Touch HD
User Manual
2
Please Read Before Proceeding
THE BATTERY IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX.
DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING.
YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE
DEVICE’S OUTER CASING.
In regard to HSDPA/WCDMA,the phone just supports Band I (UMTS 2100) &
Band VIII (UMTS 900) and doesn’t support band frequency for US.
PRIVACY RESTRICTIONS
Some countries require full disclosure of recorded telephone conversations, and
stipulate that you must inform the person with whom you are speaking that the
conversation is being recorded. Always obey the relevant laws and regulations of
your country when using the recording feature of your PDA Phone.
INTELLECTUAL PROPERTY RIGHT INFORMATION
Copyright © 2008 HTC Corporation. All Rights Reserved.
HTC, the HTC logo, HTC Innovation, ExtUSB, TouchFLO, HTC Touch HD, and HTC Care
are trademarks and/or service marks of HTC Corporation.
Microsoft, MS-DOS, Windows, Windows NT, Windows Server, Windows Mobile,
Windows XP, Windows Vista, ActiveSync, Windows Mobile Device Center, Internet
Explorer, MSN, Hotmail, Windows Live, Outlook, Excel, PowerPoint, Word, OneNote
and Windows Media are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc.
Java, J2ME and all other Java-based marks are trademarks or registered trademarks
of Sun Microsystems, Inc. in the United States and other countries.
Copyright © 2008, Adobe Systems Incorporated. All Rights Reserved.
microSD is a trademark of SD Card Association.
3
Opera® Mobile from Opera Software ASA. Copyright 1995-2008 Opera Software
ASA. All Rights Reserved.
Google is a registered trademark and Google Maps is a trademark of Google, Inc. in
the United States and other countries.
YouTube is a trademark of Google, Inc.
Copyright © 2008, Esmertec AG. All Rights Reserved.
All other company, product and service names mentioned herein are trademarks,
registered trademarks or service marks of their respective owners.
HTC shall not be liable for technical or editorial errors or omissions contained
herein, nor for incidental or consequential damages resulting from furnishing this
material. The information is provided “as is” without warranty of any kind and is
subject to change without notice. HTC also reserves the right to revise the content
of this document at any time without prior notice.
No part of this document may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying, recording or storing in a
retrieval system, or translated into any language in any form without prior written
permission of HTC.
4
Disclaimers
THE WEATHER INFORMATION, DATA AND DOCUMENTATION ARE PROVIDED “AS
IS” AND WITHOUT WARRANTY OR TECHNICAL SUPPORT OF ANY KIND FROM
HTC. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS
AFFILIATES expressly disclaim any and all representations and warranties, express
or implied, arising by law or otherwise, regarding the Weather Information, Data,
Documentation, or any other Products and services, including without limitation
any express or implied warranty of merchantability, express or implied warranty of
fitness for a particular purpose, non-infringement, quality, accuracy, completeness,
effectiveness, reliability, usefulness, that the Weather Information, Data and/or
Documentation will be error-free, or implied warranties arising from course of
dealing or course of performance.
Without limiting the foregoing, it is further understood that HTC and its Providers
are not responsible for Your use or misuse of the Weather Information, Data and/or
Documentation or the results from such use. HTC and its Providers make no express
or implied warranties, guarantees or affirmations that weather information will
occur or has occurred as the reports, forecasts, data, or information state, represent
or depict and it shall have no responsibility or liability whatsoever to any person or
entity, parties and non-parties alike, for any inconsistency, inaccuracy, or omission
for weather or events predicted or depicted, reported, occurring or occurred.
WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, YOU ACKNOWLEDGE
THAT THE WEATHER INFORMATION, DATA AND/OR DOCUMENTATION MAY INCLUDE
INACCURACIES AND YOU WILL USE COMMON SENSE AND FOLLOW STANDARD
SAFETY PRECAUTIONS IN CONNECTION WITH THE USE OF THE WEATHER
INFORMATION, DATA OR DOCUMENTATION.
5
Limitation of Damages
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
HTC OR ITS PROVIDERS BE LIABLE TO USER OR ANY THIRD PARTY FOR ANY
INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY
KIND, IN CONTRACT OR TORT, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF
REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA,
AND/OR LOSS OF PROFITS ARISING OUT OF, OR RELATED TO, IN ANY MANNER,
OR THE DELIVERY, PERFORMANCE OR NONPERFORMANCE OF OBLIGATIONS, OR
USE OF THE WEATHER INFORMATION, DATA OR DOCUMENTATION HEREUNDER
REGARDLESS OF THE FORESEEABILITY THEREOF.
Important Health Information and Safety Precautions
When using this product, the safety precautions below must be taken to avoid
possible legal liabilities and damages.
Retain and follow all product safety and operating instructions. Observe all
warnings in the operating instructions on the product.
To reduce the risk of bodily injury, electric shock, fire, and damage to the
equipment, observe the following precautions.
ELECTRICAL SAFETY
This product is intended for use when supplied with power from the designated
battery or power supply unit. Other usage may be dangerous and will invalidate
any approval given to this product.
SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION
CAUTION: Connecting to an improperly grounded equipment can result in an
electric shock to your device.
6
This product is equipped with a USB Cable for connecting with desktop or
notebook computer. Be sure your computer is properly grounded (earthed) before
connecting this product to the computer. The power supply cord of a desktop or
notebook computer has an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet which is properly
installed and grounded in accordance with all local codes and ordinances.
SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT
• Use the correct external power source
A product should be operated only from the type of power source indicated
on the electrical ratings label. If you are not sure of the type of power source
required, consult your authorized service provider or local power company.
For a product that operates from battery power or other sources, refer to the
operating instructions that are included with the product.
• Handle battery packs carefully
This product contains a Li-ion or Li-ion Polymer battery. There is a risk of
fire and burns if the battery pack is handled improperly. Do not attempt to
open or service the battery pack. Do not disassemble, crush, puncture, short
external contacts or circuits, dispose of in fire or water, or expose a battery
pack to temperatures higher than 60˚C (140˚F).
WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk
of fire or burns, do not disassemble, crush, puncture, short external contacts,
expose to temperature above 60° C (140° F), or dispose of in fire or water.
Replace only with specified batteries. Recycle or dispose of used batteries
according to the local regulations or reference guide supplied with your
product.
7
• Take extra precautions
•Keep the battery or device dry and away from water or any liquid as it may
cause a short circuit.
•Keep metal objects away so they don’t come in contact with the battery or
its connectors as it may lead to short circuit during operation.
•Do not use a battery that appears damaged, deformed, or discolored, or
the one that has any rust on its casing, overheats, or emits a foul odor.
•Always keep the battery out of the reach of babies and small children, to
avoid swallowing of the battery. Consult the doctor immediately if the
battery is swallowed.
•If the battery leaks:
•Do not allow the leaking fluid to come in contact with skin or clothing.
If already in contact, flush the affected area immediately with clean
water and seek medical advice.
•Do not allow the leaking fluid to come in contact with eyes. If already
in contact, DO NOT rub; rinse with clean water immediately and seek
medical advice.
•Take extra precautions to keep a leaking battery away from fire as
there is a danger of ignition or explosion.
SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT
Keep this product away from excessive moisture and extreme temperatures. Do not
leave the product or its battery inside a vehicle or in places where the temperature
may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass
that is exposed to direct sunlight or strong ultraviolet light for extended periods
of time. This may damage the product, overheat the battery, or pose a risk to the
vehicle.
8
PREVENTION OF HEARING LOSS
CAUTION: Permanent hearing loss may occur if earphones or
headphones are used at high volume for prolonged periods of time.
NOTE: For France, Earphone (listed below) for this device have been tested to comply
with the Sound Pressure Level requirement laid down in the applicable NF EN 50332-
1:2000 and/or NF EN 50332-2:2003 standards as required by French Article L. 5232-1.
• Earphone, manufactured by HTC, Model HS G335.
SAFETY IN AIRCRAFT
Due to the possible interference caused by this product to an aircraft’s navigation
system and its communications network, using this device’s phone function on
board an airplane is against the law in most countries. If you want to use this
device when on board an aircraft, remember to turn off your phone by switching to
Airplane Mode.
ENVIRONMENT RESTRICTIONS
Do not use this product in gas stations, fuel depots, chemical plants or where
blasting operations are in progress, or in potentially explosive atmospheres such
as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or
chemical transfer or storage facilities, and areas where the air contains chemicals or
particles, such as grain, dust, or metal powders. Please be aware that sparks in such
areas could cause an explosion or fire resulting in bodily injury or even death.
EXPLOSIVE ATMOSPHERES
When in any area with a potentially explosive atmosphere or where flammable
materials exist, the product should be turned off and the user should obey all signs
and instructions. Sparks in such areas could cause an explosion or fire resulting in
bodily injury or even death. Users are advised not to use the equipment at refueling
points such as service or gas stations, and are reminded of the need to observe
restrictions on the use of radio equipment in fuel depots, chemical plants, or where
9
blasting operations are in progress. Areas with a potentially explosive atmosphere
are often, but not always, clearly marked. These include fueling areas, below deck
on boats, fuel or chemical transfer or storage facilities, and areas where the air
contains chemicals or particles, such as grain, dust, or metal powders.
ROAD SAFETY
Vehicle drivers in motion are not permitted to use telephony services with
handheld devices, except in the case of emergency. In some countries, using hands-
free devices as an alternative is allowed.
SAFETY PRECAUTIONS FOR RF EXPOSURE
•Avoid using your phone near metal structures (for example, the steel frame of
a building).
•Avoid using your phone near strong electromagnetic sources, such as
microwave ovens, sound speakers, TV and radio.
•Use only original manufacturer-approved accessories, or accessories that do
not contain any metal.
•Use of non-original manufacturer-approved accessories may violate your
local RF exposure guidelines and should be avoided.
INTERFERENCE WITH MEDICAL EQUIPMENT FUNCTIONS
This product may cause medical equipment to malfunction. The use of this device is
forbidden in most hospitals and medical clinics.
If you use any other personal medical device, consult the manufacturer of your
device to determine if they are adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this information.
Turn your phone OFF in health care facilities when any regulations posted in
these areas instruct you to do so. Hospitals or health care facilities may be using
equipment that could be sensitive to external RF energy.
10
HEARING AIDS
Some digital wireless phones may interfere with some hearing aids. In the event
of such interference, you may want to consult your service provider, or call the
customer service line to discuss alternatives.
NONIONIZING RADIATION
Your device has an internal antenna. This product should be operated in its normal-
use position to ensure the radiative performance and safety of the interference.
As with other mobile radio transmitting equipment, users are advised that for
satisfactory operation of the equipment and for the safety of personnel, it is
recommended that no part of the human body be allowed to come too close to the
antenna during operation of the equipment.
Use only the supplied integral antenna. Use of unauthorized or modified antennas
may impair call quality and damage the phone, causing loss of performance and
SAR levels exceeding the recommended limits as well as result in non-compliance
with local regulatory requirements in your country.
To assure optimal phone performance
and ensure human exposure to RF
energy is within the guidelines set
forth in the relevant standards, always
use your device only in its normal-use
position. Contact with the antenna
area may impair call quality and cause
your device to operate at a higher
power level than needed. Avoiding
contact with the antenna area when the
phone is IN USE optimizes the antenna
performance and the battery life. Antenna
location
11
General Precautions
• Avoid applying excessive pressure to the device
Do not apply excessive pressure on the screen and the device to prevent
damaging them and remove the device from your pants’ pocket before sitting
down. It is also recommended that you store the device in a protective case
and only use the device stylus or your finger when interacting with the touch
screen. Cracked display screens due to improper handling are not covered by
the warranty.
• Device getting warm after prolonged use
When using your device for prolonged periods of time, such as when you’re
talking on the phone, charging the battery or browsing the web, the device
may become warm. In most cases, this condition is normal and therefore
should not be interpreted as a problem with the device.
• Heed service markings
Except as explained elsewhere in the Operating or Service documentation,
do not service any product yourself. Service needed on components inside
the device should be done by an authorized service technician or provider.
• Damage requiring service
Unplug the product from the electrical outlet and refer servicing to an
authorized service technician or provider under the following conditions:
•Liquid has been spilled or an object has fallen onto the product.
•The product has been exposed to rain or water.
•The product has been dropped or damaged.
•There are noticeable signs of overheating.
•The product does not operate normally when you follow the operating
instructions.
• Avoid hot areas
The product should be placed away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.
12
• Avoid wet areas
Never use the product in a wet location.
• Avoid using your device after a dramatic change in temperature
When you move your device between environments with very different
temperature and/or humidity ranges, condensation may form on or within
the device. To avoid damaging the device, allow sufficient time for the
moisture to evaporate before using the device.
NOTICE: When taking the device from low-temperature conditions into a warmer
environment or from high-temperature conditions into a cooler environment,
allow the device to acclimate to room temperature before turning on power.
• Avoid pushing objects into product
Never push objects of any kind into cabinet slots or other openings in the
product. Slots and openings are provided for ventilation. These openings
must not be blocked or covered.
• Mounting accessories
Do not use the product on an unstable table, cart, stand, tripod, or bracket.
Any mounting of the product should follow the manufacturer’s instructions,
and should use a mounting accessory recommended by the manufacturer.
• Avoid unstable mounting
Do not place the product with an unstable base.
• Use product with approved equipment
This product should be used only with personal computers and options
identied as suitable for use with your equipment.
• Adjust the volume
Turn down the volume before using headphones or other audio devices.
• Cleaning
Unplug the product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning, but NEVER use
water to clean the LCD screen.
13
Contents
Chapter 1 Getting Started 23
1.1 Getting to Know Your Touch Phone and Accessories ..................................... 24
Left panel.....................................................................................................................................24
Right panel..................................................................................................................................24
Front panel..................................................................................................................................25
Back panel ...................................................................................................................................26
Top panel .....................................................................................................................................27
Bottom panel..............................................................................................................................27
Accessories..................................................................................................................................28
1.2 Installing the SIM Card, Battery, and Storage Card........................................ 28
SIM card........................................................................................................................................28
Battery...........................................................................................................................................29
Storage card................................................................................................................................31
1.3 Charging the Battery ........................................................................................ 31
1.4 Starting Up ........................................................................................................ 32
Turn your device on and off..................................................................................................32
Auto configure the data connection settings ................................................................32
Switch to Sleep mode when not in use............................................................................33
1.5 Navigating Your Device .................................................................................... 34
Finger-touch control................................................................................................................34
Stylus.............................................................................................................................................36
On-screen navigation control ..............................................................................................36
1.6 Home Screen ..................................................................................................... 37
1.7 Status Icons ....................................................................................................... 38
1.8 Start Menu......................................................................................................... 41
1.9 Quick Menu ....................................................................................................... 42
1.10 Adjusting the Volume..................................................................................... 43
14
1.11 Using your Device as a USB Drive.................................................................. 44
Chapter 2 Using Phone Features 45
2.1 Using the Phone................................................................................................ 46
The Phone screen .....................................................................................................................46
Enter your PIN ............................................................................................................................46
2.2 Voice Call ........................................................................................................... 47
Make a call...................................................................................................................................47
Answer a call...............................................................................................................................48
End a call .....................................................................................................................................51
Call History ..................................................................................................................................52
Speed Dial ...................................................................................................................................52
Turn the phone function on and off ..................................................................................53
2.3 Voice and Video over IP Calls ........................................................................... 54
Change the VoIP service settings........................................................................................54
Register the device to the VoIP service.............................................................................55
Make a VoIP call .........................................................................................................................56
Answer a VoIP call.....................................................................................................................57
End a VoIP call ............................................................................................................................57
Make a VVoIP call ......................................................................................................................58
Answer a VVoIP call ..................................................................................................................58
End a VVoIP call..........................................................................................................................59
Change the VVoIP call settings ............................................................................................59
2.4 Smart Dial .......................................................................................................... 62
Make a call or send a text message using Smart Dial..................................................63
2.5 Setting Up Bluetooth SIM Access for Car Kit Phones ..................................... 63
Chapter 3 TouchFLO™ 3D 65
3.1 About TouchFLO™ 3D........................................................................................ 66
3.2 Using the TouchFLO 3D Home Screen .............................................................66
Home.............................................................................................................................................68
15
People ...........................................................................................................................................70
Messages .....................................................................................................................................72

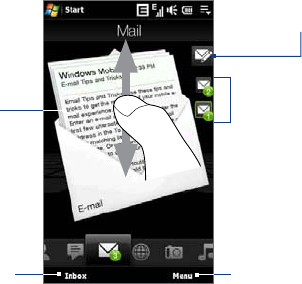

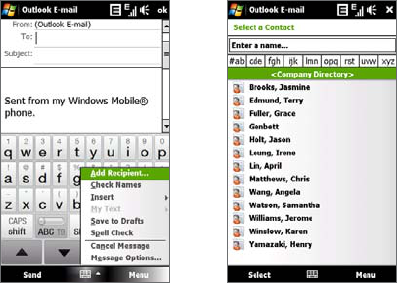

Mail.................................................................................................................................................73

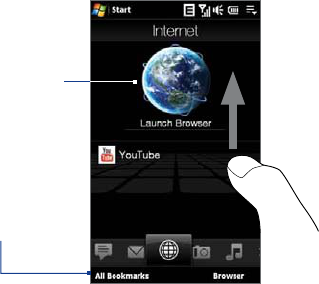

Internet.........................................................................................................................................75
Photos and Videos....................................................................................................................75
Music .............................................................................................................................................77
Weather........................................................................................................................................80
Settings.........................................................................................................................................82
Programs......................................................................................................................................83
3.3 Finger Gestures.................................................................................................84
Finger scrolling ..........................................................................................................................84
Finger zooming .........................................................................................................................85
Finger panning ..........................................................................................................................85
Chapter 4 Entering Text 87
4.1 Entering Information........................................................................................ 88
4.2 Using the Full QWERTY..................................................................................... 89

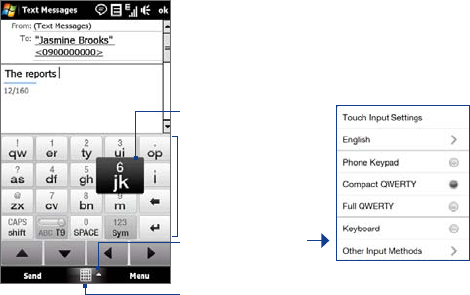

4.3 Using the Compact QWERTY............................................................................91

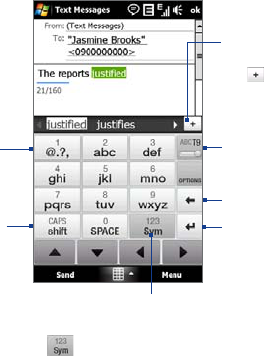

4.4 Using the Phone Keypad .................................................................................. 92
4.5 Using Multitap and T9 Modes ..........................................................................93
Multitap mode...........................................................................................................................93
T9 mode .......................................................................................................................................93
4.6 Using Numeric and Symbol Mode ................................................................... 95
4.7 Using Block Recognizer....................................................................................96
4.8 Using Letter Recognizer ...................................................................................96
4.9 Using Transcriber .............................................................................................. 97
Chapter 5 Synchronizing Information With Your Computer 99
5.1 About Synchronization ..................................................................................100
Ways to synchronize ............................................................................................................. 100

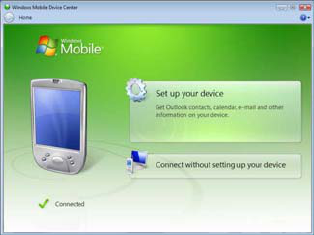

5.2 Setting Up Windows Mobile® Device Center on Windows Vista® ................101
16
Set up synchronization in Windows Mobile Device Center.................................... 101
Use Windows Mobile Device Center............................................................................... 103
5.3 Setting Up ActiveSync® on Windows® XP...................................................... 104
Install ActiveSync................................................................................................................... 104
Set up synchronization in ActiveSync............................................................................ 104
5.4 Synchronizing With Your Computer .............................................................. 105
Start and stop synchronization......................................................................................... 105
Change which information is synchronized ................................................................ 106
Troubleshoot sync connection problem....................................................................... 107
5.5 Synchronizing via Bluetooth ......................................................................... 107
5.6 Synchronizing Music and Video..................................................................... 108
Chapter 6 Exchanging Messages 109
6.1 Messaging .......................................................................................................110

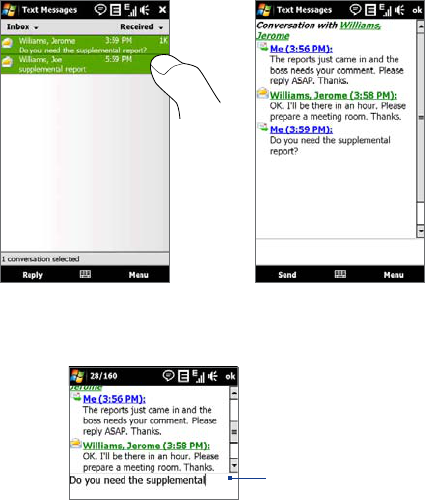

6.2 Text Messages .................................................................................................111
Create a new text message ................................................................................................ 111
Compose and send a text message ................................................................................ 112
Manage text messages ........................................................................................................ 112
6.3 Types of E-mail Accounts................................................................................115
Set up your device to synchronize Outlook e-mail with the computer............. 115
Add an e-mail account......................................................................................................... 115
6.4 E-mail Setup Wizard........................................................................................116
Set up an Internet e-mail account................................................................................... 116
Set up a custom domain e-mail........................................................................................ 118
6.5 Using E-mail.....................................................................................................119
Create a new e-mail message............................................................................................ 119
Compose and send an e-mail............................................................................................ 120
Filter the Inbox message list .............................................................................................. 121
View and reply to messages .............................................................................................. 121
Synchronize e-mails.............................................................................................................. 123
Customize e-mail settings .................................................................................................. 124
17
Chapter 7 Working With Company E-mails and Meeting Appointments 127
7.1 Synchronizing with the Exchange Server .....................................................128
Set up an Exchange Server connection......................................................................... 128
Start synchronization ........................................................................................................... 129
7.2 Working With Company E-mails ....................................................................130
Automatic synchronization through Direct Push ...................................................... 130
Scheduled synchronization ............................................................................................... 131
Instant download through Fetch Mail ........................................................................... 131
Search for e-mails on the Exchange Server.................................................................. 132
Flag your messages............................................................................................................... 133
Out-of-office auto-reply ...................................................................................................... 134
7.3 Managing Meeting Requests .........................................................................134

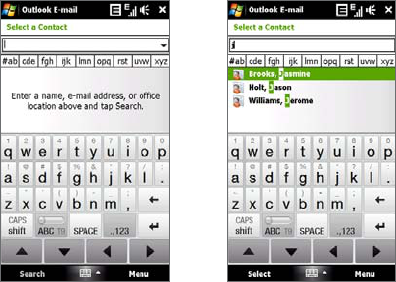

7.4 Finding Contacts in the Company Directory.................................................136
Chapter 8 Internet 139
8.1 Ways of Connecting to the Internet............................................................... 140
Mobile WiMAX......................................................................................................................... 140
Wi-Fi............................................................................................................................................ 141
EDGE........................................................................................................................................... 145
Dial-up ....................................................................................................................................... 147
8.2 Starting a Data Connection............................................................................ 147

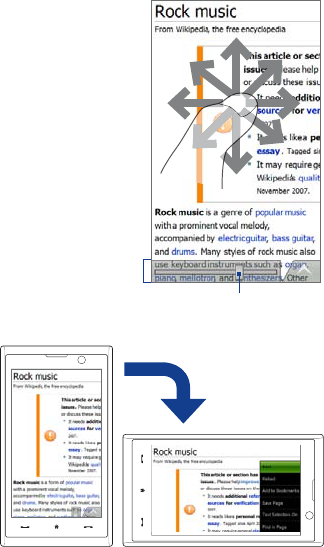

8.3 Using Opera Mobile™......................................................................................148
View web pages ..................................................................................................................... 150

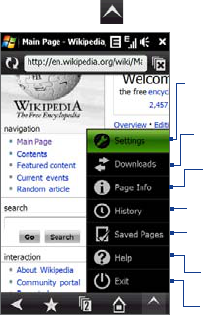

Opera Mobile menu.............................................................................................................. 151

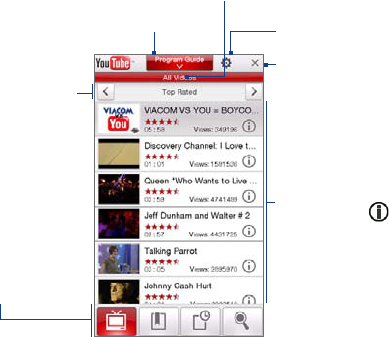

8.4 Using YouTube™ ..............................................................................................152
Browse for videos................................................................................................................... 153

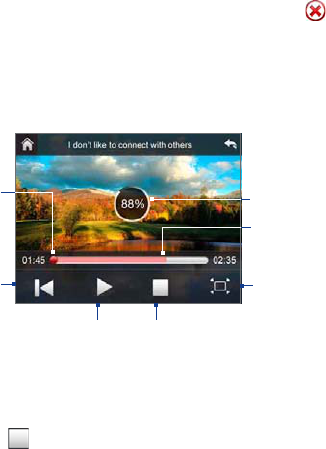

Watching videos..................................................................................................................... 154
Bookmarks................................................................................................................................ 155
History........................................................................................................................................ 156
8.5 Using Windows Live™......................................................................................157

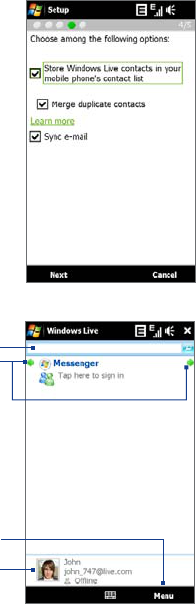

Set up Windows Live™.......................................................................................................... 157
18
The Windows Live™ interface ............................................................................................ 158
Windows Live™ Messenger ................................................................................................ 159
Launch Messenger and sign in ......................................................................................... 159
Add Windows Live™ contacts............................................................................................ 160

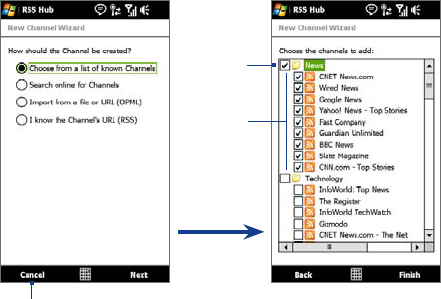

8.6 Using RSS Hub................................................................................................. 161
Subscribe to and organize news channels................................................................... 161
View and organize headlines............................................................................................. 164
View the news summary..................................................................................................... 165
8.7 Using Your Device as a Modem (Internet Sharing).......................................167
Set up your device as a WiMAX modem........................................................................ 170
Chapter 9 Bluetooth 171
9.1 Bluetooth Modes ............................................................................................172
9.2 Bluetooth Partnerships .................................................................................. 173
9.3 Connecting a Bluetooth Hands-free or Stereo Headset ..............................174
9.4 Beaming Information Using Bluetooth.........................................................175
9.5 Printing Files via Bluetooth............................................................................177
Chapter 10 Navigating on the Road 179

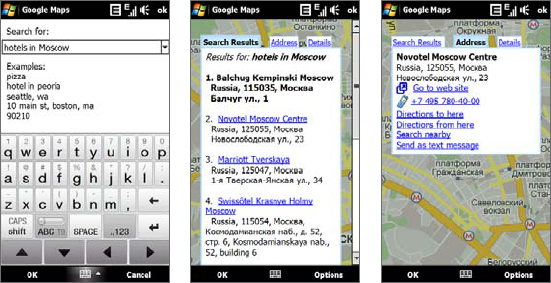

10.1 Google™ Maps...............................................................................................180
Open Google Maps ............................................................................................................... 180
Search for a place of interest ............................................................................................. 181
10.2 Guidelines and Preparation for Using GPS.................................................182
10.3 Downloading Satellite Data via QuickGPS .................................................184
Download options................................................................................................................. 185
Chapter 11 Experiencing Multimedia 187

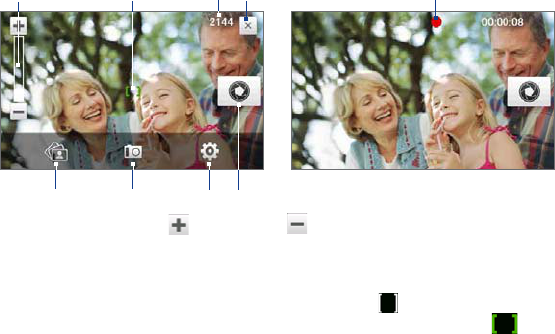

11.1 Taking Photos and Videos............................................................................188

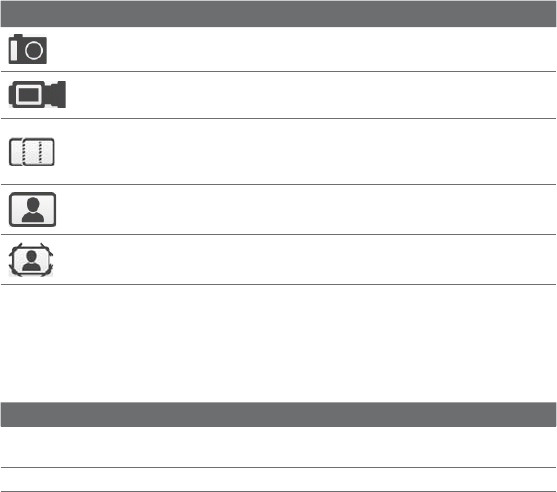

Capture modes....................................................................................................................... 188
Camera controls ..................................................................................................................... 190
On-screen controls and indicators .................................................................................. 191

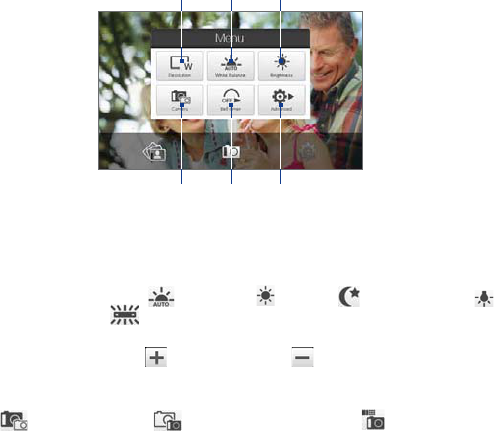

Menu Panel .............................................................................................................................. 192
19
Zooming.................................................................................................................................... 194

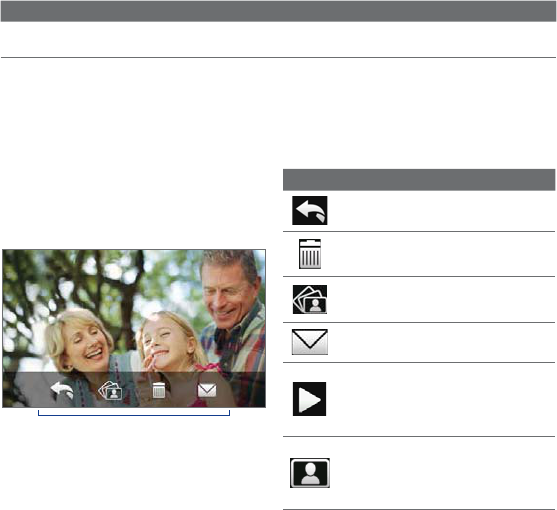

The Review screen................................................................................................................. 195
Advanced Options................................................................................................................. 196
11.2 Viewing Photos and Videos Using Album...................................................199
Select a photo or video to view........................................................................................ 200
View an image......................................................................................................................... 201
Play back video....................................................................................................................... 205
Close Album............................................................................................................................. 205
11.3 Using Windows Media® Player Mobile ........................................................206
About the controls ................................................................................................................ 207
About the screens and menus.......................................................................................... 207
Synchronize video and audio files................................................................................... 208
Play media................................................................................................................................ 210
Playlists...................................................................................................................................... 211
Troubleshooting..................................................................................................................... 211
11.4 Using FM Radio .............................................................................................212
FM Radio controls.................................................................................................................. 212
Adjust the volume................................................................................................................. 213
Save presets............................................................................................................................. 213
FM Radio main menu ........................................................................................................... 214
11.5 Using Audio Booster.....................................................................................215
Chapter 12 Programs 217

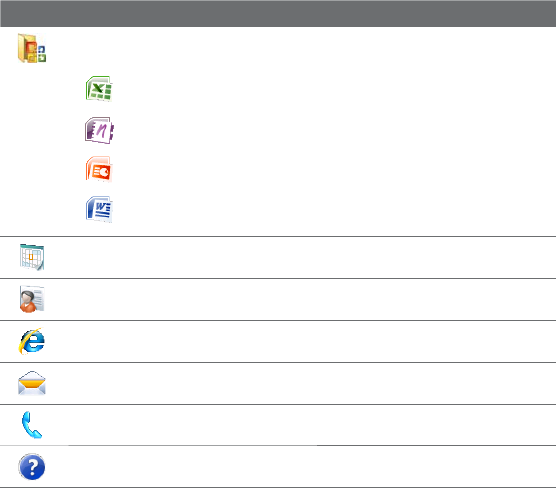

12.1 Programs on your Device.............................................................................218
12.2 Adding and Removing Programs ................................................................221
12.3 Adobe® Reader® LE .......................................................................................222

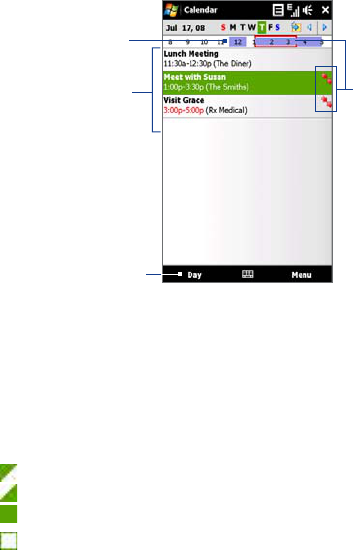

12.4 Calendar ........................................................................................................223
Create appointments ........................................................................................................... 223
View appointments............................................................................................................... 225
Send appointments .............................................................................................................. 226

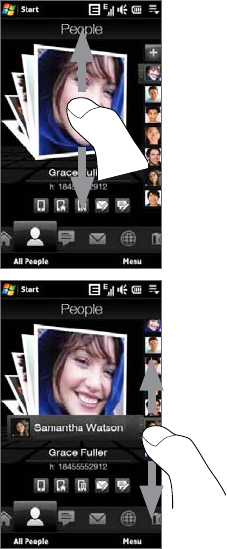

12.5 Contacts ........................................................................................................227
20
Add new contacts.................................................................................................................. 228
Organize and search contacts........................................................................................... 229
Share contact information.................................................................................................. 229
12.6 Comm Manager.............................................................................................230
12.7 Microsoft® Office Mobile..............................................................................232
12.8 Notes..............................................................................................................233
12.9 Java ................................................................................................................ 234
Install and launch MIDlets/MIDlet suites....................................................................... 234
Manage MIDlets/MIDlet suites.......................................................................................... 235

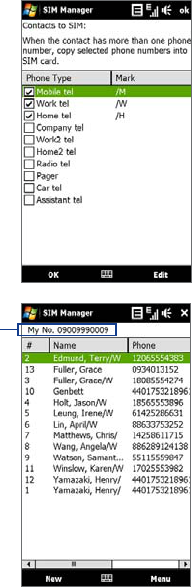

12.10 SIM Manager ............................................................................................... 236
12.11 Tasks ............................................................................................................239
12.12 ZIP ................................................................................................................240
Chapter 13 Managing Your Device 243
13.1 Copying and Managing Files .......................................................................244
13.2 Settings on your Device ...............................................................................245

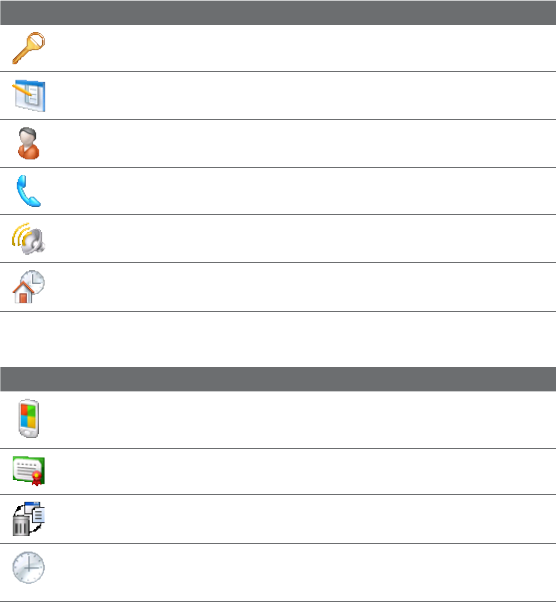

Personal tab............................................................................................................................. 245
System tab................................................................................................................................ 246
Connections tab..................................................................................................................... 248
13.3 Changing Basic Settings............................................................................... 250
Date and time.......................................................................................................................... 250
Regional settings ................................................................................................................... 250
Display settings ...................................................................................................................... 251
Device name............................................................................................................................ 251
Ringer settings........................................................................................................................ 252
Alarms and notifications ..................................................................................................... 253
Phone services ........................................................................................................................ 254

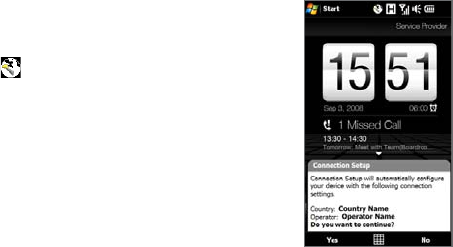

13.4 Using Connection Setup...............................................................................254
13.5 Using Task Manager......................................................................................256
13.6 Connecting to an External Display..............................................................258
Connect the device to an external display................................................................... 258
21
13.7 Protecting Your Device.................................................................................259
Protect your SIM card with a PIN...................................................................................... 259
Protect your device with a password.............................................................................. 259
Encrypt files on your storage card................................................................................... 260
13.8 Managing Memory .......................................................................................261
13.9 Resetting Your Device...................................................................................262
Soft reset................................................................................................................................... 262
Hard reset ................................................................................................................................. 262
Clear Storage........................................................................................................................... 263
13.10 Windows Update.........................................................................................264
13.11 Battery Saving Tips.....................................................................................265
Appendix 267
A.1 Specifications..................................................................................................268
A.2 Regulatory Notices .........................................................................................269
Index 277
22
Chapter 1
Getting Started
1.1 Getting to Know Your Touch Phone and Accessories
1.2 Installing the SIM Card, Battery, and Storage Card
1.3 Charging the Battery
1.4 Starting Up
1.5 Navigating Your Device
1.6 Home Screen
1.7 Status Icons
1.8 Start Menu
1.9 Quick Menu
1.10 Adjusting the Volume
1.11 Using your Device as a USB Drive
24 Getting Started
1.1 Getting to Know Your Touch Phone and Accessories
Left panel Right panel
VOLUME UP
During a call or when
playing music, press
this button to increase
the volume.
VOLUME DOWN
During a call or when
playing music, press
this button to lower
the volume.
Stylus
(See “Stylus” in this
chapter for details.)
Getting Started 25
Front panel
Touch Screen
Second Camera
Use this camera for video
call conversations or to
take a self-portrait.
END
•Press to end a call or
return to the Home
screen.
•Press and hold to lock
the device.
(See “Long Press End
Key” under “Settings on
your Device” in Chapter
13 for details.)
Earpiece
Listen to a phone
call from here.
BACK
Press to return to the
previous screen.
TALK/SEND
Press to answer an
incoming call or dial a
number.
During a call, press
and hold to toggle
the speakerphone on
and off.
Press and hold to use
Voice Speed Dial. (See
Chapter 12 for details.)
•
•
•
HOME
Press to return to the
Home screen. See
Chapter 3 for details.
Notification LED
Shows a flashing green light
when there are new notifications.
Note By default, the device vibrates and plays a sound when you press any of the virtual
buttons — TALK/SEND, HOME, BACK and END. To disable any of these notifications,
tap Start > Settings > Personal tab > Buttons > Virtual Buttons tab, then clear the
Play a sound or the Vibrate the device check box according to your preference.
26 Getting Started
Back panel
5.0 Megapixel Camera
See “Taking Photos and
Videos” in Chapter 11
for details.
Speaker
Back Cover
Getting Started 27
Top panel
POWER
Press to turn off the display
temporarily. To turn off the power,
press and hold for about 5 seconds.
For more information, see “Starting
Up” in this chapter.
3.5 mm Audio Jack
Connect the supplied stereo headset
for hands-free conversation or for
listening to audio media.
Notification LED
Shows a flashing amber light when the battery
level reaches 10% or lower. Shows a solid amber
light when the battery is being charged.
Bottom panel
Sync Connector
Connect the supplied USB cable to
synchronize information or plug in the
AC adapter to recharge the battery.
Microphone
28 Getting Started
Accessories
The product package includes the following items and accessories:
Battery•Pouch•
AC adapter•Quick Start Guide•
Screen protector•Getting Started and Application discs•
Stereo headset•Extra stylus•
USB sync cable•
1.2 Installing the SIM Card, Battery, and Storage Card
Always turn off your device before installing or replacing the SIM card, battery, and
storage card. You also need to remove the back cover before you can install these
components.
To remove the back cover
Make sure your device is turned off.
Hold the device with both hands and
the front panel facing down.
Push the back cover up with your
thumb until it disengages from the
device and then slide it up to remove.
1.
2.
3.
SIM card
The SIM card contains your phone number, service details, and phonebook/
message memory. Your device supports both 1.8V and 3V SIM cards.
Note Some legacy SIM cards may not function with your device. You should consult with
your service provider for a replacement SIM card. There may be fees for this service.
Getting Started 29
To install the SIM card
Make sure your device is turned off.
Locate the SIM card slot, then insert
the SIM card with its gold contacts
facing down and its cut-off corner
facing out the card slot.
Slide the SIM card completely into
the slot.
1.
2.
3.
Cut-off corner
To remove the SIM card
Remove the battery if it is installed.
Slide the SIM card out from the SIM card slot with your thumb.
Battery
Your device comes with a rechargeable Lithium-ion or Lithium-ion polymer
battery and is designed to use only manufacturer-specified original batteries and
accessories. Battery performance depends on many factors, including network
configuration, signal strength, the temperature of the environment in which you
operate your device, the features and/or settings you select and use, items attached
to connecting ports, and your voice, data, and other program usage patterns.
Battery life estimates (approximations):
Standby time: Up to 390 hours for GSM
Up to 450 hours for WCDMA
Talk time: Up to 310 minutes for GSM
Up to 390 minutes for WCDMA
Video call time: Up to 120 minutes
Note Battery life is subject to network and phone usage.
1.
2.
•
•
•
30 Getting Started
Warning! To reduce risk of fire or burns:
• Do not attempt to open, disassemble, or service the battery pack.
• Do not crush, puncture, short external contacts, or dispose of in fire or water.
•Do not expose to temperatures above 60oC (140oF).
•Replace only with the battery pack designated for this product.
• Recycle or dispose of used battery as stipulated by local regulations.
To install the battery
Align the battery’s exposed copper
contacts with the battery connectors
inside the battery compartment.
Insert the contacts side of the battery first
and then gently push the battery into
place.
Replace the back cover.
1.
2.
3.
To remove the battery
Make sure your device is turned off.
Remove the back cover.
The upper right side of the battery has a
protruding grip. Lift the protruding grip to
remove the battery.
1.
2.
3.
Battery grip
Getting Started 31
Storage card
To have additional storage for your images, videos, music, and files, you can
purchase a microSD™ card and install it into the your device.
To install a microSD card
Insert the microSD card into the slot
with its gold contacts facing down until
it clicks into place.
Note To remove the microSD card, press
it to eject it from the slot.
Storage card slot
1.3 Charging the Battery
New batteries are shipped partially charged. Before you start using your device, it is
recommended that you install and charge the battery. Some batteries perform best
after several full charge/discharge cycles.
To charge the battery
Connect the USB connector of the AC adapter to the sync connector on your
device.
Plug in the AC adapter to an electrical outlet to start charging the battery.
Note Only the AC adapter and USB sync cable provided with your device must be used to
charge the device.
Charging is indicated by a solid amber light on the LED indicator under the POWER
button. As the battery is being charged while the power is on, a charging icon
also appears in the title bar of the Home screen. After the battery has been fully
charged, a full battery icon appears in the title bar of the Home screen.
1.
2.
32 Getting Started
Warning! • Do not remove the battery from the device while you are charging it using
the AC or car adapter.
• As a safety precaution, the battery stops charging when it overheats.
1.4 Starting Up
After installing your SIM card and battery and charging the battery, you can now
power on and start using your device.
Turn your device on and off
To turn on the power
Press the POWER button.
When you turn on your device for the first time, a Quick Start Wizard guides
you through the screen calibration process and the set up of date and time
and password. For more information about these settings, see Chapter
13. After the Quick Start Wizard finishes, the device installs customization
settings, then restarts.
Note After the device restarts, you may be prompted to set up an e-mail account. For
instructions on how to set up an e-mail account, see Chapter 6.
To turn off the power
Press and hold the POWER button for a few seconds.
Tap Yes when a message prompts you to choose whether or not to turn off
the device completely.
Auto configure the data connection settings
The first time you power on your device, you will see a notification message from
Connection Setup. Connection Setup automatically configures your device’s data
connections, such as 3G/EDGE/GPRS, MMS, and WAP, so that you do not need to
enter the settings manually for your device.
1.
2.
1.
2.
Getting Started 33
To automatically configure data connection settings
1. When you see the notification message from the
Connection Setup, tap Yes .
Note If you do not see the notification message, tap
on the Title bar to display the message.
2. If your SIM card supports multiple network
operator profiles, a message will appear with
network profile choices. Select the profile you
want to use and tap OK.
3. Connection Setup then starts to configure your
device’s data connection settings.
4. After the Connection Setup completes the
configuration, tap Restart.
For more information about Connection Setup, see Chapter 13.
Switch to Sleep mode when not in use
Press and immediately release the POWER button to turn off the display temporarily
and switch your device to Sleep mode. Sleep mode suspends your device to a low
power state while the display is off in order to save battery power.
Your device automatically goes into Sleep mode when you leave the device idle
after a certain period of time. You will still be able to receive messages and calls
while your device is in Sleep mode. Pressing the POWER button again or incoming
calls/messages will wake up your device.
34 Getting Started
1.5 Navigating Your Device
There are different ways you can navigate and interact with the interface of your
device.
Finger-touch control
A quick and easy way to interact with the home screen and the whole interface
of your device is by touch. Basically, the following are the types of actions, called
finger gestures, you would use when interacting with your device:
Touch or tap
When selecting items on the screen, such as the Home screen tabs, Start menu,
programs and settings icons, and large on-screen buttons, simply touch them with
your finger. Apply some pressure with your finger pad when touching an item on
the screen.
Tapping means to touch lightly and quickly with your finger pad or fingertip.
On screens that display smaller-size items, you can more accurately select an item
by tapping it with your fingertip.
Swipe
To swipe means to drag your finger vertically or horizontally across the screen.
The following are some instances when you would use swiping:
Flipping on the Home screen
Swipe your finger vertically to flip through favorite contacts, messages, music
albums, photos, and more. For more information, see “Using the TouchFLO 3D
Home Screen” in Chapter 3.
Scrolling
When browsing the contacts list, web pages, documents, and certain
selection lists on the Home screen (such as the All Programs list), slowly
swipe your finger vertically across the screen to scroll. This allows you to scroll
by page and to view the content or available selections as you scroll.
•
•
Getting Started 35
The direction of swiping resembles the way you move a printed document as
you are reading it. For detailed instructions, see “Finger scrolling” in Chapter 3.
Slide
Sliding on the touch screen also involves dragging with your finger, but you need
to press and hold your finger with some pressure before you start to drag. While
dragging, do not release your finger until you have reached the target position.
The following are some instances when you would use sliding:
Switching between Home screen tabs
Slide your finger left and right to switch between the Home screen tabs. For
more information, see “Using the TouchFLO 3D Home screen“ in Chapter 3.
Advancing playback
In players that have a progress bar, such as the Home screen’s Music tab
and Windows Media® Player Mobile, slide your finger horizontally on their
progress bar to advance forward or move backward in the music or video you
are playing.
For more information about the Home screen’s Music tab, see “Music” in
Chapter 3.
For more information about Windows Media® Player Mobile, see “Using
Windows Media® Player Mobile” in Chapter 11.
Flick
Flicking the screen is similar to swiping, except that you need to swipe your finger
in light, quicker strokes. This finger gesture is always in a vertical direction, such as
when flicking the contacts list. See “Finger scrolling” in Chapter 3 for details.

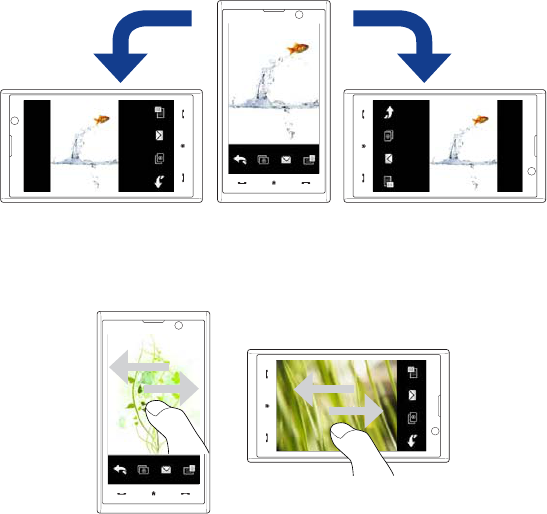

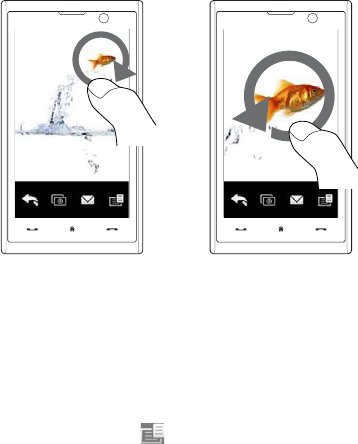

Finger zooming and panning
In programs such as Album and Opera Mobile, you can use finger gestures when
zooming and panning. See Chapter 3, 8 and 11 for details.
•
•
36 Getting Started
Stylus
You can use the stylus to navigate and interact with the touch screen. To use the
stylus, pull it out from the stylus compartment at the bottom of the right panel of
your device.
The stylus is magnetic and sticks to the side when held close to the device. This
prevents you from accidentally losing or misplacing the stylus.
Basically, you tap with the stylus to open programs and select items on the screen,
and you tap and hold on the screen to open a shortcut menu. You can also use the
stylus the same way as what you do with finger gestures, such as swiping, sliding
and flicking on the screen.
On-screen navigation control
When using the Full QWERTY, Compact QWERTY, and Phone Keypad onscreen input
methods, you can touch the Navigation Control keys at the bottom of the keyboard
for directional control. Touch the directional arrows to navigate up, down, left, and
right on the screen.
Navigation
Control keys
Getting Started 37
1.6 Home Screen
The default home screen of the device is the TouchFLO™ 3D Home screen which
allows finger-touch access to the most important functions such as contacts, text
messages, e-mail, Internet, and more.
For more information about using the TouchFLO 3D Home screen, see Chapter 3.
Start menu
Notification
Signal strength
Adjust volume
Battery status
TouchFLO 3D
Home screen
Connection status
Open the Phone screen
(See Chapter 2 for details)
Open the
Programs tab.
Quick menu
38 Getting Started
1.7 Status Icons
When you touch or tap the icon area of the title bar, the System Status screen opens
and displays larger status icons so you can touch them with your finger more easily
and accurately.
Tip The System Status screen can be disabled in TouchFLO settings. See “Settings on your
Device” in Chapter 13 for details.
The following are some of the status icons that you may see on the device.
Icons that appear in this area
Vibrate mode
Sound on
Sound off
Icons that appear in this area
Battery charging
Battery full
Battery very low
Getting Started 39
Icons that appear in this area
Connection Setup
Multiple notifications; tap the
icon to view all
New text messages;
SMS notification of voice mail
Sending MMS
Receiving MMS
MMS sent
Cannot send MMS
New incoming MMS
New Windows Live™ message
Missed call
Icons that appear in this area
Speakerphone on
Roaming
Alarm
Other wireless network(s)
detected
Wired headset connected
Bluetooth on
Bluetooth visible mode on
Bluetooth stereo headset
connected
40 Getting Started
Icons that appear in this area
GPRS available
EDGE available
HSPA available
WCDMA/UMTS available
Connected to a wireless
network
Connection is active
Connection is not active
Synchronization in
progress
Icons that appear in this area
GPRS connecting
GPRS in use
EDGE connecting
EDGE in use
HSPA connecting
HSPA in use
WCDMA/UMTS connecting
WCDMA/UMTS in use
Maximum signal strength
No signal
Phone is turned off
No phone service
Searching for phone service
Voice call in progress
Call on hold
Calls are forwarded
Dialing while no SIM card is
inserted
No SIM card inserted
Getting Started 41
1.8 Start Menu
The Start menu, which can be opened from the top left corner of the screen, gives
you access to all the programs and settings of your Windows Mobile-powered
device. Touch or tap to select an item on the Start menu.
View Help information
for the current screen.
View and change settings.
Access more programs.
Open a recently-used program.
Open a program.
When you are on another
screen, touch or tap this item
to return to the TouchFLO 3D
Home screen.
Open the Start menu.
By default, the Start menu is displayed in a large size to make it easier for you to
touch menu items with your finger when selecting them from the Start menu.
The Start menu can also be displayed in a smaller size, if preferred. Tap Start >
Settings > System tab > TouchFLO and then clear the Enable large Start menu
check box to display a smaller Start menu.
42 Getting Started
1.9 Quick Menu
The Quick menu, which can be opened from the top right corner of the screen,
shows the currently running programs. You can quickly switch between running
programs, stop programs, and see how much program memory is being used.
Touch this icon to open
the Quick Menu.
•To switch to a running
program, touch the
program name.
•To stop a running
program, touch .
Customize Task Manager settings.
(See “Using Task Manager” in
Chapter 13.)
Stop all
currently
running
programs.
Shows the total percentage
of program memory in use.
Touch to open the Memory
settings screen.
Getting Started 43
1.10 Adjusting the Volume
Adjusting the system volume changes the volume level of sound notifications and
audio/video playback, whereas adjusting the ring volume affects only the volume
of the phone ring. The system volume and ring volume can be separately adjusted.
1. Touch the icon area in the title bar and then touch the Speaker icon ( ) on
the System Status screen.
2. To switch between the Ring Volume and System Volume screens, touch
Ring or System on top of the screen.
3. On either screens, you can do the following:
•To increase or decrease the volume level, drag your finger up or down the
volume bars. You can also press the VOLUME UP/DOWN buttons on the
left panel of your device.
Volume bars
•Touch Vibrate to switch both System and Ring to Vibrate mode.
•Touch Silent to mute both the system and ring volume.
44 Getting Started
4. The System Volume or Ring Volume screen automatically closes. You can also
manually close the screen by touching the screen.
Note On certain screens that do not show the volume status icon on the title bar, you need
to use the VOLUME UP/DOWN buttons on the left panel of your device to adjust the
volume. Also use these buttons to adjust the conversation phone volume during an
ongoing call.
1.11 Using your Device as a USB Drive
To easily carry media and other files with you, you can use your device’s storage
card as a USB flash drive. This allows you to copy files from your computer to the
device’s internal storage and vice versa faster.
Note You need to have a storage card installed on your device to be able to use your device
as a disk drive.
To use the device’s storage card as a USB flash drive
Do any of the following:
Connect the device to your PC using the USB sync cable. When the Connect
to PC screen appears, select Disk Drive, then tap Done.
Touch Start > Settings > Connections tab > USB to PC, select Disk Drive
mode, then connect the device to your PC using the USB sync cable.
When Disk Drive mode is used:
You will not be able to use your device to access files from the storage card
or run applications that are installed on the storage card while the device is
connected to your PC.
Your PC will only connect to the device’s storage card. When you access your
device from the PC, you will only see the contents of the device’s storage card.
Remember to change back to ActiveSync mode when you need to synchronize
data between your device and your PC.
•
•
•
•
Chapter 2
Using Phone Features
2.1 Using the Phone
2.2 Voice Call
2.3 Voice and Video over IP Calls
2.4 Smart Dial
2.5 Setting Up Bluetooth SIM Access for Car Kit Phones
46 Using Phone Features
2.1 Using the Phone
Like a standard mobile phone, you can use your device to make, receive, and keep
track of calls and send messages.
The Phone screen
To open the Phone screen, do one of the following:
•On the Home screen, tap Phone.
•Tap Start > Phone.
•Press the TALK/SEND button.TALK/SEND button.
TALK/SEND
button
Enter your PIN
Most SIM cards are preset with a PIN (personal identification number) that is
provided by your wireless service provider.
1. Enter the preset PIN assigned by your wireless service provider.
2. Tap Enter.
Note If you entered the wrong PIN three times, the SIM card will be blocked. If this happens,
you can unblock it with the PUK (PIN Unblocking Key) obtained from your wireless
service provider.
Using Phone Features 47
2.2 Voice Call
Make a call

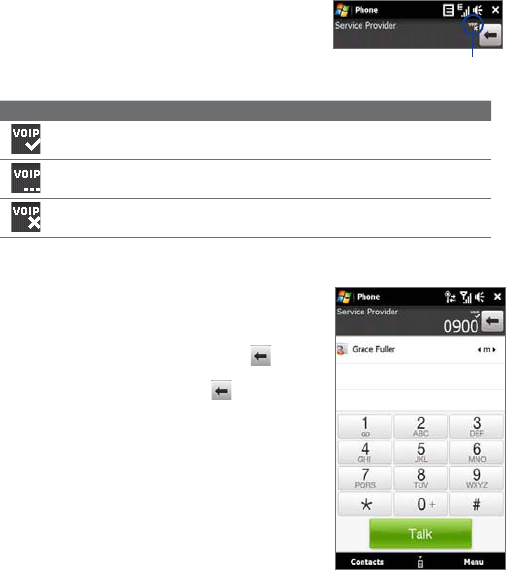

To make a call from the Phone screen
1. On the Home screen, tap Phone.
2. Tap the keys on the keypad to enter the
phone number.
Tip If you tapped a wrong number, tap to
erase each subsequent digit of a number. To
erase the entire number, tap and hold .
3. Tap Talk to place the call.
Tip When in a call, use the VOLUME UP/DOWN
buttons on the side of the device to adjust
the phone volume.
Note After tapping 6 keys and the number you
are dialing is not in your contacts, a Save to
Contacts? button will appear above the keypad.
Tap it to save the number to your Contacts.
To make a call from Contacts
On the Home screen, tap Start > Contacts to open the Contacts screen.
Do one of the following:
•Tap the contact to open the contact details and then tap the phone number
you want to call.
•Tap and hold the contact you want to call and then from the menu, select
Call Work,Call Home, or Call Mobile.
To make a call from the TouchFLO 3D Home screen
Refer to Chapter 3 to learn how to make a call from the TouchFLO 3D Home screen.
48 Using Phone Features
To make an emergency call
Enter the international emergency number for your locale, and press the
TALK/SEND button on your device.
Tip Additional emergency numbers may be included in your SIM card. Contact your
wireless service provider for details.
To make an international call
1. Tap and hold the number 0 key on the Phone screen until the plus (+) sign
appears.
The plus (+) sign replaces the international prefix of the country that you are
calling.
2. Enter the full phone number you want to dial, and press the TALK/SEND
button on your device. The full phone number includes the country code,
area code (without the leading zero, if any), and phone number.
To call voice mail
Number 1 is generally reserved for your voice mail. Tap and hold this button on the
Phone screen keypad to call voice mail and retrieve your voice mail messages.
Answer a call
When you receive a phone call, a message will appear, giving you the option to
either answer or ignore the incoming call.
Using Phone Features 49

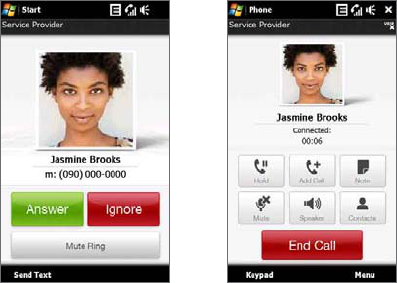

To answer or reject an incoming call
•To answer the call, tap Answer, or press the TALK/SEND button.
•To reject the call, tap Ignore, or press the END button.
•To mute the ringing sound without rejecting the call, tap Mute Ring.
Note When you answer a call and hold the device close to your ear, the display automatically
turns off. This helps prevent accidental screen presses during a phone call and also help
to save battery power. To turn the display back on, briefly press the POWER button. The
display also automatically turns on when the other party ends the call.
To reject a call and send a text message
When you reject a call, you can choose to automatically send a text message to the
mobile phone of the caller.
1. On the Phone screen, tap Menu > Options > Advanced tab.
2. Select the Reject call with text message check box.
3. Change the default text message if needed, then tap OK.
50 Using Phone Features
When Reject call with text message is enabled, tap Send Text to reject the call
and send the text message to the caller.
To put a call on hold
Your device notifies you when you have another incoming call, and gives you the
option of rejecting or accepting the call. If you are already on a call and accept the
new call, you can choose to switch between the two callers, or set up a conference
call between all three parties.
1. Tap Answer to take the second call, and put the first one on hold.
2. To end the second call and return to the first call, tap End Call or press END
on your device.
To switch between two calls
During a call, tap .
To set up a conference call
1. Either put a call on hold, and dial a second number; or, accept a second
incoming call when you already have one in progress.
Tip To dial a second number, tap on the screen.
2. Tap .
Note Not all mobile phone networks support conference calling. Contact your wireless
service provider for details.
To turn on and off the Speakerphone
During a call, tap to toggle between turning on or off the speakerphone. The
speakerphone icon appears in the title bar when the speakerphone is on.
Tip You can also tap and hold TALK/SEND to toggle between turning the speakerphone
on or off.
Warning! To avoid damage to your hearing, do not hold your device against your ear when
the speakerphone is turned on.
Using Phone Features 51
To mute the microphone during a call
Tap to toggle between turning on or off the microphone. When the
microphone is turned off, the mute icon appears on the screen.
To open Notes while in a call
Tap .
To vibrate the device when the call is established
You can set the device to vibrate once to alert you that the call has been established
with the other party.
1. On the Phone screen, tap Menu > Options >Advanced tab.
2. Select the Vibrate device when connection is established check box and
then tap OK.
End a call
When a call is in progress, tap End Call or press END to hang up.
To add a new phone number to Contacts after a call
If the phone number of the person who called is not in Contacts, you can choose to
save the number after you hang up.
1. On the Phone screen, tap Menu > Options > Advanced tab.
2. Select the Add new phone number to Contacts at end of call check box,
then tap OK.
When you enable this option, a pop-up message appears after you end the phone
call and lets you add the phone number to Contacts.
52 Using Phone Features
To check a missed call
You will see the icon in the title bar when you missed a call. To check who the
caller was, do one of the following:
•Tap the title bar, then tap and then tap View.
•On the Phone screen, tap Menu > Call History and then tap .
Call History
Use Call History to check for missed calls, dialed numbers, and calls received.
To open the Call History screen, tap Menu > Call History on the Phone screen.
Speed Dial
Use Speed Dial to call frequently-used numbers with a single tap. For example,
if you assign a contact to the location 2 in Speed Dial, you can tap and hold the
number 2 key on the Phone screen keypad to dial the contact’s number.
To create a Speed Dial entry
1. On the Phone screen, tap Menu > Speed Dial.
2. Tap Menu>New.
3. Tap a contact, then select the phone number of the contact that you want
assigned to the speed dial key.
4. In Location, select an available key to use as the speed dial key.
5. Tap OK.
Tips • To create a Speed Dial entry from Contacts or SIM card contacts, tap the contact,
select the number you want to add to Speed Dial, then tap Menu > Add to Speed
Dial.
•To delete a Speed Dial entry, in the Speed Dial list, tap and hold the desired entry,
then tap Delete.
Using Phone Features 53
Turn the phone function on and off
In many countries, you are required by law to turn off the phone while on board an
aircraft.
To enable or disable the phone function
1. Tap Start > Programs > Comm Manager.
2. On the Comm Manager screen, tap the Phone button to enable or disable
the phone function. When enabled, the ON indicator is activated.
To enable or disable Airplane Mode
Another way to turn off the phone function is to switch your device to Airplane
Mode. When you enable Airplane Mode, all wireless radios on your device are
turned off, including the phone function, Bluetooth, WiMAX, and Wi-Fi.
1. Tap Start > Programs > Comm Manager.
2. On the Comm Manager screen, tap the Airplane Mode button to enable or
disable Airplane Mode. When enabled, the ON indicator is activated.
When you disable Airplane Mode, the phone function is turned back on and the
previous state of Bluetooth, WiMAX and Wi-Fi are restored.
54 Using Phone Features
2.3 Voice and Video over IP Calls
Your device allows you to make Voice over IP (VoIP) and Voice and Video over IP
(VVoIP) calls to your contacts with VoIP-capable handsets, IP phones, or computers
with VoIP application installed.
Note VoIP and VVoIP calling are charged services and have to be provisioned on your
mobile phone account. Contact your wireless service provider for details.
Change the VoIP service settings
Check your device to see if it is preconfigured with your wireless service provider’s
VoIP profile. A VoIP profile contains all the settings you need to make a VoIP or
VVoIP call. It also specifies your VoIP user ID — a phone number, name, or e-mail
address — that identifies your device in the VoIP network.
Note If your device already has preset VoIP profile, it is recommended that you do not
change this profile. If you change the preset profile, your device may not be able to
make and receive VoIP/VVoIP calls. Contact your wireless service provider before you
change the VoIP profile.
To check the preset VoIP profile
1. Tap Start > Phone.
2. Tap Menu > VoIP Options. The VoIP Options screen then appears.
3. In the Profile tab, tap Settings.
To set the preferred connection to use for VoIP and VVoIP calls
You can set the preferred network connection to use when making a VoIP or VVoIP
call.
1. Tap Start > Phone.
2. Tap Menu > VoIP Options. The VoIP Options screen then appears.
3. In the Network tab, select from the following options:
Using Phone Features 55
•WiMAX / WiFi Only. Select this option if
you only want to use your WiMAX or Wi-Fi
network connection for all outgoing calls.
•GSM Only. Select this option if you only want
to use your cellular network (EDGE or GPRS)
for all outgoing voice calls. Calls made over
the cellular network may incur additional
charges.
•WiMAX / WiFi Preferred. When selected,
your device will initially use the WiMAX or
Wi-Fi network connection for all outgoing
calls. If these wireless network connections
are not available, the calls will be made over
your cellular network.
•GSM Preferred. When selected, your device will initially use your cellular
network for all outgoing calls. If your cellular network is not available, the
device will connect to an available WiMAX or Wi-Fi network to make the
call.
4. Tap OK.
Register the device to the VoIP service
After setting your preferred network connection, you can now register your device
with the wireless service provider’s VoIP service and start making voice or video
over IP calls.
To register the device to the VoIP service
1. On the Home screen, slide to the Settings tab.
2. On the Settings screen, tap Communications > Wi-Fi or WiMAX to enable
the wireless function.
Note You cannot connect to a WiMAX and a Wi-Fi network simultaneously.
56 Using Phone Features
3. When your device is connected to a wireless network, tap Start > Phone.
4. Check the VoIP status icon on the top right
corner of the Phone screen. Refer to the
following table for the status icons’ description.
VoIP registration
status icon
Icon Description
Ready. Registration to the VoIP service is successful. You can now make
or receive voice or video over IP calls.
Registering. The device is registering with the VoIP service.
Not available. The device fails to register with the VoIP service or the
VoIP service is not available.
Make a VoIP call
To make a VoIP call from the Phone screen
1. Tap the keys on the keypad to enter the VoIP
phone number (VoIP user ID).
Tip If you tapped a wrong number, tap to erase
each subsequent digit of a number. To erase the
entire number, tap and hold .
2. Tap Talk to place the call.
Notes • While on a VoIP call, you can also hold the call,
mute the phone, turn the speakerphone on or off,
or open notes, just like while you are in a regular
voice call.
•You cannot use a Bluetooth headset to make or
receive a VoIP call.
Using Phone Features 57
To make a VoIP call using the SIP URI
You can make a Voice over IP call to contacts outside
the VoIP service’s domain if you know their Uniform
Resource Identifier (URI). The URI is your contact’s
phone number inside a Session Initiation Protocol (SIP)
server, and resembles an e-mail address (for example,
contactname@sipnetwork.com).
1. On the Phone screen, tap Menu > Dial SIP URI.
2. Enter the SIP URI of the contact using the
onscreen keyboard, then tapap Call.
Note To make a VVoIP call to the contact, tap
Menu > Video Call. See “Make a VVoIP call” in this
chapter for details.
Answer a VoIP call
When you receive a VoIP call, a message will appear, giving you the option to either
answer or ignore the incoming call. Answer a VoIP call as you would answer a
regular voice call.
Notes • You cannot make a voice call over your cellular network when a VoIP call is in
progress.
•The VoIP service does not support conference calling.
•When a VoIP call is in progress, the device will automatically reject all incoming
VoIP or VVoIP calls.
•When a VoIP call is in progress and your phone receives an incoming voice call, the
device will give you the option to either end the current VoIP call and answer the
incoming voice call or ignore the incoming voice call.
End a VoIP call
When a VoIP call is in progress, tap End Call or press END to hang up.
58 Using Phone Features

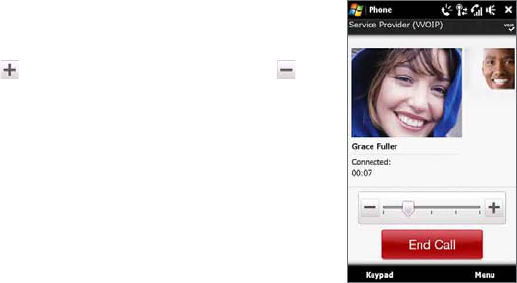

Make a VVoIP call
Video calls made over IP are called Voice and Video over IP calls or VVoIP calls.
Do one of the following to make a VVoIP call:
•On the Phone keypad, tap the VoIP phone
number to call, then tap Menu > Video Call to
start a VVoIP call.
•If you want to video call a contact outside the
VoIP service’s domain, tap Menu > Dial SIP URI,
enter the SIP URI of the contact, then tapap
Menu > Video CallCall to start a VVoIP call.
Notes • The other party’s image will appear on the
screen about 3 to 5 seconds after a connection
is established, depending on the connection
strength. The streaming images quality may also
be influenced by the connection strength.
•You cannot use a Bluetooth headset to make or
receive a VVoIP call.
Answer a VVoIP call
To answer or reject an incoming VVoIP call
•To answer the VVoIP call, tap Answer, or press TALK/SEND on your device.
•To reject the VVoIP call, tap Ignore, or press END on your device.
•To mute the ringing sound without rejecting the call, tap Mute Ring.
Notes • You cannot make a voice call over your cellular network when a VVoIP is in progress.
•When a VVoIP call is in progress, the device will automatically reject all incoming
VoIP or VVoIP calls.
•When a VVoIP call is in progress and your phone receives an incoming voice call,
the device will give you the option to either end the current VVoIP call and answer
the incoming voice call or ignore the incoming voice call.
Using Phone Features 59
End a VVoIP call
Once a VVoIP call is in progress, tap End Call or press END to hang up.
Change the VVoIP call settings
While on a VVoIP call, you can change certain settings such as the size of the image,
brightness of the video image, the camera to use, and more.
The following shows the VVoIP call screen elements and control buttons during an
ongoing VVoIP call.
1Image display area. Displays your image
and the other party's image, depending on
the selected Swap View setting.
2Status area. Displays phone number or
contact name and call timer.
3Camera. Tap to toggle between turning
on/off the camera. When the camera is
turned off, the image displayed depends
on the Video Call options you have set. See
“VVoIP call options” for details.
4Swap View. Tap to toggle between the two
view options. You can choose to have the
other party’s image small or large.
5Main/Second. Tap to toggle between using
the Main (back) and Second (front) camera.
3
5
4
2
1
60 Using Phone Features
Brightness
To adjust the brightness of the live image, tap
Menu > Brightness while in a VVoIP call.
A brightness bar appears below the status area.
Tap to make the live image brighter or tap
to make it less bright. You can also move the slider
left or right with your finger or stylus to adjust the
brightness.
Note You cannot adjust the brightness for a still image.
VVoIP call options
On the Phone screen, or on the screen of the ongoing VVoIP call, you can also tap
Menu > Video Call Options and set the following options:
•Show still image. Select the image you want to display when you turn off the
camera.
•Preset (female). Displays a female picture in place of your image.
•Preset (male). Displays a male picture in place of your image.
•Custom image. Lets you use an image file as your display picture. WhenWhen
this option is selected, the is selected, the, the File Name box and the Browse button will be
enabled, allowing you to select an image file., allowing you to select an image file.
•Last video frame. Uses the last video frame before you stopped the
camera as your display image.
Using Phone Features 61
•Video screen preference. Change how
your image and the other party’s image are
displayed on the screen, select your preference
from the Video screen preference list or tap
the View button on the Video Call screen.
•Camera options:
•Flip the 2nd camera video. Select this
check box if you are going to show a text
document to the other party using the
second camera.
•Switch camera off when answering video
call. Select this check box to not send a
video feed of yourself to the other party
when answering a video call. Instead, the
option you selected in Show still image
will be displayed.
•Switch camera off when making video call. Select this check box to not
send a video feed of yourself to the other party when making a video call.
Instead, the option you selected in Show still image will be displayed.
•Display info:
•Show call timer. Select this check box to display the call period in the
status area.
•Show phone number or name. Select this check box to display the other
party’s phone number or name in the status area.
62 Using Phone Features
2.4 Smart Dial
Smart Dial makes it easy for you to dial a
phone number.
When you start entering a phone number
or contact name, Smart Dial automatically
searches and sorts the contact entries on
the SIM card, in Contacts, and the phone
numbers in Call History (including incoming,
outgoing, and missed calls). You can then
select the desired number or contact from
the filtered list to dial.
Smart Dial
panel
To find a contact name or number
You can just enter the first letter of the name or number of a contact. Smart Dial will
search for contact phone numbers and the first character of a contact name as well
as from the character that appears after a space, dash, or underscore in a contact
name. For example, if you tap number “2” on the phone keypad, which is associated
with [a, b, and c] on the Phone keypad, contact names such as the following will
be considered matches: “Ben Miller”, “George Adams”, “John-Carter”, “Carter, Ellen”,
“Dixon, Allan”, “Thomas_Clark”, “JaneCampbell”.
If the matching list is long and you want to narrow down the search further, enter
another letter. Using the same example above, if you continue to tap “3” which is
associated with [d, e, f], the matching list will be narrowed down to the following
names: “Ben Miller”, “George Adams”, “Carter, Ellen”, “Dixon, Allan”.
Using Phone Features 63
Make a call or send a text message using Smart Dial
1. On the Home screen, tap Phone.
2. Begin entering the first few numbers or characters.
When you start entering a number or letter, the Smart Dial panel will display
matches found.
Tip Tap to close the phone keypad and to see if there are more matching contacts.
3. In the Smart Dial panel, flick and slide your finger on the touch screen.
4. You can do one of the following:
•Tap the contact to call the selected contact.
•To send a text message to the selected contact, tap
Menu > Send Text Message.
2.5 Setting Up Bluetooth SIM Access for Car Kit Phones
Bluetooth car kits that support the SIM Access Profile (SAP) can connect to your
device and access its SIM card via Bluetooth. Once a SAP connection has been
established, you can download SIM contacts from your device to the car kit phone.
You can also use the car kit phone to answer and make calls using your device’s SIM
card.
Note To enable downloading contacts onto the car kit, ensure that all contacts on the
device are stored in the SIM card and not in the device memory. Configure the car kit
to download contacts only from the SIM card.
1. On your device, make sure that Bluetooth is turned on and set to visible
mode. For information about turning on Bluetooth and enabling visible
mode, see “Bluetooth Modes” in Chapter 9.
Note When you turn on Bluetooth while your device is connected to a WiMAX network,
a message appears prompting you to disconnect the WiMAX connection first. See
“Mobile WiMAX” in Chapter 8 to know how to turn WiMAX on or off.
64 Using Phone Features
2. On the Home screen, slide to the Settings tab and then tap Menu >
Bluetooth Devices > SIM Access tab.
3. Select the Remote SIM Access check box, then tap OK.
4. Connect the car kit phone to your device via Bluetooth. To learn how to
connect, consult your car kit phone’s manual.
5. If this is the first time you are pairing the car kit phone with your device, enter
the car kit’s passcode on your device.
6. A pop-up message should appear on your device saying that a connection
has been established between your device and car kit phone. Tap OK.
7. On the Bluetooth screen, tap the SIM Access tab, then tap Connect.
Note You will not be able to make/receive calls, send/receive messages or perform related
activities on your device when the SIM Access Profile connection is active. You’ll be
able to do all these from the car kit phone during this time. After the connection is
disconnected, you will be able to use your device as before.
Chapter 3
TouchFLO™ 3D
3.1 About TouchFLO™ 3D
3.2 Using the TouchFLO 3D Home Screen
3.3 Finger Gestures
66 TouchFLO™ 3D
3.1 About TouchFLO™ 3D
TouchFLO™ 3D gives you touch control over your Windows Mobile-powered
device. TouchFLO 3D provides the following features:
A Home screen that allows finger-touch access to the most widely-used
functions, such as People, Messages, Mail, Music, Internet, and more
Allows you to use finger gestures to navigate screens
3.2 Using the TouchFLO 3D Home Screen
The TouchFLO 3D Home screen have the following tabs:
Home People
Messages
Mail Internet Photos and
Videos
Music Settings
ProgramsWeather
•
•
TouchFLO™ 3D 67
To switch between the tabs of the Home screen
Do one of the following:
Touch or tap the desired tab on the Home screen.
Press and hold your finger on the active tab, then slide your finger right or left
over the tabs. Release when you have selected the desired tab.
Note Apply some pressure when pressing and holding on the active tab to be able to
slide over the tabs.
•
•
68 TouchFLO™ 3D
Swipe left across the screen to move to the next tab, and swipe right across
the screen to move to the previous tab.
Home
The Home tab displays the current date, a flip-style clock, and an Alarm icon that
indicates whether the alarm is on or off. Missed calls and your upcoming calendar
appointments are also shown on the Home tab. To select an item on the Home tab,
touch the item.
•
TouchFLO™ 3D 69
Touch the date or the flip
clock to open the Clock &
Alarms screen where you
can set the date, time, and
alarm.
(See Chapter 13 for details.) Swipe upward
on the screen to
display the smaller
digital clock
and view more
appointments.
Touch this area to view
details about missed calls
in the Call History.
(See Chapter 2 for details.)
Home tab with flip clock
Swipe downward
on the screen to
change back to
the flip clock.
One all-day appointment
and up to two timed
appointments can be
displayed. Touch this area
to create, edit or view an
appointment.
(See “Calendar” in Chapter 12
for details.)
Home tab with smaller digital clock
70 TouchFLO™ 3D
People
On the People tab, you can add favorite contacts who you most frequently
communicate with. This allows you to quickly make calls, send text messages, and
send e-mails to your favorite contacts.
Tip You can add up to 15 favorite contacts on the People tab.
To add favorite contacts
You should already have created or synchronized contacts on your device before
you can add them to the People tab.
1. On the Home screen, slide your finger to the People tab.
2. Touch the small or big Plus icon, or touch
Add Favorite.
3. On the Select a Contact screen, touch the
name of the desired contact.
Tips • To create a new contact, touch Menu >
New Contact. See “Contacts” in Chapter
12 for details.
•SIM contacts cannot be added as favorite
contacts.
4. Select a phone number or e-mail address to
associate to the favorite contact.
Note If there is no picture associated with the
contact, the next screen prompts you to
assign a picture to the contact.
5. To add another favorite contact, touch the small Plus icon ( ) at the right
side of the screen and repeat steps 3 and 4.
TouchFLO™ 3D 71
To choose from your favorite contacts
Do any of the following:
To flip through the contact pictures one at a
time, swipe your finger up or down the screen.
On the picture strip at the right side of the
People screen:
Touch the picture of the desired favorite
contact; or
Press and hold on the currently selected
contact picture to display a slide-out bar,
and then slide up or down the picture
strip. Release your finger when the
desired favorite contact is selected.
•
•
•
72 TouchFLO™ 3D
After selecting a favorite contact, touch an icon below the contact name to
call or to compose and send a text or an e-mail message to the contact.
Touch to call
the contact.
Touch to compose and
send an e-mail message.
Touch to compose and
send a text message.
Touch to call the
contact’s home phone.
Touch to call the contact’s
work/office phone.
The icons shown will depend on available contact information. For example,
( ) will be shown if the contact’s home phone is specified.
Touch the picture of the contact on the center screen to access his or her
contact card. On the contact card, you will see the last outgoing or incoming
call as well as contact details such as phone numbers, e-mail address, and
more.
Tips • On the People tab, touch All People to access SIM contacts and all contacts that
are stored on your device.
•To remove the current favorite contact, touch Menu > Remove Favorite.
Messages
On the Messages tab, you can read SMS text messages as they arrive and create a
new SMS text message.
When there are new incoming text messages, the icon on the Messages tab will
show the number of new messages. For example, indicates that there is a new
message received.
•
•
TouchFLO™ 3D 73
To view the entire
message thread from the
sender and reply, touch
the message on the
screen.
Touch All Messages
to access all text
messages in your inbox
and other folders.
Touch this icon to create
a new SMS text message.
To flip through received
text messages, swipe
your finger upward/
downward, touch the
Up/Down arrow on the
screen.
Touch Menu to remove
the current message and
access more options.
For more information about working with text messages, see “Text Messages” in
Chapter 6.
Mail
The Mail tab is where you send and receive e-mail messages. Including Outlook
E-mail, you can add up to four POP3/IMAP4 and web-based e-mail accounts in this
tab.
To add an e-mail account
1. On the Home screen, slide your finger to the Mail tab.
2. If this is your first time to add an e-mail account, touch New Account on the
bottom-right side of the screen.
3. Set up your e-mail account using the E-mail Setup wizard.
4. To add another e-mail account, touch Menu > Accounts > New Account and
use the E-mail Setup wizard to set up your account.
74 TouchFLO™ 3D
For detailed instructions on setting up e-mail accounts using the E-mail Setup
wizard, see Chapter 6.
To check e-mail
When there are new e-mails, the icon on the Mail tab and the respective icons of
the e-mail accounts will show the number of newly received messages.
To browse through
received e-mails,
swipe up or down on
the envelope image.
Touch the e-mail
on the screen to
open and read the
message.
•
•
Touch Inbox to access
all e-mail messages of
the currently selected
account.
After selecting an e-mail
account, touch this icon
to create and send a new
e-mail message.
These are your e-mail
accounts. Touch an
icon to select an e-mail
account and view the
new e-mails received in
that account.
Touch Menu to access
more options.
For more information about working with e-mails, see Chapter 6 and 7.
TouchFLO™ 3D 75
Internet
On the Internet tab, you can open Opera Mobile™ to browse the web and add web
favorites for one-touch access to your favorite web sites.
Touch here to browse the
web using Opera Mobile.
Touch All Bookmarks to
open Opera Mobile and add,
view or delete web favorites.
Swipe upward to
scroll down the
screen and access
more web favorites,
when available.
For more information about using Opera Mobile, see Chapter 8.
Photos and Videos
The Photos and Videos tab lets you visually flip through your photos and video
clips and view them in full screen. From this tab, you can also activate the Camera
so you can take pictures and record video clips.
The Photos and Videos tab displays pictures and video files from the current
favorite album. By default, the Camera Shots album which stores the pictures and
videos that you captured using the device camera is set as the favorite. You can
change to another favorite album, if preferred.
76 TouchFLO™ 3D
To set an album as a Favorite
1. On the Photos and Videos tab, touch Album to open the Album program.
2. Touch Albums and then select one of the listed favorite albums.
3. Tap Menu > Set as Favorite. and then tap OK on the confirmation screen.
To view photos and videos
Touch the photo or
video on the screen
to view or play it in
full screen.
Touch here to open
the Album program.
(See “Viewing Photos
and Videos Using
Album” in Chapter 11
for details.)
Touch here to take a
photo.
Touch Slideshow to
view the photos as a
slideshow. If a video is
selected, touch Play.
To flip through photos
and videos, swipe
upward/downward on
the screen or touch the
Up/Down arrow.
Touch here to shoot
video.
Tips • For more information about viewing in full screen, see “View an image” and “Play
back video” in Chapter 11. The file formats that can be viewed on the Photos and
Videos tab are the same as the Album program.
•To transfer media files from a computer and view them on the Photos and Videos
tab, copy or synchronize them to a folder under \My Device (the device memory)
or \Storage Card (if a microSD card is installed).
TouchFLO™ 3D 77
Music
The Music tab allows you to visually browse through albums and music tracks and
play music. The albums and music tracks that you see on the Music tab are from the
Now Playing list of the Library.
Note Your device searches for all music files that have the following audio formats: AMR-
NB/WB (.awb), MP3 (.mp3), WMA (.wma), AAC/AAC+/eAAC+ (.aac), and MPEG-4 (.m4a).
It searches for music from the following locations:
Device: \My Music (including all subfolders)
\My Documents (including all subfolders)
Storage Card: \Storage Card (including all subfolders)
To play music
On the Music tab, flip through albums and all the music in each album, then touch
the Play icon on the middle-right side of the screen to start playback.
Touch here to go to the
previous album or the
previous music in the
current album.
Swipe upward/
downward on
the screen to flip
through albums
and the music or
songs in an album.
Touch here to play or pause.
Touch here to go to the next
album or the next music in
the current album.
Touch Menu to set music
playback to Repeat, turn
Shuffle on or off, and more.
Touch here to
access the Library.
78 TouchFLO™ 3D
To advance forward or backward in the music
Touch and hold on the thin bar below the album art to display the progress bar:
Drag your finger right or left on the progress bar to move forward or backward in
the current music.
To set repeat and shuffle modes
Touch Menu > Repeat and choose whether to repeat once, repeat all, or do not
repeat. To toggle shuffle mode on and off, touch Menu > Shuffle and then select
Shuffle On or Shuffle Off.
The icons on the upper-right side of the Music tab show whether repeat and
shuffle modes are enabled.
Repeat [One] Repeat [All] Shuffle [On]
To browse and play music in the Library
The Library organizes music into categories, such as Now Playing,Artists,Albums,
Genres,All Songs, and more. When you add more albums or music tracks to your
device, go to the Library to locate and play the new albums or music tracks.
On the Music tab, touch Library to open the Library screen.
The tabs at the bottom of the Library screen correspond to the different
categories. To browse music under a certain category, slide to the tab that
corresponds to the desired category.
Tap a music track to play it.
Note When you select a category in the Library such as Artists and play its music, the Now
Playing list will be replaced with the music tracks from that category.
1.
2.
3.
TouchFLO™ 3D 79
To use playlists
You can group your favorite music into a playlist and then play back the playlist.
To create a new playlist:
Select the desired music on the Music tab or the Library.
Touch Menu > Add to Playlist.
Touch <New Playlist>, enter a Playlist name and then touch OK.
To add more music files to a playlist:
On the Playlists tab, touch a playlist to open it.
Touch Menu > Edit.
Touch Menu > Add.
Select the check boxes of the music you want to add to the playlist, or
touch Menu > Select All to choose all the music.
Touch OK three times and then touch Up to return to the Playlists tab.
To play back a playlist:
On the Playlists tab, touch a playlist to open it.
Touch the first song in the playlist. The Music tab starts playing the first
song. After each song, the next one in the playlist will be played.
Note Playlists are not automatically updated when music files have been deleted from
the device memory or storage card.
There are two types of playlists that can be shown on the Playlists tab:
Custom playlists. Playlists that are created on the Music tab.
Windows Media® Player playlists. Playlists that are in Windows Media®
Player Mobile’s Library (which is synchronized with Windows Media® Player
on your computer). They are indicated by the Windows Media® Player icon
( ). These playlists cannot be edited.
•
1.
2.
3.
•
1.
2.
3.
4.
5.
•
1.
2.
•
•
80 TouchFLO™ 3D
Custom playlists
Windows Media®
Player playlists
Note If a Windows Media® Player playlist contains a combination of music, video and image
files, only music files in the playlist will be synchronized to your device and other
media types will be filtered out.
Weather
The Weather tab shows you the current weather as well as weather information for
the next five days of the week.
To add a city
The Weather tab can display weather information of your local city and other
added cities. Follow the steps below to add a city on this tab.
Tip You can add up to 10 cities on the Weather tab.
On the Weather tab, touch Menu > Add Location.
The Select Country screen then appears. Flick your finger on the screen or use
the Quick Scroll bar on the right of the screen to choose the country.
1.
2.
TouchFLO™ 3D 81
You can also slowly scroll through the country list by dragging your finger
upward on the screen. Touch the desired country to select it.
The Select City screen then appears. Flick your finger on the screen or use
the Quick Scroll bar on the right of the screen to choose the city. You can
also slowly scroll through the city list by dragging your finger upward on the
screen. Touch the desired city to select it.
To view weather information
Your device automatically connects to the Internet via the EDGE/GPRS data
connection, WiMAX, or Wi-Fi to download and display weather information. The
current temperature, temperature range, type of weather (sunny, cloudy, showers,
or others), time of day (daytime or nighttime), and the weather information for the
next four days of the week are shown on the Weather tab.
Touch Menu to add or
delete a city, change the
temperature to Celsius
or Fahrenheit, and more.
Shows the last
weather update.
To switch between
cities, swipe your finger
upward/downward, or
touch the Up/Down
arrow on the screen.
Touch this item to
download the latest
weather information.
3.
82 TouchFLO™ 3D
To choose download options
1. On the Weather tab, touch Menu > Settings.
Tip You can also slide to the Settings tab and then touch Data.
2. You can choose from the following options:
Download weather automatically. When this option is selected, weather
information is automatically downloaded from the AccuWeather web site
whenever you select the Weather tab, if the data has not been updated
within the last three hours. Weather data is also downloaded every time
an ActiveSync connection is established (through over-the-air or USB
connections).
Clear this option if you prefer to manually download weather information.
Download weather when roaming. Select this option only if you want to
allow automatic download of weather data when roaming. This may incur
additional costs.
Settings
The Settings tab allows you to synchronize
information with your computer or the Exchange
Server, change sound settings such as the ring
tone, and choose a different wallpaper for the
Home tab. You can also easily turn on and off the
communications features of your device such as
WiMAX, Wi-Fi, Bluetooth, and more.
•
•
TouchFLO™ 3D 83
Programs
The Programs tab allows you to add your favorite programs for one-touch access.
Touch a program icon to
open the corresponding
program.
Touch Remove to choose
which program to remove
from the Programs tab.
Touch an empty
slot to add a
favorite program.
Touch All Programs to
access all the programs
of your device.
When you have filled up the screen with programs, scroll down the Programs tab
to access more empty slots and add more programs. To scroll down, press and hold
on the screen and then drag your finger upward. You can add up to 18 favorite
programs.
To scroll back up, press and hold on the screen and then drag your finger
downward.
Note To replace a slot with another program, you must delete the occupying program
shortcut first and then add your desired program.
84 TouchFLO™ 3D
3.3 Finger Gestures
You can use finger gestures to scroll, zoom and pan on the touch screen.
Finger scrolling
Finger scrolling can be used to scroll up and down web pages, documents, and lists
such as the contacts list, file list, message list, calendar appointments list, and more.
When finger
scrolling, swipe or
flick your finger on
the touch screen.
To scroll up and down
To scroll down, swipe your finger upward on the touch screen.
To scroll up, swipe your finger downward on the touch screen.
To auto-scroll, flick your finger upward or downward on the touch screen.
Touch the screen to stop scrolling.
•
•
TouchFLO™ 3D 85
To scroll left and right
To scroll towards the right, swipe your finger to the left.
To scroll towards the left, swipe your finger to the right.
To auto-scroll, flick your finger left or right. Touch the screen to stop scrolling.
Finger zooming
The type of finger gesture to use when zooming varies in different programs.
To zoom in on a web page in Opera Mobile, tap your finger twice on the
screen. See “Using Opera Mobile” in Chapter 8 for details.
To zoom in on a photo in Album, make a full-circle swipe on the touch screen.
See “Viewing Photos and Videos Using Album” in Chapter 11 for details.
Finger panning
You can use finger panning to move to and view other
parts of a zoomed photo, web page, document, or an
e-mail. To pan, touch and hold on the touch screen
and then drag your finger in any direction.
Tip To enable or mute finger scrolling and panning
sound, touch Start > Settings > System tab >
TouchFLO, and then select or clear the Enable
sound when finger scrolling and panning check
box.
•
•
•
•
86 TouchFLO™ 3D
Chapter 4
Entering Text
4.1 Entering Information
4.2 Using the Full QWERTY
4.3 Using the Compact QWERTY
4.4 Using the Phone Keypad
4.5 Using Multitap and T9 Modes
4.6 Using Numeric and Symbol Mode
4.7 Using Block Recognizer
4.8 Using Letter Recognizer
4.9 Using Transcriber
88 Entering Text
4.1 Entering Information
When you start a program or select a field that requires text or numbers, the
Input Panel icon becomes available on the menu bar.
Tap the Input Selector arrow (that appears next to the Input Panel icon) to open a
menu where you can select a text input method and customize input options. After
selecting a text input method, the corresponding Input Panel is displayed, which
you can use to enter text.
Tip Select Other Input Methods to display more input methods.
To show or hide the Input Panel, tap the Input Panel icon.
Input Panel
(Compact QWERTY)
Input Selector arrow
Input Panel icon
Text input methods
Key when pressed
Entering Text 89

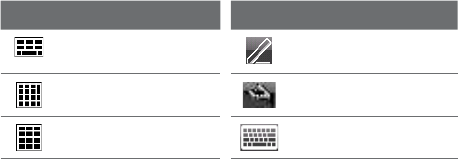

Icon Input method Icon Input method
Full QWERTY Letter Recognizer or
Block Recognizer
Compact QWERTY Transcriber
Phone Keypad Keyboard
Notes • Some text input methods may not be available in certain language versions of the
device.
•When in landscape mode, the Compact QWERTY and Phone Keypad are not
available.
4.2 Using the Full QWERTY
The Full QWERTY is a full on-screen QWERTY keyboard layout similar to a desktop
PC keyboard.
Tip You can also use the Windows Mobile on-screen keyboard which also has a QWERTY
keyboard layout by selecting Keyboard (or Other Input Methods > Keyboard) on
the Text input method menu.
90 Entering Text
• Tap to enter letters
or symbols.
• Tap and hold
to enter a
punctuation mark,
symbol, or number
that appears on
top of a key.
• Tap to enter an
uppercase letter.
• Tap twice to turn
on Caps Lock.
Tap to toggle between
using Normal or T9 mode.
Tap to open a keyboard layout
that lets you easily enter numbers
and symbols. See “Using Numeric
and Symbol Mode” for details.
Tap to create
a new line.
Tap to delete the
previous character.
Displays the word
candidate list in T9
mode. Tap a word to
insert it into your text.
Tap to add a word
to the T9 dictionary.
To enter text using the Full QWERTY
1. Start a program that accepts text input, such as Word Mobile.
2. Tap the Input Selector arrow, then tap Full QWERTY.
3. Start tapping keys on the keyboard as you would on a PC keyboard to enter
your text. To learn how to enter text using T9 mode, see “Using Multitap and
T9 Modes” in this chapter.
Entering Text 91
4.3 Using the Compact QWERTY
The Compact QWERTY is a type of on-screen keyboard which features 20 keys.
With its large, touch-friendly keys and enhanced features such as T9 predictive
input, you can enter text faster and more accurately.
• Tap to enter letters
or symbols.
• Tap and hold
to enter a
punctuation mark,
symbol, or number
that appears on
top of a key.
• Tap to enter an
uppercase letter.
• Tap twice to turn
on Caps Lock.
Tap to toggle between using
Multitap or T9 mode.
Tap to open a keyboard layout
that lets you easily enter numbers
and symbols. See “Using Numeric
and Symbol Mode” for details.
Tap to create
a new line.
Tap to delete the
previous character.
Displays the word
candidate list in T9
mode. Tap a word to
insert it into your text.
Tap to add a word
to the T9 dictionary.
Tip You can tap and hold to immediately open the numeric keyboard.
To enter text using the Compact QWERTY
1. Start a program that accepts text input, such as Word Mobile.
2. Tap the Input Selector arrow, then tap Compact QWERTY.
3. Start tapping keys on the keyboard to enter your text. To learn how to enter text
using Multitap or T9 mode, see “Using Multitap and T9 Modes” in this chapter.
92 Entering Text
4.4 Using the Phone Keypad
The Phone Keypad is a 12-key on-screen keypad that has a layout similar to mobile
phone keypads, plus some additional keys. The Phone Keypad has large keys and
enhanced input features such as T9 predictive input, which makes it faster for you
to enter text in your messages and documents.
• Tap to enter letters
or symbols.
• Tap and hold
to enter a
punctuation mark,
symbol, or number
that appears on
top of a key.
• Tap to enter an
uppercase letter.
• Tap twice to turn
on Caps Lock.
Tap to toggle
between using
Multitap or T9 mode.
Tap to open a keyboard layout that lets you easily enter numbers
and symbols. See “Using Numeric and Symbol Mode” for details.
Tap to create
a new line.
Tap to delete the
previous character.
Displays the word
candidate list in T9
mode. Tap a word to
insert it into your text.
Tap to add a word
to the T9 dictionary.
Tip You can tap and hold to immediately open the numeric keyboard.
To enter text using the Phone Keypad
1. Start a program that accepts text input, such as Word Mobile.
2. Tap the Input Selector arrow, then tap Phone Keypad.
3. Start tapping keys on the keyboard to enter your text. To learn how to enter text
using Multitap or T9 mode, see “Using Multitap and T9 Modes” in this chapter.
Entering Text 93
4.5 Using Multitap and T9 Modes
When using the on-screen keyboards, you can choose to enter text using Multitap
or T9 mode.
Multitap mode
In Multitap mode (for Compact QWERTY and Phone Keypad), enter a character by
tapping a key until the desired character is displayed on the screen.
•To enter the first letter that shows on a key, tap the key once. To enter the
second letter, tap twice.
•To enter a punctuation mark, symbol, or number that appears on top of a key,
tap and hold the key.
T9 mode
T9 is a predictive text input mode which displays a word candidate list as you enter
the first few characters so you just select the word that you want.
To enter text using T9 mode
1. Start entering the first few letters of a word. As you enter each letter,
predicted words will appear above the keyboard.
2. Tap the desired word to immediately insert it to your text.
Note Navigate through the word candidate list if there are more words to choose from.
94 Entering Text
To add a word to the T9 dictionary
If the word that you have entered is not found in the dictionary, you can add it to
the dictionary.
1. While in T9 mode, type a letter and then tap on right side of the word
candidate list.
2. Type the word you want to add and then tap ADD.
Tap to cancel
word addition.
To customize Touch Input settings
1. Tap the Input Selector arrow, then tap Touch Input Settings.
2. On the Touch Input Settings screen, select or clear the following options
according to your preferences:
•Spell Correction. Lets you correct typographical errors by selecting from
a list of possible words that reflect the characters of the keys you have
tapped as well as characters of nearby keys.
•Word Completion in T9 mode. Lets you select from a list of possible
words based on the keys that you have tapped and on the words available
in the dictionary.
•Word Completion in ABC mode. Lets you select from a list of possible
combinations based on the characters that appear on the keys that you
tapped.
•Auto-Substitution. Automatically inserts an apostrophe when you type
common contracted words (for example, “dont” automatically becomes
“don’t”).
3. Tap Done.
Entering Text 95
4.6 Using Numeric and Symbol Mode
Switch to Numeric and Symbol mode to let you easily enter numbers and common
symbols such as parentheses, braces, currency signs, punctuation marks, special
characters, and more. Numeric and Symbol mode is available when using the Full
QWERTY, Compact QWERTY, and Phone Keypad.

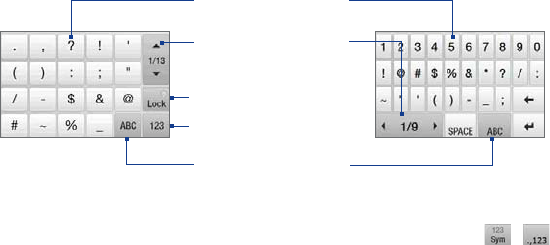

Tap a number or symbol
to insert it into your text.
Tap to go to the previous
or next page of symbols.
Tap to switch back to the
letter keyboard layout.
Tap to switch to the
numeric keyboard
See “To lock the keyboard in
Numeric and Symbol mode.”
Compact QWERTY
and Phone Keypad
Full QWERTY
To switch to Numeric and Symbol mode
1. While using Full QWERTY, Compact QWERTY, or Phone Keypad, tap / .
2. Locate the number or symbol, then tap it to insert it into your text.
To lock the keyboard in Numeric and Symbol mode
You can lock the keyboard in Numeric and Symbol mode so you can continuously
enter symbols and numbers.
1. Tap the Input Selector arrow and then tap Other Input Methods > Options.
2. In the Input Method tab, select a Touch input method in the Input method
list, then tap Options.
3. Clear the Turn on one-touch symbol entry check box.
96 Entering Text
Tip In Compact QWERTY and Phone Keypad, tap / to toggle between locking
the keyboard in Numeric and Symbol mode and switching back to the letter keyboard
layout after tapping a symbol or number.
4.7 Using Block Recognizer
With Block Recognizer, you use a single stroke to write letters, numbers, symbols,
and punctuation, which are then converted into typed text.
To use Block Recognizer
1. From a program, tap the Input Selector arrow and then tap Other Input
Methods > Block Recognizer.
2. Write characters, numbers, and symbols in the designated writing area.
•Enter letters by writing in the abc (left) area of the box.
•Enter numbers by writing in the 123 (right) area of the box.
•Enter symbols and punctuation by tapping the left or right area of the box
(a gray dot appears), then writing the desired character.
Tip For help with writing characters, tap the question mark near the writing area.
4.8 Using Letter Recognizer
With Letter Recognizer, you can write individual letters, numbers, and punctuation
marks, which are then converted into typed text.
To use Letter Recognizer
1. From a program, tap the Input Selector arrow and then tap Other Input
Methods > Letter Recognizer.
2. Write characters, numbers, and symbols in the designated writing area.
•Enter uppercase letters by writing in the ABC (left) area of the box.
Entering Text 97
•Enter lowercase letters by writing in the abc (middle) area of the box.
•Enter numbers by writing in the 123 (right) area of the box.
•Enter punctuation and symbols by writing the desired character in the
123 (right) area of the box.
Tip For help with writing characters, tap the question mark near the writing area.
4.9 Using Transcriber
Transcriber is a handwriting recognition program that enables you to write in
cursive, print, or a combination of both.
To write using Transcriber
1. Open a program that accepts user input, such as Word Mobile.
2. Tap the Input Selector arrow and then tap Other Input Methods >
Transcriber. The Transcriber introductory screen appears. Read the
introduction and tap OK.
3. Position the cursor where you want text to appear.
4. Use the stylus to write anywhere on the screen. The handwriting will be
converted to text shortly after you lift the stylus from the screen.
To enter punctuation and symbols
Transcriber comes with an on-screen keyboard that provides an easy way to add
punctuation or a special symbol to existing text. To use this on-screen keyboard, tap
on the Transcriber toolbar.
The keyboard remains visible until you tap the button again.
Tips • To reposition the keyboard, tap and hold the title bar, then drag to the desired
location.
•When no text is selected, you can open the keyboard by using the gesture (draw
a line straight down and then straight up). For more information about using
Transcriber gestures, see Help on your device.
98 Entering Text
To edit text
1. In a program, draw a line from left to right across the text you want to edit.
2. After you lift the stylus from the screen, the line disappears and the selected
text will be highlighted.
3. Do either of the following:
•Rewrite the text.
•Use gestures to capitalize letters, insert a space, and so on. For information
about using Transcriber gestures, see Help on your device.
Chapter 5
Synchronizing Information
With Your Computer
5.1 About Synchronization
5.2 Setting Up Windows Mobile® Device Center
on Windows Vista®
5.3 Setting Up ActiveSync® on Windows XP®
5.4 Synchronizing With Your Computer
5.5 Synchronizing via Bluetooth
5.6 Synchronizing Music and Video
100 Synchronizing Information With Your Computer
5.1 About Synchronization
You can take information from your computer wherever you go by synchronizing
them to your device. The following types of information can be synchronized
between your computer and your device:
•Microsoft® Office Outlook® information, which include Office Outlook e-
mail, contacts, calendar, tasks, and notes
•Notes, which are created using Microsoft® Office OneNote® 2007
•Media, such as pictures, music, and video
•Favorites, which are the bookmarked links to your favorite web sites
•Files, such as documents and other files
Before you can synchronize, you need to install and set up first the synchronization
software on your computer. For more information, see “Setting Up Windows Mobile
Device Center on Windows Vista®” and “Setting Up ActiveSync® on Windows® XP” in
this chapter.
Note ActiveSync or Windows Mobile Device Center only synchronises data on your
computer and device. If you have installed a storage card and you want to back up
files from the storage card, use Windows Explorer on your computer to copy files from
the storage card to your computer.
Ways to synchronize
After you have installed the synchronization software on your computer, connect
and synchronize your device with your computer by:
•Using the supplied USB sync cable.
Upon connecting the sync cable to your device and your computer, the
synchronization process automatically starts.
•Using Bluetooth.
You must first set up a Bluetooth partnership between your device and your
computer before you can synchronize information between them using
Synchronizing Information With Your Computer 101
Bluetooth. For more information about setting up a Bluetooth partnership,
see Chapter 9. For information about synchronizing through Bluetooth, see
“Synchronizing via Bluetooth” later in this chapter.
Try to synchronize regularly in order to keep information up-to-date in both your
device and your computer.
Notes • You can also synchronize Outlook e-mail, contacts, calendar, and tasks on your
device with the Exchange Server at your work. For more information about setting
up your device to synchronize with the Exchange Server, see Chapter 7.
•If you are sending your device for repair or performing a hard reset, data from your
device will be lost. It is recommended that you sync your device to your computer
to back up your files. To back up files from the storage card to your computer, use
Windows Explorer to copy files from the storage card to the computer.
5.2 Setting Up Windows Mobile® Device Center on
Windows Vista®
Microsoft Windows Mobile® Device Center is the replacement for Microsoft®
ActiveSync® on Windows Vista®.
Note Some versions of Windows Vista® come with Windows Mobile Device Center already
installed. If Windows Mobile Device Center is not available on your Windows Vista®,
you can install it from the Getting Started Disc that came with your device.
Set up synchronization in Windows Mobile Device Center
When you connect your device to your computer and start Windows Mobile Device
Center for the first time, you are asked to create a Windows Mobile partnership with
your device. To create a partnership:
1. Connect your device to your computer. Windows Mobile Device Center
configures itself, then opens.
2. On the license agreement screen, click Accept.
102 Synchronizing Information With Your Computer
3. On the Windows Mobile Device Center’s Home screen, click Set up your
device.
Note Choose Connect without setting up your device if you only want to transfer
media files, check for updates, and explore your device but not synchronize
Outlook information.
4. Select the items you want to synchronize, then click Next.
5. Enter a device name, then click Set Up.
When you finish the setup wizard, Windows Mobile Device Center synchronizes
your device automatically. Notice that Outlook e-mails and other information
appear on your device after synchronization.
Synchronizing Information With Your Computer 103
Use Windows Mobile Device Center
To open Windows Mobile Device Center, click Start > All Programs > Windows
Mobile Device Center on your Windows Vista computer.
On Windows Mobile Device Center, you can do the following:
•Click Mobile Device Settings to change synchronization settings.
•When you click Pictures, Music and Video > XX new pictures/video clips
are available for import, a wizard guides you to tag and transfer photos
from your device to the Photo Gallery on your computer.
•Click Pictures, Music and Video > Add media to your device from
Windows Media Player to synchronize music and video files using Windows
Media® Player. For more information, see “Using Windows Media® Player
Mobile” in Chapter 11.
•Click File Management > Browse the contents of your device to view
documents and files on your device.
Note See Windows Mobile Device Center Help for more information.
104 Synchronizing Information With Your Computer
5.3 Setting Up ActiveSync® on Windows® XP
The Getting Started disc that comes with your device contains Microsoft ActiveSync
4.5 or later. Follow the steps in this section to install and set up ActiveSync on
Windows XP or other compatible Windows systems.
Note For a list of compatible Windows systems, go to
http://www.microsoft.com/windowsmobile/activesync/activesync45.mspx.
Install ActiveSync
1. Place the Getting Started disc to the disc drive of your computer.
2. Click Setup and Installation.
3. Select the ActiveSync check box, then click Install.
4. Read the license terms, then click Accept.
5. When installation is completed, click Done.
6. On the Getting Started with Windows Mobile screen, click Close.
Set up synchronization in ActiveSync
1. Connect your device to your computer. The Synchronization Setup Wizard
automatically starts and guides you to create a synchronization partnership.
Click Next to proceed.
2. To synchronize your device with your computer, clear the Synchronize
directly with a server running Microsoft Exchange check box, then click
Next.
3. Select the information types that you want to synchronize, then click Next.
4. Select or clear the Allow wireless data connections check box according to
your preference.
5. Click Finish.
Synchronizing Information With Your Computer 105
When you finish the wizard, ActiveSync synchronizes your device automatically.
Notice that Outlook e-mails and other information appear on your device after
synchronization.
5.4 Synchronizing With Your Computer
Connect and synchronize your device with your computer using the USB cable or
Bluetooth connection.
Start and stop synchronization
You can manually synchronize either from your device or computer.
From your device
•On the TouchFLO 3D Home screen, slide to the Settings tab and then touch
Sync Data; or
•Tap Start > Programs > ActiveSync, then tap Sync. To end synchronization
before it completes, tap Stop.
Tip To delete a partnership with one computer completely, disconnect your device
from that computer first. In ActiveSync on your device, tap Menu > Options, tap the
computer name, then tap Delete.
From Windows Mobile Device Center
1. Click Start > All Programs > Windows Mobile Device Center.
2. Click at the lower left of the Windows Mobile Device Center.
To end synchronization before it completes, click .
From ActiveSync on your computer
When you connect your device to your computer, ActiveSync automatically opens
on your computer and synchronizes.
•To manually start synchronization, click .
•To end synchronization before it completes, click .
106 Synchronizing Information With Your Computer
Change which information is synchronized
You can change the information types and the amount of information to
synchronize for each type either on your device or your computer. Follow the steps
below to change synchronization settings on your device.
Note Before changing synchronization settings on your device, disconnect it from your
computer.
1. In ActiveSync on your device, tap Menu > Options.
2. Select the check box for any items you want to synchronize. If you cannot
select a check box, you might have to clear the check box for the same
information type elsewhere in the list.
3. To change synchronization settings for an information type, for instance, E-
mail, select it and tap Settings.
You can then set the download size limit, specify the time period of
information to download, and more.
Notes • Some information types such as Favorites, Files and Media cannot be selected in
ActiveSync Options on your device. You can only select or clear these items from
your computer’s Windows Mobile Device Center or ActiveSync.
•A computer can have sync partnerships with many different Windows Mobile
powered devices, but a device can have sync partnerships with at most two
computers. To ensure that your device will synchronize properly with both
computers, set up the second computer using the same synchronization settings
you used on the first computer.
•Outlook e-mail can be synchronized with only one computer.
Synchronizing Information With Your Computer 107
Troubleshoot sync connection problem
In some cases, when the computer connects to the Internet or a local network, it
may disconnect the connection with your device in favor of the Internet or network
connection.
If this happens, tap Start > Settings > Connections tab > USB to PC, then clear the
Enable advanced network functionality check box. This makes your computer
utilize a serial USB connection with your device.
5.5 Synchronizing via Bluetooth
You can connect and synchronize your device with the computer using Bluetooth.
Note To connect and synchronize your device with a computer via Bluetooth, your
computer must have a built-in Bluetooth or installed with a Bluetooth adapter or
dongle.
To synchronize with a computer via Bluetooth
1. Set up Windows Mobile Device Center or ActiveSync on your computer to
synchronize through Bluetooth. See the program’s Help for instructions.
2. On your device, tap Start > Programs > ActiveSync.
3. Make sure that Bluetooth on both your device and the computer are turned
on and set to visible mode. See “Bluetooth Modes” in Chapter 9 for details.
If this is the first time you have connected to this computer via Bluetooth,
you must first complete the Bluetooth wizard on your device and set
up a Bluetooth partnership between your device and the computer. For
more information about creating a Bluetooth partnership, see “Bluetooth
Partnerships” in Chapter 9.
4. Tap Menu > Connect via Bluetooth. Make sure the Bluetooth function of
both your device and the computer are turned on and set to visible mode.
Note To conserve battery power, turn off Bluetooth when not in use.
108 Synchronizing Information With Your Computer
5.6 Synchronizing Music and Video
If you want to carry your music or other digital media along with you while you
travel, set up Windows Media® Player on your computer to synchronize music and
video with your device.
Other than selecting the Media information type to be synchronized, all media
synchronization settings must be set in Windows Media® Player. Before media can
be synchronized, you must do the following:
•Install Windows Media® Player Version 11 on your computer. (Windows
Media® Player 11 works only in Windows XP or later versions).
•Connect your device to the computer with a USB cable. If your device is
currently connected using Bluetooth, you must end that connection before
media can be synchronized.
•Set up a sync partnership between your device and your computer’s Windows
Media® Player.
For more information about using Windows Media® Player Mobile, see Chapter 11.
Chapter 6
Exchanging Messages
6.1 Messaging
6.2 Text Messages
6.3 Types of E-mail Accounts
6.4 E-mail Setup Wizard
6.5 Using E-mail
110 Exchanging Messages
6.1 Messaging
Messaging is a central location where you will find all types of messaging accounts,
which include text messages (SMS) and e-mail accounts.
To select a messaging account
Do one of the following:
•On the TouchFLO 3D Home screen, slide to the
Mail tab and then touch Menu > Accounts >
Accounts. The Account Picker screen then opens
where you can select an account.
Tip You can also tap Start > Messaging to access
the Account Picker screen.
•While you are in a message list of a certain
account, for example Text Messages, tap
Menu > Go To to switch to other types of
messaging accounts.
To configure message account settings
•Tap Menu > Options on the Account Picker
screen; or
•Tap Menu > Tools > Options while you’re in a
message list.
Account Picker screen
To automatically add a signature in outgoing messages
You can automatically add your name and other information as your signature in
outgoing SMS and e-mail messages:
Note You need to specify your signature for each type of messaging account.
1. Tap Start > Messaging, then tap Menu > Options.
2. Tap Signatures.
Exchanging Messages 111
3. Select a messaging account in which to add a signature.
4. Select the Use signature with this account check box.
5. In the provided text box, enter the information that will be displayed as your
signature.
6. If you want the signature to be added whenever you reply or forward
messages, select the Use when replying and forwarding check box, then
tap OK.
7. Repeat the steps to add a signature to other messaging accounts.
6.2 Text Messages
Send short text messages (SMS) up to 160 characters long to other mobile phones.
Create a new text message
Depending on your preference, there are a number of alternative ways you can
create a new text message.
From the TouchFLO 3D Home screen
1. On the Home screen, slide to the Messages tab.
2. Touch the New Message icon ( ) on the upper right side of the screen.
Tip To send a text message to a favorite contact, first select the photo of the desired
contact in the People tab to open his or her contact card and then touch Send text
message. For more information about working with favorite contacts, see “People” in
Chapter 3.
From the Account Picker screen
1. Tap Start > Messaging > Text Messages.
2. Tap Menu > New.
112 Exchanging Messages
From the Contacts screen
1. Tap Start > Contacts.
2. Tap the contact’s name to open his or her contact card.
3. Touch Send text message.
Compose and send a text message
After creating a new text message, follow the steps below to enter your message
and then send it.
1. To add recipients,
enter their mobile phone numbers in the To field, separating
them with a semicolon. Y
ou can also tap To or tap Menu > Add Recipient to
add mobile phone numbers from Contacts..
2. Enter your message.
Tip To choose from preset messages, tap Menu > My Text and tap a desired
message. To check the spelling, tap Menu > Spell Check.
3. Tap Send.
Tips • For more information about entering text and symbols, see Chapter 4.
•If you want to know when a text message is received, before sending the message
that you are composing, tap Menu > Message Options, then select the Request
message delivery notification check box.
•To always receive a delivery notification, tap Menu > Tools > Options in the text
message list, tap Text Messages, then select the Request delivery notifications
check box.
Manage text messages
Text messages that are sent to and received from a contact (or number) are
grouped as a single thread in your inbox. Threaded SMS lets you see exchanged
messages (similar to a chat program) with a contact on the screen.
Exchanging Messages 113
To reply to a text message
1. In the Text Messages inbox, tap a message thread to open it.
2. At the bottom of the screen, type your reply message and then tap Send.
Enter your reply
message here
114 Exchanging Messages
To copy a message in the thread to the SIM card
1. In the Text Messages inbox, tap the message to open it.
2. Select a message in the thread that you want to copy to the SIM card.
Note You cannot copy a sent message from the thread to the SIM card.
3. Tap Menu > Copy to SIM.
To copy a text message from the SIM card to the device
1. In the Text Messages inbox, select the SIM message you want to copy.
2. Tap Menu > Copy to Phone.
Note Copying SIM text messages to your device results in duplicate messages in the Inbox
folder when your SIM card is in use.
To delete a message in the thread
1. In the Text Messages inbox, tap a message thread to open it.
2. Select a message in the thread that you want to delete.
3. Tap Menu > Delete.
To delete all messages in a thread
1. In the Text Messages inbox, select a message thread.
2. Tap Delete.
Exchanging Messages 115
6.3 Types of E-mail Accounts
You can set up the following types of e-mail accounts on your device:
•Outlook e-mail that you sync with your computer or the Exchange Server.
•E-mail account that you have from an Internet Service Provider (ISP) or other
e-mail provider.
•Web-based e-mail accounts such as Gmail®, Yahoo!® Mail Plus, AOL®, and
others.
•Work account that you access using a VPN connection.
Set up your device to synchronize Outlook e-mail with the
computer
If you have installed the synchronization software on your computer and created a
partnership with your device, then your device is ready to send and receive Outlook
e-mail.
If you have not yet installed the synchronization software nor created a partnership,
do so by following the procedures in Chapter 5.
Tip To set up your company e-mail account so that you can access Outlook e-mail
messages wirelessly, you must set up your device to synchronize via an over-the-
air connection with your company’s Exchange Server. For more information about
synchronizing with your company e-mail server, see Chapter 7.
Add an e-mail account
To add a new e-mail account, you can do one of the following:
On the TouchFLO 3D Home screen, slide to the Mail tab and then touch
Menu > Accounts > New Account; or
Tap Start > Messaging > Setup E-mail.
The E-mail Setup wizard then opens and lets you enter your e-mail account
settings. See “E-mail Setup Wizard” in this chapter for details.
•
•
116 Exchanging Messages
6.4 E-mail Setup Wizard
Windows Mobile’s E-mail Setup wizard walks you through the process of setting
up your e-mail account. It has an Auto Setup feature which can automatically set
up your e-mail account based on the e-mail address and password that you enter,
if your e-mail provider settings are preconfigured on your device. If the settings
are not found on your device, Auto Setup then attempts to retrieve the settings
online for which you may be charged when your device connects to the Internet
and downloads them. If it cannot find the e-mail settings online, you need to enter
them manually.
Note For more information about setting up your company Outlook e-mail account, see
Chapter 7.
Set up an Internet e-mail account
Set up a POP3 or IMAP4 e-mail account on your device if you have an e-mail
account from an Internet service provider (ISP) or other e-mail service provider, or a
web-based account such as Gmail, Yahoo! Mail Plus, or AOL. You can also add a work
account that you access using a VPN server connection as a POP3/IMAP4 account.
1. Add a new e-mail account. See “Add an e-mail account” for instructions.
2. Enter your E-mail address and the Password for your e-mail account and
select the Save password option. Tap Next.
3. If e-mail provider settings are found preconfigured on your device, the E-mail
Setup wizard shows a successful message. Tap Next.
If the settings are not found on your device, select the Try to get e-mail
settings automatically from the Internet checkbox to find and download
e-mail server settings from the Internet and then tap Next.
4. Enter Your name and the Account display name and then tap Next.
Exchanging Messages 117
Note If the E-mail Setup wizard was unsuccessful in finding and downloading settings
from the Internet, select Internet e-mail from the Your e-mail provider list on
the next screen. You will be asked to enter e-mail server settings. See “To specify
e-mail server settings” for details.
5. In the Automatic Send/Receive list, choose how frequent you want e-mail
messages to be automatically sent and downloaded on your device.
Note Tap Review all download settings to select download options, set the e-mail
format as HTML or plain text, and more. For more information, see “To customize
download and format settings."
6. Tap Finish.
To specify e-mail server settings
If Auto Setup is unsuccessful, contact your ISP or e-mail provider for the Incoming
mail server and Outgoing mail server settings so you can enter them on your
device.
Other options that you can select include the following:
•Select the Outgoing server requires authentication check box, if required
by your provider.
•If the outgoing e-mail server requires a different user name and password
for sending e-mail, clear the Use the same user name and password for
sending e-mail check box. You will be prompted to enter this information.
•Tap Advanced Server Settings, then select the Require SSL check boxes if
your e-mail provider uses an SSL connection for more secured e-mail. From
the Network connection list, select the data connection that you use for
connecting to the Internet.
To customize download and format settings
Before you tap Finish when setting up your POP3 or IMAP4 e-mail account, you can
tap the Review all download settings link at the bottom of the screen to choose
download options, message format, and other settings.
118 Exchanging Messages
Options Description
Automatic Send/Receive You can select a time interval for connecting to the Internet
automatically to send and receive messages.
Download messages Set the number of days of messages that you want to be
downloaded to your device.
Send/receive when I
click Send
By default, messages are immediately delivered when you
tap Send. If you prefer to save outgoing messages to the
Outbox folder first, clear the check box. (In this case, you will
need to manually send messages by tapping
Menu > Send/Receive).
Use automatic send/
receive schedule when
roaming
This allows your device to data roam when there is a set time
interval for connecting to the Internet automatically. Since
this may result in higher connection costs, you may want to
leave the check box cleared.
When deleting
messages
Choose whether to delete messages from the mail server
when you delete them on your device.
Message format Select HTML or Plain Text.
Message download limit Select the e-mail download size. If you have large volumes of
e-mail, use a lower size or select to download headers only.
Set up a custom domain e-mail
When you are using an e-mail domain name that is hosted by a different e-mail
provider (for example, your e-mail address may be Benjamin@startup.com but
Email.com hosts the e-mail account and provides e-mail services), select the
Custom Domain option in the E-mail Setup wizard to set up your e-mail account
on your device.
1. Add a new e-mail account. See “Add an e-mail account” for instructions.
2. Enter your E-mail address and the Password for your e-mail account and
select the Save password option. Tap Next.
3. Clear the Try to get e-mail settings automatically from the Internet and
then tap Next.
Exchanging Messages 119
4. In Your e-mail provider, select Custom domain and then tap Next.
5. Enter the domain of your e-mail provider and then tap Next.
6. The E-mail Setup wizard then tries to find the e-mail provider settings on your
device or from the Internet. If the settings are found, it shows a successful
message. Tap Next.
7. Enter Your name and the Account display name and then tap Next.
Note If the E-mail Setup wizard was unsuccessful in finding the settings, you will be
prompted to enter e-mail server settings on the succeeding screens. See “To
specify e-mail server settings” for details.
8. In the Automatic Send/Receive list, choose how frequent you want e-mail
messages to be automatically sent and downloaded on your device.
Note Tap Review all download settings to select download options, set the e-mail
format as HTML or plain text, and more. For more information, see “To customize
download and format settings."
9. Tap Finish.
6.5 Using E-mail
After setting up e-mail accounts on your device, you can start sending and
receiving e-mail messages.
Create a new e-mail message
Depending on your preference, there are two ways you can create a new e-mail
message.
To start from an empty message
1. On the TouchFLO 3D Home screen, slide to the Mail tab.
2. Select the e-mail account you want to use on the right side of the screen.
120 Exchanging Messages
Tip To choose from other e-mail accounts that are not displayed on the Mail tab,
touch Menu > Accounts > Accounts and then select an e-mail account from the
Account Picker screen.
3. Touch the New E-mail icon ( ) to create a new e-mail.
To send an e-mail to a favorite contact
1. On the TouchFLO 3D Home screen, slide to the People tab.
2. Swipe your finger on the screen to flip through the photos of your favorite
contacts.
3. When the photo of the desired contact is displayed, touch the displayed
photo and then touch Send e-mail.
For more information about working with favorite contacts, see “People” in Chapter 3.
Tip You can also touch Start > Contacts, select a contact name, and then touch Send
e-mail.
Compose and send an e-mail
After creating a new e-mail, follow the steps below to enter your message and then
send it.
1. To add recipients, enter their e-mail addresses, separating them with a
semicolon. You can also tap To if you want to add e-mail addresses stored in
Contacts.
2. Enter a subject and compose your message.
Tip To choose from preset messages, tap Menu > My Text and tap a desired
message. To check the spelling, tap Menu > Spell Check.
3. Tap Send.
Tips • For more information about entering text and symbols, see Chapter 4.
•To set the message priority, tap Menu > Message Options.
•If you are working offline, e-mail messages are moved to the Outbox folder and
will be sent the next time you connect.
Exchanging Messages 121
To add an attachment to a message
1. In the message that you are composing, tap Menu > Insert and tap the item
you want to attach: Picture,Voice Note, or File.
2. Select the file or picture you want to attach, or record a voice note.
Filter the Inbox message list
When the Inbox on your device is full of
messages, you can filter your Inbox to display
only the messages that contain a particular
sender or subject you are searching for.
To filter your Inbox
Enter the sender name or e-mail subject you
want to look for. As you type characters, the
message list narrows down to the sequence of
characters you have entered.
For example, entering “J”, then “O” narrows the
list to only the e-mails that contain sender names
and e-mail subjects that start with “JO.”
View and reply to messages
To download a complete e-mail
By default, each e-mail received in the inbox on your device contains only the
first few kilobytes of the message. When you open an e-mail, it displays only the
headers and part of the message. You must download the whole e-mail to view the
complete content.
122 Exchanging Messages
To download a complete e-mail message, open the e-mail and then do one of the
following:
•Finger-scroll to the end of the message, and tap Get entire message and
any attachments (POP3 e-mail account) or tap Get the rest of this message
(IMAP4 and Outlook e-mail accounts).
•Tap Menu > Download Message.
Notes • The Fetch Mail feature, which is available for POP3 and IMAP4 Internet e-mail
accounts, downloads an entire e-mail without the need for you to perform a full
synchronization. This limits the download to just the e-mail message that you want
and helps save data cost.
Fetch Mail is also available for Outlook E-mail. See “Instant download through
Fetch Mail” in Chapter 7 for details.
•Download may take some time, depending on the speed of your Internet
connection, size of the whole e-mail, and whether file attachments are
automatically downloaded.
To download file attachments
POP3 e-mail account:
File attachments of a POP3 Internet e-mail account are automatically
downloaded when you download a complete e-mail.
IMAP4 and Outlook e-mail accounts:
File attachments appear below the subject of an e-mail message. Tapping an
attachment opens the attachment if it has been fully downloaded or marks it
for download the next time you send and receive e-mail.
You can set automatic download of file attachments. See “Customize e-mail
settings” in this chapter for details.
•
•
Exchanging Messages 123
To reply to or forward a message
1. Open the message and tap Menu > Reply,Menu > Reply All, or
Menu > Forward.
2. Enter your response, then tap Send.
Notes • You can receive and view HTML e-mails from any type of e-mail account. The
HTML format is retained, without layout shifting or resizing. HTML e-mail support
in Outlook Mobile is available only if you are synchronizing your device with
Microsoft Exchange Server 2007.
•When replying using an Outlook e-mail account, you can customize ActiveSync
to exclude addresses, including your own, from being added to the recipient list.
Tap Menu > Options in ActiveSync, select the E-mail item, tap Settings, then tap
Advanced. In the My e-mail addresses text box, enter e-mail addresses you want
to exclude.
Synchronize e-mails
Synchronizing e-mails ensures that new e-mails are downloaded to the device
Inbox folder, e-mails in the Outbox folder are sent, and e-mails deleted from the
server are removed from your device. The manner in which you synchronize e-mails
depends on the type of e-mail account you have.
To automatically synchronize an Outlook e-mail account
1. Connect your device to your computer through USB or Bluetooth.
Otherwise, connect through WiMAX, Wi-Fi, or a data connection if you
are synchronizing Outlook e-mail with the Exchange Server. For more
information, see Chapter 7.
2. Synchronization automatically begins, and your device sends and receives
Outlook e-mail.
To manually synchronize your Outlook or Internet e-mail account
1. Select your Internet e-mail account. (See “To select a messaging account” in
this chapter.)
2. Tap Menu > Send/Receive.
124 Exchanging Messages
Customize e-mail settings
To change the download size and format for Outlook e-mail
1. Disconnect your device from the computer.
2. Tap Start > Programs > ActiveSync.
3. Tap Menu > Options, select E-mail, then tap Settings.
4. On the E-mail Sync Options screen:
•Under Message format, select HTML or Plain Text. HTML is only available
when connected to Microsoft Exchange Server 2007 or later.
•Under Download size limit, select the desired e-mail size.
5. Close ActiveSync and reconnect your device to the computer.
To change the download size and format for Internet e-mail
1. Tap Menu > Options on the Account Picker screen, or tap Menu > Tools >
Options while you’re in a message list.
2. Tap your POP3 or IMAP4 Internet e-mail account.
3. Tap Download Size Settings.
4. Under Message format, select HTML or Plain Text.
5. Under Download size limit, select the desired e-mail size.
6. Tap Done.
To automatically receive attachments on Outlook e-mails
1. Tap Start > Programs > ActiveSync.
2. Tap Menu > Options.
3. Tap E-mail > Settings, then select Include file attachments.
Exchanging Messages 125
To automatically receive attachments on IMAP4 e-mails
1. Tap Menu > Options on the Account Picker screen, or tap Menu > Tools >
Options while you’re in a message list.
2. Tap the name of your IMAP4 e-mail account.
3. Tap Download Size Settings.
4. In Download attachments:
Select All attachments to always download file attachments; or
Select a file size limit for auto-downloading attachments.
5. Tap Done.
To store attachments on the storage card
1. Tap Start > Messaging.
2. Tap Menu > Options > Storage tab.
3. Select the When available, use this storage card to store attachments
check box.
•
•
126 Exchanging Messages
Chapter 7
Working With Company E-mails and
Meeting Appointments
7.1 Synchronizing with the Exchange Server
7.2 Working With Company E-mails
7.3 Managing Meeting Requests
7.4 Finding Contacts in the Company Directory
128 Working With Company E-mails and Meeting Appointments
7.1 Synchronizing with the Exchange Server
To keep up-to-date with your company e-mails and meeting schedules while you’re
out of the office, you can connect your device to the Internet through WiMAX, Wi-Fi,
or a data connection and synchronize with your company’s Exchange Server.
Set up an Exchange Server connection
Before you can synchronize or access information on the Exchange Server, you
need to set up an Exchange Server connection on your device. You need to get the
following information from your network administrator and enter them on your
device:
•Exchange Server name (must be Outlook Web Access server name)
•Domain name
•User name and password that you use at work
If you have not synchronized your device with your computer, follow these steps to
set up an Exchange Server connection.
1. Add a new e-mail account. See “Add an e-mail account” in Chapter 6 for
instructions.
2. Enter the E-mail address and Password for the e-mail account and select the
Save password option. Tap Next.
3. Clear the Try to get e-mail settings automatically from the Internet option
and tap Next.
4. In Your e-mail provider, select Exchange server and tap Next.
5. Tap Next again.
6. Select the Attempt to detect Exchange Server Settings automatically
option and tap Next.
7. Enter the Domain name and tap Next.
8. In Server address, enter the Exchange Server address and tap Next.
Working With Company E-mails and Meeting Appointments 129
9. Select the items that you want to sync with the Exchange Server.
Tips • To change synchronization settings of an information item, for example, E-mail,
select the item, then tap Settings.
•To change the rules for resolving synchronization conflicts, tap Menu >
Advanced.
10.Tap Finish.
Notes • If you synchronized e-mails with your computer before, open ActiveSync on
your device, then tap Menu > Add Server Source to set up an Exchange Server
connection. When prompted to select information types for synchronization, you
must first clear the E-mail check box under the Windows PC item before you can
select E-mail under Exchange Server.
•To change Exchange Server settings, open ActiveSync on your device, then tap
Menu > Configure Server.
Start synchronization
Before you start synchronizing with the Exchange Server, make sure your device has
been set up with a WiMAX, Wi-Fi, or data connection to the Internet so that you can
synchronize over the air. For more information about connections, see Chapter 8.
After you finish setting up an Exchange Server connection, your device
automatically starts synchronization.
To manually start synchronization, you can do one of the following:
On the TouchFLO 3D Home screen, slide to the Settings tab and then touch
Sync Data; or
Tap Start > Programs > ActiveSync and then tap Sync.
Note If you connect your device to your office computer via a USB or Bluetooth connection,
you can use this connection to the computer to “pass through” to the network and
download Outlook e-mails and other information to your device.
•
•
130 Working With Company E-mails and Meeting Appointments
7.2 Working With Company E-mails
Your device gives you instant access to your company e-mails and lets you manage
your messages easier. Direct Push, Fetch Mail, Remote e-mail search, and e-mail
flags are just some of the tools you can use to manage your e-mails.
Note Some messaging features depend on the Microsoft Exchange Server version used in
your company. Check with your network administrator for the availability of these
features.
Automatic synchronization through Direct Push
Direct Push technology (push e-mail feature) enables you to receive new e-mails
on your device as soon as they arrive in your Inbox on the Exchange Server. Items
such as contacts, calendar and tasks are also immediately updated onto your device
when these items have been changed or new entries have been added on the
Exchange Server. To make Direct Push work, you need to have a WiMAX, Wi-Fi, or data
connection on your device.
You need to perform a full synchronization between your device and the Exchange
Server first before Direct Push can be enabled.
Requirement The Direct Push feature works for your device only if your company is using
Microsoft Exchange Server 2003 Service Pack 2 (SP2) with Exchange
ActiveSync or higher version.
To turn on Direct Push in ActiveSync
1. Tap Start > Programs > ActiveSync and then tap Menu > Schedule.
2. Select As items arrive in the Peak times and Off-peak times boxes.
Note When Direct Push is off, you need to manually retrieve your e-mails.
Working With Company E-mails and Meeting Appointments 131
Scheduled synchronization
If you do not want to use Direct Push, you can set a regular schedule for
synchronizing Outlook e-mail and information.
1. In ActiveSync on your device, tap Menu > Schedule.
2. Select a shorter time interval in the Peak times box for you to be able to
receive e-mails more frequently. (Peak times usually refer to your working
hours when e-mail volume is high).
3. Select a longer interval in the Off-peak times box.
Tip To set the days and hours that make up your peak and off-peak times, tap the
peak times link at the bottom of the screen.
Instant download through Fetch Mail
The Fetch Mail feature downloads an entire e-mail immediately without the need
for you to perform a full Send/Receive action. This limits the download to just the
e-mail message that you want and helps save data cost.
Requirement Fetch Mail works for your device only if your company is using Microsoft
Exchange Server 2007 or higher.
1. On the TouchFLO 3D Home screen, slide to the Mail tab, select your Outlook
account, and then tap Inbox.
Tip You can also tap Start > Messaging > Outlook E-mail.
2. Open an e-mail message.
3. By default, only the first few words of the message is shown. To download the
whole e-mail, finger-scroll to the end of the message, then tap Get the rest
of this message.
4. Wait for the remainder of the message body to download.
132 Working With Company E-mails and Meeting Appointments
Notes • For information about changing e-mail sync options such as setting the download
size for e-mail, see "Customize e-mail settings" in Chapter 6.
•When you receive an e-mail that contains a link to a document such as a PDF or
Microsoft Office document located on SharePoint or an internal file server, you
can tap the link to view the document on your device. You can view the document
only if you have a Microsoft Outlook account that synchronizes with Microsoft
Exchange Server 2007 or later. Exchange Server must also be set up to allow access
to SharePoint document libraries or internal file servers.
Search for e-mails on the Exchange Server
You can access e-mails that are not available on your device by searching your
Microsoft Exchange Server mailbox. The search results are downloaded and
displayed in a Search Results folder.
Requirement Your company must be using Microsoft Exchange Server 2007 or higher.
1. Tap Start > Messaging > Outlook E-mail.
2. Tap Menu > Tools > Search Server.
3. In the Look for text box, enter the search keyword.
4. Choose the date range of messages to search from.
5. In the Look in list, specify whether to search in the Inbox,Sent Items, or All
Folders.
6. Tap Search.
Tip To clear the search results and return to the message list, tap Menu > Clear Results.
Working With Company E-mails and Meeting Appointments 133
Flag your messages
Flags serve as a reminder for you to follow-up on important issues or requests
contained in e-mail messages. Flagging messages, which has been a useful feature
on desktop Outlook E-mail, can also be done in Outlook Mobile on your device. You
can flag received e-mail messages on your device.
Requirement Flags are enabled only if e-mails are synchronized with Microsoft Exchange
Server 2007 or higher. Flags are disabled or hidden if e-mails are
synchronized with earlier versions of Microsoft Exchange Server.
To flag or unflag a message
1. Open Outlook on your device and access the Inbox.
2. Select a message or open a message.
3. Tap Menu > Follow Up and select one of the
following options:
•Set Flag Mark the message with a red flag
to indicate that it needs follow up.
•Complete Flag Mark the message with a
check mark to indicate that the issue or
request in the e-mail is already completed.
•Clear Flag Remove the flag to unmark the
message.
Note E-mail message reminders are displayed on your
device if the messages are flagged with reminders
and synchronized from the Exchange Server.
134 Working With Company E-mails and Meeting Appointments
Out-of-office auto-reply
Outlook Mobile allows you to retrieve and change
your out-of-office status. Just like desktop Outlook
E-mail, Outlook Mobile automatically sends an auto-
reply message when you’re not available.
To send out-of-office auto-reply messages
1. Tap Start > Messaging > Outlook E-mail.
2. Tap Menu > Tools > Out of Office.
3. In the I am currently list, select Out of the
Office.
4. Enter your auto-reply message, then tap Done.
7.3 Managing Meeting Requests
When you schedule and send meeting requests from your device, you can invite
attendees to your meeting and check their status to know about their availability.
When you receive a meeting request, you can reply by accepting or declining
the request. The meeting request also clearly indicates whether or not there are
conflicting or adjacent meetings.
Requirement Your company must be using Microsoft Exchange Server 2007 or higher.
To reply to a meeting request
1. When you receive a meeting request e-mail, a notification will be displayed
on your device. Open the e-mail.
2. Tap Accept to reply and accept the meeting request, or tap Menu > Decline
if you cannot attend the meeting.
Working With Company E-mails and Meeting Appointments 135
Tips • Before responding, you can check your availability during the time of the
requested meeting by tapping View your calendar.
•If the time of the meeting conflicts with your other appointments, a
“Scheduling Conflict” status appears on top of the e-mail.
3. Choose whether or not to edit your response e-mail before sending, then tap OK.
If you accepted the meeting request, it will automatically be added as an
appointment in Calendar on your device.
To view the list of meeting participants
1. Tap Start > Calendar.
2. Tap a meeting request that you sent and then tap Attendees. The required
and optional attendees will be listed.
Icons indicating whether each attendee has accepted or declined the
meeting request will also be displayed.
Note To see the icon indicators in the attendees list, make sure Calendar is
synchronized with the Exchange Server.
136 Working With Company E-mails and Meeting Appointments
Tips • For information about creating a meeting request, see “To send a meeting request”
in Chapter 12.
•To view an attendee’s contact information, tap the attendee’s name. If the attendee
is included in your contacts list, you will see the contact information immediately.
If the attendee is not in your contacts list, tap Company Directory to view the
contact information.
7.4 Finding Contacts in the Company Directory
In addition to having contacts on your device, you can access contact information
from your organization’s Company Directory. By having over-the-air access to the
Company Directory, you can easily send e-mail messages and meeting requests to
anyone in your company.
Requirement Access to the Company Directory is available only if your organization is
running Microsoft Exchange Server 2003 SP2 or higher, and you have
completed your first synchronization with the Exchange Server.
1. Synchronize with the Exchange Server.
2. Do any of the following:
•In Contacts, tap Menu > Company Directory.
Working With Company E-mails and Meeting Appointments 137
•In a new e-mail message, tap the To box (or tap Menu > Add Recipient),
then tap Company Directory on the top of the list.
•When creating a meeting request and selecting required and optional
attendees in Calendar, tap Company Directory.
138 Working With Company E-mails and Meeting Appointments
3. Enter a partial or full contact name and tap Search. In the search results list,
tap a contact to select it.
Notes • You can save a contact from the Company Directory to your device by selecting
the contact, then tapping Menu > Save to Contacts.
•You can search on the following information as long as that information is included
in the Company Directory: First name, Last name, E-mail name, Display name,
E-mail address, or Office location.
Chapter 8
Internet
8.1 Ways of Connecting to the Internet
8.2 Starting a Data Connection
8.3 Using Opera Mobile™
8.4 Using YouTube™
8.5 Using Windows Live™
8.6 Using RSS Hub
8.7 Using Your Device as a Modem (Internet Sharing)
140 Internet
8.1 Ways of Connecting to the Internet
Your device’s networking capabilities allow you to access the Internet or your
corporate network at work through one of the following connections:
•Mobile WiMAX
•Wi-Fi
•EDGE (or GPRS)
•Dial-up
Note You can also add and set up the following connections:
• VPN: A VPN connection is used to access your corporate network by using an
existing Internet connection.
•Proxy: A Proxy connection is used to access the Internet using an existing
connection to your corporate or WAP network.
Mobile WiMAX
Mobile WiMAX (Worldwide Interoperability for Microwave Access) provides wireless
Internet access over greater distances than Wi-Fi and delivers data transfer rates of
up to 30 Mbps.
Note You cannot connect to a WiMAX and a Wi-Fi network simultaneously. When you turn
on WiMAX while your device is connected to a Wi-Fi network, a message appears
prompting you to disconnect the Wi-Fi connection first. See “Wi-Fi” in this chapter to
know how to turn Wi-Fi on or off.
To turn WiMAX on and off
1. On the Home screen, slide to the Settings tab.
2. On the Settings screen, tap Communications > WiMAX to enable/disable the
WiMAX function.
When enabled, the On indicator is activated and your device automatically
connects to your wireless service provider’s WiMAX network.
Internet 141
To check the WiMAX network status
You can check the current WiMAX connection status from any of the following
screens of your device:
•Title bar
When you enable WiMAX on your device, the
WiMAX connecting icon ( ) appears on the
Title bar. Once your device successfully connects
to a WiMAX network, the icon changes to ( ).
•WiMAX settings screen
On the Home screen, slide to the Settings tab
and then tap All Settings > Connections tab
> WiMAX. On the Status tab, you will see the
connection status to the WiMAX network.
The configuration and signal quality of the
WiMAX network connection are also shown.
Wi-Fi
Wi-Fi provides wireless Internet access over distances of up to 300 feet (100 meters).
To use Wi-Fi on your device, you need access to a wireless access point or “hotspot”.
Note The availability and range of your device’s Wi-Fi signal depends on the number,
infrastructure, and other objects through which the signal passes.
To turn Wi-Fi on and off
1. On the Home screen, slide to the Settings tab.
2. On the Settings screen, tap Communications > Wi-Fi to enable/disable the
wireless function.
When enabled, the On indicator is activated and available wireless networks
will be detected.
142 Internet
Note You cannot connect to a Wi-Fi and a WiMAX network simultaneously. When you turn
on Wi-Fi while your device is connected to a WiMAX network, a message appears
prompting you to disconnect the WiMAX connection first. See “Mobile WiMAX” in this
chapter to know how to turn WiMAX on or off.
To connect to a Wi-Fi network
After Wi-Fi is turned on, your device scans for available Wi-Fi networks in your area.

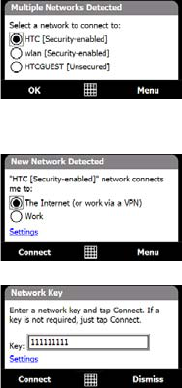

1. The network names of the detected wireless
networks are displayed on a pop-up message
window. Tap the desired Wi-Fi network, then
tap OK.
Note When you select an open (unsecured)
network, you will be automatically connected
to the network after tapping OK. You do not
need to do steps 2 and 3.
2. On the next pop-up message window, do one
of the following:
•Tap The Internet if the wireless network
connects your device to the Internet.
•Tap Work if the wireless network connects
your device to a private network.
3. Enter the key and then tap Connect.
Internet 143
Next time you use your device to detect Wi-Fi networks, you will not see the pop-up
message windows again, and you will not be prompted to enter the network key of
the previously accessed Wi-Fi network (unless you perform a hard reset which will
erase custom settings on your device).
Note Wi-Fi networks are self-discoverable, which means no additional steps are required for
your device to connect to a Wi-Fi network. It may be necessary to provide a username
and password for certain closed wireless networks.
To check Wi-Fi network status
You can check the current Wi-Fi connection status from any of the following screens
of your device:
•Title bar
When you enable Wi-Fi on your device, the Wi-Fi ON icon appears on the
title bar.
After Wi-Fi is turned on, your device scans for available wireless networks and
the wireless signal icon appears on the title bar. The arrows in this icon
move back and forth while your device is scanning for a Wi-Fi network signal.
Once your device successfully connects to a Wi-Fi network, the arrows stop
moving.
144 Internet
•Wireless LAN screen
On the Home screen, slide to the Settings tab
and then tap Menu > Wireless Networks. On
the Main tab, you will see the Wi-Fi network that
your device is currently connected to.
The configuration and signal quality of the Wi-Fi
network are also shown.
•Configure Wireless Networks screen
On the Home screen, slide to the Settings tab
and then tap All Settings. In the Connections
tab, tap Wi-Fi. This screen displays the Wi-Fi
networks currently available.
To connect to a Wi-Fi network in the list, tap and
hold on the desired network, then tap Connect.
Tap a Wi-Fi network in the list to view or change
its connection settings.
You can also add new Wi-Fi networks, if
available, by tapping Add New.
Internet 145
To save battery power while connected to a Wi-Fi network
Using Wi-Fi quickly consumes battery power. Turn off Wi-Fi when not in use. You can
also enable power saving settings.
1. On the Home screen, slide to the Settings tab.
2. On the Settings screen, tap Menu > Wireless
Networks > Power Mode tab.
3. On the Power Mode tab, move the Power
Save Mode slider to a position that
optimizes performance with the least power
consumption.
For example, move the slider to the left (Best
Performance) to have the optimal wireless
network performance; move to the right (Best
Battery) to obtain the maximum battery usage.
EDGE
Use EDGE (or GPRS) to connect to the Internet and to send and receive e-mail on
your device. You will need a data plan to use your wireless service provider’s EDGE
network. Check with your wireless service provider to find out about EDGE rates.
EDGE settings are already preconfigured on your device, and your device is ready
to use your wireless service provider’s EDGE services. Do not change the settings as
this may cause services to stop working.
146 Internet
To add a new EDGE/GPRS connection
When you need to add another EDGE/GPRS connection on your device, obtain the
Access point name from your wireless service provider. Also, check if the EDGE/
GPRS network requires a user name and password.
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the Connections tab, tap Connections.
3. In My ISP, tap Add a new modem connection.
4. On the Make New Connection screen, enter a name for the connection.
5. In the Select a modem list, select Cellular Line (GPRS , 3G), then tap Next.
6. Enter the Access point name, then tap Next.
7. Enter the user name and password, if required, then tap Finish.
Notes • To view help information for any screen, tap the help icon ( ).
•To modify your connection settings, tap Manage existing connections and then
tap Edit.
Internet 147
Dial-up
To set up a dial-up connection to your Internet Service Provider (ISP) on your
device, you need the same settings that you normally use when you dial up from
your computer. This includes the ISP server phone number, your user name and
password.
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the Connections tab, tap Connections.
3. In My ISP, tap Add a new modem connection.
4. In the Select a modem list, select Cellular Line, then tap Next.
5. Enter the ISP server phone number, then tap Next.
6. Enter your user name, password, and any other information required by your
ISP, then tap Finish.
8.2 Starting a Data Connection
After setting up a data connection such as EDGE/GPRS or ISP dial-up on your
device, you can now connect your device to the Internet. The connection is started
automatically when you begin using a program that accesses the Internet such as
Opera Mobile.
To manually start a data connection
If you have set up multiple types of data connections on your device, you can
manually start a connection.
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the Connections tab, tap Connections.
3. Tap Manage existing connections.
4. Tap and hold the name of the desired connection, then tap Connect.
148 Internet
To disconnect active data connections
1. Tap Start > Programs > Comm Manager.
2. Tap the Data Connection button.
8.3 Using Opera Mobile™
Opera Mobile™ is a full-featured Internet browser, optimized for use on your
device.
Note You can also use Internet Explorer® Mobile to browse the web. To open Internet
Explorer Mobile, tap Start > Internet Explorer.
1
2
34 56 7
8
109
Internet 149
1Refresh. Tap to reload the web page being viewed.
2Address bar. Enter the URL of the web site here.
3Back. Tap to go back to the previous web page viewed.
4Bookmarks. Tap to go to the Bookmarks screen where you can add a bookmark,
edit bookmarked web pages, and send the favorite URL link via one of the
Messaging accounts.
5Tabs. Tap to add a new browsing tab or switch to another existing browsing tab.
6Home. Tap to go to the Home page.
7Menu. Tap to open a list where you can change Opera Mobile settings, check
downloads, view History, and more.
8Close tab. Tap to close the current tab. This is only enabled if you have more
than one tab opened.
9Zoom control. Tap to open the zoom control bar and zoom in or out on a page.
10 Exit Full Screen mode. When browsing the web, Opera Mobile automatically
switches to Full screen mode. Tap to show the address and Menu bars again.
To open Opera Mobile
On the Home screen, slide to the Internet tab and then tap Browser.
To go to a web site
1. On the Opera Mobile screen, tap the address bar.
2. Enter the URL address and tap .
Search field
Address bar
Tip When you tap the address bar, a search field also appears. Quickly search the web by
entering the search item and tapping .
150 Internet
View web pages
While browsing web pages, use finger gestures to pan and zoom on the web page.
•To zoom in, tap your finger twice on
the screen. To zoom out, tap your finger
twice on the screen again.
•Tap the Zoom control to open the zoom
control bar. Move the slider to the right
to zoom in or to the left to zoom out on
the page.
Tip Touch and hold an empty area on a web
page to open a shortcut menu that lets
you go back to the previous page, reload
the page, add the page as a Favorite, and
more. You can also tap and hold a link or
image on a web page to open a menu with
different options. Zoom
control
bar
Slider
To change the screen orientation
Change the screen orientation
by simply turning your device
sideways.
Internet 151
Opera Mobile menu
On the menu bar, tap to open the menu.
Tap to open the Settings screen where you
can set the default home page, change display
settings, set privacy settings, and more.
Tap to view items being downloaded. You
can also resume or stop current downloads.
Tap to view information about the Web
page you are browsing.
Tap to see web pages that you have viewed.
Tap to manage and view web pages that you
have saved.
Tap to open the Opera Mobile help file.
Tap to close Opera Mobile completely.
Opera Mobile will not run in the background.
Note: For more information about using Opera Mobile, go to:
http://www.opera.com/products/mobile/
152 Internet
8.4 Using YouTube™
YouTube™ lets you browse, search, and watch video clips from the YouTube server.
Note You need an active connection to use YouTube. If you are using a EDGE/GPRS
connection, your data connection bill may increase significantly due to large file sizes
of the videos.
To open YouTube
Tap Start > Programs > YouTube.
Tap to open the Program
Guide list. The Program
Guide list only appears if you
are subscribed to a channel.
Displays the current program
channel being viewed.
Tap to close the
YouTube.
Tap the arrows to
filter the list by Most
Viewed,Top Rated,
and Featured.
Displays the available
videos for the
selected program
channel. Tap a video
to watch it. Tap
to view details about
the video.
Tap to switch
between the
different YouTube
screens.
Tap to set video
playback quality.
Internet 153
Browse for videos
The Program Guide list lets you change the program channel so you can browse
different types of videos available on the YouTube server. By default, there is only
one channel in the Program Guide.
To add a new program channel into the Program Guide list
1. On the YouTube screen, tap .
2. On the Search screen, enter the
channel you want to add to the
Program Guide list.
3. Tap Search. YouTube searches for
the channel and then displays the
available videos from it.
4. Tap and then on the
confirmation screen, tap OK. The
channel you just subscribed to
will now be shown when you tap
Program Guide.
Tip You can also add a YouTube user as a
program channel. To add, tap in
any of the YouTube screens and then
tap .
To change the program channel
1. On the Videos screen, tap Program Guide at the top of the screen.
2. On the Program Guide list, select a channel.
3. The video list refreshes to display the available videos for the newly selected
channel.
154 Internet
To delete a program channel from the Program Guide list
You can only delete program channels that you have added to the Program Guide list.
1. On the Videos screen, tap Program Guide.
2. Scroll down to the channel you want to delete and then tap .
3. On the confirmation screen, tap Yes .
Watching videos
On the Videos, Bookmarks, or History screen, tap a video to launch the YouTube
Video Player.
Tap to go back to
the beginning of the
video. .
Tap to toggle
between playing
and pausing the
video.
Tap to stop the
video playback.
Tap to resize
the video to
fit the screen.
Tap again to go
back to actual
size.
Drag to go forward or
backward in the video.
Buffered video
Download
progress
Tip To adjust the volume, press the VOLUME CONTROLS on the side of the device.
When you tap Stop ( ) or finish watching the entire video, you are presented
with options on what you can do next.
Internet 155
Tap to send the link
to the video you just
watched to another
person using one
of the Messaging
accounts. Tap to add the video
to your Bookmarks.
Tap to play back
the video again.
Tap to view details
about the video
you just watched.
Tap to go to the
next page of
related videos.
If no action
is taken, it
automatically goes
to the next page
after 10 seconds.
Tap to go back to
the previous page
of related videos.
Bookmarks
You can store frequently viewed videos into Bookmarks for quick access.
To view Bookmarks
On the YouTube screen, tap . Tap a video to
watch it.
To add a video into Bookmarks
Do one of the following:
•After watching a video, tap .
•On the list of videos, tap on the video
you want to add to Bookmarks and then tap
.
156 Internet
To delete a video from Bookmarks
1. On the Bookmarks screen, tap Edit.
2. Tap on the video you want to remove from Bookmarks.
3. On the confirmation screen, tap Yes .
4. Tap Done.
History
View recently watched videos on the History screen.
To view History
On the YouTube screen, tap . Tap a video to
watch it.
Note To clear the History list, tap Clear.
Internet 157
8.5 Using Windows Live™
Windows Live™ gives you a full Internet experience on your device. Windows Live™
helps you to find information, pursue your interests, and get in touch with friends
and family on the Internet easier.
Windows Live™ offers the following key features:
•Live Search Bar, which lets you search for information on the web.
•Live Messenger, the next generation of MSN Messenger Mobile.
•Live Mail, the next generation of Hotmail.
•Live Contacts, your address book for storing Live Mail, Live Messenger and
Hotmail contacts.
Set up Windows Live™
The first time you use Windows Live™, sign in using your Windows Live™ ID, which is
your Windows Live™ Mail or Hotmail address, and password.
To set up Windows Live™ for the first time
1. Tap Start > Programs > Windows Live and then tap Sign in to Windows
Live.
2. Tap the links to read the Windows Live™ Term of Use and the Microsoft
Privacy Statement. After reviewing them, tap Accept.
3. Enter your Windows Live™ Mail or Hotmail address and password, select the
Save password checkbox, then tap Next.
4. Tap Next.
158 Internet
5. Choose what information you want to sync
online with your device.
If you select Store Windows Live contacts
in your mobile phone’s contact list, your
Windows Live™ contacts will be added to the
contact list and to Windows Live™ Messenger
on your device.
If you select Sync e-mail, your Windows
Live™ Mail or Hotmail inbox messages will be
downloaded to your device.
6. Tap Next.
7. After synchronization is complete, tap Done.
The Windows Live™ interface
On the Windows Live™ main screen, you will
see a search bar, navigation buttons, and an
area where you can show and customize your
profile.
1Search bar
2Navigation buttons. Tap the left
or right arrow to switch between
Windows Live™ Messenger, Windows
Live™ Mail, and Sync status.
3Tap Menu to access and change
settings.
4Tap to change the display name,
picture, or personal message.
1
2
4
3
Internet 159
Windows Live™ Messenger
With this mobile version of Windows Live™ Messenger, you enjoy many of the
same cool features that you get from the desktop version, which include the
following:
•Instant messaging via text and voice
•Multiple conversations
•Insert emoticons
•Contact list with presence
•Send and receive files including photos
•Change status/display name
•View contacts by online status, groups, and
more
•Send messages even when a contact is
offline
Note Before you can use Windows Live™ Messenger,
your device must be connected to the Internet.
For information about setting up an Internet
connection, see “Ways of Connecting to the
Internet” in this chapter.
Launch Messenger and sign in
To open Windows Live™ Messenger
Do one of the following:
•Tap Start > Programs > Messenger.
•On the Windows Live™ main screen, tap the left or right arrow until you see
Messenger, then tap it.
160 Internet
To sign in and out
1. Tap Sign in on the Messenger screen.
2. If this is your first time to sign in, a message appears to inform you that your
messenger contacts will be added to the contact list on your device. Tap OK
to add them.
Signing in may take several minutes, depending on your connection speed.
3. To sign out, tap Menu > Sign Out.
To start and end conversations
1. In the contact list, select a contact, then tap Send IM to open a message screen.
2. Enter your text message in the text entry area of the message screen.
3. To add an emoticon, tap Menu > Add emoticon then tap an icon from the list.
4. Tap Send.
5. To end a conversation with the current contact, tap Menu > End conversation.
Tips • To send a file, tap Menu > Send. You can choose to send a picture, voice clip or any
file.
•To invite one or more contacts to the conversation, tap Menu > Options >
Add participant.
•To send a voice message, tap Voice Clip on a message screen then start talking.
After you have recorded a message, tap Send.
Add Windows Live™ contacts
You can add new Windows Live™ contacts in Windows Live™ Messenger or in
Contacts.
To add a Windows Live™ contact in Live Messenger
1. Tap Menu > Add new contact.
2. Enter the e-mail address of the contact, then tap OK.
Internet 161
To add a Windows Live™ contact in Contacts
1. On the Home screen, slide to the People tab and then tap All People.
2. Tap New, then tap Windows Live.
3. In the IM box, enter the e-mail address of the contact, which can be a
Windows Live ID or any other e-mail address.
Tip You can fill in other information about the contact, if desired. This is not
necessary if you will communicate with the contact only through Windows Live™
Messenger or Live Mail.
4. Tap OK.
5. Follow the remaining instructions to add the new contact to your Windows
Live™ contact list.
8.6 Using RSS Hub
RSS Hub is an RSS reader that keeps you up-to-date with the latest news from the
Internet. It monitors Internet news channels and downloads the most current news
updates and podcasts so you are instantly informed of breaking news and events.
For more information and tips on using RSS Hub, see Help on your device.
Note Make sure you have an active Internet connection (such as EDGE/GPRS, Wi-Fi, or
WiMAX) before using RSS Hub.
Subscribe to and organize news channels
You must subscribe to news channels before you can receive RSS feeds.
162 Internet
To subscribe to news channels
1. Tap Start > Programs > RSS Hub, then tap Continue.
2. In the New Channel Wizard screen, select the Choose from a list of known
Channels option, then tap Next. A list of RSS channels is displayed.
Channels
Category
Tap to load pre-selected RSS channels.
Note If the RSS channel you want to subscribe to is not in the list of known channels,
tap Back, then select another option on the New Channel Wizard screen. For
more information on these other options, see the Help on your device.
3. Select the checkboxes of the RSS channels you want to subscribe to, then tap
Finish.
Tip Channels are grouped by categories. If you want to select all channels in a
category, select the category check box.
4. The channel list appears. Tap Refresh to update the channels.
Internet 163
Tap to cancel
channel
updating
Channel is
updated. Tap
it to view the
headlines.
Tap to select the
channel category
to display
Headline
count
Tap to update
the channels
Channel list
To add new channels
1. In the channel list, tap Menu > Channel > New to open the New Channel
Wizard screen.
2. Select an option, then follow screen instructions to add new channels. For
more information on New Channel Wizard options, see Help on your device.
To filter the channels in the display
In the channel list, tap Menu > View, then select:
•Updated to display only those channels with unread headlines.
•All to display all subscribed channels.
164 Internet
Manage channel categories
To view all the channels in a particular category, tap All Categories in the upper left
area of the channel list, then tap the category you want to display.
To add a new category, tap Menu > Categories in the channel list to display all
categories, then tap Menu > New.
To rename or delete a category, tap Menu > Categories in the channel list to
display all categories, select a category, then tap Menu > Rename or Menu >
Delete.
If you want to change the channel category, tap and hold the channel in the
channel list, then tap Change Category. Select a new category and tap OK.
View and organize headlines
Tap a channel in the channel list to display the headlines for that channel.
Tap a headline to open
the news summary
screen
Headline or news
summary contains
a keyword
Tap to download audio/
video file attachment
Audio/Video/Image
file attachment is
downloading
Tap to play back or view
the file attachment.
New or unread
headline
Headline has
been read
Tap to return to
the channel list
Internet 165
New or unread headlines display in bold and are marked with a blue newspaper
icon. Headlines that have been read are marked with a gray newspaper icon.
View the news summary
Tap a headline in the headline list to display the news summary.
Headline and
read status
Audio/Video/Image
file attachment.
Tap to download
the file.
News summary
Tap to open the news
item in Opera Mobile.
See “Using Opera
Mobile” in this chapter
for details.
Channel name
Tap to return to
the headline list
To change view options
In the news summary screen, tap Menu to change the text size, fit the text to the
screen (text wrap), or enable ClearType for better viewing.
166 Internet
To download, play, or save podcasts
1. When you see an audio or video file attachment
in the news summary, do one of the following to
download the file:
•Tap Menu > Podcasts > Start Download.
•Tap the Download audio/Download video
link below the audio/video file icon.
Tip To cancel the file download, tap Menu >
Podcasts > Cancel Download, or tap Cancel
download below the audio/video file icon.
2. After downloading the file, do one of the
following:
•Tap Menu > Podcasts > Play or tap
Play audio/Play video below the audio/
video file icon to play back the file.
•Tap Menu > Podcast > Save to save a copy
of the file to the device’s main memory or
storage card.
To send the headline link via e-mail
1. In the news summary screen, tap Menu > Send Link via Email.
2. Messaging opens and displays the Account Picker screen. Tap the e-mail
account you want to use to send the headline link.
A new e-mail message is then created with the headline link.
3. Specify the e-mail recipients, then send it.
Note For more information on how to compose e-mails, see “Using E-mail” in Chapter 6.
To view the next or previous news summary
In the news summary screen, tap Menu > Next or Menu > Previous.
Internet 167
For more information about the features and how to configure RSS Hub, refer to the
online help. To open the online help, tap Start > Help while in RSS Hub.
8.7 Using Your Device as a Modem (Internet Sharing)
Internet Sharing connects your desktop or notebook computer to the Internet by
using your device’s data connection (WiMAX, EDGE, or GPRS, for instance). You can
choose to connect via USB or Bluetooth.
Notes • Make sure your device has a SIM card installed, and your device has an EDGE/GPRS
or phone dial-up modem connection. If your device has not been set up with a
data connection yet, tap Menu > Connection Settings on the Internet Sharing
screen. For more information about setting up these connections, see "EDGE" and
"Dial-up" in this chapter.
•If you want to use a USB cable connection, you must first install Windows Mobile
Device Center or Microsoft ActiveSync version 4.5 or later on the computer.
•If you want to use a Bluetooth connection, make sure your computer has built-in
Bluetooth capability. If your computer does not have Bluetooth, you can connect
and use a Bluetooth adapter or dongle.
•Turn off WiMAX if you will use your device as a Bluetooth modem. See “Mobile
WiMAX” in this chapter to know how to turn WiMAX on or off.
•Before using Internet Sharing, disconnect from Windows Mobile Device Center or
ActiveSync on your computer.
168 Internet
To set up your device as a USB modem
1. On your device, tap Start > Programs >
Internet Sharing.
2. In the PC Connection list, select USB.
3. In the Network Connection list, select the
name of the connection that your device uses to
connect to the Internet.
4. Connect your device to the computer using the
USB cable.
5. Tap Connect.
To use your device as a Bluetooth modem
For the computer to use the Internet connection of your device, activate Internet
Sharing on your device, then set up a Bluetooth Personal Area Network (PAN)
between the computer and your device.
1. On your device, turn on Bluetooth and set it to visible mode by following
the steps in “To turn Bluetooth on and make your device visible” section in
Chapter 9.
2. Initiate a Bluetooth partnership from your device by following the steps in “To
create a Bluetooth partnership”
3. Tap Start > Programs > Internet Sharing.
4. Select Bluetooth PAN as the PC Connection.
5. From the Network Connection list, select the name of the connection that
your device uses to connect to the Internet.
6. Tap Connect.
Internet 169
7. On your computer, set up a Bluetooth Personal Area Network (PAN) with your
device:
For Windows Vista:
a. Click Start > Control Panel > Network and Internet > Network and
Sharing Center.
b. Click Manage network connections and then under Personal Area
Network, double-click Bluetooth Network Connection.
c. In the Bluetooth Personal Area Network Devices dialog box, select your
device, then click Connect.
For Windows XP:
a. Tap Start > Control Panel > Network Connections.
b. Under Personal Area Network, click the Bluetooth Network Connection
icon.
c. Under Network Tasks, click View Bluetooth network devices.
d. In the Bluetooth Personal Area Network Devices dialog box, select your
device, then click Connect.
Note If the Bluetooth adapter or dongle on your computer was installed using a third-
party provided driver, open the Bluetooth software that came with the Bluetooth
adapter/dongle to connect your computer and device via Bluetooth. Refer to the
Bluetooth adapter/dongle documentation for more information.
8. On the Internet Sharing screen on your device, check if a connected
status message is displayed, which indicates that your computer has been
successfully connected to the Internet using your device as a Bluetooth
modem.
To end the Internet connection
On the Internet Sharing screen, tap Disconnect.
170 Internet
Set up your device as a WiMAX modem
You can use your device to connect your desktop or notebook computer to the
Internet using your WiMAX connection.
Note Make sure that you are within a WiMAX coverage area before you set up your device
as a WiMAX modem.
1. Turn on WiMAX on your device. See “Mobile WiMAX” earlier in this chapter to
know how to turn WiMAX on.
2. Connect the device to your desktop or notebook computer using the USB
sync cable.
3. Do any of the following:
•When the Connect to PC screen appears, select WiMAX Modem,
then tap Done.
•Tap Start > Programs > WiMAX Modem.
4. On the WiMAX Modem screen, tap Connect.
To end the WiMAX modem connection
On the WiMAX Modem screen, tap Disconnect.
Chapter 9
Bluetooth
9.1 Bluetooth Modes
9.2 Bluetooth Partnerships
9.3 Connecting a Bluetooth Hands-free or
Stereo Headset
9.4 Beaming Information Using Bluetooth
9.5 Printing Files via Bluetooth
172 Bluetooth
9.1 Bluetooth Modes
Bluetooth is a short-range wireless communications technology. Devices with
Bluetooth capabilities can exchange information over a distance of about eight
meters without requiring a physical connection.
Bluetooth on your device operates in three different modes:
•On. Bluetooth is turned on. Your device can detect other Bluetooth-enabled
devices, but not vice versa.
•Visible. Bluetooth is turned on, and all other Bluetooth-enabled devices can
detect your device.
•Off. Bluetooth is turned off. In this mode, you can neither send nor receive
information using Bluetooth.
Notes • By default, Bluetooth is turned off. If you turn it on, then turn off your device,
Bluetooth also turns off. When you turn on your device again, Bluetooth
automatically turns on.
•Turn off Bluetooth when not in use to conserve battery power, or in places where
using a wireless device is prohibited, such as on board an aircraft and in hospitals.
To turn Bluetooth on and make your device visible
1. On the Home screen, slide to the Settings tab and then tap Menu >
Bluetooth Devices > Mode tab.
2. Select the Turn on Bluetooth and Make this device visible to other devices
check boxes.
Note When you turn on Bluetooth while your device is connected to a WiMAX network,
a message appears prompting you to disconnect the WiMAX connection. See
“Mobile WiMAX” in Chapter 8 to know how to turn WiMAX on or off.
3. Tap OK. The Title bar will show to indicate that the device is in Visible
mode.
Bluetooth 173
To turn off Bluetooth visibility after a certain period of time
You can automatically turn off Bluetooth visibility after a specified period of time.
1. On the Home screen, slide to the Settings tab and then tap Menu >
Bluetooth Devices > Timeout tab.
2. In Turn off Visible mode, select the time before your device’s Bluetooth
visibility turns off. Tap OK.
9.2 Bluetooth Partnerships
A Bluetooth partnership is a relationship that you create between your device and
another Bluetooth-enabled device in order to exchange information in a secure
manner.
To create a Bluetooth partnership
1. On the Home screen, slide to the Settings tab and then tap Menu >
Bluetooth Devices > Devices tab.
2. Tap Add new device. Your device displays the names of other Bluetooth
devices within range.
3. Tap the device name in the box, then tap Next.
4. Specify a passcode to establish a secure connection. The passcode can be 1
up to 16 characters.
5. Tap Next.
6. Wait for the paired device to accept the partnership. The receiving party
needs to enter the same passcode that you specified.
7. After the receiving party enters the passcode, a message box appears on your
device confirming the partnership.
Tip Tap Advanced to change the paired device name and to set the services you
want to use for the paired device. After setting the name and options, tap Save.
8. Tap Done.
174 Bluetooth
Note Creating a Bluetooth partnership between two devices is a one-time process. Once
a partnership is created, the devices can recognize the partnership and exchange
information without entering a passcode again.
To accept a Bluetooth partnership
1. Ensure that Bluetooth is turned on and in visible mode.
2. Tap Ye s when prompted to establish a partnership with the other device.
3. Enter a passcode (the same passcode that is entered on the device requesting
the partnership) to establish a secure connection. The passcode must be
between 1 and 16 characters.
4. Tap Next.
5. Tap Done. You can now exchange information with the paired device.
Tips • To rename a Bluetooth partnership, tap and hold the partnership’s name on the
Devices tab of the Bluetooth screen, then tap Edit.
•To delete a Bluetooth partnership, tap and hold the partnership’s name on the
Devices tab, then tap Delete.
9.3 Connecting a Bluetooth Hands-free or Stereo
Headset
For hands-free phone conversations, you can use a Bluetooth hands-free headset
such as a car kit with your device. Your device also supports A2DP (Advanced Audio
Distribution Profile) which allows you to use a Bluetooth stereo headset for hands-
free phone conversations and for listening to stereo music.
To connect a Bluetooth hands-free or stereo headset
1. Make sure that both your device and the Bluetooth headset are turned
on and within close range, and that the headset is visible. Refer to the
manufacturer’s documentation to find out how to set the headset in visible
mode.
Bluetooth 175
2. On the Home screen, slide to the Settings tab and then tap Menu >
Bluetooth Devices > Devices tab > Add new device.
3. Tap the name of the Bluetooth headset, then tap Next. The device will
automatically pair the device with the Bluetooth headset.
Windows Mobile will automatically try one of the preconfigured passcodes (0000,
1111, 8888, 1234) to pair the Bluetooth headset with the device. If this fails, you
have to enter the passcode delivered with your headset manually.
Note If the Bluetooth stereo headset becomes disconnected, turn the headset on and
repeat step 1 to 2 above. Tap and hold the name of the Bluetooth stereo headset and
tap Set as Wireless Stereo.
9.4 Beaming Information Using Bluetooth
You can beam information, such as contacts, calendar items, tasks, and files from
your device to your computer or to another Bluetooth-enabled device.
Note If your computer does not have built-in Bluetooth capability, you need to connect
and use a Bluetooth adapter or dongle on your computer.
To beam information from your device to a computer
1. Turn on Bluetooth on your device, and make your device visible. For
information about this, see “To turn Bluetooth on and make your device visible”.
2. Set Bluetooth on your computer to visible mode, create a Bluetooth
partnership, then enable your computer to receive Bluetooth beams.
Note If the Bluetooth adapter or dongle on your computer was installed using a third-
party provided driver, open the Bluetooth software that came with the Bluetooth
adapter/dongle and enable the adapter/dongle to be discovered by other
devices. Refer to the Bluetooth adapter’s documentation for more information.
If your computer has Windows Vista or Windows XP SP2 and your
computer’s Bluetooth adapter is supported by your Windows version, do the
following steps:
176 Bluetooth
a. On your computer, open Bluetooth Devices from the Control Panel, then
click the Options tab on the Bluetooth Devices window.
b. For Windows Vista, select Allow Bluetooth devices to find this
computer.
For Windows XP, select Turn discovery on and Allow Bluetooth devices
to connect to this computer.
c. Create a Bluetooth partnership between your device and computer. For
information about creating a partnership, see “Bluetooth partnerships”.
d. In the Options tab of Bluetooth Devices, select Show the Bluetooth
icon in the notification area.
e. To enable your computer to receive Bluetooth beams, right-click the
Bluetooth icon in the notification area at the bottom-right corner of
your computer screen and select Receive a File. You are now ready to
beam.
3. On your device, select an item to beam. The item can be an appointment in
your calendar, a task, a contact card, or a file.
4. To beam a contact, tap Menu > Send Contact > Beam.
To beam other types of information, tap Menu > Beam [type of item].
5. Tap the device name to which you want to send the item.
6. If you beamed a calendar, task, or contact item to your computer and it is not
automatically added to Outlook, select File > Import and Export in Outlook
to import it.
To beam information to a Bluetooth-enabled device such as another Windows
Mobile-powered device, follow steps 1 to 5 in the above procedure.
Tips • The default folder on your computer where beamed items are stored may be
C:\Documents and Settings\your_username\My Documents in Windows XP or
C:\Users\your_username\My Documents in Windows Vista.
•For your device to receive Bluetooth beams, tap Start > Settings > Connections
tab > Beam and make sure the Receive all incoming beams check box is selected.
Bluetooth 177
9.5 Printing Files via Bluetooth
Connect your device to a Bluetooth printer to print contact information,
appointment details, images, and other file types.
Note You can print files in the .txt, .jpg,.xhtml,.vcf,.vcs file formats.
Before you start printing, make sure to turn on the Bluetooth printer and to turn
on Bluetooth on your device. To turn on Bluetooth, tap Start > Programs > Comm
Manager, then tap the Bluetooth button.
To print contact information
1. On the Home screen, slide to the People tab and then tap All People.
2. Select the contact whose information you want to print.
3. Tap Menu > Print via Bluetooth > Menu > Search Devices. Your device
starts to search for Bluetooth devices.
4. Select the Bluetooth printer and tap Menu > Send File.
5. Set the printing options you want, then tap Print.
To print a calendar appointment
1. Tap Start > Calendar, then select (highlight) the appointment whose details
you want to print.
2. Follow steps 3 to 5 in the “To print contact information” procedure.
To print a JPEG file
1. In Pictures & Videos, locate the JPEG file you want to print.
2. Tap and hold the JPEG image file and then on the menu, tap Print via
Bluetooth.
3. Follow steps 3 to 5 in the “To print contact information” procedure.
178 Bluetooth
To print a text file
1. In File Explorer, locate the text file you want to print.
2. Tap and hold the txt file and then on the menu, tap Print via Bluetooth.
3. Follow steps 3 to 5 in the “To print contact information” procedure.
Chapter 10
Navigating on the Road
10.1 Google™ Maps
10.2 Guidelines and Preparation for Using GPS
10.3 Downloading Satellite Data via QuickGPS
180 Navigating on the Road
10.1 Google™ Maps
Google™ Maps lets you track your current location, view real-time traffic situations,
and receive detailed directions to your destination. It also provides a search tool
where you can locate places of interest or an address on a vector or a satellite map.
Note You need an active data connection, or a WiMAX/Wi-Fi connection to use Google Maps.
Open Google Maps
Tap Start > Programs > Google Maps.
Note The first time you open Google Maps, you will be asked to accept the terms and
conditions when using Google Maps. You must agree to the terms and conditions
before you can proceed.
Tap to zoom
out on the map.
Tap to zoom in
on the map.
Tap to search for places of
interest and addresses.
Tap to open a menu where you
can view your current location,
get directions, see traffic
information, and more.
Your current location.
Notes • Currently, traffic information is only available for the U.S.
•Tap Menu > Options > Reset Google Maps to reset the Google Map cookies,
history of search terms, preferences, and image cache.
Tip Tap Menu > Help > Tips to learn more about the program and its many features.
Navigating on the Road 181
Search for a place of interest
You can search and locate a place of interest using Google Maps. Google Maps also
shows the contact information and gives directions on how to get to the place of
interest from your current location.
Note You can also search for keywords, addresses, and postal codes.
1. On the Google Maps screen, tap Search.
2. Enter the place of interest you want to go to (for example, hotels in Moscow),
then tap OK.
3. On the Search Results tab, tap an item to view its contact information.
Note If the place of interest you want is the first item, just tap the Address tab to view
the contact information.
182 Navigating on the Road
4. On the Address tab, you can:
•Tap Go to web site to open the web site of the place of interest.
Note This information only appears when the web site of the place of interest is
available.
•Tap the [phone number] to call the place of interest that you have
selected.
•Tap Directions to here or Directions from here to get directions on how
to get to the place of interest from your current location or vice versa.
•Tap Search nearby to search for other places of interest near your current
location.
•Tap Send as text message to send the contact information to a contact
saved on your device via SMS.
For more information about Google Maps, go to http://www.google.com/gmm/
index.html.
10.2 Guidelines and Preparation for Using GPS
If you install a GPS software on your device, please follow these guidelines before
and when using your device as a GPS device.
•Do not operate the GPS system while driving. The plotted GPS route is only
for driving reference. It should not interfere with actual driving behavior.
•Do not leave your device in a vehicle or expose the device to direct sunlight
to avoid overheating the battery, which could pose damage to the device or
risk to the vehicle.
•When using the device inside a vehicle, use the car holder to mount the
device securely in place. Avoid placing the device in the areas shown in the
following diagram:
Navigating on the Road 183
1Do not place where it will block the driver’s vision.
2Do not place where air bags could deploy.
3Do not place anywhere in the vehicle without securing the device in the
holder.
•Please use the GPS system cautiously. Users shall be liable for any damages
resulting from negligent operation of the system.
•The GPS signal cannot pass through solid non-transparent objects. Signal
reception may be affected by obstructions such as high-rise buildings,
tunnels, bridges, forests, weather (rainy or cloudy days), etc. If the vehicle’s
visor contains metal, it will be difficult for the GPS signal to pass through.
•Wireless communication products (such as mobile phones or radar-detecting
devices) may interfere with the satellite signal, resulting in unstable signal
reception.
•The Global Positioning System (GPS) is built and operated by the US
Defense Department. The Department is responsible for the accuracy and
maintenance of the system. Any changes that the Department makes may
affect the accuracy and function of the GPS system.
184 Navigating on the Road
10.3 Downloading Satellite Data via QuickGPS
Before you start using your device for GPS navigation, open the QuickGPS program
first to download ephemeris data (current satellite position and timing information)
onto your device. This data is needed to determine the GPS position of your current
location.
QuickGPS downloads ephemeris data from a web server, instead of from the
satellites, using the Internet connection on your device, which can be via Wi-Fi,
ActiveSync or EDGE/GPRS. This significantly speeds up the time for determining
your GPS position.
To open QuickGPS
Tap Start > Programs > QuickGPS.
To download data
Tap Download on the QuickGPS screen.
On the screen, initially, you will see the Valid
time of the downloaded data. As time passes,
the remaining days and hours of validity will be
shown.
To speed up GPS positioning, download the
latest ephemeris data when the validity of the
data expires.
Navigating on the Road 185
Download options
To configure download times, tap Menu > Options and choose from the available
options:
•Remind me when data expires.
Enables your device to display a reminder message when the validity of the
ephemeris data has expired.
When you see the reminder message, tap Menu to dismiss the reminder or to
set the snooze time so that you will be reminded again. Tap OK to open the
QuickGPS program and download the latest data.
•Auto download when data expires.
Allows ephemeris data to be automatically updated onto your device when
the data has expired.
•Auto download when connected to PC via ActiveSync.
Allows ephemeris data to be automatically downloaded via ActiveSync to
your device when your device is connected to your computer. Your computer
must be connected to the Internet in order to download data.
Note The ephemeris data is stored on HTC web servers. QuickGPS is preconfigured to
connect to these servers.
186 Navigating on the Road
Chapter 11
Experiencing Multimedia
11.1 Taking Photos and Videos
11.2 Viewing Photos and Videos Using Album
11.3 Using Windows Media® Player Mobile
11.4 Using FM Radio
11.5 Using Audio Booster
188 Experiencing Multimedia
11.1 Taking Photos and Videos
Use Camera to take photos and record video clips. You can either use the main
(back) camera or second (front) camera to take photos or shoot videos.
To open the Camera screen
On the Home screen, slide to the Photos and Videos tab and then tap the camera
icon ( ). The screen orientation automatically switches to landscape mode when
you open Camera.
Tip You can also tap Start > Programs > Camera to open the Camera program.
To exit the Camera
Tap the Exit icon ( ) on the Camera screen. Tap the screen to show the Camera
screen icons.
Capture modes
The camera on your device allows you to capture pictures and video clips by using
various built-in modes that provide you flexibility in taking your shots.
To change the capture mode
Tap the middle icon at the bottom of
the screen (the icon displayed is based
on the current capture mode.) On the
on-screen menu, tap the capture mode
you want to use.
Current capture mode
Experiencing Multimedia 189
You can select from the following capture modes:
Icon Capture Mode
Photo Captures standard still images.
Video Captures video clips, with or without accompanying audio.
Panorama Captures a sequence of still images continuously in one
direction, and allows stitching of all the images to create a panoramic
view of a scenery.
Contacts Picture Captures a still image and gives you the option to
immediately assign it as a Photo ID for a contact.
Picture Theme Captures still images and places them within frames.
Note When using the second camera to capture, you can only use Photo, Video,
Contacts Picture, and Picture Theme modes.
Supported file formats
Using the available capture modes, the camera in your device captures files in the
following formats:
Capture mode Format
Photo / Contacts Picture /
Picture Theme / Panorama
JPEG
Video H.263 (.3gp) ; MPEG-4 (.mp4)
190 Experiencing Multimedia
Camera controls
The camera comes with an auto-focus function to let you capture sharp and crisp
photos and videos of your subjects. Depending on the Shoot Option you have
chosen, you will need to either touch or touch and hold the Virtual Camera button
( ) at the right side of the screen to activate auto-focus. When auto-focus is
activated, it is indicated by a flashing white bracket ( ). When focus is set, the
bracket changes to a steady green bracket ( ).
Note For more information about the different shoot options, see “Advanced Options” in
this chapter.
By default, you need to touch (do not press) the Virtual Camera button to activate
auto-focus and then when focus is set, the Camera automatically takes the shot
or starts capturing video. For example, in Photo mode, touch the Virtual Camera
button to activate auto-focus; when focus is set, the Camera automatically takes the
shot.
Notes • In Video mode, press the Virtual Camera button again to stop recording.
•In Picture Theme or Panorama mode, press the Virtual Camera button for each
shot you need to take.
•The second camera (in the front panel) has no auto-focus function.
Experiencing Multimedia 191
On-screen controls and indicators
Tap the screen to display the controls and indicators.
When capturing in Photo, Video, and
Contacts Picture modes
3
7
58
6
4
1
When capturing in Video mode
92
1Zoom control. Tap to zoom in, or to zoom out. You can also tap and
hold these onscreen buttons to continuously zoom in or out on your object.
Note This control appears only when zooming is supported by the Resolution you
have selected. See “Zooming” for details.
2Auto-focus indicator. Displays a flashing bracket ( ) when focusing. When
focus is set, the flashing bracket changes to a steady green bracket ( ).
3Remaining information indicator. In Photo, Contacts Picture, Picture Theme,
and Panorama modes, this shows the remaining/available shots of pictures
based on the current settings.
In Video mode, this shows the remaining duration that can be recorded. While
recording video, this shows the recorded duration.
4Exit. Tap to exit the Camera program.
5Album. Tap to open Album. See “Viewing Photos and Videos Using Album” for
details.
192 Experiencing Multimedia
6Capture mode. Displays the current capture mode. Tap to open an on-screen
menu where you can choose the capture mode.
7Menu. Tap to open the Menu Panel. See “Menu Panel” for details.
8Virtual Camera button. This on-screen button activates auto-focus and
functions as the shutter release button.
9Recording indicator. Flashes when recording a video.
10 Template Selector icon. In Picture
Theme mode, tap to toggle among
different templates.
11 Progress indicator. In Picture
Theme and Panorama modes, this
shows the number of consecutive
shots.
Picture Theme mode
10 11
Menu Panel
The Menu Panel provides a quick way of adjusting most common camera settings
and lets you access more advanced camera settings. On the Camera screen, tap
to open the Menu Panel. To adjust a setting, keep tapping a button on the panel, for
instance, Resolution, to cycle through the available settings. To access advanced
options, tap . To adjust the brightness, see item number 3.
Note The available settings on the panel depend on the selected capture mode.
Experiencing Multimedia 193
312
645
1Resolution. Select the resolution to use when taking photos or capturing videos.
Refer to the resolution table in this chapter.
2White Balance. White balance enables the camera to capture colors more
accurately by adjusting to different lighting conditions. White balance
settings include: Auto ( ), Daylight ( ), Night ( ), Incandescent ( ),
and Fluorescent ( ).
3Brightness. Tap to open the Brightness bar at the bottom of the screen. On
the Brightness bar, tap to increase, or tap to decrease the brightness
level. Tap outside the Brightness bar to apply the change.
4Camera. Tap to select the camera to use. You can choose from main camera
( ), second camera ( ), and second camera flip ( ).
5Self-timer. Tap to set the self-timer to 2 seconds,10 seconds, or Off when
in the Photo or Contacts Picture mode. When you press the Virtual Camera
button to capture a still image, it starts to count down, then captures a still
image after the time expires.
6Advanced. Tap to open the advanced camera settings. See “Advanced
Options” for details.
194 Experiencing Multimedia
Zooming
Before capturing a photo or a video clip, you can zoom in to make the object in
focus move closer, or zoom out to make the object move farther away.
To zoom in or out
Tap to zoom in or tap to zoom out. You can also tap and hold these onscreen
buttons to continuously zoom in or out on your object.
The camera zoom range for a photo or a video clip depends on the capture mode
and resolution. Refer to the table for more information.
Capture mode Resolution Zoom range
W (2048 x 1216) 1.0x to 1.6x
3M (2048 x 1536) 1.0x to 1.6x
2M (1600 x 1200) 1.0x to 1.6x
1M (1280 x 960) 1.0x to 1.6x
Large (640 x 480) 1.0x to 1.6x
Medium (320 x 240) 1.0x to 3.2x
Video
CIF (352 x 288) 1.0x to 1.6x
Large (320 x 240) 1.0x to 1.6x
Medium (176 x 144) 1.0x to 1.6x
Small (128 x 96) 1.0x to 1.6x
Panorama Large (640 x 480) 1.0x to 1.6x
Medium (320 x 240) 1.0x to 3.2x
Contacts Picture Medium (240 x 320) 1.0x to 3.2x
Experiencing Multimedia 195
Capture mode Resolution Zoom range
Picture Theme Determined by the current
template
Depends on the size of the
selected template
Note The capture size settings and zoom ranges are only for the main camera.
The Review screen
After capturing, the Review screen lets you view, send, or delete the photo or video
clip by tapping an icon.
Review screen icons
Icon Function
Back Return to the live Camera
screen.
Delete Delete the captured
image or video.
View View the captured image or
video in the Album program.
Send Send the captured image or
video via e-mail.
Play After capturing a video, tap
this icon to play back the video in
Album. See “Viewing Photos and
Videos Using Album” in this chapter.
Assign to Contact After
capturing in Contacts Picture
mode, tap this icon to assign the
photo to a selected contact.
196 Experiencing Multimedia
Advanced Options
The Advanced Options let you adjust options for your selected capture mode
and set Camera program preferences. Access the Advanced Options by tapping
Advanced on the Menu Panel. You can tap on-screen to navigate through the
Advanced Options screen.
Tap to go through the different
Advanced Camera Settings screens.
Tap to go back to the
Camera screen.
Tap an item to
change the setting.
•Review Duration. Set a time length for displaying the captured image/video
on the Review screen. Select No Limit if you do not want to impose a time
limit. Select No Review to immediately return to the live Camera screen after
capturing and saving.
•Quality. Select the JPEG image quality level for all captured still images.
Choose from Basic,Normal,Fine, and Super Fine.
•Capture Format. Available only when in Video mode, tap this option to select
the desired file format for captured videos.
•Time Stamp (Photo mode). Choose whether or not to include the shooting
date and time on captured photos.
•Storage. Select where you want to save your files. You can either save the files
to the main memory, internal storage, or to a storage card if one is installed.
Experiencing Multimedia 197
•Keep Backlight. Turn the backlight on or off. This overrides your device
backlight settings while you are using the camera.
•Shutter Sound. Choose whether or not you want the camera to make a
shutter sound when you press the Virtual Camera button.
•Shoot Option. The camera comes with an auto-focus feature that is activated
when the Virtual Camera button is either touched or touched and held.
•Touch (Default). Requires you to touch the Virtual Camera button to
activate the auto-focus. When focus is set, the Camera automatically takes
the shot or starts capturing video.
•Touch and Hold. Requires you to touch and hold the Virtual Camera
button to activate auto-focus. When focus is set, keep touching the button
to take the shot or start recording video. Otherwise, lift your finger from
the Virtual Camera button to cancel.
•Image Properties. This option lets you adjust the capture properties, such as
Contrast,Saturation, and Sharpness.
1Tap a property to adjust.
2Tap to save the settings.
3Tap to decrease the value.
4Tap to reset all properties to their
default values.
5Tap to increase the value.
6Tap to close the submenu without
applying and saving the changes.
4253 6
1
•Effect. Choose a special effect such as Grayscale, Sepia, or Negative, to apply
to your photos or video clips.
•Metering Mode. Select a metering mode to allow the camera to measure the
amount of light and calculate the best-fit exposure value before capturing.
198 Experiencing Multimedia
Choose either Center Area to measure light using the center area of the
subject, or Average to measure light using the area around the subject.
•Prefix. When Default is selected as the prefix, the file name of each new
captured file is set to “IMAGE” or “VIDEO” followed by a sequential number, for
example: IMAGE_001.jpg. You may also choose to name files using either the
current Date or Date & Time as the prefix.
Note If you set the Camera to save captured photos to a storage card, the prefix
cannot be selected. Captured photos will be named using the convention
Images) naming standard, and will be saved to the \DCIM\100MEDIA folder on
the storage card.
•Counter. To reset the file naming counter back to 1, tap Reset.
•Flicker Adjustment. When taking indoor shots, flicker on the camera screen
may be caused by inconsistencies between the vertical scan rate of the
camera display and the flicker frequency of fluorescent lighting. To reduce
flicker, you can change the flicker adjustment setting to Auto or to the proper
frequency (50Hz or 60Hz) of the power in the country where your device is
being used.
•Grid (Photo mode). Choose
whether or not to show a grid on
the Camera screen. Showing a grid
helps you frame and center your
subject easily and accurately.
•Record with Audio (Video mode).
Select On to record audio with the
captured video clips, or select Off to
capture video without audio. Grid marks
Experiencing Multimedia 199
•Template (Picture Theme mode). Select a template.
•Recording Limit (Video mode). Set the maximum duration or file size for
recording video.
•Template Folder (Picture Theme mode). By default, templates are stored
in the \My Documents\Templates folder on the device’s Main Memory. If
you transferred some templates to a storage card (via File Explorer), set this
option to Main + Card to specify that templates are located in both the main
memory and the storage card.
•Show Reminder (Contacts Picture mode). Select On if you want the Camera
to always display a message that confirms whether or not to assign the
captured picture to a contact.
•Help. Tap to open the Camera program help file.
•About. Tap to display version and copyright information.
11.2 Viewing Photos and Videos Using Album
Use Album to view images and videos in your device. Album offers a host of
features that let you rotate images, view your images as a slideshow, use images as
contact pictures, and more.
Note Album can only display files in the BMP, GIF, PNG, JPG, Animated GIF, 3GP, MP4, and
WMV formats.
200 Experiencing Multimedia
To open Album
Do one of the following:
•On the Home screen, slide to the
Photos and Videos tab and tap
Album.
•In the Camera program, tap .
•Tap Start > Programs > Album.
Note When you open Album from the
Camera program, the screen orientation
of Album is switched to landscape
mode.
Tap to
open the
Camera
program.
Select a photo or video to view
1. On the main Album screen, tap Albums and then select the album to view.
The contents of the album are then displayed on the main Album screen.
2. Browse through the files by sliding your finger upward or downward.
3. Do one of the following:
•Tap an image to view it in full screen mode. See “View an image” for details.
•Tap a video file (files with the icon) to play back the video file. See “Play
back video” in this chapter for details.
•Select a still image and then tap Menu > Slideshow to view the images in
the album as a slideshow. Animated GIF and video files will not be played
back in the slideshow. See “To view still images as a slideshow” in this
chapter for details.
Experiencing Multimedia 201
View an image
While viewing an image in full screen, tap the screen to open the on-screen menu.
Tap to go back to
the main Album
screen, Photos
and Videos tab, or
Camera.
Tap to start the
slideshow.
Tap to send the
image using one
of the Messaging
accounts.
Tap to open a menu
where you can save the
screen image as a photo
for a contact, save the
current image as a new
file, delete the image, and
view file properties.
Tip You can delete multiple files at once by selecting Menu > Delete Items on the main
Album screen and then selecting the files to delete.
202 Experiencing Multimedia
To rotate the image
While viewing images, you can automatically rotate the image by simply turning
your device sideways.
To view the next or previous image
When viewing images in Portrait or Landscape mode, go to the next image by
swiping your finger across the screen from right to left. Go back to the previous
image by swiping your finger from left to right.
Experiencing Multimedia 203
To zoom in or out of an image
While viewing an image, make a full circle motion on the screen with your finger.
Slide your finger counter-
clockwise to zoom out.
Slide your finger clockwise
on an area to zoom in on
that area.
Tips • When you zoom in on an image, double tap the screen to automatically zoom out
and fit the image to the screen.
•When you zoom in on an image, tap and hold the screen so you can pan the
image.
•When you zoom in on an image, tap the screen to open the on-screen menu. On
the on-screen menu, tap and then select Save Screen Image to save the
image on-screen as a new file.
204 Experiencing Multimedia
To view still images as a slideshow
While viewing the slideshow, tap the screen to show playback controls.
Note The screen orientation automatically switches to landscape mode when viewing a
slideshow.
Tap to go back to
the previous image.
Tap to open the slideshow
options where you can
set the transition effect
to use, time per slide, and
orientation of the images.
Tap to return to the
main Album screen
or the Photos and
Videos tab.
Tap to play or pause the
slideshow playback.
Tap to go to the next image.
Tip If the images are in your favorite album, you can start the slideshow from the Photos
and Videos tab on the Home screen. On the Photos and Video tab, tap Slideshow.
Experiencing Multimedia 205
Play back video
While playing back video, tap the screen to show the playback controls.
Tap to go back to
the beginning of
the video.
Tap to play or pause
video playback.
Tap to stop
video playback.
Drag to go forward
or backward in the
video.
Elapsed time Total duration
Tip If the video is in your favorite album, you can start the video playback from the
Photos and Videos tab on the Home screen. On the Photos and Video tab, tap Play.
Close Album
Close Album by tapping on the main Album screen. When viewing files in full
screen mode, tap the screen to show the on-screen menu or playback controls and
then tap to go back to the main Album screen.
206 Experiencing Multimedia
11.3 Using Windows Media® Player Mobile
Windows Media® Player Mobile plays digital audio and video files that are stored
on your device or on a network, such as on a web site.
Video File Formats Supported File Extensions
Windows Media Video
MPEG4 Simple Profile
H.263
H.264
Motion JPEG
.wmv, .asf
.mp4
.3gp, .3g2
.mp4, .3gp, .3g2, .m4v
.avi
Audio File Formats Supported File Extensions
Windows Media Audio
WAVE
MP3
MIDI and SP MIDI
AMR Narrow Band
AMR Wide Band
AAC, AAC+, and eAAC+
MPEG4 audio
QCELP
EVRC
.wma
.wav
.mp3
.mid, .midi, .rmi
.amr, .3gp
.awb, .3gp
.aac, .mp4, .m4a, .3gp
.m4a
.qcp, .3g2
.qcp
To open Windows Media® Player Mobile
Tap Start > Programs > Windows Media.
Experiencing Multimedia 207
About the controls
Play/Pause
Full screen
Visit WindowsMedia.com
Tap and drag to
jump to any part of
the video or audio
Skip to the beginning of
the current file or to the
previous file
Skip to the next file
Mute/Unmute
Increase volume
Decrease volume
About the screens and menus
Windows Media® Player Mobile has three primary screens:
•Playback screen. The screen that displays the playback controls (such as Play,
Pause, Next, Previous, and Volume) and the video window. You can change
the appearance of this screen by choosing a different skin.
•Now Playing screen. The screen that displays the Now Playing playlist. This
special playlist indicates the current file being played and any files that are
“queued up” to play next.
208 Experiencing Multimedia
•Library screen. The screen that lets you quickly find your audio files, video
files, and playlists. It contains categories such as My Music, My Videos, My TV,
and My Playlists.
At the bottom of each screen, you can open a Menu. The commands on this menu
vary, depending on which screen you are viewing. For more information about the
commands in these menus, see Help on your device.
Synchronize video and audio files
Use the latest version of Windows Media® Player on your computer to synchronize
digital media files from your computer to your device. This ensures that protected
files and album art (for skins) are copied to your device correctly.
To synchronize content to your device automatically
1. On your computer, open Windows Media® Player, then connect your device to
your computer.
2. In the Device Setup Wizard, select Yes, search my computer now.
Note If you have previously opened Windows Media® Player and searched for media
on your computer, you will not be prompted to search your computer in Step 2.
3. On the Device Setup dialog box, enter a name for your device and click
Finish.
Note If you installed a storage card that has a capacity of more than 4GB and
your entire library can fit into the storage card, Windows Media Player will
automatically synchronize your music files. The device also needs to be set to
Disk Drive mode for Windows Media Player to automatically synchronize.
4. On the left panel of Windows Media® Player, right-click the name of your
device and click Set Up Sync.
Note To set up media synchronization on a storage card, right-click Storage Card in the
left panel of Windows Media® Player, then click Set Up Sync.
5. Select the playlist(s) that you want to sync between your computer and
device, then click Add.
Experiencing Multimedia 209
Note On the Device Setup dialog box, make sure that the Sync this device
automatically check box is selected.
6. Click Finish.
The files will begin synchronizing to your device. The next time you connect your
device to your computer while Windows Media® Player is running, synchronization
will start automatically.
To synchronize content manually to your device
1. If you have not set up media synchronization between your device and
computer, follow steps 1 to 3 in “To synchronize content to your device
automatically”.
2. Click the Sync tab on the Windows Media® Player of your computer. Select a
Playlist or a Library on the left panel of the Windows Media® Player.
3. From the Content List, drag the media files that you want to sync to your
device and drop them to the Sync List.
Playlists and Library List Sync ListContent List
210 Experiencing Multimedia
4. Click Start Sync to start synchronizing the selected files to your device.
Notes • Use Windows Media® Player 11 or higher on your computer to synchronize media
files to your device.
•Audio files copy faster if Windows Media® Player is configured to automatically set
the quality level for audio files copied to your device. For more information, see the
Windows Media® Player Help.
Play media
Use the Library to find and play songs, videos, and playlists that are stored on your
device or an installed storage card.
To update the Library
1. If you are not on the Library screen, tap Menu > Library.
2. On the Library screen, tap the Library arrow (near the top of the screen), then
tap the media storage that you want use, for example, Storage Card.
3. In most cases, Windows Media® Player Mobile automatically updates the
library. However, you can manually update the library to ensure that it
contains new files that you recently copied to your device or storage card.
Tap Menu > Update Library to manually update the library list.
To play video and audio files on your device
1. Select a category (for example, My Music or My Playlists).
2. Tap and hold the item that you want to play (such as a song, album, or artist
name), then tap Play.
Tips • To play a media file that is stored on your device but is not in a library, on the
Library screen, tap Menu > Open File. Tap and hold the item that you want to play
(such as a file or a folder), then tap Play.
•To play a media file from the Internet or a network server, tap Menu > Library then
tap Menu > Open URL.
Experiencing Multimedia 211
Playlists
In Windows Media® Player Mobile, you can create a new playlist by saving the
current Now Playing playlist and giving it a new name.
To save a new playlist
1. If you are not on the Library screen, tap Menu > Library.
2. Tap to select a category (for example, My Music or My Playlists).
3. Select a media file that you want, then tap Menu > Queue Up. This adds the
file to the Now Playing list.
Repeat this step until you have added all desired media files to the Now
Playing list.
Note You cannot select multiple files simultaneously.
4. After adding the media files, tap Menu > Now Playing.
5. On the Now Playing screen, tap Menu > Save Playlist.
6. Enter the playlist name, then tap Done.
7. To play back the playlist you created, tap My Playlists in the Library, select
your playlist, then tap Play.
Troubleshooting
If you encounter a problem while using the Windows Media® Player Mobile, a
number of resources are available to help you troubleshoot the issue.
For more information, see the Troubleshooting Windows Media® Player
Mobile page at the Microsoft web site (http://www.microsoft.com/windows/
windowsmedia/player/windowsmobile/troubleshooting.aspx).
212 Experiencing Multimedia
11.4 Using FM Radio
FM Radio allows you to listen to FM radio stations on your device. Since FM Radio
uses the provided stereo wired headset as an antenna, you must plug in the
headset first onto the earphone jack of your device before you open the program.
To open FM Radio
Tap Start > Programs > FM Radio.
The first time this program is used, it will automatically scan for available FM
channels in your area, save them as presets, then play the first FM station found. For
information about saving favorite stations as presets, see “Save presets.“
When you tap on the FM Radio screen, the program continues to run in the
background and allows you to continue listening to the radio while you use other
programs. To turn off the FM radio, tap on the upper right corner of the FM
Radio screen.
FM Radio controls
1
9
8
3
5
2
4
7
6
10
Function
1Turns off FM radio.
2See “Radio display” for details.
3Searches the FM band for the next higher FM channel.
4Increases the radio frequency by 0.1MHz.
5Turns the sound on or off.
6Save up to six favorite FM stations as presets.
Tap a button to tune in to a favorite station.
7Switches between headset and speaker output.
8Switches between Mono and Stereo modes.
9Decreases the radio frequency by 0.1MHz.
10 Searches the FM band for the next lower FM channel.
Experiencing Multimedia 213
Tip Tap Menu to choose more options for FM Radio, such as Scan & Save to perform a
rescan of the FM band for available FM stations and save them as presets, and more.
Radio display
1Shows the status of FM Radio. 1
3
2
4
2Shows the preset number when you select a
preset FM station.
3Shows the received signal strength.
4Shows the radio frequency.
Adjust the volume
Press the VOLUME CONTROL on the side of the device to adjust the FM Radio
volume.
Save presets
Presets are favorite FM stations that you can save for easy access. You can save up to
six FM stations to the preset buttons on the main FM Radio screen, or save up to 20
presets on the Presets screen.
To save FM stations
1. Tune in to the desired FM frequency, then tap Presets.
2. On the Presets screen, tap that appears on the desired preset number
where you want to save the FM station.
You can save up to 20 preset radio stations. Radio stations that are saved on
Presets 1 to 6 can be accessed on the main FM Radio screen.
Tip Tap to remove a favorite FM station from the list.
3. When done, tap OK.
214 Experiencing Multimedia
To listen to a preset FM station
Do one of the following:
•On the main FM Radio screen, tap the preset button that shows your favorite
station.
•On the Preset screen, select a preset number that shows your favorite station,
then tap Listen.
FM Radio main menu
Tap Menu on the FM Radio screen to access options for the FM Radio program.
Scan & Save Automatically scan radio stations that can be picked up by the
device and save them as presets. Existing presets will be cleared and replaced
with the newly scanned radio stations. You can have a maximum of 20 preset
radio stations.
Stereo Toggles between using Stereo or Mono mode when listening to an FM
radio station.
Mute Toggles between muting and restoring the volume.
Output Select whether to use the device Speaker or Wired Headset to listen
to the radio.
Sleep Set how much time must pass before FM Radio goes into sleep mode.
The Sleep option is switched to Off every time you launch FM Radio.
Exit Select to turn off FM Radio.
•
•
•
•
•
•
Experiencing Multimedia 215
11.5 Using Audio Booster
Audio Booster optimizes sound for a better listening experience. It provides preset
moods, such as hip hop, jazz, rock, etc., and several enhancement presets that suit
different types of music.
To access Audio Booster
Tap Start > Programs > Audio Booster.
1
2
3
4
Control Function
1On Select the check box to enable or
disable the equalizer.
2Frequency
band
Drag the sliders to adjust the
frequency.
3Menu •Tap Menu > Cancel to exit Audio
Booster without applying the
modified settings.
•Tap Menu > Save as Preset or
Delete Preset to save or delete
preset equalizer settings.
4Done Tap to apply the modified
settings.
5Equalizer
presets
Tap to choose the Equalizer preset
to use.
5
To use a Equalizer preset
Tap the list box then select a desired preset.
216 Experiencing Multimedia
To create a custom equalizer preset
1. Adjust the frequency bands to your desired values by dragging the equalizer
controls. The selected values are indicated on top of the sliders.
2. Save your equalizer settings as a preset by tapping Menu > Save as Preset.
3. Enter a preset name and then tap Done. The preset you created will be added
to the list box.
To delete a custom equalizer preset
1. Tap the list box then select the Equalizer preset you want to delete.
2. Tap Menu > Delete Preset.
Note You can only delete custom equalizer presets. Equalizer presets that are pre-installed
cannot be deleted.
Chapter 12
Programs
12.1 Programs on your Device
12.2 Adding and Removing Programs
12.3 Adobe® Reader® LE
12.4 Calendar
12.5 Contacts
12.6 Comm Manager
12.7 Microsoft® Office Mobile
12.8 Notes
12.9 Java
12.10 SIM Manager
12.11 Tasks
12.12 ZIP
218 Programs
12.1 Programs on your Device
The following are programs you can find on your device or install from the
Application disc.
Programs in the Start Menu
Icon Description
Office Mobile Use the complete suite of Microsoft® Office applications for your
mobile device.
Excel Mobile Create new workbooks or view and edit Excel workbooks.
OneNote Mobile Create notes with text, photos, and voice recordings.
PowerPoint Mobile View PowerPoint slides and presentations.
Word Mobile Create, view, and edit Word documents.
Calendar Keep track of your appointments and create meeting requests.
Contacts Keep track of your friends and colleagues.
Internet Explorer Mobile Browse web and WAP sites as well as download new
programs and files from the Internet.
Messaging Send and receive e-mail and text messages.
Phone Make and receive calls, switch between calls, and set up conference
calling. See Chapter 2 for details.
Help See Help topics for the current screen or program.
Programs 219
Programs screen
Icon Description
Games Play these pre-installed games: Bubble Breaker and Solitaire.
ActiveSync Synchronize information between your device and a PC or the
Exchange Server. See Chapter 5 and 7 for details.
Adobe Reader LE View PDF (Portable Document Format) files on your device.
Album View photos and videos that you captured using the device camera. See
Chapter 11 for details.
Audio Booster Enhances your music experience by providing you with controls
for adjusting equalizer, 3D sound, treble, and bass settings. See Chapter 11 for
details.
Calculator Perform basic arithmetic and calculations, such as addition,
subtraction, multiplication, and division.
Camera Take photos and shoot video clips with accompanying audio. See
Chapter 11 for details.
Comm Manager Manage your device’s connections (including Bluetooth, Wi-Fi,
and WiMAX), turn the phone on or off, and enable or disable Airplane mode. See
“Comm Manager” in this chapter for details.
File Explorer Organize and manage files on your device.
FM Radio Listen to your favorite FM radio stations. See Chapter 11 for details.
Getting Started View a list of “how to’s” that you can reference to learn basic
features and settings of your device.
Google Maps View your current location, search for places of interest and
addresses, seek directions, and more. See Chapter 10 for details.
220 Programs
Icon Description
Internet Sharing Connect your notebook computer to the Internet using your
device's data connection. See Chapter 8 for details.
Java Download and install Java applications, such as games and tools, on your
device.
Messenger This is the mobile version of Windows Live™ Messenger.
See Chapter 8 for details.
Notes Create handwritten or typed notes, drawings, and voice recordings.
Opera Mobile This is the mobile version of the Opera browser.
See Chapter 8 for details.
Pictures & Videos View, organize, and sort pictures, animated GIFs, and video
files on your device or a storage card.
QuickGPS Download satellite data over the Internet via ActiveSync (if your device
is connected to a computer), Wi-Fi, WiMAX, or a data connection to speed up the
time for determining your current GPS position. See Chapter 10 for details.
Remote Desktop Mobile Connect and control your desktop computer remotely
from your device.
RSS Hub Download and read the latest web feeds from the Internet. See Chapter
8 for details.
Search Search contacts, data, and other information on your device.
SIM Manager Manage the contacts that are stored on your SIM card. You can also
use this program to copy SIM contents to Contacts on your device.
Tasks Keep track of your tasks.
WiMAX Modem Use your device as a WiMAX modem to connect your desktop or
notebook computer to the Internet via a WiMAX connection.
Programs 221
Icon Description
Windows Live Use this mobile version of Windows Live™ to find information
on the web. It also lets you sign into your Windows Live account so that you
can access your Live Mail messages and send/receive instant messages in Live
Messenger. See Chapter 8 for details.
Windows Media Player Mobile Play back audio and video files. See Chapter 11
for details.
YouTube™ Search for uploaded videos in YouTube and play them on your device.
See Chapter 8 for details.
ZIP Save memory and free up storage space on your device by compressing files
in the conventional ZIP format.
STK (SIM Tool Kit) Service Access information and other services offered by your
wireless service provider.
12.2 Adding and Removing Programs
Additional programs, such as the programs in the Application disc or other
programs that you purchase, can be installed and uninstalled on your device. Your
device does not allow you to uninstall most of the preinstalled programs.
Note Before you purchase additional programs for your device, make sure that they are
compatible with your device.
To install a program
1. Download the program to your computer (or insert the CD or disk that
contains the program into your computer).
You may see a single *.exe file, a *.zip file, a Setup.exe file, or several versions
of files for different device types and processors. Be sure to select only the
programs designed for your device.
2. Read any installation instructions or documentation that comes with the
program. Many programs provide special installation instructions.
222 Programs
3. Connect your device to the computer.
4. Double-click the installation setup file.
To uninstall a program
1. Tap Start > Settings > System tab > Remove Programs.
2. In the Programs in storage memory list, select the program you want to
remove, then tap Remove.
12.3 Adobe® Reader® LE
Adobe® Reader® LE is an application for viewing PDF (Portable Document Format)
documents on your device. It supports a subset of the features found in the PC
versions of Adobe Reader.
To open Adobe Reader LE
Tap Start > Programs > Adobe Reader LE.
To open a PDF file on your device
•Open a PDF file in Adobe Reader LE; or
•Open File Explorer, find the PDF file, then tap the file to open it.
To navigate through a PDF document
You can use the controls in the program and finger gestures to navigate a PDF
document.
•Tap Tools > View > Continuous and then slide your finger up or down the
screen to scroll through the pages in the document.
Tip You can also drag the scroll bars to scroll through the pages.
•Tap to zoom in or to zoom out. After zooming in, slide your finger on
the screen to pan the current page.
•Tap to return to the previous page; tap to move to the next page. Tap
to jump to the first page; tap to jump to the last page.
Programs 223
•Tap Tools > Go To > Page Number to enter a page number that you want to
view.
To search for text in the document
1. Tap Tools > Find > Text or tap in the toolbar.
2. Type in the text to be searched, then tap Find.
The matched text in the document will be highlighted.
3. To view the next occurrence of the text, tap Tools > Find > Next.
Tips • Adobe Reader LE displays a bookmark pane for the PDF files that contain
bookmarks. Tap the bookmarks to go to a specific section/page within the file.
•Adobe Reader LE supports password-protected PDF files with up to 128-bit
encryption. When you open a password-protected PDF file, you will be prompted
to enter the password before opening it.
12.4 Calendar
Use Calendar to create appointments, including meetings and other events. You
can also synchronize Calendar appointments between your device and computer.
To open the Calendar screen
On the TouchFLO 3D Home screen, tap Calendar or a displayed appointment;
or
Tap Start > Calendar.
Create appointments
To schedule an appointment
1. Open the Calendar screen and then tap Menu > New Appointment.
2. Enter a name for the appointment.
3. Do one of the following:
•
•
224 Programs
•If it is a special occasion such as a birthday or a whole-day event, set the
All Day option to Yes .
•If there is a time frame for the appointment, set the start and end dates
and times.
4. Specify the type of category for your appointment, so that it can be grouped
with other related appointments. Tap Categories, then select a preset
category (Business, Holiday, Personal, or Seasonal), or tap New to create your
own category.
5. When finished, tap OK to return to the calendar.
Notes • All-day events do not occupy blocks of time in Calendar; instead, they appear in
banners at the top of the calendar.
•To remove an appointment, tap Menu > Delete Appointment.
Tip To have the time entered automatically in Day view, tap and drag to select a time slot
for the new appointment, and tap Menu > New Appointment.
To set the reminder time for new appointments
By default, Calendar has been set to display a reminder alert when you have new
upcoming appointments. You can change the reminder time.
1. Open the Calendar screen.
2. Tap Menu > Tools > Options > Appointments tab.
3. Make sure the Set reminders for new items check box is selected.
4. Set the time when you want the reminder to alert you.
5. Tap OK to return to the Calendar screen.
Programs 225
View appointments
By default, Calendar displays appointments in Agenda view. You can also look at
your appointments in Day,Week,Month, and Year views.
The highlighted hours
here indicate the time of
your appointments.
Tap to view appointment
details.
Agenda view
Tap to switch views.
The red box and
arrows indicate
that there are
conflicting
appointments.
•To see detailed appointment information in any view, tap the appointment.
•To view appointments by category, tap Menu > Filter, then select the desired
category.
•To change the default view that Calendar uses to display appointments, tap
Menu > Tools > Options > General tab. Tap the Start in box, then choose
the calendar view.
•When in Month view, you will see the following indicators:
Morning appointment
Afternoon or evening appointment
Both morning and afternoon/evening appointments
All-day event
226 Programs
Send appointments
To send a meeting request
Use Calendar to schedule meetings via e-mail with contacts who use Outlook or
Outlook Mobile.
1. Open the Calendar screen.
2. Schedule a new appointment, or open an existing one and tap Menu > Edit.
3. Tap Attendees, then tap Add Required Attendee or Add Optional
Attendee and add the contacts whom you want to invite.
Note You can specify if an attendee is required or optional only if your device is
connected to a Microsoft Exchange 2007 server. Otherwise, all attendees are
designated as required. For more information, see “Managing Meeting Requests”
in Chapter 7.
4. When you have finished adding attendees, tap Done.
5. Tap OK to send.
Tip To choose the e-mail account to use for sending meeting requests, tap Menu > Tools
> Options > Appointments tab. Tap the Send meeting requests via box and choose
to send via your Outlook E-mail, POP3/IMAP4 or Windows Live™ account.
Notes • If you’re sending the meeting request using your Outlook E-mail account, it will
be sent to the attendees the next time you synchronize your device with your
computer or Exchange Server.
•When attendees accept your meeting request, the meeting is automatically
added to their schedules. When their response is sent back to you, your calendar is
updated as well.
To send appointment details as a vCalendar
A vCalendar is a standard file format used for exchanging scheduling and task
information. vCalendar files can be exported to Outlook on the computer.
After selecting the appointment to send in the Calendar screen, tap Menu >
Send as vCalendar to send a vCalendar containing appointment details as a file
attachment in an e-mail message.
Programs 227
12.5 Contacts
Contacts is your address book and information storage for people and businesses
you communicate with. You can add the following types of contacts to your device:
•Outlook contacts. Contacts that are stored on your device, which can be
created on your device or synchronized with your PC or the Exchange Server.
•SIM contacts. Contacts that are stored on the SIM card. Only a name and
phone number can be stored for each entry.
•Windows Live™ contacts. Contacts that you communicate with using
Windows Live™ Messenger or MSN.
Note You can only add Windows Live™ contacts after you have set up Windows Live™
on your device. See “Add Windows Live contacts” in Chapter 8 for details.
To open the Contacts screen
Do one of the following:
On the TouchFLO 3D Home screen, slide to the People tab and then tap All
People; or
Tap Start > Contacts.
•
•
228 Programs
Add new contacts
To add a contact on your device
1. Open the Contacts screen.
2. Tap New, select Outlook Contact, and enter the
contact information.
3. In the File as field, choose how you want the
contact name to appear in the contact list.
4. To add a photo of the contact, tap Select a
picture, and then select the picture file or tap
Camera to take a photo of the contact.
5. To assign a ring tone to the contact, tap the
Ring tone field, scroll through the list of tones,
then select a desired tone.
6. When finished, tap OK.
Tips • If a person who is not in your list of contacts called you and you want to save that
person’s phone number, tap and hold the phone number in the Call History and
then tap Save to Contacts from the shortcut menu.
•To save a phone number that is contained in a message, open the message, tap the
underlined phone number, and then tap Menu > Save to Contacts.
•To edit contact information, tap the contact name and then tap Menu > Edit.
To add a contact to your SIM card
1. Open the Contacts screen.
2. Tap New, then select SIM Contact.
3. Enter a contact name and phone number, then tap OK.
Tip You can also use the SIM Manager to add and edit contacts on your SIM card. For
more information, see "SIM Manager" in this chapter.
Programs 229
Organize and search contacts
To group similar contacts
For easier management, you can group similar contacts by assigning them to
categories.
1. Create a new Outlook contact or edit an existing Outlook contact.
2. Tap Categories.
3. Select a preset category such as Business or Personal, or tap New to create
your own category.
4. When finished, tap OK.
To find a contact on your device
There are several ways to find a contact when your contact list is long:
Begin entering a contact name in the provided text box until the contact you
want is displayed.
Filter the list by categories. In the contact list, tap Menu > Filter, then tap
a category you’ve assigned to a contact. To show all contacts again, select
Menu > Filter > All Contacts.
Share contact information
To beam a contact’s details
You can quickly send contact information to another mobile phone or device
through Bluetooth beaming.
1. On the Contacts screen, select a contact.
2. Tap Menu > Send Contact > Beam, then select a device where to beam the
contact to.
Note Before beaming, make sure Bluetooth is turned on and set to visible mode on your
device and the target mobile device. You can also beam contact information to your
computer. See Chapter 9 for details.
•
•
230 Programs
To send contact information via text messaging
1. On the Contacts screen, select a contact.
2. Tap Menu > Send Contact > Text Messages.
3. Select the contact information you want to send, then tap Done.
4. In the new text message, enter the mobile phone number of the recipient,
then tap Send.
12.6 Comm Manager
Comm Manager is a central location where you can easily turn on and off the
communication features of your device such as the phone, Bluetooth, Wi-Fi, WiMAX,
and data connection.
To access the Comm Manager
Do one of the following:
On the TouchFLO 3D Home screen, slide to the Settings tab and then touch
Communications.
Touch Start > Programs > Comm Manager.
Touch Start > Settings > Connections tab > Comm Manager.
•
•
•
Programs 231
1
3
2
4
5
6
1Switch Airplane Mode on or off. Turning on Airplane Mode turns off the phone,
Wi-Fi and Bluetooth functions. For more information, see "To enable or disable
Airplane Mode" in Chapter 2.
2Switch the phone on or off. Tap Settings > Phone to set the ring tone and other
phone settings. See Chapter 13 for details.
3Switch Bluetooth on or off. Tap Settings > Bluetooth to configure Bluetooth on
your device. See Chapter 9 for details.
4Switch Wi-Fi on or off. Tap Settings > Wireless LAN to configure wireless network
connection settings. See Chapter 8 for details.
5Switch WiMAX on or off. Tap Settings > WiMAX to configure WiMAX connection
settings. See Chapter 8 for details.
6Connect or disconnect active data connections (GPRS, for example).
232 Programs
12.7 Microsoft® Office Mobile
Microsoft® Office Mobile consists of the following applications:
•Microsoft® Office Excel® Mobile lets you create and edit Excel workbooks
and templates on your device.
•Microsoft® Office OneNote® Mobile lets you create notes with text,
photos, and voice recordings for synchronization later with Microsoft® Office
OneNote®2007 on your computer.
•Microsoft® Office PowerPoint® Mobile allows you to view (not create) slide
show presentations in *.ppt and *.pps formats.
•Microsoft® Office Word Mobile lets you create and edit documents and
templates in Word Mobile and save them as *.doc,*.rtf,*.txt, and *.dot files.
To use Microsoft Office Mobile
1. Tap Start > Office Mobile.
2. Tap the Office Mobile application that you want to use.
Word Mobile and Excel Mobile do not fully support some features of Microsoft®
Office Word and Microsoft® Office Excel®. To see a complete list of features that are
not supported in Word Mobile and Excel Mobile, see Help on your device.
Tips • By default, Word Mobile saves documents in .docx format, while Excel Mobile
saves workbooks in .xlsx format. If you want to open these types of files on
a computer that uses Microsoft Office 2000, Office XP, or Office 2003, you
need to download and install the File Format Converter in your computer.
You can find this converter at http://www.microsoft.com/downloads/details.
aspx?FamilyId=941B3470-3AE9-4AEE-8F43-C6BB74CD1466&displaylang=en.
•If you want Word Mobile to save documents in .doc format, tap Menu > Tools >
Options (or Menu > Options when no document is opened), then change the
Default template to Word 97-2003 Document (.doc).
•If you want Excel Mobile to save workbooks in a format that is compatible with
Microsoft Office 2000, Office XP, or Office 2003, tap Menu > Options (with no
workbook opened), then change the Template for new workbook to Blank 97-
2003 Workbook.
Programs 233
12.8 Notes
Using Notes, you can create handwritten and typed notes, record voice notes,
convert handwritten notes to text for easy readability, and more.
To create a note
1. Tap Start > Programs > Notes. In the note list, tap New.
2. Choose an input method and then enter your text.
Tip For more information about input methods and entering text, see Chapter 4.
3. When finished, tap OK to save and return to the note list.
Notes • To select handwritten text, tap and hold next to the writing. As soon as dots
appear, and before they form a complete circle, quickly drag across the writing.
•If a letter crosses three ruled lines, it is treated as a drawing rather than text.
To draw in a note
1. Create or open a note file.
2. Use the stylus to draw on the screen. A selection
box then appears around your drawing.
3. Tap OK to save.
Note To select a drawing (for example, to copy or delete
it), tap and hold the drawing briefly. When you lift
the stylus, the drawing is selected.
234 Programs
To record a voice note
You can create a stand-alone recording (voice note) or you can add a recording to
a note.
1. Tap Start > Programs > Notes.
2. If you do not see the Recording toolbar, tap Menu > View Recording
Toolbar.
3. Do one of the following:
•To add a recording to a note, create or open a note.
•To create a stand-alone recording, record from the note list.
4. Tap the Record icon ( ) to begin recording your voice. Tap the Stop icon (
) when you are finished recording.
Tip
To select the voice recording format, return to the note list and then tap
Menu > Options > Global Input Options link (at the bottom of the Options screen).
On the Input screen, tap the Options tab and choose the desired format from the
Voice recording format list.
12.9 Java
MIDlets are Java applications such as games and tools that can run on mobile
devices, while a MIDlet suite is a collection of one or more MIDlets. The Java
program lets you download, install and manage MIDlets or MIDlet suites on your
device. Your device supports Java 2 Micro Edition, J2ME.
To open the Java program
Tap Start > Programs > Java.
Install and launch MIDlets/MIDlet suites
There are several ways to install a MIDlet/MIDlet suite.
Programs 235
To download and install via Internet Explorer Mobile
1. Tap Menu > Install > Browser to open Internet Explorer Mobile.
2. Locate the MIDlet/MIDlet suite while connected to the Internet.
3. Select the MIDlet/MIDlet suite to download.
4. Information about the MIDlet/MIDlet suite is then displayed. Tap Continue.
5. Confirm to start downloading.
6. Select <root> or a folder where to install the MIDlet suite to, then tap OK.
To install from your device
You can copy MIDlets/MIDlet suites from the computer to your device using the
USB sync cable or Bluetooth connection. Copy them to the root folder or any
subfolder on your device.
1. Tap Menu > Install > Local Files. The program then searches for MIDlets/
MIDlet suites on your device and displays them in a list.
2. From the list, tap the MIDlet/MIDlet suite that you want to install.
3. Confirm to start the installation.
4. Select <root> or a folder where to install the MIDlet suite to, then tap OK.
To run a MIDlet/MIDlet suite
Do one of the following:
•After installation of the MIDlet/MIDlet suite is complete, tap Yes.
•On the Java screen, open the folder that contains the MIDlet/MIDlet suite.
Select the MIDlet/MIDlet suite, then tap Launch.
Manage MIDlets/MIDlet suites
You can organize MIDlets/MIDlet suites into folders for easy identification,
renaming, updating, and more. If the device memory is full, uninstall some MIDlets/
MIDlet suites to free up memory space.
236 Programs
To create folders
1. On the Java screen, tap Menu > New Folder.
2. Enter a folder name, then tap Create.
To update a MIDlet/MIDlet suite
Tap and hold a MIDlet/MIDlet suite, then tap Update. Alternatively, you can tap
Menu > Actions > Update.
Java will search for updates for the selected MIDlet/MIDlet suite where it was
installed from before.
To uninstall MIDlets
Before you uninstall a MIDlet, make sure that it is not running.
1. Tap and hold the MIDlet, then tap Uninstall.
2. Tap OK to confirm.
Note To uninstall all MIDlets and folders from the current folder, tap Menu > Uninstall All.
12.10 SIM Manager
SIM Manager allows you to view the contents of your SIM card, transfer contacts
from your SIM card to your device or vice versa, and make a call to a SIM contact.
To create a contact on your SIM card
1. Tap Start > Programs > SIM Manager.
2. Tap New and enter a contact name and phone number.
3. Tap Save to save the information on your SIM card.
Tip To change contact information on your SIM card, tap a SIM contact, edit the
information, and then tap Save.
Programs 237
To copy SIM contacts to your device
If you have saved contacts on your SIM card, you can copy them into Contacts on
your device.
1. On the SIM Manager screen, select the desired contact, or select all SIM
contacts by tapping Menu > Select All.
2. Tap Menu > Save to Contacts.
To copy contacts to the SIM card
Only one phone number per contact name can be stored on a SIM card. When you
copy a contact that has several phone numbers to your SIM card, SIM Manager
saves each number under a separate name.
To save each number under a different contact name on the SIM card, SIM Manager
appends an indicator at the end of each name.
By default, /M, /W and /H are appended to indicate mobile, work and home phone
numbers respectively. You can edit this indicator first before you start copying
contacts to your SIM card. Indicators of the other types of phone numbers are left
empty for you to define them.
1. On the SIM Manager screen, tap Menu > Tools > Options.
2. Select the check boxes of the types of phone numbers that you want to be
added to the SIM card.
238 Programs
3. Under the Mark column, you can change the
indicator that will be appended to the SIM contact
names for each phone number type. To do so,
select a phone type, tap Edit, enter your desired
indicator, then tap Save.
4. After modifying, tap OK.
5. Tap Menu > Contacts to SIM.
6. Select the check boxes of the contact’s phone
numbers that you want to copy to your SIM card,
then tap Save.
To store your SIM card’s phone
number
1. On the SIM Manager screen,
tap Menu > Tools > List of
Own Numbers.
2. Tap Voice Line 1.
3. Change the name, if desired,
then enter your mobile
phone number.
4. Tap Save.
When your phone
number is stored
on the SIM card,
it will appear on
the SIM Manager
screen.
Programs 239
12.11 Tasks
Use Tasks to keep track of things you need to do. A task can occur once or
repeatedly (recurring).
Your tasks are displayed in a task list. Overdue tasks are displayed in red. A reminder
will be displayed when you have new tasks to be completed.
To create a task
1. Tap Start > Programs > Tasks.
2. Tap Menu > New Task, enter a subject for the task, and fill in information
such as start and due dates, priority, and so on.
3. Specify the type of category for your task, so that it can be grouped with
other related tasks. Tap Categories, then select a preset category (Business,
Holiday, Personal, or Seasonal), or tap New to create your own category.
4. When finished, tap OK.
To change the priority of a task
Before you can sort tasks by priority, you need to specify a priority level for each
task.
1. Tap Start > Programs > Tasks.
2. Tap the task you want to change the priority for.
3. Tap Edit, and tap a priority level in the Priority box.
4. Tap OK to return to the task list.
Note All new tasks are assigned a Normal priority by default.
To show start and due dates in the task list
1. Tap Start > Programs > Tasks.
2. Tap Menu > Options.
3. Select the Show start and due dates check box, then tap OK.
240 Programs
12.12 ZIP
The ZIP program increases the storage capacity of your device by allowing you to
compress files in the conventional ZIP format. It also allows you to extract files from
a zip file.
To start ZIP on your device
Tap Start > Programs > ZIP.
Each time you start ZIP, it searches for files that have the .zip file extension, and
displays these files on the Archive List screen.
To open a ZIP file and extract files
1. Touch a zip file to open it, or navigate to a zip file and then touch File > Open
Archive.
Note You cannot select multiple ZIP files.
2. From the zip file, select files by doing one of the following:
•Touch a file to select it.
•To select several files, touch Menu > Action and make sure Multi-Select
Mode is selected. Select files by touching each file. (Touch a selected file
to deselect it).
•To select all files, touch Menu > Action > Select All.
3. Touch Menu > Action > Extract.
4. Choose a folder where the files will be extracted to, then touch Extract.
5. Touch Menu > File > Close Archive to close the zip file.
Programs 241
To create a new zip archive
1. Touch File > New Archive.
2. On the Save As screen, enter the zip file name and choose a folder where
you want to save it. You can also choose whether to save the zip file on the
device’s main memory or a storage card.
3. Touch Save.
4. Touch Menu > Action > Add.
5. Navigate to the folder that contains the files you want to archive.
6. Select files to add by doing one of the following:
•Touch a file to select it.
•To select several consecutive files, drag over the files.
•To select several non-contiguous files, use the stylus to tap and hold on
the screen and then select Multi-Select Mode. Select files by tapping
each file. (Tap a selected file to deselect it).
•To select all files, use the stylus to tap and hold on the screen and then tap
Select All.
7. Touch Add.
8. Touch Menu > File > Close Archive to save and close the zip file.
242 Programs
Chapter 13
Managing Your Device
13.1 Copying and Managing Files
13.2 Settings on your Device
13.3 Changing Basic Settings
13.4 Using Connection Setup
13.5 Using Task Manager
13.6 Connecting to an External Display
13.7 Protecting Your Device
13.8 Managing Memory
13.9 Resetting Your Device
13.10 Windows Update
13.11 Battery Saving Tips
244 Managing Your Device
13.1 Copying and Managing Files
You can copy files between your device and computer, or copy files to a storage
card installed on your device. You can also efficiently manage your files and folders
using File Explorer.
To copy files using Windows Mobile Device Center or ActiveSync
1. Connect your device to the computer.
2. Click File Management > Browse the contents of your device in Windows
Mobile Device Center on your computer, or click Explore in ActiveSync on
your computer. This opens Windows Explorer on your computer and displays
the contents of your device.
3. To copy a file from your device to your computer:
a. Browse the contents of your device, right-click the file you want to copy,
then click Copy.
b. Right-click a folder on your computer, then click Paste.
4. To copy a file from your computer to your device:
a. Browse the folders on your computer, right-click the file you want to copy,
then click Copy.
b. Right-click a folder on your device, then click Paste.
To manage files on your device using File Explorer
File Explorer lets you browse and manage the contents of your device. The root
folder on the device is named My Device, and contains the following folders: My
Documents, Program Files, Windows, and more.
1. Tap Start > Programs > File Explorer.
2. Tap a folder or file to open it.
3. To return to an upper level folder, tap Up and select the folder.
4. To quickly delete, rename, or copy a file, tap and hold the file, then choose
Managing Your Device 245
the desired operation on the shortcut menu. To copy or delete multiple files,
tap and drag over the desired files to select, tap and hold the selection, then
choose the desired operation on the shortcut menu.
To copy files to a storage card
1. Make sure that the storage card is properly installed on your device.
2. Tap Start > Programs > File Explorer and navigate to the appropriate folder.
3. Tap and hold the file you want to copy, then tap Copy.
4. Tap the down arrow ( ), then tap Storage Card in the list.
5. Tap and hold an empty area on the screen and then select Paste on the
menu.
Tip You can configure programs such as Word Mobile and Excel Mobile to directly save
edited files onto a storage card. In the program's file list, tap Menu > Options, then
select the Storage Card in the Save to box.
13.2 Settings on your Device
You can adjust the device settings to suit the way you work. To see all available
settings, slide to the Settings tab on the Home screen and tap All Settings.
Personal tab
Icon Description
Buttons Assign a program or function to a hardware button or set the device to
vibrate, play a sound, or do both every time a virtual button is pressed. You can
also set the function you want to execute (for instance, lock the device) when you
press and hold the END button.
Input Set options for each of the input methods.
246 Managing Your Device
Icon Description
Lock Set a password for your device.
Menus Set which programs will appear in the Start menu.
Owner Information Enter your personal information on your device.
Phone Customize phone settings such as ring tone, set a PIN number for your
SIM card, and more.
Sounds & Notifications Enable sounds for events, notifications, and more, and
set the type of notification for different events.
Today Customize the appearance and the information to be displayed on the
Home screen.
System tab
Icon Description
About This is where you can see basic information such as the Windows Mobile®
version and type of processor used on your device. You can also specify a name
for your device.
Certificates See information about certificates that are installed on your device.
Clear Storage Reset your device to factory default settings and/or format the
internal storage.
Clock & Alarms Set the device clock to the date and time of your locale or to a
visiting time zone when you’re traveling. Alarms can also be set at specified days
and times of a week.
Managing Your Device 247
Icon Description
Customer Feedback Set your device to automatically send information about
how you use Windows Mobile. By default, this option is disabled.
Device Information See information about the firmware version, hardware,
identity, and the duration of calls made on your device.
Encryption Encrypt files on your storage card. Encrypted files will only be
readable on your device.
Error Reporting Enable or disable the device's error reporting function. When
this function is enabled and a program error occurs, technical data about the state
of the program and your computer will be logged in a text file and delivered to
Microsoft's technical support if you choose to send it.
External GPS Set the appropriate GPS communication ports, if required. You may
need to do this when there are programs on your device that access GPS data or
you have connected a GPS receiver to your device. See Help for details.
G-Sensor Recalibrate the G-Sensor of the device. Use this function when
auto-rotate is not working properly.
Key Lock Lock the buttons on your device except for the POWER button when
the device is in Sleep mode. This ensures you will not switch the device on by
accident and consume unnecessary power.
Managed Programs Displays the programs that were installed on your device
using System Center Mobile Device Manager.
Memory Check the device memory allocation status and storage card
information.
Microphone AGC Adjust the volume of your voice automatically when you are
recording.
Power Check the remaining battery power. You can also set the brightness of
the backlight and timeout for turning off the display (switching device to Sleep
mode) to conserve battery power.
248 Managing Your Device
Icon Description
Regional Settings Set the regional configuration to use, including the format for
displaying numbers, currency, date, and time on your device.
Remove Programs Remove programs that you installed on your device.
Screen Re-calibrate the screen, apply ClearType, and change the screen text size.
Task Manager Stop running programs and set the ( ) button to end programs
immediately when you tap the button. For more information, see "Using Task
Manager" in this chapter.
TouchFLO You can enable or mute the finger scrolling and panning sound. You
can also enable or disable the large Start menu.
Windows Update Link to Microsoft's web site and update Windows Mobile® on
your device with the latest security patches or fixes, if they are available.
Connections tab
Icon Description
Advanced Network Set the GPRS authentication method, set the line type to
use when making circuit switch data (CSD) connection, and set the SMS service
preference.
Beam Set your device to receive incoming Bluetooth beams.
Bluetooth Turn Bluetooth on, set your device to visible mode, and scan for other
Bluetooth devices.
Managing Your Device 249
Icon Description
Comm Manager Manage your device’s connections (including EDGE/GPRS, Wi-Fi,
Bluetooth, and WiMAX) or turn the phone function on or off.
Connection Setup Configure your device’s data connections, such as GPRS, and
WAP, based on the detected or selected network operator. See “Using Connection
Setup” in this chapter for details.
Connections Set up one or more types of modem connections for your device,
such as phone dial-up, GPRS, and more, so that your device can connect to the
Internet or a private local network.
Domain Enroll Enroll your device in your company’s domain to let System
Center Mobile Device Manager to manage the device. Please ask your Server
Administrator for more details.
USB to PC Set the type of USB connection to your PC. Select the ActiveSync
option for synchronizing data, or use Disk Drive mode for transferring files.
Wi-Fi Scan for available wireless networks.
WiMAX See information about active WiMAX networks and see your device’s
WiMAX connection settings.
Wireless LAN See information about the active wireless network, and customize
Wi-Fi settings.
250 Managing Your Device
13.3 Changing Basic Settings
Date and time
To set the date and time
1. On the Home screen Home tab, tap the time display and then tap the Time
tab.
Tip Tap the More tab and select the Display the clock on the title bar in all
programs option to show the clock on all screens.
2. Select the correct time zone and change the date or time.
Note During synchronization, the time on your device is updated with the time on your
computer.
To set the date and time for a different location
If you visit or communicate with someone in a particular time zone often, you can
select it as your visiting time zone.
1. On the Home screen Home tab, tap the time display and then tap the Time
tab.
2. Tap Visiting.
3. Select the correct time zone and change the date or time.
Regional settings
The style in which numbers, currency, dates, and times are displayed is specified in
regional settings.
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the System tab, tap Regional Settings > Region tab and then select your
region from the list.
Note This does not change the language of your device’s operating system.
The region you select determines which options will be available on the other
tabs.
Managing Your Device 251
3. To customize regional settings further, tap the appropriate tabs and set the
desired options.
Display settings
To adjust the screen brightness
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the System tab, tap Power > Backlight tab.
3. Adjust the brightness by dragging the slider under On battery power and
On external power.
Tip Select Auto adjust backlight to automatically adjust the backlight brightness
according to the ambient lighting.
To set the backlight to dim after a time delay
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the System tab, tap Power > Advanced tab.
3. In On battery power and On external power, select the Turn off backlight
if device is not used for check box, then specify the time delay.
To increase or decrease the size of text on the screen
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the System tab, tap Screen > Text Size tab.
3. Move the slider to increase or decrease the text size.
Device name
The device name is used to identify your device in the following situations:
•Synchronizing with a computer
•Connecting to a network
•Restoring information from a backup
252 Managing Your Device
Note If you synchronize multiple devices with the same computer, each device must have a
unique name.
To change the device name
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the System tab, tap About > Device ID tab.
3. Enter the device name.
Notes • The device name must begin with a letter, consist of letters from A to Z, numbers
from 0to 9, and cannot contain spaces. Use the underscore character to separate
words.
•If you enroll your device to your company’s domain, the device name will be
changed to be the same as the one used to enroll the device.
Ringer settings
To change the ring type and ring tone
1. On the Home screen, slide to the Settings tab and then tap Sound.
2. Scroll down and then tap Ring Type. Select the Ring Type you want to use
and then tap Done.
3. Tap Ringtone and then select the ringtone you want to use.
4. Tap Done.
Tips • You can use *.wav,*.mid,*.mp3,*.wma, or other types of sound files that you
downloaded from the Internet or copied from your computer as ring tones. To
quickly set the music file as a ring tone, tap and hold the music file and then select
Set As Ringtone. For a complete list of supported audio file formats for ring tones,
see "Specifications" in the Appendix.
•To use your sound files as ring tones, copy them first to the /My Documents/My
Ringtones folder on your device, then select the sound from the Ring tone list of
your device. For more information about copying files, see “Copying and Managing
Files” in this chapter.
Managing Your Device 253
Alarms and notifications
To set an alarm
1. On the Home screen Home tab, tap the time display and then tap the Alarms
tab.
2. Tap <Description> and enter a name for the alarm.
3. Tap the day of the week for the alarm. Select multiple days by tapping each
desired day. Tap again to deselect the day.
4. Tap the time to open a clock and set the time for the alarm.
Tip You can drag the hour and minute hands of the clock to set the time.
5. Tap the alarm icon ( ) to specify the type of alarm you want. You can
choose a flashing light, a single sound, a repeating sound, or vibration.
6. If you choose to play a sound, tap the list next to the Play sound check box
and tap the sound you want.
To choose how to be notified about events or actions
1. On the Home screen, slide to the Settings tab and then tap Sound >
Advanced.
2. On the Sounds tab, choose how you want to be notified by selecting the
appropriate check boxes.
3. On the Notifications tab, in Event, tap an event name and choose how you
want to be notified by selecting the appropriate check boxes. You can choose
from several options, such as a special sound, a message, a flashing light, or
vibrate.
Tip Turning off sounds and flashing light notifications helps conserve battery power.
254 Managing Your Device
Phone services
Your device can directly link to the mobile phone network, and enable you to
access and change the settings of various phone services for your device. Phone
services may include Call Forwarding, Call Waiting, Voicemail, and more. Contact
your wireless service provider to find out about the availability of phone services for
your device.
To access and change settings of phone services
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the Personal tab, tap Phone > Services tab.
3. Select the service you want to use, then tap Get Settings.
4. Choose your desired options, then tap OK.
For more information about customizing settings of phone services, see Help on
your device.
13.4 Using Connection Setup
Connection Setup configures your device’s data connections, such as GPRS and
WAP, for you so that you do not need to enter the settings manually onto your
device. All you need to do is to select your network operator, then Connection
Setup does all the configuration for you.
To automatically configure the device’s data connections
The first time you power on your device, or when
you insert a new SIM card and then power on your
device, Connection Setup will display a notification
message to inform you that it will automatically
configure your device’s connection settings.
1. Tap Ye s on the notification message.
Managing Your Device 255
Note If your SIM card supports multiple network operator profiles, the next message
that appears will display network profile choices. Select the profile you want to
use and tap OK.
2. When prompted to automatically configure your device to the proper
network settings, tap Yes .
Connection Setup configures your device’s data connection settings.
3. After the Connection Setup completes the configuration, tap Restart.
To manually select the network operator to use for data connections
You can also manually select your network operator from Connection Setup’s
settings screen. Connection Setup will then reconfigure your device’s data
connections settings based on the operator that you selected.
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the Connections tab, tap Connection Setup.
3. Select the network Country and Operator you want to use, then tap OK.
Note If you choose a Country and/or Operator that is different from the installed SIM
card network operator, you may not be able to access network services.
4. When prompted to confirm whether you want to configure the data
connection settings based on the selected network, tap Ye s.
Connection Setup configures the data connection settings.
5. After the Connection Setup completes the configuration, tap Restart.
256 Managing Your Device
13.5 Using Task Manager
Task Manager lets you view and stop running programs, configure the button,
and enable the Quick Menu on the Home screen.
To open Task Manager
•Tap the Quick Menu button on the top right corner of the Home screen to
open the Quick Menu, then tap .
•On the Home screen, slide to the Settings tab and then tap All Settings. On
the System tab, tap Task Manager.
To switch back to a running program
•Tap the program name in the Quick Menu.
•On the Task Manager screen, tap and hold the program name on the
Running tab, then tap Activate.
To configure the Exit ( ) button
You can configure the Exit button to shut down running programs when the
button is tapped, or to just temporarily close the program screen but keep the
program running.
1. On the Task Manager screen, tap the Button tab.
2. Select the Enable the “X” button to end running programs check box.
Note When the Enable the “X” button to end running programs check box is not
selected, tapping the Exit button will only close a program screen. The program
is not ended and continues to run in the background.
3. Choose the action for shutting down programs (by tapping the button, or
by tapping and holding the button).
4. Tap OK.
Managing Your Device 257
To close running programs from the Task Manager
1. On the Task Manager screen, tap the Running tab.
2. Do one of the following:
•Select the check box of the programs that you want to close, then tap
Stop Selected.
•Tap Stop All to close all programs in the list.
•Tap Menu > Stop All but Selected to close all programs except those
which check boxes are selected.
Tip You can also close running programs from the Quick Menu on the Home screen. See
“Quick Menu” in Chapter 1 for details.
To add a running program to the exclusive list
If you add a running program to the Exclusive Programs List, it will not be closed
when you tap Stop Selected or Stop All and will not be listed in the Quick Menu
on the Home Screen.
1. On the Task Manager screen, tap the Running tab.
2. Tap and hold the program name, then tap Add Exclusive.
Tip To remove a program from the exclusive list, tap the Exclusive tab, select the check
box of the program, then tap Remove.
To set the sorting preference and program icon size in the Quick Menu
1. On the Task Manager screen, tap the Others tab.
2. In Sort programs in Quick Menu by, choose whether to sort according to
Program name or Memory usage. The list will be sorted in ascending order.
3. In Program icon size in Quick Menu, choose whether to use Small size or
Large size.
258 Managing Your Device
13.6 Connecting to an External Display
The TV Out function outputs the device’s screen contents and audio to an external
display with an RCA cable socket such as a television.
Notes • You need an HTC TV Out cable to be able to connect your device to an external
display. The HTC TV Out cable is sold separately.
•When you plug in the HTC TV Out cable to your device, you will not be able to play
music files from the TouchFLO 3D Music tab.
•It is recommended that you use an audio accessory (not the HTC TV Out cable)
such as the wired headset when you want to listen to music on your device.
You can check the HTC web site for other audio accessories for your device.
Connect the device to an external display
1. Turn off the external display.
2. Connect the ends (red, white, and yellow RCA plugs) of the HTC TV Out cable
to the external display’s RCA sockets.
3. Connect the mini-USB end of the HTC TV
Out cable to the sync connector at the
bottom of the device. The TV Out screen
opens.
4. Choose the video standard to use when
outputting the video and then tap OK.
For example, if your video is in the NTSC
standard and you select PAL-M, TV Out will
automatically convert your video to PAL-M
before it outputs to the external display.
5. Turn on the external display then select the input signal that you connected
the HTC TV Out cable to (for example, Video 1).
Managing Your Device 259
13.7 Protecting Your Device
Protect your SIM card with a PIN
You can protect your SIM card from unauthorized use by assigning a PIN (personal
identification number). The default SIM card PIN is provided by your wireless service
provider.
To enable the SIM card PIN
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the Personal tab, tap Phone > PIN tab.
3. Select the Require PIN when phone is used check box.
4. Enter the PIN number and then tap OK. To change the PIN at any time, tap
Change PIN.
Tip Emergency calls can be placed at any time, without requiring a PIN.
Protect your device with a password
You can help keep your data more secure by requiring a password every time the
device is turned on.
To set a device password
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the Personal tab, tap Lock.
3. Select the Prompt if device unused for check box, then specify the idle time
before the device requires a password.
4. In the Password type box, select the type of password you would like to use.
Tip If your device is configured to connect to a network, use an alphanumeric
password for increased security.
5. Enter the password in both the Password and Confirm boxes.
260 Managing Your Device
6. Tap OK. The next time the device is turned on, you will be prompted to enter
your password.
Notes • To ensure that you can always make emergency calls, do not begin your password
with the digits of your local emergency number.
•If you entered a hint, the hint will be displayed after the wrong password is entered
five times.
•Each time a wrong password is entered, the device response time gets longer until
the device appears to be not responding.
•If you forget your password, you can hard reset or clear the device memory. Before
you do this, make sure you back up your data and files so that you can restore
them back to your device. For more information about hard resetting the device
and clearing the memory, see “Resetting Your Device” in this chapter.
Encrypt files on your storage card
You can set your device to encrypt files as they are saved on the storage card.
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the System tab, tap Encryption.
3. Select Encrypt files when placed on a storage card.
Notes • Encrypted files can only be read on the device that encrypted them.
•Encrypted files are opened just like other files, provided you are using the device
that encrypted them. There is no separate step for you to take to read these files.
Important If Encrypt files when placed on a storage card is enabled, backup all files from
the storage card before using Clear Storage, hard reset, or updating the ROM
system software. Otherwise you will no longer be able to access the encrypted files
on the storage card. Use ActiveSync or Windows Mobile Device Center to transfer
files between your storage card and computer. After the procedure, copy your files
back to the storage card.
Managing Your Device 261
13.8 Managing Memory
To see how much memory is available for use
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the System tab, tap Memory > Main tab. The amount of memory
allocated to data storage versus program storage is displayed, as well as the
amount of memory in use versus the available memory.
To see the available space of the storage card
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the System tab, tap Memory > Storage Card tab.
If your device is running low on memory, try the following to free memory on your
device:
•Close programs which are not in use.
•Move files and e-mail attachments to the storage card.
•Delete unnecessary files. Tap Start > Programs > File Explorer. Tap and hold
the file, and tap Delete.
•Delete large files. To find large files on your device, tap Start > Programs >
Search. In the Type list, tap Larger than 64 KB, and tap Search.
•
In Opera Mobile or Internet Explorer Mobile, delete temporary Internet files
and clear history information.
•Remove programs you no longer use.
•Reset your device.
262 Managing Your Device
13.9 Resetting Your Device
Soft reset
Occasionally, you may need to reset your device. A soft (or normal) reset of your
device clears all active program memory and shuts down all active programs. This
can be useful when your device is running slower than normal, or a program is not
performing properly. A soft reset is also necessary after the installation of some
programs. If a soft reset is performed when programs are running, unsaved work
will be lost.
To perform a soft reset
1. Remove the back cover.
2. Use the stylus tip to press the RESET
button located at the center right
side of device’s back panel.
Your device restarts and displays the
Home screen.
RESET
Hard reset
You can also perform a hard reset (also known as a full reset). A hard reset should
only be performed if a normal reset does not solve a system problem. After a
hard reset, the device is restored to its default settings—the way it was when you
first purchased it and turned it on. Any programs you installed, data you entered,
and settings you customized on your device will be lost. Only Windows Mobile®
software and other pre-installed programs will remain.
Warning! Your device will be set back to factory default settings. Make sure that any
additional installed programs and/or user data have been backed up before you
perform a hard reset.
Managing Your Device 263
Important If Encrypt files when placed on a storage card is enabled, backup all files from
the storage card before using Clear Storage, hard reset, or updating the ROM
system software. Otherwise you will no longer be able to access the encrypted files
on the storage card. Use ActiveSync or Windows Mobile Device Center to transfer
files between your storage card and computer. After the procedure, copy your files
back to the storage card.
To perform a hard reset
1. Pull out the stylus, then remove the back cover.
2. With the device turned on, press and hold the TALK/SEND and END buttons,
then press the RESET button with the stylus tip.
3. Release the RESET button, but continue
pressing the TALK/SEND and END
buttons until you see this message on
the screen:
4. Release the TALK/SEND and END
buttons, then replace the back cover.
This operation will delete
all your personal data,
and reset all settings to
the manufacturer default
settings. Press VolUp
to restore manufacturer
defaults, or press VolDown
to cancel.
5. Press the VOLUME UP button to perform the hard reset, or press the VOLUME
DOWN button to cancel the reset.
Clear Storage
You can also use Clear Storage to reset your device back to factory default settings
and/or format the internal storage.
1. On the Home screen, slide to the settings tab and then tap All Settings.
2. On the System tab, tap Clear Storage.
3. In the drop-down menu, select whether to Clear Storage only,Format
internal storage only, or Clear storage and format internal storage.
4. Enter “1234” and then tap Ye s.
264 Managing Your Device
13.10 Windows Update
You can update Windows Mobile® on your device with the latest updates, security
patches or fixes, if these are available.
To set up Windows Update
The first time you run Windows Update, you need to set up how you want Windows
Update to check for patches on the Microsoft web site.
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the System tab, tap Windows Update.
3. On the Update Setup screen, tap Next.
4. Choose how you want to check for updates, Manual or Automatic, then tap
Next.
Note If you select Automatic, you will be asked if you want to use your current data
plan to check for updates. Select or clear the Use my data plan to check for and
download updates check box and tap Next.
5. Tap Finish.
To check for updates
1. On the Home screen, slide to the Settings tab and then tap All Settings.
2. On the System tab, tap Windows Update.
3. Tap Check Now.
Note Windows Mobile® updates may not be available at all times. Check the Windows
Mobile® web site for update information.
Managing Your Device 265
To change Windows Update options
1. On the Home screen, slide to the Settings tab
and then tap All Settings.
2. On the System tab, tap Windows Update.
3. Tap Menu and select the option you want to
change.
•Tap Connections to change how the
device connects to the Internet when
checking for updates.
•Tap Change Schedule to change how
Windows Update checks for Windows
Mobile® updates.
13.11 Battery Saving Tips
How long your battery power lasts depends on the battery type and how you use
your device. Try the following to help conserve battery life:
•When the device is not in use, press POWER to switch off the display.
•On the Home screen, slide to the Settings tab and then tap All Settings. On
the System tab, tap Power > Advanced tab of the Power settings screen.
Here, you can specify the time before your device automatically turns off the
display and backlight to conserve battery power. For optimum conservation,
specify 3 minutes or less.
•On the Home screen, slide to the Settings tab and then tap All Settings. On
the System tab, tap Power > Backlight tab to adjust the backlight brightness
settings.
266 Managing Your Device
•Use the AC adapter to plug your device into an external power outlet
whenever possible, especially when using a storage card or when using a
modem or other peripherals.
•Turn Bluetooth off when you are not using it. Make your device visible to
other devices only when you are trying to establish a Bluetooth partnership.
For more information about Bluetooth, see Chapter 9.
•Turn off WiMAX or Wi-Fi when not in use. For more information about WiMAX
and Wi-Fi, see Chapter 8.
•Lower the volume.
•Close battery-intensive programs, such as the Camera, when you are done
using them. Make sure the programs are ended and are not continuously
running in the background. Refer to “Using Task Manager” in this chapter for
information on closing programs.
Appendix
A.1 Specifications
A.2 Regulatory Notices
268 Appendix
A.1 Specifications
Processor Qualcomm® MSM 7201A™ 528 MHz
Operating System Windows Mobile® 6.1 Professional
Memory ROM: 512 MB
RAM: 288 MB
Dimensions (LxWxT) 115 mm x 62.8 mm x 12 mm (4.528 in x 2.472 in x 0.472 in)
Weight 146.4 grams (5.164 ounces) with battery
Display 3.8-inch TFT-LCD flat touch-sensitive screen with 480 x 800 WVGA
resolution
Network HSPA/WCDMA
900/2100 MHz
Up to 2 Mbps up-link and 7.2 Mbps down-link speeds
Quad-band GSM/GPRS/EDGE
850/900/1800/1900 MHz
(Band frequency and data speed are operator dependent.)
•
•
•
Device Control TouchFLO™ 3D
Touch-sensitive front panel buttons
•
•
GPS GPS ready
Connectivity Bluetooth® 2.0 with Enhanced Data Rate and A2DP for wireless
stereo headsets
Wi-Fi® (IEEE 802.11b/g)
HTC ExtUSB™ (11-pin mini-USB 2.0)
•
•
•
Camera Main camera: 5 megapixel color camera with auto focus
Second camera: VGA CMOS color camera
Audio Built-in 3.5 mm audio jack, microphone, speaker, and FM radio
Ring tone formats:
AAC, AAC+, eAAC+, AMR-NB, AMR-WB, QCP, MP3, WMA, WAV
40 polyphonic and standard MIDI format 0 and 1 (SMF) / SP
MIDI
•
•
•
•
Appendix 269
Battery Rechargeable Lithium-ion or Lithium-ion polymer battery
Capacity 1350 mAh
•
•
Talk time: Up to 390 minutes for WCDMA
Up to 310 minutes for GSM
Standby time: Up to 450 hours for WCDMA
Up to 390 hours for GSM
Video call time: Up to 120 minutes
(The above are subject to network and phone usage.)
•
•
•
Expansion Slot microSD™ memory card (SDHC™ capable)
AC Adapter Voltage range/frequency: 100 - 240V AC, 50/60 Hz
DC output: 5V and 1A
A.2 Regulatory Notices
Regulatory Agency Identifications
For regulatory identification purposes, your product is assigned a model number of
BLAC100.
To ensure continued reliable and safe operation of your device, use only the
accessories listed below with your BLAC100.
The Battery Pack has been assigned a model number of BLAC160.
Note This product is intended for use with a certified Class 2 Limited Power Source, rated 5
Volts DC, maximum 1 Amp power supply unit.
270 Appendix
Federal Communications Commission Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harm-ful interference to radio or TV reception, which can be determined by turning
the equipment on and off, the user is encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made
to the device that are not expressly approved by High Tech Computer Corporation
may void the user’s authority to operate the equipment.
Body-worn operation
This device was tested for typical body-worn operations with the back of the
phone kept 1.5cm from the body. To maintain compliance with FCC RF exposure
requirements, use only belt-clips, holsters or similar accessories that maintain a
Appendix 271
1.5cm separation distance between the user’s body and the back of the phone,
including the antenna. The use of belt-clips, holsters and similar accessories should
not contain metallic components in its assembly. The use of accessories that do not
satisfy these requirements may not comply with FCC RF exposure requirements,
and should be avoided.
Safety Precautions for RF Exposure
Use only original manufacturer-approved accessories, or accessories that do not
contain any metal.
Use of non-original manufacturer-approved accessories may violate your local RF
exposure guidelines and should be avoided.
Exposure to Radio Frequency (RF) Signals
Your device contains a radio transmitter and receiver. The radiated output power
is far below the international radio frequency exposure limits. These limits are part
of comprehensive guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on the safety standards previously set
by international standards bodies:
•American National Standards Institute (ANSI) IEEE. C95.1-1992
•National Council on Radiation Protection and Measurement (NCRP). Report
86. 1986
•International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996
•Ministry of Health (Canada), Safety Code 6. The standards include a
substantial safety margin designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The standard incorporates a
substantial margin of safety to give additional protection for the public and to
account for any variations in usage.
272 Appendix
As with other mobile radio transmitting equipment, users are advised that for
satisfactory operation of the equipment and for the safety of personnel, it is
recommended that no part of the human body be allowed to come too close to the
antenna during operation of the equipment.
Your device has an internal antenna. Use only the supplied integral antenna. Use of
unauthorized or modified antennas may impair call quality and damage the phone,
causing loss of performance and SAR levels exceeding the recommended limits as
well as result in non-compliance with local regulatory requirements in your country.
To assure optimal phone performance and ensure human exposure to RF energy
is within the guidelines set forth in the relevant standards; always use your
device only in its normal-use position. Do not touch or hold the antenna area
unnecessarily when placing or receiving a phone call. Contact with the antenna
area may impair call quality and cause your device to operate at a higher power
level than needed. Avoiding contact with the antenna area when the phone is IN
USE optimizes the antenna performance and the battery life.
Tests for SAR are conducted using standard operating positions specified by
the FCC with the phone transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while operation can be well
below the maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required to reach the network.
In general, the closer you are to a wireless base station antenna, the lower the
power output. Before a phone model is available for sale to the public, it must be
tested and certified to the FCC that it does not exceed the limit established by the
government-adopted requirement for safe exposure. The tests are performed in
positions and locations (for example, at the ear and worn on the body) as required
by the FCC for each model. (Bodyworn measurements may differ among phone
models, depending upon available accessories and FCC requirements). For body
worn operation, to maintain compliance with FCC RF exposure guidelines, use
only original manufacturer approved accessories. When carrying the phone while
Appendix 273
it is on, use the specific original manufacturer supplied or approved carrying case,
holster, or other body-worn accessory
SAR Information
0.540 w/kg @ 1g (Head)
1.23 w/kg @ 1g (Body)
Telecommunications & Internet Association (TIA)
Safety Information
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum
separation of six inches be maintained between a handheld wireless phone
and a pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research. Persons with pacemakers:
•Should ALWAYS keep the phone more than six inches from their pacemaker
when the phone is turned ON.
•Should not carry the phone in a breast pocket.
•Should use the ear opposite the pacemaker to minimize the potential for
interference. If you have any reason to suspect that interference is taking
place, turn the phone OFF immediately.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the event
of such interference, you may want to consult your service provider, or call the
customer service line to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your
device to determine if they are adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this information.
274 Appendix
Turn the phone OFF in health care facilities when any regulations posted in
these areas instruct you to do so. Hospitals or health care facilities may be using
equipment that could be sensitive to external RF energy.
WEEE Notice
The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered
into force as European law on 13th February 2003, resulted in a major change in the
treatment of electrical equipment at end-of-life.
The purpose of this Directive is, as a first priority, the prevention of WEEE, and
in addition, to promote the reuse, recycling and other forms of recovery of such
wastes so as to reduce disposal.
The WEEE logo (shown at the left) on the product or on its box indicates
that this product must not be disposed of or dumped with your other
household waste. You are liable to dispose of all your electronic or
electrical waste equipment by relocating over to the specified collection
point for recycling of such hazardous waste. Isolated collection and
proper recovery of your electronic and electrical waste equipment at
the time of disposal will allow us to help conserving natural resources.
Moreover, proper recycling of the electronic and electrical waste
equipment will ensure safety of human health and environment. For
more information about electronic and electrical waste equipment
disposal, recovery, and collection points, please contact your local
city center, household waste disposal service, shop from where you
purchased the equipment, or manufacturer of the equipment.
RoHS Compliance
This product is in compliance with Directive 2002/95/EC of the European
Parliament and of the Council of 27 January 2003, on the restriction of the use of
certain hazardous substances in electrical and electronic equipment (RoHS) and its
amendments.
Index
A
A2DP 174
ActiveSync
- about 219
- set up 104
- synchronize with computer 105
- synchronize with Exchange Server 128
Add and remove programs 221
Adobe Reader LE 219, 222
Airplane Mode 53, 231
Alarm 253
Album
- about 199, 219
- close Album 205
- play back video 205
- select a photo or video to view 200
- view an image 201
Attachment
- add to e-mail 121
- download 122
- set IMAP4 to automatically receive
attachments 125
- set Outlook to automatically receive
attachments 124
Audio Booster 215, 219
B
Back cover
- remove 28
Backlight
- adjust brightness 251
- set backlight timeout 251
Basic settings 250
Battery
- battery information 29
- charge battery 31
- install 30
- remove 30
- save battery power 145, 265
Beam via Bluetooth 175
Block Recognizer 96
Bluetooth
- about 172
- hands-free headset 174
- modem 168
- modes 172
- partnership (pairing) 173
- SIM Access Prole (SAP) 63
- stereo headset 174
- synchronize 107
- turn on and o 231
- visible 172
276 Index
C
Calculator 219
Calendar
- about 218
- create appointment 223
- send appointment 226
- view appointment 225
Call History 52
Calling
- from Contacts 47
- from Home screen 47
- from Phone screen 47
Camera
- about 188, 219
- Advanced Options 196
- capture modes 188
- controls 190
- le formats 189
- icons 191
- Menu Panel 192
- specications 269
- zooming 194
Car kit phones 63
Clear Storage 263
Clock & Alarms 246, 250, 253
Comm Manager 219, 230, 249
Compact QWERTY 91
Company Directory 136
Conference call 50
Configure data connection
settings 33, 254
Connect device to Internet
- Dial-up 147
- start a connection 147
- ways of connecting 140
Connection Setup 33, 254
Contacts 218, 227
Contacts Picture capture mode 189
Copy
- contacts to SIM card 237
- copy and manage les 244
- media les from PC to device 208
- SIM contacts to device 237
D
Device name 251
Dial-up 147
Dimensions and weight 268
Direct Push 130
Disconnect data connection 231
Download
- download complete e-mail 121
- e-mail download settings 117, 124
- le attachments 122
- Java applications 235
- satellite data 184
- synchronize e-mails 123
- web feeds 161
Draw 233
E
E-mail
- Internet e-mail account
(POP3/IMAP4) 116
- mail server settings 117
- Mail tab (Home screen) 73
Index 277
- send 120
- settings (POP3/IMAP4) 117
- setup wizard 116
- synchronize 100, 123, 128
- types of e-mail accounts 115
EDGE/GPRS
- add new connection 146
Emergency call 48
Emoticon
- Windows Live Messenger 160
Entering Information 88
Equalizer 215
Excel Mobile 218, 232
Exchange Server 128
F
Favorite contacts 70
File Explorer 219, 244
Find contact
- Company Directory 136
- on device 229
Finger gestures 84
Finger panning 85
Finger scrolling 84
FM Radio 212, 219
Forward e-mail 123
Full QWERTY 89
G
G-Sensor 247
Games 219
Getting Started 219
Google Maps 180, 219
GPS 182, 184, 220
H
Hard reset 262, 263
Help 218
Home screen 38, 66
Home tab (Home screen) 68
I
IMAP4 116
Input methods
- Block Recognizer 96
- Compact QWERTY 91
- Full QWERTY 89
- Letter Recognizer 96
- Phone Keypad 92
- Transcriber 97
Input Panel 88
Input Selector arrow 88
International call 48
Internet 140
Internet e-mail 116
Internet Explorer Mobile 218
Internet Sharing 167, 220
Internet tab (Home screen) 75
J
Java
- about 220
- create folders 236
- install MIDlets/MIDlet suites
from device 235
278 Index
- install MIDlets/MIDlet suites
from Internet 235
- manage MIDlets/MIDlet suites 235
- uninstall MIDlets 236
- update a MIDlet/MIDlet suite 236
L
Letter Recognizer 96
Library
- Music tab (Home screen) 78
- Windows Media Player Mobile 207
Live Messenger 159
M
Mail tab (Home screen) 73
Meeting request 134, 226
Memory 42, 261, 268
Messages tab (Home screen) 72
Messaging
- about 110, 218
- e-mail 115, 116, 119
- text (SMS) 111
Messenger 159, 220
microSD card
- install 31
Microsoft Office Mobile 218, 232
MIDlet/MIDlet suite 234
Mobile WiMAX 140
- To check the WiMAX status 141
- Turn WiMAX on and o 140
Modem
- Bluetooth 168
- USB 168
Multimedia 187
Multitap 93
Music tab (Home screen) 77
N
News channels (web feeds) 161
Notes 220, 233
Now Playing
- Music tab (Home screen) 77, 78
- Windows Media Player Mobile 207
Numeric and Symbol Mode 95
O
Office Mobile 218, 232
OneNote Mobile 218, 232
Open PDF file 222
Opera Mobile 148, 220
P
Panorama capture mode 189
Password 259
People tab (Home screen) 70
Phone 46, 218
Phone Keypad 92
Phone services 254
Photo capture mode 189
Photos and Videos tab (Home screen) 75
Pictures & Videos 220
Picture Theme capture mode 189
PIN 46, 259
Playlists
- Music tab (Home screen) 79
- Windows Media Player Mobile 211
Index 279
Play media 210
Play music
- Music tab (Home screen) 77
- Windows Media Player Mobile 210
Podcasts 166
POP3 116
PowerPoint Mobile 218, 232
Programs 218
Programs tab (Home screen) 83
Put call on hold 50
Q
QuickGPS 184, 220
Quick menu 42, 256
R
Record
- voice note 234
Regional Settings 248, 250
Regulatory notices 271
Remote Desktop Mobile 220
Reply
- e-mail 123
- text (SMS) 73, 113
Reset
- clear storage 263
- hard reset 262
- soft reset 262
Review screen (Camera) 195
Ring tone 82, 252
Ring type 252
RSS Hub
- about 161, 220
- headline list 164
- news channels 161
- podcasts 166
- summary view 165
S
Safety information 5
Screen text size 251
Search 220
Send
- e-mail 120
- text message (SMS) 111
Settings (Connections tab)
- Advanced Network 248
- Beam 248
- Bluetooth 248
- Connections 147, 249
- Connection Setup 249, 254
- Domain Enroll 249
- USB to PC 107, 249
- Wi-Fi 144, 249
- Wireless LAN 144, 249
Settings (Personal tab)
- Buttons 245
- Input 245
- Lock 246, 259
- Menus 246
- Owner Information 246
- Phone 246, 252, 254
- Sounds & Notications 246, 253
- Today 246
Settings (System tab)
- About 246, 252
280 Index
- Certicates 246
- Clear Storage 246, 263
- Clock & Alarms 246, 250, 253
- Customer Feedback 247
- Device Information 247
- Encryption 247, 260
- Error Reporting 247
- External GPS 247
- Key Lock 247
- Managed Programs 247
- Memory 247
- Microphone AGC 247
- Power 247
- Regional Settings 248, 250
- Remove Programs 222, 248
- Screen 248, 251
- Task Manager 248, 256
- TouchFLO 41, 85, 248
- Windows Update 248, 264
Settings tab (Home screen) 82
SIM Access Profile (SAP) 63
SIM card
- install 28
- PIN 259
- remove 29
SIM Manager
- about 220, 236
- copy contacts to SIM card 237
- copy SIM contacts to device 237
- create SIM contact 236
Sleep mode 34
Smart Dial 62
SMS 72, 111, 120
Soft reset 262
Sounds & Notifications 246, 253
Speakerphone 50
Specifications 268
Speed Dial 52
Start menu 41
Status icons 39
STK (SIM Tool Kit) Service 221
Storage card
- encrypt 260
- install 31
Swap/switch calls 50
Synchronize
- ActiveSync 105
- change information types 106
- music and videos 108
- via Bluetooth 107
- Windows Media Player 208
- Windows Mobile Device Center 101
- with computer 82, 105
- with Exchange Server 82, 128
T
T9 93
Task Manager 248, 256
Tasks 220, 239
Text messages
- copy from SIM card 114
- copy to SIM card 114
- create new message 111
- Messages tab (Home screen) 72
- send 112
Text size (screen) 251
TouchFLO 3D 65
Index 281
Transcriber 97
Troubleshoot
- sync connection 107
- Windows Media Player Mobile 211
Turn device on and off 33
Turn phone function on and off 231
Turn the phone function on and off 53
TV Out 258
U
USB modem 168
USB to PC 107, 249
V
Vibrate 39, 43, 51, 253
Video capture mode 189
Voice and Video over IP 58
- Answer a video call 58
- Change the call settings 59
- End a video call 59
- Make a video call 58
Voice call
- about 47
- answer call 48
- end call 51
- make call 47
Voicemail 48
Voice over IP 56
- Answer a call 57
- End a call 57
- Make a call 56
VVoIP 54
- Change the settings 54
- Register to VoIP service 55
W
Weather tab (Home screen) 80
Wi-Fi 141, 231
WiMAX 231, 249
WiMAX Modem
- Setting up 170
Windows Live 157, 221
Windows Live Messenger 159, 220
Windows Media Player Mobile
- about 221
- le formats 206
- menus 207
- playlists 211
- troubleshoot 211
Windows Mobile Device Center 101
Windows Update 248, 264
Word Mobile 218, 232
Y
YouTube 152, 221
Z
ZIP
- about 221, 240
- create archive 241
- open zip le and extract les 240
Zooming
- Camera 194
- nger gestures 85
282 Index
