Please Read Before Proceeding
THE DEVICE BATTERY IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX.
DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING.
YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE DEVICE’S
OUTER CASING.
INTELLECTUAL PROPERTY RIGHT INFORMATION
Copyright © 2007 High Tech Computer Corp. All Rights Reserved.
, , , HTC Shift and ExtUSB are trademarks and/or service marks
of High Tech Computer Corp.
Microsoft, MS-DOS, Windows, Windows Vista, Windows NT, Windows Server, Windows
Mobile, Windows XP, ActiveSync, Windows Mobile Device Center, Internet Explorer,
Windows Live, MSN, Hotmail, Outlook, Excel, PowerPoint, Word, and Windows Media
are either registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc.
Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc.
SD is a trademark of SD Card Association.
This product incorporates copy protection technology that is protected by U.S.
an foreign patents, including patent numbers 5,315,448 and 6,836,549, and other
intellectual property rights. The use of Macrovision’s copy protection technology in
the product must be authorized by Macrovision. Reverse engineering or disassembly
is prohibited.
All other company, product and service names mentioned herein are trademarks,
registered trademarks or service marks of their respective owners.
HTC shall not be liable for technical or editorial errors or omissions contained herein,
nor for incidental or consequential damages resulting from furnishing this material.
The information is provided “as is” without warranty of any kind and is subject to
change without notice. HTC also reserves the right to revise the content of this
document at any time without prior notice.
No part of this document may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying, recording or storing in a
retrieval system, or translated into any language in any form without prior written
permission of HTC.
3
Important Health Information and Safety Precautions
When using this device, the safety precautions below must be taken to avoid possible
legal liabilities and damages.
Retain and follow all device safety and operating instructions. Observe all warnings in
the operating instructions on the device.
To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment,
observe the following precautions.
ELECTRICAL SAFETY
This device is intended for use when supplied with power from the designated battery
or power supply unit. Other usage may be dangerous and will invalidate any approval
given to this device.
SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION
CAUTION: Connecting to improperly grounded equipment can result in an electric
shock to your device.
This device can be used with a USB cable for connecting with other devices. Be sure
your device is properly grounded (earthed) before connecting it to other devices.
The power supply cord of this device has an equipment-grounding conductor and
a grounding plug. The plug must be plugged into an appropriate outlet which is
properly installed and grounded in accordance with all local codes and ordinances.
SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT
• Use the correct external power source
A product should be operated only from the type of power source indicated
on the electrical ratings label. If you are not sure of the type of power source
required, consult your authorized service provider or local power company. For a
product that operates from battery power or other sources, refer to the operating
instructions that are included with the product.
• Do not connect the supplied adapter to other devices
Use the adapter only as instructed by the user manual.
• Do not step on the power cord or place objects on top of it
Carefully route the power cord away from foot traffic.
• Use care when unplugging the power cord
When unplugging the power cord, do not pull on the cord itself; pull on the plug.
• Handle battery packs carefully
This device contains a Li-ion battery. There is a risk of fire and burns if the battery
pack is handled improperly. Do not attempt to open or service the battery pack.
4
WARNING: Danger of explosion if battery is incorrectly replaced.
To reduce risk of fire or burns, do not disassemble, crush, puncture,
short external contacts, expose to temperature above 60° C (140° F),
or dispose of in fire or water. Replace only with specified batteries.
Recycle or dispose of used batteries according to the local regulations
or reference guide supplied with your device.
• Take extra precautions
• Keep the battery or device dry and away from water or any liquid as it may
cause a short circuit.
• Keep metal objects away so they don’t come in contact with the battery or
its connectors as it may lead to short circuit during operation.
• Do not use a battery that appears damaged, deformed, or discolored, or the
one that has any rust on its casing, overheats, or emits a foul odor.
• Always keep the battery out of the reach of babies and small children, to
avoid swallowing of the battery. Consult the doctor immediately if the
battery is swallowed.
If the battery leaks:
• Do not allow the leaking fluid to come in contact with skin or clothing. If
already in contact, flush the affected area immediately with clean water and
seek medical advice.
• Do not allow the leaking fluid to come in contact with eyes. If already in
contact, DO NOT rub; rinse with clean water immediately and seek medical
advice.
• Take extra precautions to keep a leaking battery away from fire as there is a
danger of ignition or explosion.
• Communicate the appropriate steps immediately in case a hazard occurs
SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT
Keep this device away from excessive moisture and extreme temperatures. Do not
leave the device or its battery inside a vehicle or in places where the temperature may
exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is
exposed to direct sunlight or strong ultraviolet light for extended periods of time. This
may damage the device, overheat the battery, or pose a risk to the vehicle.
5
PREVENTION OF HEARING LOSS
CAUTION: Permanent hearing loss may occur if earphones or
headphones are used at high volume for prolonged periods of time.
SAFETY IN AIRCRAFT
Due to the possible interference caused by this device to an aircraft’s navigation
system and its communications network, using this device’s wireless communications
function on board an airplane is against the law in most countries. If you want to
use this device when on board an aircraft, remember to turn off the device’s wireless
communications function by switching to Flight Mode.
ENVIRONMENT RESTRICTIONS
Do not use this device in gas stations, fuel depots, chemical plants or where blasting
operations are in progress, or in potentially explosive atmospheres such as fuelling
areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer
or storage facilities, and areas where the air contains chemicals or particles, such as
grain, dust, or metal powders. Please be aware that sparks in such areas could cause an
explosion or fire resulting in bodily injury or even death.
EXPLOSIVE ATMOSPHERES
When in any area with a potentially explosive atmosphere or where flammable
materials exist, the device should be turned off and the user should obey all signs and
instructions. Sparks in such areas could cause an explosion or fire resulting in bodily
injury or even death. Users are advised not to use the equipment at refueling points
such as service or gas stations, and are reminded of the need to observe restrictions
on the use of radio equipment in fuel depots, chemical plants, or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are often,
but not always, clearly marked. These include fueling areas, below deck on boats, fuel
or chemical transfer or storage facilities, and areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
SAFETY PRECAUTIONS FOR RF EXPOSURE
• Avoid using your device near metal structures (for example, the steel frame of a
building).
• Avoid using your device near strong electromagnetic sources, such as microwave
ovens, sound speakers, TV and radio.
• Use only original manufacturer-approved accessories, or accessories that do not
contain any metal.
• Use of non-original manufacturer-approved accessories may violate your local RF
exposure guidelines and should be avoided.
6
INTERFERENCE WITH MEDICAL EQUIPMENT FUNCTIONS
This device may cause medical equipment to malfunction. The use of this device is
forbidden in most hospitals and medical clinics.
If you use any other personal medical device, consult the manufacturer of your device
to determine if it is adequately shielded from external RF energy. Your physician may
be able to assist you in obtaining this information.
Turn your device OFF in health care facilities when any regulations posted in these
areas instruct you to do so. Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
NONIONIZING RADIATION
Your device has an internal antenna. This device should be operated in its normal-use
position to ensure the radiative performance and safety of the interference. As with
other mobile radio transmitting equipment, users are advised that for satisfactory
operation of the equipment and for the safety of personnel, it is recommended that no
part of the human body be allowed to come too close to the antenna during operation
of the equipment.
Use only the supplied integral antenna. Use of unauthorized or modified antennas may
impair transmission quality and damage the device, causing loss of performance and
SAR levels exceeding the recommended limits as well as result in non-compliance with
local regulatory requirements in your country.
To ensure human exposure to RF energy is within the guidelines set forth in the
relevant standards, always use your device only in its normal-use position. Do not
touch or hold the antenna area unnecessarily when sending or receiving data
wirelessly. Contact with the antenna area may impair transmission quality and cause
your device to operate at a higher power level than needed. Avoiding contact with the
antenna area when the device is IN USE optimizes the antenna performance and the
battery life.
Internal
antenna
location
7
General Precautions
• Heed service markings
Except as explained elsewhere in the Operating or Service documentation, do
not service any product yourself. Service needed on components inside these
compartments should be done by an authorized service technician or provider.
• Damage requiring service
Unplug the device from the electrical outlet and refer servicing to an authorized
service technician or provider under the following conditions:
• Liquid has been spilled or an object has fallen into the device.
• The device has been exposed to rain or water.
• The device has been dropped or damaged.
• There are noticeable signs of overheating.
• The device does not operate normally when you follow the operating
instructions.
• Avoid hot areas
The device should be placed away from heat sources such as radiators, heat registers,
stoves, or other devices (including, but limited to, amplifiers) that produce heat.
• Avoid wet areas
Never use the device in a wet location.
• Avoid using your device after a dramatic change in temperature
When you move your device between environments with very different temperature
and/or humidity ranges, condensation may form on or within the device. To avoid
damaging the device, allow sufficient time for the moisture to evaporate before
using the device.
Note When taking the device from low-temperature conditions into a warmer
environment or from high-temperature conditions into a cooler environment,
allow the device to acclimate to room temperature before turning on power.
• Avoid applying excessive pressure to the device
Do not put heavy objects or apply excessive pressure on the device to prevent
damaging the device or distorting the touch screen display.
• Avoid pushing objects into device
Never push objects of any kind into cabinet slots or other openings in the device.
Slots and openings are provided for ventilation. These openings must not be blocked
or covered.
• Take care when closing the device display
Do not slam or twist the display when closing it.
8
• Mounting accessories
Do not use the device on an unstable table, cart, stand, tripod, or bracket. Any
mounting of the device should follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the manufacturer.
• Avoid unstable mounting
Do not place the device on an unstable base.
• Use device with approved equipment
This device should be used only with accessories identified as suitable for use with
your equipment.
• Adjust the volume
Turn down the volume before using headphones or other audio devices.
• Cleaning
Unplug the device from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning, but NEVER use water to clean the
LCD screen.
9
Contents
Chapter 1 Getting Started 15
1.1 Getting to Know Your Mobile Computer .............................. 16
Top side ................................................................................................................ 16
Left side ................................................................................................................ 17
Right side ............................................................................................................. 17
Back side ............................................................................................................... 17
Bottom side ......................................................................................................... 18
Status indicators ................................................................................................ 19
Accessories .......................................................................................................... 20

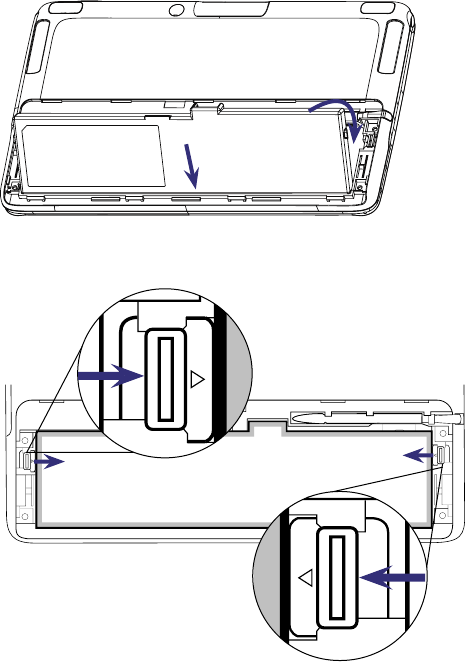

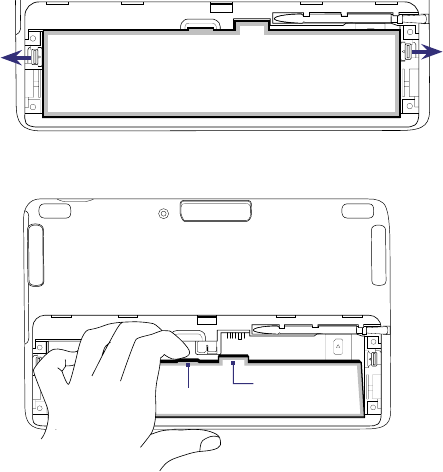

1.2 Installing the Battery ............................................................. 21
Remove the battery cover ............................................................................. 21
Insert the battery pack .................................................................................... 21
1.3 Connecting Power and Charging the Battery ...................... 24
Connect the AC adapter ................................................................................. 24
Charge the battery ........................................................................................... 24
About battery time ........................................................................................... 25
1.4 Using the Screen Protection Sheet ....................................... 25
1.5 Ways of Using the Mobile Computer .................................... 26

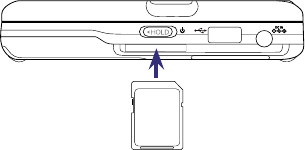

1.6 Inserting a Memory Card ...................................................... 27
1.7 Powering On the Mobile Computer for the First Time ........ 28
Turn on the power ............................................................................................ 28
Set up Windows Vista® Business Edition ................................................... 28
Install the anti-virus software ....................................................................... 28
1.8 Switching Between Windows Vista® and SnapVUE™ ........... 30
10
Chapter 2 Operating in Windows Vista® 33
2.1 Basic Settings ......................................................................... 34

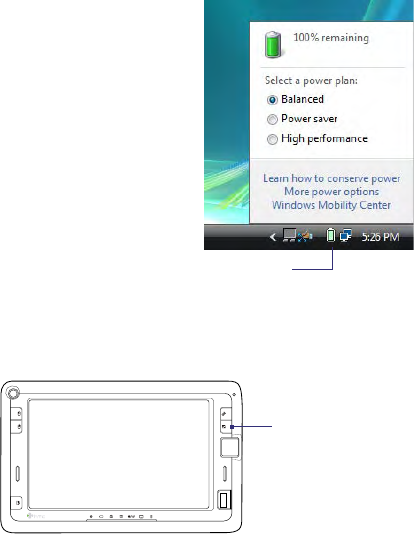

Check battery status ........................................................................................ 34
Change the screen resolution ...................................................................... 34
2.2 Navigation and Input Methods ............................................ 35
Keyboard .............................................................................................................. 35
Mouse buttons and the microPad .............................................................. 36
Touch screen ....................................................................................................... 38

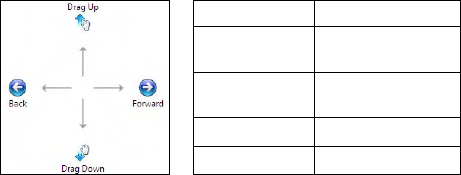

2.3 Using Pen Flicks and Touch Flicks ......................................... 39

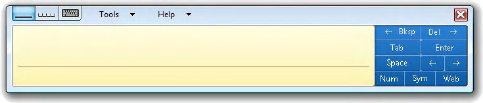

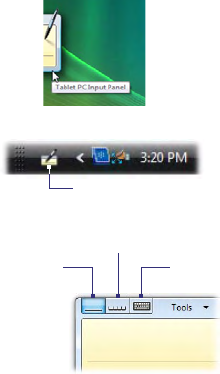

2.4 Using the Tablet PC Input Panel ........................................... 40
Writing pad .........................................................................................................41
Character pad ..................................................................................................... 42

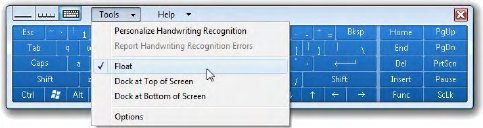

On-screen keyboard ......................................................................................... 42

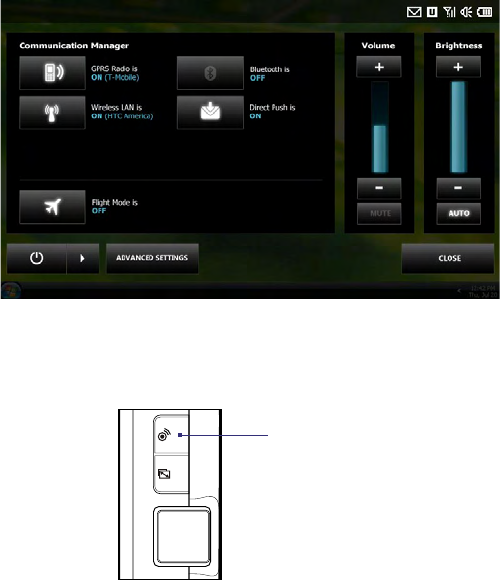

2.5 Using the Control Center ....................................................... 43
Volume and brightness ................................................................................... 44
Modem .................................................................................................................44
Wi-Fi ....................................................................................................................... 44
Bluetooth ............................................................................................................. 44
Direct Push .......................................................................................................... 45
Flight Mode ......................................................................................................... 45
Power management ........................................................................................ 46
Advanced Settings ........................................................................................... 47
2.6 Connecting to the Internet ................................................... 49
Use CDMA/EVDO ............................................................................................... 49
Use Wi-Fi ............................................................................................................... 49
2.7 Using Bluetooth ..................................................................... 51
Turn on Bluetooth and enable discoverable (or visible) mode ........ 51
Pair with other Bluetooth devices ............................................................... 51
11
2.8 Connecting Peripherals ......................................................... 53
External audio .................................................................................................... 53
USB device ........................................................................................................... 53

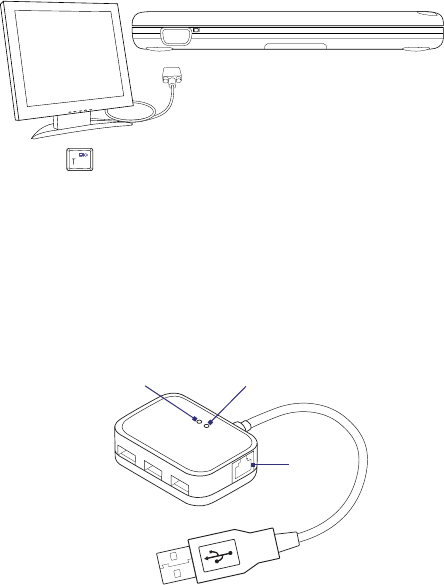

External monitor ...............................................................................................54
Extension kit (optional) ................................................................................... 54
2.9 Using the Web Camera .......................................................... 55
Chapter 3 Operating in SnapVUE™ 57
3.1 First-time Use ......................................................................... 58

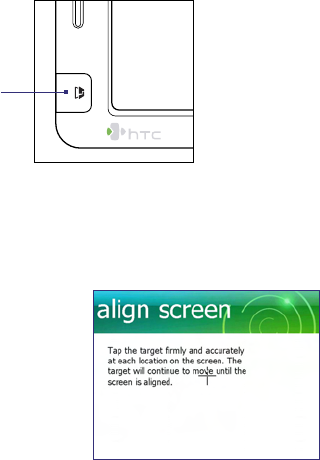

Calibrate the touch screen ............................................................................. 58
Set up a device password .............................................................................. 59

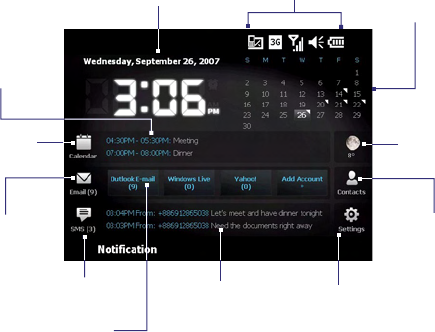

3.2 Introducing the SnapVUE Interface ..................................... 60
3.3 Date, Time and Alarm ............................................................ 61
Set the alarm ....................................................................................................... 61
3.4 Weather .................................................................................. 62
Select your city ................................................................................................... 62

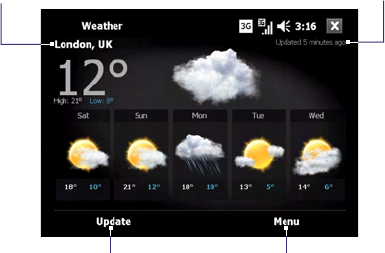

The Weather screen .......................................................................................... 62
Customize weather options .......................................................................... 63
3.5 Input Methods ....................................................................... 64
On-screen Keyboard ........................................................................................ 65
Symbol Pad .........................................................................................................65
Letter Recognizer .............................................................................................. 66
Block Recognizer ............................................................................................... 66
Transcriber ........................................................................................................... 67
3.6 Calendar ................................................................................. 70
Open the Calendar screen ............................................................................. 70
Create appointments ....................................................................................... 70
View appointments .......................................................................................... 72
Synchronize appointments with the Exchange Server ....................... 73
12
3.7 Contacts .................................................................................. 74
Create new contacts ........................................................................................ 74
View, search and send ..................................................................................... 75
Synchronize contacts with the Exchange Server ..................................75
3.8 SMS ......................................................................................... 76
View and reply to SMS messages ................................................................ 76
Compose and send text messages ............................................................. 76

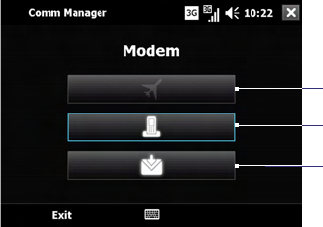

3.9 Comm Manager ..................................................................... 77
3.10 Adding a Dial-up Connection ............................................. 78
3.11 Tasks ..................................................................................... 79
3.12 Settings ................................................................................ 81
Chapter 4 E-mail 83
4.1 Types of E-mail Accounts ....................................................... 84
4.2 Adding E-mail Accounts in SnapVUE™ ................................. 84

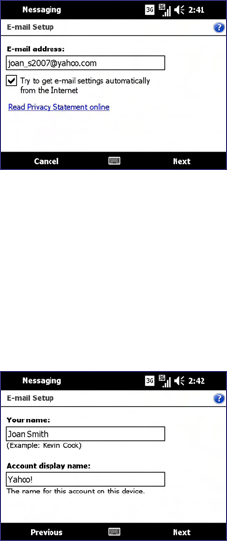

Set up your POP3 or IMAP4 e-mail account ............................................ 84
Set up your Outlook E-mail account .......................................................... 87

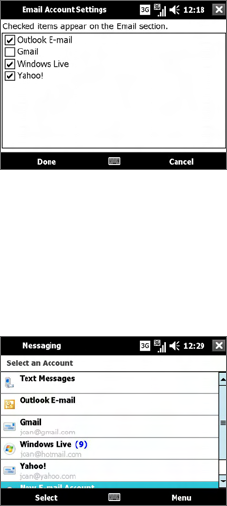

Manage e-mail accounts ................................................................................ 88
4.3 Using E-mail ........................................................................... 91
Create and send e-mails ................................................................................. 91
View and reply to e-mails ............................................................................... 92
4.4 Working With Company E-mails and Meeting Requests in
SnapVUE ................................................................................. 93
Direct Push .......................................................................................................... 93
E-mail flags .......................................................................................................... 94
Search for e-mails on the Exchange Server ............................................. 94
Out-of-office auto-reply ................................................................................. 95

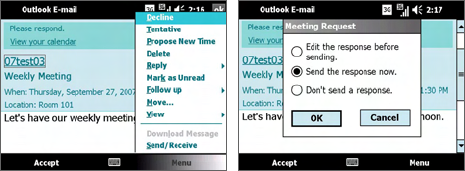

Send meeting requests ................................................................................... 95
Find contacts in the Company Directory ................................................. 97
13
Chapter 5 Securing and Managing the Mobile
Computer 99
5.1 Setting a BIOS Password ..................................................... 100
5.2 Hard Disk Recovery ............................................................. 101
5.3 Using the Fingerprint Sensor and VitaKey ........................ 102
Enroll your fingerprint ...................................................................................102
Authentication .................................................................................................103
Enroll and manage passwords ...................................................................104
Protect files with fingerprint security ......................................................105
VitaKey settings ...............................................................................................105
Back up security data ....................................................................................106
5.4 Configuring Touch Screen Input ......................................... 107
Tablet PC Settings ...........................................................................................107
Pen and Input Devices utility ......................................................................108

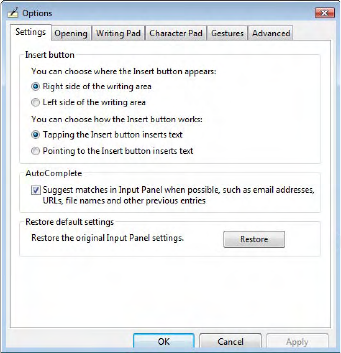

5.5 Configuring Input Panel Settings ....................................... 109
Appendix 113
A.1 Specifications ...................................................................... 114
A.2 Regulatory Notices .............................................................. 117
Index 121
14
Chapter 1
Getting Started
1.1 Getting to Know Your Mobile Computer
1.2 Installing the Battery
1.3 Connecting Power and Charging the Battery
1.4 Using the Screen Protection Sheet
1.5 Ways of Using the Mobile Computer
1.6 Inserting a Memory Card
1.7 Powering On the Mobile Computer
for the First Time

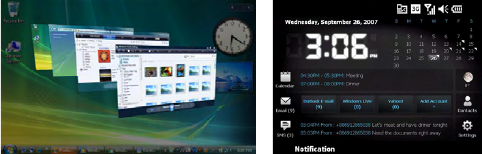

1.8 Switching Between Windows Vista®
and SnapVUE™
16 Getting Started
1.1 Getting to Know Your Mobile Computer

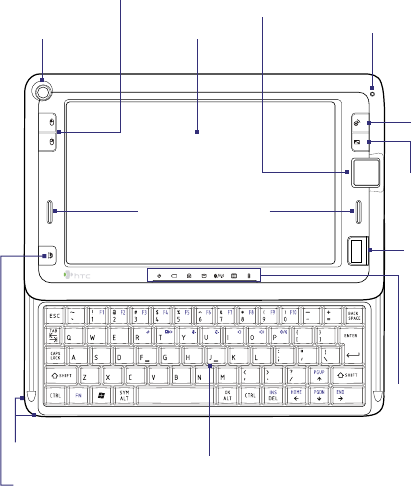

Top side
Web Camera LCD Touch Screen
Status Indicators
(See "Status
indicators" later
in this chapter for
details.)
Left/Right
Mouse Buttons
microPad
(See Chapter 2
for details.)
Resolution
Press to change the
screen resolution.
Control Center
(See Chapter 2
for details.)
Finger Print
Sensor
Use for secure
and instant user
authentication.
(See Chapter 5
for details.)
Light Sensor
Senses ambient light
to automatically adjust
screen brightness.
Left/Right Speaker
Microphone
Keyboard
Slide up the LCD panel to
reveal the keyboard.
(See Chapter 2 for details.)
SnapVUE™
(See Chapter 3
and 4 for details.)
Getting Started 17

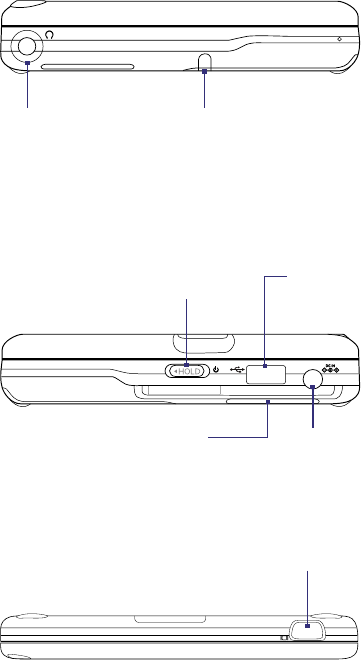

Left side
Audio Out
Connect stereo headphones
and listen to audio.
Stylus
Right side
DC-In
Connect the AC
adapter to this jack.
USB 2.0 Port
Connect a USB device such
as a printer, mouse, etc.
HOLD Switch
• Slide and hold this switch for 1 to 2
seconds to power on your Mobile
Computer.
• Slide and release this switch to wake
Vista out of sleep mode.
SDIO Card Slot
Use it as an SD
memory card reader.
Back side
VGA Port
Connect an external monitor when you need to
use dual display.
18 Getting Started
Bottom side
Battery Cover
Remove to access the battery
compartment.
Air Vents
Warning! Do not obstruct the air vents to avoid overheating the Mobile
Computer.
Getting Started 19
Status indicators
Status LED Meaning
Power • Lights green when the AC adapter is connected.
• Flashes green when the device is in sleep mode.
Battery • Lights amber when the battery is charging.
• Lights green when the battery is fully charged.
CAPS Lock Lights when the CAPS lock key is activated.
Hard Disk Activity Flashes green when the hard disk drive is being
accessed.
Bluetooth/WLAN
• Shows a flashing blue light when Bluetooth is
turned on and is ready to transmit Bluetooth radio
signals, or a flashing green light for Wi-Fi status.
• When both Bluetooth and Wi-Fi are enabled, their
lights flash alternately.
Data Connection Flashes green when a CDMA or EVDO connection is
active.
E-mail/SMS Flashes amber as a notification that new
e-mail or SMS messages have been received
(in SnapVUE mode only).
20 Getting Started
Accessories
1 2 3
4 5 6
(Optional)
No. Accessory Function
1 AC adapter with
power cable
Connect the AC adapter to the Mobile Computer to power
the device and charge the battery.
2 Stereo headset Connect to the Audio Out jack to listen to audio.
3 Battery Provides mobile power for your Mobile Computer.
4 Screen
protection sheet
Protects the touch screen from being scratched. Attach the
protection sheet starting from the top of the screen. Peel
off the back sheet and then fix the whole protection sheet
to cover the touch screen.
5 Carrying case Use as a protective case for carrying your Mobile
Computer.

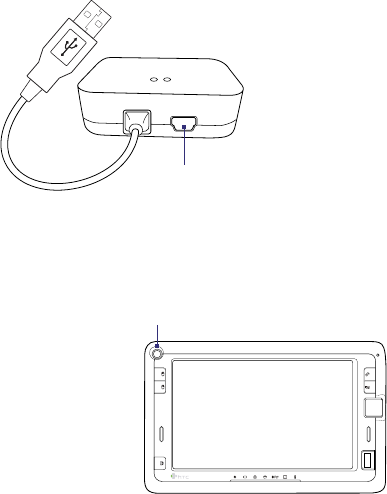

6 Extension kit
(optional)
The combo USB hub and RJ-45 LAN port allows you to
connect your Mobile Computer with more USB devices and
to a wired network.
Getting Started 21
1.2 Installing the Battery
Always turn off your Mobile Computer before installing or removing the
battery.
Your Mobile Computer comes with a rechargeable Li-ion battery. It is
designed to use only manufacturer-specified original batteries and
accessories.
Remove the battery cover
1. With the bottom side facing up, turn the Mobile Computer so that the
battery compartment faces away from you.
2. Press down firmly on the battery cover and then slide it out.
Insert the battery pack
1. Turn the Mobile Computer so that the battery compartment faces
toward you.
2. With the label facing up, insert the bottom end of the battery pack
first and then press down the battery. (See the illustration below.)
22 Getting Started
3. There are battery latches on the left and right side of the battery
compartment. Slide the latches in to lock the battery in place.
(See the illustration below.)
4. Replace the battery cover.
Getting Started 23
To remove the battery pack
1. Remove the battery cover.
2. Slide the battery latches out to release the battery. (See the
illustration below.)
3. Remove the battery by lifting it up from the protruding grip that is
located beside the battery contacts. (See the illustration below.)
Grip Battery
contacts
24 Getting Started
1.3 Connecting Power and Charging the Battery
The Mobile Computer can be powered by the AC adapter or by the installed
battery pack.
Connect the AC adapter
The AC adapter that comes with your Mobile Computer is a universal
adapter that converts AC power to DC power. You can connect the power
adapter to any 100V-120V or 220V-240V outlet. The adapter automatically
detects the input voltage.
Note Different countries may require a plug adapter to accommodate the AC
adapter power plug.
To connect the AC adapter
1. Connect the supplied power cable to the AC adapter.
2. Connect the AC adapter to the Mobile Computer and then plug it to a
power socket.
Charge the battery
If you haven’t installed the battery yet, see “Installing the Battery” in this
chapter for instructions on installing the battery.
New batteries are shipped partially charged. Use the AC adapter to charge
the battery pack fully before using your Mobile Computer for the first time.
When charging, the Battery LED ( ) flashes amber. The Battery LED lights
green when the battery is fully charged.
Note Only the supplied AC adapter should be used to charge the battery. Do not
remove the battery from the Mobile Computer while you are charging it
using the AC adapter.
Warning! To reduce risk of fire or burns:
• Do not attempt to open, disassemble, or service the battery pack.
• Do not crush, puncture, short external contacts, or dispose of in fire
or water.
• Do not expose to temperatures above 60oC (140oF).
• Replace only with the battery pack designated for this product.
Getting Started 25
• Recycle or dispose of used battery as stipulated by local regulation.
• Always turn off your Mobile Computer before installing or removing
the battery.
About battery time
Battery time is affected by many factors, including the power scheme
selected, how much you use wireless connections (Wi-Fi or 3G/2G), LCD
brightness setting, temperature of the operating environment, peripherals
attached to your Mobile Computer, and the applications, features or other
settings that you use.
Battery time estimates (approximations):
• Operating time: Up to 2 hours
• SnapVUE™ standby time
(Push e-mail enabled): Up to 53 hours
(Push e-mail disabled): Up to 11 hours
1.4 Using the Screen Protection Sheet
Use the supplied screen protection sheet to protect the touch screen from
being scratched.
To attach the screen protection sheet to the touch screen
1. Peel off a small part of the screen protection sheet from its left and
right corners.
3. Attach the screen protection sheet starting from the top of the touch
screen.
26 Getting Started
3. Peel off the back sheet and then fix the whole protection sheet to
cover the touch screen.
1.5 Ways of Using the Mobile Computer
The Mobile Computer can be used in one of two ways:
• As a notebook PC with the display tilted and keyboard extended.
• As a tablet PC that you can carry around and tap or write on.
To use the Mobile Computer as a notebook PC
1. Hold the base of the Mobile Computer with one hand while sliding
the touch panel out, and then adjust the touch panel to a comfortable
viewing angle.
Getting Started 27
2. Use the keyboard to enter text. To navigate Windows Vista®, use the
Left/Right mouse buttons and the microPad. See Chapter 2 for details.
To use the Mobile Computer as a tablet PC
If the display is tilted and the keyboard is extended, do the following to
transform the Mobile Computer to a tablet PC:
1. Gently fold down the touch panel.
2. Slide the touch panel and align it with the base of the Mobile
Computer.
When using the Mobile Computer as a tablet PC, you can carry and hold it
anywhere you go. Simply use the touch screen to navigate Windows, enter
text using the hardware keyboard or on-screen keyboard, or write on the
screen with your finger or the stylus. For more information about using the
different input methods, see Chapter 2.
1.6 Inserting a Memory Card
On the right side of the Mobile Computer, there is an SDIO slot that mainly
serves as an SD memory card reader. If you have a digital camera’s SD card,
you can view and copy photos and other media from your SD card onto the
Mobile Computer.
When inserting your SD card, make sure to insert it with the contacts facing
down and the cut-off corner directed toward the slot.
Note To remove the SD card, press the card to eject it out of the slot.
28 Getting Started
1.7 Powering On the Mobile Computer for
the First Time
After inserting and charging the battery to full charge, you can power on
and set up your Mobile Computer.
Turn on the power
1. On the right side of your
Mobile Computer, slide the
HOLD switch for 1 to 2 seconds
to turn on the power.
2. The Mobile Computer starts up and runs the Power On Self Test
(POST). The POST is a series of built-in diagnostics performed by the
BIOS in the Mobile Computer when it is started.
Tip During startup, press the DEL key if you need to enter the BIOS
and change BIOS settings. To protect your Mobile Computer from
unauthorized use, it is recommended that you set a supervisor
password in the BIOS. See Chapter 5 for details.
3. After the POST finishes, you will be prompted to set up
Windows Vista®.

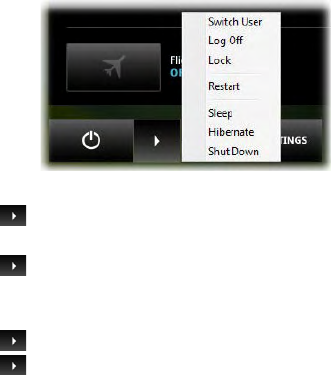

Tip You can shutdown either from the Control Center or Windows Vista®’s Start
menu. See Chapter 2 for details.
Set up Windows Vista® Business Edition
Your Mobile Computer is preinstalled with Windows Vista® Business Edition.
The first time you turn on your Mobile Computer, Windows Vista® runs a
setup wizard to detect hardware components and install drivers. Follow
the instructions on the screen to set up Windows Vista® and complete the
wizard.
Install the anti-virus software
Your Mobile Computer comes with PC-cillin Internet Security which is Trend
Micro’s anti-virus software. Before installing this anti-virus software, you
need to do the following first:
• Log into Windows with Administrator privileges.
Getting Started 29
• Disable or remove any other firewall you may have running (such as
the Windows Firewall).
• Close all windows other than the installer window.
To install Pc-cillin Internet Security
1. Open Windows Explorer and go to this folder:
C:\Program Files\TrendMicro
In the above folder, you will find an .exe file which is a compressed file
of the anti-virus software’s installer.
2. Run the .exe file.
3. A dialog box then opens, showing the default folder where the
installer will be saved. Tap Next to start extracting the installer.
4. After the extraction process is complete, a shortcut icon to the
installer will be added to the Windows Desktop. Double-click or
double-tap this icon to run the installer.
5. Click or tap Install Program to begin installing the anti-virus
software.
6. Follow the on-screen instructions to complete the installation. When
done, tap Finish.
30 Getting Started
1.8 Switching Between Windows Vista®
and SnapVUE™
Your Mobile Computer features two operational modes: Windows Vista®
and SnapVUE™.
Windows Vista® SnapVUE™
SnapVUE™ is an instant-on mode that gives you up-to-date weather
information, SMS messaging, and a Direct Push function that enables
you to receive instant work e-mails (Outlook E-mail) from your company’s
Exchange Server mailbox. You can switch to SnapVUE mode anytime,
whether Windows Vista® is running or off.
To switch to SnapVUE mode
• Press the SnapVUE button.
To switch back to Windows Vista®
1. Press the SnapVUE button.
2. If there is no display on the screen, it means that Windows Vista®
has been idle for some time and has entered sleep mode. To wake
Windows Vista® out of sleep mode, slide the HOLD switch that is
located on the right side of your Mobile Computer.
Notes • Windows Vista® and SnapVUE modes display in landscape orientation
only.
• SnapVUE does not operate until you have powered on your Mobile
Computer the first time. After that, SnapVUE is in instant-on mode.
• To always keep SnapVUE in instant-on mode, do not remove the battery
from your Mobile Computer. If you remove and reinsert the battery, you
need to start up the Mobile Computer in Windows Vista® first before you
can access SnapVUE mode.
Getting Started 31
The following are synchronized between Windows Vista® and SnapVUE:
• Battery status
• Date and time
• Backlight level
• Sound volume and mute settings
You can maintain the same set of Outlook e-mails, calendar appointments,
contacts, and tasks in both Windows Vista® and SnapVUE by synchronizing
these information with the Exchange Server. To do so, make sure you select
E-mail, Calendar, Contacts, and Tasks as your sync items when you set up
your Outlook E-mail account in SnapVUE. See “Set up your Outlook E-mail
account” in Chapter 4 for details.
For more information about using the Mobile Computer with Windows
Vista®, see Chapter 2. For information about using SnapVUE, see Chapter 3
and 4.
32 Getting Started
34 Operating in Windows Vista®
2.1 Basic Settings
You can quickly check battery status from Windows Vista®’s taskbar. Your
Mobile Computer also has a button for quickly switching the screen
resolution.
Check battery status
To check the battery status, tap
the Battery icon in the notification
area of the taskbar. This opens a
pop-up menu which shows the
remaining battery time.
From the menu, you can also
select a power management plan
and access the Windows Mobility
Center if you want to set additional
power savings options.
Tip You can also check the battery
status and set a power plan in
the Control Center. See “Using
the Control Center” later in this
chapter for details. Battery icon
Change the screen resolution
Press the RESOLUTION button to change between 800 x 480 and 1024 x 600
screen resolutions instantly.
RESOLUTION
button
Operating in Windows Vista® 35
Tip Additional screen resolution
options are available in the Graphics
Properties dialog box. To access
these options, first tap the Graphics
icon in the taskbar’s notification
area, then tap Graphic Properties
and tap Display Settings .
2.2 Navigation and Input Methods
You can use one of the following ways to navigate Windows Vista® and enter
information:
• Keyboard
• Left/Right mouse buttons and microPad
• Touch screen
Note If you prefer to use a USB mouse, you can connect one to the Mobile
Computer’s USB port. You can also purchase and use the optional Extension
Kit to connect additional accessories such as an external USB keyboard. See
“Connecting Peripherals” later in this chapter.
Keyboard
Your Mobile Computer has a built-in 66-key QWERTY keyboard that you can
slide out and use to enter text. This small footprint keyboard works just like
any standard computer keyboard with alphanumeric and function keys.
The FN (Function) key at the lower left of the keyboard provides access to
the hotkeys that are marked in blue on the keyboard. To use the hotkeys,
press and hold the FN key and then press the desired hotkey. The following
table describes the function of each hotkey.

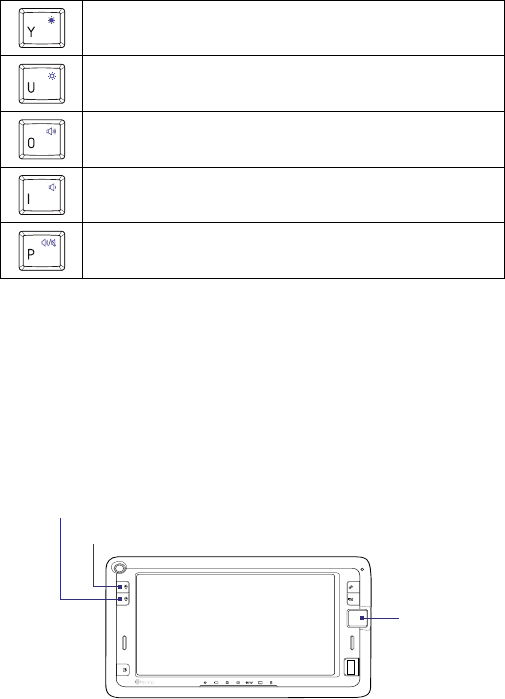

Hotkey Function
Enter sleep mode. (Slide and release the HOLD switch to wake Vista®
out of sleep mode.)
Toggle the display between the external monitor, Mobile Computer’s
LCD, and dual display (on both the LCD and external monitor).
36 Operating in Windows Vista®
Lower the screen brightness.
Increase the screen brightness.
Lower the volume.
Increase the volume.
Toggle between muting and unmuting the volume.
Pressing FN + F1 opens the Windows Help and Support window, while
pressing FN + F3 opens the Search window. The functionality of the F1 to
F10 hotkeys varies among different programs.
Note The two ALT (Alternate) keys are intended for use in Windows Vista®, whereas
SYM (Symbol) and OK are for use in SnapVUE mode. For more information
about using SnapVUE, see Chapter 3.
Mouse buttons and the microPad
Your Mobile Computer has left and right mouse buttons, and a microPad
that emulates a notebook touchpad.
Left mouse button
Right mouse button
microPad
Operating in Windows Vista® 37
The following table describes how to use the left and right mouse buttons
of your Mobile Computer.
Regular mouse action Mouse button action on the Mobile Computer
Single-click Press the left mouse button.
Double-click Press the left mouse button twice.
Right-click Press the right mouse button.
The following table describes some of the ways on how to navigate using
the microPad. The equivalent actions on a regular mouse are also listed for
easier comparison.
To: Do this on the microPad:
Equivalent
mouse action:
Move the pointer
on the screen
Move your finger in the direction you want
the pointer to move. Since the microPad
area is quite small, move your finger in small
strokes to continue moving the pointer.
Drag
Select an icon,
window or other
objects
Move the pointer to the object and then
quickly tap your finger on the microPad.
Single-click
Open a program,
folder or file;
press a button
on the screen
Move the pointer to the point of interest and
then quickly tap your finger twice on the
microPad.
Double-click
Move an object Press and hold down the left mouse button
first, and then move your finger along the
microPad to drag the object. Release the
left mouse button to drop the object on the
target location.
Click an object
and drag
Select multiple
objects
Press and hold down the left mouse button
while you move your finger along the
microPad to select multiple objects. Release
the left mouse button after selection.
Click and drag
the pointer
Tip To customize the tap zones and other settings for the microPad, click Start >
Control Panel > Device Settings tab and then click the Settings button.
38 Operating in Windows Vista®
Touch screen
Navigate and interact with the Windows system easier by simply tapping
the screen with your finger or the stylus. You can also draw or write on the
screen using either your finger or the stylus.
To use the stylus, remove it from the stylus compartment at the bottom
side of the Mobile Computer. Extend the stylus to its full length. Replace the
stylus back in its compartment when not in use to avoid losing it.
The following table describes touch screen actions and the analogous
mouse functions.
To: Do this:
Equivalent
mouse action:
Select an icon, window
or any object; press a
button on the screen
Single-tap Single-click
Open a program,
folder or file
Double-tap Double-click
Open a pop-up
context menu
Tap and hold with the stylus, or
press and hold with your finger
Right-click
Move an icon, window
or any object around
the screen
Tap and hold the object and then
drag to the desired location on the
screen
Click an object
and drag
Select multiple objects Tap and drag an area over the
desired objects
Click and drag
Scroll up and down a
file list, document or
web page
Use pen flicks or touch flicks to scroll
(see “Using Pen Flicks and Touch
Flicks” in this chapter for details)
Drag the scrollbar
Windows Vista® provides training utilities that you can use to learn and
practice touch screen navigation:
• Tap Start > All Programs > Tablet PC > Tablet PC Pen Training to
practice navigating the touch screen using the stylus.
• Tap Start > All Programs > Tablet PC > Tablet PC Touch Training to
practice navigating the touch screen with your finger.
Operating in Windows Vista® 39
Another easy way of navigating the touch screen is by using pen flicks or
touch flicks. See “Using Pen Flicks and Touch Flicks” for details.
To learn about text input using the touch screen, see “Using the Tablet PC
Input Panel”.
For information about configuring touch screen input, see Chapter 5.
2.3 Using Pen Flicks and Touch Flicks
To “flick” means to make gestures on the touch screen by sliding the stylus
or your finger in quick strokes. Pen flicks are stylus gestures that allow
you to do simple navigational and editing functions on the touch screen.
Actions like scrolling, moving forward and backward, copying and pasting,
and more, can be done using pen flicks. Touch flicks are just the same as
pen flicks, except that you use your finger to make the gestures on the
touch screen.
To navigate through documents, web pages and file lists
By default, the following navigational flicks are enabled in Vista®:
Default navigational flicks
Pen/Touch Flicks Description
Up Move down in a
document/page/list
Down Move up in a
document/page/list
Left Backward
Right Forward
To enable editing flicks
By default, pen and touch flicks for performing common editing functions
such as undo/redo, copy, delete and paste are disabled. To enable these
editing flicks, do the following:
1. Tap the Pen flicks icon on the taskbar and then tap Customize your
pen flicks settings.
40 Operating in Windows Vista®
2. The Pen and Input Devices dialog box then opens and displays the
Flicks tab. Select the Navigational flicks and editing flicks option
then tap OK.
Windows Vista® provides a training utility that you can use to learn and
practice pen and touch flicks. To access this training utility, tap Start > All
Programs > Tablet PC > Pen Flicks Training.
For more information about configuring pen and touch flicks, see
“Configuring Touch Screen Input” in Chapter 5.
2.4 Using the Tablet PC Input Panel
The Tablet PC Input Panel enables you to enter text by writing on the touch
screen with your finger or stylus, or by using the on-screen keyboard.
To open the Input Panel
The Input Panel can be opened in any of the following ways.
• Tap the Input Panel tab
on the edge of the screen
(Default).
• Tap and hold the taskbar at
the bottom of the screen and
then tap Toolbars > Tablet
PC Input Panel. This adds the
Tablet PC Input Panel icon
to to the taskbar. You can tap
this icon anytime you want to
open the Input Panel.
Tablet PC Input Panel icon
To select an input pad
• In the input panel, there are
three different input pads
available for use: writing pad,
character pad and on-screen
keyboard. Tap the pad icons at
the top of the input panel to
select the preferred input pad.
Writing
pad
On-screen
keyboard
Character pad
Operating in Windows Vista® 41
Writing pad
Use the writing pad to write sentences as if you were writing on paper.
Your handwriting will be converted into typed text when inserted to a
document, e-mail or any program.
To write text with the writing pad
1. In a document, e-mail or any program that you opened, tap the area
where you want to insert text.
2. Open the Tablet PC Input Panel.
3. By default, the writing pad is already selected. Using the stylus, start
writing on the writing pad.
4. After you have finished writing, tap Insert.
To quickly delete a word on the writing pad
• Use the stylus to scratch out the word. Draw a strikethrough (from
right to left) over the word.
To correct your text on the writing pad
A box appears underneath each handwritten word that shows it in typed
format. To correct individual characters of a word, tap the word box. The
writing pad then becomes an editing panel where you can do one or more
of the following:
• Replace with the correct word.
• Write the correct character on top of the incorrect character.
• Point the stylus below the dotted line that’s right under the incorrect
character to open a pop-up menu with more editing options.
42 Operating in Windows Vista®
Character pad
Use the character pad to write one character at a time, such as a letter,
number or symbol. Each handwritten character is converted to typed text.
To use the character pad
1. In a document, e-mail or any program that you opened, tap the area
where you want to insert text.
2. Open the Tablet PC Input Panel and then tap .
3. Write one character in each space on the character pad.
4. To correct a character:
• Write the correct character on top of the incorrect character.
• Point the stylus below the dotted line that’s right under the
incorrect character to open a pop-up menu with editing options.
5. After you have finished writing, tap Insert.

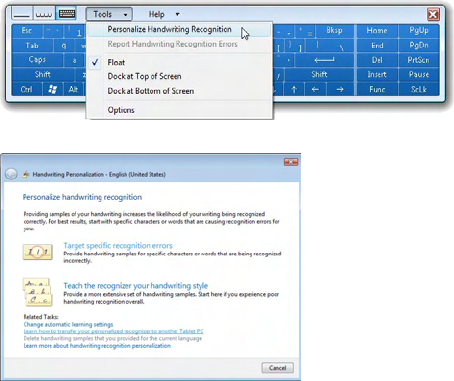

On-screen keyboard
The on-screen keyboard simulates a standard computer keyboard.
To use the on-screen keyboard
1. In a document, e-mail or any program that you opened, tap the area
where you want to insert text.
2. Open the Tablet PC Input Panel and then tap .
3. Tap the keys to input letters, numbers, etc.
Operating in Windows Vista® 43
2.5 Using the Control Center
The Control Center provides a central location for you to quickly turn on
and off the Bluetooth, Wi-Fi and 3G mobile connections, adjust volume and
brightness, select a power management mode, and more.
To open the Control Center
• Press the CONTROL CENTER button on the upper right side of the
front side of the Mobile Computer.
To close it, press the CONTROL CENTER button again or tap Close.
CONTROL CENTER
button
44 Operating in Windows Vista®
Volume and brightness
Under Volume, tap the “+” or “-” icon to increase or decrease the sound
volume. Tap Mute to toggle between turning the sound on and off.
Under Brightness, tap the “+” or “-” icon to increase or decrease the display
brightness. To have the Mobile Computer automatically adjust the display
brightness for ambient light, tap Auto.
Modem
Your Mobile Computer has a built-in CDMA and EV-DO module that you can
use as a modem to connect the computer to the Internet.
To turn the modem on and off
This icon indicates that the modem function is off. Tap it to turn
on the modem and connect to the CDMA2000 1xRTT or 1x EVDO
network.
This icon indicates that modem function is on. Tap it to
disconnect from the CDMA2000 1xRTT or 1x EVDO network and
turn off the modem.
Wi-Fi
If you have access to a wireless network or public hotspot, you can use Wi-Fi
to connect your Mobile Computer to the Internet.
To switch Wi-Fi on and off
This icon indicates that
Wi-Fi is off. Tap it to switch
Wi-Fi on.
This icon indicates that
Wi-Fi is on. Tap it to
switch Wi-Fi off.
Before you can connect to the Internet using Wi-Fi, you need to set up a
wireless network connection in Windows Vista®. See “Connecting to the
Internet” later in this chapter for details.
Bluetooth
Bluetooth allows you to exchange files and data with other Bluetooth-
enabled devices.
Operating in Windows Vista® 45
To switch Bluetooth on and off
This icon indicates that
Bluetooth is off. Tap it to
switch Bluetooth on.
This icon indicates that
Bluetooth is on. Tap it to
switch Bluetooth off.
Turning Bluetooth on does not make your Mobile Computer visible to other
Bluetooth-enabled devices. For information about enabling visible mode,
see “Using Bluetooth” later in this chapter.
Direct Push
Direct Push is the push e-mail feature that allows new Outlook e-mails to be
instantly downloaded in SnapVUE mode as they arrive in your inbox on the
Exchange Server. You can switch the Direct Push feature on and off either
from the Control Center in Vista® mode or from SnapVUE mode’s Comm
Manager.
To switch Direct Push on and off
This icon indicates that SnapVUE mode’s Direct Push feature is off.
Tap it to switch Direct Push on.
This icon indicates that SnapVUE mode’s Direct Push feature is on.
Tap it to switch Direct Push off.
For more information about using Direct Push in SnapVUE mode, see
Chapter 3.
Flight Mode
Flight Mode turns off all transmission functions, which include the modem,
Wi-Fi and Bluetooth. When you are in an airplane, enable Flight Mode
to switch off transmission functions without powering off your Mobile
Computer.
This icon indicates that
Flight Mode is off. Tap it to
enable Flight Mode.
This icon indicates that
Flight Mode is on.
To switch the modem, Wi-Fi and Bluetooth functions back on, tap their
respective icons in the Control Center.
46 Operating in Windows Vista®
Note The Flight Mode status in Windows Vista® and SnapVUE modes is in sync.
Enabling Flight Mode in the Control Center also enables Flight Mode in
SnapVUE’s Comm Manager.
Power management
The Control Center has the same buttons and menu for choosing shutdown
options as Windows Vista®.
To restart Windows
• Tap to open the ShutDown Options menu, then tap Restart.
To shut down Windows
• Tap to open the ShutDown Options menu, then tap Shut Down.
To log off
Do one of the following:
• Tap then tap Log Off; or
• Tap then tap Switch User. This allows you or another user to log
on to Vista® using another user account.
Tip To allow only certain user accounts that you have authorized to log on to
Vista®, tap Lock in the Shut Down Options menu.
To enter sleep mode
To save battery power while you’re not using the Mobile Computer, you
can switch it to sleep mode. Sleep mode saves the operating system state
(which includes all open documents, running programs and window
position, etc.) to memory and suspends the Mobile Computer to a lower
power state. It cuts down power to hardware components such as the
Operating in Windows Vista® 47
display, hard disk and peripherals, but maintains power to the computer’s
memory so you don’t lose your work.
• Tap the Sleep button ( ) to enter sleep mode.
• To wake Vista® out of sleep mode, slide the HOLD switch that is
located on the right side of the Mobile Computer.
Tips • To configure sleep mode settings, open Power Options in Windows
Vista®’s Control Panel. Select a power plan first and then tap Change plan
settings.
• Windows Vista® also provides a hybrid sleep feature that saves data in
both the memory and the hard disk to ensure that data will not be lost
when power outage occurs. See Windows Vista® Help for details.
To enter hibernate mode
Hibernate mode is a power-saving feature that saves the current state of
Windows Vista® to the hard disk and then shuts down the Mobile Computer.
To resume from hibernate mode, you have to turn the power back on.
• To enter hibernate mode, tap to open the Shut Down Options
menu, then tap Hibernate.
• To resume from hibernate mode, slide and hold the HOLD switch for
about 2 seconds.
Tip To configure hibernate mode settings, open Power Options in Windows
Vista®’s Control Panel. Select a power plan, tap Change plan settings, tap
Change advanced power settings, then tap Sleep to be able to see and
change hibernate mode settings. See Windows Vista® Help for details.
Advanced Settings
Tapping the Advanced Settings button opens a dialog box which allows
you to reset SnapVUE mode, install e-mail certificates, and configure certain
settings.
The following table describes the various options that you will find in the
Advanced Settings dialog box.
48 Operating in Windows Vista®
Tab Option/Button Description
General Show Control Center always
on top of other windows
When this check box is selected, the Control
Center is always displayed on top of other
running programs.
Reset SnapVUE In case SnapVUE mode hangs, click this
button to reset SnapVUE mode. This will not
affect Windows Vista®.
Install Certificate Click this button to install an SSL (Secure
Socket Layer) e-mail certificate in SnapVUE
mode. You need to do so if you have set
up an Outlook e-mail account in SnapVUE
which you will synchronize with an
Exchange Server that requires a certificate.
You can get the certificate file from the
administrator of your company’s mail server.
Network
Settings
Internet access Choose the type of Internet connection that
Windows Vista® will use:
• Select Automatic to allow Windows
to automatically choose the type of
connection; or
• Select Others if you do not want to use
the CDMA or EVDO connection to access
the Internet. When this option is selected,
Windows will use the wireless LAN or
wired network connection, depending on
which one of them is currently being used.
Do not connect via a data
connection when roaming
Keep this check box selected to save you
from incurring data roaming costs.
LCD
Backlight
Save LCD backlight level to
current power plan
When this check box is selected, any
changes to the Brightness setting in the
Control Center will always be saved to the
current power plan in Windows Vista®.
Operating in Windows Vista® 49
2.6 Connecting to the Internet
Your Mobile Computer allows you to connect to the Internet in two ways:
• Use CDMA/EVDO
• Use Wi-Fi
Use CDMA/EVDO
You can use your Mobile Computer’s built-in CDMA/EVDO module as a
modem to connect to the Internet.
To connect to the Internet
After the Mobile Computer has been set up with your wireless service
provider’s data connection settings, follow these steps whenever you want
to connect to the Internet.
1. Open the Control Center and tap Modem.
2. Wait for the Mobile Computer to connect to your provider’s network.
When connected, you will see one of the following status icons on the
upper-right corner of the Control Center:
1X : CDMA 1x RTT
Ev : EVDO
When you see one of the above status icons, tap Close to exit from
the Control Center.
3. Open Internet Explorer® and start browsing the web.
4. If you have installed Microsoft® Office on the Mobile Computer and
set up your e-mail account in Microsoft® Office Outlook®, you can also
begin sending and receiving e-mails.
Use Wi-Fi
Wi-Fi allows wireless Internet access over distances of up to 100 meters. To
use Wi-Fi to connect your Mobile Computer to the Internet, you need to be
within the coverage of a wireless network or public hotspot.
50 Operating in Windows Vista®
To set up a wireless network connection
1. Open the Control Center and tap Wi-Fi to turn on Wi-Fi.
2. Tap Close to exit from the Control Center.
3. Tap Start > Control Panel > Network and Sharing Center.
4. On the left pane of the Network and Sharing Center, tap Set up a
connection or network.
5. Select Manually connect to a wireless network and tap Next.
6. In the Network name box, enter the name of the wireless network.
7. Choose the security type and enter the security key.
8. To connect to the wireless network automatically, select the Start this
connection automatically check box.
9. Tap Next, and then tap Close.
To connect to the Internet
After the wireless network connection has been set up, follow these steps
whenever you want to connect to the Internet.
1. Open the Control Center and tap Wi-Fi to turn Wi-Fi on.
2. Tap Close to exit from the Control Center.
3. If you selected to connect to the wireless network automatically, you
can directly browse the web using Internet Explorer® after Wi-Fi has
been turned on.
Tip To manually connect to the wireless network, tap Start > Connect To,
tap the name of the wireless network, and then tap Connect.
4. If you have installed and set up Microsoft® Office Outlook®, you can
also send and receive e-mails while you are connected to the wireless
network.
Operating in Windows Vista® 51
2.7 Using Bluetooth
Bluetooth is a short-range wireless communications technology that allows
you to connect the Mobile Computer with Bluetooth-enabled devices
such as computers, mobile phones and PDAs and exchange information
with these devices. Bluetooth also lets you connect peripherals such
as a Bluetooth printer, headset, etc. Normally, devices with Bluetooth
capabilities can exchange information over a distance of about 8 meters.
Turn on Bluetooth and enable discoverable
(or visible) mode
For other Bluetooth-enabled devices to be able to detect your Mobile
Computer, you need to turn Bluetooth on and make the Mobile Computer
discoverable (or visible).
1. Open the Control Center then tap Bluetooth.
2. Tap Close to exit from the Control Center.
3. Tap Start > Control Panel > Bluetooth Devices.
4. In the Bluetooth Devices dialog box, tap the Options tab and then
select the Allow Bluetooth devices to find this computer check
box.
5. Select the Show the Bluetooth icon in the notification area check
box. This allows you to add the Bluetooth icon to the notification
area so you can readily access Bluetooth functions.
6. Tap Apply and then tap OK.
Pair with other Bluetooth devices
Follow the procedure below to connect the Mobile Computer with other
Bluetooth-enabled devices and peripherals.
1. Make sure that the Bluetooth function on both your Mobile Computer
and the Bluetooth device are turned on, and that they are both
set to discoverable (or visible) mode. Refer to the manufacturer’s
documentation to find out how to set the Bluetooth device to
discoverable (or visible) mode.
52 Operating in Windows Vista®
2. Tap the Bluetooth icon in the notification area then tap Open
Bluetooth Settings.
3. In the Devices tab, tap Add.
4. The Add Bluetooth Device Wizard then opens. Select the My device is
set up and ready to be found check box then tap Next.
5. The Mobile Computer then searches for available Bluetooth devices
and displays them. Select the desired Bluetooth device then tap Next.
6. If you selected to add a Bluetooth peripheral such as a Bluetooth
printer or headset, do the following:
• Select Use the passkey found in the documentation.
• Refer to the manufacturer’s documentation for the passkey of the
Bluetooth peripheral and enter it in the provided text box.
Otherwise, if you selected to connect with a computer, mobile phone
or PDA, do the following:
• To ensure a secured connection, select Let me choose my own
passkey then enter your own passkey.
7. Tap Next and wait for the other device to accept the connection.
8. Tap Finish.
Pairing is a one-time process. The next time you connect to the same
Bluetooth device, you just need to turn on Bluetooth and make sure
discoverable (or visible) mode is enabled on both the Mobile Computer and
the Bluetooth device.
Tip To find out more about using Bluetooth functions, tap Start > Help and
Support and search for Bluetooth.
Operating in Windows Vista® 53
2.8 Connecting Peripherals
If desired, you can connect external peripherals to the Mobile Computer for
added functionality.
External audio
Connect the supplied stereo headset to the Audio Out jack found at the left
side of the Mobile Computer. Alternatively, if you have external speakers,
you can connect them to Audio Out jack of the Mobile Computer.
Connect to
Audio Out
Stereo headset
(supplied)
Connect to
Audio Out
Speakers
USB device
You can expand the functionality
of your Mobile Computer by
connecting USB devices to the
USB port. You can connect a USB
thumb drive, external hard disk,
printer, mouse, keyboard, or any
USB device.
54 Operating in Windows Vista®
External monitor
You can connect an external monitor to use a larger screen if you are going
to be using the Mobile Computer for an extended period of time. You can
also set up dual display with the external monitor.
1. Connect the monitor cable’s D-SUB cable connector to the VGA port
at the rear of the Mobile Computer.
2. Press Fn+ to toggle the display to the external monitor, the
Mobile Computer’s LCD, or simultaneous view on both the external
monitor and Mobile Computer.
Extension kit (optional)
If your Mobile Computer comes with Extension kit (optional), you can use it
as a USB hub to connect up to 3 USB devices. The Extension kit also provides
an RJ-45 connector that allows you to connect the Mobile Computer to a
wired local network.
USB ports
LAN port
Power indicator lights up when
the Extension kit is powered by a
mini-USB power adapter
USB indicator lights up when
there’s one or more USB devices
connected to the Extension kit
Operating in Windows Vista® 55
There is a mini-USB port at the back of the Extension kit that allows you to
connect a 5V mini-USB power adapter. If you connected a USB device to the
Extension kit and your Mobile Computer is unable to detect it, this means
that you need to use a mini-USB power adapter with the Extension kit to
provide sufficient power to your USB device.
Mini-USB port
Note The Extension kit is available as an optional accessory, and it is not shipped
with a mini-USB power adapter.
2.9 Using the Web Camera
The built-in web camera allows
picture taking and video recording
if you have the proper software
installed on your Mobile Computer.
You can also use the web camera
with instant messaging software
such as Windows Live™ Messenger
to engage in live chats and
videoconferencing.
For more information about
using your camera software or
instant messaging software,
see the software online help or
documentation.
Web Camera
56 Operating in Windows Vista®
58 Operating in SnapVUE™
3.1 First-time Use
SnapVUE™ mode is not accessible yet the first time you install the battery
to the Mobile Computer. You need to power on the Mobile Computer
first before SnapVUE starts to operate as an instant-on mode. After that,
SnapVUE is always accessible even when the power is turned off.
To access SnapVUE mode
• Press the SnapVUE button.
SnapVUE
button
Note To always keep SnapVUE in instant-on mode, do not remove the battery from
your Mobile Computer. If you remove and reinsert the battery, you need
to start up the Mobile Computer in Vista® mode first before you can access
SnapVUE mode.
Calibrate the touch screen
The first time you use SnapVUE
mode, you will be prompted to
calibrate the touch screen. As the
cross moves around the screen,
tap the center of the cross with
the stylus. This process allows
the touch screen to accurately
respond to stylus or finger taps
when you’re using SnapVUE
mode.
Tip To recalibrate the touch screen in SnapVUE mode at any time, tap Settings >
Screen > Alignment tab then tap Align Screen.
Operating in SnapVUE™ 59
Set up a device password
You can help keep your data more secure by requiring a password every
time SnapVUE mode is used.
To set a device password
1. Tap Settings on the Home screen and then tap Lock.
2. On the Password tab, select the Prompt if device unused for check
box, and in the box to the right, select how long your device must be
idle before a password is required.
3. In the Password type box, select the type of password you would like
to use.
4. Enter the password in both the Password and Confirm boxes.
5. Tap OK. The next time you switch to SnapVUE mode, you will be
prompted to enter your password.
Notes • If you entered a hint, the hint will be displayed after the wrong password
is entered five times.
• Each time a wrong password is entered, the device response time gets
longer until the device appears to be not responding.
• If you forget your password, tap Settings > Clear Storage to clear the
memory. Before you do this, make sure you back up your data first so that
you can restore them back.
60 Operating in SnapVUE™
3.2 Introducing the SnapVUE Interface
SnapVUE mode has a Home screen that shows the current date and time,
upcoming appointments, and most recent SMS messages. From the Home
screen, you can also check your local weather, add e-mail accounts, access
settings, and more.
You can tap certain items on the Home screen, such as an appointment,
SMS message, or an icon, to view, edit or add more information for that
item.
Status area
Shows the current
day, date and time.
Tap to go to the
Calendar screen.
Tap an
appointment to
view or edit it.
Tap to go to
the Messaging
screen.
Tap to go to the
SMS screen.
Tap an e-mail account
to read or send e-mails.
Tap an SMS message
to open and view
that message.
Shows a visual
calendar of the current
month. Tap a date to
check appointments
for that day.
Tap to go to
the Weather
screen.
Tap to go to the
Contacts screen
and create or
edit contact
information..
Tap to go to
the Settings
screen.
On the Home screen, the two most recently received SMS messages and
two upcoming appointments for the coming week are displayed. All days
with appointments are indicated on the month calendar by a white triangle.
You can add up to three e-mail accounts for easy access.
Operating in SnapVUE™ 61
3.3 Date, Time and Alarm
The Home screen displays the current day, date and time. If you have
enabled the alarm for the current day, the Home screen also displays an
Alarm icon right beside the time display.
Alarm icon
The date and time are synchronized with Windows Vista® and cannot
be changed in SnapVUE mode. If you need to change the date and time
settings, you can do so in Windows Vista®.
Set the alarm
There are at most three alarms that you can enable. Each alarm can be
configured independently with different settings.
1. Tap Settings on the Home screen, then tap Alarm.
2. You will then see three Alarm tabs at the bottom. Tap the Alarm 1 tab.
3. Select the Alarm 1 check box.
4. Tap the day of the week for the alarm. You can select multiple days by
tapping each desired day.
5. Tap the Up/Down arrow to set the time for the alarm, and choose
between AM and PM.
6. Select the type of alarm you want. Choose one of the following:
• Show reminder. Displays a pop-up notification message without
sound.
• Play sound once. Sounds the alarm only once.
• Play sound repeatedly. Keeps sounding the alarm until you
dismiss the alarm.
7. If you selected to play sound, choose a sound from the drop-down list
that you want to assign as the alarm:
62 Operating in SnapVUE™
8. Repeat the same process if you want to enable set up the other
alarms.
9. When done, tap OK.
3.4 Weather
Weather displays the current weather and weather information for the next
5 days of the week. The first time you use this feature, you need to select
your city to receive local weather information.
Select your city
1. On the Home screen, tap the
Weather icon.
2. The first time you tap this icon,
you are prompted to select your
city. Browse the city list and
choose your location.
You can also do a quick search.
Type the first few letters of a city
or country then tap the Find
icon.
Tip Use the hardware keyboard
or one of the on-screen
input methods to enter text.
See “Input Methods” in this
chapter for details.
3. After you have chosen your city,
tap Select.
The Weather screen
After selecting your city, the Mobile Computer then automatically
downloads weather information from the Internet. The current temperature,
the highest and lowest temperatures, and a visual graphic of the climate
(showing if it’s daytime or nighttime, sunny or cloudy day, etc.) will be
displayed on the Weather screen.
Operating in SnapVUE™ 63
Tap this item if you want
to select another city.
Tap to download the
latest weather data.
Tap for more options.
Shows the time or days that have passed since
the last download of weather data. You can tap
this item to download the latest weather data.
Note If you have not connected to the Internet and downloaded weather
information for six days or your Mobile Computer failed to connect during
the first download, the following error message will be displayed: "Unable to
retrieve data for selected city. Select here to retry." Reconnect to the Internet
using the CDMA or EVDO connection, then tap the area that shows the error
message to download weather data.
Customize weather options
When you tap Menu > Weather Options on the Weather screen, you can
choose the following options:
• Download weather data automatically. When this check box is
selected, weather information will automatically be downloaded from
the AccuWeather Web site whenever you go to the Weather screen, if
the data has not been updated within the last three hours.
Clear this check box if you prefer to manually download weather
information.
64 Operating in SnapVUE™
• Download when roaming. Select this check box only if you want to
allow automatic download of weather data when you’re roaming. This
may incur additional costs.
• Temperature Scale. Choose whether to display temperature in
Celsius or Fahrenheit.
Tip The AccuWeather Web site (http://www.accuweather.com) provides more
detailed weather information. You can switch to Vista® mode and use
Internet Explorer® to access this Web site:
3.5 Input Methods
When you are on a screen that requires text or number entry, the Input
Panel icon becomes available at the bottom of the screen. Tap the Input
Selector arrow (that appears next to the Input Panel icon) to open a menu
where you can select a text input method and customize input options. The
corresponding Input Panel of the selected input method is then displayed
and you can use it to enter text. To toggle between showing and hiding the
Input Panel, simply tap the Input Panel icon.
Input Panel
(Keyboard)
Input Selector arrowInput Panel icon
Icon Input method Icon Input method
On-screen Keyboard Symbol Pad
Letter Recognizer or
Block Recognizer Transcriber
Operating in SnapVUE™ 65
On-screen Keyboard
The On-screen Keyboard is selected by default whenever text entry is
possible. Enter text by simply tapping the keys on the On-screen Keyboard.
To enlarge the keys of the On-screen Keyboard
By default, the On-screen Keyboard displays small keys. You can set it to
display larger keys by following these steps:
1. Tap the Input Selector arrow and then tap Options.
2. In the Input method list, select Keyboard.
3. Tap Large keys and then tap OK.
Symbol Pad
Symbol Pad provides a comprehensive list of common symbols such as
parentheses, braces, currency signs, and more, as well as punctuation marks
and special characters.
Tap a symbol to select it. You can
also use the hardware keyboard’s
arrow keys to navigate through the
available symbols and then press
ENTER to select a symbol.
Tap to display the previous page of
symbols.
Tap to display the next page of
symbols.
Tap to close the Symbol Pad without
selecting any symbol.
This indicates the current page and
the total number of symbol pages.
66 Operating in SnapVUE™
Letter Recognizer
With Letter Recognizer, you can write individual letters, numbers, and
punctuation, which are then converted into typed text.
To use Letter Recognizer
1. Tap the Input Selector arrow, and tap Letter Recognizer.
2. Write characters, numbers, and symbols in the designated writing
area.
• Enter capital letters by writing in the ABC (left) area of the box.
• Enter lower case letters by writing in the abc (middle) area of the
box.
• Enter numbers by writing in the 123 (right) area of the box.
• Enter punctuation and symbols by tapping in either area of the
box and then writing the desired character.
Note Letter Recognizer is available when text entry is possible.
Tip For help with writing characters, tap the question mark near the writing area.
Block Recognizer
With Block Recognizer, you use a single stroke to write letters, numbers,
symbols, and punctuation, which are then converted into typed text.
To use Block Recognizer
1. Tap the Input Selector arrow, and tap Block Recognizer.
2. Write characters, numbers, and symbols in the designated writing
area.
• Enter letters by writing in the abc (left) area of the box.
• Enter numbers by writing in the 123 (right) area of the box.
• Enter symbols and punctuation by tapping in either area of the
box and then writing the desired character.
Note Block Recognizer is available when text entry is possible.
Tip For help with writing characters with Block Recognizer, tap the question
mark near the writing area.
Operating in SnapVUE™ 67
Transcriber
Transcriber is a handwriting recognition method that allows you to write in
cursive, print, or a combination of both.
To write using Transcriber
1. Tap the Input Selector arrow, and tap Transcriber. The Transcriber
introductory screen appears.
2. Position the cursor where you want text to appear.
3. Use the stylus to write anywhere on the screen. The handwriting will
be converted to text shortly after you lift the stylus from the screen.
To enter punctuation and symbols
Transcriber has its own on-screen keyboard that provides an easy way to
add punctuation or a special symbol to existing text. To use this on-screen
keyboard, tap on the Transcriber toolbar.
The keyboard remains visible until you tap the button again.
Tips • To reposition the keyboard, tap and hold the title bar, then drag to the
desired location.
• When no text is selected, you can also open the keyboard by doing the
gesture.
To edit text
1. Draw a line across the text you want to edit.
2. After you lift the stylus from the screen, the line will disappear and the
selected text will be highlighted.
3. Do either of the following:
• Rewrite the text.
• Use gestures to capitalize letters, insert a space, and so on. See “To
use Transcriber gestures” for details.
68 Operating in SnapVUE™
To use Transcriber gestures
Use quick strokes of the stylus to edit your text or to insert returns, spaces,
or tabs.
Do To
Insert a paragraph return at the cursor.
The horizontal portion of the gesture must be at least two times longer
than the vertical portion.
Insert a space at the cursor.
The horizontal portion of the gesture must be at least two times longer
than the vertical portion.
Move the cursor one space back and erase any text.
Do the gesture by drawing a line from right to left.
Open the menu of alternate words if a word is selected or the on-screen
Transcriber keyboard if no text is selected.
Do the gesture by drawing a line straight down and back up.
Change the capitalization of a selected letter, word, or block of text.
Do the gesture by drawing a line straight up.
Undo the last action.
Do the gesture by drawing a line straight up and back down.
Copy the selected text.
Do the gesture by drawing a line from left to right and back.
Cut the selected text.
Do the gesture by drawing a line from right to left and back.
Paste copied or cut text.
Do the gesture by drawing a line from the lower left of the screen
diagonally up toward the right and back down to the right.
Insert a tab.
The horizontal portion of the gesture must be at least two times longer
than the vertical portion.
Operating in SnapVUE™ 69
The Transcriber toolbar
The Transcriber toolbar, which appears at the bottom of the screen when
Transcriber is open, provides easy access to several tools, Enter, Space, and
Backspace buttons, and Left and Right arrow buttons.
Tap To
Open the Transcriber: Options screen, where you can set options such as
writing direction, text entry, and shorthand.
Open the Letter Shapes screen, where you can set your personal writing
styles to maximize recognition.
Use the miniature keyboard to quickly enter numbers, punctuation, and
other symbols.
Change the character recognition mode.
• a mode. This is the default for optimum handwriting recognition.
• 123 mode. Numbers and some letters are allowed and the calculator is
activated.
• A mode. All letters are automatically capitalized.
If you are in A or 123 mode, recognition returns automatically to the
default mode once you lift the stylus.
Insert a space at the cursor.
Insert a paragraph return at the cursor.
Move the cursor one space to the left.
Move the cursor one space to the right.
Move the cursor one space back and erase any text.
70 Operating in SnapVUE™
3.6 Calendar
Use Calendar to create appointments, including meeting requests and
other events. You can set reminders so that you will be notified of your
appointments.
Note For more information about creating and responding to meeting requests,
see “Working With Company E-mails and Meeting Requests in SnapVUE” in
Chapter 4.
Open the Calendar screen
Do one of the following:
• On the Home screen, tap a date in
the month calendar. The Calendar
screen opens with your selected date
highlighted.
• Tap the Calendar icon on the Home
screen. The Calendar screen opens
with the current date highlighted.
Month Calendar on the
Home screen
Create appointments
1. Open the Calendar screen.
2. Tap Menu > New Appointment.
3. In the Subject drop-down list, select one of the preset descriptions or
enter your own description for the appointment.
4. In the Location box, enter the appointment’s location.
Operating in SnapVUE™ 71
5. Do one of the following:
• If there is a time frame for the appointment, select the start and
end dates and time.
• If it is a special occasion such as a birthday or a whole-day event,
set the All Day option to Yes.
6. Specify the type of category for your appointment, so that it can be
grouped with other related appointments. Tap Categories, then
select a preset category (Business, Holiday, Personal, or Seasonal), or
tap New to create your own category.
7. When finished, tap OK to return to the Calendar screen.
Notes • All-day events do not occupy blocks of time in Calendar; instead, they
appear in banners at the top of the calendar.
• To cancel an appointment, tap Menu > Delete Appointment.
Tip To have the time of the appointment entered automatically, tap Day to
change to the Day view, tap the time slot for the appointment, and then tap
Menu > New Appointment.
To set a default reminder for all new appointments
You can have a reminder automatically turned on for all new appointments
you schedule.
1. Open the Calendar screen.
2. Tap Menu > Tools > Options > Appointments tab.
3. Select the Set reminders for new items check box.
4. Set the time when you want the reminder to alert you.
5. Tap OK to return to the Calendar screen.
72 Operating in SnapVUE™
View appointments
On the Home screen
• You can see up to two most recent appointments on the Home
screen. Simply tap an appointment to view or edit the details of the
appointment.
• In the month calendar, days that have appointments are marked with
a white triangle.
Appointment
marker
On the Calendar screen
To access all your appointments, go to the Calendar screen. By default, the
Calendar screen displays appointments in Agenda view. Tap the lower left
of the screen to switch between Day, Week, Month, Year, and Agenda
views.
The highlighted hours
here indicate the time of
your appointments.
Tap to view appointment
details.
Agenda view
Tap to switch views.
Indicates
that there
is a conflict
with another
appointment.
Operating in SnapVUE™ 73
• To see detailed appointment information in any view, tap the
appointment.
• To view appointments by category, tap Menu > Filter then select the
desired category.
• To change the default view that Calendar uses to display
appointments, tap Menu > Tools > Options > General tab. Tap the
Start in box then choose the calendar view.
• When in Month view, you will see the following indicators:
Morning appointment
Afternoon or evening appointment
Both morning and afternoon/evening appointments
All-day event
Synchronize appointments with the Exchange Server
If you want to view the same calendar appointments in both Windows
Vista® and SnapVUE, synchronize your appointments with your company’s
Exchange Server. To do so, make sure you select E-mail as one of your sync
items when you set up your Outlook E-mail account in SnapVUE. See “Set up
your Outlook E-mail account” in Chapter 4 for details.
74 Operating in SnapVUE™
3.7 Contacts
Contacts is your address book and information storage for the people and
businesses you communicate with. You can create the following types of
contacts:
• Outlook contacts. Contacts that are stored on your Mobile
Computer, which can be created in SnapVUE mode or synchronized
with the Exchange Server.
Create new contacts
To create and store a contact on the Mobile Computer
1. On the Home screen, tap the Contacts icon.
2. Tap New, select Outlook Contact, and enter the contact information.
3. In the File as field, choose how you want the contact name to appear
in the contact list.
4. When finished, tap OK.
Tips • To edit contact information, tap the contact name then tap Menu > Edit.
• To be able to assign photos to contacts, you can copy the photos to
a stoarage card first and then insert the storage card onto the Mobile
Computer. To assign a photo of the contact, open the contact information
and then tap Select a picture.
Operating in SnapVUE™ 75
View, search and send
To group similar contacts
You can group similar contacts for easier management by assigning them
to categories.
1. Create a new Outlook contact or edit an existing Outlook contact.
2. Tap Categories.
3. Select a preset category such as Business or Personal, or tap New to
create your own category.
4. When finished, tap OK.
To find a contact on your device
There are several ways to find a contact when your contact list is long.
1. On the Home screen, tap the Contacts icon.
2. Do one of the following:
• Begin entering a contact name in the provided text box until the
contact you want is displayed.
• Use the alphabetical index displayed at the top of the contact list.
• Filter the list by categories. In the contact list, tap Menu > Filter,
then tap a category you’ve assigned to a contact. To show all
contacts again, select All Contacts.
To send contact information via text messaging
1. Select a contact, then tap Menu > Send Contact > Text Messages.
2. Select the contact information you want to send, then tap Done.
3. In the new text message, enter the mobile phone number of the
recipient, then tap Send.
For more information about text messaging, see “SMS” in this chapter.
Synchronize contacts with the Exchange Server
If you want to maintain the same set of contacts in both Windows Vista®
and SnapVUE, synchronize Outlook contacts with your company’s Exchange
Server. To do so, make sure you select Contacts as one of your sync items
when you set up your Outlook E-mail account in SnapVUE. See “Set up your
Outlook E-mail account” in Chapter 4 for details.
76 Operating in SnapVUE™
3.8 SMS
You can send and receive SMS text messages in SnapVUE mode.
View and reply to SMS messages
On the Home screen
When you have new incoming text messages, you will see the two most
recently received messages on the Home screen:
Tap a text message to read it or send a reply. See Compose and send text
messages” for instructions on composing and sending a text message.
On the Text Messages screen
Tap the SMS icon on the Home screen to open the Text Messages screen
where you can access all your text messages. On the Text Messages screen,
you can create, reply and manage your text messages.
Compose and send text messages
Send short text messages up to 160 characters long to other mobile
devices.
1. To create a new message, do one of the following:
From the Text Messages screen:
a. Tap the SMS icon on the Home screen.
b. Tap Menu > New.
From Contacts:
a. Tap the Contacts icon on the Home screen.
b. Tap a contact to open his or her contact card.
c. Tap Send text message.
2. A new text message is then created. To add more recipients,
enter
their mobile phone numbers in the To field, separating them with
a semicolon. You can also tap To if you want to add mobile phone
numbers from Contacts.
Operating in SnapVUE™ 77
3. Enter your message.
•
To quickly add common messages, tap Menu > My Text and tap a
desired message.
• To check the spelling, tap Menu > Spell Check.
4. Tap Send.
Tips • To enter symbols, tap the on-screen keyboard icon then tap Symbol Pad.
• If you want to know when a text message is received, before sending the
message that you are composing, tap Menu > Message Options then
select the Request message delivery notification check box.
3.9 Comm Manager
Comm Manager acts like a central switch that allows you to easily connect
and disconnect from the Internet and to turn on and off Direct Push.
To open Comm Manager
• Tap the Settings icon on the Home screen, then tap Comm Manager.
3
2
1
1 Tap to turn on Flight Mode. This turns off the modem function in
both SnapVUE’s Comm Manager and the Control Center in Windows
Vista®.
To turn the modem function back on, tap the Modem button in the
Comm Manager or the Control Center.
78 Operating in SnapVUE™
Note Turning on Flight Mode also turns off the Bluetooth and Wireless LAN
functions in the Control Center. For more information about the Control
Center, see Chapter 2.
2 Tap to toggle Direct Push on (to instantly receive Outlook e-mails as
they arrive) or off (to manually retrieve e-mails). When you turn on
Direct Push, the data connection will be connected automatically. For
more information about using Direct Push, see Chapter 4.
3 Tap to toggle the modem function on or off. Turning off the modem
disconnects the active CDMA or EVDO data connection.
When you turn on the modem, one of the following situations will
occur:
• If Direct Push is on when you turn on the modem, the data
connection will be reconnected automatically.
• If Direct Push is off when you turn on the modem, the data
connection will not be reconnected. You will need to manually
reconnect.
3.10 Adding a Dial-up Connection
To set up a dial-up connection to your wireless service provider or Internet
Service Provider (ISP), you need the same settings that you normally use
when you dial up from Windows Vista®. This includes the provider’s dial-up
phone number, your user name and password.
1. Tap Settings on the Home screen and then tap Connections.
2. Tap Add a new modem connection.
Operating in SnapVUE™ 79
3. On the Make New Connection screen, enter a name for the
connection.
4. In the Select a modem list, select Cellular Line, then tap Next.
5. Enter the provider’s dial-up phone number, then tap Next.
6. Enter your user name, password, and any other information required
by your provider.
7. Tap Finish.
Note To modify connection settings, tap Manage existing connections on the
Connections screen, and complete the connection wizard.
3.11 Tasks
Use Tasks to keep track of things you need to do. A task can occur once or
repeatedly (recurring). You can set reminders for your tasks and you can
organize them using categories.
Your tasks are displayed in a task list. Overdue tasks are displayed in red.
To create a task
1. Tap Settings on the Home screen and then tap Tasks.
2. Tap Menu > New Task, enter a subject for the task, and fill in
information such as start and due dates, priority, and so on.
3. Specify the type of category for your task, so that it can be grouped
with other related tasks. Tap Categories, then select a preset category
(Business, Holiday, Personal, or Seasonal), or tap New to create your
own category.
4. To set a priority (for sorting purposes), select a priority level in the the
Priority box.
Note New tasks are assigned a Normal priority by default.
5. When finished, tap OK.
Tip You can easily create a short, to-do type task. Simply tap the Tap here to add
a new task box, enter a subject, and press the ENTER key. If the task entry
box is not available, tap Menu > Options and select the Show Tasks entry
bar check box.
80 Operating in SnapVUE™
To set a default reminder for all new tasks
1. Tap Settings on the Home screen and then tap Tasks.
2. Tap Menu > Options.
3. Select the Set reminders for new items check box.
4. Tap OK to return to the task list.
Note The new tasks must have due dates set in order for the reminder to take
effect.
To show start and due dates in the task list
1. Tap Settings on the Home screen and then tap Tasks.
2. Tap Menu > Options.
3. Select the Show start and due dates check box.
4. Tap OK.
To locate a task
When your list of tasks is long, you can display a subset of the tasks or sort
the list to quickly find a specific task.
1. Tap Settings on the Home screen and then tap Tasks.
2. In the task list, do one of the following:
• Sort the list. Tap Menu > Sort By, and tap a sort option.
• Filter the list by category. Tap Menu > Filter, and tap the category
you want displayed.
Tip To filter your tasks further, tap Menu > Filter > Active Tasks or Completed
Tasks.
To synchronize tasks with the Exchange Server
If you want to maintain the same set of tasks in both Windows Vista® and
SnapVUE, synchronize your task list with your company’s Exchange Server.
To do so, make sure you select Tasks as one of your sync items when you
set up your Outlook E-mail account in SnapVUE. See “Set up your Outlook
E-mail account” in Chapter 4 for details.
Operating in SnapVUE™ 81
3.12 Settings
To see all available settings in SnapVUE mode, tap the Settings icon on the
Home screen. The table below describes about what you can do with the
SnapVUE settings.

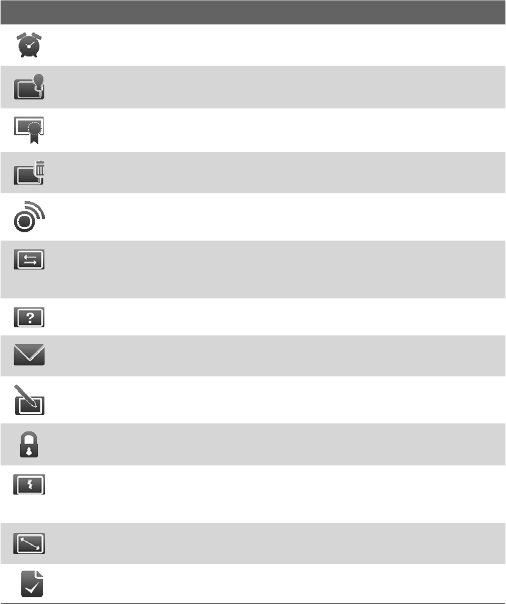

Icon Description
Alarm Set alarm(s) at specified days and times of a week
Backlight Set the backlight timeout and adjust brightness.
Certificates See information about certificates that are installed in
SnapVUE.
Clear Storage Tap this icon only when you need to remove all your data
and files from the memory and reset SnapVUE to factory default settings.
Comm Manager Manage your device’s data connection (CDMA/EVDO),
turn Direct Push on or off, and enable or disable Flight Mode.
Connections Manually set up one or more dial-up connections so that
you can connect to the Internet through one connection when another
connection becomes unavailable.
Device Information See information about the SnapVUE firmware.
E-mail Account Settings Select which e-mail accounts you want to
display or hide from the Home screen. See Chapter 4 for details.
Input Set options for each of the input methods.
Lock Set a password for SnapVUE mode.
Power Check the remaining battery power. You can also set the timeout
for turning off the display (switching device to Sleep mode) to conserve
battery power.
Screen Change the screen orientation, re-calibrate the screen, and
change the screen text size.
Tasks Create a task list and keep track of unfinished tasks.
82 Operating in SnapVUE™
84 E-mail
4.1 Types of E-mail Accounts
You can set up the following types of e-mail accounts on your Mobile
Computer:
• Outlook e-mail that you sync with your company’s Exchange Server.
• E-mail account that you have from an Internet Service Provider (ISP).
• Web-based e-mail accounts such as Yahoo!® Mail, AOL®, etc.
• Work account that you access using a VPN connection.
The Windows Vista® Business Edition on your Mobile Computer does not
come with Microsoft® Office Outlook®. To set up an Outlook e-mail account
that synchronizes with the Exchange Server, you need to purchase and
install Microsoft® Office Outlook®. To set up an e-mail account from your ISP
and web-based e-mail accounts, you can use Microsoft® Office Outlook® if
you have purchased the software, or use Windows Mail which is the default
e-mail software in Windows Vista®.
This user manual does not cover the e-mail setup procedures for Windows
Vista®. Please refer to the online help of your e-mail software for e-mail
setup instructions.
4.2 Adding E-mail Accounts in SnapVUE™
Easily set up your personal and work e-mail accounts in SnapVUE. You
can add an e-mail account from an Internet Service Provider (ISP) or other
e-mail provider as well as web-based accounts such as Gmail®, Yahoo!® Mail
Plus, AOL®, etc. If you want to access work e-mails from a company mail
server that runs Exchange Server, you can also set up Outlook E-mail in
SnapVUE to synchronize with the Exchange Server.
Note You can add at most seven e-mail accounts in SnapVUE.
Set up your POP3 or IMAP4 e-mail account
Set up a POP3 or IMAP4 e-mail account if you have an e-mail account from
an Internet service provider (ISP) or other e-mail provider, or a web-based
account such as Gmail, Yahoo! Mail Plus, etc. You can also add a work
E-mail 85
account that you access using a VPN server connection as a POP3/IMAP4
account.
To add a POP3 or IMAP4 e-mail account in SnapVUE
1. On the Home screen, tap Add Account.
2. Enter your e-mail address, and select the Try to get e-mail settings
automatically from the Internet check box. By selecting the option,
the device attempts to download e-mail server settings so that you
do not need to enter them manually.
3. Tap Next.
Auto Setup attempts to automatically configure your e-mail account.
Note If Auto Setup is unsuccessful, select Internet e-mail from the Your
e-mail provider list on the next screen. You will also be asked to enter
e-mail server settings during the setup process. See “To specify e-mail
server settings” for details.
4. After Auto Setup finishes, tap Next.
5. Enter your name. You can also edit the Account display name field to
specify the name of your ISP or e-mail provider. Tap Next.
86 E-mail
6. Enter your login name if it does not show automatically in the User
name field. Also enter your password, and select the Save password
check box. Tap Next.
7. At this point, e-mail setup is complete. In the Automatic Send/
Receive list, choose how frequent you want e-mail messages to be
automatically sent and downloaded on your device.
Note Tap Review all download settings to select download options, set the
e-mail format as HTML or plain text, and more. For more information,
see “To customize download and format settings."
8. Tap Finish.
To specify e-mail server settings
If Auto Setup is unsuccessful, contact your ISP or e-mail provider for the
Incoming mail server and outgoing mail server settings so you can enter
them on your device.
Other options that you can select include the following:
• Select the Outgoing server requires authentication check box, if
required by your provider.
• If the outgoing e-mail server requires a different user name and
password for sending e-mail, clear the Use the same user name and
password for sending e-mail check box. You will prompted to enter
these information.
• Tap Advanced Server Settings, then select the Require SSL check
boxes if your e-mail provider uses an SSL connection for more secured
e-mail. From the Network connection list, select the data connection
that you use for connecting to the Internet.
E-mail 87
To customize download and format settings
Before you tap Finish when setting up your POP3 or IMAP4 e-mail account,
you can tap Review all download settings to choose download options,
message format, and other settings.
Options Description
Automatic Send/Receive You can select a time interval for connecting to
the Internet automatically to send and receive
messages.
Download messages Set the number of days of messages that you
want to be downloaded to your device.
Send/receive when I click
Send
By default, messages are immediately delivered
when you tap Send. If you prefer to save
outgoing messages to the Outbox folder first,
clear the check box. (In this case, you will need
to manually send messages by tapping Menu >
Send/Receive).
Use automatic send/
receive schedule when
roaming
This allows your device to data roam when
there is a set time interval for connecting to the
Internet automatically. Since this may result in
higher connection costs, you may want to leave
the check box cleared.
When deleting messages Choose whether to delete messages from the
mail server when you delete them on your device.
Set up your Outlook E-mail account
Before you can access your Outlook e-mail account and other information
(such as contacts, appointments, and tasks) from your company’s Exchange
Server, you need to set up an Exchange Server connection in SnapVUE. You
need to get the following information from your network administrator and
enter them on your device:
• Exchange Server name (must be the Outlook Web Access server
name)
• Domain name
• User name and password that you use at work
88 E-mail
To set up an Exchange Server connection
1. Tap Add Account on the Home screen.
2. Enter your e-mail address. Clear the Try to get e-mail settings
automatically from the Internet check box, then tap Next.
3. Select Exchange server in the Your e-mail provider list, then tap
Next.
4. Tap Next again.
5. In Server address, enter the Exchange Server name, and tap Next.
6. Enter your user name, password, and domain, and tap Next.
Tip To change the rules for resolving synchronization conflicts, tap
Advanced.
7. Select the E-mail check box and other items such as Calendar,
Contacts, Tasks, etc. that you want to sync with the Exchange Server.
8. To change synchronization settings of an information type, select the
type of information (for example, E-mail) and tap Settings.
9. Tap Finish.
Manage e-mail accounts
To select which e-mail accounts to show on the Home screen
SnapVUE shows at most three e-mail accounts on the Home screen. If you
added more than three accounts, you can choose which e-mail accounts
you want to display on the Home screen.
1. Tap Settings on the Home screen.
2. Tap E-mail Account Settings.
E-mail 89
3. Select the check boxes of three e-mail accounts that you want to
appear on the Home screen, and clear the check boxes of the other
e-mail accounts.
4. Tap Done.
To use an e-mail account that is not on the Home screen
Open the Account Picker screen to access other e-mail accounts that are not
shown on the Home screen.
1. Tap Email on the Home screen to open the Account Picker screen.
This screen lists your text message (SMS) account and all your e-mail
accounts.
2. Tap an e-mail account to access its Inbox and view your e-mail
messages.
Tip While you are in a message list of a certain account, tap Menu > Go To to
switch to your other messaging accounts.
90 E-mail
To delete an e-mail account
• On the Account Picker screen, navigate to a personal e-mail account
you want to delete and then tap Menu > Delete.
Note Outlook E-mail and Windows Live Mail accounts cannot be deleted from the
Account Picker screen.
To configure account settings
Open the Messaging Options screen to change e-mail account settings.
• Tap Menu > Options on the Account Picker screen; or
• Tap Menu > Tools > Options while you’re in a message list.
To add a signature in outgoing messages
You can automatically add your name and other information as your
signature in outgoing SMS and e-mail messages.
1. On the Account Picker screen, tap Menu > Options.
2. Tap Signatures.
3. Select a messaging account in which to add your signature.
4. Select the Use signature with this account check box.
5. If you want your signature to be added whenever you reply or
forward messages, select the Use when replying and forwarding
check box.
6. In the provided text box, enter the information that will be displayed
as your signature.
7. Repeat steps 3 to 6 to add a signature to your other messaging
accounts.
E-mail 91
4.3 Using E-mail
After setting up e-mail accounts on your device, you can start sending and
receiving e-mail messages.
Create and send e-mails
Follow these steps to compose a new e-mail and send it:
1. Do one of the following:
• Tap an e-mail account on the Home screen; or
• Tap Email on the Home screen, and then tap an e-mail account on
the Account Picker screen.
2. Tap Menu > New to create a new message.
3. In the To field, enter e-mail addresses, separating them with a
semicolon. You can also tap To if you want to add e-mail addresses
stored in Contacts.
4. Enter a subject and compose your message. To quickly add common
messages, tap Menu > My Text and tap a desired message.
5. To automatically run a spell check, tap Menu > Spell Check.
6. To add a file attachment, copy the file first to an SD card and insert the
SD card to the Mobile Computer. Next, tap Menu > Insert > File and
select the file from the SD card.
7. Tap Send.
92 E-mail
View and reply to e-mails
From the Home screen and the Account Picker screen, you will be able to
see that you have new incoming e-mails. Tap the e-mail account that shows
you have new e-mails, and then follow these steps to view and reply to a
received message:
1. In the message list, tap to open a new message.
2. By default, only the first few kilobytes of the message are shown
when you open an e-mail. To download the whole e-mail, scroll down
to the bottom of the message and then tap Get the rest of this
message.
3. If your e-mail account is an Outlook e-mail account that is
synchronized with Microsoft Exchange Server 2007, the e-mail
will download instantly. For more information about working with
Outlook E-mail and the Exchange Server, see “Working With Company
E-mails and Meeting Requests in SnapVUE” in this chapter.
4. If you are using a personal e-mail account, web-based account, or
Outlook e-mail account that is synchronized with Microsoft Exchange
Server 2003 (or earlier version), the e-mail will not download
immediately and you will see the following message on the screen:
“Message will download next time you connect and receive e-mail.”
You need to tap Menu > Send/Receive to download the e-mail.
5. To reply or forward the e-mail, tap Menu > Reply, Reply All, or
Forward.
6. Enter your response and then tap Send.
To filter the message list
When your Inbox is full of messages, it may be hard to browse and locate a
desired message. You can filter your Inbox to only display the messages that
contain a particular sender or subject you are searching for.
• Enter the sender name or e-mail subject you want to look for using
the on-screen keyboard. As you tap keys, the message list narrows
down to the conditions you have set.
E-mail 93
For example, entering “P”, then “R”
narrows the list to only the e-mails
that contain sender names and e-mail
subjects that start with “PR.”
Note You can also filter your SMS text
message list.
4.4 Working With Company E-mails and Meeting
Requests in SnapVUE
To keep SnapVUE always up-to-date with your company e-mails while
you’re out of the office, you can synchronize Outlook E-mail over-the-air
with your company’s Exchange Server.
Before you can synchronize with the Exchange Server, make sure to set up
Outlook E-mail in SnapVUE with the appropriate Exchange Server settings.
See “Set up your Outlook E-mail account” earlier in this chapter for details.
Direct Push
Direct Push technology (push e-mail feature) enables you to receive
new e-mails as soon as they arrive in your Inbox on the Exchange Server.
Other items such as contacts, calendar appointments and tasks are also
immediately updated in SnapVUE when these items have been changed or
new entries have been added on the Exchange Server.
To make Direct Push work, you need to use the CDMA/EVDO function of
your Mobile Computer. You need to perform a full synchronization between
SnapVUE’s Outlook E-mail and the Exchange Server first before Direct Push
can be enabled.
Requirement The Direct Push feature works only if your company is using
Microsoft Exchange Server 2003 Service Pack 2 (SP2) with
Exchange ActiveSync or higher version.
94 E-mail
To turn on Direct Push
1. Tap Settings on the Home screen.
2. Tap Comm Manager.
3. Tap the Direct Push icon to activate the push e-mail feature.
Note If Direct Push is turned off, you need to manually retrieve e-mails from the
Exchange Server.
E-mail flags
Flags serve as a reminder for you to follow-up on important issues or
requests contained in the e-mail messages. Flagging messages, which
has been a useful feature on desktop Outlook E-mail, can also be done in
SnapVUE’s Outlook E-mail.
Requirement Flags are enabled only if your Outlook e-mails are synchronized
with Microsoft Exchange Server 2007 or higher. Flags are
disabled or hidden if e-mails are synchronized with earlier versions
of Microsoft Exchange Server.
To flag or unflag a message
1. In SnapVUE, tap Outlook E-mail on the Home screen or Account
Picker screen.
2. Select a message or open a message.
3. Tap Menu > Follow Up and select one of the following options:
• Set Flag Mark the message with a red flag to indicate that it needs
follow up.
• Complete Flag Mark the message with a check mark to indicate
that the issue or request in the e-mail is already completed.
• Clear Flag Remove the flag to unmark the message.
Search for e-mails on the Exchange Server
You can search for e-mails that are stored in your Microsoft Exchange Server
mailbox. The search results will be downloaded and displayed in a Search
Results folder.
Requirement Your company must be using Microsoft Exchange Server 2007 or
higher.
E-mail 95
1. Tap Outlook E-mail on the Home screen or Account Picker screen.
2. Tap Menu > Tools > Search Server.
3. In the Look for text box, enter the search keyword.
4. Choose the date range of messages to search from.
5. From the Look in list, choose whether to search from your inbox or
outbox only or to search all folders.
6. Tap Search.
Out-of-office auto-reply
You can set Outlook E-mail in SnapVUE to automatically send an auto-reply
message when you’re not available.
To send out-of-office auto-reply messages
1. Tap Outlook E-mail on the Home screen or Account Picker screen.
2. Tap Menu > Tools > Out of Office.
3. From the I am currently list, select Out of the Office.
4. Enter your auto-reply message then tap Done.
Send meeting requests
You can send meeting requests from SnapVUE. You can also respond to a
meeting request that you received by accepting or declining the request.
To create and send a meeting request
1. Create a new calendar appointment. See “Calendar” in Chapter 3 for
instructions.
2. In the appointment that you created, tap Attendees, then tap Add
Required Attendee or Add Optional Attendee and add the contacts
whom you want to invite.
Note You can specify if an attendee is required or optional only if your
company is using Microsoft Exchange 2007 server. Otherwise, all
attendees are designated as required.
3. When have finished adding attendees, tap Done.
4. Tap OK to send.
96 E-mail
Tip To choose the e-mail account to use for sending meeting requests, tap
Calendar on the Home screen and then tap Menu > Tools > Options >
Appointments tab. Tap the Send meeting requests via box and choose to
send via your Outlook E-mail, POP3/IMAP4 or Windows Live account.
Notes • If you’re sending the meeting request using your Outlook E-mail account,
it will be sent to the attendees the next time you synchronize SnapVUE’s
Outlook E-mail with the Exchange Server.
• When attendees accept your meeting request, the meeting is
automatically added to their schedules. When their response is sent back
to you, your calendar is updated as well.
To reply to a meeting request
1. When you receive a meeting request e-mail, a notification will be
displayed on the Today screen. Open the e-mail.
2. Tap Accept to reply and accept the meeting request, or tap Menu >
Decline if you cannot attend the meeting.
Tips • Before responding, you can check your availability during the time
of the requested meeting by tapping View your calendar.
• If the time of the meeting conflicts with your other appointments,
a “Scheduling Conflict” status appears on top of the e-mail.
3. Choose whether or not to edit your response e-mail before sending
then tap OK:
4. If you accepted the meeting request, it will automatically be added as
an appointment in Calendar on your device.
E-mail 97
Find contacts in the Company Directory
You can search and access contact information from your Company
Directory. By having over-the-air access to the Company Directory, you
can easily send e-mail messages and meeting requests to anyone in your
company.
Requirement Access to the Company Directory is available only if your company
is using Microsoft Exchange Server 2003 SP2 or higher, and you
have completed your first synchronization with the Exchange
Server.
1. Synchronize with the Exchange Server if you have never done so (by
tapping Menu > Send/Receive in SnapVUE’s Outlook E-mail).
2. Do any of the following:
• In Contacts, tap Menu > Company Directory.
• While composing a new e-mail message, tap the To item (or tap
Menu > Add Recipient) then tap Company Directory.
• While creating a new meeting request using Calendar, tap
Attendees and then tap Company Directory at the top of the list.
3. Enter the part or full contact name and tap Search. In the search
results list, tap a contact to select it.
Notes • You can save a contact from the Company Directory to SnapVUE by
selecting the contact then tapping Menu > Save to Contacts.
• You can search on the following information as long as that information is
included in the Company Directory: First name, Last name, E-mail name,
Display name, E-mail address, or Office location.
98 E-mail
100 Securing and Managing the Mobile Computer
5.1 Setting a BIOS Password
System Setup (BIOS) enables you to change system settings such as the
date and time or set boot device priority. You can set a supervisor password
to prevent unauthorized access to your Mobile Computer’s BIOS.
When the Supervisor Password is set, users must enter the password to start
the Mobile Computer or enter System Setup. By configuring a supervisor
password, you can restrict system access to authorized users only and
protect data and files saved on the computer.
Note Do not lose or forget your password. Write it down and keep it in a safe place.
To access System Setup
Press DEL during power on (POST) to access the BIOS program.
To set a Supervisor Password.
1. Select the Security menu in the BIOS SETUP UTILITY screen.
2. Select Change Supervisor Password and press <Enter>.
You are prompted to enter a new password.
3. Type a password up to six alphanumeric characters.
4. Press ENTER. You are prompted to reenter the password for
confirmation.
5. Type the password again.
6. Press ENTER. The password is installed.
7. Press ENTER.
A new item, Password Check, becomes available in the Security
screen.
8. Select Password Check and press ENTER.
You are prompted to set password behavior options.
9. Select one of the following options:
Setup: You will be prompted for the password whenever you access
the BIOS System Setup.
Always: You will be prompted for the password when you boot the
Mobile Computer as well as whenever you access the BIOS System
Setup.
Securing and Managing the Mobile Computer 101
10. After making your selection press <Enter>.
11. In the BIOS SETUP UTILITY select the Exit Menu.
12. Select Save Changes and Exit and press <Enter> to exit the BIOS
System Setup utility.
Note If your system behaves abnormally after changing BIOS settings, enter BIOS,
select the Exit menu and select Load BIOS default settings. Then select
Save Changes and Exit to return BIOS to the default settings.
5.2 Hard Disk Recovery
In case of system failure, Windows Vista® can be recovered to the hard disk
by running the hard disk recovery utility. Before starting this utility, make
sure to back up important data and files.
To run the hard disk recovery utility
1. Shut down the Mobile Computer and then power it on again.
2. At the start of the boot-up process, immediately press F3 to run the
hard disk recovery utility.
3. You will then see the following screen:
Recovery process is starting .....
The process will delete all data on the hard drive.
Do you want to terminate the process? (Y/N)
Press N to continue with the hard disk recovery process. If you press Y,
the hard disk recovery utility is terminated.
4. The next message prompts you whether or not to rebuild the MBR
(Master Boot Record) data:
Recovery process is starting .....
The process will delete all data on the hard drive.
Do you want to terminate the process? (Y/N) N
Do you want to rebuild the MBR (Master Boot Record) data? (Y/N)
102 Securing and Managing the Mobile Computer
If, aside from drive C, you have created other partitions in the
hard disk and you want to keep them, press N. If you press Y, your
partitions will be deleted.
5. A confirmation message then prompts you whether or not to
continue. Press Y to start the hard disk recovery process. If you press
N, the hard disk recovery utility is terminated.
6. After the recovery process is complete, slide and hold the HOLD
switch for about four seconds to shut down the Mobile Computer.
5.3 Using the Fingerprint Sensor and VitaKey
Your Mobile Computer features a fingerprint sensor, which you will find on
the lower left side of the touch panel. Windows Vista® is preinstalled with
the VitaKey™ fingerprint software which provides an extra layer of data
security to protect your Mobile Computer and personal information.
The VitaKey fingerprint software includes fingerprint authentication
to access user credentials for logging on to the Mobile Computer and
accessing files. Other functionality includes centralized password
management and quick application launching.
Enroll your fingerprint
The first time you use the VitaKey software, the System Wizard will guide
you through enrolling your fingerprints and setting up data protection.
To run the System Wizard
1. Tap the VitaKey icon in the system tray.
2. The System Wizard opens. Tap Next.
3. Tap Create new User Data File and tap Next.
4. Enter your Windows login password and tap Next.
5. Next, you are prompted to enroll your fingerprints. Select which
fingerprint you want to enroll by tapping the corresponding finger on
the screen.
6. After selecting a finger to enroll, you are prompted to swipe your
finger across the fingerprint sensor.
Securing and Managing the Mobile Computer 103
Slide your finger across the sensor. Successful reads are accompanied
by a sound and the numbered boxes below change to a fingerprint
symbol.
7. Repeat this procedure at least four times to register your fingerprint.
When you have successfully registered, you are prompted to enroll
another fingerprint.
8. Select another finger to enroll and repeat the previous steps, or tap
Next to continue.
9. Select a location on the hard disk to store a backup user data file.
10. Tap Next and then tap OK.
11. Tap Finish. A User Data File is then created which stores your enrolled
fingerprint(s).
Authentication
After enrolling one or more of your fingerprints, VitaKey will prompt for
fingerprint authentication whenever you log onto Windows in your Mobile
Computer. Swipe a finger that has an enrolled fingerprint on the fingerprint
sensor to log onto Windows.
Fingerprint authentication is also required before you are allowed to
change VitaKey settings, protect/unprotect files or use certain functions.
When you see VitaKey’s Authentication window, swipe your enrolled finger
over the fingerprint sensor.
Indicates that
authentication failed.
If this happens, swipe
your finger again.
Indicates that
authentication
is successful.
104 Securing and Managing the Mobile Computer
Enroll and manage passwords
You can enroll the account names and passwords that you use in
applications and web sites into VitaKey for centralized management. Your
account information can be enrolled and managed in VitaKey’s Password
Bank which is stored in the User Data File.
To enroll a username and password into the Password Bank
1. Launch your web browser and navigate to a page that requires a
username and password, or open the program that requires your
username and password.
2. Enter your username and password and submit them.
3. The Password Bank window then appears prompting that you name
and save the account information. Use the default or enter a name
and then tap Save. The password is then enrolled in the Password
Bank.
To use an enrolled username and password
1. Open the web page or program where you have already enrolled
account information into the Password Bank.
2. Tap the username field. VitaKey’s Authentication window opens.
3. Swipe a finger that has an enrolled fingerprint over the fingerprint
sensor. Your identity is then authenticated.
4. The account data for the web site automatically registers with the
web site and you are logged in.
To edit the account information in the Password Bank
1. Tap and the VitaKey icon in the system tray and then tap System
Settings.
2. Tap the Password Bank Management icon ( ).
3. Right-click or tap and hold on an account to open a pop-up menu. In
the menu, tap Content.
4. Tap Edit.
5. Change the username or password and then tap OK.
6. Tap Apply.
Securing and Managing the Mobile Computer 105
Protect files with fingerprint security
You can restrict read and write access of files only to yourself by requiring
fingerprint authentication.
To protect and lock files
1. Select the file or files you want to protect.
2. Right-click or tap and hold on the selected file(s) and then select File
Protection from the pop-up menu. VitaKey’s Authentication window
then opens.
3. Swipe a finger that has an enrolled fingerprint over the fingerprint
sensor. Your identity is then authenticated.
4. Select the files you want to protect.
5. Tap Start. The files are protected and a lock icon appears on the
file.
Tip To easily search for VitaKey protected files in your Mobile Computer, tap and
hold the VitaKey system tray icon and then tap Search Protected Files.
To remove protection
1. Select the file or files you want to unprotect and right tap the
selection.
2. Select File Unprotection from the pop-up menu. VitaKey’s
Authentication window opens.
3. Swipe a finger that has an enrolled fingerprint over the fingerprint
sensor. Your identity is authenticated.
4. Select the files you want to unprotect.
5. Tap Start. The files are then unprotected.
VitaKey settings
VitaKey allows you to enroll new fingerprints, remove enrolled fingerprints,
manage the Password Bank, or change program options from the System
Settings window.
To configure VitaKey
1. Right-click or tap and hold the VitaKey system tray icon and then tap
System Settings in the pop-up menu.
106 Securing and Managing the Mobile Computer
2. When you see the Authentication window, swipe your finger on the
fingerprint sensor.
3. In the System Settings window, tap the icons at the top to configure
VitaKey. The following table describes about each icon.

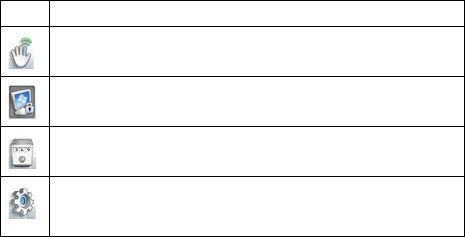

Icon Meaning
Tap to enroll a new fingerprint or delete an enrolled fingerprint.
Tap to change the Windows logon password.
Tap to delete, rename, or change an account’s username or
password in the Password Bank.
Tap to enable sound effects, enable the Password Bank and
auto-login for registered web sites, display enrolled fingers during
authentication, and more.
Back up security data
You can back up the User Data File that contains your enrolled fingerprints
and Password Bank.
1. Right-click or tap and hold the VitaKey system tray icon to open a
pop-up menu.
2. In the menu, tap System > Back up User Data File.
3. When you see the Authentication window, swipe your finger on the
fingerprint sensor.
4. Browse to the destination folder where you want to save a backup of
your User Data File and then tap Backup.
Tip To restore the data from a backup file, tap and hold the VitaKey tray icon and
then tap System > Restore User Data File.
Securing and Managing the Mobile Computer 107
5.4 Configuring Touch Screen Input
Your device features Windows Vista® Business edition, which comes with
native Tablet PC utilities to configure your stylus and to input data with
handwriting recognition. The utilities also have tools to make interacting
with the operating system easier and more convenient.
You can also use the Pen and Input Devices application in the Control Panel
to configure the stylus.
Note This section is only a guide to the Tablet PC utilities. For more information,
please see Windows Vista® online help.
Tablet PC Settings
Tablet PC Settings allow you to configure tablet PC related settings.
Note: If the Control Panel is in Classic View mode, tap Tablet PC Settings from
the Control Panel window.
1. Tap Start > Control Panel to open the Control Panel.
2. Tap Hardware and Sound.
3. Tap Tablet PC Settings.
The Tablet PC Settings window opens.
4. Tap the General tab.
5. Select Right-handed or Left-handed to set where the pop-up menus
appear depending upon whether you are right or left handed.
6. Tap the drop-down list under Orientation and select an orientation,
then tap Calibrate to calibrate the screen in that orientation. Repeat
for all orientations that you will be using.
7. Tap the Handwriting Recognition tab.
8. Tap Use the Personalized recognizer (recommended) to improve
handwriting recognition..
9. Tap Use Automatic learning (recommended) to enable the
operating system to collect handwriting data automatically.
10. Tap Don’t use automatic learning and delete any previously
collected data to prevent the operating system from collecting
handwriting data automatically.
108 Securing and Managing the Mobile Computer
11. Tap the Display tab.
12. Select an orientation from the drop-down list and select a screen
resolution to use.
13. Tap Change to change the order of the sequence in which the
orientation changes.
Note You can also use the display utility in the Control Panel to change the
screen orientation.
14. Tap the Other tab to make additional Pen and Input and Tablet PC
Input Panel Options.
Pen and Input Devices utility
The Pen and Input Devices utility allows you to configure settings for using
the stylus or a finger to interact with the operating system.
Note: If the Control Panel is in Classic View mode, tap Tablet PC Settings from
the Control Panel window.
1. Tap Start > Control Panel to open Control Panel.
2. Tap Hardware and Sound.
3. Tap Pen and Input Devices.
The Pen and Input Devices window opens.
4. Tap the Pen Options tab.
5. Select a pen action and tap Settings to configure settings for each
pen action that corresponds to an equivalent mouse action.
6. Tap the Pointer Options tab.
7. Select the visual feedback options you want for using the stylus.
8. Tap the Flicks tab.
Pen Flicks are movements that enable you to navigate and perform
shortcuts with the stylus. You can make the following selections.
• Check Use flicks to perform common actions quickly and easily
to enable the flicks function.
• Choose the flicks mode:
Navigational flicks: Use flicks for navigation only.
Securing and Managing the Mobile Computer 109
Navigational flicks and editing flicks: Use flicks for both
navigation and editing. Tap Customize to customize editing
settings.
• Set the flick sensitivity for both the stylus and touch usage.
• Check the box to display the flicks icon in the notification area.
9. Tap the Touch tab.
10. Select Use your finger as an input device if you plan to use your
finger in place of a stylus sometimes.
11. Select a Touch action and then tap Settings to configure the behavior
of a touch action.
5.5 Configuring Input Panel Settings
Tap the Tools menu.
In this menu you can configure the following settings.
Placement of the panel
• Tap Float to set the panel in floating mode. You could drag and drop
the panel in any place of the screen.
• Tap Dock at Top of Screen to dock the panel at the top of the screen.
• Tap Dock at Bottom of Screen to dock the panel at the bottom of the
screen.
Handwriting recognition
Use this application to provide writing samples to the handwriting
recognition engine, so that it can perform more accurately when you use
your Mobile Computer as a tablet PC.
110 Securing and Managing the Mobile Computer
1. Tap Tools > Personalize Handwriting Recognition.
The following screen appears.
This screen enables you to target recognition errors and to teach the
program to recognize your handwriting.
2. Tap Teach the recognizer your handwriting style.
You are prompted to provide handwriting samples.
Securing and Managing the Mobile Computer 111
3. Tap Sentences.
An instruction screen appears explaining how to perform the
recognition exercises.
4. Tap Next.
You are prompted to write the first sentence.
5. Write the sentence in the text area.
6. After you have finished, tap Next to go on to the next sentence.
7. Continue writing samples until you wish to quit.
112 Securing and Managing the Mobile Computer
8. Tap Save for later to save the samples you have written.
If you tap Cancel you are prompted to update the recognizer or
discard your samples.
More options
Tap Options to configure the input panel.
Note For more information about using the Tablet PC Input Panel options, consult
Windows Vista® online help.
Tap the tabs to change configuration settings on each panel. Follow the
information in each tab to finish the configuration.
114 Appendix
A.1 Specifications
System Information
Processor and
Chipset
Intel® Stealey 800MHz + Little River (945GMS) + ICH7U;
Qualcomm® MSM 7500, 400MHz
Memory RAM: 1GB DDR2 microDIMM RAM for Windows Vista® +
64MB for SnapVUE™
ROM: 128MB for SnapVUE™
Hard Disk 1.8” 40GB hard disk with G-Sensor shock protection
Operating System Windows Vista® Business
Power
Battery Rechargeable Lithium-ion polymer battery, 2700 mAh
Charging Time about 3 hours
Battery Life
(estimate)
Windows Vista® operating time:
SnapVUE™ standby time
(Push e-mail enabled):
(Push e-mail disabled):
Up to 2 hours
Up to 53 hours
Up to 11 days
AC Adapter AC input: 90-265V, 47/63Hz
AC input current: 1.2Arms @ 90Vac/60Hz
Output voltage: 12Vdc (typical)
Output current: 3A (max.)
Display
LCD Type 7” TFT-LCD with adjustable screen angle and touch-
sensitive screen
Resolution 800 x 480 with 262K colors
Orientation Landscape only
Appendix 115
CDMA Function
Network CDMA2000 1x RTT / 1x EVDO
Dual-band 850 / 1900 MHz
Internal Antenna Yes
Antenna Diversity Yes
Standalone GPS
Antenna Internal GPS
Sensitivity -150dBm indoor/outdoor
Update Rate Once per second
Physical
Dimensions 207 mm (L) x 129 mm (W) x 25 mm (T)
Weight 800 g (with battery)
Camera Module
Type Color CMOS VGA camera for videoconferencing
Connections
I/O Port 1 USB 2.0 host
D-Sub VGA out
3.5mm stereo audio out with microphone
Wireless
Connections
Bluetooth® 2.0, Wi-Fi® (IEEE 802.11 b/g)
Audio
Input Built-in microphone
Speaker Dual speakers
116 Appendix
Controls and Lights
Device Control • SnapVUE™ button
• Control Center button
• microPad touchpad
• Left/right mouse button
• POWER/HOLD switch
• Resolution button
• QWERTY keyboard
LEDs • Push e-mail/SMS notification
• Data connection
• Bluetooth/WLAN
• Hard disk activity
• Caps Lock
• Battery charge
• Power
Expansion Slots
Card Slot SDIO slot with hotswap functionality
Applications
Windows Vista®
Business
Internet Explorer®
Windows Media® Player 11
Games
SnapVUE™ Messaging (Push e-mail and SMS)
Calendar
Contacts
Weather
Connection Setup
Settings
Appendix 117
A.2 Regulatory Notices
Regulatory Agency Identifications
For regulatory identification purposes, your product is assigned a model number of
CLIO200.
FCC ID: NM8CLIO200.
To ensure continued reliable and safe operation of your device, use only the
accessories listed below with your CLIO200.
The Battery Pack has been assigned a model number of CLIO160.
This product is intended for use with a certified Class 2 Limited Power Source, rated 12
Volts DC, maximum 3 Amp power supply unit.
Federal Communications Commission Notice
DECLARATION OF CONFORMITY
This wireless device, CLIO200, manufactured by High Tech Computer Corp., complies
with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Responsible Party: High Tech Computer Corp.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or TV reception, which can be determined by turning the equipment on and
off, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.
Modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
118 Appendix
FCC RF EXPOSURE INFORMATION
In August 1996, the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard for
human exposure to radio frequency electromagnetic energy emitted by FCC regulated
transmitters. Those guidelines are consistent with the safety standard previously set by
both U.S. and international standards bodies. The design of this device complies with
the FCC guidelines and these international standards.
Modifications
The FCC requires the user to be notified that any changes or modifications made to the
device that are not expressly approved by High Tech Computer Corporation may void
the user’s authority to operate the equipment.
SAR Information
SAR Value:
• 1.31 W/kg @ 1g (Body)
THIS MODEL DEVICE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO
RADIO WAVES.
For body worn operation, this mobile computer has been tested and meets the FCC
RF exposure guidelines when used with the High Tech Computer Corp. accessories
supplied or designated for this product. Use of other accessories may not ensure
compliance with the FCC RF exposure guidelines.
Your mobile computer is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S. Government. These
limits are part of comprehensive guidelines and establish permitted levels of RF energy
for the general population. The guidelines are based on the safety standards previously
set by both U.S. and international standards bodies:
• American National Standards Institute (ANSI) IEEE. C95.1-1992.
• National Council on Radiation Protection and Measurement (NCRP). Report 86.
1986.
• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996.
• Ministry of Health (Canada), Safety Code 6. The standards include a substantial
safety margin designed to assure the safety of all persons, regardless of age and
health.
The exposure standard for wireless mobile employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg*. Tests for
SAR are conducted with the device transmitting at its highest certified power level in
all tested frequency bands. Although the SAR is determined at the highest certified
power level, the actual SAR level of the device while operating can be well below the
Appendix 119
maximum value. This is because the device is designed to operate at multiple power
levels so as to use only the power required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the power output. Before a device
model is available for sale to the public, it must be tested and certified to the FCC that
it does not exceed the limit established by the government adopted requirement for
safe exposure. The tests are performed in positions and locations (e.g., at the worn on
the body) as required by the FCC for each model.
The FCC has granted an Equipment Authorization for this model device with all
reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this model device is on file with the FCC and can be found under
the Display Grant section of
https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm
after searching on FCC ID: CLIO200.
Telecommunications & Internet Association (TIA) Safety
Information
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum
separation of six inches be maintained between a handheld wireless phone
and a pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research. Persons with pacemakers:
• Should ALWAYS keep the phone more than six inches from their pacemaker when
the phone is turned ON.
• Should not carry the phone in a breast pocket.
• Should use the ear opposite the pacemaker to minimize the potential for
interference. If you have any reason to suspect that interference is taking place,
turn your phone OFF immediately.
Hearing Aids
Some digital wireless devices may interfere with some hearing aids. In the event of
such interference, you may want to consult your service provider, or call the customer
service line to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device
to determine if they are adequately shielded from external RF energy. Your physician
may be able to assist you in obtaining this information.
Turn your device OFF in health care facilities when any regulations posted in these
areas instruct you to do so. Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
120 Appendix
WEEE Notice
The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered
into force as European law on 13th February 2003, resulted in a major change in the
treatment of electrical equipment at end-of-life.
The purpose of this Directive is, as a first priority, the prevention of WEEE, and in
addition, to promote the reuse, recycling and other forms of recovery of such wastes
so as to reduce disposal.
The WEEE logo on the product or on its box indicates that this product
must not be disposed of or dumped with your other household waste. You
are liable to dispose of all your electronic or electrical waste equipment
by relocating over to the specified collection point for recycling of such
hazardous waste. Isolated collection and proper recovery of your electronic
and electrical waste equipment at the time of disposal will allow us to help
conserving natural resources. Moreover, proper recycling of the electronic
and electrical waste equipment will ensure safety of human health and
environment. For more information about electronic and electrical waste
equipment disposal, recovery, and collection points, please contact your
local city centre, household waste disposal service, shop from where you
purchased the equipment, or manufacturer of the equipment
RoHS Compliance
This product is in compliance with Directive 2002/95/EC of the European Parliament
and of the Council of 27 January 2003, on the restriction of the use of certain
hazardous substances in electrical and electronic equipment (RoHS) and its
amendments.
Index
A
Alarm 61
Anti-virus software 28
Attachment
- add to e-mail 91
B
Battery 24
Block Recognizer 66
Bluetooth 44, 51
Brightness 44
C
Calendar (in SnapVUE) 70
Camera
- specifications 115
Change screen resolution (in Windows)
34
Check battery status
- in Windows 34
Comm Manager 77, 81
Company Directory 97
Connect to Internet
- Dial-up 78
- with Wi-Fi 49
Contacts (in SnapVUE) 74
Control Center 43
Create
- appointments (in SnapVUE) 70
- contacts (in SnapVUE) 74
D
Dial-up 78
Dimensions and weight 115
Direct Push 93
- turn on/off 45, 78
E
