User Manual

Your HTC Phone

User guide

Only for FCC certification

Contents

Unboxing

HTC phone 6

SIM card 7

Charging the battery 9

Switching the power on or off 9

Setting up your phone

Setting up HTC phone for the first time 11

Choosing your default Home screen 11

Adding your social networks, email accounts, and more 11

Getting to know your settings 12

Your first week with your new phone

Basics 13

Facebook Home screen 17

Android Home screen 20

Notifications 22

Working with text 25

Battery 27

Camera

Facebook Camera 30

Android Camera 31

Phone calls

Making a call 34

Returning a missed call 34

Making an emergency call 35

Answering or rejecting a call 35

What can I do during a call? 35

Setting up a conference call 36

Checking calls in the Call History 37

Switching between silent, vibrate, and normal modes 37

Messages

Facebook Messenger 38

Messaging 41

Search and web browser

Searching HTC phone and the Web 44

2 Contents

Only for FCC certification

Getting instant information with Google Now 45

Browsing the Web 46

Bookmarking a webpage 48

Using your browsing history 48

Clearing your browsing history 48

Storage

Types of storage 49

Copying files to or from HTC phone 49

Encrypting data on HTC phone 50

Gmail 51

Mail 52

Internet connections

Data connection 55

Managing your data usage 56

Wi‑Fi 57

Connecting to a virtual private network (VPN) 58

Using HTC phone as a wireless router 59

Sharing your phone's Internet connection by USB tethering 60

Bluetooth and NFC

Connecting a Bluetooth headset 61

Unpairing from a Bluetooth device 62

Sharing content with NFC 63

Settings and security

Turning Airplane mode on or off 64

Turning automatic screen rotation off 64

Adjusting the time before the screen turns off 64

Adjusting the screen brightness manually 65

Changing the display language 65

Accessibility settings 65

Working with certificates 66

Protecting your SIM card with a PIN 66

Protecting HTC phone with a screen lock 67

Trademarks and copyrights

Index

3 Contents

Only for FCC certification

Conventions used in this guide

In this user guide, we use the following symbols to indicate useful and important

information:

This is a note. A note often gives additional information, such as what happens

when you choose to do or not to do a certain action. A note also provides

information that may only be applicable to some situations.

This is a tip. A tip gives you an alternative way to do a particular step or procedure,

or lets you know of an option that you may find helpful.

This indicates important information that you need in order to accomplish a certain

task or to get a feature to work properly.

This provides safety precaution information, that is, information that you need to be

careful about to prevent potential problems.

4 Conventions used in this guide

Only for FCC certification

Important information

This device was tested for typical body-worn operations per the FCC's radio

frequency (RF) safety requirements. To comply with these RF exposure requirements,

use a belt-clip, holster, or similar accessory with this device to maintain a minimum

separation distance of 1.0 cm between the user’s body and the handset, with the

device oriented with either the front or back of the device facing towards the user’s

body. Such accessories should not contain any metallic components. Body-worn

accessories that do not meet these requirements may not ensure compliance with

FCC RF exposure guidelines and their use should be avoided.

5 Important information

Only for FCC certification

Unboxing

HTC phone

1. BACK

2. HOME

3. MENU

4. SIM card tray (with tray eject hole)

5. USB connector

6. Notification LED

7. Proximity / Light sensor

8. POWER

9. 3.5mm headset jack

10. Front camera

11. Volume controls

If you want to use a screen protector, please don’t cover and block the proximity

sensor. You can purchase the dedicated screen protector for HTC phone that

already has a small opening for the sensor.

6 Unboxing

Only for FCC certification

SIM card

HTC phone uses a microSIM card. The microSIM card contains your phone number,

service details, and memory for storing phonebook contacts and/or text messages.

Inserting the SIM card

1. Hold the phone face up.

2. Insert the tip of the SIM eject tool into the small hole next to the SIM card tray

slot.

3. Push the tip all the way into the hole until the SIM card tray ejects.

4. Pull the SIM card tray out, and place the SIM card (contacts facing down) into

the tray.

Use a standard microSIM only. Inserting other types (such as nanoSIM with an

adapter or a modified SIM) may cause the card to not fit properly or damage the

card slot.

5. Insert the SIM card tray back into the slot.

7 Unboxing

Only for FCC certification

Removing the SIM card

Make sure to switch off HTC phone before removing your SIM card.

1. Hold the phone face up.

2. Insert the tip of the SIM eject tool into the small hole next to the SIM card tray

slot.

3. Push the tip all the way into the hole until the SIM card tray ejects.

4. Pull the SIM card tray out, and remove the SIM card.

When removing the SIM card, make sure that you insert the empty SIM card tray back

into the slot.

8 Unboxing

Only for FCC certification

Charging the battery

Before you turn on and start using HTC phone, it is recommended that you charge the

battery.

Only the power adapter and USB cable provided in the box must be used to charge

the battery.

1. Insert the small end of the USB cable into the USB connector.

2. Insert the other end of the USB cable into the power adapter.

3. Plug in the power adapter to an electrical outlet to start charging the battery.

As a safety precaution, the battery stops charging if it overheats.

Switching the power on or off

Switching the power on

Press and hold the POWER button.

When you turn on HTC phone for the first time, you’ll need to set it up.

9 Unboxing

Only for FCC certification

Switching the power off

1. If the display is off, press the POWER button to turn it back on, then unlock the

screen.

2. Press and hold the POWER button for a few seconds.

3. Tap Power off on the options menu.

4. Tap OK.

10 Unboxing

Only for FCC certification

Setting up your phone

Setting up HTC phone for the first time

When you switch on HTC phone for the first time, you’ll be asked to set it up.

Walk through the on-device setup to choose your Internet connection, sign in to your

Google® account, and more.

Some features that need to connect to the Internet such as location-based services

and auto-sync of your online accounts may incur extra data fees. Don’t worry. You

can enable or disable them in Settings later on.

Choosing your default Home screen

Do you like browsing Facebook® feeds most of the time? Or, do you like having

widgets on the Home screen? On HTC phone, you can choose the Home screen that

best suits you.

To learn more about these two Home screens, see Your first week with your new

phone on page 13.

1. After you've turned on and set up HTC phone, you'll see a dialog box that lets

you choose a Home screen to use. You can:

§Tap Facebook Home to choose the Facebook Home screen.

§Tap Launcher to select the Android™ Home screen.

2. Tap Always to set the option you've selected as the default.

For Facebook Home screen, tap Login to Facebook to sign in to your Facebook

account.

Adding your social networks, email accounts,

and more

1. On the All apps screen, tap Settings.

2. Under Accounts, tap Add account.

3. Tap the account type you want to add.

4. Follow the onscreen instructions to enter your account information.

11 Setting up your phone

Only for FCC certification

Getting to know your settings

Want to change the ringtone, set up a Wi‑Fi® connection or make HTC phone more

secure? Do this and more in Settings.

On the All apps screen, tap Settings. You can also swipe down from the top of the

screen to open the Notifications panel, and then tap .

Here are some of the basic settings you can change:

§Tap the On/Off switch next to an item such as Wi-Fi to turn it on or off. Tap the

item itself to configure its settings.

§Tap Sound to set a ringtone, choose a sound profile, and configure incoming call

sound settings.

§Tap Security to secure HTC phone, for example with a screen lock.

12 Setting up your phone

Only for FCC certification

Your first week with your

new phone

Basics

Touch gestures

Use touch gestures to get around the Home screen, open apps, scroll through lists,

and more.

Tap

Tap the screen with your finger when you want to select

onscreen items such as application and settings icons, or press

onscreen buttons.

Press and hold

To open the available options for an item (for example, a link

in a webpage), just press and hold the item.

13 Your first week with your new phone

Only for FCC certification

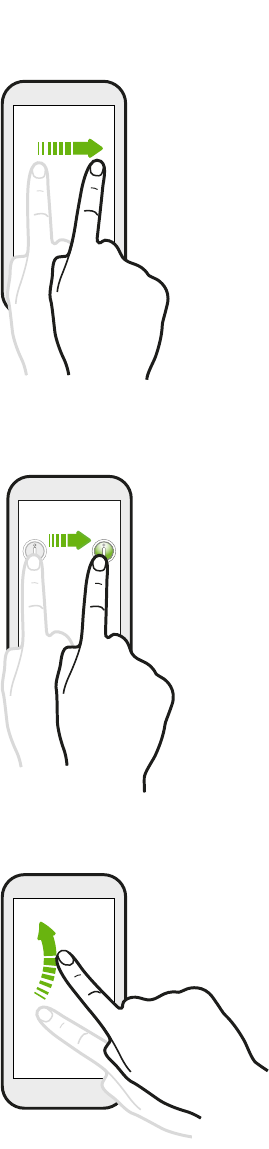

Swipe or slide

Quickly swipe your finger vertically or horizontally across the

screen to go to other Home pages, scroll through documents,

and more.

Drag

Press and hold your finger with some pressure before you start

to drag. While dragging, don't release your finger until you

have reached the target position.

Flick

Flicking the screen is similar to swiping, except that

you need to swipe your finger in light, quicker

strokes, such as when moving right and left on the

Home screen, or flicking through a contacts or

message list.

14 Your first week with your new phone

Only for FCC certification

Pinch and spread

In some apps, like Gallery or the web

browser, spread your fingers on the

screen to zoom in when viewing a picture

or text.

Pinch the screen to zoom out of the picture or text.

Sleep mode

Sleep mode saves battery power by putting HTC phone into a low power state while

the display is off. It also stops accidental button presses when HTC phone is in your

bag.

Switching to Sleep mode

Briefly press the POWER button to turn off the display and switch to Sleep mode.

HTC phone also automatically goes into Sleep mode when it’s left idle for a while.

You can change the time before HTC phone sleeps in the Settings > Display.

Waking up from Sleep mode

To wake HTC phone up manually, press the POWER button. You may need to unlock

the screen.

HTC phone automatically wakes up when you have an incoming call.

15 Your first week with your new phone

Only for FCC certification

Unlocking the screen

If you've set up a screen lock, you'll be asked to provide your credentials to unlock

HTC phone.

Press and hold the lock icon, and then drag it to any of the shortcut icons around it.

How do I turn the lock screen on or off?

§If you've set the Facebook Home screen as your default Home screen

and you've logged into Facebook, press on the Home screen, and

then tap Settings. Select or clear the Enable Facebook Home option.

§If you're using the Android Home screen, open Settings, and then tap

Security > Screen lock > None or Slide.

Opening an app

Depending on your default Home screen, you can:

Facebook

Home screen

Press while on the Home screen (or, press and hold your profile

picture on the Home screen, and then drag it to ). Slide your

finger to the right to go to the All apps screen, and then tap the app

you want to use.

Android Home

screen

Tap an app on the launch bar at the bottom of the Home screen.

To see more apps, tap , and then tap the app you want to use.

16 Your first week with your new phone

Only for FCC certification

Capturing the HTC phone screen

Want to show off your high game score, write a blog post about HTC phone features,

or post a status update about a song you're playing? It's easy to take a picture of the

screen and share it from Gallery.

Simultaneously press and hold POWER and VOLUME DOWN buttons. The screen is

saved in the Screenshots album in Gallery.

Changing your ringtone, notifications, and sounds

1. On the All apps screen, tap Settings.

2. Tap Sound.

3. Tap Phone ringtone or Default notification to change the ringtone and

notification sound.

Want alarms to ring louder but notifications to be more discreet? In Settings, tap

Sound > Volumes and set the volume levels for each sound type.

Facebook Home screen

Stay in touch with your friends or get the latest news updates right on your Home

screen. Sign in to Facebook to see your friends' posts, photos, and stories. You'll also

see updates from the pages you've subscribed to.

Aside from Facebook posts, you can check your notifications on the Home screen. For

details, see Notification callouts and chat heads on page 23.

§Press and hold your profile picture to see the available shortcut options, and

then drag it to any of the item around it.

§If Facebook Home screen is your default Home screen, press to switch

between the Home screen and the launcher.

You can also set to always go to the All apps screen or launcher. On the

Facebook Home screen, press , and then tap Facebook Home settings. Select

the Launchables on home press option.

§If you're using the Android Home screen, tap > Facebook Home to go to this

Home screen.

17 Your first week with your new phone

Only for FCC certification

Adding apps on the launcher

Place apps you often use on the launcher screen.

1. From the Facebook Home screen, press and hold your profile picture, and then

drag it to . Or, press .

2. From the launcher, swipe right to go to the All apps screen.

3. Press and hold an app, and then drag it to the launcher.

To remove an app from the launcher, press and hold an icon that you want to

delete, and then drag it to .

Where's the status bar?

If you don't see the status bar on the Facebook Home screen, you can:

§Swipe your finger down from the top edge of the screen.

§Press , tap Facebook Home settings, and then clear the Hide System

Status Bar option to always see the status bar on the Home screen.

18 Your first week with your new phone

Only for FCC certification

Checking Facebook photos and status updates

§Swipe left or right to browse through your friends' posted photos and status

updates. Press and hold a photo to see it in full view.

§Double-tap a photo or status update to like it. You can also tap once on the

screen to see the onscreen buttons, and then tap .

§To view comments or add your own, tap once on the screen to see the onscreen

buttons, and then tap .

Swipe your finger down to hide the comment box.

§If someone posted on your timeline or invited you to an event, drag the

notification callout to the right to open the post in the Facebook app.

To set a schedule for refreshing Facebook posts, press on the Home screen, and

then tap Settings > Refresh interval.

To customize the types of posts you want to see on the Home screen, press ,

and then Facebook Home settings. Under Story Sources, tap an item's On/Off

switch to show or hide this type of post.

Posting your Facebook updates

You can easily post a status update from the Facebook Home screen.

1. From the Facebook Home screen, press and hold your profile picture, and then

drag it to . Or, press .

2. Tap on top of the laucher.

3. Compose your status update. You can also add photos, tag friends, or share

your location.

19 Your first week with your new phone

Only for FCC certification

4. Tap (this button may be different depending on your default privacy

option) and select an audience for this post.

5. Tap Post.

Opening a recent app

You can easily access the app you've just recently opened.

From the Facebook Home screen, press and hold your profile picture, and then drag it

to .

Android Home screen

Your Home screen is where you make HTC phone your own. You can add your

favorite applications, shortcuts, folders and widgets so they’re always just a tap away.

§As you start to do more things with HTC phone, you might find that one Home

screen is not enough. Just swipe horizontally to the left or right on the screen

and you’ll discover more space for adding icons, widgets, and more.

§If you've set Android Home screen as your default Home screen, press to

return to the main Home screen.

§If you're using the Facebook Home screen, tap More on the All apps screen to

go to this Home screen.

Changing your wallpaper

Pick your favorite photo as your Home wallpaper. Choose from the available

wallpapers, or use any photo you've taken with the camera.

1. On the All apps screen, tap Settings.

2. Tap Display > Wallpaper.

3. Tap one of the following:

Gallery Choose an existing photo and crop it, and then tap OK.

Live Wallpapers Choose a preset animated wallpaper, and then tap Set

wallpaper.

Wallpapers Choose a preset wallpaper, and then tap Set wallpaper.

20 Your first week with your new phone

Only for FCC certification

Adding widgets and shortcuts to your Home screen

Widgets make at-a-glance important information and media content easily available.

Choose from a selection of widgets and add the most useful ones to your Home

screen. You can also add shortcuts to frequently used settings, bookmarked

webpages, and more.

1. From the Home screen, tap .

2. Tap Widgets, and then swipe left to browse through the available widgets and

shortcuts.

3. Press and hold an item, and then drag it to a home screen panel where you want

to add it.

Resizing a widget

Some widgets can be resized after you've added them to your Home screen.

1. Press and hold a widget on the Home screen, and then release your finger. If a

border appears, that means the widget is resizable.

2. Drag the sides of the border to enlarge or shrink the widget size.

Adding apps on your Home screen

Place apps you often use on your Home screen.

1. From the Home screen, tap .

2. Press and hold an app, and then drag it to a home screen panel where you want

to add it.

Rearranging or removing a widget or icon

§Press and hold the widget or icon you want to move, and then drag it to where

you want it on the Home screen.

§Press and hold the widget or icon you want to delete, and then drag it to .

When the widget or icon turns red, lift your finger.

Personalizing the launch bar

The launch bar on your Home screen gives you one-touch access to commonly used

apps. Fill the launch bar with apps you often use.

From the All apps screen, press and hold an app, and then drag it to an empty slot on

the launch bar.

You can also group apps on the launch bar into a folder.

To remove an app, press and hold the app and drag it out of the launch bar.

21 Your first week with your new phone

Only for FCC certification

Grouping apps into a folder

You can group apps into a folder on the Home screen or launch bar.

1. Drag an app over to another app on the Home screen or launch bar to

automatically create a folder.

2. To add more, press and hold another app and drag it to the folder.

3. Tap the folder to open it and see its content.

Notifications

Notification LED

The notification LED shows a:

§Solid green light when HTC phone is connected to the power adapter or a

computer and the battery is fully charged.

§Flashing green light when you have a pending notification.

§Solid orange light when the battery is being charged.

§Flashing orange light when the battery level reaches very low.

22 Your first week with your new phone

Only for FCC certification

Notification callouts and chat heads

On the Facebook Home screen, you can check all your Facebook notifications at a

glance.

When you're using the Facebook Messenger app, you'll also see a popup chat head

every time you receive a new message. Chat heads appear on the Home screen or

when you're using other apps. See Checking your messages on page 40 for details.

Do any of the following:

Notification

callouts

On the Facebook Home screen:

§Drag a notification callout to the right to open it in the Facebook

app.

§To dismiss a notification in the list, drag it left.

§To turn notification callouts off, press , and then tap Facebook

Home settings. Under Features, switch off Notifications.

Chat heads §Tap a chat head to open the received message in Facebook

Messenger.

§If there are multiple messages from different contacts, press and

hold the first chat head to see other chat heads. Tap a chat head to

switch from one message to another.

§Drag a chat head anywhere on the screen to reposition it. To dismiss

chat heads, drag it to Close.

If you don't see chat heads when you receive Facebook messages,

open the Facebook Messenger and confirm your account first. Press

, tap Settings > Notifications, and then select Chat Heads.

23 Your first week with your new phone

Only for FCC certification

Notifications panel

When you see notification icons in the status bar, open the Notifications panel to

check out details of the notifications that you've received.

1. Slide down from the status bar to open the Notifications panel.

If you don't see the status bar on the Facebook Home screen, slide your finger

down from the top of the screen.

2. On the Notifications panel:

§You can expand certain notifications to see more information, such as email

previews and calendar events. Spread with your two fingers to expand a

notification, or pinch to collapse it.

§You'll see icons in some notifications that allow you to take immediate

actions. For example, when you have a missed call, tap the available icons

to return the call or reply with a text message.

§If you have several notifications, scroll down the screen to see them all.

§Tap the notification to open the corresponding app.

§To dismiss just one notification in the list, drag it left or right.

§You can also quickly access settings from the Notifications panel. Tap .

3. To close the Notifications panel, press .

You can also tap to dismiss all notifications and close the Notifications

panel.

24 Your first week with your new phone

Only for FCC certification

Working with text

Selecting, copying, and pasting text

In apps such as the web browser and Email, you can select and copy text, and then

paste or share it.

1. Press and hold on a word.

2. Drag the start and end anchors to highlight the surrounding text you want to

select.

3. After you have selected the text you want to copy, tap .

The selected text is then copied to the clipboard.

4. In a text entry field (for example while composing an email), press and hold at

the point where you want to paste the text.

5. Tap Paste.

To copy the address of a linked webpage, press and hold the link, and then tap

Copy link URL.

Sharing text

1. After you have selected the text you want to share, tap (or tap > Share).

2. Choose where to paste and share the selected text, such as in an email message

or social network status update.

25 Your first week with your new phone

Only for FCC certification

Entering text

The onscreen keyboard becomes available when you tap a text field in an app. Enter

letters and numbers, add words to your personal dictionary, and more.

Tap the keys on the onscreen keyboard to enter letters and numbers, as well as

punctuation marks and symbols.

§Tap to enter an uppercase letter. Double-tap to turn on caps lock.

§Tap to show number and symbol keys.

§Press to close the onscreen keyboard.

To open the keyboard settings, go to Settings > Language & input, and then tap

beside Android keyboard.

Entering text with word prediction

Word prediction is enabled by default, and word suggestions are displayed as you

type.

To enter text in word prediction mode, do any of the following:

§Tap the space bar to insert a highlighted word in the suggestion list.

§Tap a word from the suggestion list.

Adding words and phrases to the word prediction dictionary

Add frequently-used names, acronyms, and even phrases to the word prediction

dictionary to easily find them in the suggestion list.

Type even faster when you create text shortcuts to words and phrases. Instead of

typing Talk to you later, save a few keystrokes by adding the ttyl shortcut. In your

message or email, just type "ttyl", and then tap the complete phrase from the

suggestion list.

1. On the All apps screen, tap Settings.

2. Tap Language & input > Personal dictionary > .

3. Enter a word or phrase, and then enter its text shortcut.

4. Tap Done to close the onscreen keyboard, and then press .

Editing or deleting words and phrases in the word prediction dictionary

1. On the All apps screen, tap Settings.

2. Tap Language & input > Personal dictionary.

§To edit a word, phrase, or shortcut, tap the item in the list.

§To delete a word or phrase from the dictionary, tap an item in the list, and

then tap .

26 Your first week with your new phone

Only for FCC certification

Entering text by speaking

No time to type? Try speaking the words to enter them.

1. Tap an area where you want to enter text.

2. On the onscreen keyboard, tap .

3. When you see the microphone image, speak out the words you want to type.

To set the voice input language, tap the language bar above the microphone

image. You can choose one or more languages. Available languages depend on the

voice input languages supported by Google.

4. If a word doesn't match what you've spoken and it's underlined, tap the

underlined word to delete it or to see more choices.

5. Enter punctuation marks by saying the name (for example, say "comma").

Battery

Checking battery usage

See a ranking list of apps that are using the battery. You can also see how much and

how long the battery has been used for each app.

1. On the All apps screen, tap Settings.

2. Tap Battery.

3. Tap an app to check how it's using the battery. You'll see how much battery

power is used.

Getting the battery to last longer

How long the battery can last before it needs recharging depends on how you use

HTC phone.

In times when you need to extend the battery life more, try out some of these tips:

Check your battery usage

Monitoring your battery usage helps you identify what's using the most power so you

can choose what to do about it. For details, see Checking battery usage on page 27.

27 Your first week with your new phone

Only for FCC certification

Manage your connections

§Turn off wireless connections you're not using. Go to Settings to turn on or off

connections such as mobile data, Wi‑Fi, or Bluetooth®.

§Switch to 2G when you don't need a data connection.

More power is used when you're in low coverage areas. Temporarily turning off

your data connection and switching to GSM network mode uses less battery

power.

To switch to GSM mode, go to Settings, and then tap More under Wireless &

networks. Tap Mobile networks > Use only 2G networks.

§Turn GPS on only when a precise location is needed.

To prevent some apps from using GPS in the background, keep the GPS

satellites setting off. Turn it on only when you need your precise location while

using navigation or location-based apps. Go to Settings and tap Location access

to turn this setting on or off.

Manage your display

Lowering the brightness, letting the display sleep when not in use, and keeping it

simple helps save battery power.

§Use automatic brightness (the default), or manually lower the brightness.

§Set the screen timeout to a shorter time.

Manage your apps

§Install the latest software and application updates. Updates sometimes include

battery performance improvements.

§Uninstall or disable apps that you never use.

Many apps run processes or sync data in the background even when you're not

using them. If there are apps that you don't need anymore, uninstall them.

If an app came preloaded and can't be uninstalled, disabling the app can still

prevent it from continuously running or syncing data. In Settings > Apps, swipe

to the All tab, tap the app, and then tap Disable.

Limit background data and sync

Background data and sync can use a lot of battery power if you have many apps

syncing data in the background. It’s recommended not to let apps sync data too

often. Determine which apps can be set with longer sync times, or sync manually.

28 Your first week with your new phone

Only for FCC certification

§If you have many email accounts, consider prolonging the sync time of some

accounts.

§Choose widgets wisely.

Some widgets constantly sync data. Consider removing the ones that are not

important from your Home screen.

§In Play Store, press , tap Settings, and then clear Auto-add widgets to avoid

automatically adding Home screen widgets whenever you've installed new apps.

Also clear Auto-update apps if you're fine with updating apps from Play Store

manually.

Other tips

To squeeze in a little bit more battery power, try these tips:

§Tone down the ringtone and media volume.

§Minimize the use of vibration or sound feedback. In Settings, tap Sound and

choose which ones you don't need and can disable.

§Check your apps’ settings as you may find more options to optimize the battery.

29 Your first week with your new phone

Only for FCC certification

Camera

Facebook Camera

Taking a photo

Snap, tag, and share photos on the go.

1. Launch the Facebook Camera. On the Facebook Home screen, you can:

§Press and hold your profile picture, and then drag it to .

§Press and hold your profile picture, and then drag it to . On top of the

launcher, tap .

2. To switch between the front or main camera, tap .

3. Tap to choose a flash mode.

4. When you're ready to take a photo, tap .

Tagging and sharing photos

1. After taking a photo or a bunch of them, tap on the Viewfinder screen.

2. To tag a photo, tap a photo thumbnail, and then tap faces to tag your friends.

3. Tap to select the photo.

4. To tag and select more photos, swipe left or right to go to the previous or next

photo, and then repeat steps 2 and 3.

5. To share your selected photos on Facebook, tap , and then type in your

description.

6. You can also do any of the following:

§Tap to add a location to your photos.

§Tap to select the online album where you want to upload the photos.

§Tap to select an audience or privacy option for this post.

7. Tap Post.

30 Camera

Only for FCC certification

Recording a video

Shoot and easily share a recorded video with your friends.

1. Launch the Facebook Camera. On the Facebook Home screen, you can:

§Press and hold your profile picture, and then drag it to .

§Press and hold your profile picture, and then drag it to . On top of the

launcher, tap .

2. Tap to switch to Video mode.

3. Use the onscreen controls to zoom in or out, choose a flash mode, and more.

4. When you're ready to record a video, tap .

5. Tap to stop recording.

6. To upload the recorded video on Facebook, tap . You can do any of the

following:

§Tap to add a location to your video.

§Tap to select the online album where you want to upload the video.

§Tap to select an audience or privacy option for this post.

7. Tap Post.

Android Camera

Camera basics

Take great photos and videos with the camera, and make them more memorable by

applying a variety of effects and scenes.

1. To launch the Android Camera, do one of the following:

§On the Android lock screen, drag the lock icon to .

§On the All apps screen, tap Camera.

2. Use the controls on the Viewfinder screen to zoom in or out, choose a flash

mode, and more.

31 Camera

Only for FCC certification

Zoom in or out §Before taking a photo or video, slide your finger on the

zoom bar to zoom in or out.

§When you're recording video, the zoom bar is always

onscreen. You can freely zoom in or out while recording.

Switch between

the front and

main camera

§In Photo capture mode, tap .

§In Video capture mode, tap .

Some camera features are not available when you’re using

the front camera.

Choose a flash

mode

Tap > , and then select a flash mode.

(Flash or video light is not available when you're using the

front camera or if the battery power is too low.)

Setting the resolution

1. On the Viewfinder screen, choose between Photo capture and Video

capture mode , and then tap .

2. Do one of the following:

§To change the photo resolution, tap > Picture size, and then choose a

resolution.

§To change the video quality, tap 720p (may change depending on your

default resolution), and then choose a resolution.

Taking a photo

1. Open the Camera app.

2. Be sure that the Photo capture mode is selected.

3. Just point the camera at what you want to capture. The camera adjusts the

focus automatically as you move it.

4. When you're ready to take the photo, tap .

Choosing a camera scene

A scene is a collection of settings to suit the lighting and environment. Choose from a

wide selection of scenes before you start taking photos.

1. On the Viewfinder screen, be sure that Photo capture mode is selected.

2. Tap , and then tap SCN.

3. Select a scene mode.

4. When you're ready to take the photo, tap .

32 Camera

Only for FCC certification

Recording video

1. Open the Camera app.

2. Be sure that the Video capture mode is selected.

3. When you're ready to start recording, tap .

4. Freely zoom in or out.

5. To stop recording, tap .

Choosing a video effect

Use the available camera effects to make your videos look like they’ve been taken

through special lenses or filters.

1. On the Viewfinder screen, be sure that Video mode is selected.

2. Tap > .

3. Scroll through the available effects and tap one that you like.

Taking a panoramic photo

Whether it’s the Golden Gate Bridge or the Eiffel Tower, you can capture anything

wide or tall in a single photo.

Some camera features are not available when you’re in this mode, such as zooming.

1. On the Viewfinder screen, select the Panorama capture mode .

2. When you're ready to take the shot, tap .

3. Pan HTC phone as smoothly as you can to automatically capture frames.

4. Tap to stop capturing anytime.

The camera stitches the frames into a single photo.

33 Camera

Only for FCC certification

Phone calls

Making a call

You can either dial a number directly or browse through your contact list and call logs

to make a call.

1. Open the Phone app.

2. Do any of the following:

§Enter the phone number, and then tap .

§Search for a call log in the Call history , and then tap beside the

contact you want to call.

§In the People tab, tap the contact you want to call.

3. To hang up, tap .

Calling a phone number in a text message

1. Tap the phone number within the message.

2. Tap .

Calling a phone number in an email

1. Tap the phone number in the email body.

2. Tap .

Returning a missed call

You'll see the missed call notification when you miss a call.

§Slide the Notifications panel open to check who the caller is. To return the call,

tap Call back.

§Open the Phone app, and then tap the Call History tab . Tap beside the

contact to call.

34 Phone calls

Only for FCC certification

Making an emergency call

In some regions, you can make emergency calls from HTC phone even if you don’t

have a SIM card installed or your SIM card has been blocked.

If you don't have a network signal, you won't be able to make an emergency call.

1. Open the Phone app.

2. Dial the emergency number for your locale, and then tap .

If you've enabled but forgotten your lock password or lock pattern, you can still

make emergency calls by tapping Emergency call on the screen.

Answering or rejecting a call

When you receive a phone call from a contact, the Incoming call screen appears.

§Press and hold to see your call options, and then drag it to or .

§To decline a call and send a text message to the caller, drag to , and then

select a message to send.

Muting the ringing sound without rejecting the call

Do one of the following:

§Press the VOLUME DOWN or VOLUME UP button.

§Press the POWER button.

What can I do during a call?

When a call is in progress, you can turn the speakerphone on, place the call on hold,

and more.

Putting a call on hold

To put the call on hold, tap . To resume the call, tap again.

35 Phone calls

Only for FCC certification

Switching between calls

If you’re already in a call and you accept another call, you can switch between the two

calls.

1. When you receive another call, press and hold to see your call options, and

then drag it to to accept the second call and put the first call on hold.

2. To switch between the calls, tap .

Turning the speakerphone on or off during a call

To decrease potential damage to your hearing, do not hold HTC phone to your ear

when the speakerphone is on.

§On the call screen, tap . The speakerphone icon appears in the status bar.

§To turn the speakerphone off, tap .

Muting the microphone during a call

On the call screen, tap to toggle between turning the microphone on or off.

Setting up a conference call

Conference calling with your friends, family, or co-workers is easy. Make the first call

(or accept a call), and then simply dial each subsequent call to add it to the

conference.

Make sure your SIM card is enabled with conference calling service. Contact your

mobile operator for details.

1. Make a call to the first conference call participant.

2. When connected, tap , and then dial the number of the second participant.

The first participant is put on hold.

3. When connected to the second participant, tap .

4. To add another participant, tap , and then dial the number of the contact.

36 Phone calls

Only for FCC certification

5. When connected, tap to add the participant to the conference call.

6. To end the conference call, tap .

Checking calls in the Call History

Use Call History to check missed calls, your dialed numbers, and received calls.

1. Open the Phone app.

2. Swipe to view the Call History tab .

3. Tap a name or number in the list to view a detailed call log. Or, tap beside it

to call.

Adding a new phone number to your contacts from Call History

1. On the Call History tab , tap the phone number, and then tap Add to

contacts.

2. Choose whether to create a new contact or save the number to an existing

contact.

Switching between silent, vibrate, and normal

modes

Do one of the following:

§To change from vibrate to normal mode, press the VOLUME UP button.

§To change from silent to normal mode, press the VOLUME UP button twice.

§Press and hold the POWER button for a few seconds, and then select a sound

profile on the options menu.

37 Phone calls

Only for FCC certification

Messages

Facebook Messenger

Sending a Facebook message

Use the Facebook Messenger app to start private conversations with your friends on

Facebook. You can also send messages to a mobile phone number or an email

address. See Sending a text or multimedia message on page 39 for details.

1. Open the Facebook Messenger app.

If it's your first time to open this app, you'll need to confirm your Facebook

account.

2. Tap .

3. Enter the first few letters of a friend's name in the To field, and then tap the

friend from the suggested list. Repeat this step to add more friends as message

recipients.

4. Tap the box that says Write a message, and then enter your message.

5. To add an attachment, tap , and then choose an attachment type.

You may need to press to close the onscreen keyboard.

6. When finished, tap Send.

Creating your Favorites list

Quickly send messages by adding your friends you frequently chat with to your

Favorites list.

1. Open the Facebook Messenger app.

2. In Favorites, tap > Edit.

3. Enter the first few letters of a friend's name in the search field.

4. Tap the beside a friend's profile picture, and then tap Done.

38 Messages

Only for FCC certification

Sending a text or multimedia message

§To send and receive SMS and MMS using the Facebook Messenger app, open

Messenger, and then press . Tap Settings > SMS/MMS. Select the Enable text

messaging option.

§Sending SMS and MMS may incur extra data fees.

1. Open the Facebook Messenger app.

2. Tap .

3. Do any of the following:

§Enter the first few letters of a contact's name in the To field, and then tap

the friend with the corresponding mobile phone number in the suggested

list.

§Enter a mobile phone number, and then tap Text to: [mobile phone

number].

Repeat this step to add more message recipients.

4. Tap the box that says Write a message, and then enter your message.

5. To add a photo attachment and send the message as MMS, tap , and then

choose an attachment type.

You may need to press to close the onscreen keyboard.

6. When finished, tap Send.

39 Messages

Only for FCC certification

Checking your messages

Depending on your notification settings, you can receive message notification callouts

on the Home screen or see popup chat heads. For details, see Notification callouts

and chat heads on page 23.

To open and read a new message, you can:

§Tap a popup chat head to display the message. If you've received multiple

messages, press and hold the first chat head to see other messages that you can

open.

§From the Facebook Home screen, drag the message notification callout to the

right.

§Slide the Notifications panel open, and then tap the received message

notification.

Replying to a message

1. On the Messages screen, tap a contact (or phone number) to display the

conversation with that contact.

2. Tap the box that says Write a message, and then enter your message.

3. Tap Send.

Deleting messages and conversations

On the Messages screen, do any of the following:

Delete a message Open the conversation thread with a contact, press and hold

the message to delete, and then tap Delete.

Delete a conversation Press and hold a contact (or phone number), and then tap

Delete.

40 Messages

Only for FCC certification

Messaging

Sending a text message (SMS)

1. Open the Messaging app.

2. Tap .

3. Enter a contact name or mobile number in the To field.

4. Tap the box that says Type message, and then enter your message.

5. Tap , or press to save the message as a draft.

§There is a limit on the number of characters for a single text message. If you

exceed the limit, your text message will be delivered as one but will be billed as

more than one message.

§Your text message automatically becomes a multimedia message if you enter an

email address as the recipient, add a message subject, attach an item, or compose

a very long message.

Sending a multimedia message (MMS)

1. Open the Messaging app.

2. Tap .

3. Enter a contact name, mobile number, or email address in the To field.

4. To add a subject line, press , and then tap Add subject.

5. Tap the box that says Type message, and then enter your message.

6. Tap , and then choose an attachment type.

7. Select or browse for the item to attach.

8. After adding an attachment, you'll see buttons for replacing, viewing or

removing your attachment.

9. Tap , or press to save the message as a draft.

41 Messages

Only for FCC certification

Creating a slideshow

1. After you've added either a photo, video, or audio in the multimedia message

you’re composing, tap > Slideshow > Add slide.

2. Tap the slide you've added, and then do one of the following:

§Tap Add picture,and then choose to add a photo.

§Press to see more attachment types and options.

3. Tap Preview. Tap once on the preview screen to see playback controls.

4. When finished, tap Return, and then tap Send. Or, press to save the

message as a draft.

Resuming a draft message

Open a draft message right from the Messaging screen, edit the message, and then

tap .

Replying to a message

1. On the Messaging screen, tap a contact (or phone number) to display the

exchange of messages with that contact.

2. Tap the box that says Type message, and then enter your message.

3. Tap .

Forwarding a message

1. On the Messaging screen, tap a contact (or phone number) to view the

exchange of messages with that contact.

2. Press and hold a message, and then tap Forward.

3. In the To field, fill in one or more recipients.

4. Tap .

Viewing and saving an attachment from a multimedia message

§If there’s a media attachment such as a photo or video in a received message,

tap it to view the content.

§To save the attachment, press and hold the multimedia message, and then

choose to save the attachment from the options menu.

If you are concerned about the size of your data downloads, you can choose to

check the size and subject first before you download a multimedia message. On the

Messaging screen, press , and then tap Settings. Clear the Auto-retrieve option.

42 Messages

Only for FCC certification

Deleting messages and conversations

On the Messaging screen, do any of the following:

Delete a message Open the conversation thread with a contact, press and hold the

message, and then tap Delete.

Delete a

conversation

Open the conversation thread with a contact (or phone number),

press , and then tap Delete thread.

To delete multiple conversations, on the Messaging screen, press

and hold a conversation thread with a contact (or phone

number), select multiple items to delete, and then tap .

In the Messaging settings, select the Delete old messages option to auto delete old

messages.

How do I protect a message from being deleted?

You can lock a message so that it will not be deleted even if you delete the

other messages in the conversation.

1. On the Messaging screen, tap a contact (or phone number) to display

the exchange of messages with that contact.

2. Press and hold the message that you want to lock.

3. Tap Lock on the options menu. A lock icon is displayed.

43 Messages

Only for FCC certification

Search and web browser

Searching HTC phone and the Web

You can search for information on HTC phone and on the Web by using Google

Search. Start your search by entering a keyword or by using Google Voice Search™.

Some apps, such as People or Email, have their own search function, which you can

use to search only within those apps.

Performing searches on the Web and HTC phone

1. Open the Google app. Or, press and hold .

2. In the search box, enter what you want to search for. As you type, matching

items on HTC phone and suggestions from Google web search are shown.

To search for the information exclusively on HTC phone, swipe your finger up the

screen, and then tap Search phone.

3. If what you’re searching for is in the list of suggestions, tap the item to open it in

its compatible app.

Searching the Web with your voice

Use Google Voice Search to find information on the Web just by speaking to

HTC phone.

1. Open the Voice Search app. Or, press and hold .

2. Say "Google", and then say what you want to search for. After speaking,

matching items from Google web search are shown.

3. If what you’re searching for is in the list, tap the item to open it in its compatible

app. Otherwise, tap to search again.

Setting search options

1. Open the Google app. Or, press and hold .

2. Press , and then tap Settings to set the following options:

§Voice. Set the Google Voice Search language, speech output, and more.

§Phone search. Select which apps on HTC Phone is included when doing a

search.

§Privacy & accounts. Manage your location history, enable recent web

searches to show, or clear your search history.

44 Search and web browser

Only for FCC certification

Getting instant information with Google Now

Do you want to know the weather or your morning commute time before you start

your day? Google Now delivers quick and up-to-date information that matters to you

—all without the search.

Depending on your location, time of day, and previous Google searches, Google Now

displays information cards that include:

§The day's weather and the weather forecast for upcoming days.

§The traffic conditions on your way to work or your commute back home.

§The directions and travel time to your next appointment.

§The next train or bus arriving at your platform or bus stop.

§Your favorite team's score and standings while you enjoy the game.

Setting up Google Now

Before setting up Google Now:

§Make sure that you're signed in to your Google account.

§Turn location services on and make sure that you have an Internet connection.

1. Open the Google app. Or, press and hold .

2. The subsequent screens show examples of Google Now information cards. Tap

Next until you reach the Get Google Now! screen.

3. Tap Yes, I'm in. Google Now information cards will start to appear on the

Google search screen.

More information cards will appear on the Google search screen as you use

HTC phone to search the Web, create appointments, and more.

Changing card settings

You can easily customize the settings of Google Now cards to suit your information

needs. For example, you can change your home and work addresses in the Traffic

card or choose which time of the day the Weather card appears. You can also keep a

card from appearing on the Google search screen.

1. Open the Google app. Or, press and hold .

2. Press , and then tap Settings > Google Now.

3. Tap the information card you want to customize.

45 Search and web browser

Only for FCC certification

4. Tap a card setting, and then change it to your preference.

To hide the card, tap the On/Off switch next to the card name.

5. Press to save your changes and return to the previous screen.

Refreshing Google Now

Refresh Google Now to show relevant cards for information that you've just added on

HTC phone, like an upcoming appointment in Calendar.

1. Open the Google app. Or, press and hold .

2. Press , and then tap Refresh.

Turning off Google Now

1. Open the Google app. Or, press and hold .

2. Press , and then tap Settings > Google Now.

3. Tap the On/Off switch next to Google Now.

Browsing the Web

1. Open the Browser app.

2. Tap the URL box on top of the screen.

3. Enter the webpage address or your search keywords.

4. On the webpage, you can:

§Tap a link to open it, or press and hold a link to see more options.

§Tap an email address to send a message to the email address.

§Press and hold an image to save, copy, or set it as your wallpaper.

5. To return to the previous webpage you've viewed, press .

46 Search and web browser

Only for FCC certification

Using browser tabs

Open multiple browser tabs and quickly switch from one webpage to another.

Open the Browser app.

§To add a browser tab, tap > . Repeat the same to open new browser tabs.

§To switch among browser tabs, tap and swipe to the webpage you want to

view. Tap the browser tab to display the webpage in full screen.

§To close a browser tab, tap , and then tap .

Saving web content for later

Save webpages to read later, even without an Internet connection.

HTC phone saves webpage text and images only. You will need Internet connection

to open linked pages.

While viewing a webpage, press , and then tap Save for offline reading.

§To view a saved webpage, press , and then tap Bookmarks. Swipe to the

Saved pages tab, and then tap a webpage you want to view.

§To exit offline reading mode and open linked pages, press , and then tap Go

live.

Setting browser options

Customize the web browser to suit your browsing style. Set display, privacy, and

security options when using the web browser.

From the browser screen, press , and then tap Settings.

47 Search and web browser

Only for FCC certification

Bookmarking a webpage

Add your favorite webpages as bookmarks so you can access them quickly.

Bookmark a webpage in a normal browser screen and not when you're browsing

incognito.

1. While viewing a webpage, press , and then tap Save to bookmarks.

2. On the Bookmark this page screen, you can edit the bookmark name, sync the

bookmark with an online account, or save the bookmark in a new category

folder.

3. Tap OK.

To view and open a bookmark, press , and then tap Bookmarks. Navigate to the

bookmark you want to open, and then tap it.

Using your browsing history

HTC phone keeps a record of webpages you've visited.

1. While viewing a webpage, press , and then tap Bookmarks.

You can also press and hold .

2. Swipe to the History tab.

3. Navigate to the webpage that you want to view, and then tap it.

Clearing your browsing history

1. While viewing a webpage, press , and then tap Settings > Privacy & security

> Clear history.

2. Tap OK.

All webpage entries in the History are deleted.

If you want to delete a single webpage entry, go to the History, press and hold the

webpage entry, and then tap Remove from history.

48 Search and web browser

Only for FCC certification

Storage

Types of storage

Want to know what types of storage you can use for your apps, data, and files?

HTC phone has these storage types:

Internal

storage

This storage combines both the app storage, where apps, email, data,

and text messages are stored, and the file storage, where photos, videos,

and music files are kept.

USB

storage

When you plug in an external USB storage device (such as a USB flash

drive or an SD card reader), you can view photos and videos stored on

the device right from Gallery and play songs stored on the device in Play

Music.

You need a USB On-The-Go micro cable adapter to connect HTC phone

and a USB storage device. HTC phone supports USB storage devices

(except portable hard drives) up to 64 GB.

Copying files to or from HTC phone

You can copy your music, photos, and other files to HTC phone.

1. Connect HTC phone to the computer using the supplied USB cable. You'll see

options for viewing or importing files on the computer screen.

2. Choose to view files.

3. Copy the files from your computer to HTC phone, or vice versa.

4. After copying the files, disconnect HTC phone from the computer.

49 Storage

Only for FCC certification

Encrypting data on HTC phone

You can encrypt data such as your online accounts, settings, music files and other

media. After encryption, you will need to enter the screen lock PIN or password to

turn on your phone and access the data.

§Set a lock screen PIN or password before encrypting your data.

§Fully charge the battery and keep HTC phone connected to the power adapter

during encryption. The encryption process takes about an hour.

§You cannot undo encryption. If you want to return to an unencrypted phone, you

must perform a factory reset.

1. On the All apps screen, tap Settings.

2. Tap Security > Encrypt phone.

3. Tap Encrypt phone.

4. Enter the lock screen PIN or password, and tap Next.

5. Tap Encrypt phone.

Encryption starts and the progress is displayed. The phone may restart a few times.

When the encryption process is complete, enter your PIN or password.

50 Storage

Only for FCC certification

Gmail

Viewing your Gmail Inbox

All your received email messages are delivered to your Inbox.

Open the Gmail app.

Archive, delete or

label multiple

conversations

Tap the check box before the

email message or conversation.

Then tap the onscreen buttons at

the bottom to choose what to do

with the selected messages or

conversations.

Display drafts, sent

messages, and

other labels

Tap Inbox at the top bar and then

tap another label (such as Sent,

Drafts, or your created label) to

view its messages and

conversations.

Switch to your

other Gmail™

account

Tap Inbox at the top bar, and

then tap the account you want to

switch to.

Sending an email message in Gmail

1. In the inbox of the Gmail account you want to use, tap .

2. Fill in one or more recipients.

Want to loop in more recipients in a carbon copy (Cc) or blind carbon copy (Bcc)

of the email message? Tap > Add Cc/Bcc.

3. Enter the email subject, and then compose your message.

4. If you want to attach a photo, tap > Attach file.

5. Tap to send.

Replying to or forwarding email messages in Gmail

1. In the Gmail inbox, tap the email message or conversation.

2. To reply to the sender, tap . Or, tap and choose whether to Reply all or

Forward.

51 Email

Only for FCC certification

3. Do one of the following:

§If you're replying to the sender or you selected Reply all, enter your reply

message.

§If you selected Forward, specify the message recipients.

Tap Respond inline if you want to interleave your new message with the received

email. But this removes any attachments or formatting in the original email

message.

4. Tap to send.

Mail

Adding an email account

Set up email accounts such as another Microsoft® Exchange ActiveSync® account or

an account from a Web-based email service or email provider.

§If you're adding a Microsoft Exchange ActiveSync or a POP3/IMAP email account,

ask your network administrator or email service provider for additional email

settings that you may need.

§Some email accounts, such as corporate emails, may require some remote security

administration of HTC phone.

1. Open the Email app.

2. Enter the email address and password for your email account, and then tap

Next.

3. Select an email account type.

4. Set the sync options for this email account, and then tap Next.

5. Enter a name for your email account, and then tap Next.

To add more email accounts in the Email app, press , and then tap Settings > Add

account.

52 Email

Only for FCC certification

Checking your mail

The Email app is where you read, send, and organize email messages from one or

more email accounts that you’ve set up on HTC phone.

1. Open the Email app. The inbox of one of your email accounts appears.

2. Do any of the following:

§Tap an email message to read.

§To switch between email accounts, tap the bar that shows the current email

account, and then tap another account.

§To display email messages in another mail folder, tap , and then tap the

folder you want to view.

§To view email messages from all your accounts, tap the bar that shows the

current email account, and then tap Combined view.

§To archive, delete or label multiple conversations, tap the check box before

the email message or conversation. Then tap the onscreen buttons at the

bottom to choose what to do with the selected messages or conversations.

§To change an email account's settings, select the account, press , and

then tap Settings.

Sending an email message

1. Open the Email app.

2. Switch to the email account that you want to use.

3. Tap .

4. Fill in one or more recipients.

Want to loop in more recipients in a carbon copy (Cc) or blind carbon copy (Bcc)

of the email message? Press , and then tap Add Cc/Bcc.

5. Enter the subject, and then compose your message.

53 Email

Only for FCC certification

6. To add a photo attachment, press , and then tap Attach file.

7. Tap .

To save the email as draft and send it later, press , and then tap Save draft.

Or press .

Resuming a draft email message

1. In an email account inbox, tap > Drafts.

2. Tap the message.

3. When you finish editing the message, tap .

Reading and replying to an email message

1. Open the Email app.

2. Switch to the email account you want to use.

3. In the email account inbox, tap the email message or conversation you want to

read.

4. To reply to the sender, tap . Or, tap , and then choose whether to Reply all

or Forward.

Searching email messages

1. Tap .

2. In the search box, enter the words you want to search for.

3. Tap a result to open the email message.

54 Email

Only for FCC certification

Internet connections

Data connection

When you turn on HTC phone for the first time, it will be automatically set up to use

your mobile operator's data connection (if the SIM card is inserted).

You need an LTE data plan to use LTE data services. Check with your mobile

operator for details.

Turning the data connection on or off

Turning your data connection off saves battery life and money on data charges.

1. On the All apps screen, tap Settings.

2. Under Wireless & networks, tap More.

3. Tap Mobile networks.

4. Select or clear the Data enabled option to turn the data connection on and off.

If you don’t have the data connection turned on and you’re also not connected to a

Wi‑Fi network, you won’t receive automatic updates to your email, social network

accounts, and other synced information.

Adding a new access point

You can add a new Access Point Name (APN) when roaming or if you have difficulty

establishing a data connection. APNs connect HTC phone to data networks for

services such as mobile web browsing.

Before you add another data connection, have the access point name and settings

from your mobile operator ready (including username and password if required).

1. On the All apps screen, tap Settings.

2. Under Wireless & networks, tap More.

3. Tap Mobile networks > Access Point Names.

4. On the APNs screen, press , and then tap New APN.

5. Enter the APN settings.

6. Press , and then tap Save.

7. Select the new APN on the APNs screen.

55 Internet connections

Only for FCC certification

Managing your data usage

If you're on a limited data allowance, it's important to keep track of the activities and

apps that usually send and receive data, such as browsing the web, syncing online

accounts, and sending email or sharing status updates.

Here are some other examples:

§Streaming web videos and music

§Tuning in to Internet radio

§Playing online games

§Downloading apps, maps, and files

§Refreshing apps to update info and feeds

§Uploading and backing up your files to your online storage account

§Using HTC phone as a Portable Wi-Fi hotspot

§Sharing your mobile data connection by USB tethering

To help you save on data usage, connect to a Wi‑Fi network whenever possible and

set your online accounts and emails to sync less frequently.

Turning data roaming on or off

Connect to your mobile operator’s partner networks and access data services when

you’re out of your mobile operator’s coverage area.

Using data services while roaming may be costly. Check with your mobile operator

for data roaming rates before you use data roaming.

1. On the All apps screen, tap Settings.

2. Under Wireless & networks, tap More.

3. Tap Mobile networks.

4. Select or clear the Data roaming option.

Keeping track of your data usage

Monitor your data usage so you don't go over your monthly data allowance.

Data usage measured by HTC phone may vary with your actual data usage.

1. On the All apps screen, tap Settings.

2. Tap Data usage.

3. Select Set mobile data limit to automatically disable your data connection when

you reach the set limit.

Then, drag the upper LIMIT line to set your monthly data limit.

56 Internet connections

Only for FCC certification

4. Drag the lower ALERT line to set an alert before you reach your monthly data

limit.

5. Drag the vertical line markers to see how much data you've used during a

particular time interval.

If you're connecting HTC phone to another portable Wi‑Fi hotspot, press , and

then tap Mobile hotspots to restrict background data from downloading that may

incur extra data fees.

Viewing the data usage of apps

1. On the All apps screen, tap Settings.

2. Tap Data usage.

3. Drag the vertical line markers to see how much data you've used during a

particular time interval.

4. Scroll down the screen to see a list of apps and their data usage info.

5. Tap an app to see more details.

Wi‑Fi

To use Wi‑Fi, you need access to a wireless access point or “hotspot”.

The availability and strength of a Wi‑Fi signal varies depending on objects the Wi‑Fi

signal has to pass through (such as buildings or a wall between rooms).

Turning Wi‑Fi on and connecting to a wireless network

1. On the All apps screen, tap Settings.

2. Tap the Wi-Fi On/Off switch to turn Wi‑Fi on.

3. Tap Wi-Fi.

Detected Wi‑Fi networks will be listed.

If the wireless network that you want is not listed, tap to manually add it.

4. Tap the Wi‑Fi network you want to connect to. If you selected a secured

network, you'll be asked to enter the network key or password.

5. Tap Connect. You'll see the Wi‑Fi icon in the status bar when connected.

The next time HTC phone connects to a previously accessed secured wireless

network, you won’t be asked to enter the key or other security information again.

57 Internet connections

Only for FCC certification

Connecting to a Wi‑Fi network via WPS

If you're using a Wi‑Fi router with Wi‑Fi Protected Setup (WPS), you can connect

HTC phone easily.

1. On the All apps screen, tap Settings.

2. Tap the Wi-Fi On/Off switch to turn Wi‑Fi on.

3. Tap Wi-Fi.

4. Tap , and then press the WPS button on your Wi‑Fi router.

To use the Wi‑Fi Protected Setup (WPS) PIN method, press , and then tap WPS

Pin Entry.

Connecting to a different Wi‑Fi network

1. On the All apps screen, tap Settings.

2. Tap Wi-Fi. Detected Wi‑Fi networks are displayed.

To manually scan for available Wi‑Fi networks, press , and then ta tap Scan.

3. Tap a Wi‑Fi network to connect to it.

Connecting to a virtual private network (VPN)

Add virtual private networks (VPNs) so you can connect and access resources inside

a secured local network, such as your corporate network.

Before you can connect to your organization's local network, you may be asked to:

§Install security certificates

§Enter your login credentials

§Download and install a required VPN app on HTC phone

Contact your network administrator for details. Also, HTC phone must first establish a

Wi‑Fi or data connection before you can start a VPN connection.

Adding a VPN connection

You must first set a lock screen PIN or password before you can use credential

storage and set up the VPN.

1. On the All apps screen, tap Settings.

2. Under Wireless & networks, tap More.

3. Tap VPN > Add VPN profile.

58 Internet connections

Only for FCC certification

4. Enter the VPN settings and set them up according to the security details your

network administrator gave you.

5. Tap Save.

The VPN is then added to the VPNs section of the VPN settings screen.

Connecting to a VPN

1. On the All apps screen, tap Settings.

2. Under Wireless & networks, tap More.

3. Tap VPN.

4. Tap the VPN that you want to connect to.

5. Enter your log in credentials, and then tap Connect. When you’re connected, the

VPN connected icon appears in the notification area of the status bar.

You can then open the web browser to access resources such as your corporate

network intranet.

Disconnecting from a VPN

1. Slide the Notifications panel open.

2. Tap the VPN connection to return to the VPN settings screen, and then tap the

VPN connection to disconnect from it.

Using HTC phone as a wireless router

Share your data connection with other devices by turning HTC phone into a wireless

router.

§Make sure the data connection is turned on.

§You must have an approved data plan associated with your account from your

mobile service provider to use this service.

1. On the All apps screen, tap Settings.

2. Under Wireless & networks, tap More.

3. Tap Tethering & portable hotspot > Set up Wi-Fi hotspot.

4. Enter a router name or use the default router name.

5. Choose the type of security and set the password (key) for your wireless router.

If you selected Open in Security, you don’t need to enter a password.

The password is the key other people need to enter on their device so they can

connect and use HTC phone as a wireless router.

59 Internet connections

Only for FCC certification

6. Tap Save.

7. On the Tethering & portable hotspot screen, select the Portable Wi-Fi Hotspot

option to turn on the wireless router.

HTC phone is ready to be used as a wireless router when you see on the status

bar.

Sharing your phone's Internet connection by

USB tethering

No Internet connection available for your computer? No problem. Use the data

connection of HTC phone to connect to the Internet.

§Make sure your SIM card is inserted on HTC phone and that mobile data is turned

on.

§You may need to have USB tethering added to your data plan, and it may incur

additional cost. Contact your mobile service provider for details.

1. Connect HTC phone to your computer using the provided USB cable.

2. On the All apps screen, tap Settings.

3. Under Wireless & networks, tap More.

4. Tap Tethering & portable hotspot.

5. Select the USB tethering option.

60 Internet connections

Only for FCC certification

Bluetooth and NFC

Connecting a Bluetooth headset

You can listen to music over a Bluetooth stereo headset, or have hands-free

conversations using a compatible Bluetooth headset.

§To listen to music with your headset, the headset must support the A2DP

Bluetooth profile.

§Before you connect your headset, make it discoverable so HTC phone can find it.

Refer to your headset manual for details.

1. On the All apps screen, tap Settings.

2. If Bluetooth is off, tap the Bluetooth On/Off switch to turn it on.

3. Tap Bluetooth. The Bluetooth screen opens.

4. If you don't see your headset listed, tap Search for devices to refresh the list.

5. When you see the name of your headset in the Available Devices section, tap

the name. HTC phone pairs with the headset and the headset connection status

is displayed in the Paired Devices section.

If automatic pairing fails, enter the passcode supplied with your headset.

When the Bluetooth headset is connected to HTC phone, the Bluetooth connected

icon is displayed in the status bar.

Reconnecting a Bluetooth headset

Normally, you can easily reconnect your headset by switching on Bluetooth on

HTC phone, and then turning on the headset.

However, you might have to connect manually if your headset has been used with

another Bluetooth device.

Make sure that the headset is discoverable. Refer to the headset manual for details.

1. On the All apps screen, tap Settings.

2. If Bluetooth is off, tap the Bluetooth On/Off switch to turn it on.

61 Bluetooth and NFC

Only for FCC certification

3. Tap Bluetooth. The Bluetooth screen opens.

4. Tap the headset’s name in the Paired Devices section.

5. If prompted to enter a passcode, try 0000 or 1234, or consult the headset

documentation to find the passcode.

If you still cannot reconnect to the headset, follow the instructions in Unpairing from a

Bluetooth device on page 62, and then follow the steps under Connecting a

Bluetooth headset on page 61.

Unpairing from a Bluetooth device

1. On the All apps screen, tap Settings.

2. If Bluetooth is off, tap the Bluetooth On/Off switch to turn it on.

3. Tap Bluetooth. The Bluetooth screen opens.

4. In the Paired devices section, tap next to the device to unpair.

5. Tap Unpair.

62 Bluetooth and NFC

Only for FCC certification

Sharing content with NFC

With built-in NFC (near field communication) on HTC phone, you can share content to

another NFC-capable mobile device in an instant. Beam webpages, photos, contact

information, and more by holding HTC phone and the other device back to back.

You can also use NFC for contactless payment. Contact your mobile operator to

find out about the availability of NFC payment services.

Turning NFC on

1. On the All apps screen, tap Settings.

2. Under Wireless & networks, tap More.

3. Select the NFC option.

Beaming content

Make sure that both devices are unlocked and have NFC turned on. If the other

device has an Android Beam option, make sure it is also turned on.

1. While viewing the content that you want to share, hold HTC phone and the

other device back to back. When the devices connect, you'll hear a sound and

both devices will vibrate slightly.

2. Tap the screen.

The shared content appears on the other screen. For some items that you've shared

(such as contact information), additional instructions on how to save the item will

appear on the receiving device.

63 Bluetooth and NFC

Only for FCC certification

Settings and security

Turning Airplane mode on or off

When you enable Airplane (Flight) mode, all wireless radios on HTC phone are turned

off, including the call function, data services, Bluetooth, and Wi‑Fi.

When you disable Airplane mode, the call function is turned back on and the previous

state of Bluetooth and Wi‑Fi is restored.

§You can manually turn Bluetooth and Wi‑Fi back on after enabling Airplane mode.

§If USB tethering is turned on, enabling Airplane mode turns it off. You need to

manually turn USB tethering on after you disable Airplane mode.

Press and hold POWER, and then tap Airplane mode.

When enabled, the Airplane mode icon is displayed in the status bar.

Turning automatic screen rotation off

Automatic rotation is not supported in all apps.

1. On the All apps screen, tap Settings.

2. Tap Display.

3. Clear the Auto-rotate screen option.

Adjusting the time before the screen turns off

After a period of inactivity, the screen turns off to conserve battery power. You can

set the idle time before the screen turns off.

1. On the All apps screen, tap Settings.

2. Tap Display, and then tap Sleep.

3. Tap the time before the screen turns off.

64 Settings and security

Only for FCC certification

Adjusting the screen brightness manually

1. On the All apps screen, tap Settings.

2. Tap Display > Brightness.

3. Clear the Automatic brightness option.

4. Drag the brightness slider to the left to decrease or to the right to increase the

screen brightness.

5. Tap OK.

Changing the display language

Changing the language adjusts the keyboard layout, date and time formatting, and

more.

1. On the All apps screen, tap Settings.

2. Tap Language & input > Language.

3. Tap the language you want to use.

Accessibility settings

Use these settings when you’ve downloaded and installed an accessibility tool, such as

a screen reader that provides voice feedback. You can turn accessibility functions or

services on or off.

1. On the All apps screen, tap Settings.

2. Tap Accessibility and choose the settings you want.

65 Settings and security

Only for FCC certification

Working with certificates

Use client and Certificate Authority (CA) digital certificates to enable HTC phone to

access VPN or secured Wi-FI networks, and also to provide authentication to online

secure servers. You can get a certificate from your system administrator or download

it from sites that require authentication.

Some apps such as your browser or email client let you install certificates directly in

the app. See the app's help for details.

Installing a digital certificate

You must set a lock screen PIN or password before installing a digital certificate.

1. Save the certificate file in the root folder on HTC phone.

2. On the All apps screen, tap Settings.

3. Tap Security > Install from storage.

4. If you have more than one certificate in the root folder, select the certificate you

want to install.

5. Enter a name for the certificate and tap OK.

Protecting your SIM card with a PIN

Add another layer of security for HTC phone by assigning a PIN (personal

identification number) to your SIM.

Make sure you have the default SIM PIN provided by your mobile operator before

continuing.

1. On the All apps screen, tap Settings.

2. Tap Security > Set up SIM card lock, then select Lock SIM card.

3. Enter the default SIM card PIN, and then tap OK.

4. To change the SIM card PIN, tap Change SIM PIN.

66 Settings and security

Only for FCC certification

Restoring a SIM card that has been locked out

If you enter the wrong PIN more times than the maximum number of attempts

allowed, your SIM card will become “PUK-locked.”

You need a PUK code to restore access to HTC phone. Contact your mobile operator

for this code.

1. On the Phone dialer screen, enter the PUK code, and then tap Next.

2. Enter the new PIN you want to use, and then tap Next.

3. Enter the new PIN again, and then tap OK.

Protecting HTC phone with a screen lock

Protect your personal information and prevent others from using HTC phone without

your permission by setting a screen lock pattern, face unlock, PIN, or password.

You'll be asked to unlock the screen every time HTC phone is turned on or when it’s

idle for a certain period of time.

1. On the All apps screen, tap Settings.

2. Tap Security > Screen lock.

3. Select a screen lock option and set up the screen lock.

4. Tap Automatically lock, then specify the idle time before the screen is locked.

You can also clear Make pattern visible or Make passwords visible if you don’t want

your screen lock to display as you enter it onscreen.

Securing HTC phone with a personal touch

Make unlocking your phone as easy as looking at it. Protect your personal information

and prevent others from using HTC phone without your permission by setting up face

unlock.

1. On the All apps screen, tap Settings.

2. Tap Security > Screen lock > Face Unlock.

3. Tap Set it up and follow the onscreen instructions.

67 Settings and security

Only for FCC certification

4. Choose a backup lock to use in case the phone doesn't recognize you.

5. Tap Automatically lock, then specify the idle time before the screen is locked.

You can also tap Improve face matching on the Security screen to train HTC phone

to recognize your face in different situations, such as when you're wearing glasses

or sporting a beard.

You'll be asked to unlock the screen every time HTC phone is turned on or when it’s

idle for a certain period of time.

To further improve security, select Liveness check on the Security screen. You'll be

asked to blink to unlock the screen.

Forgot your screen lock pattern?

If you’ve forgotten your screen lock pattern, you have up to five attempts to

try and unlock HTC phone.

If this fails, you can unlock HTC phone by entering your Google Account user

name and password.

1. On the unlock screen, enter your lock pattern.

2. After the fifth attempt, when you’re asked to wait for 30 seconds, tap

OK.

3. If the display goes off, press the POWER button to turn the display back

on, and then unlock the screen.

4. Tap the Forgot pattern? button when it appears.

5. Enter your Google Account name and password, and then tap Sign in.

You’ll then be asked to create a new screen lock pattern. If you no

longer want to do so, tap None or press .

68 Settings and security

Only for FCC certification

Trademarks and copyrights

HTC, the HTC logo, HTC quietly brilliant logo, and HTC phone are trademarks or

service marks of HTC Corporation.

Google, the Google logo, Android, the Android logo, Android Market, Google Apps,

Google Calendar, Google Checkout, Google Earth, Google Latitude, Google Maps,

Google Play, Google Talk, Google Wallet, Gmail, Picasa, and YouTube are trademarks

of Google Inc.

Facebook is a trademark of Facebook, Inc.

Microsoft, Windows, ActiveSync, Excel, Outlook, PowerPoint, Windows Media, and

Windows Vista are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

The

Bluetooth

® word mark and logos are registered trademarks by Bluetooth SIG, Inc.

Wi-Fi® is a registered trademark of the Wireless Fidelity Alliance, Inc.

LTE is a trademark of European Telecommunications Standards Institute (ETSI).

All other company, product and service names mentioned herein are trademarks,

registered trademarks or service marks of their respective owners.

Screen images contained herein are simulated. HTC shall not be liable for technical or

editorial errors or omissions contained herein, nor for incidental or consequential

damages resulting from furnishing this material. The information is provided “as is”

without warranty of any kind and is subject to change without notice. HTC also

reserves the right to revise the content of this document at any time without prior

notice.

No part of this document may be reproduced or transmitted in any form or by any

means, electronic or mechanical, including photocopying, recording or storing in a

retrieval system, or translated into any language in any form without prior written

permission of HTC.

69 Trademarks and copyrights

Only for FCC certification

Index

Accounts

- syncing

Airplane mode

Android Beam

See NFC

Apps

- grouping into a folder

- icons on Home screen

- on Home screen

Battery

- charging

- checking usage

- saving battery power

Bluetooth

- connecting a Bluetooth headset

Browser

- bookmarks

- history

- Reading list or Watch list

- tabs

- using

Camera

- basics

30–33

- effects

- panorama

- recording a video

- resolution

- taking a photo

Capture screen

Change phone language

Conference call

Copying

- files to computer

- text

Data connection

- access point names (APN)

- data roaming

- sharing

- turning on or off

- usage

Display

- changing the time before the screen

turns off

- screen brightness

- screen rotation

- Sleep mode

See Mail

Face unlock

Files

- copying to computer

Finger gestures

Folder

- grouping apps

- grouping bookmarks

Gestures

- touch gestures

Gmail

Google Now

- setting up

- turning off

Google Voice Search

Hands free

Headphones

See Bluetooth

70 Index

Only for FCC certification

Home screen

- adding widgets

- apps

- extended

- folder

- launch bar

- shortcuts

- wallpaper

Hotspot

See Wireless router

Idle screen

See Lock screen

Internet

- browser

- connections

Internet connection

- data connection

- VPN

- Wi-Fi

- wireless router

Keyboard

- dictionary

- entering text

- entering text by speaking

- predictive text

- shortcuts

- speech recognition

Language

- system language

Lock screen

- dismissing an alarm

- unlocking

Low battery

Low storage

See Phone storage

Mail

- attachments

- carbon copy, blind copy (cc, bcc)

- draft

- replying

- searching

- sending

Making calls

- calling

- calling a number in a message

Messages

- deleting a conversation

40, 43

- draft message

39, 41, 42

- forwarding

- locking

- replying

40, 42

- sending

39, 41

MMS

Mobile data

Multimedia message

- attachment

- sending

Near Field Communication (NFC)

Notifications

- panel

Online accounts

- adding accounts

- what can you sync with

Pair a Bluetooth headset

Panorama

Phone calls

- calling

- calling a number in a message

- conference call

- emergency call

- missed calls

- muting the microphone

- putting a call on hold

- Smart Dial

- speakerphone

Phone storage

- copying files

- storage encryption

- types of storage

71 Index

Only for FCC certification

Power

- charging the battery

- checking battery usage

- saving power

- sleep mode

Print screen

See Capture screen

PUK (PIN Unblock Key)

Reading list

Router

See Wireless router

Screen

- adjusting brightness

- capture

- changing the time before the screen

turns off

- idle screen

- rotation

- Sleep mode settings

Screen lock

Screen shot

See Capture screen

- searching phone and Web

- voice search

Security

- encrypting data

- protecting phone with screen lock

- protecting SIM card with PIN

- security certificates

Settings

- Accessibility

- display language

- Storage

Setup

- initial setup

Sharing

- text

SIM card

- SIM PIN

Sleep mode

Slideshow

- MMS

Smart network sharing

SMS

39, 41

Sound

- switching profiles

Speakerphone

Storage

Tethering

See USB Tethering

Text message

39, 41

USB Tethering

Videos

- recording

Voice input

Voice search

VPN

- adding a connection

- connecting

- disconnecting

Wallpaper

- changing

Watch list

Wi-Fi

- connecting to another network

- connecting via WPS

- turning on

Widgets

- adding

- removing

- resizing

Wireless router

Word prediction

72 Index

Only for FCC certification

HTC PM33100 Smartphone User Manual Your HTC Phone

HTC Corporation Smartphone Your HTC Phone

Contents

User Manual

Navigation menu

Namespaces

Views

Navigation
