Users Manual Part 1
Smart
User Manual
2
Congratulations on the purchase of your new Windows Mobile™ Smartphone!
Please Read Before Proceeding.
THIS DEVICE IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX.
DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING.
YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE
DEVICE’S OUTER CASING.
PRIVACY RESTRICTIONS
Some countries require full disclosure of recorded telephone conversations, and
stipulate that you must inform the person with whom you are speaking that the
conversation is being recorded. Always obey the relevant laws and regulations of your
country when using the recording feature of your phone.
COPYRIGHT INFORMATION
Microsoft, MS-DOS, Windows, Windows NT, Windows Server, Windows Mobile,
ActiveSync, Excel, Internet Explorer, MSN, Outlook, PowerPoint and Word are either
registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries.
3
Important Health Information and Safety Precautions
When using this product, the safety precautions below must be taken to
avoid possible legal liabilities and damages.
Retain and follow all product safety and operating instructions. Observe all
warnings in the operating instructions on the product.
To reduce the risk of bodily injury, electric shock, fire and damage to the
equipment, observe the following precautions.
ELECTRICAL SAFETY
This product is intended for use when supplied with power from the
designated battery or power supply unit. Other usage may be dangerous and
will invalidate any approval given to this product.
SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION
CAUTION – Improper connection of associated equipment-grounding can
result in a risk of electric shock.
This product is equipped with an ActiveSync Cable for connecting with a
desktop or notebook computer. Be sure your computer is properly grounded
(earthed) before connecting this product to the computer. The desktop
or notebook computer is equipped with a power supply cord having an
equipment grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet which is properly installed and grounded
in accordance with all local codes and ordinances.
SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT
• Use the correct external power source
A product should be operated only from the type of power source
indicated on the electrical ratings label. If you are not sure of the type
of power source required, consult your authorized service provider or
local power company. For a product that operates from battery power or
other sources, refer to the operating instructions that are included with
the product.
• Handle battery packs carefully
This product contains a Li-ion battery. There is a risk of fire and burns
if the battery pack is handled improperly. Do not attempt to open or
service the battery pack. Do not disassemble, crush, puncture, short
external contacts or circuits, dispose of in fire or water or expose a
battery pack to temperatures higher than 60˚C (140˚F).
4
WARNING! DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. TO REDUCE RISK OF FIRE OR BURNS, DO NOT
DISASSEMBLE, CRUSH, PUNCTURE, SHORT EXTERNAL
CONTACTS, EXPOSE TO TEMPERATURE ABOVE 60˚C (140˚F),
OR DISPOSE OF IN FIRE OR WATER. REPLACE ONLY WITH
SPECIFIED BATTERIES. RECYCLE OR DISPOSE OF USED
BATTERIES ACCORDING TO THE LOCAL REGULATIONS OR
REFERENCE GUIDE SUPPLIED WITH YOUR PRODUCT.
SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT
Keep this product away from excessive moisture and extreme temperatures.
Do not leave the product or its battery inside a vehicle or in places where the
temperature may exceed 60°C (140°F), such as on a car dashboard, window
sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet
light for extended periods of time. This may damage the product, overheat
the battery or pose a risk to the vehicle.
SAFETY PRECAUTIONS FOR ACOUSTIC PRESSURE
CAUTION – Permanent hearing loss may occur if earphones or headphones
are used for prolonged listening at high volume.
NOTE: For France, mobile headphones or earphones for this device
(Manufactured by Supplier Name:COTRON, Model Numbers:CHM-
201STV03030) have been tested to comply with the Sound Pressure
Level requirement laid down in NF EN 50332-1:2000 standard as
required by French Article L. 5232-1.
SAFETY IN AIRCRAFT
Due to the possible interference caused by this product to an aircraft’s
navigation system and its communications network, using this device’s
phone function on board an airplane is against the law in most countries. If
you want to use this device when on board an aircraft, remember to turn off
your phone by switching to Flight Mode.
5
ENVIRONMENTAL RESTRICTIONS
Do not use this product in gas stations, fuel depots, chemical plants or where
blasting operations are in progress, or in potentially explosive atmospheres
such as fuelling areas, fuel storehouses, below deck on boats, chemical
plants, fuel or chemical transfer or storage facilities, and areas where the
air contains chemicals or particles, such as grain, dust, or metal powders.
Please be aware that sparks in such areas could cause an explosion or fire
resulting in bodily injury or even death.
EXPLOSIVE ATMOSPHERES
When in any area with a potentially explosive atmosphere or where
flammable materials exist, the product should be turned off and the user
should obey all signs and instructions. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even death. Users are advised
not to use the equipment at refueling points such as service or gas stations,
and are reminded of the need to observe restrictions on the use of radio
equipment in fuel depots, chemical plants or where blasting operations are
in progress. Areas with a potentially explosive atmosphere are often, but
not always, clearly marked. These include fueling areas, below deck on
boats, fuel or chemical transfer or storage facilities, and areas where the air
contains chemicals or particles, such as grain, dust or metal powders.
ROAD SAFETY
Vehicle drivers in motion are not permitted to use telephony services with
handheld devices, except in the case of emergency. In some countries,
using hands-free devices as an alternative is allowed.
INTERFERENCE WITH MEDICAL EQUIPMENT FUNCTIONS
This product may cause medical equipment to malfunction. The use of this
device is forbidden in most hospitals and medical clinics.
NONIONIZING RADIATION
This product should be operated in the suggested normal condition only
to ensure the radiative performance and safety from interference. As with
other mobile radio transmitting equipment, users are advised that for
satisfactory operation of the equipment and for the safety of personnel, it is
recommended that no part of the human body be allowed to come too close
to the antenna during operation of the equipment.
6
General Precautions
• Heed service markings
Except as explained elsewhere in the Operating or Service
documentation, do not service any product yourself. Service needed on
components inside the casing should be done by an authorized service
technician or provider.
• Damage requiring service
Unplug the product from the electrical outlet and refer servicing to an
authorized service technician or provider under the following conditions:
• Liquid has been spilled or an object has fallen into the product.
• The product has been exposed to rain or water.
• The product has been dropped or damaged.
• There are noticeable signs of overheating.
• The product does not operate normally when you follow the operating
instructions.
• Avoid hot areas
The product should be placed away from heat sources such as
radiators, heat registers, stoves or other products (including amplifiers)
that produce heat.
• Avoid wet areas
Never use the product in a wet location.
• Avoid pushing objects into product
Never push objects of any kind into cabinet slots or other openings
in the product. Slots and openings are provided for ventilation. These
openings must not be blocked or covered.
• Mounting Accessories
Do not use the product on an unstable table, cart, stand, tripod or
bracket. Any mounting of the product should follow the manufacturer’s
instructions, and should use a mounting accessory recommended by
the manufacturer.
• Avoid unstable mounting
Do not place the product on an unstable base.
7
• Use product with approved equipment
This product should be used only with personal computers and options
identified as suitable for use with your equipment.
• Adjust the volume
Turn down the volume before using headphones or other audio devices.
• Cleaning
Unplug the product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning, but
NEVER use water to clean the LCD screen.
8
Contents
Chapter 1 Getting Started 11
1.1 Getting to Know your Phone and its Accessories .. 12

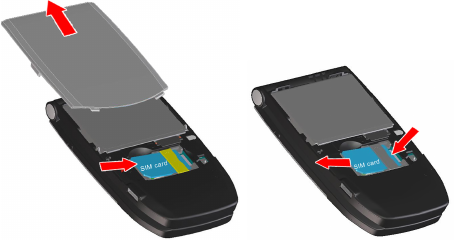

1.2 Inserting the SIM Card ............................................... 18
1.3 Installing the Micro SD Card ..................................... 19
1.4 The Home Screen ....................................................... 20
1.5 Status Indicators and Program Icons ....................... 21

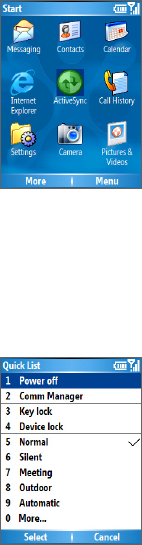

1.6 Using the Start Menu .................................................. 24
1.7 Using the Quick List ................................................... 24
1.8 Entering Information .................................................. 25
1.9 Battery Information .................................................... 28
Chapter 2 Using Phone Features 29
2.1 Using the Phone ......................................................... 30
2.2 Making a Call .............................................................. 31
2.3 Receiving a Call .......................................................... 34
2.4 In-call Options ............................................................ 34
2.5 Additional Dialing Information .................................. 36
Chapter 3 Synchronizing Information and
Setting Up E-mail Security 39
3.1 About ActiveSync ....................................................... 40
9
3.2 Setting Up ActiveSync ............................................... 40

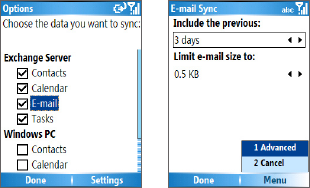

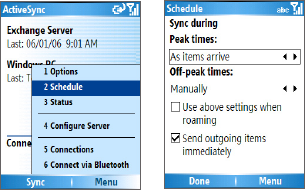

3.3 Synchronizing Information ........................................ 43
3.4 Synchronizing via Bluetooth ..................................... 47
3.5 Synchronizing Music and Video ............................... 48
3.6 Setting Up Email Security .......................................... 49
Chapter 4 Managing your Phone 51
4.1 Personalizing your Phone ......................................... 52
4.2 Adding and Removing Programs .............................. 58
4.3 Using Task Manager and Managing Memory ........... 60
4.4 Managing and Backing Up Files ............................... 61
4.5 Protecting your Phone ............................................... 64
4.6 Restarting your Phone ............................................... 66
4.7 Resetting your Phone ................................................ 66
Chapter 5 Getting Connected 67

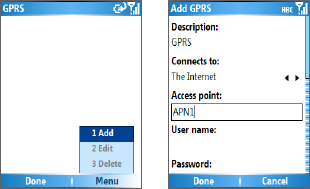

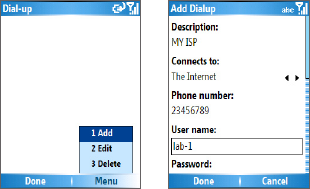

5.1 Connecting to the Internet ......................................... 68
5.2 Using Internet Explorer Mobile ................................. 72
5.3 Using Wireless Modem .............................................. 74
5.4 Using Comm Manager ............................................... 78
5.5 Using Bluetooth .......................................................... 79
Chapter 6 Exchanging Messages and Using
Outlook 89
6.1 Using Email and Text Messages ............................... 90
10
6.2 Using MMS Messages ................................................ 98
6.3 Using Pocket MSN Messenger ................................ 105
6.4 Using Calendar ......................................................... 107
6.5 Using Contacts ........................................................ 108
6.6 Using Tasks ............................................................... 113
6.7 Using Voice Notes .................................................... 114
Chapter 7 Experiencing Multimedia 115
7.1 Using Camera and Video Recorder ........................ 116
7.2 Using Pictures & Videos .......................................... 125
7.3 Using Windows Media Player .................................. 130
7.4 Using MIDlet Manager .............................................. 138
Chapter 8 Using Other Applications 143
8.1 Using ClearVue Suite ............................................... 144
8.2 Using Speed Dial ...................................................... 148
Appendix 151
A.1 Regulatory Notices ................................................... 152
A.2 PC Requirement to Run ActiveSync 4.x ................. 158
A.3 Specifications ........................................................... 159
Index 163
Chapter 1
Getting Started
1.1 Getting to Know your Phone
and its Accessories
1.2 Inserting the SIM Card
1.3 Installing the Micro SD Card
1.4 The Home Screen
1.5 Status Indicators and Program Icons
1.6 Using the Start Menu
1.7 Using the Quick List
1.8 Entering Information
1.9 Battery Information
12 Getting started
1.1 Getting to Know your Phone and its
Accessories
1
2
3
4
5
6
7
9
8
10
11
12
13
Getting started 13
Item Function
1. Comm Manager Press to open Comm Manager. Please note the button does
not work when the flip cover is closed.
2. VOLUME/
Voice Notes/
Voice Tag
Press to increase or decrease the earpiece volume during a call.
When the flip cover is opened, press and hold the Volume Up
button to start the Voice Notes recorder or press and hold the
Volume Down button to launch the Voice Tag feature.
3. Camera Lens 1.3 Megapixel CMOS lens on the flip cover. It supports the
self-capturing feature from the external screen when the flip
cover is closed.
4. External Screen When your phone is powered on and the flip cover is closed,
the external screen shows the device status. To customize the
display of the external screen, see the “Set up the external
screen” section in Chapter 4.
5. Rewind When Media Player is running, press this hotkey to go back to
the beginning of the current file; quickly press twice to jump to
the previous file. If Media Player is launched in the foreground
but no file is loaded, nothing happens when you press this
hotkey.
6.
Play/Pause
When the flip cover is closed, press this hotkey to launch
Windows Media Player directly.
7. Forward When Media Player is running, press this hotkey to jump to the
next file. If Media Player is launched in foreground but no file is
loaded, nothing happens when you press this hotkey.
8. Speaker Listen to audio media.
9. LED Indicators The upper bi-color LED Indicator (amber/red/green) notifies
you of the battery and network status of your phone
respectively, while the lower blue LED indicator notifies you of
Bluetooth connectivity status. For more information about LED
Indicators, see the table at the end of this section.
10.
Battery Cover
11.
External Antenna
Connector
Connect your phone to an external antenna (if available) to
utilize the superior reception quality.
12. CAMERA Press to launch the camera. If already running, press to
capture an image or start recording a video clip.
13.
Earphone/
Sync/Power
Connector
Connect the USB cable to synchronize data or recharge the
battery; plug in the provided Stereo headset to use the hands-
free kit or listen to audio media; alternatively, plug in the AC
adapter to recharge the battery.
14 Getting started
14
15
16
17
18
19
20
21
22
23
25
26
24
Getting started 15
Item Function
14. Earpiece Listen to a phone call.
15.
Display Screen
16. Left SOFT KEY Press to perform the command shown in the label above the
button.
17. TALK
Press to dial a phone number, answer a call, switch to another
call or put a call on hold. Hold to activate/deactivate loudspeaker
mode.
18. HOME Press to go to the Home Screen.
Press and hold to open the Quick List.
19. Key Press and switch to different input modes or press and hold to
choose an input mode or symbols from the list.
20. Light Sensor Dark conditions sensed here will activate a backlight under the
keypad, making it easier to see the buttons.
21.
Right SOFT
KEY
Press to perform the command shown in the label above the
button.
22. POWER/END Press and hold to turn on/off the phone or, during a call, press
to end the call.
23. BACK Press to go to the previous screen or backspace over
characters.
24. Navigation
Control/ENTER
Use to scroll left, right, up or down or press in to use as the
ENTER button.
25. Key Press to add a space or press and hold to display a list of
symbols.
26. Microphone Speak into the microphone when receiving or making a phone
call or voice recording.
16 Getting started
LED indicator lights
Various colors that might display in the two LED Indicators are
summarized here.
Upper LED Status
Solid green Battery is fully charged.
Blank Battery case is empty.
Solid amber Battery is charging or the phone is using ActiveSync to
synchronize with a PC.
Flashing green Connected to the network.
Flashing red Battery very low (less than 4%).
Flashing amber
Battery temperature is hotter or colder than the
functional limits of 0 to 48 degrees Celsius and has
stopped charging.
Amber/Green LED
off
Battery fault. The “Battery Fault” indicator ( ) is
displayed. In this case, the flashing green LED can be
recovered by unplugging the AC adapter.
Dim Disconnected from the network.
Lower LED Status
Flashing blue Bluetooth mode set to “On” or “Discoverable” mode.
Getting started 17
Accessories
The following accessories are provided with the device:
1
2
3
4
Accessory Function
1. AC adapter Recharge the device battery.
2. USB cable Connect your device to a PC and synchronize data.
3.
Stereo headset
Provide a volume control jog dial and a Send/End button.
You can use the button to pick up and hang up incoming
and outgoing calls. Plug into Earphone/Sync connector to
listen to audio files.
4.
Pouch
Act as a protective carrying case for your phone.
18 Getting started
1.2 Inserting the SIM Card
Your SIM (Subscriber Identity Module) card is given to you by your wireless
service provider and contains your basic subscriber information, such as your
phone number and your address book.
Before you begin, ensure that the phone is turned off.
1. Open the battery cover: Hold the phone in one hand with the front
panel facing down in the palm of your hand. With your other hand
press down on the battery cover and slide it open.
2. Insert the SIM card: Insert the SIM card into the SIM card slot with
its gold contacts facing down. When completed, replace the battery
cover.
To take the SIM card out, press the bottom of the SIM card to slide it
out of the slot. Then lightly lift up the SIM card.
Press here.
Remove the
battery cover.
Insert the
SIM card.
Remove the
SIM card.
Getting started 19
1.3 Installing the Micro SD Card
1. Open the battery cover.
2. Remove the SIM card if you have installed it.
3. Lift up the Micro SD card metal socket, and then insert the Micro SD
card into the slot.
Insert the
Micro SD card.
Lift up the
socket.
4. Push the metal socket down.
5. Replace the SIM card, battery and battery cover.
20 Getting started
1.4 The Home Screen
The Home screen displays important information, such as upcoming
appointments, status indicators, the current date, time, profile and
icons of programs that you have recently used. You can open a
program directly by selecting its icon and pressing ENTER.
• To access the Home screen from anywhere, press HOME.
• To customize the Home screen display, including the background,
click Start > Settings > Home Screen.
1. Select a recently-used program, and
open it directly from the Home screen.
2. Displays the name of your wireless
service provider.
3. Click to view the details of a missed
call.
4. Xpress Mail allows you to access data
while on the go via your smartphone.
5. Click to see the time of your next
appointment.
6. Displays the current profile. Click to
change the profile.
7. Click to open the Messages folder.
8. Click to display all program icons.
9. Displays notifications, such as missed
calls or new messages.
10. Displays the GPRS or GSM network
status.
11. Displays the power status.
12. Displays the network signal strength.
13. Displays the current date and time.
14. Click to open Contacts, Call History or
Messages.
Home Screen
2
1
3
5
6
7
8
12
14
9 10 11
13
4
Getting started 21
1.5 Status Indicators and Program Icons
The following table lists common status indicators and their meanings.
GPRS available New email or text message
(SMS,
Short Message Service)
GPRS connected New instant message
Voice call in progress Multipress text input mode,
lowercase
Data call in progress Multipress text input mode,
uppercase
Calls forwarded Multipress text input mode, caps
lock
Call on hold T9 text input mode, lowercase
Missed call
T9 text input mode, uppercase
Dialing while no SIM card
installed T9 text input mode, caps lock
Speakerphone on Numeric input mode
Battery level Ringer off
Low battery Vibrate call alert
Very low battery Microphone muted
Battery charging Bluetooth
No battery or battery fault No SIM card installed
Signal strength SIM card with fault
Radio connected or no signal Roaming
Radio off / Line 1/2
Sync error
22 Getting started
The following table lists icons of the programs that are already installed
on your phone.
ActiveSync Synchronizes information between your phone and a PC.
Calculator Performs basic arithmetic and calculations, such as
addition, subtraction, multiplication and division.
Calendar Keeps track of your appointments and creates meeting
requests.
Call History Keeps track of all phone calls made, received and
missed.
Camera Captures photos in various modes.
Clear
Storage
Clears the memory, restores the phone back to factory
default settings, then restarts the phone.
ClearVue
Document Lets you view Word documents on your phone.
ClearVue
PDF Lets you view PDF files on your phone.
ClearVue
PPT Lets you view PowerPoint files on your phone.
ClearVue
Worksheet Lets you view Excel worksheets on your phone.
Comm
Manager
Lets you easily enable or disable your phone, start or
stop synchronization with your computer, mute your
phone, enable or disable Bluetooth, stop data services
and enable or disable Direct Push.
Contacts Keeps track of contact information.
Download
Agent
Provides information about the download status and the
downloaded content from the Internet.
File
Explorer Lets you organize and manage files on your phone.
Games Lets you play one of two games: Bubble Breaker and
Solitaire come with your phone.
Getting started 23
GetGood
Open the browser to access the GoodLink, which
provides you with the real-time wirelss push
synchronization of email, attachments and PIM data.
Internet
Explorer
Allows you to browse Web and WAP sites and to
download new programs and files from the Internet.
Messaging Lets you send and receive emails and text messages.
MIDlet
Manager
Lets you download and install Java-based applications,
such as games and tools, on your phone.
Pictures &
Videos
Collects, organizes and sorts picture and video files in the
My Pictures folder on your phone or on a storage card.
Pocket
MSN
Lets you send and receive instant messages with your
MSN Messenger contacts.
Settings Personalize your phone to suit the way you use it.
Speed Dial
Lets you create speed dial entries for dialling frequently-
called phone numbers or for opening frequently-accessed
programs.
SIM
Manager
Lets you manage the contacts that are stored on your
SIM card. You can also use this program to copy SIM
contents to Contacts on your phone.
STK (SIM
Tool Kit)
Service
Allows you to access information and other services
offered by your wireless service provider.
Task
Manager Keeps track of your running programs.
Tasks Keeps track of your tasks.
Video
Recorder Captures video clips in various modes and duration.
Voice Notes Allows you to make short voice recordings.
Windows
Media Lets you play back video and audio files.
Wireless
Modem
Enables your device to be used as an external modem
for a PC by using a Bluetooth port or USB port.
24 Getting started
1.6 Using the Start Menu
The Start menu is located at the bottom-left corner of the Home screen
and displays various program icons that are spread across one or
more screens.
To see the available programs in the Start menu
• On the Home screen, click Start.
• To see more programs, click More.
Your phone comes with several bundled
programs that you can start using
immediately. You can also install additional
programs from the included Windows
Mobile™ Getting Started Disc or from the
Internet, or purchase mobile phone software
from retail stores and install them to your
phone.
1.7 Using the Quick List
The Quick List offers convenient access to a list of functions, such
as locking your phone or keypad and choosing a different profile. For
more information about profiles, see Chapter 4.
To access the Quick List
1. Press and hold the HOME button.
2. Scroll through the list and select the
desired item by clicking Select, pressing
the ENTER button or pressing the related
numeric key on the keypad.
3. To exit the Quick List at any time, click
Cancel.
Getting started 25
1.8 Entering Information
You can enter text and numbers by using the keypad. The phone
supports three input modes for entering text and numbers: Multipress,
T9 and Numeric. Multipress and T9 modes are used for entering text;
Numeric mode is used for entering numbers.
When you select a field that requires entering text or numbers, the
phone automatically selects the appropriate input mode. The status
indicator on the top-right side of the display screen shows the input
mode that you are currently using.
Multipress text input mode, lowercase
Multipress text input mode, uppercase
Multipress text input mode, caps lock
T9 text input mode, lowercase
T9 text input mode, uppercase
T9 text input mode, caps lock
Numeric input mode
To change the input mode
1. Press and hold the key.
2. On the menu, click the input mode you want.
Use Multipress mode
In Multipress mode, you can enter a character by pressing the numeric
key on which the character appears.
To enter text in Multipress mode
• To enter the first character on the numeric key, press once. To
enter the second character on the numeric key, press twice, and
so on.
• To enter a character that is on the same numeric key, pause after
you enter the first character.
• To enter punctuation, press 1 repeatedly until you see the
punctuation you want.
26 Getting started
To change the Multipress time out
You can change the length of time to pause between key presses on
the same numeric key.
1. On the Home screen, click Start > Settings > Accessibility.
2. In Multipress time out, select the length of the pause between
key presses.
Use T9 mode
To form a word in T9 mode, press the numeric keys that contain the
letters you want. As you enter letters, T9 analyzes your key presses
and attempts to complete the word. For example, to enter the word
“shoe”, press 7, 4, 6, 3.
To enter text in T9 mode
1. Press and hold the key.
2. On the menu, click T9.
3. Do any of the following:
• Enter letters by pressing the keys on which the letters appear.
Press a key only once for each letter. If there is more than one
choice in the T9 dictionary for your entry, a list of available
words is displayed.
• Press the key to enter a space after the word as entered
or click one of the available words, and then the space is
added automatically.
• If you do not see the desired word, click Add Word? from the
list, and then enter the word using Multipress.
• To enter punctuation, press 1 and select from a list of common
punctuation marks.
Use Numeric mode
If a text box permits a numeric entry only, such as a phone number, the
input mode automatically defaults to Numeric mode. However, if you
need to enter numbers within a line of text, change to Numeric mode,
and then change back to Multipress or T9 mode to finish entering the
text.
Getting started 27
To enter numbers in text boxes
1. Press and hold the key to change to Numeric mode.
2. On the keypad, enter the number or numbers you want.
3. Change back to Multipress or T9 input mode by pressing and
holding the key, and then finish entering your text.
More text entry tasks
In both Multipress and T9 modes, the first letter of a sentence is by
default capitalized.
To change between uppercase, lowercase and caps lock
• Press the key to change between uppercase, lowercase and
caps lock within a text input mode.
To delete characters
• To backspace and delete a single character in any input mode,
press BACK.
• To backspace and delete an entire text or numeric field in any
input mode, press and hold BACK.
To enter a space
• In Multipress or T9 mode, press the key.
To enter a symbol
1. Press and hold the key.
2. On the menu, click Symbols to display the Symbol page.
3. Select the symbol you want and press ENTER.
To start a new line
In a multi-line text box such as the notes area of a contact or a
calendar appointment, do the following:
• In any input mode, press ENTER.
To enter the plus sign for international calls
• In a numeric entry box, press and hold 0.
28 Getting started
1.9 Battery Information
Battery performance depends on many factors, including your
wireless service provider’s network configuration, signal strength, the
temperature of the environment in which you operate your phone, the
features and/or settings you select and use, items attached to your
phone’s connecting ports, your voice, data and other program usage
patterns.
Battery life estimates (approximations):
• Talk time: 3.6 – 7 hours
• Standby time: 146 – 220 hours
WARNING! To reduce risk of fire or burns:
• Do not attempt to open, disassemble or service the battery pack.
• Do not crush, puncture, short external contacts or dispose of in fire or
water.
• Do not expose to temperatures above 60˚C (140˚F).
• Replace only with the battery pack designated for this product.
• Recycle or dispose of used batteries as stipulated by local regulation.
The Power Management screen
• On the Home screen, click Start > Settings
> Power Management to access the Power
Management screen. You can check the
battery power from the Main battery bar.
• On the Power Management screen, you
can optimize the power performance by
adjusting the backlight, display and light
sensor settings.
To manage a low battery
When the low-battery warning appears, do the following:
1. Immediately save your current data.
2. Synchronize with your PC to charge the battery.
3. Turn off your phone.
For information about charging the battery, see the Quick Start Guide.
Chapter 2
Using Phone Features
2.1 Using the Phone
2.2 Making a Call
2.3 Receiving a Call
2.4 In-call Options
2.5 Additional Dialing Information
30 Using Phone Features
2.1 Using the Phone
You can use your phone to make, receive, keep track of calls and send
text messages (SMS, Short Message Service) and MMS (Multimedia
Messaging Service) messages. You can also dial a phone number
directly from Contacts and easily copy SIM contacts to Contacts on the
phone.
The Phone screen
From the Phone screen, you can open, call, find a contact and even
save a new number in Contacts. To access the Phone screen, do any
of the following:
• Press TALK ( ).
• Directly enter the phone number by pressing numeric keys on the
keypad.
Enter your PIN
Most Subscriber Identity Module (SIM) cards are preset with a personal
identification number (PIN) that is provided by your wireless service
provider.
1. On the Home screen, click Start > Settings > Security > Enable
SIM PIN.
2. Enter the preset PIN provided by your wireless service provider.
3. Click Done.
Note If your PIN is entered incorrectly three times, the SIM card will be
blocked. If this happens, you can unblock it with the PIN Unblocking Key
(PUK) obtained from your wireless service provider.
Set ring tones
You can choose how to be notified of incoming calls, reminders, new
messages, alarms, and more.
Using Phone Features 31
To set a ring tone for incoming calls
1. On the Home screen, click Start > Settings > Sounds.
2. In the Ring tone list, select a ring tone.
3. Click Done.
If you select Vibrate, the sound is muted and the phone will vibrate
when you receive a call. The vibrate icon ( )
appears in the title
bar. Selecting None in the Ring tone list mutes the phone. For more
information about sounds, see “Choose how to be notified about
events or actions” in Chapter 4.
Note To adjust the earpiece volume during a call, press the VOLUME control
on the phone side panel. Adjusting the volume at any other time can
affect the ring, notification and MP3 sound levels.
2.2 Making a Call
With your phone, you can make calls from the Home screen, the
Phone screen, from Contacts, Speed Dial, Call History or SIM Contacts
(contacts stored on your SIM card).
Make a call from the Phone screen
1. On the Home screen, access the Phone screen by pressing
TALK ( ) or pressing numeric keys on the keypad.
2. When you enter the phone number completely, press TALK ( ).
Phone Screen
32 Using Phone Features
Tips
• While entering the phone number, press the BACK button if you need
to backspace.
• You will notice that when you press a numeric key on the keypad, a list
of names and numbers is displayed as your phone searches Contacts,
Call History, Speed Dial and your SIM card to find a matching name
or number. For example, when you press a number such as 5, names
that begin with J, K and L will be displayed as well as phone numbers
that start with 5. The next number you press continues to narrow the
search. When you see the name of the person you want to call, select
it and press TALK ( ).
Make a call from Contacts
1. On the Home screen, click Start > Contacts.
2. Do one of the following:
• Select the desired contact and press TALK ( ).
• Select the desired contact in the contact list and press the
ENTER button twice (once to view the contact details and
once to dial the associated number).
To specify the number to dial
By default, the mobile phone number (m) of a contact is dialed when
you make a call from Contacts; however, you can choose to dial a
different phone number.
1. On the Home screen, click Start > Contacts.
2. Select the contact.
3. Press NAVIGATION left or right. The letter representing the
number changes to m (mobile), w (work) or h (home).
Tip You may also access the contact list by clicking Contacts on the Home
screen (simply by pressing the right SOFT KEY).
To edit the contact
When you select a contact in the contact list and press ENTER to view
details and different numbers associated with the contact, you can:
• Edit information associated with the contact by clicking Menu >
Edit.
• Save the selected contact on your SIM card by clicking Menu >
Save to SIM.
Using Phone Features 33
Make a call from Call History
1. On the Home screen, click Start > Call History.
2. Select a name or number and press TALK ( ).
Tip On the Call History screen, press ENTER to view details, such as the
call type (dialed, missed or received call), call duration, date and time.
Pressing ENTER again dials the associated number.
To customize calls by using the Menu
You can select various options in the Menu of Call History to customize
and filter the calls made, received or missed:
• Find Contact: Find the selected name or number in Contacts.
• Send Text Message: Send a text message to the selected name
or number.
• E-mail: Send an email to the selected name or number.
• View Timers: Find the duration of the selected call.
• Delete: Remove the selected call or number from Call History.
• Delete List: Remove all the calls and numbers from Call History.
• Save to Contacts: Save the selected name or number in
Contacts.
• Filter: Categorize the call or number into various call types.
Note You can also save a number in Contacts by clicking Save on the Call
History screen.
Make a call from Speed Dial
You can make calls using Speed Dial. To learn how to use Speed Dial,
see “Using Speed Dial” in Chapter 8.
Make a call from SIM Manager
1. Click Start > Accessories > SIM Manager. Wait for the contents
of your SIM card to load.
2. Choose the contact you want to call and click Menu > Dial.
34 Using Phone Features
2.3 Receiving a Call
When you receive a phone call, you have the option to answer it or
ignore it.
To answer an incoming call
•
To answer the call, click Answer, or press TALK
( ) or any
numeric key
.
• Open the flip cover.
Tip The way to answer an incoming call depends on the setting in Answer
Mode. For details, see "Set up the Answer Mode" in Chapter 4.
To ignore an incoming call
• To ignore the call, click Ignore or press END ( ).
To end a call
• Press END ( ).
• Close the flip cover.
2.4 In-call Options
Your phone provides various options for
managing multiple calls at the same time. You
are notified when you have another incoming
call, and you have the choice of ignoring or
accepting the call. If you are already on a call
and accept the new call, you can choose to
switch between the two callers or set up a
conference call between all three parties.
To answer another call
1. Click Answer to take the second call and put the first call on hold.
2. To end the second call and return to the first call, press
END
( )
.
Using Phone Features 35
To switch between calls
• To switch between two calls, click Swap.
To set up a conference call
1. Either put a call on hold and dial a second number or answer a
second incoming call during a call.
2. Click Menu > Conference.
Notes
• If the conference connection is successful, the word “Conference”
appears at the top of the screen.
• To add extra persons to your conference call, click Menu > Hold, enter
the phone number, and then click Resume to return to the call.
• Not all service providers support conference call. Contact your service
provider for details.
To turn the Speakerphone on and off
The built-in Speakerphone allows you to talk handsfree or lets other
people listen to the conversation.
• During a call, click Menu > Speakerphone On. The
speakerphone icon ( ) appears at the top of the screen.
• To turn off the Speakerphone during the call, click Menu >
Speakerphone Off.
Tip The speakerphone can be toggled on and off by simply pressing and
holding TALK ( ) during the call
Warning! To avoid damage to your hearing, do not hold your phone against
your ear when the Speakerphone is turned on.
To mute a call
Click Mute during a call, so that you can hear the caller but the caller
cannot hear you. When the microphone is turned off, the mute icon
( ) appears on the screen. Click Unmute to turn on the microphone
again.
36 Using Phone Features
2.5 Additional Dialing Information
Make an emergency call
• Enter the appropriate emergency number for your region and
press TALK
( ).
Tip Additional emergency numbers may be included in your SIM card.
Contact your service provider for details.
Make an international call
1. Press and hold the 0 key on the keypad until the sign appears.
The sign replaces the 00 in the international prefix of the
country that you are calling.
2. Enter the full phone number and press TALK ( ). The full phone
number includes country code, area code (without the leading
zero, if any) and phone number.
Insert a pause in a dialing sequence
Some international calls require a pause in the dialing sequence in
order for the calls to process successfully.
1. On the Home screen, click Start > Contacts.
2. Select the contact entry that contains the phone number into
which you want to insert a pause and press ENTER to open the
contact card.
3. Select the desired phone number and click Menu > Edit.
4. Position the cursor on the phone number where you want to
insert a pause, then click Menu > Insert Pause. The letter “p” will
appear in the number to indicate where the pause will occur in
the dialing sequence.
5. Click Done.
Using Phone Features 37
Insert a longer pause in a dialing sequence
Some phone numbers may require a longer pause than the default
pause in the dialing sequence. In these cases, you can pause as long
as you want and manually continue the dialing sequence.
1. On the Home screen, click Start > Contacts.
2. Select the contact entry that contains the phone number into
which you want to insert a longer pause and press ENTER to
open the contact card.
3. Select the desired phone number and click Menu > Edit.
4. Position the cursor on the phone number where you want to
insert a longer pause, then click Menu > Insert Wait. The letter
“w” will appear in the number to indicate where the longer pause
(wait) will occur in the dialing sequence.
5. Click Done.
Note When you call a number that contains a longer pause, you must press
TALK ( ) to continue dialing.
SIM Tool Kit (STK)
A SIM card must be inserted in your device in order to use this feature,
which allows you to access a range of information services provided by
your service provider.
1. On the Home screen, click Start > SIM Tool Kit (STK). A list of
provided services appears.
2. To access a service, click the item in the list.
38 Using Phone Features
Chapter 3
Synchronizing Information and
Setting Up E-mail Security
3.1 About ActiveSync
3.2 Setting Up ActiveSync
3.3 Synchronizing Information
3.4 Synchronizing via Bluetooth
3.5 Synchronizing Music and Video
3.6 Setting Up Email Security
40 Synchronizing Information and Setting Up E-mail Security
3.1 About ActiveSync
ActiveSync synchronizes information on your phone with information
on your PC such as Outlook content. ActiveSync can also synchronize
over a wireless or cellular network with Exchange Server if your
company or service provider is running Exchange Server with
Exchange ActiveSync.
Specifically, you can use ActiveSync to:
• Synchronize information such as Outlook email, contacts,
calendar or tasks information on your phone with your PC, as well
as music and video files.
• Synchronize Outlook email, contacts, calendar appointments and
tasks on your phone directly with Exchange Server so that you
can stay up to date even when your PC is turned off.
• Copy files between your phone and your PC.
• Select which types of information are synchronized and specify
how much information is synchronized. For example, you can
choose how many weeks of past calendar appointments to
synchronize.
• Add and remove programs on your device. For details, see
Chapter 4, “Adding and Removing Programs.”
3.2 Setting Up ActiveSync
To install and set up ActiveSync your the computer
1. Install ActiveSync on your PC, as described on the Windows
Mobile™ Getting Started Disc.
2. After Setup completes, the Synchronization Setup Wizard
automatically starts when you connect your phone to the PC.
The wizard will guide you through creating a synchronization
relationship between your phone and the computer. Click Next.
Synchronizing Information and Setting Up E-mail Security 41
3. Do not select the Synchronize directly with a server running
Microsoft Exchange Server check box if you will synchronize
your device with a computer. Just click Next, then skip to step 8.
4. If you are going to synchronize your device with Exchange
Server, select the Synchronize directly with a server running
Microsoft Exchange Server check box, then click Next.
5. On the Exchange server credentials screen, enter the Exchange
server address, your user name, password and the domain
name.
If you do not know what the Exchange server address and
domain name are, you can check with your network administrator,
or you can check them in your computer by doing the following:
• In Outlook, click Tools > E-mail Accounts.
• Select View or change existing e-mail accounts.
• Double-click Microsoft Exchange Server.
• On the Exchange Server Settings screen, you will see the
Exchange Server name.
42 Synchronizing Information and Setting Up E-mail Security
• To check the domain name, click Start > Settings > Control
Panel, then double-click System.
• In the System Properties dialog box, click the Computer
Name tab. You will then see the domain name.
6. On your device, you also need to enter the Exchange server
settings. For information about this, see “Synchronizing directly
with Exchange Server.”
7. On the Synchronization Setup Wizard, click Next.
8. Select the information types to synchronize between your device
and the computer.
If you are going to synchronize your device with both your
computer and Exchange Server, do the following:
•
For the Contacts, Calendar, E-mail and Tasks items, choose
whether to synchronize them with the computer or with the
Exchange Server. These items cannot be synchronized to both.
• Select the check boxes of the other information types if you
want to synchronize them with your computer.
9. Click Next.
10. Click Finish.
Tip When you finish the wizard, ActiveSync synchronizes your phone
automatically. Once synchronization completes, you can disconnect
your phone from your PC.
Synchronizing Information and Setting Up E-mail Security 43
3.3 Synchronizing Information
When you connect your phone to your PC, ActiveSync will immediately
synchronize. While the phone is connected, ActiveSync synchronizes
every time you make a change on either the PC or the phone.
To manually start and stop synchronization
1. Connect your phone.
• To synchronize local information on the PC, such as Outlook
information or media files, connect your phone to the PC using
Bluetooth or a cable.
• If you are synchronizing directly with Exchange Server, you
can use the connection to the PC to access the network, or
you can synchronize over a cellular or Wi-Fi network without
connecting to the PC.
2. In ActiveSync, click Sync. To end synchronization before it
completes, click Stop.
Synchronize Outlook information with the computer
If you have set up a synchronization relationship between your phone
and the PC, synchronization keeps Outlook information up to date on
both of them.
You can also set up your phone to synchronize with more than one PC,
or with a combination of one or more PCs and Exchange Server. When
synchronizing with multiple computers, the items you synchronize will
appear on all of the computers with which they are synchronized. For
example, if you have set up synchronization with two PCs (PC1 and
PC2), which have different items, and you synchronize Contacts and
Calendar on the phone with both computers, the result is as follows:
44 Synchronizing Information and Setting Up E-mail Security
Location New state
PC1 All Outlook contacts and calendar appointments that were on PC2
are now also on PC1.
PC2 All Outlook contacts and calendar appointments that were on PC1
are now also on PC2.
Phone All Outlook contacts and calendar appointments from both PC1
and PC2 are on the phone.
Note Outlook email can be synchronized with only one computer.
To change which information is synchronized
ActiveSync synchronizes a limited amount of information by default
to save storage space on your phone. You can change the amount of
information that is synchronized by performing the following steps.
Note Before changing synchronization settings on the phone, disconnect it
from your PC.
1. On the Home screen, click Start > ActiveSync.
2. In ActiveSync, click Menu > Options.
3. Do one or more of the following:
• Select the check box for the items you
want to synchronize. If you cannot
select a check box, you might have
to clear the check box for the same
information type elsewhere in the list.
• Clear the check box for any items you
want to exclude.
• To customize synchronization of a
computer, select the computer name
then click Menu > Settings.
• To customize synchronization of a particular type of
information, select the information type then click Settings.
• To stop synchronizing with one computer completely, select
the computer name and click Menu > Delete.
Note Outlook email can be synchronized with only one computer.
Synchronizing Information and Setting Up E-mail Security 45
Synchronize Outlook information with Exchange
Server
You can set up synchronization with Exchange Server on your phone,
if it is available to you through your company or wireless service
provider. However, you should first ask your administrator or check
your computer for the following information and then carry on with the
steps: Exchange Server name, domain name, your user name and
password. (For information about how to check the Exchange server
name and domain on your PC, see “To install and set up ActiveSync on
the computer.”)
Note Before changing synchronization settings on the phone, disconnect it
from your PC.
To synchronize directly with Exchange Server
1. On the Home screen, click Start > ActiveSync > Menu >
Configure Server. If you have not yet set up synchronization
with Exchange Server, this will say Add Server Source.
2. On the Edit Server Settings screen, enter the name of the server
running Exchange Server in the Server address box and click
Next.
3. On the User Information screen, enter your user name, password
and domain name.
4. If you want the phone to save your password so that you will
not need to enter it again when connecting, select the Save
password check box. Then, click Next.
5. On the Options screen, select the check boxes of the types of
information that you want to synchronize with Exchange Server.
6. To customize synchronization of a particular type of information,
select the type of information then click Menu > Settings.
7. To change the rules for resolving synchronization conflicts, click
Menu > Advanced on the Options screen.
8. Click Finish.
Note You can also use the Sync Setup Wizard to set up the phone to
synchronize remotely with Exchange Server. This wizard is started when
you connect your phone to your PC after installing ActiveSync on the PC.
46 Synchronizing Information and Setting Up E-mail Security
Schedule synchronization with Exchange Server
You can schedule information to be synchronized automatically
between your phone and Exchange Server, or schedule
synchronization at regular time intervals. Choose between these two
methods, depending on your email volume and which method you think
is more cost-effective.
To receive emails and synchronize other information instantly
The Direct Push technology (Push E-Mail feature) enables you to
receive new emails on your phone as soon as they arrive in your
Inbox on Exchange Server. With this feature, items such as contacts,
calendar and tasks are also immediately updated onto your phone
when these items have been changed or new entries have been added
on Exchange Server. To make Direct Push work, you need to set up a
GPRS connection on your phone.
The Direct Push feature works for your phone if your private network
such as your corporate network is using Microsoft Exchange Server
Service Pack 2 (SP2) with Exchange ActiveSync and after your first full
synchronization with Exchange Server.
1. In ActiveSync on your phone, click Menu > Schedule.
2. Select As items arrive in the Peak times and Off-peak times
boxes.
Note When the GPRS and Wi-Fi connections are turned on at the same time,
the Direct Push feature will always go through GPRS, for which you
could be charged as per your network operator’s service plan.
Synchronizing Information and Setting Up E-mail Security 47
To schedule synchronization at regular time intervals
You can set how often to synchronize during Peak times (which
usually refer to your working hours) when email volume is high, as well
as Off-times when email volume is low.
1. In ActiveSync on your device, click Menu > Schedule.
2. On the Schedule screen, select a shorter time interval in the
Peak times box for you to be able to receive emails more
frequently.
3. Select a longer interval in the Off-peak times box.
Tip To set the days and hours that make up your peak and off-peak times,
click Menu > Peak Times on the Schedule screen.
3.4 Synchronizing via Bluetooth
You can connect your phone to the PC to synchronize using the local
wireless technologies and Bluetooth. These technologies have similar
but slightly different requirements.
To synchronize with a PC via Bluetooth
1. Follow the instructions in ActiveSync Help on the PC for
configuring Bluetooth on your PC to support ActiveSync.
2. On the Home screen, click Start > ActiveSync.
3. Click Menu > Connect via Bluetooth. Ensure that the phone
and the PC are within close range.
4. If this is the first time you have connected to this PC via
Bluetooth, you must complete the Bluetooth wizard on the
phone and set up a Bluetooth partnership with the PC before
synchronizing.
5. Click Sync.
6. When finished, click Menu > Disconnect Bluetooth.
Notes
• To preserve battery power, turn off Bluetooth when not in use.
• To connect and synchronize your phone with a computer via Bluetooth,
your computer must have a Bluetooth adapter or dongle.
48 Synchronizing Information and Setting Up E-mail Security
3.5 Synchronizing Music and Video
If you want to take your music or other digital media with you,
ActiveSync works with Windows Media Player to synchronize music
and video files with your phone.
Other than selecting the media information type in ActiveSync to
be synchronized, all media synchronization settings must be set in
Windows Media Player. Before media can be synchronized, you must
do the following:
• Install Windows Media Player Version 10 on the PC.
• Connect your phone to the PC with a USB cable. If the phone
is currently connected using Bluetooth, you must end that
connection before media can be synchronized.
• Insert a 32-MB or larger storage card into your phone.
• Set up a sync partnership between the storage card and
Windows Media Player.
Change Media synchronization settings
Once you have selected the Media information type in ActiveSync to
be synchronized, any of your favorite music and video files in Windows
Media Player playlists can be synchronized by ActiveSync. All you
have to do is set up synchronization in Windows Media Player for
those media files.
To set up a sync relationship with a storage card
1. On the PC, open Windows
Media Player.
2. Click the Sync tab.
3. Select the storage card.
4. Click Set up Sync.
5. Choose whether to
synchronize automatically
or manually.
For information about using Windows Media Player on the phone, see
“Using Windows Media Player” in Chapter 7.
Synchronizing Information and Setting Up E-mail Security 49
3.6 Setting Up Email Security
Windows Mobile on your phone protects your Outlook emails through
Secure/Multipurpose Internet Mail Extension (S/MIME), which allows
you to digitally sign your messages as well as encrypt them.
Using authorization keys and certificates, S/MIME allows you to
digitally sign your email messages to prove your identity to the
recipients. Authorization keys are also used when encrypting
messages to improve privacy and prevent undue tampering or hacking
of your messages. You can encrypt a message with or without a
certificate. However, to read an encrypted message, you need a valid
certificate for decrypting email messages.
Note S/MIME encryption and digital signatures for Windows Mobile-based
devices are available only with Exchange Server 2003 Service Pack 2
or a later version that supports S/MIME. If you aren’t using one of these
products or have not yet synchronized, these options are unavailable.
Digitally sign and encrypt all messages
ActiveSync allows you to set up S/MIME email encryption and signing.
You will have to obtain a valid certificate for signing or encrypting email
before you will be able to sign or encrypt mail successfully.
1. On the Home screen, click Start > ActiveSync.
2. Click Menu > Options.
3. Select the E-mail information type and click Settings. On the
E-mail Sync screen, click Menu > Advanced.
50 Synchronizing Information and Setting Up E-mail Security
4. Do one or both of the following:
• To sign all your outgoing email messages so that recipients
can be certain that the messages were sent by you and have
not been altered in any way, select Sign messages.
• To encrypt all your outgoing email messages so that the
contents of your messages are protected from being viewed
by anyone other then the intended recipients, select Encrypt
messages.
5. Click Menu > Choose Certificate to select a certificate for
signing or encrypting outgoing email messages.
You can select certificates to sign or encrypt email messages
individually if you do not choose to sign or encrypt all outgoing
emails. For information about signing and encrypting individual
messages, see “Individually sign and encrypt a message” in
Chapter 6.
Chapter 4
Managing your Phone
4.1 Personalizing your Phone
4.2 Adding and Removing Programs
4.3 Using Task Manager and
Managing Memory
4.4 Managing and Backing Up Files
4.5 Protecting your Phone
4.6 Restarting your Phone
4.7 Resetting your Phone
52 Managing your Phone
4.1 Personalizing your Phone
Set up the Answer Mode
You can answer an incoming call by pressing TALK ( ) or any numeric
key on the keypad, or simply by opening the flip cover.
1. On the Home screen, click Start > Settings > Phone.
2. Click Answer Mode.
3. Select Open to answer or Any key to answer.
Set up the Home screen
The Home screen is your starting place for most tasks. You can gain
access to all features and programs from the Home screen.
The top of the Home screen displays icons for the programs that you
have most recently used. The center of the Home screen can display
your next appointment, the number of new messages (voice mail, text,
email or MMS) that you have received and other important information.
When you click an icon or item on the Home Screen, the associated
program opens.
To customize the Home screen
1. On the Home screen, click Start > Settings > Home Screen.
2. In Home screen layout, Color scheme, Background image
and Time out, select the options you want, and then click Done.
Tip You have three ways to set up the background image:
• Use ActiveSync to copy your favorite picture file to the directory in your
phone: My Device\Application Data\Home. Then, you can select the
picture as the background image through Start > Settings > Home
Screen > Background image.
• Capture a photo using the phone’s camera. When viewing the photo
in the Review screen, click Menu > Use as Home Screen and then
follow the on-screen instructions to set the captured photo as the
background image.
• Use the Pictures & Videos program to set up the background image.
See “To set a picture as the Home screen background” in Chapter 7 for
details.
Managing your Phone 53
Set language, locale and other regional options
Your phone should already be set up with the regional settings that are
appropriate for your locale.
To change regional settings
You can specify the language, locale, date and time style, as well as
number and currency formatting options.
1. On the Home screen, click Start > Settings > Regional
Settings.
2. In Language, select your preferred language.
3. In Locale, select the locale for the language you selected. The
Locale option automatically changes the format of the remaining
options (such as date, time and currency) according to the locale
you specify.
4. Click Done.
Note
You must turn your phone off and on again for the changes to take effect.
Set the date and time
1. On the Home screen, click Start > Settings > Clock & Alarm >
Date and Time.
2. In Time zone, select your time zone.
3. In Date, edit the month, day or year.
4. In Time, edit the hour, minute and second.
5. Click Done.
Choose how to be notified about events or actions
A profile is a group of settings that determine how your phone will
alert you to incoming calls, events such as email receipt notifications,
alarms or system events. A number of different preset combinations of
these settings are included with your phone. Each profile appears with
a descriptive name.
54 Managing your Phone
To change the current profile
1. On the Home screen, click Profile [Type]. Example: Profile
Normal.
2. Select the desired profile and click Done.
Tip To quickly change the profile, press and hold the HOME button to
display the Quick List and click a profile.
To edit a profile
1. On the Home screen, click Profile [Type]. Example: Profile
Normal.
2. Select the profile to edit.
3. Click Menu > Edit.
4. Do one of the following:
• Modify the settings and click Done.
• To cancel without saving changes, click Cancel.
Tip To revert to the default profile settings, click Menu > Reset to default.
To specify the sound for an event
1. On the Home screen, click Start > Settings > Sounds.
2. For the desired event, select a sound. Select None if you do not
want to hear a sound.
3. Click Done.
Note For ring tones, you can use sounds in either .wav, .mid, .wma or .mp3
file format. For notifications or reminders, you can use .wav or .mid files.
Tip When you select a sound, the sound plays. To hear it again, select
Menu > Play.
To set sounds for the key presses
1. On the Home screen, click Start > Settings > Sounds.
2. In Keypad control, select a sound. Select None if you do not
want to hear any sound while pressing a key.
3. Click Done.
Managing your Phone 55
To copy a sound to your phone
After a sound file is located on your phone, you can use it for a ring
tone, notification or reminder. Sound files in either .wav, .mid or .wma
formats can be used.
1. Connect the phone to your PC using a USB connection.
2. On your PC, copy the desired sound file.
3. In ActiveSync on your PC, click Explore and double-click My
Windows Mobile-Based Device.
4. Do one of the following:
• To save the sound file on your phone, double-click
Application Data, double-click Sounds and paste the file into
that folder.
• To save the sound file on your storage card, double-click
Storage Card and paste the file into the folder you want.
To set an alarm
1. On the Home screen, click Start > Settings > Clock & Alarm >
Alarm.
2. In Alarm, choose one of the following:
• Off to turn the alarm off.
• On to turn the alarm on.
3. In Alarm time, enter the time for the alarm to go off.
4. Click Done.
Set personal information
Entering and displaying owner information can prove helpful; they allow
someone to return the phone to you if it is lost.
To enter owner information
1. On the Home screen, click Start > Settings > Owner
Information.
2. Complete the following:
• In Name, enter your name.
56 Managing your Phone
• In Telephone number, enter a number where you can be
reached.
• In E-mail address, enter your email address.
• In Notes, enter any other information you want to include.
3. Click Done.
Set performance and maintenance options
To change accessibility settings
1. On the Home screen, click Start > Settings > Accessibility.
2. Select your preferences for the following:
• System font size to set the size of the font that is displayed
on the screen.
• Multipress time out to set the length of time between key
presses when entering text in Multipress mode.
• Confirmation time out to set the delay before an
unconfirmed action times out.
• In-call alert volume to set the volume for incoming calls or
receiving new message alerts while you are in a call.
3. Click Done.
To change power management settings
You can use Power Management to check the battery and configure
settings that prolong battery life.
1. On the Home screen, click Start > Settings > Power
Management.
2. Adjust the following:
• In Backlight time out on battery, select the amount of time
for the phone to be idle before the backlight turns off.
• In Backlight time out on AC, select the amount of time for
the phone to be idle before the backlight turns off when using
AC (mains) power.
Managing your Phone 57
• In Display time out, select the time limit for the phone to be
idle before the screen turns off.
• In Light Sensor Enable, turn it on to see the buttons on the
keypad more easily in the dark.
3. Click Done.
Tip Main battery indicates the amount of battery life remaining.
To find the operating system version number
• On the Home screen, click Start > Settings > About.
The operating system version number installed on your phone
along with the manufacturer’s copyright information will be listed
on the screen.
To find the phone specification
• On the Home screen, click Start > Settings > System
Information.
The System Information screen displays the details about the
phone specification, such as processor, speed, memory, display,
model name, and so on.
To turn error reporting on and off
1. On the Home screen, click Start > Settings > Error Reporting.
2. In Error Reporting, select Enable or Disable to turn on or off
error reporting.
3. Click Done.
Set up the external screen
You can change the display of the external screen when the flip cover
is closed.
On the Home screen, click Start > Settings > External Screen, then
you can configure the following:
• Background. Select the type of clock shown on the exrternal
display. Selecting Wallpaper allows you to choose a picture as
the background of the external screen.
58 Managing your Phone
• Wallpaper image. Select a picture as the wallpaper.
• Status bar. Select On or Off to show or hide the status bar on
the external screen.
• Date and time. Select On or Off to show or hide the current date
and time on the external screen.
• Button lock after idle for. Select the amount of time for which
the phone must be idle before the buttons are locked.
• Button lock after closing. Selecting On means the buttons will
be locked immediately after the flip cover is closed. When you
select Off, the button lock function will activate according to the
configuration in the Button lock after idle for item.
• Display time out. Select how long the phone must be idle before
the external screen turns off.
• Display off after closing. Selecting On means the external
screen will turn off immediately after the flip cover is closed.
When you select Off, the display time depends on the setting in
the Display time out item.
4.2 Adding and Removing Programs
Before you purchase additional programs for your phone, you should
note the name of your phone, the version of Windows Mobile software
running on it and the type of processor. This information will help
you select a program that is compatible with your phone. For more
information, see “To find the operating system version number” in this
chapter.
Programs available for purchase usually include a Setup program
(commonly named “setup.exe”) that you must first install on your PC.
You can then use ActiveSync to add programs to your phone or add a
program directly from the Internet.
Managing your Phone 59
To add programs
1. Download the program to your PC (or insert the CD or disk
that contains the program into your PC). You may see a single
*.exe file, a *.zip file, a Setup.exe file or several versions of files
for different device types and processors. Be sure to select a
program designed for your phone and processor type.
2. Read any installation instructions or documentation that comes
with the program. Many programs provide special installation
instructions.
3. Connect your phone and PC.
4. Double-click the *.exe file.
• If the executable file is an installation wizard, follow the
instructions on the screen. Once the program has been
installed on your PC, the wizard will automatically transfer the
program to your phone.
• If an installation wizard does not start, you will see an
error message stating that the program is valid but that it
is designed for a different type of computer. You will need
to copy this program to your phone. If you cannot find any
installation instructions for the program, use ActiveSync to
copy the program file to the Program Files folder on your
phone.
To remove a program
Programs that come with the phone cannot be removed.
1. On the Home screen, click Start > Settings > Remove
Programs.
2. Scroll to the program to remove.
3. Click Menu > Remove.
60 Managing your Phone
4.3 Using Task Manager and Managing Memory
To see how much memory is available
1. On the Home screen, click Start > Settings > About.
2. Scroll down to Available Memory.
Use Task Manager
Task Manager allows you to view all the programs currently running on
your phone in the form of a list. From Task Manager, you can switch to,
activate or terminate any currently running program. It also allows you
to view the phone memory status and battery information.
To start Task Manager
• Click Start > Task Manager.
Task Manager
The Task Manager Menu contains the following options.
Option Allows you to
Go To Switch to the selected program.
Refresh Refresh the Task Manager screen to reflect a list of currently
running programs.
Stop Stop the selected program. You can view the free memory status
at the bottom of the screen.
Managing your Phone 61
Option Allows you to
Stop All Stop all listed programs. Click OK to confirm that you want
to end all currently running programs. You can view the free
memory status at the bottom of the screen.
Stop All But
Selected
Stop all running programs in the list except the one you selected.
System Info View information about power status, memory usage flash and
device information.
About View program name, version and copyright information.
4.4 Managing and Backing Up Files
You can back up files to your PC using ActiveSync or copy files to
a storage card that is installed by you on your phone. You can also
efficiently manage your files and folders using File Explorer installed on
your phone.
Using Microsoft ActiveSync, you can copy or move information
from the PC to the phone and vice versa. Changes you make to the
information on one computer will not affect the information on the other
computer. If you want to automatically update information on both your
phone and your PC, synchronize the information instead. For more
information about copying and synchronizing files, see ActiveSync Help
on your PC.
To copy a file using ActiveSync
Copying a file results in separate versions of a file on your phone and
PC. Because the files are not synchronized, changes made to one file
will not affect the other.
1. Connect your phone to your PC.
2. In ActiveSync, click Explore, which opens the Mobile Device
folder for your phone.
3. In the Mobile Device folder, go to the file that you want to copy on
your phone or PC.
62 Managing your Phone
4. Do one of the following:
• To copy the file to your phone, right-click the file and click
Copy. Right-click the desired folder on your phone and click
Paste.
• To copy the file to your PC, right-click the file and click Copy.
Right-click the desired folder on your PC and click Paste.
Use File Explorer
File Explorer provides many easy-to-use features for file and folder
management.
To start File Explorer
• On the Home screen, click Start > File Explorer.
File Explorer operates in the following two views:
• List View
• Icons View
File Explorer displays the entire file structure in your phone’s memory.
The functions focus primarily on folder management. When initially
started, File Explorer is in List View by default. To switch between
views, click Menu > View > Icons or List.
File Explorer - List View
Managing your Phone 63
The File Explorer menu contains the following options:
Option Allows you to
Send Allows you send the selected file through one of the
messaging features.
Beam Allows you send the selected file through Bluetooth.
Edit Open a menu where you can choose to cut, copy, paste,
delete or rename a file. You can also create a new folder.
Properties View information about the selected folder or file.
View Open a menu where you can switch between the Icons or
List view.
Sort By Open a menu where you can choose to sort the files or
folders by Name, Date, Size or Type.
My Device Display the folders and files in the root folder of the phone.
My Documents Display the folders and files in the My Documents folder.
To send a file as an email attachment
1. In File Explorer, select a file.
2. Click Menu > Send.
3. On the Messaging screen, select Outlook E-mail or a custom
email account.
4. The file will automatically be attached to the new message.
Specify the recipient and subject and type your message.
5. Click Send.
64 Managing your Phone
4.5 Protecting your Phone
There are several levels of security on your phone. You can protect
your phone from unauthorized use by requiring a type of password
called a PIN (personal identification number) in order to make calls.
Your first PIN will be given to you by your wireless service provider.
Additionally, you can lock the keypad or the entire phone to prevent
unauthorized access.
To enable the SIM personal identification number (PIN)
1. On the Home screen, click Start > Settings > Security.
2. Click Enable SIM PIN.
3. Enter your PIN and click Done.
Note To cancel without enabling the SIM PIN, press HOME.
To disable the SIM PIN
1. On the Home screen, click Start > Settings > Security.
2. Click Disable SIM PIN.
3. Enter your PIN and click Done.
To change the SIM PIN
Be sure to make a note of your personal identification number (PIN).
When the SIM PIN is enabled, you must provide this PIN to unlock the
phone.
1. Click Start > Settings > Security.
2. Click Change PIN2.
3. In Old PIN, enter the current PIN.
4. Enter and confirm the new PIN and click Done.
Lock the keypad
Locking the keypad turns off keypad functionality. This is a helpful
feature if, for example, the phone turning itself on in your pocket and
making accidental key presses.
Managing your Phone 65
To lock the keypad
• On the Home screen, press and hold the HOME button and
click Key lock. Once the keypad is locked, the left soft key label
changes to Unlock.
Note You can still receive calls and make emergency calls when the keypad
is locked.
To unlock the keypad
• On the Home screen, click Unlock and press the key.
Lock your phone
Device Lock is an additional security feature that prevents
unauthorized use of your phone.
To enable/disable Device Lock
1. On the Home screen, click Start > Settings > Security.
2. Click Device Lock.
3. Select the Prompt if device unused for item, then select the
amount of time for which the phone should be inactive before
automatically locking.
4. Select the password type (Simple SIM or Strong
alphanumeric).
5. Enter and confirm your password.
6. Click Done.
7. To disable Device Lock, click Start > Settings > Security >
Device Lock to enter the setting page (requires the password)
and clear the Prompt if device unused for item.
To lock/unlock your phone
• Once you configure the Device Lock setting, you can lock your
phone from the Quick List directly without configuring the settings
again.
• When the device is locked, click Unlock and enter the password
to unlock your device.
66 Managing your Phone
4.6 Restarting your Phone
Occasionally, you may want to restart your phone, for example, when
a program is not performing properly or the phone does not respond to
any key presses.
To restart the phone
1. Remove the battery.
2. Reinsert the battery and turn on your phone.
Warning! If the phone is restarted while a program is running, unsaved
work will be lost.
4.7 Resetting your Phone
Resetting your phone will remove all the data from its memory which
include contacts, tasks, calendar appointments and more, and restore
the phone back to the factory default settings.
To reset your phone
1. Click Start > Accessories > Clear Storage.
2. Follow the on-screen instructions to reset the phone. The phone
will restart after it has been reset.
5.1 Connecting to the Internet
5.2 Using Internet Explorer Mobile
5.3 Using Wireless Modem
5.4 Using Comm Manager
5.5 Using Bluetooth
Chapter 5
Getting Connected
68 Getting Connected
5.1 Connecting to the Internet
Your phone’s powerful networking capabilities allow you to access
the Internet or your corporate network at work through wireless and
conventional connections. Specifically, you can configure your phone
to establish a connection via Dial-up, GPRS, Bluetooth, Virtual Private
Network (VPN) or Proxy.
With an active connection on your phone, you can browse the Web,
download emails or chat using MSN Messenger. Check with your
service provider to see if a connection has already been set up for you
and if over-the-air configuration is supported.
If you need to manually set up a connection, it is important that you
obtain the following information from your Internet Service Provider
(ISP) or the company whose intranet you are trying to access:
• ISP server phone number
• User name
• Password
• Access point name (required for GPRS connection)
• Domain name (required for accessing a corporate network or an
intranet)
Set up a GPRS connection
GPRS is a non-voice value-added service that allows information to
be sent and received across a mobile telephone network. You can use
GPRS to connect to the Internet or to send and receive MMS on your
phone. When you use GPRS, you will be billed per KB (Kilobyte) when
sending or receiving information.
If GPRS settings are not preset on your phone, obtain the Access
point name from your wireless service provider. Also, check with your
wireless service provider if a user name and password are required.
Getting Connected 69
To set up a GPRS connection
1. On the Home screen, click Start > Settings > Connections >
GPRS.
2. Click Menu > Add.
3. In Description, enter a name for the connection.
4. In Connects to, select The Internet.
5. Enter the name of the GPRS Access point of your wireless
service provider.
6. Enter the appropriate information in the remaining fields, if
required by your wireless service provider.
7. Click Done.
8. To start browsing the Internet, click Start > Internet Explorer.
Note For information about setting up and sending MMS, see “Using MMS
Messages” in Chapter 6.
Set up a Dial-up connection
When you use your phone to dial up to your ISP and connect to the
Internet or to your corporate network, you will be billed by the number
of minutes that you use.
To establish a dial-up connection on your phone, you need the same
settings that you normally use when you dial up from your computer.
This includes the ISP server phone number, your user name and
password.
70 Getting Connected
To set up a dial-up connection for browsing the Internet
1. On the Home screen, click Start > Settings > Connections >
Dial-up.
2. Click Menu > Add.
3. In Description, enter a name for the connection.
4. In Connects to, select The Internet.
5. Enter the appropriate information in the remaining fields.
6. Click Done.
7. To start browsing the Internet, click Start > Internet Explorer.
To set up a dial-up connection to your corporate network
1. On the Home screen, click Start > Settings > Connections >
Dial-up.
2. Click Menu > Add.
3. In Description, enter a name for the connection.
4. In Connects to, select Work.
5. Enter the appropriate information in the remaining fields.
6. Click Done.
Note You can also add and set up the following connections:
• VPN: A VPN connection is used to access your corporate network by
using an existing Internet connection.
• Proxy: A Proxy connection is used to access the Internet using an
existing connection to your corporate or WAP network.
Getting Connected 71
Advanced options
From the Connections screen, you can access advanced options to
specify the service provider, the number of redial attempts, the amount
of idle time to wait before disconnecting, and so on.
1. On the Home screen, click Start > Settings > Connections.
2. Click Menu > Advanced.
3. Select a network service provider for each connection type.
You can choose Automatic to allow the phone to set a service
provider for each connection by default.
4. Click Menu > Options.
5. Choose the appropriate information for the remaining fields.
6. Click Done.
Add a URL exception
Some URLs for Web pages on your company intranet may use dots,
for example: intranet.companyname.com. To view these pages in
Internet Explorer Mobile, you must create a URL exception.
1. On the Home screen, click Start > Settings > Connections.
2. Click Menu > Advanced.
3. Click Menu > Work URL Exceptions.
4. Click Menu > Add.
5. In URL Pattern, enter the URL name. To add multiple URLs, use
a semicolon (;).
6. Click Done.
Note You do not need to create URL exceptions for Internet URLs.
72 Getting Connected
5.2 Using Internet Explorer Mobile
Internet Explorer Mobile is a full-featured Internet browser, optimized
for use on your phone.
To open Internet Explorer
• On the Home screen, click Start > Internet Explorer.
To go to a link
1. While on a Web page, scroll vertically or horizontally to see all
available links.
2. Click the link.
To go to a Web page
1. In Internet Explorer, click Menu > Address Bar.
2. Enter the address and click Go.
To change Web page display options
1. While on a Web page, click Menu > View.
2. Select one of the following:
• One Column. Arranges the content into one column that is
as wide as the screen. This means that you will rarely have to
scroll horizontally.
• Default. Maintains a layout similar to what you see on a
desktop computer, but makes items smaller and arranges the
content so that you can see most of it without having to scroll
horizontally.
• Desktop. Keeps the same layout and size as on a desktop
computer, which will require both horizontal and vertical
scrolling.
To change the size of text on Web pages
• While on a Web page, click Menu > Zoom and select the size
you want.
Getting Connected 73
To show or hide pictures on Web pages
• While on a Web page, click Menu > View > Show Pictures.
A check mark next to Show Pictures indicates that pictures will
be displayed on Web pages.
To view a page in full-screen mode
• While on a Web page, click Menu > View > Full Screen.
Tip To exit full-screen mode, press either SOFT KEY, and then click Menu >
View > Full Screen to cancel the selection.
To add a Web page to the Favorites list
1. Go to the page you want to add, click Menu > Address Bar,
enter the address and click Go.
2. Click Menu > Add to Favorites.
3. Confirm or change the name and Web page address.
4. In Folder, select a folder for the favorite.
5. Click Add.
Tip A quick way to add favorites to your phone is to synchronize with your
PC using ActiveSync. For more information, see ActiveSync Help on
your PC.
To view a favorite
1. While on a Web page, click Favorites.
2. Select a favorite and click Go.
To move a favorite to a folder
1. Click Favorites.
2. Select the favorite to move.
3. Click Menu > Edit.
4. Under Folder, scroll to the folder to which you want to move the
favorite.
5. Click Done.
74 Getting Connected
To clear history, cookies or temporary files
1. While on a Web page, click Menu > Tools > Options.
2. Click Memory.
3. Select the type of memory to clear.
4. Click Clear, click Yes, and then click Done.
To send a link via email
1. Go to the desired Web page.
2. Click Menu > Tools > Send Link via E-mail.
3. Select Text Messages or Outlook E-mail.
4. A new message is created with the page address inserted in the
message body.
5.3 Using Wireless Modem
With Wireless Modem, you can use your phone as an external modem
for another device such as a PDA or notebook computer.
Note Make sure your phone has a GPRS SIM card installed and that you
have set up a GPRS or dial-up modem connection on your phone. For
information about setting up GPRS on your phone, see “Set up a GPRS
connection” in this chapter. Also make sure you have connected your
phone to a computer (via Bluetooth or USB). For information about
setting up a dial-up connection, see “Set up a Dial-up connection.”
Set up the phone as a modem
To set up the phone as a USB modem
1. On the Home screen of your phone, click Start > Accessories >
Wireless Modem.
2. Select USB as the Connection type.
3. To use your phone as a GPRS modem, set the Access point
name (APN). To set, click Menu > APN Setting and enter the
access point name.
Getting Connected 75
4. On your notebook, disable ActiveSync. Then plug in the USB
cable adapter between the phone and the notebook.
Note To disable ActiveSync on your computer, click File > Connection
Settings then clear Allow USB connections.
5. Click Menu > Start on your phone.
6. The next thing to do is to add the phone as a USB modem onto
your notebook. To do so, continue to do the following steps.
7. After you click Menu > Start on the Wireless Modem screen of
your phone, your notebook will automatically detect that your
phone has been connected. The Found New Hardware dialog
box will then appear on your notebook.
8. In the Found New Hardware dialog box, select Install from a list
or specific location (Advanced) and click Next.
9. Select Search for the best drivers in these locations.
10. Insert the Getting Started Disc into your CD drive. Select the
Include this location in the search check box, then click
Browse and choose the CD drive and root folder where the
modem driver is located. Then click Next.
11. Wait for the installation
to complete, then click
Finish.
12. On your computer, click
Start > Settings > Control
Panel.
13. Double-click Phone and
Modem Options.
14. Click the Modems tab.
Select the new modem
from the Modems list, then
click OK.
