7.1 Synchronizing with the Exchange Server

To keep up-to-date with your company e-mails and meeting schedules while you’re

out of the office, you can connect your device to the Internet through Wi-Fi or a

data connection and synchronize with your company’s Exchange Server.

Setting up an Exchange Server connection

Before you can synchronize or access information on the Exchange Server, you

need to set up an Exchange Server connection on your device. You need to get the

Exchange Server name (must be Outlook Web Access server name), domain name,

user name, and the password that you use at work from your network administrator

and enter them on your device.

Note You can set up an Outlook e-mail account that synchronizes with the Exchange Server

from the TouchFLO 3D Mail tab using Mail Setup. See “Mail” in Chapter 3 for details.

If you have not synchronized your device with your computer, follow these steps to

set up an Exchange Server connection.

1. Tap Start > All Programs > Messaging > Setup E-mail.

2. Enter the E-mail address and Password for the e-mail account and select the

Save password option. Tap Next.

Chapter 7

Working With Company E-mails and

Meeting Appointments

126 Working With Company E-mails and Meeting Appointments

3. Clear the Try to get e-mail settings automatically from the Internet option

and tap Next.

4. In Your e-mail provider, select Exchange server and tap Next.

5. Tap Next again.

6. Select the Attempt to detect Exchange Server Settings automatically

option and tap Next.

7. Enter the Domain name and tap Next.

8. In Server address, enter the Exchange Server address and tap Next.

9. Select the items that you want to sync with the Exchange Server.

Tips • To change synchronization settings of an information item, for example, E-mail,

select the item, then tap Settings.

• To change the rules for resolving synchronization conflicts, tap Menu >

Advanced.

10. Tap Finish.

Notes • If you synchronized e-mails with your computer before, open ActiveSync on

your device, then tap Menu > Add Server Source to set up an Exchange Server

connection. When prompted to select information types for synchronization, you

must first clear the E-mail check box under the Windows PC item before you can

select E-mail under Exchange Server.

• To change Exchange Server settings, open ActiveSync on your device, and then tap

Menu > Configure Server.

Starting synchronization

Before you start synchronizing with the Exchange Server, make sure your device

has been set up with a Wi-Fi or data connection to the Internet so that you can

synchronize over the air. For more information about connections, see Chapter 8.

After you finish setting up an Exchange Server connection, your device

automatically starts synchronization.

Working With Company E-mails and Meeting Appointments 127

To manually start synchronization, tap Start > Settings, and then touch Sync Data.

Note If you connect your device to your office computer via a USB or Bluetooth connection,

you can use this connection to the computer to “pass through” to the network and

download Outlook e-mails and other information to your device.

7.2 Working With Company E-mails

Your device gives you instant access to your company e-mails and lets you manage

your messages easier. Direct Push, Fetch Mail, Remote e-mail search, and e-mail

flags are just some of the tools you can use to manage your e-mails.

Note Some messaging features depend on the Microsoft Exchange Server version used in

your company. Check with your network administrator for the availability of these

features.

Automatic synchronization through Direct Push

Direct Push technology (push e-mail feature) enables you to receive new e-mails on

your device as soon as they arrive in your Inbox on the Exchange Server. Items such

as contacts, calendar and tasks are also immediately updated onto your device when

these items have been changed or new entries have been added on the Exchange

Server. To make Direct Push work, you need to have a Wi-Fi or data connection on

your device.

You need to perform a full synchronization between your device and the Exchange

Server before Direct Push can be enabled.

Requirement The Direct Push feature works for your device only if your company is

using Microsoft Exchange Server 2003 Service Pack 2 (SP2) with Exchange

ActiveSync or later.

128 Working With Company E-mails and Meeting Appointments

To turn on Direct Push in Comm Manager

1. Tap Start > Settings, and then touch Communications.

Tip You can also tap Start > All Programs > Comm Manager.

2. On the Comm Manager screen, touch the OFF/ON slider at the right side of

the Microsoft Direct Push item.

To turn on Direct Push in ActiveSync

1. Tap Start > ActiveSync and then tap Menu > Schedule.

2. Select As items arrive in the Peak times and Off-peak times boxes.

Note When Direct Push is off, you need to manually retrieve your e-mails.

Scheduled synchronization

If you do not want to use Direct Push, you can set a regular schedule for

synchronizing Outlook e-mail and information.

1. In ActiveSync on your device, tap Menu > Schedule.

2. Select from the available options to set the synchronization schedule.

Tip You can select a shorter interval in the Peak times box and a longer interval in

the Off-peak times box, so that your e-mails are synchronized more frequently

when you are working. To set the days and hours that make up your peak and

off-peak times, tap the peak times link at the bottom of the screen.

Instant download through Fetch Mail

The Fetch Mail feature downloads an entire e-mail immediately without the need

for you to perform a full Send/Receive action. This limits the download to just the

e-mail message that you want and helps save data cost.

Requirement Fetch Mail works for your device only if your company is using Microsoft

Exchange Server 2007 or later.

1. Tap Start > All Programs > Messaging > Outlook E-mail.

2. Open an e-mail message.

Working With Company E-mails and Meeting Appointments 129

3. By default, only the first few words of the message are shown. To download

the whole e-mail, finger-scroll to the end of the message, then tap Get the

rest of this message.

4. Wait for the remainder of the message body to download.

Notes • For information about changing e-mail sync options such as setting the download

size for e-mail, see "Customizing e-mail settings" in Chapter 6.

• When you receive an e-mail that contains a link to a document such as a PDF or

Microsoft Office document located on SharePoint or an internal file server, you

can tap the link to view the document on your device. You can view the document

only if you have a Microsoft Outlook account that synchronizes with Microsoft

Exchange Server 2007 or later. Exchange Server must also be set up to allow access

to SharePoint document libraries or internal file servers.

Searching for e-mails on the Exchange Server

You can access e-mails that are not available on your device by searching your

Microsoft Exchange Server mailbox. The search results are downloaded and

displayed in a Search Results folder.

Requirement Your company must be using Microsoft Exchange Server 2007 or later.

1. Tap Start > All Programs > Messaging > Outlook E-mail.

2. Tap Menu > Tools > Search Server.

3. In the Look for text box, enter the search keyword.

4. Choose the date range of messages to search from.

5. In the Look in list, specify whether to search in the Inbox, Sent Items, or

All Folders, and then tap Search.

Tip To clear the search results and return to the message list, tap Menu > Clear Results.

130 Working With Company E-mails and Meeting Appointments

Flagging your messages

Flags serve as a reminder for you to follow-up on important issues or requests

contained in e-mail messages. Flagging messages, which has been a useful feature

on desktop Outlook E-mail, can also be done in Outlook Mobile on your device. You

can flag received e-mail messages on your device.

Requirement Flags are enabled only if e-mails are synchronized with Microsoft Exchange

Server 2007 or later. Flags are disabled or hidden if e-mails are synchronized

with earlier versions of Microsoft Exchange Server.

To flag or unflag a message

1. Tap Start > All Programs > Messaging > Outlook E-mail.

2. Open a message.

3. Tap Menu > Follow Up and select one of the following options:

• Set Flag Mark the message with a red flag to remind yourself to follow it up.

• Complete Flag Mark the message with a check mark to indicate that the

issue or request in the e-mail is already completed.

• Clear Flag Remove the flag to unmark the message.

Note E-mail message reminders are displayed on your device if the messages are flagged

with reminders and synchronized from the Exchange Server.

Out-of-office auto-reply

Outlook Mobile allows you to retrieve and change your out-of-office status. Just like

desktop Outlook, Outlook Mobile automatically sends an auto-reply message when

you’re not available.

Working With Company E-mails and Meeting Appointments 131

To send out-of-office auto-reply messages

1. Tap Start > All Programs > Messaging >

Outlook E-mail.

2. Tap Menu > Tools > Out of Office.

3. In the I am currently list, select Out of the

Office.

4. Enter your auto-reply message, and then tap

Done.

7.3 Managing Meeting Requests

When you schedule and send meeting requests from your device, you can invite

attendees to your meeting and check their availability.

When you receive a meeting request, you can reply by accepting or declining

the request. The meeting request also clearly indicates whether or not there are

conflicting or adjacent meetings.

Requirement Your company must be using Microsoft Exchange Server 2007 or later.

To reply to a meeting request

1. When you receive a meeting request e-mail, a notification is displayed on

your device. Open the e-mail.

2. Tap Accept to reply and accept the meeting request, or tap Menu > Decline

if you cannot attend the meeting.

Tips • Before responding, you can check your availability during the time of the

requested meeting by tapping View your calendar.

• If the time of the meeting conflicts with your other appointments, a

“Scheduling Conflict” status appears on top of the e-mail.

3. Choose whether or not to edit your response e-mail before sending, then tap OK.

If you accept the meeting request, it is automatically added as an

appointment in Calendar on your device.

132 Working With Company E-mails and Meeting Appointments

7.4 Finding Contacts in the Company Directory

In addition to having contacts on your device, you can access contact information

from your organization’s Company Directory. By having over-the-air access to the

Company Directory, you can easily send e-mail messages and meeting requests to

anyone in your company.

Requirement Access to the Company Directory is available only if your organization is

running Microsoft Exchange Server 2003 SP2 or higher, and you have

completed your first synchronization with the Exchange Server.

1. Synchronize with the Exchange Server.

2. Do any of the following:

• In Contacts, tap Menu > Company Directory.

• In a new e-mail message, tap the To box (or tap Menu > Add Recipient),

and then tap Company Directory on the top of the list.

• When creating a meeting request and selecting required and optional

attendees in Calendar, tap Company Directory.

3. Enter a partial or full contact name and tap Search. In the search results list,

tap a contact to select it.

Notes • You can save a contact from the Company Directory to your device by selecting

the contact, and then tapping Menu > Save to Contacts.

• You can search for the following information as long as that information is

included in the Company Directory: First name, Last name, E-mail name, Display

name, E-mail address, or Office location.

Chapter 8

Internet

Chapter 8

Internet

8.1 Ways of Connecting to the Internet

Your device’s networking capabilities allow you to access the Internet or your

corporate network through Wi-Fi, GPRS/3G (or EDGE when available), or dial-up.

You can also add and set up a VPN or proxy connection.

Wi-Fi

Wi-Fi provides wireless Internet access over distances of up to 100 meters (300 feet).

To use Wi-Fi on your device, you need access to a wireless access point or “hotspot”.

Note The availability and range of your device’s Wi-Fi signal depends on the number,

infrastructure, and other objects through which the signal passes.

To turn Wi-Fi on and connect to a Wi-Fi network

1. Tap Start > Settings, and then tap Communications.

2. Tap Wi-Fi. Detected wireless networks are displayed on the screen.

Tap the desired Wi-Fi network, and then tap Connect.

• If you selected an open (unsecured) network, you are automatically

connected to the network.

• If you selected a secured network, enter the security key and then tap

Done. You are then connected to the network.

134 Internet

Indicates a secured

Wi-Fi network.

Indicates that

your device is

connected to this

Wi-Fi network

Signal strength

Network name (SSID)

3. Tap Back to return to the Communications screen.

Next time you use your device to detect Wi-Fi networks, you will not be prompted

to enter the network key of the previously accessed Wi-Fi network (unless you

perform a hard reset which will erase custom settings on your device).

Notes • Wi-Fi networks are self-discoverable, which means no additional steps are required

for your device to connect to a Wi-Fi network. It may be necessary to provide a

username and password for certain closed wireless networks.

• To turn off Wi-Fi, on the Communications screen, tap the OFF/ON slider at the right

side of the Wi-Fi item.

Internet 135

To check Wi-Fi network status

Aside from the Wi-Fi status icon on the title bar, you can check the current

Wi-Fi connection status from any of the following screens of your device:

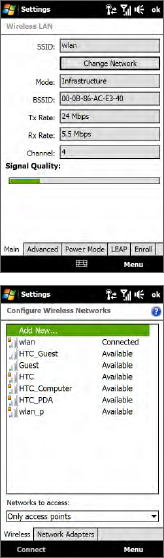

• Wireless LAN screen

Tap Start > Settings, and then tap

Menu > Wireless Networks.

On the Main tab, you will see the Wi-Fi network

that your device is currently connected to.

The configuration and signal quality of the Wi-Fi

network are also shown.

• Configure Wireless Networks screen

Tap Start > Settings, and then tap All Settings.

On the Connections tab, tap Wi-Fi, then tap the

Wireless Networks button. This screen displays

all available Wi-Fi networks in range.

To connect to a Wi-Fi network in the list, tap and

hold on the desired network, then tap Connect.

Tap a Wi-Fi network in the list to view or change

its connection settings.

You can also add new Wi-Fi networks, if

available, by tapping Add New.

136 Internet

To save battery power while connected to a Wi-Fi network

Using Wi-Fi quickly consumes battery power. Turn off Wi-Fi when not in use.

You can also enable power saving settings while using Wi-Fi.

1. Tap Start > Settings, and then tap Menu > Wireless Networks >

Power Mode tab.

2. Move the Power Save Mode slider to a position

that optimizes performance with the least

power consumption.

For example, move the slider to the left (Best

Performance) to have the optimal wireless

network performance; move to the right (Best

Battery) to obtain the maximum battery usage.

GPRS/3G

Use GPRS/3G (or EDGE, if available) to connect to the Internet and to send and

receive e-mail on your device. You will need a data plan to use your wireless service

provider’s GPRS/3G network. Check with your wireless service provider to find out

about GPRS/3G rates.

GPRS/3G settings are already preconfigured on your device, and your device is

ready to use your wireless service provider’s GPRS/3G services. Do not change the

settings as this may cause services to stop working. If you need to add another

GPRS/3G connection on your device, contact your wireless service provider.

Dial-up

To set up a dial-up connection to your Internet Service Provider (ISP) on your device,

you need the same settings that you normally use when you dial up from your

computer. This includes the ISP server phone number, your user name and password.

1. Tap Start > Settings, and then tap All Settings.

2. On the Connections tab, tap Connections.

Internet 137

3. In My ISP, tap Add a new modem connection.

4. In the Select a modem list, select Cellular Line, then tap Next.

5. Enter the ISP server phone number, then tap Next.

6. Enter your user name, password, and any other information required by your

ISP, then tap Finish.

Starting a data connection

After setting up a data connection such as GPRS/3G or ISP dial-up on your device,

you can now connect your device to the Internet. The connection is automatically

started when you begin using a program that accesses the Internet such as Opera

Mobile.

To manually start a data connection

If you have set up multiple types of data connections on your device, you can

manually start a connection.

1. Tap Start > Settings, and then tap All Settings.

2. On the Connections tab, tap Connections.

3. Tap Manage existing connections.

4. Tap and hold the name of the desired connection, and then tap Connect.

To disconnect active data connections

1. On the Home screen, slide to the Settings tab, and then tap Communications.

2. Tap the OFF/ON slider at the right side of the Data Connection item.

138 Internet

8.2 Using Opera Mobile™

Opera Mobile™ is a full-featured Internet browser, optimized for use on your device.

To open Opera Mobile and go to a website

1. On the Home screen, slide to the Internet tab and then tap Launch Browser.

2. On the Opera Mobile screen, tap the address bar.

Note If the address bar is hidden, tap at the bottom-right corner of the screen.

3. Enter the URL address and tap .

Tip When you tap the address bar, a search field also appears. Quickly search the web by

entering the search item and tapping .

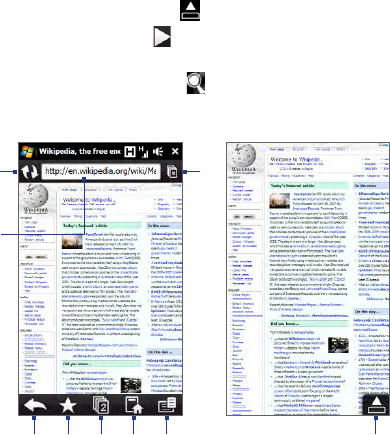

The browser screen

3 4 5 6 7

Internet 139

1Refresh the web page being viewed.

2Enter the URL of the web site here.

3Return to the previous web page viewed.

4Go to the Bookmarks screen where you can add, edit, or send bookmarks.

5Add a new browsing tab or switch to another browsing tab.

6Go to the home page.

7Open a list where you can change Opera Mobile settings. See “Opera Mobile

menu” in this chapter for details.

8Close the current tab. This is enabled only if you have more than one tab opened.

9When browsing the web, Opera Mobile automatically switches to full screen mode.

Tap to show the address and Menu bars again.

Opera Mobile menu

On the menu bar, tap to open the menu.

Open the Settings screen where you

can set your home page, change display

settings, set privacy settings, and more.

View items being downloaded, and

resume or stop current downloads.

View information about the

web page you are browsing.

See web pages that you have viewed.

Manage and view web pages

that you have saved.

Open the Opera Mobile help file.

Close Opera Mobile completely.

Opera Mobile will not run in the background.

140 Internet

Notes • For more information about using Opera Mobile, go to:

http://www.opera.com/products/mobile/.

• You can also use Internet Explorer® Mobile to browse the web. To open Internet

Explorer Mobile, tap Start > All Programs > Internet Explorer.

Navigating web pages

To pan on the web page

While browsing web pages, use finger

gestures to pan on the web page.

Tip Touch and hold an empty area on a web

page to open a shortcut menu that lets

you go back to the previous page, reload

the page, add the page as a Favorite, and

more. You can also tap and hold a link or

image on a web page to open a menu

with different options.

Internet 141

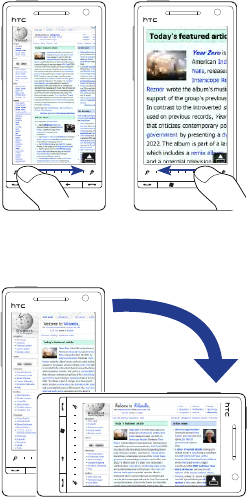

To zoom in and out on web pages

While viewing a web page in full screen,

slide to the right of the zoom bar to

zoom in on the web page. To zoom out,

slide your finger to the left on tap the

screen twice again.

Tip You can also tap the screen twice

to zoom in. To zoom out, tap the

screen twice again.

Zooming in Zooming out

To change the screen orientation

Change the screen orientation by

simply turning your device sideways.

142 Internet

8.3 Using YouTube™

YouTube™ lets you browse, search, and watch Internet videos that are posted in

YouTube.

Note You need an active data or Wi-Fi connection to use YouTube. If you are using a

GPRS/3G connection, watching Internet videos may significantly increase your data

connection costs.

To open YouTube

On the Home screen, slide to the Internet tab, and then tap YouTube.

Open the

Program Guide.

Displays the current

program channel

being viewed.

Close YouTube.

Filter the list by feed

type and by date

uploaded to the

YouTube server.

Displays the available

videos for the

selected program

channel. Tap a video

to watch it. Tap

to view details about

the video. Switch between the

YouTube screens.

Set the quality of

downloaded videos and

site (country) preference.

Internet 143

Searching videos

1. On the YouTube screen, tap .

2. On the Search screen, enter the video information, and then tap Search.

YouTube searches for the video, and then displays all related videos on the

screen.

3. Tap on a video to watch it. See “Watching videos” for details.

Using the Program Guide

The Program Guide categorizes videos into channels so you can browse and watch

related videos available on YouTube. You can also add your favorite video channel

in the Program Guide.

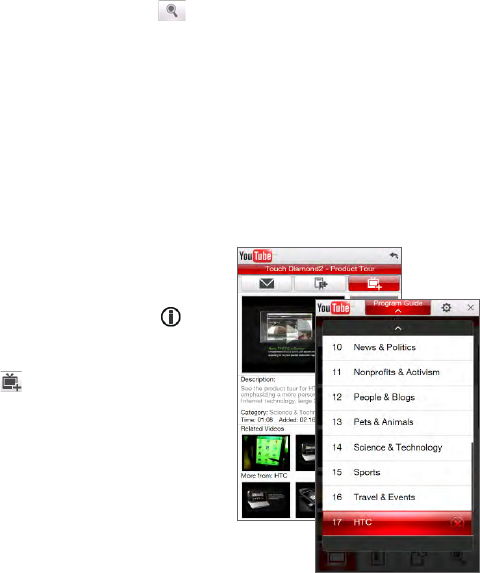

To add a new channel

1. Search the channel or video you

want to add to the Program Guide.

See “Searching videos” for details.

2. In the search results list, tap at

the right side of the video or channel

to open the details screen.

3. Tap , and then tap OK on the

confirmation screen.

The channel you just subscribed to

is shown when you tap Program

Guide.

Tip You can also add a YouTube user or

search information as a program

channel.

144 Internet

To change the program channel

1. On the Videos screen, tap Program Guide at the top of the screen.

2. On the Program Guide, select a channel.

Tip You can scroll down to view more channels.

The video list refreshes to display the available videos for the selected

channel.

To delete a program channel

You can only delete channels that you have added to the Program Guide.

1. Tap Program Guide.

2. Scroll down to the channel that you want to delete, and then tap .

3. On the confirmation screen, tap Yes.

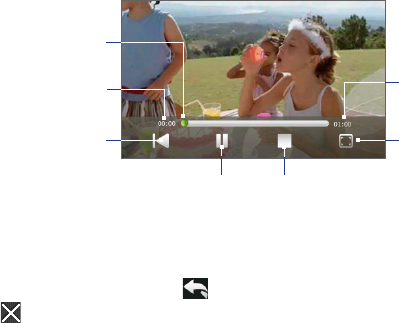

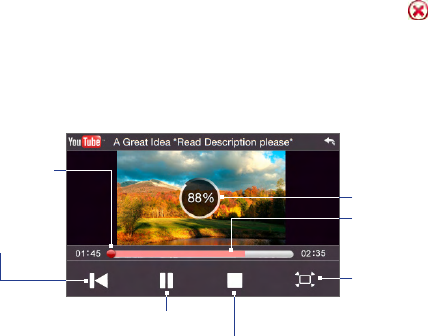

Watching videos

Tap a video on any YouTube screen, program guide channel, or search results list to

launch the YouTube Video Player.

Go back to the

beginning of the video.

Play/pause the video.

Stop the video playback.

Depending on the

quality of downloaded

videos you selected,

tap to view the video

in its actual size, in

expanded size, or in

full screen.

Drag to go forward or

backward in the video.

Buffered video

Download progress

Tip To adjust the volume, press the VOLUME UP and VOLUME DOWN buttons on the left

panel of the device.

Internet 145

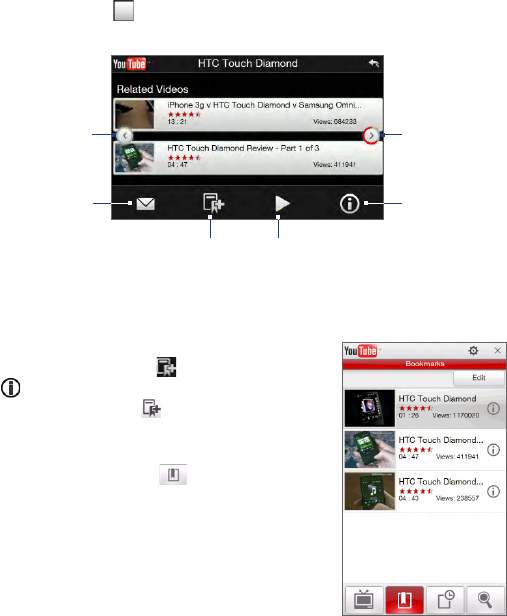

When you tap Stop ( ) or finish watching the entire video, you can select from

the following options.

Send the link of the

previously watched

video via e-mail, or

to send the video

thumbnail via MMS. Add the video to

your Bookmarks.

Replay the video.

View information

about the video

you just watched.

Go to the next page

of related videos.

If no action is taken,

the next page

is automatically

displayed after 10

seconds.

Go back to the

previous page of

Category

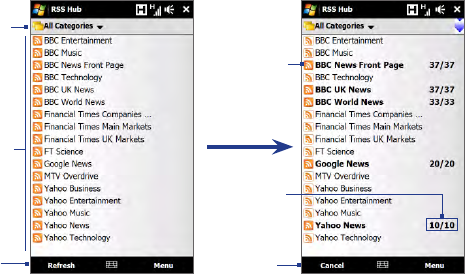

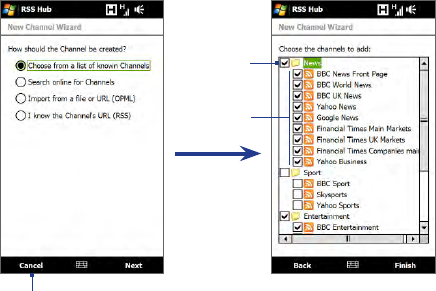

Tap to load pre-selected RSS channels.

Tip Channels are grouped by categories. If you want to select all channels in a

category, select the category check box.

Internet 153

5. The channel list appears. Tap Refresh to update the channels.

Cancel

channel

updating

Channel is

updated. Tap

to view the

headlines.

Select the

channel category

to display

Headline

count

Update the

channels

Channel list

To add new channels

1. In the channel list, tap Menu > Channel > New to open the New Channel

Wizard screen.

2. Select an option, and then follow screen instructions to add new channels.

For more information on New Channel Wizard options, see the Help on your

device.

To filter the channels to display

In the channel list, tap Menu > View, and then select Updated to display only

those channels with unread items, or All to display all subscribed channels.

154 Internet

Using the headline list

Tap a channel in the channel list to display the headline list.

Tap a headline to open

the news summary

screen.

The item contains

a keyword.

Download the podcast

or image attachment.

Podcast or image

attachment is

downloading.

Play back the podcast

or view the image.

New or unread item

Item has been read

Return to the

channel list

New or unread items display in bold and are marked with a blue newspaper icon.

Items that have been read are marked with a gray newspaper icon.

Internet 155

Viewing the news summary

Tap a headline in the headline list to display the news summary.

Headline and

read status Podcast or image

attachment. Tap the link

to download the file.

News summary

Open the complete

article in Opera

Mobile. See “Using

Opera Mobile” in this

chapter for details.

Channel name

Return to the

headline list

Tap Menu to change the way that text is displayed, save a podcast, send a link to

the article via e-mail, and more.

To download, play, or save podcasts

1. On the news summary screen tap the Download audio/Download video

link or the audio/video podcast icon.

Tip To cancel the file download, tap Cancel download below the audio/video file icon.

2. After downloading the file, do one of the following:

• Tap Play audio/Play video or the audio/video file icon to play back the file.

• Tap Menu > Podcast > Save to save a copy of the file to the device’s main

memory or storage card.

156 Internet

To send the a link to the article via e-mail

1. In the news summary screen, tap Menu > Send Link via Email.

2. Messaging opens and displays the Account Picker screen. Tap the e-mail

account that you want to use.

A new e-mail message is then created with the link.

3. Specify the e-mail recipients, and then tap Send.

Note For more information on how to compose e-mails, see “Creating and sending an

e-mail message” in Chapter 6.

To view the next or previous news summary

In the news summary screen, tap Menu > Next or Menu > Previous.

8.7 Using Your Device as a Modem (Internet Sharing)

Internet Sharing connects your desktop or notebook computer to the Internet by

using your device’s data connection such as GPRS/3G. You can connect via USB or

Bluetooth.

Before you proceed

Make sure your device has a SIM card installed, and your device has a

GPRS/3G or dial-up modem connection. If your device has not been set up

with a data connection yet, tap Menu > Connection Settings on the Internet

Sharing screen. For more information about setting up these connections,

see “GPRS/3G” and “Dial-up” in this chapter.

To set up your device as a USB modem, you must first install Windows Mobile

Device Center or Microsoft ActiveSync version 4.5 or later on the computer.

To use a Bluetooth connection, make sure your computer has built-in

Bluetooth capability. If your computer does not have Bluetooth, you can

connect and use a Bluetooth adapter or dongle.

Before using Internet Sharing, disconnect from Windows Mobile Device

Center or ActiveSync on your computer.

•

Internet 157

To set up your device as a USB modem

1. Connect the device to your desktop or

notebook computer using the USB sync cable.

2. When the Connect to PC screen appears, select

Internet Sharing, then tap Done.

3. In the PC Connection list, select USB.

4. In the Network Connection list, select the

name of the connection that your device uses

to connect to the Internet.

5. Tap Connect.

To use your device as a Bluetooth modem

1. On your device, turn on Bluetooth and set it to visible mode by following the

steps in the “To turn Bluetooth on and make your device visible” section in

Chapter 9.

2. Initiate a Bluetooth partnership from your device by following the steps in the

“To create a Bluetooth partnership” section in Chapter 9.

3. Connect the device to your desktop or notebook computer using the USB

sync cable.

4. When the Connect to PC screen appears, select Internet Sharing, then tap

Done.

5. Select Bluetooth PAN as the PC Connection.

6. From the Network Connection list, select the name of the connection that

your device uses to connect to the Internet, and then tap Connect.

158 Internet

7. On your computer, set up a Bluetooth Personal Area Network (PAN) with your

device:

For Windows Vista:

a. Click Start > Control Panel > Network and Internet > Network and

Sharing Center.

b. Click Manage network connections and then under Personal Area

Network, double-click Bluetooth Network Connection.

c. In the Bluetooth Personal Area Network Devices dialog box, select your

device, and click Connect.

For Windows XP:

a. Tap Start > Control Panel > Network Connections.

b. Under Personal Area Network, click the Bluetooth Network Connection

icon.

c. Under Network Tasks, click View Bluetooth network devices.

d. In the Bluetooth Personal Area Network Devices dialog box, select your

device, and click Connect.

Note If the Bluetooth adapter or dongle on your computer was installed using a

third-party driver, open the Bluetooth software that came with the Bluetooth

adapter/dongle to connect your computer and device via Bluetooth. Refer to the

Bluetooth adapter/dongle documentation for more information.

8. On the Internet Sharing screen on your device, check whether a connected

status message is displayed, which indicates that your computer has been

successfully connected to the Internet using your device as a Bluetooth

modem.

To end the Internet connection

On the Internet Sharing screen, tap Disconnect.

9.1 Bluetooth Modes

Bluetooth is a short-range wireless communications technology. Devices with

Bluetooth capabilities can exchange information over a distance of about eight

meters without requiring a physical connection.

Bluetooth on your device operates in three different modes:

• On. Bluetooth is turned on. Your device can detect other Bluetooth-enabled

devices, but not vice versa.

• Visible. Bluetooth is turned on, and all other Bluetooth-enabled devices can

detect your device.

• Off. Bluetooth is turned off. In this mode, you can neither send nor receive

information using Bluetooth.

Notes • By default, Bluetooth is turned off. If you turn it on, and then turn off your

device, Bluetooth also turns off. When you turn on your device again, Bluetooth

automatically turns on.

• Turn off Bluetooth when not in use to conserve battery power, or in places where

using a wireless device is prohibited, such as on board an aircraft and in hospitals.

To turn Bluetooth on and make your device visible

1. Tap Start > Settings, and then tap Menu > Bluetooth Devices > Mode tab.

2. Select the Turn on Bluetooth and Make this device visible to other devices

check boxes.

3. Tap OK. The Title bar shows to indicate that the device is in visible mode.

Chapter 9

Bluetooth

160 Bluetooth

To turn off Bluetooth visibility after a certain period of time

You can automatically turn off Bluetooth visibility after a specified period of time.

1. Tap Start > Settings, and then tap Menu > Bluetooth Devices > Timeout tab.

2. In Turn off Visible mode, select the time before your device’s Bluetooth

visibility turns off, and then tap OK.

9.2 Bluetooth Partnerships

Create a Bluetooth partnership between your device and another Bluetooth-

enabled device in order to exchange information in a secured manner. Creating

a Bluetooth partnership between two devices is a one-time process. Once a

partnership is created, the devices can recognize the partnership and exchange

information without entering a passcode again.

To create a Bluetooth partnership

1. Tap Start > Settings, and then tap Menu > Bluetooth Devices > Devices tab.

2. Tap Add new device. Your device displays the names of other Bluetooth

devices within range.

3. Tap the device name in the box, and then tap Next.

4. Specify a passcode to establish a secure connection. The passcode can be 1

up to 16 characters.

5. Tap Next.

6. Wait for the paired device to accept the partnership. The receiving party

needs to enter the same passcode that you specified.

7. After the receiving party enters the passcode, a message box appears on your

device confirming the partnership.

8. Tap Done.

Bluetooth 161

To accept a Bluetooth partnership

1. Ensure that Bluetooth is turned on and in visible mode.

2. Tap Yes when prompted to establish a partnership with the other device.

3. Enter the passcode (the same passcode that is entered on the device

requesting the partnership) to establish a secure connection.

4. Tap Next.

5. Tap Done. You can now exchange information with the paired device.

Tips • Tap the device’s name in the Devices tab to change the paired device name and to

set the services you want to use for the paired device. After setting the name and

options, tap Save.

• To delete a Bluetooth partnership, tap and hold the partnership’s name on the

Devices tab, then tap Delete.

9.3 Connecting a Bluetooth Hands-free or Stereo

Headset

For hands-free phone conversations, you can use a Bluetooth headset with your

device. Your device also supports A2DP (Advanced Audio Distribution Profile) which

allows you to use a Bluetooth stereo headset for listening to stereo music.

To connect a Bluetooth hands-free or stereo headset

1. Make sure that both your device and the Bluetooth headset are turned on

and within close range, and that the headset is visible. Refer to the Bluetooth

headset documentation on how to set the headset in visible mode.

2. Tap Start > Settings, tap Communications, and then tap Bluetooth.

3. Tap Add new Bluetooth headset. The device scans for Bluetooth headsets

within range.

4. Tap the name of the Bluetooth headset in the list to automatically pair it with

your device.

162 Bluetooth

5. When pairing is successful, tap OK.

Note If automatic pairing fails, tap Retry, or enter the headset passcode manually

when prompted.

If the Bluetooth stereo headset is disconnected, turn the stereo headset on, repeat

steps 1 and 2, and then tap the stereo headset name under the Previously Paired

Headset section to connect.

9.4 Beaming Information Using Bluetooth

You can beam information such as contacts, calendar items, tasks, and files from

your device to a Bluetooth-enabled computer or device.

To beam information from your device to a computer

1. Turn on Bluetooth on your device, and make your device visible. For

information about this, see “To turn Bluetooth on and make your device visible”.

2. Set Bluetooth on your computer to visible mode, create a Bluetooth

partnership, then enable your computer to receive Bluetooth beams.

Note If the Bluetooth adapter or dongle on your computer was installed using a third-

party driver, open the Bluetooth software that came with the Bluetooth adapter/

dongle and enable the adapter/dongle to be discovered by other devices. Refer

to the Bluetooth adapter’s documentation for more information.

If your computer has Windows Vista or Windows XP SP2 and your computer’s

Bluetooth adapter is supported by your Windows version, do the following:

a. On your computer, open Bluetooth Devices from the Control Panel, and

then click the Options tab on the Bluetooth Devices window.

b. For Windows Vista, select Allow Bluetooth devices to find this

computer.

For Windows XP, select Turn discovery on and Allow Bluetooth devices

to connect to this computer.

Bluetooth 163

c. Create a Bluetooth partnership between your device and computer. For

information about creating a partnership, see “Bluetooth partnerships”.

d. In the Options tab of Bluetooth Devices, select Show the Bluetooth

icon in the notification area.

e. To enable your computer to receive Bluetooth beams, right-click the

Bluetooth icon in the notification area at the bottom-right corner of

your computer screen and select Receive a File. You are now ready to

beam.

3. On your device, select an item to beam. The item can be an appointment in

your calendar, a task, a contact card, or a file.

4. To beam a contact, tap Menu > Send Contact > Beam. To beam other types

of information, tap Menu > Beam [type of item].

5. Tap the device name to which you want to send the item.

6. If you beamed a calendar, task, or contact item to your computer and it is not

automatically added to Outlook, select File > Import and Export in Outlook

to import it.

Tips • The default folder on your computer where beamed items are stored may be

C:\Documents and Settings\your_username\My Documents in Windows XP or

C:\Users\your_username\My Documents in Windows Vista.

• For your device to receive Bluetooth beams, tap Start > Settings > Connections

tab > Beam and make sure the Receive all incoming beams check box is selected.

To beam information to a Bluetooth-enabled device such as another Windows

Mobile-powered device, create first a Bluetooth partnership with the other device,

then follow steps 3 to 5.

164 Bluetooth

9.5 Bluetooth Explorer and Bluetooth File Sharing

Bluetooth Explorer lets you search Bluetooth devices that have file sharing

capability, and allows you to access their Bluetooth shared folder and exchange

files.

To enable Bluetooth Explorer and Bluetooth file sharing on your device

1. Tap Start > Settings, and then tap Menu > Bluetooth Devices > FTP tab.

2. Select the Enable Bluetooth Explorer check box. This makes the Bluetooth

device folder visible in File Explorer and gives other Bluetooth devices access

to your Bluetooth shared folder.

3. Select the Enable File Sharing check box.

Tip Tap Browse to use another folder as your Bluetooth shared folder.

4. Tap OK.

To use Bluetooth Explorer and copy a file

1. Tap Start > All Programs > Bluetooth Explorer.

Tip You can also open Bluetooth Explorer from the File Explorer program. Tap Start >

All Programs > File Explorer, tap the down arrow ( ) on the upper-left of the

screen, and then tap Bluetooth.

Bluetooth Explorer then scans for other Bluetooth devices that have file

sharing capability.

Bluetooth 165

2. Tap a Bluetooth device that you want to

connect to.

3. When prompted, enter a passcode to connect

to the other Bluetooth device.

When connected, files in the Bluetooth shared

folder on the other Bluetooth device also

appear on the Bluetooth Explorer screen.

3. Tap and hold a file, and then tap Cut or Copy

depending on your preference.

4. Tap Up twice, and then navigate to the folder

where you want to paste or copy the file.

5. Tap Menu > Edit > Paste.

9.6 Printing via Bluetooth

Connect your device to a Bluetooth printer to print contact information,

appointment details, images, and other file types.

Note You can print files in the .txt, .jpg, .xhtml, .vcf, .vcs file formats.

Before you start printing, make sure to turn on the Bluetooth printer and to turn on

Bluetooth on your device.

To print contact information

1. Tap Start > All Programs > Contacts.

2. Tap and hold the contact whose information you want to print, and then tap

Print via Bluetooth.

3. Tap Menu > Search Devices. Your device starts to search for Bluetooth devices.

166 Bluetooth

4. Select the Bluetooth printer and tap Menu > Send File.

5. Set the printing options, and then tap Print.

To print a calendar appointment

1. Tap Start > Calendar to open the Calendar tab.

2. Select the date with the appointment to open it in Day view.

3. Tap the appointment to open the appointment details screen, and then tap

Menu > Print via Bluetooth.

4. Follow steps 3 to 5 in “To print contact information”.

To print an image or text file

1. Tap Start > All Programs, and then tap Pictures & Videos or File Explorer.

2. Locate the image or text file you want to print.

3. Tap and hold the image or text file, and then tap Print via Bluetooth.

4. Follow steps 3 to 5 in “To print contact information”.

10.1 Google™ Maps (Available by Country)

Google™ Maps lets you track your current location, view real-time traffic situations,

and receive detailed directions to your destination. It also allows you to search and

locate places of interest or even a contact address.

Note You need an active data or Wi-Fi connection to use Google Maps.

To open Google Maps, tap Start > All Programs > Google Maps.

Zoom out

Zoom in

Search for places

Find your current

location, get directions,

see traffic information,

and more.

Chapter 10

Navigating on the Road

168 Navigating on the Road

Notes • Traffic information is available only in some selected cities.

• Tap Menu > Help > Tips to learn more about the program and its many features.

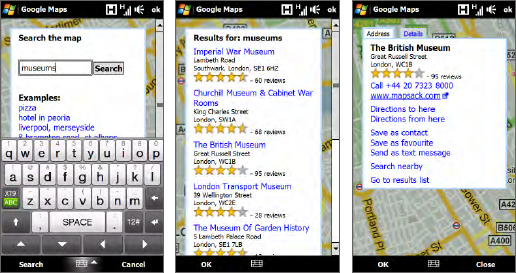

Searching a place of interest

Google Maps lets you search and locate a place of interest, shows the contact

information for that place, and gives directions on how to get there from your

current location.

1. On the Google Maps screen, tap Search.

2. Enter the name, address, or postal code of the place on the search field and

then tap Search.

3. In the search results list, tap the place to view its address, phone number, and

other details.

Navigating on the Road 169

4. On the Address tab, tap:

• The [phone number] to call the place of interest.

• The web address (if available) to go to the web site of the place of interest.

• Directions to here to get directions going to the place of interest from

your current location, or tap Directions from here to get directions going

to another location from the place of interest.

• Save as contact to save the contact information of the place of interest to

your contacts list.

• Save as favourite to add the place of interest to your list of favorite

places. To access your favorite places, on the Google Maps screen, tap

Menu > Favourites.

• Send as text message to send the place’s contact information to your

contact via SMS.

• Search nearby to search for other places of interest near the place you

are currently viewing.

For more information about Google Maps, go to

http://www.google.com/gmm/index.html.

10.2 Guidelines and Preparation for Using GPS

If you installed a GPS navigation software on your device, follow these guidelines

before and when using your device for GPS navigation.

• When using GPS navigation software in the car, always plot your GPS route

before starting to drive. Do not try to configure the GPS navigation software

while driving.

• The plotted GPS route is only for driving reference. It should not interfere with

actual driving behavior.

170 Navigating on the Road

• Do not leave your device in a vehicle or expose the device to direct sunlight

to avoid overheating the battery, which could pose damage to the device or

risk to the vehicle.

•When using the device inside a vehicle, use the car holder to mount the

device securely in place. Avoid placing the device in the areas shown in the

following diagram:

1 Do not place where it will block the driver’s vision.

2 Do not place where air bags could deploy.

3 Do not place anywhere in the vehicle without securing the device in the holder.

•Use the GPS system cautiously. Users shall be liable for any damages resulting

from negligent operation of the system.

• The GPS signal cannot pass through solid non-transparent objects. Signal

reception may be affected by obstructions such as high-rise buildings,

tunnels, bridges, forests, weather (rainy or cloudy days), etc. If the vehicle’s

visor contains metal, it will be difficult for the GPS signal to pass through.

• Other nearby wireless communication products (such as mobile phones or

radar-detecting devices) may interfere with the satellite signal, resulting in

unstable signal reception.

Navigating on the Road 171

• The Global Positioning System (GPS) is built and operated by the US

Defense Department. The Department is responsible for the accuracy and

maintenance of the system. Any changes that the Department makes may

affect the accuracy and function of the GPS system.

10.3 Downloading Location Data via QuickGPS

Before using the device for GPS navigation, open QuickGPS to download

ephemeris data (current satellite position and timing information). QuickGPS

significantly speeds up the time for determining your GPS position. QuickGPS

downloads ephemeris data from web servers, instead of from satellites, using your

device’s Internet connection via Wi-Fi, ActiveSync or GPRS/3G.

To open QuickGPS

Tap Start > All Programs > QuickGPS.

To download GPS data

Tap Download on the QuickGPS screen.

On the screen, initially, you will see the Valid

time of the downloaded data. As time passes,

the remaining days and hours of validity will be

shown.

To speed up GPS positioning, download the

latest ephemeris data when the validity of the

data expires.

172 Navigating on the Road

Changing the download options

To configure download times, tap Menu > Options and choose from available

options:

• Remind me when data expires.

Display a message when ephemeris data expires.

• Auto download when data expires.

Automatically download ephemeris data when it expires.

• Auto download when connected to PC via ActiveSync.

Automatically download ephemeris data when it is connected to your

computer via ActiveSync. Your computer must be connected to the Internet

to download ephemeris data.

Chapter 11

Experiencing Multimedia

11.1 Taking Photos and Videos

Use Camera to take photos and record video clips.

To open the Camera screen

On the Home screen, slide to the Photos and Videos tab and then tap the camera

icon ( ). The screen orientation automatically switches to landscape mode when

you open Camera.

To close the Camera

Tap the On-screen control button ( ), and then tap .

Changing the capture mode

Tap , then tap the capture mode icon ( — the icon displayed is based

on the current capture mode). On the menu, tap the capture mode you want to use.

Icon Capture Mode

Captures standard still images.

Records video clips, with or without audio.

174 Experiencing Multimedia

Icon Capture Mode

Captures still images continuously in one direction, and then

stitches them to create a panoramic view of a scenery.

Records video clips suitable for sending via MMS.

Captures a still image that you can assign as a contact picture.

Captures still images and places them within frames.

Note When using the second camera to capture, you can use all modes, except for

Panorama.

Using the Focus

Use the automatic focus or Touch Focus function to capture sharp and crisp photos

and videos.

Note The second (front) camera has no auto-focus function.

Auto-focus

Auto-focus sets the focus on the object at the center of the screen and is available

for all capture modes. By default, touching the Virtual Camera button ( )

activates auto-focus and a flashing white bracket ( ) appears in the center of the

screen. When focus is set, the bracket changes to a steady green bracket ( ), and

then the Camera takes the photo or starts to record the video.

Touch Focus

Touch Focus allows you to focus on a particular area of the screen. Touch Focus is

enabled by default and is only available for Photo or Contacts Picture mode.

Note To disable Touch Focus, see “Setting advanced options” in this chapter.

Experiencing Multimedia 175

To use Touch Focus:

1. Set the Camera to Photo or Contacts Picture mode.

2. Touch the area on the screen that you want to focus. The Touch Focus

indicator ( ) positions itself on the selected area.

Note If you tap outside the effective focus area, a white box appears to indicate the

area where you can use Touch Focus.

3. Touch to activate auto-focus on the selected area and take the photo.

See “Auto-focus” in this chapter for more information.

Tip To move the Touch Focus indicator back to the center of the screen, tap .

Capturing photo or recording video

By default, the Camera automatically takes the shot or starts capturing video after

you have set the focus.

• In Photo or Contacts Picture mode, touch the Virtual Camera button to

activate auto-focus; when focus is set, the Camera automatically takes the shot.

• In Video or MMS Video mode, touch the Virtual Camera button to activate

auto-focus; when focus is set, the Camera automatically starts recording.

Touch the Virtual camera button again to stop recording.

• In Picture Theme or Panorama mode, touch the Virtual Camera button to

activate auto-focus; when focus is set, the Camera automatically takes the

first shot. Do the same for each shot you need to take.

176 Experiencing Multimedia

The Review screen

After capturing a photo or recording video, the Review screen gives you the option

to view/play, send, or delete the photo or video clip.

Icon Function

Return to the live Camera screen.

/ View the captured image or play the captured video in Album.

See “Viewing Photos and Videos Using Album” in this chapter.

Delete the captured image or video.

Send the captured image or video via MMS or e-mail.

After capturing in Contacts Picture mode, tap to assign the photo to

a contact.

On-screen controls

Tap to display the on-screen controls.

752 31 4 6

1 Album. Open the Album program. See “Viewing Photos and Videos Using

Album” for details.

2 Capture mode. See “Changing the capture mode” for details.

Experiencing Multimedia 177

3 Touch Focus / Auto-focus indicator. See “Using the focus” for details.

4 Menu. Open the Menu Panel. See “Menu Panel” for details.

5 Virtual Camera button. Activates the auto-focus and functions as the shutter

release button.

6 Template Selector icon. In Picture Theme mode, tap to select another frame.

7 Progress indicator. In Picture Theme and Panorama modes, this shows the

number of consecutive shots.

Menu Panel

The Menu panel lets you quickly adjust common camera settings and provides

access to more advanced camera settings. To open the Menu panel, tap on

the Camera screen, and then tap . To adjust a setting, keep tapping a button, for

instance, White Balance, to cycle through the available settings.

Note The available menu panel buttons depend on the selected capture mode.

Icon Function

Select the white balance setting according to the current lighting

condition to capture colors more accurately.

Open the Brightness bar and adjust the brightness level. Tap outside the

Brightness bar to apply the change.

Select the camera to use. You can choose from main camera ( ) or

second camera ( ).

Set the ISO level manually to 100, 200, 400, or 800, or set it back to

AUTO. Higher ISO numbers are better for taking pictures in low light

conditions.

Set the self-timer to 2 seconds, 10 seconds, or Off when in Photo or

Contacts Picture mode.

Open the advanced camera settings. See “Setting advanced options” for

details.

178 Experiencing Multimedia

Zooming

Before capturing a photo or a video clip, you can zoom in or out on your subject.

To zoom in or out, slide your finger up or down on the Zoom bar while holding the

device sideways. While you are sliding your finger on the Zoom bar, the level of

zoom is shown on the zoom control bar on the screen.

Zoom control bar Zoom bar

The camera zoom range for a photo or a video clip depends on the capture mode

and resolution. Refer to the table for more information.

Capture mode Resolution Zoom range

Photo 5M Normal: 2592 x 1944

Widescreen: 2592 x 1552 1.0x to 1.6x

3M Normal: 2048 x 1536

Widescreen: 2048 x 1216 1.0x to 1.6x

2M Normal: 1600 x 1200

Widescreen: 1600 x 960 1.0x to 1.6x

1M Normal: 1280 x 960

Widescreen: 1280 x 768 1.0x to 1.6x

LNormal: 640 x 480

Widescreen: 640 x 384 1.0x to 1.6x

MNormal: 320 x 240

Widescreen: 320 x 192 1.0x to 3.2x

Experiencing Multimedia 179

Capture mode Resolution Zoom range

Video VGA 640 x 480* 1.0x to 1.6x

CIF 352 x 288 1.0x to 1.6x

L 320 x 240 1.0x to 1.6x

M 176 x 144 1.0x to 1.6x

S 128 x 96 1.0x to 1.6x

MMS Video M 176 x 144 1.0x to 1.6x

S 128 x 96 1.0x to 1.6x

Panorama L 640 x 480 1.0x to 1.6x

M 320 x 240 1.0x to 3.2x

Contacts Picture M 272 x 272 1.0x to 3.2x

Picture Theme Determined by the current

template

Depends on the size of

the selected template

* Available only in some models.

Note The capture resolutions and zoom ranges are only for the main camera.

Setting advanced options

The Advanced options let you adjust options for your selected capture mode and

set Camera program preferences. Tap Advanced on the Menu panel to open the

Advanced screen.

Tap to navigate through the

Advanced option screens.

Tap to go back to

the Camera screen.

Tap an item to

change the setting.

180 Experiencing Multimedia

• Resolution. Select the resolution to use.

• Widescreen (Photo mode). When On (default) you can use the entire screen as

viewfinder. Refer to the zoom table for the resolution when Widescreen is On.

• Touch Focus (Photo and Contacts Picture modes). Enables or disables the

Touch Focus function. Touch Focus is On by default.

• Review Duration. Set the time for a captured photo/video to remain on the

Review screen.

• Quality. Select the image quality level for captured photos.

• Capture Format (Video and MMS Video modes). Select the file format for

recorded videos.

• Time Stamp (Photo mode). Include the date and time on captured photos.

• Storage. Select where to save photos and videos. You can either save the files

to the main memory, or to a storage card if available.

• Keep Backlight. Turn the backlight on or off. This overrides your device

backlight settings while you are using the camera.

• Shutter Sound. Play a shutter sound when you tap the Virtual Camera button.

• Image Properties. Adjust the image properties.

1Tap a property to adjust.

2Save the settings.

3Decrease the value.

4Reset all properties to default.

5Increase the value.

6Close the Image Properties

screen without applying and

saving the changes.

42 53 6

• Effect. Apply a special effect to your photos or videos.

Experiencing Multimedia 181

• Metering Mode. Select a metering mode to allow the camera to measure the

amount of light and calculate the best-fit exposure value before capturing.

• Prefix. The file name of a newly captured photo or video is set to “IMAGE” or

“VIDEO” followed by a sequential number, for example: IMAGE_001.jpg. You

can also choose the current date or date and time as the file name prefix.

Note You can not change the file name prefix when saving captured photos to a

storage card. Captured photos are named using the convention IMAGnnnn.jpg

(where ‘nnnn’ is the counter), and are saved to the \DCIM\100MEDIA folder on

the storage card.

• Counter. Reset the file naming counter back to 1.

• Flicker Adjustment. When taking indoor shots under fluorescent lighting,

keep this setting on Auto or change it to the proper frequency (50Hz or 60Hz)

of the power in your country to reduce flicker.

• Grid (Photo mode). Show a grid on the screen so you can easily frame and

center your subjects.

• Record with Audio (Video or MMS Video mode). Select On to record videos

with audio, or Off to record videos without audio.

• Recording Limit (Video mode). Set the maximum duration or file size for

recording video.

• Template (Picture Theme mode). Select a template.

• Template Folder (Picture Theme mode). By default, templates are stored in

the \My Documents\Templates folder on the device’s Main Memory. If you

transferred some templates to a storage card, set this option to Main + Card.

• Show Reminder (Contacts Picture mode). Select On if you want the Camera

to prompt you to assign the captured picture to a contact.

• Direction (Panorama mode). Choose the direction in which to stitch the

photos in a panorama.

• Stitch Count (Panorama mode). Select the number of shots to take and stitch

into a panorama.

182 Experiencing Multimedia

11.2 Viewing Photos and Videos Using Album

Use Album to view photos and videos in your device.

To open Album

On the Home screen, slide to the Photos and Videos tab, and then tap Album.

You can also tap while on the Camera program to open Album.

Open the Camera

program.

Play the video file.

View the photo

in full screen.

View another album. Start a slideshow, set the

album as favorite, and more.

Experiencing Multimedia 183

Viewing photos

While viewing a photo, tap the screen to open the menu.

Return to the

previous screen.

Start the slideshow.

Send the photo using

e-mail or MMS. Save the photo as a contact

picture, save the onscreen

image as a new file, and more.

To view the next or previous photo in the album

View the next photo by swiping your finger across the screen from right to left.

Go back to the previous photo by swiping your finger from left to right.

To zoom in or out on an photo

Double-tap the area on the photo you want to zoom in on. To zoom out, double-

tap the screen again.

Tips • Use the zoom bar to zoom in on the center of the photo. Slide your finger to the

right of the zoom bar to zoom in. Slide to the left of the zoom bar to zoom out.

• When you zoom in on a photo, tap and hold the screen to pan and view other

areas of the photo. When you zoom in on a photo, tap the screen, tap and then

select Save Screen Image to save the zoomed in photo as a new file.

184 Experiencing Multimedia

To view a slideshow of photos in the current album

While viewing a photo, tap the screen, and then tap .

Note • Animated GIF and video files are excluded from the slideshow.

• The screen orientation automatically switches to landscape mode during the

slideshow.

During the slideshow, tap the screen to show the playback controls.

Go back to the

previous image.

Set the transition

effect, time per slide,

and orientation of

the photos.

Return to the

previous screen.

Play or pause the slideshow.

Go to the next image.

Tip If the photos are in your favorite album, you can start the slideshow from the Photos

and Videos tab on the Home screen. See “Photos and Videos” in Chapter 3 for details.

Experiencing Multimedia 185

Playing videos

While playing back video, tap the screen to show the playback controls.

Change the video

display mode to Fit &

Crop (default), Best Fit,

or Stretch.

Go back to the

beginning of

the video.

Play or pause

the video.

Stop the video.

Drag to go forward or

backward in the video.

Elapsed time Total duration

Closing Album

When viewing photos in full screen, tap the screen to show the on-screen menu or

playback controls and then tap to go back to the main Album screen.

Tap on the main Album screen to close Album.

186 Experiencing Multimedia

11.3 Using Windows Media® Player Mobile

Windows Media® Player Mobile plays digital audio and video files that are stored

on your device or on the web.

To open Windows Media® Player Mobile

Tap Start > All Programs > Windows Media.

Windows Media® Player Mobile opens with the Library screen. Use the Library

screen to find and play songs, videos, and playlists that are stored on your device or

on the storage card.

Playing media

To update the Library

In most cases, Windows Media® Player Mobile automatically updates the library.

However, you can manually update the library to ensure that it contains new files

that you recently copied to your device or to the storage card. Tap Menu > Update

Library to manually update the library list.

To play audio and video files

1. On the Library screen, tap the Library arrow (near the top of the screen), then

tap the media storage that you want use, for example, Storage Card.

2. Select a category (for example, My Music or My Playlists).

3. Tap and hold the item that you want to play (such as a song, album, or artist

name), and then tap Play.

Experiencing Multimedia 187

The playback screen opens and plays the audio or video file.

Play/Pause

Full screen

Visit WindowsMedia.com

Drag to jump to any

part of the video or

audio.

Skip to the beginning of

the current file or to the

previous file.

Skip to the next file.

Mute/Unmute

Increase volume

Decrease volume

Synchronizing video and audio files

Use the latest version of Windows Media® Player on your computer to synchronize

digital media files from your computer to your device. This ensures that protected

files and album art (for skins) are correctly copied to your device.

To automatically synchronize content to your device

1. On your computer, open Windows Media® Player, then connect your device to

your computer.

2. In the Device Setup Wizard, select Yes, search my computer now.

188 Experiencing Multimedia

Note If you have previously opened Windows Media® Player and searched for media

on your computer, you are not prompted to search your computer in step 2.

3. On the Device Setup dialog box, enter a name for your device and click

Finish.

Note If you installed a storage card that has a capacity of more than 4GB and

your entire library can fit into the storage card, Windows Media Player will

automatically synchronize your music files. The device also needs to be set to

Disk Drive mode for Windows Media Player to automatically synchronize.

4. On the left panel of Windows Media® Player, right-click the name of your

device and click Set Up Sync.

Note To set up media synchronization on a storage card, right-click Storage Card in the

left panel of Windows Media® Player, then click Set Up Sync.

5. Select the playlist(s) that you want to sync between your computer and

device, then click Add.

Note On the Device Setup dialog box, make sure that the Sync this device

automatically check box is selected.

6. Click Finish.

The files begin synchronizing to your device. The next time you connect your device

to your computer while Windows Media® Player is running, synchronization will

start automatically.

To manually synchronize content to your device

1. If you have not set up media synchronization between your device and

computer, follow steps 1 to 3 in “To automatically synchronize content to your

device”.

2. Click the Sync tab on the Windows Media® Player of your computer. Select a

Playlist or a Library on the left panel of the Windows Media® Player.

3. From the Content List, drag the media files that you want to sync to your

device and drop them to the Sync List.

Experiencing Multimedia 189

Playlists and Library List Sync List

Content List

4. Click Start Sync to start synchronizing the selected files to your device.

Notes • Use Windows Media® Player 11 or higher on your computer to synchronize media

files to your device.

• Audio files copy faster if Windows Media® Player is configured to automatically set

the quality level for audio files copied to your device. For more information, see the

Windows Media® Player Help.

Creating playlists

Create a new playlist by saving the current Now Playing playlist and giving it a new

name.

To save a new playlist

1. If you are not on the Library screen, tap Menu > Library.

2. Tap to select a category (for example, My Music or My Playlists).

190 Experiencing Multimedia

3. Select a media file that you want, then tap Menu > Queue Up. This adds the

file to the Now Playing list. Repeat this step until you have added all desired

media files to the Now Playing list.

Note You cannot select multiple files simultaneously.

4. After adding the media files, tap Menu > Now Playing.

5. On the Now Playing screen, tap Menu > Save Playlist.

6. Enter the playlist name, then tap Done.

7. To play back the playlist you created, tap My Playlists in the Library, select

your playlist, then tap Play.

Troubleshooting

For troubleshooting information, visit http://www.microsoft.com/windowsmobile/

en-us/help/more/windows-media-player.mspx

11.4 Using FM Radio

FM Radio lets you to listen to FM radio stations on your device. Since FM Radio uses

the provided stereo wired headset as the antenna, connect the headset first to the

earphone jack of your device before you open the program.

To open FM Radio

Tap Start > All Programs > FM Radio.

The first time you open FM Radio, it automatically scans for available FM stations,

saves them as presets, and plays the first FM station found. For information about

saving favorite stations as presets, see “Saving presets.“

Experiencing Multimedia 191

FM Radio status

FM radio frequency

Search the FM band for the

next lower FM station.

Fine tune the radio frequency

by -0.1 MHz.

Select headset or speaker

audio output.

Turn off FM radio.

Station preset number (if you

saved the station as preset)

Radio signal strength

Select mono or stereo audio.

Search the FM band for the

next higher FM station.

Fine tune the radio frequency

by +0.1 MHz.

Turn the sound on or off.

Preset FM stations. Tap a

station to tune in.

Set FM Radio options, such as

Scan and Save, mute the audio,

and select the audio output.

Tip Press the VOLUME UP and VOLUME DOWN buttons on the side of the device to adjust

the volume.

192 Experiencing Multimedia

Saving presets

Save favorite FM stations as presets so you can easily access them. You can save up

to 20 preset radio stations. Radio stations that are saved on Presets 1 to 6 can be

accessed on the FM Radio screen.

To save FM stations as presets

1. Tune in to the desired FM frequency, and then tap Presets.

2. On the Presets list, tap that appears on the desired preset number

where you want to save the FM station.

Tip Tap to remove a favorite FM station from the list.

3. When done, tap OK.

To listen to a preset FM station

On the FM Radio screen, tap the station preset button. If the station preset button is

not on the screen, tap Preset, then tap the station you want to listen to.

Minimizing or turning off FM Radio

When you tap on the FM Radio screen, the program continues to run in the

background and allows you to continue listening to the radio while you use other

programs. To turn off FM radio, tap on the upper right corner of the FM Radio

screen.

Experiencing Multimedia 193

11.5 Using Audio Booster

Audio Booster optimizes sound by providing an audio equalizer for a better listening

experience. To use Audio Booster, connect the supplied wired headset to your device.

To open Audio Booster

Tap Start > All Programs > Audio Booster.

1Enable or disable the equalizer.

2Apply the modified settings.

3Choose the equalizer preset to use.

4Drag the sliders to adjust the frequency.

5Exit Audio Booster without applying

the modified settings, or save or delete

preset equalizer settings.

To create a custom equalizer preset

1. Adjust the frequency bands to your desired values by dragging the equalizer

controls.

2. When finished, tap Menu > Save as Preset.

3. Enter a preset name and then tap Done. The equalizer preset is added to the

preset list box.

Note To delete a custom equalizer preset, select it on the preset list box and then tap

Menu > Delete Preset. You cannot delete pre-installed equalizer presets.

194 Experiencing Multimedia

11.6 Using MP3 Trimmer

Use MP3 Trimmer to trim an MP3 file and save it as a new file or set it as a ring tone.

To open MP3 Trimmer

Tap Start > All Programs > MP3 Trimmer.

Play/Stop

Start and End Points

Set the part of the music to

use as a ring tone or save as a

new file. Drag the left handle

to set the start time, then drag

the right handle to set the

end time.

Start Point / End Point

To accurately set the start and

end points, tap these controls

to step backward/forward.

Title

Duration

Playback time

To trim an MP3 file

1. Tap Open to locate and select the MP3 file you want to trim.

2. On the MP3 Trimmer screen, use the stylus to adjust the Start Point and

End Point.

Note After you set the Start Point, the MP3 file plays from the start point. After you set

the End Point, the MP3 file plays from 5 seconds before the end point.

3. Tap Play to play the trimmed file.

4. Tap Menu and select to whether set the file as the default ring tone, save the

file to the ring tone folder, or save it as another file name.

12.1 Managing Programs

Launching a program

Tap Start > All Programs, and then tap a desired program. To view more programs,

scroll down the screen by swiping your finger upward. See “Start Screen” in

Chapter 1 for details.

Installing a program

You can install or uninstall additional programs, such as the programs in the

Application disc or purchased programs. Your device does not allow you to uninstall

most of the preinstalled programs.

Note Before you purchase additional programs, make sure that they are compatible with

your device.

To install a program

1. Download the program to your computer, or insert the CD/DVD that contains

the program into your computer.

You may see a single *.exe file, a *.zip file, a Setup.exe file, or several versions

of files for different device types and processors. Be sure to select only the

programs designed for your device.

2. Read any installation instructions or documentation that comes with the

program. Many programs provide special installation instructions.

Chapter 12

Programs

196 Programs

3. Connect your device to the computer.

4. Double-click the installation setup file.

To uninstall a program

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap Remove Programs.

3. In the Programs in storage memory list, select the program you want to

remove, and then tap Remove.

12.2 Contacts

Contacts is your address book for people and businesses you communicate with.

You can add Outlook contacts from your device or synchronized with your PC

or the Exchange Server, SIM contacts stored on the SIM card, or Windows Live™

contacts.

Note You can only add Windows Live™ contacts after you have set up Windows Live™ on

your device. See “Using Windows Live™” in Chapter 8.

To open the Contacts screen

Tap Start > All Programs > Contacts.

Programs 197

Adding new contacts

To add a contact on your device

1. On the Contacts screen, tap New, select Outlook Contact, and enter the

contact information.

2. In the File as field, choose how you want the

contact name to appear in the contact list.

3. To add a photo of the contact, tap Select a

picture, and then select the picture file or tap

Camera to take a photo of the contact.

4. To assign a ring tone to the contact, tap the

Ring tone field, scroll through the list of tones,

then select a desired tone.

5. When finished, tap OK.

Tip To edit contact information, tap the contact name

and then tap Menu > Edit.

To add a contact to your SIM card

1. On the Contacts screen, tap New, then select SIM Contact.

2. Enter a contact name and phone number, and then tap OK.

Tip You can also use the SIM Manager to add and edit contacts on your SIM card. For

more information, see “SIM Manager” in this chapter.

198 Programs

Organizing and searching contacts

To group similar contacts

For easier contact management, you can group contacts by assigning them into

categories.

1. Create a new Outlook contact or edit an existing Outlook contact.

2. Tap Categories.

3. Select a preset category such as Business or Personal, or tap New to create

your own category.

4. When finished, tap OK.

To find a contact on your device

There are several ways to find a contact when your contact list is long:

Begin entering a contact name in the provided text box until the contact you

want is displayed.

On the Quick Scroll bar on the right

of the Contacts screen, scroll to or

tap a letter to go directly to the part

of the contacts list where contact

names start with that letter.

Note You can disable the Quick

Scroll bar by tapping Menu >

Options and selecting the Show

alphabetical index check box.

This shows the alphabetical index

at the top of the Contacts list.

Filter the list by categories. In the

contact list, tap Menu > Filter, then

tap a category you’ve assigned to a

contact. To show all contacts again,

select Menu > Filter > All Contacts.

•

Quick

Scroll

bar

•

Programs 199

Sharing contact information

You can quickly send contact information to another mobile phone or device

through Bluetooth beaming or text messaging.

To beam the contact information

1. Tap and hold a contact on the Contacts screen.

2. Tap Menu > Send Contact > Beam, then select the device where to send the

contact.

Note Before beaming, make sure Bluetooth is turned on and set to visible mode on your

device and the target mobile device. You can also beam contact information to your

computer. See Chapter 9 for details.

To send the contact information via text messaging

1. Tap and hold a contact on the Contacts screen.

2. Tap Menu > Send Contact > Text Messages.

3. Select the contact information you want to send, and then tap Done.

4. In the new text message, enter the mobile phone number of the recipient,

and then tap Send.

12.3 JBlend

Use JBlend to download, install and manage MIDlets or MIDlet suites on your

device. MIDlets are Java applications such as games and tools that can run on

mobile devices, while a MIDlet suite is a collection of one or more MIDlets. Your

device supports Java 2 Micro Edition (J2ME).

To open JBlend

Tap Start > All Programs > JBlend.

200 Programs

Installing and launching MIDlets/MIDlet suites

To download and install from the Internet

1. Open an Internet browser, such as Opera Mobile.

2. Navigate to the web page with the link for the MIDlet/MIDlet suite you want

to download, and tap the link.

3. Follow the onscreen instructions to install and run the MIDlet/MIDlet suite.

To install from your device

You can copy MIDlets/MIDlet suites from your PC to your device using the USB sync

cable or Bluetooth connection.

1. On the JBlend screen, tap Install > Local Install. The program then searches

for MIDlets/MIDlet suites on your device and displays them in a list.

2. From the list, tap the MIDlet/MIDlet suite that you want to install.

3. Follow the onscreen instructions to install and run the MIDlet/MIDlet suite.

To run a MIDlet/MIDlet suite

On the JBlend screen, open the folder that contains the MIDlet/MIDlet suite, and

then tap the MIDlet/MIDlet suite.

Managing MIDlets/MIDlet suites

You can update MIDlets/MIDlet suites, or uninstall them to free up memory space.

To update a MIDlet/MIDlet suite

1. On the JBlend screen, tap the Input Panel icon, and then tap the up/down

navigation keys on the on-screen keyboard to select the MIDlet/MIDlet suite

that you want to update.

2. Tap Menu > Application > Update Info. JBlend then searches for updates for

the selected MIDlet/MIDlet suite.

Programs 201

To uninstall a MIDlet/MIDlet suite

Before you uninstall a MIDlet, make sure that it is not running.

1. On the JBlend screen, tap and hold the MIDlet, and then tap Delete.

2. Tap Yes to confirm.

Note To uninstall all MIDlets and folders, tap Menu > Application > Delete All.

12.4 Microsoft® Office Mobile

Microsoft® Office Mobile consists of the following applications:

• Microsoft® Office Excel® Mobile lets you create and edit Excel workbooks

and templates on your device.

• Microsoft® Office OneNote® Mobile lets you create notes with text,

photos, and voice recordings for synchronization later with Microsoft® Office

OneNote® 2007 on your computer.

• Microsoft® Office PowerPoint® Mobile allows you to view (not create) slide

show presentations in *.ppt and *.pps formats.

• Microsoft® Office Word Mobile lets you create and edit documents and

templates in Word Mobile and save them as *.doc, *.rtf, *.txt, and *.dot files.

To use Microsoft Office Mobile

Tap Start > All Programs, and then tap the Office Mobile application that you want

to use.

Word Mobile and Excel Mobile do not fully support some features of Microsoft®

Office Word and Microsoft® Office Excel®. To see a complete list of features that are

not supported in Word Mobile and Excel Mobile, see Help on your device.

202 Programs

Tips • By default, Word Mobile saves documents in .docx format, while Excel Mobile

saves workbooks in .xlsx format. If you want to open these types of files on a

computer that uses Microsoft Office 2000, Office XP, or Office 2003, you need to

download and install the File Format Converter in your computer. Download the

File Format Converter at http://www.microsoft.com/downloads/.

• If you want Word Mobile to save documents in .doc format, tap Menu > Tools >

Options (or Menu > Options when no document is opened), then change the

Default template to Word 97-2003 Document (.doc).

• If you want Excel Mobile to save workbooks in a format that is compatible with

Microsoft Office 2000, Office XP, or Office 2003, tap Menu > Options (with no

workbook opened), then change the Template for new workbook to

Blank 97-2003 Workbook.

12.5 SIM Manager

SIM Manager allows you to view the contents of your SIM card, transfer contacts

from your SIM card to your device or vice versa, and make a call to a SIM contact.

To create a contact on your SIM card

1. Tap Start > All Programs > SIM Manager.

2. Tap New and enter the contact name and phone number.

3. Tap Save.

Tip To change contact information on your SIM card, tap a SIM contact, edit the

information, and then tap Save.

To copy SIM contacts to your device

If you have saved contacts on your SIM card, you can copy them into Contacts on

your device.

1. On the SIM Manager screen, select the desired contact, or select all SIM

contacts by tapping Menu > Select All.

2. Tap Menu > Save to Contacts.

Programs 203

To copy contacts to the SIM card

Only one phone number per contact name can be stored on a SIM card.

1. On the SIM Manager screen, tap Menu > Contacts to SIM.

2. Select the check boxes of the contact’s phone numbers that you want to copy

to your SIM card, then tap Save.

When you copy a contact that has several phone numbers to your SIM card, SIM

Manager separately saves each number by appending an indicator at the end of

each name.

By default, /M, /W, and /H are appended to indicate mobile, work, and home phone

numbers respectively. To edit the default indicators and to select which other types

of numbers to save to the SIM card, tap Menu > Tools > Options.

12.6 Voice Recorder

Voice Recorder lets you create a voice recording and send it as an MMS or e-mail

attachment, beam it via Bluetooth, or set it as your ring tone.

Note

Voice Recorder saves recordings in AMR-NB format.

To create and play a voice recording

1. Tap Start > All Programs > Voice Recorder.

2. Hold the device’s microphone close to the sound source.

3. Touch Record or to start recording. Tap Stop or to end the

recording.

4. Touch the voice recording on the screen to play it.

204 Programs

To choose where to save voice recordings

By default, all recordings are saved in the My Voices folder of the device. You can

choose another folder or create a new folder to save your voice recordings.

Note If a storage card is installed before you open Voice Recorder, the recordings are saved

in the My Voices folder on the storage card by default.

1. Tap the arrow beside the folder name on the top-left of the screen.

2. In the menu that opens, choose an existing folder or touch Add/Delete to

create a new folder.

Sending and managing your voice recordings

To send a voice recording via MMS, e-mail, or Bluetooth, to set a voice recording as

a ring tone, or to rename/move a recording, tap and hold the recording and choose

from the available options.

13.1 Copying and Managing Files

Copy files between your device and computer, or copy files to a storage card

installed on your device. You can also efficiently manage your files and folders using

File Explorer.

To copy files using Windows Mobile Device Center or ActiveSync

1. Connect your device to the computer.

2. Click File Management > Browse the contents of your device in Windows

Mobile Device Center on your computer, or click Explore in ActiveSync on

your computer. This displays the content of your device in Windows Explorer

on your computer.

3. To copy a file from your device to your computer:

a. Browse the contents of your device, right-click the file you want to copy,

and then click Copy.

b. Right-click a folder on your computer, and then click Paste.

4. To copy a file from your computer to your device:

a. Browse the folders on your computer, right-click the file you want to copy,

and then click Copy.

b. Right-click a folder on your device, and then click Paste.

Chapter 13

Managing Your Device

206 Managing Your Device

To manage files on your device using File Explorer

File Explorer lets you browse and manage the contents of your device. The root

folder on the device is named My Device, and contains the following folders:

My Documents, Program Files, Windows, and more.

1. Tap Start > All Programs > File Explorer.

2. Tap a folder or file to open it.

3. To return to an upper level folder, tap Up.

4. To quickly delete, rename, or copy a file, tap and hold the file, and then

choose the desired operation on the shortcut menu. To copy or delete

multiple files, tap and drag over the desired files, tap and hold the selection,

and then choose an option from the menu.

To copy files to a storage card

1. Make sure that the storage card is properly installed on your device.

2. Connect the device to your computer using the USB cable, select Disk Drive

on the Connect to PC screen, and then tap Done.

3. On your computer, navigate to the removable disk drive, and then start

copying files to the storage card.

4. When finished, disconnect the device from your computer.

13.2 Settings on your Device

You can adjust the device settings to suit the way you work. Use the Settings tab to

adjust basic device settings. See “Settings” in Chapter 3 for details.

To see all available settings, tap Start > Settings, and then tap All Settings.

Managing Your Device 207

Personal tab

Icon Description

Buttons Assign a program or function to a hardware button or set the function

you want to execute (for instance, lock the device) when you press and hold the

END button.

Input Set options for each of the input methods.

Lock Set a password for your device.

Menus Set which programs appear in the Start menu.

Note The Start menu is disabled when the TouchFLO 3D Home screen

is enabled. To enable the Start menu, tap Start > Settings, tap All

Settings > Personal tab > Today > Items tab, and then clear the

TouchFLO 3D check box.

Owner Information Enter your personal information on your device.

Phone Customize phone settings such as the ring tone, or set a PIN number for

your SIM card.

Sounds & Notifications Enable sounds for events, notifications, and more, and

set the type of notification for different events.

Today Customize the appearance of the Home screen and the information to

display on it.

Note You will not see the Today screen when the TouchFLO 3D Home screen

is enabled. To display the Today screen, tap Start > Settings button, tap

All Settings > Personal tab > Today > Items tab, and then clear the

TouchFLO 3D check box.

208 Managing Your Device

System tab

Icon Description

About This is where you can see basic information such as the Windows Mobile®

version and type of processor used on your device. You can also specify a name

for your device.

Auto Volume Control Automatically adjust the recording volume to an even

level.

Certificates See information about certificates that are installed on your device.

Clear Storage Reset your device to factory default settings.

Clock & Alarms Set the device clock to the date and time of your locale or to a

time zone you are visiting. Alarms can also be set on specified days and times of

the week.

Customer Feedback Set your device to automatically send information about

how you use Windows Mobile. By default, this option is disabled.

Device Information See information about the firmware version, hardware,

identity, and the duration of calls made on your device.

Encryption Encrypt files on your storage card. Encrypted files are only readable

on your device.

Error Reporting Enable or disable the device's error reporting function. When

this function is enabled and a program error occurs, technical data about the

state of the program and your computer is logged in a text file and delivered to

Microsoft's technical support if you choose to send it.

External GPS Set the appropriate GPS communication ports, if required. You may

need to do this when there are programs on your device that access GPS data or

you have connected a GPS receiver to your device.

Managing Your Device 209

Icon Description

G-Sensor Recalibrate the G-Sensor of the device. Use this function when

auto-rotate is not working properly.

Managed Programs Displays the programs that were installed on your device

using System Center Mobile Device Manager.

Memory Check the device memory allocation and storage card information.

Power Check the remaining battery power. You can also set the brightness of

the backlight and the timeout for turning off the display (switching the device to

Sleep mode) to conserve battery power.

Regional Settings Set the regional configuration to use, including the format for

displaying numbers, currency, date, and time on your device.

Remove Programs Uninstall programs that you previously installed on your

device.

Screen Recalibrate the screen, apply ClearType to display text more clearly, and

change the screen text size.

Task Manager Stop running programs and set the ( ) button to end programs

immediately when you tap the button. For more information, see “Using Task

Manager” in this chapter.

TouchFLO Set the device to vibrate when you tap the tabs, links, or other

onscreen items of supported applications.

Windows Update Link to Microsoft's web site and update Windows Mobile® on

your device with the latest security patches or fixes, if they are available.

210 Managing Your Device

Connections tab

Icon Description

Advanced Network Turn HSPA on/off, set the GPRS authentication method, and

set the line type to use when making a circuit switch data (CSD) connection. HSPA

is a 3.5G digital data service that provides high-speed downstream/upstream

data rates. Check with your wireless service provider whether HSPA is supported

in your area.

Beam Set your device to receive incoming Bluetooth beams.

Bluetooth Turn Bluetooth on, set your device to visible mode, and scan for other

Bluetooth devices.

Comm Manager Manage your device’s connections (including the phone,

GPRS/3G, Wi-Fi, and Bluetooth) or turn the phone function on or off.

Connection Setup Configure your device’s data connections, such as GPRS, and

WAP, based on the detected SIM card or selected network operator. See “Using

Connection Setup” in this chapter for details.

Connections Set up one or more types of modem connection for your device,

such as phone dial-up and GPRS, so that your device can connect to the Internet

or a private local network.

Domain Enroll Enroll your device in your company’s domain to let System Center

Mobile Device Manager manage the device. Ask your network administrator for

more details.

USB to PC Set the type of USB connection to your PC. Select the ActiveSync

option for synchronizing data, or use Disk Drive mode for transferring files.

Wi-Fi Turn the Wi-Fi function on or off, scan for available wireless networks, see

information about the active wireless network, and customize Wi-Fi settings.

Managing Your Device 211

13.3 Changing Basic Settings

Display settings

To manually adjust the screen brightness

By default, your device automatically adjusts the screen brightness according to the

ambient lighting.

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap Power > Backlight tab.

3. Clear the Auto adjust backlight check box.

4. Adjust the brightness by dragging the slider under On battery power and

On external power.

To automatically turn off the screen backlight when the device is not in use

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap Power > Advanced tab.

3. In On battery power and On external power, specify the time before the

screen backlight turns off.

To increase or decrease the size of text on the screen

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap Screen > Text Size tab.

3. Move the slider to increase or decrease the text size.

To re-calibrate the touch screen

The device touch screen is calibrated before shipment. Re-calibrate the touch

screen if it does not accurately respond to screen taps.

1. While the device is on, press and hold the VOLUME UP and VOLUME DOWN

buttons, and then tap the screen to open the align screen.

2. Follow the on-screen instructions to complete the calibration.

212 Managing Your Device

Device name

The device name is used to identify your device when synchronizing with a

computer, connecting to a network, or restoring information from a backup.

Note If you synchronize multiple devices with the same computer, each device must have a

unique name.

To change the device name

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap About > Device ID tab.

3. Enter the device name.

Notes • The device name must begin with a letter, consist of letters from A to Z, numbers from

0 to 9, and cannot contain spaces. Use the underscore character to separate words.

• If you enroll your device to your company’s domain, the device name will be

changed to be the same as the one used to enroll the device.

Ringer settings

To change the ring type and ring tone

1. Tap Start > Settings, and then tap Sound.

2. Scroll down and then tap Ring Type. Select the ring type you want to use

and then tap Done.

3. Tap Ringtone and then select the ring tone you want to use.

4. Tap Done.

Tips • You can use *.wav, *.mid, *.mp3, *.wma, or other types of sound files that you

downloaded from the Internet or copied from your computer. For a complete list

of supported audio file formats, see “Specifications” in the Appendix.

• To use your sound files as ring tones, copy them first to the /My Documents/My

Ringtones folder on your device, and then select the sound from the Ring tone

list of your device. For more information about copying files, see “Copying and

Managing Files” in this chapter.

Managing Your Device 213

To choose how to be notified about events or actions

1. Tap Start > Settings, and then tap Sound > Advanced.

2. On the Sounds tab, choose how you want to be notified by selecting the

appropriate check boxes.

3. On the Notifications tab, in Event, tap a ring type and ring tone for that

event or action from the lists below.

Tip Turning off sound notifications helps conserve battery power.

Phone services

You can change the settings of various phone services for your device. Phone

services may include Call Forwarding, Call Waiting, Voicemail, and more. Contact

your wireless service provider to find out about the availability of phone services for

your device.

To access and change settings of phone services

1. Tap Start > Settings, and then tap Communications.

2. On the Comm Manager screen, tap Phone > Phone services.

3. Select the service you want to use, and then tap Get Settings.

4. Choose your desired options, and then tap OK.

For more information about customizing settings of phone services, see the Help

on your device.

214 Managing Your Device

13.4 Using Connection Setup

After you insert a new SIM card and power on your device, you can use Connection

Setup to automatically configure your device’s data connections, such as 3G/GPRS

and WAP.

Note For details on how to automatically configure the data connections, see “Importing

SIM contacts and auto configuring data connection settings” in Chapter 1.

To manually select the network operator to use for data connections

You can manually select your network operator and allow Connection Setup to

reconfigure your device’s data connections settings based on the selected operator.

1. Tap Start > Settings, and then tap All Settings.

2. On the Connections tab, tap Connection Setup.

3. Select the network Country and Operator you want to use, then tap OK.

Note If you choose a country and/or operator that is different from the installed SIM

card network operator, you may not be able to access network services.

4. When prompted to confirm whether you want to configure the data

connection settings, tap Yes.

5. After Connection Setup completes the configuration, tap Restart.

13.5 Using Comm Manager

Comm Manager lets you easily turn on and off the communication features of your

device such as the phone, Bluetooth, Wi-Fi, and data connection.

To access Comm Manager

Tap Start > Settings, and then tap Communications.

Managing Your Device 215

Switch Airplane Mode on or off.

See “Turning the Phone Function On

and Off” in Chapter 2.

Access the phone settings and

change the PIN codes, configure

phone services, and more.

Connect a Bluetooth hands-free or

stereo headset. See Chapter 9 for

details.

Connect to a wireless network.

See Chapter 8 for details.

Open ActiveSync and adjust the

push e-mail settings. See Chapter 7

for details.

Open Connection Setup and

automatically configure your data

connection settings.

Switch the phone on or off.

See “Turning the Phone Function On

and Off” in Chapter 2.

Switch Bluetooth on or off.

See Chapter 9 for details.

Switch Wi-Fi on or off.

See Chapter 8 for details.

Switch between automatically

receiving (as items arrive) or manually

retrieving Outlook e-mails.

See Chapter 7 for details.

Connect or disconnect active data

connections (3G/GPRS, or EDGE).

Adjust the phone, Bluetooth, and

Wi-Fi settings.

216 Managing Your Device

13.6 Using Task Manager

Task Manager lets you view and stop running programs, configure the button,

and enable the Quick Menu on the Home screen.

To open Task Manager

Tap the Quick Menu button on the top-right corner of the Home screen to open

the Quick Menu, and then tap .

To configure the Exit ( ) button

By default, running programs are shut down when you tap and hold the button.

1. On the Task Manager screen, tap the Button tab.

Note When you clear Enable the “X” button to end running programs, tapping

the Exit button only closes a program screen. The program is not ended and

continues to run in the background.

2. Choose the action for shutting down programs (by tapping the button, or

by tapping and holding the button).

3. Tap OK.

To add a running program to the exclusive list

If you add a running program to the Exclusive Programs List, it will not be closed

when you tap Stop Selected or Stop All and will not be listed in the Quick Menu

on the Home Screen.

1. On the Task Manager screen, tap the Running tab.

2. Tap and hold the program name, and then tap Add Exclusive.

Tip To remove a program from the exclusive list, tap and hold the program on the

Running tab, then tap Remove from Exclusive.

Managing Your Device 217

13.7 Protecting Your Device

Protect your SIM card with a PIN

You can protect your SIM card by requiring a PIN (personal identification number)

every time the device is turned on. You will not be able to use the phone or the data

connection until you enter the correct PIN.

To enable the SIM card PIN

1. Tap Start > Settings, and then tap Communications.

2. On the Comm Manager screen, tap Phone > PIN Code.

3. Enter the PIN, tap OK, and then tap OK on the dialog box.

Tips • To change the PIN, tap Change PIN on the Phone Settings screen.

• Emergency calls can be placed at any time, without requiring a PIN.

Protect your device with a password

You can help keep your data more secure by requiring a password every time the

device is turned on.

To set a device password

1. Tap Start > Settings, and then tap All Settings.

2. On the Personal tab, tap Lock.

3. Select the Prompt if device unused for check box, then specify the idle time

before the device requires a password.

4. In the Password type box, select the type of password you would like to use.

Tip If your device is configured to connect to a network, use an alphanumeric

password for increased security.

5. Enter the password in both the Password and Confirm boxes.

6. Tap OK. The next time the device is turned on, you will be prompted to enter

your password.

218 Managing Your Device

Notes • To ensure that you can always make emergency calls, do not begin your password

with the digits of your local emergency number.

• If you entered a hint, the hint will be displayed after the wrong password is entered

five times.

• Each time a wrong password is entered, the device response time gets longer until

the device appears to be not responding.

• If you forget your password, you can hard reset or clear the device memory. For

more information about hard resetting the device and clearing the memory, see

“Resetting Your Device”.

Encrypt files on your storage card

You can set your device to encrypt files as they are saved on the storage card.

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap Encryption.

3. Select Encrypt files when placed on a storage card.

Notes • Encrypted files can only be read on the device that encrypted them.

• Encrypted files are opened just like other files, provided you are using the device

that encrypted them. There is no separate step for you to take to read these files.

Important If Encrypt files when placed on a storage card is enabled, backup all files from

the storage card before using Clear Storage, hard reset, or updating the operating

system. Otherwise you will no longer be able to access the encrypted files on the

storage card. Use ActiveSync or Windows Mobile Device Center to transfer files

between your storage card and computer. After the procedure, copy your files

back to the storage card.

Managing Your Device 219

13.8 Managing Memory

To see the available device memory

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap Memory > Main tab. The amount of memory

allocated to data storage versus program storage is displayed, as well as the

amount of memory in use versus the available memory.

To see the available storage card space

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap Memory > Storage Card tab.

13.9 Resetting Your Device

Performing a soft reset

Perform a soft (normal) reset to clear all active program memory and shut down all

active programs. This is useful when your device is running slower than normal, or a

program is not performing properly. If a soft reset is performed when programs are

running, unsaved work is lost.

To perform a soft reset

1. Pull out the stylus, then remove the

back cover.

2. Use the stylus tip to press the RESET

button (red) located at the opening

of the stylus bay.

Your device restarts and displays the

Home screen.

220 Managing Your Device

Performing a hard reset

If a normal reset does not solve a system problem, you can perform a hard (full)

reset. After a hard reset, the device is restored to its default settings—the way it

was when you first purchased it and turned it on. You will lose any programs you

installed, data you entered, and settings you customized on your device, and only

Windows Mobile® software and other pre-installed programs will remain.

Warning! Your device will be set back to factory default settings. Make sure that any

additional installed programs and/or user data have been backed up before you

perform a hard reset.

Important If Encrypt files when placed on a storage card is enabled, backup all files from

the storage card before using Clear Storage, hard reset, or updating the operating

system. Otherwise you will no longer be able to access the encrypted files on the

storage card. Use ActiveSync or Windows Mobile Device Center to transfer files

between your storage card and computer. After the procedure, copy your files

back to the storage card.

To perform a hard reset

1. With the device turned off, press and hold the VOLUME UP and VOLUME

DOWN buttons, then briefly press the POWER button.

2. Continue pressing the VOLUME UP and VOLUME DOWN buttons until you see

this message on the screen:

This operation will delete

all your personal data,

and reset all settings to

the manufacturer default

settings. Press VolUp

to restore manufacturer

defaults, or press other

keys to cancel.

3. Release the VOLUME UP and VOLUME DOWN buttons.

4. Press the VOLUME UP button to perform the hard reset, or press any other

button to cancel the reset.

Managing Your Device 221

Using Clear Storage

If you can access the device settings, you can use Clear Storage to reset your device

back to factory default settings.

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap Clear Storage.

3. Enter “1234” and then tap Yes.

13.10 Windows Update

Update Windows Mobile® with the latest security patches and fixes from Microsoft,

if these are available.

To set up Windows Update

The first time you run Windows Update, you need to set up how you want Windows

Update to check for updates.

1. Tap Start > S ettings, and then tap All Settings.

2. On the System tab, tap Windows Update.

3. On the Update Setup screen, tap Next.

4. Choose how you want to check for updates, then tap Next.

Note If you select Automatic, you are asked if you want to use your current data plan

to check for updates. Select or clear the Use my data plan to check for and

download updates check box, and tap Next.

5. Tap Finish.

To check for updates

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap Windows Update.

3. Tap Check Now.

222 Managing Your Device

To change Windows Update options

1. Tap Start > Settings, and then tap All Settings.

2. On the System tab, tap Windows Update.

3. Tap Menu > Connections to change how the device connects to the Internet

when checking for updates, or tap Menu > Change Schedule to change how

Windows Update checks for Windows Mobile® updates.

A.1 Regulatory Notices

Regulatory Agency Identifications

For regulatory identification purposes, your product is assigned a model number of

TOPA100.

To ensure continued reliable and safe operation of your device, use only the

accessories listed below with your TOPA100.

The Battery Pack has been assigned a model number of TOPA160.

Note This product is intended for use with a certified Class 2 Limited Power Source, rated 5

Volts DC, maximum 1 Amp power supply unit.

Federal Communications Commission Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation.

Appendix

224 Appendix

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with Appendix 247 the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harm-ful interference to radio or TV reception, which can be determined by turning

the equipment on and off, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made

to the device that are not expressly approved by High Tech Computer Corporation

may void the user’s authority to operate the equipment.

Safety Precautions for RF Exposure

Use only original manufacturer-approved accessories, or accessories that do not

contain any metal.

Use of non-original manufacturer-approved accessories may violate your local RF

exposure guidelines and should be avoided.

Exposure to Radio Frequency (RF) Signals

Your device contains a radio transmitter and receiver. The radiated output power

is far below the international radio frequency exposure limits. These limits are part

of comprehensive guidelines and establish permitted levels of RF energy for the

general population. The guidelines are based on the safety standards previously set

by international standards bodies:

Appendix 225

• American National Standards Institute (ANSI) IEEE. C95.1-1992

• National Council on Radiation Protection and Measurement (NCRP). Report

86. 1986

• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996

• Ministry of Health (Canada), Safety Code 6. The standards include a

substantial safety margin designed to assure the safety of all persons,

regardless of age and health.

The exposure standard for wireless mobile phones employs a unit of measurement

known as the Specific Absorption Rate, or SAR. The standard incorporates a

substantial margin of safety to give additional protection for the public and to

account for any variations in usage.

As with other mobile radio transmitting equipment, users are advised that for

satisfactory operation of the equipment and for the safety of personnel, it is

recommended that no part of the human body be allowed to come too close to the

antenna during operation of the equipment.

Your device has an internal antenna. Use only the supplied integral antenna. Use of

unauthorized or modified antennas may impair call quality and damage the phone,

causing loss of performance and SAR levels exceeding the recommended limits as

well as result in non-compliance with local regulatory requirements in your country.

To assure optimal phone performance and ensure human exposure to RF energy

is within the guidelines set forth in the relevant standards; always use your

device only in its normal-use position. Do not touch or hold the antenna area

unnecessarily when placing or receiving a phone call. Contact with the antenna

area may impair call quality and cause your device to operate at a higher power

level than needed. Avoiding contact with the antenna area when the phone is IN

USE optimizes the antenna performance and the battery life.

Body-worn measurements were tested for typical body-worn operations with the

back of the device kept 1.5 cm from the body.

226 Appendix

SAR Information

1.27 w/kg @10g (Head)

1.24 w/kg @10g (Body)

Telecommunications & Internet Association (TIA)

Safety Information

Pacemakers

The Health Industry Manufacturers Association recommends that a minimum

separation of six inches be maintained between a handheld wireless phone

and a pacemaker to avoid potential interference with the pacemaker. These

recommendations are consistent with the independent research by and

recommendations of Wireless Technology Research. Persons with pacemakers:

• Should ALWAYS keep the phone more than six inches from their pacemaker

when the phone is turned ON.

• Should not carry the phone in a breast pocket.

• Should use the ear opposite the pacemaker to minimize the potential for

interference. If you have any reason to suspect that interference is taking

place, turn the phone OFF immediately.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event

of such interference, you may want to consult your service provider, or call the

customer service line to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your

device to determine if they are adequately shielded from external RF energy. Your

physician may be able to assist you in obtaining this information.

Turn the phone OFF in health care facilities when any regulations posted in

these areas instruct you to do so. Hospitals or health care facilities may be using

equipment that could be sensitive to external RF energy.

Appendix 227

WEEE Notice

The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered

into force as European law on 13th February 2003, resulted in a major change in the

treatment of electrical equipment at end-of-life.

The purpose of this Directive is, as a first priority, the prevention of WEEE, and

in addition, to promote the reuse, recycling and other forms of recovery of such

wastes so as to reduce disposal.

The WEEE logo (shown at the left) on the product or on its box indicates

that this product must not be disposed of or dumped with your other

household waste. You are liable to dispose of all your electronic or

electrical waste equipment by relocating over to the specified collection

point for recycling of such hazardous waste. Isolated collection and

proper recovery of your electronic and electrical waste equipment at

the time of disposal will allow us to help conserving natural resources.

Moreover, proper recycling of the electronic and electrical waste

equipment will ensure safety of human health and environment. For

more information about electronic and electrical waste equipment

disposal, recovery, and collection points, please contact your local

city center, household waste disposal service, shop from where you

purchased the equipment, or manufacturer of the equipment.

RoHS Compliance

This product is in compliance with Directive 2002/95/EC of the European

Parliament and of the Council of 27 January 2003, on the restriction of the use of

certain hazardous substances in electrical and electronic equipment (RoHS) and its

amendments.

228 Appendix

A.2 Specifications

Processor Qualcomm® MSM7200A™, 528 MHz

Operating System Windows Mobile® 6.1 Professional

Memory ROM: 512 MB

RAM: 288 MB

Dimensions (LxWxT) 107.85 X 53.1 X 13.7 mm (4.25 X 2.09 X 0.54 inches)

Weight 117.5 grams (4.15 ounces) with battery

Display 3.2-inch TFT-LCD flat touch-sensitive screen with 480 X 800 WVGA

resolution

Network HSPA/WCDMA

900/2100 MHz

Up to 2 Mbps up-link and 7.2 Mbps down-link speeds

Quad-band GSM/GPRS/EDGE

850/900/1800/1900 MHz

(Band frequency, HSPA availability, and data speed are operator dependent.)

•

Device Control TouchFLO™ 3D

Zoom bar

•

GPS Internal GPS antenna

Connectivity Bluetooth® 2.0 with Enhanced Data Rate and A2DP for wireless

stereo headsets

Wi-Fi®: IEEE 802.11b/g

HTC ExtUSB™ (11-pin mini-USB 2.0 and audio jack in one)

•

Camera Main camera: 5.0 megapixel color camera with auto focus

Second camera: VGA CMOS color camera

Audio supported

formats

AAC, AAC+, eAAC+, AMR-NB, AMR-WB, QCP, MP3, WMA, WAV,

MIDI, M4A

Video supported

formats

WMV, ASF, MP4, 3GP, 3G2, M4V, AVI

Appendix 229

Battery Rechargeable Lithium-ion battery

Capacity: 1100 mAh

•

Talk time: Up to 300 minutes for WCDMA

Up to 340 minutes for GSM

Standby time: Up to 500 hours for WCDMA

Up to 360 hours for GSM

Video call time: Up to 150 minutes

(The above are subject to network and phone usage.)

•

Expansion Slot microSD™ memory card (SD 2.0 compatible)

AC Adapter Voltage range/frequency: 100 - 240V AC, 50/60 Hz

DC output: 5V and 1A

Special Features FM Radio, G-Sensor

230 Appendix

Index

A2DP 161

ActiveSync

- ActiveSync mode 40

- set up 99

- synchronize with computer 100

- synchronize with Exchange Server 125

Add and remove programs 195

Airplane Mode 53, 215

Album

- about 182

- close Album 185

- play back video 185

- view an image 183

Attachment

- add to e-mail 118

- download 120

- set IMAP4 to automatically receive

attachments 123

- set Outlook to automatically receive

attachments 123

Audio Booster 193

Auto Volume Control 208

Back cover

- remove 25

Backlight

- set backlight timeout 211

Basic settings 211

Battery

- battery information 26

- charge battery 28

- install 27

- remove 27

- save battery power 136

Beam via Bluetooth 162

Bluetooth

- about 159

- Bluetooth Explorer 164

- Bluetooth ﬁle sharing 164

- Bluetooth shared folder 164

- hands-free headset 161

- modem 157

- modes 159

- partnership (pairing) 160

- stereo headset 161

- synchronize 102

- turn on and o 215

- visible 159

Call History 49

Calling

- from Phone screen 41

Camera

- about 173

- Advanced Options 179

232 Index

- capture modes 173

- icons 176

- Menu Panel 177

- zooming 178

Car kit phones 54

Clear Storage 221

Clock & Alarms 208

Comm Manager 210, 214

Company Directory 132

Conference call 47

Configure data connection settings 29, 214

Connect device to Internet

- Dial-up 136

- start a connection 137

- ways of connecting 133

Connection Setup 29, 32, 214

Contacts 196

Contacts Picture capture mode 174

Copy

- contacts to SIM card 203

- copy and manage ﬁles 205

- media ﬁles from PC to device 187

- SIM contacts to device 202

Device name 212

Dial-up 136

Direct Push 127, 215

Disconnect data connection 215

Disk Drive mode 40

Download

- download complete e-mail 119

- e-mail download settings 117, 122

- ﬁle attachments 120

- Java applications 200

- location data 171

- synchronize e-mails 122

- web feeds 151

E-mail

- Internet e-mail account (POP3/

IMAP4) 115

- mail server settings 116

- Mail tab (Home screen) 69

- settings (POP3/IMAP4) 117

- synchronize 95, 122, 125

- types of e-mail accounts 114

Emergency call 44

Emoticon

- MMS 112

- Windows Live Messenger 150

Entering Information 87

Excel Mobile 201

Exchange Server 125

Favorite contacts 60

File Explorer 206

Find contact

- Company Directory 132

- on device 198

Finger gestures 38

Finger panning 39

Finger scrolling 38

FM Radio 190

Focus

- auto-focus 174

Index 233

Forward e-mail 120

Full QWERTY 88

G-Sensor 209

Google Maps 167

GPS 169, 171

Hard reset 220

Home screen 30, 55

IMAP4 115

Input methods

- Full QWERTY 88

- Phone Keypad 90

Input Panel 87

Input Selector arrow 87

International call 44

Internet 133

Internet e-mail 115

Internet Sharing 156

Internet tab (Home screen) 74

JBlend 199

- install MIDlets/MIDlet suites from

device 200

- install MIDlets/MIDlet suites from

Internet 200

- manage MIDlets/MIDlet suites 200

- update a MIDlet/MIDlet suite 200

Library

- Music tab (Home screen) 81

Live Messenger 150

Mail tab (Home screen) 69

Meeting request 131

Memory 36, 219, 230

Messages tab (Home screen) 69

Messaging

- about 105

- e-mail 114

- multimedia (MMS) 109

- text (SMS) 106

Messenger 150

microSD card

- install 27

Microsoft Office Mobile 201

MMS

- about 109

- add audio clip 112

- add photo/video 111

- add text 112

- blacklist 114

- create MMS message 110

- MMS settings 109

- reply message 113

- view message 113

MMS Video capture mode 174

Modem

- Bluetooth 157

- USB 157

234 Index

MP3 Trimmer 194

Multimedia 109, 173

Music tab (Home screen) 80

News channels (web feeds) 151

Now Playing

- Music tab (Home screen) 80, 81

Office Mobile 201

OneNote Mobile 201

Opera Mobile 138

Panorama capture mode 174

Password 217

People tab (Home screen) 60

Phone Keypad 90

Phone services 213

Photo capture mode 173

Picture Theme capture mode 174

PIN 217

Playlists

- Music tab (Home screen) 82

- Windows Media Player Mobile 189

Play media 186

Play music

- Music tab (Home screen) 81

- Windows Media Player Mobile 186

Podcasts 155

POP3 115

PowerPoint Mobile 201

QuickGPS 171

Quick menu 36, 216

Record

- voice recording 203

Regional Settings 209

Regulatory notices 223

- e-mail 120

- MMS 113

- text (SMS) 107

Reset

- clear storage 221

- hard reset 219

- soft reset 219

Review screen (Camera) 176

Ring tone 212

Ring type 212

RSS Hub

- about 151

- headline list 154

- news channels 151

- podcasts 155

- summary view 155

Safety information 5

Screen text size 211

Send

- MMS message 110

- text message (SMS) 106

Index 235

Settings (Connections tab)

- Advanced Network 210

- Beam 210

- Bluetooth 210

- Connections 136, 210

- Connection Setup 210, 214

- Domain Enroll 210

- USB to PC 102, 210

- Wi-Fi 210

- Wireless LAN 135

Settings (Personal tab)

- Buttons 207

- Input 207

- Lock 207, 217

- Menus 207

- Owner Information 207

- Phone 207, 212, 213

- Sounds & Notiﬁcations 207, 213

- Today 207

Settings (System tab)

- About 208, 212

- Certiﬁcates 208

- Clear Storage 208, 221

- Clock & Alarms 208

- Customer Feedback 208

- Device Information 208

- Encryption 208, 218

- Error Reporting 208

- External GPS 208

- Managed Programs 209

- Memory 209

- Power 209

- Regional Settings 209

- Remove Programs 196, 209

- Screen 209, 211

- Task Manager 209, 216

- TouchFLO 209

- Windows Update 209, 221

Settings tab (Home screen) 85

SIM card

- install 25

- PIN 217

- remove 26

SIM Manager

- about 202

- copy contacts to SIM card 203

- copy SIM contacts to device 202

- create SIM contact 202

Sleep mode 29

Smart Dial 41

SMS 69, 106

Soft reset 219

Sounds & Notifications 207, 213

Speakerphone 48

Specifications 230

Speed Dial 50

Start screen

- add a program icon 35

- launch a program 35

- open 34

- remove or replace an icon 35

Status icons 32

Stock

- quote 76

Stock tab (Home screen) 76

Storage card

- encrypt 218

- install 27

236 Index

Streaming Media 146

Synchronize

- ActiveSync 100

- change information types 101

- music and videos 103

- via Bluetooth 102

- Windows Media Player 187

- Windows Mobile Device Center 96

- with computer 100

- with Exchange Server 125

Task Manager 209, 216

Text messages

- copy to SIM card 108

- create new message 106

- Messages tab (Home screen) 69

Text size (screen) 211

Troubleshoot

- sync connection 102

- Windows Media Player Mobile 190

Turn device on and off 28

Turn phone function on and off 215

Turn the phone function on and off 53

USB modem 157

USB to PC 102, 210

Vibrate 32, 37

Video call

- about 50

- answer video call 53

- make video call 50

- settings 51

Video capture mode 173

Voice call

- about 41

- answer call 45

- end call 48

Voicemail 44

Voice Recorder 203

Volume

- adjust 37

Weather tab (Home screen) 83

Wi-Fi 215

Windows Live 148

Windows Live Messenger 150

Windows Media Player Mobile

- ﬁle formats 186

- playlists 189

- troubleshoot 190

Windows Mobile Device Center 96

Windows Update 209, 221

Word Mobile 201

YouTube

- open 142

- Program Guide 143

Zooming

- Camera 178

- Opera Mobile 141

HTC TPZV PDA PHONE User Manual 2

HTC Corporation PDA PHONE Users Manual 2

Contents

Users Manual 2

Navigation menu

Namespaces

Views

Navigation
