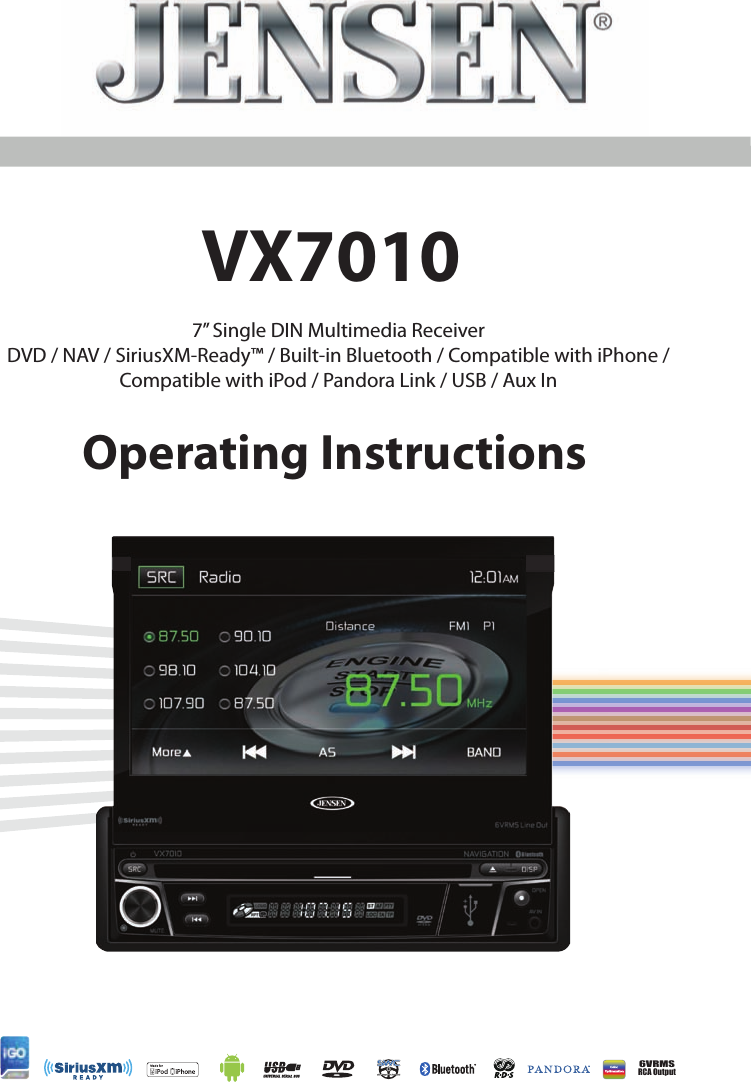

6VRMSRCA OutputVX7010Operating Instructions7” Single DIN Multimedia ReceiverDVD / NAV / SiriusXM-Ready™ / Built-in Bluetooth / Compatible with iPhone /Compatible with iPod / Pandora Link / USB / Aux In

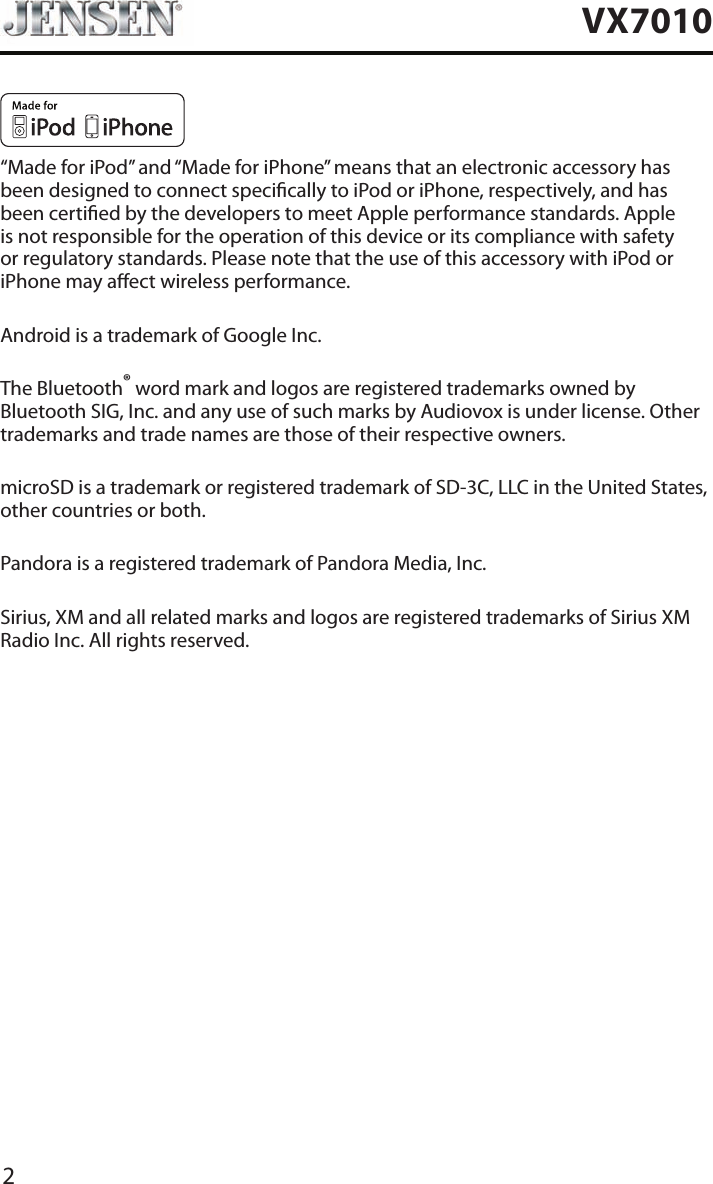

2VX7010“Made for iPod” and “Made for iPhone” means that an electronic accessory has been designed to connect specically to iPod or iPhone, respectively, and has been certied by the developers to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety or regulatory standards. Please note that the use of this accessory with iPod or iPhone may aect wireless performance.Android is a trademark of Google Inc.The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Audiovox is under license. Other trademarks and trade names are those of their respective owners.microSD is a trademark or registered trademark of SD-3C, LLC in the United States, other countries or both.Pandora is a registered trademark of Pandora Media, Inc.Sirius, XM and all related marks and logos are registered trademarks of Sirius XM Radio Inc. All rights reserved.

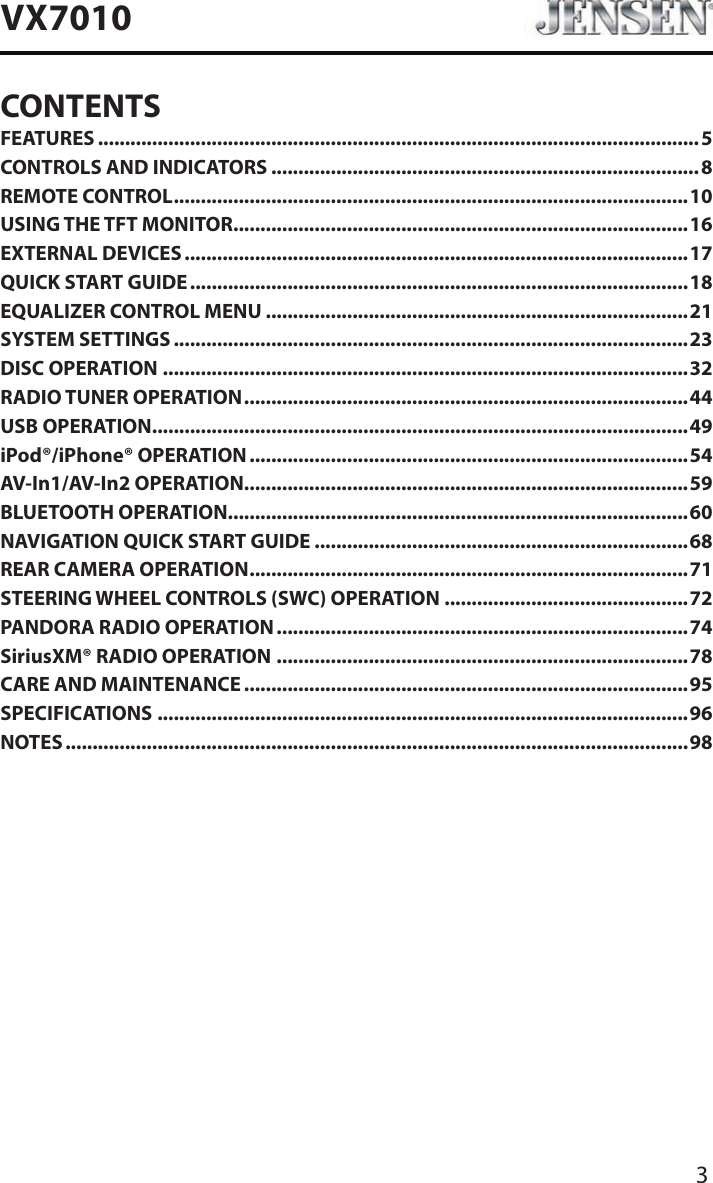

3VX7010CONTENTSFEATURES ...............................................................................................................5CONTROLS AND INDICATORS ...............................................................................8REMOTE CONTROL ...............................................................................................10USING THE TFT MONITOR ....................................................................................16EXTERNAL DEVICES .............................................................................................17QUICK START GUIDE ............................................................................................18EQUALIZER CONTROL MENU ..............................................................................21SYSTEM SETTINGS ...............................................................................................23DISC OPERATION .................................................................................................32RADIO TUNER OPERATION .................................................................................. 44USB OPERATION ...................................................................................................49iPod®/iPhone® OPERATION .................................................................................54AV-In1/AV-In2 OPERATION ..................................................................................59BLUETOOTH OPERATION .....................................................................................60NAVIGATION QUICK START GUIDE .....................................................................68REAR CAMERA OPERATION .................................................................................71STEERING WHEEL CONTROLS (SWC) OPERATION .............................................72PANDORA RADIO OPERATION ............................................................................74SiriusXM® RADIO OPERATION ............................................................................78CARE AND MAINTENANCE ..................................................................................95SPECIFICATIONS ..................................................................................................96NOTES ...................................................................................................................98

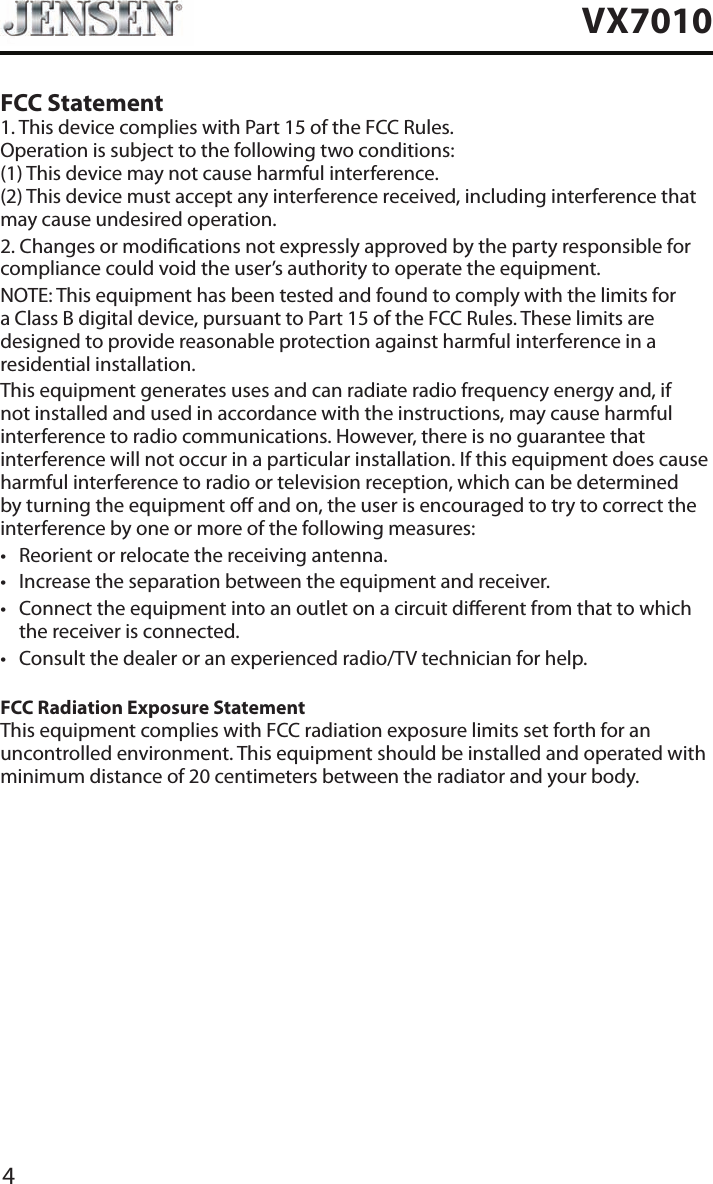

4VX7010FCC Statement1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 centimeters between the radiator and your body.

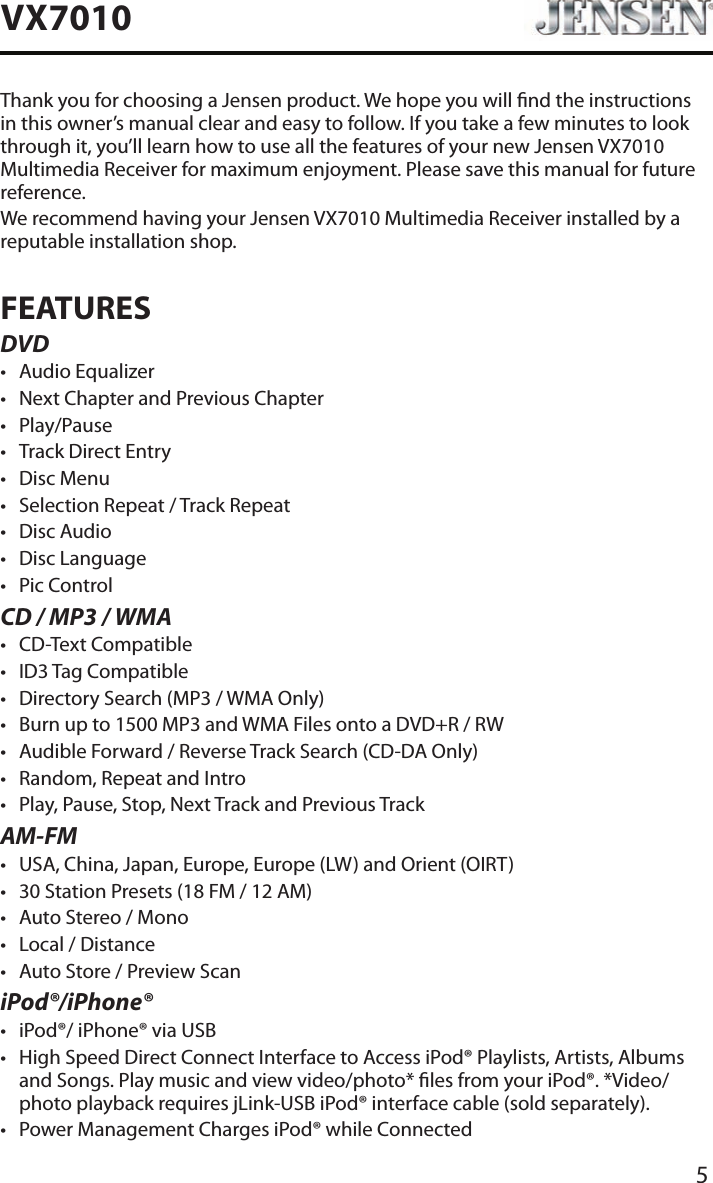

5VX7010Thank you for choosing a Jensen product. We hope you will nd the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen VX7010 Multimedia Receiver for maximum enjoyment. Please save this manual for future reference.We recommend having your Jensen VX7010 Multimedia Receiver installed by a reputable installation shop.FEATURESDVD• Audio Equalizer• Next Chapter and Previous Chapter • Play/Pause• Track Direct Entry• Disc Menu• Selection Repeat / Track Repeat• Disc Audio• Disc Language • Pic ControlCD / MP3 / WMA• CD-Text Compatible• ID3 Tag Compatible• Directory Search (MP3 / WMA Only)• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW• Audible Forward / Reverse Track Search (CD-DA Only)• Random, Repeat and Intro• Play, Pause, Stop, Next Track and Previous TrackAM-FM• USA, China, Japan, Europe, Europe (LW) and Orient (OIRT)• 30 Station Presets (18 FM / 12 AM)• Auto Stereo / Mono• Local / Distance• Auto Store / Preview ScaniPod®/iPhone®• iPod®/ iPhone® via USB• High Speed Direct Connect Interface to Access iPod® Playlists, Artists, Albums and Songs. Play music and view video/photo* les from your iPod®. *Video/photo playback requires jLink-USB iPod® interface cable (sold separately).• Power Management Charges iPod® while Connected

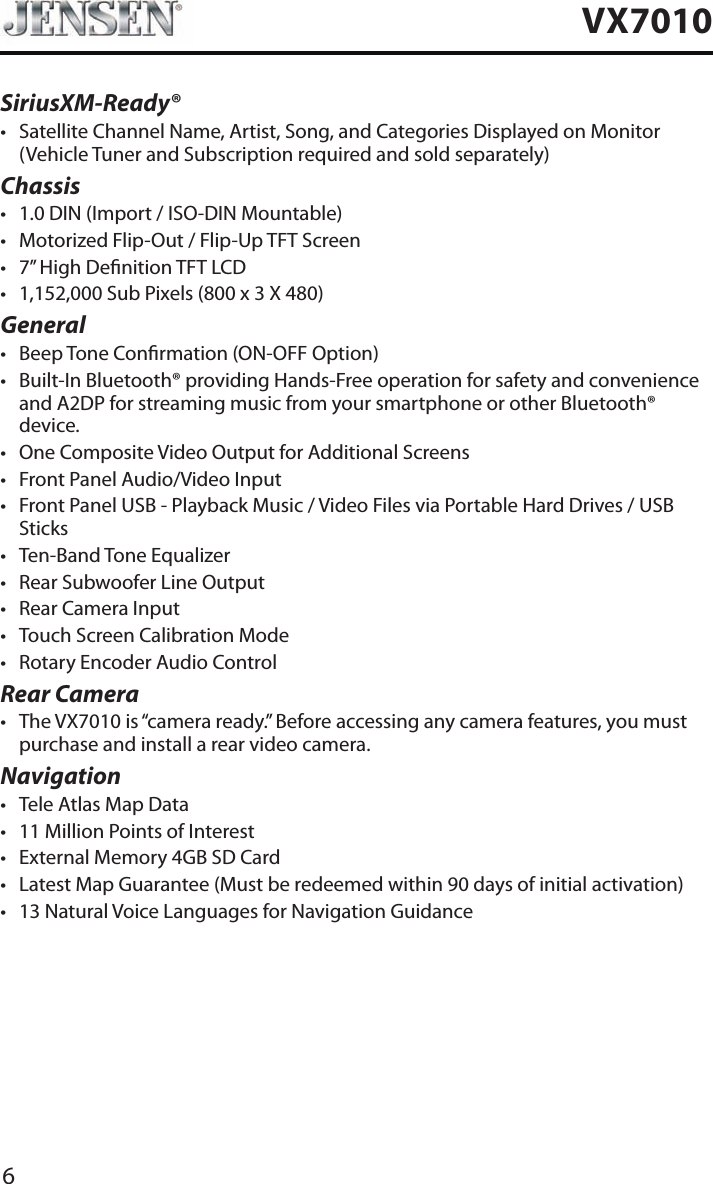

6VX7010SiriusXM-Ready®• Satellite Channel Name, Artist, Song, and Categories Displayed on Monitor (Vehicle Tuner and Subscription required and sold separately)Chassis• 1.0 DIN (Import / ISO-DIN Mountable)• Motorized Flip-Out / Flip-Up TFT Screen• 7” High Denition TFT LCD• 1,152,000 Sub Pixels (800 x 3 X 480)General• Beep Tone Conrmation (ON-OFF Option)• Built-In Bluetooth® providing Hands-Free operation for safety and convenience and A2DP for streaming music from your smartphone or other Bluetooth® device. • One Composite Video Output for Additional Screens• Front Panel Audio/Video Input• Front Panel USB - Playback Music / Video Files via Portable Hard Drives / USB Sticks• Ten-Band Tone Equalizer• Rear Subwoofer Line Output• Rear Camera Input• Touch Screen Calibration Mode• Rotary Encoder Audio ControlRear Camera• The VX7010 is “camera ready.” Before accessing any camera features, you must purchase and install a rear video camera.Navigation• Tele Atlas Map Data• 11 Million Points of Interest• External Memory 4GB SD Card• Latest Map Guarantee (Must be redeemed within 90 days of initial activation)• 13 Natural Voice Languages for Navigation Guidance

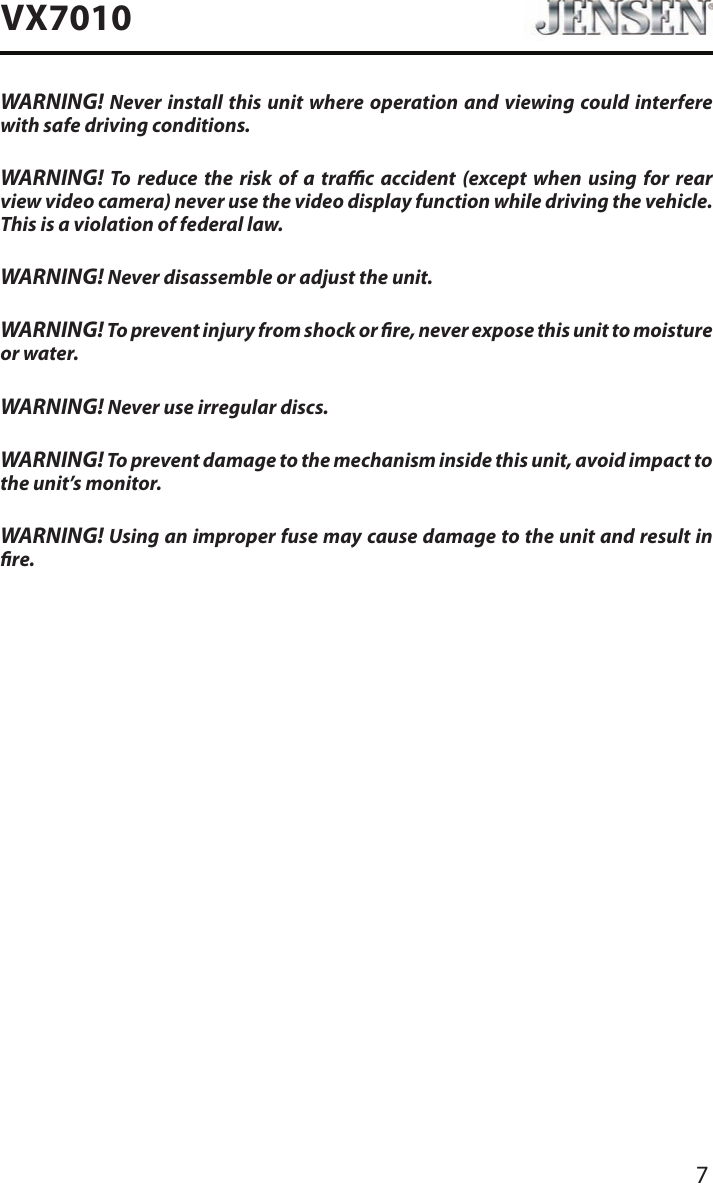

7VX7010WARNING! Never install this unit where operation and viewing could interfere with safe driving conditions.WARNING! To reduce the risk of a trac accident (except when using for rear view video camera) never use the video display function while driving the vehicle. This is a violation of federal law.WARNING! Never disassemble or adjust the unit.WARNING! To prevent injury from shock or re, never expose this unit to moisture or water.WARNING! Never use irregular discs.WARNING! To prevent damage to the mechanism inside this unit, avoid impact to the unit’s monitor.WARNING! Using an improper fuse may cause damage to the unit and result in re.

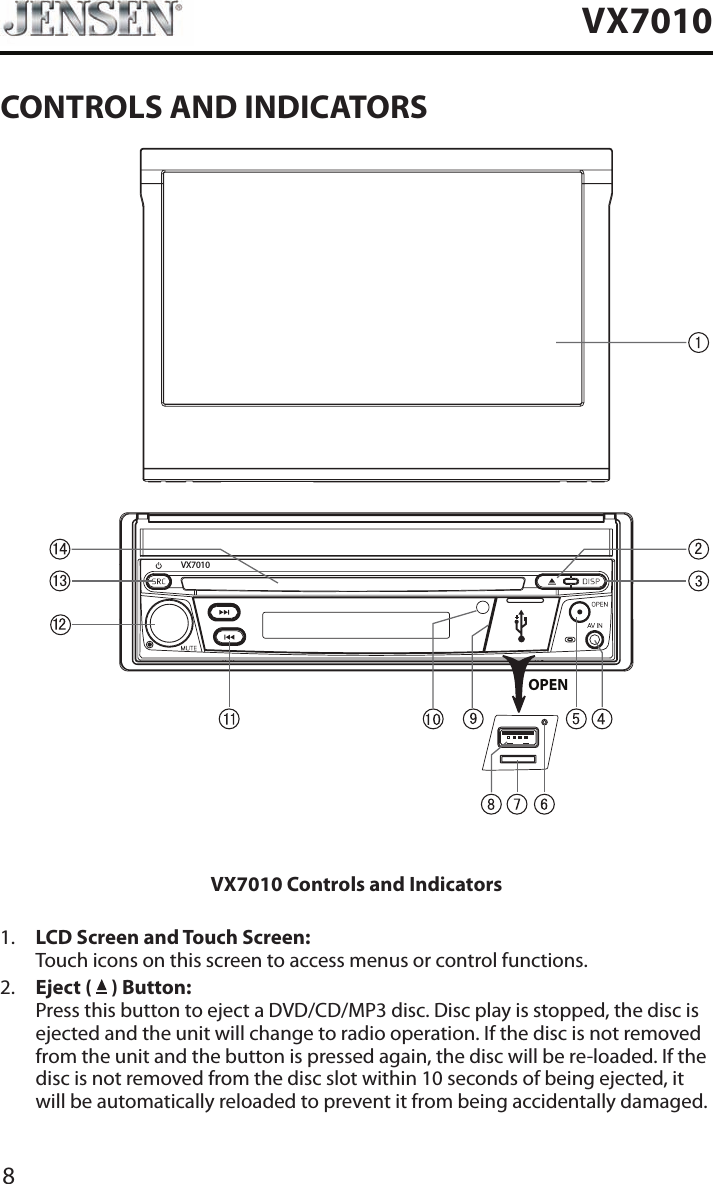

8VX7010CONTROLS AND INDICATORSOPENVX7010VX7010 Controls and Indicators1. LCD Screen and Touch Screen: Touch icons on this screen to access menus or control functions.2. Eject ( ) Button: Press this button to eject a DVD/CD/MP3 disc. Disc play is stopped, the disc is ejected and the unit will change to radio operation. If the disc is not removed from the unit and the button is pressed again, the disc will be re-loaded. If the disc is not removed from the disc slot within 10 seconds of being ejected, it will be automatically reloaded to prevent it from being accidentally damaged.

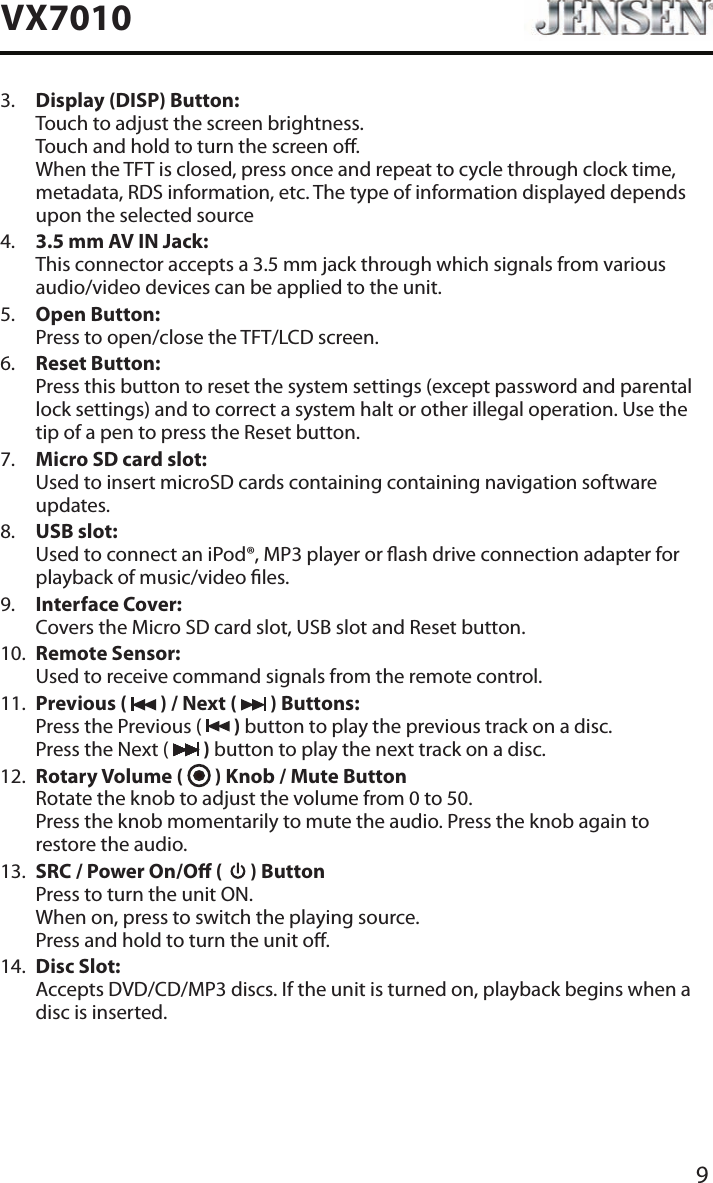

9VX70103. Display (DISP) Button: Touch to adjust the screen brightness. Touch and hold to turn the screen o. When the TFT is closed, press once and repeat to cycle through clock time, metadata, RDS information, etc. The type of information displayed depends upon the selected source4. 3.5 mm AV IN Jack: This connector accepts a 3.5 mm jack through which signals from various audio/video devices can be applied to the unit.5. Open Button: Press to open/close the TFT/LCD screen.6. Reset Button: Press this button to reset the system settings (except password and parental lock settings) and to correct a system halt or other illegal operation. Use the tip of a pen to press the Reset button.7. Micro SD card slot: Used to insert microSD cards containing containing navigation software updates.8. USB slot: Used to connect an iPod®, MP3 player or ash drive connection adapter for playback of music/video les.9. Interface Cover: Covers the Micro SD card slot, USB slot and Reset button.10. Remote Sensor: Used to receive command signals from the remote control.11. Previous ( ) / Next ( ) Buttons: Press the Previous ( ) button to play the previous track on a disc. Press the Next ( ) button to play the next track on a disc.12. Rotary Volume ( ) Knob / Mute Button Rotate the knob to adjust the volume from 0 to 50. Press the knob momentarily to mute the audio. Press the knob again to restore the audio.13. SRC / Power On/O ( ) Button Press to turn the unit ON. When on, press to switch the playing source. Press and hold to turn the unit o.14. Disc Slot: Accepts DVD/CD/MP3 discs. If the unit is turned on, playback begins when a disc is inserted.

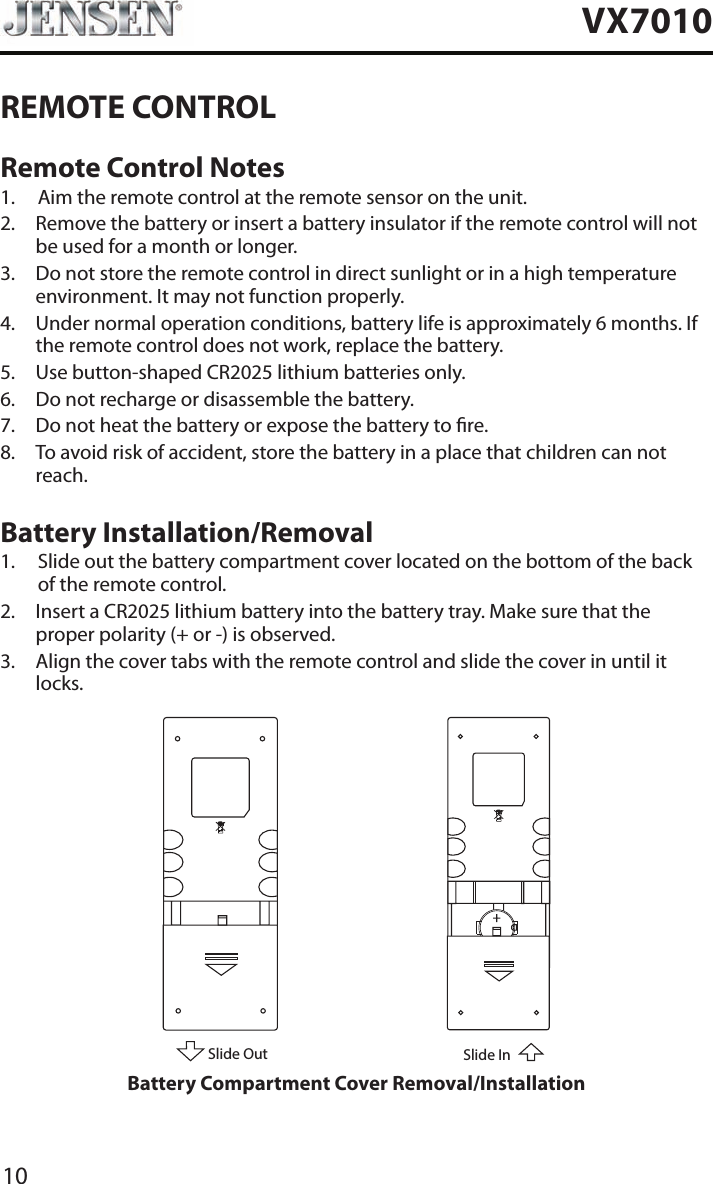

10VX7010REMOTE CONTROLRemote Control Notes1. Aim the remote control at the remote sensor on the unit.2. Remove the battery or insert a battery insulator if the remote control will not be used for a month or longer.3. Do not store the remote control in direct sunlight or in a high temperature environment. It may not function properly.4. Under normal operation conditions, battery life is approximately 6 months. If the remote control does not work, replace the battery.5. Use button-shaped CR2025 lithium batteries only.6. Do not recharge or disassemble the battery.7. Do not heat the battery or expose the battery to re.8. To avoid risk of accident, store the battery in a place that children can not reach.Battery Installation/Removal1. Slide out the battery compartment cover located on the bottom of the back of the remote control.2. Insert a CR2025 lithium battery into the battery tray. Make sure that the proper polarity (+ or -) is observed.3. Align the cover tabs with the remote control and slide the cover in until it locks.Slide OutSlide InBattery Compartment Cover Removal/Installation

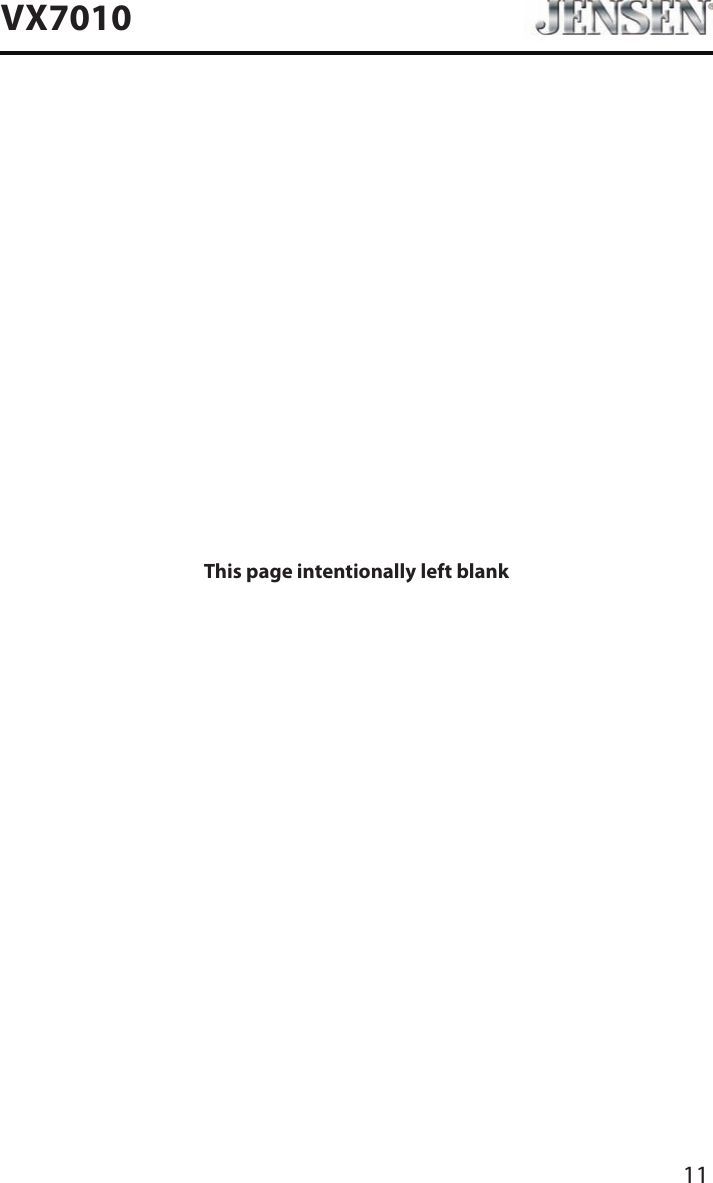

11VX7010This page intentionally left blank

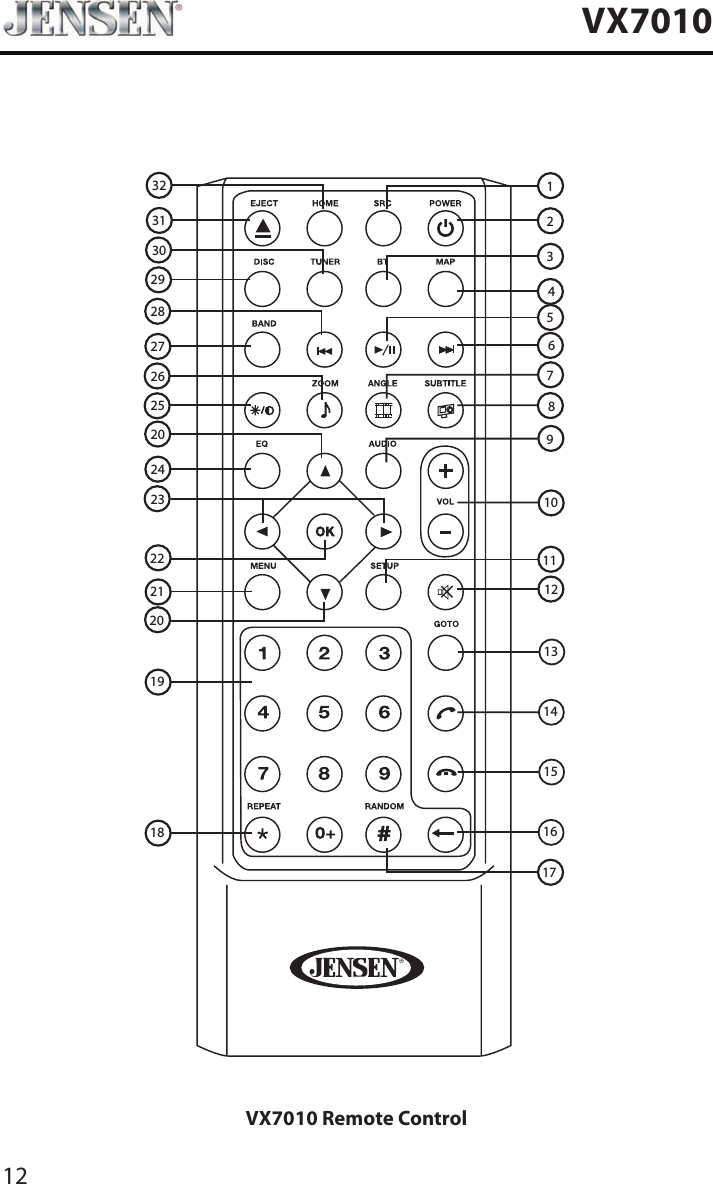

12VX7010302932312625282723202422211918 161514139107811121234175620VX7010 Remote Control

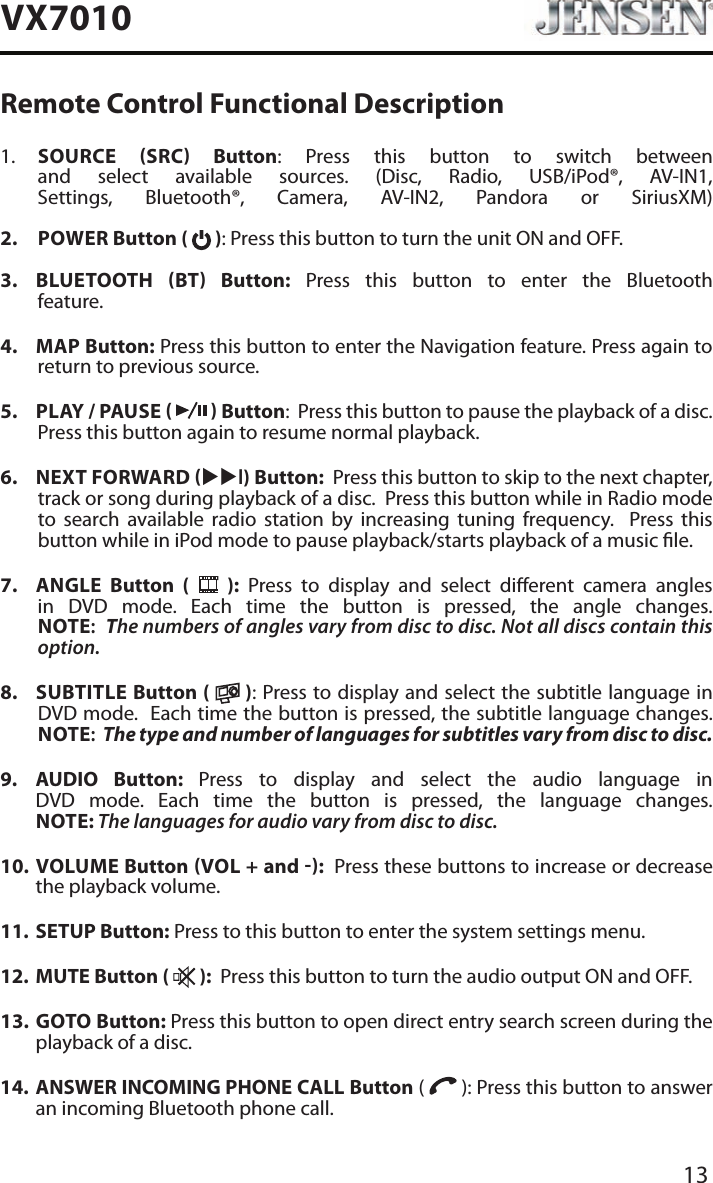

13VX7010Remote Control Functional Description1. SOURCE SRC Button: Press this button to switch between and select available sources. (Disc, Radio, USB/iPod®, AV-IN1, Settings, Bluetooth®, Camera, AV-IN2, Pandora or SiriusXM) 2. POWER Button ( ): Press this button to turn the unit ON and OFF. 3. BLUETOOTH BT Button: Press this button to enter the Bluetooth feature. 4. MAP Button: Press this button to enter the Navigation feature. Press again to return to previous source.5. PLAY / PAUSE   Button: Press this button to pause the playback of a disc. Press this button again to resume normal playback. 6. NEXT FORWARD uul) Button: Press this button to skip to the next chapter, track or song during playback of a disc. Press this button while in Radio mode to search available radio station by increasing tuning frequency. Press this button while in iPod mode to pause playback/starts playback of a music le.7. ANGLE Button ( ): Press to display and select dierent camera angles in DVD mode. Each time the button is pressed, the angle changes. NOTE: The numbers of angles vary from disc to disc. Not all discs contain this option.8. SUBTITLE Button ( ): Press to display and select the subtitle language in DVD mode. Each time the button is pressed, the subtitle language changes. NOTE: The type and number of languages for subtitles vary from disc to disc.9. AUDIO Button: Press to display and select the audio language in DVD mode. Each time the button is pressed, the language changes. NOTE: The languages for audio vary from disc to disc.10. VOLUME Button VOL + and : Press these buttons to increase or decrease the playback volume.11. SETUP Button: Press to this button to enter the system settings menu.12. MUTE Button ( ): Press this button to turn the audio output ON and OFF.13. GOTO Button: Press this button to open direct entry search screen during the playback of a disc.14. ANSWER INCOMING PHONE CALL Button ( ): Press this button to answer an incoming Bluetooth phone call.

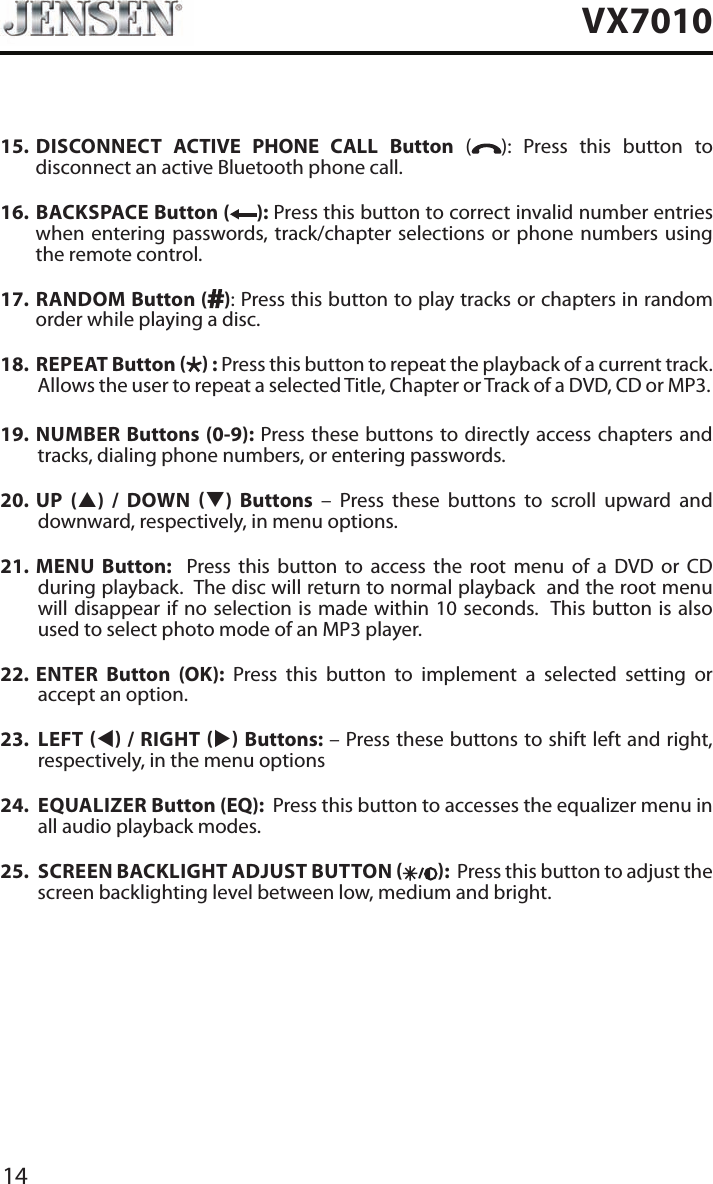

14VX701015. DISCONNECT ACTIVE PHONE CALL Button ( ): Press this button to disconnect an active Bluetooth phone call.16. BACKSPACE Button ( ): Press this button to correct invalid number entries when entering passwords, track/chapter selections or phone numbers using the remote control.17. RANDOM Button ( ): Press this button to play tracks or chapters in random order while playing a disc. 18. REPEAT Button   : Press this button to repeat the playback of a current track. Allows the user to repeat a selected Title, Chapter or Track of a DVD, CD or MP3. 19. NUMBER Buttons (0-9): Press these buttons to directly access chapters and tracks, dialing phone numbers, or entering passwords. 20. UP (p) / DOWN q) Buttons – Press these buttons to scroll upward and downward, respectively, in menu options. 21. MENU Button: Press this button to access the root menu of a DVD or CD during playback. The disc will return to normal playback and the root menu will disappear if no selection is made within 10 seconds. This button is also used to select photo mode of an MP3 player.22. ENTER Button (OK): Press this button to implement a selected setting or accept an option. 23. LEFT t / RIGHT u Buttons: – Press these buttons to shift left and right, respectively, in the menu options24. EQUALIZER Button (EQ): Press this button to accesses the equalizer menu in all audio playback modes.25. SCREEN BACKLIGHT ADJUST BUTTON  : Press this button to adjust the screen backlighting level between low, medium and bright.

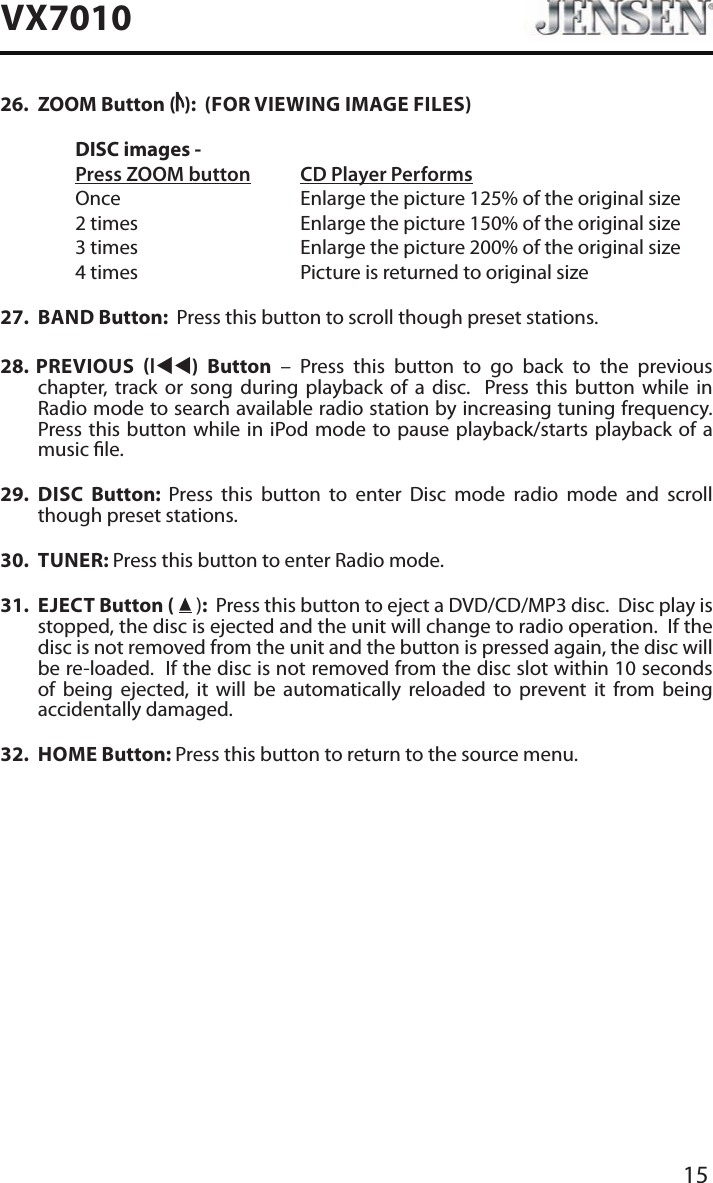

15VX701026. ZOOM Button ( ): (FOR VIEWING IMAGE FILES) DISC images - Press ZOOM button CD Player Performs Once Enlarge the picture 125% of the original size 2 times Enlarge the picture 150% of the original size 3 times Enlarge the picture 200% of the original size 4 times Picture is returned to original size27. BAND Button: Press this button to scroll though preset stations.28. PREVIOUS ltt) Button – Press this button to go back to the previous chapter, track or song during playback of a disc. Press this button while in Radio mode to search available radio station by increasing tuning frequency. Press this button while in iPod mode to pause playback/starts playback of a music le.29. DISC Button: Press this button to enter Disc mode radio mode and scroll though preset stations. 30. TUNER: Press this button to enter Radio mode. 31. EJECT Button ( ): Press this button to eject a DVD/CD/MP3 disc. Disc play is stopped, the disc is ejected and the unit will change to radio operation. If the disc is not removed from the unit and the button is pressed again, the disc will be re-loaded. If the disc is not removed from the disc slot within 10 seconds of being ejected, it will be automatically reloaded to prevent it from being accidentally damaged.32. HOME Button: Press this button to return to the source menu.

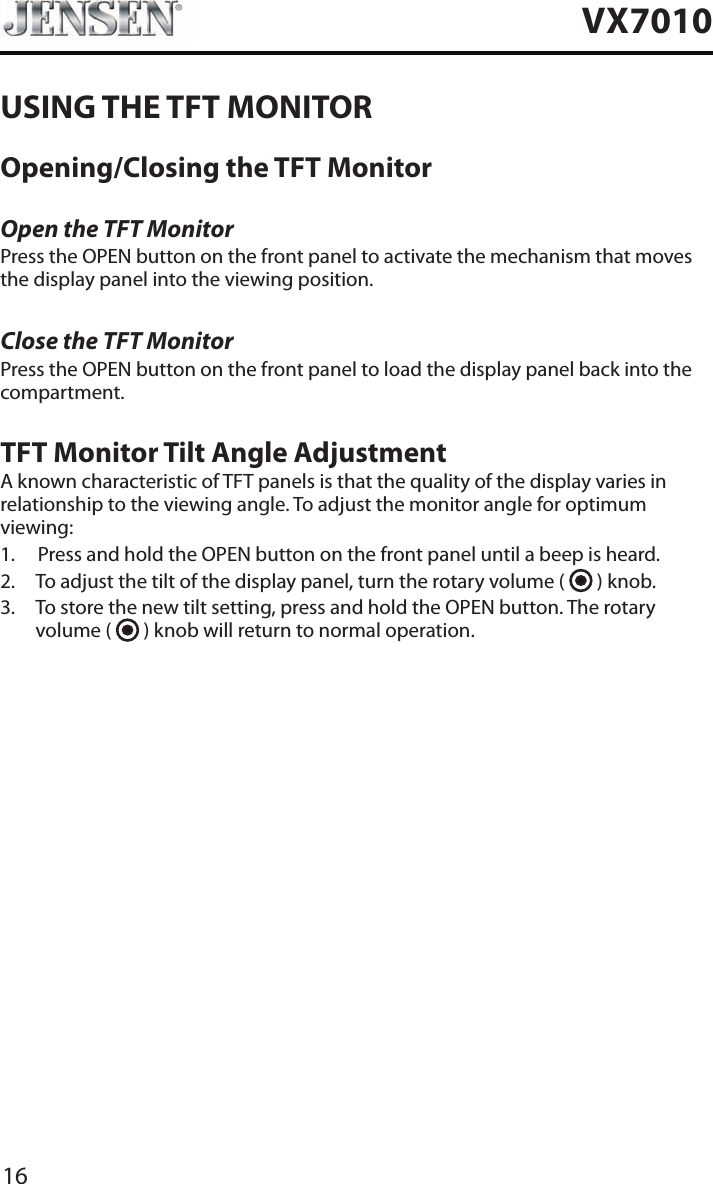

16VX7010USING THE TFT MONITOROpening/Closing the TFT MonitorOpen the TFT MonitorPress the OPEN button on the front panel to activate the mechanism that moves the display panel into the viewing position.Close the TFT MonitorPress the OPEN button on the front panel to load the display panel back into the compartment.TFT Monitor Tilt Angle AdjustmentA known characteristic of TFT panels is that the quality of the display varies in relationship to the viewing angle. To adjust the monitor angle for optimum viewing:1. Press and hold the OPEN button on the front panel until a beep is heard.2. To adjust the tilt of the display panel, turn the rotary volume ( ) knob.3. To store the new tilt setting, press and hold the OPEN button. The rotary volume ( ) knob will return to normal operation.

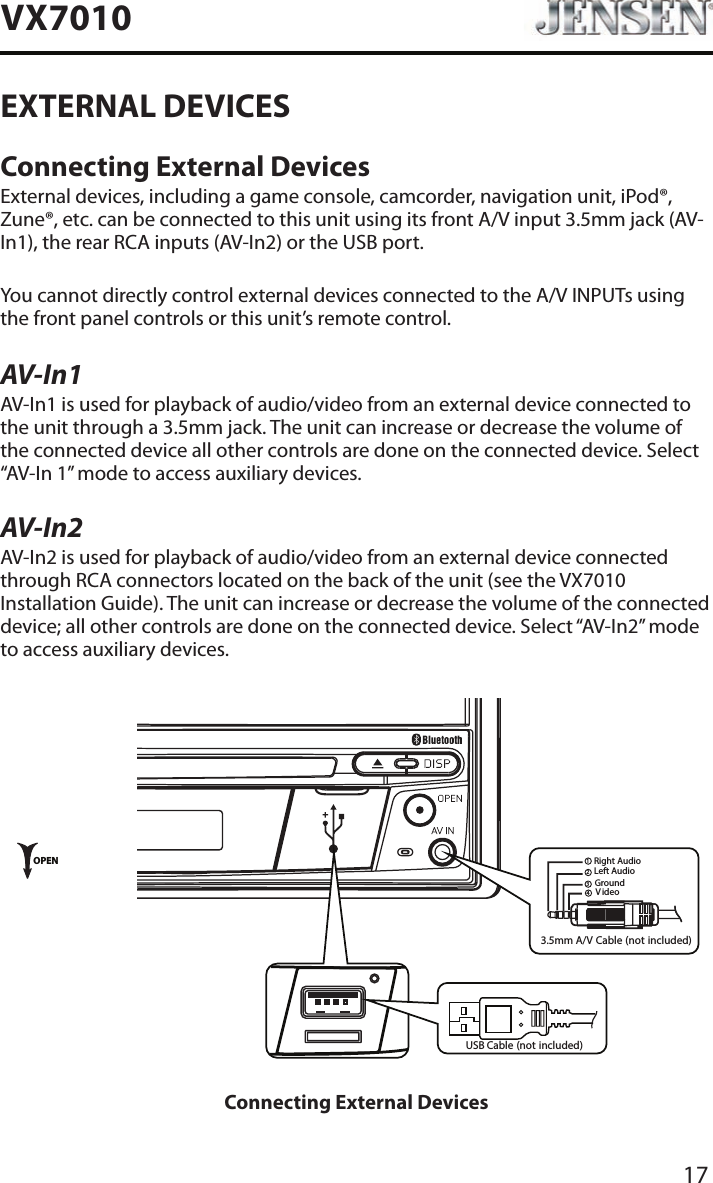

17VX7010EXTERNAL DEVICESConnecting External DevicesExternal devices, including a game console, camcorder, navigation unit, iPod®, Zune®, etc. can be connected to this unit using its front A/V input 3.5mm jack (AV-In1), the rear RCA inputs (AV-In2) or the USB port.You cannot directly control external devices connected to the A/V INPUTs using the front panel controls or this unit’s remote control.AV-In1AV-In1 is used for playback of audio/video from an external device connected to the unit through a 3.5mm jack. The unit can increase or decrease the volume of the connected device all other controls are done on the connected device. Select “AV-In 1” mode to access auxiliary devices.AV-In2AV-In2 is used for playback of audio/video from an external device connected through RCA connectors located on the back of the unit (see the VX7010 Installation Guide). The unit can increase or decrease the volume of the connected device; all other controls are done on the connected device. Select “AV-In2” mode to access auxiliary devices.3.5mmA/V Cable (not included)VideoLeft AudioRight AudioGround1234OPENUSB Cable (not included)Connecting External Devices

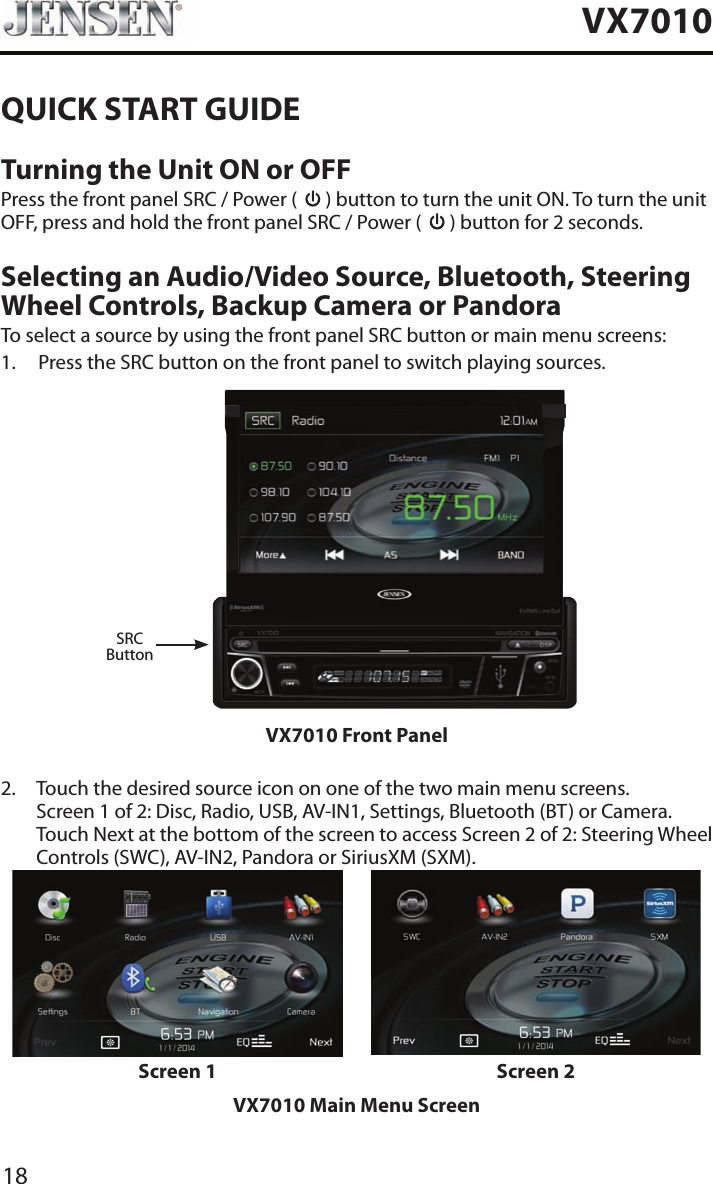

18VX7010QUICK START GUIDETurning the Unit ON or OFFPress the front panel SRC / Power ( ) button to turn the unit ON. To turn the unit OFF, press and hold the front panel SRC / Power ( ) button for 2 seconds.Selecting an Audio/Video Source, Bluetooth, Steering Wheel Controls, Backup Camera or PandoraTo select a source by using the front panel SRC button or main menu screens:1. Press the SRC button on the front panel to switch playing sources.SRCButtonVX7010 Front Panel2. Touch the desired source icon on one of the two main menu screens. Screen 1 of 2: Disc, Radio, USB, AV-IN1, Settings, Bluetooth (BT) or Camera. Touch Next at the bottom of the screen to access Screen 2 of 2: Steering Wheel Controls (SWC), AV-IN2, Pandora or SiriusXM (SXM).Screen 1 Screen 2VX7010 Main Menu Screen

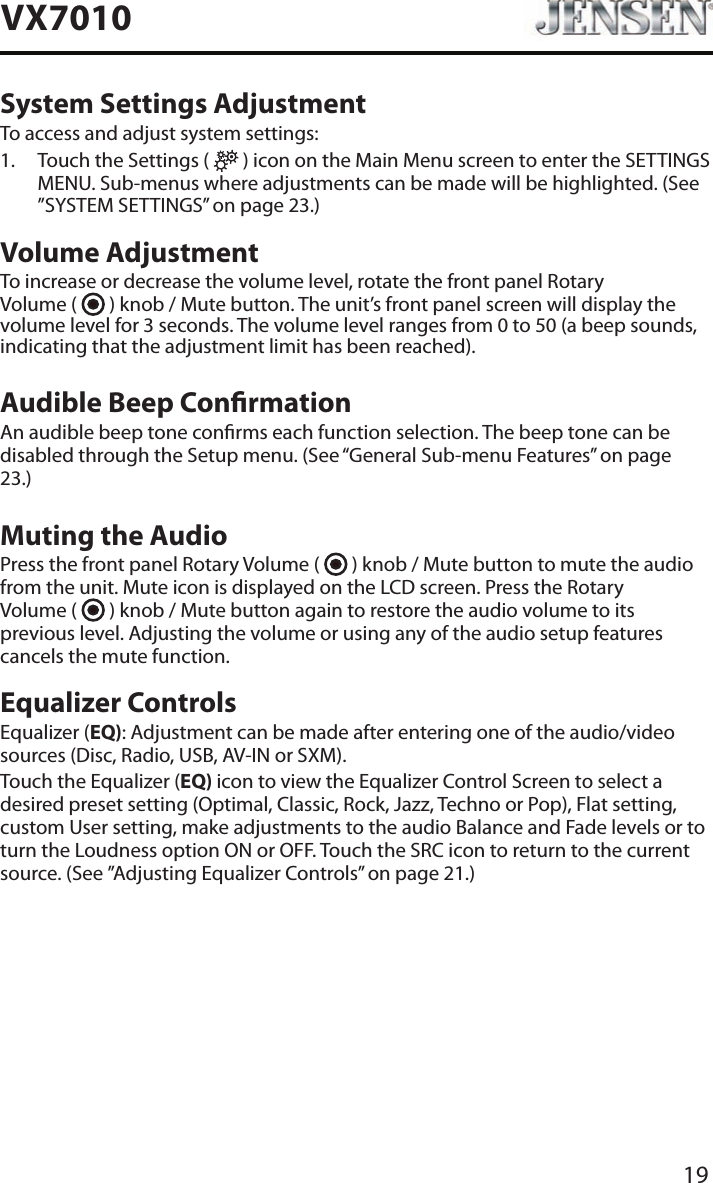

19VX7010System Settings AdjustmentTo access and adjust system settings:1. Touch the Settings ( ) icon on the Main Menu screen to enter the SETTINGS MENU. Sub-menus where adjustments can be made will be highlighted. (See ”SYSTEM SETTINGS” on page 23.)Volume AdjustmentTo increase or decrease the volume level, rotate the front panel Rotary Volume ( ) knob / Mute button. The unit’s front panel screen will display the volume level for 3 seconds. The volume level ranges from 0 to 50 (a beep sounds, indicating that the adjustment limit has been reached).Audible Beep ConrmationAn audible beep tone conrms each function selection. The beep tone can be disabled through the Setup menu. (See “General Sub-menu Features” on page 23.)Muting the AudioPress the front panel Rotary Volume ( ) knob / Mute button to mute the audio from the unit. Mute icon is displayed on the LCD screen. Press the Rotary Volume ( ) knob / Mute button again to restore the audio volume to its previous level. Adjusting the volume or using any of the audio setup features cancels the mute function.Equalizer ControlsEqualizer (EQ): Adjustment can be made after entering one of the audio/video sources (Disc, Radio, USB, AV-IN or SXM).Touch the Equalizer (EQ) icon to view the Equalizer Control Screen to select a desired preset setting (Optimal, Classic, Rock, Jazz, Techno or Pop), Flat setting, custom User setting, make adjustments to the audio Balance and Fade levels or to turn the Loudness option ON or OFF. Touch the SRC icon to return to the current source. (See ”Adjusting Equalizer Controls” on page 21.)

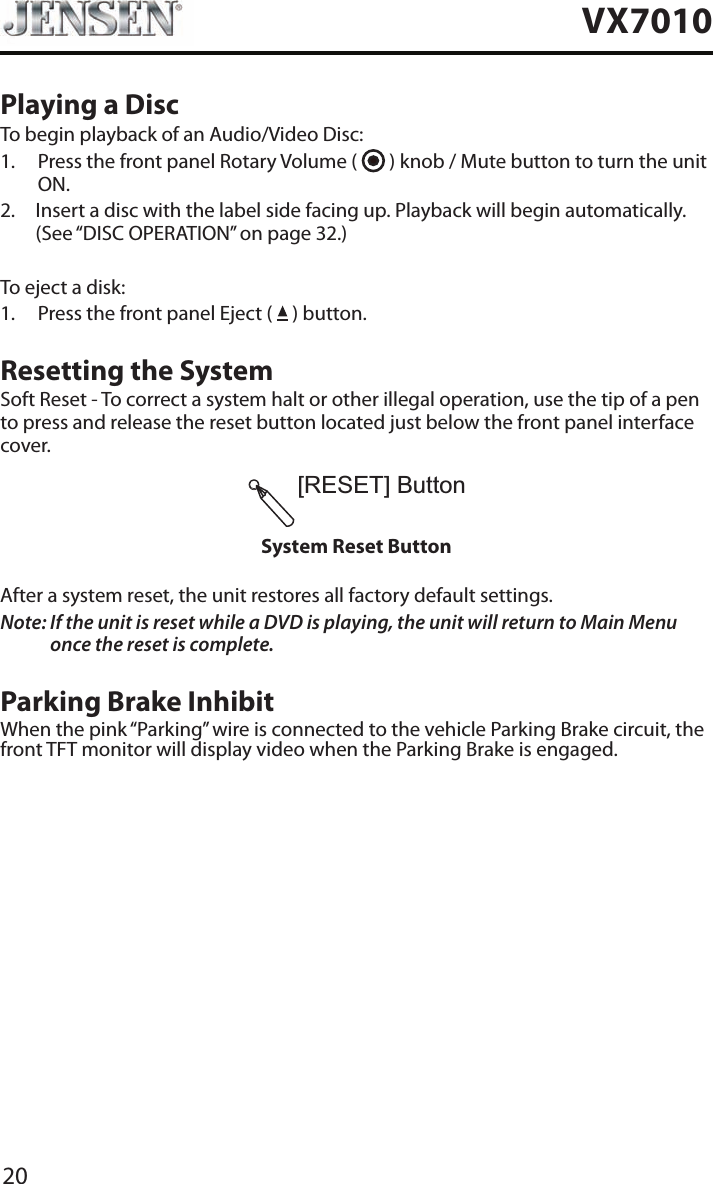

20VX7010Playing a DiscTo begin playback of an Audio/Video Disc:1. Press the front panel Rotary Volume ( ) knob / Mute button to turn the unit ON.2. Insert a disc with the label side facing up. Playback will begin automatically. (See “DISC OPERATION” on page 32.)To eject a disk:1. Press the front panel Eject ( ) button.Resetting the SystemSoft Reset - To correct a system halt or other illegal operation, use the tip of a pen to press and release the reset button located just below the front panel interface cover.[RESET]ButtonSystem Reset ButtonAfter a system reset, the unit restores all factory default settings.Note: If the unit is reset while a DVD is playing, the unit will return to Main Menu once the reset is complete.Parking Brake InhibitWhen the pink “Parking” wire is connected to the vehicle Parking Brake circuit, the front TFT monitor will display video when the Parking Brake is engaged.

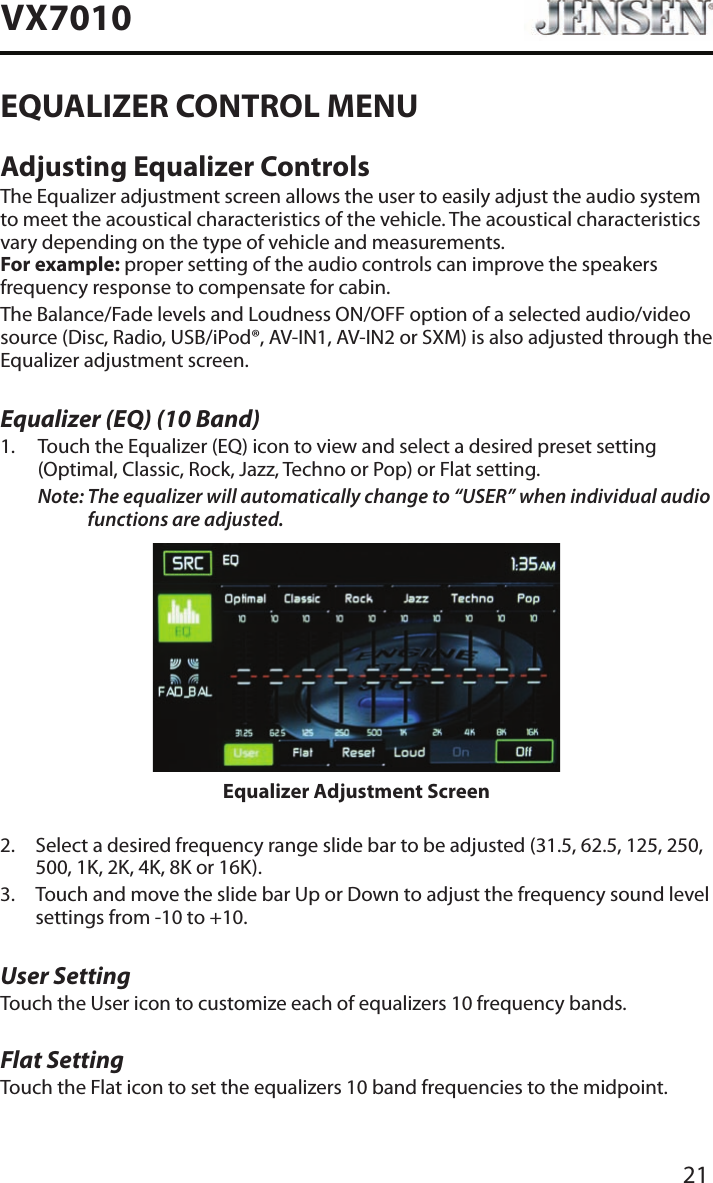

21VX7010EQUALIZER CONTROL MENUAdjusting Equalizer ControlsThe Equalizer adjustment screen allows the user to easily adjust the audio system to meet the acoustical characteristics of the vehicle. The acoustical characteristics vary depending on the type of vehicle and measurements. For example: proper setting of the audio controls can improve the speakers frequency response to compensate for cabin.The Balance/Fade levels and Loudness ON/OFF option of a selected audio/video source (Disc, Radio, USB/iPod®, AV-IN1, AV-IN2 or SXM) is also adjusted through the Equalizer adjustment screen.Equalizer (EQ) (10 Band)1. Touch the Equalizer (EQ) icon to view and select a desired preset setting (Optimal, Classic, Rock, Jazz, Techno or Pop) or Flat setting.Note: The equalizer will automatically change to “USER” when individual audio functions are adjusted.Equalizer Adjustment Screen2. Select a desired frequency range slide bar to be adjusted (31.5, 62.5, 125, 250, 500, 1K, 2K, 4K, 8K or 16K).3. Touch and move the slide bar Up or Down to adjust the frequency sound level settings from -10 to +10.User SettingTouch the User icon to customize each of equalizers 10 frequency bands. Flat SettingTouch the Flat icon to set the equalizers 10 band frequencies to the midpoint.
22VX7010Reset SettingTouch the Reset icon to reset the 10 equalizer band frequencies to the mid point.Loud SettingTouch the Loud icon to turn the loud option ON or OFF. The loud option automatically alters the frequency response curve of audio to make it sound more natural when played at a lower volume level.Exiting the EqualizerTo exit the Equalizer menu touch the SRC icon to return to the current source.Fade-BalanceBalance-Touch the FAD-BAL icon on the left side of the equalizer screen to display the balance/fader screen. Fade-Balance Adjustment ScreenBalance - This feature is used to balance the audio output levels between the left and right side of the vehicle. Touch the t or u icons to change the balance control settings -20 (Left) to +20 (Right). The setting can also be changed by touching screen within the grid to move the sphere.Fader - This feature is used to fade the audio output levels between the front and rear of the vehicle. Touch the p or q icons to change the fade control settings -20 (Rear) to +20 (Front). The setting can also be changed by touching screen within the grid to move the sphere.Sub (Subwoofer) - This feature is used to reduce or increase the subwoofer sound level. Touch the slide bar p or q icons to adjust the settings.Exiting the Balance-FaderTo exit the balance-fader touch the SRC icon on the top left corner of the screen.

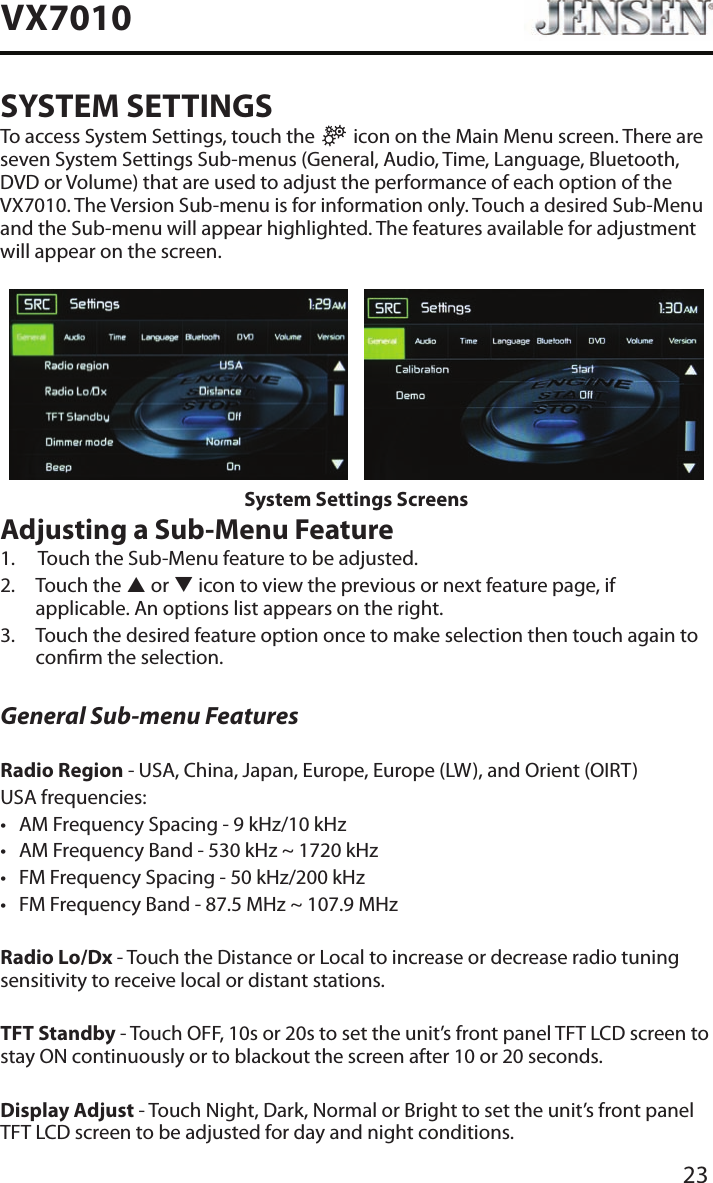

23VX7010SYSTEM SETTINGSTo access System Settings, touch the icon on the Main Menu screen. There are seven System Settings Sub-menus (General, Audio, Time, Language, Bluetooth, DVD or Volume) that are used to adjust the performance of each option of the VX7010. The Version Sub-menu is for information only. Touch a desired Sub-Menu and the Sub-menu will appear highlighted. The features available for adjustment will appear on the screen.System Settings ScreensAdjusting a Sub-Menu Feature1. Touch the Sub-Menu feature to be adjusted.2. Touch the p or q icon to view the previous or next feature page, if applicable. An options list appears on the right. 3. Touch the desired feature option once to make selection then touch again to conrm the selection.General Sub-menu FeaturesRadio Region - USA, China, Japan, Europe, Europe (LW), and Orient (OIRT)USA frequencies:• AM Frequency Spacing - 9 kHz/10 kHz • AM Frequency Band - 530 kHz ~ 1720 kHz• FM Frequency Spacing - 50 kHz/200 kHz• FM Frequency Band - 87.5 MHz ~ 107.9 MHzRadio Lo/Dx - Touch the Distance or Local to increase or decrease radio tuning sensitivity to receive local or distant stations.TFT Standby - Touch OFF, 10s or 20s to set the unit’s front panel TFT LCD screen to stay ON continuously or to blackout the screen after 10 or 20 seconds.Display Adjust - Touch Night, Dark, Normal or Bright to set the unit’s front panel TFT LCD screen to be adjusted for day and night conditions.

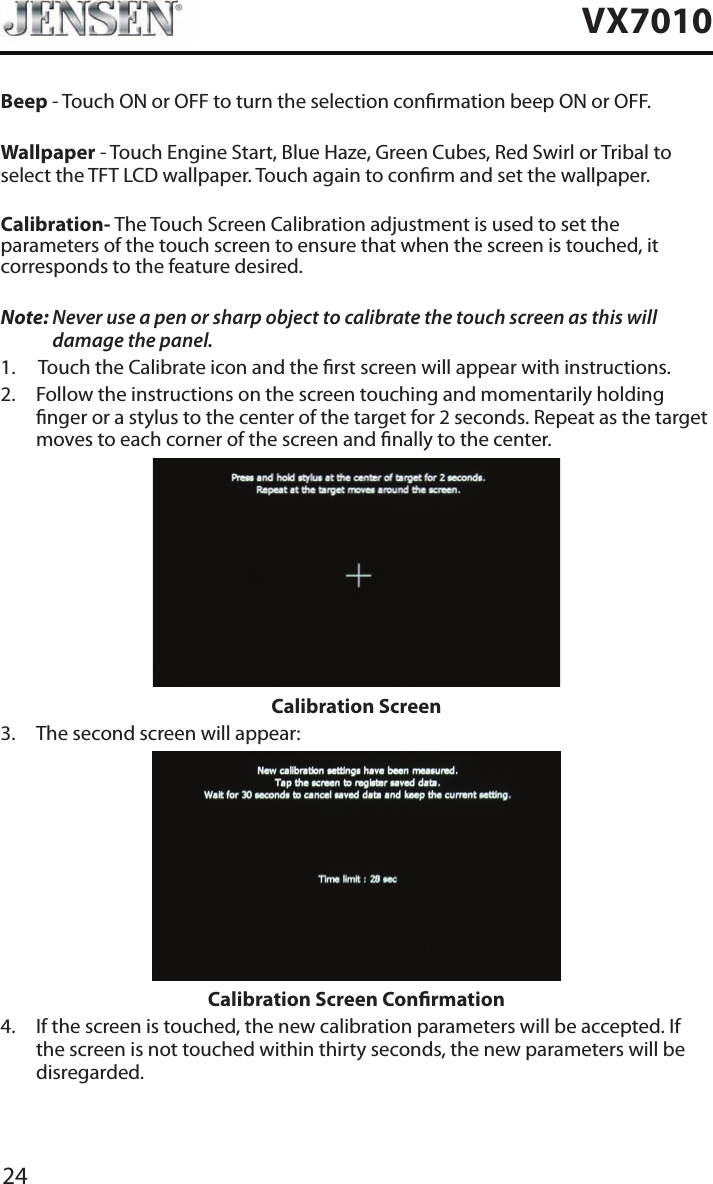

24VX7010Beep - Touch ON or OFF to turn the selection conrmation beep ON or OFF.Wallpaper - Touch Engine Start, Blue Haze, Green Cubes, Red Swirl or Tribal to select the TFT LCD wallpaper. Touch again to conrm and set the wallpaper.Calibration- The Touch Screen Calibration adjustment is used to set the parameters of the touch screen to ensure that when the screen is touched, it corresponds to the feature desired.Note: Never use a pen or sharp object to calibrate the touch screen as this will damage the panel.1. Touch the Calibrate icon and the rst screen will appear with instructions.2. Follow the instructions on the screen touching and momentarily holding nger or a stylus to the center of the target for 2 seconds. Repeat as the target moves to each corner of the screen and nally to the center.Calibration Screen3. The second screen will appear:Calibration Screen Conrmation4. If the screen is touched, the new calibration parameters will be accepted. If the screen is not touched within thirty seconds, the new parameters will be disregarded.

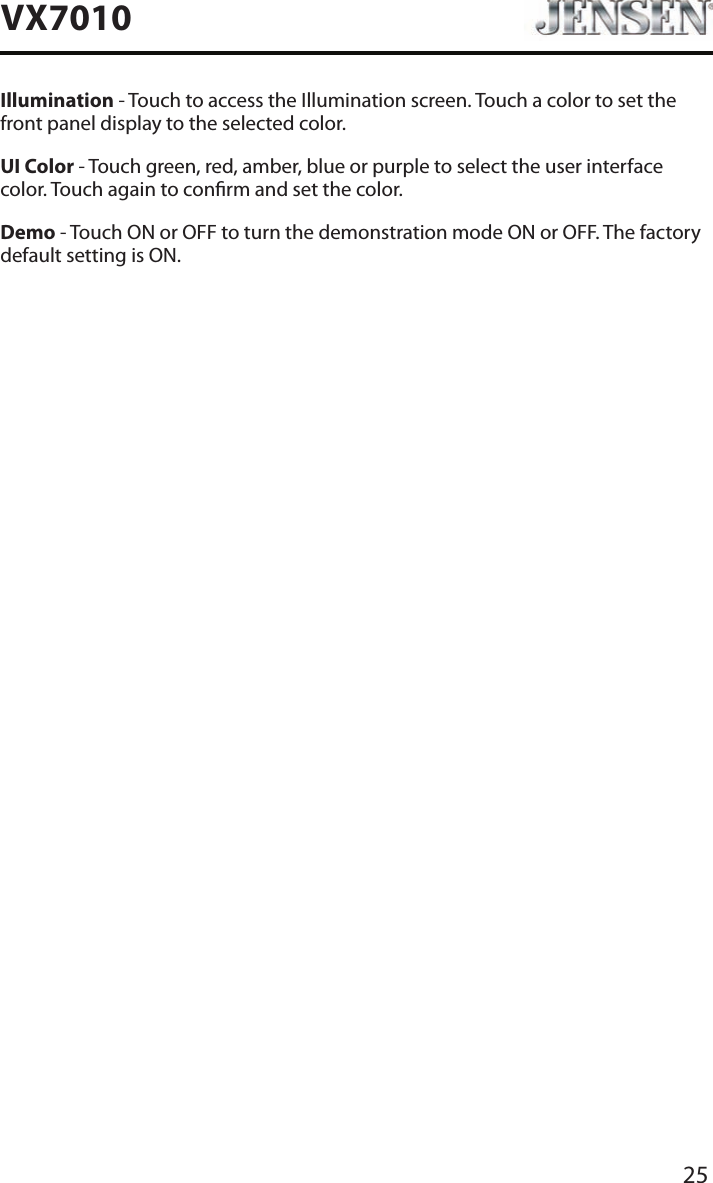

25VX7010Illumination - Touch to access the Illumination screen. Touch a color to set the front panel display to the selected color.UI Color - Touch green, red, amber, blue or purple to select the user interface color. Touch again to conrm and set the color.Demo - Touch ON or OFF to turn the demonstration mode ON or OFF. The factory default setting is ON.

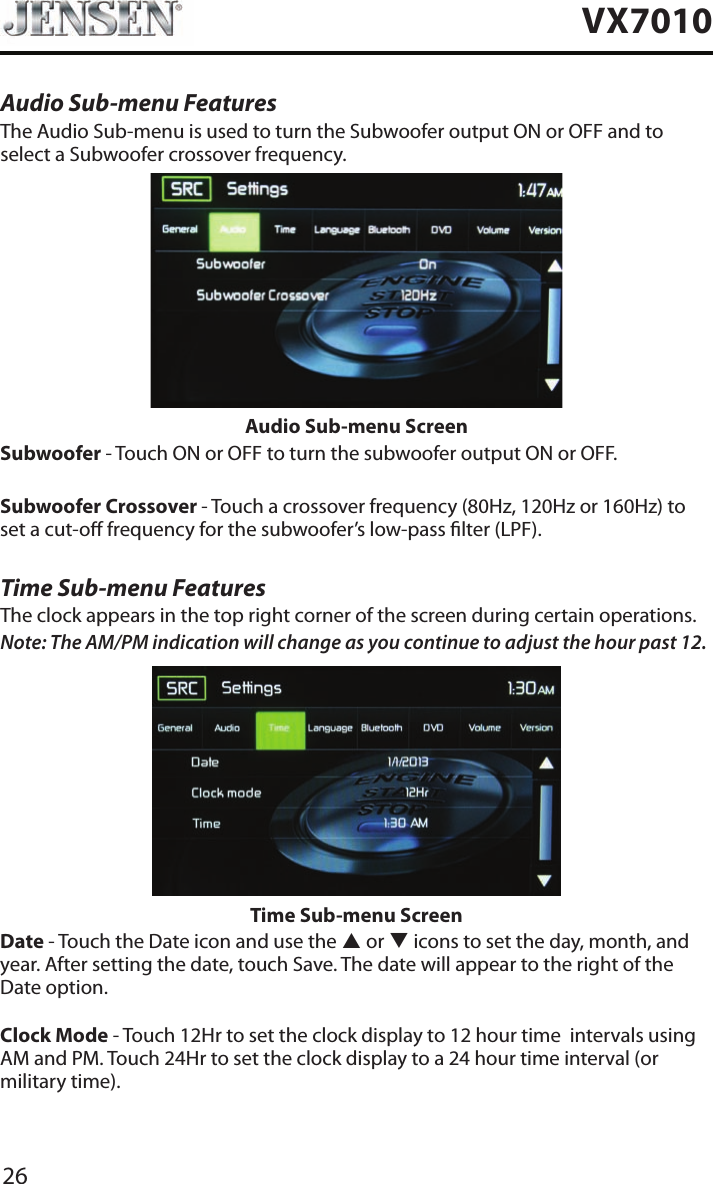

26VX7010Audio Sub-menu FeaturesThe Audio Sub-menu is used to turn the Subwoofer output ON or OFF and to select a Subwoofer crossover frequency.Audio Sub-menu ScreenSubwoofer - Touch ON or OFF to turn the subwoofer output ON or OFF.Subwoofer Crossover - Touch a crossover frequency (80Hz, 120Hz or 160Hz) to set a cut-o frequency for the subwoofer’s low-pass lter (LPF).Time Sub-menu FeaturesThe clock appears in the top right corner of the screen during certain operations.Note: The AM/PM indication will change as you continue to adjust the hour past 12.Time Sub-menu ScreenDate - Touch the Date icon and use the p or q icons to set the day, month, and year. After setting the date, touch Save. The date will appear to the right of the Date option. Clock Mode - Touch 12Hr to set the clock display to 12 hour time intervals using AM and PM. Touch 24Hr to set the clock display to a 24 hour time interval (or military time).

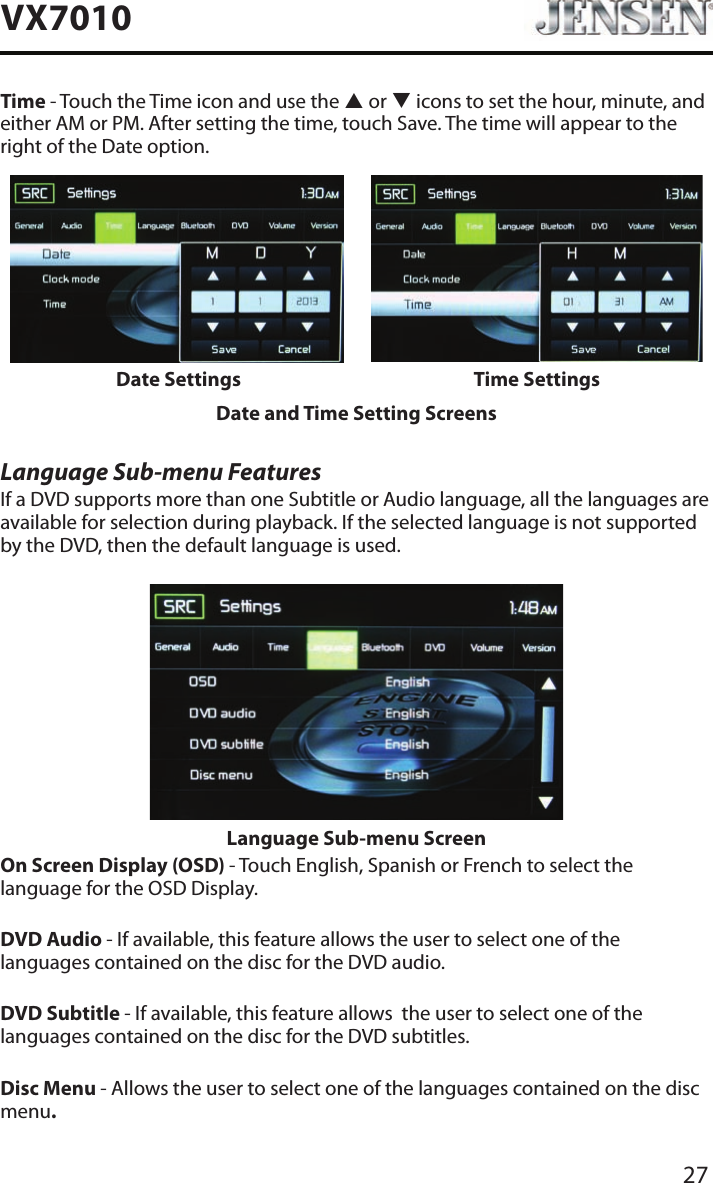

27VX7010Time - Touch the Time icon and use the p or q icons to set the hour, minute, and either AM or PM. After setting the time, touch Save. The time will appear to the right of the Date option.Date Settings Time SettingsDate and Time Setting ScreensLanguage Sub-menu FeaturesIf a DVD supports more than one Subtitle or Audio language, all the languages are available for selection during playback. If the selected language is not supported by the DVD, then the default language is used.Language Sub-menu ScreenOn Screen Display (OSD) - Touch English, Spanish or French to select the language for the OSD Display. DVD Audio - If available, this feature allows the user to select one of the languages contained on the disc for the DVD audio.DVD Subtitle - If available, this feature allows the user to select one of the languages contained on the disc for the DVD subtitles.Disc Menu - Allows the user to select one of the languages contained on the disc menu.

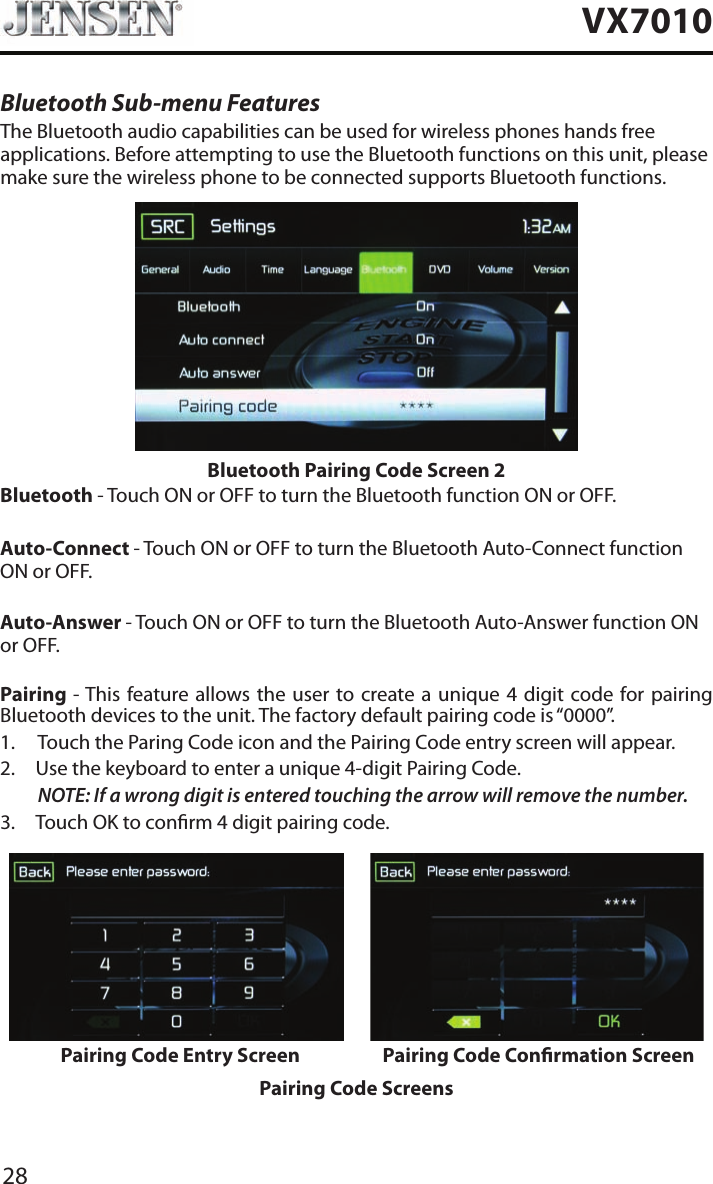

28VX7010Bluetooth Sub-menu FeaturesThe Bluetooth audio capabilities can be used for wireless phones hands free applications. Before attempting to use the Bluetooth functions on this unit, please make sure the wireless phone to be connected supports Bluetooth functions.Bluetooth Pairing Code Screen 2Bluetooth - Touch ON or OFF to turn the Bluetooth function ON or OFF.Auto-Connect - Touch ON or OFF to turn the Bluetooth Auto-Connect function ON or OFF.Auto-Answer - Touch ON or OFF to turn the Bluetooth Auto-Answer function ON or OFF.Pairing - This feature allows the user to create a unique 4 digit code for pairing Bluetooth devices to the unit. The factory default pairing code is “0000”.1. Touch the Paring Code icon and the Pairing Code entry screen will appear. 2. Use the keyboard to enter a unique 4-digit Pairing Code.NOTE: If a wrong digit is entered touching the arrow will remove the number.3. Touch OK to conrm 4 digit pairing code.Pairing Code Entry Screen Pairing Code Conrmation ScreenPairing Code Screens

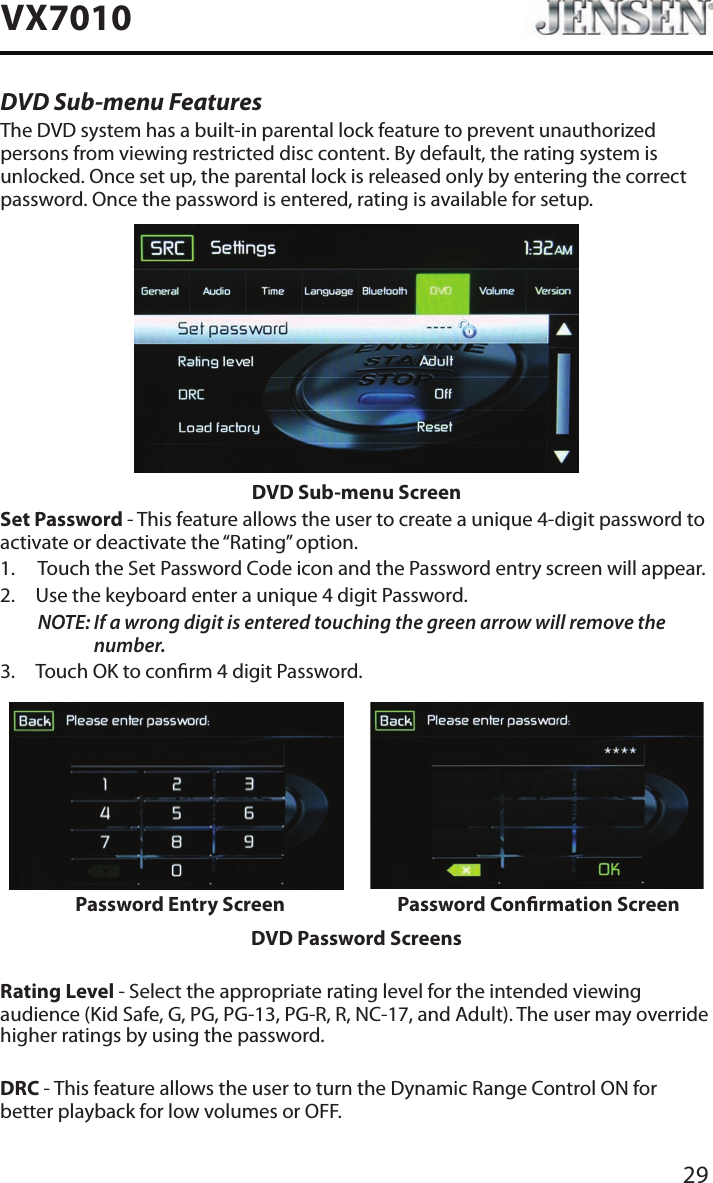

29VX7010DVD Sub-menu FeaturesThe DVD system has a built-in parental lock feature to prevent unauthorized persons from viewing restricted disc content. By default, the rating system is unlocked. Once set up, the parental lock is released only by entering the correct password. Once the password is entered, rating is available for setup.DVD Sub-menu ScreenSet Password - This feature allows the user to create a unique 4-digit password to activate or deactivate the “Rating” option.1. Touch the Set Password Code icon and the Password entry screen will appear. 2. Use the keyboard enter a unique 4 digit Password.NOTE: If a wrong digit is entered touching the green arrow will remove the number.3. Touch OK to conrm 4 digit Password.Password Entry Screen Password Conrmation ScreenDVD Password ScreensRating Level - Select the appropriate rating level for the intended viewing audience (Kid Safe, G, PG, PG-13, PG-R, R, NC-17, and Adult). The user may override higher ratings by using the password.DRC - This feature allows the user to turn the Dynamic Range Control ON for better playback for low volumes or OFF.

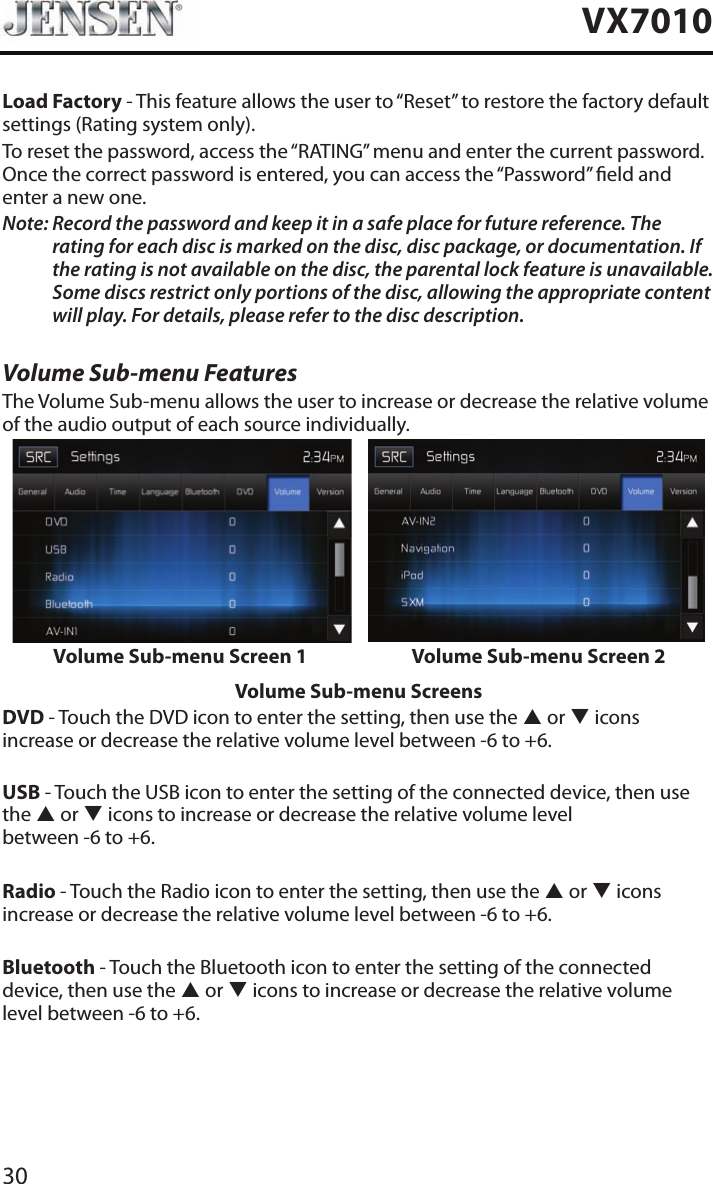

30VX7010Load Factory - This feature allows the user to “Reset” to restore the factory default settings (Rating system only).To reset the password, access the “RATING” menu and enter the current password. Once the correct password is entered, you can access the “Password” eld and enter a new one.Note: Record the password and keep it in a safe place for future reference. The rating for each disc is marked on the disc, disc package, or documentation. If the rating is not available on the disc, the parental lock feature is unavailable. Some discs restrict only portions of the disc, allowing the appropriate content will play. For details, please refer to the disc description.Volume Sub-menu FeaturesThe Volume Sub-menu allows the user to increase or decrease the relative volume of the audio output of each source individually.Volume Sub-menu Screen 1 Volume Sub-menu Screen 2Volume Sub-menu ScreensDVD - Touch the DVD icon to enter the setting, then use the p or q icons increase or decrease the relative volume level between -6 to +6.USB - Touch the USB icon to enter the setting of the connected device, then use the p or q icons to increase or decrease the relative volume level between -6 to +6.Radio - Touch the Radio icon to enter the setting, then use the p or q icons increase or decrease the relative volume level between -6 to +6.Bluetooth - Touch the Bluetooth icon to enter the setting of the connected device, then use the p or q icons to increase or decrease the relative volume level between -6 to +6.

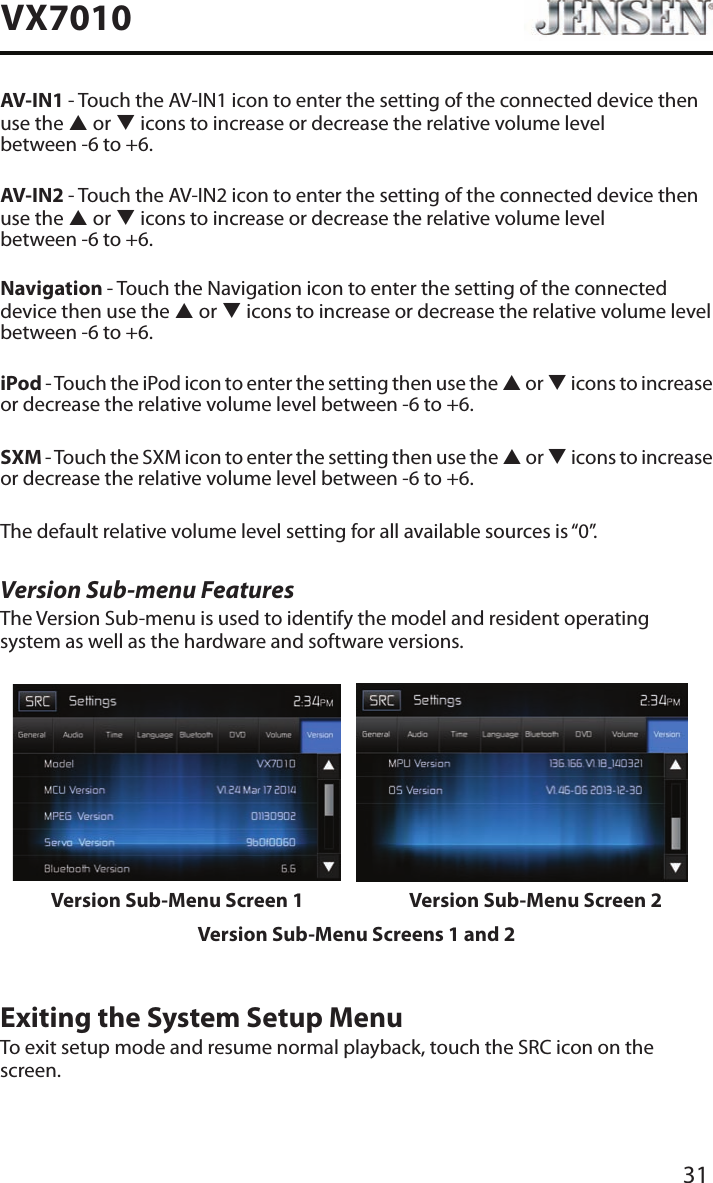

31VX7010AV-IN1 - Touch the AV-IN1 icon to enter the setting of the connected device then use the p or q icons to increase or decrease the relative volume level between -6 to +6.AV-IN2 - Touch the AV-IN2 icon to enter the setting of the connected device then use the p or q icons to increase or decrease the relative volume level between -6 to +6.Navigation - Touch the Navigation icon to enter the setting of the connected device then use the p or q icons to increase or decrease the relative volume level between -6 to +6.iPod - Touch the iPod icon to enter the setting then use the p or q icons to increase or decrease the relative volume level between -6 to +6.SXM - Touch the SXM icon to enter the setting then use the p or q icons to increase or decrease the relative volume level between -6 to +6.The default relative volume level setting for all available sources is “0”.Version Sub-menu FeaturesThe Version Sub-menu is used to identify the model and resident operating system as well as the hardware and software versions.Version Sub-Menu Screen 1 Version Sub-Menu Screen 2Version Sub-Menu Screens 1 and 2Exiting the System Setup MenuTo exit setup mode and resume normal playback, touch the SRC icon on the screen.

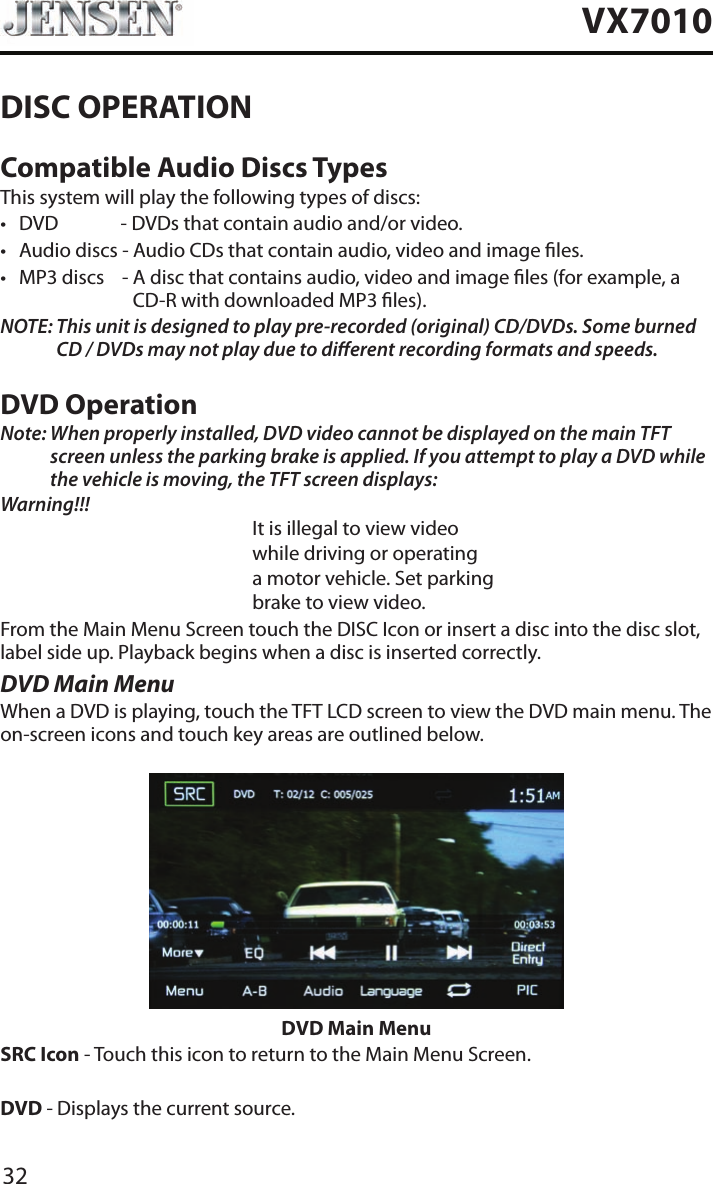

32VX7010DISC OPERATIONCompatible Audio Discs TypesThis system will play the following types of discs:• DVD - DVDs that contain audio and/or video.• Audio discs - Audio CDs that contain audio, video and image les.• MP3 discs - A disc that contains audio, video and image les (for example, a CD-R with downloaded MP3 les).NOTE: This unit is designed to play pre-recorded (original) CD/DVDs. Some burned CD / DVDs may not play due to dierent recording formats and speeds.DVD OperationNote: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen displays:Warning!!!It is illegal to view videowhile driving or operatinga motor vehicle. Set parkingbrake to view video.From the Main Menu Screen touch the DISC Icon or insert a disc into the disc slot, label side up. Playback begins when a disc is inserted correctly.DVD Main MenuWhen a DVD is playing, touch the TFT LCD screen to view the DVD main menu. The on-screen icons and touch key areas are outlined below.DVD Main MenuSRC Icon - Touch this icon to return to the Main Menu Screen.DVD - Displays the current source.

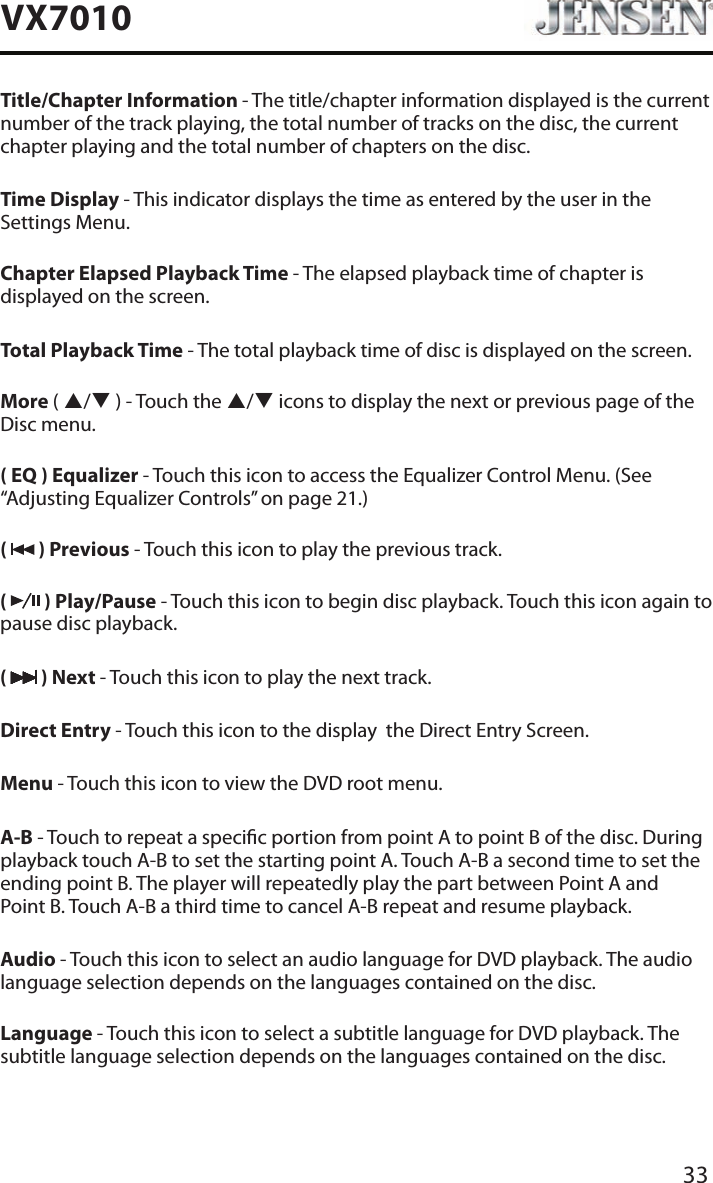

33VX7010Title/Chapter Information - The title/chapter information displayed is the current number of the track playing, the total number of tracks on the disc, the current chapter playing and the total number of chapters on the disc.Time Display - This indicator displays the time as entered by the user in the Settings Menu.Chapter Elapsed Playback Time - The elapsed playback time of chapter is displayed on the screen.Total Playback Time - The total playback time of disc is displayed on the screen.More ( p/q ) - Touch the p/q icons to display the next or previous page of the Disc menu.( EQ ) Equalizer - Touch this icon to access the Equalizer Control Menu. (See “Adjusting Equalizer Controls” on page 21.)( ) Previous - Touch this icon to play the previous track.( ) Play/Pause - Touch this icon to begin disc playback. Touch this icon again to pause disc playback.( ) Next - Touch this icon to play the next track.Direct Entry - Touch this icon to the display the Direct Entry Screen.Menu - Touch this icon to view the DVD root menu.A-B - Touch to repeat a specic portion from point A to point B of the disc. During playback touch A-B to set the starting point A. Touch A-B a second time to set the ending point B. The player will repeatedly play the part between Point A and Point B. Touch A-B a third time to cancel A-B repeat and resume playback.Audio - Touch this icon to select an audio language for DVD playback. The audio language selection depends on the languages contained on the disc.Language - Touch this icon to select a subtitle language for DVD playback. The subtitle language selection depends on the languages contained on the disc.

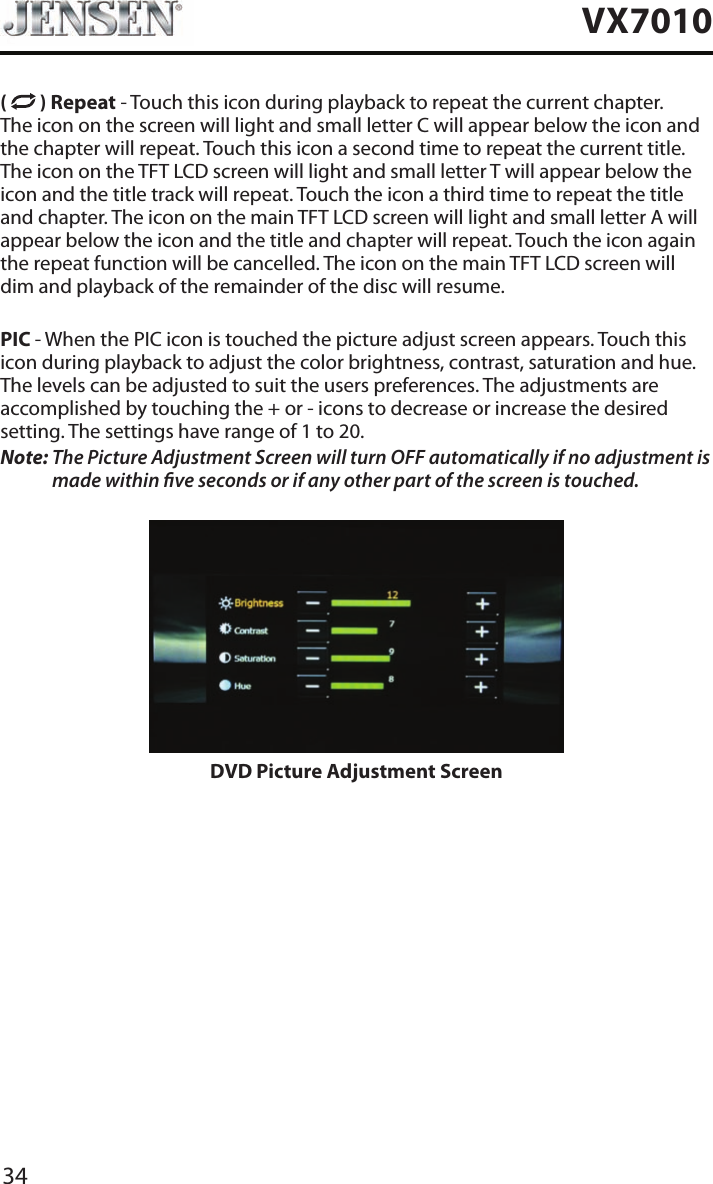

34VX7010( ) Repeat - Touch this icon during playback to repeat the current chapter. The icon on the screen will light and small letter C will appear below the icon and the chapter will repeat. Touch this icon a second time to repeat the current title. The icon on the TFT LCD screen will light and small letter T will appear below the icon and the title track will repeat. Touch the icon a third time to repeat the title and chapter. The icon on the main TFT LCD screen will light and small letter A will appear below the icon and the title and chapter will repeat. Touch the icon again the repeat function will be cancelled. The icon on the main TFT LCD screen will dim and playback of the remainder of the disc will resume.PIC - When the PIC icon is touched the picture adjust screen appears. Touch this icon during playback to adjust the color brightness, contrast, saturation and hue. The levels can be adjusted to suit the users preferences. The adjustments are accomplished by touching the + or - icons to decrease or increase the desired setting. The settings have range of 1 to 20. Note: The Picture Adjustment Screen will turn OFF automatically if no adjustment is made within ve seconds or if any other part of the screen is touched.DVD Picture Adjustment Screen

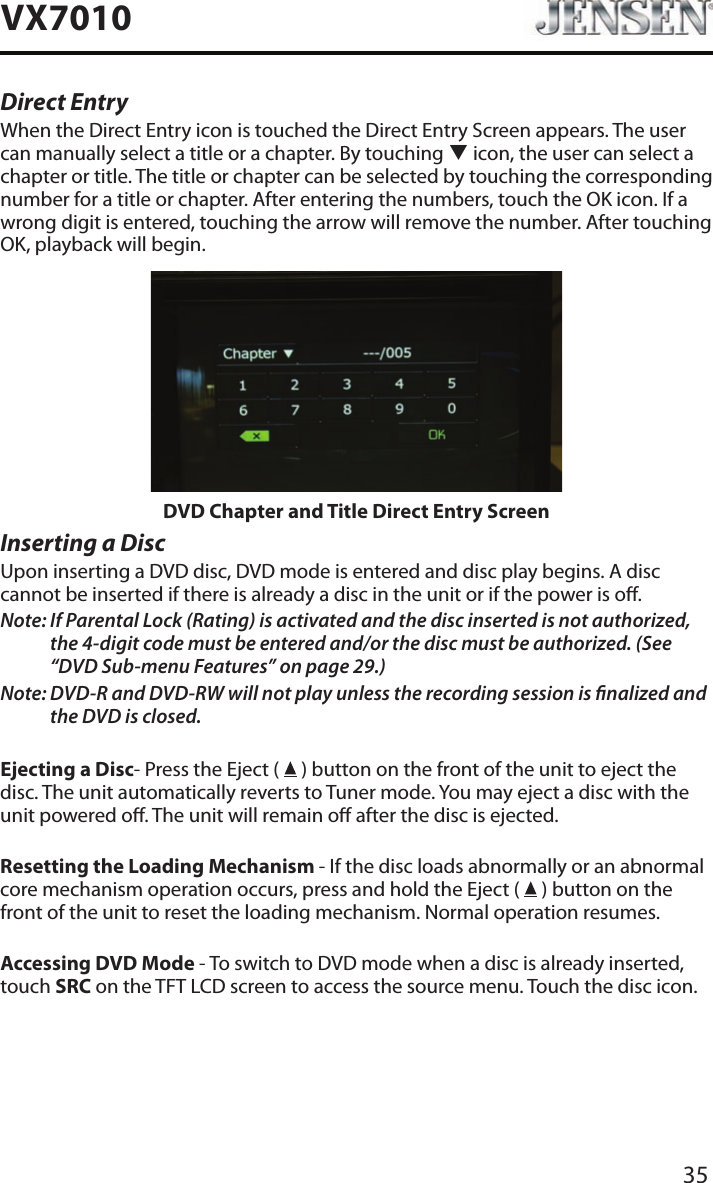

35VX7010Direct EntryWhen the Direct Entry icon is touched the Direct Entry Screen appears. The user can manually select a title or a chapter. By touching q icon, the user can select a chapter or title. The title or chapter can be selected by touching the corresponding number for a title or chapter. After entering the numbers, touch the OK icon. If a wrong digit is entered, touching the arrow will remove the number. After touching OK, playback will begin.DVD Chapter and Title Direct Entry ScreenInserting a DiscUpon inserting a DVD disc, DVD mode is entered and disc play begins. A disc cannot be inserted if there is already a disc in the unit or if the power is o.Note: If Parental Lock (Rating) is activated and the disc inserted is not authorized, the 4-digit code must be entered and/or the disc must be authorized. (See “DVD Sub-menu Features” on page 29.)Note: DVD-R and DVD-RW will not play unless the recording session is nalized and the DVD is closed.Ejecting a Disc- Press the Eject ( ) button on the front of the unit to eject the disc. The unit automatically reverts to Tuner mode. You may eject a disc with the unit powered o. The unit will remain o after the disc is ejected.Resetting the Loading Mechanism - If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the Eject ( ) button on the front of the unit to reset the loading mechanism. Normal operation resumes.Accessing DVD Mode - To switch to DVD mode when a disc is already inserted, touch SRC on the TFT LCD screen to access the source menu. Touch the disc icon.

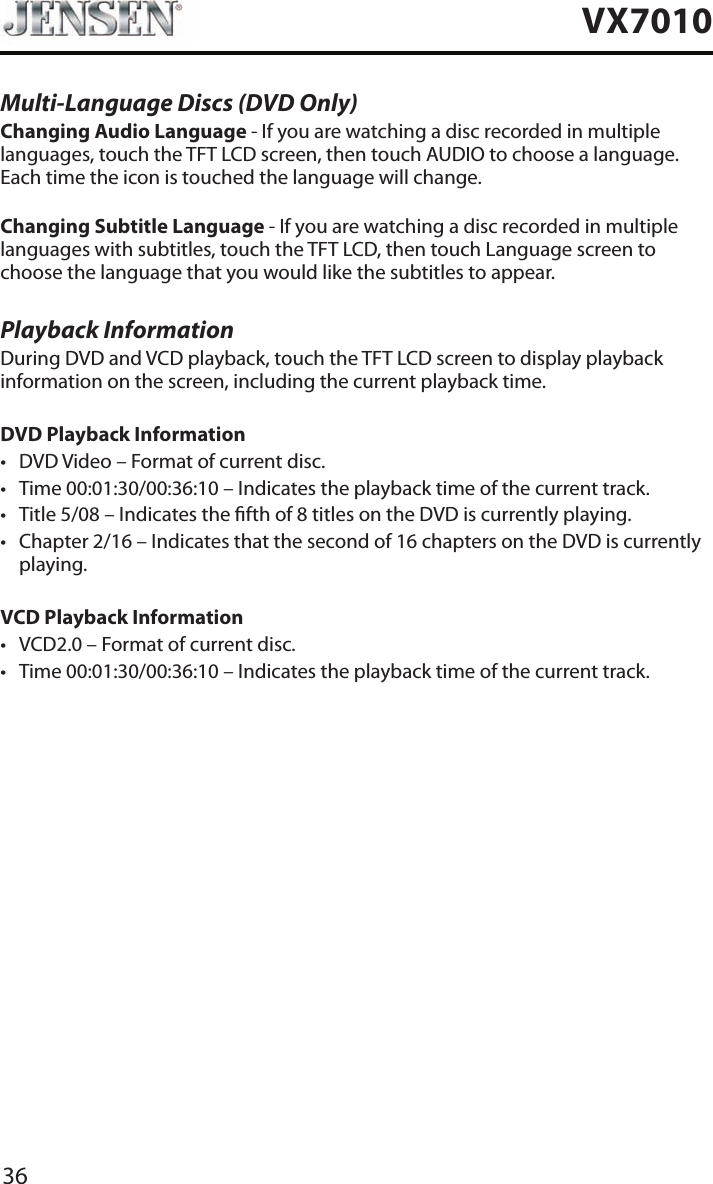

36VX7010Multi-Language Discs (DVD Only)Changing Audio Language - If you are watching a disc recorded in multiple languages, touch the TFT LCD screen, then touch AUDIO to choose a language. Each time the icon is touched the language will change.Changing Subtitle Language - If you are watching a disc recorded in multiple languages with subtitles, touch the TFT LCD, then touch Language screen to choose the language that you would like the subtitles to appear.Playback InformationDuring DVD and VCD playback, touch the TFT LCD screen to display playback information on the screen, including the current playback time.DVD Playback Information• DVD Video – Format of current disc.• Time 00:01:30/00:36:10 – Indicates the playback time of the current track.• Title 5/08 – Indicates the fth of 8 titles on the DVD is currently playing.• Chapter 2/16 – Indicates that the second of 16 chapters on the DVD is currently playing.VCD Playback Information • VCD2.0 – Format of current disc.• Time 00:01:30/00:36:10 – Indicates the playback time of the current track.

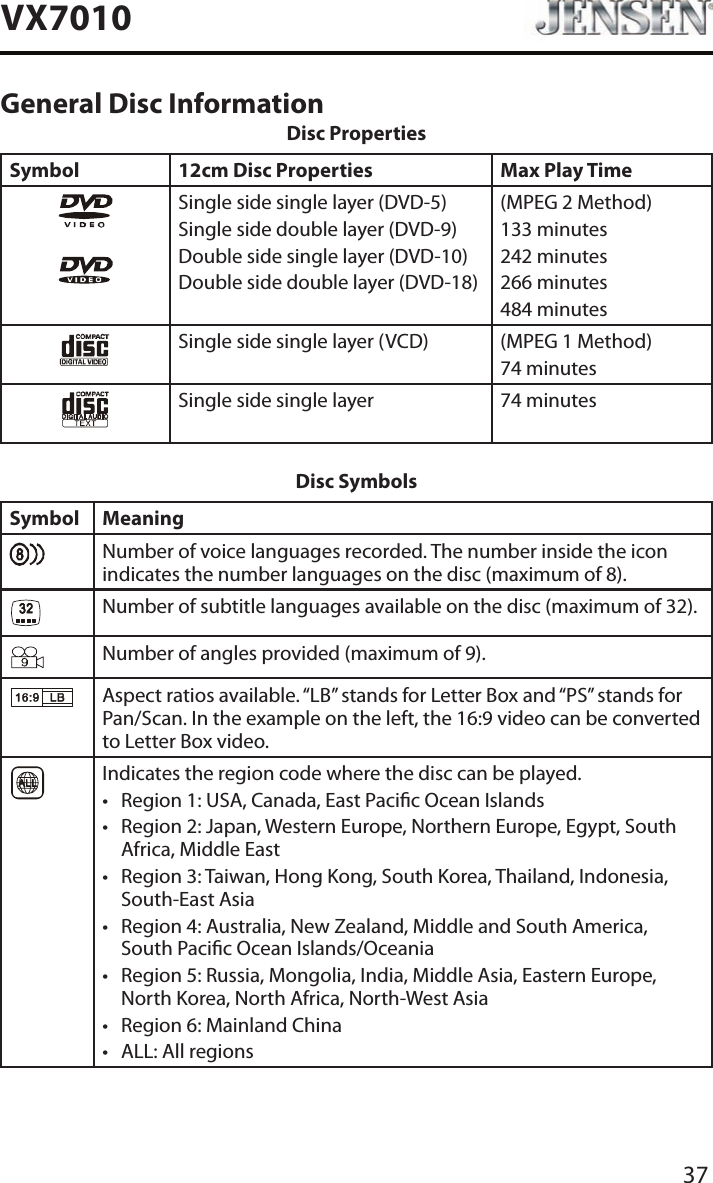

37VX7010General Disc InformationDisc PropertiesSymbol 12cm Disc Properties Max Play TimeSingle side single layer (DVD-5)Single side double layer (DVD-9)Double side single layer (DVD-10)Double side double layer (DVD-18)(MPEG 2 Method)133 minutes242 minutes266 minutes484 minutesSingle side single layer (VCD) (MPEG 1 Method)74 minutesSingle side single layer 74 minutesDisc SymbolsSymbol MeaningNumber of voice languages recorded. The number inside the icon indicates the number languages on the disc (maximum of 8).Number of subtitle languages available on the disc (maximum of 32).Number of angles provided (maximum of 9).Aspect ratios available. “LB” stands for Letter Box and “PS” stands for Pan/Scan. In the example on the left, the 16:9 video can be converted to Letter Box video.Indicates the region code where the disc can be played.• Region 1: USA, Canada, East Pacic Ocean Islands• Region 2: Japan, Western Europe, Northern Europe, Egypt, South Africa, Middle East• Region 3: Taiwan, Hong Kong, South Korea, Thailand, Indonesia, South-East Asia• Region 4: Australia, New Zealand, Middle and South America, South Pacic Ocean Islands/Oceania• Region 5: Russia, Mongolia, India, Middle Asia, Eastern Europe, North Korea, North Africa, North-West Asia• Region 6: Mainland China• ALL: All regions

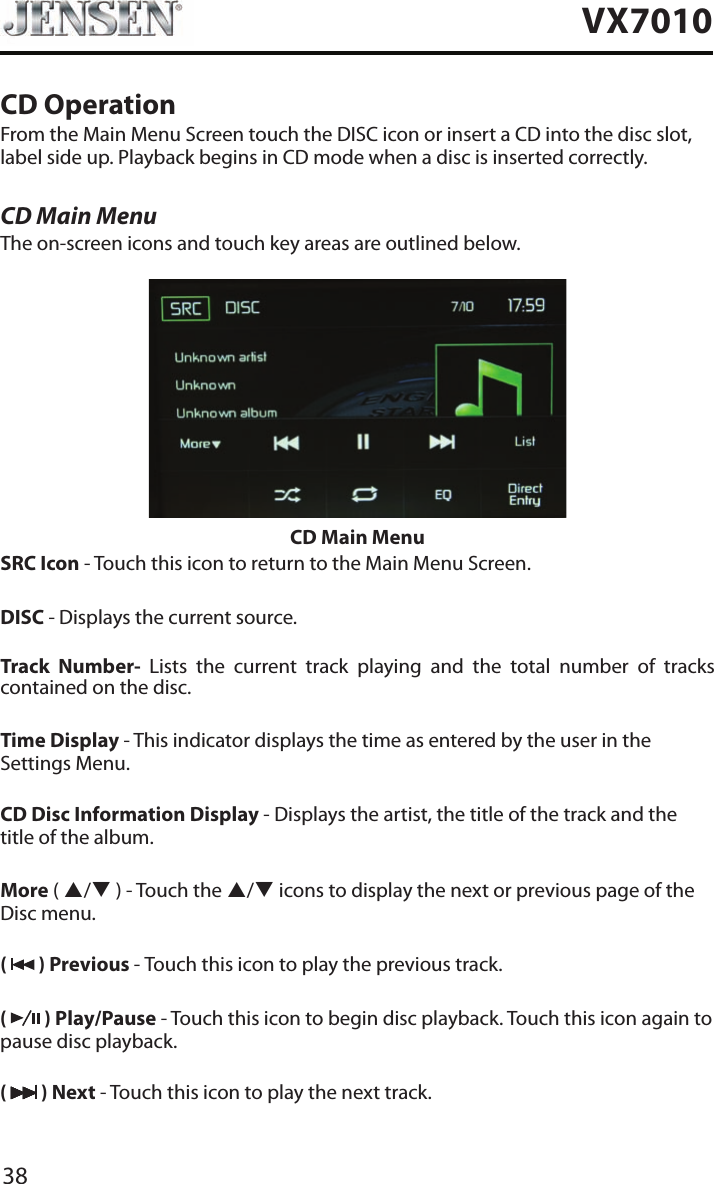

38VX7010CD OperationFrom the Main Menu Screen touch the DISC icon or insert a CD into the disc slot, label side up. Playback begins in CD mode when a disc is inserted correctly.CD Main MenuThe on-screen icons and touch key areas are outlined below.CD Main MenuSRC Icon - Touch this icon to return to the Main Menu Screen.DISC - Displays the current source.Track Number- Lists the current track playing and the total number of tracks contained on the disc.Time Display - This indicator displays the time as entered by the user in the Settings Menu.CD Disc Information Display - Displays the artist, the title of the track and the title of the album.More ( p/q ) - Touch the p/q icons to display the next or previous page of the Disc menu. ( ) Previous - Touch this icon to play the previous track.( ) Play/Pause - Touch this icon to begin disc playback. Touch this icon again to pause disc playback.( ) Next - Touch this icon to play the next track.

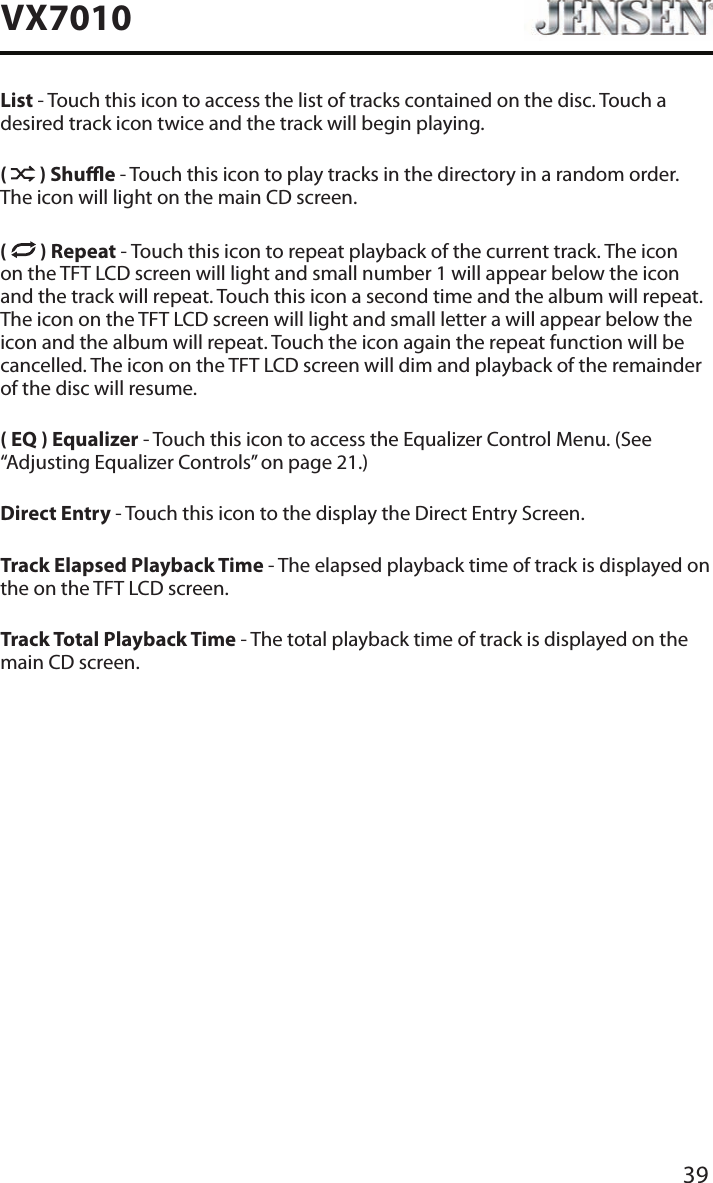

39VX7010List - Touch this icon to access the list of tracks contained on the disc. Touch a desired track icon twice and the track will begin playing. ( ) Shue - Touch this icon to play tracks in the directory in a random order. The icon will light on the main CD screen.( ) Repeat - Touch this icon to repeat playback of the current track. The icon on the TFT LCD screen will light and small number 1 will appear below the icon and the track will repeat. Touch this icon a second time and the album will repeat. The icon on the TFT LCD screen will light and small letter a will appear below the icon and the album will repeat. Touch the icon again the repeat function will be cancelled. The icon on the TFT LCD screen will dim and playback of the remainder of the disc will resume.( EQ ) Equalizer - Touch this icon to access the Equalizer Control Menu. (See “Adjusting Equalizer Controls” on page 21.)Direct Entry - Touch this icon to the display the Direct Entry Screen.Track Elapsed Playback Time - The elapsed playback time of track is displayed on the on the TFT LCD screen.Track Total Playback Time - The total playback time of track is displayed on the main CD screen.

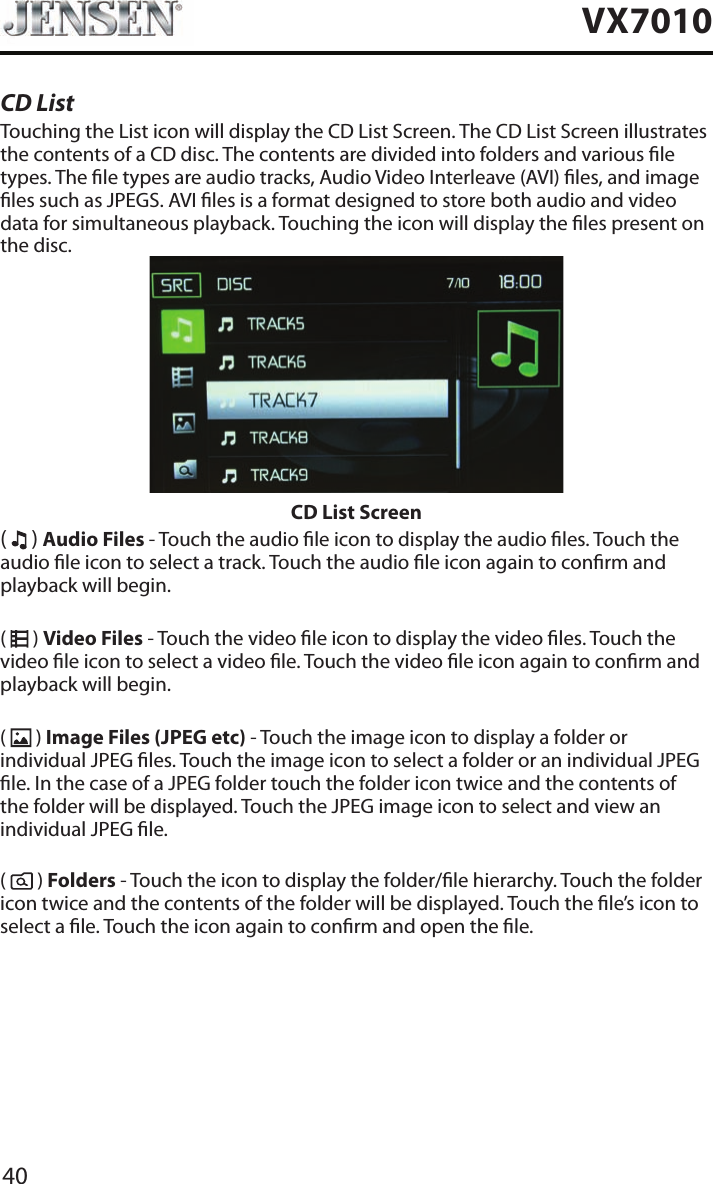

40VX7010CD ListTouching the List icon will display the CD List Screen. The CD List Screen illustrates the contents of a CD disc. The contents are divided into folders and various le types. The le types are audio tracks, Audio Video Interleave (AVI) les, and image les such as JPEGS. AVI les is a format designed to store both audio and video data for simultaneous playback. Touching the icon will display the les present on the disc. CD List Screen( ) Audio Files - Touch the audio le icon to display the audio les. Touch the audio le icon to select a track. Touch the audio le icon again to conrm and playback will begin. ( ) Video Files - Touch the video le icon to display the video les. Touch the video le icon to select a video le. Touch the video le icon again to conrm and playback will begin.( ) Image Files (JPEG etc) - Touch the image icon to display a folder or individual JPEG les. Touch the image icon to select a folder or an individual JPEG le. In the case of a JPEG folder touch the folder icon twice and the contents of the folder will be displayed. Touch the JPEG image icon to select and view an individual JPEG le.( ) Folders - Touch the icon to display the folder/le hierarchy. Touch the folder icon twice and the contents of the folder will be displayed. Touch the le’s icon to select a le. Touch the icon again to conrm and open the le.

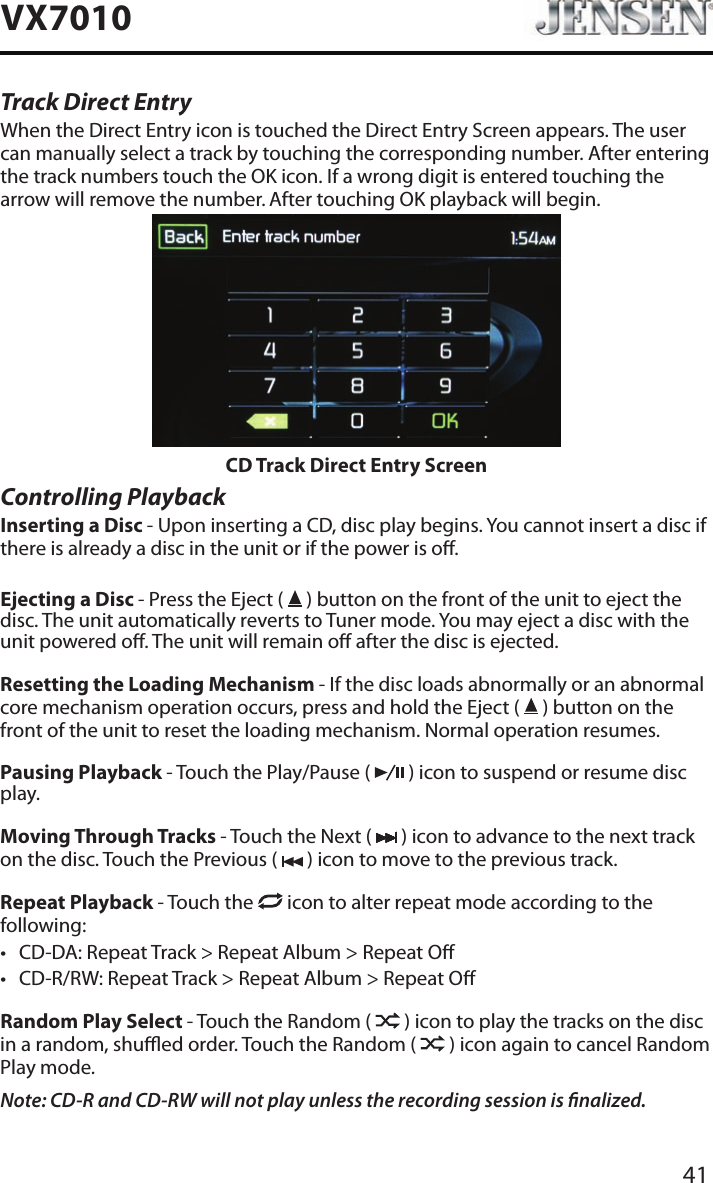

41VX7010Track Direct EntryWhen the Direct Entry icon is touched the Direct Entry Screen appears. The user can manually select a track by touching the corresponding number. After entering the track numbers touch the OK icon. If a wrong digit is entered touching the arrow will remove the number. After touching OK playback will begin.CD Track Direct Entry ScreenControlling PlaybackInserting a Disc - Upon inserting a CD, disc play begins. You cannot insert a disc if there is already a disc in the unit or if the power is o. Ejecting a Disc - Press the Eject ( ) button on the front of the unit to eject the disc. The unit automatically reverts to Tuner mode. You may eject a disc with the unit powered o. The unit will remain o after the disc is ejected.Resetting the Loading Mechanism - If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the Eject ( ) button on the front of the unit to reset the loading mechanism. Normal operation resumes.Pausing Playback - Touch the Play/Pause ( ) icon to suspend or resume disc play.Moving Through Tracks - Touch the Next ( ) icon to advance to the next track on the disc. Touch the Previous ( ) icon to move to the previous track.Repeat Playback - Touch the icon to alter repeat mode according to the following: • CD-DA: Repeat Track > Repeat Album > Repeat O• CD-R/RW: Repeat Track > Repeat Album > Repeat ORandom Play Select - Touch the Random ( ) icon to play the tracks on the disc in a random, shued order. Touch the Random ( ) icon again to cancel Random Play mode. Note: CD-R and CD-RW will not play unless the recording session is nalized.

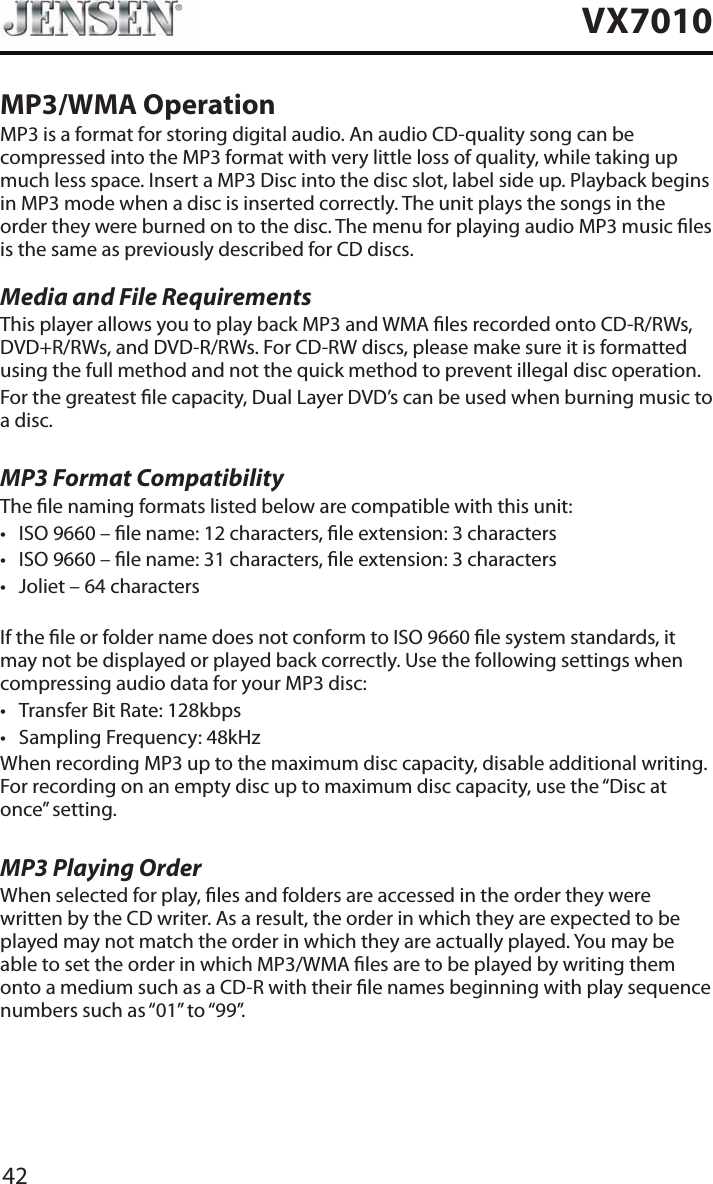

42VX7010MP3/WMA OperationMP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. Insert a MP3 Disc into the disc slot, label side up. Playback begins in MP3 mode when a disc is inserted correctly. The unit plays the songs in the order they were burned on to the disc. The menu for playing audio MP3 music les is the same as previously described for CD discs.Media and File RequirementsThis player allows you to play back MP3 and WMA les recorded onto CD-R/RWs, DVD+R/RWs, and DVD-R/RWs. For CD-RW discs, please make sure it is formatted using the full method and not the quick method to prevent illegal disc operation.For the greatest le capacity, Dual Layer DVD’s can be used when burning music to a disc. MP3 Format CompatibilityThe le naming formats listed below are compatible with this unit:• ISO 9660 – le name: 12 characters, le extension: 3 characters• ISO 9660 – le name: 31 characters, le extension: 3 characters• Joliet – 64 charactersIf the le or folder name does not conform to ISO 9660 le system standards, it may not be displayed or played back correctly. Use the following settings when compressing audio data for your MP3 disc:• Transfer Bit Rate: 128kbps• Sampling Frequency: 48kHzWhen recording MP3 up to the maximum disc capacity, disable additional writing. For recording on an empty disc up to maximum disc capacity, use the “Disc at once” setting.MP3 Playing OrderWhen selected for play, les and folders are accessed in the order they were written by the CD writer. As a result, the order in which they are expected to be played may not match the order in which they are actually played. You may be able to set the order in which MP3/WMA les are to be played by writing them onto a medium such as a CD-R with their le names beginning with play sequence numbers such as “01” to “99”.

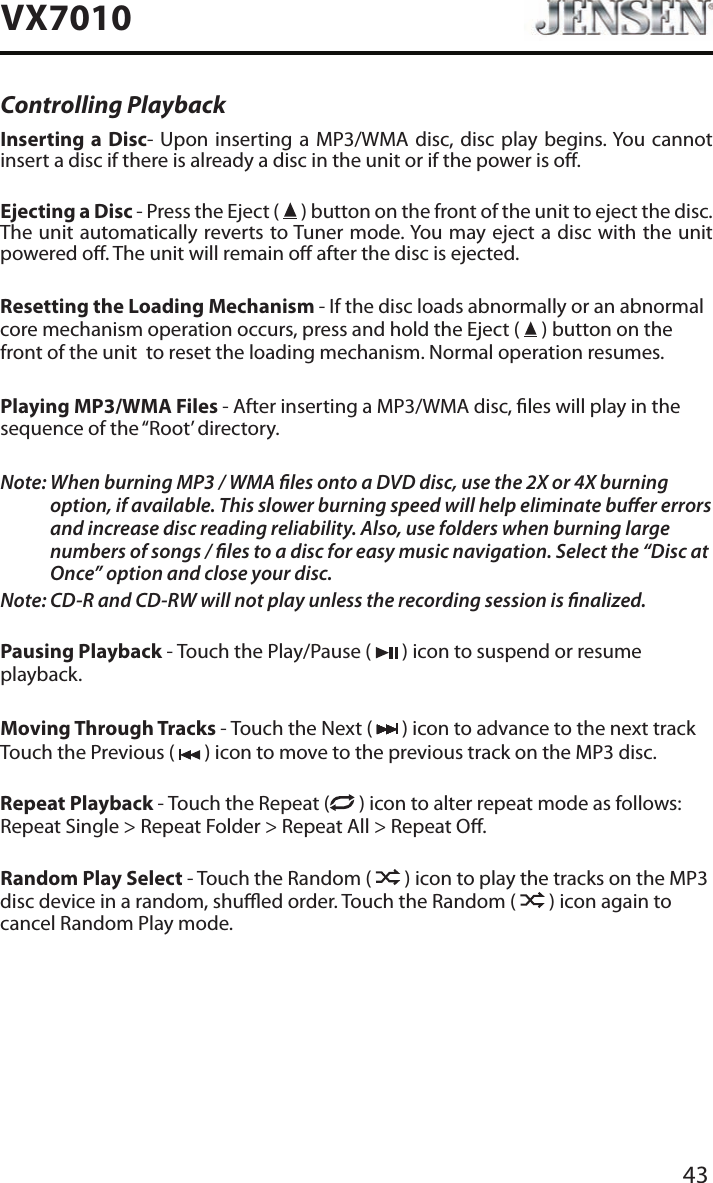

43VX7010Controlling PlaybackInserting a Disc- Upon inserting a MP3/WMA disc, disc play begins. You cannot insert a disc if there is already a disc in the unit or if the power is o. Ejecting a Disc - Press the Eject ( ) button on the front of the unit to eject the disc. The unit automatically reverts to Tuner mode. You may eject a disc with the unit powered o. The unit will remain o after the disc is ejected.Resetting the Loading Mechanism - If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the Eject ( ) button on the front of the unit to reset the loading mechanism. Normal operation resumes.Playing MP3/WMA Files - After inserting a MP3/WMA disc, les will play in the sequence of the “Root’ directory.Note: When burning MP3 / WMA les onto a DVD disc, use the 2X or 4X burning option, if available. This slower burning speed will help eliminate buer errors and increase disc reading reliability. Also, use folders when burning large numbers of songs / les to a disc for easy music navigation. Select the “Disc at Once” option and close your disc.Note: CD-R and CD-RW will not play unless the recording session is nalized.Pausing Playback - Touch the Play/Pause ( ) icon to suspend or resume playback.Moving Through Tracks - Touch the Next ( ) icon to advance to the next track Touch the Previous ( ) icon to move to the previous track on the MP3 disc.Repeat Playback - Touch the Repeat ( ) icon to alter repeat mode as follows: Repeat Single > Repeat Folder > Repeat All > Repeat O.Random Play Select - Touch the Random ( ) icon to play the tracks on the MP3 disc device in a random, shued order. Touch the Random ( ) icon again to cancel Random Play mode.

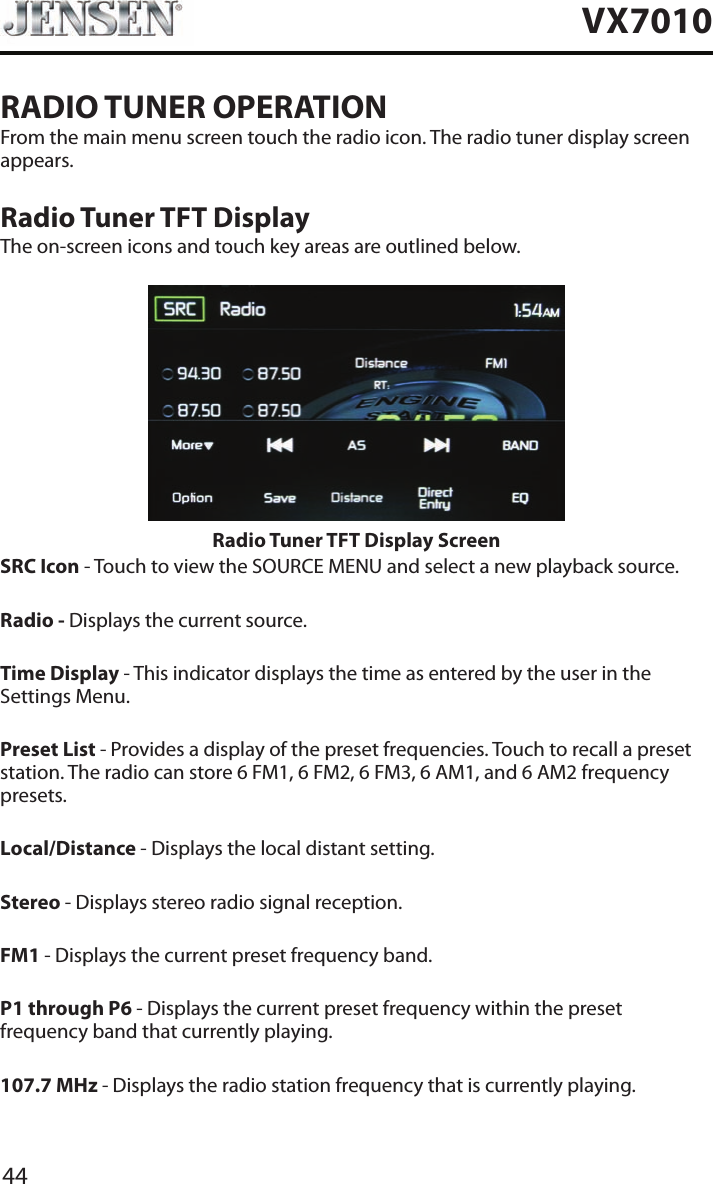

44VX7010RADIO TUNER OPERATIONFrom the main menu screen touch the radio icon. The radio tuner display screen appears.Radio Tuner TFT DisplayThe on-screen icons and touch key areas are outlined below.Radio Tuner TFT Display Screen SRC Icon - Touch to view the SOURCE MENU and select a new playback source. Radio - Displays the current source.Time Display - This indicator displays the time as entered by the user in the Settings Menu.Preset List - Provides a display of the preset frequencies. Touch to recall a preset station. The radio can store 6 FM1, 6 FM2, 6 FM3, 6 AM1, and 6 AM2 frequency presets.Local/Distance - Displays the local distant setting.Stereo - Displays stereo radio signal reception.FM1 - Displays the current preset frequency band. P1 through P6 - Displays the current preset frequency within the preset frequency band that currently playing. 107.7 MHz - Displays the radio station frequency that is currently playing.

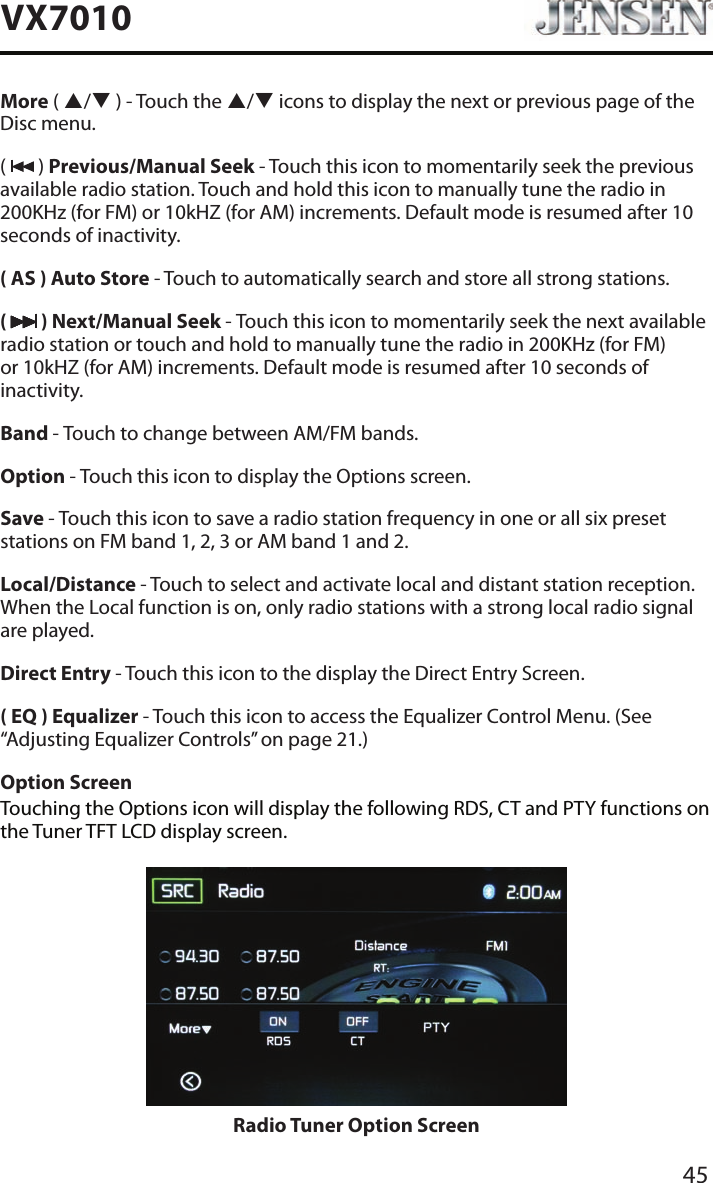

45VX7010More ( p/q ) - Touch the p/q icons to display the next or previous page of the Disc menu. ( ) Previous/Manual Seek - Touch this icon to momentarily seek the previous available radio station. Touch and hold this icon to manually tune the radio in 200KHz (for FM) or 10kHZ (for AM) increments. Default mode is resumed after 10 seconds of inactivity.( AS ) Auto Store - Touch to automatically search and store all strong stations.( ) Next/Manual Seek - Touch this icon to momentarily seek the next available radio station or touch and hold to manually tune the radio in 200KHz (for FM) or 10kHZ (for AM) increments. Default mode is resumed after 10 seconds of inactivity.Band - Touch to change between AM/FM bands.Option - Touch this icon to display the Options screen.Save - Touch this icon to save a radio station frequency in one or all six preset stations on FM band 1, 2, 3 or AM band 1 and 2.Local/Distance - Touch to select and activate local and distant station reception. When the Local function is on, only radio stations with a strong local radio signal are played.Direct Entry - Touch this icon to the display the Direct Entry Screen.( EQ ) Equalizer - Touch this icon to access the Equalizer Control Menu. (See “Adjusting Equalizer Controls” on page 21.)Option ScreenTouching the Options icon will display the following RDS, CT and PTY functions on the Tuner TFT LCD display screen.Radio Tuner Option Screen

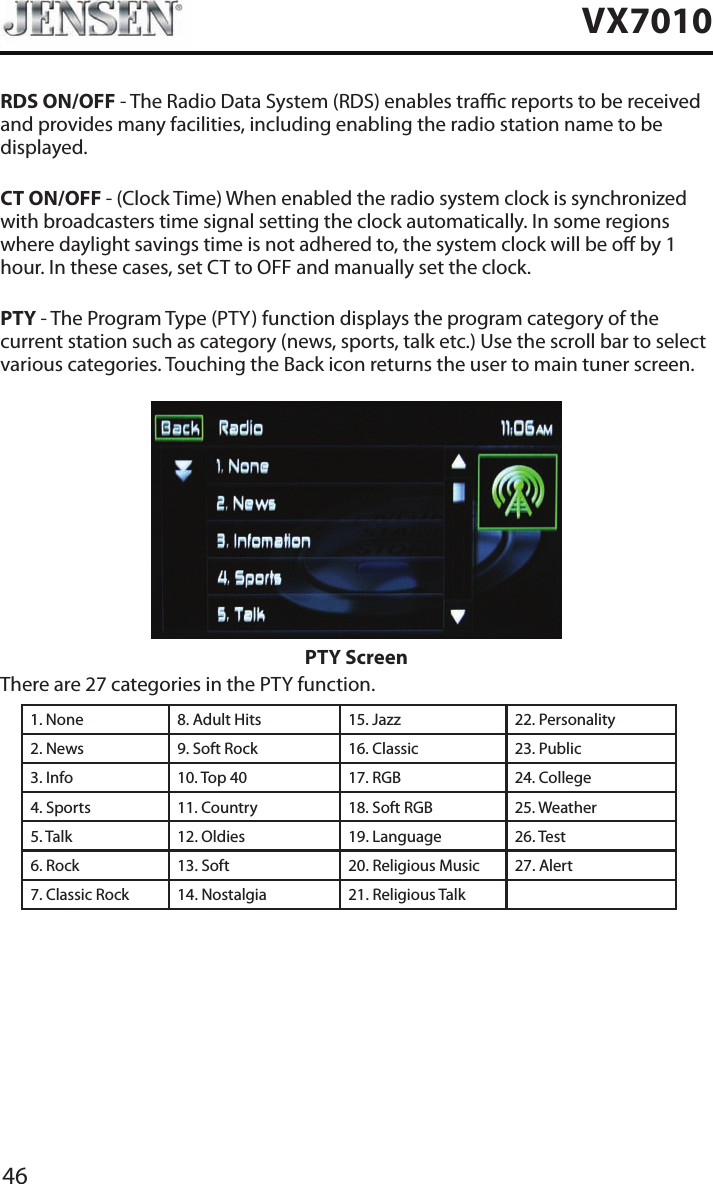

46VX7010RDS ON/OFF - The Radio Data System (RDS) enables trac reports to be received and provides many facilities, including enabling the radio station name to be displayed.CT ON/OFF - (Clock Time) When enabled the radio system clock is synchronized with broadcasters time signal setting the clock automatically. In some regions where daylight savings time is not adhered to, the system clock will be o by 1 hour. In these cases, set CT to OFF and manually set the clock.PTY - The Program Type (PTY) function displays the program category of the current station such as category (news, sports, talk etc.) Use the scroll bar to select various categories. Touching the Back icon returns the user to main tuner screen.PTY ScreenThere are 27 categories in the PTY function.1. None 8. Adult Hits 15. Jazz 22. Personality2. News 9. Soft Rock 16. Classic 23. Public3. Info 10. Top 40 17. RGB 24. College4. Sports 11. Country 18. Soft RGB 25. Weather5. Talk 12. Oldies 19. Language 26. Test6. Rock 13. Soft 20. Religious Music 27. Alert7. Classic Rock 14. Nostalgia 21. Religious Talk

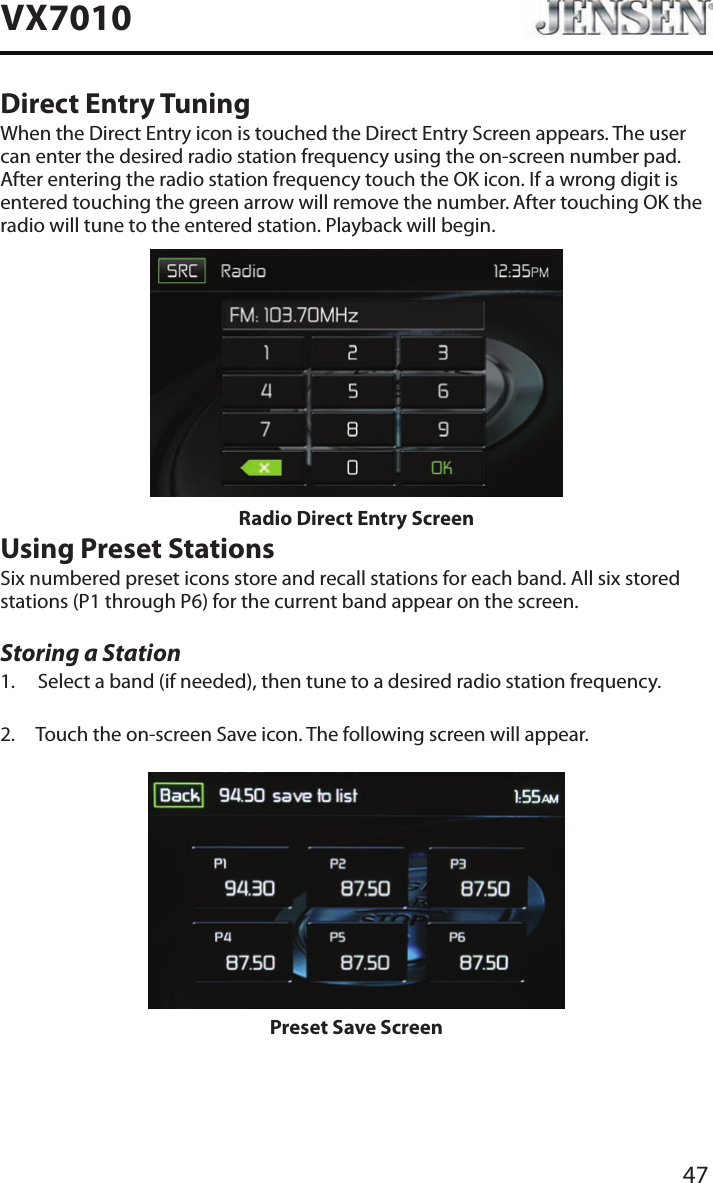

47VX7010Direct Entry TuningWhen the Direct Entry icon is touched the Direct Entry Screen appears. The user can enter the desired radio station frequency using the on-screen number pad. After entering the radio station frequency touch the OK icon. If a wrong digit is entered touching the green arrow will remove the number. After touching OK the radio will tune to the entered station. Playback will begin. Radio Direct Entry ScreenUsing Preset StationsSix numbered preset icons store and recall stations for each band. All six stored stations (P1 through P6) for the current band appear on the screen.Storing a Station1. Select a band (if needed), then tune to a desired radio station frequency.2. Touch the on-screen Save icon. The following screen will appear.Preset Save Screen

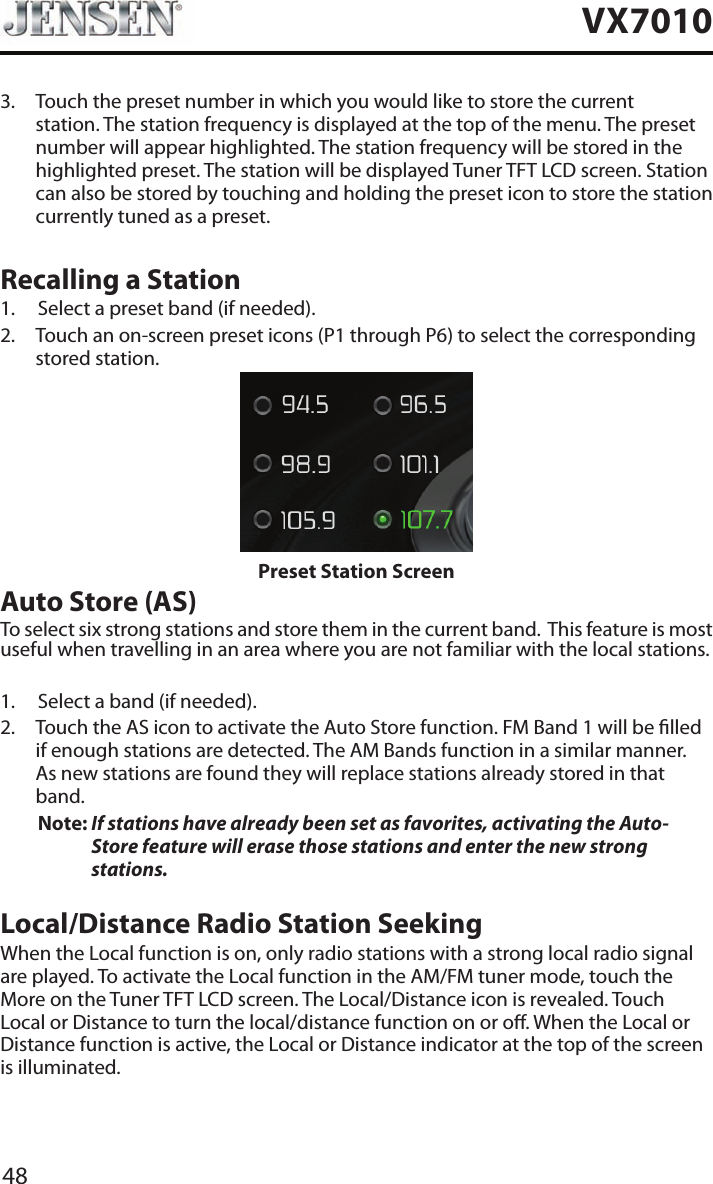

48VX70103. Touch the preset number in which you would like to store the current station. The station frequency is displayed at the top of the menu. The preset number will appear highlighted. The station frequency will be stored in the highlighted preset. The station will be displayed Tuner TFT LCD screen. Station can also be stored by touching and holding the preset icon to store the station currently tuned as a preset.Recalling a Station1. Select a preset band (if needed).2. Touch an on-screen preset icons (P1 through P6) to select the corresponding stored station. Preset Station ScreenAuto Store (AS)To select six strong stations and store them in the current band. This feature is most useful when travelling in an area where you are not familiar with the local stations. 1. Select a band (if needed).2. Touch the AS icon to activate the Auto Store function. FM Band 1 will be lled if enough stations are detected. The AM Bands function in a similar manner. As new stations are found they will replace stations already stored in that band.Note: If stations have already been set as favorites, activating the Auto-Store feature will erase those stations and enter the new strong stations. Local/Distance Radio Station SeekingWhen the Local function is on, only radio stations with a strong local radio signal are played. To activate the Local function in the AM/FM tuner mode, touch the More on the Tuner TFT LCD screen. The Local/Distance icon is revealed. Touch Local or Distance to turn the local/distance function on or o. When the Local or Distance function is active, the Local or Distance indicator at the top of the screen is illuminated.

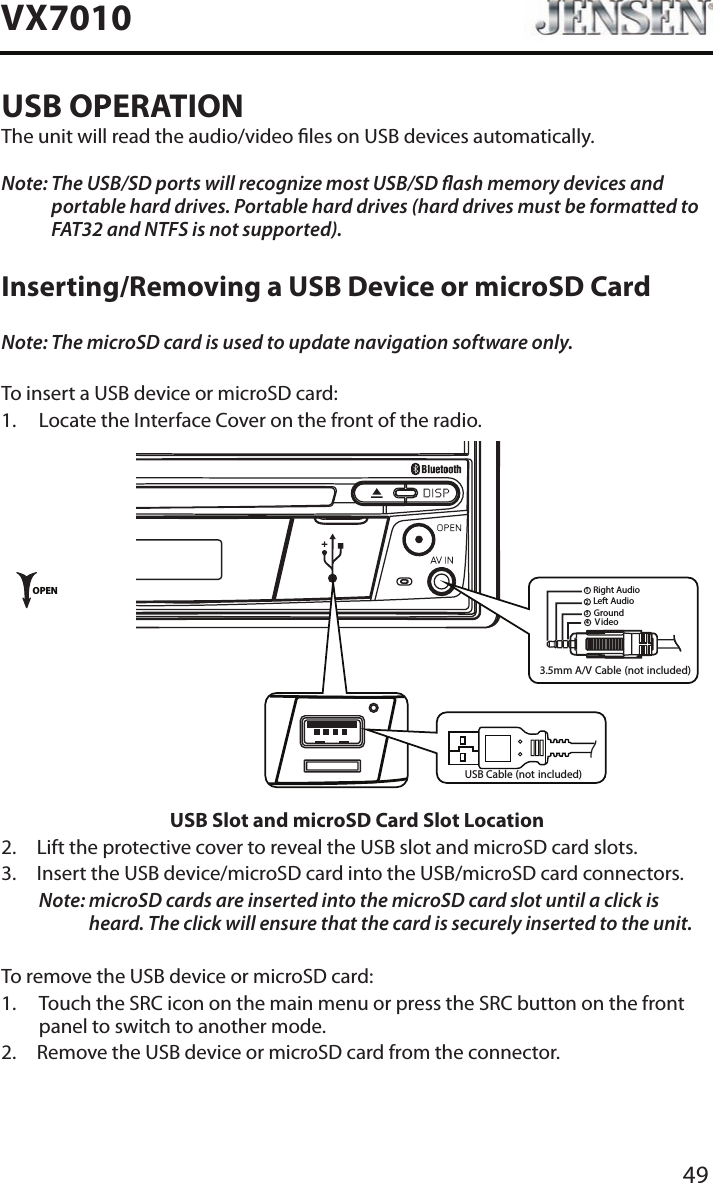

49VX7010USB OPERATIONThe unit will read the audio/video les on USB devices automatically.Note: The USB/SD ports will recognize most USB/SD ash memory devices and portable hard drives. Portable hard drives (hard drives must be formatted to FAT32 and NTFS is not supported).Inserting/Removing a USB Device or microSD CardNote: The microSD card is used to update navigation software only.To insert a USB device or microSD card:1. Locate the Interface Cover on the front of the radio.3.5mmA/V Cable (not included)VideoLeft AudioRight AudioGround1234OPENUSB Cable (not included)USB Slot and microSD Card Slot Location2. Lift the protective cover to reveal the USB slot and microSD card slots.3. Insert the USB device/microSD card into the USB/microSD card connectors. Note: microSD cards are inserted into the microSD card slot until a click is heard. The click will ensure that the card is securely inserted to the unit.To remove the USB device or microSD card:1. Touch the SRC icon on the main menu or press the SRC button on the front panel to switch to another mode.2. Remove the USB device or microSD card from the connector.

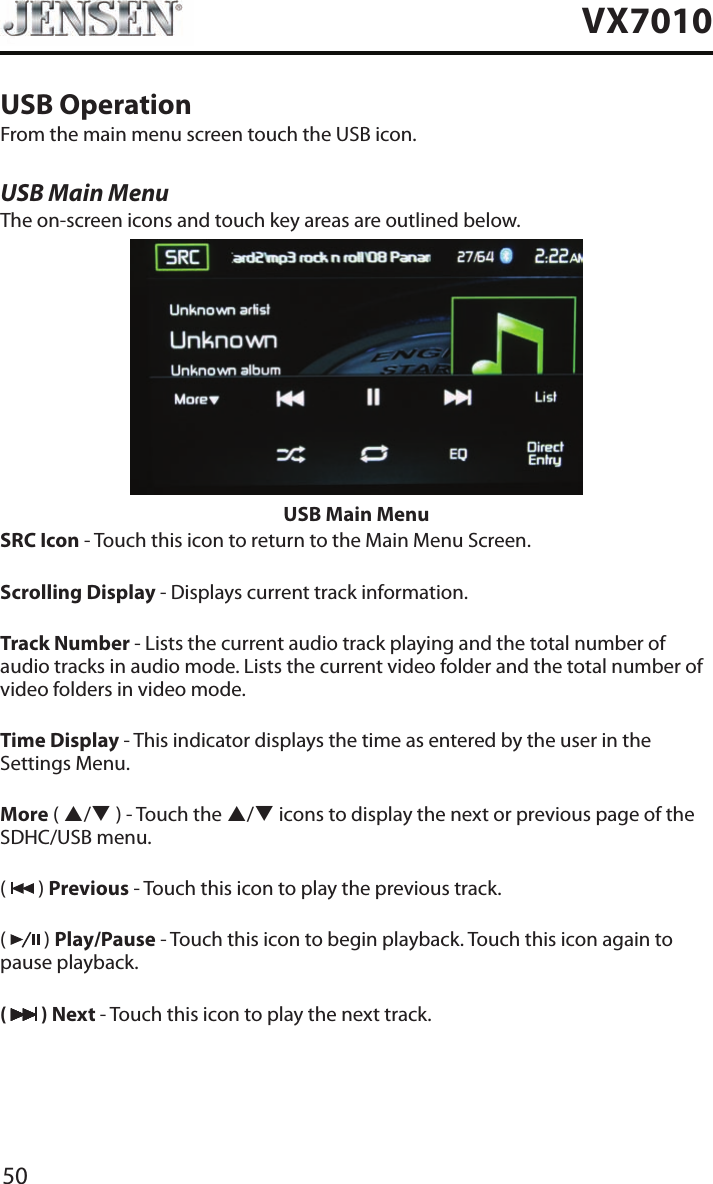

50VX7010USB OperationFrom the main menu screen touch the USB icon.USB Main MenuThe on-screen icons and touch key areas are outlined below.USB Main MenuSRC Icon - Touch this icon to return to the Main Menu Screen.Scrolling Display - Displays current track information.Track Number - Lists the current audio track playing and the total number of audio tracks in audio mode. Lists the current video folder and the total number of video folders in video mode.Time Display - This indicator displays the time as entered by the user in the Settings Menu.More ( p/q ) - Touch the p/q icons to display the next or previous page of the SDHC/USB menu.( ) Previous - Touch this icon to play the previous track.( ) Play/Pause - Touch this icon to begin playback. Touch this icon again to pause playback.( ) Next - Touch this icon to play the next track.

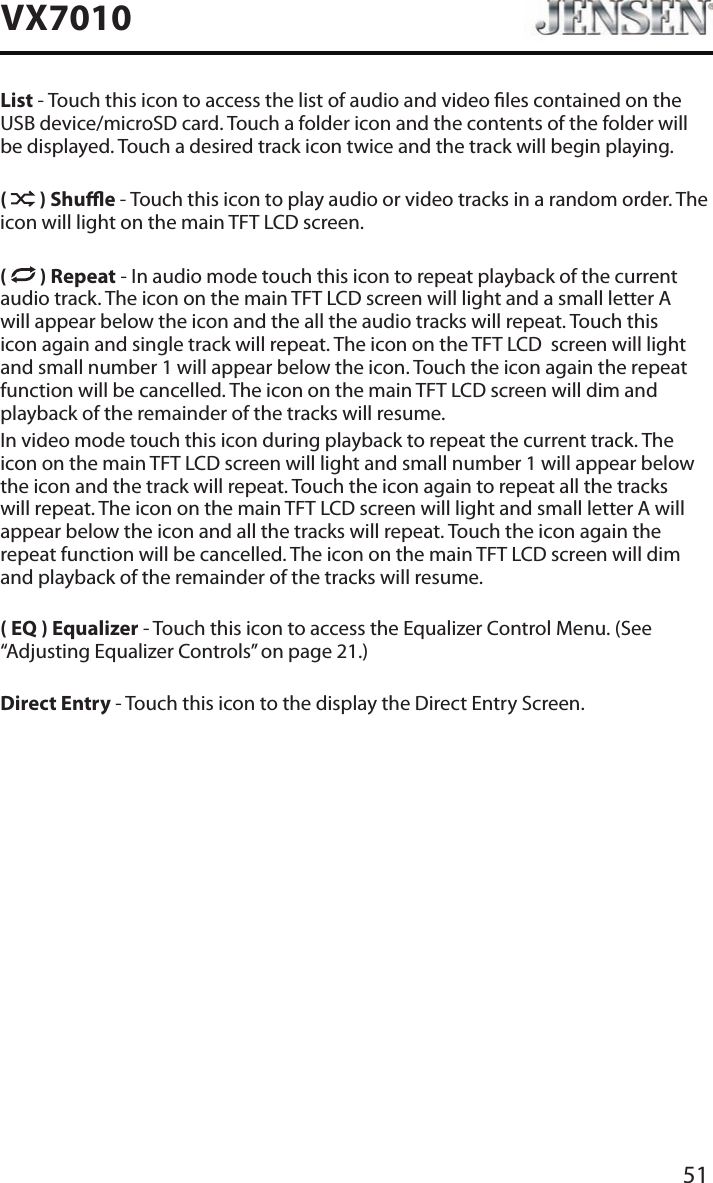

51VX7010List - Touch this icon to access the list of audio and video les contained on the USB device/microSD card. Touch a folder icon and the contents of the folder will be displayed. Touch a desired track icon twice and the track will begin playing.( ) Shue - Touch this icon to play audio or video tracks in a random order. The icon will light on the main TFT LCD screen.( ) Repeat - In audio mode touch this icon to repeat playback of the current audio track. The icon on the main TFT LCD screen will light and a small letter A will appear below the icon and the all the audio tracks will repeat. Touch this icon again and single track will repeat. The icon on the TFT LCD screen will light and small number 1 will appear below the icon. Touch the icon again the repeat function will be cancelled. The icon on the main TFT LCD screen will dim and playback of the remainder of the tracks will resume.In video mode touch this icon during playback to repeat the current track. The icon on the main TFT LCD screen will light and small number 1 will appear below the icon and the track will repeat. Touch the icon again to repeat all the tracks will repeat. The icon on the main TFT LCD screen will light and small letter A will appear below the icon and all the tracks will repeat. Touch the icon again the repeat function will be cancelled. The icon on the main TFT LCD screen will dim and playback of the remainder of the tracks will resume.( EQ ) Equalizer - Touch this icon to access the Equalizer Control Menu. (See “Adjusting Equalizer Controls” on page 21.)Direct Entry - Touch this icon to the display the Direct Entry Screen.

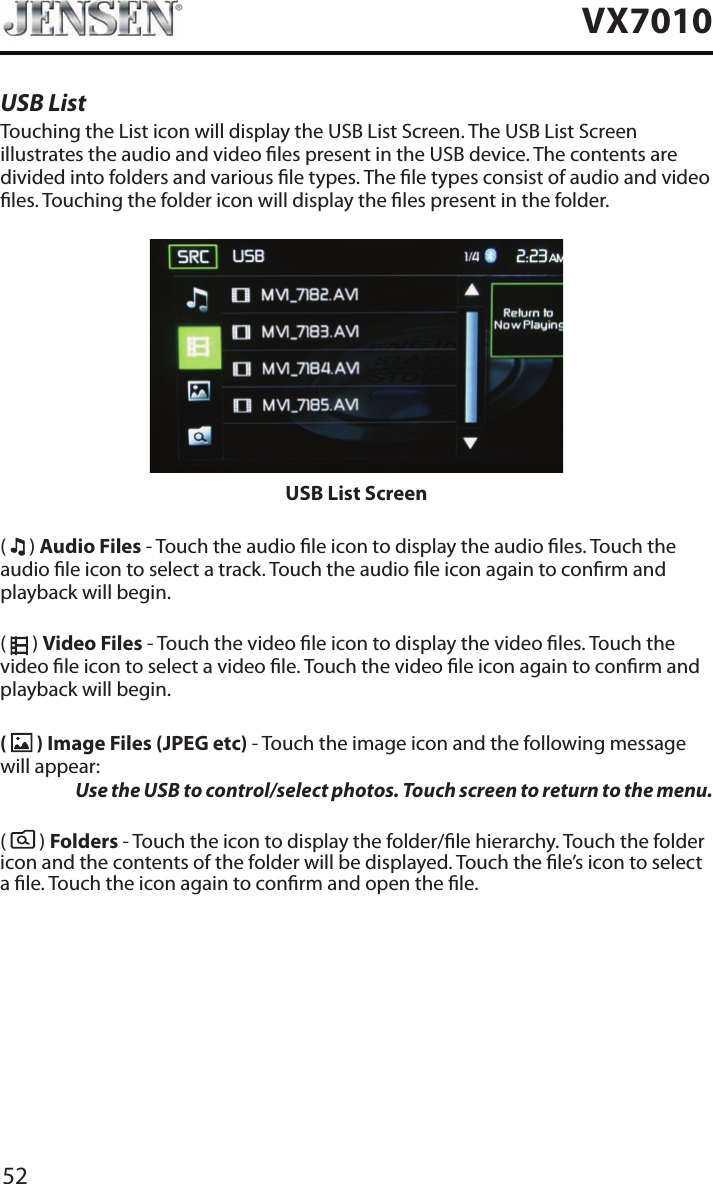

52VX7010USB ListTouching the List icon will display the USB List Screen. The USB List Screen illustrates the audio and video les present in the USB device. The contents are divided into folders and various le types. The le types consist of audio and video les. Touching the folder icon will display the les present in the folder.USB List Screen( ) Audio Files - Touch the audio le icon to display the audio les. Touch the audio le icon to select a track. Touch the audio le icon again to conrm and playback will begin.( ) Video Files - Touch the video le icon to display the video les. Touch the video le icon to select a video le. Touch the video le icon again to conrm and playback will begin.( ) Image Files (JPEG etc) - Touch the image icon and the following message will appear: Use the USB to control/select photos. Touch screen to return to the menu. ( ) Folders - Touch the icon to display the folder/le hierarchy. Touch the folder icon and the contents of the folder will be displayed. Touch the le’s icon to select a le. Touch the icon again to conrm and open the le.

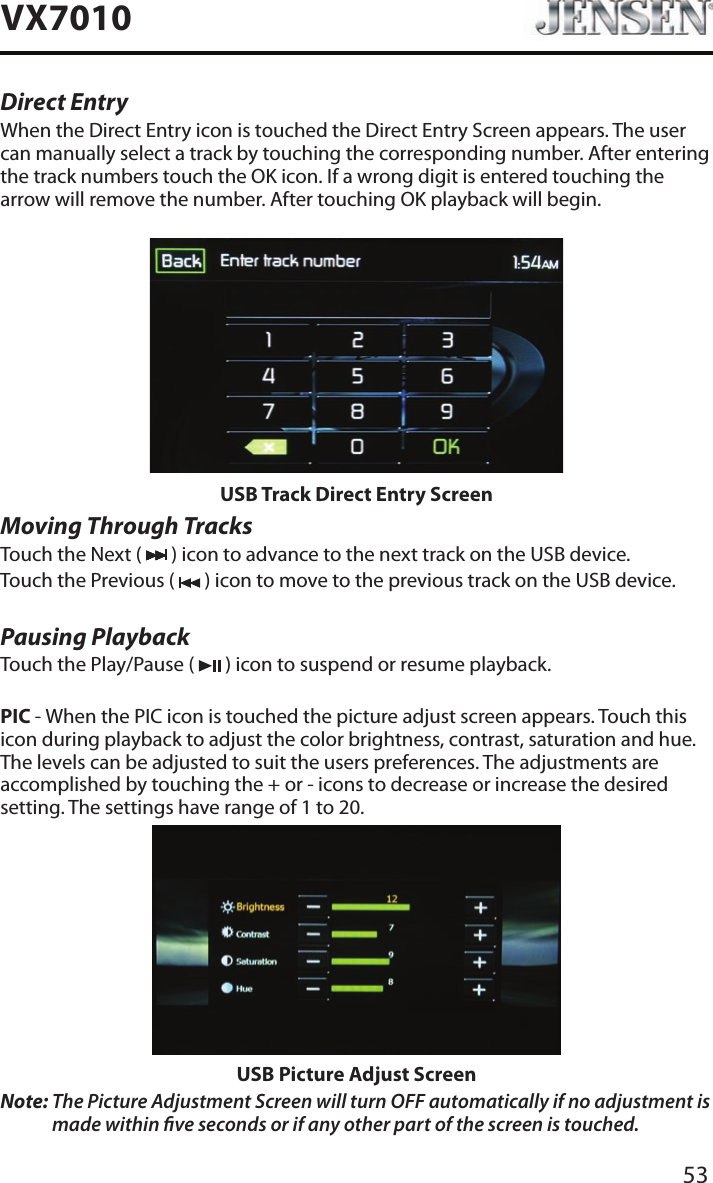

53VX7010Direct EntryWhen the Direct Entry icon is touched the Direct Entry Screen appears. The user can manually select a track by touching the corresponding number. After entering the track numbers touch the OK icon. If a wrong digit is entered touching the arrow will remove the number. After touching OK playback will begin.USB Track Direct Entry ScreenMoving Through TracksTouch the Next ( ) icon to advance to the next track on the USB device.Touch the Previous ( ) icon to move to the previous track on the USB device.Pausing PlaybackTouch the Play/Pause ( ) icon to suspend or resume playback.PIC - When the PIC icon is touched the picture adjust screen appears. Touch this icon during playback to adjust the color brightness, contrast, saturation and hue. The levels can be adjusted to suit the users preferences. The adjustments are accomplished by touching the + or - icons to decrease or increase the desired setting. The settings have range of 1 to 20. USB Picture Adjust ScreenNote: The Picture Adjustment Screen will turn OFF automatically if no adjustment is made within ve seconds or if any other part of the screen is touched.

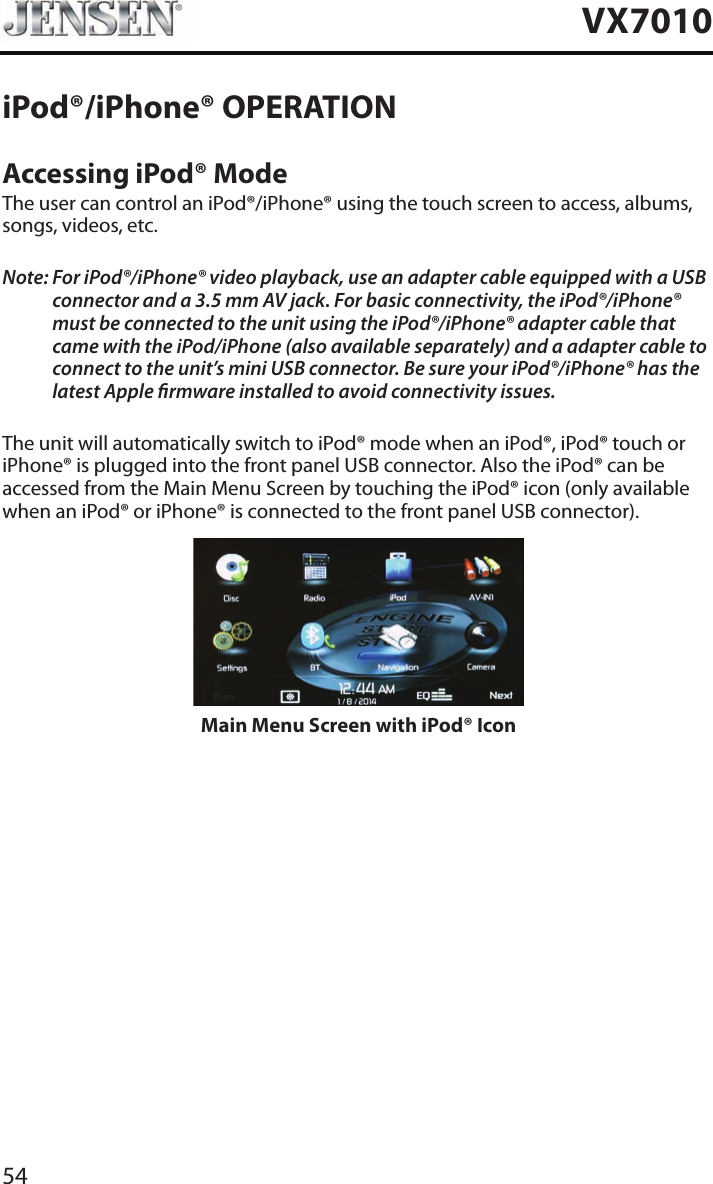

54VX7010iPod®/iPhone® OPERATIONAccessing iPod® ModeThe user can control an iPod®/iPhone® using the touch screen to access, albums, songs, videos, etc.Note: For iPod®/iPhone® video playback, use an adapter cable equipped with a USB connector and a 3.5 mm AV jack. For basic connectivity, the iPod®/iPhone® must be connected to the unit using the iPod®/iPhone® adapter cable that came with the iPod/iPhone (also available separately) and a adapter cable to connect to the unit’s mini USB connector. Be sure your iPod®/iPhone® has the latest Apple rmware installed to avoid connectivity issues.The unit will automatically switch to iPod® mode when an iPod®, iPod® touch or iPhone® is plugged into the front panel USB connector. Also the iPod® can be accessed from the Main Menu Screen by touching the iPod® icon (only available when an iPod® or iPhone® is connected to the front panel USB connector).Main Menu Screen with iPod® Icon

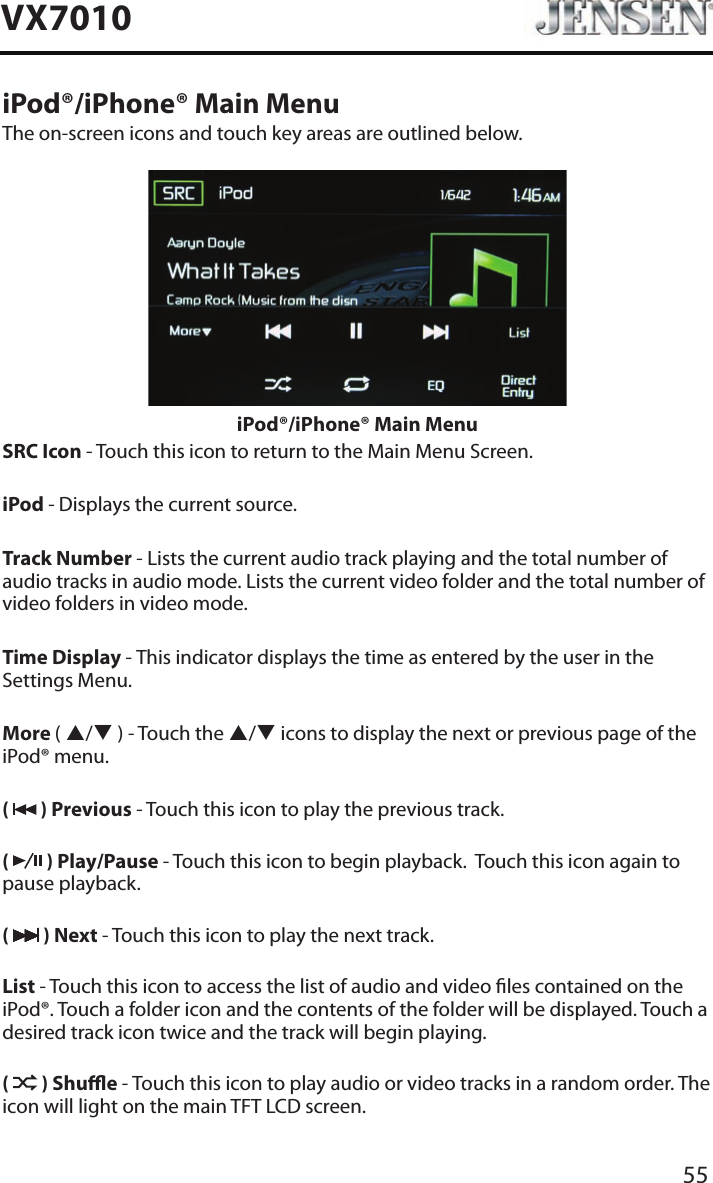

55VX7010iPod®/iPhone® Main MenuThe on-screen icons and touch key areas are outlined below.iPod®/iPhone® Main MenuSRC Icon - Touch this icon to return to the Main Menu Screen. iPod - Displays the current source.Track Number - Lists the current audio track playing and the total number of audio tracks in audio mode. Lists the current video folder and the total number of video folders in video mode.Time Display - This indicator displays the time as entered by the user in the Settings Menu.More ( p/q ) - Touch the p/q icons to display the next or previous page of the iPod® menu.( ) Previous - Touch this icon to play the previous track.( ) Play/Pause - Touch this icon to begin playback. Touch this icon again to pause playback.( ) Next - Touch this icon to play the next track.List - Touch this icon to access the list of audio and video les contained on the iPod®. Touch a folder icon and the contents of the folder will be displayed. Touch a desired track icon twice and the track will begin playing. ( ) Shue - Touch this icon to play audio or video tracks in a random order. The icon will light on the main TFT LCD screen.

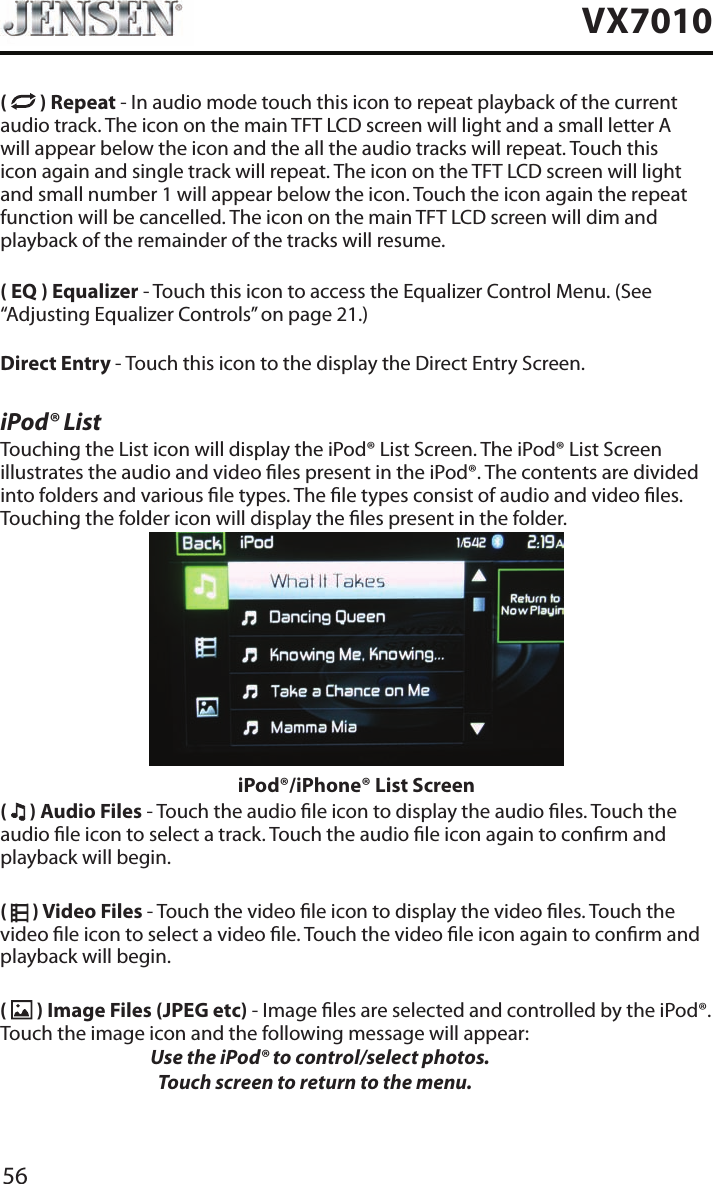

56VX7010( ) Repeat - In audio mode touch this icon to repeat playback of the current audio track. The icon on the main TFT LCD screen will light and a small letter A will appear below the icon and the all the audio tracks will repeat. Touch this icon again and single track will repeat. The icon on the TFT LCD screen will light and small number 1 will appear below the icon. Touch the icon again the repeat function will be cancelled. The icon on the main TFT LCD screen will dim and playback of the remainder of the tracks will resume.( EQ ) Equalizer - Touch this icon to access the Equalizer Control Menu. (See “Adjusting Equalizer Controls” on page 21.)Direct Entry - Touch this icon to the display the Direct Entry Screen.iPod® ListTouching the List icon will display the iPod® List Screen. The iPod® List Screen illustrates the audio and video les present in the iPod®. The contents are divided into folders and various le types. The le types consist of audio and video les. Touching the folder icon will display the les present in the folder. iPod®/iPhone® List Screen( ) Audio Files - Touch the audio le icon to display the audio les. Touch the audio le icon to select a track. Touch the audio le icon again to conrm and playback will begin.( ) Video Files - Touch the video le icon to display the video les. Touch the video le icon to select a video le. Touch the video le icon again to conrm and playback will begin.( ) Image Files (JPEG etc) - Image les are selected and controlled by the iPod®. Touch the image icon and the following message will appear: Use the iPod® to control/select photos. Touch screen to return to the menu.

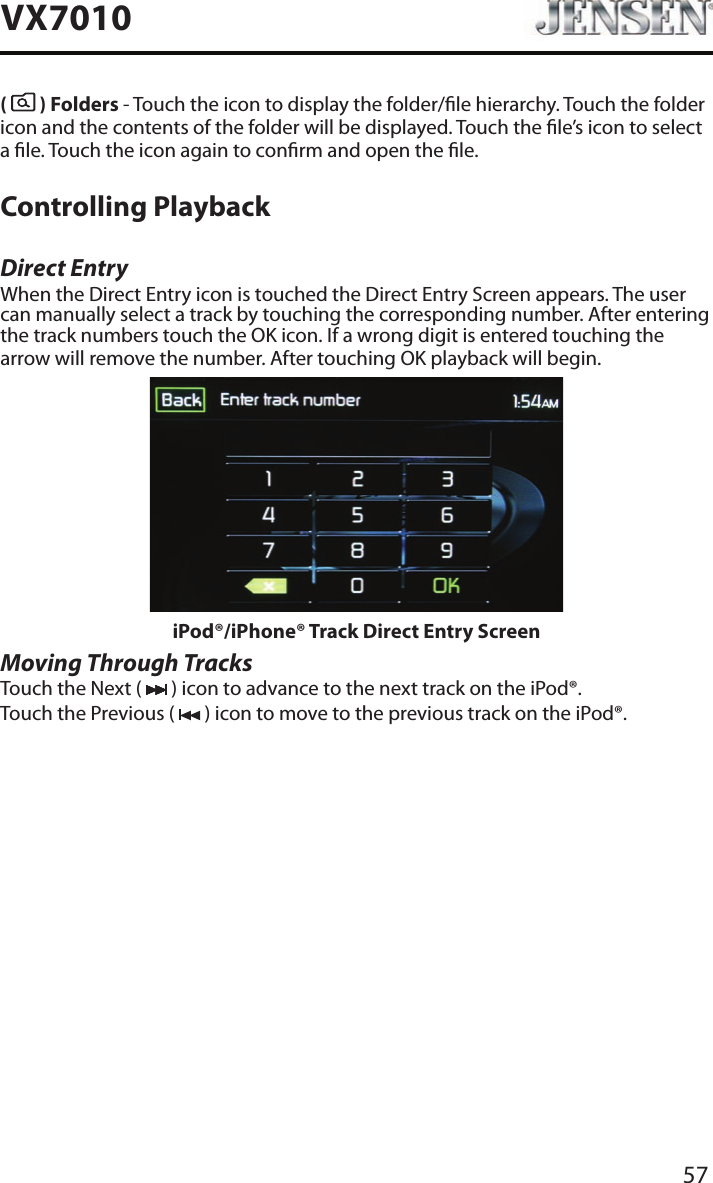

57VX7010( ) Folders - Touch the icon to display the folder/le hierarchy. Touch the folder icon and the contents of the folder will be displayed. Touch the le’s icon to select a le. Touch the icon again to conrm and open the le.Controlling PlaybackDirect EntryWhen the Direct Entry icon is touched the Direct Entry Screen appears. The user can manually select a track by touching the corresponding number. After entering the track numbers touch the OK icon. If a wrong digit is entered touching the arrow will remove the number. After touching OK playback will begin.iPod®/iPhone® Track Direct Entry ScreenMoving Through TracksTouch the Next ( ) icon to advance to the next track on the iPod®.Touch the Previous ( ) icon to move to the previous track on the iPod®.

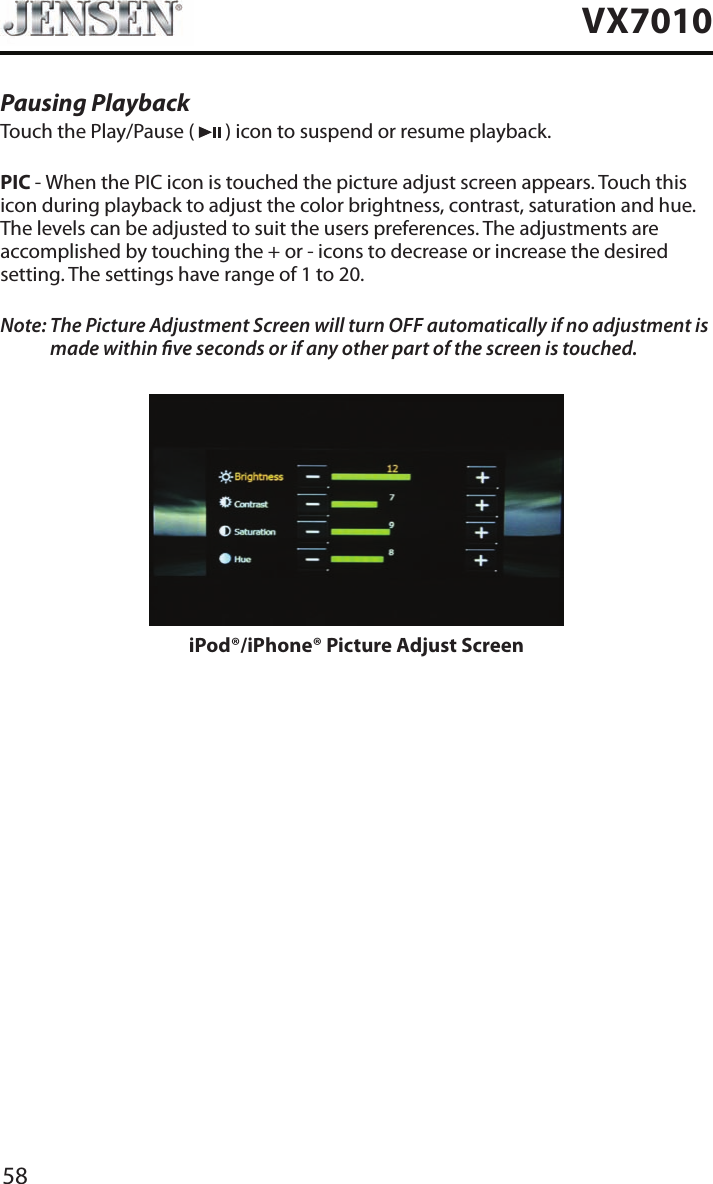

58VX7010Pausing PlaybackTouch the Play/Pause ( ) icon to suspend or resume playback.PIC - When the PIC icon is touched the picture adjust screen appears. Touch this icon during playback to adjust the color brightness, contrast, saturation and hue. The levels can be adjusted to suit the users preferences. The adjustments are accomplished by touching the + or - icons to decrease or increase the desired setting. The settings have range of 1 to 20. Note: The Picture Adjustment Screen will turn OFF automatically if no adjustment is made within ve seconds or if any other part of the screen is touched.iPod®/iPhone® Picture Adjust Screen

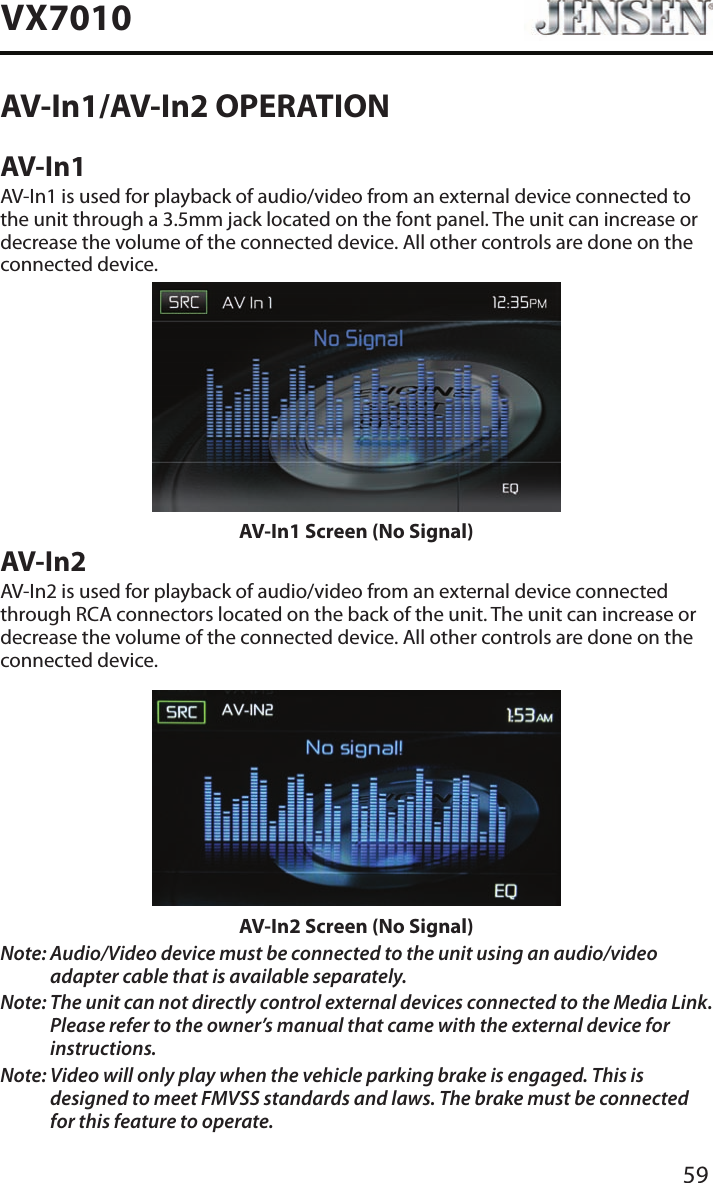

59VX7010AV-In1/AV-In2 OPERATIONAV-In1AV-In1 is used for playback of audio/video from an external device connected to the unit through a 3.5mm jack located on the font panel. The unit can increase or decrease the volume of the connected device. All other controls are done on the connected device.AV-In1 Screen (No Signal)AV-In2AV-In2 is used for playback of audio/video from an external device connected through RCA connectors located on the back of the unit. The unit can increase or decrease the volume of the connected device. All other controls are done on the connected device.AV-In2 Screen (No Signal)Note: Audio/Video device must be connected to the unit using an audio/video adapter cable that is available separately.Note: The unit can not directly control external devices connected to the Media Link. Please refer to the owner’s manual that came with the external device for instructions.Note: Video will only play when the vehicle parking brake is engaged. This is designed to meet FMVSS standards and laws. The brake must be connected for this feature to operate.
60VX7010BLUETOOTH OPERATIONBluetooth® was launched by a special interest group (SIG) comprised of Ericsson Inc., Intel Corp., Nokia Corp., Toshiba and IBM in 1998, and it is currently developed by nearly 2,000 companies worldwide. The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Audiovox Corporation is under license. Other trademarks and trade names are those of their respective owners.Bluetooth® technology has the capability to wirelessly synchronize and transfer data among devices. The Bluetooth® audio capabilities can be used for mobile phones hands free applications. Bluetooth® has many proles and the unit is compatible with most Bluetooth® enabled mobile phones. Before attempting to use the Bluetooth® functions on the unit, please make sure your mobile phone supports Bluetooth® functions.Note: The line-of-sight distance between this unit and your mobile phone must be 8 feet (2.4 meters) or less for sending and receiving voice and data via Bluetooth® wireless technology.Please make sure your mobile phone supports Bluetooth® functions (Headset or Handsfree proles or both). Adhere to the following guidelines for successful operation.• Before using Bluetooth® functions, you must pair your mobile phone to the VX7010 unit (see “Pairing the Bluetooth® System with Your Mobile Phone and Unit”). To ensure the best reception for pairing and re-connection, please make sure the mobile phone battery is fully charged before you begin.• Try to perform pairing within a few minutes of the mobile phone being turned on.• Once the unit has been paired with the mobile phone, the unit’s model number, “VX7010”, will be displayed on the mobile phone.• To achieve the best performance, always keep the mobile phone within 10 feet (3 meters) of the unit.• Always keep a clear path between the mobile phone and the unit. Never place a metal object or any other obstacle between the mobile phone and the unit. • Some mobile phones may have a “Power Saving Mode” option. PLEASE DO NOT use the power saving mode with the VX7010.• Before accepting or making a call, make sure your mobile phone’s “Bluetooth® function” is turned on.• To ensure the best conversation quality/performance, stay within 3 feet (1 meter) of the unit’s microphone when talking.• To manually disconnect the mobile phone from the unit, touch the “Chain Link” icon on the Bluetooth® user interface (next to the mobile phone name) and the Bluetooth® device will be “disconnected”, but still paired.

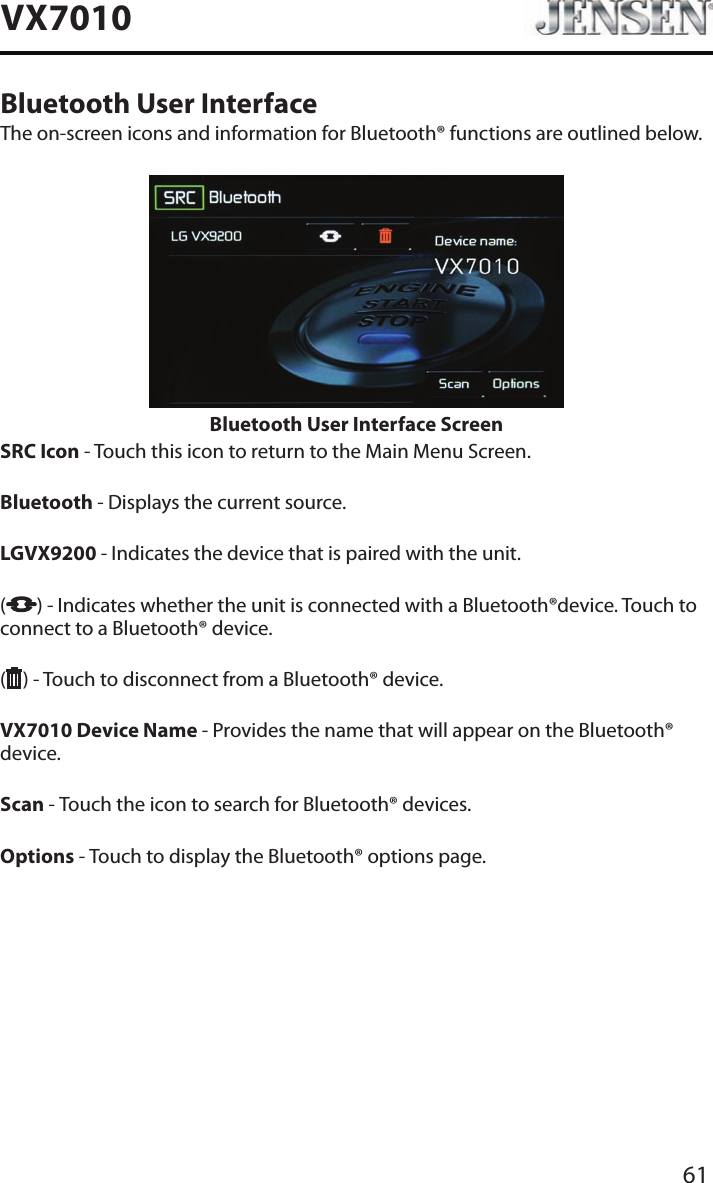

61VX7010Bluetooth User InterfaceThe on-screen icons and information for Bluetooth® functions are outlined below.Bluetooth User Interface ScreenSRC Icon - Touch this icon to return to the Main Menu Screen. Bluetooth - Displays the current source. LGVX9200 - Indicates the device that is paired with the unit. ( ) - Indicates whether the unit is connected with a Bluetooth®device. Touch to connect to a Bluetooth® device.( ) - Touch to disconnect from a Bluetooth® device. VX7010 Device Name - Provides the name that will appear on the Bluetooth® device. Scan - Touch the icon to search for Bluetooth® devices. Options - Touch to display the Bluetooth® options page.

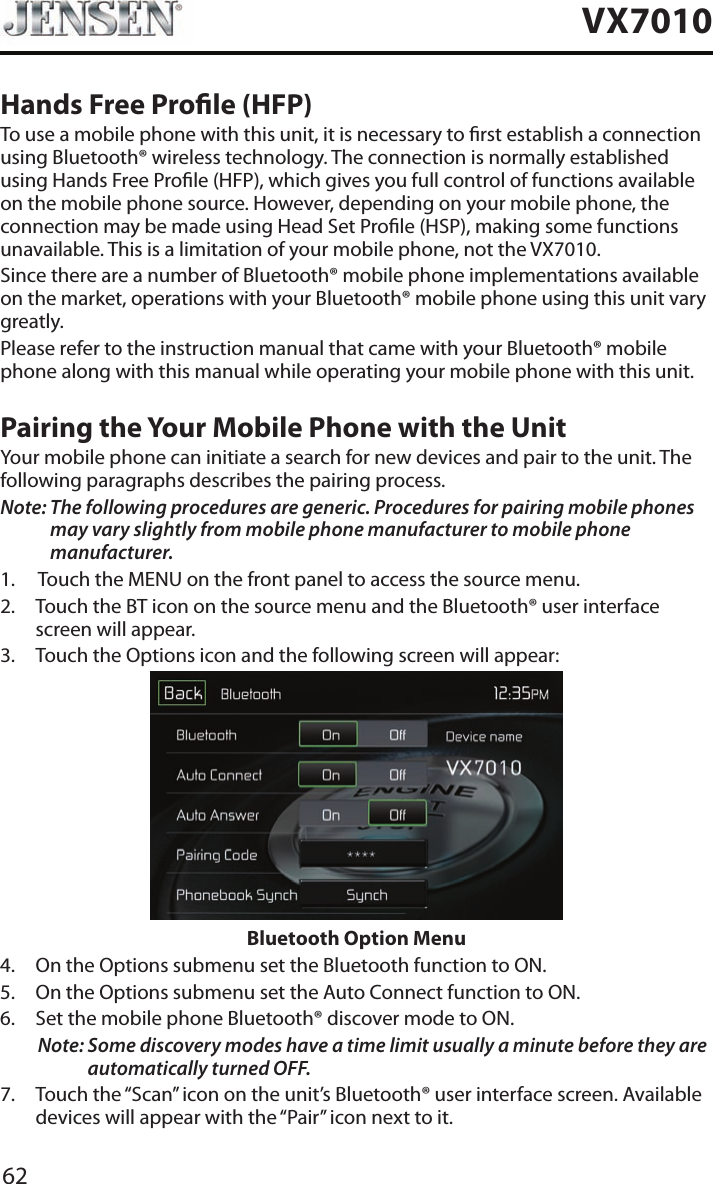

62VX7010Hands Free Prole (HFP)To use a mobile phone with this unit, it is necessary to rst establish a connection using Bluetooth® wireless technology. The connection is normally established using Hands Free Prole (HFP), which gives you full control of functions available on the mobile phone source. However, depending on your mobile phone, the connection may be made using Head Set Prole (HSP), making some functions unavailable. This is a limitation of your mobile phone, not the VX7010.Since there are a number of Bluetooth® mobile phone implementations available on the market, operations with your Bluetooth® mobile phone using this unit vary greatly.Please refer to the instruction manual that came with your Bluetooth® mobile phone along with this manual while operating your mobile phone with this unit.Pairing the Your Mobile Phone with the UnitYour mobile phone can initiate a search for new devices and pair to the unit. The following paragraphs describes the pairing process.Note: The following procedures are generic. Procedures for pairing mobile phones may vary slightly from mobile phone manufacturer to mobile phone manufacturer.1. Touch the MENU on the front panel to access the source menu.2. Touch the BT icon on the source menu and the Bluetooth® user interface screen will appear. 3. Touch the Options icon and the following screen will appear: Bluetooth Option Menu4. On the Options submenu set the Bluetooth function to ON.5. On the Options submenu set the Auto Connect function to ON.6. Set the mobile phone Bluetooth® discover mode to ON.Note: Some discovery modes have a time limit usually a minute before they are automatically turned OFF.7. Touch the “Scan” icon on the unit’s Bluetooth® user interface screen. Available devices will appear with the “Pair” icon next to it.

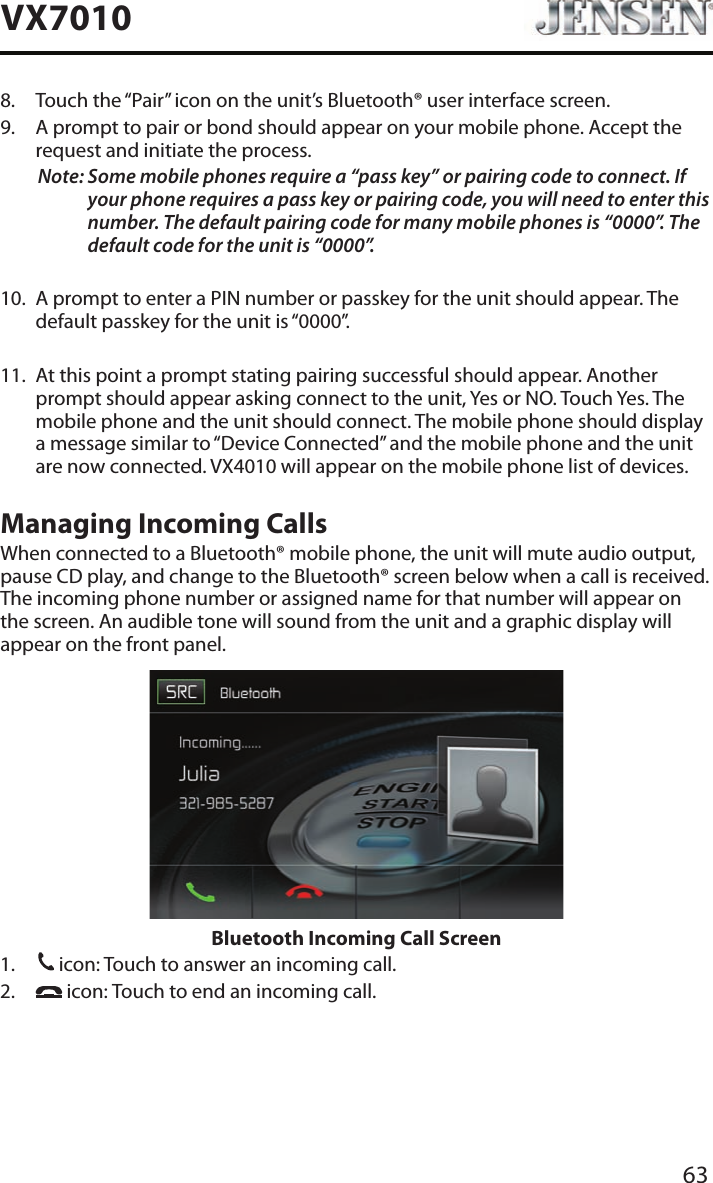

63VX70108. Touch the “Pair” icon on the unit’s Bluetooth® user interface screen.9. A prompt to pair or bond should appear on your mobile phone. Accept the request and initiate the process.Note: Some mobile phones require a “pass key” or pairing code to connect. If your phone requires a pass key or pairing code, you will need to enter this number. The default pairing code for many mobile phones is “0000”. The default code for the unit is “0000”. 10. A prompt to enter a PIN number or passkey for the unit should appear. The default passkey for the unit is “0000”.11. At this point a prompt stating pairing successful should appear. Another prompt should appear asking connect to the unit, Yes or NO. Touch Yes. The mobile phone and the unit should connect. The mobile phone should display a message similar to “Device Connected” and the mobile phone and the unit are now connected. VX4010 will appear on the mobile phone list of devices.Managing Incoming CallsWhen connected to a Bluetooth® mobile phone, the unit will mute audio output, pause CD play, and change to the Bluetooth® screen below when a call is received. The incoming phone number or assigned name for that number will appear on the screen. An audible tone will sound from the unit and a graphic display will appear on the front panel. Bluetooth Incoming Call Screen1. 31 icon: Touch to answer an incoming call.2. icon: Touch to end an incoming call.

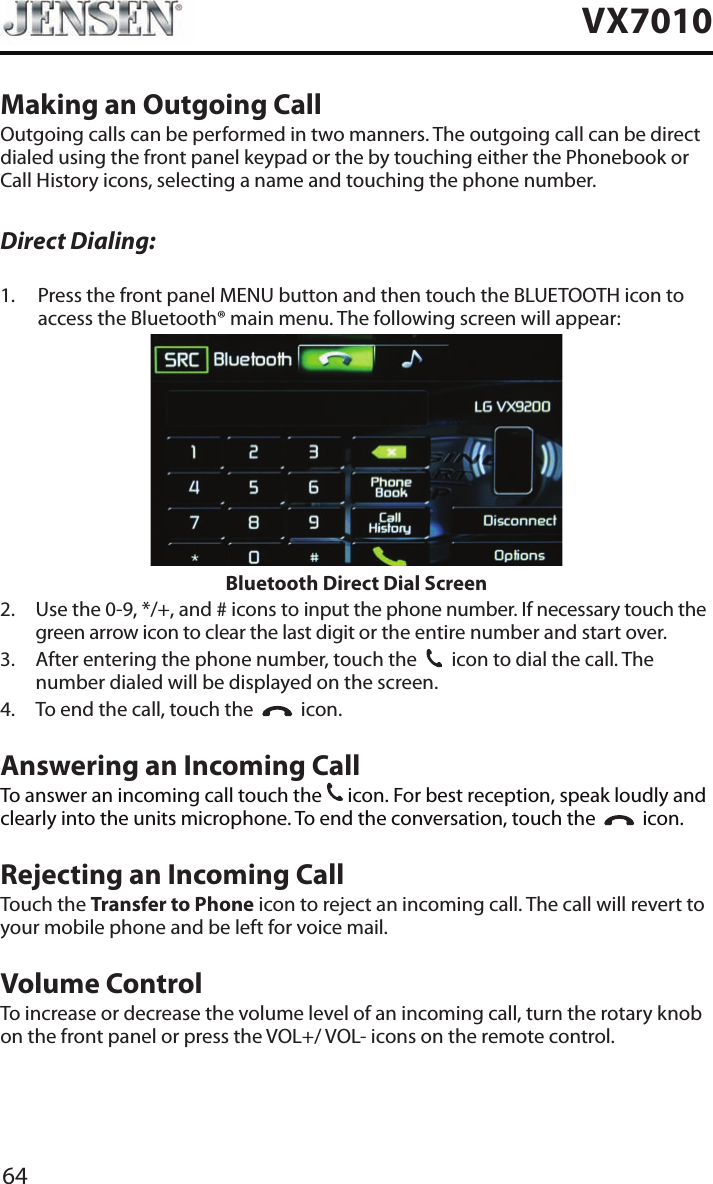

64VX7010Making an Outgoing CallOutgoing calls can be performed in two manners. The outgoing call can be direct dialed using the front panel keypad or the by touching either the Phonebook or Call History icons, selecting a name and touching the phone number.Direct Dialing:1. Press the front panel MENU button and then touch the BLUETOOTH icon to access the Bluetooth® main menu. The following screen will appear:Bluetooth Direct Dial Screen2. Use the 0-9, */+, and # icons to input the phone number. If necessary touch the green arrow icon to clear the last digit or the entire number and start over.3. After entering the phone number, touch the 31 icon to dial the call. The number dialed will be displayed on the screen. 4. To end the call, touch the icon.Answering an Incoming CallTo answer an incoming call touch the 31 icon. For best reception, speak loudly and clearly into the units microphone. To end the conversation, touch the icon.Rejecting an Incoming CallTouch the Transfer to Phone icon to reject an incoming call. The call will revert to your mobile phone and be left for voice mail.Volume ControlTo increase or decrease the volume level of an incoming call, turn the rotary knob on the front panel or press the VOL+/ VOL- icons on the remote control.

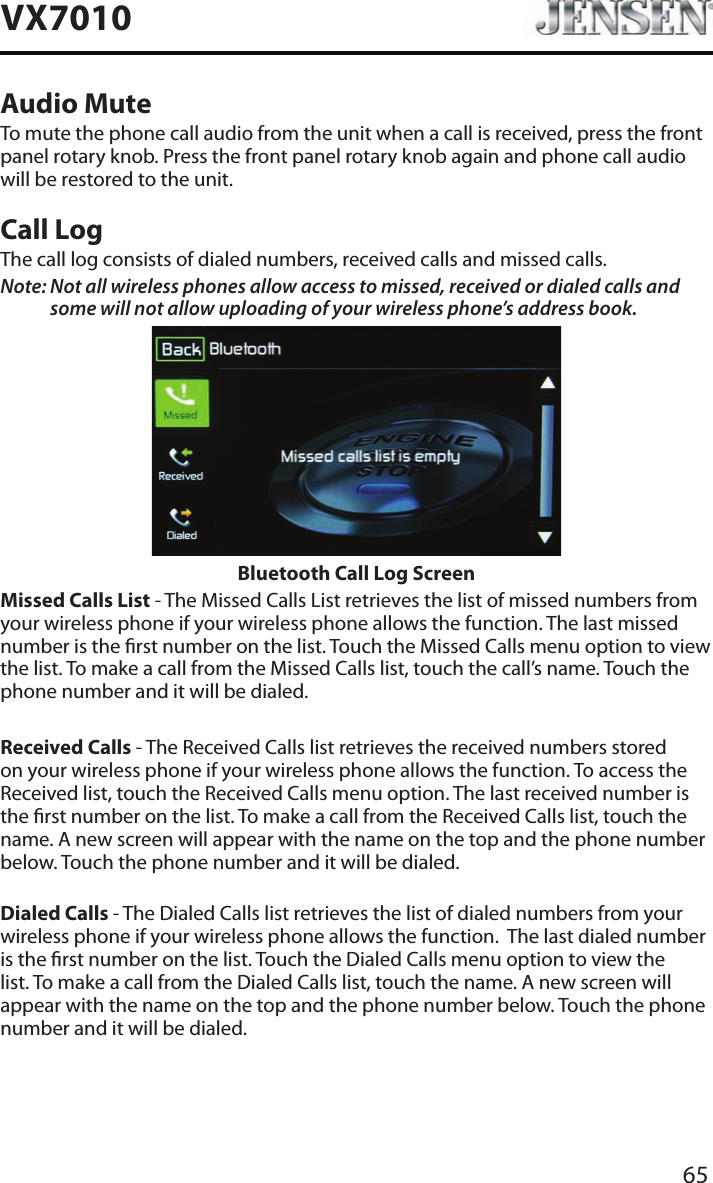

65VX7010Audio MuteTo mute the phone call audio from the unit when a call is received, press the front panel rotary knob. Press the front panel rotary knob again and phone call audio will be restored to the unit.Call LogThe call log consists of dialed numbers, received calls and missed calls.Note: Not all wireless phones allow access to missed, received or dialed calls and some will not allow uploading of your wireless phone’s address book. Bluetooth Call Log ScreenMissed Calls List - The Missed Calls List retrieves the list of missed numbers from your wireless phone if your wireless phone allows the function. The last missed number is the rst number on the list. Touch the Missed Calls menu option to view the list. To make a call from the Missed Calls list, touch the call’s name. Touch the phone number and it will be dialed.Received Calls - The Received Calls list retrieves the received numbers stored on your wireless phone if your wireless phone allows the function. To access the Received list, touch the Received Calls menu option. The last received number is the rst number on the list. To make a call from the Received Calls list, touch the name. A new screen will appear with the name on the top and the phone number below. Touch the phone number and it will be dialed.Dialed Calls - The Dialed Calls list retrieves the list of dialed numbers from your wireless phone if your wireless phone allows the function. The last dialed number is the rst number on the list. Touch the Dialed Calls menu option to view the list. To make a call from the Dialed Calls list, touch the name. A new screen will appear with the name on the top and the phone number below. Touch the phone number and it will be dialed.

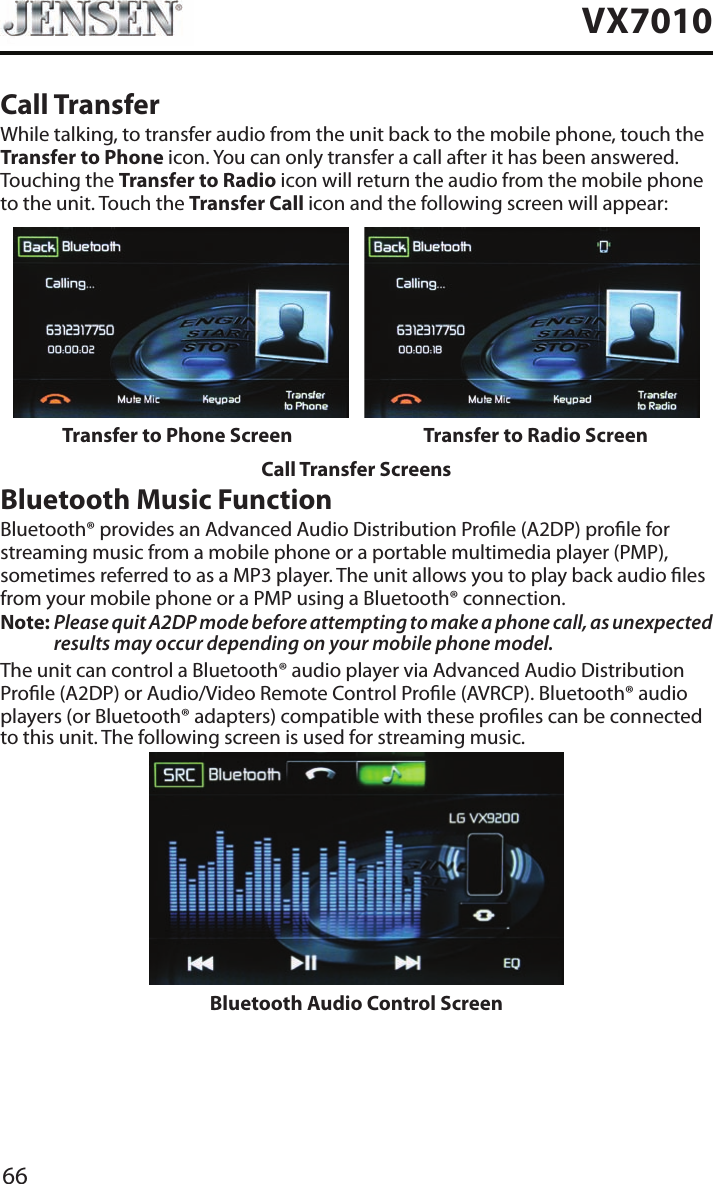

66VX7010Call TransferWhile talking, to transfer audio from the unit back to the mobile phone, touch the Transfer to Phone icon. You can only transfer a call after it has been answered. Touching the Transfer to Radio icon will return the audio from the mobile phone to the unit. Touch the Transfer Call icon and the following screen will appear:Transfer to Phone Screen Transfer to Radio ScreenCall Transfer ScreensBluetooth Music FunctionBluetooth® provides an Advanced Audio Distribution Prole (A2DP) prole for streaming music from a mobile phone or a portable multimedia player (PMP), sometimes referred to as a MP3 player. The unit allows you to play back audio les from your mobile phone or a PMP using a Bluetooth® connection.Note: Please quit A2DP mode before attempting to make a phone call, as unexpected results may occur depending on your mobile phone model.The unit can control a Bluetooth® audio player via Advanced Audio Distribution Prole (A2DP) or Audio/Video Remote Control Prole (AVRCP). Bluetooth® audio players (or Bluetooth® adapters) compatible with these proles can be connected to this unit. The following screen is used for streaming music.Bluetooth Audio Control Screen

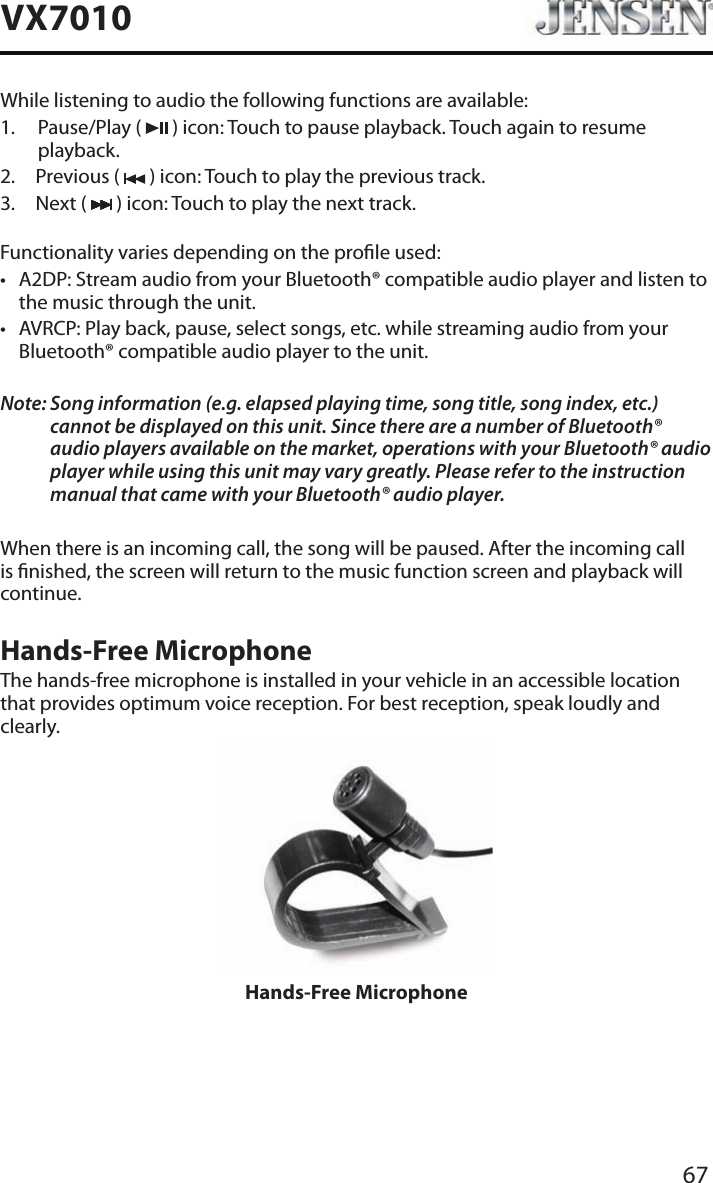

67VX7010While listening to audio the following functions are available:1. Pause/Play ( ) icon: Touch to pause playback. Touch again to resume playback.2. Previous ( ) icon: Touch to play the previous track.3. Next ( ) icon: Touch to play the next track.Functionality varies depending on the prole used: • A2DP: Stream audio from your Bluetooth® compatible audio player and listen to the music through the unit.• AVRCP: Play back, pause, select songs, etc. while streaming audio from your Bluetooth® compatible audio player to the unit.Note: Song information (e.g. elapsed playing time, song title, song index, etc.) cannot be displayed on this unit. Since there are a number of Bluetooth® audio players available on the market, operations with your Bluetooth® audio player while using this unit may vary greatly. Please refer to the instruction manual that came with your Bluetooth® audio player. When there is an incoming call, the song will be paused. After the incoming call is nished, the screen will return to the music function screen and playback will continue.Hands-Free MicrophoneThe hands-free microphone is installed in your vehicle in an accessible location that provides optimum voice reception. For best reception, speak loudly and clearly.Hands-Free Microphone

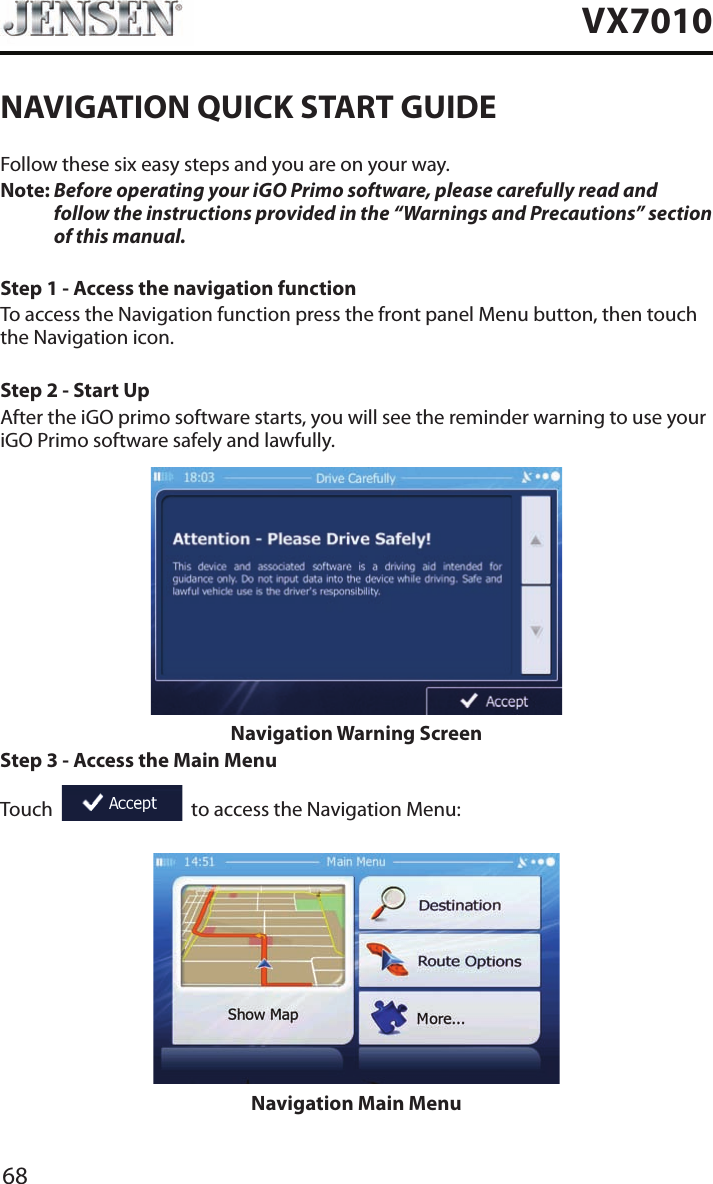

68VX7010NAVIGATION QUICK START GUIDEFollow these six easy steps and you are on your way.Note: Before operating your iGO Primo software, please carefully read and follow the instructions provided in the “Warnings and Precautions” section of this manual.Step 1 - Access the navigation functionTo access the Navigation function press the front panel Menu button, then touch the Navigation icon.Step 2 - Start UpAfter the iGO primo software starts, you will see the reminder warning to use your iGO Primo software safely and lawfully.Navigation Warning ScreenStep 3 - Access the Main MenuTouch to access the Navigation Menu:Navigation Main Menu

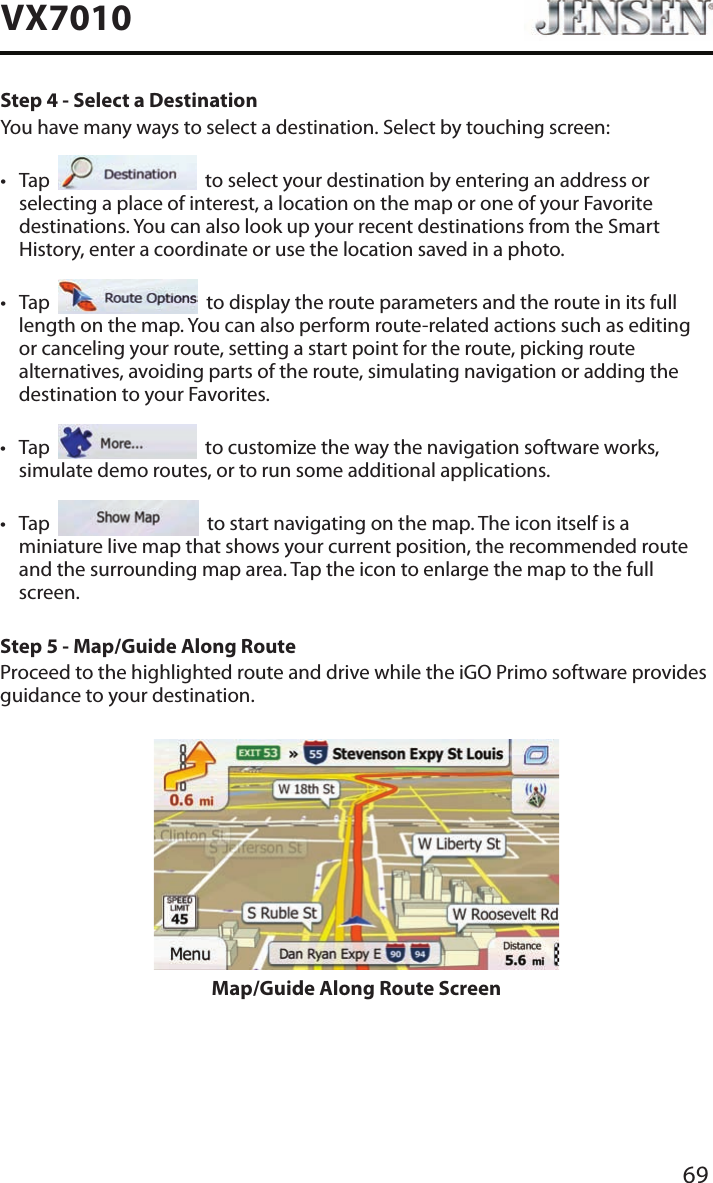

69VX7010Step 4 - Select a DestinationYou have many ways to select a destination. Select by touching screen:• Tap to select your destination by entering an address or selecting a place of interest, a location on the map or one of your Favorite destinations. You can also look up your recent destinations from the Smart History, enter a coordinate or use the location saved in a photo.• Tap to display the route parameters and the route in its full length on the map. You can also perform route-related actions such as editing or canceling your route, setting a start point for the route, picking route alternatives, avoiding parts of the route, simulating navigation or adding the destination to your Favorites.• Tap to customize the way the navigation software works, simulate demo routes, or to run some additional applications.• Tap to start navigating on the map. The icon itself is a miniature live map that shows your current position, the recommended route and the surrounding map area. Tap the icon to enlarge the map to the full screen.Step 5 - Map/Guide Along RouteProceed to the highlighted route and drive while the iGO Primo software provides guidance to your destination.Map/Guide Along Route Screen

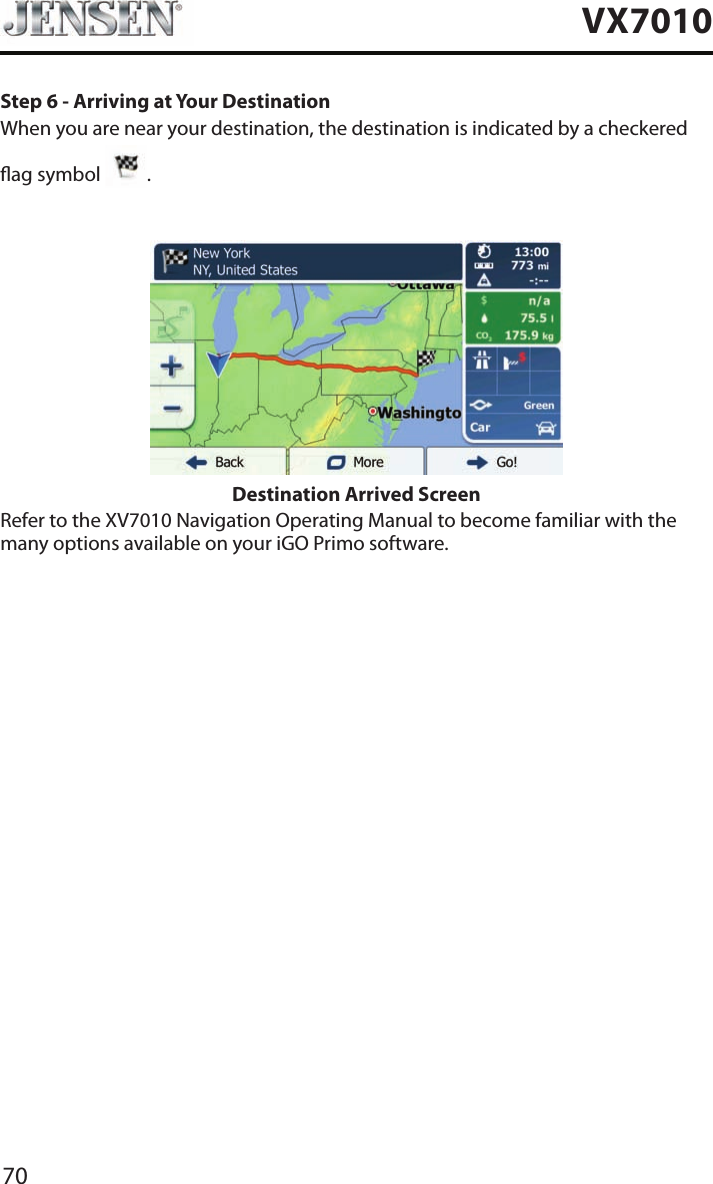

70VX7010Step 6 - Arriving at Your DestinationWhen you are near your destination, the destination is indicated by a checkered ag symbol .Destination Arrived ScreenRefer to the XV7010 Navigation Operating Manual to become familiar with the many options available on your iGO Primo software.

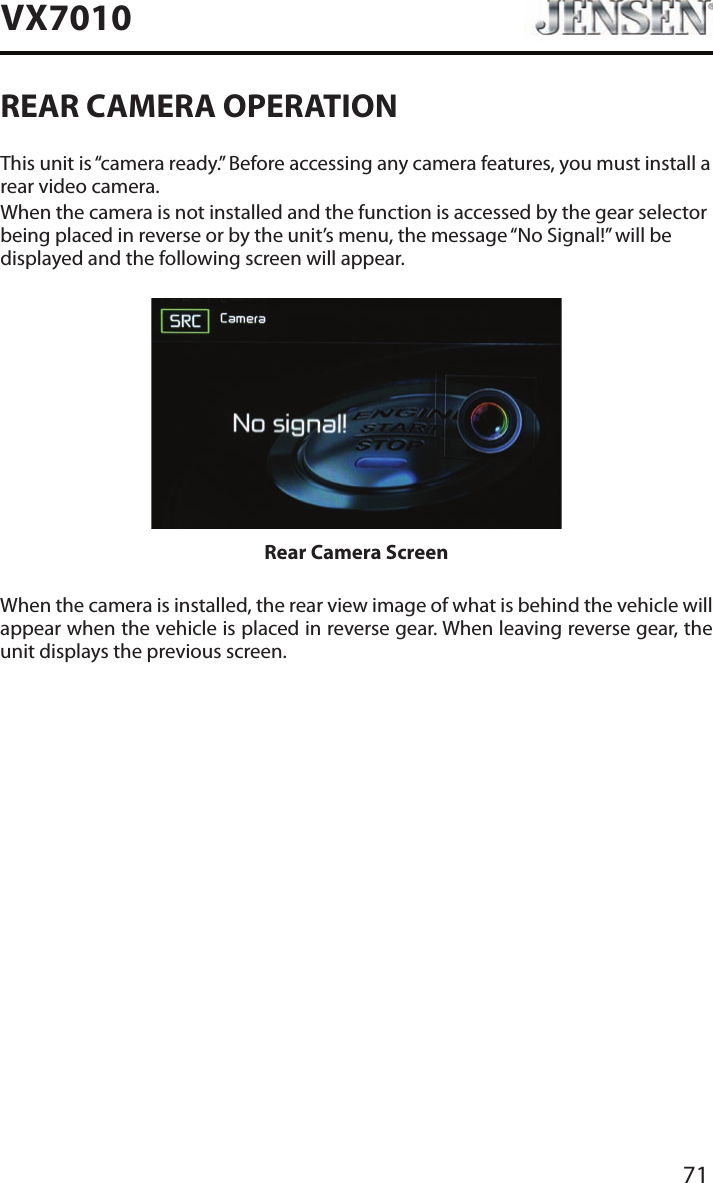

71VX7010REAR CAMERA OPERATIONThis unit is “camera ready.” Before accessing any camera features, you must install a rear video camera.When the camera is not installed and the function is accessed by the gear selector being placed in reverse or by the unit’s menu, the message “No Signal!” will be displayed and the following screen will appear.Rear Camera ScreenWhen the camera is installed, the rear view image of what is behind the vehicle will appear when the vehicle is placed in reverse gear. When leaving reverse gear, the unit displays the previous screen.

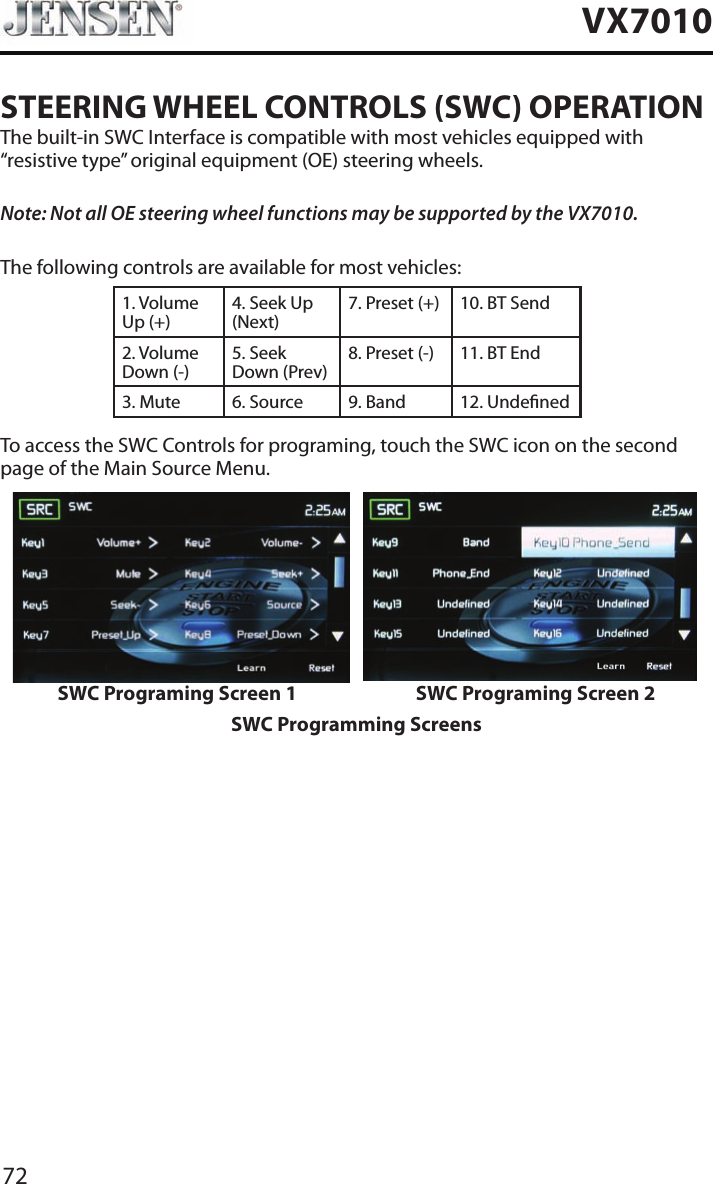

72VX7010STEERING WHEEL CONTROLS (SWC) OPERATIONThe built-in SWC Interface is compatible with most vehicles equipped with “resistive type” original equipment (OE) steering wheels.Note: Not all OE steering wheel functions may be supported by the VX7010.The following controls are available for most vehicles:1. Volume Up (+)4. Seek Up (Next)7. Preset (+) 10. BT Send2. Volume Down (-)5. Seek Down (Prev)8. Preset (-) 11. BT End3. Mute 6. Source 9. Band 12. UndenedTo access the SWC Controls for programing, touch the SWC icon on the second page of the Main Source Menu.SWC Programing Screen 1 SWC Programing Screen 2SWC Programming Screens

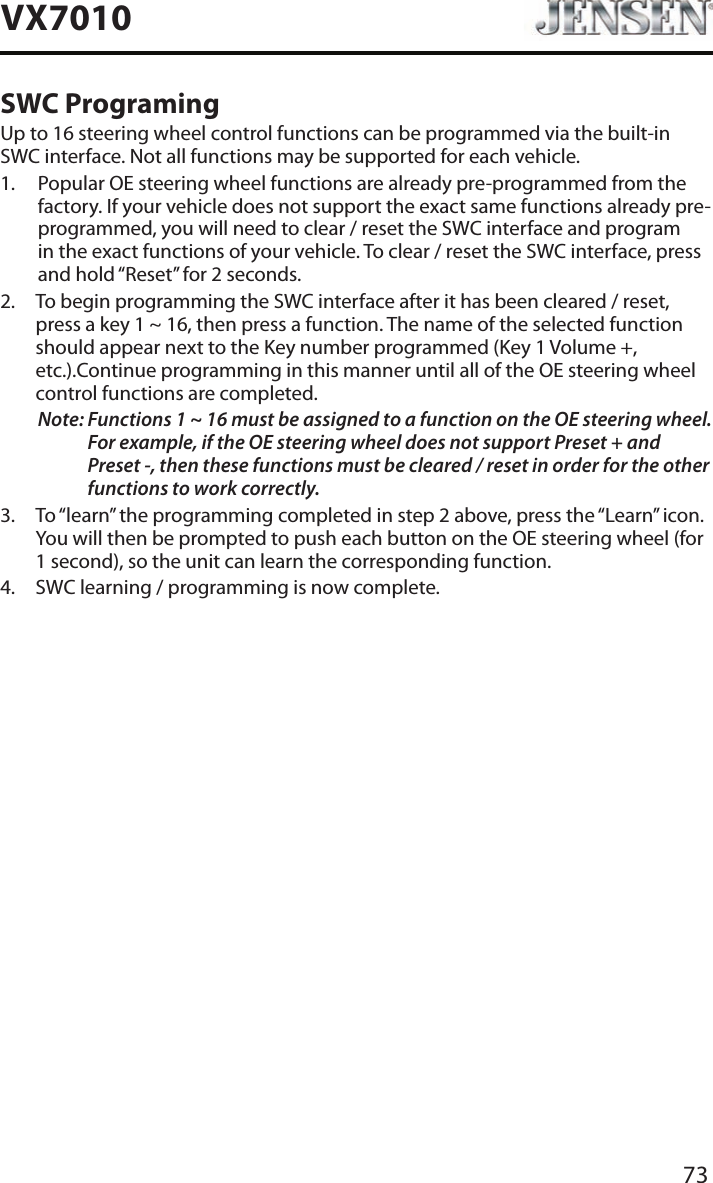

73VX7010SWC ProgramingUp to 16 steering wheel control functions can be programmed via the built-in SWC interface. Not all functions may be supported for each vehicle.1. Popular OE steering wheel functions are already pre-programmed from the factory. If your vehicle does not support the exact same functions already pre-programmed, you will need to clear / reset the SWC interface and program in the exact functions of your vehicle. To clear / reset the SWC interface, press and hold “Reset” for 2 seconds.2. To begin programming the SWC interface after it has been cleared / reset, press a key 1 ~ 16, then press a function. The name of the selected function should appear next to the Key number programmed (Key 1 Volume +, etc.).Continue programming in this manner until all of the OE steering wheel control functions are completed.Note: Functions 1 ~ 16 must be assigned to a function on the OE steering wheel. For example, if the OE steering wheel does not support Preset + and Preset -, then these functions must be cleared / reset in order for the other functions to work correctly. 3. To “learn” the programming completed in step 2 above, press the “Learn” icon. You will then be prompted to push each button on the OE steering wheel (for 1 second), so the unit can learn the corresponding function. 4. SWC learning / programming is now complete.

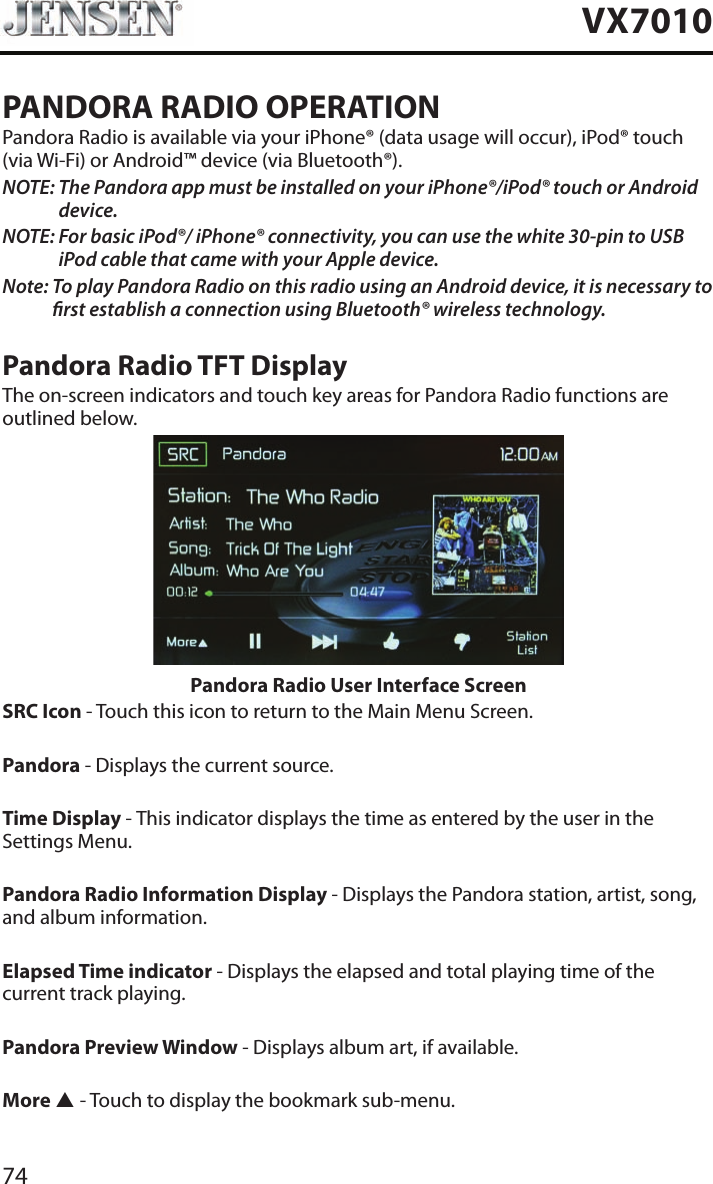

74VX7010PANDORA RADIO OPERATIONPandora Radio is available via your iPhone® (data usage will occur), iPod® touch (via Wi-Fi) or Android™ device (via Bluetooth®).NOTE: The Pandora app must be installed on your iPhone®/iPod® touch or Android device.NOTE: For basic iPod®/ iPhone® connectivity, you can use the white 30-pin to USB iPod cable that came with your Apple device.Note: To play Pandora Radio on this radio using an Android device, it is necessary to rst establish a connection using Bluetooth® wireless technology.Pandora Radio TFT DisplayThe on-screen indicators and touch key areas for Pandora Radio functions are outlined below.Pandora Radio User Interface ScreenSRC Icon - Touch this icon to return to the Main Menu Screen. Pandora - Displays the current source. Time Display - This indicator displays the time as entered by the user in the Settings Menu.Pandora Radio Information Display - Displays the Pandora station, artist, song, and album information.Elapsed Time indicator - Displays the elapsed and total playing time of the current track playing.Pandora Preview Window - Displays album art, if available.More p - Touch to display the bookmark sub-menu.

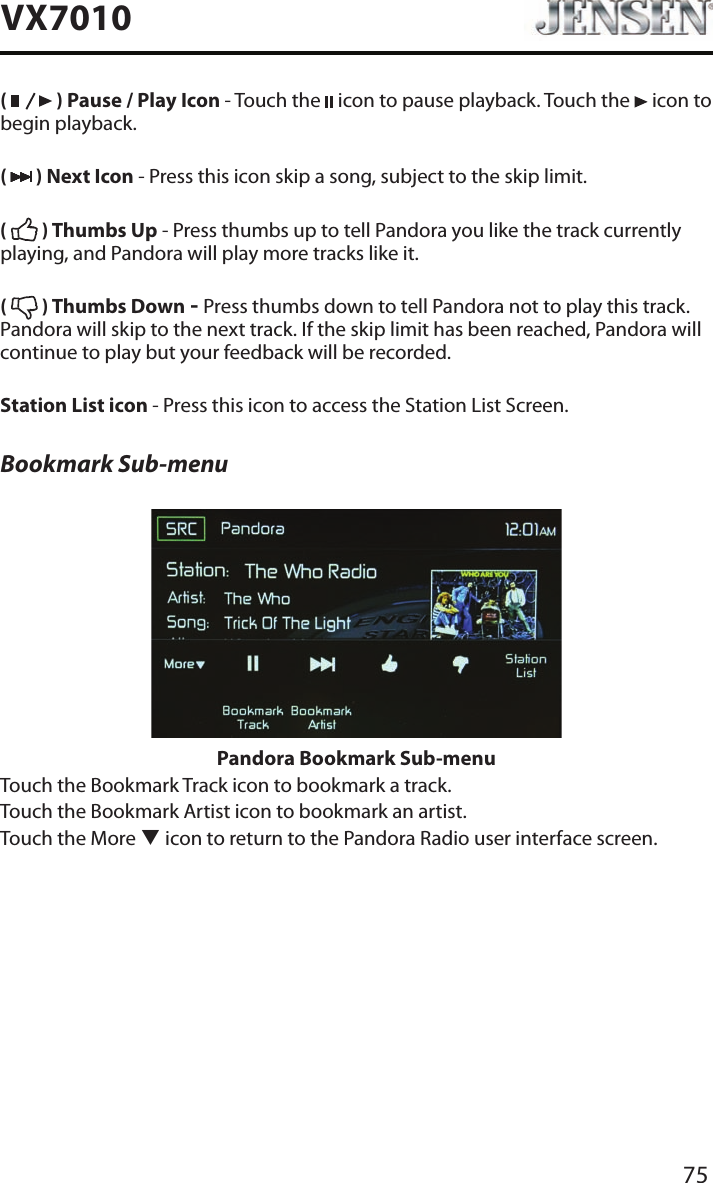

75VX7010( ) Pause / Play Icon - Touch the icon to pause playback. Touch the icon to begin playback.( ) Next Icon - Press this icon skip a song, subject to the skip limit.( ) Thumbs Up - Press thumbs up to tell Pandora you like the track currently playing, and Pandora will play more tracks like it.( ) Thumbs Down - Press thumbs down to tell Pandora not to play this track. Pandora will skip to the next track. If the skip limit has been reached, Pandora will continue to play but your feedback will be recorded.Station List icon - Press this icon to access the Station List Screen.Bookmark Sub-menuPandora Bookmark Sub-menuTouch the Bookmark Track icon to bookmark a track.Touch the Bookmark Artist icon to bookmark an artist.Touch the More q icon to return to the Pandora Radio user interface screen.

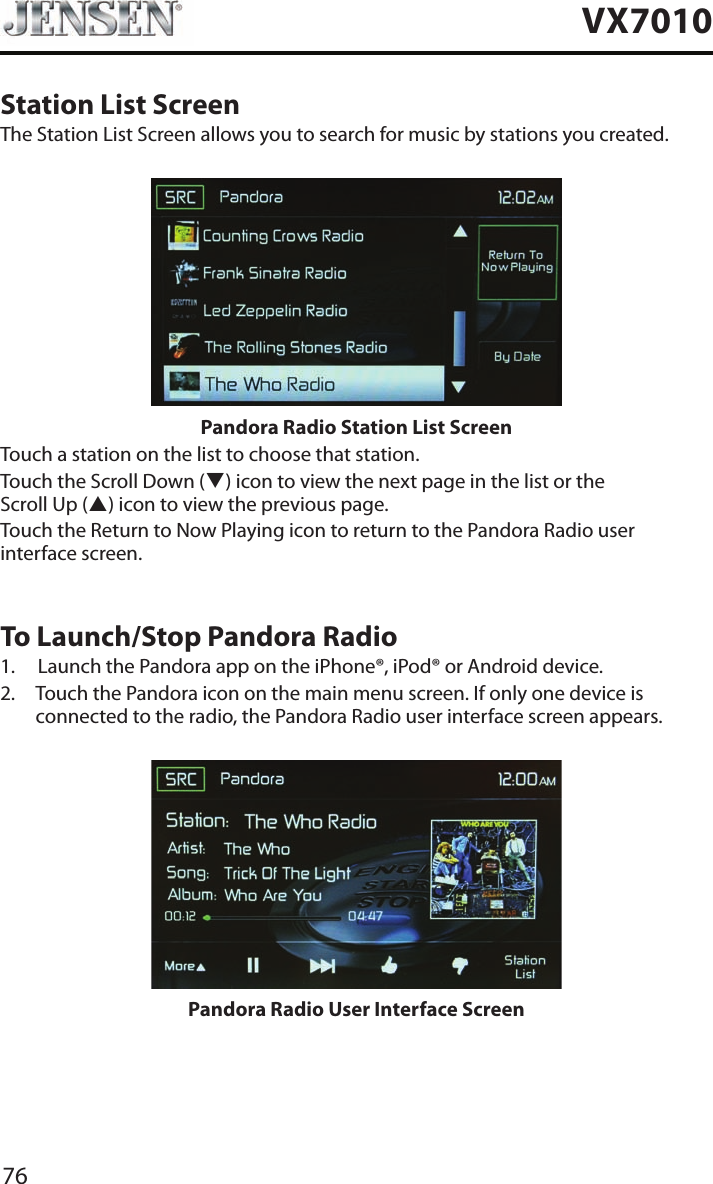

76VX7010Station List ScreenThe Station List Screen allows you to search for music by stations you created.Pandora Radio Station List ScreenTouch a station on the list to choose that station.Touch the Scroll Down (q) icon to view the next page in the list or the Scroll Up (p) icon to view the previous page. Touch the Return to Now Playing icon to return to the Pandora Radio user interface screen.To Launch/Stop Pandora Radio1. Launch the Pandora app on the iPhone®, iPod® or Android device.2. Touch the Pandora icon on the main menu screen. If only one device is connected to the radio, the Pandora Radio user interface screen appears.Pandora Radio User Interface Screen

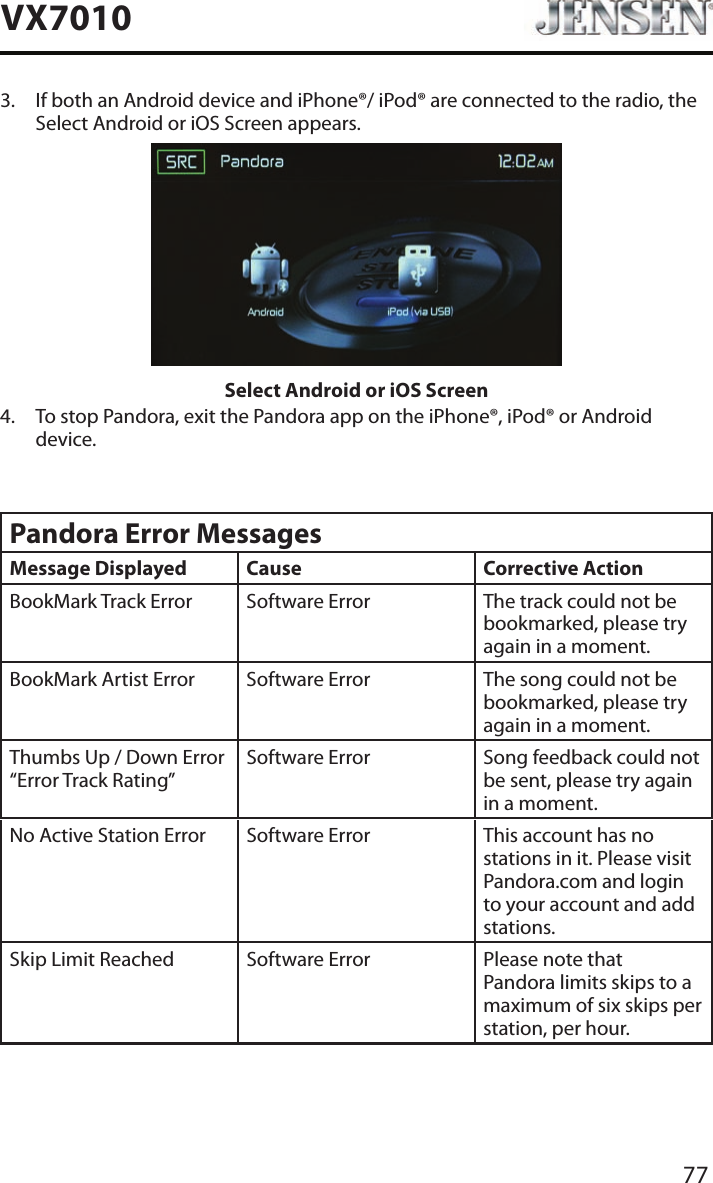

77VX70103. If both an Android device and iPhone®/ iPod® are connected to the radio, the Select Android or iOS Screen appears.Select Android or iOS Screen4. To stop Pandora, exit the Pandora app on the iPhone®, iPod® or Android device.Pandora Error MessagesMessage Displayed Cause Corrective ActionBookMark Track Error Software Error The track could not be bookmarked, please try again in a moment.BookMark Artist Error Software Error The song could not be bookmarked, please try again in a moment.Thumbs Up / Down Error “Error Track Rating”Software Error Song feedback could not be sent, please try again in a moment.No Active Station Error Software Error This account has no stations in it. Please visit Pandora.com and login to your account and add stations.Skip Limit Reached Software Error Please note that Pandora limits skips to a maximum of six skips per station, per hour.

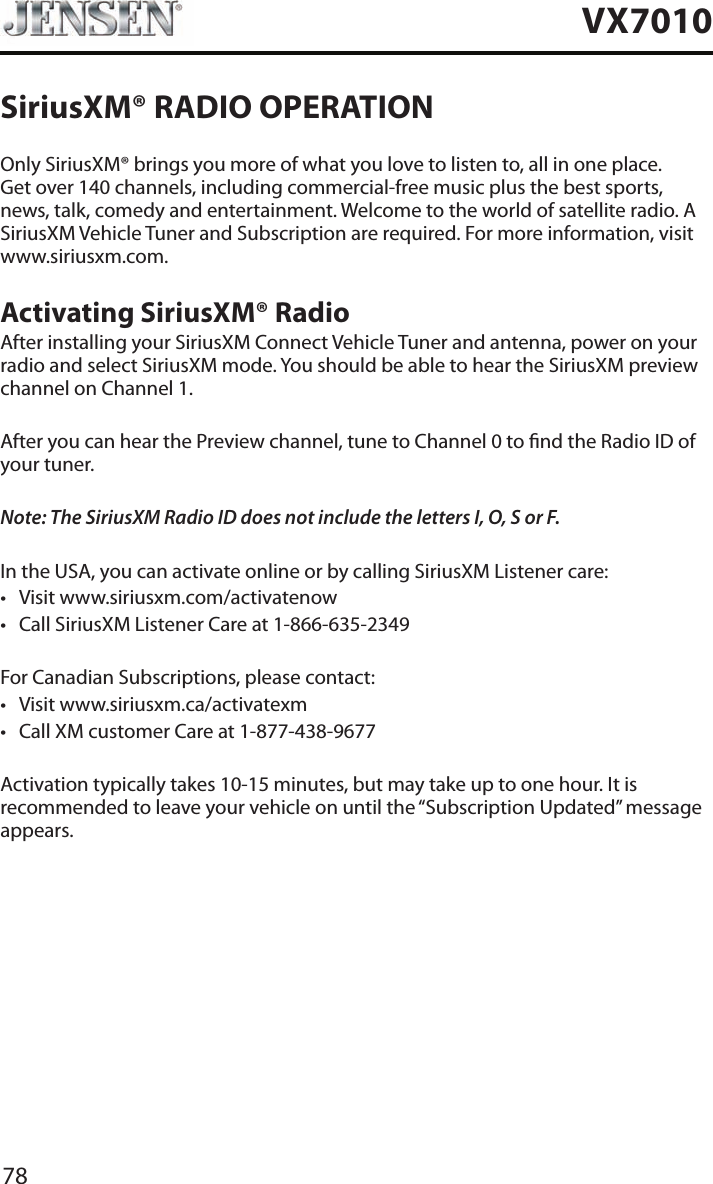

78VX7010SiriusXM® RADIO OPERATIONOnly SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.Activating SiriusXM® RadioAfter installing your SiriusXM Connect Vehicle Tuner and antenna, power on your radio and select SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1.After you can hear the Preview channel, tune to Channel 0 to nd the Radio ID of your tuner.Note: The SiriusXM Radio ID does not include the letters I, O, S or F.In the USA, you can activate online or by calling SiriusXM Listener care:• Visit www.siriusxm.com/activatenow• Call SiriusXM Listener Care at 1-866-635-2349For Canadian Subscriptions, please contact:• Visit www.siriusxm.ca/activatexm• Call XM customer Care at 1-877-438-9677Activation typically takes 10-15 minutes, but may take up to one hour. It is recommended to leave your vehicle on until the “Subscription Updated” message appears.

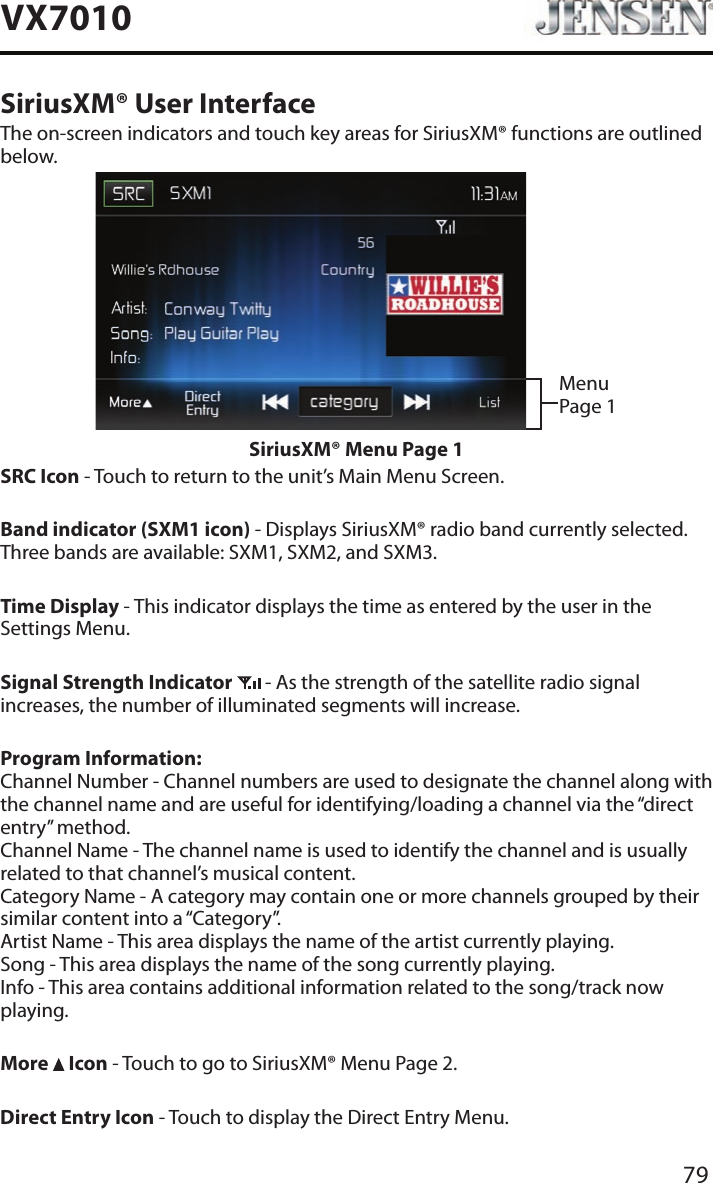

79VX7010SiriusXM® User InterfaceThe on-screen indicators and touch key areas for SiriusXM® functions are outlined below.Menu Page 1SiriusXM® Menu Page 1SRC Icon - Touch to return to the unit’s Main Menu Screen.Band indicator (SXM1 icon) - Displays SiriusXM® radio band currently selected. Three bands are available: SXM1, SXM2, and SXM3.Time Display - This indicator displays the time as entered by the user in the Settings Menu.Signal Strength Indicator - As the strength of the satellite radio signal increases, the number of illuminated segments will increase.Program Information: Channel Number - Channel numbers are used to designate the channel along with the channel name and are useful for identifying/loading a channel via the “direct entry” method. Channel Name - The channel name is used to identify the channel and is usually related to that channel’s musical content. Category Name - A category may contain one or more channels grouped by their similar content into a “Category”. Artist Name - This area displays the name of the artist currently playing. Song - This area displays the name of the song currently playing. Info - This area contains additional information related to the song/track now playing.More Icon - Touch to go to SiriusXM® Menu Page 2.Direct Entry Icon - Touch to display the Direct Entry Menu.

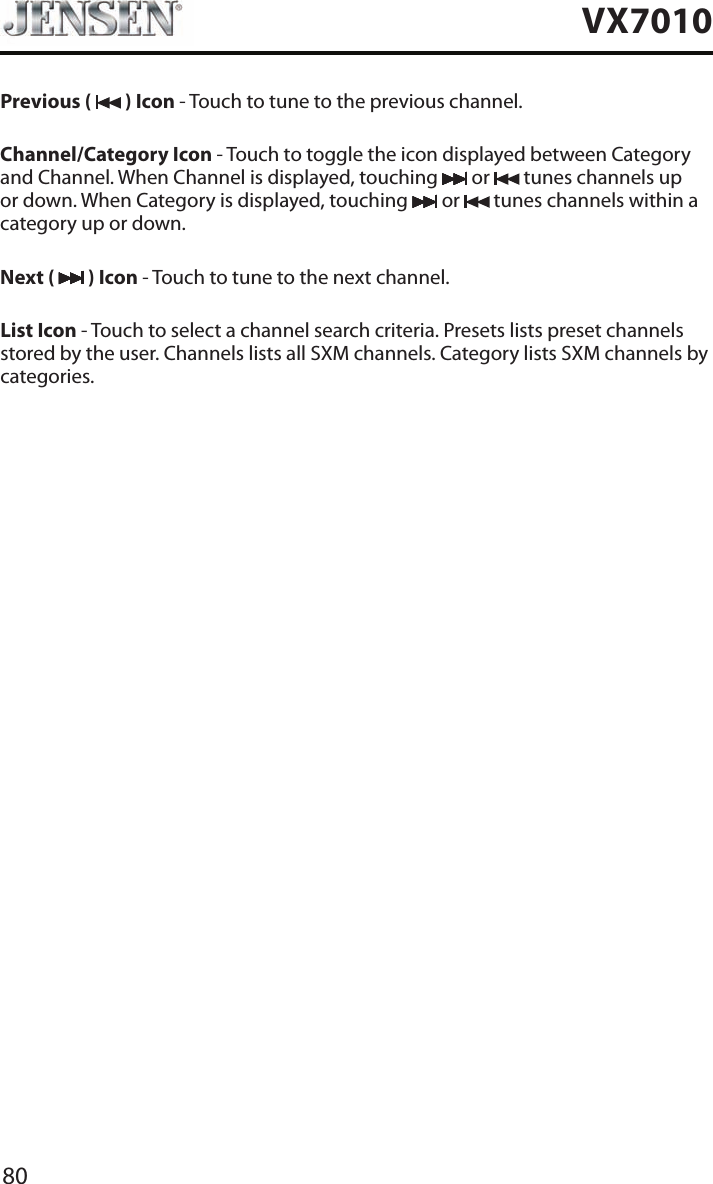

80VX7010Previous ( ) Icon - Touch to tune to the previous channel.Channel/Category Icon - Touch to toggle the icon displayed between Category and Channel. When Channel is displayed, touching or tunes channels up or down. When Category is displayed, touching or tunes channels within a category up or down.Next ( ) Icon - Touch to tune to the next channel.List Icon - Touch to select a channel search criteria. Presets lists preset channels stored by the user. Channels lists all SXM channels. Category lists SXM channels by categories.

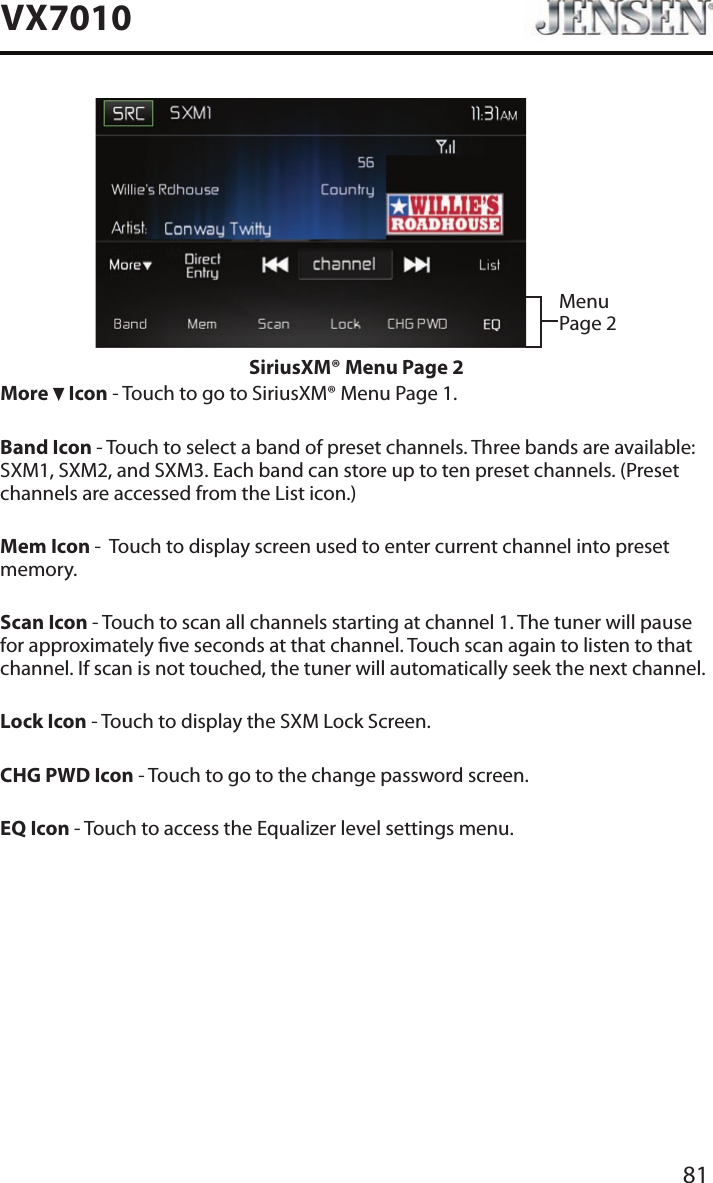

81VX7010Menu Page 2SiriusXM® Menu Page 2More Icon - Touch to go to SiriusXM® Menu Page 1.Band Icon - Touch to select a band of preset channels. Three bands are available: SXM1, SXM2, and SXM3. Each band can store up to ten preset channels. (Preset channels are accessed from the List icon.)Mem Icon - Touch to display screen used to enter current channel into preset memory.Scan Icon - Touch to scan all channels starting at channel 1. The tuner will pause for approximately ve seconds at that channel. Touch scan again to listen to that channel. If scan is not touched, the tuner will automatically seek the next channel.Lock Icon - Touch to display the SXM Lock Screen.CHG PWD Icon - Touch to go to the change password screen.EQ Icon - Touch to access the Equalizer level settings menu.

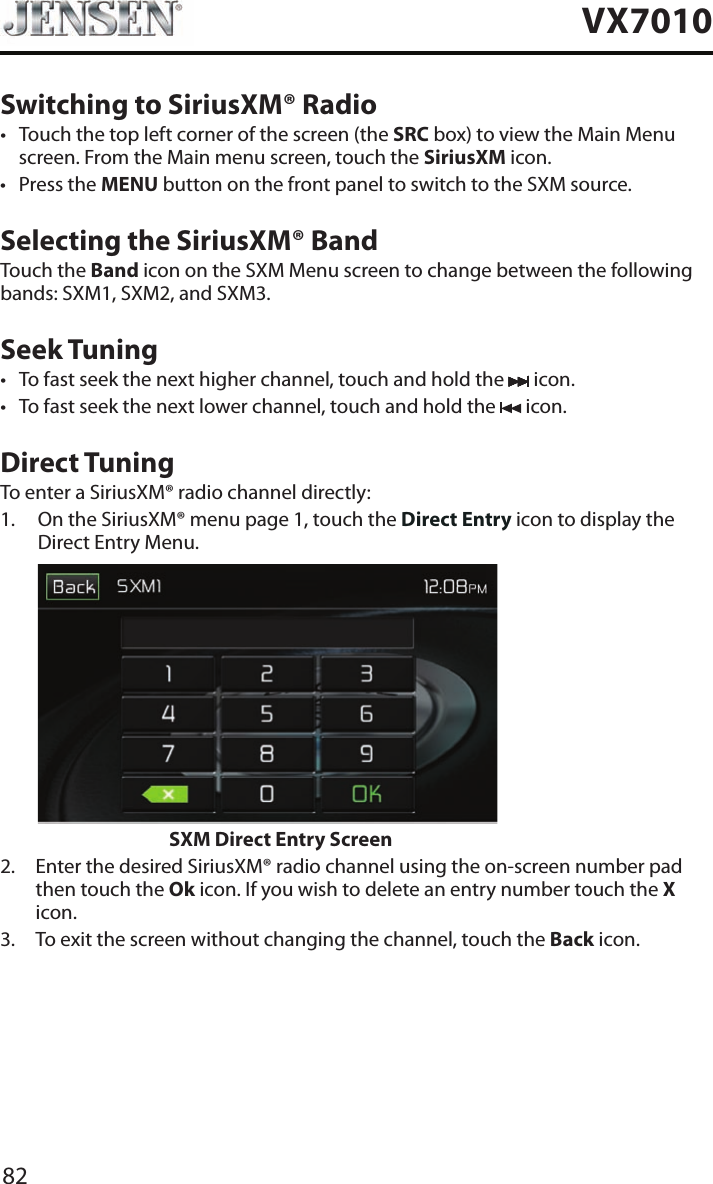

82VX7010Switching to SiriusXM® Radio• Touch the top left corner of the screen (the SRC box) to view the Main Menu screen. From the Main menu screen, touch the SiriusXM icon. • Press the MENU button on the front panel to switch to the SXM source. Selecting the SiriusXM® BandTouch the Band icon on the SXM Menu screen to change between the following bands: SXM1, SXM2, and SXM3.Seek Tuning• To fast seek the next higher channel, touch and hold the icon.• To fast seek the next lower channel, touch and hold the icon.Direct TuningTo enter a SiriusXM® radio channel directly:1. On the SiriusXM® menu page 1, touch the Direct Entry icon to display the Direct Entry Menu. SXM Direct Entry Screen2. Enter the desired SiriusXM® radio channel using the on-screen number pad then touch the Ok icon. If you wish to delete an entry number touch the X icon.3. To exit the screen without changing the channel, touch the Back icon.

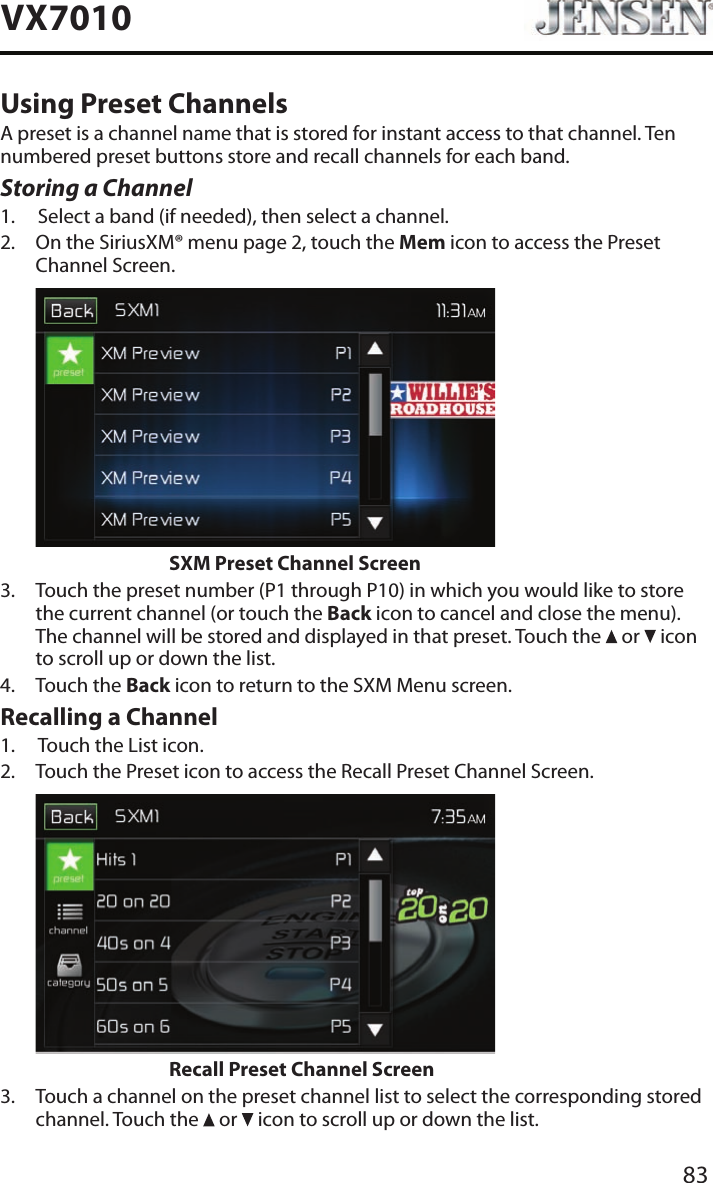

83VX7010Using Preset ChannelsA preset is a channel name that is stored for instant access to that channel. Ten numbered preset buttons store and recall channels for each band.Storing a Channel1. Select a band (if needed), then select a channel.2. On the SiriusXM® menu page 2, touch the Mem icon to access the Preset Channel Screen. SXM Preset Channel Screen3. Touch the preset number (P1 through P10) in which you would like to store the current channel (or touch the Back icon to cancel and close the menu). The channel will be stored and displayed in that preset. Touch the or icon to scroll up or down the list.4. Touch the Back icon to return to the SXM Menu screen.Recalling a Channel1. Touch the List icon.2. Touch the Preset icon to access the Recall Preset Channel Screen. Recall Preset Channel Screen3. Touch a channel on the preset channel list to select the corresponding stored channel. Touch the or icon to scroll up or down the list.

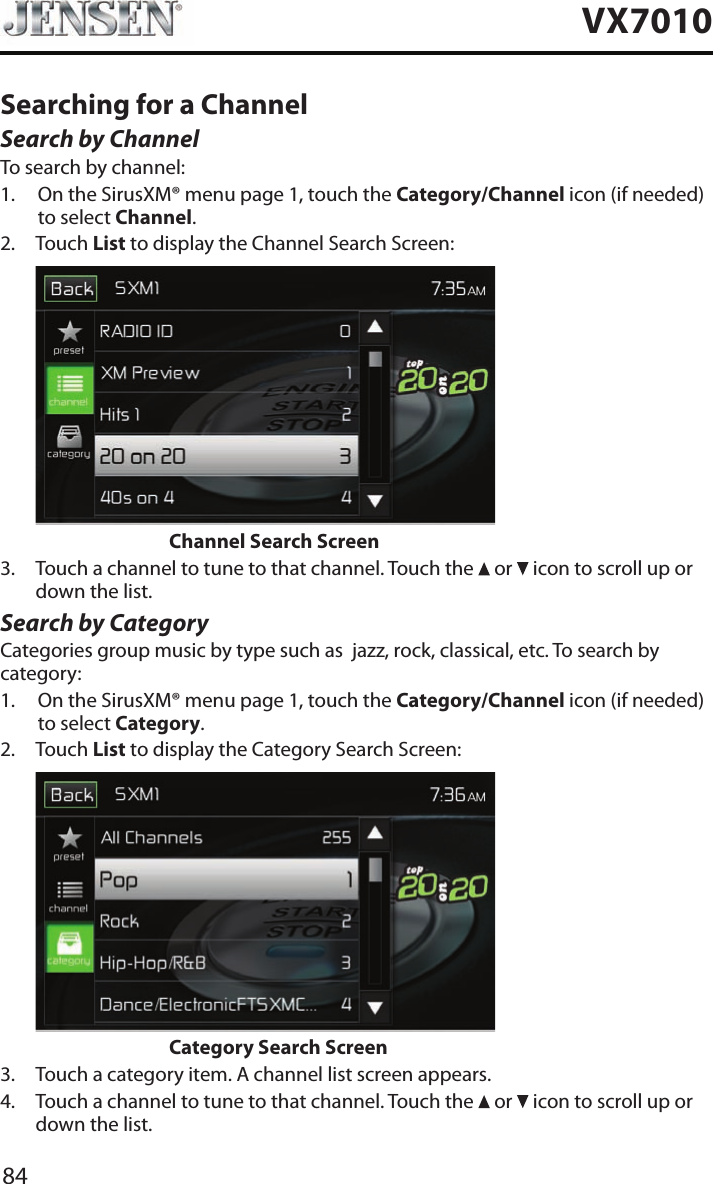

84VX7010Searching for a ChannelSearch by ChannelTo search by channel:1. On the SirusXM® menu page 1, touch the Category/Channel icon (if needed) to select Channel.2. Touch List to display the Channel Search Screen: Channel Search Screen3. Touch a channel to tune to that channel. Touch the or icon to scroll up or down the list.Search by CategoryCategories group music by type such as jazz, rock, classical, etc. To search by category:1. On the SirusXM® menu page 1, touch the Category/Channel icon (if needed) to select Category.2. Touch List to display the Category Search Screen: Category Search Screen3. Touch a category item. A channel list screen appears.4. Touch a channel to tune to that channel. Touch the or icon to scroll up or down the list.

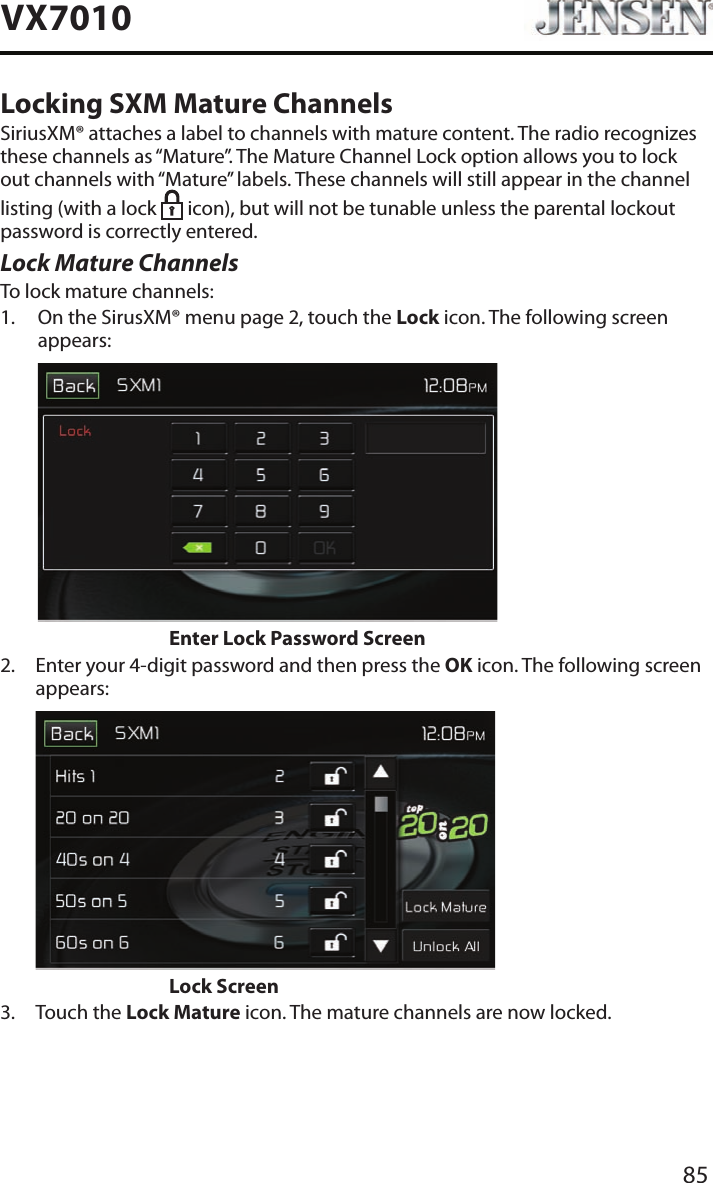

85VX7010Locking SXM Mature ChannelsSiriusXM® attaches a label to channels with mature content. The radio recognizes these channels as “Mature”. The Mature Channel Lock option allows you to lock out channels with “Mature” labels. These channels will still appear in the channel listing (with a lock icon), but will not be tunable unless the parental lockout password is correctly entered.Lock Mature ChannelsTo lock mature channels:1. On the SirusXM® menu page 2, touch the Lock icon. The following screen appears: Enter Lock Password Screen2. Enter your 4-digit password and then press the OK icon. The following screen appears: Lock Screen3. Touch the Lock Mature icon. The mature channels are now locked.

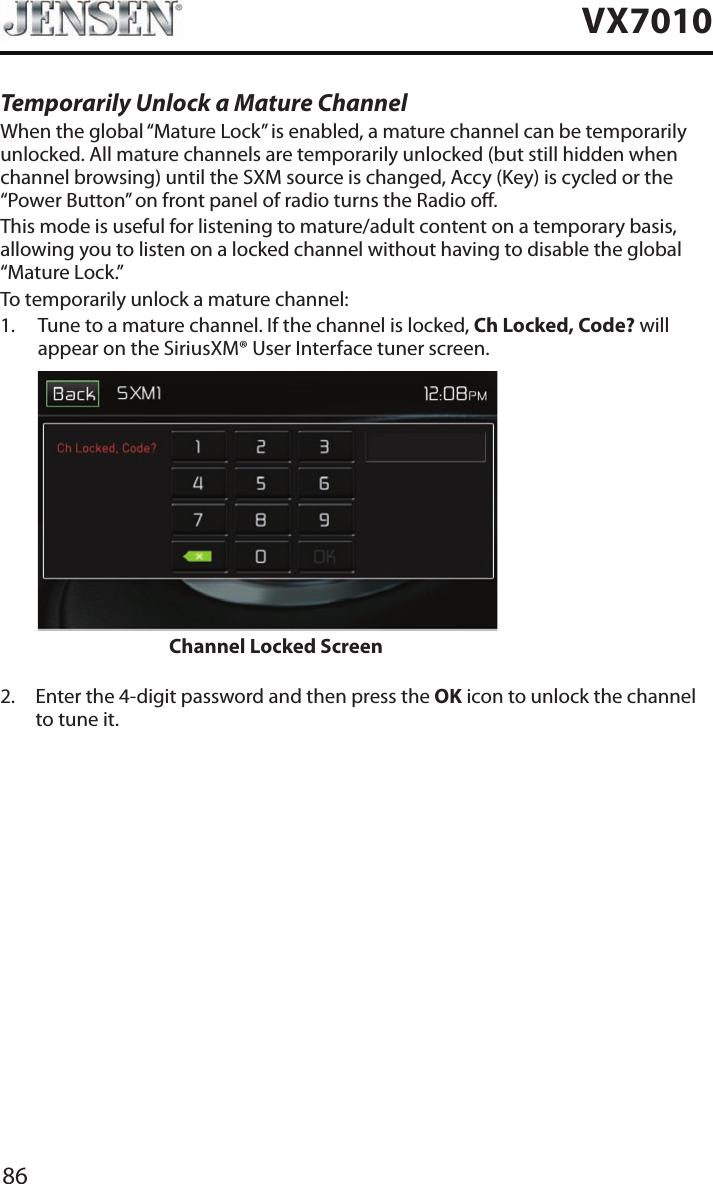

86VX7010Temporarily Unlock a Mature ChannelWhen the global “Mature Lock” is enabled, a mature channel can be temporarily unlocked. All mature channels are temporarily unlocked (but still hidden when channel browsing) until the SXM source is changed, Accy (Key) is cycled or the “Power Button” on front panel of radio turns the Radio o. This mode is useful for listening to mature/adult content on a temporary basis, allowing you to listen on a locked channel without having to disable the global “Mature Lock.”To temporarily unlock a mature channel:1. Tune to a mature channel. If the channel is locked, Ch Locked, Code? will appear on the SiriusXM® User Interface tuner screen. Channel Locked Screen 2. Enter the 4-digit password and then press the OK icon to unlock the channel to tune it.

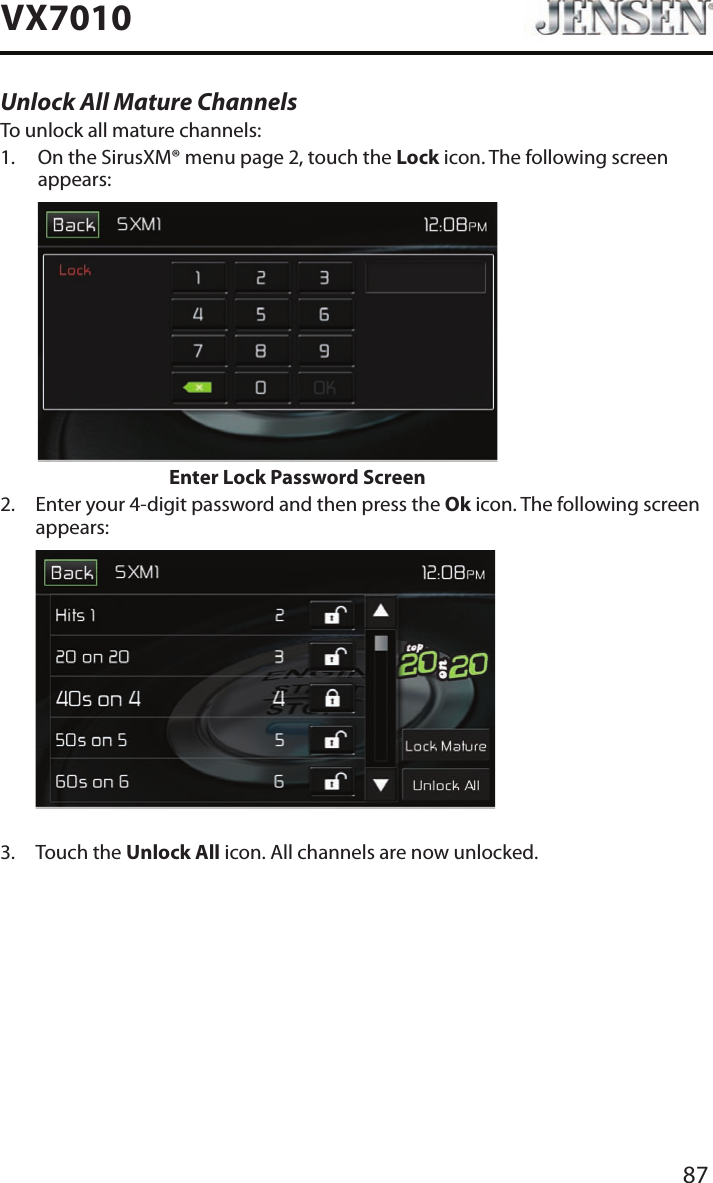

87VX7010Unlock All Mature ChannelsTo unlock all mature channels:1. On the SirusXM® menu page 2, touch the Lock icon. The following screen appears: Enter Lock Password Screen2. Enter your 4-digit password and then press the Ok icon. The following screen appears: 3. Touch the Unlock All icon. All channels are now unlocked.

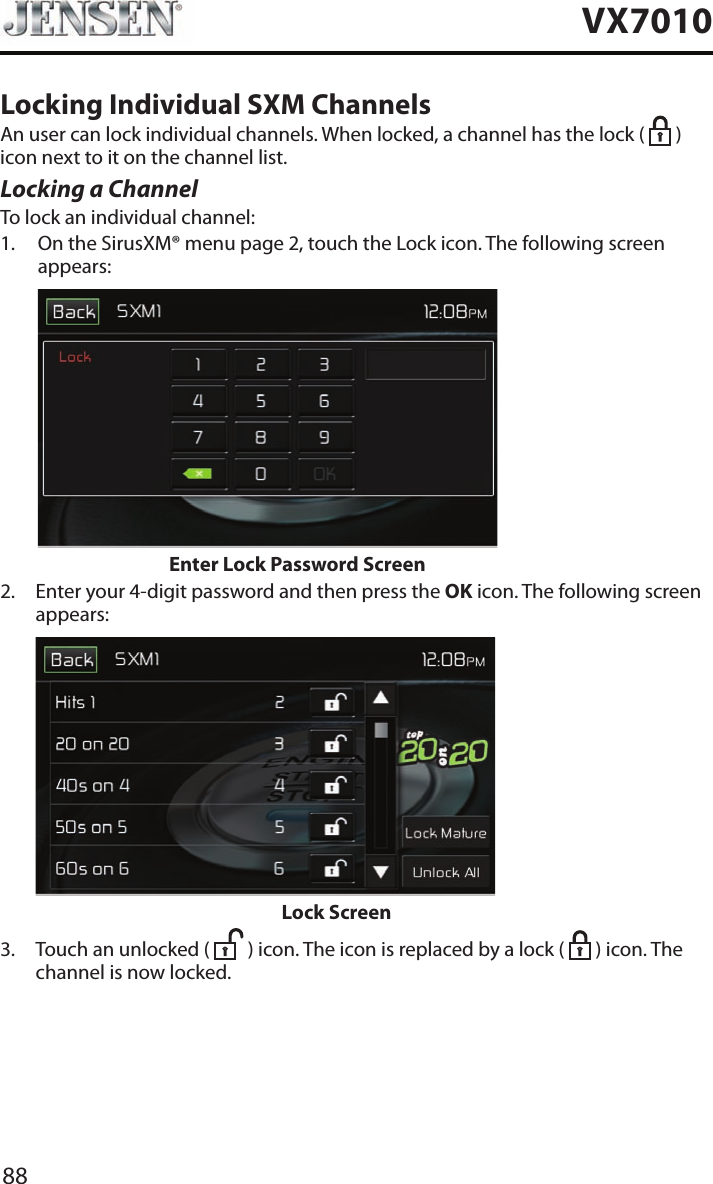

88VX7010Locking Individual SXM ChannelsAn user can lock individual channels. When locked, a channel has the lock ( ) icon next to it on the channel list.Locking a ChannelTo lock an individual channel:1. On the SirusXM® menu page 2, touch the Lock icon. The following screen appears: Enter Lock Password Screen2. Enter your 4-digit password and then press the OK icon. The following screen appears: Lock Screen3. Touch an unlocked ( ) icon. The icon is replaced by a lock ( ) icon. The channel is now locked.

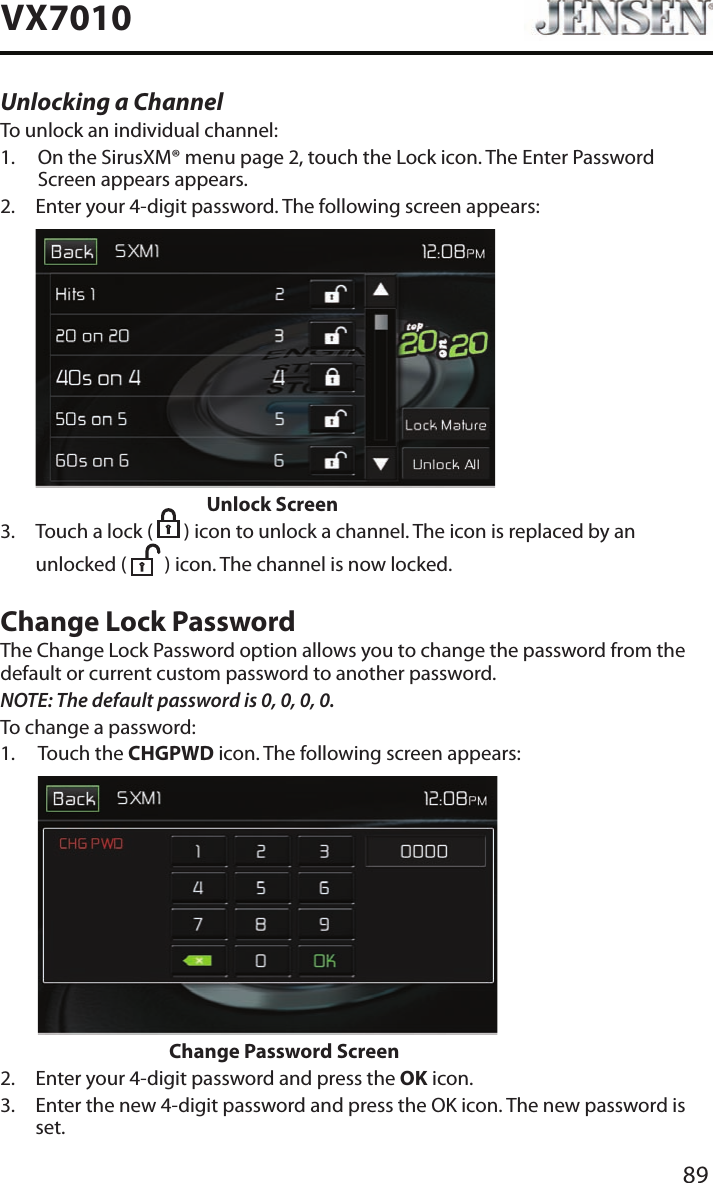

89VX7010Unlocking a ChannelTo unlock an individual channel:1. On the SirusXM® menu page 2, touch the Lock icon. The Enter Password Screen appears appears.2. Enter your 4-digit password. The following screen appears: Unlock Screen3. Touch a lock ( ) icon to unlock a channel. The icon is replaced by an unlocked ( ) icon. The channel is now locked.Change Lock PasswordThe Change Lock Password option allows you to change the password from the default or current custom password to another password.NOTE: The default password is 0, 0, 0, 0.To change a password:1. Touch the CHGPWD icon. The following screen appears: Change Password Screen2. Enter your 4-digit password and press the OK icon.3. Enter the new 4-digit password and press the OK icon. The new password is set.

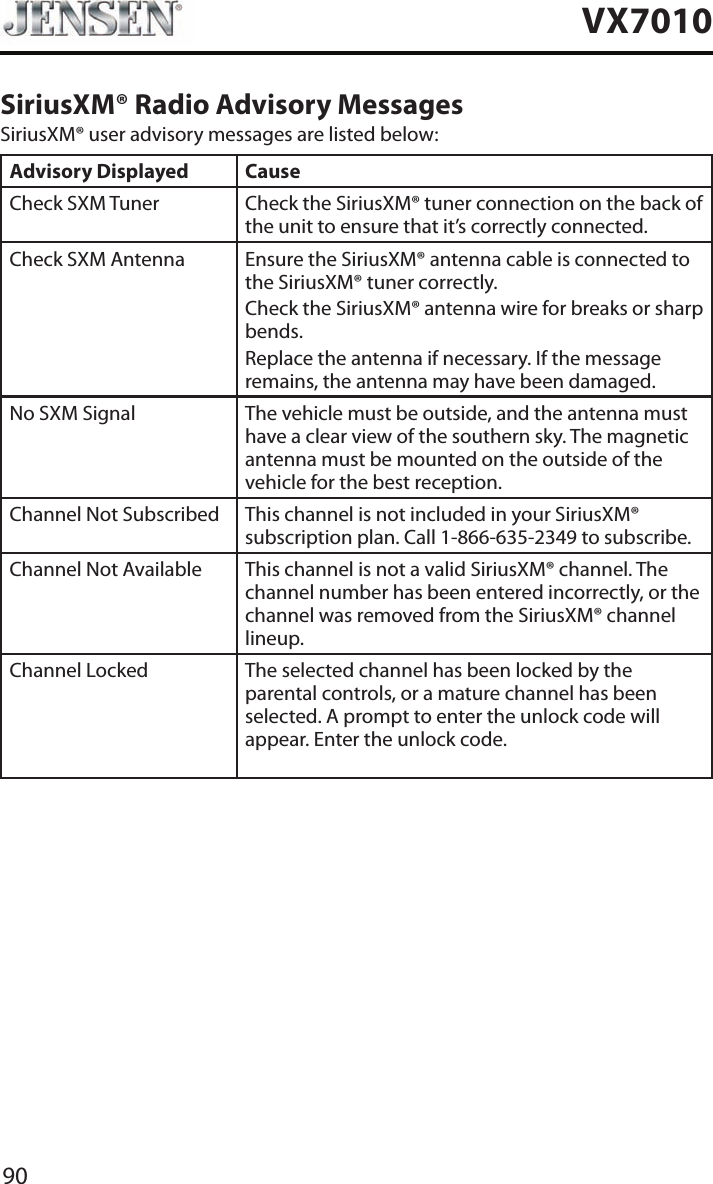

90VX7010SiriusXM® Radio Advisory MessagesSiriusXM® user advisory messages are listed below:Advisory Displayed CauseCheck SXM Tuner Check the SiriusXM® tuner connection on the back of the unit to ensure that it’s correctly connected. Check SXM Antenna Ensure the SiriusXM® antenna cable is connected to the SiriusXM® tuner correctly.Check the SiriusXM® antenna wire for breaks or sharp bends.Replace the antenna if necessary. If the message remains, the antenna may have been damaged.No SXM Signal The vehicle must be outside, and the antenna must have a clear view of the southern sky. The magnetic antenna must be mounted on the outside of the vehicle for the best reception.Channel Not Subscribed This channel is not included in your SiriusXM® subscription plan. Call 1-866-635-2349 to subscribe.Channel Not Available This channel is not a valid SiriusXM® channel. The channel number has been entered incorrectly, or the channel was removed from the SiriusXM® channel lineup. Channel Locked The selected channel has been locked by the parental controls, or a mature channel has been selected. A prompt to enter the unlock code will appear. Enter the unlock code.

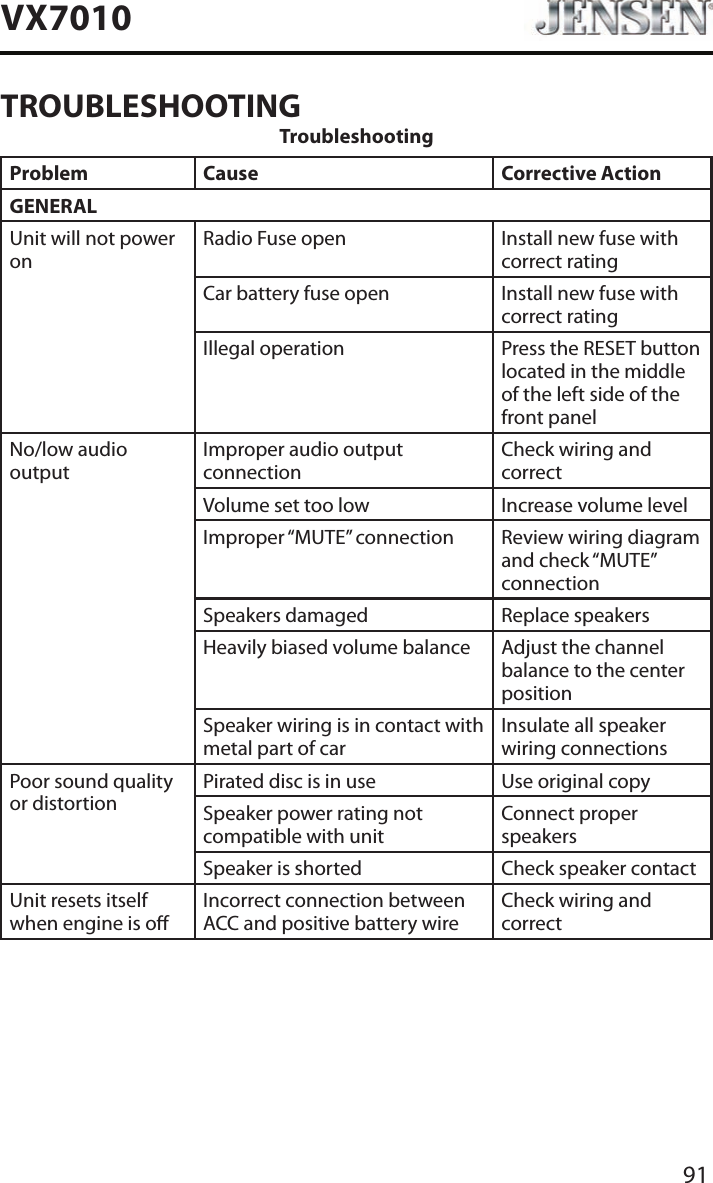

91VX7010TROUBLESHOOTINGTroubleshootingProblem Cause Corrective ActionGENERALUnit will not power onRadio Fuse open Install new fuse with correct ratingCar battery fuse open Install new fuse with correct ratingIllegal operation Press the RESET button located in the middle of the left side of the front panelNo/low audio outputImproper audio output connectionCheck wiring and correctVolume set too low Increase volume levelImproper “MUTE” connection Review wiring diagram and check “MUTE” connectionSpeakers damaged Replace speakersHeavily biased volume balance Adjust the channel balance to the center positionSpeaker wiring is in contact with metal part of carInsulate all speaker wiring connectionsPoor sound quality or distortionPirated disc is in use Use original copySpeaker power rating not compatible with unitConnect proper speakersSpeaker is shorted Check speaker contactUnit resets itself when engine is oIncorrect connection between ACC and positive battery wireCheck wiring and correct

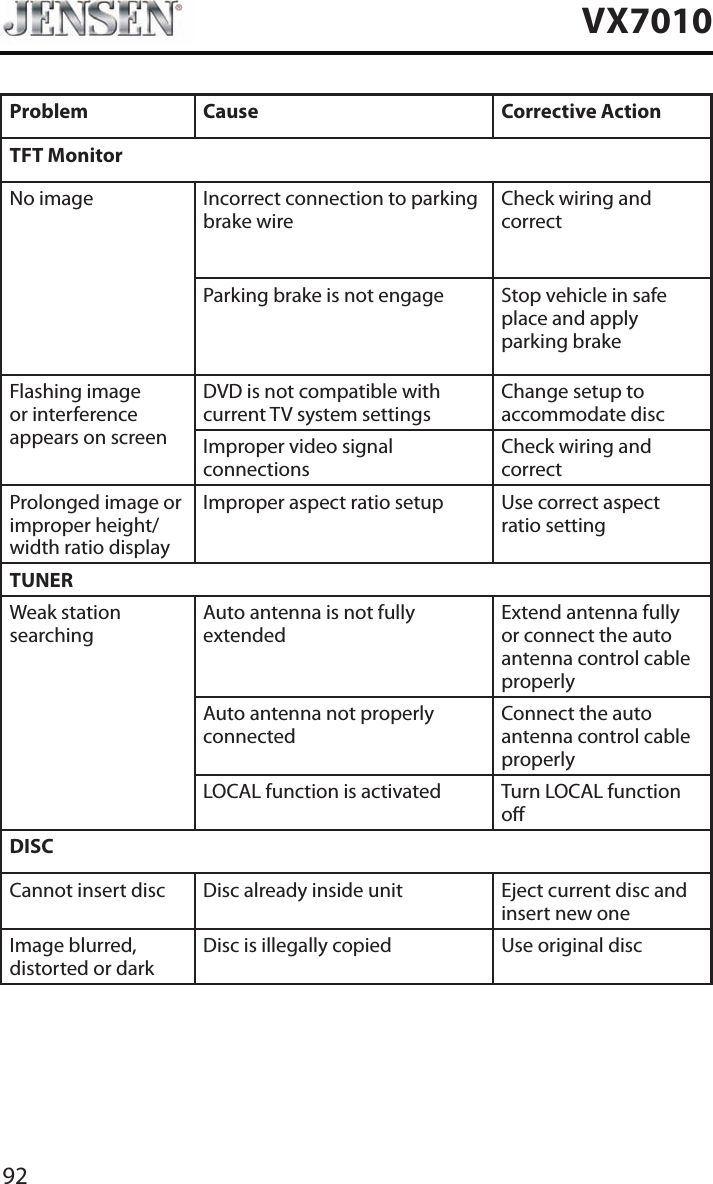

92VX7010Problem Cause Corrective ActionTFT MonitorNo image Incorrect connection to parking brake wireCheck wiring and correctParking brake is not engage Stop vehicle in safe place and apply parking brakeFlashing image or interference appears on screenDVD is not compatible with current TV system settingsChange setup to accommodate discImproper video signal connectionsCheck wiring and correctProlonged image or improper height/width ratio displayImproper aspect ratio setup Use correct aspect ratio settingTUNERWeak station searchingAuto antenna is not fully extendedExtend antenna fully or connect the auto antenna control cable properlyAuto antenna not properly connectedConnect the auto antenna control cable properlyLOCAL function is activated Turn LOCAL function oDISCCannot insert disc Disc already inside unit Eject current disc and insert new oneImage blurred, distorted or darkDisc is illegally copied Use original disc

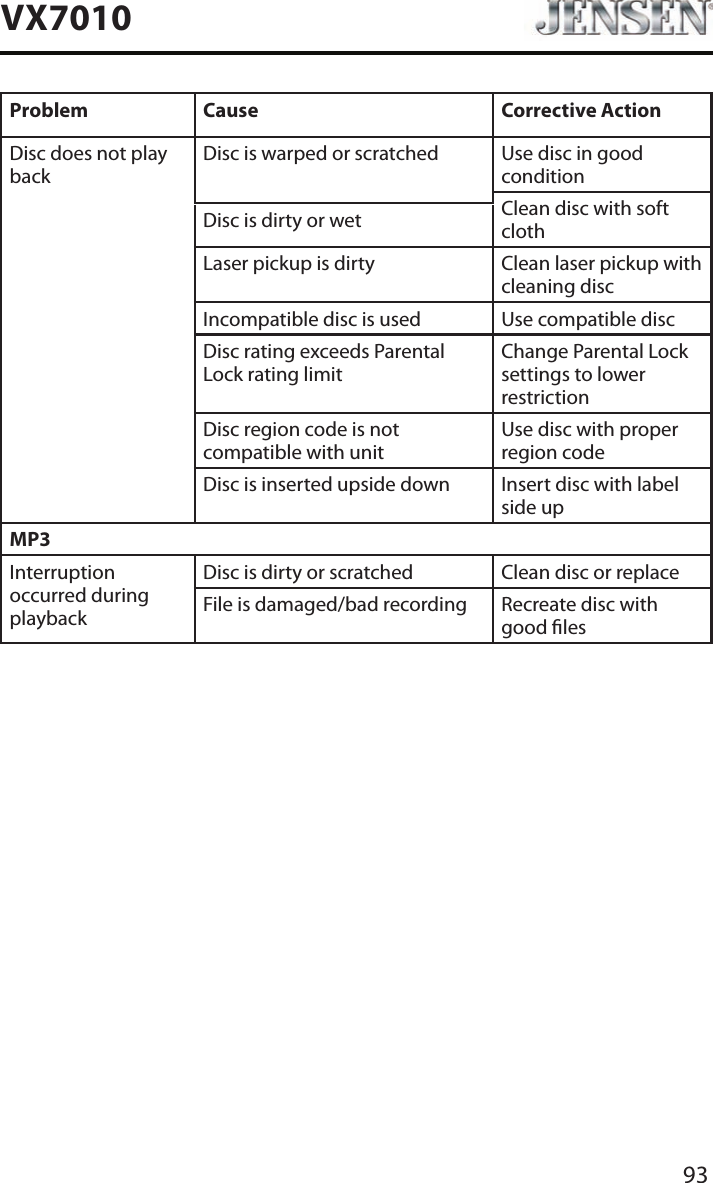

93VX7010Problem Cause Corrective ActionDisc does not play backDisc is warped or scratched Use disc in good conditionClean disc with soft clothDisc is dirty or wetLaser pickup is dirty Clean laser pickup with cleaning discIncompatible disc is used Use compatible discDisc rating exceeds Parental Lock rating limitChange Parental Lock settings to lower restrictionDisc region code is not compatible with unitUse disc with proper region codeDisc is inserted upside down Insert disc with label side upMP3Interruption occurred during playbackDisc is dirty or scratched Clean disc or replaceFile is damaged/bad recording Recreate disc with good les

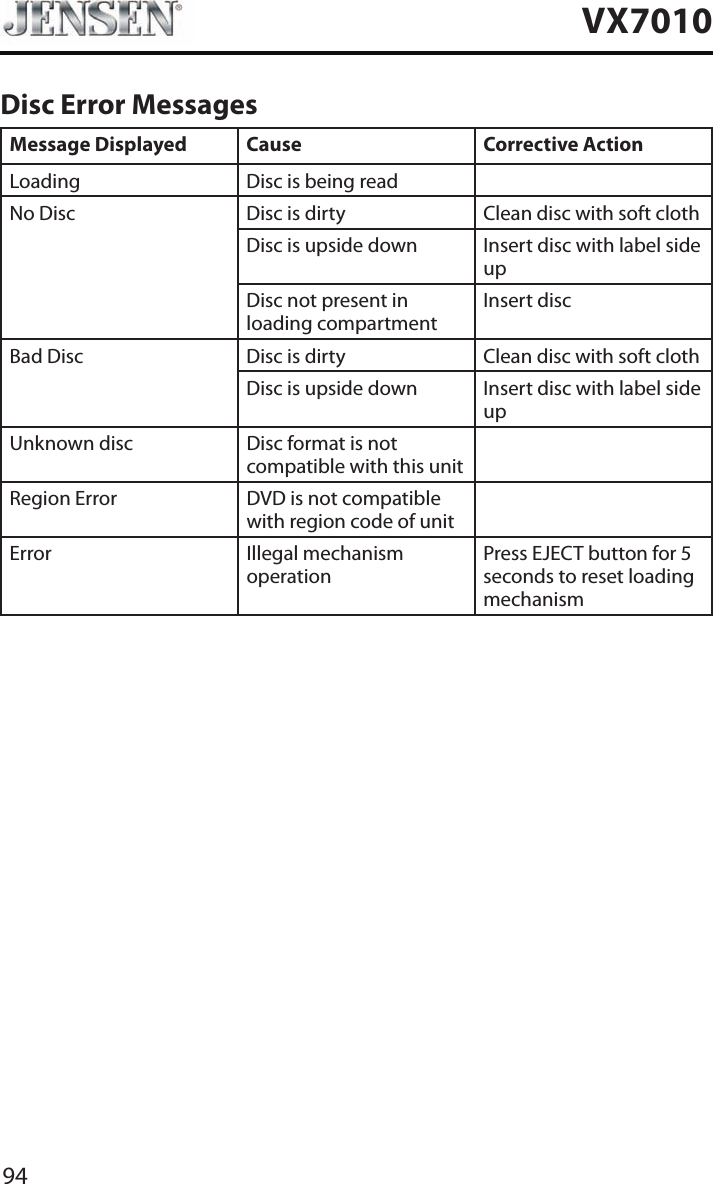

94VX7010Disc Error MessagesMessage Displayed Cause Corrective ActionLoading Disc is being readNo Disc Disc is dirty Clean disc with soft clothDisc is upside down Insert disc with label side upDisc not present in loading compartmentInsert discBad Disc Disc is dirty Clean disc with soft clothDisc is upside down Insert disc with label side upUnknown disc Disc format is not compatible with this unitRegion Error DVD is not compatible with region code of unitError Illegal mechanism operationPress EJECT button for 5 seconds to reset loading mechanism

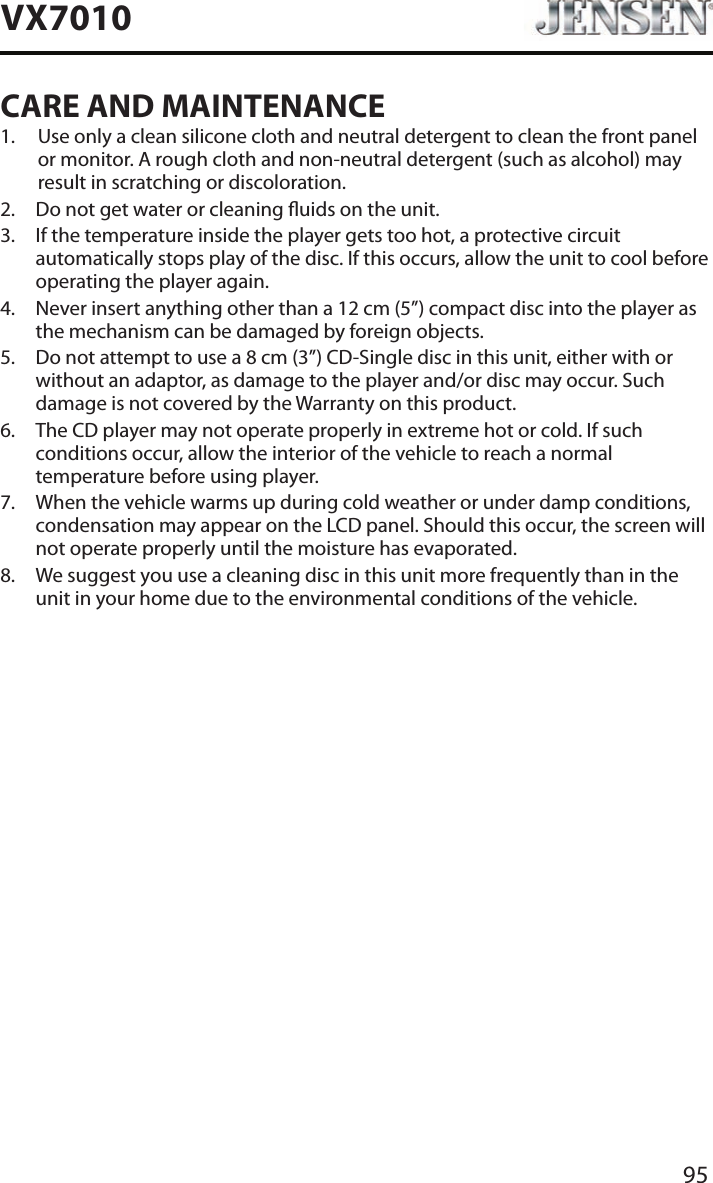

95VX7010CARE AND MAINTENANCE1. Use only a clean silicone cloth and neutral detergent to clean the front panel or monitor. A rough cloth and non-neutral detergent (such as alcohol) may result in scratching or discoloration.2. Do not get water or cleaning uids on the unit.3. If the temperature inside the player gets too hot, a protective circuit automatically stops play of the disc. If this occurs, allow the unit to cool before operating the player again.4. Never insert anything other than a 12 cm (5”) compact disc into the player as the mechanism can be damaged by foreign objects.5. Do not attempt to use a 8 cm (3”) CD-Single disc in this unit, either with or without an adaptor, as damage to the player and/or disc may occur. Such damage is not covered by the Warranty on this product.6. The CD player may not operate properly in extreme hot or cold. If such conditions occur, allow the interior of the vehicle to reach a normal temperature before using player.7. When the vehicle warms up during cold weather or under damp conditions, condensation may appear on the LCD panel. Should this occur, the screen will not operate properly until the moisture has evaporated.8. We suggest you use a cleaning disc in this unit more frequently than in the unit in your home due to the environmental conditions of the vehicle.

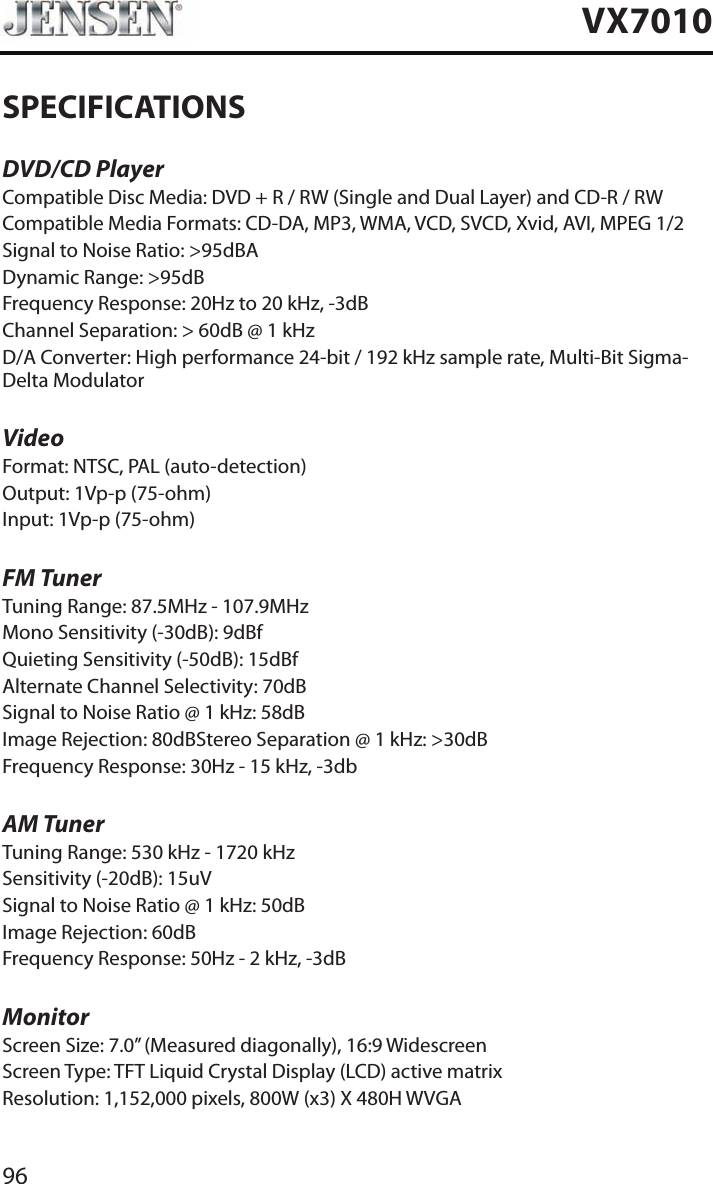

96VX7010SPECIFICATIONSDVD/CD PlayerCompatible Disc Media: DVD + R / RW (Single and Dual Layer) and CD-R / RWCompatible Media Formats: CD-DA, MP3, WMA, VCD, SVCD, Xvid, AVI, MPEG 1/2Signal to Noise Ratio: >95dBADynamic Range: >95dBFrequency Response: 20Hz to 20 kHz, -3dBChannel Separation: > 60dB @ 1 kHzD/A Converter: High performance 24-bit / 192 kHz sample rate, Multi-Bit Sigma-Delta ModulatorVideoFormat: NTSC, PAL (auto-detection)Output: 1Vp-p (75-ohm)Input: 1Vp-p (75-ohm)FM TunerTuning Range: 87.5MHz - 107.9MHzMono Sensitivity (-30dB): 9dBfQuieting Sensitivity (-50dB): 15dBfAlternate Channel Selectivity: 70dBSignal to Noise Ratio @ 1 kHz: 58dB Image Rejection: 80dBStereo Separation @ 1 kHz: >30dBFrequency Response: 30Hz - 15 kHz, -3dbAM TunerTuning Range: 530 kHz - 1720 kHzSensitivity (-20dB): 15uVSignal to Noise Ratio @ 1 kHz: 50dBImage Rejection: 60dBFrequency Response: 50Hz - 2 kHz, -3dBMonitorScreen Size: 7.0” (Measured diagonally), 16:9 WidescreenScreen Type: TFT Liquid Crystal Display (LCD) active matrixResolution: 1,152,000 pixels, 800W (x3) X 480H WVGA

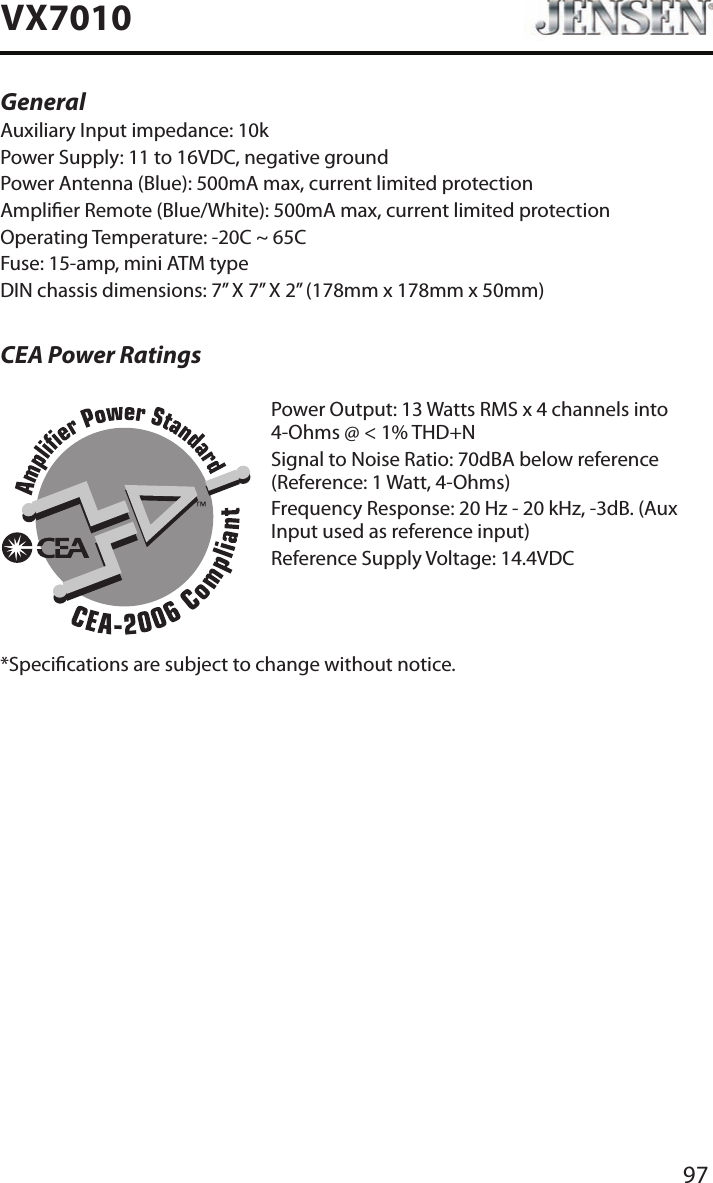

97VX7010General Auxiliary Input impedance: 10k Power Supply: 11 to 16VDC, negative groundPower Antenna (Blue): 500mA max, current limited protectionAmplier Remote (Blue/White): 500mA max, current limited protectionOperating Temperature: -20C ~ 65CFuse: 15-amp, mini ATM typeDIN chassis dimensions: 7” X 7” X 2” (178mm x 178mm x 50mm)CEA Power RatingsPower Output: 13 Watts RMS x 4 channels into 4-Ohms @ < 1% THD+NSignal to Noise Ratio: 70dBA below reference (Reference: 1 Watt, 4-Ohms)Frequency Response: 20 Hz - 20 kHz, -3dB. (Aux Input used as reference input)Reference Supply Voltage: 14.4VDC*Specications are subject to change without notice.

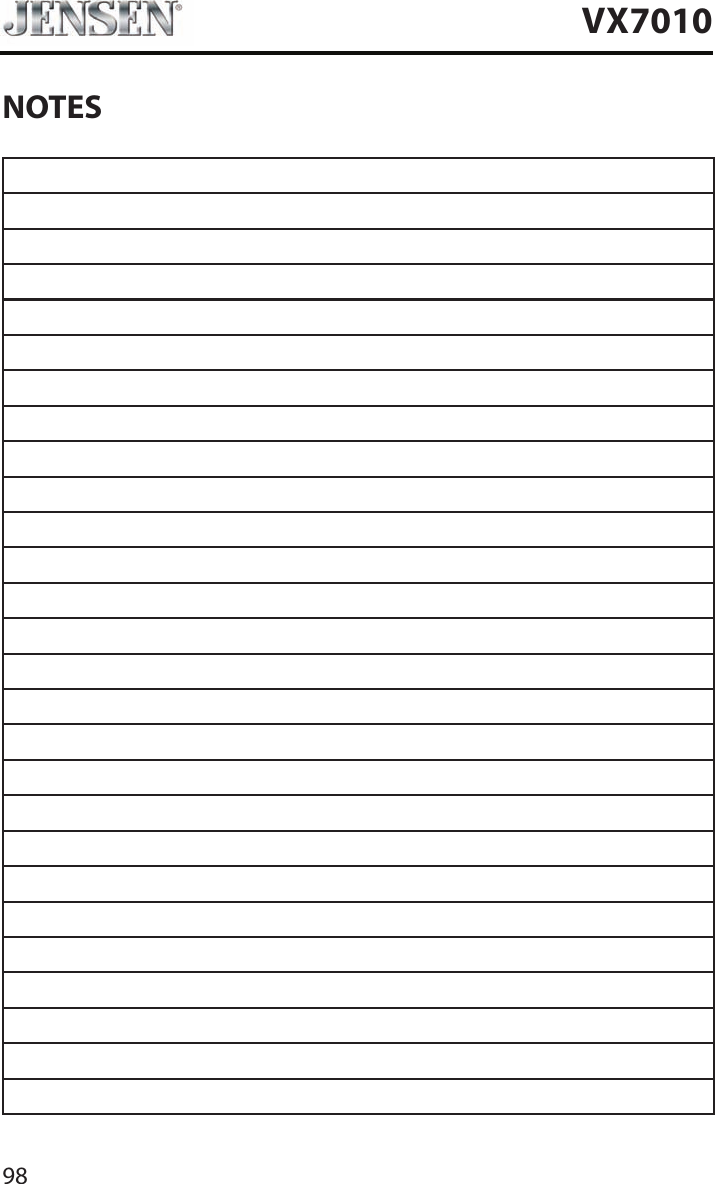

98VX7010NOTES
99VX7010

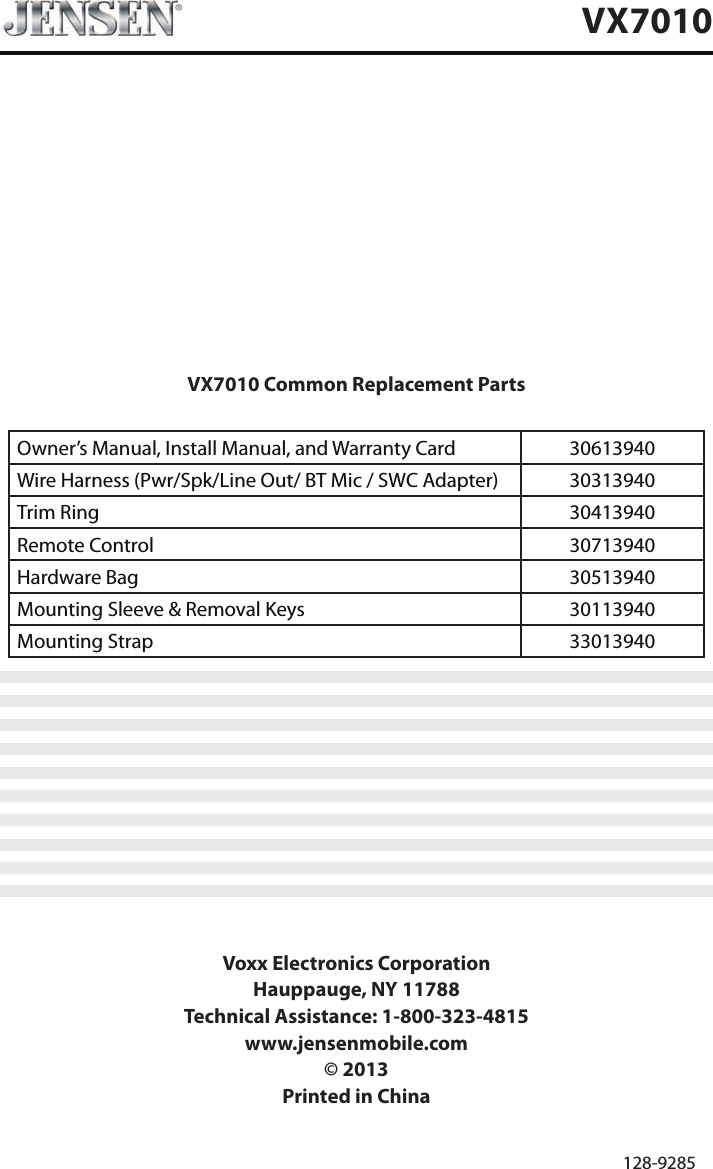

VX7010 Common Replacement PartsOwner’s Manual, Install Manual, and Warranty Card 30613940 Wire Harness (Pwr/Spk/Line Out/ BT Mic / SWC Adapter) 30313940Trim Ring 30413940Remote Control 30713940Hardware Bag 30513940Mounting Sleeve & Removal Keys 30113940Mounting Strap 33013940Voxx Electronics CorporationHauppauge, NY 11788Technical Assistance: 1-800-323-4815www.jensenmobile.com© 2013Printed in China 128-9285VX7010
