PRODUCT SPECIFICATION Version 1.1
IEEE
802.11 b/g/n
1T/1R
USB Module
Model Number:
W79M1510S
客户认可
Custom Approval Section
Custom Name
Department
Approval Date:
拟制
DESIGN
审核
CHECK
批准
APPROVAL
王仕友
2015-08-10
惠 州 高 盛 达 科 技 有 限 公 司
HUIZHOU GAOSHENGDA TECHNOLOGY CO.,LTD
中国惠州仲恺高新技术开发区华宇路 75 号
HUA YU RD., NO.75, ZHONGKAI HIGH-TECH DEVELOPMENT AREA, HUIZHOU, CHINA
TEL:(0752)2096932 FAX:(0752)2096628 E-mail: wangsy@hz-gsd.com
![](/img.php?id=2884603&img=bg2.png)
PRODUCTS SPECIFICATION
PAGE 2 OF 13
W79M1510S
Version1.1
Document revision history
Revision Date Approved by Remarks
Version 1.0 2015-07-20 Draft
Version 1.1 2015-08-10 王仕友
Update
Page4:Add
Schematic diagram
Page5:Add
Part List
Page10:Add label list &Package
Page12:Add Antenna Specifications
![](/img.php?id=2884603&img=bg3.png)
PRODUCTS SPECIFICATION
PAGE 3 OF 13
W79M1510S
Version1.1
1. General Description
This document is to specify the product requirements for 802.11 b/g/n USB Module.This Module is
based on Media Tek MT7601U chipset that complied with IEEE 802.11g, IEEE 802.11b, IEEE
802.11n standard from 2.4G-2.5GHz,and it can be used to provide up to 54Mbps for 802.11g,11Mbps
for 802.11b and 150Mbps for 802.11n to connect your wireless LAN.
With seamless roaming, fully interoperability and advanced security with WEP standard,
802.11b/g/n USB Module offers absolute interoperability with different vendors 802.11 b, 802.11 g,
802.11n Access Points through the wireless LAN.
2. Features
● Compatible with IEEE 802.11b standard to provide wireless 11Mbps data rate.
● Compatible with IEEE 802.11g standard to provide wireless 54Mbps data rate.
● Compatible with IEEE 802.11n standard to provide wireless 150Mbps data rate.
● Operation at 2.4G-2.5GHz frequency band to meet worldwide regulations
● Supports WEP ,WPA ,WPA2,TKIP,AES enhanced security
● Drivers support Windows XP 32/64, 2000, 7,Vista 32/64, Linux OS
● High speed USB 2.0 interface
● RoHS compliant
![](/img.php?id=2884603&img=bg4.png)
PRODUCTS SPECIFICATION
PAGE 4 OF 13
W79M1510S
Version1.1
3. Application Diagrams
3.1
Functional Block Diagram
3.2 Schematic diagram
![](/img.php?id=2884603&img=bg5.png)
PRODUCTS SPECIFICATION
PAGE 5 OF 13
W79M1510S
Version1.1
4. Part List
4.1 Part List
Type Specification model Number Manufacturer
IC
MT7601U 1 MTK
G5728 1 GUOCHAN
Capacitance
0201/50V/1pF/±0.1pF/COG 1
Murata
0201/16V/100nF/±10%/X5R
2
0402/50V/0.5pF/±0.1pF/C0G
1
0402/50V/1.2pF/±0.1pF/C0G
2
0402/50V/4.7pF/±0.25pF/C0G
2
0402/50V/5.6pF/±0.25pF/C0G
2
0402/50V/10pF/±0.5pF/C0G
1
0402/50V/47pF/±5%/C0G
1
0402/50V/100pF/±5%/C0G
1
0402/16V/100nF/±10%/X7R
11
0402/10V/1uF/±10%/X5R
7
0603/6.3V/10uF/±20%/X5R
2
Resistance
0201 1/20W 100KΩ ±5%
1
WALSIH ,HK resistor
0402 1/16W 0Ω ±5%
4
0402 1/16W 8.2KΩ ±1%
1
0402 1/16W 10KΩ ±5%
1
0402 1/16W 22KΩ ±5%
1
0402 1/16W 24KΩ ±1%
1
0402 1/16W 100KΩ ±5%
1
Inductance
0402/1.0nH/±0.3nH
1
Muralist
0402/2.7nH/±5%
2
0402/18nH/±5%
2
0805/4.7uH/±20%/700m
A
1
Crystal oscillator
40MHz,CL=15pF,10ppm,LF
SMD/3.2X2.5
1 GUOCHAN
Connector
1.25mm/WS/5/ 镀锡黑色
/A1253WRA-S5PN6BT1T00R
1
燦達
Shield
WF7E(不锈钢)
1 GUOCHAN
![](/img.php?id=2884603&img=bg6.png)
PRODUCTS SPECIFICATION
PAGE 6 OF 13
W79M1510S
Version1.1
5. General Requirements
5.1 IEEE 802.11b Section
# Feature
Detailed Description
5.1.1 Standard ● IEEE 802.11b
5.1.2
Radio and
Modulation
Schemes
● DQPSK , DBPSK , DSSS , and CCK
5.1.3 Operating
Frequenc
y
● 2400 ~ 2497MHz ISM band
5.1.4 Channel Numbers
● 11 channels for United States
● 13 channels for Europe Countries(Default)
● 14 channels for Ja
p
an
5.1.5 Data Rate ● 11,5.5,2,and 1Mbps
5.1.6 Media Access
Protocol ● CSMA/CA with ACK
5.1.7
Transmitter
Output
Power at Antenna
Connecto
r
● Typical RF Output Power at each RF chain,Data Rate and at
room Temp. 25degree C
● 17dBm(±2dB) at 1,2,5.5,11Mbps
5.1.8
Receiver
Sensitivity
at Antenna
Connector
● Typical Sensitivity at Which Frame(1000-byte PDUs)Error
Rate=8% at room Temp 25 degree C
● -90 dBm at 2Mbps
● -81 dBm for 11Mbps
5.2 IEEE 802.11g Section
# Feature
Detailed Description
5.2.1 Standard ● IEEE 802.11
g
5.2.2 Radio and
Modulation T
yp
e ● QPSK , BPSK , 16QAM ,64QAM with OFDM
5.2.3 Operating
Fre
q
uenc
y
● 2400 ~ 2483.5MHz ISM band
5.2.4 Channel Numbers
● 11 channels for United States
● 13 channels for Europe Countries(Default)
● 13 channels for Japan
5.2.5 Data Rate ● 6,9,12,18,24,36,48,54Mbps
5.2.6 Media Access
Protocol ● CSMA/CA with ACK
5.2.7
Transmitter
Output
Power at Antenna
Connector
● Typical RF Output Power(tolerance±2dB) at each RF chain,
Data Rate and at roomTemp. 25 degree C
● 17±2dB dBm at 6,9Mbps
● 17±2dB dBm at 12,18Mbps
● 17±2dB dBm at 24,36Mbps
● 16±2dB dBm at 48,54Mb
p
s
5.2.8
Receiver
Sensitivity
at Antenna
Connector
● Typical Sensitivity at each RF chain. Frame(1000-byte
PDUs)Error Rate=10% at room Temp 25 degree C
● -87 dBm at 6Mbps
● -86 dBm at 9Mbps
● -84 dBm at 12Mbps
● -82 dBm at 18Mbps
● -80 dBm at 24Mbps
● -76 dBm at 36Mbps
● -72 dBm at 48Mbps
![](/img.php?id=2884603&img=bg7.png)
PRODUCTS SPECIFICATION
PAGE 7 OF 13
W79M1510S
Version1.1
● -71 dBm at 54Mbps
5.3 IEEE 802.11n Section
#
Feature
Detailed Description
5.3.1 Standard ● IEEE 802.11n
5.3.2 Radio and
Modulation T
y
pe ● BPSK , QPSK , 16QAM ,64QAM with OFDM
5.3.3 Operating
Frequenc
y
● 2400 ~ 2483.5MHz
5.3.4 Data Rate(Mbps)
MCS GI=800ns GI=400ns
20MHz 40MH 20MHz 40MHz
0 6.5 13.5 7.2 15
1 13 27 14.4 30
2 19.5 40.5 21.7 45
3 26 54 28.9 60
4 39 81 43.3 90
5 52 108 57.8 120
6 58.5 121.5 65.0 135
7 65 135 72.2 150
5.3.5 Media Access
Protocol ● CSMA/CA with ACK
5.3.6
Transmitter
Output
Power at Antenna
Connector
● Typical RF Output Power(tolerance±2dB) at each RF chain,Data
Rate and at roomTemp. 25degree C
HT-20
● 16±2dBm at MCS0~7
HT-40
● 16±2dBm at MCS0~7
5.3.7
Receiver
Sensitivity
at Antenna
Connector
● Typical Sensitivity at Which Frame(1000-byte PDUs)Error
Rate=10% at roomTemp. 25degree C
HT-20
● -87dBm at MCS0/8
● -84dBm at MCS1/9
● -82dBm at MCS2/10
● -79dBm at MCS3/11
● -76dBm at MCS4/12
● -72dBm at MCS5/13
● -70dBm at MCS6/14
● -69dBm at MCS7/15
HT-40
● -84dBm at MCS0/8
● -81dBm at MCS1/9
● -80dBm at MCS2/10
● -76dBm at MCS3/11
● -73dBm at MCS4/12
● -69dBm at MCS5/13
● -68dBm at MCS6/14
● -66dBm at MCS7/15
![](/img.php?id=2884603&img=bg8.png)
PRODUCTS SPECIFICATION
PAGE 8 OF 13
W79M1510S
Version1.1
6. Electrical and Thermal Characteristics
6.1
Temperature
Limit
Ratings
Parameter
Minimum
Maximum
Units
Storage
Temperature
-40
+80
℃
Ambient
Operating
Temperature
0
+60
℃
Junction
Temperature
0
+125
℃
6.2
General Section
#
Feature Detailed Description
6.2.1 Antenna Type ● PIFA antenna
6.2.2 Operating Voltage ● 5.0V±10%
6.2.3 Current Consumption ● 350mA at continuous transmit mode
● 220mA at receive mode w/o receiving packet
6.2.4 Form Factor and
Interface
● High Speed USB2.0 Interface
6.2.5 Connector ● 1.25-5 pin connector (see appendix)
6.3 Software
Driver
Windows XP 32/64, 2000, 7,Vista 32/64, Linux OS
Security WEP ,WPA ,WPA2,TKIP,AES
6.4 Mechanical Requirements
#
Feature Detailed Description
6.4.1 Length ● 38mm(PCB)
● MAX:38.9mm
6.4.2 Width ● 26mm
6.4.3 Height ● 1.0mm(PCB)
● MAX:5.2mm

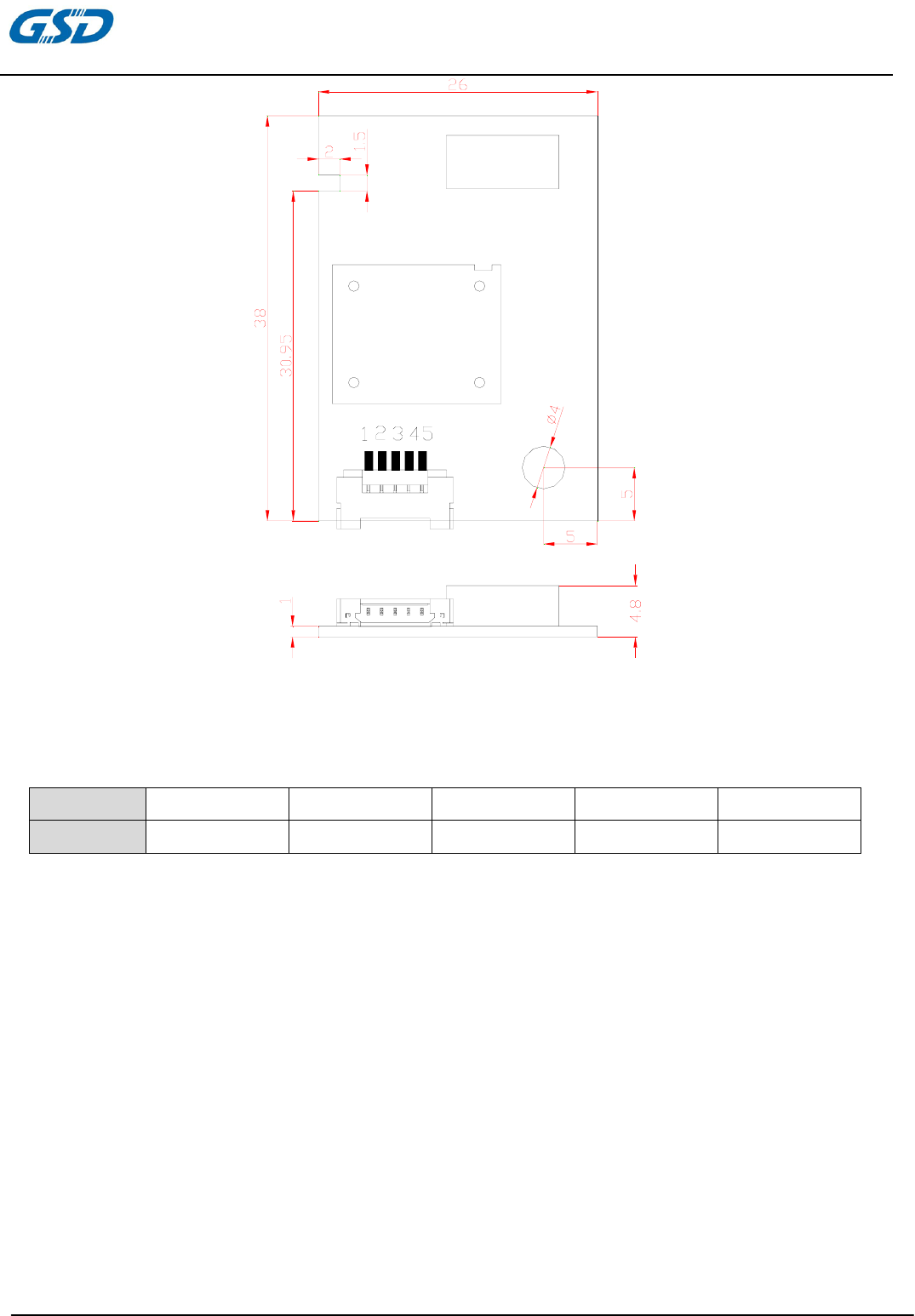

6.5 Mechanical Dimensions
![](/img.php?id=2884603&img=bg9.png)
PRODUCTS SPECIFICATION
PAGE 9 OF 13
W79M1510S
Version1.1
天线
·注1*:未标注公差±0.3mm.
6.6 Pin Description
1.25-5 Pin connector
Pin 1 2 3 4 5
Definition Power_EN GND D+ D- VCC(5V)
![](/img.php?id=2884603&img=bga.png)
PRODUCTS SPECIFICATION
PAGE 10 OF 13
W79M1510S
Version1.1

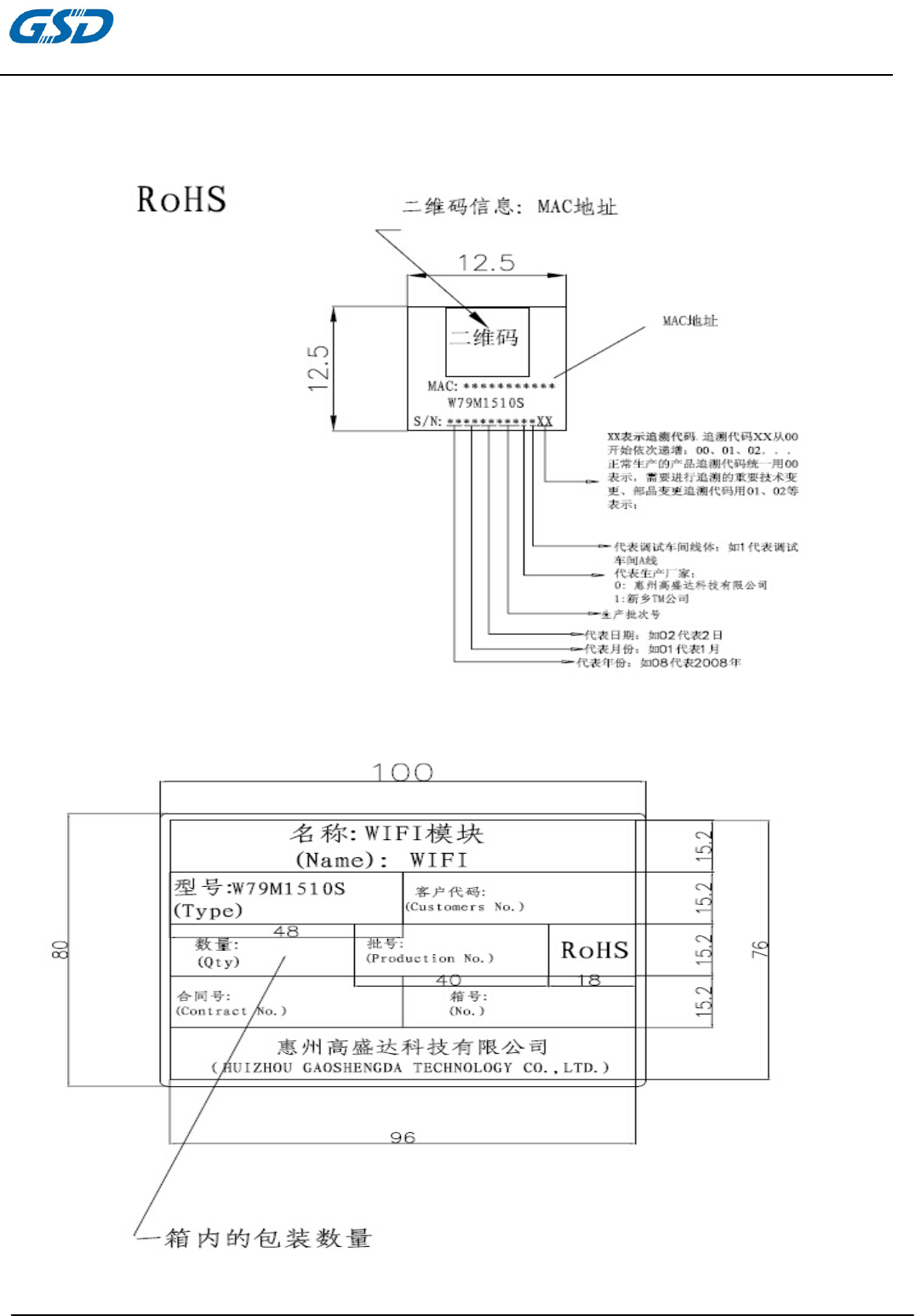

7. label list &Package
7.1 Module label
7.2 box label
![](/img.php?id=2884603&img=bgb.png)
PRODUCTS SPECIFICATION
PAGE 11 OF 13
W79M1510S
Version1.1

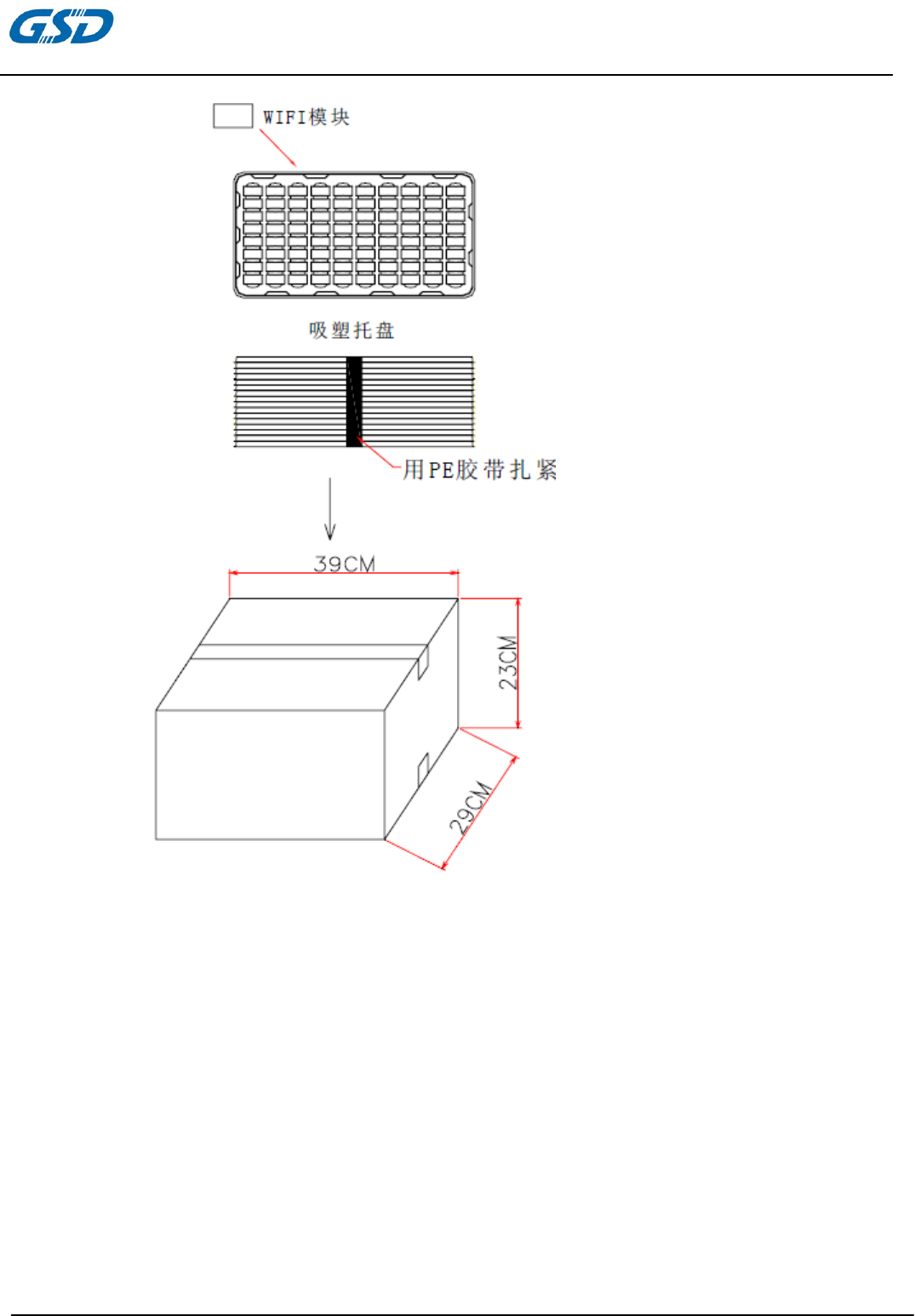

7.3 Package
注:每个吸塑托盘装50PCS模组;每只箱装2000PCS模组。
![](/img.php?id=2884603&img=bgc.png)
PRODUCTS SPECIFICATION
PAGE 12 OF 13
W79M1510S
Version1.1

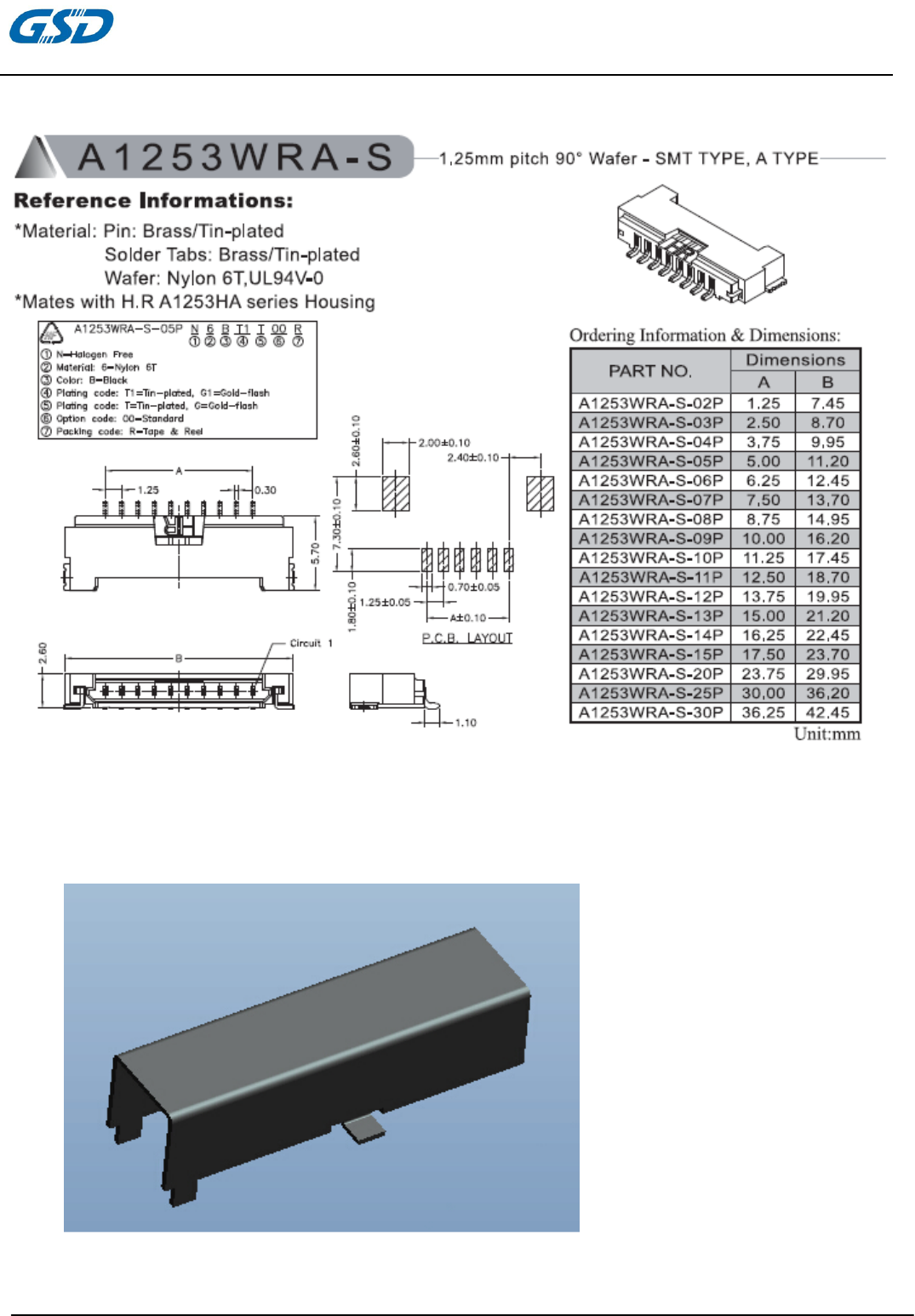

appendix 1: 1.25mm*5PIN SMT connector
appendix 2: Antenna Specifications
2.1 Antenna shape chart
![](/img.php?id=2884603&img=bgd.png)
PRODUCTS SPECIFICATION
PAGE 13 OF 13
W79M1510S
Version1.1
2.2 Smith chart
2.3 Direction chart
![](/img.php?id=2884603&img=bge.png)
PRODUCTS SPECIFICATION
PAGE 14 OF 13
W79M1510S
Version1.1
appendix 3:Statement
FCC Important Notes:
(1)
FCC Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
The devices must be installed and used in strict accordance with the manufacturer’s instructions as described in
the user documentation that comes with the product. Modular could be only used in mobile or fix device, and
could not be used in any portable device.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this
equipment. Such modifications could void the user authority to operate the equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
This device and it’s antennas(s) must not be co-located or operating in conjunction with any other antenna or
transmitter except in accordance with FCC multi-transmitter product procedures.
(2)
Co-location Warning:
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or
transmitter.
(3)
OEM integration instructions:
This device is intended only for OEM integrators under the following conditions:
The transmitter module may not be co-located with any other transmitter or antenna. The module shall be only
used with the integral antenna(s) that has been originally tested and certified with this module.
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator
is still responsible for testing their end-product for any additional compliance requirements required with this
module installed (for example, digital device emissions, PC peripheral requirements, etc.).
(4)
Validity of using the module certification:
In the event that these conditions cannot be met (for example certain laptop configurations or co-location with
another transmitter), then the FCC authorization for this module in combination with the host equipment is no
longer considered valid and the FCC ID of the module cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization.
(5)
End product labeling:
The final end product must be labeled in a visible area with the following:
“Contains Transmitter Module FCC ID: 2AC23-W79M1510S”.
(6)
Information that must be placed in the end user manual:
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove
this RF module in the user's manual of the end product which integrates this module. The end user manual shall
include all required regulatory information/warning as show in this manual.
![](/img.php?id=2884603&img=bgf.png)
PRODUCTS SPECIFICATION
PAGE 15 OF 13
W79M1510S
Version1.1
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
IEEE 802.11b or 802.11g operation of this product in the USA is firmware-limited to channels 1 through 11.
IC Statement
- English: "
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device."
The final end product must be labeled in a visible area with the following:
“Contains Transmitter Module IC ID: 12290A-W79M1510S”.
- French:"
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement."
