Users manual
![](/img.php?id=3290325&img=bg1.png)
PRODUCT SPECIFICATION Version 1.0
IEEE
802.11 a/b/g/n/ac
2T/2R Band
USB2.0 Module
Model Number:
WC0HR2601
( REALTEK RTL8812BU )
2.4G channel: 1-13
5G channel: 36-48 149-165
(MAC address from GSD)
惠 州 高 盛 达 科 技 有 限 公 司
HUIZHOU GAOSHENGDA TECHNOLOGY CO., LTD
中国惠州仲恺高新技术开发区华宇路 75 号
HUA YU RD., NO.75, ZHONGKAI HIGH-TECH DEVELOPMENT AREA, HUIZHOU, CHINA
TEL:(0752)2096932 E-mail: gaoz@gaosd.cn
拟制
DESIGN
审核
CHECK
批准
APPROVAL
高照 陈宇科 熊运自
2016.09.26 2016.09.26 2016.09.26
客户认可
Custom Approval Section
Custom Name
Department
Approval Date:
![](/img.php?id=3290325&img=bg2.png)
PRODUCTS SPECIFICATION
PAGE 2 OF 10
WC0HR2601
Version 1.0
Document revision history
Revision Date Approved by Remarks
Version 1.0 2016-09-26 Draft
![](/img.php?id=3290325&img=bg3.png)
PRODUCTS SPECIFICATION
PAGE 3 OF 10
WC0HR2601
Version 1.0
1. General Description
This document is to specify the product requirements for 802.11a/b/g/n/ac and Bluetooth USB Module. This
Card is based on REALTEK RTL8812BU chipset .It is a complete dual-band(2.4GHz and 5GHz)WIFI 2
×
2 MIMO MAC/PHY/Radio System-on-a-Chip. This module provides a high level of integration with a
dual-stream IEEE 802.11ac MAC/ base band /radio.The WLAN operation supports 20MHz,40MHz and
80MHz channels for data rates up to 866.7Mbps. It is also backward complied with IEEE 802.11a standard
from 5.15~5.825GHz wideband and IEEE 802.11b/g standard from 2.4~2.5GHz. It can be used to provide
up to 54Mbps for IEEE 802.11a and IEEE 802.11g, 11Mbps for IEEE 802.11b and 300Mbps for IEEE
802.11n.
With seamless roaming, fully interoperability and advanced security with WEP standard, 802.11 a/b/g/n/ac
USB2.0 Module offers absolute interoperability with different vendors 802.11a/b/g/n/ac. Access Points
through the wireless LAN.
2. Features
Compatible with IEEE 802.11b standard to provide wireless 11Mbps data rate.
Compatible with IEEE 802.11g standard to provide wireless 54Mbps data rate.
Compatible with IEEE 802.11a standard to provide wireless 54Mbps data rate.
Compatible with IEEE 802.11n standard to provide wireless 300Mbps data rate.
Compatible with IEEE 802.11ac standard to provide wireless 866.7Mbps data rate.
Operation at 2.4~2.5GHz and 5.15~5.825GHz frequency band to meet worldwide regulations
Provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and
network compatibility.
Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication
Supports IEEE 802.11i (WPA and WPA2),WAPI,. enhanced security
Friendly user configuration and diagnostic utilities
Drivers support Win10,Win8,Win7,XP,Linux
High speed USB 2.0 interface
ROHS compliant
![](/img.php?id=3290325&img=bg4.png)
PRODUCTS SPECIFICATION
PAGE 4 OF 10
WC0HR2601
Version 1.0
3. Application Diagrams

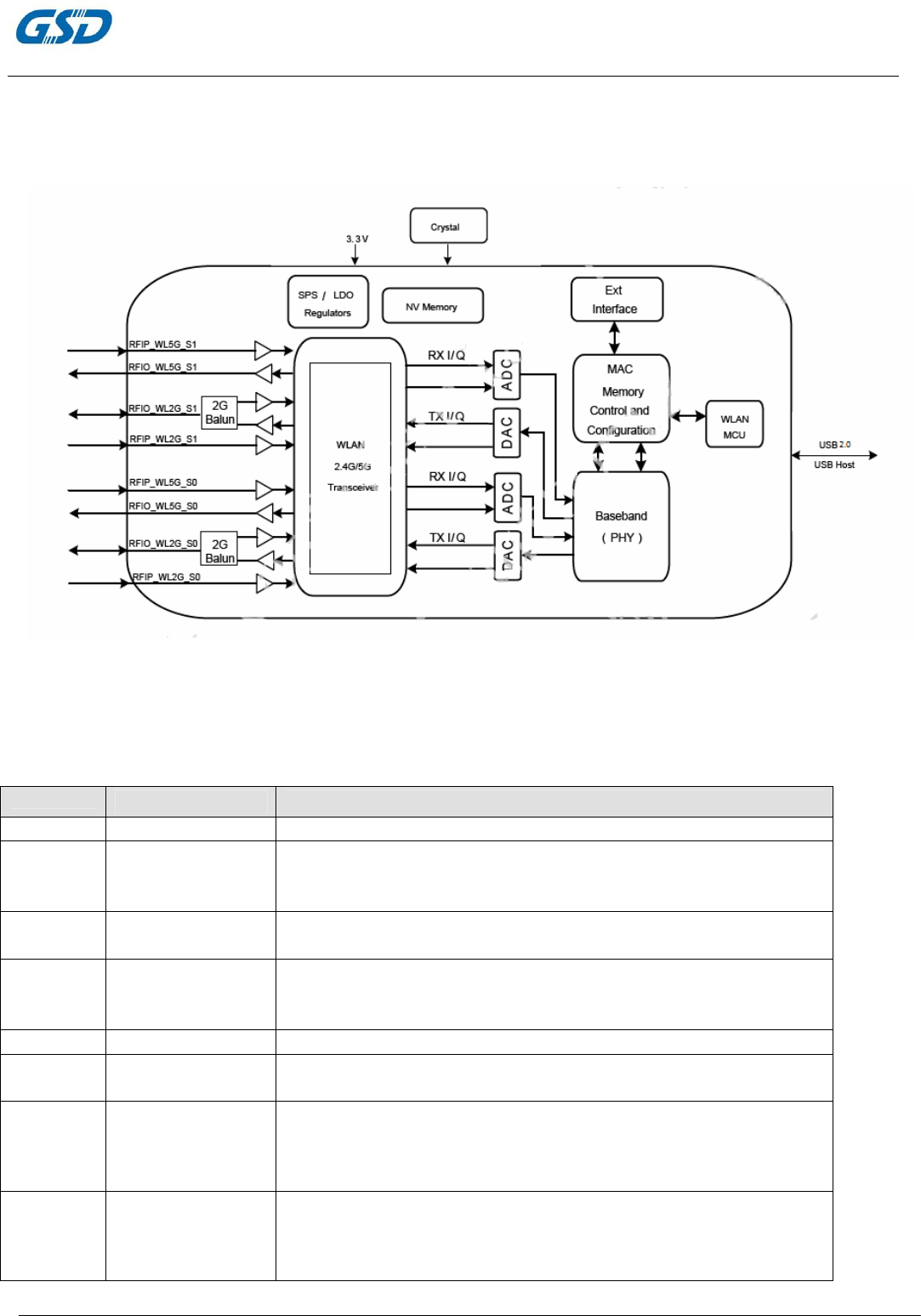

3.1 Functional Block Diagram
3.2 General Requirements
3.2.1 IEEE 802.11b Section
Feature
Detailed Description
3.2.1.1 Standard ● IEEE 802.11b
3.2.1.2
Radio and
Modulation
Schemes
● DQPSK , DBPSK , DSSS , and CCK
3.2.1.3 Operating
Frequency ● 2400 ~ 2483.5MHz ISM band
3.2.1.4 Channel Numbers
● 11 channels for United States
● 13 channels for Europe Countries
● 14 channels for Japan
3.2.1.5 Data Rate ● 11,5.5,2,and 1Mbps
3.2.1.6 Media Access
Protocol ● CSMA/CA with ACK
3.2.1.7
Transmitter Output
Power at Antenna
Connector
● Typical RF Output Power (tolerance±2dB) at each RF chain,
Data Rate and at room Temp. 25 degree C
● 19 dBm at 1Mbps
● 16 dBm at 11Mbps
3.2.1.8
Receiver
Sensitivity
at Antenna
Connector
● Typical Sensitivity at Which Frame(1000-byte PDUs)Error
Rate=8%
● -88 dBm at 1Mbps
● -82 dBm at 11Mbps
![](/img.php?id=3290325&img=bg5.png)
PRODUCTS SPECIFICATION
PAGE 5 OF 10
WC0HR2601
Version 1.0
3.2.2 IEEE 802.11g Section
Feature
Detailed Description
3.2.2.1 Standard ● IEEE 802.11g
3.2.2.2 Radio and
Modulation Type ● QPSK , BPSK , 16QAM ,64QAM with OFDM
3.2.2.3 Operating
Frequency ● 2400 ~ 2483.5MHz ISM band
3.2.2.4 Channel Numbers
● 11 channels for United States
● 13 channels for Europe Countries
● 13 channels for Japan
3.2.2.5 Data Rate ● 6,9,12,18,24,36,48,54Mbps
3.2.2.6 Media Access
Protocol ● CSMA/CA with ACK
3.2.2.7
Transmitter Output
Power at Antenna
Connector
● Typical RF Output Power(tolerance±2dB) at each RF chain,
Data Rate and at room Temp. 25degree C
● +18 dBm at 6Mbps
● +14 dBm at 54Mbps
3.2.2.8
Receiver
Sensitivity
at Antenna
Connector
● Typical Sensitivity at each RF chain. Frame(1000-byte
PDUs)Error Rate<10% at room Temp 25 degree C
● -86 dBm at 6Mbps
● -73 dBm at 54Mbps
3.2.3 IEEE 802.11a Section
Feature
Detailed Description
3.2.3.1 Standard ● IEEE 802.11a
3.2.3.2 Radio and
Modulation Type ● QPSK , BPSK , 16QAM ,64QAM with OFDM
3.2.3.3 Operating
Frequency
● 5.15~5.35GHz and 5.725~5.825GHz for US and Canada
● 5.15~5.35GHz and 5.47~5.725GHz for Japan
● 5.15~5.35GHz and 5.47~5.725GHz for Europe
● 5.725~5.825GHz for China
3.2.3.4 Channel Numbers
● 12 non-overlapping channels for US and Canada
● 8 non-overlapping channels for Japan
● 19 non-overlapping channels for Europe
● 4 non-overlapping channels for China
3.2.3.5 Data Rate ● 6,9,12,18,24,36,48,54Mbps
3.2.3.6 Media Access
Protocol ● CSMA/CA with ACK
3.2.3.7
Transmitter
Output
Power at Antenna
Connector
● Typical RF Output Power(tolerance±2dB) at each RF chain,
Data Rate and at room Temp. 25degree C
● +18 dBm at 6Mbps
● +14dBm at 54Mbps
3.2.3.8
Receiver
Sensitivity
at Antenna
Connector
● Typical Sensitivity at each RF chain. Frame(1000-byte
PDUs)Error Rate<10% at room Temp 25 degree C
● -86 dBm at 6Mbps
● -73 dBm at 54Mbps
![](/img.php?id=3290325&img=bg6.png)
PRODUCTS SPECIFICATION
PAGE 6 OF 10
WC0HR2601
Version 1.0
3.2.4 IEEE 802.11n Section
Feature
Detailed Description
3.2.4.1 Standard ● IEEE 802.11n
3.2.4.2 Radio and
Modulation Type
● BPSK , QPSK , 16QAM ,64QAM with OFDM
3.2.4.3 Operating
Frequency
● 2.4GHz band:2400 ~ 2483.5MHz
● 5GHz and:5150 ~ 5825MHZ
3.2.4.4 Data Rate
GI=800ns GI=400ns MCS
20MHz 40MH 20MHz 40MHz
0 6.5 13.5 7.2 15
1 13 27 14.4 30
2 19.5 40.5 21.7 45
3 26 54 28.9 60
4 39 81 43.3 90
5 52 108 57.8 120
6 58.5 121.5 65.0 135
7 65 135 72.2 150
8 13 27 14.444 30
9 26 54 28.889 60
10 39 81 43.333 90
11 52 108 57.778 120
12 78 162 86.667 180
13 104 216 115.556 240
14 117 243 130.000 170
15 130 270 144.444 300
3.2.4.5 Media Access
Protocol ● CSMA/CA with ACK
● Typical RF Output Power (tolerance±2dB) at each RF chain, Data Rate
and at room Temp. 25 degree C
● 2.4GHz Band/HT20
● 18 dBm at MCS0
● 12 dBm at MCS7
● 2.4GHz Band/HT40
● 18 dBm at MCS0
● 12 dBm at MCS7
3.2.4.6
Transmitter Output
Power at Antenna
Connector ● 5GHz Band/HT20
● 18 dBm at MCS0
● 12 dBm at MCS7
● 5GHz Band/HT40
● 18 dBm at MCS0
● 12 dBm at MCS7
Typical Sensitivity at each RF chain at Which Frame(1000-byte PDUs)Error
Rate=10% and at room Temp.25 degree C
2.4GHz Band/HT20
● -86 dBm at MCS0
● -70 dBm at MCS7
2.4GHz Band/HT40
● -83 dBm at MCS0
● -66 dBm at MCS7
3.2.4.7
Receiver Sensitivity
at Antenna
Connector
5GHz Band/HT20
● -86 dBm at MCS0
● -71 dBm at MCS7
5GHz Band/HT40
● -83 dBm at MCS0
● -67 dBm at MCS7
![](/img.php?id=3290325&img=bg7.png)
PRODUCTS SPECIFICATION
PAGE 7 OF 10
WC0HR2601
Version 1.0
3.2.5 IEEE 802.11ac Section
Feature
Detailed Description
3.2.5.1 Standard ● IEEE 802.11ac
3.2.5.2 Radio and
Modulation Type ● QPSK , BPSK , 16QAM ,64QAM,256QAM with OFDM
3.2.5.3 Operating
Frequency
● 5.15~5.35GHz and 5.725~5.825GHz for US and Canada
● 5.15~5.35GHz and 5.47~5.725GHz for Japan
● 5.15~5.35GHz and 5.47~5.725GHz for Europe
● 5.725~5.825GHz for China
3.2.5.4 Channel Numbers
● 12 non-overlapping channels for US and Canada
● 8 non-overlapping channels for Japan
● 19 non-overlapping channels for Europe
● 4 non-overlapping channels for China
3.2.5.5 Data Rate ● at most 866.7 Mbps
3.2.5.6 Media Access
Protocol ● CSMA/CA with ACK
● Typical RF Output Power(tolerance±2dB) at each RF chain,
Data Rate and at room Temp. 25degree C
HT20
● 18 dBm at MCS0
● 12 dBm at MCS7
● 11 dBm at MCS8
HT40
● 18 dBm at MCS0
● 12 dBm at MCS8
● 11 dBm at MCS9
3.2.5.7
Transmitter
Output
Power at Antenna
Connector
HT80
● 18 dBm at MCS0
● 12 dBm at MCS8
● 11 dBm at MCS9
3.2.5.8
Receiver
Sensitivity
at Antenna
Connector
● Typical Sensitivity at each RF chain. Frame(1000-byte
PDUs)Error Rate<10% at room Temp 25 degree C
5GHz Band / HT20
● -64dBm at MCS8
5GHz Band / HT40
● -61dBm at MCS9
5GHz Band / HT80
● -58dBm at MCS9
![](/img.php?id=3290325&img=bg8.png)
PRODUCTS SPECIFICATION
PAGE 8 OF 10
WC0HR2601
Version 1.0
4. Electrical and Thermal Characteristics
4.1
Environmental Requirements
Parameter
Minimum
Maximum
Units
Storage
Temperature
-40
+80
℃
Ambient
Operating
Temperature
0
60
℃
Junction
Temperature
0
125
℃
4.2
General Section
Feature Detailed Description
5.2.1 Antenna Type ● WIFI ANT :PIFA Antenna and IPEX
5.2.2 Operating Voltage ● 3.3 V±10%
5.2.3 Current Consumption ● <1000mA
5.2.4 Form Factor and Interface
● High Speed USB2.0 Interface
4.3 Software
Driver Win10,Win8,Win7, XP, Linux, MAC
Security 64/128-bits WEP, WPA, WPA2
4.4 Mechanical Dimensions
Feature Detailed Description
4.4.1 Length ● 47mm
4.4.2 Width ● 30mm
4.4.3 Height ● 7.0mm(PCB 1.0mm)
![](/img.php?id=3290325&img=bg9.png)
PRODUCTS SPECIFICATION
PAGE 9 OF 10
WC0HR2601
Version 1.0
5 Connector Definition
10-Pin 1.25 mm connector(Horizontal Type)
Pin 1 3 3 4 5 6 7 8 9 10
Definition
3.3V
3.3V
D- D+ GND WOWn RST
GND NC GND

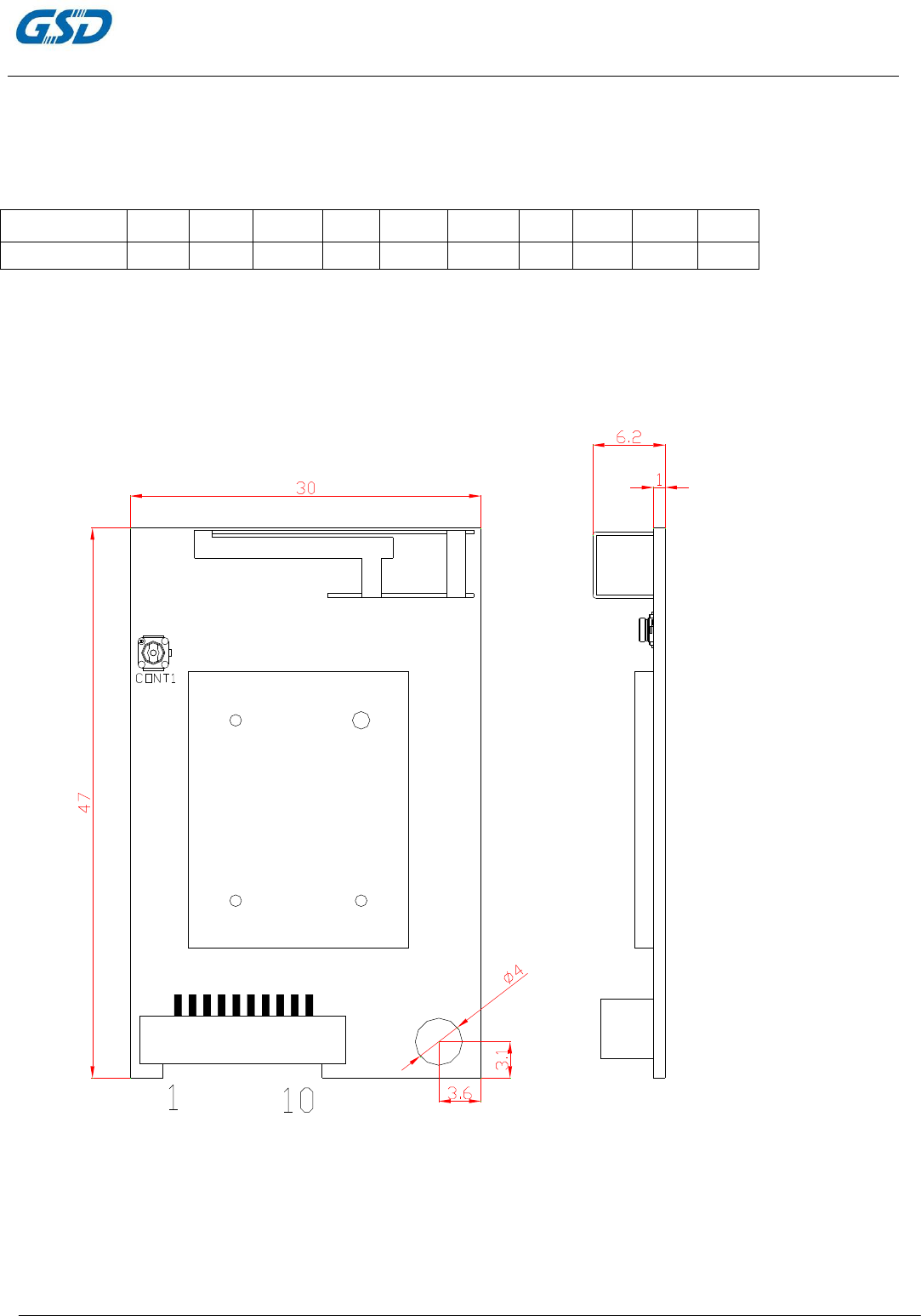

6 Mechanical Dimensions
Note1: The below is left-off-board ANT diagram
Note2:TOLERANCES ARE +/-0.5mm UNLESS OTHERWISE SPECIFIED
* UNITE :mm
![](/img.php?id=3290325&img=bga.png)
PRODUCTS SPECIFICATION
PAGE 10 OF 10
WC0HR2601
Version 1.0

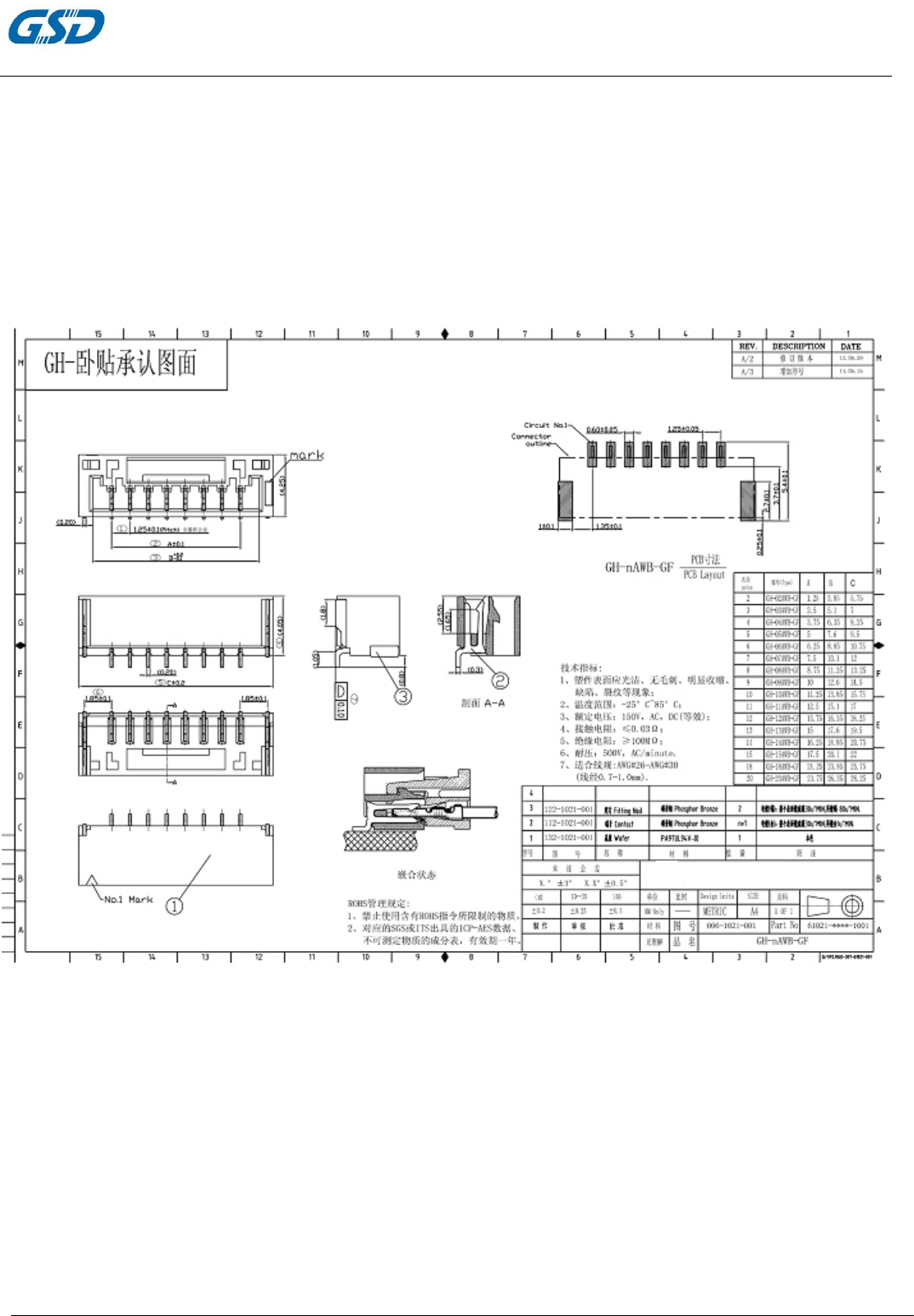

Appendix 1 : SMT connector GH-10AWB-GF
This is the N pin connector which is in common use. You can select 10 pins according to
your requirement.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party.
Responsible for compliance could void the user’s authority to operate this
equipment. (Example- use only shielded interface cables when connecting to
computer or peripheral devices).
This equipment complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC Radiation Exposure Statement:
The equipment complies with FCC Radiation exposure limits set forth for
uncontrolled enviroment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.
.
