6222D-UUB
FN-LINK TECHNOLOGY LIMITED 1Proprietary & Confidential Information
Revision History
Version
Date
Description
Draft
Approved
1.0
2016-08-01
-Preliminary
Ken
William Tan
1.1
2017-03-02
Update datasheet
Colin Ming
William Tan
1.2
2017-04-10
Modified pins definition
Colin Ming
William Tan
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 1Proprietary & Confidential Information
CONTENTS
1. Introduction.................................................................................................................................1
2. Features....................................................................................................................................... 2
3. General Specification............................................................................................................... 3
3.1 General Specification.................................................................................................................................3
4. WiFi RF Specification............................................................................................................... 4
4.1 2.4GHz RF Specification...........................................................................................................................4
4.2 5GHz RF Specification.............................................................................................................................. 6
5. Bluetooth Specification......................................................................................................... 10
5.1 Bluetooth Specification............................................................................................................................10
6. Pin Assignments......................................................................................................................11
7. Dimensions............................................................................................................................... 13
7.1 Physical Outline........................................................................................................................................13
7.2 Layout Recommendation........................................................................................................................14
8. Reference Design....................................................................................................................15
9. Recommended Reflow Profile............................................................................................. 16
10. Package Information............................................................................................................ 17
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 1Proprietary & Confidential Information
1. Introduction
Fn-Link Technology would like to announce a low-cost and low-power consumption module
which has all of the WiFi and Bluetooth functionalities. The highly integrated module makes
the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless
roaming capabilities and advanced security, also could interact with different vendors’
802.11a/b/g/n/ac 2x2 Access Points in the wireless LAN.
The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can
achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN.
The integrated module provides USB interface for WiFi and Bluetooth.
This compact module is a total solution for a combination of WiFi + BT technologies. The
module is specifically developed for Smart TV and OTT Box application.
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 2Proprietary & Confidential Information
2. Features
Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ
802.11ac, or 2.4G/5G 802.11n WLAN applications.
Dual-stream spatial multiplexing up to 867 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports USB interface for WLAN and Bluetooth.
Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2,
2.X+ enhance data rate.
Supports Bluetooth for class1 and class2 power level transmissions.

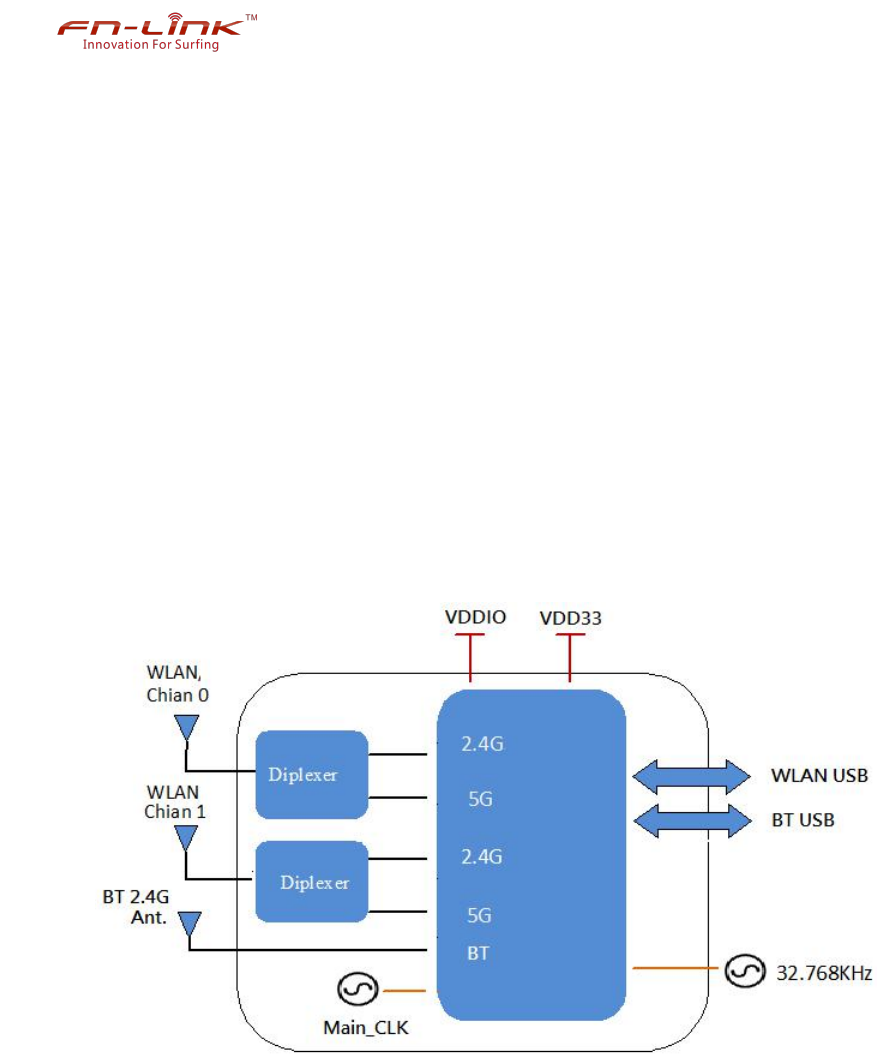

A simplified block diagram of the module is depicted in the figure below.
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 3Proprietary & Confidential Information
3. General Specification
3.1 General Specification
3.1.2 Recommended Operating Rating
Min.
Typ.
Max.
Unit
Operating Temperature
-10
25
70
deg.C
VCC33
3.15
3.3
3.45
V
VDDIO
1.7
1.8 or 3.3
3.45
V
Model Name
6222D-UUB
Product Description
Support WiFi/Bluetooth
Dimension
L x W x H: 27 x 18 x 2.0 (typical) mm
WiFi Interface
Support USB3.0/USB2.0
BT Interface
USB2.0
Operating temperature
-10°C to 70°C
Storage temperature
-40°C to 85°C
Humidity
Operating Humidity 10% to 95% Non-Condensing
Storage Humidity 5% to 95% Non-Condensing
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 4Proprietary & Confidential Information
4. WiFi RF Specification
4.1 2.4GHz RF Specification
Feature
Description
WLAN Standard
IEEE 802.11a/b/g/n/ac WiFi compliant
Frequency Range
2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)
Number of Channels
2.4GHz：Ch1 ~ Ch14
Output Power
802.11b /11Mbps : 16 dBm ± 1.5 dB @ EVM -9dB
802.11g /54Mbps : 15 dBm ± 1.5 dB @ EVM -25dB
802.11n /MCS7 : 14 dBm ± 1.5 dB @ EVM -28dB
Test Items
Typical Value
Standard Value
SISO Receive
Sensitivity (11b,20MHz)
@8% PER
- 1Mbps PER @ -92 dBm, typical
≤-83
- 2Mbps PER @ -90 dBm, typical
≤-80
- 5.5Mbps PER @ -87 dBm, typical
≤-79
- 11Mbps PER @ -85 dBm, typical
≤-76
SISO Receive
Sensitivity (11g,20MHz)
@10% PER
- 6Mbps PER @ -89 dBm, typical
≤-85
- 9Mbps PER @ -88 dBm, typical
≤-84
- 12Mbps PER @ -87 dBm, typical
≤-82
- 18Mbps PER @ -84 dBm, typical
≤-80
- 24Mbps PER @ -81 dBm, typical
≤-77
- 36Mbps PER @ -78 dBm, typical
≤-73
- 48Mbps PER @ -73 dBm, typical
≤-69
- 54Mbps PER @ -71 dBm, typical
≤-68
MIMO Receive
Sensitivity (11g,20MHz)
@10% PER
- 6Mbps PER @ -91 dBm, typical
≤-88
- 9Mbps PER @ -90 dBm, typical
≤-86
- 12Mbps PER @ -89 dBm, typical
≤-85
- 18Mbps PER @ -87 dBm, typical
≤-84
- 24Mbps PER @ -84 dBm, typical
≤-81
- 36Mbps PER @ -81 dBm, typical
≤-79
- 48Mbps PER @ -76 dBm, typical
≤-73
- 54Mbps PER @ -74 dBm, typical
≤-68
SISO Receive
Sensitivity (11n,20MHz)
@10% PER
- MCS=0 PER @ -89 dBm, typical
≤-85
- MCS=1 PER @ -86 dBm, typical
≤-82
- MCS=2 PER @ -84 dBm, typical
≤-80
- MCS=3 PER @ -80 dBm, typical
≤-77
- MCS=4 PER @ -77 dBm, typical
≤-73
- MCS=5 PER @ -72 dBm, typical
≤-69
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 5Proprietary & Confidential Information
- MCS=6 PER @ -71 dBm, typical ≤-68
- MCS=7 PER @ -69 dBm, typical ≤-67
MIMO Receive
Sensitivity (11n,20MHz)
@10% PER
- MCS=0 PER @ -90 dBm, typical ≤-87
- MCS=1 PER @ -89 dBm, typical ≤-85
- MCS=2 PER @ -87 dBm, typical ≤-83
- MCS=3 PER @ -84 dBm, typical ≤-80
- MCS=4 PER @ -80 dBm, typical ≤-75
- MCS=5 PER @ -75 dBm, typical ≤-70
- MCS=6 PER @ -73 dBm, typical ≤-68
- MCS=7 PER @ -72 dBm, typical ≤-67
- MCS=8 PER @ -87 dBm, typical ≤-82
- MCS=15 PER @ -68 dBm, typical ≤-64
Maximum Input Level 802.11b : -10 dBm
802.11g/n : -20 dBm
Antenna Reference Small
antennas
with
3.15
dBi
peak
gain
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 6Proprietary & Confidential Information
4.2 5GHz RF Specification
Feature
Description
WLAN Standard
IEEE 802.11a/n 2x2, WiFi compliant
Frequency Range
4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)
Number of Channels
5.0GHz：Please see the table1
Output Power
802.11a /54Mbps : 13 dBm ± 1.5 dB @ EVM -25dB
802.11n /MCS7 : 12 dBm ± 1.5 dB @ EVM -28dB
802.11ac /MCS9 : 11 dBm ± 1.5 dB @ EVM -32Db
Test Items
Typical Value
Standard Value
SISO Receive Sensitivity
(11a,20MHz) @10% PER
- 6Mbps PER @ -88 dBm
≤-85
- 9Mbps PER @ -87 dBm
≤-84
- 12Mbps PER @ -86 dBm
≤-82
- 18Mbps PER @ -83 dBm
≤-80
- 24Mbps PER @ -80 dBm
≤-77
- 36Mbps PER @ -77 dBm
≤-73
- 48Mbps PER @ -72 dBm
≤-69
- 54Mbps PER @ -70 dBm
≤-68
MIMO Receive Sensitivity
(11a,20MHz) @10% PER
- 6Mbps PER @ -90 dBm
≤-86
- 9Mbps PER @ -89 dBm
≤-85
- 12Mbps PER @ -88 dBm
≤-83
- 18Mbps PER @ -86 dBm
≤-81
- 24Mbps PER @ -83 dBm
≤-78
- 36Mbps PER @ -80 dBm
≤-75
- 48Mbps PER @ -75 dBm
≤-69
- 54Mbps PER @ -71 dBm
≤-66
SISO Receive Sensitivity
(11n,20MHz) @10% PER
- MCS=0 PER @ -88 dBm
≤-85
- MCS=1 PER @ -85 dBm
≤-82
- MCS=2 PER @ -83 dBm
≤-80
- MCS=3 PER @ -80 dBm
≤-77
- MCS=4 PER @ -76 dBm
≤-73
- MCS=5 PER @ -71 dBm
≤-69
- MCS=6 PER @ -70 dBm
≤-68
- MCS=7 PER @ -68 dBm
≤-67
MIMO Receive Sensitivity
(11n,20MHz) @10% PER
- MCS=0 PER @ -89 dBm
≤-82
- MCS=1 PER @ -88 dBm
≤-80
- MCS=2 PER @ -86 dBm
≤-79
- MCS=3 PER @ -83 dBm
≤-78
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 7Proprietary & Confidential Information
- MCS=4 PER @ -79 dBm
≤-74
- MCS=5 PER @ -74 dBm
≤-68
- MCS=6 PER @ -73 dBm
≤-66
- MCS=7 PER @ -71 dBm
≤-64
- MCS=8 PER @ -88 dBm
≤-84
- MCS=15 PER @ -68 dBm
≤-63
SISO Receive Sensitivity
(11n,40MHz) @10% PER
- MCS=0 PER @ -85 dBm
≤-82
- MCS=1 PER @ -82 dBm
≤-79
- MCS=2 PER @ -80 dBm
≤-77
- MCS=3 PER @ -77 dBm
≤-74
- MCS=4 PER @ -73 dBm
≤-70
- MCS=5 PER @ -69 dBm
≤-66
- MCS=6 PER @ -67 dBm
≤-65
- MCS=7 PER @ -66 dBm
≤-64
MIMO Receive Sensitivity
(11n,40MHz) @10% PER
- MCS=0 PER @ -87 dBm
≤-79
- MCS=1 PER @ -85 dBm
≤-76
- MCS=2 PER @ -83 dBm
≤-74
- MCS=3 PER @ -80 dBm
≤-71
- MCS=4 PER @ -76 dBm
≤-67
- MCS=5 PER @ -72 dBm
≤-63
- MCS=6 PER @ -70 dBm
≤-62
- MCS=7 PER @ -69 dBm
≤-63
- MCS=8 PER @ -85 dBm
≤-79
- MCS=15 PER @ -66 dBm
≤-61
SISO Receive Sensitivity
(11ac,20MHz) @10% PER
- MCS=0, NSS1 PER @ -86 dBm
≤-82
- MCS=1, NSS1 PER @ -84 dBm
≤-80
- MCS=2, NSS1 PER @ -82 dBm
≤-77
- MCS=3, NSS1 PER @ -79 dBm
≤-73
- MCS=4, NSS1 PER @ -75 dBm
≤-69
- MCS=5, NSS1 PER @ -70 dBm
≤-68
- MCS=6, NSS1 PER @ -69 dBm
≤-67
- MCS=7, NSS1 PER @ -68 dBm
≤-62
- MCS=8, NSS1 PER @ -64 dBm
≤-60
MIMO Receive Sensitivity
(11ac,20MHz) @10% PER
- MCS=0, NSS1 PER @ -88 dBm
≤-79
- MCS=1, NSS1 PER @ -87 dBm
≤-77
- MCS=2, NSS1 PER @ -85 dBm
≤-74
- MCS=3, NSS1 PER @ -82 dBm
≤-71
- MCS=4, NSS1 PER @ -78 dBm
≤-66
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 8Proprietary & Confidential Information
- MCS=5, NSS1 PER @ -73 dBm
≤-65
- MCS=6, NSS1 PER @ -72 dBm
≤-64
- MCS=7, NSS1 PER @ -71 dBm
≤-59
- MCS=8, NSS1 PER @ -67 dBm
≤-57
SISO Receive Sensitivity
(11ac,40MHz) @10% PER
- MCS=0, NSS1 PER @ -84 dBm
≤-79
- MCS=1, NSS1 PER @ -81 dBm
≤-77
- MCS=2, NSS1 PER @ -79 dBm
≤-74
- MCS=3, NSS1 PER @ -76 dBm
≤-70
- MCS=4, NSS1 PER @ -73 dBm
≤-66
- MCS=5, NSS1 PER @ -68 dBm
≤-65
- MCS=6, NSS1 PER @ -67 dBm
≤-64
- MCS=7, NSS1 PER @ -66 dBm
≤-59
- MCS=8, NSS1 PER @ -61 dBm
≤-57
- MCS=9, NSS1 PER @ -60 dBm
≤-55
MIMO Receive Sensitivity
(11ac,40MHz) @10% PER
- MCS=0, NSS1 PER @ -86 dBm
≤-79
- MCS=1, NSS1 PER @ -84 dBm
≤-76
- MCS=2, NSS1 PER @ -82 dBm
≤-74
- MCS=3, NSS1 PER @ -79 dBm
≤-72
- MCS=4, NSS1 PER @ -76 dBm
≤-67
- MCS=5, NSS1 PER @ -71 dBm
≤-63
- MCS=6, NSS1 PER @ -70 dBm
≤-62
- MCS=7, NSS1 PER @ -69 dBm
≤-61
- MCS=8, NSS1 PER @ -64 dBm
≤-56
- MCS=9, NSS1 PER @ -63 dBm
≤-54
SISO Receive Sensitivity
(11ac,80MHz) @10% PER
- MCS=0, NSS1 PER @ -81 dBm
≤-79
- MCS=1, NSS1 PER @ -78 dBm
≤-76
- MCS=2, NSS1 PER @ -76 dBm
≤-74
- MCS=3, NSS1 PER @ -72 dBm
≤-71
- MCS=4, NSS1 PER @ -69 dBm
≤-67
- MCS=5, NSS1 PER @ -66 dBm
≤-63
- MCS=6, NSS1 PER @ -64 dBm
≤-62
- MCS=7, NSS1 PER @ -62 dBm
≤-61
- MCS=8, NSS1 PER @ -58 dBm
≤-56
- MCS=9, NSS1 PER @ -56 dBm
≤-54
MIMO Receive Sensitivity
(11ac,80MHz) @10% PER
- MCS=0, NSS1 PER @ -82 dBm
≤-76
- MCS=1, NSS1 PER @ -81 dBm
≤-73
- MCS=2, NSS1 PER @ -79 dBm
≤-71
- MCS=3, NSS1 PER @ -75 dBm
≤-68
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 9Proprietary & Confidential Information
- MCS=4, NSS1 PER @ -72 dBm ≤-64
- MCS=5, NSS1 PER @ -69 dBm ≤-60
- MCS=6, NSS1 PER @ -67 dBm ≤-59
- MCS=7, NSS1 PER @ -65 dBm ≤-58
- MCS=8, NSS1 PER @ -61 dBm ≤-53
- MCS=9, NSS1 PER @ -60 dBm ≤-51
Maximum Input Level 802.11a/n : -30 dBm
Antenna Reference Small
antennas
with
4.27
dBi
peak
gain
15GHz(20MHz) Channel table
Band range Operating Channel
Numbers
Channel center
frequencies(MHz)
5180MHz~5240MHz
36 5180
40 5200
44 5220
48 5240
5260MHz~5320MHz
52 5260
56 5280
60 5300
64 5320
5550MHz~5700MHz
100 5500
104 5520
108 5540
112 5560
116 5580
120 5600
124 5620
128 5640
132 5660
136 5680
140 5700
5745MHz~5825MHz
149 5745
153 5765
157 5785
161 5805
165 5825
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 10 Proprietary & Confidential Information
5. Bluetooth Specification
5.1 Bluetooth Specification
Feature Description
General Specification
Bluetooth Standard Bluetooth V4.2 of 1, 2 and 3 Mbps.
Host Interface USB2.0
Antenna Reference Small
antennas
with
3.15
dBi
peak
gain
Frequency Band 2402 MHz ~ 2480 MHz
Number of Channels 79 channels
Modulation FHSS, GFSK, DPSK, DQPSK
RF Specification
Min. Typical. Max.
Output Power (Class 1.5) 9 dBm
Sensitivity @ BER=0.1%
for GFSK (1Mbps) -92 dBm
Sensitivity @ BER=0.01%
for π/4-DQPSK (2Mbps) -92 dBm
Sensitivity @ BER=0.01%
for 8DPSK (3Mbps) -85 dBm
Maximum Input Level
GFSK (1Mbps):-20dBm
π/4-DQPSK (2Mbps) :-20dBm
8DPSK (3Mbps) :-20dBm
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 11 Proprietary & Confidential Information

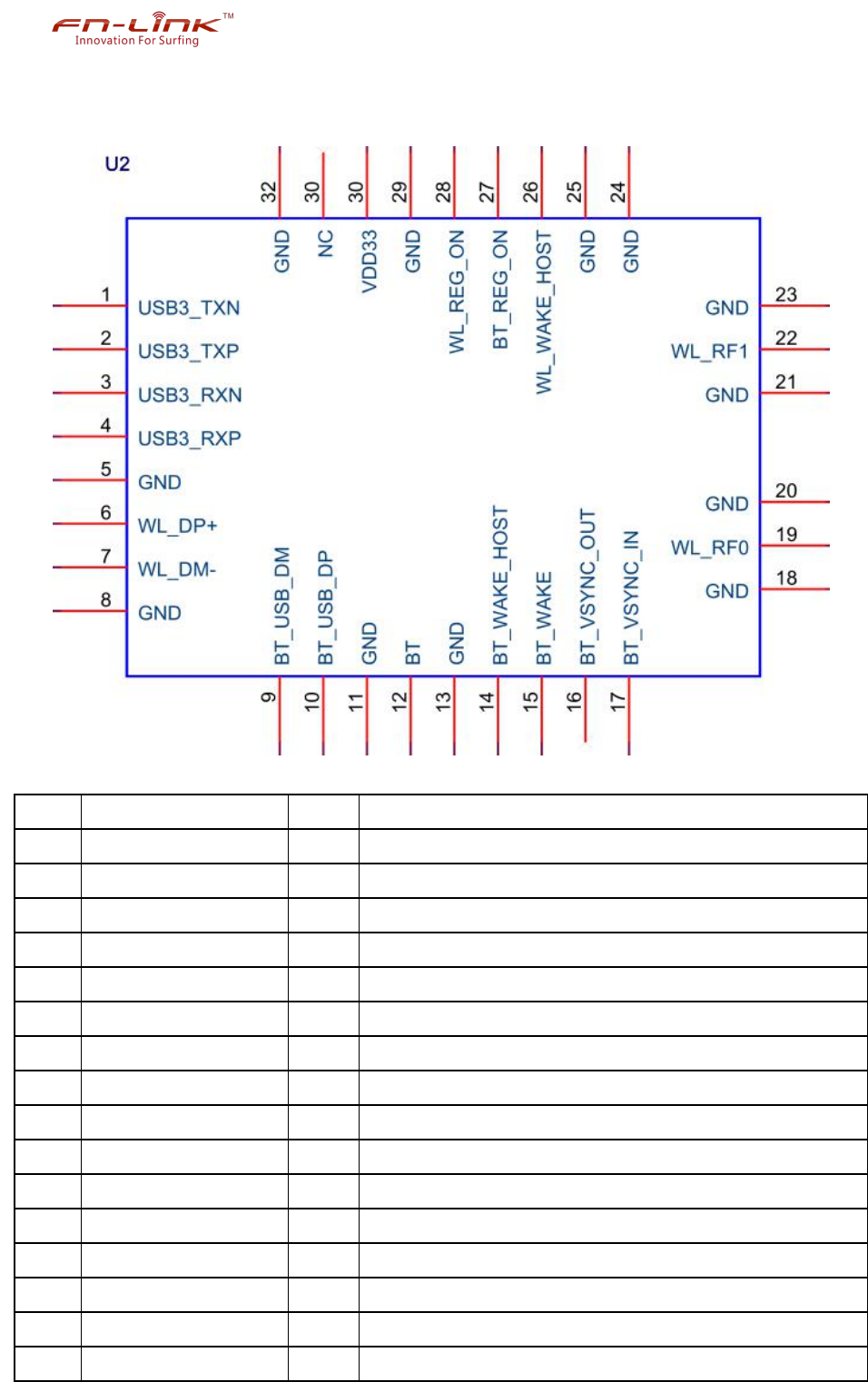

6. Pin Assignments
NO.
Name
Type
Description
1
USB3_TXN
I/O
USB3.0 TX data-
2
USB3_TXP
I/O
USB3.0 TX data+
3
USB3_RXN
I/O
USB3.0 RX data-
4
USB3_RXP
I/O
USB3.0 RX data+
5
GND
－
Ground connections
6
USB_DP
I/O
USB data+ (USB2.0/3.0)
7
USB_DM
I/O
USB data- (USB2.0/3.0)
8
GND
－
Ground connections
9
NC
－
No connection (Floating)
10
NC
－
No connection (Floating)
11
GND
－
Ground connections
12
BT_RF
I/O
BT RF port
13
GND
－
Ground connections
14
BT_WAKE_HOST
O
BT wake up HOST
15
BT_WAKE
I
Wake up BT
16
NC
－
No connection (Floating)
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 12 Proprietary & Confidential Information
17
NC
－
No connection (Floating)
18
GND
－
Ground connections
19
WL_RF1
I/O
2.4G/5G WIFI RF port1
20
GND
－
Ground connections
21
GND
－
Ground connections
22
WL_RF0
I/O
2.4G/5G WIFI RF port0
23
GND
－
Ground connections
24
GND
－
Ground connections
25
GND
－
Ground connections
26
WL_WAKE_HOST
WLAN wake up HOST
27
BT_REG_ON
I
GPIO Control BT device enabled,
ON: pull high, OFF: pull low
28
WL_REG_ON
I
GPIO Control WIFI device enabled,
ON: pull high, OFF: pull low
29
GND
－
Ground connections
30
VDD33
I
3.3V Voltage input
31
NC
－
No connection (Floating)
32
GND
－
Ground connections
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 13 Proprietary & Confidential Information

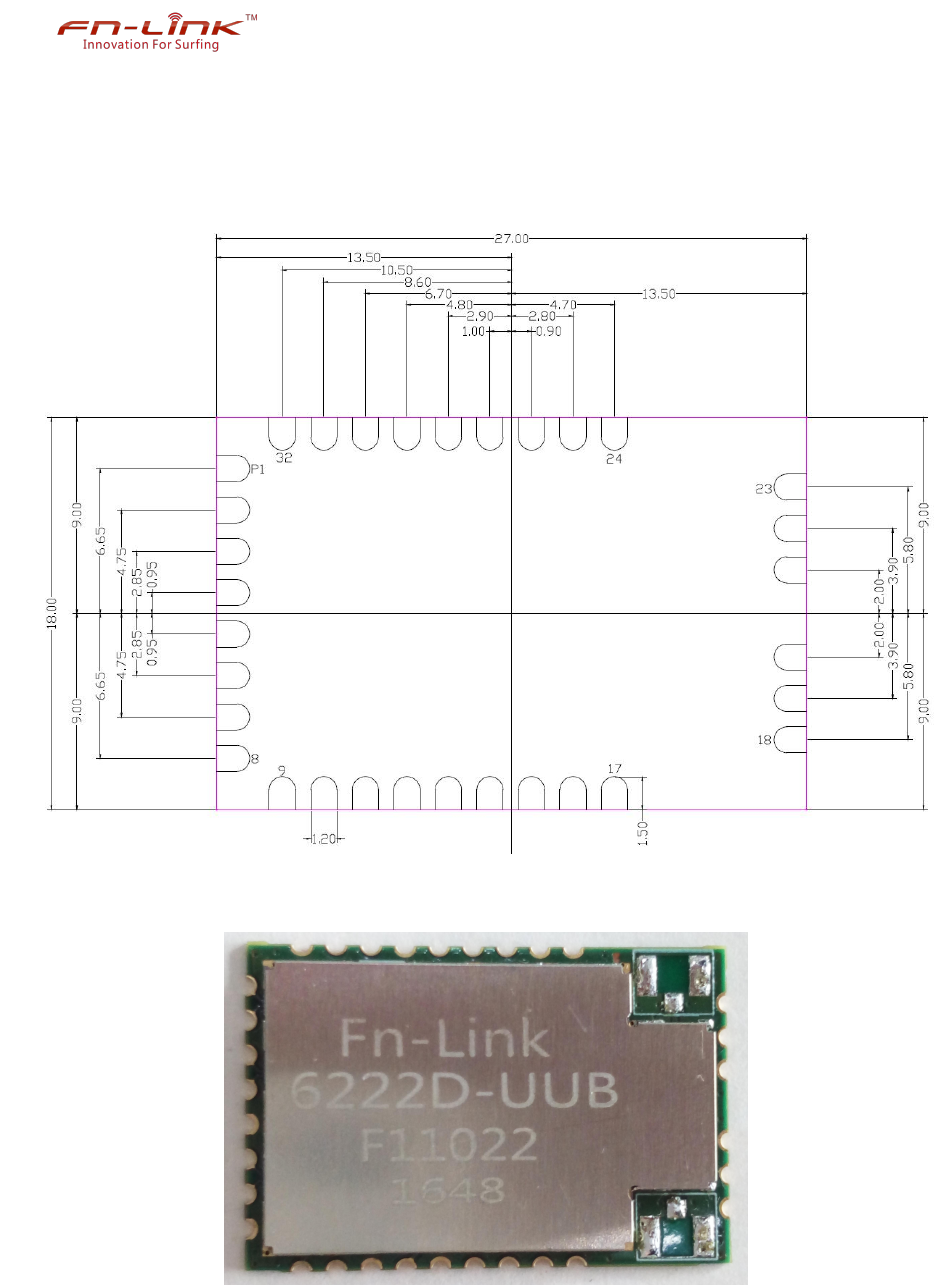

7. Dimensions
7.1 Physical Outline
(Unit: mm)
< TOP VIEW >
Marking Description
< TOP VIEW >
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 14 Proprietary & Confidential Information

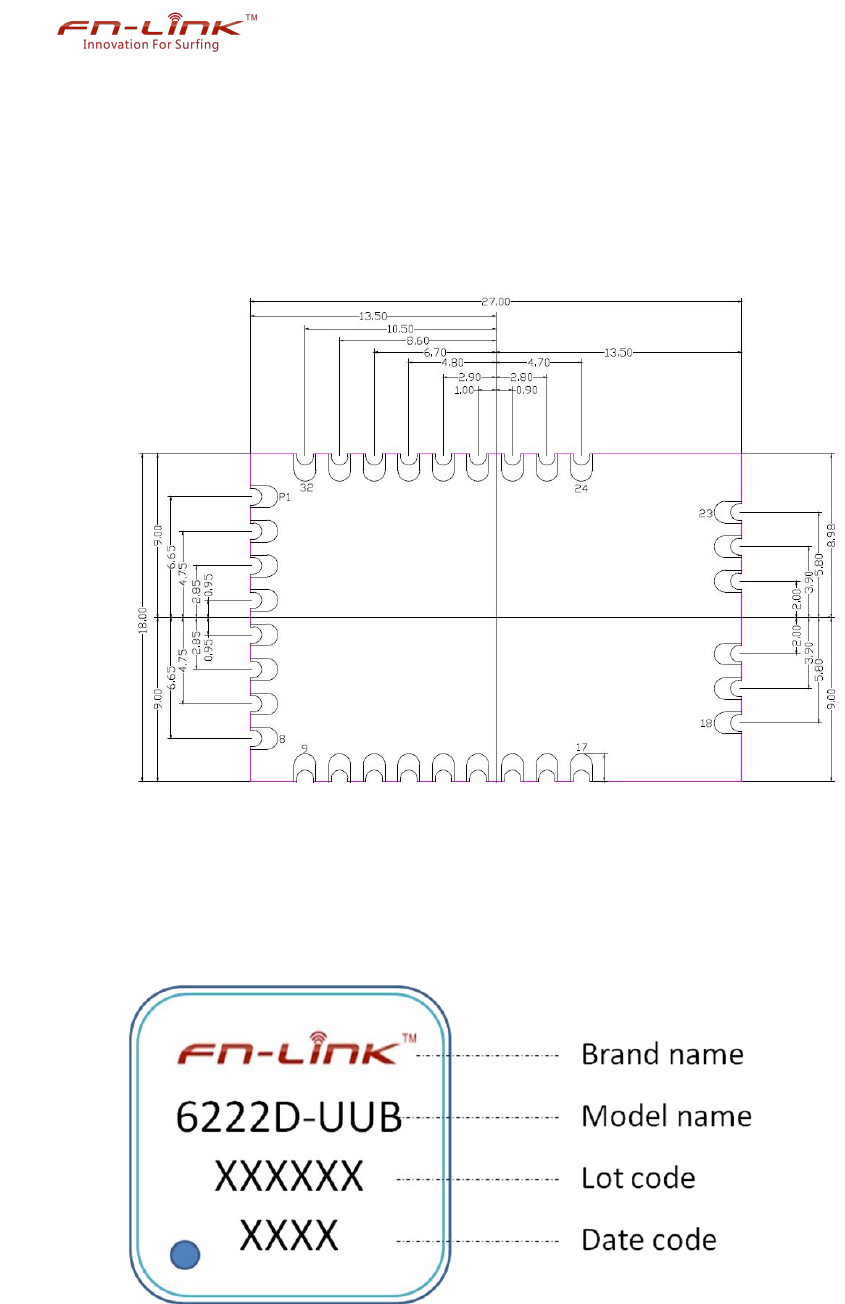

7.2 Layout Recommendation
(Unit: mm)
< TOP VIEW >
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 15 Proprietary & Confidential Information

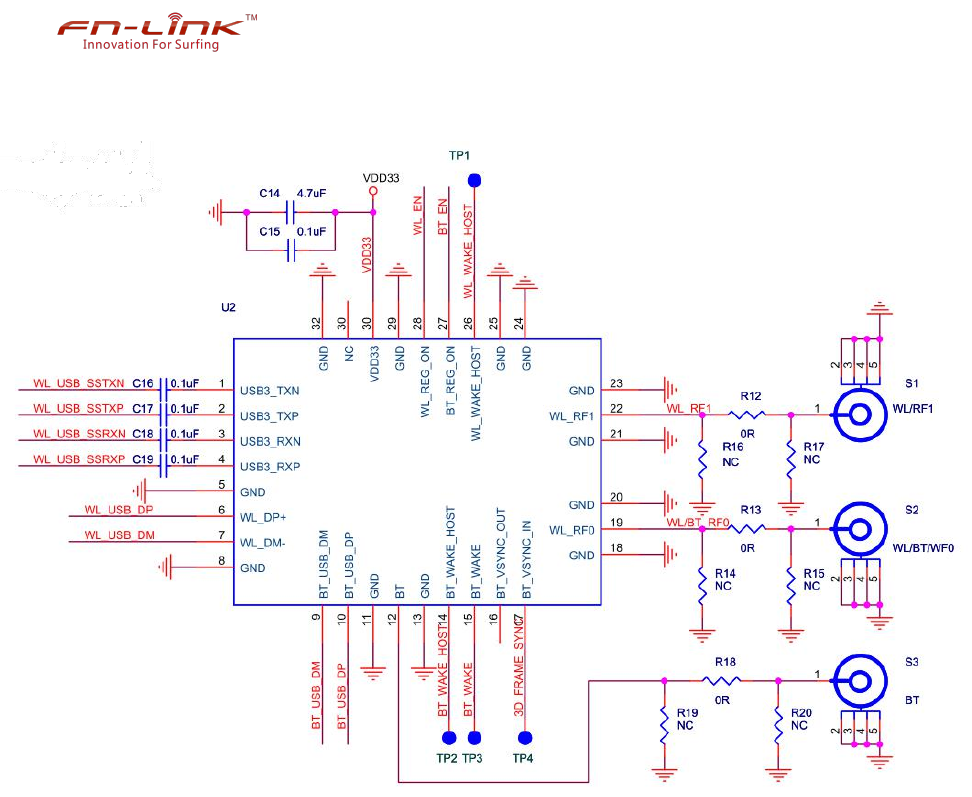

8. Reference Design
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 16 Proprietary & Confidential Information

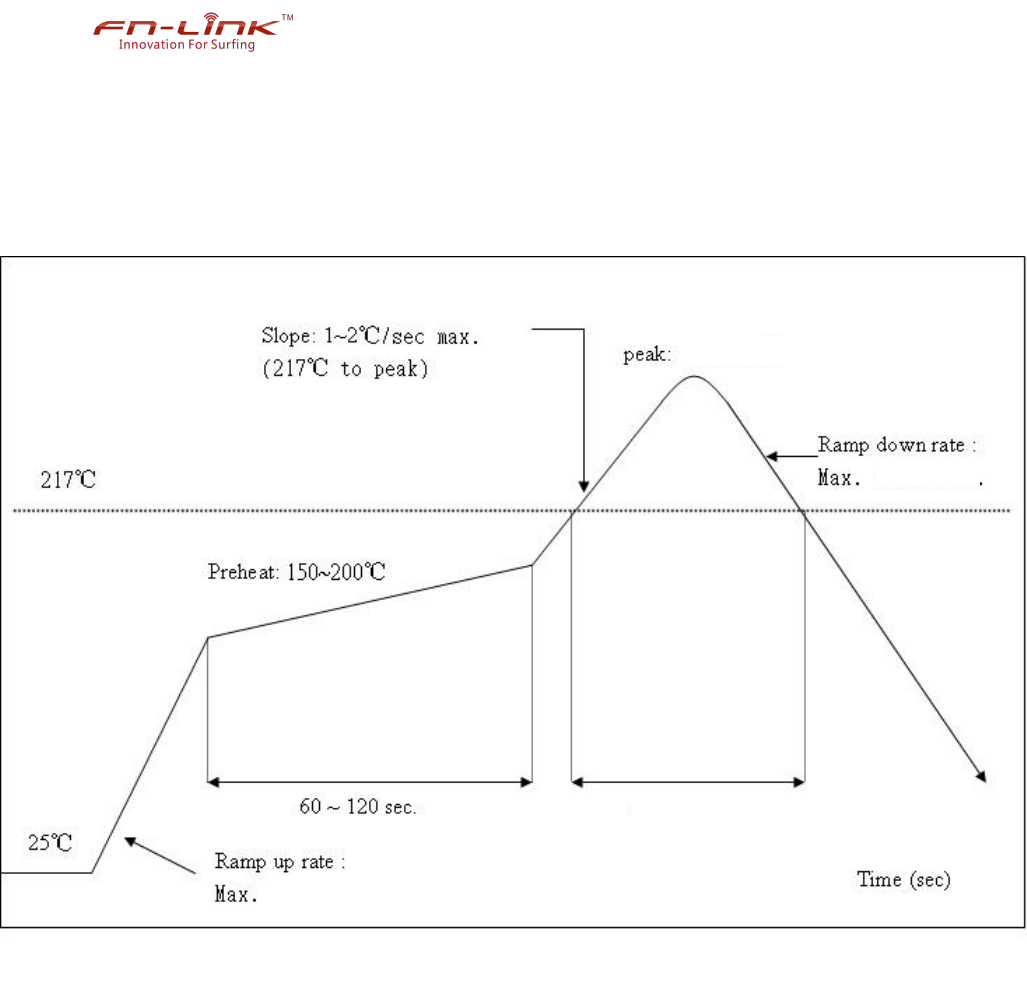

9. Recommended Reflow Profile
Referred to IPC/JEDEC standard.
Peak Temperature: <250°C
Number of Times: 2 times
2.5℃/sec
2.5°C/sec
40~70 sec
250℃
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 17 Proprietary & Confidential Information
10. Package Information

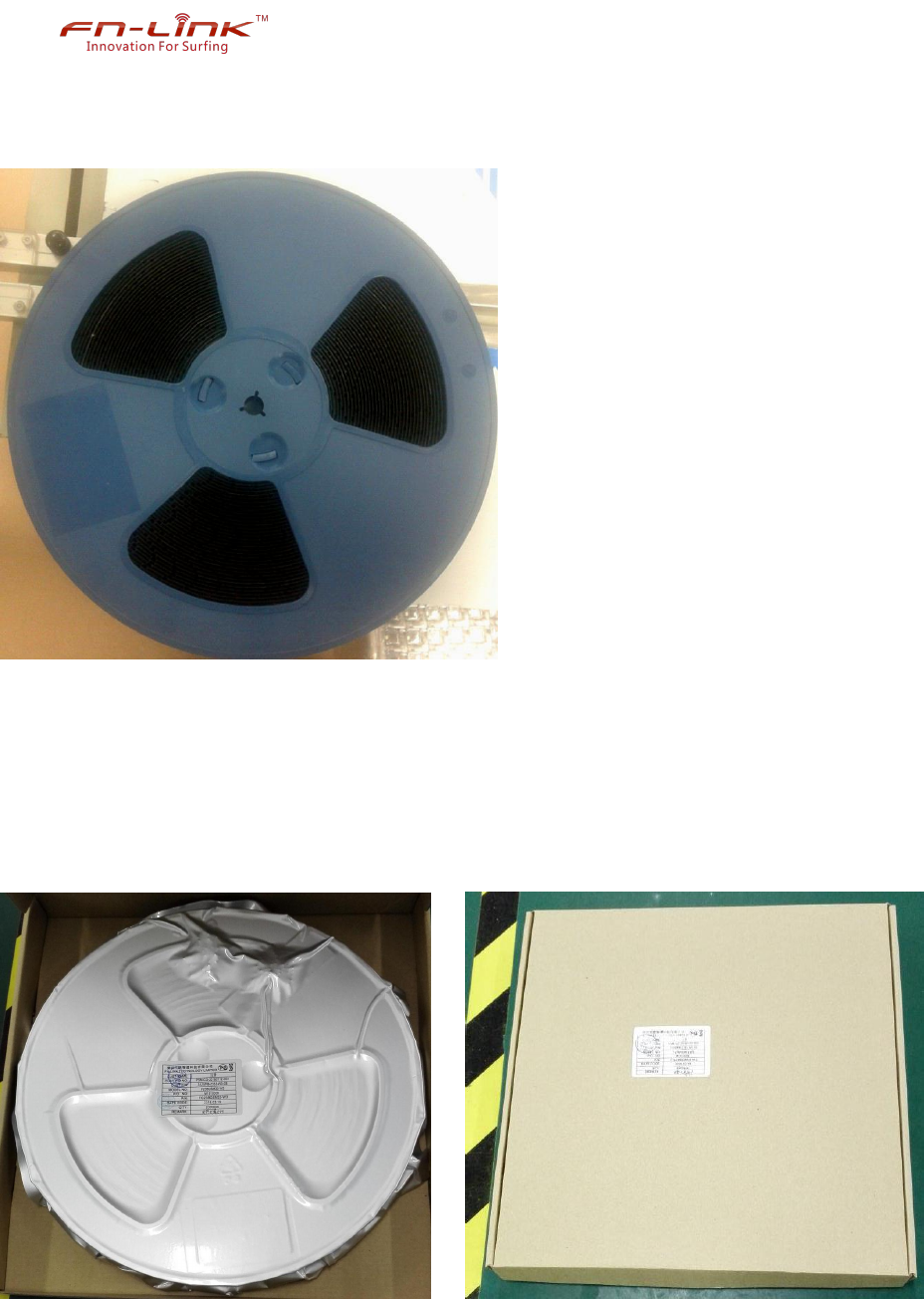

the take-up package
Using self-adhesive tape
Size of black tape: 24mm*32.6m the cover tape: 2.13mm*32.6m
Color of plastic disc: blue
A roll of 2000pcs
NY bag size: 460mm*385mm size: 350*350*35mm
6222D-UUB
FN-LINK TECHNOLOGY LIMITED 18 Proprietary & Confidential Information

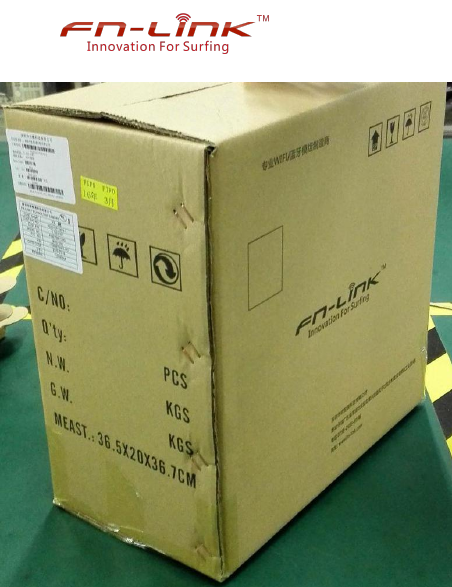

The packing case size: 350*210*370mm
FCC Statement:
This device complies with Part 15
of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference. (2) This device must accept any
interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to
comply with the limits
for a Class B digital
device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection
against
harmful
interference
in
a
residential
installation.
This
equipment
generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause harmful interference to radio or television reception, which can be determined by turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more of the following measures:
---Reorient or relocate
the receiving antenna.
---Increase the separation between
the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to
which the receiver is
connected.
---Consult the dealer or an experienced radio/TV technician for help.
WARNING:
Changes
or
modifications
not
expressly
approved
by
the
party
responsible
for
compliance could void the user's
authority to operate the equipment.
LABEL OF THE END PRODUCT:
The final end product must be labelled in a visible area with the following "Contains TX FCC ID:
2AATL-6222D-UUB". If the size of the end product is smaller than 8x10cm, then additional FCC
part 15.19 statement is required to be available in the users manual: This device complies with
Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device
may not cause harmful interference, and (2) this
device must accept any interference received,
including interference that
may cause undesired operation.
RF Exposure
This device has been evaluated and shown compliant
with the FCC RF Exposure limits under
fixed
exposure
conditions
(antennas
are
greater
than
20cm
from
a
person's
body)
when
installed in certain specific OEM configurations.
This
modular
complies
with
FCC
RF
radiation
exposure
limits
set
forth
for
an
uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. Due to missing shielding the
module is strictly limited to integration by
the Grantee himself or his dedicated
OEM integrator under control of
the Grantee. However,
the OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with
this module installed.
FN-LINK TECHNOLOGY LIMITED 19 Proprietary & Confidential Information
IMPORTANT NOTE:
This device is intended only for OEM integrators under the following conditions:
(1) According to FCC Part 15 Subpart C Section 15.212, the radio elements of the modular
transmitter must have their own shielding. However, due to there is no shielding for this WIFI/BT
module, this module is granted as a Limited Modular Approval.
(2) Integration is typically strictly restricted to Grantee himself or dedicated OEM
integrators
under control of the Grantee.
In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter. then the FCC authorization is no longer considered valid
and the FCC ID can not be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
The module will be responsible to satisfy SAR/RF Exposure requirements, when the module
integrated into any (portable, mobile, fixed) host device.
This module is intended for OEM integrator only and the OEM integrators and instructed to
ensure that the end user has no manual instructions to remove or install the device. The OEM
integrator is still responsible for the FCC compliance requirement of the end product, which
integrates this module.
The module has no shielding and tested stand alone. This module is tested and approved as
Limited modular approval with stand alone configuration, any OEM incorporated this radio
module into any system are require additional testing and evaluation.
The module must in the end-product be installed in such manner that the authorized antennas
can be used, any change of the antenna will void the certification.
EU Regulatory RED Declaration of Conformance
Hereby, we(FN-LINK TECHNOLOGY LIMITED) declared that this device is in co mpliance with
the essential requirements and other relevant provisions of the RE Directive 2014/53/EU.
Only indoor use as the restriction of 5150-5250MHz.
FN-LINK TECHNOLOGY LIMITED 20 Proprietary & Confidential Information
