HUNAN FN LINK TECHNOLOGY F23BUUM13 WIFI+BLE 4.0 module User Manual FN LINK TECHNOLOGY LIMITED
FN-LINK TECHNOLOGY LIMITED WIFI+BLE 4.0 module FN LINK TECHNOLOGY LIMITED
User Manual
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 1 /9
F23BUUM13
series user 's manual
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 2 /9
Index
How to install the driver
Put the product plug into the USB port of PC……………………..3
Copy the driver into the PC……………..………….…...................3
Install the driver & Install driver successfully……….………….....6
The test interface……………………………….……......................7
Installation Guide……………………………….……..…......................8
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 3 /9

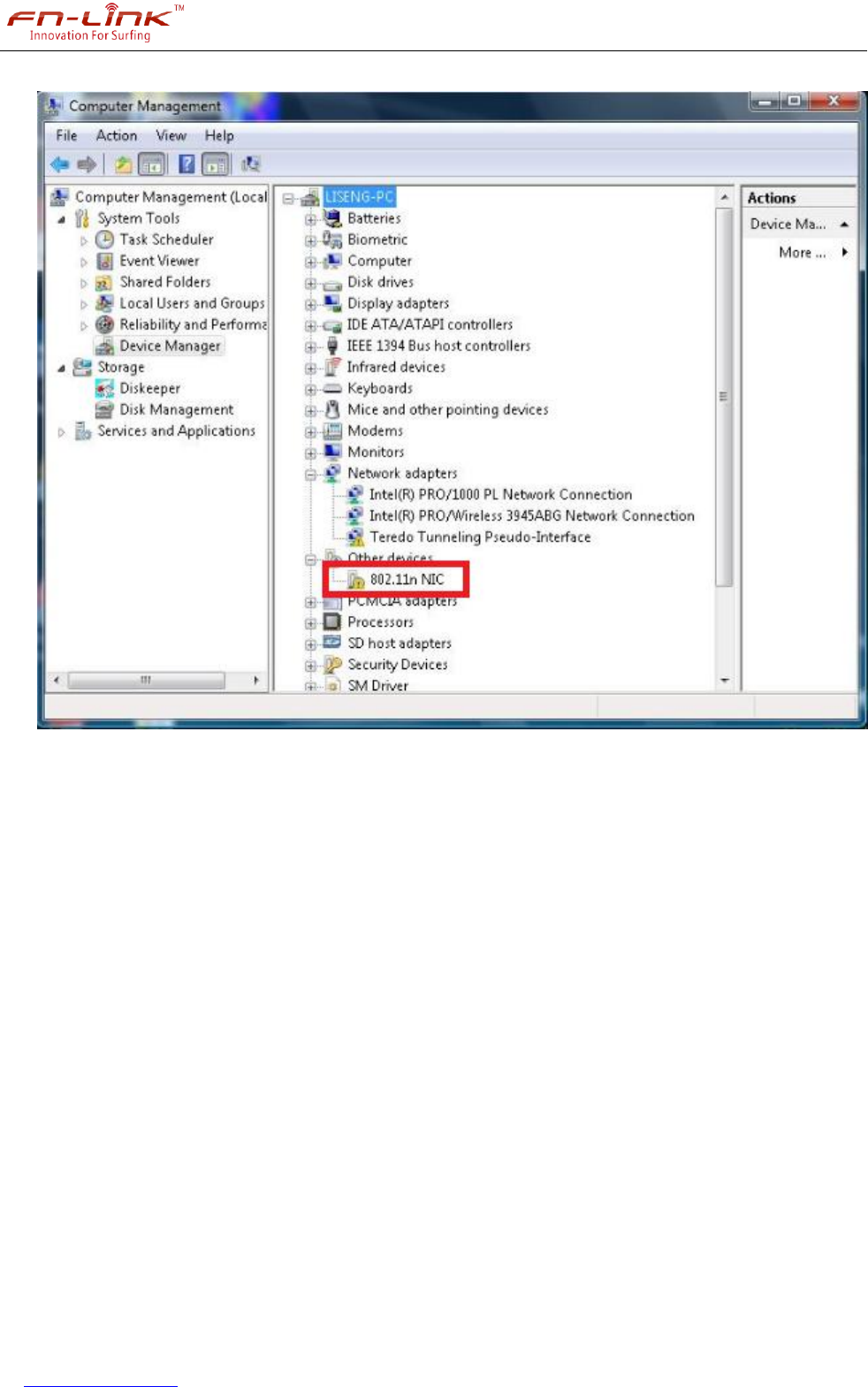

1. Put the product plug into the USB port, the "device manager" of PC is shown below:

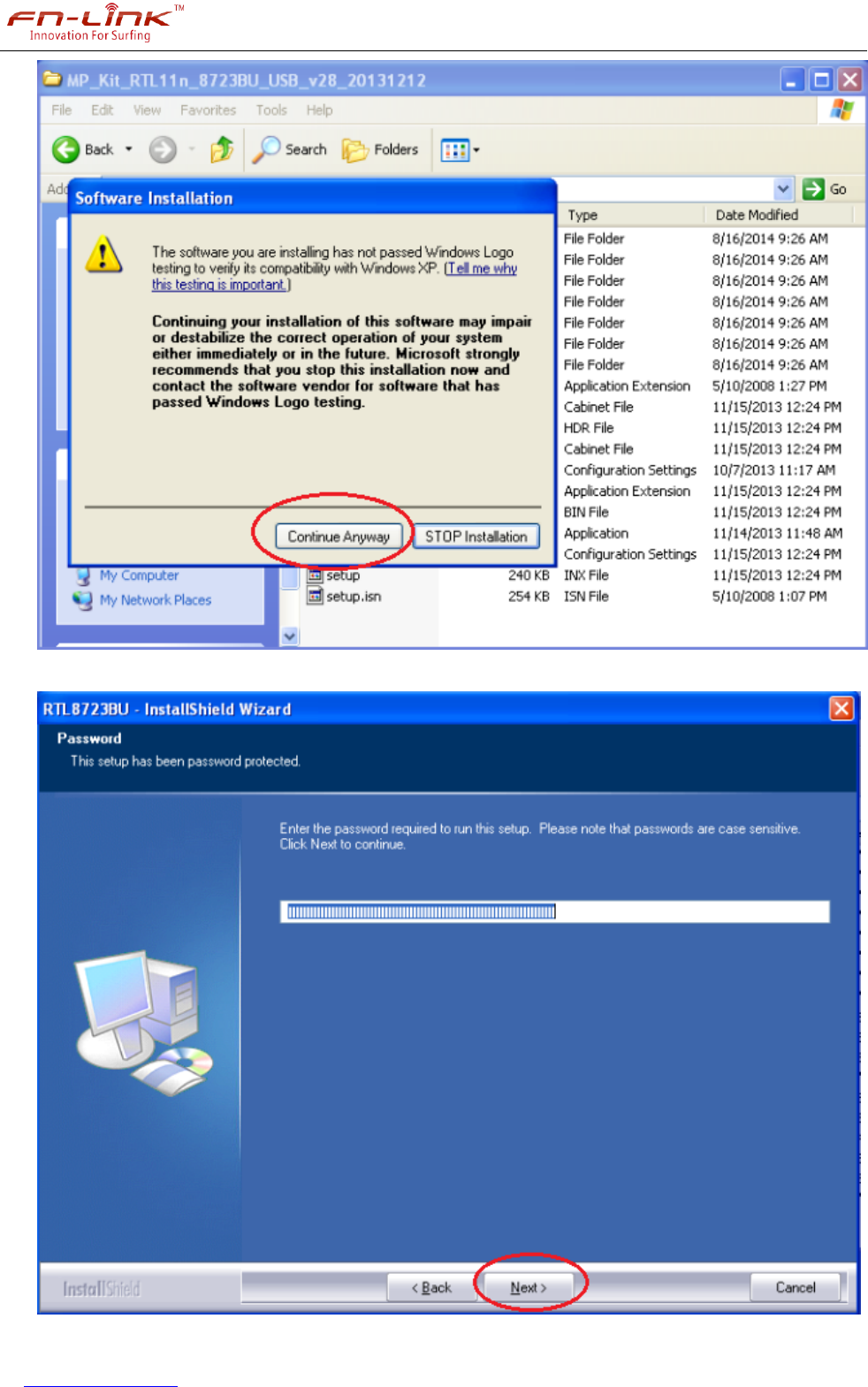

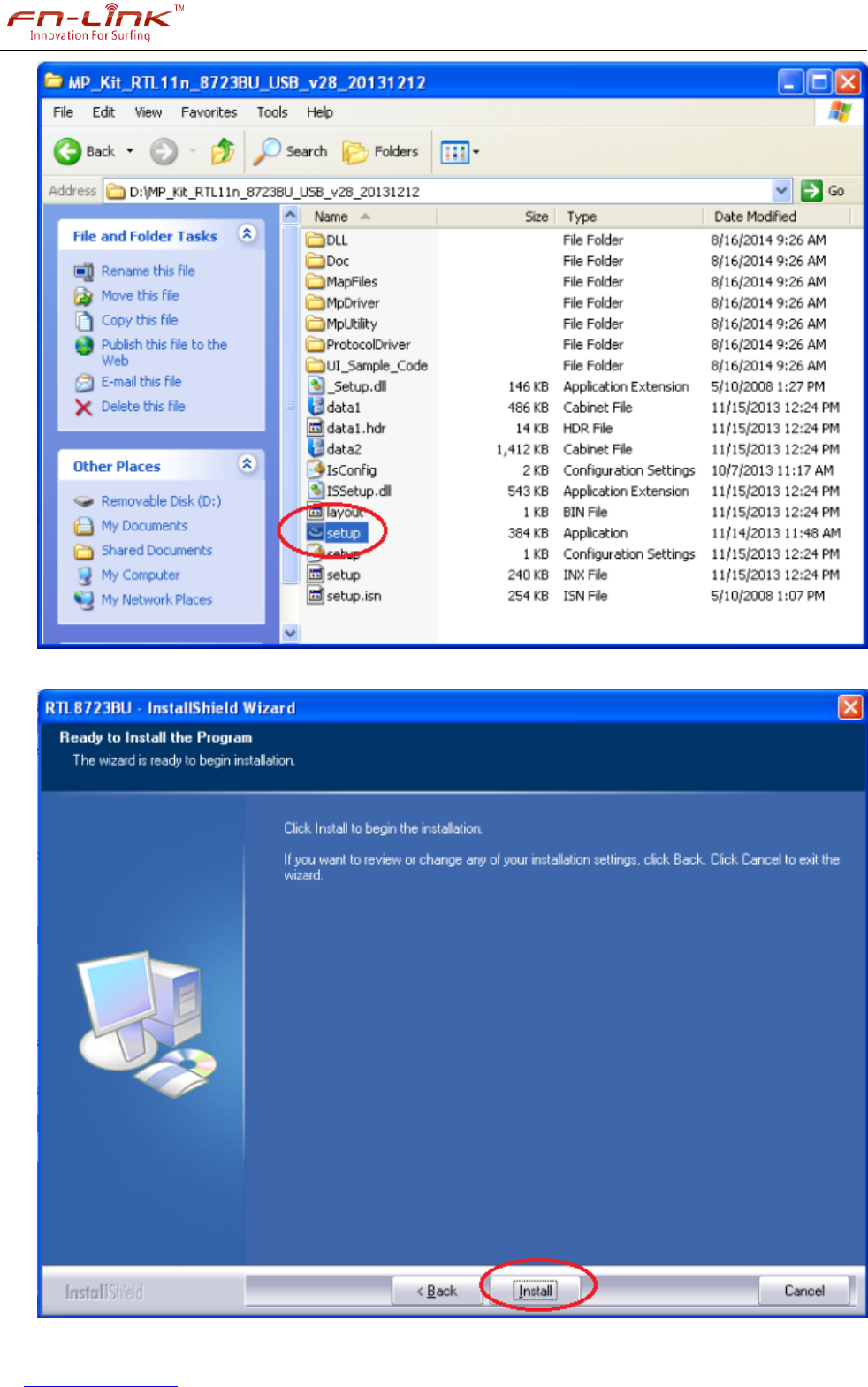

2. Copy the corresponding driver "MP_Kit_RTL11n_8723BU_USB_v28_20131212" into the
PC, and install driver, the installation methods: open the file
"MP_Kit_RTL11n_8723BU_USB_v28_20131212", double click "Setup" installation
program, guide to install.
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 4 /9
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 5 /9
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 6 /9

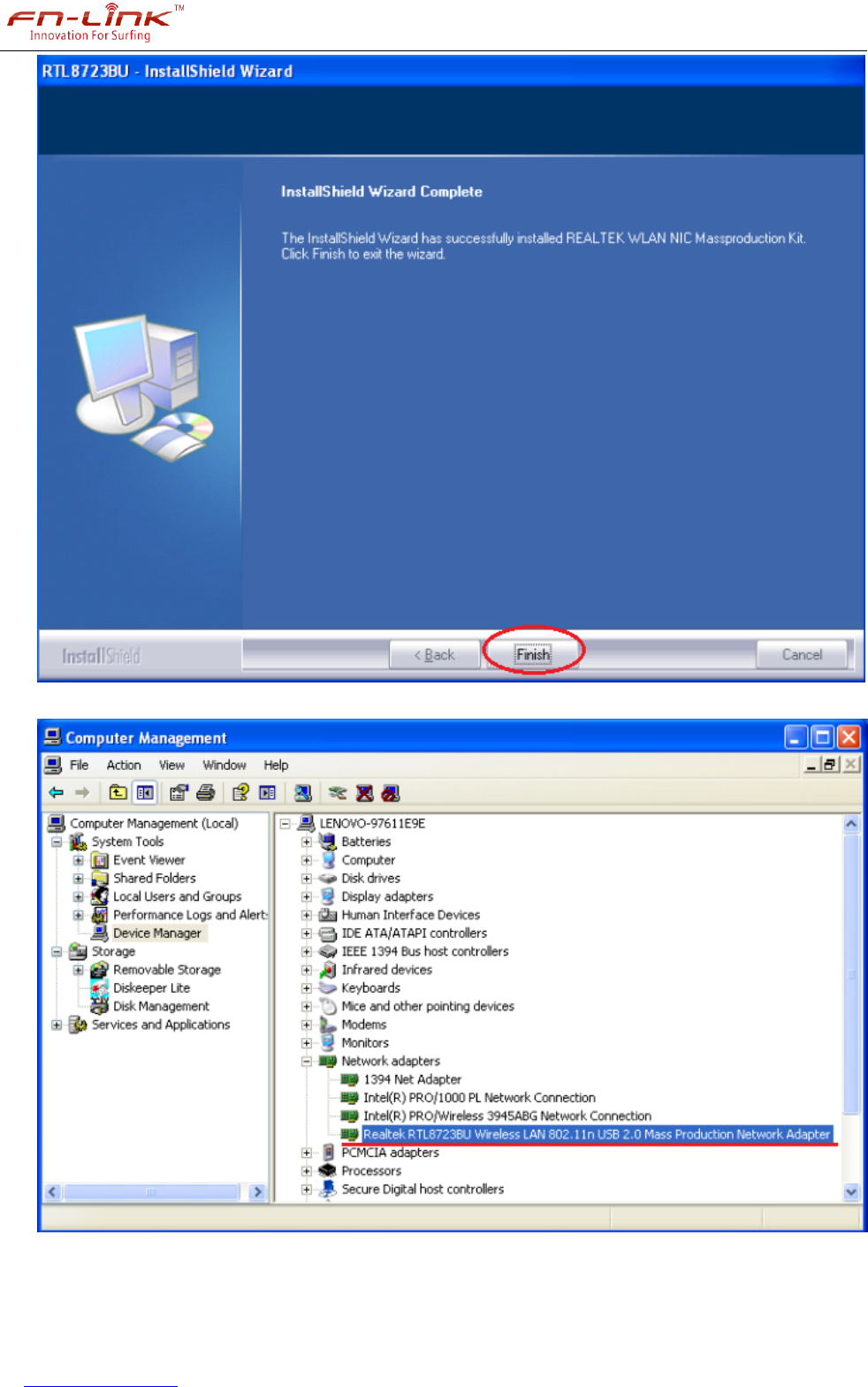

3. After install driver successfully. the "device manager" of PC is shown below:
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 7 /9

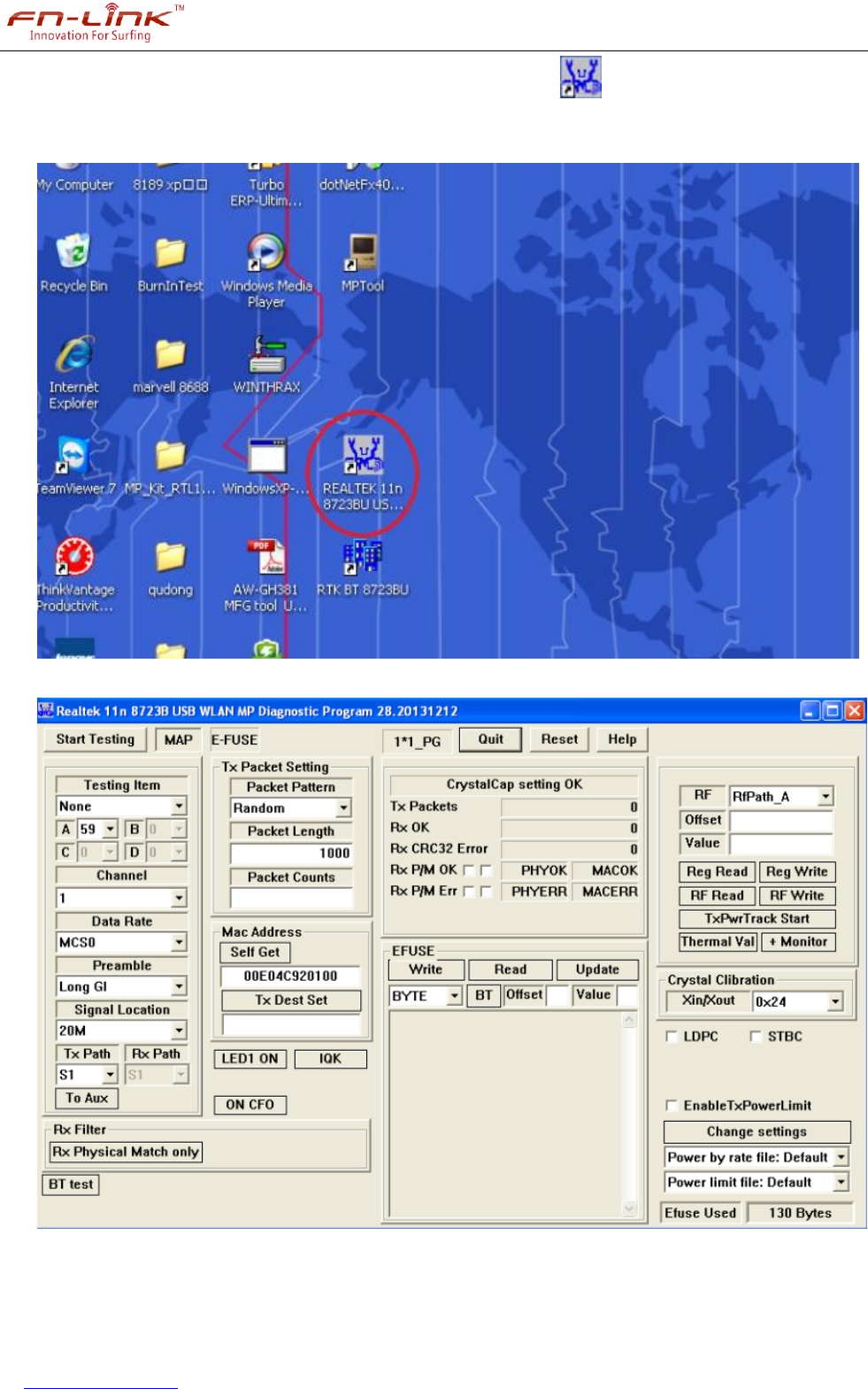

4. After install driver successfully. double click the icon " " in PC desktop, as shown
below:
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 8 /9

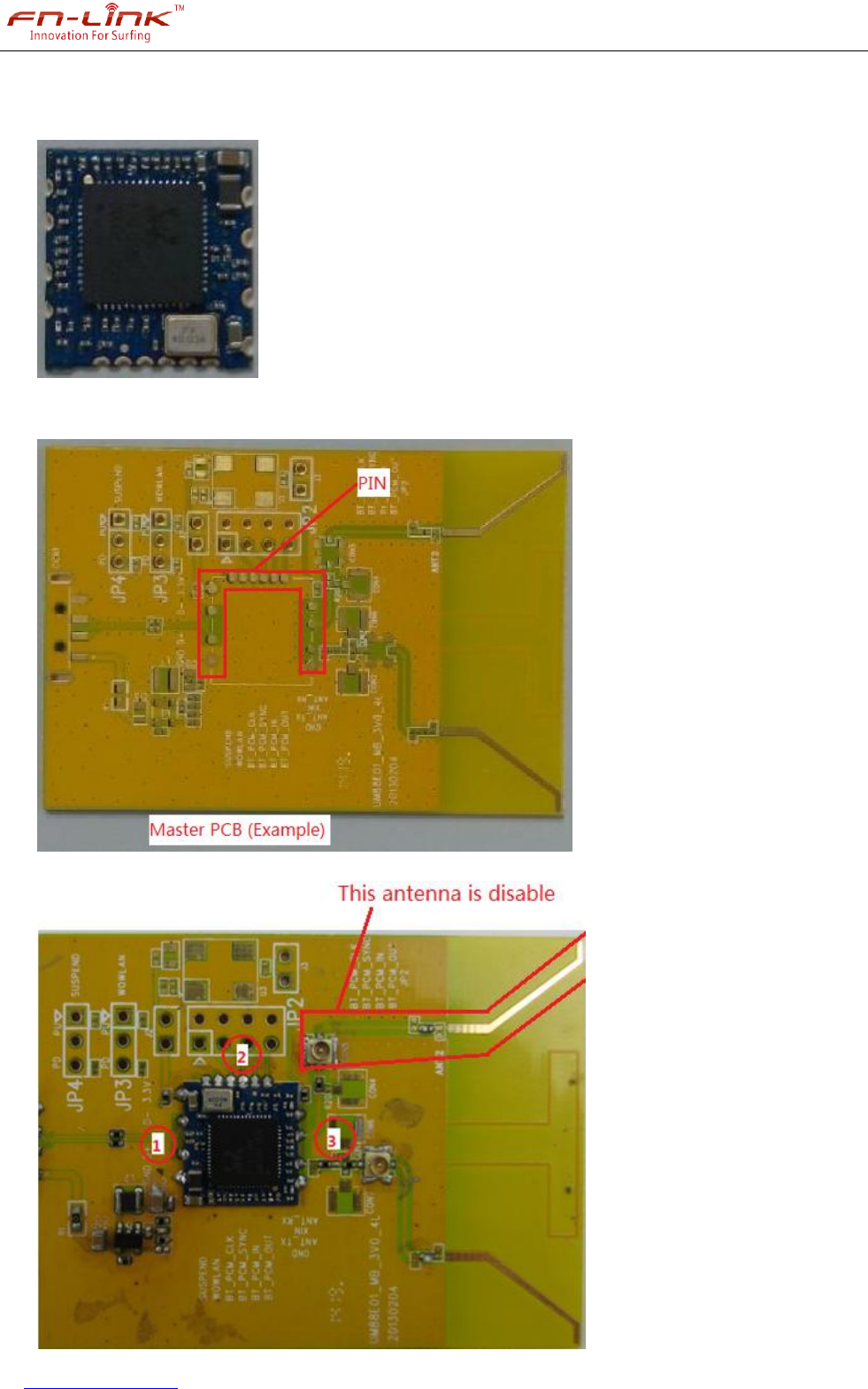

Installation Guide
1. Check RTL8723BU Module connection pin is clean for soldering.
2. Ready the Master PCB which will connect with RTL8723BU Module. Check connection
pads is clean for soldering.

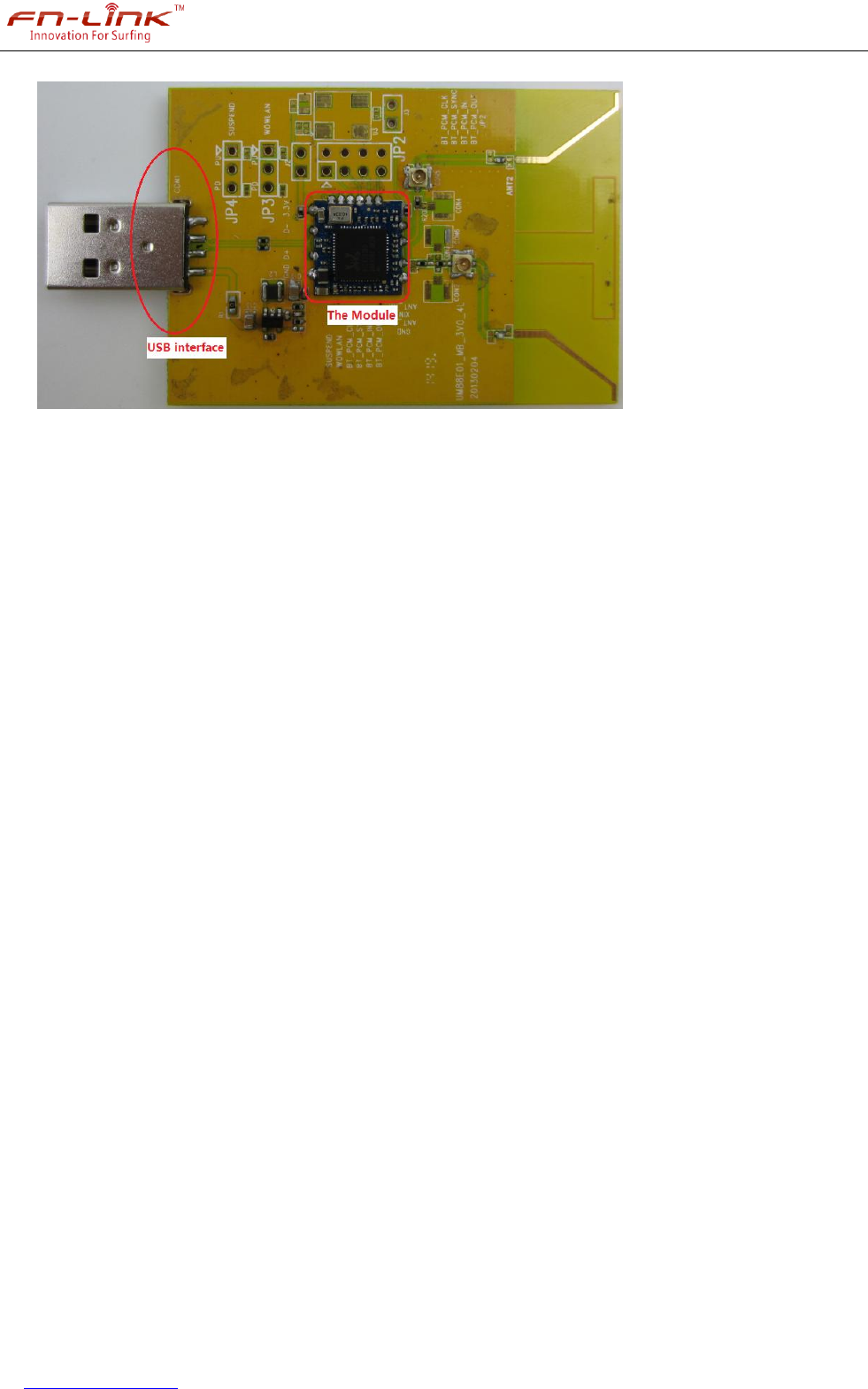

3. Place the Module on the Master PCB. Then solder it in sequence : 1.2.3
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 9 /9
4. After soldering, Check all pads are well connected.
FCC Statement:
The final end product must be labeled in a visible area with the following "Contains TX FCC
ID:2AATL-F23BUUM13". If the size of the end product is smaller than 8x10cm, then additional
FCC part 15.19 stayement is required to be availale in the users manual:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement:
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Due to missing shielding the module is strictly limited to integration by the Grantee himself or his dedicated
OEM integrator under control of the Grantee.However, the OEM integrator is still responsible for testing
their end-product for any additional compliance requirements required with this module installed.
This device is intended only for OEM integrators under the following conditions:
1)This module is granted as a Limited Modular Approval.
2)This device has been designed to operate with a FPC antenna having a maximum gain of 0dBi.Only
this type of antenna may be used.
This device has been evaluated and shown compliant with the FCC RF Exposure limits under fixed
exposure conditions (antennas are greater than 20cm from a person’s body)when installed in certain
specific OEM configurations.
