HUNG WAI DT215-AC4 21.5 inch Quad Core Media Player Standard Housing User Manual

HUNG WAI PRODUCTS LIMITED 21.5 inch Quad Core Media Player Standard Housing

User Manual

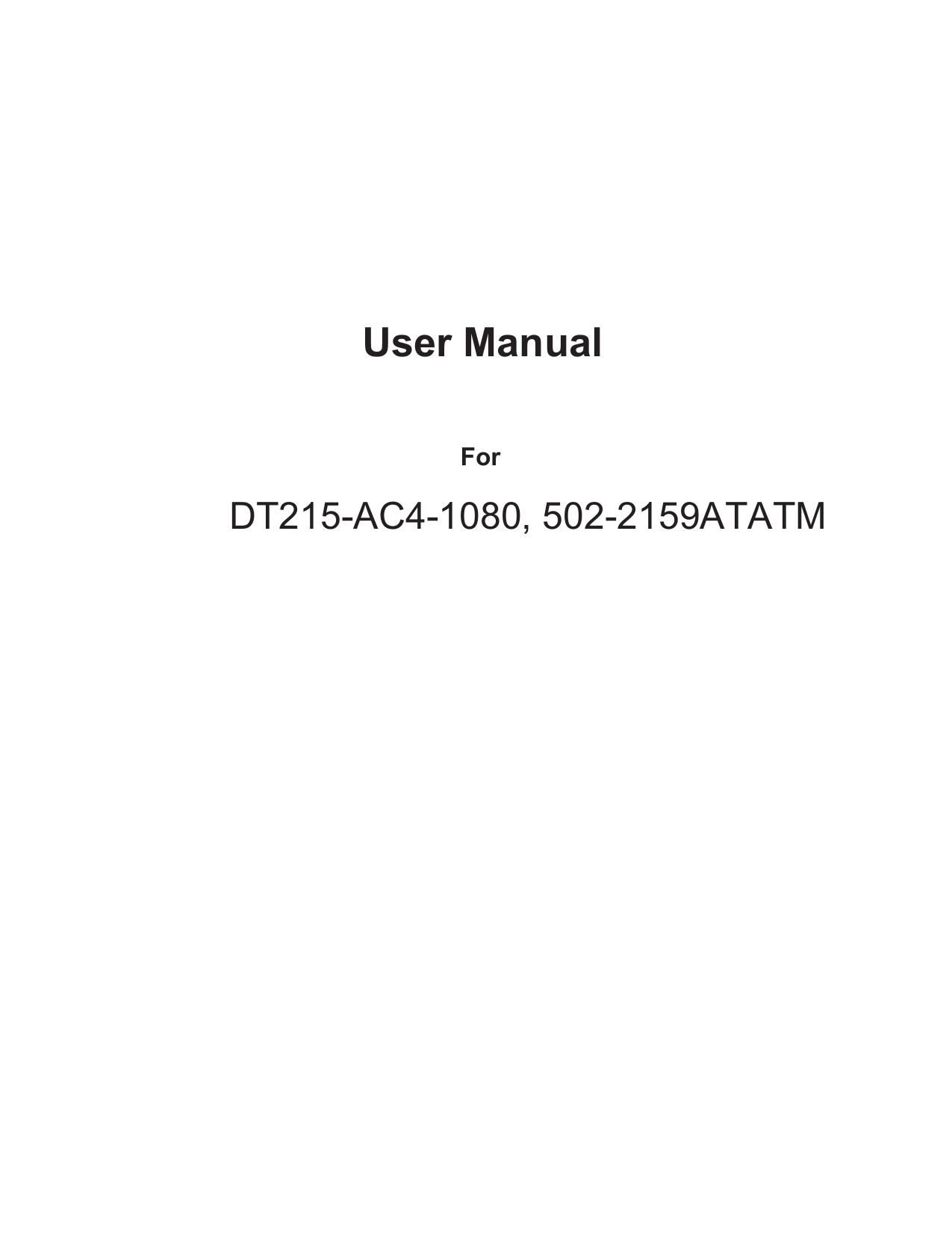

User Manual For DT185-AS4-720 DT101-AS4-720;502-1019ATMDT215-AC4-1080, 502-2159ATATM
1. Specifications: Dimension: 450x265x55mm (without wing brackets) 485x265x55mm (with wing brackets) Input port: 1pc 5.5mm female barrel jack - for +12V power input 1pc SD Card Slot - for SD 1pc DTCN-A-4F 4-pin connector for UART device connection 2pcs USB-A standard USB receptacle Output port: 1pc 18.5in TFT LCD module with 1366x768 resolution 2pcs Antenna connector for 2.4G + 5G WiFi network 1pc 3.5mm headphone jack - for 85mW audio 2pcs DTCN-A-2F - 2-pin female connector for SP1-SP2 1pc HDMI standard connector 1pc Optical connector 1pc DTCN-A 2F 2-pin connector for 5V output Other ports: 1pc RJ45 jack - for hardwired network compatibility 1pc mini USB receptacle 10pcs DTCN-A-4F – 4-pin connector for PB control Antennas: Removable antennas with 2.5dBi gain. Provided by Lian Chuang Xin (Shenzhen) Ltd, Co. P/N: ANT-1569SMA20-00-A Operation temperature:-10ćć-60ć Frequency Stability: +/-3.2 ppm Adapter: Input 100-240VAC 50-60Hz, Output 12VDC 3A The mini USB connector of the device only used for upgrading software, but can’t communicate data with PC The product is in-door used only. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. External omni direction antenna （reversed polarity ，non standard antenna port）with 2.5dBi gain. Provided by Lian Chuang Xin (Shenzhen) Ltd, Co. P/N:ANT-1569SMA20-00-A-20ć to +50ćVoltage(AC /60Hz):102-138V/ ACThe distance between user and products should be no less than 20cmDimension: 238X155X33mm (without wing brackets) 268X155X33mm (with wing brackets) Dimension: 502.9X303.2X45.0mm (without wing brackets) 543.0X303.2X45.5mm (with wing brackets)

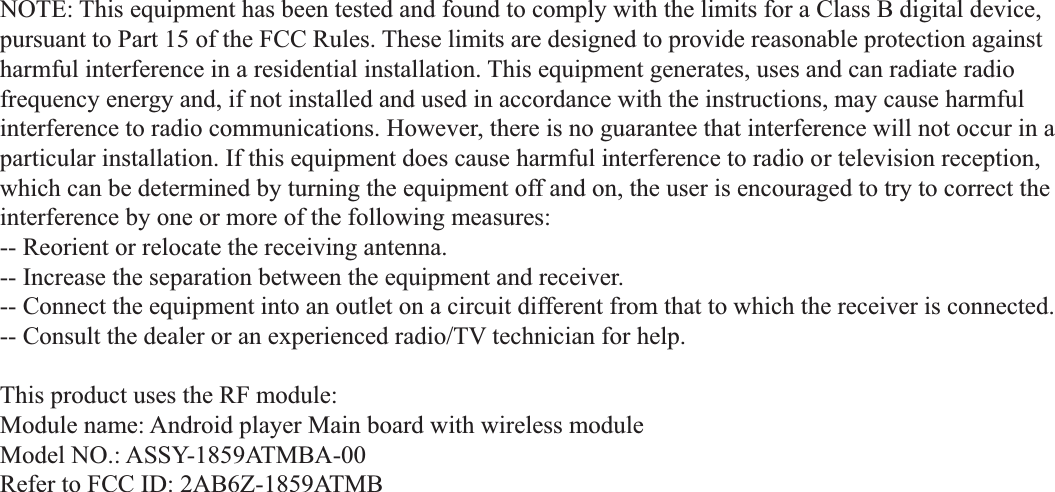

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This product uses the RF module: Module name: Android player Main board with wireless module Model NO.: ASSY-1859ATMBA-00 Refer to FCC ID: 2AB6Z-1859ATMB
