HUNG WAI DTEX-PS-S Product Selector Slave Device User Manual

HUNG WAI PRODUCTS LIMITED Product Selector Slave Device

User manual

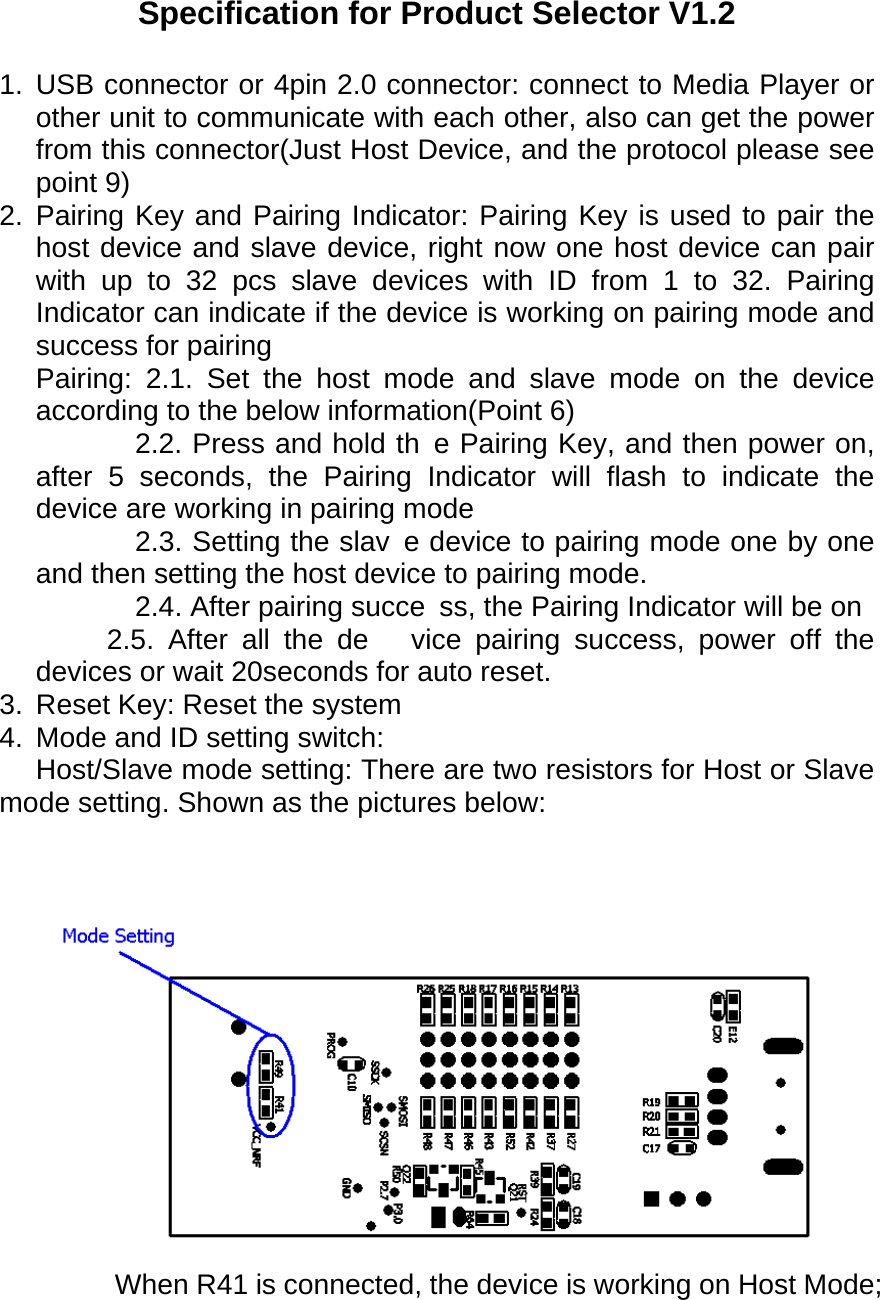

Specification for Product Selector V1.2 1. USB connector or 4pin 2.0 connector: connect to Media Player or other unit to communicate with each other, also can get the power from this connector(Just Host Device, and the protocol please see point 9) 2. Pairing Key and Pairing Indicator: Pairing Key is used to pair the host device and slave device, right now one host device can pair with up to 32 pcs slave devices with ID from 1 to 32. Pairing Indicator can indicate if the device is working on pairing mode and success for pairing Pairing: 2.1. Set the host mode and slave mode on the device according to the below information(Point 6) 2.2. Press and hold th e Pairing Key, and then power on, after 5 seconds, the Pairing Indicator will flash to indicate the device are working in pairing mode 2.3. Setting the slav e device to pairing mode one by one and then setting the host device to pairing mode. 2.4. After pairing succe ss, the Pairing Indicator will be on 2.5. After all the de vice pairing success, power off the devices or wait 20seconds for auto reset. 3. Reset Key: Reset the system 4. Mode and ID setting switch: Host/Slave mode setting: There are two resistors for Host or Slave mode setting. Shown as the pictures below: When R41 is connected, the device is working on Host Mode;

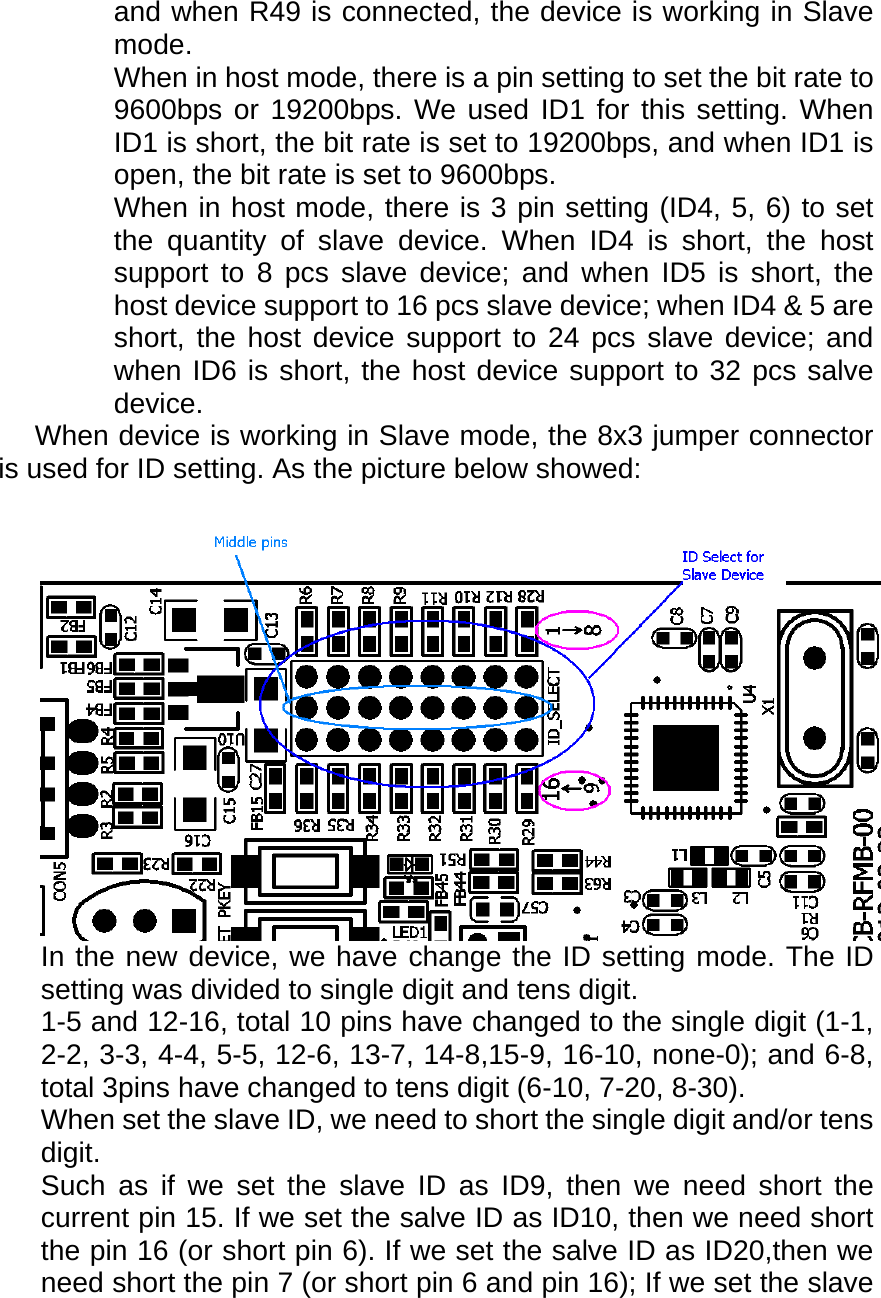

and when R49 is connected, the device is working in Slave mode. When in host mode, there is a pin setting to set the bit rate to 9600bps or 19200bps. We used ID1 for this setting. When ID1 is short, the bit rate is set to 19200bps, and when ID1 is open, the bit rate is set to 9600bps. When in host mode, there is 3 pin setting (ID4, 5, 6) to set the quantity of slave device. When ID4 is short, the host support to 8 pcs slave device; and when ID5 is short, the host device support to 16 pcs slave device; when ID4 & 5 are short, the host device support to 24 pcs slave device; and when ID6 is short, the host device support to 32 pcs salve device. When device is working in Slave mode, the 8x3 jumper connector is used for ID setting. As the picture below showed: In the new device, we have change the ID setting mode. The ID setting was divided to single digit and tens digit. 1-5 and 12-16, total 10 pins have changed to the single digit (1-1, 2-2, 3-3, 4-4, 5-5, 12-6, 13-7, 14-8,15-9, 16-10, none-0); and 6-8, total 3pins have changed to tens digit (6-10, 7-20, 8-30). When set the slave ID, we need to short the single digit and/or tens digit. Such as if we set the slave ID as ID9, then we need short the current pin 15. If we set the salve ID as ID10, then we need short the pin 16 (or short pin 6). If we set the salve ID as ID20,then we need short the pin 7 (or short pin 6 and pin 16); If we set the slave

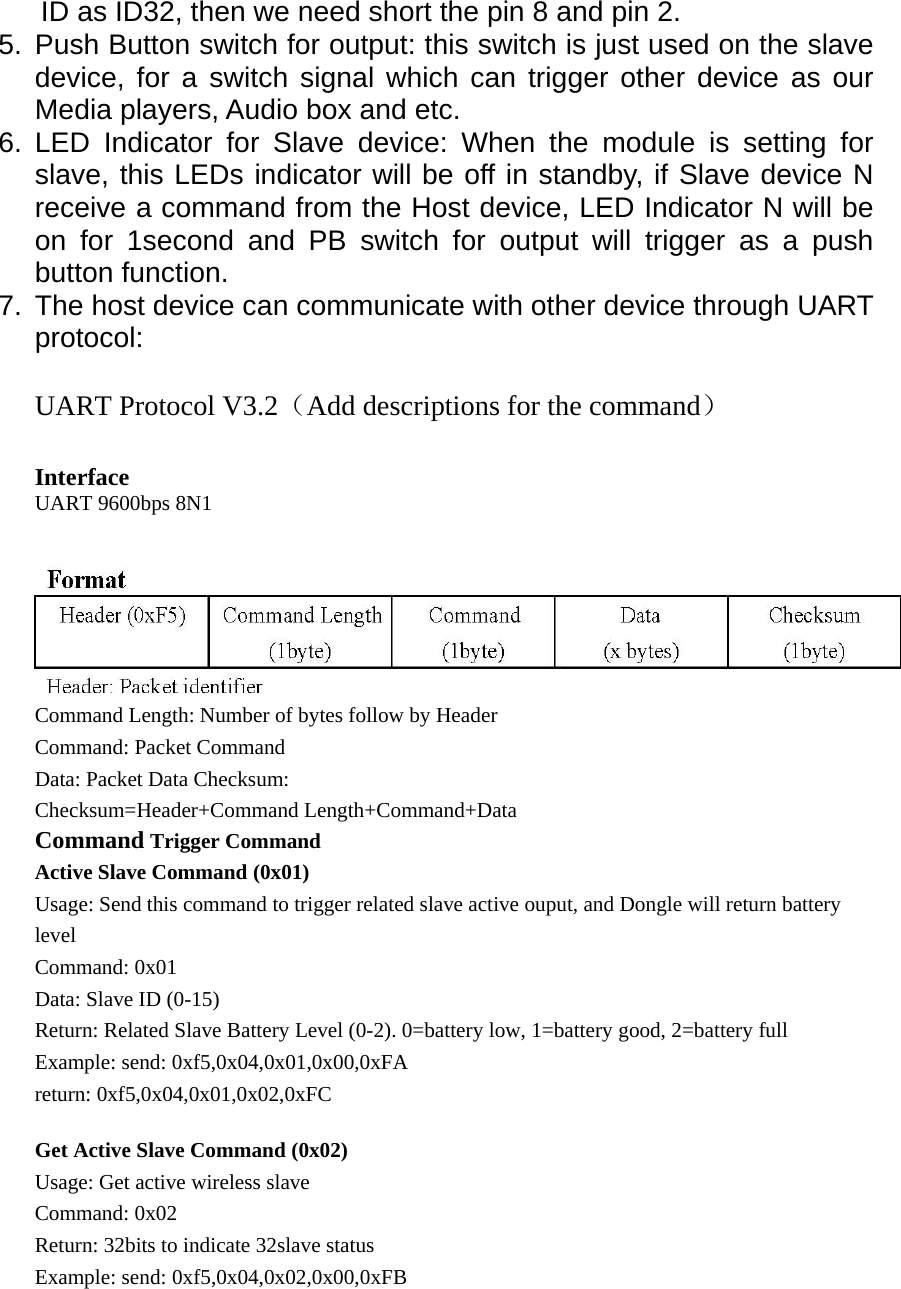

ID as ID32, then we need short the pin 8 and pin 2. 5. Push Button switch for output: this switch is just used on the slave device, for a switch signal which can trigger other device as our Media players, Audio box and etc. 6. LED Indicator for Slave device: When the module is setting for slave, this LEDs indicator will be off in standby, if Slave device N receive a command from the Host device, LED Indicator N will be on for 1second and PB switch for output will trigger as a push button function. 7. The host device can communicate with other device through UART protocol: UART Protocol V3.2（Add descriptions for the command） Interface UART 9600bps 8N1 Command Length: Number of bytes follow by Header Command: Packet Command Data: Packet Data Checksum: Checksum=Header+Command Length+Command+Data Command Trigger Command Active Slave Command (0x01) Usage: Send this command to trigger related slave active ouput, and Dongle will return battery level Command: 0x01 Data: Slave ID (0-15) Return: Related Slave Battery Level (0-2). 0=battery low, 1=battery good, 2=battery full Example: send: 0xf5,0x04,0x01,0x00,0xFA return: 0xf5,0x04,0x01,0x02,0xFC Get Active Slave Command (0x02) Usage: Get active wireless slave Command: 0x02 Return: 32bits to indicate 32slave status Example: send: 0xf5,0x04,0x02,0x00,0xFB

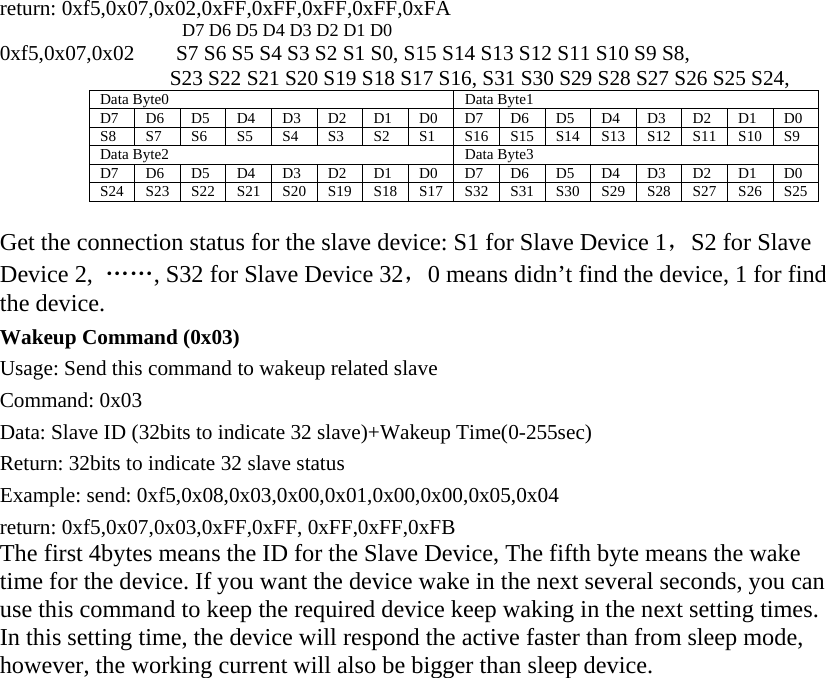

return: 0xf5,0x07,0x02,0xFF,0xFF,0xFF,0xFF,0xFA D7 D6 D5 D4 D3 D2 D1 D0 0xf5,0x07,0x02 S7 S6 S5 S4 S3 S2 S1 S0, S15 S14 S13 S12 S11 S10 S9 S8, S23 S22 S21 S20 S19 S18 S17 S16, S31 S30 S29 S28 S27 S26 S25 S24, Data Byte0 Data Byte1 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0 S8 S7 S6 S5 S4 S3 S2 S1 S16 S15 S14 S13 S12 S11 S10 S9 Data Byte2 Data Byte3 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0 S24 S23 S22 S21 S20 S19 S18 S17 S32 S31 S30 S29 S28 S27 S26 S25 Get the connection status for the slave device: S1 for Slave Device 1，S2 for Slave Device 2, ……, S32 for Slave Device 32，0 means didn’t find the device, 1 for find the device. Wakeup Command (0x03) Usage: Send this command to wakeup related slave Command: 0x03 Data: Slave ID (32bits to indicate 32 slave)+Wakeup Time(0-255sec) Return: 32bits to indicate 32 slave status Example: send: 0xf5,0x08,0x03,0x00,0x01,0x00,0x00,0x05,0x04 return: 0xf5,0x07,0x03,0xFF,0xFF, 0xFF,0xFF,0xFB The first 4bytes means the ID for the Slave Device, The fifth byte means the wake time for the device. If you want the device wake in the next several seconds, you can use this command to keep the required device keep waking in the next setting times. In this setting time, the device will respond the active faster than from sleep mode, however, the working current will also be bigger than sleep device.

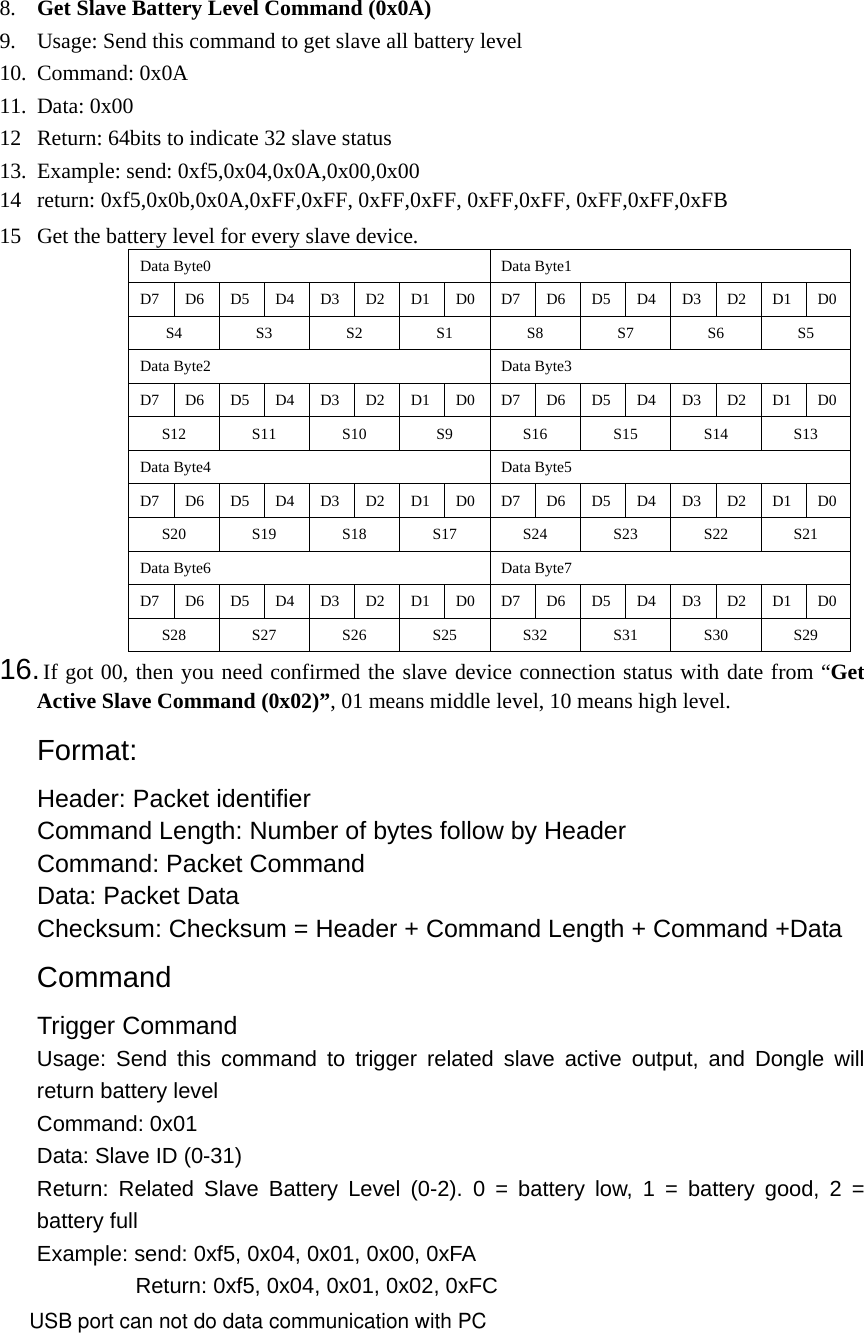

8. Get Slave Battery Level Command (0x0A) 9. Usage: Send this command to get slave all battery level 10. Command: 0x0A 11. Data: 0x00 12 Return: 64bits to indicate 32 slave status 13. Example: send: 0xf5,0x04,0x0A,0x00,0x00 14 return: 0xf5,0x0b,0x0A,0xFF,0xFF, 0xFF,0xFF, 0xFF,0xFF, 0xFF,0xFF,0xFB 15 Get the battery level for every slave device. Data Byte0 Data Byte1 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0S4 S3 S2 S1 S8 S7 S6 S5 Data Byte2 Data Byte3 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0S12 S11 S10 S9 S16 S15 S14 S13 Data Byte4 Data Byte5 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0S20 S19 S18 S17 S24 S23 S22 S21 Data Byte6 Data Byte7 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0S28 S27 S26 S25 S32 S31 S30 S29 16. If got 00, then you need confirmed the slave device connection status with date from “Get Active Slave Command (0x02)”, 01 means middle level, 10 means high level. Format: Header: Packet identifier Command Length: Number of bytes follow by Header Command: Packet Command Data: Packet Data Checksum: Checksum = Header + Command Length + Command +Data Command Trigger Command Usage: Send this command to trigger related slave active output, and Dongle will return battery level Command: 0x01 Data: Slave ID (0-31) Return: Related Slave Battery Level (0-2). 0 = battery low, 1 = battery good, 2 = battery full Example: send: 0xf5, 0x04, 0x01, 0x00, 0xFA Return: 0xf5, 0x04, 0x01, 0x02, 0xFC USB port can not do data communication with PC

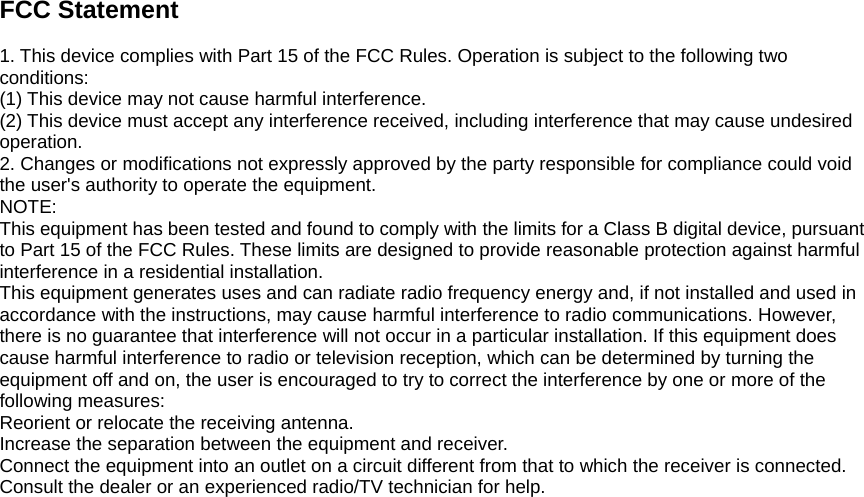

FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
