Turning the Tablet on and off

To turn the tablet on:

Turn on the Power button until the LCD screen turn on and you see “American Megatrends” logo,

then wait until you see the CSR screen.

To turn the tablet off:

Touch to Power off to turn off the tablet.

User Interface - CSR Level

 Click on the CSRicon will allow the user to enter the CSR.

o CSR Setting Menu:

 Apps

 Auto Run App - This will display a list of the applications currently installed

on the unit. Checking an application will determine which app is auto

launched on start up.

 Uninstall Apps - The user will be able to select which APKs to uninstall

 Install Apps - The user will be able to install APKs located on either the SD

card or USB flash drive from a folder named "ApkFiles". Before installing

the unit will ask the user for confirmation to install the new software.

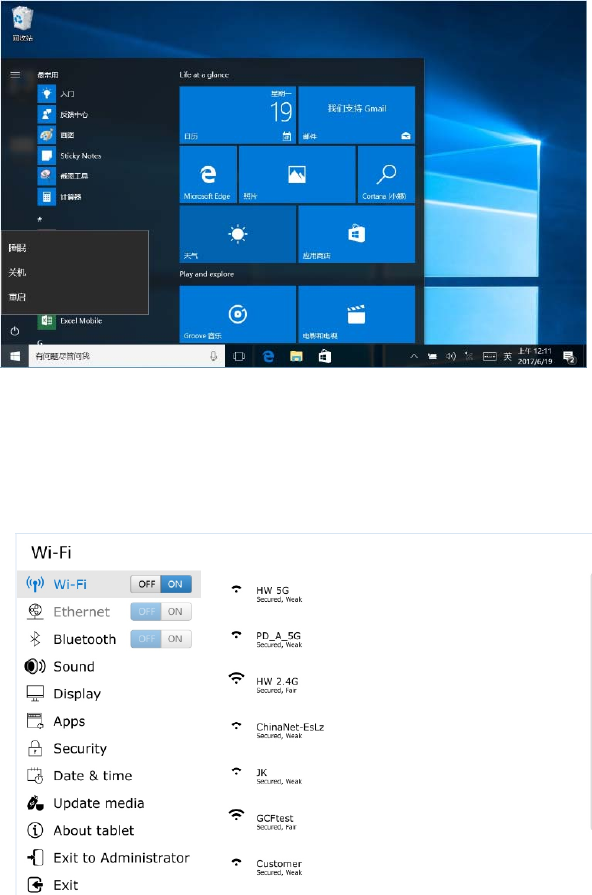

 Wi-Fi

 This option allows the player to connect to a wireless router.

 Ethernet

 This option allows the player to connect to the network using the RJ45.

 Bluetooth

 This option allows the player to connect to a remote device via Bluetooth

 Network Settings

 Tethering & Portable Hotspot - This option allows the user to connect a Wi-Fi

or Bluetooth device to the Android Media Player and access the internet

through the players connection or access specific files on the player

 Sound

 Volume - This allows the user to adjust the system volume level

 Display

 Brightness - This allows the user to adjust the system brightness level

 Date/Time

 Automatic Date & Time - If the unit is connected to the network, the unit will

automatically pull the current date/time from the internet.

 Set Date & Time - If the Automatic option is not selected, this option will

allow the user to manually set the current date/time.

 24-hour Reset Enable - This option allows the user to set the reset time the

unit will automatically power cycle every 24 hours.

 Update Media

 This option will allow the user to load content from an SD card or USB flash

drive onto the unit from a folder labeled "MediaFiles".

 When selected, the unit will display a list of all content that is available on the

SD card and/or USB flash drive with a checkbox to the right of each item.

By default all items will be checked.

 The checkbox will show whether a file will be transferred or not.

 When a "Transfer Now" button is touched, a confirmation window will

appear warning the user that the current files installed on the player are about

to be overwritten. If the user selects yes, the items with the checkbox

checked will be transferred onto the internal memory, overwriting the content

that is currently stored there. If the user selects no, the unit will return to the

Update/Replace Media Content option.

 About device

 This will be the same as the "About Tablet" setting on the current android

based units. It will display the media player model #, android version, last

update date, etc...

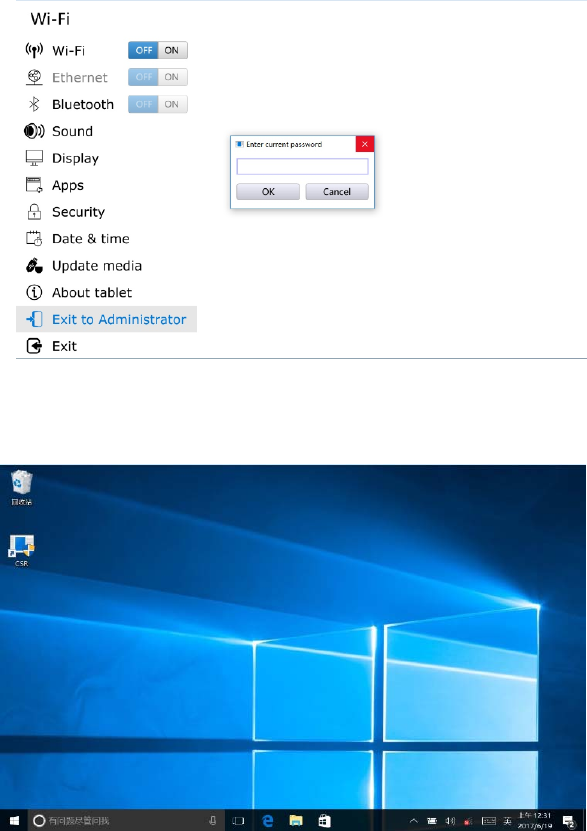

o Administrator Level

o This level will be accessible only if the user inputs the correct password after pressing the

“Exit to Administrator” tab in the CSR.

o This level will be the full standard Window 10 OS, it will allow the user to make all the

adjustments that are available to a standard Window 10 based unit, such as installing

applications, diagnostics, etc...

3



W

g



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust

acceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser'sauthoritytooperatetheequipment.

NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandused

inaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular

installation.

Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto

correcttheinterferencebyoneormoreofthefollowing

measures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferent

fromthattowhichthereceiverisconnected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

NOTE:Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperationinconjunctionwithanyotherantennaortransmitter.

RFExposureStatement

TomaintaincompliancewithFCC’sRFExposureguidelines,Thisequipmentshouldbeinstalledandoperatedwithminimumdistanceof10mmtheradiatoryourbody.

Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperationinconjunctionwithanyotherantennaortransmitter.Changesormodificationstothisunitnotexpresslyapproved

bythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.

For5GWiFi：

(1)thedeviceforoperationintheband5150‐5250MHzisonlyforindoorusetoreducethepotentialforharmfulinterferencetoco‐channelmobilesatellitesystems;

(2)themaximumantennagainpermittedfordevicesinthebands5250‐5350MHzand5470‐5725MHzshallcomplywiththee.i.r.p.limit;andthemaximumantennagainpermitted

fordevicesintheband5725‐5825MHzshallcomplywiththee.i.r.p.limitsspecifiedforpoint‐to‐pointandnonpoint‐to‐pointoperationasappropriate.

(4)Usersshouldalsobeadvisedthathigh‐powerradarsareallocatedasprimaryusers(i.e.priorityusers)ofthebands5250‐5350MHzand5650‐5850MHzandthattheseradars

couldcauseinterferenceand/ordamagetoLE‐LANdevices.



RFExposureInformation:

TheSARlimitofUSA(FCC)is1.6W/kgaveragedoveronegramoftissue.DeviceTypes(FCCID:2AB6Z‐MS‐W10)hasalsobeentestedagainstthisSARlimit.

ThehighestSARvaluereportedunderthisstandardduringproductcertificationforusewhenproperlywornonthebodyis0.112W/kg.Thisdevicewastestedfortypicalbody‐worn

operationswiththebackofthehandsetkept10mmfromthebody.TomaintaincompliancewithFCCRFexposurerequirements,useaccessoriesthatantaina5mmseparation

distance

betweentheuser'sbodyandthebackofthehandset.

Theuseofbeltclips,holstersandsimilaraccessoriesshouldnotcontainmetalliccomponentsinitsassembly.

TheuseofaccessoriesthatdonotsatisfytheserequirementsmaynotcomplywithFCCRFexposurerequirements,andshouldbeavoided.

Theuseofbeltclips,holstersandsimilaraccessoriesshouldnotcontainmetalliccomponentsinitsassembly.

TheuseofaccessoriesthatdonotsatisfytheserequirementsmaynotcomplywithFCCRFexposurerequirements,andshouldbeavoided.
