HYT Science and Technology Co TC3600KU6 Two Way Radio User Manual
Shenzhen HYT Science &Technology; Co Ltd Two Way Radio
User Manual
1
THANK YOU!
We are grateful for your purchase of HYT product. We believe this easy-to-use radio will
provide you with dependable and reliable communications. This HYT portable two-way
radio is a precision device. Treat it with care, and you will enjoy years of reliable
operation.
MODELS COVERED IN THIS MANUAL
TC3600-KU (6) Two-way Radio
2
Content
User Safety, Training, and General Information
Compliance with RF Energy Exposure Standards
FCC Compliance
Precautions
Product Inspection
Battery Information
Accessory Installation
Getting Started
Features and Operation
Chinese/English Menu
Troubleshooting Guide
Care and Cleaning
Optional Accessories
Specification
Frequency Chart
3
User Safety, Training, and General Information
READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION
BEFORE USING YOUR HYT PORTABLE TWO-WAY RADIO.
Compliance with RF Energy Exposure Standards
Your HYT two-way radio is designed and tested to comply with a number of national and
international standards and guidelines (listed below) regarding human exposure to radio
frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP
exposure limits for occupational/controlled RF exposure environment at duty cycles of
up to 50% talk-50% listen and should be used for occupational use only. In terms of
measuring RF energy for compliance with the FCC exposure guidelines, your radio
radiates measurable RF energy only while it is transmitting (during talking), not when it
is receiving (listening) or in standby mode.
Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty cycle
(5% talk-5% listen-90% standby), even though this radio complies with the FCC
occupational RF exposure limits at duty cycles of up to 50% talk.
Your HYT two-way radio complies with the following of RF energy exposure
standards and guidelines:
z United States Federal Communications Commission, Code of Federal Regulations;
47CFR part 2 sub-part J
z American National Standards Institute (ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95. 1-1992
z Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition
z International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled
environment RF energy exposure limits in the above standards and guidelines, users
should transmit no more than 50% of the time and always adhere to the following
procedures:
Transmit and Receive
To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT
button.
Hand-held radio operation
Hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm)
away from the lips.
Body-worn operation
z Always place the radio in an HYT approved clip, holder, holster, case, or body harness
for this product. Use of non-HYT-approved accessories may exceed FCC RF
exposure guidelines.
Antennas & Batteries
4
z Use only HYT approved, supplied antenna or HYT approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage the radio and
may violate FCC regulations.
z Use only HYT approved, supplied batteries or HYT approved replacement batteries.
Use of non- HYT -approved batteries may exceed FCC RF exposure guidelines.
Approved Accessories
For a list of HYT approved accessories, see the accessories page of this user manual or
visit the following website which lists approved accessories: http://www.HYT.com.cn
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
Modifications not authorized by the manufacturer may void users authority to operate
this device.
FCC Requirements
Your radio must be properly licensed by the Federal Communications Commission prior
to use. Your HYT dealer can assist you in meeting these requirements. Your dealer will
program each radio with your authorized frequencies, signaling codes, etc., and will be
there to meet your communications needs as your system expands.
Note
The term "IC": before the certification / registration number only signifies that the
Industry Canada technical specification were met.
SAR Information
SAR:
THIS MODEL DEVICE MEETS THE GOVERN-MENTS REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES.
For body worm operation, this phone has been tested and meets the FCC RF exposure
guidelines when used with an accessory that contains no metal,and that positions the
antenna of the two-way radio a minimum of 2.5cm from the body.The SAR values of this
two-way radio are 0.93 w/kg (Face Hold) and 1.74 w/kg (Body Worn).Use of other
accessories may not ensure compliance with the FCC RF exposure guidelines
5
The FCC has granted an Equipment Authorization for this model device with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines.SAR
information on this model device is on files with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/oet/fccid.after searching on FCC ID:
R74TC3600KU6. In the U.S. and Canada,the SAR limit for mobile two-way radio used
by the pulic is 5 Watts/kg(W/kg) averaged over one gram of tissue.The standard
incorporates a substantial margin of safety to give additional protection for the public
and to account for any variations in usage
Precautions
• Only qualified technicians are allowed to maintain this product.
• Do not use the radio or charge a battery in explosive areas such as coal gas, dust,
steam, etc.
• Switch OFF the radio while refueling or parking at gas station.
• Do not modify or adjust this radio without permission.
• Do not expose the radio to direct sunlight over a long time nor place it close to
heating source.
• Do not place the radio in excessively dusty, humid areas, or on unstable surfaces.
Safety: It is important that the operator is aware of and understands hazards common
to the operation of any radio.
Product Inspection
Thank you for your use of HYT portable two-way radio TC3600. Before use, you are
recommended to inspect the product as follows.
First check the shipping carton for any signs of damage. If any damage has occurred,
please contact your dealer immediately. Confirm the supplied product against the
packing slip to assure accuracy.
Available Accessories
Item Qty. (pcs)
Antenna 1
Belt Clip 1
Strap 1
Battery 1
Desktop Charger 1
AC Adapter 1
Owner’s Manual 1
6
Battery Information
Battery Charging Information
The battery is not charged by the manufactory. Charge the newly purchased battery or
out of use for more than 2 months battery before use. The battery capacity will be
optimum only after being charged/discharged for two or three times. When the battery
power is lower, please charge it or replace it with a new one.
Notices:
Do not short out the battery terminals or dispose of the battery by fire.
Turn off the radio when charging the battery inside the radio.
Remove the radio and the battery from the charger when charging cycle is over.
Overcharging will shorten the battery life.
Do not continue charging the battery if it is already fully charged. Or the battery life
will be shortened.
Store the battery in a place about 25℃. Charging the battery in less than 10℃
temperature will cause the electrolyte leakage and damage the battery.
Charging the battery in over 35℃ temperature will affect the battery capacity.
Charging the Battery
You are recommended to use HYT authorized
charger. Charger LED will indicate the charging
status.
LED Meaning
Red LED flashes Power voltage
too low
Red LED glows Charging
Green LED glows Done
7

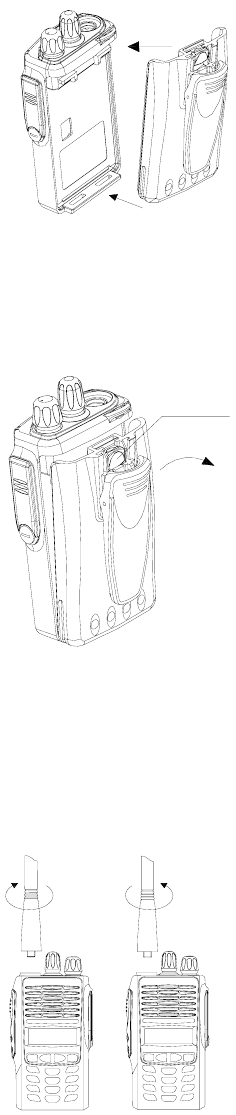

Accessory Installation
Battery
Attach the battery
Insert the two tabs on bottom of the battery into the slots at the bottom of the radio. Push
top of the battery towards the radio until a click is heard. (See figure 1)
Fig. 1
Remove the battery
Turn off the radio. Push the battery latch on the middle of the radio to remove the upper
side of the battery away from the radio. And then remove the battery. (See figure 2)
Fig. 2
Antenna
Insert the threaded end of the antenna into the connector on top of the radio. Rotate the
antenna clockwise to fasten it.
Rotate the antenna counterclockwise to remove it. (See figure 3)
Fig. 3
Battery Latch
Attach Remove
8

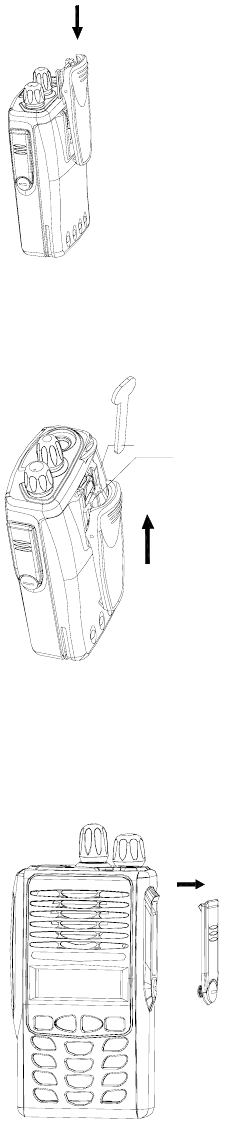

Belt Clip
Attach Belt Clip
Align the slot of the belt clip with the T-slot at the battery cover and press the belt clip
downwards until it is locked. (See figure 4)
Fig. 4
Remove the belt clip
Press the disassembly release upwards with a key until it releases and then push the
belt clip upwards with your thumb to remove it. (See figure 5)
Fig.5
Earplug Cover
Rotate the screw at the bottom of the cover counter clockwise by a screwdriver until it is
out of the nut to remove the Earphone/Microphone jack cover. (See figure 6)
Fig. 6
External Earphone/Microphone (Optional)
Disassembly Release
9
Insert the tab at the bottom of the earphone/microphone into the slot on the radio. (See
figure 7). Align the nuts at top of the earphone/microphone with the holes on the radio
and then turn them clockwise to fasten.
Fig. 7
10
Getting Started
(1) Antenna
Used to transmit/receive signals.
(2) LED
Following table indicates LED indication and corresponding radio status.
LED Status
No display Standby
Green Receive
Red Transmit
Flashing green Scan
Flashing red Low battery voltage
Flashing orange Call waiting
(3) Channel Selector
Used to select wanted channel.
(4) Programmable key [A]
(5) Power/Volume Control Knob
Rotate the Power/Volume Knob clockwise until a “click” is heard to turn the radio on,
fully counter clockwise to turn the radio off. When the radio is on, turn the knob to
adjust volume.
(6) Battery Latch
Used to fasten the battery.
(7) Speaker
Used to output sounds.
(8) Microphone
Used to input sounds.
(9) External Jack
Used to connect with external earphone or programming cable.
(10) Belt Clip
Used to clip the radio on your belt.
11
(11) Battery Pack
(12) PTT key
Press and hold PTT, radio operates in transmit mode. Release PTT, radio returns to
receive mode.
(13) Programmable Key [B]
(14) Programmable Key [C]
The following table shows the key function when
z Briefly press
z Press and hold
Key Function Briefly Press Press and Hold
Emergency Siren Enable emergency siren Disable emergency siren
Monitor Disable monitor Monitor
Scan Enable/Disable scan Enable/Disable scan
Nuisance Delete Delete nuisance channel
in scan
Delete nuisance channel in
scan
Select High/Low
Power Select High/Low Power Select High/Low Power
Repeater/Talk Around Select Repeater or Talk
Around Mode
Select Repeater or Talk
Around Mode
Repeater/Reverse
Frequency
Select Repeater or
Reverse Frequency Mode
Select Repeater or
Reverse Frequency Mode
Call Transmit a Call Transmit a Call
Selective Call Transmit Selective Call Transmit Selective Call
Group Call Transmit Group Call Transmit Group Call
Please contact your dealer for more details about programmable key.
(15) Function Keyboard (See figure 8)
Exit: Used to return to the upper menu
Up key
Down key
Menu/Select Key: Used to enter menu mode. In menu mode, this key is used to select
options.
Fig. 8
(16) Numeric Keyboard (See figure 9)
Used to input information to the program menu of the radio. (Only for radio with a
numeric keyboard.)
Exit Up Down Menu/Select Key
12
Fig. 9
(17) LCD Display
Used to indicate operation status of the radio.
Features and Operation
Turn On/Off the Radio
Rotate “Power/Volume” knob clockwise. An alert tone indicates that the self-test of the
radio has been completed satisfactorily. LED glows green at the same time. If self-test
fails and/or the selected channel is not programmed, you will hear another alert tone.
Rotate “Power/Volume” knob counterclockwise until a click is heard to turn the radio off.
Adjust the Volume
Rotate “Power/Volume” knob to adjust the volume.
Password (Only for radio with a numeric keyboard.)
This radio offers password protection feature. “Password” will appear on LCD after
power on if password is set in your radio. The radio enters conventional mode after
entering 1-8 digit password.
Keypad Lock/Unlock (Only for radio with a numeric keyboard.)
Hold down key and then press “*” key in 2 seconds to lock the keypad. When the
keypad is locked, holding down key and then pressing “*” key in 2 seconds can
unlock the keypad. LCD displays “ ” icon when keypad is locked.
Select Channel
This radio provides 128 conventional channels (8 zones, 16 channels in each zone).
Some of the channels may be not programmed and can’t be used. Please contact your
dealer for more details.
Rotate “Channel Selector” knob to select wanted channel.
1. Select an appropriate zone. (Refer to “select zone” in Chinese/English Menu).
2. Rotate “Channel Selector” knob until your wanted channel is selected.
Transmit
1. Turn on the radio.
2. Rotate “Channel Selector” knob to select wanted channel.
3. Press PTT and speak into the microphone with your mouth 2.5-5 centimeters away
from the radio. LED glows red during transmission.
4. Release PTT key to finish speaking.
Receive
1. Turn on the radio.
2. Rotate “Channel Selector” knob to select wanted channel.
3. Adjust the volume.
13
1. Then you can receive a valid call. LED glows green during receiving.
2. 1) If CTCSS/CDCSS and squelch tail elimination feature are enabled by your dealer,
noise will be removed by the end of a conversation.
2) Beep tone sounds by the end of a conversation if roger tone is enabled by your
dealer;
Please contact your dealer for more details.
Monitor
1. Press MONI key to monitor the current channel.
2. Press MONI key again to exit.
3. Your dealer can set three monitor modes: Selective call monitor, CTCSS monitor
and Carrier monitor.
Selective call monitor: To prohibit selective call squelch;
CTCSS monitor: To prohibit all signaling squelch and open the speaker when carrier is
detected.
Carrier monitor: To prohibit all squelch and open the speaker.
Repeater/Talk Around
When the repeater doesn’t work or you are out of the communication range of the
repeater and within the communication range of your group member, you can bypass
the repeater and talk directly to your group member.
Press programmed “Repeater/Talk Around” key to select between repeater and talk
around mode. An alert tone indicates that the radio operates in talk around mode. A
different alert tone indicates that you are talking via a repeater.
Repeater/Reverse Frequency
When you are out of the communication range of the repeater and within the
communication range of your group member, you can talk with your group member by
reverse frequency if your group member is within the communication range of the
repeater.
Press programmed “Repeater/Reverse Frequency” key to select between repeater and
reverse frequency. An alert tone indicates that the radio operates in reverse frequency
mode. A different alert tone indicates that you are talking via a repeater.
Note: “Repeater/Talk Around” and “Repeater/Reverse Frequency” can’t be set
simultaneously in one radio.
Power Level
Each channel of the radio is set as different power levels that are user selectable. (High
power is forbidden in certain channels).
1. High power allows your talk to be heard from further distance.
2. Low power helps to save battery power.
Press programmed “power select” key to select high/low power. An alert tone indicates
that the radio operates at high power and another alert tone indicates low power.
Scan
Scan feature allows you to monitor all channels for activity.
When scan feature is enabled, the radio will detect all channels. If an active channel is
detected, the radio will remain on that channel and you will be able to hear the
conversation. (The dealer can program a channel as scan item or non-scan-item).
14
Disable/Enable Scan Feature
1. Press scan key, scanning begins.
2. Press scan key again, scanning ends.
LED flashes green in scan mode.
Callback
Pressing PTT during scanning can callback on the callback channel. Please contact
your dealer for more details.
Nuisance Delete
Nuisance delete feature allows you to temporarily delete an unwanted channel from the
scan list.
When the radio stops on the nuisance channel, press the programmed “nuisance delete”
key until an alert tone sounds to delete this channel.
When scan feature is enabled again, the deleted channel will return to the scan list.
Note: Priority channel can’t be deleted.
Priority Channel Scan
This feature allows you to scan important channels frequently. The dealer can program a
channel as priority channel through the programming software. Please contact your
dealer for more details.
Channel Scan: Ch1ÆCh2ÆCh3ÆCh4ÆCh5…Ch1
Priority Channel Scan（Ch2 is priority channel）：
Ch2ÆCh1ÆCh2ÆCh3ÆCh2ÆCh4ÆCh2Æ…Ch1
Note: The radio will constantly monitor the priority channel when it stops on a
non-priority channel. If an activity is detected on the priority channel, the radio will move
to and remain on the priority channel.
Call
Press the programmed call key, the radio will sound a series of rings to call and wake
the radio that has the same channel and signaling to draw the user’s attention.
Selective Call
The radio can call selected radios if selective call feature is set. It includes selective call
and group call. Selective call is used to call a selected radio and group call will call a
group of radios.
Transmit
1. Hold down PTT key and then press the programmable key [B], the radio will transmit
a series of programmed selective call signaling code. (The user can edit selective call
list through the menu. Please refer to Chinese/English menu.)
2. Hold down PTT and then press the programmable key [C], the radio will transmit a
series of programmed group call signaling code.
3. When transmission ends, the radio enters call waiting mode. When the called radio
receives the signaling, it will send a confirmation tone to your radio.
4. Then press PTT to talk.
5. When the call waiting reset time elapses, MONI key is pressed or channel selector
knob is rotated, the radio will exit the call waiting mode.
Receive
1. When your radio receives a selective call signaling code or group call signaling code
15
that is the same as your preset one, it will send a confirmation tone to the caller.
2. After transmitting the confirmation tone, the radio enters call waiting mode.
3. Then pressing PTT can talk.
4. When the call waiting reset time elapses, MONI key is pressed or channel selector
knob is rotated, the radio will exit the call waiting mode.
Note: LED flashes orange in call waiting mode.
Emergency Siren
The radio can be programmed to sound emergency siren. When the emergency siren is
enabled, the radio will transmit emergency ANI and then sound continuously at highest
volume. (Emergency ANI can be disabled by your dealer. Once disabled, the Emergency
ANI will not be transmitted).
1. Press Emergency Siren key to activate Emergency Siren feature.
2. Press Disable Emergency Siren key to disable Emergency Siren feature.
3. Press Emergency Siren key again to activate Emergency Siren feature.
VOX Feature
Plug an earphone with VOX feature into the radio to enable VOX feature.
1. VOX feature enables you to transmit automatically by speaking into the microphone.
2. Transmission stops automatically when you stop speaking.
3. Press PTT to disable VOX feature.
4. Turn the radio on again, VOX feature will be activated.
Built-in Modem
The built-in 1200/2400bit/s MSK modulator offers data transmission function. Please
contact your dealer for more details.
Low Battery Alert
When the battery voltage becomes low, the red LED will flash and beeps sound. You
need to recharge or replace the battery.
16
Chinese/English Menu
Call List
1. Press key in standby mode to enter the main menu and go to the “call list”
Menu
Call List
Edit Call Alias
Select Zone
Utilities
Tone Level
Talk Around/
Reverse Frequency
VOX Level
Language
Channel Display
Squelch Level
Power Level
Backlight
Chinese/English
Channel Number
/Alias/Frequency
Off 1, 2, 3
Level1-Level8
Zone 1-Zone 8
17
item. Press [C] key to exit the menu mode.
2. Press key to enter call list and then press /key to select
upwards/downwards. Press key to save the change and exit the menu. Press
[C] key to return to the upper menu without saving the change.
Edit Call Alias
1. Press in standby mode to enter the main menu and then press key to
enter “edit call alias” item.
2. Press key to enter selective call list and then press / key to select a call
alias. Press key again to edit the selective call alias. Input characters through
the numeric keyboard and press / key to move. Press key to save the
change and return to the selective call list. Press [C] key to return to the selective
call list without saving the change. Press key to continue the above operation
and [C] to return to the main menu.
Note: Only English character can be entered when editing call alias. To enter Chinese
character, you can program via the programming software.
Select Zone
1. Press key to enter “select zone” item.
Call List
Simon
Edit Call Alias
Call1
Select Zone
18
2. Press key to enter the zone list (1-8) and press / key to select a zone.
Press key to save the selected zone and return to the main menu. Press [C]
key to return to the main menu without saving the change.
Utilities
Squelch Level
1. Press key to enter “Utilities” menu.
2. Press key to enter the utilities menu. Press / key to select the item and
key to enter the item. After entering the item, LCD displays the current squelch
level (Off, level 1-3). Press / key to change the squelch level.
3. Press key to save the change and return to the utilities menu. Press [C] key to
return to the utilities menu without saving the change.
VOX Level
1. Enter the “Utilities” menu.
2. Press key to go to VOX item. Press key to enter the item. LCD displays
current VOX level.
Zone 6
Utilities
Squelch Level
2
Utilities
VOX Level
1
19
3. Press / key to change the VOX level (off, level 1-3). VOX feature is disabled
when OFF. Press key to save the change and return to the utilities menu. Press [C]
key to quit without saving the change.
Power Level
1. Enter the “Utilities” menu.
2. Press key to go to “power level” item. Press key to enter the item. LCD
displays power level option.
3. Press / key to toggle the power level (High/Low). Press key to save the
change and return to the utilities menu. Press [C] key to quit without saving the change.
Backlight
1. Enter the “Utilities” menu.
2. Press key to go to “backlight” item. Press key to enter the item. LCD
displays backlight option.
3. Press / key to turn the backlight on/off. Press key to save the change and
2
Utilities
Power Level
Power High
Power Low
Utilities
Backlight
Off
20
return to the utilities menu. Press [C] key to quit without saving the change.
Tone Level
1. Press key to go to “tone level” item.
2. Press key to enter “tone level” (level 1-8) item. LCD displays current tone level.
Press / key to change the tone level. You will hear a 1000Hz confirmation tone at
the same time. Press key to save the change and return to the utilities menu.
Press [C] key to quit without saving the change.
Talk Around/Reverse Frequency
1. Press key to go to “talk around/reverse frequency” item.
2. Press key to enter this item. LCD displays the current transmit mode. Press
/key to change the transmit mode. Press key to save the change and return
to the utilities menu. Press [C] key to return without saving the change.
Language
1. Press key to go to “language” item. Press to enter “language” item and LCD
displays the current language. Press / key to toggle the language interface.
On
Tone Level
6
TalkAround/Reverse
Reverse
Talkaround
21
2. Press key to save the change and return to the utilities menu. Press [C] to
return without saving the change.
Channel Display
1. Press key to go to “channel display” item.
2. Press key to enter channel display item. LCD displays the current channel
display mode. Press /key to toggle the display mode. Press key to save
the change and return to the utilities menu. Press [C] to return without saving the
change. Channel display mode can be switched among channel number, channel
alias and receiving frequency.
Note:
1. Press /key in the main menu to toggle the setting item in the above order.
2. In the menu mode, the radio will return to the standby mode automatically without
saving the setting if the display is kept for over 20 seconds or the channel selector
knob is turned.
3. Chinese/English interface.
4. Support English input.
Language
Chinese
English
Channel Display
Alias
22
Appendix 1 LCD Display
Description
Signal Strength Indicato
r
Keypad Lock Battery Power Indicator Carrier Indicator Speaker on
High/Low Power Transmitting Monitoring Scanning Call Waiting
Appendix 2 Character Input
Appendix 3 Alert Tone
High pitched tone Low pitched tone
Operation Description Audible Tone
Turn on the radio Power on-Ready
Turn on the radio Power on-Failure
Repeater/Talk Around Repeater
Repeater/Talk Around Talk Around
Repeater/Reverse
Frequency
Repeater
Repeater/Reverse
Frequency
Reverse Frequency
Select Power High Power
Select Power Low Power
z Low Battery Alert Tone
Number of times key is pressed
Key 1 2 3 4 5 6 7 8 9
0 0 + - * / ( ) < >
1 Space 1 , . ’ ”
： ！ ？
2 A B C 2 a b c
3 D E F 3 d e f
4 G H I 4 g h I
5 J K L 5 j k l
6 M N O 6 m n o
7 P Q R S 7 p q r s
8 T U V 8 t u v
9 W X Y Z 9 w x y z
* * & %
# # @ $
～
23
Idle Channel Tone
PLL Unlock Tone
Troubleshooting Guide
Care and Cleaning
Do not carry your radio by the antenna or remote microphone;
Wipe the battery with a lint-free cloth to remove dirt, grease, or other material that
may prevent good electrical connection;
When not in use, keep the accessory jacks covered with the protective caps;
Clean the shell, controls and keys of your radio with neutral detergent and warm
water after a long period of usage. Avoid using strong chemicals.
Optional Accessories
Earholder style ear microphone158Z-G
Earbud style ear microphone 158Z-S
Headset 158Z-H
Vertical Leather Case PT-20
Horizontal Leather case PT-23
Handhold Microphone SM-05/SM-06Z
Antenna UHF/VHF
HYT endeavor to achieve the accuracy and completeness of this manual, but cannot
Trouble Solution
No power
z Battery may be used up. Please recharge or
replace the battery.
z Battery may not be attached properly. Remove
the battery and attach again.
Power doesn’t last long even if fully
charged.
z Battery life cycle is over. Please replace it with a
new one.
Can’t talk to or hear other users in
your group.
z Make sure you are using the same frequency
and CTCSS tone as other users in your group.
z Other users may be too far away. Make sure
you are within the communication range.
Voice of other users (non-group
user) appears on the channel. z Please change your CTCSS tone. Be sure to
change the tone on all the other radios in your
group.
24
guarantee its accuracy at all times. All the above specifications and design are subject to
change without notice.
All the reproduction and translation of this manual without authorization of HYT is not
allowed.
