HYT Science and Technology Co TC3600U0 FM Handheld Transceiver User Manual
Shenzhen HYT Science &Technology; Co Ltd FM Handheld Transceiver Users Manual
Users Manual
1
THANK YOU!
We are grateful for your purchase of HYT product. We believe this easy–to-use
radio will provide you with dependable and reliable communications. This HYT
portable two-way radio is a precision device. Treat it with care, and you will enjoy
years of reliable operation.
MODELS COVERED IN THIS MANUAL
TC3600 VHF Radio
TC3600 UHF Radio
2
Contents
User Safety, Training, and General Information
Compliance with RF Energy Exposure Standards
Important Note: FCC Information
FCC Compliance
Precautions
Product Inspection
Battery Information
Accessory Installation
Battery
Antenna
Belt Clip
Earplug Cover
External Earphone/Microphone (optional)
Getting Started
Features and Operation
Turn on/off the radio
Adjust the Volume
Power-on Password (only for keypad mode)
Keypad Lock/Unlock (only for keypad mode)
Select Channel
Transmit
Receive
Monitor
Repeater/Talk Around
Repeater/ Reverse Frequency
Power Level
Scan
Call
Emergency ANI/Emergency Alert
Record
VOX Feature
Low Battery Alert
2-Tone/HDC1200 Selective Signalling
Troubleshooting Guide
Care and Cleaning
Optional Accessories
Frequency Chart
3
User Safety, Training, and General Information
READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION
BEFORE USING YOUR HYT PORTABLE TWO-WAY RADIO.
Compliance with RF Energy Exposure Standards
Your HYT two-way radio is designed and tested to comply with a number of national and
international standards and guidelines (listed below) regarding human exposure to radio
frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP
exposure limits for occupational/controlled RF exposure environment at duty cycles of
up to 50% talk-50% listen and should be used for occupational use only. In terms of
measuring RF energy for compliance with the FCC exposure guidelines, your radio
radiates measurable RF energy only while it is transmitting (during talking), not when it
is receiving (listening) or in standby mode.
Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty cycle
(5% talk-5% listen-90% standby), even though this radio complies with the FCC
occupational RF exposure limits at duty cycles of up to 50% talk.
Your HYT two-way radio complies with the following of RF energy exposure
standards and guidelines:
z United States Federal Communications Commission, Code of Federal Regulations;
47CFR part 2 sub-part J
z American National Standards Institute (ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95. 1-1992
z Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition
z International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
z Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio
Frequency Electromagnetic Fields in the Frequency Range from 3KHz to 300GHz, 1999
z Australian Communications Authority Radio communications (Electromagnetic
Radiation-Human Exposure) Standard 1999 (applicable to wireless phones only)
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled
4
environment RF energy exposure limits in the above standards and guidelines, users
should transmit no more than 50% of the time and always adhere to the following
procedures:
Transmit and Receive
To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT
button.
Hand-held radio operation
Hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm)
away from the lips.
Body-worn operation
z Body-worn operations are restricted to belt-clips, holsters or similar accessories
that have no metallic component in the assembly and that provide at least 1.5 cm
separation between the device, including its antenna, and the user's body.
z Always place the radio in a HYT approved clip, holder, holster, case, or body
harness for this product. Use of non- HYT -approved accessories may exceed FCC
RF exposure guidelines.
z If you do not use a HYT approved body-worn accessory and are not using the radio
in the intended use position in front of the face, then ensure the antenna and the
radio are kept four inch (6 cm) from the body when transmitting.
Antennas & Batteries
z Use only HYT approved, supplied antenna or HYT approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage the radio and
may violate FCC regulations.
z Use only HYT approved, supplied batteries or HYT approved replacement batteries.
Use of non- HYT -approved batteries may exceed FCC RF exposure guidelines.
Approved Accessories
For a list of HYT approved accessories, see the accessories page of this user manual or
visit the following website which lists approved accessories: http://www.hyt.com.cn.
5

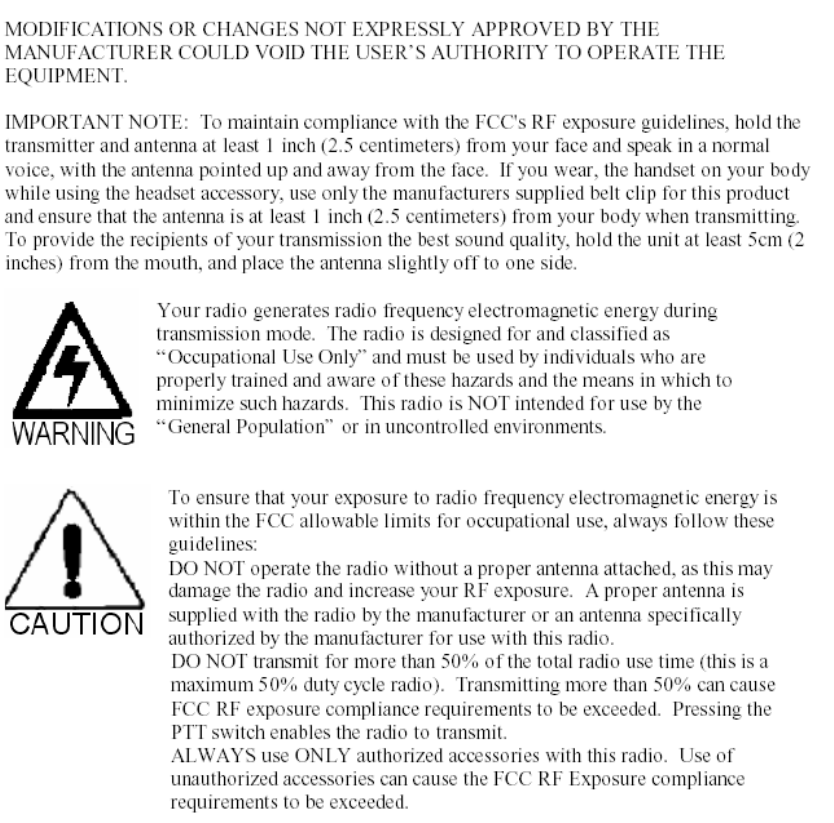

Important note: FCC Information
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
6
user is encouraged to try to correct the interference by one or more of the following
measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
FCC Requirements
Your radio must be properly licensed by the Federal Communications Commission prior
to use. Your HYT Wireless dealer can assist you in meeting these requirements. Your
dealer will program each radio with your authorized frequencies, signaling codes, etc.,
and will be there to meet your communications needs as your system expands.
7
Precautions
z Only qualified technicians are allowed to maintain this product.
z Do not use the radio or charge a battery in explosive areas such as coal gas, dust,
steam, etc.
z Switch OFF the radio while refueling or parking at gas station.
z Do not modify or adjust this radio for any reason.
z Do not expose the radio to direct sunlight over a long time nor place it close to
heating source.
z Do not place the radio in excessively dusty, humid areas, or on unstable surfaces.
z Stubby antenna especially suits communication in close quarters；While long and
fine antenna provides better communication quality and avoids any
uncomfortableness when wearing the radio on waist.
z The communication range will be impacted in rainy or cloudy days or when you are
in forest.
Safety: It is important that the operator is aware of and understands hazards common
to the operation of any radio.
8
Supplied Accessories
Please carefully take the transceiver out of the box. We recommend that you confirm the
items listed in the following table are enclosed before discarding the box. If any items
are missing or have been damaged during shipment, file a claim with the carrier
immediately.
Available Accessories
Item Qty. (pcs)
Antenna* 1
Belt Clip 1
Strap 1
Battery 1
Desktop Charger 1
AC Adapter 1
Owner’s Manual 1
Declaration of Conformity* 1
*Notes:
① Frequency is marked on the color circle of the antenna. Red circle indicates UHF
and green indicates VHF. If frequency is not marked on the color circle, please
refer to the label on the main unit for details.
② Only for European market.
9
Battery Information (Take a keypad type model for example)
Initial use of the battery
The battery is not fully charged at the factory. Please charge the new battery before
initial use. In general, the battery should be charged for 12 hours before initial use,
which is suitable for Ni-Cd, Ni-MH or Li-ion battery charged with slow or rapid charger. It
is recommended to take this step during the first three times of use. When the battery
power is low, it needs to be charged.
Applicable Battery Packs
Charge only the HYT approved battery packs. Other batteries may burst and cause
personal injury.
Safety attention
1. Conductive metals including jewelry, key, etc, may result in short circuit, discharge,
generation of a large quantity of heat, or leakage when coming into contact with
battery contacts or electrodes. To avoid damage to articles or human injury, treat any
battery with care.
2. Do not short out the battery terminals or dispose of the battery in fire. Never attempt
to disassemble the battery. If discarded, the battery should be thrown into dedicated
battery recycle box.
Normal operation
★ Please charge the battery indoor to ensure the optimal charging effect.
★ In general, the battery can be removed if the charger indicator turns from red to
green.
★ Turn off the radio when charging the battery inside the radio.
★ Do not charge the battery if its power hasn’t been used up (if the power used up, the
radio will give alert tone), otherwise, the battery life will be shortened.
★ Do not return fully charged batteries to the charger for an “extra boost”. This action
will significantly reduce cycle life.
To prolong battery life
★ Battery performance will be greatly decreased under -20℃ temperature. Please use
back-up battery in cold weather. The cold battery unable to work in this situation may
work under room temperature, so keep it for later use.
★ The dust on the battery contact may affect the life cycle of the battery. Please use
clean dry cloth to wipe it before the insertion of the battery into the radio.
10
Battery storage notice
1. Due to the self-discharge, the battery which will not be used for a long time should
be stored after full charge to avoid the damage to the battery because of
over-discharge.
2. Take out the battery stored for about 6 months to charge it, to avoid the influence of
electrolyte over-discharge on battery capacity.
3. Notice the ambient humidity and temperature for the battery storage. Please store it
in cool dry area with room temperature, to decrease self-discharge.
Battery charging
When radio LED flashes red and three Beeps sound every 30 seconds after the battery
is installed, that means battery power is low. Please charge the battery.
You are recommended to use HYT-approved, supplied charger; Charger LED will
indicate the charging status.
1. Plug the power cable into the adapter.
2. Plug the DC socket of adapter into the DC jack on the rear of the charger.

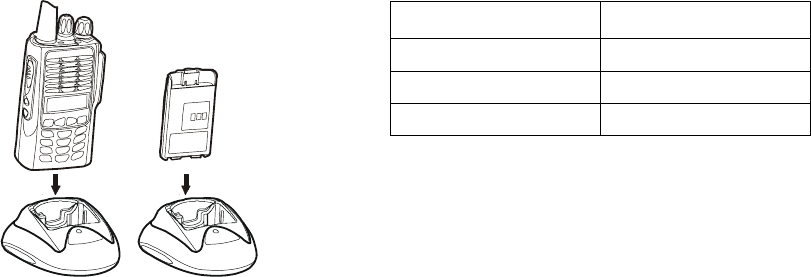

3. Insert the battery or the radio with battery into the charger cup.
4. Plug the AC socket of adapter into an AC outlet.
5. Make sure that the battery connectors are in contact with the charging terminals; the
charger LED glows red and charging begins.
6. The charger LED glows green when the battery is fully charged in about 3 hours,
please remove the battery or the radio with battery from the charger.
*Notes: Charger LED may flash red if you put the battery into the charger, which is a
normal pre-charge process for the charger to protect the battery when the battery power
is low. It will turn to normal charge status (glow red) after 30 seconds.
LED Indication
Flashing red Low battery voltage
Red Charging
Green Fully charged
11
Accessory Installation (Take a keypad type model for example)
Battery
Attaching the battery:

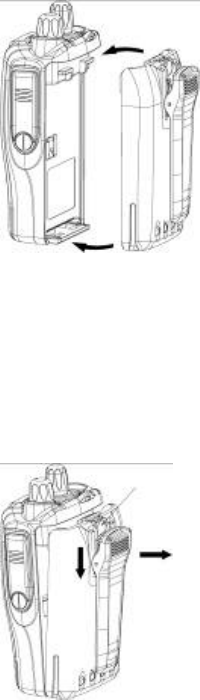

Insert the two tabs on bottom of the battery into the slots at the bottom of the radio. Push
the top of the battery towards the radio until a click is heard. (See figure 1)
Fig. 1
Removing the battery:
Turn off the radio. Push the battery latch on the middle of the radio to remove the upper
side of the battery away from the radio and then remove the battery. (See figure 2)
Fig. 2
Antenna

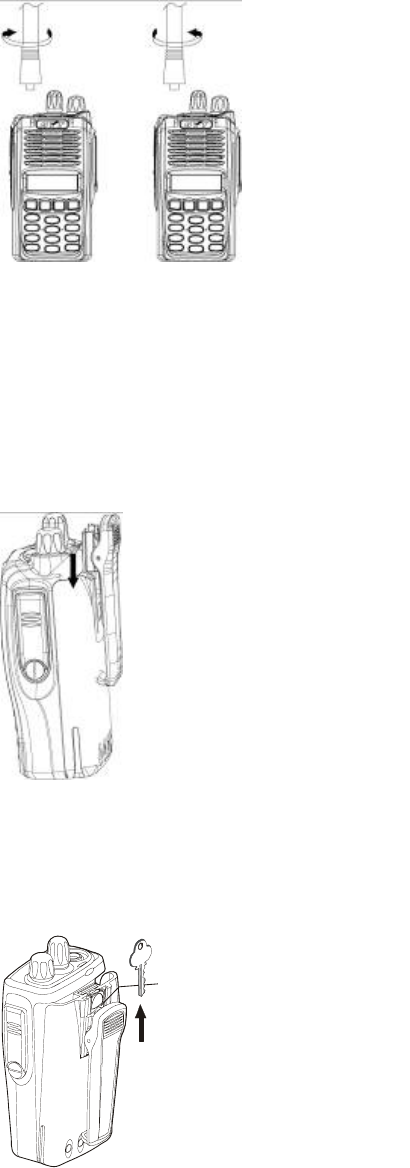

Insert the threaded end of the antenna into the connector on top of the radio. Rotate the
antenna clockwise to fasten it.
Rotate the antenna counterclockwise to remove it. (See figure 3)
Battery Latch
12
Fig. 3

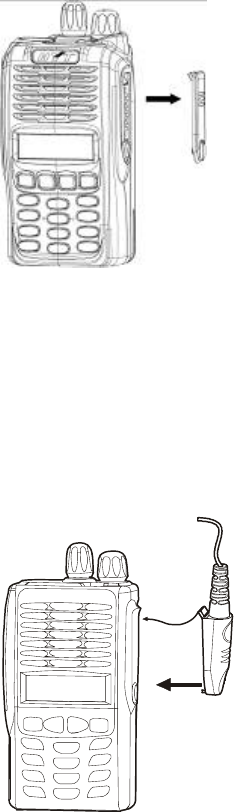

Belt Clip
Attaching Belt Clip:
Align the slot of the belt clip with the T-slot at the battery cover and press the belt clip
downwards until it is locked. (See figure 4)
Fig. 4
Removing the belt clip:
Press the disassembly release upwards with a key until it releases and then push the
belt clip upwards with your thumb to remove it. (See figure 5)
Fig.5
Earphone/Microphone Jack Cover
To remove the Earphone/Microphone jack cover, rotate the screw at the bottom of the
cover counterclockwise with a screwdriver until it is free. (See figure 6)
Disassembly Release
Attach Remove
13
Fig. 6
External Earphone/Microphone (Optional)
Insert the tab at the bottom of the earphone/microphone into the slot on the radio. (See
figure 7). Align the thumbscrew at top of the earphone/microphone with the hole on the
radio and turn it clockwise to fasten.
Fig. 7
14
Getting Started
(Keypad type model) (Non-keypad type model)

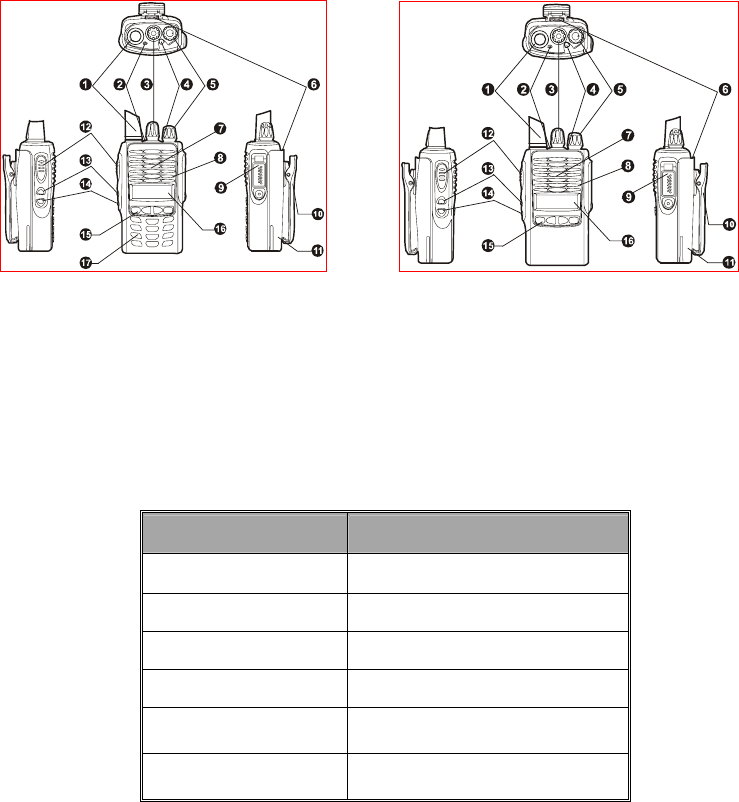

(1) Antenna
Used to transmit/receive signals.
(2) LED
The following table indicates LED mode and corresponding radio status:
LED Status
Not lit Standby
Green Receive
Red Transmit
Flashing green Scan
Flashing red Low battery voltage
Flashing orange Call waiting
(3) Channel Selector
Used to select wanted channel.
(4) Programmable key [A]
(5) Power/Volume Control Knob
Rotate the Power/Volume Knob clockwise until a “click” is heard to turn the radio on;
rotate fully counter-clockwise to turn the radio off. When the radio is on, turn the knob
to adjust volume.
(6) Battery Latch
Used to fasten the battery.
(7) Speaker
Used to output receiver audio and alert tones
(8) Microphone
15
Used to input voice audio
(9) External Jack
Used to connect with external earphone or programming cable.
(10) Belt Clip
Used to clip the radio on your belt
(11) Battery Pack
(12) PTT Button
Press and hold the PTT Button to transmit. Release the PTT Button to receive.
(13) Programmable Key [B]
(14) Programmable Key [C]
The following table shows the key function when:
• Short pressed
• Long pressed
Key Function Short Press Long Press
Emergency Alert Enable emergency Alert Disable emergency Alert
Monitor Disable monitor Monitor
Scan Enable/Disable scan Enable/Disable scan
Nuisance Delete Delete nuisance channel in
scan Delete nuisance channel in scan
Select High/Low
Power Select High/Low Power Select High/Low Power
Repeater/Talk
Around
Select Repeater or Talk
Around Mode
Select Repeater or Talk Around
Mode
Repeater/Reverse
Frequency
Select Repeater or Reverse
Frequency Mode
Select Repeater or Reverse
Frequency Mode
Call Transmit a Call Transmit a Call
Selective Call
Transmit selective call or
group call signalling (2-Tone)
or HDC shortcut key
Transmit selective call or group
call signalling (2-Tone) or HDC
shortcut key
Vibration Toggle Vibration On/off Toggle Vibration On/off
Record Enable/Disable Record
Function Enable/Disable Record Function
Play Toggle Record Playing On/off Toggle Record Playing On/off
Delete Delete the Current Message Delete the Current Message
Please contact your dealer for more details about the programmable keys.
16

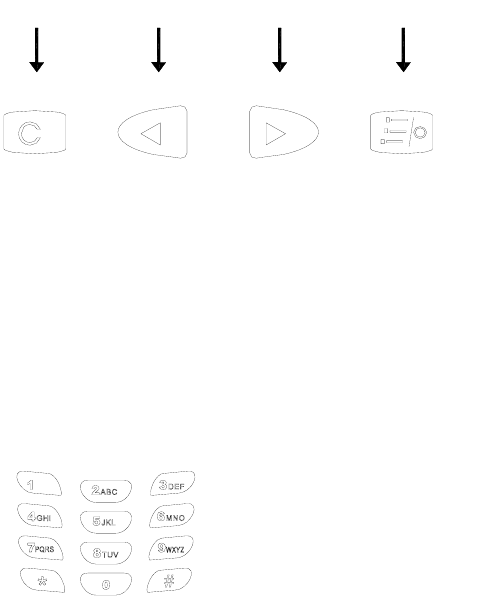

(15) Function Keypad (See figure 8)
Exit: Used to return to the upper menu
Up key
Down key
Menu/Select Key: Used to enter menu mode. In menu mode, this key is used to select
options.
Fig. 8
(16) LCD Display
Used to indicate operation status of the radio.
(17) Numeric Keypad (See figure 9)
Used to input information to the program menu of the radio. (Only for a keypad type
model)
Fig. 9
Exit Up Down Menu/Select Key
17
Features and Operation
Turn On/Off the Radio
To turn the radio on, rotate the “Power/Volume” knob clockwise. An alert tone indicates
that the self-test of the radio completed successfully. The LED glows green during
power-up. If self-test fails and/or the selected channel is not set, you will also hear an
alert tone.
To turn the radio off, rotate the “Power/Volume” knob counterclockwise until a click is
heard.
Adjust the Volume
Rotate the “Power/Volume” knob to adjust the volume.
Power-on Password (Only for a keypad type model)
This radio offers password protection feature. “Password” will appear on LCD after
power on if password is set in the radio. The radio enters conventional mode after
entering 1-8 digit password.
Keypad Lock/Unlock (Only for a keypad type model)
Hold down key and then press “*” key in 2 seconds to lock the keypad. When the
keypad is locked, holding down key and then pressing “*” key in 2 seconds can
unlock the keypad. LCD displays “ ” icon when keypad is locked.
Select Channel
The radio provides 256 conventional channels (16 zones, 16 channels in each zone).
Some of the channels may be not programmed and can’t be used. Please contact your
dealer for more details.
Rotate the “Channel Selector” knob to select the wanted channel.
1. Select an appropriate zone. (Refer to “select zone” in Menu Mode).
2. Rotate “Channel Selector” knob until your wanted channel is selected.
Transmit
1. Turn on the radio.
2. Rotate the “Channel Selector” knob to select the wanted channel.
18
3. Make sure there is no activity on the channel.
4. Press the PTT button and speak into the microphone with your mouth 1- 2 inches
away from the radio. The LED glows red during transmission.
5. Release the PTT button to finish transmission.
Receive
1. Turn on the radio.
2. Rotate the “Channel Selector” knob to select the wanted channel.
3. Adjust the volume.
4. If vibration mode is set and a call is received, the radio will alert you with vibration
and no audio will be heard. The LED glows green during receiving.
5. When CTCSS/CDCSS or squelch tail elimination feature is set by your dealer:
• No squelch tail will be heard at the end of a received transmission when the
courtesy tone is disabled.
• A beep tone sounds at the end of a received transmission when the courtesy tone
is enabled.
Please contact your dealer for more details.
Monitor
1. Press MONI key to monitor the current channel.
2. Press MONI key again to exit.
3. Your dealer can set three monitor modes: Selective call monitor, CTCSS monitor
and Carrier monitor.
Selective call monitor: To prohibit selective call squelch;
CTCSS monitor: To prohibit all signaling squelch and open the speaker when carrier is
detected.
Carrier monitor: To prohibit all squelch and open the speaker.
Repeater/Talk Around
When you are out of the communication range of the repeater and within the
communication range of your group member, you can bypass the repeater and talk
directly to your group member.
Press the programmed “Repeater/Talk Around” key to select between “repeater” and
19
“talk around” mode. An alert tone indicates that radio is in talk around mode (simplex). A
different alert tone indicates that the radio is out of the talk around mode (duplex).
Repeater/Reverse Frequency
When you are out of the communication range of the repeater and within the
communication range of your group member, you can talk with your group member by
reverse frequency when your group member is still within the communication range of
the repeater.
Press programmed “Repeater/Reverse Frequency” key to select between “repeater” and
“reverse frequency”. An alert tone indicates that radio operates in reverse frequency
mode. A different alert tone indicates that the radio is out of the reverse frequency mode.
Note: “Repeater/Talk Around” and “Repeater/Reverse Frequency” cannot be set
simultaneously within one radio.
Power Level
Each channel of the radio can have different power levels that are user selectable.
• High power allows you to transmit greater distances.
• Low power helps to save battery life.
Press the programmed “power select” key to select high/low power. An alert tone
indicates when the power level is toggled.
Scan
Scan feature allows you to monitor all channels for activity.
When scan feature is enabled, the radio will detect all channels. If an active channel is
detected, the radio will remain on that channel while receiving (The dealer can program
a channel as scan item or non-scan-item).
Disable/Enable Scan Feature
1. Press the scan key to begin scanning.
2. Press the scan key again to stop scanning.
The LED flashes green in scan mode.
Callback
The radio will transmit on the callback channel if the PTT button is pressed while
scanning.
20
Please contact your dealer for more details about callback channel.
Nuisance Channel Delete
Nuisance channel delete feature allows you to temporarily delete an unwanted channel
from the scan list.
When the radio stops on the nuisance channel, press the programmed “nuisance delete”
key until an alert tone sounds to delete this channel.
When scan feature is enabled again, the deleted channel will return to the scan list.
Note: Priority channel cannot be deleted.
Priority Channel Scan
This feature allows you to scan important channels. The dealer can program a channel
as priority channel through the programming software.
Note: The radio will constantly monitor the priority channel when it stops on a
non-priority channel. If activity is detected on the priority channel, the radio will revert to
the priority channel and remain there as long as the channel stays active.
Please contact your dealer for more details.
Call
Press the programmed call key and the radio will send a preprogrammed signaling code
to compatible receivers with the same code. The compatible receiver sounds an alert
tone to draw the user’s attention.
Emergency ANI/Emergency Alert
The radio can be programmed to transmit an emergency ANI or emergency alert. ANI
can be DTMF or five-tone (set by your dealer).
If emergency alert is enabled, the radio will sound an audible alert at high volume.
1. Press the Emergency Alert key to enable Emergency Alert feature.
2. Press and hold the Emergency Alert key to disable Emergency Alert feature.
If the radio is programmed to transmit emergency ANI, press emergency key and then:
1. The radio transmits emergency ANI on the preprogrammed emergency channel. The
times of transmission and the interval time between every two transmission can be
set by your dealer.
2. The radio can receive signals during the interval time.
21
3. Emergency ANI will not be sent any more when emergency ANI transmission is
completed or when PTT key/Disable Emergency Key is pressed.
4. The radio will transmit/receive only on the emergency channel (set by your dealer)
after exit from the emergency ANI transmission mode until the radio is turned off and
back on.
5. In emergency mode, the radio can receive signals, and only PTT and Monitor key
are enabled.
6. In emergency mode, if vibration mode is set, the radio will toggle vibration off
automatically and output receiver audio through the speaker.
7. If the current transmit power is set as low, it will switch to high power automatically.
Record
Record and play can be performed when the radio is in receiving mode and no signal
appears.
Record
1. Press Record key or select Record feature in the menu to begin record.
2. When the memory is full and a new message is received, the oldest unprotected
message will be deleted. Unread message will not be deleted.
3. The radio stops recording when the record time elapses or any valid key is pressed
or when signal appears.
4. The radio can be set to delete all messages after power off (set by your dealer).
Play
1. Press Play key, the radio can play all the messages continuously starting from
newest to oldest. In the menu mode, you can select any message to play.
2. There is a one-second interval and an alert tone between two messages.
3. The radio stops playing when any valid key is pressed or signal appears. When all
the messages are played, the radio stops playing.
4. Press Delete key during playing to delete the selected message and continue to play
next one. You can select and delete a message through the menu mode.
The radio will sound an alert every two minutes to remind you of the new message.
Unread icon will be displayed. When all the new messages are played, the Unread icon
22
on LCD disappears.
VOX Feature
Plug an earphone into the radio. In the menu mode, turn the VOX feature on to enable
VOX feature. The VOX feature enables you to transmit automatically by speaking into
the microphone.
1. Transmission starts automatically when you start speaking and stops automatically
when you stop speaking.
2. Press the PTT button to disable the VOX feature.
The VOX feature will be reactivated after switching the power off and then back on.
Low Battery Alert
When the battery voltage becomes low, the red LED will flash and a beep sound is
heard. At this time, the battery should be replaced or recharged.
2-Tone/HDC1200 Selective Call
The radio can call selected radios if selective call feature is enabled. Selective call
signalling includes 2-Tone and HDC signalling.
2-Tone
Press the Selcall key or go to the required 2-Tone signalling in Call List and press the
PTT key to transmit.
The radio enters call waiting mode when transmission ends or at receiving a valid
selective signalling. The LED flashes orange in call waiting mode. The radio will exit
from the call waiting mode when the call waiting reset time elapses, the MONI key is
pressed, or when the channel selector knob is rotated.
Please refer to your dealer for details.
HDC1200
Send a Selective Call
You can send a selective call to another radio or a radio group if your radio supports this
function
To send a selective call
1. Press or shortcut key "SelCall” to enter menu mode (the channel should be
defined with HDC1200).
23
2. Press ◄ or ► to find in the menu and press key to
choose.
3. Press ◄ or ► to select required ID in call list, or enter your required ID with the
keypad (keypad type model only).
4. Press the PTT key to send the call. The radio alerts with customized alert tone and
exits from menu mode to call wait mode.
5. Press the PTT key to transmit and release to receive.
6. The radio resets and exits call wait mode.
Receive a selective call
The radio alerts when receiving a selective call and LED flashes orange.
“Call Received” and preset name (or caller ID) are displayed alternatively on the LCD.
Send an Alert Call
An alert call can be sent to alert others.
To send an alert Call:
1. Press or shortcut key “SelCall” to enter menu mode (the channel should be
defined with HDC1200).
2. Press ◄ or ► to find in the menu and press key to choose.
3. Press ◄ or ► to select required ID in call list, or enter your required ID with the
keypad (keypad type model only).
4. Press the PTT key to send the call and.
5. is displayed on the screen when the Call Alert Page is received;
While is displayed when the Call Alert Page is not received;
6. Press the PTT key to transmit and release to receive.
7. The radio resets and exits call wait mode.
Selective Call
Alert Call
Transmitting
Acknowledge
No Acknowledge
24
Receive an Alert Call
The radio alerts with the customized tone when receiving an alert call. The text “Call
Received” and predefined name/Caller ID are displayed alternatively on the LCD before
you respond.
Press the PTT key to respond and stop the alert tone. Press any key other than the PTT
key to delete the information on LCD after exiting the call wait mode.。
Radio Check
This feature allows you to determine whether a radio is in the range that may cause any
interference to local radio users. Radio check also works when trying to send a selective
call or when call alert fails (need signalling protocol support).
To execute a radio check:
1. Press or shortcut key “SelCall” to enter menu mode (the channel should be
defined with HDC1200).
2. Press ◄ or ► key to find in the menu and press to select.
3. Press ◄ or ► key to select your required ID in call list or enter your required ID
number with numeric keypad (for keypad type model only).
4. Press the PTT key to send and is displayed on the screen.
5. appears when the radio check is received while
appears when radio check is not received
Radio Kill/Revive
Your radio is endowed with a safe-added feature, which allows the radio to be disabled
when a stun signalling is received from a base station.
This feature is applied when:
¾ The radio is stolen,
¾ Your vehicle is under maintenance
¾ System problem
Note: when your radio is disabled by the base station, all the keys are disabled except
power on/off keys. The radio can be revived only by receiving a revive signalling from
base station. Radio status information before stun is displayed when radio is re-powered
on.
Please contact your dealer for more details about the programmable keys
R
ad
i
o
C
h
ec
k
Transmitting
Acknowledge No Acknowledge
25
Menu Mode (Functions are subject to addition without prior notice)
VOX Level
Squelch Level
Power Level
Backlight
Off 1, 2, 3
Off 1, 2, 3
English
Channel Number
/
Alias/Fre
q
uenc
y
Level1-Level8
Zone 1-Zone 8
Menu
Call List
Edit Call Alias
Select Zone
Utilities
Tone Level
Talk Around/
Reverse Frequency
Language
Channel Display
Voice Service
HDC function
Selective Call
Radio Check
Alert Call
Message Option
Record
Delete All Msg
Unread Msg Alert
Play
Delete
Protect
26
Call List
1. Press key in standby mode to enter the main menu and go to the “call list”
item. Press [C] key to exit from the menu mode.
2. Press key to enter call list and then press◄/►key to select
upwards/downwards. Press key to save the change and exit from the menu.
Press [C] key to return to the upper menu without saving the change.
Edit Call Alias
1. Press in standby mode to enter the main menu and then press ►key to enter
“edit call alias” item.
2. Press key to enter selective call list and then press ◄/►key to select a call
alias. Press key again to edit the selective call alias. Input characters through
the numeric keyboard and press ◄/►key to move. Press key to save the
change and return to the selective call list. Press [C] key to return to the selective
call list without saving the change. Press key to continue the above operation
and [C] key to return to the main menu.
Call List
Simon
Edit Call Alias
Call1
27
Select Zone
1. Press ►key to enter “select zone” item.
2. Press key to enter the zone list (1-16) and press ◄/►key to select a zone.
Press key to save the selected zone and return to the main menu. Press [C]
key to return to the main menu without saving the change.
Utilities
Squelch Level
1. Press ►key to enter “Utilities” menu.
2. Press key to enter the utilities menu. Press ◄/►key to select the item and
key to enter the item. After entering the item, LCD displays the current squelch
level (Off, level 1-3). Press ◄/►key to change the squelch level.
3. Press key to save the change and return to the utilities menu. Press [C] key to
return to the utilities menu without saving the change.
VOX Level
Select Zone
Zone 6
Utilities
Squelch Level
2
28
1. Enter the “Utilities” menu.
2. Press ►key to go to VOX item. Press key to enter the item. LCD displays
current VOX level.
3. Press ◄/►key to change the VOX level (off, level 1-3). VOX feature is disabled when
OFF. Press key to save the change and return to the utilities menu. Press [C] key
to quit without saving the change.
Power Level
1. Enter the “Utilities” menu.
2. Press ►key to go to “power level” item. Press key to enter the item. LCD
displays power level option.
3. Press ◄/►key to toggle the power level (High/Low). Press key to save the
change and return to the utilities menu. Press [C] key to quit without saving the change.
Utilities
VOX Level
1
2
Utilities
Power Level
Power High
Power Low
29
Backlight
1. Enter the “Utilities” menu.
2. Press ►key to go to “backlight” item. Press key to enter the item. LCD
displays backlight option.
3. Press ◄/►key to turn the backlight on/off. Press key to save the change and
return to the utilities menu. Press [C] key to quit without saving the change.
Tone Level
1. Press ►key to go to “tone level” item.
2. Press key to enter “tone level” (level 1-8) item. LCD displays current tone level.
Press ◄/►key to change the tone level. You will hear a confirmation tone at the same
time. Press key to save the change and return to the utilities menu. Press [C] key
to quit without saving the change.
Utilities
Backlight
Off
On
Tone Level
6
30
Talk Around/Reverse Frequency
1. Press ►key to go to “talk around/reverse frequency” item.
2. Press key to enter this item. LCD displays the current transmit mode. Press
◄/►key to change the transmit mode. Press key to save the change and return to
the utilities menu. Press [C] key to return without saving the change.
Language
1. Press ►key to go to “language” item. Press to enter “language” item and LCD
displays the current language. Press ◄/►key to toggle the language interface. (Only
English is available)
Channel Display
1. Press ►key to go to “channel display” item.
2. Press key to enter channel display item. LCD displays the current channel
display mode. Press ◄/►key to toggle the display mode. Press key to save
the change and return to the utilities menu. Press [C] key to return without saving
the change. Channel display mode can be switched among channel number,
channel alias and receiving frequency.
TalkAround/Reverse
Language
Reverse
Talkaround
Channel Display
Alias
31
Note:
1. Press ◄/►key in the main menu to toggle the setting item in the above order.
2. In the menu mode, the radio will return to the standby mode automatically without
saving the setting if the display is kept for over 20 seconds or the channel selector
knob is rotated.
Voice Service
Press ►key to go to “Voice Service” item. Press key to enter the item.
Message Option
Press ◄/►key to enter “Message Option”. Press ◄/►key to select an item and press
key to enter the selected item. After entering the item, press ◄/►key to operate as
following.
Play ：Play the selected message.
Delete: Delete the selected message.
Protect: Protect/Unprotect the selected message. “P” is displayed if a message is a
protected message.
Record
Press ◄/►key to enter “Record” item. Press key to begin recording. The radio
stops recording when the record time elapses or key is pressed again.
Voice Service
Message Option
Record
32
Delete All Messages
Press ◄/►key to enter “delete all messages” item. Press key and “Delete All?” will
be displayed. Press key again to delete all messages. Press C key to exit.
Unread Message Alert
Press ◄/►key to enter “Unread message alert” item. Press key and “On”/”Off” will
be displayed. Press ◄/►key to toggle unread message alert on/off. Press key to
save the change. Press C key to exit.
z HDC Function
1. Press► to go to “HDC function” item.
2. Press to enter and LCD displays the detailed function items. Press ◄/► to
toggle between the items and then press to enter the selected item.
Press to enter the call list of selected functions. Press◄/► to go to required
call list. Press【C】 to go back to HDC function menu. Press the PTT key to transmit
the selected call list.
Delete All Msg
Unread Msg Alert
HDC Function
Selective Call Alert Call Radio Check
Call List Alias
or
HDC (1-200)
33

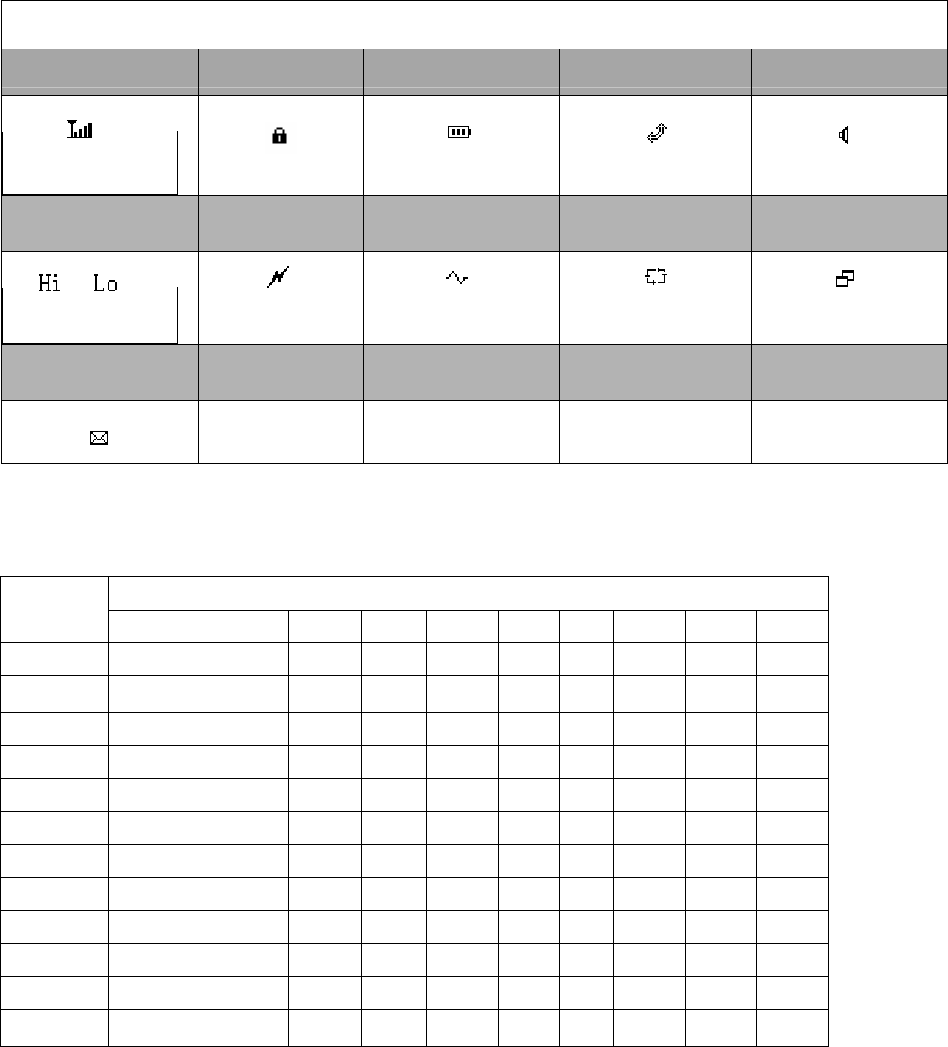

Appendix 1 LCD Display
Description
Signal Strength Indicato
r
Keypad Lock Battery Power Indicator Carrier Indicator Speaker on
High/Low Power Transmitting Monitoring Scanning Call Waiting
Unread Message
Appendix 2 Entering Characters
Number of times key is pressed
Key 1 2 3 4 5 6 7 8 9
0 0 + - * / ( ) < >
1 Space 1 , . ’ ”
： ！ ？
2 A B C 2 a b c
3 D E F 3 d e f
4 G H I 4 g h I
5 J K L 5 j k l
6 M N O 6 m n o
7 P Q R S 7 p q r s
8 T U V 8 t u v
9 W X Y Z 9 w x y z
* * & %
# # @ $
～
34
Appendix 3 Alert Tone
High tone Low tone
Operation Description Audible Tone
Turn on the radio Power on-Ready
Turn on the radio Power on-Failure
Repeater/Talk Around Repeater
Repeater/Talk Around Talk Around
Repeater/Reverse
Frequency
Repeater
Repeater/Reverse
Frequency
Reverse Frequency
Select Power High Power
Select Power Low Power
Low Battery Alert Tone
Idle Channel Tone
PLL Unlock Tone
35
Care and Cleaning
• Avoid physical abuse to your radio such as carrying it by the antenna or by the
speaker microphone.
• Wipe the battery contacts with a lint-free cloth to remove dirt, grease, or other
material that may prevent good electrical contact.
• When not in use, keep the accessory jacks covered with the protective cap.
• The case, controls, and keypad can be cleaned with a mild detergent and warm
water. Avoid using strong chemicals.
36
Optional Accessories

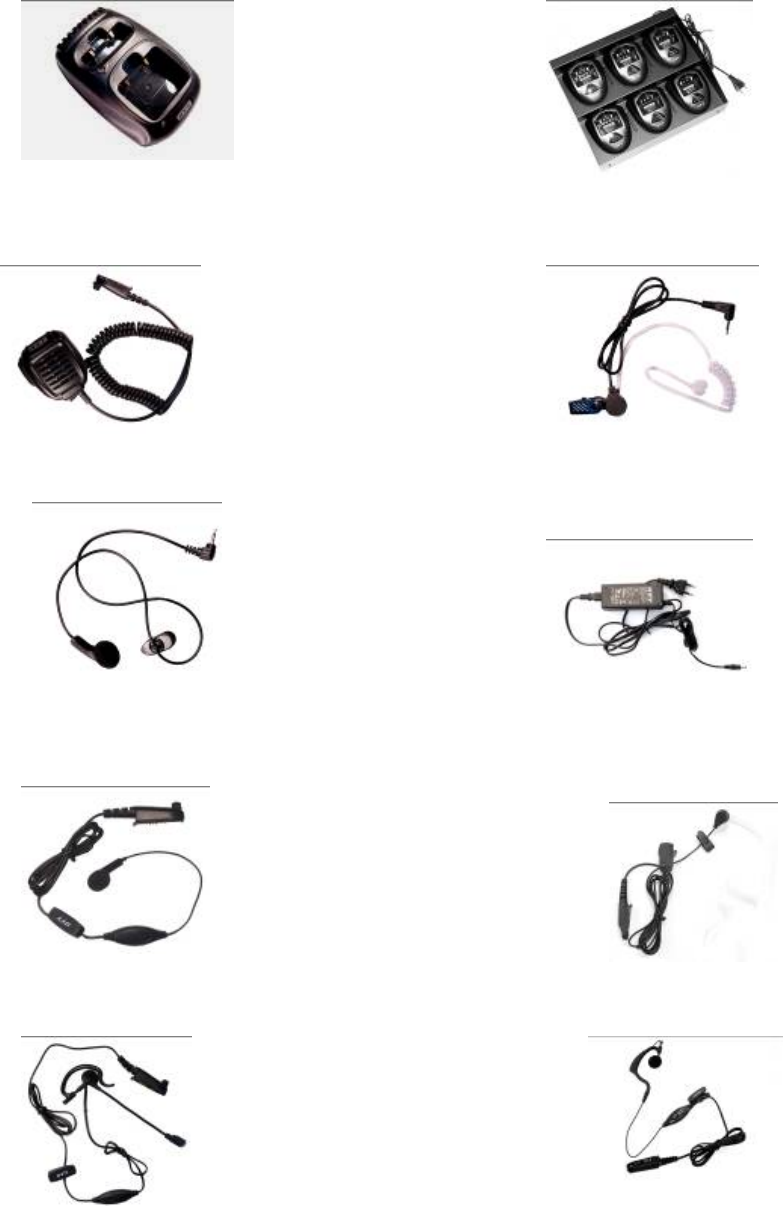

Dual Pocket Rapid Charger CH20L01 Multi-unit Charger MCL01
(for Li-Ion batteries) (for Li-Ion batteries)
Receive-only Earpiece with Transparent
Acoustic Tube (use with Remote
Speaker Microphone SM08) ESS04
Remote Speaker
Microphone SM08N1
Receive-only Earpiece (for use with Remote
Speaker Microphone SM08) ESS01
Switch Power (exclusive to dual
pocket rapid charger) PS2001
Earbud with in-line VOX ESN01 Earbud with Transparent
Acoustic Tube EAN01
Earset with Boom Mic & in-line VOX EHN02 Earset with in-line Mic & VOX EHN01
37

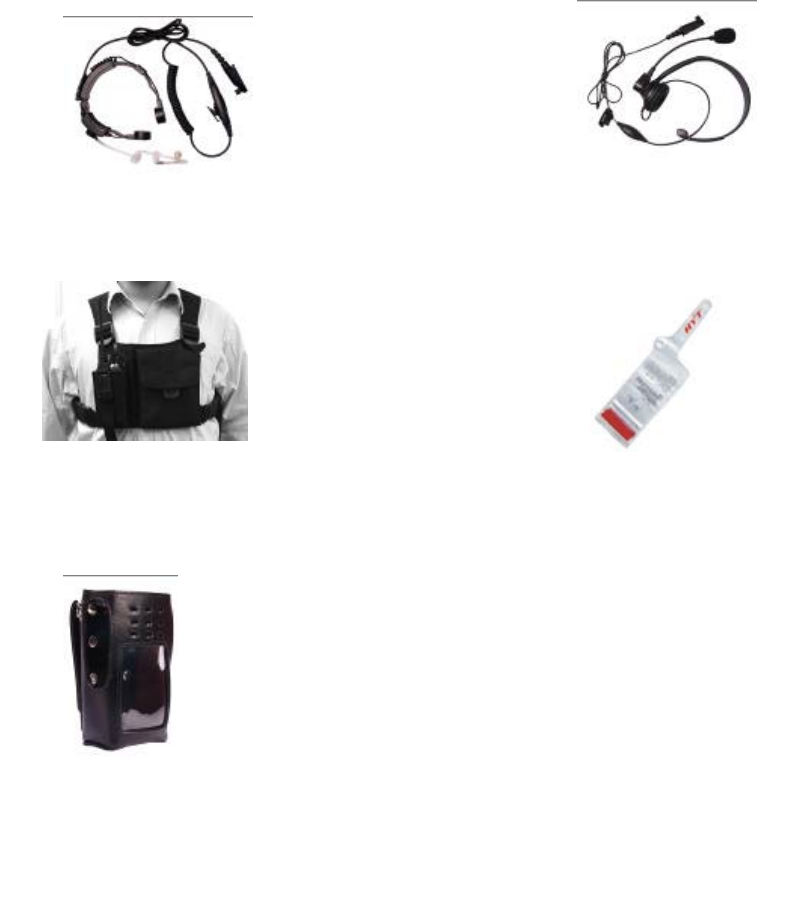

Throat-vibrating Earpiece with
Transparent Acoustic Tube ELN01 Headset ECN02
Leather Carry Case (display & keypad
model) (applicable to TC3600 series)
LCBY08
Chest Pack LCBN03 Transparent Waterproof
Bag LCBY03
38
Frequency Chart
Model:
Serial Number:
Channel Transmit
Frequency
Transmit
CTCSS/DCS
Transmit
2-Tone/5-Tone
Transmit
ANI/DTMF
Receive
Frequency
Receive
CTCSS/DCS
Receive
2-Tone/5-Tone
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
HYT endeavors to achieve the accuracy and completeness of this manual, but is not liable for
any possible omission and printing mistakes.
All the above specifications and design are subject to change without prior notice.
All the reproduction and translation of this manual without authorization of HYT is not allowed.
