HYT Science and Technology Co TR-50V PORTABLE REPEATER/TRANSCEIVER User Manual
Shenzhen HYT Science &Technology; Co Ltd PORTABLE REPEATER/TRANSCEIVER
Contents
- 1. Users Manual II
- 2. Users Maual I
- 3. Users Manual III
Users Manual II
![](/img.php?id=674438&img=bg1.png)

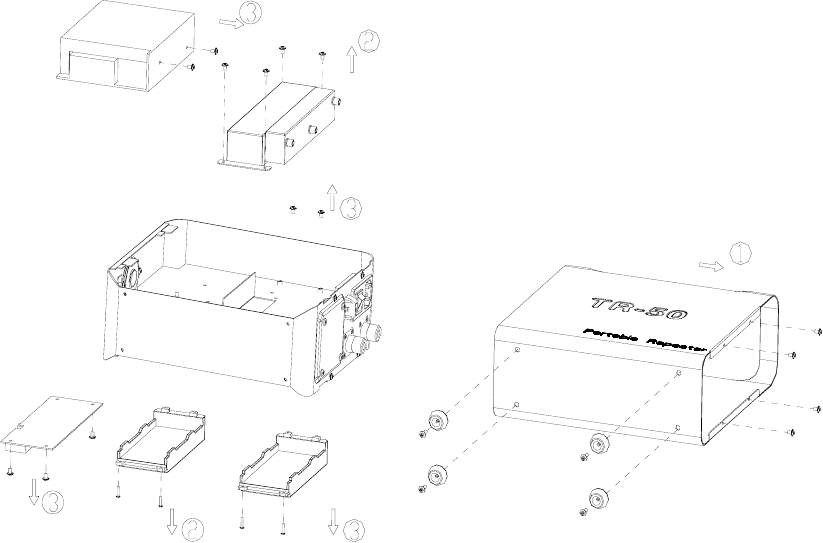

Assembly and Disassembly for repair
Disassemble the main unit
1. Remove with tool the four screws on the rear side of main unit, and the four on the
bottom of the main unit together with the rubber gasket. Pull out the outer cover.
2. Remove the four screws fixing the duplexer and then remove those fixing the
transceiver.
3. Remove the screws fixing transmitter, power supply, and control board.
4. Remove the accessories such as fan and Jack.
![](/img.php?id=674438&img=bg2.png)

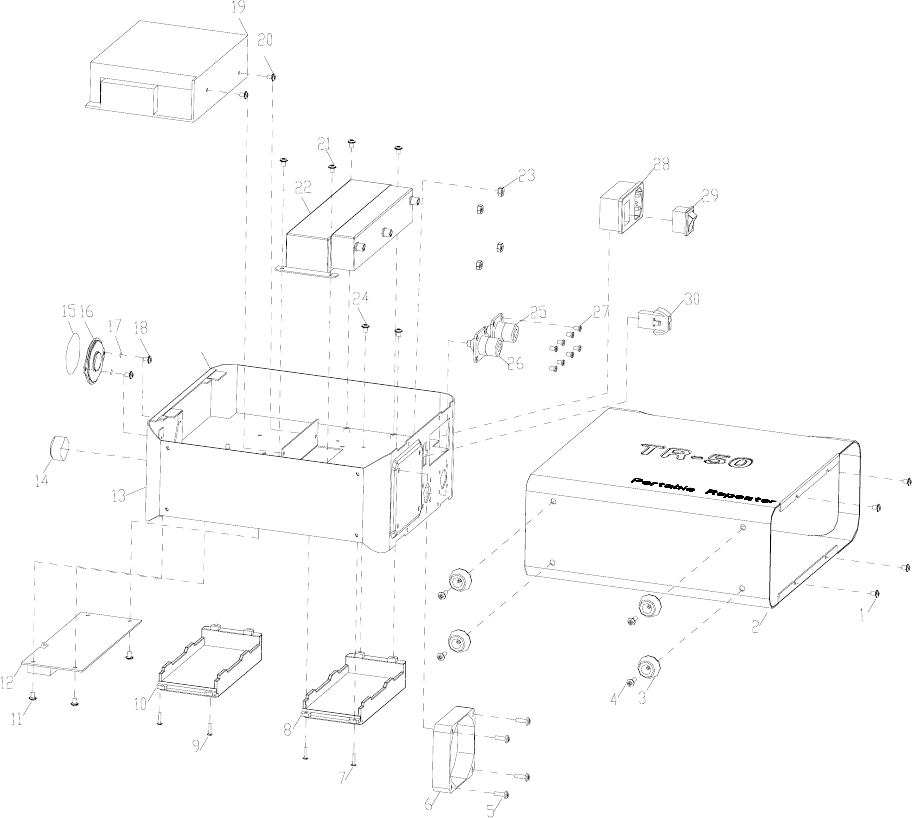

Exploded View
