Users Manual

4 1

Features of your vehicle

How vehicle audio works

AM and FM radio signals are broadcast

from transmitter towers located around

your city. They are intercepted by the

radio antenna on your vehicle. This signal

is then processed by the radio and sent

to your vehicle speakers.

When a strong radio signal has reached

your vehicle, the precise engineering of

your audio system ensures the best pos-

sible quality reproduction. However, in

some cases the signal coming to your

vehicle may not be strong and clear.

This can be due to factors, such as the

distance from the radio station, close-

ness of other strong radio stations or the

presence of buildings, bridges or other

large obstructions in the area.

AM broadcasts can be received at

greater distances than FM broadcasts.

This is because AM radio waves are

transmitted at low frequencies. These

long distance, low frequency radio waves

can follow the curvature of the earth

rather than travelling straight. In addition,

they curve around obstructions resulting

in better signal coverage.

JBM001

FM reception

JBM002

AM reception

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 1

AC110A0GG (Alt. : AC111A0GG, AC110A0GN, AC110A0GE, AC112A0GG)

Features of your vehicle

FM broadcasts are transmitted at high

frequencies and do not bend to follow the

earth's surface. Because of this, FM

broadcasts generally begin to fade within

short distances from the station. Also,

FM signals are easily affected by build-

ings, mountains, and obstructions. This

can lead to undesirable or unpleasant

listening conditions which might lead you

to believe a problem exists with your

radio. The following conditions are nor-

mal and do not indicate radio trouble:

• Fading - As your vehicle moves away

from the radio station, the signal will

weaken and sound will begin to fade.

When this occurs, we suggest that you

select another stronger station.

• Flutter/Static - Weak FM signals or

large obstructions between the trans-

mitter and your radio can disturb the

signal causing static or fluttering nois-

es to occur. Reducing the treble level

may lessen this effect until the distur-

bance clears.

• Station Swapping - As an FM signal

weakens, another more powerful sig-

nal near the same frequency may

begin to play. This is because your

radio is designed to lock onto the clear-

est signal. If this occurs, select another

station with a stronger signal.

• Multi-Path Cancellation - Radio signals

being received from several directions

can cause distortion or fluttering. This

can be caused by a direct and reflect-

ed signal from the same station, or by

signals from two stations with close

frequencies. If this occurs, select

another station until the condition has

passed.

JBM003

FM radio station

JBM004 JBM005

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 2

4 3

Features of your vehicle

Using a cellular phone or a two-way

radio

When a cellular phone is used inside the

vehicle, noise may be produced from the

audio system. This does not mean that

something is wrong with the audio equip-

ment. In such a case, try to operate

mobile devices as far from the audio

equipment as possible.

Caring for disc

• If the temperature inside the car is too

high, open the car windows to ventilate

before using the system.

• It is illegal to copy and use MP3/WMA

files without permission. Use CDs that

are created only by lawful means.

• Do not apply volatile agents, such as

benzene and thinner, normal cleaners

and magnetic sprays made for ana-

logue disc onto CDs.

• To prevent the disc surface from get-

ting damaged, hold CDs by the edges

or the center hole only.

• Clean the disc surface with a piece of

soft cloth before playback (wipe it from

the center to the outside edge).

• Do not damage the disc surface or

attach pieces of sticky tape or paper.

• Make certain only CDs are inserted

into the CD player (Do not insert more

than one CD at a time).

• Keep CDs in their cases after use to

protect them from scratches or dirt.

• Depending on the type of CD-R/CD-

RW CDs, certain CDs may not operate

normally according to the manufactur-

ing companies. In such circumstances,

continued use may cause malfunctions

to your audio system.

✽NOTICE - Playing an

Incompatible Copy

Protected Audio CD

Some copy protected CDs, which do not

comply with international audio CD

standards (Red Book), may not play on

your car audio. Please note that inabili-

ties to properly play a copy protected

CD may indicate that the CD is defec-

tive, not the CD player.

CAUTION

When using a communication sys-

tem such as a cellular phone or a

radio set inside the vehicle, a sepa-

rate external antenna must be fitted.

When a cellular phone or a radio set

is used with an internal antenna

alone, it may interfere with the vehi-

cle's electrical system and adversely

affect safe operation of the vehicle.

WARNING

Do not use a cellular phone while

driving. Stop at a safe location to

use a cellular phone.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 3

Features of your vehicle

NOTE:

Order of playing files (folders) :

1. Song playing order : to sequen-

tially.

2. Folder playing order :

❋If no song file is contained in the fold-

er, that folder is not displayed.

WARNING

• Do not stare at the screen while

driving. Staring at the screen for

prolonged periods of time could

lead to traffic accidents.

• Do not disassemble, assemble, or

modify the audio system. Such

acts could result in accidents,

fire, or electric shock.

• Using the phone while driving may

lead to a lack of attention of traffic

conditions and increase the likeli-

hood of accidents. Use the

phone feature after parking the

vehicle.

• Heed caution not to spill water or

introduce foreign objects into the

device. Such acts could lead to

smoke, fire, or product malfunc-

tion. (Continued)

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 4

4 5

Features of your vehicle

(Continued)

• Turn on the car ignition before

using this device. Do not operate

the audio system for long periods

of time with the ignition turned off

as such operations may lead to

battery discharge.

• Do not subject the device to

severe shock or impact. Direct

pressure onto the front side of

the monitor may cause damage to

the LCD or touch screen.

• When cleaning the device, make

sure to turn off the device and

use a dry and smooth cloth.

Never use tough materials, chem-

ical cloths, or solvents (alcohol,

benzene, thinners, etc.) as such

materials may damage the device

panel or cause color/quality dete-

rioration. (Continued)

CAUTION

• Operating the device while driving

could lead to accidents due to a

lack of attention to external sur-

roundings. First park the vehicle

before operating the device.

• Adjust the volume to levels that

allow the driver to hear sounds

from outside of the vehicle. Driving

in a state where external sounds

cannot be heard may lead to acci-

dents.

• Pay attention to the volume setting

when turning the device on. A sud-

den output of extreme volume

upon turning the device on could

lead to hearing impairment.

(Adjust the volume to a suitable

levels before turning off the

device.) (Continued)

(Continued)

• Please refrain from use if the

screen is blank or no sound can

be heard as these signs may indi-

cate product malfunction.

Continued use in such conditions

could lead to accidents(fires,

electric shock) or product mal-

functions.

• Do not touch the antenna during

thunder or lightening as such

acts may lead to lightning

induced electric shock.

• Do not stop or park in parking-

restricted areas to operate the

product. Such acts could lead to

traffic accidents.

• Use the system with the vehicle

ignition turned on. Prolonged use

with the ignition turned off could

result in battery discharge.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 5

✽NOTICE - Using the USB

device

• To use an external USB device, make

sure the device is not connected when

starting up the vehicle. Connect the

device after starting up.

• If you start the engine when the USB

device is connected, it may damage

the USB device. (USB flashdrives are

very sensitive to electric shock.)

• If the engine is started up or turned off

while the external USB device is con-

nected, the external USB device may

not work.

• The System may not play unauthenti-

cated MP3 or WMA files.

1) It can only play MP3 files with the

compression rate between

8Kbps~320Kbps.

2) It can only play WMA music

files with the compression rate

between 8Kbps~320Kbps.

• Take precautions for static electricity

when connecting or disconnecting the

external USB device.

(Continued)

• An encrypted MP3 PLAYER is not

recognizable.

• Depending on the condition of the

external USB device, the connected

external USB device can be unrecog-

nizable.

• When the formatted byte/sector set-

ting of External USB device is not

either 512BYTE or 2048BYTE, then

the device will not be recognized.

• Use only a USB device formatted to

FAT 12/16/32.

• USB devices without USB I/F authen-

tication may not be recognizable.

• Make sure the USB connection termi-

nal does not come in contact with the

human body or other objects.

• If you repeatedly connect or discon-

nect the USB device in a short period

of time, it may break the device.

• You may hear a strange noise when

connecting or disconnecting a USB

device.

(Continued)

Features of your vehicle

(Continued)

• Do not place beverages close to

the audio system. Spilling bever-

ages may lead to system mal-

function.

• In case of product malfunction,

please contact your place of pur-

chase or After Service center.

• Placing the audio system within

an electromagnetic environment

may result in noise interference.

• Prevent caustic solutions such as

perfume and cosmetic oil from

contacting the dashboard

because they may cause damage

or discoloration.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 6

4 7

Features of your vehicle

(Continued)

• If you disconnect the external USB

device during playback in USB mode,

the external USB device can be dam-

aged or may malfunction. Therefore,

disconnect the external USB device

when the audio is turned off or in

another mode. (e.g, Radio, CD)

• Depending on the type and capacity of

the external USB device or the type of

the files stored in the device, there is a

difference in the time taken for recog-

nition of the device.

• Do not use the USB device for purpos-

es other than playing music files.

• Playing videos through the USB is not

supported.

• Use of USB accessories such as

rechargers or heaters using USB I/F

may lower performance or cause trou-

ble.

(Continued)

• Some USB flash memory readers

(such as CF, SD, micro SD, etc.) or

external-HDD type devices can be

unrecognizable.

• Music files protected by DRM (DIGI-

TAL RIGHTS MANAGEMENT) are

not recognizable.

• The data in the USB memory may be

lost while using this audio. Always

back up important data on a personal

storage device.

• Please avoid using USB

memory products which

can be used as key chains

or cellular phone acces-

sories as they could cause

damage to the USB jack. Please make

certain only to use plug type connec-

tor products.

(Continued)

• If you use devices such as a USB hub

purchased separately, the vehicle’s

audio system may not recognize the

USB device. In that case, connect the

USB device directly to the multimedia

terminal of the vehicle.

• If the USB device is divided by logical

drives, only the music files on the

highest-priority drive are recognized

by car audio.

• Devices such as MP3 Player/ Cellular

phone/Digital camera can be unrecog-

nizable by standard USB I/F can be

unrecognizable.

• Charging through the USB may not

be supported in some mobile devices.

• USB HDD or USB types liable to con-

nection failures due to vehicle vibra-

tions are not supported.

(i-stick type)

• Some non-standard USB devices

(METAL COVER TYPE USB) can be

unrecognizable.

(Continued)

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 7

Features of your vehicle

✽NOTICE - Using the

iPod®device

• Some iPod®models may not support

communication protocol and files may

not properly play.

Supported iPod®models:

- iPhone®3GS/4

- iPod®touch 1st~4th generation

- iPod®nano 1st~6th generation

- iPod®classic

• The order of search or playback of

songs in the iPod®can be different

from the order searched in the audio

system.

• If the iPod®is disabled due to its own

malfunction, reset the iPod®. (Reset:

Refer to iPod®manual)

• An iPod®may not operate normally

on low battery.

(Continued)

• Some iPod®devices, such as the

iPhone®, can be connected through

the Bluetooth®Wireless Technology

interface. The device must have audio

Bluetooth®Wireless Technology capa-

bility (such as for stereo headphone

Bluetooth®Wireless Technology).

The device can play, but it will not be

controlled by the audio system.

• To use iPod®features within the

audio, use the cable provided upon

purchasing an iPod®device.

• Skipping or improper operation may

occur depending on the characteris-

tics of your iPod®/ iPhone®device.

• If your iPhone®is connected to both

the Bluetooth®Wireless Technology

and USB, the sound may not be prop-

erly played. In your iPhone®, select

the Dock connector or Bluetooth®

Wireless Technology to change the

sound output (source).

(Continued)

• When connecting iPod®with the

iPod®Power Cable, insert the connec-

tor to the multimedia socket com-

pletely. If not inserted completely,

communications between iPod®and

audio may be interrupted.

• When adjusting the sound effects of

the iPod®and the audio system, the

sound effects of both devices will over-

lap and might reduce or distort the

quality of the sound.

• Deactivate (turn off) the equalizer

function of an iPod®when adjusting

the audio system’s volume, and turn

off the equalizer of the audio system

when using the equalizer of an iPod®.

• When not using iPod®with car audio,

detach the iPod®cable from iPod®.

Otherwise, iPod®may remain in

accessory mode, and may not work

properly.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 8

Features of your vehicle

✽NOTICE -

Bluetooth®

wireless technology

The Bluetooth®word mark and logos

are registered trademarks owned by

Bluetooth SIG, lnc. and any use of such

marks is under license.

A Bluetooth®enabled call phone is

required to use Bluetooth®wireless

technology.

✽NOTICE - Before using

the

Bluetooth®

handsfree

What is Bluetooth

•Bluetooth®refers to a short-distance

wireless networking technology which

uses a 2.4GHz ~ 2.48GHz frequency to

connect various devices within a

certain distance.

• Supported within PCs, external

devices, Bluetooth®phones, PDAs,

various electronic devices, and auto-

motive environments, Bluetooth®

allows data to be transmitted at high

speeds without having to use a con-

nector cable.

•Bluetooth®Handsfree refers to a

device which allows the user to conve-

niently make phone calls with

Bluetooth®mobile phones through the

audio system.

✽NOTICE - Precautions for

safe driving

•Bluetooth®Handsfree is a feature that

enables drivers to practice safe driv-

ing. Connecting the head unit with a

Bluetooth®phone allows the user to

conveniently make and receive calls

and use contacts. Before using

Bluetooth®, carefully read the contents

of this user’s manual.

• Excessive use or operations while

driving may lead to negligent driving

practices and result in accidents.

Refrain from excessive operations

while driving.

• Viewing the screen for prolonged peri-

ods of time is dangerous and may lead

to accidents. When driving, view the

screen only for short periods of time.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 9

Features of your vehicle

104

✽NOTICE -When connecting

Bluetooth®

phone

• Before connecting the head unit with

the mobile phone, check to see that the

mobile phone supports Bluetooth®

features.

• Even if the phone supports

Bluetooth®, the phone will not be

found during device searches if the

phone has been set to hidden state or

the Bluetooth®power is turned off.

Disable the hidden state or turn on the

Bluetooth®power prior to

searching/connecting with the Head

unit.

• Bluetooth phone is automatically con-

nected when the ignition on.

• If you do not want automatic connec-

tion with your Bluetooth®device, turn

off the Bluetooth®feature within your

mobile phone.

• The Handsfree call volume and quali-

ty may differ depending on the mobile

phone.

(Continued)

• Park the vehicle when connecting the

head unit with the mobile phone.

•Bluetooth®connection may become

intermittently disconnected in some

mobile phones. Follow these steps to

try again.

1. Within the mobile phone, turn the

Bluetooth®function off/on and try

again.

2.Turn the mobile phone power

Off/On and try again.

3.Completely remove the mobile

phone battery, reboot, and then

again.

4. Reboot the Audio System and try

again.

5. Delete all paired devices, pair and

try again.

• Handsfree call quality and volume

may differ depending on the model of

your mobile phone.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 10

411

Features of your vehicle

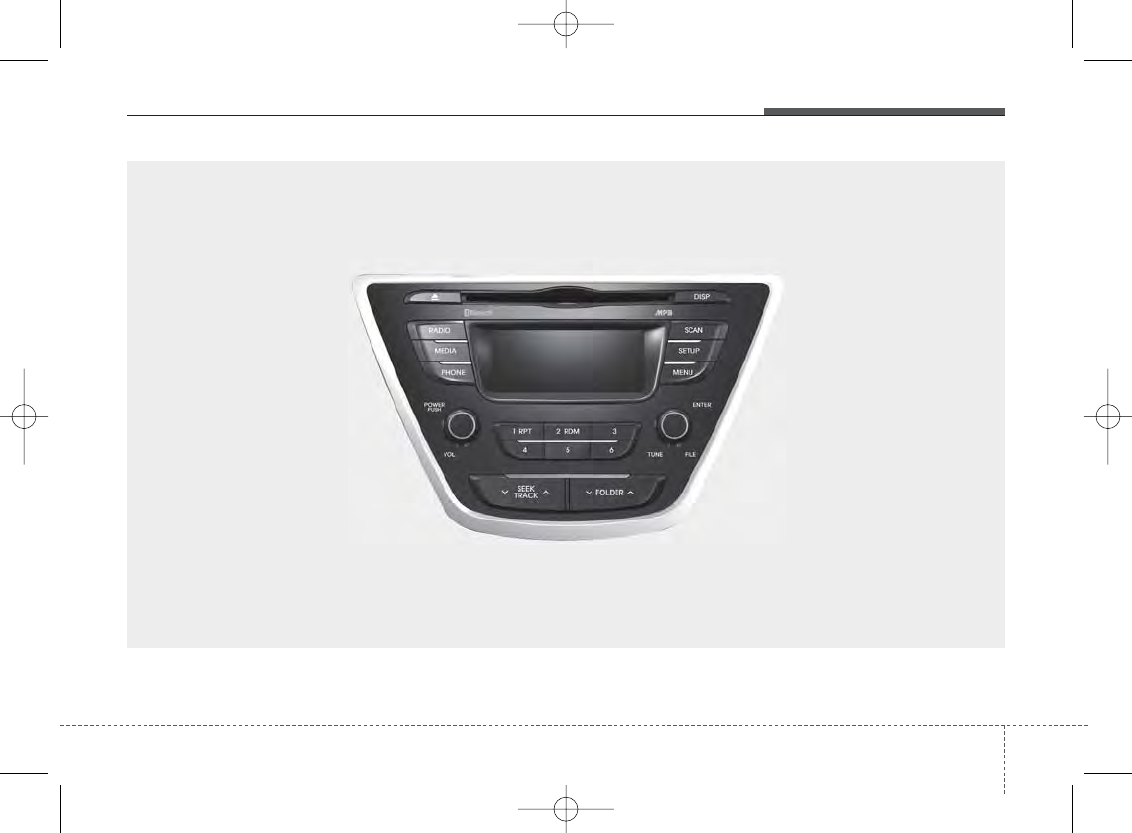

■ CD Player : AM110MDAN F/L, AM110MDMC

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 11

Features of your vehicle

124

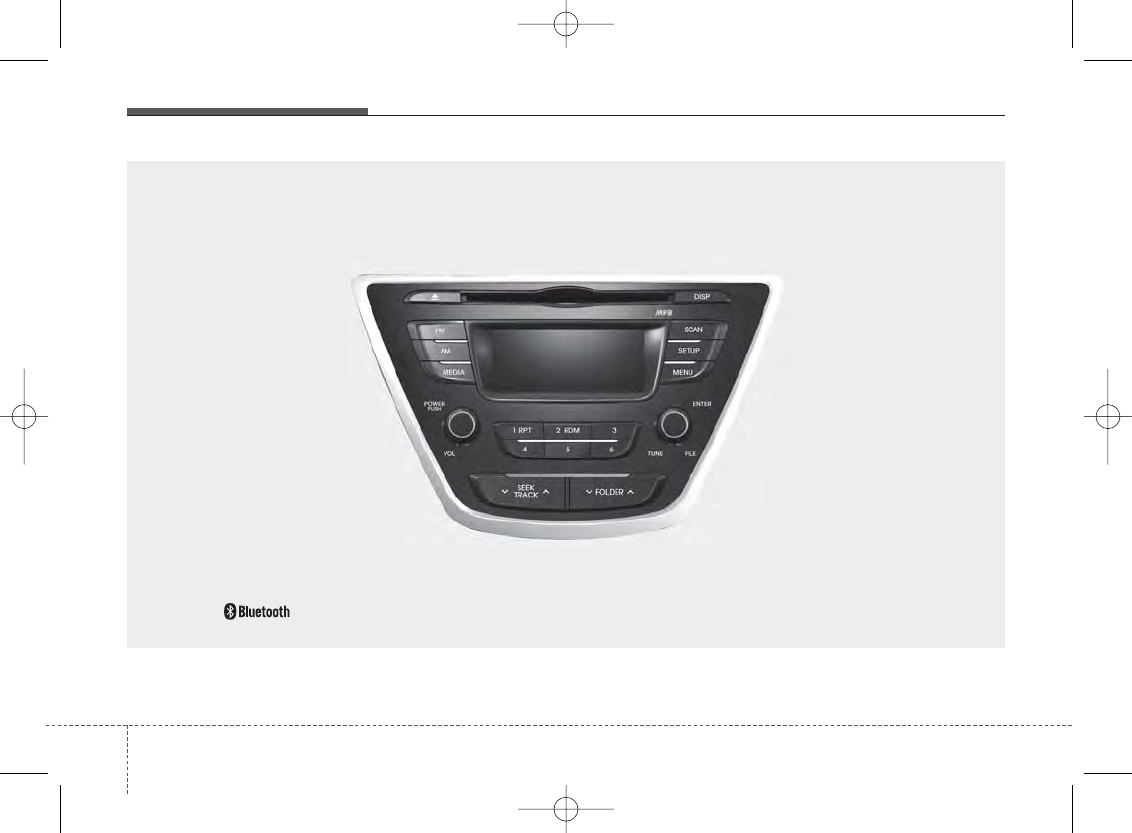

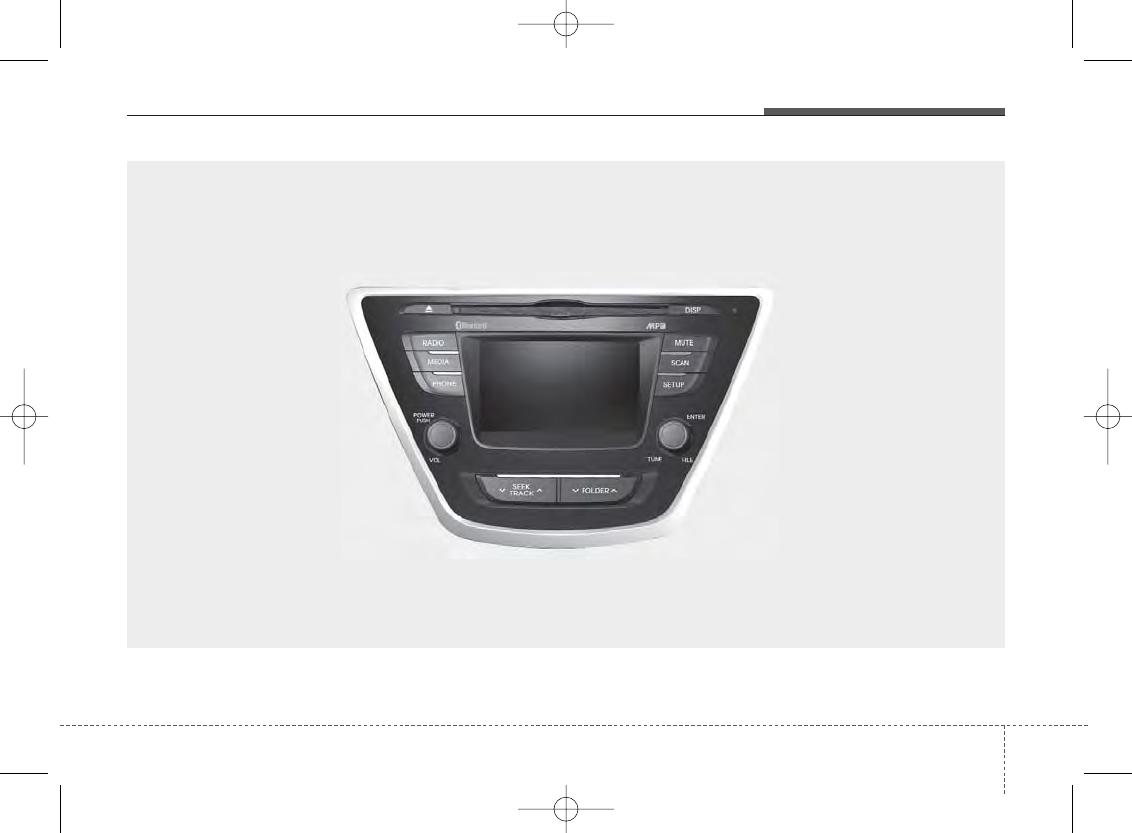

■ CD Player : AM100MDAN F/L, AM100MDMC

❋ No logo will be shown if the

Bluetooth®

Wireless Technology feature is not supported.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 12

413

Features of your vehicle

SYSTEM CONTROLLERS AND

FUNCTIONS

Audio Head Unit

1. (EJECT)

• Ejects the disc.

• Changes to FM/AM mode.

• Each time the key is pressed, the

mode is changed in order of FM1 ➟

FM2 ➟AM

❈In Setup>Display, the radio pop up

screen will be displayed when [Mode

Pop up] is turned .

When the pop up screen is displayed,

use the TUNE knob or keys ~

to select the desired mode.

• Changes to CD, USB, iPod, AUX, My

Music, BT Audio modes.

• Each time the key is pressed, the mode

is changed in order of CD, USB, iPod,

AUX, My Music, BT Audio modes.

❈In Setup>Display, the media pop up

screen will be displayed when [Mode

Pop up] is turned .

When the pop up screen is displayed,

use the TUNE knob or keys ~

to select the desired mode.

• Operates Phone Screen

❈When a phone is not connected, the

connection screen is displayed.

5. PWR/VOL knob

• Power Knob: Turns power On/Off

by pressing the knob

• Volume Knob: Sets volume by turn-

ing the knob left/right

6. ~ (Preset)

• Radio Mode: Saves frequencies (chan-

nels) or receives saved frequencies

(channels)

• CD, USB, iPod, My Music mode

- : Repeat

- : Random

• In the Radio, Media, Setup, and Menu

pop up screen, the number menu is

selected.

• Radio Mode : Automatically searches

for broadcast frequencies.

• CD, USB, iPod, My Music modes :

- Shortly press the key (under 0.8 sec-

onds): Moves to next or previous

song(file)

- Press and hold the key (over 0.8 sec-

onds): Rewinds or fast-forwards the

current song(file)

SEEK

TRACK

PHONE

MEDIA

RADIO

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 13

Features of your vehicle

144

• Each time the button is shortly pressed

(under 0.8 seconds), it sets the screen

Off ➟Screen On ➟Screen Off

❈Audio operation is maintained and only

the screen will be turned Off. In the

screen Off state, press any key to turn

the screen On again.

• Radio Mode

- Shortly press the key (under 0.8 sec-

onds): Previews each broadcast for 5

seconds each

- Press and hold the key (over 0.8 sec-

onds): Previews the broadcasts saved

in Preset ~ for 5 seconds

each.

❈Press the key again to contin-

ue listening to the current frequency.

• CD, USB, iPod mode

- Shortly press the key (under 0.8 sec-

onds): Previews each song (file) for

10 seconds each

❈Press the key again to contin-

ue listening to the current song (file).

10.

• Shortly press the key (under 0.8 sec-

onds) : Moves to the Display, Sound,

Phone, System setting modes

11.

• Displays menus for the current mode.

12.

• MP3, CD, USB mode : Folder Search

• iPod mode: Moves to parent folder

13. TUNE knob

• Radio mode : Changes frequency by

turning the knob left/right

• CD, USB, iPod mode: Searches songs

(files) by turning the knob left/right

❈When the desired song is displayed,

press the knob to play the song.

• Moves focus in all selection menus and

selects menus

FOLDER

SETUP

SCAN

DISP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 14

415

Features of your vehicle

Audio Head Unit

(For NON Bluetooth model)

14.

• Changes to FM mode.

• Each time the key is pressed, the

mode changed in order of FM1 ➟

FM2.

15.

• Changes to AM mode.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 15

Features of your vehicle

164

SETUP

Display Settings

Press the key Select [Display]

through TUNE knob or key

Select menu through TUNE knob

Mode Pop up

[Mode Pop up] Changes /

selection mode

• During On state, press the or

key to display the mode

change pop up screen.

Text Scroll

[Text Scroll] Set /

• : Maintains scroll

• : Scrolls only one (1) time.

Media Display

When playing an MP3 file, select the

desired display info from ‘Folder/File’ or

‘Album/Artist/Song’.

SOUND SETTINGS

Press the key Select [Sound]

through TUNE knob or key

Select menu through TUNE knob

Sound Settings

This menu allows you to set the ‘Bass,

Middle, Treble’ and the Sound Fader and

Balance.

Select [Sound Settings] Select menu

through TUNE knob Turn TUNE

knob left/right to set

• Bass, Middle, Treble : Selects the

sound tone.

• Fader, Balance : Moves the sound

fader and balance.

• Default : Restores default settings.

❈Back : While adjusting values, pressing

the TUNE knob will restore the par-

ent menu.

SETUP

Off

OffOn

MEDIA RADIO

OffOn

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 16

417

Features of your vehicle

Speed Dependent Volume Control

This feature is used to automatically con-

trol the volume level according to the

speed of the vehicle.

Select [Speed Dependent Vol.] Set

in 4 levels [Off/Low/Mid/High] of

TUNE knob

SYSTEM SETTINGS

Press the key Select [System]

through tune knob or key Select

menu through TUNE knob

Memory Information

Displays currently used memory and

total system memory.

Select [Memory Information] OK

The currently used memory is displayed

on the left side while the total system

memory is displayed on the right side.

Language

This menu is used to set the display and

voice recognition language.

Select [Language] Set through TUNE

knob

❈The system will reboot after the lan-

guage is changed.

❈Language support by region

- English, Francais, Espanol

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 17

Features of your vehicle

184

RADIO : FM, AM

SEEK

Press the key

• Shortly pressing the key (under 0.8

seconds): Changes the frequency.

• Pressing and holding the key (over 0.8

seconds): Automatically searches for

the next frequency.

Preset SEEK

Press the ~ key

• Shortly pressing the key (under 0.8

seconds): Plays the frequency saved in

the corresponding key.

• Pressing and holding the key (over 0.8

seconds): Pressing and holding the

desired key from ~ will

save the currently playing broadcast to

the selected key and sound a BEEP.

SCAN

Press the key

• Shortly pressing the key (under 0.8

seconds): The broadcast frequency

increases and previews each broad-

cast for 5 seconds each. After scan-

ning all frequencies, returns and plays

the current broadcast frequency.

• Pressing and holding the key (over 0.8

seconds): Previews the broadcasts

saved in Preset ~ for 5

seconds each.

Selecting through manual search

Turn the TUNE knob left/right to adjust

the frequency.

• FM : Changes by 200KHz

• AM : Changes by 10KHz

Within key are the A.Store (Auto

Store) and Info functions.

A.Store

Press the key Set [A.Store]

through TUNE knob or key

Saves broadcasts with superior recep-

tion to ~ keys. If no frequen-

cies are received, then the most recently

received frequency will be broadcast.

1 6

SCAN

SEEK

TRACK

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 18

419

Features of your vehicle

BASIC METHOD OF USE :

Audio CD / MP3 CD / USB /

iPod®/ My Music

Press the key to change the mod

mode in order of CD➟USB(iPod®)➟AUX

➟My Music➟BT Audio.

The folder/file name is displayed on the

screen.

❈The CD is automatically played when a

CD is inserted.

❈The USB music is automatically played

when a USB is connected.

Repeat

While song (file) is playing (RPT)

key

Audio CD, MP3 CD, USB, iPod®, My

Music mode: RPT on screen

• To repeat one song (Shortly pressing

the key (under 0.8 seconds)): Repeats

the current song.

MP3 CD, USB mode: FLD.RPT on screen

• To repeat folder (Pressing the key

twice).

❈Press the key again to turn off

repeat.

Random

While song (file) is playing (RDM)

key

Audio CD, iPod®, My Music mode: RDM

on screen

• Random (press the key : Plays all

songs in random order.

MP3 CD, USB mode: FLD.RDM on

screen

• Folder Random (press the key : Plays

all files within the current folder in ran-

dom order.

MP3 CD, USB mode : ALL RDM on

screen

• All Random (pressing twice): Plays all

files in random order.

❈Press the key again to turn off

repeat.

Changing Song/File

While song (file) is playing key

• Shortly pressing the key (under 0.8

seconds): Plays the current song from

the beginning.

❈If the key is pressed again

within 1 second, the previous song is

played.

• Pressing and holding the key (over 0.8

seconds): Rewinds the song.

While song (file) is playing key

• Shortly pressing the key (under 0.8

seconds): Plays the next song.

• Pressing and holding the key (over 0.8

seconds): Fast forwards the song.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

2RDM

2 RDM

MEDIA

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 19

Features of your vehicle

204

Scan

While song (file) is playing key

Scans all songs for 10 seconds starting

from the next song.

❈Press the key again to turn off.

❈The SCAN function is not supported in

iPod mode.

Folder Search : MP3 CD, USB

Mode

While file is playing key

• Searches the next folder.

While file is playing key

• Searches the previous folder.

❈If a folder is selected by pressing the

TUNE knob, the first file within the

selected folder will be played.

Searching Songs (File)

• Turning TUNE knob : Searches for

songs (files)

• Pressing TUNE knob : Plays select-

ed song (file).

MENU : Audio CD

Press the CD MP3 mode key to

set the Repeat, Random, Information

features.

Repeat

Press the key Set [ RPT]

through the

TUNE

knob or key to

repeat the current song.

❈Press RPT again to turn off.

Random

Press the key Set [ RDM]

through the

TUNE

knob or key to

randomly play songs within the current

folder.

❈Press RDM again to turn off.

Information

Press the key Set [ Info]

through the

TUNE

knob or key to

display information of the current song.

❈Press the key to turn off info

display.

FOLDER

SCAN

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 20

421

Features of your vehicle

MENU : MP3 CD / USB

Press the CD MP3 mode key to

set the Repeat, Folder Random, Folder

Repeat, All Random, Information, and

Copy features.

Repeat

Press the key Set [ RPT]

through the

TUNE

knob or key

to repeat the current song.

❈Press RPT again to turn off.

Folder Random

Press the key Set [ F.RDM]

through the

TUNE

knob or key to

randomly play songs within the current

folder.

❈Press F.RDM again to turn off.

Folder Repeat

Press the key Set [ F.RPT]

through the

TUNE

knob or key

to repeat songs within the current folder.

❈Press F.RPT again to turn off.

All Random

Press the key Set [ A.RDM]

through the

TUNE

knob or key to

randomly play all songs within the CD.

❈Press A.RDM again to turn off.

Information

Press the key Set [ Info]

through the

TUNE

knob or key

to display information of the current song.

❈Press the key to turn off info

display.

Copy

Press the key Set [ Copy]

through the

TUNE

knob or key.

This is used to copy the current song

into My Music. You can play the copied

Music in My Music mode.

❈If another key is pressed while copying

is in progress, a pop up asking you

whether to cancel copying is displayed.

❈If another media is connected or

inserted (USB, CD, iPod®, AUX) while

copying is in progress, copying is can-

celed.

❈Music will not be played while copying

is in progress.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 21

Features of your vehicle

224

MENU : iPod®

In iPod®mode, press the key to

set the Repeat, Random, Information and

Search features.

Repeat

Press the key Set [ RPT]

through the

TUNE

knob or key

to repeat the current song.

❈ Press RPT again to turn repeat off.

Random

Press the key Set [ RDM]

through the TUNE knob or key.

Plays all songs within the currently play-

ing category in random order.

❈Press RDM again to turn off.

Information

Press the key Set [ Info]

through the

TUNE

knob or key.

Displays information of the current

song.

❈Press the key to turn off info

display.

Press the key Set [ Search]

through the

TUNE

knob or key.

Displays iPod®category list.

❈Searching iPod® category is

key pressed, move to parent category.

MENU : My Music Mode

In My Music mode, press the key

to set the Repeat, Random, Information,

Delete, Delete All, and Delete Selection

features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or key.

Repeats the currently playing song.

❈Press RPT again to turn repeat off.

Random

Press the key Set [ RDM]

through the TUNE knob or key.

Plays all songs within the currently play-

ing folder in random order.

❈Press RDM again to turn random off.

2 RDM

1 RPT

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 22

423

Features of your vehicle

Information

Press the key Set [ Info]

through the

TUNE

knob or key.

Displays information of the current song.

❈Press the key to turn off info

display.

Delete

Press the key Set [ Delete]

through the TUNE knob or key.

• Deletes currently playing file

In the play screen, pressing delete will

delete the currently playing song.

• Deletes file from list

➀Select the file you wish to delete by

using the TUNE knob.

➁Press the key and select the

delete menu to delete the selected file.

Delete All

Press the key Set [ Del.All]

through the TUNE knob or key.

Deletes all songs of My Music.

Delete Selection

Press the key Set [ Del.Sel]

through the TUNE knob or key.

Songs within My Music are selected and

deleted.

➀Select the songs you wish to delete

from the list.

➁After selecting, press the key

and select the delete menu.

AUX

AUX is used to play external MEDIA cur-

rently connected with the AUX terminal.

AUX mode will automatically start when

an external device is connected to the

AUX terminal.

If an external device is connected, you

can also press the key to change

to AUX mode.

❈AUX mode cannot be started unless

there is an external device connected

to the AUX terminal.

MEDIA

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 23

Features of your vehicle

244

Bluetooth

Wireless Technology

AUDIO

What is

Bluetooth

Wireless

Technology?

Bluetooth

Wireless Technology allows

devices to be connected in a short distance,

including hands-free devices, stereo head-

sets, wireless remote controllers, etc. For

more information, visit the

Bluetooth

Wireless Technology website

www.Bluetooth.com

Before using

Bluetooth

Wireless

Technology audio features

•

Bluetooth

Wireless Technology audio

may not be supported depending on

the compatibility of your

Bluetooth

Wireless Technology mobile phone.

• In order to use

Bluetooth

Wireless

Technology audio, you must first pair

and connect the

Bluetooth

Wireless

Technology mobile phone.

•

Bluetooth

Wireless Technology audio

can be used only when the [Audio

Streaming] of Phone is turned .

❈Setting

Bluetooth

Wireless

Technology Audio Streaming : Press

the key Select [Phone]

through the tune knob or key

Select [Audio Streaming] through the

TUNE knob Set /

Starting

Bluetooth

Wireless

Technology Audio

• Press the key to change the

mode in order of CD➟USB➟AUX➟My

Music➟BT Audio.

• If BT Audio is selected,

Bluetooth

Wireless Technology audio will start

playing.

❈Audio may not automatically start playing

in some mobile phones.

Using the

Bluetooth

Wireless

Technology audio features

• Play / Stop

Press the TUNE knob to play and

pause the current song.

❈The play / pause functions may not be

supported in some mobile phones.

OffOn

SETUP

MEDIA

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 24

425

Features of your vehicle

PHONE (if equipped)

Before using the

Bluetooth®

Wireless Technology phone features

• In order to use

Bluetooth

Wireless

Technology phone, you must first pair

and connect the

Bluetooth

Wireless

Technology mobile phone.

• If the mobile phone is not paired or

connected, it is not possible to enter

Phone mode. Once a phone is paired

or connected, the guidance screen will

be displayed.

• If Priority is set upon vehicle

ignition(IGN/ACC ON), the

Bluetooth

Wireless Technology phone will be

automatically connected. Even if you

are outside, the first

Bluetooth

Wireless Technology phone will be

automatically connected once you are

in the vicinity of the vehicle. If you do

not want automatic

Bluetooth

Wireless Technology phone connec-

tion, set the

Bluetooth

Wireless

Technology power to OFF.

Making a call using the Steering

wheel remote controller

❈The actual feature in the vehicle may

differ from the illustration.

1.VOLUME button : Raises or lowers

speaker volume.

2.MUTE button : Mute the microphone

during a call.

3. button : Places and transfers

calls.

4. button : Ends calls or cancels

functions.

• Check call history and making call

➀Shortly press (under 0.8 seconds) the

key on the steering remote con-

troller.

➁The call history list will be displayed on

the screen.

➂Press the key again to connect a

call to the selected number.

• Redialing the most recently called num-

ber

➀Press and hold (over 0.8 seconds) the

key on the steering remote con-

troller.

➁The most recently called number is

redialed.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 25

Features of your vehicle

264

Bluetooth

Wireless Technology

Pairing a

Bluetooth

Wireless

Technology Device

What is Bluetooth

Wireless

Technology Pairing?

Pairing refers to the process of synchro-

nizing your

Bluetooth

Wireless

Technology phone or device with the car

audio system for connection. Pairing is

necessary to connect and use the

Bluetooth

Wireless Technology feature.

Pairing Key / Key on

the Steering Remote Controller

When No Devices have been Paired

1. Press the key or the key

on the steering remote controller. The

following screen is displayed.

2. Select [OK] button to enter the Pair

Phone screen.

1) Car Name : Name of device as shown

when searching from your

Bluetooth

Wireless Technology device

2) Passkey : Passkey used to pair the

device

3.From your

Bluetooth

Wireless

Technology device (i.e. Mobile Phone),

search and select your car audio sys-

tem.

PHONE

WARNING

Driving while distracted can result

in a loss of vehicle control that may

lead to an accident, severe person-

al injury, and death. The driver’s pri-

mary responsibility is in the safe

and legal operation of a vehicle,

and use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s eyes,

attention and focus away from the

safe operation of a vehicle or which

are not permissible by law should

never be used during operation of

the vehicle.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 26

427

Features of your vehicle

[Non SSP supported device]

(SSP: Secure Simple Pairing)

4. After a few moments, a screen is dis-

played where the passkey is entered.

Hear, enter the passkey “0000” to pair

your

Bluetooth

Wireless Technology

device with the car audio system.

[SSP supported device]

4. After a few moments, a screen is dis-

played 6 digits passkey .

Hear, check the passkey on your

Bluetooth

Wireless Technology

device and confirm.

5. Once pairing is complete, the following

screen is displayed.

During the pairing process, make sure that

all connection requests on the phone are

accepted for phonebook download and to

allow acceptance of all future connection

requests.

✽NOTICE

If Bluetooth®Wireless Technology

devices are paired but none are current-

ly connected, pressing the key

or the key on the steering wheel

displays the following screen. Select

[Pair] button to pair a new device or

select [Connect] to connect a previously

paired device.

Pairing through [PHONE] Setup

Press the key Select

[Phone] Select [Pair Phone] Select

TUNE knob

1.The following steps are the same as

those described in the section "When

No Devices have been Paired" on the

previous page.

SETUP

PHONE

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 27

Features of your vehicle

284

✽NOTICE

•Bluetooth®Wireless Technology fea-

tures supported within the vehicle are

as follows. Some features may not be

supported depending on your

Bluetooth®Wireless Technology

device.

- Outgoing/Incoming Handsfree calls

- Operations during a call (Switch to

Private, Switch to call waiting, MIC

on/off)

- Downloading Call History

- Downloading Mobile Contacts

-Bluetooth®Wireless Technology

device auto connection

- Bluetooth Audio Streaming

• Up to five Bluetooth®Wireless

Technology devices can be paired to

the Car Handsfree system.

• Only one Bluetooth®Wireless

Technology device can be connected at

a time.

• Other devices cannot be paired while

a Bluetooth®Wireless Technology

device is connected.

• Only Bluetooth®Wireless Technology

Handsfree and Bluetooth audio relat-

ed features are supported.

• Bluetooth related operations are pos-

sible only within devices that support

Handsfree or audio features, such as a

Bluetooth®Wireless Technology

mobile phone or a Bluetooth audio

device.

• If a connected Bluetooth®Wireless

Technology device becomes discon-

nected due to being out of communi-

cation range, turning the device OFF,

or a Bluetooth®Wireless Technology

communication error, corresponding

Bluetooth®Wireless Technology

devices are automatically searched

and reconnected.

• If the system becomes unstable due to

communication errors between the

car Handsfree and the Bluetooth®

Wireless Technology device, reset the

device by turning off and back on

again. Upon resetting Bluetooth®

Wireless Technology device, the sys-

tem will be restored.

• After pairing is complete, a contacts

download request is sent once to the

mobile phone. Some mobile phones

may require confirmation upon

receiving a download request, ensure

your mobile phone accepts the con-

nection. Refer to your phones user’s

manual for additional information

regarding phone pairing and connec-

tions.

Connecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

1) Connected Phone : Device that is cur-

rently connected

2) Paired Phone : Device that is paired

but not connected

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 28

429

Features of your vehicle

From the paired phone list, select the

device you want to connect and select

[Connect].

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth

Wireless Technology devices with the

car audio system. The "Change Priority"

feature is used to set the connection pri-

ority of paired phones.

Press the key Select [Phone]

Select [Paired Phone List]

From the paired phone list, select the

phone you want to switch to the highest

priority, then select [Change Priority] but-

ton from the Menu. The selected device

will be changed to the highest priority.

✽NOTICE

Priority icon will be displayed when the

selected phone is set as a priority phone.

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 29

Features of your vehicle

304

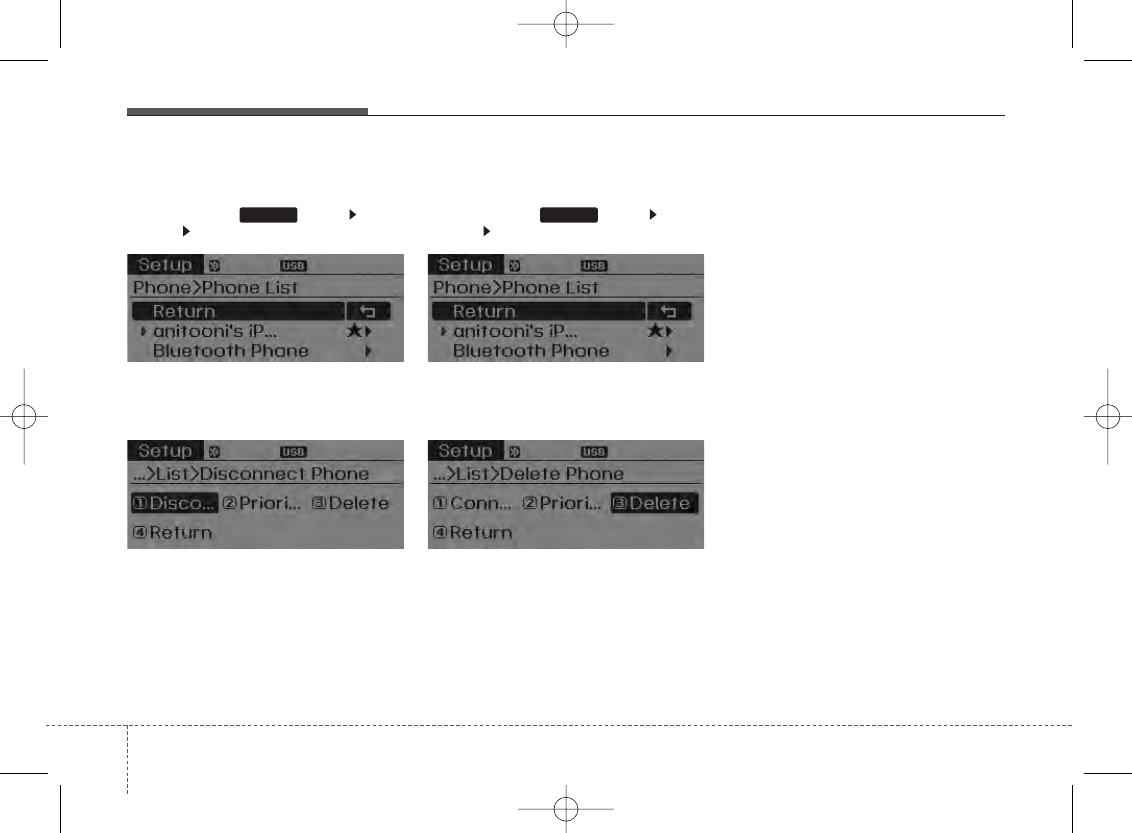

Disconnecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

currently connected device and select

[Disconnect] button.

Deleting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

device you want to delete and select

[Delete] button.

✽NOTICE

• When deleting the currently connect-

ed device, the device will automatical-

ly be disconnected to proceed with the

deleting process.

• If a paired Bluetooth®Wireless

Technology device is deleted, the

device’s call history and contacts data

will also be deleted.

• To re-use a deleted device, you must

pair the device again.

SETUP SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:00 PM Page 30

431

Features of your vehicle

USING

Bluetooth®

WIRELESS

TECHNOLOGY(If equipped)

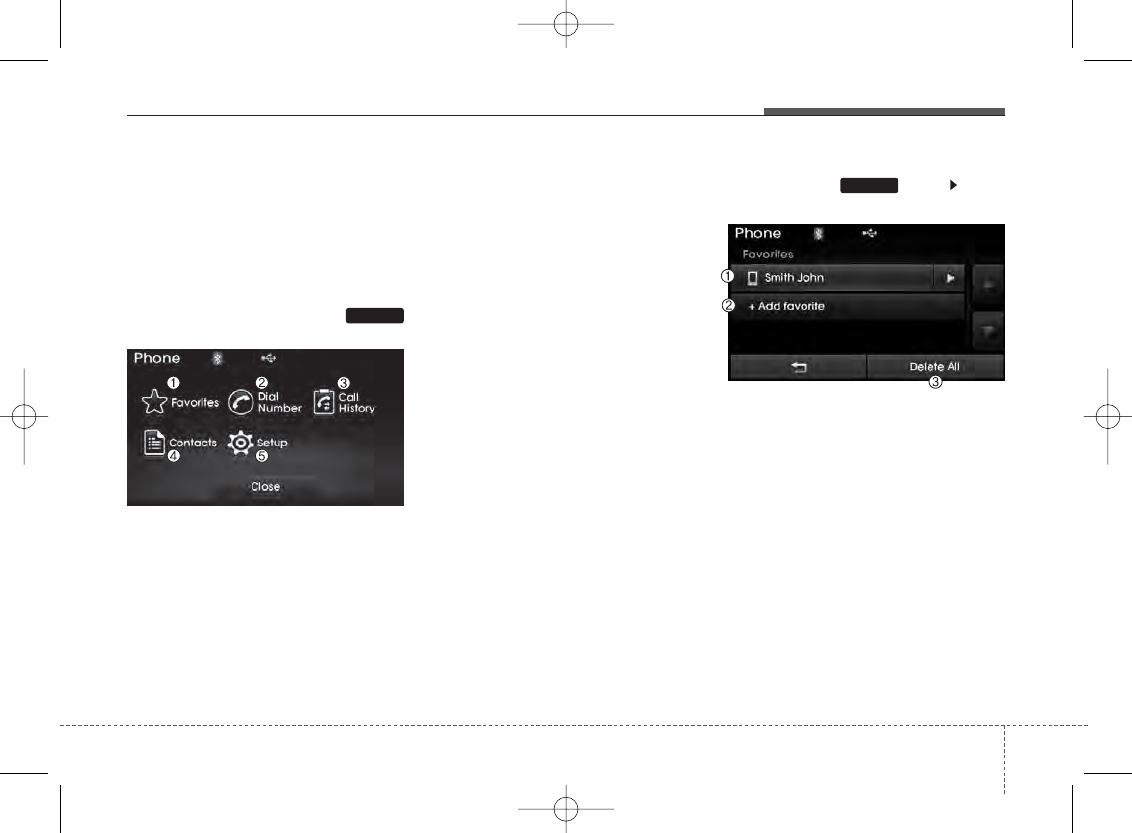

Phone Menu Screen

Phone Menus

With a

Bluetooth

Wireless Technology

device connected, press the

key to display the Phone menu screen.

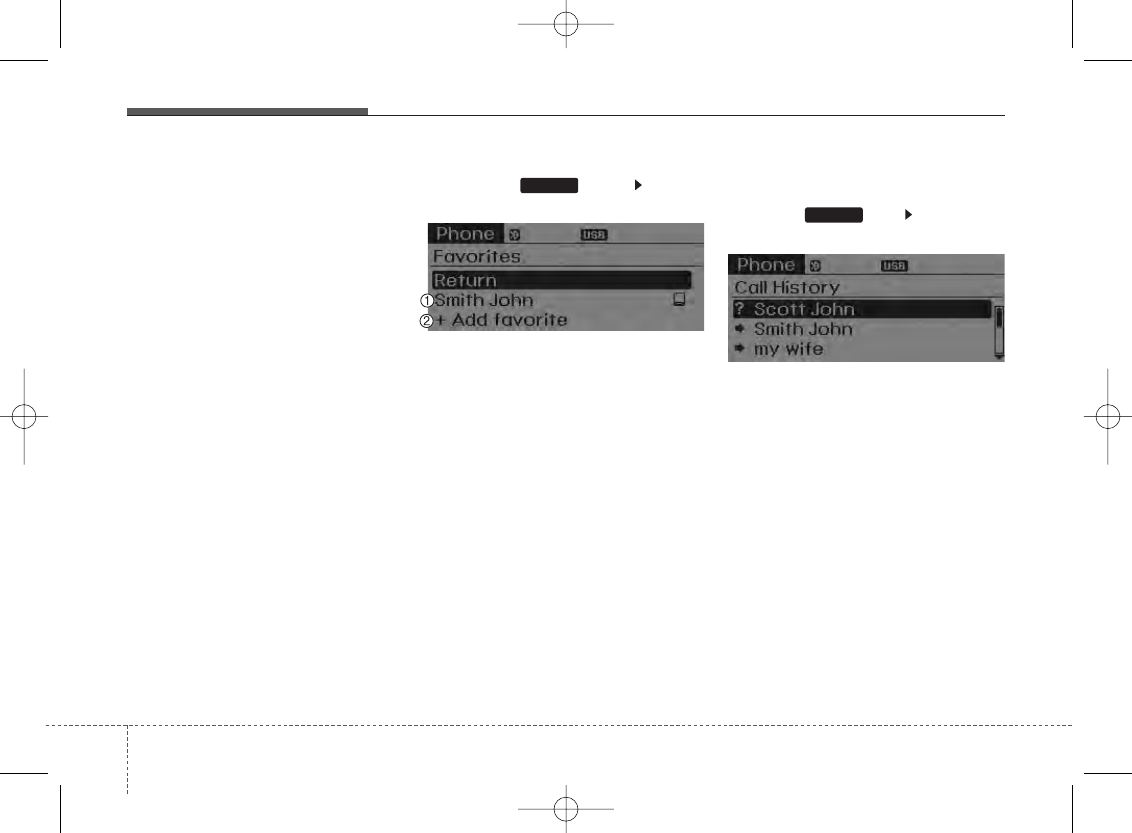

1) Favorite : Up to 20 frequently used

contacts saved for easy access

2) Call History : Device the call history

list screen

3) Contacts : Displays the Contacts list

screen

4) Setup : Displays Phone related set-

tings.

✽NOTICE

• If you select the [Call History] button

but there is no call history data, a

prompt is displayed which asks to

download call history data.

• If you select the [Contacts] button but

there is no contacts data stored, a

prompt is displayed which asks to

download contacts data.

• This feature may not be supported in

some mobile phones. For more infor-

mation on download support, refer to

your mobile phone user’s manual.

Answering Calls

Answering a Call

Answering a call with a

Bluetooth

Wireless Technology device connected

will display the following screen.

To accept the call, press key on the

steering wheel while the call is incoming.

1) Caller : Displays the other party’s

name when the incoming caller is

saved within your contacts

2) Incoming Number : Displays the

incoming number

PHONE

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 31

Features of your vehicle

324

✽NOTICE

• When an incoming call pop-up is dis-

played, most Audio and SETUP mode

features are disabled. Only the call

volume will operate.

• The telephone number may not be

properly displayed in some mobile

phones.

• When a call is answered with the

mobile phone, the call mode will auto-

matically revert to Private mode.

Favorites

Press the key Select

[Favorites]

1) Saved favorite contact : Connects call

upon selection

2) To add favorite : Downloaded contacts

be saved as favorite.

✽NOTICE

• To save Favorite, contacts should be

downloaded.

• Contact saved in Favorites will not be

automatically updated if the contact

has been updated in the phone. To

update Favorites, delete the Favorite

and create a new Favorite.

Call History

Press the key Select [Call

History]

A list of incoming, outgoing and missed

calls is displayed.

• Call history may not be saved in the

call history list in some mobile phones.

• Calls received with hidden caller ID will

not be saved in the call history list.

• Calling through the call history is not

possible when there is no call history

stored or a

Bluetooth

Wireless

Technology phone is not connected.

• Up to 20 received, dialed and missed

calls are stored in Call History.

• Time of received/dialed calls and call

time information are not saved.

PHONE

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 32

433

Features of your vehicle

Contacts

Press the key Select

[Contacts]

The list of saved phone book entries is

displayed.

NOTE:

Find a contact in an alphabetical

order, press the key.

✽NOTICE

• Up to 1,000 contacts saved in your

Bluetooth®Wireless Technology

phone can be downloaded into the car

contacts. Contacts that have been

downloaded to the car cannot be edit-

ed or deleted on the phone.

• Mobile phone contacts are managed

separately for each paired Bluetooth®

Wireless Technology device (max 5

devices x 1,000 contacts each).

Previously downloaded data is main-

tained even if the Bluetooth®Wireless

Technology device has been discon-

nected.

(However, the contacts and call history

saved to the phone will be deleted if a

paired phone is deleted.)

• It is possible to download contacts

during Bluetooth streaming audio.

• When downloading contacts, the icon

will be displayed within the status bar.

• It is not possible to begin downloading

a contact list when the contact down-

load feature has been turned off with-

in the Bluetooth®Wireless Technology

device. In addition, some devices may

require device authorization upon

attempting to download contacts. If

downloading does not normally occur,

check the Bluetooth®Wireless

Technology device settings or the

screen state.

• The contacts download feature may

not be supported in some mobile

phones. For more information of sup-

ported Bluetooth®devices and func-

tion support, refer to your phone’s

user manual.

PHONE

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 33

Features of your vehicle

344

Bluetooth®

Wireless

Technology Setting

The

Bluetooth

word mark and logos are

registered trademarks owned by

Bluetooth SIG, Inc. and any use of such

marks by Hyundai is under license. Other

trademarks and trade names are those

of their respective owners. A

Bluetooth

enabled cell phone is required to use

Bluetooth

Wireless Technology.

Pairing a New Device

Press the key Select

[Phone] Select [Pair Phone]

Bluetooth

Wireless Technology devices

can be paired with the audio system.

For more information, refer to the “Pairing

through Phone Setup” section within

Bluetooth

Wireless Technology.

Viewing Paired Phone List

Press the key Select

[Phone] Select [Paired Phone List]

This feature is used to view mobile

phones that have been paired with the

audio system. Upon selecting a paired

phone, the setup menu is displayed.

For more information, refer to the “Setting

Bluetooth

Wireless Technology

Connection” section within

Bluetooth

Wireless Technology.

SETUP SETUP

WARNING

Driving while distracted can result

in a loss of vehicle control that may

lead to an accident, severe person-

al injury, and death. The driver’s pri-

mary responsibility is in the safe

and legal operation of a vehicle,

and use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s eyes,

attention and focus away from the

safe operation of a vehicle or which

are not permissible by law should

never be used during operation of

the vehicle.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 34

435

Features of your vehicle

1) Connect/Disconnect Phone : Connect/

disconnects currently selected phone

2) Change Priority : Sets currently select-

ed phone to highest connection priority

3) Delete : Deletes the currently selected

phone

4) Return : Moves to the previous screen

✽NOTICE Before down-

loading contacts

• Only contacts within connected

phones can be downloaded. Also

check to see that your mobile phone

supports the download feature.

• To learn more about whether your

mobile phone supports contacts

downloads, refer to your mobile

phone user’s manual.

• The contacts for only the connected

phone can be downloaded.

Downloading Contacts

Press the key Select [Phone]

Select [Contacts Download]

As the contacts are downloaded from

the mobile phone, a download progress

bar is displayed.

✽NOTICE

• Upon downloading phone contacts,

the previous corresponding data is

deleted.

• This feature may not be supported in

some mobile phones.

Auto Download (Contacts)

Press the key Select

[Phone] Select [Auto Download]

This feature is used to automatically

download mobile contacts entries once a

Bluetooth

Wireless Technology phone

is connected.

✽NOTICE

• The Auto Download feature will

download mobile contacts entries

every time the phone is connected.

The download time may differ

depending on the number of saved

contacts entries and the communica-

tion state.

• Before downloading contacts, first

check to see that your mobile phone

supports the contacts download fea-

ture.

SETUP SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 35

Features of your vehicle

364

Audio Streaming

Press the key Select [Phone]

Select [Audio Streaming]

When Audio Streaming is turned on, you

can play music files saved in your

Bluetooth

Wireless Technology device

through the audio system.

Outgoing Volume

Press the key Select

[Phone] Select [Outgoing Volume]

Use TUNE knob to adjust the outgo-

ing volume level.

✽NOTICE

While on a call, the volume can be

changed by using the key.

Turning Bluetooth System Off

Press the key Select

[Phone] Select [Bluetooth System Off]

Once

Bluetooth

Wireless Technology is

turned off,

Bluetooth

Wireless

Technology related features will not be

supported within the audio system.

✽NOTICE

To turn Bluetooth®Wireless Technology

back on, go to [Phone] and

select “Yes”.

SETUP

SEEK

TRACK

SETUP SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 36

437

Features of your vehicle

■ CD Player : AM910MDAN, AM910MDMC

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 37

Features of your vehicle

384

SYSTEM CONTROLLERS AND

FUNCTIONS

Audio Head Unit

1. (EJECT)

• Ejects the disc.

• Convert to Radio mode.

• Each time the key is pressed,the mode

is changed in order of FM1, FM2, AM.

• Convert to Media Mode

• Each time the key is pressed, the mode

is changed in order of CD, USB(iPod®),

AUX, My Music, BT Audio.

4. (for

Bluetooth

Wireless

Technology equipped model)

• Converts to Phone mode

❈When a phone is not connected, the

connection screen is displayed.

5. PWR/VOL knob

• Power : Press to turn power on/off.

• Volume : Turn left/right to control

volume.

• When pressed shortly(under 0.8 sec-

onds)

- Radio mode : plays previous/next

frequency.

- Media (CD/USB/iPod®/My Music)

modes : changes the track, Song(file)

• When pressed and held (Over 0.8 sec-

onds)

- Radio mode : continuously changes

the frequency. Upon release, plays

the current frequency.

- Media(CD/USB/iPod®/My Music)

modes : rewinds or fast forwards the

track or file

- During a Handsfree call, controls the

call volume.

• CD/USB/MP3 mode : Search Folder

FOLDER

SEEK

TRACK

PHONE

MEDIA

RADIO

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 38

439

Features of your vehicle

• Turns the monitor display on/off.

When the button is pressed, stops sound

and "Audio Mute" is displayedon LCD.

10.

• Radio Mode : previews all receivable

broadcasts for 5 seconds each

• Media (CD/USB/My Music) modes :

previews each song (file) for 10 sec-

onds each.

11.

Converts to Setup mode.

12. TUNE knob

• Radio mode : turn to change broadcast

frequencies.

• Media (CD/USB/iPod®/My Music)

modes : turn to search tracks/chan-

nels/files.

DISP

SETUP

SCAN

MUTE

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 39

Features of your vehicle

404

Making a call using the Steering-

wheel mounted control

❈The actual feature in the vehicle may

differ from the illustration.

1. VOLUME

• Used to control volume.

2. SEEK

• When pressed shortly (under 0.8 seconds)

- Radio mode : searches broadcast fre-

quencies saved to presets.

- Media(CD / USB / iPod® / My Music /

BT Audio) modes : changes the track,

file or chapter.

• When pressed and held (over 0.8 seconds)

- Radio mode, automatically searches

broadcast frequencies and channels

- Media(CD / USB / iPod® / My Music)

modes, rewinds or fast forwards the

track or song(file)

- BT Audio mode may not be support-

ed in some mobile phones.

3. MUTE

• Mutes audio volume.

4. MODE

• Each time this key is pressed, the mode is

changed in order of FM1 ➟ FM2 ➟ AM

➟ CD ➟ USB or iPod ➟ AUX ➟ My

Music ➟ BT Audio

• If the media is not connected or a disc

is not inserted, corresponding modes

will be disabled.

• When pressed shortly

- When pressed in the phone screen,

displays call history screen

- When pressed in the dial screen,

makes a call

- When pressed in the incoming call

screen, answers the call

- When pressed during call waiting,

switches to waiting call (Call Waiting)

• When pressed and held

(over 0.8 seconds)

- When pressed in the

Bluetooth

Wireless Technology Handsfree wait

mode, redials the last call

- When pressed during a

Bluetooth

Wireless Technology Handsfree call,

switches call back to mobile phone

(Private)

- When pressed while calling on the

mobile phone, switches call back to

Bluetooth

Wireless Technology

Handsfree (Operates only when

Bluetooth

Wireless Technology

Handsfree is connected)

• Ends phone call

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 40

441

Features of your vehicle

RADIO MODE

Basic Mode Screen

1. Mode Display

Displays currently operating mode

2. Frequency

Displays the current frequency

3. Preset

Displays current preset number [1] ~ [6]

4. Preset Display

Displays preset buttons

5. Autostore

Automatically saves frequencies with

superior reception to Preset buttons

Switching to Radio Mode

Pressing the key will change the

operating mode in order of FM1

➟

FM2

➟

Press the or key to

change the mode in order of FM1

➟

FM2

and AM.

If [Mode Pop-up] is turned on within

[Display], then pressing the

key will display the Radio Pop-

up Mode screen.

Turn the TUNE knob to move the

focus. Press the knob to select.

RADIO

SETUP

AMFM

RADIO

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 41

Features of your vehicle

424

Searching Radio Frequencies

Using Seek

Press the key to play the pre-

vious/next frequency.

Using TUNE

Turn the TUNE knob to select the

desired frequency.

• FM : Increases/decreased by 200kHz

• AM : Increases/decreased by 10kHz

Using Radio Mode

Selecting /Saving Presets

Press the button to display the

broadcast information for the frequency

saved to each button.

Press the ~ buttons to play the

desired preset.

✽NOTICE

While listening to a frequency you want

to save as a preset, press and hold one of

the [1] ~ [6] preset buttons (over 0.8 sec-

onds) to save the current frequency to

the selected preset.

Auto Store

Press the button to automat-

ically save receivable frequencies to

Preset buttons.

Scan

Press the key to preview fre-

quencies with superior reception for 5

seconds each.

Press and hold the key (over

0.8 seconds) to preview presets for 5

seconds each.

✽NOTICE

• Once scan is complete, the previous

frequency will be restored.

• While Scan is operating, pressing the

key will cancel the scan oper-

ation.

SCAN

Auto Store

Preset

SEEK

TRACK

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 42

4 43

Features of your vehicle

✽NOTICE - Using the

discs

• This device has been manufactured to

be compatible with software bearing

the following logo marks.

• Do not clean discs with chemical solu-

tions, such as record sprays, antistatic

sprays, antistatic liquids, benzene, or

thinners.

• After using a disc, put the disc back in

its original case to prevent disc

scratches.

• Hold discs by their edges or within the

center hole to prevent damages to disc

surfaces.

• Do not introduce foreign substances

into the disc insert/eject slot.

Introducing foreign substances could

damage the device interior.

• Do not insert two discs simultaneous-

ly.

• When using CD-R/CD-RW discs, dif-

ferences in disc reading and playing

times may occur depending on the

disc manufacturer, production

method and the recording method as

used by the user.

(Continued)

• Clean fingerprints and dust off the

disc surface (coated side) with a soft

cloth.

• The use of CD-R/CD-RW discs

attached with labels may result in disc

slot jams or difficulties in disc

removal. Such discs may also result in

noise while playing.

• Some CD-R/CD-RW discs may not

properly operate depending on the

disc manufacturer, production

method and the record method as

used by the user. If problems persist,

trying using a different CD as contin-

ued use may result in malfunctions.

• The performance of this product may

differ depending on the CD-RW Drive

Software.

• Copy-protected CDs such as S-type

CDs may not function in the device.

DATA discs cannot be played.

(However, such discs may still operate

but will do so abnormally.)

(Continued)

• Do not use abnormally shaped discs

(8cm, heart-shaped, octagon-shaped)

as such discs could lead to malfunc-

tions.

• If the disc is straddled on the disc slot

without removal for 10 seconds, the

disc will automatically be re-inserted

into the disc player.

• Only genuine audio CDs are support-

ed. Other discs may result in recogni-

tion failure (e.g. copy CD-R, CDs with

labels)

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 43

Features of your vehicle

444

MEDIA MODE

Pressing the key will change the

operating mode in order of CD

➟

USB(iPod®)

➟

AUX

➟

My Music

➟

Audio.

If [Mode Pop up] is turned on within

[Display], then pressing the

key will display the Media Pop-

up Mode screen.

Turn the TUNE knob to move the

focus. Press the knob to select.

✽NOTICE

The media mode pop up screen can be

displayed only when there are two or

more media modes turned on.

Title Icon

When a

Bluetooth

Wireless

Technology, iPod®, USB, or AUX device

is connected or a CD is inserted, the cor-

responding mode icon will be displayed.

Icon Title

Bluetooth

Wireless Technology

iPod®

USB

AUX

MEDIA

SETUP

MEDIA

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 44

4 45

Features of your vehicle

AUDIO CD MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat/Random(Shuffle)/ Scan, dis-

plays the currently operating function.

3. Track Info

Displays information about the current

track.

4. Play/Pause

Changes the play/pause state.

5. Play Time

Displays the current play time.

6. Info

Shows detailed information about the

current track.

7. Random(Shuffle)

Turns the Random(Shuffle) feature

on/off.

8. Repeat

Turns the Repeat feature on/off.

9. List

Moves to the list screen.

Using Audio CD Mode

Playing/Pausing CD Tracks

Once an audio CD is inserted, the mode

will automatically start and begin playing.

While playing, press the button to

pause and press button to play.

✽NOTICE

• Only genuine audio CDs are support-

ed. Other discs may result in recogni-

tion failure (e.g. copy CD-R, CDs with

labels)

• The artist and title information are

displayed on the screen if track infor-

mation is included within the audio

CD.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 45

Features of your vehicle

464

Changing Tracks

Press the key to move to the

previous or next track.

✽NOTICE

• Pressing the key after the

track has been playing for 2 seconds

will start the current track from the

beginning.

• Pressing the key before the

track has been playing for 1 seconds

will start the previous track.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired track.

Once you find the desired track, press

the TUNE knob to start playing.

Rewinding / Fast-forwarding Tracks

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current track.

Scan

Press the key to play the first 10

seconds of each file.

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 46

447

Features of your vehicle

Audio CD Mode Menu

Within this mode, you will have access to

the Info, Random(Shuffle), Repeat and

List features.

Info

Press the button to display details

about the current disc.

Random(Shuffle)

Press the button to play tracks in

random(Shuffle) order.

Press the button again to turn the

Random(Shuffle) feature off.

• Random(Shuffle): Plays all tracks in

random(Shuffle) order.

Repeat

Press the button to repeat the

current track. Press the button again to

turn the repeat feature off.

• Repeat : Repeats the current track.

List

Press the button to display the

track list screen.

Turn the TUNE knob left/right to

search for tracks. Once the desired track

is displayed, press the knob to select and

play.

Shuffle

Info

Repeat

List

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 47

Features of your vehicle

484

MP3 CD MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat/Random(Shuffle)/ Scan,

displays the currently operating function.

3. File Index

Displays the current file number.

4. File Info

Displays information about the current

file.

5. Play/Pause

Changes the play/pause state.

6. Play Time

Displays the current play time.

7. Info

Shows detailed information about the

current file.

8. Random(Shuffle)

Turns the Random(Shuffle) feature

on/off.

9. Repeat

Turns the Repeat feature on/off.

10. Copy

Copies the current file into My Music

11. List

Moves to the list screen.

Using MP3 CD Mode

Playing/Pausing MP3 Files

Once an MP3 disc is inserted the mode

will automatically start and being playing.

While playing, press the button to

pause and press

button to play.

✽NOTICE

If there are numerous files and folders

within the disc, reading time could take

more than 10 seconds and the list may

not be displayed or song searches may

not operate. Once loading is complete,

try again.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 48

4 49

Features of your vehicle

Changing Files

Press the key to move to the

previous or next file.

✽NOTICE

• Pressing the key after the

file has been playing for 2 seconds will

start the current file from the begin-

ning.

• Pressing the key before the

file has been playing for 1 seconds will

start the previous file.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired file.

Once you find the desired file, press the

TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan

Press the key to play the first 10

seconds of each file.

Searching Folders

Press the key to select and

search folders.

Once the desired folder is displayed,

press the TUNE knob to select.

The first file within the selected folder will

begin playing.

MP3 CD Mode Menu

Within this mode, you will have access to

the Info, Random(Shuffle), Repeat, Copy

and List features.

Info

Press the button to display details

about the current file.

FOLDER

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

Info

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 49

Features of your vehicle

504

✽NOTICE

• When the ‘Folder File’ option is set as

the default display within Display

setup, the album/artist/file informa-

tion are displayed as detailed file

information.

• When the ‘Album Artist Song’ option

is set as the default display, the folder

name/file name are displayed as

detailed file information.

• The title, artist and album info are

displayed only when such information

are recorded within the MP3 file ID3

tag.

Random(Shuffle)

Press the button to play files in

random(Shuffle) order.

Each time the button is pressed, the fea-

ture changes in order of Random

(Shuffle) Folder ➟ Random (Shuffle) All➟

Off.

• Random(Shuffle) Folder : Plays all files

within the current folder in Random

(Shuffle) order.

• Random(Shuffle) All : Plays all files in

Random(Shuffle) order.

Repeat

Press the button to repeat the

current file or folder.

Each time the button is pressed, the fea-

ture changes in order of Repeat ➟Repeat

Folder➟Off.

• Repeat: Repeats the current file.

• Repeat Folder: Repeats all files within

the current Folder.

Copying Files

Press the button to copy the cur-

rent file into My Music.

✽NOTICE

Selecting another feature during copy-

ing will display a pop-up asking whether

you wish to cancel copying. To cancel,

select 'Yes’.

List

Press the button to display the file

list screen.

Turn the TUNE knob left/right to

search for files. Once the desired file is

displayed, press the knob to select and

play.

Copy

Repeat

Shuffle

List

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 50

4 51

Features of your vehicle

✽NOTICE - Using the USB

device

• Connect the USB device after turning

on the engine. The USB device may

become damaged if it is already con-

nected when the ignition is turned

on.The USB device may not operate

properly if the car ignition is turned

on or off with the USB device connect-

ed.

• Heed caution to static electricity when

connecting/disconnecting USB

devices.

• Encoded MP3 Players will not be rec-

ognized when connected as an exter-

nal device.

• When connecting an external USB

device, the device may not properly

recognize the USB is in some states.

• Only products formatted with

byte/sectors under 64Kbyte will be

recognized.

• This device recognizes USB devices

formatted in FAT 12/16/32 file for-

mats. This device does not recognize

files in NTFS file format.

(Continued)

• Some USB devices may not be sup-

ported due to compatibility issues.

• Avoid contact between the USB con-

nector with bodily parts or foreign

objects.

• Repeated connecting/disconnecting of

USB devices within short periods of

time may result in product malfunc-

tion.

• A strange noise may occur when dis-

connecting the USB.

• Make sure to connect/disconnect

external USB devices with the audio

power turned off.

• The amount of time required to recog-

nize the USB device may differ

depending on the type, size or file for-

mats stored in the USB. Such differ-

ences in time are not indications of

malfunctions.

• The device only supports USB devices

used to play music files.

• USB images and videos are not sup-

ported.

(Continued)

• Do not use the USB I/F to charge bat-

teries or USB accessories that gener-

ate heat. Such acts may lead to wors-

ened performance or damage to the

device.

• The device may not recognize the USB

device if separately purchased USB

hubs and extension cables are being

used. Connect the USB directly with

the multimedia terminal of the vehi-

cle.

• When using mass storage USB devices

with separate logical drives, only files

saved to the root drive can be played.

• Files may not properly operate if

application programs are installed to

the USBs.

• The device may not operate normally

if MP3 Players, cellular phones, digi-

tal cameras, or other electronic

devices (USB devices not recognized

as portable disk drives) are connected

with the device.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 51

Features of your vehicle

524

(Continued)

• Charging through the USB may not

work for some mobile devices.

• The device may not support normal

operation when using a USB memory

type besides (Metal Cover Type) USB

Memory.

• The device may not support normal

operation when using formats such as

HDD Type, CF, or SD Memory.

• The device will not support files

locked by DRM (Digital Rights

Management.)

• USB memory sticks used by connect-

ing an Adaptor (SD Type or CF Type)

may not be properly recognized.

• The device may not operate properly

when using USB HDDs or USBs sub-

ject to connection failures caused by

vehicle vibrations. (e.g. i-stick type)

(Continued)

• Avoid use of USB memo-

ry products that can also

be used as key chains or

mobile phone accessories.

Use of such products may

cause damage to the USB jack.

• Connecting an MP3 device or phone

through various channels, such as

AUX/BT or Audio/ USB mode may

result in pop noises or abnormal oper-

ation.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 52

4 53

Features of your vehicle

USB MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat/Random(Shuffle)/ Scan,

displays the currently operating function.

3. File Index

Displays the current file number.

4. File Info

Displays information about the current file.

5. Play/Pause

Changes the play/pause state.

6. Play Time

Displays the current play time.

7. Info

Displays detailed information for the cur-

rent file.

8. Random(Shuffle)

Turns the Random(Shuffle) feature

on/off.

9. Repeat

Turns the Repeat feature on/off.

10. Copy

Copies the current file into My Music.

11. List

Moves to the list screen.

Using USB Mode

Playing/Pausing USB Files

Once a USB is connected, the mode will

automatically start and begin playing a

USB file.

While playing, press the button to

pause and press button to play.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 53

Features of your vehicle

544

✽NOTICE

• Loading may require additional time

if there are many files and folders

within the USB and result in faulty list

display or file searching. Normal

operations will resume once loading is

complete.

• The device may not support normal

operation when using a USB memory

type besides (Metal Cover Type) USB

Memory.

Changing Files

Press the keys to move to the

previous or next file.

✽NOTICE

• Pressing the key after the

file has been playing for 2 seconds will

start the current file from the begin-

ning.

• Pressing the key before the

file has been playing for 1 seconds will

start the previous file.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired file.

Once you find the desired file, press the

TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (over 0.8 seconds) to rewind

or fast-forward the current file.

Scan

Press the key to play the first 10

seconds of each file.

Searching Folders

Press the key to select and

search folders.

Once the desired folder is displayed,

press the TUNE knob to select.

The first file within the selected folder will

begin playing.

FOLDER

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SCAN

SEEK

TRACK

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 54

4 55

Features of your vehicle

USB Mode Menu

Within this mode, you will have access to

the Info, Random(Shuffle), Repeat, Copy

and List features.

Info

Press the button to display details

about the current file.

✽NOTICE

• When the ‘Folder File’ option is set as

the default display within Display

setup, the album/artist/file information

are displayed as detailed file informa-

tion.

• When the ‘Album Artist Song’ option

is set as the default display, the folder

name/file name are displayed as

detailed file information.

• The title, artist and album info are

displayed only when such information

are recorded within the MP3 file ID3

tag.

Random(Shuffle)

Press the button to play files in

random(Shuffle) order.

Each time the button is pressed, the fea-

ture changes in order of Random(Shuffle)

Folder➟Random (Shuffle) All➟Off.

• Random(Shuffle) Folder : Plays the

files in the current folder in

random(Shuffle) order.

• Random(Shuffle) All : Plays all files in

random(Shuffle) order.

Repeat

Press the button to repeat the

current file or folder.

Each time the button is pressed, the fea-

ture changes in order of Repeat➟

Repeat Folder ➟Off.

• Repeat (Icon) : Repeats the current

file.

• Repeat Folder (Icon) : Repeats all files

within the current folder.

Copying Files

Press the button to copy the cur-

rent file into My Music.

✽NOTICE

Selecting another feature during copy-

ing will display a pop-up asking whether

you wish to cancel copying. To cancel,

select 'Yes’.

List

Press the button to display the file

list screen.

Turn the TUNE knob left/right to

search for files. Once the desired file is

displayed, press the knob to select and

play.

List

Copy

Repeat

Shuffle

Info

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 55

Features of your vehicle

564

✽NOTICE - Using the

iPod®device

• iPod®is a registered trademark of

Apple Inc.

• In order to use the iPod®while oper-

ating the keys, you must use a dedi-

cated iPod®cable. (the cable that is

supplied when purchasing iPod®/

iPhone®products)

• If the iPod®is connected to the vehicle

while it is playing, a high pitch sound

could occur for approximately 1-2 sec-

onds immediately after connecting. If

possible, connect the iPod to the vehi-

cle with the iPod®stopped/paused.

• During ACC ON state, connecting the

iPod®through the iPod®cable will

charge the iPod®through the car

audio system.

• When connecting with the iPod®

cable, make sure to fully insert the

jack to prevent communication inter-

ference.

(Continued)

• When the EQ features of an external

device, such as the iPod®, and the

audio system are both active, EQ

effects could overlap and cause sound

deterioration and distortion.

Whenever possible, turn off the EQ

feature within the external device

upon use by connecting with the audio

system.

• Noise may occur when an iPod®or

AUX device is connected. When such

devices are not being used, disconnect

the device for storage.

• When the iPod®or AUX device power

is connected to the power jack, play-

ing the external device may result in

noise. In such cases, disconnect the

power connection before use.

• Skipping or improper operation may

occur depending on the characteris-

tics of your iPod® /Phone®device.

• If your iPhone®is connected to both

the Bluetooth®Wireless Technology

and USB, the sound may not be prop-

erly played. In your iPhone®, select

the Dock connector or Bluetooth®

Wireless Technology to change the

sound output (source).

(Continued)

• iPod mode cannot be operated when

the iPod®cannot be recognized due to

versions that do not support commu-

nication protocols.

• For fifth generation iPod®Nano

devices, the iPod®may not be recog-

nized when the battery level is low.

Please charge the iPod®for use.

• Search/play orders shown within the

iPod®device may differ with the

orders shown within the audio system.

• If the iPod®malfunctions due to an

iPod®device defect, reset the iPod®

and try again. (To learn more, refer to

your iPod®manual)

• Some iPod®s may not sync with the

System depending on its version. If

the Media is removed before the

Media is recognized, then the system

may not properly restore the previ-

ously operated mode. (iPad®charging

is not supported.)

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 56

4 57

Features of your vehicle

iPod®MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat/Random(Shuffle), displays

the currently operating function.

3. Song Index

Displays the current song/total number of

songs.

4. Song Info

Displays information about the current

song.

5. Play/Pause

Changes the play/pause state.

6. Play Time

Displays the current play time.

7. Random(Shuffle)

Turns the Random(Shuffle) feature

on/off.

8. Repeat

Turns the Repeat feature on/off.

9. List

Moves to the list screen.

Using iPod®Mode

Playing/Pausing iPod

Songs

Once an iPod®is connected, the mode

will automatically start and begin playing

an iPod®song.

While playing, press the button to

pause and press button to play.

✽NOTICE

iPod®s with unsupported communica-

tion protocols may not properly operate

in the audio system.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 57

Features of your vehicle

584

Changing Songs

Press the key to move to the

previous or next song.

✽NOTICE

• Pressing the key after the

song has been playing for 2 seconds

will start the current song from the

beginning.

• Pressing the key before the

song has been playing for 1 seconds

will start the previous song.

• Slight time differences may exist

depending your iPod®product.

Rewinding / Fast-forwarding Songs

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current song.

Searching Categories

Turn the TUNE knob left/right to

search for the desired category.

Once you find the desired category,

press the TUNE knob to select and

play.

✽NOTICE

There are eight categories that can be

searched, including Playlists, Artists,

Albums, Genres, Songs, Composers,

Audiobooks and Podcasts.

Category Menu

Within the iPod®Category menu, you will

have access to the , Home, and

features.

1. : Displays the play screen

2. Home : Moves to the iPod®root catego-

ry screen

3. : Moves to the previous catego-

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 58

4 59

Features of your vehicle

✽NOTICE

• If the search mode is accessed while

playing a song, the most recently

searched category is displayed.

• Search steps upon initial connection

may differ depending on the type of

iPod®device.

iPod®Mode Menu

Within this mode, you will have access to

the Random(Shuffle), Repeat and List

features.

Random(Shuffle)

Press the button to play songs in

random(Shuffle) order.

• Random(Shuffle) All : Plays all songs

in Random(Shuffle) order.

Repeat

Press the button to repeat the

current song. Press the button again to

turn the repeat feature off.

• Repeat : Repeats the current song

List

Press the button to display the

Category Menu.

Turn the TUNE knob left/right to

search for the desired category.

Once you find the desired category,

press the TUNE knob to select and

play.

List

Repeat

Shuffle

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 59

Features of your vehicle

604

AUX Mode

Using AUX Mode

Press the key Select [AUX]

An external device can be connected to

play music.

Connecting an External Device

External audio players (Camcorders, car

VCR, etc.) can be played through a ded-

icated cable.

✽NOTICE

• If an external device connector is con-

nected with the AUX terminal, then

AUX mode will automatically operate.

Once the connector is disconnected,

the previous mode will be restored.

• AUX mode can be used only when an

external audio player (camcorder, car

VCR, etc.) has been connected.

• The AUX volume can be controlled

separately from other audio modes.

• Connecting a connector jack to the

AUX terminal without an external

device will convert the system to AUX

mode, but only output noise. When an

external device is not being used, also

remove the connector jack.

• When the external device power is

connected to the power jack, playing

the external device may output noise.

In such cases, disconnect the power

connection before use.

• Fully insert the AUX cable to the AUX

jack upon use.

MEDIA

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 60

4 61

Features of your vehicle

MY MUSIC MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat/Random(Shuffle)/ Scan,

displays the currently operating function.

3. File Index

Displays the current file/total number of

files.

4. File Info

Displays information about the current

file.

5. Play/Pause

Changes the play/pause state.

6. Play Time

Displays the current play time.

7. Info

Displays detailed information for the cur-

rent file.

8. Random(Shuffle)

Turns the Random(Shuffle) feature

on/off.

9. Repeat

Turns the Repeat feature on/off.

10. Delete

Deletes the current file.

11. List

Moves to the list screen.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 61

Features of your vehicle

624

Using My Music Mode

Playing/Pausing My Music Files

While playing, press the button to

pause and press

button to play.

✽NOTICE

If there are no files saved within My

Music, the button will be dis-

abled.

Changing Files

Press the key to move to the

previous or next file.

✽NOTICE

• Pressing the key after the

file has been playing for 2 seconds will

start the current file from the begin-

ning.

• Pressing the key before the

file has been playing for 1 seconds will

start the previous file.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired file.

Once you find the desired file, press the

TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan

Press the key to play the first 10

seconds of each file.

My Music

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SCAN

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 62

4 63

Features of your vehicle

My Music Mode Menu

Within this mode, you will have access to

the Info, Random(Shuffle), Repeat,

Delete and List features.

Info

Press the button to display details

about the current file.

✽NOTICE

The title, artist and album info are dis-

played only when such information is

recorded within the MP3 file ID3 tag.

Random

Press the button to play files in

random order. Press the button again to

turn the Random feature off.

Repeat

Press the button to repeat the

current song. Press the button again to

turn the repeat feature off.

Deleting Files

Press the button to delete the

current file.

List

Press the button to display the file

list screen.

Turn the TUNE knob left/right to

search for files. Once the desired file is

displayed, press the knob to select and

play.

List

Delete

Repeat

Shuffle

Info

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 63

Features of your vehicle

644

List Menu

From the List screen, it is possible to

delete files you previously saved into My

Music.

Press the button or individually

select the files you want to delete. Once

files are selected, the button

and buttons will be enabled.

1) : Moves to the previous screen

2) Sellect All: Selects all files

3) Unsellet All: Deselects all selected

files

4) Delete: Deletes selected files

After selecting the files you want to

delete, press the button to

delete the selected files.

✽NOTICE

• If there is memory available, up to

6,000 files can be saved.

• Identical files cannot be copied more

than 1,000 times.

• To check memory information, go to

[System] [Memory

Information]

✽NOTICE - Using the

Bluetooth®

wireless tech-

nology audio mode

•Bluetooth®Wireless Technology

Audio Mode can be used only when a

Bluetooth®Wireless Technology

phone has been connected.

•Bluetooth®Wireless Technology

Audio Mode will not be available

when connecting mobile phones that

do not support this feature.

• While Bluetooth®Wireless

Technology Audio is playing, if the

Bluetooth®Wireless Technology

phone is connected, then the music

will also stop.

• Moving the Track up/down while

playing Bluetooth®Wireless

Technology audio mode may result in

pop noises in some mobile phones.

•Bluetooth®Wireless Technology

streaming audio may not be support-

ed in some mobile phones.

• When returning to Bluetooth®

Wireless Technology Audio mode

after ending a call, the mode may not

automatically restart in some mobile

phones.

• Receiving an incoming call or making

an outgoing call while playing

Bluetooth®Wireless Technology Audio

may result in audio interference.

SETUP

Delete

Unselect All

Select All

Delete

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 64

4 65

Features of your vehicle

Bluetooth

Wireless

Technology AUDIO MODE

(If equipped)

Using

Bluetooth®

Wireless

Technology Audio Mode

Playing/Pausing Bluetooth

Wireless

Technology

Audio

Once a

Bluetooth

Wireless Technology

device is connected, the mode will auto-

matically start.

While playing, press the button to

pause and press button to play.

✽NOTICE

The play/pause feature may operate

differently depending on the mobile

phone.

Changing Files

Press the key to move to the

previous or next file.

Setting Connection

If a

Bluetooth

Wireless Technology

device has not been connected, press the

key [Phone] button to display

the

Bluetooth

Wireless Technology con-

nection screen.

It is possible to use the pair phone, con-

nect/disconnect and delete features from

your

Bluetooth

Wireless Technology

phone.

✽NOTICE

• If the Bluetooth®Wireless Technology

audio is not operating properly, check

whether the feature is turned off at

[Phone] [Streaming

Audio]. If the feature is off, turn back

on and try again.

• If music is not yet playing from your

mobile device after converting to

Bluetooth®Wireless Technology Audio

mode, pressing the play button once

may start playing the mode. Check to

see that music is playing from the

Bluetooth®Wireless Technology device

after converting to Bluetooth®

Wireless Technology Audio Mode.

SETUP

SEEK

TRACK

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:01 PM Page 65

Features of your vehicle

664

✽NOTICE - Pairing through

[PHONE] Setup

• Before reading the manual, check the

following.

• Press the key Select

[Phone] Select [Pair Phone]

• From your Bluetooth®Wireless

Technology device (i.e. Mobile Phone),

search and select your car audio sys-

tem.

• If you entered the Passkey within the

Bluetooth®Wireless Technology

device

• If the following screen is displayed

and a 6-digit passkey is checked and

confirmed within the Bluetooth®

Wireless Technology device.

Pairing a

Bluetooth®

Wireless

Technology Device

What is Bluetooth® Wireless

Technology Pairing?

Pairing refers to the process of synchro-

nizing your

Bluetooth

Wireless

Technology phone or device with the car

audio system for connection. Pairing is

necessary to connect and use the

Bluetooth

Wireless Technology feature.

Pairing Key / Key on

the Steering Remote Controller

When No Devices have been Paired

1. Press the key or the

key on the steering remote controller.

The following screen is displayed.

2. Press the button to enter the

Pair Phone screen.

PHONE

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 66

4 67

Features of your vehicle

1) Car Name : Name of device as shown

when searching from your

Bluetooth

Wireless Technology device

2) Passkey : Passkey used to pair the

device

3. From your

Bluetooth

Wireless

Technology device (i.e. Mobile

Phone), search and select your car

audio system.

[Non SSP supported device]

(SSP: Secure Simple Pairing)

4. After a few moments, a screen is dis-

played where the passkey is entered.

Hear, enter the passkey “0000” to pair

your

Bluetooth

Wireless Technology

device with the car audio system.

[SSP supported device]

4. After a few moments, a screen is dis-

played 6 digits passkey.

Hear, check the passkey on your

Bluetooth

Wireless Technology

device and confirm.

5. Once pairing is complete, the following

screen is displayed.

✽NOTICE

If Bluetooth®Wireless Technology

devices are paired but none are current-

ly connected, pressing the key

or the key on the

steering wheel displays the following

screen. Press the [Pair] button to pair a

new device or press the [Connect] to

connect a previously paired device.

PHONE

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 67

Features of your vehicle

684

Pairing through [PHONE] Setup

Press the key Select

[Phone] Select [Pair Phone] Select

TUNE knob

1.The following steps are the same as

those described in the section "When

No Devices have been Paired" on the

previous page.

✽NOTICE

•Bluetooth®Wireless Technology fea-

tures supported within the vehicle are

as follows. Some features may not be

supported depending on your

Bluetooth®Wireless Technology

device.

- Outgoing/Incoming Handsfree calls

- Operations during a call (Switch to

Private, Switch to call waiting, MIC

on/off)

- Downloading Call History

- Downloading Mobile Contacts

-Bluetooth®Wireless Technology

device auto connection

- Bluetooth Audio Streaming

• Up to five Bluetooth®Wireless

Technology devices can be paired to

the Car Handsfree system.

• Only one Bluetooth®Wireless

Technology device can be connected at

a time.

• Other devices cannot be paired while

a Bluetooth®Wireless Technology

device is connected.

• Only Bluetooth®Wireless Technology

Handsfree and Bluetooth audio relat-

ed features are supported.

• Bluetooth related operations are possi-

ble only within devices that support

Handsfree or audio features, such as a

Bluetooth®Wireless Technology mobile

phone or a Bluetooth audio device.

• If a connected Bluetooth®Wireless

Technology device becomes discon-

nected due to being out of communi-

cation range, turning the device OFF,

or a Bluetooth®Wireless Technology

communication error, corresponding

Bluetooth®Wireless Technology

devices are automatically searched

and reconnected.

• If the system becomes unstable due to

communication errors between the

car Handsfree and the Bluetooth®

Wireless Technology device, reset the

device by turning off and back on

again. Upon resetting Bluetooth®

Wireless Technology device, the sys-

tem will be restored.

• After pairing is complete, a contacts

download request is sent once to the

mobile phone. Some mobile phones

may require confirmation upon receiv-

ing a download request, ensure your

mobile phone accepts the connection.

Refer to your phones user’s manual for

additional information regarding

phone pairing and connections.

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 68

4 69

Features of your vehicle

Connecting a Device

Press the key Select [Phone]

Select [Paired Phone List]

1)Connected Phone : Device that is cur-

rently connected

2)Paired Phone : Device that is paired

but not connected

From the paired phone list, select the

device you want to connect and press the

button.

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth

Wireless Technology devices with the

car audio system. The "Change Priority"

feature is used to set the connection pri-

ority of paired phones.

Press the key Select [Phone]

Select [Paired Phone List]

From the paired phone list, select the

phone you want to switch to the highest

priority, then press the

button from the Menu. The selected

device will be changed to the highest pri-

ority.

✽NOTICE

Priority icon will be displayed when the

selected phone is set as a priority phone.

Change priority

SETUP

Connect

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 69

Features of your vehicle

704

Disconnecting a Device

Press the key Select [Phone]

Select [Paired Phone List]

From the paired phone list, select the

currently connected device and press the

button.

Deleting a Device

Press the key Select [Phone]

Select [Paired Phone List]

From the paired phone list, select the

device you want to delete and press the

button.

✽NOTICE

• When deleting the currently connect-

ed device, the device will automatical-

ly be disconnected to proceed with the

deleting process.

• If a paired Bluetooth®Wireless

Technology device is deleted, the

device’s call history and contacts data

will also be deleted.

• To re-use a deleted device, you must

pair the device again.

Delete

SETUP

Disconnect

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 70

4 71

Features of your vehicle

USING

Bluetooth®

Wireless

Technology

Phone Menu Screen

Phone Menus

With a

Bluetooth

Wireless Technology

device connected, press the

key to display the Phone menu screen.

1) Favorite : Up to 20 frequently used

contacts saved for easy access

2) Dial Number : Displays the dial screen

where numbers can be dialed to make

calls

3) Call History : Device the call history

list screen

4) Contacts : Displays the Contacts list

screen

5) Setup : Displays Phone related set-

tings

✽NOTICE

• If you press the [Call History] button

but there is no call history data, a

prompt is displayed which asks to

download call history data.

• If you press the [Contacts] button but

there is no contacts data stored, a

prompt is displayed which asks to

download contacts data.

• This feature may not be supported in

some mobile phones. For more infor-

mation on download support, refer to

your mobile phone user’s manual.

Favorites

Press the key Select

[Favorites]

1) Saved favorite contact : Connects call

upon selection

2) To add favorite : Downloaded contacts

be saved as favorite.

3) Delete All : Delete all stored favorite

contacts

✽NOTICE

• To save Favorite, contacts should be

downloaded.

• Contact saved in Favorites will not be

automatically updated if the contact

has been updated in the phone. To

update Favorites, delete the Favorite

and create a new Favorite.

PHONE

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 71

Features of your vehicle

724

Calling by Dialing a Number

Press the key Select [Dial

Number]

1) Dial Pad : Used to enter phone num-

ber

2) Call : If a number has been entered,

calls the number If no number has

been entered, switches to call history

screen

3) End : Deletes the entered phone num-

ber

4) Delete : Deletes entered numbers one

digit at a time

Answering Calls

Answering a Call

Answering a call with a

Bluetooth

Wireless Technology device connected

will display the following screen.

1) Caller : Displays the other party’s

name when the incoming caller is

saved within your contacts

2) Incoming Number : Displays the

incoming number

3) Accept : Accept the incoming call

4) Reject : Reject the incoming call

✽NOTICE

• When an incoming call pop-up is dis-

played, most Audio and SETUP mode

features are disabled. Only the call

volume will operate.

• The telephone number may not be

properly displayed in some mobile

phones.

• When a call is answered with the

mobile phone, the call mode will auto-

matically revert to Private mode.

PHONE

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 72

4 73

Features of your vehicle

During a Handsfree Call

1) Caller : Displays the other party’s

name if the incoming caller is saved

within your contacts

2) Incoming Number : Displays the

incoming number

3) Call time : Displays the call time

4) End : Ends call

5) Private : Converts to Private mode

6) Out Vol. : Sets call volume as heard by

the other party

7) Mute : Turns Mic Mute On/Off

✽NOTICE

If the mic is muted, the other party will

not be able to hear your voice.

Call History

Press the key Select [Call

History]

A list of incoming, outgoing and missed

calls is displayed.

Press the button to download

the call history.

1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

2) Download : Download Recent Call

History

• Call history may not be saved in the

call history list in some mobile phones.

• Calls received with hidden caller ID will

not be saved in the call history list.

• Calling through the call history is not

possible when there is no call history

stored or a

Bluetooth

Wireless

Technology phone is not connected.

• Up to 20 received, dialed and missed

calls are stored in Call History.

• Time of received/dialed calls and call

time information are not saved.

Download

PHONE

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 73

Features of your vehicle

744

Contacts

Press the key Select

[Contacts]

The list of saved phone book entries is

displayed. Press the button to

download the call history.

1) Contacts List :

- Displays downloaded contacts entries

- Connects call upon selection

2) Sort by : Find a contact in an alpha-

betical order.

3) Download : Download contacts entries

✽NOTICE

• Up to 1,000 contacts saved in your

Bluetooth®Wireless Technology

phone can be downloaded into the car

contacts. Contacts that have been

downloaded to the car cannot be edit-

ed or deleted on the phone.

• Mobile phone contacts are managed

separately for each paired Bluetooth®

Wireless Technology device (max 5

devices x 1,000 contacts each).

Previously downloaded data is main-

tained even if the Bluetooth®Wireless

Technology device has been discon-

nected.

(However, the contacts and call histo-

ry saved to the phone will be deleted if

a paired phone is deleted.)

• It is possible to download contacts

during Bluetooth streaming audio.

• When downloading contacts, the icon

will be displayed within the status bar.

(Continued)

• It is not possible to begin downloading

a contact list when the contact down-

load feature has been turned off with-

in the Bluetooth®Wireless Technology

device. In addition, some devices may

require device authorization upon

attempting to download contacts. If

downloading does not normally occur,

check the Bluetooth®Wireless

Technology device settings or the

screen state.

• The contacts download feature may

not be supported in some mobile

phones. For more information of sup-

ported Bluetooth®devices and func-

tion support, refer to your phone’s

user manual.

Download

PHONE

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 74

4 75

Features of your vehicle

Bluetooth®

Wireless Technology

Setting

Pairing a New Device

Press the key Select [Phone]

Select [Pair Phone]

Bluetooth

Wireless Technology devices

can be paired with the audio system.

For more information, refer to the “Pairing

through Phone Setup” section within

Bluetooth

Wireless Technology.

Viewing Paired Phone List

Press the key Select [Phone]

Select [Paired Phone List]

This feature is used to view mobile

phones that have been paired with the

audio system. Upon selecting a paired

phone, the setup menu is displayed.

For more information, refer to the “Setting

Bluetooth

Wireless Technology

Connection” section within

Bluetooth

Wireless Technology.

1) : Moves to the previous screen

2) Connect/Disconnect Phone : Connect/

disconnects currently selected phone

3) Delete : Deletes the currently selected

phone

4) Change Priority : Sets currently

selected phone to highest connection

priority

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 75

Features of your vehicle

764

✽NOTICE - Before down-

loading contacts

• Only contacts within connected

phones can be downloaded. Also

check to see that your mobile phone

supports the download feature.

• To learn more about whether your

mobile phone supports contacts

downloads, refer to your mobile

phone user’s manual.

• The contacts for only the connected

phone can be downloaded.

Downloading Contacts

Press the key Select [Phone]

Select [Contacts Download]

As the contacts are downloaded from

the mobile phone, a download progress

bar is displayed.

✽NOTICE

• Upon downloading phone contacts,

the previous corresponding data is

deleted.

• This feature may not be supported in

some mobile phones.

Auto Download (Contacts)

Press the key Select [Phone]

Select [Auto Download]

This feature is used to automatically

download mobile contacts entries once a

Bluetooth

Wireless Technology phone

is connected.

✽NOTICE

• The Auto Download feature will download

mobile contacts entries every time the

phone is connected. The download time

may differ depending on the number of

saved contacts entries and the communi-

cation state.

• Before downloading contacts, first

check to see that your mobile phone

supports the contacts download fea-

ture.

SETUP SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 76

4 77

Features of your vehicle

Streaming Audio

Press the key Select [Phone]

Select [Streaming Audio]

When Streaming Audio is turned on, you

can play music files saved in your

Bluetooth

Wireless Technology device

through the audio system.

Outgoing Volume

Press the key Select [Phone]

Select [Outgoing Volume]

Use the , buttons to adjust the

outgoing volume level.

✽NOTICE

While on a call, the volume can be

changed by using the key.

Turning Bluetooth System Off

Press the key Select

[Phone] Select [Bluetooth System Off]

Once

Bluetooth

Wireless Technology is

turned off,

Bluetooth

Wireless

Technology related features will not be

supported within the audio system.

✽NOTICE

To turn Bluetooth®Wireless Technology

back on, go to [Phone] and

press “Yes

SETUP

SETUP SETUP

SEEK

TRACK

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 77

Features of your vehicle

784

SETUP

Starting Mode

Press the key to display the

Setup screen.

You can select and control options related

to [Display], [Sound], [Clock/Calendar],

[Phone] and [System].

Display Settings

Adjusting the Brightness

Press the key Select [Display]

Select [Brightness]

Use the , buttons to adjust the

screen brightness or set the Brightness

on Automatic, Daylight, or Night mode.

Press the button to reset.

1) Automatic : Adjusts the brightness

automatically

2) Daylight : Always maintains the bright-

ness on high

3) Night : Always maintains the bright-

ness on low

Pop-up Mode

Press the key Select [Display]

Select [Mode Pop up]

This feature is used to display the Pop-up

Mode screen when entering radio and

media modes.

When this feature is turned on, pressing

the or key will display

the Pop-up Mode screen.

✽NOTICE

The media Pop-up Mode screen can be

displayed only when two or more media

modes have been connected.

MEDIA RADIO

SETUP

Default

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 78

4 79

Features of your vehicle

Text Scroll

Press the key Select [Display]

Select [Text Scroll]

This feature is used to scroll text dis-

played on the screen when it is too long

to be displayed at once.

When turned on, the text is repeatedly

scrolled. When turned off, the text is

scrolled just once.

MP3 Information Display

Press the key Select [Display]

Select [Media Display]

This feature is used to change the infor-

mation displayed within USB and MP3

CD modes.

1) Folder File : Displays file name and

folder name

2) Album Artist Song : Displays album

name/artist name/song

Sound Settings

Press the key Select [Sound]

Select [Sound Setting]

Use the , , , buttons to

adjust the Fader/Balance settings.

Use the , buttons to adjust the

Bass/Middle/Treble settings.

Press the button to reset.

Default

SETUP

SETUP SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 79

Features of your vehicle

804

SDVC (Speed Dependent Volume

Control)

Press the key Select [Sound]

Select [Speed Dependent Vol.]

The volume level is controlled automati-

cally according to the vehicle speed.

SDVC can be set by selecting from

Off/Low/Mid/High.

Touch Screen Beep

Press the key Select [Sound]

Select [Touch Screen Beep]

This feature is used to turn the touch

screen beep on/off.

System Setting

Memory Information

Press the key Select [System]

Select [Memory Information]

This feature displays information related

to system memory.

1) Using : Displays capacity currently in

use

2) Capacity : Displays total capacity

Language

Press the key Select [System]

Select [Language]

SETUP

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 80

4 81

Features of your vehicle

REAR VIEW CAMERA

(if equipped)

• The system has been equipped with a

rear view camera for user safety by

allowing a wider rear range of vision.

• The rear view camera will automatical-

ly operate when the ignition key is

turned ON and the transmission lever

is set to R.

• The rear view camera will automatical-

ly stop operating when set to a differ-

ent lever.

CAUTION

The rear view camera has been

equipped with an optical lens to pro-

vide a wider range of vision and may

appear different from the actual dis-

tance. For safety, directly check the

rear and left/right sides.

H-MD-MEXICO-AUDIO-edit:BH hma 4-109~(Audio).qxd 12/17/2013 4:02 PM Page 81

Features of your vehicle

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void

your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

HYUNDAI MOBIS AC110A0GG DIGITAL CAR AUDIO SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
