Features of your vehicle

How vehicle audio works

AM and FM radio signals are broad-

cast from transmitter towers located

around your city. They are intercept-

ed by the radio antenna on your vehi-

cle. This signal is then received by

the radio and sent to your vehicle

speakers.

When a strong radio signal has

reached your vehicle, the precise

engineering of your audio system

ensures the best possible quality

reproduction. However, in some

cases the signal coming to your vehi-

cle may not be strong and clear.

This can be due to factors, such as

the distance from the radio station,

closeness of other strong radio sta-

tions or the presence of buildings,

bridges or other large obstructions in

the area.

AM broadcasts can be received at

greater distances than FM broad-

casts. This is because AM radio

waves are transmitted at low fre-

quencies. These long, low frequency

radio waves can follow the curvature

of the earth rather than travelling

straight out into the atmosphere. In

addition, they curve around obstruc-

tions so that they can provide better

signal coverage.

JBM001

JBM002

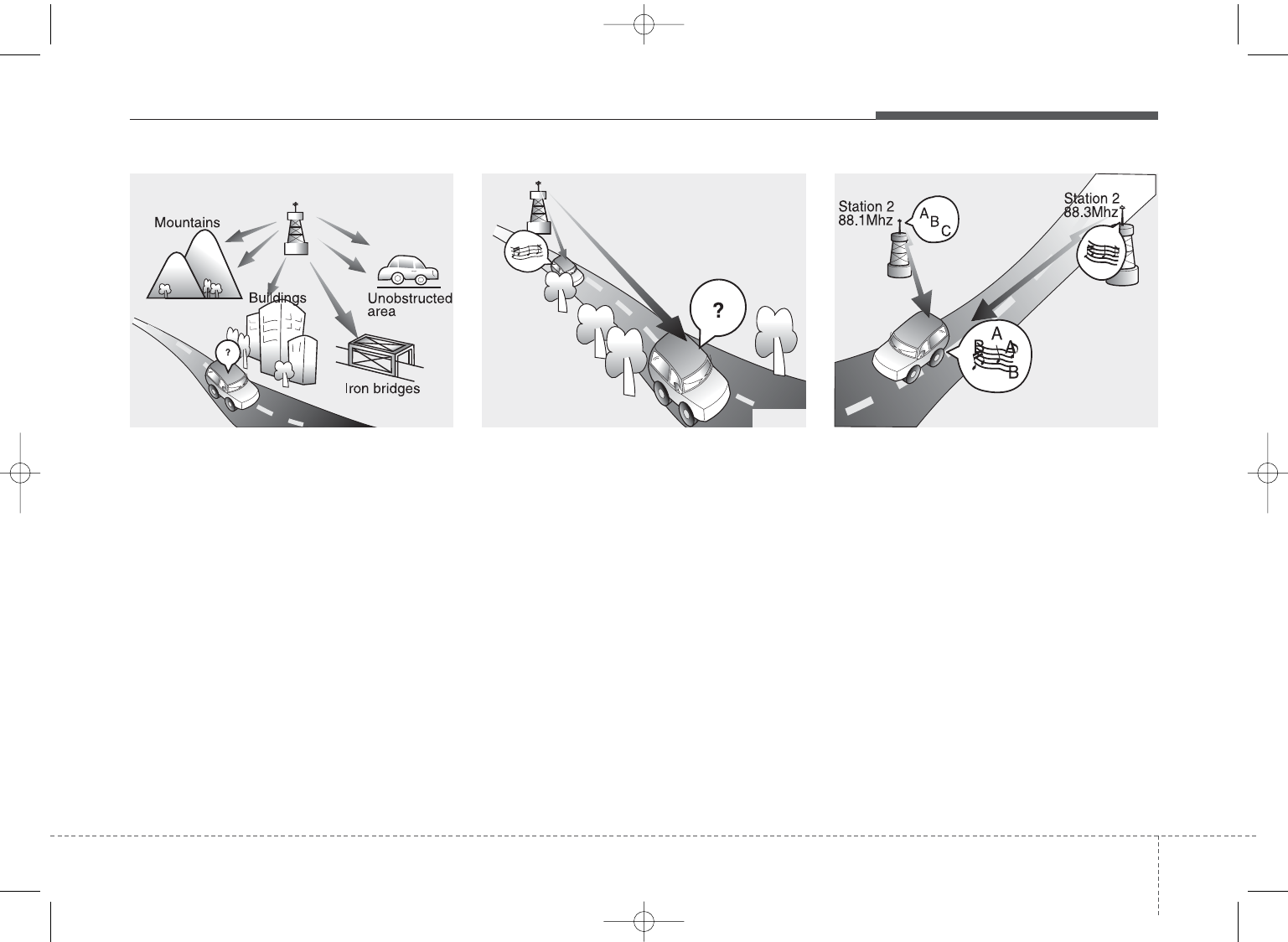

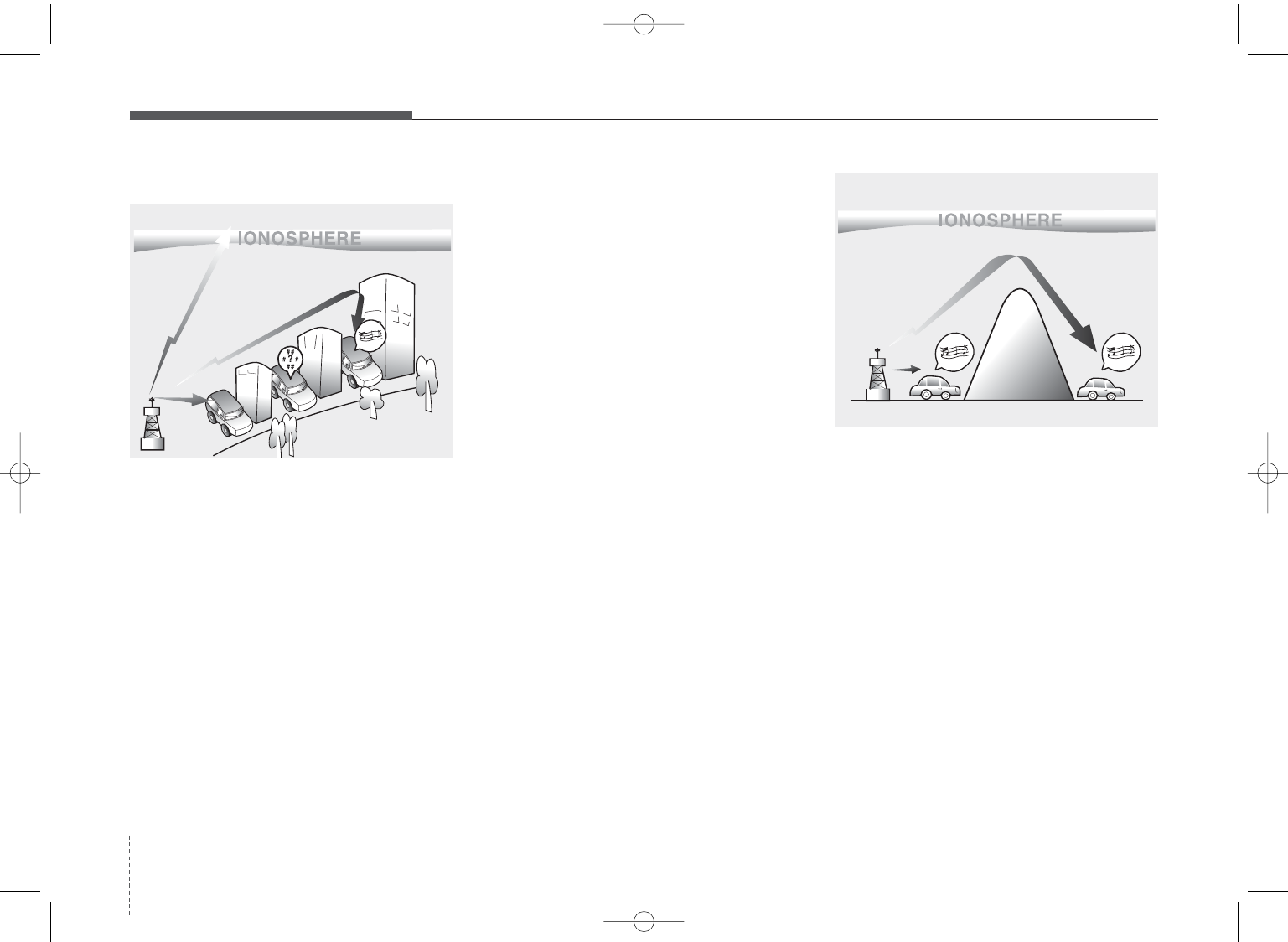

FM reception

AM (MW, LW) reception

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 2

Features of your vehicle

FM broadcasts are transmitted at

high frequencies and do not bend to

follow the earth's surface. Because

of this, FM broadcasts generally

begin to fade at short distances from

the station. Also, FM signals are eas-

ily affected by buildings, mountains,

or other obstructions. These can

result in certain listening conditions

which might lead you to believe a

problem exists with your radio. The

following conditions are normal and

do not indicate radio trouble:

• Fading - As your vehicle moves

away from the radio station, the

signal will weaken and sound will

begin to fade. When this occurs,

we suggest that you select another

stronger station.

• Flutter/Static - Weak FM signals or

large obstructions between the

transmitter and your radio can dis-

turb the signal causing static or

fluttering noises to occur. Reducing

the treble level may lessen this

effect until the disturbance clears.

• Station Swapping - As a FM signal

weakens, another more powerful

signal near the same frequency

may begin to play. This is because

your radio is designed to lock onto

the clearest signal. If this occurs,

select another station with a

stronger signal.

• Multi-Path Cancellation - Radio

signals being received from sever-

al directions can cause distortion

or fluttering. This can be caused by

a direct and reflected signal from

the same station, or by signals

from two stations with close fre-

quencies. If this occurs, select

another station until the condition

has passed.

JBM004 JBM005JBM003

FM radio station

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 3

Features of your vehicle

Using a cellular phone or a two-

way radio

When a cellular phone is used inside

the vehicle, noise may be produced

from the audio system. This does not

mean that something is wrong with

the audio equipment. In such a case,

use the cellular phone at a place as

far as possible from the audio equip-

ment.

Caring for disc

• If the temperature inside the car is

too high, open the car windows to

ventilate before using the system.

• It is illegal to copy and use

MP3/WMA files without permis-

sion. Use CDs that are created

only by lawful means.

• Do not apply volatile agents, such

as benzene and thinner, normal

cleaners and magnetic sprays

made for analogue disc onto CDs.

• To prevent the disc surface from

getting damaged, hold CDs by the

edges or the center hole only.

• Clean the disc surface with a piece

of soft cloth before playback (wipe

it from the center to the outside

edge).

• Do not damage the disc surface or

attach pieces of sticky tape or

paper.

• Make certain only CDs are insert-

ed into the CD player (Do not insert

more than one CD at a time).

• Keep CDs in their cases after use

to protect them from scratches or

dirt.

CAUTION

When using a communication

system such as a cellular phone

or a radio set inside the vehicle,

a separate external antenna

must be fitted. When a cellular

phone or a radio set is used

with an internal antenna alone,

it may interfere with the vehi-

cle's electrical system and

adversely affect safe operation

of the vehicle.

WARNING

Do not use a cellular phone

while driving. Stop at a safe

location to use a cellular phone.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 4

Features of your vehicle

• Depending on the type of CD-

R/CD-RW CDs, certain CDs may

not operate normally according to

manufacturing companies or mak-

ing and recording methods. In such

circumstances, continued use may

cause malfunctions to your audio

system.

✽✽NOTICE - Playing an

Incompatible Copy

Protected Audio CD

Some copy protected CDs, which do

not comply with international audio

CD standards (Red Book), may not

play on your car audio. Please note

that inabilities to properly play a

copy protected CD may indicate

that the CD is defective, not the CD

player.

✽✽NOTICE

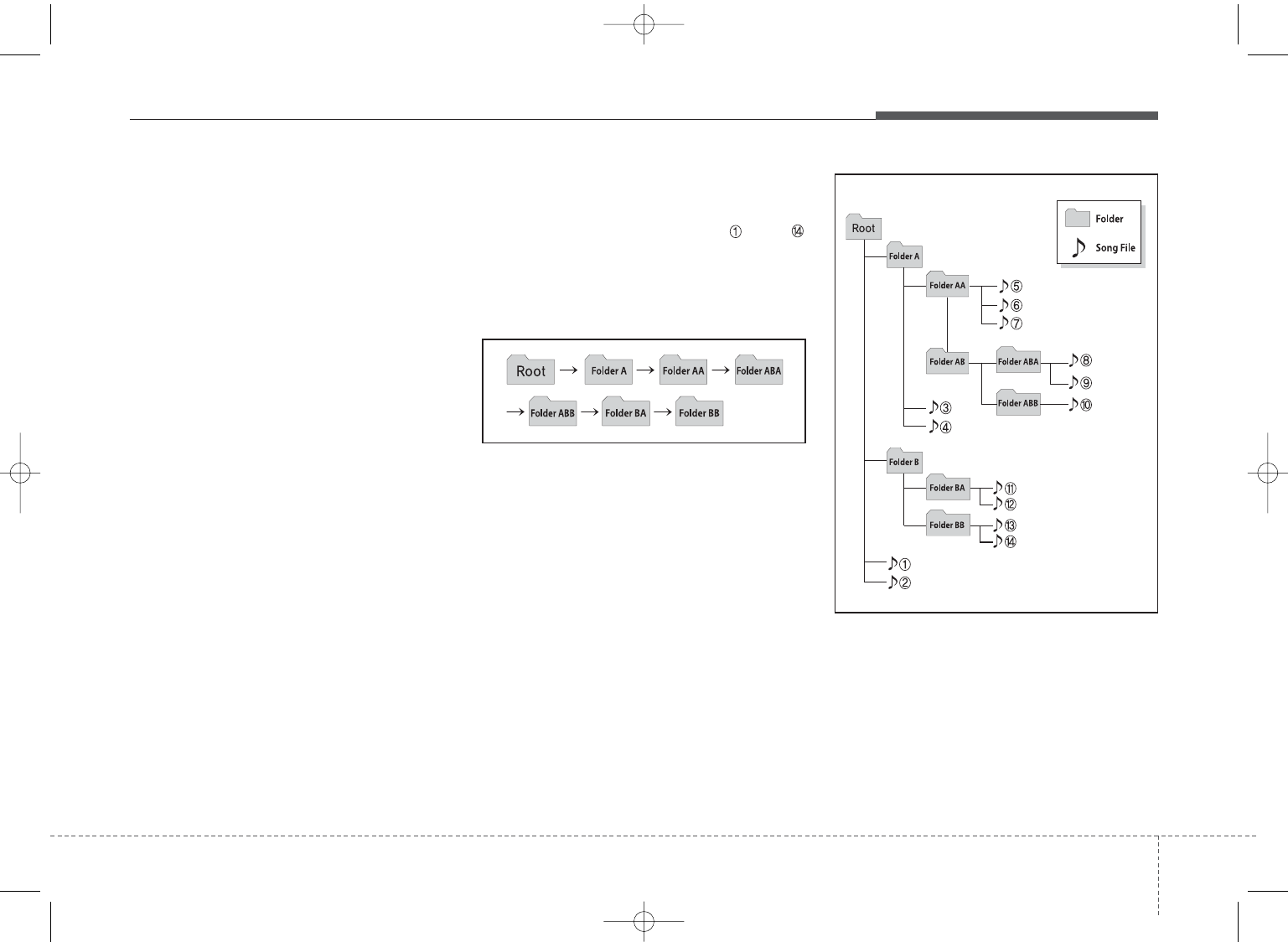

Order of playing files (folders) :

1. Song playing order : to

sequentially.

2. Folder playing order :

❈❈If no song file is contained in the

folder, that folder is not displayed.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 5

Features of your vehicle

WARNING

• Do not stare at the screen

while driving. Staring at the

screen for prolonged periods

of time could lead to traffic

accidents.

• Do not disassemble, assem-

ble, or modify the audio sys-

tem. Such acts could result in

accidents, fire, or electric

shock.

• Using the phone while driving

may lead to a lack of attention

of traffic conditions and

increase the likelihood of

accidents. Use the phone fea-

ture after parking the vehicle.

• Heed caution not to spill water

or introduce foreign objects

into the device. Such acts

could lead to smoke, fire, or

product malfunction.

(Continued)

• Driving while distracted can

result in a loss of vehicle control

that may lead to an accident,

severe personal injury, and

death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a vehi-

cle or which are not permissible

by law should never be used

during operation of the vehicle.

(Continued)

• Please refrain from use if the

screen is blank or no sound

can be heard as these signs

may indicate product malfunc-

tion. Continued use in such

conditions could lead to acci-

dents(fires, electric shock) or

product malfunctions.

• Do not touch the antenna dur-

ing thunder or lightening as

such acts may lead to light-

ning induced electric shock.

• Do not stop or park in park-

ing-restricted areas to operate

the product. Such acts could

lead to traffic accidents.

• Use the system with the vehi-

cle ignition turned on.

Prolonged use with the igni-

tion turned off could result in

battery discharge.

(Continued)

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 6

Features of your vehicle

(Continued)

•Turn on the car ignition before

using this device. Do not oper-

ate the audio system for long

periods of time with the ignition

turned off as such operations

may lead to battery discharge.

• Do not subject the device to

severe shock or impact. Direct

pressure onto the front side of

the monitor may cause damage

to the LCD or touch screen.

• When cleaning the device,

make sure to turn off the

device and use a dry and

smooth cloth. Never use

tough materials, chemical

cloths, or solvents (alcohol,

benzene, thinners, etc.) as

such materials may damage

the device panel or cause

color/quality deterioration

(Continued)

• Do not place beverages close

to the audio system. Spilling

beverages may lead to system

malfunction.

• In case of product malfunc-

tion, please contact your place

of purchase or After Service

center.

• Placing the audio system with-

in an electromagnetic environ-

ment may result in noise inter-

ference.

• Prevent caustic solutions

such as perfume and cosmet-

ic oil from contacting the

dashboard because they may

cause damage or discol-

oration.

CAUTION

• Operating the device while

driving could lead to acci-

dents due to a lack of atten-

tion to external surroundings.

First park the vehicle before

operating the device.

• Adjust the volume to levels

that allow the driver to hear

sounds from outside of the

vehicle. Driving in a state

where external sounds cannot

be heard may lead to acci-

dents.

• Pay attention to the volume

setting when turning the

device on. A sudden output of

extreme volume upon turning

the device on could lead to

hearing impairment. (Adjust

the volume to a suitable levels

before turning off the device.)

(Continued)

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 7

Features of your vehicle

✽✽NOTICE - USING THE USB

DEVICE

• To use an external USB device,

make sure the device is not con-

nected when starting up the vehi-

cle. Connect the device after start-

ing up.

• If you start the engine when the

USB device is connected, it may

damage the USB device. (USB

flashdrives are very sensitive to

electric shock.)

• If the engine is started up or

turned off while the external USB

device is connected, the external

USB device may not work.

• The System may not play inau-

thentic MP3 or WMA files.

1) It can only play MP3 files with

the compression rate between

8Kbps ~ 320Kbps.

2) It can only play WMA music

files with the compression rate

between 8Kbps ~ 320Kbps.

• Take precautions for static elec-

tricity when connecting or discon-

necting the external USB device.

• An encrypted MP3 PLAYER is

not recognizable.

(Continued)

• Depending on the condition of the

external USB device, the connect-

ed external USB device can be

unrecognizable.

• When the formatted byte/sector

setting of External USB device is

not either 512BYTE or

2048BYTE, then the device will

not be recognized.

• Use only a USB device formatted

to FAT 12/16/32.

• USB devices without USB I/F

authentication may not be recog-

nizable.

• Make sure the USB connection

terminal does not come in contact

with the human body or other

objects.

• If you repeatedly connect or dis-

connect the USB device in a short

period of time, it may break the

device.

• You may hear a strange noise

when connecting or disconnecting

a USB device.

(Continued)

• If you disconnect the external USB

device during playback in USB

mode, the external USB device can

be damaged or may malfunction.

Therefore, disconnect the external

USB device when the audio is

turned off or in another mode.

(e.g, Radio, CD)

• Depending on the type and capac-

ity of the external USB device or

the type of the files stored in the

device, there is a difference in the

time taken for recognition of the

device.

• Do not use the USB device for pur-

poses other than playing music

files.

• Playing videos through the USB is

not supported.

• Use of USB accessories such as

rechargers or heaters using USB

I/F may lower performance or

cause trouble.

(Continued)

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 8

Features of your vehicle

(Continued)

• If you use devices such as a USB

hub purchased separately, the

vehicle’s audio system may not

recognize the USB device. In that

case, connect the USB device

directly to the multimedia termi-

nal of the vehicle.

• If the USB device is divided by log-

ical drives, only the music files on

the highest-priority drive are rec-

ognized by car audio.

• Devices such as MP3 Player/

Cellular phone/Digital camera can

be unrecognizable by standard

USB I/F can be unrecognizable.

• Charging through the USB may

not be supported in some mobile

devices.

• USB HDD or USB types liable to

connection failures due to vehicle

vibrations are not supported. (i-

stick type)

• Some non-standard USB devices

(METAL COVER TYPE USB)

can be unrecognizable.

(Continued)

• Some USB flash memory readers

(such as CF, SD, micro SD, etc.) or

external-HDD type devices can be

unrecognizable.

• Music files protected by DRM

(DIGITAL RIGHTS MANAGE-

MENT) are not recognizable.

• The data in the USB memory may

be lost while using this audio.

Always back up important data on

a personal storage device.

• Please avoid using USB

memory products

which can be used as

key chains or cellular

phone accessories as

they could cause damage to the

USB jack. Please make certain

only to use plug type connector

products.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 9

Features of your vehicle

104

✽✽NOTICE - USING THE iPod®

DEVICE

• Some iPod®models may not sup-

port communication protocol and

files may not properly play.

Supported iPod®models:

- iPod®Mini

- iPod®4th (Photo) ~ 6th (Classic)

generation

- iPod®Nano 1st~4th generation

- iPod®Touch 1st~2nd generation

• The order of search or playback of

songs in the iPod®can be different

from the order searched in the

audio system.

• If the iPod®disabled due to its

own malfunction, reset the iPod®.

(Reset: Refer to iPod®manual)

• An iPod®may not operate nor-

mally on low battery.

(Continued)

• Some iPod®devices, such as the

iPhone®, can be connected through

the Bluetooth®Wireless Technology

interface. The device must have

audio Bluetooth®Wireless

Technology capability (such as for

stereo headphone Bluetooth®

Wireless Technology ). The device

can play, but it will not be con-

trolled by the audio system.

• To use iPod®features within the

audio, use the cable provided upon

purchasing an iPod®d device.

• Skipping or improper operation may

occur depending on the characteris-

tics of your iPod®/iPhone®device.

• If your iPhone®is connected to both

the Bluetooth®Wireless Technology

and USB, the sound may not be prop-

erly played. In your iPhone®, select

the Dock connector or Bluetooth®

Wireless Technology to change the

sound output (source).

(Continued)

• When connecting iPod®with the

iPod®Power Cable, insert the con-

nector to the multimedia socket

completely. If not inserted com-

pletely, communications between

iPod®and audio may be interrupt-

ed.

• When adjusting the sound effects

of the iPod®and the audio system,

the sound effects of both devices

will overlap and might reduce or

distort the quality of the sound.

• Deactivate (turn off) the equalizer

function of an iPod®when adjust-

ing the audio system’s volume, and

turn off the equalizer of the audio

system when using the equalizer of

an iPod®.

• When not using iPod®with car

audio, detach the iPod®cable from

iPod®. Otherwise, iPod®may

remain in accessory mode, and

may not work properly.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 10

411

Features of your vehicle

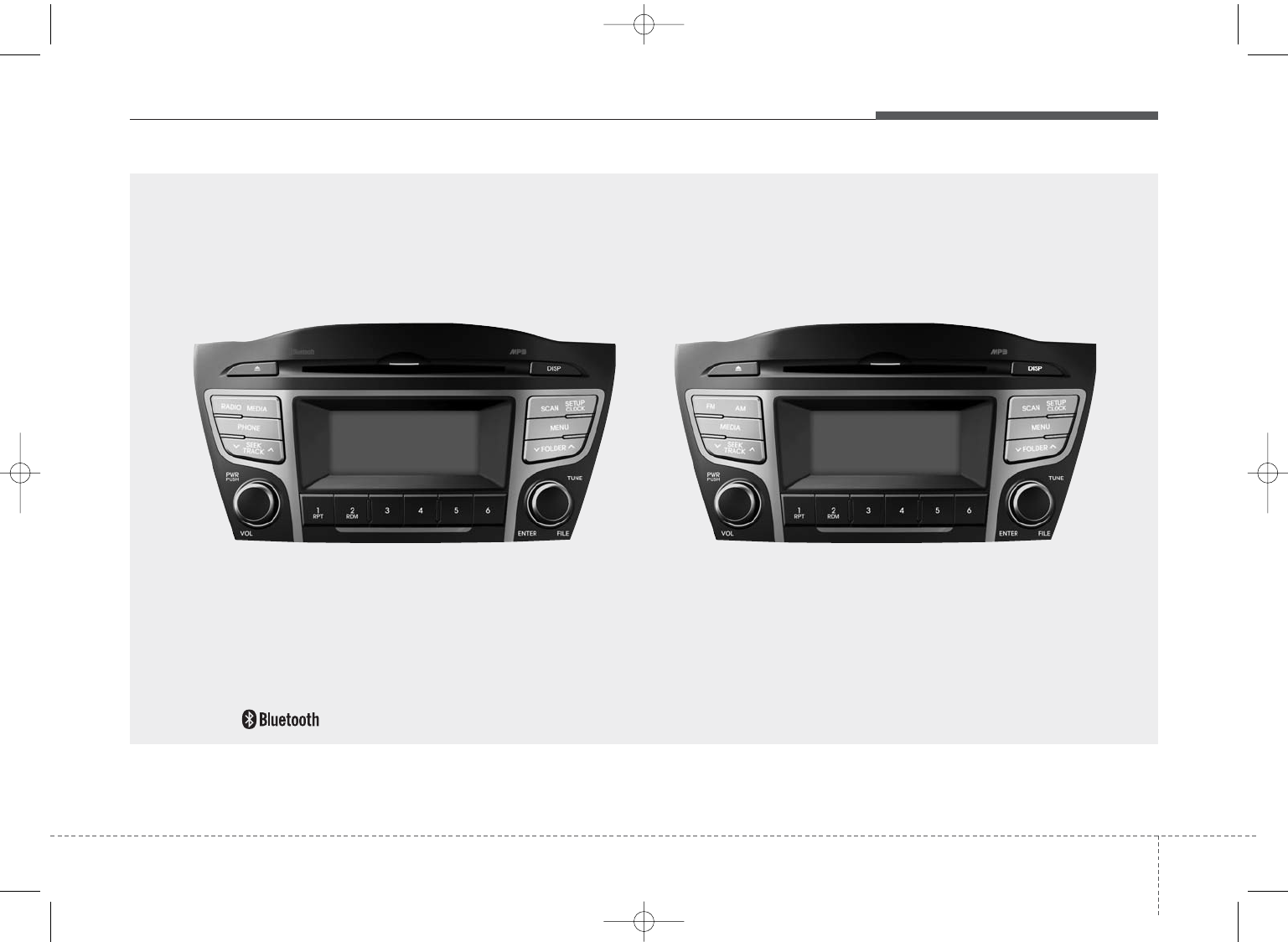

* : for columbia

❈ No logo will be shown if the

Bluetooth

Wireless Technology feature is not supported.

■■ CD Player : AC100TMGG, AC110TMGG, AC100TMGE, AC110TMGE, AC100TMGN, AC110TMGN,

AC100TMGL*, AC110TMGL*

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 11

AC100D3GG,AC110D3GG,AC100D3GE,AC110D3GE,AC100D3GN,AC110D3GN,AC100D3GL,AC110D3GL

AC100D7GN,AC110D7GN

Features of your vehicle

124

SYSTEM CONTROLLERS

AND FUNCTIONS

❈Display and settings may differ

depending on the selected audio.

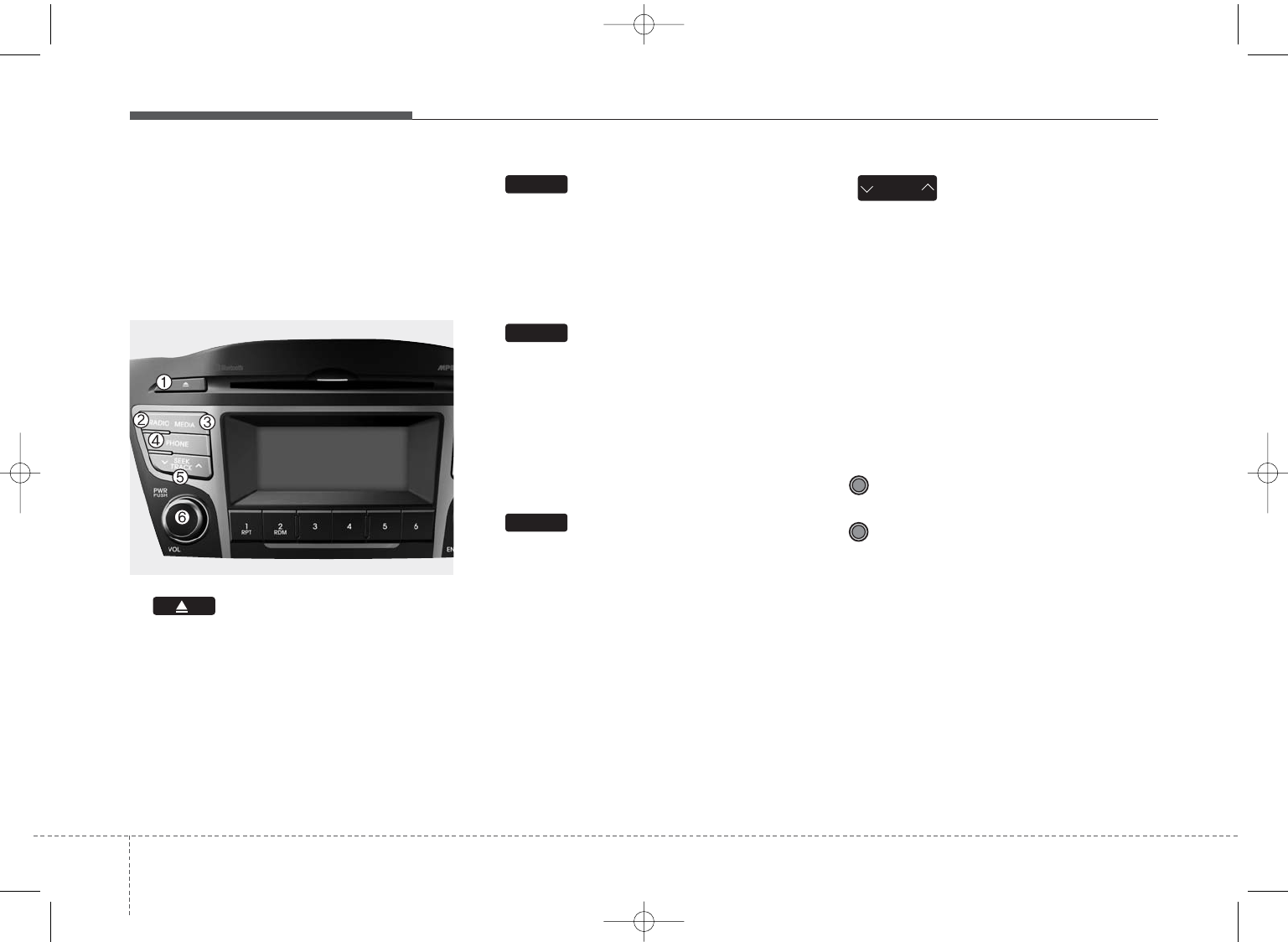

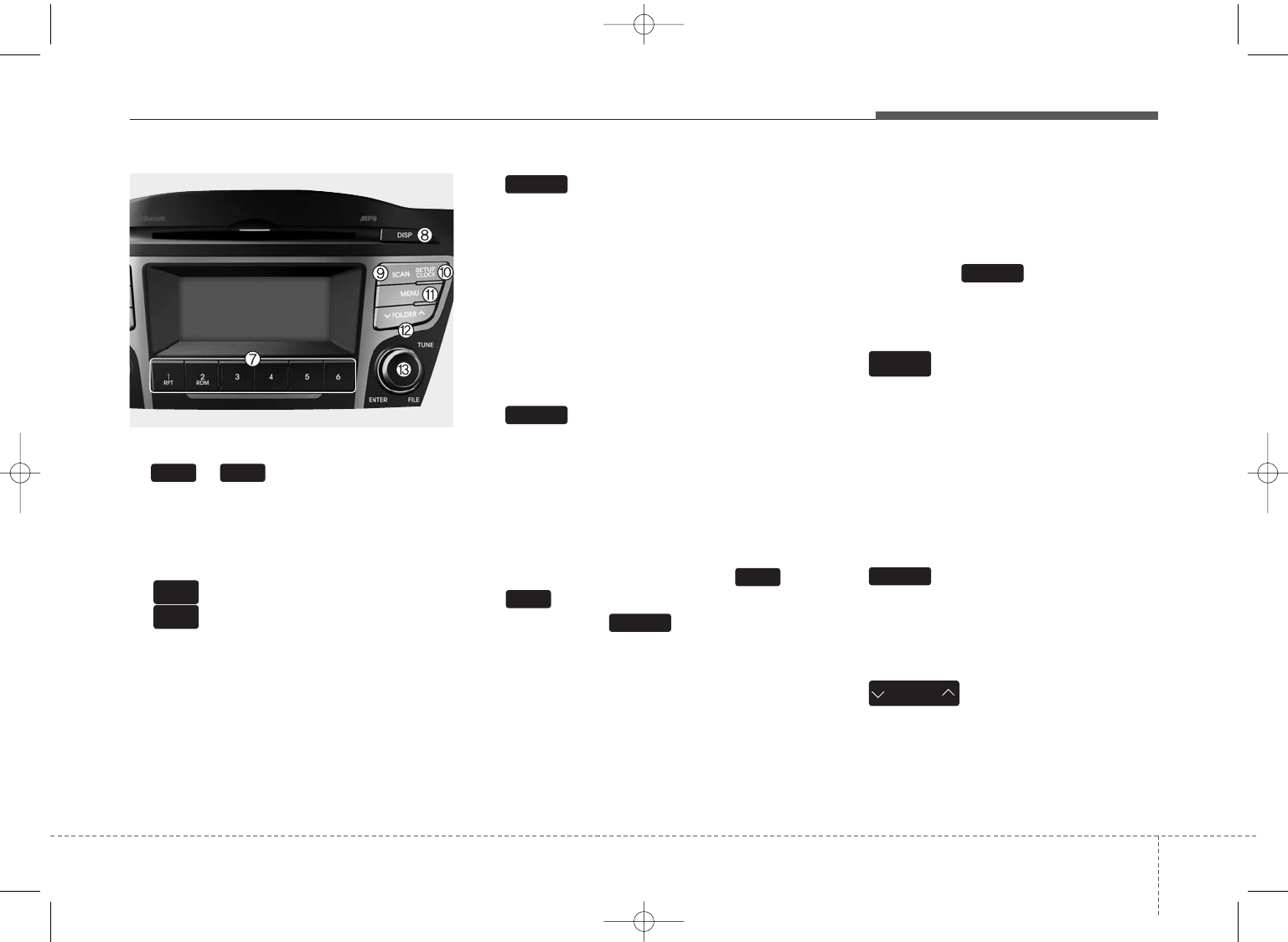

Audio Head Unit

1. (EJECT)

• Ejects the disc.

• Changes to FM/AM mode.

• Each time the key is pressed,the

mode is changed in order of FM1 ➟

FM2 ➟AM.

• Changes to CD, USB(iPod®), AUX,

My Music, BT Audio mode.

• Each time the key is pressed, the

mode is changed in order of CD,

USB(iPod®), AUX, My Music, BT

Audio mode.

4. (if equipped)

• Operates Phone Screen

❈ When a phone is not connected,

the connection screen is displayed.

• Radio Mode : Automatically search-

es for broadcast frequencies.

• CD, USB, iPod®, My Music modes

- Shortly press the key (under 0.8

seconds): Moves to next or previ-

ous song (file)

- Press and hold the key (over 0.8

seconds): Rewinds or fast-for-

wards the current song.

6. PWR/VOL knob

• Power Knob: Turns power On/Off

by pressing the knob

• Volume Knob: Sets volume by

turning the knob left/right

SEEK

TRACK

PHONE

MEDIA

RADIO

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 12

413

Features of your vehicle

7. ~ (Preset)

• Radio Mode: Saves frequencies

(channels) or receives saved fre-

quencies (channels)

• CD, USB, iPod®, My Music mode

- : Repeat

- : Random

• In the Radio, Media, Setup, and

Menu pop up screen, the number

menu is selected.

• Each time the button is shortly

pressed (under 0.8 seconds), sets

screen Off ➟Screen On ➟Screen

Off

❈ Audio operation is maintained and

only the screen will be turned Off.

In the screen Off state, press any

key to turn the screen On again.

• Radio Mode

- Shortly press the key : Previews

each broadcast for 5 seconds

each.

- Press and hold the key (over 0.8

seconds): Previews the broad-

casts saved in Preset ~

for 5 seconds each.

❈Press the key again to

continue listening to the current

frequency.

• CD, USB, My Music mode

- Shortly press the key (under 0.8

seconds): Previews each song

(file) for 10 seconds each.

❈Press the key again to

continue listening to the current

song (file).

10.

• Shortly press the key (under 0.8

seconds) : Moves to the Display,

Sound, Clock, Phone, System set-

ting modes

• Press and hold the key (over 0.8

seconds) : Move to the Time setting

screen

11.

Displays menus for the current

mode.

❈iPod®List : Move to parent category

12.

• CD MP3, USB mode : Folder

FOLDER

SETUP

CLOCK

SCAN

DISP

RDM

RPT

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 13

Features of your vehicle

144

13. TUNE knob

• Radio mode : Changes frequency

by turning the knob left/right

• CD, USB, iPod®, My Music mode:

Searches songs (files) by turning

the knob left/right

❈ When the desired song is dis-

played, press the knob to play the

song.

• Moves focus in all selection menus

and selects menus

14.

• Changes to FM mode.

• Each time the key is pressed, the

mode changed in order of FM1 ➟

FM2.

15.

• Changes to AM mode.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 14

415

Features of your vehicle

SETUP

-AC100TMGG, AC110TMGG,

AC100TMGE, AC110TMGE,

AC100TMGN, AC110TMGN,

AC100TMGL*, AC110TMGL*

* : for columbia

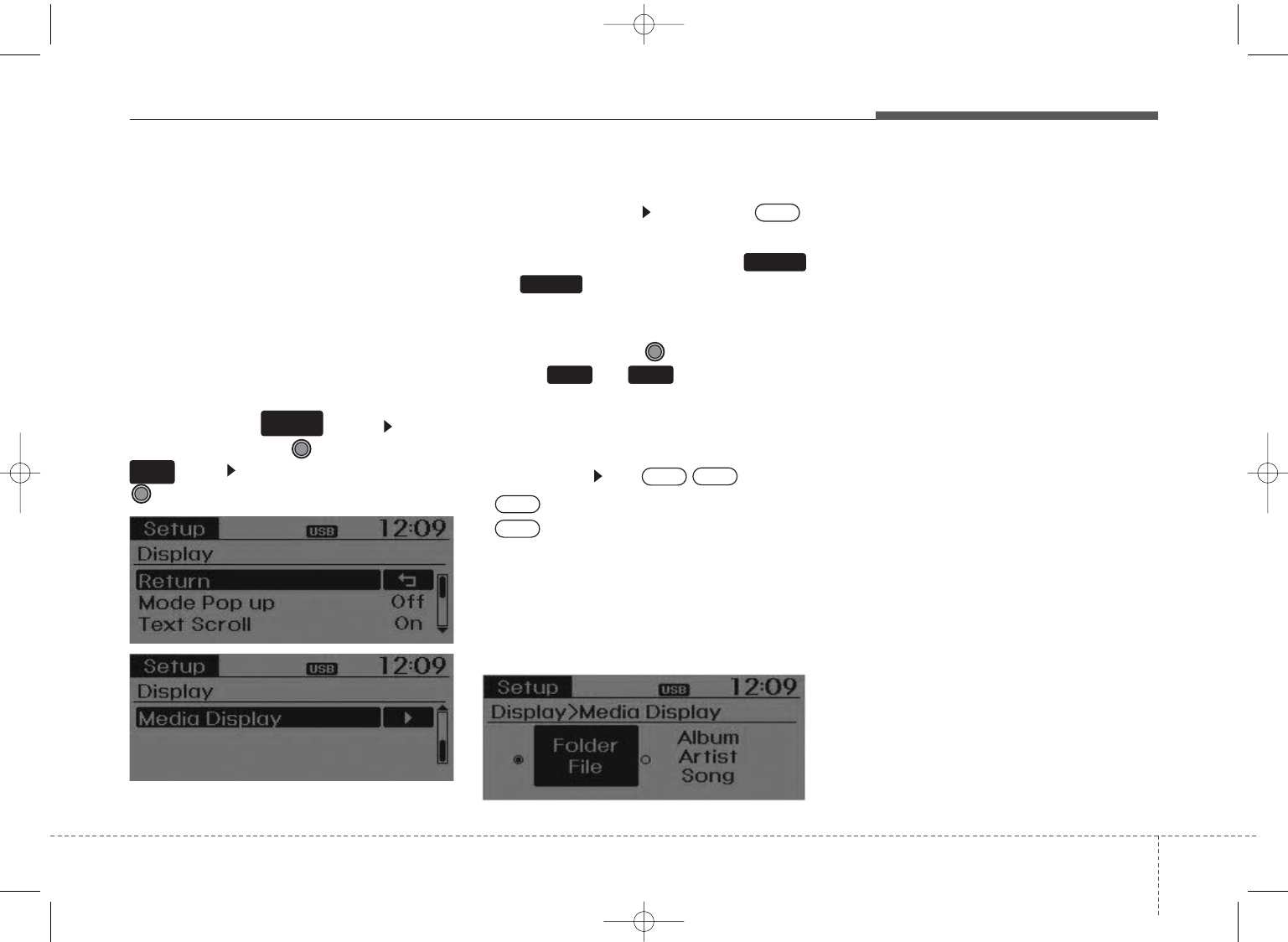

Display Settings

Press the key Select

[Display] through TUNE knob or

key Select menu through

Mode Pop up

[Mode Pop up] Changes .

selection mode

• During On state, press the

or key to display the mode

change pop up screen.

• When the pop up screen is dis-

played, use the TUNE knob or

keys ~ to select the

desired mode.

Text Scroll

[Text Scroll ] Set /

• : Maintains scroll

• : Scrolls only one (1) time.

Media Display

When playing an MP3 file, select the

desired display info from ‘Folder/File’

or ‘Album/Artist/Song’.

Off

MEDIA

RADIO

RPT

SETUP

CLOCK

TUNE knob

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 15

Features of your vehicle

164

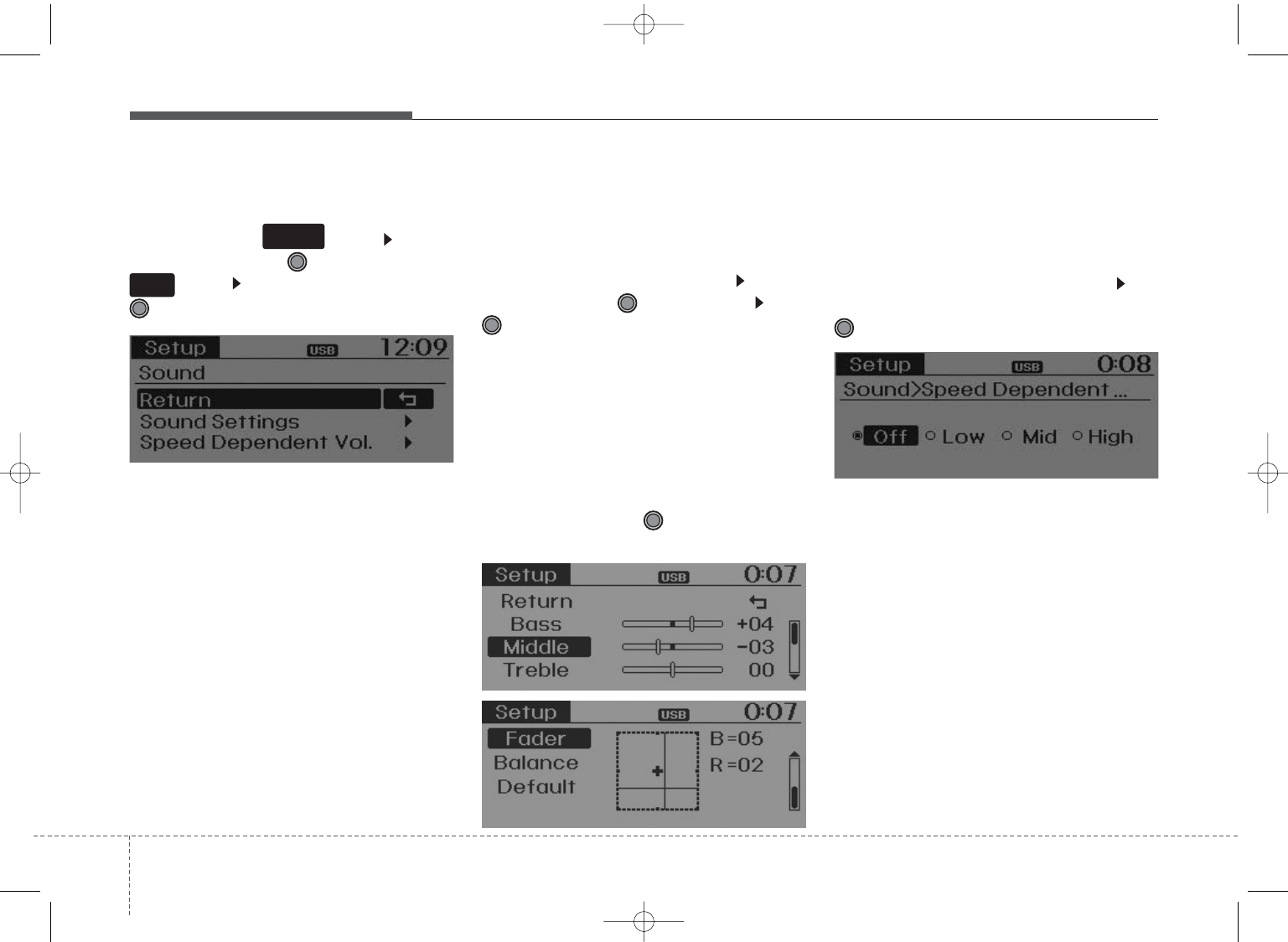

Sound Settings

Press the key Select

[Sound] through TUNE knob or

key Select menu through

TUNE knob

Sound Settings

This menu allows you to set the

‘Bass, Middle, Treble’ and the Sound

Fader and Balance.

Select [Sound Settings] Select

menu through TUNE knob Turn

TUNE knob left/right to set

• Bass, Middle, Treble : Selects the

sound tone.

• Fader, Balance : Moves the sound

fader and balance.

• Default : Restores default settings.

❈ Return : While adjusting values,

re-pressing the TUNE knob will

restore the parent menu.

Speed Dependent Volume Control

This feature is used to automatically

control the volume level according to

the speed of the vehicle.

Select [Speed Dependent Vol.] Set

in 4 levels [Off/Low/Mid/High] of

TUNE knob

RDM

SETUP

CLOCK

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 16

417

Features of your vehicle

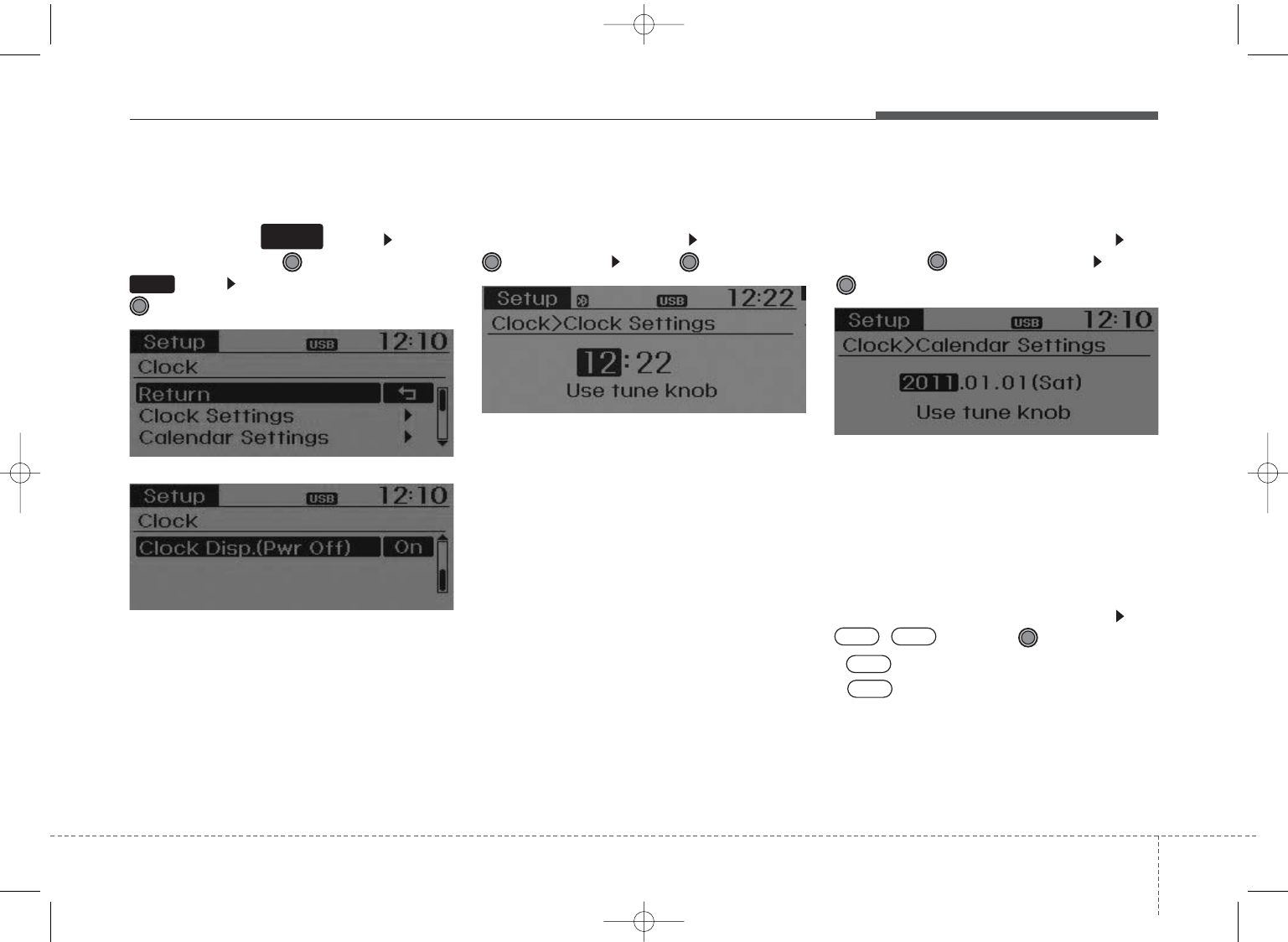

Clock Settings

Press the key Select

[Clock] through TUNE knob or

key Select menu through

TUNE knob

Clock Settings

This menu is used to set the time.

Select [Clock Settings] Set through

TUNE knob Press TUNE knob

❈ Adjust the number currently in

focus to set the [hour] and press

the tune knob to set the [minute].

Calendar Settings

This menu is used to set the date.

Select [Calendar Settings] Set

through TUNE knob Press

TUNE knob

❈ Adjust the number currently in

focus to make the settings and

press the tune knob to move to the

next setting. (Set in order of

Year/Month/Day)

Clock Display when Power is OFF

Select [Clock Disp.(Pwr Off) Set

/ through TUNE knob

• : Displays time/date on screen

• : Turn off.

Off

OffOn

SETUP

CLOCK

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 17

Features of your vehicle

184

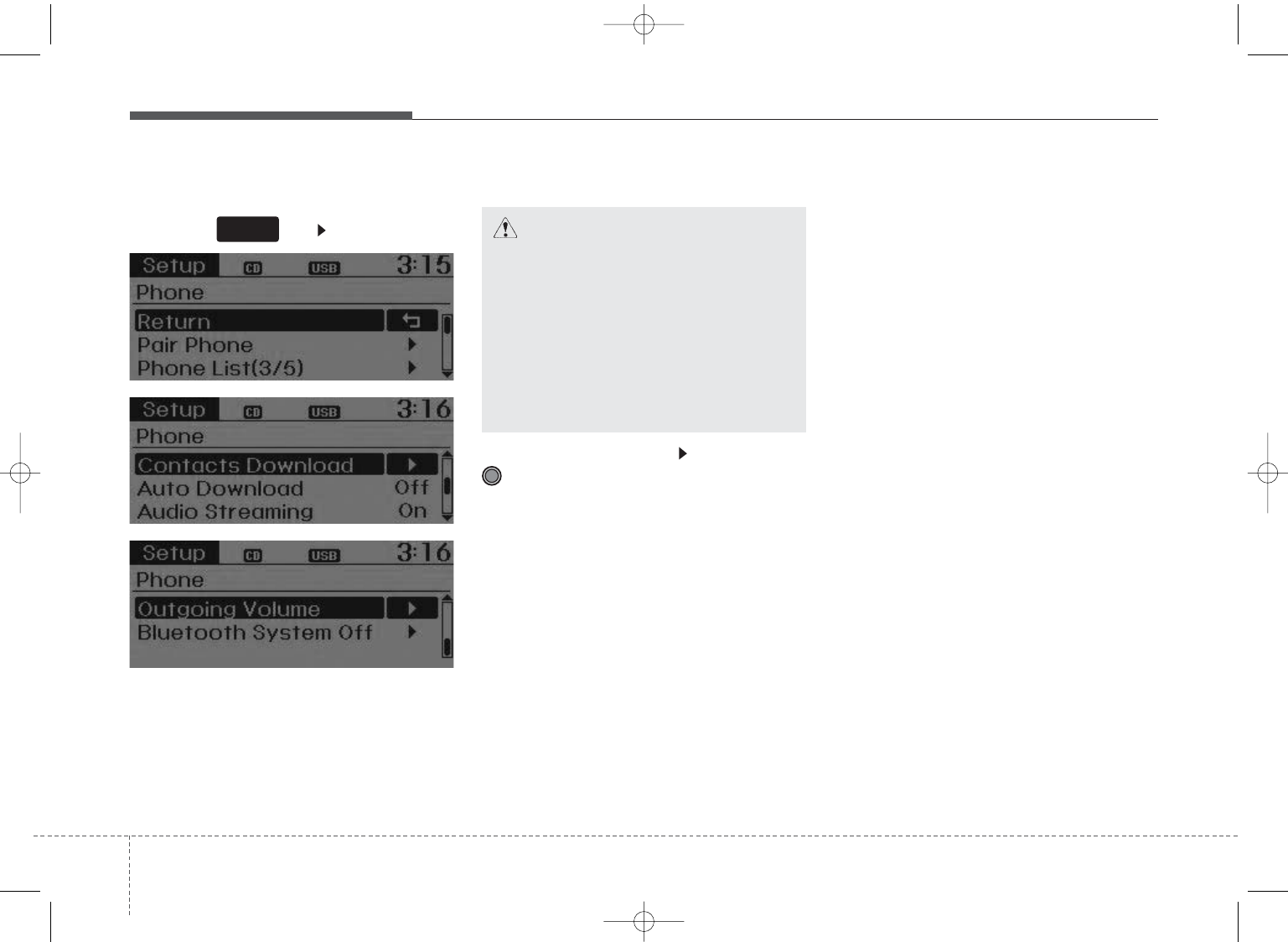

Phone Setup (if eqipped)

Press the key Select [Phone]

Pair Phone

Select [Pair Phone] Set through

TUNE knob

➀ Search for device names as dis-

played on your mobile phone and

connect.

➁ Input the passkey displayed on the

screen. (Passkey : 0000)

❈ The device name and passkey will

be displayed on the screen for up

to 3 minutes. If pairing is not com-

pleted within the 3 minutes, the

mobile phone pairing process will

automatically be canceled.

➂ Pairing completion is displayed.

❈ In some mobile phones, pairing

will automatically be followed by

connection.

❈ It is possible to pair up to five

Bluetooth®

Wireless Technology

enabled mobile phones.

SETUP

CLOCK CAUTION

To pair a Bluetooth®Wireless

Technology enabled mobile

phone, authentication and con-

nection processes are first

required. As a result, you can-

not pair your mobile phone

while driving the vehicle. First

park your vehicle before use.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 18

419

Features of your vehicle

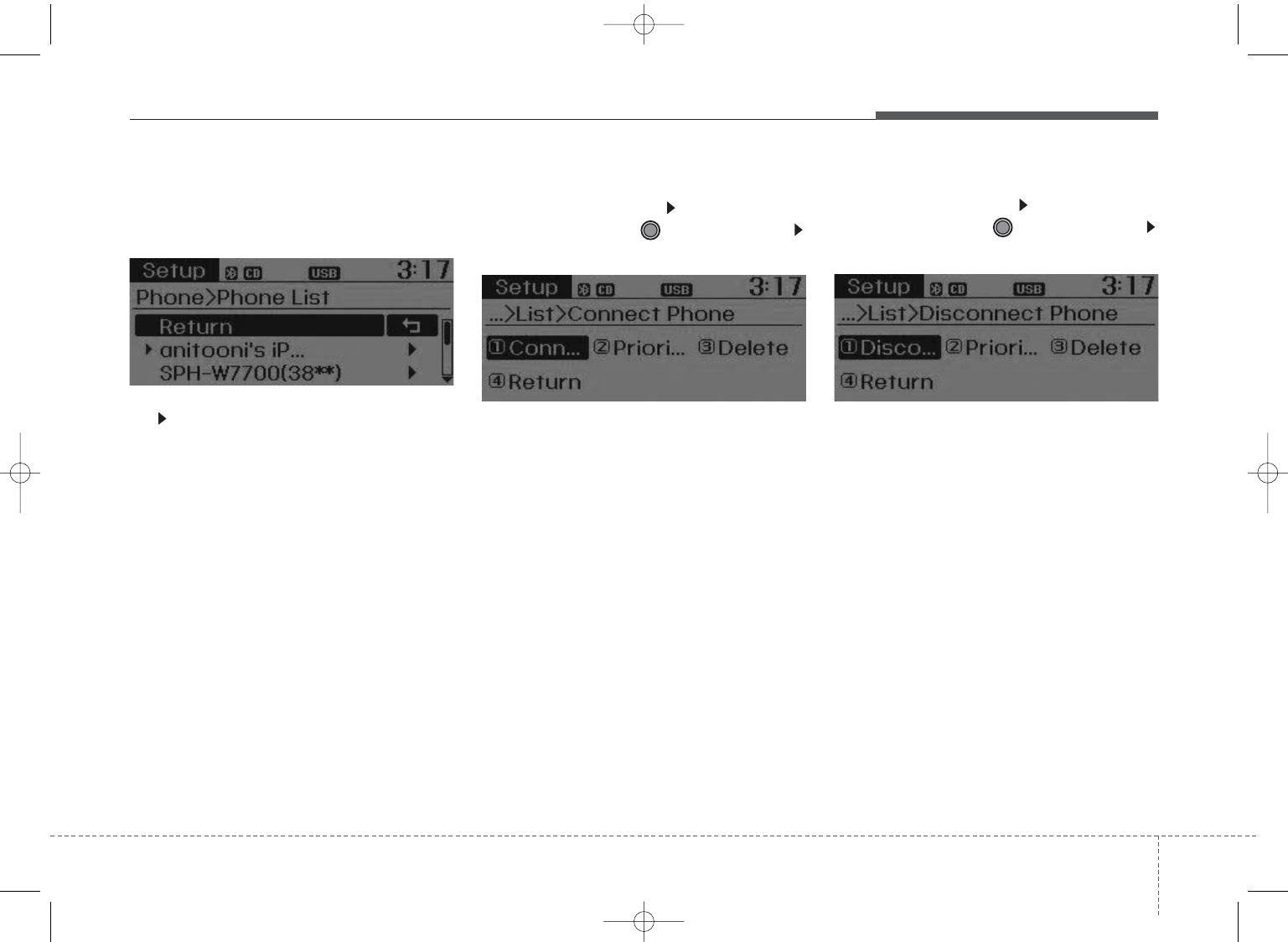

Phone List

The names of up to 5 paired phones

will be displayed.

A [ ] is displayed in front of the cur-

rently connected phone.

Select the desired name to setup the

selected phone.

• Connecting a phone

Select [Phone List] Select mobile

phone through TUNE knob

Select [Connect Phone]

➀ Select a mobile phone that is not

currently connected.

➁ Connect the selected mobile

phone.

➂ Connection completion is dis-

played.

❈ If a phone is already connected,

disconnect the currently connect-

ed phone and select a new phone

to connect.

• Disconnecting a connected phone

Select [Phone List] Select mobile

phone through TUNE knob

Select [Disconnect Phone]

➀ Select the currently connected

mobile phone.

➁ Disconnect the selected mobile

phone.

➂ Disconnection completion is dis-

played.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 19

Features of your vehicle

204

• Changing connection sequence

(Priority)

This is used to change the order (pri-

ority) of automatic connection for the

paired mobile phones.

Select [Phone List] Select [Priority]

through TUNE knob Select No. 1

Priority mobile phone

➀ Select [Priority].

➁ From the paired phones, select

the phone desired for No.1 priority.

➂ The changed priority sequence is

displayed.

❈ Once the connection sequence

(priority) is changed, the new no. 1

priority mobile phone will be con-

nected.

- when the no. 1 priority cannot be

connected: Automatically attempts

to connect the most recently con-

nected phone.

- Cases when the most recently

connected phone cannot be con-

nected: Attempts to connect in the

order in which paired phones are

listed.

- The connected phone will auto-

matically be changed to No. 1 pri-

ority.

• Delete

Select [Phone List] Select mobile

phone through TUNE knob

Select [Delete]

➀ Select the desired mobile phone.

➁ Delete the selected mobile phone.

➂ Deletion completion is displayed.

❈ When attempting to delete a cur-

rently connected phone, the

phone is first disconnected.

Contacts Download

This feature is used to download

contacts and call histories into the

audio system.

Select [Contacts Download] Select

through TUNE knob

CAUTION

• When you delete a mobile

phone, the mobile phone con-

tacts will also be erased.

• For stable Bluetooth®Wireless

Technology communication,

delete the mobile phone from

the audio and also delete the

audio from your mobile phone.

CAUTION

• The download feature may not

be supported in some mobile

phones.

• If a different operation is per-

formed while Contacts are

being downloaded, download-

ing will be discontinued.

Contacts already downloaded

will be saved.

• When downloading new

Contacts, delete all previously

saved Contacts before start-

ing download.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 20

421

Features of your vehicle

Auto Download

When connecting a mobile phone, it

is possible to automatically download

new Contacts and Call Histories.

Select [Auto Download] Set /

through TUNE knob

Audio Streaming

Songs (files) saved in your

Bluetooth®

Wireless Technology

enabled mobile phone can be played

through the audio system.

Select [Audio Streaming] Set /

through TUNE knob

Outgoing Volume

This is used to set the volume of your

voice as heard by the other party

while on a

Bluetooth®

Wireless

Technology enabled handsfree call.

Select [Outgoing Volume] Set vol-

ume through TUNE knob

❈ While on a call, the volume can be

changed by using the

key.

SEEK

TRACK

Off

OnOff

CAUTION

The Bluetooth®Wireless

Technology audio streaming

feature may not be supported in

some mobile phones.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 21

Features of your vehicle

224

Bluetooth

Wireless

Technology System Off

This feature is used when you do not

wish to use the

Bluetooth®

Wireless

Technology system.

Select [Bluetooth System Off] Set

through TUNE knob

❈ If a phone is already connected,

disconnect the currently connect-

ed phone and turn the

Bluetooth®

Wireless Technology system off.

Using the

Bluetooth

Wireless

Technology System

To use

Bluetooth®

Wireless

Technology when the system is cur-

rently off, follow these next steps.

• Turning On

Bluetooth®

Wireless

Technology through the Key

Press the key Screen

Guidance

❈ Moves to the screen where

Bluetooth®

Wireless Technology

functions can be used and dis-

plays guidance.

• Turning On

Bluetooth®

Wireless

Technology through the

Key

Press the key Select [Phone]

➀ A screen asking whether to turn on

Bluetooth®

Wireless Technology will

be displayed.

➁ On the screen, select to turn

Bluetooth®

Wireless Technology

and display guidance.

❈ If the

Bluetooth®

Wireless

Technology system is turned on, the

system will automatically try to con-

nect the most recently connected

Bluetooth®

Wireless Technology

mobile phone.

YES

SETUP

CLOCK

SETUP

CLOCK

PHONE

CAUTION

Bluetooth®Wireless Technology

connection may become inter-

mittently disconnected in some

mobile phones. Follow these

next steps to try again.

1) Turn the Bluetooth®Wireless

Technology function within the

mobile phone ON/OFF and try

to connect again.

2) Turn the mobile phone power

ON/OFF and try to connect

again.

3) Completely remove the mobile

phone battery, reboot, and then

try to connect again.

4) Reboot the audio system and

try to connect again

5) Delete all paired devices in

your mobile phone and the

audio system and pair again

for use.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 22

423

Features of your vehicle

System Settings

Press the key Select [System]

Memory Information

(if equipped)

Displays currently used memory and

total system memory.

Select [Memory Information] OK

The currently used memory is dis-

played on the left side while the total

system memory is displayed on the

right side.

Language

This menu is used to set the display

and voice recognition language.

Select [Language] Set through

TUNE knob

❈ The system will reboot after the

language is changed.

❈ Language support by region

- English,

SETUP

CLOCK

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 23

Features of your vehicle

244

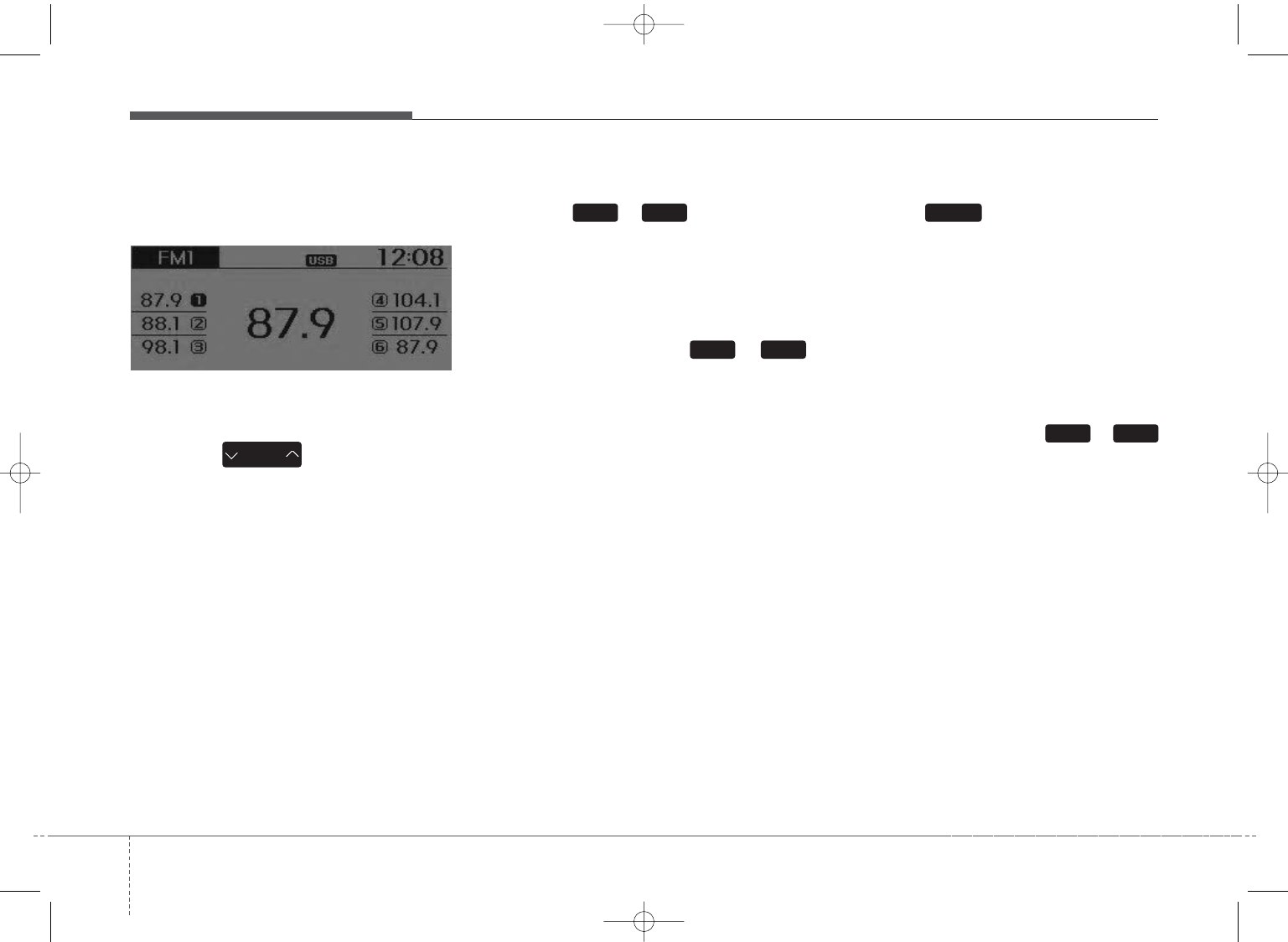

RADIO

Changing RADIO mode

SEEK

Press the key

• Shortly pressing the key (under 0.8

seconds): Changes the frequency.

• Pressing and holding the key (over

0.8 seconds): Automatically search-

es for the next frequency.

Preset SEEK

Press the ~ key

• Shortly pressing the key (under 0.8

seconds): Plays the frequency

saved in the corresponding key.

• Pressing and holding the key (over

0.8 seconds): Pressing and holding

the desired key from ~

will save the currently playing

broadcast to the selected key and

sound a BEEP.

SCAN

Press the key

• Shortly pressing the key (under 0.8

seconds): The broadcast frequen-

cy increases and previews each

broadcast for 5 seconds each.

After scanning all frequencies,

returns and plays the current

broadcast frequency.

• Pressing and holding the key (over

0.8 seconds): Previews the broad-

casts saved in Preset ~

for 5 seconds each. 61

SCAN

SEEK

TRACK

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 24

425

Features of your vehicle

Selecting through manual

Turn the TUNE knob left/right to

adjust the frequency.

•AC100TMGE, AC110TMGE

- FM : Changes by 50KHz

- AM : Changes by 9khz

•AC100TMGG, AC110TMGG

- FM : Changes by 100KHz

- AM : Changes by 9khz

• AC100TMGL, AC110TMGL

- FM : Changes by 100KHz

- AM : Changes by 10khz

•AC100TMGN, AC110TMGN

- FM : Changes by 200KHz

- AM : Changes by 10khz

Within key are the A.Store

(Auto Store) and Info functions.

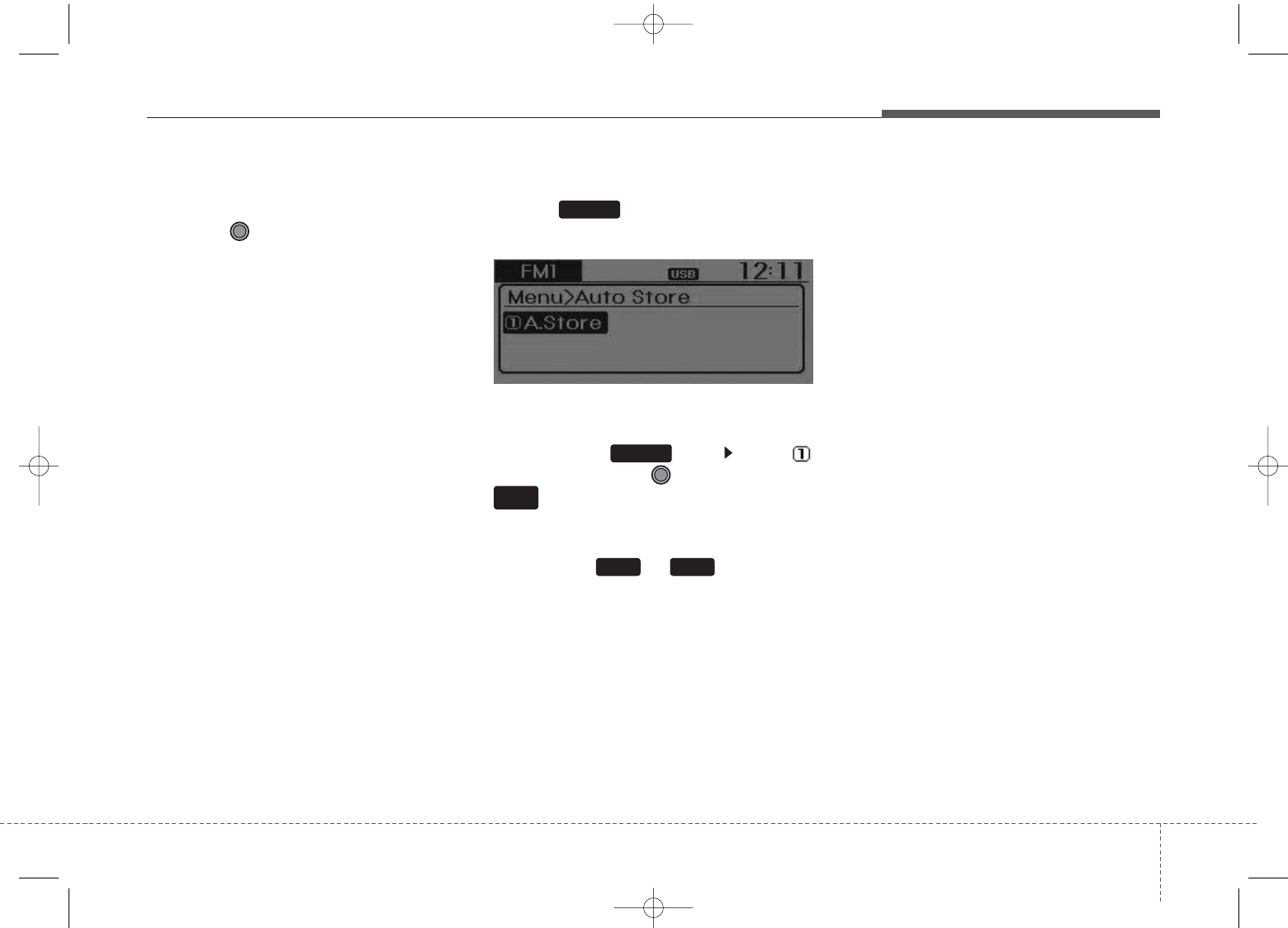

A.Store (Auto Store)

Press the key Set [

A.Store] through TUNE knob or

key.

Select A.Store(Auto Store) to save

frequencies with superior reception

to presets ~ . If no fre-

quencies are received, then the most

recently received frequency will be

broadcast.

RPT

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:56 AM Page 25

AC100D3GE,AC110D3GE

AC100D3GG,AC110D3GG

AC100D3GL,AC110D3GL

AC100D3GN,AC110D3GN

Features of your vehicle

264

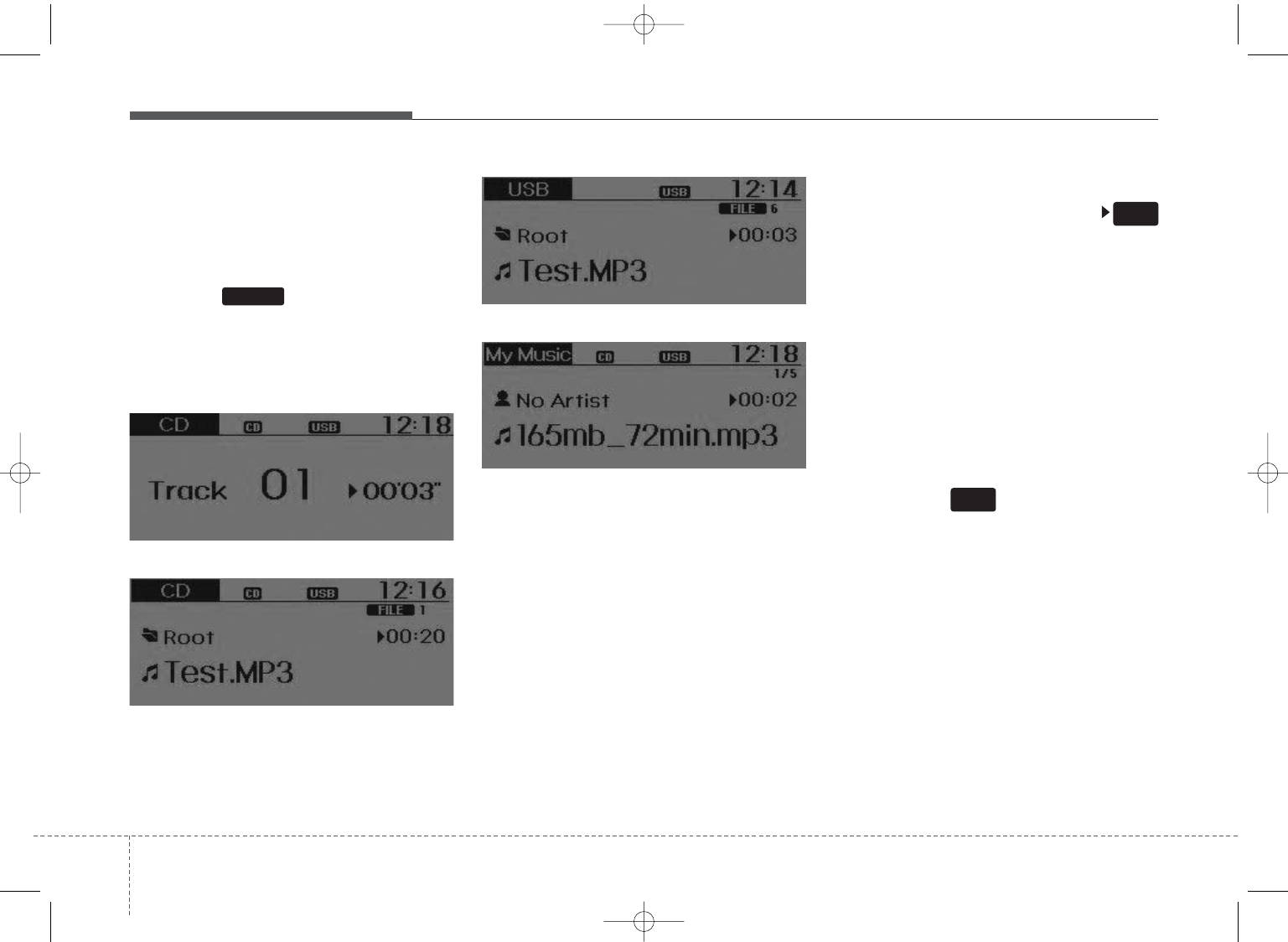

BASIC METHOD OF USE :

Audio CD / MP3 CD / USB /

iPod®/ My Music

Press the key to change the

mod mode in order of CD ➟ USB(iPod®)

➟ AUX ➟ My Music ➟ BT Audio.

The folder/file name is displayed on

the screen.

<USB>

❈ The CD is automatically played

when a CD is inserted.

❈ The USB music is automatically

played when a USB is connected.

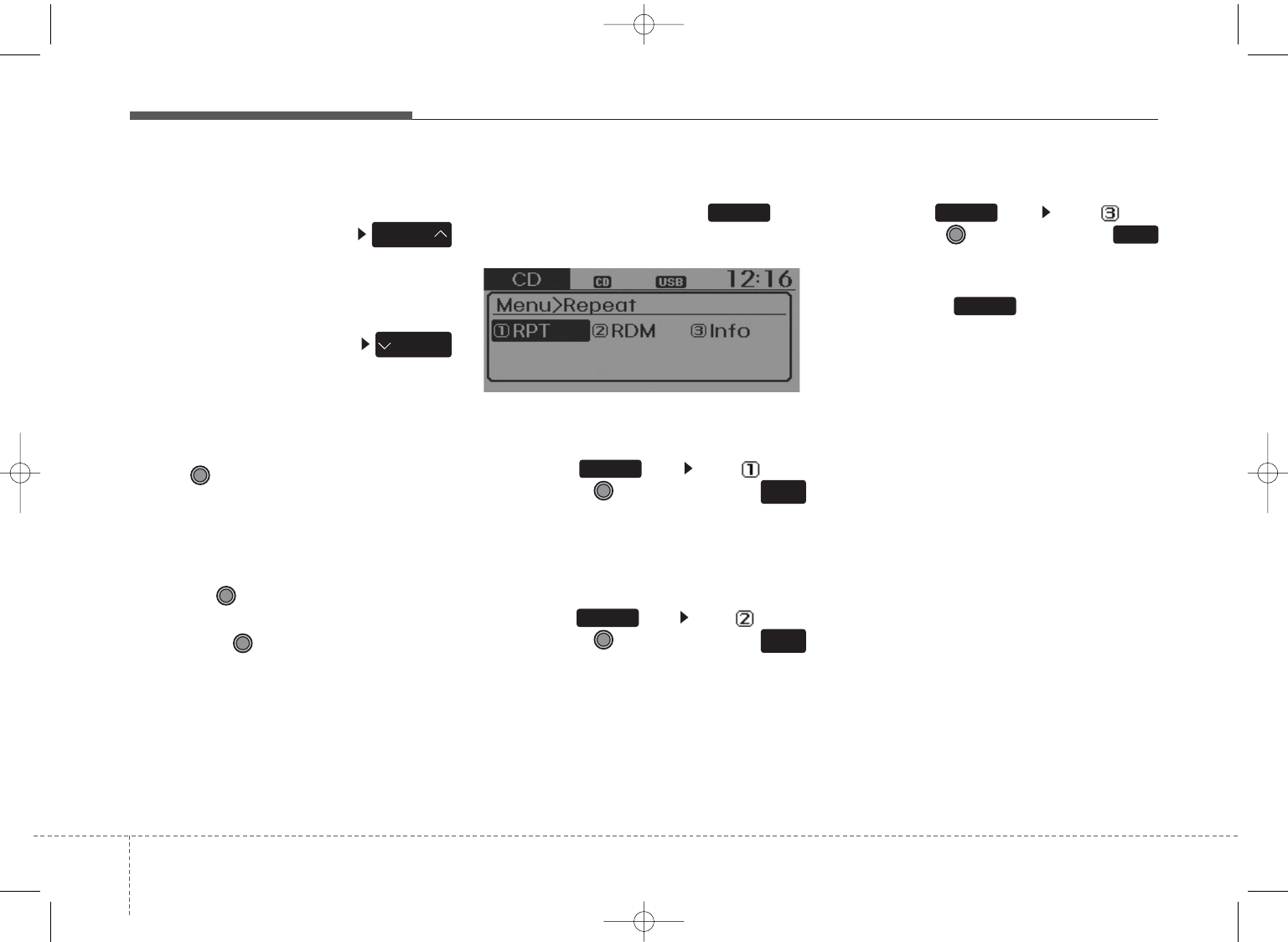

Repeat

While song (file) is playing

(RPT) key

Audio CD, MP3 CD, USB, iPod®, My

Music mode: RPT on screen

• To repeat one song (Shortly press-

ing the key (under 0.8 seconds)):

Repeats the current song.

MP3 CD, USB mode: FLD.RPT on

screen

• To repeat folder (pressing twice):

repeats all files within the current

folder.

❈ Press the key again to turn

off repeat.

RPT

MEDIA

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 26

427

Features of your vehicle

Random

While song (file) is playing

(RDM) key

Audio CD, My Music mode: RDM on

screen

• Random (Shortly pressing the key ):

Plays all songs in random order.

MP3 CD, USB mode: FLD.RDM on

screen

• Folder Random (Shortly pressing

the key): Plays all files within the

current folder in random order.

MP3 CD, USB mode:RDM on

screen

• Random (pressing twice): Plays all

files in random order.

iPod®mode: RDM on screen

• Random (press the key) : Plays all

files in random order.

❈ Press the key again to turn

off random.

Changing Song/File

While song (file) is playing

key

• Shortly pressing the key: Plays the

current song from the beginning.

❈ If the key is pressed

again within 1 second, the previ-

ous song is played.

• Pressing and holding the key (over

0.8 seconds): Rewinds the song.

While song (file) is playing

key

• Shortly pressing the key: Plays the

next song.

• Pressing and holding the key (over

0.8 seconds): Fast forwards the

song.

Scan

While song (file) is playing

key

• Shortly pressing the key (under 0.8

seconds) : Scans all songs from

the next song for 10 seconds each.

❈ Press the key again to turn

off.

❈ The SCAN function is not support-

ed in iPod®mode.

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

RDM

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 27

Features of your vehicle

284

Folder Search : MP3 CD, USB

Mode

While file is playing

(Folder Up) key

• Searches the next folder.

While file is playing

(Folder Down) key

• Searches the parent folder.

❈ If a folder is selected by pressing

the TUNE knob, the first file

within the selected folder will be

played.

Searching Songs (File)

• Turning TUNE knob : Searches

for songs (files)

• Pressing TUNE knob : Plays

selected song (file).

MENU : Audio CD

Press the CD MP3 mode key

to set the Repeat, Random,

Information features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key to repeat the current song.

❈ Press RPT again to turn off.

Random

Press the key Set [ RDM]

through the TUNE knob or

key to randomly play songs within

the current folder.

❈ Press RDM again to turn off.

Information

Press the key Set [ Info]

through the TUNE knob or

key to display information of the cur-

rent song.

❈ Press the key to turn off

info display. MENU

RDM

RPT

FOLDER

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 28

429

Features of your vehicle

MENU : MP3 CD / USB

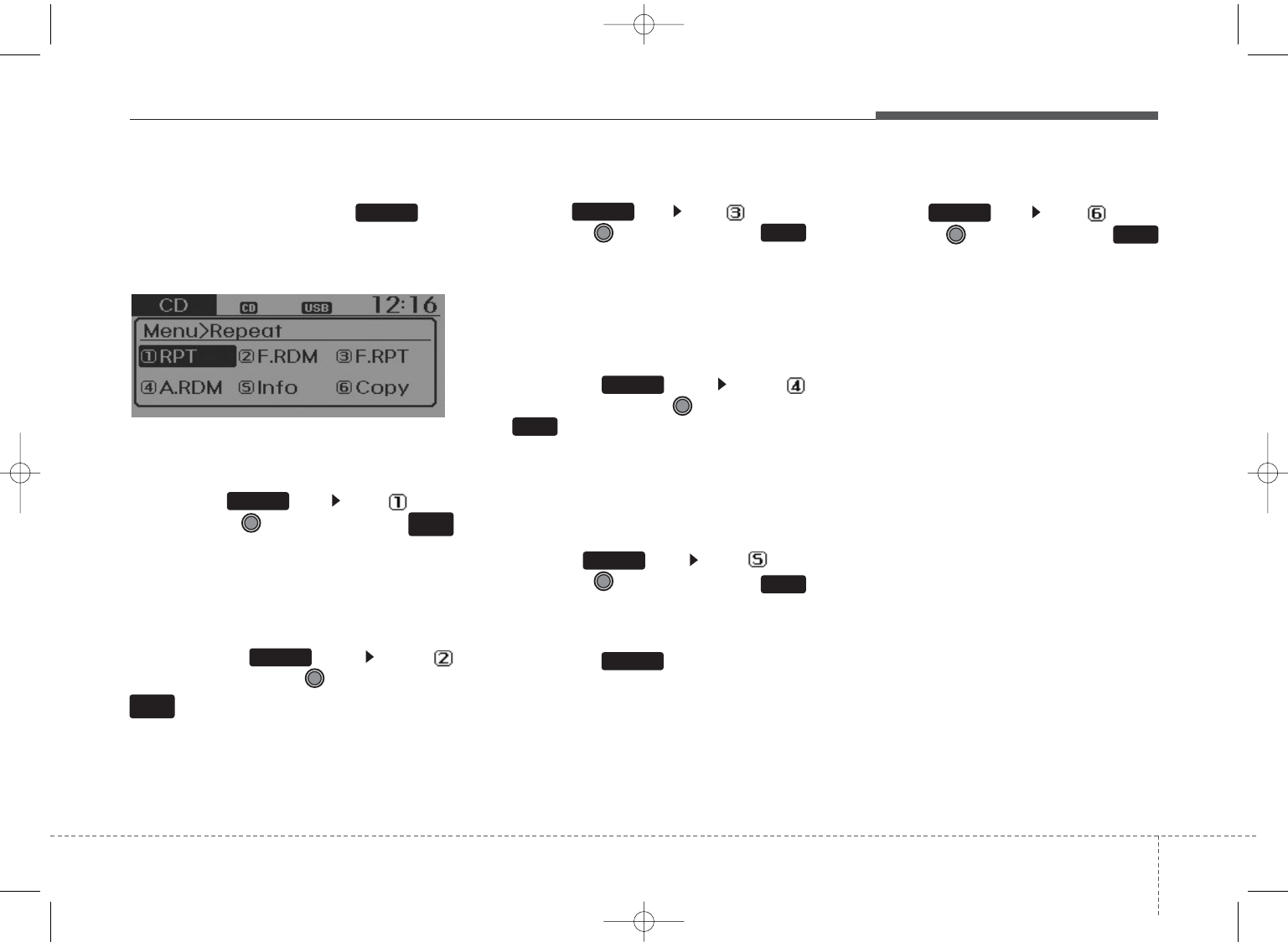

Press the CD MP3 mode key

to set the Repeat, Folder Random,

Folder Repeat, All Random,

Information, and Copy features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key to repeat the current song.

❈ Press RPT again to turn off.

Folder Random

Press the key Set [

F.RDM] through the TUNE knob or

key to randomly play songs

within the current folder.

❈ Press F.RDM again to turn off.

Folder Repeat

Press the key Set [ F.RPT]

through the TUNE knob or

key to repeat songs within the cur-

rent folder.

❈ Press F.RPT again to turn off.

All Random

Press the key Set [

A.RDM] through the TUNE knob

or key to randomly play all

songs within the CD.

❈ Press A.RDM again to turn off.

Information

Press the key Set [ Info]

through the TUNE knob or

key to display information of the cur-

rent song.

❈ Press the key to turn off

info display.

Copy

Press the key Set [ Copy]

through the TUNE knob or

key.

This is used to copy the current

song into My Music. You can play

the copied Music in My Music

mode.

❈ If another key is pressed while

copying is in progress, a pop up

asking you whether to cancel

copying is displayed.

❈ If another media is connected or

inserted (USB, CD, iPod®, AUX)

while copying is in progress, copy-

ing is canceled.

❈ Music will not be played while

copying is in progress.

RDM

RPT

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 29

Features of your vehicle

304

MENU : iPod®

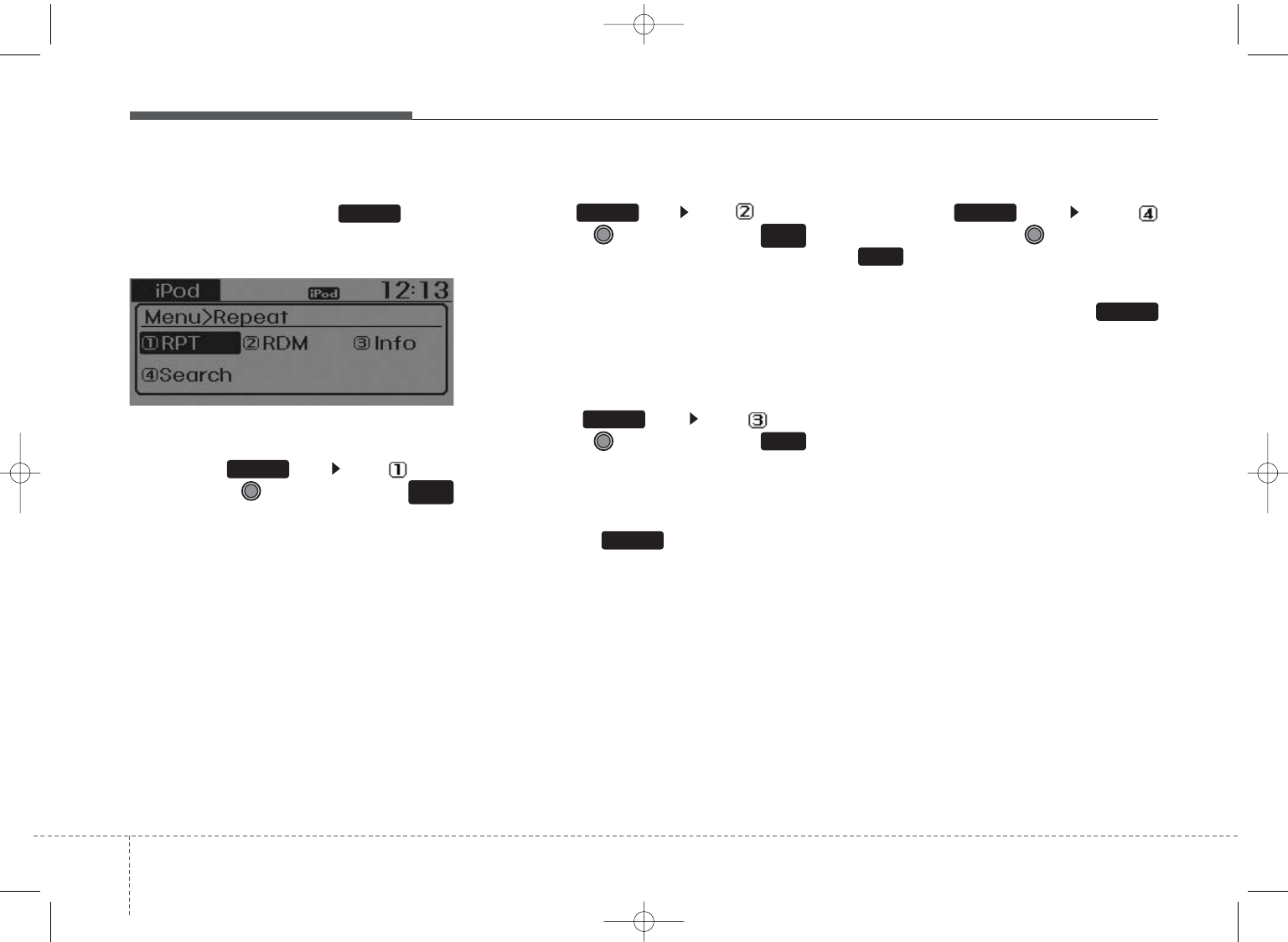

In iPod®mode, press the key to

set the Repeat, Random, Information

and Search features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key to repeat the current song.

❈ Press RPT again to turn repeat

off.

Random

Press the key Set [ RDM]

through the TUNE knob or

key.

Plays all songs within the currently

playing category in random order.

❈ Press RDM again to turn off.

Information

Press the key Set [ Info]

through the TUNE knob or

key.

Displays information of the current

song.

❈ Press the key to turn off

info display.

Press the key Set [

Search] through the TUNE knob

or key.

Displays iPod®category list.

❈ Searching iPod®category is

key pressed, move to parent cate-

gory.

RDM

RPT

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 30

431

Features of your vehicle

MENU : My Music Mode

(if equipped)

In My Music mode, press the

key to set the Repeat, Random,

Information, Delete, Delete All, and

Delete Selection features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key.

Repeats the currently playing song.

❈ Press RPT again to turn repeat off.

Random

Press the key Set [ RDM]

through the TUNE knob or

key.

Plays all songs in random order.

❈ Press RDM again to turn random

off.

Information

Press the key Set [ Info]

through the TUNE knob or

key.

Displays information of the current

song.

❈ Press the key to turn off

info display.

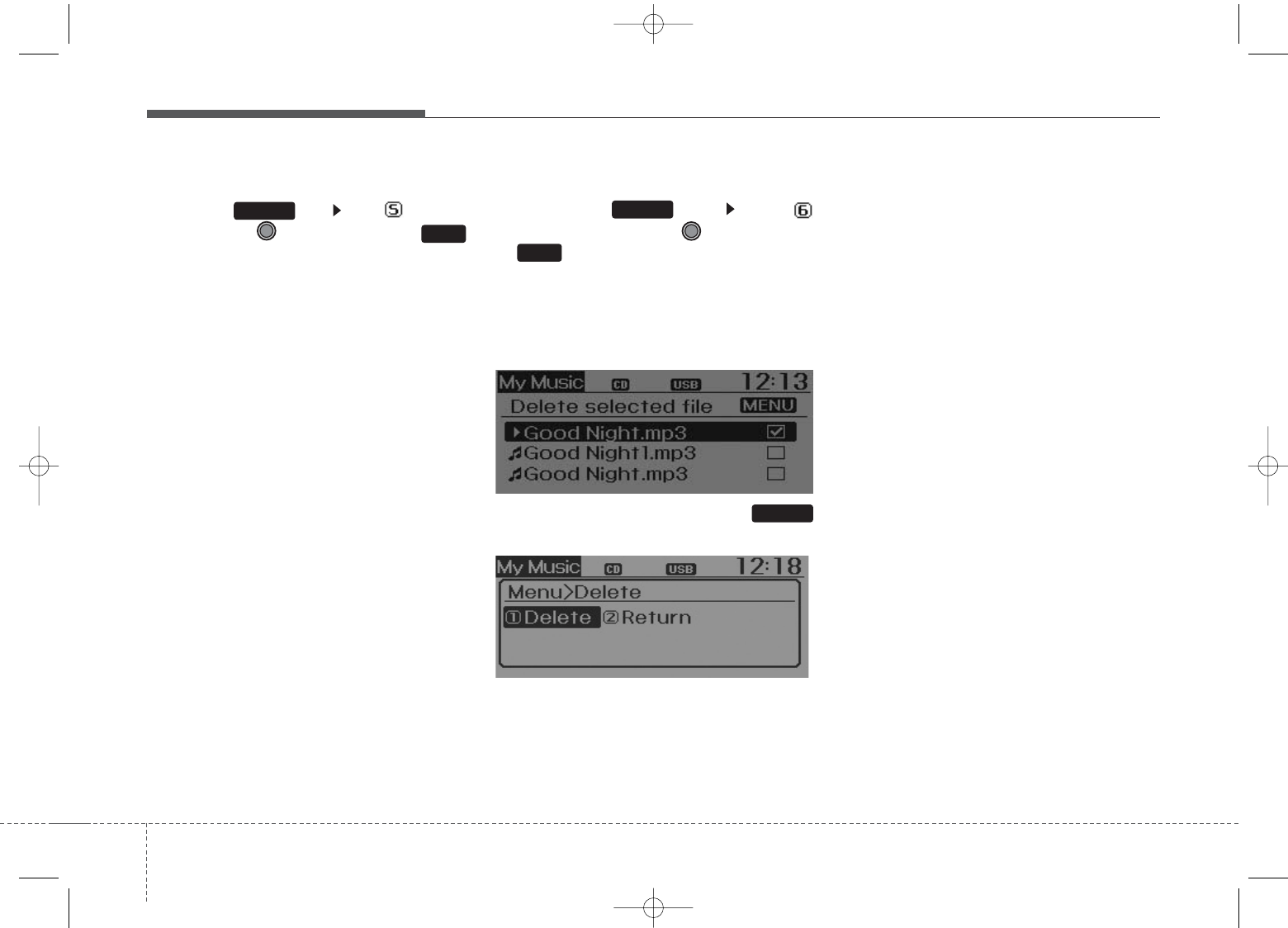

Delete

Press the key Set [ Delete]

through the TUNE knob or

key.

Deletes currently playing file

In the play screen, pressing delete

will delete the currently playing

song.

Deletes file from list

➀ Select the file you wish to delete

by using the TUNE knob.

➁ Press the key and select

the delete menu to delete the

selected file.

RDM

RPT

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 31

Features of your vehicle

324

Delete All

Press the key Set [ Del.All]

through the TUNE knob or

key.

Deletes all songs of My Music.

Delete Selection

Press the key Set [

Del.Sel] through the TUNE knob

or key.

Songs within My Music are selected

and deleted.

➀ Select the songs you wish to

delete from the list.

➁ After selecting, press the

key and select the delete menu.

✽✽NOTICE - Using the My

Music

• Even if memory is available, a

maximum of 6,000 songs can be

stored.

• The same song can be copied up to

1,000 times.

• Memory info can be checked in

the System menu of Setup.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 32

433

Features of your vehicle

AUX

AUX is used to play external MEDIA

currently connected with the AUX

terminal.

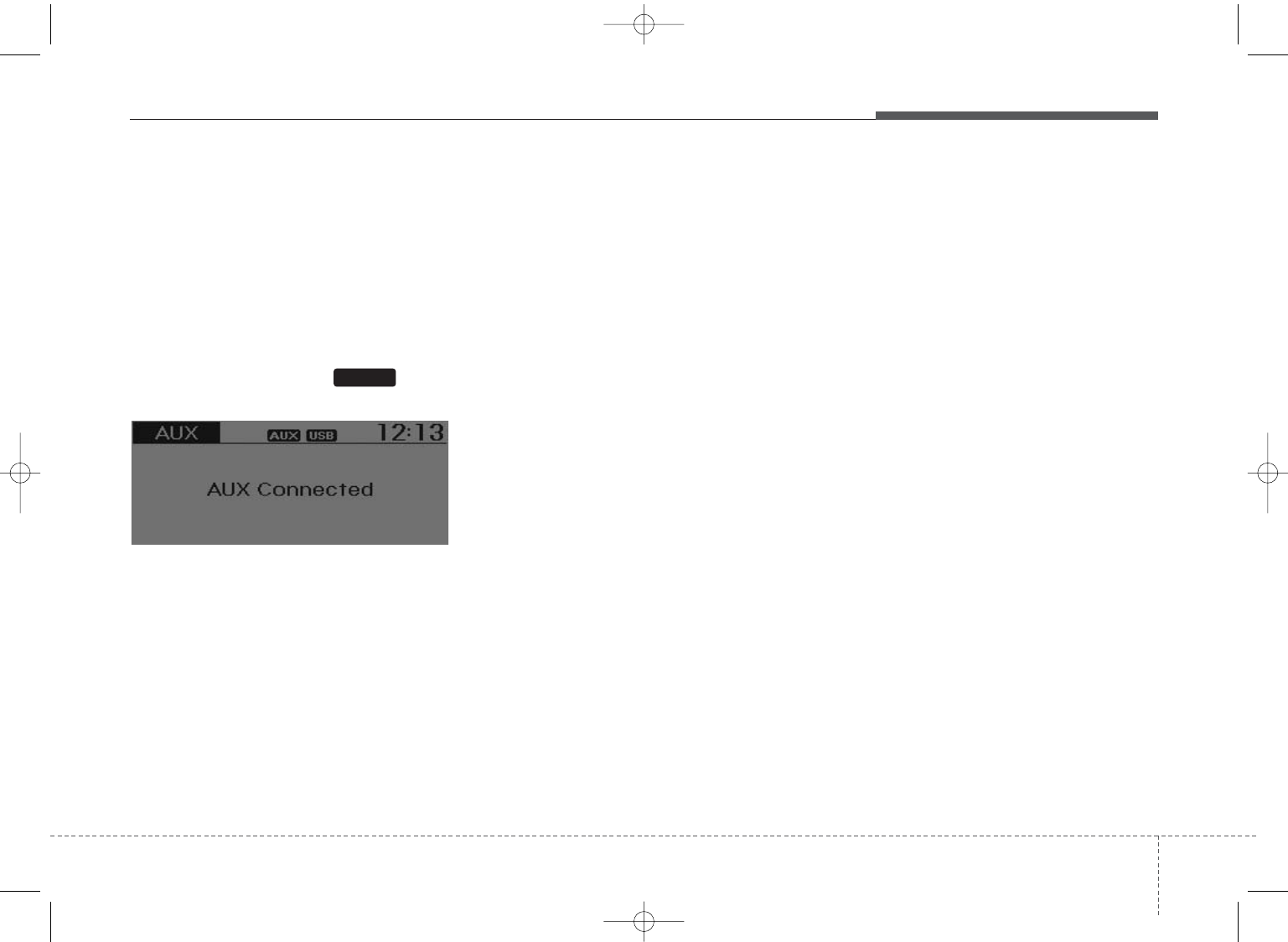

AUX mode will automatically start

when an external device is connect-

ed with the AUX terminal.

If an external device is connected,

you can also press the key to

change to AUX mode.

❈ AUX mode cannot be started

unless there is an external device

connected to the AUX terminal.

✽✽NOTICE - USING THE AUX

Fully insert the AUX cable into the

AUX terminal for use.

MEDIA

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 33

Features of your vehicle

344

Bluetooth®

Wireless

Technology AUDIO

(if equipped)

What is

Bluetooth

Wireless

Technology?

Bluetooth®

Wireless Technology

allows devices to be connected in a

short distance, including hands-free

devices, stereo headsets, wireless

remote controllers, etc. For more

information, visit the

Bluetooth®

Wireless Technology website at

www.Bluetooth.com

Before using

Bluetooth®

Wireless

Technology audio features

•

Bluetooth®

Wireless Technology

audio may not be supported

depending on the compatibility of

your

Bluetooth®

Wireless Technology

mobile phone.

• In order to use

Bluetooth®

Wireless

Technology audio, you must first

pair and connect the

Bluetooth®

Wireless Technology mobile phone.

• The

Bluetooth®

word mark and

logos are registered trademarks

owned by

Bluetooth®

SIG, Inc. and

any use of such marks is under

license. Other trademarks and trade

names are those of their respective

owners. A

Bluetooth®

enabled cell

phone is required to use

Bluetooth®

Wireless Technology

•

Bluetooth®

Wireless Technology

audio can be used only when the

[Audio Streaming] of Phone is

turned On.

❈ Setting

Bluetooth®

Wireless

Technology Audio Streaming :

Press the key Select

[Phone] through the tune knob

Select [Audio Streaming] through

the TUNE knob Set /

Starting

Bluetooth®

Wireless

Technology Audio

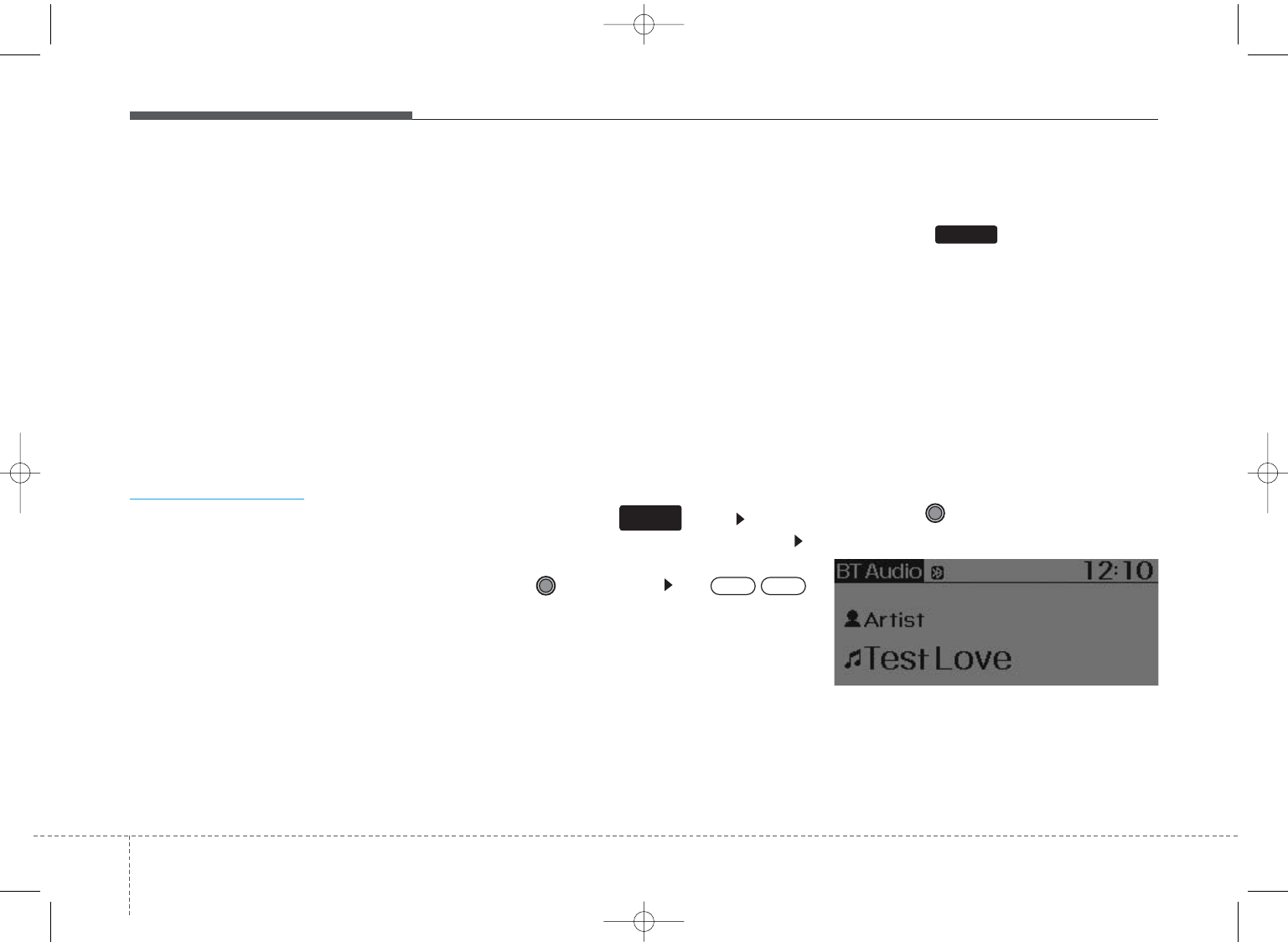

• Press the key to change the

mode in order of CD ➟ USB ➟ AUX

➟ My Music ➟ BT Audio.

• If BT Audio is selected,

Bluetooth®

Wireless Technology audio will start

playing.

❈ Audio may not automatically start

playing in some mobile phones.

Using the

Bluetooth®

Wireless

Technology audio features

• Play / Pause

Press the TUNE knob to play and

pause the current song.

❈ The previous song / next song /

play / pause functions may not be

supported in some mobile phones.

MEDIA

OffOn

SETUP

CLOCK

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 34

435

Features of your vehicle

PHONE (if equipped)

Before using the

Bluetooth

Wireless

Technology

phone features

• In order to use

Bluetooth®

Wireless

Technology

phone, you must first

pair and connect the

Bluetooth®

Wireless Technology

mobile phone.

• If the mobile phone is not paired or

connected, it is not possible to

enter Phone mode. Once a phone

is paired or connected, the guid-

ance screen will be displayed.

• If Priority is set upon vehicle igni-

tion (IGN/ACC ON), the

Bluetooth®

Wireless Technology

phone will be

automatically connected. Even if

you are outside, the

Bluetooth®

Wireless Technology

phone will be

automatically connected once you

are in the vicinity of the vehicle. If you

do not want automatic

Bluetooth®

Wireless Technology

phone connec-

tion, set the

Bluetooth®

Wireless

Technology

power to OFF.

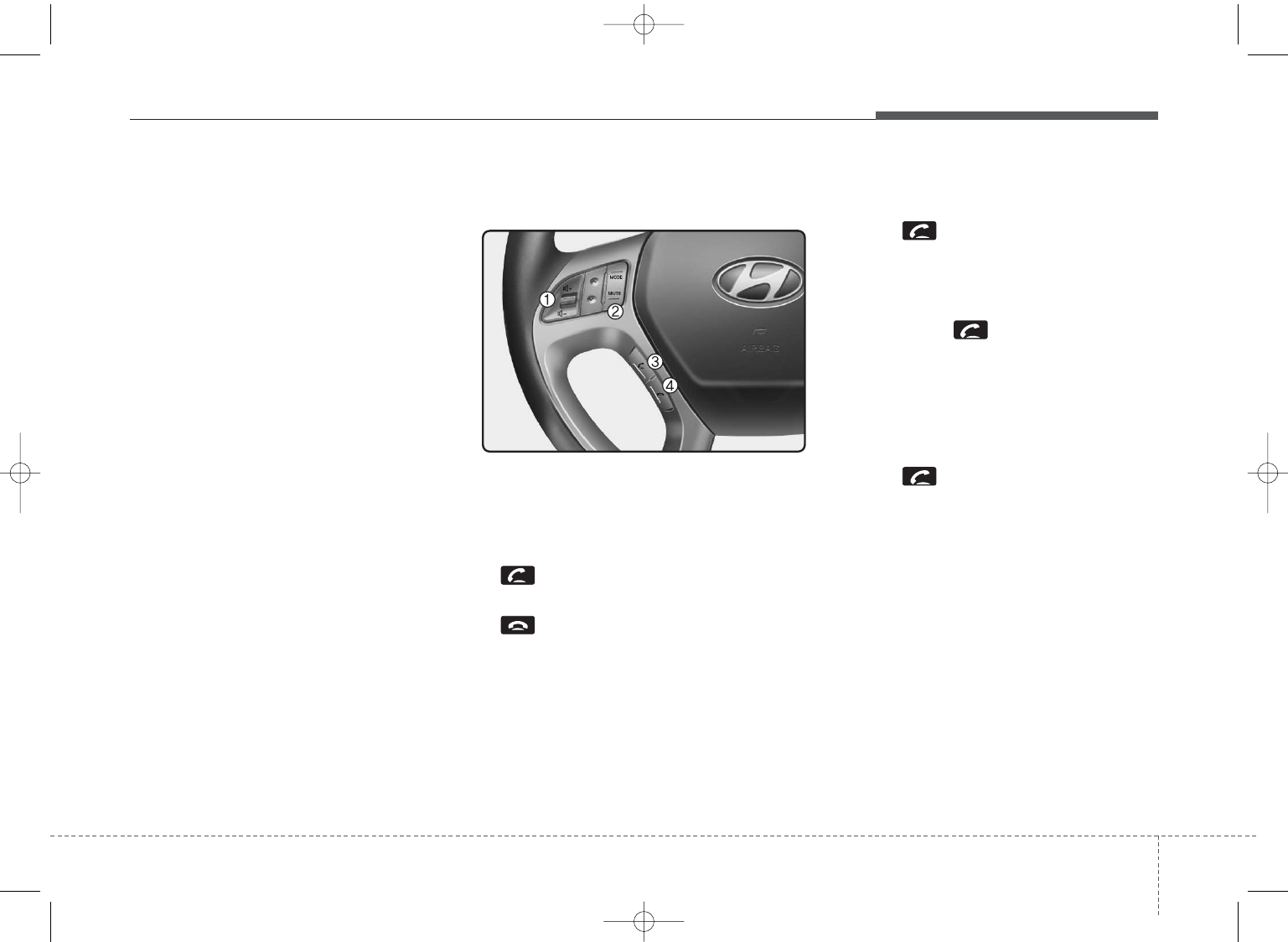

Making a call using the Steering

wheel remote controller

1. VOLUME button : Raises or lowers

speaker volume.

2.MUTE button : Mute the micro-

phone during a call.

3. button : Places and transfers

calls.

4. button : Ends calls or cancels

functions.

• Check call history and making call

➀ Shortly press (under 0.8 seconds)

the key on the steering

remote controller.

➁ The call history list will be dis-

played on the screen.

➂ Press the key again to con-

nect a call to the selected number.

• Redialing the most recently called

number

➀ Press and hold (over 0.8 seconds)

the key on the steering

remote controller.

➁ The most recently called number

is redialed.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 35

Features of your vehicle

364

Phone MENU

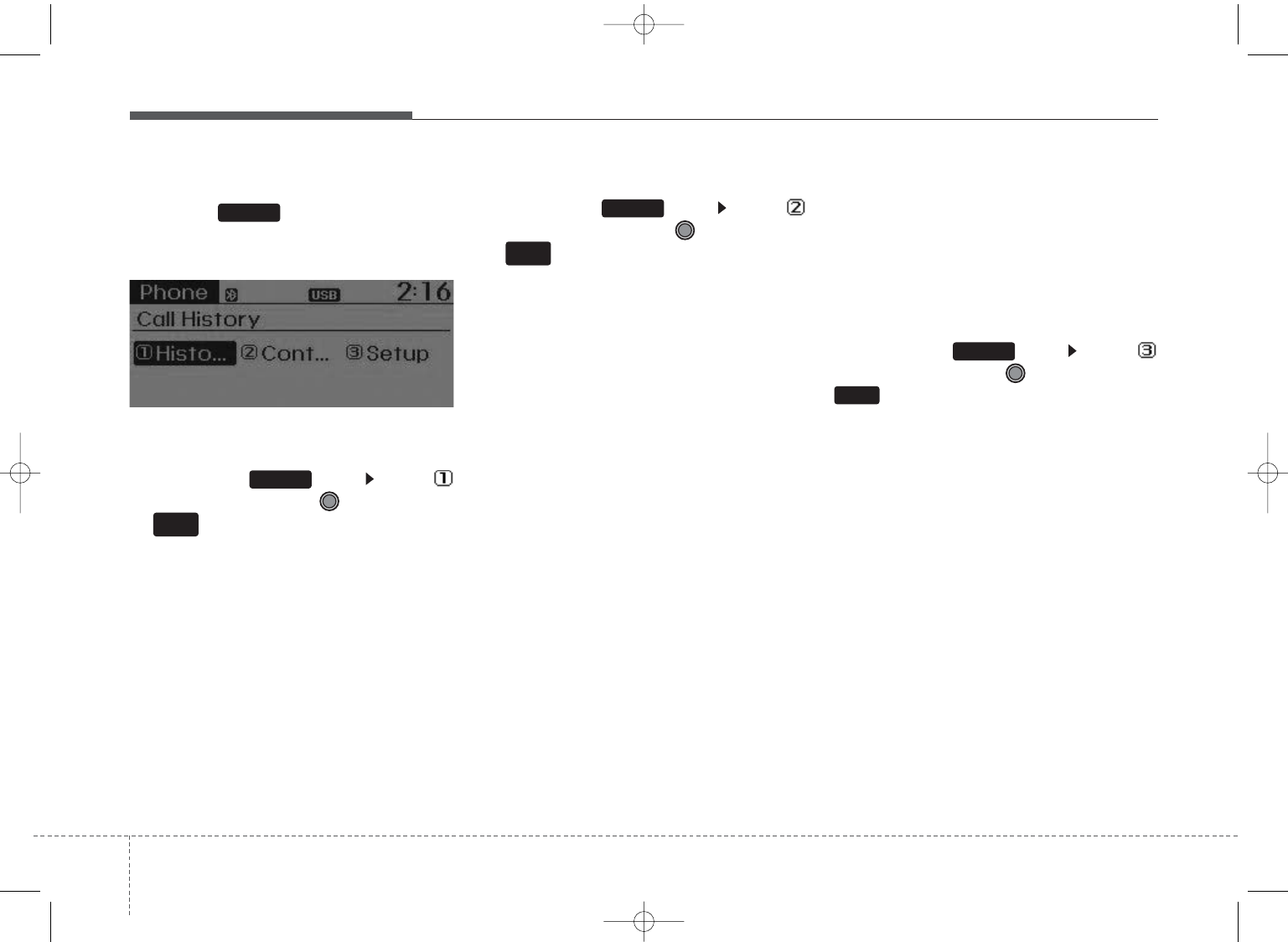

Press the key to display three

menus (Call History, Contacts,

Phone Setup).

Call history

Press the key Set [

History] through the TUNE knob

or key.

The call history is displayed and can

be used to select a number and

make a call.

If call history does not exist, a screen

asking whether to download call his-

tory is displayed. (The download fea-

ture may not be supported in some

mobile phones)

Contacts

Press the key Set [

Contacts] through the TUNE knob

or key.

The Contacts are displayed and can

be used to select a number and

make a call.

❈If more than one number is saved

to one contact, then a screen

showing the mobile phone num-

ber, Home and office number is

displayed. Select the desired num-

ber to make the call.

❈If Contacts do not exist, a screen

asking whether to download

Contacts is displayed. (The down-

load feature may not be supported

in some mobile phones)

Phone Setup

Press the key Set [

Setup] through the TUNE knob or

key.

The

Bluetooth

Wireless Technology

mobile phone setup screen is dis-

played. For more information, refer to

“Phone Setup”.

PHONE

RDM

PHONE

RPT

PHONE

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 36

437

Features of your vehicle

✽✽NOTICE - USING THE

Bluetooth®

Wireless Technology

CELLULAR PHONE

• Do not use a cellular phone or per-

form Bluetooth®Wireless

Technology settings (e.g. pairing a

phone) while driving.

• Some Bluetooth®Wireless

Technology -enabled phones may

not be recognized by the system or

fully compatible with the system.

• Before using Bluetooth®Wireless

Technology related features of the

audio system, refer your phone’s

User’s Manual for phone-side

Bluetooth®Wireless Technology

operations.

• The phone must be paired to the

audio system to use Bluetooth®

Wireless Technology related fea-

tures.

• You will not be able to use the

hands-free feature when your

phone (in the car) is outside of the

cellular service area (e.g. in a tun-

nel, in a underground, in a moun-

tainous area, etc.).

(Continued)

• If the cellular phone signal is poor

or the vehicles interior noise is too

loud, it may be difficult to hear the

other person’s voice during a call.

• Do not place the phone near or

inside metallic objects, otherwise

communications with Bluetooth®

Wireless Technology system or cel-

lular service stations can be dis-

turbed.

• While a phone is connected

through Bluetooth®Wireless

Technology your phone may dis-

charge quicker than usual for

additional Bluetooth®Wireless

Technology-related operations.

• Some cellular phones or other

devices may cause interference

noise or malfunction to audio sys-

tem. In this case, store the device

in a different location may resolve

the condition.

• Phone contact names should be

saved in English or they may not

be displayed correctly.

(Continued)

• If Priority is set upon vehicle igni-

tion(IGN/ACC ON), the

Bluetooth®Wireless Technology

phone will be automatically con-

nected.

Even if you are outside, the

Bluetooth®Wireless Technology

phone will be automatically con-

nected once you are in the vicinity

of the vehicle.

If you do not want automatic

Bluetooth®Wireless Technology

connection, turn the Bluetooth®

Wireless Technology feature off.

• The hands-free call volume and

quality may differ depending on

the mobile phone type.

•Bluetooth®Wireless Technology

features can be used only when the

mobile phone has been paired and

connected with the device. For

more information on pairing and

connecting Bluetooth®Wireless

Technology enabled mobile

phones, refer to the “Phone Setup”

section.

(Continued)

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 37

Features of your vehicle

384

(Continued)

• When a Bluetooth®Wireless

Technology mobile phone is con-

nected, a ( ) icon will appear at

the top of the screen. If a ( ) icon

is not displayed, this indicates that

a Bluetooth®Wireless Technology

enabled device has not been con-

nected. You must connect the

device before use. For more infor-

mation on Bluetooth®Wireless

Technology mobile phones, refer

to the “Phone Setup” section.

• Pairing and connecting a

Bluetooth®Wireless Technology

enabled mobile phone will work

only when the Bluetooth®Wireless

Technology option within your

mobile phone has been turned on.

(Methods of turning on the

Bluetooth®Wireless Technology

enabled feature may differ

depending on the mobile phone.)

(Continued)

• In some mobile phones, starting

the ignition while talking through

Bluetooth®Wireless Technology

enabled handsfree call will result

in the call becoming disconnected.

(Switch the call back to your

mobile phone when starting the

ignition.)

• Some features may not be sup-

ported in some Bluetooth®

Wireless Technology mobile phone

and devices.

•Bluetooth®Wireless Technology

enabled operation may be unsta-

ble depending on the communica-

tion state.

• Placing the audio system within an

electromagnetic environment may

result in noise interference.

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 38

439

Features of your vehicle

APPENDIX

Name Description

AST (A.store) Automatically selects and saves

channels

SDVC Speed Dependent Volume

Control

LM FL EG GEN3.0 AUDIO_A_NBD009.qxp 6/11/2013 7:57 AM Page 39

HYUNDAI MOBIS AC110D3GN DIGITAL CAR AUDIO SYSTEM User Manual LM FL EG GEN3 0 AUDIO A NBD009 qxp

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM LM FL EG GEN3 0 AUDIO A NBD009 qxp

User Manual

Navigation menu

Namespaces

Views

Navigation
