Features of your vehicle

D300800AHM

How vehicle audio works

AM and FM radio signals are broadcast

from transmitter towers located around

your city. They are intercepted by the

radio antenna on your vehicle. This signal

is then received by the radio and sent to

your vehicle speakers.

When a strong radio signal has reached

your vehicle, the precise engineering of

your audio system ensures the best pos-

sible quality reproduction. However, in

some cases the signal coming to your

vehicle may not be strong and clear. This

can be due to factors such as the dis-

tance from the radio station, closeness of

other strong radio stations or the pres-

ence of buildings, bridges or other large

obstructions in the area.

AM broadcasts can be received at

greater distances than FM broadcasts.

This is because AM radio waves are

transmitted at low frequencies. These

long, low frequency radio waves can fol-

low the curvature of the earth rather than

travelling straight out into the atmos-

phere. In addition, they curve around

obstructions so that they can provide bet-

ter signal coverage.

¢¢¢

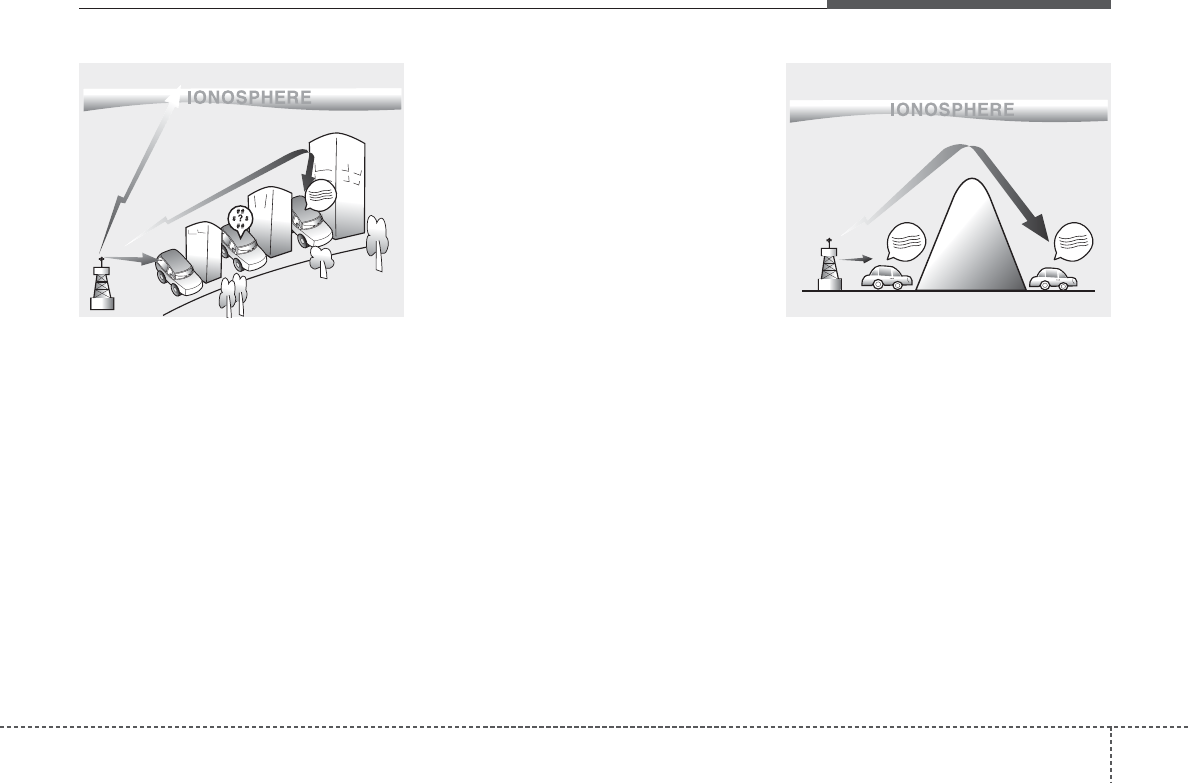

JBM002

AM reception

¢¢¢

JBM001

FM reception

Features of your vehicle

FM broadcasts are transmitted at high

frequencies and do not bend to follow the

earth's surface. Because of this, FM

broadcasts generally begin to fade at

short distances from the station. Also,

FM signals are easily affected by build-

ings, mountains, or other obstructions.

These can result in certain listening con-

ditions which might lead you to believe a

problem exists with your radio. The fol-

lowing conditions are normal and do not

indicate radio trouble:

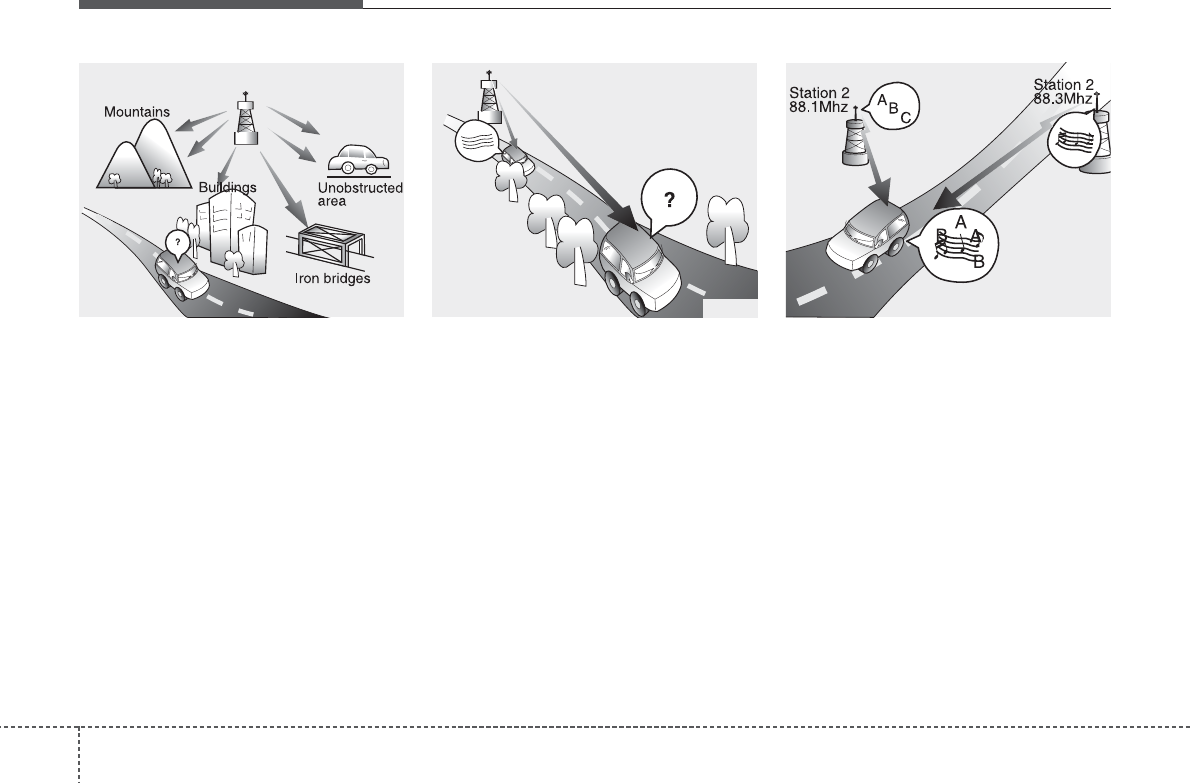

• Fading - As your vehicle moves away

from the radio station, the signal will

weaken and sound will begin to fade.

When this occurs, we suggest that you

select another stronger station.

• Flutter/Static - Weak FM signals or

large obstructions between the trans-

mitter and your radio can disturb the

signal causing static or fluttering nois-

es to occur. Reducing the treble level

may lessen this effect until the distur-

bance clears.

• Station Swapping - As a FM signal

weakens, another more powerful sig-

nal near the same frequency may

begin to play. This is because your

radio is designed to lock onto the clear-

est signal. If this occurs, select another

station with a stronger signal.

• Multi-Path Cancellation - Radio signals

being received from several directions

can cause distortion or fluttering. This

can be caused by a direct and reflect-

ed signal from the same station, or by

signals from two stations with close

frequencies. If this occurs, select

another station until the condition has

passed.

JBM005

¢¢¢

JBM004JBM003

FM radio station

Features of your vehicle

Satellite radio reception

You may experience difficulties in receiv-

ing XM™ satellite radio signals in the fol-

lowing situations.

• If you are driving in a tunnel or a cov-

ered parking area.

• If you are driving beneath the top level

of a multi-level freeway.

• If you drive under a bridge.

• If you are driving next to a tall vehicle

(such as a truck or a bus) that blocks

the signal.

• If you are driving in a valley where the

surrounding hills or peaks block the

signal from the satellite.

• If you are driving on a mountain road

where is the signal blocked by moun-

tains.

• If you are driving in an area with tall

trees that block the signal (30 ft. /10m

or more), for example on an road that

goes through a dense forest.

• The signal can become weak in some

areas that are not covered by the XM™

repeater network.

NOTE:

There may be other unforeseen cir-

cumstances leading to reception prob-

lems with the XM™ satellite radio sig-

nal.

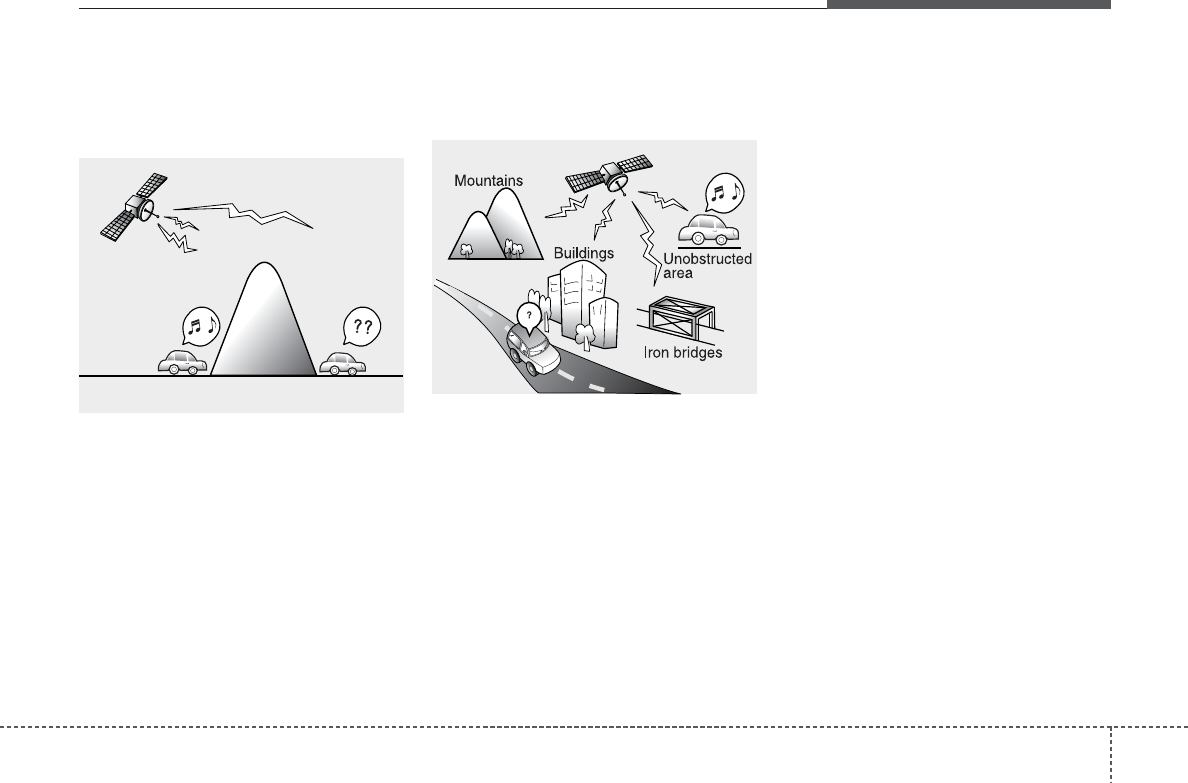

SATELLITE2

SATELLITE1

Features of your vehicle

Using a cellular phone or a two-way

radio

When a cellular phone is used inside the

vehicle, noise may be produced from the

audio equipment. This does not mean

that something is wrong with the audio

equipment. In such a case, use the cellu-

lar phone at a place as far as possible

from the audio equipment.

Care of disc

• If the temperature inside the car is too

high, open the car windows for ventilation

before using your car audio.

• It is illegal to copy and use MP3/WMA

files without permission. Use CDs that

are created only by lawful means.

• Do not apply volatile agents such as

benzene and thinner, normal cleaners

and magnetic sprays made for ana-

logue disc onto CDs.

• To prevent the disc surface from get-

ting damaged. Hold and carry CDs by

the edges or the edges of the center

hole only.

• Clean the disc surface with a piece of

soft cloth before playback (wipe it from

the center to the outside edge).

• Do not damage the disc surface or

attach pieces of sticky tape or paper

onto it.

• Make sure on undesirable matter other

than CDs are inserted into the CD

player (Do not insert more than one

CD at a time).

• Keep CDs in their cases after use to

protect them from scratches or dirt.

• Depending on the type of CD-R/CD-

RW CDs, certain CDs may not operate

normally according to manufacturing

companies or making and recording

methods. In such circumstances, if you

still continue to use those CDs, they

may cause the malfunction of your car

audio system.

✽✽NOTICE - Playing an

Incompatible Copy

Protected Audio CD

Some copy protected CDs, which do not

comply with the international audio CD

standards (Red Book), may not play on

your car audio. Please note that if you

try to play copy protected CDs and the

CD player does not perform correctly

the CDs maybe defective, not the CD

player.

CAUTION

When using a communication sys-

tem such a cellular phone or a radio

set inside the vehicle, a separate

external antenna must be fitted.

When a cellular phone or a radio set

is used with an internal antenna

alone, it may interfere with the vehi-

cle's electrical system and adverse-

ly affect safe operation of the vehi-

cle.

WARNING

Do not use a cellular phone while

driving. Stop at a safe location to

use a cellular phone.

Features of your vehicle

RB_PA710RB_RADIO

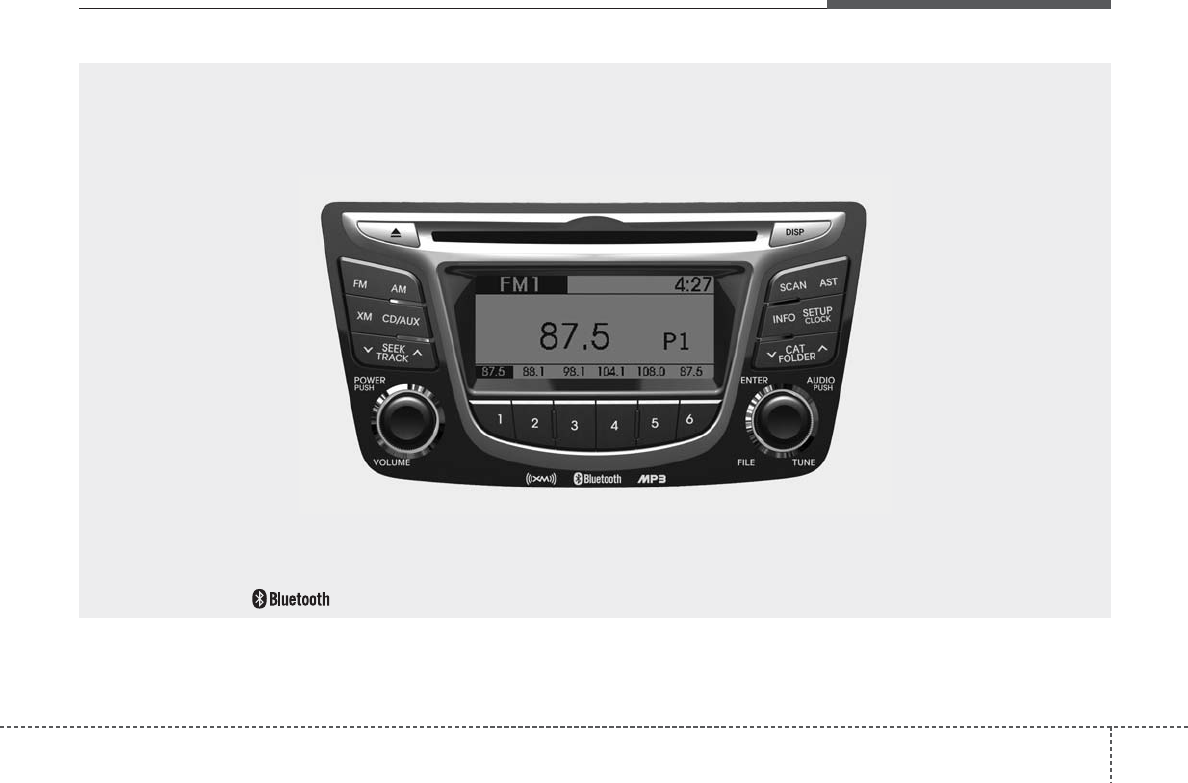

■■ CD Player : PA710RB

❋There will be no logo if the Bluetooth®feature is not supported.

Using RADIO, SETUP, VOLUME

and AUDIO CONTROL

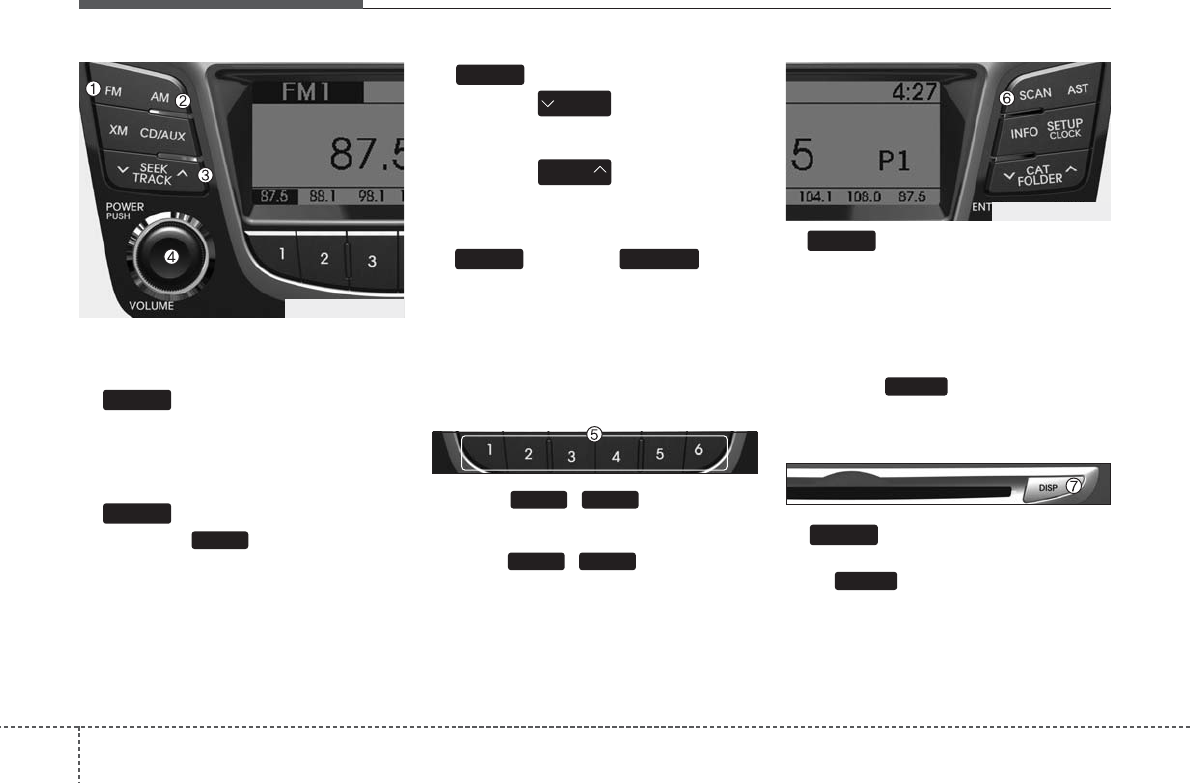

1. Button

Turns to FM mode and toggles FM1 and

FM2 when the button is pressed each

time.

2. Button

Pressing the button selects the

AM band. AM Mode is displayed on the

LCD.

3. Button

• When the is pressed, it will

automatically tune to the next lower

station.

• When the is pressed, it will

automatically tune to the next higher

station.

4. Button & Knob

• Turns the audio system on/off when

the ignition switch is on ACC or ON.

• If the knob is turned clockwise/counter-

clockwise, the volume will increase

/decrease.

5. PRESET Buttons

• Press ~ buttons less

than 0.8 seconds to play the station

saved in each button.

• Press ~ buttons more

than 0.8 seconds or longer to save the

current station to the respective button

with a beep.

6. Button

• When the button is pressed, it auto-

matically scans the radio stations

upwards.

• The SCAN feature steps through each

station, starting from the initial station,

for 5 seconds.

• Press the button again to stop

the scan feature and to listen to the

currently selected channel.

7. Button

Turn the LCD Display & Backlight ON/OFF

when button press.

DISP

SCAN

VOLUMEPOWER

SEEK

TRACK

SEEK

TRACK

SEEK

Features of your vehicle

PA710RB_RADIO

Features of your vehicle

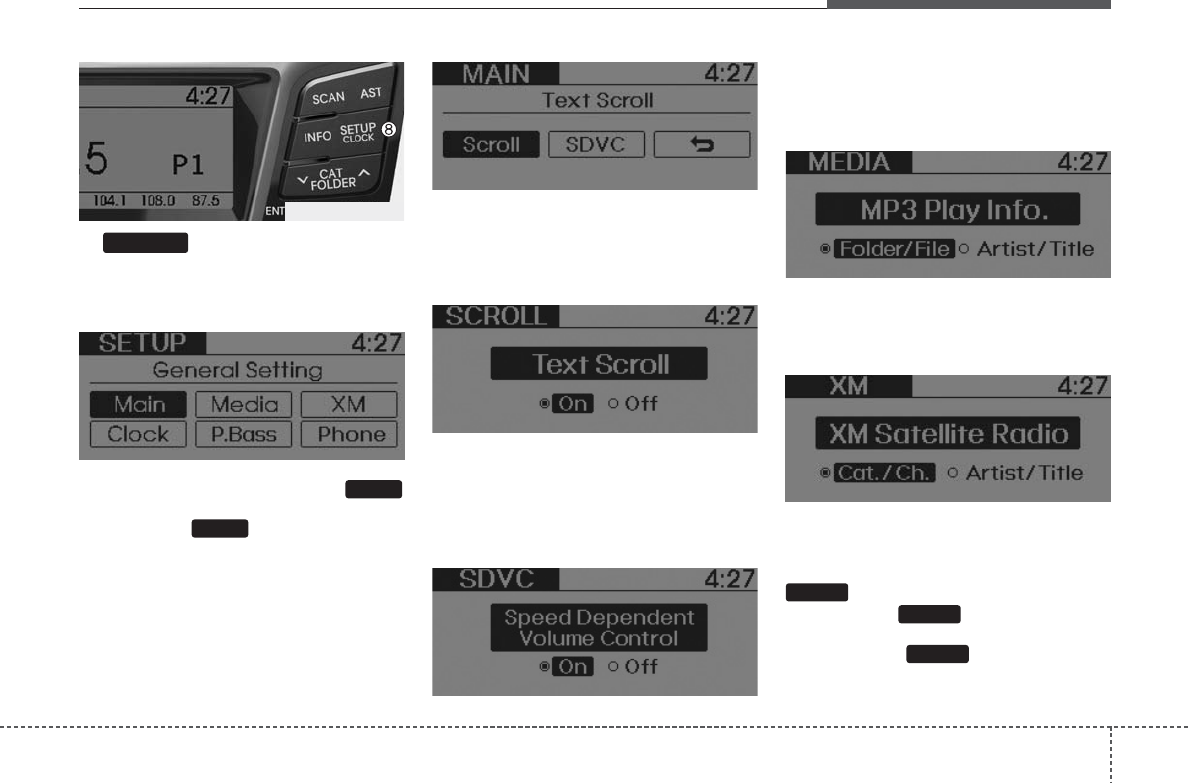

8. Button

Press this button to enter SETUP mode,

If no action is taken for 8 seconds, it will

return to previous mode.

In “SETUP” mode, rotate the

knob to move the cursor between items,

and push the knob to select.

• MAIN

Select this item to enter the Scroll and

SDVC setup.

• SCROLL

Select whether long file names are

scrolled continuously (On) or just once

(Off).

• SDVC

(Speed Dependent Volume Control)

Select this item to turn the SDVC feature

On or Off. If it is turned ON, volume level

is adjusted automatically according to

the vehicle speed.

• MEDIA

Select default display of MP3 play infor-

mation. “Folder/File” or “Artist/Title” can

be selected.

• XM

Select default display of XM mode.

“Cat./Ch.” or “Artist/Title” can be selected.

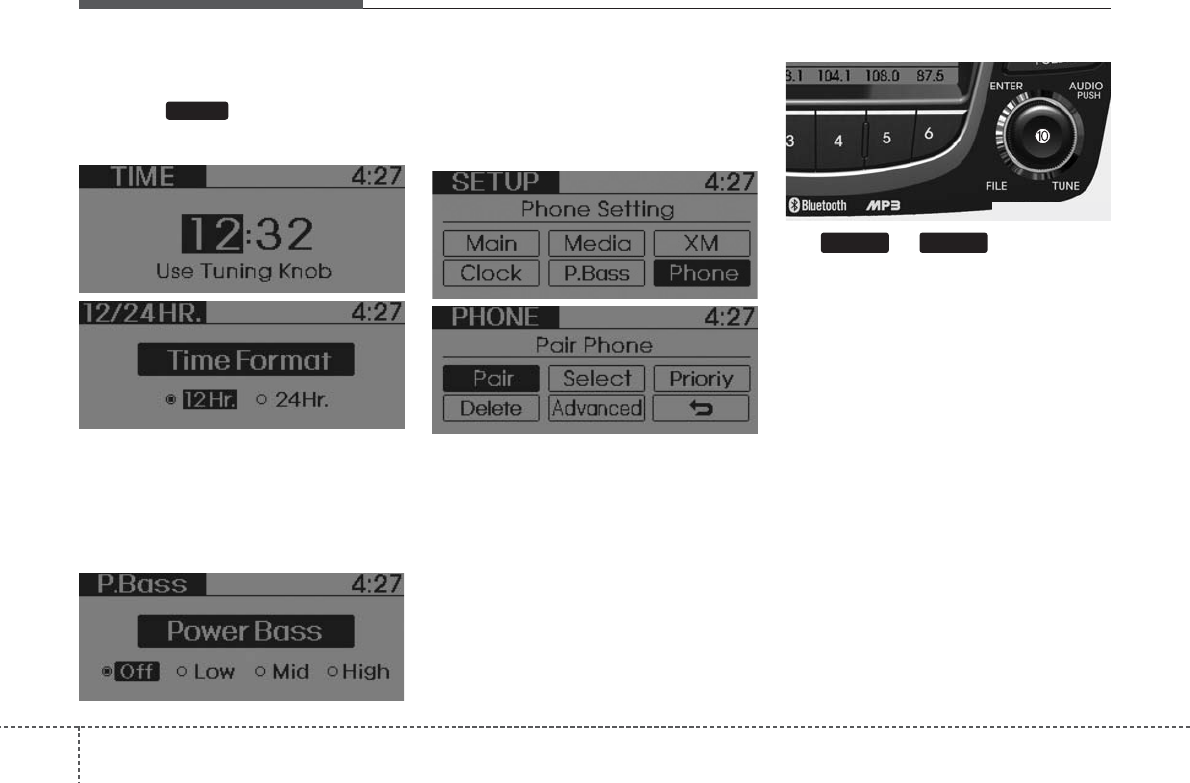

• CLOCK

Select this item to enter Clock setup

mode. Adjust the hour and press the

button to set. Adjust the minute

and press the button to complete

and exit from clock adjustment mode.

Pressing the button while in

power off, screen will allow the user to

SETUP

ENTER

TUNE

SETUP

PA710RB_RADIO

Features of your vehicle

make immediately adjustments to the

clock.

Press the button for more than

3 seconds while in power off/on, you can

enter the time setup screen directly.

• P.BASS (PowerBass)

This function creates virtual sound

effects and allows adjustments to the

Bass level.

Off ➟Low ➟Mid ➟High ➟ Off...

❈ AM Mode is not supported.

• PHONE

Select this item to enter PHONE setup

mode. Refer to “BLUETOOTH PHONE

OPERATION” section for detailed infor-

mation.

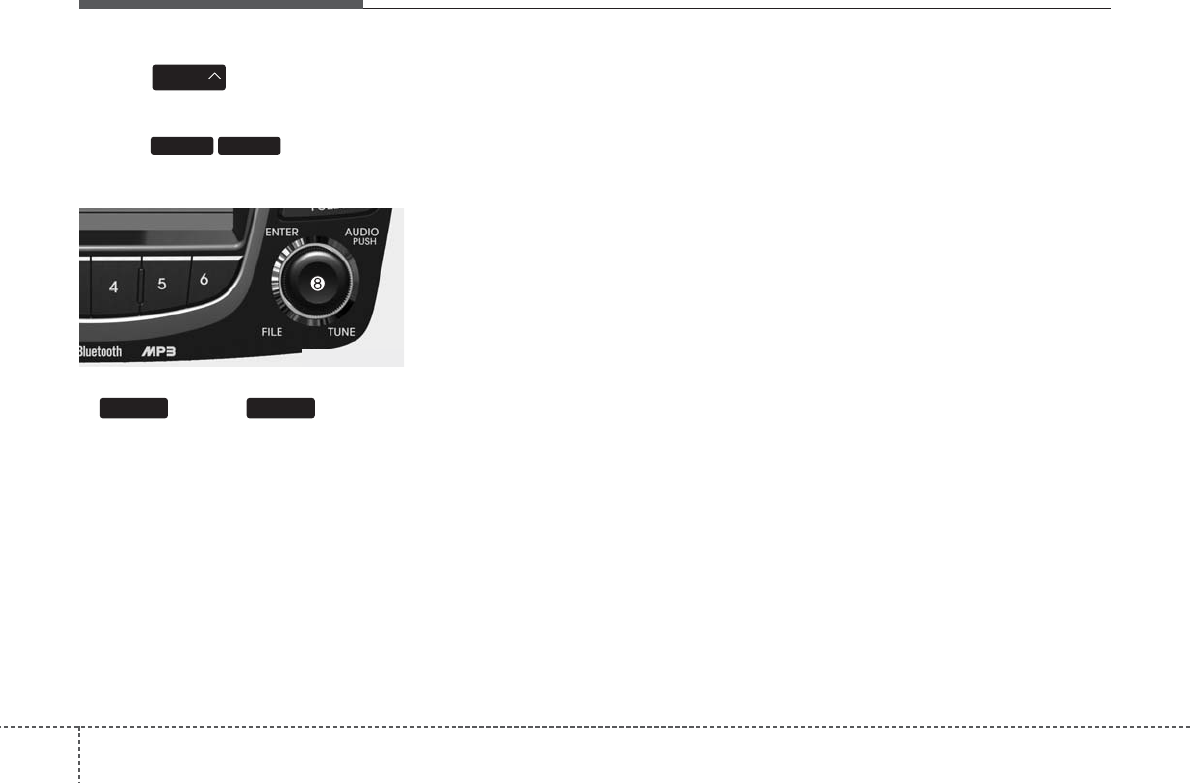

10. & Knob

Rotate the knob clockwise or counter-

clock wise to increase or decrease from

current frequency.

(AM 10 kHz, FM 200 MHz)

Pressing the button changes the BASS,

MIDDLE, TREBLE, FADER and BAL-

ANCE TUNE mode. The mode selected

is shown on the display. After selecting

each mode, rotate the Audio control knob

clockwise or counterclockwise.

• BASS Control

To increase the BASS, rotate the knob

clockwise, while to decrease the BASS,

rotate the knob counterclockwise.

• MIDDLE Control

To increase the MIDDLE, rotate the knob

clockwise, while to decrease the MID-

DLE, rotate the knob counterclockwise.

AUDIOTUNE

SETUP

PA710RB_RADIO

Features of your vehicle

• TREBLE Control

To increase the TREBLE, rotate the knob

clockwise, while to decrease the TRE-

BLE, rotate the knob counterclockwise.

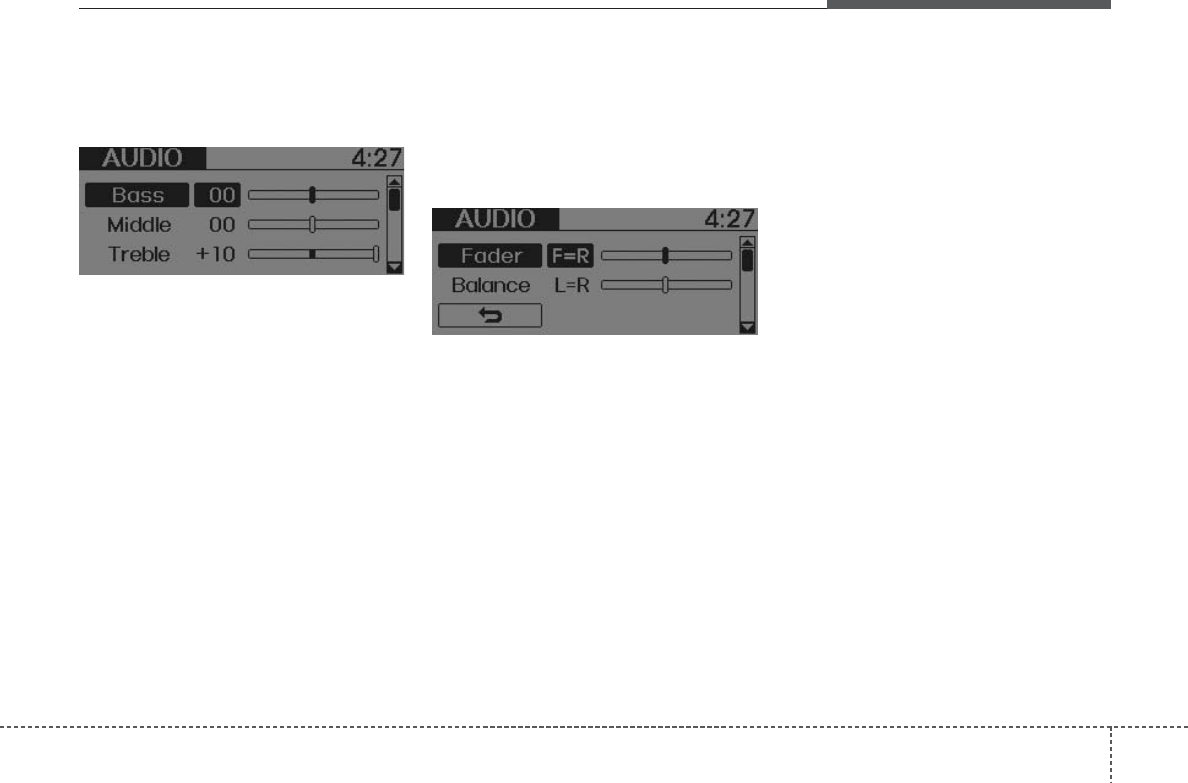

• FADER Control

Turn the control knob clockwise to empha-

size rear speaker sound (front speaker

sound will be attenuated). When the con-

trol knob is turned counterclockwise, front

speaker sound will be emphasized (rear

speaker sound will be attenuated).

• BALANCE Control

Rotate the knob clockwise to emphasize

right speaker sound (left speaker sound

will be attenuated). When the control

knob is turned counter clockwise, left

speaker sound will be emphasized (right

speaker sound will be attenuated).

Features of your vehicle

104

Using XM satellite Radio

Your vehicle is equipped with 3 months

complimentary period of XM Satellite

Radio. XM provides access to over 130

channels of music, information, and

entertainment programming.

1. Button

Turns to XM Satellite Radio Mode. XM

mode toggles in order to XM1➟XM2➟

XM3➟XM1... when the button is pressed

each time.

2. Button

• Push button for less than 0.8

second to select previous channel.

• Push button for 0.8 second

or longer to continuously move to pre-

vious channel.

• Push button for less than 0.8

second to select next channel.

• Push button for 0.8 second

or longer to continuously move to next

channel.

• Radio ID : Seek or Tune to XM channel

0 to display the Radio ID.

3. PRESET Buttons

Push ~ buttons less than

0.8 second to play the channel saved in

each button. Push Preset button for 0.8

second or longer to save current channel

to the respective button with a beep.

4. Knob

While listening to XM broadcast, rotate

this control to the right or left to search

other channels while listening to current

channel. (Turn to the right to search high-

er channels and left, lower channels)

5. Button

Press to hear a brief sampling of all

channel. To cancel the scan mode, press

the button once again.

6. Button (CATEGORY)

• Push button to search previ-

ous category.

• Push button to search next

category. To listen to the displayed cat-

egory, press the / button.

To scan channel in displayed category,

press the button.

To search channel in displayed catego-

ry, press buttons or turn the

knob clockwise/counterclock-

wise. (CATEGORY icon is will be

turned on in Category mode)

TUNE

SEEK

SCAN

SETUPTUNE

CAT

FOLDER

CAT

FOLDER

CAT

SCAN

TUNE

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

PA710RB_XM PA710RB_XM

PA710RB_XM

411

Features of your vehicle

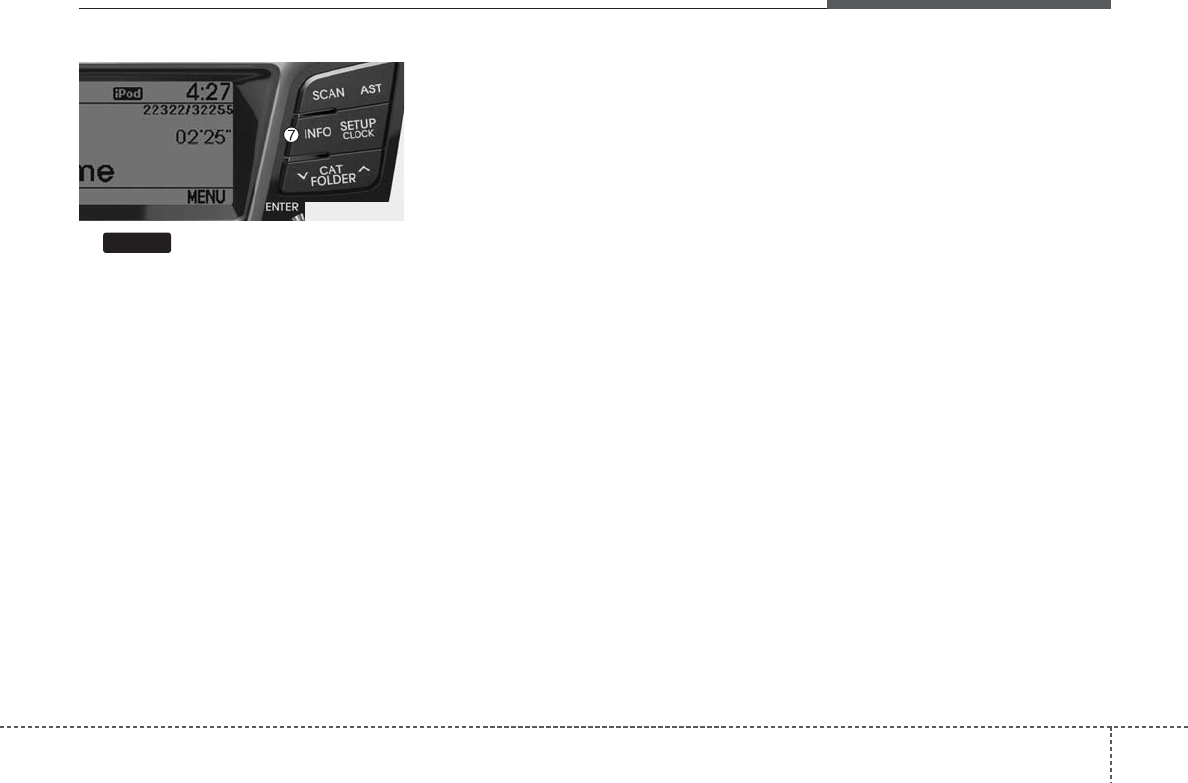

7. Button

Displays the information of the current

channel in the order of Artist/Song title,

Category/Channel name, Current Play

Channel, Artist/Song title when the

button is pressed each time. The com-

plete text information is not displayed,

rotate the knob to see the next

page.

TUNE

INFO

PA710RB_XM

Features of your vehicle

124

Using CD Player

1. Button (CD)

If the CD is loaded, turns to CD mode.

If no CD, it displays “No Media” for 3 sec-

onds and returns to the previous mode.

2. Button

• Press button for less than

0.8 seconds to play from the beginning

of current song.

• Press button for less than

0.8 seconds and press again within

1 second to play the previous song.

• Press button for 0.8 seconds

or longer to initiate reverse direction

high speed sound search of current

song.

• Press button for less than

0.8 seconds to play the next song.

• Press button for 0.8 seconds

or longer to initiate forward direction

high speed sound search of current

song.

3. Button (RANDOM)

Press this button for less than 0.8 sec-

onds to activate ‘RDM’ mode and more

than 0.8 seconds to activate ‘ALL RDM’

mode.

• RDM : Only files/tracks in a folder/disc

are played back in a random sequence.

• ALL RDM (MP3/WMA Only) : All files in

a disc are played back in the random

sequence.

4. Button (REPEAT)

Press this button for less than 0.8 sec-

onds to activate 'RPT' mode and more

than 0.8 seconds to activate 'FLD RPT'

mode.

• RPT : Only a track (file) is repeatedly

played back.

• FLD RPT (MP3/WMA Only) : Only files

in a folder are repeatedly played back.

5. Knob & Button

• Turn this knob clockwise to browse

songs after current song, or counter-

clockwise to browse songs before cur-

rent song. To play the displayed song,

press the knob.

• Pressing this knob without turning

enters to AUDIO CONTROL mode.

6. CD Eject Button

• Press button to eject the CD.

This button works regardless of ignition

switch status.

7. CD Slot

Please face printed side upward and

gently push in. When the ignition switch

is on ACC or ON and power is off, power

is automatically turned on if the CD is

ENTERTUNE

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

CD/AUX

PA710RB_CD

loaded. This CDP supports only 12cm

CD. If VCD, Data CD are loaded,

"Reading Error" message will appear

and CD will be ejected.

8. Button

Play each song in the CD for 10 seconds.

To cancel SCAN Play, press this button

again.

9. Button

Displays the information of the current

song.

• Audio CD : Disc Title/Artist, Track Title

/Artist, Total Track.

• MP3 CD : File Name, Title, Artist,

Album, Folder, Total Files (Not dis-

played if the information is unavailable

on the CD or file.)

10. Button

• Press button to move to

child folder of the current folder and

display the first song in the folder.

Press knob to move to the fold-

er displayed. It will play the first song in

the folder.

• Press button to move to par-

ent folder of the current folder and dis-

play the first song in the folder.

Press knob to move to the fold-

er displayed.

NOTE:

Order of playing files (folders) :

1. Song playing order : to sequen-

tially.

TUNE

CAT

FOLDER

TUNE

CAT

FOLDER

INFO

SCAN

PA710RB_CD

413

Features of your vehicle

144

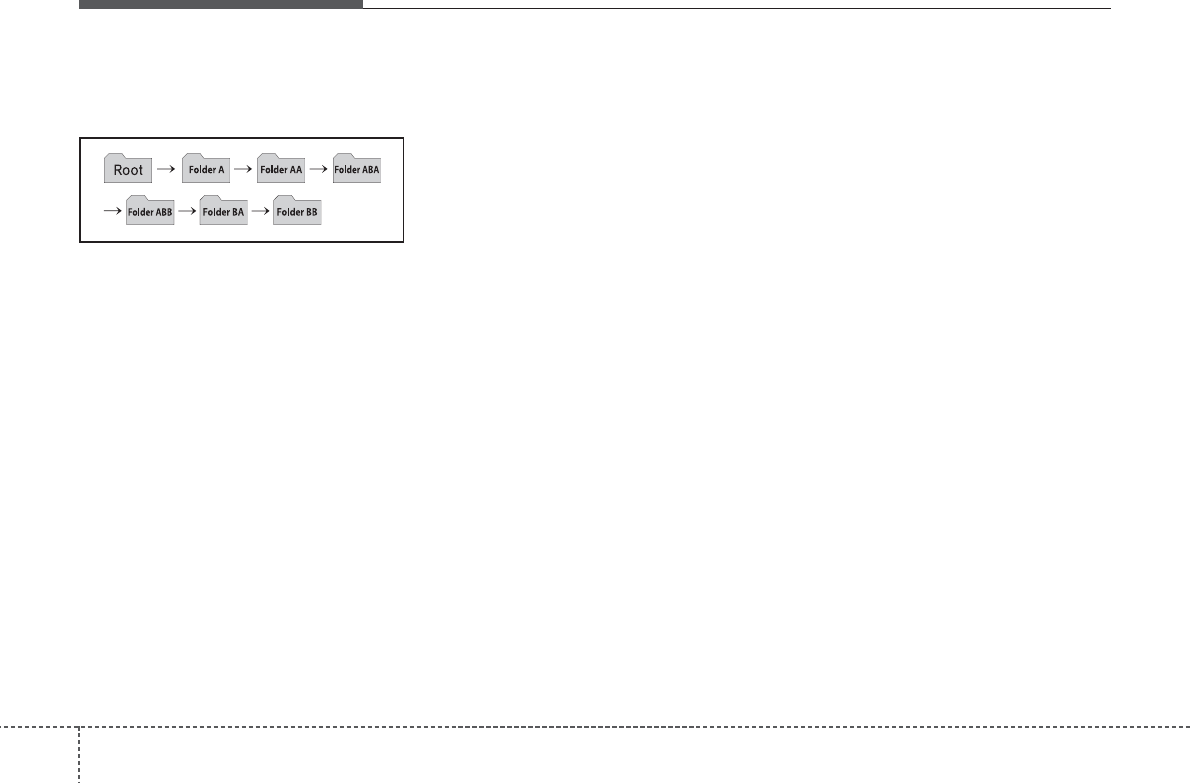

2. Folder playing order :

❋If no song file is contained in the

folder, that folder is not displayed.

415

Features of your vehicle

CAUTION IN USING

USB DEVICE

• To use an external USB device,

make sure the device is not con-

nected when starting up the vehi-

cle. Connect the device after

starting up.

• If you start the engine when the

USB device is connected, it may

damage the USB device. (USB

flashdrives are very sensitive to

electric shock.)

• If the engine is started up or

turned off while the external USB

device is connected, the external

USB device may not work.

• It may not play inauthentic MP3 or

WMA files.

1) It can only play MP3 files with

the compression rate between

8Kbps~320Kbps.

2) It can only play WMA music

files with the compression rate

between 8Kbps~320Kbps.

• Take precautions for static electrici-

ty when connecting or disconnect-

ing the external USB device.

(Continued)

• An encrypted MP3 PLAYER is not

recognizable.

• Depending on the condition of

the external USB device, the con-

nected external USB device can

be unrecognizable.

• When the formatted byte/sector

setting of External USB device is

not either 512BYTE or 2048BYTE,

then the device will not be recog-

nized.

• Use only a USB device formatted

to FAT 12/16/32.

• USB devices without USB I/F

authentication may not be recog-

nizable.

• Make sure the USB connection

terminal does not come in contact

with the human body or other

objects.

• If you repeatedly connect or dis-

connect the USB device in a short

period of time, it may break the

device.

• You may hear a strange noise

when connecting or disconnect-

ing a USB device.

(Continued)

• If you disconnect the external USB

device during playback in USB

mode, the external USB device can

be damaged or may malfunction.

Therefore, disconnect the external

USB device when the audio is

turned off or in another mode. (e.g,

Radio, XM or CD)

• Depending on the type and capacity

of the external USB device or the

type of the files stored in the device,

there is a difference in the time

taken for recognition of the device.

• Do not use the USB device for pur-

poses other than playing music files.

• Playing videos through the USB is

not supported.

• Use of USB accessories such as

rechargers or heaters using USB

I/F may lower performance or

cause trouble.

• If you use devices such as a USB

hub purchased separately, the

vehicle’s audio system may not

recognize the USB device. In that

case, connect the USB device

directly to the multimedia termi-

nal of the vehicle.

(Continued)

Features of your vehicle

164

(Continued)

• If the USB device is divided by

logical drives, only the music files

on the highest-priority drive are

recognized by car audio.

• Devices such as MP3 Player/

Cellular phone/Digital camera can

be unrecognizable by standard

USB I/F can be unrecognizable.

• Charging through the USB may

not be supported in some mobile

devices.

❋

A car exclusive cable (sold sep-

arately) is required to use the

iPod.

• Some non-standard USB devices

(METAL COVER TYPE USB) can be

unrecognizable.

• Some USB flash memory readers

(such as CF, SD, microSD, etc.) or

external-HDD type devices can be

unrecognizable.

• Music files protected by DRM

(DIGITAL RIGHTS MANAGEMENT)

are not recognizable.

• The data in the USB memory may

be lost while using this audio.

Always back up important data on

a personal storage device.

(Continued)

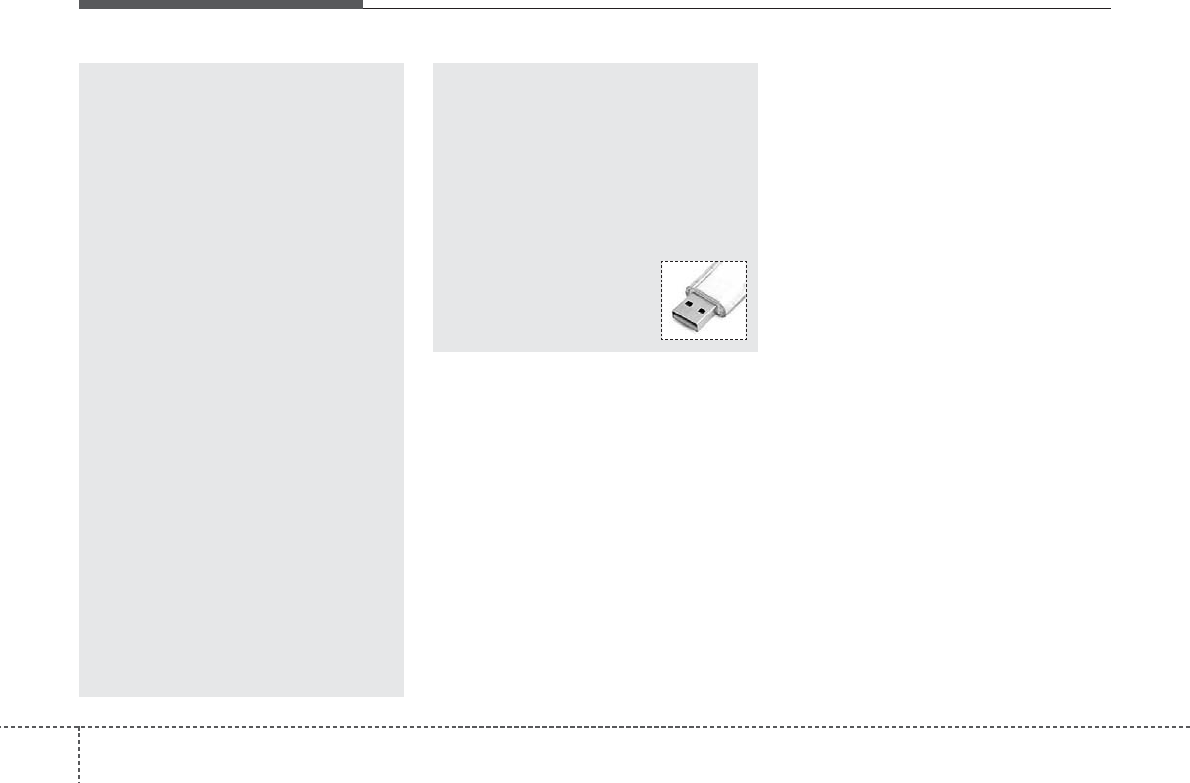

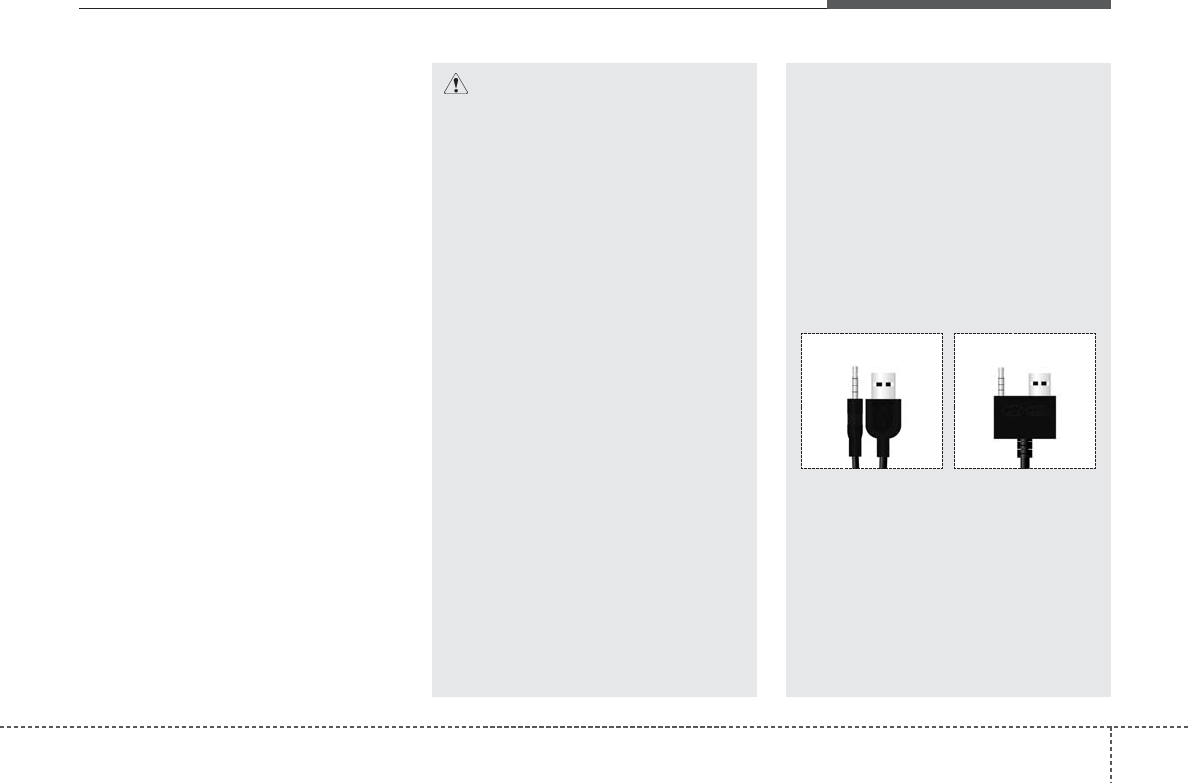

• Please avoid using USB memory

products which can be used as

key chains or cellular phone

accessories as they could cause

damage to the USB jack. Please

make certain only to use plug type

connector products as shown

below.

417

Features of your vehicle

Using USB device

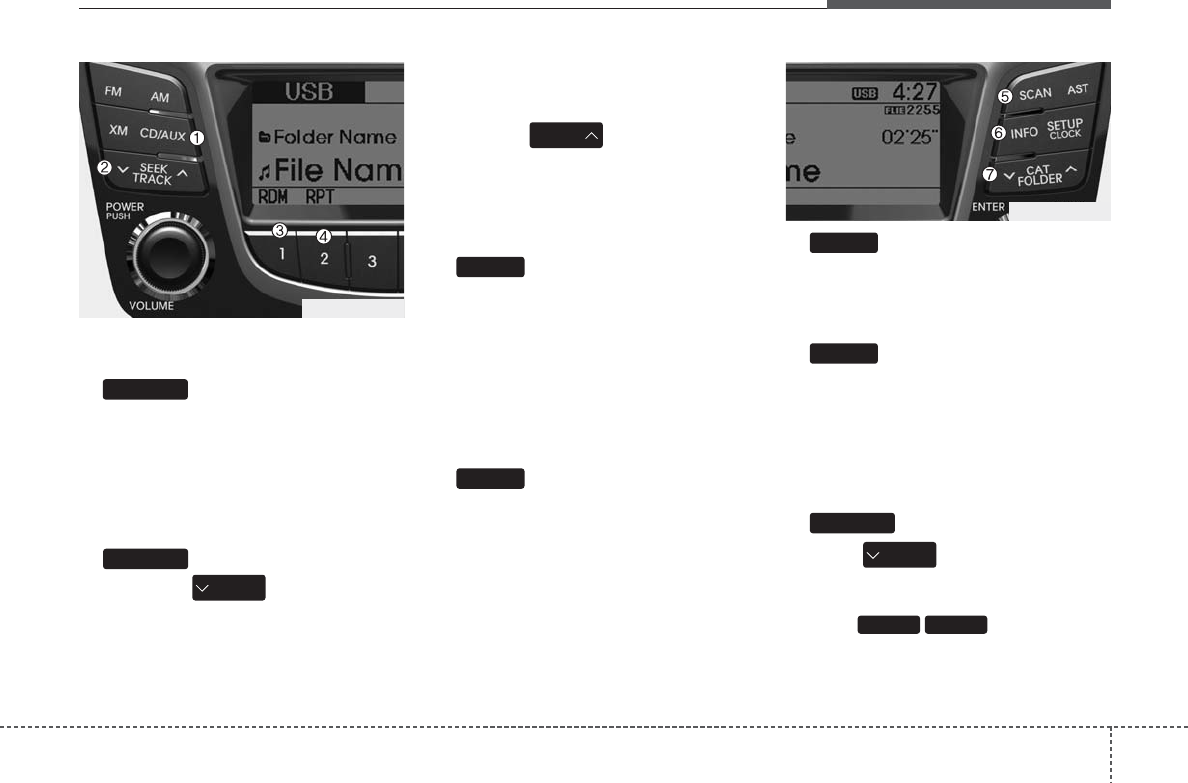

1. Button (USB)

If USB is connected, it switches to the

USB mode from the other mode to play

the song files stored in the USB. If no CD

and auxiliary device is not connected, it

displays "NO Media" for 3 seconds and

returns to the previous mode.

2. Button

• Press the button for less

than 0.8 seconds to play from the

beginning of the current song.

Press the button for less than 0.8 sec

onds and press it again within 1 second

to move to and play the previous song.

Press the button for 0.8 seconds or

longer to play the song in reverse

direction in fast speed.

• Press the button for less than

0.8 seconds to move to the next song.

Press the button for 0.8 seconds or

longer to play the song in forward

direction in fast speed.

3. Button (RANDOM)

Press this button for less than 0.8 sec-

onds to activate ‘RDM’ mode and more

than 0.8 seconds to activate ‘ALL RDM’

mode.

• RDM : Only files/tracks in a folder/disc

are played back in a random sequence.

• ALL RDM : All files in a disc are played

back in the random sequence.

4. Button (REPEAT)

Press this button for less than 0.8 sec-

onds to activate 'RPT' mode and more

than 0.8 seconds to activate 'FLD RPT'

mode.

• RPT : Only a track (file) is repeatedly

played back.

• FLD RPT : Only files in a folder are

repeatedly played back.

5. Button

Plays each song in the USB device for 10

seconds. To cancel SCAN Play, press

this button again.

6. Button

Displays the information of the file cur-

rently played in the order of

File Name, Title, Artist, Album, Folder,

Total File, Normal Display (Displays no

information if the file has no song infor-

mation.)

7. Button

• Press button to move to

child folder of the current folder and

display the first song in the folder.

Press / knob to move

to the folder displayed. It will play the

first song in the folder.

ENTERTUNE

CAT

FOLDER

INFO

SCAN

SEEK

TRACK

SEEK

TRACK

CD/AUX

PA710RB_USB

Features of your vehicle

184

• Press button to move to par-

ent folder display the first song in the

folder.

Press / knob to move

to the folder displayed.

8. Knob & Button

• Turn this knob clockwise to browse

songs after current song, or counter

clockwise to browse songs before cur-

rent song. To play the displayed song,

press the knob.

• Pressing this knob without turning

enters to AUDIO CONTROL mode.

ENTERTUNE

CAT

FOLDER

PA710RB_USB

419

Features of your vehicle

✽✽NOTICE FOR USING THE

iPod®DEVICE

• Some iPod models might not sup-

port the communication protocol

and the files will not be played.

Supported iPod models:

- iPod Mini

- iPod 4th(Photo) ~ 6th(Classic)

generation

- iPod Nano 1st~4th generation

- iPod Touch 1st~2nd generation

• The order of search or playback of

songs in the iPod can be different

from the order searched in the

audio system.

• If the iPod disabled due to its own

malfunction, reset the iPod. (Reset:

Refer to iPod manual)

• An iPod may not operate normally

on low battery.

• Some iPod devices, such as the

iPhone, can be connected through the

Bluetooth®interface. The device

must have audio Bluetooth®capabili-

ty (such as for stereo headphone

Bluetooth®). The device can play, but

it will not be controlled by the audio

system.

CAUTION IN USING THE

iPod®DEVICE

• The Hyundai iPod Power Cable is

needed in order to operate iPod

with the audio buttons on the

audio system. The USB cable pro-

vided by Apple may cause mal-

function and should not be used

for Hyundai vehicles.

❋

The Hyundai iPod Power Cable

may be purchased through your

Hyundai Dealership.

• When connecting iPod with the

iPod Power Cable, insert the con-

nector to the multimedia socket

completely. If not inserted com-

pletely, communications between

iPod and audio may be interrupted.

• When adjusting the sound effects of

the iPod and the audio system, the

sound effects of both devices will

overlap and might reduce or distort

the quality of the sound.

• Deactivate (turn off) the equalizer

function of an iPod when adjust-

ing the audio system’s volume,

and turn off the equalizer of the

audio system when using the

equalizer of an iPod.

(Continued)

• When the iPod cable is connected,

the system can be switched to AUX

mode even without iPod device

and may cause noise. Disconnect

the iPod cable when you are not

using the iPod device.

• When not using iPod with car

audio, detach the iPod cable from

iPod. Otherwise, iPod may remain

in accessory mode, and may not

work properly.

• When connecting the iPod, use the

USB/AUX terminals.

• When disconnecting the iPod,

disconnect both the USB/AUX ter-

minal.

• The iPod exclusive cable must be

connected to both the USB/AUX

terminals for iPod charging and

operations to be supported.

Detachable USB/AUX

All-in-one USB/AUX

Features of your vehicle

204

Using iPod®

❋iPod®is a trademark of Apple Inc.

1. Button (iPod)

If iPod is connected, it switches to the

iPod mode from the previous mode to

play the song files stored in the iPod.

If there is no iPod connected, then it dis-

plays the message "No Media" for 3 sec-

onds and returns to the previous mode.

2. Button

• Press the button for less

than 0.8 seconds to play from the

beginning of the song currently played.

Press the button for less than 0.8 sec-

onds and press it again within 1 sec-

ond to move to and play the previous

track.

Press the button for 0.8 seconds or

longer to play the song in reverse

direction in fast speed.

• Press the button for less

than 0.8 seconds to move to the next

track.

Press the button for 0.8 seconds or

longer to play the song in forward direc-

tion in fast speed.

3. Button (RANDOM)

• Press this button for less than 0.8 sec-

onds to shuffle order of all songs in

current category. (Song Random)

• Press this button for 0.8 seconds or

longer to shuffle order of albums in cur-

rent category. (Album Random)

• To cancel RANDOM Play, press this

button again.

4. Button (REPEAT)

Repeats the song currently played.

5. Button (MENU)

Moves to the upper category from cur-

rently played category of the iPod.

To move to (play) the category (song)

displayed, press knob.

You will be able to search through the

lower category of the selected category.

The order of iPod’s category is Playlist,

Artist, Albums, Genres, Songs, Composers.

Knob & Button

When you rotate the knob clockwise, it

will display the songs (category) ahead

of the song currently played (category in

the same level).

Also, when you rotate the knob counter-

clockwise, it will display the songs (cate-

gory) before the song currently played

(category in the same level).

To listen to the song displayed in the

song category, press the button to skip to

and play the selected song.

ENTERTUNE

TUNE

SEEK

TRACK

SEEK

TRACK

CD/AUX

PA710RB_iPod

421

Features of your vehicle

7. Button

Displays the information of the file cur-

rently played in the order of Title, Artist ,

Album, Normal Display (Displays no

information if the file has no song infor-

mation.)

INFO

PA710RB_iPod

Features of your vehicle

224

CAUTION IN USING

BLUETOOTH®CELLULAR

PHONE

• Do not use a cellular phone or

perform Bluetooth

settings (e.g.

pairing a phone) while driving.

• Some Bluetooth

-enabled phones

may not be recognized by the

system or fully compatible with

the system.

• Before using Bluetooth

features of the audio system,

refer your phone’s User’s Manual

for phone-side Bluetooth

opera-

tions.

•

The phone must be paired to the

audio system to use Bluetooth®

related features.

• You will not be able to use the

hands-free feature when your

phone (in the car) is outside of

the cellular service area (e.g. in a

tunnel, in a underground, in a

mountainous area, etc.).

• If the cellular phone signal is poor

or the vehicles interior noise is

too loud, it may be difficult to hear

the other person’s voice during a

call.

(Continued)

(continued)

• Do not place the phone near or

inside metallic objects, otherwise

communications with Bluetooth

system or cellular service sta-

tions can be disturbed.

• While a phone is connected

through Bluetooth

your phone

may discharge quicker than usual

for additional Bluetooth

-related

operations.

• Some cellular phones or other

devices may cause interference

noise or malfunction to audio

system. In this case, store the

device in a different location may

resolve the situation.

• Please save your phone name in

English, or your phone name may

not be displayed correctly.

423

Features of your vehicle

BLUETOOTH®PHONE OPERATION

(if equipped)

1. button : Raises or lowers speak-

er volume.

2. button : Places and transfers calls.

3. button : Ends calls or cancels func-

tions.

4. button : Activates voice recognition.

■What is Bluetooth®?

Bluetooth®is a wireless technology that

allows multiple devices to be connected

in a short range, low-powered devices

like hands-free, stereo headset, wireless

remocon, etc. For more information, visit

the

Bluetooth

website at

www.Bluetooth.com

■General Features

• This audio system supports

Bluetooth®hands-free and stereo-

headset features.

- HANDS-FREE feature: Making or

receiving calls wirelessly through

voice recognition.

- STEREO-HEADSET feature: Playing

music from cellular phones (that sup-

ports A2DP feature) wirelessly.

• Voice recognition engine of the

Bluetooth®system supports 3 types of

languages:

English

Canadian French

US Spanish

✽✽NOTICE

• The phone must be paired to the sys-

tem before using Bluetooth®features.

• Only one selected (linked) cellular phone

can be used with the system at a time.

• Some phones are not fully compatible

with this system.

• The Bluetooth® word mark and logos

are registered trademarks owned by

Bluetooth®SIG, Inc. and any use of

such marks by Hyundai is under

license. A Bluetooth enabled cell

phone is required to use Bluetooth®

wireless technology.

■Receiving a Phone Call

When receiving a phone call, a ringtone

is audible from speakers and the audio

system changes into telephone mode.

When receiving a phone call, “Incoming

call” message and incoming phone num-

ber (if available) are displayed on the

audio.

• To Answer a Call:

- Press button on the steering wheel.

• To Reject a Call:

- Press button on the steering wheel.

• To Adjust Ring Volume:

- Use VOLUME buttons on the steering

wheel.

• To Transfer a Call to the Phone (Secret

Call):

- Press and hold button on the

steering wheel until the audio system

transfers a call to the phone.

VOLUME

Features of your vehicle

244

■Talking on the Phone

When talking on the phone, “Active Call”

message and the other party’s phone

number (if available) are displayed on the

audio.

• To Finish a Call

- Press button on the steering wheel.

✽✽NOTICE

In the following situations, you or the

other party may have difficulty hearing

each other:

1. Speaking at the same time, your voice

may not reach each other parties. (This

is not a malfunction.) Speak alternate-

ly with the other party on the phone.

2. Keep the Bluetooth®volume to a low

level. High-level volume may result in

distortion and echo.

3. When driving on a rough road.

4. When driving at high speeds.

5. When the window is open.

6. When the air conditioning vents are

facing the microphone.

7. When the sound of the air condition-

ing fan is loud.

■Bluetooth®Audio Music Streaming

The audio system supports Bluetooth®

A2DP (Audio Advanced Distribution

Profile) and AVRCP (Audio Video

Remote Control Profile) technologies.

Both profiles provide steaming of music

via compatible “PAIRED” Bluetooth®

Cellular phone.

To stream music from the Bluetooth® cel-

lular phone, play your music files on your

cellular phone according to your cellular

phone user’s manual and press the

button on the audio system until

“MP3 play” is displayed on the LCD.

The audio system head unit displays

‘MP3 MODE’.

NOTE:

• In addition to streaming MP3 files,

all music and sound files your cellu-

lar phone supports can be played

by the audio system.

• Bluetooth®compatible cellular

phones must include A2DP and

AVRCP capabilities.

• Some A2DP and AVRCP compatible

Bluetooth®cellular phones may not

play music through the audio sys-

tem initially. These cellular phones

may need to have the Bluetooth®

streaming enabled, for example;

i.e : Menu➟Filemanager➟Music➟

Option➟Play via Bluetooth

• Please refer to User’s Guide for your

cellular phone for more information.

To cancel Bluetooth®cellular phone

music streaming, stop music play-

back on the cellular phone or

change the audio mode to AM, FM,

XM, CD, iPod, ect.

CD/AUX

425

Features of your vehicle

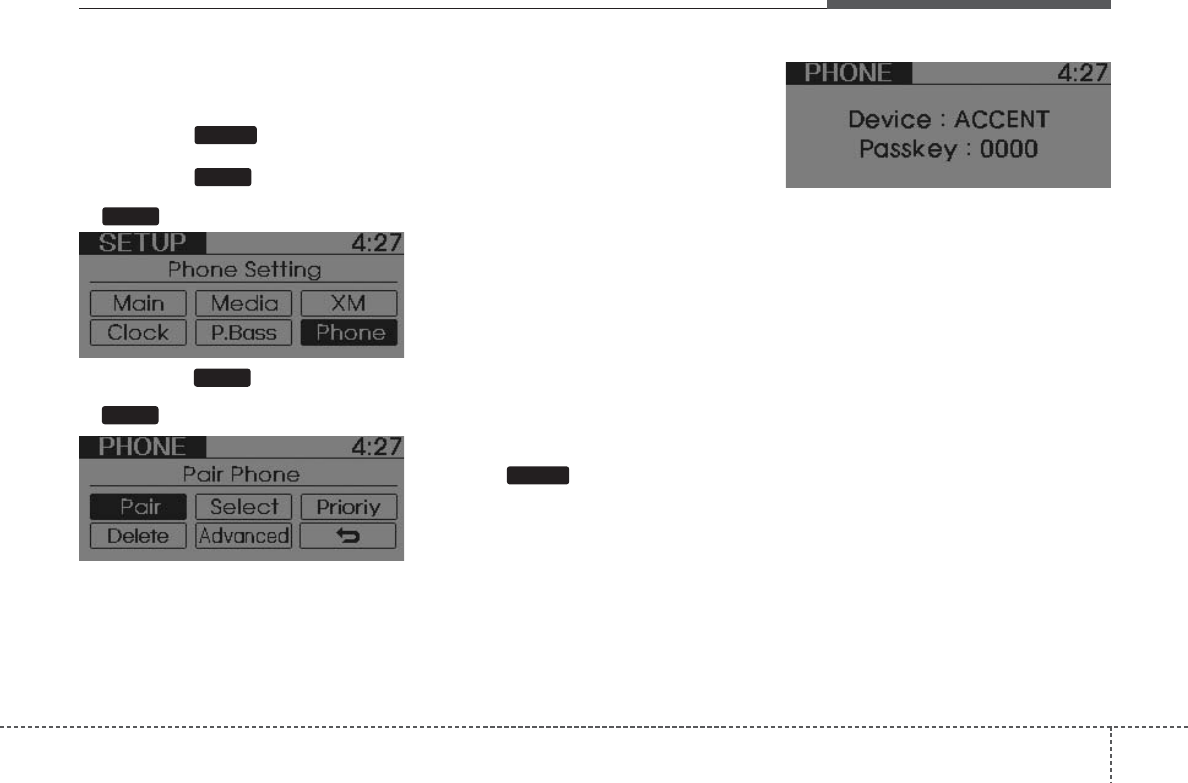

■Phone Setup

All Bluetooth®related operations can be

performed in PHONE menu.

1) Push the button to enter

SETUP mode.

2) Rotate the knob to move the

cursor between items and push the

button to select "Phone"

3) Rotate the knob to move the

cursor between items and push the

button to select a desired item.

• Pairing a phone

Before using Bluetooth®features, the

phone must be paired with the audio sys-

tem. Up to 5 phones can be paired with

the system.

NOTE:

• The pairing procedure of the phone

varies according to each phone

model. Before attempting to pair

phone, please see your phone’s

User’s Guide for instructions.

• Once pairing with the phone is com-

pleted, there is no need to pair with

that phone again unless the phone

is deleted manually from the audio

system (refer “Deleting a Phone”

section) or the vehicle’s information

is removed from the phone.

➀Press button to enter SETUP

mode.

➁Select “Phone”, then “Pair” in PHONE

menu.

➂The audio displays “Device : [ACCENT]

Passkey: 0000”

➃Search and select the device name in

your mobile phone to starting the pair-

ing process.

NOTE:

• If the phone is paired with two or

more vehicles of the same model,

some phones may not handle

Bluetooth®devices of that name

correctly. In this case, you may need

to change the name displayed on

your phone.

For example, if the vehicles' name is

HMC CAR, you may need to change

the name displayed on you phone

from HMC_CAR to JOHNS_CAR or

HMC CAR_1 to avoid ambiguity.

Refer to your phone User’s Guide, or

contact your cellular carrier or phone

manufacturer for instructions.

• Connecting a phone

When the Bluetooth®system is enabled,

the phone previously used is automati-

cally selected and re-connected. If you

want to select different phone previously

paired, the phone can be selected

through “Select Phone” menu.

SETUP

ENTER

TUNE

ENTER

TUNE

SETUP

Features of your vehicle

264

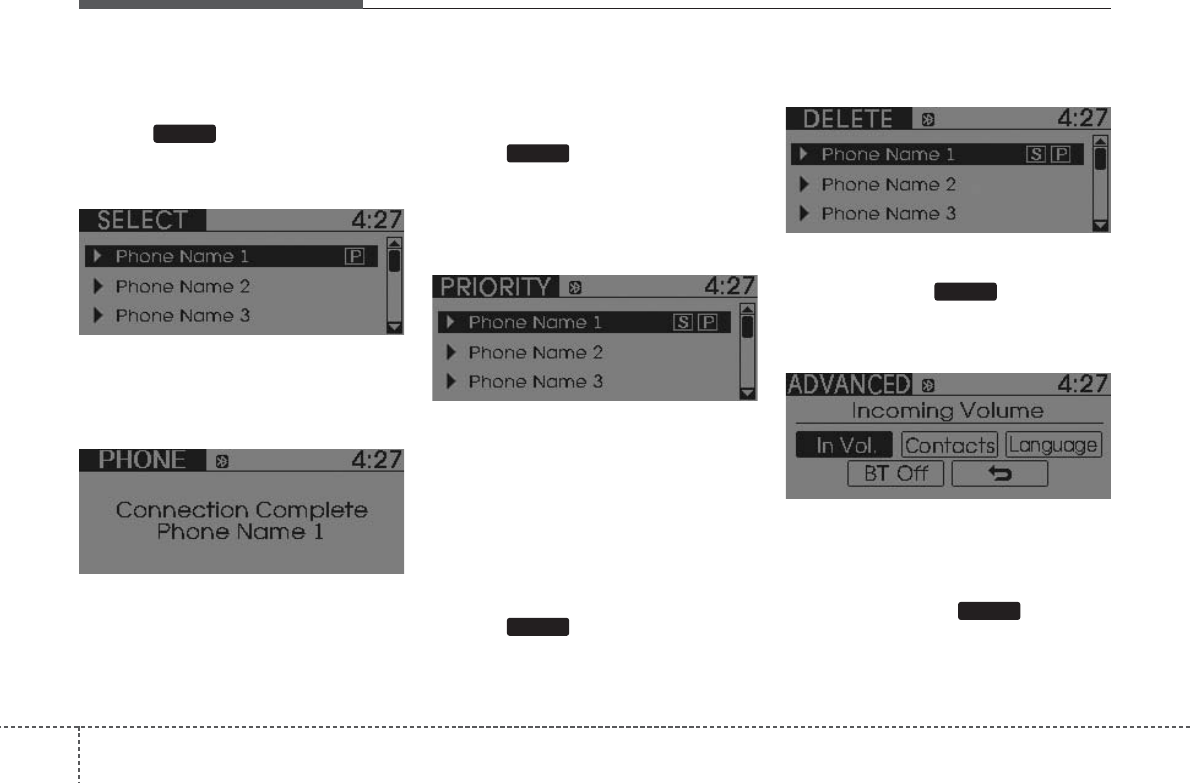

Only a selected phone can be used with

the hands-free system at a time.

➀Press button to enter SETUP

mode.

➁Select “Phone”, then “Select” in PHONE

menu.

➂Select desired phone name from the list

shown.

➃The Bluetooth®icon appears on the

upper side of audio display when a

phone is connected.

• Changing Priority

If several phones are paired with the

audio system, the system attempts to

connect following order when the

Bluetooth®system is enabled:

1) “Priority” checked phone.

2) Previously connected phone

3) Gives up auto connection.

➀Press button to enter SETUP

mode.

➁Select “Phone”, then “Priority” in PHONE

menu.

➂Select desired phone name from the

list shown.

• Deleting a Phone

The paired phone can be deleted.

- When the phone is deleted, all the infor-

mation associated with that phone is

also deleted (including phonebook).

- If you want to use the deleted phone with

the audio system again, pairing proce-

dure must be completed once more.

➀Press button to enter SETUP

mode.

➁Select “Phone”, then “Delete” in PHONE

menu.

➂Select desired phone name from the list

shown.

• Advanced Settings

After pressing the button, select

“Phone” menu. while in PHONE menu,

select the “Advanced” menu to make

Bluetooth®Phone settings.

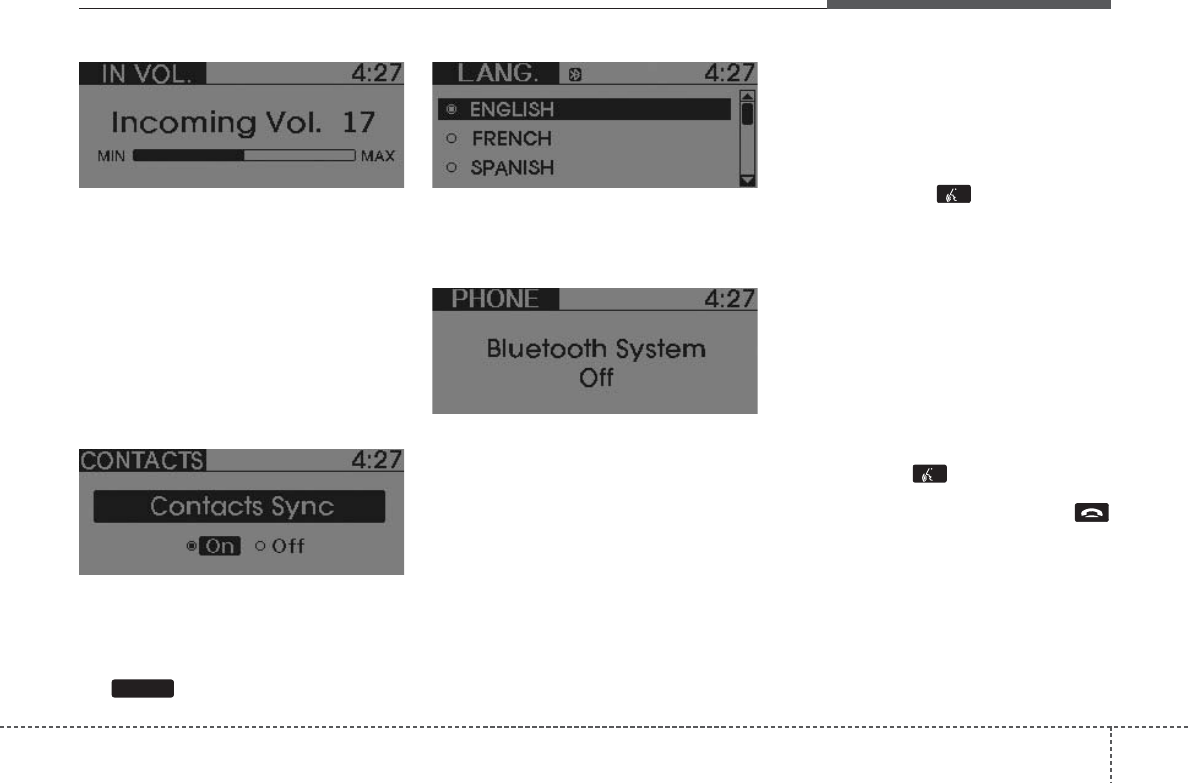

Incoming Volume (Bluetooth®call vol-

ume adjustments)

While in ADVANCED menu, select

“In Vol.” Use the knob key to set the desired

volume and press the button.

ENTER

SETUP

427

Features of your vehicle

Contacts Sync (Automatic Phonebook

download setting)

While in ADVANCED menu, select

“Contacts” To automatically save the con-

tacts and call history in your mobile

phone each time you connect a mobile

device, select ON. If you do not wish for

automatic download, select OFF.

It’s not available to make a phone call by

Bluetooth audio system while the phone-

book is being downloaded.

Language of Bluetooth®voice recognition

While in ADVANCED menu, press

“Language”. To change the language,

select the desired language and press

the button.

Bluetooth®system off

While in ADVANCED menu, select

“BT Off” to turn off the Bluetooth®System.

■Voice Recognition Activation

• The voice recognition engine contained

in the Bluetooth®System can be acti-

vated in the following conditions:

- Button Activation

The voice recognition system will be

active when the button is pressed

and after the sound of a Beep.

- Active Listening

The voice recognition system will be

active for a period of time when the

Voice Recognition system has asked

for a customer response.

• The system can recognize single digits

from zero to nine while number greater

than ten will not be recognized.

• The system shall cancel voice recogni-

tion mode in following cases : When

pressing the button and saying

cancel following the beep. When not

making a call and pressing the

button. When voice recognition has

failed 3 consecutive times.

• At any time if you say “help”, the system

will announce what commands are

available.

ENTER

Features of your vehicle

284

■Menu tree

The menu tree identifies available voice

recognition Bluetooth®functions.

■Making a Phone Call

• Direct Calling

➀Press button.

➁Say the following command.

- Call <John> : Connects the call to John.

- Call <John> on <Mobile> : Connects

the call to John’s mobile phone number.

- Call <John> at <Home> : Connects

the call to john’s home number.

- Call <John> in <Office> : Connects

the call to John’s office number.

Note:

Calls can be immediately connected

to contacts who name or voice tag are

saved in the phonebook(or contacts).

• Calling by Name

A phone call can be made by speaking

names registered in the audio system.

➀Press button.

➁Say “Call”.

➂Say “By name” when prompted.

➃Say desired name (in Phonebook or

voice tag).

➄Say desired location (phone number

type). Only stored locations can be

selected.

➅ Say “Yes” to confirm and make a call.

Call [Name] Ex) Call John (at Home)

Ex) Dial 911

Dial [Number]

Redial

Call Back

Add entry

Phonebook

Change name

Delete name

By phone

By voice

Call By name

By number

✽✽Tip

■Voice Operation

To get the best performance out of the

Voice Recognition System, observe the

followings:

- Keep the interior of the vehicle as

quiet as possible. Close the window

to eliminate surrounding noise

(traffic noise, vibration sounds,

etc), which may disturb recogniz-

ing the voice command correctly.

- Speak a command after a beep

sound within 5 seconds. Otherwise

the command will not be received

properly.

- Speak in a natural voice without

pausing between words.

- While receiving voice commands,

press the button on the steer-

ing wheel remote controller to ter-

minate guidance. Voice command

will convert back to waiting mode

to allow the user to say a new voice

command.

429

Features of your vehicle

✽✽Tip

A shortcut to each of the following func-

tions is available:

1. Say “Call Name”

• Dialing by Number

A phone call can be made by dialing the

spoken numbers. The system can recog-

nize single digits from zero to nine.

➀Press button.

➁Say “Call”.

➂Say “By number” when prompted.

➃Say desired phone numbers.

➄Say “Dial” to complete the number and

make a call.

✽✽Tip

A shortcut to each of the following func-

tions is available:

➀Say “Dial Number”

➁Say “Dial <digit>”

■Phone Book (In-Vehicle)

• Adding entry by voice

Phone numbers and voice tags can be

registered. Entries registered in the

phone can also be transferred.

➀Press button.

➁Say "Phonebook".

- The system replies with all available

commands.

- To skip the information message,

press again and then a beep is

heard.

➂Say “Add Entry”.

➃Say “By Voice” to proceed.

➄Say the name of the entry when

prompted.

➅Say “Yes” to confirm.

➆Say the phone number of that entry

when prompted.

➇Say “Store” if phone number input is

finished.

➈ Say a phone number type. “Home”,

“Work”, “Mobile”, “Other” or “Default” is

available.

➉ Say “Yes” to complete adding entry.

Say “Yes” to store additional location

for this contact, or say “Cancel” to fin-

ish the process.

✽✽NOTICE

- The system can recognize single digits

from zero to nine. Numbers that are

ten or greater cannot be recognized.

- You can enter each digit individually

or group digits together in preferred

string lengths.

- To speed up input, it is a good idea to

group all digits into a continuous string.

- Recommend to enter the numbers

constituted an grouping within all

digit numbers to dial 995 / 734 / 0000

- The display corresponding to each

operation appears on the screen as fol-

lows:

Input operation example:

1. Say: “Nine, nine, five”

➟ Display: “995”

2. And say: “Seven, three, four”

➟ Display: “995734”

Features of your vehicle

304

• Adding Entry by Phone

➀Press button.

➁Say "Phonebook".

➂Say "Add Entry" after prompt.

➃Say "By Phone" to proceed.

➄Say “Yes” to confirm.

➅ Your phone will start to transfer

phone/contact list to the audio system.

This process may take over 10 min-

utes depending on the phone model

and number of entries

➆Wait till the audio displays “Transfer

Complete” message.

• Changing Name

The registered names can be modified.

➀Press button.

➁Say “Phonebook”.

➂Say “Change Name” after prompt.

➃Say the name of the entry (voice tag).

➄Say “Yes” to confirm.

➅ Say new desired name.

• Deleting Name

The registered names can be deleted.

➀Press button.

➁Say “Phonebook”.

➂Say “Delete Name” after prompt.

➃Say the name of the entry (voice tag).

➄Say “Yes” to confirm.

■Bluetooth®Audio Speaker Adaptation

Speaker adaptation will improve perform-

ance of voice recognition system to a

particular user voice.

This will degrade the performance for

other users.

• Record

➀Press button for 10sec.

➁Say “Record profile”.

➂Say “Yes”.

➃Say the word displayed on Radio.

• Delete

➀Press button for 10sec.

➁Say “Delete profile”.

➂Say “Yes”.

431

Features of your vehicle

■ Key matrix

No.

Class

Paired H/P

Empty Disconnected

SHORT

LONG

SHORT

LONG

[10sec]

LONG

[10sec]

Normal mode

BT SETUP menu

Incoming Call Outgoing Call Active Call 2nd Call

Not Paired Not Connecting --

Accept Call

Connected

2nd call

1st Call:waiting

2nd Call:active

2nd Call

2nd Call:waiting

1st Call:active

KEY

------Transfer call:secret call

End Call

MODE Cancel

MODE Cancel Reject Call End Call End Call

Active

Speaker

Adaptation

(Only English)

Active

Speaker

Adaptation

(Only English)

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void

your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

HYUNDAI MOBIS AC110SBGN DIGITAL CAR AUDIO SYSTEM User Manual H RB 1012 USA CANADA 1231 qxp

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM H RB 1012 USA CANADA 1231 qxp

Users Manual

Navigation menu

Namespaces

Views

Navigation
