CAR MULTIMEDIA SYSTEM

USER'S MANUAL

C6EUG01

(미국/영어-English)

CAR MULTIMEDIA SYSTEM I

미국/영어-English

Thank you for purchasing this multimedia

system.

This user's manual explains how to use

the Kia Motor multimedia system.

Before using the product, read the con-

tents of this user's manual carefully and

use this product safely.

•

The screens shown in this manual may

differ with the actual screens of the

product.

•

The design and specification of this

product may change without prior notifi-

cation for product improvement.

•

When transferring the vehicle to another

individual, include this user's manual so

that the next driver can continue its use.

Precaution for safe usage

•

Driving while distracted can result in a

loss of vehicle control, that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation of a

vehicle, and use of any handheld devices,

other equipment, or vehicle systems which

take the driver’s eyes, attention and focus

away from the safe operation of a vehicle

or which are not permissible by law should

never be used during operation of the

vehicle.

•

Do not operate the

multimedia system

while driving.

•

Do not disassemble, assemble, or modify

the

multimedia system

•

Do not watch the screen for prolonged

periods of time while driving.

•

Set the volume to a level which allows the

driver to be aware of external conditions.

•

Do not operate the

multimedia system

for

prolonged periods of time with the vehicle

ignition in ACC. Such operations may lead

to battery discharge.

•

Be cautious not to spill water or introduce

foreign objects into the device.

•

Do not cause severe shock to the device.

Direct pressure onto the front side of the

monitor may cause damage to the LCD or

touch panel.

•

In case of product malfunction, please

contact your place of purchase or service

center.

•

When cleaning the touch screen, make

sure to turn off the device and use a dry

and smooth cloth. Never use tough materi-

als, chemical cloths, or solvents (alcohol,

ammonia, benzene, thinners, etc.) as such

materials may damage the device panel or

cause color and quality deterioration.

•

SiriusXM service requires a subscrip-

tion, sold separately, after 3-month trial

included with vehicle purchase. If you

decide to continue your SiriusXM ser-

vice at the end of your trial subscription,

the plan you choose will automatically

renew and bill at then-current rates until

you call Sirius XM at 1-866-635-2349 to

cancel. See our Customer Agreement

for complete terms at www.siriusxm.

com. Programming subject to change.

Sirius satellite service is available only

to those at least 18 and older in the 48

contiguous USA, D.C., and PR (with

coverage limitations). Traffic informa-

tion not available in all markets. See

siriusxm.com/traffic for details. Sirius,

XM and all related marks and logos are

trademarks of Sirius XM Radio Inc.

WARNING

• Driving while distracted can result in a

loss of vehicle control that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation

of a vehicle, and use of any handheld

devices, other equipment, or vehicle

systems which take the driver’s eyes,

attention and focus away from the safe

operation of a vehicle or which are not

permissible by law should never be used

during operation of the vehicle.

Read the following safety precautions

for your safety

Before using the product, read the contents of this user's manual

carefully and use this product safely.

※ The design and speciﬁ cations of this product may change without prior

notiﬁ cation for product and service improvement.

The actual features in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

※ This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁ ed under the GNU General

Public license, Version 2, June 1991, and the GNU lesser General Public

License, Version 2.1, February 1999.

For additional information and to obtain related materials including

without limitation, the previous referred to licenses and software, please

Notations used within this User's Manual

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

2 I Table of Contents

1. Basic

Warnings and Cautions ............. 1-2

Key Product Features .................. 1-4

Component Names and

Functions ....................................... 1-5

Head Unit ………………………… 1-5

Steering Wheel Controls ………… 1-7

Starting the System for the

First Time ........................................ 1-9

Turning the System On/Off ……… 1-9

System Reset ……………………… 1-9

Battery Warning Message ……… 1-10

Restrictions on Features for Safety

Measures …………………………1-10

Home Screen ……………………… 1-11

On-Screen Touch Controls ……… 1-12

2. Radio/Media

FM/AM ............................................ 2-2

FM/AM Mode Display Controls …… 2-2

HD Radio™ Technology ............. 2-4

Basic Mode Screen

(HD Radio™ reception ON) ……… 2-5

SiriusXM™ ....................................... 2-6

SiriusXM™ Mode Display

Controls …………………………… 2-6

Selecting through Channel/

Category List ……………………… 2-8

Direct Tune ………………………… 2-8

Viewing Menu ……………………… 2-8

About Disc ................................... 2-11

Precautions upon Handling Discs … 2-11

Supported Disc Formats …………2-12

Disc/Content Format Compatibility … 2-12

Before Playing an MP3 Disc ……… 2-14

Disc CD ......................................... 2-16

CD Mode Display Controls ……… 2-16

Disc MP3 ...................................... 2-19

MP3 Mode Display Controls………2-19

USB ................................................ 2-22

Before Playing a USB MP3 ………2-22

Supported USB MP3 music

specifications ………………………2-24

Supported Image Specifications … 2-24

USB Mode Display Controls………2-25

USB Image ………………………… 2-28

iPod .............................................. 2-30

Using iPod Devices ………………2-30

iPod Mode Display Controls ……… 2-34

AUX ............................................... 2-37

Connecting an External Device …… 2-37

Bluetooth® Audio ........................ 2-38

Bluetooth Audio Mode Display

Controls ……………………………2-38

Bluetooth Connections Settings …2-39

My Music ...................................... 2-40

My Music Mode Display Controls … 2-40

Table of Contents

Table of Contents I 3

3. Bluetooth

Before Using the Bluetooth®

Handsfree ...................................... 3-2

What is

Bluetooth

Wireless

Technology? ……………………… 3-2

Precautions for Safe Driving …… 3-2

CAUTIONS upon Connecting

Bluetooth® Phone ………………… 3-3

Bluetooth Connection ................. 3-4

Pairing a New Device …………… 3-4

Connecting Bluetooth Devices…… 3-4

Disconnecting Bluetooth Devices … 3-5

Deleting Bluetooth Devices ……… 3-5

Bluetooth Phone .......................... 3-6

Phone Status Icons ……………… 3-6

Dial ………………………………… 3-7

Accept/Reject Call ………………… 3-7

Using the Menu During

a Phone Call ……………………… 3-8

Call History ………………………… 3-9

Contacts ……………………………3-10

Favorites …………………………… 3-11

4. UVO eServices

The 911 Connect feature

may not operate in the following

situations ........................................ 4-2

About UVO eServices ................. 4-4

Before using UVO eServices ....... 4-5

Connecting Bluetooth ................. 4-5

Pair a device from

Bluetooth-enabled phone ......... 4-5

Connecting to

smartphone via USB .................... 4-6

Activating UVO eServices ………… 4-6

911 Connect ................................. 4-7

911 Connect ……………………… 4-7

Initiating a 911 Call ………………… 4-7

Roadside Assist ............................. 4-8

Roadside Assist …………………… 4-8

Vehicle Diagnostics ..................... 4-9

Conducting Vehicle Diagnostics …… 4-9

Schedule Service ………………… 4-10

Send Report …………………………4-10

Scheduled Diagnostics ……………4-11

Automatic Diagnostics …………… 4-12

My Car Zone ................................ 4-12

Curfew Limit Alert …………………… 4-13

Speed Alert …………………………4-13

Parking Minder ........................... 4-14

Sending Parking Location ………… 4-14

eServices Guide ......................... 4-15

eServices Guide……………………4-15

UVO eServices Settings …………4-15

4 I Table of Contents

5. Voice Recognition

What is Voice Recognition? ....... 5-2

Precautions Required for

Successful Voice Recognition ... 5-2

Starting/Ending and Setting

Voice Recognition ....................... 5-3

Starting Voice Recognition ……… 5-3

Ending Voice Recognition ………… 5-3

Combining Voice Recognition with

On-Screen Commands …………… 5-3

Extending the Listening Time …… 5-4

Skipping Prompt Messages …… 5-5

Adjusting Voice Recognition Volume … 5-5

Voice Recognition

Screen Overview .......................... 5-6

Start Screen ……………………… 5-6

Help Display ……………………… 5-6

Instructions for Using

Voice Recognition ………………… 5-7

Voice Commands ........................ 5-8

Types of Commands ……………… 5-8

Call Commands …………………… 5-8

Radio Commands ………………… 5-9

Media Commands ………………… 5-10

UVO eServices Commands List … 5-12

Other Commands List

(Commands used in List/Help) ……5-13

Siri Eyes Free ................................ 5-14

How to start Siri ……………………5-14

How to use Siri ……………………5-14

6. Apps/Info

Start Up ........................................... 6-2

Pandora® ........................................... 6-3

Pandora® Screen Controls ……… 6-3

SiriusXM™ Data ............................. 6-6

About SiriusXM™ Data Service … 6-6

Accessing SiriusXM™ Data ……… 6-6

SiriusXM™ Weather

Announcement …………………… 6-7

SiriusXM™ Sports Information … 6-8

SiriusXM™ Stock Information …… 6-9

SiriusXM™ Fuel Price Information … 6-11

SiriusXM™ Movie Information …… 6-12

SoundHound .............................. 6-14

Accessing SoundHound …………6-14

SoundHound Main Screen ………6-14

Recognizing Music ………………6-15

Searching Music …………………6-15

Song Main Screen …………………6-16

Android Auto ............................... 6-17

What is Android Auto? …………… 6-17

Precautions …………………………6-17

Using Android Auto Features …… 6-18

Table of Contents I 5

7. Other Features

Climate Mode ............................... 7-2

Operating Climate Mode ………… 7-2

Basic Mode Screen ……………… 7-2

Camera.......................................... 7-4

Steering-linked camera …………… 7-4

SVM (Surround View Monitor) …… 7-5

Front SVM ………………………… 7-5

Rear SVM ………………………… 7-5

Parking Guidance Settings ……… 7-6

8. Setup

Setup .............................................. 8-2

Sound Settings .............................. 8-3

Display Settings ............................ 8-3

Phone Settings .............................. 8-4

Phone Settings …………………… 8-4

Bluetooth Connection Settings …… 8-4

Auto Connection Priority ………… 8-5

Bluetooth System Information …… 8-5

UVO eServices Settings .............. 8-6

911 Connect ……………………… 8-6

Parking Minder …………………… 8-7

My Car Zone ……………………… 8-7

Scheduled Diagnostics …………… 8-9

Trip Info Sync Reminder …………8-10

Connectivity Settings ................. 8-10

Android Auto ……………………… 8-10

Home Screen Settings ............... 8-11

Wi-Fi Settings ............................... 8-11

How to Connect to a Network ……8-11

Clock Settings ............................. 8-12

Voice Recognition Settings ...... 8-12

Language Settings .................... 8-12

Keyboard Settings ..................... 8-13

Screen Saver Settings ................ 8-13

System Info .................................. 8-13

System Update ……………………8-14

9. Appendix

Product Specification.................. 9-2

Troubleshooting ........................... 9-4

FAQ ................................................. 9-7

About Pairing Mobile Phones …… 9-7

About Making/

Answering Phone Calls …………… 9-8

About

Bluetooth

Wireless Technology/

Head Unit Use Environment …… 9-8

iPod®

iPod® is a registered trademark of Apple Inc.

Bluetooth®

Wireless Technology

The

Bluetooth

Wireless Technology word mark and logos are registered

trademarks owned by

Bluetooth

Wireless Technology SIG, Inc. and any

use of such marks by Kia is under license.

Bluetooth

Wireless Technology enabled cell phone is required to use

Bluetooth

Wireless Technology.

Bluetooth

Wireless Technology phone

compatibility can be checked by visiting http://www.kia.com.

HD Radio™ Technology

HD Radio™ Technology manufactured under license from iBiquity Digital

Corporation. U.S. and Foreign Patents.

HD Radio™ and the HD, HD Radio, and "Arc" logos are proprietary

trademarks of iBiquity Digital Corp.

Pandora®

Pandora, the Pandora logo, and the Pandora trade dress are trademarks

or registered trademarks of Pandora Media, Inc. Used with permission.

Pandora is only available in certain countries. Please visit http://www.

pandora.com/legal for more information.

Warnings and Cautions

Key Product Features

Component Names and Functions

Starting the System for the First Time

part.1 Basic

1-2 I Basic

Safety Warnings

• Do not stare at the screen while driv-

ing. Staring at the screen for prolonged

periods of time could lead to traffic acci-

dents.

• Do not disassemble, assemble, or mod-

ify the Multimedia system. Such acts

could result in accidents, fire, or electric

shock.

• Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

• If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibil-

ity of an accident may increase. Please

use phone related functions only when

parked.

• Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

• Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

• Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

• For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

• Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

Basic

Warnings and Cautions I 1-3

Safety Cautions

Pay attention to traffic conditions while

driving.

• Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

• Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

• Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

• If you want to change the position of

device installation, please inquire with

your place of purchase or service main-

tenance center. Technical expertise is

required to install or disassemble the

device.

• Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

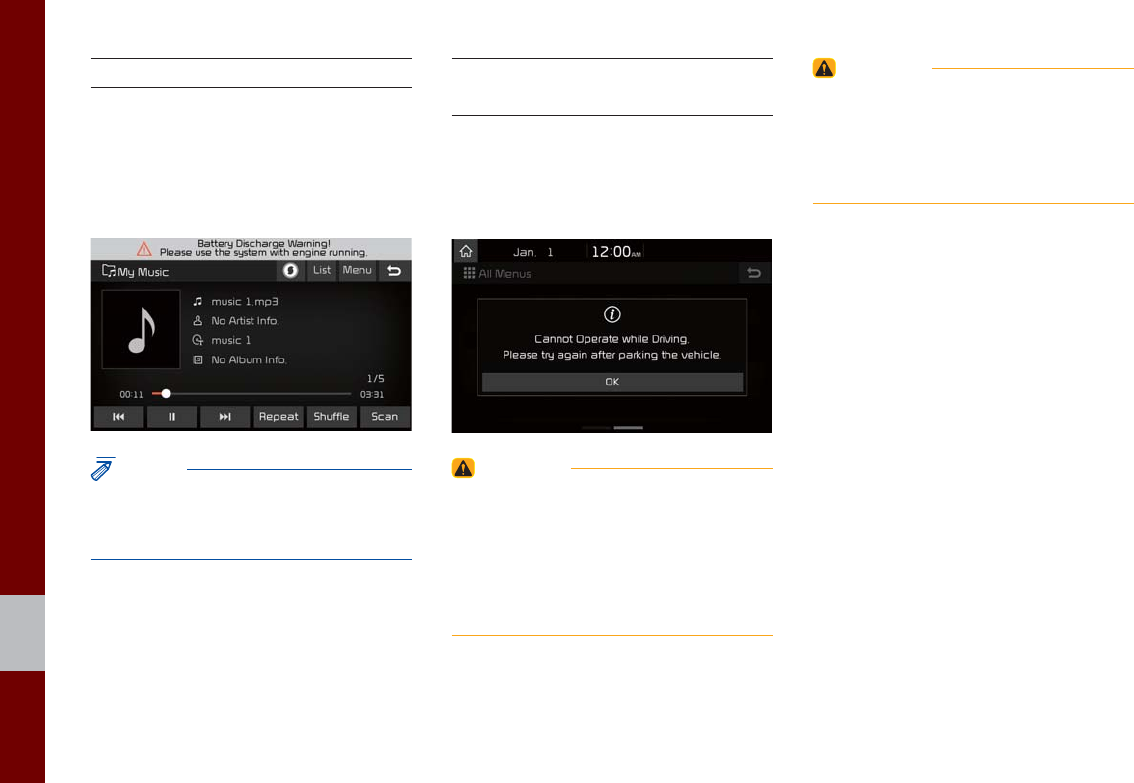

• Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

• Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

• When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

• Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

1-4 I Basic

Key Product Features

This device is a Multimedia system equipped with a multifunc-

tional disc player that supports Radio (FM, AM), HD Radio™

Technology (if equipped), SiriusXM™, Audio CD, MP3, USB,

iPod, AUX, Bluetooth Audio and My Music features. The WIDE

VGA LCD provides a high quality resolution while the powerful

and rich sound system adds to the driving enjoyment.

Display

Wide TFT-LCD Display

• Provides high quality video through a Wide TFT-

LCD Display using an LED Back Light.

• Touch screen for maximum user convenience.

Radio

Digital Tuner Feature

• Digital Tuner using PLL method that supports

memory of 40 broadcast stations.

Radio broadcast station name

• Displays broadcast station names.

HD Radio™(if equipped)/Satellite Radio feature

• Supports HD Radio™(if equipped) reception

and Satellite Radio (SiriusXM™).

Multimedia

Player

Support for various Media Formats

• Support for various media formats, including

Radio, Audio CD, MP3, USB, iPod, AUX and

Bluetooth

Audio Streaming modes

My Music

• Supports copying of music stored within USB

devices into My Music (internal memory) mode

Miscellaneous

Bluetooth

Wireless Technology

• Convenient use of Bluetooth

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

• Easy control of features through touch screen

options

Steering Wheel Control

• Control over audio features, voice recognition

and Bluetooth

through the steering wheel

control for maximum convenience

Component Names and Functions I 1-5

Component Names and Functions

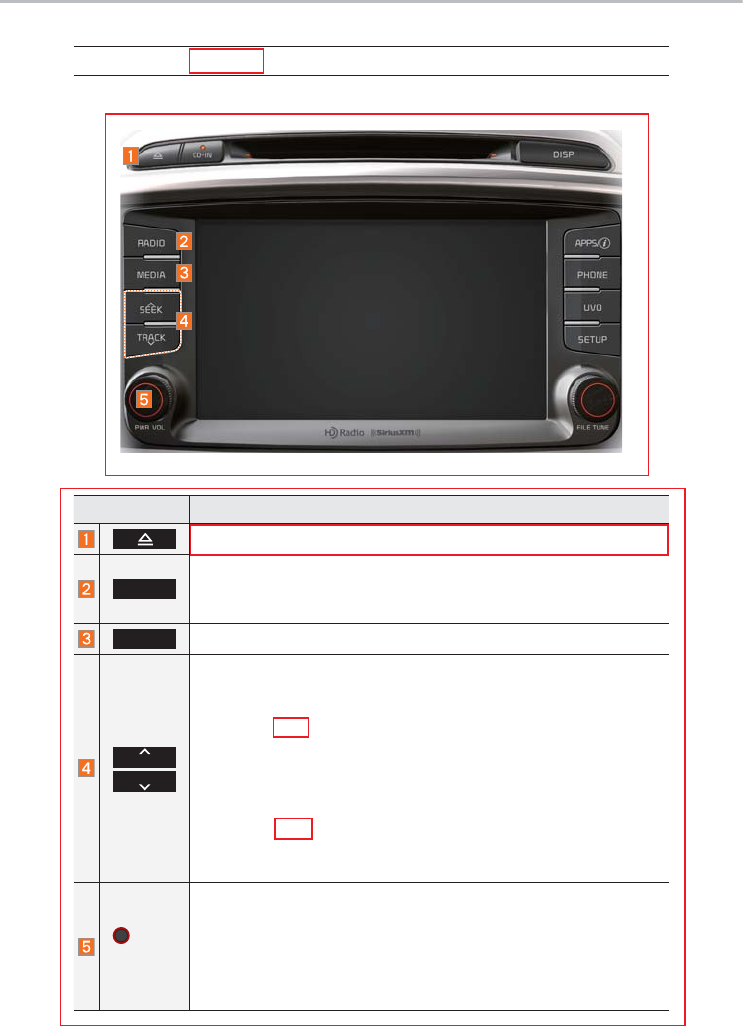

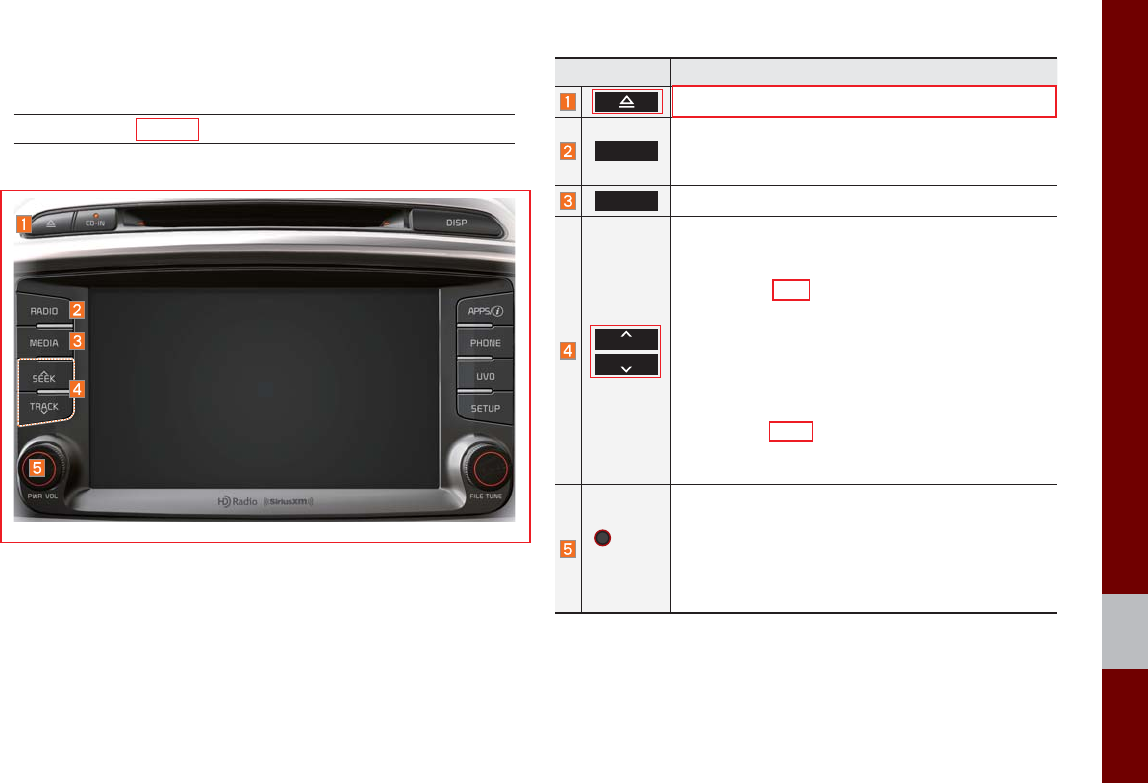

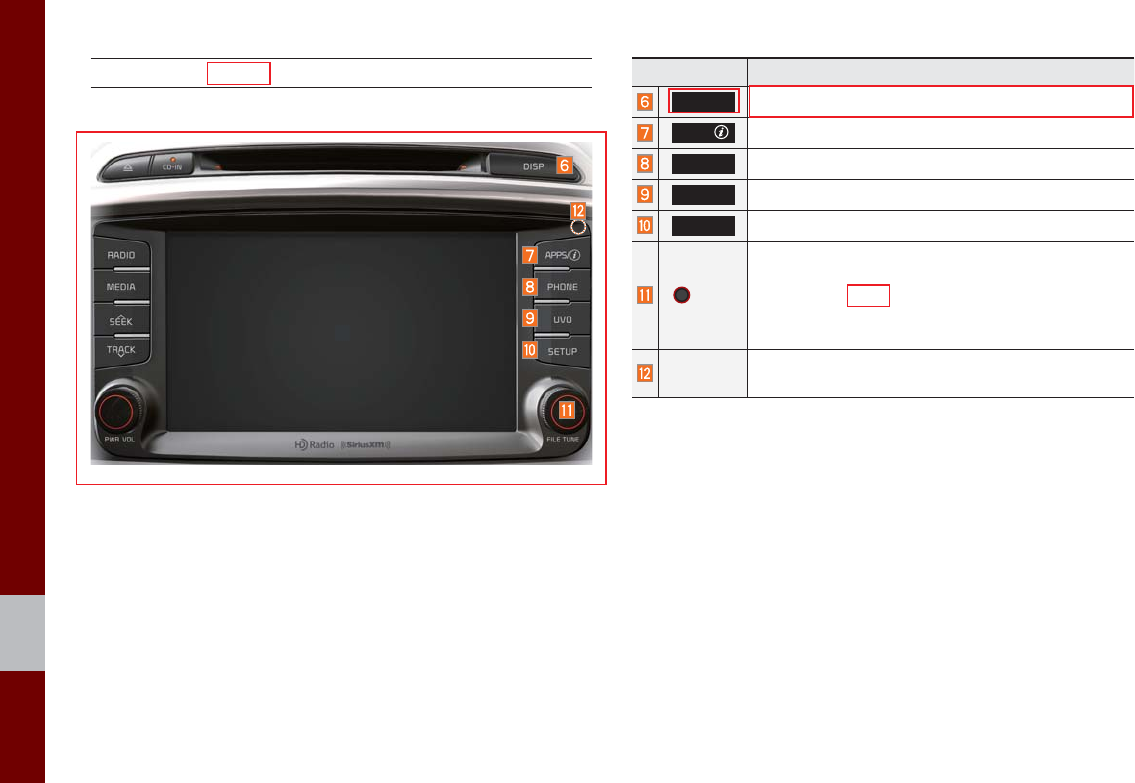

Head Unit

Name Description

Press to insert or eject disc

RADIO

Selects FM/AM/SiriusXM™ mode

• Each time this is pressed, the mode is changed in

the following order: FM → AM → SiriusXM™ → FM.

MEDIA

Selects MEDIA mode.

TRACK

SEEK

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: Plays the previous/next frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA (Disc/USB/iPod/My Music) mode:

Changes the track, file or title (except for USB

Image and AUX).

When pressed and held down (more than 0.8 sec-

onds),

• FM/AM mode: Continuously changes the fre-

quency until the key is released.

• MEDIA (Disc/USB/iPod/My Music) mode:

Rewinds or fast forwards the track or file (except

for USB Image, Bluetooth Audio, and AUX).

PWR/

VOL

• When power is off, press to turn power on.

• When power is on, press and hold (more than 0.8

seconds) to turn the power off.

• When power is on, press quickly (less than 0.8

seconds) to turn Audio off.

• Turn left/right to adjust the volume.

1-6 I Basic

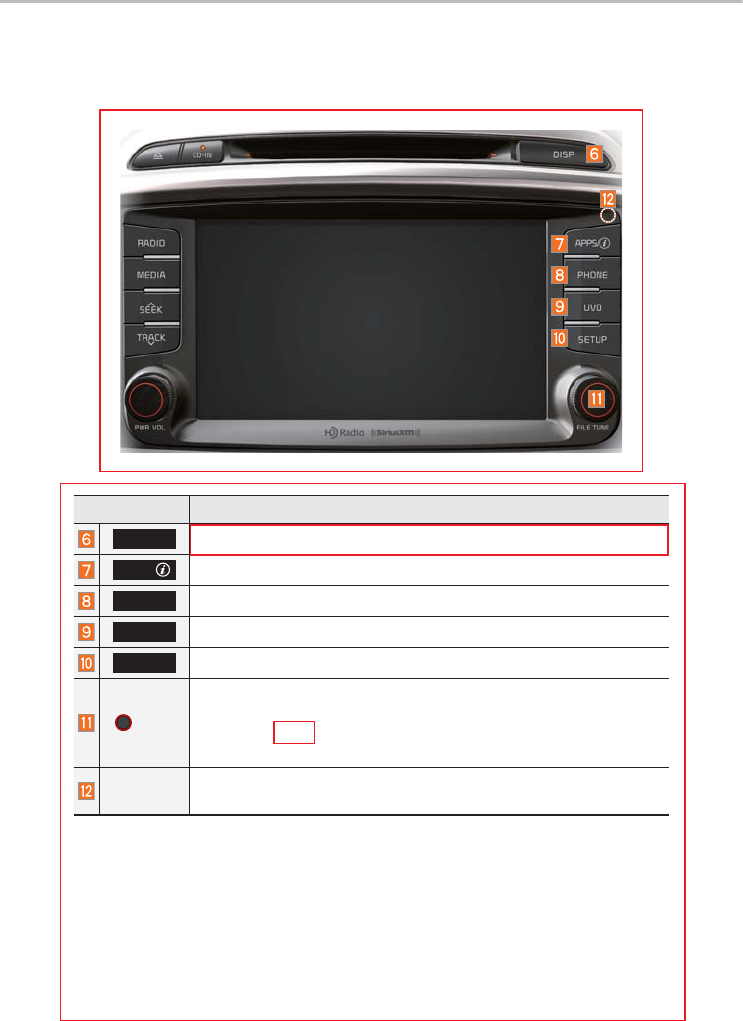

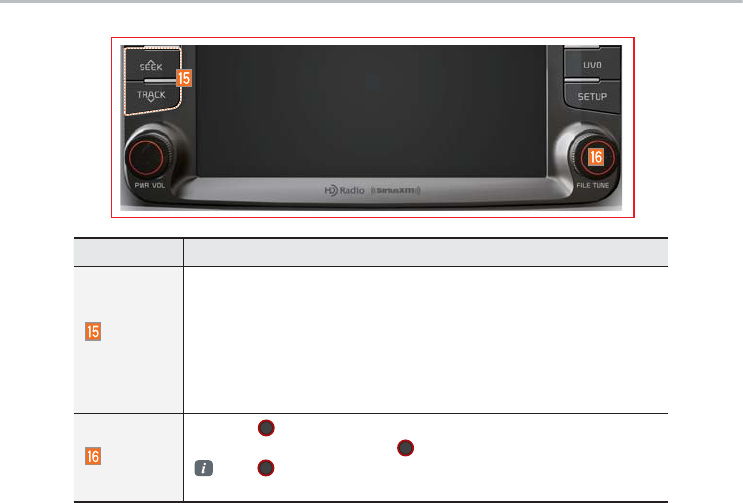

Head Unit

Name Description

DISP

Turns the screen on/off.

APPS/

Moves to the Apps/Info screen.

PHONE

Displays the Bluetooth phone mode.

UVO

Displays the UVO mode

SETUP

Moves to the Setup screen.

TUNE

• FM/AM mode: Changes the frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA (Disc/USB/iPod/My Music) mode:

Changes the track, file or title (except USB Image,

Bluetooth Audio, and AUX).

RESET

Resets the system settings. (Preset radio channels

and other data will not be deleted)

※ The actual feature in the vehicle may differ from the illustration.

Component Names and Functions I 1-7

Name Description

When pressed quickly (less than 0.8 seconds),

• If Android Auto is not connected, activates the

multimedia system voice recognition

• If Android Auto is connected, activates or ends

Google voice recognition

When pressed and held (more than 0.8 seconds),

• If the multimedia system voice recognition is acti-

vated, ends the multimedia system voice recognition

• If Android Auto is connected, activates or ends

Google voice recognition

• If iOS device is connected through Bluetooth,

activates or ends Siri Eyes Free

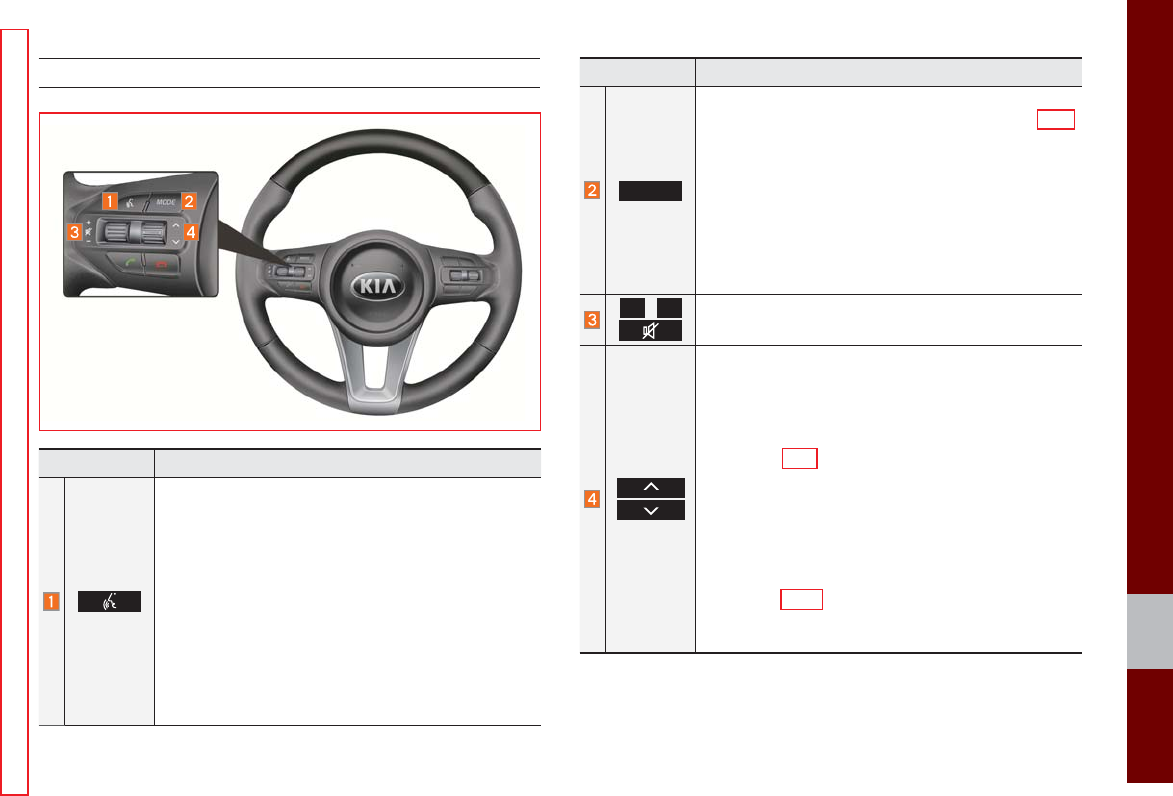

Name Description

MODE

• Each time this is pressed, the mode is changed in

the following order: FM → AM → SiriusXM → Disc

→ USB or iPod → AUX → Bluetooth Audio → My

Music → Android Auto → Pandora → FM

• If the media is not connected, the corresponding

modes will be disabled

• Press and hold (more than 0.8 seconds) to turn

the Audio system on/off

• When power is off, press button to turn power

back on

Controls the volume

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: searches broadcast frequencies

saved to Presets

• SiriusXM™ mode: searches broadcast channels

saved to Presets

• MEDIA (Disc/USB/iPod/My Music) mode: changes

the track, file or title (except USB Image, AUX)

When pressed and held (more than 0.8 seconds),

• FM/AM mode: automatically searches broadcast

frequencies

• SiriusXM™ mode: automatically searches broad-

cast channels

• MEDIA (Disc/USB/iPod/My Music) mode: quickly

looks up songs (excluding USB images, AUX and

Bluetooth audio files)

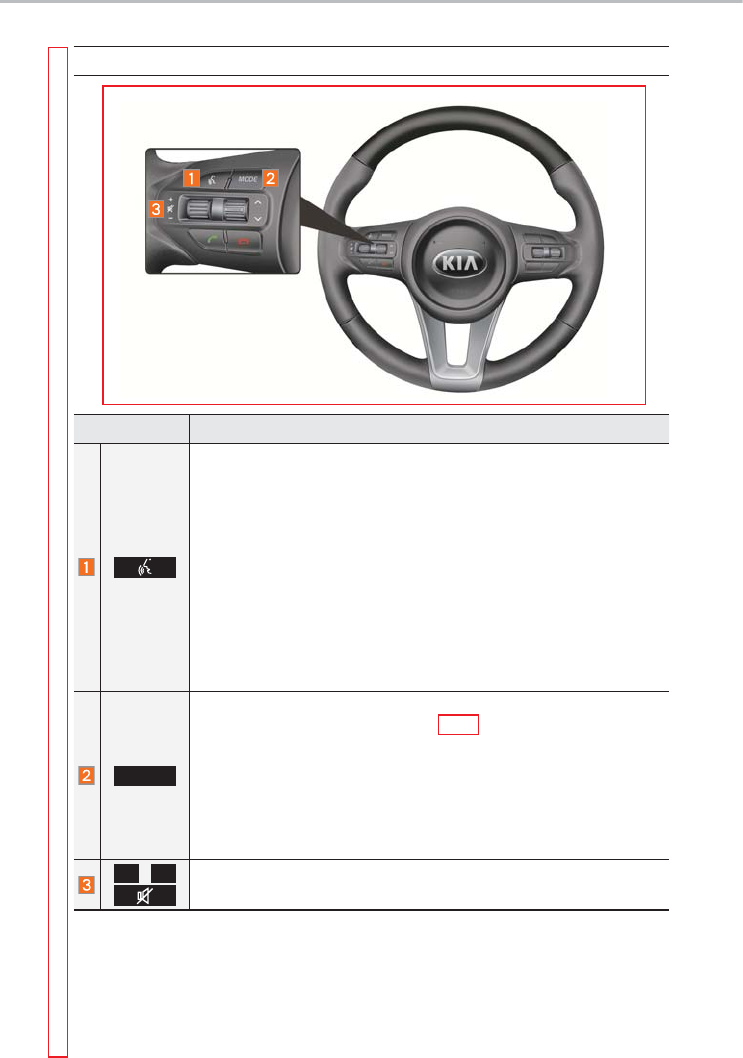

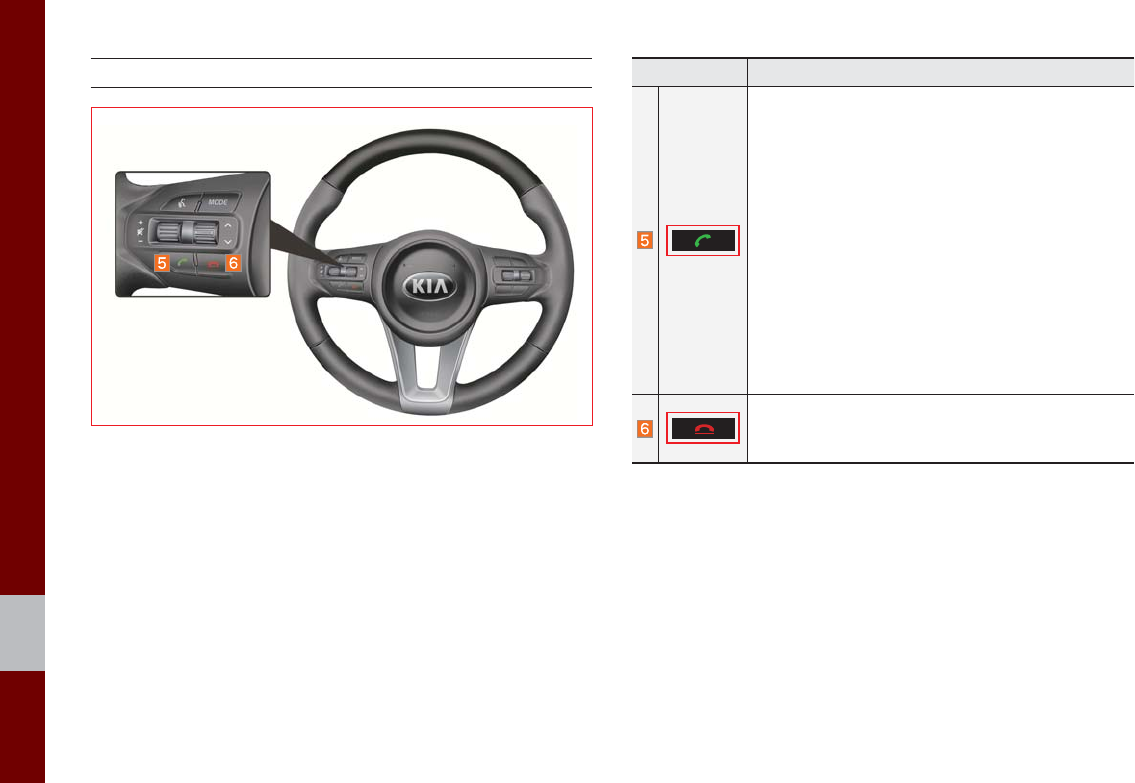

Steering Wheel Controls

1-8 I Basic

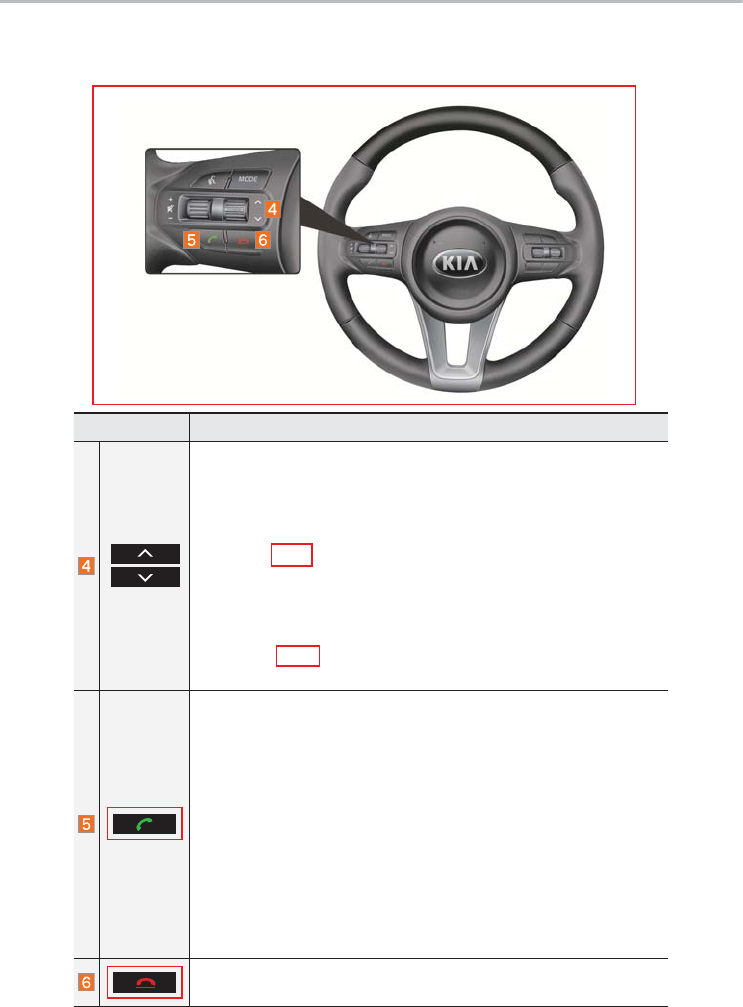

Steering Wheel Controls

Name Description

When pressed quickly (less than 0.8 seconds),

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen,

answers the call

• When pressed during call waiting, switches to

waiting call (Call Waiting)

When pressed and held (more than 0.8 seconds),

• When pressed in Bluetooth

Hands-free, redials

the last dialed call

• When pressed during a Bluetooth

Hands-free

call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone,

switches call back to Bluetooth

Hands-free

(operates only when Bluetooth

Hands-free is

connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects

the call

※ The actual feature in the vehicle may differ from the illustration.

Starting the System for the First Time I 1-9

Starting the System for

the First Time

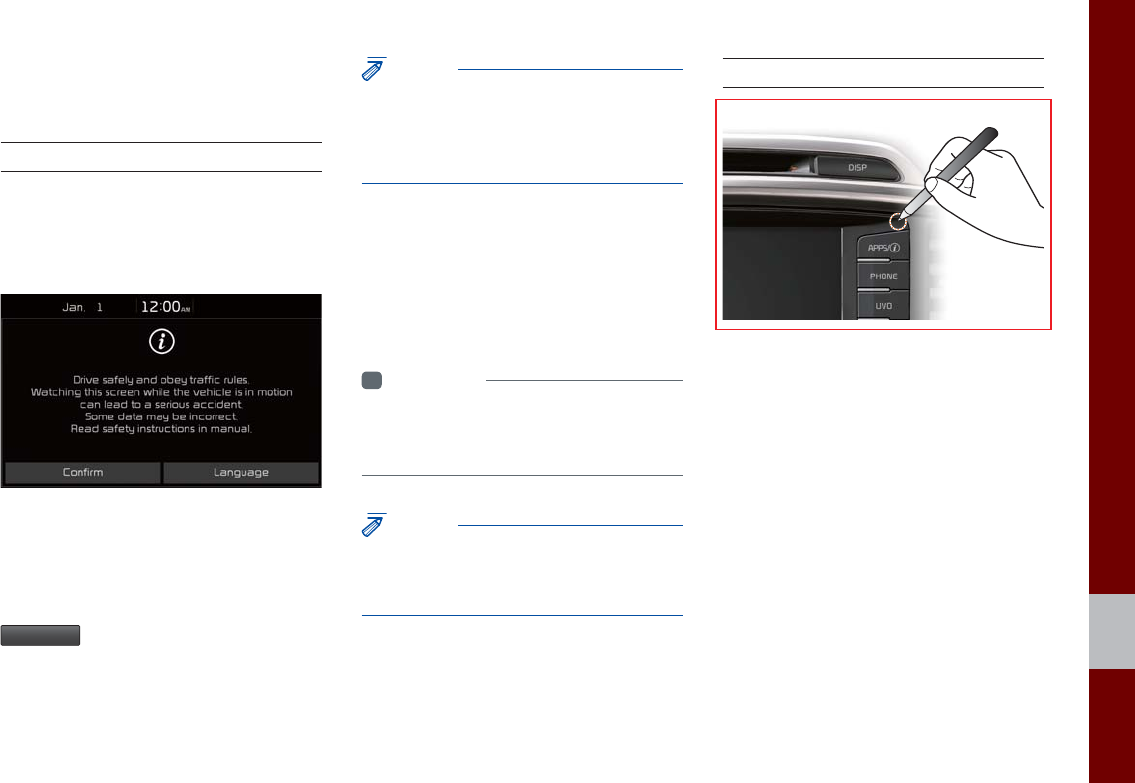

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

Pressing the power key on the head unit

will display the safety guide. To change the

system language between English,

French, Spanish and Korean, select the

Language

button.

NOTICE

• You cannot operate the system while it is

booting up. It may take some time for all of

features of the system, particularly the voice

recognition system, to be ready for use.

Pressing and holding the power key on the

head unit will turn off the system.

You can change Screen Saver Settings

in Setup to display a clock on the Screen

Saver.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will

automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust

the volume to a reasonable level.

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the RESET key for a sec-

ond or longer. (It is recommended that you

press the RESET key using a tool, such as

a pin or a clip.)

UMaD2F1001EU

1-10 I Basic

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become

completely discharged.

Restrictions on Features for

Safety Measures

Several features are limited while driving.

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

WARNING

- Blank Screen

• Refrain from use if the screen is blank or

no sound can be heard as these signs may

indicate product malfunction. Continued use in

such conditions could lead to accidents (ﬁ res,

electric shock).

WARNING

- Touching the Antenna During A

Thunder Storm

• Do not touch the antenna during thunder or

lightning as such acts may lead to lightning

induced electric shock.

UMaD2F1002EU UMaD2F1003EU

Starting the System for the First Time I 1-11

Home Screen

Controls Menu Conﬁ guration for the Home Screen

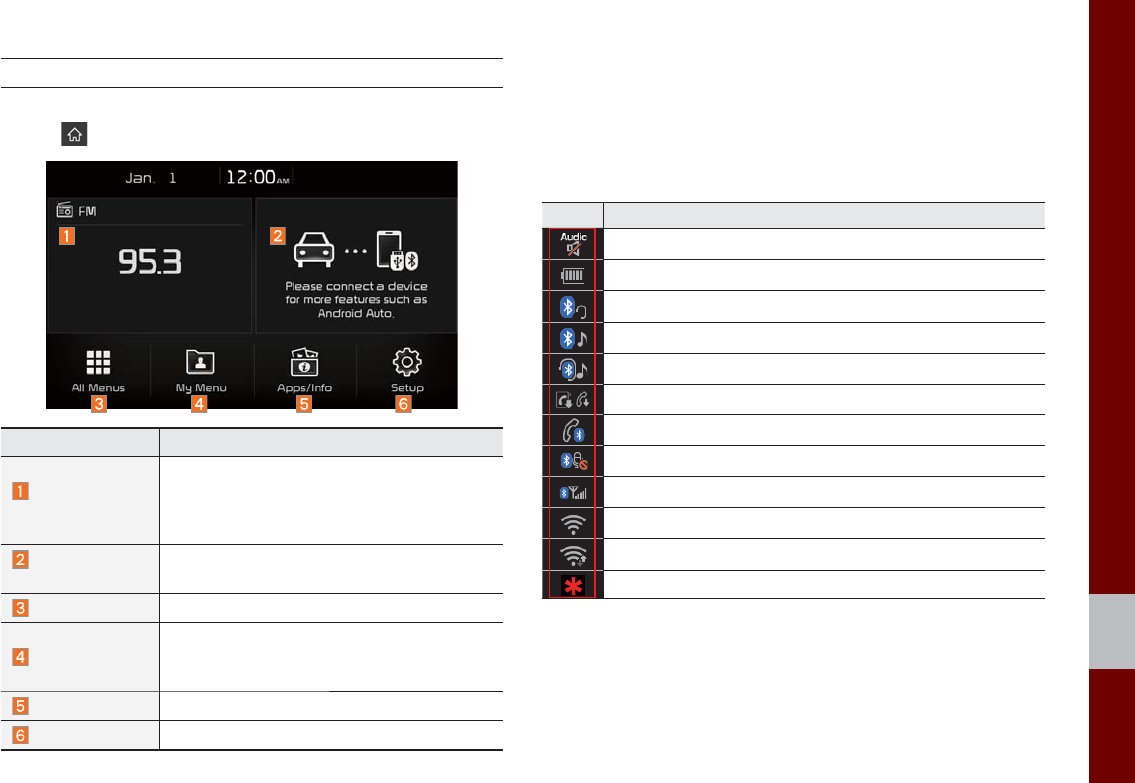

Tap the icon on any screen to display the Home Screen below.

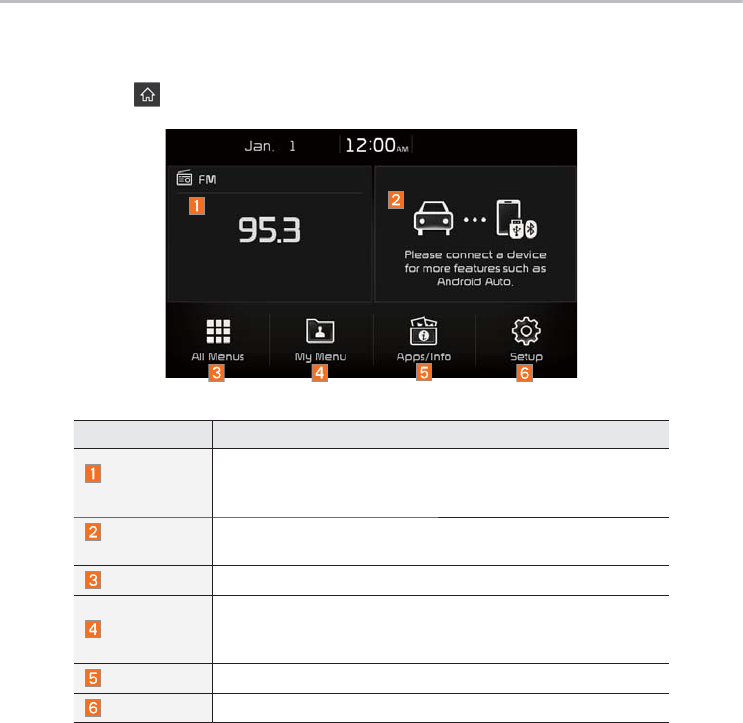

Features Description

Radio/Media

Widget

• Shows brief information on the radio or

media that is now playing.

• Tap the area to move to the mode that

you are listening to.

Connectivity

Widget

Shows any connected devices such as

Android Auto, iPod, Pandora, and Bluetooth.

All Menus Shows all of the items in the system menu.

My Menu

• You can add up to eight menus here.

• Add your favorite menus to have quick

and easy access to them.

Apps/Info Moves to the Apps/Info screen.

Setup Moves to the Setup screen.

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

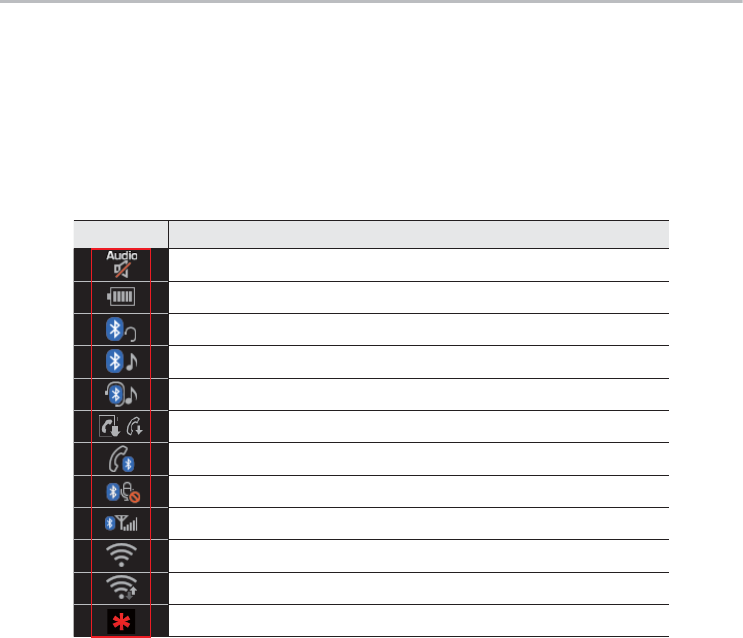

The icons in the following table indicate the various types of sys-

tem status details and events.

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth is muted.

Displays the signal strength of the Bluetooth phone.

Displayed when connected to Wi-Fi.

Displayed when connecting to Wi-Fi.

Displayed when 911 connect is available.

UMaD2F1004EU

1-12 I Basic

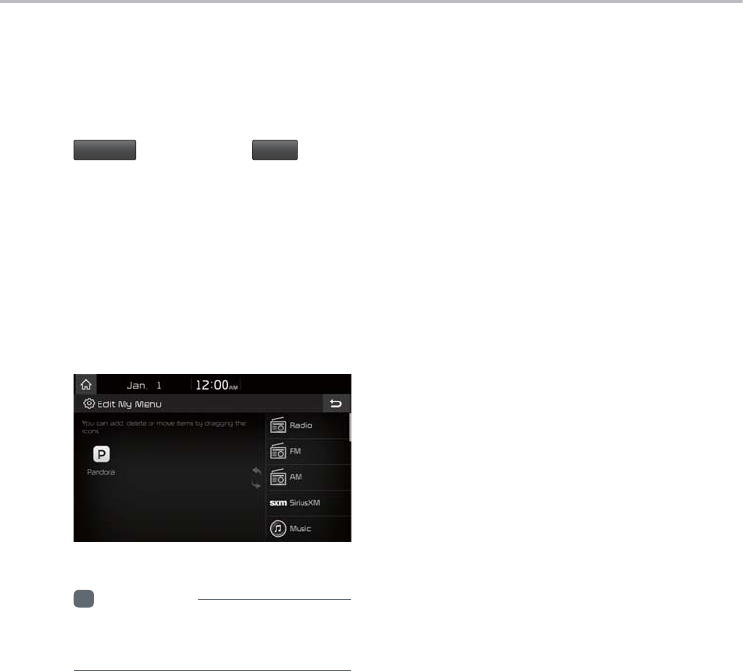

Adding Your Favorite Menu Items to My

From the Home screen, select

My Menu

icon, and then

Edit

From the Edit My Menu screen, select

menu items from the list on the right, then

drag and drop them to a desired place on

the left.

To remove the item from My Menu, drag

item from the left and drop them on the

right.

Information

• Up to eight items can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive

material. Touch the screen using your ﬁ nger,

an electrostatic touch-screen glove, or a stylus

pen.

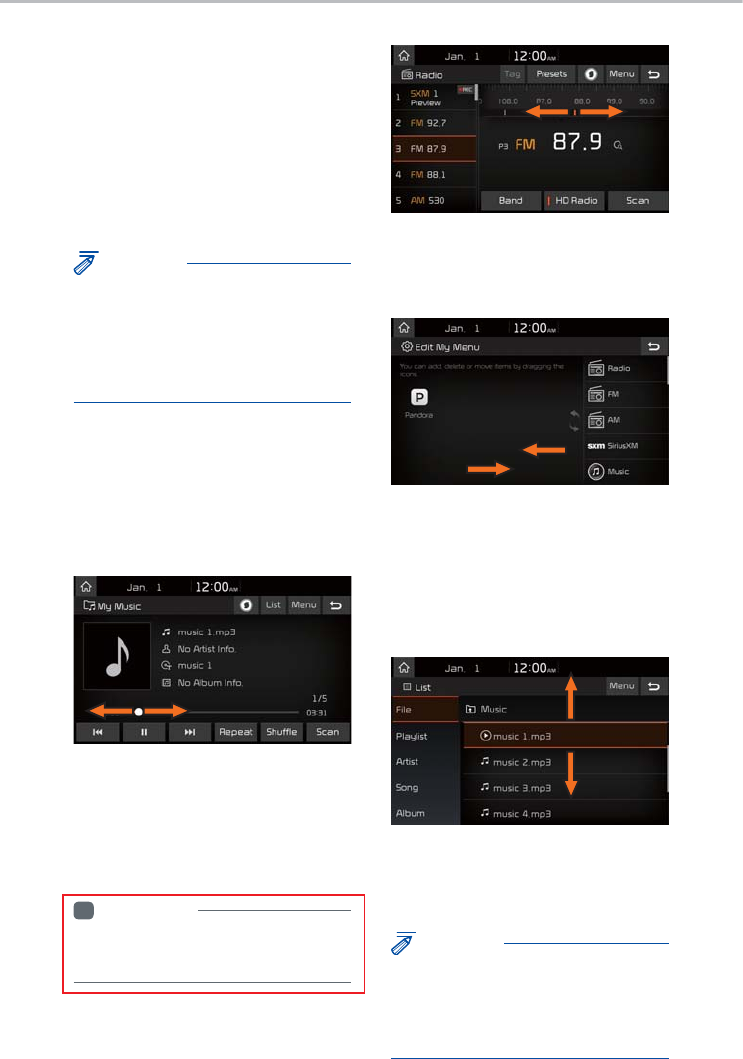

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

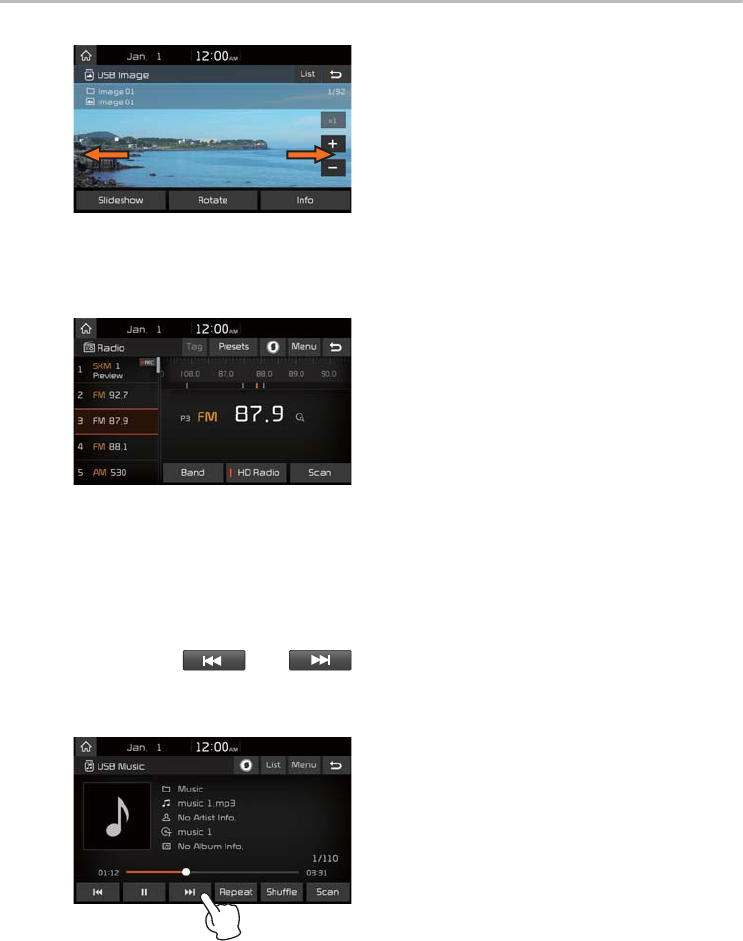

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

Information

• Music screens for Disc CD and Disc MP3 do

not support this function.

UMaD2F1005EU UMaD2F1006EU

Starting the System for the First Time I 1-13

Drag the frequency bar to the left or right

to move to the frequency that you want.

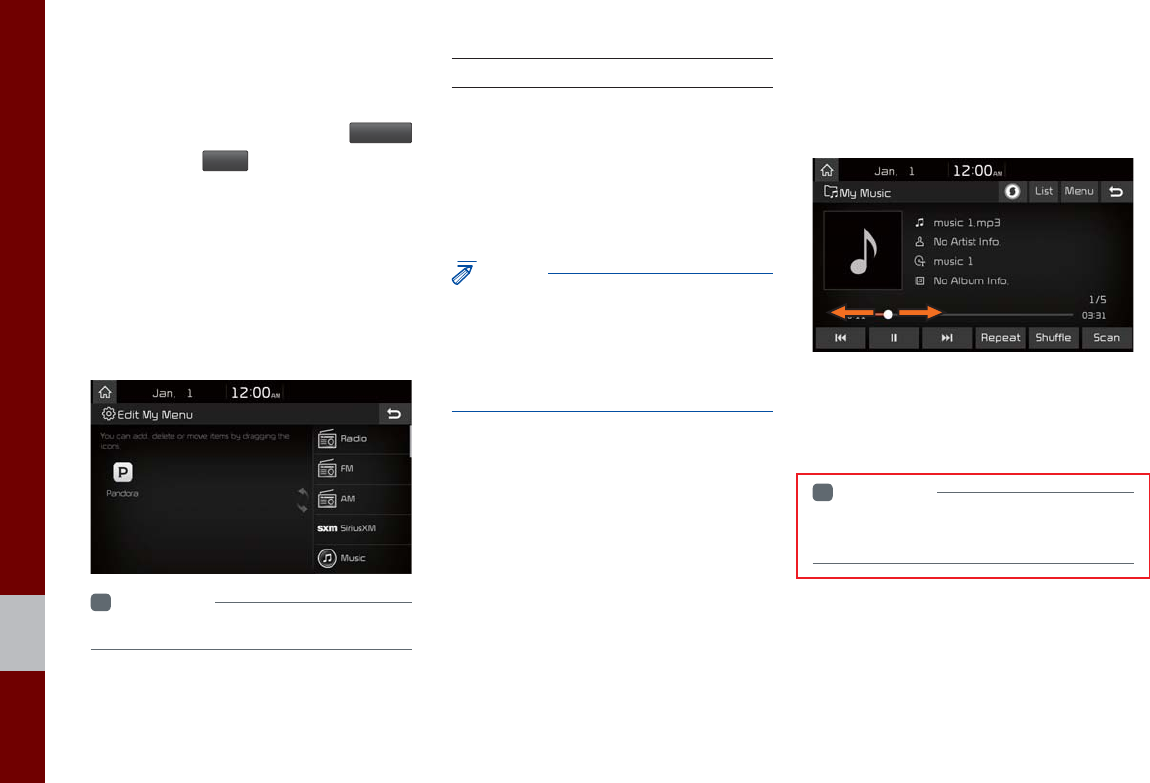

From the Edit My Menu screen, drag and

drop icons to add, delete, or move to/from

My Menu.

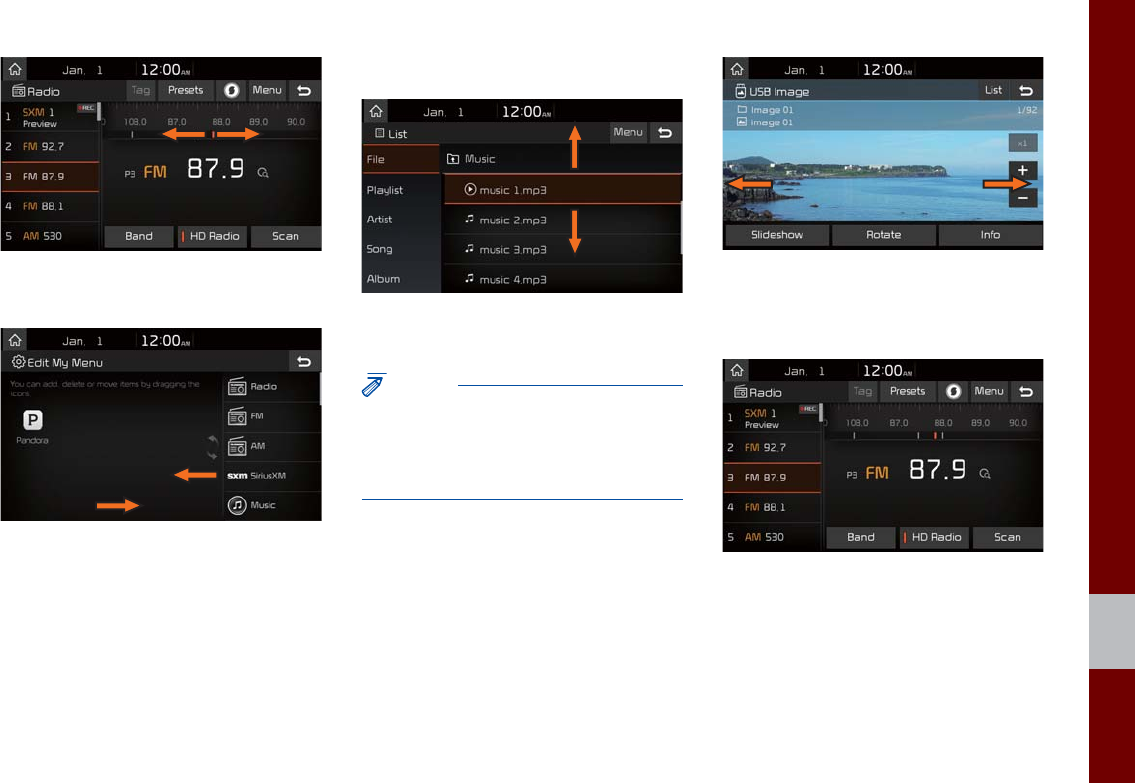

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display.

You can easily move many items at a time

with the handler

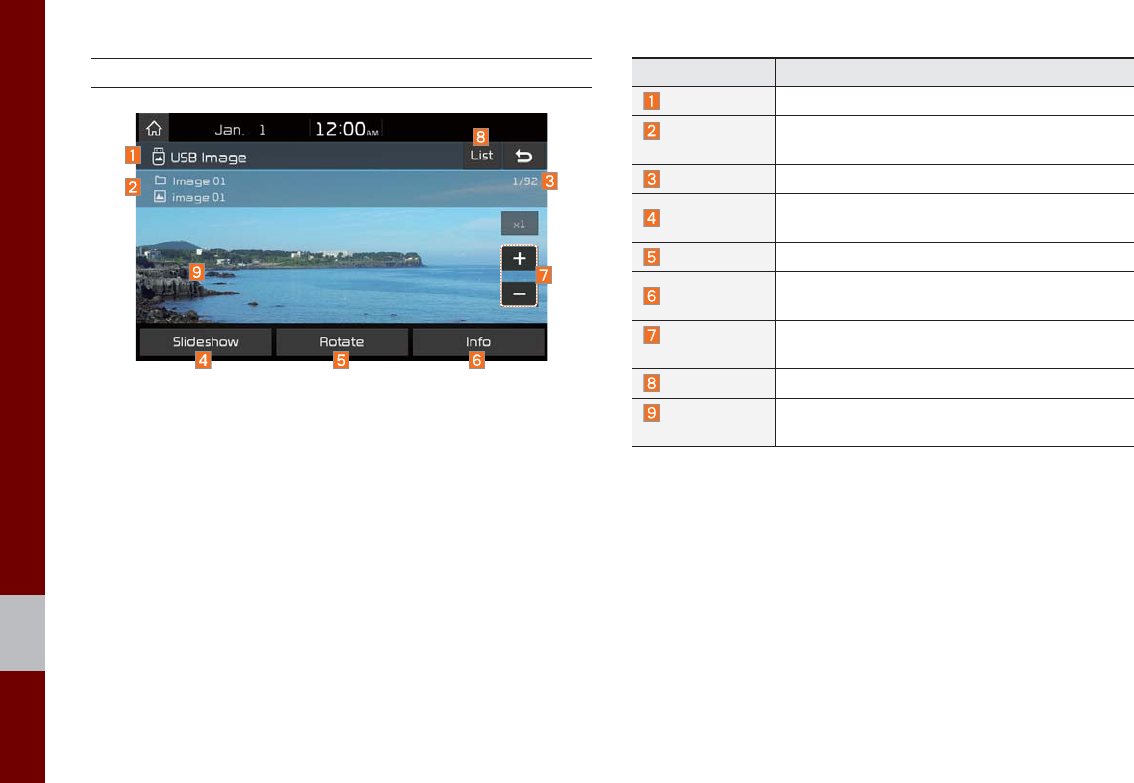

You can view the previous or next image

by flicking left/right on an image on the

USB Image screen.

Flick left/right on the frequency bar in the

radio player to look up the previous/next

frequency available.

UMaD2F1007EU UMaD2F1010EU

UMaD2F1008EU UMaD2F1011EU

UMaD2F1009EU

1-14 I Basic

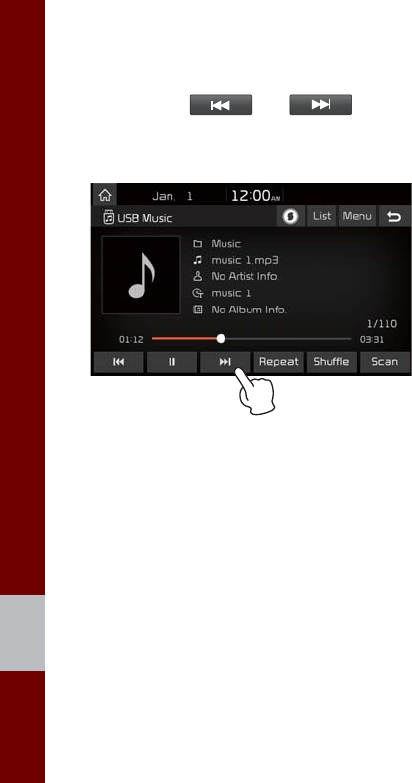

Press and Hold

Pressing the and buttons

in the music player will fast forward/rewind

the music.

UMaD2F1012EU

FM/AM

HD Radio™ Technology

SiriusXM™

About Disc

Disc CD

Disc MP3

USB

iPod

AUX

Bluetooth® Audio

My Music

part.2 Radio/Media

2-2 I Radio/Media

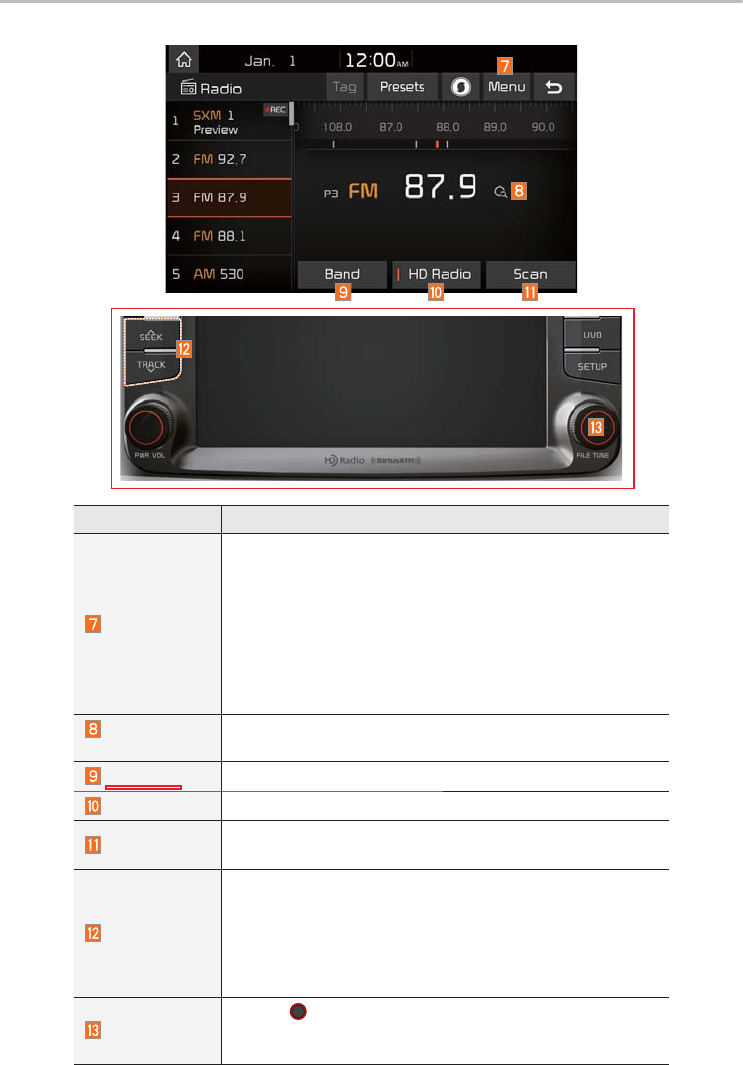

FM/AM

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu from All Menus on the Home

screen.

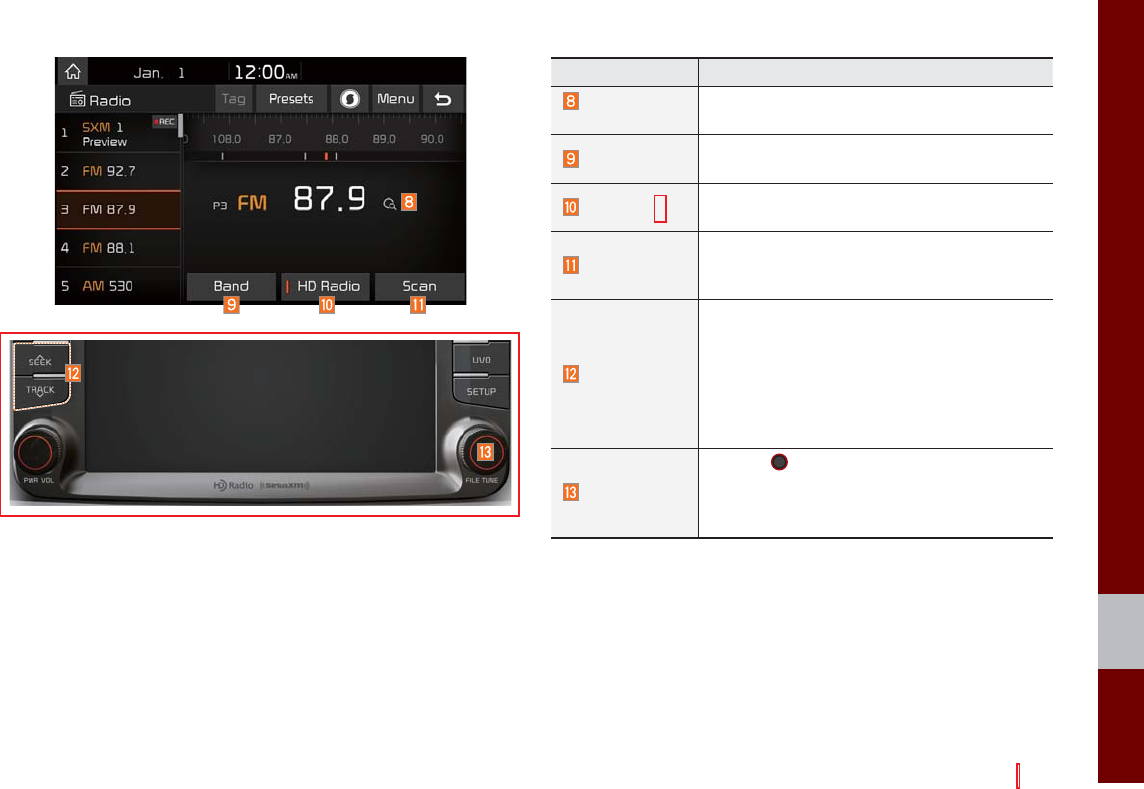

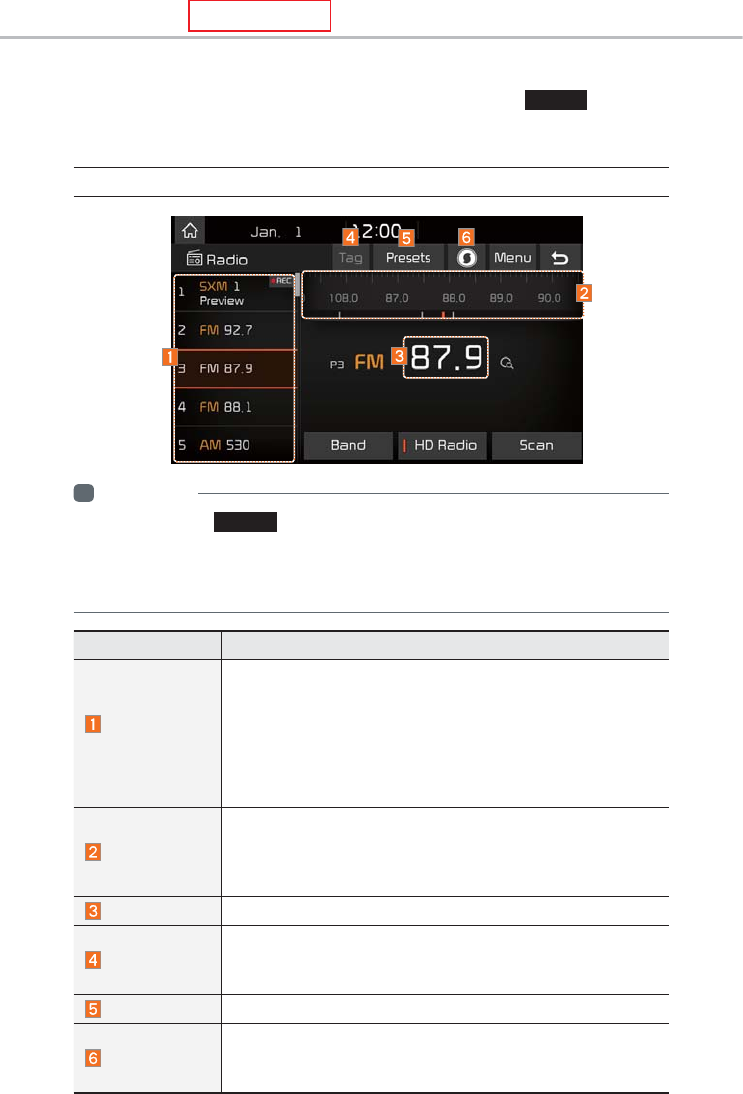

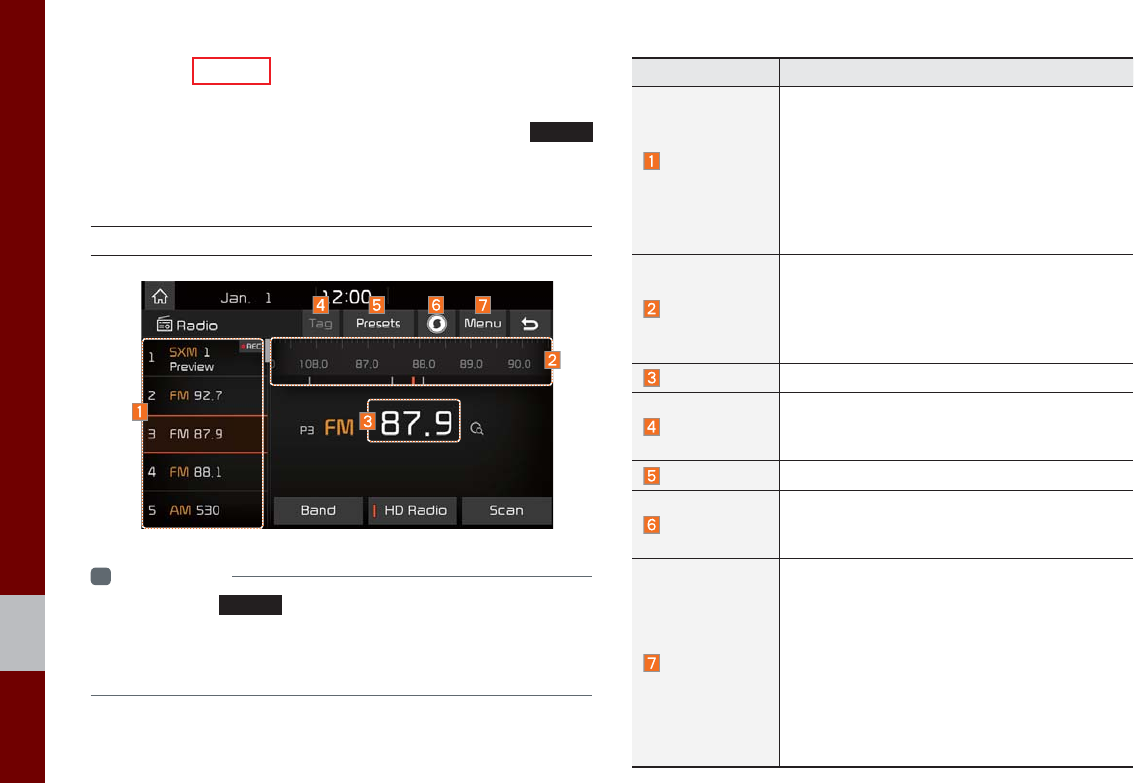

FM/AM Mode Display Controls

Information

• If you press the

RADIO

key when power is off, the power will turn on

and a radio broadcast will be tuned from the current mode.

• If you are in radio mode, select the media widget from the Home screen

to access the radio player.

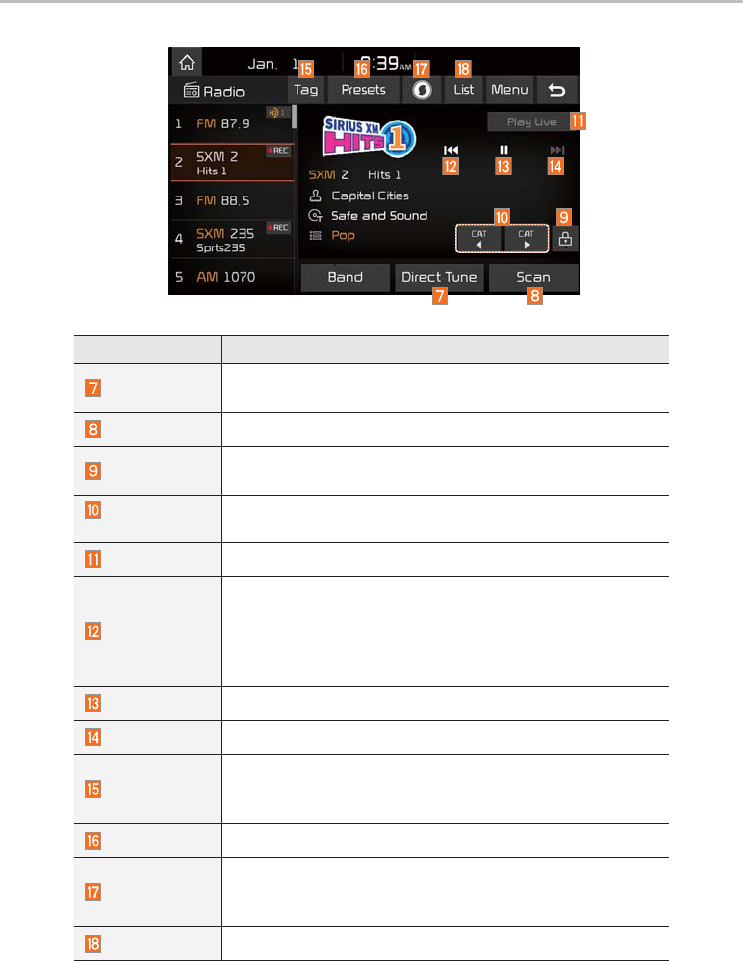

Features Description

Preset

Frequencies

• The stored preset frequencies are displayed

for user selection.

• After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the frequency

is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll

quickly through presets.

Frequency Bar

• Flick the frequency bar left/right to search for

available radio channels to the left or right of

the current channel.

• Dragging: Drag the frequency bar to the left/

right to find the radio channel that you want.

Frequency Displays the current frequency.

Tag

Saves the current music’s tag information to the

head unit. If connected to iPod, the tag informa-

tion can be saved on the device.

Presets Shows the stored presets for user selection.

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to

the SoundHound information in the Info section.

• List

Moves to the frequency list.

• Info

Turns the Radio text information transmitted

from the broadcasting station on and off.

• Preset Scan

Plays preset frequencies for 10 seconds per

item.

• Sound Settings

Moves to the Sound Settings.

Radio/Media

UMaD2F2001EU

FM/AM I 2-3

Features Description

Scan/Preset

Scan

Displays an active mode from Scan and Preset

Scan modes.

Band

Changes to the desired band from among FM, AM,

and SiriusXM.

HD Radio Used to set whether to turn HD Radio™ recep-

tion On or Off.

Scan

Shortly plays the broadcasts for the frequen-

cies with superior reception for 5 seconds per

item.

SEEK/TRACK

• When pressed quickly (less than 0.8 sec-

onds): Seeks the previous/next frequency.

• When pressed and held (more than 0.8 sec-

onds): Moves quickly through all of the fre-

quencies. The moment that you release the

button, the system seeks the next available

frequency.

TUNE

Turn the

TUNE

knob to manually seek avail-

able frequencies.

• FM: Increment/decrement by 200 kHz

• AM: Increment/decrement by 10 kHz

UMaD2F2002EU

2-4 I Radio/Media

If an HD Radio™ broadcast is received,

the radio mode will switch from analog

broadcast to HD Radio™ broadcast.

Information

• The HD Radio™ screen is displayed only

when a HD Radio™ broadcast is being

received

Program Service Data:

Contributes to the superior user experience of HD

Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3

Channel Guide, and other relevant data streams.

Adjacent traditional main stations are extra local FM

channels. These HD2/HD3 Channels provide new, origi-

nal music as well as deep cuts into traditional genre.

Digital, CD-quality sound. HD Radio™ Technology

enables local radio stations to broadcast a clean digital

signal. AM sounds like today’s FM and FM sounds like a CD.

HD Radio™ Technology

HD Radio™ Technology I 2-5

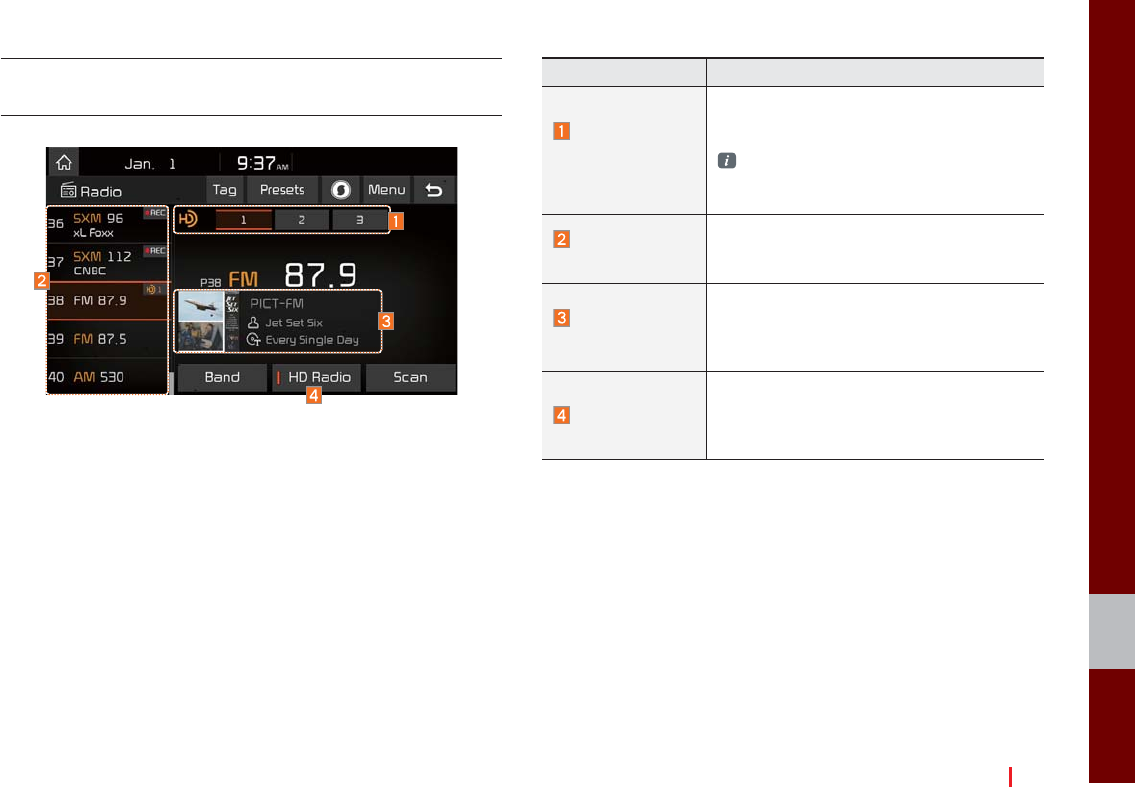

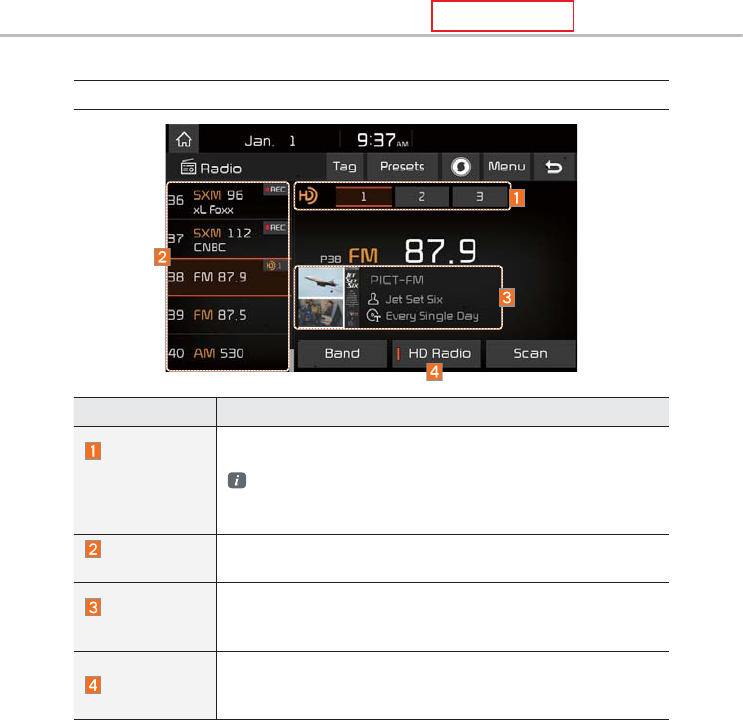

Basic Mode Screen

(HD Radio™ reception ON)

Name Description

HD Radio™

Reception &

Channel buttons

Displays main HD Radio™ channels and

used to directly select the current available

channels.

The HD Radio™ related icon display

becomes active within regions where an

HD Radio™ signal can be received.

HD Channel

Number

Analog station and corresponding HD

Radio™ channel number saved in the pre-

set list.

HD Broadcast

Info

Displays detailed information about the cur-

rent broadcast (the details of the information

shown are different depending on whether

the Info button is selected)

HD Radio

When the HD Radio™ soft button is ON (the

blue indicator on the HD Radio™ button

is illuminated), HD Radio™ signals will be

broadcast.

UMaD2F2003EU

2-6 I Radio/Media

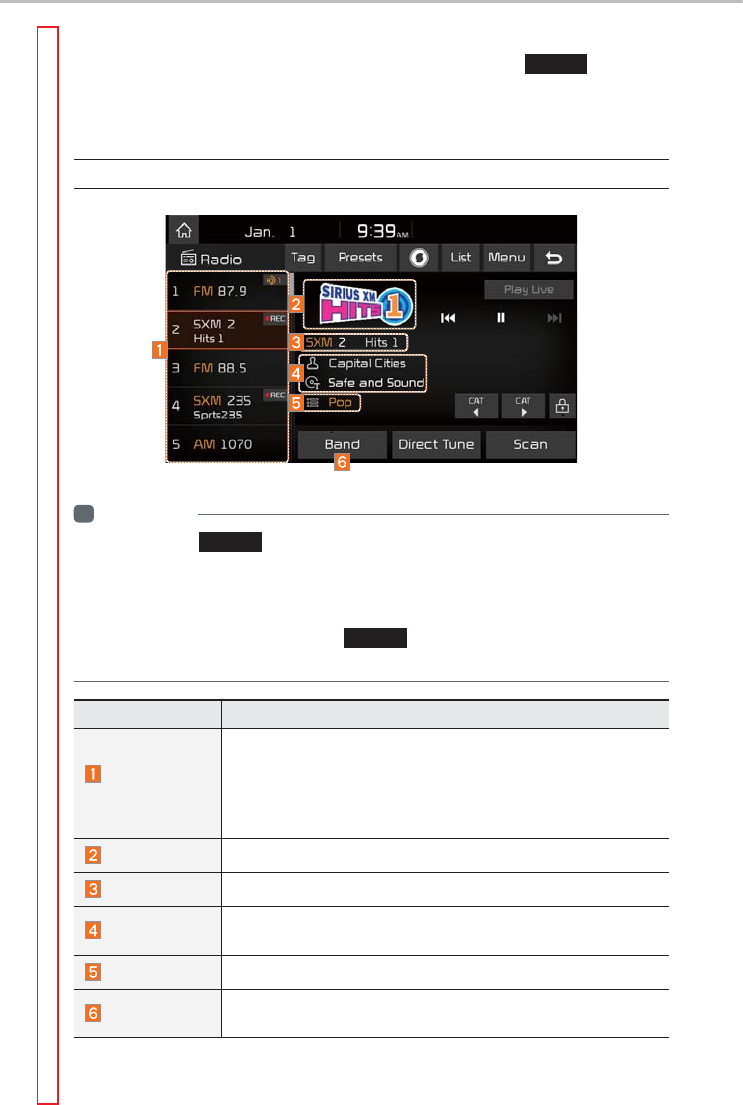

SiriusXM™

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu option from All Menus on the

Home screen. Select the SiriusXM™ band from the radio player.

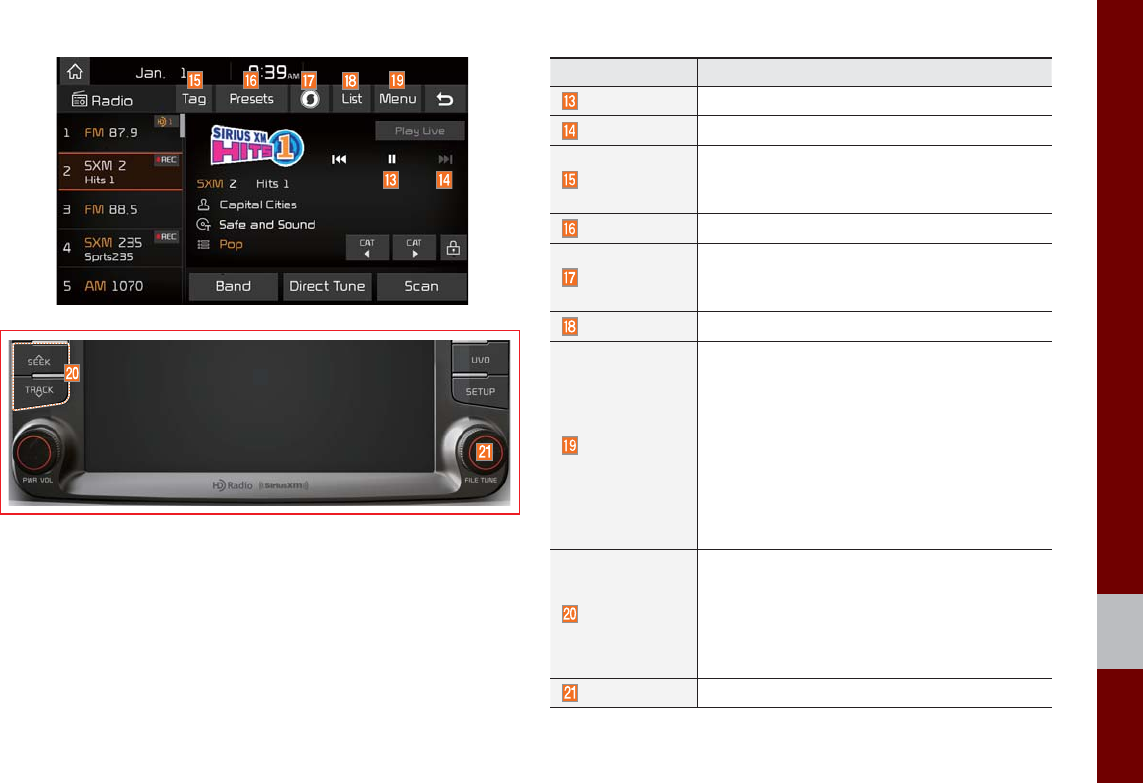

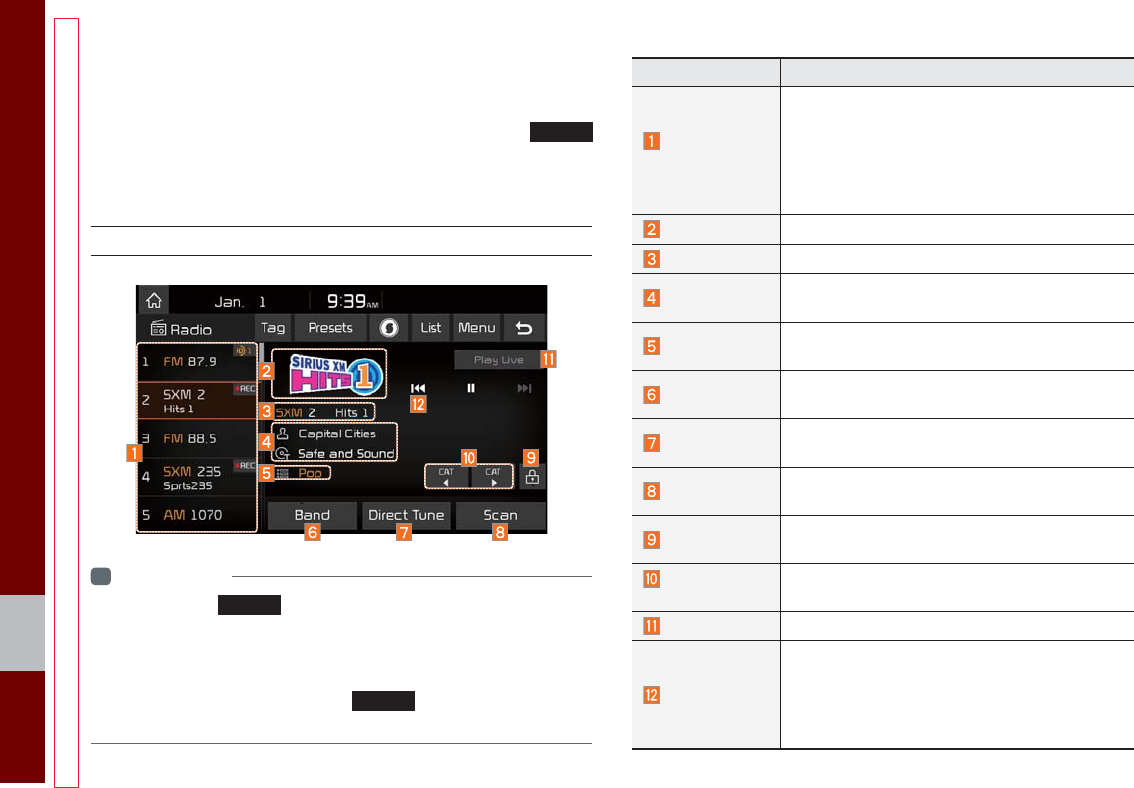

SiriusXM™ Mode Display Controls

Information

• If you press the

RADIO

key when the power is off, the power will turn

on and a radio broadcast will be tuned from the current mode.

• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget

from the Home screen to access the radio player.

• When the power is off, pressing the

RADIO

key will turn the power on

and play a SiriusXM™ Radio broadcast.

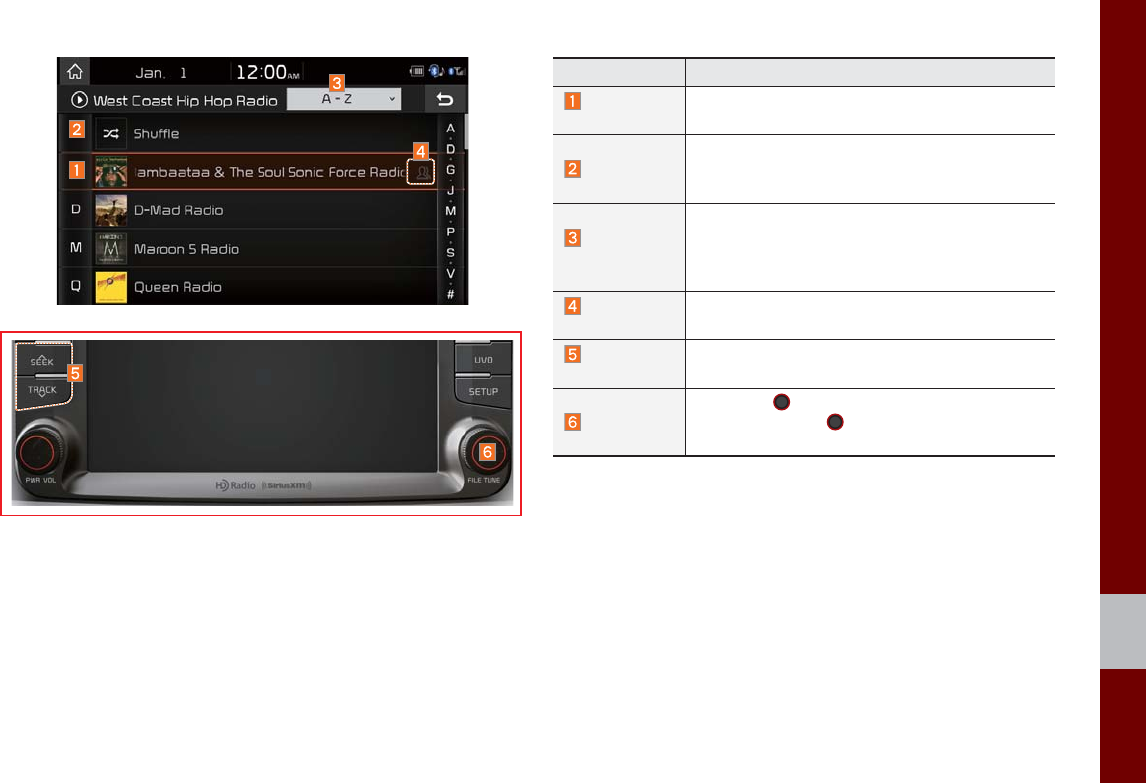

Features Description

Preset

Frequencies

• Shows the stored presets for user selection.

• After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the fre-

quency is to be stored in the selected preset

button.

Channel Logo Displays the current channel logo.

Channel Info Displays the current channel number and name.

Content Info Displays the artist, title and other information

about the current playing song.

Category Info Displays the category of the currently playing

song.

Band Changes to the desired band from among FM,

AM, and SirusXM.

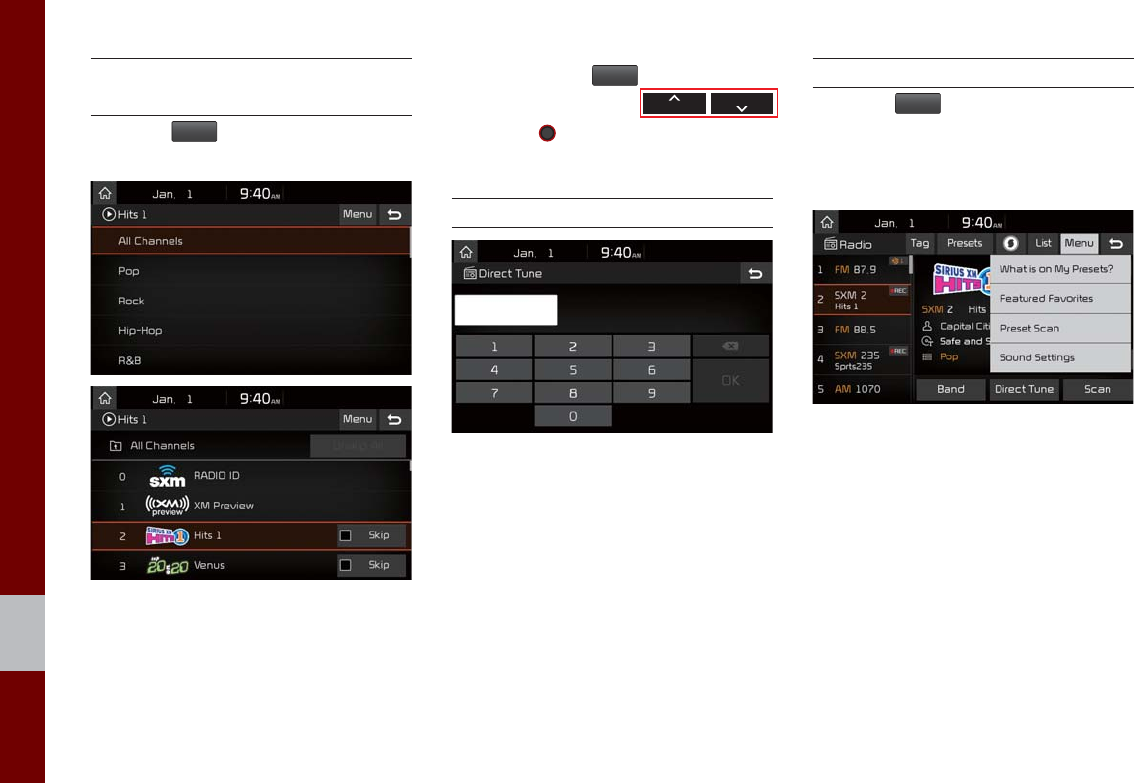

Direct Tune Used to search for the desired channel by

entering the channel number.

Scan Plays all receivable channels for 10 seconds

per item.

Category Lock If pressed, only the channels for the current cat-

egory can be searched or scanned.

category

Back Button Move to home/previous mode screen

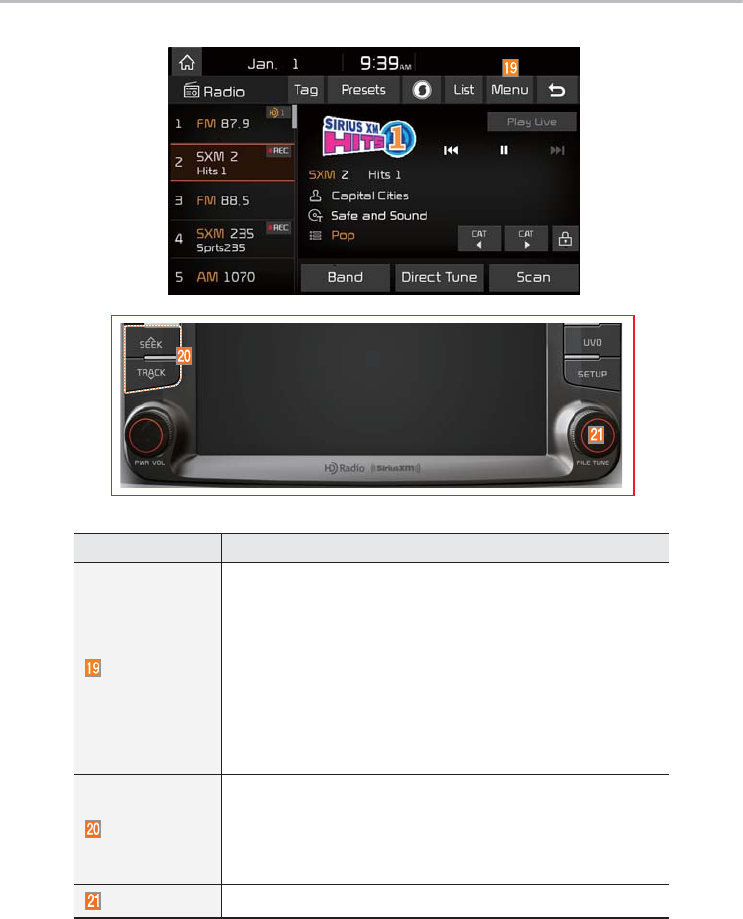

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to

the SoundHound information in the Info section.

Menu Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the sound.

UMaD2F2019EU

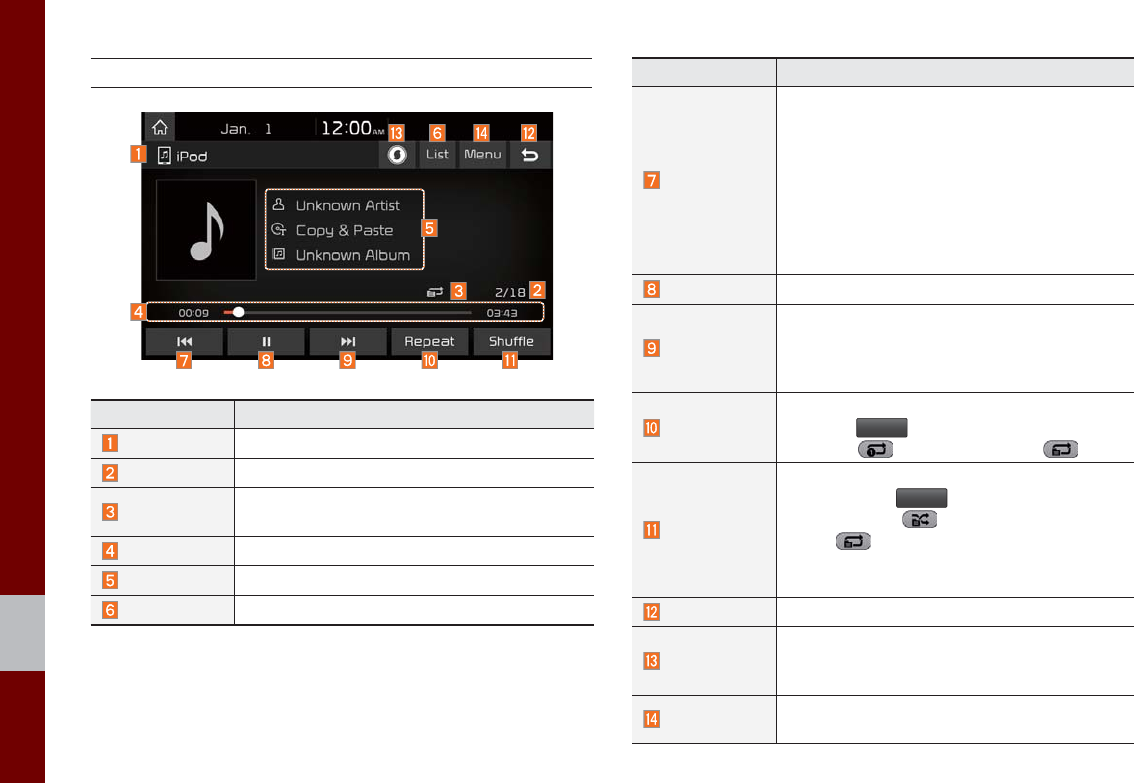

iPod I 2-35

Features Description

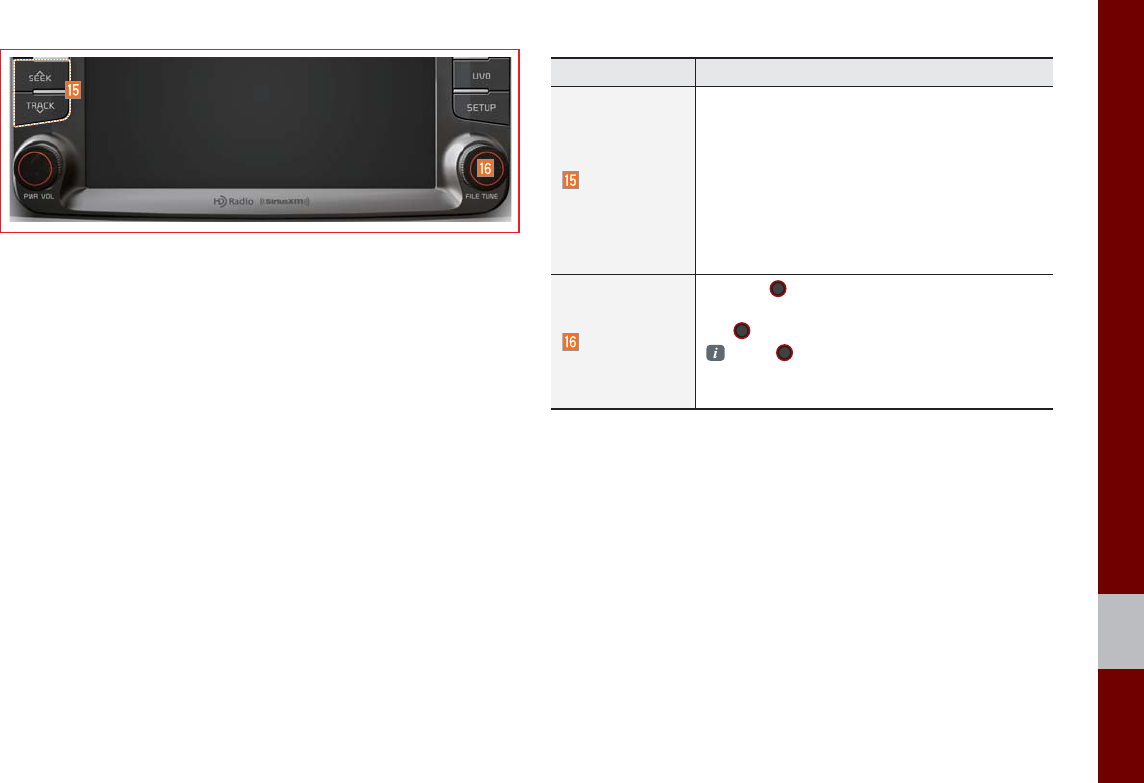

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

• If play time is less than 3 seconds, moves to

previous/next file

• If play time is more than 3 seconds, plays

the current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

2-36 I Radio/Media

Features Description

Category Name

Displays the category name

Category List

Displays the contents of selected category

If there are many items in the list, items are

added in order and the scroll bar on the right

is adjusted accordingly.

Back Button Converts to basic mode screen

Upper Folder Moves to Upper Folder

Search Menu

Search tracks by the list type. Search songs

according to Playlist, Artist, Song, Album,

Genre, Composer, Podcast and Audiobook .

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

• If play time is less than 3 seconds, moves to

previous/next file

• If play time is more than 3 seconds, plays

the current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track.

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If you do not anything with the knob for

5 seconds, the

TUNE

knob search will be

terminated.

UMaD2F2020EU

AUX I 2-37

AUX

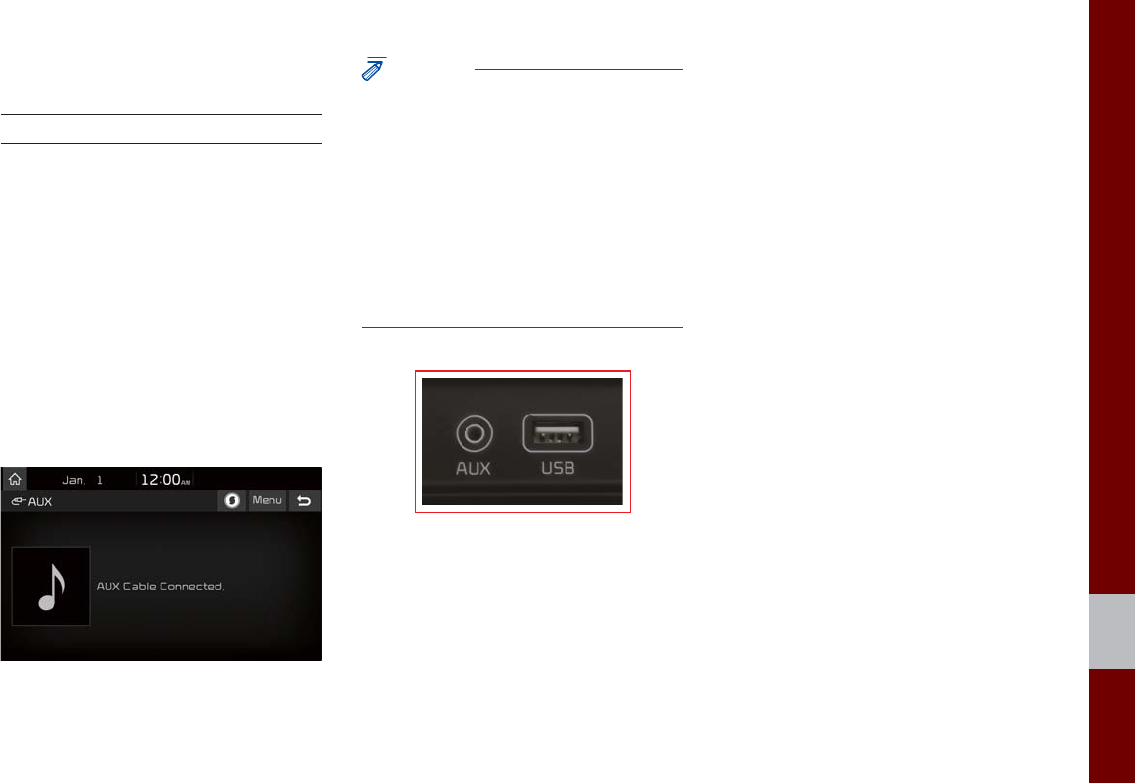

Connecting an External Device

If an external device connector is con-

nected with the AUX terminal, then AUX

mode will automatically operate. Once the

connector is disconnected, the previous

mode will be restored.

• AUX mode can be used only when an

external audio player has been con-

nected.

• The AUX volume can also be controlled

separately through the connected

device.

NOTICE

• If only a cable is connected to the AUX

without an external device, the mode will

be changed to AUX, but noise may occur.

When an external device is not being

used, remove the connector jack.

• When the external device power is

connected to the power jack, playing the

external device may output noise. In such

cases, disconnect the power connection

before use.

UMaD2F2021EU

2-38 I Radio/Media

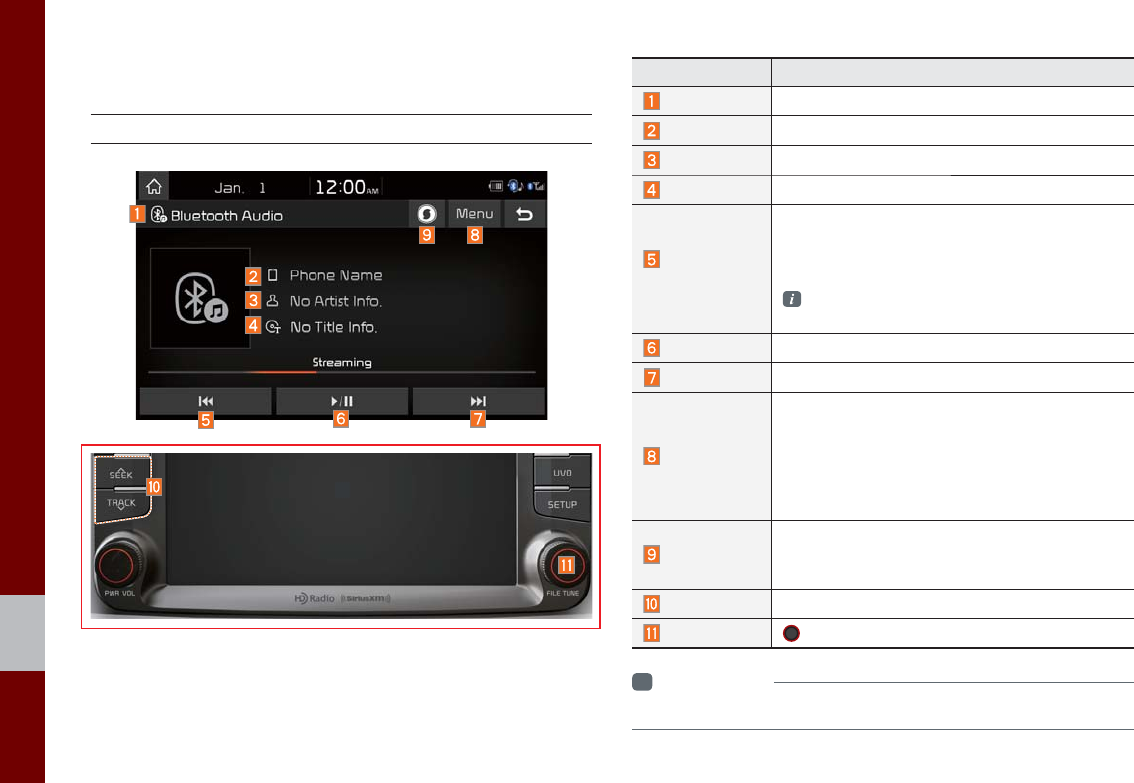

Bluetooth

Audio

Bluetooth Audio Mode Display Controls

Features Description

Mode Displays the current operating mode

Phone Name Displays name of connected phone

Artist Info Name of current artist

Title Name of current song

File

• If play time is less than 3 seconds, moves to

the previous file

• If play time is more than 3 seconds, plays the

current file from the beginning

This function may differ depending on the

model of mobile phone

Play/Pause Plays/Pauses Bluetooth Audio

Next File Moves to the next file

• Connections: Moves to the Bluetooth Settings

screen. You can pair a new device or change/

delete paired device(s).

• Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the

sound.

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to the

SoundHound information in the Info section.

SEEK/TRACK Plays the previous/next file

TUNE

is not supported.

Information

• Artist info and Title may not be supported by mobile phone

UMaD2F2022EU

Bluetooth

Audio I 2-39

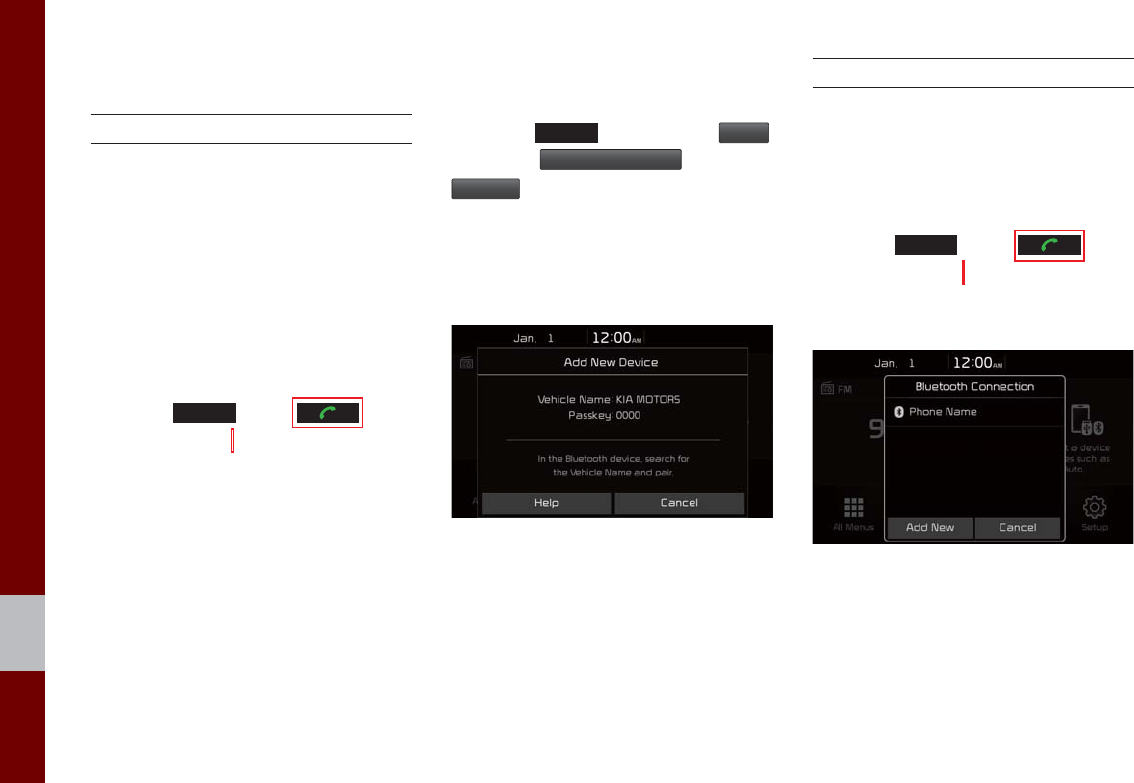

Bluetooth Connections

Settings

Settings for pairing, connection and dis-

connection of a Bluetooth device

• In Bluetooth Audio play screen, select

and then

Connections

Information

• If the music in the mobile phone is not

played after changing to audio streaming

mode, press the play button. Thus check if

the music is playing in the Bluetooth device

after changing to audio streaming mode.

Audio streaming may not be supported for

some mobile phones.

• Please check the Bluetooth compatibility

in below website: KIA Motors Corporation

http://www.kia.com

UMaD2F2023EU

2-40 I Radio/Media

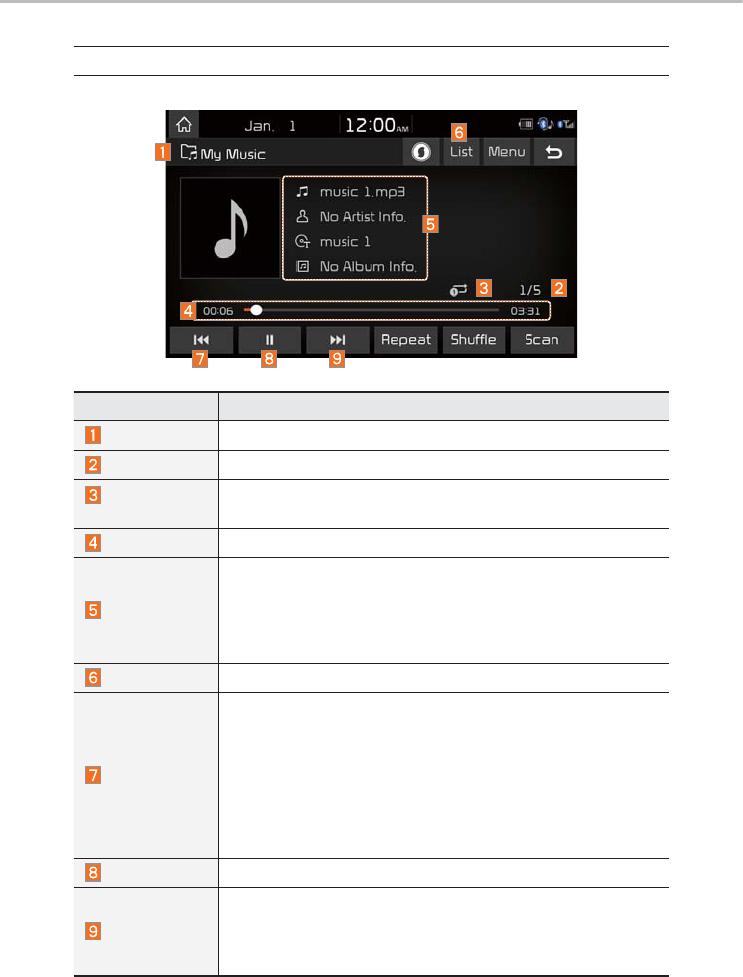

My Music

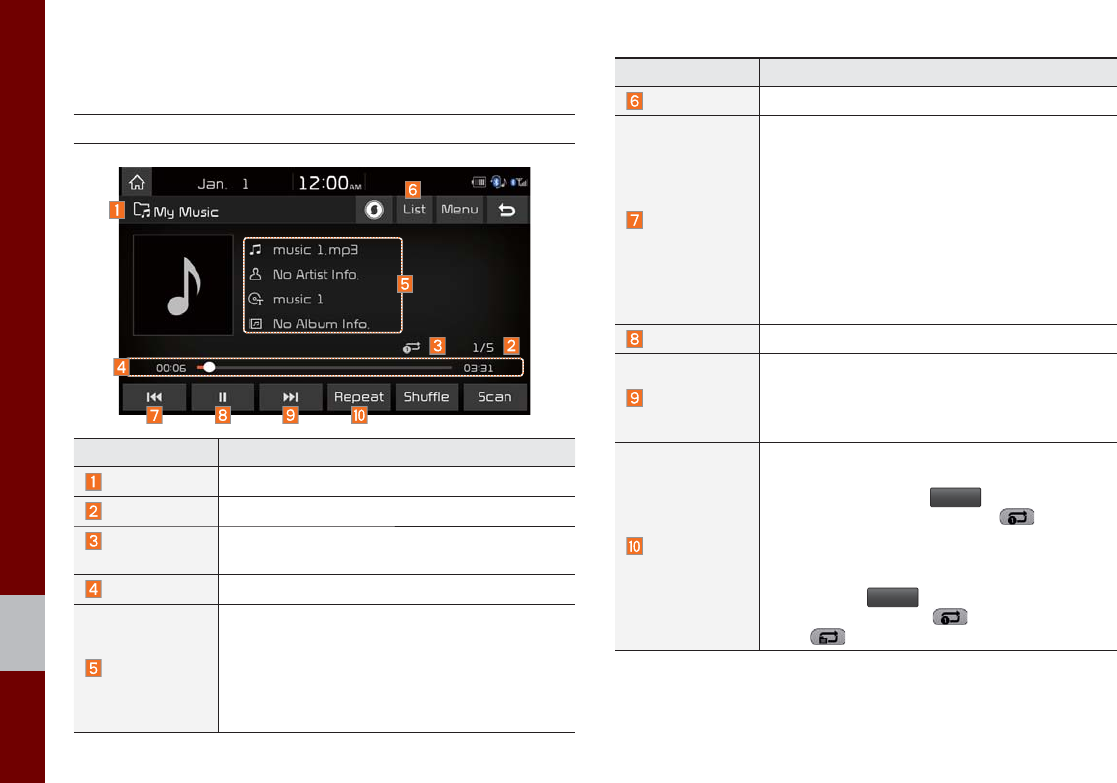

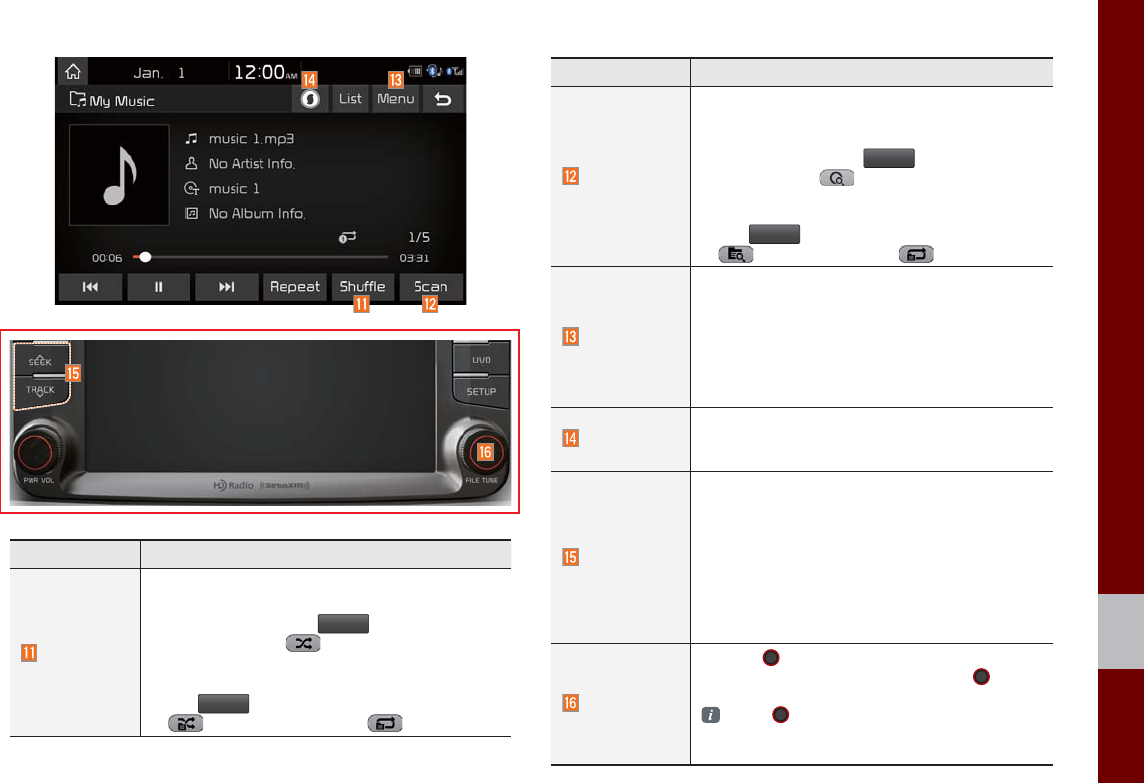

My Music Mode Display Controls

Features Description

Mode Displays the current operating mode

File Index Shows the current file/total files

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the cur-

rent operating function

Play Time Displays the current play time/total play time

Song Info

Displays the information about the current track

• When a track in the file tab on the list screen is

selected: Displays file, artist, title, album info

• When a track in the other tab on the list

screen is selected: Displays artist, title,

album info

Features Description

List Moves to the list screen

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current

file from the beginning (Depends on the play

time)

• If play time is less than 3 seconds, moves to

previous file

• If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is pressed (less than 0.8 seconds):

Moves to the next file

• If button is pressed (more than 0.8 seconds)

it will fast-forward the file

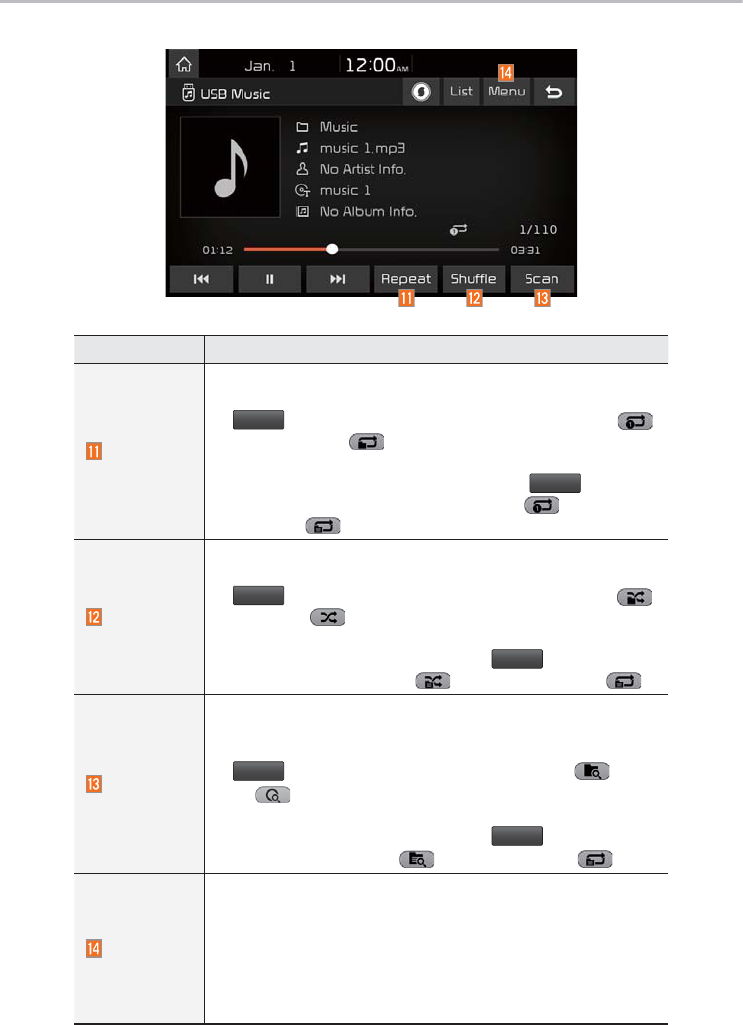

Repeat

Repeats the current file

• If select the song in the file tab on the list

screen: Select the

Repeat

button to switch

between repeating one song and turn-

ing repeat off.

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen:

Select the

Repeat

button to switch between

repeating one song and turning repeat

off

UMaD2F2024EU

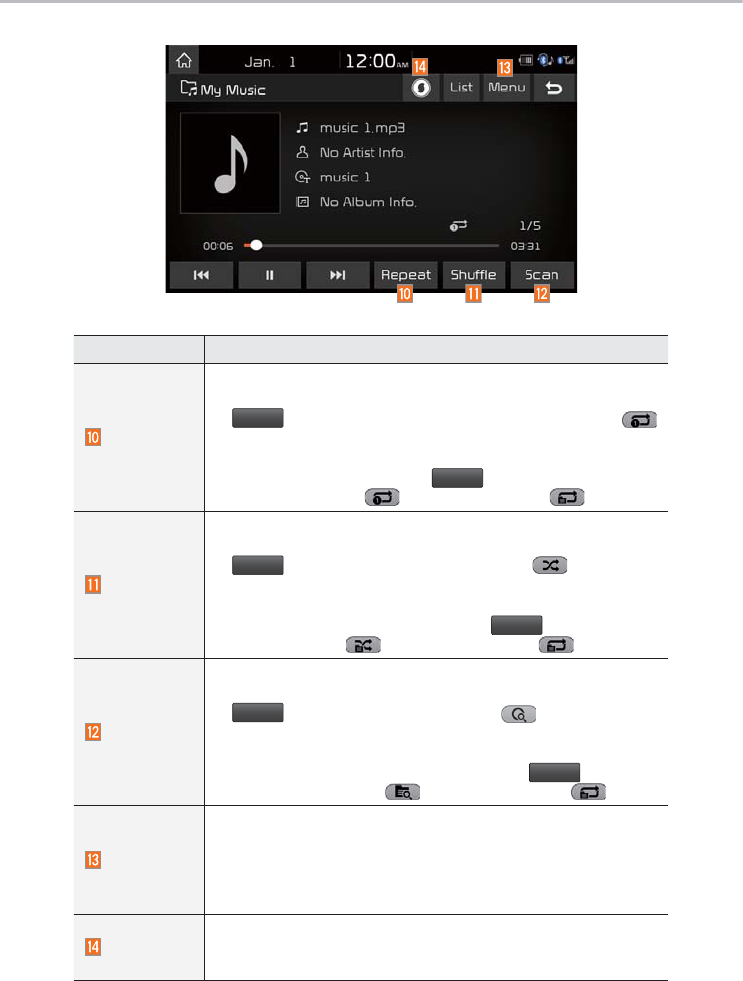

My Music I 2-41

Features Description

Shuffle

Plays files in random order

• If select the song in the file tab on the list

screen: Select the

Shuffle

button to switch

between shuffle and turning shuffle off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Shuffle

button to switch between shuffle

and turning shuffle off

Features Description

Scan

Scans the beginning parts of files (approx. 10

seconds per file)

• If select the song in the file tab on the list

screen: Select the

Scan

button to switch

between scan and turning scan off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Scan

button to switch between scan

and turning scan off

• Add to Playlist: Adds the current song to the

Playlist: Playlist is placed on the left tab in the list

• Delete Current File: Deletes the current track

from My Music.

• Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the

sound.

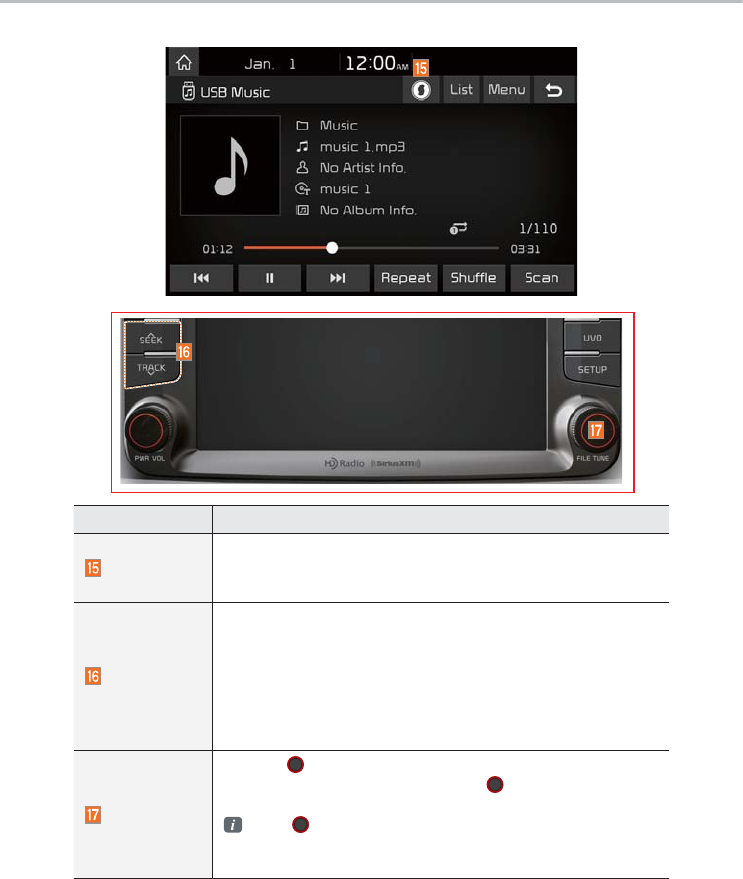

SoundHound Runs the SoundHound feature.

For more details regarding this feature, refer to

the SoundHound information in the Info section.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

• If play time is less than 3 seconds, moves to

previous/next file

• If play time is more than 3 seconds, plays the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired track.

If the desired track is displayed, press the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

UMaD2F2025EU

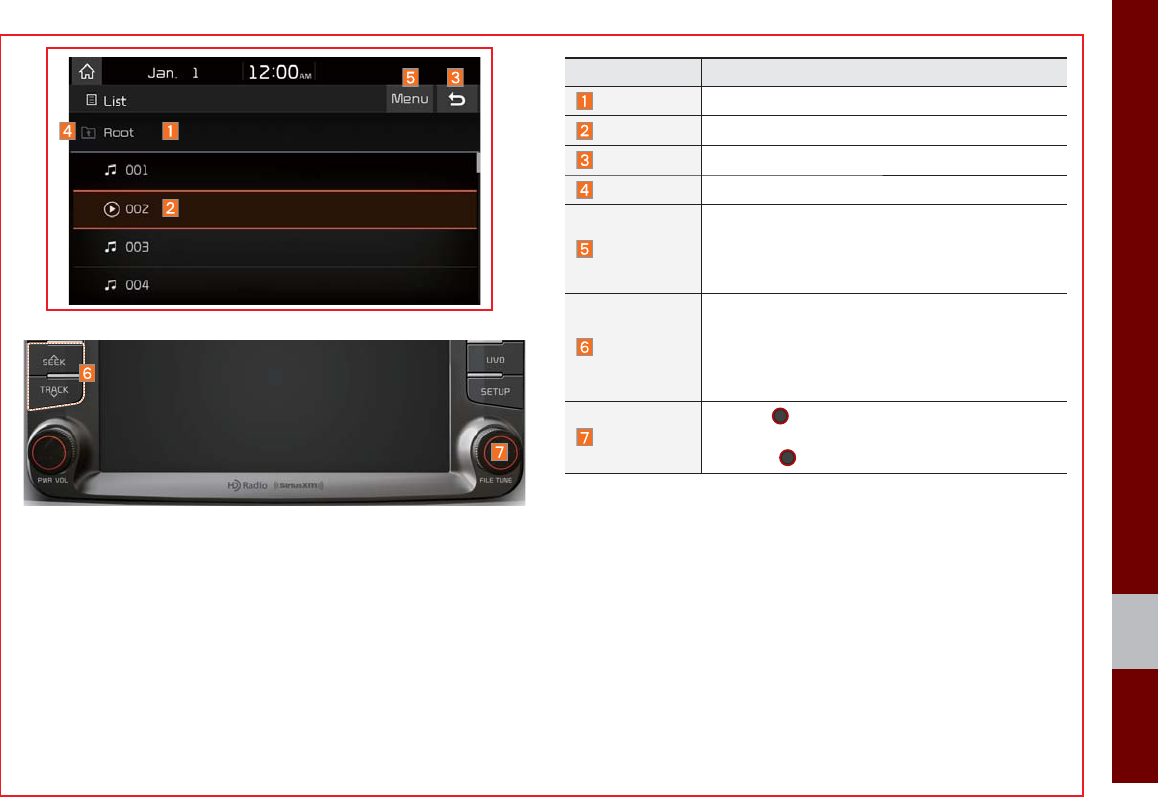

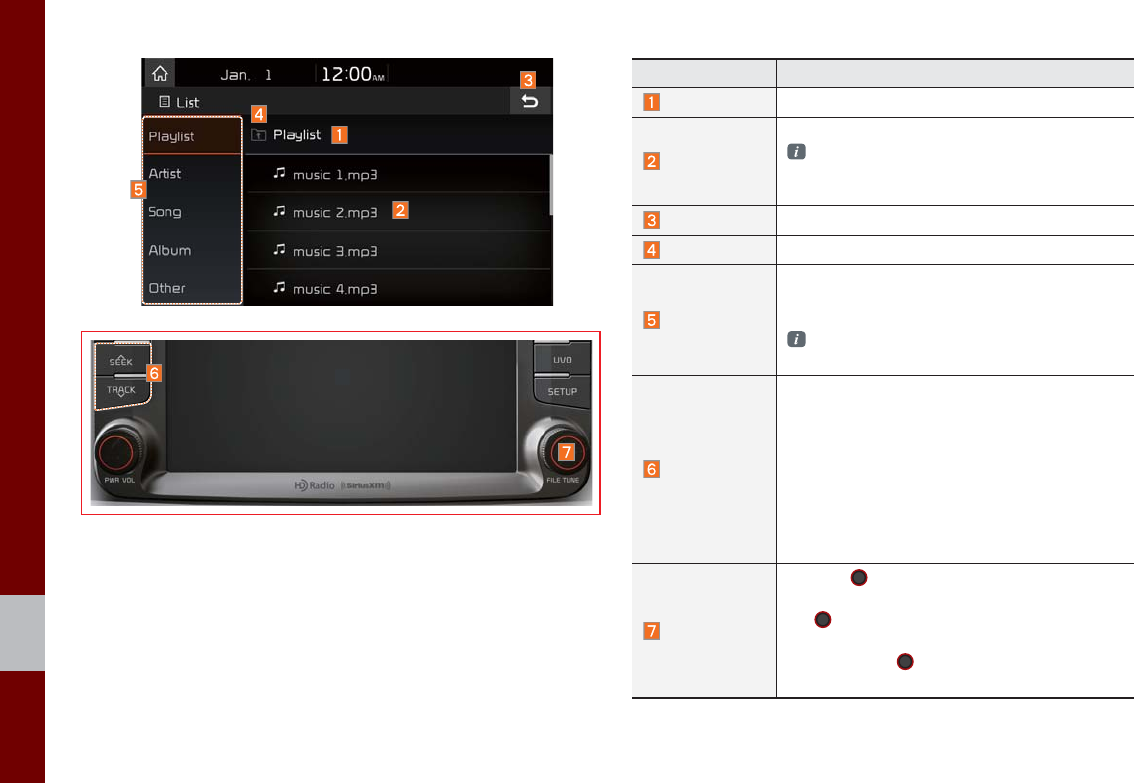

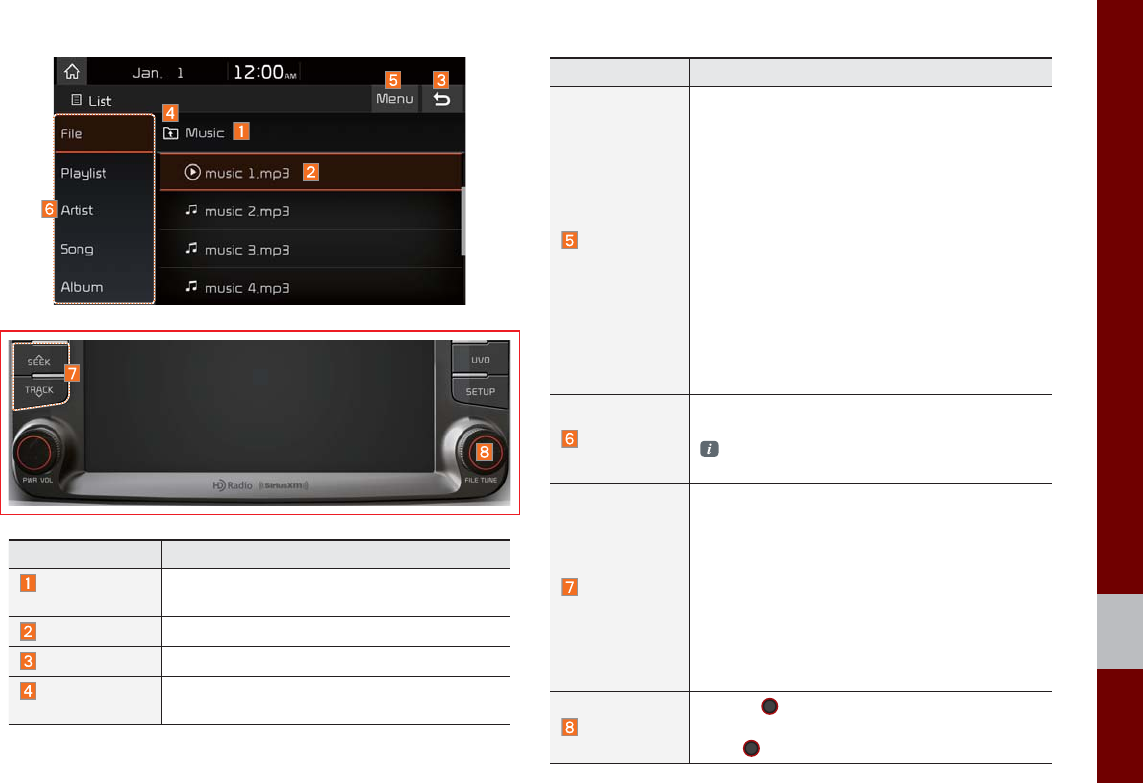

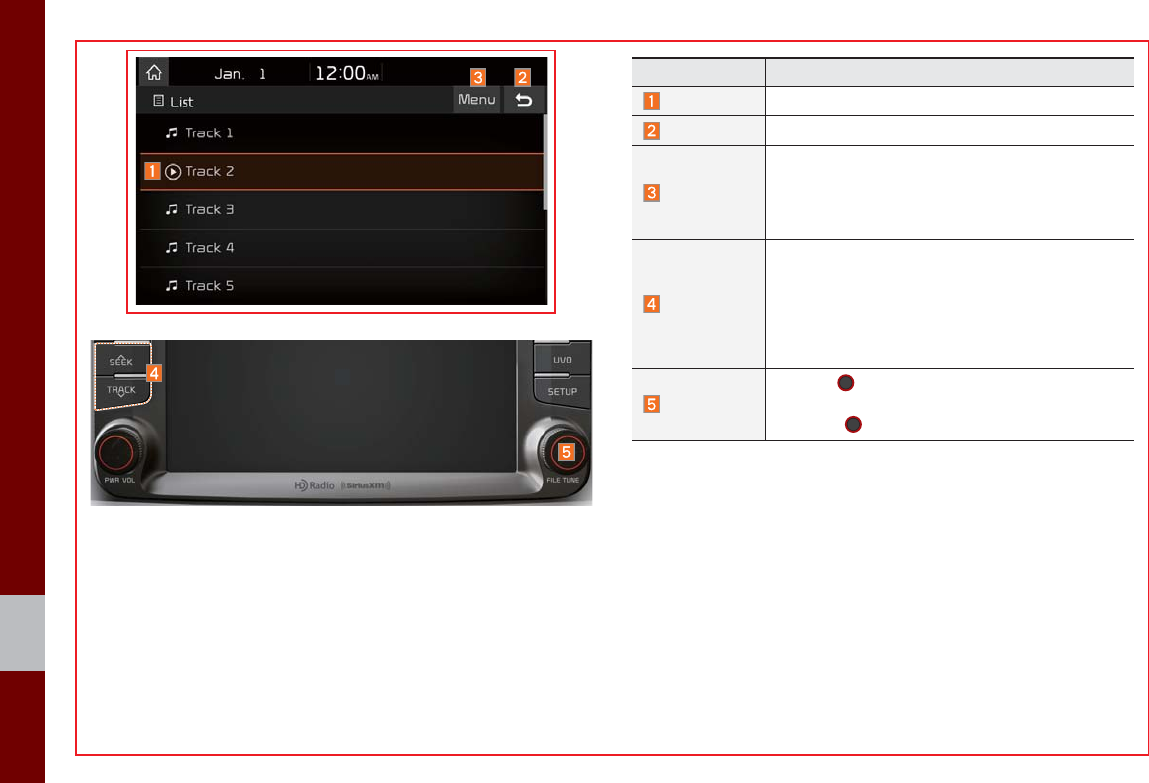

2-42 I Radio/Media

Features Description

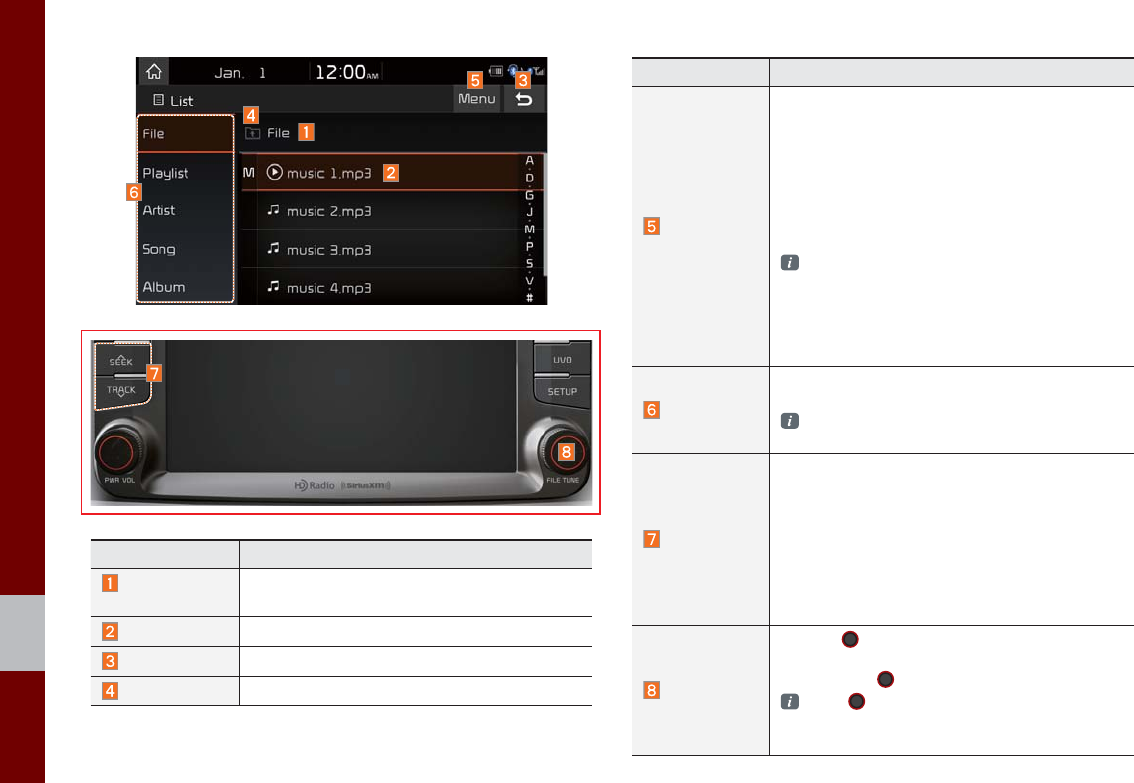

Folder/

Category Name

Displays folder/category name in the list

Current Song Displays the current playing file name

Back Button Converts to basic mode screen

Upper Folder Moves to Root Folder

Features Description

• Add to Playlist: Adds the current track to the

Playlist: Playlist is placed on the left tab in the

list (Maximum 100 files) Select a track and

press “Add to Playlist” to add the track in the

playlist

• Delete from Playlist: Select a track from the

playlist and press “Delete from Playlist” to

delete the track in the playlist

• Delete Files: Deletes files from My Music

If delete file from My Music, the information

related to song also deleted in the list.

• Now Playing: When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when

the current list includes the current file

Search Menu

Search tracks by the list type. Search songs

according to File, Playlist, Artist, Song and Album.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

• If play time is less than 3 seconds, moves to

previous/next file

• If play time is more than 3 seconds, plays the

current file from the beginning

If button is pressed (more than 0.8 seconds) it will

rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to move the focus to pre-

vious/next file. If the file you want to play is dis-

played, press

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within 5

seconds of searching tracks, Tune search will

be terminated.

UMaD2F2026EU

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

part.3 Bluetooth

3-2 I Bluetooth

Before Using the

Bluetooth

Handsfree

What is

Bluetooth

Wireless Technology?

• Bluetooth® Wireless Technology refers

to a short-distance wireless network-

ing technology which uses a 2.45GHz

frequency to connect various devices

within a certain distance.

• Supported within PCs, external devices,

Bluetooth® phones, PDAs, various elec-

tronic devices, and automotive environ-

ments,

Bluetooth

Wireless Technology

to be transmitted at high speeds without

having to use a connector cable.

• Bluetooth® Handsfree refers to a device

which allows the user to conveniently

make phone calls with Bluetooth®

mobile phones through the Multimedia

system.

• The Bluetooth® Handsfree feature may

not be supported in some mobile phones.

For more information on mobile phone

compatibility, visit the KIA Motor website

- KIA Motors Corporation: http://www.kia.

com

WARNING

- Distracted Driving

• Focus on the road while driving. The driver's

primary responsibility is in the safe and legal

operation of the vehicle. Drivers should not

use any hand held devices or other equipment

or vehicle systems that distract the driver

during vehicle operation.

• Do not stare at the multimedia screen for long

periods of time while driving. Staring at the

screen for prolonged periods of time can lead

to trafﬁ c accidents and can result in personal

injuries.

Precautions for Safe Driving

• Bluetooth® is a feature that enables driv-

ers to make handsfree calls. Connecting

the head unit with a Bluetooth® phone

allows the user to conveniently make

calls, receive calls, and manage the

phonebook. Before using

Bluetooth

Wireless Technology, carefully read the

contents of this user’s manual.

• Excessive use or operations while driv-

ing may lead to negligent driving prac-

tices and be the cause of accidents. Do

not operate the device excessively while

driving.

•

Viewing the screen for prolonged peri-

ods of time is dangerous and may lead

to accidents. When driving, view the

screen only for short periods of time.

Bluetooth

Before Using the Bluetooth

Handsfree I 3-3

CAUTIONS upon Connecting

Bluetooth® Phone

• Before connecting the head unit with

the mobile phone, check to see that the

mobile phone supports Bluetooth® fea-

tures

• Even if the phone supports

Bluetooth

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth® power is turned off.

Disable the hidden state or turn on the

Bluetooth® power prior to searching/

connecting with the head unit.

• If Auto Connection is used, the

Bluetooth® phone is automatically con-

nected when the ignition is turned on,

making it unnecessary to have to con-

nect the phone with the head unit every

time.

• If you do not want automatic connection

with your Bluetooth® device, turn the

Bluetooth® feature off of the Bluetooth®

device.

• Park the vehicle when connecting the

head unit with the mobile phone.

• Bluetooth® connection may become

intermittently disconnected in some

mobile phones. Follow these steps to try

again.

1. Turn the Bluetooth® function within the

mobile phone OFF/ON and try again.

2. Turn the mobile phone power OFF/ON

and try again.

3. Completely remove the mobile phone

battery, reboot, and then again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both of

Phone and Head Unit sides and then

try again

• The Handsfree call volume and quality

may differ depending on the mobile

phone.

• Pairing Bluetooth® devices and use of

other Bluetooth® features are not sup-

ported when the vehicle is in motion. For

safety, please first park your vehicle.

• If you continue having issue download-

ing your contacts to your vehicle, con-

tact your mobile phone provider.

3-4 I Bluetooth

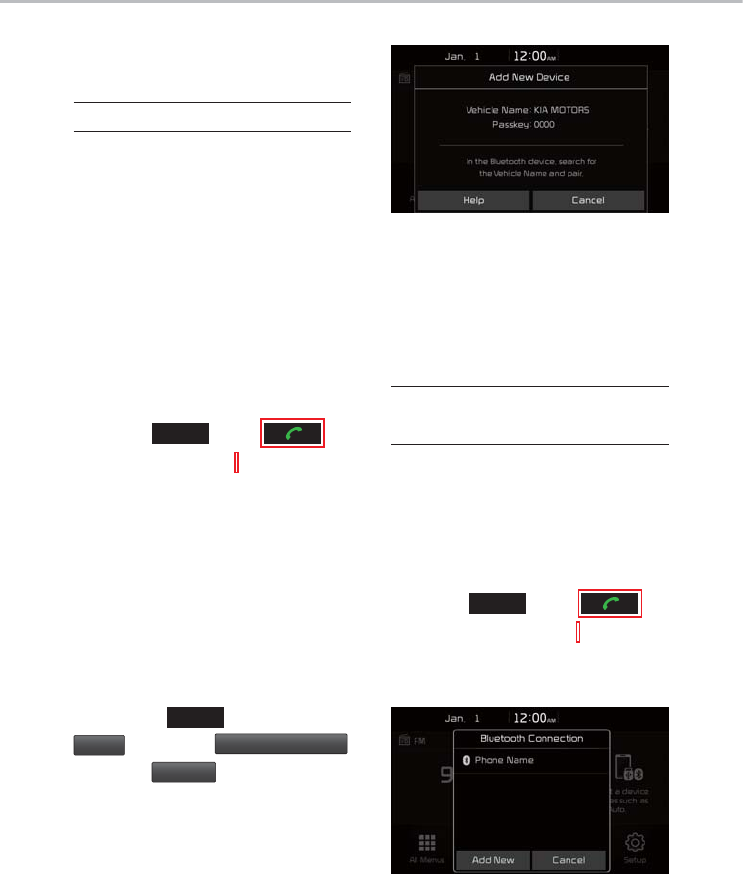

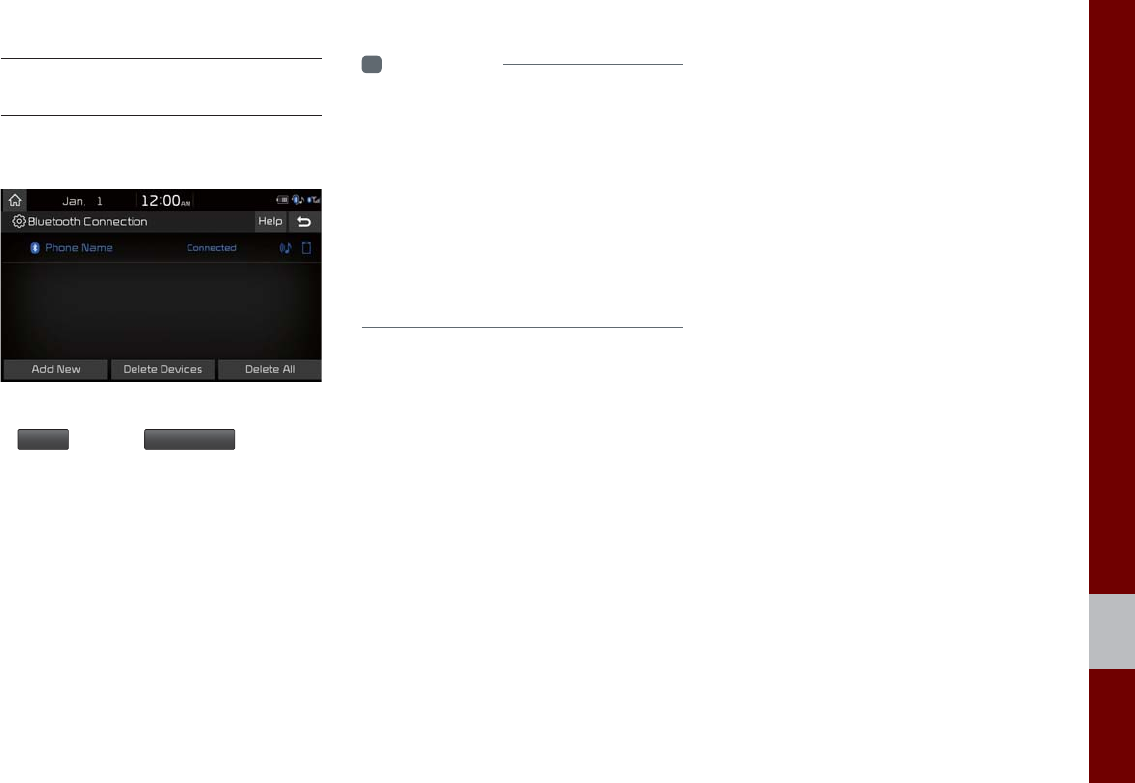

Bluetooth Connection

Pairing a New Device

Before you can use the Bluetooth feature,

you must first pair/connect your mobile

phone to your car.

Up to 5 Bluetooth devices can be paired.

Only one Bluetooth device can be con-

nected at a time.

Pairing a New Device by Selecting

Phone/Call

Press the

PHONE

key or key in

the steering wheel control. ▶ Pair your car

after your mobile phone detects the

Bluetooth device. ▶ Enter the passkey or

accept the authorization popup. ▶

Connect Bluetooth.

Pairing a New Device Through the

Phone Settings

Press the

SETUP

key. ▶ Select

Phone

▶ Select

Bluetooth Connection

. ▶ Select

Add New

. ▶ Pair your car after your

mobile phone detects the Bluetooth

device. ▶ Enter the passkey or accept

the authorization popup. ▶ Connect

Bluetooth.

The default passkey is 0000.

The vehicle name above is an example.

Check the actual information on the product.

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting

Phone/Call

Press the

PHONE

key or key in

the steering wheel control. ▶ Select the

name of the device to connect. ▶ Connect

Bluetooth.

UMaD2F3001EU UMaD2F3002EU

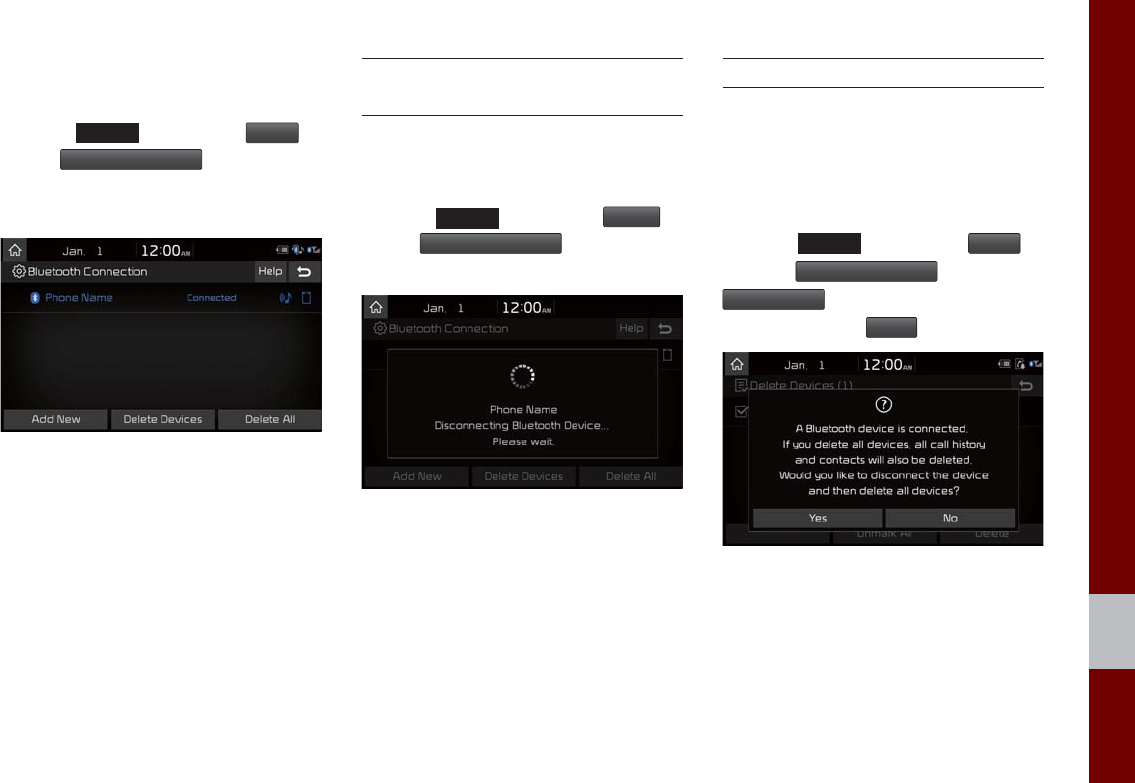

Bluetooth Connection I 3-5

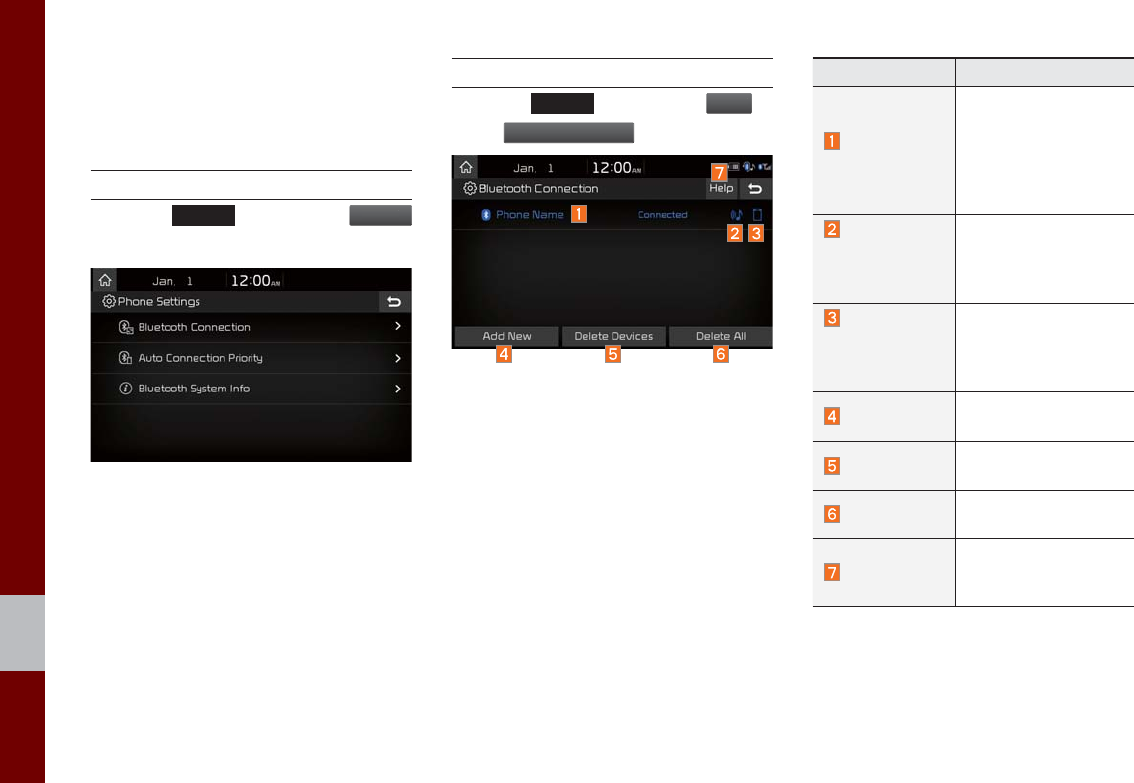

Connecting Devices Through the

Phone Settings

Press the

SETUP

key. ▶ Select

Phone

. ▶

Select

Bluetooth Connection

. ▶ Select the

name of the device to connect. ▶ Connect

Bluetooth.

Disconnecting

Bluetooth Devices

Disconnects Bluetooth devices that are

connected.

Press the

SETUP

key. ▶ Select

Phone

. ▶

Select

Bluetooth Connection

. ▶ Select the

name of the device to disconnect.

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you

added. Note that deleting a Bluetooth

device will delete all Call History and

Contact Info downloaded along with it.

Press the

SETUP

key. ▶ Select

Phone

. ▶

Select

Bluetooth Connection

. ▶ Select

Delete Devices

. ▶ Select the device name

to delete. ▶ Select

Delete

UMaD2F3003EU UMaD2F3004EU UMaD2F3005EU

3-6 I Bluetooth

Bluetooth Phone

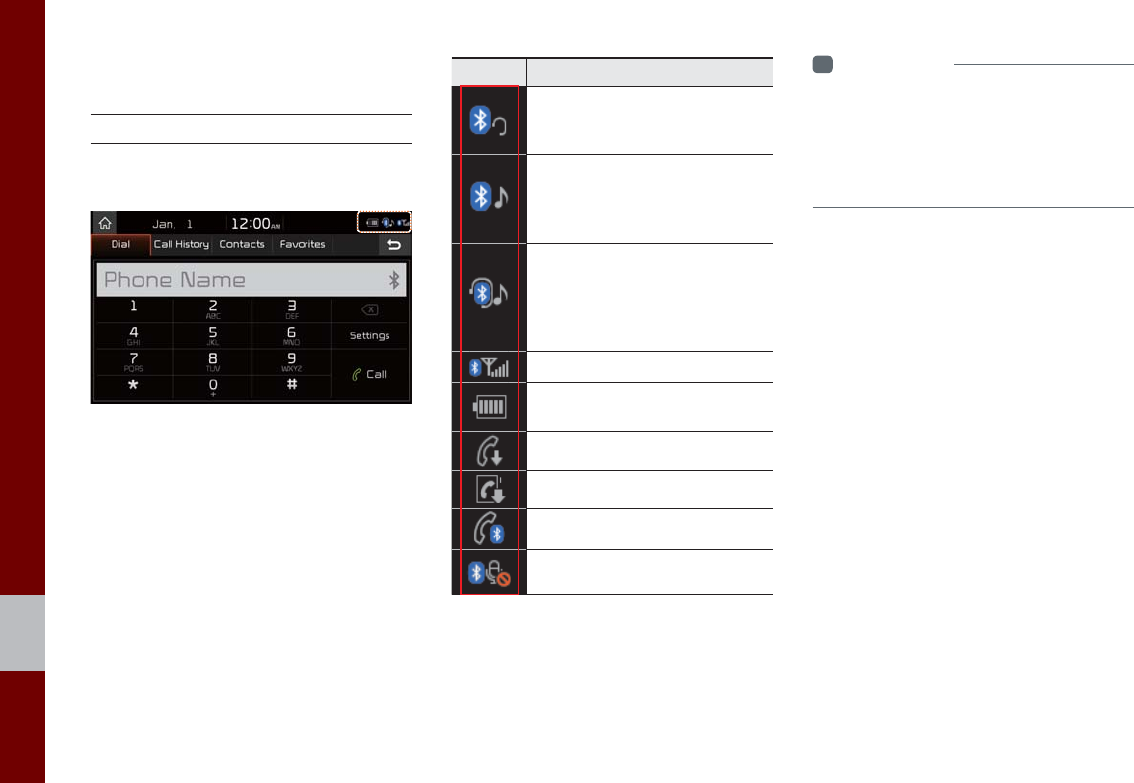

Phone Status Icons

Shows the current phone status in the

right top of the display.

Icons Description

You can use Bluetooth phones

when a Bluetooth Hands-free

connection is established.

You can use Bluetooth audio

features when a Bluetooth

audio connection is estab-

lished.

You can use Bluetooth phones

and audio features when both

Bluetooth Hands-free and

audio connections are estab-

lished.

Call signal strength indicator

Battery level of the Bluetooth

devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Information

• The battery level icon and the call signal

strength indicator may not be supported in

some Bluetooth devices.

• The battery level may differ from the actual

level remaining

UMaD2F3006EU

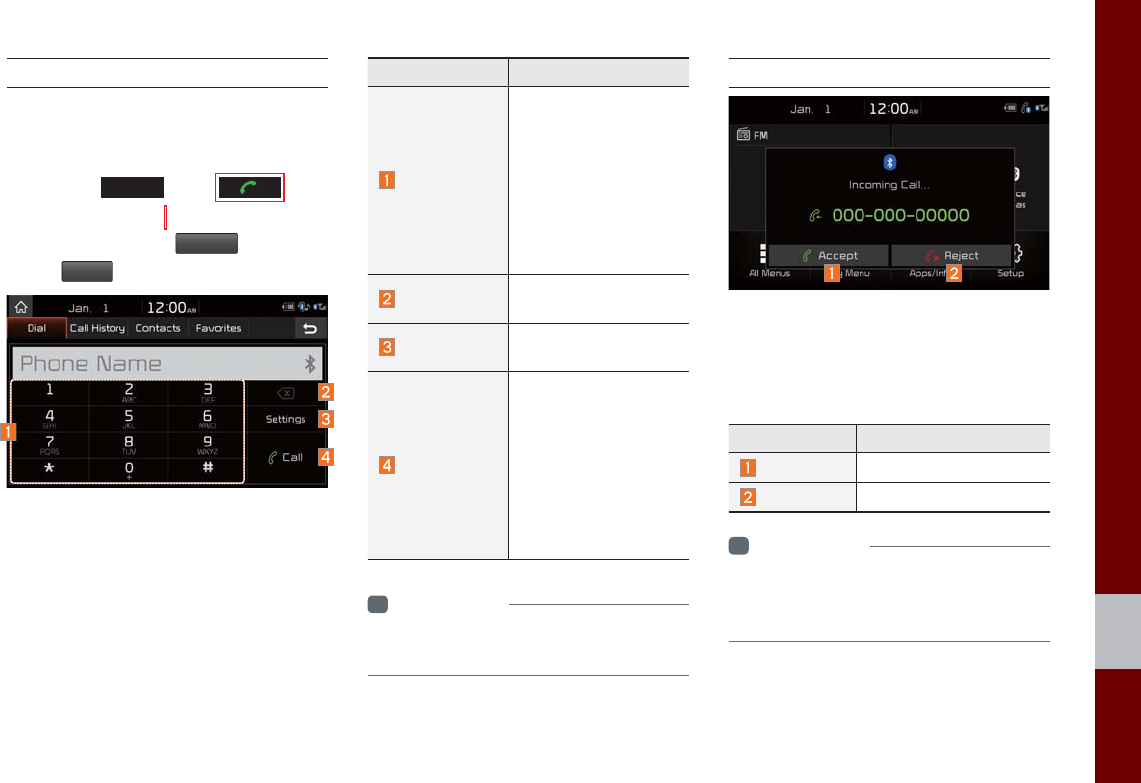

Bluetooth Phone I 3-7

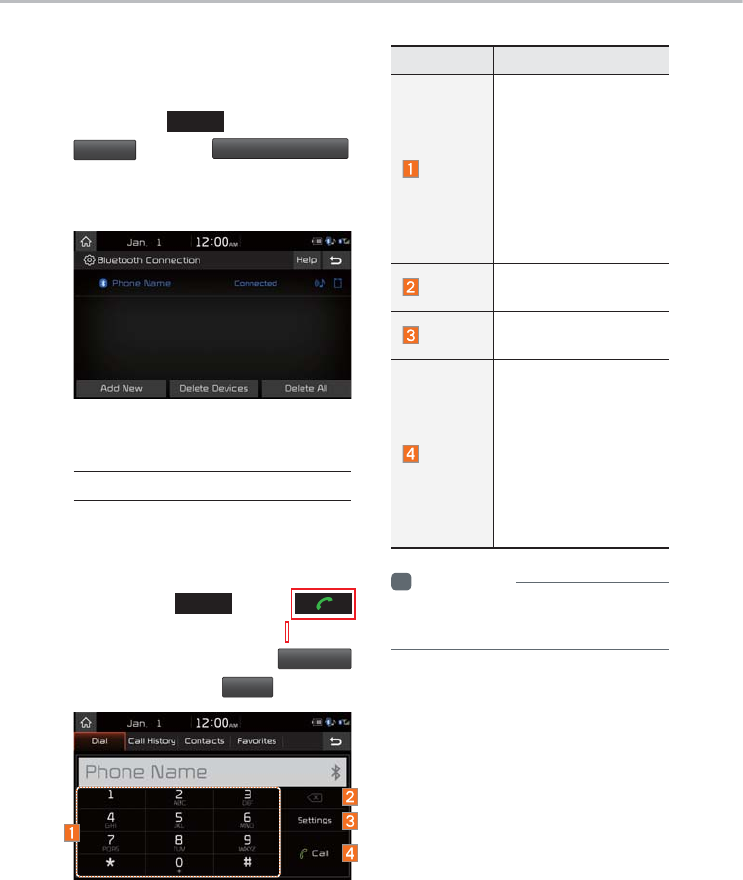

Dial

Dials a call after the Bluetooth devices are

connected.

• Press the

PHONE

key or key in

the steering wheel control.

• You can also select

All Menus

icon ▶ and

then

Phone

icon.

Name Description

Keypad

Use the keypad to

enter the phone

number that you want

to call. Press and hold

the last number of

a speed dial to dial

a number that you

added to the Speed

Dial list in the phone

Delete Deletes the numbers

that you entered.

Settings Moves to a screen of

Phone Settings.

Call

Makes a call after

you dial a number

and select CALL. If

the number is listed

in Dialed Calls, you

can select the number

and press CALL to

automatically dial that

number again.

Information

• Some types of mobile phones may not

support the Speed Dial function.

Accept/Reject Call

If there is an incoming call after you made

a Bluetooth connection, a popup message

will appear.

Name Description

Accept Answers the call.

Reject Ignores the call.

Information

• In some mobile phones, the caller's number

may not be displayed, and the Reject feature

may not be supported.

UMaD2F3007EU UMaD2F3008EU

3-8 I Bluetooth

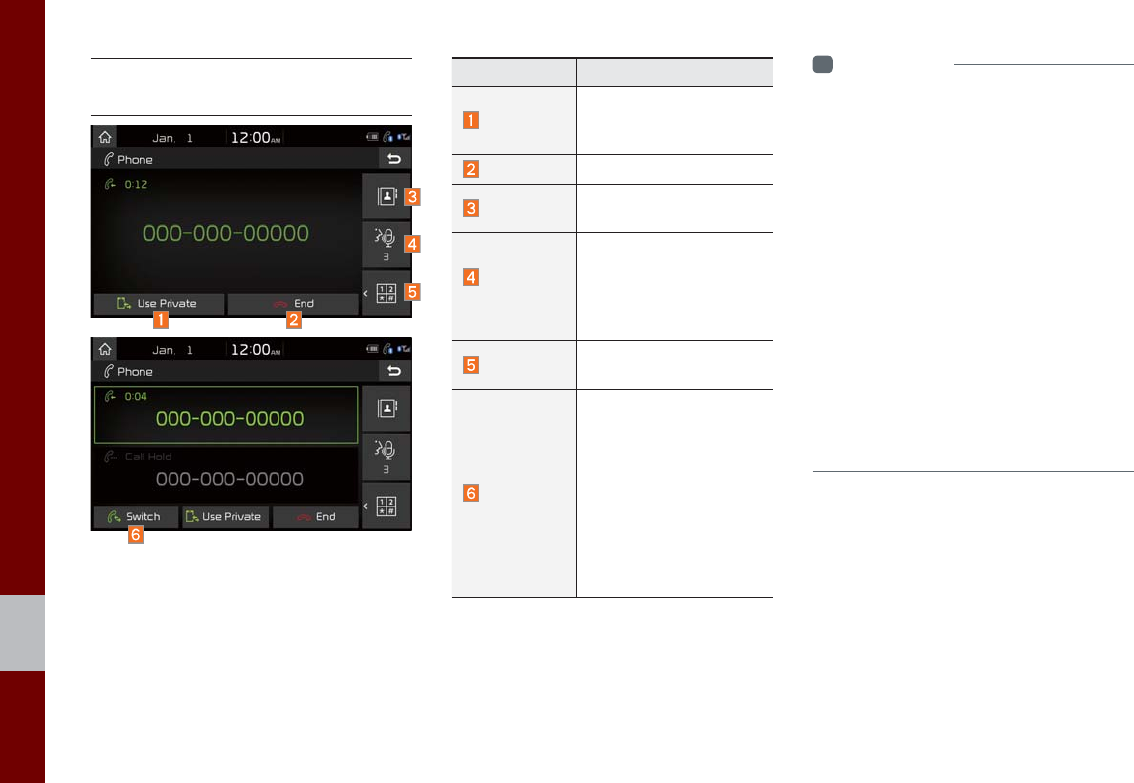

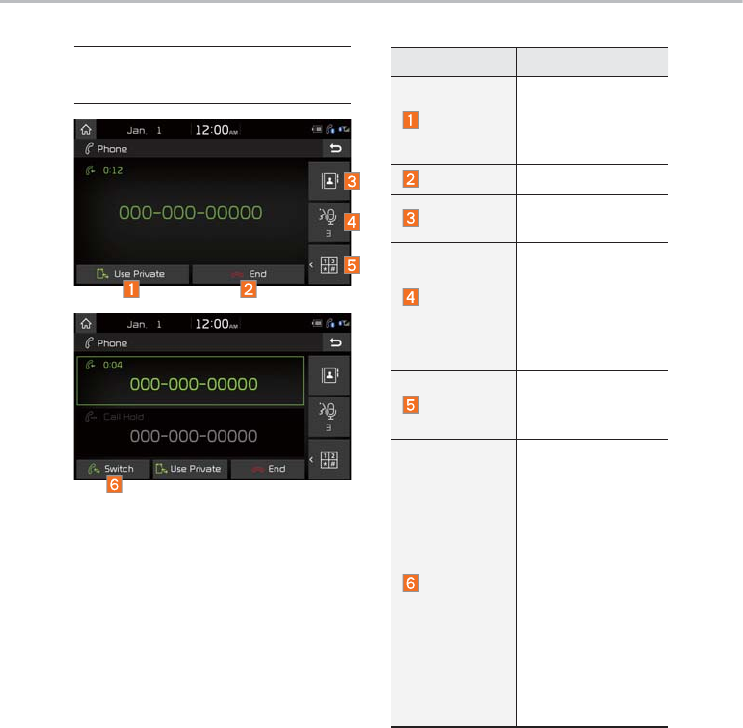

Using the Menu During

a Phone Call

When making a call, you can use the fol-

lowing menu items.

Name Description

Use Private

Switches a voice call

from the car Hands-free

to the mobile phone.

End Ends a call.

Contacts Displays the Contacts

list.

Outgoing

Volume

Displays the Mic Volume

settings. You can adjust

the in-call volume that

the other party hears

(level 1 - 5).

Keypad Moves to a screen for

entering ARS numbers.

Switch

Switches to a call on

hold, if any. You can also

switch calls by select-

ing the number in the

Information Display. The

Switch function switches

the current call to a

waiting call in order to

answer a new incoming

call.

Information

• If the caller's number is listed in Contacts, the

caller's name will be displayed. Otherwise,

only the number will be displayed. In some

mobile phones, the phone number may not

be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as

Radio and Settings.

• Depending on handset types, the in-call

volume the other party hears may differ. If the

other party hears your voice too low or too

loud, adjust the mic volume.

UMaD2F3009EU

UMaD2F3010EU

Bluetooth Phone I 3-9

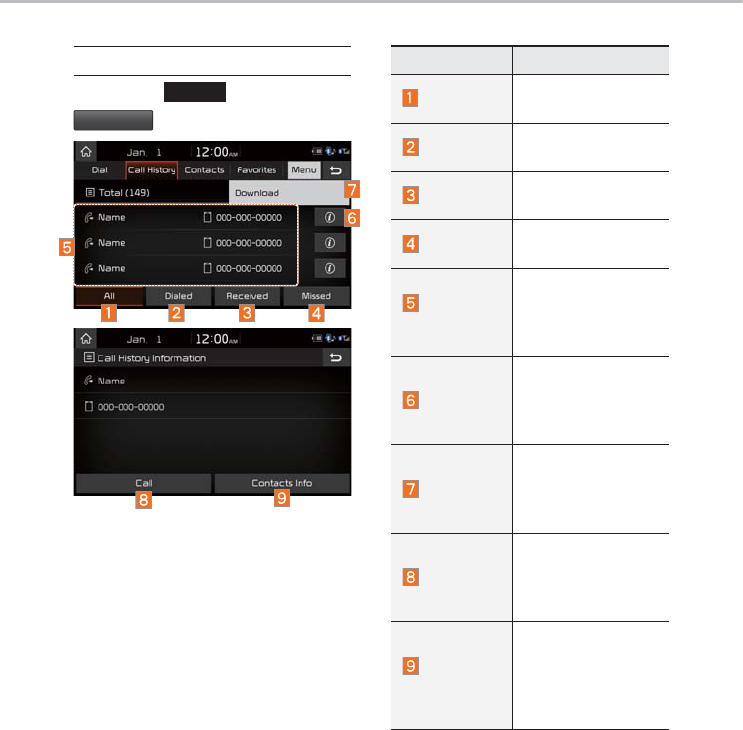

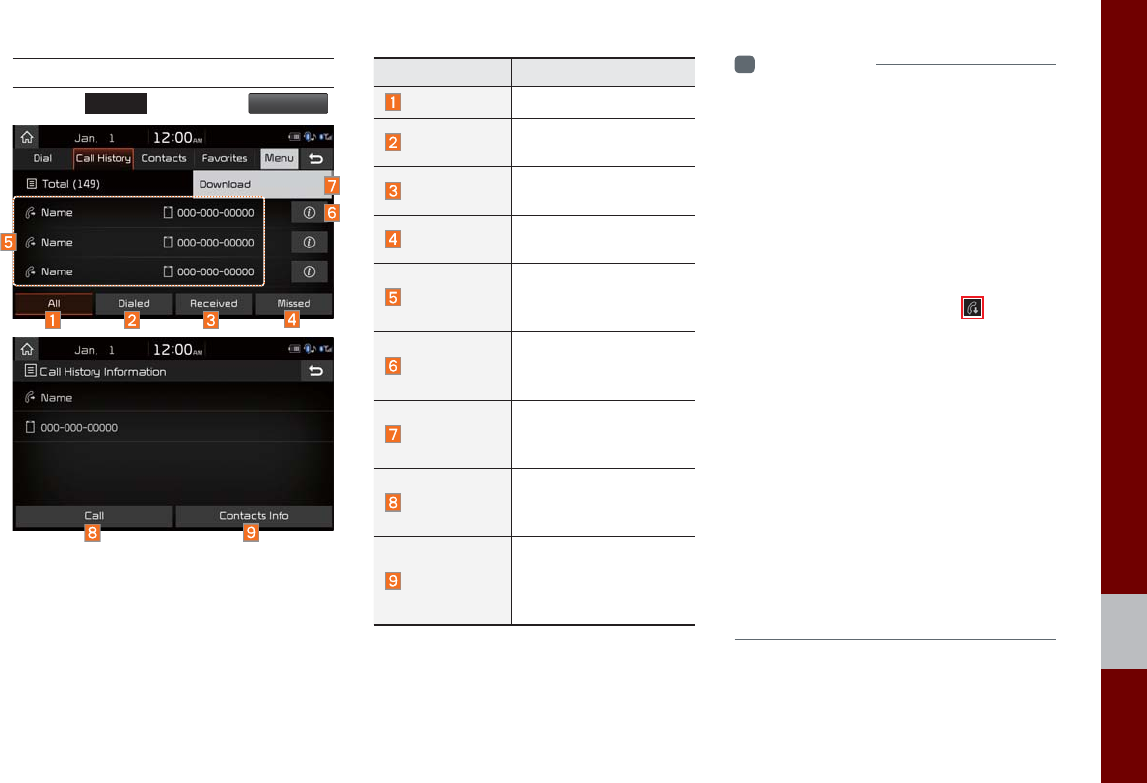

Call History

Press the

PHONE

key, and then

Call History

Name Description

All Lists the all call history.

Dialed Lists the calls that you

made.

Received Lists the calls that you

have received.

Missed Lists the calls you

missed.

Call History

Displays all of your call

history. Select from the

list to dial the number.

Information

Displays the details of

your call history

information.

Download

Downloads the call his-

tory information from

your mobile phone.

Call

Dials the selected

number in your Call

History Information.

Contacts Info

Goes to the Contact

Information screen if

the number has been

stored.

Information

• In some mobile phones, call records may

not be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off

on the Bluetooth device, the call history

download will fail.

• Some devices require a device authentication

for downloading your call history. If download

fails, check if the Bluetooth settings or

display status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device

supports download feature. For details

regarding Bluetooth-supported devices and

their functional compatibility, visit http://www.

kia.com

UMaD2F3012EU

UMaD2F3011EU

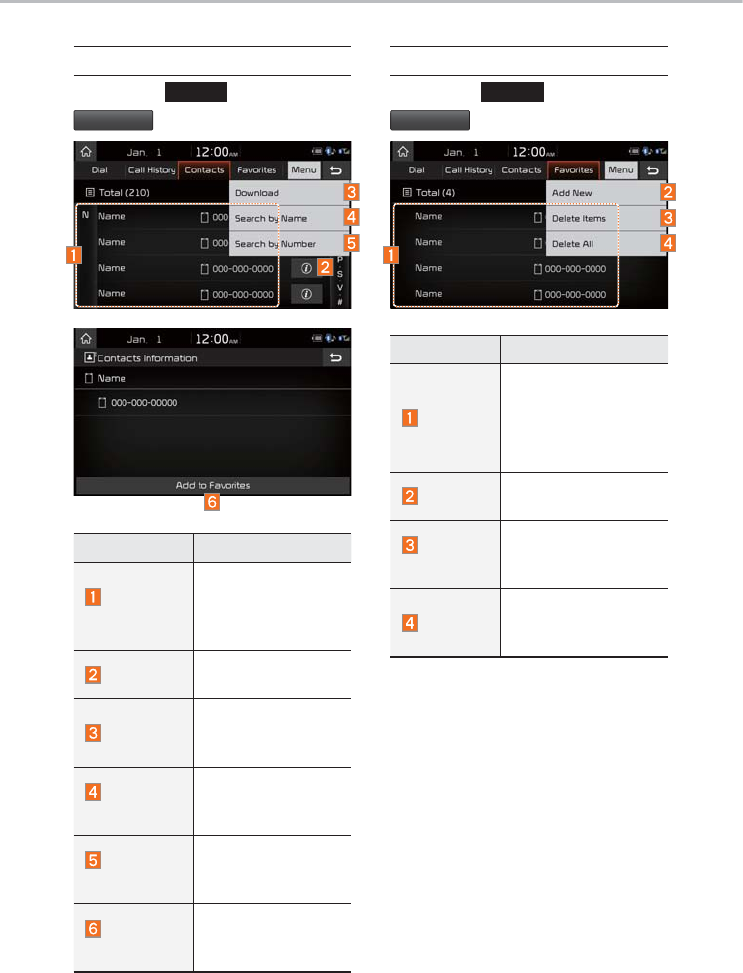

3-10 I Bluetooth

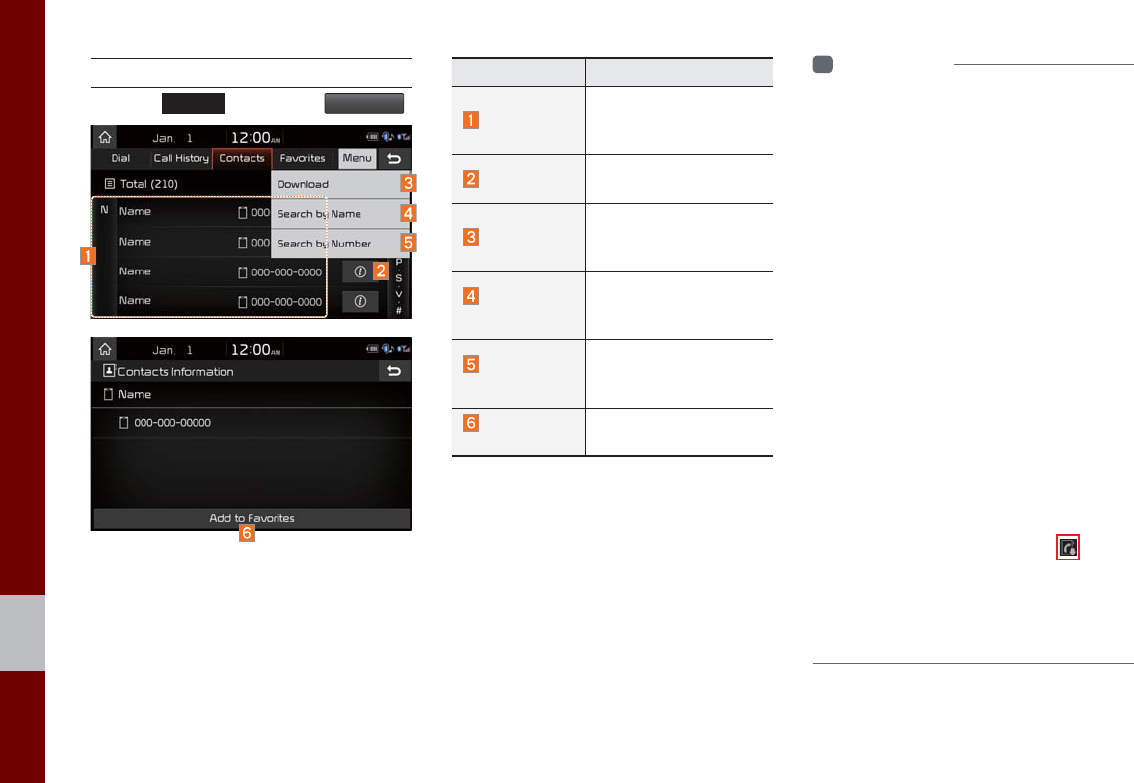

Contacts

Press the

PHONE

key, and then

Contacts

Name Description

Contacts List

The list of Contacts.

Select from the list to

dial the number.

Information Displays contact infor-

mation.

Download

Downloads contacts

from your mobile

phone.

Search by

Name

Searches Contacts

for the name that you

enter.

Search by

Number

Searches Contacts for

the number that you

enter.

Add to

Favorites

Adds a phone number

to Favorites.

Information

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth

device.

• You cannot edit or delete downloaded

phone numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is

disconnected, the downloaded data will

remain. (Note that deleting a paired phone

will also delete all downloaded Contacts

and Call History data)

• Downloaded phone numbers may be lost

depending on the condition of the head

unit. Keep your important data in a safe

place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same

time by default.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on

your Bluetooth device.

UMaD2F3013EU

UMaD2F3014EU

Bluetooth Phone I 3-11

• Some devices require a device authentication

for downloading your contacts. If download

fails,check your phone screen and conﬁ rm the

download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth

device supports contacts download. For

Bluetooth supporting devices details and

compatibility, visit http://www.kia.com

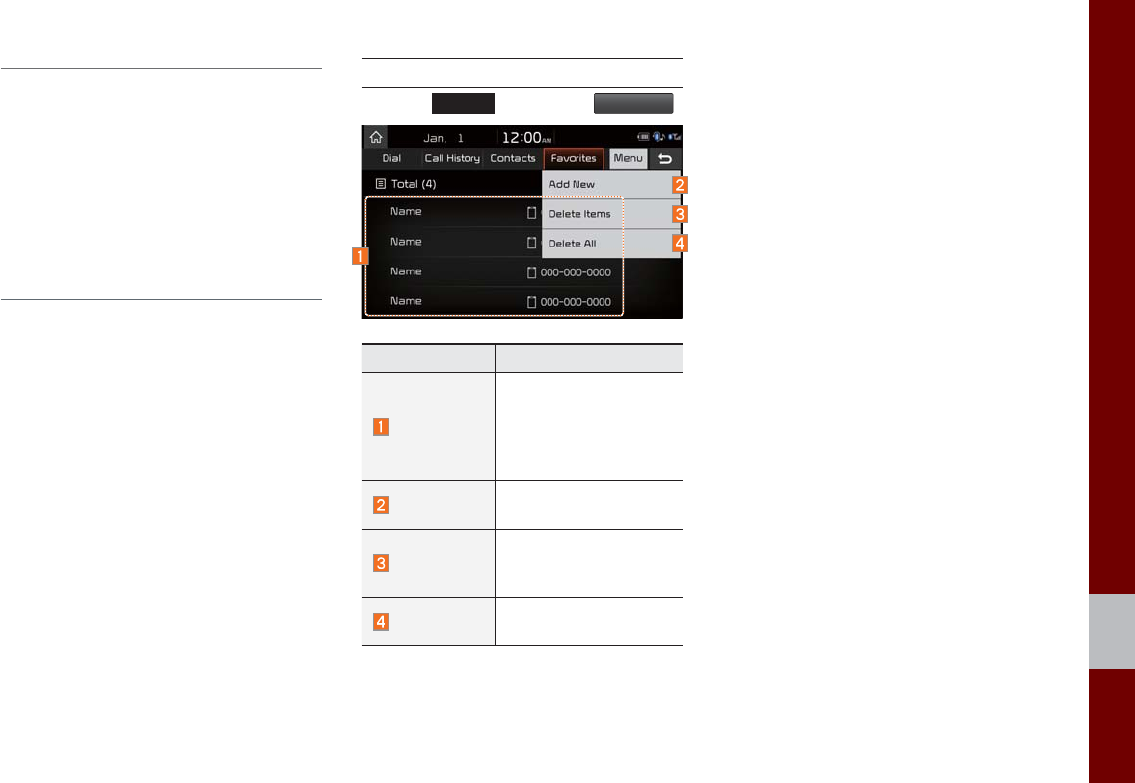

Favorites

Press the

PHONE

key, and then

Favorites

Name Description

Favorites

Lists the phone

numbers saved as

Favorites. Select from

the list to dial the num-

ber.

Add New Adds a new number to

Favorites.

Delete Items

Deletes numbers

that you select from

Favorites.

Delete All Deletes all of the

numbers from Favorites.

UMaD2F3015EU

MEMO

The 911 Connect feature may not operate in the following situations

About UVO eServices

Before using UVO eServices

Connecting Bluetooth

Pair a device from Bluetooth-enabled phone

Connecting to smartphone via USB

911 Connect

Roadside Assist

Vehicle Diagnostics

My Car Zone

Parking Minder

eServices Guide

part.4 UVO eServices

4-2 I UVO eServices

UVO eServices

The 911 Connect feature may

not operate in the following situations

When the vehicle ignition is not turned on.

When the phone Bluetooth® feature is set to off.

When the phone Bluetooth® cannot be connected or becomes

disconnected.

When there are no phones paired with the vehicle.

When cellular service is unavailable.

When the power turns off due to phone power (battery) issues.

When a Bluetooth® device without phone feature support has

been connected, such as an MP3 device.

When the system is booting.

When the system power supply is unstable.

When the attempted call is blocked due to user operations.

When the 9-1-1 call is unstable due to phone or other commu-

nication network issues.

When the call feature is not operating due to phone settings set

by the user.

When the phone cannot be controlled via Bluetooth® due to

phone specifications or characteristics.

Using UVO eServices and Precautions I 4-3

Using UVO eServices and Precautions

Download the UVO eServices App and install it on your smartphone.

The app can be downloaded from your smartphone’s app store.

For using UVO eServices call features such as 911 Connect,

Roadside Assist and eServices Guide, a smartphone must be

connected with the vehicle via Bluetooth. Pair and connect your

smartphone with the vehicle. For information on connecting

your Bluetooth device, refer to the smartphone user’s manual

and instructions on the Phone Help screen on your radio. Up to

five Bluetooth devices can be paired to the vehicle and only

one device can be connected at a time.

For using data communication of Vehicle Diagnostics, Parking

Minder, and My Car Zone, smartphone must be connected with

the vehicle via USB cable.

※

The use of genuine cable is recommended. (The use of

other products may result in abnormal or non-proper operation.)

Some UVO eServices features will only be available when your

smartphone is connected with the vehicle via USB and the

UVO eServices App is running.

UVO eServices may not operate properly with incompatible

smartphones. To view the list of compatible smartphones,

please visit MyUVO.com

Communication between the vehicle and smartphone app may

temporarily disconnect depending on the phone state.

If the feature is not operating properly, you may need to reset

the UVO eServices App or the smartphone and try again

according to the following steps.

1. Try feature again in the Head Unit

2. Restart smartphone app

3. Re-connect Bluetooth and USB cable

4. Reset smartphone 5. Delete Device and pair again

Some services use the customer’s mobile phone data plan for

data communication. Therefore, the features will function in

accordance with the cellular plan.

Use of the most up-to-date app version is recommended.

For smartphone related inquiries, please visit MyUVO.com.

4-4 I UVO eServices

About UVO eServices

UVO eServices provides the following features through Bluetooth

and/or USB connection to your smartphone.

Name Connection Description

911

Connect BT

If an airbag deploys, your vehicle

automatically initiates a call to 9-1-1

and sends your vehicle’s location

information to the 9-1-1 operator.

Roadside

Assist BT & USB If a diagnostic issue exists, you can

connect with a Roadside Assist.

Vehicle

Diagnostics USB

Informs you if there is a diagnostic

issue found in your vehicle. If an

issue is found, you can contact a

call center through Roadside Assist

or reserve an appointment with

your preferred Kia dealer through

Schedule Service.

My Car

Zone USB

Keeps track of predefined triggered

alerts such as Speed Alert and

Curfew Limit Alert from the My Car

Zone feature.

Parking

Minder USB

Saves the location of your parked

vehicle on your UVO eServices

smartphone app.

You can check where your vehicle is

parked through the UVO eServices

App on your smartphone.

eServices

Guide BT Receive guidance on how to use

UVO eServices.

Information

• 24-hour Roadside Assistance is a

service plan provided by Kia Motors

America, Inc. Certain limitations apply. Coverage details are available

in the Kia Warranty and Consumer Information Manual. For access

to Enhanced Roadside Assistance, a conn

ected mobile phone via

Bluetooth within the cellular service coverage area is required.

To use UVO eServices, the following conditions must be met.

1. The UVO eServices smartphone app must be installed and

you must log in using your MyUVO account credentials.

2. The smartphone must be connected via Bluetooth and USB

cable to the vehicle.

3. Once this is complete, eServices must be activated.

Pair a device from Bluetooth-enabled phone I 4-5

Before using UVO

eServices

Installing the UVO eServices App on your

smartphone

1. Download and install the UVO eSer-

vices App on your smartphone.

The app can be downloaded from the

Apple App Store or Google Play.

2. Register your vehicle and account at

MyUVO.com

Note: MyUVO.com is accessible from

your phone’s browser.

3. Start the UVO eServices App on your

smartphone and log in.

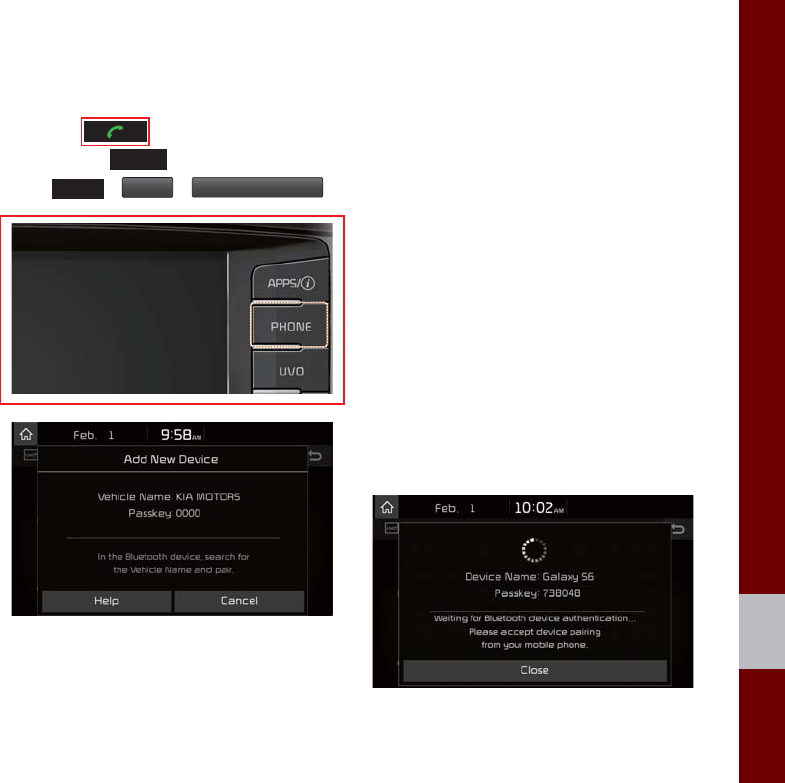

Connecting Bluetooth

Press the key on the steering wheel

or press the

PHONE

key on the head unit.

Press

SETUP

▶

Phone

▶

Bluetooth Connection

Pair a device from

Bluetooth-enabled phone

1. Turn on the Bluetooth feature on your

smartphone’s Bluetooth settings screen.

2. Search Bluetooth devices on your

smartphone.

3. Select the Vehicle Name on the phone

that matches the name shown on the

screen.

4. Verify the passkey shown on the touch-

screen.

If the phone supports SSP, check the

passkey on your Bluetooth® device and

confirm the authentication.

UMaD2F4001EU UMaD2F4002EU

4-6 I UVO eServices

Connecting to

smartphone via USB

1. Connect your smartphone with the vehi-

cle via USB cable.

NOTICE

• For smartphone related inquiries, please visit

MyUVO.com.

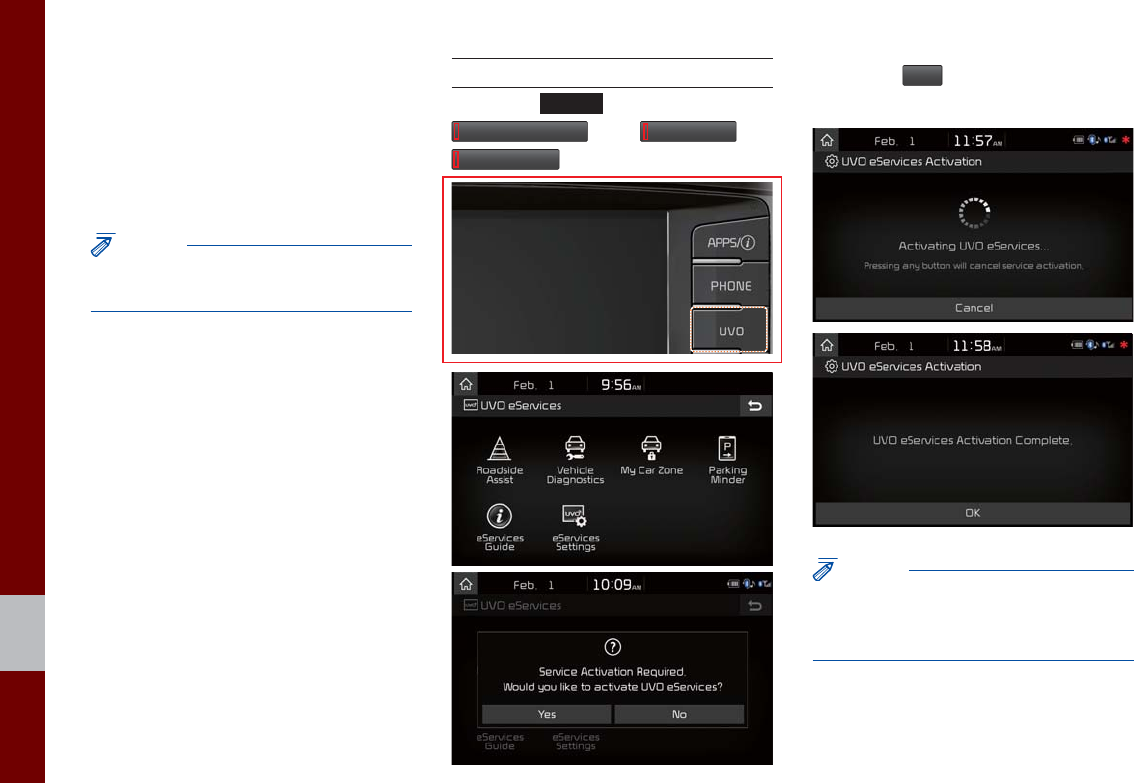

Activating UVO eServices

Press the

UVO

key, then press the

Vehicle Diagnostics

My Car Zone

Parking Minder

button.

Press the

Yes

button, then the UVO

eServices activation process will begin.

NOTICE

• Before activating UVO eServices, ensure

your phone is connected to the vehicle via

USB cable.

UMaD2F4004EU UMaD2F4006EU

UMaD2F4003EU UMaD2F4005EU

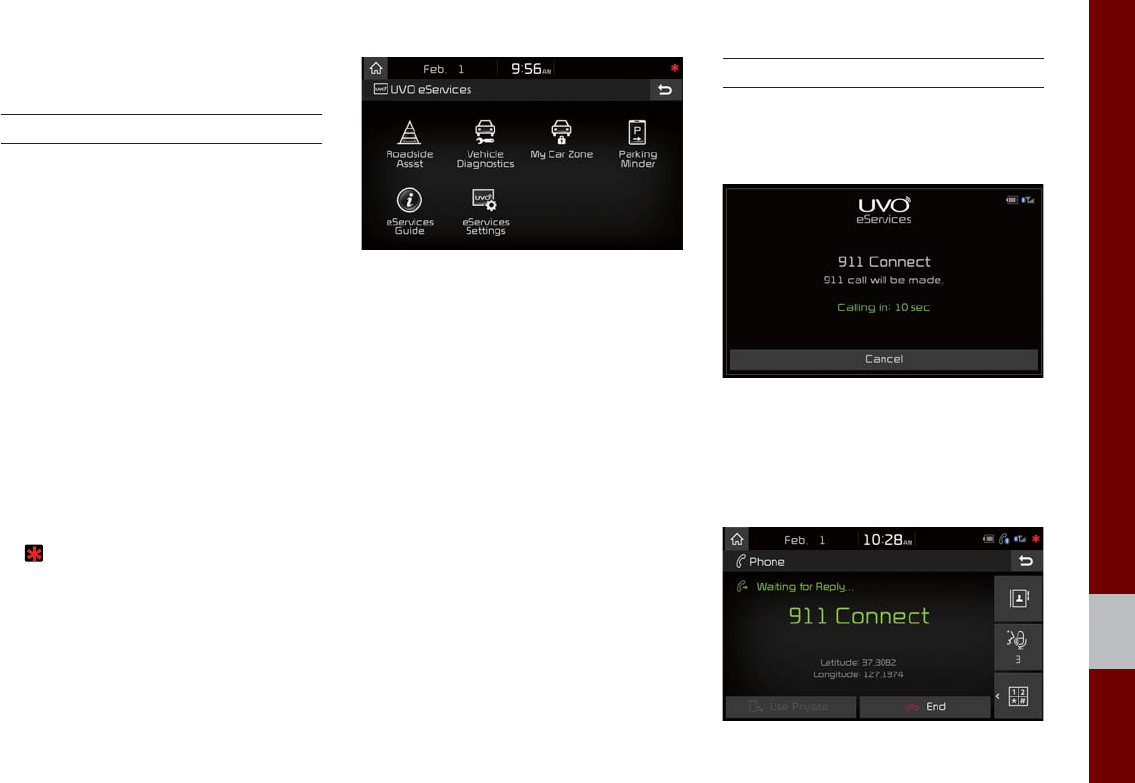

911 Connect I 4-7

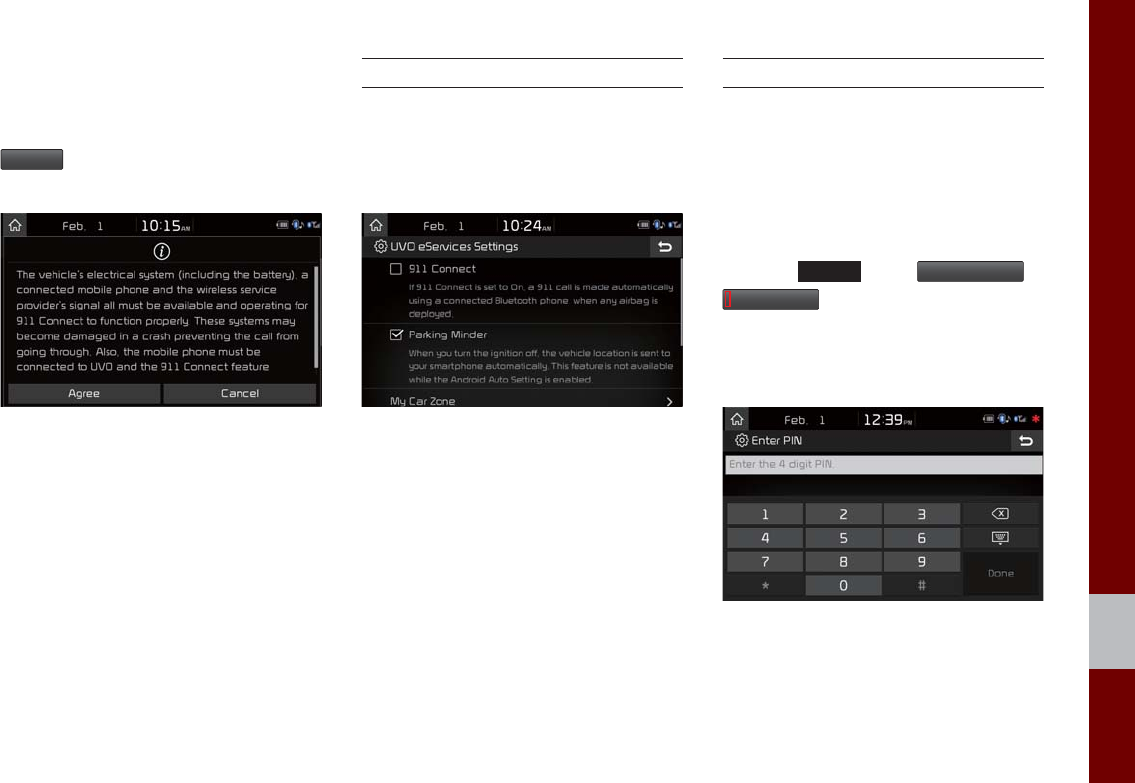

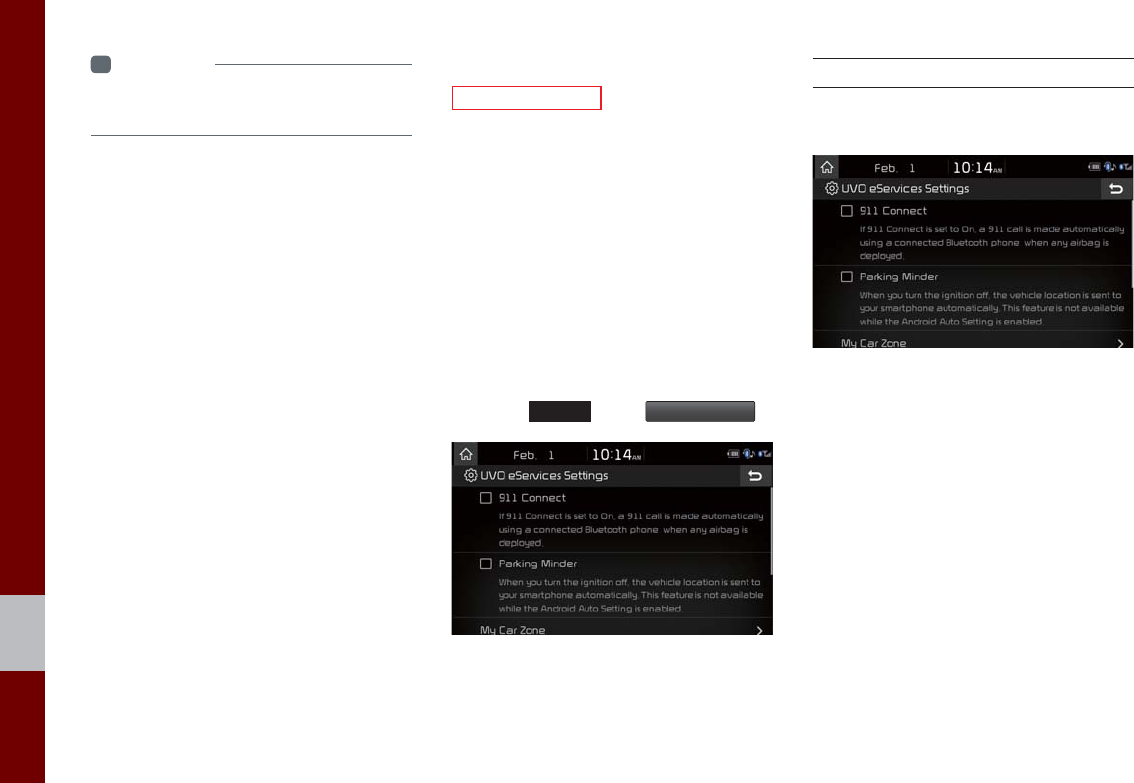

911 Connect

If an airbag deploys, your vehicle automat-

ically initiates a call to 9-1-1 and sends

your vehicle’s location information to the

9-1-1 operator.

The 911 Connect feature is available only

when the mobile phone is connected via

Bluetooth.

By default, this feature is turned off. To turn

it on, you must turn it on in the eServices

Settings menu. By enabling this feature,

you are agreeing to the 911 Connect

A ( ) icon is displayed at the top of the

touch screen as shown below when phone

is connected to UVO eServices system via

Bluetooth and the 911 connect feature is

turned on.

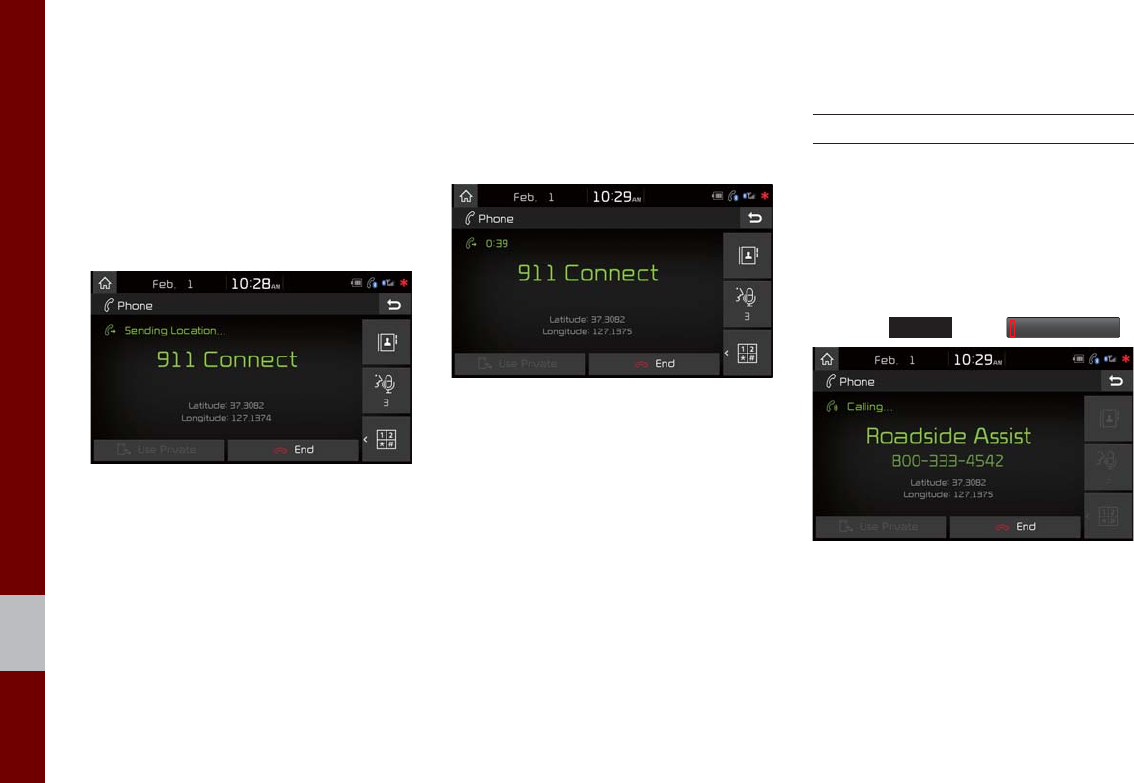

Initiating a 911 Call

If an airbag deploys, the following screen

is displayed and a call is automatically

placed to 9-1-1 after 10 seconds.

Once a call is connected with a 9-1-1

operator, it is possible to request emer-

gency services to be dispatched to your

location.

UMaD2F4009EUUMaD2F4007EU

UMaD2F4008EU

4-8 I UVO eServices

The 9-1-1 operator may request informa-

tion on the current location of your vehicle.

When the 9-1-1 operator requests your

vehicle location, “Sending Location” is

displayed on the screen and the vehicle

location is automatically sent to the 9-1-1

operator.

When the 9-1-1 operator attempts to talk

to the driver again, the call time is dis-

played and allows the driver to speak with

the 9-1-1 operator.

Roadside Assist

If there is any issues in the vehicle, you

can connect with a Roadside Assist agent.

The Roadside Assist feature can be used

only when your phone is connected via

Bluetooth.

Press the

UVO

key ▶

Roadside Assist

UMaD2F4010EU UMaD2F4011EU UMaD2F4012EU

Vehicle Diagnostics I 4-9

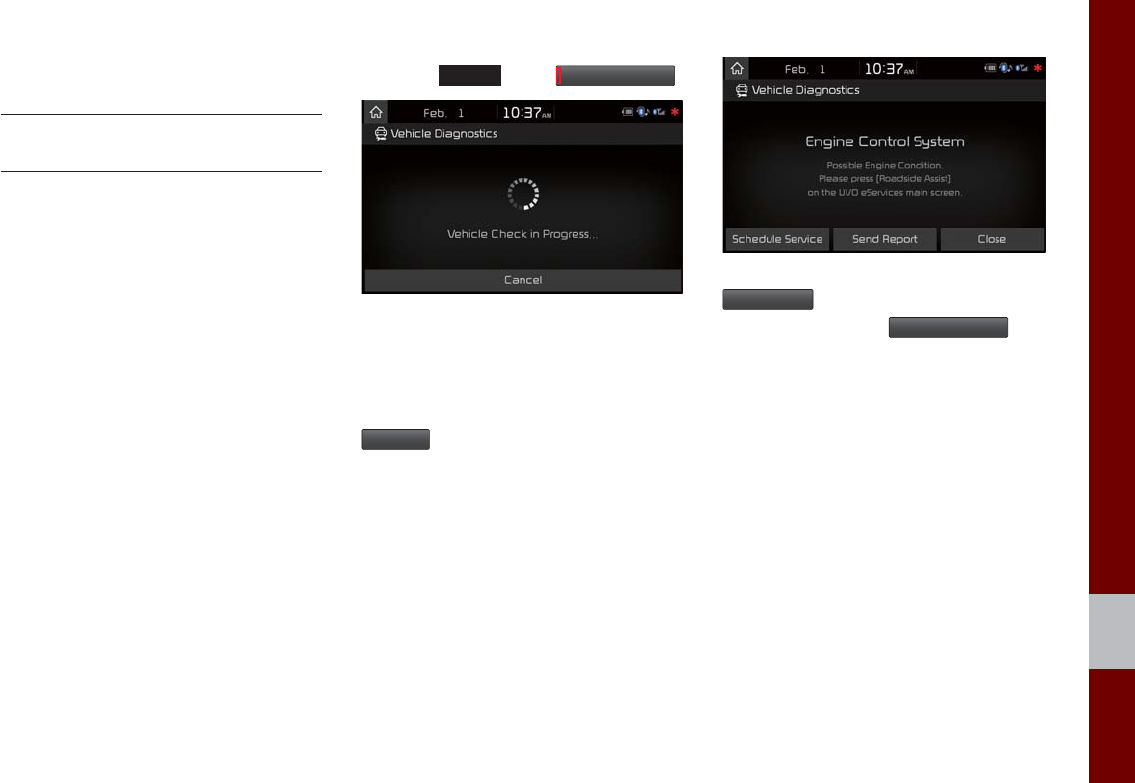

Vehicle Diagnostics

Conducting Vehicle

Diagnostics

Vehicle Diagnostics is available only when

the ignition is turned on and the vehicle is

parked.

It also requires that UVO eServices is

activated, and the Phone is connected

via USB cable before starting Vehicle

Diagnostics.

Press the

UVO

key ▶

Vehicle Diagnostics

The Vehicle Diagnostics process will begin.

When a diagnostics check is in progress,

keep the vehicle in park with the ignition

on. To cancel diagnostics, press the

Cancel

button on the touch screen or

any hardkey.

If diagnostic issues are found, press the

Send Report

button to send to your MyUVO

account or press the

Schedule Service

but-

ton to schedule an appointment with your

preferred or nearby Kia dealer.

UMaD2F4013EU UMaD2F4014EU

4-10 I UVO eServices

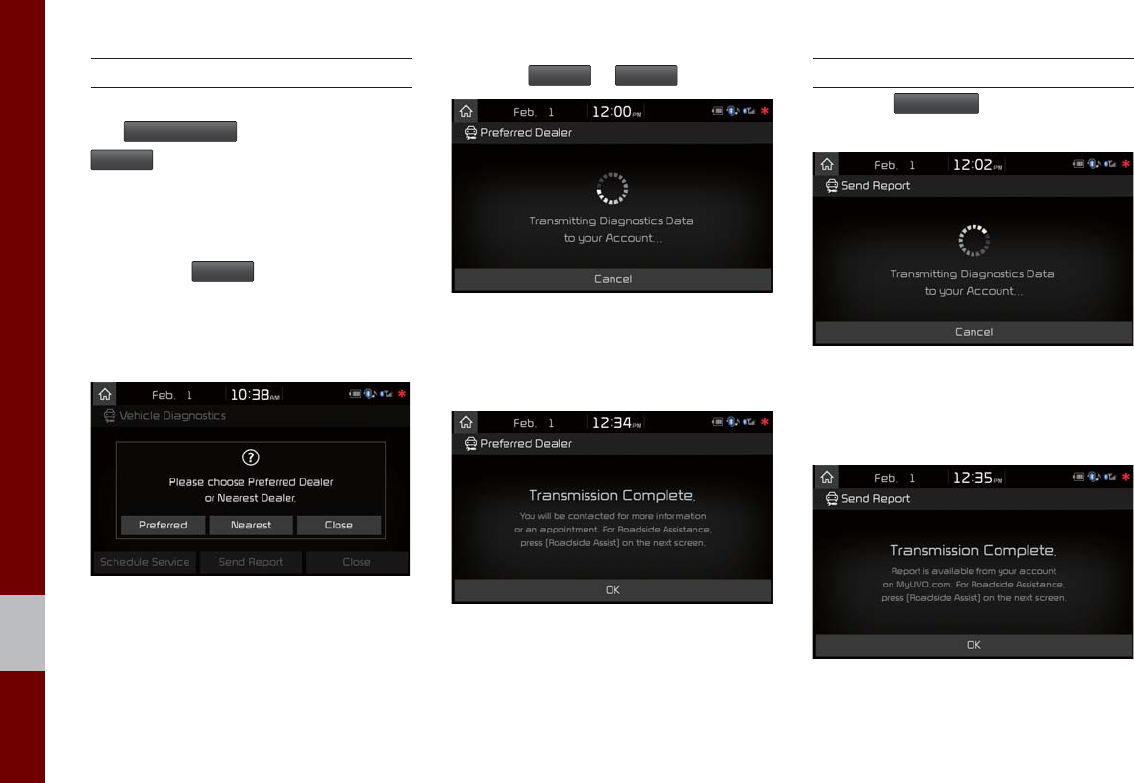

Schedule Service

When scheduling an appointment using

the

Schedule Service

button, pressing the

Preferred

button will allow you to request an

appointment with your preferred Kia dealer

and send your vehicle’s diagnostics infor-

mation.

Pressing the

Nearest

button will allow you

to request an appointment with the near-

est Kia dealer and send your vehicle’s

diagnostics information.

Press the

Preferred

Nearest

button.

Request an appointment with Preferred or

Nearest Kia Dealer and send your vehi-

cle’s diagnostics data.

Send Report

Press the

Send Report

in the vehicle diag-

nostics result screen.

Vehicle Diagnostics Data is transmitted to

your account and you can see the report

on MyUVO.com

UMaD2F4015EU UMaD2F4017EU UMaD2F4019EU

UMaD2F4016EU UMaD2F4018EU

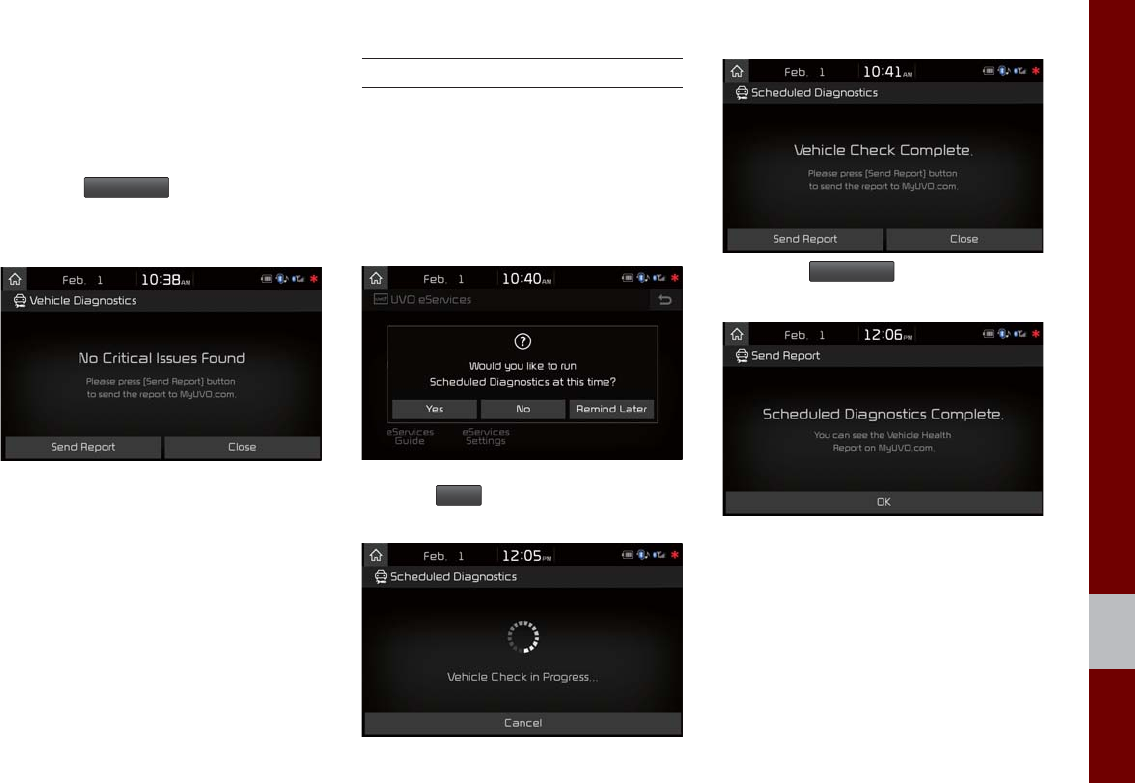

Vehicle Diagnostics I 4-11

Even if diagnostic issues are not found

after Vehicle Diagnostics, it is recom-

mended that you send the diagnostic

results to your MyUVO account.

Press the

Send Report

button to send the

diagnostics results to your MyUVO

account.

Scheduled Diagnostics

If you have set up Scheduled Diagnostics

on your UVO eServices App, a vehicle

diagnostics check will automatically start

on the day you selected.

On the date of the Scheduled Diagnostics,

the following window will be displayed.

Press the

Yes

button on the touch screen

to proceed with diagnostics.

Press the

Send Report

button to see the

Vehicle Health Report on MyUVO.com.

UMaD2F4022EU UMaD2F4024EUUMaD2F4020EU

UMaD2F4021EU UMaD2F4023EU

4-12 I UVO eServices

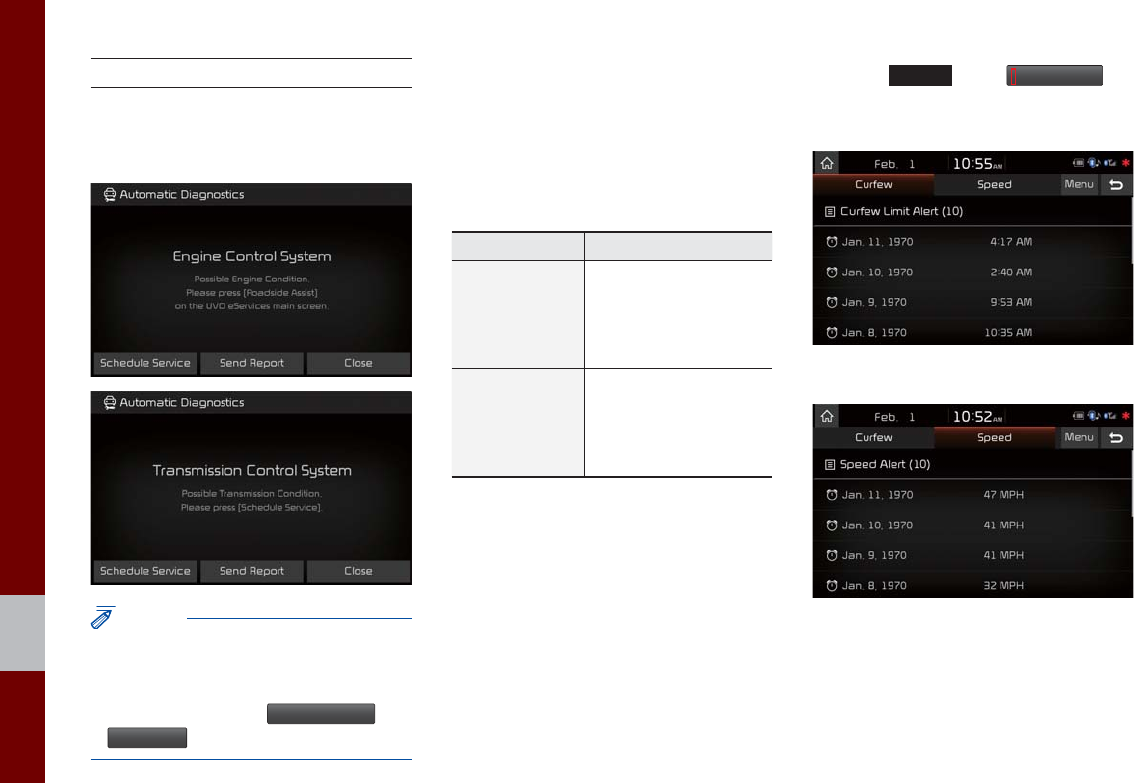

Automatic Diagnostics

If a critical diagnostics issue with your

vehicle’s powertrain is detected, Automatic

Diagnostics will be notified.

NOTICE

• The screen messages differ based on the

vehicle diagnostics severity. Ensure your

phone is connected to the system via USB

cable before using

Schedule Service

and

Send Report

My Car Zone

My Car Zone is a feature that provides

alerts and driving history for Curfew Limit

Alerts and Speed Alerts set by the user.

Name Description

Curfew Limit

Alert

Curfew Limit Alerts are

alerts that are triggered

when a driver is driving

within a predefined time

range.

Speed Alert

Speed Alerts are alerts

that are triggered when

a driver exceeds the

predefined maximum

speed.

My Car Zone features are supported only

when UVO eServices has been activated.

Press the

UVO

key ▶

My Car Zone

Curfew Limit Alerts History

Speed Alerts History

UMaD2F4026EU UMaD2F4028EU

UMaD2F4025EU UMaD2F4027EU

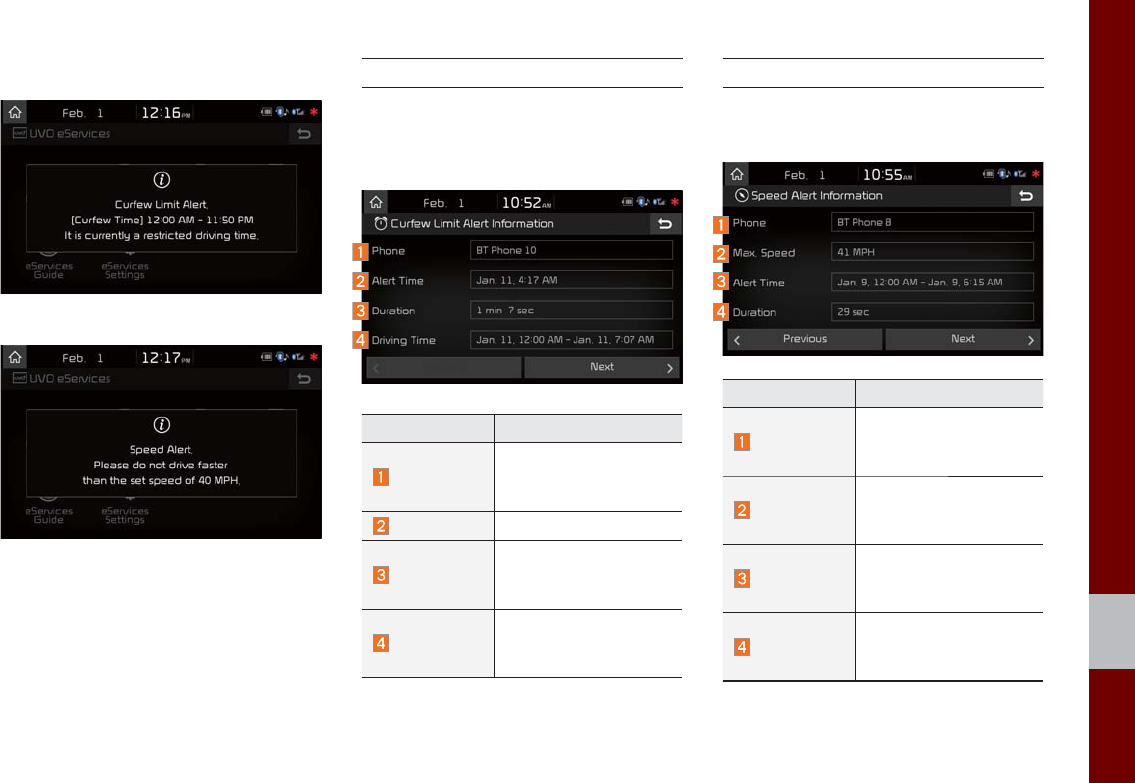

My Car Zone I 4-13

Curfew Limit Alert

Speed Alert

Curfew Limit Alert

You can check the Curfew Limit Alert

history for a list of past triggered curfew

alerts.

Name Description

Phone

Name of phone con-

nected upon triggered

curfew limit

Alert Time Initial alert time

Duration

Total duration of driving

while curfew limit was

triggered

Driving Time

Total driving time from

turning ignition on until

turning ignition off

Speed Alert

You can check the Speed Alert history for

triggered speed limit alerts of the vehicle.

Name Description

Phone

Name of phone con-

nected upon triggered

speed limit alert

Max. Speed

Maximum vehicle speed

upon triggered speed

limit alert

Alert Time

Time from first triggered

alert until last triggered

alert

Duration

Total triggered alert time

from turning ignition on

to turning ignition off

UMaD2F4029EU

UMaD2F4031EUUMaD2F4030EU UMaD2F4032EU

4-14 I UVO eServices

To check My Car Zone alert history from

your smartphone, you must first send the

alert history to your MyUVO account.

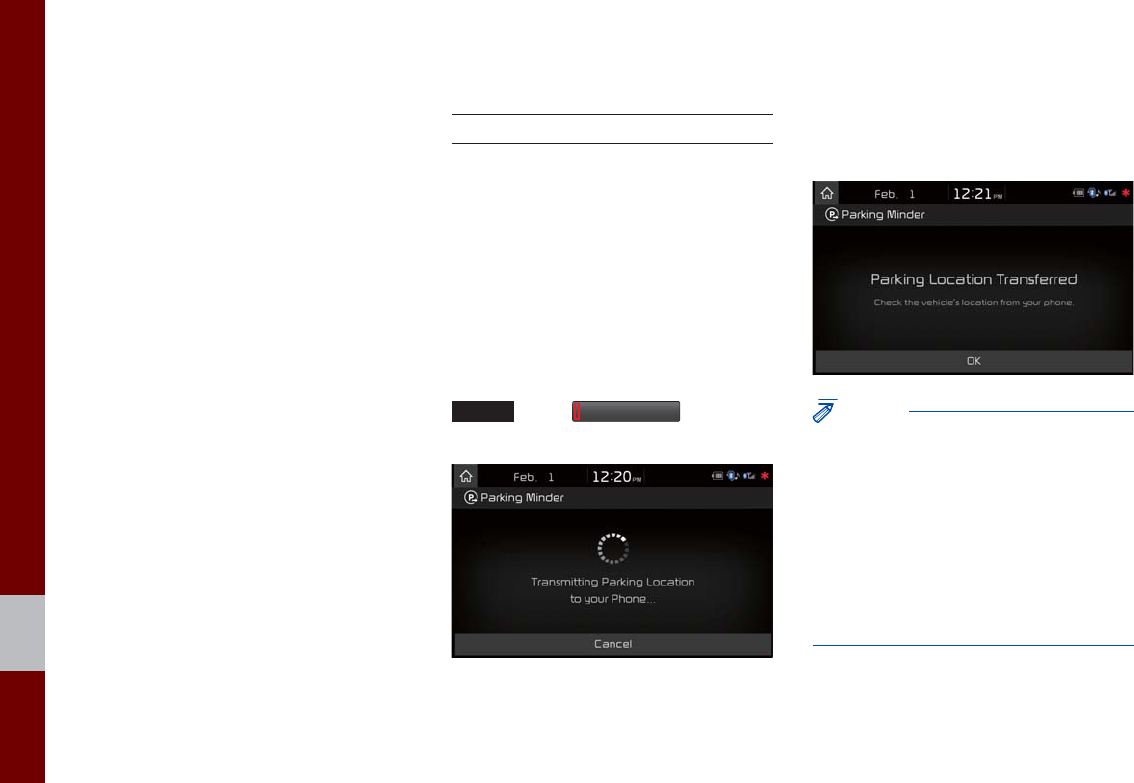

Parking Minder

Sending Parking Location

The location where your vehicle is cur-

rently parked can be sent to your smart-

phone.

Ensure that your smartphone is connected

via USB and the UVO eServices App is

running before using this feature.

After parking the vehicle, press the

UVO

key ▶

Parking Minder

to send the

vehicle’s location to your smartphone.

Once the parking location has been sent,

you can view your vehicle’s location from

the UVO eServices App on your smart-

phone.

NOTICE

• When the parking location is being sent, do

not drive the vehicle. Ensure that you have

logged into the UVO eServices App, and your

phone is connected to the multimedia system

via USB cable.

• When ignition is turned off while the phone is

connected via USB, Parking Minder can be

transferred automatically if the option is set up

in UVO eService Settings

UMaD2F4033EU UMaD2F4034EU

eServices Guide I 4-15

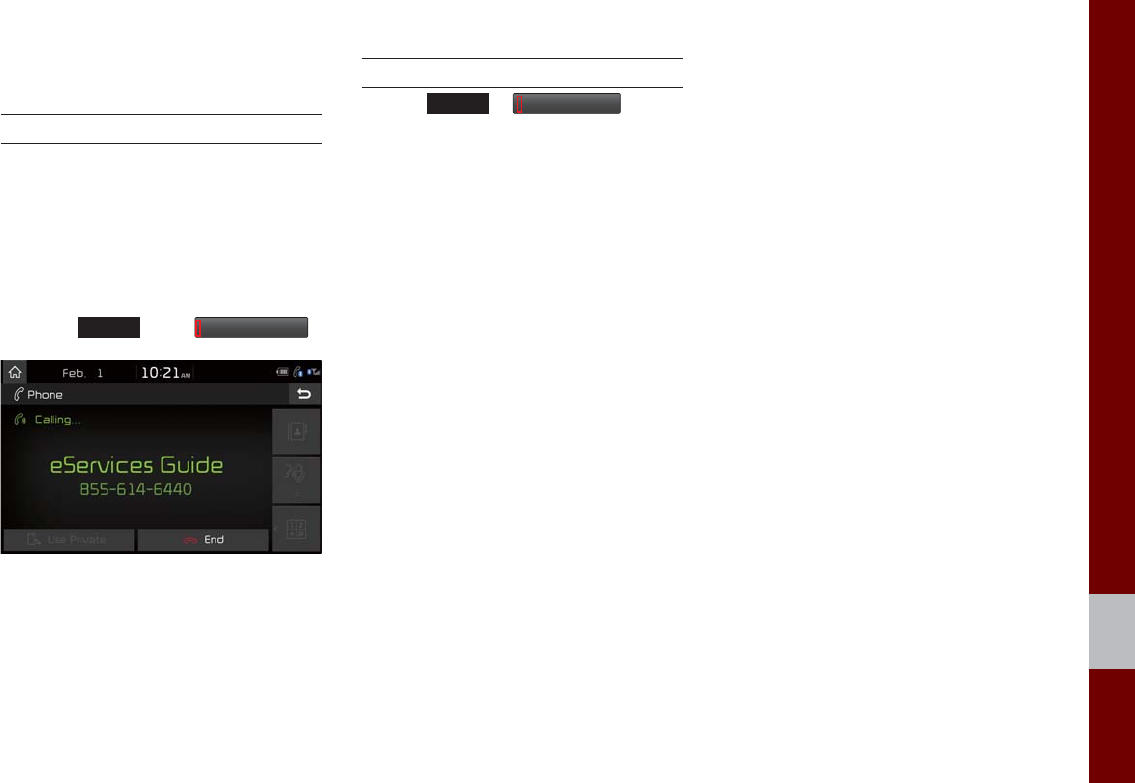

eServices Guide

eServices Guide provides guidance on

how to use UVO eServices.

This feature is only available when the

mobile phone is connected via Bluetooth.

Press the

UVO

key ▶

eServices Guide

UVO eServices Settings

Refer to

SETUP

▶

UVO eServices

UMaD2F4035EU

MEMO

What is Voice Recognition?

Precautions Required for Successful Voice Recognition

Starting/Ending and Setting Voice Recognition

Voice Recognition Screen Overview

Voice Commands

Siri Eyes Free

part.5 Voice Recognition

5-2 I Voice Recognition

What is Voice Recognition?

The voice recognition feature operates the

multimedia system by recognizing voice

commands and enables hands-free oper-

ation of the system while you are driving

your car.

Not all possible voice commands are

recognized by the system due to techno-

logical limitations. To make up for these

limitations, the system displays the voice

commands that are available for you to

use.

There are errors in communication between

people. Likewise, voice recognition some-

times misunderstands your voice command

in some circumstances. If this happens,

either check the screen for the available

options and say the command again, or

manually select and press the button for the

corresponding command on the screen.

Precautions Required

for Successful Voice

Recognition

1. Voice recognition supports only the

commands that are displayed on the

screen and written in the User's Guide.

2. To ensure the correct recognition and

execution of your command, say your

command when you hear the beep after

a voice prompt.

3. Voice recognition automatically ends if:

1) A call is incoming or outgoing

2) A media device (USB or iPod, etc.) is

connected or disconnected

3) The rear view camera is operated

4) The car engine starts or stops

5) A system key, such as

RADIO

key

MEDIA

key is selected

4. The microphone used for the voice

recognition system is located in the

headliner directly above the driver's

head. To make your commands better

understood, keep your body straight

in the driver's seat when speaking the

command.

5. Speaking naturally and clearly will

ensure better recognition of your voice

commands.

6. In the following cases voice recognition

will be affected by ambient noise.

1) The sound of the wind if any window

or the sun roof is open.

2) High speed blower from the air vents.

Set climate control to blow lower than

level 3.

3) Vibrations from passing through a

tunnel.

4) Vibrations from driving on an uneven

road.

5) Storms and heavy rain.

Voice Recognition

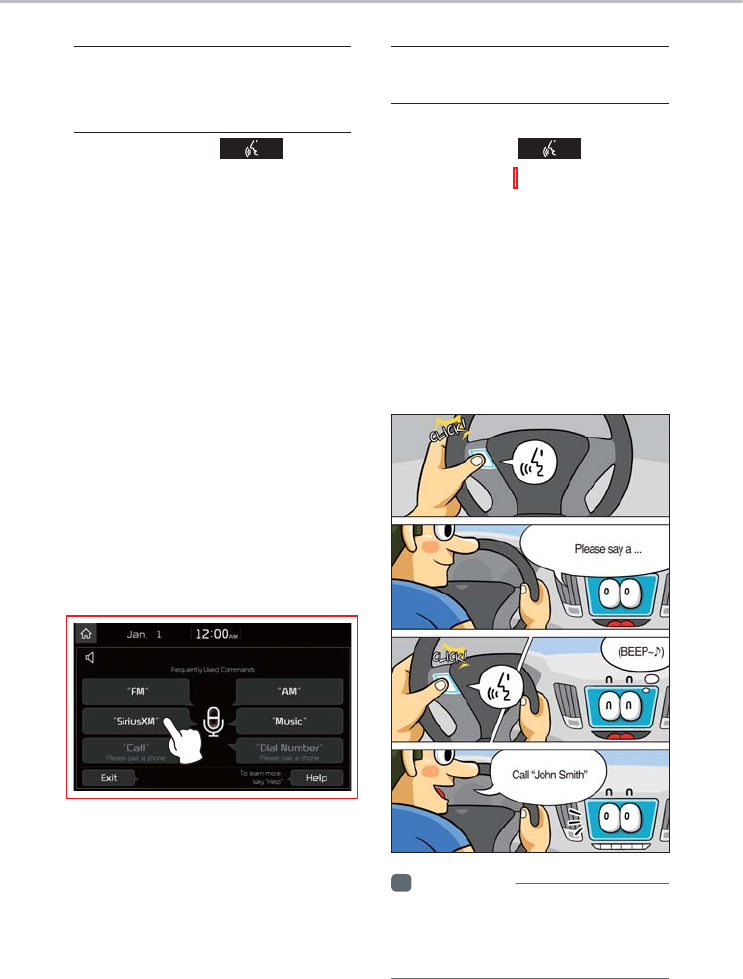

Starting/Ending and Setting Voice Recognition I 5-3

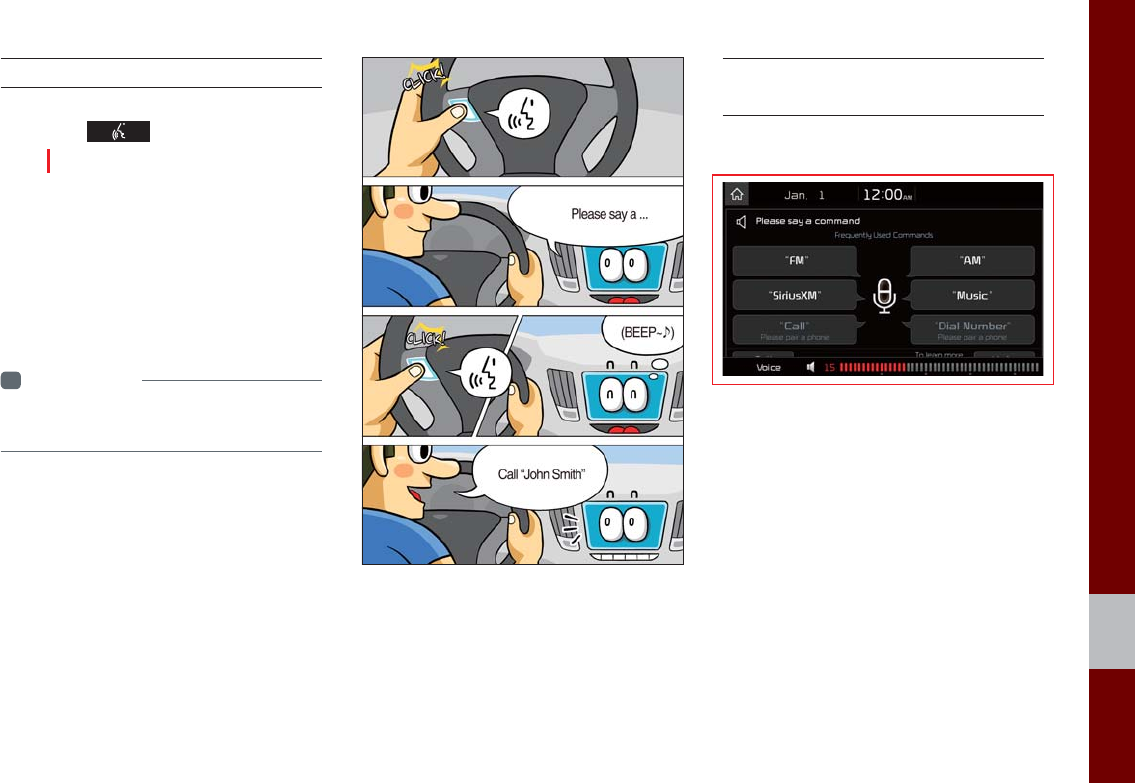

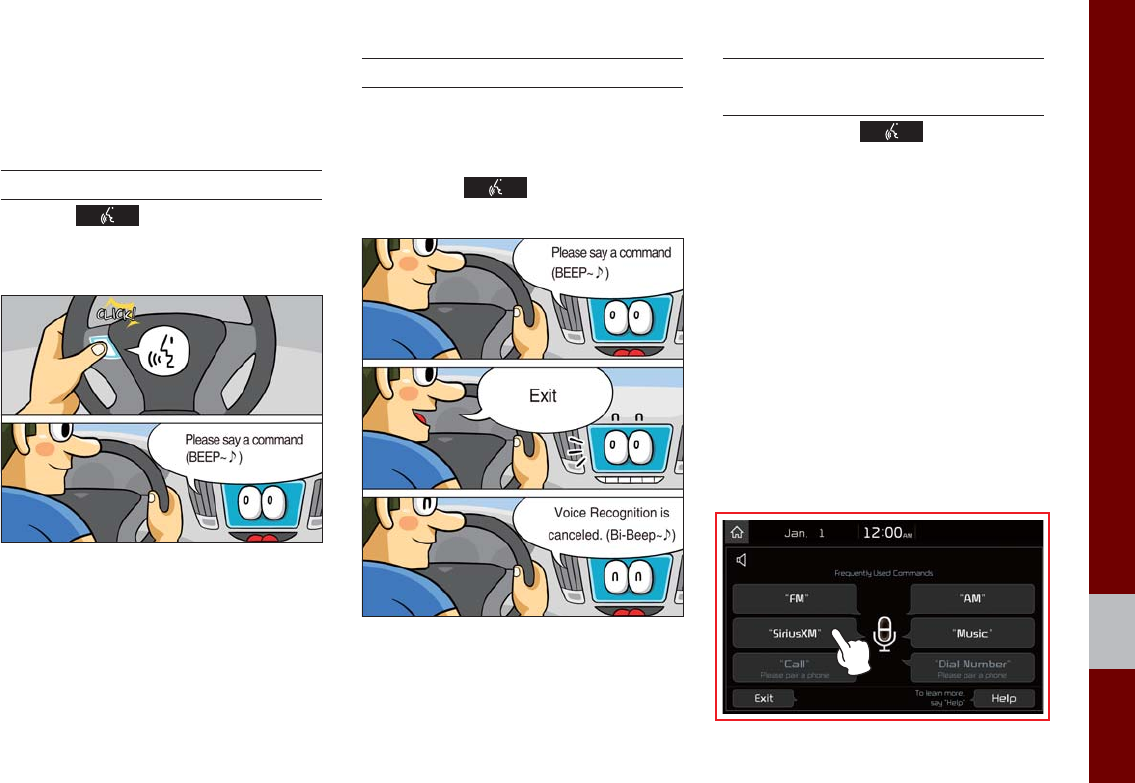

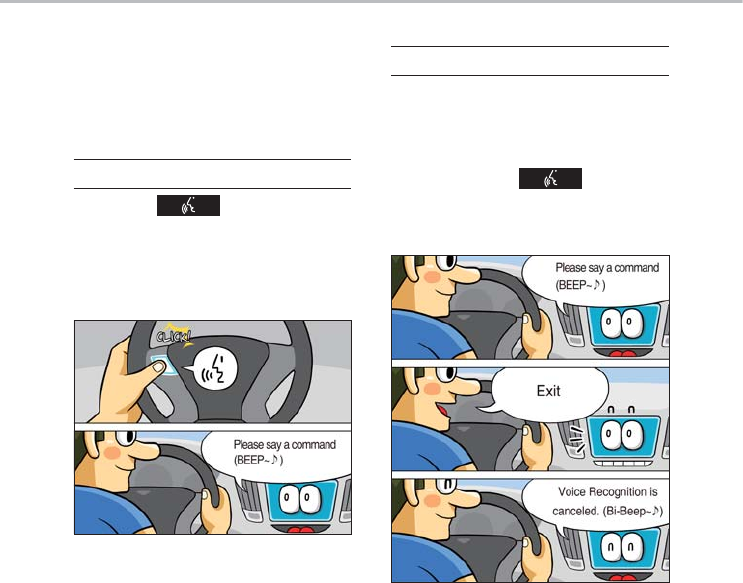

Starting/Ending

and Setting Voice

Recognition

Starting Voice Recognition

Press the key briefly (less than 0.8

seconds) on the steering wheel control to

activate voice recognition.

Ending Voice Recognition

1. Select “Exit” to the left of the bottom to

end voice recognition.

2. Press and hold (more than 0.8 sec-

onds) the key on the steering

wheel control to end voice recognition.

Combining Voice Recognition

with On-Screen Commands

After pressing the key, say a com-

mand after the beep. The voice recognition

system will execute the desired operation

after understanding the command.

Alternatively, you may touch any of the cor-

responding Frequently Used Commands

on the screen while the Voice Recognition

system is in operation.

Combining voice recognition with available

on-screen commands is useful when the

system is taking longer than expected or

the voice command did not execute as

desired.

UMaD2F5003EUUMaD2F5001EU UMaD2F5002EU

5-4 I Voice Recognition

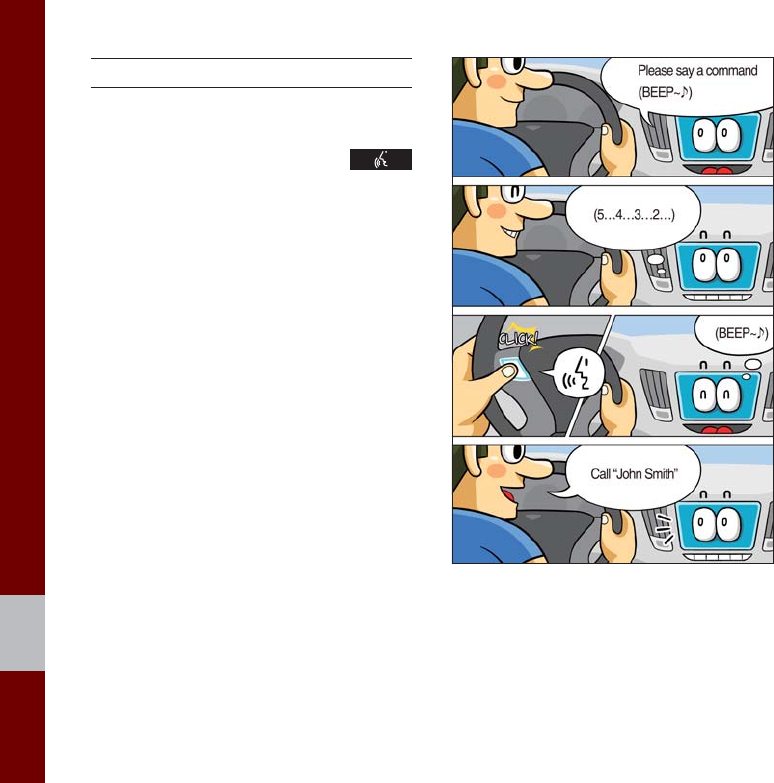

Extending the Listening Time

When the system is waiting for your com-

mand, after the voice prompt and beep

have been heard, if you press the

key (shorter than 0.8 seconds), then the

beep will sound again and standby mode

will restart.

When activated, voice recognition waits for

your command for 5 seconds. If you say

nothing for 5 seconds, a voice prompt will

ask for your command again.

UMaD2F5004EU

Starting/Ending and Setting Voice Recognition I 5-5

Skipping Prompt Messages

When you hear the prompt message,

press the key on the steering

wheel control to skip the message and go

directly to listening mode to say your com-

mand.

This results in faster operation when

you feel the message is too long or you

already know the command to use.

Information

• Refer to Part 8 for instructions on how to

change the Voice Recognition Settings.

Adjusting Voice

Recognition Volume

During voice recognition, rotate the vol-

ume knob to adjust the message volume.

UMaD2F5006EUUMaD2F5005EU

5-6 I Voice Recognition

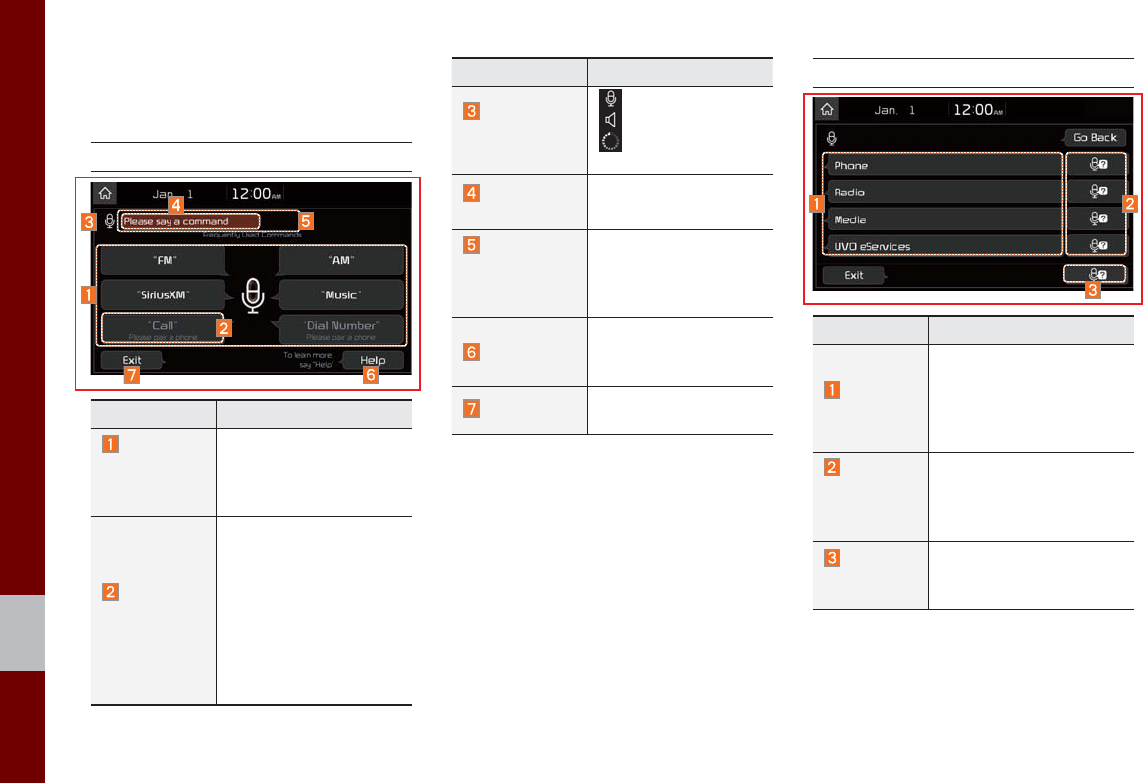

Voice Recognition

Screen Overview

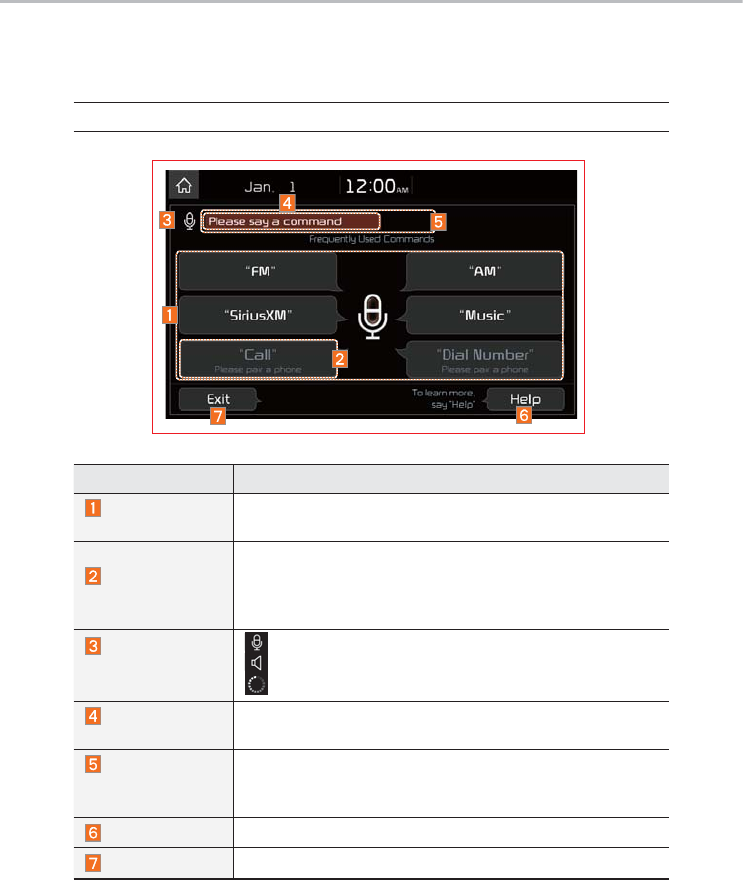

Start Screen

Name Description

Most

frequently

used

commands

Displays the six most fre-

quently used commands.

Not

available

command

Displays commands that

are not available due to

a failure in meeting the

conditions for using them

and thus need additional

settings. The conditions

required for using them

will be described briefly

under each command.

Name Description

Voice

recognition

status icons

Standby

Voice guidance

Voice command

process

Recognized

results

Displays the voice rec-

ognition result.

User's

speaking

volume being

recognized

Displays the voice

command volume in

real time.

Help

Displays all available

help commands in a

tree format.

Exit Ends the voice recog-

nition.

Help Display

Name Description

Command

list

• Shows the available

commands.

• Select or say a command

to display additional com-

mands in detail.

How to

use for

selected

item

This section shows how to

use voice recognition for

the selected item.

How to

use in

general

This section displays how

to use voice recognition in

general.

UMaD2F5007EU UMaD2F5008EU

Voice Recognition Screen Overview I 5-7

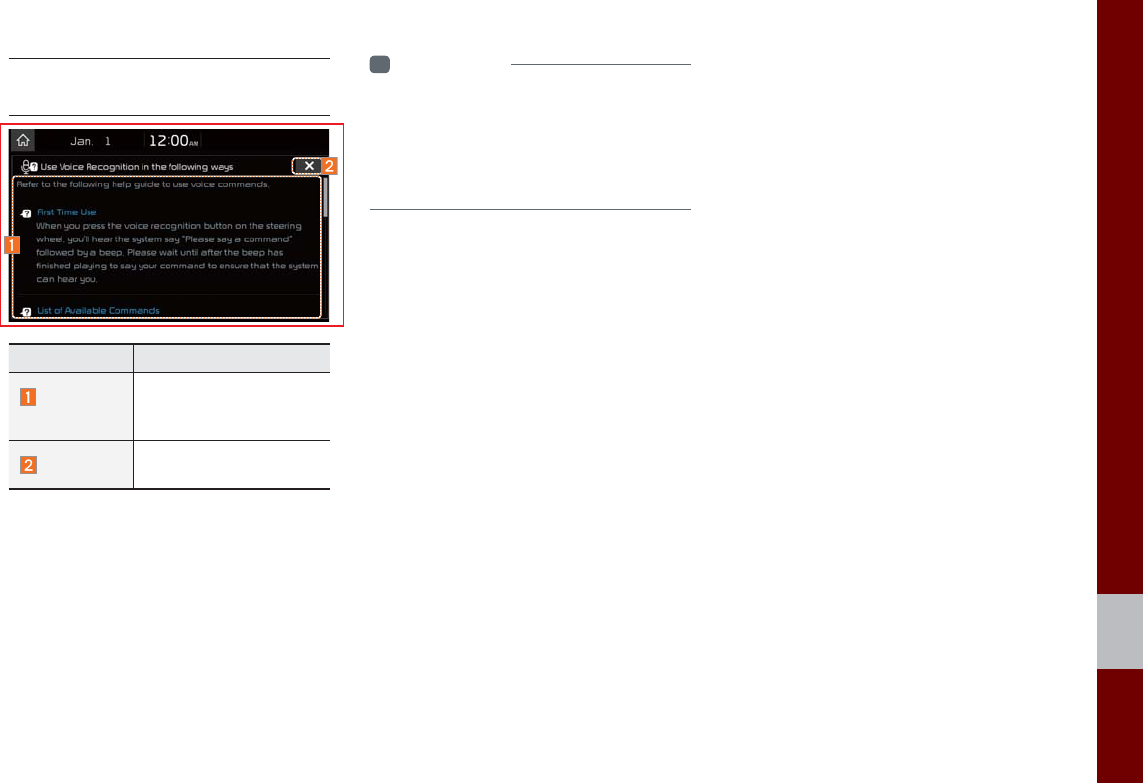

Instructions for Using

Voice Recognition

Name Description

Detail

instruction

This section describes

how to use voice recog-

nition in detail.

Close button Closes the screen and

restarts voice recognition.

Information

• In the instructions screen, no voice is

recognized, so you must manually issue

commands. Because the instructions screen

displays a lot of content, you can not view it

while driving for safety precautions.

UMaD2F5009EU

5-8 I Voice Recognition

Voice Commands

Types of Commands

Voice recognition commands are classified as “Global Commands”

and “Local Commands”.

1. Global Commands (●): Commands that can be used immedi-

ately after activating voice recognition.

2. Local Commands (○): Commands that can be used when a

multimedia or Bluetooth function is running, or displayed on the

screen, after activating voice recognition.

Call Commands

* Check the following before using call commands:

1. Voice commands related to phone calls can be used after con-

necting a Bluetooth device.

2. To call a person, for example “Call <John Smith>” whose name

is listed in Contacts, you must first download the Contacts

list. For details on downloading contacts, see “Part 3. Using

Bluetooth > Chapter 3. Bluetooth Phone > 3.10 Contacts”.

3. After downloading the Bluetooth contacts, it will take some time

to convert the Contacts into voice data during which time you

cannot make a call by name yet. The time it takes to convert

voice data may vary depending on the number of Contacts

downloaded on the phone.

Command Operation

●Call Displays downloaded Contacts, after this

you can make a call by saying the name.

●Call <Name> You can directly call a person by <Name>

in the downloaded Contacts.

●Call <Name> on

Mobile

You can call a person <name> directly to

the number that is saved as “Mobile” in

the downloaded Contacts.

e.g.) Call “John Smith” on Mobile

●Call <Name> in

Office

You can call a person <name> directly to

the number that is saved as “Office” in the

downloaded Contacts.

e.g.) Call “John Smith” in Office

●Call <Name> at

Home

You can call a person <name> directly to

the number that is saved as “Home” in the

downloaded Contacts.

e.g.) Call “John Smith” at Home

●Call <Name> on

Other

You can call a person <name> directly to

the number that is saved as “Other” than

“Mobile, Home, or Office” in the down-

loaded Contacts.

e.g.) Call “John Smith” on Other

●Dial Number Displays a screen where you can say a

phone number to dial.

●Dial <Phone #> You can directly say the number to call.

e.g.) Dial 111 555 1234

●Redial Directly calls at the number that you last

dialed.

●Call History Displays your Call History, where you can

say the list number to make a call.

Voice Commands I 5-9

Radio Commands

Command Operation

●Radio Plays the most recent radio channels

from FM, AM, and SiriusXM™.

●FM Plays FM radio.

●FM

<87.5~107.9>

Tunes to FM <Frequency> according to

what you say.

e.g.) FM 87.5: FM eighty seven point five

●SiriusXM Plays SiriusXM™ radio.

●SiriusXM

<0~999>

Tunes to SiriusXM™ Channel <Channel

Number> according to what you say.

e.g.) SiriusXM 23: SiriusXM Twenty three

●AM Plays AM radio.

●AM <530~1710> Tunes to AM <Frequency> according to

what you say.

e.g.) AM 530: AM Five Thirty

○Preset <1~40> Tunes to your preset stations (1 to 40).

○Channel

<0~999>

In SiriusXM™ Radio mode, turns on the

<Channel Number> that you say.

5-10 I Voice Recognition

Media Commands

* Check the following before you use media commands.

1. If no media is connected or if no playable files exist at the time

when you use these commands, a voice message will tell you

that this is not available.

2. If you say the name of the media that is currently playing again,

then that media will continue playing.

e.g.) Saying “USB” while USB content is playing.

Command Operation

●Music Continues the last media you played.

●CD CD Plays the content of the CD currently

inserted.

●iPod

Plays the iPod currently connected. This

will work the same when an iPhone is con-

nected. If a USB is connected, then it will

be played instead of the iPod.

●USB

Plays the music on the USB currently con-

nected.

If an iPod is connected, then the iPod will

be played instead of the USB.

●Bluetooth Audio

Plays the music on the Bluetooth phone

currently connected.

This may not be supported depending on

the Bluetooth connection status.

●AUX Plays external devices that are currently

connected.

●My Music Plays My Music files stored in the system.

●Pandora Radio Plays Pandora Radio that is currently con-

nected.

Voice Commands I 5-11

1. Audio CD Command

Command Operation

○Play Plays a paused track.

Maintains the current settings during playback.

○Pause

Pauses a track that is currently playing.

Maintains current settings while paused during

playback.

○Tra ck

<1~99> Plays a desired track number.

○Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled play-

back.

○Shuffle Off

Cancels Shuffle and plays tracks sequentially.

Maintains current settings during sequential

playback.

○Repeat

Plays the current track repeatedly.

Maintains the current settings during repeat play-

back.

○Repeat Off

Cancels Repeat and plays multiple tracks or files.

Maintains current settings during multiple track

playback.

2. MP3 CD/USB Music/iPod/My Music Command

Command Operation

○Play Plays a selected file.

Maintains the current settings during playback.

○Pause

Pauses a file that is playing.

Maintains current settings while paused during

playback.

○Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled

playback.

○Shuffle Off

Cancels Shuffle and plays tracks sequentially.

Maintains current settings during sequential

playback.

○Repeat

Plays the current track or file repeatedly.

Maintains the current settings during repeat

playback.

○Repeat Off

Cancels Repeat and plays multiple tracks or files.

Maintains current settings during multiple track

playback.

5-12 I Voice Recognition

3. Pandora Radio Command

Command Operation

○Skip Moves to the next track.

○Thumbs up

If you like the genre of the music currently

playing, say “Thumbs up” so that more

similar music will play.

○Thumbs down

If you don’t like the music currently playing,

say “Thumbs down” to minimize the num-

ber of playbacks of similar genre music.

○Play

Plays a selected file.

Maintains the current settings during play-

back.

○Pause

Pauses a file that is playing.

Maintains current settings while paused

during playback.

○Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled

playback.

4. Bluetooth audio/AUX Command

For Bluetooth audio and external devices (AUX), local commands

are unavailable, including Play, Pause, Repeat and Shuffle.

UVO eServices Commands List

Command Operation

●Roadside Assist Connect with a Roadside Assist agent.

●Vehicle

Diagnostics

Informs you if diagnostic issues are found

in your vehicle

●eService Guide Provides guidance on how to use UVO

eServices

Voice Commands I 5-13

Other Commands List

(Commands used in List/Help)

Command Operation

●Help

Moves to the voice recognition help screen.

All available commands can then be identi-

fied and used.

○Line 1~4

(One~Four)

When you cannot select a certain name,

such as in Call History, you can select it

using numbers.

Simple numbers can be recognized, such

as “One” or “Two”.

○Yes / No

When voice recognition is activated, this

command is used when an answer is

requested for a confirmation question.

○Previous/Next

When four or more searched items are

listed, you can move to the previous or next

page using a voice command.

○Manual Input

When Dial entry results are displayed,

this command is used to search manually,

rather than to search with a voice com-

mand.

Voice recognition stops after this command

is used.

○Go Back Moves to the previous screen.

●Exit Ends the voice recognition.

5-14 I Voice Recognition

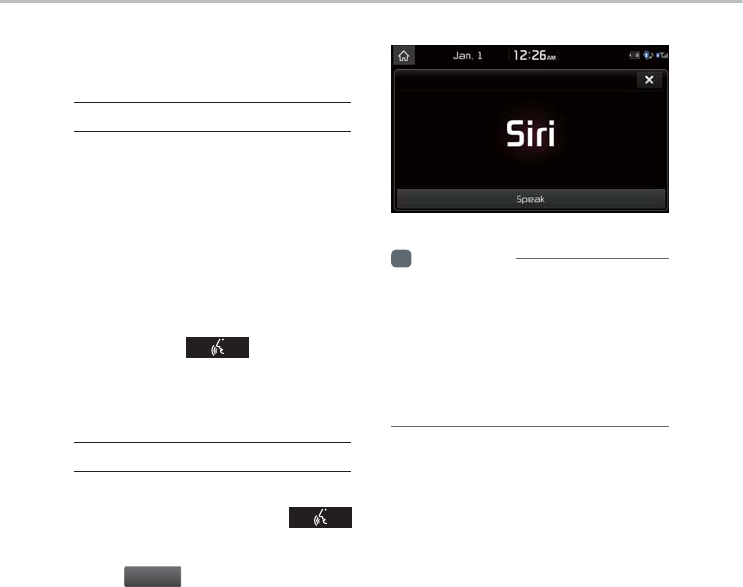

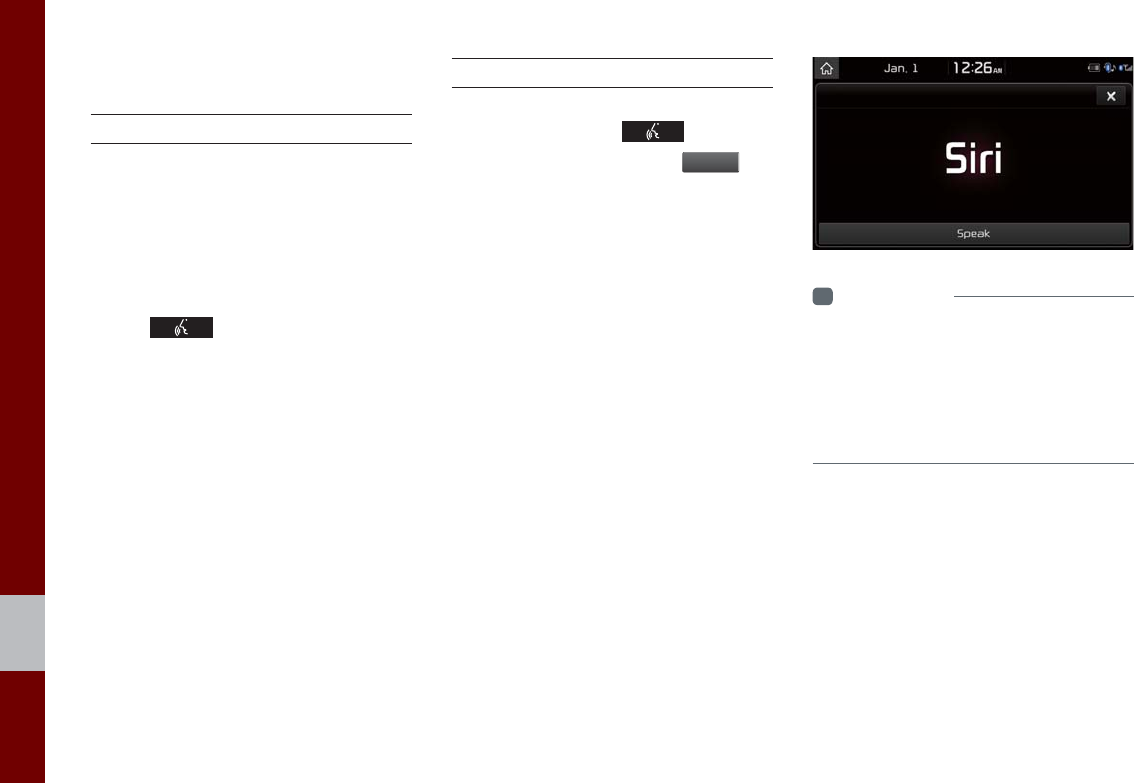

Siri Eyes Free

How to start Siri

If you want to use Siri, you have to con-

nect your iOS device to the Multimedia

system through Bluetooth.

(Please check whether your iOS device

supports Siri and turning Siri On)

Then you can use Siri while pressing and

holding key on the steering wheel.

How to use Siri

When you access the Siri screen while

pressing and holding key on the

steering wheel, you can press

pea

but-

ton and then you can speak what you

want. Note that the Multimedia system

only supports “Phone” related functions.

Other functions will be performed in your

iOS device. If you press voice key quickly,

Siri would re-start. If you hold down voice

key, Siri would be terminated and the

screen would go back to the previous

screen. Eyes-Free mode would be acti-

vated automatically while you are driving.

When shifting gears into P or putting the

Parking brake on, Eyes-Free mode would

be deactivated automatically.

Information

• Functions and feedbacks from voice

commands via Siri are executed in the iOS

device. If the iOS version is changed, the

functions and response may be different

according to the iOS device and the latest

version.

UMaD2F5010EU

Start up

Pandora®

SiriusXM™ Data

SoundHound

Android Auto

part.6 Apps/Info

6-2 I Apps/Info

Apps/Info

Start Up

Press the

APPS/

key on the head unit to move to the information

screen. The screen is composed of:

• Pandora®: To listen to Pandora® Radio by connecting a smart

phone

• Quick Guide: To provide information about how to controls and

major functions

• SiriusXM Data: To show weather, sports, stock, fuel prices and

movie information provided by SiriusXM™ Travel Link.

• Voice Commands: To provide information about available voice

command list to use voice recognition.

• Android Auto: To conveniently use various functions of your

mobile phone while driving (For more information, visit the

Google website http://support.google.com/androidauto).

Pandora

I 6-3

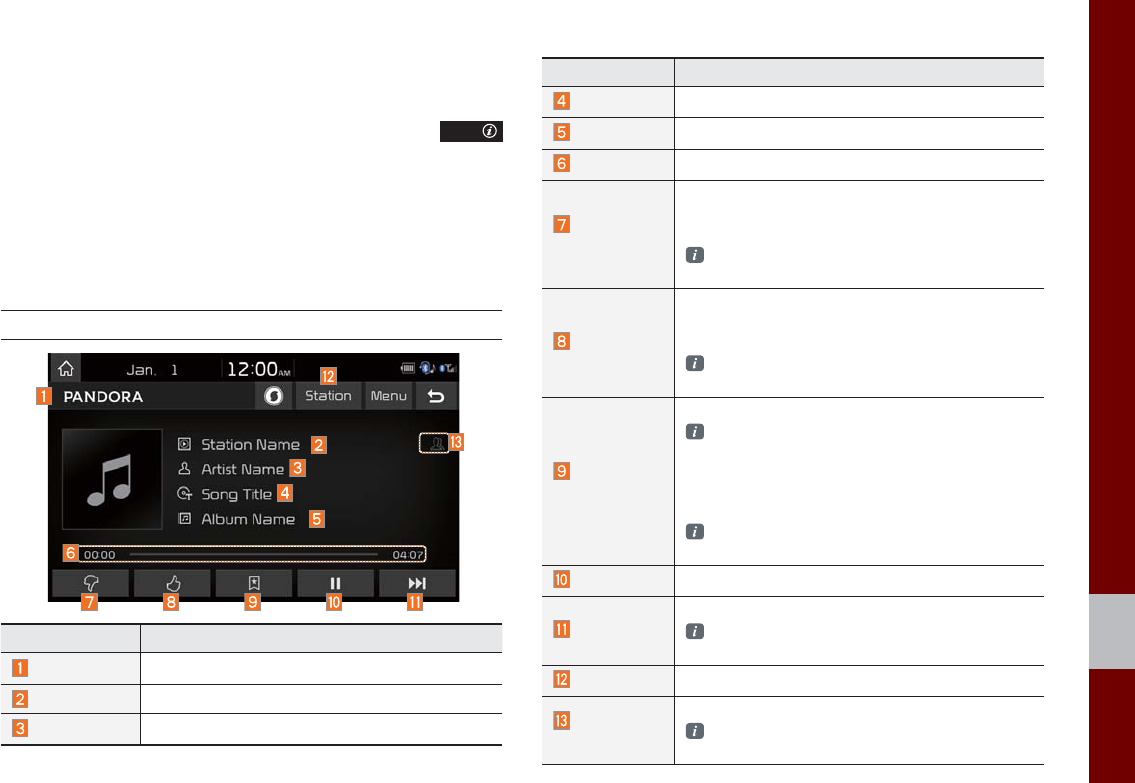

Pandora

Press the “Pandora” icon after selecting All Menus or the

APPS/

key to enter Pandora®.

Pandora, the Pandora logo, and the Pandora trade dress are

trademarks or registered trademarks of Pandora Media, Inc. Used

with permission. Pandora is only available in certain countries.

Please visit http://www.pandora.com/legal for more information.

Pandora® Screen Controls

Name Description

Mode Displays the current operating mode.

Station Name Shows the station name current playing.

Artist Name Shows the artist/title information current playing.

Name Description

Song Title Shows the song title current playing.

Album Name Shows the album name current playing.

Play Time Displays the current play time.

Thumbs

Down

If you don’t like the music currently playing, press

this button to move to the next song and to minimize

the number of playbacks of similar genre music.

You can move to next song up to specific times

which Pandora

allows

Thumbs Up

If you like the genre of the music Thumbs Up,

press this button to send a “Thumbs Up” signal to

Pandora

so that more similar music will play.

This function can not be reset once setting is

chosen.

Bookmark

Track

Add the music current playing to the bookmarks list.

You can view your bookmarked songs from

your Pandora

profile online. Go to pandora.

com, then click on the “Your profile” button

above the player. That will bring up a page with

your stations, bookmarked songs.

This function can not be reset once setting is

chosen.

Play/Pause Plays/pauses the current song

Skip Moves to the next track

You can move to next song up to specific times

which Pandora

allows

Station Moves to the station list screen.

Shared

Station Icon

Indicates that the station is already shared.

Thumbs Up/Down in not available for shared

stations.

UMaD2F6001EU

6-4 I Apps/Info

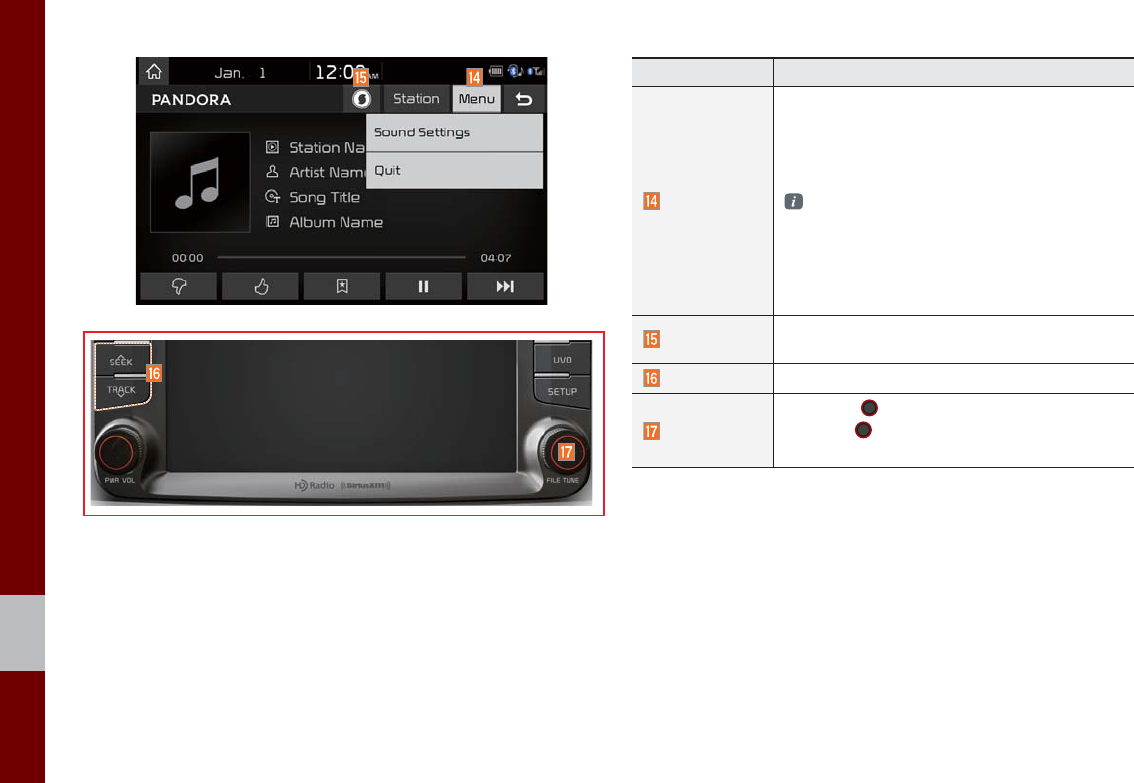

Name Description

• Sound Settings

Moves to the sound settings screen.

• Quit

Exit current Pandora

mode and then move to

previous AV mode.

You can view your bookmarked artists and

songs from your Pandora

profile online.

Go to pandora.com, then click on the “Your

Profile” button above the player. That will

bring up a page with your stations, book-

marked artists, and bookmarked songs.

SoundHound Moves to the SoundHound searching music

application.

SEEK/TRACK Press briefly to play the next song.

TUNE

Rotate the

TUNE

knob to search for a station.

Press the

TUNE

knob to play the station when

you find the name that you want.

UMaD2F6002EU

Pandora

I 6-5

Name Description

Current

Station Shows the name of the station current displayed.

Shuffle

Shuffling your stations provides a more diverse

mix of music by randomly playing songs from the

stations in your list.

Sorts stations by the items in the menu.

• A-Z: Sorts stations in alphabetical order.

• By Date: Sorts stations in the order they were

generated.

Shared

Station Icon Indicates that the station is already shared.

SEEK/

TRACK Press briefly to play the next song.

TUNE

Rotate the TUNE knob to move to the previous/

next list. Press the TUNE knob to play a

selected file.

UMaD2F6003EU

6-6 I Apps/Info

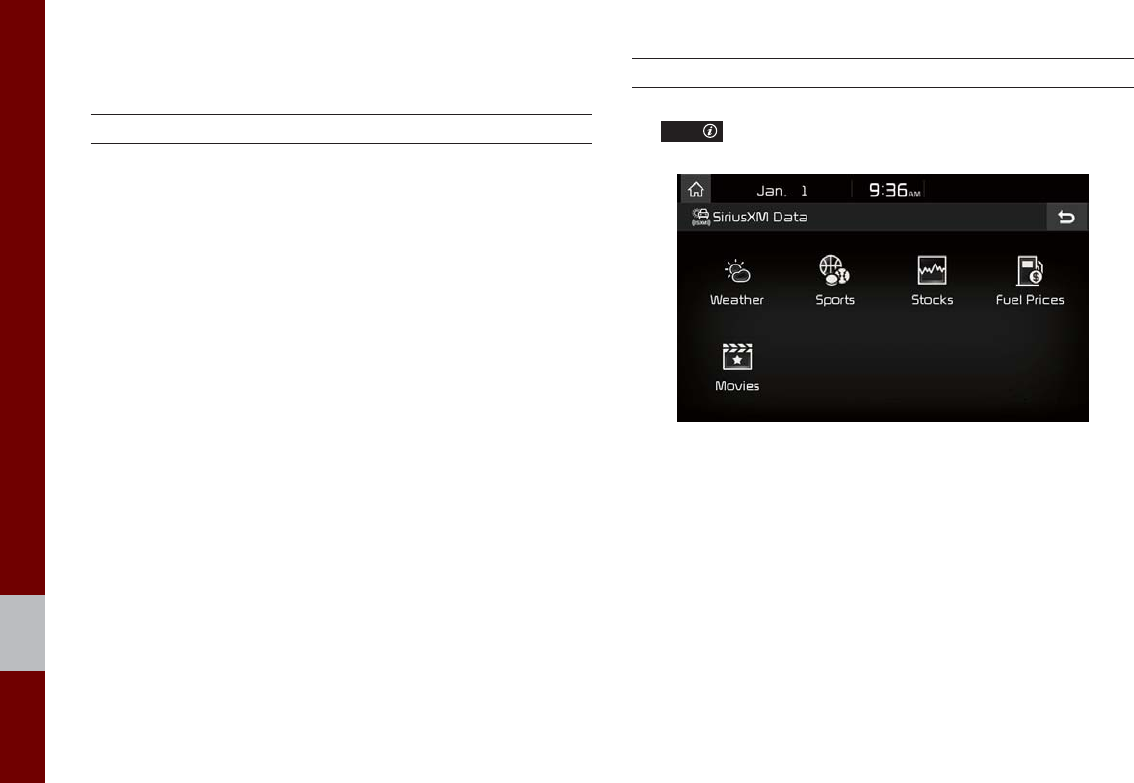

SiriusXM™ Data

About SiriusXM™ Data Service

The SiriusXM™ Data Service is a paid membership satellite radio

service that provides users with information such as Weather,

Sports, Stocks, Fuel Prices and Movies.

However, weather information is not supported for vehicles pur-

chased in Canada.

Accessing SiriusXM™ Data

Select the “SiriusXM Data” icon after selecting All Menus icon or

the

APPS/

key to enter the SiriusXM™ Data mode.

UMaD2F6004EU

SiriusXM™ Data I 6-7

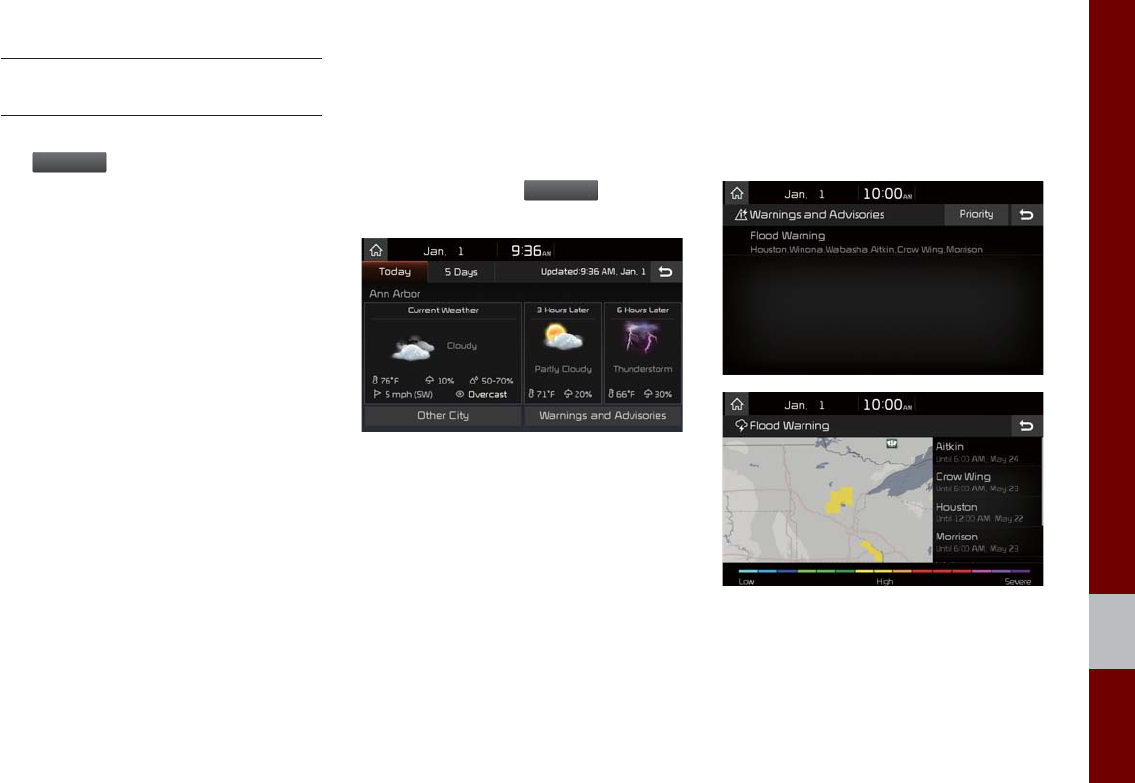

SiriusXM™ Weather

Announcement

At the “SiriusXM Data” screen, select

the

icon to enter the Weather

Announcement mode.

Weather Forecast

This service provides current weather

information and weather forecasts for the

next five days in your region. To change

the region, select the

ther City

button and

select the desired region.

Warnings and Advisories

This service provides weather warnings

and advisories, such as tornado, storm,

flood, etc.

UMaD2F6005EU UMaD2F6007EU

UMaD2F6006EU UMaD2F6008EU

6-8 I Apps/Info

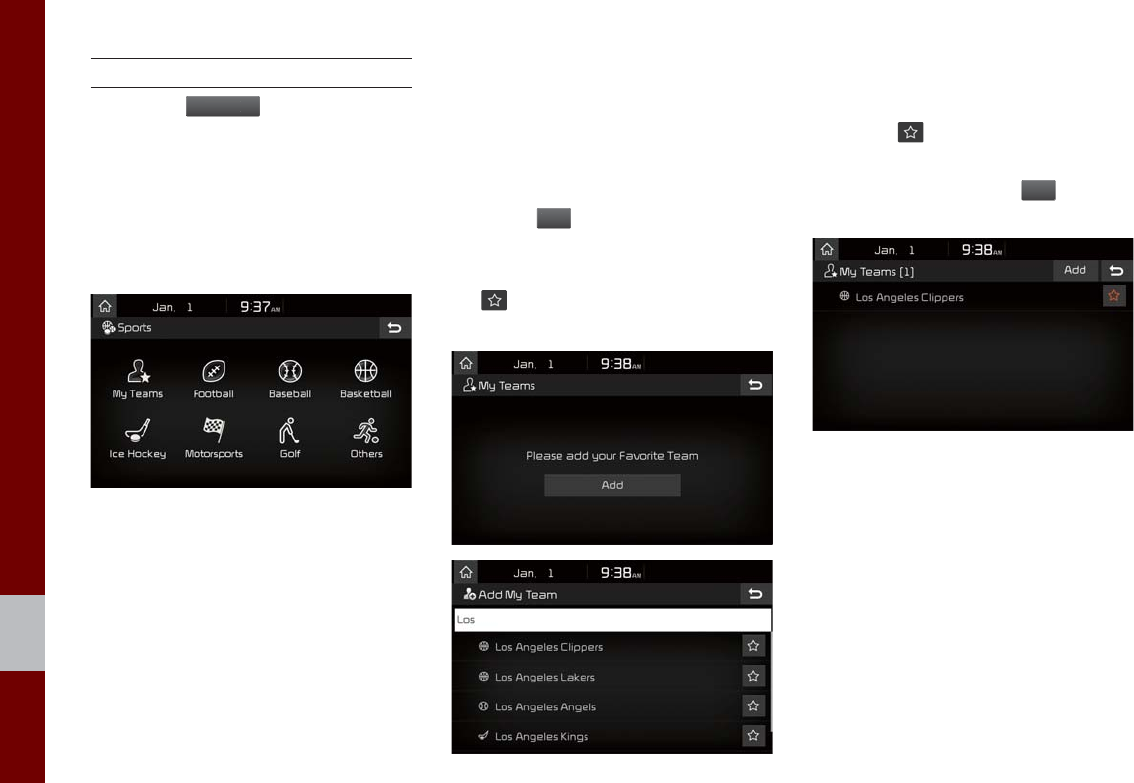

SiriusXM™ Sports Information

Select the

icon to enter the

Sports mode.

This service provides real-time updated

information on scores and schedules for

major sports, such as NFL, NBA, NCAA

football, NCAA basketball, NHL, MLB,

NASCAR and more.

My Teams

You can save teams which you are inter-

ested in as part of My teams to easily view

related scores and schedules.

Select the My Teams menu and then

select the

button to search for and

Search for your favorite teams and select

the button on the right to add it to the

“My Teams” list.

You can always check the list of teams

that you added in the “My Teams” menu.

Select the button on the right side of

the team name to delete the team from

“My Teams” or select the

button to

add other teams.

UMaD2F6009EU

UMaD2F6010EU

UMaD2F6012EUUMaD2F6011EU

SiriusXM™ Data I 6-9

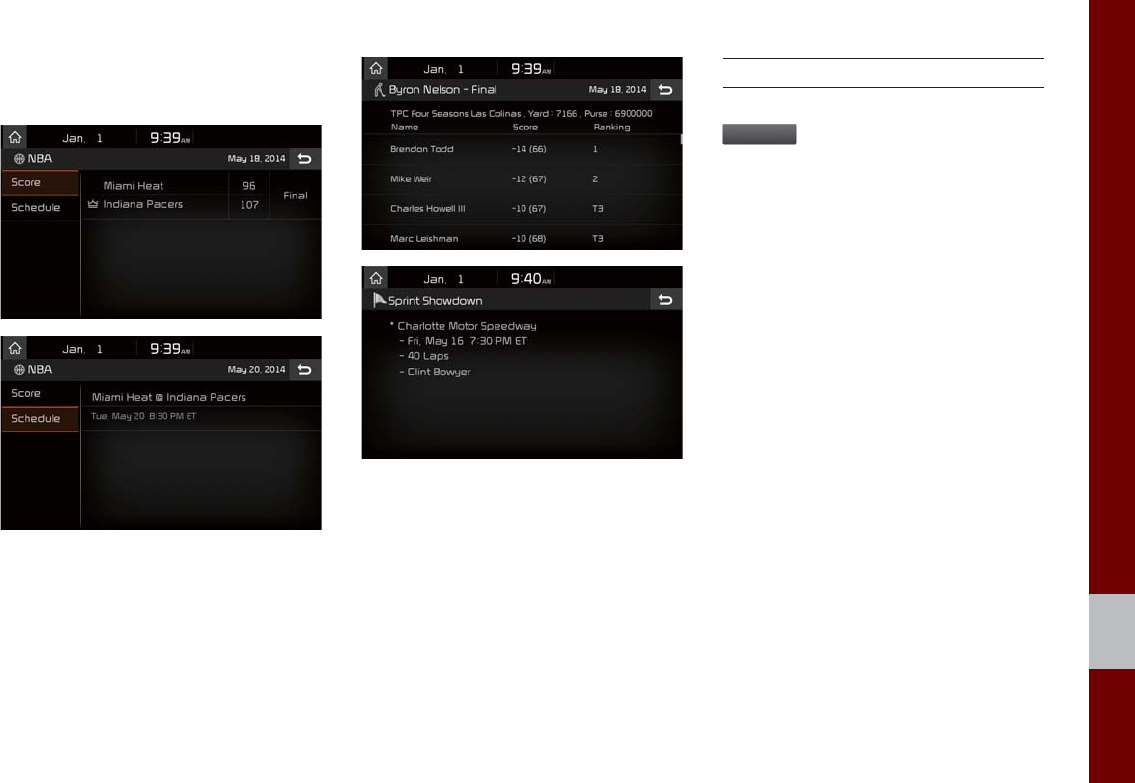

Select the team name to check daily

results and recent schedules for that team.

SiriusXM™ Stock Information

In the “SiriusXM Data” screen, select the

Stocks

icon to enter the Stocks mode.

Stocks is a feature that shows the current

value and change of stocks.

For symbols which you are interested in,

select the icon to save the symbol as a

part of the “Saved” symbols which can be

viewed from the “My Favorites” button on

the Stocks Main screen.

UMaD2F6013EU

UMaD2F6014EU

UMaD2F6015EU

UMaD2F6016EU

6-10 I Apps/Info

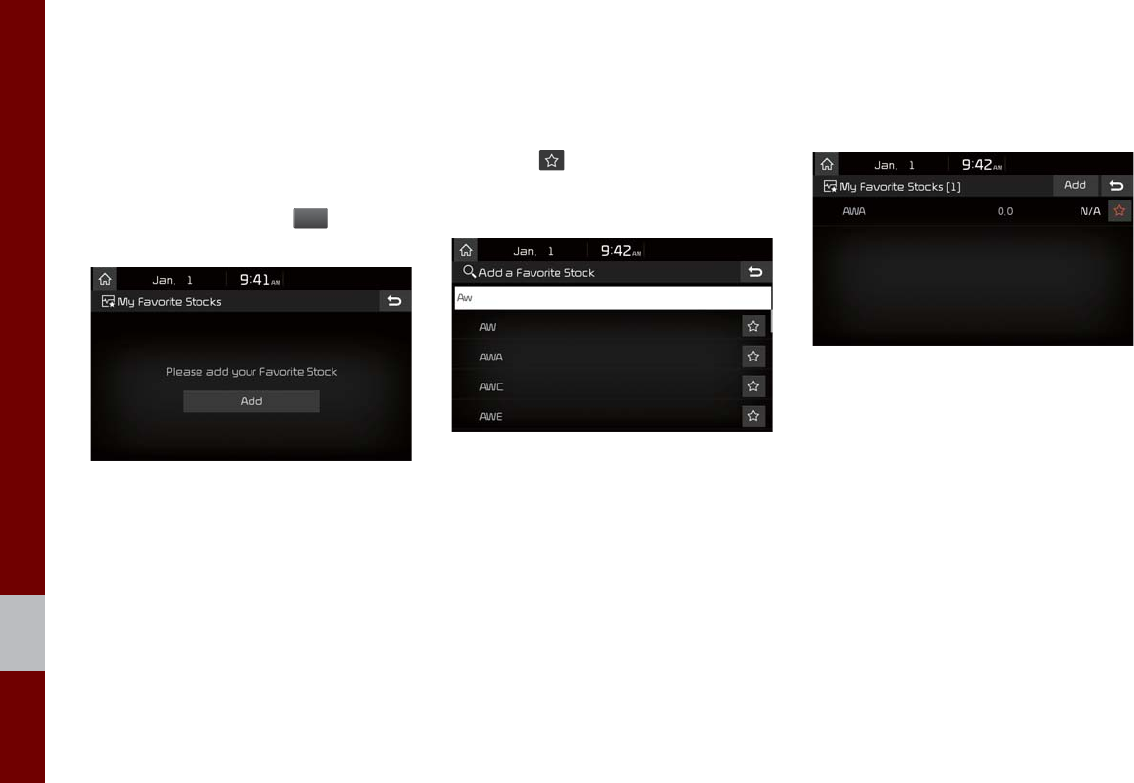

My Favorites

My Favorites shows a list of stocks added

by the user. When entering the Stocks

menu for the first time, a screen is dis-

played for you to add your favorite stock

information. Select the

button to

move to the stock search screen.

Stock Search

Use the Stock Search menu to search for

specific stocks.

Select the button after searching for

your favorite stocks to save them in “My

Favorites”.

In the My Favorites screen, you can find

the selected stock information that you

registered.

UMaD2F6018EU UMaD2F6019EUUMaD2F6017EU

SiriusXM™ Data I 6-11

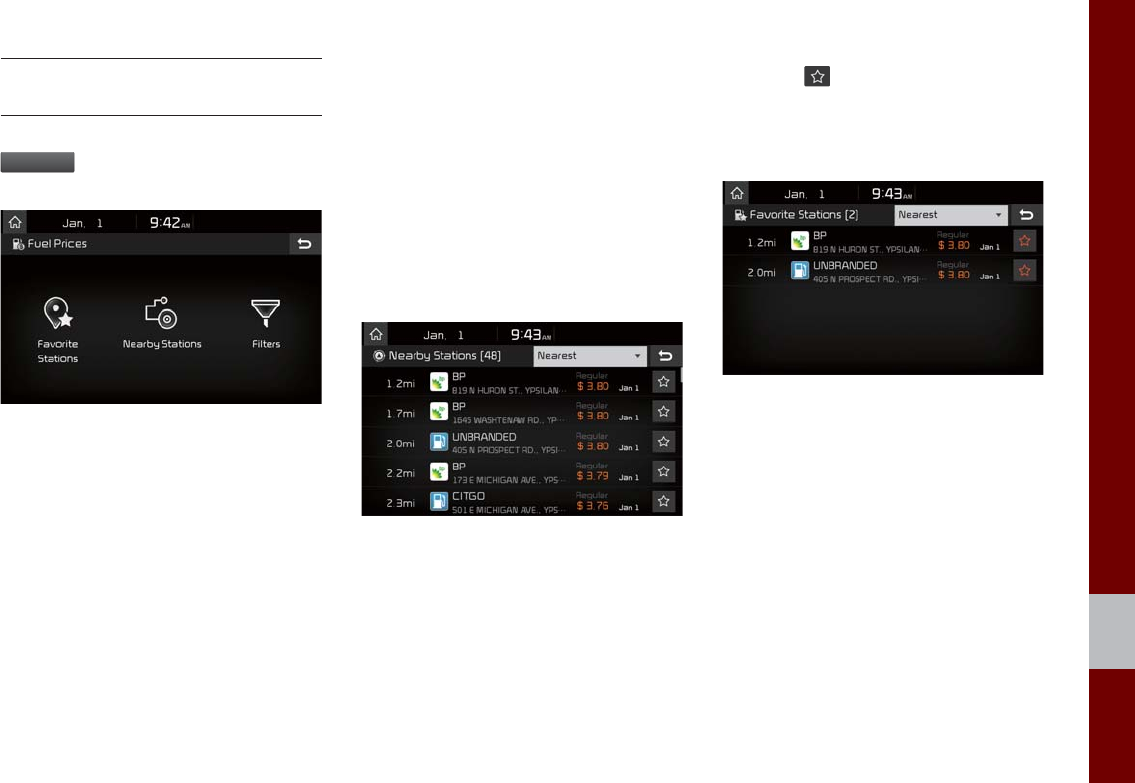

SiriusXM™ Fuel Price

Information

At the “SiriusXM Data” screen, select the

icon to enter the Fuel Prices

Information mode.

Search for Nearby Stations, and

Stations.

Search for nearby stations with the “Nearby

Stations” menu.

It shows station locations, starting from the

nearest one, and select “Nearest” menu

on the top right side to further sort them

by price or brand name.

Select the button to the right of the list

to register key locations as a Favorite

Station so that you can go there again with

the “Favorite Stations” menu.

UMaD2F6020EU UMaD2F6021EU UMaD2F6022EU

6-12 I Apps/Info

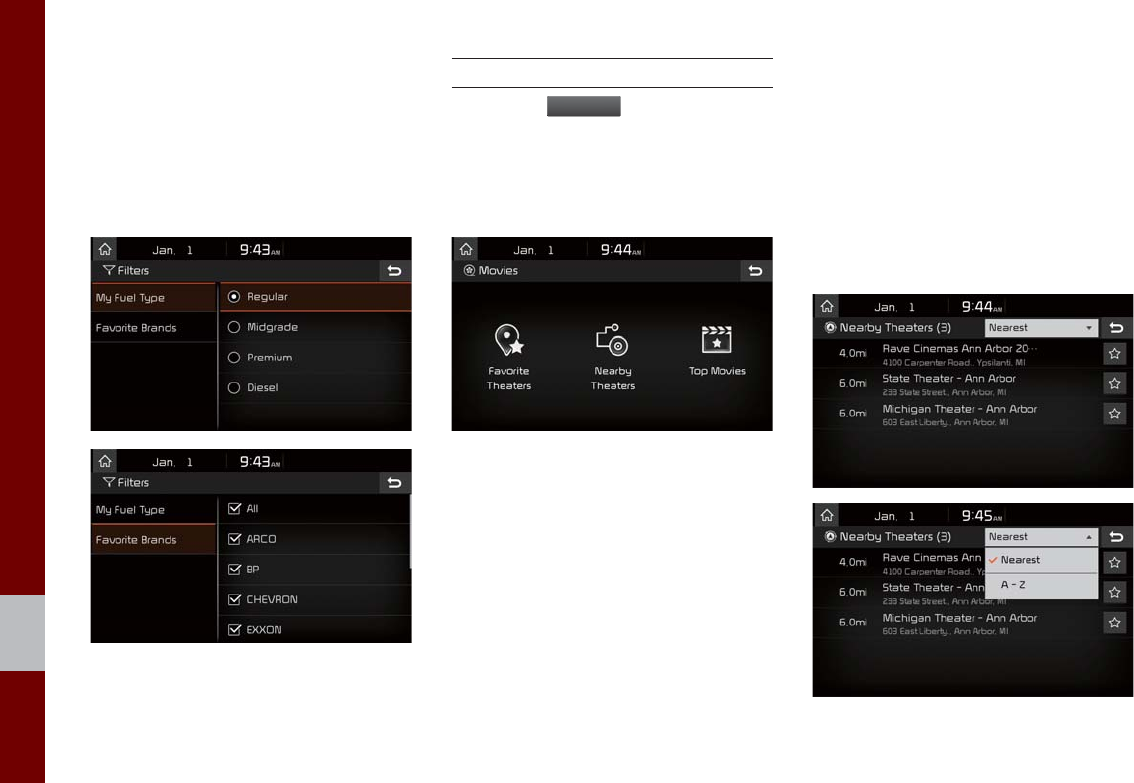

My Fuel Type Settings

With the “Filters” menu, you can select fuel

types and favorite brands.

When searching for Nearby Stations, the

results will reflect selected fuel types and

brand information.

SiriusXM™ Movie Information

Select the

ovies

icon to enter the

Movie mode.

You can check recent movies and nearby

theaters, and also register your favorite

theater locations.

Search for Nearby Theaters, and

Theaters.

In the “Nearby Theaters” menu, you can

search for any nearby theaters.

It shows theaters, starting from the nearest

one, and selecting the “Nearest” menu at

the top right side will sort them by name.

UMaD2F6026EU

UMaD2F6025EU UMaD2F6027EU

UMaD2F6023EU

UMaD2F6024EU

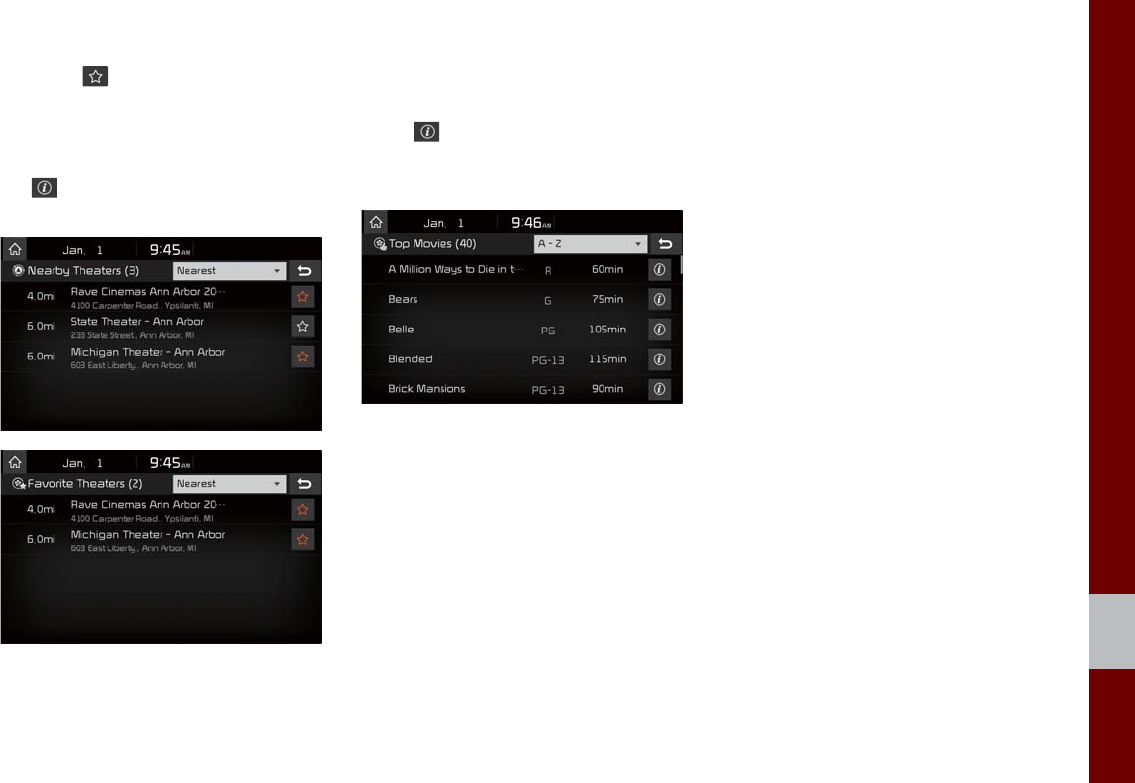

SiriusXM™ Data I 6-13

Select the button to the right of the list

to register your favorite theater so that you

can always check it again using the

“Favorite Theaters” menu and selecting

the button to view the current movie

information for that theater.

In the “Top Movies” menu, you can check

for any movies that are currently popular.

Press button to the right of a movie

title to view the plot summary and any

other detailed information.

UMaD2F6028EU

UMaD2F6030EUUMaD2F6029EU

6-14 I Apps/Info

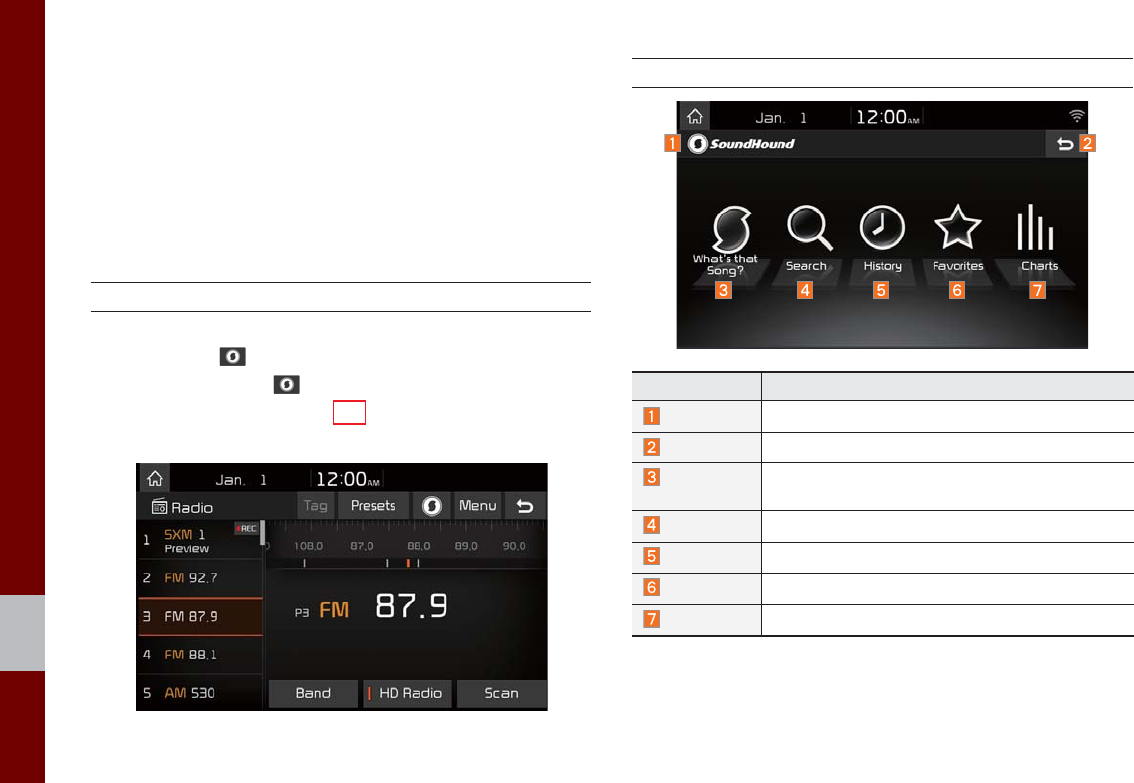

SoundHound

SoundHound is a music search engine. It enables users to identify

music by playing or singing a song. It is also possible to search by

typing the name of the artist, song, album or lyrics.

The head unit should be connected to the Internet in order to use

SoundHound. (ex. Wi-Fi)

Accessing SoundHound

1. From the Home screen, select All Menus then select

SoundHound button.

2. Select SoundHound button on Radio modes (AM, FM and

SiriusXM) or Media modes (CD, Bluetooth Audio, iPod, USB,

My Music, AUX and Pandora).

SoundHound Main Screen

Name Description

Mode Displays the current operating mode.

Back button Goes back to previous mode.

What’s that

Song?

Starts the song recognition process. After this pro-

cess is complete, it goes to Song screen.

Search Goes to Search screen.

History Goes to History screen.

Favorites Goes to Favorites screen.

Charts Goes to Charts screen.

UMaD2F6031EU UMaD2F6032EU

SoundHound I 6-15

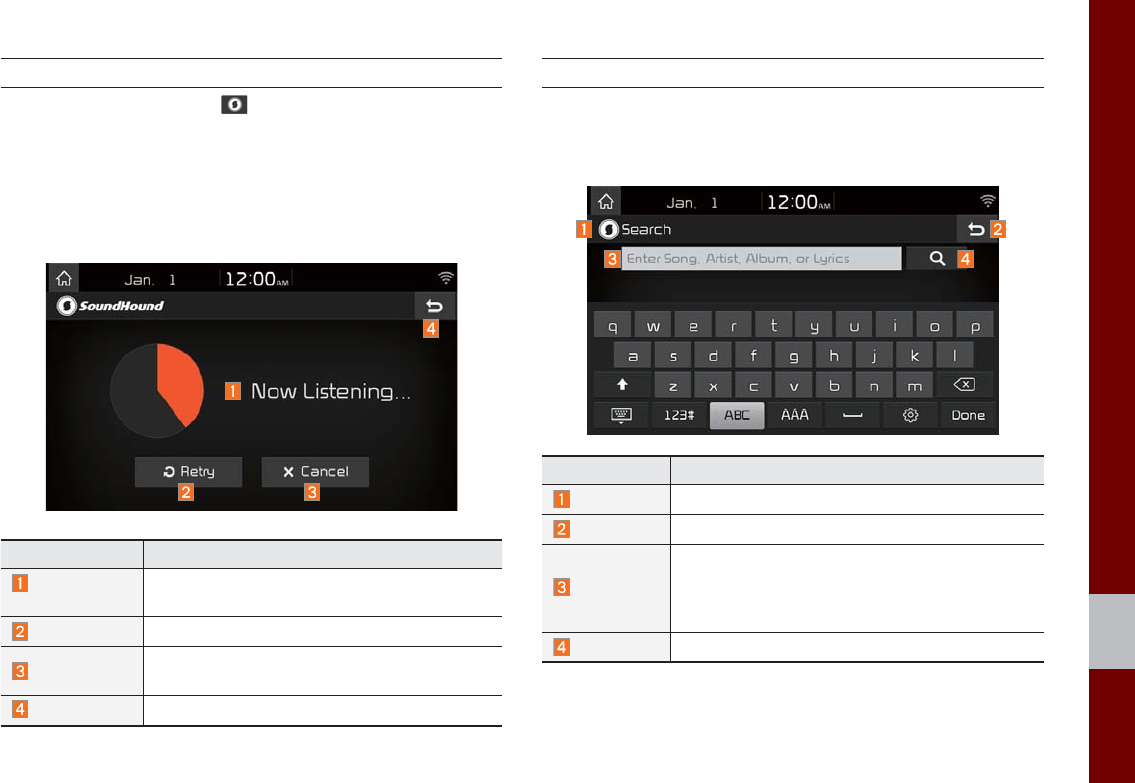

Recognizing Music

After selecting SoundHound button, the song recognition pro-

cess is activated, the system will match the currently playing song

with the SoundHound music database.

Music from Smartphones and MP3 players that are not connected

to the head unit can also be recognized.

Name Description

Now

Listening…

Message displayed while SoundHound is

processing the music.

Retry Starts over the song recognition process.

Cancel Cancels song recognition process and Exits

SoundHound.

Back button Goes back to previous screen.

Searching Music

Music can also be searched by selecting the Search option in

SoundHound main screen and typing a song, artist, album or lyr-

ics into the search field.

Name Description

Search Displays the current operating mode.

Back button Goes back to SoundHound main screen.

Search field

Displays search field. Once text is typed, recom-

mended song, artist, album or lyrics information

that might match the search criteria is displayed in

the scroll menu.

Search icon Starts the searching process.

UMaD2F6033EU UMaD2F6034EU

6-16 I Apps/Info

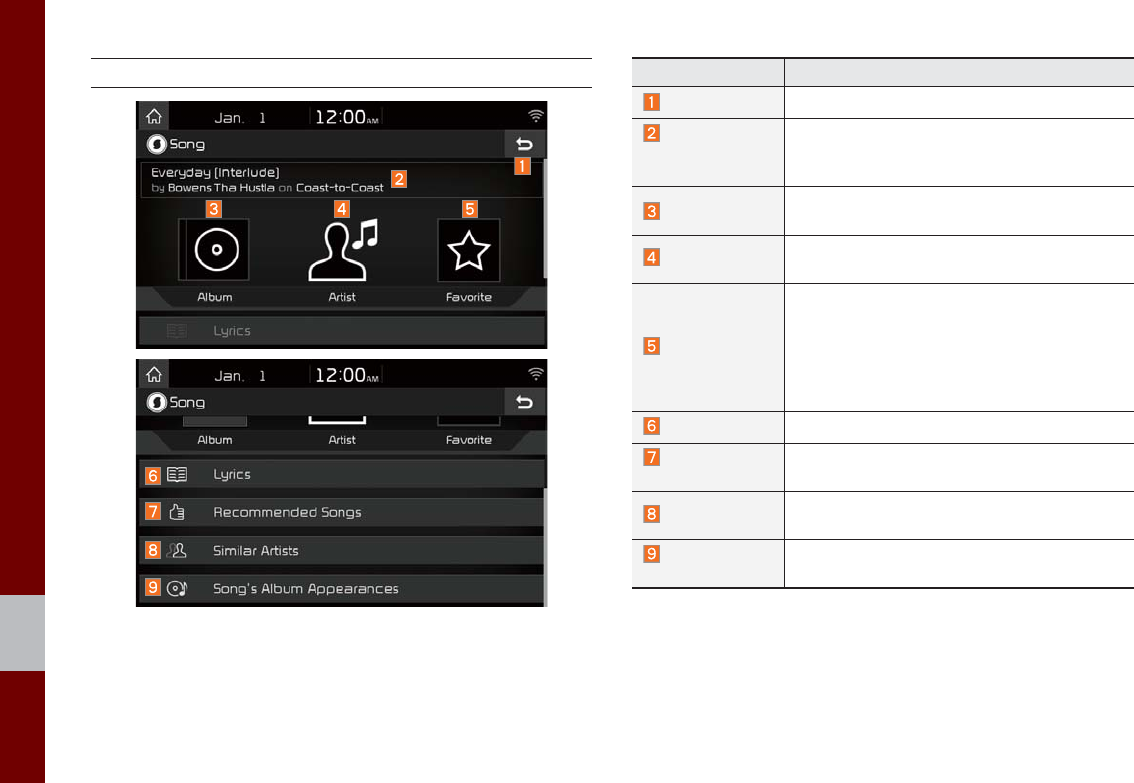

Song Main Screen

Name Description

Back button Goes back to previous screen.

Song, Artist

and Album

information

Displays song, artist and album information of

currently playing song.

Album Image If album image is selected, the detailed infor-

mation of the album is displayed.

Artist Image If artist image is selected, the detailed informa-

tion of the artist is displayed.

Favorite

It saves current playing song into Favorites

by tapping on the star icon. Star icon will be

highlighted when song has been saved into

Favorites. To delete song from Favorites, select

the star icon again or go to Favorites menu

screen.

Lyrics Displays current playing song’s lyrics.

Recommended

Songs

Displays a list of recommended songs by

SoundHound.

Similar Artists Displays list of similar artists to currently play-

ing artist.

Song’s Album

Appearances

Displays list of albums on which currently play-

ing song appears.

UMaD2F6035EU

UMaD2F6036EU

Android Auto I 6-17

Android Auto

What is Android Auto?

You can securely access your smart phone while driving by using

this feature. Various functions on your smart phone are displayed

on the multimedia system so you can easily use any of them (find-

ing the direction, making a call, listening to music, etc.).

With Android phone connected, Android Auto appears on the display.

Available functions and operations may differ depending on the

company model.

For more information, visit the Google website http://support.goo-

gle.com/androidauto

Precautions

• Android Auto is a registered trademark of Google Inc.

• Android Auto is unavailable if the phone OS is not Android 5.0

(Lollipop) or higher or your phone is unable to be recognized due

to a shutdown caused by a failure or defect in the device itself.

• Your phone may not be recognized if its battery is low. Charge

your phone then try again.

• If your phone is shut down due to a defect in the device itself,

reset your phone and try again.

• If you repeatedly connect and disconnect the USB cable on the

device in a short period of time, your phone may malfunction.

This can also cause a device failure.

• The device recognition time may differ depending on the device

type and firmware/OS version.

• Using the micro-USB cable that came with the phone is rec-

ommended. (Using a non-genuine product may cause noise or

malfunction.)

• Normal operations are not guaranteed when you arbitrarily

manipulate your phone while Android Auto is active.

• Carrier charges may apply when using Android Auto.

6-18 I Apps/Info

• Android Auto may not operate normally due to mobile phone

issues.

• The following problems may occur due to issues with your

phone.

- Intermittent black screens appear when entering Android

Auto.

- Unable to differentiate between phones that support Android

Auto and those that do not.

- If services do not work properly due to problems similar to the

specified above, check your phone, and if necessary, recon-

nect your phone after restarting.

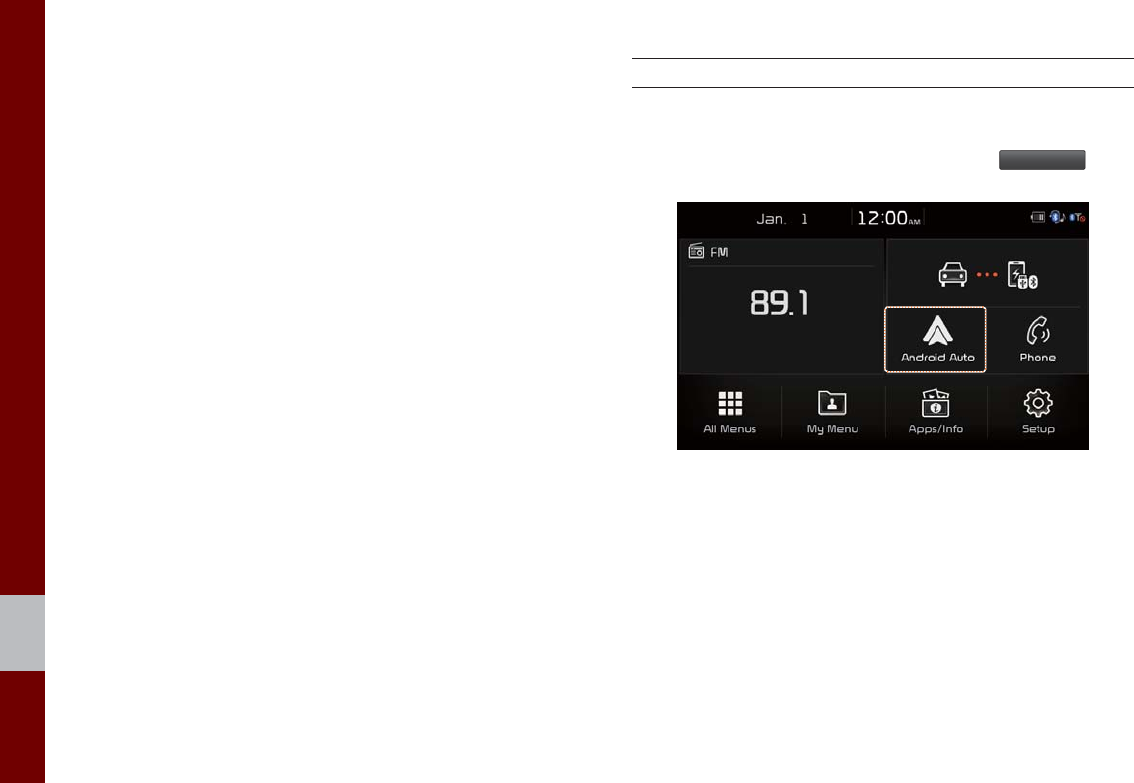

Using Android Auto Features

1. With Android Auto, connect the micro-USB cable provided by

the mobile manufacturer.

2. On the Home or All Menus screen, select the

Android Auto

icon.

3. You can use Android Auto’s features, such as navigation,

music, and phone.

UMaD2F6037EU

Android Auto I 6-19

NOTICE

• Before connecting your mobile phone, check whether Android Auto

is set to ON in the Connectivity Settings menu.

• After connecting the mobile phone, you must unlock your phone

and accept the Disclaimers on your phone in order for Android Auto

to launch.

• The screens and features displayed on the multimedia system

are the same as what Google originally provide. The screens and

features are subject to change according to the policy of each

individual company.

Cautions when using Android Auto

• Bluetooth media features will be disabled when Android Auto

is activated. You cannot use Bluetooth Media features such as

Bluetooth Audio and Pandora. If you want to use these features,

disconnect the micro-USB cable.

• Android Auto mode does not support the feature that enables you to

search for music ﬁ les by controlling the

TUNE

knob.

• If Android Auto is not activated even after a successful connection,

check the following:

- Phone Application status (Check if an error has occurred)

- Check if Android Auto has been closed on your phone.

- Check whether Android Auto is set to ON in the Connectivity

Settings menu.

• If Android Auto does not work normally even after a reconnection

has been made, visit the Google website http://support.google.com/

androidauto.

MEMOMEMO

Climate Mode

Camera

part.7 Other Features

7-2 I Other Features

Other Features

Climate Mode

Operating Climate Mode

Press the

CLIMATE

key for the climate system to see status infor-

mation in the full screen display.

While multimedia or navigation is in use, the climate system infor-

mation will be displayed over top when you control the tempera-

ture (TEMP) or turn on the air conditioner (A/C).

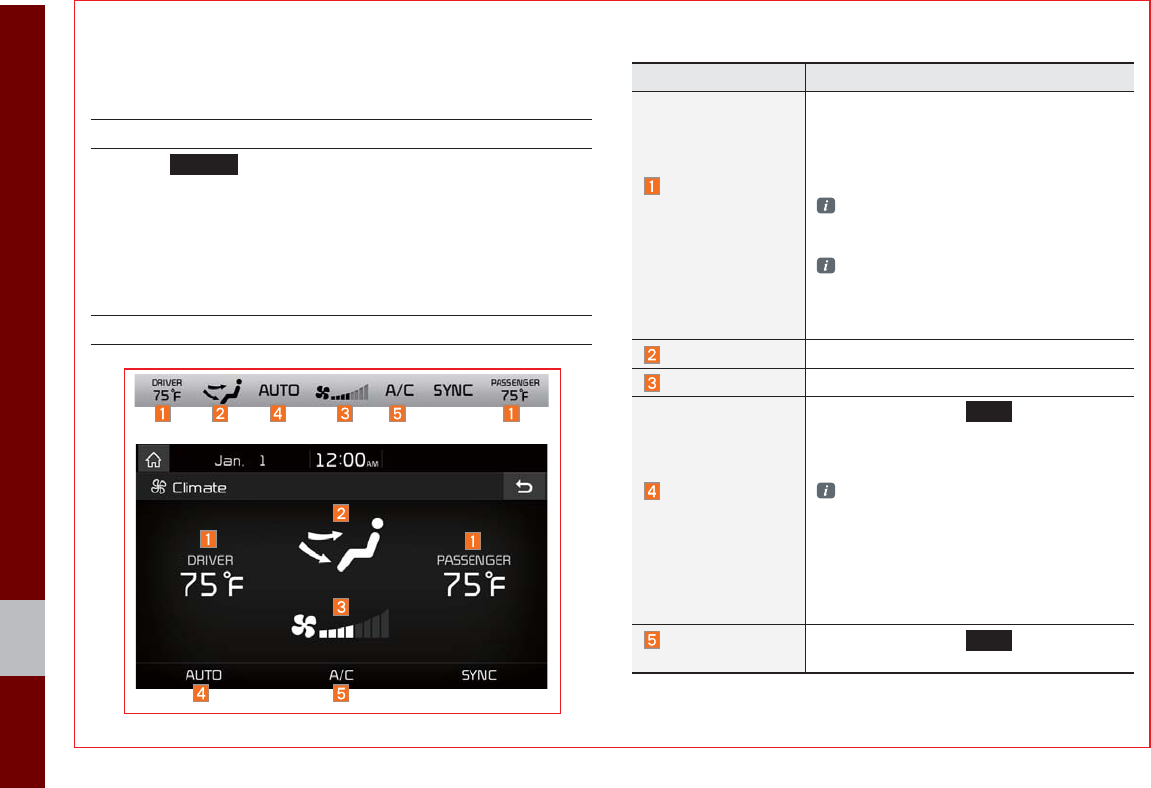

Basic Mode Screen

Name Description

Set the temperature

of the driver's seat

and passenger

seats

Displays the configured temperature set-

tings for the driver's seat and the passenger

seats. Cooling or heating will continue until

the temperature matches the configured

temperature settings.

The internal temperaure can be con-

trolled in incrments of 1°F within a range

of 63°F to 89°F.

LOW is displayed when the temperature

is set to anything below 63°F, and HIGH

is displayed when it is set to anything

above 89°F.

Air direction Displays the configured air direction settings.

Air volume Displays the configured air volume settings

Cooling/heating

control status

(AUTO)

Displayed when the

AUTO

key is pressed

and cooling/heating operates automatically

according to the configured temperature

settings.

AUTO will be turned off when you try to

do the following with AUTO on:

- Control the air volume

- Control the air direction

- Turn the air conditioning (A/C) on/off

- Turn on the moisture removal function

for the windshield

Air conditioning

control status

Displayed when the

A/C

key is pressed

and the air conditioning starts cooling/heating.

UMaD2F7002EU

UMaD2F7003EU

Climate Mode I 7-3

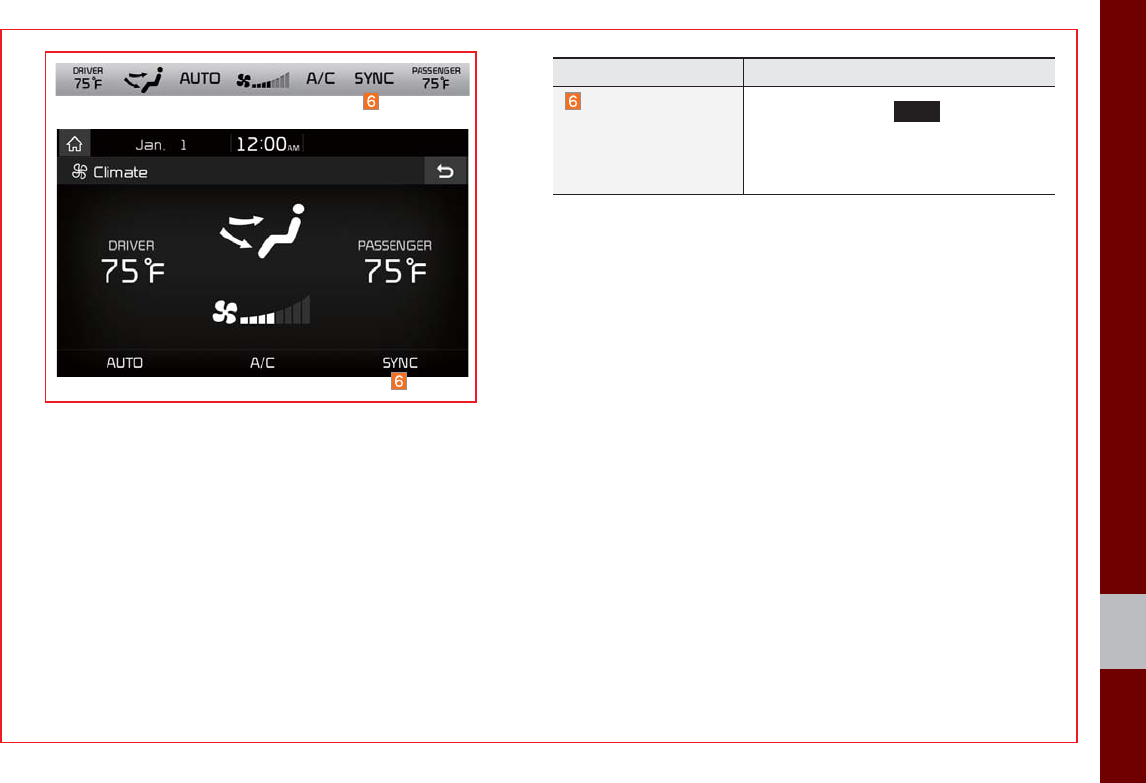

Name Description

Simultaneous tem-

perature settings for

the driver's seat and

the passenger seats

(SYNC)

Displayed when the

SYNC

key is pressed

and the temperatures of the driver's seat

and the passenger seats can be config-

ured at the same time.

7-4 I Other Features

Camera

WARNING

- Backing Up & Using Camera

• Never rely solely on the rear view cam-

era when backing up. Prior to entering

your vehicle always do a visual check of

the area behind your vehicle, and before

backing up be aware of your surroundings

and supplement the rear view camera by

looking over your shoulders and checking

your rear view mirrors. Due to the diffi-

culty of ensuring that the area behind you

remains clear, always back up slowly and

stop immediately if you even suspect that

a person, and especially a child, might be

behind you.

Information

• A separate chipset is used for the camera

screen while booting up, so it may be different

after booting up.

Steering-linked camera

• This device is connected to a rear

detection camera to see behind the car

for safe reversing.

• The Rear View Camera turns on auto-

matically if you shift the gear to R when

the power is on or the engine has

started.

• While the device boots up, shift the gear

to "R" to activate the rear detection cam-

eras. Shift the gear to another position

to deactivate the rear detection camera.

NOTICE

• A wide-angle lens is installed as the rear

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears.

on-screen. For safety, make sure to view

the back, right, and left sides of the car for

yourself.

• The color of the parking guidelines displayed

in the picture may differ from the actual

screen.

• When booted up, blinking may occur when

you switch to a UI screen.

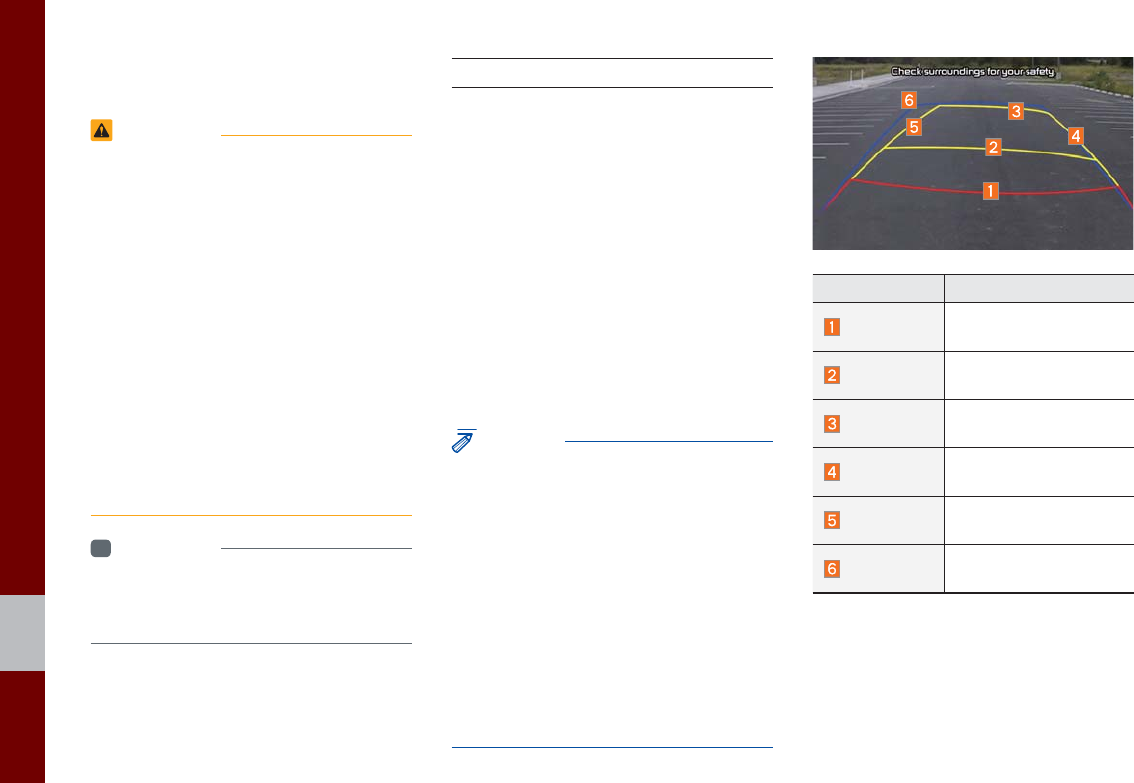

Name Description

Red Line About 0.5m from the rear

bumper

Yellow Line 1 About 1m from the rear

bumper

Yellow Line 2 About 3m from the rear

bumper

Yellow Line 3 Trajectory of the wheel

on the driver’s side

Yellow Line 4 Trajectory of the wheel

on the passenger side

Blue Line Neutral steering trajec-

tory

As you reverse your car and monitor the

area behind your car, the steering-linked

driving trajectory and the neutral driving

trajectory are both displayed.

UMaD2F7001EU

Camera I 7-5

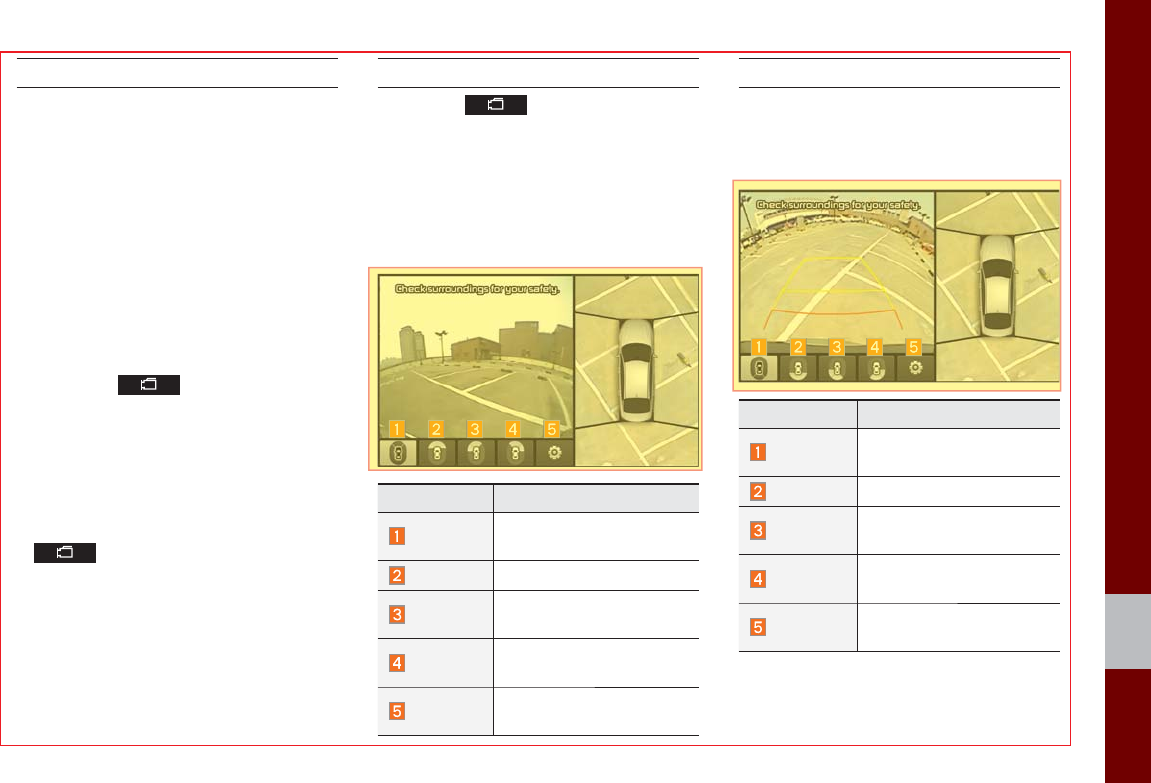

SVM (Surround View Monitor)

With the power on, the SVM is connected

to the SVM camera to see the front, rear,

and back of the car when driving at low

speeds (10km/h or less). It is optional.

• The SVM-camera front detection mode

will be activated when driving at low

speeds (10km/h or less). When the car

drives over 10km/h, the SVM camera

screen is disabled.

• When the key is pressed and

the gear is in a position other than P or

R while the engine is running, the SVM

camera automatically starts when the

car accelerates.

• Shift gears to P or R and turn off the

key to disable the front detec-

tion camera screen.

• The rear detection mode of the SVM

camera is activated with the gear is

positioned to R.

Front SVM

Select the key after starting the

engine.

If the gear is in a position other than P or

R, it automatically switches to the front

detection SVM camera mode when the

car accelerates.

Name Description

SVM Displays all of the images

around the car.

Front Displays the front image.

Front left Displays the front-left

image.

Front right Displays the front-right

image.

Settings Displays the Parking

Guidance Settings screen.

Rear SVM

If the gear is positioned to R, the rear SVM

camera is automatically switched to the

operational mode.

Name Description

SVM Displays all of the images

around the car.

Rear Displays the rear image.

Rear left Displays the rear-left

image.

Rear right Displays the rear-right


Settings Displays the Parking

Guidance Settings screen.

UMaD2F7004EU UMaD2F7005EU

7-6 I Other Features

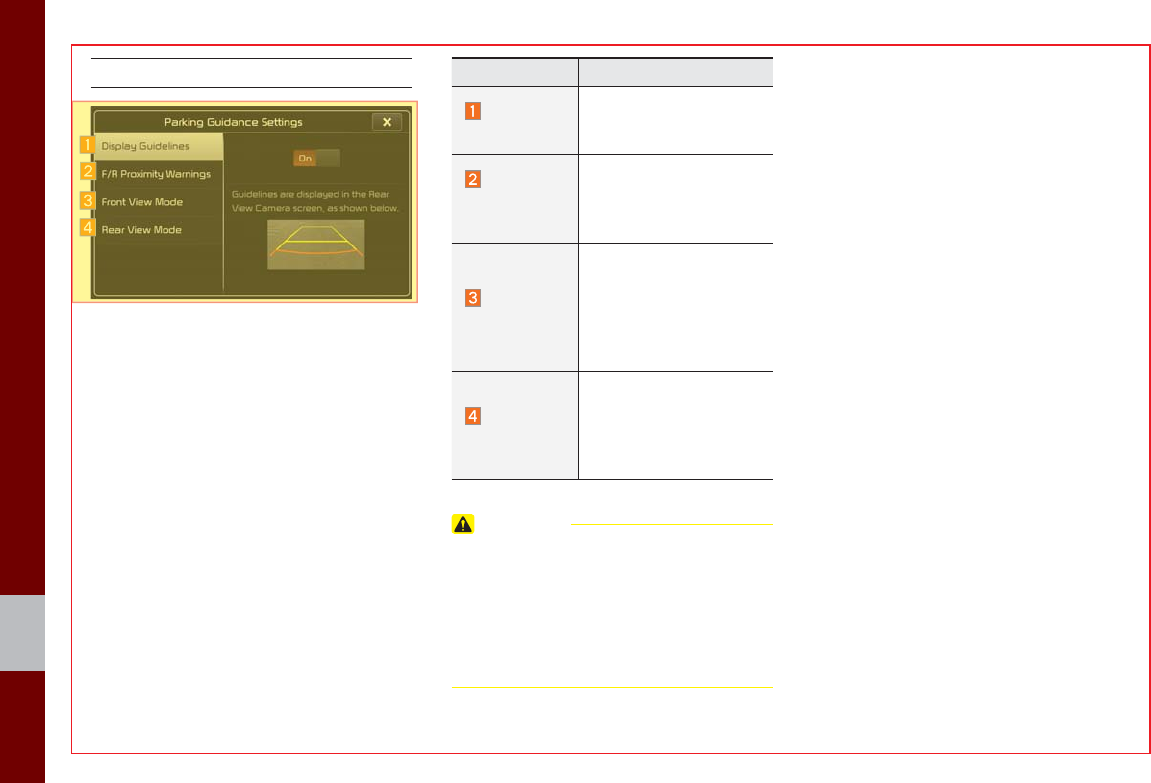

Parking Guidance Settings

Name Description

Display

Guidelines

Guidelines are displayed

in the Rear View Camera

screen, as shown below.

F/R

Proximity

Warnings

Provides a warning when

an object is in close

proximity to the front or

rear of the vehicle.

Front View

Mode

Displaying the front

SVM, select the basic

display mode of the

camera screen. (SVM,

Front left, Front right,

and Front.)

Rear View

Mode

Displaying the rear SVM,

select the basic display

mode of the camera

screen. (SVM, Rear left,

Rear right, and Rear.)

CAUTION

• A wide-angle lens is installed for the front

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears

onscreen. For safety, make sure to check the

front, right, and left sides for yourself.

UMaD2F7006EU

Setup

Sound Settings

Display Settings

Phone Settings

UVO eServices Settings

Connectivity Settings

Home Screen Settings

Wi-Fi Settings

Clock Settings

Voice Recognition Settings

Language Settings

Keyboard Settings

Screen Saver Settings

System Info

part.8 Setup

8-2 I Setup

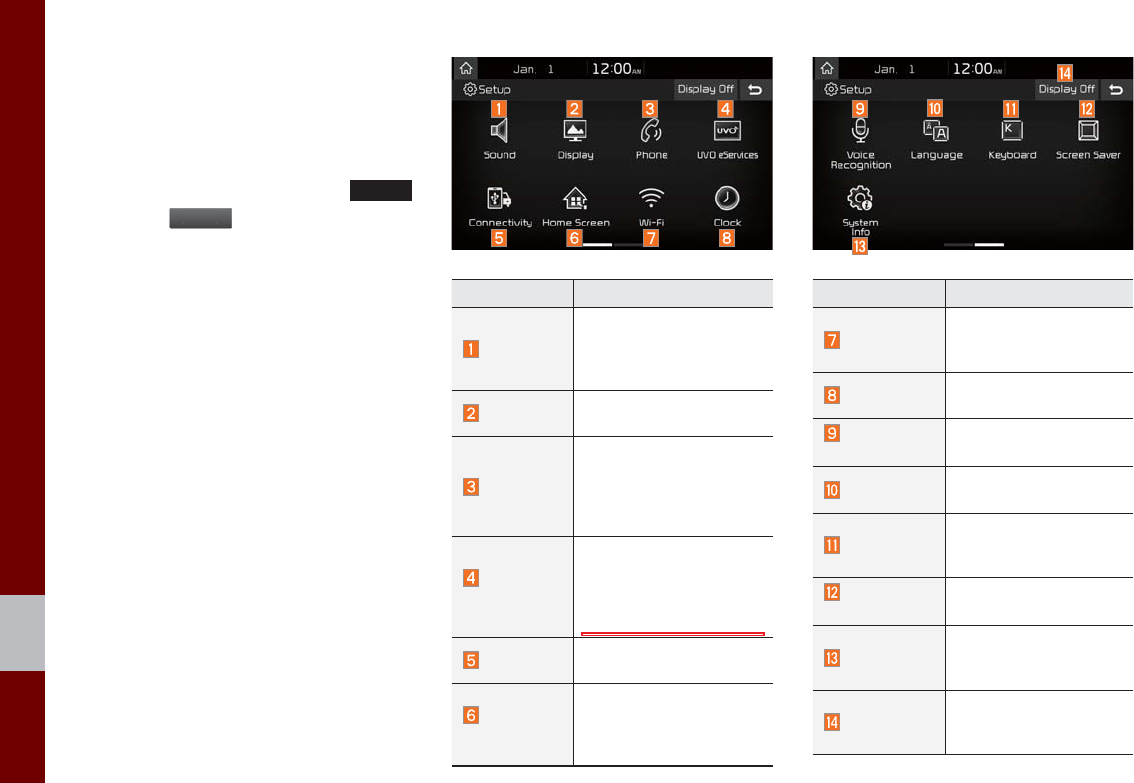

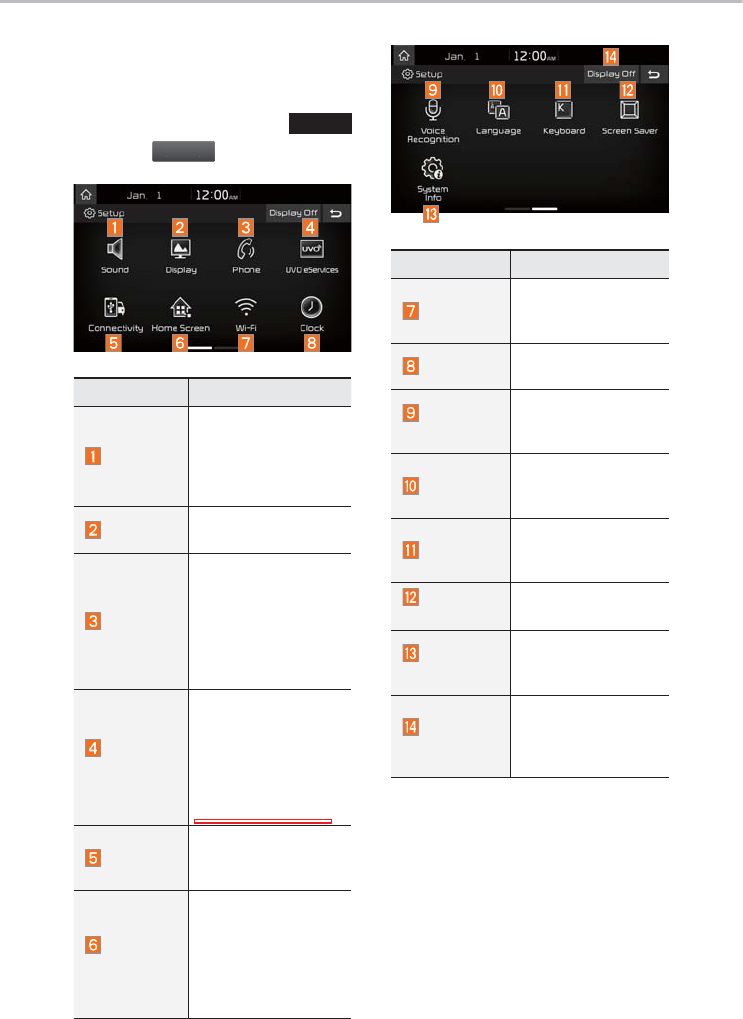

Setup

Setup is the screen to control Audio sys-

tem settings.

To enter the screen, press the

SETUP

key or the

Setu

icon in All Menus.

Features Description

Sound

Provides the sound con-

trol options for Position,

Bass, Mid, Treble, Volume

and Advanced settings.

Display Provides the Mode/

Illumination settings.

Phone

Provides the Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information settings.

UVO

eServices

Provides the 911

Connect/Parking Minder/

My Car Zone/ Scheduled

Diagnostics/Trip Info

Sync Reminder Settings.

Connectivity Provides connectivity set-

tings for Android Auto.

Home

Screen

Provides the function

to customize the three

menu items at the bottom

of the Home Screen.

Features Description

Wi-Fi Provides the Wi-Fi

On and Network

Connection settings.

Clock Provides the Time and

View settings.

Voice

Recognition

Provides the Guidance

and Priority settings.

Language

Provides the Change

Language settings.

Keyboard Provides settings to

switch keyboard lay-

outs.

Screen

Saver

Provides the Clock/

None settings.

System Info Provides software and

storage space informa-

tion.

Display Off Provides the Display

Off (touch activation)

function.

UMaD2F8001EU UMaD2F8002EU

Setup I 8-3

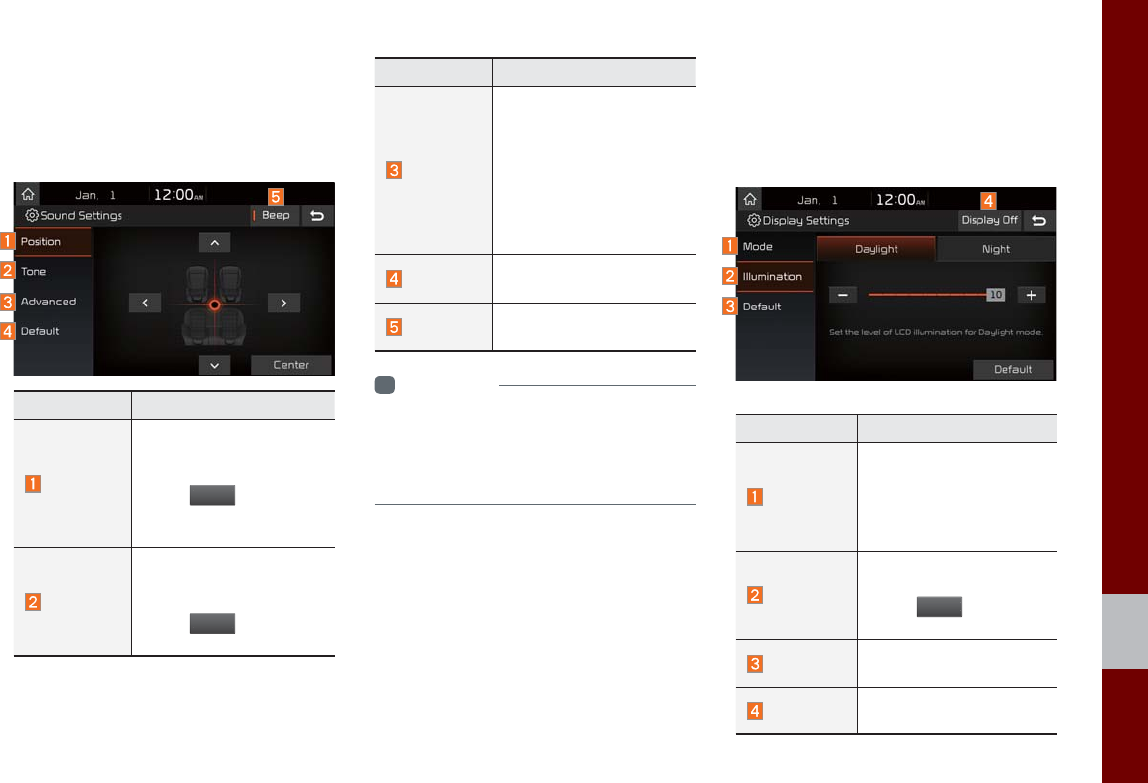

Sound Settings

Adjusts the sound effects for the whole

system.

Features Description

Position

Select the Up/Down/Left/

Right button to control

sound positioning.

Select

to concen-

trate the sound on the

center of vehicle.

Tone

Drag the slide bar to

control bass/mid/treble

settings.

Select

to initialize

the settings.

Features Description

Advanced

Select additional audio

options such as “Speed

Dependent Volume

Control” that automatically

controls Audio volume

according to vehicle

speed as well as “Variable

EQ”.

Default Resets the sound to fac-

tory default settings.

Beep Select to activate a beep

when pressing buttons.

Information

• Advanced sound settings may differ according

to selected AMP option.

• The seat shape may differ according to

vehicle model.

Display Settings

Adjusts the level of illumination for the

entire system.

Features Description

Mode

Select any of LCD illumi-

nation change modes:

Automatic (changes

the level automatically),

Daylight, and Night.

Illumination

Set the levels of illumina-

tion for day and night.

Select

to initialize

the settings.

Default Resets the display to fac-

tory default settings

Display Off Provides the Display Off

(touch activation) function.

UMaD2F8003EU UMaD2F8004EU

8-4 I Setup

Phone Settings

Changes Bluetooth phone settings.

Phone Settings

Press the

SETUP

key ▶ Select

Pho

icon.

Bluetooth Connection Settings

Press the

SETUP

key ▶ Select

▶

Select

th C

nnecti

Features Description

Paired Device

List

Displays the paired

Bluetooth device list.

When selecting from

the list, the device is

connected or discon-

nected.

Bluetooth

Audio

Connection

Status

An icon appears when

you make a Bluetooth

Audio connection.

Bluetooth

Hands-Free

Connection

Status

An icon appears when

you make a Bluetooth

Hands-free connec-

tion.

Add New Register a new

Bluetooth device.

Delete Devices Select and delete a

paired device.

Delete All Delete all paired

devices.

Help

Switches to the

Bluetooth Connection

Help screen.

UMaD2F8005EU UMaD2F8006EU

Setup I 8-5

Information

• Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be connected

at a time.

• During a Bluetooth device connection, another

device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit

are also deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio, will

function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly

disconnected, due to being out of

communication range, the device powering

off, or a Bluetooth communication error, the

Bluetooth device automatically searches for

and connects to nearby Bluetooth devices.

• If the system is not stable, due to a vehicle-

Bluetooth device communication error, restore

the Default Factory Settings.

• For Default Factory Settings, the bluetooth

settings are reset to factory settings

• Press the

SETUP

key ▶ Select

hone

▶

Select

▶Select

ory

tti

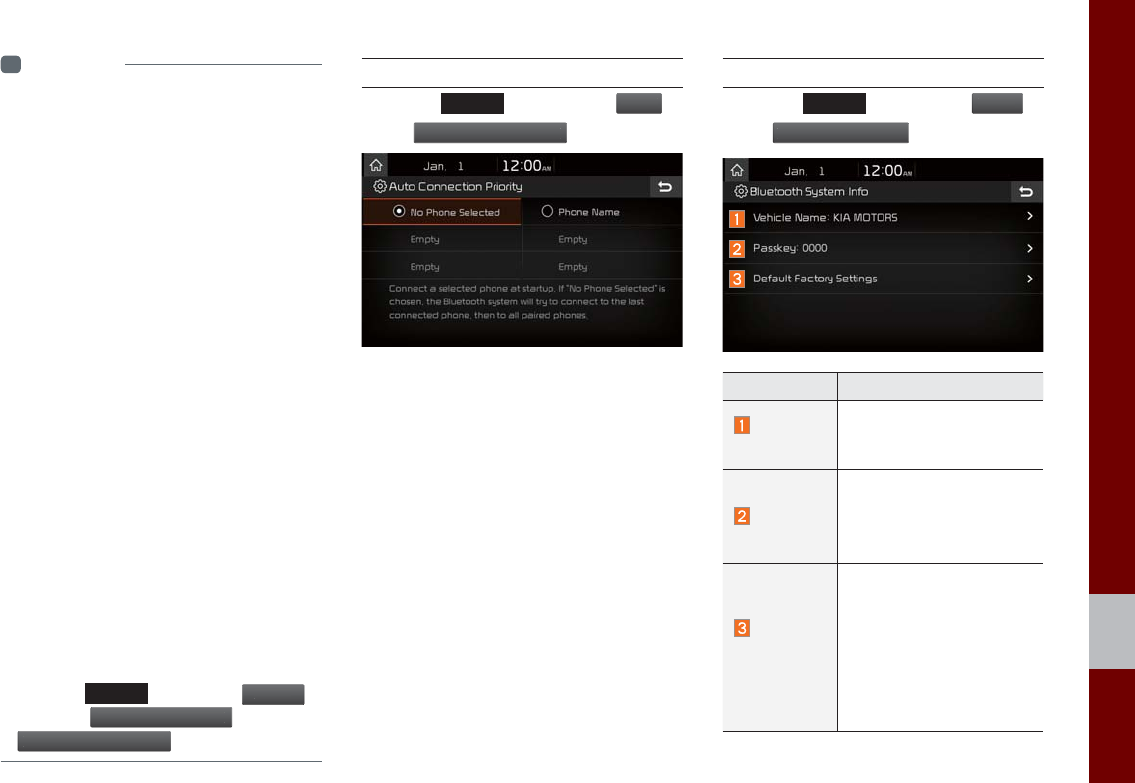

Auto Connection Priority

Press the

SETUP

key ▶ Select

▶

Select

Auto Connection Priorit

When the engine is running, the selected

Bluetooth device is automatically con-

nected. If you fail to connect the selected

device, the previously-connected device is

automatically connected, and if it also fails,

then it tries to connect all paired devices

sequentially.

Depending on auto connection priority,

connection to a device may take time.

Bluetooth System Information

Press the

SETUP

key ▶Select

▶

Select

Bluetooth S

stem Info

Features Description

Vehicle

Name

You can change the

Bluetooth device name of

the vehicle.

Passkey

You can change the pass-

key used for Bluetooth

device authentication. the

initial passkey is 0000.

Default

Factory

Settings

You can delete all paired

devices and restore the

Default Bluetooth Settings.

For Default Factory

Settings, all paired devices

are deleted, and the

system is reset to factory

settings.

UMaD2F8007EU UMaD2F8008EU

8-6 I Setup

Information

• The vehicle name above is an example.

Check the actual information on the product.

UVO eServices Settings

Within the eServices Settings screen,

UVO eServices related features can be set,

such as activating 911 Connect, Parking

Minder and setting the My Car Zone.

For safety reasons, My Car Zone Settings

can not be adjusted while driving. Park

the vehicle before making any changes to

your settings.

Press the

SETUP

key ▶

UVO eServices

911 Connect

This feature is used to turn on or off the

911 Connect feature.

UMaD2F8009EU UMaD2F8010EU

Setup I 8-7

When enabing this feature, you must first

agree to the 911 Connect tems of use.

After reading the tems of use, press the

Agree

button on the touch screen to

accept.

Parking Minder

If you want to send vehicle location to your

smartphone automatically when you turn

the ignition off, turn the Parking Minder

feature On.

My Car Zone

This feature is used to set My Car Zone

(Curfew Limit, Speed) alert conditions.

My Car Zone Settings is unavailable when

UVO eServices has not been activated.

Press the

SETUP

key ▶

UVO eServices

▶

My Car Zone

The PIN must be entered to use My Car

Zone Settings.

UMaD2F8011EU UMaD2F8012EU UMaD2F8013EU

8-8 I Setup

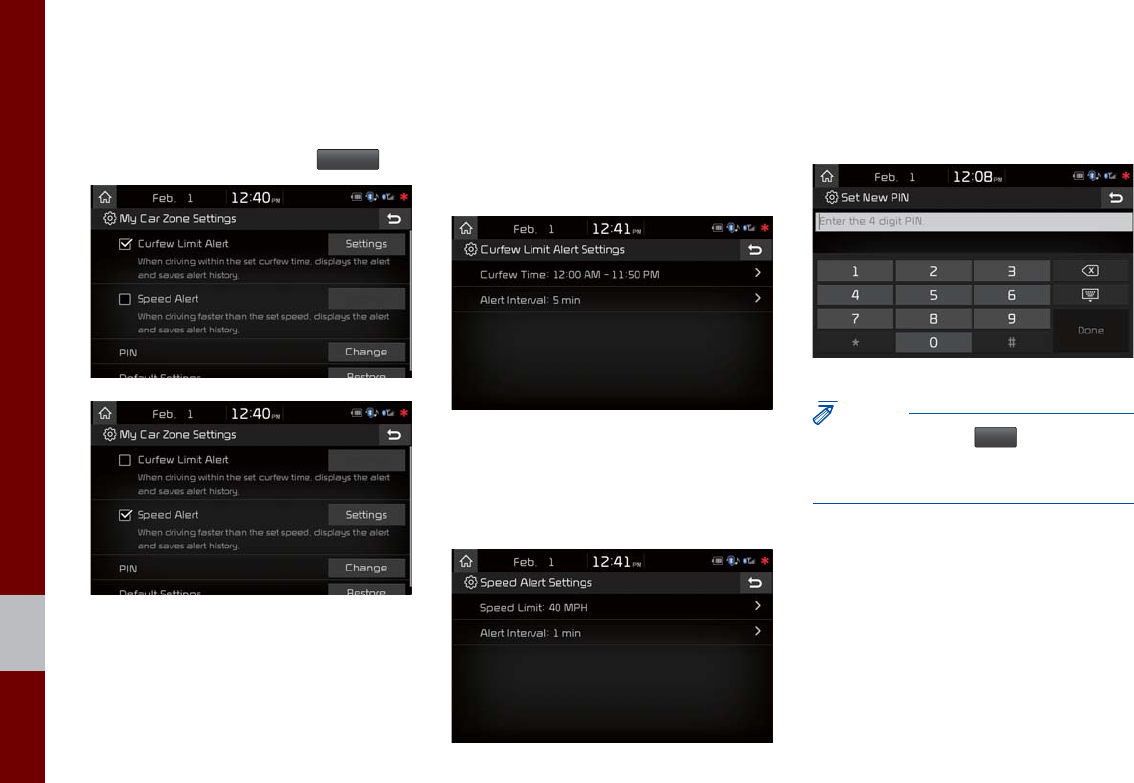

This screen is used to set Curfew Limit

and Speed Alert features.

Set the alert conditions On ▶

Settings

Curfew Limit Alert Settings

Within Curfew Limit Alert Settings, you can

set the Curfew Limit Alert Start and End

Time. You can also set the Alert Interval of

alerts upon Curfew Limit.

Speed Alert Settings

Within Speed Alert Settings, you can set

the vehicle speed limit and Alert Interval of

alerts upon overspeeding.

This feature is used to change the PIN to

enter My Car Zone Settings.

NOTICE

• Before pressing

Done

, ensure your

smartphone is connected to UVO eServices

system via USB cable.

UMaD2F8014EU

UMaD2F8015EU

UMaD2F8016EU

UMaD2F8017EU

UMaD2F8018EU

Setup I 8-9

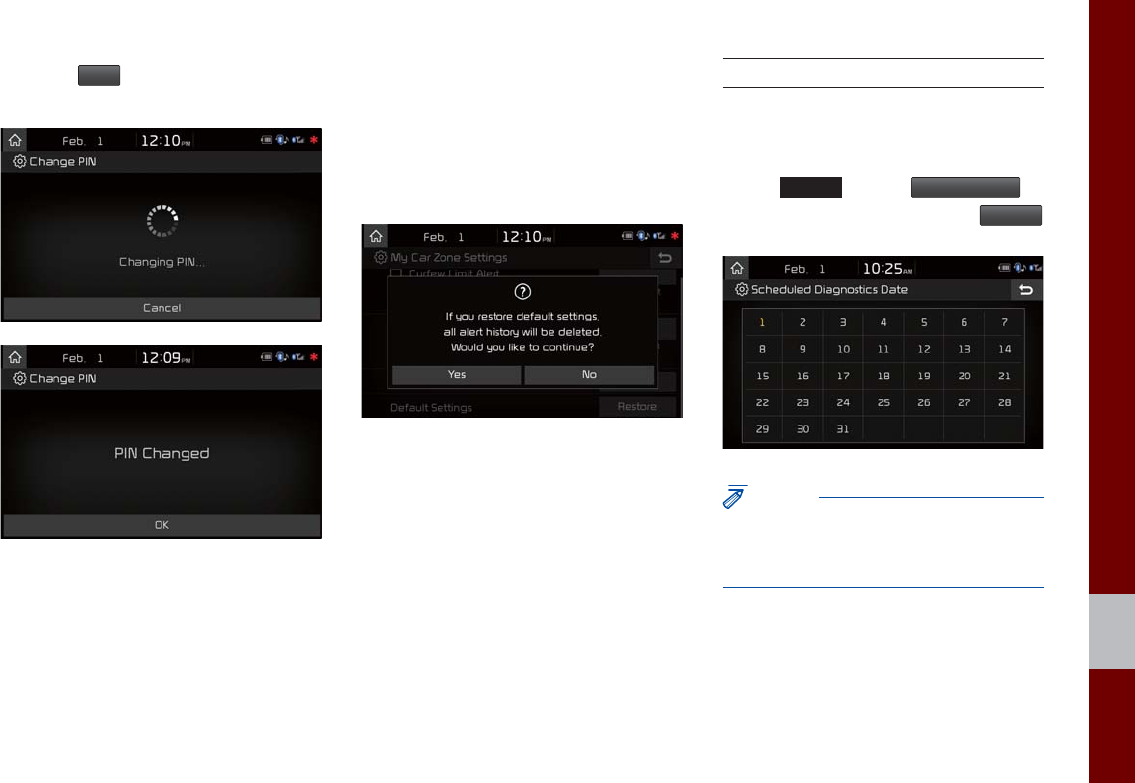

Press the

Done

button to transmit the new

PIN to your My UVO com account.

Restore Factory Settings

This feature is used to restore all My Car

Zone alert history and settings back to

default state.

Scheduled Diagnostics

This feature is for setting when scheduled

diagnostics alerts display.

Press

SETUP

key ▶

UVO eServices

▶

Set the Scheduled Diagnostics On ▶

Settings

NOTICE

• For months without the corresponding day,

the last day of the month will automatically be

set as the scheduled diagnostics date.

UMaD2F8019EU

UMaD2F8020EU UMaD2F8021EU

UMaD2F8022EU

8-10 I Setup

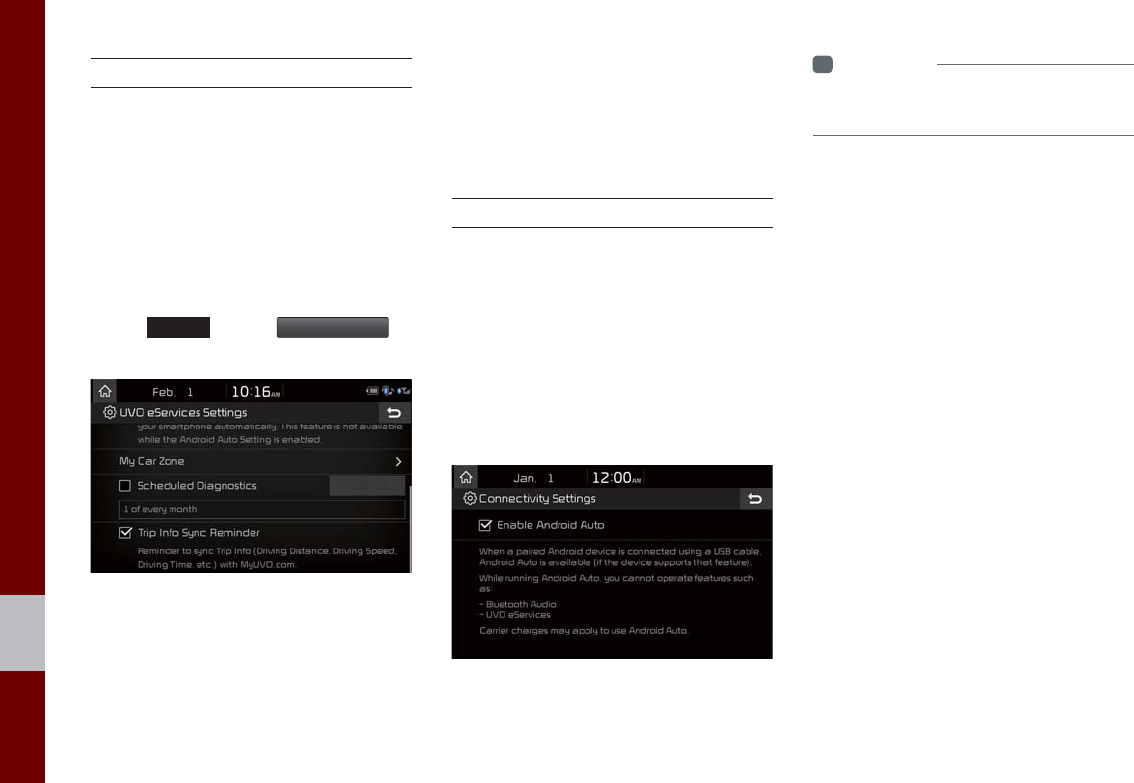

Trip Info Sync Reminder

Trip Info is a feature used to set whether

system displays alert when trip info(Driv-

ing Distance, Driving Speed, Driving Time,

etc). reaches 90% of memory.

UVO eServices must be activated to use

this feature.

Press

SETUP

key ▶

UVO eServices

▶

Set Trip Info Sync Reminder On

Connectivity Settings

You can set Android Auto to activate when

an Android device is connected.

Android Auto

If Android Auto is checked, you can use

the functions of your Android phone with

a USB cable and Bluetooth connected. It

enables the Android Auto functions. The

latest version of Android must be installed

on the phone (Android 5.0 and above).

While Android Auto is running, you cannot

use some features.

Information

• This setting is disabled when a device is

connected to the vehicle USB port.

UMaD2F8023EU UMaD2F8024EU

Setup I 8-11

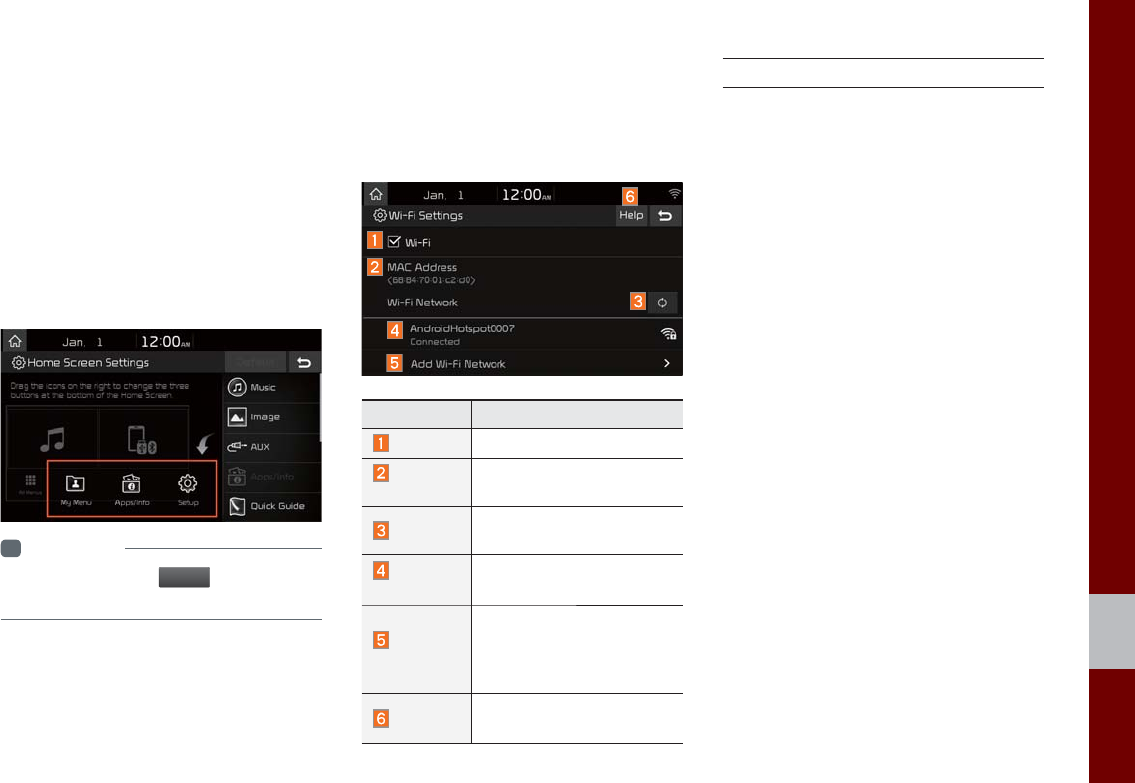

Home Screen Settings

You can customize the three menu items

at the bottom right of the Home Screen

into the ones you want.

On the Home Screen Settings screen,

drag the menu items on the right to the

area marked in blue in the screen below.

Information

• You can select the

Def

button to reset

to the factory default settings.

Wi-Fi Settings

You can share a digital-device network

with the vehicle device through Wi-Fi.

Features Description

Wi-Fi Turn on/off Wi-Fi.

MAC

Address

Displays the MAC

address.

Refresh Searches available net-

works near the vehicle.

Network

Name

Displays available network

AP (Access Point) names.

Add Wi-Fi

Network

Enter the network ID/

password to connect to

a hidden network AP

(Access Point).

Help Shows the Wi-Fi setup

guide.

How to Connect to a Network

1. In the Wi-Fi settings of a digital

device, activate Internet sharing

(Hotspot).

2. In the vehicle network list, select the

desired device to connect to. Enter

the password to connect, if any.

UMaD2F8025EU UMaD2F8026EU

8-12 I Setup

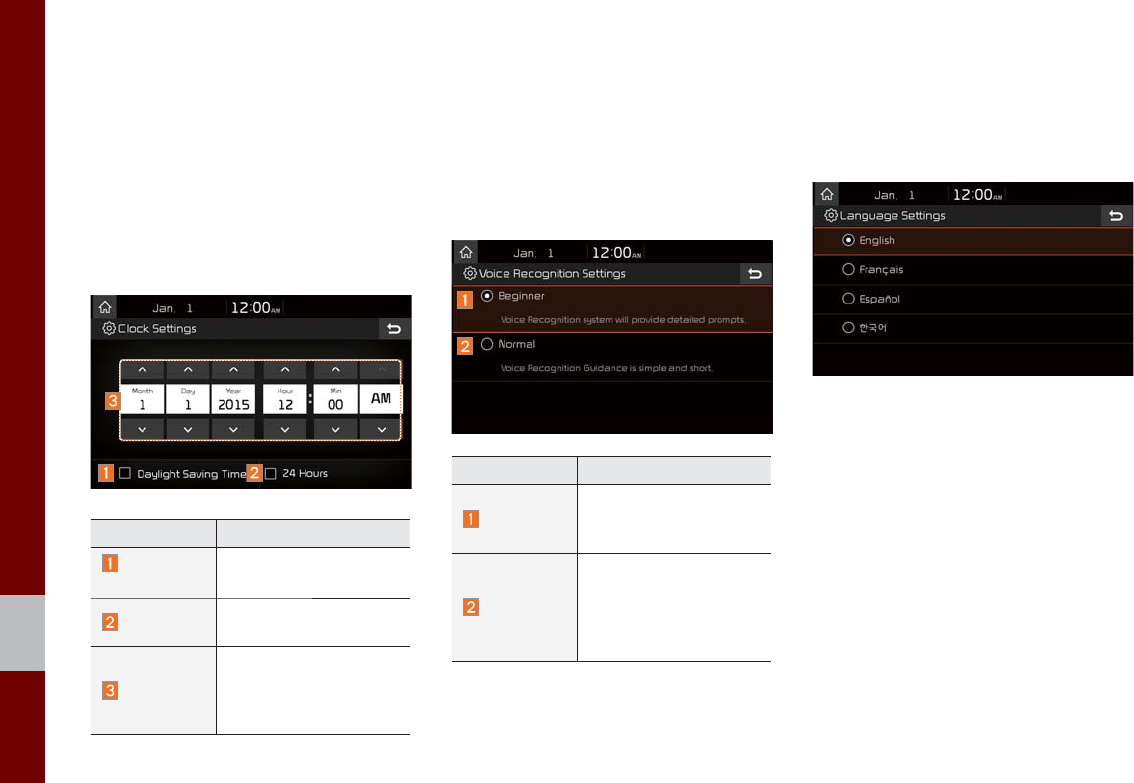

Clock Settings

Configure the settings for time and date.

Using the arrow buttons, you can change

the values. Clock settings do not automat-

ically change when crossing into different

time zones. The time must be changed

manually on this screen.

Features Description

Daylight

Saving Time

The daylight saving

time (DST) is applied.

24 Hours The time display is set

in 24-hour format.

Direct entry

If you tap any value,

you can directly enter

the number in the fol-

lowing screen.

Voice Recognition

Settings

Configure how to make a call with

Voice Recognition Guidance and Voice

Recognition.

Features Description

Beginner

For beginners, the voice

recognition system pro-

vides voice prompts.

Normal

For normal users, the

voice recognition sys-

tem provides simple

and short voice guid-

ances.

Language Settings

You can configure the displayed system

language.

When the language is changed, the sys-

tem language is automatically changed.

Unique data including MP3 file name is

not changed and voice recognition does

not support some languages.

UMaD2F8027EU UMaD2F8028EU UMaD2F8029EU

Setup I 8-13

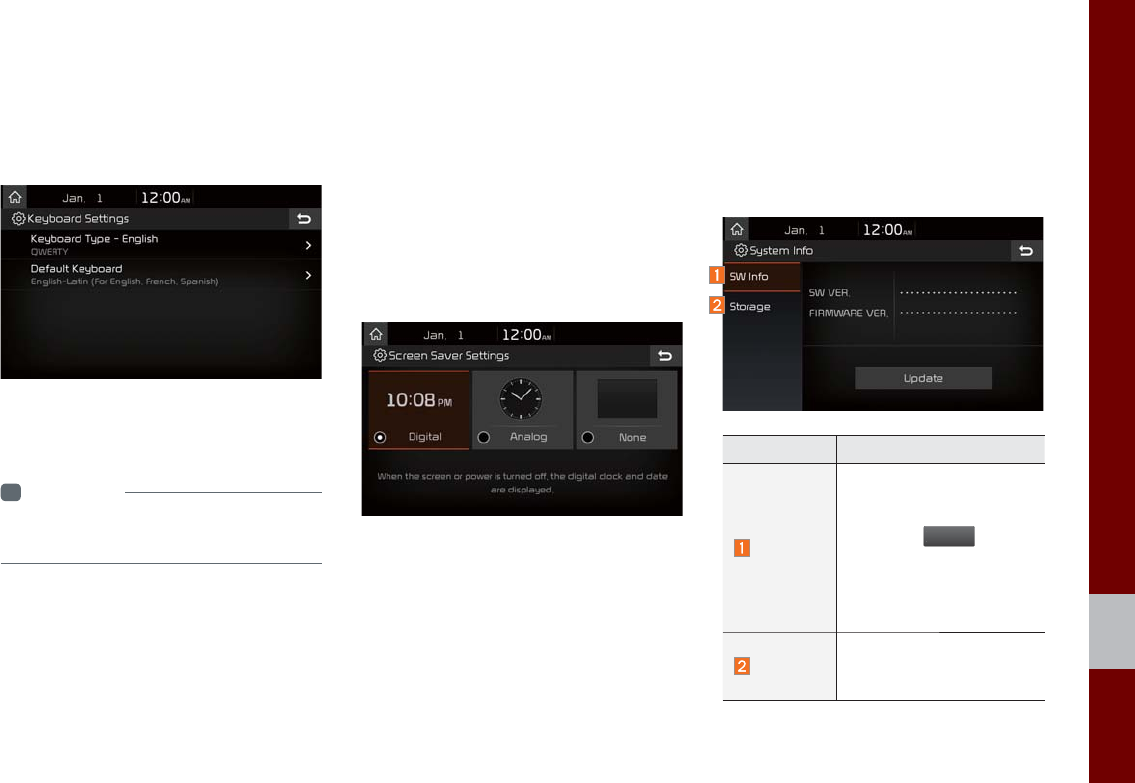

Keyboard Settings

You can configure the keyboard layout for

each language.

You can configure ABCD or QWERTY

keyboards for the system.

Information

• Configured keyboard layouts are applied

to all input modes.

Screen Saver Settings

You can select any of the following screen

formats to be displayed when the screen

or power is turned off (Press and hold the

Power button).

• Digital clock and date

• Analog clock and date

• None

System Info

At the System Info screen, software ver-

sion information, updates, and storage

status details are available.

Features Description

SW Info

System version informa-

tion and update details

are available.

Select the

Upd

button

to update the system.

After update is complete,

the system will reboot

automatically.

Storage

Displays the memory

space available for media

storage.

UMaD2F8030EU UMaD2F8031EU UMaD2F8032EU

8-14 I Setup

System Update

At the System Info screen, insert the USB

memory with the latest file downloaded,

and then select the

button to begin

updating. The system will then reboot

automatically.

Information

• This product needs supplemented

software updates and additional functions,

which collectively may take some time to

complete, depending on the amount of

data.

CAUTION

• If the power is disconnected or the USB is

removed during an update, the data might be

damaged. Please do not turn off the vehicle

while an update is in progress.

Product Specification

Troubleshooting

FAQ

part.9 Appendix

9-2 I Appendix

Product Specification

TFT-LCD

Screen Size 7 inch(152.4 X 91.44 mm)

Resolution 384000 pixels (Resolution: 800 x 480)

Operating

Method TFT(Thin Film Transistor) Active Matrix

Viewing Angle Left/Right, Top/Bottom: ALL 89°

Internal Lighting LED

Radio

Channels

FM: 87.5 MHz ~ 107.9 MHz(Step: 200 kHz)

AM: 530 kHz ~ 1710 kHz(Step: 10 kHz)

Sensitivity FM: Under 10 dBu/AM: Under 35 dBu

Distortion Factor Within 2 %

Common

Name Car TFT LCD Display Audio Unit

Power Supply DC 14.4 V Operating

Power DC 9 V ~ DC 16 V

Current

Consumption 2.5 A Sleep

Current

1 mA

(Head Unit Only)

Operating

Temperature -20 ~ +70 °C

(-4 ~ +158 °F)

Storage

Temperature

-30 ~ +80 °C

(-22 ~ +176 °F)

Dimensions 178 X 139.2 X 103 (Main Box)

Weight 2.3 kg

Appendix

Appendix I 9-3

Wi-Fi Details

Frequency 2412 ~ 2462 MHz,

5180 ~ 5825 MHz

Specification IEEE802.11 a/b/g/n/ac

Operating

Temperature

-20 ~ +70

°C

(-4 ~ +158

°F

)

Supported

Bandwidth 20/40/80 MHz

Bluetooth®

Wireless Technology

Frequency

Range 2402 ~ 2480 MHz

Supported

Bluetooth

Specification

3.0

Supported

Profile Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)

Output -6~4 dBm (Power Class2, Conducted)

Number of

Channels 79 channels

CAUTION

• The producer and installer cannot provide services related to life safety

as the concerned radio equipment is liable to radio interference.

9-4 I Appendix

Troubleshooting

1. Errors which occur during the operation or installation of the

device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Kia dealer.

Problem Possible Cause

There are small red,

blue, or green dots on

the screen

• Because the LCD is manufactured with

technology requiring high point density,

a pixel or lighting deficiency may occur

within 0.01% of total pixels

The sound or image is

not working

• Has the Switch for the vehicle been

turned to [ACC] or [ON]?

• Has the SYSTEM been turned OFF?

The screen is being

displayed but sound is

not working

• Has the volume been set to a low level?

• Has the volume been muted?

When the power is

turned on, the corners

of the screen are dark

• The display appearing somewhat dark

after prolonged periods of use is normal

with LCD panels. It is not a malfunction

• If the screen is very dark, contact your

nearest Kia dealer for assistance

Sound is working from

only one speaker

• Are the positions of Fader or Balance

sound controls adjusted to only one

side?

Problem Possible Cause

Sound does not work in

AUX mode

• Are the audio connector jacks fully

inserted into the AUX terminal?

The external device is

not working

• Is the external device connected with a

standard connector cable?

Upon turning power on,

the most recent mode

screen is not displayed

Within modes that play files by reading

external sources, such as discs, USB,

iPod, or Bluetooth

streaming mode, the

most recently played mode screen prior to

turning off power may not properly load

• If there is no disc or the corresponding

device is not connected, the mode oper-

ated prior to the most recent mode will

operate

• If the previous mode still cannot be

properly played, the mode operated

prior to that will operate

Appendix I 9-5

Problem Possible Cause Countermeasure

The power

does not

turn

The fuse is

disconnected

• Replace with a suitable fuse

• If the fuse is disconnected

again, please contact your

point of purchase or Kia

dealer

Device is not properly

connected

• Check to see that the

device has been properly

connected

The system

does not

play

The vehicle battery is

low

• Charge the battery If the

problem persists, contact

your point of purchase or

Kia dealer

Problem Possible Cause Countermeasure

The image

color/tone

quality is

low

• The brightness,

saturation, hue, and

contrast levels are

not set properly

• Properly adjust the bright-

ness, saturation, hue, and

contrast levels through

Display Setup

Sound does

not work

• The volume level

is set to the lowest

level

• The connection is

not proper

• The device is

currently fast-for-

warding, rewinding,

scanning, or play-

ing in slow mode

• Adjust the volume level

• Check to see that the

device has been properly

connected

• The sound will not work

when the device is fast-for-

warding, rewinding, scan-

ning, or playing in slow

mode

The sound

image qual-

ity is low

• Vibration is occur-

ring from where

the conversion

switch has been

installed

• Image color/tone

quality is low

• The sound may be

short-circuited and the

image distorted if the

device vibrates

• The device will return to

normal once vibrations stop

9-6 I Appendix

Problem Possible Cause Countermeasure

The USB

does not

work

• USB memory is

damaged

• USB memory has

been contaminated

• A separately pur-

chased USB HUB

is being used

• A USB extension

cable is being

used

• A USB which is

not a Metal Cover

Type USB Memory

is being used

• An HDD type, CF,

SD Memory is

being used

• There are no

music files which

can be played

• Please use the USB after

formatting it.

• Remove any foreign sub-

stances on the contact

surface of the USB memory

and multimedia terminal

• Directly connect the USB

memory with the multime-

dia terminal on the vehicle

• Directly connect the USB

memory with the multime-

dia terminal on the vehicle

• Use standard USB

Memory

• Use standard USB

Memory

• Only MP3, WMA file

formats are supported.

Please use only the sup-

ported music file formats

The iPod is

not recog-

nized even

though it

has been

connected

• There are no titles

which can be

played

• The iPod firmware

version has not

been properly

updated

• The iPod device

does not recog-

nize downloads

• Use iTunes to download

and save MP3 files into the

iPod

• Use iTunes to update

the firmware version and

reconnect the iPod with the

device

• Reset the iPod and recon-

nect with the device

Problem Possible Cause Countermeasure

Bluetooth

does not

work or its

limited

functions are

available

• Bluetooth on your

mobile phone is

set to OFF

• The Bluetooth

connection is not

made

• Android Auto is

active

• Set it to ON

• Make the connection

active

• Deactivate the mode

Android

Auto does

not work

with proper

connection

• Android Auto

blocking is made

in your phone

• The status of the

application has an

error

• Android OS ver-

sion not supported

• Android Auto App

not installed

• Non acceptance of

request of approval

• Release the blocking.

• Clear the error.

• End the application pro-

cess and try again

• The latest version of

Android must have been

installed

• Install Android Auto App

through Google Play

• Accept request of approval

Android Auto is connected

first time

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the

RESET

key to

reset the system.

• Press and hold the

RESET

key (over 1 second). The device power will

turn off and the system will reset.

Appendix I 9-7

FAQ

About Pairing Mobile Phones

Q I cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth® func-

tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set

it to ON. If the cell phone still can’t be registered, try again after

turning Bluetooth off and on, or delete the device registration on

the multimedia system and cell phone and then register the cell

phone again.

Q What is the difference between pairing a mobile phone and con-

necting a mobile phone?

A Pairing occurs through authenticating the head unit and mobile

phone. Mobile phones paired to the head unit can be connected

and disconnected until the paired mobile phone is deleted from

the system. Bluetooth® Handsfree features, such as making/

answering calls or managing contacts, are supported only in

mobile phones connected with the head unit.

Q What is a Passkey?

A A passkey is the password used to authenticate the connection

between the head unit and mobile phone. The passkey only

needs to be entered once when pairing the mobile phone for the

first time.

The initial passkey is 0000. You can change it with

SETUP

▶

Phon

▶

luetooth S

stem Inf

▶

asske

menu options.

9-8 I Appendix

About Making/Answering Phone Calls

Q How can I answer a call?

A When there is an incoming call, a notification pop-up will

become displayed. To answer the incoming call, select the

cce

button on the screen or the key on the

steering

wheel control

To reject the call, select the

ect

button on the screen or

press the key on the steering wheel control.

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (more than 0.8 seconds)

the key on the

steering wheel control

or select the

button at the bottom of the Phone screen to

switch the call to your mobile phone.

About

Bluetooth

Wireless Technology/

Head Unit Use Environment

Q What is the range of my wireless connection?

A The wireless connection can be used within 15 yards.

Q How many mobile phones can be paired?

A It is possible to pair up to five mobile phones.

Q Why is call quality sometimes poor?

Check the reception sensitivity of the mobile phone when call

quality becomes worsened. The call quality may deteriorate when

the signal strength is low. Call quality may also worsen if metal

objects, such as beverage cans, are placed near the mobile

phone. Check to see if there are metal objects in the vicinity of the

mobile phone. The call sound and quality may differ depending on

the type of mobile phone.

Index I 9-9

0~9

911 Connect ……………………4-7, 8-6

About Bluetooth® Wireless Technology/

Head Unit Use Environment ……… 9-8

About Disc ………………………… 2-11

About Making/

Answering Phone Calls …………… 9-8

About Pairing Mobile Phones ……… 9-7

About SiriusXM™ Data Service…… 6-6

About UVO eServices …………… 4-4

Accept/Reject Call ………………… 3-7

Accessing SiriusXM™ Data ……… 6-6

Accessing SoundHound ………… 6-14

Activating UVO eServices ………… 4-6

Adjusting Voice Recognition Volume

… 5-5

Android Auto …………………6-17, 8-10

Auto Connection Priority …………… 8-5

Automatic Diagnostics …………… 4-12

AUX ………………………………… 2-37

Basic Mode Screen ………………… 7-2

Basic Mode Screen

(HD Radio™ reception ON) ……… 2-5

Battery Warning Message ………… 1-10

Before Playing a USB MP3 ……… 2-22

Before Playing an MP3 Disc ……… 2-14

Before Using the

Bluetooth® Handsfree ……………… 3-2

Before using UVO eServices ……… 4-5

Bluetooth® Audio …………………… 2-38

Bluetooth Audio Mode

Display Controls …………………… 2-38

Bluetooth Connection ……………… 3-4

Bluetooth Connection Settings …… 8-4

Bluetooth Connections Settings …… 2-39

Bluetooth Phone …………………… 3-6

Bluetooth System Information …… 8-5

Call Commands …………………… 5-8

Call History ………………………… 3-9

Camera …………………………… 7-4

CAUTIONS upon Connecting

Bluetooth® Phone ………………… 3-3

CD Mode Display Controls ………… 2-16

Climate Mode ……………………… 7-2

Clock Settings ……………………… 8-12

Combining Voice Recognition with

On-Screen Commands …………… 5-3

Component Names and Functions

… 1-5

Conducting Vehicle Diagnostics …… 4-9

Connecting an External Device …… 2-37

Connecting Bluetooth ……………… 4-5

Connecting Bluetooth Devices …… 3-4

Connecting to smartphone via USB

… 4-6

Connectivity Settings ……………… 8-10

Contacts …………………………… 3-10

Curfew Limit Alert ………………… 4-13

Index

9-10 I Index

Deleting Bluetooth Devices ……… 3-5

Dial ………………………………… 3-7

Direct Tune ………………………… 2-8

Disc CD …………………………… 2-16

Disc MP3 …………………………… 2-19

Disc/Content Format Compatibility

… 2-12

Disconnecting Bluetooth Devices … 3-5

Display Settings …………………… 8-3

Ending Voice Recognition ………… 5-3

eServices Guide …………………… 4-15

Extending the Listening Time ……… 5-4

FAQ ………………………………… 9-7

Favorites …………………………… 3-11

FM/AM ……………………………… 2-2

FM/AM Mode Display Controls …… 2-2

Front SVM ………………………… 7-5

HD Radio™ Technology …………… 2-4

Head Unit …………………………… 1-5

Help Display ………………………… 5-6

Home Screen ……………………… 1-11

Home Screen Settings …………… 8-11

How to Connect to a Network …… 8-11

How to start Siri …………………… 5-14

How to use Siri …………………… 5-14

Initiating a 911 Call ………………… 4-7

Instructions for Using

Voice Recognition ………………… 5-7

iPod ………………………………… 2-30

iPod Mode Display Controls ……… 2-34

Key Product Features ……………… 1-4

Keyboard Settings ………………… 8-13

Language Settings ………………… 8-12

Media Commands ………………… 5-10

MP3 Mode Display Controls ……… 2-19

My Car Zone ………………… 4-12, 8-7

My Music …………………………… 2-40

My Music Mode Display Controls … 2-40

On-Screen Touch Controls ………… 1-12

Operating Climate Mode ………… 7-2

Other Commands List

(Commands used in List/Help) …… 5-13

Index I 9-11

Pair a device from Bluetooth-enabled

phone ……………………………… 4-5

Pairing a New Device ……………… 3-4

Pandora® …………………………… 6-3

Pandora® Screen Controls ………… 6-3

Parking Guidance Settings ………… 7-6

Parking Minder ……………… 4-14, 8-7

Phone Settings …………………… 8-4

Phone Status Icons ……………… 3-6

Precautions for Safe Driving ……… 3-2

Precautions Required for Successful

Voice Recognition ………………… 5-2

Precautions upon Handling Discs … 2-11

Precautions ………………………… 6-17

Product Specification ……………… 9-2

Radio Commands ………………… 5-9

Rear SVM ………………………… 7-5

Recognizing Music ………………… 6-15

Restrictions on Features for Safety

Measures …………………………… 1-10

Roadside Assist …………………… 4-8

Schedule Service ………………… 4-10

Scheduled Diagnostics ……… 4-11, 8-9

Screen Saver Settings …………… 8-13

Searching Music …………………… 6-15

Selecting through Channel/

Category List ……………………… 2-8

Send Report ……………………… 4-10

Sending Parking Location ………… 4-14

Setup ……………………………… 8-2

Siri Eyes Free ……………………… 5-14

SiriusXM™ ………………………… 2-6

SiriusXM™ Data …………………… 6-6

SiriusXM™ Fuel Price Information

… 6-11

SiriusXM™ Mode Display Controls

… 2-6

SiriusXM™ Movie Information …… 6-12

SiriusXM™ Sports Information …… 6-8

SiriusXM™ Stock Information …… 6-9

SiriusXM™ Weather Announcement

… 6-7

Skipping Prompt Messages ……… 5-5

Song Main Screen ………………… 6-16

Sound Settings …………………… 8-3

SoundHound ……………………… 6-14

SoundHound Main Screen ………… 6-14

Speed Alert ………………………… 4-13

Start Screen ………………………… 5-6

Start Up …………………………… 6-2

Starting the System for the

First Time …………………………… 1-9

Starting Voice Recognition ………… 5-3

Starting/Ending and Setting Voice

Recognition ………………………… 5-3

Steering-linked camera …………… 7-4

Steering Wheel Controls …………… 1-7

Supported Disc Formats…………… 2-12

Supported Image Specifications … 2-24

Supported USB MP3 music

specifications ……………………… 2-24

SVM (Surround View Monitor) …… 7-5

System Info ………………………… 8-13

System Reset ……………………… 1-9

System Update …………………… 8-14

9-12 I Index

The 911 Connect feature may not

operate in the following situations

… 4-2

Trip Info Sync Reminder ……… 8-10

Troubleshooting …………………… 9-4

Turning the System On/Off ……… 1-9

Types of Commands ……………… 5-8

USB ………………………………… 2-22

USB Image ………………………… 2-28

USB Mode Display Controls ……… 2-25

Using Android Auto Features ……… 6-18

Using iPod Devices ……………… 2-30

Using the Menu During a

Phone Call ………………………… 3-8

UVO eServices Commands List …… 5-12

UVO eServices Settings ……… 4-15, 8-6

Vehicle Diagnostics ………………… 4-9

Viewing Menu ……………………… 2-8

Voice Commands ………………… 5-8

Voice Recognition Screen

Overview …………………………… 5-6

Voice Recognition Settings ………… 8-12

Warnings and Cautions …………… 1-2

What is Android Auto? …………… 6-17

What is Bluetooth®

Wireless Technology? ……………… 3-2

What is Voice Recognition? ……… 5-2

Wi-Fi Settings ……………………… 8-11

Important Information

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual ("User's

Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.

Keep User's Guide in Vehicle

When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please

make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and

safety information carefully.

Warning

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other

serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a

safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may

to distract your attention away from the road and remove your hands from the wheel.

General Operation

Voice Command Control

Functions within the Multimedia system may be accomplished using only voice commands. Using voice commands while driving allows

you to operate the system without removing your hands from the wheel.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before

attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous

if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while

driving. Driving while unable to hear these sounds could cause an accident.

Use of Speech Recognition Functions

Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any

speech recognition functions included in the system and address any errors.

FCC Warning

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• IIncrease the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body.

This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the

FCC.

IC Warning

“This device complies with Industry Canada licence-exempt RSS standard(s).”

Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interfer-

ence,

including interference that may cause undesired operation of the device.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est

autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas provoquer de brouillage, et (2) l’appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Cet équipement doit être installé et utilisé avec un minimum de 20 cm entre le radiateur et votre corps.

K_UM_G4.0[EN]AVN PART 10.indd 10-18K_UM_G4.0[EN]AVN PART 10.indd 10-18 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5

MEMO

CAR MULTIMEDIA SYSTEM

QUICK REFERENCE GUIDE

C6EUG01

(미국/영어-English)

Thank you for purchasing this multimedia system.

This user’s manual explains how to use the Kia Motor multimedia system.

Before using the product, read the contents of this user’s manual carefully

and use this product safely.

•

The screens shown in this manual may differ with the actual screens of the product.

•

The design and specification of this product may change without prior notifica-

tion for product improvement.

•

When transferring the vehicle to another individual, include this user’s manual so

that the next driver can continue its use.

Precaution for safe usage

•

Driving while distracted can result in a loss of vehicle control, that may lead to an

accident, severe personal injury, and death. The driver’s primary responsibility is in

the safe and legal operation of a vehicle, and use of any handheld devices, other

equipment, or vehicle systems which take the driver’s eyes, attention and focus away

from the safe operation of a vehicle or which are not permissible by law should never

be used during operation of the vehicle.

•

Do not operate the multimedia system while driving.

•

Do not disassemble, assemble, or modify the multimedia system.

•

Do not watch the screen for prolonged periods of time while driving.

•

Set the volume to a level which allows the driver to be aware of external conditions.

•

Do not operate the multimedia system for prolonged periods of time with the vehicle

ignition in ACC. Such operations may lead to battery discharge.

•

Be cautious not to spill water or introduce foreign objects into the device.

•

Do not cause severe shock to the device. Direct pressure onto the front side of the

monitor may cause damage to the LCD or touch panel.

•

In case of product malfunction, please contact your place of purchase or service center.

•

When cleaning the touch screen, make sure to turn off the device and use a dry

and smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol,

ammonia, benzene, thinners, etc.) as such materials may damage the device panel

or cause color and quality deterioration.

•

SiriusXM service requires a subscription, sold separately, after 3-month

trial included with vehicle purchase. If you decide to continue your

SiriusXM service at the end of your trial subscription, the plan you choose

will automatically renew and bill at then-current rates until you call Sirius

XM at 1-866-635-2349 to cancel. See our Customer Agreement for com-

plete terms at www.siriusxm.com. Programming subject to change. Sirius

satellite service is available only to those at least 18 and older in the 48

contiguous USA, D.C., and PR (with coverage limitations). Traffic informa-

tion not available in all markets. See siriusxm.com/traffic for details. Sirius,

XM and all related marks and logos are trademarks of Sirius XM Radio

Inc.

WARNING

• Driving while distracted can result in a loss of vehicle control that may lead to

an accident, severe personal injury, and death. The driver’s primary responsi-

bility is in the safe and legal operation of a vehicle, and use of any handheld

devices, other equipment, or vehicle systems which take the driver’s eyes,

attention and focus away from the safe operation of a vehicle or which are not

permissible by law should never be used during operation of the vehicle.

Table of Contents

........................................................

Controls and Functions

.............................................

On-Screen Touch Controls

......................................

Setup

................................................................................

Home Screen

................................................................

FM/AM

.............................................................................

HD Radio™ Technology

...........................................

SiriusXM™

.....................................................................

USB Music

.....................................................................

My Music

.........................................................................

Bluetooth

.........................................................................

Voice Recognition

.......................................................

FAQ

..................................................................................

Controls and Functions

Head Unit

Name Description

Press to insert or eject disc

RADIO

Selects FM/AM/SiriusXM™ mode

• Each time this is pressed, the mode is changed in the following

order: FM → AM → SiriusXM™ → FM.

MEDIA

Selects MEDIA mode.

TRACK

SEEK

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: Plays the previous/next frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA (Disc/USB/iPod/My Music) mode: Changes the track, file

or title (except for USB Image and AUX).

When pressed and held down (more than 0.8 seconds),

• FM/AM mode: Continuously changes the frequency until the

key is released.

• MEDIA (Disc/USB/iPod/My Music) mode: Rewinds or fast for-

wards the track or file (except for USB Image, Bluetooth Audio,

and AUX).

PWR/

VOL

• When power is off, press to turn power on.

• When power is on, press and hold (more than 0.8 seconds) to

turn the power off.

• When power is on, press quickly (less than 0.8 seconds) to turn

Audio off.

• Turn left/right to adjust the volume.

Name Description

DISP

Turns the screen on/off.

APPS/

Moves to the Apps/Info screen.

PHONE

Displays the Bluetooth phone mode.

UVO

Displays the UVO mode

SETUP

Moves to the Setup screen.

TUNE

• FM/AM mode: Changes the frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA (Disc/USB/iPod/My Music) mode: Changes the track,

file or title (except USB Image, Bluetooth Audio, and AUX).

RESET

Resets the system settings. (Preset radio channels

and other data will not be deleted)

※ The actual feature in the vehicle may differ from the illustration.

Steering Wheel Controls

Name Description

When pressed quickly (less than 0.8 seconds),

• If Android Auto is not connected, activates the multimedia sys-

tem voice recognition

• If Android Auto is connected, activates or ends Google voice

recognition

When pressed and held (more than 0.8 seconds),

• If the multimedia system voice recognition is activated, ends the

multimedia system voice recognition

• If Android Auto is connected, activates or ends Google voice

recognition

• If iOS device is connected through Bluetooth, activates or ends

Siri Eyes Free

MODE

• Each time this is pressed, the mode is changed in the following

order: FM → AM → SiriusXM → Disc → USB or iPod → AUX →

Bluetooth Audio → My Music → Android Auto → Pandora → FM

• If the media is not connected, the corresponding modes will be

disabled

• Press and hold (more than 0.8 seconds) to turn the Audio sys-

tem on/off

• When power is off, press button to turn power back on

Controls the volume

Controls and Functions

Name Description

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: searches broadcast frequencies saved to

Presets

• SiriusXM™ mode: searches broadcast channels saved to

Presets

• MEDIA (Disc/USB/iPod/My Music) mode: changes the track, file

or title (except USB Image, AUX)

When pressed and held (more than 0.8 seconds),

• FM/AM mode: automatically searches broadcast frequencies

• SiriusXM™ mode: automatically searches broadcast channels

• MEDIA (Disc/USB/iPod/My Music) mode: quickly looks up

songs (excluding USB images, AUX and Bluetooth audio files)

When pressed quickly (less than 0.8 seconds),

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen, answers the call

• When pressed during call waiting, switches to waiting call (Call

Waiting)

When pressed and held (more than 0.8 seconds),

• When pressed in Bluetooth

Hands-free, redials the last dialed

call

• When pressed during a Bluetooth

Hands-free call, switches

call back to mobile phone (Private)

• When pressed while calling on the mobile phone, switches call

back to Bluetooth

Hands-free (operates only when Bluetooth

Hands-free is connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects the call

※ The actual feature in the vehicle may differ from the illustration.

Learn how to touch the screen to

operate the system.

Select

Tap lightly on a menu or an item to

select it.

NOTICE

• The system will not recognize your

touch if you wear a glove or other non-

conductive material. Touch the screen

using your finger, an electrostatic

touch-screen glove, or a stylus pen.

Drag & Drop

Select a menu or item you want,

then drag and drop it to where you

want to place it.

Drag or touch the slider along the

play bar in the music screens to

jump to the point that you want to

play from.

Information

• Music screens for Disc CD and Disc

MP3 do not support this function.

Drag the frequency bar to the left or

right to move to the frequency that

you want.

From the Edit My Menu screen, drag

and drop icons to add, delete, or

move to/from My Menu.

Flick (Quick Scrolling)

Quickly moves up and down in the

list.

NOTICE

• Moving the list when there are many

items will display a handler on the right

of the display. You can easily move

many items at a time with the handler

On-Screen Touch Controls

You can view the previous or next

image by flicking left/right on an

image on the USB Image screen.

Flick left/right on the frequency bar

in the radio player to look up the pre-

vious/next frequency available.

Press and Hold

Pressing the and

buttons in the music player will fast

forward/rewind the music.

Setup

Setup is the screen to control Audio

system settings.

To enter the screen, press the

SETUP

key or the

Setu

icon in All Menus.

Features Description

Sound

Provides the sound

control options for

Position, Bass, Mid,

Treble, Volume and

Advanced settings.

Display Provides the Mode/

Illumination settings.

Phone

Provides the

Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information set-

tings.

UVO

eServices

Provides the 911

Connect/Parking

Minder/My Car

Zone/ Scheduled

Diagnostics/Trip

Info Sync Reminder

Settings.

Connectivity

Provides connec-

tivity settings for

Android Auto.

Home

Screen

Provides the func-

tion to customize

the three menu

items at the bot-

tom of the Home

Screen.

Features Description

Wi-Fi Provides the Wi-Fi

On and Network

Connection settings.

Clock Provides the Time

and View settings.

Voice

Recognition

Provides the

Guidance and

Priority settings.

Language Provides the

Change Language

settings.

Keyboard Provides settings

to switch keyboard

layouts.

Screen

Saver

Provides the Clock/

None settings.

System

Info

Provides software

and storage space

information.

Display

Off

Provides the

Display Off (touch

activation) func-

tion.

Home Screen

Controls Menu Conﬁ guration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

Features Description

Radio/Media

Widget

• Shows brief information on the radio or media that is now

playing.

• Tap the area to move to the mode that you are listening to.

Connectivity

Widget

Shows any connected devices such as Android Auto, iPod,

Pandora, and Bluetooth.

All Menus Shows all of the items in the system menu.

My Menu

• You can add up to eight menus here.

• Add your favorite menus to have quick and easy access to

them.

Apps/Info Moves to the Apps/Info screen.

Setup Moves to the Setup screen.

Information Display on the Status Bar

Displays the date and time, along with the system status shown by the various

icons to the right of the clock.

The icons in the following table indicate the various types of system status

details and events.

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth is muted.

Displays the signal strength of the Bluetooth phone.

Displayed when connected to Wi-Fi.

Displayed when connecting to Wi-Fi.

Displayed when 911 connect is available.

Home Screen

Adding Your Favorite Menu Items

to My Menu

From the Home screen, select

My Menu

icon, and then

Edit

From the Edit My Menu screen,

select menu items from the list on

the right, then drag and drop them to

a desired place on the left.

To remove the item from My Menu,

drag item from the left and drop

them on the right.

Information

• Up to eight items can be added to My

Menu.

FM/AM

You can access the radio player either by pressing the

RADIO

key or by

selecting the Radio menu from All Menus on the Home screen.

FM/AM Mode Display Controls

Information

• If you press the

RADIO

key when power is off, the power will turn on and a

radio broadcast will be tuned from the current mode.

• If you are in radio mode, select the media widget from the Home screen to

access the radio player.

Features Description

Preset

Frequencies

• The stored preset frequencies are displayed for user selec-

tion.

• After selecting frequency, press and hold the preset button for

more than 0.8 seconds. A beep sound will be heard and the

frequency is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll quickly

through presets.

Frequency Bar

• Flick the frequency bar left/right to search for available

radio channels to the left or right of the current channel.

• Dragging: Drag the frequency bar to the left/right to find the

radio channel that you want.

Frequency Displays the current frequency.

Tag

Saves the current music’s tag information to the

head unit. If connected to iPod, the tag information can be

saved on the device.

Presets Shows the stored presets for user selection.

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to the

SoundHound information in the Info section.

Features Description

• List

Moves to the frequency list.

• Info

Turns the Radio text information transmitted from the

broadcasting station on and off.

• Preset Scan

Plays preset frequencies for 10 seconds per item.

• Sound Settings

Moves to the Sound Settings.

Scan/Preset

Scan Displays an active mode from Scan and Preset can modes.

Band

Changes to the desired band from among FM, AM, and SirusXM.

HD Radio Used to set whether to turn HD Radio™ reception On or Off.

Scan Shortly plays the broadcasts for the frequencies with supe-

rior reception for 5 seconds per item.

SEEK/TRACK

• When pressed quickly (less than 0.8 seconds): Seeks the

previous/next frequency.

• When pressed and held (more than 0.8 seconds): Moves

quickly through all of the frequencies. The moment that you

release the button, the system seeks the next available fre-

quency.

TUNE Turn the TUNE knob to manually seek available frequencies.

• FM: Increment/decrement by 200 kHz

• AM: Increment/decrement by 10 kHz

Basic Mode Screen (HD Radio™ reception ON)

Name Description

HD Radio™

Reception

& Channel

buttons

Displays main HD Radio™ channels and used to directly

select the current available channels.

The HD Radio™ related icon display becomes active

within regions where an HD Radio™ signal can be

received.

HD Channel

Number

Analog station and corresponding HD Radio™ channel

number saved in the preset list.

HD Broadcast

Info

Displays detailed information about the current broadcast

(the details of the information shown are different depending

on whether the Info button is selected)

HD Radio

When the HD Radio™ soft button is ON (the blue indicator

on the HD Radio™ button is illuminated), HD Radio™ sig-

nals will be broadcast.

HD Radio™ Technology

You can access the radio player either by pressing the

RADIO

key or by

selecting the Radio menu option from All Menus on the Home screen. Select

the SiriusXM™ band from the radio player.

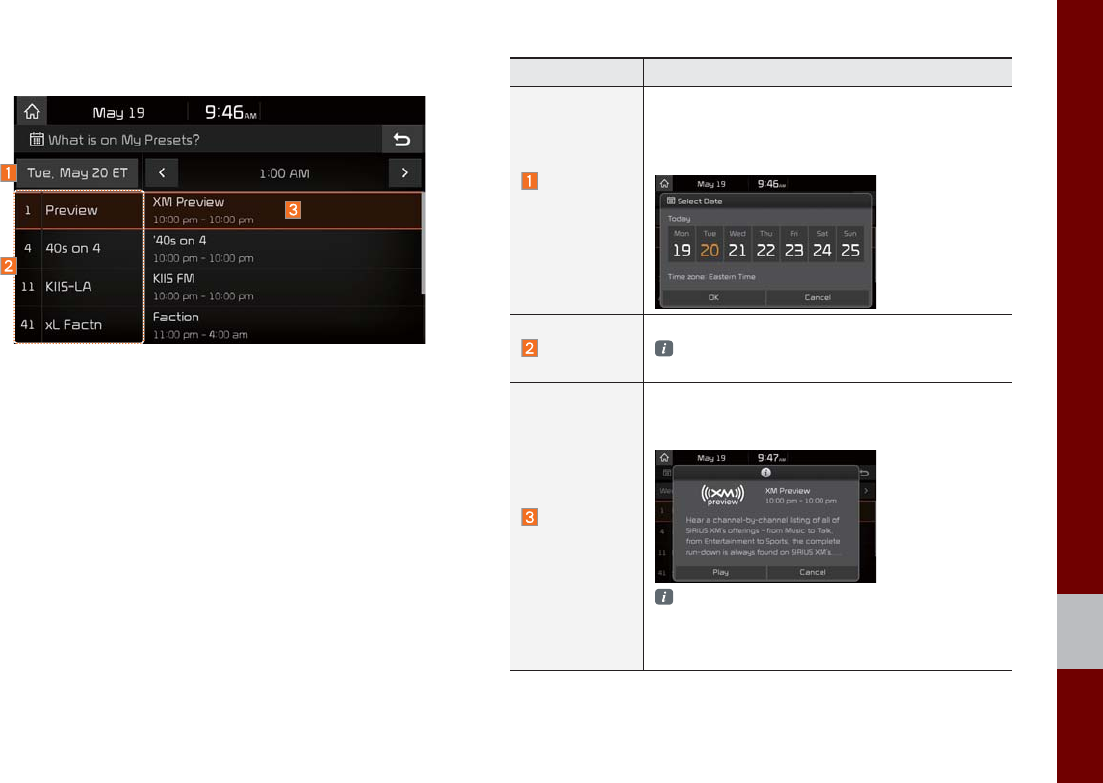

SiriusXM™ Mode Display Controls

Information

• If you press the

RADIO

key when the power is off, the power will turn on and a radio

broadcast will be tuned from the current mode.

• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the

Home screen to access the radio player.

• When the power is off, pressing the

RADIO

key will turn the power on and play a

SiriusXM™ Radio broadcast.

Features Description

Preset

Frequencies

• Shows the stored presets for user selection.

• After selecting frequency, press and hold the preset

button for more than 0.8 seconds. A beep sound will be

heard and the frequency is to be stored in the selected

preset button.

Channel Logo Displays the current channel logo.

Channel Info Displays the current channel number and name.

Content Info Displays the artist, title and other information about the cur-

rent playing song.

Category Info Displays the category of the currently playing song.

Band Changes to the desired band from among FM, AM, and

SirusXM.

SiriusXM™

Features Description

Direct Tune Used to search for the desired channel by entering the

channel number.

Scan Plays all receivable channels for 10 seconds per item.

Category Lock If pressed, only the channels for the current category can

be searched or scanned.

HYUNDAI MOBIS AC140C6AN DIGITAL CAR AVN SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AVN SYSTEM

User Manual

Navigation menu

Namespaces

Views

Navigation
