Features of your vehicle

624

SYSTEM CONTROLLERS

AND FUNCTIONS

❈ Display and settings may differ

depending on the selected audio.

Audio Head Unit

(for RDS equipped model)

(1) (EJECT)

Ejects the disc.

(2)

Converts to Radio(FM/AM) mode.

Each time the key is pressed,the

mode is changed in order of FM1 ➟

FM2 ➟FMA ➟AM ➟AMA.

(3)

Start Media mode

Each time the key is pressed, the

mode is changed in order of CD,

USB(iPod) AUX, My Music, BT

Audio.

(4)

Converts to Phone mode

❈ When a phone is not connected,

the connection screen is dis-

played.

(5) PWR/VOL knob

Power : Press to turn power

on/off.

Volume : Turn left/right to control

volume.

(6)

When pressed shortly(under 0.8

seconds)

- Radio mode : plays previous/next

frequency.

- Media (CD / USB / iPod / My Music)

modes : changes the track, Song(file)

When pressed and held (0.8 sec-

onds)

- Radio mode : continuously changes

the frequency. Upon release, plays

the current frequency.

- Media(CD / USB / iPod / My Music)

modes : rewinds or fast forwards

the track or file

- During a Handsfree call, controls

the call volume.

SEEK

TRACK

MEDIA

RADIO

463

Features of your vehicle

(7)

Turns the monitor display on/off.

(8)

Set TA(Traffic Announcement) fea-

ture On/Off.

(9)

Radio Mode : previews all receivable

broadcasts for 5 seconds each

Media (CD / USB / iPod / My Music)

modes : previews each song (file) for

10 seconds each.

(10)

Converts to Setup mode.

(11) TUNE knob

Radio mode : turn to change broad-

cast frequencies.

Media (CD / USB / iPod / My Music)

modes : turn to search tracks/chan-

nels/files.

(12)

RDS Radio mode : searches RDS

program types.

CD/USB/MP3 modes : searches

folders.

PTY

FOLDER

SCAN

465

Features of your vehicle

SYSTEM CONTROLLERS

AND FUNCTIONS

❈Display and settings may differ

depending on the selected audio.

Audio Head Unit

(1) (EJECT)

Ejects the disc.

(2)

Converts to Radio(FM/AM) mode.

Each time the key is pressed,the

mode is changed in order of FM1 ➟

FM2 ➟ AM.

(3)

Start Media mode

Each time the key is pressed, the

mode is changed in order of CD,

USB(iPod) AUX, My Music, BT

Audio.

(4)

Converts to Phone mode

❈When a phone is not connected,

the connection screen is dis-

played.

(5) PWR/VOL knob

Power : Press to turn power

on/off.

Volume : Turn left/right to control

volume.

(6)

When pressed shortly(under 0.8

seconds)

- Radio mode : plays previous/next

frequency.

- Media (CD / USB / iPod / My Music)

modes : changes the track,

Song(file)

When pressed and held (0.8 sec-

onds)

- Radio mode : continuously changes

the frequency. Upon release, plays

the current frequency.

- Media(CD / USB / iPod / My Music)

modes : rewinds or fast forwards

the track or file

- During a Handsfree call, controls

the call volume.

SEEK

TRACK

PHONE

MEDIA

RADIO

Features of your vehicle

664

(7)

Turns the monitor display on/off.

(8) MUTE

Mutes audio volume.

(9)

Radio Mode : previews all receivable

broadcasts for 5 seconds each

Media (CD / USB / iPod / My Music)

modes : previews each song (file) for

10 seconds each.

(10)

Converts to Setup mode.

(11) TUNE knob

Radio mode : turn to change broad-

cast frequencies.

Media (CD / USB / iPod / My Music)

modes : turn to search tracks/chan-

nels/files.

(12)

CD/USB/MP3 modes : searches

folders.

FOLDER

SETUP

SCAN

DISP

467

Features of your vehicle

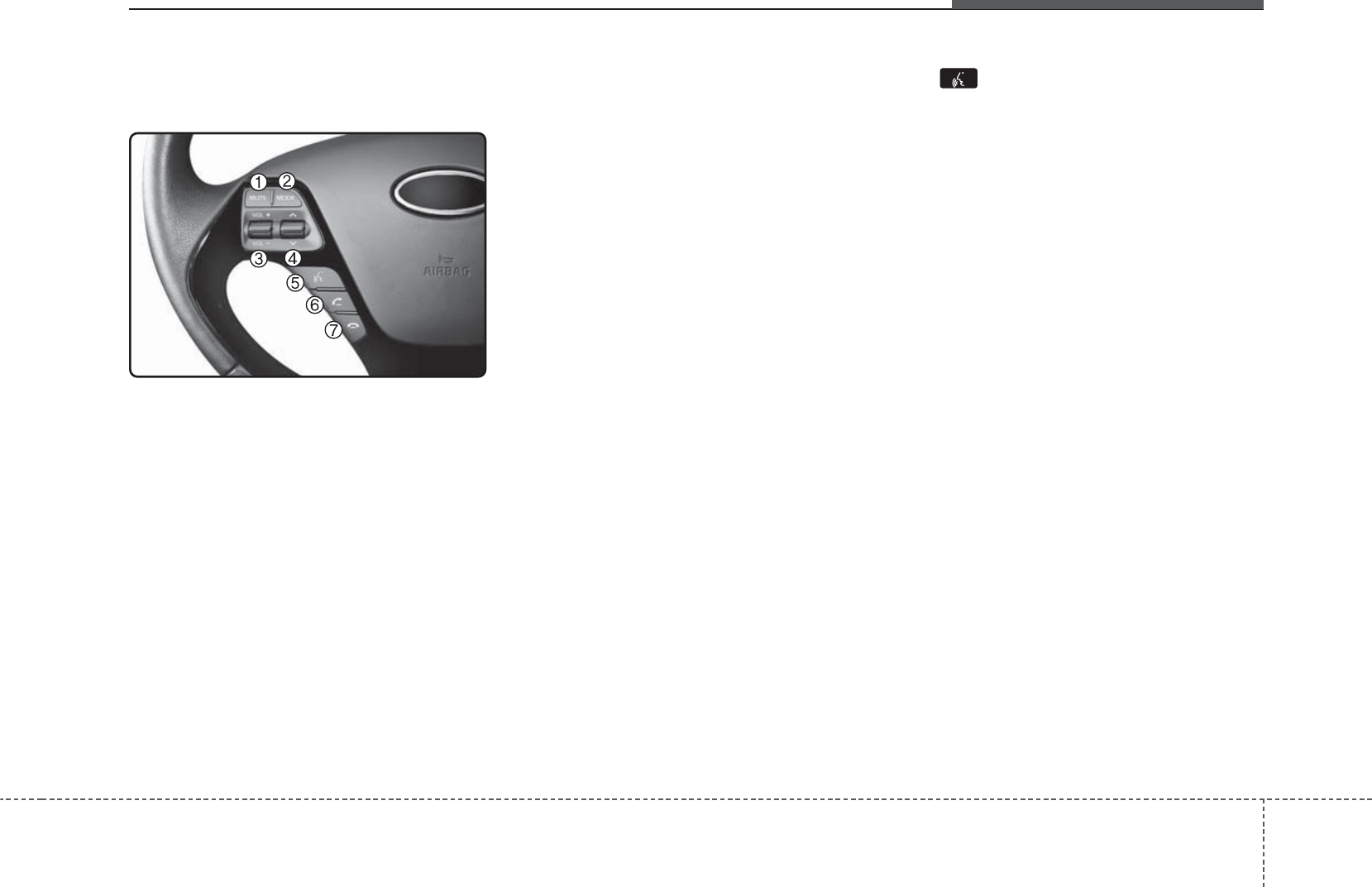

Steering wheel remote con-

troller

(1) MUTE

Mutes audio volume.

(2) MODE

Each time this key is pressed, the

mode is changed in order of FM1➟

FM2 ➟ FMA➟AM ➟ AMA ➟ USB or

iPod ➟ AUX ➟ My Music➟ BT Audio

If the media is not connected or a

disc is not inserted, corresponding

modes will be disabled.

(3) VOLUME

Used to control volume.

(4) SEEK

When pressed shortly (under 0.8

seconds)

- Radio mode : searches broadcast

frequencies saved to presets.

- Media (CD / USB / iPod / My Music /

BT Audio) modes : changes the

track, file or chapter.

When pressed and held (over 0.8

seconds)

- Radio mode, automatically searches

broadcast frequencies and channels

- Media(CD / USB / iPod / My Music)

modes, rewinds or fast forwards the

track or song(file)

(5) (if equipped)

When pressed shortly (under 0.8

seconds)

- Starts voice recognition

- When selecting during a voice

prompt, stops the prompt and con-

verts to voice command waiting

state

When pressed and held (over 0.8

seconds)

- Ends voice recognition

Features of your vehicle

684

(6)

When pressed shortly (under 0.8 sec-

onds)

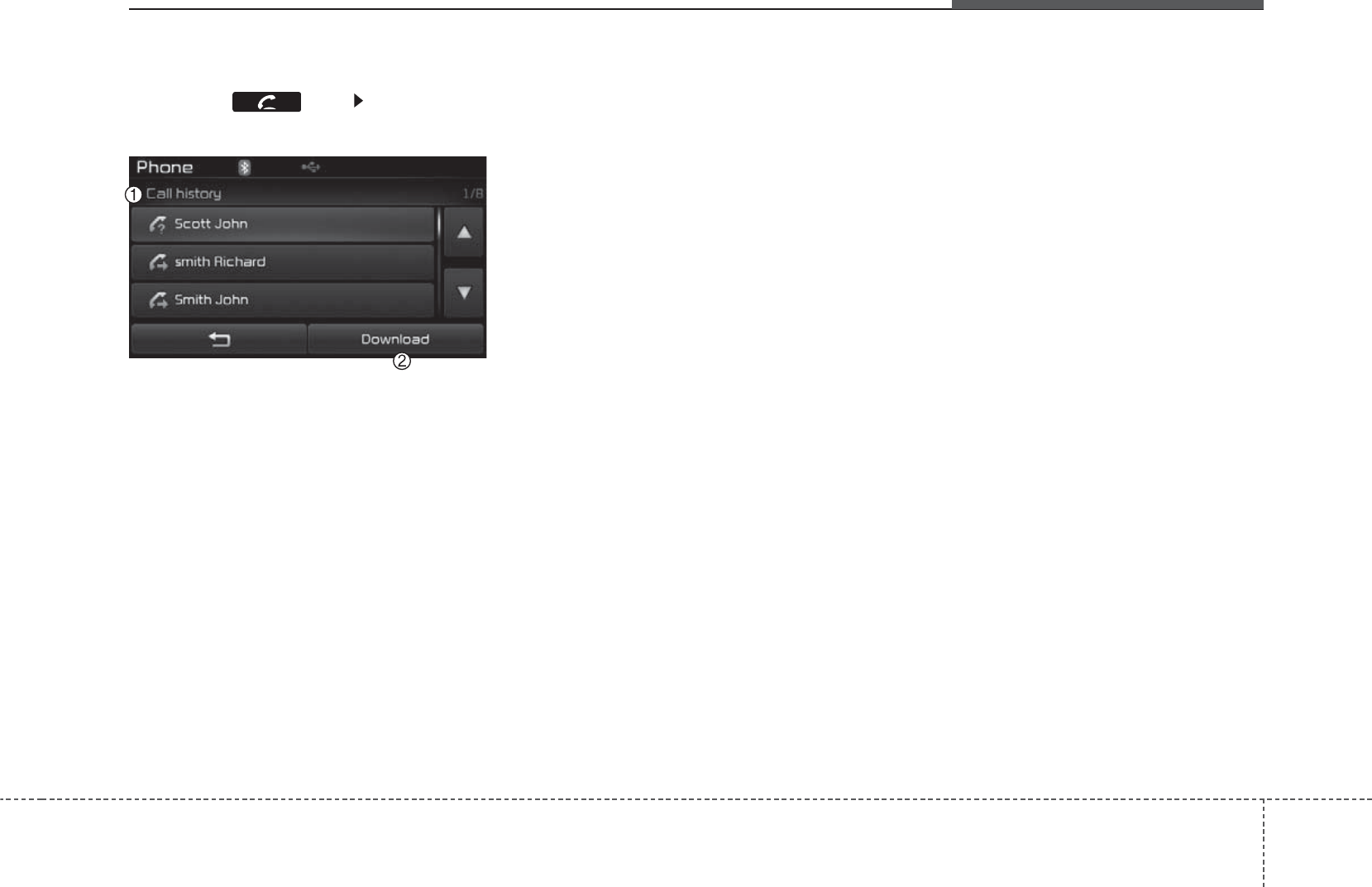

- When pressed in the phone screen,

displays call history screen

- When pressed in the dial screen,

makes a call

- When pressed in the incoming call

screen, answers the call

- When pressed during call waiting,

switches to waiting call (Call

Waiting)

When pressed and held (over 0.8

seconds)

- When pressed in the

Bluetooth®

Wireless Technology Handsfree

wait mode, redials the last call

- When pressed during a

Bluetooth®

Wireless Technology Handsfree

call, switches call back to mobile

phone (Private)

- When pressed while calling on the

mobile phone, switches call back to

Bluetooth®

Wireless Technology

Handsfree (Operates only when

Bluetooth®

Wireless Technology

Handsfree is connected)

(7)

Ends phone call

469

Features of your vehicle

Radio Mode

(for RDS model)

-AM100A7EE, AM110A7EE

Basic Mode Screen

(1) Mode Display

Displays currently operating mode

(2) Frequency

Displays the current frequency

(3) Preset

Displays current preset number [1] ~

[6]

(4) Preset Display

Displays saved presets

(5) Autostore

Automatically saves frequencies with

superior reception to Preset buttons

(6) RDS Menu

Displays the RDS Menu

(7) RDS Info

Displays RDS broadcast information

Features of your vehicle

704

Switching to Radio Mode

Pressing the key will change

the operating mode in order of FM1

➟FM2➟FMA➟AM➟AMA.

Pressing the or key

to change the operating mode in

order of FM1➟FM2➟FMA and AM➟

AMA.

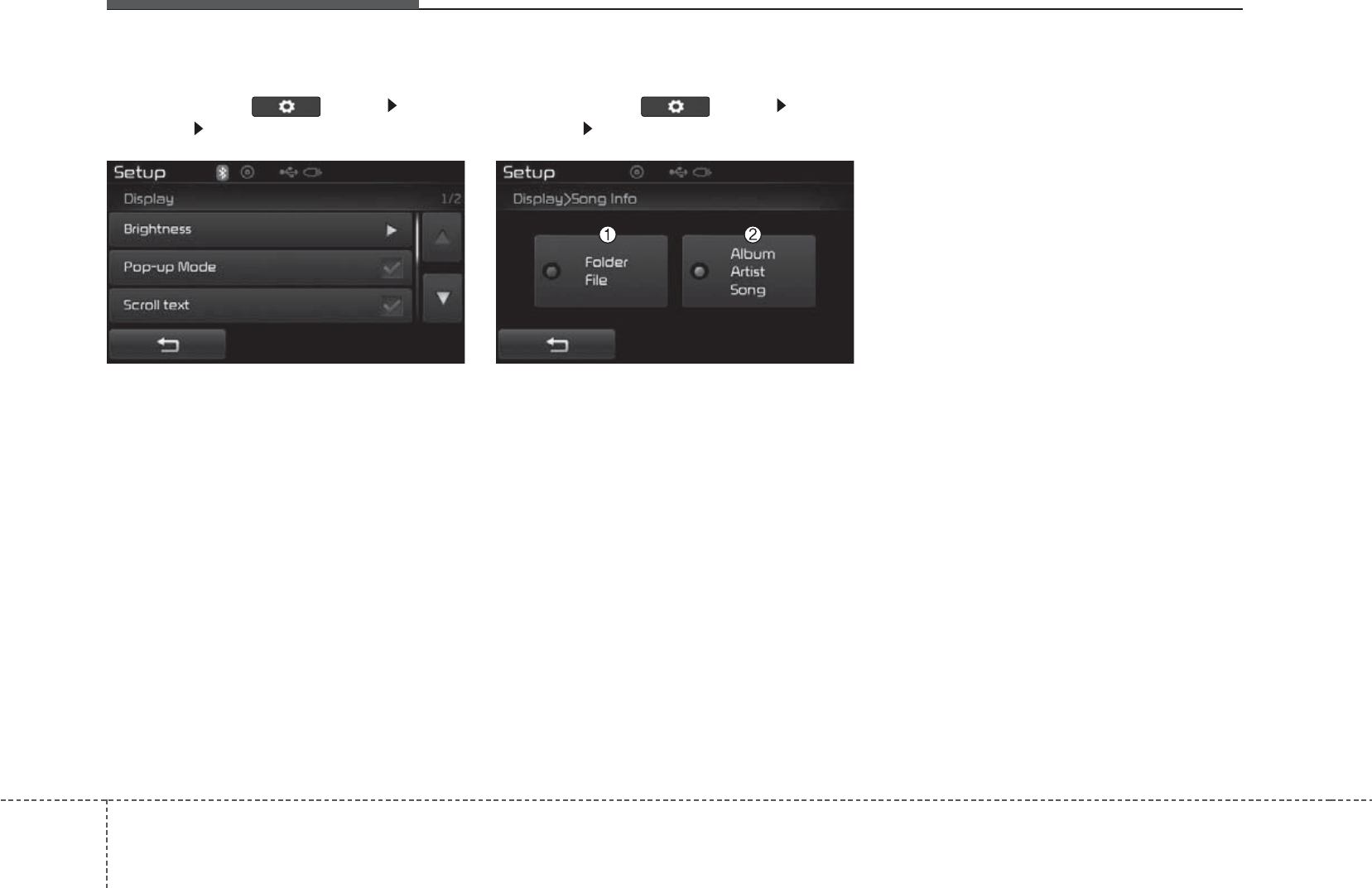

If [Pop-up Mode] is turned on within

[Display], then pressing the

key will display the Radio

Pop-up Mode screen.

Turn the TUNE knob to move the

focus. Press the knob to select.

Searching Radio Frequencies

Using Seek

Press the key to play the

previous/next frequency.

Using TUNE

Turn the TUNE knob to select the

desired frequency.

• FM : Increases/decreased by 50kHz

• AM : Increases/decreased by 9kHz

Using Radio Mode

Selecting/Saving Presets

Press the ~ buttons to play

the desired preset.

Press the button to display the

broadcast information for the fre-

quency saved to each button.

SEEK

TRACK

RADIO

AMFM

RADIO

471

Features of your vehicle

✽

NOTICE

While listening to a frequency you

want to save as a preset, press and

hold one of the [1] ~ [6] preset but-

tons (over 0.8 seconds) to save the

current frequency to the selected

preset.

Auto Store

Press the button to automati-

cally save receivable frequencies to

Preset buttons.

✽

NOTICE

While Auto Store is operating, press-

ing the [Cancel] button again will

cancel Auto Store and restore the

previous frequency.

RDS Menu

Press the button to set the AF

(Alternative Frequency), Region and

News features.

✽

NOTICE

The RDS Menu is not supported

within AM or AMA mode.

Scan

Radio Mode

- Press the key (under 0.8 seconds):

Previews each broadcast for 5 sec-

onds each

✽

NOTICE

Once scan is complete, the previous

frequency will be restored.

While Scan is operating, pressing

the key will cancel the scan

operation.

SCAN

Features of your vehicle

724

Program Type

Press the key to search

for the desired Program type.

Turn the TUNE knob left/right to

search for the desired program type.

Once you find the desired program

type, press the TUNE knob.

After selecting the desired Program

Type and while the Program Type is

blinking (approximately 5 seconds),

pressing the key will allow

you to select a different Program

Type broadcast.

TA (Traffic Announcement)

Press the key to turn the TA

(Traffic Announcement) feature

On/Off.

PTY

FOLDER

473

Features of your vehicle

RADIO MODE

-AM100A7GG, AM110A7GG,

AM100A7GE, AM110A7GE,

AM100A7GN, AM110A7GN,

AM100A7GL, AM110A7GL

Basic Mode Screen

(1) Mode Display

Displays currently operating mode

(2) Frequency

Displays the current frequency

(3) Preset

Displays current preset number [1] ~

[6]

(4) Preset Display

Displays preset buttons

(5) Autostore

Automatically saves frequencies with

superior reception to Preset buttons

Switching to Radio Mode

Pressing the key will change

the operating mode in order of FM1

➟FM2➟AM

Press the or key to

change the mode in order of FM1➟

FM2 and AM.

If [Mode Pop-up] is turned on within

[Display], then pressing the

key will display the Radio

Pop-up Mode screen.

Turn the TUNE knob to move the

focus. Press the knob to select.

RADIO

SETUP

AMFM

RADIO

Features of your vehicle

744

Searching Radio Frequencies

Using Seek

Press the key to play the

previous/next frequency.

Using TUNE

Turn the TUNE knob to select the

desired frequency.

• FM : Increases/decreased by 100kHz

• AM : Increases/decreased by 9kHz

Using Radio Mode

Selecting /Saving Presets

Press the button to display

the broadcast information for the fre-

quency saved to each button.

Press the ~ buttons to play

the desired preset.

✽

NOTICE

While listening to a frequency you

want to save as a preset, press and

hold one of the [1] ~ [6] preset but-

tons (over 0.8 seconds) to save the

current frequency to the selected

preset.

Auto Store

Press the button to automati-

cally save receivable frequencies to

Preset buttons.

Scan

Press the key to preview fre-

quencies with superior reception for

5 seconds each.

Press and hold the key (over

0.8 seconds) to preview presets for 5

seconds each.

✽

NOTICE

• Once scan is complete, the previous

frequency will be restored.

• While Scan is operating, pressing

the key will cancel the scan

operation.

SCAN

A.store

Preset

SEEK

TRACK

475

Features of your vehicle

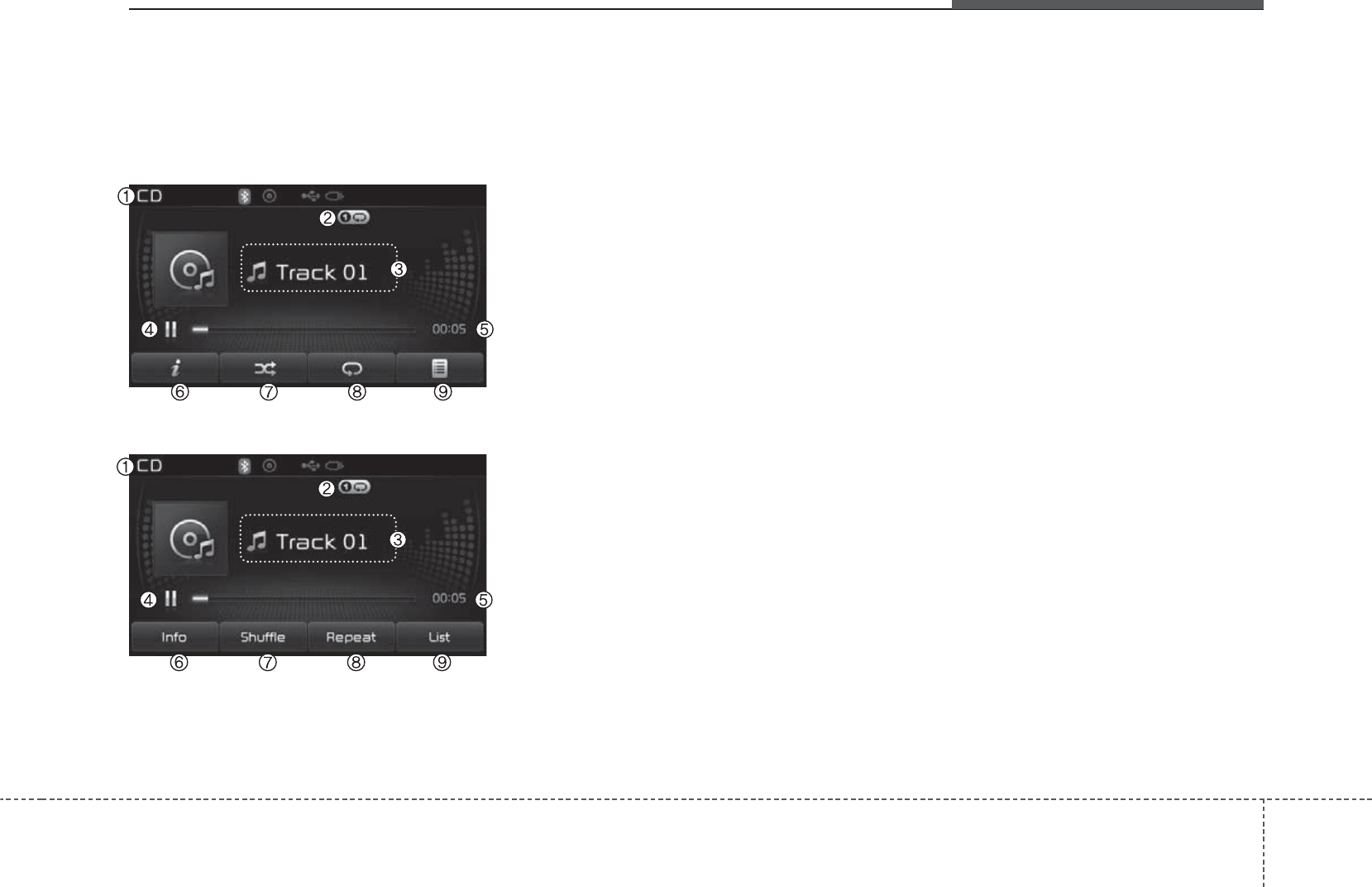

AUDIO CD MODE

Basic Mode Screen

(1) Mode

Displays currently operating mode

(2) Operation State

From Repeat/Random(Shuffle)/ Scan,

displays the currently operating func-

tion

(3) Track Info

Displays information about the cur-

rent track

(4) Play/Pause

Changes the play/pause state

(5) Play Time

Displays the current play time

(6) Info

Shows detailed information about

the current track

(7) Random(Shuffle)

Turns the Random(Shuffle) feature

on/off

(8) Repeat

Turns the Repeat feature on/off

(9) List

Moves to the list screen

Features of your vehicle

764

Using Audio CD Mode

Playing/Pausing CD Tracks

Once an audio CD is inserted, the

mode will automatically start and

begin playing.

While playing, press the button

to pause and press button to

play.

✽

NOTICE

• Only genuine audio CDs are sup-

ported. Other discs may result in

recognition failure (e.g. copy CD-

R, CDs with labels)

• The artist and title information are

displayed on the screen if track

information is included within the

audio CD.

Changing Tracks

Press the key to move to

the previous or next track.

✽

NOTICE

• Pressing the key after the

track has been playing for 2 seconds

will start the current track from the

beginning.

• Pressing the key before

the track has been playing for 1 sec-

onds will start the previous track.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired track.

Once you find the desired track, press

the TUNE knob to start playing.

Rewinding / Fast-forwarding

Tracks

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current

track.

Scan

Press the key to play the first

10 seconds of each file.

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

477

Features of your vehicle

Audio CD Mode Menu

Within this mode, you will have

access to the Info, Random(Shuffle),

Repeat and List features.

Info

Press the ( )button to dis-

play details about the current disc.

Random(Shuffle)

Press the ( )button to play

tracks in random(Shuffle) order.

Press the button again to turn the

Random(Shuffle) feature off.

• Random(Shuffle): Plays all tracks in

random(Shuffle) order.

Repeat

Press the ( )button to

repeat the current track. Press the

button again to turn the repeat fea-

ture off.

• Repeat: Repeats the current track.

List

Press the ( )button to dis-

play the track list screen.

Turn the TUNE knob left/right to

search for tracks. Once the desired

track is displayed, press the knob to

select and play.

List

Repeat

Shuffle

Info

Features of your vehicle

784

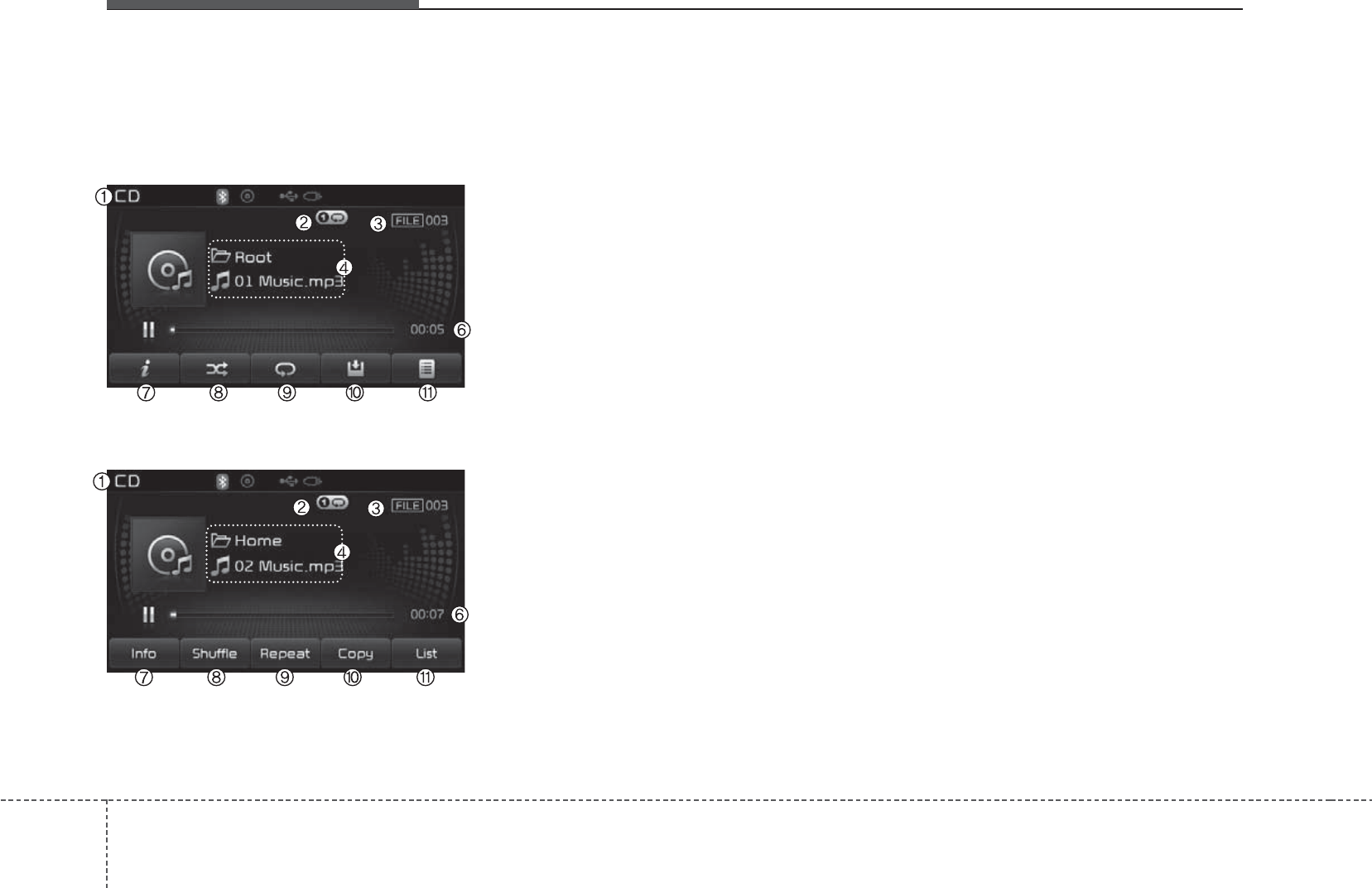

MP3 CD MODE

Basic Mode Screen

(1) Mode

Displays currently operating mode.

(2) Operation State

From Repeat/Random(Shuffle)/ Scan,

displays the currently operating func-

tion

(3) File Index

Displays the current file number

(4) File Info

Displays information about the cur-

rent file

(5) Play/Pause

Changes the play/pause state

(6) Play Time

Displays the current play time

(7) Info

Shows detailed information about

the current file

(8) Random(Shuffle)

Turns the Random(Shuffle) feature

on/off

(9) Repeat

Turns the Repeat feature on/off

(10) Copy

Copies the current file into My Music

(11) List

Moves to the list screen

479

Features of your vehicle

Using MP3 CD Mode

Playing/Pausing MP3 Files

Once an MP3 disc is inserted the

mode will automatically start and

being playing.

While playing, press the button

to pause and press button to

play.

✽

NOTICE

If there are numerous files and fold-

ers within the disc, reading time

could take more than 10 seconds

and the list may not be displayed or

song searches may not operate.

Once loading is complete, try again.

Changing Files

Press the key to move to

the previous or next file.

✽

NOTICE

• Pressing the key after the

file has been playing for 2 seconds

will start the current file from the

beginning.

• Pressing the key before

the file has been playing for 1 sec-

onds will start the previous file.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired file.

Once you find the desired file, press

the TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current file.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

Features of your vehicle

804

Scan

Press the key to play the first

10 seconds of each file.

Searching Folders

Press the ()

key to select and search folders.

Once the desired folder is displayed,

press the TUNE knob to select.

The first file within the selected fold-

er will begin playing.

MP3 CD Mode Menu

Within this mode, you will have

access to the Info, Random(Shuffle),

Repeat, Copy and List features.

Info

Press the ( )button to dis-

play details about the current file.

✽

NOTICE

• When the ‘Folder File’ option is set

as the default display within

Display setup, the album/artist/file

information are displayed as

detailed file information.

• When the ‘Album Artist Song’

option is set as the default display,

the folder name/file name are dis-

played as detailed file information.

• The title, artist and album info are

displayed only when such informa-

tion are recorded within the MP3

file ID3 tag.

Info

FOLDER

PTY

FOLDER

SCAN

481

Features of your vehicle

Random(Shuffle)

Press the ( )button to play

files in random(Shuffle) order.

Each time the button is pressed, the

feature changes in order of Random

(Shuffle) Folder ➟ Random (Shuffle)

All➟ Off.

• Random(Shuffle) Folder : Plays all

files within the current folder in

Random (Shuffle) order.

• Random(Shuffle) All : Plays all files

in Random(Shuffle) order.

Repeat

Press the ( )button to

repeat the current file or folder.

Each time the button is pressed, the

feature changes in order of Repeat

➟Repeat Folder➟Off.

• Repeat: Repeats the current file.

• Repeat Folder: Repeats all files

within the current Folder.

Copying Files

Press the ( )button to

copy the current file into My Music.

✽

NOTICE

Selecting another feature during

copying will display a pop-up asking

whether you wish to cancel copying.

To cancel, select 'Yes’.

List

Press the ( )button to dis-

play the file list screen.

Turn the TUNE knob left/right to

search for files. Once the desired file

is displayed, press the knob to select

and play.

ListCopy

Repeat

Shuffle

Features of your vehicle

824

✽

NOTICE - USING THE USB

DEVICE

• Connect the USB device after

turning on the engine. The USB

device may become damaged if it

is already connected when the

ignition is turned on.The USB

device may not operate properly if

the car ignition is turned on or off

with the USB device connected.

• Heed caution to static electricity

when connecting/disconnecting

USB devices.

• Encoded MP3 Players will not be

recognized when connected as an

external device.

• When connecting an external USB

device, the device may not proper-

ly recognize the USB is in some

states.

• Only products formatted with

byte/sectors under 64Kbyte will be

recognized.

• This device recognizes USB

devices formatted in FAT 12/16/32

file formats. This device does not

recognize files in NTFS file for-

mat.

(Continued)

• Some USB devices may not be sup-

ported due to compatibility issues.

• Avoid contact between the USB

connector with bodily parts or for-

eign objects.

• Repeated connecting/disconnect-

ing of USB devices within short

periods of time may result in prod-

uct malfunction.

• A strange noise may occur when

disconnecting the USB.

• Make sure to connect/disconnect

external USB devices with the

audio power turned off.

• The amount of time required to

recognize the USB device may dif-

fer depending on the type, size or

file formats stored in the USB.

Such differences in time are not

indications of malfunctions.

• The device only supports USB

devices used to play music files.

• USB images and videos are not

supported.

(Continued)

• Do not use the USB I/F to charge

batteries or USB accessories that

generate heat. Such acts may lead

to worsened performance or dam-

age to the device.

• The device may not recognize the

USB device if separately pur-

chased USB hubs and extension

cables are being used. Connect the

USB directly with the multimedia

terminal of the vehicle.

• When using mass storage USB

devices with separate logical

drives, only files saved to the root

drive can be played.

• Files may not properly operate if

application programs are installed

to the USBs.

• The device may not operate nor-

mally if MP3 Players, cellular

phones, digital cameras, or other

electronic devices (USB devices

not recognized as portable disk

drives) are connected with the

device.

(Continued)

483

Features of your vehicle

(Continued)

• Charging through the USB may

not work for some mobile devices.

• The device may not support nor-

mal operation when using a USB

memory type besides (Metal

Cover Type) USB Memory.

• The device may not support nor-

mal operation when using formats

such as HDD Type, CF, or SD

Memory.

• The device will not support files

locked by DRM (Digital Rights

Management.)

• USB memory sticks used by con-

necting an Adaptor (SD Type or

CF Type) may not be properly rec-

ognized.

• The device may not operate prop-

erly when using USB HDDs or

USBs subject to connection fail-

ures caused by vehicle vibrations.

(e.g. i-stick type)

(Continued)

• Avoid use of USB

memory products that

can also be used as key

chains or mobile phone

accessories. Use of such products

may cause damage to the USB

jack.

• Connecting an MP3 device or

phone through various channels,

such as AUX/BT or Audio/USB

mode may result in pop noises or

abnormal operation.

Features of your vehicle

844

USB MODE

Basic Mode Screen

(1) Mode

Displays currently operating mode

(2) Operation State

From Repeat/Random(Shuffle)/ Scan,

displays the currently operating func-

tion

(3) File Index

Displays the current file number

(4) File Info

Displays information about the cur-

rent file

(5) Play/Pause

Changes the play/pause state

(6) Play Time

Displays the current play time

(7) Info

Displays detailed information for the

current file

(8) Random(Shuffle)

Turns the Random(Shuffle) feature

on/off

(9) Repeat

Turns the Repeat feature on/off

(10) Copy

Copies the current file into My Music

(11) List

Moves to the list screen

485

Features of your vehicle

Using USB Mode

Playing/Pausing USB Files

Once a USB is connected, the mode

will automatically start and begin

playing a USB file.

While playing, press the button to

pause and press button to play.

✽

NOTICE

• Loading may require additional

time if there are many files and

folders within the USB and result

in faulty list display or file search-

ing. Normal operations will resume

once loading is complete.

• The device may not support nor-

mal operation when using a USB

memory type besides (Metal Cover

Type) USB Memory.

Changing Files

Press the keys to move to

the previous or next file.

✽

NOTICE

• Pressing the key after the

file has been playing for 2 seconds

will start the current file from the

beginning.

• Pressing the key before

the file has been playing for 1 sec-

onds will start the previous file.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired file.

Once you find the desired file, press

the TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan

Press the key to play the first

10 seconds of each file.

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

Features of your vehicle

864

Searching Folders

Press the ()

key to select and search folders.

Once the desired folder is displayed,

press the TUNE knob to select.

The first file within the selected fold-

er will begin playing.

USB Mode Menu

Within this mode, you will have

access to the Info, Random(Shuffle),

Repeat, Copy and List features.

Info

Press the ( )button to dis-

play details about the current file.

✽

NOTICE

• When the ‘Folder File’ option is set

as the default display within

Display setup, the album/artist/file

information are displayed as

detailed file information.

• When the ‘Album Artist Song’

option is set as the default display,

the folder name/file name are dis-

played as detailed file information.

• The title, artist and album info are

displayed only when such informa-

tion are recorded within the MP3

file ID3 tag.

Info

FOLDER

PTY

FOLDER

487

Features of your vehicle

Random(Shuffle)

Press the ( )button to

play files in random(Shuffle) order.

Each time the button is pressed, the

feature changes in order of

Random(Shuffle) Folder➟Random

(Shuffle) All➟Off.

• Random(Shuffle) Folder : Plays the

files in the current folder in ran-

dom(Shuffle) order.

• Random(Shuffle) All : Plays all files

in random(Shuffle) order.

Repeat

Press the ( )button to

repeat the current file or folder.

Each time the button is pressed, the

feature changes in order of Repeat➟

Repeat Folder ➟Off.

• Repeat (Icon) : Repeats the current

file.

• Repeat Folder (Icon) : Repeats all

files within the current folder.

Copying Files

Press the ( )button to

copy the current file into My Music.

✽

NOTICE

Selecting another feature during

copying will display a pop-up asking

whether you wish to cancel copying.

To cancel, select 'Yes’.

List

Press the ( )button to dis-

play the file list screen.

Turn the TUNE knob left/right to

search for files. Once the desired file

is displayed, press the knob to select

and play.

ListCopy

Repeat

Shuffle

Features of your vehicle

884

✽

NOTICE - USING THE

iPod®DEVICE

• iPod®is a registered trademark of

Apple Inc.

• In order to use the iPod while

operating the keys, you must use a

dedicated iPod cable. (the cable

that is supplied when purchasing

iPod/iPhone products)

• If the iPod is connected to the

vehicle while it is playing, a high

pitch sound could occur for

approximately 1-2 seconds imme-

diately after connecting. If possi-

ble, connect the iPod to the vehicle

with the iPod stopped/paused.

• During ACC ON state, connecting

the iPod through the iPod cable

will charge the iPod through the

car audio system.

• When connecting with the iPod

cable, make sure to fully insert the

jack to prevent communication

interference.

(Continued)

• When the EQ features of an exter-

nal device, such as the iPod, and the

audio system are both active, EQ

effects could overlap and cause

sound deterioration and distortion.

Whenever possible, turn off the EQ

feature within the external device

upon use by connecting with the

audio system.

• Noise may occur when an iPod or

AUX device is connected. When

such devices are not being used, dis-

connect the device for storage.

• When the iPod or AUX device

power is connected to the power

jack, playing the external device

may result in noise. In such cases,

disconnect the power connection

before use.

• Skipping or improper operation

may occur depending on the charac-

teristics of your iPod/Phone device.

• If your iPhone is connected to both

the Bluetooth®Wireless Technology

and USB, the sound may not be

properly played. In your iPhone,

select the Dock connector or

Bluetooth®Wireless Technology to

change the sound output (source).

(Continued)

• iPod mode cannot be operated

when the iPod cannot be recog-

nized due to the playing of ver-

sions that do not support commu-

nication protocols, cases of iPod

abnormalities and defects.

• For fifth generation iPod Nano

devices, the iPod may not be rec-

ognized when the battery level is

low. Please charge the iPod for

use.

• Search/play orders shown within

the iPod device may differ with the

orders shown within the audio sys-

tem.

• If the iPod malfunctions due to an

iPod device defect, reset the iPod

and try again. (To learn more,

refer to your iPod manual)

• Some iPods may not sync with the

System depending on its version.

If the Media is removed before the

Media is recognized, then the sys-

tem may not properly restore the

previously operated mode. (iPad

charging is not supported.)

489

Features of your vehicle

iPod MODE

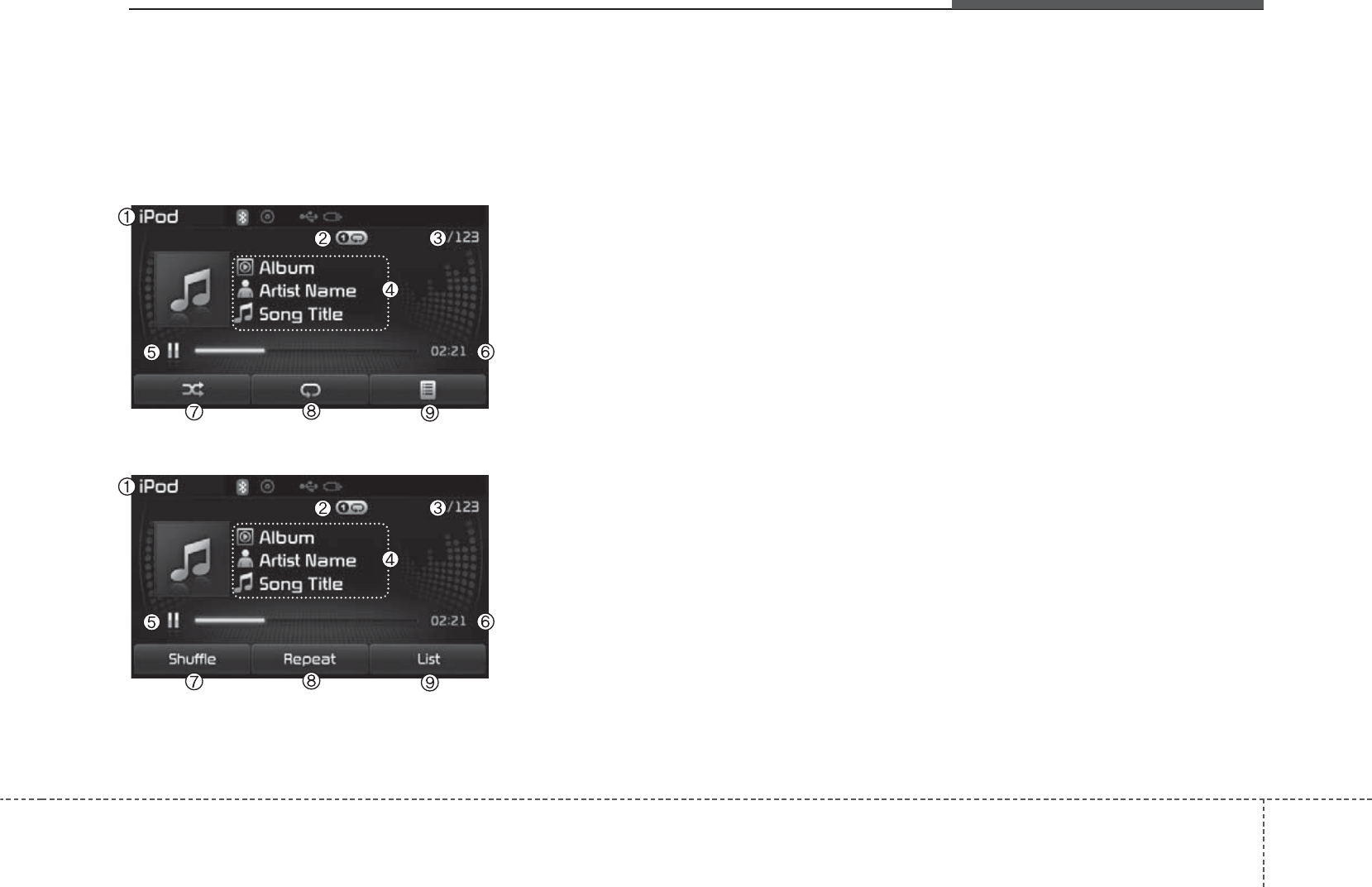

Basic Mode Screen

(1) Mode

Displays currently operating mode

(2) Operation State

From Repeat/Random(Shuffle), dis-

plays the currently operating function

(3) Song Index

Displays the current song/total num-

ber of songs

(4) Song Info

Displays information about the cur-

rent song

(5) Play/Pause

Changes the play/pause state

(6) Play Time

Displays the current play time

(7) Random(Shuffle)

Turns the Random(Shuffle) feature

on/off

(8) Repeat

Turns the Repeat feature on/off

(9) List

Moves to the list screen

Features of your vehicle

904

Using iPod Mode

Playing/Pausing iPod Songs

Once an iPod is connected, the

mode will automatically start and

begin playing an iPod song.

While playing, press the button

to pause and press button to

play.

✽

NOTICE

iPods with unsupported communi-

cation protocols may not properly

operate in the audio system.

Changing Songs

Press the key to move to

the previous or next song.

✽

NOTICE

• Pressing the key after the

song has been playing for 2 sec-

onds will start the current song

from the beginning.

• Pressing the key before

the song has been playing for 1 sec-

onds will start the previous song.

• Slight time differences may exist

depending your iPod product.

Rewinding / Fast-forwarding

Songs

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current

song.

Searching Categories

Turn the TUNE knob left/right to

search for the desired category.

Once you find the desired category,

press the TUNE knob to select

and play.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

491

Features of your vehicle

✽

NOTICE

There are eight categories that can

be searched, including Playlists,

Artists, Albums, Genres, Songs,

Composers, Audiobooks and

Podcasts.

Category Menu

Within the iPod Category menu, you

will have access to the , Home,

and features.

(1) : Displays the play screen

(2) Home : Moves to the iPod root

category screen

(3) : Moves to the previous cat-

egory

✽

NOTICE

• If the search mode is accessed

while playing a song, the most

recently searched category is dis-

played.

• Search steps upon initial connec-

tion may differ depending on the

type of iPod device.

Features of your vehicle

924

iPod Mode Menu

Within this mode, you will have

access to the Random(Shuffle),

Repeat and List features.

Random(Shuffle)

Press the ( )button to

play songs in random(Shuffle) order.

Each time the button is pressed, the

feature changes in order of

Random(Shuffle) Album➟Random

(Shuffle) All➟Off.

• Random(Shuffle) Album : Shuffle

Album plays album in

Random(Shuffle) order.

• Random(Shuffle) All : Plays all

songs in Random(Shuffle) order.

Repeat

Press the ( )button to

repeat the current song. Press the

button again to turn the repeat fea-

ture off.

• Repeat : Repeats the current song

List

Press the ( )button to dis-

play the Category Menu.

Turn the TUNE knob left/right to

search for the desired category.

Once you find the desired category,

press the TUNE knob to select

and play.

List

Repeat

Shuffle

493

Features of your vehicle

AUX MODE

Using AUX Mode

Press the key Select [AUX]

An external device can be connected

to play music.

Connecting an External Device

External audio players (Camcorders,

car VCR, etc.) can be played through

a dedicated cable.

✽

NOTICE

• If an external device connector is

connected with the AUX terminal,

then AUX mode will automatically

operate. Once the connector is dis-

connected, the previous mode will

be restored.

• AUX mode can be used only when

an external audio player (cam-

corder, car VCR, etc.) has been

connected.

• The AUX volume can be con-

trolled separately from other

audio modes.

• Connecting a connector jack to the

AUX terminal without an external

device will convert the system to

AUX mode, but only output noise.

When an external device is not

being used, also remove the con-

nector jack.

• When the external device power is

connected to the power jack, play-

ing the external device may output

noise. In such cases, disconnect the

power connection before use.

• Fully insert the AUX cable to the

AUX jack upon use.

MEDIA

Features of your vehicle

944

MY MUSIC MODE

Basic Mode Screen

(1) Mode

Displays currently operating mode

(2) Operation State

From Repeat/Random(Shuffle)/ Scan,

displays the currently operating func-

tion

(3) File Index

Displays the current file/total number

of files

(4) File Info

Displays information about the cur-

rent file

(5) Play/Pause

Changes the play/pause state

(6) Play Time

Displays the current play time

(7) Info

Displays detailed information for the

current file

(8) Random(Shuffle)

Turns the Random(Shuffle) feature

on/off

(9) Repeat

Turns the Repeat feature on/off

(10) Delete

Deletes the current file

(11) List

Moves to the list screen

495

Features of your vehicle

Using My Music Mode

Playing/Pausing My Music Files

While playing, press the button

to pause and press button to

play.

✽

NOTICE

If there are no files saved within My

Music, the [My Music] button will

be disabled.

Changing Files

Press the key to move to

the previous or next file.

✽

NOTICE

• Pressing the key after the

file has been playing for 2 seconds

will start the current file from the

beginning.

• Pressing the key before

the file has been playing for 1 sec-

onds will start the previous file.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired file.

Once you find the desired file, press

the TUNE knob to start playing.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

Features of your vehicle

964

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan

Press the key to play the first

10 seconds of each file.

My Music Mode Menu

Within this mode, you will have

access to the Info, Random(Shuffle),

Repeat, Delete and List features.

Info

Press the ( )button to dis-

play details about the current file.

✽

NOTICE

The title, artist and album info are

displayed only when such informa-

tion is recorded within the MP3 file

ID3 tag.

Random

Press the ( )button to

play files in random order. Press the

button again to turn the Random fea-

ture off.

Repeat

Press the ( )button to

repeat the current song. Press the

button again to turn the repeat fea-

ture off.

Deleting Files

Press the ( )button to

delete the current file.

Delete

Repeat

Shuffle

Info

SCAN

SEEK

TRACK

497

Features of your vehicle

List

Press the ( )button to dis-

play the file list screen.

Turn the TUNE knob left/right to

search for files. Once the desired file

is displayed, press the knob to select

and play.

List Menu

From the List screen, it is possible to

delete files you previously saved into

My Music.

Press the ( )button or

individually select the files you want

to delete. Once files are selected, the

( )button and

( )buttons will be enabled.

(1) : Moves to the previous

screen

(2) Sellect All: Selects all files

(3) Unsellet All: Deselects all select-

ed files

(4) Delete: Deletes selected files

After selecting the files you want to

delete, press the ( )but-

ton to delete the selected files.

✽

NOTICE

• If there is memory available, up to

6,000 files can be saved.

• Identical files cannot be copied

more than 1,000 times.

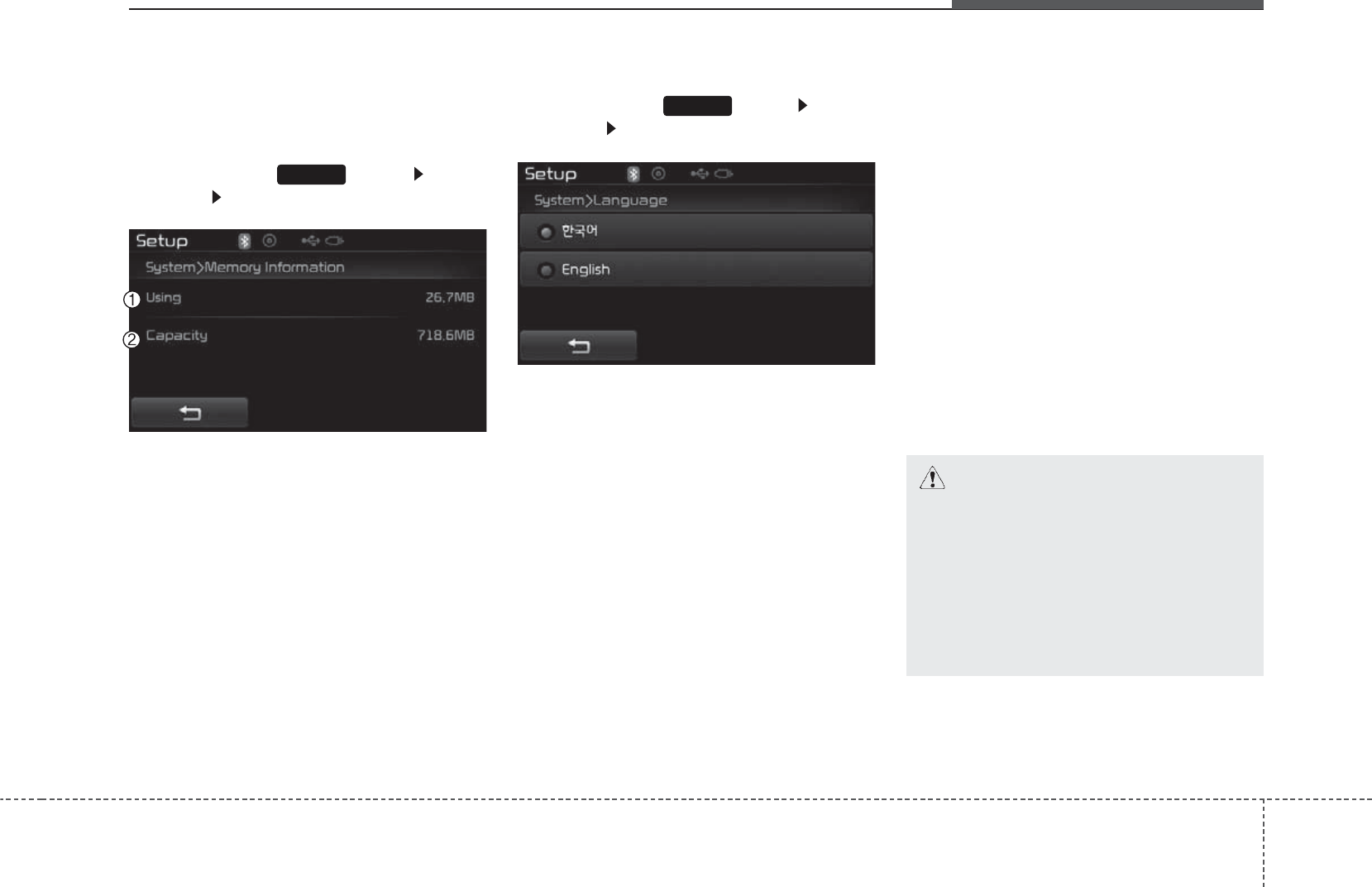

• To check memory information, go

to [System] [Memory

Information]

SETUP

Delete

Unselect All

Select All

List

Features of your vehicle

984

✽

NOTICE - USING THE

Bluetooth

Wireless

Technology Audio Mode

•Bluetooth®Wireless Technology

Audio Mode can be used only

when a Bluetooth®Wireless

Technology phone has been con-

nected.

•Bluetooth®Wireless Technology

Audio Mode will not be available

when connecting mobile phones

that do not support this feature.

• While Bluetooth®Wireless

Technology Audio is playing, if the

Bluetooth®Wireless Technology

phone is connected, then the music

will also stop.

• Moving the Track up/down while

playing Bluetooth®Wireless

Technology audio mode may

result in pop noises in some mobile

phones.

•Bluetooth®Wireless Technology

streaming audio may not be sup-

ported in some mobile phones.

(Continued)

• When returning to Bluetooth®

Wireless Technology Audio mode

after ending a call, the mode may

not automatically restart in some

mobile phones.

• Receiving an incoming call or

making an outgoing call while

playing Bluetooth®Wireless

Technology Audio may result in

audio interference.

Bluetooth

Wireless

Technology AUDIO MODE

(for

Bluetooth®

Wireless

Technology equipped model)

Using

Bluetooth®

Wireless

Technology Audio Mode

Playing/Pausing Bluetooth®

Wireless Technology

Audio

Once a

Bluetooth®

Wireless

Technology device is connected, the

mode will automatically start.

While playing, press the button

to pause and press button to

play.

499

Features of your vehicle

✽

NOTICE

The play/pause feature may operate

differently depending on the mobile

phone.

Changing Files

Press the key to move to

the previous or next file.

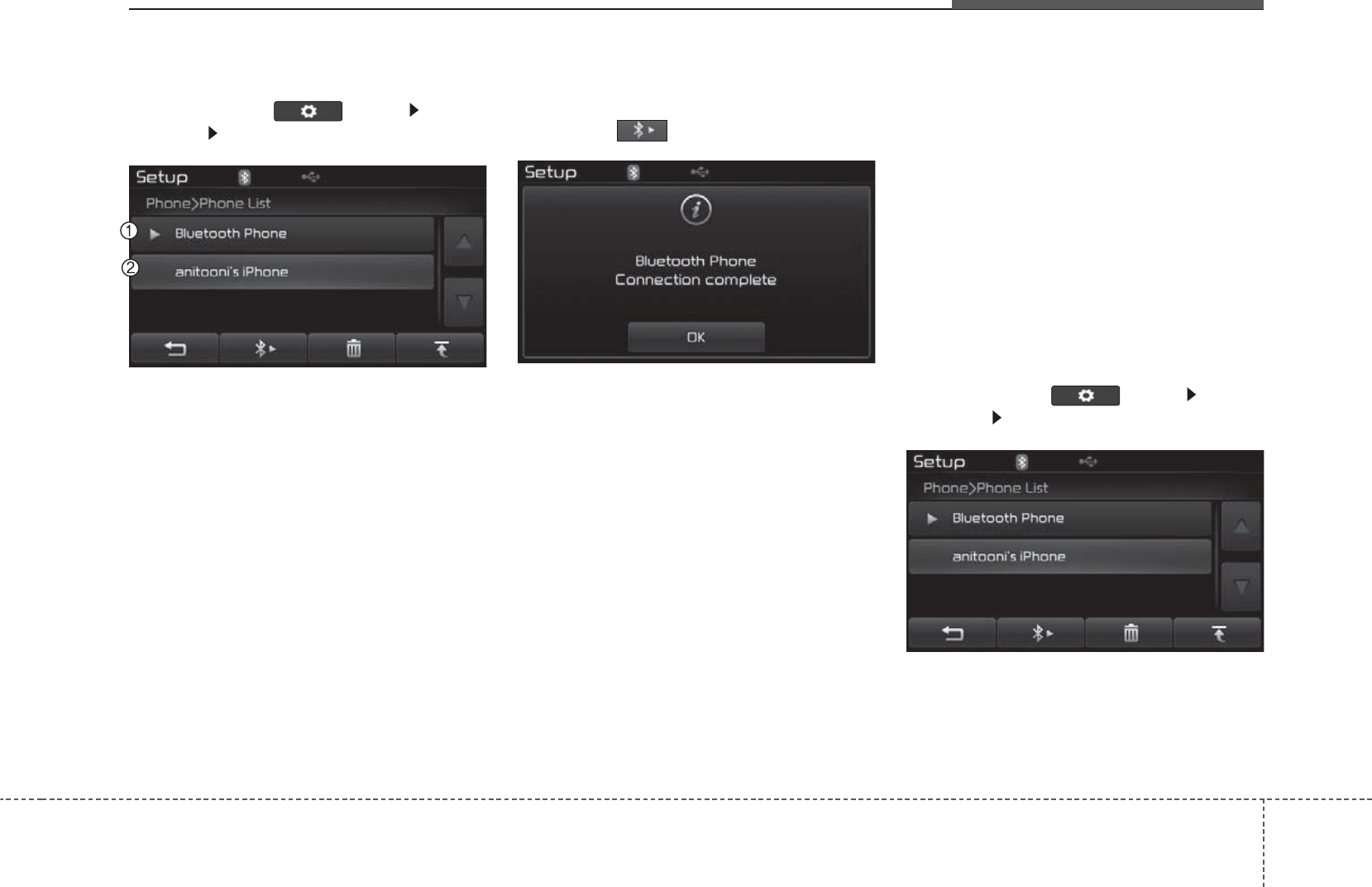

Setting Connection

If a

Bluetooth®

Wireless Technology

device has not been connected,

press the ()key

[Phone] button to display the

Bluetooth®

Wireless Technology con-

nection screen.

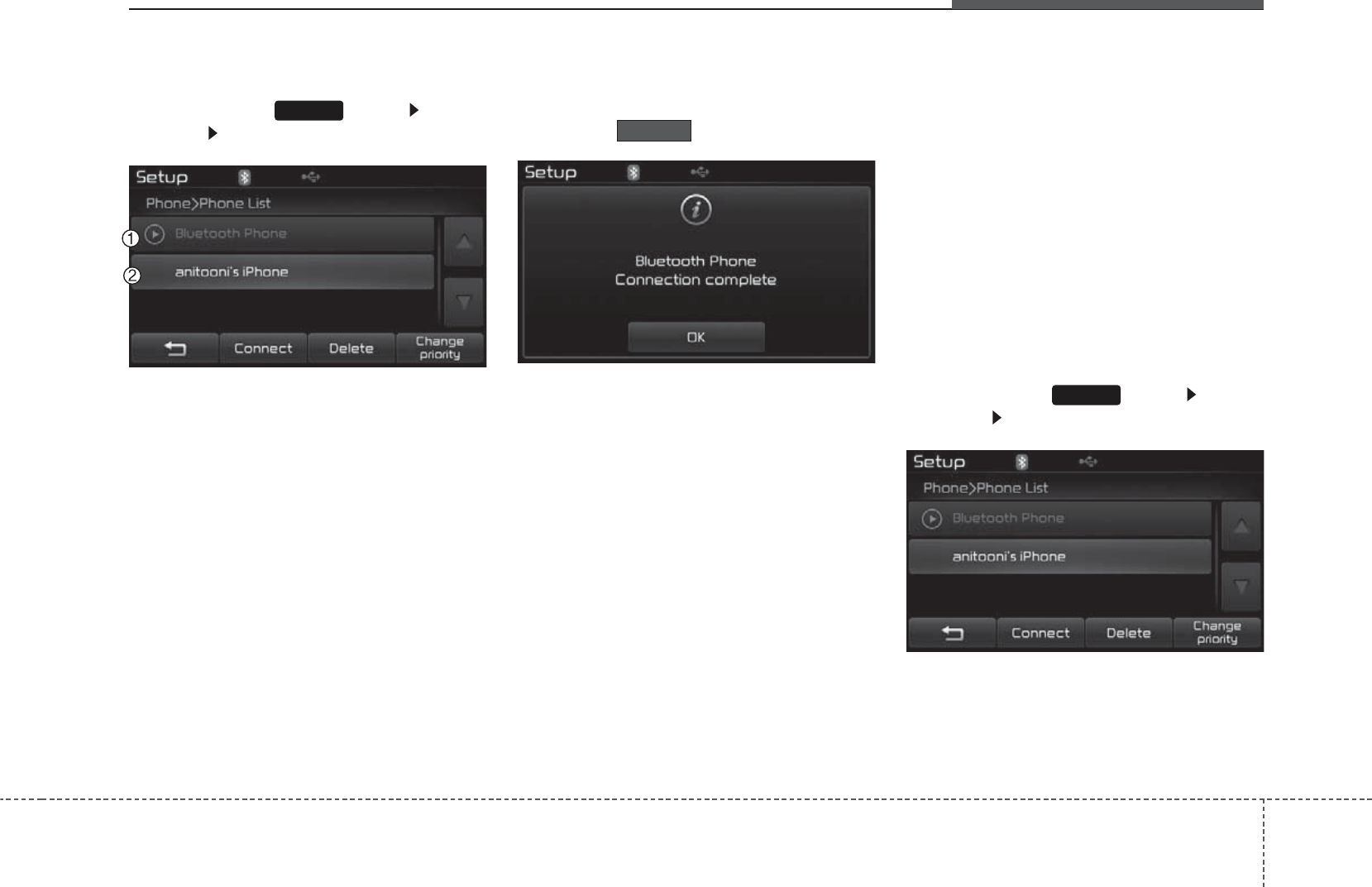

It is possible to use the pair phone,

connect/disconnect and delete fea-

tures from your

Bluetooth®

Wireless

Technology phone.

✽

NOTICE

• If the Bluetooth®Wireless

Technology audio is not operating

properly, check whether the fea-

ture is turned off at

() [Phone] [Audio

streaming] (Streaming Audio). If

the feature is off, turn back on and

try again.

• If music is not yet playing from

your mobile device after convert-

ing to Bluetooth®Wireless

Technology Audio mode, pressing

the play button once may start

playing the mode. Check to see

that music is playing from the

Bluetooth®Wireless Technology

device after converting to

Bluetooth®Wireless Technology

Audio Mode.

SETUP

SEEK

TRACK

Features of your vehicle

1004

Bluetooth®

Wireless Technology

(for RDS,

Bluetooth®

Wireless

Technology equipped model)

Using

Bluetooth®

Wireless

Technology Handsfree

•

Bluetooth®

Wireless Technology

refers to a short-distance wireless

networking technology which uses a

2.45GHz frequency to connect vari-

ous devices within a certain dis-

tance.

• Supported within PCs, external

devices,

Bluetooth®

Wireless

Technology phones, PDAs, various

electronic devices, and automotive

environments,

Bluetooth®

Wireless

Technology allows data to be trans-

mitted at high speeds without hav-

ing to use a connector cable.

•

Bluetooth®

Wireless Technology

Handsfree refers to a device which

allows the user to conveniently

make phone calls with

Bluetooth®

Wireless Technology mobile

phones through the audio system.

CAUTION

• Bluetooth®Wireless Technology

Handsfree is a feature that

enables drivers to practice safe

driving. Connecting the car

audio system with a Bluetooth®

Wireless Technology phone

allows the user to conveniently

make calls, receive calls, and

manage the phone book. Before

using the Bluetooth®Wireless

Technology , carefully read the

contents of this user’s manual.

• Excessive use or operations

while driving may lead to negli-

gent driving practices and be

the cause of accidents.

• Do not operate the device

excessively while driving.

• Viewing the screen for pro-

longed periods of time is dan-

gerous and may lead to acci-

dents. When driving, view the

screen only for short periods of

time.

4 101

Features of your vehicle

✽

NOTICE - USING UPON

CONNECTING

Bluetooth

Wireless Technology

PHONE

• Before connecting the car audio

system with the mobile phone,

check to see that the mobile phone

supports Bluetooth®Wireless

Technology features.

• Even if the phone supports

Bluetooth®Wireless Technology,

the phone will not be found during

device searches if the phone has

been set to hidden state or the

Bluetooth®Wireless Technology

power is turned off. Disable the

hidden state or turn on the

Bluetooth®Wireless Technology

power prior to searching/connect-

ing with the car audio system.

(Continued)

• If you do not want to automatical-

ly connect your Bluetooth®

Wireless Technology phone, try

the following.

1. Turn off the Bluetooth®Wireless

Technology feature in your

mobile phone.

- For more information on

Bluetooth®Wireless Technology

features within your mobile,

refer to your mobile phone

user’s manual.

2. Turn off the Bluetooth®Wireless

Technology feature in your car

audio system.

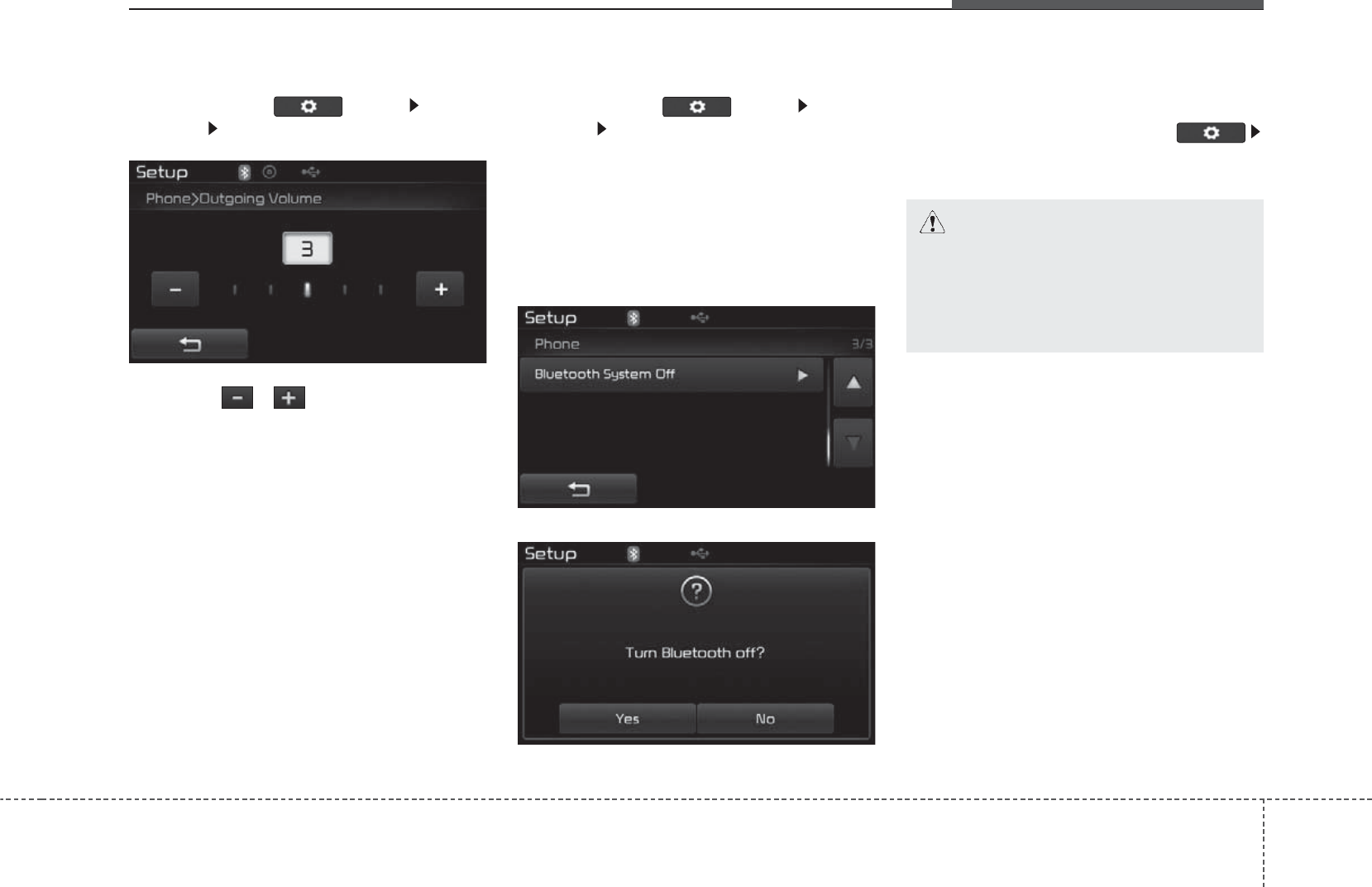

- To turn off the Bluetooth®

Wireless Technology feature in

your car audio system, go to

() > [Phone] and

[Bluetooth System Off] the

Bluetooth®Wireless Technology

feature.

• Park the vehicle when connecting

the car audio system with your

mobile phone.

(Continued)

•Bluetooth®Wireless Technology

connection may become intermit-

tently disconnected in some

mobile phones. Follow these steps

to try again.

1. Turn the Bluetooth®Wireless

Technology function within the

mobile phone off/on and try

again.

2. Turn the mobile phone power

Off/On and try again.

3 Completely remove the mobile

phone battery, reboot, and then

again.

4. Reboot the audio system and try

again.

5. Delete all paired devices, pair

and try again.

• The Handsfree call volume and

quality may differ depending on

the mobile phone.

(Continued)

SETUP

Features of your vehicle

1024

(Continued)

•Bluetooth®Wireless Technology

features supported within the

vehicle are as follows. Some fea-

tures may not be supported

depending on your Bluetooth®

Wireless Technology device.

- Answering and placing

Bluetooth®Wireless Technology

Handsfree calls

- Menu operation during call

(Switch to Private, Switch to call

waiting, Outgoing volume)

- Download Call History

- Download Mobile Phone book

- Phone book/Call History Auto

Download

-Bluetooth®Wireless Technology

device auto connection -

Bluetooth®Wireless Technology

Audio

• It is possible to pair up to five

Bluetooth®Wireless Technology

devices to the car system.

• Only one Bluetooth®Wireless

Technology device can be connect-

ed at a time.

(Continued)

• Other devices cannot be paired

while a Bluetooth®Wireless

Technologydevice is already con-

nected.

• When a Bluetooth®Wireless

Technology device is being con-

nected, the connection process

cannot be canceled.

• Only Bluetooth®Wireless

Technology Handsfree and

Bluetooth®Wireless Technology

audio related features will operate

within this system.

• Normal operation is possible only

for devices that support Handsfree

or audio features, such as a

Bluetooth®Wireless Technology

mobile phone or a Bluetooth®

Wireless Technology audio device.

• Only one function can be used at a

time between the Bluetooth®

Wireless Technology Handsfree

and Bluetooth®Wireless

Technology audio. (While playing

Bluetooth®Wireless Technology

audio, streaming will end upon

entering the Bluetooth®Wireless

Technology phone screen.)

(Continued)

• If a connected Bluetooth®Wireless

Technology device becomes dis-

connected for various reasons,

such as being out of range, turning

the device OFF, or a Bluetooth®

Wireless Technology communica-

tion error, Bluetooth®Wireless

Technology devices are automati-

cally searched and connected.

• Placing the audio system within an

electromagnetic environment may

result in noise interference.

4 103

Features of your vehicle

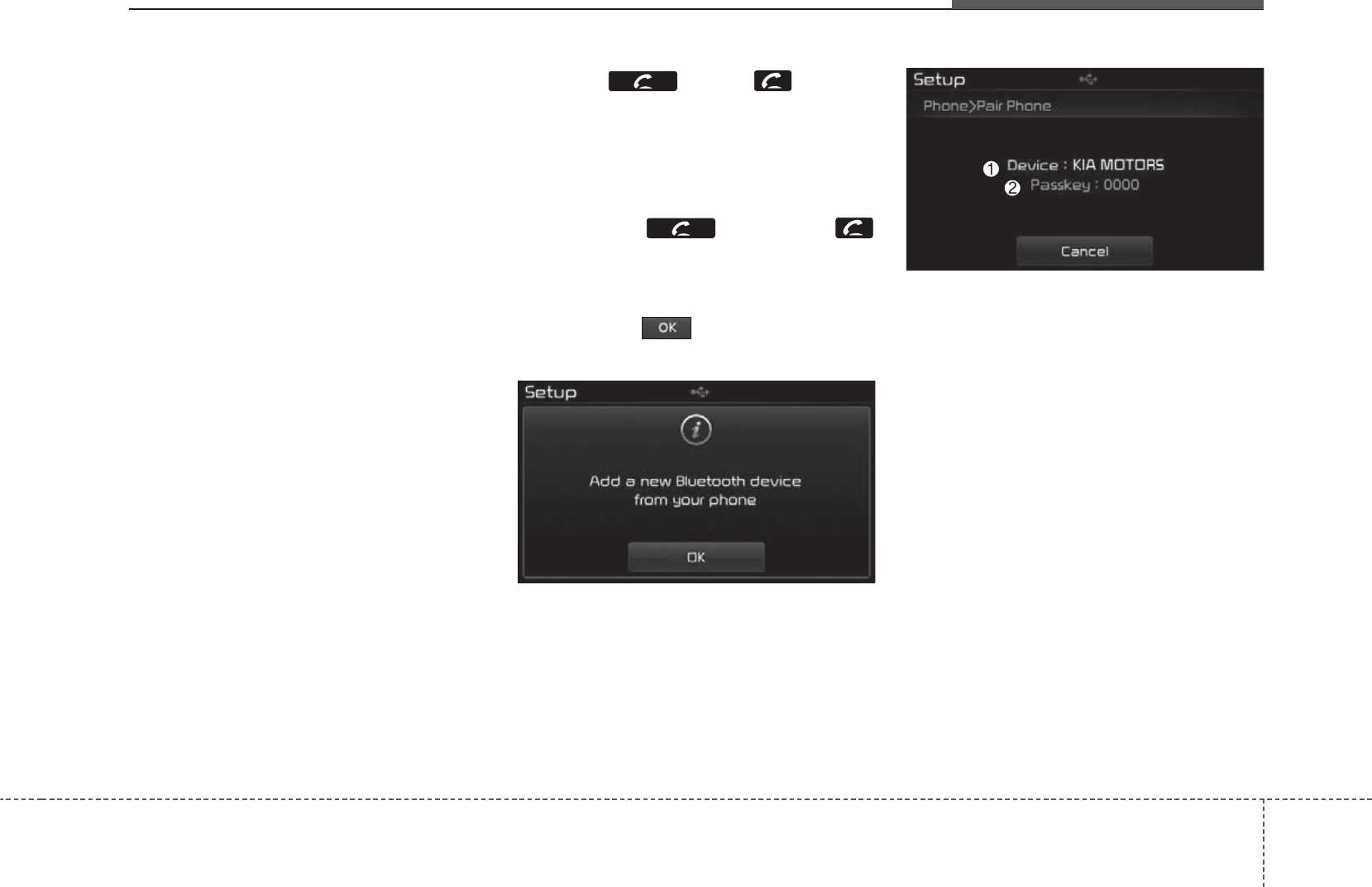

Pairing a

Bluetooth®

Wireless

Technology wireless technology

Device

What is

Bluetooth®

Wireless

Technology Pairing?

Pairing refers to the process of syn-

chronizing your

Bluetooth®

Wireless

Technology phone or device with the

car audio system for connection.

Pairing is necessary to connect and

use the

Bluetooth®

Wireless

Technology feature.

Pairing Key / Key

on the Steering Remote

Controller

When No Devices have been

Paired

1. Press the key or the

key on the steering remote con-

troller. The following screen is dis-

played.

2. Press the button to enter the

Pair Phone screen.

(1) Device : Name of device as

shown when searching from your

Bluetooth®

Wireless Technology

device

(2) Passkey : Passkey used to pair

the device

3. From your

Bluetooth®

Wireless

Technology device (i.e. Mobile

Phone), search and select your

car audio system.

4. After a few moments, a screen is

displayed where the passkey is

entered.

Here, enter the passkey “0000” to

pair your

Bluetooth®

Wireless

Technology device with the car

audio system.

Features of your vehicle

1044

5. Once pairing is complete, the fol-

lowing screen is displayed.

✽

NOTICE

• If Bluetooth®Wireless Technology

devices are paired but none are

currently connected, pressing the

key or the key on the

steering remote controller displays

the following screen. Press the

[Pair] button to pair a new device

or press the [Connect] to connect a

previously pair device.

Pairing through [PHONE]

Setup

Press the key Select

[Phone] Select [Pair Phone]

Select TUNE knob

1. The following steps are the same

as the steps described in the

“When No Devices have been

Paired” section.

✽

NOTICE

• The waiting period during phone

pairing will last for one minute.

The pairing process will fail if the

device is not paired within the

given time. If the pairing process

fails, you must start the process

from the beginning.

• Generally, most Bluetooth®

Wireless Technology devices will

automatically connect once pairing

is complete. However, some devices

may require a separate verification

process to connect. Check to see

whether Bluetooth®Wireless

Technology has been properly con-

nected within your mobile phone.

• List of paired Bluetooth®Wireless

Technology devices can be viewed

at [Phone] [Paired Phone

List].

4 105

Features of your vehicle

Connecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

(1) Connected Phone : Device that is

currently connected

(2) Paired Phone : Device that is

paired but not connected

From the paired phone list, select the

device you want to connect and

press the button.

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth®

Wireless Technology

devices with the car audio system.

As a result, the “Change Priority’ fea-

ture is used to set the connection pri-

ority of paired phones. However, the

most recently connected phone will

always be set as the highest priority.

Press the key Select

[Phone] Select [Paired Phone List]

Features of your vehicle

1064

From the paired phone list, select

the phone you want to change to the

highest priority, then press the

button from the Menu. The selected

device will be changed to the high-

est priority.

✽

NOTICE

When a device is currently connected,

even if you change the priority to a

different device, the currently con-

nected phone will always be set as the

highest priority.

Disconnecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

currently connected device and

press the button.

Deleting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

device you want to delete and press

the button.

✽

NOTICE

• When deleting the currently con-

nected device, the device will auto-

matically be disconnected to pro-

ceed with the deleting process.

• If a paired Bluetooth®Wireless

Technology device is deleted, the

device’s call history and phone

book data will also be deleted.

• To re-use a deleted device, you

must pair the device again.

4 107

Features of your vehicle

USING

Bluetooth

Wireless

Technology

Phone Menu Screen

Phone Menus

With a

Bluetooth®

Wireless

Technology device connected, press

the key to display the Phone

menu screen.

(1) Dial Number : Displays the dial

screen where numbers can be

dialed to make calls

(2) Call History : Displays the call

history list screen

(3) Phone book : Displays the Phone

book list screen

(4) Setup : Displays Phone related

settings

✽

NOTICE

• If you press the [Call History] but-

ton but there is no call history

data, a prompt is displayed which

asks whether to download call his-

tory data.

• If you press the [Phone book] but-

ton but there is no phone book

data, a prompt is displayed which

asks whether to download phone

book data.

• This feature may not be supported

in some mobile phones. For more

information on download support,

refer to your mobile phone user’s

manual.

Calling by Dialing a Number

Press the key Select [Dial

Number]

(1) Dial Pad : Used to enter phone

number

(2) Call : If a number has been

entered, calls the number If no

number has been entered,

switches to call history screen

(3) End : Deletes the entered phone

number

(4) Delete : Deletes entered numbers

one digit at a time

Features of your vehicle

1084

Answering Calls

Answering a Call

Answering a call with a

Bluetooth®

Wireless Technology device connect-

ed will display the following screen.

(1) Caller : Displays the other part’s

name when the incoming caller is

saved within your phone book

(2) Incoming Number : Displays the

incoming number

(3) Accept : Accept the incoming call

(4) Reject : Reject the incoming call

✽

NOTICE

• When the incoming call pop-up is

displayed, most Audio and

SETUP mode features will not

operate. Only the call volume can

be operated.

• The telephone number may not be

properly displayed in some mobile

phones.

• When a call is answered with the

mobile phone, the call mode will

automatically convert to Private

mode.

During a Handsfree Call

(1) Caller : Displays the other party’s

name if the incoming caller is

saved within your phone book

(2) Incoming Number : Displays the

incoming number

(3) Call time : Displays the call time

(4) End : Ends call

(5) Private : Converts to Private mode

(6) Out Vol. : Sets call volume as

heard by the other party

(7) Mute : Turns Mic Mute On/Off

✽

NOTICE

If the mic is muted, the other party

will not be able to hear your voice.

4 109

Features of your vehicle

Call History

Press the key Select [Call

History]

A list of incoming, outgoing and

missed calls is displayed.

Press the [Download] button to

download the call history.

(1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

(2) Download : Download Recent

Call History

✽

NOTICE

• The call history list will display up

to 30 outgoing, incoming, and

missed calls.

• Upon downloading call histories,

previously saved histories are

deleted.

• Incoming calls with hidden caller

IDs will not be saved in the call

history list.

• Previously saved phone book

entries are stored even if a device

is disconnected and re-connected.

• The download feature may not be

supported in some mobile phones.

Check to see that the Bluetooth®

Wireless Technology device sup-

ports the download feature.

Features of your vehicle

1104

Phone Book

Press the key Select

[Phone book]

The list of saved phone book entries

is displayed. Press the [Download]

button to download the call history.

(1) Contact List :

- Displays downloaded phone

book entries

- Connects call upon selection

(2) Download : Download phone

book entries

✽

NOTICE

• Up to 1,000 phone book entries can

be copied into car phone book.

• Upon downloading phone book

data, previously saved phone book

data will be deleted.

• Downloading is not possible if the

phone book download feature is

turned off within the Bluetooth®

Wireless Technology device. Also,

some devices may require device

authorization upon attempting to

download. If downloading cannot

be normally conducted, check the

Bluetooth®Wireless Technology

device setting or the screen state.

• Caller ID information will not be

displayed for unsaved callers.

• The download feature may not be

supported in some mobile phones.

Check to see that the Bluetooth®

Wireless Technology device sup-

ports the download feature.

4 111

Features of your vehicle

Bluetooth®

Wireless Technology

(for

Bluetooth®

Wireless

Technology equipped model)

Pairing a

Bluetooth®

Wireless

Technology wireless technolo-

gy Device

What is

Bluetooth®

Wireless

Technology Pairing?

Pairing refers to the process of syn-

chronizing your

Bluetooth®

Wireless

Technology phone or device with the

car audio system for connection.

Pairing is necessary to connect and

use the

Bluetooth®

Wireless

Technology feature.

Pairing Key / Key

on the Steering Remote

Controller

When No Devices have been

Paired

1. Press the key or the

key on the steering remote con-

troller. The following screen is dis-

played.

2. Press the button to enter the

Pair Phone screen.

(1) Device : Name of device as

shown when searching from your

Bluetooth®

Wireless Technology

device

(2) Passkey : Passkey used to pair

the device

3. From your

Bluetooth®

Wireless

Technology device (i.e. Mobile

Phone), search and select your

car audio system.

4. After a few moments, a screen is

displayed where the passkey is

entered.

Here, enter the passkey “0000” to

pair your

Bluetooth®

Wireless

Technology device with the car

audio system.

5. Once pairing is complete, the fol-

lowing screen is displayed.

PHONE

Features of your vehicle

1124

✽

NOTICE

• If Bluetooth®Wireless Technology

devices are paired but none are

currently connected, pressing the

key or the key on the

steering remote controller displays

the following screen. Press the

[Pair] button to pair a new device

or press the [Connect] to connect a

previously pair device.

Pairing through [PHONE]

Setup

Press the key Select

[Phone] Select [Pair Phone]

Select TUNE knob

The following steps are the same as

the steps described in the “When No

Devices have been Paired” section.

✽

NOTICE

• The waiting period during phone

pairing will last for one minute.

The pairing process will fail if the

device is not paired within the

given time. If the pairing process

fails, you must start the process

from the beginning.

• Generally, most Bluetooth®

Wireless Technology devices will

automatically connect once pairing

is complete. However, some devices

may require a separate verification

process to connect. Check to see

whether Bluetooth®Wireless

Technology has been properly con-

nected within your mobile phone.

• List of paired Bluetooth®Wireless

Technology devices can be viewed

at [Phone] [Paired Phone

List].

SETUP

PHONE

4 113

Features of your vehicle

Connecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

(1) Connected Phone : Device that is

currently connected

(2) Paired Phone : Device that is

paired but not connected

From the paired phone list, select the

device you want to connect and

press the button.

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth®

Wireless Technology

devices with the car audio system.

As a result, the “Change Priority’ fea-

ture is used to set the connection pri-

ority of paired phones. However, the

most recently connected phone will

always be set as the highest priority.

Press the key Select

[Phone] Select [Paired Phone List]

SETUP

Connect

SETUP

Features of your vehicle

1144

From the paired phone list, select

the phone you want to change to the

highest priority, then press the

button from the Menu.

The selected device will be changed

to the highest priority.

✽

NOTICE

When a device is currently connected,

even if you change the priority to a

different device, the currently con-

nected phone will always be set as the

highest priority.

Disconnecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

currently connected device and

press the button.

Deleting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

device you want to delete and press

the button.

✽

NOTICE

• When deleting the currently connect-

ed device, the device will automatical-

ly be disconnected to proceed with the

deleting process.

• If a paired Bluetooth®Wireless

Technology device is deleted, the

device’s call history and contacts

data will also be deleted.

• To re-use a deleted device, you

must pair the device again.

Delete

SETUP

Disconnect

SETUP

Change priority

4 115

Features of your vehicle

USING

Bluetooth

Wireless

Technology

Phone Menu Screen

Phone Menus

With a

Bluetooth®

Wireless

Technology device connected, press

the key to display the Phone

menu screen.

(1) Dial Number : Displays the dial

screen where numbers can be

dialed to make calls

(2) Call History : Displays the call

history list screen

(3) Contacts : Displays the Contacts

list screen

(4) Setup : Displays Phone related

settings

✽

NOTICE

• If you press the [Call History] but-

ton but there is no call history

data, a prompt is displayed which

asks whether to download call his-

tory data.

• If you press the [contacts] button

but there is no contacs data, a

prompt is displayed which asks

whether to download contacts

data.

• This feature may not be supported

in some mobile phones. For more

information on download support,

refer to your mobile phone user’s

manual.

Calling by Dialing a Number

Press the key Select [Dial

Number]

(1) Dial Pad : Used to enter phone

number

(2) Call : If a number has been

entered, calls the number If no

number has been entered,

switches to call history screen

(3) End : Deletes the entered phone

number

(4) Delete : Deletes entered numbers

one digit at a time

PHONE

Features of your vehicle

1164

Answering Calls

Answering a Call

Answering a call with a

Bluetooth®

Wireless Technology device connect-

ed will display the following screen.

(1) Caller : Displays the other part’s

name when the incoming caller is

saved within your contacts

(2) Incoming Number : Displays the

incoming number

(3) Accept : Accept the incoming call

(4) Reject : Reject the incoming call

✽

NOTICE

• When the incoming call pop-up is

displayed, most Audio and

SETUP mode features will not

operate. Only the call volume can

be operated.

• The telephone number may not be

properly displayed in some mobile

phones.

• When a call is answered with the

mobile phone, the call mode will

automatically convert to Private

mode.

During a Handsfree Call

(1) Caller : Displays the other party’s

name if the incoming caller is

saved within your contacts

(2) Incoming Number : Displays the

incoming number

(3) Call time : Displays the call time

(4) End : Ends call

(5) Private : Converts to Private mode

(6) Out Vol. : Sets call volume as

heard by the other party

(7) Mute : Turns Mic Mute On/Off

✽

NOTICE

If the mic is muted, the other party

will not be able to hear your voice.

4 117

Features of your vehicle

Call History

Press the key Select [Call

History]

A list of incoming, outgoing and

missed calls is displayed.

Press the button to down-

load the call history.

(1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

(2) Download : Download Recent

Call History

Contacts

Press the key Select

[Contacts]

The list of saved phone book entries

is displayed. Press the but-

ton to download the call history.

(1) Contacts List :

- Displays downloaded contacts

entries

- Connects call upon selection

(2) Download : Download contacts

entries

✽

NOTICE

• Up to 1,000 contacts entries can be

copied into car contacts.

• Upon downloading contacts data,

previously saved contacts data will

be deleted.

• Downloading is not possible if the

contacts download feature is

turned off within the Bluetooth®

Wireless Technology device. Also,

some devices may require device

authorization upon attempting to

download. If downloading cannot

be normally conducted, check the

Bluetooth®Wireless Technology

device setting or the screen state.

• Caller ID information will not be

displayed for unsaved callers.

• The download feature may not be

supported in some mobile phones.

Check to see that the Bluetooth®

Wireless Technology device sup-

ports the download feature.

Download

PHONE

Download

PHONE

Features of your vehicle

1184

✽

NOTICE - USING THE

Voice Recognition

• When using the voice recognition

feature, only commands listed

within the user's manual are sup-

ported.

• Be aware that during the opera-

tion of the voice recognition sys-

tem, pressing any key other than

the key or touching the screen

will terminate voice recognition

mode.

• For superior voice recognition

performance, position the micro-

phone used for voice recognition

above the head of the driver’s seat

and maintain a proper position

when saying commands.

• Within the following situations,

voice recognition may not function

properly due to external sound.

- When the windows and sunroof

are open

- When the wind of the cooling /

heating device is strong

- When entering and passing

through tunnels

- When driving on rugged and

uneven roads

(Continued)

- During severe rain (heavy rains,

windstorms)

• Phone related voice commands

can be used only when a

Bluetooth®Wireless Technology

device is connected.

• When making calls by stating a

name, the corresponding contact

must be downloaded and stored

within the audio system.

• After downloading the Bluetooth®

Wireless Technology phone book,

it takes some times to convert the

phone book data into voice infor-

mation. During this time, voice

recognition may not properly

operate.

• Pronounce the voice commands

naturally and clearly as if in a nor-

mal conversation.

4 119

Features of your vehicle

VOICE RECOGNITION

(if equipped)

Using Voice Recognition

Starting Voice Recognition

Shortly press the key on the

steering remote controller .Say a

command

If voice recognition is in [Normal

Mode], then the system will say

“Please say a command. Beep~”

• If voice recognition is in [Expert

Mode], then the system will only

say a “Beep~”

• To change the Normal Mode/Expert

Mode setting, go to ()

[System] [Voice Recognition

System].

✽

NOTICE

For proper recognition, say the com-

mand after the voice instruction and

beep tone.

Skipping Prompt Messages

While prompt message is being stat-

ed Shortly press the key on the

steering remote controller (under 0.8

seconds)

The prompt message is immediately

ended and the beep tone will sound.

After the “beep”, say the voice com-

mand.

Re-starting Voice Recognition

While system waits for a command

Shortly press the key on the

steering remote controller (under 0.8

seconds)

The command wait state is immedi-

ately ended and the beep ton will

sound. After the “beep”, say the voice

command.

SETUP

Features of your vehicle

1204

ENDING VOICE

RECOGNITION

While Voice Recognition is operating

Press and hold the key on the

steering remote controller (over 0.8

seconds)

✽

NOTICE

• While using voice command,

pressing a steering wheel remote

control or a different key will end

voice command.

• In a state where the system is wait-

ing for a voice command, say

“cancel” or “end” to end voice

command.

• In a state where the system is wait-

ing for a voice command, press

and hold the key on the steer-

ing remote controller to end voice

command.

4 121

Features of your vehicle

❈ Illustration on using voice commands

• Starting voice command.

Shortly pressing the key (under 0.8 seconds):

• Skipping Voice Recognition

Shortly pressing the key

(under 0.8 seconds):

• End voice command.

Shortly pressing the key (under 0.8 seconds):

More Help

Please say a command

Please say a...

More Help.

You can say Radio, FM, AM, Media, CD, USB, Aux,

My Music, iPod, Bluetooth Audio, Phone, Call

History or Phone book. Please say a command.

More Help.

You can say Radio, FM, AM, Media, CD, USB, Aux,

My Music, iPod, Bluetooth Audio, Phone, Call

History or Phone book. Please say a command.

Ding~

Shortly pressing the

key (under 0.8 seconds)

Phone book

Cancel

Please say a command

Phone book.

Please say the name of the phone book you

want to call.

Ding~

Di-Ding~(Cancel Sound)

Ding~

Features of your vehicle

1224

Voice Command List

• Common Commands: These are commands that can be used in all situations. (However, some commands may not

be supported in special circumstances.)

Command Function

More Help Provides guidance on commands that can be

used anywhere in the system.

Help Provides guidance on commands that can be

used within the current mode.

Call<Name> Calls <Name> saved in

phone book

Ex) Call “John”

Phone Provides guidance on Phone related com-

mands. After saying this command, say “Call

History”, “

Phone book

”, “Dial Number” to exe-

cute corresponding functions.

Call History Displays the Call History screen.

Phone book

Displays the

phone book

screen. After saying

this command, say the name of a

phone book

saved in the

phone book

to automatically con-

nect the call.

Dial Number Display the Dial number screen. After saying

this command, you can say the number what

you want to call.

Redial Connects the most recently called number.

Radio

•

When listening to the radio, displays the next

radio screen. (FM1

➟

FM2

➟

FMA

➟

AMA)

•

When listening to a different mode, displays

the most recently played radio screen.

Command Function

•

When currently listening to the FM radio,

maintains the current state.

•

When listening to a different mode, displays

the most recently played FM screen.

FM1(FM One) Displays the FM1 screen.

FM2(FM Two) Displays the FM2 screen.

FMA Displays the FMA screen.

AM Displays the AM screen.

AMA Displays the AMA screen.

FM Preset 1~6 Plays the most recently played broadcast

saved in FM Preset 1~6.

AM Preset 1~6 Plays the broadcast saved in AM Preset 1~6.

FM 87.5~107.9 Plays the FM broadcast of the corresponding

frequency.

AM 530~1710 Plays the AM broadcast of the corresponding

frequency.

TA on Enable Traffic Announcement

TA off Disable Traffic Announcement

News on Enable RDS News feature

News off Disable RDS News feature

4 123

Features of your vehicle

Command Function

Media Moves to the most recently played media

screen.

Play Track 1~30 If a music CD has been inserted, plays the

corresponding track.

CD Plays the music saved in the CD.

Search CD Moves to the CD track or file selection screen.

•

For audio CDs, move to the screen and say the

track number to play the corresponding track.

•

Moves to MP3 CD file selection screen. After

manually operate the device to select and

play music.

USB Plays USB music.

Search USB Moves to USB file selection screen. After

manually operate the device to select and play

music.

iPod Plays iPod music.

Search iPod Moves to the iPod file selection screen. After,

manually operate the device to select and play

music.

My Music Plays the music saved in My Music.

Search My Music Moves to My Music file selection screen. After

manually operate the device to select and play

music.

Command Function

AUX (Auxiliary) Plays the connected external device.

Bluetooth Audio Plays the music saved in connected

Bluetooth

Wireless Technology

device.

Mute Mutes the radio or music volume.

Pardon? Repeats the most recent comment.

Cancel (Exit) Ends voice command.

Features of your vehicle

1244

• FM/AM radio commands: Commands that can be

used while listening to FM, AM radio.

• Audio CD commands: Commands that can be used

while listening to Audio CD.

Command Function

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Auto Store Automatically selects radio broadcast fre-

quencies with superior reception and saves in

Presets 1~6.

Preset Save 1~6 Saves the current broadcast frequency to

Preset 1~6.

Seek up Plays the next receivable broadcast.

Seek down Plays the previous receivable broadcast.

Next Preset Selects the preset number next to the most

recently selected preset. (Example: When cur-

rently listening to preset no. 3, then preset no.

4 will be selected.)

Previous Preset Selects the preset number previous to the

most recently selected preset. (Example:

When currently listening to preset no. 3, then

preset no. 2 will be selected.)

Scan Scans receivable frequencies from the current

broadcast and plays for 10 seconds each.

Preset Scan Moves to the next preset from the current

present and plays for 10 seconds each.

AF on Enable Alternative Frequency feature

AF off Disable Alternative Frequency feature

Region Enable Region feature

Command Function

Region off Disable Region feature

Program Type Moves to the RDS Program type selection

screen. After, manually operate the device to

select a desired program type.

Random Randomly plays the tracks within the CD.

Random Off Cancels random play to play tracks in sequen-

tial order.

Repeat Repeats the current track.

Repeat Off Cancels repeat play to play tracks in sequen-

tial order.

Next Track Plays the next track.

Previous Track Plays the previous track.

Scan Scans the tracks from the next track for 10

seconds each.

Track 1~30 Plays the desired track number.

Search Track Moves to the track selection screen. After, say

the track name to play the corresponding track.

Information Displays the information screen of the current

track.

4 125

Features of your vehicle

• MP3 CD / USB commands: Commands that can be

used while listening to music files saved in CD and

USB.

• iPod Commands: Commands that can be used while

playing iPod.

Command Function

Random Randomly plays the files within the current

folder.

All Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Folder Repeat Repeats all files in the current folder.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Search Folder Moves to the folder selection screen.

Information Displays the information screen of the current

file.

Copy Copies the current file into My Music.

Command Function

All Random Randomly plays all saved songs.

Random Randomly plays the songs within the current

category.

Random Off Cancels random play to play songs in sequen-

tial order.

Repeat Repeats the current song.

Repeat Off Cancels repeat play to play songs in sequen-

tial order.

Next Song Plays the next song.

Previous Song Plays the previous song.

Search Song Moves to the song selection screen.

Information Displays the information screen of the current

song.

Features of your vehicle

1264

• My Music Commands: Commands that can be used

while playing My Music.

•

Bluetooth®

Wireless Technology Audio Commands:

Commands that can be used while playing Phone

Music.

Command Function

Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Information Displays the information screen of the current

file.

Delete Deletes the current file. You will bypass an

additional confirmation process.

Delete All Deletes all files saved in My Music. You will

bypass an additional confirmation process.

Command Function

Play Plays the currently paused song.

Pause Pauses the current song.

4 127

Features of your vehicle

SETUP

(for RDS,

Bluetooth®

Wireless

Technology equipped model)

- AM100A7EE, AM110A7EE

Starting Mode

Press the key to display the

Setup screen.

You can select and control options

related to [Display], [Sound],

[Phone] and [System].

Display Settings

Adjusting the Brightness

Press the key Select

[Display] Select [Brightness]

Use the , buttons to adjust the

screen brightness or set the

Brightness on Automatic, Day, or

Night mode.

Press the button to reset.

(1) Automatic : Adjusts the bright-

ness automatically

(2) Day : Always maintains the

brightness on high

(3) Night : Always maintains the

brightness on low

Pop-up Mode

Press the key Select

[Display] Select [Pop-up Mode]

This feature is used to display the

Pop-up Mode screen when entering

radio and media modes.

When this feature is turned on,

pressing the or key

will display the Pop-up Mode screen.

✽

NOTICE

The media Pop-up Mode screen can

be displayed only when two or more

media modes have been connected.

MEDIA RADIO

Default

Features of your vehicle

1284

Scroll Text

Press the key Select

[Display] Select [Scroll text]

This feature is used to scroll text dis-

played on the screen when it is too

long to be displayed at once.

When turned on, the text is repeat-

edly scrolled. When turned off, the

text is scrolled just once.

MP3 Information Display

Press the key Select

[Display] Select [Song Info]

This feature is used to change the

information displayed within USB

and MP3 CD modes.

(1) Folder File : Displays file name

and folder name

(2) Album Artist Song : Displays

album name/artist name/song

4 129

Features of your vehicle

Sound Settings

Press the key Select

[Sound] Select [Audio Setting]

Use the , , , buttons to

adjust the Fader/Balance settings.

Use the , buttons to adjust the

Bass/Middle/Treble settings.

Press the button to reset.

SDVC (Speed Dependent Volume

Control)

Press the key Select

[Sound] Select [Speed Dependent

Vol.]

The volume level is controlled auto-

matically according to the vehicle

speed. SDVC can be set by selecting

from Off/Low/Mid/High.

Voice Recognition Setting

Press the key Select

[Sound] Select [Volume Dialogue]

Use the , buttons to adjust

the Volume Dialog.

Default

Features of your vehicle

1304

Touch Screen Beep

Press the key Select

[Sound] Select [Touch Screen

Beep]

This feature is used to turn the touch

screen beep on/off.

4 131

Features of your vehicle

Bluetooth®

Wireless

Technology Setting

Pairing a New Device

Press the key Select

[Phone] Select [Pair Phone]

Bluetooth®

Wireless Technology devices

can be paired with the audio system.

For more information, refer to the

“Pairing through Phone Setup” sec-

tion within

Bluetooth®

Wireless

Technology.

Viewing Paired Phone List

Press the key Select

[Phone] Select [Paired Phone List]

This feature is used to view mobile

phones that have been paired with

the audio system. Upon selecting a

paired phone, the setup menu is dis-

played.

For more information, refer to the

“Setting

Bluetooth®

Wireless

Technology Connection” section with-

Bluetooth®

Wireless Technology.

(1) : Moves to the previous

screen

(2) Connect/Disconnect Phone :

Connect/ disconnects currently

selected phone

(3) Delete : Deletes the currently

selected phone

(4) Change Priority : Sets currently

selected phone to highest connec-

tion priority

✽

NOTICE BEFORE DOWN-

LOADING PHONE BOOKS

• Only phone books within connect-

ed phones can be downloaded.

Also check to see that your mobile

phone supports the download fea-

ture.

• To learn more about whether your

mobile phone supports phone

book downloads, refer to your

mobile phone user’s manual.

• The Phone book for only the con-

nected phone can be downloaded.

Before downloading, check to see

whether your phone supports the

download feature.

Features of your vehicle

1324

Downloading Phone books

Press the key Select

[Phone] Select [Phone book

Download]

The Phone book is downloaded from

the mobile phone and the download

progress is displayed.

✽

NOTICE

• Up to 1,000 phone book entries

can be copied into car phone book.

• Up to 1,000 phone book entries

can be saved for each paired

device.

• Upon downloading phone book

data, previously saved phone book

data will be deleted. However,

Phone book entries saved to other

paired phones are not deleted.

Auto Download (Phone Book)

Press the key Select

[Phone] Select [Auto Download]

This feature is used to automatically

download mobile phone book entries

once a

Bluetooth®

Wireless

Technology phone is connected.

✽

NOTICE

• The Auto Download feature will

download mobile phone book

entries every time the phone is

connected. The download time

may differ depending on the num-

ber of saved phone book entries

and the communication state.

• When downloading a phone book,

first check to see that your mobile

phone supports the phone book

download feature.

Audio Streaming

Press the key Select

[Phone] Select [Audio Streaming]

When Audio Streaming is turned on,

you can play music files saved in

your

Bluetooth®

Wireless

Technology device from the car.

4 133

Features of your vehicle

Outgoing Volume

Press the key Select

[Phone] Select [Outgoing Volume]

Use the , buttons to adjust

the outgoing volume level.

Turning Bluetooth System Off

Press the key Select

[Phone] Select [Bluetooth System

Off]

Once

Bluetooth®

Wireless

Technology is turned off,

Bluetooth®

Wireless Technology related features

will not be supported within the audio

system.

✽

NOTICE

To turn Bluetooth®Wireless

Technology back on, go to

[Phone] and press “Yes”.

CAUTION

Bluetooth®Wireless Technology

audio streaming may not be sup-

ported in some Bluetooth®

Wireless Technology phones.

Features of your vehicle

1344

System Setting

Memory Information

Press the key Select

[System] Select [Memory Information]

This feature displays information

related to system memory.

(1) Using : Displays capacity current-

ly in use

(2) Capacity : Displays total capacity

Voice Recognition Mode Setting

(if equipped)

Press the key Select

[System] Select [Voice Recognition

System]

This feature is used to select the

desired prompt feedback option from

Normal and Expert.

(1) Normal : When using voice

recognition, provides detailed

guidance prompts

(2) Expert : When using voice recog-

nition, omits some guidance

prompts

✽

NOTICE

Voice Recognition is depend on the

Audio System.

Language

Press the key Select

[System] Select [Language]

This feature is used to change the

system and voice recognition lan-

guage.

If the language is changed, the sys-

tem will restart and apply the select-

ed language.

❈ Language support by region

4 135

Features of your vehicle

SETUP

(for

Bluetooth®

Wireless

Technology equipped model)

- AM110A7GG, AM110A7GE,

AM110A7GN, AM110A7GL

Starting Mode

Press the key to display the

Setup screen.

You can select and control options

related to [Display], [Sound], [Phone]

and [System].

Display Settings

Adjusting the Brightness

Press the key Select

[Display] Select [Brightness]

Use the , buttons to adjust the

screen brightness or set the

Brightness on Automatic, Daylight, or

Night mode.

Press the button to reset.

(1) Automatic : Adjusts the bright-

ness automatically

(2) Daylight : Always maintains the

brightness on high

(3) Night : Always maintains

the brightness on low

Pop-up Mode

Press the key Select

[Display] Select [Mode Pop up]

This feature is used to display the

Pop-up Mode screen when entering

radio and media modes.

When this feature is turned on,

pressing the or key

will display the Pop-up Mode screen.

✽

NOTICE

The media Pop-up Mode screen can

be displayed only when two or more

media modes have been connected.

MEDIA RADIO

SETUP

Default

SETUP

Features of your vehicle

1364

Text Scroll

Press the key Select

[Display] Select [Text Scroll]

This feature is used to scroll text dis-

played on the screen when it is too

long to be displayed at once.

When turned on, the text is repeat-

edly scrolled. When turned off, the

text is scrolled just once.

MP3 Information Display

Press the key Select

[Display] Select [Media Display]

This feature is used to change the

information displayed within USB

and MP3 CD modes.

(1) Folder File : Displays file name

and folder name

(2) Album Artist Song : Displays

album name/artist name/song

Sound Settings

Press the key Select

[Sound] Select [Sound Setting]

SETUP

SETUP SETUP

4 137

Features of your vehicle

Use the , , , buttons to

adjust the Fader/Balance settings.

Use the , buttons to adjust the

Bass/Middle/Treble settings.

Press the button to reset.

SDVC (Speed Dependent Volume

Control)

Press the key Select

[Sound] Select [Speed Dependent

Vol.]

The volume level is controlled auto-

matically according to the vehicle

speed. SDVC can be set by selecting

from Off/Low/Mid/High.

Touch Screen Beep

Press the key Select

[Sound] Select [Touch Screen

Beep]

This feature is used to turn the touch

screen beep on/off.

SETUP

Default

Features of your vehicle

1384

Bluetooth®

Wireless

Technology Setting

Pairing a New Device

Press the key Select

[Phone] Select [Pair Phone]

Bluetooth®

Wireless Technology

devices can be paired with the audio

system.

For more information, refer to the

“Pairing through Phone Setup” sec-

tion within

Bluetooth®

Wireless

Technology.

Viewing Paired Phone List

Press the key Select

[Phone] Select [Paired Phone List]

This feature is used to view mobile

phones that have been paired with

the audio system. Upon selecting a

paired phone, the setup menu is dis-

played.

For more information, refer to the

“Setting

Bluetooth®

Wireless

Technology Connection” section with-

Bluetooth®

Wireless Technology.

(1) : Moves to the previous

screen

(2) Connect/Disconnect Phone :

Connect/disconnects currently

selected phone

(3) Delete : Deletes the currently

selected phone

(4) Change Priority : Sets currently

selected phone to highest connec-

tion priority

✽

NOTICE BEFORE DOWN-

LOADING CONTACTS

• Only contacts within connected

phones can be downloaded. Also

check to see that your mobile

phone supports the download fea-

ture.

• To learn more about whether your

mobile phone supports contacts

downloads, refer to your mobile

phone user’s manual.

• The contacts for only the connect-

ed phone can be downloaded.

Before downloading, check to see

whether your phone supports the

download feature.

SETUP

4 139

Features of your vehicle

Downloading Contacts

Press the key Select

[Phone] Select [Contacts Download]

The contacts is downloaded from the

mobile phone and the download

progress is displayed.

✽

NOTICE

• Up to 1,000 contacts entries can be

copied into car contacts.

• Up to 1,000 contacts entries can be

saved for each paired device.

• Upon downloading contacts data,

previously saved contacts data

will be deleted. However, contacts

entries saved to other paired

phones are not deleted.

Auto Download (Contacts)

Press the key Select

[Phone] Select [Auto Download]

his feature is used to automatically

download mobile contacts entries once

Bluetooth

Wireless Technology

phone is connected.

✽

NOTICE

• The Auto Download feature will

download mobile contacts entries

every time the phone is connected. The

download time may differ depending

on the number of saved contacts

entries and the communication state.

• When downloading a contacts,

first check to see that your mobile

phone supports the contacts

download feature.

Streaming Audio

Press the key Select

[Phone] Select [Streaming Audio]

When Streaming Audio is turned on,

you can play music files saved in

your

Bluetooth®

Wireless Technology

device from the car.

SETUP SETUP SETUP

Features of your vehicle

1404

Outgoing Volume

Press the key Select

[Phone] Select [Outgoing Volume]

Use the , buttons to adjust the

outgoing volume level.

Turning Bluetooth System Off

Press the key Select

[Phone] Select [Bluetooth System

Off]

Once

Bluetooth

Wireless Technology

is turned off,

Bluetooth

Wireless

Technology related features will not be

supported within the audio system.

✽

NOTICE

To turn Bluetooth®Wireless

Technology back on, go to

[Phone] and press “Yes”.

SETUP

4 141

Features of your vehicle

System Setting

Memory Information

Press the key Select

[System] Select [Memory Information]

This feature displays information

related to system memory.

(1) Using : Displays capacity current-

ly in use

(2) Capacity : Displays total capacity

Language

Press the key Select

[System] Select [Language]

This feature is used to change the sys-

tem and voice recognition language.

If the language is changed, the sys-

tem will restart and apply the select-

ed language.

REAR VIEW CAMERA

(if equipped)

• The system has been equipped

with a rear view camera for user

safety by allowing a wider rear

range of vision.

• The rear view camera will automat-

ically operate when the ignition key

is turned ON and the transmission

lever is set to R.

• The rear view camera will automat-

ically stop operating when set to a

different lever.

SETUP

CAUTION

The rear view camera has been

equipped with an optical lens to

provide a wider range of vision

and may appear different from

the actual distance. For safety,

directly check the rear and

left/right sides.

Features of your vehicle

1424

APPENDIX

Name Description

12hr 12 Hour

24hr 24 Hour

AST(A.Store) Automatically selects and saves

channels

AMA AM Radio (Auto store)

AUX External Audio mode

Bass Deep sound

Treble High sound

BT Audio

Bluetooth

Wireless Technology

Audio

FMA FM Radio (Auto store)

Preset Saved radio frequency

RDS Search Radio Data System Search

TA Off Traffic Announcement

Appendix Homologation

FCC Compliance Statement.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions :

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interferencethat may cause undesired operation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Do Not

Any changes or modifications to the equipment not expressly

approved by the party responsible for compliance could void

user’s authority to operate the equipment.

Be sure

The antenna(s) used for this device must be installed to provide a separation distance of

at least 20 cm from all persons and must not be co-located or operating in conjunction

with any other antenna or transmitter.

HYUNDAI MOBIS AC210D4EE DIGITAL CAR AUDIO SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM

User Manual

Navigation menu

Namespaces

Views

Navigation
