How vehicle audio works

AM and FM radio signals are broadcast

from transmitter towers located around

your city. They are intercepted by the

radio antenna on your vehicle. This signal

is then received by the radio and sent to

your vehicle speakers.

When a strong radio signal has reached

your vehicle, the precise engineering of

your audio system ensures the best pos-

sible quality reproduction. However, in

some cases the signal coming to your

vehicle may not be strong and clear. This

can be due to factors such as the dis-

tance from the radio station, closeness of

other strong radio stations or the pres-

ence of buildings, bridges or other large

obstructions in the area.

AM broadcasts can be received at

greater distances than FM broadcasts.

This is because AM radio waves are

transmitted at low frequencies. These

long, low frequency radio waves can fol-

low the curvature of the earth rather than

travelling straight out into the atmos-

phere. In addition, they curve around

obstructions so that they can provide bet-

ter signal coverage.

¢¢¢

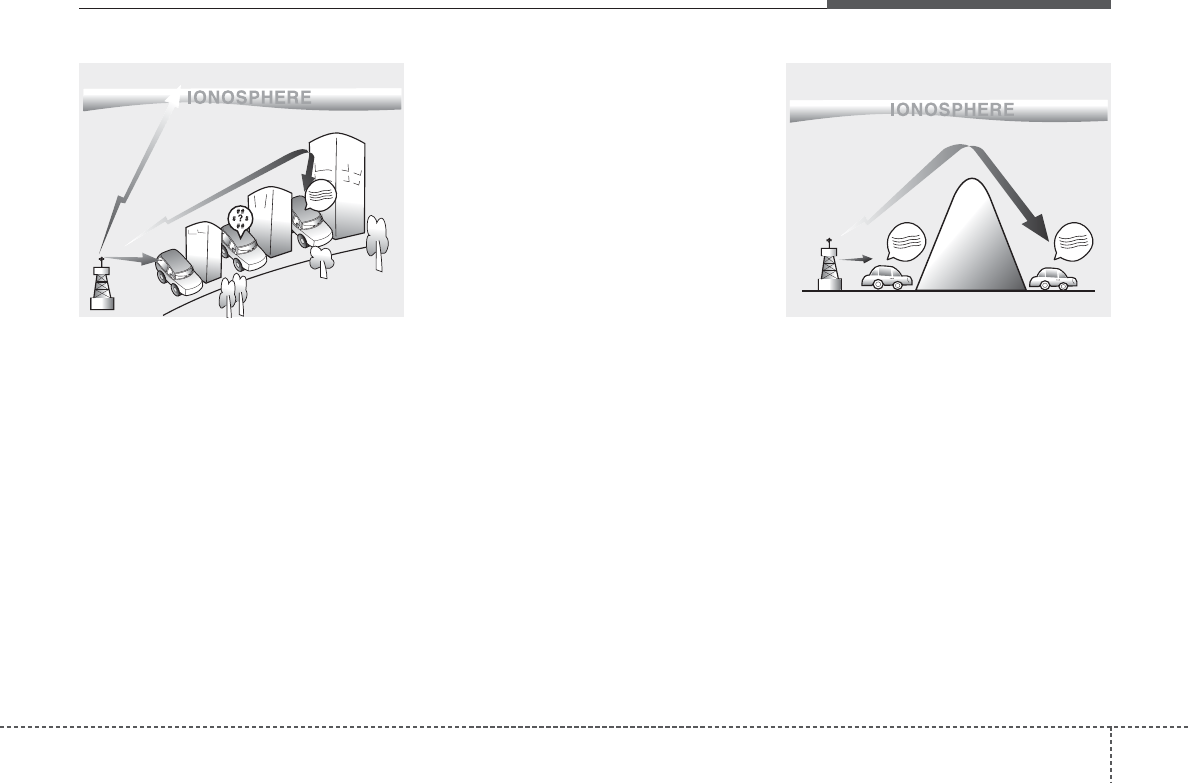

JBM002

AM radio reception

¢¢¢

JBM001

FM radio reception

Features of your vehicle

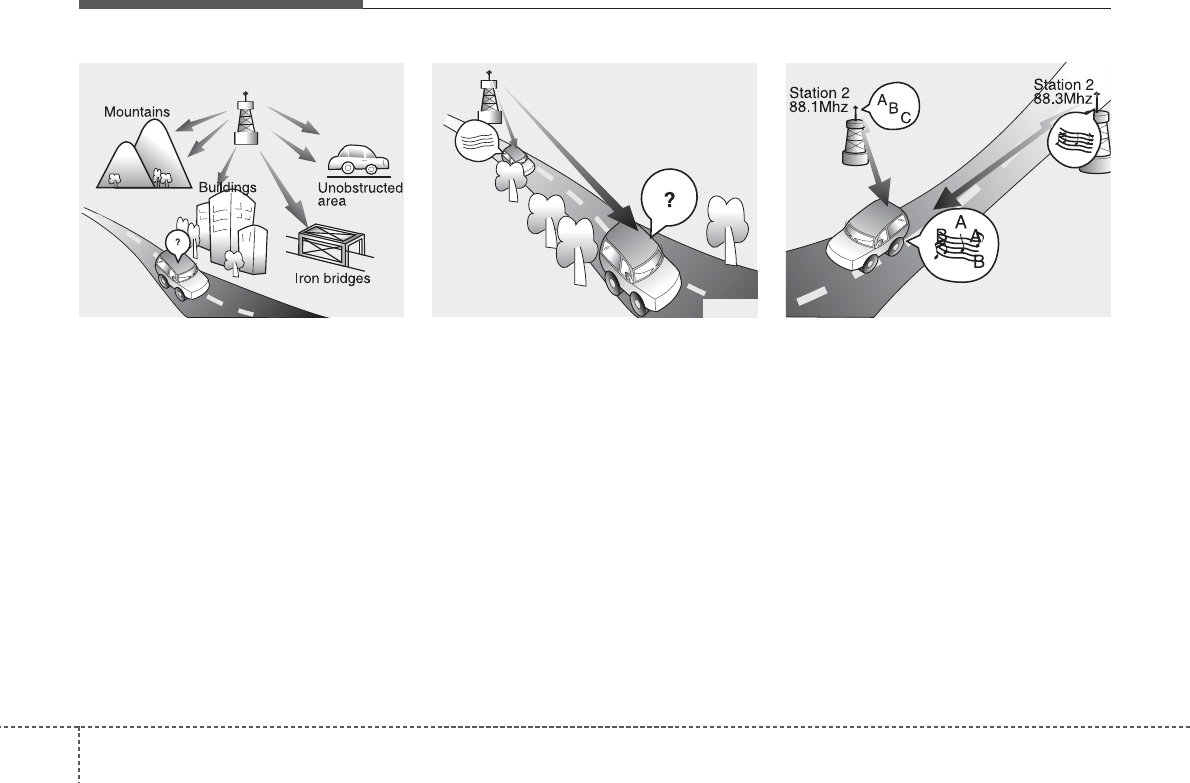

FM broadcasts are transmitted at high

frequencies and do not bend to follow the

earth's surface. Because of this, FM

broadcasts generally begin to fade at

short distances from the station.

Also, FM signals are easily affected by

buildings, mountains, or other obstruc-

tions. These can result in certain listening

conditions which might lead you to

believe a problem exists with your radio.

The following conditions are normal and

do not indicate radio trouble:

• Fading - As your vehicle moves away

from the radio station, the signal will

weaken and sound will begin to fade.

When this occurs, we suggest that you

select another stronger station.

• Flutter/Static - Weak FM signals or

large obstructions between the trans-

mitter and your radio can disturb the

signal causing static or fluttering nois-

es to occur. Reducing the treble level

may lessen this effect until the distur-

bance clears.

• Station Swapping - As a FM signal

weakens, another more powerful sig-

nal near the same frequency may

begin to play. This is because your

radio is designed to lock onto the clear-

est signal. If this occurs, select another

station with a stronger signal.

• Multi-Path Cancellation - Radio signals

being received from several directions

can cause distortion or fluttering. This

can be caused by a direct and reflect-

ed signal from the same station, or by

signals from two stations with close

frequencies. If this occurs, select

another station until the condition has

passed.

JBM005

¢¢¢

JBM004JBM003

FM radio station

Features of your vehicle

Using a cellular phone or a two-way

radio

When a cellular phone is used inside the

vehicle, noise may be produced from the

audio equipment. This does not mean

that something is wrong with the audio

equipment. In such a case, use the cellu-

lar phone at a place as far as possible

from the audio equipment.

Care of disc

• If the temperature inside the car is too

high, open the car windows for ventilation

before using your car audio.

• It is illegal to copy and use MP3/WMA

files without permission. Use CDs that

are created only by lawful means.

• Do not apply volatile agents such as

benzene and thinner, normal cleaners

and magnetic sprays made for ana-

logue disc onto CDs.

• To prevent the disc surface from get-

ting damaged. Hold and carry CDs by

the edges or the edges of the center

hole only.

• Clean the disc surface with a piece of

soft cloth before playback (wipe it from

the center to the outside edge).

• Do not damage the disc surface or

attach pieces of sticky tape or paper

onto it.

• Make sure on undesirable matter other

than CDs are inserted into the CD

player (Do not insert more than one

CD at a time).

• Keep CDs in their cases after use to

protect them from scratches or dirt.

• Depending on the type of CD-R/CD-

RW CDs, certain CDs may not operate

normally according to manufacturing

companies or making and recording

methods. In such circumstances, if you

still continue to use those CDs, they

may cause the malfunction of your car

audio system.

✽✽NOTICE - Playing an

Incompatible Copy

Protected Audio CD

Some copy protected CDs, which do not

comply with the international audio CD

standards (Red Book), may not play on

your car audio. Please note that if you

try to play copy protected CDs and the

CD player does not perform correctly

the CDs maybe defective, not the CD

player.

CAUTION

When using a communication sys-

tem such a cellular phone or a radio

set inside the vehicle, a separate

external antenna must be fitted.

When a cellular phone or a radio set

is used with an internal antenna

alone, it may interfere with the vehi-

cle's electrical system and adverse-

ly affect safe operation of the vehi-

cle.

WARNING

Do not use a cellular phone while

driving. Stop at a safe location to

use a cellular phone.

Features of your vehicle

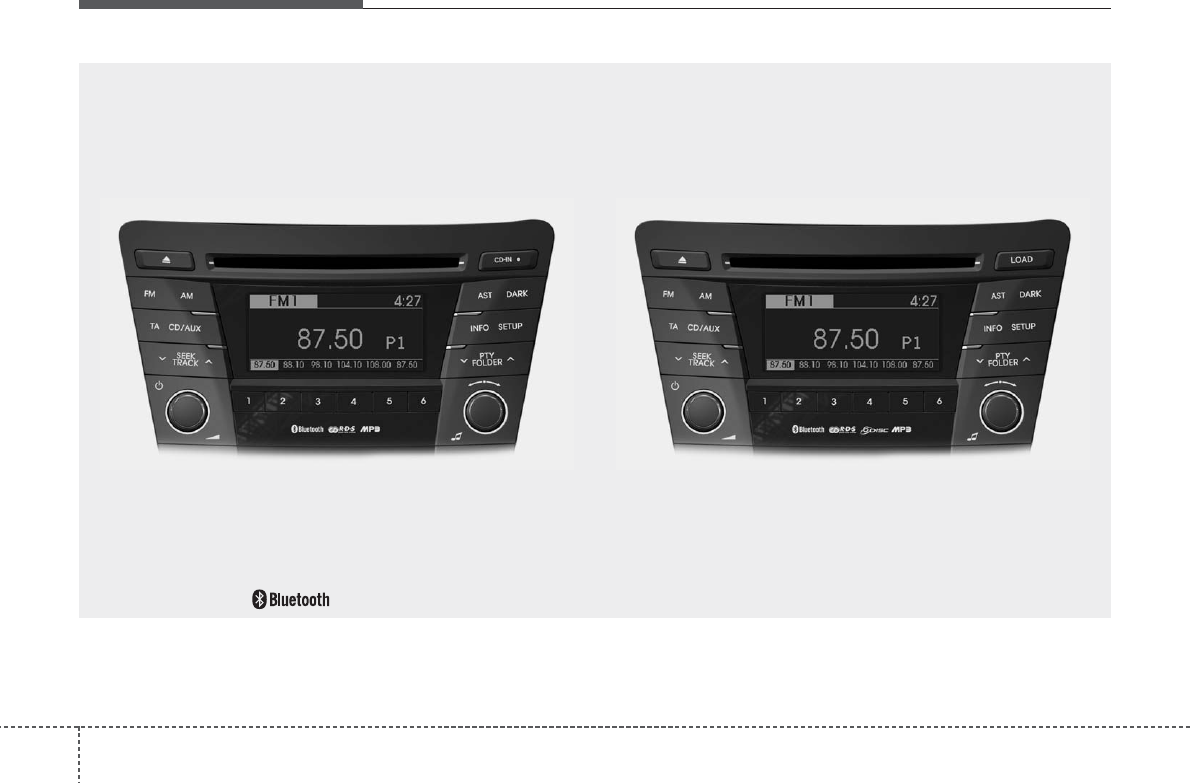

VF_AC100DFE_EU / VF_AC600DFE_EU

■■ CD Player : AC100DFE/AC110DFE ■■ CD Changer : AC600DFE/AC610DFE

❋There will be no logo if the Bluetooth®feature is not supported.

Features of your vehicle

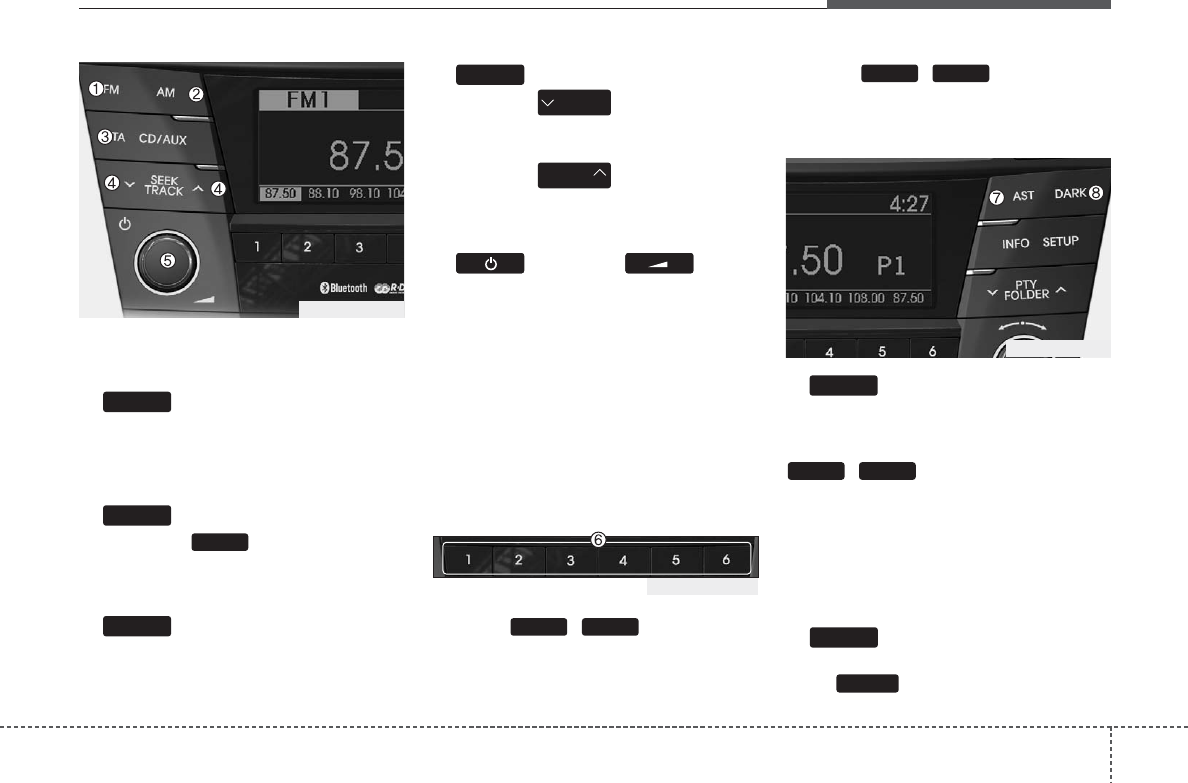

Using RADIO, SETUP, VOLUME

and AUDIO CONTROL

1. Button

Turns to FM mode and toggles FM1 and

FM2 when the button is pressed each

time.

2. Button

Pressing the button selects the

AM band. AM Mode is displayed on the

LCD.

3. Button

TA(Traffic announcement) Channels in

FM, CD, AUX mode, turns on/off the

reception of TA channels of RDS.

4. Button

• When the is pressed, it will

automatically tune to the next lower

station.

• When the is pressed, it will

automatically tune to the next higher

station.

5. Button & Knob

• Turns the audio system on/off when

the ignition switch is on ACC or ON.

• If the knob is turned clockwise/counter-

clockwise, the volume will increase

/decrease.

• Depending on the model if the ignition

switch is not on ACC or ON position.

the “Battery Discharge” warning appears

on LCD after 10 seconds of power-up,

and automatically turns off after 1 hours

of operation.

6. PRESET Buttons

• Press ~ buttons less

than 0.8 seconds to play the station

saved in each button.

• Press ~ buttons more

than 0.8 seconds or longer to save the

current station to the respective button

with a beep.

7. Button (AUTO STORE)

When the button is pressed, it automati-

cally selects and saves channels with

high reception rate to PRESET buttons

~ and plays the channel

saved in PRESET1. If no channel is

saved after AST, it will play the previous

channel.

• Saves only to the Preset memory

(1)~(6) of FMA or AMA mode in some

models.

8. Button

Turn the LCD Display & Backlight ON/OFF

when button press.

DARK

AST

SEEK

TRACK

SEEK

TRACK

SEEK

VF_EU_RADIO

Features of your vehicle

9. Button

• Moves button when search-

ing PTY in RDS Broadcasting Program

Type selection.

• Moves button when search-

ing PTY in RDS Broadcasting Program

Type selection.

10. Button

Press the button to convert to

Setup Mode. In the Setup Mode screen,

select the mode you want to set by

pressing the knob. Press

knob to enter detailed setup mode. The

Setup Mode screens are each different

according to the Bluetooth, External Amp

option selections.

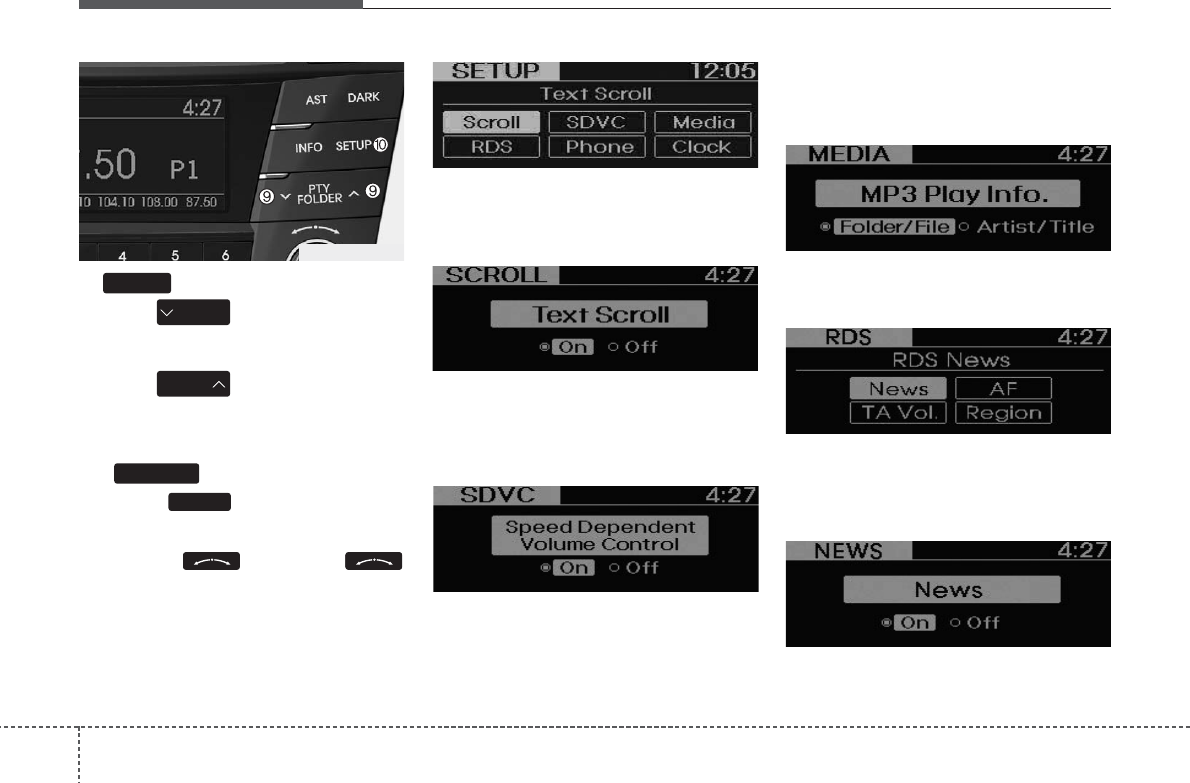

• SCROLL

Select whether long file names are scrolled

continuously (On) or just once (Off).

• SDVC

(Speed Dependent Volume Control)

Select this item to turn the SDVC feature

On or Off. If it is turned ON, volume level

is adjusted automatically according to

the vehicle speed.

• MEDIA

Select default display of MP3 play infor-

mation. “Folder/File” or “Artist/Title” can

be selected.

• RDS(if available)

RDS menu includes News/AF/Region/

TA Vol. menu sequentially.

• NEWS(NEWS MENU indication is pos

sible with RDS MENU)

Turns the automatic NEWS reception fea-

ture ON or OFF.

SETUP

PTY

FOLDER

PTY

FOLDER

PTY

VF_EU_RADIO

Features of your vehicle

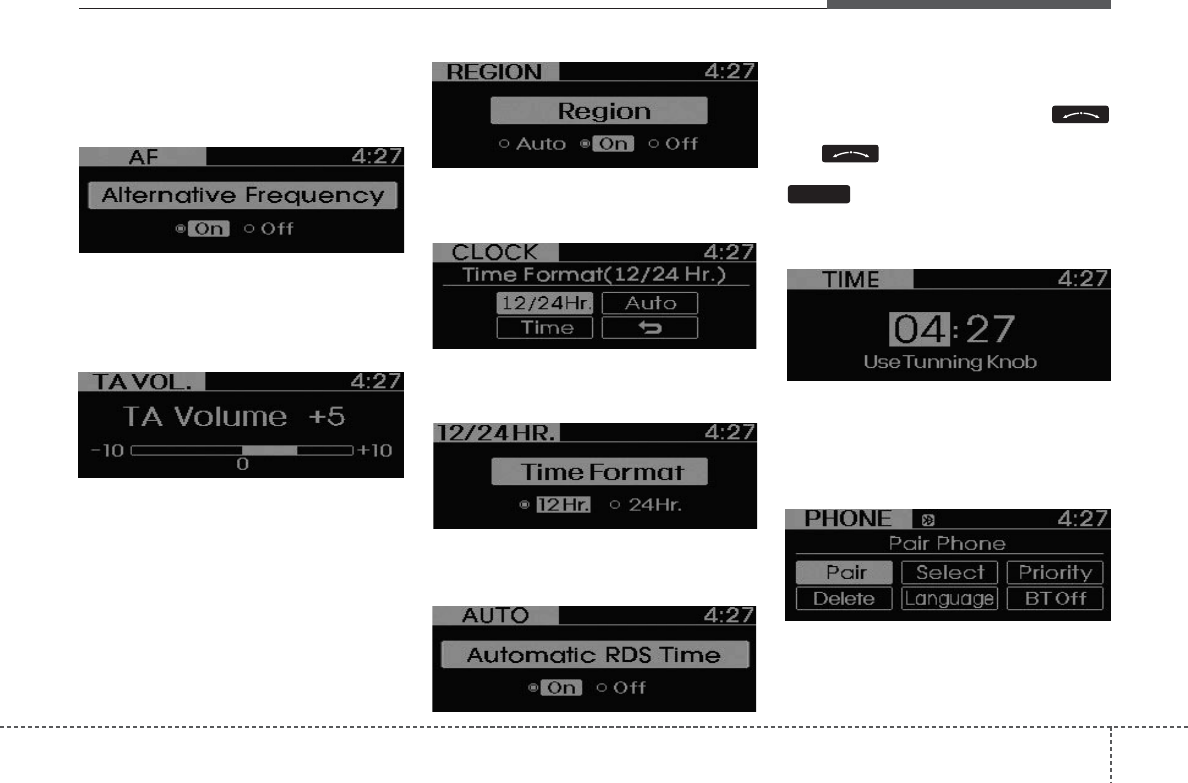

• AF(AF MENU indication is possible with

RDS MENU)

Select this item to turn the AF(Alternate

Frequency) feature ON or OFF.

• TA VOL.(TA VOL. MENU indication is

possible with RDS MENU)

Adjusts the TA (Traffic Announcement) vol-

ume level according to normal audio vol-

ume level.

• REGION(REGION MENU indication is

possible with RDS MENU)

Selects whether REGION code is used

(ON) or not (OFF) once the radio deter-

mines the AF jump condition. If AUTO is

selected, AF jump condition is determined

automatically via PI reception status.

• CLOCK

Select this item to enter Clock setup

mode.(12/24Hr., Auto, Time)

• 12/24 Hr.

Select “12/24 Hr.” button to enter Time

Format menu.

• Auto

Select “Auto” button to enter Automatic

RDS Time menu.

• Time

Select “Time” button to enter Time setting.

Adjust the hour and press the

knob to set. Adjust the minute and press

the knob to complete and exit

from clock adjustment mode. Pressing the

button more than 0.8 seconds

while in power off, screen will allow the

user to make immediately adjustments to

the clock.

• PHONE (if equipped)

Select this item to enter PHONE setup

mode.

Refer to “BLUETOOTH PHONE

OPERATION” section for detailed infor-

mation.

❈“PHONE” menu is not available if the

audio does not support Bluetooth features.

SETUP

Features of your vehicle

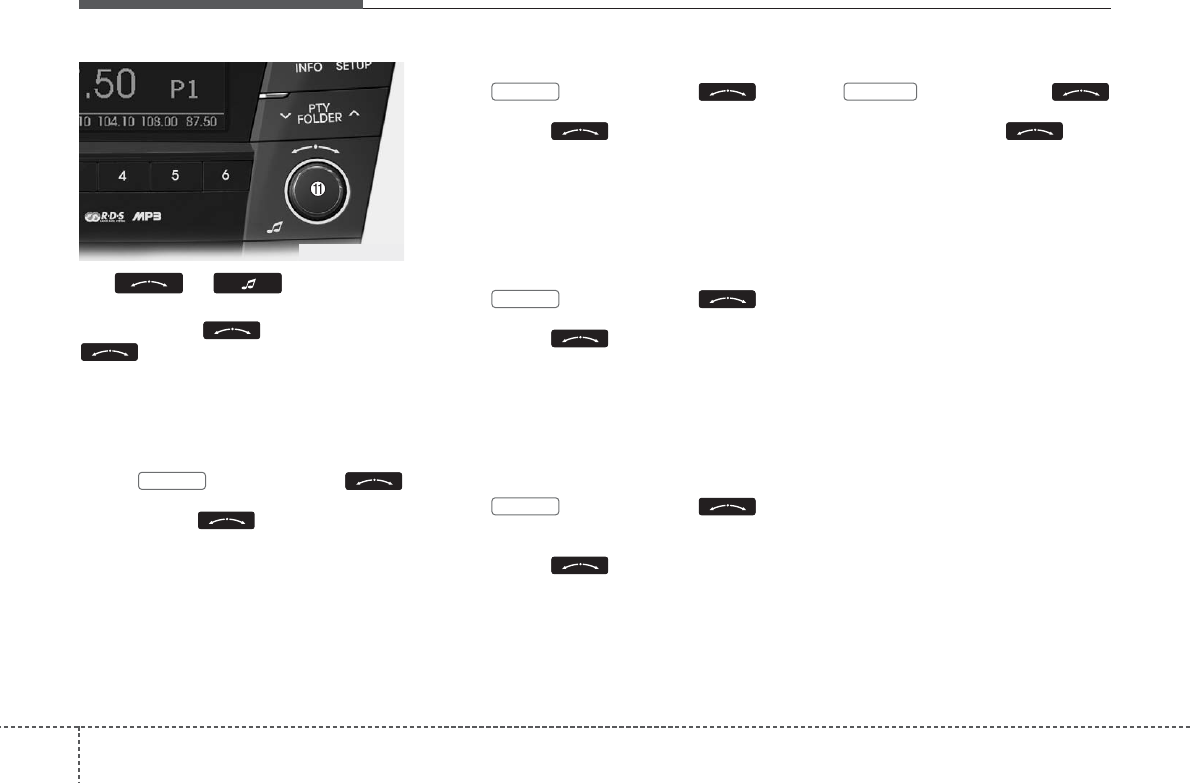

11. & Knob

Within the screen displayed after first

pressing the knob, turn the

knob to select the mode. The

modes will change in order of BASS .

MIDDLE ↔TREBLE ↔FADER ↔BAL-

ANCE.

• BASS Control

Press and turn the

knob to adjust the bass setting. In this

state, turn the knob clockwise to

increase the bass and counter-clockwise

to decrease the bass. (Based on bass

frequency band, the range of adjustment

is max +10/min-10.)

BASS -1 BASS 0

→

BASS +1

• MIDDLE Control

Press and turn the

knob to adjust the middle setting. In this

state, turn the knob clockwise to

increase the middle and counter-clock-

wise to decrease the middle. (Based on

middle frequency band, the range of

adjustment is max +10/min-10.)

MIDDLE -1 MIDDLE 0

→

MIDDLE +1

• TREBLE Control

Press and turn the

knob to adjust the treble setting. In this

state, turn the knob clockwise to

increase the treble and counter-clock-

wise to decrease the treble. (Based on

treble frequency band, the range of

adjustment is max +10/min-10.)

TREBLE -1 TREBLE

→

TREBLE

• FADER Control

Press and turn the

knob clockwise and counter-clockwise to

adjust the front/rear volume levels. In this

state, turn the knob clockwise to

increase the front speaker volume and

counter-clockwise to increase the rear

speaker volume. (The front/rear can each

be adjusted to F=10/R=10.)

FADER F=1 FADER F=R

→

FADER R=1

• BALANCE Control

Press and turn the

knob to adjust the left/right volume set-

ting. In this state, turn the knob

clockwise to decrease the left speaker

volume and counter-clockwise to decrease

the right speaker volume.

(The left/right can each be adjusted to

L=10/R=10.)

BALANCE

→

FADER

→

TRBLE

→

MIDDLE

→

BASS

VF_EU_RADIO

Features of your vehicle

Using CD Player

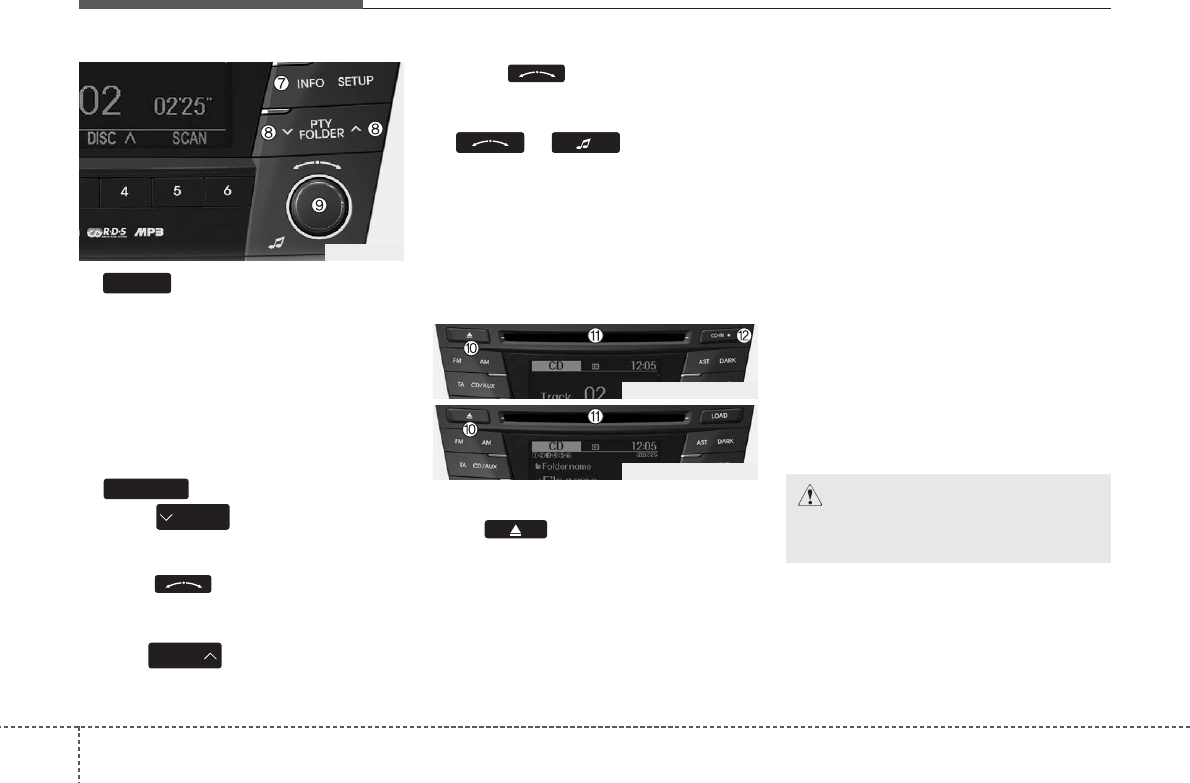

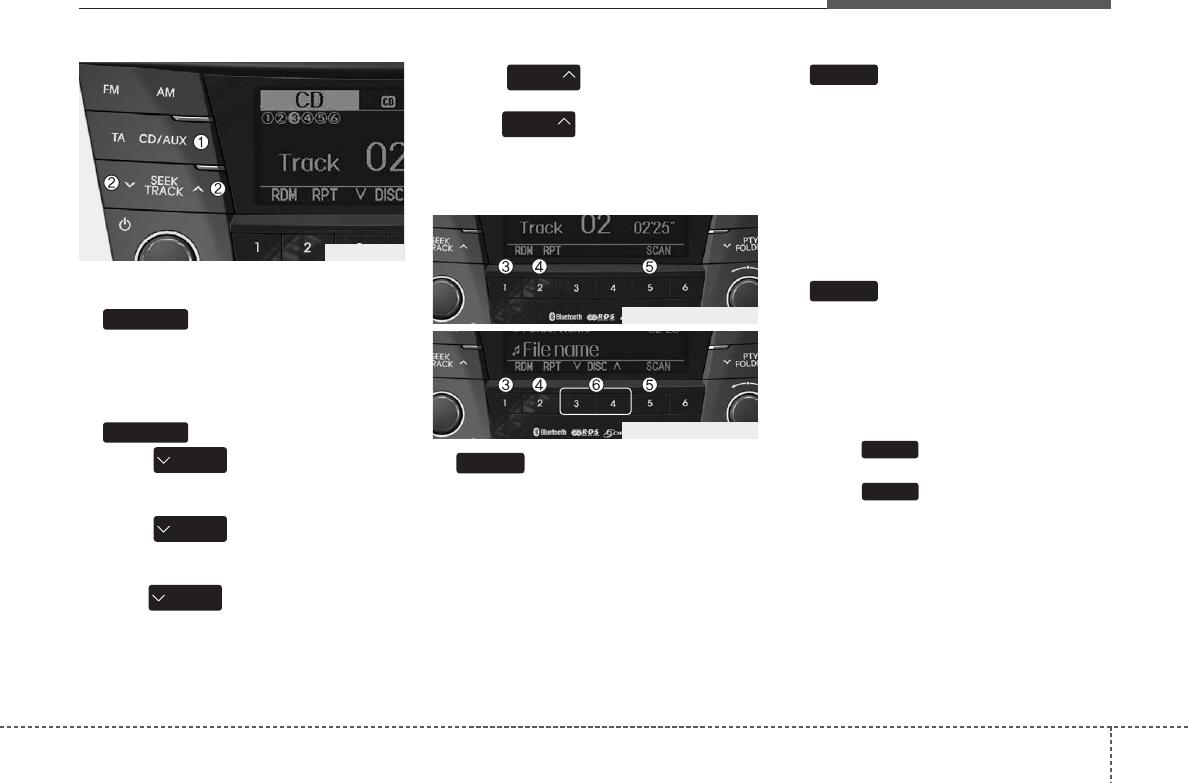

1. Button (CD)

If the CD is loaded, turns to CD mode.

If no CD, it displays “No Media” for 3 sec-

onds and returns to the previous mode.

2. Button

• Press button for less than

0.8 seconds to play from the beginning

of current song.

• Press button for less than

0.8 seconds and press again within

1 second to play the previous song.

• Press button for 0.8 seconds

or longer to initiate reverse direction

high speed sound search of current

song.

• Press button for less than

0.8 seconds to play the next song.

• Press button for 0.8 seconds

or longer to initiate forward direction

high speed sound search of current

song

3. Button (RANDOM)

Press this button for less than 0.8 sec-

onds to activate ‘RDM’ mode and more

than 0.8 seconds to activate ‘ALL RDM’

mode.

• RDM : Only files/tracks in a folder/disc

are played back in a random

sequence.

• ALL RDM (MP3/WMA Only) : All files in

a disc are played back in the random

sequence.

4. Button (REPEAT)

Press this button for less than 0.8 sec-

onds to activate ‘RPT’ mode and more

than 0.8 seconds to activate ‘FLD.RPT’

mode.

• RPT : Only a track (file) is repeatedly

played back.

•FLD.RPT (MP3/WMA Only) : Only files

in a folder are repeatedly played back.

5. Button (SCAN)

Play each song in the CD for 10 seconds.

To cancel SCAN Play, press this button

again.

6. DISC Button (CD changer :

AC600DFE/AC610DFE)

• Preset change button changes

disc to the previous disc.

• Preset change button changes

disc to the next disc.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

CD/AUX VF_AC100DFE_CDP

VF_AC600DFE_CDC

VF_EU_CD

Features of your vehicle

104

7. Button

Displays the information of the current

song.

• Audio CD : Disc Title/Artist, Track Title

/Artist, Total Track.

• MP3 CD : File Name, Title, Artist,

Album, Folder, Total Files (Not dis-

played if the information is unavailable

on the CD or file.)

8. Button

• Press button to move to

child folder of the current folder and

display the first song in the folder.

Press knob to move to the

folder displayed. It will play the first

song in the folder.

• Press button to move to par-

ent folder of the current folder and dis-

play the first song in the folder.

Press knob to move to the

folder displayed.

& Knob

• Turn this knob clockwise to browse

songs after current song, or counter-

clockwise to browse songs before cur-

rent song. To play the displayed song,

press the knob.

• Pressing this knob without turning

enters to AUDIO CONTROL mode.

10. CD Eject Button

Push button for less than 0.8

seconds to eject the CD during CD play-

back. This button is enabled when igni-

tion switch is off.

• ALL EJECT (CD Changer : AC600DFE/

AC610DFE)

Press this button for more than 0.8 sec-

onds to eject all discs inside the deck in

respective order.

11. CD Slot

Insert a CD label side up and gently push

in while ignition switch is on ACC or ON.

The audio automatically switches to CD

mode and begins to play the CD.

If the audio was turned off, audio power

will automatically turned on as the CD is

inserted.

• This audio only recognizes 12cm-size, CD-

DA (Audio CD) or ISO data-CD (MP3 CD).

• If UDF data-CD or non-CD (e.g. DVD) is

inserted, "Reading Error" message will

be displayed and the disc will be ejected.

12. CD Indicator (CD Player : AC100

DFE /AC110DFE)

When car ignition switch is ACC or ON

and if the CD is loaded, this indicator is

lighted. If the CD is ejected the light is

turned off.

PTY

FOLDER

PTY

FOLDER

INFO

CAUTION

Do not insert a CD if CD indicator is

lit.

VF_AC100DFE_CDP

VF_AC600DFE_CDC

VF_EU_CD

411

Features of your vehicle

13. Button (CD Changer :

AC600DFE/AC610DFC))

Push button to load CDs to avail-

able CDC deck (from 1~6). Push

button for more than 2 seconds to load

into all available decks. The last CD will

play. 10 seconds idle status will disable

loading process.

NOTE:

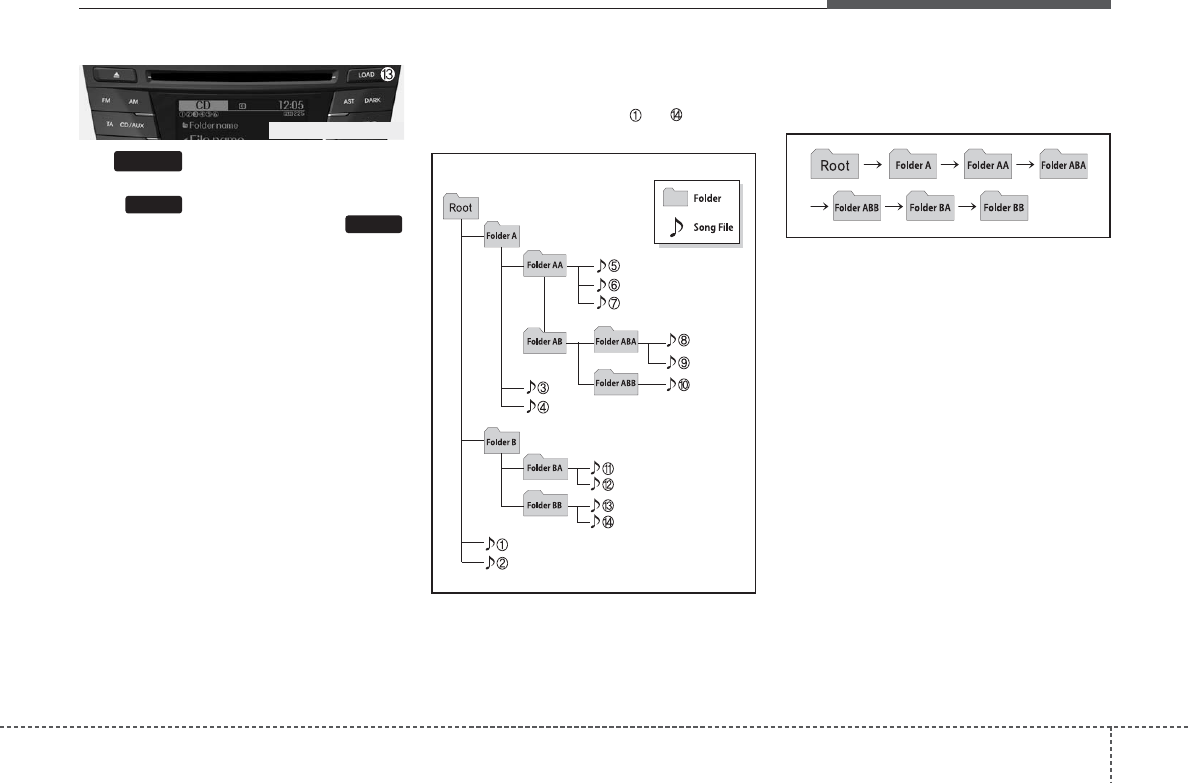

Order of playing files (folders) :

1. Song playing order : to sequen-

tially.

2. Folder playing order :

❋If no song file is contained in the

folder, that folder is not displayed.

LOAD

VF_AC600DFE_CDC

Features of your vehicle

124

CAUTION IN USING

USB DEVICE

• To use an external USB device,

make sure the device is not con-

nected when starting up the vehi-

cle. Connect the device after

starting up.

• If you start the engine when the

USB device is connected, it may

damage the USB device. (USB

flashdrives are very sensitive to

electric shock.)

• If the engine is started up or

turned off while the external USB

device is connected, the external

USB device may not work.

• It may not play inauthentic MP3 or

WMA files.

1) It can only play MP3 files with

the compression rate between

8Kbps~320Kbps.

2) It can only play WMA music

files with the compression rate

between 8Kbps~320Kbps.

• Take precautions for static electrici-

ty when connecting or disconnect-

ing the external USB device.

(Continued)

• An encrypted MP3 PLAYER is not

recognizable.

• Depending on the condition of

the external USB device, the con-

nected external USB device can

be unrecognizable.

• When the formatted byte/sector

setting of External USB device is

not either 512BYTE or 2048BYTE,

then the device will not be recog-

nized.

• Use only a USB device formatted

to FAT 12/16/32.

• USB devices without USB I/F

authentication may not be recog-

nizable.

• Make sure the USB connection

terminal does not come in contact

with the human body or other

objects.

• If you repeatedly connect or dis-

connect the USB device in a short

period of time, it may break the

device.

• You may hear a strange noise

when connecting or disconnect-

ing a USB device.

(Continued)

• If you disconnect the external USB

device during playback in USB

mode, the external USB device can

be damaged or may malfunction.

Therefore, disconnect the external

USB device when the audio is

turned off or in another mode. (e.g,

Radio or CD)

• Depending on the type and capacity

of the external USB device or the

type of the files stored in the device,

there is a difference in the time

taken for recognition of the device.

• Do not use the USB device for pur-

poses other than playing music files.

• Playing videos through the USB is

not supported.

• Use of USB accessories such as

rechargers or heaters using USB

I/F may lower performance or

cause trouble.

• If you use devices such as a USB

hub purchased separately, the

vehicle’s audio system may not

recognize the USB device. In that

case, connect the USB device

directly to the multimedia termi-

nal of the vehicle.

(Continued)

413

Features of your vehicle

(Continued)

• If the USB device is divided by

logical drives, only the music files

on the highest-priority drive are

recognized by car audio.

• Devices such as MP3 Player/

Cellular phone/Digital camera can

be unrecognizable by standard

USB I/F can be unrecognizable.

• Charging through the USB may

not be supported in some mobile

devices.

❋

A car exclusive cable (Provided

or sold separately) is required to

use the iPod.

• Some non-standard USB devices

(METAL COVER TYPE USB) can be

unrecognizable.

• Some USB flash memory readers

(such as CF, SD, microSD, etc.) or

external-HDD type devices can be

unrecognizable.

• Music files protected by DRM

(DIGITAL RIGHTS MANAGEMENT)

are not recognizable.

• The data in the USB memory may

be lost while using this audio.

Always back up important data on

a personal storage device.

(Continued)

• Please avoid using USB memory

products which can be used as

key chains or cellular phone

accessories as they could cause

damage to the USB jack. Please

make certain only to use plug type

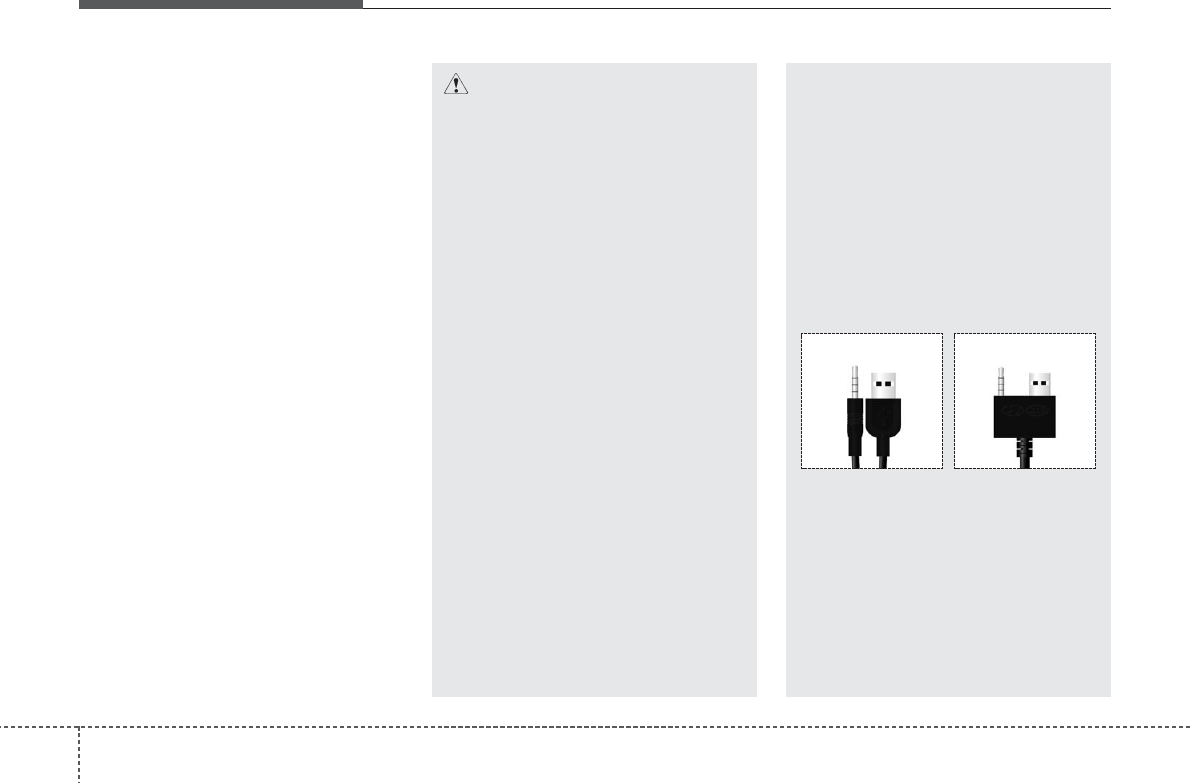

connector products as shown

below.

Features of your vehicle

144

Using USB device

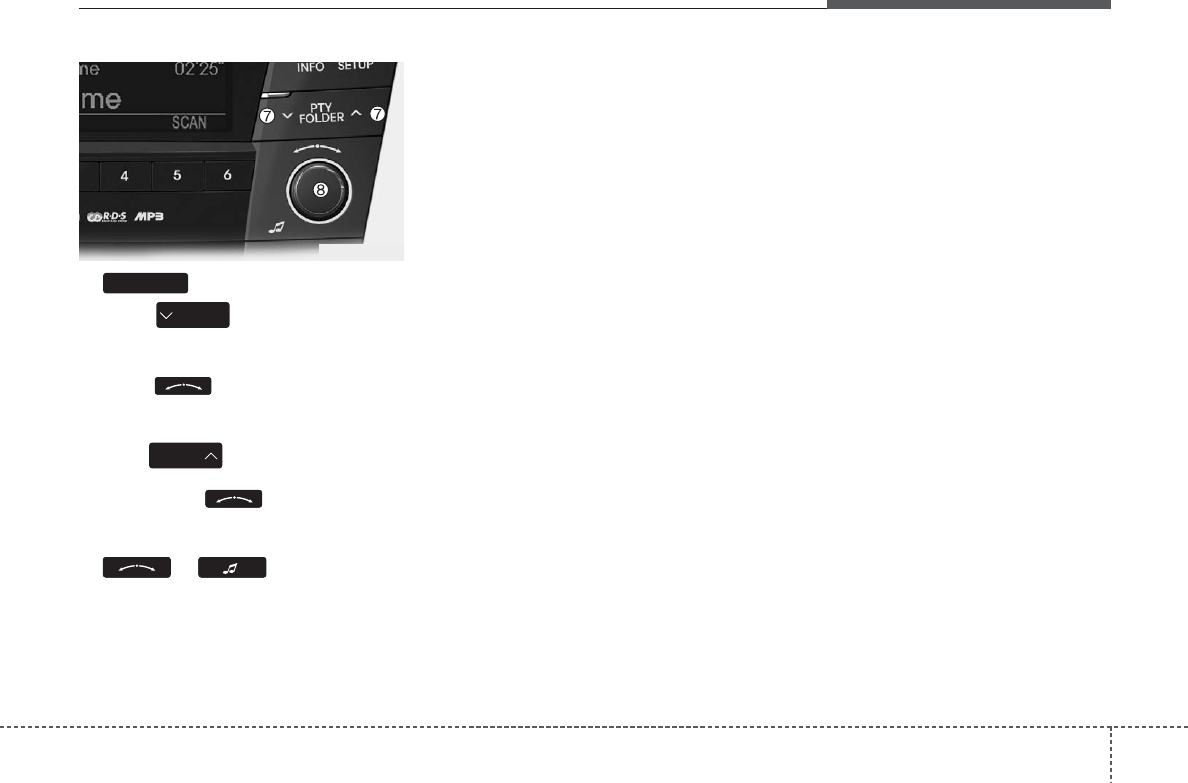

1. Button (USB or AUX)

If the auxiliary device is connected, it

switches to USB or AUX mode to play the

sound from the auxiliary player.

If there is no auxiliary device, then the

message “No Media” will become dis-

played on the LCD for 3 seconds and

returns to previous mode.

2. Button

• Press the button for less

than 0.8 seconds to play from the

beginning of the current song.

Press the button for less than 0.8 sec

onds and press it again within 1 sec-

ond to move to and play the previous

song.

Press the button for 0.8 seconds or

longer to play the song in reverse

direction in fast speed.

• Press the button for less than

0.8 seconds to move to the next song.

Press the button for 0.8 seconds or

longer to play the song in forward

direction in fast speed.

3. Button (RANDOM)

• Press this button for less than 0.8 sec-

onds to play songs randomly in current

folder.

• Press this button for 0.8 seconds or

longer to play songs randomly in entire

USB device.

• To cancel RANDOM play, press this

button again.

4. Button (REPEAT)

• Press this button for less than 0.8 sec-

onds to repeat current song.

• Press this button for 0.8 seconds or longer

to repeat all songs in current folder.

• To cancel REPEAT, press this button

again.

5. Button (SCAN)

Plays each song in the USB device for 10

seconds. To cancel SCAN play, press this

button again.

6. Button

Displays the information of the file cur-

rently played in the order of FILE NAME,

TITLE, ARTIST, ALBUM, FOLDER,

TOTAL FILE, NORMAL DISPLAY

(Displays no information if the file has no

song information.)

INFO

SEEK

TRACK

SEEK

TRACK

CD/AUX

VF_EU_USB

415

Features of your vehicle

7. Button

• Press button to move to

child folder of the current folder and

display the first song in the folder.

Press knob to move to the

folder displayed. It will play the first

song in the folder.

• Press button to move to par-

ent folder display the first song in the

folder. Press knob to move to

the folder displayed.

& Knob

• Turn this knob clockwise to browse

songs after current song, or counter

clockwise to browse songs before cur-

rent song. To play the displayed song,

press the knob.

• Pressing this knob without turning

enters to AUDIO CONTROL mode.

PTY

FOLDER

PTY

FOLDER

VF_EU_USB

Features of your vehicle

164

✽✽NOTICE FOR USING THE

iPod DEVICE

• Some iPod models might not sup-

port the communication protocol

and the files will not be played.

Supported iPod models:

- iPod Mini

- iPod 4th(Photo) ~ 6th(Classic)

generation

- iPod Nano 1st~4th generation

- iPod Touch 1st~2nd generation

• The order of search or playback of

songs in the iPod can be different

from the order searched in the

audio system.

• If the iPod disabled due to its own

malfunction, reset the iPod. (Reset:

Refer to iPod manual)

• An iPod may not operate normally

on low battery.

• Some iPod devices, such as the

iPhone, can be connected through the

Bluetooth®interface. The device

must have audio Bluetooth®capabili-

ty (such as for stereo headphone

Bluetooth®). The device can play, but

it will not be controlled by the audio

system.

CAUTION IN USING THE

iPod DEVICE

• The Hyundai iPod Power Cable is

needed in order to operate iPod

with the audio buttons on the

audio system. The USB cable pro-

vided by Apple may cause mal-

function and should not be used

for Hyundai vehicles.

❋

The Hyundai iPod Power Cable

may be purchased through your

Hyundai Dealership.

•When connecting iPod with the

iPod Power Cable, insert the con-

nector to the multimedia socket

completely. If not inserted com-

pletely, communications between

iPod and audio may be interrupted.

• When adjusting the sound effects of

the iPod and the audio system, the

sound effects of both devices will

overlap and might reduce or distort

the quality of the sound.

• Deactivate (turn off) the equalizer

function of an iPod when adjust-

ing the audio system’s volume,

and turn off the equalizer of the

audio system when using the

equalizer of an iPod.

(Continued)

• When the iPod cable is connected,

the system can be switched to AUX

mode even without iPod device

and may cause noise. Disconnect

the iPod cable when you are not

using the iPod device.

• When not using iPod with car

audio, detach the iPod cable from

iPod. Otherwise, iPod may remain

in accessory mode, and may not

work properly.

•When connecting the iPod, use the

USB/AUX terminals.

•When disconnecting the iPod,

disconnect both the USB/AUX ter-

minal.

•The iPod exclusive cable must be

connected to both the USB/AUX

terminals for iPod charging and

operations to be supported.

Detachable USB/AUX

All-in-one USB/AUX

417

Features of your vehicle

Using iPod

❋iPod is a trademark of Apple Inc.

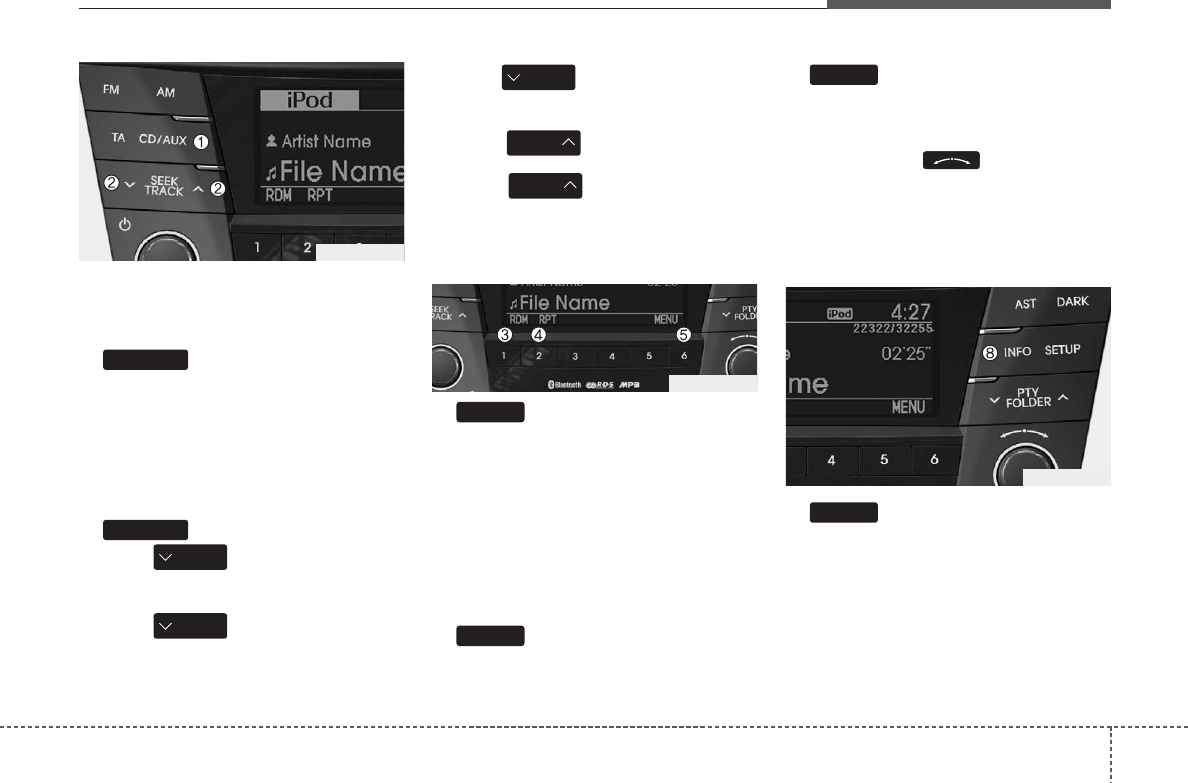

1. Button (iPod)

If iPod is connected, it switches to the

iPod mode from the previous mode to

play the song files stored in the iPod.

If there is no iPod connected, then it dis-

plays the message "No Media" for 3 sec-

onds and returns to the previous mode.

2. Button

• Press button for less than

0.8 seconds to play from the beginning

of current song.

• Press button for less than

0.8 seconds and press again within

1 second to play the previous song.

•

Press button for 0.8 seconds

or longer to initiate reverse direction high

speed sound search of current song.

• Press button for less than

0.8 seconds to play the next song.

•

Press button for 0.8 sec-

onds or longer to initiate forward direc-

tion high speed sound search of cur-

rent song.

3. Button (RANDOM)

• Press this button for less than 0.8 sec-

onds to shuffle order of all songs in

current category. (Song Random)

• Press this button for 0.8 seconds or

longer to shuffle order of albums in cur-

rent category. (Album Random)

• To cancel RANDOM Play, press this

button again.

4. Button (REPEAT)

Repeats the song currently played.

5. Button (MENU)

Moves to the upper category from cur-

rently played category of the iPod.

To move to (play) the category (song)

displayed, press knob.

You will be able to search through the

lower category of the selected category.

The standard order of iPod’s category is

SONGS, ALBUMS, ARTISTS, GENRES,

iPod.

6. Button

Displays the information of the file cur-

rently played in the order of

TITLE,

ARTIST, ALBUM, NORMAL DISPLAY

(Displays no information if the file has no

song information.)

INFO

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

CD/AUX

VF_EU_iPod

Features of your vehicle

184

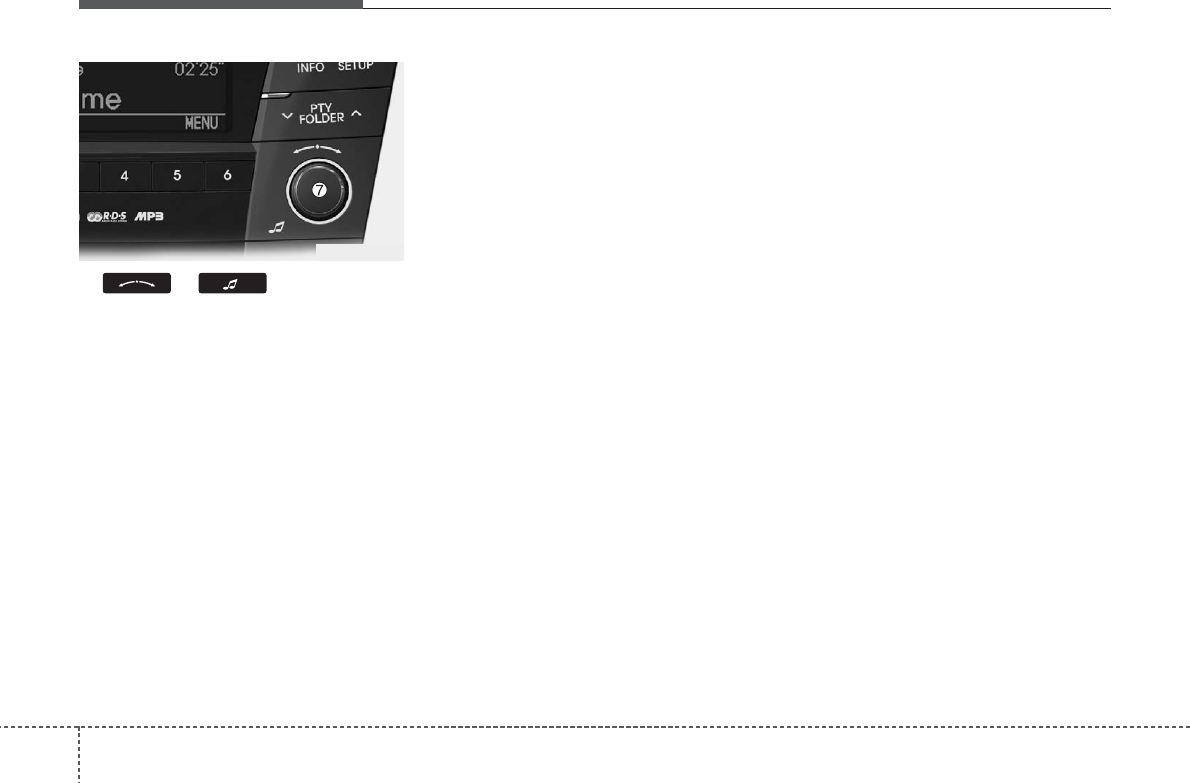

& Knob

When you rotate the knob clockwise, it

will display the songs (category) ahead

of the song currently played (category in

the same level).

Also, when you rotate the knob counter-

clockwise, it will display the songs (cate-

gory) before the song currently played

(category in the same level).

To listen to the song displayed in the

song category, press the button to skip to

and play the selected song.

Pressing the button changes the BASS,

MIDDLE, TREBLE, FADER and BAL-

ANCE TUNE mode. The mode selected

is shown on the display. After selecting

each mode, rotate the Audio control knob

clockwise or counterclockwise.

VF_EU_iPod

419

Features of your vehicle

CAUTION IN USING

BLUETOOTH®CELLULAR

PHONE

• Do not use a cellular phone or

perform Bluetooth

settings (e.g.

pairing a phone) while driving.

• Some Bluetooth

-enabled phones

may not be recognized by the

system or fully compatible with

the system.

• Before using Bluetooth

features of the audio system,

refer your phone’s User’s Manual

for phone-side Bluetooth

opera-

tions.

•

The phone must be paired to the

audio system to use Bluetooth®

related features.

• You will not be able to use the

hands-free feature when your

phone (in the car) is outside of

the cellular service area (e.g. in a

tunnel, in a underground, in a

mountainous area, etc.).

• If the cellular phone signal is poor

or the vehicles interior noise is

too loud, it may be difficult to hear

the other person’s voice during a

call.

(Continued)

(continued)

• Do not place the phone near or

inside metallic objects, otherwise

communications with Bluetooth

system or cellular service sta-

tions can be disturbed.

• While a phone is connected

through Bluetooth

your phone

may discharge quicker than usual

for additional Bluetooth

-related

operations.

• Some cellular phones or other

devices may cause interference

noise or malfunction to audio

system. In this case, store the

device in a different location may

resolve the situation.

• Please save your phone name in

English, or your phone name may

not be displayed correctly.

Features of your vehicle

204

BLUETOOTH®PHONE OPERATION

(if equipped)

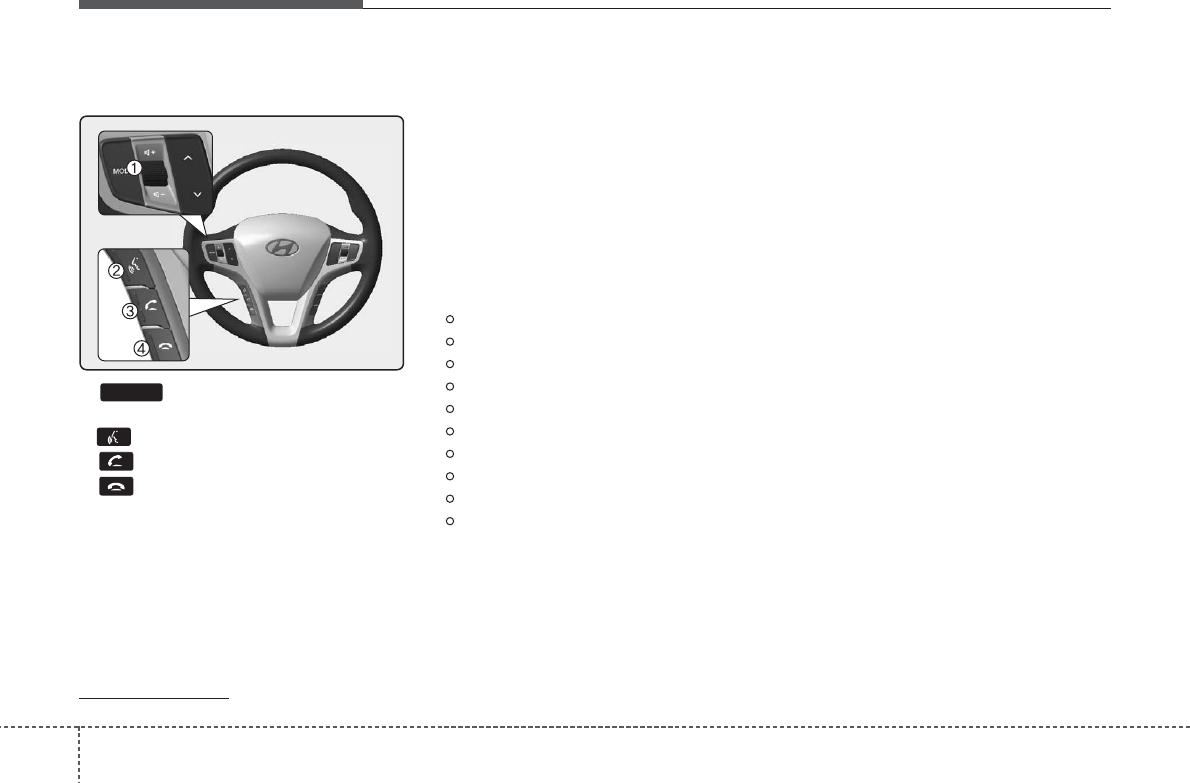

1. button : Raises or lowers

speaker volume.

2. button : Activates voice recognition.

3. button : Places or transfers a call.

4. button : Rejects or ends a call.

■What is Bluetooth®?

Bluetooth®is a wireless technology that

allows multiple devices to be connected

in a short range, low-powered devices

like hands-free, stereo headset, steering

remote control, etc. For more informa-

tion, visit

the Bluetooth

website at

www.Bluetooth.com

■General Features

• This audio system supports Bluetooth®

hands-free and stereo-headset features.

- HANDS-FREE feature: Making or

receiving calls wirelessly through

voice recognition.

- STEREO-HEADSET feature: Playing

music from cellular phones (that sup-

ports A2DP feature) wirelessly.

• Voice recognition engine of the

Bluetooth®system supports 10 types of

languages:

FRENCH

GERMAN

UK ENGLISH

SPANISH

DUTCH

ITALIAN

DANISH

RUSSIAN

POLISH

SWEDISH

✽✽NOTICE

• The phone must be paired to the sys-

tem before using Bluetooth®features.

• Only one selected (linked) cellular phone

can be used with the system at a time.

• Some phones are not fully compatible

with this system.

• The Bluetooth® word mark and logos

are registered trademarks owned by

Bluetooth®SIG, Inc. and any use of

such marks by Hyundai is under

license. A Bluetooth enabled cell

phone is required to use Bluetooth®

wireless technology.

VOLUME

421

Features of your vehicle

■Bluetooth®Language Setting

The system language can be changed by

the following steps:

1. Power on the audio system with the

volume set to an audible level.

2. Press and hold button on the

steering wheel until the audio displays

“Please Wait”.

- The Bluetooth®system will reply in

currently selected language that it is

changing to the next language.

- System language cycles between

FRENCH/GERMAN/UK ENGLISH

SPANISH/DUTCH/ITALIAN/DANISH

RUSSIAN/POLISH/SWEDISH.

3. When completed, the audio display

returns to normal.

4. Repeat steps 2 and 3 for the next lan-

guage selection.

NOTE:

The phone needs to be paired again

after changing system language.

- Avoid resting your thumb or finger

on the button as the language

could unintentionally change.

■Voice Recognition Activation

• The voice recognition engine contained

in the Bluetooth®System can be acti-

vated in the following conditions:

- Button Activation

The voice recognition system will be

active when the button is pressed

and after the sound of a Beep.

- Active Listening

The voice recognition system will be

active for a period of time when the

Voice Recognition system has asked

for a customer response.

• The system can recognize single digits

from zero to nine while number greater

than ten will not be recognized.

• If the command is not recognized, the

system will announce "Pardon" or No

input voice signal from microphone. (No

response)

• The system shall cancel voice recogni-

tion mode in following cases : When

pressing the button and saying

cancel following the beep. When not

making a call and pressing the

button. When voice recognition has

failed 3 consecutive times.

• At any time if you say “help”, the system

will announce what commands are

available.

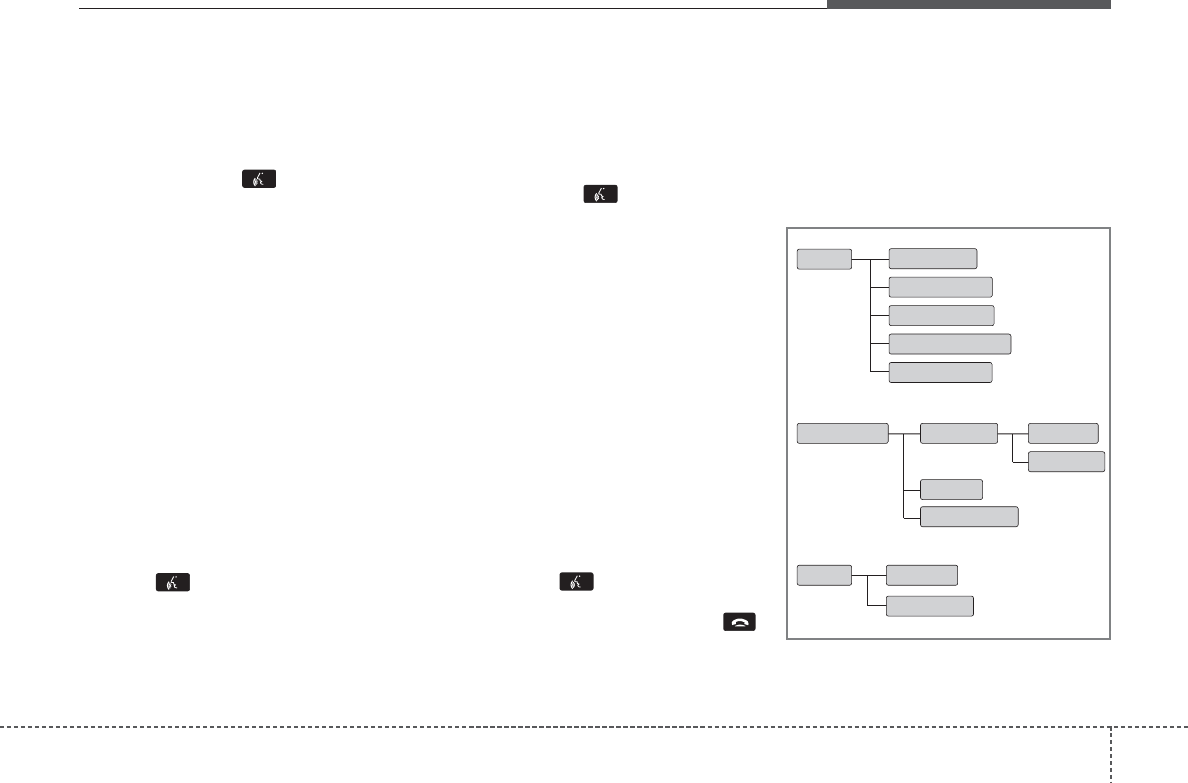

■Menu tree

The menu tree identifies available voice

recognition Bluetooth®functions.

Pair phone

Select phone

Change priority

Delete phone

Bluetooth off

Setup

Add entryPhonebook

Change

Delete name

By Phone

By voice

Call By name

By number

■Voice Operation Tip

To get the best performance out of the

Voice Recognition System, observe the

followings:

- Keep the interior of the vehicle as quiet

as possible. Close the window to elim-

inate surrounding noise (traffic noise,

vibration sounds, etc), which may dis-

turb recognizing the voice command

correctly.

- Speak a command after a beep sound

within 5 seconds. Otherwise the com-

mand will not be received properly.

- Speak in a natural voice without paus-

ing between words.

■Phone Setup

All Bluetooth®-related operations can be

performed by voice command or by man-

ual operation.

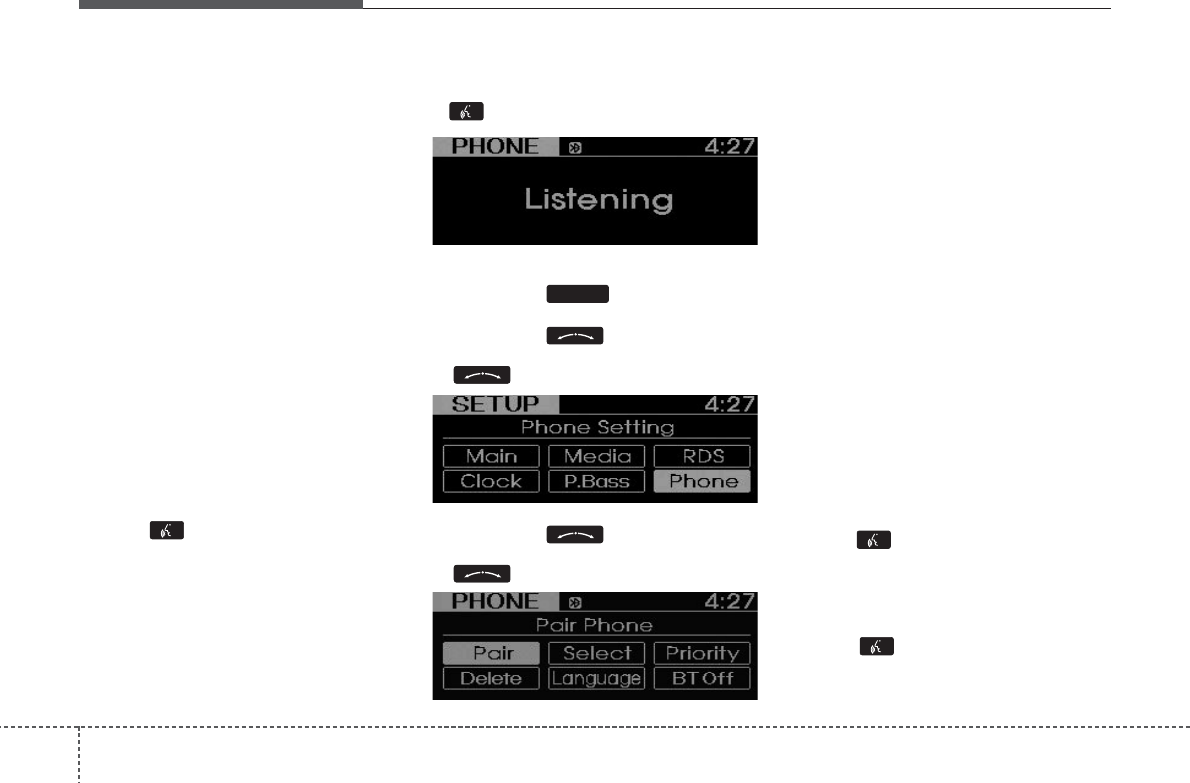

- By Voice Command:

1. Press button.

2. Say “Set up”.

- The system replies with available

commands.

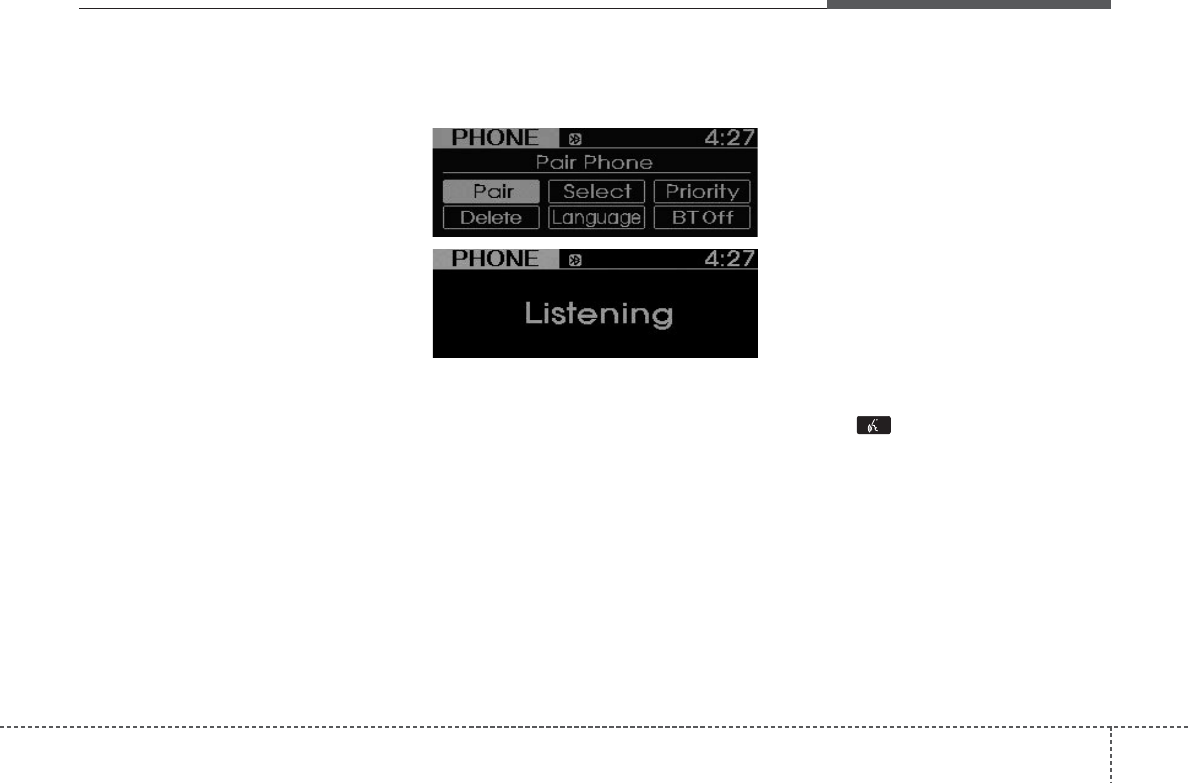

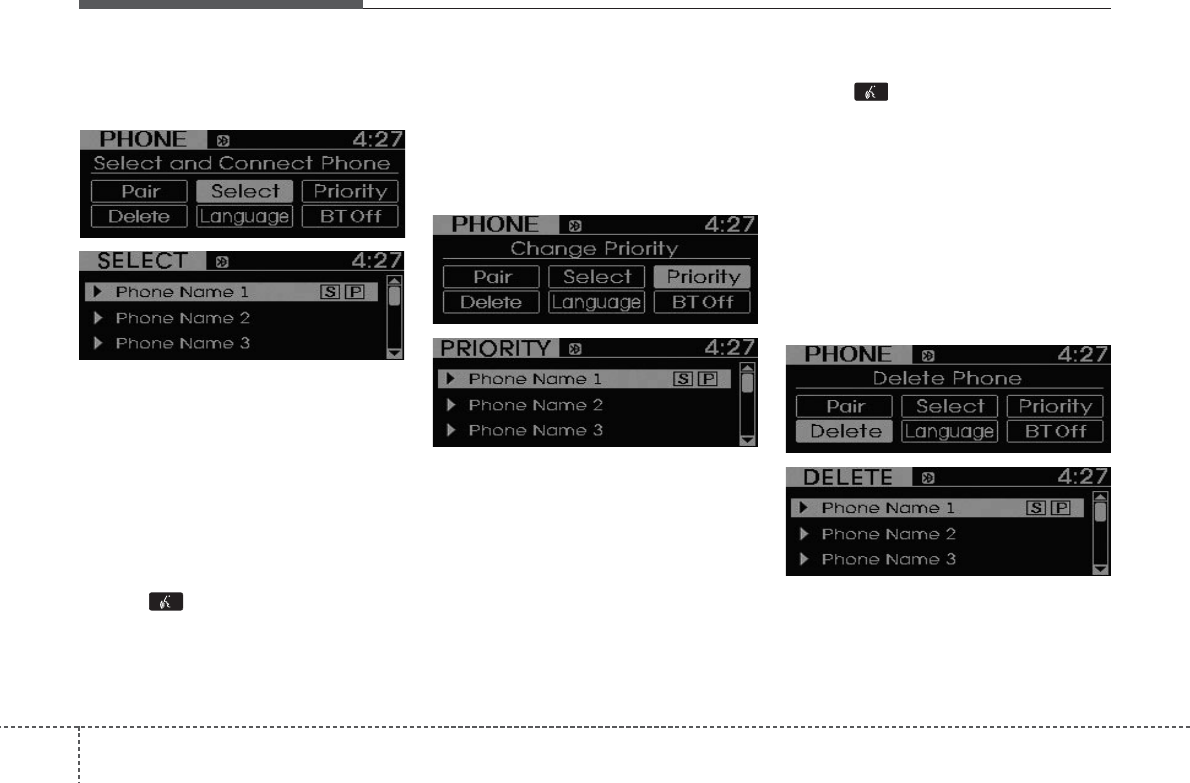

1) Pair phone

2) Select phone

3) Delete phone

4) Change priority

5) Bluetooth off

- To skip the information message, Press

again and then a beep is heard.

- By Manual Operation:

1. Push the button to enter

SETUP mode.

2. Rotate the knob to move the

cursor between items push the

knob to select “Phone”.

3. Rotate the knob to move the

cursor between items and push the

knob to select a desired item.

• Pairing phone

Before using Bluetooth®features, the

phone must be paired (registered) to the

audio system. Up to 5 phones can be

paired with the system.

NOTE:

The pairing procedure of the phone

varies according to each phone

model. Before attempting to pair

phone, please see your phone’s

User’s Guide for instructions.

NOTE:

Once pairing with the phone is com-

pleted, there is no need to pair with

that phone again unless the phone is

deleted manually from the audio sys-

tem (refer “Deleting Phone” section)

or the vehicle’s information is

removed from the phone.

- By Voice Command:

1. Press button.

2. Say “Set Up”.

- The system replies with available

commands.

- To skip the information message,

press again and then a beep is

heard.

SETUP

Features of your vehicle

224

423

Features of your vehicle

3. Say “Pair Phone”

4. Proceed at next step.

5. Say the name of your phone when

prompted.

- Use any name to uniquely describe

your phone.

- Use Full name to voice tag.

- Not use to short name or similar to

voice command.

6. Bluetooth®system will repeat the

name you stated.

7. Say “Yes” to confirm.

8. The audio displays “searching ----

passkey: 0000” and asks you to initiate

pairing procedure from the phone.

9. Search the Bluetooth®system on your

phone .Your phone should display your

[vehicle model name] on the

Bluetooth®device list. Then attempt

pairing on your phone

10. After Pairing is completed, your

phone will start to transfer phone/con-

tact list to the audio system.

- This process may take from a few

minutes to over 10 minutes depend-

ing on the phone model and number

of entries in the phone/contact list.

- By Manual Operation:

1. Select “Pair” in PHONE menu, then

proceed from step5.

NOTE:

• Until the audio displays “Transfer

Complete”, Bluetooth®hands-free

feature may not be fully operational.

• Depending on the phone make and

model, the phone book contact list

mat not transfer to the audio system.

NOTE:

If the phone is paired to two or more

vehicles of the same model, i.e. both

vehicles are HYUNDAI i40, some

phones may not handle Bluetooth®

devices of that name correctly. In this

case, you may need to change the

name displayed on your phone from

i40 to i401 and i402.

Refer to your phone’s User’s Guide, or

contact your cellular carrier or phone

manufacturer for instructions.

• Connecting phone

When the Bluetooth®system is enabled,

the phone previously used is automati-

cally selected and re-connected. If you

want to select different phone previously

paired, the phone can be selected

through “Select Phone” menu.

Only a selected phone can be used with

the hands-free system at a time.

- By Voice Command:

1. Press button.

2. Say “Set Up”.

3. Say “Select Phone” after prompt

- The system lists all the registered

phone names.

4. Say the name or number of desired

phone from the list.

5. Say “Yes” to confirm.

- By Manual Operation:

1. Select “Select” in PHONE menu, then

select desired phone from the list.

• Changing Priority

When several phones are paired to the

audio system, the system attempts to

connect following order when the

Bluetooth®is enabled:

1. “Priority” checked phone.

2. Previously connected phone

3. Gives up auto connection.

- By Voice Command:

1. Press button.

2. Say “Set Up”.

3. Say “Change Priority” after prompt.

- The system lists all the registered

phone names.

4. Say the name or number of desired

phone from the list.

5. Say “Yes” to confirm.

- By Manual Operation:

1. Select “Priority” in PHONE menu, then

select desired phone from the list.

• Deleting Phone

The paired phone can be deleted.

- When the phone is deleted, all the infor-

mation associated with that phone is

also deleted (including phonebook).

- If you want to use the deleted phone

with the audio system again, pairing

procedure must be completed once

more.

- By Voice Command:

1.Press button.

2.Say “Set Up”.

3.Say “Delete Phone” after prompt.

- The system lists all the registered

phone names.

4.Say the name or number of desired

phone from the list.

5.Say “Yes” to confirm.

- By Manual Operation:

1. Select “Delete” in PHONE menu, then

select desired phone from the list.

Features of your vehicle

244

425

Features of your vehicle

• Changing Language

- By Voice Command:

1. Select “Language” in PHONE menu,

adjust language to desired language

by turning knob, then press

the knob to cinfirm.

- Supported Languages:

FRENCH/GERMAN/UK ENGLISH

SPANISH/DUTCH/ITALIAN/DANISH

/RU

SSIAN/POLISH/SWEDISH.

NOTE:

The Phone need to be paired again

after changing system language.

• Avoid resting your thumb or finger

on the talk button as the language

could unintentionally change.

• Turning Bluetooth®ON/OFF

Bluetooth®system can be enabled (ON)

or disabled (OFF) by this menu.

- If Bluetooth®is disabled, all the com-

mands related to Bluetooth®system

prompts whether you wish to turn

Bluetooth®ON or not.

- By Voice Command:

1. Press button.

2. Say “Set Up”

3. Say “Bluetooth Off” after prompt.

4. Say “Yes” to confirm.

- By Manual Operation:

1. Select “BT Off” in PHONE menu, then

after announcement, say “YES” to con-

firm.

■Phone Book (In-Vehicle)

• Adding Entry

Phone numbers and voice tags can be

registered. Entries registered in the

phone can also be transferred.

• Adding Entry by Voice

1. Press button.

2. Say "Phonebook".

- The system replies with all available

commands.

- To skip the information message,

press again and then a beep is

heard.

3. Say “Add Entry”.

4. Say “By Voice” to proceed.

5. Say the name of the entry when

prompted.

6. Say “Yes” to confirm.

7. Say the phone number of that entry

when prompted.

8. Say “Store” if phone number input is

finished.

9. Say a phone number type. “Home”,

“Work”, “Mobile”, “Other” or “Default” is

available.

10. Say “Yes” to complete adding entry.

11. Say “Yes” to store additional location

for this contact, or say “Cancel” to fin-

ish the process.

Features of your vehicle

264

✽✽NOTICE

- The system can recognize single digits

from zero to nine. Numbers that are

ten or greater cannot be recognized.

- You can enter each digit individually

or group digits together in preferred

string lengths.

- To speed up input, it is a good idea to

group all digits into a continuous

string.

- Recommend to enter the numbers con-

stituted an grouping within all digit

numbers to dial 995 / 734 / 0000.

- The display corresponding to each

operation appears on the screen as fol-

lows:

Input operation example:

1. Say: “Nine, nine, five”

➟ Display: “995”

2. And say: “Seven, three, four”

➟ Display: “995734”

• Adding Entry by Phone

1. Press button.

2. Say “Phonebook”.

3. Say “Add Entry” after prompt.

4. Say “By Phone” to proceed.

5. Say “Yes” to confirm.

6.Your phone will start to transfer

phone/contact list to the audio system.

This process may take over 10 minutes

depending on the phone model and

number of entries

7. Wait till the audio displays “Transfer

Complete” message.

• Changing Name

The registered names can be modified.

1.Press button.

2.Say “Phonebook”.

3.Say “Change Name” after prompt.

4.Say the name of the entry (voice tag).

5.Say “Yes” to confirm.

6.Say new desired name.

• Deleting Name

The registered names can be deleted.

1.Press button.

2.Say “Phonebook”.

3.Say “Delete Name” after prompt.

4.Say the name of the entry (voice tag).

5.Say “Yes” to confirm.

■Making a Phone Call

• Calling by Name

A phone call can be made by speaking

names registered in the audio system.

1. Press button.

2. Say “Call”.

3. Say “Name” when prompted.

4. Say desired name (voice tag).

5. Say desired location (phone number

type). Only stored locations can be

selected.

6. Say “Yes” to confirm and make a call.

✽✽Tip

A shortcut to each of the following func-

tions is available:

1. Say “Call Name”

2. Say “Call <john>”

3. Say “Call <john> at <home>”

427

Features of your vehicle

• Dialing by Number

A phone call can be made by dialing the

spoken numbers. The system can recog-

nize single digits from zero to nine.

1.Press button.

2.Say “Call”.

3.Say “Number” when prompted.

4.Say desired phone numbers.

5.Say “Dial” to complete the number and

make a call.

✽✽Tip

A shortcut to each of the following func-

tions is available:

1. Say “Dial Number”

2. Say “Dial <digit>”

■Receiving a Phone Call

When receiving a phone call, a ringtone

is audible from speakers and the audio

system changes into telephone mode.

When receiving a phone call, “Incoming

call” message and incoming phone num-

ber (if available) are displayed on the

audio.

• To Answer a Call:

- Press button on the steering wheel.

• To Reject a Call:

- Press button on the steering wheel.

• To Adjust Ring Volume:

- Use VOLUME buttons on the steering

wheel.

• To Transfer a Call to the Phone (Secret

Call):

- Press button on the steering

wheel until the audio system transfers a

call to the phone.

■Talking on the Phone

When talking on the phone, “Active Call”

message and the other party’s phone

number (if available) are displayed on the

audio.

• To Finish a Call

- Press button on the steering wheel.

✽✽NOTICE

In the following situations, you or the

other party may have difficulty hearing

each other:

1. Speaking at the same time, your voice

may not reach each other parties. (This

is not a malfunction.) Speak alternate-

ly with the other party on the phone.

2. Keep the Bluetooth®volume to a low

level. High-level volume may result in

distortion and echo.

3. When driving on a rough road.

4. When driving at high speeds.

5. When the window is open.

6. When the air conditioning vents are

facing the microphone.

7. When the sound of the air condition-

ing fan is loud.

Features of your vehicle

284

■Bluetooth®Audio Music Streaming

The audio system supports Bluetooth®

A2DP (Audio Advanced Distribution

Profile) and AVRCP (Audio Video

Remote Control Profile) technologies.

Both profiles provide steaming of music

via compatible “PAIRED” Bluetooth®

Cellular phone.

To stream music from the Bluetooth® cel-

lular phone, play your music files on your

cellular phone according to your cellular

phone user’s manual and press the

button on the audio system until

“MP3 play” is displayed on the LCD.

The audio system head unit displays

‘MP3 MODE’.

NOTE:

• In addition to streaming MP3 files,

all music and sound files your cellu-

lar phone supports can be played

by the audio system.

• Bluetooth®compatible cellular

phones must include A2DP and

AVRCP capabilities.

• Some A2DP and AVRCP compatible

Bluetooth®cellular phones may not

play music through the audio sys-

tem initially. These cellular phones

may need to have the Bluetooth®

streaming enabled, for example;

i.e : Menu➟Filemanager➟Music➟

Option➟Play via Bluetooth

• Please refer to User’s Guide for your

cellular phone for more information.

To cancel Bluetooth®cellular phone

music streaming, stop music play-

back on the cellular phone or

change the audio mode to AM/FM,

CD, iPod, ect.

CD/AUX

429

Features of your vehicle

■ Key matrix

No.

Class

Paired H/P

Empty Disconnected

SHORT

LONG

SHORT

LONG

[10sec]

LONG

[10sec]

Normal mode

BT SETUP menu

Incoming Call Outgoing Call Active Call 2nd Call

Not Paired Not Connecting --

Accept Call

Connected

2nd call

1st Call:waiting

2nd Call:active

2nd Call

2nd Call:waiting

1st Call:active

KEY

------Transfer call:secret call

End Call

MODE Cancel

MODE Cancel Reject Call End Call End Call

Active

Speaker

Adaptation

(Only English)

Active

Speaker

Adaptation

(Only English)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

ˍ Reorient or relocate the receiving antenna.

ˍ Increase the separation between the equipment and receiver.

ˍ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

ˍ Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modiﬁcations to this device not explicitly approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be

installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating

in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.

IC Warning

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

HYUNDAI MOBIS AC610DFGG CAR AUDIO (BLUETOOTH) User Manual H VF 1102 EU 0311 qxp

HYUNDAI MOBIS CO., LTD. CAR AUDIO (BLUETOOTH) H VF 1102 EU 0311 qxp

Users Manual

Navigation menu

Namespaces

Views

Navigation
