AUDIO (Without Touch Screen)

C7N3H0000EG/C7N3H0001EG

4-4

Multimedia System

Feature of Your Audio

Head Unit

❈The actual features in the vehicle

may differ from the illustration.

(1) RADIO

• Plays Radio(FM/AM) mode.

• Each time the button is pressed,

the radio mode popup will be dis-

played or closed.

• The radio mode popup will not be

displayed when [SETUP/CLOCK]

button [Display] [Mode popup]

is turned [Off].

(2) MEDIA

• Plays Media(USB(iPod®), Bluetooth®

(BT) Audio*, AUX) mode.

• Each time the button is pressed,

the media mode popup will be dis-

played or closed.

• The media mode popup will not be

displayed when [SETUP/CLOCK]

button [Display] [Mode popup]

is turned [Off].

* if equipped

(3) DISP (Type A)

• Turns off the screen.

• Each time the button is pressed, it

sets the Screen Off ➟On ➟Off.

(4) PHONE (Type B)

• Moves to Phone Screen.

• If Bluetooth®is not connected, dis-

plays Bluetooth®Pair/Connection

screen.

(5) SEEK/TRACK

When pressed quickly

• Radio mode: Searches broadcast

frequencies.

• Media mode: Changes the track,

file or title. (except AUX)

When pressed and held (more than

1.0 seconds)

• Radio mode: Frequency is controlled

by 1 step quickly. When the button is

released after pressing and holding,

searches broadcast frequencies.

• Media mode: Rewinds or fast-

forwards the song. (except

Bluetooth®(BT) Audio*, AUX)

* if equipped

(6) POWER/VOL knob

• Power knob: Turns power On/Off

by pressing the knob.

• Volume knob: Sets volume by turn-

ing the knob left/right.

4-5

Multimedia System

(7) SETUP/CLOCK

When pressed quickly

• Moves to Setup screen.

When pressed and held (more than

1.0 seconds)

• Moves to the Time Settings.

(8) MENU

• Displays menus for the current mode.

(9) BACK

• Moves to previous screen.

(10) FOLDER

• USB mode: Searches folders.

(11) TUNE knob

• Radio mode: Changes frequency

by turning the knob left/right.

• Media mode: Searches songs(files)

by turning the knob left/right.

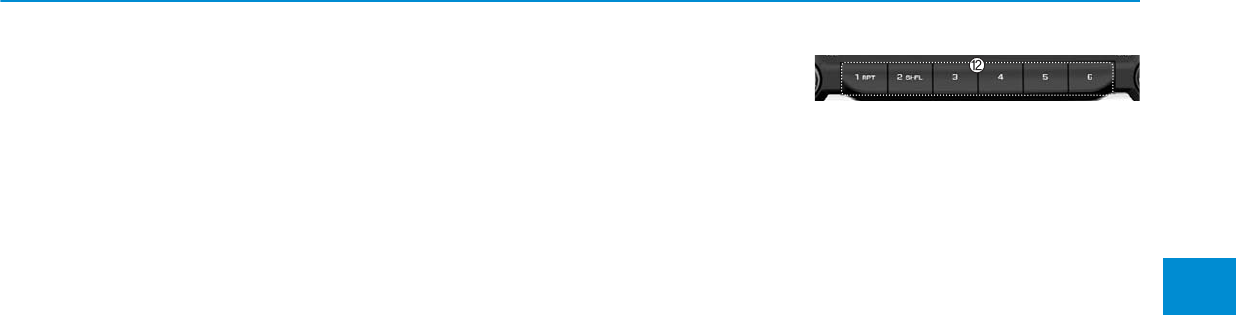

(12) [1] ~ [6] (Preset)

When pressed quickly

• Radio mode: Receives saved fre-

quencies(channels).

• Media mode(USB)

-[1 RPT] button: Repeat/Repeat

Folder

-[2 SHFL] button: Shuffle Folder/

Shuffle

• Media mode(iPod®)

-[1 RPT] button: Repeat

-[2 SHFL] button: Shuffle

• In case of Menu popup, the num-

ber menu is selected.

When pressed and held (more than

1.0 seconds)

• Radio mode: Saves frequencies

(channels).

4-6

Multimedia System

Steering wheel remote control

(Bluetooth®equipped model)

❈The actual features in the vehicle

may differ from the illustration.

(1) MUTE

• Mutes the audio.

• Mutes the microphone during a

call. (Bluetooth®equipped model)

(2) MODE

• Each time this is pressed, the

mode is changed sequentially.

• If the media is not connected, the

corresponding modes will be dis-

abled.

• Press and hold to turn the Audio

system on/off.

• When power is off, press button to

turn power back on.

(3) VOLUME

• Adjust the volume.

(4) SEEK/TRACK

• When pressed quickly

- Radio mode: Searches broadcast

frequencies saved to Presets.

- Media mode: Changes track, file

or title. (except AUX)

• When pressed and held (more

than 1.0 seconds)

- Radio mode: Frequency is con-

trolled by 1 step quickly. When

the button is released after

pressing and holding, searches

broadcast frequencies.

- Media mode: Rewinds or fast-for-

wards the song. (except

Bluetooth®(BT) Audio*, AUX)

* if equipped

(5) CALL (if equipped)

• When pressed quickly

- If not in Bluetooth®Handsfree

mode or receiving a phone call.

First press: Automatically display

the most recently Dialed Call

number.

Second press: The most recently

Dialed Call number is dialed.

4-7

Multimedia System

- Press in the incoming call

screen, answers the call.

- Press in Bluetooth®Handsfree

mode to switch to the waiting call.

• When pressed and held (more

than 1.0 seconds)

- If not in Bluetooth®Handsfree

mode or receiving a phone call,

the most recently Dialed Call

number is dialed.

- When pressed in Bluetooth®

Handsfree mode to switch the

call to your cell phone.

- When pressed in cell phone

mode to switch to Bluetooth®

Handsfree mode.

- If Bluetooth®is not connected,

displays Bluetooth®Pair/Connection

screen.

(6) END (if equipped)

• When pressed during a call, ends

the phone call.

• When pressed in the incoming call

screen, rejects the call.

• Do not stare at the screen

while driving. Staring at the

screen for prolonged periods

of time could lead to traffic

accidents.

• Do not disassemble, assem-

ble, or modify the audio sys-

tem. Such acts could result in

accidents, fire, or electric

shock.

• Using the phone while driving

may lead to a lack of attention

of traffic conditions and

increase the likelihood of

accidents. Use the phone fea-

ture after parking the vehicle.

• Exercise caution not to spill

water or introduce foreign

objects into the device. Such

acts could lead to smoke, fire,

or product malfunction.

(Continued)

WARNING (Continued)

• Please refrain from use if the

screen is blank or no sound

can be heard as these signs

may indicate product malfunc-

tion. Continued use in such

conditions could lead to acci-

dents (fires, electric shock) or

product malfunctions.

• Do not touch the antenna dur-

ing thunder or lightening as

such acts may lead to light-

ning induced electric shock.

• Do not stop or park in park-

ing-restricted areas to operate

the product. Such acts could

lead to traffic accidents.

• Use the system with the vehicle

engine turned on. Prolonged

use with the ignition turned

on only could result in battery

discharge.

4-8

Multimedia System

• Operating the device while driv-

ing could lead to accidents due

to a lack of attention to external

surroundings. First park the

vehicle before operating the

device.

• Adjust the volume to levels that

allow the driver to hear sounds

from outside of the vehicle.

Driving in a state where external

sounds cannot be heard may

lead to accidents.

• Pay attention to the volume set-

ting when turning the device on.

A sudden output of extreme vol-

ume upon turning the device on

could lead to hearing impair-

ment. (Adjust the volume to a

suitable levels before turning off

the device.)

• Turn on the car engine before

using this device. Do not oper-

ate the audio system for long

periods of time only with the

ignition turned on as such oper-

ations may lead to battery dis-

charge.

(Continued)

• Do not subject the device to

severe shock or impact. Direct

pressure onto the front side of

the monitor may cause damage

to the LCD.

• When cleaning the device, make

sure to turn off the device and

use a dry and smooth cloth.

Never use tough materials,

chemical cloths, or solvents

(alcohol, benzene, thinners, etc.).

As such materials may damage

the device panel or cause

color/quality deterioration.

• Do not place beverages close to

the audio system. Spilling bever-

ages may lead to system mal-

function.

• In this case of product malfunc-

tion, please contact your place of

purchase or After Service center.

• Placing the audio system within

an electromagnetic environment

may result in noise interference.

• Prevent caustic solutions such

as perfume and cosmetic oil

from contacting the dashboard

because they may cause dam-

age or discoloration.

NOTICE

Driving while distracted can

result in a loss of vehicle con-

trol that may lead to an acci-

dent, severe personal injury,

and death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a

vehicle or which are not permis-

sible by law should never be

used during operation of the

vehicle.

WARNING

4-9

Multimedia System

Radio

Radio Mode

Change Mode: [RADIO]button

• Plays Radio(FM/AM) mode. Each

time the button is pressed, the

radio mode popup will be displayed

or closed.

• The radio mode popup will not be

displayed when [SETUP/CLOCK]

button [Display] [Mode popup]

is turned [Off].

Search Frequency: [SEEK/TRACK]

button

Searches the previous/next broad-

cast frequencies.

• Shortly pressing the button:

Searches broadcast frequencies.

• Frequency is controlled by 1 step

quickly. When the button is released

after pressing and holding, search-

es broadcast frequencies.

Change Frequency: TUNE knob

Changes frequency by turning the

knob left/right. You can seek avail-

able frequencies manually.

Saved Frequency: [1] ~ [6] (Preset)

buttons

• Shortly pressing the button: Plays

the frequency saved in the corre-

sponding button.

• Pressing and holding the button

(more than 1.0 seconds): Saves

the currently playing broadcast to

the selected button and sound a

BEEP.

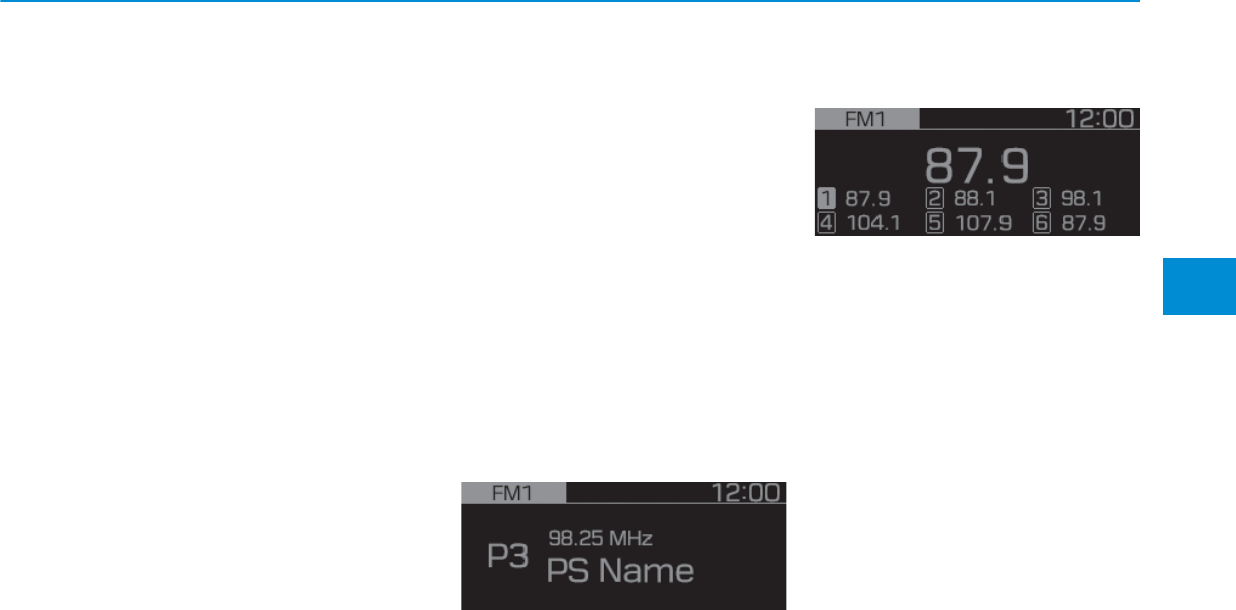

FM/AM (with RDS)

FM/AM Mode

Displays Menu Popup when pressing

the [MENU] button.

Traffic announcement (for RDS

model)

TA(Traffic announcement) feature

On/Off.

Presets (for RDS model)

Displays saved presets.

Auto Store

• Saves broadcasts with superior

reception to [1] ~ [6] (Preset) buttons.

• If no frequencies are received,

then the most recently received

frequency will be broadcast.

4-10

Multimedia System

Scan

The broadcast frequency increases

and previews each broadcast for 5

seconds each. After scanning all fre-

quencies, returns and plays the cur-

rent broadcast frequency.

Sound Settings

Moves to Sound Settings.

Media

Information - Using MP3

Supported audio formats

File formats that do not comply

with the above formats may not be

properly recognized or play with-

out properly displaying file names

or other information.

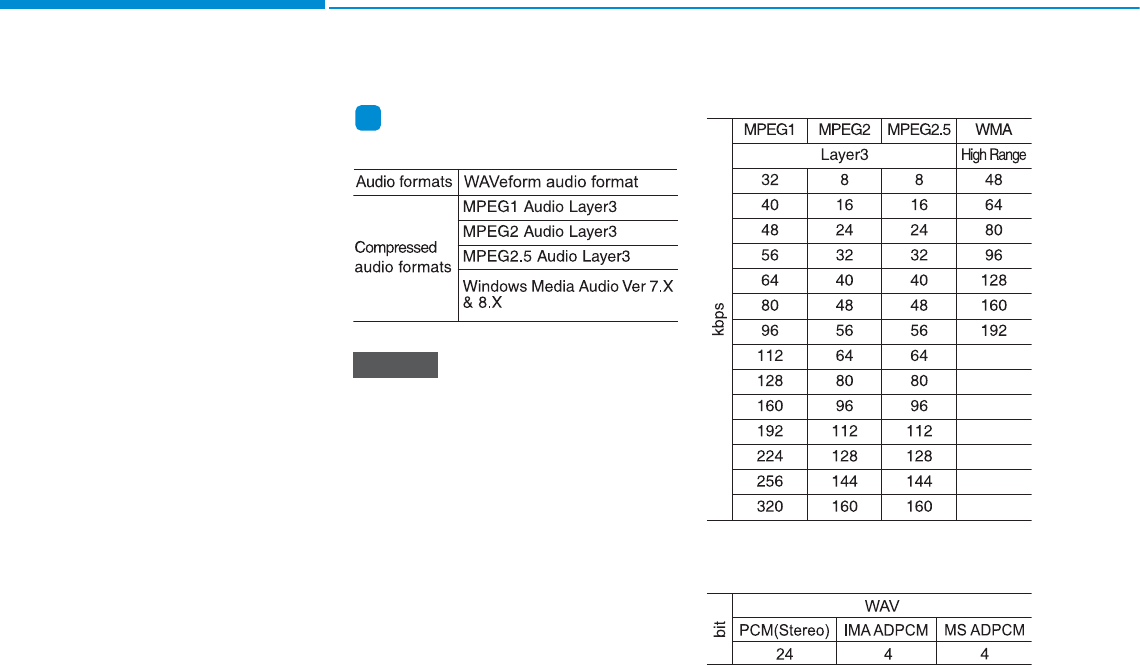

Range of supported file types

1. Bitrate range (Kbps)

2. Bit Per Sample range (bit)

NOTICE

4-11

Multimedia System

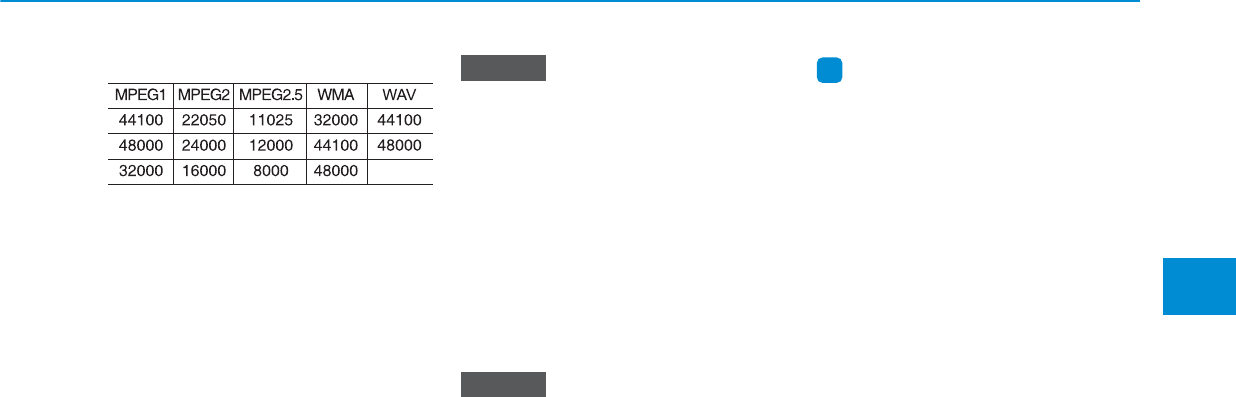

3. Sampling frequency (Hz)

• For MP3/WMA compression files,

differences in sound quality will

occur depending on the bitrate.

(Higher sound quality can be expe-

rienced with higher bitrates.)

• This device only recognizes files

with MP3/WMA extensions. Other

file extensions may not be properly

recognized.

4. Maximum number of recognized

folders and files

• Folder: 1,000 folders for USB

• File: 5,000 files for USB

• There are no limitations to the

number of recognized folder levels.

5. Text Display (Based on Unicode)

• Filenames: Maximum 40 English

characters

• Foldernames: Maximum 40 English

characters

Using the scroll feature allows you

to see the entire name of files with

names that are too long to be dis-

played at once.

Language Support (Unicode Support)

• Korean: 2,604 characters

• English: 94 characters

• Common Chinese characters: 4,888

characters

• Special symbols: 986 characters

Japanese/Simplified Chinese char-

acters are not supported.

Information

- Using the USB Device

• Connect the USB device after turn-

ing on the engine. The USB device

may become damaged if it is already

connected when the ignition is

turned on. The USB device may not

operate properly if the car ignition

is turned on or off with the USB

device connected.

• Be careful for static electricity when

connecting/disconnecting USB

devices.

• Encoded MP3 Players will not be

recognized when connected as an

external device.

• When connecting an external USB

device, the vehicle's audio system

may not recognize the USB depend-

ing on what firmware is used by USB

device or what files are on the USB.

• Only products formatted with

byte/sectors under 64Kbyte will be

recognized.

• This device recognizes USB devices

formatted in FAT 12/16/32 file for-

mats. This device does not recognize

files in NTFS file format.

(Continued)

NOTICE

4-12

Multimedia System

(Continued)

• Some USB devices may not be sup-

ported due to compatibility issues.

• Avoid contact between the USB con-

nector and bodily parts or foreign

objects.

• Repeated connecting/disconnecting

of USB devices within short periods

of time may result in product mal-

function.

• A strange noise may occur when dis-

connecting the USB.

• Make sure to connect/disconnect

external USB devices with the audio

power turned off.

• The amount of time required to rec-

ognize the USB device may differ

depending on the type, size or file

formats stored on the USB. Such

differences in time are not indica-

tions of malfunctions.

• The vehicle audio system only sup-

ports USB devices designed to play

music files.

• USB images and videos are not sup-

ported.

(Continued)

• Do not use the USB I/F to charge

batteries or USB accessories that

generate heat. Doing so may lead to

worsened performance or damage

to the audio system.

• The audio system may not recognize

the USB device if separately pur-

chased USB hubs and extension

cables are being used. Connect the

USB device directly with the USB

port of the vehicle.

• When using mass storage USB

devices with separate logical drives,

only files saved to the root drive can

be played.

• Files may not properly operate if

application programs are installed

on the USBs.

• The audio system may not operate

normally if MP3 Players, cellular

phones, digital cameras, or other

electronic devices (USB devices not

recognized as portable disk drives)

are connected with the audio sys-

tem.

(Continued)

• Charging through the USB may not

work for some mobile devices.

• The device may not support normal

operation when using an atypical

USB memory device (miniature,

keychain, etc.). For best results, use

a typical USB device that has a

metal case.

• The device may not support normal

operation when using formats such

as HDD Type, CF, or SD Memory.

• The device will not support files

locked by DRM (Digital Rights

Management.).

• USB memory sticks used by con-

necting an Adaptor (SD Type or CF

Type) may not be properly recog-

nized.

• The device may not operate proper-

ly when using USB HDDs or USBs

subject to connection failures

caused by vehicle vibrations. (e.g. i-

stick type)

(Continued)

4-13

Multimedia System

(Continued)

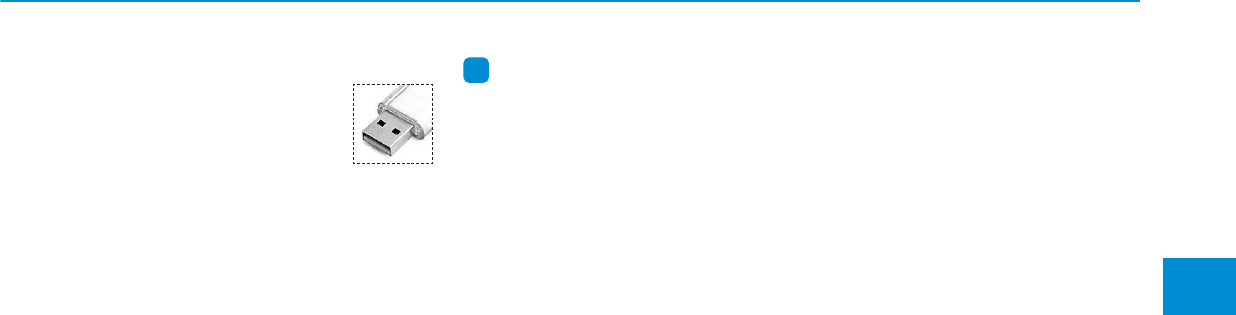

• Avoid use of USB

memory products that

can also be used as key

chains or mobile phone

accessories. Use of such

products may cause damage to the

USB jack.

• Connecting an MP3 device or phone

through various channels, such as

AUX/BT or Audio/USB mode may

result in pop noises or abnormal

operation.

• Use USB 2.0 devices for better com-

patibility. Maximum device size

supported is 32 GB.

Information -Using an iPod®

• iPod®is a registered trademark of

Apple Inc.

• In order to use the iPod®with your

vehicle’s audio system, you must use

a dedicated iPod®cable. (the cable

that is supplied when purchasing

iPod®/iPhone®products)

• If the iPod®is connected to the vehi-

cle while it is playing, a high pitch

sound could occur for approximate-

ly 1-2 seconds immediately after

connecting. If possible, connect the

iPod®to the vehicle with the iPod®

stopped/paused.

• When the vehicle ignition is set to

ACC or ON, connecting the iPod®

through the iPod®cable will charge

the iPod®through the car audio sys-

tem.

• When connecting with the iPod®

cable, make sure to fully insert the

jack to prevent communication

interference.

(Continued)

• When the EQ features of an exter-

nal device, such as the iPod®, and

the audio system are both active, EQ

effects could overlap and cause

sound deterioration and distortion.

Whenever possible, turn off the EQ

feature within the external device

when it is connected to the audio

system.

• Noise may occur when an iPod®or

AUX device is connected. When

such devices are not being used, dis-

connect the device for storage.

• When the iPod®or AUX device

power is connected to the power

jack, playing the external device

may result in noise. In such cases,

disconnect the power connection

before use.

• Skipping or improper operation

may occur depending on the charac-

teristics of your iPod®/iPhone®

device.

(Continued)

4-14

Multimedia System

(Continued)

• If your iPhone®is connected to both

the Bluetooth®and USB, the sound

may not be properly played. In your

iPhone®, select the Dock connector

or Bluetooth®to change the sound

output (source).

• iPod®mode cannot be operated

when the iPod®cannot be recog-

nized due to the playing of versions

that do not support communication

protocols, cases of iPod®abnormali-

ties and defects.

• For fifth generation iPod®Nano

devices, the iPod®may not be recog-

nized when the battery level is low.

Please charge the iPod®for use.

• The search/play orders shown with-

in the iPod®device may differ from

the orders shown within the audio

system.

• If the iPod®malfunctions due to an

iPod®device defect, reset the iPod®

and try again. (To learn more, refer

to your iPod®manual)

(Continued)

• Some iPod®s may not sync with the

System depending on the version. If

the Media is removed before the

Media is recognized, then the sys-

tem may not properly restore the

previously operated mode. (iPad®

charging is not supported.)

• Use an iPod®cable shorter than 1

meter in length such as the one orig-

inally supplied with a new iPod®,

longer cables may lead to the audio

system not recognizing the iPod®.

Information

- Using Bluetooth®(BT) Audio

(if epuipped)

• Bluetooth®Audio Mode can be used

only when a Bluetooth®phone has

been connected.

• Bluetooth®Audio Mode will not be

available when connecting mobile

phones that do not support this fea-

ture.

• If a Bluetooth®Phone is being used

to play music and receives an

incoming or outgoing phone call,

then the music will stop.

• Moving the Track up/down while

playing Bluetooth®audio mode may

result in pop noises with some

mobile phones.

• Bluetooth®streaming audio may not

be supported in some mobile phones.

• When returning to Bluetooth®

Audio mode after ending a call, the

mode may not automatically restart

in some mobile phones.

• Receiving an incoming call or mak-

ing an outgoing call while playing

Bluetooth®Audio may result in

audio interference.

4-15

Multimedia System

Media Mode

Change Mode: [MEDIA] button

• Each time the button is pressed,

the media mode popup will be dis-

played or closed.

You can select a menu in the mode

popup by using the [1] ~ [6] (Preset)

buttons or TUNE knob.

• The media mode popup will not be

displayed when [SETUP/CLOCK]

button [Display] [Mode popup]

is turned [Off].

• If media device(USB, AUX) is con-

nected, then it will automatically

operate. Once it is disconnected,

the previous mode will be restored.

• The Audio/Bluetooth®(BT) Audio*/

AUX volume can also be con-

trolled.

* if equipped

Repeat: [1 RPT] button

Repeats the current song or repeats

all songs within the current folder.

•iPod

®mode: Repeat Song ➟

Repeat Off

• USB mode: Repeat Song ➟

Repeat Folder ➟ Off

Shuffle: [2 SHFL] button

Plays all songs within the current

folder(category) or play all songs in

random order.

•iPod

®mode: Shuffle All ➟ Shuffle

Off

• USB mode: Shuffle Folder ➟

Shuffle All ➟ Off

Change Song/File: [SEEK/TRACK]

button

[∨ SEEK/TRACK] button

• Shortly pressing the button: Plays

the current song from the begin-

ning.

• If the [∨ SEEK/TRACK] button is

pressed again within 2 seconds, the

previous song is played.

• Pressing and holding the button

(more than 1.0 seconds): Rewinds

the song.

[SEEK/TRACK ∧] button

• Shortly pressing the button: Plays

the next song.

• Pressing and holding the button

(more than 1.0 seconds): Fast-for-

wards the song.

Information

• AUX and Bluetooth®(BT) Audio*

don’t support Rewind/Fast-forward

feature.

• Changing the previous/next song

may not be supported in some

Bluetooth®devices.

* if equipped

4-16

Multimedia System

Search Song: TUNE knob

• Turning TUNE knob: Searches for

songs(files).

• Pressing TUNE knob: Plays selected

song(file).

Information

• Bluetooth®(BT) Audio* and AUX

don’t support playlist feature.

• In iPod®Mode, song (file) lists are

not supported if music is played

using the Music application after

connecting the iPod®.

• While Bluetooth®(BT) Audio* is

playing, pressing the TUNE knob

plays and pauses the current song.

* if equipped

Search Folder: [FOLDER] button

• Searches the previous/next folder.

(USB)

Information

If a folder is selected by pressing the

TUNE knob, the first file within the

selected folder will be played.

USB

Displays Menu Popup when pressing

the [MENU] button.

List

Moves to the list screen.

Information

Displays information of the current

song.

Sound Settings

Moves to Sound Settings.

iPod

Displays Menu Popup when pressing

the [MENU] button.

List

Moves to the list screen.

Repeat

Repeats the current song. Press it

again to turn off.

Shuffle

Plays all songs within the currently

playing category in random order.

Press it again to turn off.

Information

Displays information of the current song.

Sound Settings

Moves to Sound Settings.

4-17

Multimedia System

Bluetooth

(BT) Audio

(if equipped)

Displays Menu Popup when pressing

the [MENU] button.

Sound Settings

Moves to Sound Settings.

Information

• Audio may not automatically start

playing in some Bluetooth®devices.

If the music in the Bluetooth®device

is not played after changing to audio

streaming mode, press the TUNE

knob. Check if the music is playing

in the Bluetooth®device after

changing to audio streaming mode.

• Audio streaming may not be sup-

ported for some Bluetooth®devices.

• If Bluetooth®device is disconnected,

Bluetooth®(BT) Audio is ended.

• Bluetooth®connection is required to

use Bluetooth®(BT) Audio. Refer to

the Bluetooth®manual for more

information.

AUX

Displays Menu Popup when pressing

the [MENU] button.

Sound Settings

Moves to Sound Settings.

4-18

Multimedia System

• Focus on the road while driv-

ing. The driver’s primary

responsibility is in the safe

and legal operation of the

vehicle. Drivers should not

use any hand held devices or

other equipment or vehicle

systems that distract the driv-

er during vehicle operation.

• Do not stare at the multimedia

screen for long periods of

time while driving. Staring at

the screen for prolonged peri-

ods of time can lead to traffic

accidents and can result in

personal injuries.

• Pairing Bluetooth®devices

and use of other Bluetooth®

features are not supported

when the vehicle is in motion.

For safety, please first park

your vehicle.

WARNING

Information

• AUX mode can be used only when

an external audio player has been

connected.

• If only a cable is connected to the

AUX without an external device, the

mode will be changed to AUX, but

noise may occur. When an external

device is not being used, remove the

connector jack.

• When the external device power is

connected to the power jack, play-

ing the external device may output

noise. In such cases, disconnect the

power connection before use.

Phone (if equipped)

Information

- Using Bluetooth®(BT) Phone

What is Bluetooth®Wireless Technology?

• Bluetooth®refers to a short-dis-

tance wireless networking technol-

ogy which uses a 2.45GHz fre-

quency to connect various devices

within a certain distance.

• Supported within PCs, external

devices, Bluetooth®phones, PDAs,

various electronic devices, and auto-

motive environments, Bluetooth®to

be transmitted at high speeds with-

out having to use a connector cable.

• Bluetooth®Handsfree refers to a

device which allows the user to

conveniently make phone calls

with Bluetooth®devices through

the Multimedia system.

• The Bluetooth®Handsfree feature

may not be supported in some

Bluetooth®devices.

4-19

Multimedia System

• Bluetooth®is a feature that

enables drivers to make hands-

free calls. Connecting the head

unit with a Bluetooth®phone

allows the user to conveniently

make calls, receive calls, and

manage the phonebook. Before

using Bluetooth®, carefully read

the contents of this user’s man-

ual.

• Excessive use or operations

while driving may lead to negli-

gent driving practices and be

the cause of accidents. Do not

operate the device excessively

while driving.

• Viewing the screen for pro-

longed periods of time is dan-

gerous and may lead to acci-

dents. When driving, view the

screen only for short periods of

time.

• Before connecting the head unit

with the Bluetooth®device, check

to see that the mobile device sup-

ports Bluetooth®features.

• Even if the mobile device supports

Bluetooth®, the device will not

be found during device searches

if the device has been set to hid-

den state or the Bluetooth®

power is turned off. Disable the

hidden state or turn on the

Bluetooth®power prior to

searching/connecting with the

head unit.

• If a Bluetooth®device becomes

disconnected due to being out

of communication range, turn-

ing the device OFF, or a

Bluetooth®communication

error, corresponding Bluetooth®

devices are automatically

searched and reconnected.

(Continued)

• If you do not want automatic

connection with your Bluetooth®

device, turn the Bluetooth®fea-

ture off in the Bluetooth®device.

• Only one Bluetooth®device can

be connected at a time.

• Bluetooth®connection may

become intermittently discon-

nected in some Bluetooth®

devices. Follow these steps to

try again.

1. Turn the Bluetooth®function

within the Bluetooth®device

OFF/ON and try again.

2. Turn the Bluetooth®device

power OFF/ON and try again.

3. Completely remove the

Bluetooth®device battery,

reboot, and then again.

4. Reboot the Multimedia System

and try again.

5. Delete all paired devices from

both of Bluetooth®device and

Head Unit sides and then try

again.

NOTICE NOTICE

4-20

Multimedia System

• If the Bluetooth®device is not

connected, it is not possible to

enter Phone mode. After con-

necting your Bluetooth®device

to your car, use the Bluetooth®

features.

• You will not be able to use the

handsfree feature when your

phone is outside of the cellular

service area (e.g. in a tunnel, in a

underground, in a mountainous

area, etc.).

• If the cellular phone signal is

poor or the vehicles interior

noise is too loud, it may be diffi-

cult to hear the other person’s

voice during a call.

• Do not place the Bluetooth®

device near or inside metallic

objects, otherwise communica-

tions with Bluetooth®system or

cellular service stations can be

disturbed.

• Placing the audio system within

an electromagnetic environment

may result in noise interference.

(Continued)

• Some Bluetooth®devices may

cause interference noise or mal-

function to audio system. In this

case, store the device in a differ-

ent location may resolve the

condition.

• While a device is connected

through Bluetooth®, your device

may discharge quicker than

usual for additional Bluetooth®-

related operations.

• The handsfree call volume and

quality may differ depending on

the Bluetooth®device.

• If Connection Priority is set

upon vehicle ignition (IGN/ACC

ON), the Bluetooth®device will

be automatically connected.

Even if you are outside, the

Bluetooth®device will be auto-

matically connected once you

are in the vicinity of the vehicle.

If you do not want to automati-

cally connect your Bluetooth®

device, turn off the Bluetooth®

feature in your Bluetooth®

device.

(Continued)

• In some Bluetooth®devices,

starting the ignition while talk-

ing through Bluetooth®enabled

handsfree call will result in the

call becoming disconnected due

to car handsfree call transfer. If

you use your phone outside the

vehicle, turn off the Bluetooth®

feature in your phone.

NOTICE

4-21

Multimedia System

Bluetooth

Connection

Before you can use the Bluetooth®

feature, you must first pair/connect

your Bluetooth®device to your car.

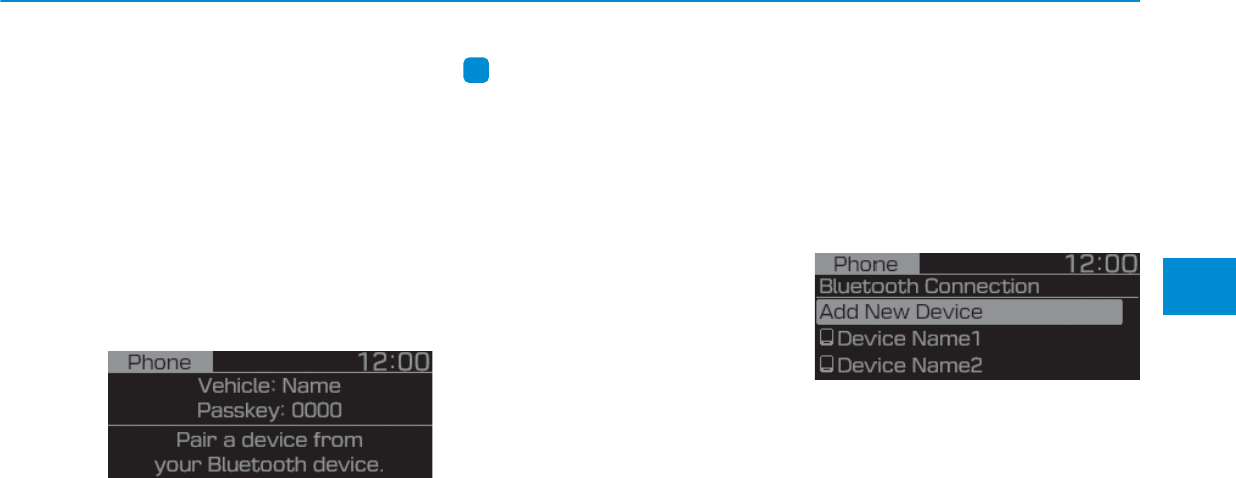

Pairing a New Device

Press the [PHONE] button in the

head unit or [CALL] button in the

steering wheel remote control.

Press the [SETUP/CLOCK] button

Select [Phone] Select [Add New

Device].

In your Bluetooth®device,

1. Pair your car after your Bluetooth®

device detects the Bluetooth®

device.

2. Enter the passkey(0000) or accept

the authorization popup.

3. Connect Bluetooth®.

Information

• Up to 5 Bluetooth®devices can be

paired.

• The default passkey is 0000.

• During a Bluetooth®device connec-

tion, another device cannot be paired.

• The Vehicle Name above is an exam-

ple. Check the actual information

on the product.

• Pairing and connecting a

Bluetooth®enabled Bluetooth®

device will work only when the

Bluetooth®option within your

Bluetooth®device has been turned

on. (Methods of turning on the

Bluetooth®enabled feature may dif-

fer depending on the Bluetooth®

device.)

• After pairing is complete, a contacts

download request is sent to the

Bluetooth®device. Some Bluetooth®

devices may require confirmation

upon receiving a download request.

Ensure your Bluetooth®device

accepts the connection. Refer to your

phone’s user manual for additional

information regarding phone pairing

and connections.

Connecting Bluetooth®Devices

Press the [PHONE] button in the

head unit or [CALL] button in the

steering wheel remote control 

Select the name of the device to con-

nect Connect Bluetooth®.

Connects the Bluetooth®devices

that you add.

4-22

Multimedia System

Information

• Only one Bluetooth®device can be

connected at a time.

• Bluetooth®features supported with-

in the vehicle are as follows. Some

features may not be supported

depending on your Bluetooth®

device.

- Outgoing/Incoming Handsfree

calls

- Operations during a call: Switch

to Private, Switch to call waiting,

MIC on/off

- Downloading Call History

- Downloading Contacts

- Bluetooth®device Auto Connection

- Bluetooth®Audio Streaming

Bluetooth

Phone

Bluetooth®Phone

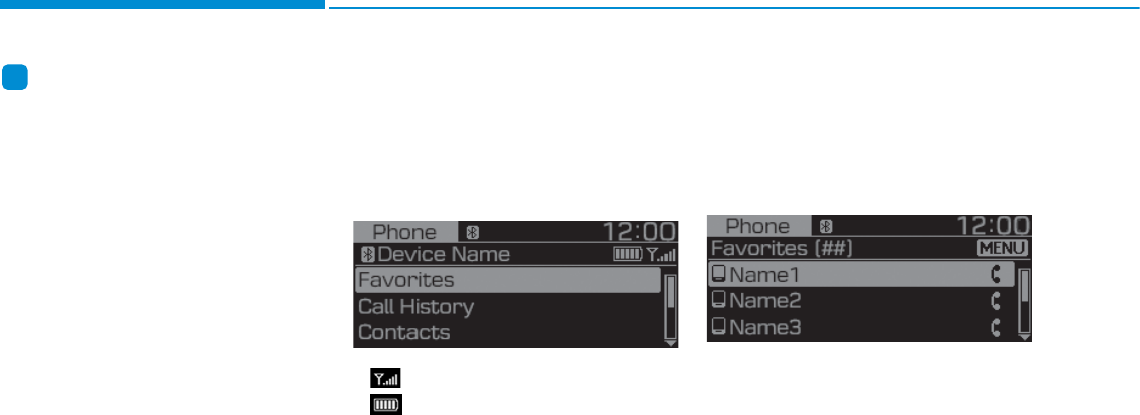

Press the [PHONE] button.

Displays Phone Menu screen. The

connected device name is displayed

in the top of the display.

• : Call signal strength indicator.

• : Battery level of the Bluetooth®

devices connected.

Favorites

Press the [PHONE] button Select

[Favorites].

Lists the phone numbers saved as

Favorites. Select from the list to dial

the number.

Displays Menu Popup when pressing

the [MENU] button.

• Add New Favorites: Adds a phone

number to Favorites.

• Delete Items: Deletes numbers that

you select from Favorites.

• Delete All: Deletes all of the num-

bers from Favorites.

4-23

Multimedia System

Information

• Up to 20 favorites can be saved in

favorites of each device.

• Downloading favorites in your

Bluetooth®device does not be sup-

ported.

• To save favorite, contacts should be

downloaded.

• Contact saved in favorites will not

be automatically updated if the con-

tact has been updated in the phone.

To update Favorites, delete the

favorite and create a new favorite.

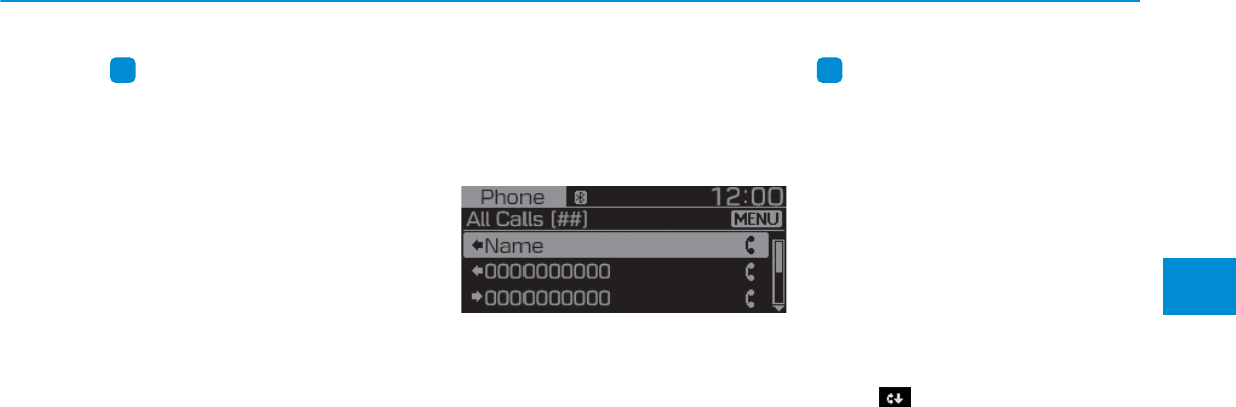

Call History

Press the [PHONE] button Select

[Call History].

Displays all of your call history. Select

from the list to dial the number.

Displays Menu Popup when pressing

the [MENU] button.

• Download: Downloads the call his-

tory information from your

Bluetooth®device.

• All Calls: Lists the all call history.

• Dialed Calls: Lists the calls that

you made.

• Received Calls: Lists the calls that

you have received.

• Missed Calls: Lists the calls you

missed.

Information

• Call history may not be saved in the

call history list in some Bluetooth®

devices.

• Calls from restricted ID’s are not

saved in the call history list.

• Up to 50 calls can be added in each

Dialed Calls/Received Calls/Missed

Calls list.

• The durations of each dialed/received

call are not displayed in your car’s

Call History list.

• While the call history download is in

progress, the status bar displays an

icon ( ).

• If the call history download is

turned off on the Bluetooth®device,

the call history download will fail.

• Some devices require a device

authentication for downloading

your call history. If download fails,

check if the Bluetooth®settings or

display status are normal.

4-24

Multimedia System

Contacts

Press the [PHONE] button Select

[Contacts].

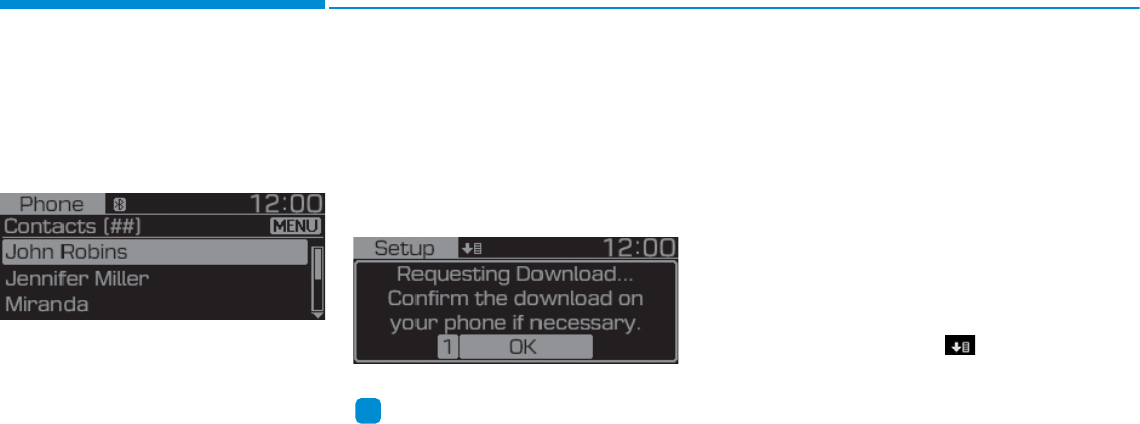

Displays the list of Contacts. Select

from the list to dial the number.

Displays Menu Popup when pressing

the [MENU] button.

• Download: Downloads contacts

from your Bluetooth®device.

Requesting Download

Some devices require a device

authentication for downloading your

call history and contacts.

If download fails, check the

Bluetooth®device settings or the

screen state.

Information

• Only supported contacts format can

be downloaded and displayed from

the Bluetooth device, contacts from

some applications will not be included.

• Up to 2000 phone numbers can be

downloaded from a single, paired

Bluetooth®device.

• You cannot edit or delete down-

loaded phone numbers from your

car.

(Continued)

• Contacts can be viewed only when

the Bluetooth®device is connected.

• Even if the Bluetooth®device is dis-

connected, the downloaded data will

remain. (Note that deleting a paired

device will also delete all downloaded

Contacts and Call History data)

• Downloaded phone numbers may

be lost depending on the condition

of the head unit. Keep your impor-

tant data in a safe place.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available

if the contacts download function is

turned off on your Bluetooth®

device.

• Phone contact names should be

saved in English or they may not be

displayed correctly.

• The time of contacts/call history

download may differ depending on

the Bluetooth®devices.

• Some devices require a device

authentication for downloading

your contacts. If download fails,

check your phone screen and con-

firm the download if necessary.

4-25

Multimedia System

Accept/Reject Call

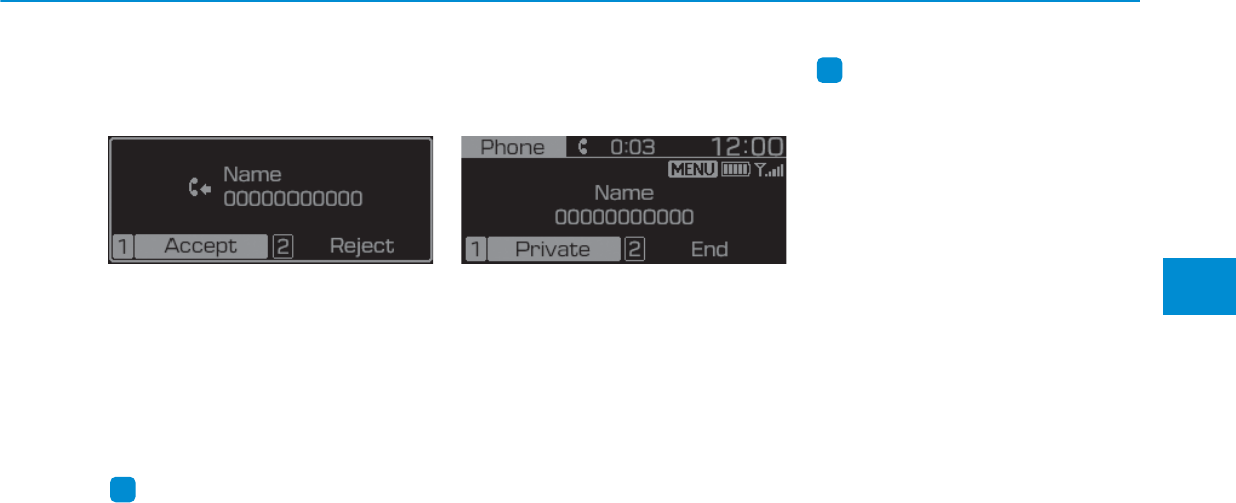

If there is an incoming call, a popup

message will appear.

• To answer the incoming call, select

[Accept] on the screen or press the

[CALL] button on the steering

wheel remote control.

• To reject the call, select [Reject] on

the screen or press the [END] but-

ton on the steering wheel remote

control.

Information

In some Bluetooth®devices, the

caller’s number may not be displayed,

and the Reject feature may not be sup-

ported.

Using the Menu During a Phone Call

When making a call, you can use the

following menu items.

(1) Private: Switches a voice call

from the car Hands-free to the

Bluetooth®device.

(2) End: Ends a call.

Displays Menu Popup when pressing

the [MENU] button.

• Outgoing Volume: Displays the Mic

Volume settings. You can adjust the

in-call volume that the other party

hears (level 1 - 5).

Information

• Up to 2000 phone numbers can be

downloaded from a single, paired

Bluetooth®device.

• If the caller’s number is listed in

Contacts, the caller’s name will be

displayed. Otherwise, only the num-

ber will be displayed. In some

Bluetooth®devices, the phone num-

ber may not be displayed.

• In some Bluetooth®devices, the Use

Private feature may not be supported.

• In some Bluetooth®devices, the

Switch feature may not be supported.

• The phone number may not be

properly displayed in some

Bluetooth®devices.

• During a phone call on a Bluetooth®

Handsfree, you cannot access other

modes, such as Radio and Setup.

• Depending on handset types, the in-

call volume the other party hears

may differ. If the other party hears

your voice too low or too loud,

adjust the mic volume.

4-26

Multimedia System

Phone settings

Press the [PHONE] button Select

[Phone settings].

- For more details, refer to Setup ➟

Bluetooth page.

Setup

Display

Press the [SETUP/CLOCK] button

Select [Display].

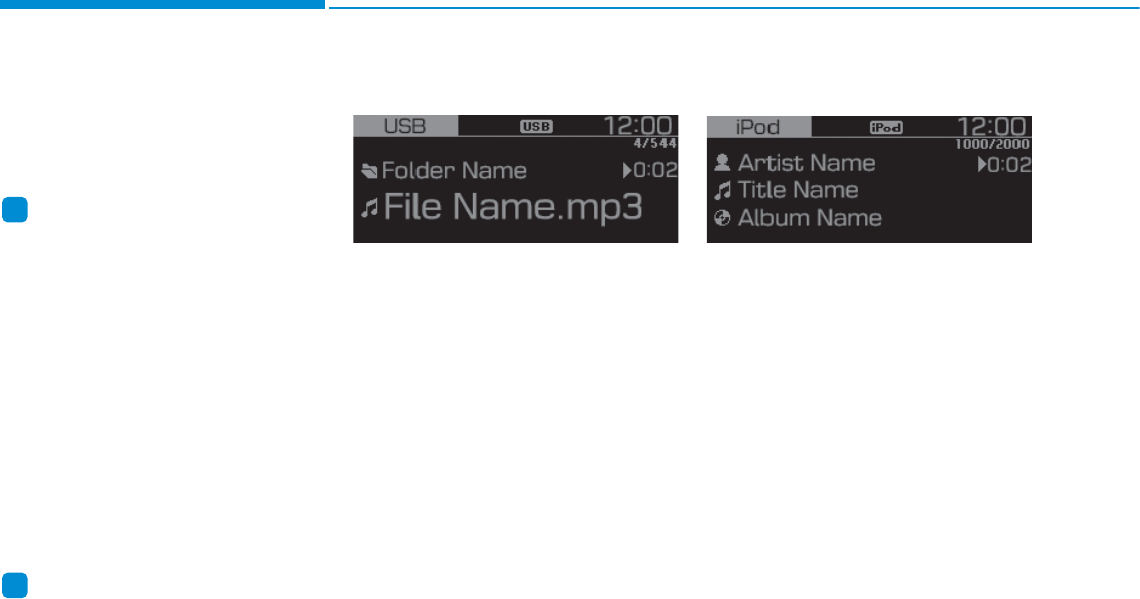

• Media Display: When playing an

MP3 file, select the desired display

info from [Folder/File] or

[Artist/Title/Album].

• Mode Popup: During [On] state,

press the [RADIO] or [MEDIA] but-

ton to display the mode change

popup.

• Text Scroll: If text is too long to dis-

play, the text is scrolled from right

to left.

- Title name on USB/iPod®/

Bluetooth®(BT) Audio* Screen.

- Focused File/Folder name on

play list.

- Focused Contacts name on Call

History/Contacts/Favorites list.*

- Focused Device name on Paired

Devices, Delete Devices,

Connection Priority Settings list.*

* if equipped

Sound

Press the [SETUP/CLOCK] button

Select [Sound].

• Position: Selects the sound position.

• Tone: Selects the sound tone.

• Speed Dependent Volume:

Controls the volume level automat-

ically according to the speed of the

vehicle.

Date/Time

Press the [SETUP/CLOCK] button

Select [Date/Time].

• Set Time: Adjusts the number cur-

rently in focus to set the [hour], and

press the TUNE knob to set the

[minute] and [AM/PM].

• Time Format: Sets the 12/24 hour

time format of the audio system.

• Set Date: Adjusts the number cur-

rently in focus to make the settings

and press the TUNE knob to move

to the next settings.

• Display(Power OFF): Displays

time/date on screen when the

audio system turns power off.

4-27

Phone (if equipped)

Add New Device

Press the [SETUP/CLOCK] button

Select [Phone] Select [Add New

Device].

• The following steps are the same

as those described in the section

[Pairing a New Device] on the pre-

vious page.

Connect/Disconnect Device

Press the [SETUP/CLOCK] button

Select [Phone] Select [Paired

devices].

• Displays the paired Bluetooth®

device list. From the paired device

list, select the device you want to

connect or disconnect.

Information

• Displays the icons when Bluetooth®

device is connected.

: An icon appears when you make

a Bluetooth®Audio connection.

: An icon appears when you make

a Bluetooth®Handsfree connection.

• Only one Bluetooth®device can be

connected at a time.

• Bluetooth®Handsfree and

Bluetooth®Audio functions are sup-

ported. Handsfree and audio-sup-

ported devices, such as a Bluetooth®

smartphone or audio, will function

normally.

• If the system is not stable due to a

vehicle- Bluetooth®device commu-

nication error, delete the paired

device on each device and pair/con-

nect the Bluetooth®device again.

Delete Devices

Press the [SETUP/CLOCK] button

Select [Phone] Select [Delete

Devices].

• Displays the paired Bluetooth®

device list.

• When selecting from the list, the

device is deleted.

Information

• When you delete a paired device, the

Call History and Contacts stored in

the head unit are also deleted.

• To re-use a deleted device, you must

pair the device again.

Connection Priority

Press the [SETUP/CLOCK] button 

Select [Phone] Select [Connection

Priority].

• Select the device to want to set the

connection priority of paired

devices.

• If “None” is chosen, the Bluetooth®

system will try to connect to the

last connected device, then to all

paired devices.

Multimedia System

4-28

Multimedia System

Information

• When the engine is running, the

selected Bluetooth®device is auto-

matically connected. If you fail to

connect the selected device, the pre-

viously-connected device is auto-

matically connected, and if it also

fails, then it tries to connect all

paired devices sequentially.

• Depending on auto connection pri-

ority, connection to a device may

take time.

• If a Bluetooth®device becomes dis-

connected due to being out of com-

munication range, turning the

device OFF, or a Bluetooth®com-

munication error, corresponding

Bluetooth®devices are automatical-

ly searched and reconnected.

• Even if you are outside, the Bluetooth®

device will be automatically connected

once you are in the vicinity of the vehi-

cle. If you do not want to automatical-

ly connect your Bluetooth® device,

turn off the Bluetooth®feature in your

Bluetooth®device.

(Continued)

• In some Bluetooth®devices, starting

the ignition while talking through

Bluetooth®enabled handsfree call

will result in the call becoming dis-

connected due to car handsfree call

transfer. If you use your phone out-

side the vehicle, turn off the

Bluetooth®feature in your phone.

Language

Press the [SETUP/CLOCK] button

Select [Language].

• Changes the display language.

Display Off

Press the [SETUP/CLOCK] button

Select [Display Off].

• Audio operation is maintained and

only the screen will be turned Off.

In the Screen Off state, press any

button to turn the Screen On again.

FCC#Warning#

This%equipment%has%been%tested%and%found%to%comply%with%the%limits%for%a%Class%B%digital%device,%pursuant%to%part%15%

of%the%FCC%Rules.%These%limits%are%designed%to%provide%reasonable%protection%against%harmful%interference%in%a%

residential%installation.%This%equipment%generates,%uses%and%can%radiate%radio%frequency%energy%and,%if%not%installed%

and%used%in%accordance%with%the%instructions,may%cause%harmful%interference%to%radio%communications.%However,%

there%is%no%guarantee%that%interference%will%not%occur%in%a%particular%installation.%If%this%equipment%does%cause%

harmful%interference%to%radio%or%television%reception,%which%can%be%determined%by%turning%the%equipment%off%and%

on,%the%user%is%encouraged%to%try%to%correct%the%interference%by%one%ormore%of%the%following%measures:%



■%Reorient%or%relocate%the%receiving%antenna.%

■%Increase%the%separation%between%the%equipment%and%receiver.%

■%Connect%the%equipment%into%an%outlet%on%a%circuit%different%from%that%to%which%the%receiver%is%connected.%

■%Consult%the%dealer%or%an%experienced%radio/TV%technician%for%help.%

Caution:%Any%changes%ormodifications%to%this%device%not%explicitly%approved%by%manufacturer%could%void%

your%authority%to%operate%this%equipment.%

This%device%complies%with%part%15%of%the%FCC%Rules.%Operation%is%subject%to%the%following%two%conditions:%

(1)%This%device%may%not%cause%harmful%interference,%and%(2)%this%device%must%accept%any%interference%received,%

including%interference%that%may%cause%undesired%operation.%

This%equipment%complies%with%the%FCC%RF%radiation%exposure%limits%set%forth%for%an%uncontrolled%environment.%This%

equipment%should%be%installed%and%operated%with%a%minimum%distance%of%20cm%between%the%radiator%and%any%part%

of%your%body.%

HYUNDAI MOBIS ACB10A0GG DIGITAL CAR AUDIO SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM

User manual

Navigation menu

Namespaces

Views

Navigation
