Feature of Your Audio

Head unit

❈The actual features in the vehicle

may differ from the illustration.

(1) LCD screen

• Tap the screen to select a button.

(2) RADIO

• Start FM and AM Radio.

(3) MEDIA

• Select USB(iPod®), Bluetooth®(BT)

Audio or AUX.

• Display the media menu when two

or more media are connected or

when the [MEDIA] button is

pressed in media mode.

(4) PHONE

• Start Bluetooth®Phone mode.

(5) POWER/VOLUME knob

• Turn to adjust the volume.

• Press to turn the device on or off.

(6) RESET

• Shutdown and restart the system.

4-3

Multimedia System

(7) DISP

• Turn the display on or off.

(8) CLOCK

• Access Time setting.

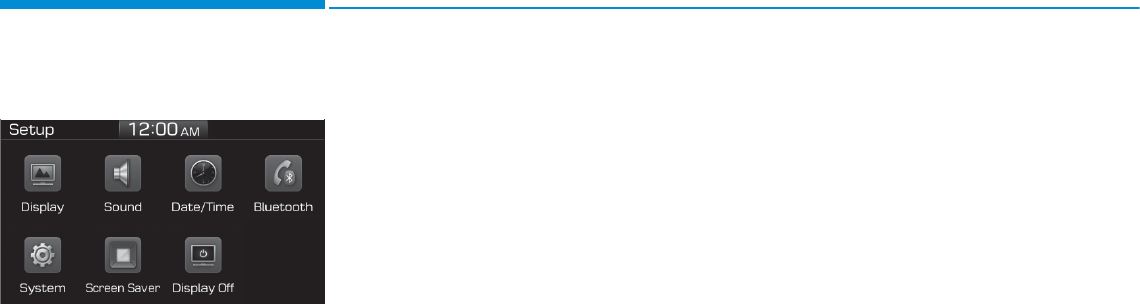

(9) SETUP

• Access Display, Sound, Date/Time,

Bluetooth, System, Screen Saver

and Display Off settings.

(10) TUNE knob

• Turn to navigate through the sta-

tions/songs list.

• Press to select an item.

(11) SEEK/TRACK

• Search for next station in radio

mode.

• Change the current song in media

mode.

4-4

Multimedia System

Steering wheel remote control

❈The actual features in the vehicle

may differ from the illustration.

(1) MUTE

• Mutes the audio. (It will be paused

in some media modes.)

• Mutes the microphone during a

call. (Bluetooth®equipped model)

(2) MODE

• Press the button to change the

mode in the following order: Radio

➟Media.

• Press and hold the button to turn

off.

(3) VOLUME

• Press to adjust the volume.

(4) UP/DOWN

• Press the button in radio mode to

search Presets.

• Press and hold the button in radio

mode to search frequencies.

• Press the button in media mode to

change the current song. (except

AUX)

• Press and hold the button in media

mode to quick search through

songs. (except Bluetooth®(BT)

Audio and AUX)

(5) CALL

• Pressing the button

- If not in Bluetooth®Handsfree

mode or receiving a phone call.

First press: Display Dial Number

screen.

Second press: Automatically dis-

play the most recently Dialed

Call number.

Third press: Dial the phone num-

ber entered.

- Press in the Incoming Call notifi-

cation screen to accept the

phone call.

- Press in Bluetooth®Handsfree

mode to switch to the waiting call.

• Pressing and holding the button

(more than 1.0 seconds)

- If not in Bluetooth®Handsfree

mode or receiving a phone call,

the most recently Dialed Call

number is dialed.

- Press in Bluetooth®Handsfree

mode to transfer the call to your

cell phone.

- Press in cell phone mode to

switch to Bluetooth®Handsfree

mode.

(6) END

• Press in Bluetooth®Handsfree

mode to end the phone call.

• Press in the incoming call screen

to reject the call.

4-5

Multimedia System

• Do not stare at the screen

while driving. Staring at the

screen for prolonged periods

of time could lead to traffic

accidents.

• Do not disassemble, assem-

ble, or modify the audio sys-

tem. Such acts could result in

accidents, fire, or electric

shock.

• Using the phone while driving

may lead to a lack of attention

of traffic conditions and

increase the likelihood of

accidents. Use the phone fea-

ture after parking the vehicle.

• Exercise caution not to spill

water or introduce foreign

objects into the device. Such

acts could lead to smoke, fire,

or product malfunction.

(Continued)

WARNING (Continued)

• Please refrain from use if the

screen is blank or no sound

can be heard as these signs

may indicate product malfunc-

tion. Continued use in such

conditions could lead to acci-

dents (fires, electric shock) or

product malfunctions.

• Do not touch the antenna dur-

ing thunder or lightening as

such acts may lead to light-

ning induced electric shock.

• Do not stop or park in park-

ing-restricted areas to operate

the product. Such acts could

lead to traffic accidents.

• Use the system with the vehi-

cle engine turned on.

Prolonged use with the igni-

tion turned on only could

result in battery discharge.

Driving while distracted can

result in a loss of vehicle con-

trol that may lead to an acci-

dent, severe personal injury,

and death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a

vehicle or which are not permis-

sible by law should never be

used during operation of the

vehicle.

WARNING

4-6

Multimedia System

• Operating the device while driv-

ing could lead to accidents due

to a lack of attention to external

surroundings. First park the

vehicle before operating the

device.

• Adjust the volume to levels that

allow the driver to hear sounds

from outside of the vehicle.

Driving in a state where external

sounds cannot be heard may

lead to accidents.

• Pay attention to the volume set-

ting when turning the device on.

A sudden output of extreme vol-

ume upon turning the device on

could lead to hearing impair-

ment. (Adjust the volume to a

suitable levels before turning off

the device.)

• Turn on the car engine before

using this device. Do not oper-

ate the audio system for long

periods of time only with the

ignition turned on as such oper-

ations may lead to battery dis-

charge.

(Continued)

• Do not subject the device to

severe shock or impact. Direct

pressure onto the front side of

the monitor may cause damage

to the LCD.

• When cleaning the device, make

sure to turn off the device and

use a dry and smooth cloth.

Never use tough materials,

chemical cloths, or solvents

(alcohol, benzene, thinners,

etc.). As such materials may

damage the device panel or

cause color/quality deterioration

• Do not place beverages close to

the audio system. Spilling bever-

ages may lead to system mal-

function.

• In this case of product malfunc-

tion, please contact your place of

purchase or After Service center.

• Placing the audio system within

an electromagnetic environment

may result in noise interference.

• Prevent caustic solutions such

as perfume and cosmetic oil

from contacting the dashboard

because they may cause dam-

age or discoloration.

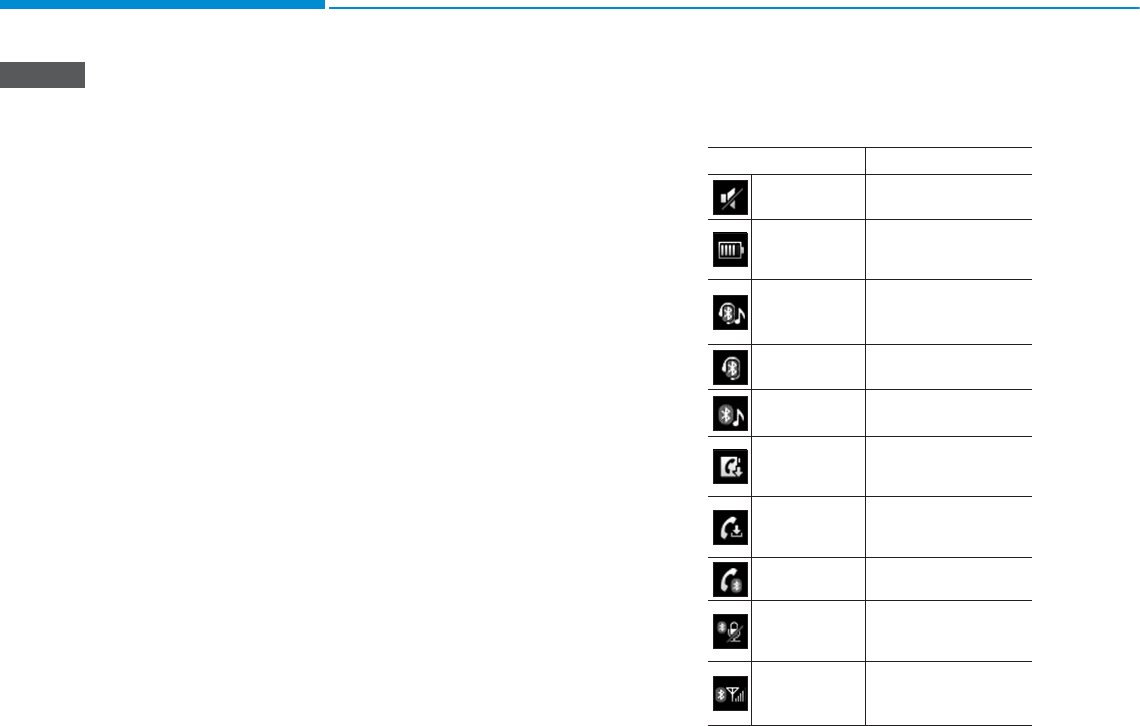

Information on status icons

Icons showing audio status are shown

in the upper-right corner of the screen.

NOTICE

Icon

Description

Mute Mute engaged

Battery

Remaining battery life of

a connected Bluetooth®

device

Handsfree +

Audio stream-

ing connection

Bluetooth®Handsfree

call and audio stream-

ing available

Handsfree

connection

Bluetooth®Handsfree

call available

Bluetooth®

audio streaming

Bluetooth®audio

streaming available

Downloading

contacts

Downloading contacts

through Bluetooth®wire-

less communications

Downloading

call history

Downloading call history

through Bluetooth® wire-

less communications

Line busy Phone call in progress

Mute mic

Mic muted during a

call (caller cannot

hear your voice)

Phone signal

strength

Display the phone signal

strength for a cell phone

connected by Bluetooth®

4-7

Multimedia System

Radio

FM/AM (without RDS)

(1) Band

Switch between FM, AM.

(2) Presets

View all presets.

(3) List

View all available stations.

(4) Menu

Navigate to the menu screen.

Switching between FM, AM

• Press the [RADIO] button on the

audio system to switch between

FM, AM.

• Select [Band] on the screen to

switch between FM, AM.

Searching stations

Press the [SEEK/TRACK] button to

search stations.

List

A list of all available stations in the

vehicle’s current location is dis-

played. Select the desired station.

Favorite stations can be saved to

[Presets] by selecting [save].

Presets

Save up to 40 frequently used stations.

To listen to a preset, select the

desired station list.

Press and hold the desired slot from

1 through 40. This saves the current

station in the selected slot.

If the slot is empty, simply selecting

saves the station to the slot.

Select [Menu], and select the desired

function.

• Scan: All available stations are

played for five seconds each.

• Sound Settings: Audio sound set-

tings can be changed.

4-8

Multimedia System

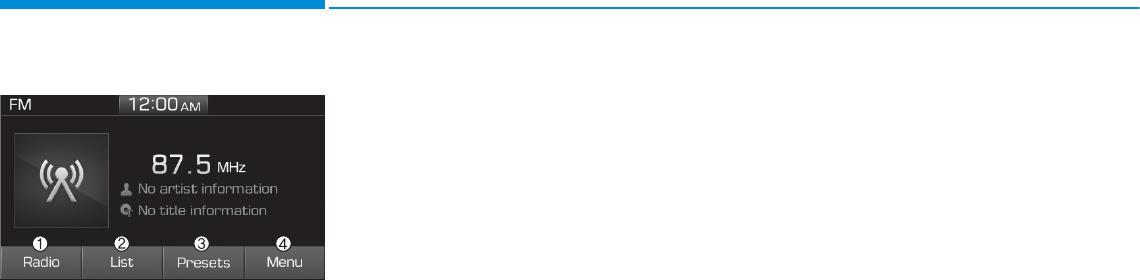

FM/AM (with RDS)

(1) Radio

Switch between FM and AM.

(2) List

View all available stations.

(3) Presets

View all presets

(4) Menu

Navigate to the menu screen.

Switching between FM, AM

• Press the [RADIO] button on the

audio system to switch between

FM, AM.

• Select [Radio] on the screen to

switch between FM and AM.

Searching stations

Press the [SEEK/TRACK] button to

search stations.

List

A list of all available stations in the

vehicle’s current location is dis-

played. Select the desired station.

Favorite stations can be saved to

[Presets] by selecting [+].

Presets

Save up to 40 frequently used stations.

To listen to a preset, select the

desired station list.

Press and hold the desired slot from

1 through 40. This saves the current

station in the selected slot.

If the slot is empty, simply selecting

saves the station to the slot.

Select [Menu], and select the desired

function.

• Traffic Announcement (TA): Enable

or disable Traffic Announcements.

• Scan: All available stations are

played for five seconds each.

• Sound Settings: Audio sound set-

tings can be changed.

4-9

Multimedia System

Media

Information - Using MP3

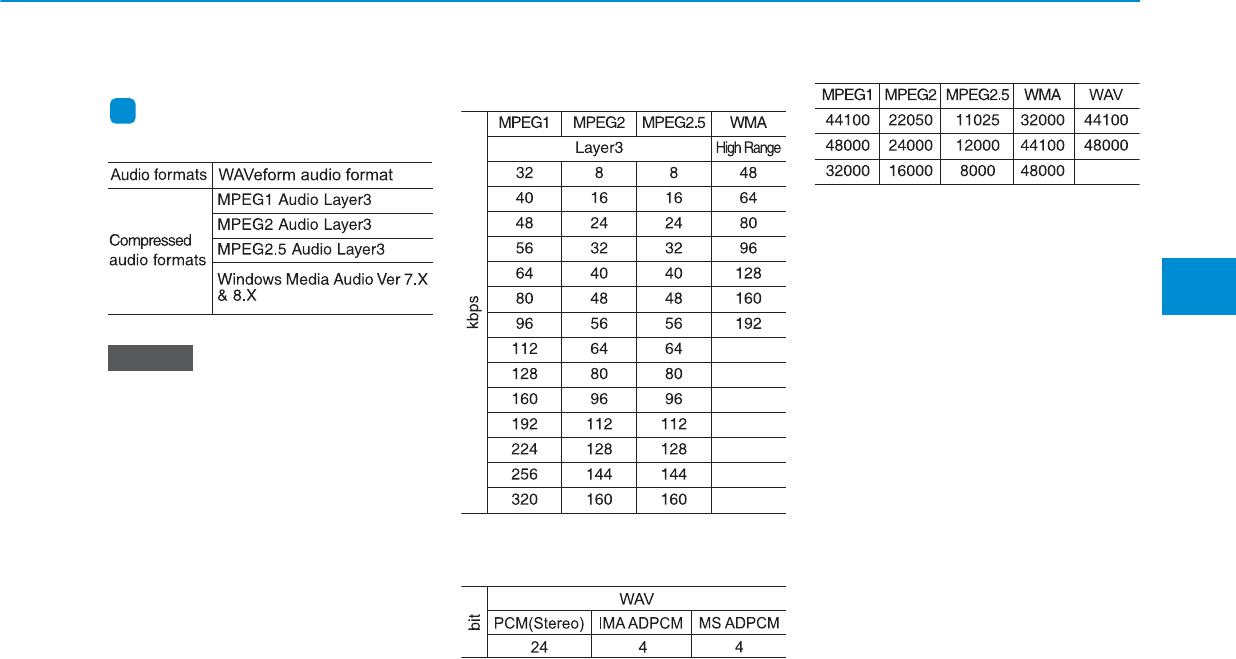

Supported audio formats

File formats other than the formats

above may not be recognized or

playable. Information such as file-

name may not be displayed.

Range of supported file types

1. Bitrate range (Kbps)

2. Bit Per Sample range (bit)

3. Sampling frequency (Hz)

• The sound quality of MP3/WMA

compressed and WAV files may

vary depending on the bitrate. (A

higher bitrate can have better

sound quality.)

• The product only recognizes files

with the MP3, WMA or WAV exten-

sion. Files without one of these

extensions are not recognized.

4. Number of recognizable folders

and files

• Folders: 2,000 for USB

• Files: 6,000 for USB

• No recognition limit for folder hier-

archies

5. Character display range (Unicode)

• Filenames: Up to 64 English char-

acters (64 Korean characters)

• Foldernames: Up to 32 English

characters (32 Korean characters)

NOTICE

4-10

Multimedia System

The scroll feature can be used to

display file and folder names that

are too long to display on the

screen.

Languages supported (Unicode support)

• Korean: 2,604 characters

• English: 94 characters

• Common Chinese characters:

4,888 characters

• Special symbols: 986 characters

Japanese/Simplified Chinese char-

acters are not supported.

Information

- Using the USB Devices

• Starting the vehicle while a USB

device is connected can damage the

device. Please disconnect USB

devices before starting the vehicle.

• Starting the vehicle or stopping the

engine while an external USB device

is connected can result in failure of

the external USB device to operate.

• Be cautious of static electricity when

connecting/disconnecting external

USB devices.

• An encrypted MP3 player is not rec-

ognized when connected as an exter-

nal device.

• External USB devices may not be

recognized, depending on the state

of the external USB device.

• Only products with byte/sectors for-

matted at 4 KB or lower are recog-

nized.

• Only USB devices in FAT12/16/32

format are recognized; NTFS and

ExFAT file systems are not recog-

nized.

(Continued)

• Some USB devices are not recog-

nized due to compatibility issues.

• Do not touch the USB connections.

• Connecting and disconnecting USB

devices rapidly over a short period

of time can cause equipment failure.

• Abnormal sounds may be audible

when the USB device is disconnected.

• Turn the audio off before connecting

or disconnecting external USB

devices.

• Recognition may take longer

depending on the type, capacity or

file format of the external USB

device. This is not a product mal-

function.

• Use of USB devices for purposes

other than playing music files is pro-

hibited.

• Image display and video playback

are not supported.

• Use of USB accessories, including

charge and heat though the USB I/F,

can lead to reduced product per-

formance or malfunctions. Do not

use USB devices or accessories for

these purposes.

(Continued)

NOTICE

4-11

Multimedia System

(Continued)

• Use of aftermarket USB hubs and

extension cables can result in the

vehicle’s audio system failing to rec-

ognize your USB device. Connect

the USB device directly to the multi-

media port of your vehicle.

• When using high-capacity USB

devices with logical drive divisions,

only files saved on the highest level

logical drive can be played.

If applications are loaded on a USB

drive, file playback may fail.

• Some MP3 players, cell phones, dig-

ital cameras, etc. (USB devices that

are not recognized as mobile stor-

age) may not operate normally

when connected.

• USB charging may not be supported

by some mobile devices.

• Operation is guaranteed only for

standard (Metal Cover Type) USB

Memory drives.

• Operation of HDD, CF, SD and mem-

ory stick devices is not guaranteed.

• DRM (Digital Rights Management)

files cannot be played.

(Continued)

• SD-type USB memory, CF-type

USB memory, and other USB mem-

ory devices that require adapters

for connection are not supported.

• Proper operation of USB HDDs or

USB drives with connectors that

loosen due to vehicle vibrations is

not guaranteed. (iStick, etc.)

• USB products that are

used as key chains or

cell phone accessories

may damage the USB

jack and affect proper

file playback. Please refrain from

use. Use only products with plug

connectors, as shown in the follow-

ing illustration.

• When MP3 devices or cell phones

are connected simultaneously

through AUX, BT Audio and USB

modes, a popping noise or malfunc-

tion may occur.

• Use USB 2.0 devices for better com-

patibility. Maximum device size

supported is 32 GB.

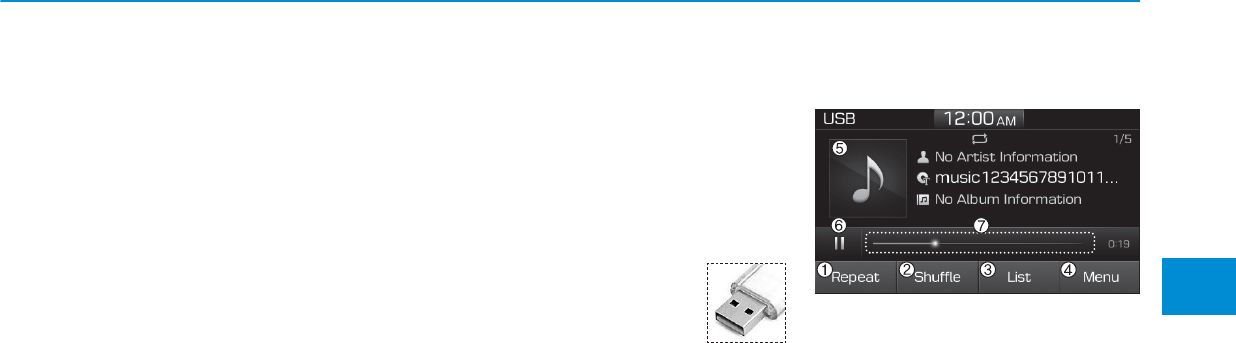

USB

(1) Repeat

Enable/disable repeat play.

(2) Shuffle

Enable/disable shuffle play.

(3) List

View a list of all songs.

(4) Menu

Navigate to the menu screen.

(5) Album Image

View song info.

4-12

Multimedia SystemMultimedia System

(6) Pause

Pause or play music.

(7) Playback progress

Select to skip to the desired location.

Playback

Press the [MEDIA] button, and

select [USB].

Connect a USB drive to the USB port

to automatically play files on the USB

drive.

Changing songs

Press the [SEEK/TRACK] button to

play the previous or next song.

Press and hold the [SEEK/TRACK]

button to rewind or fast forward the

currently playing song.

Search songs by turning TUNE

knob, and press the knob to play.

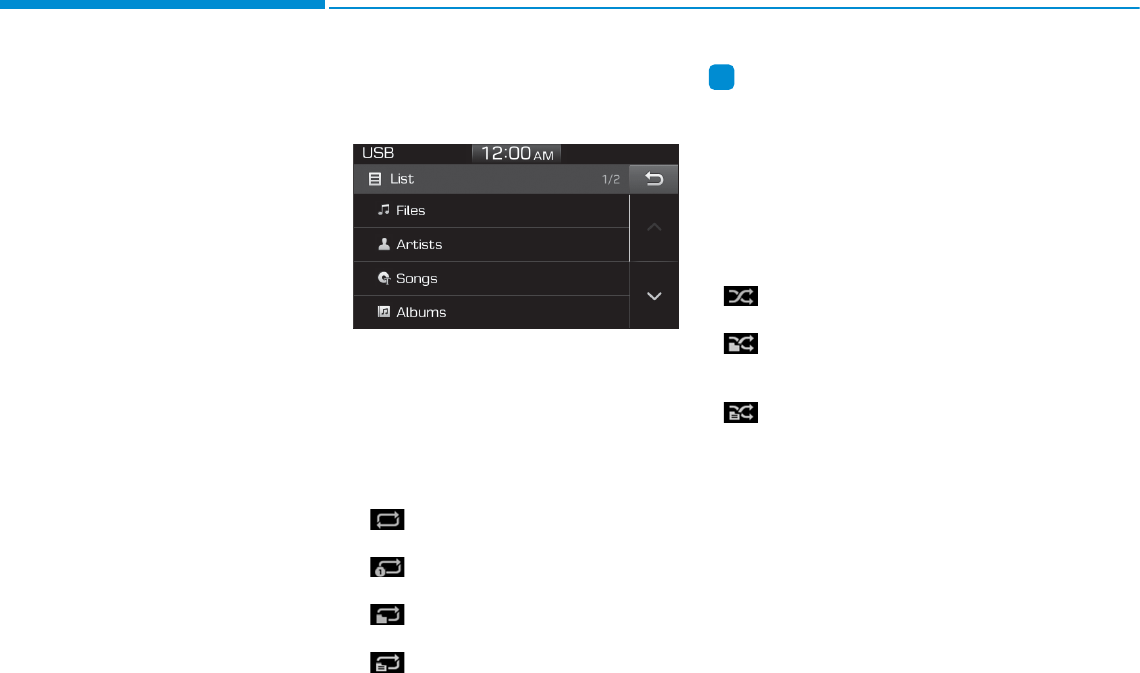

Selecting songs from a list

Select [List] to see a list of songs

available for play.

Select and play the desired song.

Repeat play

Select [Repeat] to enable or disable

‘Repeat all’, ‘Repeat current song’,

‘Repeat folder’ or ‘Repeat category’

play.

• Repeat all: All songs in the

playlist are repeated.

• Repeat current song: The cur-

rently playing song is repeated.

• Repeat folder: All songs in the

current folder are repeated.

• Repeat category: Repeat all

songs in the current category.

Information

The repeat folder function is available

only when songs are playing from the

[File] category under [List].

Shuffle play

Select [Shuffle] to enable or disable

‘Shuffle’, ‘Shuffle folder’ or ‘Shuffle

category’ play.

• Shuffle: Songs are played in

random order.

• Shuffle folder: Songs within

the current folder are played in ran-

dom order.

• Shuffle category: Songs within

the current category are played in

random order.

Select [Menu], and select the desired

function.

• Information: Detailed information

on the currently playing song is dis-

played.

• Sound Settings: Audio sound set-

tings can be changed.

4-13

Multimedia System

Information

- Using the iPod®Devices

• To use the audio system’s iPod®con-

trol function, use the dedicated

cable provided with your iPod®.

• Connecting the iPod®to the vehicle

during play may result in a loud

noise that lasts about one to two sec-

onds. Connect the iPod®to the vehi-

cle after stopping or pausing play.

• Connect the iPod®with the vehicle in

the ACC ON state to begin charging.

• When connecting the iPod®cable,

be sure to fully push the cable into

the port.

• When EQ effects are enabled simul-

taneously on external devices, such

as iPod®s and the audio system, the

EQ effects may overlap, causing

sound quality deterioration or dis-

tortion. Deactivate the EQ function

for all external devices, if possible.

• Noise may occur when your iPod®

or the AUX port is connected.

Disconnect and store separately

when not in use.

(Continued)

• There may be noise if the audio sys-

tem is used with an iPod®or AUX

external device connected to the

power jack. In these cases, discon-

nect the iPod®or external device

from the power jack.

• Play may be interrupted, or device

malfunctions may occur depending

on the characteristics of your

iPod®/iPhone®/iPad®.

• Play may fail if your iPhone®is con-

nected through both Bluetooth®and

USB. In this case, select Dock con-

nector or Bluetooth®on your

iPhone®to change the sound output

settings.

• If your software version does not

support the communication proto-

col or your iPod®is not recognized

due to device failure, anomalies or

defects, iPod®mode cannot be used.

• iPod®nano (5th generation) devices

may not be recognized if the battery

is low. Charge sufficiently before use.

(Continued)

• The search and song play order in

the iPod®device may be different

from the search order in the audio

system.

• If the iPod®has failed due to an

internal defect, please reset the

iPod®(consult your iPod®manual).

• Depending on the software version,

the iPod®may fail to sync with the

system. If the media is removed or

disconnected before recognition, the

previous mode may not be restored

(iPad®cannot be charged).

• Cables other than the 1-meter cable

provided with iPod®/iPhone®/iPad®

products may not be recognized.

• When other music apps are used on

your iPod®, the system sync func-

tion may fail due to malfunction of

the iPod®application.

4-14

Multimedia System

iPod

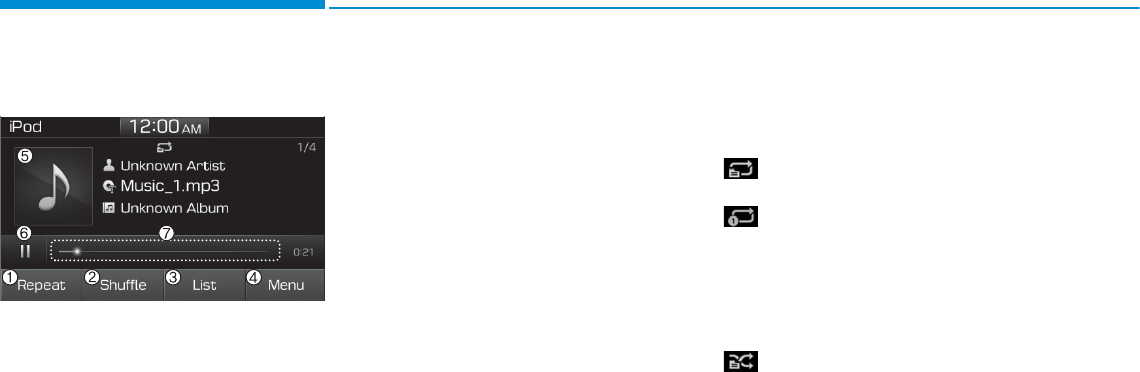

(1) Repeat

Enable/disable repeat play.

(2) Shuffle

Enable/disable shuffle play.

(3) List

View a list of all songs.

(4) Menu

Navigate to the menu screen.

(5) Album Image

View song info.

(6) Pause

Pause or play music.

(7) Playback progress

Select to skip to the desired location.

Playback

Connect your iPod®to the audio

USB port, press the [MEDIA] button,

and select [iPod].

Changing songs

Press the [SEEK/TRACK] button to

play the previous or next song.

Press and hold the [SEEK/TRACK]

button to rewind or fast forward the

currently playing song.

Search songs by turning the TUNE

knob, and press the knob to play.

Selecting songs from a list

Select [List] to see a list of songs

available for play.

Select and play the desired song.

Repeat play

Select [Repeat] to enable or disable

‘Repeat category’, ‘Repeat current

song’ play.

• Repeat category: Repeat all

songs in the current category.

• Repeat current song: The cur-

rently playing song is repeated.

Shuffle play

Select [Shuffle] to enable or disable

‘Shuffle category’ play.

• Shuffle category: Songs within

the current category are played in

random order.

Select [Menu], and select the desired

function.

• Information: Detailed info on the

currently playing song is displayed.

• Sound Settings: Audio sound set-

tings can be changed.

4-15

Multimedia System

444

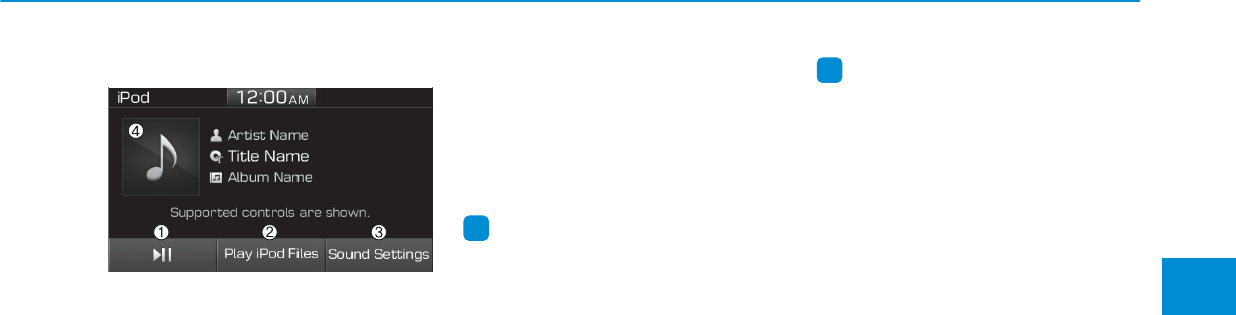

When other music programs are running

When songs saved on your iPod®

are playing through a separate music

app, the above screen is displayed.

(1) Play/Pause: Pause or play music.

(2) Play iPod Files: Play music saved

on your iPod®.

(3) Sound Settings: Audio sound set-

tings can be changed.

(4) Album Image: View playback info.

Play iPod Files

Select [Play iPod Files] to play songs

saved on your iPod®.

If there are no songs saved on your

iPod®, the [Play iPod Files] is dis-

abled.

Information

Operation cannot be carried out cor-

rectly due to iPod®application mal-

function.

Information

- Using Bluetooth®Audio

• Bluetooth®Audio mode can only be

used if a Bluetooth®-enabled phone

is connected. Only devices that sup-

port Bluetooth®audio can be used.

• If the Bluetooth®-enabled phone is

disconnected during play, the music

stops.

• When the TRACK UP/DOWN but-

tons are used during Bluetooth®

audio streaming, a popping noise or

sound interruptions may occur,

depending on the cell phone device.

• Depending on the cell phone model,

the audio streaming function may

not be supported.

• If a phone call is made or received

when music is playing in Bluetooth®

Audio mode, the call may mix with

the music.

• When returning to Bluetooth®

Audio mode after ending a call, play

might not resume automatically for

some cell phone models.

4-16

Multimedia System

• Bluetooth®Handsfree is a fea-

ture that enables drivers to prac-

tice safe driving. Connecting the

car audio system with a

Bluetooth®phone allows the

user to conveniently make calls,

receive calls, and manage the

phone book. Before using the

Bluetooth®, carefully read the

contents of this user’s manual.

• Excessive use or operations

while driving may lead to negli-

gent driving practices and be

the cause of accidents.

• Do not operate the device exces-

sively while driving.

• Viewing the screen for pro-

longed periods of time is dan-

gerous and may lead to acci-

dents.

• When driving, view the screen

only for short periods of time.

Bluetooth

(BT) Audio

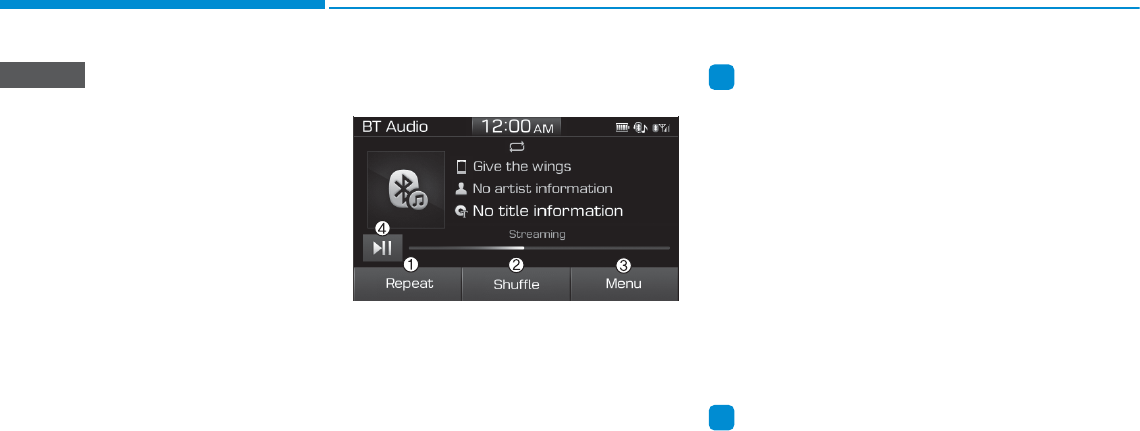

(1) Repeat

Enable/disable repeat play.

(2) Shuffle

Enable/disable shuffle play.

(3) Menu

Navigate to the menu screen.

(4) Play/Pause

Pause or play music.

Information

• Some cell phone models may not

support particular functions.

• Bluetooth®audio volume is synced

with cell phone media volume.

Playback

Press the [MEDIA] button, and

select [BT Audio].

Changing songs

Press the [SEEK/TRACK] button to

play the previous or next song.

Information

Some cell phones may not support this

function.

NOTICE

4-17

Multimedia System

444

Repeat play

Select [Repeat] to enable or disable

‘Repeat all’, ‘Repeat current song’ or

‘Repeat category’ play.

• Repeat all: All songs in the

playlist are repeated.

• Repeat current song: The cur-

rently playing song is repeated.

• Repeat category: Repeat all

songs in the current category.

Information

The repeat play function is engaged,

depending on the operation of the con-

nected Bluetooth®device.

Shuffle play

Select [Shuffle] to enable or disable

‘Shuffle’, ‘Shuffle category’ play.

• Shuffle: Songs are played in

random order.

• Shuffle category: Songs within

the current category are played in

random order.

Information

The shuffle function is engaged,

depending on the operation of the con-

nected Bluetooth®device.

Select [Menu], and select the desired

function.

• Connections: The currently connected

Bluetooth®device can be changed.

• Information: Detailed information on

the currently playing song is displayed.

• Sound Settings: Audio sound set-

tings can be changed.

AUX

Running AUX

Press the [MEDIA] button, and

select [AUX].

Connect the external device connec-

tion jack to the AUX terminal to run

AUX.

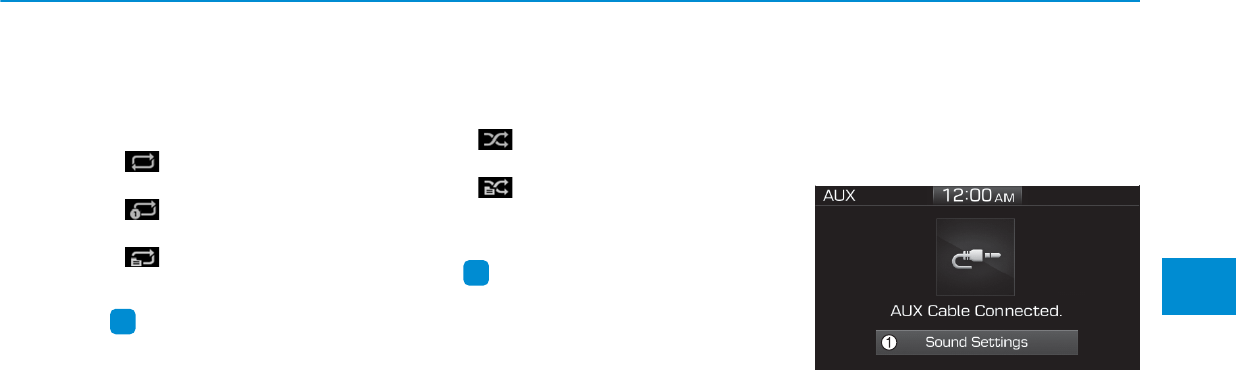

(1) Sound Settings: Audio sound set-

tings can be changed.

4-18

Multimedia System

Phone

Information

- Using Bluetooth®(BT) Phone

• Bluetooth®is a near-field wireless

networking technology that uses the

2.4 GHz frequency to connect vari-

ous devices within a certain distance

wirelessly.

• The technology is used in PCs,

peripherals, Bluetooth®phones,

tablet PCs, household appliances

and automobiles. Devices support-

ing Bluetooth®can exchange data at

high speeds without physical cable

connections.

• Bluetooth®Handsfree devices enable

convenient access to phone functions

through cell phones equipped with

Bluetooth®.

• Some Bluetooth®devices may not be

supported by the Bluetooth®

Handsfree function.

(Continued)

• When Bluetooth®is connected and

calls are attempted through a con-

nected cell phone from outside the

vehicle, the call is connected

through the Bluetooth®Handsfree

function of the vehicle.

• Please be sure to disconnect the

Bluetooth®Handsfree function

through your Bluetooth®device or

the audio screen.

Safety precautions

• The Bluetooth®Handsfree function

helps drivers to drive safely. By

connecting a Bluetooth®-enabled

phone to the vehicle’s audio sys-

tem, phone calls can be made and

received through the audio system

and contacts can be managed.

Consult the user manual before

use.

• Excessive manipulation of controls

while driving, making it difficult to

pay attention to the road ahead,

can lead to accidents. Do not oper-

ate the device excessively while

driving.

• Looking at the screen for a pro-

longed time increases the risk of

accidents. Keep time spent looking

at the screen to a minimum.

4-19

Multimedia System

444

Precautions when connecting

Bluetooth®devices

• The vehicle supports the following

Bluetooth®functions. Some

Bluetooth®devices may not sup-

port some functions.

1) Bluetooth®Handsfree phone

calls

2) Operations during a call

(Private, Switch, Out Vol. con-

trols)

3) Download call history saved to

the Bluetooth®device

4) Download contacts saved to the

Bluetooth®device

5) Automatic contacts/call history

download when Bluetooth®is

connected

6) Automatic Bluetooth®device

connection when the vehicle is

started

7) Bluetooth®audio streaming

playback

• Before connecting the audio sys-

tem to your device, make sure your

device supports Bluetooth®.

• Even if your device supports

Bluetooth®, a Bluetooth®connec-

tion cannot be established if the

device’s Bluetooth®function is

switched off. Search and connect

with the Bluetooth®function

enabled.

• Pair or connect Bluetooth®devices

to the audio system with the vehi-

cle at a standstill.

• If a Bluetooth®connection is lost

due to abnormal conditions while a

Bluetooth®device is connected

(communication range exceeded,

device power OFF, communication

errors, etc.), the disconnected

Bluetooth®device is searched for

and automatically reconnected.

• If you want to disable the

Bluetooth®device auto-connect

function, turn the Bluetooth®func-

tion OFF on your device. Consult

the user manuals for individual

devices to see whether Bluetooth®

is supported.

• Handsfree call quality and volume

may vary depending on the type of

Bluetooth®device.

• Some Bluetooth®devices are sub-

ject to intermittent Bluetooth®con-

nection failures. In this case, use

the following method.

1) Turn the Bluetooth®function off

on your Bluetooth®device ➟

Turn it on and try again.

2) Delete the paired device from

both the audio system and

Bluetooth®device, then pair

again.

3) Power down your Bluetooth®

device ➟Turn it on and try

again.

4) Completely remove the battery

from your Bluetooth®device;

reinsert it, reboot, and attempt

connection.

5) Restart the vehicle and reat-

tempt connection.

4-20

Multimedia System

Pairing a Bluetooth

device

Information on pairing Bluetooth®

devices

• Pairing refers to the process of

pairing Bluetooth®cell phones or

devices with the system prior to

connection. This is a necessary

procedure for Bluetooth®connec-

tion and usage.

• Up to five devices can be paired.

• Pairing Bluetooth®device is not

allowed while vehicle is moving.

Pairing the first Bluetooth®device

Press the [PHONE] button on the

audio system or the [CALL] button

on the steering wheel remote control

➟Search for the vehicle from the

Bluetooth®device, and pair ➟Enter

the passkey on the Bluetooth®

device or approve passkey ➟

Bluetooth®pairing completed.

1. When the [PHONE] button on the

audio system or the [CALL] but-

ton on the steering wheel remote

control is pressed, the following

screen is displayed. Devices can

now be paired.

(1) Vehicle Name: Searched name in

Bluetooth®device.

Information

The vehicle name in the image above

is an example. Refer to your device for

the actual name of your device.

2. Search for available Bluetooth®

devices in the Bluetooth®menu of

your Bluetooth®device (cell

phone, etc.).

3. Confirm that the vehicle name in

your Bluetooth®device matches

the vehicle name shown on the

audio screen, then select it.

4-1. For devices that require passkey

entry, a passkey entry screen is

shown on your Bluetooth®

device.

- Enter the passkey ‘0000’, in your

Bluetooth®device.

4-2. For devices that require passkey

confirmation, the following

screen is shown on the audio

system. A 6-digit passkey input

screen is shown in the

Bluetooth®device.

- After confirming that the 6-digit

passkey on the audio screen

and the Bluetooth®device are

identical, select [OK] in your

Bluetooth®device.

4-21

Multimedia System

444

Information

The 6-digit passkey in the image

above is an example. Refer to your

vehicle for the actual passkey.

Pairing a second Bluetooth®device

Press the [SETUP] button on the

audio system ➟ Select [Bluetooth] ➟

Select [Connections] ➟Select [Add

New].

- The pairing procedure from this

point is identical to [Pairing the first

Bluetooth device].

Information

• Bluetooth®standby mode lasts for

three minutes. If a device is not

paired within three minutes, pairing

is canceled. Start over from the

beginning.

• For most Bluetooth®devices, a con-

nection is established automatically

after pairing. Some devices, howev-

er, require separate confirmation

when connecting after pairing. Be

sure to check your Bluetooth®

device after pairing to confirm that

it has connected.

Connecting Bluetooth

devices

If there are no connected devices

Press the [PHONE] button on the

audio system or the [CALL] button in

the steering wheel remote control ➟

List of paired Bluetooth®devices ➟

Select the desired Bluetooth®device

from the list ➟Connect Bluetooth®.

4-22

Multimedia System

If there are connected devices

Press the [PHONE] button on the

audio system ➟Select [Settings] ➟

Select [Connections] ➟Select

Bluetooth®device to connect ➟Select

[Connect] ➟Connect Bluetooth®.

Information

• Only one Bluetooth®device can be

connected at a time.

• When a Bluetooth®device is con-

nected, other devices cannot be

paired.

Accepting/rejecting phone calls

Receiving phone calls with

Bluetooth®connected.

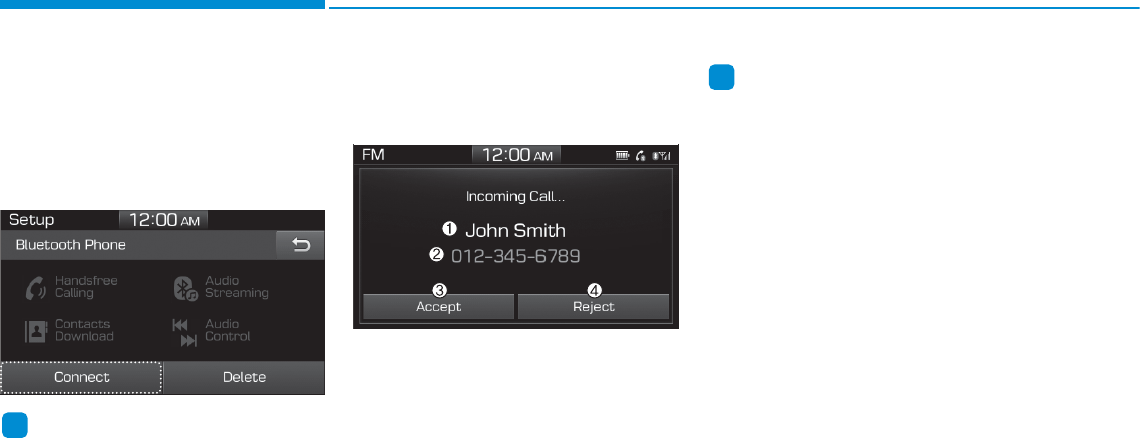

(1) Caller name: If the caller number

is in your contacts, the correspon-

ding name is displayed.

(2) Incoming phone number:

Incoming phone number is dis-

played.

(3) Accept: Accept call.

(4) Reject: Reject call.

Information

• When the incoming call screen is

displayed, audio mode and the set-

tings screen cannot be shown. Only

call volume control is supported.

• Some Bluetooth®devices may not

support the call reject function.

• Some Bluetooth®devices may not

support the phone number display

function.

4-23

Multimedia System

444

Operation during calls

Incoming call with Bluetooth®con-

nected ➟Select [Accept].

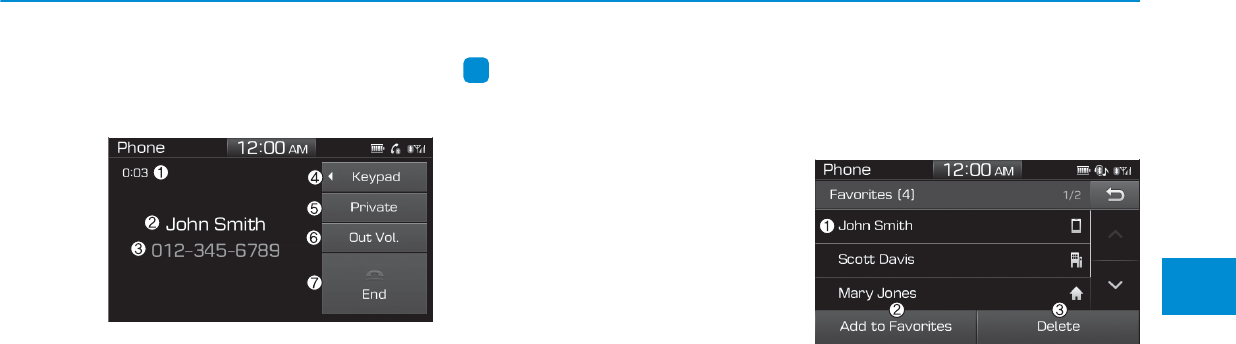

(1) Display Call duration: Call dura-

tion display.

(2) Caller name: If the caller number is

in your contacts, the corresponding

name is displayed.

(3) Incoming phone number: Incoming

phone number is displayed.

(4) Keypad: Number keypad for

Automatic Response Service input

is displayed.

(5) Private: Call is transferred to a

cell phone.

(6) Outgoing Volume: Adjust outgo-

ing voice volume.

(7) End: End call.

Information

• Some Bluetooth®devices may not

support the Private function.

• The outgoing voice volume may

vary depending on the type of

Bluetooth®device. If the outgoing

voice volume is too high or low,

adjust the Outgoing Volume.

Favorites

Press the [PHONE] button on the

audio system ➟Select [Favorites] ➟

Favorites list displayed.

(1) Favorites list: A list of paired

favorites is displayed.

Connect a call when selected.

(2) Add to Favorites: Add a down-

loaded phone number to favorites.

(3) Delete: Delete a saved favorite.

4-24

Multimedia System

Information

• Up to 20 favorites can be saved for

each connected Bluetooth®device.

• Favorites can be accessed when the

Bluetooth®device they were paired

from is connected.

• The audio system does not down-

load favorites from Bluetooth®

devices. Favorites must be newly

saved before use.

• To add to favorites, contacts must be

downloaded first.

• Saved favorites are not updated

even if the contacts of the connected

Bluetooth®device are changed. In

this case, favorites need to be delet-

ed and added again.

Call History

Press the [PHONE] button on the

audio system ➟Select [Call History]

➟Call history is displayed.

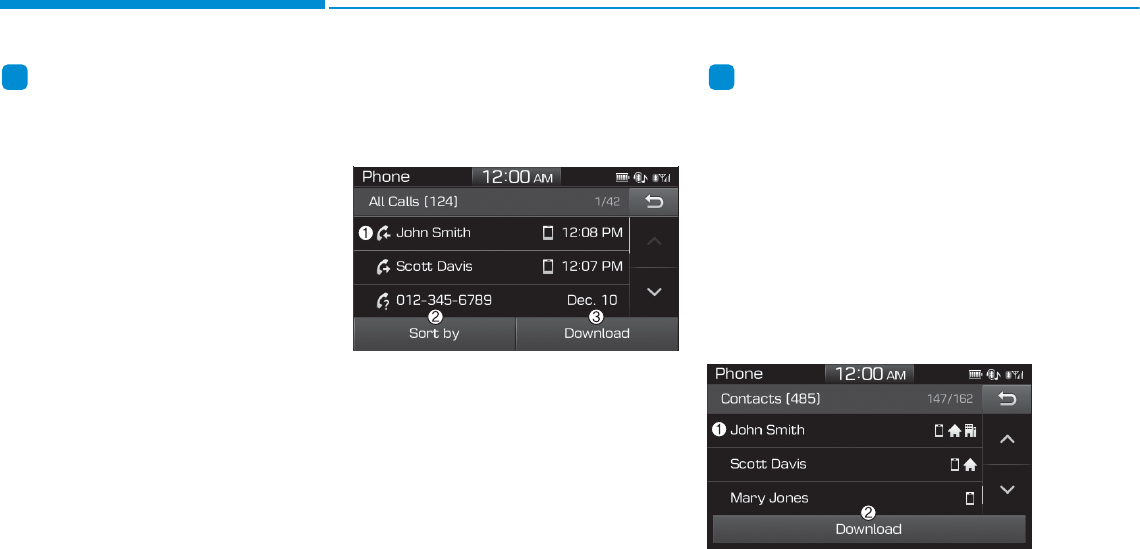

(1) Call History: Display the down-

loaded call history list.

Connect a call when selected.

(2) Sort by: Sort by All Calls, Dialed

Calls, Received Calls or Missed

Calls.

(3) Download: Download call history

from connected Bluetooth®devices.

Information

• Up to 50 dialed, received and missed

calls are saved.

• When the latest call history is

received, the existing call history is

deleted.

Contacts

Press the [PHONE] button on the

audio system ➟Select [Contacts] ➟

Select letter (ABC) ➟Contacts are

displayed.

(1) Contacts: Display downloaded

contacts.

Connect a call when selected.

(2) Download: Download contacts from

connected Bluetooth®devices.

4-25

Multimedia System

444

Information

• Only supported contacts format can

be downloaded and displayed from

the Bluetooth device, contacts from

some applications will not be included.

• Up to 2,000 contacts can be saved.

• In some cases, additional confirmation

from your Bluetooth®device is neces-

sary when downloading contacts. If

downloading of contacts unsuccessful,

consult your Bluetooth®device’s set-

tings or the audio screen to approve

the download.

• Contacts without phone numbers

are not displayed.

Dial

Press the [PHONE] button on the

audio system ➟Select [Dial].

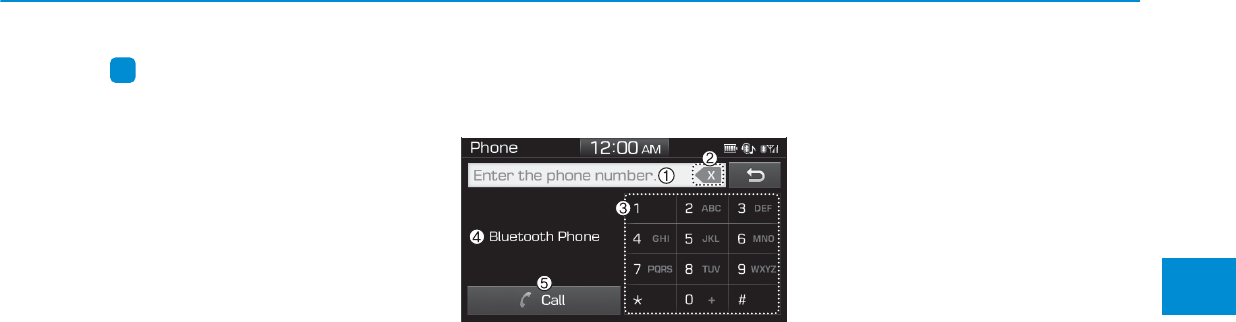

(1) Phone number entry window: The

phone number entered using the

keypad is displayed.

(2) Clear

- Shortly press to delete individual

digits.

- Press and hold to delete the

entire phone number.

(3) Keypad: Enter phone number.

(4) Bluetooth®Phone name

- The name of the connected

Bluetooth®device is displayed.

- Contacts matching the keypad

number/letter input are dis-

played.

(5) Call

- Enter and select a phone num-

ber to call.

- Select without entering a phone

number to see the most recent

dialed call.

Settings

Press the [PHONE] button on the

audio system ➟Select [Settings].

- For more details, refer to Setup ➟

Bluetooth page.

4-26

Multimedia System

Setup

Setup is the screen to control Audio

system settings.

Press the [SETUP] button on the

audio system.

Display

Press the [SETUP] button on the

audio system ➟Select [Display].

• Mode: Adjusts the brightness auto-

matically according to surrounding

brightness.

• Illumination: The brightness of the

audio screen can be changed.

• Text Scroll: If text is too long to be

displayed on the screen, enable

the text scroll function.

Sound

Press the [SETUP] button on the

audio system ➟Select [Sound].

• Position: Sound balance and fader

can be adjusted.

• Tone: Sound tone color can be

adjusted.

• Back-up Warning Priority:

Automatically lower audio volume

while reversing.

• Speed Dependent Volume:

Automatically adjust volume based

on vehicle speed.

• Beep: Select whether to play a

beep sound when the screen is

touched.

Date/Time

Press the [SETUP] button on the

audio system ➟Select [Date/Time].

• Set Time: Set the time displayed on

the audio screen.

• Time Format: Choose between 12-

hour and 24-hour time formats.

• Set Date: Set the date displayed on

the audio screen.

Bluetooth

Press the [SETUP] button on the

audio system ➟Select [Bluetooth].

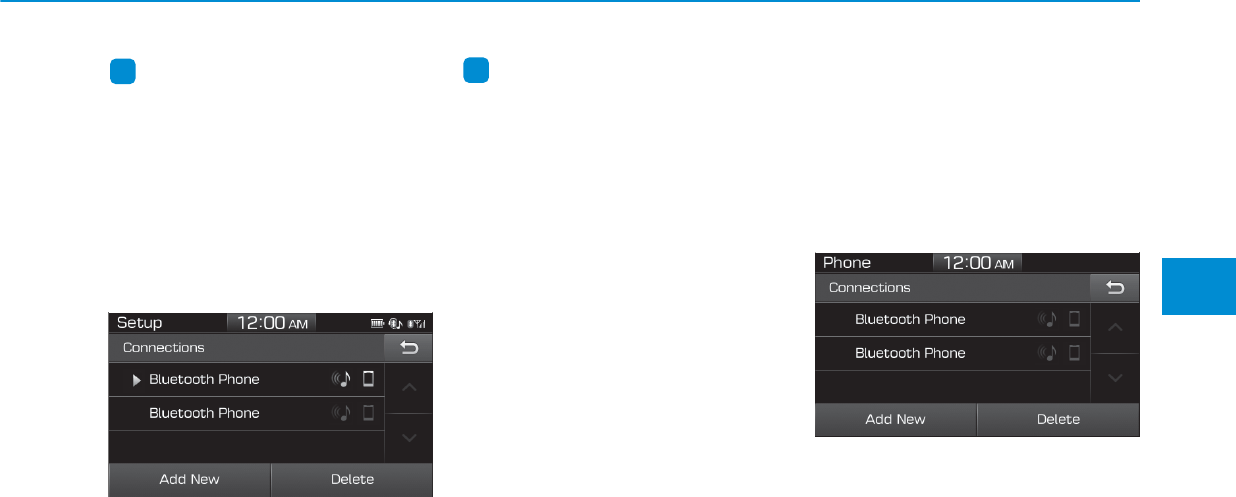

• Connections: Control pairing, dele-

tion, connection and disconnection

of Bluetooth®devices.

• Auto Connection Priority: Set the

connection priority of Bluetooth®

devices when the vehicle is start-

ed.

• Download Contacts: Contacts can

be downloaded from connected

Bluetooth®devices.

4-27

Multimedia System

444

Information

• When paired devices are deleted,

the call history and contacts of the

device saved to the audio system are

deleted.

• For Bluetooth®connections with

low connection priority, some time

may be required for the connection

to be established.

• Contacts can be downloaded only

from the currently connected

Bluetooth®device.

• If no Bluetooth®device is connected,

the Download Contacts button is

disabled.

System

Press the [SETUP] button on the

audio system ➟Select [System].

• Language: Change the user lan-

guage.

• Default: Reset the audio system.

Information

• The system resets to the default val-

ues, and all saved data and settings

are lost.

Screen Saver

Set the information displayed when

the audio system is switched off or

the screen is turned off.

Press the [SETUP] button on the

audio system ➟Select [Screen

Saver].

• Analog: An analog clock is dis-

played.

• Digital: A digital clock is displayed.

• None: No information is displayed.

Display Off

To prevent glare, the screen can be

turned off with the audio system in

operation.

Press the [SETUP] button on the

audio system ➟Select [Display Off].

Information

Use ‘Screen Saver’ to set the informa-

tion to be displayed when the screen is

turned off.

FCC#Warning#

This%equipment%has%been%tested%and%found%to%comply%with%the%limits%for%a%Class%B%digital%device,%pursuant%to%part%15%

of%the%FCC%Rules.%These%limits%are%designed%to%provide%reasonable%protection%against%harmful%interference%in%a%

residential%installation.%This%equipment%generates,%uses%and%can%radiate%radio%frequency%energy%and,%if%not%installed%

and%used%in%accordance%with%the%instructions,may%cause%harmful%interference%to%radio%communications.%However,%

there%is%no%guarantee%that%interference%will%not%occur%in%a%particular%installation.%If%this%equipment%does%cause%

harmful%interference%to%radio%or%television%reception,%which%can%be%determined%by%turning%the%equipment%off%and%

on,%the%user%is%encouraged%to%try%to%correct%the%interference%by%one%ormore%of%the%following%measures:%



■%Reorient%or%relocate%the%receiving%antenna.%

■%Increase%the%separation%between%the%equipment%and%receiver.%

■%Connect%the%equipment%into%an%outlet%on%a%circuit%different%from%that%to%which%the%receiver%is%connected.%

■%Consult%the%dealer%or%an%experienced%radio/TV%technician%for%help.%

Caution:%Any%changes%ormodifications%to%this%device%not%explicitly%approved%by%manufacturer%could%void%

your%authority%to%operate%this%equipment.%

This%device%complies%with%part%15%of%the%FCC%Rules.%Operation%is%subject%to%the%following%two%conditions:%

(1)%This%device%may%not%cause%harmful%interference,%and%(2)%this%device%must%accept%any%interference%received,%

including%interference%that%may%cause%undesired%operation.%

This%equipment%complies%with%the%FCC%RF%radiation%exposure%limits%set%forth%for%an%uncontrolled%environment.%This%

equipment%should%be%installed%and%operated%with%a%minimum%distance%of%20cm%between%the%radiator%and%any%part%

of%your%body.%

HYUNDAI MOBIS ACB12A0IG DIGITAL CAR AUDIO SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM

User manual

Navigation menu

Namespaces

Views

Navigation
