Car Multimedia System ] User’s Manual

$&6)

৔য]޷Ҵ٣য়٣য়ࣁ؀

Thank you for purchasing this multimedia

system.

This user’s manual explains how to use

the HYUNDAI Motor multimedia system.

Before using the product, read the con-

tents of this user’s manual carefully and

use this product safely.

•

The screens shown in this manual may

differ with the actual screens of the prod-

uct.

•

The design and specification of this prod-

uct may change without prior notification

for product improvement.

•

When transferring the vehicle to another

individual, include this user’s manual so

that the next driver can continue its use.

Precaution for safe usage

•

Driving while distracted can result in a loss

of vehicle control, that may lead to an acci-

dent, severe personal injury, and death. The

driver’s primary responsibility is in the safe

and legal operation of a vehicle, and use

of any handheld devices, other equipment,

or vehicle systems which take the driver’s

eyes, attention and focus away from the

safe operation of a vehicle or which are not

permissible by law should never be used

during operation of the vehicle.

•

Do not operate the

multimedia system

while driving.

•

Do not disassemble, assemble, or modify

the

multimedia system

•

Do not watch the screen for prolonged peri-

ods of time while driving.

•

Set the volume to a level which allows the

driver to be aware of external conditions.

•

Do not operate the

multimedia system

for

prolonged periods of time with the vehicle

ignition in ACC. Such operations may lead

to battery discharge.

•

Be cautious not to spill water or introduce

foreign objects into the device.

•

Do not cause severe shock to the device.

Direct pressure onto the front side of the

monitor may cause damage to the LCD or

touch panel.

•

In case of product malfunction, please con-

tact your place of purchase or service cen-

ter.

•

When cleaning the touch screen, make

sure to turn off the device and use a dry

and smooth cloth. Never use tough materi-

als, chemical cloths, or solvents (alcohol,

ammonia, benzene, thinners, etc.) as such

materials may damage the device panel or

cause color and quality deterioration.

WARNING

•Driving while distracted can result in a

loss of vehicle control that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation of a

vehicle, and use of any handheld devices,

other equipment, or vehicle systems which

take the driver’s eyes, attention and focus

away from the safe operation of a vehicle

or which are not permissible by law should

never be used during operation of the

vehicle.

5HDGWKHIROORZLQJVDIHW\SUHFDXWLRQVIRU\RXU

VDIHW\

Before using the product, read the contents of this user’s manual

carefully and use this product safely.

୔ The design and speciﬁcations of this product may change without prior

notiﬁcation for product and service improvement.

The actual features in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

୔ This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁed under the GNU General

Public license, Version 2, June 1991, and the GNU lesser General

Public License, Version 2.1, February 1999.

For additional information and to obtain related materials including

without limitation, the previous referred to licenses and software, please

1RWDWLRQVXVHGZLWKLQWKLV8VHUΰV0DQXDO

WARNING

• A WARNING indicates that a condition may result in harm, serious bodily

injury or death if the warning is ignored.

CAUTION

• A CAUTION indicates that a condition may result in damage to your

vehicle if the caution is ignored.

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

+<81'$,9(+,&/(2:1(535,9$&<32/,&<

Your Hyundai vehicle may be equipped with technologies and services that use information collected,

generated, recorded or stored by the vehicle. Hyundai has created a Vehicle Owner Privacy Policy to explain

how these technologies and services collect use and share this information.

You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website at:

https://www.hyundaiusa.com/owner-privacy-policy.aspx

If you would like to receive a hard copy of our Vehicle Owner Privacy Policy, please contact our Customer

Connect Center at:

Hyundai Customer Care

P.O. Box 20850

Fountain Valley, CA 92728

800-633-5151

consumeraffairs@hmausa.com

Hyundai

’

s Customer Connect Center representatives are available Monday through Friday,

between the hours of 5:00 AM and 7:00 PM PST and Saturday and Sunday between 6:30 AM and 3:00 PM PST

(English).

For Customer Connect Center assistance in Spanish or Korean, representatives are available Monday

through Friday between 6:30 AM and 3:00 PM PST.

Table of Contents I 3



7DEOHRI&RQWHQWV

 %DVLF

:DUQLQJVDQG&DXWLRQV

.H\3URGXFW)HDWXUHV

&RPSRQHQW1DPHVDQG)XQFWLRQV

Head Unit ……………………………… 1-5

Steering Wheel Controls ……………… 1-7

6WDUWLQJWKH6\VWHPIRUWKH)LUVW

7LPH

Turning the System On/Off …………… 1-9

System Reset ………………………… 1-9

Battery Warning Message …………… 1-10

Restrictions on Features for Safety

Measures ……………………………… 1-10

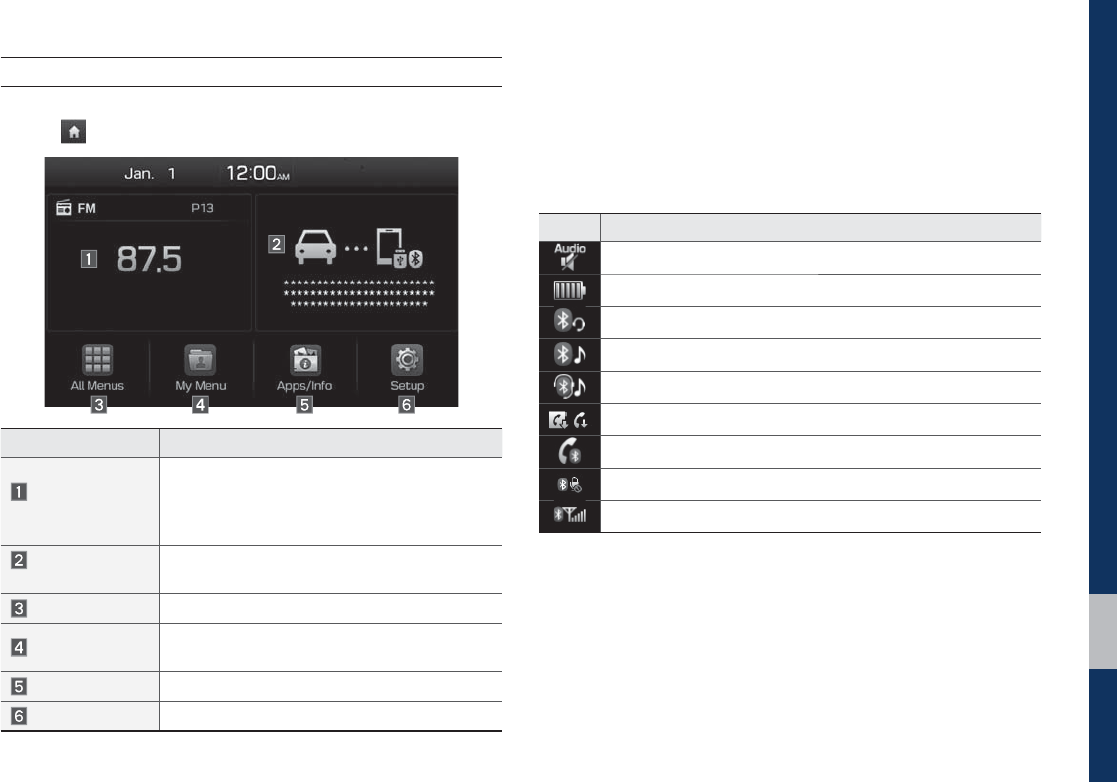

Home Screen ………………………… 1-11

On-Screen Touch Controls …………… 1-12

 5DGLR0HGLD

)0$0

86%

Before Playing a USB MP3 …………… 2-4

Supported USB MP3 music

specifications ………………………… 2-6

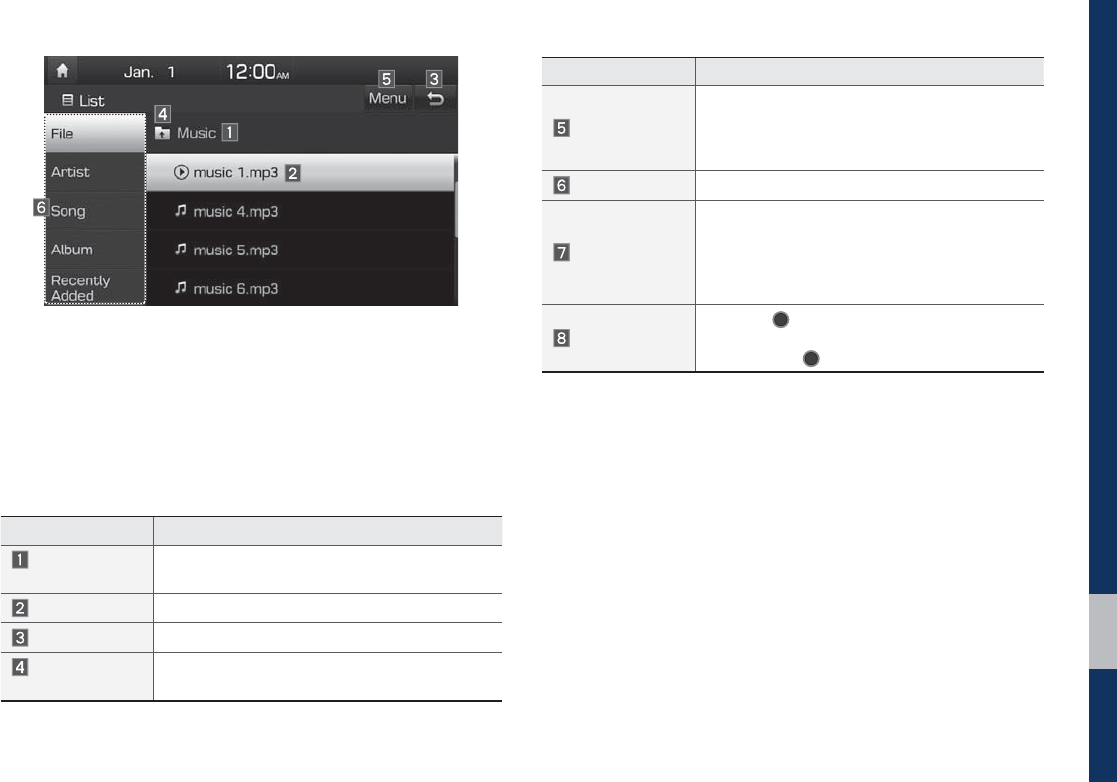

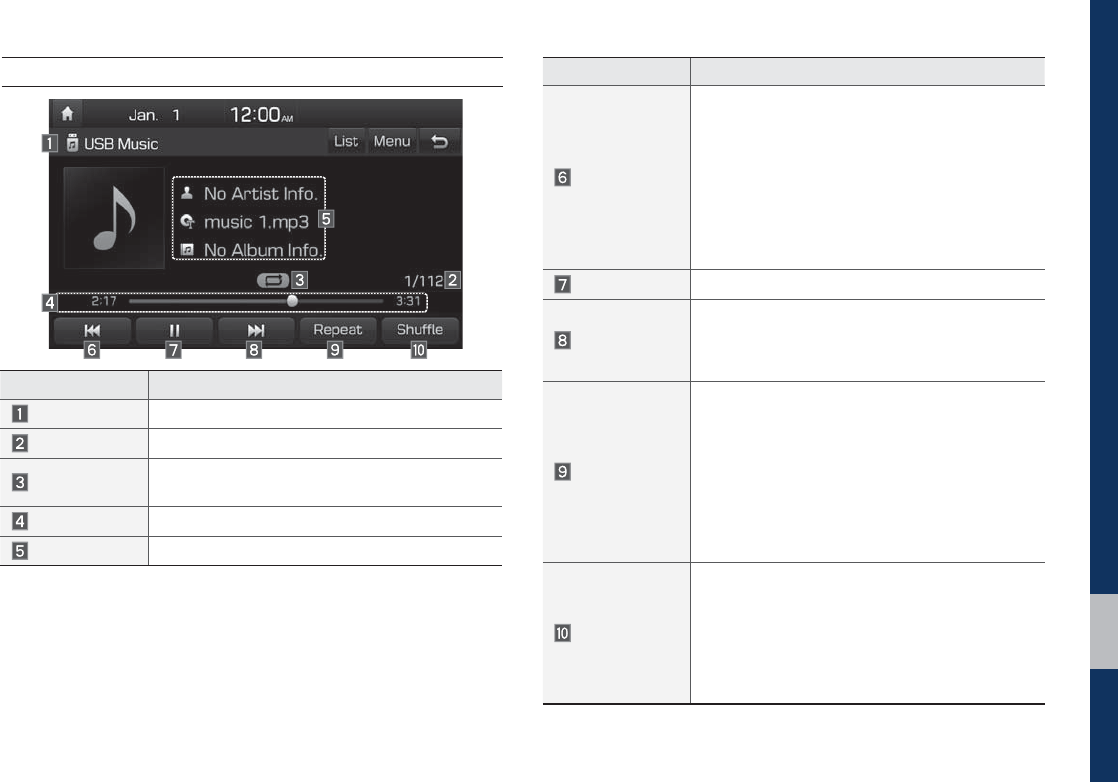

USB Music …………………………… 2-7

L3RG

Using iPod Devices …………………… 2-10

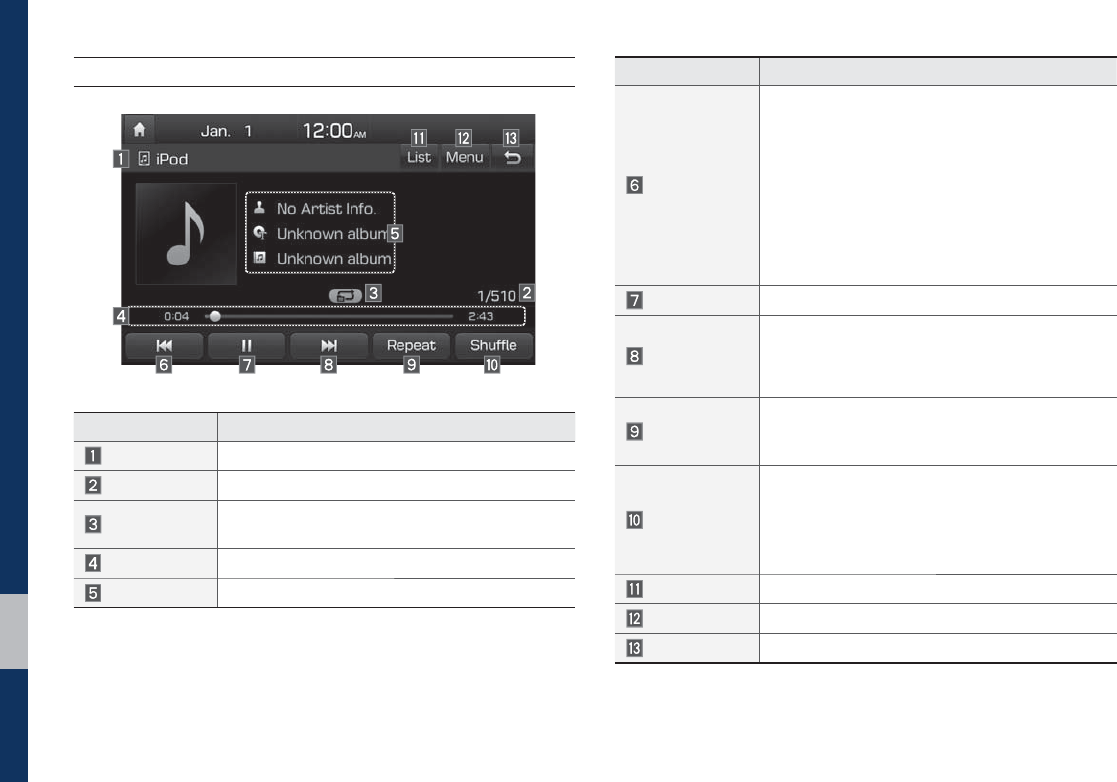

iPod …………………………………… 2-14

$8;

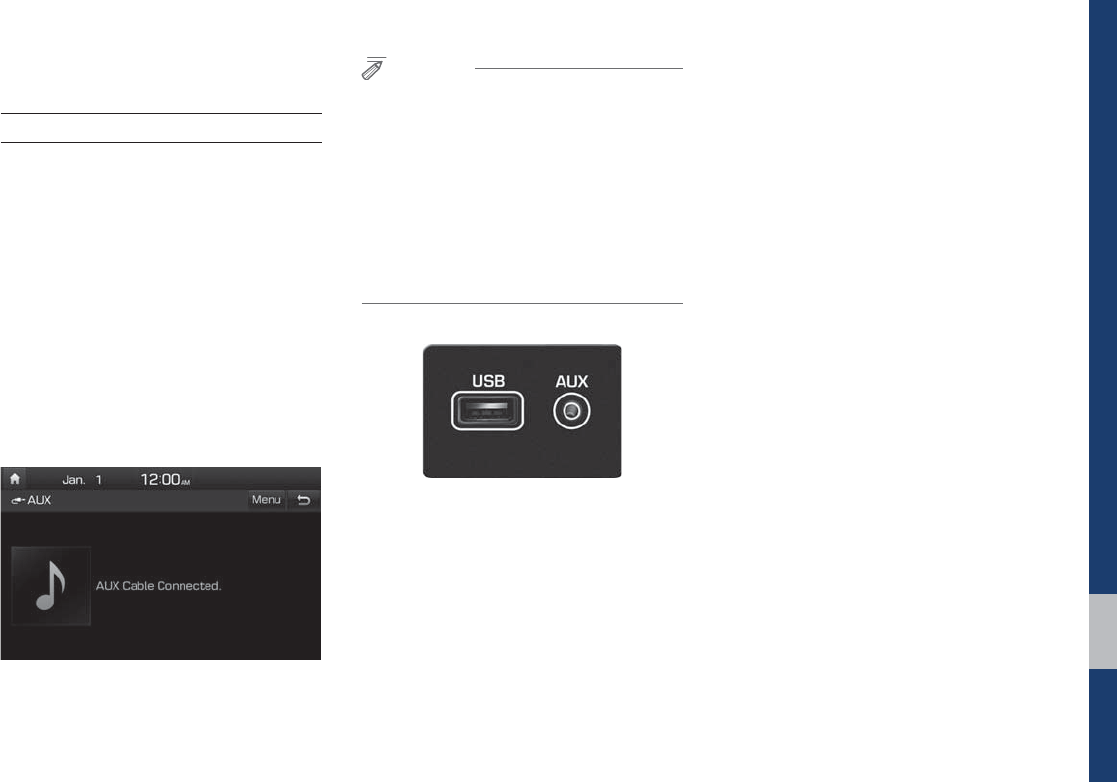

Connecting an External Device ……… 2-17

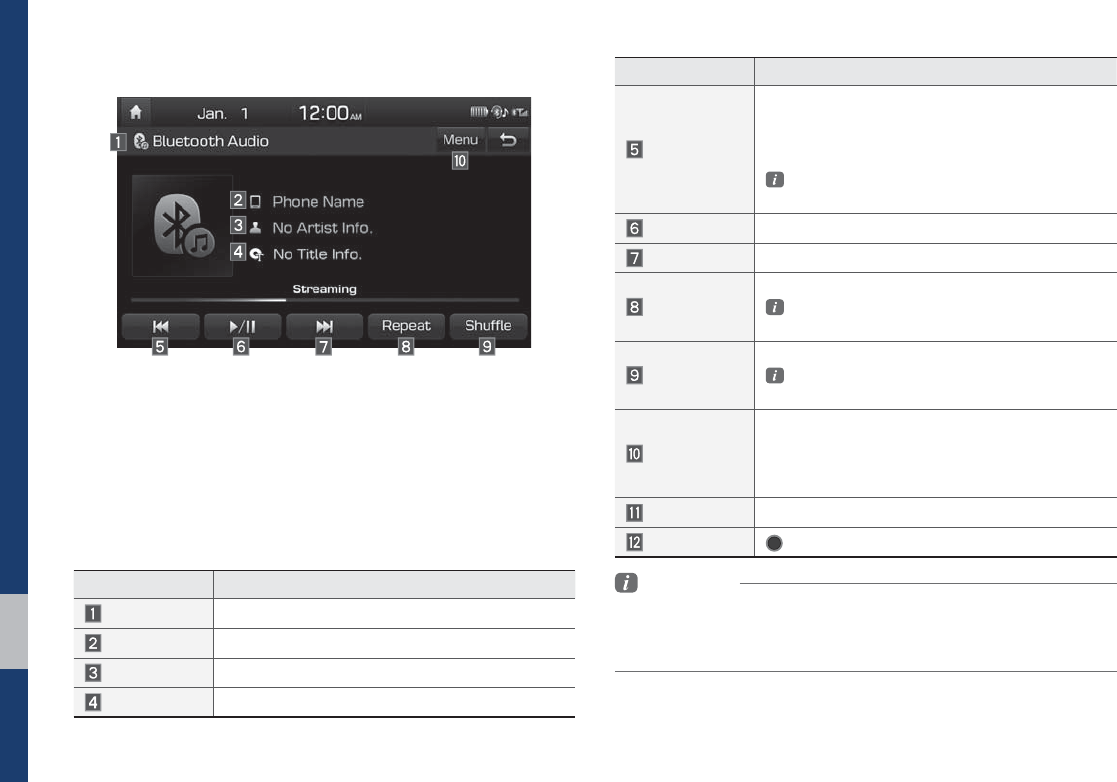

%OXHWRRWKp$XGLR

Bluetooth Connection Settings ……… 2-19

 %OXHWRRWK

%HIRUH8VLQJWKH%OXHWRRWKp

+DQGVIUHH

What is

Bluetooth

Wireless

Technology? …………………………… 3-2

Precautions for Safe Driving ………… 3-2

CAUTIONS upon Connecting

Bluetooth® Phone …………………… 3-3

%OXHWRRWK&RQQHFWLRQ

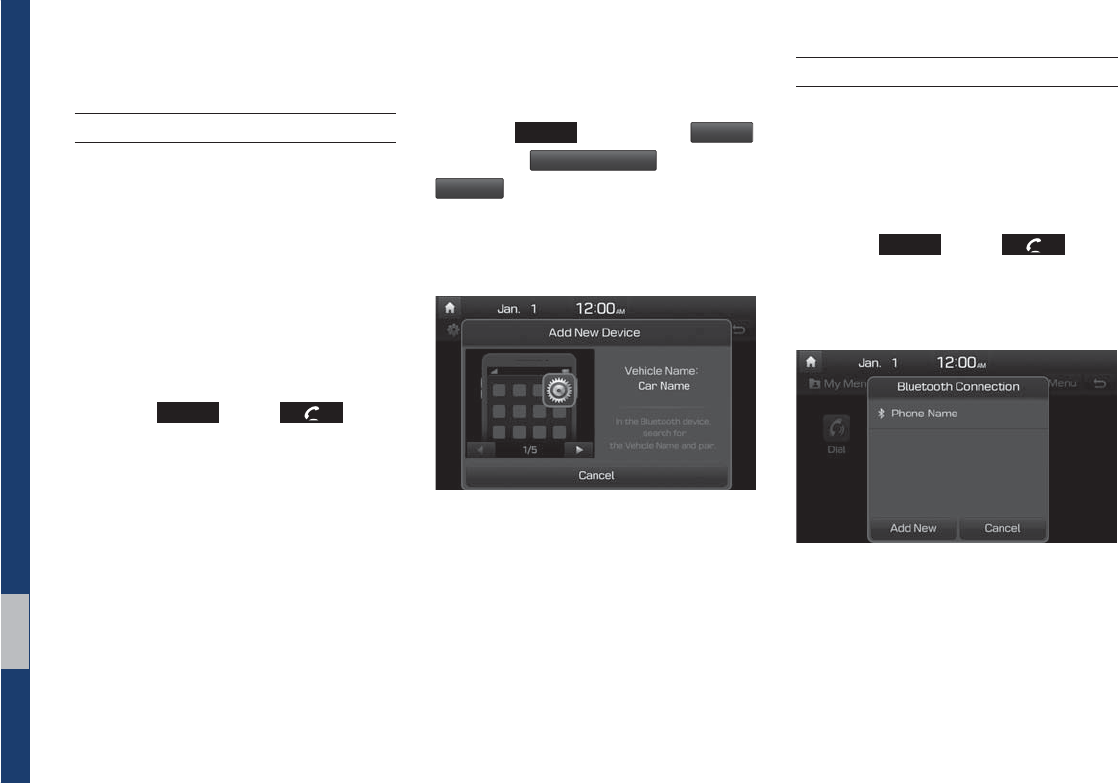

Pairing a New Device ………………… 3-4

Connecting Bluetooth Devices ……… 3-4

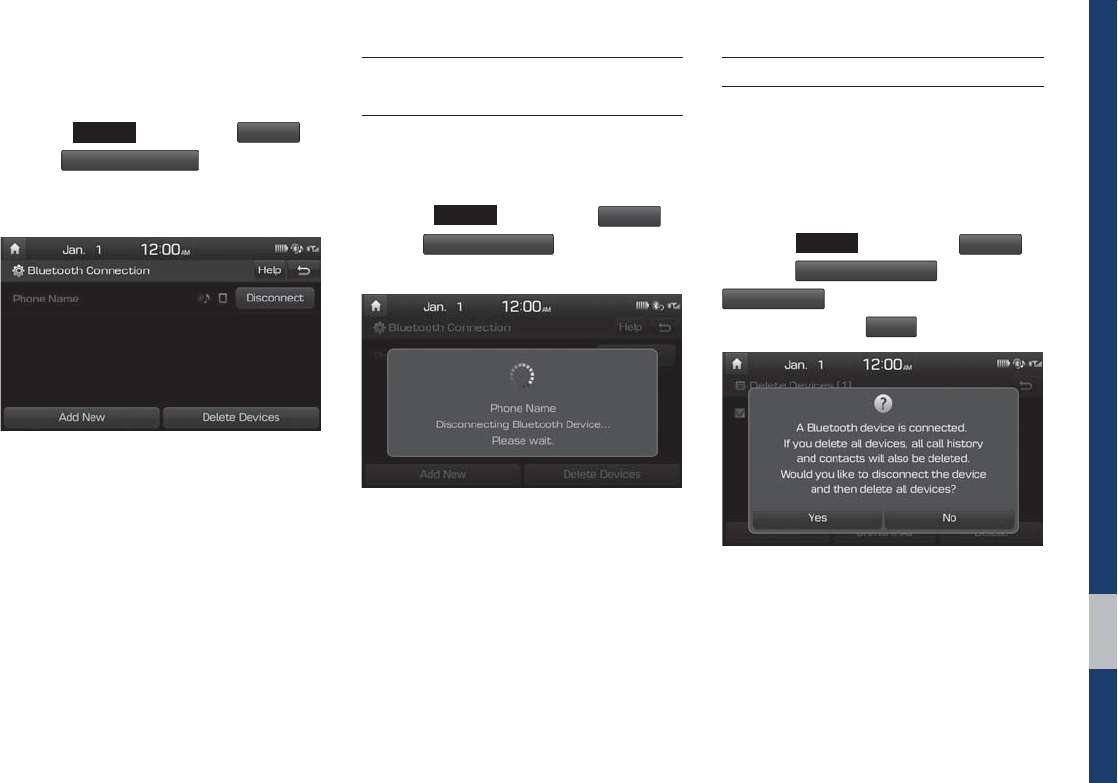

Disconnecting Bluetooth Devices …… 3-5

Deleting Bluetooth Devices …………… 3-5

%OXHWRRWK3KRQH

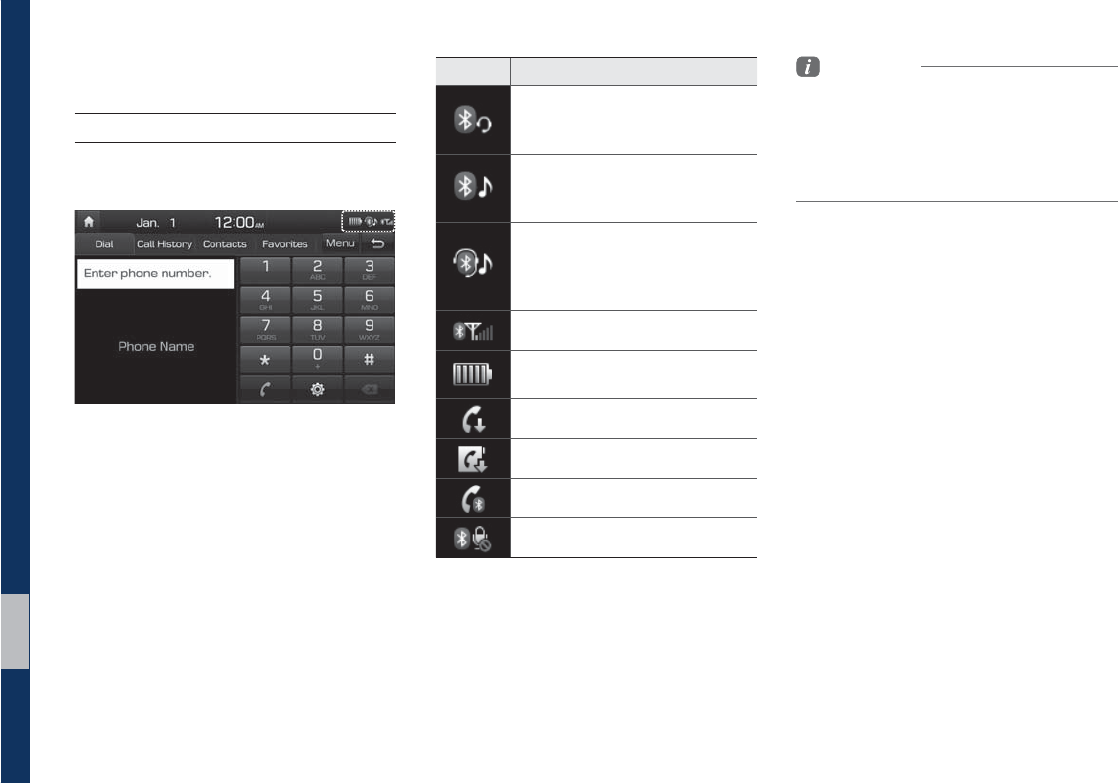

Phone Status Icons …………………… 3-6

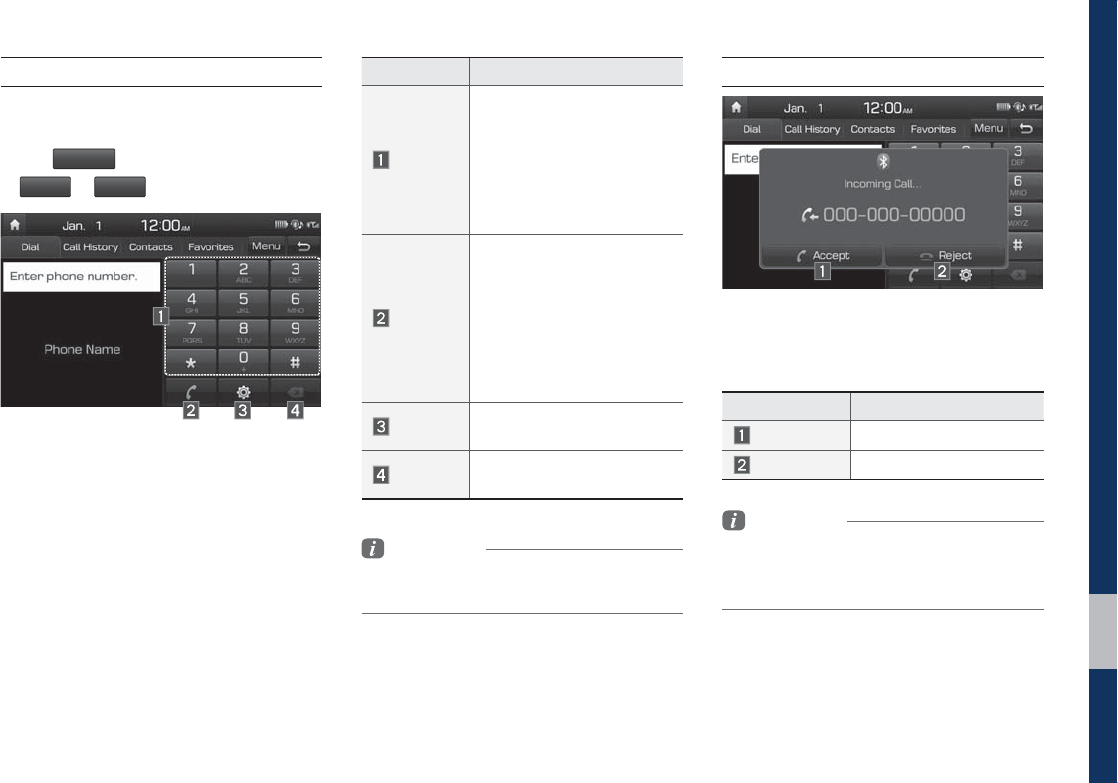

Dial …………………………………… 3-7

Accept/Reject Call …………………… 3-7

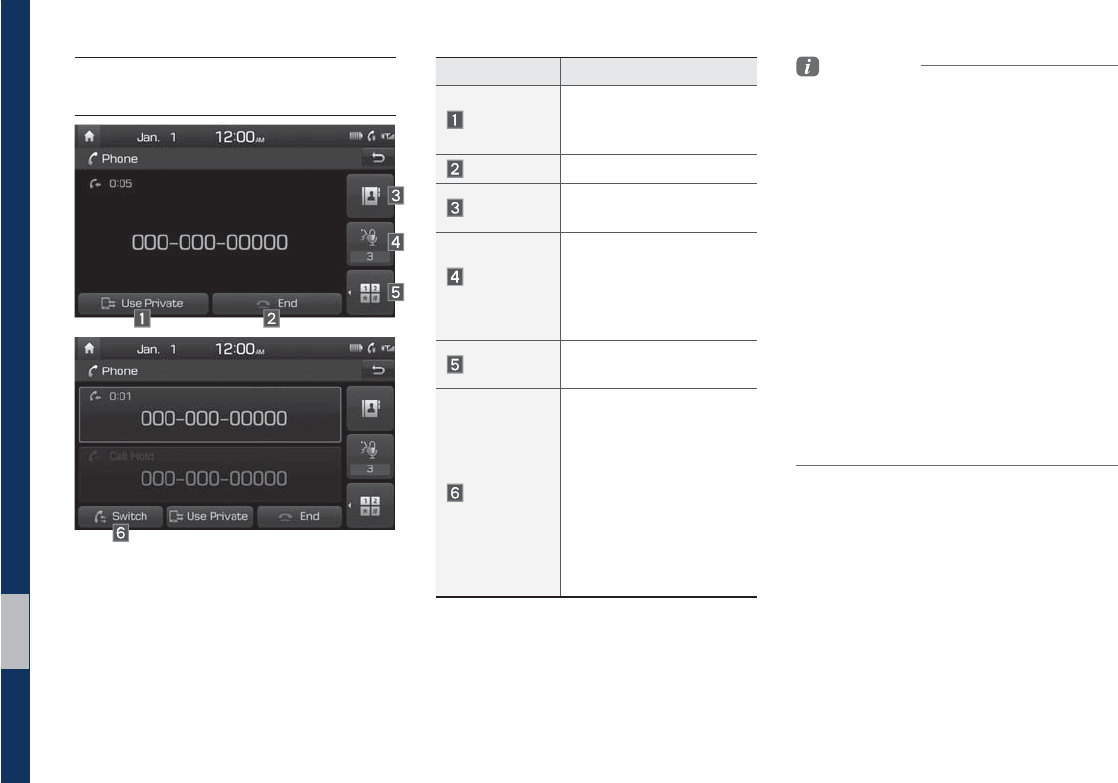

Using the Menu During a Phone

Call …………………………………… 3-8

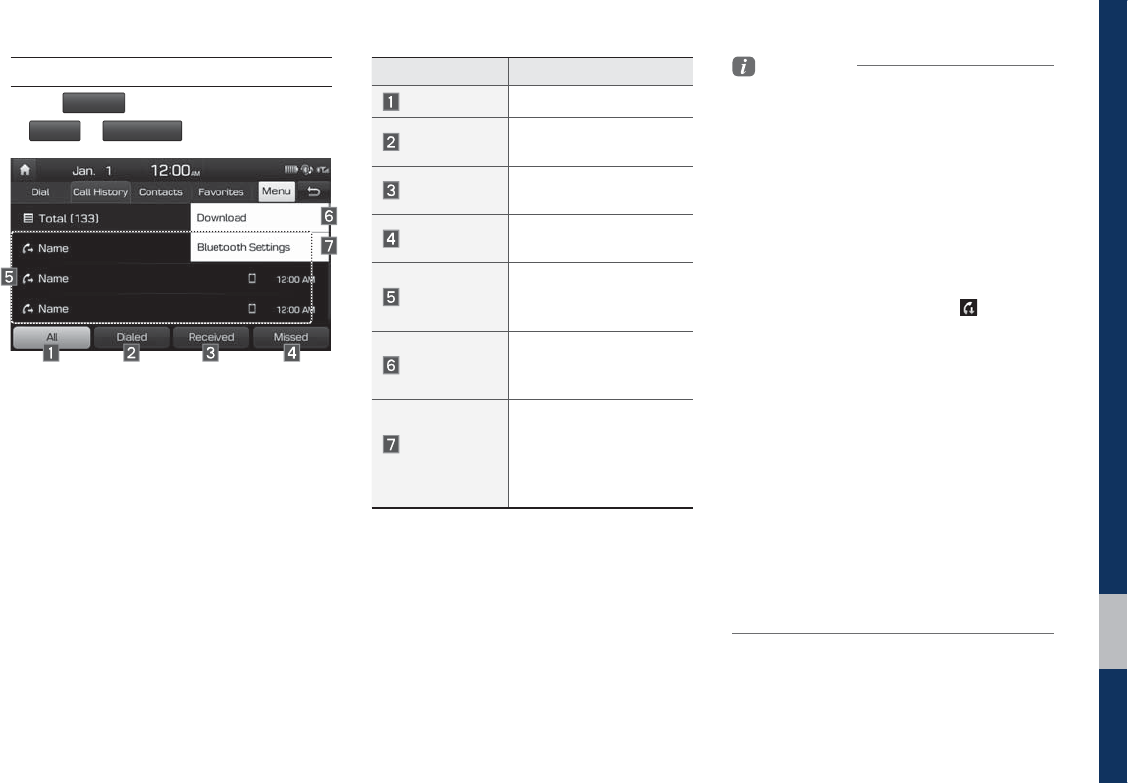

Call History …………………………… 3-9

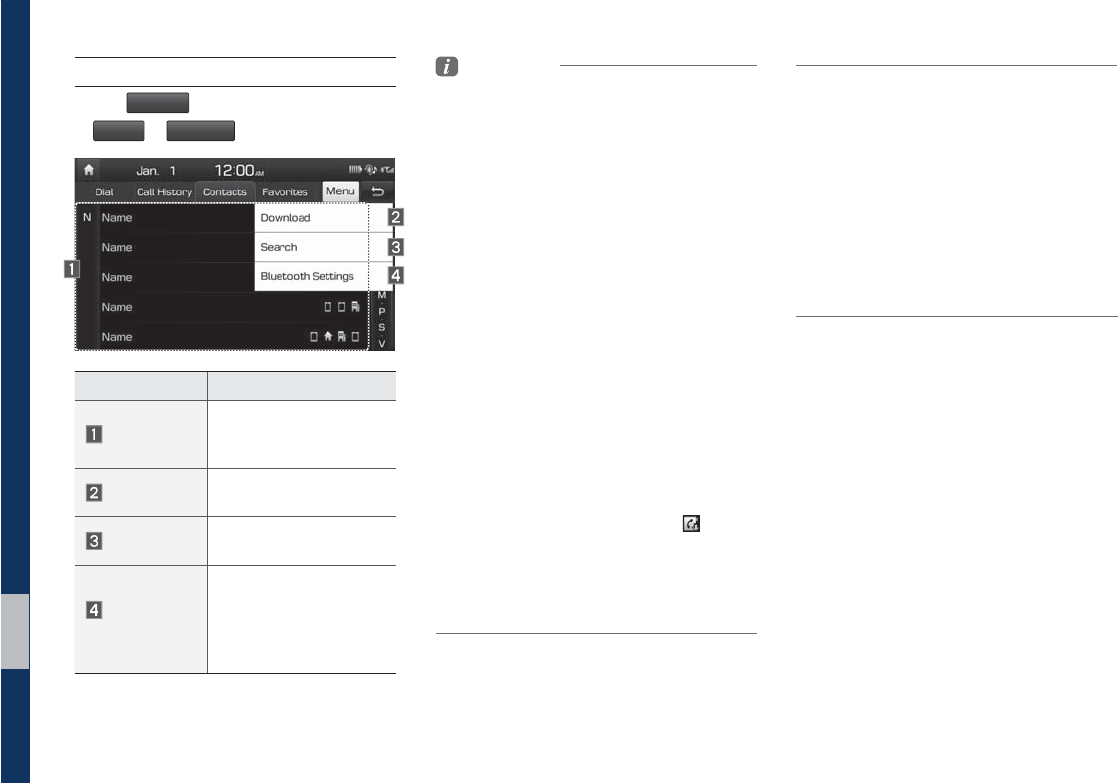

Contacts ……………………………… 3-10

Favorites ……………………………… 3-11

4 I Table of Contents

 2WKHU)HDWXUHV

&DPHUD

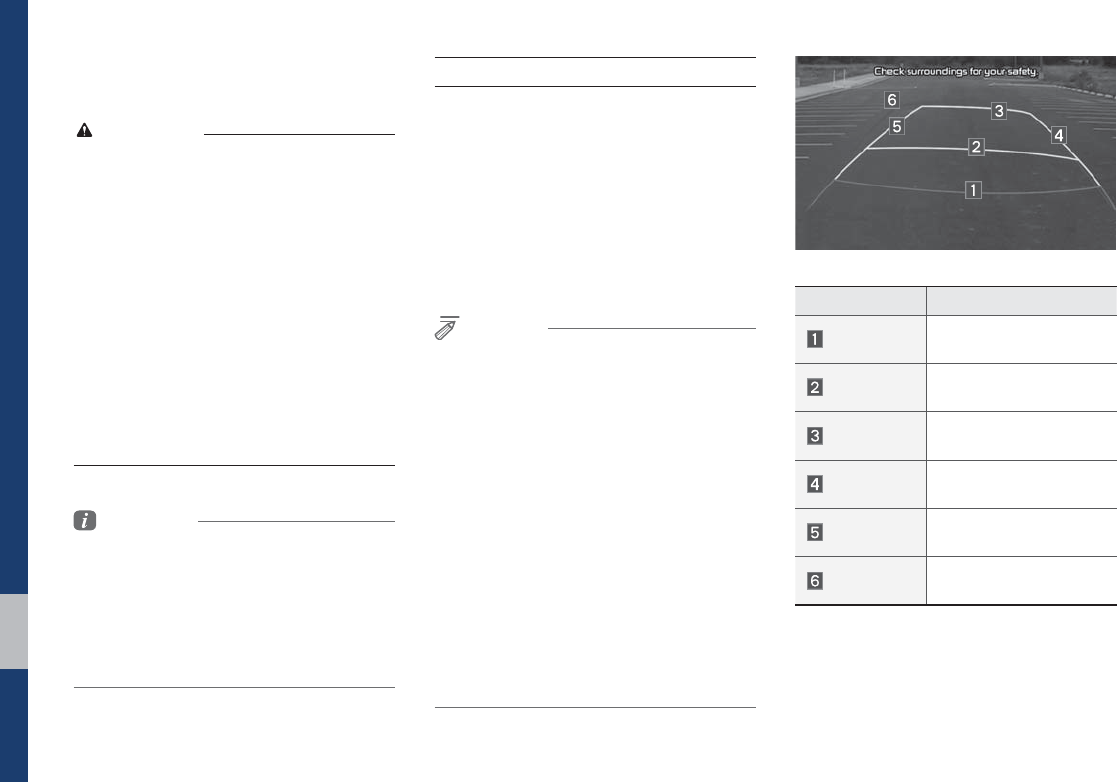

Steering-linked camera ……………… 4-2

 6HWXS

6HWXS

6RXQG6HWWLQJV

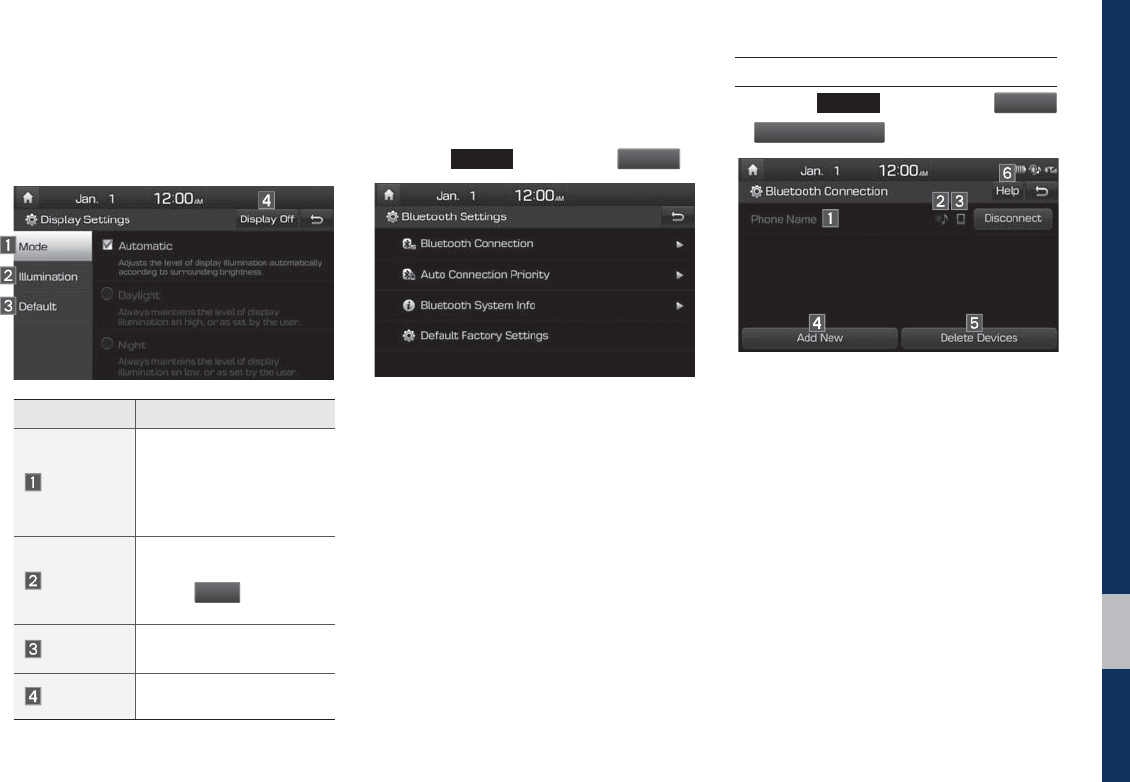

'LVSOD\6HWWLQJV

%OXHWRRWK6HWWLQJV

Bluetooth Connection ………………… 5-3

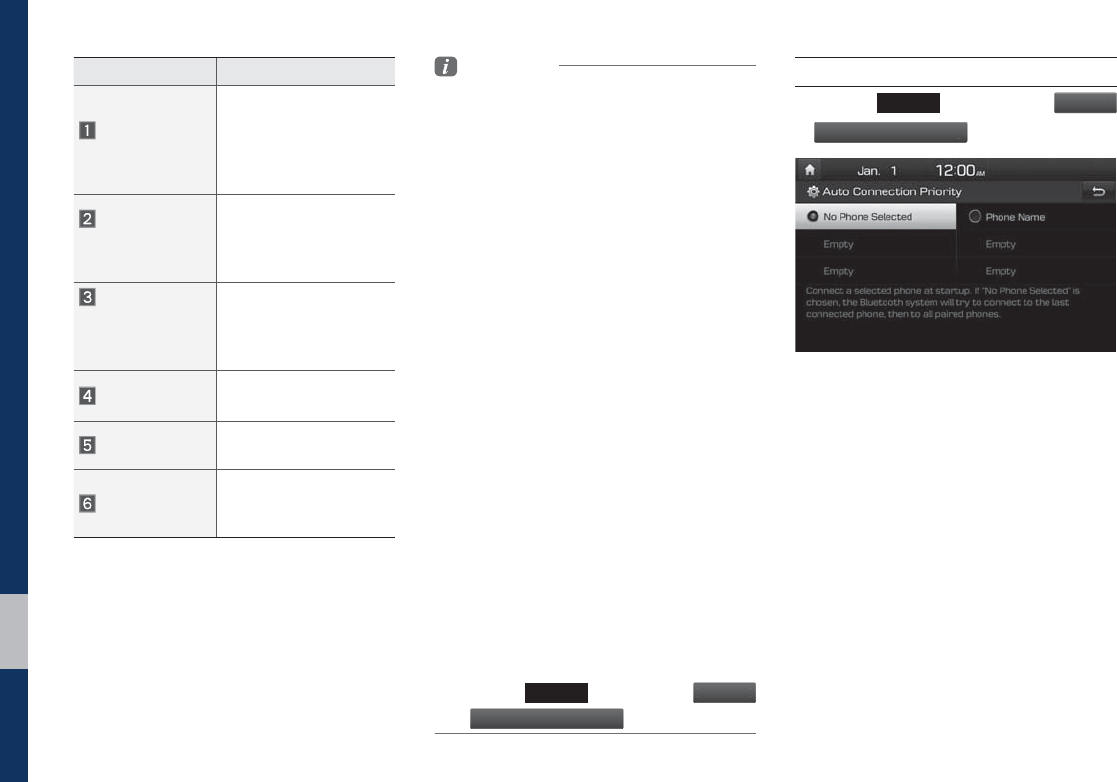

Auto Connection Priority ……………… 5-4

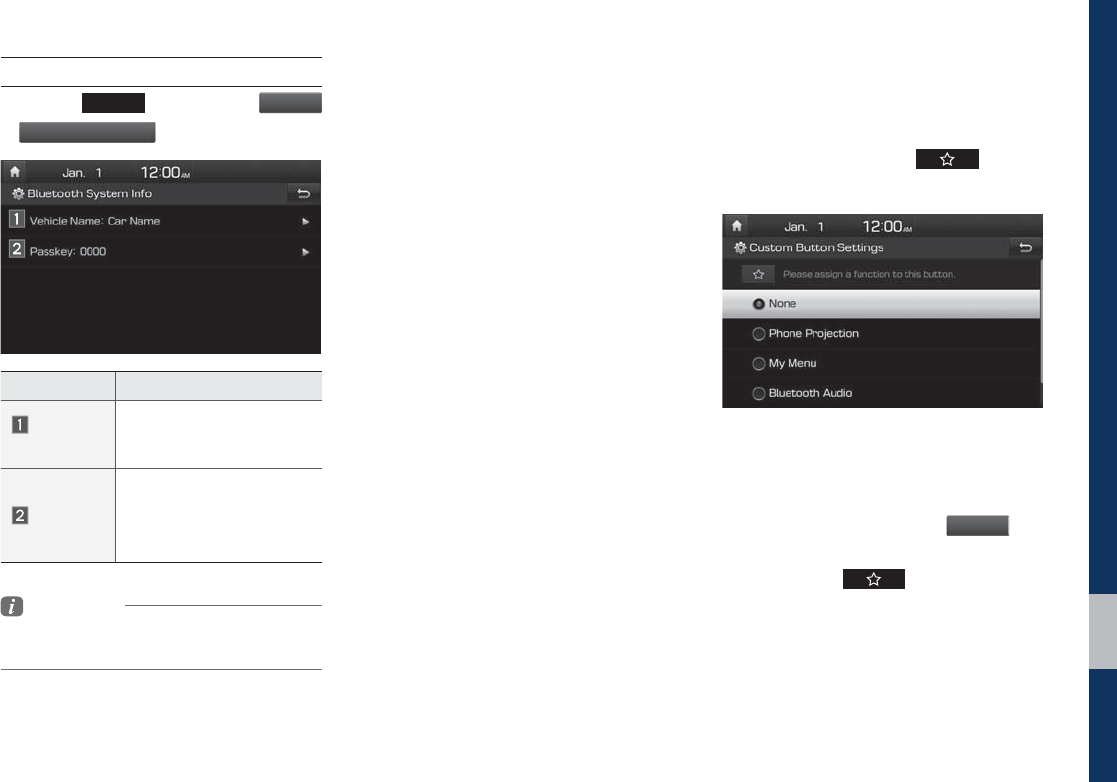

Bluetooth System Information………… 5-5

3KRQH3URMHFWLRQ6HWWLQJV

&XVWRP%XWWRQ6HWWLQJV

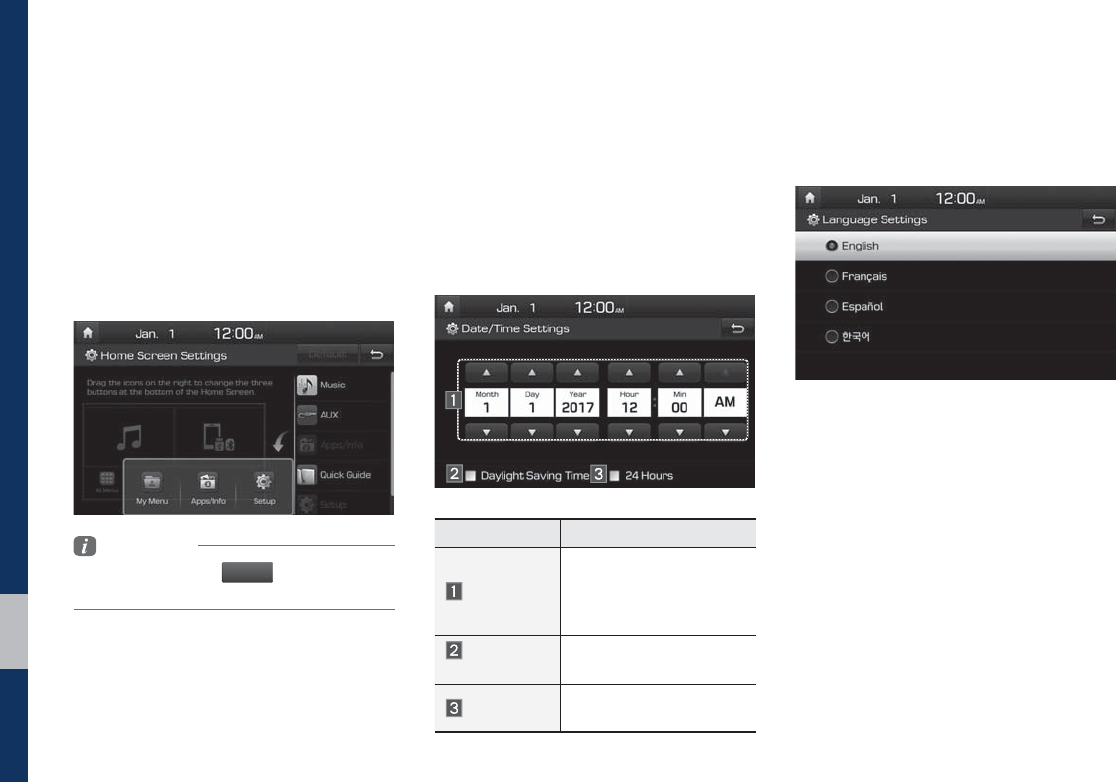

+RPH6FUHHQ6HWWLQJV

'DWH7LPH6HWWLQJV

/DQJXDJH6HWWLQJV

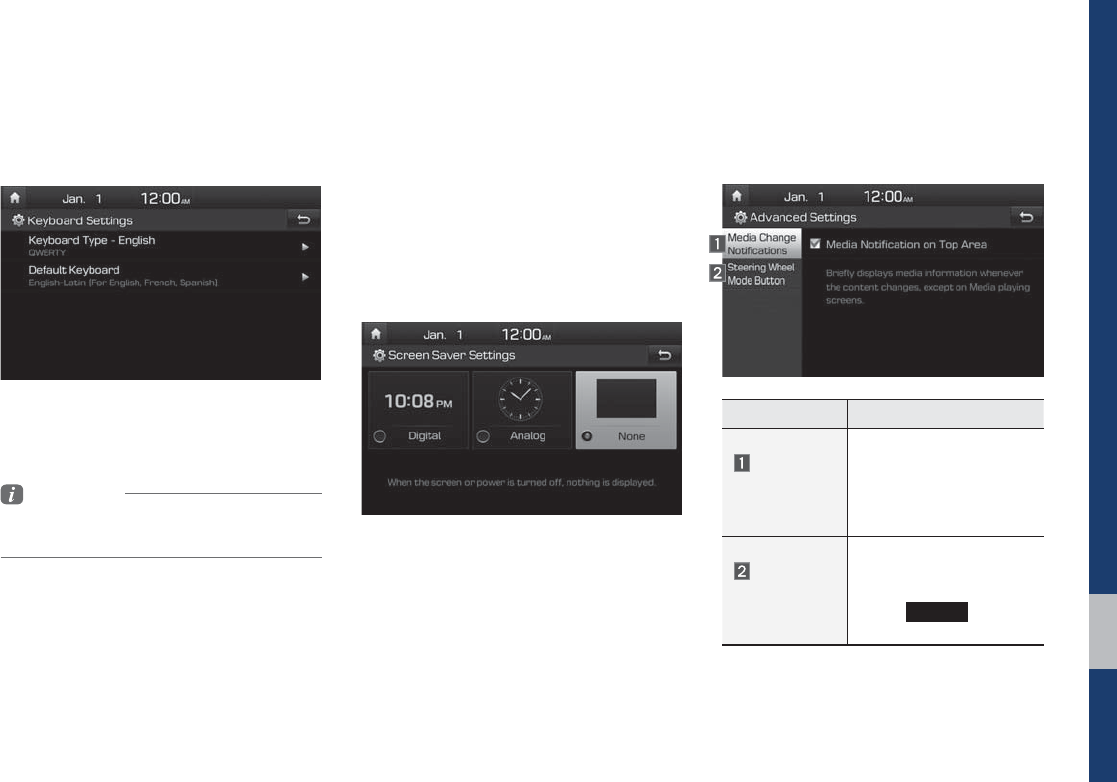

.H\ERDUG6HWWLQJV

6FUHHQ6DYHU6HWWLQJV

$GYDQFHG6HWWLQJV

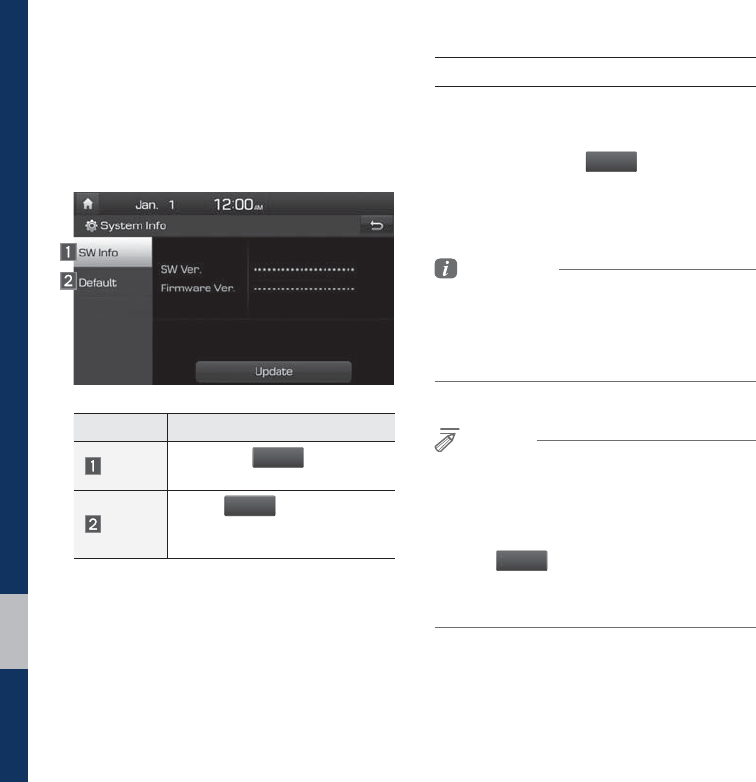

6\VWHP,QIR

System Update ……………………… 5-8

 $SSHQGL[

3URGXFW6SHFLILFDWLRQ

7URXEOHVKRRWLQJ

)$4

About Pairing Mobile Phones ………… 6-6

About Making/Answering Phone

Calls …………………………………… 6-7

About

Bluetooth

® Wireless Technology/

Head Unit Use Environment ………… 6-7

,PSRUWDQW,QIRUPDWLRQ

*HQHUDO2SHUDWLRQ

)&&:DUQLQJ

iPod®

iPod® is a registered trademark of Apple Inc.

Bluetooth

Wireless Technology

The

Bluetooth

® word mark and logos are registered trademarks owned

by Bluetooth SIG, Inc. and any use of such marks by HYUNDAI is under

license. Other trademarks and trade names are those of their respective

owners.

Bluetooth

Wireless Technology enabled cell phone is required to use

Bluetooth

® Wireless Technology.

Bluetooth

® Wireless Technology phone

compatibility can be checked by visiting https://www.hyundaiusa.com/

bluetooth.

Warnings and Cautions

Key Product Features

Component Names and Functions

Starting the System for the First Time

SDUW%DVLF

1-2 I Basic

:DUQLQJV

Park the vehicle before operating the

device.

• Do not disassemble, assemble, or mod-

ify the Multimedia system. Such acts

could result in accidents, fire, or electric

shock.

• Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

• If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibil-

ity of an accident may increase. Please

use phone related functions only when

parked.

• Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

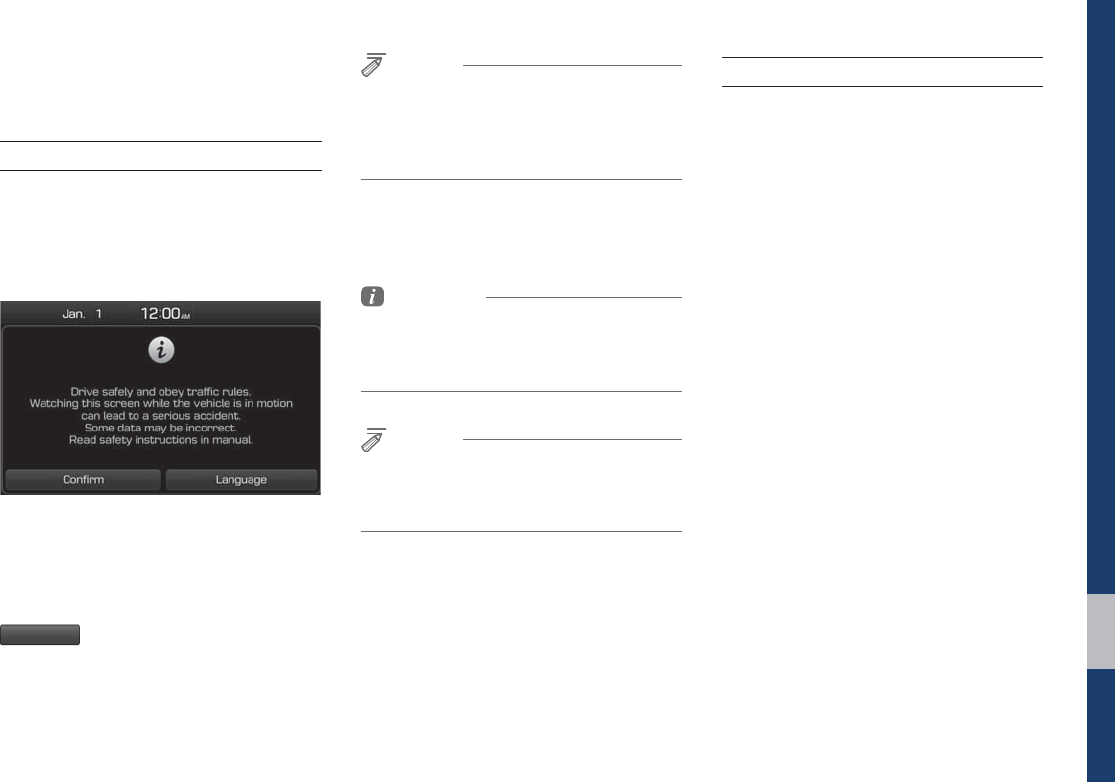

• For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

• Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

%DVLF

Warnings and Cautions I 1-3



&DXWLRQV

Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations may

lead to battery discharge.

Pay attention to traffic conditions while

driving.

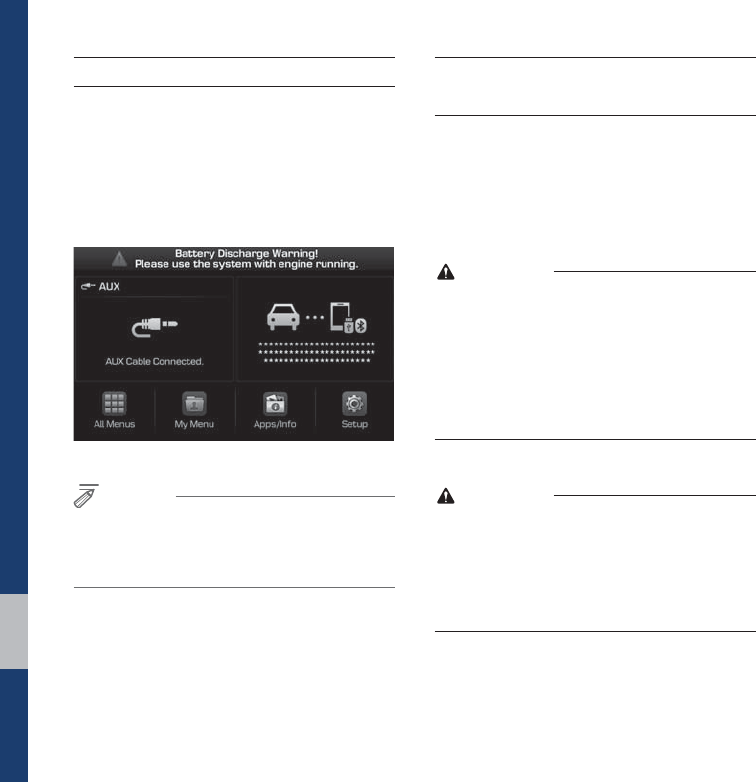

• Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

• Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

• When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

• Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

1-4 I Basic

Display

Wide TFT-LCD Display

• Provides high quality video through a Wide

TFT-LCD Display using an LED Back Light.

• Touch screen for maximum user convenience.

Radio

Digital Tuner Feature

• Digital Tuner using PLL method that supports

memory of 40 broadcast stations.

Radio broadcast station name

• Displays broadcast station names.

Multimedia

Player

Support for various Media Formats

• Support for various media formats, including

Radio, USB, iPod, AUX and Bluetooth

Audio

Streaming modes

.H\3URGXFW)HDWXUHV

This device is a Multimedia system equipped with a multifunc-

tional player that supports Radio (FM, AM), USB, iPod, AUX and

Bluetooth Audio features. The WIDE VGA LCD provides a high

quality resolution while the powerful and rich sound system adds

to the driving enjoyment.

Miscellaneous

Bluetooth

Wireless Technology

• Convenient use of Bluetooth

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

• Easy control of features through touch screen

options

Steering Wheel Control

• Control over audio features, voice recognition

and Bluetooth

through the steering wheel

control for maximum convenience

Component Names and Functions I 1-5



&RPSRQHQW1DPHVDQG)XQFWLRQV

Head Unit

Name Description

108&3

70-

• When power is off, press to turn power on.

• When power is on, press and hold (more than

0.8 seconds) to turn the power off.

• When power is on, press quickly (less than

0.8 seconds) to turn Audio off.

• Turn left/right to adjust the volume.

3"%*0

Selects FM/AM mode

• Each time this is pressed, the mode is changed

in the following order: FM

FM.

.&%*"

Selects MEDIA mode.

• If the media is not connected MEDIA mode will

not be activated.

Displays the function set by user.

Name Description

53"$,

4&&,

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: Plays the previous/next fre-

quency.

• MEDIA mode: Changes the track, file or title

(except for AUX).

When pressed and held down (more than 0.8 sec-

onds),

• FM/AM mode: Moves quickly through all of the

frequencies. The moment that you release the

button, the system seeks the next available fre-

quency.

• MEDIA mode: Rewinds or fast forwards the

track or file (except for Bluetooth Audio, and

AUX).

1-6 I Basic

Name Description

)0.&

Moves to the Home Screen.

1)0/&

Displays the Bluetooth phone mode.

4&561

Moves to the Setup screen.

56/&

• FM/AM mode: Changes the frequency.

• MEDIA mode: Changes the track, file or title

(except for Bluetooth Audio, and AUX).

Name Description

3&4&5 Resets the system settings. (Preset radio channels

and other data will not be deleted)

୔GThe actual image in the vehicle may differ from the illustration

Component Names and Functions I 1-7



Steering Wheel Controls

Name Description

When pressed quickly (less than 0.8 seconds),

• Activates voice recognition

When pressed and held down (more than 0.8 sec-

onds),

• Ends voice recognition

• If iOS device is connected through Bluetooth,

activates or ends Siri Eyes Free

Name Description

.0%&

• Each time this is pressed, the mode is changed

in the following order: FM ֌AM ֌USB or iPod

֌AUX ֌Bluetooth Audio ֌FM

• If the media is not connected, the corresponding

modes will be disabled

• Press and hold (more than 0.8 seconds) to turn

the Audio system on/off

• When power is off, press button to turn power

back on

70-

70-

Use to adjust the volume of audio or call.

Use to mute the audio or call sound.

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: searches broadcast frequencies

saved to Presets

• Media mode: changes the track, file or title (except

for AUX)

When pressed and held down (more than 0.8 sec-

onds),

• FM/AM mode: automatically searches broadcast

frequencies

• Media mode: quickly looks up songs (except for

AUX and Bluetooth audio files)

1-8 I Basic

Name Description

When pressed quickly (less than 0.8 seconds),

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen,

answers the call

• When pressed during call waiting, switches to

waiting call (Call Waiting)

When pressed and held down (more than 0.8 sec-

onds),

• When pressed in Bluetooth

Hands-free, redials

the last dialed call

• When pressed during a Bluetooth

Hands-free

call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone,

switches call back to Bluetooth

Hands-free

(operates only when Bluetooth

Hands-free is

connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects

the call

୔GThe actual image in the vehicle may differ from the illustration.

Starting the System for the First Time I 1-9



6WDUWLQJWKH6\VWHPIRUWKH

)LUVW7LPH

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

Pressing the power key on the head unit

will display the safety guide. To change the

system language between English,

French, Spanish and Korean, select the

-BOHVBHF

button.

NOTICE

• You cannot operate the system while it is

booting up. It may take some time for all of

features of the system, particularly the voice

recognition system, to be ready for use.

Pressing and holding the power key on the

head unit will turn off the system.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will

automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust

the volume to a reasonable level.

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the 3&4&5 key for a sec-

ond or longer. (It is recommended that you

press the 3&4&5 key using a tool, such as

a pin or a clip.)

1-10 I Basic

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become

completely discharged.

Restrictions on Features for

Safety Measures

Several features are limited while driving.

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

WARNING

- Blank Screen

• Refrain from use if the screen is blank or

no sound can be heard as these signs may

indicate product malfunction. Continued use in

such conditions could lead to accidents (ﬁres,

electric shock).

WARNING

- Touching the Antenna During A

Thunder Storm

• Do not touch the antenna during thunder or

lightning as such acts may lead to lightning

induced electric shock.

Starting the System for the First Time I 1-11



Features Description

Radio/

Media Widget

• Shows brief information on the radio or

media that is now playing.

• Tap the area to move to the mode that you

are listening to.

Phone Projection

Widget

Shows any connected devices such as iPod

and Bluetooth.

All Menus Shows all of the items in the system menu.

My Menu Add your favorite menus to have quick and

easy access to them.

Apps/Info Moves to the Apps/Info screen.

Setup Moves to the Setup screen.

Home Screen

Controls Menu Conﬁguration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

The icons in the following table indicate the various types of sys-

tem status details and events.

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth phone is muted.

Displays the signal strength of the Bluetooth phone.

1-12 I Basic

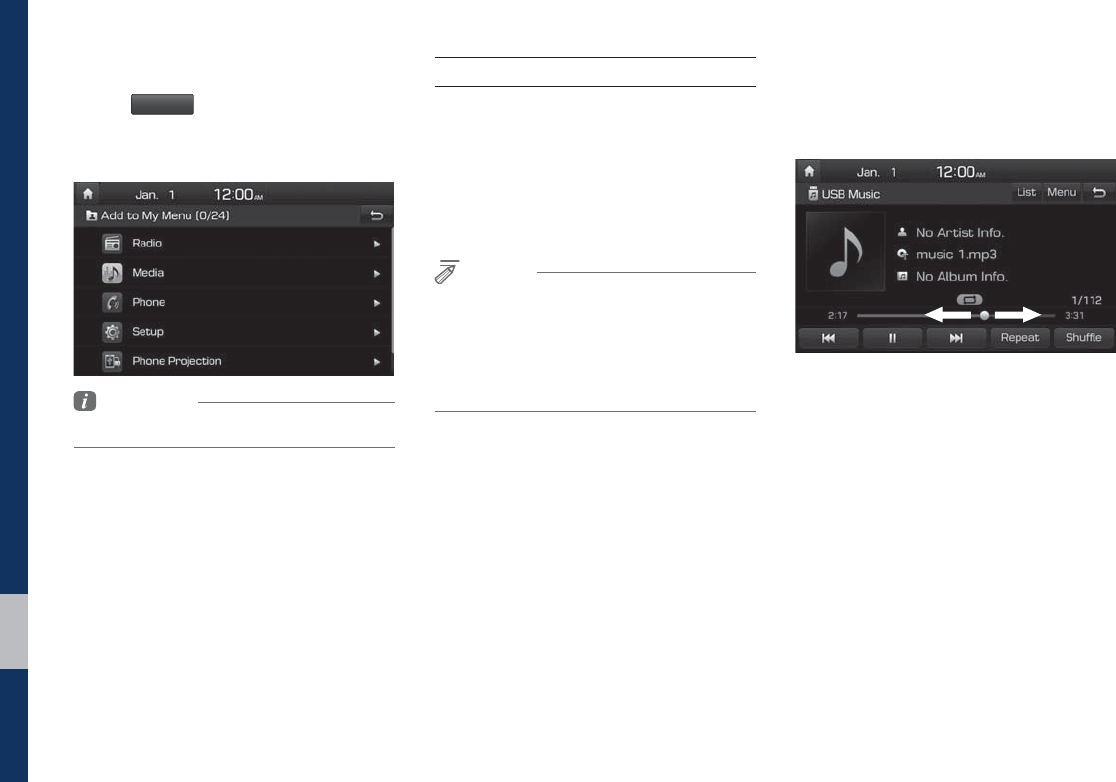

Adding a Feature to My Menu

Select

.Z.FOV

on the Home Screen to

add the most frequently used menus,

change the menu order, or delete menus.

Information

• Up to 24 menus can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive

material. Touch the screen using your ﬁnger,

an electrostatic touch-screen glove, or a stylus

pen.

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

Starting the System for the First Time I 1-13



Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display.

You can easily move many items at a time

with the handler.

Select and Hold

Selecting and holding the or

button in the music player will

rewind or fast forward the music.

0(02

FM/AM

USB

iPod

AUX

Bluetooth® Audio

SDUW5DGLR0HGLD

2-2 I Radio/Media

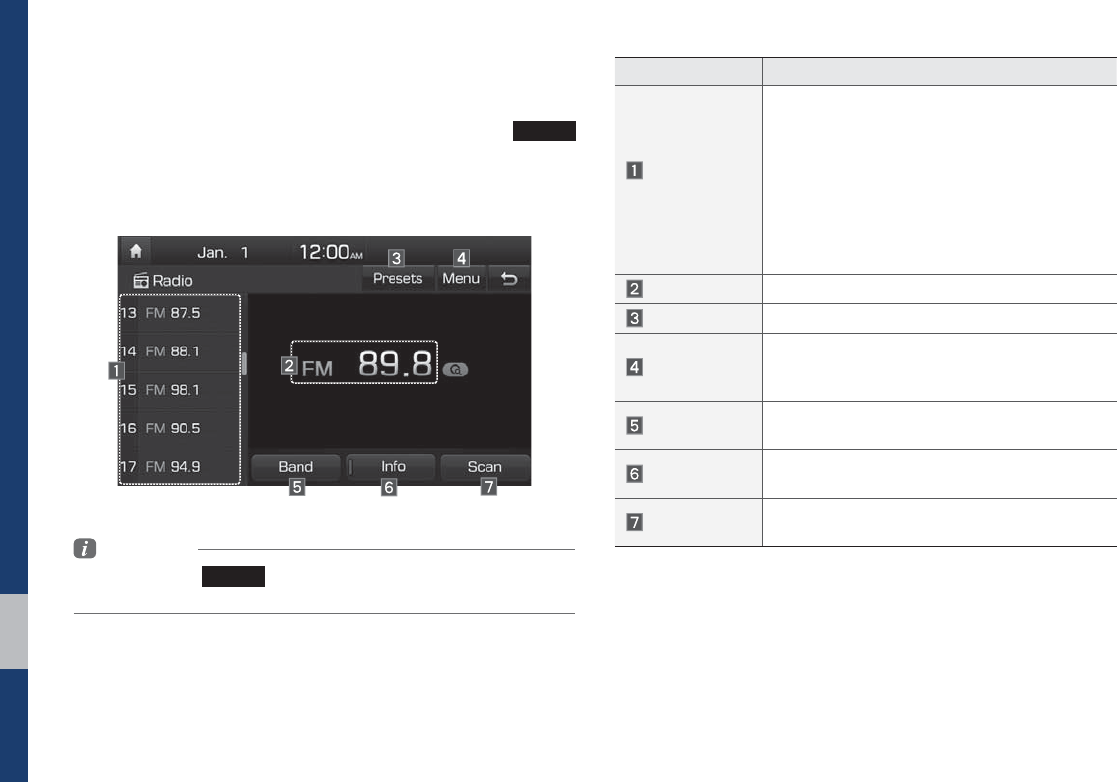

Features Description

Preset

Frequencies

• The stored preset frequencies are displayed

for user selection.

• After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the fre-

quency is to be stored in the selected preset

button.

• Flick the preset frequencies up/down to scroll

quickly through presets.

Frequency Displays the current frequency.

Presets Shows the stored presets for user selection.

• List: Moves to the frequency list.

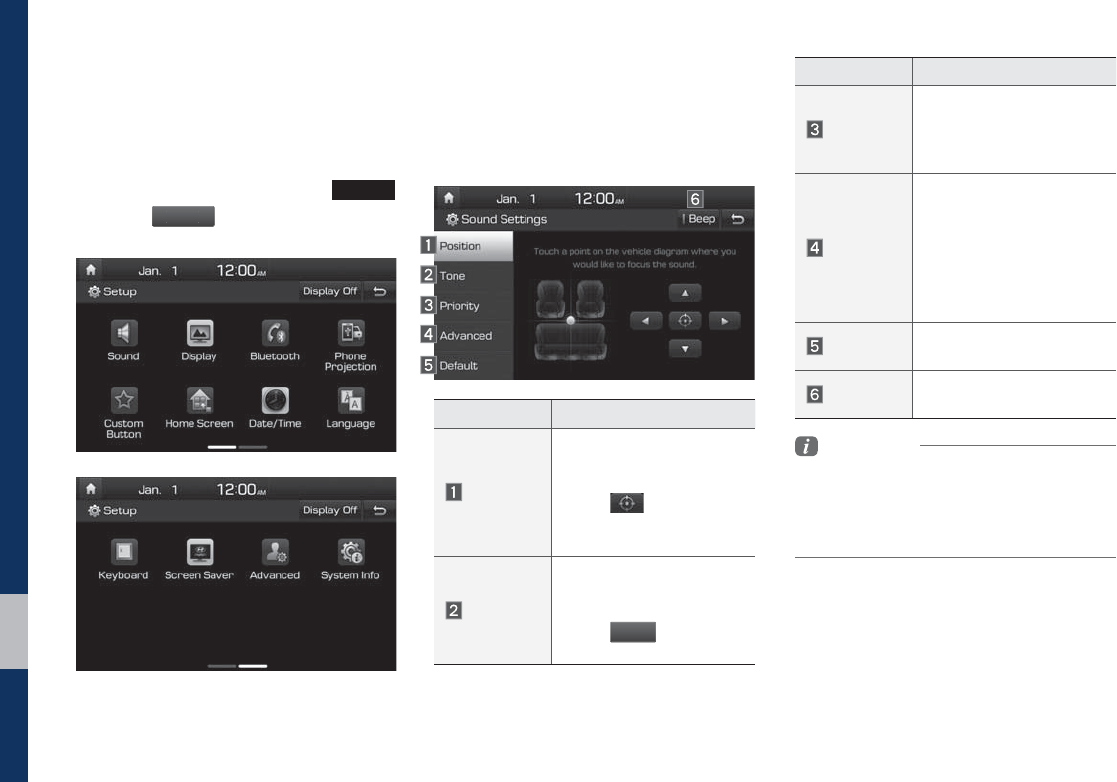

• Sound Settings: Moves to the Sound

Settings.

Band Changes to the desired band from among FM,

AM.

Info T

urns the Radio text information transmitted from

the broadcasting station on and off.

Scan Shortly plays the broadcasts for the frequencies

with superior reception for 5 seconds per item.

5DGLR0HGLD

)0$0

You can access the radio player either by pressing the

3"%*0

key or by selecting the Radio menu from All Menus on the Home

screen.

Information

• If you press the

3"%*0

key when power is off, the power will turn on

and a radio broadcast will be tuned from the current mode.

FM/AM I 2-3



Features Description

SEEK/TRACK

• When pressed quickly (less than 0.8 sec-

onds): Seeks the previous/next frequency.

• When pressed and held down (more than 0.8

seconds): Moves quickly through all of the

frequencies. The moment that you release

the button, the system seeks the next avail-

able frequency.

TUNE

Turn the

56/&

knob to manually seek avail-

able frequencies.

• FM: Increment/decrement by 200 kHz

• AM: Increment/decrement by 10 kHz

• AM: Increment/decrement by 9 kHz (For

GUAM Model)

2-4 I Radio/Media

86%

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB

device may become damaged if it is already connected when the

ignition is turned on.

• Files that are not standard format music/image files will not be

played.

• For MP3/WMA/OGG files, only music files with compression

rates between 8Kbps ~ 320Kbps can be played.

• Heed caution to static electricity when connecting/disconnecting

external USB devices.

• Encoded MP3 Players will not be recognized when connected

as an external device.

• When connecting an external USB device, the device may not

properly recognize the USB is in some states.

• Only products formatted with byte/sectors under 64Kbyte will be

recognized.

• USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-

tem are recommended. File systems other than FAT12, FAT16,

FAT32, exFAT, and NTFS are not supported.

• Some USB devices may not be supported due to compatibility

issues.

• Take caution so that the USB connector does not come in con-

tact with body parts or objects.

• Repeated connecting/disconnecting of USB devices within short

periods of time may result in product malfunction.

• Make sure to connect/disconnect external USB devices with the

audio power turned off.

• The amount of time required to recognize the external USB

device may differ depending on the type, size, or file formats

stored on the USB.

• The use of USB devices for purposes other than playing music

and image files is prohibited.

• Do not use the USB I/F to charge batteries or USB accessories

that generate heat. Such acts may lead to worsened perfor-

mance or damage to the device.

• The device may not recognize the USB device if separately

purchased USB hubs and extension cables are being used.

Connect the USB directly with the multimedia terminal of the

vehicle.

• When using mass storage USB devices with separate logical

drives, only files saved to the root drive can be played.

• When application programs are installed to specific USBs, files

may not properly play.

USB I 2-5



• The device may not operate normally if MP3 Players, cellu-

lar phones, digital cameras, or other electronic devices (USB

devices not recognized as portable disk drives) are connected

with the device.

• Charging through the USB may not work for some mobile

devices.

• The device may not support normal operation when using a

USB memory type besides Metal Cover Type USB Memory.

• The device may not support normal operation when using for-

mats such as HDD Type, CF, or SD Memory.

• When playing iPods, please use a dedicated iPod car cable.

• Normal operation cannot be guaranteed when other cables are

being used.

• The device will not support files locked by DRM. (Digital Rights

Management)

• USB memory sticks used by connecting an Adaptor (SD Type or

CF Type) may not be properly recognized.

• Only use Plug type connector products, as shown in the figure

below.

• To play USB MP3, the USB device must be connected to the

USB port in the front multibox. The USB port in the center con-

sole storage (if equipped) is for charging only.

Plug Type Connector

Product Name Manufacturer

XTICK LG

BMK BMK Technology

SKY-DRV Sky Digital

TRANSCEND JetFlash Transcend

Sandisk Cruzer SanDisk

Micro ZyRUS ZyRUS

NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

2-6 I Radio/Media

Supported USB MP3 music speciﬁcations

Name Description

MP3 File

Specification Specification: MPEG1 AUDIO LAYER 3

Recommended

Bit Rates and

Sampling

Frequency

Acceptable sampling frequency: 32, 44.1, 48 (kHz)

Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112,

128, 160, 192, 224, 256, 320 (Kbps)

96, 128, 192 Kbps fixed bit rate/44.1kHz

ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,

ID3v2.4 ID3 tags

Detailed

Specifications

Maximum directory layers: 20 layers

Maximum length of folder name/file name: 255Bytes

Supported characters for folder name/file name:

Alphanumeric characters, Korean standard character

set 2,350 characters, Simplified Chinese 4888 char-

acters

Maximum number of folders which can be stored

onto one USB: 2000 folders (including ROOT)

Maximum number of files which can be stored onto

one USB: 8000

Information

• The sound quality of MP3 files that use bitrates exceeding

192 Kbps cannot be guaranteed. When using ﬁles without ﬁxed bit rates,

some features (FF/REW features) may not properly operate.

USB I 2-7



USB Music

Features Description

Mode Displays the current operating mode

File Index Shows the current file/total files within the USB

Repeat/Shuffle From Repeat/Shuffle, displays the current oper-

ating function

Play Time Displays the current play time/total play time

Song Info Displays artist, title, album info

Features Description

Previous File

• If button is selected (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

If play time is less than 3 seconds, moves to

previous file

If play time is more than 3 seconds, play the

current file from the beginning

• If button is selected (over than 0.8 seconds)

it rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is selected (less than 0.8 seconds):

Moves to the next file

• If button is selected (over than 0.8 seconds):

It fast-forwards the track

Repeat

Repeats the current file.

• If select the file in the file tab on the list

screen: select this button to switch between

repeating the current file, repeating folder,

and repeating all files.

• If select the file in the other tabs on the list

screen: select this button to switch between

repeating the current file and repeating all

files.

Shuffle

Plays files in random order.

• If select the files in the file tab on the list

screen: select this button to switch between

shuffle folder, shuffle all, and turning shuffle off.

• If select the file in the other tabs on the list

screen: select this button to switch between

shuffle category and turning shuffle off.

2-8 I Radio/Media

Features Description

List Moves to the list screen

• Hide Current File: a selected file can be

deleted. Deleted file can be found in the

‘Hidden_’ folder.

This function is only supported when USB

format is compatible with FAT16 or FAT32.

• Sound Settings: Moves to the Sound

Settings.

Back Button Converts to basic mode screen

TUNE

Turn the

56/&

knob to search a desired

track. If the desired track is displayed, select the

56/&

knob to play the track.

If you do not anything with the 56/&

knob for 5 seconds of searching tracks, the

track info for the current track is restored.

USB I 2-9



Features Description

Folder/

Category Name Displays folder/category name in the list

Current Song Displays the current playing file name

Back Button Converts to basic mode screen

Upper Folder/

Category Moves to Upper Folder/Category

Features Description

Now Playing: when moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when the

current list includes the current file)

Search Menu

Search songs by the list type.

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track

• If button is pressed (over than 0.8 seconds):

Moves to play screen, and then it will rewind

or fast-forward the track.

TUNE

Turn the

56/&

knob to move the focus to

the previous/next list. If the desired track is dis-

played, press

56/&

knob to play the track.

2-10 I Radio/Media

L3RG

Using iPod Devices

• iPod is a registered trademark of Apple Inc.

• iPod mode will not operate if the con-

nected iPod cannot be recognized due

to operation of unsupported versions

that do not support related protocols,

iPod abnormalities, or iPod device

defects. Some iPods with unsupported

communication protocols may not prop-

erly operate with the Multimedia system.

• For fifth generation iPod Nano devices,

the iPod may not be recognized when

the battery level is low. Please charge

the iPod for use.

• Search/play orders shown within the

iPod device may differ with the orders

shown within the Multimedia system.

• If the iPod malfunctions due to an iPod

device defect, reset the iPod and try

again. (To learn more, refer to your iPod

manual)

• If repeatedly connect and disconnect

iPod/iPhone to the Multimedia system

with USB cable in a short time, it may

cause abnormal operation.

• The time for recognition of iPod/iPhone

may vary depending on device type,

firmware version and iOS version.

• For some iPod Touch and iPhone

devices, connecting Bluetooth® while the

iPod is operating may result in discon-

tinued iPod sound. When such devices

with Bluetooth® support are connected,

this problem occurs as the sound source

is changed from the Dock Connector

(USB connector cable) to Bluetooth.

• To prevent this symptom, Bluetooth

Audio function in the Multimedia system

is limited if iPod/iPhone is connected

to the system through both cable and

Bluetooth. To listen to the iPod sound,

use either iPod menu with USB connec-

tion or Bluetooth Audio with Bluetooth

connection.

iPod I 2-11



• To listen to the iPod sound, reconnect

the USB cable or change the audio out-

put settings in iPod/iPhone to Dock.

• In order to use the iPod while operating

the keys, you must use a dedicated iPod

cable. (the cable that is supplied when

purchasing iPod/iPhone products)

୔ During ACC ON state, connecting the

iPod through the iPod cable (The cable

that is supplied when purchasing iPod/

iPhone product.) will charge the iPod

through the head unit.

୔ The use of genuine iPod cables sup-

plied by Apple is recommended. (The

use of other products may result in

noise or abnormal operation.)

୔GG

To play iPod music through cable con-

nection, the iPod/USB cable must be

connected to the USB port in the front

multibox. The USB port in the center

console storage (if equipped) is for

charging only.

• When connecting with the iPod cable,

make sure to fully insert the jack to pre-

vent communication interference. If the

iPod is connected to the vehicle while it

is playing, a high pitch tone may sound

for about 1~2 seconds immediately after

connection. If possible, connect the iPod

to the vehicle with the iPod stopped/

paused.

• Within iPhones, streaming audio and

iPod control may occasionally conflict.

If problems persist, remove the iPhone

and connect again.

• When connecting to iPod Nano/Classic,

the HYUNDAI Motor logo appears on

the Apple device. For the iPod Nano 6

generation, however, the logo image

does not appear since it is not sup-

ported. Also, all iPhone and iPod Touch

products do not support this function.

• In Apple’s iOS 6.0 version or later,

Podcast and Audiobook media files

are designed to be played with the

Podcasts and iBooks applications spe-

cifically designed for Apple products. If

the Apple device does not provide the

Podcast and Audiobook lists, the playlist

may not be displayed and played in the

iPod mode.

• If the Apple Podcasts and iBooks apps

are not installed on the Apple device, but

the Apple device provides the Podcast

and Audiobook lists, you can play files in

other categories in iPod mode.

• The screen of multimedia system can

be different when you run other music

players (e.g. iHeartRadio) on your con-

nected device.

2-12 I Radio/Media

• While using a connected iPhone/iPod

Touch device, it may not operate nor-

mally if the user changed some func-

tions in the device.

• When calling with an iPhone connec-

tion, song may stop playing due to an

Apple device feature. If sound does

not resume after the call is terminated,

check the device status.

• If lots of songs have the same informa-

tion, skipping may occur when previous/

next song is executed due to an Apple

device feature. Also problems may

occur depending on device type or iOS

version.

• If lots of songs have the same informa-

tion, it may occur difference of playing

songs between the Multimedia system

and Apple device. Reset the device or

delete the same songs in the Apple

device using iTunes.

• If you control pause, repeat, shuffle, or

seek songs when the play time is less

than 3s before the song is finished play-

ing, it may occur difference of playing

song between the Multimedia system

and Apple device. Access to iPod music

from another mode or pause a song and

then play a song again in Apple device.

• If the iPhone/iPod Touch supports

Bluetooth, the Apple device will not be

able to use the Bluetooth function if the

device is connected through both the

USB port and via Bluetooth. Disconnect

the USB connection then use Bluetooth

Audio.

• If iPod/iPhone connected to the

Multimedia system through both USB

and AUX. iPod/iPhone keeps output

sound via AUX, thus it may occur sound

will not output in iPod mode.

• If AUX cable connected to iPod/iPhone

but not connect to the Multimedia sys-

tem, it may occur sound will not output

in iPod mode due to iPod/iPhone’s fea-

ture. Especially, if you use AUX cable

like pictures, this problem may occur.

• Disconnect AUX cable from iPod/iPhone

first, then connect to the Multimedia

system via USB. Or change settings to

“Dock” in iPod/iPhone.

• If connect to the Multimedia system

while podcast or iTunes music down-

loading to iPod/iPhone, it may occur

some problems when you select song

in the list. Reconnect iPod/iPhone to the

Multimedia system when downloading

is finished or the file deleted.

• If connect to the Multimedia system

while sync, it may occur some problems.

Try to use iPod/iPhone connection after

sync complete. (To learn more, refer to

your iPod manual)

iPod I 2-13



• iPhone and iPod Touch devices are

guaranteed to work normally on iOS

9.3.2 or below. However, they may not

work normally on future iOS versions

as their operations have not yet been

tested.

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPod Mini Not Supported

iPod Shuffle

iPod Nano ̺̺̺̺̺̺

Not released ̺

iPod Touch

(iOS 1.1 not sup-

ported)

̺̺̺̺̺ Not released

iPad ̺(Unable to charge, Not verified, Normal operation not guaranteed)

iPad Mini

iPod Classic Not Supported ̺

(iPod with Video)

(iPod Classic)

(iPod Classic) Not released

Type 3G 3GS 4 4S 5 5C 5S 6 6+ 6S 6S+ SE 7 7+

iPhone

Not verified,

Normal opera-

tion not guaran-

teed

̺̺̺̺̺̺̺̺̺̺̺̺̺

• We recommend that your Apple device

uses the latest firmware since some

problems may occur due to an outdated

firmware or other software related

issues.

2-14 I Radio/Media

iPod

Features Description

Mode Displays the current operating mode

Song Index Shows the current song/total songs

Repeat/Shuffle

From Repeat/Shuffle, displays the current oper-

ating function

Play Time Displays the current play time/total play time

Song Info Displays the artist/song title/album info

Features Description

Previous File

• If button is selected (less than 0.8 seconds):

Moves to the previous file or play the current

file from the beginning (Depends on the play

time)

If play time is less than 3 seconds, moves to

previous file

If play time is more than 3 seconds, play the

current file from the beginning

• If button is selected (over than 0.8 seconds) it

rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is selected (less than 0.8 seconds):

Moves to the next file

• If button is selected (more than 0.8 seconds):

It fast-forwards the track

Repeat

Repeats the current song.

Select this button to switch between repeating the

current song and repeating all song.

Shuffle

Plays songs in random order.

Select this button to switch between shuffle cat-

egory and turning shuffle off.

• Shuffle Category: shuffle song in the current

category.

List Moves to the list screen

Sound Settings: Moves to the Sound Settings

Back Button Move to home/previous mode screen

iPod I 2-15



Features Description

TUNE

Turn the

56/&

knob to search a desired

track. If the desired track is displayed, press

the

56/&

knob to play the track.

If you do not anything with the 56/& knob

for 5 seconds of searching tracks, the track

info for the current track is restored.

2-16 I Radio/Media

Features Description

Category Name Displays the category name

Category List

Displays the contents of selected category

If there are many items in the list, items are

added in order and the scroll bar on the

right is adjusted accordingly.

Back Button Converts to basic mode screen

Upper Category Moves to Upper Category

Search Menu Search songs by the list type.

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track.

• If button is pressed (over than 0.8 seconds):

Moves to play screen, and then it will rewind

or fast-forward the track.

TUNE

Turn the

56/&

knob to search a desired

track. If the desired track is displayed,

press the

56/&

knob to play the track.

If you do not anything with the knob for 5 sec-

onds, the

56/&

knob search will be termi-

nated.

AUX I 2-17



$8;

Connecting an External Device

If an external device connector is con-

nected with the AUX terminal, then AUX

mode will automatically operate. Once the

connector is disconnected, the previous

mode will be restored.

• AUX mode can be used only when an

external audio player has been con-

nected.

• The AUX volume can also be controlled

separately through the connected

device.

NOTICE

• If only a cable is connected to the AUX

without an external device, the mode will be

changed to AUX, but noise may occur. When

an external device is not being used, remove

the connector jack.

• When the external device power is connected

to the power jack, playing the external device

may output noise. In such cases, disconnect

the power connection before use.

୔ The actual image in the vehicle may

differ from the illustration.

2-18 I Radio/Media

%OXHWRRWK

$XGLR

Features Description

Mode Displays the current operating mode

Phone Name Displays name of connected phone

Artist Info Name of current artist

Title Name of current song

Features Description

Previous File

• If play time is less than 3 seconds, moves to

the previous file

• If play time is more than 3 seconds, plays the

current file from the beginning

This function may differ depending on the

model of mobile phone.

Play/Pause Plays/Pauses Bluetooth Audio

Next File Moves to the next file

Repeat

Repeats the current file.

This function may differ depending on the

model of mobile phone.

Shuffle

Plays files in random order.

This function may differ depending on the

model of mobile phone.

• Connections: Moves to the Bluetooth Settings

screen. You can pair a new device or change/

delete paired device(s).

• Sound Settings: Moves to the Sound Settings.

SEEK/TRACK Plays the previous/next file

TUNE

56/&

is not supported.

Information

• Artist info and Title may not be supported by mobile phone.

• While in use of other functions after connecting your mobile phone

through a USB cable, the Bluetooth audio is disabled.

Bluetooth® Audio I 2-19



Bluetooth Connection Settings

Settings for pairing, connection and dis-

connection of a Bluetooth device.

• In Bluetooth Audio play screen, select

.FOV

and then

$POOFDUJPOT

Information

• If the music in the mobile phone is not played

after changing to audio streaming mode,

press the play button. Thus check if the

music is playing in the Bluetooth device after

changing to audio streaming mode. Audio

streaming may not be supported for some

mobile phones.

• Please check the Bluetooth compatibility in

below website: HYUNDAI Motor America

https://www.hyundaiusa.com/bluetooth

0(02

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

SDUW%OXHWRRWK

3-2 I Bluetooth

%HIRUH8VLQJWKH%OXHWRRWK



+DQGVIUHH

What is

Bluetooth

Wireless

Technology?

•

Bluetooth

® Wireless Technology refers

to a short-distance wireless network-

ing technology which uses a 2.45GHz

frequency to connect various devices

within a certain distance.

• Supported within PCs, external devices,

Bluetooth® phones, PDAs, various elec-

tronic devices, and automotive environ-

ments,

Bluetooth

® Wireless Technology

to be transmitted at high speeds without

having to use a connector cable.

• Bluetooth® Handsfree refers to a device

which allows the user to conveniently

make phone calls with Bluetooth®

mobile phones through the Multimedia

system.

• The Bluetooth® Handsfree feature may

not be supported in some mobile phones.

For more information on mobile phone

compatibility, visit the HYUNDAI website

- HYUNDAI Motor America: https://www.

hyundaiusa.com/bluetooth

WARNING

- Distracted Driving

• Focus on the road while driving. The driver’s

primary responsibility is in the safe and legal

operation of the vehicle. Drivers should not

use any hand held devices or other equipment

or vehicle systems that distract the driver

during vehicle operation.

• Do not stare at the multimedia screen for long

periods of time while driving. Staring at the

screen for prolonged periods of time can lead

to trafﬁc accidents and can result in personal

injuries.

Precautions for Safe Driving

• Bluetooth® is a feature that enables driv-

ers to make handsfree calls. Connecting

the head unit with a Bluetooth® phone

allows the user to conveniently make

calls, receive calls, and manage the

phonebook. Before using

Bluetooth

Wireless Technology, carefully read the

contents of this user’s manual.

• Excessive use or operations while driv-

ing may lead to negligent driving prac-

tices and be the cause of accidents. Do

not operate the device excessively while

driving.

• Viewing the screen for prolonged peri-

ods of time is dangerous and may lead

to accidents. When driving, view the

screen only for short periods of time.

%OXHWRRWK



Before Using the Bluetooth® Handsfree I 3-3

CAUTIONS upon Connecting

Bluetooth® Phone

• Before connecting the head unit with

the mobile phone, check to see that the

mobile phone supports Bluetooth® fea-

tures

• Even if the phone supports

Bluetooth

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth® power is turned off.

Disable the hidden state or turn on the

Bluetooth® power prior to searching/

connecting with the head unit.

• If Auto Connection is used, the

Bluetooth® phone is automatically con-

nected when the ignition is turned on,

making it unnecessary to have to con-

nect the phone with the head unit every

time.

• If you do not want automatic connection

with your Bluetooth® device, turn the

Bluetooth® feature off of the Bluetooth®

device.

• Park the vehicle when connecting the

head unit with the mobile phone.

• Bluetooth® connection may become

intermittently disconnected in some

mobile phones. Follow these steps to try

again.

1. Turn the Bluetooth® function within

the mobile phone OFF/ON and try

again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile

phone battery, reboot, and then

again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both

of Phone and Head Unit sides and

then try again

• The Handsfree call volume and quality

may differ depending on the mobile

phone.

• Pairing Bluetooth® devices and use of

other Bluetooth® features are not sup-

ported when the vehicle is in motion. For

safety, please first park your vehicle.

• If you continue having issue download-

ing your contacts to your vehicle, con-

tact your mobile phone provider.

3-4 I Bluetooth

%OXHWRRWK&RQQHFWLRQ

Pairing a New Device

Before you can use the Bluetooth feature,

you must first pair/connect your mobile

phone to your car.

Up to 5 Bluetooth devices can be paired.

Only one Bluetooth device can be con-

nected at a time.

Pairing a New Device by Selecting

Phone/Call

Press the

1)0/&

key or key in

the steering wheel control. ٠ Pair your car

after your mobile phone detects the

Bluetooth device. ٠ Enter the passkey or

accept the authorization popup. ٠

Connect Bluetooth.

Pairing a New Device Through the

Phone Settings

Press the

4&561

key. ٠ Select

#MVFUPPUI

٠Select

#MVFUPPUI$POOFDUJPO

. ٠ Select

"EE/FX

. ٠ Pair your car after your mobile

phone detects the Bluetooth device. ٠

Enter the passkey or accept the authoriza-

tion popup. ٠ Connect Bluetooth.

The default passkey is 0000.

The vehicle name above is an example.

Check the actual information on the product.

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting

Phone/Call

Press the

1)0/&

key or key in

the steering wheel control. ٠ Select the

name of the device to connect. ٠ Connect

Bluetooth.

Bluetooth Connection I 3-5



Connecting Devices Through the

Phone Settings

Press the

4&561

key. ٠ Select

#MVFUPPUI

. ٠

Select

#MVFUPPUI$POOFDUJPO

. ٠ Select the

name of the device to connect. ٠ Connect

Bluetooth.

Disconnecting Bluetooth

Devices

Disconnects Bluetooth devices that are

connected.

Press the

4&561

key. ٠ Select

#MVFUPPUI

. ٠

Select

#MVFUPPUI$POOFDUJPO

. ٠ Select the

name of the device to disconnect.

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you

added. Note that deleting a Bluetooth

device will delete all Call History and

Contact Info downloaded along with it.

Press the

4&561

key. ٠ Select

#MVFUPPUI

. ٠

Select

#MVFUPPUI$POOFDUJPO

. ٠ Select

%FMFUF%FWJDFT

. ٠ Select the device name

to delete. ٠ Select

%FMFUF

3-6 I Bluetooth

%OXHWRRWK3KRQH

Phone Status Icons

Shows the current phone status in the

right top of the display.

Information

• The battery level icon and the call signal

strength indicator may not be supported in

some Bluetooth devices.

• The battery level may differ from the actual

level remaining.

Icons Description

You can use Bluetooth phones

when a Bluetooth Hands-free

connection is established.

You can use Bluetooth audio

features when a Bluetooth audio

connection is established.

You can use Bluetooth phones

and audio features when both

Bluetooth Hands-free and audio

connections are established.

Call signal strength indicator

Battery level of the Bluetooth

devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Bluetooth Phone I 3-7



Dial

Dials a call after the Bluetooth devices are

connected.

Select

"MM.FOVT

from Home Screen display

1IPOF

%JBM

Name Description

Keypad

Use the keypad to enter

the phone number that you

want to call. Select and

hold the last number of a

speed dial to dial a num-

ber that you added to the

Speed Dial list in the phone

Call

Makes a call after you dial

a number and select this

button. If the number is

listed in Dialed Calls, you

can select the number and

select this button to auto-

matically dial that number

again.

Settings Moves to a screen of

Bluetooth Connection.

Delete Deletes the numbers that

you entered.

Information

• Some types of mobile phones may not

support the Speed Dial function.

Accept/Reject Call

If there is an incoming call after you made

a Bluetooth connection, a popup message

will appear.

Information

• In some mobile phones, the caller’s number

may not be displayed, and the Reject feature

may not be supported.

Name Description

Accept Answers the call.

Reject Ignores the call.

3-8 I Bluetooth

Using the Menu During a

Phone Call

When making a call, you can use the fol-

lowing menu items.

Name Description

Use Private

Switches a voice call

from the car Hands-free

to the mobile phone.

End Ends a call.

Contacts Displays the Contacts

list.

Outgoing

Volume

Displays the Mic Volume

settings. You can adjust

the in-call volume that

the other party hears

(level 1 - 5).

Keypad Moves to a screen for

entering ARS numbers.

Switch

Switches to a call on

hold, if any. You can also

switch calls by select-

ing the number in the

Information Display. The

Switch function switches

the current call to a

waiting call in order to

answer a new incoming

call.

Information

• If the caller’s number is listed in Contacts, the

caller’s name will be displayed. Otherwise,

only the number will be displayed. In some

mobile phones, the phone number may not

be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as

Radio and Settings.

• Depending on handset types, the in-call

volume the other party hears may differ. If the

other party hears your voice too low or too

loud, adjust the mic volume.

Bluetooth Phone I 3-9



Call History

Select

"MM.FOVT

from Home Screen display

1IPOF

$BMM)JTUPSZ

Name Description

All Lists the all call history.

Dialed Lists the calls that you

made.

Received Lists the calls that you

have received.

Missed Lists the calls you

missed.

Call History

Displays all of your call

history. Select from the

list to dial the number.

Download

Downloads the call his-

tory information from

your mobile phone.

Bluetooth

Settings

Provides the Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information.

Information

• In some mobile phones, call records may not

be added to your Call History.

• Calls from restricted ID’s are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car’s Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off on the

Bluetooth device, the call history download

will fail.

• Some devices require a device authentication

for downloading your call history. If download

fails, check if the Bluetooth Settings or display

status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device

supports download feature. For details

regarding Bluetooth-supported devices and

their functional compatibility, visit https://www.

hyundaiusa.com/bluetooth

3-10 I Bluetooth

Contacts

Select

"MM.FOVT

from Home Screen display

1IPOF

$POUBDUT

Name Description

Contacts List

The list of Contacts.

Select from the list to dial

the number.

Download Downloads contacts from

your mobile phone.

Search Searches Contacts.

Bluetooth

Settings

Provides the Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information.

Information

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth

device.

• You cannot edit or delete downloaded phone

numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain.

(Note that deleting a paired phone will also

delete all downloaded Contacts and Call

History data)

• Downloaded phone numbers may be lost

depending on the condition of the head unit.

Keep your important data in a safe place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same

time by default.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on

your Bluetooth device.

• Some devices require a device authentication

for downloading your contacts. If download

fails,check your phone screen and conﬁrm the

download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth

device supports contacts download. For

Bluetooth supporting devices details and

compatibility, visit https://www.hyundaiusa.

com/bluetooth

Bluetooth Phone I 3-11



Favorites

Select

"MM.FOVT

from Home Screen display

1IPOF

'BWPSJUFT

Name Description

Favorites

Lists the phone num-

bers saved as Favorites.

Select from the list to

dial the number.

Add New Adds a new number to

Favorites.

Delete

Deletes numbers

that you select from

Favorites.

Bluetooth

Settings

Provides the Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information.

0(02

Camera

SDUW2WKHU)HDWXUHV

4-2 I Other Features

&DPHUD

WARNING

- Backing Up & Using Camera

• Never rely solely on the rear view camera

when backing up. Prior to entering your

vehicle always do a visual check of the area

behind your vehicle, and before backing up

be aware of your surroundings and supple-

ment the rear view camera by looking over

your shoulders and checking your rear view

mirrors. Due to the difficulty of ensuring that

the area behind you remains clear, always

back up slowly and stop immediately if you

even suspect that a person, and especially

a child, might be behind you.

Information

• While the device boots up, shift the gear to

“R” to activate the rear detection cameras.

Shift the gear to another position to deactivate

the rear detection camera.

• The camera screen shown while the system

boots up does not display any text or buttons.

Steering-linked camera

• This device is connected to a rear

detection camera to see behind the car

for safe reversing.

• The Rear View Camera turns on

automatically if you shift the gear to R

when the power is on or the engine has

started.

NOTICE

• A wide-angle lens is installed as the rear

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears.

on-screen. For safety, make sure to view

the back, right, and left sides of the car for

yourself.

• The color of the parking guidelines displayed

in the picture may differ from the actual

screen.

• When booted up, blinking may occur when

you switch to a UI screen.

• If Back-up Warning Priority is set in the Sound

Settings, the audio volume is lowered when

your car is driving backward.

Name Description

Red Line About 0.5m from the rear

bumper

Yellow Line 1 About 1m from the rear

bumper

Yellow Line 2 About 3m from the rear

bumper

Yellow Line 3 Trajectory of the wheel

on the driver’s side

Yellow Line 4 Trajectory of the wheel

on the passenger side

Blue Line Neutral steering trajec-

tory

As you reverse your car and monitor the

area behind your car, the steering-linked

driving trajectory and the neutral driving

trajectory are both displayed.

2WKHU)HDWXUHV

Setup

Sound Settings

Display Settings

Bluetooth Settings

Phone Projection Settings

Custom Button Settings

Home Screen Settings

Date/Time Settings

Language Settings

Keyboard Settings

Screen Saver Settings

Advanced Settings

System Info

SDUW6HWXS

5-2 I Setup

6HWXS

Setup is the screen to control Audio sys-

tem settings.

To enter the screen, press the

4&561

key or the

4FUVQ

icon in All Menus.

6RXQG6HWWLQJV

Adjusts the sound effects for the whole

system.

Features Description

Position

Select the Up/Down/Left/

Right button to control

sound positioning.

Select to concen-

trate the sound on the

center of vehicle.

Tone

Drag the slide bar to con-

trol Bass/Middle/Treble

settings.

Select

FOUF

to initialize

the settings.

Features Description

Priority

Sets the volume ratio

when reversing the car,

turning on the car’s igni-

tion, etc.

Advanced

Select additional audio

options such as “Speed

Dependent Volume

Control” that automatically

controls Audio volume

according to vehicle

speed.

Default Resets the sound to fac-

tory default settings.

Beep Select to activate a beep

when selecting buttons.

Information

• Advanced sound settings may differ according

to selected AMP option.

• The seat shape may differ according to

vehicle model.

Setup I 5-3



'LVSOD\6HWWLQJV

Adjusts the level of illumination for the

entire system.

Features Description

Mode

Select any of LCD illumi-

nation change modes:

Automatic (changes

the level automatically),

Daylight, and Night.

Illumination

Set the levels of illumina-

tion for day and night.

Select

%FGBVM

to initialize

the settings.

Default Resets the display to fac-

tory default settings.

Display Off Provides the Display Off

(touch activation) function.

%OXHWRRWK6HWWLQJV

Changes Bluetooth phone settings.

Press the

4&561

key

Select

#MVFUPPUI

Bluetooth Connection

Press the

4&561

key ٠ Select

#MV

#MVFUPPUI

POOFDUJP

5-4 I Setup

Features Description

Paired Device

List

Displays the paired

Bluetooth device list.

When selecting from the

list, the device is con-

nected or disconnected.

Bluetooth Audio

Connection

Status

An icon appears when

you make a Bluetooth

Audio connection.

Bluetooth

Hands-Free

Connection

Status

An icon appears when

you make a Bluetooth

Hands-free connection.

Add New Register a new

Bluetooth device.

Delete Devices Select and delete a

paired device.

Help

Switches to the

Bluetooth Connection

Help screen.

Information

• Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be connected

at a time.

• During a Bluetooth device connection, another

device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit

are also deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio, will

function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly

disconnected, due to being out of

communication range, the device powering

off, or a Bluetooth communication error, the

Bluetooth device automatically searches for

and connects to nearby Bluetooth devices.

• If the system is not stable, due to a vehicle-

Bluetooth device communication error, restore

the Default Factory Settings.

• For Default Factory Settings, the Bluetooth

Settings are reset to factory settings.

• Press the

4&561

key

Select

#MVFUPPU

FGBVMU'BDUPSZ4FUUJOH

Auto Connection Priority

Press the

4&561

key ٠ Select

#MV

VUP

POOFDUJPO1SJPSJU

When the engine is running, the selected

Bluetooth device is automatically con-

nected. If you fail to connect the selected

device, the previously-connected device is

automatically connected, and if it also fails,

then it tries to connect all paired devices

sequentially.

Depending on auto connection priority,

connection to a device may take time.

Setup I 5-5



Bluetooth System Information

Press the

4&561

key ٠ Select

#MV

MVFUPPUI

TUFN*OG

Features Description

Vehicle

Name

You can change the

Bluetooth device name of

the vehicle.

Passkey

You can change the pass-

key used for Bluetooth

device authentication. the

initial passkey is 0000.

Information

• The vehicle name above is an example.

Check the actual information on the product.

3KRQH3URMHFWLRQ6HWWLQJV

For more details, refer to the Phone pro-

jection guide.

&XVWRP%XWWRQ6HWWLQJV

You can choose the feature to be

accessed when the key is

pressed.

Setting it to a feature that you frequently

use will allow you to access the feature

quickly and conveniently anytime.

For example, setting it to

Z.FOV

will

enable you to access the My Menu screen

by pressing the key.

5-6 I Setup

+RPH6FUHHQ6HWWLQJV

You can customize the three menu items

at the bottom right of the Home Screen

into the ones you want.

On the Home Screen Settings screen,

drag the menu items on the right to the

area marked in blue in the screen below.

Information

• You can select the

%FGBVM

button to reset to

the factory default settings.

'DWH7LPH6HWWLQJV

Configure the settings for time and date.

Using the arrow buttons, you can change

the values. Date/Time settings do not

automat ically change when crossing into

different time zones. The time must be

changed manually on this screen.

Features Description

Direct entry

If you tap any value, you

can directly enter the

number in the following

screen.

Daylight

Saving Time

The daylight saving time

(DST) is applied.

24 Hours The time display is set in

24-hour format.

/DQJXDJH6HWWLQJV

You can configure the displayed system

language.

When the language is changed, the

system language is automatically

changed.

Unique data including MP3 file name is

not changed and voice recognition does

not support some languages.

Setup I 5-7



.H\ERDUG6HWWLQJV

You can configure the keyboard layout for

each language.

You can configure ABCD or QWERTY

keyboards for the system.

Information

• Conﬁgured keyboard layouts are applied to all

input modes.

6FUHHQ6DYHU6HWWLQJV

You can select any of the following screen

formats to be displayed when the screen

or power is turned off (Press and hold the

Power button).

• Digital clock and date

• Analog clock and date

• None

$GYDQFHG6HWWLQJV

Sets alerts per function if desired by the

user.

Features Description

Media

Change

Notifications

Sets whether to display

media information at the

top of the screen as the

next item is played when

not on the media screen.

Steering

Wheel Mode

Button

Sets the media to be

played when the steering

wheel or rear seat (if pro-

vided)

.0%&

button is

pressed.

5-8 I Setup

6\VWHP,QIR

System version information and update

details are available.

Features Description

SW Info Select the

BUF

button to

update the system.

Default

When

GBVMU

is selected,

the settings are changed to

factory defaults.

System Update

At the System Info screen, insert the USB

memory with the latest file downloaded,

and then select the

QEBU

button to begin

updating. The system will then reboot

automatically.

Information

• This product needs supplemented software

updates and additional functions, which

collectively may take some time to complete,

depending on the amount of data.

NOTICE

• If the power is disconnected or the USB is

removed during an update, the data might be

damaged. Please do not turn off the vehicle

while an update is in progress.

• When

GBVMU

is selected, it may delete all of

the data and settings so be cautious of your

action.

Product Specification

Troubleshooting

FAQ

SDUW$SSHQGL[

6-2 I Appendix

3URGXFW6SHFLILFDWLRQ

TFT-LCD

Screen Size 7 inch(152.4 x 91.44mm)

Resolution 384,000 pixels (Resolution: 800 x 480)

Operating

Method TFT(Thin Film Transistor) Active Matrix

Viewing Angle Left/Right, Top/Bottom: ALL 89°

Internal Lighting LED

Radio

Channels

FM: 87.5 MHz ~ 107.9 MHz(Step: 200 kHz)

AM: 530 kHz ~ 1710 kHz(Step: 10 kHz)

AM: 531 kHz ~ 1701 kHz(Step: 9 kHz)

(For GUAM Model)

Sensitivity FM: Under 10dBuV/AM: Under 35dBu EMF

Distortion Factor Within 2%

Common

Power Supply DC 14.4V Operating

Power DC 9V ~ DC 16V

Dark Current 1mA(Head Unit Only)

Operating

Temperature

-20 ~ +70°C

(-4 ~ +158°F)

Storage

Temperature

-30 ~ +80°C

(-22 ~ +176°F)

Dimensions 208 x 148.5 x 177.3mm

Current

Consumption 2.5A Weight 1.7kg

Bluetooth

® Wireless Technology

Frequency

Range 2402 ~ 2480 MHz

Supported

Bluetooth

Specification

3.0

Supported

Profile

Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)

Bluetooth

Power Class 2 -6 ~ 4 dBm Number of

Channels 79 channels

$SSHQGL[

Troubleshooting I 6-3



7URXEOHVKRRWLQJ

1. Errors which occur during the operation or installation of the

device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Hyundai dealer.

Problem Possible Cause

There are small red,

blue, or green dots on

the screen

• Because the LCD is manufactured with

technology requiring high point density,

a pixel or lighting deficiency may occur

within 0.01% of total pixels

The sound or image is

not working

• Has the Switch for the vehicle been

turned to [ACC] or [ON]?

• Has the SYSTEM been turned OFF?

The screen is being dis-

played but sound is not

working

• Has the volume been set to a low level?

• Has the volume been muted?

When the power is

turned on, the corners of

the screen are dark

• The display appearing somewhat dark

after prolonged periods of use is normal

with LCD panels. It is not a malfunction

• If the screen is very dark, contact your

nearest Hyundai dealer for assistance

Sound is working from

only one speaker

• Are the positions of Fader or Balance

sound controls adjusted to only one

side?

Problem Possible Cause

Sound does not work in

AUX mode

• Are the audio connector jacks fully

inserted into the AUX terminal?

The external device is

not working

• Is the external device connected with a

standard connector cable?

Upon turning power on,

the most recent mode

screen is not displayed

Within modes that play files by reading

external sources, such as USB, iPod, or

Bluetooth

streaming mode, the most

recently played mode screen prior to turning

off power may not properly load

• If the corresponding device is not con-

nected, the mode operated prior to the

most recent mode will operate

• If the previous mode still cannot be prop-

erly played, the mode operated prior to

that will operate

6-4 I Appendix

Problem Possible Cause Countermeasure

The image

color/tone

quality is low

• The brightness,

saturation, hue, and

contrast levels are

not set properly

• Properly adjust the bright-

ness, saturation, hue, and

contrast levels through

Display Setup

Sound does

not work

• The volume level

is set to the lowest

level

• Adjust the volume level

• The connection is

not proper

• Check to see that the

device has been properly

connected

• The device is

currently fast-for-

warding, rewinding,

scanning, or playing

in slow mode

• The sound will not work

when the device is fast-for-

warding, rewinding, scan-

ning, or playing in slow

mode

The sound or

image quality

is low

• Vibration is occur-

ring from where the

conversion switch

has been installed

• The sound may be short-cir-

cuited and the image dis-

torted if the device vibrates

• Image color/tone

quality is low

• The device will return to

normal once vibrations stop

Problem Possible Cause Countermeasure

The power

does not turn

The fuse is

disconnected

• Replace with a suitable fuse

• If the fuse is disconnected

again, please contact

your point of purchase or

Hyundai dealer

Device is not properly

connected

• Check to see that the

device has been properly

connected

The system

does not play

The vehicle battery is

low

• Charge the battery If the

problem persists, contact

your point of purchase or

Hyundai dealer

Troubleshooting I 6-5



Problem Possible Cause Countermeasure

The USB

does not

work

• USB memory is

damaged

• Please use the USB after

formatting it.

• USB memory has

been contaminated

• Remove any foreign sub-

stances on the contact

surface of the USB memory

and multimedia terminal

• A separately pur-

chased USB HUB

is being used

• Directly connect the USB

memory with the multimedia

terminal on the vehicle

• A USB extension

cable is being used

• Directly connect the USB

memory with the multimedia

terminal on the vehicle

• A USB which is not

a Metal Cover Type

USB Memory is

being used

• Use standard USB Memory

• An HDD type, CF,

SD Memory is being

used

• Use standard USB Memory

• There are no music

files which can be

played

• Only MP3, WMA file formats

are supported. Please use

only the supported music

file formats

Problem Possible Cause Countermeasure

The iPod is

not recog-

nized even

though it has

been con-

nected

• There are no titles

which can be

played

• Use iTunes to download and

save MP3 files into the iPod

• The iPod firmware

version has not

been properly

updated

• Use iTunes to update

the firmware version and

reconnect the iPod with the

device

• The iPod device

does not recognize

downloads

• Reset the iPod and recon-

nect with the device

Bluetooth

does not

work or its

limited

functions are

available

• Bluetooth on your

mobile phone is set

to OFF

• Set it to ON

• The Bluetooth con-

nection is not made

• Make the connection active

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the 3&4&5 key to

reset the system.

• Press and hold the 3&4&5 key (more than 1 second). The device power

will turn off and the system will reset.

6-6 I Appendix

)$4

About Pairing Mobile Phones

QI cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth® func-

tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set

it to ON. If the cell phone still can’t be registered, try again after

turning Bluetooth off and on, or delete the device registration

on the multimedia system and cell phone and then register the

cell phone again.

Q What is the difference between pairing a mobile phone and

connecting a mobile phone?

Pairing occurs through authenticating the head unit and mobile

phone. Mobile phones paired to the head unit can be connected

and disconnected until the paired mobile phone is deleted from

the system. Bluetooth® Handsfree features, such as making/

answering calls or managing contacts, are supported only in

mobile phones connected with the head unit.

QWhat is a Passkey?

A passkey is the password used to authenticate the connection

between the head unit and mobile phone. The passkey only

needs to be entered once when pairing the mobile phone for

the first time.

The initial passkey is 0000. You can change it with

4&561

#MV

#MVFUPPUI4ZTUFN*OGP

BTT

options.

FAQ I 6-7



About Making/Answering Phone Calls

QHow can I answer a call?

A When there is an incoming call, a notification pop-up will

become displayed. To answer the incoming call, select the

DDFQU

button on the screen or press the key on the

steering wheel control.

To reject the call, select the

button on the screen or

press the key on the steering wheel control.

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (more than 0.8 seconds) the

key on the steering wheel control or select the

6TF1SJWBU

button at the bottom of the Phone screen to switch

the call to your mobile phone.

About

Bluetooth

® Wireless Technology/Head

Unit Use Environment

QWhat is the range of my wireless connection?

AThe wireless connection can be used within 15 yards.

QHow many mobile phones can be paired?

AIt is possible to pair up to five mobile phones.

QWhy is call quality sometimes poor?

A Check the reception sensitivity of the mobile phone when call

quality becomes worsened. The call quality may deteriorate

when the signal strength is low. Call quality may also worsen

if metal objects, such as beverage cans, are placed near the

mobile phone. Check to see if there are metal objects in the

vicinity of the mobile phone. The call sound and quality may dif-

fer depending on the type of mobile phone.

6-8 I Index

,QGH[

About Bluetooth® Wireless Technology/

Head Unit Use Environment ………… 6-7

About Making/Answering Phone

Calls …………………………………… 6-7

About Pairing Mobile Phones ………… 6-6

Accept/Reject Call …………………… 3-7

Advanced Settings …………………… 5-7

Auto Connection Priority ……………… 5-4

AUX …………………………………… 2-17

Battery Warning Message …………… 1-10

Before Playing a USB MP3 …………… 2-4

Before Using the Bluetooth®

Handsfree …………………………… 3-2

Bluetooth® Audio ……………………… 2-18

Bluetooth Connection ………………… 3-4

Bluetooth Connection Settings … 2-19, 5-3

Bluetooth Phone ……………………… 3-6

Bluetooth Settings …………………… 5-3

Bluetooth System Information………… 5-5

Call History …………………………… 3-9

Camera ……………………………… 4-2

CAUTIONS upon Connecting

Bluetooth® Phone …………………… 3-3

Component Names and Functions … 1-5

Connecting an External Device ……… 2-17

Connecting Bluetooth Devices ……… 3-4

Contacts ……………………………… 3-10

Custom Button Settings ……………… 5-5

Index I 6-9



Date/Time Settings …………………… 5-6

Deleting Bluetooth Devices …………… 3-5

Dial …………………………………… 3-7

Disconnecting Bluetooth Devices …… 3-5

Display Settings ……………………… 5-3

)

FAQ …………………………………… 6-6

Favorites ……………………………… 3-11

FM/AM ………………………………… 2-2

Head Unit ……………………………… 1-5

Home Screen ………………………… 1-11

Home Screen Settings ……………… 5-6

iPod …………………………………… 2-10

iPod Mode Display Controls ………… 2-14

Keyboard Settings …………………… 5-7

Key Product Features ………………… 1-4

Language Settings …………………… 5-6

On-Screen Touch Controls …………… 1-12

Pairing a New Device ………………… 3-4

Phone Projection Settings …………… 5-6

Phone Status Icons …………………… 3-6

Precautions for Safe Driving ………… 3-2

Product Specification ………………… 6-2

Restrictions on Features for Safety

Measures ……………………………… 1-10

6-10 I Index

Screen Saver Settings ………………… 5-7

Setup ………………………………… 5-2

Sound Settings ……………………… 5-2

Starting the System for the First

Time …………………………………… 1-9

Steering-linked camera ……………… 4-2

Steering Wheel Controls ……………… 1-7

Supported USB MP3 music

specifications ………………………… 2-6

System Info …………………………… 5-8

System Reset ………………………… 1-9

System Update ……………………… 5-8

Troubleshooting ……………………… 6-3

Turning the System On/Off …………… 1-9

USB …………………………………… 2-4

USB Mode Display Controls ………… 2-7

Using iPod Devices …………………… 2-10

Using the Menu During a Phone

Call …………………………………… 3-8

Warnings and Cautions ……………… 1-2

What is Bluetooth® Wireless

Technology? …………………………… 3-2



,PSRUWDQW,QIRUPDWLRQ

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual (“User’s

Guide”). Not following precautions found in this User’s Guide can lead to an accident or other serious consequences.

Keep User’s Guide in Vehicle

When kept in the vehicle, the User’s Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please

make certain that before using the system for the first time, all persons have access to the User’s Guide and read its instructions and

safety information carefully.

Warning

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other

serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a

safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may

to distract your attention away from the road and remove your hands from the wheel.

*HQHUDO2SHUDWLRQ

Voice Command Control

Functions within the Multimedia system may be accomplished using only voice commands. Using voice commands while driving allows

you to operate the system without removing your hands from the wheel.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before

attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous

if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while

driving. Driving while unable to hear these sounds could cause an accident.

Use of Speech Recognition Functions

Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any

speech recognition functions included in the system and address any errors.



)&&:DUQLQJ

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: Any changes or modifications to this device not expressly approved by the party responsible for compliance could void your

authority to operate the equipment.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be

collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.

0(02

HYUNDAI MOBIS ADB10J3AN DIGITAL CAR SYSTEM User Manual DAUD2 0 USA AV

HYUNDAI MOBIS CO., LTD. DIGITAL CAR SYSTEM DAUD2 0 USA AV

User Manual

Navigation menu

Namespaces

Views

Navigation
