HYUNDAI MOBIS ADB40C2AN DISPLAY CAR SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DISPLAY CAR SYSTEM

UserManual.wiki >

HYUNDAI MOBIS >

ADB40C2AN User Manual HTML Version

User Manual

2VEUG07

(미국/영어-English) CAR MULTIMEDIA SYSTEM

USER'S MANUAL

CAR MULTIMEDIA SYSTEM

미국/영어-English

Thank you for purchasing this multimedia

system.

This user's manual explains how to use

the HYUNDAI Motor multimedia system.

Before using the product, read the con-

tents of this user's manual carefully and

use this product safely.

•

The screens shown in this manual may

differ with the actual screens of the

product.

•

The design and specification of this

product may change without prior notifi-

cation for product improvement.

•

When transferring the vehicle to another

individual, include this user's manual so

that the next driver can continue its use.

Precaution for safe usage

•

Driving while distracted can result in a

loss of vehicle control, that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation of a

vehicle, and use of any handheld devices,

other equipment, or vehicle systems which

take the driver’s eyes, attention and focus

away from the safe operation of a vehicle

or which are not permissible by law should

never be used during operation of the

vehicle.

•

Do not operate the

multimedia system

while driving.

•

Do not disassemble, assemble, or modify

the

multimedia system

•

Do not watch the screen for prolonged

periods of time while driving.

•

Set the volume to a level which allows the

driver to be aware of external conditions.

•

Do not operate the

multimedia system

for

prolonged periods of time with the vehicle

ignition in ACC. Such operations may lead

to battery discharge.

•

Be cautious not to spill water or introduce

foreign objects into the device.

•

Do not cause severe shock to the device.

Direct pressure onto the front side of the

monitor may cause damage to the LCD or

touch panel.

•

In case of product malfunction, please

contact your place of purchase or service

center.

•

When cleaning the touch screen, make

sure to turn off the device and use a dry

and smooth cloth. Never use tough materi-

als, chemical cloths, or solvents (alcohol,

ammonia, benzene, thinners, etc.) as such

materials may damage the device panel or

cause color and quality deterioration.

•

SiriusXM service requires a subscrip-

tion, sold separately, after 3-month trial

included with vehicle purchase. If you

decide to continue your SiriusXM ser-

vice at the end of your trial subscription,

the plan you choose will automatically

renew and bill at then-current rates until

you call Sirius XM at 1-866-635-2349 to

cancel. See our Customer Agreement

for complete terms at www.siriusxm.

com. Programming subject to change.

Sirius satellite service is available only

to those at least 18 and older in the 48

contiguous USA, D.C., and PR (with

coverage limitations). Traffic informa-

tion not available in all markets. See

siriusxm.com/traffic for details. Sirius,

XM and all related marks and logos are

trademarks of Sirius XM Radio Inc.

WARNING

• Driving while distracted can result in a

loss of vehicle control that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation

of a vehicle, and use of any handheld

devices, other equipment, or vehicle

systems which take the driver’s eyes,

attention and focus away from the safe

operation of a vehicle or which are not

permissible by law should never be used

during operation of the vehicle.

All Map Database cannot be copied without permission.

Important Notice : This is protected by U.S. copyright laws. All rights not expressly granted are reserved.

You may not otherwise reproduce, modify and distribute the content without HYUNDAI MnSoft, Inc’s prior written consent.

Read the following safety cautions for your

safety

Before using the product, read the contents of this user's manual

carefully and use this product safely.

※ The design and speciﬁ cations of this product may change without prior

notiﬁ cation for product and service improvement.

The actual features in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

※ For more information on open licenses and legal notices, refer to the

website below.

http://www.mobiszone.co.kr/front/mall/jsp/manual/avn_download_

center_manual.jsp

Notations used within this User's Manual

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

2 I Table of Contents

1. Basic

Warnings and Cautions .........................1-2

Key Product Features ...........................1-4

Component Names and Functions ......1-5

Head Unit ……………………………… 1-5

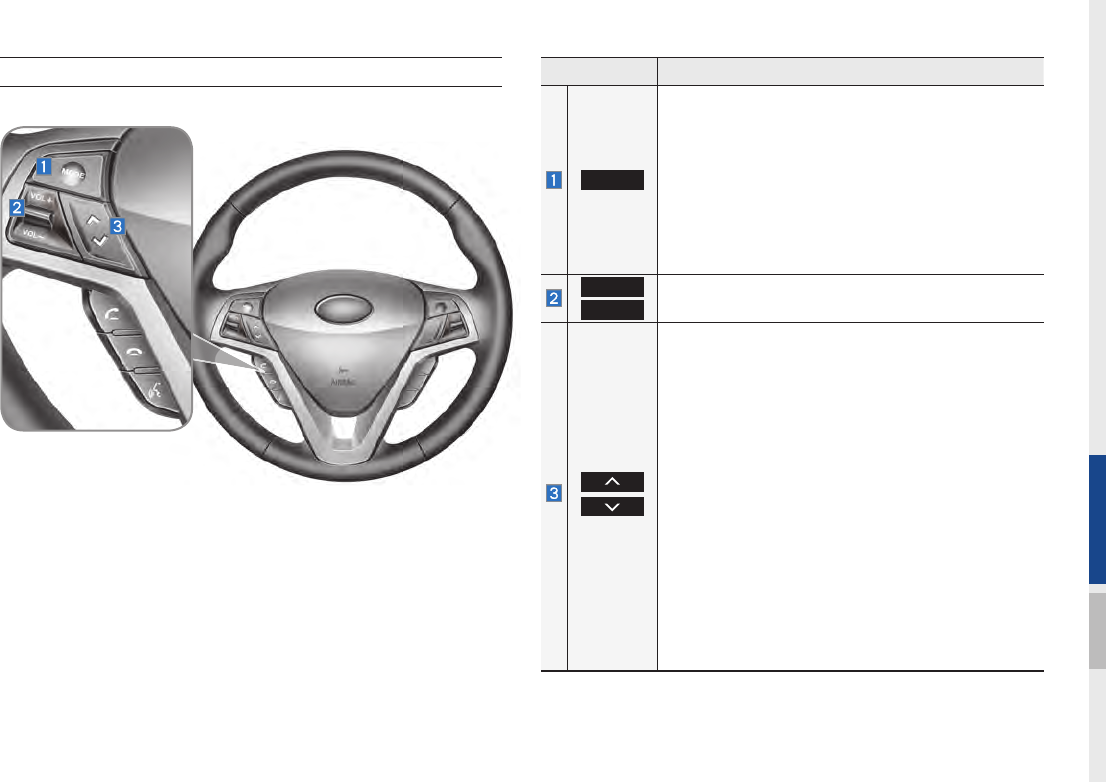

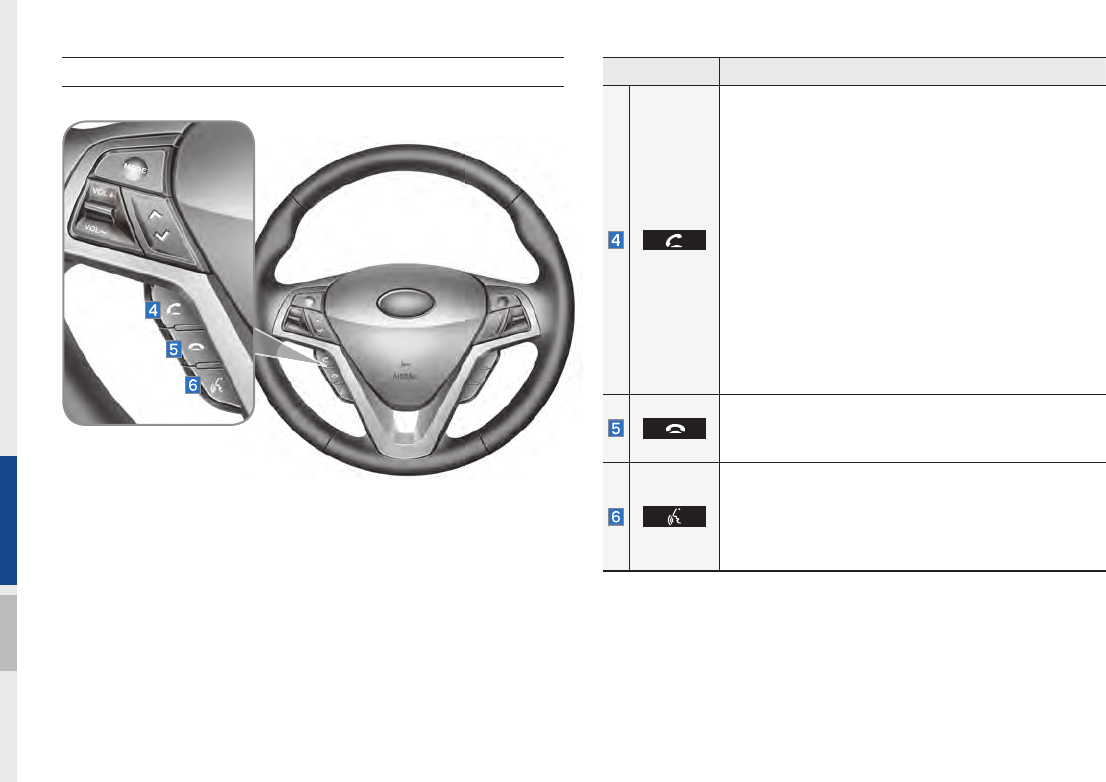

Steering Wheel Control ……………… 1-7

Starting the System for the

First Time .................................................1-9

Turning the System On/Off …………… 1-9

System Reset ………………………… 1-9

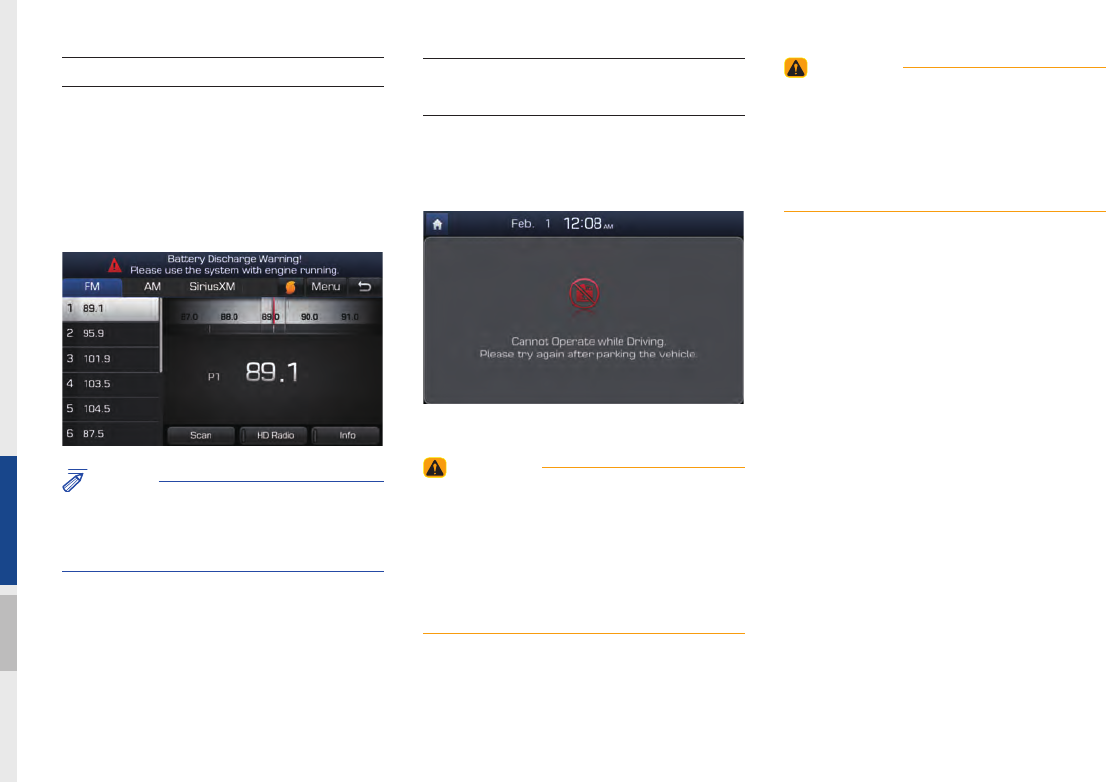

Battery Warning Message ……………1-10

Restrictions on Features for Safety

Measures ……………………………… 1-10

Home Screen …………………………1-11

On-Screen Touch Controls …………… 1-12

2. AV

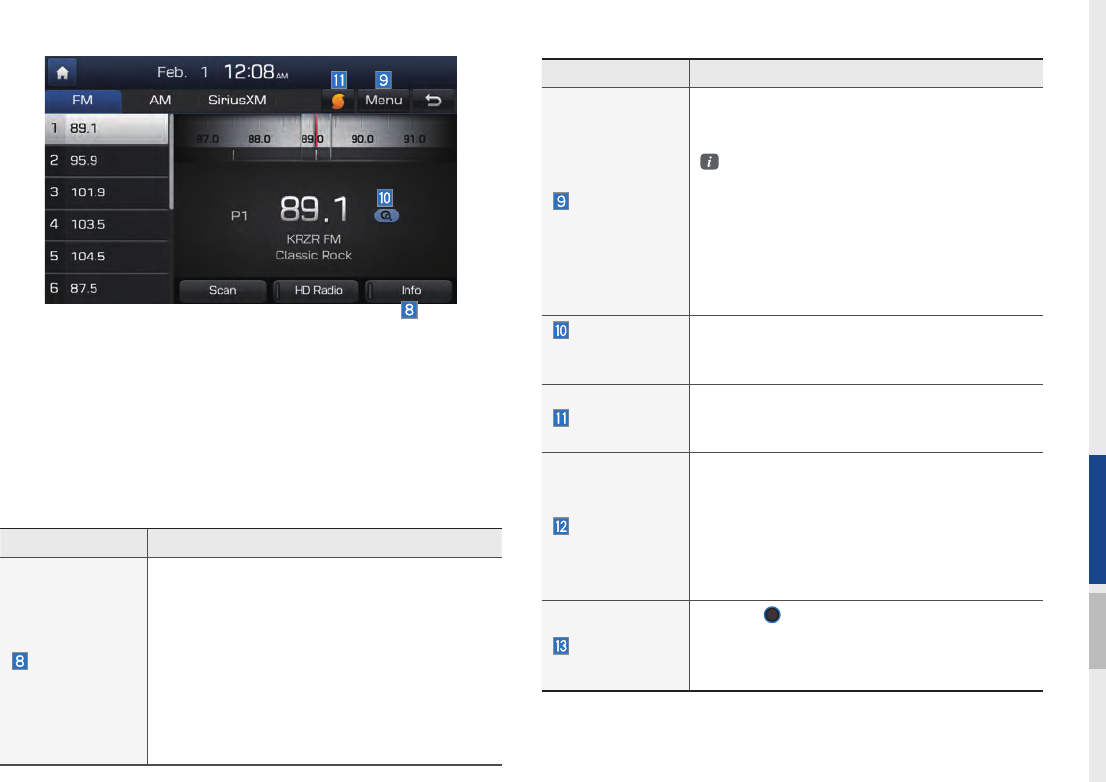

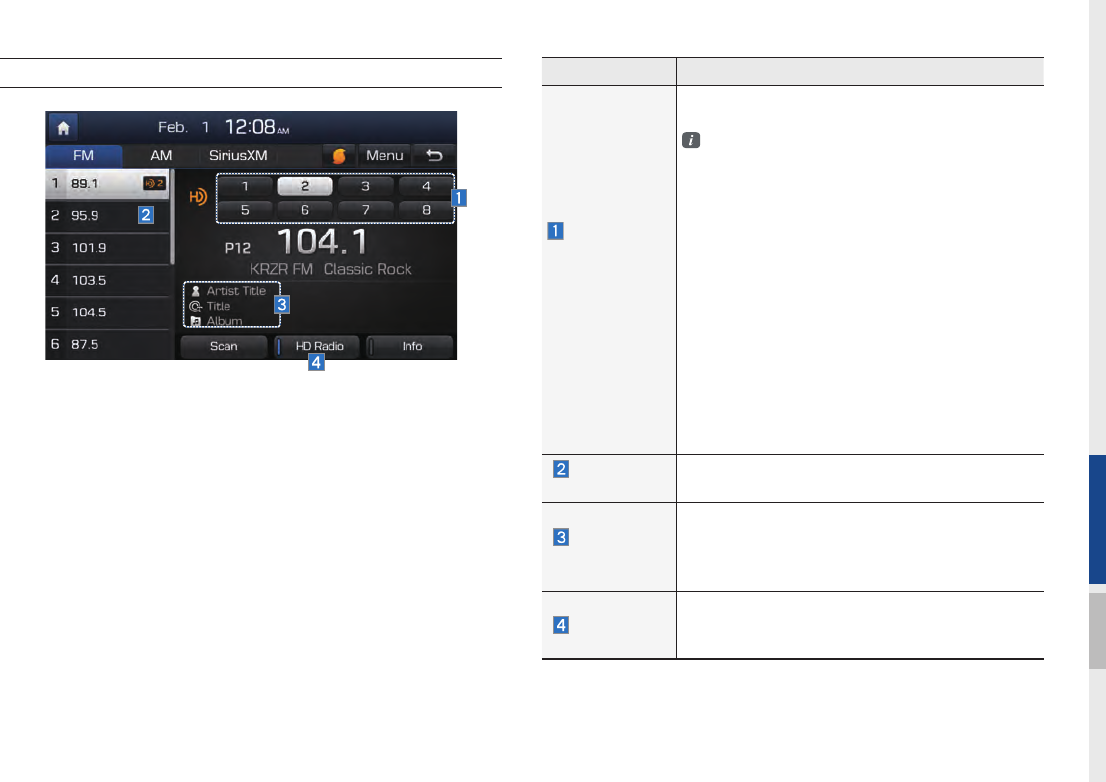

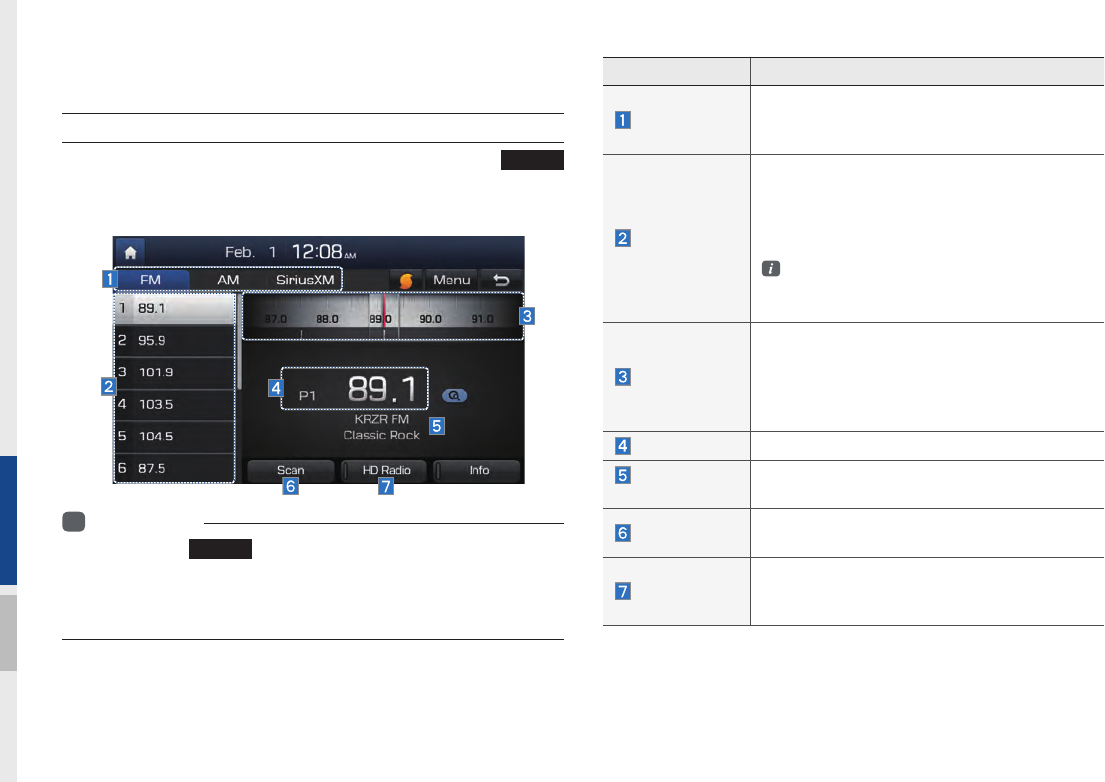

FM/AM .....................................................2-2

Accessing FM/AM Mode …………… 2-2

HD Radio™ Technology ........................2-4

HD Radio™ Mode Display Controls … 2-5

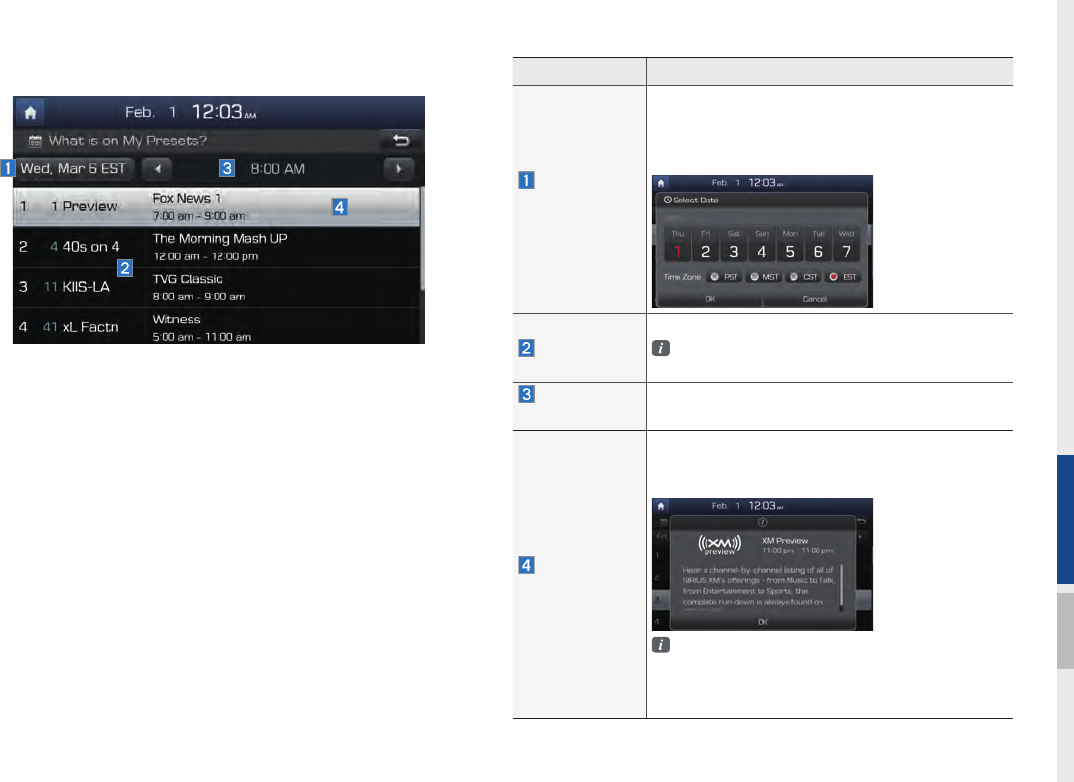

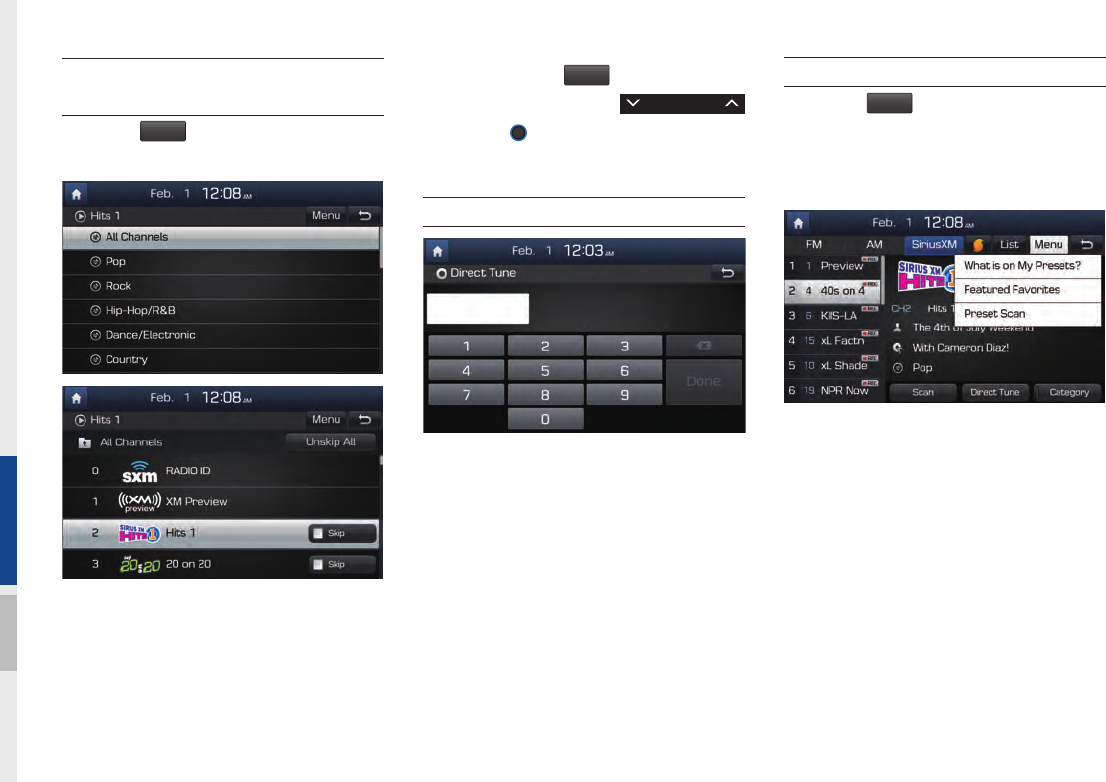

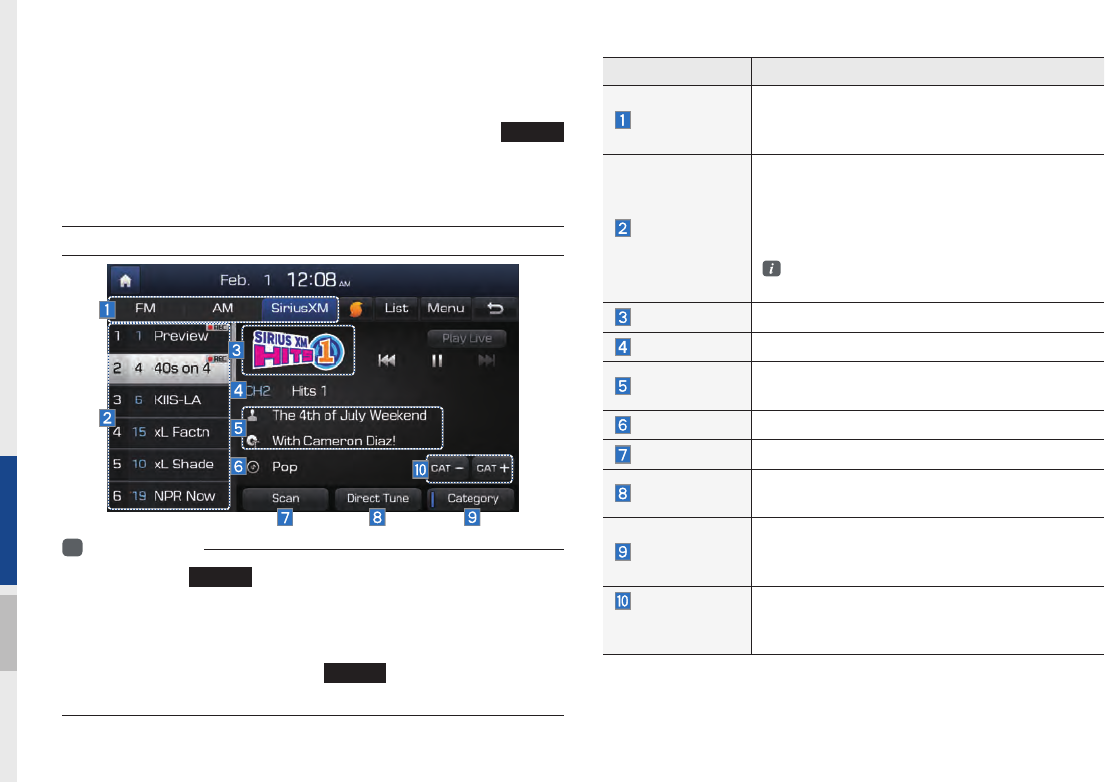

SiriusXM™ ...............................................2-6

SiriusXM™ Display Controls …………… 2-6

Selecting through Channel/

Category List ………………………… 2-8

Direct Tune …………………………… 2-8

Viewing Menu ………………………… 2-8

USB ..........................................................2-11

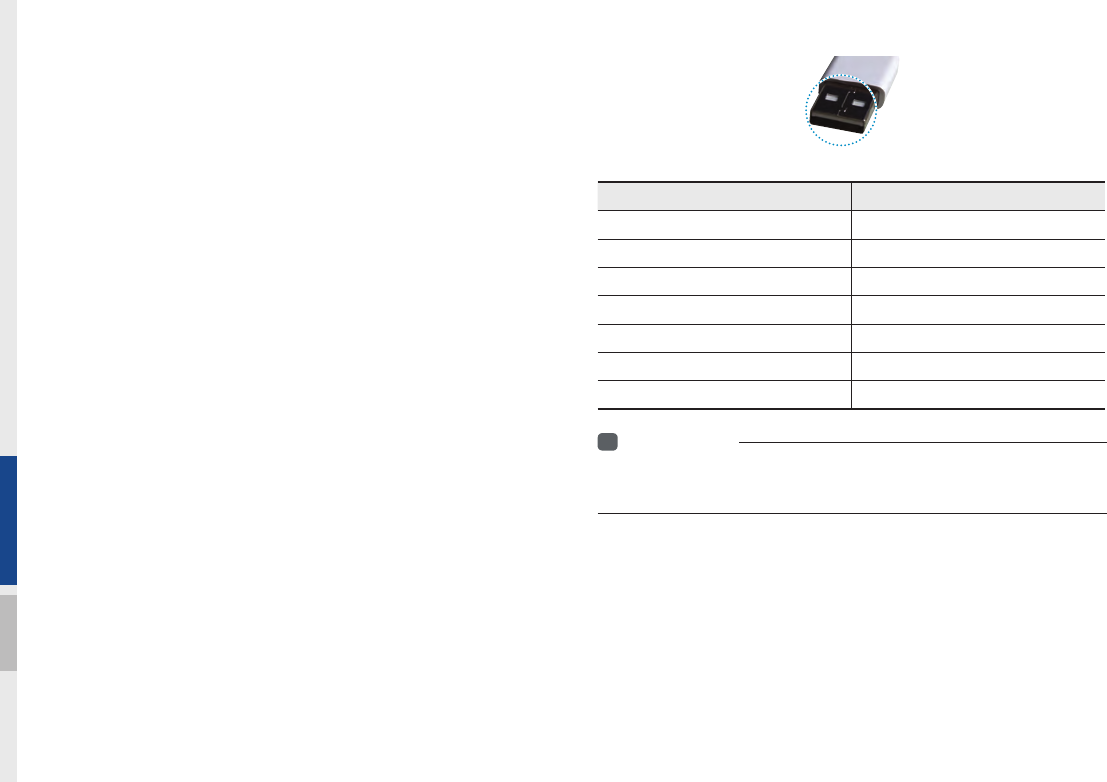

Before Playing a USB MP3 ……………2-11

USB MP3 Information and Precautions … 2-13

Supported Image Specifications……… 2-13

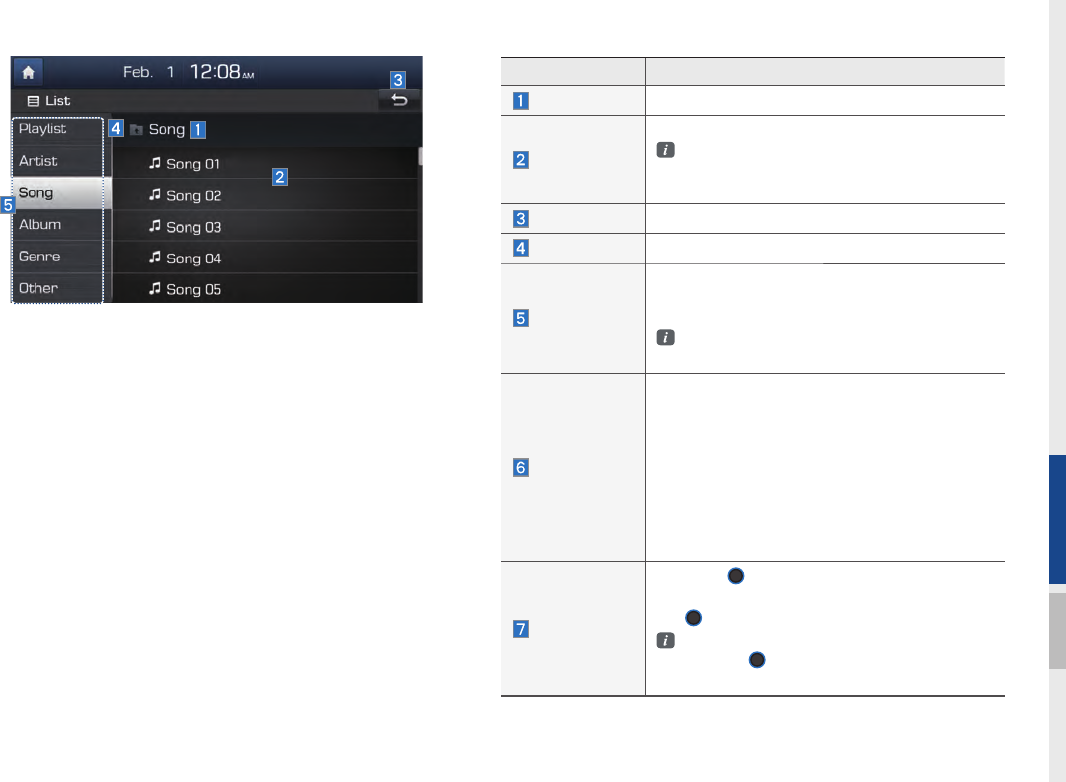

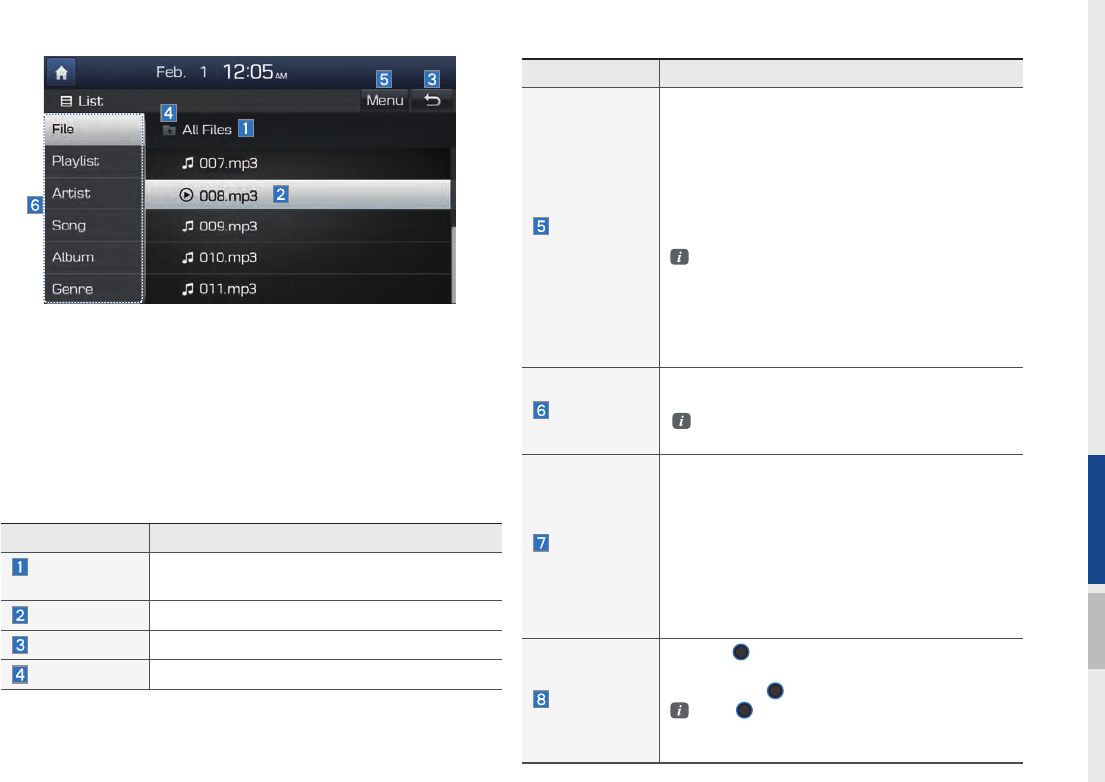

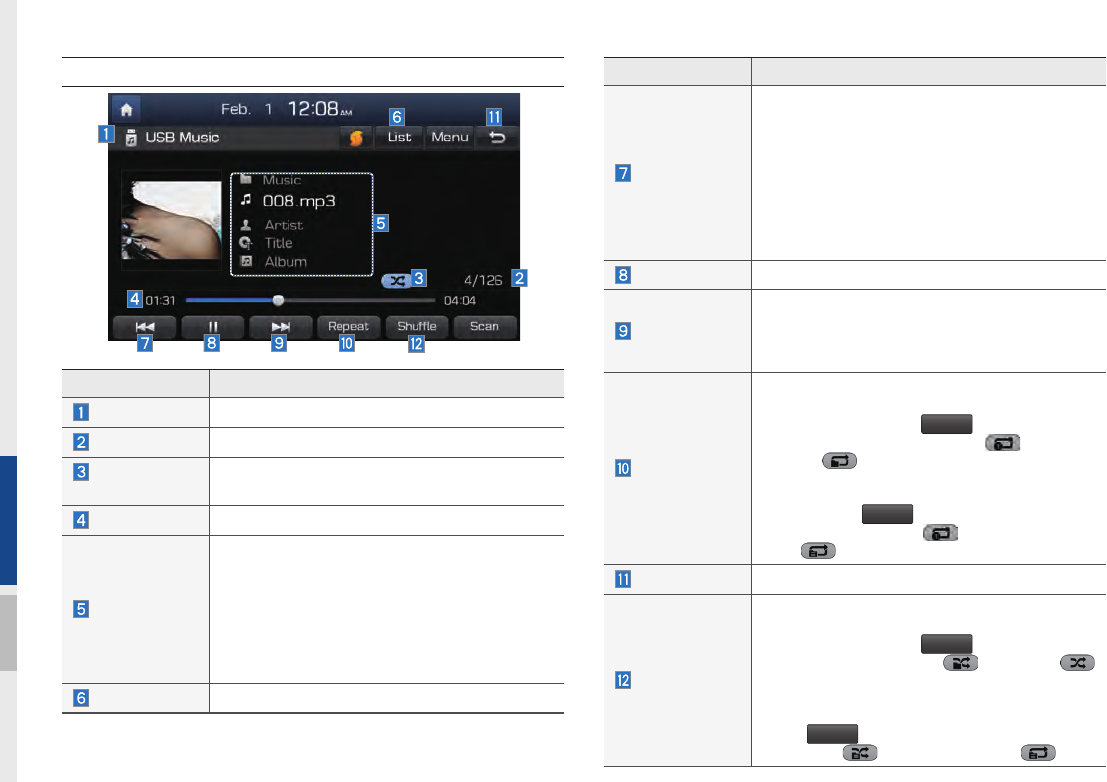

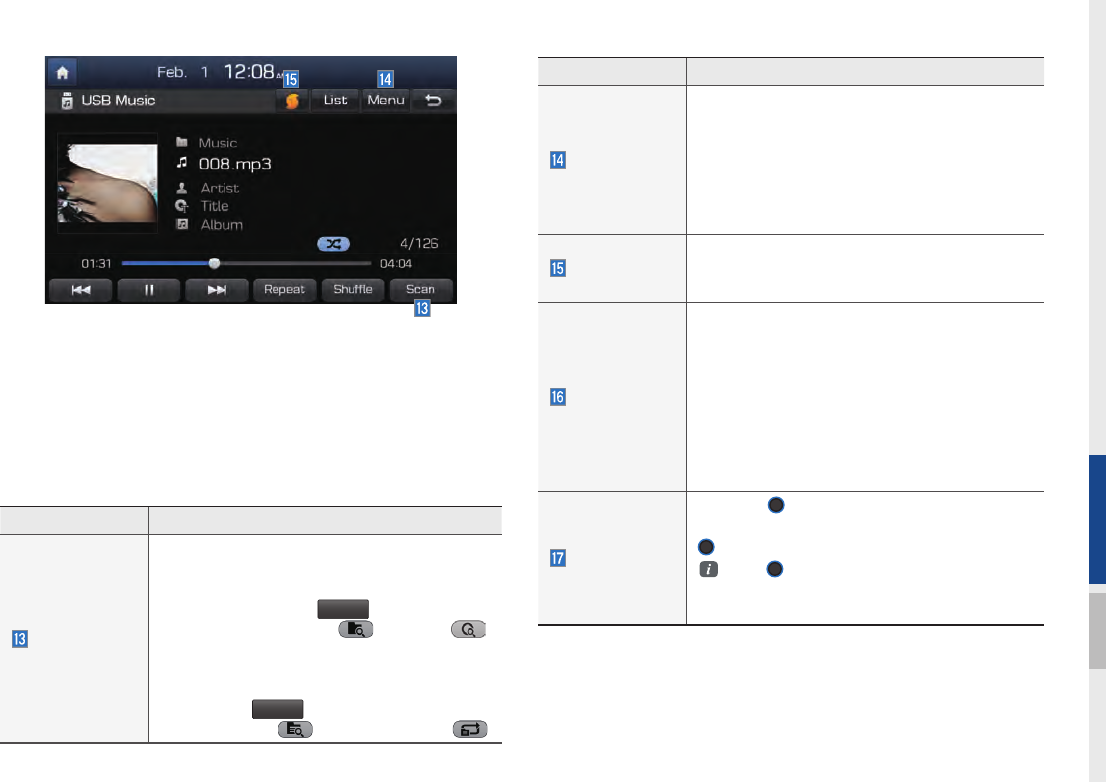

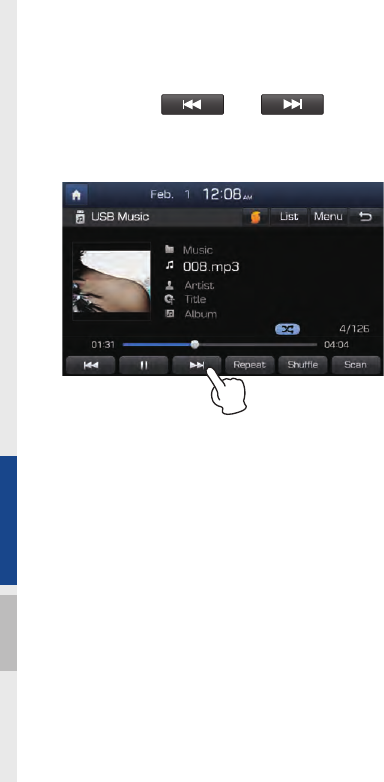

USB Music ……………………………2-14

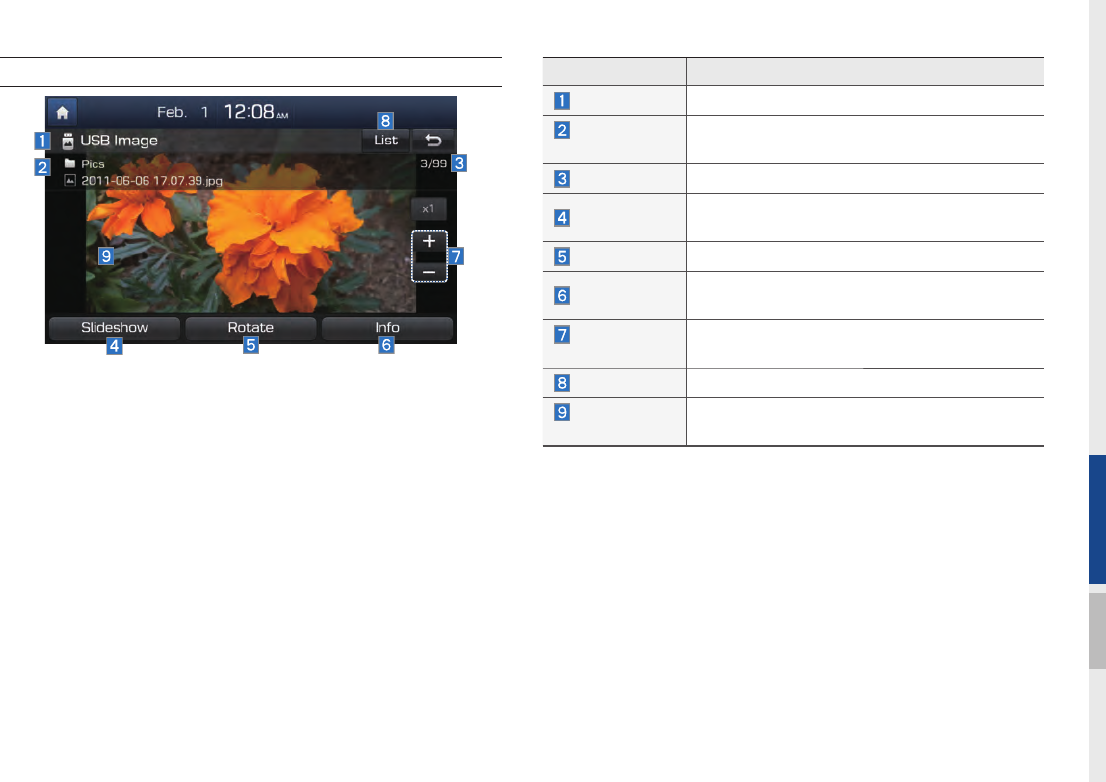

USB Image ……………………………2-17

iPod .........................................................2-19

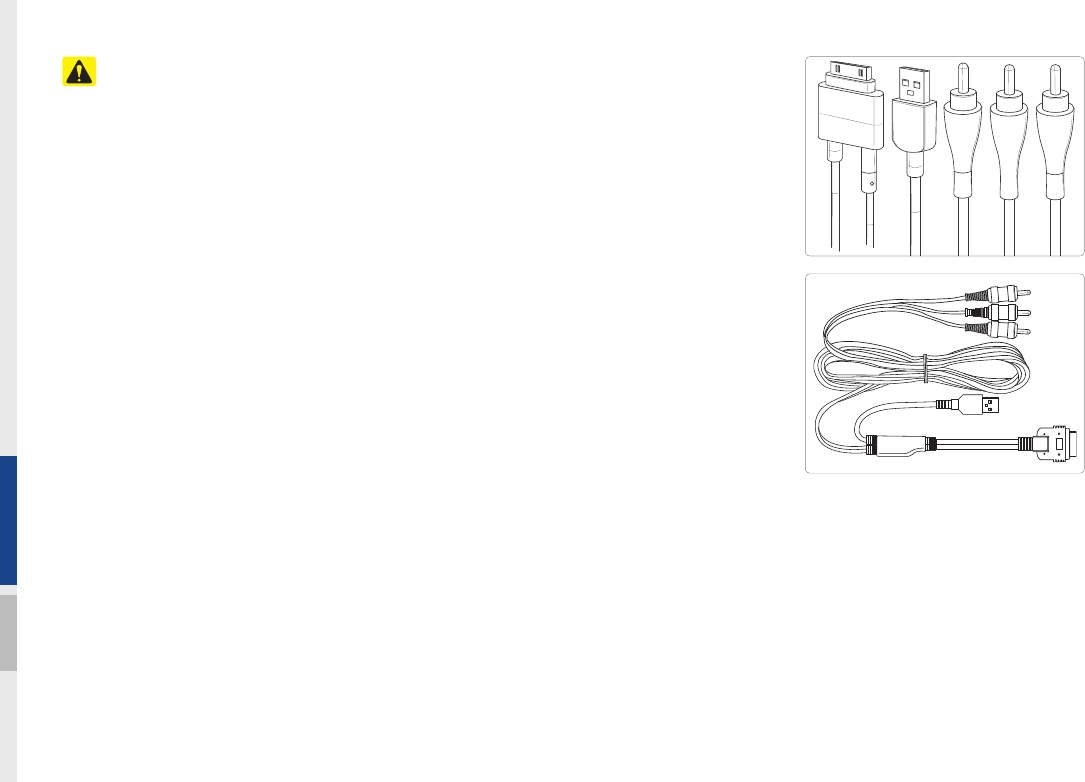

Using iPod Devices ……………………2-19

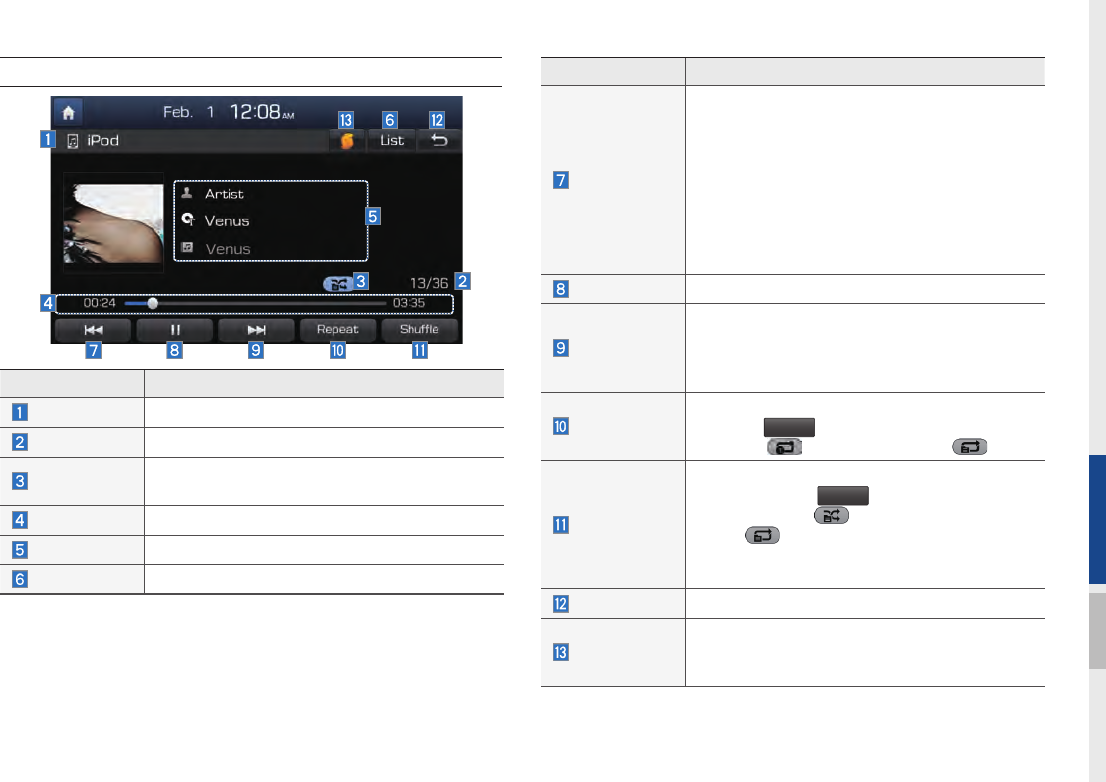

iPod …………………………………… 2-23

AUX .........................................................2-26

Connecting an External Device ……… 2-26

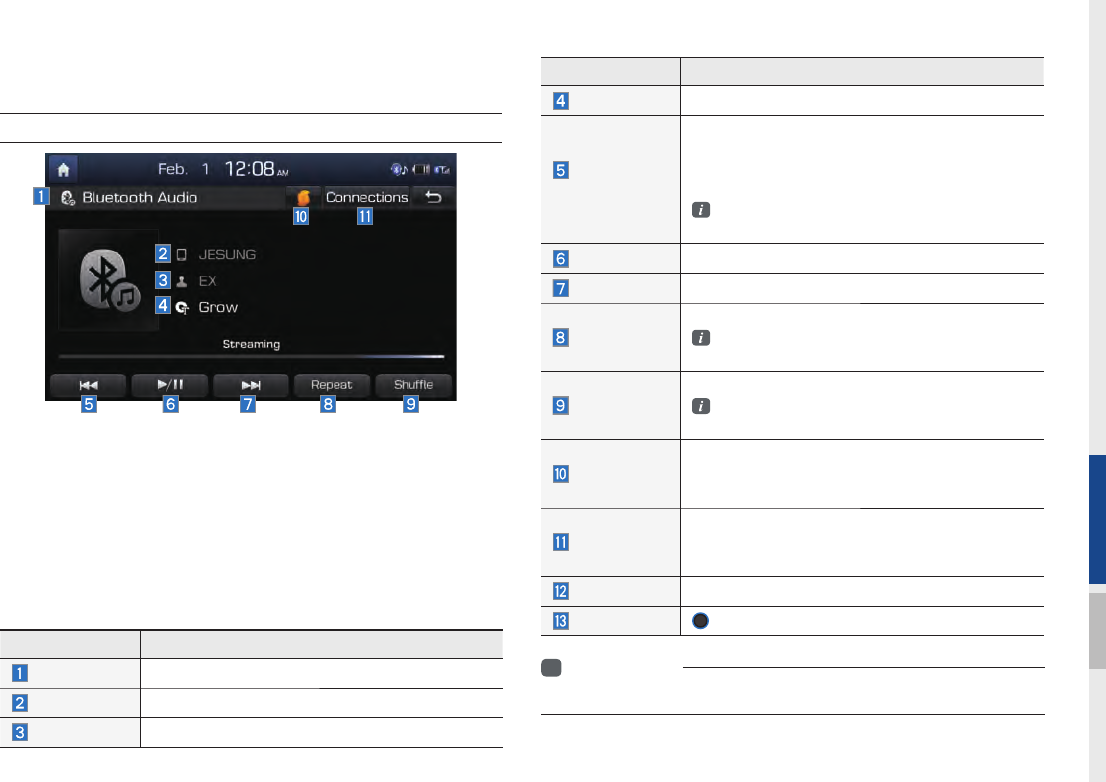

Bluetooth® Audio ..................................2-27

Bluetooth Audio Mode ………………… 2-27

Bluetooth Connections Settings ………2-28

My Music ...............................................2-29

Table of Contents

Table of Contents I 3

3. Bluetooth

Before Using the Bluetooth®

Handsfree ................................................3-2

What is

Bluetooth

Wireless

Technology? …………………………… 3-2

Precautions for Safe Driving ………… 3-2

CAUTIONS upon Connecting

Bluetooth® Phone …………………… 3-3

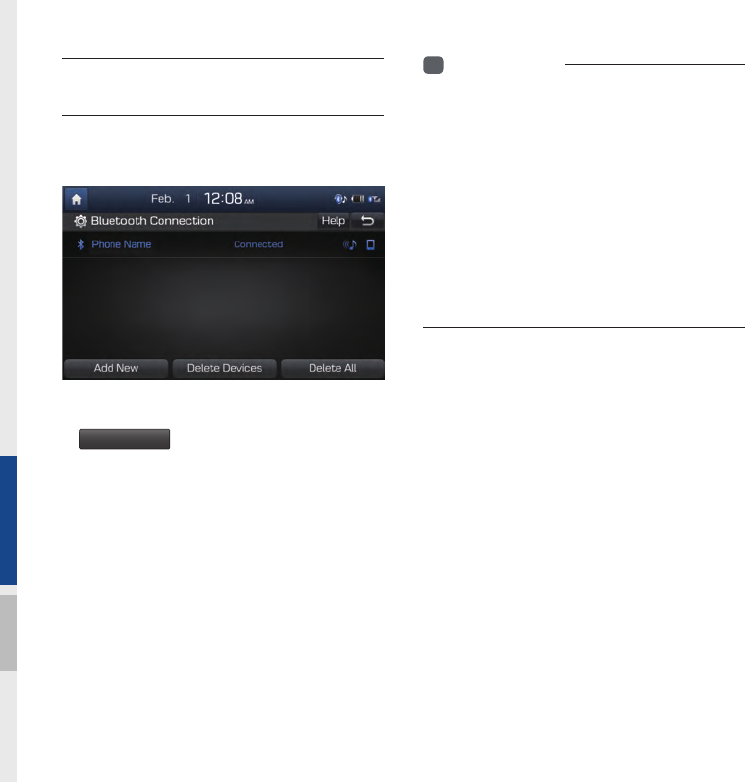

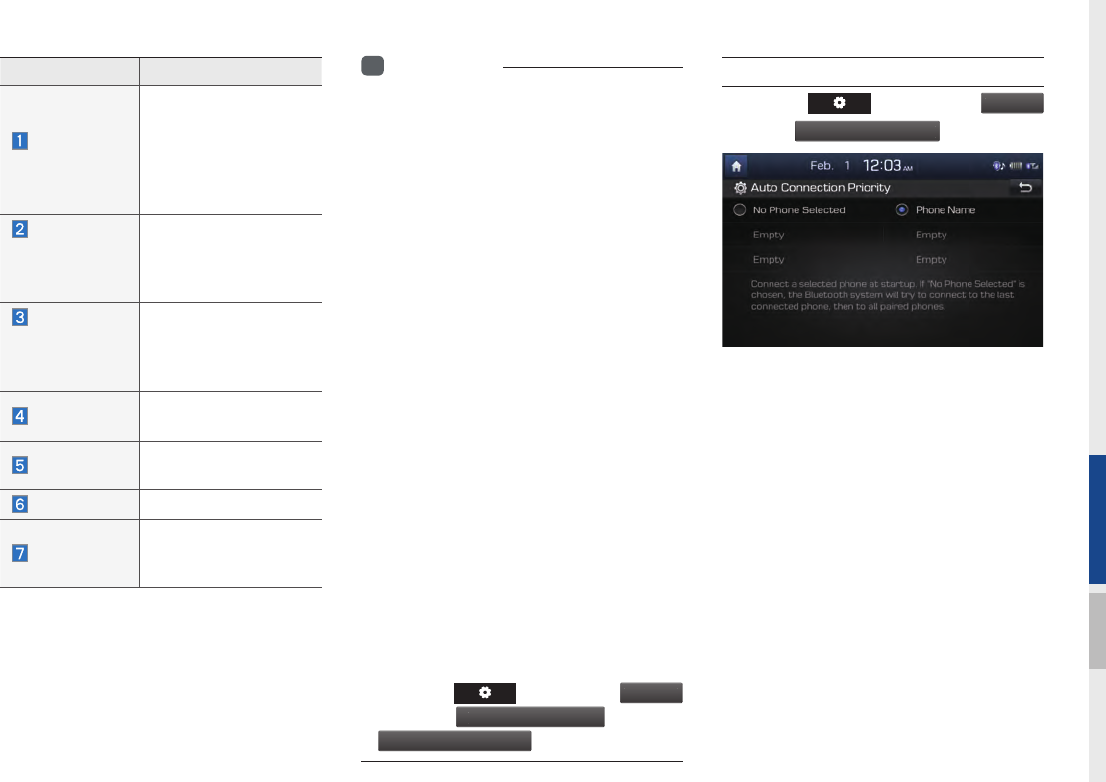

Bluetooth Connection ............................3-4

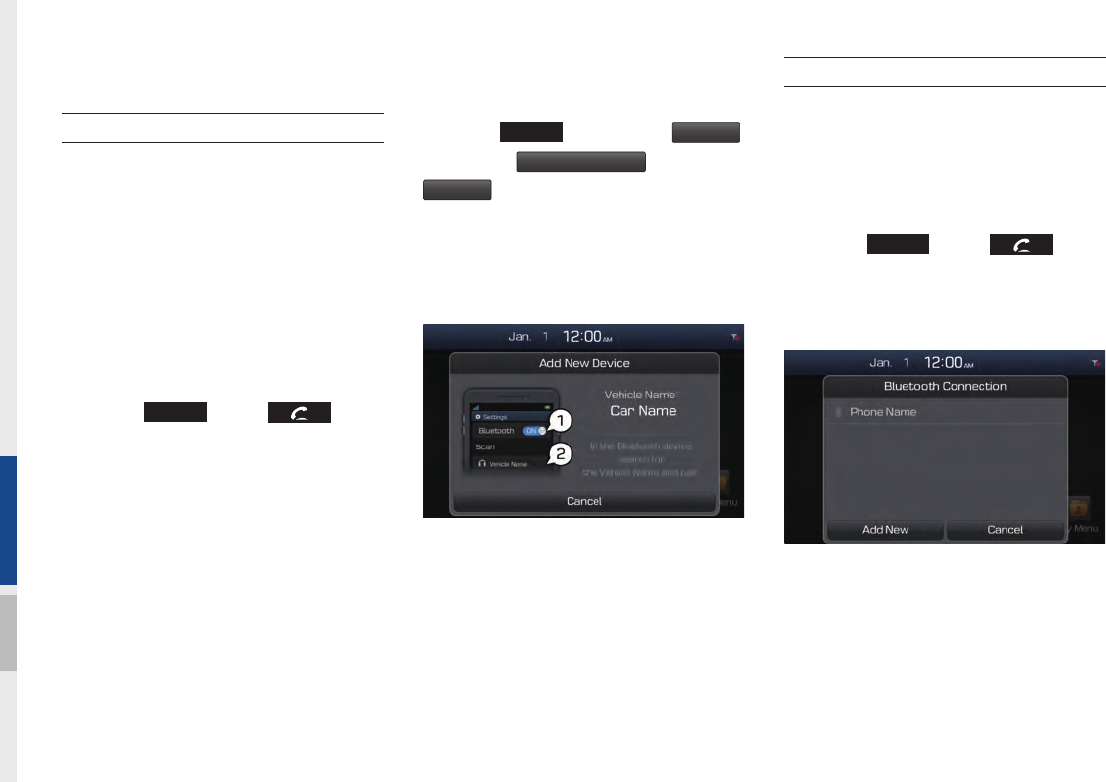

Pairing a New Device ………………… 3-4

Connecting Bluetooth Devices ……… 3-4

Disconnecting Bluetooth Devices …… 3-5

Deleting Bluetooth Devices …………… 3-5

Bluetooth Phone ....................................3-6

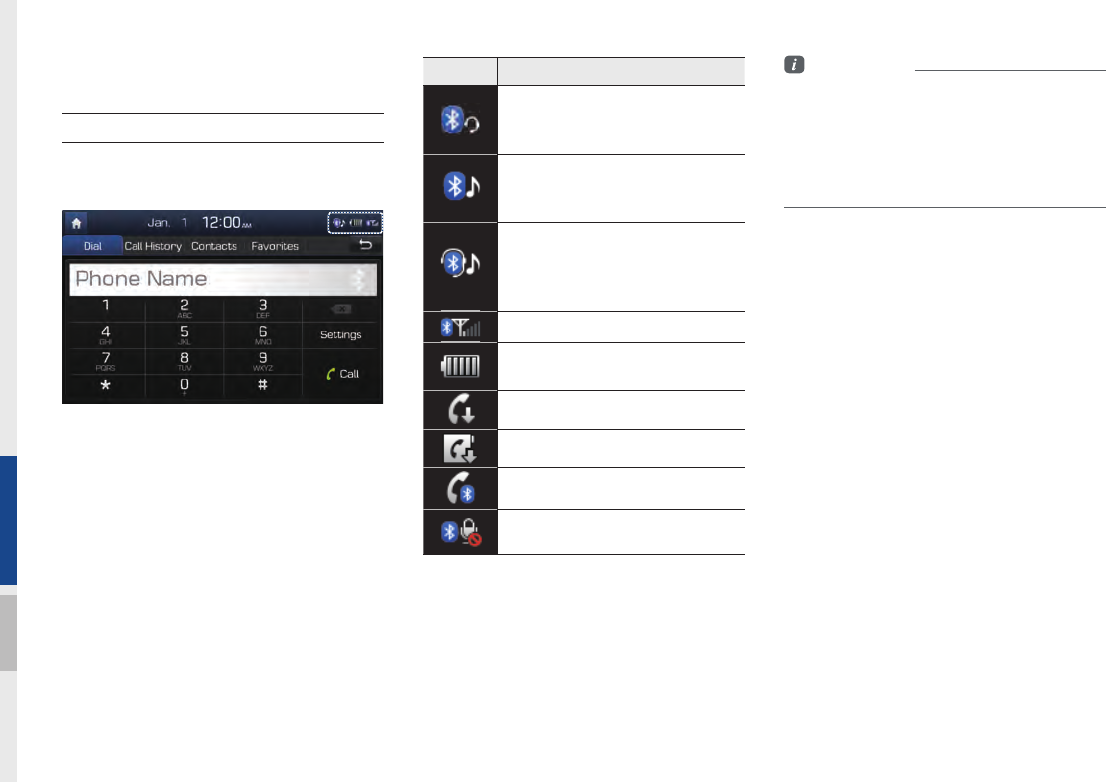

Phone Status Icons ………………… 3-6

Dial …………………………………… 3-7

Accept/Reject Call …………………… 3-7

Using the Menu During a Phone Call … 3-8

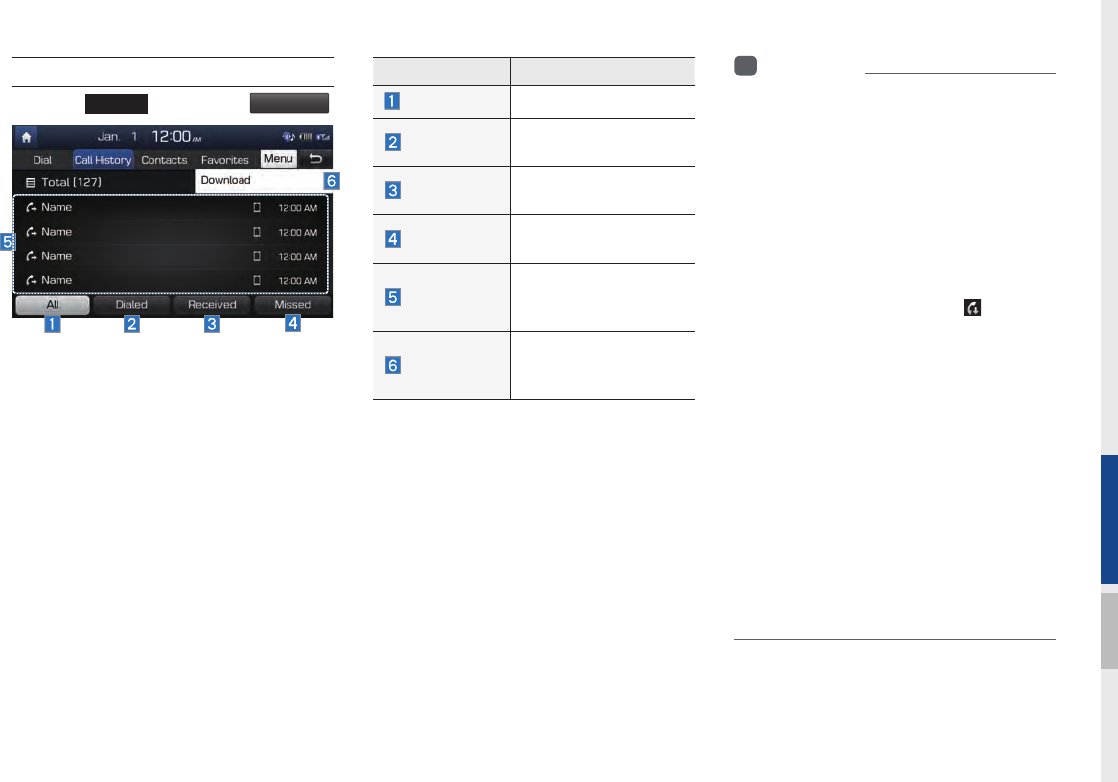

Call History …………………………… 3-9

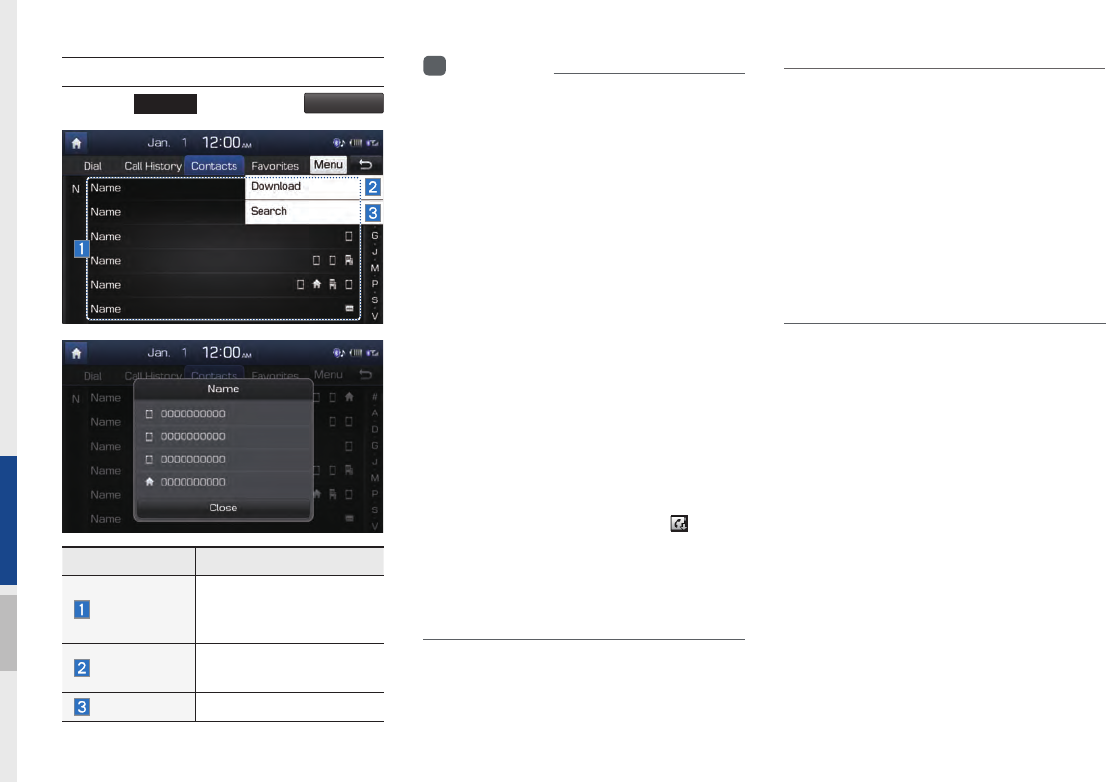

Contacts ………………………………3-10

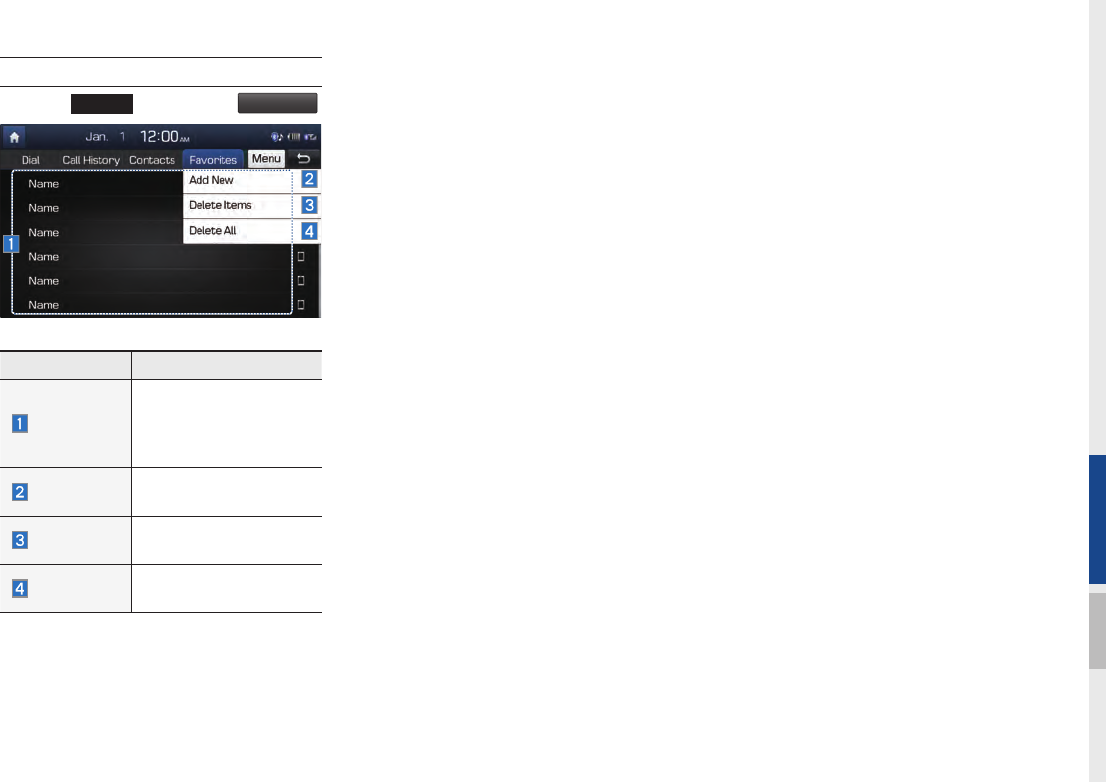

Favorites ………………………………3-11

4. Blue Link® Control

Name and Function of Each Part ........4-2

Rear View Mirror Switch ……………… 4-2

Before Use ...............................................4-3

What Is Blue Link? …………………… 4-3

What Is Telematics? ………………… 4-3

About Transmission and

Reception of Radio Waves …………… 4-3

Getting Started with Blue Link ............4-4

Connecting with the Blue Link Center … 4-4

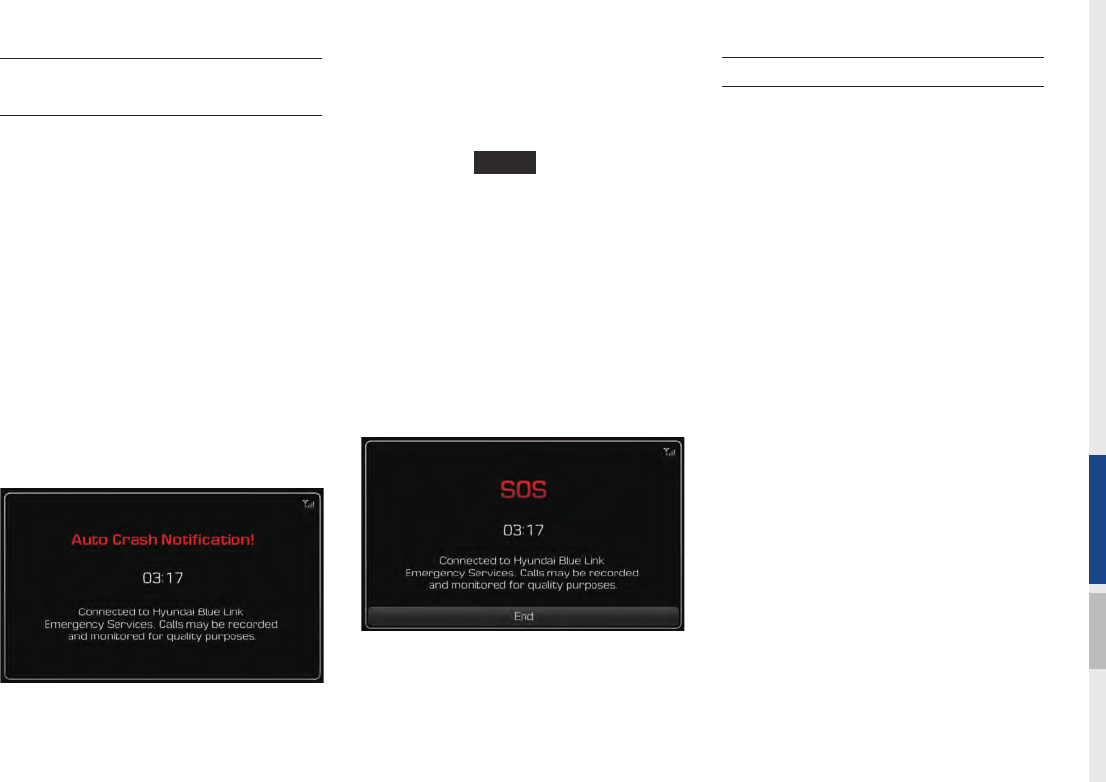

Blue Link® Safety and Security Service …4-5

Stolen Vehicle Recovery ……………… 4-5

Driving Info ..............................................4-6

Send to Car with Google .......................4-6

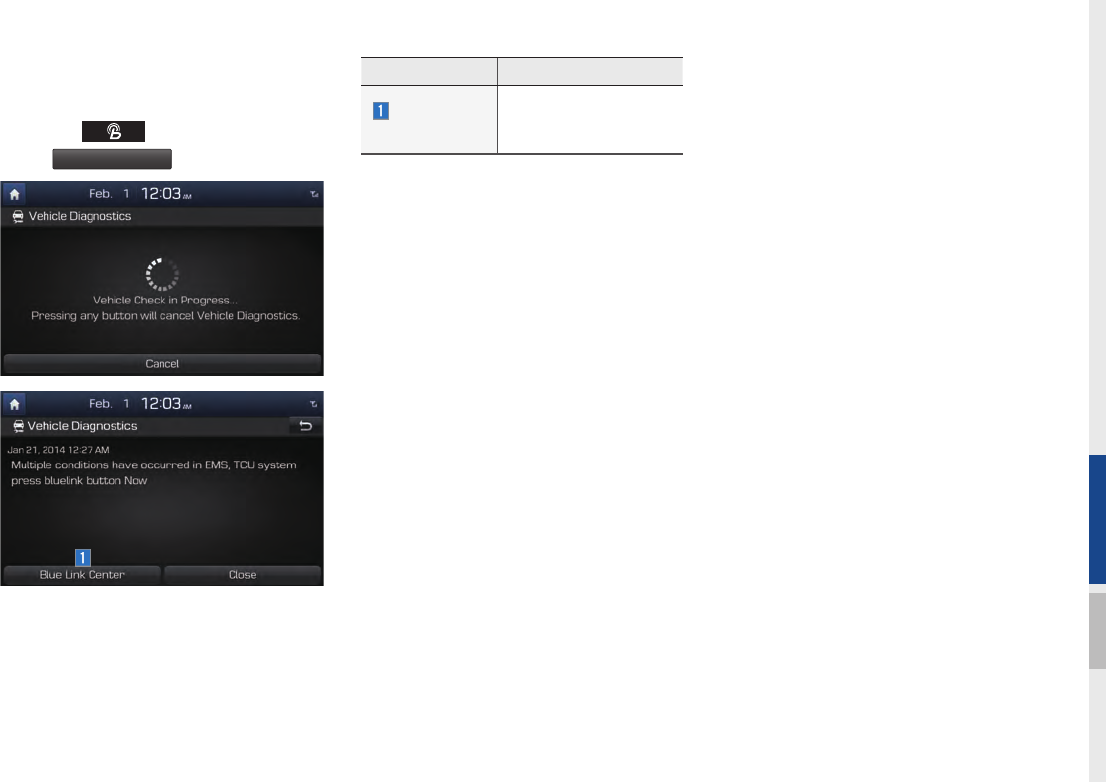

Vehicle Diagnostics ................................4-7

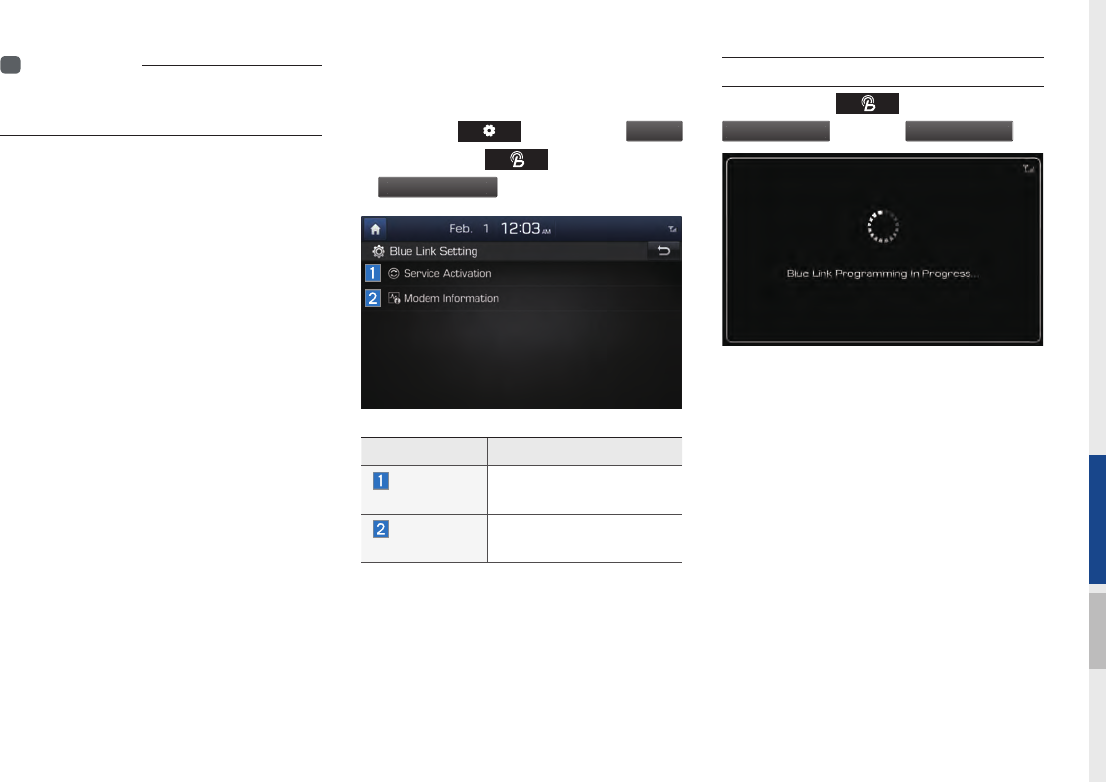

Blue Link Settings ..................................4-7

Blue Link Voice Local Search ..............4-8

What is Blue Link Voice Local Search? … 4-8

Starting Blue Link Voice Local Search … 4-8

5. Navigation

Basic Features ........................................5-2

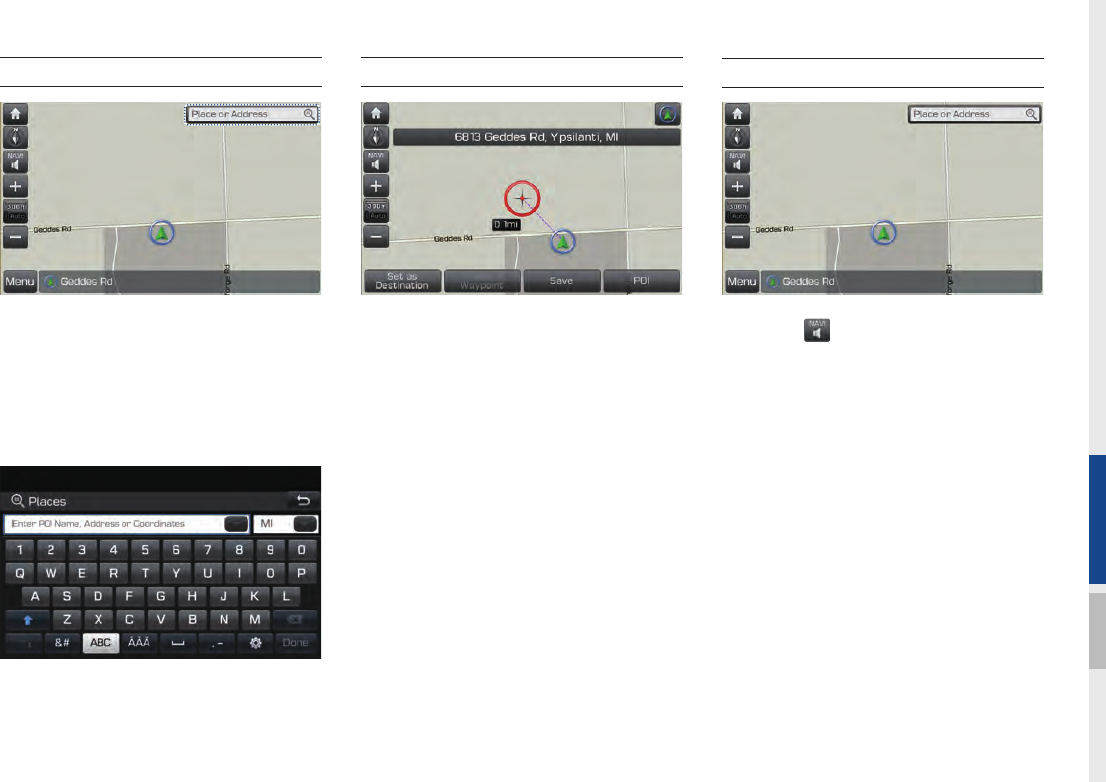

Operating Navigation Screen ………… 5-2

Places ………………………………… 5-3

Changing Map View ………………… 5-3

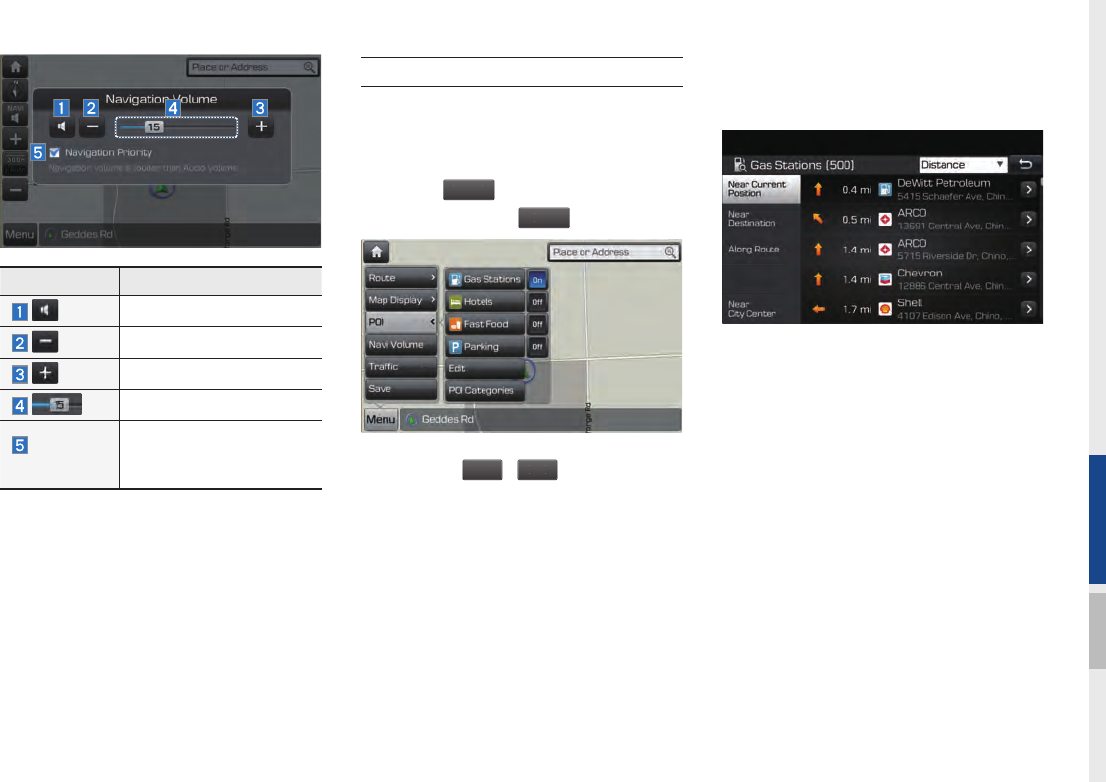

Navigation Volume …………………… 5-3

Zoom In/Zoom Out …………………… 5-4

Map Scale …………………………… 5-4

Menu .........................................................5-5

Route ………………………………… 5-5

Map Display ………………………… 5-6

Navigation Volume …………………… 5-6

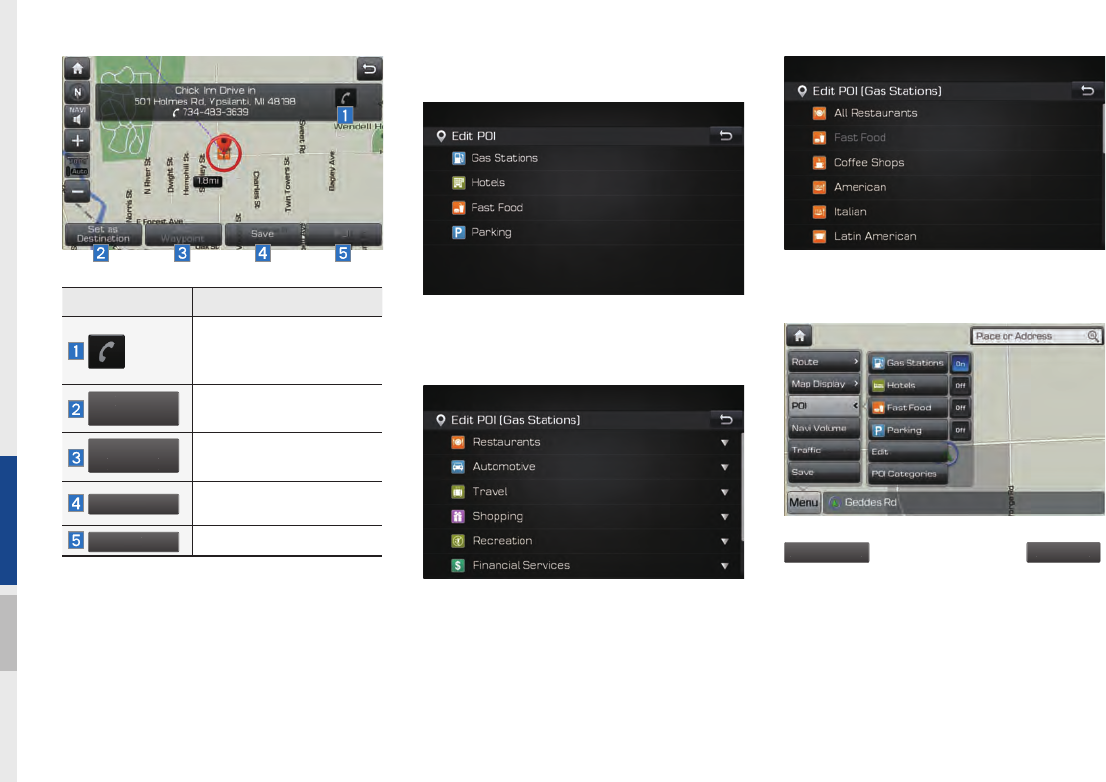

Nearby POIs ………………………… 5-7

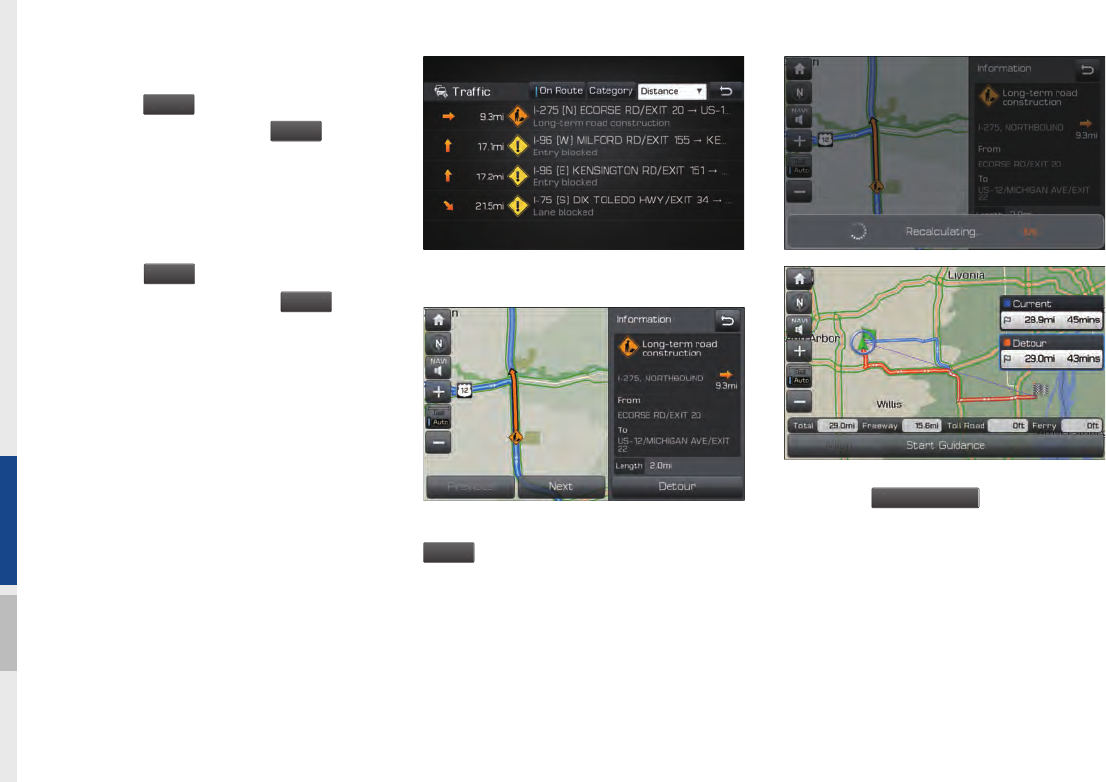

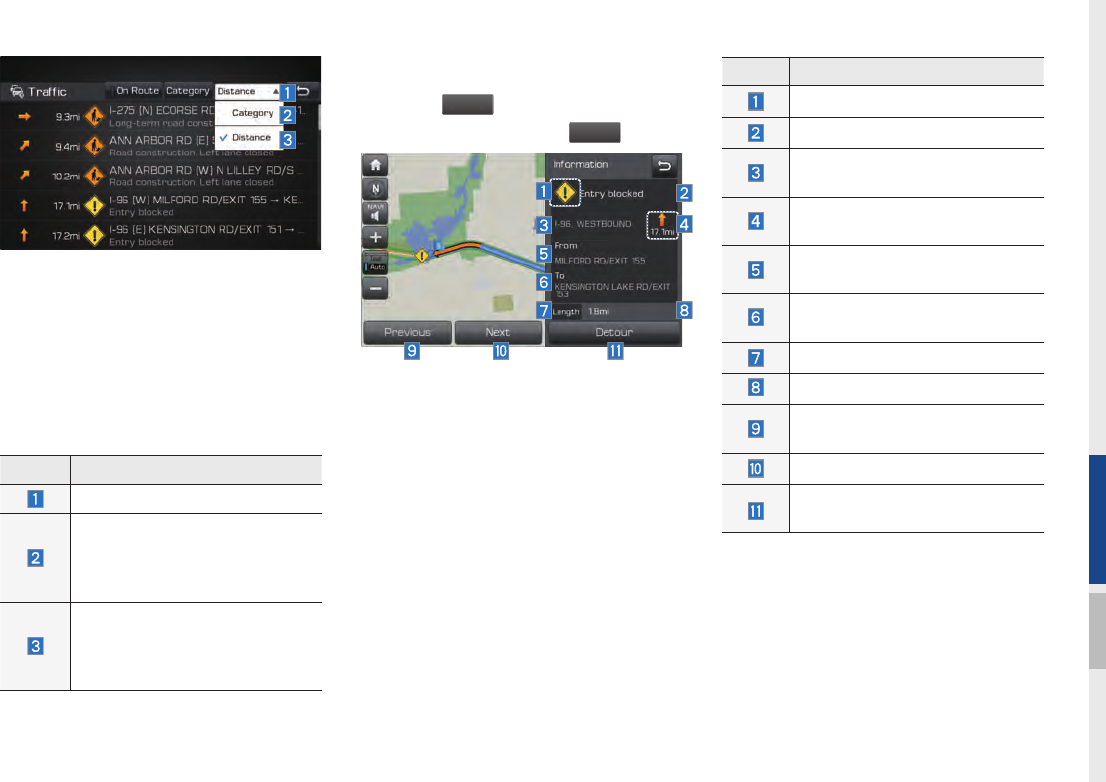

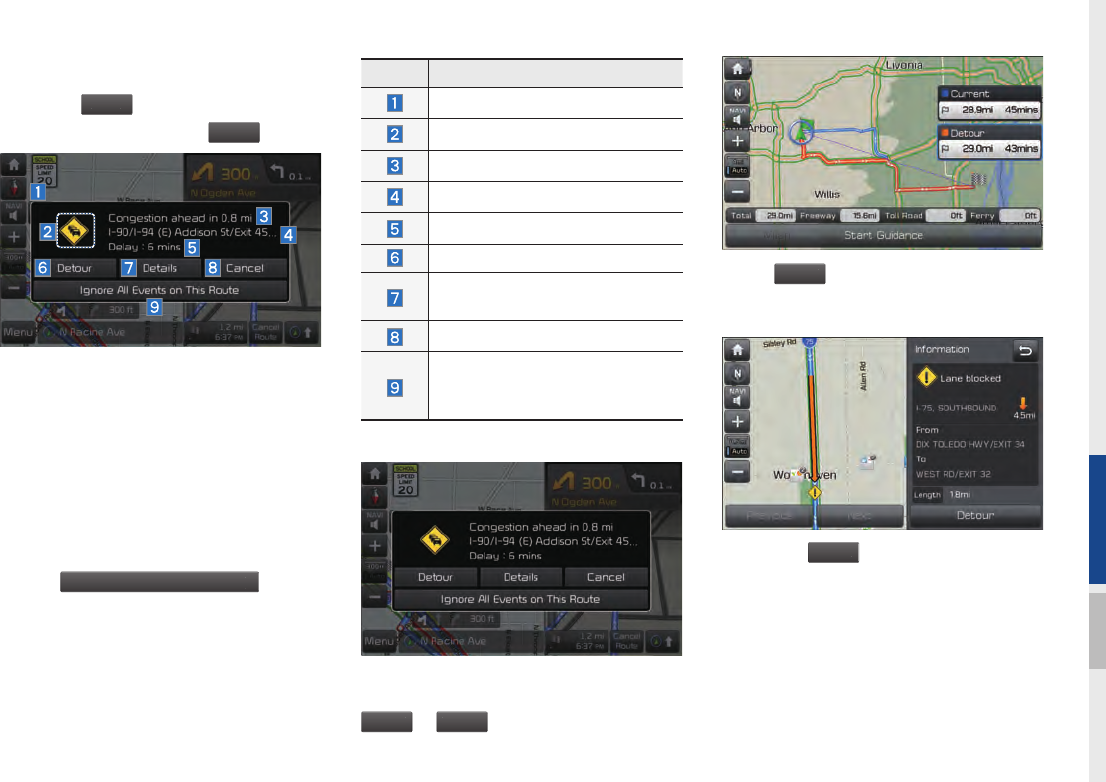

Traffic ………………………………… 5-10

Save ……………………………………5-14

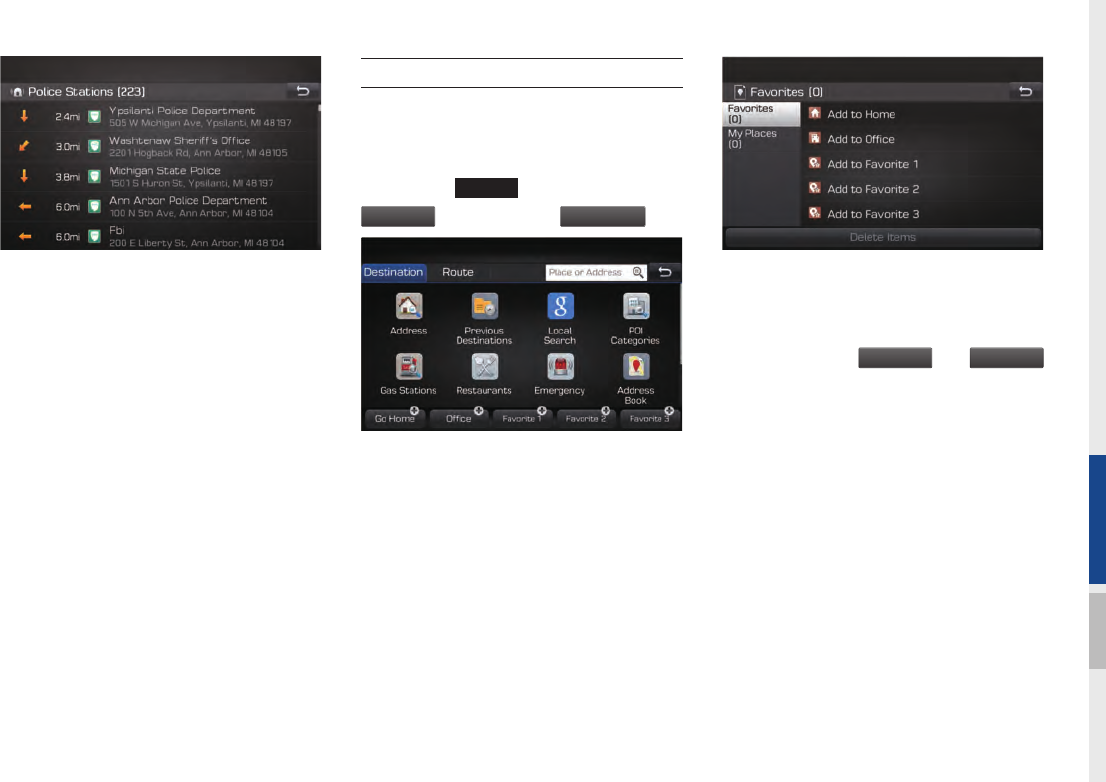

Search .....................................................5-15

Places …………………………………5-15

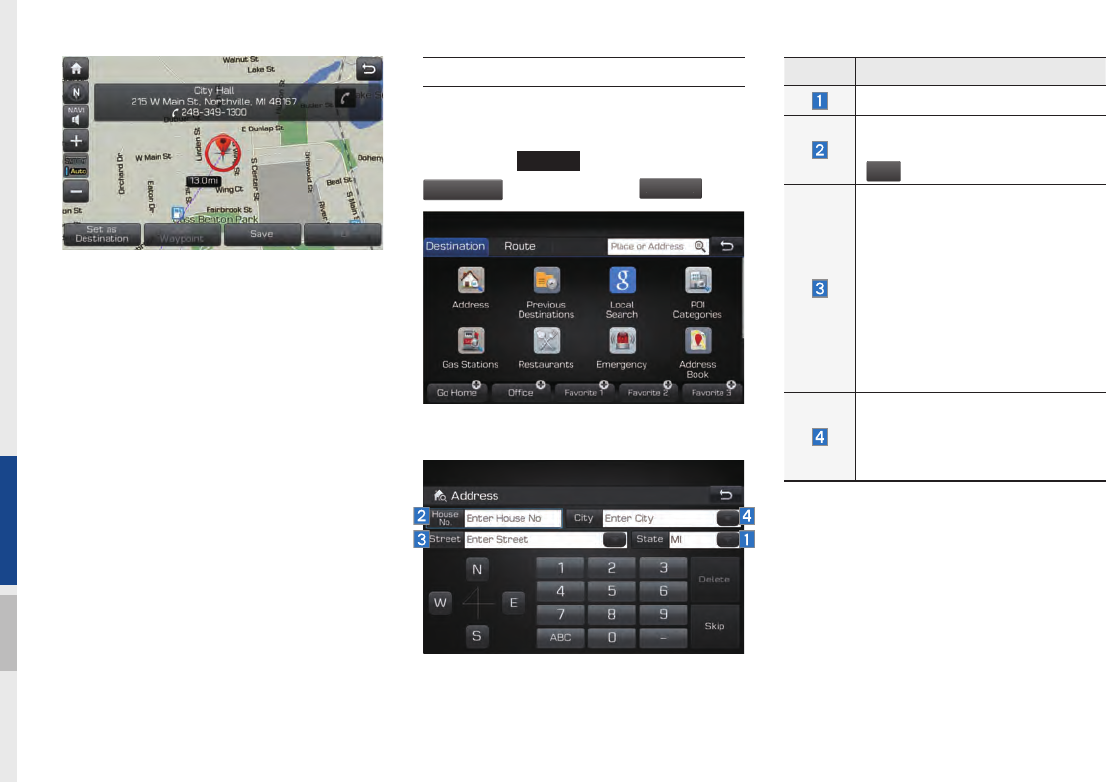

Address ………………………………5-16

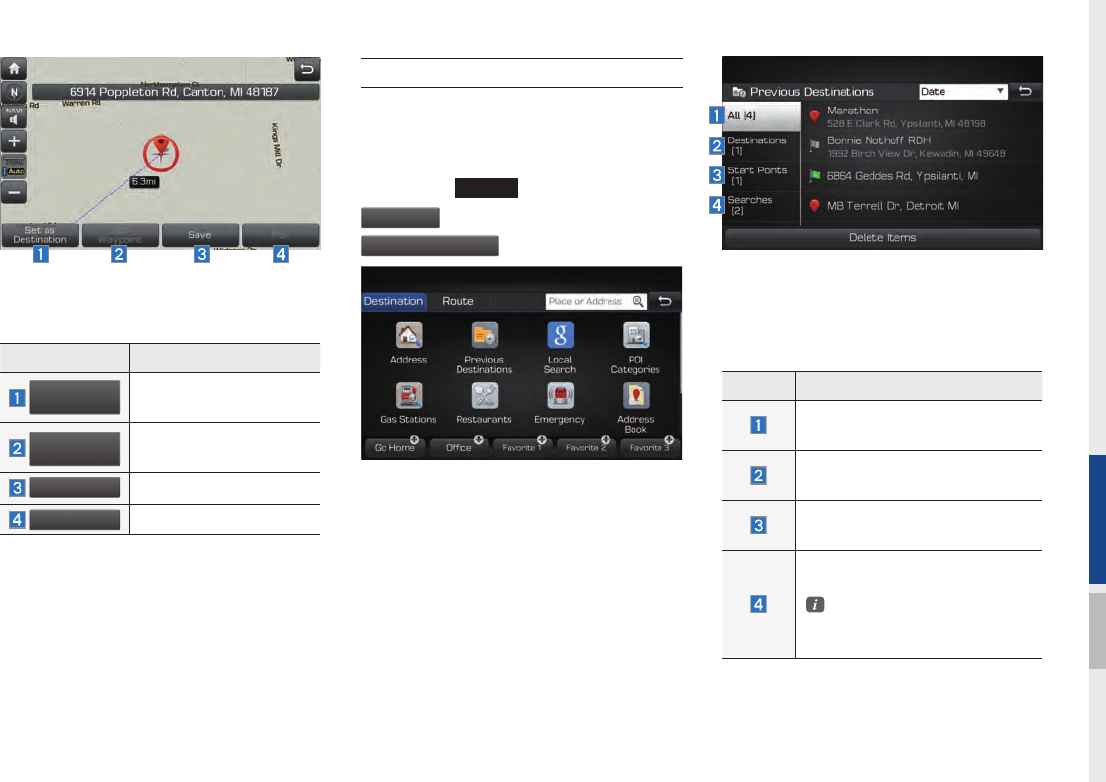

Previous Destinations ………………… 5-17

Local Search …………………………5-18

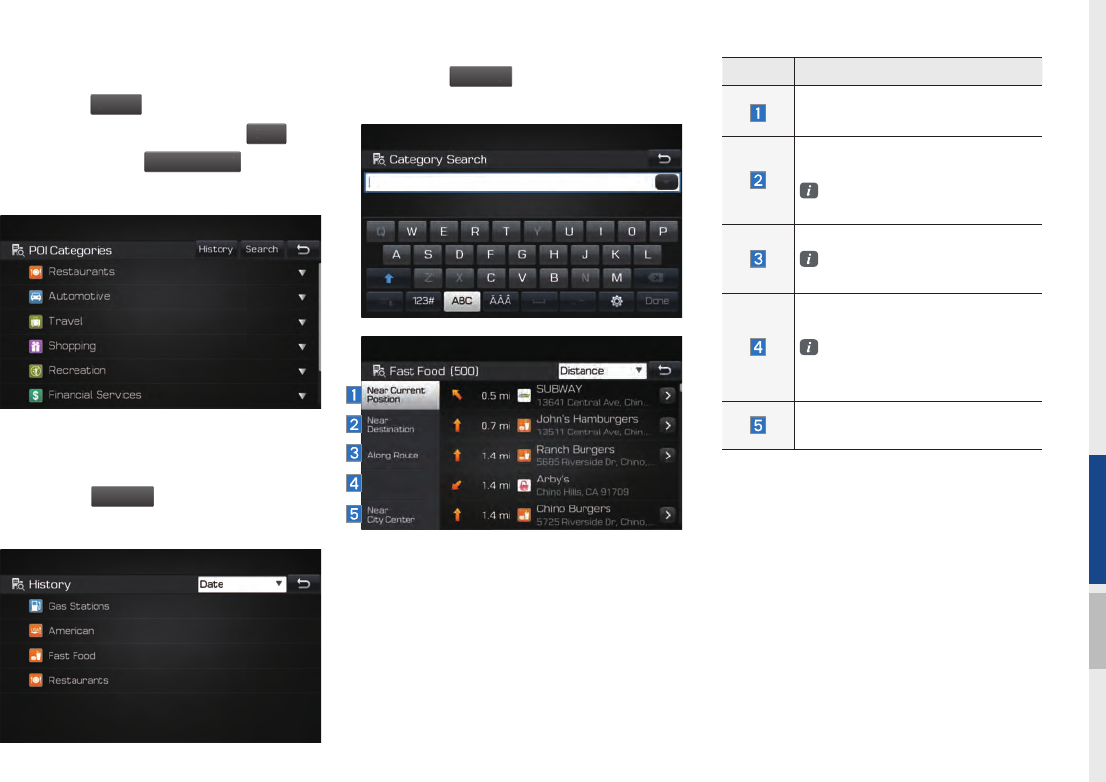

POI Categories ………………………5-19

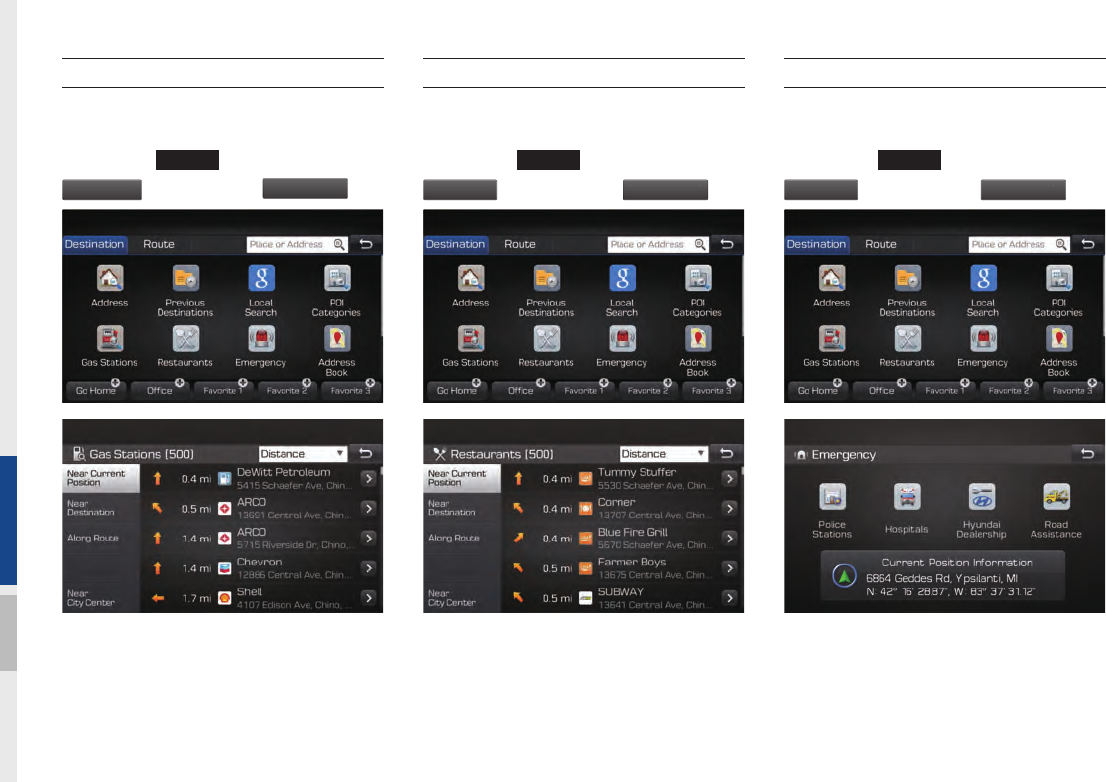

Gas Stations ………………………… 5-20

Restaurants ……………………………5-20

4 I Table of Contents

Emergency ……………………………5-20

Address Book ………………………… 5-21

Phone Number ………………………5-22

Freeway Exit/Entrance ……………… 5-23

Intersection ……………………………5-23

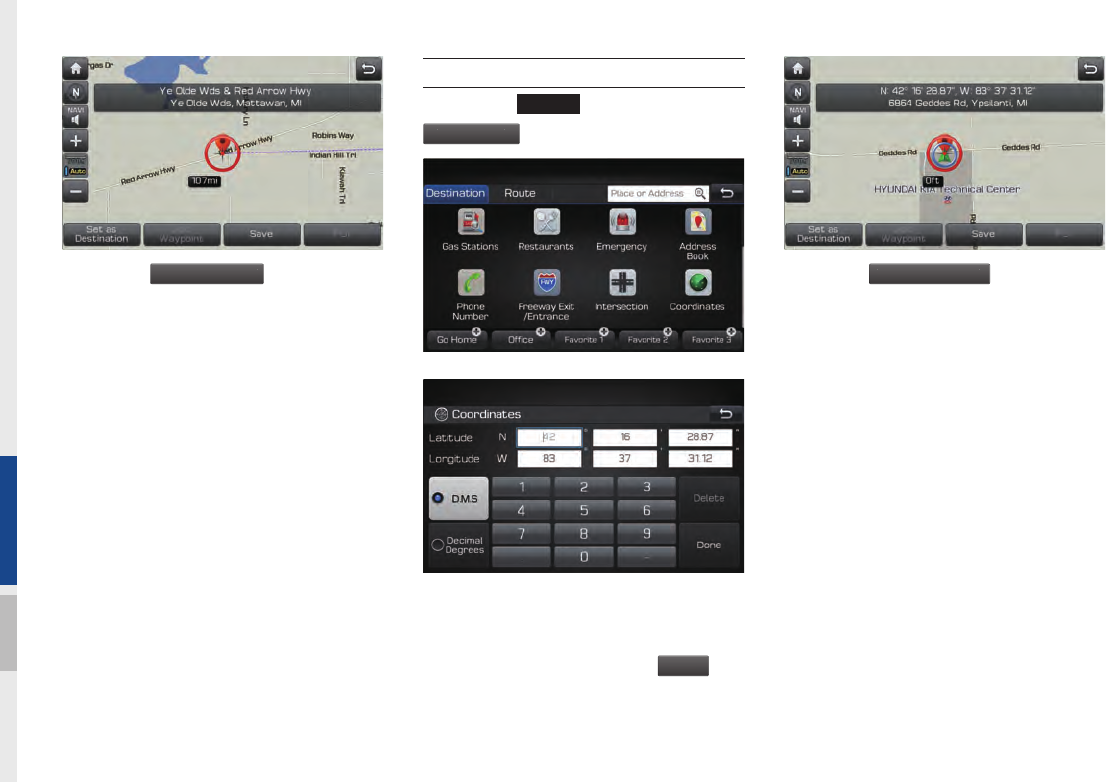

Coordinates ……………………………5-24

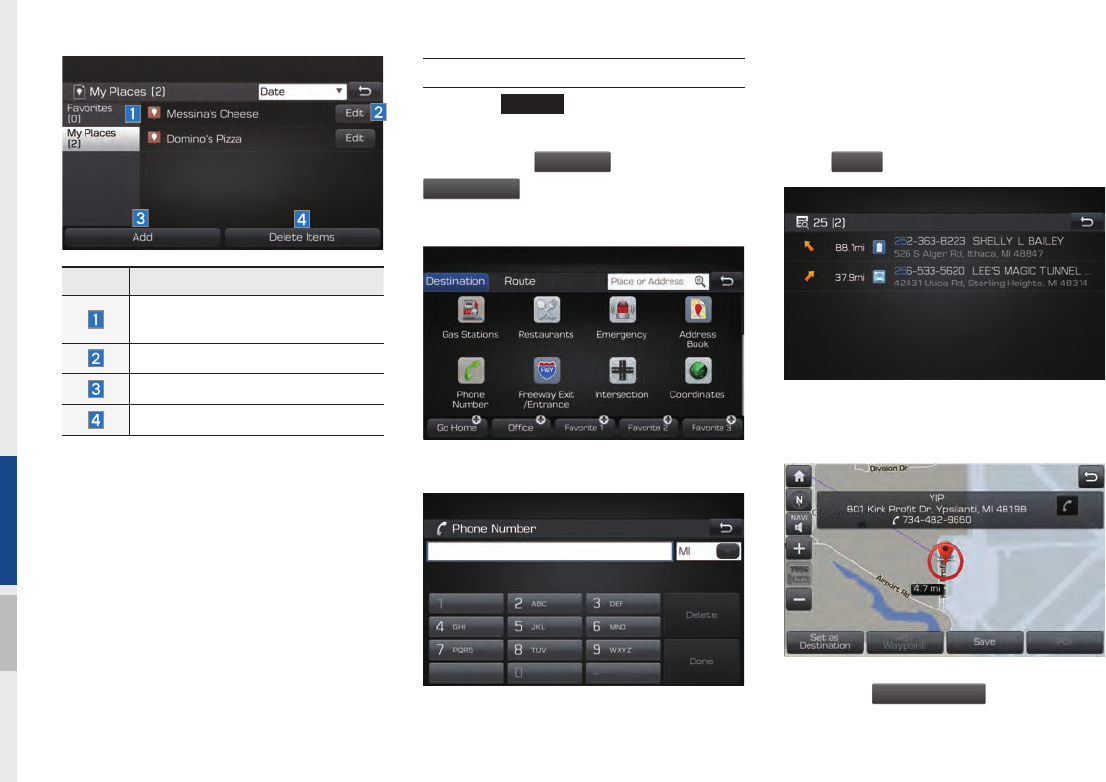

Favorite places …………………………5-25

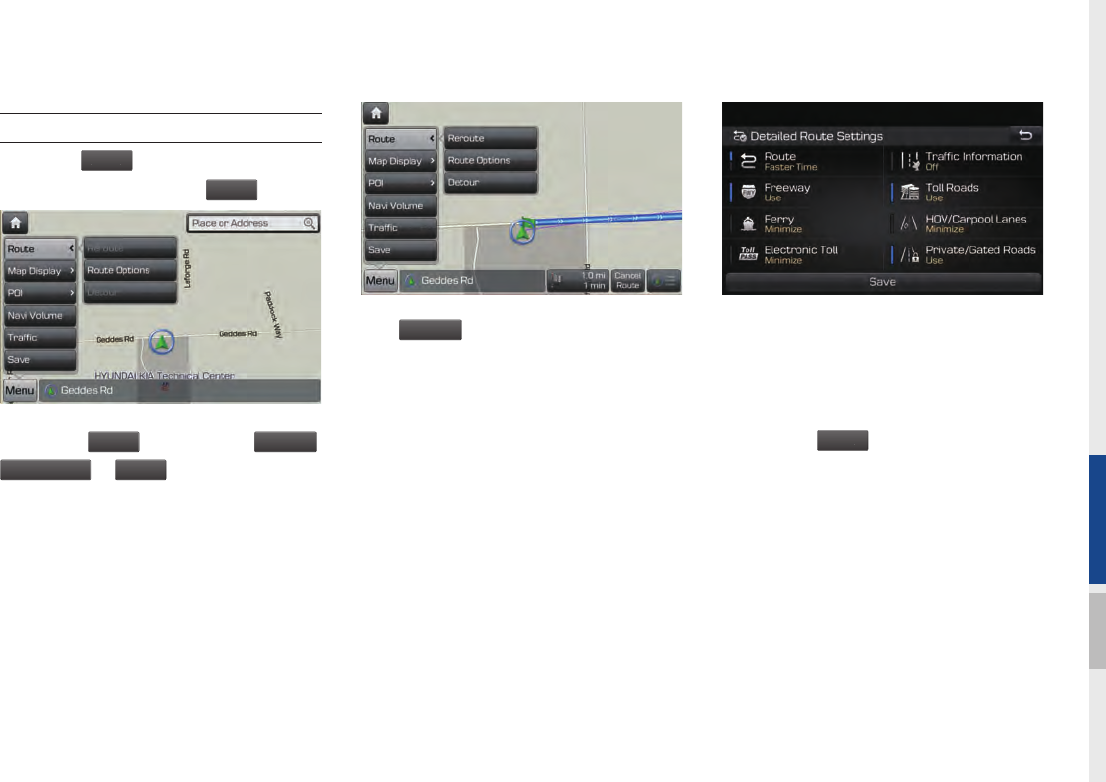

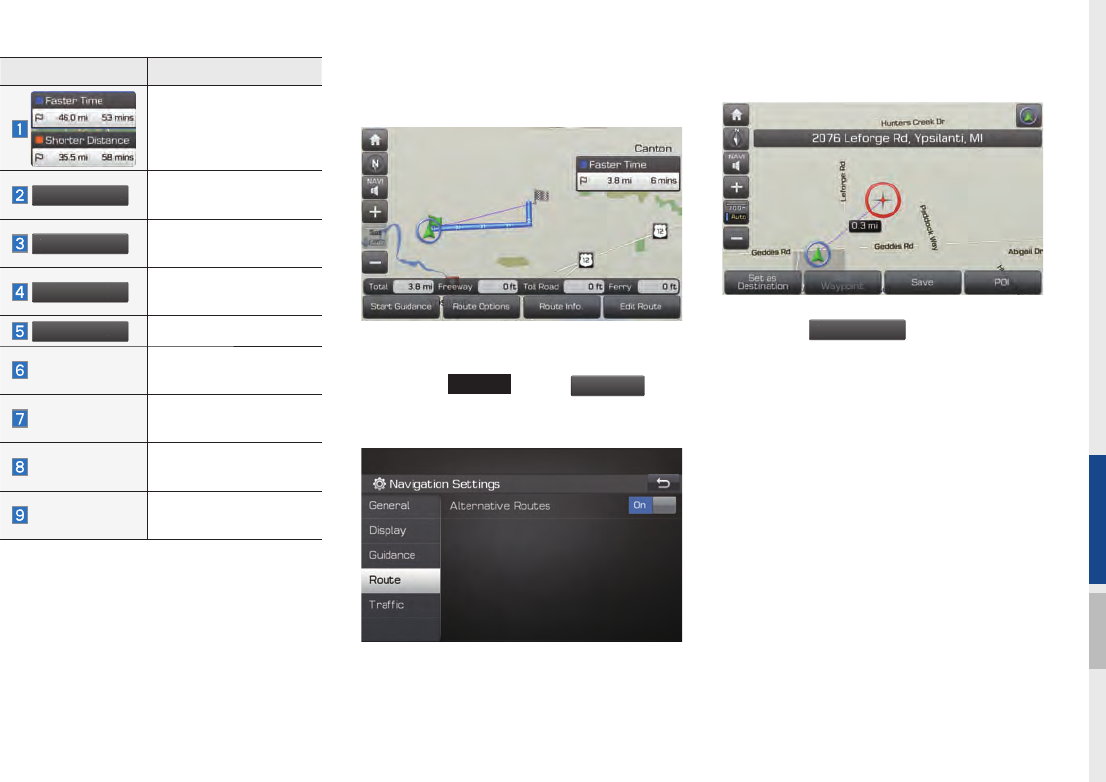

Route Setting ………………………… 5-26

Route Guidance ………………………5-29

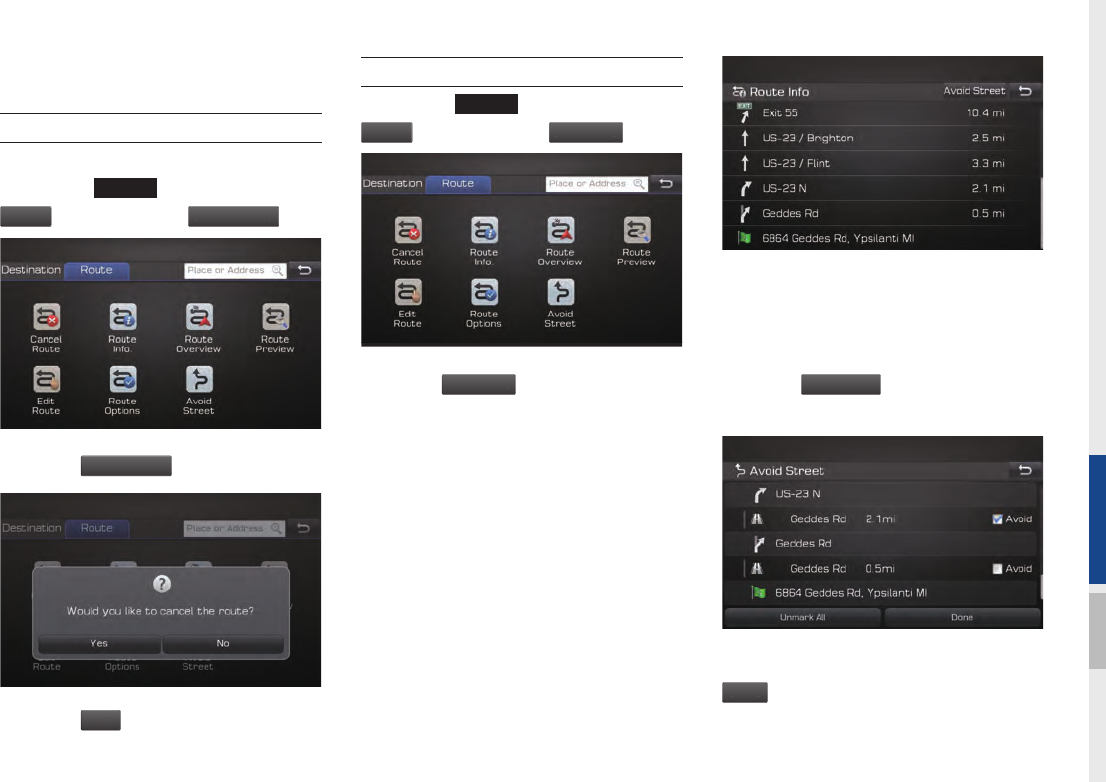

Route .......................................................5-31

Canceling Route ……………………… 5-31

Display Route Information ……………5-31

Route Overview ………………………5-32

Route Preview ………………………… 5-32

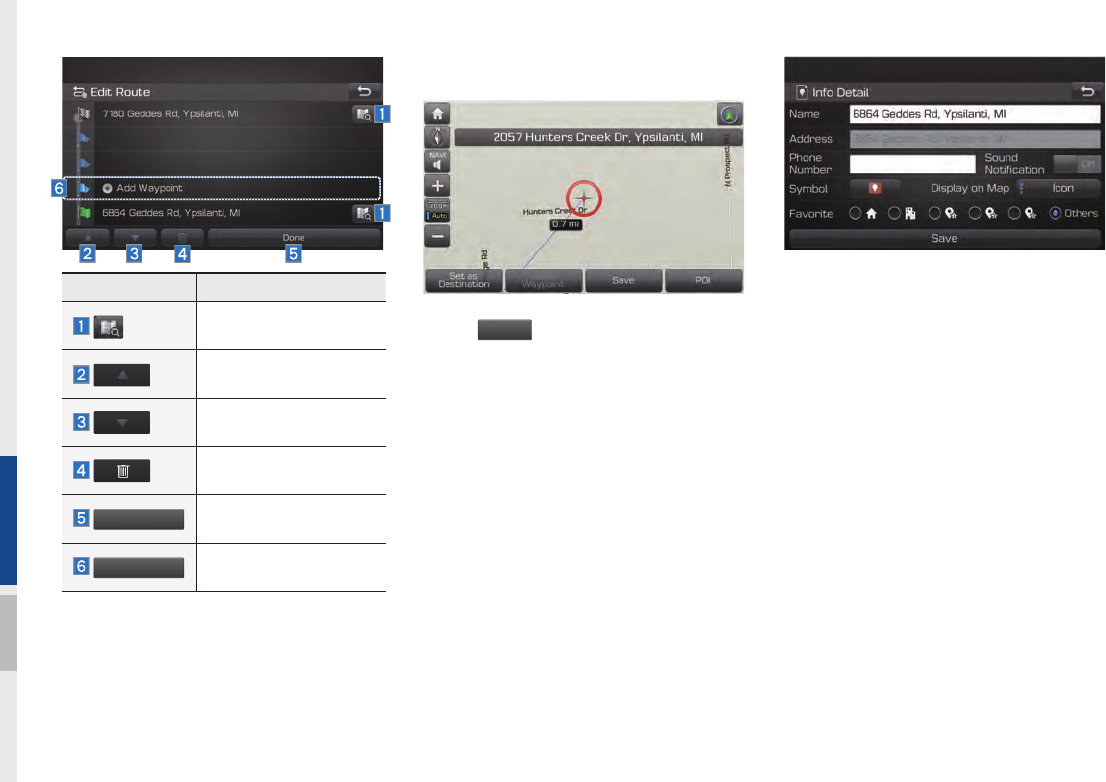

Editing Route …………………………5-33

Route Options ………………………… 5-34

Avoid Street ……………………………5-34

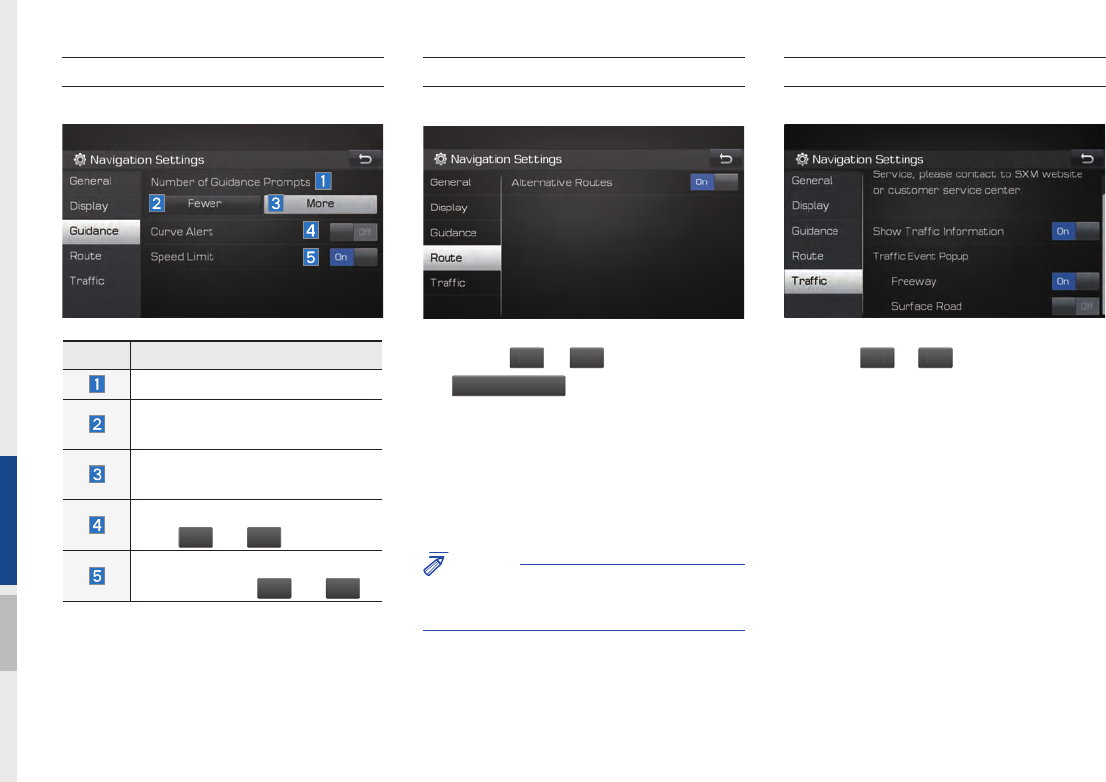

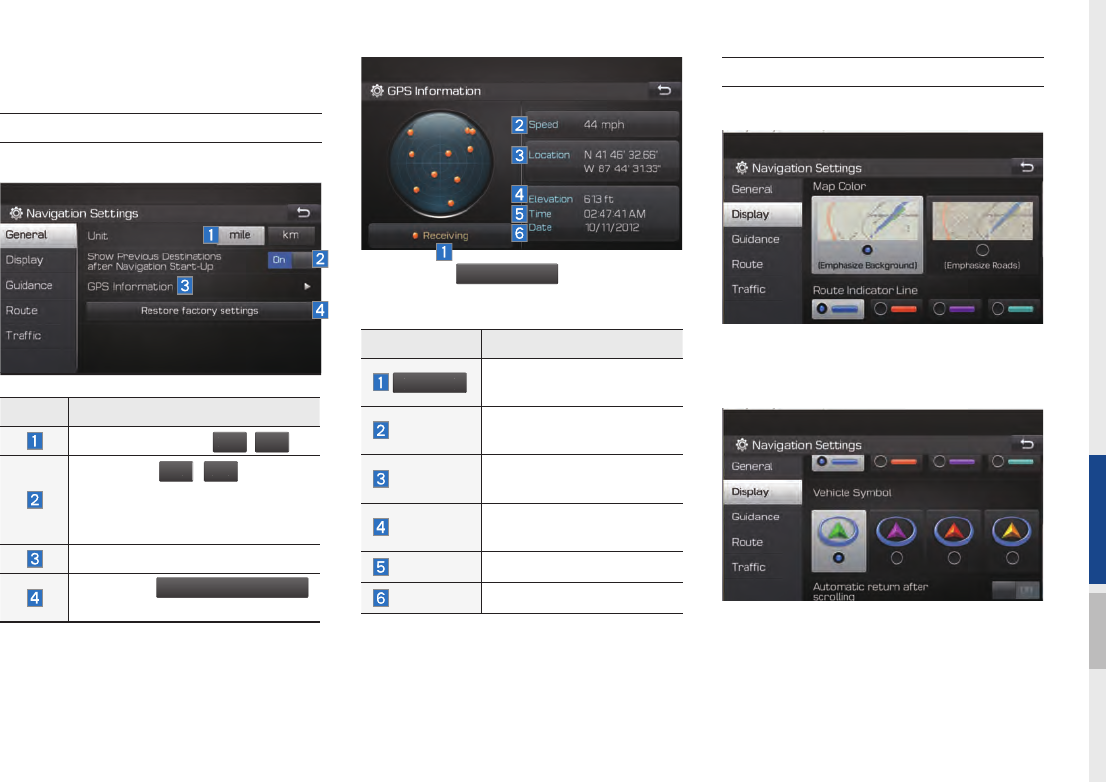

Navigation Settings ..............................5-35

General ………………………………5-35

Display ………………………………… 5-35

Guidance ………………………………5-36

Route …………………………………5-36

Traffic ………………………………… 5-36

Troubleshooting ....................................5-37

6. Voice Recognition

What is Voice Recognition? .................6-2

Precautions Required for Successful

Voice Recognition ..................................6-2

Starting/Ending and Setting

Voice Recognition ..................................6-3

Starting Voice Recognition …………… 6-3

Ending Voice Recognition …………… 6-3

Combining Voice Recognition

with On-Screen Commands ………… 6-3

Extending the Listening Time ………… 6-4

Skipping Prompt Messages ………… 6-5

Adjusting Voice Recognition Volume … 6-5

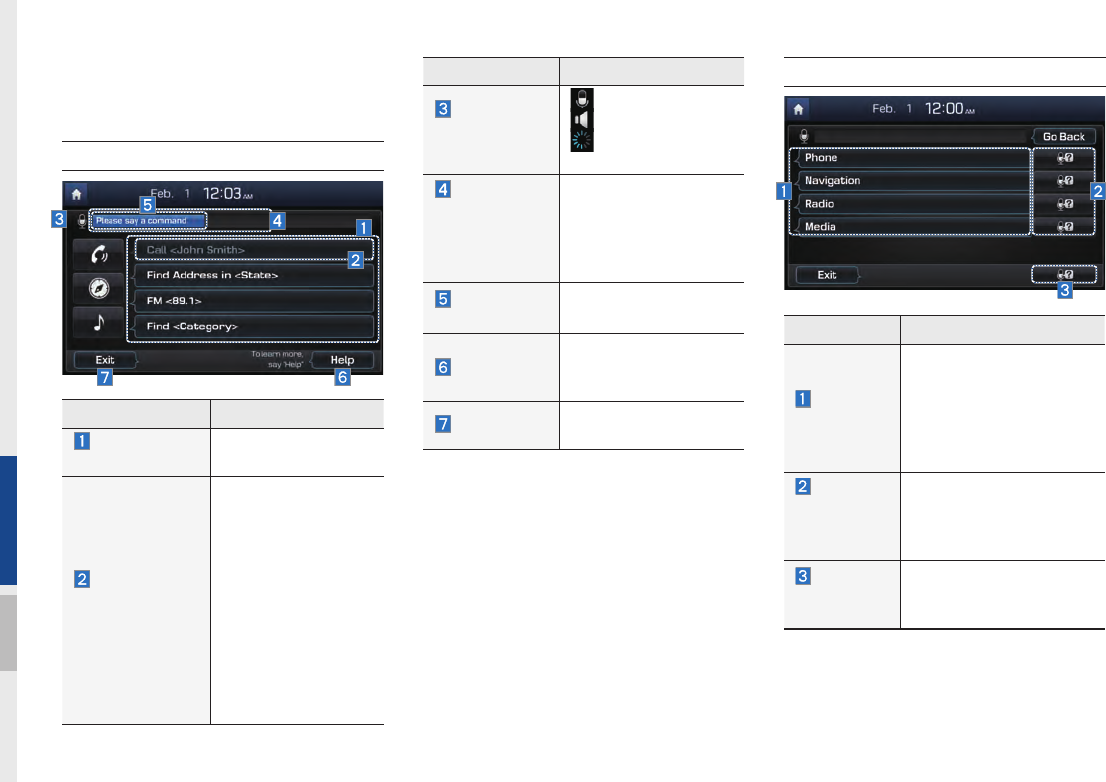

Voice Recognition Screen Overview ..6-6

Start Screen …………………………… 6-6

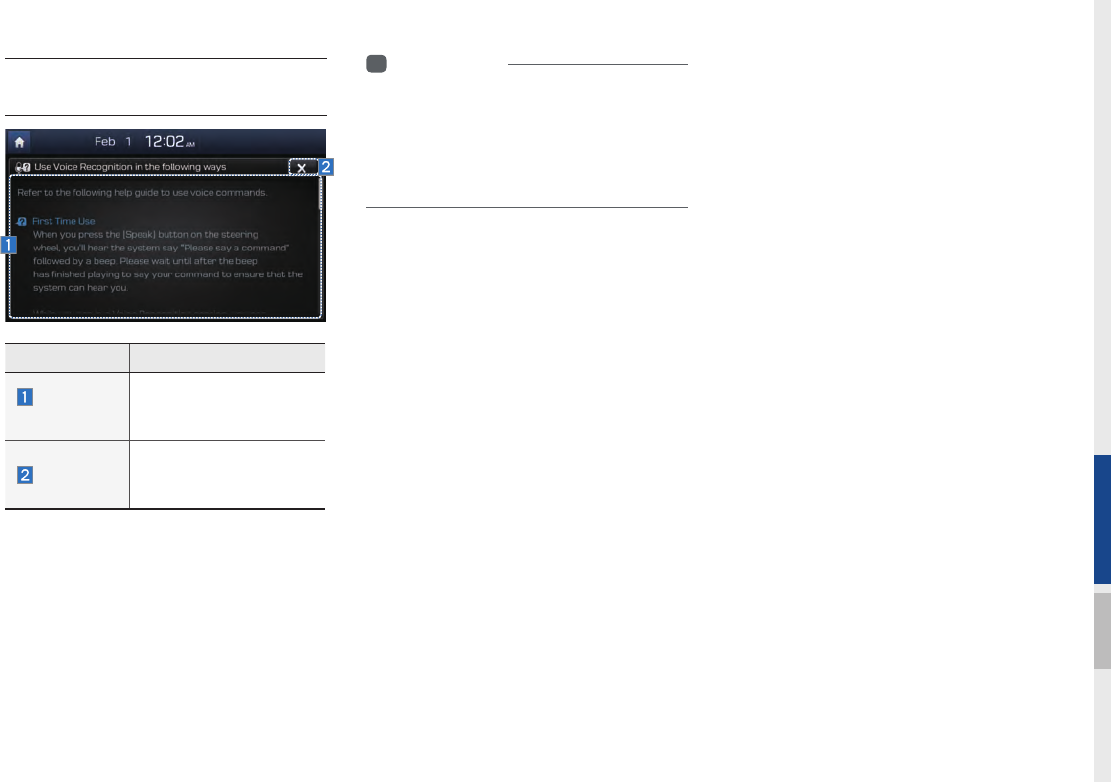

Help Display …………………………… 6-6

Instructions for Using Voice Recognition …6-7

Voice Commands ....................................6-8

Types of Commands ………………… 6-8

Call Commands ……………………… 6-8

Navigation Commands ……………… 6-9

Radio Commands …………………… 6-11

Media Commands …………………… 6-12

Other Commands List

(Commands used in List/Help) ……… 6-14

“Find <Category>” List ………………… 6-15

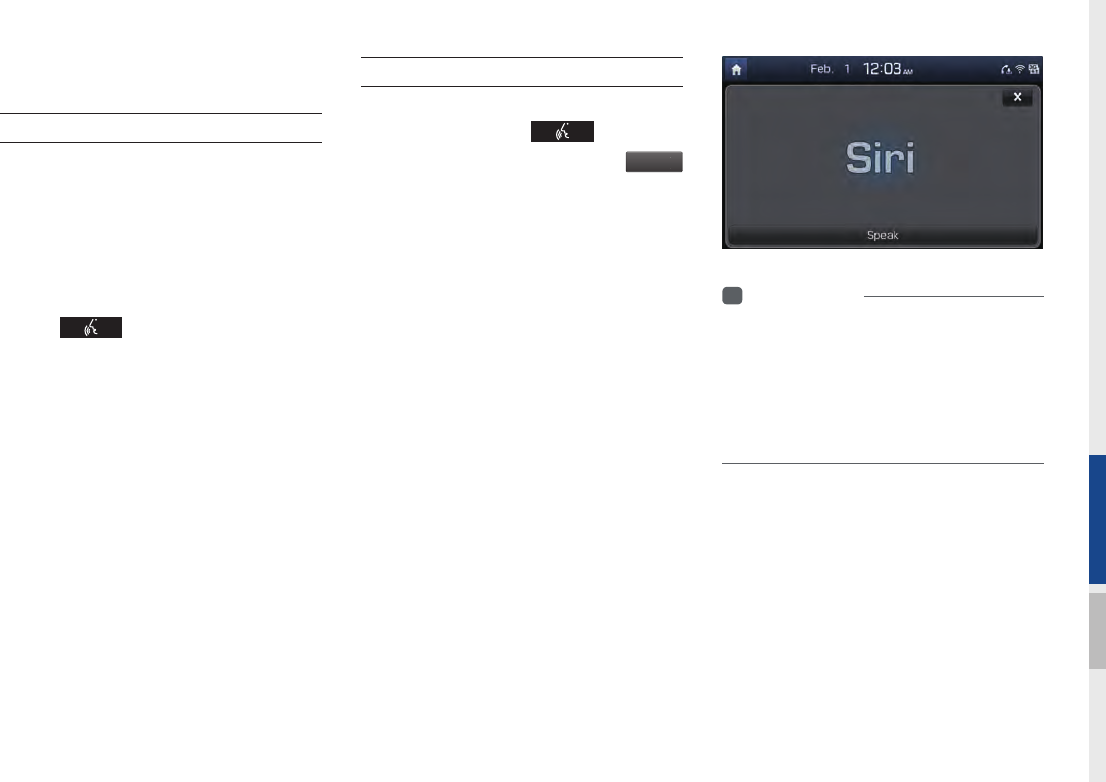

Siri Eyes Free ........................................6-21

How to start Siri ……………………… 6-21

How to use Siri ………………………… 6-21

7. Info

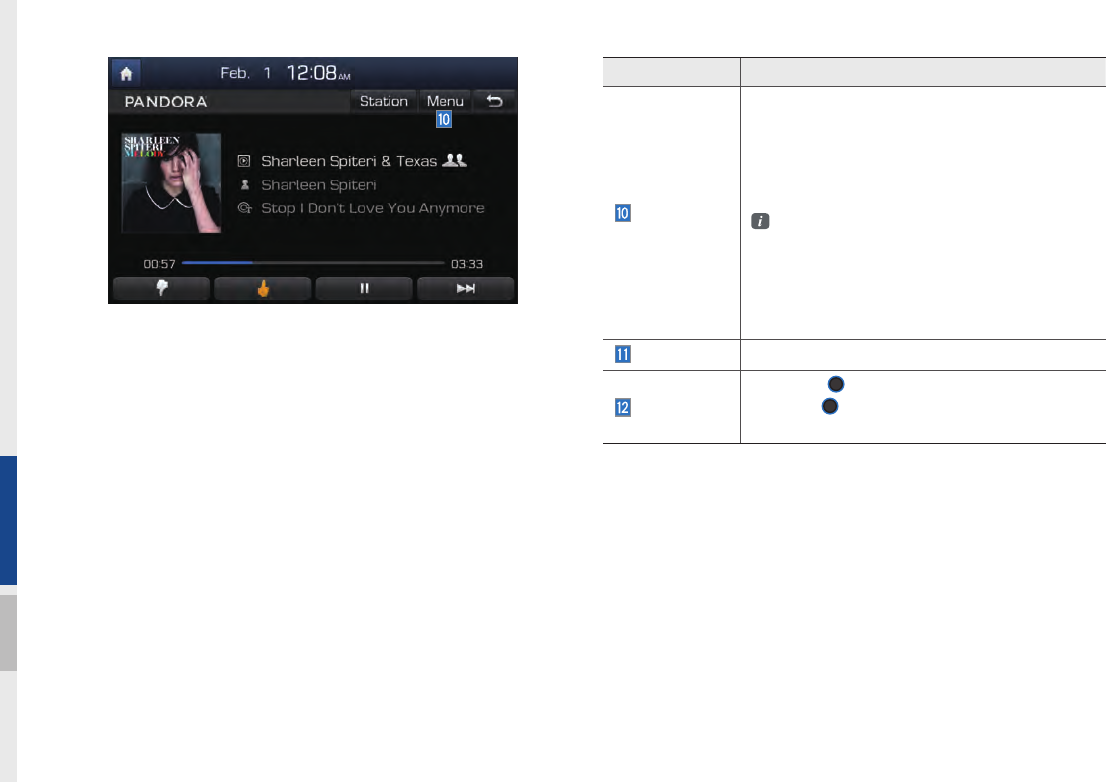

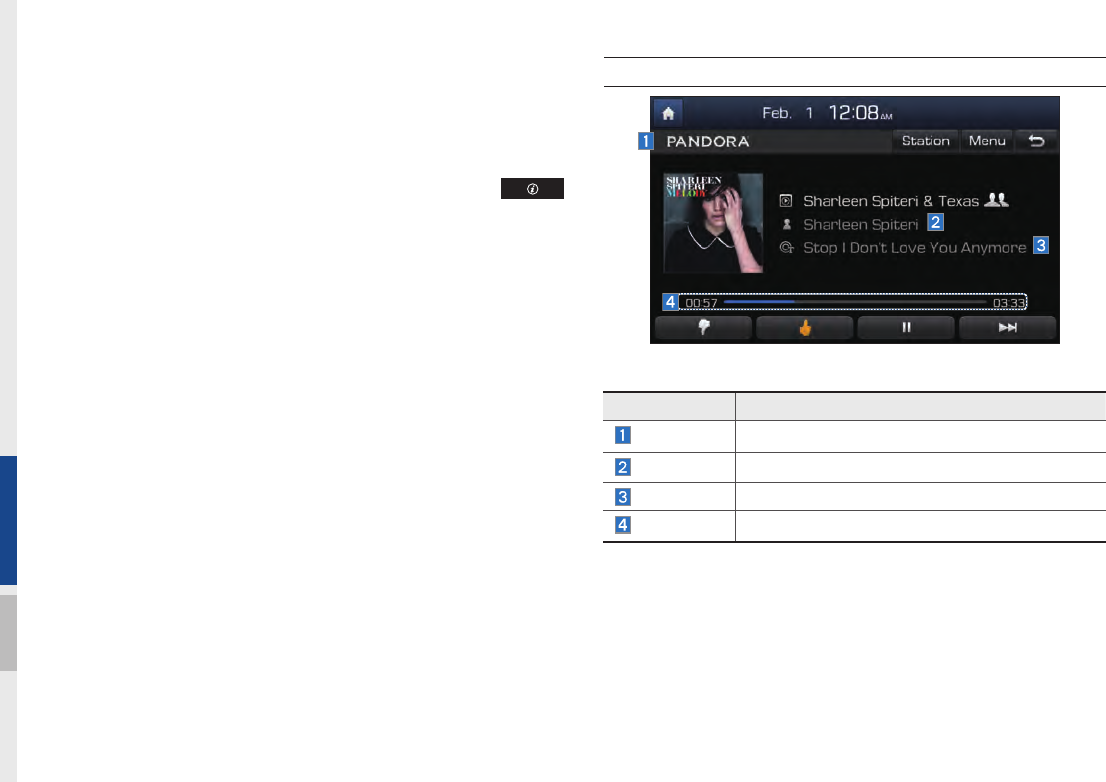

Pandora Radio .........................................7-2

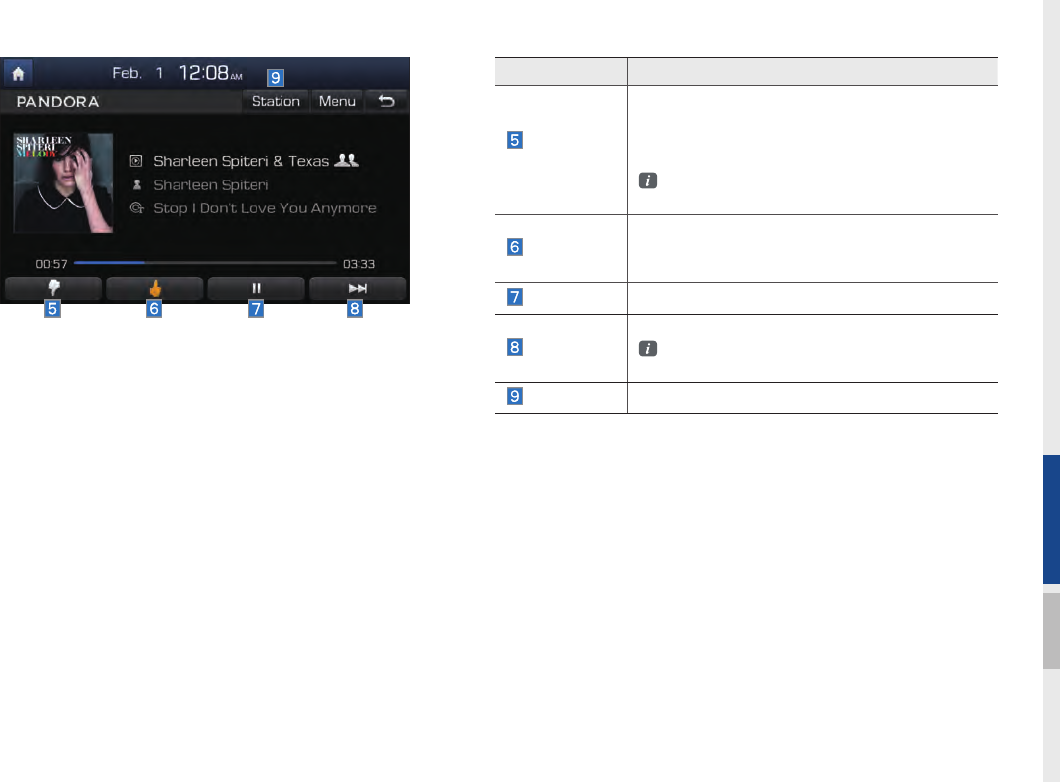

Pandora Radio Mode Screen Controls

… 7-2

Download Center ...................................7-6

Apps List ……………………………… 7-6

My Apps ……………………………… 7-7

SiriusXM™ Data .....................................7-8

About SiriusXM™ Data Service ……… 7-8

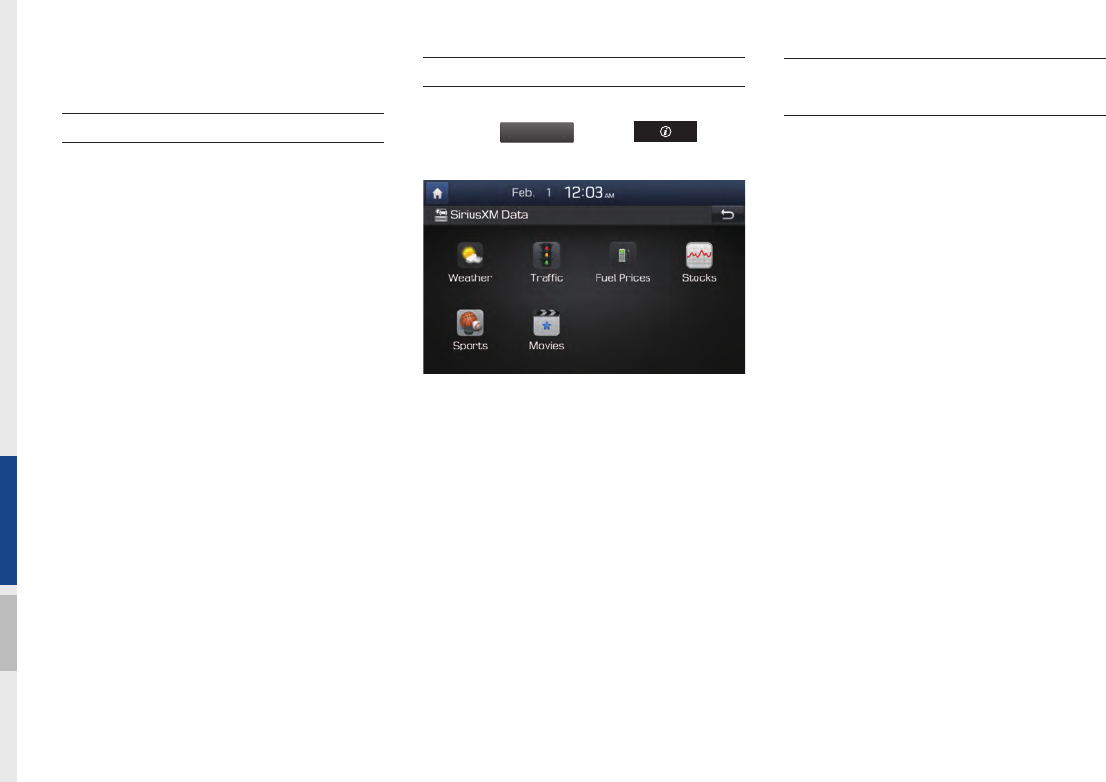

Accessing SiriusXM™ Data ………… 7-8

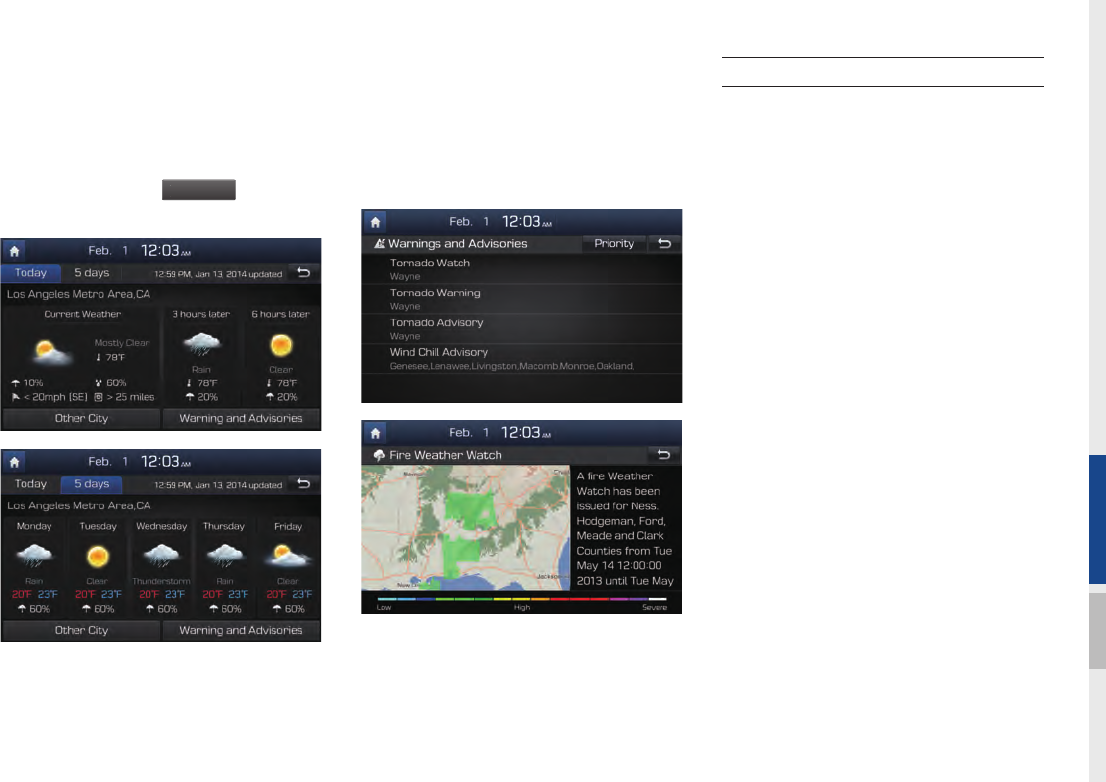

SiriusXM™ Weather Announcement … 7-8

SiriusXM™ Traffic Information………… 7-9

Table of Contents I 5

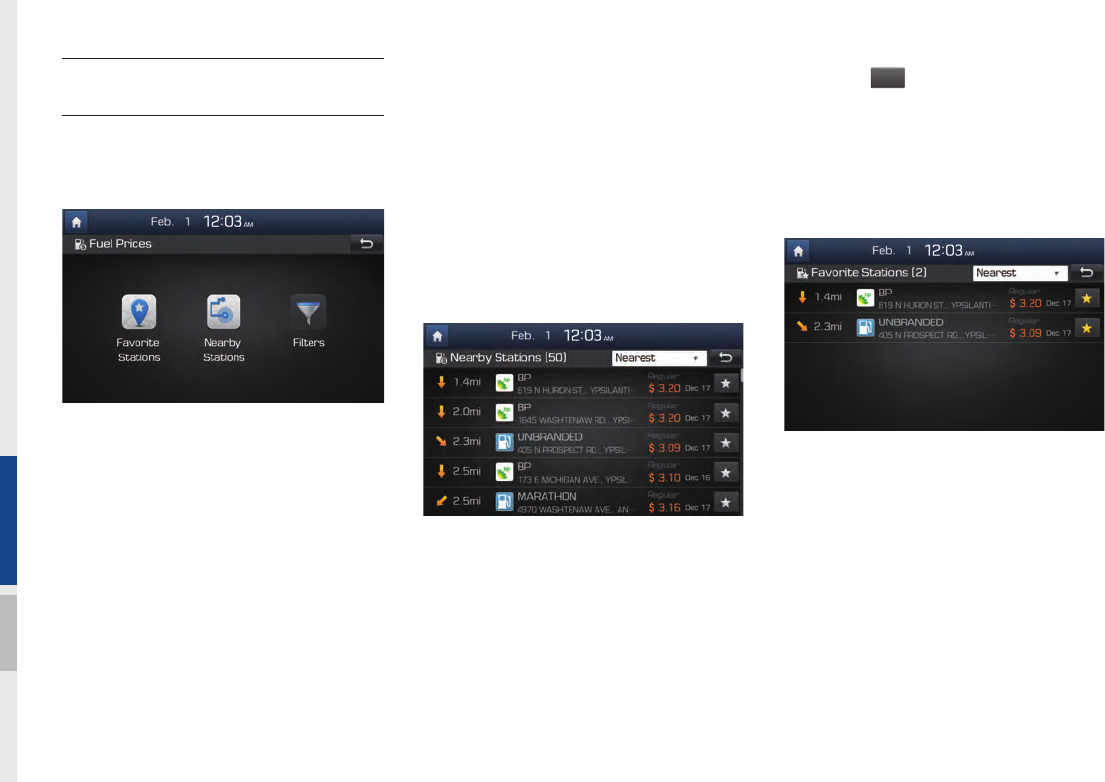

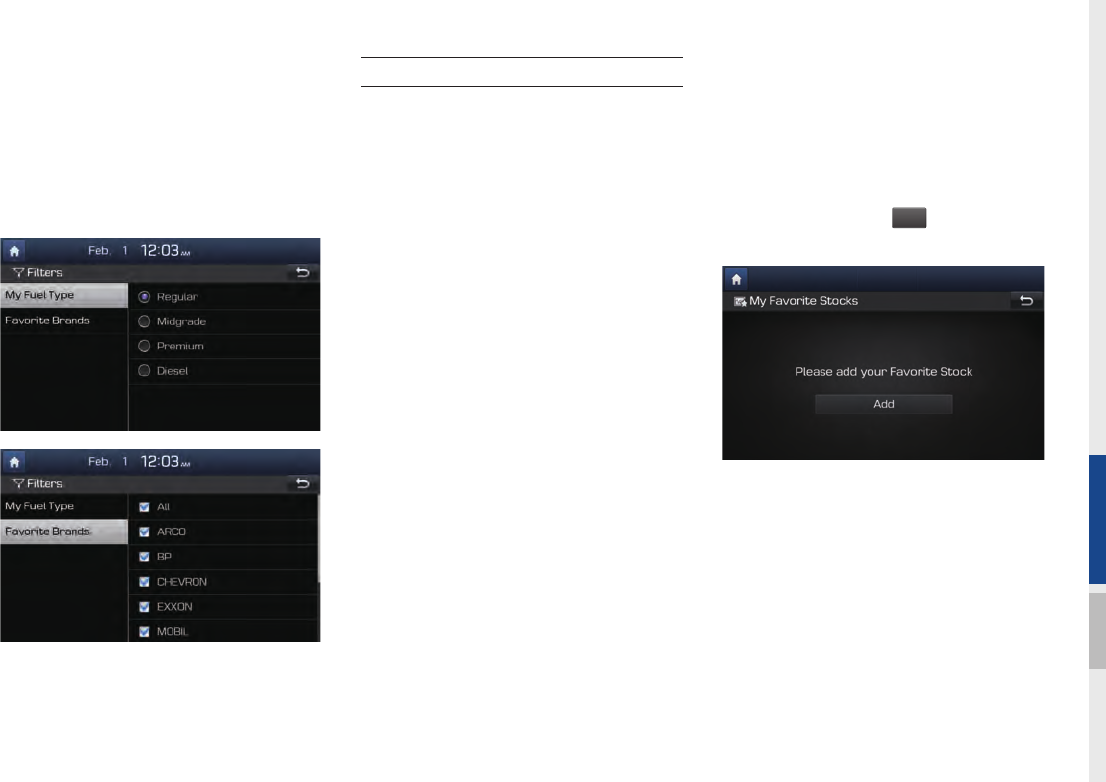

SiriusXM™ Fuel Price Information …… 7-10

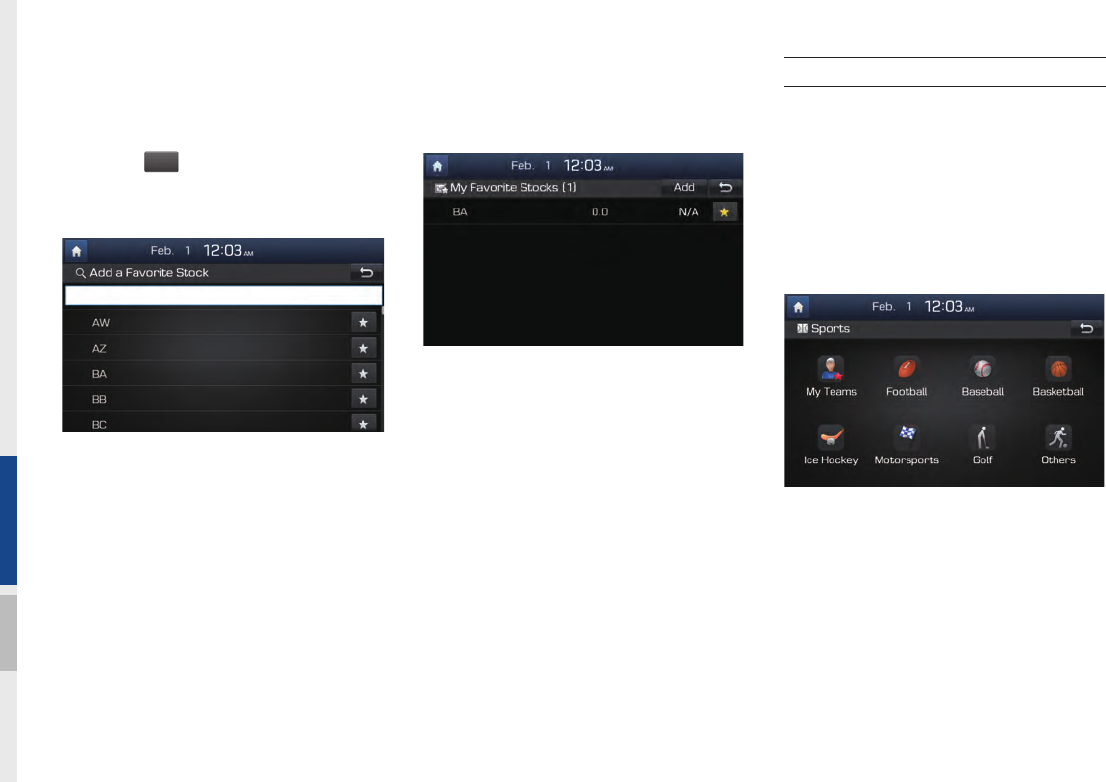

SiriusXM™ Stock Information …………7-11

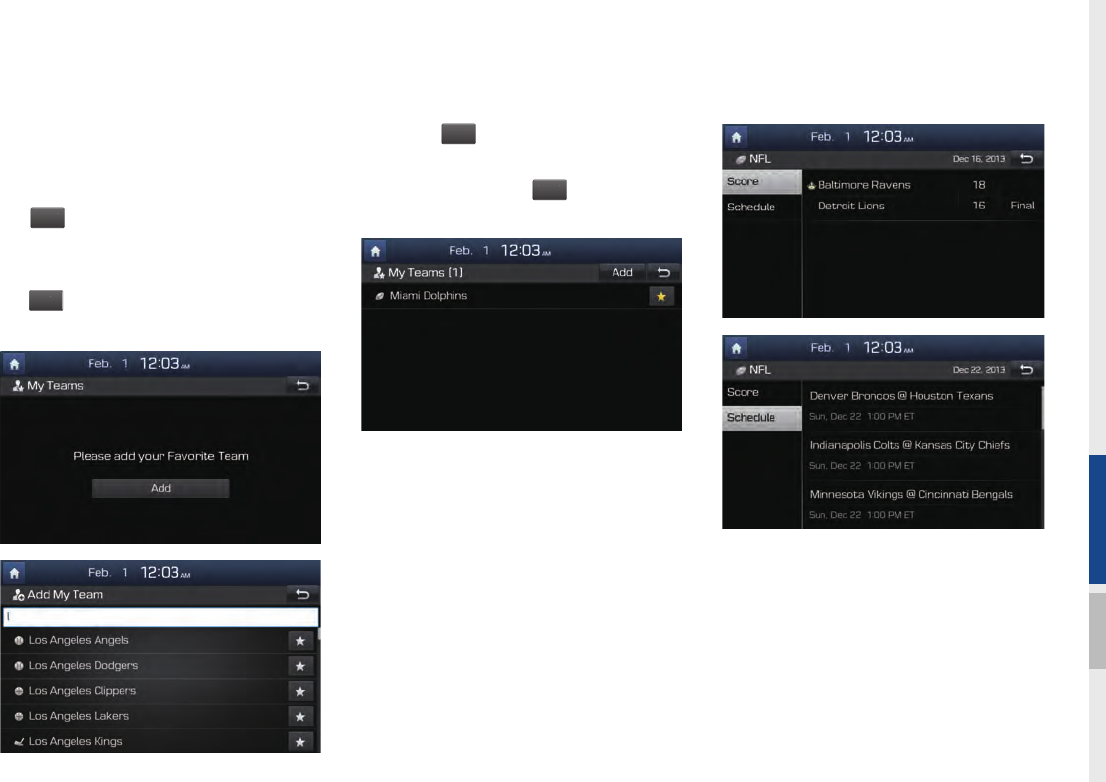

SiriusXM™ Sports Information ………7-12

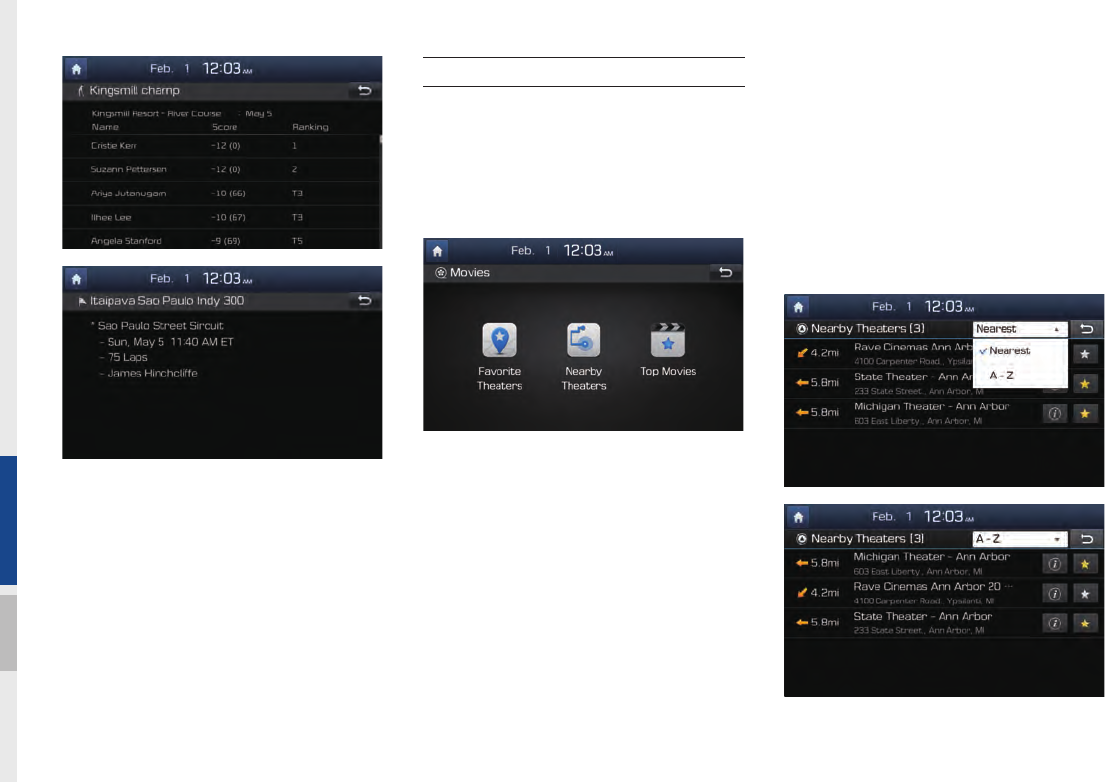

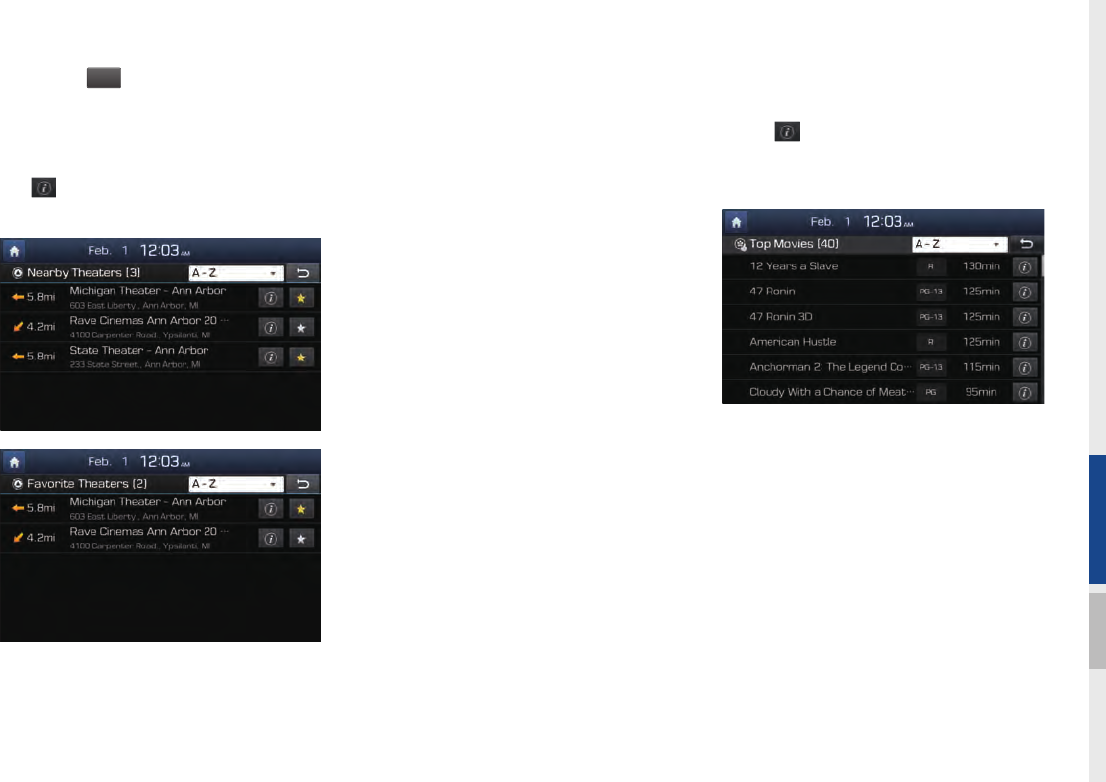

SiriusXM™ Movie Information ……… 7-14

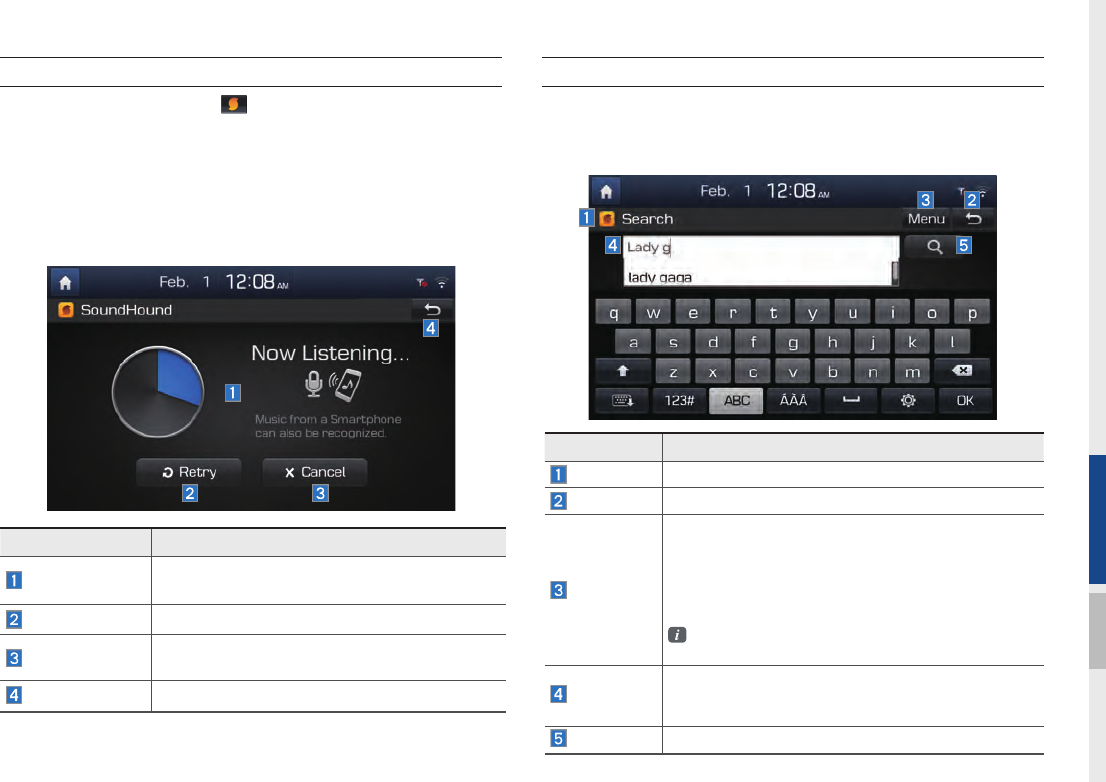

SoundHound ..........................................7-16

Accessing SoundHound ……………7-16

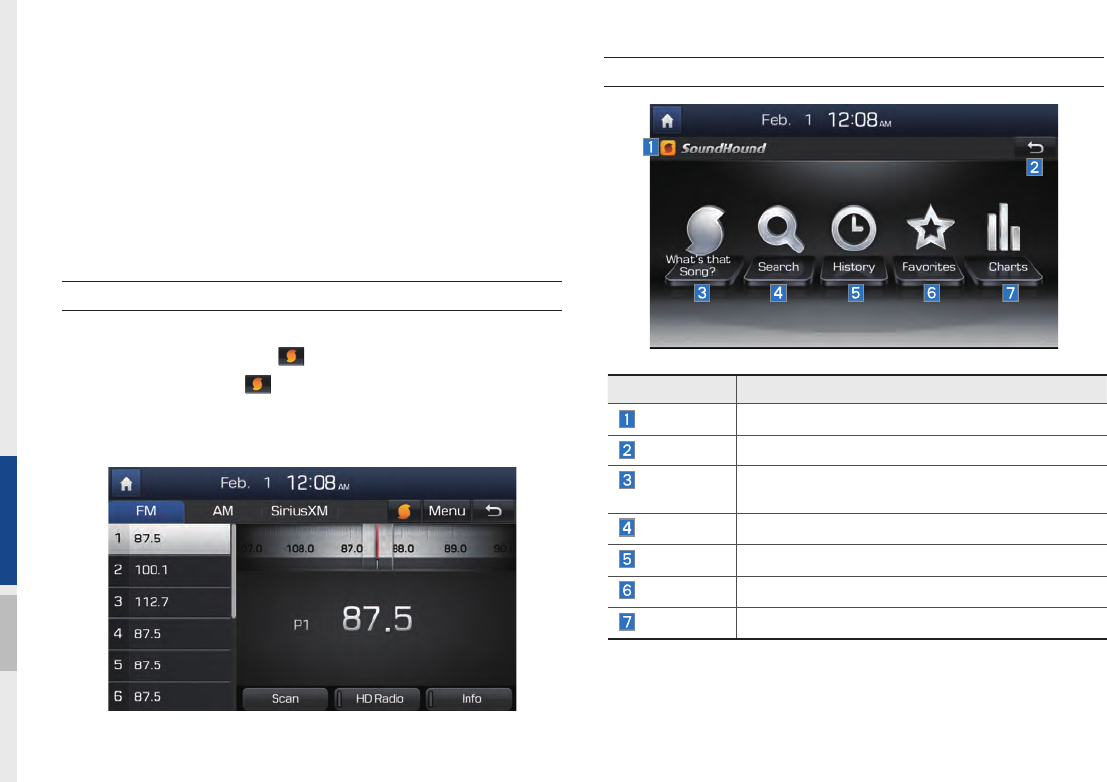

SoundHound Main Screen …………… 7-16

Recognizing Music ……………………7-17

Searching Music ……………………… 7-17

Song Main Screen …………………… 7-18

8. Other Features

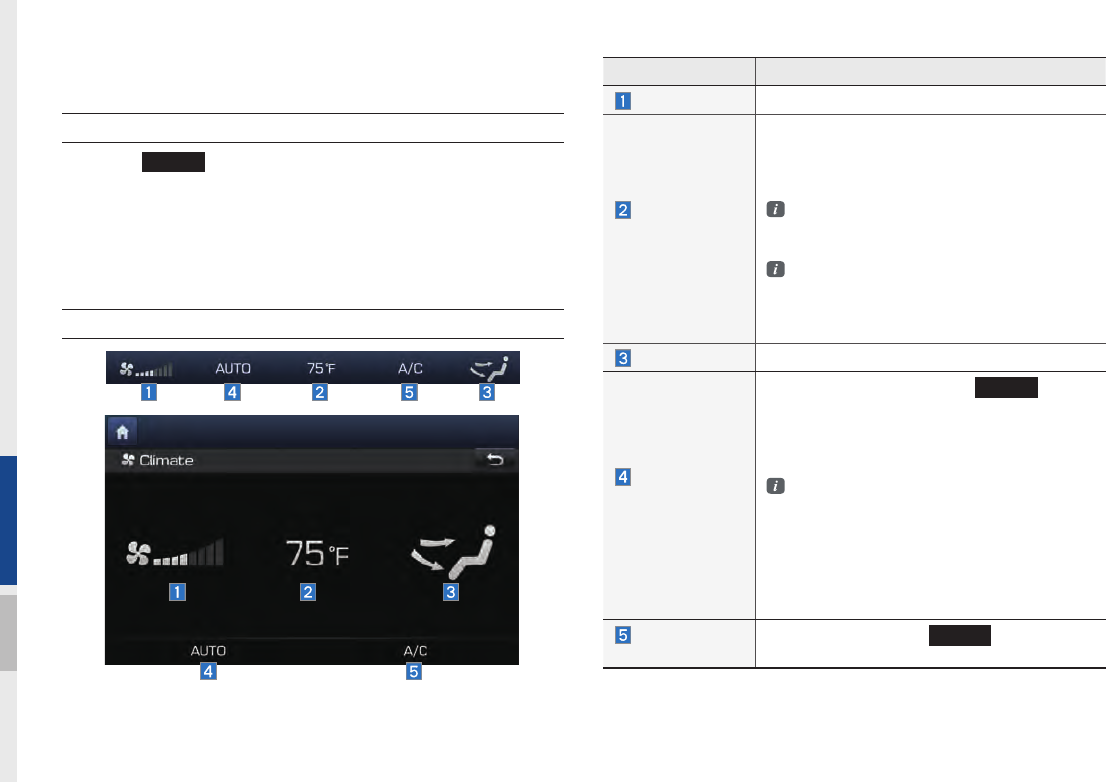

Climate Mode ..........................................8-2

Operating Climate Mode ……………… 8-2

Basic Mode Screen …………………… 8-2

Camera ......................................................8-3

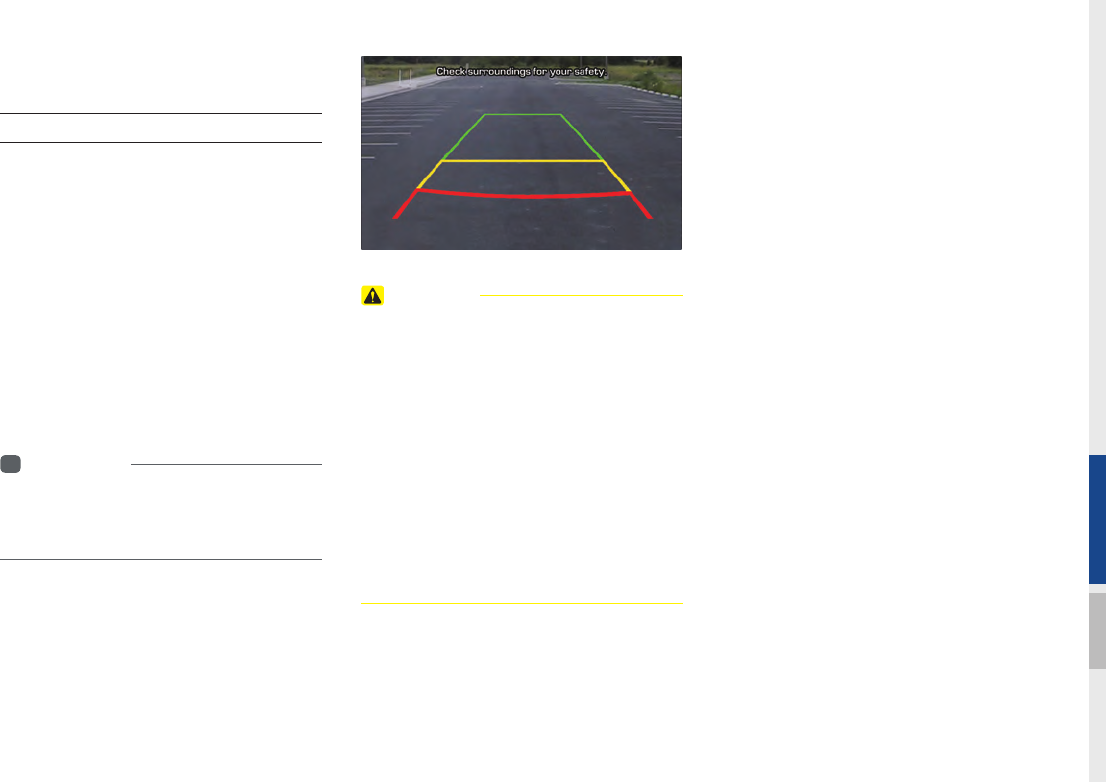

About Rear Detection Camera ……… 8-3

9. Setup

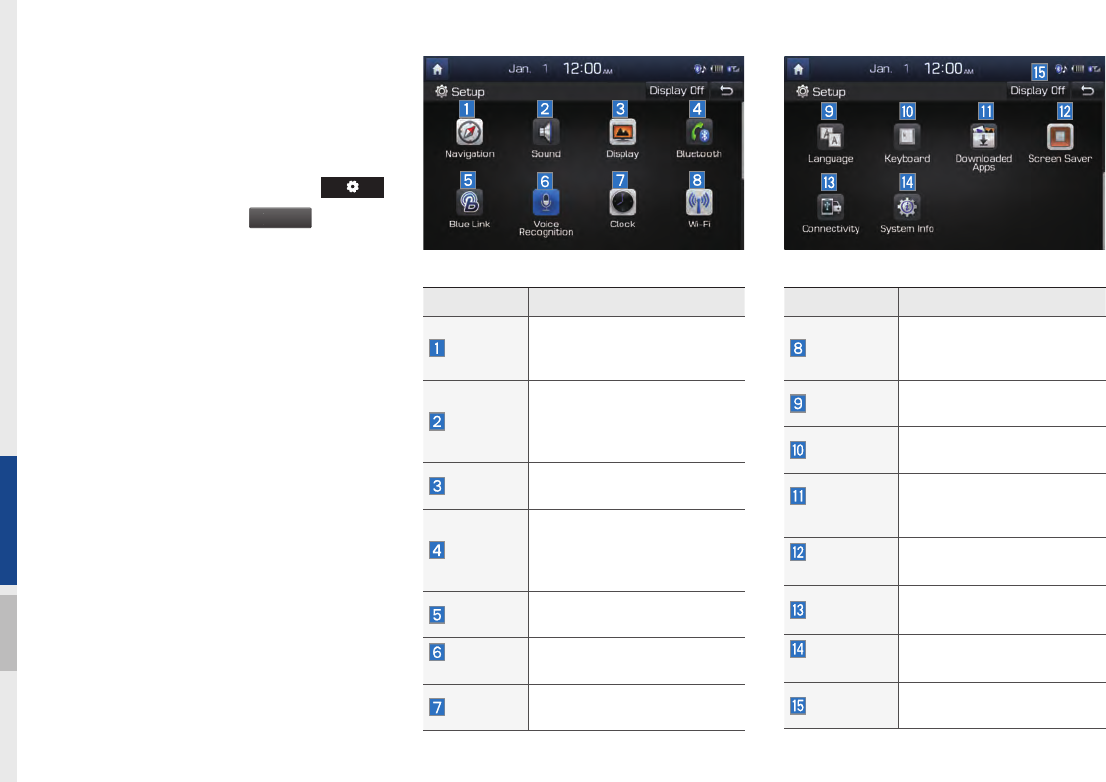

Setup .........................................................9-2

Navigation Settings ................................9-3

Sound Settings ........................................9-3

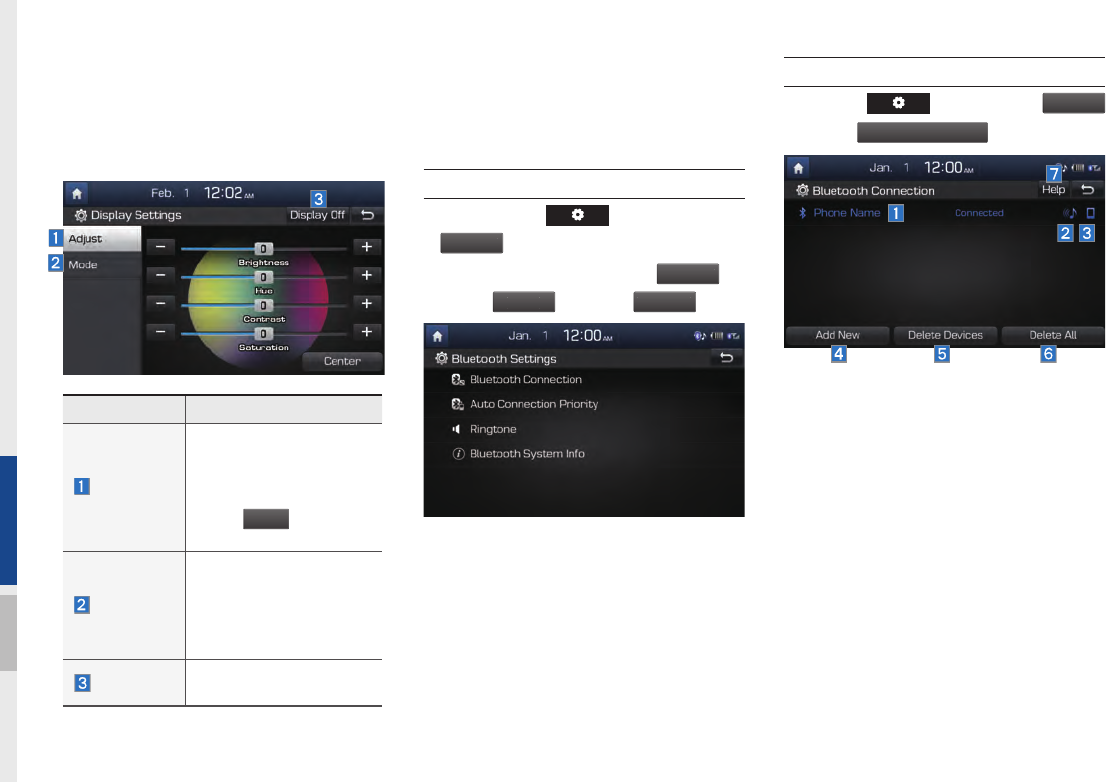

Display Settings ......................................9-4

Bluetooth Settings .................................9-4

Bluetooth Settings …………………… 9-4

Bluetooth Connection Settings ……… 9-4

Auto Connection Priority ……………… 9-5

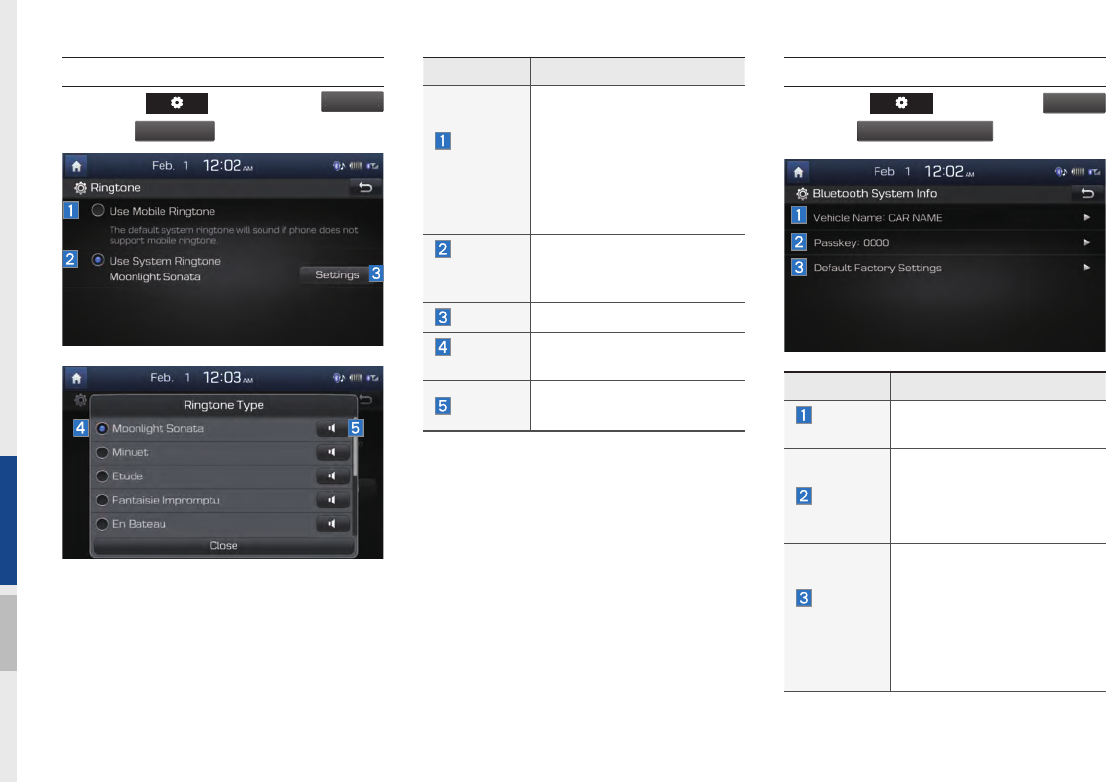

Phone Ringtone ……………………… 9-6

Bluetooth System Information………… 9-6

Blue Link Settings ..................................9-7

Service Activation …………………… 9-7

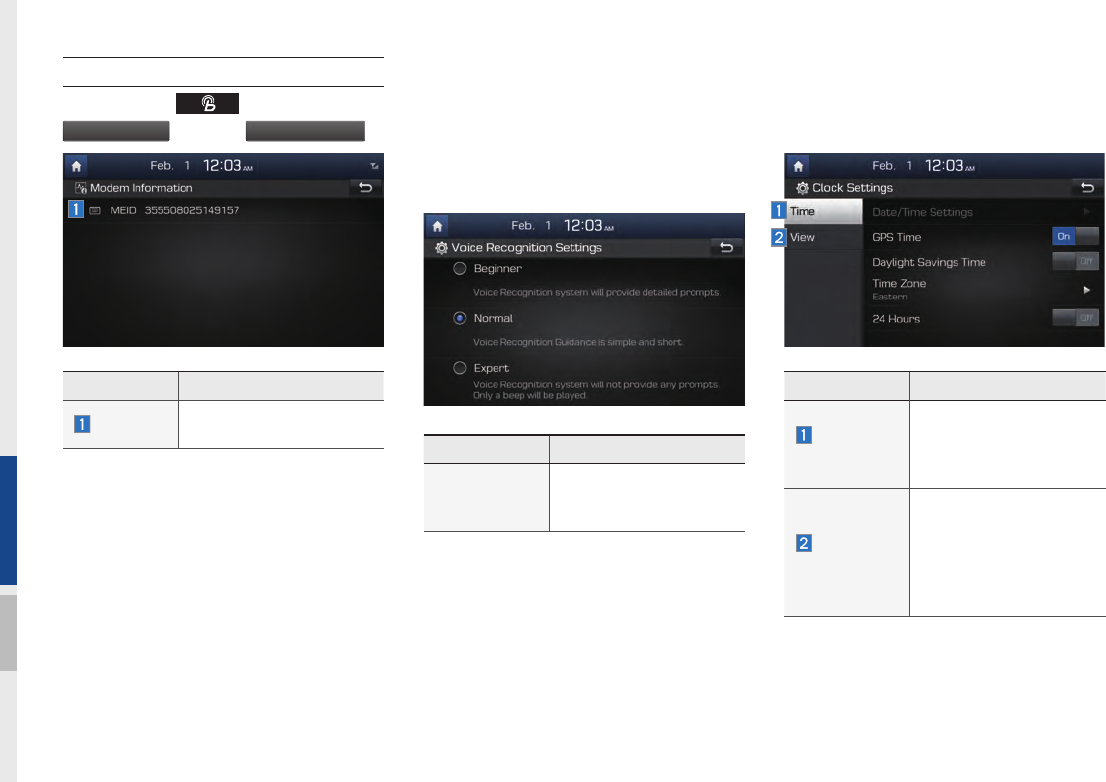

Modem Information …………………… 9-8

Voice Recognition Settings ..................9-8

Clock Settings .........................................9-8

Language Settings .................................9-9

Keyboard Settings ................................9-10

Downloaded Apps Settings ................9-10

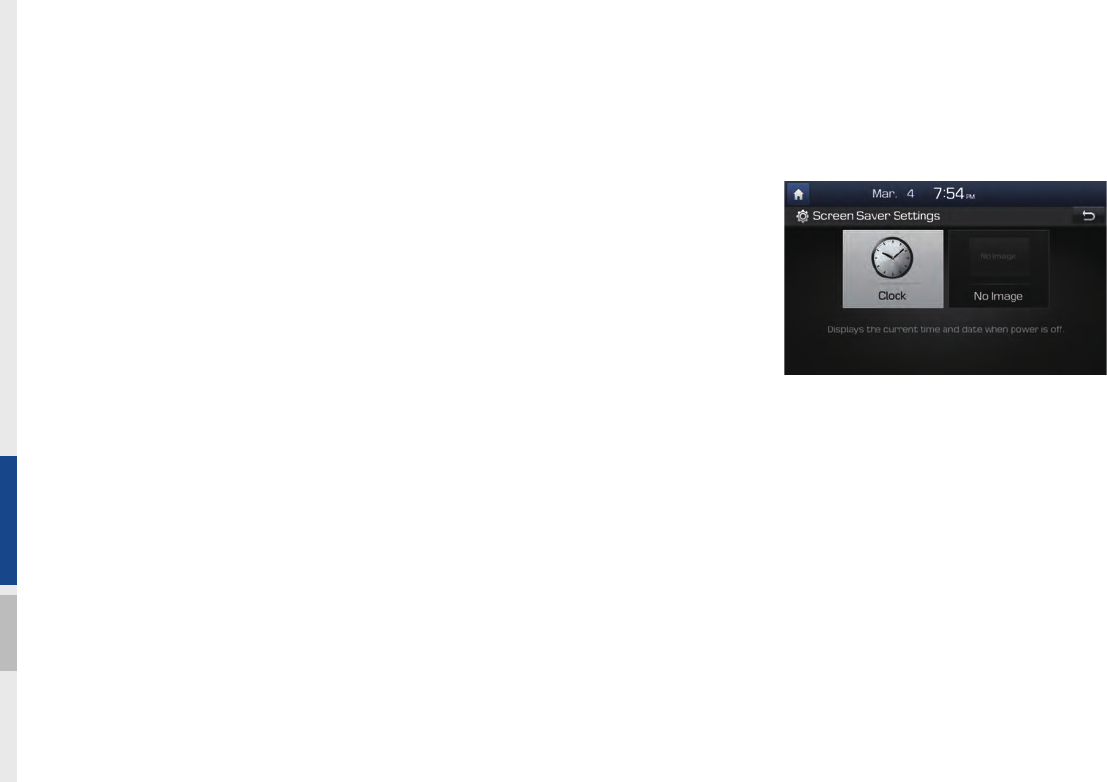

Screen Saver Settings .........................9-10

System Info ............................................9-11

System Update ………………………9-11

10. Appendix

Product Specification ..........................10-2

Troubleshooting ....................................10-4

FAQ .........................................................10-7

About Pairing Mobile Phones …………10-7

About Making/Answering Phone Calls … 10-8

About

Bluetooth

Wireless Technology/

Head Unit Use Environment ………… 10-8

CAUTIONS upon Using SD Cards

•Ejecting and Inserting SD Cards

•Ejecting and inserting SD cards while the multimedia system is operating may result in SD

Card or System errors. To eject or insert the SD card, ﬁ rst turn off the multimedia system and

the vehicle ignition.

•Eject/insert SD cards only to update the multimedia system with a new version.

•Usage of SD Cards

•The SD Card is formatted to include only Map and new system update ﬁ les.

•The SD Card cannot be used to save and play Music.

•Do not add, delete, or format ﬁ les within the SD Card.

iPod®

iPod® is a registered trademark of Apple Inc.

Bluetooth®

Wireless Technology

The Bluetooth® word mark and logos are registered trademarks owned

by Bluetooth SIG, Inc. and any use of such marks by HYUNDAI is under

license. Other trademarks and trade names are those of their respective

owners.

Bluetooth

Wireless Technology enabled cell phone is required to use

Bluetooth

Wireless Technology.

Bluetooth

Wireless Technology phone

compatibility can be checked by visiting https://www.hyundaiusa.com/

bluetooth.

HD Radio™ Technology

HD Radio™ Technology manufactured under license from iBiquity Digital

Corporation. U.S. and Foreign Patents.

HD Radio™ and the HD, HD Radio, and "Arc" logos are proprietary

trademarks of iBiquity Digital Corp.

Warnings and Cautions

Key Product Features

Component Names and Functions

Starting the System for the First Time

part.1 Basic

1-2 I Basic

Safety Warnings

•Even when receiving route guidance

from the Navigation system, please

abide by actual traffic and road regu-

lations. Following only the Navigation

route guidance may lead to violations of

actual traffic and road regulations and

lead to traffic accidents.

•Do not stare at the screen while driv-

ing. Staring at the screen for prolonged

periods of time could lead to traffic acci-

dents.

•Do not operate the Navigation system

while driving, such as entering POIs or

conducting route searches. Such acts

could lead to accidents, fire, or electric

shock. Park the vehicle before operating

the device.

•Do not disassemble, assemble, or mod-

ify the Multimedia system. Such acts

could result in accidents, fire, or electric

shock.

•Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

•If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibil-

ity of an accident may increase. Please

use phone related functions only when

parked.

•Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

•Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

•Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

•For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

•Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

Basic

Warnings and Cautions I 1-3

Safety Cautions

Pay attention to traffic conditions while

driving.

•In some instances, the navigation may

provide guidance through restricted

areas.

•Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

•Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

•Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

•If you want to change the position of

device installation, please inquire with

your place of purchase or service main-

tenance center. Technical expertise is

required to install or disassemble the

device.

•Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

•Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

•Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

•When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

•Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

1-4 I Basic

Display

Wide TFT-LCD Display

•Provides high quality video through a Wide TFT-

LCD Display using an LED Back Light.

•Touch screen for maximum user convenience.

Radio

Digital Tuner Feature

•Digital Tuner using PLL method that supports

memory of 12 broadcast stations for each AM

and FM modes.

Radio broadcast station name

•Displays broadcast station names.

HD Radio™/Satellite Radio feature

•Supports HD Radio™ reception and Satellite

Radio (SiriusXM™).

Key Product Features

This device is a Multimedia system equipped with a multifunctional

player that supports Radio (FM, AM), HD Radio™ technology,

SiriusXM™, USB, iPod, AUX, Bluetooth Audio and My Music fea-

tures. The WIDE VGA LCD provides a high quality resolution while

the powerful and rich sound system adds to the driving enjoyment.

Multimedia

Player

Support for various Media Formats

•Support for various media formats, including

Radio, USB, iPod, AUX and Bluetooth

Audio

Streaming modes

My Music

•Supports copying of music stored within USB

devices into My Music (internal memory) mode

Navigation

Voice Guidance

•Voice route guidance to safely and conveniently

reach set destinations

•Various map scales that enable drivers to accu-

rately view map and surrounding areas

Automatic Correction for Current Location

•Automatically corrects current position using

map matching and GPS information.

Miscellaneous

Bluetooth

Wireless Technology

•Convenient use of Bluetooth

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

•Easy control of features through touch screen

options

Steering Wheel Control

•Control over audio features, voice recognition

and Bluetooth

through the steering wheel con-

trol for maximum convenience

Component Names and Functions I 1-5

Component Names and Functions

Head Unit

Name Description

RADIO

Converts to FM/AM/SiriusXM™ mode

•Each time the key is pressed, the mode is changed

in order of FM → AM → SiriusXM™ → FM

MEDIA

Converts to MEDIA mode

•Selects MEDIA mode If the media is not con-

nected MEDIA mode will not be activated.

Displays the Blue Link mode

MAP

VOICE

Displays the map for the current position

NAVI

Takes you to the menu screen where you can find

your destination and set the route.

Takes user to phone screen

Displays the information mode

SD card insert slot

Displays the Setup mode

※ The actual feature in the vehicle may differ from the illustration.

1-6 I Basic

Name Description

POWER/

VOL

•When power is off, press to turn power on

•When power is on, press and hold (over 0.8

seconds) to turn power off

•When power is on, press quickly (under 0.8

seconds) to turn Audio off

•Turn left/right to control volume

TUNE

•FM/AM mode : changes the frequency

•SiriusXM™ mode : changes the channel

•MEDIA (USB/iPod/My Music) mode : changes

the file or title changes the file or title (except

USB Image, Bluetooth Audio and AUX)

SEEK/TRACK

When key is pressed shortly. (under 0.8 sec-

onds)

•FM/AM mode : plays previous/next frequency

•SiriusXM™ mode : plays the previous/next

channel

•MEDIA (USB/iPod/My Music) mode : changes

the file or title (except USB Image and AUX)

When key is pressed and held. (over 0.8 sec-

onds)

•FM/AM mode : continuously changes the fre-

quency until the key is released

•SiriusXM™ mode : continuously changes the

channel until the key is released and plays the

current channel

•MEDIA (USB/iPod/My Music) mode : rewinds

or fastforwards the or file (except USB Image,

Bluetooth Audio and AUX)

RESET

Resets the system settings. (Preset radio chan-

nels and other data will not be deleted)

Head Unit

Component Names and Functions I 1-7

Name Description

MODE

•Each time this key is pressed, mode is changed in

the order FM → AM → SiriusXM™ → USB Music

or iPod → AUX → Bluetooth Audio → My Music

•If the media is not connected, the corresponding

modes will be disabled

•Press and hold the key (more than 0.8 seconds)

to turn the Audio system on/off

•When power is off, press the key to turn power

back on

VOL+

VOL-

Controls the volume

When keys are pressed quickly. (less than 0.8 sec-

onds)

•FM/AM mode : searches broadcast frequencies

saved to Presets

•SiriusXM™ mode : searches broadcast channels

saved to Presets

•MEDIA (USB/iPod/My Music) mode : changes the

file or title (except USB Image, AUX)

When keys are pressed and held. (more than 0.8

seconds)

•FM/AM mode : automatically searches broadcast

frequencies

•SiriusXM™ mode : automatically searches broad-

cast channels

•MEDIA (USB/iPod/My Music) mode : quickly

looks up songs (excluding USB images, AUX and

Bluetooth audio files)

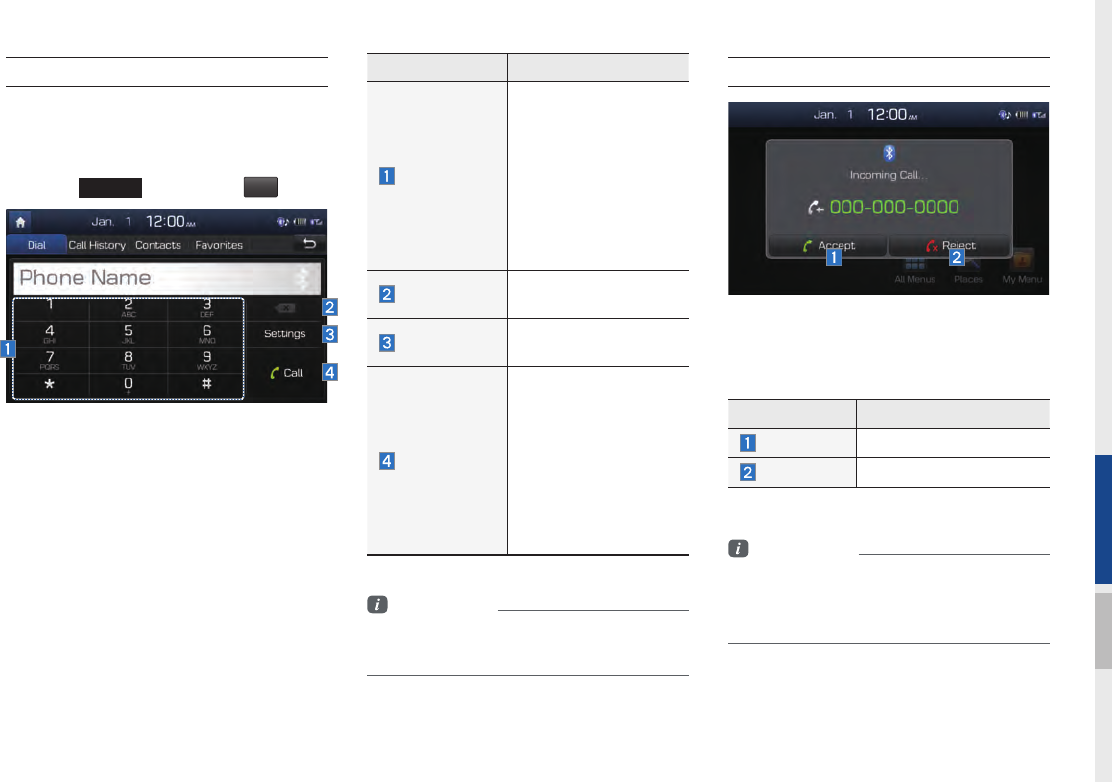

Steering Wheel Control

1-8 I Basic

Name Description

When pressed quickly. (less than 1.2 seconds)

•When pressed in the dial screen, makes a call

•When pressed in the incoming call screen,

answers the call

•When pressed during call waiting, switches to

waiting call (Call Waiting)

When pressed and held. (more than 1.2 seconds)

•When pressed in Bluetooth

Hands-free, redials

the last dialed call

•When pressed during a Bluetooth

Hands-free

call, switches call back to mobile phone (Private)

•When pressed while calling on the mobile phone,

switches call back to Bluetooth

Hands-free

(operates only when Bluetooth

Hands-free is

connected)

•When pressed during a call, ends the phone call

•When pressed in the incoming call screen, rejects

the call

When pressed quickly. (less than 0.8 seconds)

•Activates voice recognition

When pressed and held. (more than 0.8 seconds)

•Ends voice recognition

•Activates Siri Eyes Free

Steering Wheel Control

※The actual feature in the vehicle may differ from the illustration.

Starting the System for the First Time I 1-9

Starting the System for the

First Time

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

Pressing the power key on the head unit

will display the user confirm screen. To

change the system language between

English, French, Spanish and Korean

press the Change

Language

button.

NOTICE

• Cannot operate the system while it is booting

up. It may take some time for all of features of

the system, particularly the voice recognition

system, to be ready for use.

Pressing and holding the power key on the

head unit will turn off the system.

You can change Screen Saver Settings in

Setup to display a clock or another chosen

image on the Screen Saver.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will

automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust

the volume to a reasonable level.

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the RESET key for a sec-

ond or longer. (It is recommended that you

press the RESET key using a tool, such as

a pin or a clip.)

NOTICE

• Resetting the system restores all existing

settings and configurations (e.g. volume,

display, etc.) back to their factory defaults.

1-10 I Basic

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become

completely discharged.

Restrictions on Features for

Safety Measures

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

WARNING

- Blank Screen

• Refrain from use if the screen is blank or

no sound can be heard as these signs may

indicate product malfunction. Continued use in

such conditions could lead to accidents (ﬁ res,

electric shock).

WARNING

- Touching the Antenna During A

Thunder Storm

• Do not touch the antenna during thunder or

lightning as such acts may lead to lightning

induced electric shock.

Starting the System for the First Time I 1-11

Features Description

Navigation

Widget

•Provides a brief view of the navigation map

and the route screen.

•Touch any area on the screen to move to

the navigation screen.

AV Widget

•Shows brief information on the radio media

current playing.

•Touch the area to move to the mode for

what you are listening to.

All Menus Shows all of the items in the system menu.

Places Directly moves to the screen where you can

search for your destination.

My Menu

•You can add and save up to eight menu items.

•Add your favorite menu items to have quick

and easy access to them.

Home Screen

Controls Menu Conﬁ guration for the Home Screen

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

The icons in the following table indicate the various types of sys-

tem status details and events.

Information

•

Received signal strength indicator of Blue Link and 2G/3G

information are displayed only in the devices that support the telematics

system.

AV-Mute Navigation-

Mute Making a call and Bluetooth connection 2G/3G/

ICON

Description Mute AV

sound

Mute

Navigation

sound

Bluetooth

phone

remaining

battery

Handsfree

connection

Making a

call using

Bluetooth

phone

Bluetooth

phone

reception

sensitivity

ICON

Description Connecting to

music stream

ICON

Description Handsfree+

streaming

connection

Mute

Bluetooth

phone

microphone

2G/3G data

connection

(displayed

only when

connected

to a 2G/3G

data net-

work)

ICON

Description Downloading

contacts/

recent calls

Blue Link

received

signal

strength

indication

1-12 I Basic

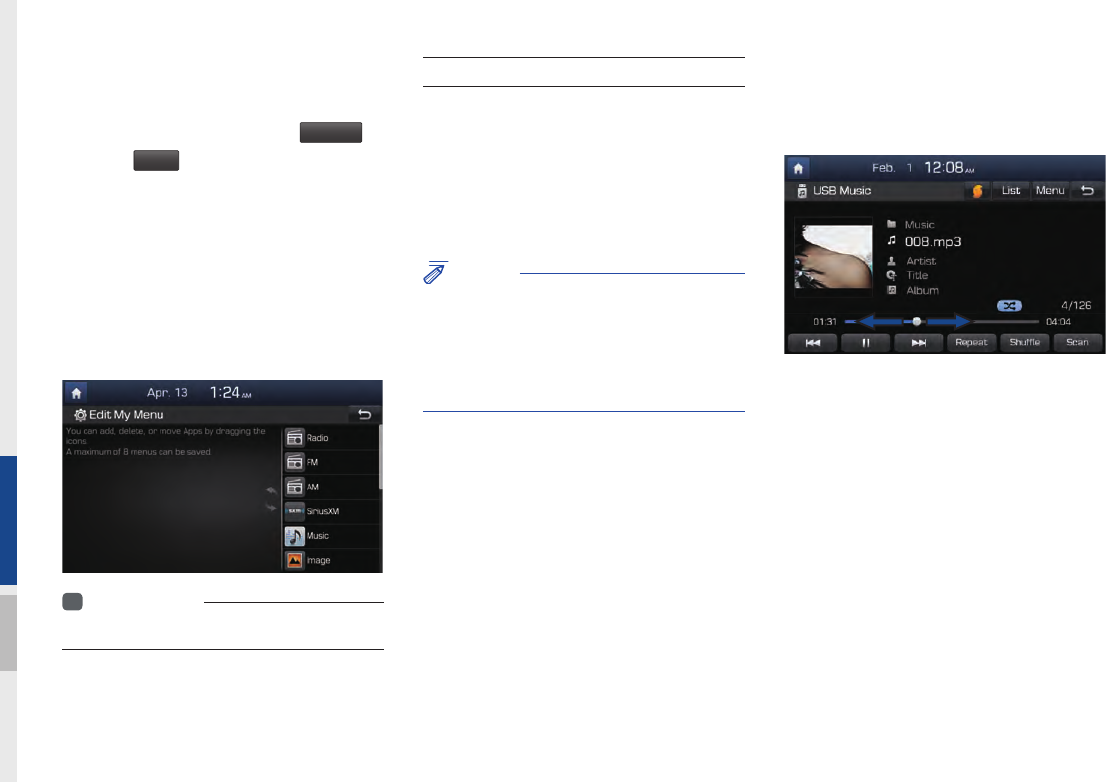

Adding Your Favorite Menu Items to My

From the Home screen, select

My Menu

▶

and then

Edit

From the Edit My Menu screen, select

menu items from the list on the right, then

drag and drop them to a desired place on

the left.

To remove the item from My Menu, draft

item from the left and drop them on the

right.

Information

• Up to eight items can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive

material. Touch the screen using your ﬁ nger,

an electrostatic touch-screen glove, or a stylus

pen.

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

Starting the System for the First Time I 1-13

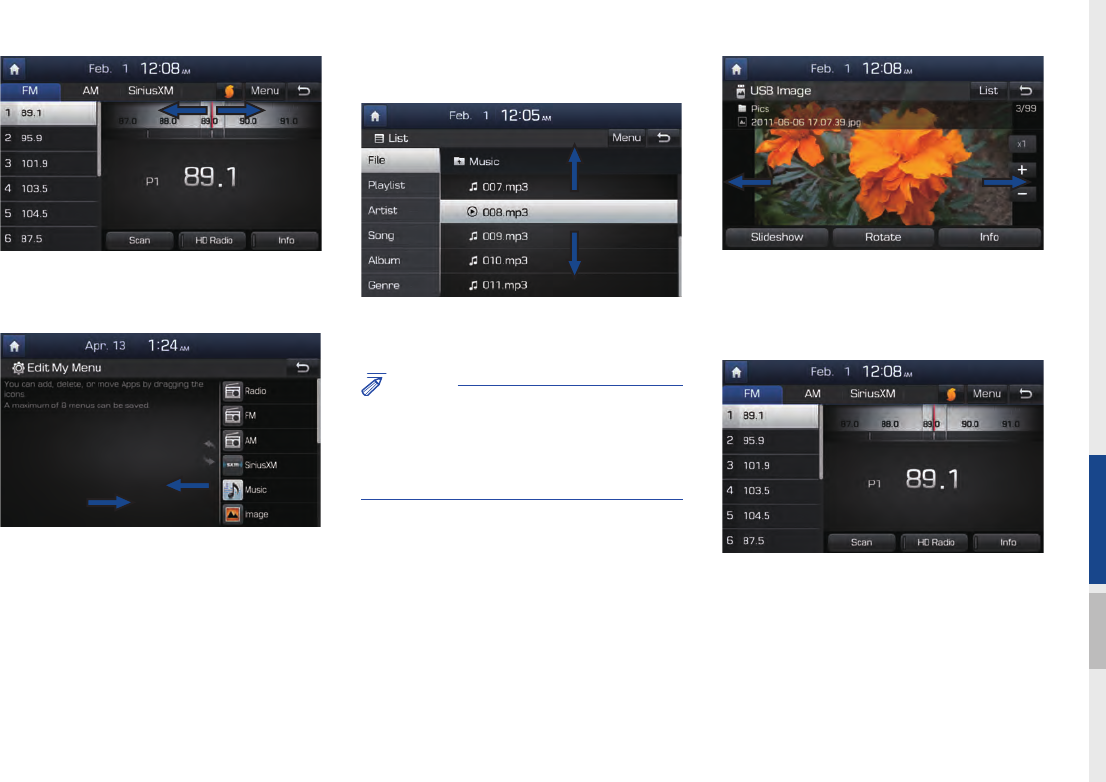

Drag the frequency bar to the left or right

to move to the frequency that you want.

From the Edit My Menu screen, drag and

drop icons to add, delete, or move to from

My Menu.

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display.

You can easily move many items at a time

with the handler

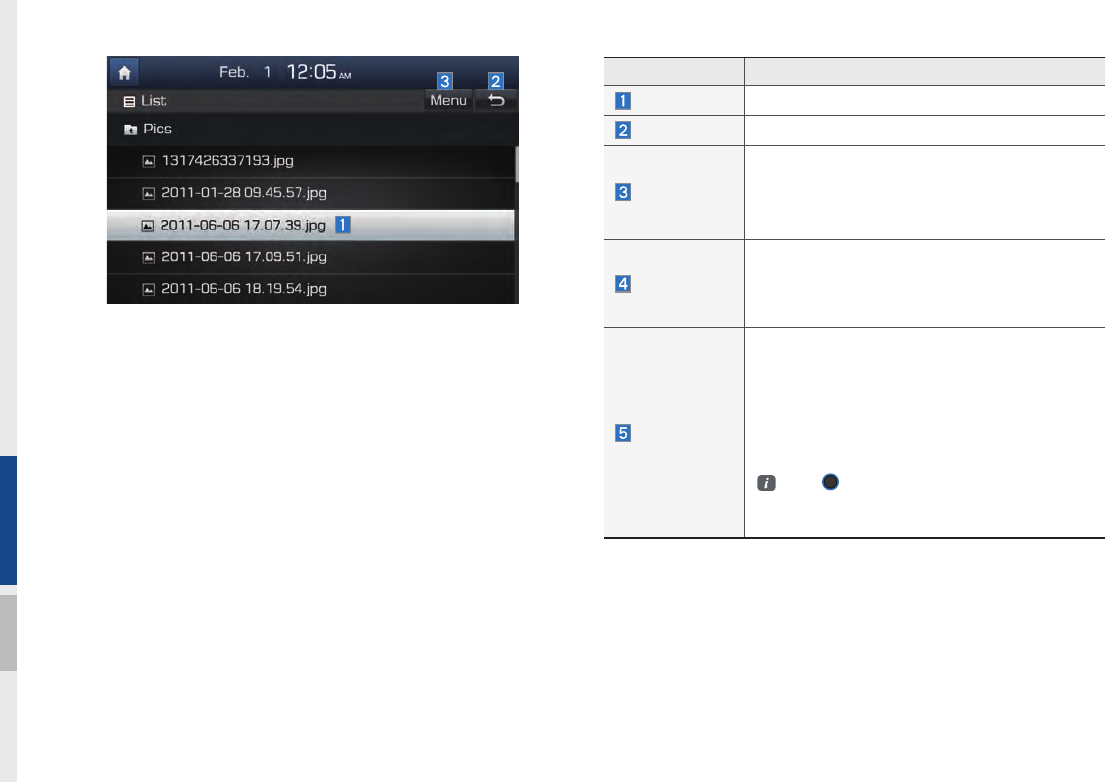

You can view the previous or next image

by flicking left/right on an image on the

USB Image screen.

Flick left/right on the frequency bar in the

radio player to look up the previous/next

frequency available.

1-14 I Basic

Press and Hold

Pressing the and buttons

in the music or video player will fast for-

ward/rewind the music or video.

FM/AM

HD Radio™ Technology

SiriusXM™

USB

iPod

AUX

Bluetooth® Audio

My Music

part.2 AV

2-2 I AV

Features Description

Mode Display

•Displays current operating mode

•If select wanted mode tap, it will change to

selected mode in Radio.

Preset

•Shows saved presets for user selection

•After selecting frequency → press and

hold (over 0.8 seconds) the preset button.

A 'beep' will sound and the frequency is

saved to the selected preset button.

A total of 24 frequencies with 12 preset

frequencies each for FM/AM modes can be

saved.

Frequency Bar

•Flick the frequency bar left/right to search for

available radio channels to the left or right of

the current channel.

•Dragging: Drag the frequency bar to the left/

right to find the radio channel that you want.

Frequency Displays the current frequency

Broadcast

station Displays the current broadcast station name.

Scan Plays frequencies with superior reception for 5

seconds each

HD Radio

When the HD Radio soft button is ON (the blue

indicator on the HD Radio button is illuminated),

HD Radio signals will be received.

FM/AM

Accessing FM/AM Mode

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu option from All Menus on the

Home screen.

Information

• If you press the

RADIO

key when the power is off, then the power will

turn on and a radio broadcast will be tuned up.

• If you are in the FM/AM mode, select the FM/AM radio widget from the

Home screen to access the radio player.

FM/AM I 2-3

Features Description

Info

Turns the Radio Text information on and off

•If the ON Text On button is displayed (Text off

state), information will not be displayed even

if there is information being transmitted from

the broadcast station.

•If the Off Text Off button is displayed (Text

on state), then broadcast information will be

displayed. Information may not be displayed if

there is no information being transmitted from

the broadcast station.

Features Description

•Autostore

Saves frequencies with good reception to

Preset buttons

While Auto Store is operating, pressing the

Auto Store button again will cancel the func-

tion and play the previous frequency.

•Preset Scan

Plays preset frequencies for 5 or 10 seconds

each

•HD on : 10 seconds

•HD off : 5 seconds

Scan/

Auto Scan/

Preset Scan

Displays an activated mode from the Scan/Auto

Scan/Preset Scan modes.

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

SEEK/TRACK

•Pressing this button briefly (less than 0.8 sec-

onds) : Seeks the previous/next frequency.

•Pressing and holding this button (longer than

0.8 seconds) : Moves quickly through all of

the frequencies. From the moment that you

release the button, the system will seek the

next available frequency.

TUNE

Turn the

TUNE

knob to manually seek avail-

able frequencies.

•FM : Increment/decrement by 200 kHz

•AM : Increment/decrement by 10 kHz

2-4 I AV

If an HD Radio™ broadcast is received,

the radio mode will switch from analog

broadcast to HD Radio™ broadcast.

Information

• The

HD Radio™

screen is displayed only

when a HD Radio™ broadcast is being

received

Program Service Data :

Contributes to the superior user experience of HD

Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3

Channel Guide, and other relevant data streams.

Adjacent traditional main stations are extra local FM

channels. These HD2/HD3 Channels provide new, origi-

nal music as well as deep cuts into traditional genre.

Digital, CD-quality sound. HD Radio™ Technology

enables local radio stations to broadcast a clean digital

signal. AM sounds like today’s FM and FM sounds like a CD.

HD Radio™ Technology

HD Radio™ Technology I 2-5

HD Radio™ Mode Display Controls

Name Description

HD Radio™

Reception &

Channel but-

tons

Displays main HD Radio™ channels and used to

directly select the current available channels.

HD Radio technology allows AM and FM radio

stations to transmit audio and data using a dig-

ital signal. The HD Radio format allows stations

to simultaneously broadcast one or more differ-

ent programs in addition to the program being

transmitted on the station’s analog channel.

When the HD Radio soft button on the screen

is ON (blue indicator on the HD Radio button is

illuminated), HD Radio reception will become

active whenever a broadcast channel sends

an HD Radio signal and when the vehicle is in

areas where the signal reception is strong. If

multiple HD Radio programs are available, a

soft button for each channel will appear on the

screen allowing you to select from HD1, HD2,

etc.

HD Channel

Number

Analog station and corresponding HD Radio

channel number saved in the preset list.

Broadcast

Info

Displays detailed information about the current

broadcast. (the details of the information shown

are different depending on whether the Info button

is selected)

HD Radio

When the HD Radio soft button is ON (the blue

indicator on the HD Radio button is illuminated),

HD Radio signals will be received.

2-6 I AV

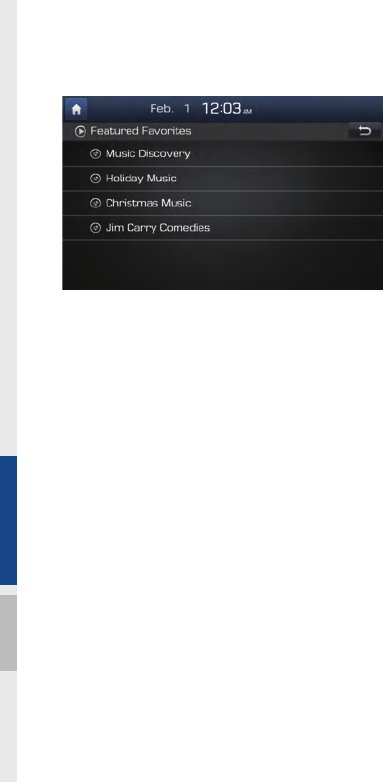

SiriusXM™

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu option from All Menus on the

Home screen. Select the SiriusXM™ tab from the radio player.

SiriusXM™ Display Controls

Information

• If you press the

RADIO

key when the power is off, then the power will

turn on and a radio broadcast will be tuned up.

• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget

from the Home screen to access the radio player.

• When the power is off, pressing the

RADIO

key will turn the power on

and play a SiriusXM™ Radio broadcast.

Features Description

Mode Display

Displays current operating mode.

If you press FM, AM or SiriusXM, mode will

change to selected one in Radio.

Preset

Shows saved presets for user selection

After selecting frequency → press and hold

(over 0.8 seconds) the preset button. A 'beep'

will sound and the frequency is saved to the

selected preset button.

A total of 18 frequencies for SiriusXM™

modes can be saved.

Channel Logo Displays the current channel logo.

Channel Info Displays the current channel number and name.

Contents Info Displays the artist, title and other information

about the current playing song.

Category Info Displays the current playing category.

Scan Plays all receivable channels for 10 seconds each.

Direct Tune Used to search for channels by entering chan-

nel numbers.

category

Back Button Move to home/previous mode screen

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

Features Description

Mode Displays current operating mode

Song Index Shows the current song/total songs

Repeat/Shuffle From Repeat/Shuffle, displays the current oper-

ating function

Play Time Displays the current play time/total play time

Song Info Displays the artist/song title/album info

List Moves to the list screen

2-24 I AV

Features Description

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is over than 3 seconds, plays the

current file from the beginning

If button is pressed (over than 0.8 seconds) it will

rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within 5

seconds of searching tracks, the track info for

the current track is restored.

iPod I 2-25

Features Description

Category Name Displays the category name

Category List

Displays the contents of selected category

If there are many items in the list, items are

added in order and the scroll bar on the right

is adjusted accordingly.

Back Button Converts to basic mode screen

Upper Folder Moves to Upper Folder

Search Menu

Search tracks by the list type. Search songs

according to Playlist, Artist, Song, Album, and

Genre.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is over than 3 seconds, plays the

current file from the beginning

If button is pressed (over than 0.8 seconds) it will

rewind/fast-forward the track.

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If you do not anything with the knob for 5 sec-

onds, the

TUNE

knob search will be termi-

nated.

2-26 I AV

AUX

Connecting an External Device

If an external device connector is connected with the AUX termi-

nal, then AUX mode will automatically operate. Once the connec-

tor is disconnected, the previous mode will be restored.

•AUX mode can be used only when an external audio player has

been connected.

•The AUX volume can also be controlled separately through the

connected device.

NOTICE

• If only a cable is connected to the AUX without an external device, the

mode will be changed to AUX, but noise may occur. When an external

device is not being used, remove the connector jack.

• When the external device power is connected to the power jack, playing

the external device may output noise. In such cases, disconnect the

power connection before use.

Features Description

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

Back Button Move to home/previous mode screen

Information

•

SEEK/TRACK

key, TUNE is not supported.

BluetoothⓇ Audio I 2-27

Features Description

Title Name of current song.

File

•If play time is less than 3 seconds, moves to

the previous file.

•If play time is over than 3 seconds, plays the

current file from the beginning.

This function may differ depending on the

model of mobile phone.

Play/Pause Plays/Pauses Bluetooth Audio.

Next File Moves to the next file.

Repeat

Repeats the current file.

This function may differ depending on the

model of mobile phone.

Shuffle

Plays files in random order.

This function may differ depending on the

model of mobile phone.

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

Connections

Moves to the Bluetooth Settings screen. You

can pair a new device or change/delete paired

device(s).

SEEK/TRACK Plays the previous/next file.

TUNE

is not supported.

Bluetooth

Audio

Bluetooth Audio Mode

Information

• Artist info and Title may not be supported by mobile phone.

Features Description

Mode Displays current operating mode.

Phone Name Displays name of connected phone .

Artist Info Name of current artist.

2-28 I AV

Bluetooth Connections

Settings

Settings for pairing, connection and dis-

connection of a Bluetooth device

•In Bluetooth Audio play screen, Select

Connections

Information

• If the music in the mobile phone is not played

after changing to audio streaming mode,

press the play button. Thus check if the

music is playing in the Bluetooth device after

changing to audio streaming mode. Audio

streaming may not be supported for some

mobile phones.

• Please check the Bluetooth compatibility in

below website : HYUNDAI Motor America

https://www.hyundaiusa.com/bluetooth

My Music I 2-29

My Music

Features Description

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

•If play time is less than 3 seconds, moves to

previous file

•If play time is over than 3 seconds, play the

current file from the beginning

If button is pressed (over than 0.8 seconds) it

rewinds the track

Play/Pause Plays/pauses the current file

Next File

•If button is pressed (less than 0.8 seconds):

Moves to the next file

•If button is pressed (over than 0.8 seconds) it

will fast-forward the file

Repeat

Repeats the current file

•If select the song in the file tab on the list

screen : Press the

Repeat

button to switch

between repeating one song and turn-

ing repeat off.

•If select the song in the other tabs (Playlist,

Artist, Song, Album, Genre) on the list screen

: Press the

Repeat

button to switch between

repeating one song and turning repeat

off

Features Description

Mode Displays current operating mode

File Index Shows the current file/total files

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the current

operating function

Play Time Displays the current play time/total play time

Song Info

Displays the information about the current track

•When a track in the file tab on the list screen

is selected : Displays file, artist, title, album

info

•When a track in the other tab on the list

screen is selected : Displays artist, title, album

info

List Moves to the list screen

2-30 I AV

Features Description

Scan

Scans the beginning parts of files (approx. 10

seconds per file)

•If select the song in the file tab on the list

screen : Press the

Scan

button to switch

between scan and turning scan off

•If select the song in the other tabs (Playlist,

Artist, Song, Album, Genre) on the list screen

: Press the

Scan

button to switch between

scan and turning scan off

•Add to Playlist: Adds the current song to the

Playlist

Playlist is placed on the left tab in the list

•Delete Current File: Deletes the current track

from My Music.

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

SEEK/

TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is over than 3 seconds, plays the

current file from the beginning

If button is pressed (over than 0.8 seconds) it will

rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired track.

If the desired track is displayed, press the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within 5

seconds of searching tracks, the track info

for the current track is restored.

Features Description

Shuffle

Plays files in random order

•If select the song in the file tab on the list screen

: Press the

Shuffle

button to switch between

shuffle and turning shuffle off

•If select the song in the other tabs (Playlist,

Artist, Song, Album, Genre) on the list screen :

Press the

Shuffle

button to switch between

shuffle and turning shuffle off

My Music I 2-31

Features Description

•Add to Playlist : Adds the current track to the

Playlist : Playlist is placed on the left tab in the

list (Maximum 100 files) Select a track and press

“Add to Playlist” to add the track in the playlist

•Delete from Playlist : Select a track from the

playlist and press “Delete from Playlist” to

delete the track in the playlist

•Delete Files : Deletes files from My Music

If delete file from My Music, the information

related to song also deleted in the list.

•Now Playing : When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when

the current list includes the current file

Search Menu

Search tracks by the list type. Search songs accord-

ing to Playlist, Artist, Song, Album, and Genre.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/ TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is over than 3 seconds, plays the

current file from the beginning

If button is pressed (over than 0.8 seconds) it will

rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to move the focus to pre-

vious/next file. If the file you want to play is dis-

played, press

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within 5

seconds of searching tracks, Tune search

will be terminated.

Features Description

Folder/

Category Name

Displays folder/category name in the list

Current Song Displays current playing file name

Back Button Converts to basic mode screen

Upper Folder Moves to Root Folder

2-32 I AV

MEMO

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

part.3 Bluetooth

3-2 I Bluetooth

Before Using the Bluetooth

Handsfree

What is

Bluetooth

Wireless Technology?

•Bluetooth

Wireless Technology refers

to a short-distance wireless network-

ing technology which uses a 2.45GHz

frequency to connect various devices

within a certain distance.

•Supported within PCs, external devices,

Bluetooth® phones, PDAs, various elec-

tronic devices, and automotive environ-

ments,

Bluetooth

Wireless Technology

to be transmitted at high speeds without

having to use a connector cable.

•Bluetooth® Handsfree refers to a device

which allows the user to conveniently

make phone calls with Bluetooth®

mobile phones through the Multimedia

system.

•The Bluetooth® Handsfree feature

may not be supported in some mobile

phones. For more information on mobile

phone compatibility, visit the HYUNDAI

website.

- HYUNDAI Motor America: https://www.

hyundaiusa.com/bluetooth

WARNING

- Distracted Driving

• Focus on the road while driving. The driver's

primary responsibility is in the safe and legal

operation of the vehicle. Drivers should not

use any hand held devices or other equipment

or vehicle systems that distract the driver

during vehicle operation.

• Do not stare at the multimedia screen for long

periods of time while driving. Staring at the

screen for prolonged periods of time can lead

to trafﬁ c accidents and can result in personal

injuries.

Precautions for Safe Driving

•Bluetooth® is a feature that enables driv-

ers to make handsfree calls. Connecting

the head unit with a Bluetooth® phone

allows the user to conveniently make

calls, receive ctalls, and manage the

phonebook. Before using

Bluetooth

Wireless Technology, carefully read the

contents of this user’s manual.

•Excessive use or operations while driv-

ing may lead to negligent driving prac-

tices and be the cause of accidents. Do

not operate the device excessively while

driving.

•Viewing the screen for prolonged peri-Viewing the screen for prolonged peri-

ods of time is dangerous and may lead ods of time is dangerous and may lead

to accidents. When driving, view the to accidents. When driving, view the

screen only for short periods of time.screen only for short periods of time.

Bluetooth

Before Using the BluetoothⓇ Handsfree I 3-3

CAUTIONS upon Connecting

Bluetooth® Phone

•Before connecting the head unit with

the mobile phone, check to see that the

mobile phone supports Bluetooth® fea-

tures

•Even if the phone supports

Bluetooth

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth® power is turned off.

Disable the hidden state or turn on the

Bluetooth® power prior to searching/

connecting with the head unit.

•If Auto Connection is used, the

Bluetooth® phone is automatically con-

nected when the ignition is turned on,

making it unnecessary to have to con-

nect the phone with the head unit every

time.

•If you do not want automatic connection

with your Bluetooth® device, turn the

Bluetooth® feature off of the Bluetooth®

device.

•Park the vehicle when connecting the

head unit with the mobile phone.

•Bluetooth® connection may become

intermittently disconnected in some

mobile phones. Follow these steps to

try again.

1. Turn the Bluetooth® function within

the mobile phone OFF/ON and try

again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile

phone battery, reboot, and then

again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both

of Phone and Head Unit sides and

then try again

•The Handsfree call volume and quality

may differ depending on the mobile

phone.

•Pairing Bluetooth® devices and use of

other Bluetooth® features are not sup-

ported when the vehicle is in motion. For

safety, please first park your vehicle.

•If you continue having issue download-

ing your contacts to your vehicle, con-

tact your mobile phone provider.

3-4 I Bluetooth

Bluetooth Connection

Pairing a New Device

Before you can use the Bluetooth feature,

you must first pair/connect your mobile

phone to your car.

Up to 5 Bluetooth devices can be paired.

Only one Bluetooth device can be con-

nected at a time.

Pairing a New Device by Selecting

Phone/Call

Press the

PHONE

key or key in

the steering wheel control. ▶ Pair your car

after your mobile phone detects the

Bluetooth device. ▶ Enter the passkey or

accept the authorization popup. ▶

Connect Bluetooth.

Pairing a New Device Through the

Phone Settings

Press the

SETUP

key. ▶ Select

Bluetooth

▶ Select

Bluetooth Connection

. ▶ Select

Add New

. ▶ Pair your car after your

mobile phone detects the Bluetooth

device. ▶ Enter the passkey or accept

the authorization popup. ▶ Connect

Bluetooth.

The default passkey is 0000.

The Vehicle Name above is an exam-

ple. Check the actual information on the

product.

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting

Phone/Call

Press the

PHONE

key or key in

the steering wheel control. ▶ Select the

name of the device to connect. ▶ Connect

Bluetooth.

Bluetooth Connection I 3-5

Connecting Devices Through the

Phone Settings

Press the

SETUP

key. ▶ Select

Bluetooth

▶ Select

Bluetooth Connection

. ▶ Select the

name of the device to connect. ▶

Connect Bluetooth.

Disconnecting

Bluetooth Devices

Disconnects Bluetooth devices that are

connected.

Press the

SETUP

key. ▶ Select

Bluetooth

▶ Select

Bluetooth Connection

. ▶ Select the

name of the device to disconnect.

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you

added. Note that deleting a Bluetooth

device will delete all Call History and

Contact Info downloaded along with it.

Press the

SETUP

key. ▶ Select

Bluetooth

▶ Select

Bluetooth Connection

. ▶ Select

Delete Devices

. ▶ Select the device name

to delete. ▶ Select

Delete

3-6 I Bluetooth

Bluetooth Phone

Phone Status Icons

Shows the current phone status in the

right top of the display.

Icons Description

You can use Bluetooth phones

when a Bluetooth Hands-free

connection is established.

You can use Bluetooth audio

features when a Bluetooth audio

connection is established.

You can use Bluetooth phones

and audio features when both

Bluetooth Hands-free and audio

connections are established.

Call signal strength indicator

Battery level of the Bluetooth

devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Information

• The battery level icon and the call signal

strength indicator may not be supported in

some Bluetooth devices.

• The battery level may differ from the actual

level remaining

Bluetooth Phone I 3-7

Dial

Dials a call after the Bluetooth devices are

connected.

Press the

PHONE

key, and then

Dial

Name Description

Keypad

Use the keypad to

enter the phone num-

ber that you want to

call. Press and hold

the last number of

a speed dial to dial

a number that you

added to the Speed

Dial list in the phone

Delete Deletes the numbers

that you entered.

Settings Moves to a screen of

Phone Settings.

Call

Makes a call after

you dial a number

and select CALL. If

the number is listed

in Dialed Calls, you

can select the number

and press CALL to

automatically dial that

number again.

Information

• Some types of mobile phones may not

support the Speed Dial function.

Accept/Reject Call

If there is an incoming call after you made

a Bluetooth connection, a popup message

will appear.

Name Description

Accept Answers the call.

Reject Ignores the call.

Information

• In some mobile phones, the caller's number

may not be displayed, and the Reject feature

may not be supported.

3-8 I Bluetooth

Using the Menu During

a Phone Call

When making a call, you can use the fol-

lowing menu items.

Name Description

Use Private

Switches a voice call

from the car Hands-free

to the mobile phone.

End Ends a call.

Contacts Displays the Contacts

list.

Outgoing

Volume

Displays the Mic Volume

settings. You can adjust

the in-call volume that

the other party hears

(level 1 - 5).

Keypad Moves to a screen for

entering ARS numbers.

Switch

Switches to a call on

hold, if any. You can also

switch calls by select-

ing the number in the

Information Display. The

Switch function switches

the current call to a

waiting call in order to

answer a new incoming

call.

Information

• If the caller's number is listed in Contacts, the

caller's name will be displayed. Otherwise,

only the number will be displayed. In some

mobile phones, the phone number may not

be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as

Radio and Setup.

• Depending on handset types, the in-call

volume the other party hears may differ. If the

other party hears your voice too low or too

loud, adjust the mic volume.

Bluetooth Phone I 3-9

Call History

Press the

PHONE

key, and then

Call History

Name Description

All Lists the all call history.

Dialed Lists the calls that you

made.

Received Lists the calls that you

have received.

Missed Lists the calls you

missed.

Call History

Displays all of your call

history. Select from the

list to dial the number.

Download

Downloads the call his-

tory information from

your mobile phone.

Information

• In some mobile phones, call records may not

be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off on the

Bluetooth device, the call history download

will fail.

• Some devices require a device authentication

for downloading your call history. If download

fails, check if the Bluetooth settings or display

status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device

supports download feature. For details

regarding Bluetooth-supported devices and

their functional compatibility, visit https://www.

hyundaiusa.com/bluetooth

3-10 I Bluetooth

Contacts

Press the

PHONE

key, and then

Contacts

Name Description

Contacts List

The list of Contacts.

Select from the list to

dial the number.

Download Downloads contacts

from your mobile phone.

Search Searches Contacts.

Information

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth

device.

• You cannot edit or delete downloaded phone

numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain.

(Note that deleting a paired phone will also

delete all downloaded Contacts and Call

History data)

• Downloaded phone numbers may be lost

depending on the condition of the head unit.

Keep your important data in a safe place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same

time by default.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on

your Bluetooth device.

• Some devices require a device authentication

for downloading your contacts. If download

fails,check your phone screen and conﬁ rm the

download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth

device supports contacts download. For

Bluetooth supporting devices details and

compatibility, visit https://www.hyundaiusa.

com/bluetooth

Bluetooth Phone I 3-11

Favorites

Press the

PHONE

key, and then

Favorites

Name Description

Favorites

Lists the phone numbers

saved as Favorites.

Select from the list to

dial the number.

Add New Adds a new number to

Favorites.

Delete Items Deletes numbers that you

select from Favorites.

Delete All Deletes all of the numbers

from Favorites.

MEMO

Name and Function of Each Part

Before Use

Getting Started with Blue Link

Driving Info

Send to Car with Google

Vehicle Diagnostics

Blue Link Settings

Blue Link Voice Local Search

part.4

Blue Link® Control

4-2 I Blue Link® Control

Blue Link® Control

Rear View Mirror Switch

Using the Rear View Mirror switch

Selecting the Rear View mirror switch will allow you to make ser-

vice required inquiries, place search, and emergency Service by

connecting to the Blue Link Center. Such features can be used

only after subscribing to the Blue Link service.

Instructions

Display Contents

Blue Link

•Start or ends the Blue Link call.

Blue Link Voice Local Search

•Request information about places via Blue

Link Voice Local Search.

SOS

•Start or ends the SOS call.

Name and Function of Each Part

※ Refer to Blue Link service manual for more Blue Link features.

Before Use I 4-3

Before Use

What Is Blue Link?

This is a Hyundai telematics service based on our cutting-edge IT

system that makes your driving experience more convenient and

fun and features safety, security, vehicle diagnostics, remote con-

trol and even smartphone synchronization functions.

Enjoy a smarter driving style with Blue Link.

What Is Telematics?

The word “Telematics” stems from the combination of telecommu-

nications and informatics, and refers to an information system that

provides a variety of driving information through the built-in termi-

nal by analyzing each symptom and driving state. This allows for a

much safer and more comfortable driving experience.

About Transmission and

Reception of Radio Waves

Connection to the Blue Link Center or wireless data transmission

may be disrupted in the following places.

For radio wave transmission/reception status, refer to the status

displayed on the Blue Link screen.

It is recommended that you use the Blue Link system when the

antenna icon ( ) shows four bars or more.

Places where Blue Link may be disrupted depending on the trans-

mission/reception status:

•Inside tunnels

•Mountainous areas or dense forest

•Roads close to cliff edges

•Densely built-up areas

•On highways or roads underneath higher interchange roads

•Inside buildings

4-4 I Blue Link® Control

Getting Started with

Blue Link

Use Blue Link features such as Driving

Info and Vehicle Diagnostics. Blue Link

features can be used after activating the

service.

Information

• A separate fee may be charged for using Blue

Link, and features may differ according to your

service plan.

Select the key in the head unit.

Name Description

Driving Info

Displays information such

as Driving Time/Idle Time,

Deceleration/Acceleration

Distribution, Driving Speed

and Driving Distance.

Send to

Car with

Google

Displays information about

places received via Blue

Link Voice Local Search.

Vehicle

Diagnostics

Inspects vehicle malfunc-

tions and provides diag-

nostics.

Blue Link

Settings

Activates the service or

displays modem informa-

tion.

Connecting with the

Blue Link Center

Press the key in the rear-view

mirror to connect with the Blue Link center.

Getting Started with Blue Link I 4-5

Blue Link® Safety and

Security Service

Auto Crash Notiﬁ cation

Provides immediate assistance when an

accident occurs and an airbag is deployed.

In this event, an ACN signal, contain-

ing customer and location information,

will automatically be transmitted to the

response center. Upon receipt of the sig-

nal, a response specialist will attempt to

establish voice communications with the

vehicle occupants and forward any perti-

nent information to Blue Link emergency

services.

SOS

Customers request emergency Blue

Link emergence services by pressing

the dedicated

SOS

key in the vehicle.

This action transmits vehicle information

and location to specially trained response

specialists, who assist in coordinating the

dispatch of appropriate emergency assis-

tance to the customer.

The response specialist remains on the

line with the customer until advised assis-

tance has arrived.

Stolen Vehicle Recovery

In the event a customer’s vehicle is

reported stolen (and a stolen vehicle

report has been filed with the appropriate

police department), the response center

can provide assistance to the police in an

attempt to recover the vehicle.

Vehicle Slowdown

Used with Stolen Vehicle Recovery, this

enables law enforcement to gradually

reduce the engine power of the vehicle,

thus slowing it down to safe levels. A warn-

ing shall be transmitted to the driver prior

to the slowdown procedure.

Vehicle Immobilization

Used with Stolen Vehicle Recovery, this

enables law enforcement to send a signal

to the vehicle which immobilizes the engine

management system, thus preventing

startup. This capability is only valid when

the ignition is off, but can be saved for later

immobilization if the vehicle is on or in

motion at the time of signal transmission.

4-6 I Blue Link® Control

Driving Info

Select the key in the head unit ▶

Select

Driving Info

This service can be used while your car is

stopped and the engine is on.

Select

Update

button to receive up-to-

date driving information.

Send to Car with Google

Select the key in the head unit ▶

Select

Send to Car with Google

You can check information about places

received via Blue Link Voice Local Search.

To use Send to Car with Google, first you

need to sign up to the Blue Link.

Name Description

Place list Displays the list of

received places

Delete Items Deletes selected items

from the place list.

Delete All Deletes all items from

the place list.

Dial

Displays the phone

number of a selected

place. Press the num-

ber to make a call.

View Map

Displays the address of

a selected place. Press

the address to view

map

Previous/

Displays the previous or

next place information.

Blue Link Settings I 4-7

Vehicle Diagnostics

Select the key in the head unit ▶

Select

Vehicle Diagnostics

Name Description

Blue Link

Center

Calls the Blue Link

Center to check for

vehicle problems

You can have your vehicle inspected only

after stopping the vehicle because some

control units can't be diagnosed while driving.

Vehicle Diagnostics will be canceled if you

switch to another screen while diagnosis

is in progress.

To receive result details, you need to first

Blue Link Settings

For more details, refer to part 9. Setup >

Blue Link Settings.

4-8 I Blue Link® Control

Blue Link Voice Local

What is Blue Link Voice

Local Search?

With Blue Link network service, you can

search for Google-provided place names

with your voice.

Separated from Voice Recognition in the

steering wheel, it specializes in place

name searches and may be run with a

key in the rear-view mirror.

The search is done through network ser-

vices; it is only available when connected

to a communication network.

Starting Blue Link

Voice Local Search

Press key in the rear-view mirror

(less than 0.8 seconds) to start Blue Link

Voice Local Search.

Name Description

Example

command

Shows an example to ask

for a place search.

Manual

switch

button

Switches the Blue Link

Voice Local Search screen

to manual search.

End

button

Ends Blue Link Voice Local

Search.

With Blue Link Voice

Local Search, press

the key in the

rear-view mirror again to

end the service.

Basic Features

Route

Navigation Settings

Troubleshooting

part.5 Navigation

5-2 I Navigation

Navigation

Basic Features

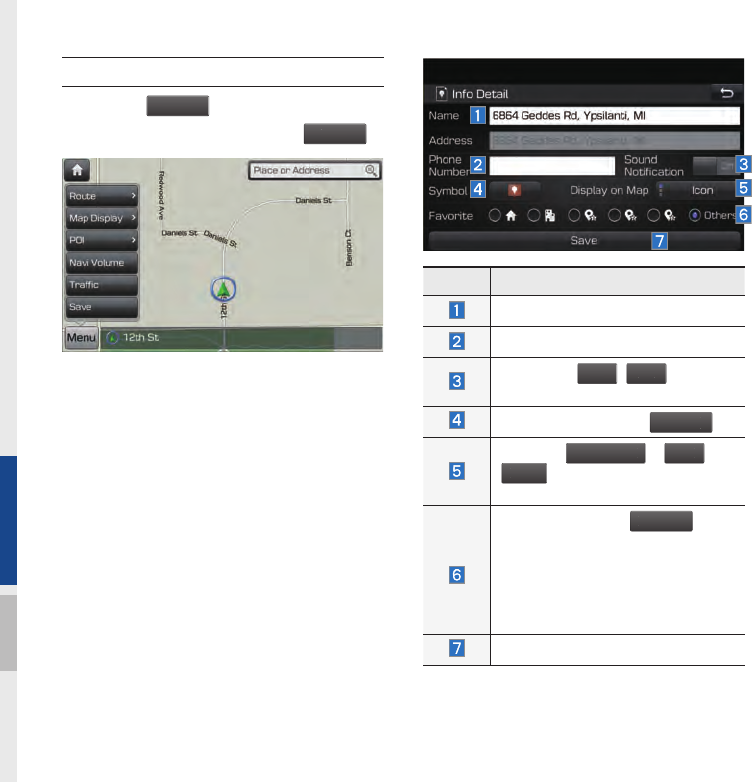

Operating Navigation Screen

Basic features on the map screen.

Name Description

Go to the Place menu.

Move to the Home Screen

Change the map view mode.

Adjusts the volume.

Zoom in the map.

Set the zoom level automatically accord-

ing to the guidance.

Zoom out the map.

enu

Quick and easy selection of a destination

and options.

Touch to scroll the map.

Des

Quick and easy selection of a destination

from the map screen.

Add

aypo

Set a waypoint to the current route.

Save frequently used address to address

book.

Find a POI(Point Of Interest) around the

current position.

View the vehicle’s current position on the

map screen.

Basic Features I 5-3

Places

You can use this menu when the gear is in

“Parking” mode and there is no destination

set.

Press the Search screen to move to

“Places”.

Please refer to “Places” in “Destination

Search” for more details.

Changing Map View

Touch the compass arrow icon to toggle

between a map oriented to the North, ori-

ented parallel to the vehicle’s heading and

3D View.

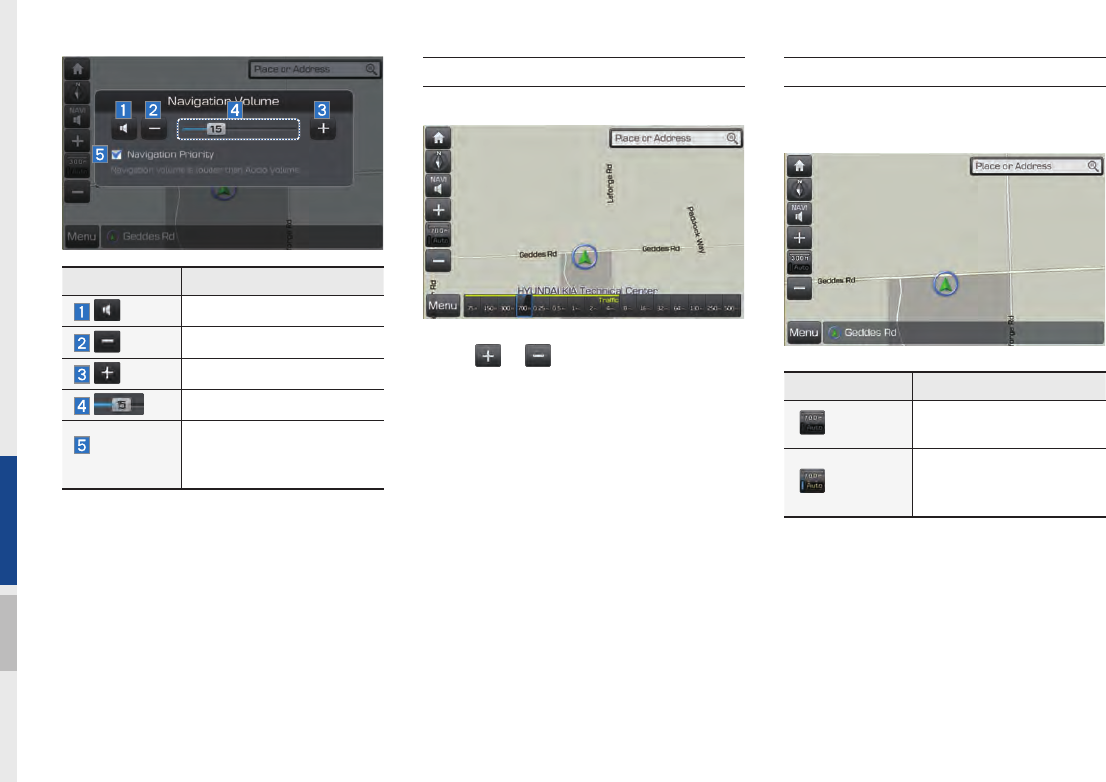

Navigation Volume

Select the button to adjust the naviga-

tion volume.

5-4 I Navigation

Name Description

Set the volume to mute.

Turn the volume down

Turn the volume up

Slide to set the volume

Navigation

Priority

Sets the volume of voice

guidance louder than that

of audio.

Zoom In/Zoom Out

Zoom the map view screen in and out.

Select or to set the zoom level

Map Scale

Sets the zoom level automatically accord-

ing to the type of road.

Name Description

Scale Fix Manually adjust the map

scale.

Auto Scale Change the map scale

automatically depending

on the type of road.

Menu I 5-5

Route

Select the

button on the bottom left

of the screen ▶ Select the

oute

button

Select the

oute

button to set

erout

Route

ption

etour

Reroute

The

eroute

button is active only when

there is an active route.

You can search a route again.

Route Option

You can select an option from Route,

Traffic Information, Freeway, Toll Roads,

Ferry, HOV/Carpool Lanes, Electronic Toll

or Private/Gated Roads.

Select the

button to save your

selection.

If there is a route already saved, another

route will be searched.

5-6 I Navigation

Detour

The

button is active only when

there is an active route.

Selected distance is detoured from the

current location.

Map Display

Displays the direction of the map.

Press , or .

Name Description

North Up (2D)

Displays always has

north at the top of

screen.

Heading Up

(2D)

Displays always

shows the vehicle’s

direction as proceed-

ing towards the top of

the screen.

(3D)

Shows the map in 3

dimentions.

3D Buildings Shows or hides build-

ings on the map.

Navigation Volume

Select the

vi Vol

button to adjust the

navigation volume.

Menu I 5-7

Name Description

Set the volume to mute.

Turn the volume down.

Turn the volume up.

Slide to set the volume.

Navigation

Priority

Sets the volume of voice

guidance louder than that

of audio.

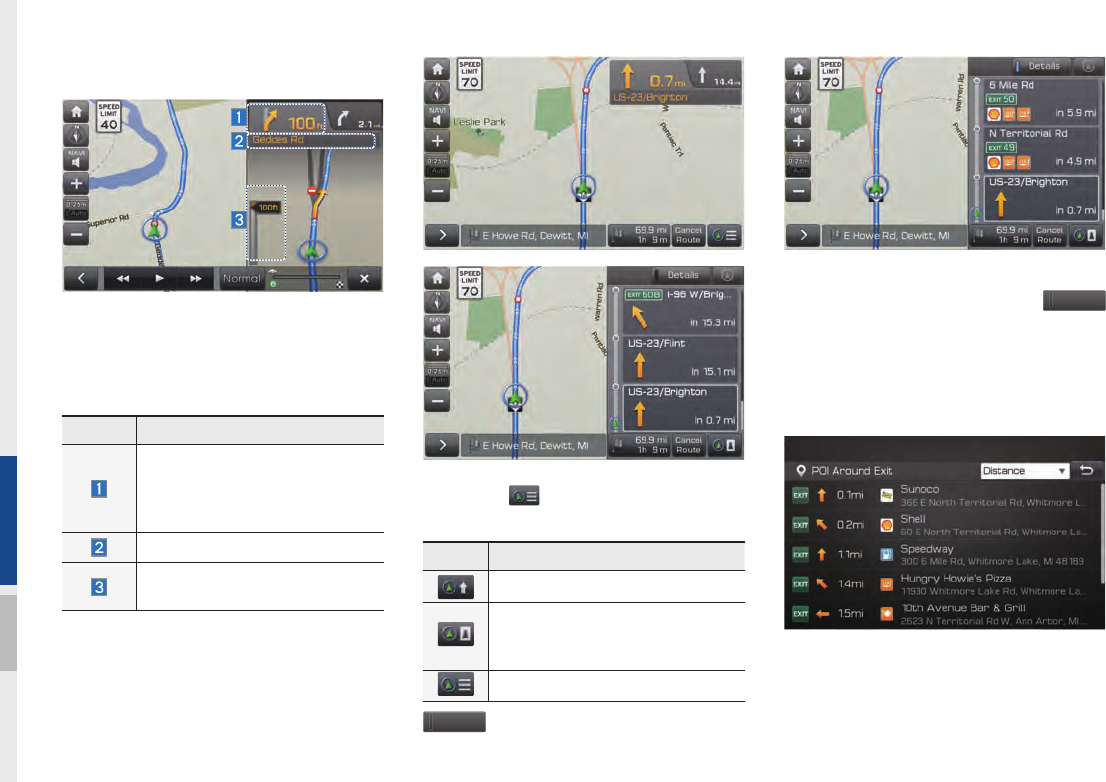

Nearby POIs

Display nearby POIs on the map.

View Nearby POIs

Select the

on the bottom of the left

screen ▶ Select the

button.

Select the

button to set

whether to show nearby POIs or not.

When categories are selected, they will

appear on the map. (ex. Gas Station)

The lists of nearby gas station are dis-

played.

The list can be sorted to display in order of

distance or name.

5-8 I Navigation

Name Description

Call to the selected loca-

tion. (Phone needs to be

connected via Bluetooth)

Des

ion

Set the place as a desti-

nation.

Add

aypo

Set the location as a way-

point.

Save the location.

Search nearby POIs.

•Editing

Change the shortcut POIs to display for

your shortcuts. (ex. Gas Station)

Select the desired category to change. (ex.

Restaurants)

Select new category to display. (ex.

American)

s S

tat

ion

button is changed to

mer

Menu I 5-9

•Searching POI categories

Select the

Men

button on the bottom

left of the screen. ▶ Select the

but-

ton. ▶ Select the

ategories

button. ▶

Select the desired item.

Select the item to search.

Select the

istor

button to check the

previous search result.

Select the

rch

button to search the

POI category by name.

Select the desired POI to check the loca-

tion and for detailed information.

Name Description

Search POI around the current

position.

Search POI around the destina-

tion.

Active only when a route’s

planned.

Search POI along route.

Active only when a route’s

planned.

Search POI around the current

cursor when the map scrolled.

Active only when the cursor

position is different from the

vehicle position.

Search POI around the city

selected.

5-10 I Navigation

Traf ﬁ c

Select the

button. ▶ Select the

ffi

button.

Trafﬁ c List

On the traffic list, the current traffic/road

event information is displayed in order of

distance

Name Description

Direction from the current loca-

tion.

Distance from the current loca-

tion. (mi or km)

Displays traffic info symbol based

on the type of event..

Description of traffic event.

Additional traffic information may be dis-

played upon clicking on the

ategory

button.

Name

Description

Display ‘Road Construction’ informa-

tion.

Display ‘Accident’ information.

Display ‘Slow Traffic’ information.

Display ‘Incident’ information.

Display ‘Hazardous Road Conditions’

information.

Display ‘Travel Information’ .

When On Route is activated, only traffic

information on your route is displayed.

Menu I 5-11

On the traffic list, the current basic traf-

fic/road event information is displayed in

order of distance.

Select the combo box to change the

arrangement in order of distance/cate-

gory.

Name Description

Select the combo box to arrange.

Arrangement by category: Display

traffic information arranged in

order of traffic information event

type.

Arrangement by distance: Display

the traffic information in order

of distance closer to the current

location.

Trafﬁ c detail

Select the

Men

button on the bottom left

of the screen. ▶ Select the

ffic

button.

Select the traffic information on the traffic

list to display the detailed screen as shown

in the screen.

Display the symbol of traffic event and

arrow which indicates the road from start

to end of the traffic event. Detailed infor-

mation is available on the right screen.

Name Description

Symbol of traffic event

Event name of traffic information

Road name / road number includ-

ing direction

Direction and distance from the

current location

Intersection where traffic event

starts

Intersection where traffic event

ends

Total distance of traffic event

Estimated delay time

Check the previous traffic infor-

mation

Check the next traffic information

Detour the route based on the

traffic information

5-12 I Navigation

Trafﬁ c detour

Select the

button on the bottom left

of the screen. ▶ Select the

ffi

button.

If there is traffic information on the route, it

is possible to detour the route using traffic

information and search other routes.

When the

etou

button is enabled in the

View Traffic Detail, press the

etou

button

to detour.

on.

Select the desired section.

Check the information and press the

button.

Select the

tart

uidanc

button to apply

the detoured sections and search other

routes.

Menu I 5-13

Trafﬁ c Pop-up

Select the

enu

button on the bottom left

of the screen. ▶ Select the

ffic

button.

If there is “red traffic flow” on the route, a

traffic information pop-up is displayed.

On the traffic information popup window,

brief information is displayed and Details

and Detour can be selected.

If you do not wish to see this pop-up dis-

played again during the current route,

select

gnore

All

vents on

Thi

oute

button

on the display.

Name Description

Pop-up Icon

Symbol of traffic event

Road Name / Road Number

Distance from current location

Estimated delay time

Search detour route

View the detailed information

regarding traffic event

Close the pop-up message

Set not to display pop-up on the

current route. (Maintained until

the destination is reset)

On the traffic information pop-up, select

etour

eta

to perform action.

Select

etour

to change the route.

Select the

ils

button for further infor-

mation.

5-14 I Navigation

Save

Select the

button on the left bot-

tom of the screen. ▶ Select the

To store the location on the current map to

the address book.

Name Description

Change the name.

Enter the phone number.

Select the

button to

set the sound notification.

Possible to register

ymbo

Press

con

Name

Non

to display on the map

screen.

Designate to the

avor

item.

When the favorite is designated,

press the button on the bottom

of the Destination menu and

request the route guide immedi-

ately..

Save the setting.

Search I 5-15

Places

You can enter POI Name, Address, or

Coordinates that you wish to search by.

Press the

NAVI

key. ▶ Select the

est

nat

tab. ▶ Select the

search bar.

Enter the POI Name, Address and

Coordinates of the location you want in

the input window above, and select the

one

button.

If you select a location from the search

result list, it will bring you to the point.

If you select the

ilter by

ity

button on the

search result screen, it will bring you to the

City search screen where you can filter the

search results by city names.

If you select the

Filter by

ategor

button

from the search result screen, it will bring

you to the POI Categories screen where

you can filter the search results by POI

Categories.

5-16 I Navigation

Once the destination has been identified

either by POI name, address, or coordi-

nates, the map screen will be displayed.

From this screen you can set the desti-

nation or add a waypoint, or add the dis-

played destination to your address book.

Address

Set destination by address search.

Press the

NAVI

key. ▶ Select the

est

nat

tab. ▶ Select the

Add

ress

icon.

How to Search Address

Name Description

Select state to search.

Enter house number. If you don’t

know the house number, select

button.

Enter the street name. Entering

exact street name is required.

The letters on the keyboard

are automatically enabled and

disabled based on the search

result, and words are automati-

cally completed.

When same street names are

available in other cities, the lists

of city are displayed.

Select a city before entering

the street name. Addresses are

searched only from the selected

city.

Search criteria can be entered in any

order. Example: [State] then [City] then

[Street] then [House No.]

Search I 5-17

Enter the address to check the location

information on the map.

Name Description

et as

est

nat

Set the location as a des-

tination.

Add

aypo

Set the location as a way-

point.

Sav

Save the location

Search nearby POIs.

Previous Destinations

Select from previously inputted addresses

and POI’s.

Press the

NAVI

key. ▶ Select the

est

nat

tab. ▶ Select the

rev

ous

est

nat

ons

icon.

Arrange by all, latest destinations, latest

searched places and latest departing

places.

Arrange in order of date and name.

Name Description

Display all destinations, depart-

ing places, and searched places.

Display previous destination

places for route guidance

Display previous departing

places for route guidance

Display previously searched

places for route guidance.

But, not displayed when the

searched places are set as

destination..

5-18 I Navigation

Select the

button to delete the

information.

Name Description

All

Select all.

rk All

Deselect all.

Delete the selected

item(s).

Local Search

Press the

NAVI

key. ▶ Select the

Des

tab. ▶ Select the

Loc

l Se

icon.

Runs Google Local Search.

Enter the desired keywords and select the

one

button.

Searching is in progress.

If search successes, search results are

displayed. Select one of the search result.

Search I 5-19

Select the

et as Destination

button to start

guidance.

If failed, the connection error message is

displayed as above. Please try again.

POI Categories

Press the

NAVI

key. ▶ Select the

ion

tab. ▶ Select the

ategories

icon.

Select the desired item.

Select the desired item in the sub-catego-

ries.

Name Description

Select the desired destination

among the searched items and

add it as a way point.

Arrange in order of Distance and

Name.

Arrange in order of Near Current

Position, Near Destination, Along

Route, Near Scroll Mark and Near

City Center.

5-20 I Navigation

Gas Stations

Search for gas stations.

Press the

NAVI

key. ▶ Select the

est

nat

tab. ▶ Select the

s S

tat

ion

icon.

Select the desired destination among the

searched items.

Restaurants

Search restaurants.

Press the

NAVI

key. ▶ Select the

est

nat

tab. ▶ Select the

estaurant

icon.

Select the desired destination among the

searched items.

Emergency

Search emergency facilities.

Press the

NAVI

key. ▶ Select the

est

nat

tab. ▶ Select the

mergency

icon.

Check the current location information

and select the desired item in the sub-

menu(ex. Police Station).

Search I 5-21

Select the desired destination among the

searched items.

Address Book

Search the destination with the address

book.

Press the

NAVI

key. ▶ Select the

Destinatio

tab. ▶ Select the

ddress Book

icon.

Select the desired group.

If you save addresses in the Favorites tab,

you can set destinations easily by pressing

the icons such as

o Home

and

ffic

at the bottom of the Destination menu.

5-22 I Navigation

Name Description

Select the desired destination

from the searched items.

Edit the destination.

Delete the desired item.

Phone Number

Press the

NAVI

key. ▶ Flick the screen

in up direction to scroll to the bottom row

of icons in the

est

nat

tab. ▶ Select the

one

to search POI by phone

number.

Search destination by phone number.

Type phone number to search. To search for

a list of numbers based on a partial phone

number entry, enter a few numbers and

select

to narrow the search results.

Select the desired destination among the

searched items.

Select the

et as Destinatio

button to start

guidance.

Search I 5-23

Freeway Exit/Entrance

Press the

NAVI

key. ▶ Select the

Freeway Exit/Entrance

to search by freeway

exit/entrance.

Type freeway name and exit/entrance.

Select the

et as Destination

button to start

guidance.

Intersection

Press the

NAVI

key. ▶ Select the

ntersect

to search by intersection.

Type 1st Street name, the State, 2nd

Street name.

5-24 I Navigation

Select the

et as Destinatio

button to start

guidance.

Coordinates

Press the

NAVI

key. ▶ Select the

oordinate

to search by coordinates.

There are two ways to search by coordi-

nates (D.M.S or Decimal degrees). After

typing coordinates, select the

one

but-

ton to search.

Select the

et as Destinatio

button to start

guidance.

Search I 5-25

Favorite places

Set the route using your favorite places.

Press the

NAVI

key. ▶ Select the

Des

ion

tab. ▶ Select from favorite

places

On the button where locations are not reg-

istered, the icon is displayed. When a

location is registered, the button disap-

pears and the buttons 1 to 3 are displayed

as your favorite places.

Select the

o Home

button then select the

button to set the Favorite ‘Go Home’.

Go Hom

in various searching

methods. Office, Special 1, Special 2, and

Special 3 can also be set as a Favorite

using the same steps.

Pressing any of the Favorite Place buttons

will start the route guidance to the saved

Favorite address.

5-26 I Navigation

Route Setting

The route can be set after searching for a

destination.

While the destination is set, the buttons

et as Destination

and

dd Waypoint

appear.

Select the desired button to change a desti-

nation or add a waypoint.

Destination Setting

After searching the destination, select the

et as Destinatio

button to set the location

as a destination.

All Routes

When the alternative routes option is

enabled in navigation setting, two routing

options are displayed based on faster time

and shorter distance.

•Faster Time: Select time-optimized

route, being the fastest roads.

•Shorter Distance: Select short distance,

irrespective of how fast or slow progress will

be calculated.

Search I 5-27

Name Description

Display total distance,

travel time. Select the

desired route.

Start the guidance

with the route.

Route Options

Change the route

option.

oute

You can check route

information.

Edi

oute

Edit the route.

Total Display total distance

of the route

Freeway Display length of

freeway on the route

Toll Road Display length of toll

road on the route

Ferry Display length of Ferry

route on the route

The route will be calculated using the

option “Faster Time” by default.

Alternative routes can be suggested if

necessary,

SETUP

key. ▶

gat

icon

▶ Route ▶ Alternative: On

Adding Waypoint

Select the

Add

aypo

button to set the

position as a waypoint and search the

route.

5-28 I Navigation

Registering Location

Select

button at the desired loca-

tion to register the location.

Enter the detailed information of the loca-

tion to save.

Name Description

Display the selected

point on the map screen.

Move the selected item

up.

Move the selected item

down.

Delete the selected

item.

one

Select the button to fin-

ish editing.

Add Waypoint

Select the button to add

waypoint.

Search I 5-29

Route Guidance

Show route guidance detailed information.

Route Guidance Screen

ema

: Display the time remaining

by destination.

: Display the estimated time of

arrival.

Name Description

Displays the distance

and direction to the first

turn point.

Displays the distance

and direction to the sec-

ond turn point.

Displays the lane infor-

mation at the current

location. Display the

recommended direc-

tion in white, travelable

direction in white, and the

non-travelable direction

in grey.

Name Description

Displays the distance

to the destination and

the estimated time of

arrival. Press the button

to check the detailed

information. If no way-

point is set, you will see

the remaining distance

or estimated time of

arrival in turn each time

you click the button.

Cancel the route.

Change to preliminary

guidance, TBT guidance,

and zoom-on guidance

screens.

est

nat

Displays the destination

information.

5-30 I Navigation

Split Screen during Route Guidance

Approaching the turning point, the detailed

road and travel information is automatically

displayed on the right side of the screen.

Touch the button to change display

view mode as below.

eta

additional info can be displayed

on Freeway

Additional info of Freeway exit or Rest area

can be displayed by selecting the

ils

button.

Detailed information for POIs around free-

way exit is listed by pressing POI symbols.

Name Description

•Turn Point: Display direction

and shape to turn shortly

•Distance to turn : Display dis-

tance to next turn point

Road name to maneuver

Detail Distance Bar: Display dis-

tance to next turn point.

Name Description

Display the full map screen.

Junction View, Split screen.

(Active only when images are

available)

Display Turn-by-turn information

Route I 5-31

Route

Canceling Route

Cancel the route.

Press the

NAVI

key. ▶ Select the

Route

tab. ▶ Select the

ancel Route

icon.

Select the

ancel Route

icon.

Select the

button to cancel the route.

Display Route Information

Press the

NAVI

key. ▶ Select the

ute

tab. ▶ Select the

e Info

icon.

Select the

e Info

icon.

Check the information on the map. Select

the desired item to see the map information.

Avoiding road

Click the

Avoi

ree

button to avoid the

street or road.

Check the desired item and select the

Done

button to finish.

5-32 I Navigation

Route Overview

Check the information on route including

the distance, estimated time, toll fees, etc.

Press the

NAVI

key. ▶ Select the

Rout

tab. ▶ Select the

Route Overvie

icon.

Select the

Route

vervie

icon.

Name Description

Route

ptions

Change the search

option.

oute

You can check route

information.

Edi

out

Edit the current route.

Route Preview

Check the detailed turn-by-turn list.

Press the

NAVI

key. ▶ Select the

oute

tab. ▶ Select the

oute

rev

icon.

Select the

oute

rev

icon.

Route I 5-33

Editing Route

Edit the current route.

Press the

NAVI

key. ▶ Select the

ute

tab. ▶ Select the

ute

icon.

Select the

Edi

out

icon.

Name Description

Move to the departure location.

Move to the previous maneuver.

Move to the next maneuver.

Move to the destination location.

Touch bar to move to the specific

position

Close the route preview.

Name Description

Display the selected point

on the map screen.

Move the selected item

up.

Move the selected item

down.

Delete the selected item.

one

Press the button to finish

editing.

Add Waypoin

Press the button to add

an waypoint.

5-34 I Navigation

Add a waypoint through various searching

methods.

Route Options

Press the

NAVI

key. ▶ Select the

ute

tab. ▶ Select the

Route Option

icon.

Select the

Route

ptions

icon.

Determine the route options to guide the

route.

Avoid Street

Search new route by avoiding the selected

street(s).

Press the

NAVI

key. ▶ Select the

tab. ▶ Select the

voi

ree

icon.

Select the

void

tree

icon.

Select the

button to plan new route

after selecting the street(s) that you want

to avoid.

Navigation Settings I 5-35

Navigation Settings

General

Change general settings.

Select the

Informatio

to display the

detail GPS satellites information

Display

Change the display map settings.

Change the map colors and the route

guidance line colors.

Change the vehicle symbol.

Name Description

Change the unit of

mil

Select the

button to

change the previous destination

view setting when starting the

navigation.

Check the GPS information.

Select the

estore

actory sett

ngs

button to initialize.

Name Description

ece

Active when current posi-

tion is being calculated

Speed Display current speed of

the vehicle

Location Display current position of

the vehicle

Elevation Display current elevation

of the vehicle

Time Display time

Date Display date

5-36 I Navigation

Guidance

Change the guidance setting.

Route

Change the route setting.

Select the

button to change

the

ternat

outes

setting.

•Alternative on: Alternative routes will

be suggested (depending on the route

preference between “Faster time” and

“Shorter Distance”).

NOTICE

• Alternative routes can be shown only while

the vehicle is not moving.

•Alternative off: No alternative routes will

be suggested. Guidance will start right

after calculating with the route prefer-

ence (Faster time or Shorter distance)

Traf ﬁ c

Change the traffic information setting.

Select the

button to change the

settings.

•Show Traffic Information On/Off: Select

whether to display traffic information or

not

•Traffic Event Pop-up Freeway On/Off:

Select whether to display Pop-up mes-

sage for traffic information on freeway

•Traffic Event Pop-up Surface Road On/

Off: Select whether to display Pop-up

message for traffic information on sur-

face road.

Name Description

Set the frequency of guidance

Route guidance is given less fre-

quently.

Guidance will be provided fre-

quently

Change whether to turn Curve

Alert

and

Change whether to show speed

limit by pressing

and

Troubleshooting I 5-37

Troubleshooting

The current position as shown on the navigation may differ from

the actual position under the following conditions.

The following occurrences are not malfunctions :

•When driving on Y-shaped roads

with narrow angles the current

position may be displayed in the

opposite direction

•Within city streets, the current posi-

tion may be displayed on the oppo-

site side or on an off-road position

•When changing the zoom level

from maximum to a different level,

the current position may become

displayed on a different road

•If the vehicle is loaded onto a ferry

or a car transport vehicle, the cur-

rent position may become stalled

on the last position prior to loading

•When driving on a spiral-shaped

road

•When driving in mountain regions

with sharp turns or sudden brakes

•When entering a road after passing

an underground parking structure,

building parking structure, or roads

with many rotations

•When driving in heavy traffic with

frequent starts and stops

•When driving under slippery condi-

tions, such as heavy sand, snow, etc.

•When driving on spiral-shaped roads

•When the tires have recently been

replaced (Especially upon use of

spare or studless tires).

•When using tires of improper size

•When the tire pressure for the 4 tires

are different

•When the replacement tire is worn or

used (Especially studless tires having

passed a second season).

•When driving near high-rise buildings

•When a roof carrier has been installed

•When a long distance route is calcu-

lated while driving on an expressway

In such cases, continued driving will

automatically enable the system

to conduct map matching or use

updated GPS information to provide

the current position (In such cases, up

to several minutes may be required)

Correct route guidance may not occur due to search conditions

or driving position.

The following occurrences are not malfunctions :

•Guidance to go straight may be

given while driving on a straight

road

•Guidance may not be given even

when having turned at an inter-

section

•There are certain intersections in

which guidance may not occur

•A route guidance signaling for

a u-turn may occur in some No

u-turn intersections

•Route guidance signaling

entrance into a No-entry zone

may occur (No-entry zone, road

under construction, etc.)

•Guidance may be given to a posi-

tion that is not the actual destina-

tion if roads to reach the actual

destination do not exist or are too

narrow

•Faulty voice guidance may be

given if the vehicle breaks away

from the designated route. (e.g. if

a turn is made at an intersection

while the navigation provided

guidance to go straight.)

These situations may occur after conducting route calculation.

The following occurrences are not malfunctions :

•Guidance may be given to a

position differing from the current

position when turning at an inter-

section

•When driving in high speeds,

route recalculation may take a

longer period of time

•Route guidance signaling for a

u-turn may occur in some No

u-turn intersections

•Route guidance signaling entrance

into No-entry zone may occur.

(No-entry zone, road under construc-

tion, etc.)

•Guidance may be given to a position

removed from the actual destination

if roads to reach the actual destina-

tion do not exist or are too narrow

•Faulty voice guidance may be given

if the vehicle breaks away from the

designated route (e.g. If a turn is

made at an intersection while the

navigation provided guidance to go

straight.)

END USER LICENSE AGREEMENTEND USER LICENSE AGREEMENT

PLEASE READ THIS END USER LICENSE AGREEMENT (“EULA”) CAREFULLY BEFORE USING THE NAVIGATION SYSTEM.PLEASE READ THIS END USER LICENSE AGREEMENT (“EULA”) CAREFULLY BEFORE USING THE NAVIGATION SYSTEM.

This is a license agreement between you and Hyundai MnSoft, INC. including its affiliates (“COMPANY”) regarding a copy of the This is a license agreement between you and Hyundai MnSoft, INC. including its affiliates (“COMPANY”) regarding a copy of the

COMPANY navigable map database together with associated software, media and explanatory printed documentation published by COMPANY navigable map database together with associated software, media and explanatory printed documentation published by

COMPANY(jointly the “Product”). The Product is provided for your personal, internal use only and not for resale. It is protected by copyright COMPANY(jointly the “Product”). The Product is provided for your personal, internal use only and not for resale. It is protected by copyright

and is subject to the following terms which are agreed to by you, on the one hand, and COMPANY and its licensors (and their licensors and is subject to the following terms which are agreed to by you, on the one hand, and COMPANY and its licensors (and their licensors

and suppliers) (collectively, “Licensors”) on the other hand.and suppliers) (collectively, “Licensors”) on the other hand.

By using the Product, you accept and agree to all terms and conditions in this End User License Agreement (“EULA”). IF YOU DO NOT By using the Product, you accept and agree to all terms and conditions in this End User License Agreement (“EULA”). IF YOU DO NOT

AGREE TO THE TERMS OF THIS EULA, YOU MUST PROMPTLY EXIT THE PRODUCT OPERATION PROGRAM AND DO NOT USE AGREE TO THE TERMS OF THIS EULA, YOU MUST PROMPTLY EXIT THE PRODUCT OPERATION PROGRAM AND DO NOT USE

OR ACCESS TO THE PRODUCT. YOU AGREE THAT YOUR RIGHTS UNDER THIS EULA MAY BE TERMINATED AUTOMATICALLY OR ACCESS TO THE PRODUCT. YOU AGREE THAT YOUR RIGHTS UNDER THIS EULA MAY BE TERMINATED AUTOMATICALLY

WITHOUT NOTICE IF YOU FAIL TO COMPLY WITH ANY TERM(S) OF THIS EULA.WITHOUT NOTICE IF YOU FAIL TO COMPLY WITH ANY TERM(S) OF THIS EULA.

Terms and Conditions

Personal Use Only. You agree to use this Product together with COMPANY’s authorized application for the solely personal, non-commer-

cial purposes for which you were licensed, and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to

the restrictions set forth in the following paragraphs, you agree not to otherwise reproduce, copy, modify, decompile, disassemble, create

any derivative works of, or reverse engineer any portion of this Data, and may not transfer or distribute it in any form, for any purpose,

except to the extent permitted by mandatory laws. You may not assign this EULA or any of the rights or licenses granted under this EULA,

except when installed in the system for which it was created.

Restrictions. Except where you have been specifically licensed to do so by COMPANY, and without limiting the preceding paragraph, you

may not use the Product (i) with any products, systems, or applications installed or otherwise connected to or in communication with vehi-

cles, capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet management or similar applications; or (ii) with or

in communication with any positioning devices or any mobile or wireless-connected electronic or computer devices, including without lim-

itation cellular phones, palmtop and handheld computers, pagers, and personal digital assistants or PDAs.

COPYING OR USE OF THE PRODUCT EXCEPT AS PERMITTED BY THIS EULA IS UNAUTHORIZED AND IS COPYRIGHT

INFRINGEMENT UNDER THE LAWS OF YOUR COUNTRY. IF YOU COPY OR USE THE PRODUCT WITHOUT COMPANY’S

PERMISSION, EXCEPT AS PERMITTED BY THIS EULA, YOU ARE VIOLATING THE LAW AND LIABLE TO COMPANY AND ITS

LICENSORS FOR DAMAGES, AND YOU MAY BE SUBJECT TO CRIMINAL PENALTIES.

THE PRODUCT MAY INCLUDE ENFORCEMENT TECHNOLOGY DESIGNED TO PREVENT (i) UNAUTHORIZED COPYING OF

THE PRODUCT ONTO PHYSICAL STORAGE MEDIA OR VIA TRANSFER OVER THE INTERNET OR OTHER ELECTRONIC

COMMUNICATION MEANS AND/OR (ii) ILLEGAL USAGE OF THE PRODUCT OTHER THAN BY A SPECIFICALLY AHTORIZED

DEVICE. YOU AGREE THAT COMPANY MAY USE THESE MEASURES TO PROTECT COMPANY AND THE LICENSORS AGAINST

Uploads. The Product may provide functionality through which you are able to upload certain information about your use of the Product

(collectively, “Uploads”) to COMPANY’s servers or receive other services from COMPANY (collectively, the “Services”). If you use such

functionality, you authorize COMPANY to retain your Uploads on its servers. COMPANY will have no obligation to provide any Services,

may change the form and nature of any Services at any time with or without notice to you, will have no liability whatsoever to you for any

failure of the Product or Services to transmit your Uploads to or from COMPANY’s servers, may cease providing any Services at any time

with or without notice to you, and will have no obligation to retain your Uploads (or any other materials you may provide to COMPANY) on

its servers or return your Uploads (or any other materials you may provide to COMPANY) to you before deleting them from its servers.

Storage. The Product may provide functionality through which you are able to store information (such as images) on the device on which

you are using the Product. COMPANY will have no liability whatsoever to you or any third party for any failure of the Product to store any

such information on such device.

Personal Information. By using the Product, you agree to the collection, retention and processing of your personal data (including the loca-

tion of your mobile device) by COMPANY and to the storage and processing of such personal information on computers located outside

of the country in which you reside. Even though COMPANY has taken steps intended to protect your personal information from being

intercepted, accessed, used, or disclosed by unauthorized persons, COMPANY cannot fully eliminate security risks associated with your

personal information and cannot guarantee that its systems will not be breached. See [*] for additional information regarding COMPANY’s

use of your personal information.

WARNING.WARNING. THE PRODUCT REFLECTS REALITY AS EXISTING BEFORE YOU RECEIVED THE PRODUCT AND IT COMPRISES THE PRODUCT REFLECTS REALITY AS EXISTING BEFORE YOU RECEIVED THE PRODUCT AND IT COMPRISES

DATA AND INFORMATION FROM GOVERNMENT OTHER SOURCES. ACCORDINGLY, THE PRODUCT MAY CONTAIN INACCURATE DATA AND INFORMATION FROM GOVERNMENT OTHER SOURCES. ACCORDINGLY, THE PRODUCT MAY CONTAIN INACCURATE

OR INCOMPLETE INFORMATION DUE TO THE PASSAGE OF TIME, CHANGING CIRCUMSTANCES, SOURCES USED AND OR INCOMPLETE INFORMATION DUE TO THE PASSAGE OF TIME, CHANGING CIRCUMSTANCES, SOURCES USED AND

THE NATURE OF COLLECTING COMPREHENSIVE GEOGRAPHIC PRODUCT, ANY OF WHICH MAY LEAD TO INCORRECT THE NATURE OF COLLECTING COMPREHENSIVE GEOGRAPHIC PRODUCT, ANY OF WHICH MAY LEAD TO INCORRECT

RESULTS. RESULTS. THE PRODUCT AND SERVICES MAY NOT TO BE USED FOR SAFETY OF LIFE APPLICATIONS, OR FOR ANY OTHER

APPLICATION IN WHICH THE ACCURACY OR RELIABILITY OF THE PRODUCT OR SERVICES COULD CREATE A SITUATION

WHERE PERSONAL INJURY OR DEATH MAY OCCUR. DO NOT ATTEMPT TO CONFIGURE THE PRODUCT OR INPUT DO NOT ATTEMPT TO CONFIGURE THE PRODUCT OR INPUT

INFORMATION WHILE DRIVING. FAILURE TO PAY FULL ATTENTION TO THE OPERATION OF YOUR VEHICLE COULD RESULT IN INFORMATION WHILE DRIVING. FAILURE TO PAY FULL ATTENTION TO THE OPERATION OF YOUR VEHICLE COULD RESULT IN

DEATH, SERIOUS INJURY, OR PROPERTY DAMAGE. BY USING THE PRODUCT, YOU ASSUME ALL RESPONSIBILITY AND RISK.DEATH, SERIOUS INJURY, OR PROPERTY DAMAGE. BY USING THE PRODUCT, YOU ASSUME ALL RESPONSIBILITY AND RISK.

Disclaimer of Warranty. The Product is provided to you “as is,” and you agree to use it at your own risk. SUBJECT TO THE APPLICABLE

LAWS, COMPANY AND THE LICENSORS MAKE NO GUARANTEES, REPRESENTATIONS OR WARRANTIES OF ANY KIND,

EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO, CONTENT, QUALITY, ACCURACY,

COMPLETENESS, EFFECTIVENESS, RELIABILITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, NON-INFRINGEMENT, USEFULNESS, USE OR RESULTS TO BE OBTAINED FROM THE PRODUCT, OR THAT

THE PRODUCT OR SERVER WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT ERRORS IN THE PRODUCT OR

NONCONFORMITY TO ITS DOCUMENTATION CAN OR WILL BE CORRECTED. YOU ACKNOWLEDGE THAT THE PROVISIONS OF

THIS SECTION ARE A MATERIAL INDUCEMENT AND CONSIDERATION TO COMPANY AND THE LICENSORS TO GRANT THE

LICENSE CONTAINED IN THIS EULA AND TO PROVIDE YOU WITH ACCESS TO THE SERVICES.

Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED UNDER THE APPLICABLE LAWS, COMPANY AND THE LICENSORS

SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE

CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, INCURRED

BY YOU OR ANY THIRD PARTY WHICH MAY ARISE IN CONNECTION WITH OR RESULT FROM THE USE OR POSSESSION

OF THE PRODUCT; OR FOR ANY LOSS OF DATA, PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR OTHER DIRECT,

INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THE

PRODUCT, ANY DEFECT IN THE PRODUCT, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION

IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF COMPANY OR THE LICENSORS HAVE BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES AND NOTWITHSTANDING THE FAILURE OF ANY LIMITED REMEDY PROVIDED HEREIN.

Exclusions. Some jurisdictions do not allow certain warranty exclusions or the limitation or exclusion of liability, so to that extent the above

exclusion may not apply to you. To the extent that COMPANY may not, as a matter of applicable law, disclaim any implied warranty or limit

its liabilities, the scope and duration of such warranty and the extent of COMPANY’s liability shall be the minimum permitted under such

applicable law. The disclaimer of warranty and limitation of liability set forth in this EULA does not affect or prejudice your statutory rights

where you have acquired the Product otherwise than in the course of business.

Third-Party Copyright Notices. The third-party sourced data has been incorporated into or made a part of the Product and is being subli-

censed to you subject to the terms and conditions of this EULA. In this regard, you shall not remove or tamper with any intellectual prop-

erty rights notice attached or used in relation to data supplied by the Licensors.

Entire Agreement. This EULA is the entire agreement between COMPANY (and the Licensors) and you pertaining to the subject matter

hereof, and supersedes in their entirety any and all previous written or oral communications or documents (including, if you are obtaining

an update, any agreement that may have been included with an earlier version of the Product) with respect to such subject matter.

Governing Law. This EULA shall be governed by the laws of the jurisdiction in which you reside at the date of acquisition of the Product.

Should you at that moment reside outside the European Union or Switzerland, the law of the jurisdiction within the European Union or

Switzerland where you acquired the Product shall apply. In all other cases, or if the jurisdiction where you acquired the Product cannot

be defined, the laws of the Republic of Korea shall apply. This EULA will not be governed by the U.N. Convention on Contracts for the

International Sale of Goods. The courts competent at your place of residence at the time you acquired the Product shall have jurisdiction

over any dispute arising out of, or relating to this EULA, without prejudice to COMPANY’s right to bring claims at your then current place of

residence.

Export Control. You agree not to export or re-export from anywhere any part of the Product in any form except in compliance with appli-

cable export laws, rules and regulations, including but not limited to the laws, rules and regulations administered by the Office of Foreign

Assets Control of the U.S. Department of Commerce and the Bureau of Industry and Security of the U.S. Department of Commerce.

Miscellaneous. If any provision of this EULA is found to be invalid or unenforceable, it will be enforced to the extent permissible and the

remainder of this EULA will remain in full force and effect. Failure by COMPANY to prosecute any right with respect to a default hereun-

der will not constitute a waiver by COMPANY of the right to enforce rights with respect to the same or any other breach. No refunds or

replacements will be permitted on damaged Product.

U.S. Government End Users. If the Product is being acquired by or on behalf of the United States Government or any other entity seek-

ing or applying rights similar to those customarily claimed by the United States Government, this Product and related documentation are

“Commercial Items” as that term is defined at 48 C.F.R. (“FAR”) 2.101. This Product and related documentation are licensed to the United

States Government end users (a) only as “Commercial Items” and (b) with only those rights as are granted to all other end users in accor-

dance with this EULA, and each copy of Product delivered or otherwise furnished shall be marked and embedded as appropriate with the

following “Notice of Use,” and shall be treated in accordance with such Notice:

NOTICE OF USENOTICE OF USE

CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME: Hyundai MnSoft, Inc.

CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS: 74 Wonhyo-ro, Yongsan-gu,

Seoul 140-711, Republic of Korea

This Product and related documentation are commercial items as defined in

FAR 2.101 and is subject to this EULA under which this Product is provided.

If the Contracting Officer, federal government agency, or any federal official refuses to use the legend provided herein, the Contracting

Officer, federal government agency, or any federal official must notify COMPANY prior to seeking additional or alternative rights in the

Product.

End-User Terms Required by HERE. The Product utilizes map data that COMPANY licenses from HERE and the following copyright

The HERE Data for areas of Canada includes information taken with permission from Canadian authorities, including: © Her Majesty the

Queen in Right of Canada, © Queen’s Printer for Ontario, © Canada Post Corporation, GeoBase ®, © Department of Natural Resources

HERE holds a non-exclusive license from the United States Postal Service® to publish and sell ZIP+4® information.

©United States Postal Service® 2010. Prices are not established, controlled or approved by the United States Postal Service®.

The following trademarks and registrations are owned by the USPS: United States Postal Service, USPS, and ZIP+4.

The HERE Data for Mexico includes certain data from Instituto Nacional de Estadística y Geografía.

Austria: © Bundesamt für Eich- und Vermessungswesen

Croatia, Cyprus, Estonia, Latvia, Lithuania, Moldova, Poland, Slovenia and/or Ukraine: © EuroGeographics

France: source: © IGN 2009 – BD TOPO ®

Germany: Die Grundlagendaten wurden mit Genehmigung der zustaendigen Behoerden entnommen

Great Britain: Contains Ordinance Survey data © Crown copyright and database right 2010, and Royal Mail data © Royal Mail copyright

and database right 2010.

Greece: Copyright Geomatics Ltd.

Italy: La Banca Dati Italiana è stata prodotta usando quale riferimento anche cartografia numerica ed al tratto prodotta e fornita dalla

Regione Toscana.

Portugal: Source: IgeoE – Portugal

Spain: Información geográfica propiedad del CNIG

Sweden: Based upon electronic data Ó National Land Survey Sweden

Switzerland: Topografische Grundlage: Ó Bundesamt für Landestopographie

United Kingdom: Contains public sector information licensed under the Open Government Licence v1.0 (see for the license http://www.

nationalarchives.gov.uk/doc/open-government-licence/) and is adapted from data from the office for National Statistics licensed under the

Open Government Licence v.1.0.

Israel: © Survey of Israel data source

Jordan: © Royal Jordanian Geographic Centre. The foregoing notice requirement for Jordan Data is a material term of the Agreement. If

Client or any of its permitted sublicensees (if any) fail to meet such requirement, HERE shall have the right to terminate Client’s license

with respect to the Jordan Data.

Mozambique: Certain Data for Mozambique provided by Cenacarta © 20XX by Cenacarta

Réunion: source: © IGN 2009 - BD TOPO ®

End-User Terms Required by ZENRIN. The Product utilizes map data that COMPANY licenses from ZENRIN and the following copyright

notices apply to such map data (the “ZENRIN Data”):

The marks of companies displayed by this product to indicate business locations are the marks of their respective owners. The use of

such marks in this product does not imply any sponsorship, approval, or endorsement by such companies of this product.

About Map Updates About Map Updates

•You can contact your Hyundai dealer or Call MnSOFT at 1-888-757-0010.

Information Information

•This product requires regular updates for new functions and map updates. Updating may require up to 1 hour depending on the data

size.

•Turning off the power or ejecting the SD card during the update process may result in damage to the system. Make sure to keep the

ignition on and wait until updating is complete.

CAUTION CAUTION

•Please use only the SD card that was included with the vehicle purchase.

•The use of an uncertified SD card may result in damage to the system due to heat related deformation.

•Product malfunctions caused by the use of an uncertified cards shall not be covered within the product warranty.

•Repeatedly connecting/disconnecting the SD card in a short period of time may cause damage to the device.

What is Voice Recognition?

Precautions Required for Successful Voice Recognition

Starting/Ending and Setting Voice Recognition

Voice Recognition Screen Overview

Voice Commands

Siri Eyes Free

part.6 Voice Recognition

6-2 I Voice Recognition

What is Voice Recognition?

The voice recognition feature operates the

multimedia system by recognizing voice

commands and enables hands-free oper-

ation of the system while you are driving

your car.

Not all possible voice commands are

recognized by the system due to techno-

logical limitations. To make up for these

limitations, the system displays the voice

commands that are available for you to

use.

There are errors in communication between

people. Likewise, voice recognition some-

times misunderstands your voice command

in some circumstances. If this happens,

either check the screen for the available

options and say the command again, or

manually select and press the button for the

corresponding command on the screen.

Precautions Required

for Successful Voice

Recognition

1. Voice recognition supports only the

commands that are displayed on the

screen and written in the User's Guide.

2. To ensure the correct recognition and

execution of your command, say your

command when you hear the beep after

a voice prompt.

3. Voice recognition automatically ends if:

1) A call is incoming or outgoing

2) A media device (USB or iPod, etc.)

is connected or disconnected

3) The rear view camera is operated

4) The car engine starts or stops

5) A system key, such as

RADIO

key

MEDIA

key is selected

6) An emergency occurs, for example

re-searching for the route after the

navigation route has been lost

4. The microphone used for the voice

recognition system is located in the

headliner directly above the driver's

head. To make your commands better

understood, keep your body straight

in the driver's seat when speaking the

command.

5. Speaking naturally and clearly will

ensure better recognition of your voice

commands.

6. In the following cases voice recognition

will be affected by ambient noise.

1) The sound of the wind if any win-

dow or the sun roof is open.

2) High speed blower from the air

vents. Set climate control to blow

lower than level 3.

Vibrations from passing through a

tunnel.

4) Vibrations from driving on an

uneven road.

5) Storms and heavy rain.

Voice Recognition

Starting/Ending and Setting Voice Recognition I 6-3

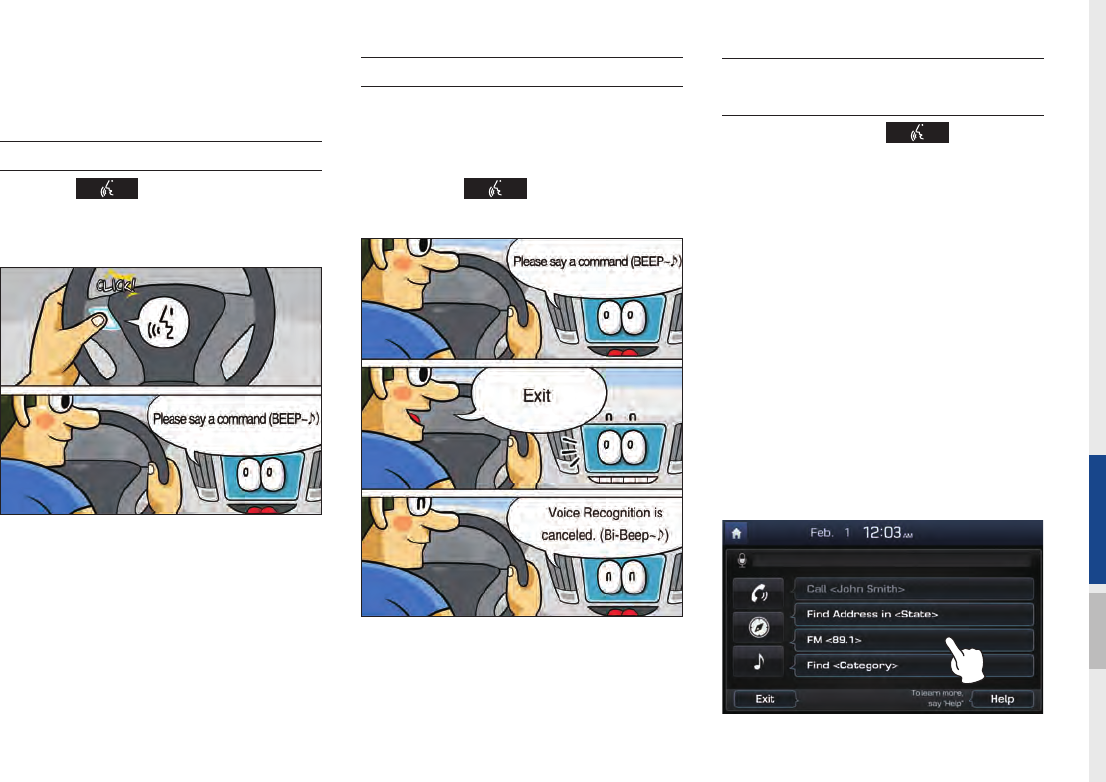

Starting/Ending and Setting

Voice Recognition

Starting Voice Recognition

Press the key briefly (less than 0.8

seconds) on the steering wheel control to

activate voice recognition.

Ending Voice Recognition

1. Select “Exit” to the left of the bottom to

end voice recognition.

2. Press and hold (more than 0.8 sec-

onds) the key on the steering

wheel control to end voice recognition.

Combining Voice Recognition

with On-Screen Commands

After pressing the key, say a

command after the beep. The voice rec-

ognition system will execute the desired

operation after understanding the com-

mand. Alternatively, you may touch any

of the corresponding commands on the

screen while the Voice Recognition sys-

tem is in operation.

Combining voice recognition with available

on-screen commands is useful when the

system is taking longer than expected or

the voice command did not execute as

desired.

6-4 I Voice Recognition

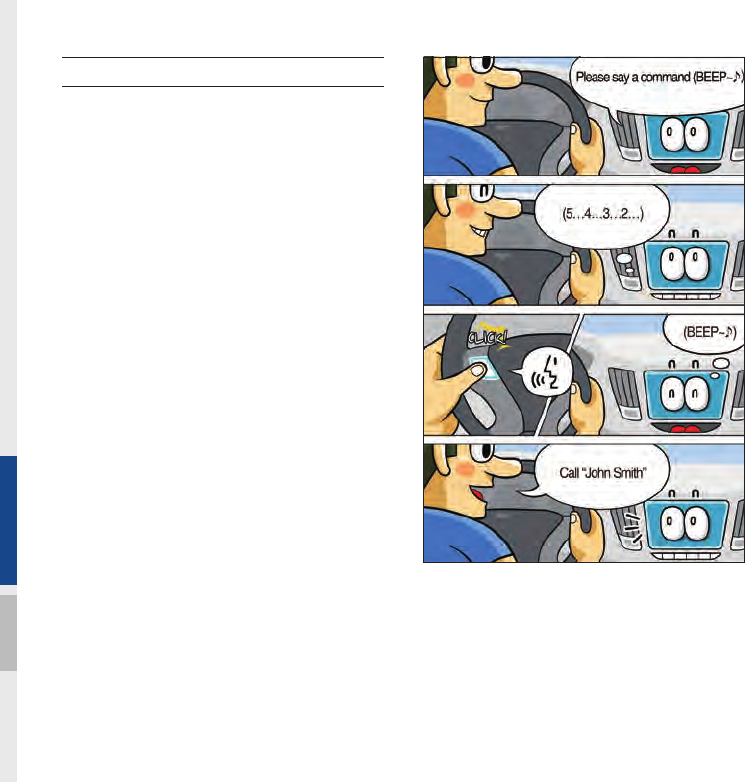

Extending the Listening Time

When the system is waiting for your com-

mand, after the voice prompt and beep

have been heard, if you press the voice

recognition icon (less than 0.8 seconds),

then the beep will sound again and

standby mode will restart.

When activated, voice recognition waits for

your command for 5 seconds. If you say

nothing for 5 seconds, a voice prompt will

ask for your command again.

Starting/Ending and Setting Voice Recognition I 6-5

Skipping Prompt Messages

When you hear the prompt, "Please say

a command," from the system, press the

voice recognition icon on the steering

wheel remote control to skip the message

and go directly to listening mode to say

your command.

This results in faster operation when

you feel the message is too long or you

already know the command to use.

Information

• Refer to Part 9 for instructions on how to

change the Voice Recognition Settings.

Adjusting Voice

Recognition Volume

During voice recognition, rotate the vol-

ume knob to adjust the message volume.

6-6 I Voice Recognition

Voice Recognition Screen

Overview

Start Screen

Name Description

Representative

Commands

Display the represen-

tative commands.

Not

available

command

Displays commands

that are not available

due to a failure in

meeting the condi-

tions for using them

and thus need addi-

tional settings. The

conditions required

for using them will

be described briefly

under each com-

mand.

Name Description

Voice

recognition

status icons

Standby

Voice guidance

Voice command

process

User's

speaking

volume

being

recognized

Displays the voice

command volume in

real time.

Recognized

results

Displays the voice rec-

ognition result.

Help

Displays all available

help commands in a

tree format.

Exit Ends the voice recog-

nition.

Help Display

Name Description

Command

list

• Shows the available

commands.

•Select or say a com-

mand to display addi-

tional commands in

detail.

How to

use for

selected

item

This section shows how to

use voice recognition for

the selected item.

How to

use in

general

This section displays how

to use voice recognition in

general.

Voice Recognition Screen Overview I 6-7

Instructions for Using

Voice Recognition

Information

• In the instructions screen, no voice is

recognized, so you must manually issue

commands. Because the instructions screen

displays a lot of content, you can not view it

while driving for safety precautions.

Name Description

Detail

instruction

This section describes

how to use voice recog-

nition in detail.

Close button

Closes the screen and

restarts voice recogni-

tion.

6-8 I Voice Recognition

Voice Commands

Types of Commands

Voice recognition commands are classified as "Global Commands"

and "Local Commands."

1. Global Commands (󰥋): Commands that can be used immedi-

ately after activating voice recognition.

2. Local Commands (◯): Commands that can be used when a

multimedia, navigation, or Bluetooth call is running, or displayed

on the screen, after activating voice recognition.

Call Commands

* Check the following before using call commands:

1. Voice commands related to phone calls can be used after con-

necting a Bluetooth device.

2. To call a person, for example “Call <John Smith>” whose name

is listed in Contacts, you must first download the Contacts list.

For details on downloading contacts, see “Part 3. Bluetooth >

Chapter 3. Bluetooth Phone > 3.10 Contacts”.

3. After downloading the Bluetooth contacts, it will take some time

to convert the Contacts into voice data during which time you

cannot make a call by name yet. The time it takes to convert

voice data may vary depending on the number of Contacts

downloaded on the phone.

Command Operation

󰥋Call Displays downloaded Contacts, after this

you can make a call by saying the name.

󰥋Call <Name> You can directly call a person by <Name>

in the downloaded Contacts.

󰥋Call <Name> on

Mobile

You can call a person <name> directly to

the number that is saved as “Mobile” in

the downloaded Contacts.

e.g.) Call “John Smith” on Mobile

󰥋Call <Name> at

Work

You can call a person directly <Name> to

the number that is saved as “Work” in the

downloaded Contacts.

e.g.) Call “John Smith” at Work

󰥋Call <Name> at

Home

You can call a person <name> directly to

the number that is saved as “Home” in the

downloaded Contacts.

e.g.) Call “John Smith” at Home

󰥋Call <Name> on

Other

You can call a person <name> directly to

the number that is saved as “Other” than

“Mobile, Home, or Office” in the down-

loaded Contacts.

e.g.) Call “John Smith” on Other

󰥋Dial Number Displays a screen where you can say a

phone number to dial.

󰥋Dial <Phone #> You can directly say the number to call.

e.g.) Dial 111 555 1234

Voice Commands I 6-9

Navigation Commands

* Check the following before you use navigation commands:

1. Search for and find addresses located in the state or province

your car is currently in.

If you want to search in another state, say the name of state/

province and then look it up.

Find Address is classified by states/provinces to provide you

with faster service.

2. Some commands such as “Cancel Route” are available only

when the destination is fixed.

Command Operation

󰥋Find Address

in <State>

•Finds the address in <State> and sets it as

the destination.

e.g.) Find Address in California

•To find an address, you should say "House

Number → Street → City"

e.g.) 300 (Three Zero Zero) Main Street, Almond

󰥋Find Address Finds the address and sets it as the destination.

󰥋Find POI

Find the points of interest. After this command,

you can find the name of a location step-by-

step.

󰥋Find

Immediately finds <Category>. For detail of

<Category>, see “Find <Category>” list.

e.g.) Find “Banks”

Command Operation

󰥋Map Moves to the current position on the naviga-

tion map

󰥋Previous

Points

Displays a list combining Previous Destinations,

Previous Searches, and Previous Starting Points

all together.

You can then set a destination by saying the list

number.

󰥋Previous

Destinations

Displays a list of recent destinations that you

can return to by saying the number in the list.

󰥋Previous

Searches

Displays a list of recent searches, where you

can set a destination by saying the number in

the list.

󰥋Previous

Starting Points

Displays a list of recent starting points that you

can return to by saying the number in the list.

󰥋Traffic

Information Moves to the Traffic Information menu screen.

󰥋Go Home

Set the destination to your home.

Your home must first be set in the Navigation

system.

󰥋Go to Office

Set the destination to your office/work.

Your office/work must first be set in the

Navigation system.

6-10 I Voice Recognition

Command Operation

󰥋Hospital

Displays a list of the nearest hospitals.

You can then set a destination by saying the

list number.

󰥋Dealership

Displays a list of the nearest car dealerships.

You can then set a destination by saying the

list number.

󰥋Road

Assistance

Displays a list of the nearest road assistance

locations.

You can then set a destination by saying the

list number.

󰥋Show Route Displays a map overview of the entire route

to your destination.

Command Operation

󰥋Turn Guidance

On Turns on the voice guidance system.

󰥋Turn Guidance

Off Turns off the voice guidance system.

󰥋Zoom All the

Way Out

Zooms out from the navigation map to the

fullest.

󰥋Zoom All the

Way In Zooms in on the navigation map to the fullest.

󰥋Cancel Route Cancels the route to the fixed destination and

exits guidance.

󰥋Destination

Information

Tells you the remaining distance and time to

your destination.

󰥋Route Options

Restarts the route to your destination.You can

then select either “Faster Time” or “Shorter

Distance”.

󰥋Find Faster

Time Route

Starts a new route to your destination that will

take the least amount of time.

󰥋

Find Shorter

Distance

Route

Starts a new route to your destination that will

use the shortest distance.

󰥋Emergency

Services

Displays a list of nearest Police Station,

Hospital, Dealership, or Road Assistance.

You can then set a destination by saying the

list number.

󰥋Police Station

Displays a list of the nearest police stations.

You can then set a destination by saying the

list number.

Voice Commands I 6-11

Command Operation

󰥋Radio Plays the most recent radio channels from

FM, AM, and SiriusXM™.

󰥋FM Plays FM radio.

󰥋FM

<87.5~107.9>

Tunes to FM <Frequency> according to

what you say.

e.g.) FM 87.5: FM eighty seven point five

󰥋SiriusXM Plays SiriusXM™ radio.

󰥋

SiriusXM

Channel

<0~999>

Tunes to SiriusXM™ Channel <Channel

Number> according to what you say.

e.g.) SiriusXM Channel 23: SiriusXM

Channel twenty three

󰥋AM Plays AM radio.

󰥋AM <530~1710>

Tunes to AM <Frequency> according to

what you say.

e.g.) AM 530: AM five thirty

◯Preset <1~18> Tunes to your preset stations (1 to 18).

◯Channel

<0~999>

In SiriusXM™ Radio mode, turns on the

<Channel Number> that you say.

Radio Commands

6-12 I Voice Recognition

Media Commands

* Check the following before you use media commands.

1. If no media is connected or if no playable files exist at the time

when you use these commands, a voice message will tell you

that this is not available.

2. If you say the name of the media that is currently playing again,

then that media will continue playing.

e.g.) Saying “USB” while USB content is playing.

Command Operation

󰥋Music Continues the last media you played.

󰥋iPod

Plays the iPod currently connected. This

will work the same when an iPhone is con-

nected. If a USB is connected, then it will

be played instead of the iPod.

󰥋USB

Plays the music on the USB currently con-

nected.

If an iPod is connected, then the iPod will

be played instead of the USB.

󰥋Bluetooth Audio

Plays the music on the Bluetooth phone

currently connected.

This may not be supported depending on

the Bluetooth connection status.

󰥋AUX Plays external devices that are currently

connected.

󰥋My Music Plays My Music files stored in the system.

󰥋Pandora Radio Plays Pandora Radio that is currently con-

nected.

Voice Commands I 6-13

1. USB Music/iPod/My Music Command

Command Operation

◯Play Plays a selected file.

Maintains the current settings during playback.

◯Pause

Pauses a file that is playing.

Maintains current settings while paused during

playback.

◯Shuffle

Plays files randomly.

Maintains current settings during shuffled play-

back.

◯Shuffle Off

Cancels Shuffle and plays files sequentially.

Maintains current settings during sequential

playback.

◯Repeat

Plays the current file repeatedly.

Maintains the current settings during repeat play-

back.

◯Repeat Off

Cancels Repeat and plays multiple files.

Maintains current settings during multiple file

playback.

2. Pandora Radio command

Command Operation

◯Skip Moves to the next track.

◯Thumbs up

If you like the genre of the music currently

playing, say “Thumbs up” so that more

similar music will play.

◯Thumbs down

If you don’t like the music currently playing,

say “Thumbs down” to minimize the number

of playbacks of similar genre music.

3. Bluetooth audio/AUX command

For Bluetooth audio and external devices (AUX), local commands

are unavailable, including Play, Pause, Repeat and Shuffle.

6-14 I Voice Recognition

Other Commands List

(Commands used in List/Help)

Command Operation

󰥋Help

Moves to the voice recognition help screen.

All available commands can then be identi-

fied and used.

◯Line 1~5

(One~Five)

When you cannot select a certain name,

such as in Call History, you can select it

using numbers.

Simple numbers can be recognized, such

as “One” or “Two”.

◯Yes/No

When voice recognition is activated, this

command is used when an answer is

requested for a confirmation question.

◯Previous Page/

When five or more searched items are

listed, you can move to the previous or next

page using a voice command.

◯Manual Input

When Dial or POI Name search results are

displayed, this command is used to search

manually, rather than to search with a voice

command.

Voice recognition stops after this command

is used.

◯Go Back Moves to the previous screen.

󰥋Exit Ends the voice recognition.

Voice Commands I 6-15

“Find <Category>” List

Navigation location names can be changed after an update.

1. Restaurants

Restaurants

Fast Food Restaurants

Arby's

Boston Market

BURGER KING

Carl's Jr

Chick-fil-A

Chipotle

Church's Chicken

Dairy Queen

Firehouse Subs

Fleming's

Hardee's

In-N-Out Burger

IHOP

Jack in the Box

Jimmy John's

KFC

Little Caesars

Long John Silver's

McAlister's Deli

McDonald's

Panda Express

Panera Bread

Popeyes

Quiznos Sub

Schlotzsky's

SONIC

SUBWAY

Taco Bell

Taco John's

Waffle House

Wendy's

White Castle

American Restaurants

Applebee's

Bahama Breeze

Boston's Restaurant & Sports Bar

Cheeseburger in Paradise

Chili's Grill & Bar

Cool River

Denny's

Frisch's Big Boy

Good Eats

III Forks

Lee Roy Selmon's

Lone Star Steakhouse & Saloon

Longhorn Steakhouse

Luckys Cafe

Outback Steakhouse

Ponderosa

Publix

Seasons 52

Sheetz

Silver Fox

Texas Roadhouse

TGI Friday's

The Capital Grille

French Restaurants

Italian Restaurants

Bonefish Grill

Carrabba's Italian Grill

Chuck E Cheese's

Domino's

Olive Garden

Papa John's

Papa Murphy's

Pizza 73

Pizza Hut

pizza pizza

Continental Restaurants

Mexican Restaurants

Cantina Laredo

Chevys

El Chico

Japanese Restaurants

Chinese Restaurants

PF Chang's China Bistro

Korean Restaurants

Vegetarian Restaurants

Seafood Restaurants

Red Lobster

Latin American Restaurants

6-16 I Voice Recognition

Restaurants

Asian Restaurants

African Restaurants

Coffee Shops

Starbucks

Dunkin' Donuts

Tim Hortons

Other Restaurants

Auntie Anne's

Baskin-Robbins

Haagen-Dazs

Hooters

Roy's

TCBY

VAN DER VALK

Automotive

Hyundai Dealerships

Gas Stations

ampm

ARCO

Canadian Tire

Casey's General Store

Cenex

Chevron

CITGO

Conoco

Esso

Exxon

Fleetfuels

GetGo

Giant Gasoline

GTO

Gulf

Husky

Ingles Gas Express

Marathon

Martin's Gasoline

Meijer

Mobil

Murphy Express

Murphy USA

Petro Stopping Centers

PETRO-CANADA

Phillips 66

Pioneer

QuikTrip

Rutter's

Sheetz

Shell

Sinclair

Speedway

Sunoco

Sunoco Canada

TEXACO

TravelCenters of America

Ultramar

Valero

Wawa

Parking

Auto Services

AAA

Advance Auto Parts

America's Tire

AutoZone

BOSCH Car Service

Certigard

Discount Tire

Firestone

GOODYEAR

Kal Tire

Midas

Napa

O'Reilly Auto Parts

Sears Auto Center

Road Assistance

Automobile Dealerships

Auto Parts

Car Washes

Motorcycle Dealerships

2. Automotive

Voice Commands I 6-17

Travel

Airports

Hotels

Americas Best Value Inn

AmericInn

Andaz

Ascend Collection

Baymont Inn & Suites

Best Western

Cambria Suites

Canadas Best Value Inn

Candlewood Suites

Clarion Hotel

Comfort INN

Comfort Suites

CONRAD

Country Inn & Suites by Carlson

COURTYARD by Marriott

Crowne Plaza

Days Inn

DELTA

Doubletree

Econo Lodge

Embassy Suites

Grand Residences by Marriott

Hampton Inn

Hampton Inn & Suites

Hawthorn Suites

Hilton

Hilton Garden Inn

Hilton Grand Vacations

Holiday Inn

Holiday Inn Express

Homewood Suites

Hotel Indigo

Howard Johnson

Hyatt Place

Hyatt

Hyatt Summerfield Suites

Intercontinental

JW Marriott

LA QUINTA INN

Lexington

Mainstay Suites

Marriott

Marriott VACATION CLUB

Microtel Inns & Suites

Motel 6

NOVOTEL

Omni Hotels

Park Inn

Park Plaza

QUALITY INN

Radisson

Radisson SAS

RAMADA

Red Roof Inn

Regent Hotels & Resorts

Renaissance

Residence Inn

Ritz-Carlton Club

Rodeway Inn

Sheraton

Sleep Inn

SOFITEL

Staybridge Suites

Studio 6

Suburban Extended Stay

Super 8

Thriftlodge Canada

Travelodge

Travelodge Canada

VAN DER VALK

WALDORF ASTORIA

COLLECTION

Wingate by Wyndham

Wyndham

Rest Areas

Tourist Information

Tourist Attractions

Travel Agents

City Centers

Rental Car Agencies

Alamo

AVIS

Budget

Dollar Rent A Car

Enterprise

Hertz

National

Thrifty

Campgrounds

3. Travel

6-18 I Voice Recognition

Travel

Ferry Terminals

Bus Stations

Local Transit

Train Stations

Shopping

Department Stores

Canadian Tire

Dollar General

Dollar Tree

Family Dollar

JCPenney

Kmart

Kohl's

Nordstrom

Sears

Sears Hometown Store

Target

T.J. Maxx

Walmart

Convenience Stores

7-Eleven

ampm

Circle K

Fleetfuels

GetGo

GTO

Kangaroo Express

Murphy Express

Murphy USA

Petro Stopping Centers

QuikTrip

Rutter's

Sunoco Canada

TravelCenters of America

Wawa

Shopping Centers

Office Depot

Grocery Stores

Giant Eagle

Giant Food Stores

IGA

Ingles Markets

Food Lion

Kroger

Martin's Food Markets

Meijer

Publix

Sav-Mor Foods

Save-A-Lot

SuperValu

Music Stores

Bookstores

Barnes & Noble

Electronics Stores

AT&T

Best Buy

Future Shop

GameStop

Radioshack

Sprint

Staples

T-Mobile

OfficeMax

US Cellular

Verizon

Gift Shops

Sporting Goods Stores

Dick's Sporting Goods

Sports Authority

Home Specialty Stores

ABC Fine Wine & Spirits

Ace Hardware

4. Shopping

Voice Commands I 6-19

Shopping

Claire's

Costco

Home Depot

Lowe's

Merle Norman

PETCO

PETSMART

Sally Beauty Supply

SHERWIN-WILLIAMS

True Value

Clothing Shops

Mark's

Shoe Stores

Pharmacies

CVS/pharmacy

Giant Drugstore

Ingles Pharmacy

Kmart Pharmacy

Kroger Pharmacy

Martin's Drugstore

Meijer Pharmacy

Rite Aid

Shoppers Drug Mart

Target Pharmacy

Walgreens

General Merchandise

Recreation

Amusement Parks

Museums

Cinemas

Golf Courses

Sports Complexes

Sports Activities

Wineries

Video & Game Rental

Ski Resorts

Recreation Areas

Other Recreation Areas

Financial Services

Banks

Bank of America

BB&T

Chase

Citibank

Citizens Bank

Fifth Third Bank

Key Bank

PNC Bank

RBC Bank

Regions

SunTrust

TD Bank

TD Canada Trust

US Bank

Wells Fargo

ATMs

Check Cashing Services

Money Transfer

6. Financial Services5. Recreation

6-20 I Voice Recognition

Community

Police Stations

Post Offices

Libraries

Schools

Fire Departments

Churches

Synagogues

Convention Centers

City Halls

Civic Centers

Court Houses

Government Offices

Waste & Sanitary Services

Utilities

Business Facilities

Services

Hospitals

Medical Services

Physicians

Tax Services

Attorneys

Funeral Homes

Hair & Beauty Services

Cleaning & Laundry Services

Social Services

Communication

Dentists

Photography Services

Tailors & Alterations

Movers

Nursing Home

Optical Services

Personal Services

Repair Service

Veterinary Hospital

8. Services7. Community

Siri Eyes Free I 6-21

Siri Eyes Free

How to start Siri

If you want to use Siri, you have to con-

nect your iOS device to the Multimedia

system through Bluetooth.

(Please check whether your iOS device

supports Siri and turning Siri On.)

Then you can use Siri while pressing and

holding key on the steering wheel.

How to use Siri

When you access the Siri screen while

pressing and holding key on the

steering wheel, you can select

pea

button and then you can speak what you

want. Note that the Multimedia system

only supports “Phone” related functions.

Other functions will be performed in your

iOS device. If you press voice key quickly,

Siri would re-start. If you hold down voice

key, Siri would be terminated and the

screen would go back to the previous

screen. Eyes-Free mode would be acti-

vated automatically while you are driving.

When shifting gears into P or putting the

Parking brake on, Eyes-Free mode would

be deactivated automatically.

Information

• Functions and feedbacks from voice

commands via Siri are executed in the iOS

device. If the iOS version is changed, the

functions and response may be different

according to the iOS device and the latest

version.

MEMO

Pandora Radio

Download Center

SiriusXM™ Data

SoundHound

part.7 Info

7-2 I Info

Info

Pandora Radio Mode Screen Controls

Pandora Radio

To listen to Pandora Radio by connecting a smartphone, app

should be installed on your phone.

Press the “Pandora” icon after selecting All Menus or the

hard-key to enter Pandora Radio mode.

Name Description

Mode Displays current operating mode.

Station Info Shows the station name current playing.

Track Info Shows the artist/title information current playing.

Play Time Displays the current play time.

Pandora Radio Mode I 7-3

Name Description

Thumb

Down

If you don’t like the music current playing, press

this button to move to the next music and to min-

imize the number of playbacks of similar genre

music.

You can move to next song up to specific times

which pandora allows

Thumb Up If you like the genre of the music current playing,

press this button to send a “Thumb Up” signal to

Pandora so that more similar music will play.

Play/Pause Plays/pauses the current song

SKIP Moves to the next track

You can move to next song up to specific times

which pandora allows

Station List Moves to the station list screen.

7-4 I Info

Name Description

•Bookmark Track

Adds the music current playing to the book-

marks list.

•Bookmark Artist

Adds the artist of the music current playing to

the bookmarks list.

You can view your bookmarked artists and

songs from your Pandora profile online. Go to

pandora.com, then click on the “Your Profile”

button above the player. That will bring up a

page with your stations, bookmarked artists,

and bookmarked songs.

SEEK/TRACK Press briefly to play the next song.

TUNE

Rotate the

TUNE

knob to search for a station.

Press the

TUNE

knob to play the station when

you find the name that you want.

Pandora Radio Mode I 7-5

Name Description

Current

Station Shows the name of the station current displayed.

Previous Switches to the play mode screen.

Shuffle Shuffling your stations provides a more diverse

mix of music by randomly playing songs from the

stations in your list.

Sorts stations by the items in the menu.

•A-Z : Sorts stations in alphabetical order.

•By Date: Sorts stations in the order they were

generated.

SEEK/

TRACK Press briefly to play the next song.

TUNE

Rotate the

TUNE

knob to move to the previous/

next list. Press the

TUNE

knob to play a

selected file.

7-6 I Info

Download Center

With Download Center, you can install

paid/free applications or check for related

information. Only BlueLink center, verified

applications can be installed.

You can use Download Center after agree-

ing to the terms of service and use on the

screen. (Only 1 time for initial launch)

Apps List

Select Home-screen

All

enu

▶

pps

▶ and then select

Download

enter

Name Description

Application

Download

and Run

buttons

Button state changes

according to the applica-

tion state.

own

Downloads free applica-

tions.

urc

Downloads paid applica-

tions.

ownlo

Downloads deleted

applications after previ-

ously installing them.

etry

Downloads the applica-

tions that failed to down-

load due to network or

system errors.

Runs installed applica-

tions.

ancel

Cancels any downloads

and updates.

Download Center I 7-7

My Apps

Select

All

enus

enu

from Home

screen ▶

▶followed by

ownload

enter

and then ▶

pps

The

App

menu displays the

own

options for

downloaded applications.

All functions of

pps

are the same as

those in the app list.

Information

• You can update applications already running

only after closing them.

• Details on downloaded apps can be checked

within the Download Center.

Name Description

Menu Updates and refreshes

the menu.

After installation, it

shows applications

requiring updates.

The update screen

shows the

pdate All

button to update all

applications that need

updates.

res

Refreshes the app list

status.

Detailed

Information

When the application

list area is pressed, it

moves to the Detailed

Information screen.

review

Displays application

images.

nform

ion

Displays application

information.

7-8 I Info

SiriusXM™ Data

About SiriusXM™ Data Service

The SiriusXM™ Data Service is a paid

membership Satellite radio service which

provides users with traffic, stock, sports,

and weather information.

However, weather information is not sup-

ported for vehicles purchased in Canada.

Accessing SiriusXM™ Data

Press the “SiriusXM Data” icon after

selecting

ll Men

or the hard-

key to enter the SiriusXM™ Data mode.

SiriusXM™ Weather

Announcement

At the “SiriusXM Data” screen, press

the “Weather” icon to enter the Weather

Announcement mode.

SiriusXM™ Data I 7-9

Weather Forecast

This service provides current weather

information and weather forecasts for the

next five days in your region. To change

the region, press the

ther

button and

select the desired region.

Warnings and Advisories

This service provides weather warnings

and advisories, such as tornado, storm,

flood, etc. as symbols on the Navigation

map.

SiriusXM™ Trafﬁ c Information

At the “SiriusXM Data” screen, press

the “Traffic” icon to enter the Traffic

Announcement mode.

7-10 I Info

SiriusXM™ Fuel Price

Information

At the “SiriusXM Data” screen, press the

“Fuel Prices” icon to enter the Fuel Prices

Information mode.

Search for Nearby Stations, and

Stations.

Search for nearby stations with the “Nearby

Stations” menu.

It shows station locations, starting from the

nearest one, and select “Nearest” menu

on the top right side to further sort them

by price or brand name.

Select the

★

button to the right of the

list to register key locations as a Favorite

Station so that you can go there again with

the “Favorite Stations” menu. Select the list

to move to navigation destination select

screen to receive guidance.

SiriusXM™ Data I 7-11

My Fuel Type Settings

With the “Filters” menu, you can select fuel

types and favorite brands.

When searching for Nearby Stations, the

results will reflect selected fuel types and

brand information.

SiriusXM™ Stock Information

In the “SiriusXM Data” screen, press the

“Stocks” icon to enter the Stocks mode.

Stocks is a feature that shows the current

value and change of stocks.

For symbols which you are interested in,

press the icon to save the symbol as a

part of Saved symbols can be viewed from

the My Favorites button on the Stock Main

screen.

My Favorites

My Favorites shows a list of stocks added

by the user. When entering the Stocks

menu for the first time, a screen is dis-

played for you to add your favorite stock

information. Press the

Add

button to move

to the stock search screen.

7-12 I Info

Stock Search

Use the Stock Search menu to search for

specific stocks.

Press the

★

button after searching for

your favorite stocks to save them in “My

Favorite”.

In the My Favorites screen, you can find

the selected stock information that you

registered.

SiriusXM™ Sports Information

Press the “Sports” icon to enter the Sports

mode.

This service provides real-time updated

information on scores and schedules for

major sports, such as NFL, NBA, NCAA

football, NCAA basketball, NHL, MLB,

NASCAR and more.

SiriusXM™ Data I 7-13

My Teams

You can save teams which you are inter-

ested in as part of My teams to easily view

related scores and schedules.

Select the My Teams menu and then press

the

Add

button to search for and register

your favorite teams.

Search for your favorite teams and press

the

★

button on the right to add it to the

“My Teams” list.

You can always check the list of teams

that you added in the “My Teams” menu.

Press the

★

button on the right side of

the team name to delete the team from “My

Teams” or press the

Add

button to add

other teams.

Press the team name to check daily

results and recent schedules for that team.

7-14 I Info

SiriusXM™ Movie Information

Press the “Movies” icon to enter the Movie

mode.

You can check recent movies and nearby

theaters, and also register your favorite

theater locations.

Search for Nearby Theaters, and

Theaters.

In the “Nearby Theaters” menu, you can

search for any nearby theaters.

It shows theaters, starting from the nearest

one, and selecting the “Nearest” menu at

the top right side will sort them by name.

SiriusXM™ Data I 7-15

Select the

★

button to the right of the

list to register your favorite theater so that

you can always check it again using the

“Favorite Theaters” menu and selecting

the button to view the current movie

information for that theater.

Select from the list to move to the select

navigation destination screen and receive

directions.

In the “Top Movies” menu, you can check

for any movies that are currently popular.

Press button to the right of a movie

title to view the plot summary and any

other detailed information.

7-16 I Info

SoundHound

SoundHound is a music search engine. It enables users to identify

music by playing or singing a song. It is also possible to search by

typing the name of the artist, song, album or lyrics.

The head unit should be connected to the Internet in order to use

SoundHound .

Accessing SoundHound

1. From the Home screen, select All Menus, My Menu or Apps

then select SoundHound button.

2. Select SoundHound button on Radio modes (AM, FM and

SiriusXM) or Media modes (Bluetooth Audio, iPod, USB, My

Music and AUX).

SoundHound Main Screen

Name Description

Mode Displays current operating mode.

Back button Goes back to previous mode.

What’s that

Song?

Starts the song recognition process. After this

process is complete, it goes to Song screen.

Search Goes to Search screen.

History Goes to History screen.

Favorites Goes to Favorites screen.

Charts Goes to Charts screen.

SoundHound I 7-17

Recognizing Music

After selecting SoundHound button, the song recognition pro-

cess is activated, the system will match current playing song with

the SoundHound music database.

Music from Smartphones and MP3 players that are not connected

to head unit can also be recognized.

Searching Music

Music can also be searched by selecting the Search option in

SoundHound main screen and typing a song, artist, album or lyr-

ics into the search field.

Name Description

Now Listening… Message displayed while SoundHound is

processing the music.

Retry Starts over the song recognition process.

Cancel Cancels song recognition process and Exits

SoundHound.

Back button Goes back to previous screen.

Name Description

Search Displays current operating mode.

Back button Goes back to SoundHound main screen.

Displays menu options:

Home: Goes back to SoundHound main screen.

History: Goes to History screen.

Favorites: Goes to Favorites screen.

Exit: Exits SoundHound application and goes back to

previous media mode.

Delete option is available in Favorites and History

screens.

Search field Displays search field. Once text is typed, recommended

song, artist, album or lyrics information that might match

the search criteria is displayed in th e scroll menu.

Search icon Starts the searching process.

7-18 I Info

Song Main Screen

Name Description

Back button Goes back to previous screen.

Song, Artist

and Album

information

Displays song, artist and album information of

currently playing song.

Album Image If album image is selected, it displays songs

list in the album.

Artist Image If artist image is selected, displays the artist’s

songs list.

Favorite

It saves current playing song into Favorites

by tapping on the star icon. Star icon will be

highlighted when song has been saved into

Favorites. To delete song from Favorites, select

the star icon again or go to Favorites menu

screen.

Lyrics Displays current playing song’s lyrics.

Recommended

Songs

Displays a list of recommended songs by

SoundHound.

Similar Artists Displays list of similar artists to currently play-

ing artist.

Song’s Album

Appearances

Displays list of albums on which currently play-

ing song appears.

Climate Mode

Camera

part.8 Other Features

8-2 I Other Features

Climate Mode

Operating Climate Mode

Press the

CLIMATE

key for the climate system to see status infor-

mation in the full screen display.

While multimedia or navigation is in use, the climate system infor-

mation will be displayed over top when you control the tempera-

ture (TEMP) or turn on the air conditioner (A/C).

Basic Mode Screen

Name Description

Air volume Displays the configured air volume settings.

Set

temperature of

driver's seat

Displays the configured temperature of driver's

seat. Cooling and heating will continue until the

temperature of the driver's seat matches the

configured temperature.

The internal temperature can be controlled

in increments of 1°F within a range of 63°F

to 89°F.

LOW is displayed when the temperature is

set to anything below 63°F, and HIGH is

displayed when it is set to anything above

89°F.

Air direction Displays the configured air direction settings.

Cooling/

heating control

status (AUTO)

It is displayed when the

AUTO

key is

selected,

and cooling/heating operates automatically

according to the configured temperature set-

tings.

AUTO will be off when you try do the follow

ing with AUTO on:

- Control the air volume

- Control the air direction

- Turn on/off the air conditioner (A/C)

- To turn on the moisture removal function

for the windshield

Air conditioner

control status

It is displayed when the

A/C

key is selected

and the air conditioner starts cooling.

Other Features

Camera I 8-3

Camera

About Rear Detection Camera

•This device is connected to a rear

detection camera to see behind the car

when reversing.

•The Rear View Camera turns on auto-

matically if you shift the gear to R when

the power is on or the engine has started.

•While the device boots up, shift the gear

to "R" to activate the rear detection cam-

eras. Shift the gear to another position

to deactivate the rear detection camera.

Information

• A separate chipset is used for the camera

screen while booting up, so it may be different

after booting up.

CAUTION

• A wide-angle lens is installed as the rear

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears

on-screen. For safety, make sure to view

the back, right, and left sides of the car for

yourself.

• The color of the parking guidelines displayed

in the picture may differ from the actual

screen.

• When booted up, blinking may occur when

you switch to a UI screen.

8-4 I Other Features

MEMO

Setup

Navigation Settings

Sound Settings

Display Settings

Bluetooth Settings

Blue Link Settings

Voice Recognition Settings

Clock Settings

Language Settings

Keyboard Settings

Downloaded Apps Settings

Screen Saver Settings

System Info

part.9 Setup

9-2 I Setup

Setup

Setup is the screen to control system set-

tings of the Multimedia System.

To enter the screen, select the

key of the device or the

etup

button in

All Menus.

Features Description

Navigation Provides Normal/Screen/

Guidance/Route/Safety

Setting.

Sound

Provides the sound

control options for Position,

Bass, Mid, Treble, Volume

and Advanced settings.

Display Provides the Adjust/Mode

settings.

Bluetooth

Provides the Bluetooth

Connection/Auto Connection

Priority/Ringtone/Bluetooth

System Information.

Blue Link Provides the Activation/

Modem Information settings.

Voice

Recognition

Provides the Guidance and

Priority settings.

Clock Provides the Time and View

settings.

Features Description

Wi-Fi Provides the Wi-Fi On and

Network Connection set-

tings.

Language Provides the Change

Language settings.

Keyboard Provides settings to switch

keyboard layouts.

Downloaded

Apps

Provides the removal set-

tings for downloaded and

installed apps.

Screen

Saver

Provides the Clock/None

settings.

Connectivity

For more details, refer to

Connectivity guide.

System

Info

Provides software and

storage space information.

Display Off Provides the Display Off

(touch activation) function.

Setup I 9-3

Navigation Settings

For more details, refer to part 5. Navigation

Settings.

Sound Settings

Adjusts the sound effects for the whole

system.

Features Description

Position

Select the

Down

Left

Righ

button to control sound posi-

tioning.

Press

enter

to concentrate

the sound on the center of

vehicle.

Tone

Drag the slide bar to control

bass/mid/treble settings.

Press

to initialize the

settings.

Features Description

Priority

You can adjust the volume

ratio between navigation

announcements and reg-

ular audio.

Advanced

Select additional audio

options such as “Speed

Dependent Volume Control”

that automatically controls

Audio volume according to

vehicle speed as well as

“Variable EQ”, “Surround”,

and “Quantum Logic

Surround”.

Beep Select to activate a beep

when pressing buttons.

Information

• Advanced sound settings may differ according

to selected AMP option.

• The seat shape may differ according to

vehicle model.

9-4 I Setup

Display Settings

Controls the display brightness and image

rate for the whole system.

Bluetooth Settings

Changes Bluetooth phone settings.

Bluetooth Settings

•Select the key ▶ Select

uetoot

•Home screen ▶ Select

All

enus

▶

Select

etup

▶ Select

uetoot

Bluetooth Connection Settings

Select the key ▶ Select

uetoot

▶Select

Bluetooth Connectio

Features Description

Adjust

Drag the slide bar to

control the Brightness/

Hue/Contrast/Saturation

settings.

Press

Center

to initialize

the settings.

Mode

You can select Daylight/

Night/Automatic options

for the display bright-

ness according to mode

changes.

Display Off Provides the Display Off

(touch activation) function.

Setup I 9-5

Features Description

Paired Device

List

Displays the paired

Bluetooth device list.

When selecting from

the list, the device is

connected or discon-

nected.

Bluetooth

Audio

Connection

Status

An icon appears when

you make a Bluetooth

Audio connection.

Bluetooth

Hands-Free

Connection

Status

An icon appears when

you make a Bluetooth

Hands-free connec-

tion.

Add New Register a new Bluetooth

device.

Delete Devices Select and delete a

paired device.

Delete All Delete all paired devices.

Help

Switches to the

Bluetooth Connection

Help screen.

Information

• Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be connected

at a time.

• During a Bluetooth device connection, another

device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit

are also completely deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio, will

function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly

disconnected, due to being out of

communication range, the device powering

off, or a Bluetooth communication error, the

Bluetooth device automatically searches for

and connects to nearby Bluetooth devices.

• If the system is not stable, due to a vehicle-

Bluetooth device communication error, restore

the Default Factory Settings.

• For Default Factory Settings, the bluetooth

settings are reset to factory settings

• Select the key ▶ Select

▶ Select

Bluetooth S

stem Info

▶ Select

Default Factory Settings

Auto Connection Priority

Select the key ▶Select

uetoot

▶ Select

uto

onnection Priorit

When the engine is running, the selected

Bluetooth device is automatically con-

nected. If you fail to connect the selected

device, the previously-connected device is

automatically connected, and if it also fails,

then it tries to connect all paired devices

sequentially.

Depending on auto connection priority,

connection to a device may take time.

9-6 I Setup

Phone Ringtone

Select the key ▶ Select

uetoot

▶ Select

ngton

Features Description

Use

Mobile

Ringtone

The configured mobile

ringtone comes out through

the vehicle speakers when

you receive a call. When a

mobile device doesn’t sup-

port it, the basic ringtone of

the vehicle will be used.

Use

System

Ringtone

The system ringtone will be

used.

Settings Changes the ringtone.

Ringtone

Type Selects a ringtone by name.

Preview Previews the available ring-

tones.

Bluetooth System Information

Select the key ▶Select

uetoot

▶ Select

Bluetooth System Info

Features Description

Vehicle

Name

You can change the Bluetooth

device name of the vehicle.

Passkey

You can change the pass-

key used for Bluetooth

device authentication. the

initial passkey is 0000.

Default

Factory

Settings

You can delete all paired

devices and restore the

Default Bluetooth Settings.

For Default Factory Settings,

all paired devices are

deleted, and the system is

reset to factory settings.

Setup I 9-7

Information

• The Vehicle Name above is an example.

Check the actual information on the product.

Blue Link Settings

•Select the key ▶ Select

Blue Link Setting

Features Description

Service

Activation

Reactivates the Blue

Link.

Modem

Information

Shows MEID modem

information.

Service Activation

Select the key ▶ Select

lue Link

etting

▶ Select

ervice Activation

Activation may take up to five minutes.

Do not turn the engine off while activation

is in progress.

If activation fails, contact the Blue Link

Center at (855) 2-BlueLink.

During service activation, the hard keys in

the head unit do not function.

9-8 I Setup

Modem Information

Select the key ▶ Select

Blue Link

etting

▶ Select

ormat

Features Description

MEID Identification number of

the Blue Link terminal

Voice Recognition Settings

Configure how to make a call with

Voice Recognition Guidance and Voice

Recognition.

Features Description

Guidance

Select an option from

Beginner, Normal, or

Expert.

Clock Settings

Provides the time and date settings.

Features Description

Time

Settings

Provides the GPS Time,

Date/Time Settings,

Daylight Savings Time,

and 24 Hours options.

View

Settings

Provides options to

select a digital or analog

clock widget for the

screen saver or home

screen, and to select the

Display Date settings.

Setup I 9-9

Language Settings

You can configure the displayed system

language.

When the language is changed, the

system language is automatically

changed.

Unique data including MP3 file name is

not changed and some languages don’t

support voice recognition.

Keyboard Settings

You can configure the keyboard layout for

each language.

You can configure ABCD or QWERTY

keyboards for the system.

Information

• Conﬁ gured keyboard layouts are applied to all

input modes.

Downloaded Apps Settings

Displays the applications that were down-

loaded through the Download Center. View

the memory status of installed applications

or delete them.

You can delete downloaded applications in

the Download Center. To recover a deleted

application, you can re-install the applica-

tion with the re-download function in the

Download Center.

9-10 I Setup

Screen Saver Settings

Configures a screen to be displayed when

the system is powered off.

Setup I 9-11

System Info

At the System Info screen, software ver-

sion information, updates, and storage

status details are available.

Features Description

SW Info

System version informa-

tion and update details are

available.

Select the

button

to update the system. After

update is complete, the

system will reboot auto-

matically.

Storage

Space

Displays the memory

space available for media

files and applications.

System Update

At the System Info screen, insert the

updated memory (USB or SD card) with

the latest file downloaded, and then select

the

button to begin updating. The

system will then reboot automatically.

Information

• This product needs supplemented software

updates, additional new functions, and

renewed maps, which collectively may take

some time to complete, depending on the

amount of data.

CAUTION

• If the power is disconnected or the USB or

SD card is removed during an update, the

data might be damaged. Please wait until the

update is complete while the engine is on.

9-12 I Setup

MEMO

Product Specification

Troubleshooting

FAQ

part.10 Appendix

10-2 I Appendix

Product Specification

TFT-LCD

Screen Size Navigation Device - 7 inch(166.6 x 105.8mm)

Resolution Navigation Device - 384,000 pixels

(Resolution: 800 x 480)

Operating

Method TFT(Thin Film Transistor) Active Matrix

Viewing Angle Left/Right, Top/Bottom : ALL 89°

Internal Lighting LED

Radio

Channels

FM : 87.5 MHz ~ 107.9 MHz(Step : 200 kHz)

AM : 530 kHz ~ 1710 kHz(Step : 10 kHz)

Sensitivity FM : Under 10dBu/AM : Under 35dBu

Distortion Factor Within 2%

Common

Name Car TFT LCD Display Navigation Unit

Power Supply DC 14.4V Operating

Power DC 9V ~ DC 16V

Current

Consumption 2.5A Sleep

Current

0.5mA

(Head Unit Only)

Operating

Temperature

-20 ~ +70℃

(-4 ~ +158

℉

)

Storage

Temperature

-40 ~ +85℃

(-40 ~ +185℉)

Dimensions 187 X 102 X167.5mm (Main BOX)

Weight 2.7kg

CDMA

Frequency TX: 824MHz~849MHz(BC0), 850MHz~1910MHz(BC1)

RX: 869MHz~894MHz(BC0), 930MHz~1990MHz(BC1)

Sensitivity -104dBm under(FER=0.5% under)

Power 23.01~30dBm (BC0, BC1, conducted)

Appendix

Appendix I 10-3

Bluetooth®

Wireless Technology

Frequency

Range 2402 ~ 2480 MHz

Supported

Bluetooth

Specification

3.0

Supported

Profile Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)

Output 0.125mW

Number of

Channels 79 channels

CAUTION

• The producer and installer cannot provide services related to life

safety as the concerned radio equipment is liable to radio interference.

10-4 I Appendix

Troubleshooting

1. Errors which occur during the operation or installation of the

device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Hyundai dealer.

Problem Possible Cause

There are small red,

blue, or green dots on

the screen

•Because the LCD is manufactured with

technology requiring high point density,

a pixel or lighting deficiency may occur

within 0.01% of total pixels

The sound or image is

not working

•Has the Switch for the vehicle been turned

to [ACC] or [ON]?

•Has the SYSTEM been turned OFF?

The screen is being dis-

played but sound is not

working

•Has the volume been set to a low level?

•Has the volume been muted?

When the power is

turned on, the corners of

the screen are dark

•The display appearing somewhat dark

after prolonged periods of use is normal

with LCD panels. It is not a malfunction

•If the screen is very dark, contact your

nearest Hyundai dealer for assistance

Sound is working from

only one speaker

•Are the positions of Fader or Balance

sound controls adjusted to only one side?

Problem Possible Cause

Sound does not work in

AUX mode

•Are the audio connector jacks fully

inserted into the AUX terminal?

The external device is

not working

•Is the external device connected with a

standard connector cable?

Upon turning power on,

the most recent mode

screen is not displayed

Within modes that play files by reading

external sources, such as USB, iPod, or

Bluetooth

streaming mode, the most

recently played mode screen prior to turning

off power may not properly load

•If there is the corresponding device is not

connected, the mode operated prior to the

most recent mode will operate

•If the previous mode still cannot be prop-

erly played, the mode operated prior to

that will operate

Appendix I 10-5

Problem Possible Cause Countermeasure

The image

color/tone

quality is low

•The brightness,

saturation, hue, and

contrast levels are

not set properly

•Properly adjust the bright-

ness, saturation, hue, and

contrast levels through

Display Setup

Sound does

not work

•The volume level

is set to the lowest

level

•The connection is

not proper

•The device is

currently fast-for-

warding, rewinding,

scanning, or playing

in slow mode

•Adjust the volume level

•Check to see that the device

has been properly

connected

•The sound will not work

when the device is

fast-forwarding, rewinding,

scanning, or playing in slow

mode

The sound or

image quality

is low

•Vibration is occur-

ring from where the

conversion switch

has been installed

•Image color/tone

quality is low

•The sound may be short-

circuited and the image

distorted if the device

vibrates

•The device will return to

normal once vibrations stop

Problem Possible Cause Countermeasure

The power

does not

turn on

The fuse is

disconnected

•Replace with a suitable fuse

•If the fuse is disconnected

again, please contact

your point of purchase or

Hyundai dealer

Device is not properly

connected

•Check to see that the device

has been properly con-

nected

The system

does not

play

The vehicle battery is low

•Charge the battery If the

problem persists, contact

your point of purchase or

Hyundai dealer

10-6 I Appendix

Problem Possible Cause Countermeasure

The USB

does not

work

•USB memory is

damaged

•USB memory has

been contaminated

•A separately

purchased USB

HUB is being used

•A USB extension

cable is being used

•A USB which is not

a Metal Cover Type

USB Memory is

being used

•An HDD type, CF,

SD Memory is being

used

•There are no music

files which can be

played

•Please use after formatting

the USB into FAT 12/16/32

format

•Remove any foreign

substances on the contact

surface of the USB memory

and multimedia terminal

•Directly connect the USB

memory with the multimedia

terminal on the vehicle

•Directly connect the USB

memory with the multimedia

terminal on the vehicle

•Use standard USB Memory

•Only MP3, WMA file formats

are supported. Please use

only the supported music file

formats

The iPod is

not recog-

nized even

though it has

been con-

nected

•There are no titles

which can be played

•The iPod firmware

version has not

been properly

updated

•The iPod device

does not recognize

downloads

•Use iTunes to download and

save MP3 files into the iPod

•Use iTunes to update the

firmware version and recon-

nect the iPod with the device

•Reset the iPod and reconnect

with the device

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the

RESET

key to

reset the system.

• Press and hold the

RESET

key (over 1 second). The device power will

turn off and the system will reset.

Appendix I 10-7

FAQ

About Pairing Mobile Phones

Q I cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth® func-

tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set

it to ON. If the cell phone still can’t be registered, try again after

turning Bluetooth off and on, or delete the device registration on

the AVN and cell phone and then register the cell phone again.

Q What is the difference between pairing a mobile phone and con-

necting a mobile phone?

A Pairing occurs through authenticating the head unit and mobile

phone. Mobile phones paired to the head unit can be connected

and disconnected until the paired mobile phone is deleted from

the system. Bluetooth® Handsfree features, such as making/

answering calls or managing contacts, are supported only in

mobile phones connected with the head unit.

Q What is a Passkey?

A A passkey is the password used to authenticate the connection

between the head unit and mobile phone. The passkey only

needs to be entered once when pairing the mobile phone for the

first time.

The initial passkey is 0000. You can change it with

▶

uetoot

▶

luetooth

ystem Info

▶

ass

options.

10-8 I Appendix

About Making/Answering Phone Calls

Q How can I answer a call?

A When there is an incoming call, a notification pop-up will

become displayed. To answer the incoming call, press the

ccep

button on the screen or the key on the steering

remote controller.

To reject the call, press the

ect

button on the screen or press

the key on the steering wheel control.

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (over 0.8 seconds) the

key on the steering remote controller or press the

vat

button at the bottom of the Phone screen to switch the call to

your mobile phone.

About

Bluetooth

Wireless Technology/

Head Unit Use Environment

Q What is the range of my wireless connection?

A The wireless connection can be used within 15 yards.

Q How many mobile phones can be paired?

A It is possible to pair up to five mobile phones.

Q Why is call quality sometimes poor?

Check the reception sensitivity of the mobile phone when call

quality becomes worsened. The call quality may deteriorate when

the signal strength is low. Call quality may also worsen if metal

objects, such as beverage cans, are placed near the mobile

phone. Check to see if there are metal objects in the vicinity of the

mobile phone. The call sound and quality may differ depending on

the type of mobile phone.

Index I 10-9

About

Bluetooth

Wireless Technology/

Head Unit Use Environment …………10-8

About Making/Answering Phone Calls …10-8

About Pairing Mobile Phones …………10-7

About Rear Detection Camera ……… 8-3

About SiriusXM™ Data Service ……… 7-8

About Transmission and

Reception of Radio Waves …………… 4-3

Accept/Reject Call …………………… 3-7

Accessing FM/AM Mode …………… 2-2

Accessing SiriusXM™ Data ………… 7-8

Accessing SoundHound ……………7-16

Address ………………………………5-16

Address Book …………………………5-21

Adjusting Voice Recognition Volume … 6-5

Apps List ……………………………… 7-6

Auto Connection Priority ……………… 9-5

AUX ……………………………………2-26

Avoid Street ……………………………5-34

Basic Features ………………………… 5-2

Basic Mode Screen …………………… 8-2

Battery Warning Message ……………1-10

Before Playing a USB MP3 ……………2-11

Before Use …………………………… 4-3

Before Using the Bluetooth® Handsfree … 3-2

Blue Link Settings ……………… 4-7, 9-7

Blue Link Voice Local Search ………… 4-8

Blue Link® Safety and Security Service … 4-5

Bluetooth Audio Mode …………………2-27

Bluetooth Connection ………………… 3-4

Bluetooth Connection Settings ……… 9-4

Bluetooth Connections Settings ………2-28

Bluetooth Phone ……………………… 3-6

Bluetooth Settings …………………… 9-4

Bluetooth System Information………… 9-6

Bluetooth® Audio ………………………2-27

Call Commands ……………………… 6-8

Call History …………………………… 3-9

Camera ……………………………… 8-3

Canceling Route ………………………5-31

CAUTIONS upon Connecting

Bluetooth® Phone …………………… 3-3

Changing Map View ………………… 5-3

Climate Mode ………………………… 8-2

Clock Settings ………………………… 9-8

Combining Voice Recognition

with On-Screen Commands ………… 6-3

Component Names and Functions … 1-5

Connecting an External Device ………2-26

Connecting Bluetooth Devices ……… 3-4

Connecting with the Blue Link Center … 4-4

Contacts ………………………………3-10

Coordinates ……………………………5-24

Index

10-10 I Index

Deleting Bluetooth Devices …………… 3-5

Dial …………………………………… 3-7

Direct Tune …………………………… 2-8

Disconnecting Bluetooth Devices …… 3-5

Display …………………………………5-35

Display Route Information ……………5-31

Display Settings ……………………… 9-4

Download Center …………………… 7-6

Downloaded Apps Settings …………9-10

Driving Info …………………………… 4-6

Editing Route …………………………5-33

Emergency ……………………………5-20

Ending Voice Recognition …………… 6-3

Extending the Listening Time ………… 6-4

FAQ ……………………………………10-7

Favorite places …………………………5-25

Favorites ………………………………3-11

“Find <Category>” List …………………6-15

FM/AM ………………………………… 2-2

Freeway Exit/Entrance ………………5-23

Gas Stations …………………………5-20

General ………………………………5-35

Getting Started with Blue Link………… 4-4

Guidance ………………………………5-36

HD Radio™ Mode Display Controls … 2-5

HD Radio™ Technology ……………… 2-4

Head Unit ……………………………… 1-5

Help Display …………………………… 6-6

Home Screen …………………………1-11

How to Connect to a Network ………… 9-9

How to start Siri ………………………6-21

How to use Siri …………………………6-21

Instructions for Using Voice Recognition … 6-7

Intersection ……………………………5-23

iPod …………………………… 2-19, 2-23

Key Product Features ………………… 1-4

Keyboard Settings ……………………9-10

Language Settings …………………… 9-9

Local Search …………………………5-18

Map Display ………………………… 5-6

Map Scale …………………………… 5-4

Media Commands ……………………6-12

Menu ………………………………… 5-5

Modem Information …………………… 9-8

My Apps ……………………………… 7-7

My Music ………………………………2-29

Index I 10-11

Name and Function of Each Part …… 4-2

Navigation Commands ……………… 6-9

Navigation Settings ……………… 5-35, 9-3

Navigation Volume ……………… 5-3, 5-6

Nearby POIs ………………………… 5-7

On-Screen Touch Controls ……………1-12

Operating Climate Mode ……………… 8-2

Operating Navigation Screen ………… 5-2

Other Commands List

(Commands used in List/Help) ………6-14

Pairing a New Device ………………… 3-4

Pandora Radio ………………………… 7-2

Pandora Radio Mode Screen Controls … 7-2

Phone Number ………………………5-22

Phone Ringtone ……………………… 9-6

Phone Status Icons ………………… 3-6

Places …………………………… 5-3, 5-15

POI Categories ………………………5-19

Precautions for Safe Driving ………… 3-2

Precautions Required for

Successful Voice Recognition ………… 6-2

Previous Destinations …………………5-17

Product Specification …………………10-2

Radio Commands ……………………6-11

Rear View Mirror Switch ……………… 4-2

Recognizing Music ……………………7-17

Restaurants ……………………………5-20

Restrictions on Features for

Safety Measures ………………………1-10

Route …………………… 5-5, 5-31, 5-36

Route Guidance ………………………5-29

Route Options …………………………5-34

Route Overview ………………………5-32

Route Preview …………………………5-32

Route Setting …………………………5-26

Save ……………………………………5-14

Screen Saver Settings …………………9-10

Search …………………………………5-15

Searching Music ………………………7-17

Selecting through Channel/

Category List ………………………… 2-8

Send to Car with Google ……………… 4-6

Service Activation …………………… 9-7

Setup ………………………………… 9-2

Siri Eyes Free …………………………6-21

SiriusXM™ …………………………… 2-6

SiriusXM™ Data ……………………… 7-8

SiriusXM™ Display Controls ………… 2-6

SiriusXM™ Fuel Price Information ……7-10

SiriusXM™ Movie Information ………7-14

SiriusXM™ Sports Information ………7-12

SiriusXM™ Stock Information …………7-11

SiriusXM™ Traffic Information………… 7-9

SiriusXM™ Weather Announcement … 7-8

Skipping Prompt Messages ………… 6-5

Song Main Screen ……………………7-18

Sound Settings ……………………… 9-3

SoundHound …………………………7-16

10-12 I Index

SoundHound Main Screen ……………7-16

Start Screen …………………………… 6-6

Starting Blue Link Voice Local Search … 4-8

Starting the System for the First Time … 1-9

Starting Voice Recognition …………… 6-3

Starting/Ending and Setting

Voice Recognition …………………… 6-3

Steering Wheel Control ……………… 1-7

Stolen Vehicle Recovery ……………… 4-5

Supported Image Specifications………2-13

System Info ……………………………9-11

System Reset ………………………… 1-9

System Update ………………………9-11

Traffic ………………………… 5-10, 5-36

Troubleshooting ……………… 5-37, 10-4

Turning the System On/Off …………… 1-9

Types of Commands ………………… 6-8

USB ……………………………………2-11

USB Image ……………………………2-17

USB MP3 Information and

Precautions ……………………………2-13

USB Music ……………………………2-14

Using iPod Devices ……………………2-19

Using the Menu During a Phone Call … 3-8

Vehicle Diagnostics …………………… 4-7

Viewing Menu ………………………… 2-8

Voice Commands …………………… 6-8

Voice Recognition Screen Overview … 6-6

Voice Recognition Settings …………… 9-8

Warnings and Cautions ……………… 1-2

What Is Blue Link? …………………… 4-3

What is Blue Link Voice Local Search? … 4-8

What is

Bluetooth®

Wireless Technology? ………………… 3-2

What Is Telematics? ………………… 4-3

What is Voice Recognition? ………… 6-2

Zoom In/Zoom Out …………………… 5-4

Important Safety Information

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual ("User's

Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.

Keep User's Guide in Vehicle

When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please

make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and

safety information carefully.

Warning

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other

serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a

safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may

to distract your attention away from the road and remove your hands from the wheel.

General Operation

Voice Command Control

Functions within the Multimedia system may be accomplished using only voice commands. Using voice commands while driving allows

you to operate the system without removing your hands from the wheel.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before

attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous

if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while

driving. Driving while unable to hear these sounds could cause an accident.

Navigation Features

Any navigation features included in the system are intended to provide turn by turn instructions to get you to a desired destination. Please

make certain all persons using this system carefully read and follow all instructions on safety information.

Distraction Hazard

Some navigation features may require manual (non-verbal) setup. Attempting to perform such set-up or insert data while driving can seri-

ously distract your attention and could cause an accident or other serious consequences. Stop the vehicle in a safe and legal manner

before attempting these operations.

Let Your Judgment Prevail

Any navigation features are provided only as an aid. Make your driving decisions based on your observations of local conditions and exist-

ing traffic regulations. Any such feature is not a substitute for your personal judgment. Any route suggestions made by this system should

never replace any local traffic regulations or your personal judgment or knowledge of safe driving practices.

Route Safety

Do not follow the route suggestions if doing so would result in an unsafe or illegal maneuver, if you would be placed in an unsafe situation,

or if you would be directed into an area that you consider unsafe. The driver is ultimately responsible for the safe operation of the vehicle

and therefore, must evaluate whether it is safe to follow the suggested directions.

Potential Map Inaccuracy

Maps used by this system may be inaccurate because of changes in roads, traffic controls or driving conditions. Always use good judg-

ment and common sense when following the suggested routes.

Emergency Services

Do not rely on any navigation features included in the system to route you to emergency services. Ask local authorities or an emergency

services operator for these locations. Not all emergency services such as police, fire stations, hospitals and clinics are contained in the

map database for navigation features.

Use of Speech Recognition Functions

Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any

speech recognition functions included in the system and address any errors.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• IIncrease the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body.

This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the

FCC.
