(미국/영어-English)DIGITAL CAR AUDIO SYSTEM l USER'S MANUAL

Thank you for purchasing this multimedia

system.

This user's manual explains how to use

the HYUNDAI Motor multimedia system.

Before using the product, read the con-

tents of this user's manual carefully and

use this product safely.

•

The screens shown in this manual may

differ with the actual screens of the

product.

•

The design and specification of this

product may change without prior notifi-

cation for product improvement.

•

When transferring the vehicle to another

individual, include this user's manual so

that the next driver can continue its use.

Precaution for safe usage

•

Driving while distracted can result in a

loss of vehicle control, that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation of a

vehicle, and use of any handheld devices,

other equipment, or vehicle systems which

take the driver’s eyes, attention and focus

away from the safe operation of a vehicle

or which are not permissible by law should

never be used during operation of the

vehicle.

•

Do not operate the

multimedia system

while driving.

•

Do not disassemble, assemble, or modify

the

multimedia system

•

Do not watch the screen for prolonged

periods of time while driving.

•

Set the volume to a level which allows the

driver to be aware of external conditions.

•

Do not operate the

multimedia system

for

prolonged periods of time with the vehicle

ignition in ACC. Such operations may lead

to battery discharge.

•

Be cautious not to spill water or introduce

foreign objects into the device.

•

Do not cause severe shock to the device.

Direct pressure onto the front side of the

monitor may cause damage to the LCD or

touch panel.

•

In case of product malfunction, please

contact your place of purchase or service

center.

•

When cleaning the touch screen, make

sure to turn off the device and use a dry

and smooth cloth. Never use tough materi-

als, chemical cloths, or solvents (alcohol,

ammonia, benzene, thinners, etc.) as such

materials may damage the device panel or

cause color and quality deterioration.

•

SiriusXM service requires a subscrip-

tion, sold separately, after 3-month trial

included with vehicle purchase. If you

decide to continue your SiriusXM ser-

vice at the end of your trial subscription,

the plan you choose will automatically

renew and bill at then-current rates until

you call Sirius XM at 1-866-635-2349 to

cancel. See our Customer Agreement

for complete terms at www.siriusxm.

com. Programming subject to change.

Sirius satellite service is available only

to those at least 18 and older in the 48

contiguous USA, D.C., and PR (with

coverage limitations). Traffic informa-

tion not available in all markets. See

siriusxm.com/traffic for details. Sirius,

XM and all related marks and logos are

trademarks of Sirius XM Radio Inc.

WARNING

•Driving while distracted can result in a

loss of vehicle control that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation

of a vehicle, and use of any handheld

devices, other equipment, or vehicle

systems which take the driver’s eyes,

attention and focus away from the safe

operation of a vehicle or which are not

permissible by law should never be used

during operation of the vehicle.

Read the following safety precautions for your

safety

Before using the product, read the contents of this user's manual

carefully and use this product safely.

※ The design and speciﬁcations of this product may change without prior

notiﬁcation for product and service improvement.

The actual features in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

※ This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁed under the GNU General

Public license, Version 2, June 1991, and the GNU lesser General Public

License, Version 2.1, February 1999.

For additional information and to obtain related materials including

without limitation, the previous referred to licenses and software, please

Notations used within this User's Manual

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

HYUNDAI VEHICLE OWNER PRIVACY POLICY

Your Hyundai vehicle may be equipped with technologies and services that use information collected,

generated, recorded or stored by the vehicle. Hyundai has created a Vehicle Owner Privacy Policy to explain

how these technologies and services collect use and share this information.

You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website at:

https://www.hyundaiusa.com/owner-privacy-policy.aspx

If you would like to receive a hard copy of our Vehicle Owner Privacy Policy, please contact our Customer

Connect Center at:

Hyundai Motor America/Phoenix

P.O. Box 83835

Phoenix, AZ 85071-3835

800-633-5151

consumeraffairs@hmausa.com

Hyundai

’

s Customer Connect Center representatives are available Monday through Friday,

between the hours of 5:00 AM and 7:00 PM PST and Saturday and Sunday between 6:30 AM and 3:00 PM PST

(English).

For Customer Connect Center assistance in Spanish or Korean, representatives are available Monday

through Friday between 6:30 AM and 3:00 PM PST.

Table of Contents I 3

Table of Contents

1. Basic

Warnings and Cautions .........................1-2

Key Product Features ...........................1-4

Component Names and Functions ......1-5

Head Unit ………………………… 1-5

Head Unit (For GUAM Model) …… 1-7

Steering Wheel Controls ………… 1-9

Starting the System for the

First Time ...............................................1-11

Turning the System On/Off ……… 1-11

System Reset ……………………… 1-11

Battery Warning Message ………1-12

Restrictions on Features for Safety

Measures ………………………… 1-12

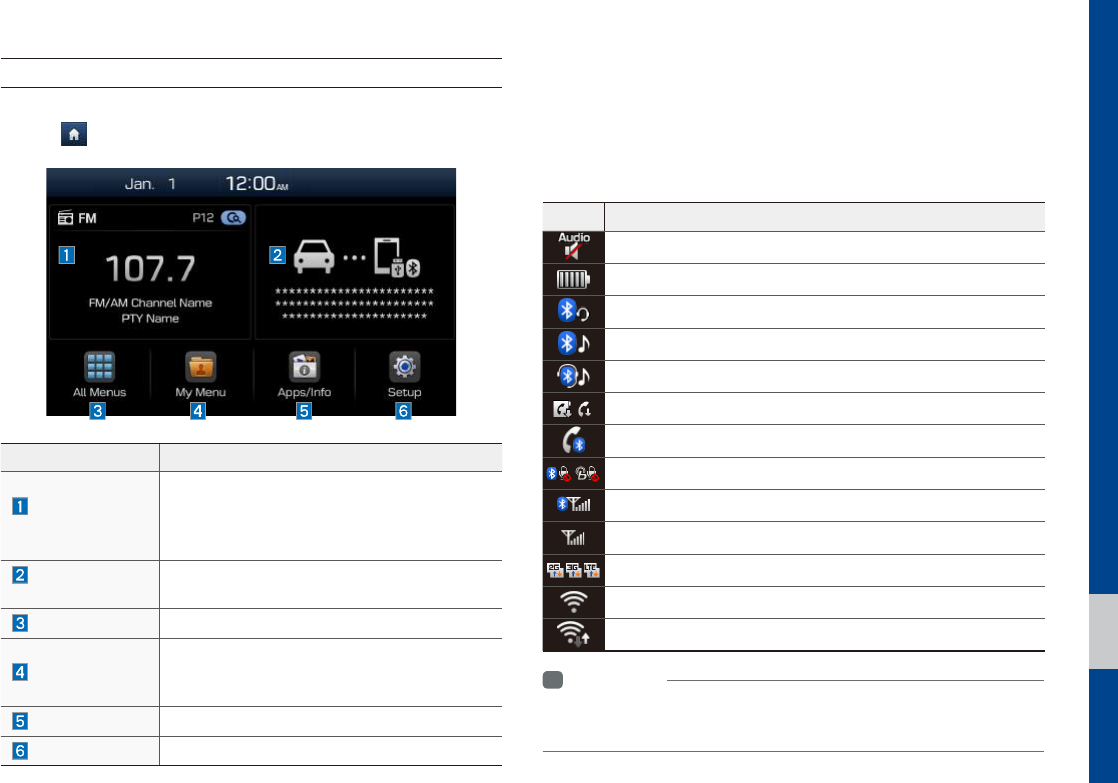

Home Screen ……………………… 1-13

On-Screen Touch Controls ………1-14

2. Radio/Media

FM/AM ..................................................... 2-2

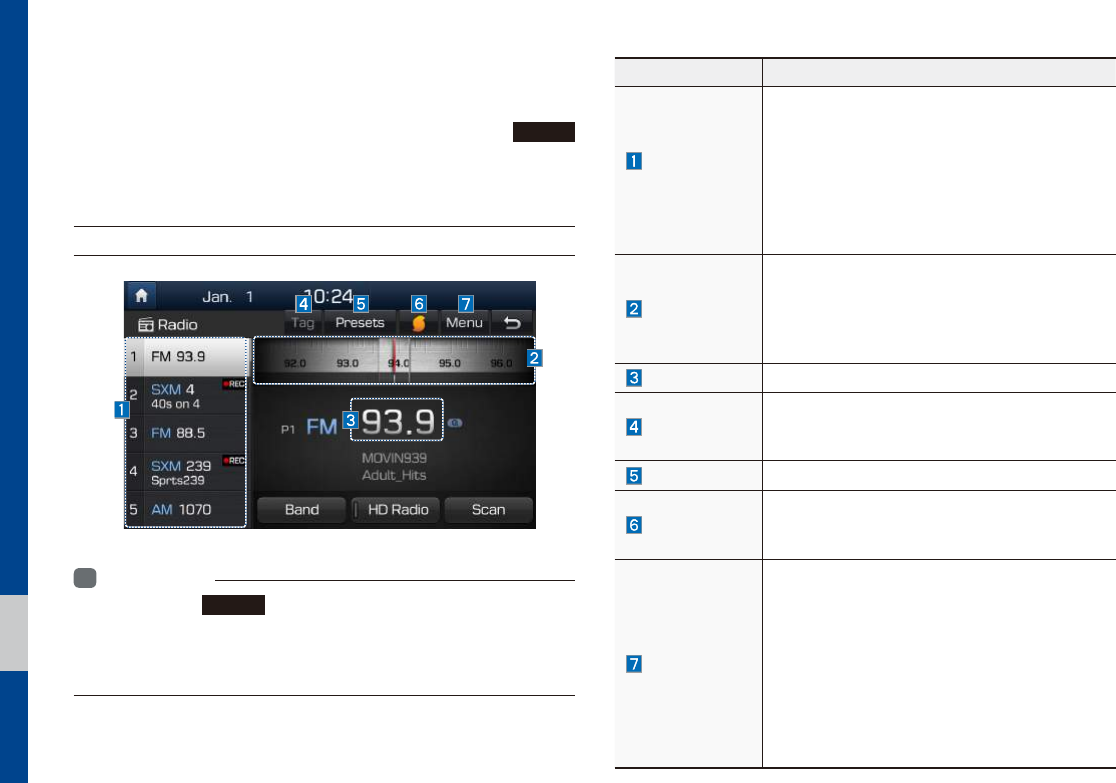

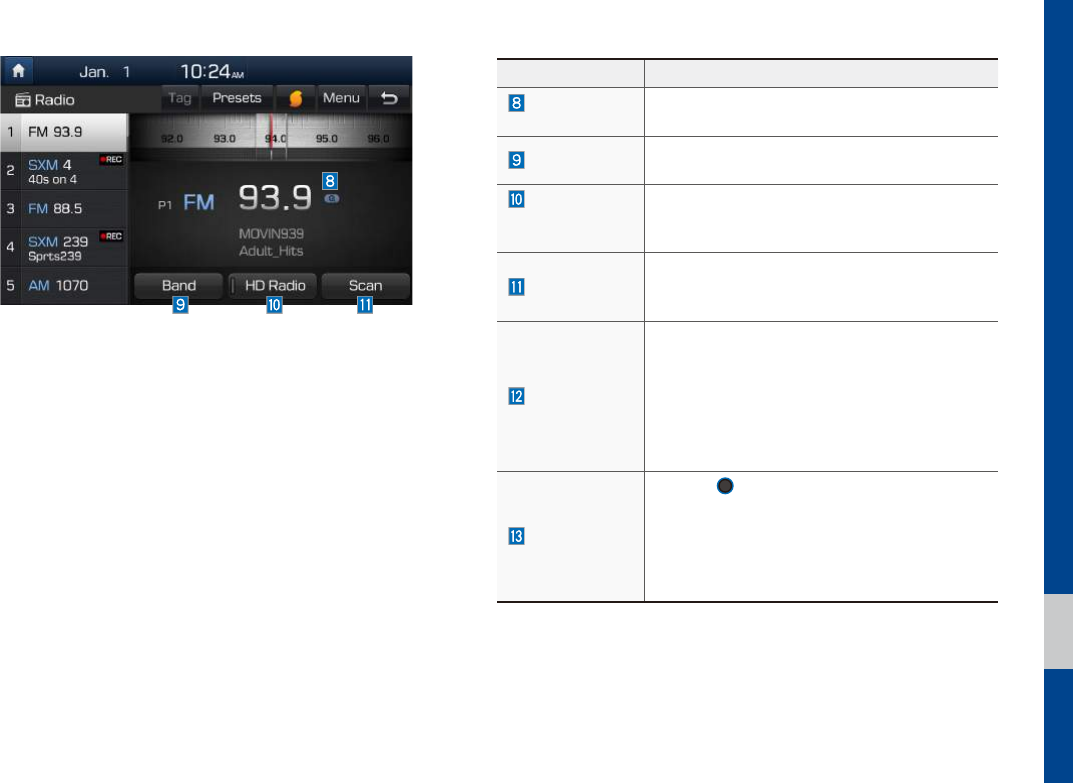

FM/AM Mode Display Controls … 2-2

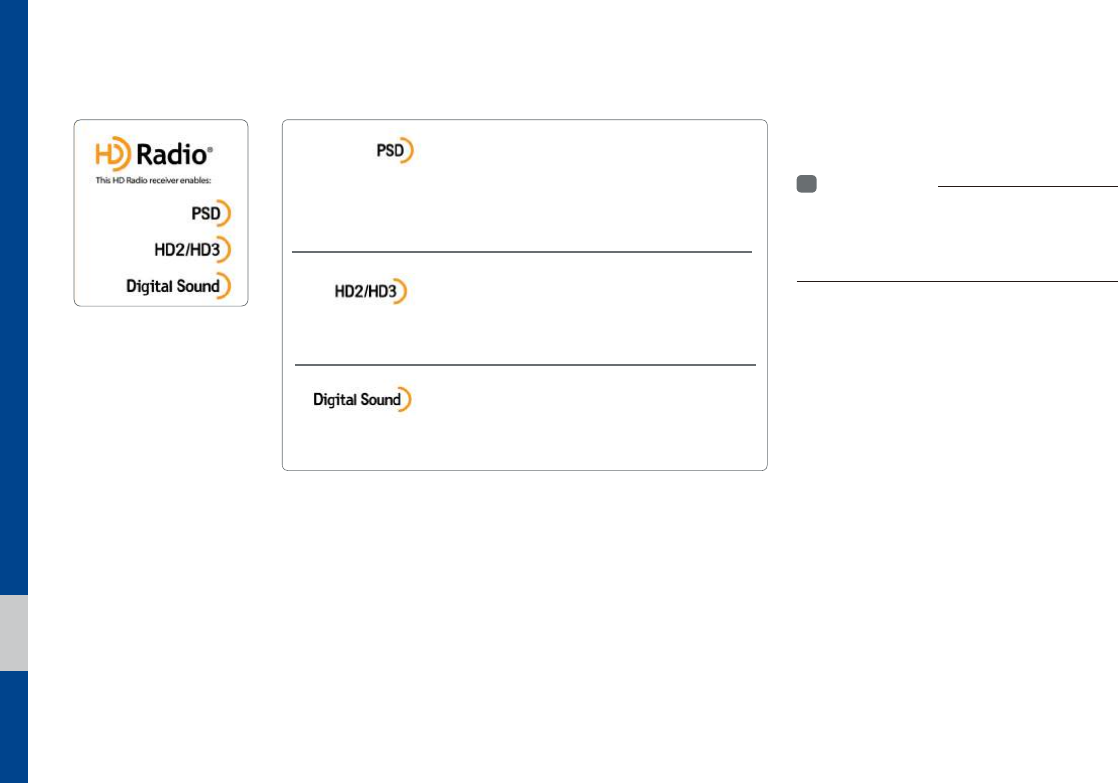

HD Radio™ Technology

(Except GUAM Model) .......................... 2-4

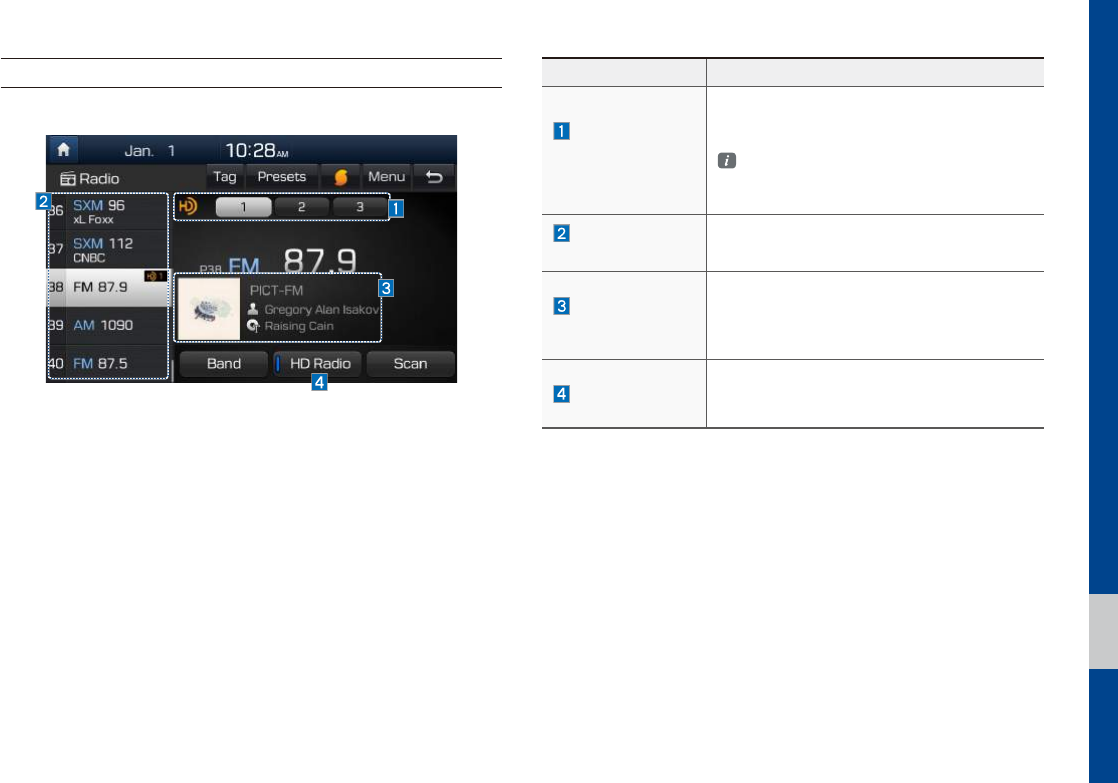

HD Radio™ Mode Display

Controls …………………………… 2-5

SiriusXM™ ............................................... 2-6

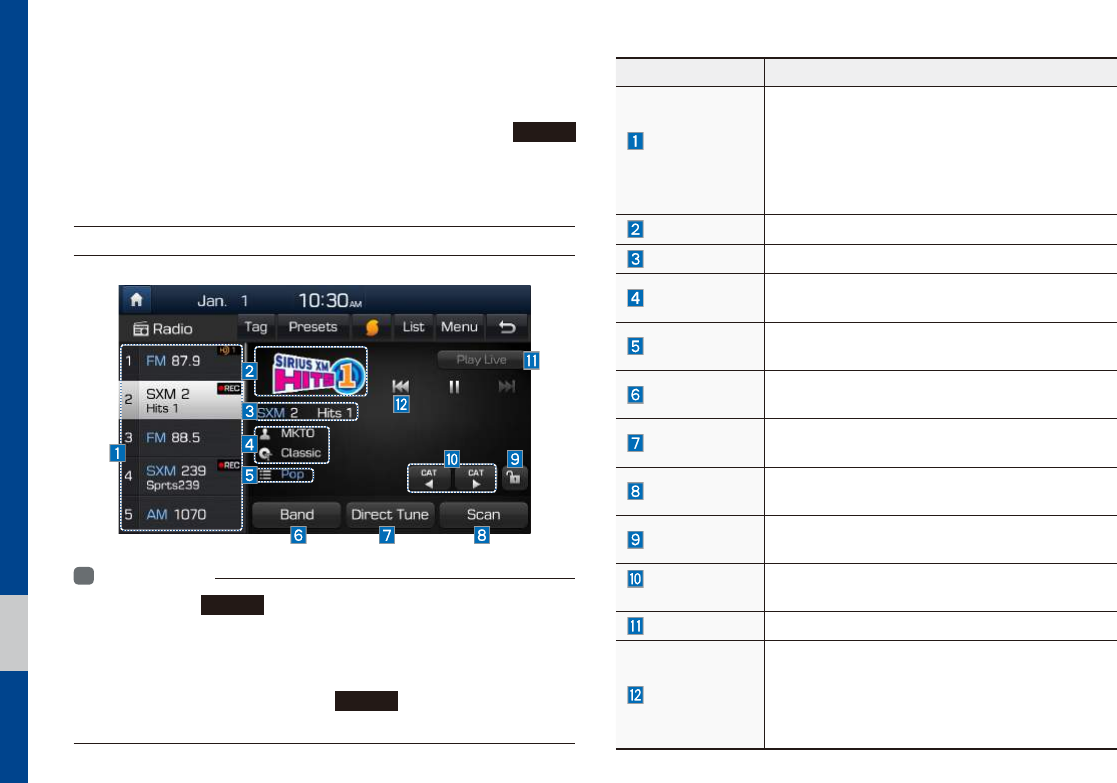

SiriusXM™ Mode Display

Controls …………………………… 2-6

Selecting through Channel/Category

List ………………………………… 2-8

Direct Tune ………………………… 2-8

Viewing Menu ……………………… 2-8

USB .......................................................... 2-11

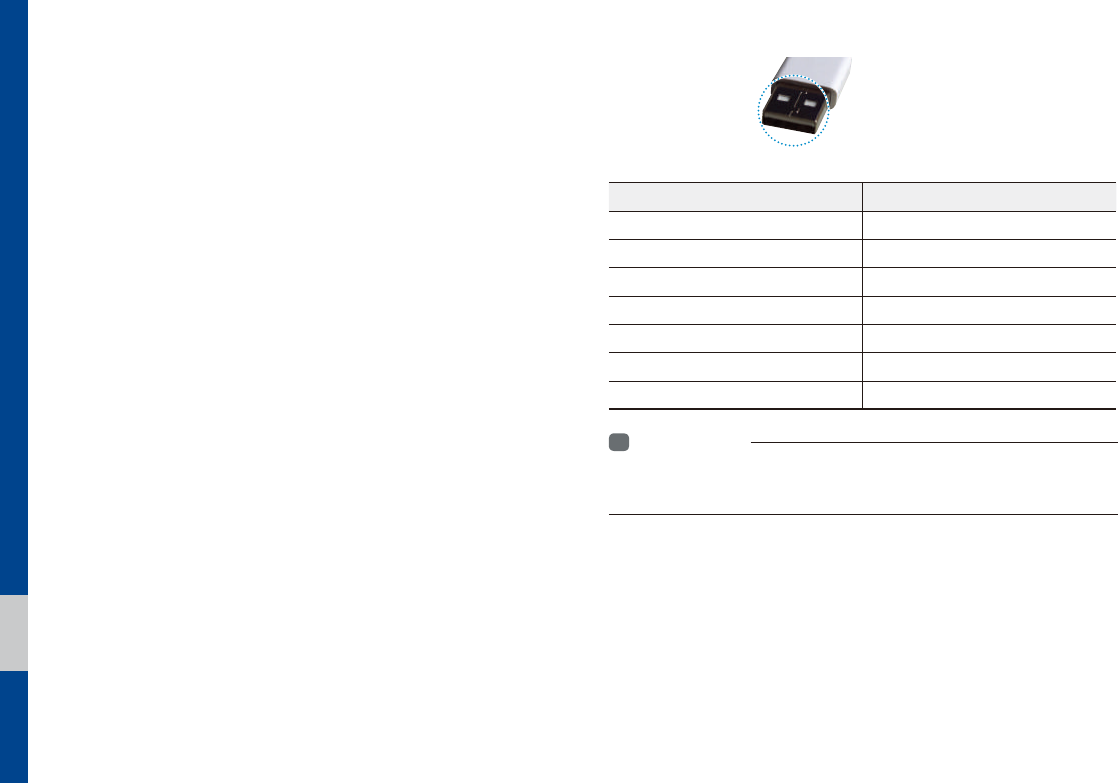

Before Playing a USB MP3 ……… 2-11

Supported USB MP3 music

specifications ……………………… 2-13

Supported Image Specifications … 2-13

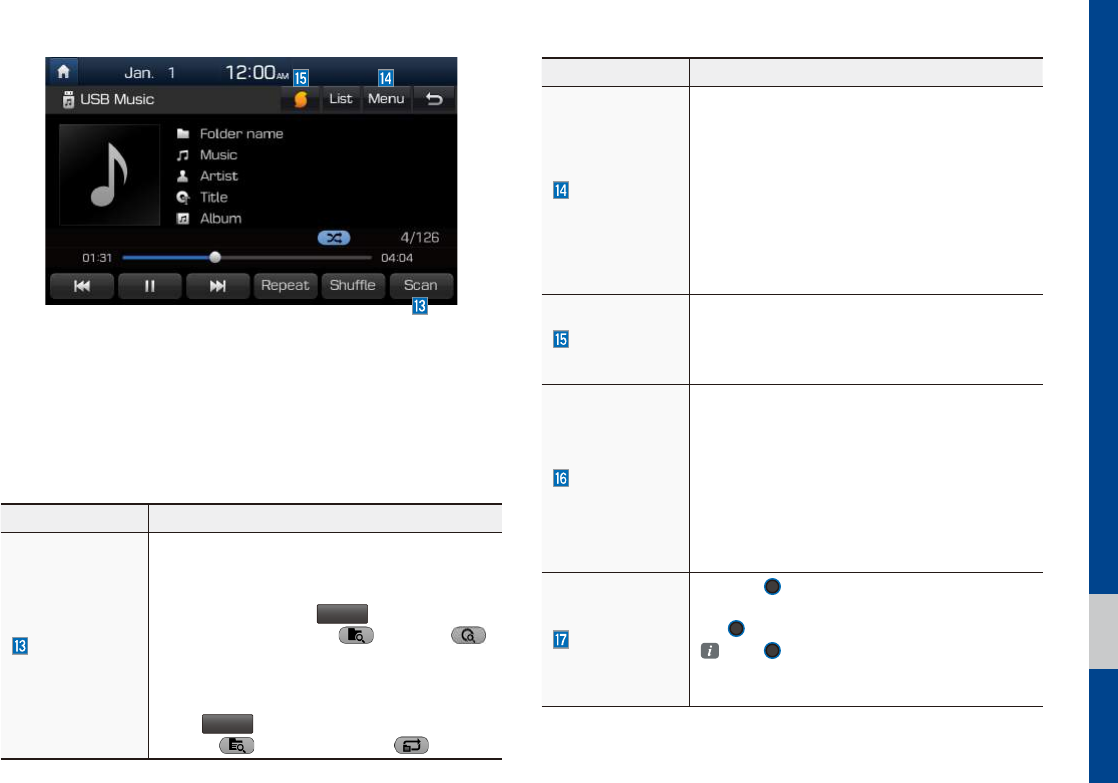

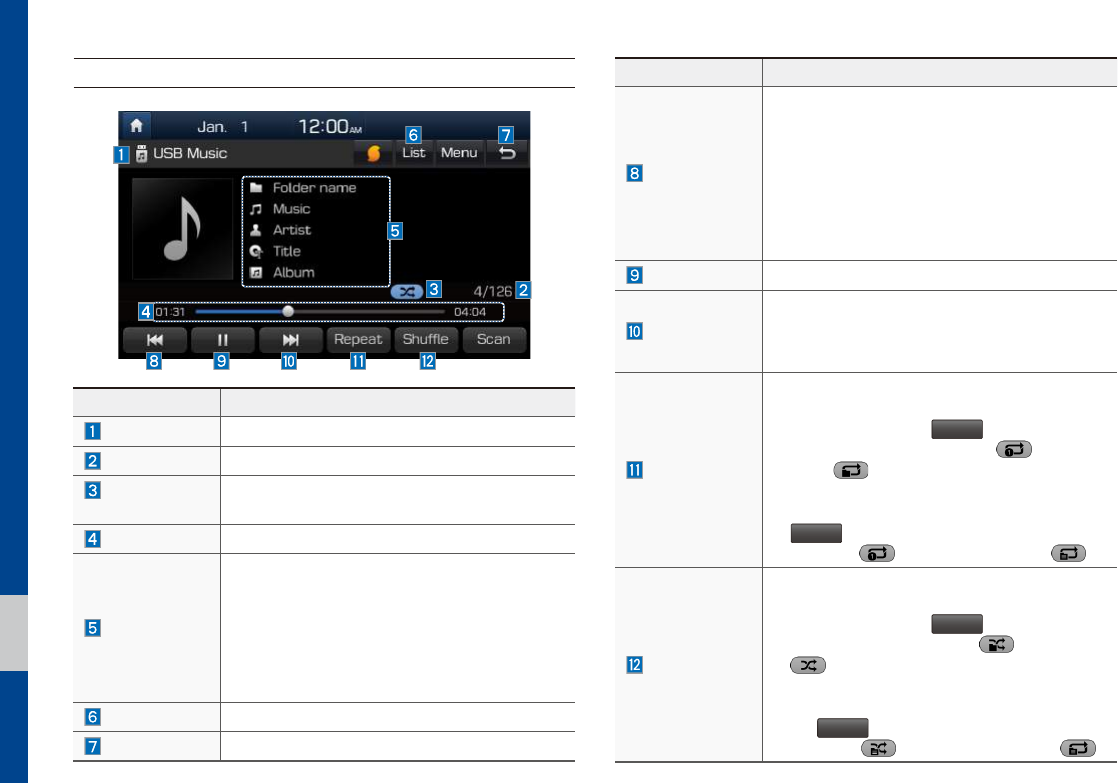

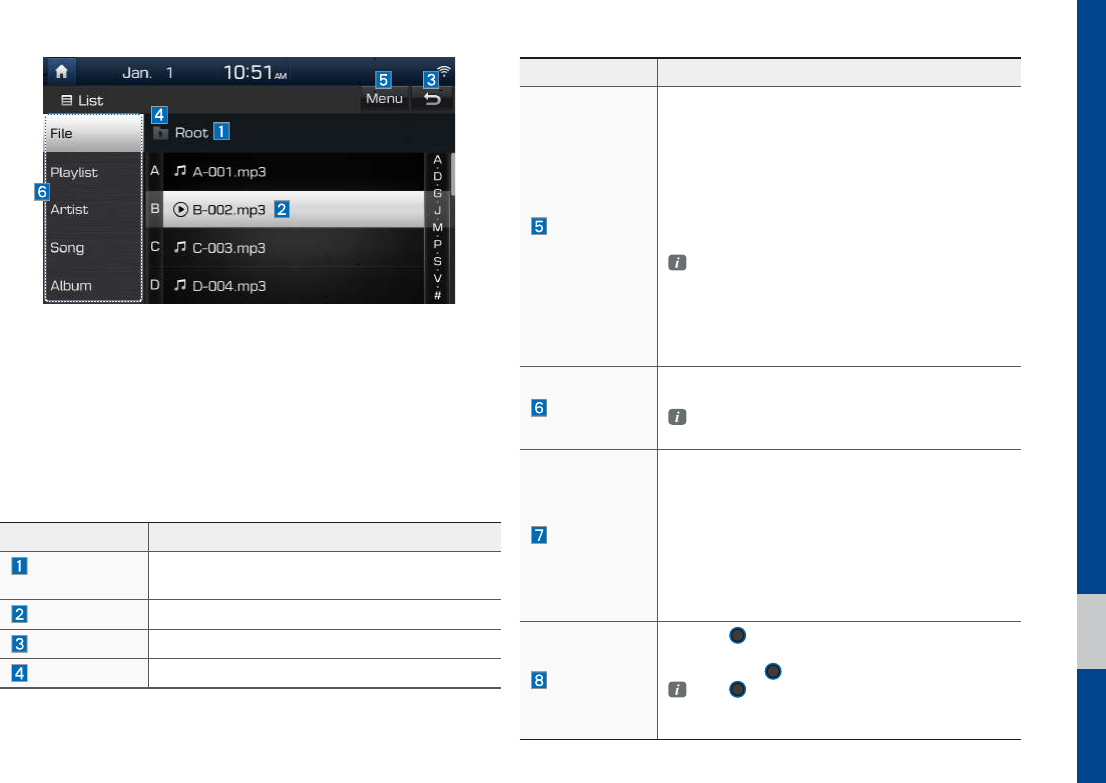

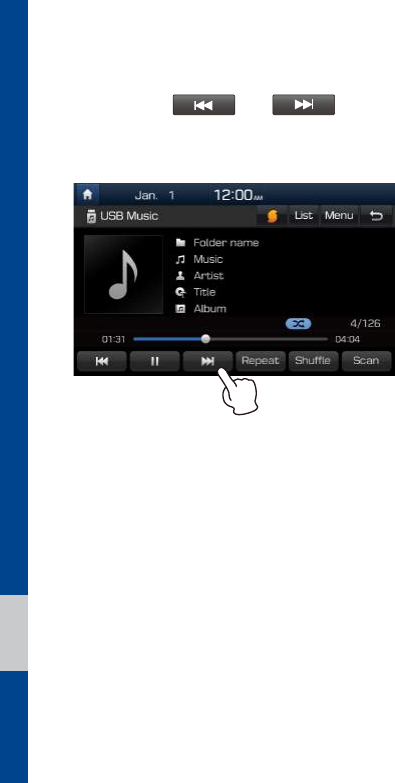

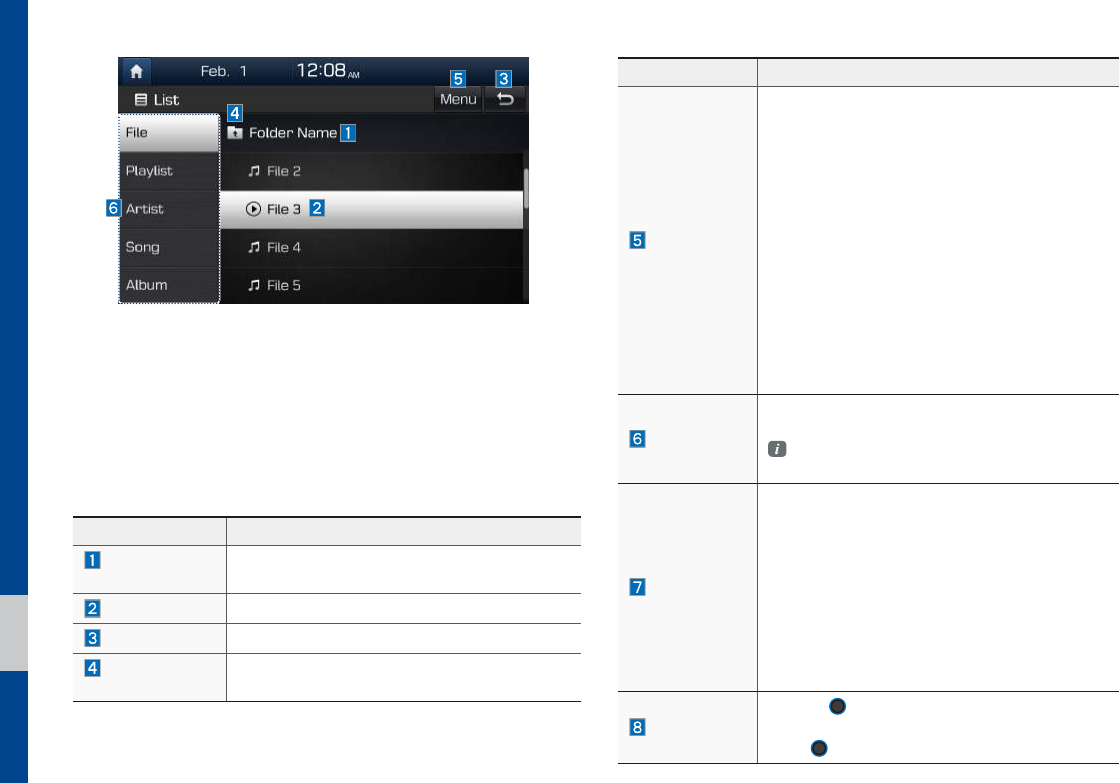

USB Music ………………………… 2-14

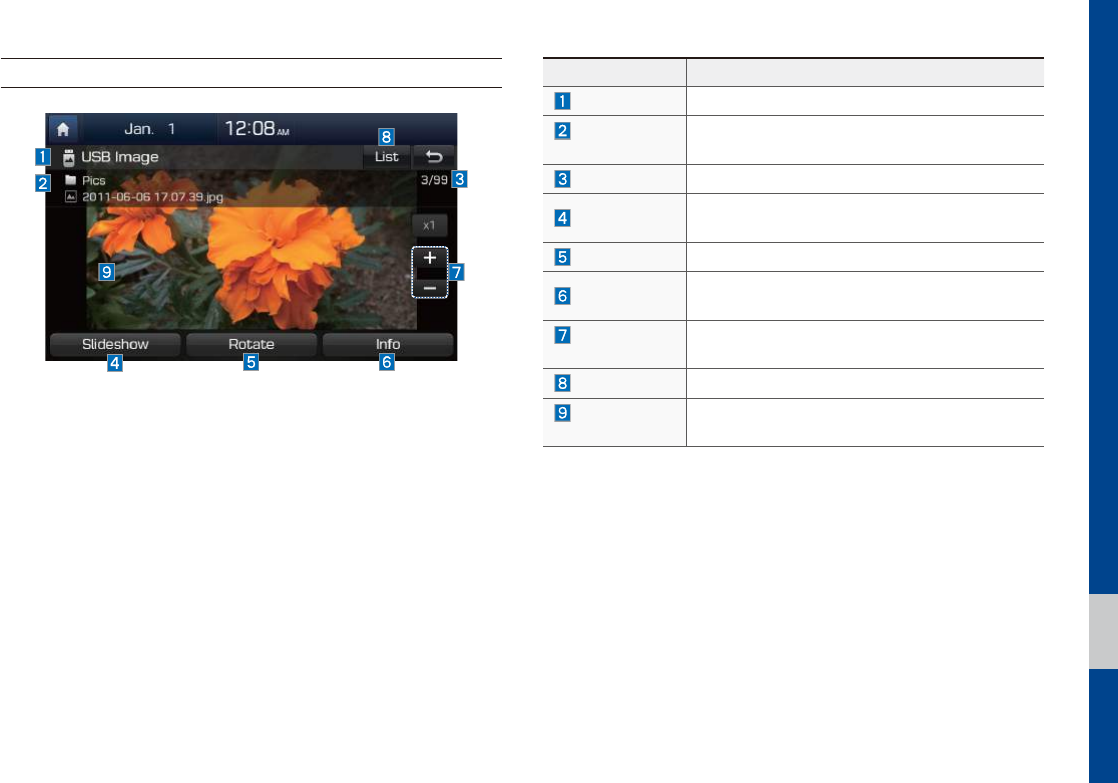

USB Image ………………………… 2-17

iPod .........................................................2-19

Using iPod Devices ……………… 2-19

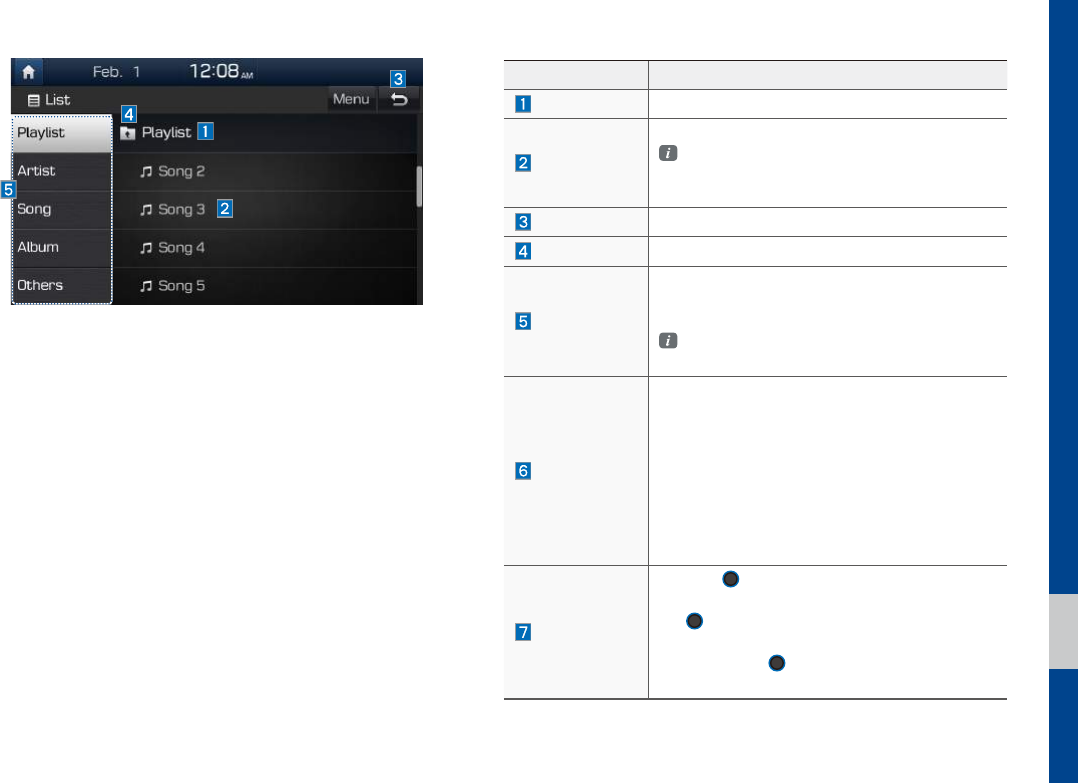

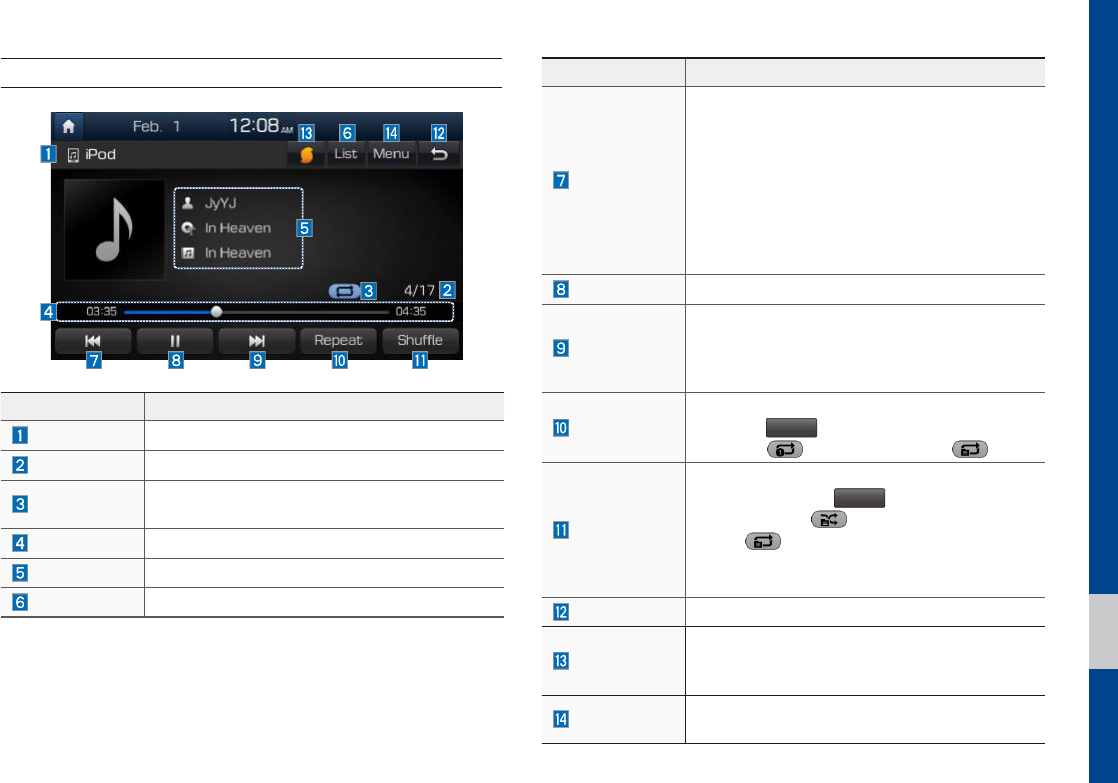

iPod Mode Display Controls ………2-23

AUX .........................................................2-26

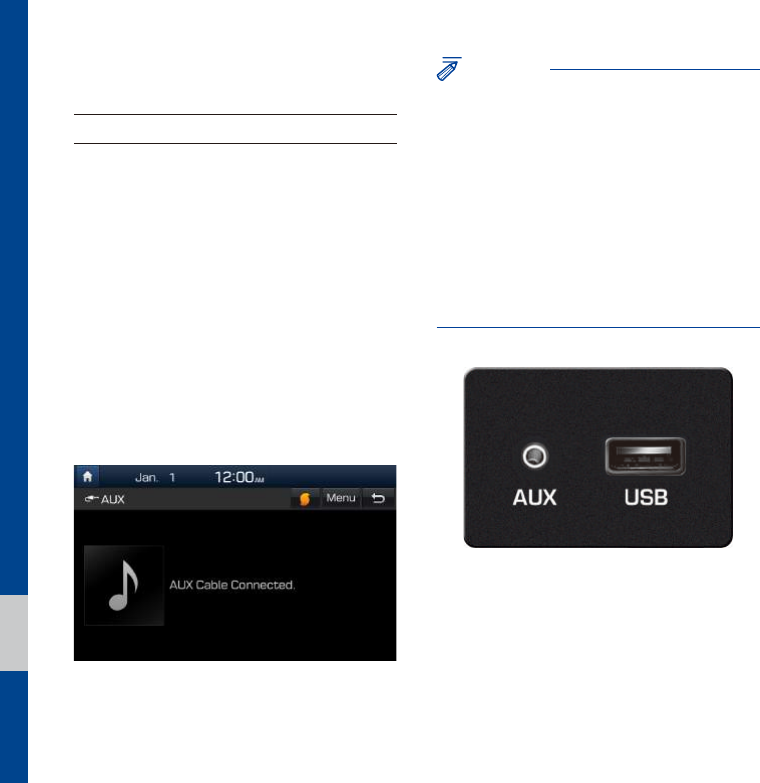

Connecting an External Device …2-26

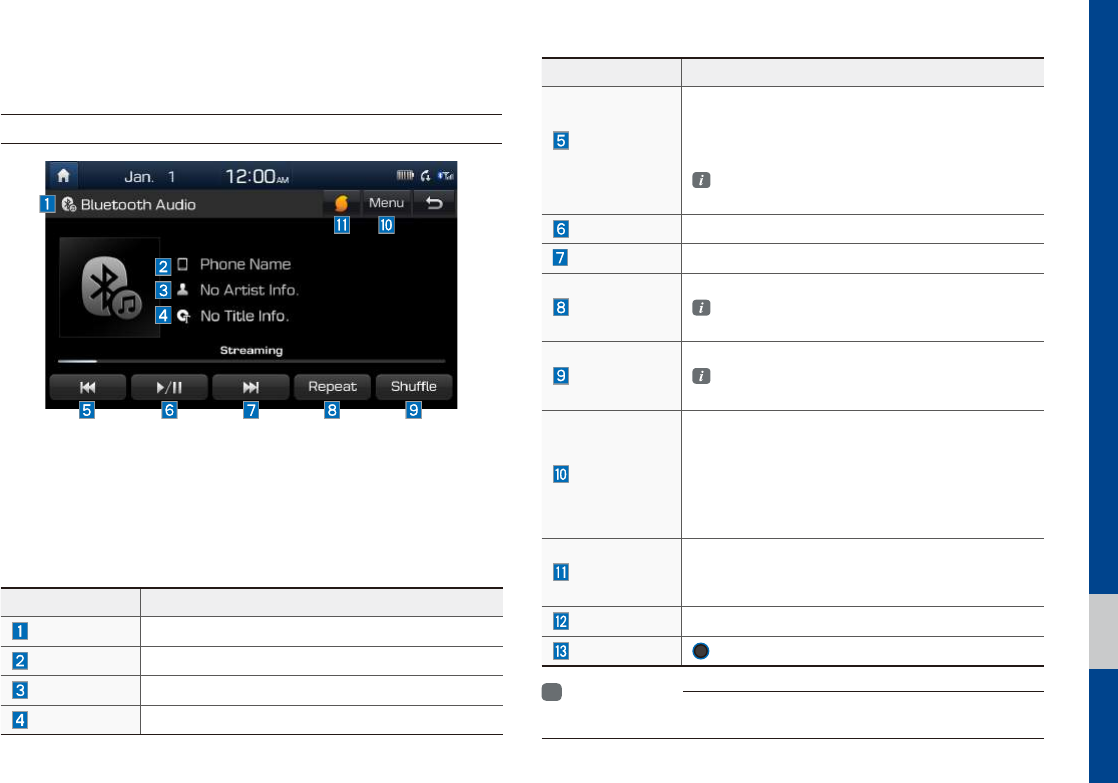

Bluetooth® Audio ..................................2-27

Bluetooth Audio Mode Display

Controls …………………………… 2-27

Bluetooth Connections Settings …2-28

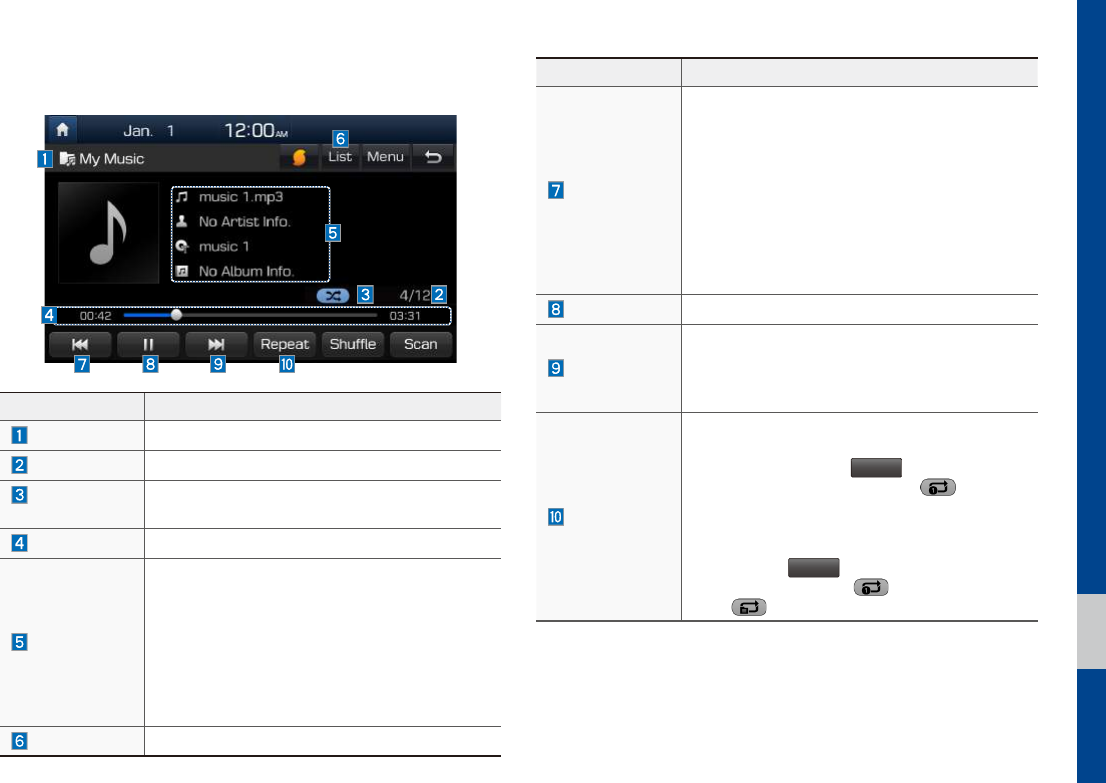

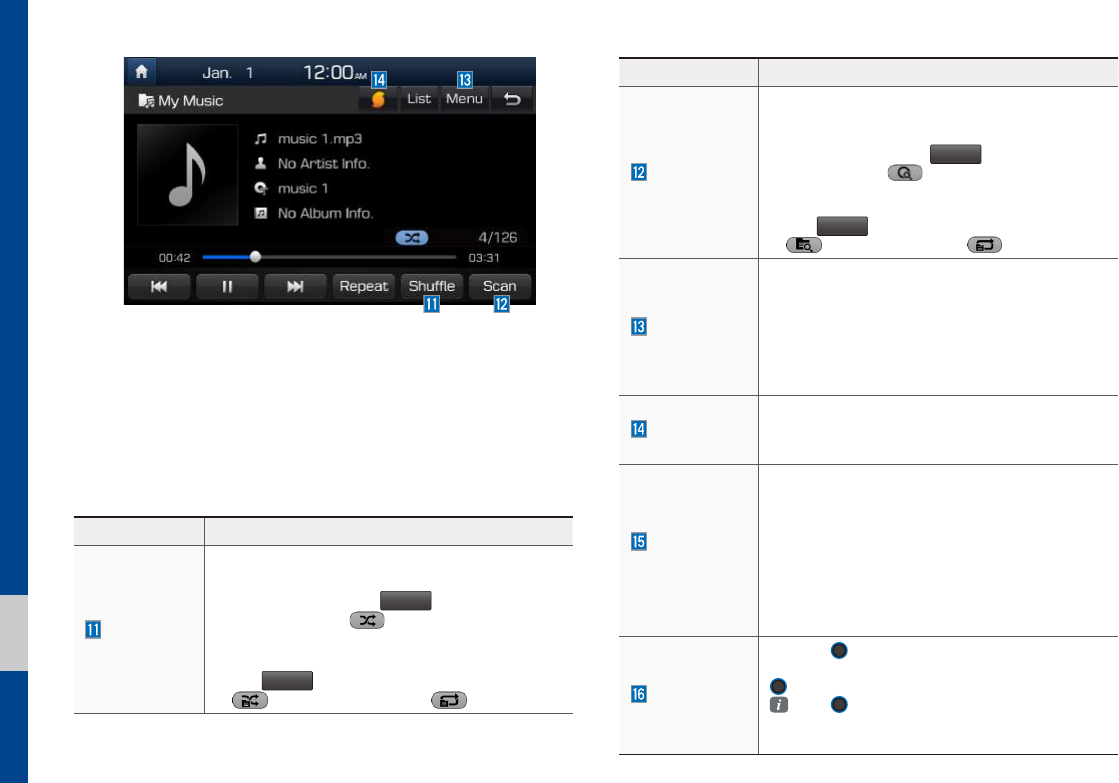

My Music ...............................................2-29

4 I Table of Contents

3. Bluetooth

Before Using the Bluetooth®

Handsfree ................................................3-2

What is

Bluetooth

Wireless

Technology? ……………………… 3-2

Precautions for Safe Driving …… 3-2

CAUTIONS upon Connecting

Bluetooth® Phone ………………… 3-3

Bluetooth Connection ............................3-4

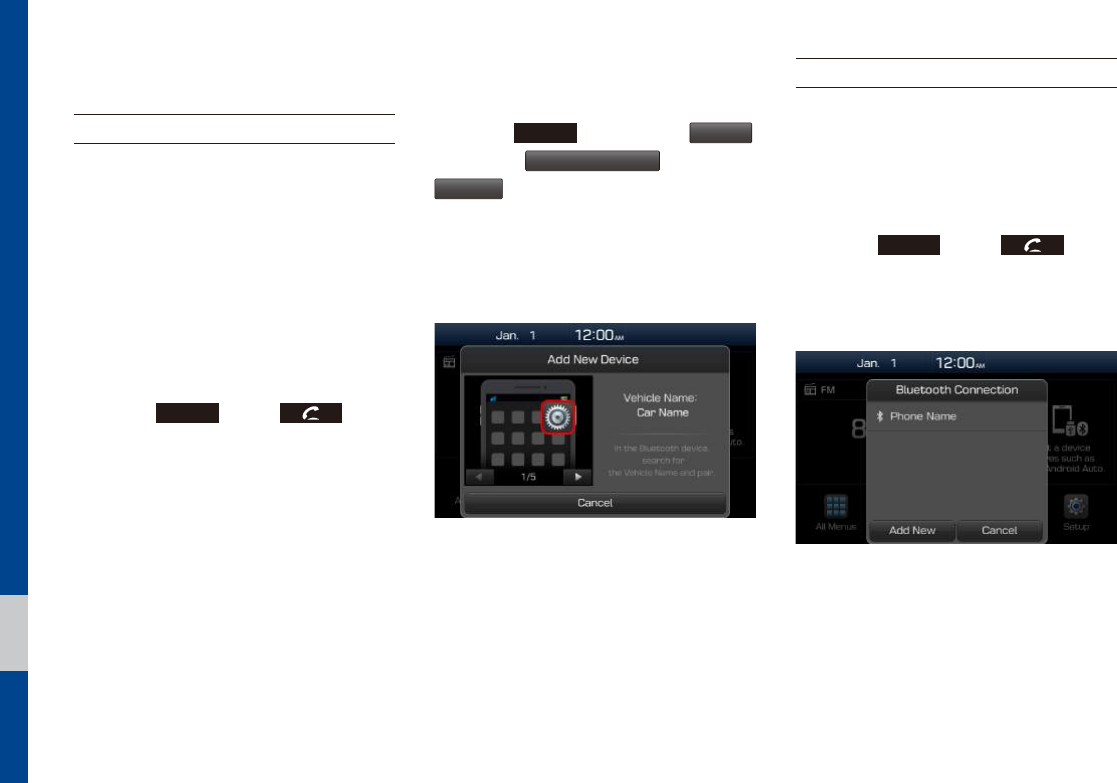

Pairing a New Device …………… 3-4

Connecting Bluetooth Devices…… 3-4

Disconnecting Bluetooth Devices

… 3-5

Deleting Bluetooth Devices ……… 3-5

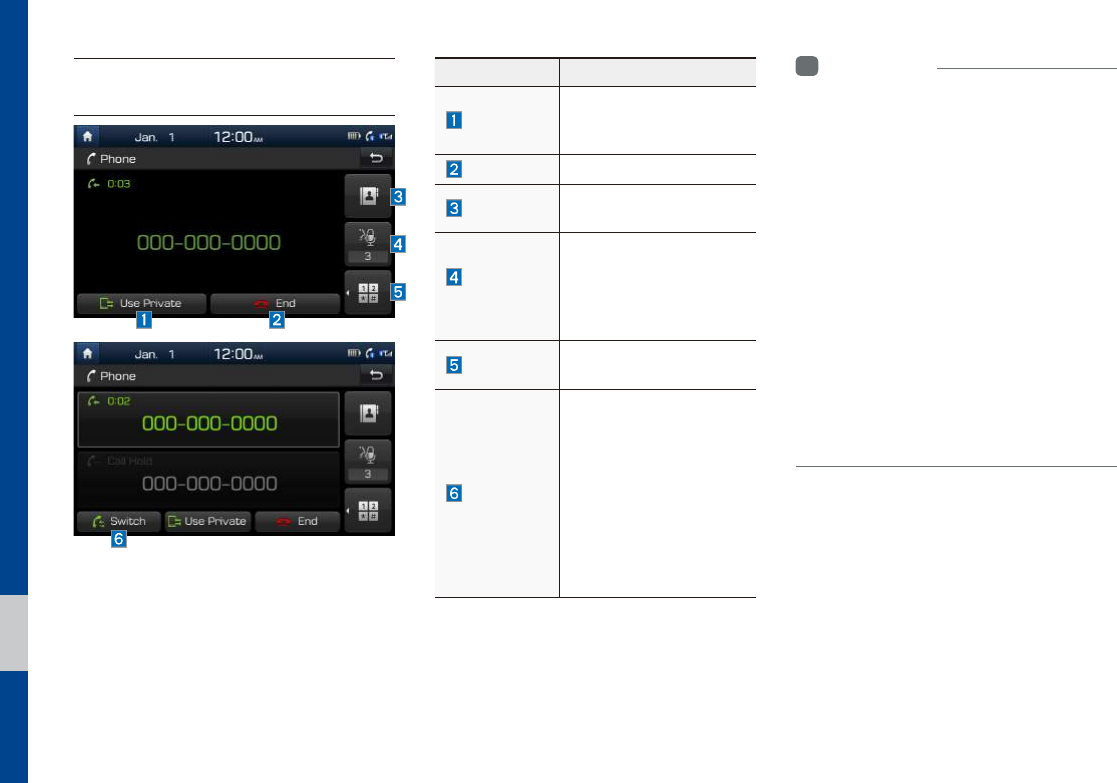

Bluetooth Phone ....................................3-6

Phone Status Icons ……………… 3-6

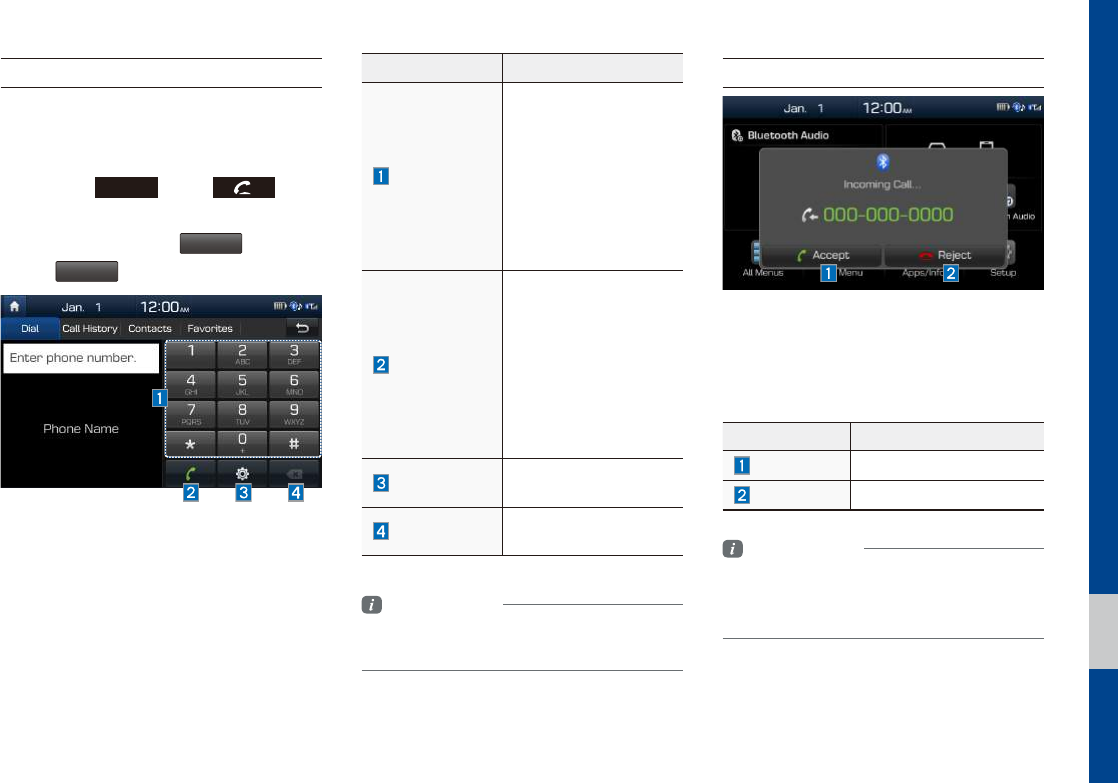

Dial ………………………………… 3-7

Accept/Reject Call ………………… 3-7

Using the Menu During a Phone

Call ………………………………… 3-8

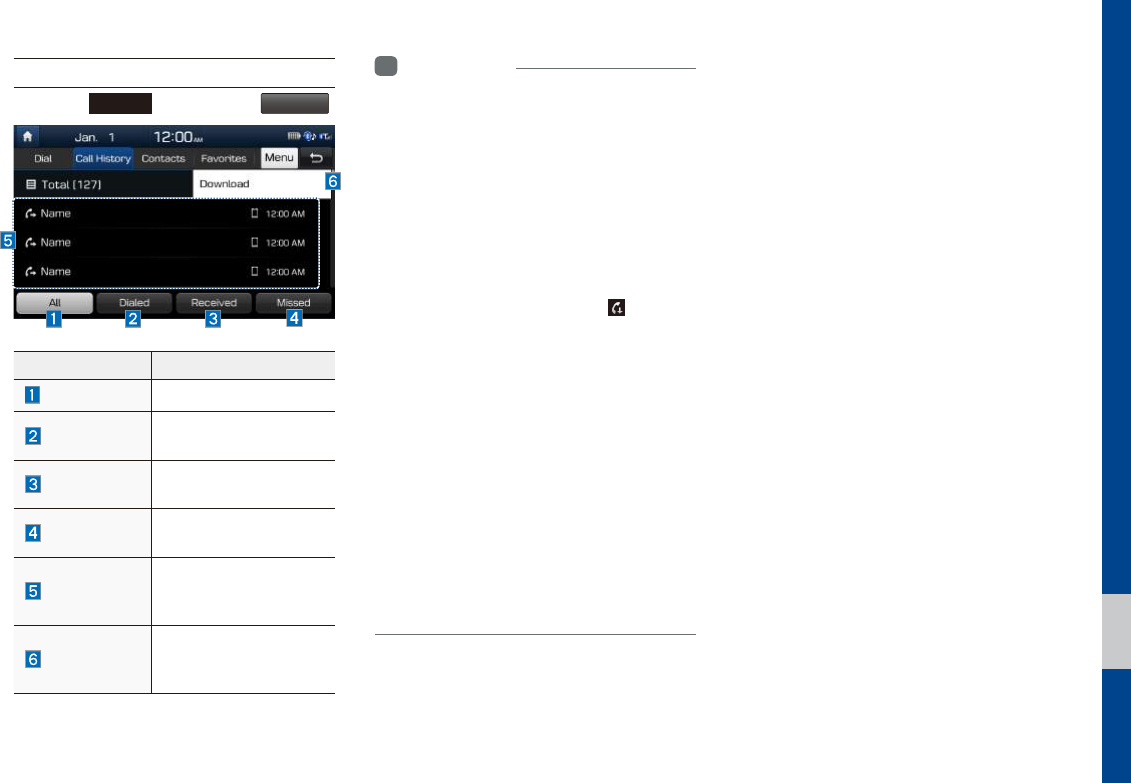

Call History ………………………… 3-9

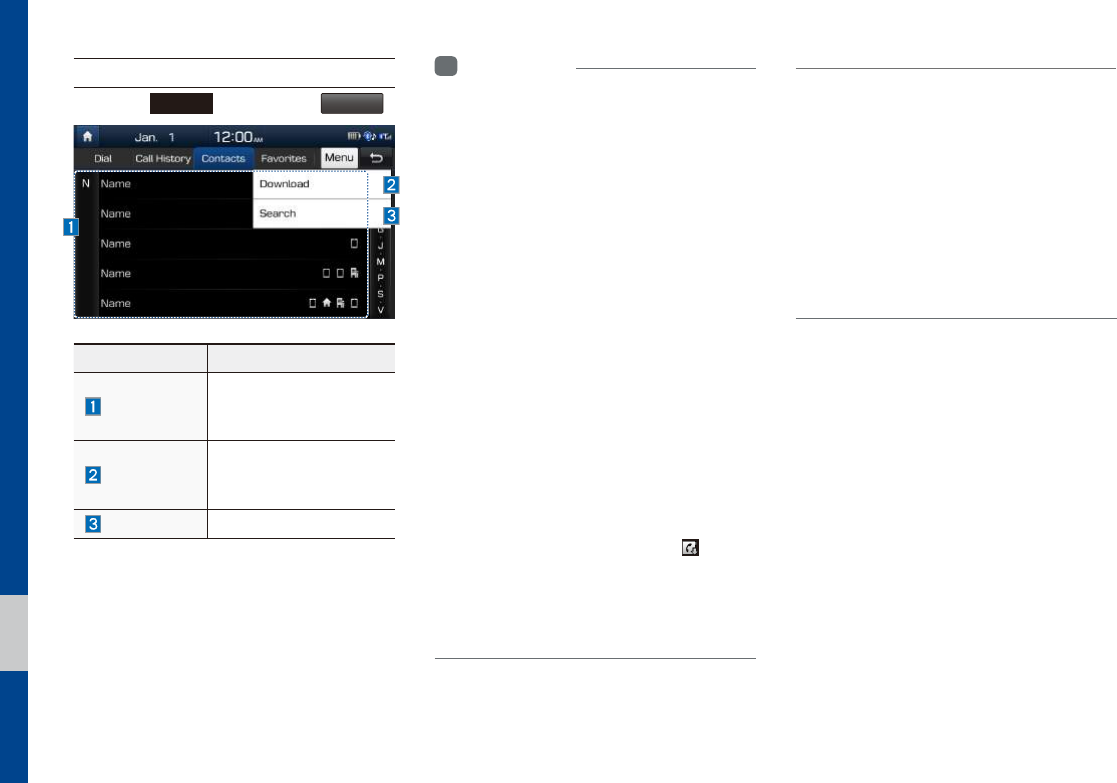

Contacts …………………………… 3-10

Favorites …………………………… 3-11

4. Blue Link®

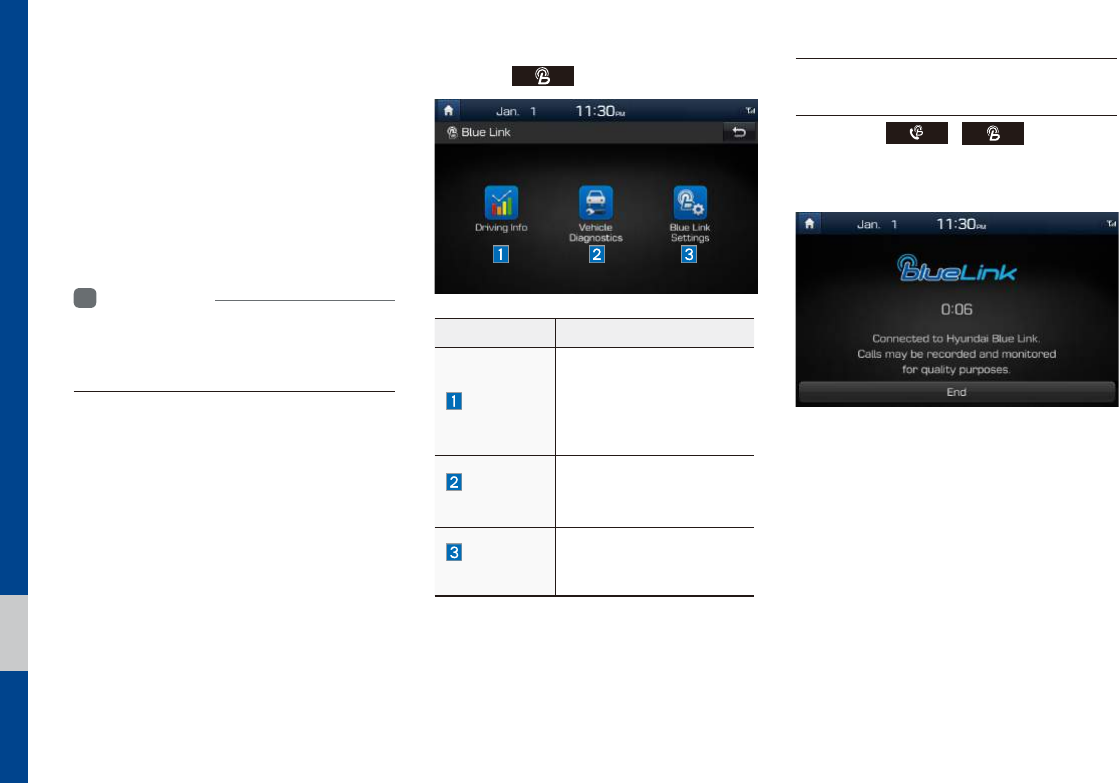

Name and Function of Each Part ........4-2

Rear View Mirror Switch ………… 4-2

Before Use ...............................................4-3

What Is Blue Link? ………………… 4-3

What Is Telematics? ……………… 4-3

About Transmission and Reception of

Radio Waves ……………………… 4-3

Getting Started with Blue Link ............4-4

Connecting with the Blue Link

Center ……………………………… 4-4

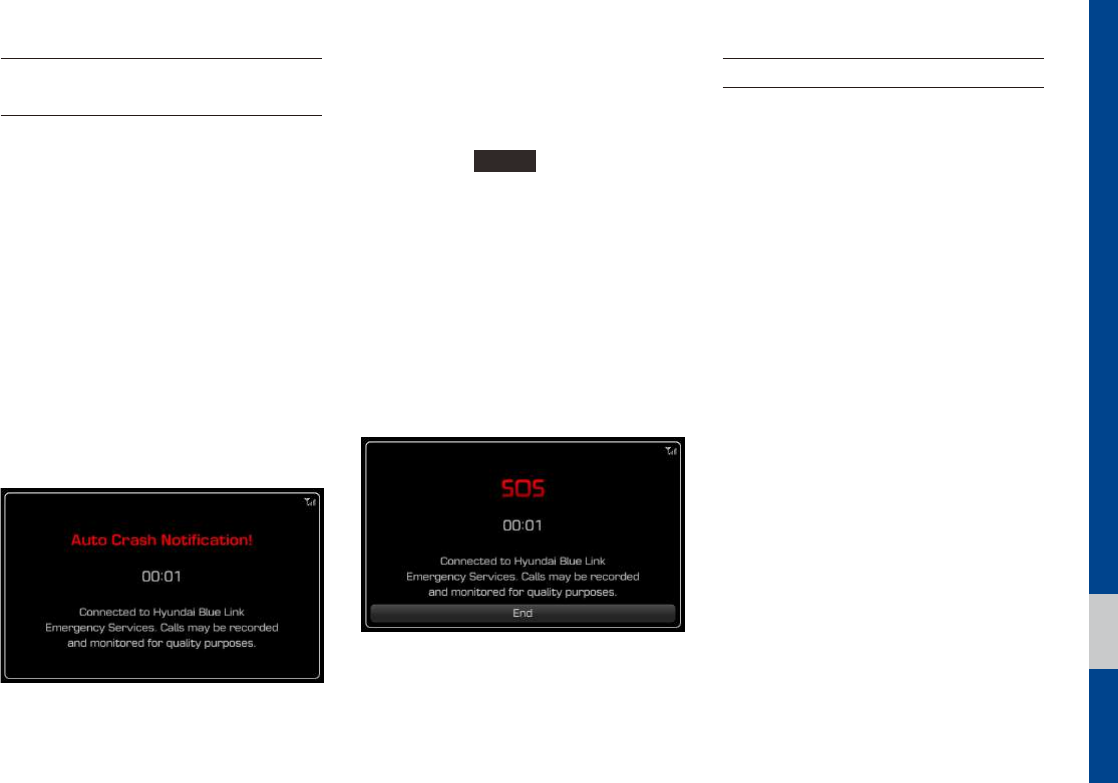

Blue Link® Safety and Security

Service……………………………… 4-5

Stolen Vehicle Recovery ………… 4-5

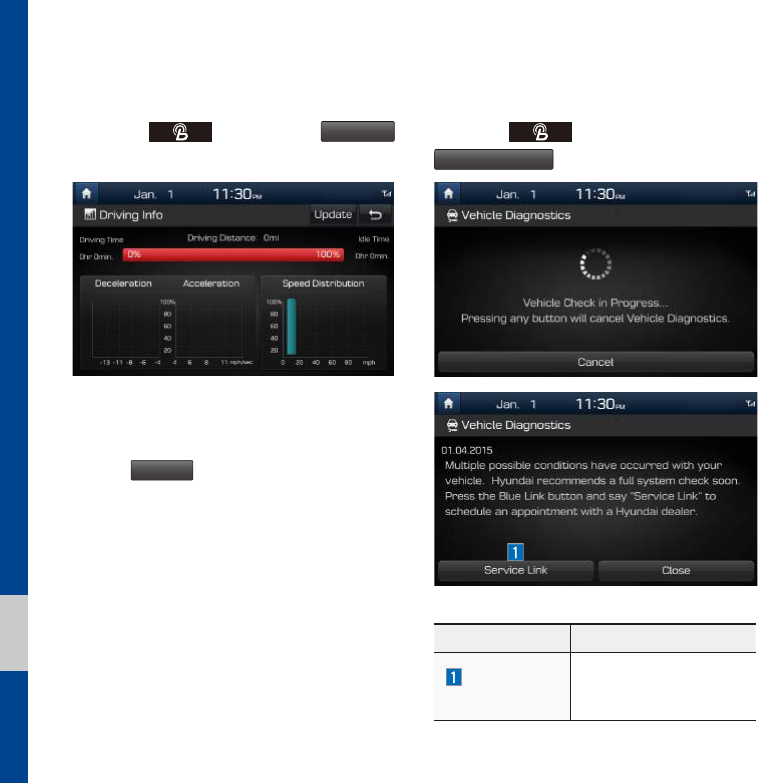

Driving Info .............................................. 4-6

Vehicle Diagnostics ................................4-6

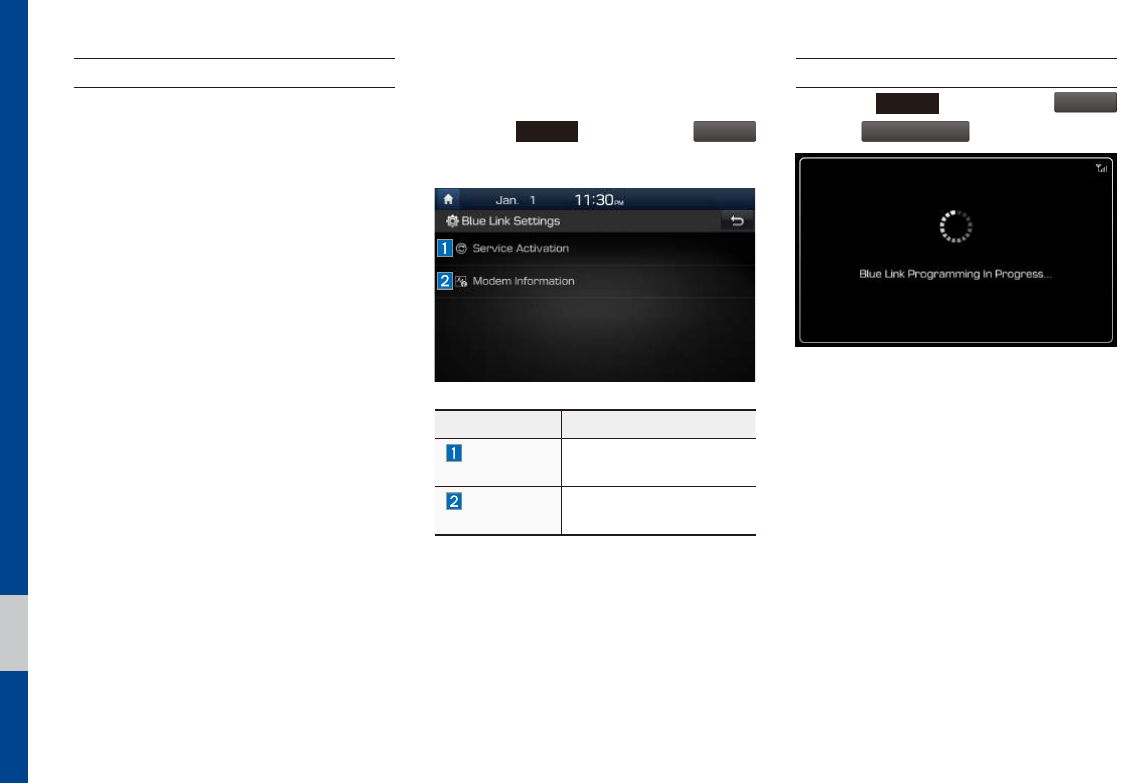

Blue Link Settings ..................................4-6

5. Voice Recognition

What is Voice Recognition? .................5-2

Precautions Required for Successful

Voice Recognition ................................. 5-2

Starting/Ending and Setting Voice

Recognition ..............................................5-3

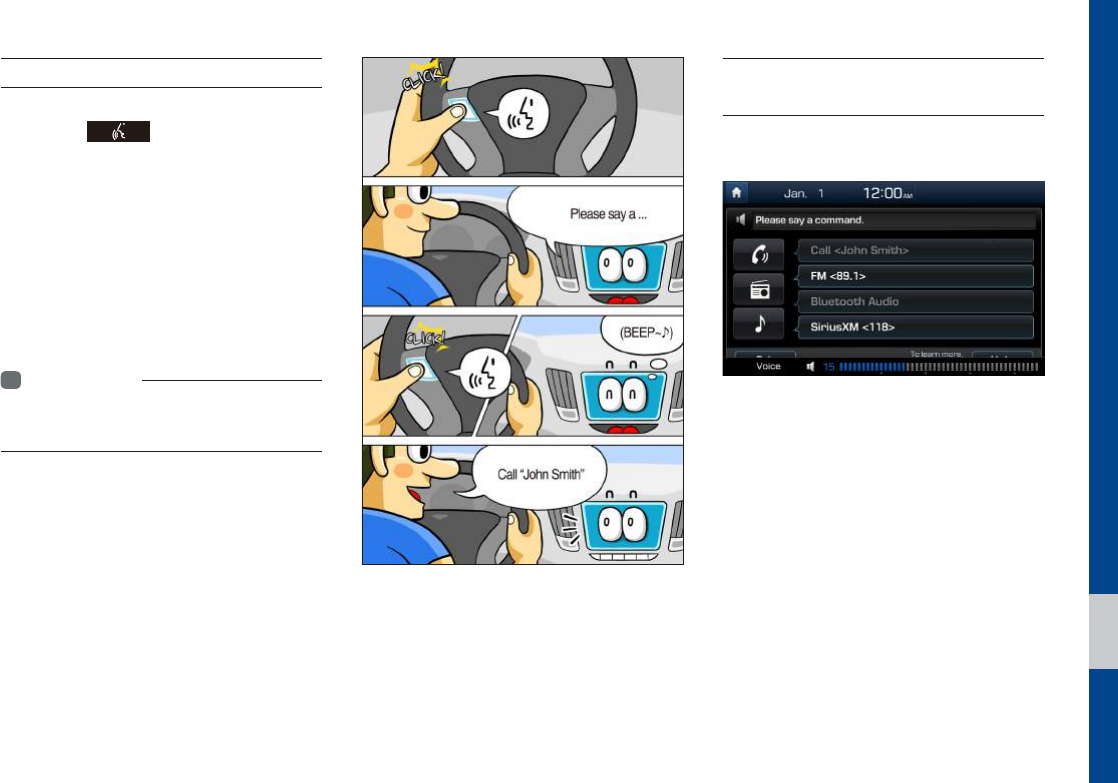

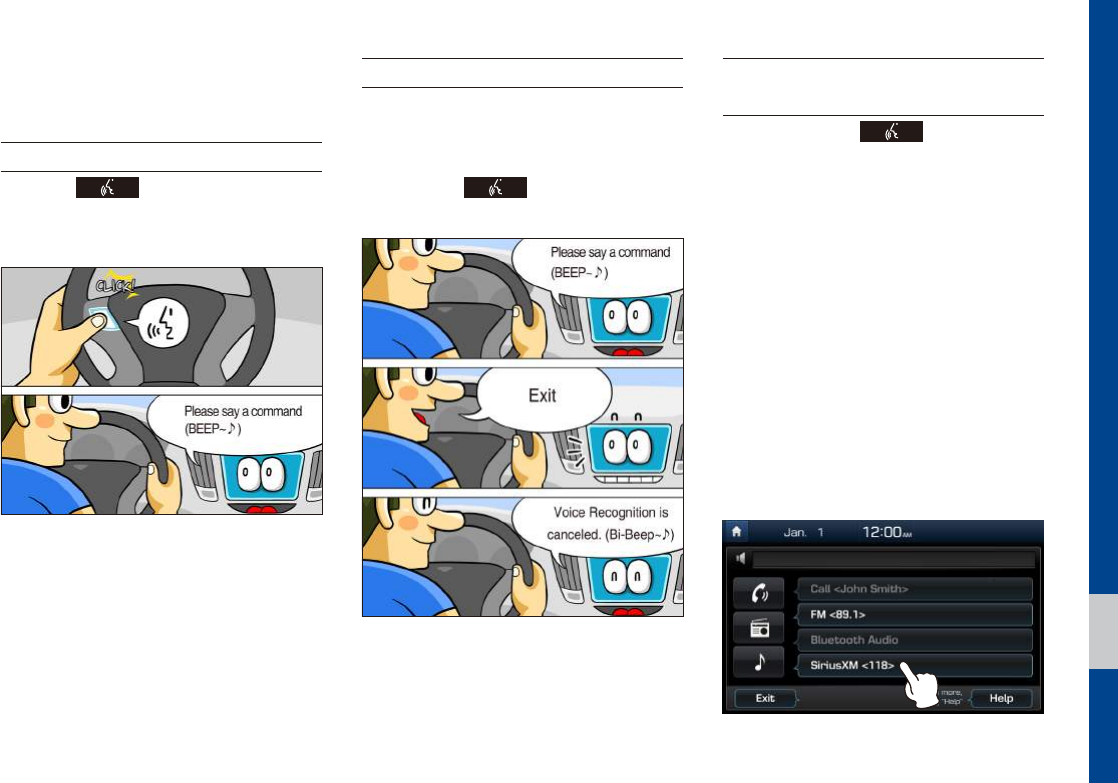

Starting Voice Recognition ……… 5-3

Ending Voice Recognition ………… 5-3

Combining Voice Recognition with

On-Screen Commands …………… 5-3

Extending the Listening Time …… 5-4

Skipping Prompt Messages ……… 5-5

Adjusting Voice Recognition

Volume ……………………………… 5-5

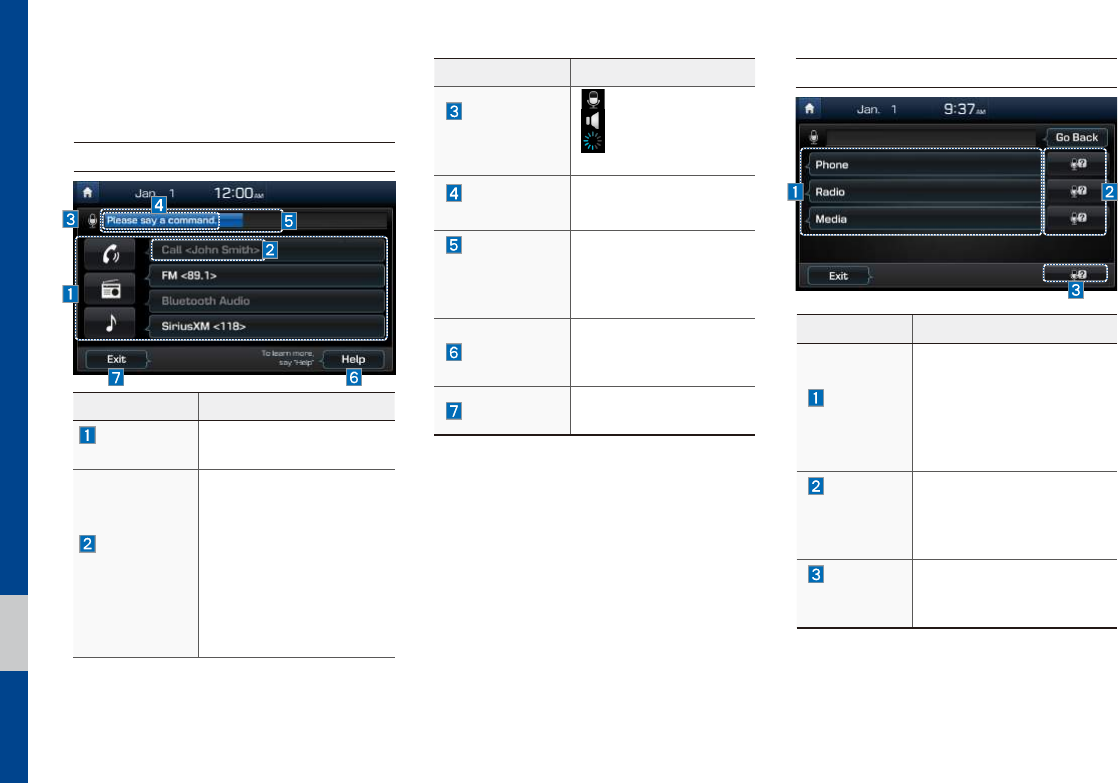

Voice Recognition Screen Overview ..5-6

Start Screen ……………………… 5-6

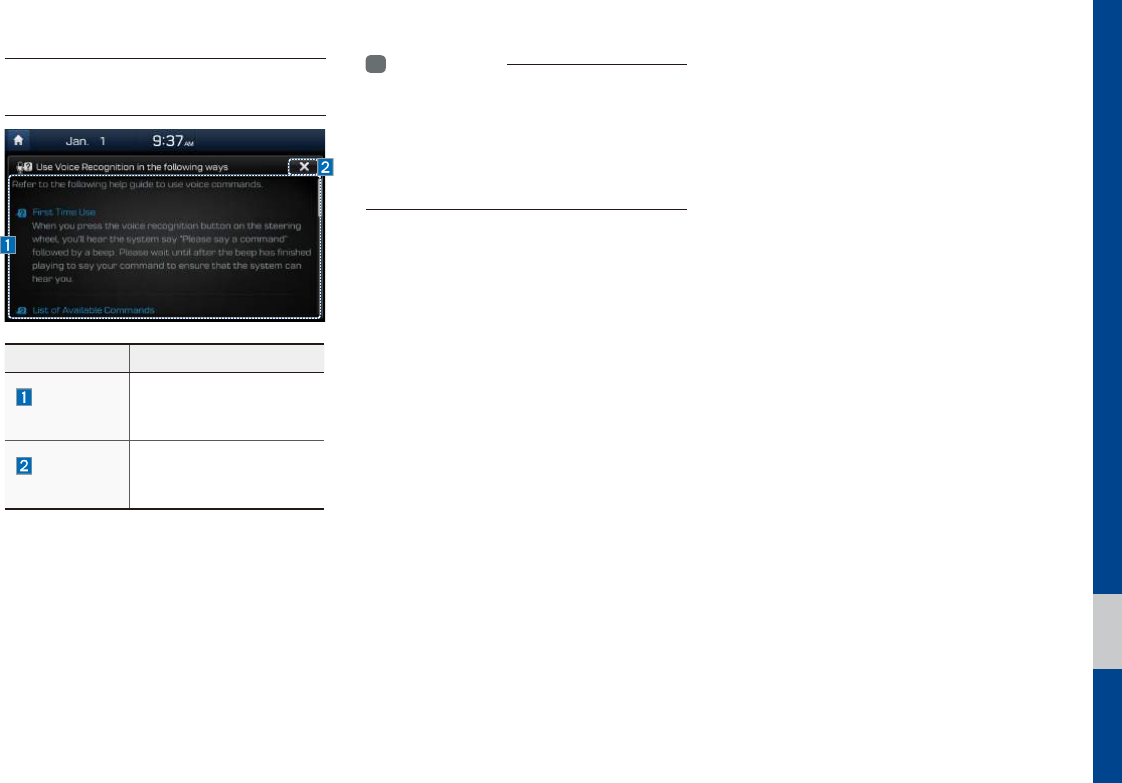

Help Display ……………………… 5-6

Instructions for Using Voice

Recognition ………………………… 5-7

Voice Commands ....................................5-8

Types of Commands ……………… 5-8

Call Commands …………………… 5-8

Radio Commands ………………… 5-9

Table of Contents I 5

Media Commands ………………… 5-10

Other Commands List

(Commands used in List / Help) …5-12

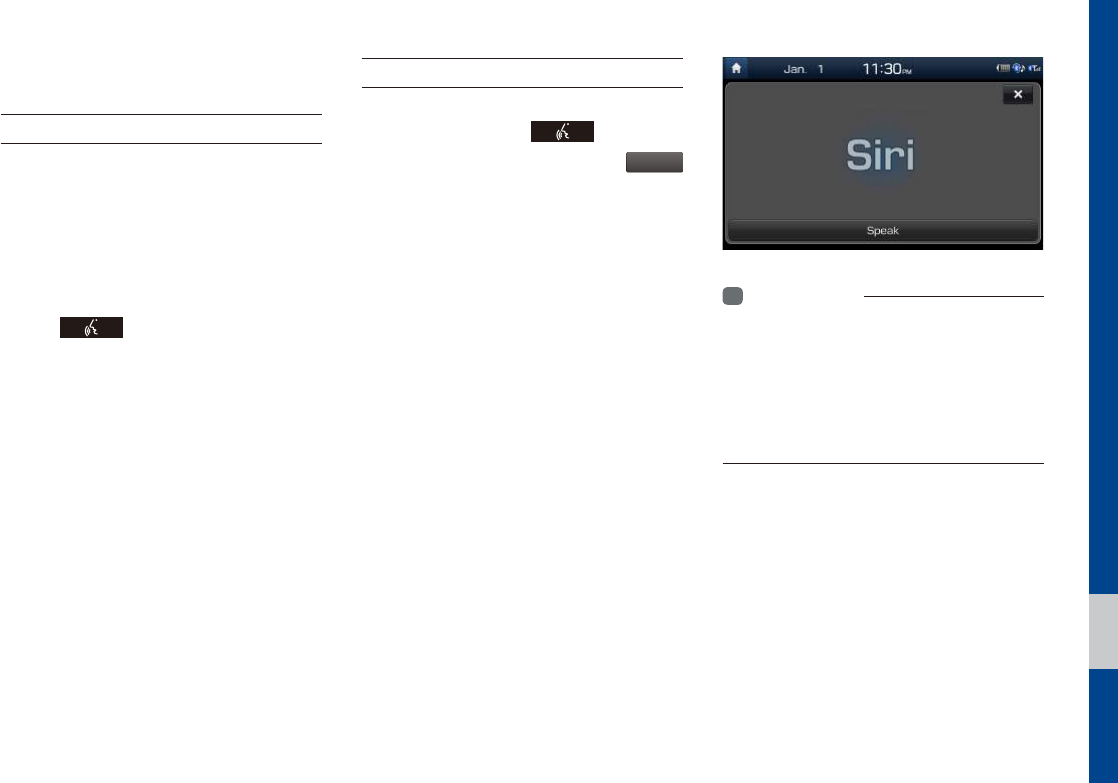

Siri Eyes Free ........................................5-13

How to start Siri …………………… 5-13

How to use Siri …………………… 5-13

6. Apps/Info

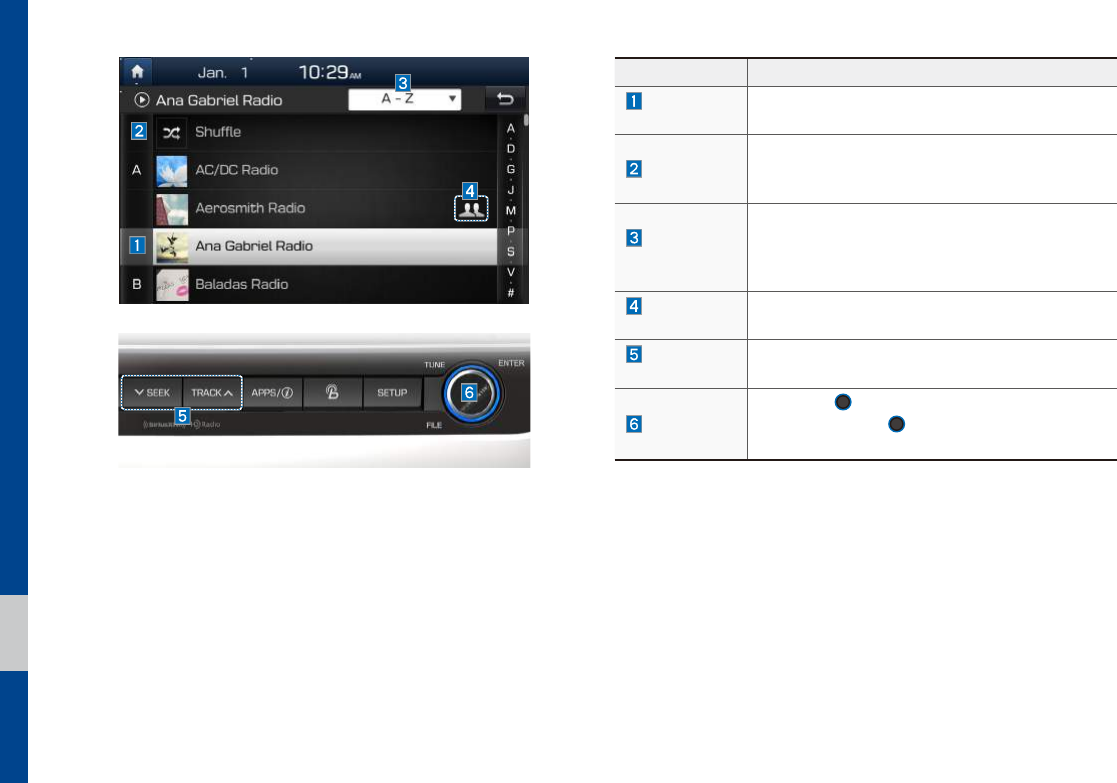

Pandora® (Except GUAM Model) ........ 6-2

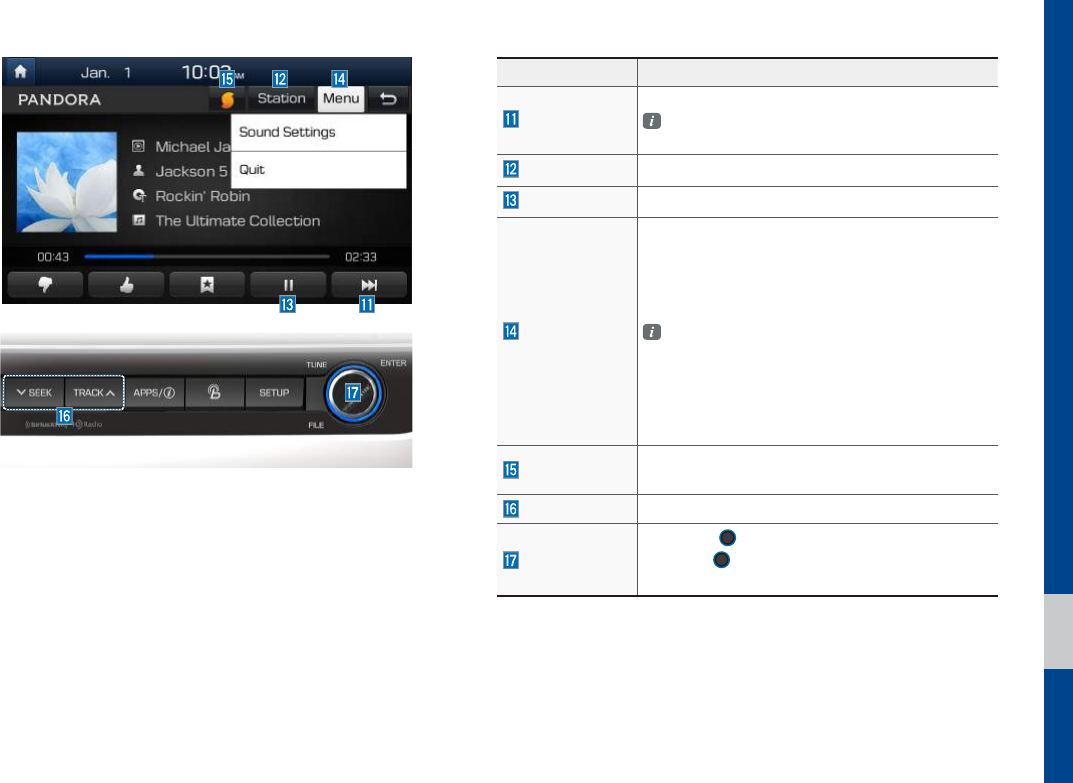

Pandora® Screen Controls ……… 6-2

SiriusXM™ Data .....................................6-5

About SiriusXM™ Data Service … 6-5

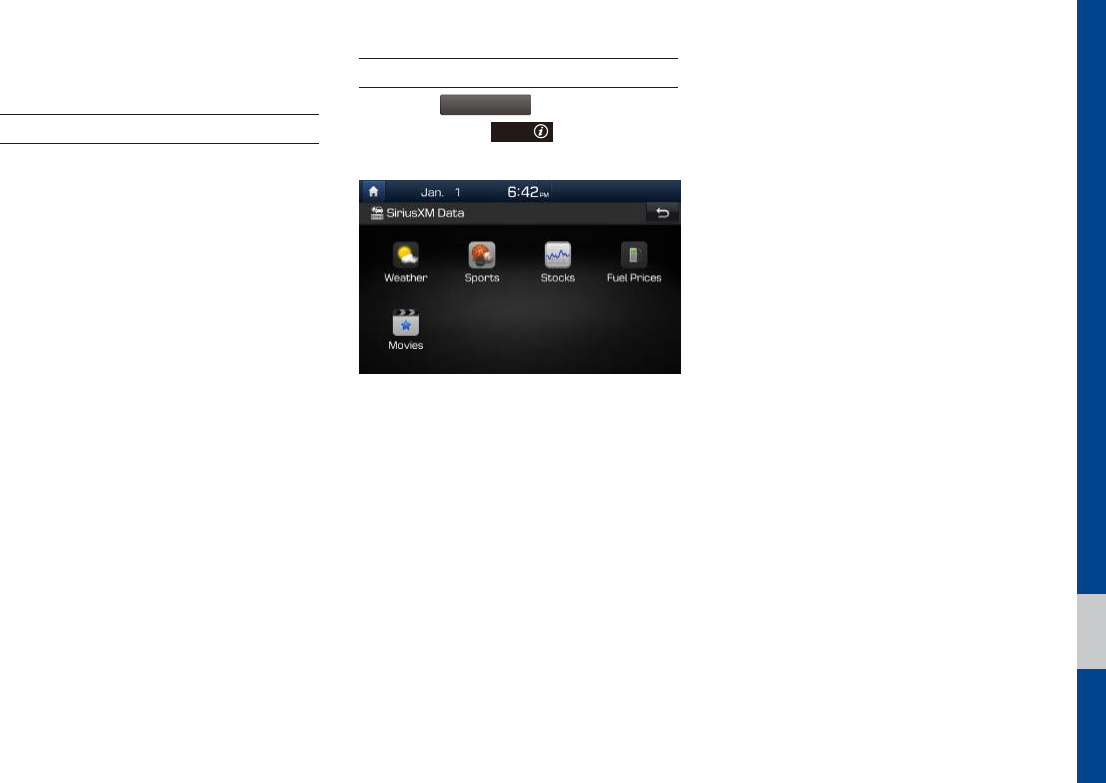

Accessing SiriusXM™ Data ……… 6-5

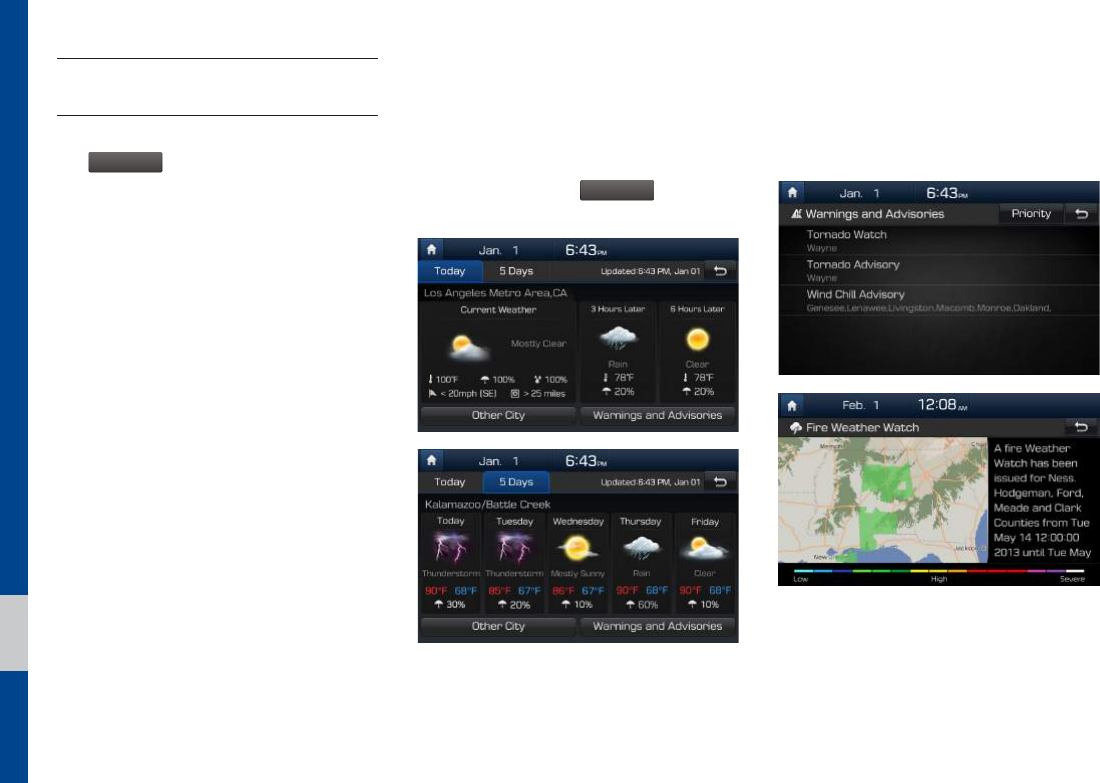

SiriusXM™ Weather

Announcement …………………… 6-6

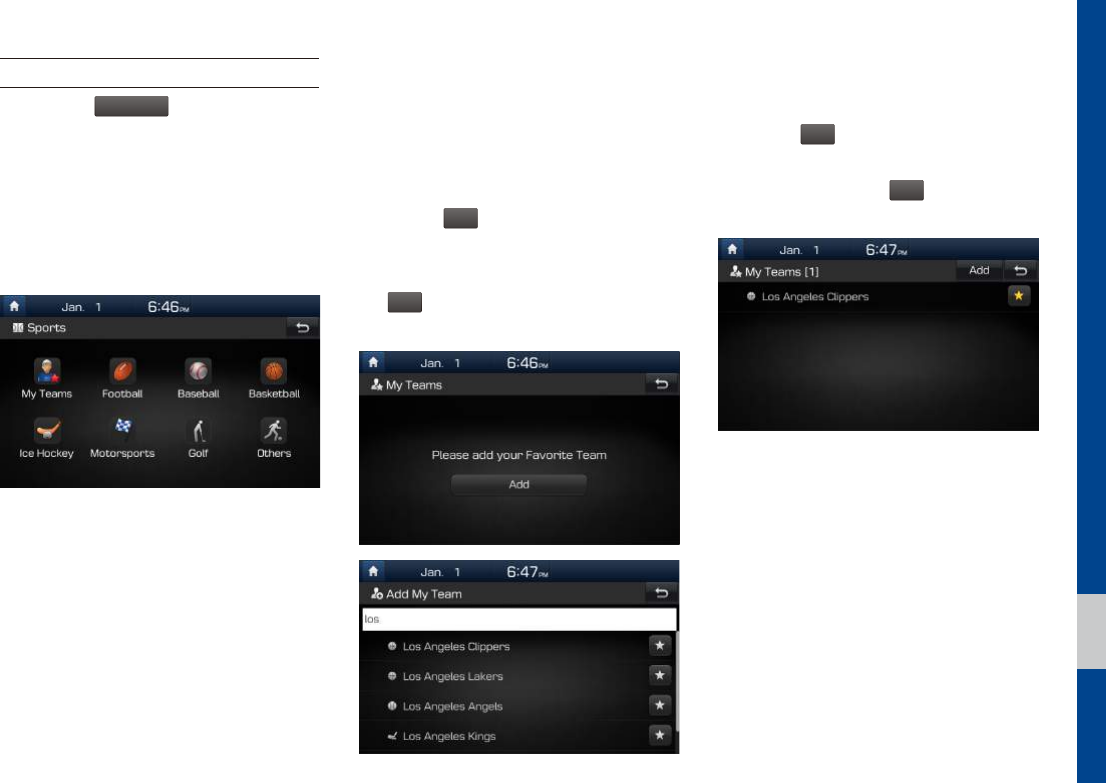

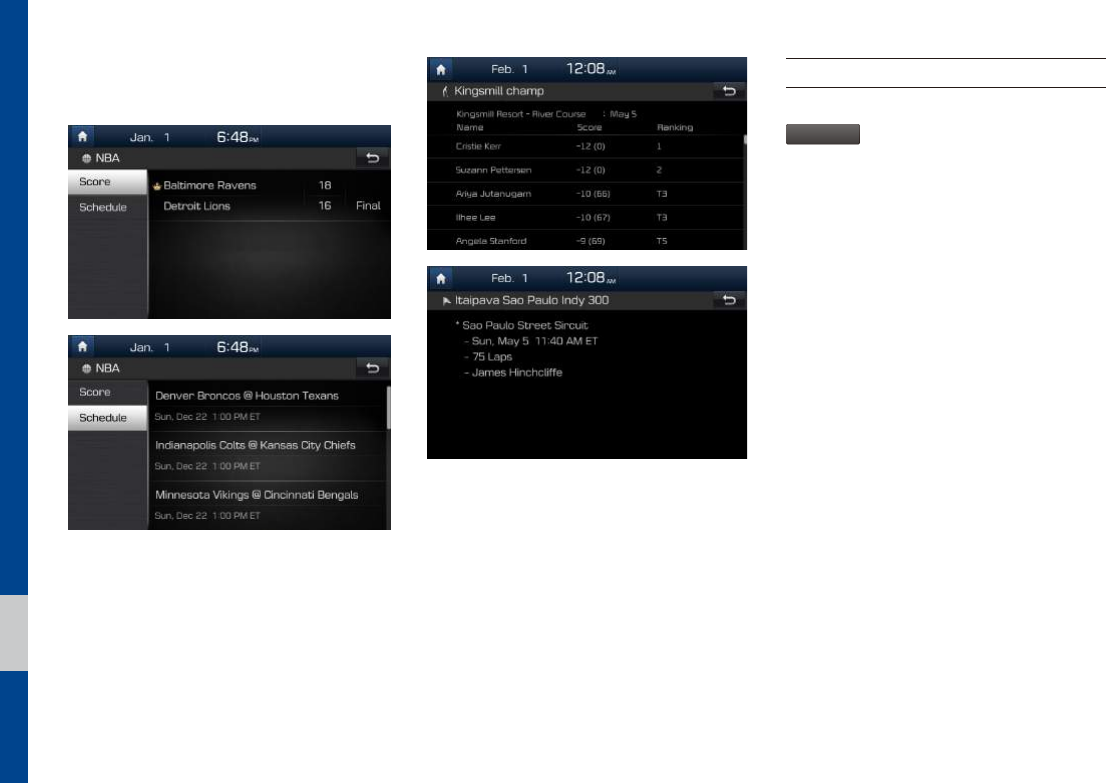

SiriusXM™ Sports Information …6-7

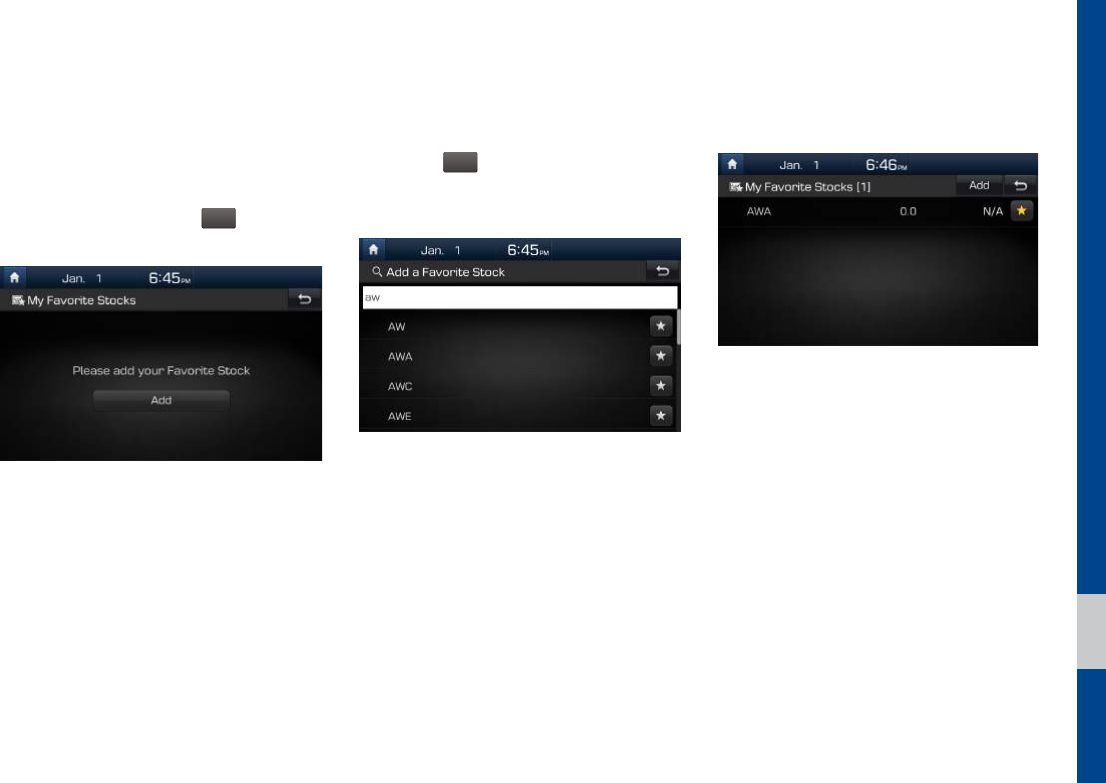

SiriusXM™ Stock Information …… 6-8

SiriusXM™ Fuel Price

Information ………………………… 6-10

SiriusXM™ Movie Information … … 6-11

SoundHound .......................................... 6-13

Accessing SoundHound ………… 6-13

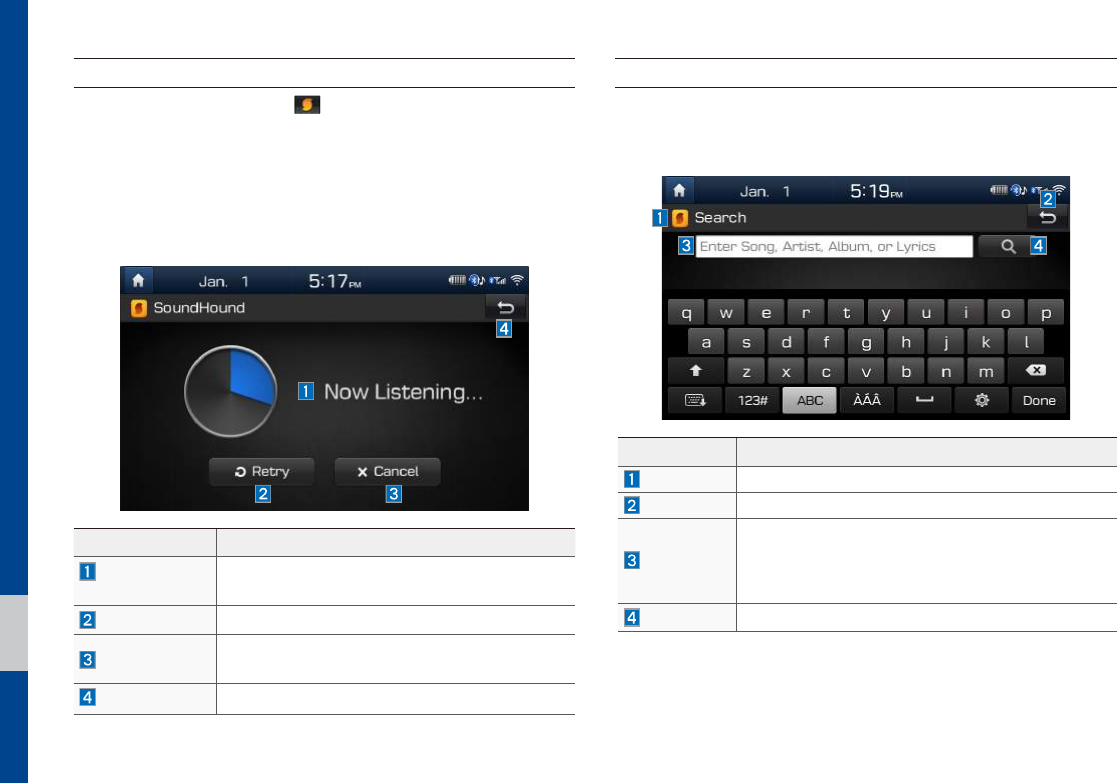

SoundHound Main Screen ……… 6-13

Recognizing Music ……………… 6-14

Searching Music ………………… 6-14

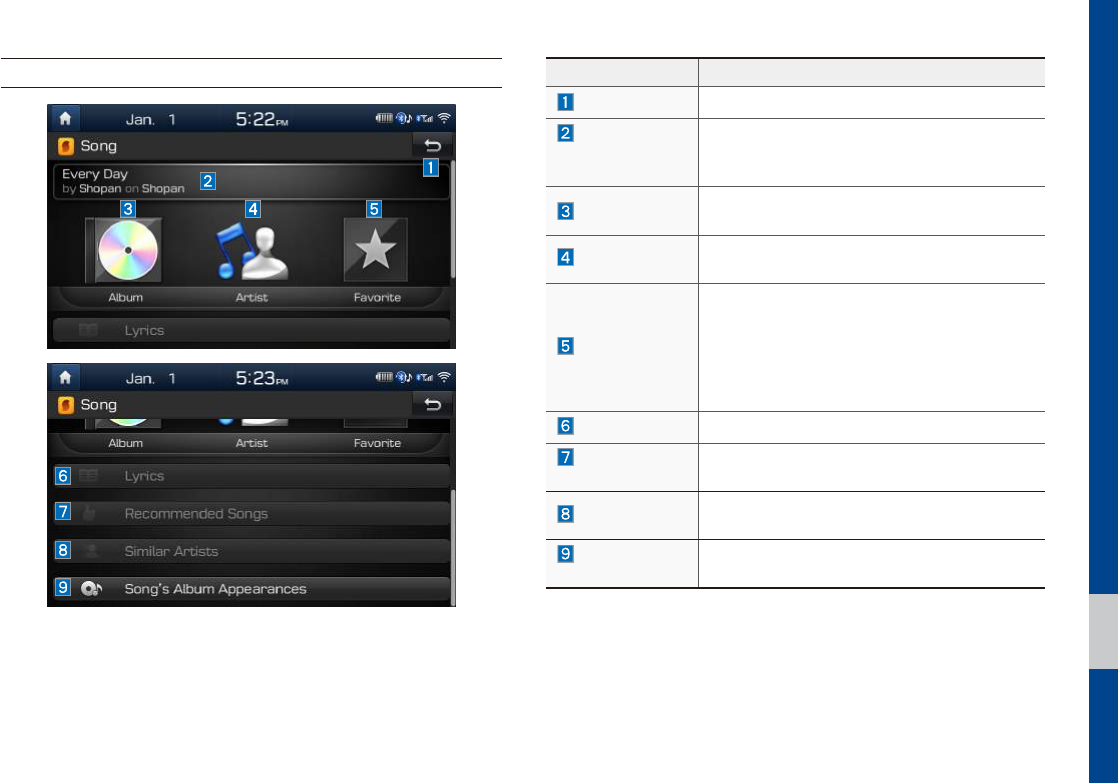

Song Main Screen ………………… 6-15

7. Other Features

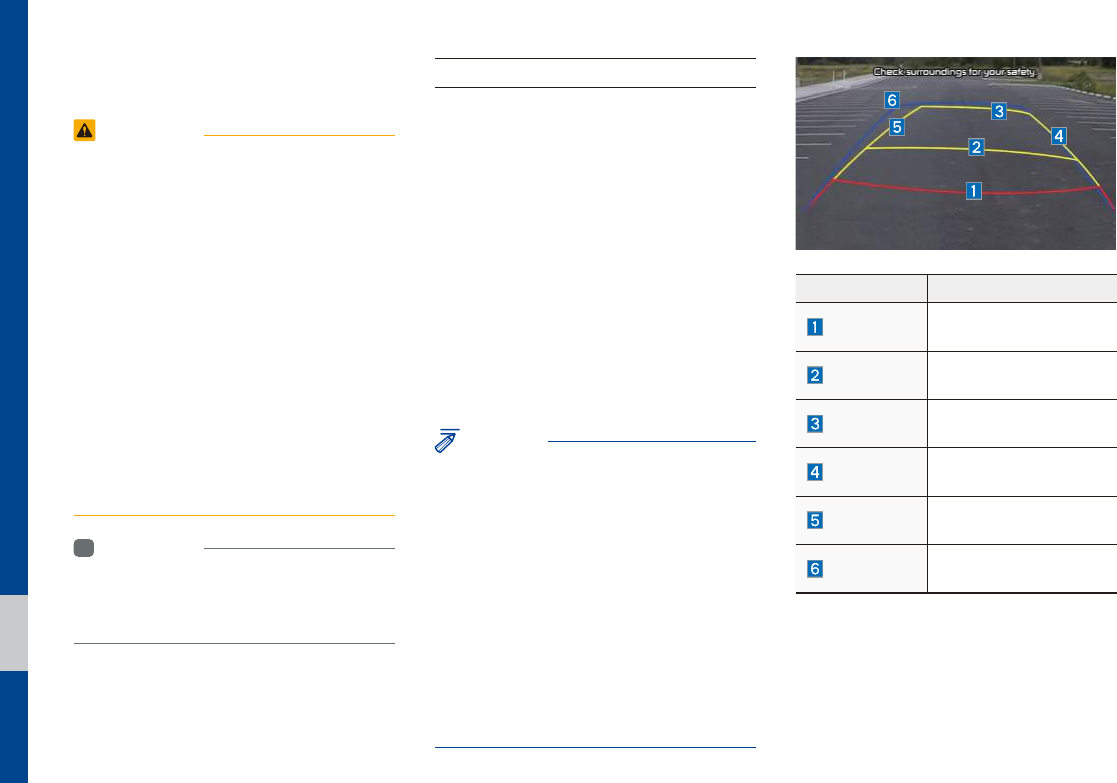

Camera ......................................................7-2

Steering-linked camera …………… 7-2

8. Setup

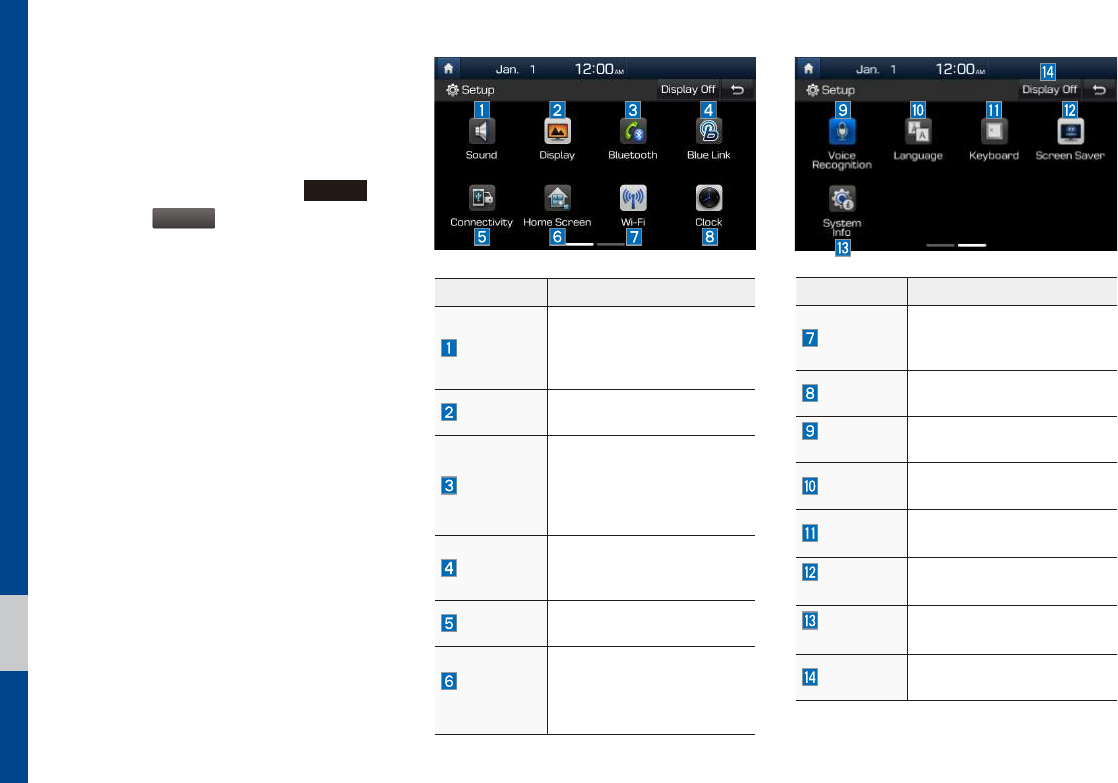

Setup ......................................................... 8-2

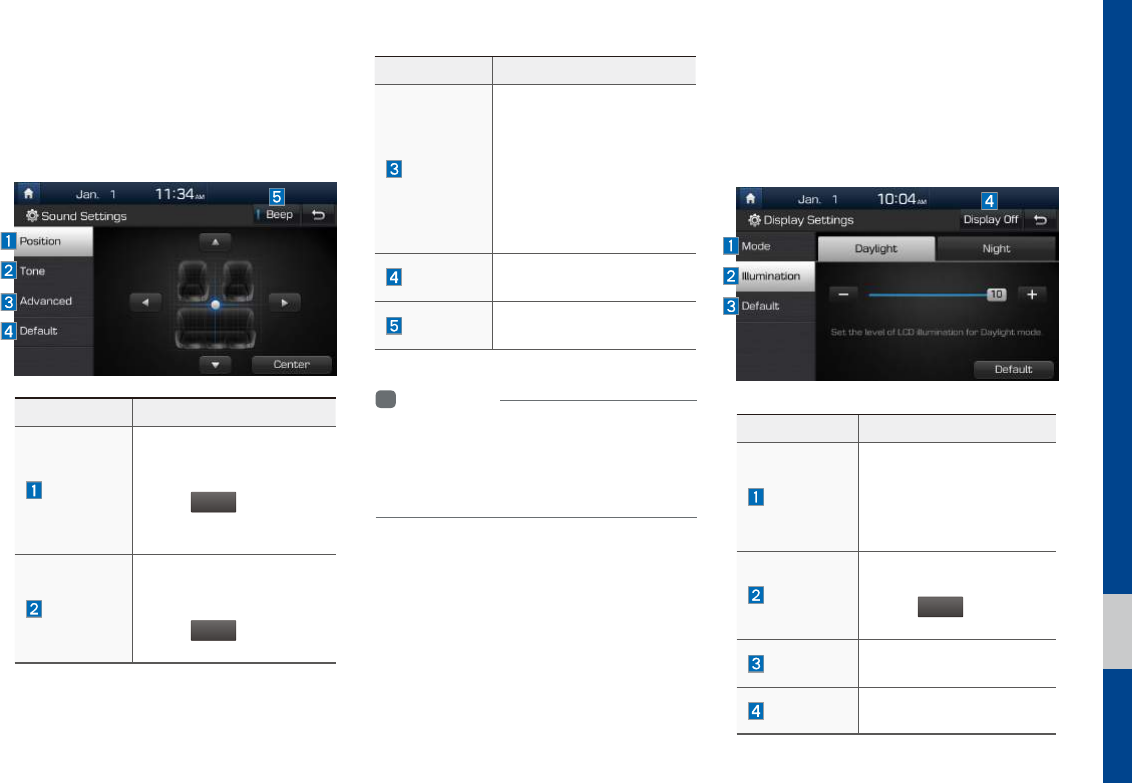

Sound Settings ........................................ 8-3

Display Settings ......................................8-3

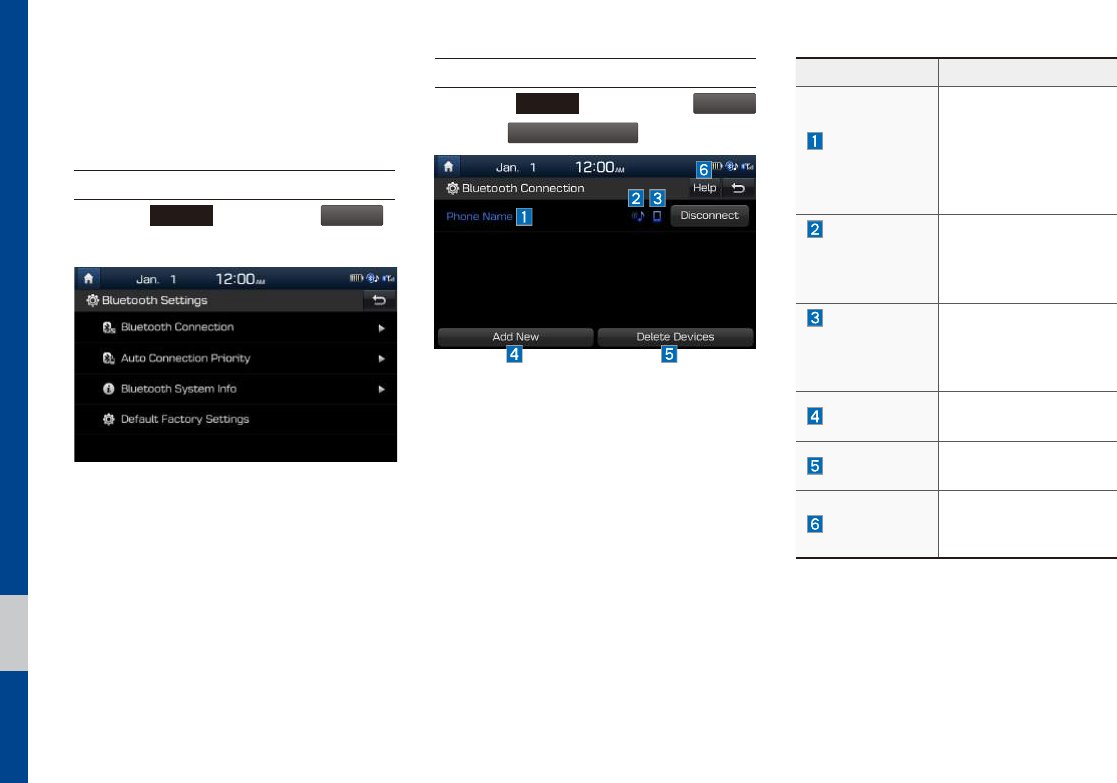

Bluetooth Settings .................................8-4

Bluetooth Settings ………………… 8-4

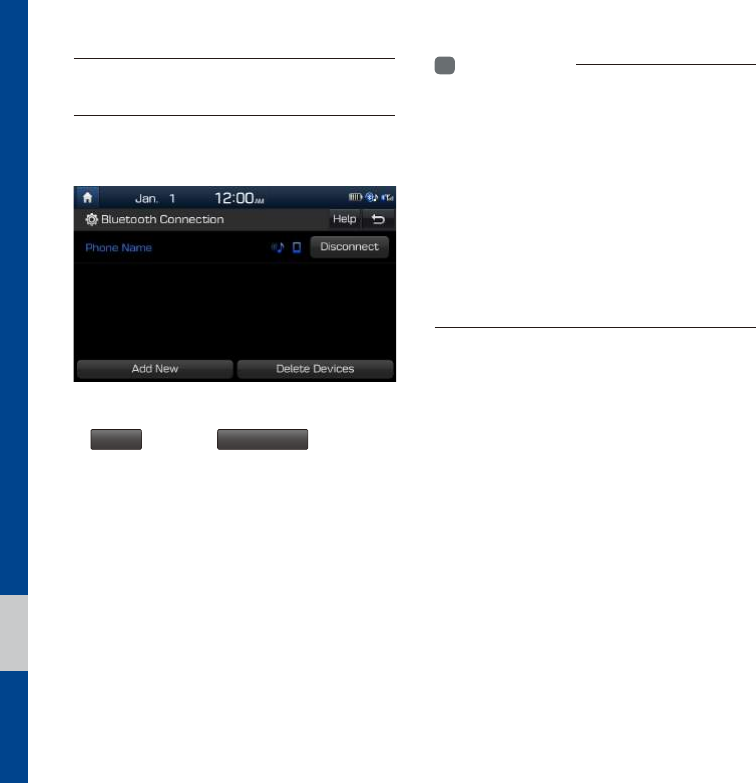

Bluetooth Connection Settings …8-4

Auto Connection Priority ………… 8-5

Bluetooth System Information …… 8-5

Default Factory Settings ………… 8-6

Blue Link Settings

(For Blue Link Model) ...........................8-6

Service Activation ………………… 8-6

Modem Information ……………… 8-7

Home Screen Settings ........................... 8-7

6 I Table of Contents

Wi-Fi Settings .........................................8-7

How to Connect to a Network …… 8-8

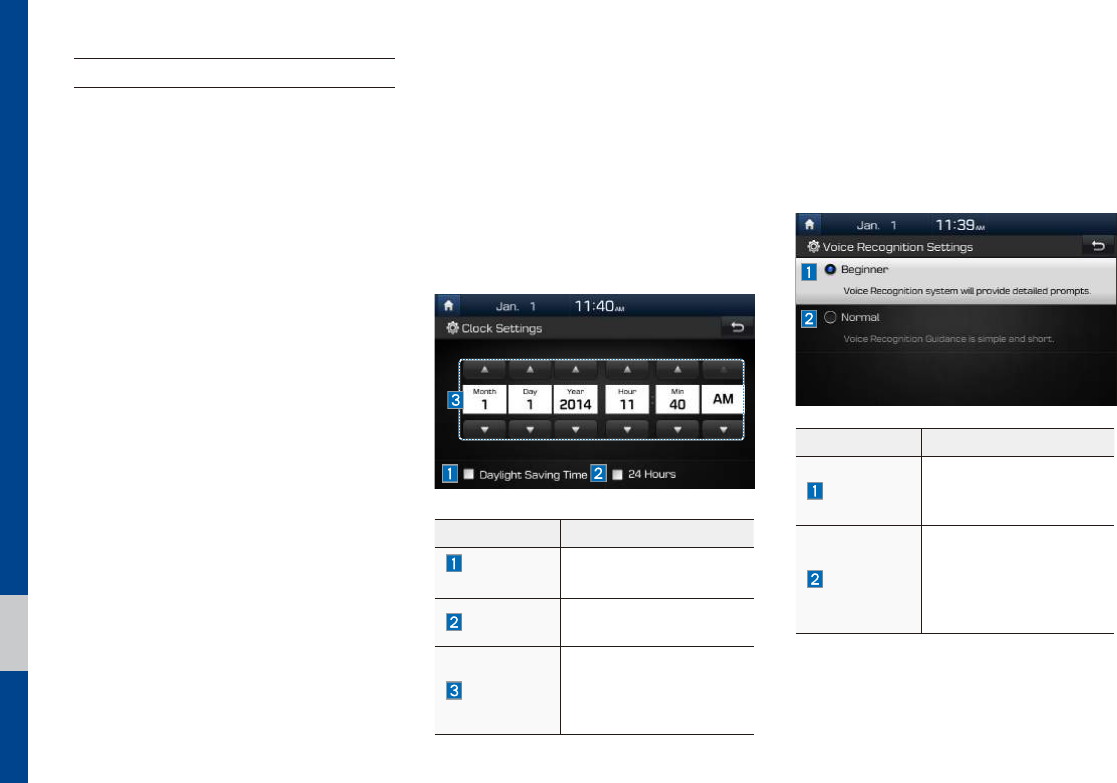

Clock Settings .........................................8-8

Voice Recognition Settings ..................8-8

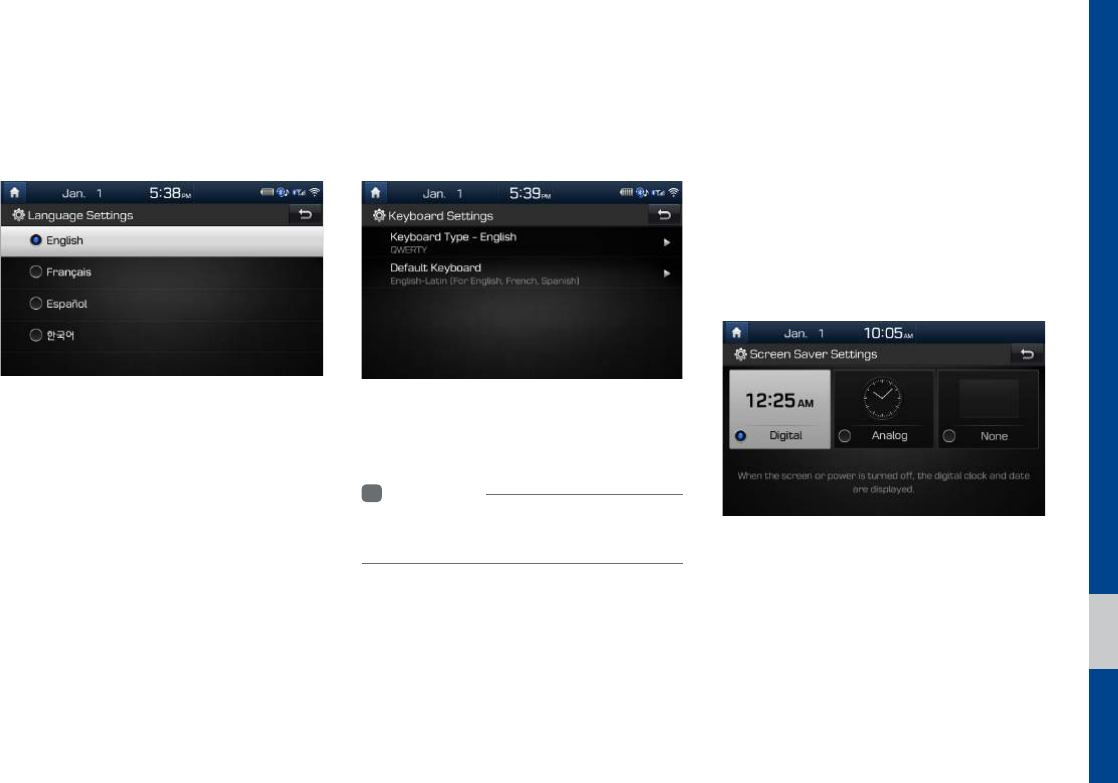

Language Settings .................................8-9

Keyboard Settings ..................................8-9

Screen Saver Settings ...........................8-9

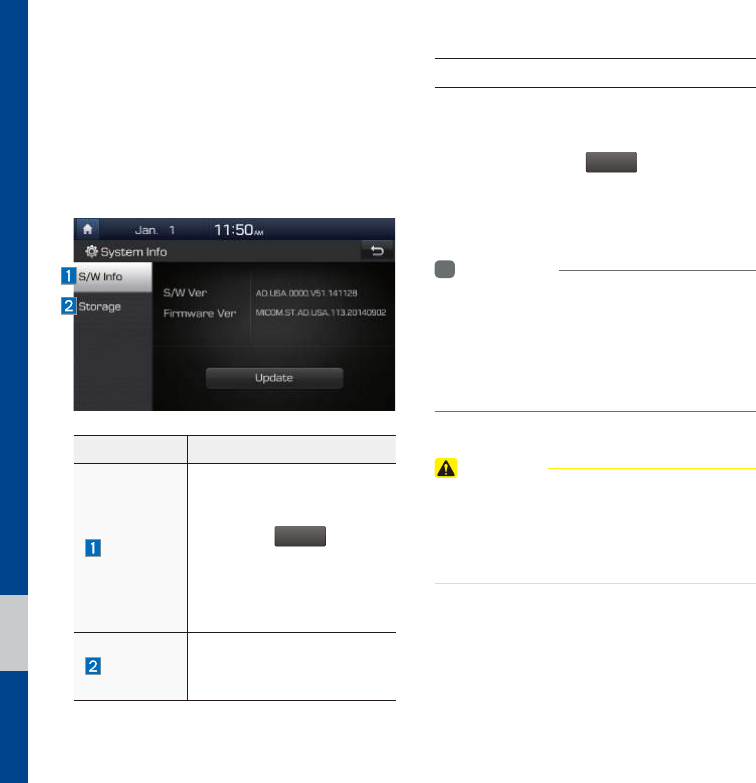

System Info ............................................8-10

System Update …………………… 8-10

9. Appendix

Product Specification ............................9-2

Troubleshooting ......................................9-4

FAQ ...........................................................9-7

About Pairing Mobile Phones …… 9-7

About Making/Answering Phone

Calls ………………………………… 9-8

About

Bluetooth

® Wireless Technology/

Head Unit Use Environment …… 9-8

iPod®

iPod® is a registered trademark of Apple Inc.

Bluetooth®

Wireless Technology

The

Bluetooth

® word mark and logos are registered trademarks owned

by Bluetooth SIG, Inc. and any use of such marks by HYUNDAI is under

license. Other trademarks and trade names are those of their respective

owners.

Bluetooth

Wireless Technology enabled cell phone is required to use

Bluetooth

Wireless Technology.

Bluetooth

Wireless Technology phone

compatibility can be checked by visiting https://www.hyundaiusa.com/

bluetooth.

HD Radio™ Technology

HD Radio™ Technology manufactured under license from iBiquity Digital

Corporation. U.S. and Foreign Patents.

HD Radio™ and the HD, HD Radio, and "Arc" logos are proprietary

trademarks of iBiquity Digital Corp.

Pandora®

Pandora, the Pandora logo, and the Pandora trade dress are trademarks

or registered trademarks of Pandora Media, Inc. Used with permission.

Pandora is only available in certain countries. Please visit http://www.

pandora.com/legal for more information.

Wi-Fi®

The Wi-Fi CERTIFIED™ Logo is a certiﬁcation mark of Wi-Fi Alliance.

Warnings and Cautions

Key Product Features

Component Names and Functions

Starting the System for the First Time

part.1 Basic

1-2 I Basic

Safety Warnings

•Do not stare at the screen while driv-

ing. Staring at the screen for prolonged

periods of time could lead to traffic acci-

dents.

•Do not disassemble, assemble, or mod-

ify the Multimedia system. Such acts

could result in accidents, fire, or electric

shock.

•Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

•If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibil-

ity of an accident may increase. Please

use phone related functions only when

parked.

•Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

•Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

•Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

•For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

•Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

Basic

Warnings and Cautions I 1-3

Safety Cautions

Pay attention to traffic conditions while

driving.

•Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

•Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

•Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

•If you want to change the position of

device installation, please inquire with

your place of purchase or service main-

tenance center. Technical expertise is

required to install or disassemble the

device.

•Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

•Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

•Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

•When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

•Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

1-4 I Basic

Display

Wide TFT-LCD Display

•Provides high quality video through a Wide TFT-

LCD Display using an LED Back Light.

•Touch screen for maximum user convenience.

Radio

Digital Tuner Feature

•Digital Tuner using PLL method that supports

memory of 40 broadcast stations.

Radio broadcast station name

•Displays broadcast station names.

HD Radio™/Satellite Radio feature

•Supports HD Radio™ reception and Satellite

Radio (SiriusXM™).

Multimedia

Player

Support for various Media Formats

•Support for various media formats, including

Radio, USB, iPod, AUX and Bluetooth

Audio

Streaming modes

My Music

•Supports copying of music stored within USB

devices into My Music (internal memory) mode

Key Product Features

This device is a Multimedia system equipped with a multifunctional

player that supports Radio (FM, AM), HD Radio™ technology,

SiriusXM™, USB, iPod, AUX, Bluetooth Audio and My Music fea-

tures. The WIDE VGA LCD provides a high quality resolution while

the powerful and rich sound system adds to the driving enjoyment.

Miscellaneous

Bluetooth

Wireless Technology

•Convenient use of Bluetooth

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

•Easy control of features through touch screen

options

Steering Wheel Control

•Control over audio features, voice recognition

and Bluetooth

through the steering wheel con-

trol for maximum convenience

Component Names and Functions I 1-5

Component Names and Functions

Head Unit

Name Description

POWER/

VOL

•When power is off, press to turn power on.

•When power is on, press and hold (more than

0.8 seconds) to turn the power off.

•When power is on, press quickly (less than 0.8

seconds) to turn Audio off.

•Turn left/right to adjust the volume.

RADIO

Selects FM/AM/SiriusXM™ mode

•Each time this is pressed, the mode is changed in

the following order: FM → AM → SiriusXM™ →

FM.

MEDIA

Selects MEDIA mode.

PHONE

Displays the Bluetooth phone mode.

Name Description

SEEK

TRACK

When pressed quickly (less than 0.8 seconds),

•FM/AM mode: Plays the previous/next fre-

quency.

•SiriusXM™ mode: Changes the channel.

•MEDIA (USB/iPod/My Music) mode: Changes

the track, file or title (except for USB Image and

AUX).

When pressed and held down (more than 0.8

seconds),

•FM/AM mode: Continuously changes the fre-

quency until the key is released.

•MEDIA (USB/iPod/My Music) mode: Rewinds

or fast forwards the track or file (except for

USB Image, Bluetooth Audio, and AUX).

1-6 I Basic

Name Description

APPS/

Moves to the Apps/Info screen.

Moves to the Blue Link screen.

SETUP

Moves to the Setup screen.

TUNE

•FM/AM mode: Changes the frequency.

•SiriusXM™ mode: Changes the channel.

•MEDIA (USB/iPod/My Music) mode: Changes the

track, file or title (except USB Image, Bluetooth

Audio, and AUX).

Name Description

RESET

Resets the system settings. (Preset radio channels

and other data will not be deleted)

DISP

Turns the screen on/off.

※ The actual feature in the vehicle may differ from the illustration.

Component Names and Functions I 1-7

Head Unit (For GUAM Model)

Name Description

POWER/

VOL

•When power is off, press to turn power on.

•When power is on, press and hold (more than

0.8 seconds) to turn the power off.

•When power is on, press quickly (less than 0.8

seconds) to turn Audio off.

•Turn left/right to adjust the volume.

RADIO

Selects FM/AM/SiriusXM™ mode

•Each time this is pressed, the mode is changed

in the following order: FM → AM → SiriusXM™ →

FM.

Degradation of the satellite signal may occur

depending on the SiriusXM satellite coverage

(http://www.siriusxm.com).

MEDIA

Selects MEDIA mode.

PHONE

Displays the Bluetooth phone mode.

Name Description

SEEK

TRACK

When pressed quickly (less than 0.8 seconds),

•FM/AM mode: Plays the previous/next fre-

quency.

•SiriusXM™ mode: Changes the channel.

•MEDIA (USB/iPod/My Music) mode: Changes

the track, file or title (except for USB Image and

AUX).

When pressed and held down (more than 0.8

seconds),

•FM/AM mode: Continuously changes the fre-

quency until the key is released.

•MEDIA (USB/iPod/My Music) mode: Rewinds

or fast forwards the track or file (except for

USB Image, Bluetooth Audio, and AUX).

1-8 I Basic

Name Description

APPS/

Moves to the Apps/Info screen.

DISP

Turns the screen on/off.

SETUP

Moves to the Setup screen.

TUNE

•FM/AM mode: Changes the frequency.

•SiriusXM™ mode: Changes the channel.

•MEDIA (USB/iPod/My Music) mode: Changes

the track, file or title (except USB Image,

Bluetooth Audio, and AUX).

Name Description

RESET

Resets the system settings. (Preset radio chan-

nels and other data will not be deleted)

※ The actual feature in the vehicle may differ from the illustration.

Component Names and Functions I 1-9

Name Description

When pressed quickly (less than 0.8 seconds),

•Activates voice recognition

When pressed and held (more than 0.8 seconds),

•Ends voice recognition

•If iOS device is connected through Bluetooth,

activates or ends Siri Eyes Free

VOL+

VOL-

Controls the volume

When pressed quickly (less than 0.8 seconds),

•FM/AM mode: searches broadcast frequencies

saved to Presets

•SiriusXM™ mode: searches broadcast channels

saved to Presets

•MEDIA (USB/iPod/My Music) mode: changes the

track, file or title (except USB Image, AUX)

When pressed and held (more than 0.8 seconds),

•FM/AM mode: automatically searches broadcast

frequencies

•SiriusXM™ mode: automatically searches broad-

cast channels

•MEDIA (USB/iPod/My Music) mode: quickly

looks up songs (excluding USB images, AUX and

Bluetooth audio files)

Steering Wheel Controls

1-10 I Basic

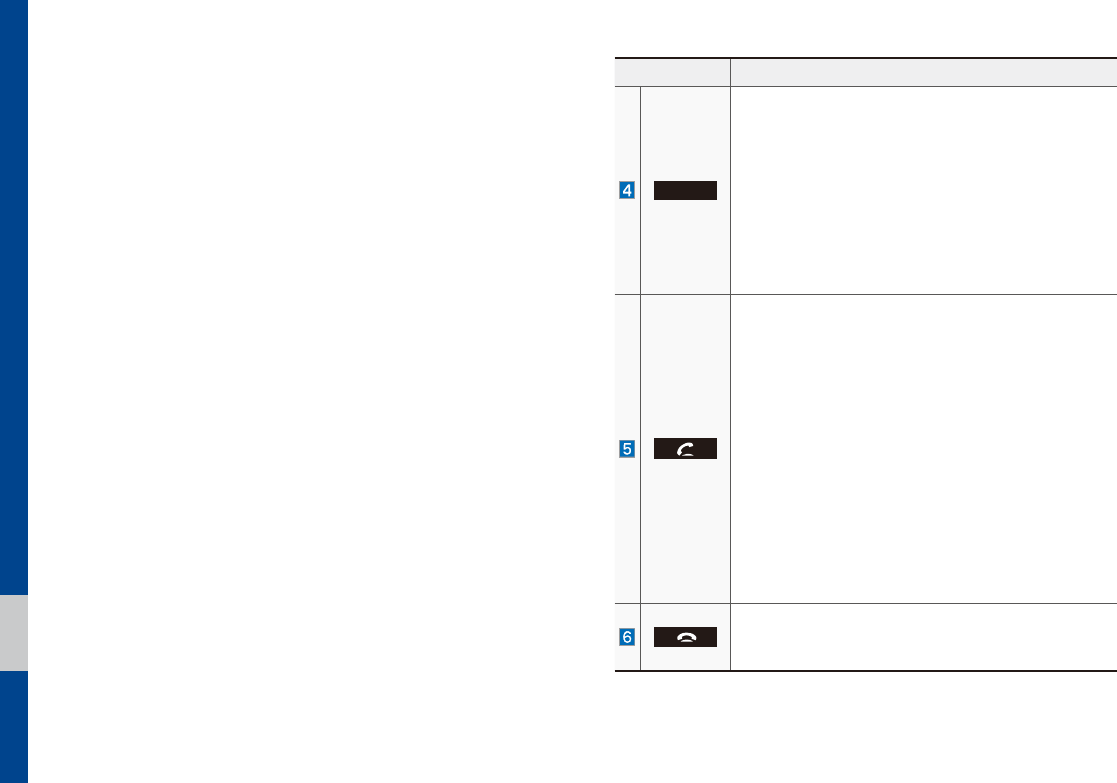

Name Description

MODE

•Each time this is pressed, the mode is changed in

the following order: FM → AM → SiriusXM → USB

or iPod → AUX → Bluetooth Audio → My Music

→ Pandora → FM

•If the media is not connected, the corresponding

modes will be disabled

•Press and hold (more than 0.8 seconds) to turn

the Audio system on/off

•When power is off, press button to turn power

back on

When pressed quickly (less than 0.8 seconds),

•When pressed in the dial screen, makes a call

•When pressed in the incoming call screen,

answers the call

•When pressed during call waiting, switches to

waiting call (Call Waiting)

When pressed and held (more than 0.8 seconds),

•When pressed in Bluetooth

Hands-free, redials

the last dialed call

•When pressed during a Bluetooth

Hands-free

call, switches call back to mobile phone (Private)

•When pressed while calling on the mobile phone,

switches call back to Bluetooth

Hands-free

(operates only when Bluetooth

Hands-free is

connected)

•When pressed during a call, ends the phone call

•When pressed in the incoming call screen, rejects

the call

※ The actual feature in the vehicle may differ from the illustration.

Starting the System for the First Time I 1-11

Starting the System for the

First Time

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

Pressing the power key on the head unit

will display the safety guide. To change the

system language between English,

French, Spanish and Korean, select the

Language

button.

NOTICE

• You cannot operate the system while it is

booting up. It may take some time for all of

features of the system, particularly the voice

recognition system, to be ready for use.

Pressing and holding the power key on the

head unit will turn off the system.

You can change Screen Saver Settings

in Setup to display a clock on the Screen

Saver.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will

automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust

the volume to a reasonable level.

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the RESET key for a sec-

ond or longer. (It is recommended that you

press the RESET key using a tool, such as

a pin or a clip.)

1-12 I Basic

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become

completely discharged.

Restrictions on Features for

Safety Measures

Several features are limited while driving.

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

WARNING

- Blank Screen

• Refrain from use if the screen is blank or

no sound can be heard as these signs may

indicate product malfunction. Continued use in

such conditions could lead to accidents (ﬁres,

electric shock).

WARNING

- Touching the Antenna During A

Thunder Storm

• Do not touch the antenna during thunder or

lightning as such acts may lead to lightning

induced electric shock.

Starting the System for the First Time I 1-13

Features Description

Radio/Media

Widget

•Shows brief information on the radio or

media that is now playing.

•Tap the area to move to the mode that

you are listening to.

Connectivity

Widget

Shows any connected devices such as iPod,

Pandora, and Bluetooth.

All Menus Shows all of the items in the system menu.

My Menu

•You can add up to eight menus here.

•Add your favorite menus to have quick

and easy access to them.

Apps/Info Moves to the Apps/Info screen.

Setup Moves to the Setup screen.

Home Screen

Controls Menu Conﬁguration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

The icons in the following table indicate the various types of sys-

tem status details and events.

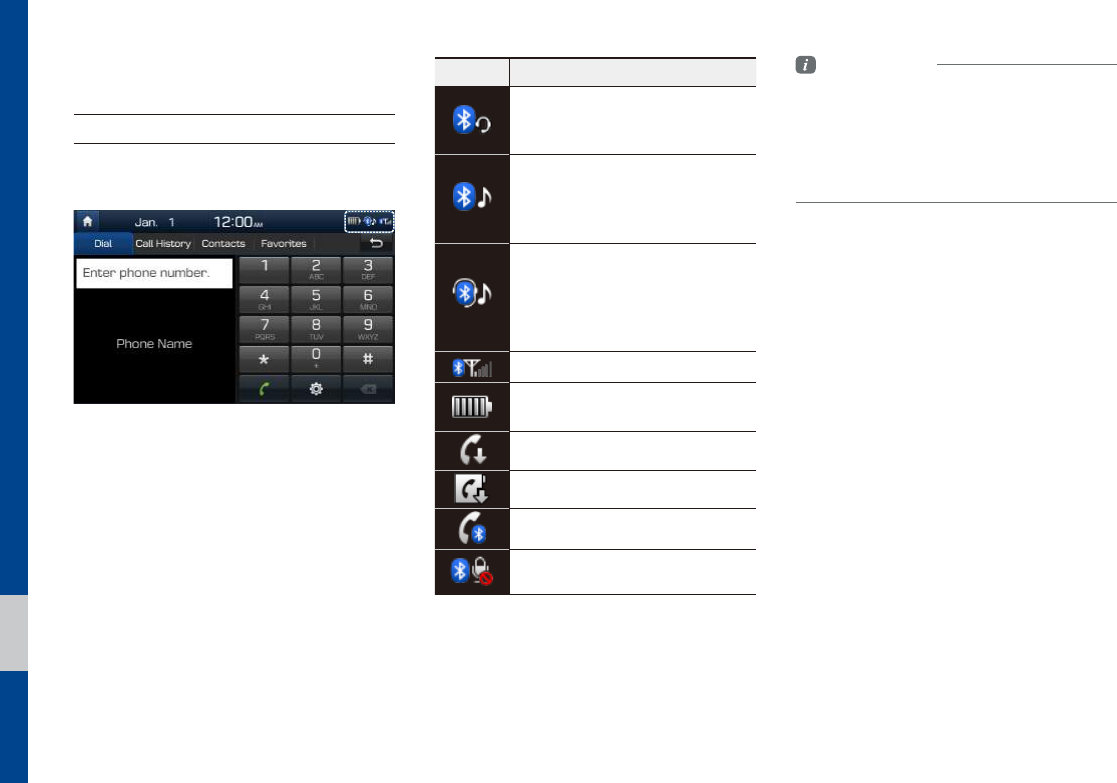

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth or Blue Link phone is muted.

Displays the signal strength of the Bluetooth phone.

Displays the signal strength of the Blue Link.

Displayed when using 2G/3G/LTE data.

Displayed when connected to Wi-Fi.

Displayed when connecting to Wi-Fi.

Information

• Received signal strength indicator of Blue Link and 2G/3G/LTE information

are displayed only in the devices that support the telematics system.

1-14 I Basic

Adding Your Favorite Menu Items to My

From the Home screen, select

My Menu

icon, and then

Edit

From the Edit My Menu screen, select

menu items from the list on the right, then

drag and drop them to a desired place on

the left.

To remove the item from My Menu, drag

item from the left and drop them on the

right.

Information

• Up to eight items can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive

material. Touch the screen using your ﬁnger,

an electrostatic touch-screen glove, or a stylus

pen.

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

Starting the System for the First Time I 1-15

Drag the frequency bar to the left or right

to move to the frequency that you want.

From the Edit My Menu screen, drag and

drop icons to add, delete, or move to/from

My Menu.

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display.

You can easily move many items at a time

with the handler

You can view the previous or next image

by flicking left/right on an image on the

USB Image screen.

Flick left/right on the frequency bar in the

radio player to look up the previous/next

frequency available.

1-16 I Basic

Press and Hold

Pressing the and buttons

in the music player will fast forward/rewind

the music.

FM/AM

HD Radio™ Technology (Except GUAM Model)

SiriusXM™

USB

iPod

AUX

Bluetooth® Audio

My Music

part.2 Radio/Media

2-2 I Radio/Media

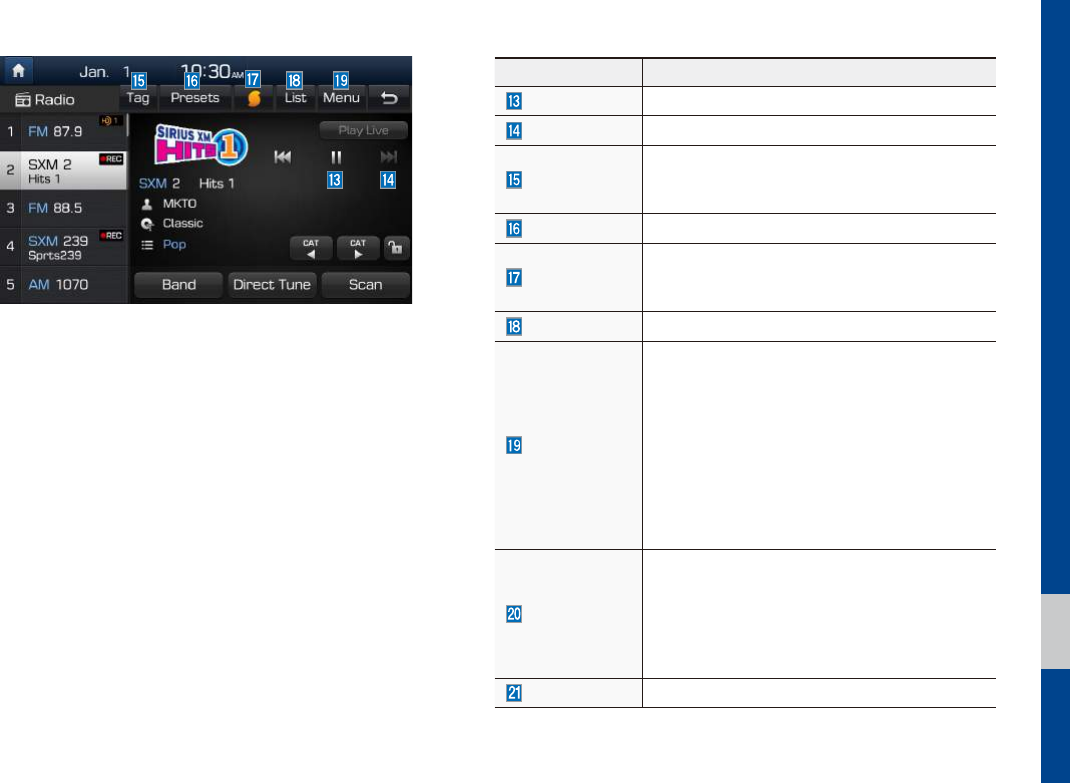

Features Description

Preset

Frequencies

•The stored preset frequencies are displayed for

user selection.

•After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the frequency

is to be stored in the selected preset button.

•Flick the preset frequencies up/down to scroll

quickly through presets.

Frequency Bar

•Flick the frequency bar left/right to search for

available radio channels to the left or right of

the current channel.

•Dragging: Drag the frequency bar to the left/

right to find the radio channel that you want.

Frequency Displays the current frequency.

Ta g

Saves the current music’s tag information to the

head unit. If connected to iPod, the tag informa-

tion can be saved on the device.

Presets Shows the stored presets for user selection.

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to the

SoundHound information in the Info section.

•List

Moves to the frequency list.

•Info

Turns the Radio text information transmitted

from the broadcasting station on and off.

•Preset Scan

Plays preset frequencies for 10 seconds per

item.

•Sound Settings

Moves to the Sound Settings.

Radio/Media

FM/AM

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu from All Menus on the Home

screen.

FM/AM Mode Display Controls

Information

• If you press the

RADIO

key when power is off, the power will turn on

and a radio broadcast will be tuned from the current mode.

• If you are in radio mode, select the media widget from the Home screen

to access the radio player.

FM/AM I 2-3

Features Description

Scan/Preset

Scan

Displays an active mode from Scan and Preset

Scan modes.

Band

Changes to the desired band from among FM, AM,

and SiriusXM.

HD Radio

(Except

GUAM Model)

Used to set whether to turn HD Radio™ recep-

tion On or Off.

S c a n

Shortly plays the broadcasts for the frequen-

cies with superior reception for 5 seconds per

item.

SEEK/TRACK

•When pressed quickly (less than 0.8 sec-

onds): Seeks the previous/next frequency.

•When pressed and held (more than 0.8 sec-

onds): Moves quickly through all of the fre-

quencies. The moment that you release the

button, the system seeks the next available

frequency.

TUNE

Turn the

TUNE

knob to manually seek avail-

able frequencies.

•FM: Increment/decrement by 200 kHz

•AM: Increment/decrement by 10 kHz

AM: Increment/decrement by 9 kHz

(For GUAM Model)

2-4 I Radio/Media

If an HD Radio™ broadcast is received,

the radio mode will switch from analog

broadcast to HD Radio™ broadcast.

Information

• The

HD Radio™

screen is displayed only

when a HD Radio™ broadcast is being

received

Program Service Data:

Contributes to the superior user experience of HD

Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3

Channel Guide, and other relevant data streams.

Adjacent traditional main stations are extra local FM

channels. These HD2/HD3 Channels provide new, origi-

nal music as well as deep cuts into traditional genre.

Digital, CD-quality sound. HD Radio™ Technology

enables local radio stations to broadcast a clean digital

signal. AM sounds like today’s FM and FM sounds like a CD.

HD Radio™ Technology

(Except GUAM Model)

HD Radio™ Technology I 2-5

HD Radio™ Mode Display Controls

Name Description

HD Radio™

Reception &

Channel buttons

Displays main HD Radio™ channels and

used to directly select the current available

channels.

The HD Radio™ related icon display

becomes active within regions where an

HD Radio™ signal can be received.

HD Channel

Number

Analog station and corresponding HD Radio

channel number saved in the preset list.

HD Broadcast

Info

Displays detailed information about the cur-

rent broadcast (the details of the information

shown are different depending on whether

the Info button is selected)

HD Radio

When the HD Radio soft button is ON (the

blue indicator on the HD Radio button is illu-

minated), HD Radio signals will be received.

2-6 I Radio/Media

Features Description

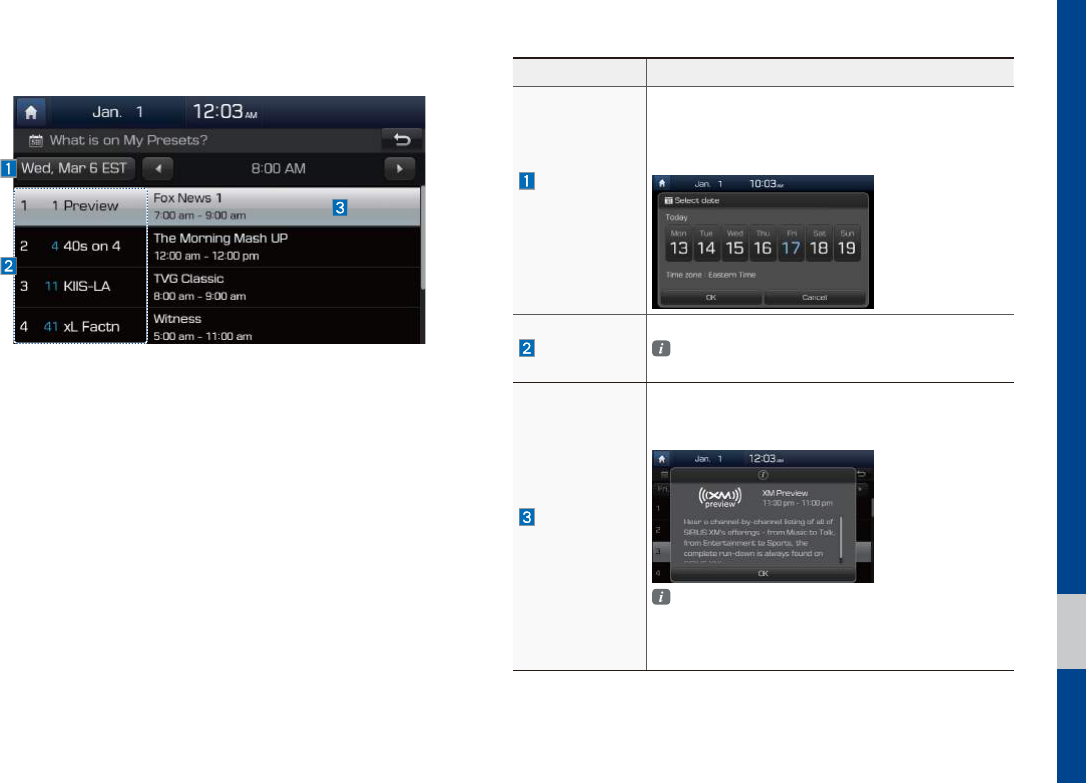

Preset

Frequencies

•Shows the stored presets for user selection.

•After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the fre-

quency is to be stored in the selected preset

button.

Channel Logo Displays the current channel logo.

Channel Info Displays the current channel number and name.

Content Info Displays the artist, title and other information

about the current playing song.

Category Info Displays the category of the currently playing

song.

Band Changes to the desired band from among FM,

AM, and SiriusXM.

Direct Tune Used to search for the desired channel by

entering the channel number.

Scan Plays all receivable channels for 10 seconds

per item.

Category Lock If pressed, only the channels for the current cat-

egory can be searched or scanned.

category

Back Button Move to home/previous mode screen

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to the

SoundHound information in the Info section.

Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the sound.

Features Description

Mode Displays the current operating mode

Song Index Shows the current song/total songs

Repeat/Shuffle From Repeat/Shuffle, displays the current

operating function

Play Time Displays the current play time/total play time

Song Info Displays the artist/song title/album info

List Moves to the list screen

2-24 I Radio/Media

Features Description

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is more than 3 seconds, plays

the current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track

TUNE

Turn the TUNE knob to search a desired

track. If the desired track is displayed, press

the TUNE knob to play the track.

If the TUNE knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

iPod I 2-25

Features Description

Category Name Displays the category name

Category List

Displays the contents of selected category

If there are many items in the list, items are

added in order and the scroll bar on the

right is adjusted accordingly.

Back Button Converts to basic mode screen

Upper Folder Moves to Upper Folder

Search Menu

Search tracks by the list type. Search songs

according to Playlist, Artist, Song, Album,

Genre, Composer, Podcast and Audiobook .

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is more than 3 seconds, plays

the current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track.

TUNE

Turn the TUNE knob to search a desired

track. If the desired track is displayed, press

the TUNE knob to play the track.

If you do not anything with the knob for

5 seconds, the TUNE knob search will be

terminated.

2-26 I Radio/Media

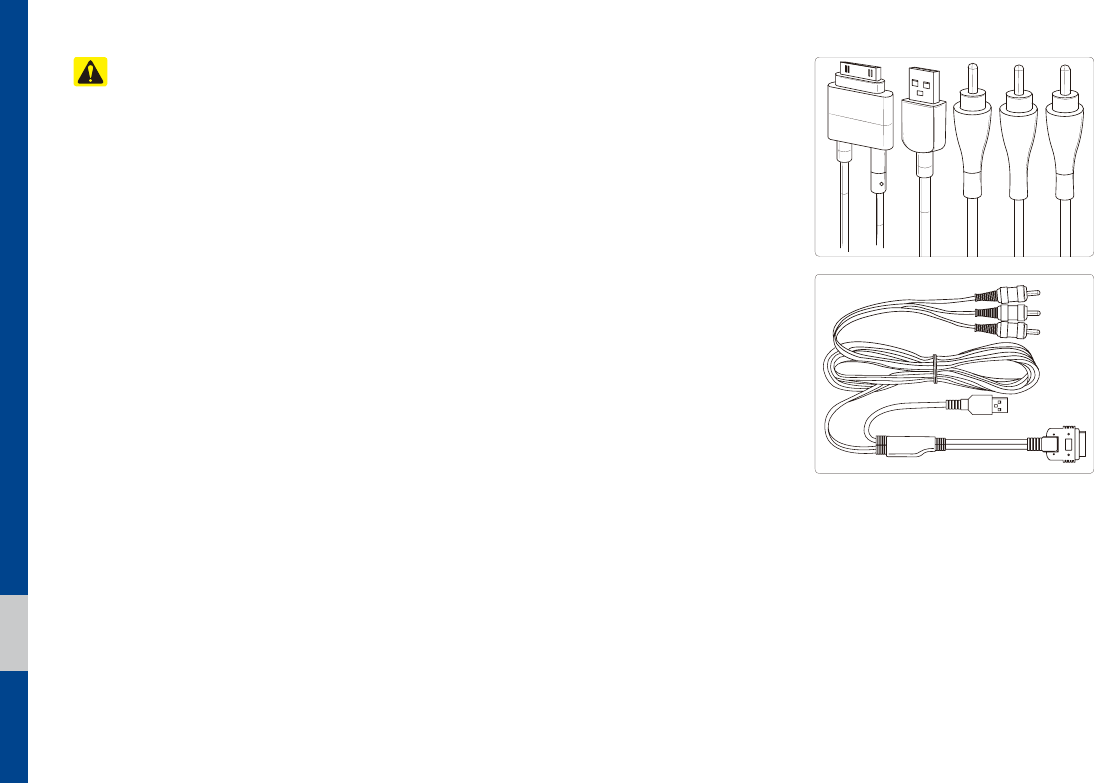

AUX

Connecting an External Device

If an external device connector is con-

nected with the AUX terminal, then AUX

mode will automatically operate. Once the

connector is disconnected, the previous

mode will be restored.

•AUX mode can be used only when an

external audio player has been con-

nected.

•The AUX volume can also be controlled

separately through the connected

device.

NOTICE

•If only a cable is connected to the AUX

without an external device, the mode will

be changed to AUX, but noise may occur.

When an external device is not being

used, remove the connector jack.

•When the external device power is

connected to the power jack, playing the

external device may output noise. In such

cases, disconnect the power connection

before use.

※ The actual feature in the vehicle may

differ from the illustration.

Bluetooth® Audio I 2-27

Bluetooth

Audio

Bluetooth Audio Mode Display Controls

Features Description

Mode Displays the current operating mode

Phone Name Displays name of connected phone

Artist Info Name of current artist

Title Name of current song

Features Description

File

•If play time is less than 3 seconds, moves to

the previous file

•If play time is more than 3 seconds, plays the

current file from the beginning

This function may differ depending on the

model of mobile phone

Play/Pause Plays/Pauses Bluetooth Audio

Next File Moves to the next file

Repeat

Repeats the current file.

This function may differ depending on the

model of mobile phone.

Shuffle

Plays files in random order.

This function may differ depending on the

model of mobile phone.

•Connections: Moves to the Bluetooth Settings

screen. You can pair a new device or change/

delete paired device(s).

•Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the

sound.

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to the

SoundHound information in the Info section.

SEEK/TRACK Plays the previous/next file

TUNE

is not supported.

Information

• Artist info and Title may not be supported by mobile phone

2-28 I Radio/Media

Bluetooth Connections

Settings

Settings for pairing, connection and dis-

connection of a Bluetooth device

•In Bluetooth Audio play screen, select

and then

Connections

Information

•If the music in the mobile phone is not

played after changing to audio streaming

mode, press the play button. Thus check if

the music is playing in the Bluetooth device

after changing to audio streaming mode.

Audio streaming may not be supported for

some mobile phones.

• Please check the Bluetooth compatibility in

below website: HYUNDAI Motor America

https://www.hyundaiusa.com/bluetooth

My Music I 2-29

My Music

Features Description

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current

file from the beginning (Depends on the play

time)

•If play time is less than 3 seconds, moves to

previous file

•If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

rewinds the track

Play/Pause Plays/pauses the current file

Next File

•If button is pressed (less than 0.8 seconds):

Moves to the next file

•If button is pressed (more than 0.8 seconds)

it will fast-forward the file

Repeat

Repeats the current file

•If select the song in the file tab on the list

screen: Select the

Repeat

button to switch

between repeating one song and turn-

ing repeat off.

•If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen:

Select the

Repeat

button to switch between

repeating one song and turning repeat

off

Features Description

Mode Displays the current operating mode

File Index Shows the current file/total files

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the cur-

rent operating function

Play Time Displays the current play time/total play time

Song Info

Displays the information about the current

track

•When a track in the file tab on the list screen

is selected: Displays file, artist, title, album

info

•When a track in the other tab on the list

screen is selected: Displays artist, title,

album info

List Moves to the list screen

2-30 I Radio/Media

Features Description

Scan

Scans the beginning parts of files (approx. 10

seconds per file)

•If select the song in the file tab on the list

screen: Select the

Scan

button to switch

between scan and turning scan off

•If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Scan

button to switch between scan

and turning scan off

•Add to Playlist: Adds the current song to the Playlist

Playlist is placed on the left tab in the list

•Delete Current File: Deletes the current track

from My Music.

•Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the

sound.

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to the

SoundHound information in the Info section.

SEEK/

TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is more than 3 seconds, plays the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired track.

If the desired track is displayed, press the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within 5

seconds of searching tracks, the track info

for the current track is restored.

Features Description

Shuffle

Plays files in random order

•If select the song in the file tab on the list

screen: Select the

Shuffle

button to switch

between shuffle and turning shuffle off

•If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Shuffle

button to switch between shuffle

and turning shuffle off

My Music I 2-31

Features Description

•Add to Playlist: Adds the current track to the

Playlist: Playlist is placed on the left tab in the

list (Maximum 100 files) Select a track and

press “Add to Playlist” to add the track in the

playlist

•Delete from Playlist: Select a track from the

playlist and press “Delete from Playlist” to

delete the track in the playlist

•Delete Files: Deletes files from My Music

If delete file from My Music, the information

related to song also deleted in the list.

•Now Playing: When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when

the current list includes the current file

Search Menu

Search tracks by the list type. Search songs accord-

ing to File, Playlist, Artist, Song and Album.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is more than 3 seconds, plays the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to move the focus to pre-

vious/next file. If the file you want to play is dis-

played, press

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within 5

seconds of searching tracks, Tune search will

be terminated.

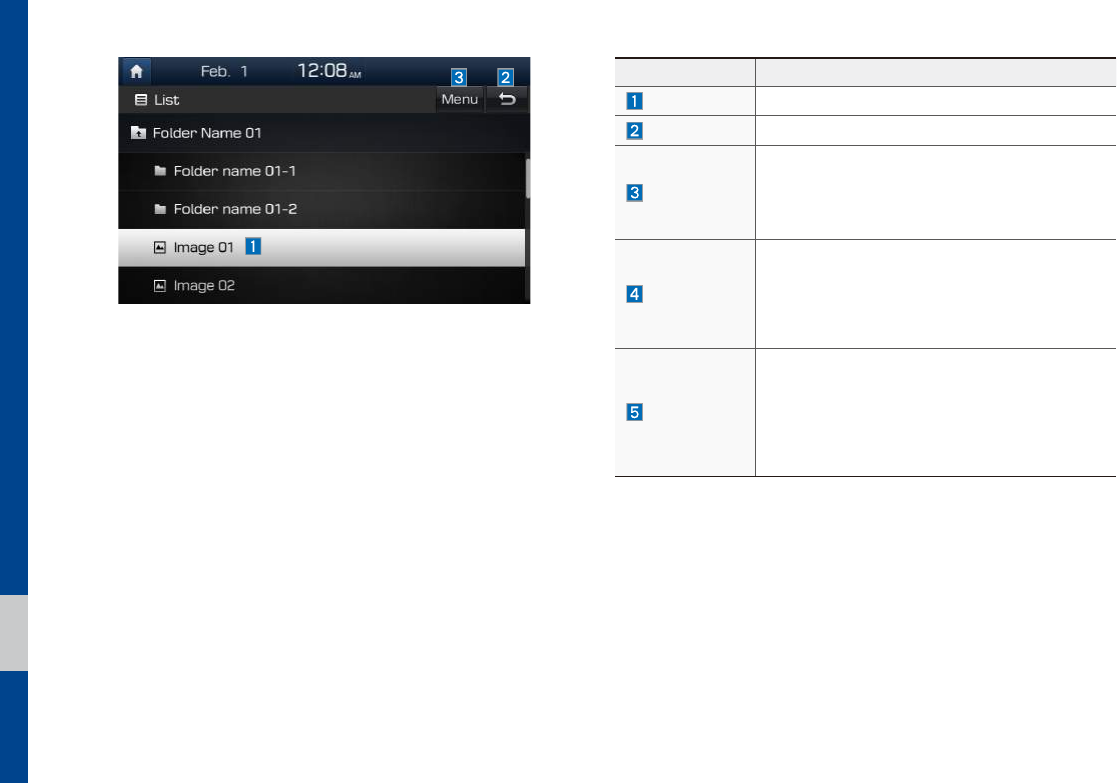

Features Description

Folder/

Category Name

Displays folder/category name in the list

Current Song Displays the current playing file name

Back Button Converts to basic mode screen

Upper Folder Moves to Root Folder

MEMO

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

part.3 Bluetooth

3-2 I Bluetooth

Before Using the Bluetooth

Handsfree

What is

Bluetooth

Wireless Technology?

•

Bluetooth

® Wireless Technology refers

to a short-distance wireless network-

ing technology which uses a 2.45GHz

frequency to connect various devices

within a certain distance.

•Supported within PCs, external devices,

Bluetooth® phones, PDAs, various elec-

tronic devices, and automotive environ-

ments,

Bluetooth®

Wireless Technology

to be transmitted at high speeds without

having to use a connector cable.

•Bluetooth® Handsfree refers to a device

which allows the user to conveniently

make phone calls with Bluetooth®

mobile phones through the Multimedia

system.

•The Bluetooth® Handsfree feature may

not be supported in some mobile phones.

For more information on mobile phone

compatibility, visit the HYUNDAI website

- HYUNDAI Motor America: https://www.

hyundaiusa.com/bluetooth

WARNING

- Distracted Driving

• Focus on the road while driving. The driver's

primary responsibility is in the safe and

legal operation of the vehicle. Drivers should

not use any hand held devices or other

equipment or vehicle systems that distract the

driver during vehicle operation.

• Do not stare at the multimedia screen for long

periods of time while driving. Staring at the

screen for prolonged periods of time can lead

to trafﬁc accidents and can result in personal

injuries.

Precautions for Safe Driving

•Bluetooth® is a feature that enables driv-

ers to make handsfree calls. Connecting

the head unit with a Bluetooth® phone

allows the user to conveniently make

calls, receive calls, and manage the

phonebook. Before using

Bluetooth®

Wireless Technology, carefully read the

contents of this user’s manual.

•Excessive use or operations while driv-

ing may lead to negligent driving prac-

tices and be the cause of accidents. Do

not operate the device excessively while

driving.

•Viewing the screen for prolonged peri-

ods of time is dangerous and may lead

to accidents. When driving, view the

screen only for short periods of time.

Bluetooth

Before Using the Bluetooth

Handsfree I 3-3

CAUTIONS upon Connecting

Bluetooth® Phone

•Before connecting the head unit with

the mobile phone, check to see that the

mobile phone supports Bluetooth® fea-

tures

•Even if the phone supports

Bluetooth®

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth® power is turned off.

Disable the hidden state or turn on the

Bluetooth® power prior to searching/

connecting with the head unit.

•If Auto Connection is used, the

Bluetooth® phone is automatically con-

nected when the ignition is turned on,

making it unnecessary to have to con-

nect the phone with the head unit every

time.

•If you do not want automatic connection

with your Bluetooth® device, turn the

Bluetooth® feature off of the Bluetooth®

device.

•Park the vehicle when connecting the

head unit with the mobile phone.

•Bluetooth® connection may become

intermittently disconnected in some

mobile phones. Follow these steps to

try again.

1. Turn the Bluetooth® function within

the mobile phone OFF/ON and try

again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile

phone battery, reboot, and then

again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both

of Phone and Head Unit sides and

then try again

•The Handsfree call volume and quality

may differ depending on the mobile

phone.

•Pairing Bluetooth® devices and use of

other Bluetooth® features are not sup-

ported when the vehicle is in motion. For

safety, please first park your vehicle.

•If you continue having issue download-

ing your contacts to your vehicle, con-

tact your mobile phone provider.

3-4 I Bluetooth

Bluetooth Connection

Pairing a New Device

Before you can use the Bluetooth feature,

you must first pair/connect your mobile

phone to your car.

Up to 5 Bluetooth devices can be paired.

Only one Bluetooth device can be con-

nected at a time.

Pairing a New Device by Selecting

Phone/Call

Press the

PHONE

key or key in

the steering wheel remote control. ▶ Pair

your car after your mobile phone detects

the Bluetooth device. ▶ Enter the passkey

or accept the authorization popup. ▶

Connect Bluetooth.

Pairing a New Device Through the

Phone Settings

Press the

SETUP

key. ▶ Select

Bluetooth

▶Select

Bluetooth Connection

. ▶ Select

Add New

. ▶ Pair your car after your

mobile phone detects the Bluetooth

device. ▶ Enter the passkey or accept

the authorization popup. ▶ Connect

Bluetooth.

The default passkey is 0000.

The vehicle name above is an example.

Check the actual information on the product.

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting

Phone/Call

Press the

PHONE

key or key in

the steering wheel remote control. ▶

Select the name of the device to connect.

▶Connect Bluetooth.

Bluetooth Connection I 3-5

Connecting Devices Through the

Phone Settings

Press the

SETUP

key. ▶ Select

Bluetooth

. ▶

Select

Bluetooth Connection

. ▶ Select the

name of the device to connect. ▶ Connect

Bluetooth.

Disconnecting

Bluetooth Devices

Disconnects Bluetooth devices that are

connected.

Press the

SETUP

key. ▶ Select

Bluetooth

. ▶

Select

Bluetooth Connection

. ▶ Select the

name of the device to disconnect.

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you

added. Note that deleting a Bluetooth

device will delete all Call History and

Contact Info downloaded along with it.

Press the

SETUP

key. ▶ Select

Bluetooth

. ▶

Select

Bluetooth Connection

. ▶ Select

Delete Devices

. ▶ Select the device name to

delete. ▶ Select

Delete

3-6 I Bluetooth

Bluetooth Phone

Phone Status Icons

Shows the current phone status in the

right top of the display.

Information

• The battery level icon and the call signal

strength indicator may not be supported in

some Bluetooth devices.

• The battery level may differ from the actual

level remaining

Icons Description

You can use Bluetooth phones

when a Bluetooth Hands-free

connection is established.

You can use Bluetooth audio

features when a Bluetooth

audio connection is estab-

lished.

You can use Bluetooth phones

and audio features when both

Bluetooth Hands-free and

audio connections are estab-

lished.

Call signal strength indicator

Battery level of the Bluetooth

devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Bluetooth Phone I 3-7

Dial

Dials a call after the Bluetooth devices are

connected.

•Press the

PHONE

key or key in

the steering wheel remote control.

•You can also select

All Menus

icon, and

then

Phone

icon.

Name Description

Keypad

Use the keypad to

enter the phone

number that you want

to call. Press and hold

the last number of

a speed dial to dial

a number that you

added to the Speed

Dial list in the phone

Call

Makes a call after

you dial a number

and select CALL. If

the number is listed

in Dialed Calls, you

can select the number

and press CALL to

automatically dial that

number again.

Settings Moves to a screen of

Phone Settings.

Delete Deletes the numbers

that you entered.

Information

• Some types of mobile phones may not

support the Speed Dial function.

Accept/Reject Call

If there is an incoming call after you made

a Bluetooth connection, a popup message

will appear.

Information

• In some mobile phones, the caller's number

may not be displayed, and the Reject feature

may not be supported.

Name Description

Accept Answers the call.

Reject Ignores the call.

3-8 I Bluetooth

Using the Menu During

a Phone Call

When making a call, you can use the fol-

lowing menu items.

Name Description

Use Private

Switches a voice call

from the car Hands-free

to the mobile phone.

End Ends a call.

Contacts Displays the Contacts

list.

Outgoing

Volume

Displays the Mic Volume

settings. You can adjust

the in-call volume that

the other party hears

(level 1 - 5).

Keypad Moves to a screen for

entering ARS numbers.

Switch

Switches to a call on

hold, if any. You can also

switch calls by select-

ing the number in the

Information Display. The

Switch function switches

the current call to a

waiting call in order to

answer a new incoming

call.

Information

• If the caller's number is listed in Contacts,

the caller's name will be displayed.

Otherwise, only the number will be

displayed. In some mobile phones, the

phone number may not be displayed.

• In some Bluetooth devices, the Use

Private feature may not be supported.

• In some Bluetooth devices, the Switch

feature may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes,

such as Radio and Settings.

• Depending on handset types, the in-call

volume the other party hears may differ. If

the other party hears your voice too low or

too loud, adjust the mic volume.

Bluetooth Phone I 3-9

Call History

Press the

PHONE

key, and then

Call History

Name Description

All Lists the all call history.

Dialed Lists the calls that you

made.

Received Lists the calls that you

have received.

Missed Lists the calls you

missed.

Call History

Displays all of your call

history. Select from the

list to dial the number.

Download

Downloads the call his-

tory information from

your mobile phone.

Information

• In some mobile phones, call records may

not be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off

on the Bluetooth device, the call history

download will fail.

• Some devices require a device authentication

for downloading your call history. If download

fails, check if the Bluetooth settings or

display status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device

supports download feature. For details

regarding Bluetooth-supported devices and

their functional compatibility, visit https://www.

hyundaiusa.com/bluetooth

3-10 I Bluetooth

Contacts

Press the

PHONE

key, and then

Contacts

Name Description

Contacts List

The list of Contacts.

Select from the list to

dial the number.

Download

Downloads contacts

from your mobile

phone.

Search Searches Contacts.

Information

•Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth

device.

•You cannot edit or delete downloaded

phone numbers from your car.

•Contacts can be viewed only when the

Bluetooth device is connected.

•Even if the Bluetooth device is

disconnected, the downloaded data will

remain. (Note that deleting a paired phone

will also delete all downloaded Contacts

and Call History data)

•Downloaded phone numbers may be lost

depending on the condition of the head

unit. Keep your important data in a safe

place.

•Contacts from both the SIM card and your

mobile phone are downloaded at the same

time by default.

•The status bar displays a ( ) while

downloading contacts.

•The download will not be available if the

contacts download function is turned off on

your Bluetooth device.

• Some devices require a device authentication

for downloading your contacts. If download

fails,check your phone screen and conﬁrm the

download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth

device supports contacts download. For

Bluetooth supporting devices details and

compatibility, visit https://www.hyundaiusa.

com/bluetooth

Bluetooth Phone I 3-11

Favorites

Press the

PHONE

key, and then

Favorites

Name Description

Favorites

Lists the phone

numbers saved as

Favorites. Select from

the list to dial the num-

ber.

Add New Adds a new number to

Favorites.

Delete Items

Deletes numbers

that you select from

Favorites.

Delete All Deletes all of the

numbers from Favorites.

MEMO

Name and Function of Each Part

Before Use

Getting Started with Blue Link

Driving Info

Vehicle Diagnostics

Blue Link Settings

part.4

Blue Link®

(For Blue Link Model)

4-2 I Blue Link®

Blue Link®

Rear View Mirror Switch

Using the Rear View Mirror switch

Selecting the Rear View mirror switch will allow you to make ser-

vice required inquiries, place search, and emergency Service by

connecting to the Blue Link Center. Such features can be used

only after subscribing to the Blue Link service.

Instructions

Display Contents

Starts or ends the Blue Link call.

SOS

Starts or ends the SOS call.

※ Refer to Blue Link service manual for more Blue Link features.

Name and Function of Each Part

※ The actual feature in the vehicle may differ from the illustration.

(For Blue Link Model)

Before Use I 4-3

Before Use

What Is Blue Link?

This is a Hyundai telematics service based on our cutting-edge IT

system that makes your driving experience more convenient and

fun and features safety, security, vehicle diagnostics, remote con-

trol and even smartphone synchronization functions.

Enjoy a smarter driving style with Blue Link.

What Is Telematics?

The word “Telematics” stems from the combination of telecommu-

nications and infomatics, and refers to an information system that

provides a variety of driving information through the built-in termi-

nal by analyzing each symptom and driving state. This allows for a

much safer and more comfortable driving experience.

About Transmission and

Reception of Radio Waves

For radio wave transmission/reception status, refer to the status

displayed on the Blue Link screen.

Connection to the Blue Link Center or wireless data transmission

may be disrupted in the following places.

•Inside tunnels

•Mountainous areas or dense forest

•Roads close to cliff edges

•Densely built-up areas

•On highways or roads underneath higher interchange roads

•Inside buildings

4-4 I Blue Link®

Getting Started with

Blue Link

Use Blue Link features such as Driving

Info and Vehicle Diagnostics. Blue Link

features can be used after activating the

service.

Information

• A separate fee may be charged for using Blue

Link, and features may differ according to your

service plan.

Press the key in the head unit.

Name Description

Driving Info

Displays information such

as Driving Time/Idle Time,

Deceleration/Acceleration

Distribution, Driving Speed

and Driving Distance.

Vehicle

Diagnostics

Inspects vehicle malfunc-

tions and provides diag-

nostics.

Blue Link

Settings

Activates the service or

displays modem informa-

tion.

Connecting with the

Blue Link Center

Press the , key in the

rear-view mirror to connect with the Blue

Link center.

Getting Started with Blue Link I 4-5

Blue Link® Safety and

Security Service

Auto Crash Notiﬁcation

Provides immediate assistance when an

accident occurs and an airbag is deployed.

In this event, an ACN signal, contain-

ing customer and location information,

will automatically be transmitted to the

response center. Upon receipt of the sig-

nal, a response specialist will attempt to

establish voice communications with the

vehicle occupants and forward any perti-

nent information to Blue Link emergency

services.

SOS

Customers request emergency Blue

Link emergency services by pressing

the dedicated

SOS

key in the vehicle.

This action transmits vehicle information

and location to specially trained response

specialists, who assist in coordinating the

dispatch of appropriate emergency assis-

tance to the customer.

The response specialist remains on the

line with the customer until emergency first

responder assistance has arrived.

Stolen Vehicle Recovery

In the event a customer’s vehicle is

reported stolen (and a stolen vehicle

report has been filed with the appropriate

police department), the response center

can provide assistance to the police in an

attempt to recover the vehicle.

Vehicle Slowdown

Used with Stolen Vehicle Recovery, this

enables law enforcement to gradually

reduce the engine power of the vehicle,

thus slowing it down to safe levels. A warn-

ing shall be transmitted to the driver prior

to the slowdown procedure.

Vehicle Immobilization

Used with Stolen Vehicle Recovery, this

enables law enforcement to send a signal

to the vehicle which immobilizes the engine

management system, thus preventing

startup. This capability is only valid when

the ignition is off, but can be saved for later

immobilization if the vehicle is on or in

motion at the time of signal transmission.

4-6 I Blue Link®

Driving Info

Press the key ▶ Select

Driving Info

icon.

This service can be used while your car is

stopped and the engine is on.

Select

Update

button to receive up-to-

date driving information.

Vehicle Diagnostics

Press the key ▶ Select

Vehicle Diagnostics

icon.

Name Description

Service

Link

Calls the Blue Link

Center to check for

vehicle problems

You can have your vehicle inspected only

after stopping the vehicle because some

control units can't be diagnosed while driv-

ing.

Vehicle Diagnostics will be canceled if you

switch to another screen while diagnosis is

in progress.

To receive result details, you need to first

Blue Link Settings

For more details, refer to part 8. Setup >

Blue Link Settings.

What is Voice Recognition?

Precautions Required for Successful Voice Recognition

Starting/Ending and Setting Voice Recognition

Voice Recognition Screen Overview

Voice Commands

Siri Eyes Free

part.5 Voice Recognition

5-2 I Voice Recognition

What is Voice Recognition?

The voice recognition feature operates the

multimedia system by recognizing voice

commands and enables hands-free oper-

ation of the system while you are driving

your car.

Not all possible voice commands are

recognized by the system due to techno-

logical limitations. To make up for these

limitations, the system displays the voice

commands that are available for you to

use.

There are errors in communication between

people. Likewise, voice recognition some-

times misunderstands your voice command

in some circumstances. If this happens,

either check the screen for the available

options and say the command again, or

manually select and press the button for the

corresponding command on the screen.

Precautions Required

for Successful Voice

Recognition

1. Voice recognition supports only the

commands that are displayed on the

screen and written in the User's Guide.

2. To ensure the correct recognition and

execution of your command, say your

command when you hear the beep after

a voice prompt.

3. Voice recognition automatically ends if:

1) A call is incoming or outgoing

2) A media device (USB or iPod, etc.)

is connected or disconnected

3) The rear view camera is operated

4) The car engine starts or stops

5) A system key, such as

RADIO

key

MEDIA

key is selected

4. The microphone used for the voice

recognition system is located in the

headliner directly above the driver's

head. To make your commands better

understood, keep your body straight

in the driver's seat when speaking the

command.

5. Speaking naturally and clearly will

ensure better recognition of your voice

commands.

6. In the following cases voice recognition

will be affected by ambient noise.

1) The sound of the wind if any win-

dow or the sun roof is open.

2) High speed blower from the air

vents. Set climate control to blow

lower than level 3.

3) Vibrations from passing through a

tunnel.

4) Vibrations from driving on an

uneven road.

5) Storms and heavy rain.

Voice Recognition

Starting/Ending and Setting Voice Recognition I 5-3

Starting/Ending and Setting

Voice Recognition

Starting Voice Recognition

Press the key briefly (less than 0.8

seconds) on the steering wheel control to

activate voice recognition.

Ending Voice Recognition

1. Select “Exit” to the left of the bottom to

end voice recognition.

2. Press and hold (more than 0.8 sec-

onds) the key on the steering

wheel control to end voice recognition.

Combining Voice Recognition

with On-Screen Commands

After pressing the key, say a com-

mand after the beep. The voice recogni-

tion system will execute the desired opera-

tion after understanding the command.

Alternatively, you may touch any of the

corresponding Commands on the screen

while the Voice Recognition system is in

operation.

Combining voice recognition with available

on-screen commands is useful when the

system is taking longer than expected or

the voice command did not execute as

desired.

5-4 I Voice Recognition

Extending the Listening Time

When the system is waiting for your com-

mand, after the voice prompt and beep

have been heard, if you press the

key (less than 0.8 seconds), then the beep

will sound again and standby mode will

restart.

When activated, voice recognition waits for

your command for 5 seconds. If you say

nothing for 5 seconds, a voice prompt will

ask for your command again.

Starting/Ending and Setting Voice Recognition I 5-5

Skipping Prompt Messages

When you hear the prompt message,

press the key on the steering

wheel remote control to skip the message

and go directly to listening mode to say

your command.

This results in faster operation when

you feel the message is too long or you

already know the command to use.

Information

• Refer to Part 8 for instructions on how to

change the Voice Recognition Settings.

Adjusting Voice

Recognition Volume

During voice recognition, rotate the vol-

ume knob to adjust the message volume.

5-6 I Voice Recognition

Voice Recognition Screen

Overview

Start Screen

Help Display

Name Description

Representative

Commands

Displays the representa-

tive commands.

Not

available

command

Displays commands that

are not available due to

a failure in meeting the

conditions for using them

and thus need additional

settings. The conditions

required for using them

will be described briefly

under each command.

Name Description

Voice

recognition

status icons

Standby

Voice guidance

Voice command

process

Recognized

results

Displays the voice rec-

ognition result.

User's

speaking

volume being

recognized

Displays the voice

command volume in

real time.

Help

Displays all available

help commands in a

tree format.

Exit Ends the voice recog-

nition.

Name Description

Command

list

• Shows the available

commands.

•Select or say a com-

mand to display addi-

tional commands in

detail.

How to

use for

selected

item

This section shows how to

use voice recognition for

the selected item.

How to

use in

general

This section displays how

to use voice recognition in

general.

Voice Recognition Screen Overview I 5-7

Instructions for Using

Voice Recognition

Information

• In the instructions screen, no voice is

recognized, so you must manually issue

commands. Because the instructions screen

displays a lot of content, you cannot view it

while driving for safety precautions.

Name Description

Detail

instruction

This section describes

how to use voice recog-

nition in detail.

button

Closes the screen and

restarts voice recogni-

tion.

5-8 I Voice Recognition

Voice Commands

Types of Commands

Voice recognition commands are classified as “Global Commands”

and “Local Commands”.

1. Global Commands (●): Commands that can be used immedi-

ately after activating voice recognition.

2. Local Commands (○): Commands that can be used when a

multimedia or Bluetooth function is running, or displayed on the

screen, after activating voice recognition.

Call Commands

* Check the following before using call commands:

1. Voice commands related to phone calls can be used after con-

necting a Bluetooth device.

2. To call a person, for example “Call <John Smith>” whose name

is listed in Contacts, you must first download the Contacts list.

For details on downloading contacts, see “Part 3. Bluetooth >

Chapter 3. Bluetooth Phone > 3.10 Contacts”.

3. After downloading the Bluetooth contacts, it will take some time

to convert the Contacts into voice data during which time you

cannot make a call by name yet. The time it takes to convert

voice data may vary depending on the number of Contacts

downloaded on the phone.

Command Operation

●Call Displays downloaded Contacts, after this

you can make a call by saying the name.

●Call <Name> You can directly call a person by <Name>

in the downloaded Contacts.

●Call <Name> on

Mobile

You can call a person <name> directly to

the number that is saved as “Mobile” in

the downloaded Contacts.

e.g.) Call “John Smith” on Mobile

●Call <Name> at

Work

You can call a person <name> directly to

the number that is saved as “Work” in the

downloaded Contacts.

e.g.) Call “John Smith” at Work

●Call <Name> at

Home

You can call a person <name> directly to

the number that is saved as “Home” in the

downloaded Contacts.

e.g.) Call “John Smith” at Home

●Call <Name> on

Other

You can call a person <name> directly to

the number that is saved as “Other” than

“Mobile, Home, or Work” in the down-

loaded Contacts.

e.g.) Call “John Smith” on Other

●Dial Number Displays a screen where you can say a

phone number to dial.

●Dial <Phone #> You can directly say the number to call.

e.g.) Dial 111 555 1234

●Redial Directly calls at the number that you last

dialed.

●Call History Displays your Call History, where you can

say the list number to make a call.

Voice Commands I 5-9

Command Operation

●Radio Plays the most recent radio channels

from FM, AM, and SiriusXM™.

●FM Plays FM radio.

●FM

<87.5~107.9>

Tunes to FM <Frequency> according to

what you say.

e.g.) FM 87.5: FM eighty seven point five

●SiriusXM Plays SiriusXM™ radio.

●SiriusXM

<0~999>

Tunes to SiriusXM™ Channel <Channel

Number> according to what you say.

e.g.) SiriusXM 23: SiriusXM Twenty three

●AM Plays AM radio.

●AM <530~1710> Tunes to AM <Frequency> according to

what you say.

e.g.) AM 530: AM Five thirty

●

AM <531~1701>

(For GUAM

Model)

Tunes to AM <Frequency> according to

what you say.

e.g.) AM 531: AM Five thirty one

○Preset <1~40> Tunes to your preset stations (1 to 40).

○Channel

<0~999>

In SiriusXM™ Radio mode, turns on the

<Channel Number> that you say.

Radio Commands

5-10 I Voice Recognition

Media Commands

* Check the following before you use media commands.

1. If no media is connected or if no playable files exist at the time

when you use these commands, a voice message will tell you

that this is not available.

2. If you say the name of the media that is currently playing again,

then that media will continue playing.

e.g.) Saying “USB” while USB content is playing.

Command Operation

●Music Continues the last media you played.

●iPod

Plays the iPod currently connected. This

will work the same when an iPhone is con-

nected. If a USB is connected, then it will

be played instead of the iPod.

●USB

Plays the music on the USB currently con-

nected.

If an iPod is connected, then the iPod will

be played instead of the USB.

●Bluetooth Audio

Plays the music on the Bluetooth phone

currently connected.

This may not be supported depending on

the Bluetooth connection status.

●AUX Plays external devices that are currently

connected.

●My Music Plays My Music files stored in the system.

●

Pandora Radio

(Except GUAM

Model)

Plays Pandora Radio that is currently con-

nected.

Voice Commands I 5-11

1. USB Music / iPod / My Music Command

Command Operation

○Play Plays a selected file.

Maintains the current settings during playback.

○Pause

Pauses a file that is playing.

Maintains current settings while paused during

playback.

○Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled play-

back.

○Shuffle Off

Cancels Shuffle and plays tracks sequentially.

Maintains current settings during sequential

playback.

○Repeat

Plays the current track or file repeatedly.

Maintains the current settings during repeat play-

back.

○Repeat Off

Cancels Repeat and plays multiple tracks or

files.

Maintains current settings during multiple track

playback.

2. Pandora Radio command (Except GUAM Model)

Command Operation

○Skip Moves to the next track.

○Thumbs up

If you like the genre of the music currently

playing, say “Thumbs up” so that more simi-

lar music will play.

○Thumbs down

If you don’t like the music currently playing,

say “Thumbs down” to minimize the number

of playbacks of similar genre music.

○Play

Plays a selected file.

Maintains the current settings during play-

back.

○Pause

Pauses a file that is playing.

Maintains current settings while paused

during playback.

○Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled

playback.

5-12 I Voice Recognition

3. Bluetooth audio / AUX command

For Bluetooth audio and external devices (AUX), local commands

are unavailable, including Play, Pause, Repeat and Shuffle.

Other Commands List

(Commands used in List / Help)

Command Operation

●Help

Moves to the voice recognition help screen.

All available commands can then be identified

and used.

○Line 1~4

(One~Four)

When you cannot select a certain name,

such as in Call History, you can select it

using numbers.

Simple numbers can be recognized, such

as “One” or “Two”.

○Yes / No

When voice recognition is activated, this

command is used when an answer is

requested for a confirmation question.

○Previous/Next

When four or more searched items are

listed, you can move to the previous or next

page using a voice command.

○Manual Input

When Dial entry results are displayed,

this command is used to search manually,

rather than to search with a voice com-

mand.

Voice recognition stops after this command

is used.

○Go Back Moves to the previous screen.

●Exit Ends the voice recognition.

Siri Eyes Free I 5-13

Command Operation

●Help

Moves to the voice recognition help screen.

All available commands can then be identified

and used.

○Line 1~4

(One~Four)

When you cannot select a certain name,

such as in Call History, you can select it

using numbers.

Simple numbers can be recognized, such

as “One” or “Two”.

○Yes / No

When voice recognition is activated, this

command is used when an answer is

requested for a confirmation question.

○Previous/Next

When four or more searched items are

listed, you can move to the previous or next

page using a voice command.

○Manual Input

When Dial entry results are displayed,

this command is used to search manually,

rather than to search with a voice com-

mand.

Voice recognition stops after this command

is used.

○Go Back Moves to the previous screen.

●Exit Ends the voice recognition.

Siri Eyes Free

How to start Siri

If you want to use Siri, you have to con-

nect your iOS device to the Multimedia

system through Bluetooth.

(Please check whether your iOS device

supports Siri and turning Siri On)

Then you can use Siri while pressing and

holding key on the steering wheel.

How to use Siri

When you access the Siri screen while

pressing and holding key on the

steering wheel, you can select the

Speak

button and then you can speak what you

want. Note that the Multimedia system

only supports “Phone” related functions.

Other functions will be performed in your

iOS device. If you press voice key quickly,

Siri would re-start. If you hold down voice

key, Siri would be terminated and the

screen would go back to the previous

screen. Eyes-Free mode would be acti-

vated automatically while you are driving.

When shifting gears into P or putting the

Parking brake on, Eyes-Free mode would

be deactivated automatically.

Information

• Functions and feedbacks from voice

commands via Siri are executed in the iOS

device. If the iOS version is changed, the

functions and response may be different

according to the iOS device and the latest

version.

MEMO

Pandora® (Except GUAM Model)

SiriusXM™ Data

SoundHound

part.6 Apps/Info

6-2 I Apps/Info

Apps/Info

Pandora

(Except GUAM Model)

Select the

Pandora

icon after selecting All Menus or the

APPS/

key to enter Pandora®.

Pandora, the Pandora logo, and the Pandora trade dress are

trademarks or registered trademarks of Pandora Media, Inc. Used

with permission. Pandora is only available in certain countries.

Please visit http://www.pandora.com/legal for more information.

Pandora® Screen Controls

Name Description

Mode Displays the current operating mode.

Station Name Shows the station name current playing.

Artist Name Shows the artist/title information current playing.

Song Title Shows the song title current playing.

Album Name Shows the album name current playing.

Play Time Displays the current play time.

Thumbs Down

If you don’t like the music currently playing, press

this button to move to the next song and to min-

imize the number of playbacks of similar genre

music.

You can move to next song up to specific times

which Pandora

allows

Thumbs Up

If you like the genre of the music currently playing,

press this button to send a “Thumbs Up” signal to

Pandora

so that more similar music will play.

This function cannot be reset once setting is

chosen.

Bookmark

Tr a ck

Add the music current playing to the bookmarks

list.

You can view your bookmarked songs from

your Pandora

profile online. Go to pandora.

com, then click on the “Your profile” button

above the player. That will bring up a page with

your stations, bookmarked songs.

This function cannot be reset once setting is

chosen.

Shared Station

Icon

Indicates that the station is already shared.

Thumbs Up/Down are not available for shared

stations.

Pandora

I 6-3

Name Description

Skip

Moves to the next track

You can move to next song up to specific times

which Pandora

allows

Station List Moves to the station list screen.

Play/Pause Plays/pauses the current song

•Sound Settings

Moves to the sound settings screen.

•Quit

Exit current Pandora

mode and then move to

previous AV mode.

You can view your bookmarked artists and

songs from your Pandora

profile online. Go to

pandora.com, then click on the “Your Profile”

button above the player. That will bring up a

page with your stations, bookmarked artists,

and bookmarked songs.

SoundHound Moves to the SoundHound searching music appli-

cation.

SEEK/TRACK Press briefly to play the next song.

TUNE

Rotate the

TUNE

knob to search for a station.

Press the

TUNE

knob to play the station when

you find the name that you want.

6-4 I Apps/Info

Name Description

Current

Station Shows the name of the station current displayed.

Shuffle

Shuffling your stations provides a more diverse

mix of music by randomly playing songs from the

stations in your list.

Sorts stations by the items in the menu.

•A-Z: Sorts stations in alphabetical order.

•By Date: Sorts stations in the order they were

generated.

Shared

Station Icon Indicates that the station is already shared.

SEEK/

TRACK Press briefly to play the next song.

TUNE

Rotate the

TUNE

knob to move to the previous/

next list. Press the

TUNE

knob to play a

selected file.

SiriusXM™ Data I 6-5

SiriusXM™ Data

About SiriusXM™ Data Service

The SiriusXM™ Data Service is a paid

membership satellite radio service that

provides users with information such as

Weather, Sports, Stocks, Fuel Prices and

Movies.

However, weather information is not sup-

ported for vehicles purchased in Canada.

Accessing SiriusXM™ Data

Select the

SiriusXM Data

icon after selecting

All Menus or the

APPS/

key to enter the

SiriusXM™ Data mode.

6-6 I Apps/Info

SiriusXM™ Weather

Announcement

At the “SiriusXM Data” screen, select

the

Weather

icon to enter the Weather

Announcement mode.

Weather Forecast

This service provides current weather

information and weather forecasts for the

next five days in your region. To change

the region, select the

Other City

button and

select the desired region.

Warnings and Advisories

This service provides weather warnings

and advisories, such as tornado, storm,

flood, etc.

SiriusXM™ Data I 6-7

SiriusXM™ Sports Information

Select the

Sports

icon to enter the

Sports mode.

This service provides real-time updated

information on scores and schedules for

major sports, such as NFL, NBA, NCAA

football, NCAA basketball, NHL, MLB,

NASCAR and more.

My Teams

You can save teams which you are inter-

ested in as part of My teams to easily

view related scores and schedules.

Select the My Teams menu and then

select the

Add

button to search for and

Search for your favorite teams and select

the

★

button on the right to add it to the

“My Teams” list.

You can always check the list of teams

that you added in the “My Teams” menu.

Select the

★

button on the right side of

the team name to delete the team from “My

Teams” or select the

Add

button to add

other teams.

6-8 I Apps/Info

Select the team name to check daily

results and recent schedules for that team.

SiriusXM™ Stock Information

In the “SiriusXM Data” screen, select the

Stocks

icon to enter the Stocks mode.

Stocks is a feature that shows the current

value and change of stocks.

For symbols which you are interested in,

select the icon to save the symbol as a

part of the “Saved” symbols which can be

viewed from the “My Favorites” button on

the Stocks Main screen.

SiriusXM™ Data I 6-9

My Favorites

My Favorites shows a list of stocks added

by the user. When entering the Stocks

menu for the first time, a screen is dis-

played for you to add your favorite stock

information. Select the

Add

button to

move to the stock search screen.

Stock Search

Use the Stock Search menu to search for

specific stocks.

Select the

★

button after searching for

your favorite stocks to save them in “My

Favorites”.

In the My Favorites screen, you can find

the selected stock information that you

registered.

6-10 I Apps/Info

SiriusXM™ Fuel Price

Information

At the “SiriusXM Data” screen, select the

Fuel Prices

icon to enter the Fuel Prices

Information mode.

Search for Nearby Stations, and

Stations.

Search for nearby stations with the

“Nearby Stations” menu.

It shows station locations, starting from

the nearest one, and select “Nearest”

menu on the top right side to further sort

them by price or brand name.

Select the

★

button to the right of the

list to register key locations as a Favorite

Station so that you can go there again

with the “Favorite Stations” menu.

SiriusXM™ Data I 6-11

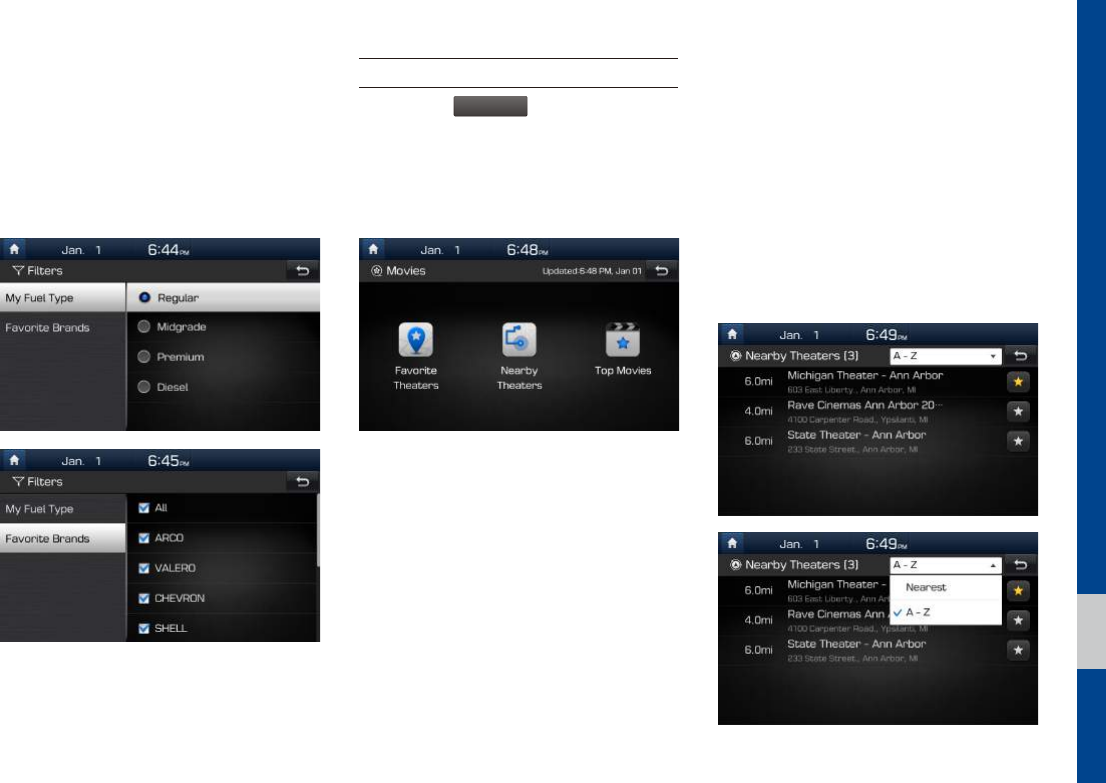

My Fuel Type Settings

With the “Filters” menu, you can select

fuel types and favorite brands.

When searching for Nearby Stations, the

results will reflect selected fuel types and

brand information.

SiriusXM™ Movie Information

Select the

Movies

icon to enter the

Movie mode.

You can check recent movies and nearby

theaters, and also register your favorite

theater locations.

Search for Nearby Theaters, and

Theaters.

In the “Nearby Theaters” menu, you can

search for any nearby theaters.

It shows theaters, starting from the near-

est one, and selecting the “Nearest” menu

at the top right side will sort them by

name.

6-12 I Apps/Info

Select the

★

button to the right of the

list to register your favorite theater so that

you can always check it again using the

“Favorite Theaters” menu and selecting

the button to view the current movie

information for that theater.

In the “Top Movies” menu, you can check

for any movies that are currently popular.

Select the button to the right of a

movie title to view the plot summary and

any other detailed information.

SoundHound I 6-13

SoundHound

SoundHound is a music search engine. It enables users to identify

music by playing or singing a song. It is also possible to search by

typing the name of the artist, song, album or lyrics.

The head unit should be connected to the Internet in order to use

SoundHound. (ex. Wi-Fi)

Accessing SoundHound

1. From the Home screen, select All Menus then select

SoundHound button.

2. Select SoundHound button on Radio modes (AM, FM and

SiriusXM) or Media modes (Bluetooth Audio, iPod, USB, My

Music, AUX and Pandora).

SoundHound Main Screen

Name Description

Mode Displays the current operating mode.

Back button Goes back to previous mode.

What’s that

Song?

Starts the song recognition process. After this pro-

cess is complete, it goes to Song screen.

Search Goes to Search screen.

History Goes to History screen.

Favorites Goes to Favorites screen.

Charts Goes to Charts screen.

6-14 I Apps/Info

Recognizing Music

After selecting SoundHound button, the song recognition pro-

cess is activated, the system will match the currently playing song

with the SoundHound music database.

Music from Smartphones and MP3 players that are not connected

to the head unit can also be recognized.

Searching Music

Music can also be searched by selecting the Search option in

SoundHound main screen and typing a song, artist, album or lyr-

ics into the search field.

Name Description

Now

Listening…

Message displayed while SoundHound is

processing the music.

Retry Starts over the song recognition process.

Cancel Cancels song recognition process and Exits

SoundHound.

Back button Goes back to previous screen.

Name Description

Search Displays the current operating mode.

Back button Goes back to SoundHound main screen.

Search field

Displays search field. Once text is typed,

recommended song, artist, album or lyrics

information that might match the search criteria is

displayed in the scroll menu.

Search icon Starts the searching process.

SoundHound I 6-15

Song Main Screen

Name Description

Back button Goes back to previous screen.

Song, Artist

and Album

information

Displays song, artist and album information of

currently playing song.

Album Image If album image is selected, the detailed infor-

mation of the album is displayed.

Artist Image If artist image is selected, the detailed informa-

tion of the artist is displayed.

Favorite

It saves current playing song into Favorites

by tapping on the star icon. Star icon will be

highlighted when song has been saved into

Favorites. To delete song from Favorites, select

the star icon again or go to Favorites menu

screen.

Lyrics Displays current playing song’s lyrics.

Recommended

Songs

Displays a list of recommended songs by

SoundHound.

Similar Artists Displays list of similar artists to currently play-

ing artist.

Song’s Album

Appearances

Displays list of albums on which currently play-

ing song appears.

MEMO

Camera

part.7 Other Features

7-2 I Other Features

Camera

WARNING

- Backing Up & Using Camera

•Never rely solely on the rear view cam-

era when backing up. Prior to entering

your vehicle always do a visual check of

the area behind your vehicle, and before

backing up be aware of your surroundings

and supplement the rear view camera by

looking over your shoulders and checking

your rear view mirrors. Due to the diffi-

culty of ensuring that the area behind you

remains clear, always back up slowly and

stop immediately if you even suspect that

a person, and especially a child, might be

behind you.

Information

• A separate chipset is used for the camera

screen while booting up, so it may be different

after booting up.

Steering-linked camera

•This device is connected to a rear

detection camera to see behind the car

for safe reversing.

•The Rear View Camera turns on

automatically if you shift the gear to R

when the power is on or the engine has

started.

•While the device boots up, shift the gear to

"R" to activate the rear detection cameras.

Shift the gear to another position to

deactivate the rear detection camera.

NOTICE

• A wide-angle lens is installed as the rear

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears.

on-screen. For safety, make sure to view

the back, right, and left sides of the car for

yourself.

• The color of the parking guidelines displayed

in the picture may differ from the actual

screen.

• When booted up, blinking may occur when

you switch to a UI screen.

Name Description

Red Line About 0.5m from the rear

bumper

Yellow Line 1 About 1m from the rear

bumper

Yellow Line 2 About 3m from the rear

bumper

Yellow Line 3 Trajectory of the wheel

on the driver’s side

Yellow Line 4 Trajectory of the wheel

on the passenger side

Blue Line Neutral steering trajec-

tory

As you reverse your car and monitor the

area behind your car, the steering-linked

driving trajectory and the neutral driving

trajectory are both displayed.

Other Features

Setup

Sound Settings

Display Settings

Bluetooth Settings

Blue Link Settings (For Blue Link Model)

Home Screen Settings

Wi-Fi Settings

Clock Settings

Voice Recognition Settings

Language Settings

Keyboard Settings

Screen Saver Settings

System Info

part.8 Setup

8-2 I Setup

Setup

Setup is the screen to control Audio sys-

tem settings.

To enter the screen, press the

SETUP

key or the

Setup

icon in All Menus.

Features Description

Sound

Provides the sound

control options for Position,

Bass, Mid, Treble, Volume

and Advanced settings.

Display Provides the Mode/

Illumination settings.

Bluetooth

Provides the Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information settings.

Blue Link

Provides the Activation/

Modem Information settings.

(For Blue Link Model)

Connectivity

For more details, refer to

Connectivity guide.

Home

Screen

Provides the function to cus-

tomize the three menu items

at the bottom of the Home

Screen.

Features Description

Wi-Fi

Provides the Wi-Fi On and

Network Connection set-

tings.

Clock Provides the Time and View

settings.

Voice

Recognition

Provides the Guidance and

Priority settings.

Language Provides the Change

Language settings.

Keyboard Provides settings to switch

keyboard layouts.

Screen

Saver

Provides the Clock/None

settings.

System

Info

Provides software and stor-

age space information.

Display Off Provides the Display Off

(touch activation) function.

Setup I 8-3

Sound Settings

Adjusts the sound effects for the whole

system.

Information

• Advanced sound settings may differ according

to selected AMP option.

• The seat shape may differ according to

vehicle model.

Display Settings

Adjusts the level of illumination for the

entire system.

Features Description

Mode

Select any of LCD illumi-

nation change modes:

Automatic (changes

the level automatically),

Daylight, and Night.

Illumination

Set the levels of illumina-

tion for day and night.

Select

Default

to initialize

the settings.

Default Resets the display to fac-

tory default settings

Display Off Provides the Display Off

(touch activation) function.

Features Description

Position

Select the Up/Down/Left/

Right button to control

sound positioning.

Select

Center

to concen-

trate the sound on the

center of vehicle.

Tone

Drag the slide bar to

control bass/mid/treble

settings.

Select

Center

to initialize

the settings.

Features Description

Advanced

Select additional audio

options such as “Speed

Dependent Volume

Control” that automatically

controls Audio volume

according to vehicle

speed as well as “Variable

EQ”.

Default Resets the sound to fac-

tory default settings.

Beep Select to activate a beep

when pressing buttons.

8-4 I Setup

Bluetooth Settings

Changes Bluetooth phone settings.

Bluetooth Settings

Press the

SETUP

key ▶ Select

Bluetooth

icon.

Bluetooth Connection Settings

Press the

SETUP

key ▶ Select

Bluetooth

▶ Select

Bluetooth Connection

Features Description

Paired Device

List

Displays the paired

Bluetooth device list.

When selecting from

the list, the device is

connected or discon-

nected.

Bluetooth

Audio

Connection

Status

An icon appears when

you make a Bluetooth

Audio connection.

Bluetooth

Hands-Free

Connection

Status

An icon appears when

you make a Bluetooth

Hands-free connec-

tion.

Add New Register a new

Bluetooth device.

Delete Devices Select and delete a

paired device.

Help

Switches to the

Bluetooth Connection

Help screen.

Setup I 8-5

Information

• Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be connected

at a time.

• During a Bluetooth device connection, another

device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit

are also deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio, will

function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly

disconnected, due to being out of

communication range, the device powering

off, or a Bluetooth communication error, the

Bluetooth device automatically searches for

and connects to nearby Bluetooth devices.

• If the system is not stable, due to a vehicle-

Bluetooth device communication error, restore

the Default Factory Settings.

• For Default Factory Settings, the bluetooth

settings are reset to factory settings

• Press the

SETUP

key ▶ Select

Bluetooth

▶Select

Default Factory Settings

Auto Connection Priority

Press the

SETUP

key ▶ Select

Bluetooth

▶

Select

Auto Connection Priority

When the engine is running, the selected

Bluetooth device is automatically con-

nected. If you fail to connect the selected

device, the previously-connected device is

automatically connected, and if it also fails,

then it tries to connect all paired devices

sequentially.

Depending on auto connection priority,

connection to a device may take time.

Bluetooth System Information

Press the

SETUP

key ▶Select

Bluetooth

▶ Select

Bluetooth System Info

Features Description

Vehicle

Name

You can change the

Bluetooth device name of

the vehicle.

Passkey

You can change the pass-

key used for Bluetooth

device authentication. the

initial passkey is 0000.

Information

• The vehicle name above is an example.

Check the actual information on the product.

8-6 I Setup

Default Factory Settings

You can delete all paired devices and

restore the Default Bluetooth Settings. For

Default Factory Settings, all paired devices

are deleted, and the system is reset to

factory settings.

Blue Link Settings

Press the

SETUP

key ▶ Select

Blue Link

icon.

Features Description

Service

Activation

Reactivates the Blue

Link.

Modem

Information

Shows modem informa-

tion for USIM and IMEI.

Service Activation

Press the

SETUP

key ▶ Select

Blue Link

▶Select

Service Activation

Activation may take up to five minutes.

Do not turn the engine off while activation

is in progress.

If activation fails, contact the Blue Link

Center at (855) 2-BlueLink.

During service activation, the keys in the

head unit do not function.

(For Blue Link Model)

Setup I 8-7

Modem Information

Press the

SETUP

key ▶ Select

Blue Link

▶Select

Modem Information

Features Description

USIM USIM Identity number

IMEI Equipment Identity number

Home Screen Settings

You can customize the three menu items

at the bottom right of the Home Screen

into the ones you want.

On the Home Screen Settings screen,

drag the menu items on the right to the

area marked in blue in the screen below.

Information

• You can select the

Default

button to reset

to the factory default settings.

Wi-Fi Settings

You can share a digital-device network

with the vehicle device through Wi-Fi.

Features Description

Wi-Fi Turn on/off Wi-Fi.

MAC

Address

Displays the MAC

address.

Refresh Searches available net-

works near the vehicle.

Network

Name

Displays available network

AP (Access Point) names.

Add Wi-Fi

Network

Enter the network ID/

password to connect to

a hidden network AP

(Access Point).

Help Shows the Wi-Fi setup

guide.

8-8 I Setup

How to Connect to a Network

1. In the Wi-Fi settings of a digital

device, activate Internet sharing

(Hotspot).

2. In the vehicle network list, select the

desired device to connect to. Enter

the password to connect, if any.

Clock Settings

Configure the settings for time and date.

Using the arrow buttons, you can change

the values. Clock settings do not automat-

ically change when crossing into different

time zones. The time must be changed

manually on this screen.

Features Description

Daylight

Saving Time

The daylight saving

time (DST) is applied.

24 Hours The time display is set

in 24-hour format.

Direct entry

If you tap any value,

you can directly enter

the number in the fol-

lowing screen.

Voice Recognition Settings

Configure how to make a call with

Voice Recognition Guidance and Voice

Recognition.

Features Description

Beginner

For beginners, the voice

recognition system pro-

vides voice prompts.

Normal

For normal users, the

voice recognition sys-

tem provides simple

and short voice guid-

ances.

Setup I 8-9

Language Settings

You can configure the displayed system

language.

When the language is changed, the

system language is automatically

changed.

Unique data including MP3 file name is

not changed and voice recognition does

not support some languages.

Keyboard Settings

You can configure the keyboard layout for

each language.

You can configure ABCD or QWERTY

keyboards for the system.

Information

• Configured keyboard layouts are applied

to all input modes.

Screen Saver Settings

You can select any of the following screen

formats to be displayed when the screen

or power is turned off (Press and hold the

Power button).

•Digital clock and date

•Analog clock and date

•None

8-10 I Setup

System Info

At the System Info screen, software ver-

sion information, updates, and storage

status details are available.

Features Description

S/W Info

System version informa-

tion and update details

are available.

Select the

Update

button

to update the system.

After update is complete,

the system will reboot

automatically.

Storage

Displays the memory

space available for media

storage.

System Update

At the System Info screen, insert the USB

memory with the latest file downloaded,

and then select the

Update

button to begin

updating. The system will then reboot

automatically.

Information

• This product needs supplemented

software updates and additional functions,

which collectively may take some time to

complete, depending on the amount of

data.

CAUTION

• If the power is disconnected or the USB is

removed during an update, the data might be

damaged. Please do not turn off the vehicle

while an update is in progress.

Product Specification

Troubleshooting

FAQ

part.9 Appendix

9-2 I Appendix

Product Specification

TFT-LCD

Screen Size 7 inch(152.4 X 91.44mm)

Resolution 384,000 pixels (Resolution: 800 x 480)

Operating

Method TFT(Thin Film Transistor) Active Matrix

Viewing Angle Left/Right, Top/Bottom: ALL 89°

Internal Lighting LED

Radio

Channels

FM: 87.5 MHz ~ 107.9 MHz(Step: 200 kHz)

AM: 530 kHz ~ 1710 kHz(Step: 10 kHz)

AM: 531 kHz ~ 1701 kHz(Step: 9 kHz)

(For GUAM Model)

Sensitivity FM: Under 10dBu/AM: Under 35dBu

Distortion Factor Within 2%

Common

Name Car TFT LCD Display Audio Unit

Power Supply DC 14.4V Operating

Power DC 9V ~ DC 16V

Current

Consumption 2.5A Sleep

Current

Before 96 hour,

10mA

After 96 hour,1mA

(For Blue Link

Model)

1mA

(For NON Blue

Link Model)

Operating

Temperature

-20 ~ +70°C

(-4 ~ +158°F)

Storage

Temperature

-30 ~ +80°C

(-22 ~ +176°F)

Dimensions 208 X 147.3 X 175mm (Main BOX)

Weight 2kg

Wi-Fi Details

Frequency 2412 ~ 2462MHz,

5180 ~ 5825MHz

Specification IEEE802.11 a/b/g/n/ac

Operating

Temperature

-20 ~ +70

°C

(-4 ~ +158

°F

)

Supported

Bandwidth 20/40/80MHz

Appendix

Appendix I 9-3

MODEM RF SPEC

LTE

Frequency 2110MHz~2155MHz(B4),

746MHz~756MHz(B13)

Sensitivity -93.3dBm under@20M(B4), -93.3dBm

under@10M(B13) (Throughput ≥95%)

Frequency 1710MHz~1755MHz(B4),

777MHz~787MHz(B13)

Max RF

Output Power

Power Class3(B4, B13),

20.3dBm ~ 25.7dBm (conducted)

CDMA

Frequency 869MHz~894MHz(BC0),

1930MHz~1990MHz(BC1)

Sensitivity -104dBm under(FER = 0.5% under)

Frequency 824MHz~849MHz(BC0),

1850MHz~1910MHz(BC1)

Max RF

Output Power

Power Class3(BC0),

Power Class2(BC1),

23.01dBm ~ 30dBm(conducted)

Bluetooth®

Wireless Technology

Frequency

Range 2402 ~ 2480 MHz

Supported

Bluetooth

Specification

3.0

Supported

Profile Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)

Output -6~4dBm (Power Class2, Conducted)

Number of

Channels 79 channels

CAUTION

• The producer and installer cannot provide services related to life

safety as the concerned radio equipment is liable to radio interference.

9-4 I Appendix

Troubleshooting

1. Errors which occur during the operation or installation of the

device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Hyundai dealer.

Problem Possible Cause

There are small red,

blue, or green dots on

the screen

•Because the LCD is manufactured with

technology requiring high point density,

a pixel or lighting deficiency may occur

within 0.01% of total pixels

The sound or image is

not working

•Has the Switch for the vehicle been turned

to [ACC] or [ON]?

•Has the SYSTEM been turned OFF?

The screen is being dis-

played but sound is not

working

•Has the volume been set to a low level?

•Has the volume been muted?

When the power is

turned on, the corners of

the screen are dark

•The display appearing somewhat dark

after prolonged periods of use is normal

with LCD panels. It is not a malfunction

•If the screen is very dark, contact your

nearest Hyundai dealer for assistance

Sound is working from

only one speaker

•Are the positions of Fader or Balance

sound controls adjusted to only one side?

Problem Possible Cause

Sound does not work in

AUX mode

•Are the audio connector jacks fully

inserted into the AUX terminal?

The external device is

not working

•Is the external device connected with a

standard connector cable?

Upon turning power on,

the most recent mode

screen is not displayed

Within modes that play files by reading

external sources, such as USB, iPod, or

Bluetooth

streaming mode, the most

recently played mode screen prior to turning

off power may not properly load

•If the corresponding device is not con-

nected, the mode operated prior to the

most recent mode will operate

•If the previous mode still cannot be prop-

erly played, the mode operated prior to

that will operate

Appendix I 9-5

Problem Possible Cause Countermeasure

The image

color/tone

quality is low

•The brightness, satura-

tion, hue, and contrast

levels are not set prop-

erly

•Properly adjust the bright-

ness, saturation, hue, and

contrast levels through

Display Setup

Sound does

not work

•The volume level

is set to the lowest

level

•The connection is

not proper

•The device is

currently fast-for-

warding, rewinding,

scanning, or playing

in slow mode

•Adjust the volume level

•Check to see that the device

has been properly connected

•The sound will not work

when the device is fast-for-

warding, rewinding, scan-

ning, or playing in slow

mode

The sound or

image quality

is low

•Vibration is occur-

ring from where the

conversion switch

has been installed

•Image color/tone

quality is low

•The sound may be short-cir-

cuited and the image dis-

torted if the device vibrates

•The device will return to nor-

mal once vibrations stop

Problem Possible Cause Countermeasure

The power

does not turn

The fuse is

disconnected

•Replace with a suitable fuse

•If the fuse is disconnected

again, please contact

your point of purchase or

Hyundai dealer

Device is not properly

connected

•Check to see that the device

has been properly con-

nected

The system

does not

play

The vehicle battery is

low

•Charge the battery If the

problem persists, contact

your point of purchase or

Hyundai dealer

9-6 I Appendix

Problem Possible Cause Countermeasure

The USB

does not

work

•USB memory is

damaged

•Please use the USB after

formatting it.

•USB memory has

been contaminated

•Remove any foreign sub-

stances on the contact

surface of the USB memory

and multimedia terminal

•A separately pur-

chased USB HUB is

being used

•Directly connect the USB

memory with the multimedia

terminal on the vehicle

•A USB extension

cable is being used

•Directly connect the USB

memory with the multimedia

terminal on the vehicle

•A USB which is not

a Metal Cover Type

USB Memory is

being used

•Use standard USB Memory

•An HDD type, CF,

SD Memory is being

used

•Use standard USB Memory

•There are no music

files which can be

played

•Only MP3, WMA file formats

are supported. Please use

only the supported music file

formats

Problem Possible Cause Countermeasure

The iPod is

not recog-

nized even

though it has

been con-

nected

•There are no titles

which can be played

•Use iTunes to download and

save MP3 files into the iPod

•The iPod firmware

version has not

been properly

updated

•Use iTunes to update the

firmware version and recon-

nect the iPod with the device

•The iPod device

does not recognize

downloads

•Reset the iPod and reconnect

with the device

Bluetooth

does not

work or its

limited

functions are

available

•Bluetooth on your

mobile phone is set

to OFF

•Set it to ON

•The Bluetooth con-

nection is not made

•Make the connection active

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the

RESET

key to

reset the system.

• Press and hold the

RESET

key (more than 1 second). The device power

will turn off and the system will reset.

Appendix I 9-7

FAQ

About Pairing Mobile Phones

Q I cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth® func-

tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set

it to ON. If the cell phone still can’t be registered, try again after

turning Bluetooth off and on, or delete the device registration on

the multimedia system and cell phone and then register the cell

phone again.

Q What is the difference between pairing a mobile phone and con-

necting a mobile phone?

A Pairing occurs through authenticating the head unit and mobile

phone. Mobile phones paired to the head unit can be connected

and disconnected until the paired mobile phone is deleted from

the system. Bluetooth® Handsfree features, such as making/

answering calls or managing contacts, are supported only in

mobile phones connected with the head unit.

Q What is a Passkey?

A A passkey is the password used to authenticate the connection

between the head unit and mobile phone. The passkey only

needs to be entered once when pairing the mobile phone for the

first time.

The initial passkey is 0000. You can change it with

SETUP

▶

Bluetooth

▶

Bluetooth System Info

▶

Passkey

options.

9-8 I Appendix

About Making/Answering Phone Calls

Q How can I answer a call?

A When there is an incoming call, a notification pop-up will

become displayed. To answer the incoming call, select the

button on the screen or the key on the steering

remote controller.

To reject the call, select the

Reject

button on the screen or

press the key on the steering wheel control.

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (more than 0.8 seconds) the

key on the steering remote controller or select the

Use Private

button at the bottom of the Phone screen to

switch the call to your mobile phone.

About

Bluetooth

® Wireless Technology/

Head Unit Use Environment

Q What is the range of my wireless connection?

A The wireless connection can be used within 15 yards.

Q How many mobile phones can be paired?

A It is possible to pair up to five mobile phones.

Q Why is call quality sometimes poor?

Check the reception sensitivity of the mobile phone when call

quality becomes worsened. The call quality may deteriorate when

the signal strength is low. Call quality may also worsen if metal

objects, such as beverage cans, are placed near the mobile

phone. Check to see if there are metal objects in the vicinity of the

mobile phone. The call sound and quality may differ depending on

the type of mobile phone.

Index I 9-9

About

Bluetooth

® Wireless Technology/

Head Unit Use Environment ………… 9-8

About Making/Answering Phone

Calls …………………………………… 9-8

About Pairing Mobile Phones ………… 9-7

About SiriusXM™ Data Service ……… 6-5

About Transmission and Reception of

Radio Waves ………………………… 4-3

Accept/Reject Call …………………… 3-7

Accessing SiriusXM™ Data ………… 6-5

Accessing SoundHound ………………6-13

Adjusting Voice Recognition Volume … 5-5

Auto Connection Priority ……………… 8-5

AUX ……………………………………2-26

Battery Warning Message ……………1-12

Before Playing a USB MP3 ……………2-11

Before Use …………………………… 4-3

Before Using the Bluetooth®

Handsfree …………………………… 3-2

Blue Link Settings …………………… 4-6

Blue Link Settings

(For Blue Link Model) ………………… 8-6

Blue Link® Safety and Security

Service ………………………………… 4-5

Bluetooth Audio Mode Display

Controls ………………………………2-27

Bluetooth Connection Settings ……… 8-4

Bluetooth Connection ………………… 3-4

Bluetooth Connections Settings ………2-28

Bluetooth Phone ……………………… 3-6

Bluetooth Settings …………………… 8-4

Bluetooth System Information………… 8-5

Bluetooth® Audio ………………………2-27

Call Commands ……………………… 5-8

Call History …………………………… 3-9

CAUTIONS upon Connecting Bluetooth®

Phone ………………………………… 3-3

Camera ……………………………… 7-2

Clock Settings ………………………… 8-8

Combining Voice Recognition with

On-Screen Commands ……………… 5-3

Component Names and Functions …1-5

Connecting an External Device ………2-26

Connecting Bluetooth Devices ……… 3-4

Connecting with the Blue Link Center 4-4

Contacts ………………………………3-10

Default Factory Settings ……………… 8-6

Deleting Bluetooth Devices …………… 3-5

Dial …………………………………… 3-7

Direct Tune …………………………… 2-8

Disconnecting Bluetooth Devices …… 3-5

Display Settings ……………………… 8-3

Driving Info …………………………… 4-6

Index

9-10 I Index

Ending Voice Recognition …………… 5-3

Extending the Listening Time ………… 5-4

FAQ …………………………………… 9-7

Favorites ………………………………3-11

FM/AM ………………………………… 2-2

FM/AM Mode Display Controls ……… 2-2

Getting Started with Blue Link………… 4-4

HD Radio™ Mode Display Controls … 2-5

HD Radio™ Technology

(Except GUAM Model) ……………… 2-4

Head Unit ……………………………… 1-5

Head Unit (For GUAM Model) ……… 1-7

Help Display …………………………… 5-6

Home Screen Settings ……………… 8-7

Home Screen …………………………1-13

How to Connect to a Network ………… 8-8

How to start Siri ………………………5-13

How to use Siri …………………………5-13

Instructions for Using Voice

Recognition …………………………… 5-7

iPod ……………………………………2-19

iPod Mode Display Controls …………2-23

Key Product Features ………………… 1-4

Keyboard Settings …………………… 8-9

Language Settings …………………… 8-9

Media Commands ……………………5-10

Modem Information …………………… 8-7

My Music ………………………………2-29

Name and Function of Each Part …… 4-2

On-Screen Touch Controls ……………1-14

Other Commands List

(Commands used in List / Help) ………5-12

Pairing a New Device ………………… 3-4

Pandora® Screen Controls …………… 6-2

Pandora® (Except GUAM Model) …… 6-2

Phone Status Icons …………………… 3-6

Precautions for Safe Driving ………… 3-2

Precautions Required for Successful

Voice Recognition …………………… 5-2

Product Specification ………………… 9-2

Index I 9-11

Radio Commands …………………… 5-9

Rear View Mirror Switch ……………… 4-2

Recognizing Music ……………………6-14

Restrictions on Features for Safety

Measures ………………………………1-12

Screen Saver Settings ………………… 8-9

Searching Music ………………………6-14

Selecting through Channel/Category

List …………………………………… 2-8

Service Activation …………………… 8-6

Setup ………………………………… 8-2

Siri Eyes Free …………………………5-13

SiriusXM™ Mode Display Controls …2-6

SiriusXM™ Data ……………………… 6-5

SiriusXM™ Fuel Price Information …… 6-10

SiriusXM™ Movie Information ………6-11

SiriusXM™ Sports Information ……… 6-7

SiriusXM™ Stock Information ………… 6-8

SiriusXM™ Weather Announcement … 6-6

SiriusXM™ …………………………… 2-6

Skipping Prompt Messages ………… 5-5

Song Main Screen ……………………6-15

Sound Settings ……………………… 8-3

SoundHound Main Screen ……………6-13

SoundHound …………………………6-13

Start Screen …………………………… 5-6

Starting the System for the First

Time ……………………………………1-11

Starting Voice Recognition …………… 5-3

Starting/Ending and Setting Voice

Recognition …………………………… 5-3

Steering-linked camera ……………… 7-2

Steering Wheel Controls ……………… 1-9

Stolen Vehicle Recovery ……………… 4-5

Supported USB MP3 music

specifications …………………………2-13

Supported Image Specifications………2-13

System Info ……………………………8-10

System Reset …………………………1-11

System Update ………………………8-10

Troubleshooting ……………………… 9-4

Turning the System On/Off ……………1-11

Types of Commands ………………… 5-8

USB ……………………………………2-11

USB Image ……………………………2-17

USB Music ……………………………2-14

Using iPod Devices ……………………2-19

Using the Menu During a Phone Call … 3-8

9-12 I Index

Vehicle Diagnostics …………………… 4-6

Viewing Menu ………………………… 2-8

Voice Commands …………………… 5-8

Voice Recognition Screen Overview … 5-6

Voice Recognition Settings …………… 8-8

Warnings and Cautions ……………… 1-2

What Is Blue Link? …………………… 4-3

What is

Bluetooth

® Wireless

Technology? …………………………… 3-2

What Is Telematics? ………………… 4-3

What is Voice Recognition? ………… 5-2

Wi-Fi Settings ………………………… 8-7

Important Information

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual ("User's

Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.

Keep User's Guide in Vehicle

When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please

make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and

safety information carefully.

Warning

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other

serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a

safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may

to distract your attention away from the road and remove your hands from the wheel.

General Operation

Voice Command Control

Functions within the Multimedia system may be accomplished using only voice commands. Using voice commands while driving allows

you to operate the system without removing your hands from the wheel.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before

attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous

if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while

driving. Driving while unable to hear these sounds could cause an accident.

Use of Speech Recognition Functions

Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any

speech recognition functions included in the system and address any errors.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body.

This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the

FCC.

FCC ID: TQ8-ADB40GKAN

,&:DUQLQJ

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This

device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est

autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout

brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

RF Exposure

The antenna (or antennas) must be installed so as to maintain at all times a distance minimum of at least 20 cm between the radiation

source (antenna) and any individual. This device may not be installed or used in conjunction with any other antenna or transmitter.

l’exposition aux RF

L’antenne (ou les antennes) doit tre install e de fa on maintenir tout instant une distance minimum de au moins 20 cm entre la source de

radiation (l’antenne) et toute personne physique.

IC : 5074A-ADB40GKAN

MEMO

HYUNDAI MOBIS ADB40GKAN DIGITAL CAR AUDIO SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM
