CAR MULTIMEDIA SYSTEM

USER'S MANUAL

5HDGWKHIROORZLQJVDIHW\SUHFDXWLRQV

IRU\RXUVDIHW\

Before using the product, read the contents of this user's manual

carefully and use this product safely.

Ф The design and speciﬁcations of this product may change without prior

notiﬁcation for product and service improvement.

The actual features in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

Ф This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁed under the GNU General

Public license, Version 2, June 1991, and the GNU lesser General Public

License, Version 2.1, February 1999.

For additional information and to obtain related materials including

without limitation, the previous referred to licenses and software, please

1RWDWLRQVXVHGZLWKLQWKLV8VHUV0DQXDO

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

iPod®

iPod® is a registered trademark of Apple Inc.

Bluetooth

Wireless Technology

A compatible

Bluetooth

Wireless Technology-enabled cell phone is

required to use

Bluetooth

Wireless Technology.

The

Bluetooth

® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by Kia is under license.

Other trademarks and trade names are those of their respective owners.

A Bluetooth® enabled cell phone is required to use

Bluetooth

Wireless

Technology.

Bluetooth

Wireless Technology phone compatibility can be checked by

visiting http://www.kia.com.

HD Radio™ Technology

HD Radio™ Technology manufactured under license from iBiquity Digital

Corporation. U.S. and Foreign Patents.

For patents see http://patents.dts.com/. HD Radio™ and the HD, HD

Radio™, and "ARC" logos are registered trademarks or trademarks of

iBiquity Digital Corporation in the United States and/or other countries.

Warnings and Cautions

Key Product Features

Component Names and Functions

Starting the System for the First Time

SDUW%DVLF

1-2 I Basic

6DIHW\:DUQLQJV

• Even when receiving route guidance

from the Navigation system, please

abide by actual traffic and road regu-

lations. Following only the Navigation

route guidance may lead to violations of

actual traffic and road regulations and

lead to traffic accidents.

• Do not stare at the screen while driving.

Staring at the screen for prolonged peri-

ods of time could lead to traffic accidents.

• Do not operate the Navigation system

while driving, such as entering POIs or

conducting route searches. Such acts

could lead to accidents, fire, or electric

shock. Park the vehicle before operating

the device.

• Do not disassemble, assemble, or modify

the Multimedia system. Such acts could

result in accidents, fire, or electric shock.

• Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

• If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibility

of an accident may increase. Please

use phone related functions only when

parked.

• Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

• Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

• Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

• For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

• Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

%DVLF

Warnings and Cautions I 1-3



6DIHW\&DXWLRQV

Pay attention to traffic conditions while

driving.

• In some instances, the navigation may

provide guidance through restricted

areas.

• Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

• Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

• Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

• Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

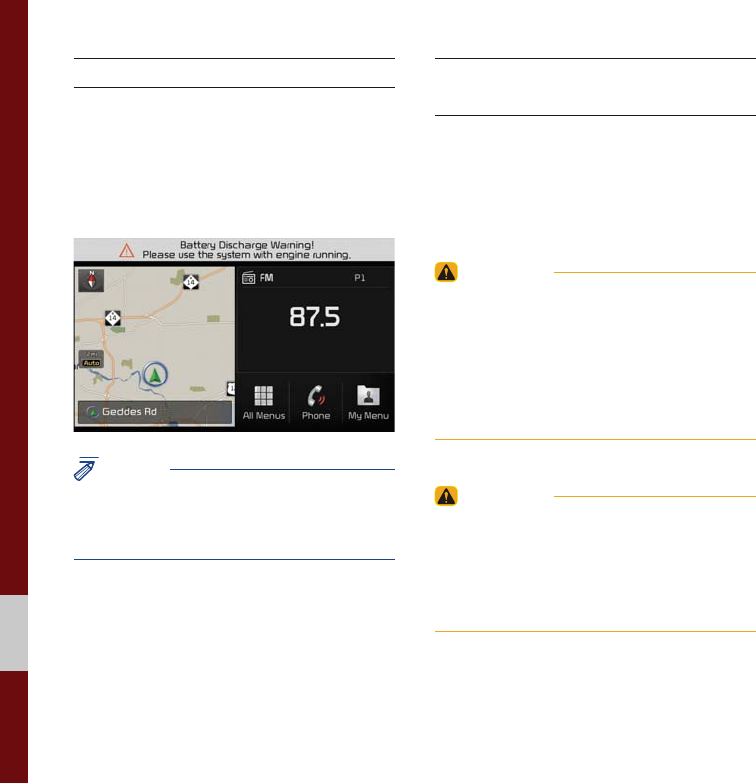

• Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

• Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

• When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

• Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

1-4 I Basic

.H\3URGXFW)HDWXUHV

This device is a Multimedia system equipped with a multi-

functional player that supports Radio (FM, AM), HD Radio™,

SiriusXM™, USB, iPod, AUX and Bluetooth Audio features. The

WIDE VGA LCD provides a high quality resolution while the pow-

erful and rich sound system adds to the driving enjoyment.

Display

Wide TFT-LCD Display

• Provides high quality video through a Wide

TFT-LCD Display using an LED Back Light.

• Touch screen for maximum user convenience.

Radio

Digital Tuner Feature

• Digital Tuner using PLL method that supports

memory of 40 broadcast stations.

Radio broadcast station name

• Displays broadcast station names.

Multimedia

Player

Support for various Media Formats

• Support for various media formats, including

Radio, USB, iPod, AUX and Bluetooth

Audio

Streaming modes

Navigation

Voice Guidance

• Voice route guidance to safely and conve-

niently reach set destinations.

• Various map scales that enable drivers to

accurately view map and surrounding areas.

Automatic Correction for Current Location

• Automatically corrects current position using

map matching and GPS information.

Miscellaneous

Bluetooth

Wireless Technology

• Convenient use of Bluetooth

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

• Easy control of features through touch screen

options

Steering Wheel Control

• Control over audio features, voice recognition

and Bluetooth

through the steering wheel

control for maximum convenience

Component Names and Functions I 1-5



&RPSRQHQW1DPHVDQG)XQFWLRQV

Head Unit

Name Description

32:(5

92/

• When power is off, press to turn power on.

• When power is on, press and hold (more than

0.8 seconds) to turn the power off.

• When power is on, press quickly (less than 0.8

seconds) to turn Audio off.

• Turn left/right to adjust the volume.

5$',2

Selects FM/AM/SiriusXM™ mode

• Each time this is pressed, the mode is changed

in the following order: FM я AM я SiriusXM™

я FM.

Name Description

0(',$

Selects MEDIA mode.

• If the media is not connected MEDIA mode will

not be activated.

Moves to the function set by the user.

1-6 I Basic

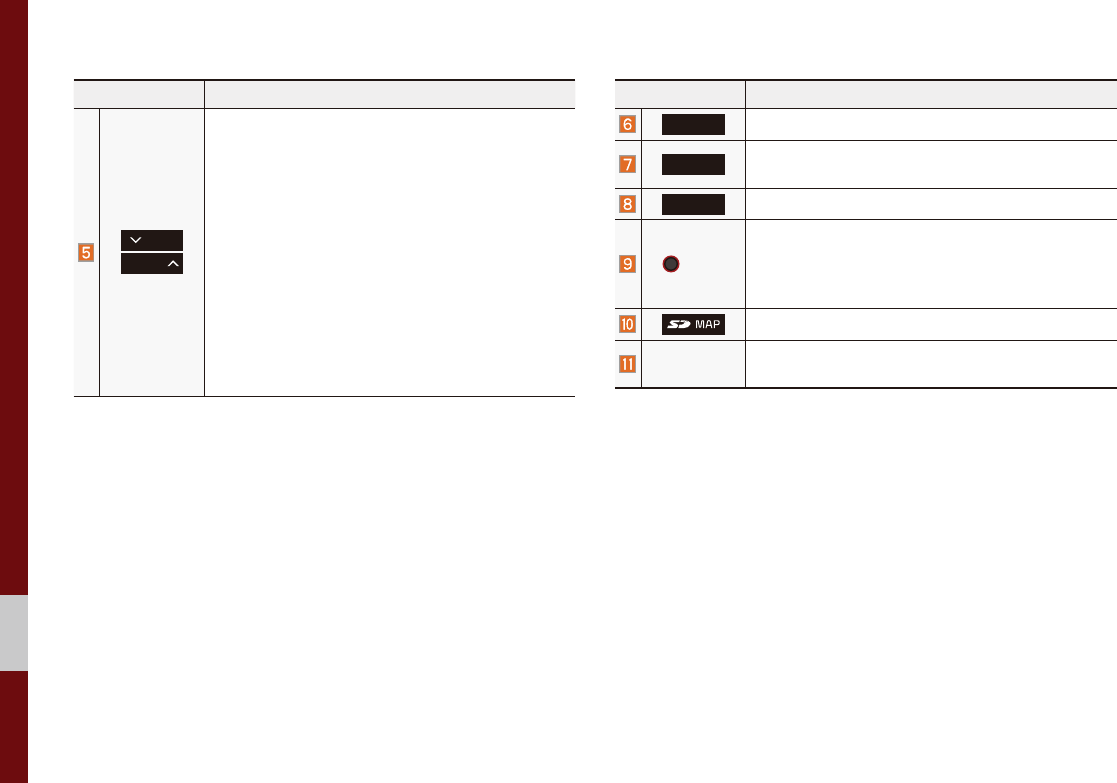

Name Description

75$&.

6((.

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: Plays the previous/next fre-

quency.

• SiriusXM™ mode: Changes the channel.

• MEDIA mode: Changes the track, file or title

(except for AUX).

When pressed and held down (more than 0.8 sec-

onds),

• FM/AM mode: Moves quickly through all of the

frequencies. The moment that you release the

button, the system seeks the next available fre-

quency.

• MEDIA mode: Rewinds or fast forwards the

track or file (except for AUX, Bluetooth Audio).

Name Description

0$3

Displays the map for the current position.

1$9

Takes you to the menu screen where you can find

your destination and set the route.

6(783

Moves to the Setup screen.

781(

• FM/AM mode: Changes the frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA mode: Changes the track, file or title

(except for AUX, Bluetooth Audio).

SD Card insert slot.

5(6(7 Resets the system settings. (Preset radio channels

and other data will not be deleted)

Ф The actual image in the vehicle may differ from the illustration.

Component Names and Functions I 1-7



Name Description

When pressed quickly (less than 0.8 seconds),

• Activates voice recognition.

When pressed and held (more than 0.8 seconds),

• Ends voice recognition.

• If iOS device is connected through Bluetooth,

activates or ends Siri Eyes Free.

Name Description

02'(

• Each time this is pressed, the mode is changed

in the following order: FM я AM я SiriusXM™ я

USB or iPod я AUX я Bluetooth Audio я FM

You can select which mode to use in

Advanced settings.

• If the media is not connected, the corresponding

modes will be disabled

• Press and hold (more than 0.8 seconds) to turn

the Audio system on/off

• When power is off, press button to turn power

back on





Controls the volume

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: searches broadcast frequencies

saved to Presets

• SiriusXM™ mode: searches broadcast channels

saved to Presets

• MEDIA mode: changes the track, file or title

(except for AUX)

When pressed and held (more than 0.8 seconds),

• FM/AM mode: automatically searches broadcast

frequencies

• SiriusXM™ mode: automatically searches broad-

cast channels

• MEDIA mode: quickly looks up songs (except for

AUX, Bluetooth Audio)

Steering Wheel Controls

1-8 I Basic

Name Description

When pressed quickly (less than 0.8 seconds),

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen,

answers the call

• When pressed during call waiting, switches to

waiting call (Call Waiting)

When pressed and held (more than 0.8 seconds),

• When pressed in Bluetooth

Hands-free, redials

the last dialed call

• When pressed during a Bluetooth

Hands-free

call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone,

switches call back to Bluetooth

Hands-free

(operates only when Bluetooth

Hands-free is

connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects

the call

Ф The actual image in the vehicle may differ from the illustration.

Starting the System for the First Time I 1-9



6WDUWLQJWKH6\VWHPIRU

WKH)LUVW7LPH

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

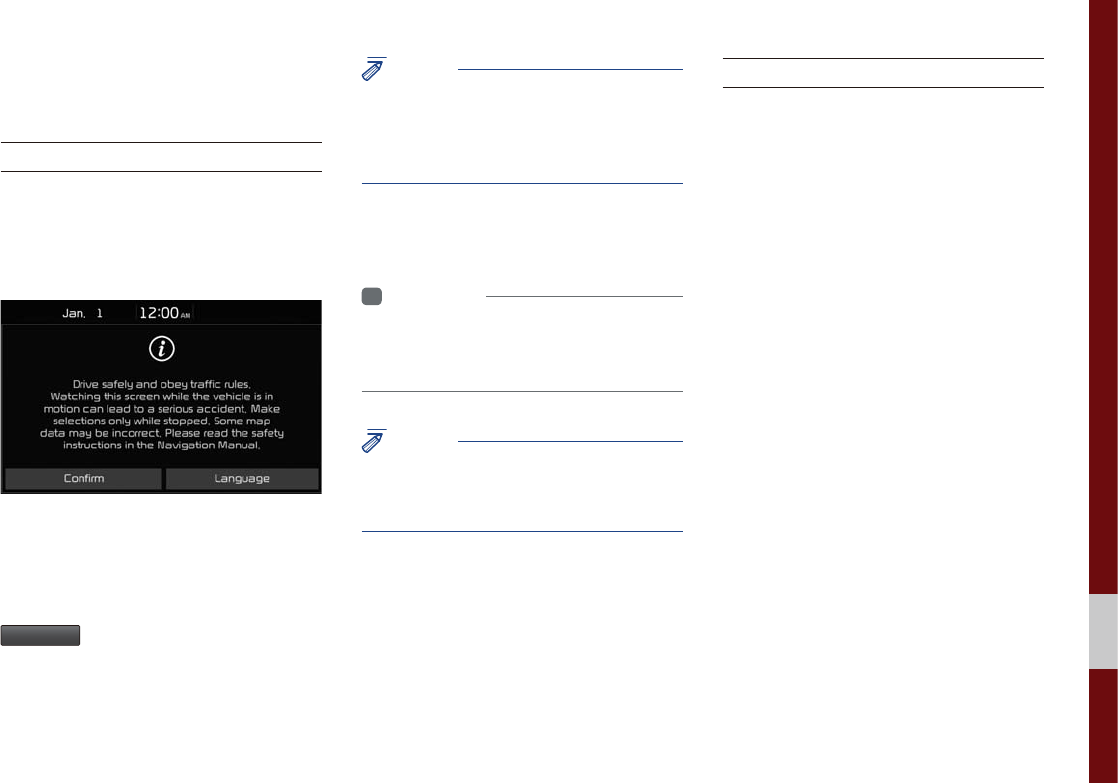

warning will appear.

Pressing the power key on the head unit

will display the safety guide. To change the

system language between English,

French, Spanish and Korean, select the

/DQJXDJH

button.

NOTICE

• You cannot operate the system while it is

booting up. It may take some time for all of

features of the system, particularly the voice

recognition system, to be ready for use.

Pressing and holding the power key on the

head unit will turn off the system.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will

automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust

the volume to a reasonable level.

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the 5(6(7 key for a sec-

ond or longer. (It is recommended that you

press the 5(6(7 key using a tool, such as

a pin or a clip.)

1-10 I Basic

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become

completely discharged.

Restrictions on Features for

Safety Measures

Several features are limited while driving.

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

WARNING

- Blank Screen

• Refrain from use if the screen is blank or

no sound can be heard as these signs may

indicate product malfunction. Continued use in

such conditions could lead to accidents (ﬁres,

electric shock).

WARNING

- Touching the Antenna During A

Thunder Storm

• Do not touch the antenna during thunder or

lightning as such acts may lead to lightning

induced electric shock.

Starting the System for the First Time I 1-11



Home Screen

Controls Menu Conﬁguration for the Home Screen

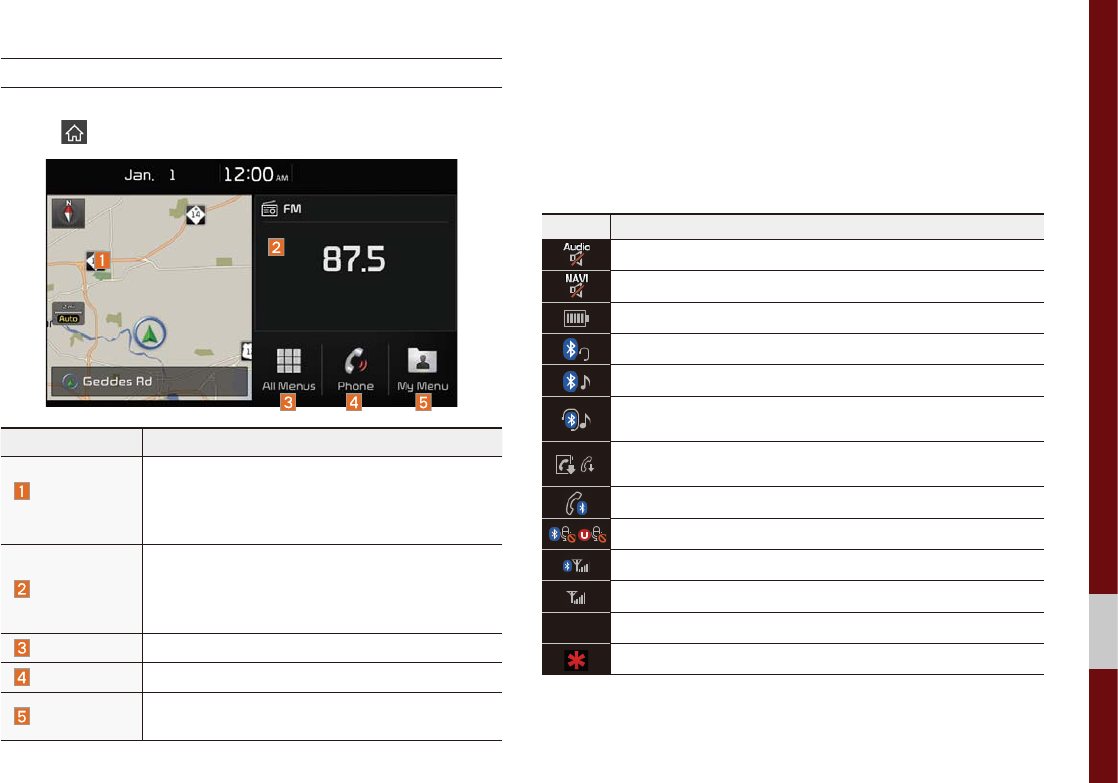

Tap the icon on any screen to display the Home Screen below.

Features Description

Navigation

Widget

• Provides a brief view of the navigation map

and the route screen.

• Touch any area on the screen to move to the

navigation screen.

AV Widget

• Shows brief information on the radio or

media that is now playing.

• Tap the area to move to the mode that you

are listening to.

All Menus Shows all of the items in the system menu.

Phone Displays user to phone screen.

My Menu Add your favorite menus to have quick and easy

access to them.

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

The icons in the following table indicate the various types of sys-

tem status details and events.

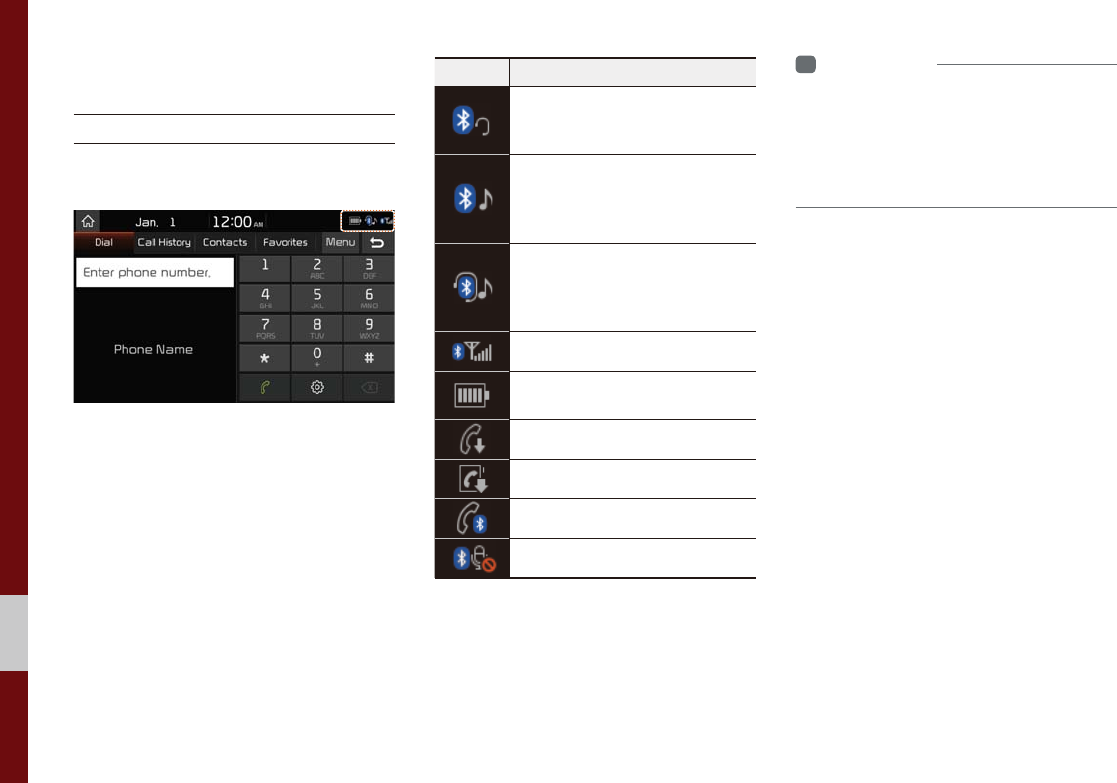

Icon Description

Displayed when the audio is muted.

Displayed when the navigation sound is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and

handsfree.

Displayed when downloading contacts or recent calls from the

Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth or UVO phone is muted.

Displays the signal strength of the Bluetooth phone.

Displays the signal strength of the UVO.

Displayed when 911 connect is available.

1-12 I Basic

Adding a Feature to My Menu

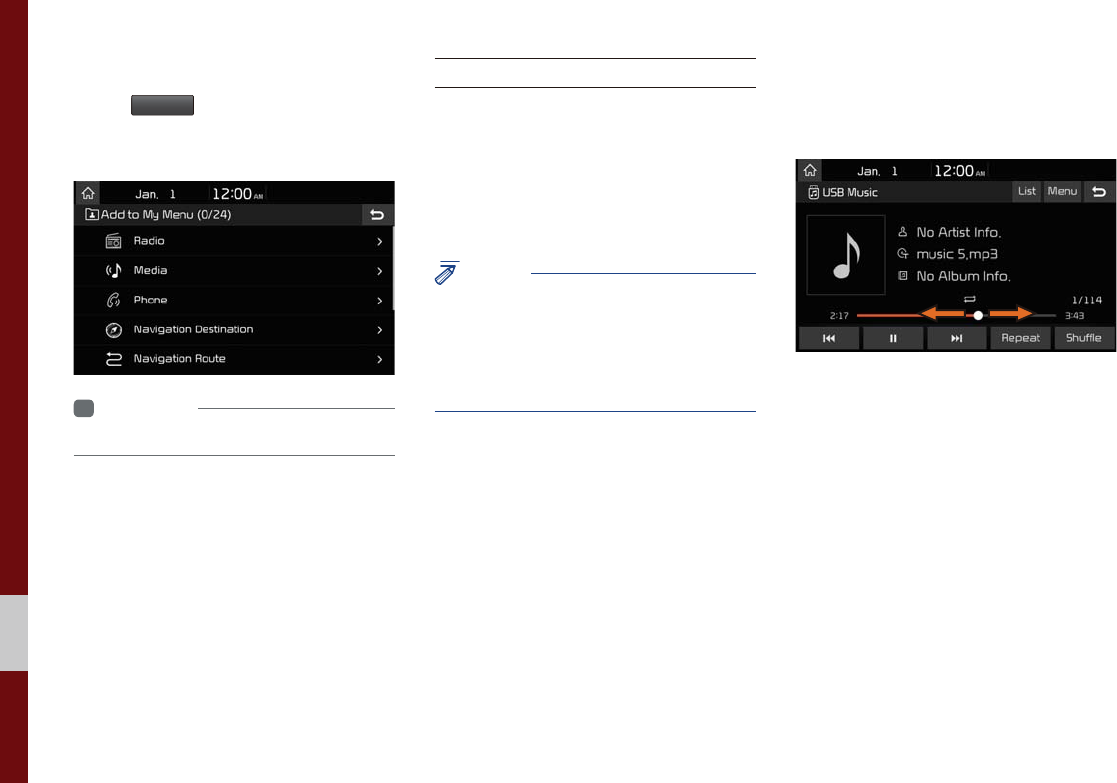

Select

0\0HQX

on the Home Screen to

add the most frequently used menus,

change the menu order, or delete menus.

Information

• Up to 24 menus can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive

material. Touch the screen using your ﬁnger,

an electrostatic touch-screen glove, or a stylus

pen.

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

Starting the System for the First Time I 1-13



Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display.

You can easily move many items at a time

with the handler.

Press and Hold

Pressing the and buttons

in the music player will fast forward/rewind

the music.

0(02

FM/AM

HD Radio™ Technology

SiriusXM™

USB

iPod

AUX

Bluetooth® Audio

SDUW5DGLR0HGLD

2-2 I Radio/Media

)0$0

You can access the radio player either by pressing the

5$',2

key or by selecting the Radio menu from All Menus on the Home

screen.

Information

• If you press the

5$',2

key when power is off, the power will turn on

and a radio broadcast will be tuned from the current mode.

Features Description

Preset

Frequencies

• The stored preset frequencies are displayed

for user selection.

• After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the frequency

is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll

quickly through presets.

Frequency Displays the current frequency.

Presets Shows the stored presets for user selection.

• List: Moves to the frequency list.

• Info: Turns the Radio text information transmit-

ted from the broadcasting station on and off.

• Sound Settings: Moves to the Sound Settings.

Band Changes to the desired band from among FM,

AM, and SiriusXM™.

HD Radio Used to set whether to turn HD Radio™ recep-

tion On or Off.

Scan

Shortly plays the broadcasts for the frequen-

cies with superior reception for 10 seconds

per item.

5DGLR0HGLD



FM/AM I 2-3

Features Description

SEEK/TRACK

• When pressed quickly (less than 0.8 sec-

onds): Seeks the previous/next frequency.

• When pressed and held (more than 0.8 sec-

onds): Moves quickly through all of the fre-

quencies. The moment that you release the

button, the system seeks the next available

frequency.

TUNE

Turn the

781(

knob to manually seek avail-

able frequencies.

• FM: Increment/decrement by 200 kHz

• AM: Increment/decrement by 10 kHz

2-4 I Radio/Media

If an HD Radio™ broadcast is received,

the radio mode will switch from analog

broadcast to HD Radio™ broadcast.

Information

• The

HD Radio™

screen is displayed only

when a HD Radio™ broadcast is being

received.

+'5DGLRа7HFKQRORJ\

Program Service Data: Presents song name,

artist, station IDs, and other relevant data

streams.

FM stations can provide additional digital-only

audio programming on HD2/HD3 Channels.

Digital, CD-quality sound. HD Radio™ Technology

enables local radio stations to broadcast a clean

digital signal. AM sounds like today’s FM and FM

sounds like a CD.

Real-Time Traffic reports, alerts, and flow data

displayed on screen via interactive traffic maps

and/or data.

HD Radio™ Technology I 2-5



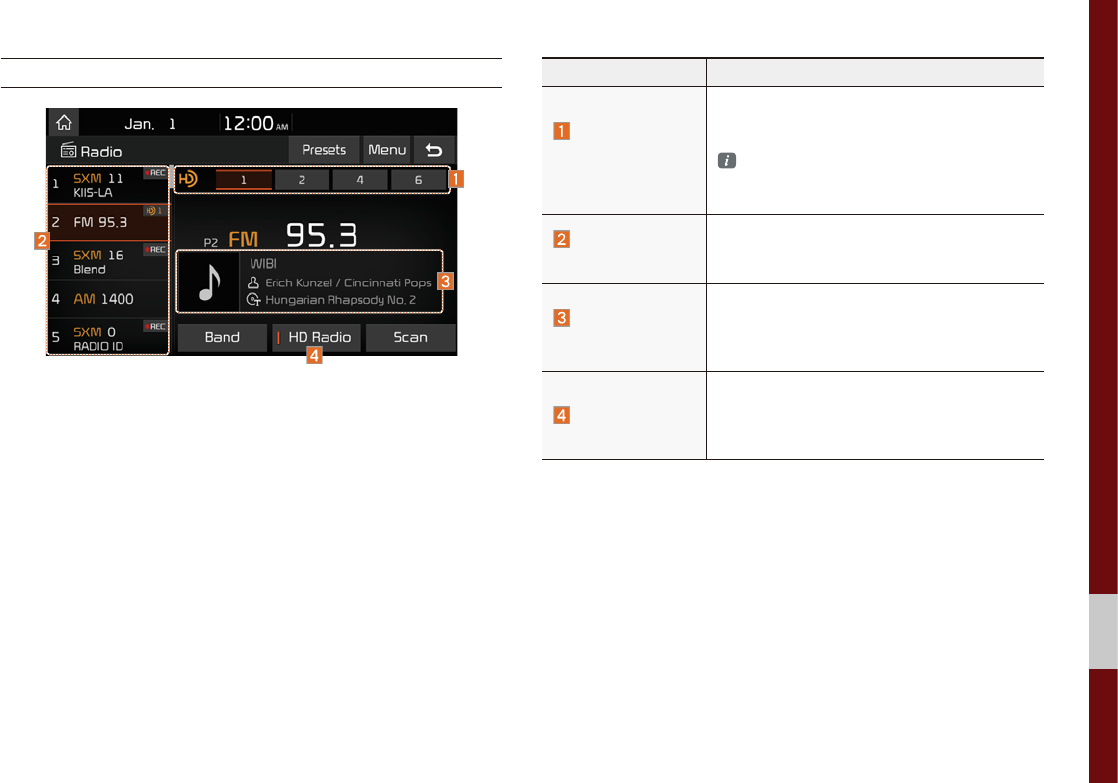

HD Radio™

Features Description

HD Radio™

Reception &

Channel buttons

Displays main HD Radio™ channels and

used to directly select the current available

channels.

The HD Radio™ related icon display

becomes active within regions where an

HD Radio™ signal can be received.

HD Channel

Number

Analog station and corresponding HD

Radio™ channel number saved in the pre-

set list.

HD Radio™

Broadcast Info

Displays detailed information about the cur-

rent broadcast (the details of the information

shown are different depending on whether

the Info button is selected)

HD Radio

When the HD Radio™ soft button is ON

(the red indicator on the HD Radio™ button

is illuminated), HD Radio™ signals will be

received.

2-6 I Radio/Media

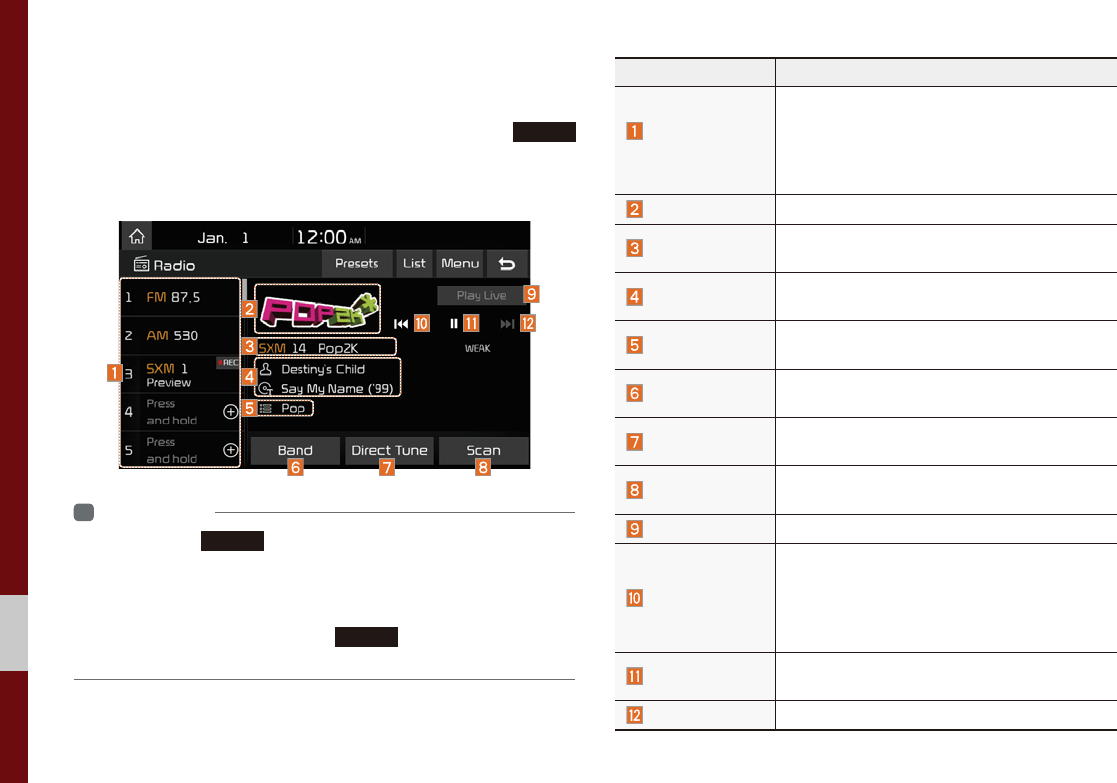

6LULXV;0а

You can access the radio player either by pressing the

5$',2

key or by selecting the Radio menu option from All Menus on the

Home screen. Select the SiriusXM™ band from the radio player.

Information

• If you press the

5$',2

key when the power is off, the power will turn

on and a radio broadcast will be tuned from the current mode.

• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget

from the Home screen to access the radio player.

• When the power is off, pressing the

5$',2

key will turn the power on

and play a SiriusXM™ Radio broadcast.

Features Description

Preset

Frequencies

• Shows the stored presets for user selection.

• After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the frequency

is to be stored in the selected preset button.

Channel Logo Displays the current channel logo.

Channel Info Displays the current channel number and

name.

Content Info Displays the artist, title and other information

about the current playing song.

Category Info Displays the category of the currently playing

song.

Band Changes to the desired band from among FM,

AM, and SiriusXM™.

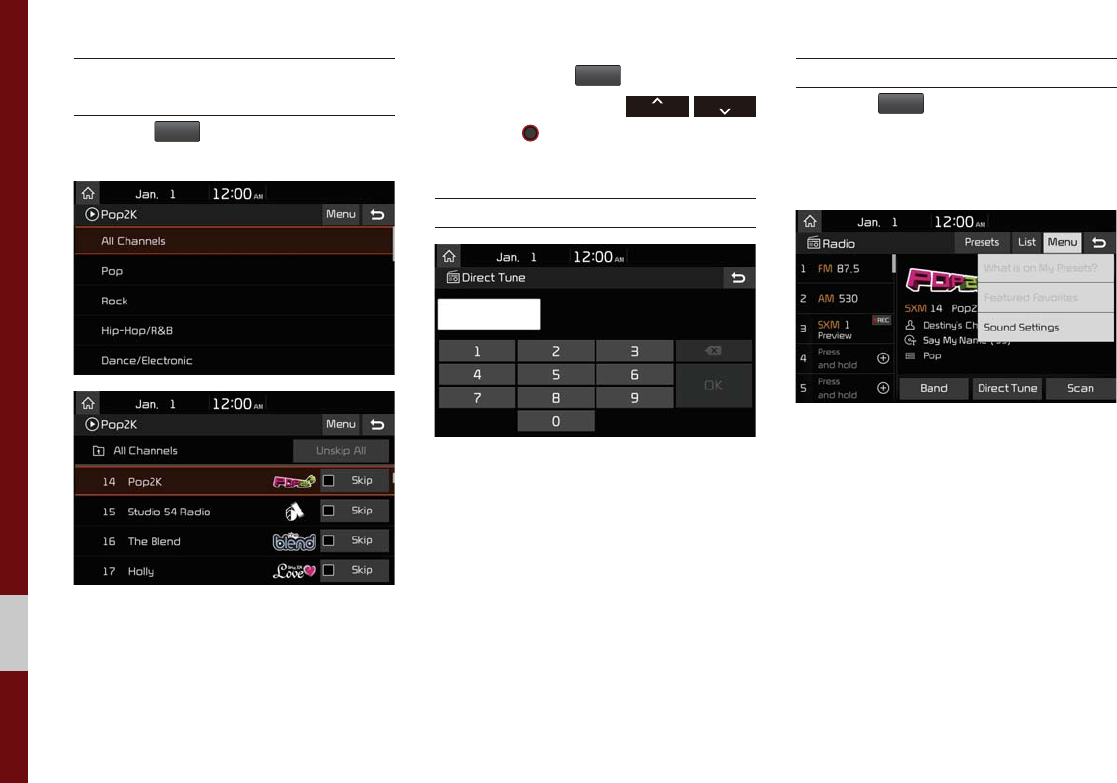

Direct Tune Used to search for the desired channel by

entering the channel number.

Scan Plays all receivable channels for 10 seconds

per item.

Play Live Switches to the live broadcast mode.

Skip Backward

Repeats the previously broadcasted program.

• Holding for less than 0.8 seconds: Moves to

the previous segment.

• Holding for more than 0.8 seconds: Moves

to the previous 5 seconds.

Play/Pause Pauses/plays the current broadcasting pro-

gram.

Skip Forward Moves to the next segment.

SiriusXM™ I 2-7



Features Description

Weak Signal Displays the weak radio reception.

Presets Shows the stored presets for user selection.

List Moves to the channel list.

• What is on My Presets?

The program schedule saved in my preset. (For

more details, see Section 3.10. Viewing Menu.)

• Featured Favorites: Theme channels recom-

mended by SiriusXM™. (For more details,

see Section 3.10. Viewing Menu.)

• Sound Settings: Moves to the Sound Settings.

SEEK/TRACK

• When pressed quickly (less than 0.8 sec-

onds): Plays the previous/next channel.

• When pressed and held (more than 0.8 sec-

onds): Continuously changes the channel

until the key is released and plays the current

channel.

TUNE Changes the channel.

2-8 I Radio/Media

Selecting through

Channel/Category List

Select the

/LVW

ԡ Select the desired cat-

egory and channel.

Select the desired category and the chan-

nel. Once selected, the previous screen

will be restored and the selected channel

will begin playing.

If you select the

6NLS

button, you can

scan channels using the

6((.

75$&.

key or the

781(

knob by skipping the

channels that you chose to skip.

Direct Tune

Enter the number of the channel you want

to receive.

Viewing Menu

Using the

0HQX

button on the right, you

can view the program schedule and infor-

mation about the Featured Favorites pro-

vided by SiriusXM™.

SiriusXM™ I 2-9



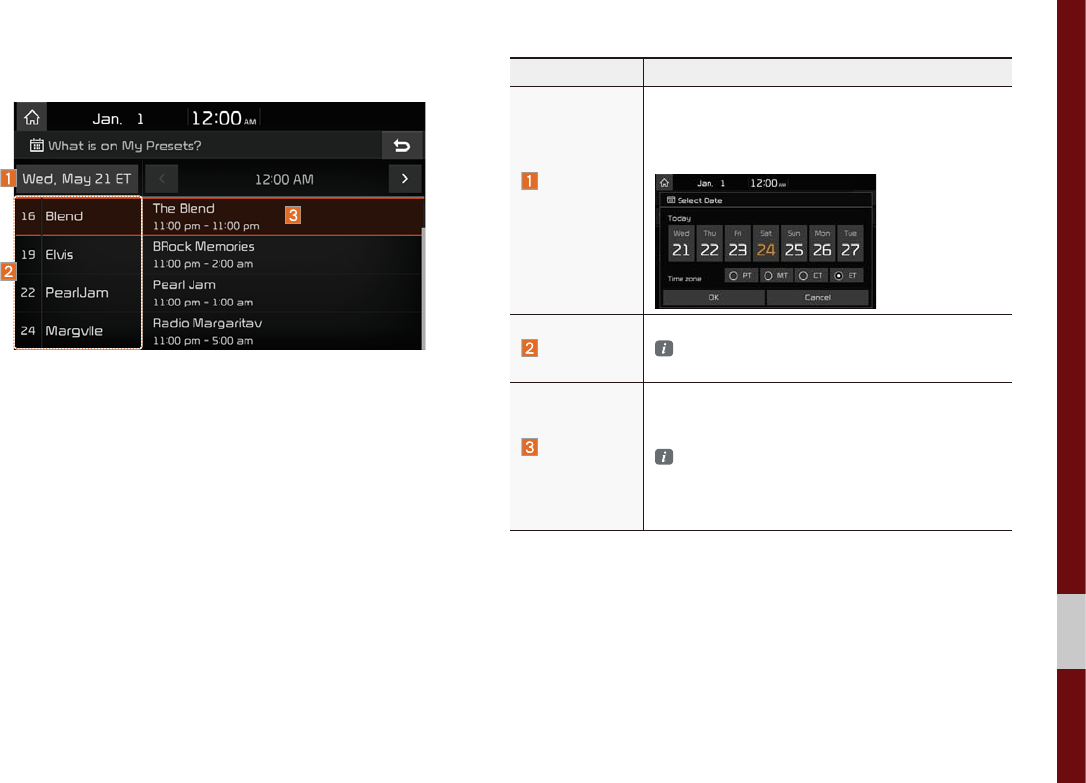

What is on My Presets? (Program Schedule)

You can select Menu to see program information and the sched-

ules of broadcast channels listed in the presets.

Name Description

Change

Broadcast

Date

By selecting this option, you can select a broad-

casting date.

Broadcast information will be provided for one

week from the current date.

Preset

Shows saved presets for user selection

A total of 40 frequencies for SiriusXM™ modes

can be displayed.

Program

Information

Shows you the program titles to be broadcasted

at the time that you have chosen.

Select a program to see more details.

If there is more information on the program you

selected, an arrow button will be displayed on

the right of the list. You can see more program

information by selecting the arrow button.

2-10 I Radio/Media

Featured Favorites

Featured Favorites feature allows

SiriusXM™ to broadcast additional presets.

• Example 1: “Martha’s Favorites” may

represent Martha Stuart’s favorites pre-

sets on her radio.

• Example 2: During holidays, “Holiday

Music” may represent all the SiriusXM™

channels that are playing the holiday

music for easy access by users.

Multiple sets Featured Favorites data

can be broadcast by SiriusXM™ and can

change from time to time.

USB I 2-11



86%

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB

device may become damaged if it is already connected when the

ignition is turned on.

• Files that are not standard format music/image files will not be

played.

• For MP3/WMA/OGG files, only music files with compression

rates between 8Kbps ~ 320Kbps can be played.

• Heed caution to static electricity when connecting/disconnecting

external USB devices.

• Encoded MP3 Players will not be recognized when connected

as an external device.

• When connecting an external USB device, the device may not

properly recognize the USB is in some states.

• Only products formatted with byte/sectors under 64Kbyte will be

recognized.

• USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-

tem, are recommended. File systems other than FAT12, FAT16,

FAT32, exFAT, and NTFS are not supported.

• Some USB devices may not be supported due to compatibility

issues.

• Take caution so that the USB connector does not come in con-

tact with body parts or objects.

• Repeated connecting/disconnecting of USB devices within short

periods of time may result in product malfunction.

• Make sure to connect/disconnect external USB devices with the

audio power turned off.

• The amount of time required to recognize the external USB

device may differ depending on the type, size, or file formats

stored on the USB.

• The use of USB devices for purposes other than playing music

and image files is prohibited.

• Do not use the USB I/F to charge batteries or USB accessories

that generate heat. Such acts may lead to worsened perfor-

mance or damage to the device.

• The device may not recognize the USB device if separately

purchased USB hubs and extension cables are being used.

Connect the USB directly with the multimedia terminal of the

vehicle.

• When using mass storage USB devices with separate logical

drives, only files saved to the root drive can be played.

• When application programs are installed to specific USBs, files

may not properly play.

2-12 I Radio/Media

• The device may not operate normally if MP3 Players, cellu-

lar phones, digital cameras, or other electronic devices (USB

devices not recognized as portable disk drives) are connected

with the device.

• Charging through the USB may not work for some mobile

devices.

• The device may not support normal operation when using a

USB memory type besides Metal Cover Type USB Memory.

• The device may not support normal operation when using for-

mats such as HDD Type, CF, or SD Memory.

• When playing iPods, please use a dedicated iPod car cable.

• Normal operation cannot be guaranteed when other cables are

being used.

• The device will not support files locked by DRM (Digital Rights

Management).

• USB memory sticks used by connecting an Adaptor (SD Type or

CF Type) may not be properly recognized.

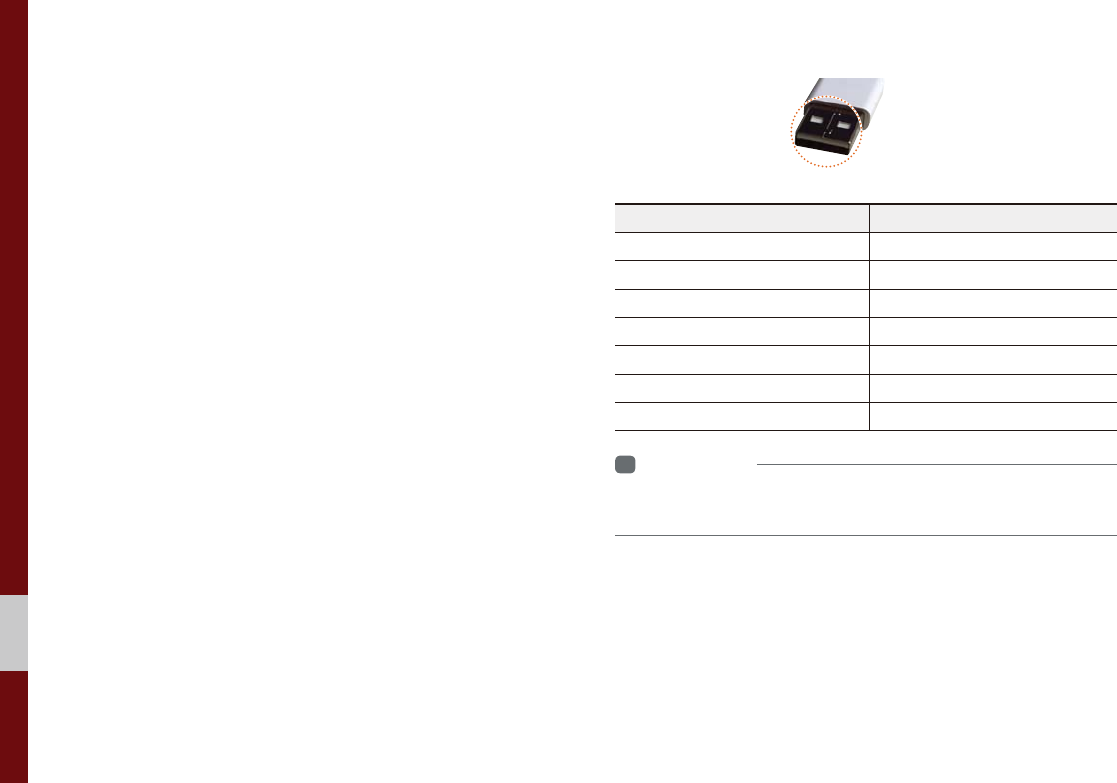

• Only use Plug type connector products, as shown in the figure

below.

• To play USB MP3, the USB device must be connected to the

USB port in the front multibox. The USB port in the center con-

sole storage (if equipped) is for charging only.

Product Name Manufacturer

XTICK LG

BMK BMK Technology

SKY-DRV Sky Digital

TRANSCEND JetFlash Transcend

Sandisk Cruzer SanDisk

Micro ZyRUS ZyRUS

NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

Plug Type Connector

USB I 2-13



Supported USB MP3 music speciﬁcations

Name Description

MP3 File

Specification Specification: MPEG1 AUDIO LAYER 3

Recommended

Bit Rates and

Sampling

Frequency

Acceptable sampling frequency: 32, 44.1, 48 (kHz)

Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112,

128, 160, 192, 224, 256, 320 (Kbps)

96, 128, 192 Kbps fixed bit rate/44.1kHz

ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,

ID3v2.4 ID3 tags

Detailed

Specifications

Maximum directory layers: 20 layers

Maximum length of folder name/file name: 255Bytes

Supported characters for folder name/file name:

Alphanumeric characters, Korean standard charac-

ter set 2,350 characters, Simplified Chinese 4888

characters

Maximum number of folders which can be stored

onto one USB: 2000 folders (including ROOT)

Maximum number of files which can be stored onto

one USB: 8000

Information

• The sound quality of MP3 files that use bitrates exceeding

192 Kbps cannot be guaranteed. When using ﬁles without ﬁxed bit rates,

some features (FF/REW features) may not properly operate.

2-14 I Radio/Media

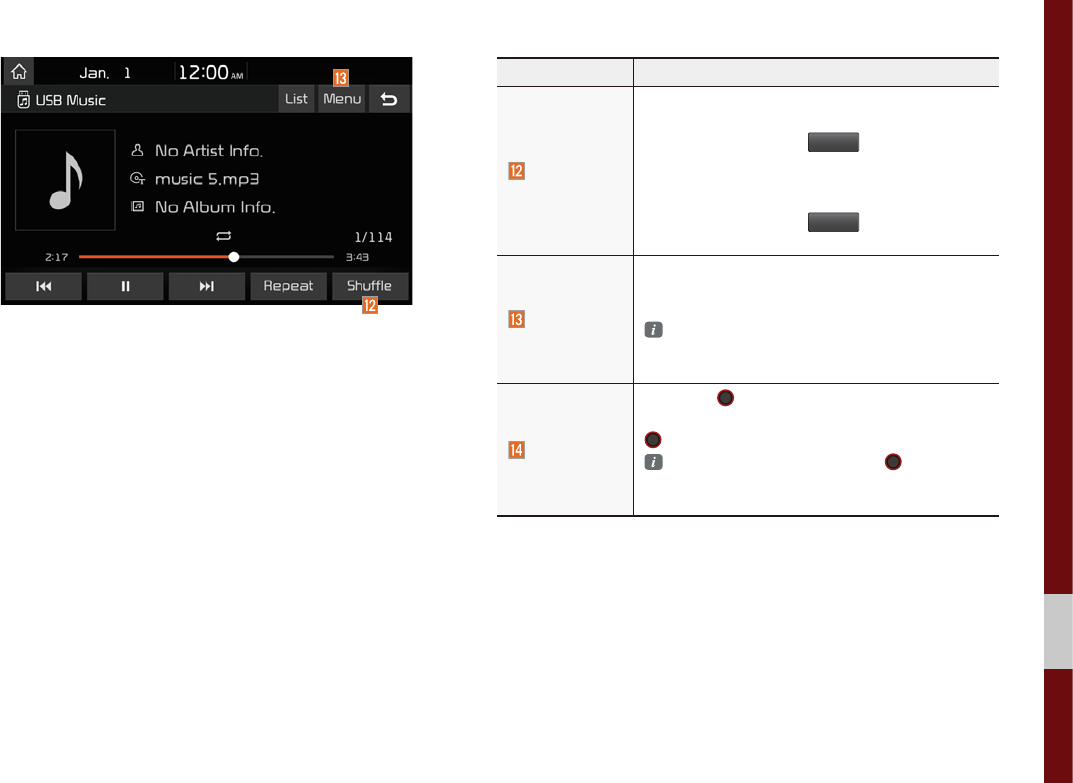

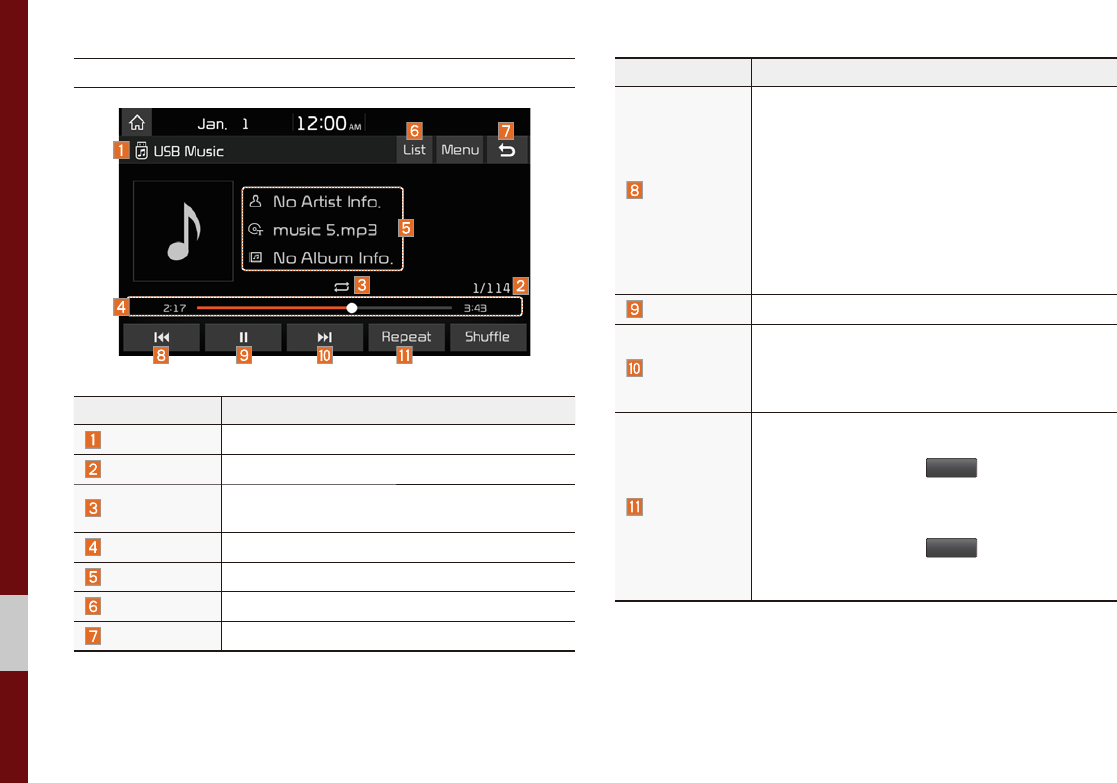

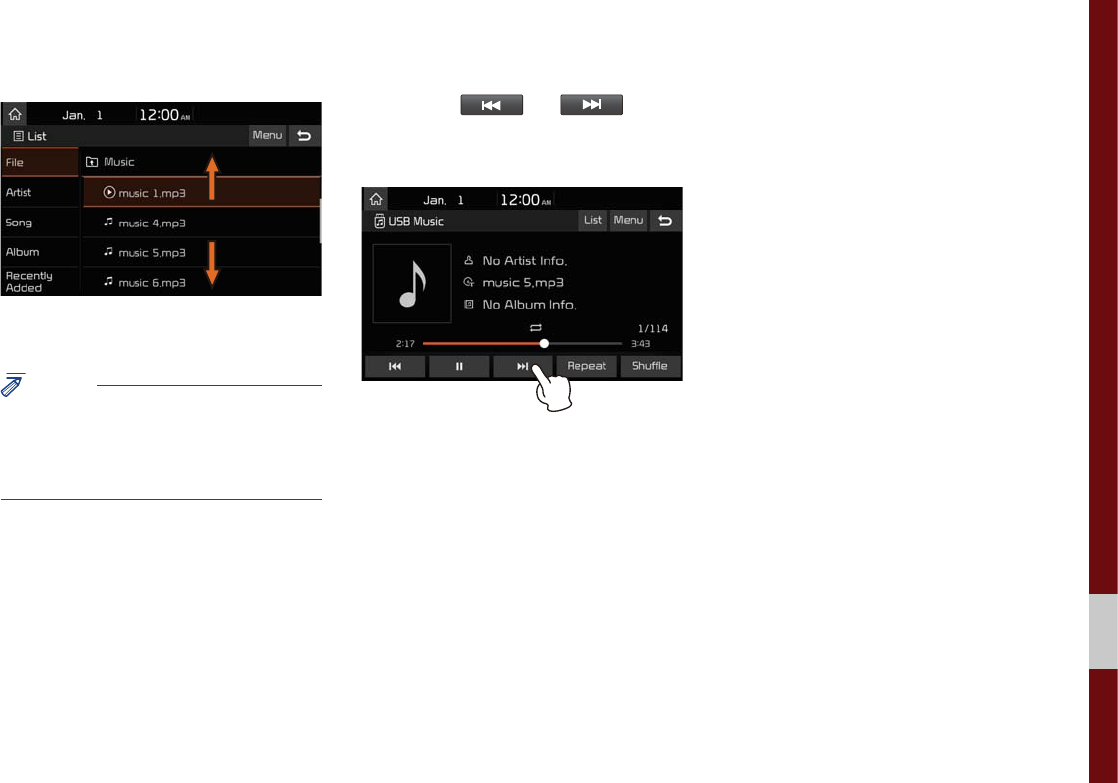

USB Music

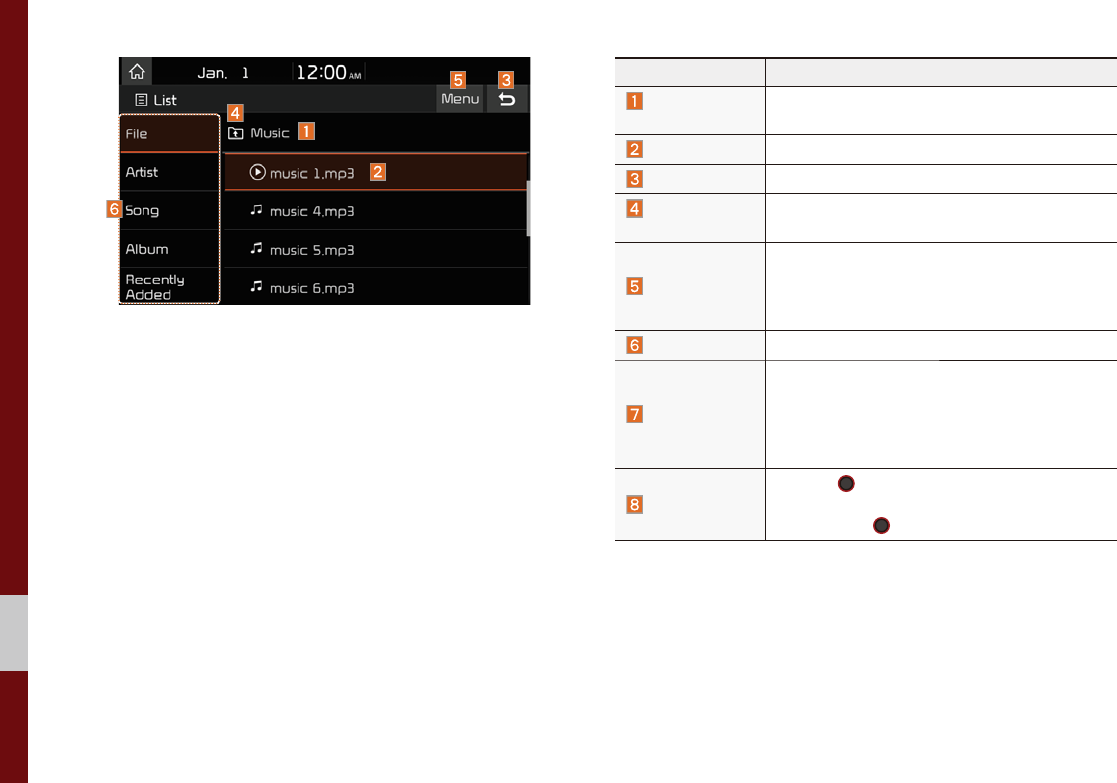

Features Description

Mode Displays the current operating mode

File Index Shows the current file/total files within the USB

Repeat/Shuffle From Repeat/Shuffle, displays the current oper-

ating function

Play Time Displays the current play time/total play time

Song Info Displays the artist/title/album info

List Moves to the list screen

Back Button Converts to basic mode screen

Features Description

Previous File

• If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current

file from the beginning (Depends on the play

time)

- If play time is less than 3 seconds, moves to

previous file

- If play time is more than 3 seconds, play the

current file from the beginning

• If button is pressed (over than 0.8 seconds) it

rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is pressed (less than 0.8 seconds):

Moves to the next file.

• If button is pressed (over than 0.8 seconds): It

fast-forwards the track.

Repeat

Repeats the current file

• If select the song in the file tab on the list

screen: Select the

5HSHDW

button to switch

between repeating one song, repeating folder,

and turning repeat off

• If select the song in the other tabs on the list

screen: Select the

5HSHDW

button to switch

between repeating one song and turning

repeat off

USB I 2-15



Features Description

Shuffle

Plays files in random order

• If select the song in the file tab on the list

screen: Select the

6KXIIOH

button to switch

between Shuffle Folder, Shuffle All, and turning

shuffle off

• If select the song in the other tabs on the list

screen: Select the

6KXIIOH

button to switch

between Shuffle Category and turning shuffle off

• Hide Current File: a selected file can be

deleted. Deleted file can be found in the

“Hidden_” folder.

This function is only supported when USB for-

mat is compatible with FAT16 or FAT32.

• Sound Settings: Moves to the Sound Settings.

TUNE

Turn the

781(

knob to search a desired

track. If the desired track is displayed, select the

781(

knob to play the track.

If you do not anything with the 781( knob

for 5 seconds of searching tracks, the track

info for the current track is restored.

2-16 I Radio/Media

Features Description

Folder/

Category Name Displays folder/category name in the list

Current Song Displays the current playing file name

Back Button Converts to basic mode screen

Upper Folder/

Category Moves to Upper Folder/Category

Now Playing: When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when the

current list includes the current file)

Search Menu Search songs by the list type.

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track

• If button is pressed (over than 0.8 seconds):

Moves to play screen, and then it will rewind

or fast-forward the track.

TUNE

Turn the

781(

knob to move the focus to the

previous/next list. If the desired track is dis-

played, press

781(

knob to play the track.

iPod I 2-17



L3RG

Using iPod Devices

• iPod is a registered trademark of Apple Inc.

• iPod mode will not operate if the con-

nected iPod cannot be recognized due

to operation of unsupported versions

that do not support related protocols,

iPod abnormalities, or iPod device

defects. Some iPods with unsupported

communication protocols may not prop-

erly operate with the Multimedia system.

• For fifth generation iPod Nano devices,

the iPod may not be recognized when

the battery level is low. Please charge

the iPod for use.

• Search/play orders shown within the

iPod device may differ with the orders

shown within the Multimedia system.

• If the iPod malfunctions due to an iPod

device defect, reset the iPod and try

again. (To learn more, refer to your iPod

manual)

• If repeatedly connect and disconnect

iPod/iPhone to the Multimedia system

with USB cable in a short time, it may

cause abnormal operation.

• The time for recognition of iPod/iPhone

may vary depending on device type,

firmware version and iOS version.

• For some iPod Touch and iPhone

devices, connecting Bluetooth® while the

iPod is operating may result in discon-

tinued iPod sound. When such devices

with Bluetooth® support are connected,

this problem occurs as the sound source

is changed from the Dock Connector

(USB connector cable) to Bluetooth.

• To prevent this symptom, Bluetooth

Audio function in the Multimedia system

is limited if iPod/iPhone is connected

to the system through both cable and

Bluetooth. To listen to the iPod sound,

use either iPod menu with USB connec-

tion or Bluetooth Audio with Bluetooth

connection.

2-18 I Radio/Media

• To listen to the iPod sound, reconnect

the USB cable or change the audio out-

put settings in iPod/iPhone to Dock.

• In order to use the iPod while operating

the keys, you must use a dedicated iPod

cable. (the cable that is supplied when

purchasing iPod/ iPhone products)

ФDuring ACC ON state, connecting the

iPod through the iPod cable (The cable

that is supplied when purchasing iPod/

iPhone product.) will charge the iPod

through the head unit.

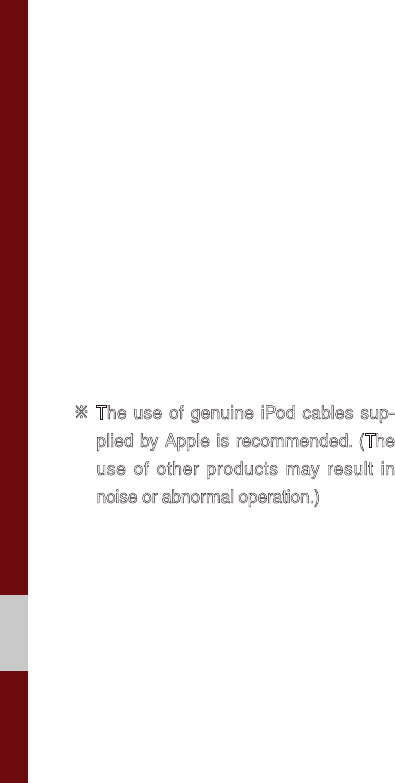

ФThe use of genuine iPod cables sup-

plied by Apple is recommended. (The

use of other products may result in

noise or abnormal operation.)

ФTo play iPod music through cable con-

nection, the iPod/USB cable must be

connected to the USB port in the front

multibox. The USB port in the center

console storage (if equipped) is for

charging only.

• When connecting with the iPod cable,

make sure to fully insert the jack to pre-

vent communication interference. If the

iPod is connected to the vehicle while it

is playing, a high pitch tone may sound

for about 1~2 seconds immediately

after connection. If possible, connect

the iPod to the vehicle with the iPod

stopped/paused.

• Within iPhones, streaming audio and

iPod control may occasionally conflict.

If problems persist, remove the iPhone

and connect again.

• When connecting to iPod Nano/Classic,

the Kia Motor logo appears on the Apple

device. For the iPod Nano 6 genera-

tion, however, the logo image does not

appear since it is not supported. Also, all

iPhone and iPod Touch products do not

support this function.

• In Apple’s iOS 6.0 version or later,

Podcast and Audiobook media files

are designed to be played with the

Podcasts and iBooks applications spe-

cifically designed for Apple products. If

the Apple device does not provide the

Podcast and Audiobook lists, the playlist

may not be displayed and played in the

iPod mode.

• If the Apple Podcasts and iBooks apps

are not installed on the Apple device, but

the Apple device provides the Podcast

and Audiobook lists, you can play files in

other categories in iPod mode.

• The screen of multimedia system can

be different when you run other music

players (e.g. iHeartRadio) on your con-

nected device.

iPod I 2-19



&DXWLRQ

• While using a connected iPhone/iPod

Touch device, it may not operate nor-

mally if the user changed some func-

tions in the device.

• When calling with an iPhone connec-

tion, song may stop playing due to an

Apple device feature. If sound does

not resume after the call is terminated,

check the device status.

• If lots of songs have the same informa-

tion, skipping may occur when previous/

next song is executed due to an Apple

device feature. Also problems may

occur depending on device type or iOS

version.

• If lots of songs have the same informa-

tion, the song that plays may be differ-

ent between the system and the Apple

device. Reset the device or delete the

same songs in the Apple device using

iTunes.

• If you control pause, repeat, shuffle, or

seek songs when the play time is less

than 3s before the song is finished play-

ing, it may occur difference of playing

song between the Multimedia system

and Apple device. Access to iPod music

from another mode or pause a song and

then play a song again in Apple device.

• If the iPhone/iPod Touch supports

Bluetooth, the Apple device will not be

able to use the Bluetooth function if the

device is connected through both the

USB port and via Bluetooth. Disconnect

the USB connection then use Bluetooth

Audio.

• If iPod/iPhone connected to the

Multimedia system through both USB

and AUX. iPod/iPhone keeps output

sound via AUX, thus it may occur sound

will not output in iPod mode.

• If AUX cable connected to iPod/iPhone

but not connect to the Multimedia sys-

tem, it may occur sound will not output

in iPod mode due to iPod/iPhone’s fea-

ture. Especially, if you use AUX cable

like pictures, this problem may occur.

• Disconnect AUX cable from iPod/iPhone

first, then connect to the Multimedia

system via USB. Or change settings to

“Dock” in iPod/iPhone.

• If connect to the Multimedia system

while podcast or iTunes music down-

loading to iPod/iPhone, it may occur

some problems when you select song

in the list. Reconnect iPod/iPhone to the

Multimedia system when downloading

is finished or the file deleted.

• If connect to the Multimedia system

while sync, it may occur some problems.

Try to use iPod/iPhone connection after

sync complete. (To learn more, refer to

your iPod manual)

2-20 I Radio/Media

&DXWLRQ

• iPhone and iPod Touch devices are

guaranteed to work normally on iOS

9.3.2 or below. However, they may not

work normally on future iOS versions

as their operations have not yet been

tested.

• We recommend that your Apple device

uses the latest firmware since some

problems may occur due to an outdated

firmware or other software related

issues.

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPod Mini Not Supported

iPod Shuffle

iPod Nano Ԫ ԪԪԪԪԪ

Not released Ԫ

iPod Touch Ԫ

(iOS 1.1 not supported) ԪԪԪԪԪ Not released

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPad Ԫ (Unable to charge, Not verified, Normal operation not guaranteed)

iPad Mini

iPod Classic Not Supported Ԫ

(iPod with Video)

(iPod Classic)

(iPod Classic) Not released

Type 3G 3GS 4 4S 5 5C 5S 6 6+ 6S 6S+ SE 7 7+

iPhone

Not verified,

Normal operation

not guaranteed

ԪԪԪԪԪԪԪԪԪԪԪԪԪ

iPod I 2-21



iPod

Features Description

Mode Displays the current operating mode

Song Index Shows the current song/total songs

Repeat/Shuffle From Repeat/Shuffle, displays the current oper-

ating function

Play Time Displays the current play time/total play time

Song Info Displays the artist/title/album info

List Moves to the list screen

Features Description

Previous File

• If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current

file from the beginning (Depends on the play

time)

- If play time is less than 3 seconds, moves

to previous file

- If play time is more than 3 seconds, play

the current file from the beginning

• If button is pressed (over than 0.8 seconds) it

rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is pressed (less than 0.8 seconds):

Moves to the next file.

• If button is pressed (over than 0.8 seconds): It

fast-forwards the track.

Repeat

Repeats the current file

Select the

5HSHDW

button to switch between

repeating 1 track, and turning repeat off

Shuffle

Plays files in random order

When selecting the

6KXIIOH

button, it changes to

shuffle category я deactivate shuffle then

repeat

• Shuffle Category: Shuffle song in the current

category

Back Button Move to home/previous mode screen

Menu Sound Settings: Moves to the Sound Settings.

2-22 I Radio/Media

Features Description

TUNE

Turn the

781(

knob to search a desired

track. If the desired track is displayed, press

the

781(

knob to play the track.

If you do not anything with the 781( knob

for 5 seconds of searching tracks, the track

info for the current track is restored.

iPod I 2-23



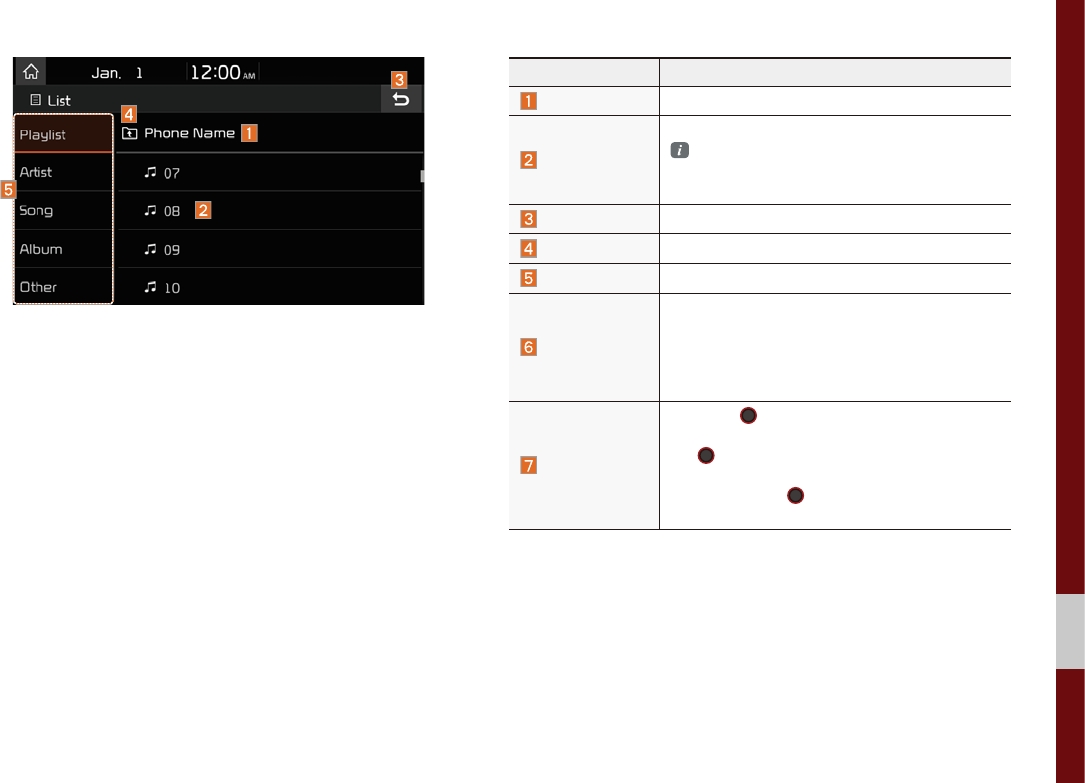

Features Description

Category Name Displays the category name

Category List

Displays the contents of selected category

If there are many items in the list, items are

added in order and the scroll bar on the right

is adjusted accordingly.

Back Button Converts to basic mode screen

Upper Category Moves to Upper Category

Search Menu Search songs by the list type.

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track

• If button is pressed (over than 0.8 seconds):

Moves to play screen, and then it will rewind

or fast-forward the track.

TUNE

Turn the

781(

knob to search a desired

track. If the desired track is displayed, press

the

781(

knob to play the track.

If you do not anything with the knob for

5 seconds, the

781(

knob search will be

terminated.

2-24 I Radio/Media

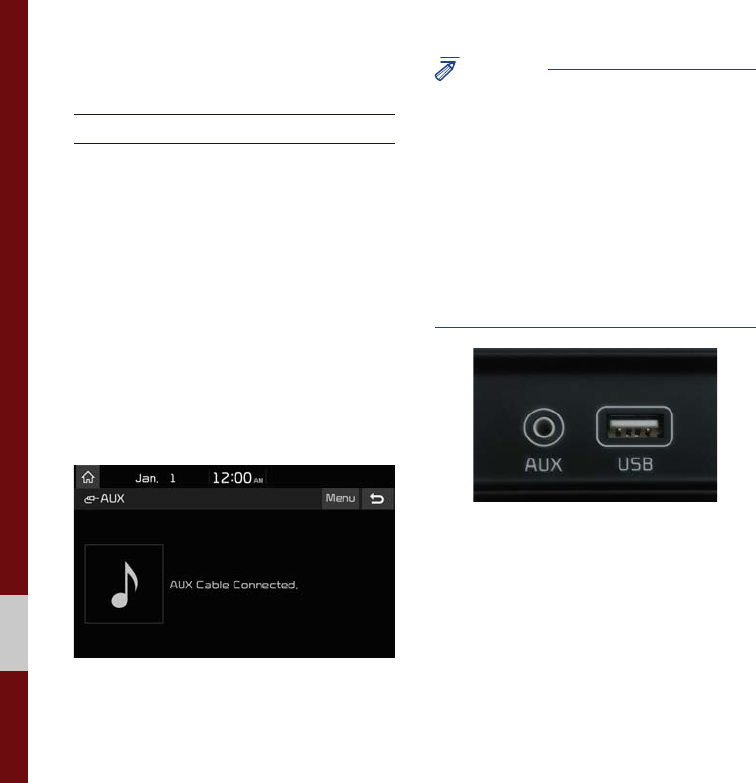

$8;

Connecting an External Device

If an external device connector is con-

nected with the AUX terminal, then AUX

mode will automatically operate. Once the

connector is disconnected, the previous

mode will be restored.

• AUX mode can be used only when an

external audio player has been con-

nected.

• The AUX volume can also be controlled

separately through the connected

device.

NOTICE

•If only a cable is connected to the AUX

without an external device, the mode will

be changed to AUX, but noise may occur.

When an external device is not being

used, remove the connector jack.

•When the external device power is

connected to the power jack, playing the

external device may output noise. In such

cases, disconnect the power connection

before use.

Ф The actual image in the vehicle may

differ from the illustration.



Bluetooth® Audio I 2-25

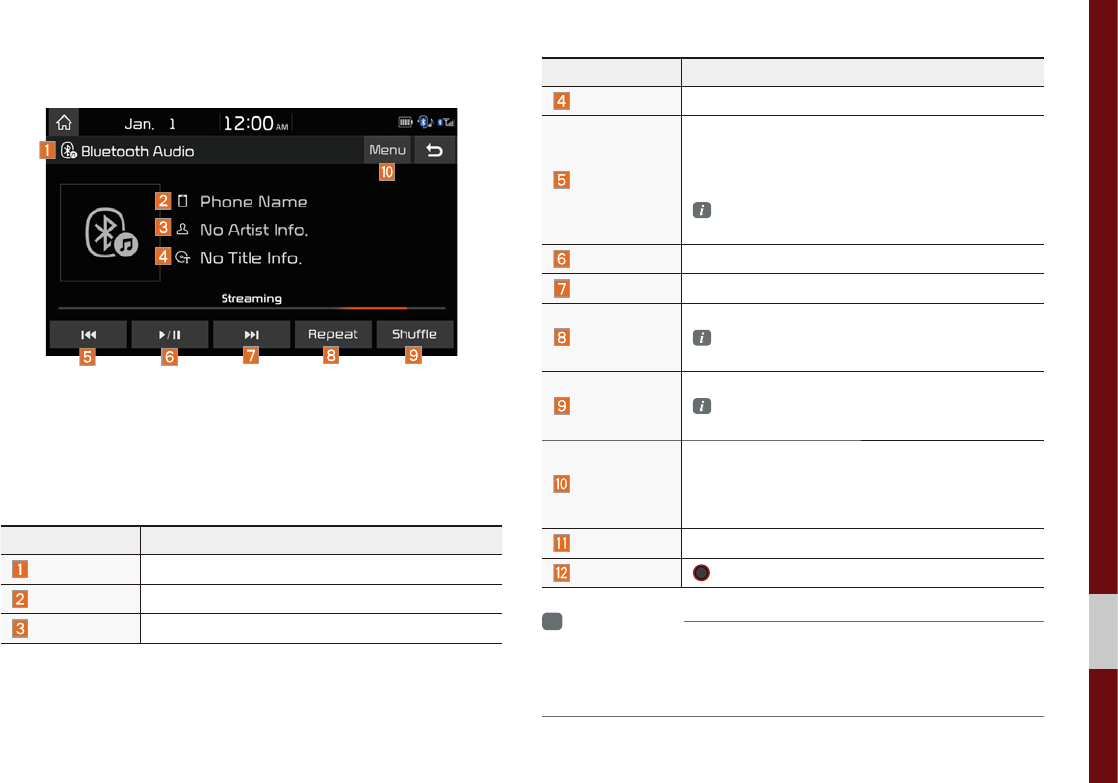

%OXHWRRWK

$XGLR

Features Description

Mode Displays the current operating mode

Phone Name Displays name of connected phone

Artist Info Name of current artist

Features Description

Title Name of current song

Previous File

• If play time is less than 3 seconds, moves to

the previous file

• If play time is more than 3 seconds, plays the

current file from the beginning

This function may differ depending on the

model of mobile phone.

Play/Pause Plays/Pauses Bluetooth Audio

Next File Moves to the next file

Repeat

Repeats the current file.

This function may differ depending on the

model of mobile phone.

Shuffle

Plays files in random order.

This function may differ depending on the

model of mobile phone.

• Connections: Moves to the Bluetooth Settings

screen. You can pair a new device or change/

delete paired device(s).

• Sound Settings: Moves to the Sound Settings.

SEEK/TRACK Plays the previous/next file

TUNE

781(

is not supported

Information

• Artist info and Title may not be supported by mobile phone.

• While in use of other functions after connecting your mobile phone

through a USB cable, the Bluetooth audio is disabled.

2-26 I Radio/Media

Bluetooth Connection Settings

Settings for pairing, connection and dis-

connection of a Bluetooth device.

• In Bluetooth Audio play screen, select

0HQX

and then

&RQQHFWLRQV

Information

•If the music in the mobile phone is not

played after changing to audio streaming

mode, press the play button. Thus check if

the music is playing in the Bluetooth device

after changing to audio streaming mode.

Audio streaming may not be supported for

some mobile phones.

•Please check the Bluetooth compatibility

in below website: KIA Motors Corporation

http://www.kia.com

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

SDUW%OXHWRRWK

3-2 I Bluetooth

%HIRUH8VLQJWKH

%OXHWRRWK

+DQGVIUHH

What is

Bluetooth

Wireless Technology?

• Bluetooth® Wireless Technology refers

to a short-distance wireless network-

ing technology which uses a 2.45GHz

frequency to connect various devices

within a certain distance.

• Supported within PCs, external devices,

Bluetooth® phones, PDAs, various elec-

tronic devices, and automotive environ-

ments,

Bluetooth®

Wireless Technology

to be transmitted at high speeds without

having to use a connector cable.

• Bluetooth® Handsfree refers to a device

which allows the user to conveniently

make phone calls with Bluetooth®

mobile phones through the Multimedia

system.

• The Bluetooth® Handsfree feature may

not be supported in some mobile phones.

For more information on mobile phone

compatibility, visit the KIA Motor website

- KIA Motors Corporation: http://www.kia.com

WARNING

- Distracted Driving

• Focus on the road while driving. The driver's

primary responsibility is in the safe and legal

operation of the vehicle. Drivers should not

use any hand held devices or other equipment

or vehicle systems that distract the driver

during vehicle operation.

• Do not stare at the multimedia screen for long

periods of time while driving. Staring at the

screen for prolonged periods of time can lead

to trafﬁc accidents and can result in personal

injuries.

Precautions for Safe Driving

• Bluetooth® is a feature that enables driv-

ers to make handsfree calls. Connecting

the head unit with a Bluetooth® phone

allows the user to conveniently make

calls, receive calls, and manage the

phonebook. Before using

Bluetooth®

Wireless Technology, carefully read the

contents of this user’s manual.

• Excessive use or operations while driv-

ing may lead to negligent driving prac-

tices and be the cause of accidents. Do

not operate the device excessively while

driving.

• Viewing the screen for prolonged peri-

ods of time is dangerous and may lead

to accidents. When driving, view the

screen only for short periods of time.

%OXHWRRWK



Before Using the Bluetooth® Handsfree I 3-3

CAUTIONS upon Connecting

Bluetooth® Phone

• Before connecting the head unit with the

mobile phone, check to see that the mobile

phone supports Bluetooth® features.

• Even if the phone supports

Bluetooth®

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth® power is turned off.

Disable the hidden state or turn on the

Bluetooth® power prior to searching/

connecting with the head unit.

• If Auto Connection is used, the

Bluetooth® phone is automatically con-

nected when the ignition is turned on,

making it unnecessary to have to con-

nect the phone with the head unit every

time.

• If you do not want automatic connection

with your Bluetooth® device, turn the

Bluetooth® feature off of the Bluetooth®

device.

• Park the vehicle when connecting the

head unit with the mobile phone.

• Bluetooth® connection may become

intermittently disconnected in some

mobile phones. Follow these steps to try

again.

1. Turn the Bluetooth® function within the

mobile phone OFF/ON and try again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile phone

battery, reboot, and then again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both of

Phone and Head Unit sides and then

try again.

• The Handsfree call volume and quality

may differ depending on the mobile

phone.

• Pairing Bluetooth® devices and use of

other Bluetooth® features are not sup-

ported when the vehicle is in motion. For

safety, please first park your vehicle.

• If you continue having issue download-

ing your contacts to your vehicle, con-

tact your mobile phone provider.

3-4 I Bluetooth

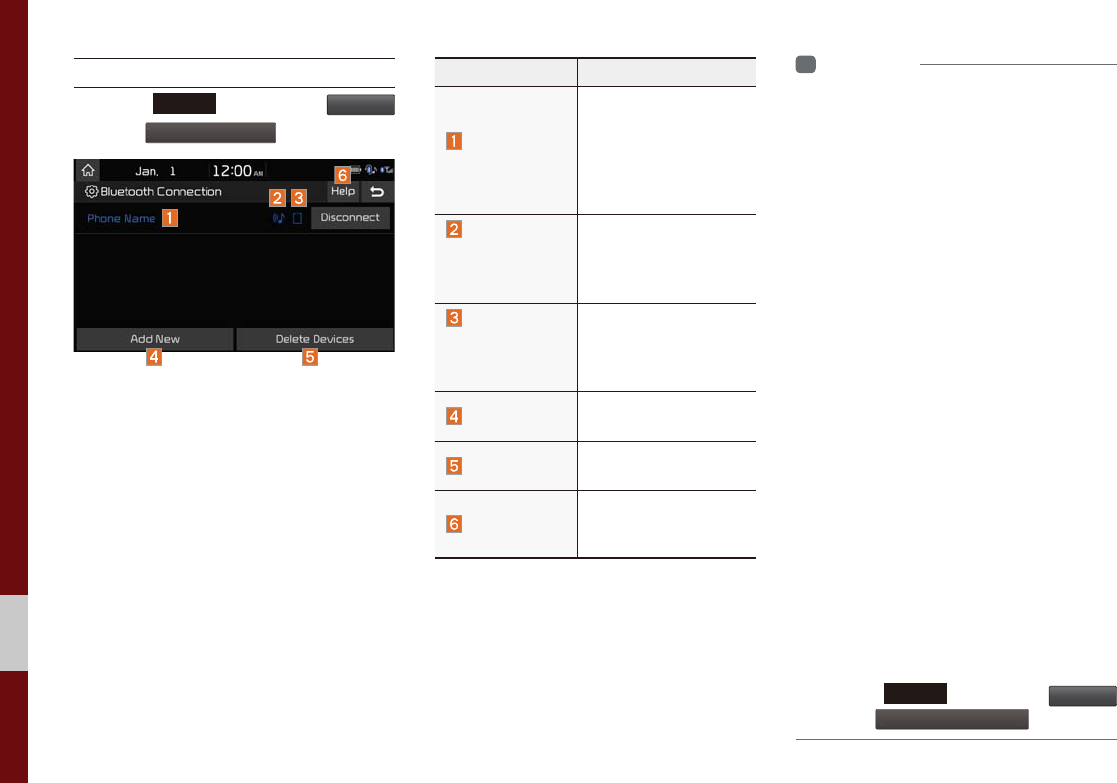

%OXHWRRWK&RQQHFWLRQ

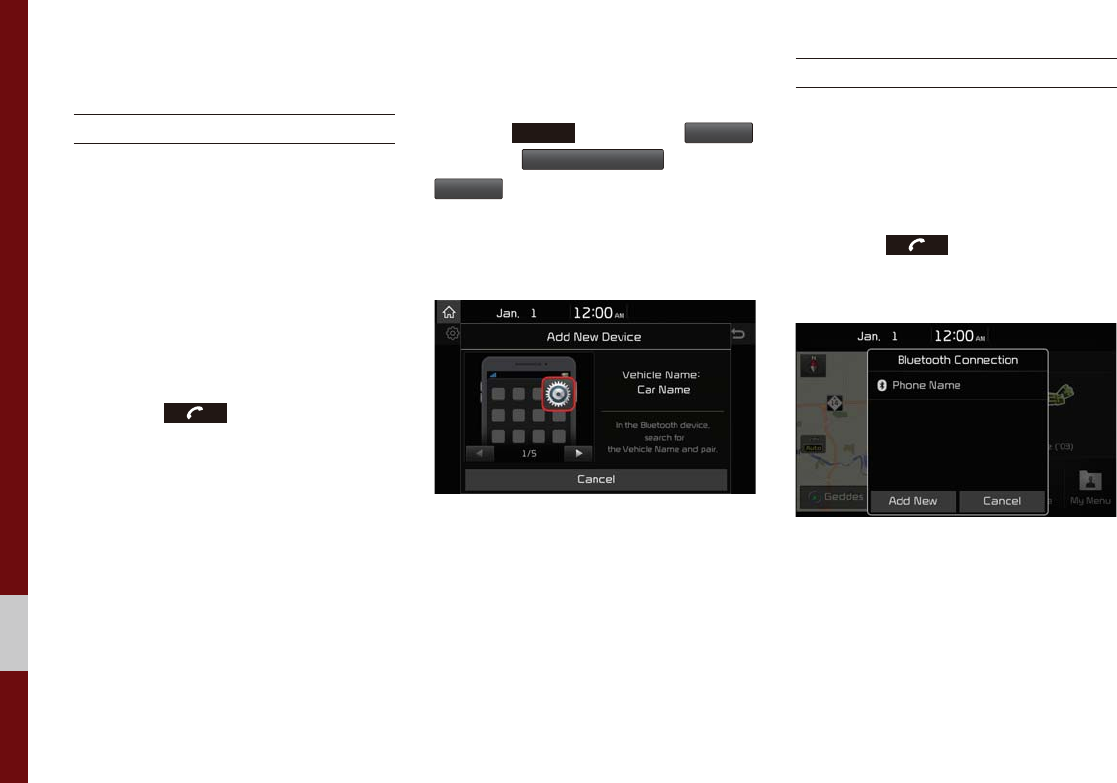

Pairing a New Device

Before you can use the Bluetooth feature,

you must first pair/connect your mobile

phone to your car.

Up to 5 Bluetooth devices can be paired.

Only one Bluetooth device can be con-

nected at a time.

Pairing a New Device by Selecting

Phone/Call

Press the key in the steering

wheel control. ԡ Pair your car after your

mobile phone detects the Bluetooth

device. ԡ Enter the passkey or accept the

authorization popup. ԡ Connect Bluetooth.

Pairing a New Device Through the

Phone Settings

Press the

6(783

key. ԡ Select

%OXHWRRWK

ԡSelect

%OXHWRRWK&RQQHFWLRQ

. ԡ Select

$GG1HZ

. ԡ Pair your car after your mobile

phone detects the Bluetooth device. ԡ

Enter the passkey or accept the authoriza-

tion popup. ԡ Connect Bluetooth.

The default passkey is 0000.

The vehicle name above is an example.

Check the actual information on the product.

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting

Phone/Call

Press the key in the steering

wheel control. ԡ Select the name of the

device to connect. ԡ Connect Bluetooth.

Bluetooth Connection I 3-5



Connecting Devices Through the

Phone Settings

Press the

6(783

key. ԡ Select

%OXHWRRWK

ԡSelect

%OXHWRRWK&RQQHFWLRQ

. ԡ Select the

name of the device to connect. ԡ Connect

Bluetooth.

Disconnecting

Bluetooth Devices

Disconnects Bluetooth devices that are

connected.

Press the

6(783

key. ԡ Select

%OXHWRRWK

ԡ Select

%OXHWRRWK&RQQHFWLRQ

. ԡ Select the

name of the device to disconnect.

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you

added. Note that deleting a Bluetooth

device will delete all Call History and

Contact Info downloaded along with it.

Press the

6(783

key. ԡSelect

%OXHWRRWK

. ԡ

Select

%OXHWRRWK&RQQHFWLRQ

. ԡSelect

'HOHWH'HYLFHV

. ԡ Select the device name

to delete. ԡ Select

'HOHWH

3-6 I Bluetooth

%OXHWRRWK3KRQH

Phone Status Icons

Shows the current phone status in the

right top of the display.

Icons Description

You can use Bluetooth phones

when a Bluetooth Hands-free

connection is established.

You can use Bluetooth audio

features when a Bluetooth

audio connection is estab-

lished.

You can use Bluetooth phones

and audio features when both

Bluetooth Hands-free and audio

connections are established.

Call signal strength indicator

Battery level of the Bluetooth

devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Information

• The battery level icon and the call signal

strength indicator may not be supported in

some Bluetooth devices.

•The battery level may differ from the actual

level remaining.

Bluetooth Phone I 3-7



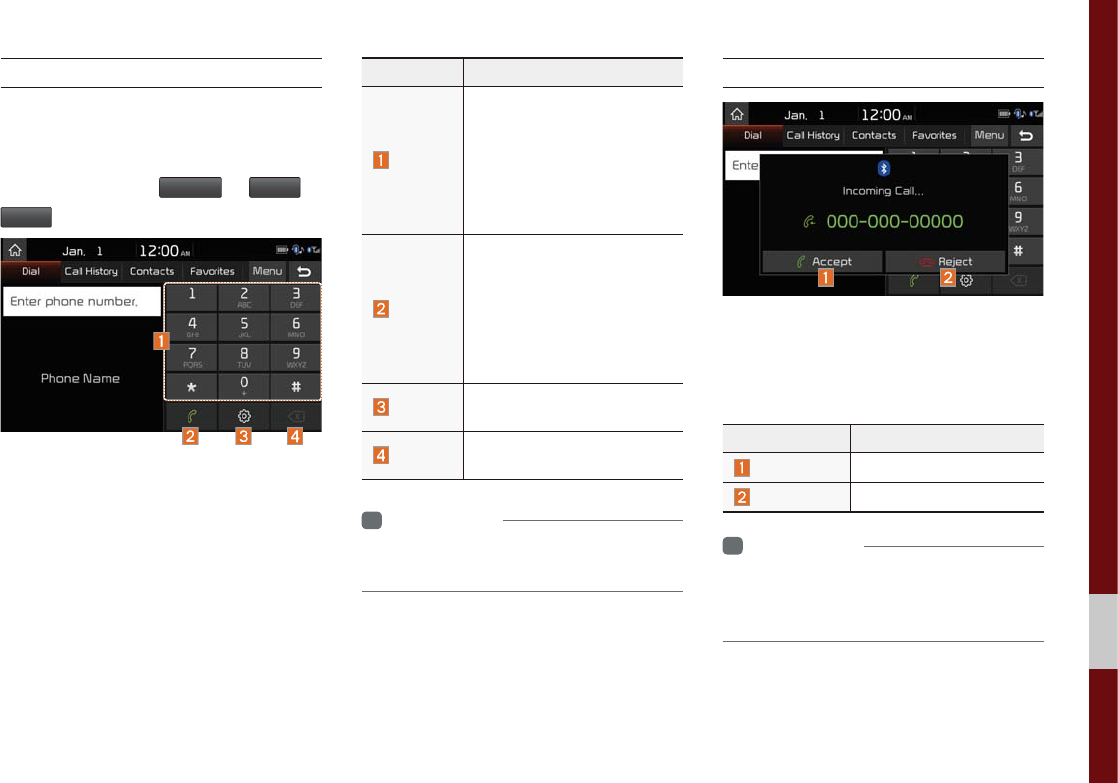

Dial

Dials a call after the Bluetooth devices are

connected.

You can also select

$OO0HQXV

3KRQH

ԡ

'LDO

Name Description

Keypad

Use the keypad to enter

the phone number that you

want to call. Press and hold

the last number of a speed

dial to dial a number that

you added to the Speed

Dial list in the phone

Call

Makes a call after you dial

a number and select CALL.

If the number is listed in

Dialed Calls, you can select

the number and press

CALL to automatically dial

that number again.

Settings Moves to a screen of

Bluetooth Connection.

Delete Deletes the numbers that

you entered.

Information

• Some types of mobile phones may not

support the Speed Dial function.

Accept/Reject Call

If there is an incoming call after you made

a Bluetooth connection, a popup message

will appear.

Name Description

Accept Answers the call.

Reject Ignores the call.

Information

• In some mobile phones, the caller's number

may not be displayed, and the Reject feature

may not be supported.

3-8 I Bluetooth

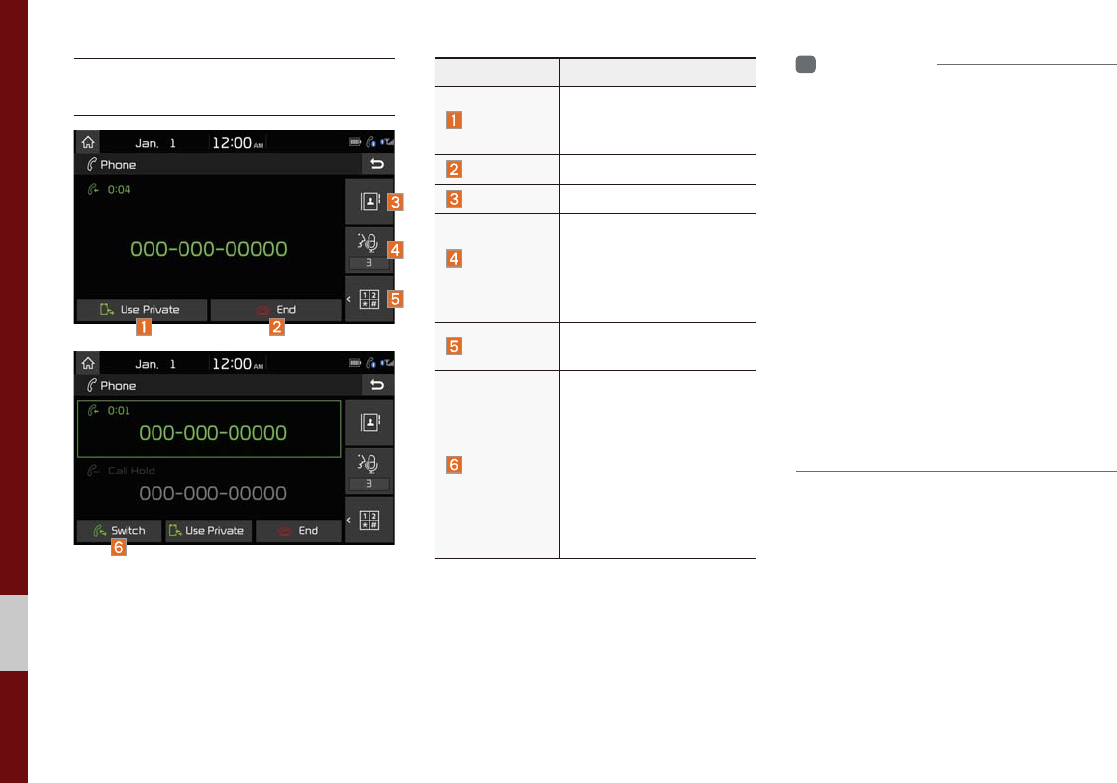

Using the Menu During

a Phone Call

When making a call, you can use the fol-

lowing menu items.

Name Description

Use Private

Switches a voice call

from the car Hands-free

to the mobile phone.

End Ends a call.

Contacts Displays the Contacts list.

Outgoing

Volume

Displays the Mic Volume

settings. You can adjust

the in-call volume that

the other party hears

(level 1 - 5).

Keypad Moves to a screen for

entering ARS numbers.

Switch

Switches to a call on

hold, if any. You can also

switch calls by select-

ing the number in the

Information Display. The

Switch function switches

the current call to a wait-

ing call in order to answer

a new incoming call.

Information

• If the caller's number is listed in Contacts, the

caller's name will be displayed. Otherwise,

only the number will be displayed. In some

mobile phones, the phone number may not

be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as

Radio and Settings.

• Depending on handset types, the in-call

volume the other party hears may differ. If the

other party hears your voice too low or too

loud, adjust the mic volume.

Bluetooth Phone I 3-9



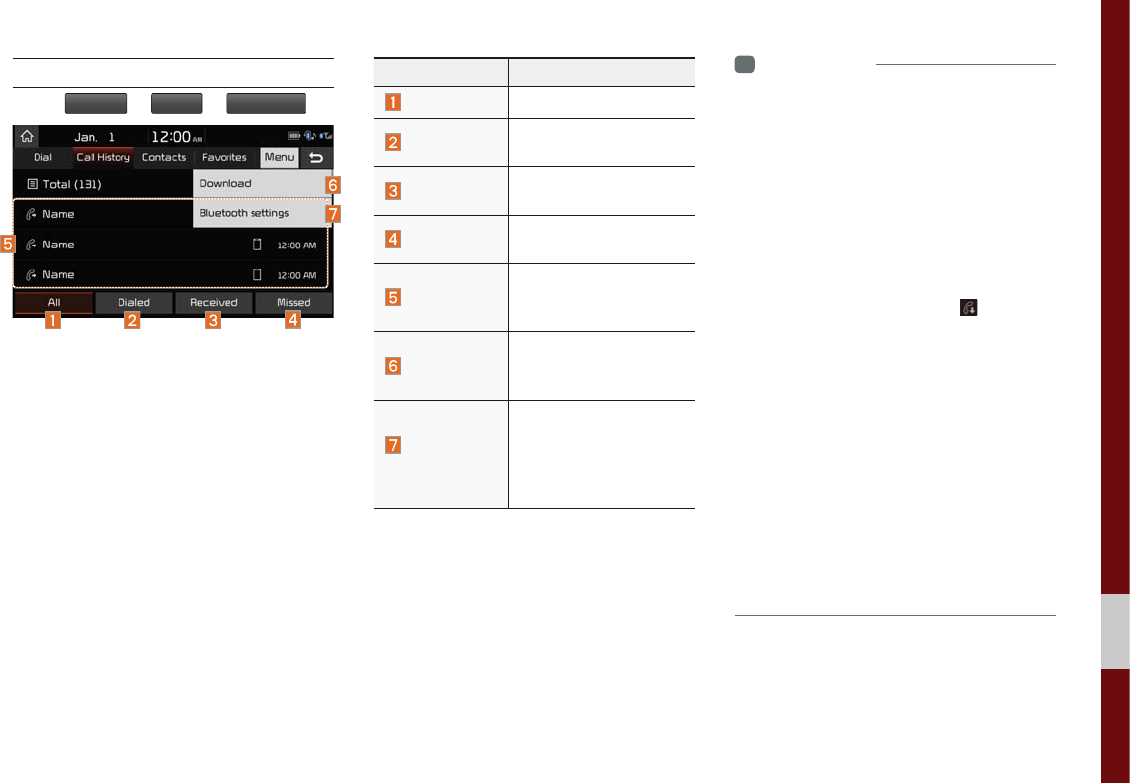

Call History

Select

$OO0HQXV

3KRQH

ԡ

&DOO+LVWRU\

Name Description

All Lists the all call history.

Dialed Lists the calls that you

made.

Received Lists the calls that you

have received.

Missed Lists the calls you

missed.

Call History

Displays all of your call

history. Select from the

list to dial the number.

Download

Downloads the call

history information from

your mobile phone.

Bluetooth

Settings

Provides the Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information.

Information

• In some mobile phones, call records may not

be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off on the

Bluetooth device, the call history download

will fail.

• Some devices require a device authentication

for downloading your call history. If download

fails, check if the Bluetooth Settings or display

status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device

supports download feature. For details regarding

Bluetooth-supported devices and their functional

compatibility, visit http://www. kia.com

3-10 I Bluetooth

Contacts

Select

$OO0HQXV

3KRQH

ԡ

&RQWDFWV

Name Description

Contacts List

The list of Contacts.

Select from the list to

dial the number.

Download Downloads contacts

from your mobile phone.

Search Searches Contacts.

Bluetooth

Settings

Provides the Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information.

Information

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth

device.

• You cannot edit or delete downloaded phone

numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain. (Note that

deleting a paired phone will also delete all

downloaded Contacts and Call History data)

• Downloaded phone numbers may be lost

depending on the condition of the head unit.

Keep your important data in a safe place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same

time by default.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on

your Bluetooth device.

• Some devices require a device authentication

for downloading your contacts. If download

fails, check your phone screen and confirm

the download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth

device supports contacts download. For

Bluetooth supporting devices details and

compatibility, visit http://www.kia.com

Bluetooth Phone I 3-11



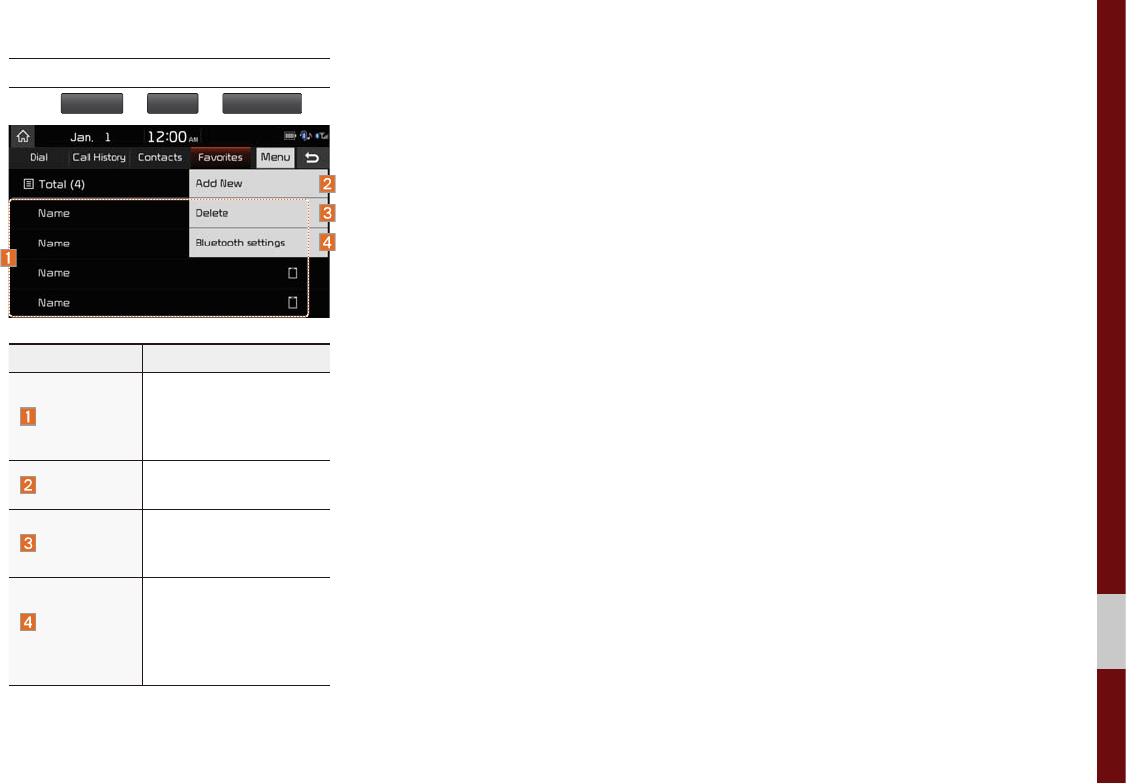

Favorites

Select

$OO0HQXV

3KRQH

ԡ

)DYRULWHV

Name Description

Favorites

Lists the phone num-

bers saved as Favorites.

Select from the list to

dial the number.

Add New Adds a new number to

Favorites.

Delete

Deletes numbers

that you select from

Favorites.

Bluetooth

Settings

Provides the Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information.

0(02

The 911 Connect feature may not operate in the following situations

About UVO eServices

Before using UVO eServices

Connecting Bluetooth

Pair a device from Bluetooth-enabled phone

Connecting to smartphone via USB

911 Connect

Roadside Assist

Vehicle Diagnostics

My Car Zone

Parking Minder

My POIs

eServices Guide

SDUW892H6HUYLFHV

4-2 I UVO eServices

892H6HUYLFHV

7KH&RQQHFWIHDWXUHPD\QRW

RSHUDWHLQWKHIROORZLQJVLWXDWLRQV

When the vehicle ignition is not turned on.

When the phone Bluetooth® feature is set to off.

When the phone Bluetooth® cannot be connected or becomes

disconnected.

When there are no phones paired with the vehicle.

When cellular service is unavailable.

When the power turns off due to phone power (battery) issues.

When a Bluetooth® device without phone feature support has

been connected, such as an MP3 device.

When the system is booting.

When the system power supply is unstable.

When the attempted call is blocked due to user operations.

When the 9-1-1 call is unstable due to phone or other commu-

nication network issues.

When the call feature is not operating due to phone settings set

by the user.

When the phone cannot be controlled via Bluetooth® due to

phone specifications or characteristics.

Using UVO eServices and Precautions I 4-3





8VLQJ892H6HUYLFHVDQG3UHFDXWLRQV

Download the UVO eServices App and install it on your smartphone.

The app can be downloaded from your smartphone’s app store.

For using UVO eServices call features such as 911 Connect,

Roadside Assist and eServices Guide, a smartphone must be

connected with the vehicle via Bluetooth. Pair and connect your

smartphone with the vehicle. For information on connecting

your Bluetooth device, refer to the smartphone user’s manual

and instructions on the Phone Help screen on your radio. Up to

five Bluetooth devices can be paired to the vehicle and only

one device can be connected at a time.

For using data communication of Vehicle Diagnostics, Parking

Minder, and My Car Zone, smartphone must be connected with

the vehicle via USB cable.

Ф

The use of genuine cable is recommended. (The use of

other products may result in abnormal or non-proper operation.)

Some UVO eServices features will only be available when your

smartphone is connected with the vehicle via USB and the

UVO eServices App is running.

UVO eServices may not operate properly with incompatible

smartphones. To view the list of compatible smartphones,

please visit MyUVO.com

Communication between the vehicle and smartphone app may

temporarily disconnect depending on the phone state.

If the feature is not operating properly, you may need to reset

the UVO eServices App or the smartphone and try again

according to the following steps.

1. Try feature again in the Head Unit

2. Restart smartphone app

3. Re-connect Bluetooth and USB cable

4. Reset smartphone

5. Delete Device and pair again

Some services use the customer’s mobile phone data plan for

data communication. Therefore, the features will function in

accordance with the cellular plan.

Use of the most up-to-date app version is recommended.

For smartphone related inquiries, please visit MyUVO.com.

4-4 I UVO eServices

$ERXW892H6HUYLFHV

UVO eServices provides the following features through Bluetooth

and/or USB connection to your smartphone.

Name Connection Description

911

Connect BT & USB

If an airbag deploys, your vehicle

automatically initiates a call to 9-1-1

and sends your vehicle’s location

information to the 9-1-1 operator.

Roadside

Assist BT & USB If a diagnostic issue exists, you can

connect with a Roadside Assist.

Vehicle

Diagnostics USB

Informs you if there is a diagnostic

issue found in your vehicle. If an

issue is found, you can contact a

call center through Roadside Assist

or reserve an appointment with

your preferred Kia dealer through

Schedule Service.

My Car

Zone USB

Keeps track of predefined triggered

alerts such as Speed Alert and

Curfew Limit Alert from the My Car

Zone feature.

Parking

Minder USB

Saves the location of your parked

vehicle on your UVO eServices

smartphone app.

You can check where your vehicle is

parked through the UVO eServices

App on your smartphone.

Name Connection Description

My POIs USB

Downloads Points of Interest to your

multimedia system from Google

Maps and MyUVO.com

eServices

Guide BT & USB Receive guidance on how to use

UVO eServices.

Information

• 24-hour Roadside Assistance is a

service plan provided by Kia Motors

America, Inc. Certain limitations apply. Coverage details are available

in the Kia Warranty and Consumer Information Manual. For access

to Enhanced Roadside Assistance, a conn

ected mobile phone via

Bluetooth within the cellular service coverage area is required.

To use UVO eServices, the following conditions must be met.

1. The UVO eServices smartphone app must be installed and

you must log in using your MyUVO account credentials.

2. The smartphone must be connected via Bluetooth and USB

cable to the vehicle.

3. Once this is complete, eServices must be activated.

Pair a device from Bluetooth-enabled phone I 4-5



%HIRUHXVLQJ892

H6HUYLFHV

Installing the UVO eServices App on your

smartphone

1. Download and install the UVO eSer-

vices App on your smartphone.

The app can be downloaded from the

Apple App Store or Google Play.

2. Register your vehicle and account at

MyUVO.com

Note: MyUVO.com is accessible from

your phone’s browser.

3. Start the UVO eServices App on your

smartphone and log in.

&RQQHFWLQJ%OXHWRRWK

Press the key on the steering

wheel or select the

3KRQH

icon on the

Home screen. Press

6(783

keyԡ

%OXHWRRWK

ԡ

%OXHWRRWK&RQQHFWLRQ

3DLUDGHYLFHIURP

%OXHWRRWKHQDEOHGSKRQH

1. Turn on the Bluetooth feature on your

smartphone’s Bluetooth Settings screen.

2. Search Bluetooth devices on your

smartphone.

3. Select the Vehicle Name on the phone

that matches the name shown on the

screen.

4. Verify the passkey shown on the touch-

screen.

If the phone supports SSP, check the

passkey on your Bluetooth® device and

confirm the authentication.

4-6 I UVO eServices

&RQQHFWLQJWR

VPDUWSKRQHYLD86%

1. Connect your smartphone with the vehi-

cle via USB cable.

NOTICE

• For smartphone related inquiries, please visit

MyUVO.com.

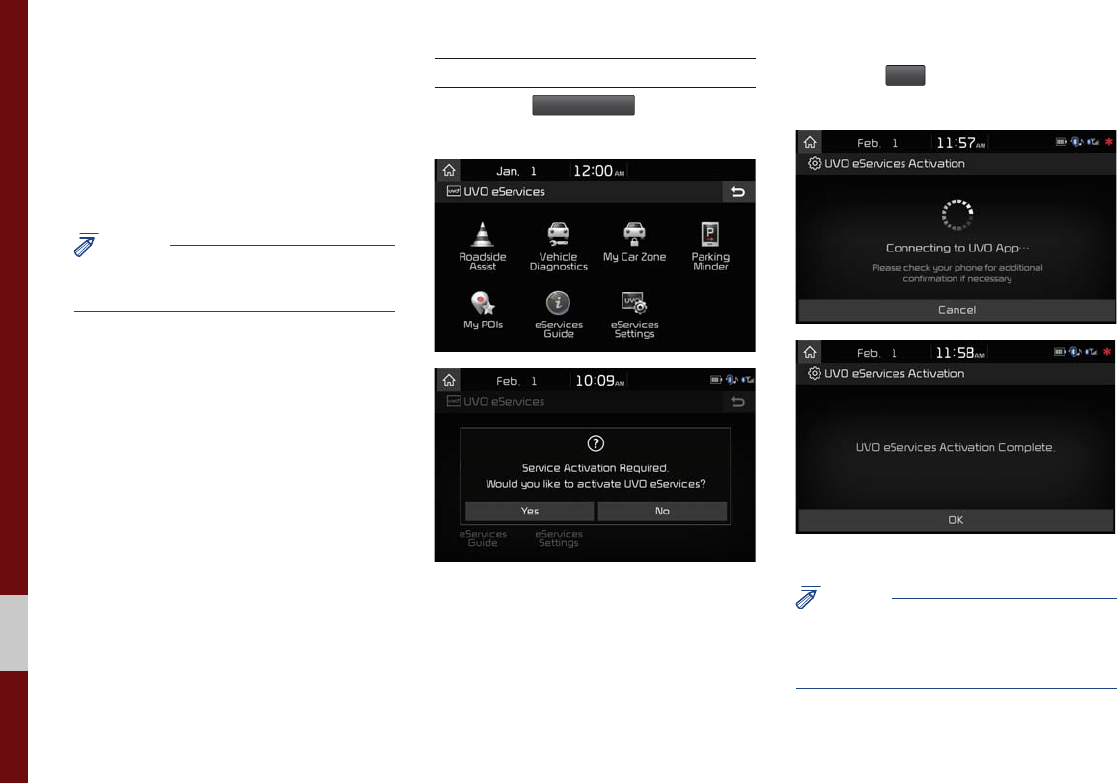

Activating UVO eServices

Select the

892H6HUYLFHV

icon from All

Menus on the Home screen.

Press the

<HV

button, then the UVO

eServices activation process will begin.

NOTICE

•Before activating UVO eServices, ensure

your phone is connected to the vehicle via

USB cable.

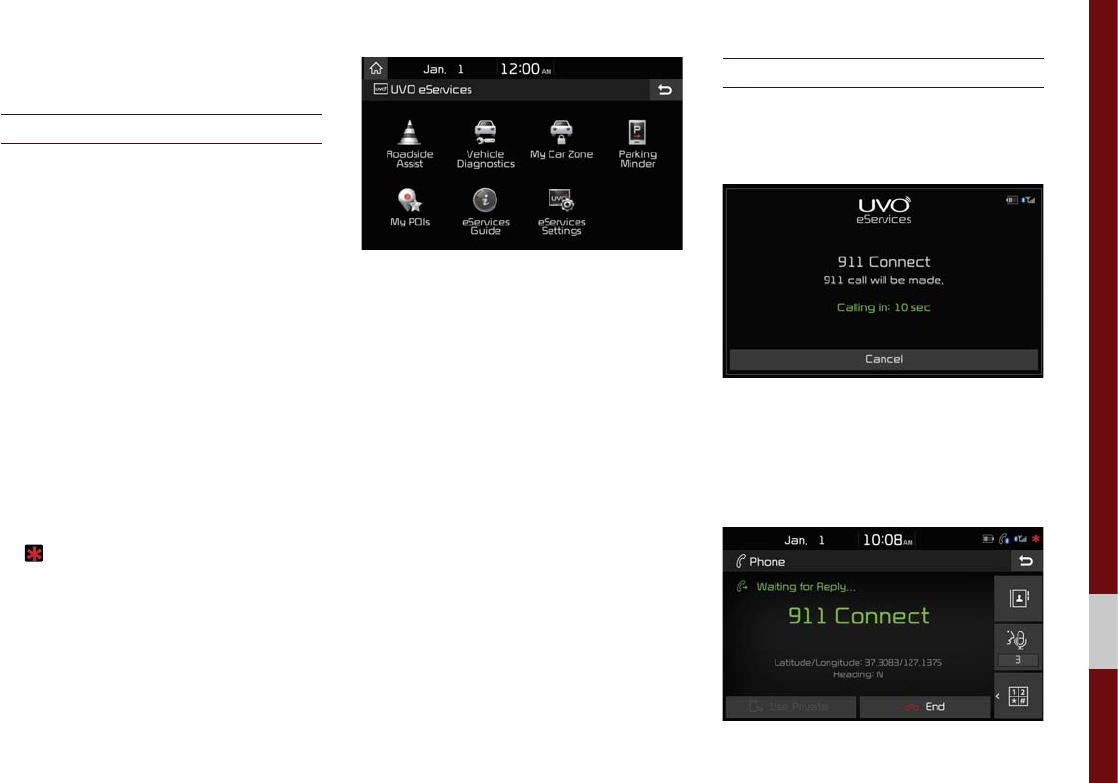

911 Connect I 4-7



&RQQHFW

911 Connect

If an airbag deploys, your vehicle automat-

ically initiates a call to 9-1-1 and sends

your vehicle’s location information to the

9-1-1 operator.

The 911 Connect feature is available only

when the mobile phone is connected via

Bluetooth.

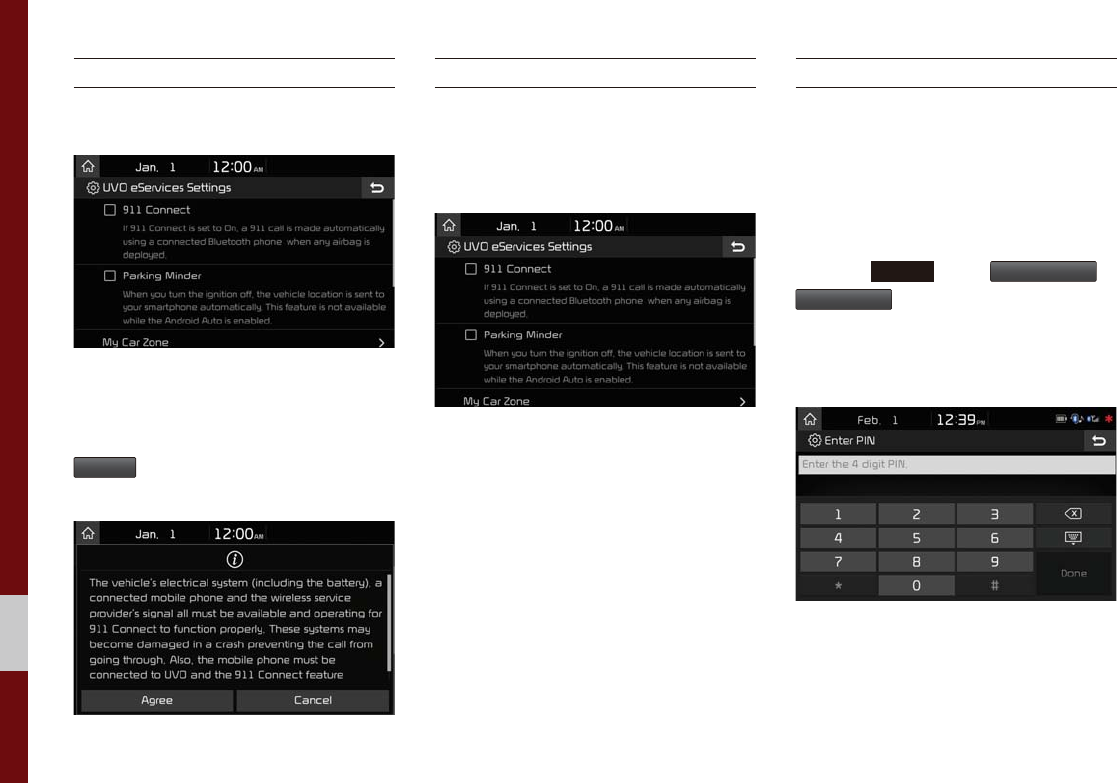

By default, this feature is turned off. To turn

it on, you must turn it on in the eServices

Settings menu. By enabling this feature,

you are agreeing to the 911 Connect

A ( ) icon is displayed at the top of the

touch screen as shown below when phone

is connected to UVO eServices system via

Bluetooth and the 911 connect feature is

turned on.

Initiating a 911 Call

If an airbag deploys, the following screen

is displayed and a call is automatically

placed to 9-1-1 after 10 seconds.

Once a call is connected with a 9-1-1

operator, it is possible to request emer-

gency services to be dispatched to your

location.

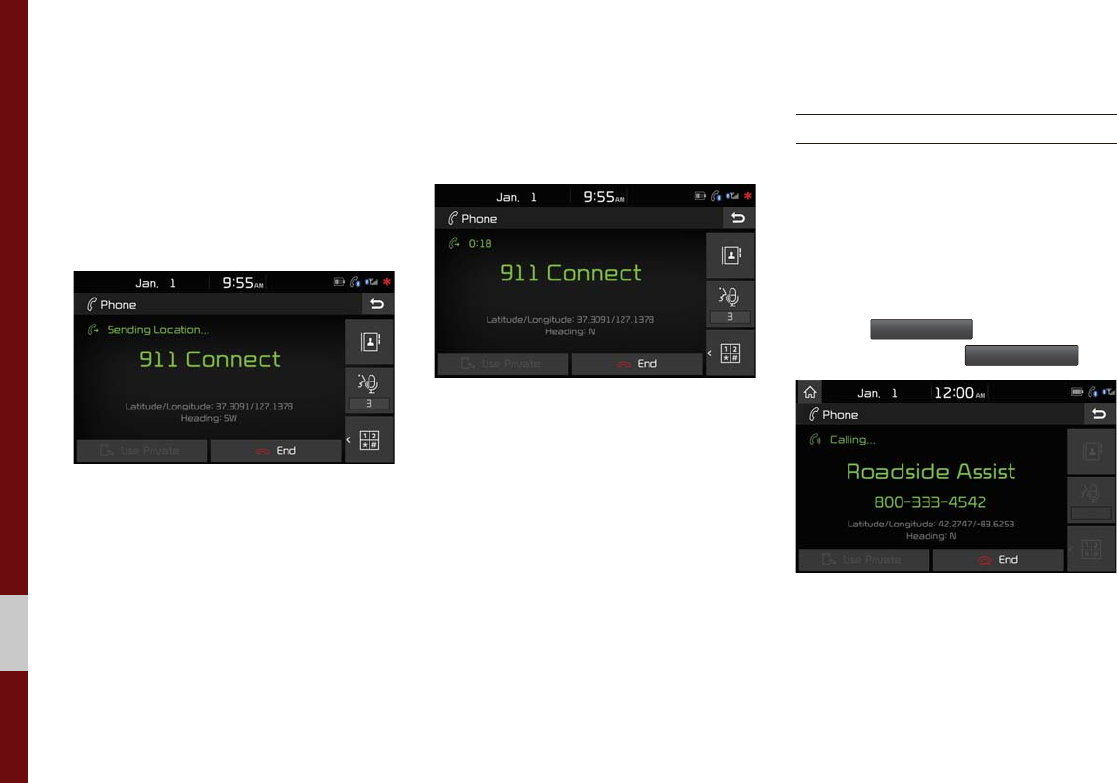

4-8 I UVO eServices

The 9-1-1 operator may request informa-

tion on the current location of your vehicle.

When the 9-1-1 operator requests your

vehicle location, “Sending Location” is

displayed on the screen and the vehicle

location is automatically sent to the 9-1-1

operator.

When the 9-1-1 operator attempts to talk

to the driver again, the call time is dis-

played and allows the driver to speak with

the 9-1-1 operator.

5RDGVLGH$VVLVW

Roadside Assist

If there is any issues in the vehicle, you

can connect with a Roadside Assist agent.

The Roadside Assist feature can be used

only when your phone is connected via

Bluetooth.

Select the

892H6HUYLFHV

icon from All Menus

on the Home screen ԡ

5RDGVLGH$VVLVW

Vehicle Diagnostics I 4-9



9HKLFOH'LDJQRVWLFV

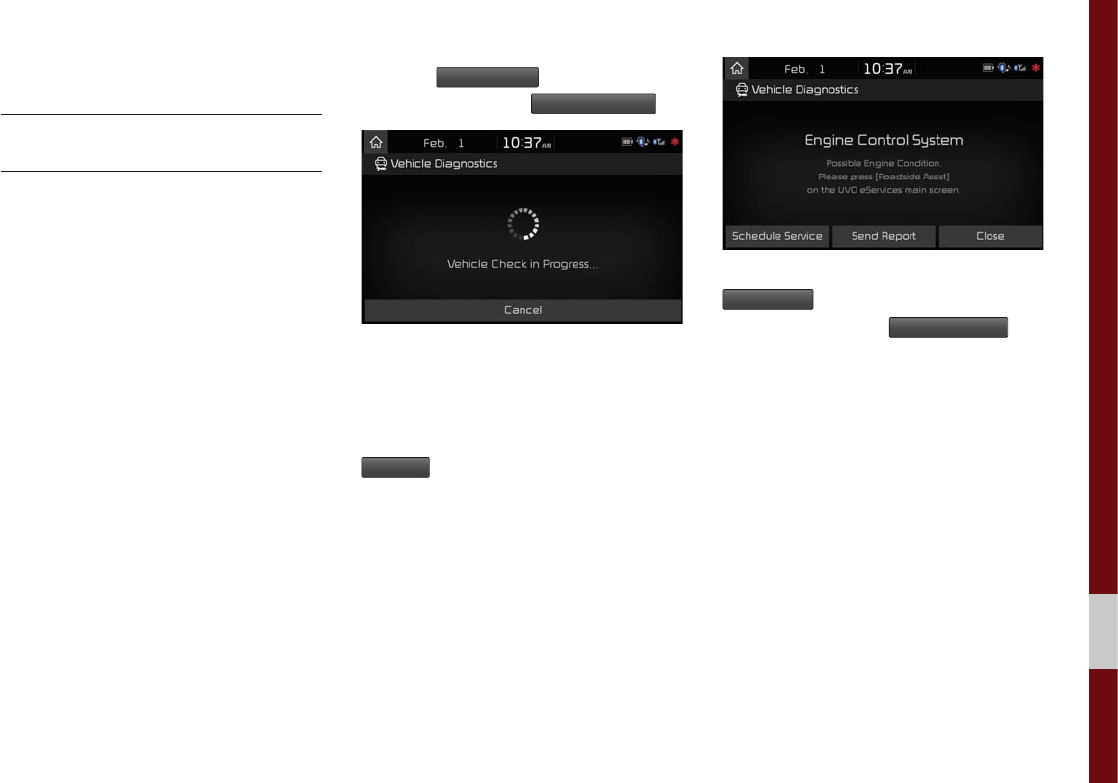

Conducting Vehicle

Diagnostics

Vehicle Diagnostics is available only when

the ignition is turned on and the vehicle is

parked.

It also requires that UVO eServices is

activated, and the Phone is connected

via USB cable before starting Vehicle

Diagnostics.

Select the

892H6HUYLFHV

icon from All Menus

on the Home screen ԡ

9HKLFOH'LDJQRVWLFV

The Vehicle Diagnostics process will begin.

When a diagnostics check is in progress,

keep the vehicle in park with the ignition

on. To cancel diagnostics, press the

&DQFHO

button on the touch screen or

any hardkey.

If diagnostic issues are found, press the

6HQG5HSRUW

button to send to your MyUVO

account or press the

6FKHGXOH6HUYLFH

but-

ton to schedule an appointment with your

preferred or nearby Kia dealer.

4-10 I UVO eServices

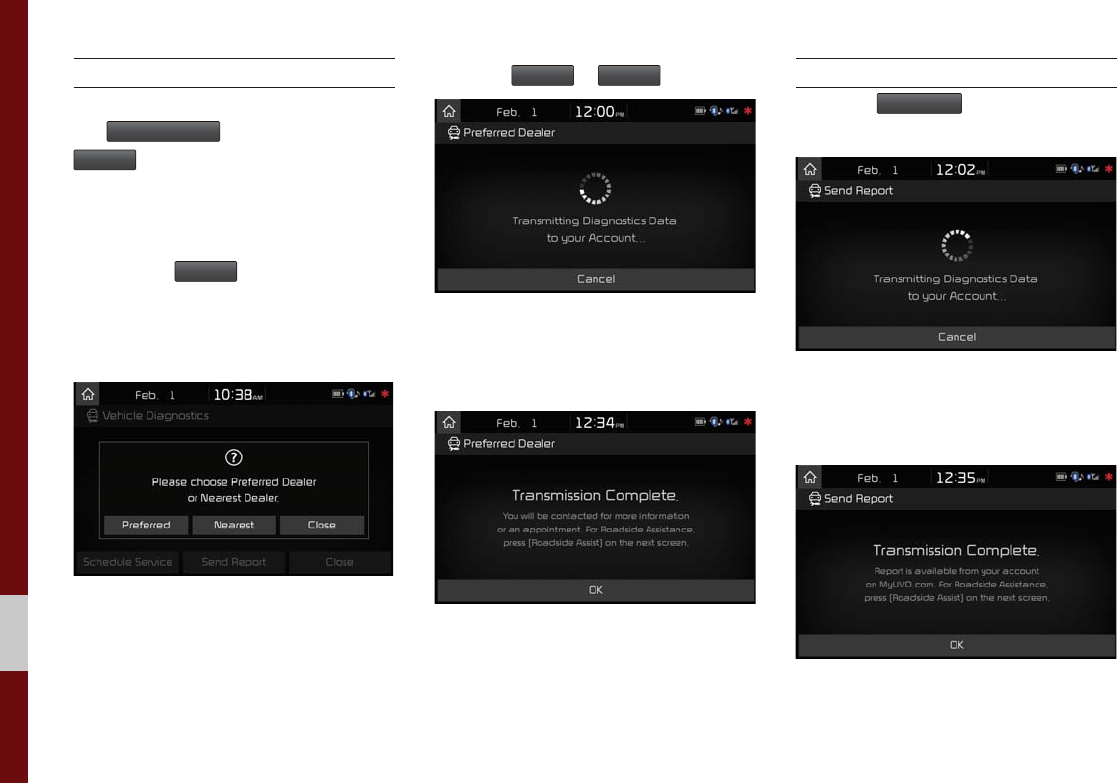

Schedule Service

When scheduling an appointment using

the

6FKHGXOH6HUYLFH

button, pressing the

3UHIHUUHG

button will allow you to request an

appointment with your preferred Kia dealer

and send your vehicle’s diagnostics infor-

mation.

Pressing the

1HDUHVW

button will allow you

to request an appointment with the near-

est Kia dealer and send your vehicle’s

diagnostics information.

Press the

3UHIHUUHG

1HDUHVW

button.

Request an appointment with Preferred or

Nearest Kia Dealer and send your vehi-

cle’s diagnostics data.

Send Report

Press the

6HQG5HSRUW

in the vehicle diag-

nostics result screen.

Vehicle Diagnostics Data is transmitted to

your account and you can see the report

on MyUVO.com

Vehicle Diagnostics I 4-11



Even if diagnostic issues are not found

after Vehicle Diagnostics, it is recom-

mended that you send the diagnostic

results to your MyUVO account.

Press the

6HQG5HSRUW

button to send the

diagnostics results to your MyUVO

account.

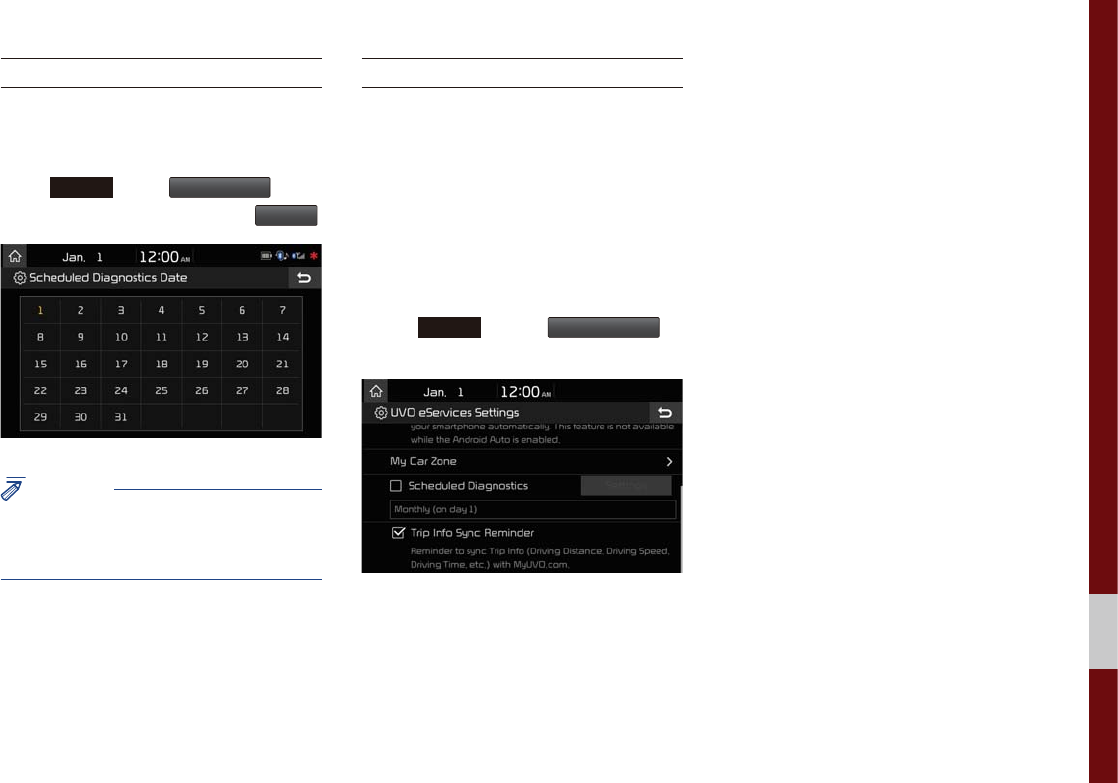

Scheduled Diagnostics

If you have set up Scheduled Diagnostics

on your UVO eServices App, a vehicle

diagnostics check will automatically start

on the day you selected.

On the date of the Scheduled Diagnostics,

the following window will be displayed.

Press the

<HV

button on the touch screen

to proceed with diagnostics.

Press the

6HQG5HSRUW

button to see the

Vehicle Health Report on MyUVO.com.

4-12 I UVO eServices

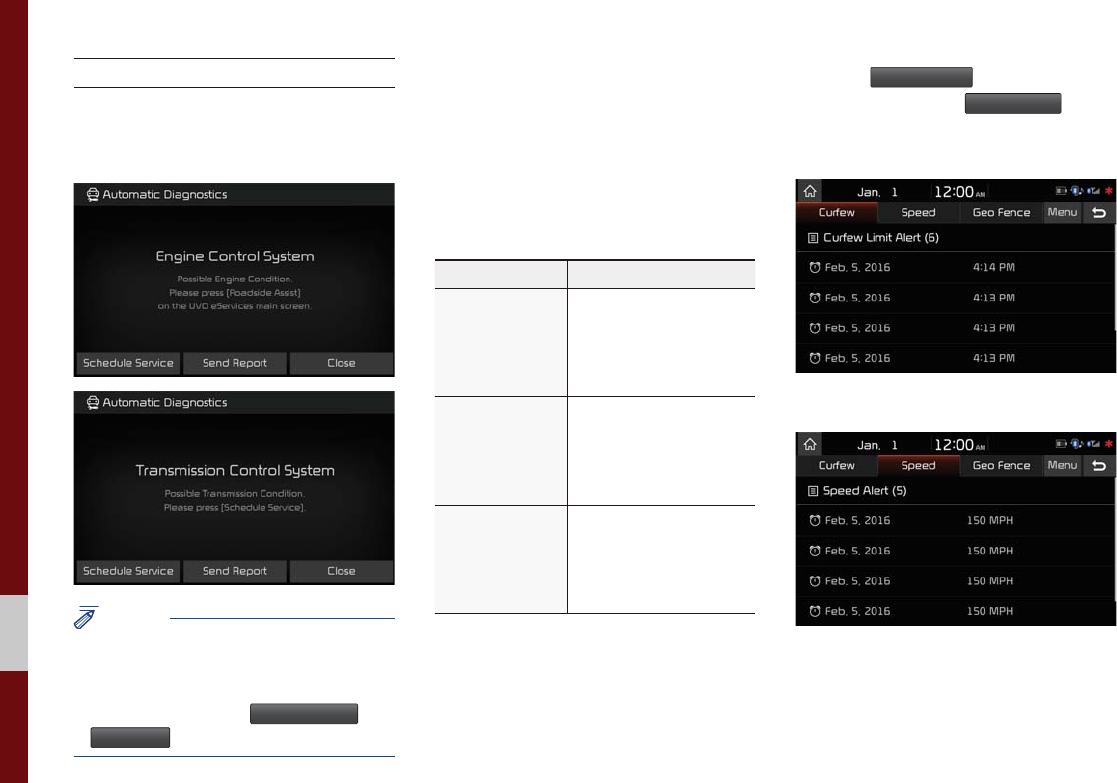

Automatic Diagnostics

If a critical diagnostics issue with your

vehicle’s powertrain is detected, Automatic

Diagnostics will be notified.

NOTICE

• The screen messages differ based on the

vehicle diagnostics severity. Ensure your

phone is connected to the system via USB

cable before using

6FKHGXOH6HUYLFH

and

6HQG5HSRUW

0\&DU=RQH

My Car Zone is a feature that provides

alerts and driving history for Curfew Limit

Alerts, Speed Alerts, and Geo Fence

Alerts set by the user.

Name Description

Curfew Limit

Alert

Curfew Limit Alerts are

alerts that are triggered

when a driver is driving

within a predefined time

range.

Speed Alert

Speed Alerts are alerts

that are triggered when

a driver exceeds the

predefined maximum

speed.

Geo Fence

Alert

Geo Fence Alerts are

alerts that are triggered

when a driver enters

into a predefined geo-

graphical location.

My Car Zone features are supported only

when UVO eServices has been activated.

Select the

892H6HUYLFHV

icon from All Menus

on the Home screen ԡ

0\&DU=RQH

Curfew Limit Alerts History

Speed Alerts History

My Car Zone I 4-13



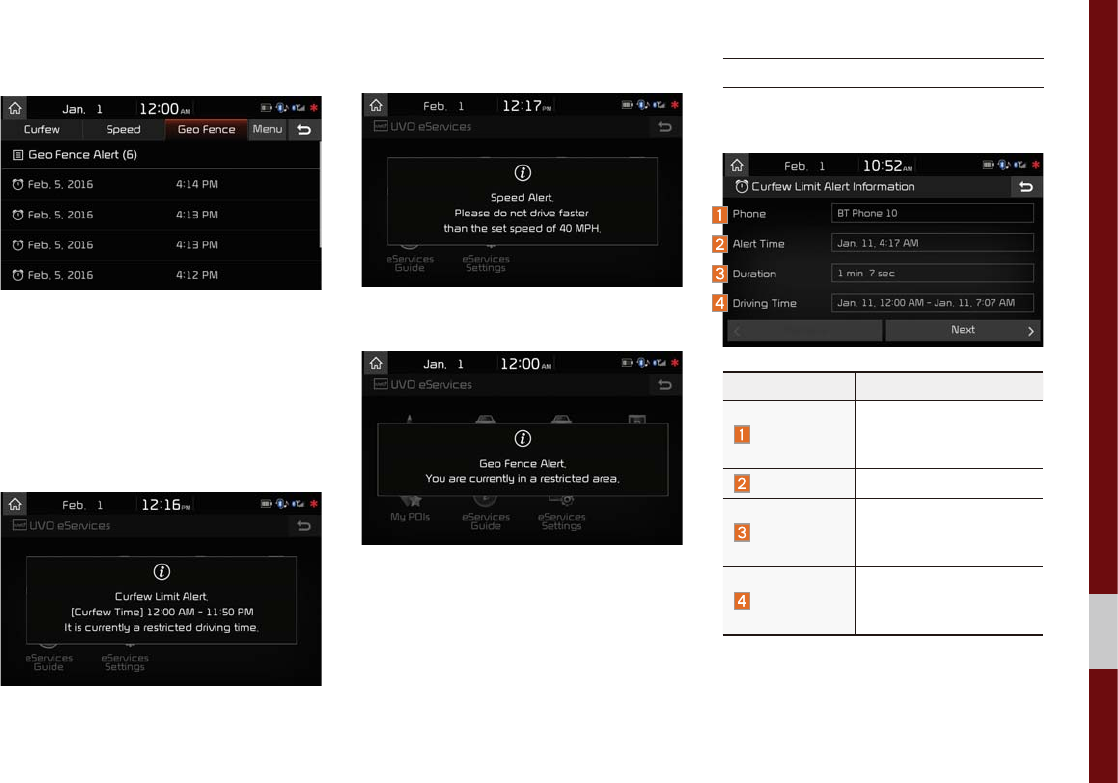

Geo Fence Alerts History

When a driver does not keep the pre-de-

fined driving conditions, popup is displayed

with voice guidance and save alerts in the

My Car Zone history.

Curfew Limit Alert

Speed Alert

Geo Fence Alert

Curfew Limit Alert

You can check the Curfew Limit Alert his-

tory for a list of past triggered curfew alerts.

Name Description

Phone

Name of phone con-

nected upon triggered

curfew limit

Alert Time Initial alert time

Duration

Total duration of driving

while curfew limit was

triggered

Driving Time

Total driving time from

turning ignition on until

turning ignition off

4-14 I UVO eServices

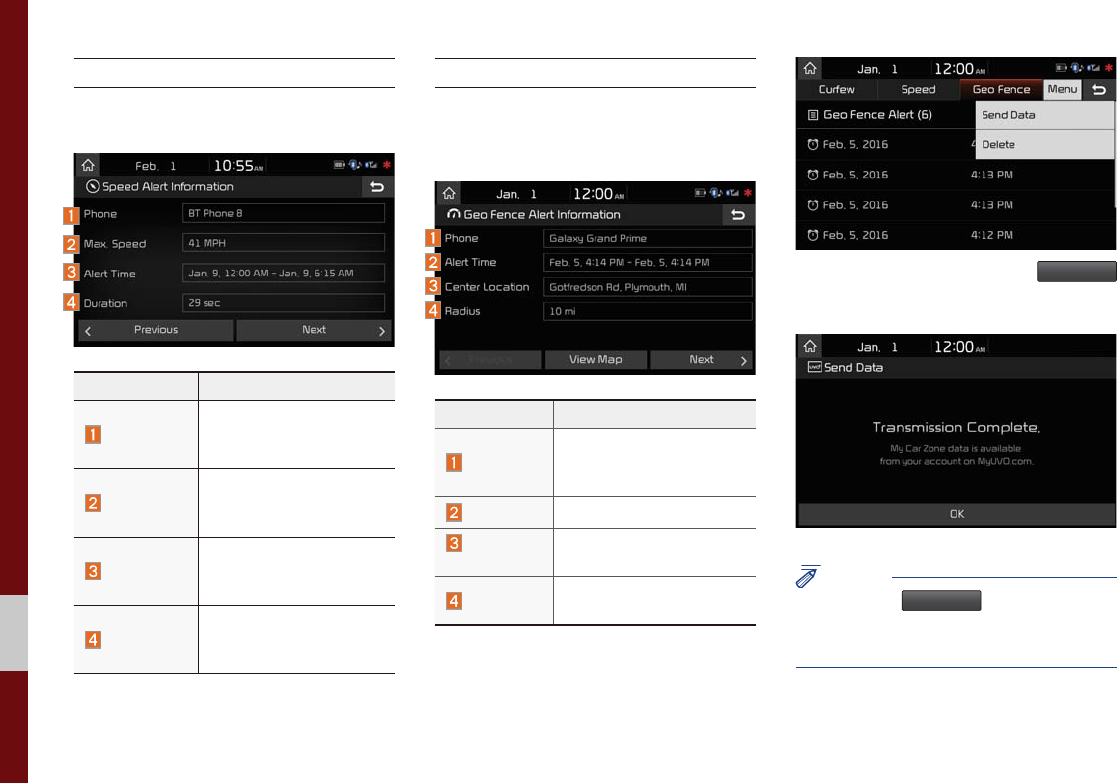

Speed Alert

You can check the Speed Alert history for

triggered speed limit alerts of the vehicle.

Name Description

Phone

Name of phone con-

nected upon triggered

speed limit alert

Max. Speed

Maximum vehicle speed

upon triggered speed

limit alert

Alert Time

Time from first triggered

alert until last triggered

alert

Duration

Total triggered alert time

from turning ignition on

to turning ignition off

Geo Fence Alert

You can check the Geo Fence Alert his-

tory for triggered Geo Fence alerts of the

vehicle.

Name Description

Phone

Name of phone con-

nected upon triggered

geo fence alert

Alert Time Initial alert time

Center

Location

Radius from set center

location address

Radius Radius from set geo

fence address

To check My Car Zone alert history from

your smartphone, you must first send the

alert history to your MyUVO account.

From the Menu tab, Press the

6HQG'DWD

button on the touch screen.

NOTICE

• Before using

6HQG'DWD

, ensure your phone

is connected to the UVO eSevices system via

USB cable.

My POIs I 4-15



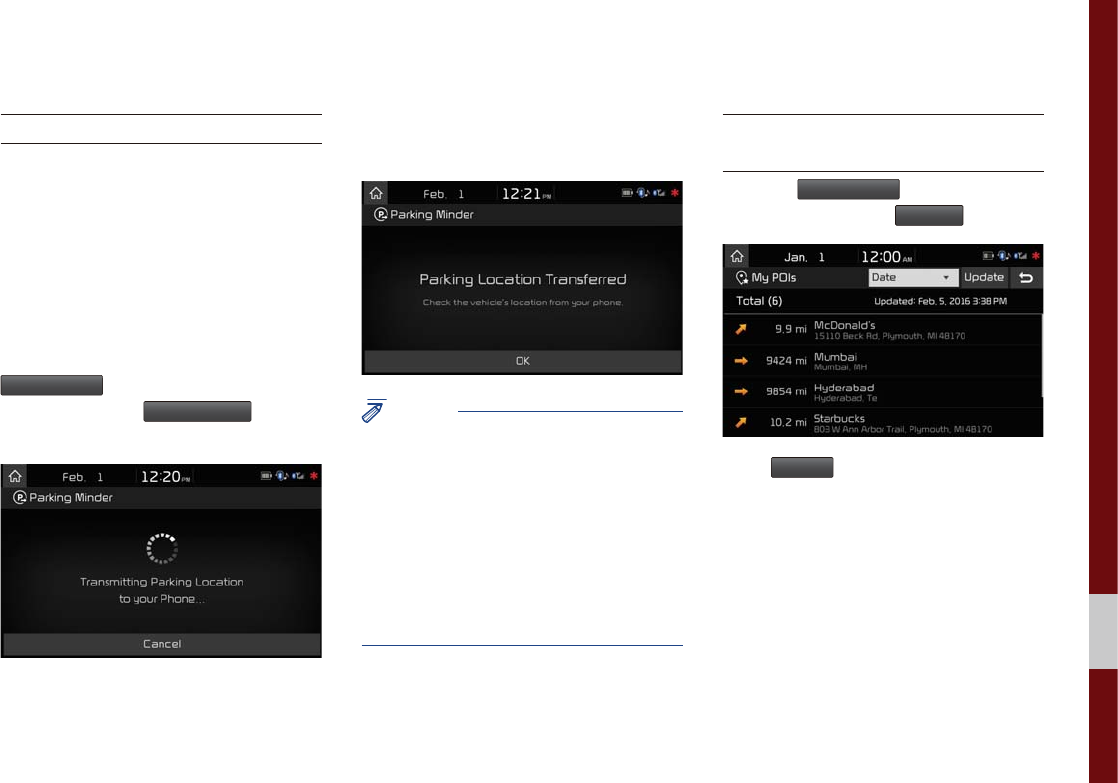

3DUNLQJ0LQGHU

Sending Parking Location

The location where your vehicle is currently

parked can be sent to your smartphone.

Ensure that your smartphone is connected

via USB and the UVO eServices App is

running before using this feature.

After parking the vehicle, select the

892H6HUYLFHV

icon from All Menus on the

Home screen ԡ

3DUNLQJ0LQGHU

to send

the vehicle’s location to your smartphone.

Once the parking location has been sent,

you can view your vehicle’s location from

the UVO eServices App on your smart-

phone.

NOTICE

• When the parking location is being sent, do

not drive the vehicle. Ensure that you have

logged into the UVO eServices App, and your

phone is connected to the multimedia system

via USB cable.

• When ignition is turned off while the phone is

connected via USB, Parking Minder can be

transferred automatically if the option is set up

in UVO eService Settings

0\32,V

Sending Points of Interest

to Your Navigation System

Select the

892H6HUYLFHV

icon from All Menus

on the Home screen ೛

0\32,V

Press

8SGDWH

button on the touch screen.

4-16 I UVO eServices

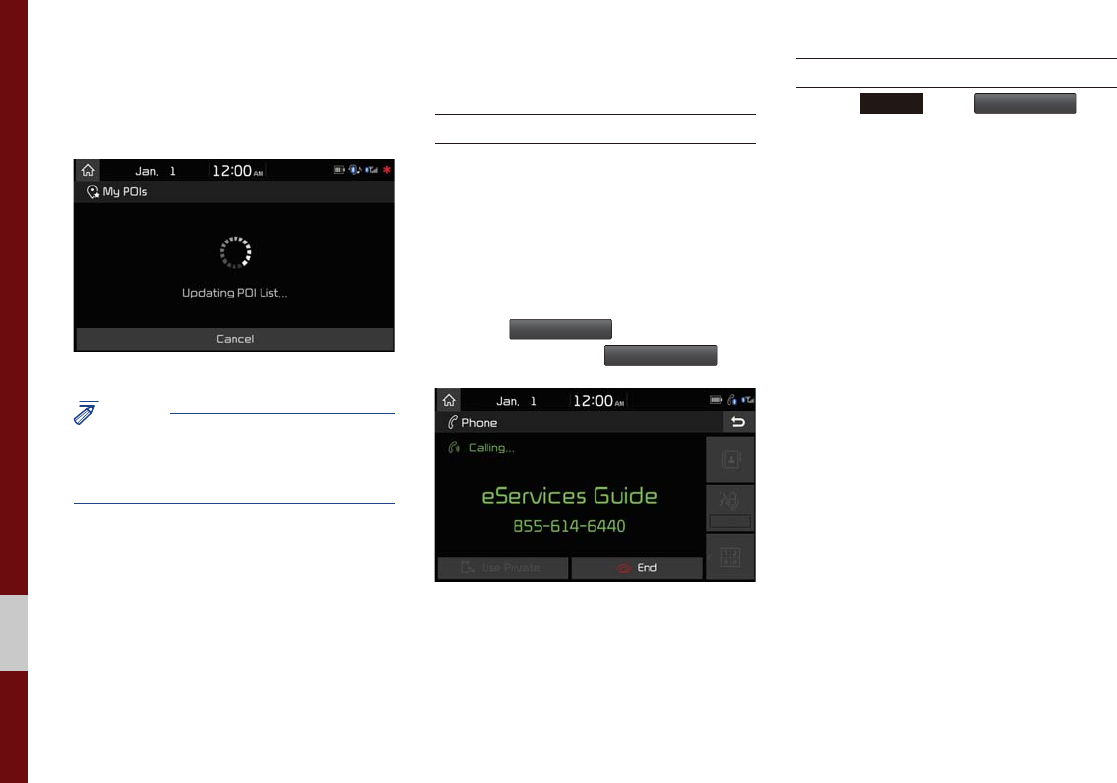

UVO eServices system will attempt to

download the POIs from MyUVO via your

smartphone.

NOTICE

• Ensure that you have logged in to the UVO

eServices App, and your phone is connected

to the UVO eServices system via USB cable.

Once the POIs have been downloaded,

select a POI from the list to see more

details.

H6HUYLFHV*XLGH

eServices Guide

eServices Guide provides guidance on

how to use UVO eServices.

This feature is only available when the

mobile phone is connected via Bluetooth.

Select the

892H6HUYLFHV

icon from All Menus

on the Home screen ԡ

H6HUYLFHV*XLGH

UVO eServices Settings

Refer to

6(783

key ԡ

892H6HUYLFHV

Basic Features

Quick Menu

Destination Search

Route Search

Navigation Settings

Troubleshooting

SDUW1DYLJDWLRQ

5-2 I Navigation

1DYLJDWLRQ

%DVLF)HDWXUHV

Operating Navigation Screen

Basic features on the map screen.

Name Description

Move to Places Menu.

Go to the Home screen.

Change the map view mode.

Adjusts the volume.

Zoom in the map.

Set the zoom level automatically according

to the guidance.

Zoom out the map.

Quick Menu for destination selection and

options.

Touch to scroll the map.

DQFH

Start the preferred navigation route to

selected location.

Choose the preferred navigation route to

selected location.

Set a waypoint to the current route.

Save frequently used address to address

book.

32,

Find a POI(Point Of Interest) around the

current position.

View the vehicle’s current position on the

map screen.

Basic Features I 5-3



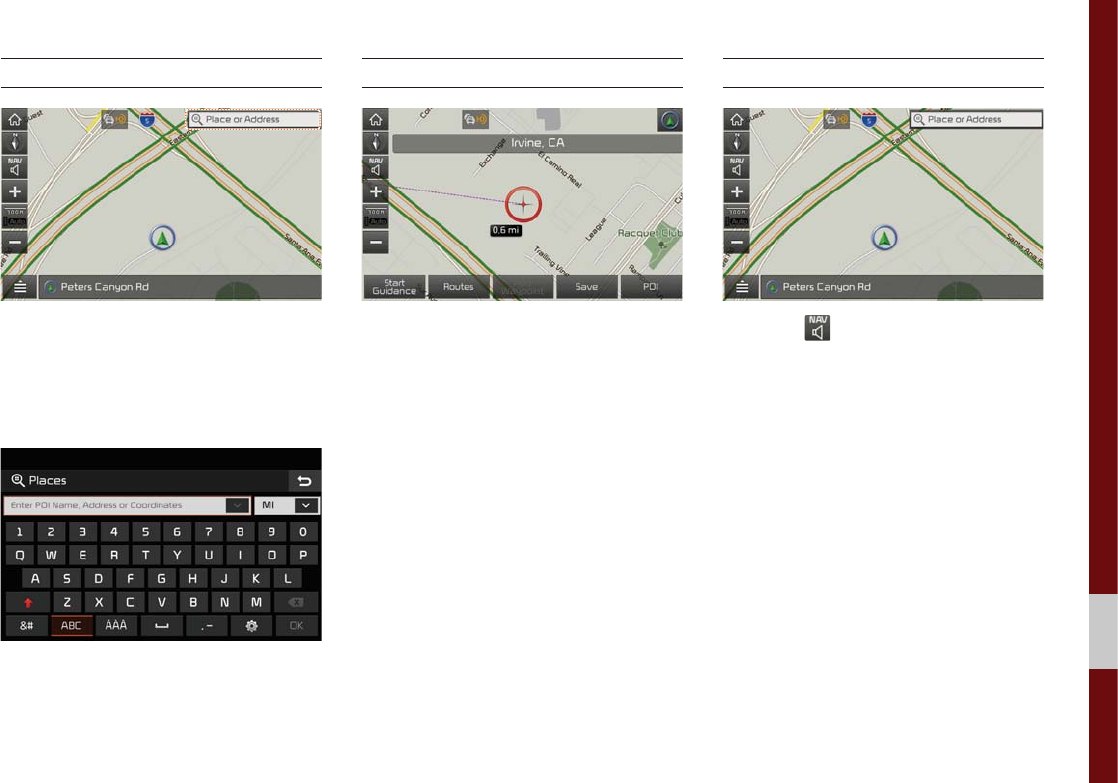

Places

You can use this menu when the vehi-

cle shift lever is in P (Park) and there

is no destination set. Press the Search

Icon(Place or Address) to move to “Places”.

Please refer to “Places” in “Destination

Search” for more details.

Changing Map View

Touch the compass arrow icon to toggle

between a map oriented to the North, ori-

ented parallel to the vehicle’s heading and

3D View.

Navigation Volume

Select the button to adjust the naviga-

tion volume.

5-4 I Navigation

Name Description

Set the volume to mute.

Turn the volume down.

Turn the volume up.

Slide to set the volume.

Lowers all other audio volumes

when Navigation prompts are

playing.

Zoom In/Zoom Out

Zoom the map view screen in and out.

Select or to set the zoom level.

Map Scale

Sets the zoom level automatically accord-

ing to the type of road.

Name Description

Scale Fix Manually adjust the map

scale.

Auto Scale Change the map scale

automatically depending

on the type of road.

Quick Menu I 5-5



4XLFN0HQX

Route

Select button on the bottom left of the

screen ԡPress

button.

Select the

5RX

button to set

5RXWH2

WLRQ

'HW

RXU

(

LW5

Route Options

Select your preferred route and avoid

options. Then select the

HFD

button

to save your selection. These options will

become default for future routes.

Detour

The

button is active only when

there is an active route.

Selected distance is detoured from the

current location.

5-6 I Navigation

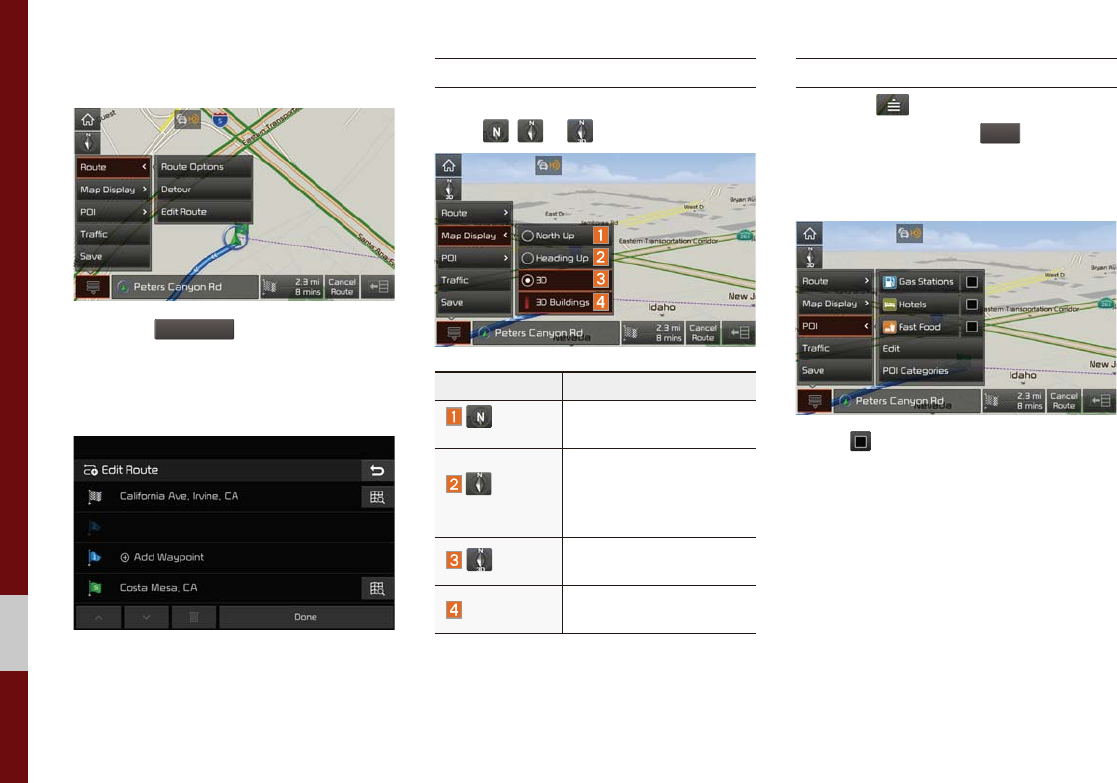

Edit Route

Select the

(GLW



button to change the

route.

Refer to the Route > Editing Route section in

the manual for more information(page 5-26).

Map Display

Displays the direction of the map.

Press , or .

Name Description

North

Up (2D)

Displays always has

north at the top of screen.

Heading

Up (2D)

Displays always shows

the vehicle’s direction as

proceeding towards the

top of the screen.

3D Shows the map in

3 dimentions.

3D Buildings

Shows or hides build-

ings on the map.

POI

Select the button on the bottom left of

the screen ԡ Select the

32,

button.

View Nearby POIs

Select check button to set whether to

show nearby POIs or not. When catego-

ries are selected, they will appear on the

map. (ex. Gas Stations)

Quick Menu I 5-7



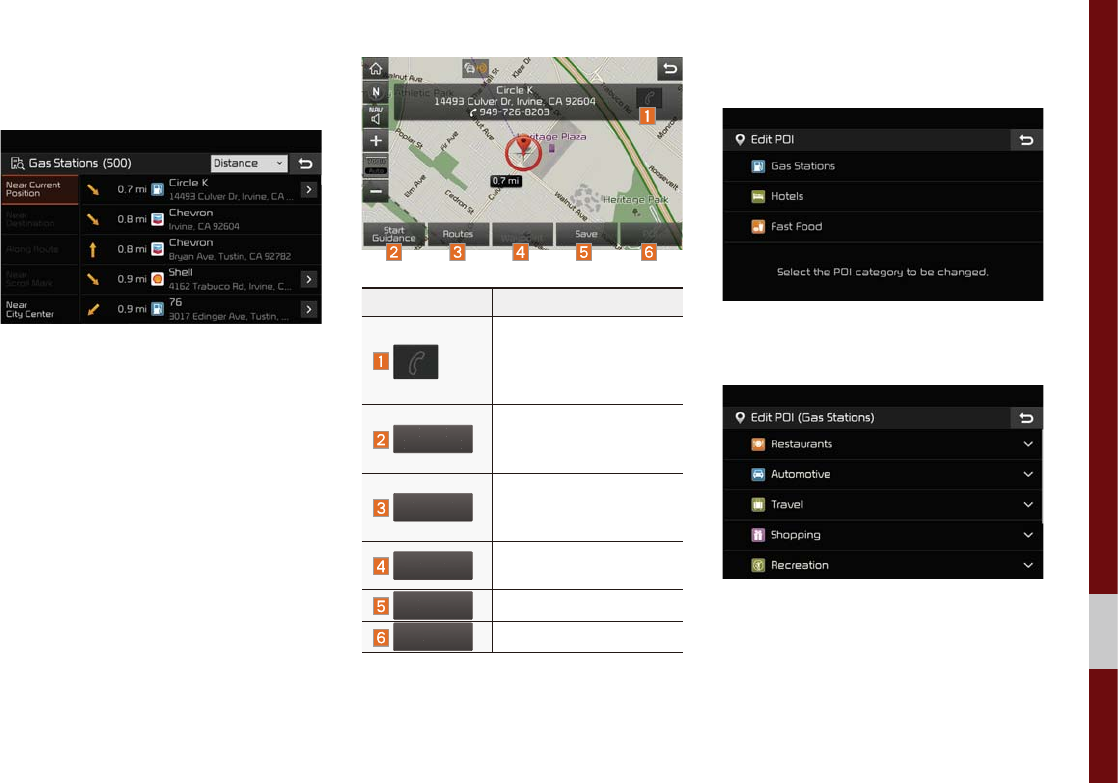

The lists of nearby gas stations are dis-

played.

The list can be sorted to display in order of

distance or name.

Name Description

Call to the selected

location (Phone needs

to be connected via

Bluetooth).

*XLGDQF

Start the preferred navi-

gation route to selected

location.

5RXW

Choose the preferred

navigation route to

selected location.

$GG

D\SR

Set the location as a

waypoint.

6DY

Save the location.

Search nearby POIs.

Edit

Change the shortcut POIs to display.

(ex. Gas Stations)

Select the desired category to change.

(ex Restaurants)

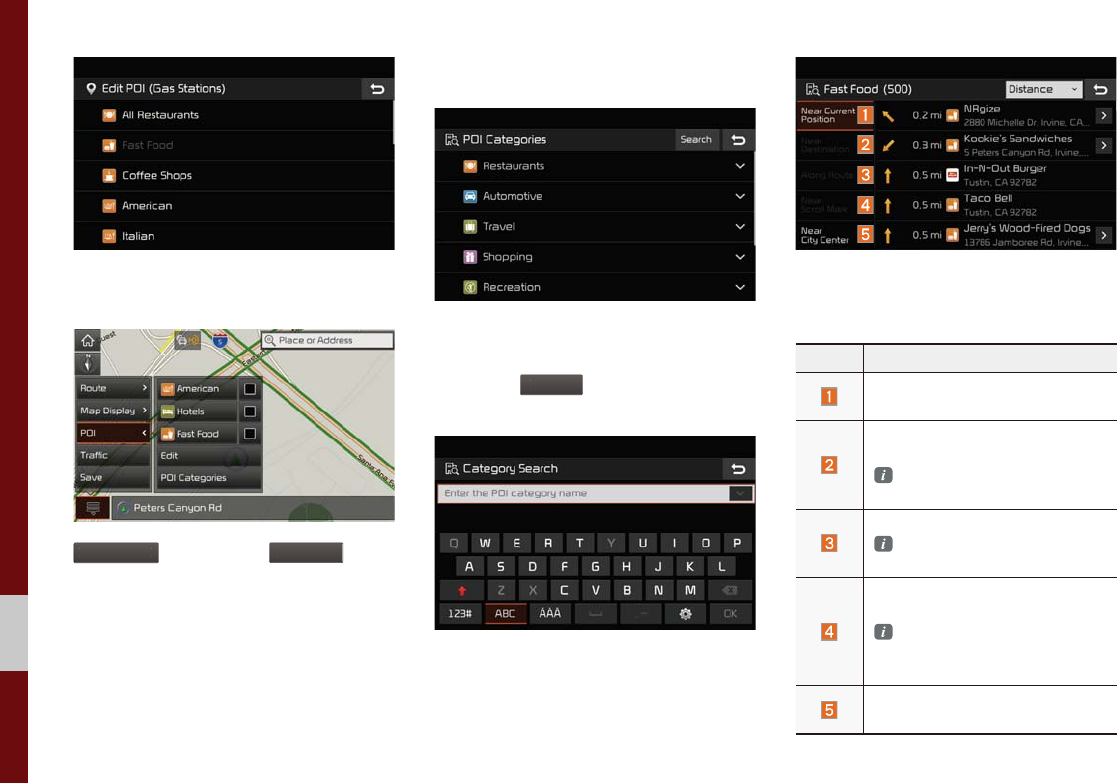

5-8 I Navigation

Select new category to display.

(ex. American)

DV

is changed to

PHULFD

POI Categories

Select the item to search.

Press the

HDUFK

button to search the

POI category by name.

Select the desired POI to check the loca-

tion and for detailed information.

Name Description

Search POI around the current

position.

Search POI around the destina-

tion.

Active only when a route’s

planned.

Search POI along route.

Active only when a route’s

planned.

Search POI around the current

cursor when the map scrolled.

Active only when the cursor

position is different from the

vehicle position.

Search POI around the city

selected.

Quick Menu I 5-9



Trafﬁc

Select the button on the bottom left of

the screen ԡ Select the

DIILF

button.

Trafﬁc List

On the traffic list, the current traffic/road

event information is displayed in order of

distance.

Name Description

Direction from the current location.

Distance from the current loca-

tion (mi or km).

Displays traffic info symbol based

on the type of event.

Description of traffic event.

Additional traffic information may be dis-

played upon clicking on the

HJRU\

button.

Name Description

Display ‘Road Construction’ infor-

mation.

Display ‘Accident’ information.

Display ‘Slow Traffic’ information.

Display ‘Incident’ information.

Display ‘Hazardous Road

Conditions’ information.

Display ‘Travel Information’.

When

2Q5RXWH

is activated, only traffic

information on your route is displayed.

5-10 I Navigation

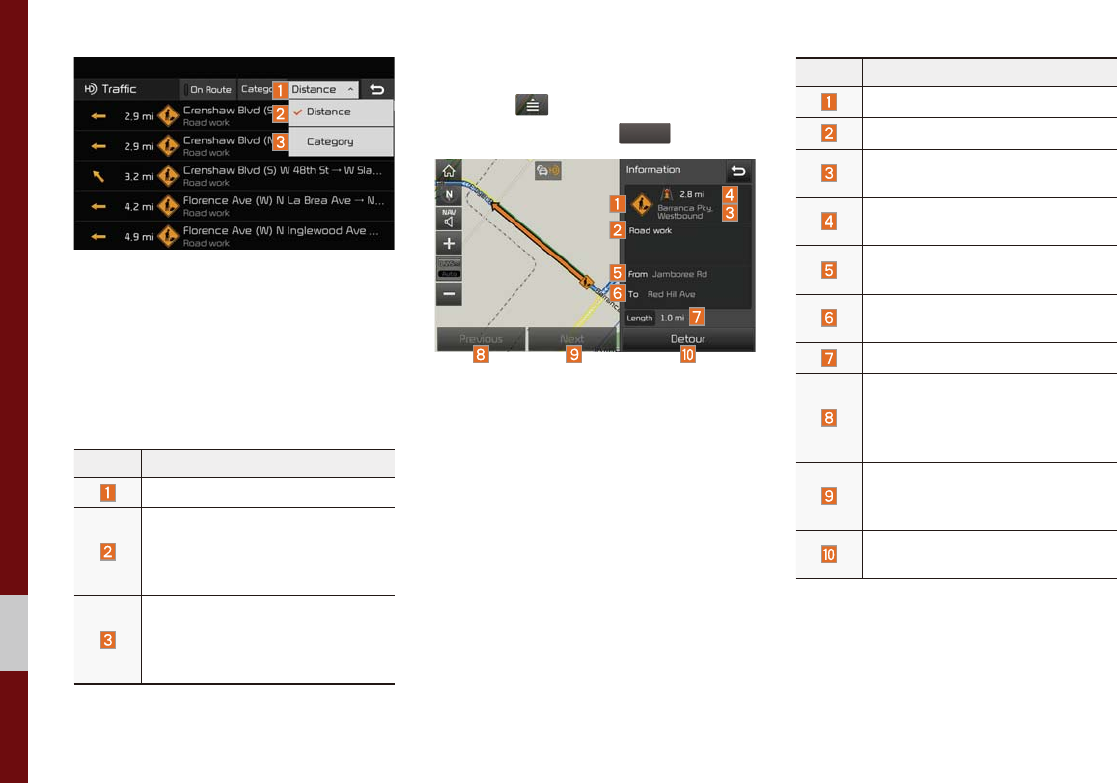

On the traffic list, the current basic traffic/

road event information is displayed in

order of distance.

Select the combo box to change the

arrangement in order of Category/

Distance.

Name Description

Select the combo box to arrange.

Arrangement by distance: Display

the traffic information in order

of distance closer to the current

location.

Arrangement by category: Display

traffic information arranged in

order of traffic information event

type.

Trafﬁc detail

Select the button on the bottom left of

the screen ԡ Select the

IILF

button.

Select the traffic information on the traffic

list to display the detailed screen as shown

in the screen.

Display the symbol of traffic event and

arrow which indicates the road from start

to end of the traffic event. Detailed infor-

mation is available on the right screen.

Name Description

Symbol of traffic event.

Event name of traffic information.

Road name/road number includ-

ing direction.

Direction and distance from the

current location.

Intersection where traffic event

starts.

Intersection where traffic event

ends.

Total distance of traffic event.

Check the previous traffic infor-

mation (Enabled only when there

are two or more events on the On

Route)

Check the next traffic information

(Enabled only when there are two

or more events on the On Route)

Detour the route based on the

traffic information.

Quick Menu I 5-11



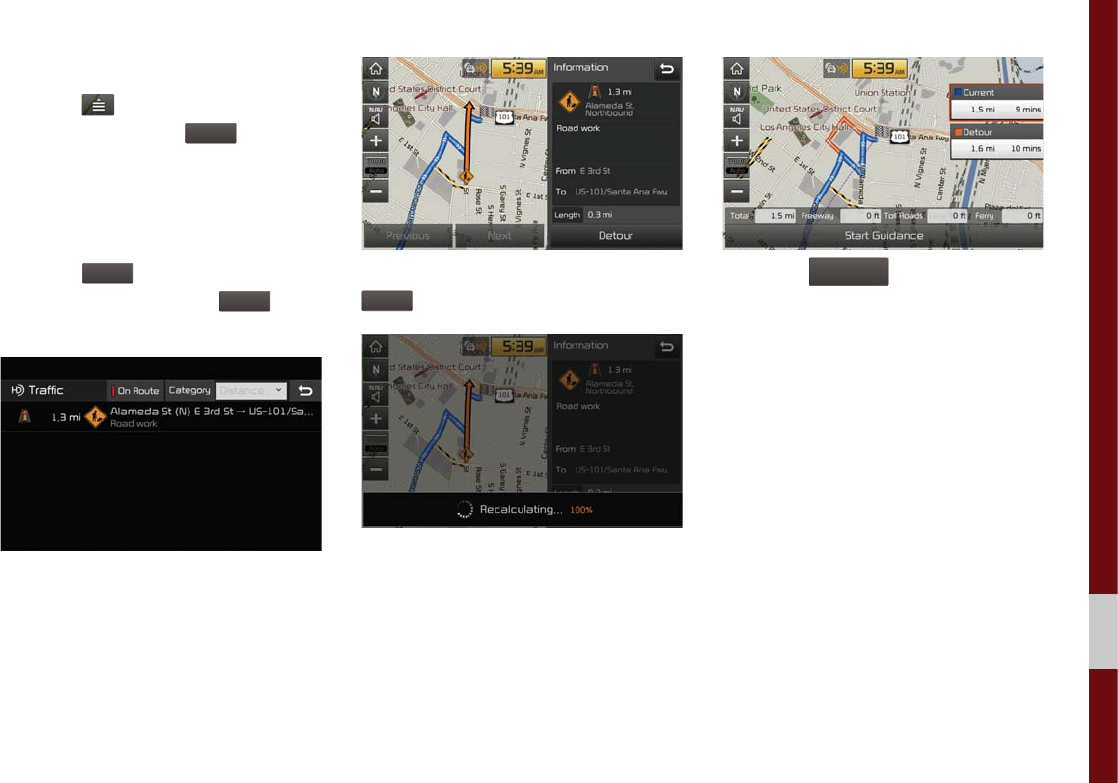

Trafﬁc detour

Select the button on the bottom left of

the screen ԡ Select the

IIL

button.

If there is traffic information on the route, it

is possible to detour the route using traffic

information and search other routes.

When the

RXU

button is enabled in the

View Traffic Detail, press the

RXU

button

to detour.

Select the desired section.

Check the information and press the

button.

Select the

*XLGD

button to apply the

detoured sections and search other routes.

5-12 I Navigation

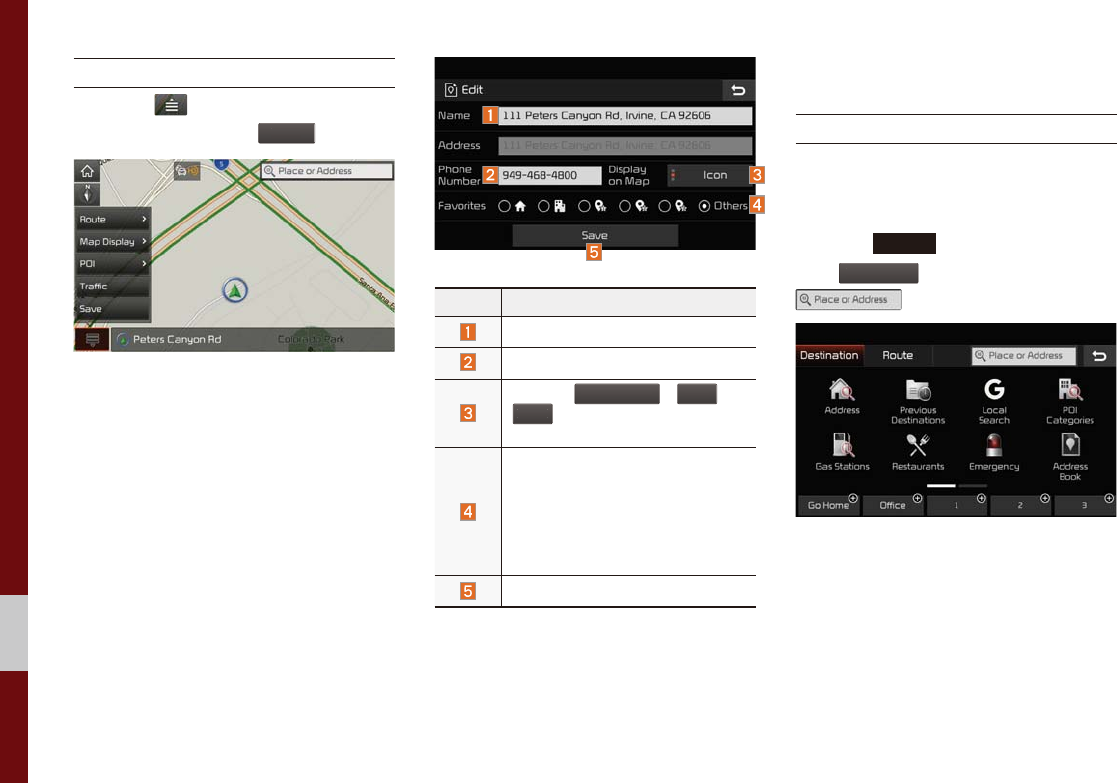

Save

Select the button on the bottom left of

the screen ԡ Select the

6DYH

To store the location on the current map to

the address book.

Name Description

Change the name.

Enter the phone number.

Press

,FRQ1DP

to display on the map

screen.

Designate to the Favorite item.

When the favorite is designated,

press the button on the bottom

of the Destination menu and

request the route guide immedi-

ately.

Save the setting.

'HVWLQDWLRQ6HDUFK

Places

You can enter POI Name, Address or

Coordinates that you wish to search by.

Press the

1$9

head unit key. ԡ Select

the

tab. ԡ Select the

Search Bar.

Destination Search I 5-13



Enter the POI Name, Address and

Coordinates of the location you want in the

input window above, and press the

button.

If you select a location from the search

result list, it will bring you to the point.

If you press the

)LOW

HU

\

&LW\

button on the

search result screen, it will bring you to the

City search screen where you can filter the

search results by city names.

If you press the

)LOW

HU

\

HJRU

button

from the search result screen, it will bring

you to the POI Categories screen where

you can filter the search results by POI

Categories.

Once the destination has been identified

either by POI name, address, or coordi-

nates, the map screen will be displayed.

From this screen you can set the desti-

nation or add a waypoint, or add the dis-

played destination to your address book.

5-14 I Navigation

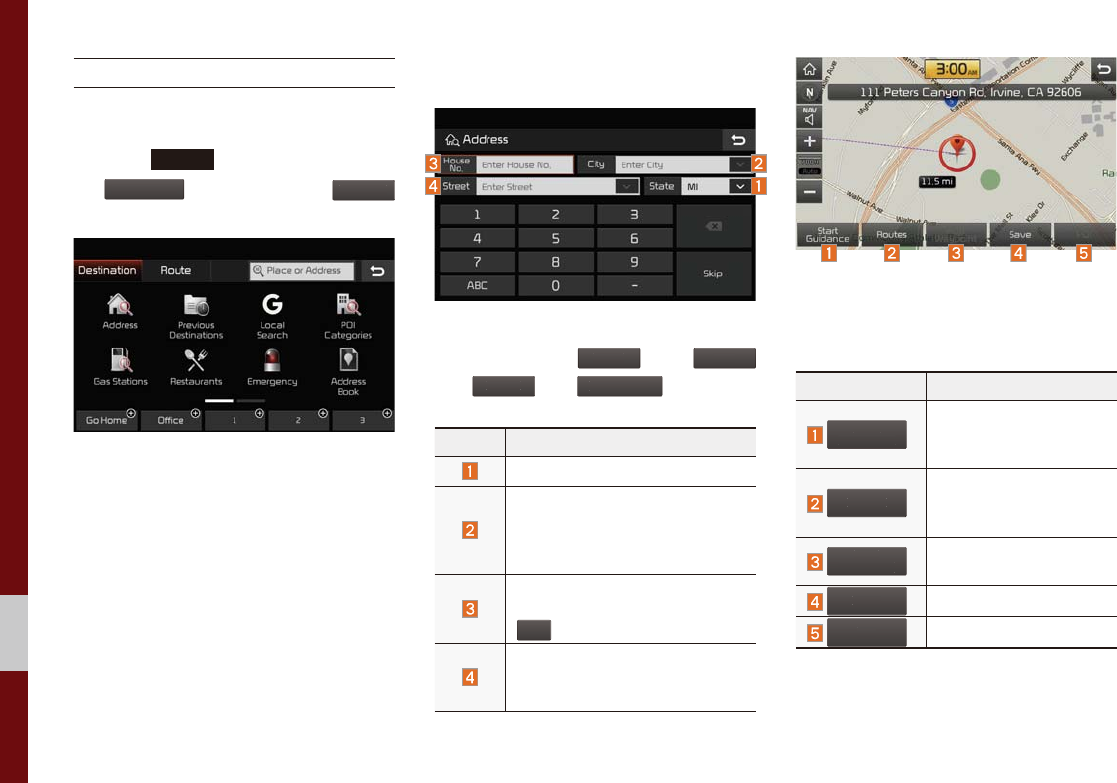

Address

Set destination by address search.

Press the

1$9

head unit key. ԡ Select

the

DWLR

tab. ԡ Select the

$GGUHV

icon.

How to Search Address

Search criteria can be entered in any

order. Example:

then

6WUHHW

then

+RXVH



Name Description

Select state to search.

Select a city before entering

the street name. Addresses are

searched only from the selected

city.

Enter house number. If you don’t

know the house number, press

button.

Enter a street name. If same

street names exist in other cities,

the list of cities will be displayed.

Enter the address to check the location

information on the map.

Name Description

DQF

Start the preferred navi-

gation route to selected

location.

5RX

WHV

Choose the preferred

navigation route to

selected location.

$GG

D\SRLQW

Set the location as a

waypoint.

DYH

Save the location.

Search nearby POIs.

Destination Search I 5-15



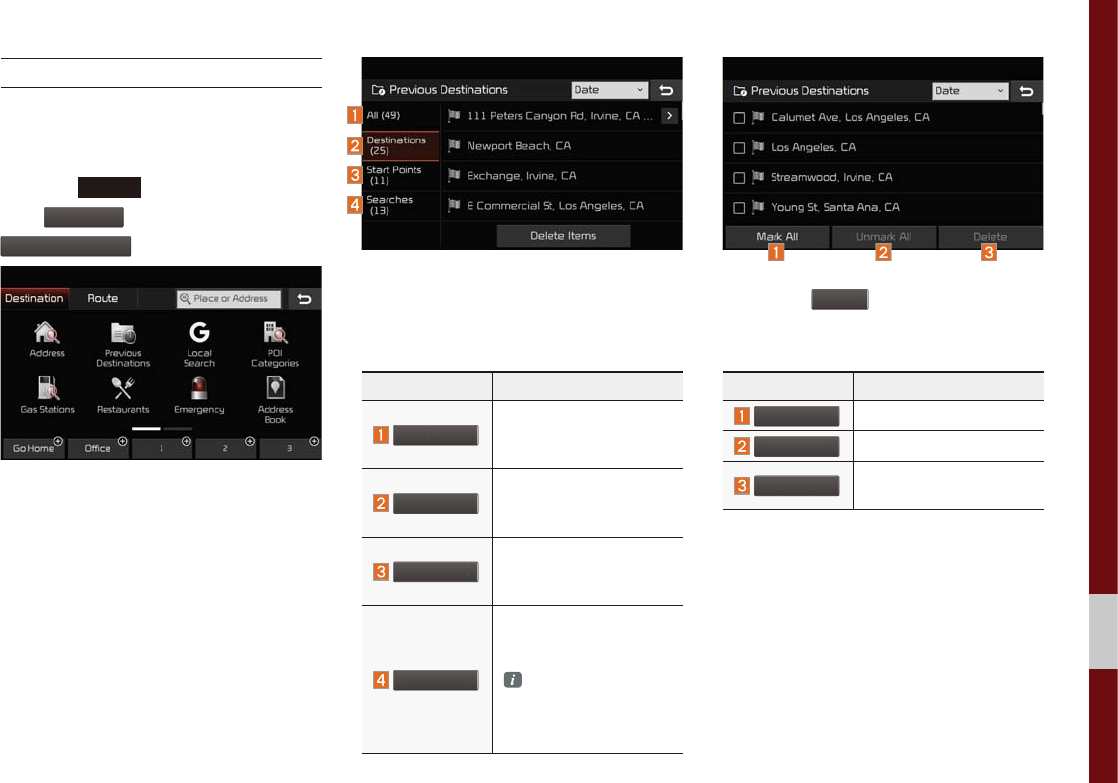

Previous Destinations

Select from previously inputted addresses

and POIs.

Press the

1$9

head unit key. ԡ Select

the

tab. ԡ Select the

UHY

RXV

icon.

Arrange by all, latest destinations, latest

searched places and latest departing

places. Arrange in order of date and time.

Name Description

$OO

Display all destinations,

departing places, and

searched places.

HVWLQ

Display previous desti-

nation places for route

guidance.

6WDUW3RLQW

Display previous depart-

ing places for route

guidance.

6HDUFKHV

Display previously

searched places for

route guidance.

But, not displayed

when the searched

places are set as

destination.

Press the

'HOHWH

button to delete the

information.

Name Description

DUN

Select all.

UN$OO

Deselect all.

'HOHWH

Delete the selected

item(s).

5-16 I Navigation

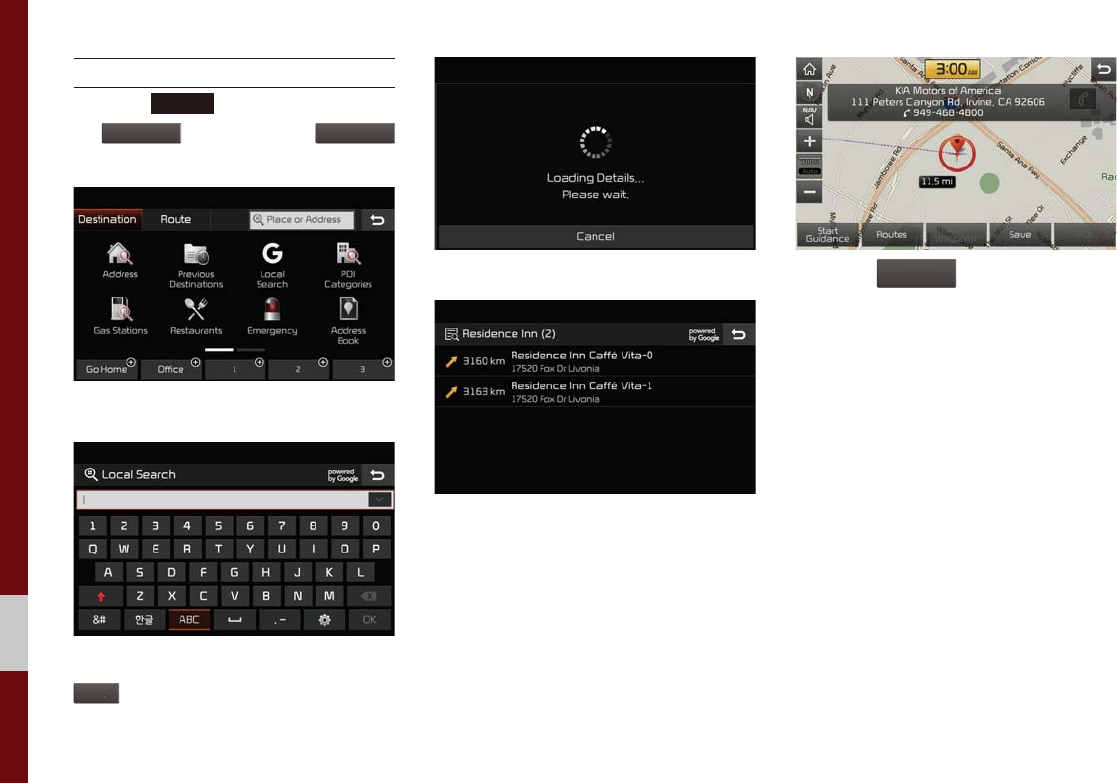

Local Search

Press the

1$9

head unit key. ԡ Select

the

'HVWLQ

tab. ԡ Select the

O6H

UFK

icon.

Runs Google Local Search.

Enter the desired keywords and press the

button.

Searching is in progress.

If one or more results are found, the

search results are displayed. Select one of

the search result.

Press the

XLGDQF

button to start guid-

ance.

If search or guidance fails, the connection

error message is displayed as above.

Please try again.

Destination Search I 5-17



POI Categories

Press the

1$9

head unit key. ԡ Select

the

HVWLQ

tab. ԡ Select the

32,&DWHJRULH

icon.

Select the desired item.

Select the desired item in the sub-categories.

Name Description

Select the desired destination

among the searched items and

add it as a way point.

Arrange in order of Distance and

Name.

Arrange in order of Near Current

Position, Near Destination, Along

Route, Near Scroll Mark and Near

City Center.

Gas Stations

Search for gas stations.

Press the

1$9

head unit key. ԡ Select

the

DWLR

tab. ԡ Select the

DV

RQV

icon.

Select the desired destinations among the

search items.

5-18 I Navigation

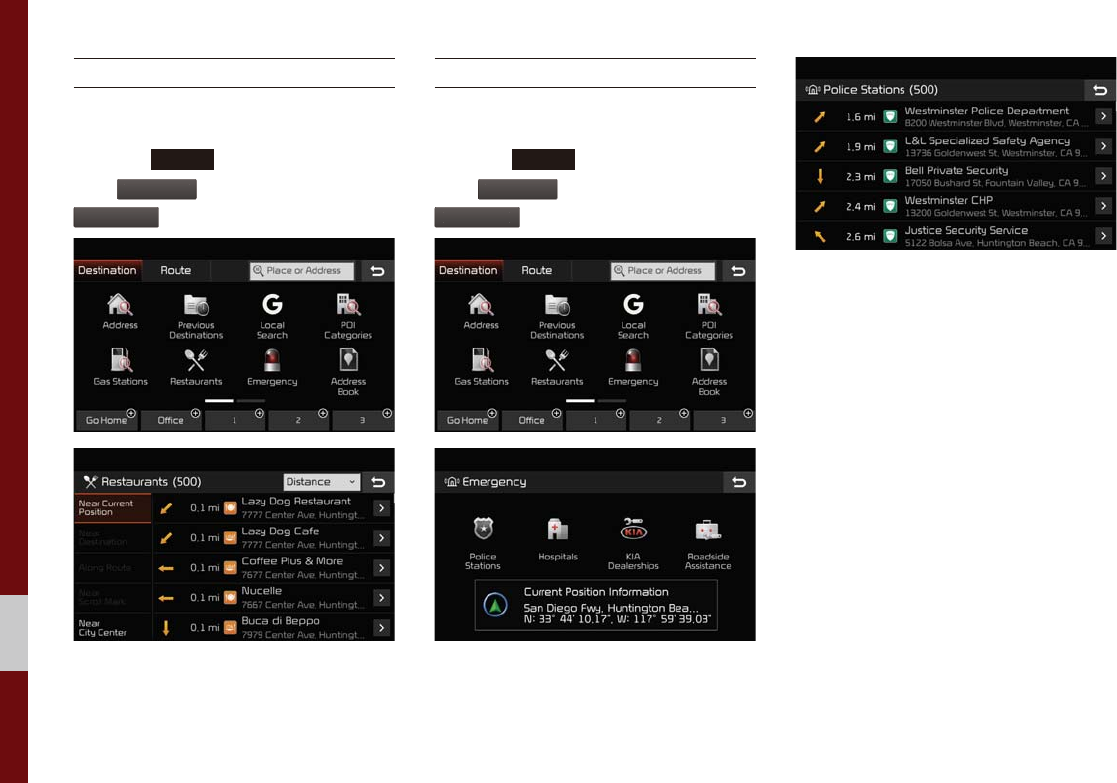

Restaurants

Search restaurants.

Press the

1$9

head unit key. ԡ Select

the

DWLR

tab. ԡ Select the

DXUDQ

icon.

Select the desired destination among the

searched items.

Emergency

Search emergency facilities.

Press the

1$9

head unit key. ԡ Select

the

DWLRQ

tab. ԡ Select the

(

PHUJHQF\

icon.

Check the current location information and

select the desired item in the sub menu.

(ex. Police Stations)

Select the desired destination among the

searched items.

Destination Search I 5-19



Address Book

Search the destination with the address

book.

Press the

1$9

head unit key. ԡ Select

the

tab. ԡ Select the

GGUHVV%RRN

icon.

Select the desired group.

If you save address in the Favorites tab, you

can set destinations easily by pressing the

icons such as

+

and

IILFH

at the

bottom of the Destination menu.

Name Description

Select the desired destination

from the searched items.

Edit the item.

Delete the desired item.

Coordinates

Press the

1$9

head unit key. ԡ Select

the

HVWLQ

tab. ԡ Select the

&RR

to search by coordinates.

There are two ways to search by coordi-

nates (D.M.S or Decimal Degrees). After

typing coordinates, press the

button

to search.

5-20 I Navigation

Press the

*XLGDQFH

button to start guid-

ance.

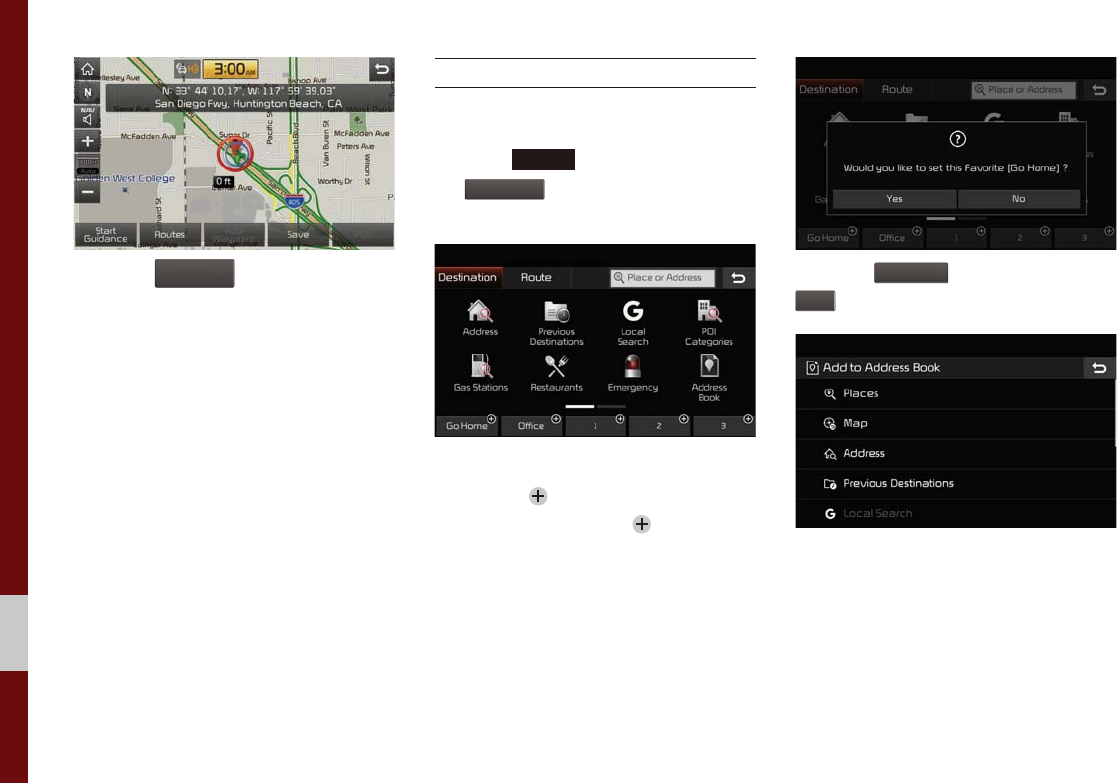

Favorite Places

Set the route using your favorite places.

Press the

1$9

head unit key. ԡ Select

the

DWLR

tab. ԡ Select from favorite

places.

On the button where locations are not reg-

istered, the icon is displayed. When a

location is registered, the button disap-

pears and the buttons 1 to 3 are displayed

as your favorite places.

Press the

R

RPH

button then press the

<HV

button to set the Favorite ‘Go Home’.

Office, Special 1, Special 2, and Special 3

can also be set as a Favorite using the same

steps.

Destination Search I 5-21



Pressing any of the Favorite Place buttons

will start the route guidance to the saved

Favorite address.

Route Setting

The route can be set after searching for a

destination.

While the destination is set, the buttons

QFH

, and

$GG

D\SR

appear.

Press the desired button to change a des-

tination or add a waypoint.

Destination Setting

After searching the destination, press the

QFH

button to set the location as a

destination.

5-22 I Navigation

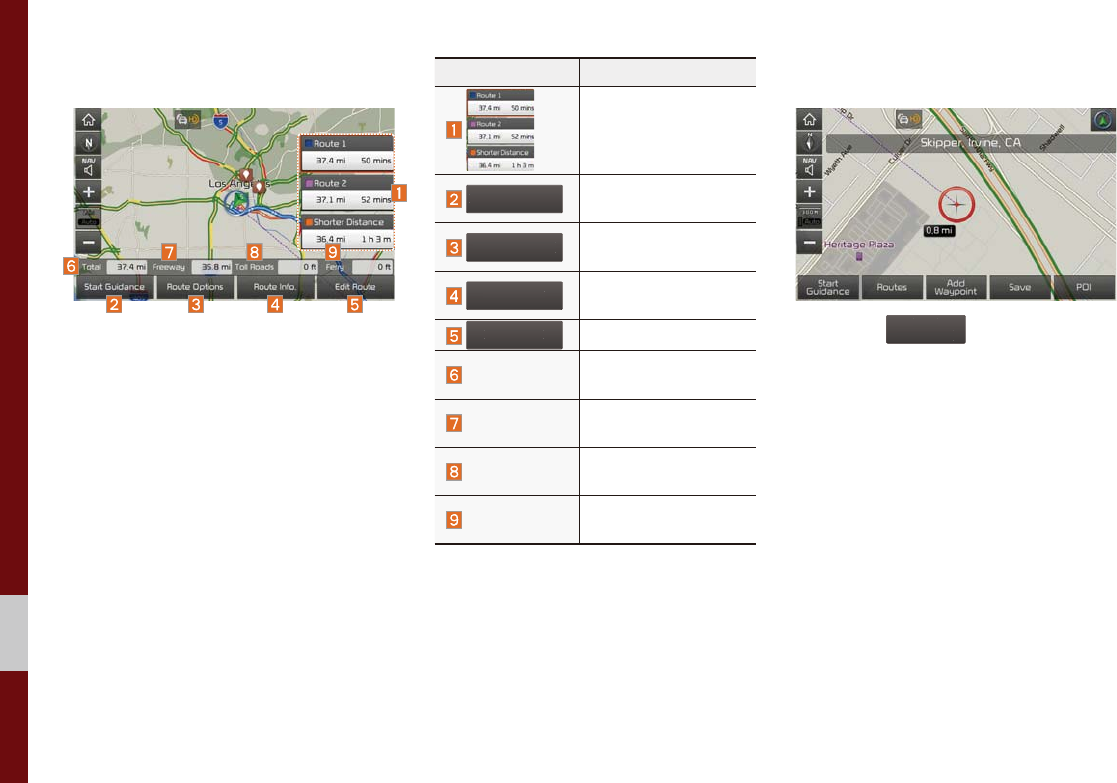

All Routes

Three routing options are displayed based

on real time traffic information and traffic

pattern information and shorter distance.

• Route 1: Select the best route based on

combine real-time traffic information and

traffic pattern data on the map.

• Route 2: Select the best route based on

real-time traffic information.

• Shorter Distance: Select short distance,

regardless of how fast or slow progress

will be calculated.

Name Description

Display total distance,

travel time. Select the

desired route.

UW*

Start the guidance

with the route.

RXWH

WLRQ

Change the route

option.

5RXWH,QIR



You can check route

information.

(GLW



Edit the route.

Total Display total distance

of the route.

Freeway Display length of free-

way on the route.

Toll Road Display length of toll

road on the route.

Ferry Display length of Ferry

route on the route.

Adding Waypoint

Press the

$GG

RLQ

button to set the

position as a waypoint and search the

route.

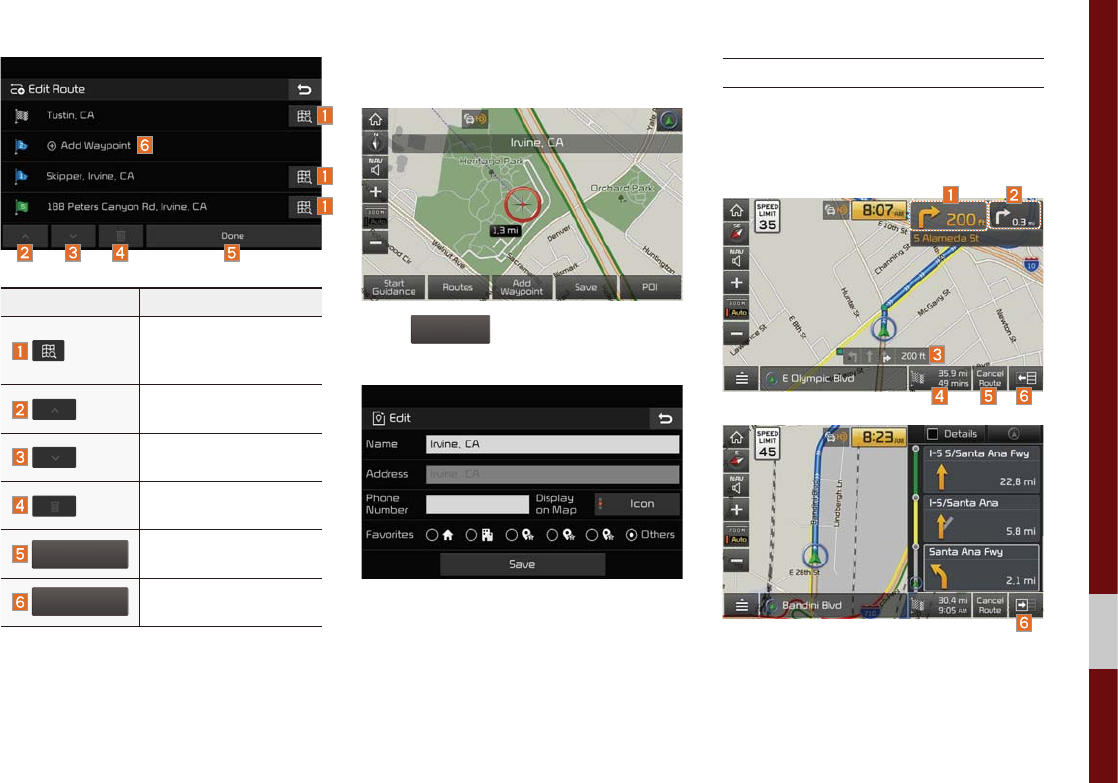

Destination Search I 5-23



Name Description

Display the selected

point on the map

screen.

Move the selected item

up.

Move the selected item

down.

Delete the selected

item.

Press the button to fin-

ish editing.

$GG:D\SRLQ

Press the button to

add waypoint.

Registering Location

Press

DYH

at the desired location to

Enter the detailed information of the loca-

tion to save.

Route Guidance

Show route guidance detailed information.

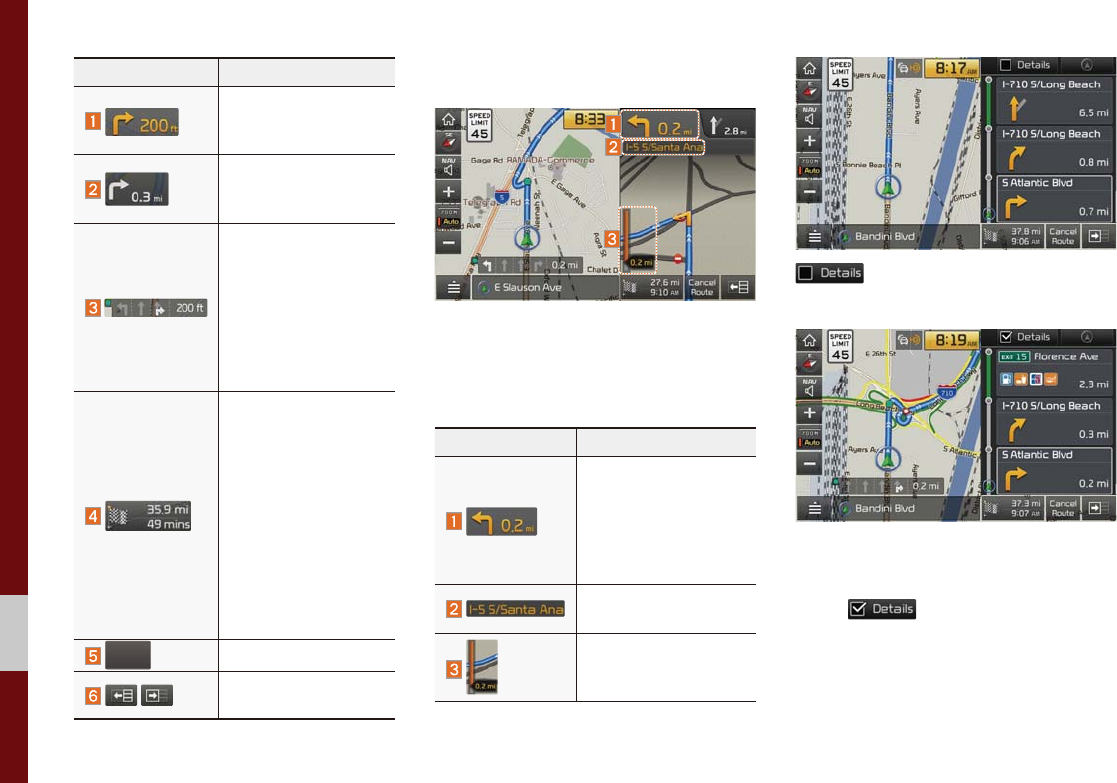

Route Guidance Screen

5-24 I Navigation

Name Description

Displays the distance

and direction to the

first turn point.

Displays the distance

and direction to the

second turn point.

Displays the lane infor-

mation at the current

location. Display the

recommended direc-

tion in white, travelable

direction in white, and

the non-travelable

direction in grey.

Displays the distance

to the destination and

the estimated time

of arrival. Press the

button to check the

detailed information. If

no waypoint is set, you

will see the remaining

distance or estimated

time of arrival in turn

each time you click

the button.

QFHO

5RX

Cancel the route.

Displays the Turn List.

Closes the Turn List.

Split Screen during Route Guidance

Approaching the turning point, the detailed

road and travel information is automatically

displayed on the right side of the screen.

Name Description

• Turn Point: Displays

direction and shape

to turn shortly.

• Distance to turn:

Displays distance to

next turn point.

Road name to maneu-

ver: Info of the road.

Detail Distance Bar:

Displays distance to

next turn point.

additional info can be displayed

on Freeway.

Additional info of Freeway exit or Rest

area can be displayed by pressing the

button .

Route Search I 5-25



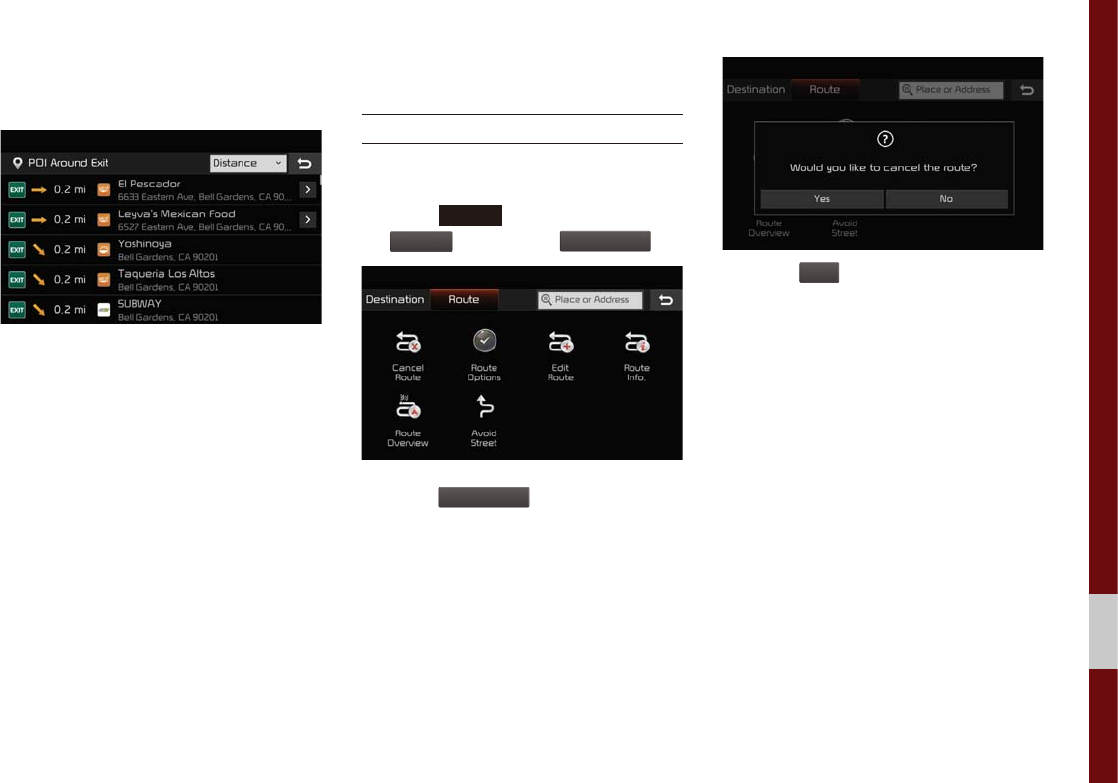

Detailed information for POIs around free-

way exit is listed by pressing POI symbols.

5RXWH6HDUFK

Canceling Route

Cancel the route.

Press the

1$9

head unit key. ԡ Select

the

tab. ԡ Select

QFHO5

Press the

QFH



5RXW

icon.

Press the

<HV

button to cancel the route.

5-26 I Navigation

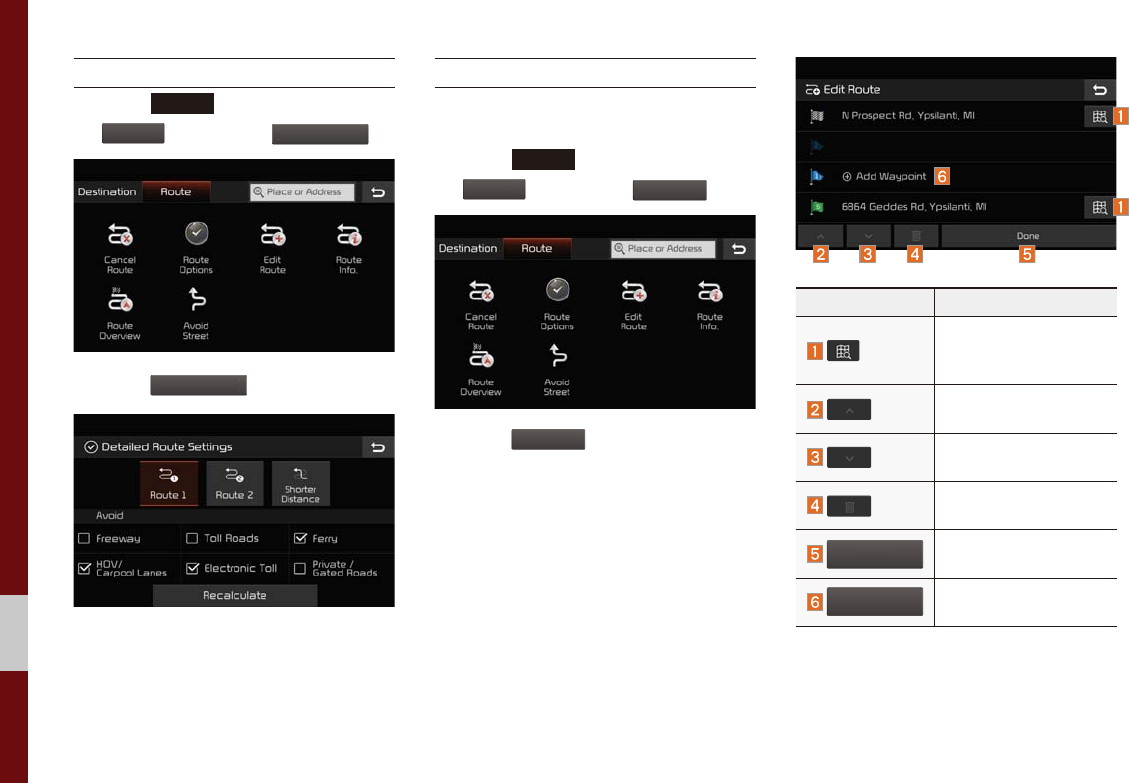

Route Options

Press the

1$9

head unit key. ԡ Select

the

tab. ԡ Select

RXWH2SWLRQV

Press the

RXWH

WLRQV

icon.

Determine the route options to guide the

route.

Editing Route

Edit the current route.

Press the

1$9

head unit key. ԡ Select

the

5RXWH

tab. ԡ Select

(GLW



Press the

(GLW5RXW

icon.

Name Description

Display the selected

point on the map

screen.

Move the selected item

up.

Move the selected item

down.

Delete the selected

item.

RQH

Press the button to fin-

ish editing.

GG:D\SRLQW

Press the button to

add waypoint.

Route Search I 5-27



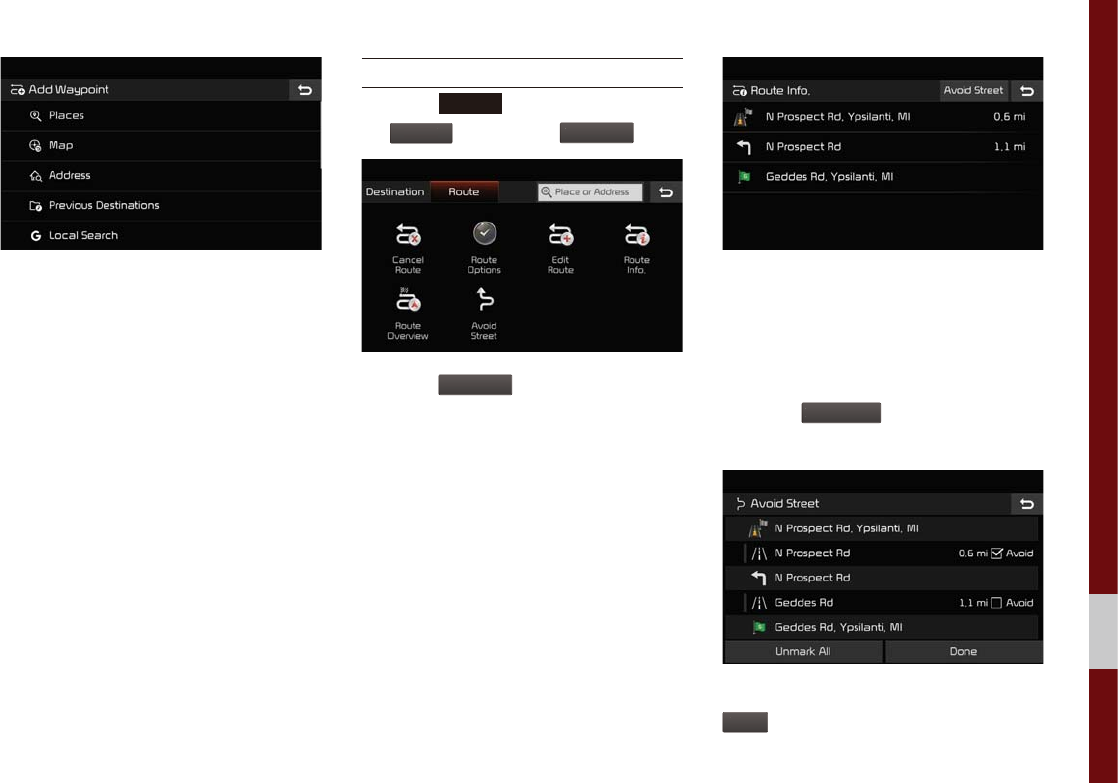

Add the waypoint through various search-

ing methods.

Display Route Information

Press the

1$9

head unit key. ԡ Select

the

5RX

tab. ԡ Select

RXWH,QIR



Press the

RXWH,QIR



icon.

Check the information on the map. Select

the desired item to see the map informa-

tion.

Avoiding a road

Click the

YRLG6WUHH

button to avoid the

street or road.

Check the desired item and press the

button to finish.

5-28 I Navigation

Route Overview

Check the information on route including

the distance, estimated time, toll fees, etc.

Press the

1$9

head unit key. ԡ Select

the

tab. ԡ Select

RXWH2

Press the

RXWH2

icon.

Name Description

RXWH

SWLRQ

Change the search

option.

H

R

You can check route

information.

LW5

Edit the current route.

Avoid Street

Search new route by avoiding the selected

street(s).

Press the

1$9

head unit key. ԡ Select

the

tab. ԡ Select

RLG6WUHHW

Press the

RLG6WUHHW

icon.

Navigation Settings I 5-29



Press the

to plan new route after

selecting the street(s) that you want to avoid.

1DYLJDWLRQ6HWWLQJV

Display

Change general settings.

Name Description

Change the unit of

PLO

Press the button to change

the previous destination view set-

ting when starting the navigation.

When button selected, nav-

igation will automatically return

to current vehicle position after

scrolling through map display.

Change the route guidance line

colors.

Select the button to display

traffic information on the map.

Check the GPS information.

5-30 I Navigation

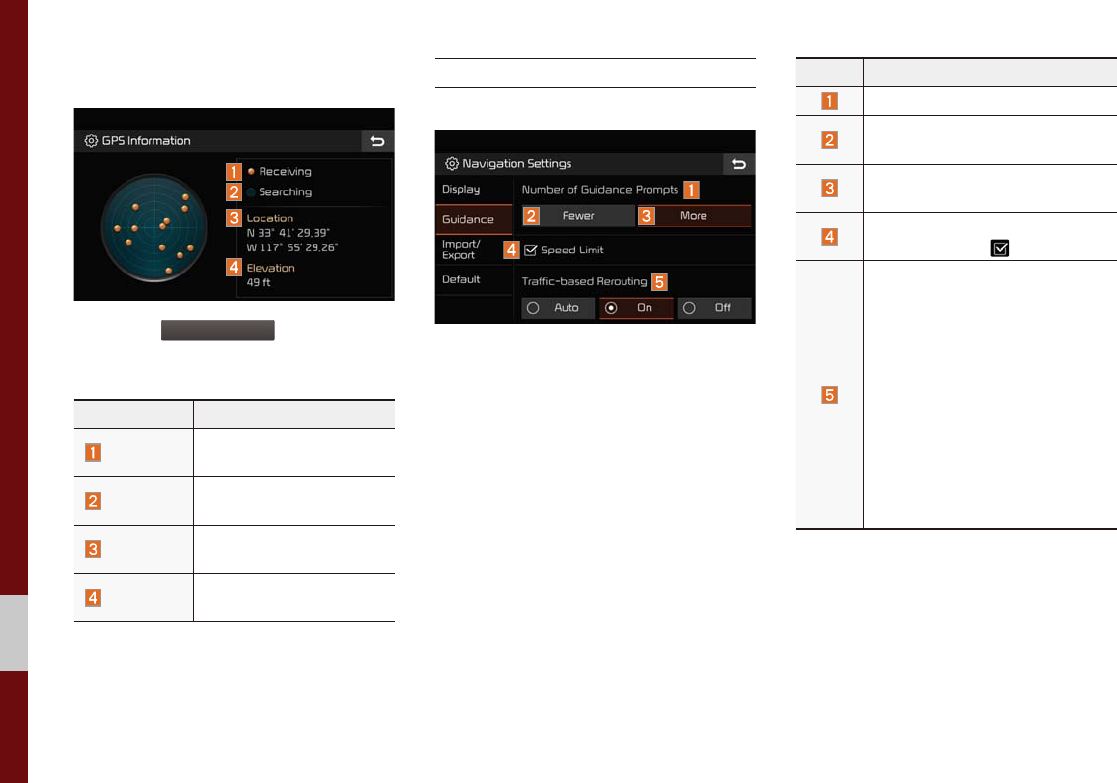

GPS Information

Press the

36,QIRUPDWLR

to display the

detail GPS satellites information.

Name Description

Receiving Active when current posi-

tion is being calculated.

Searching Active when searching for

satellite signal.

Location Display current position of

the vehicle.

Elevation Display current elevation

of the vehicle.

Guidance

Change the guidance setting.

Name Description

Set the frequency of guidance.

Route guidance is given less fre-

quently.

Guidance will be provided fre-

quently.

Change whether to show speed

limit by pressing .

Searching faster routes internally

using traffic information.

• Auto: When set to Auto, during

route guidance, faster route is

automatically changed to avoid

traffic incident.

• On: If set to On, faster route

pop-up option appears during

route guidance.

• Off: If set to Off, no faster

routes are suggested to avoid

traffic incident during route

guidance.

Navigation Settings I 5-31



Import/Export

In navigation setting screen, press

RUW



([SRUW

Press the desired category.

Name Description

The latest data of Navigation

Address Book which have been

exported to a USB device will

be imported to your navigation

device.

Export the Navigation Address

Book on your navigation device

to a USB device.

WARNING

• The amount of data available for importing to

a USB device is limited based on the number

of address book items supported by the

navigation system.

• If the data stored on the USB device uses

different coordinates than those used by the

current system, the importing location may

change.

• Please make sure that the address book have

been successfully imported before use.

• Only USB devices formatted in FAT16/32 are

supported.

• Certain USB devices may not be supported

due to compatibility issues.

Default

Reset the Navigation Settings to factory

default.

5-32 I Navigation

7URXEOHVKRRWLQJ

The current position as shown on the navigation may differ from

the actual position under the following conditions.

The following occurrences are not malfunctions :

• When driving on Y-shaped roads

with narrow angles the current

position may be displayed in the

opposite direction

• Within city streets, the current posi-

tion may be displayed on the oppo-

site side or on an off-road position

• When changing the zoom level

from maximum to a different level,

the current position may become

displayed on a different road

• If the vehicle is loaded onto a ferry

or a car transport vehicle, the cur-

rent position may become stalled

on the last position prior to loading

• When driving on a spiral-shaped

road

• When driving in mountain regions

with sharp turns or sudden brakes

• When entering a road after passing

an underground parking structure,

building parking structure, or roads

with many rotations

• When driving in heavy traffic with

frequent starts and stops

• When driving under slippery condi-

tions, such as heavy sand, snow, etc.

• When driving on spiral-shaped roads

• When the tires have recently been

replaced (Especially upon use of

spare or studless tires).

• When using tires of improper size

• When the tire pressure for the 4 tires

are different

• When the replacement tire is worn or

used (Especially studless tires hav-

ing passed a second season).

• When driving near high-rise buildings

• When a roof carrier has been

installed

• When a long distance route is calcu-

lated while driving on an expressway

In such cases, continued driving will

automatically enable the system

to conduct map matching or use

updated GPS information to pro-

vide the current position (In such

cases, up to several minutes may be

required)

Correct route guidance may not occur due to search conditions or

driving position.

The following occurrences are not malfunctions :

• Guidance to go straight may be

given while driving on a straight

road

• Guidance may not be given even

when having turned at an inter-

section

• There are certain intersections in

which guidance may not occur

• A route guidance signaling for

a u-turn may occur in some No

u-turn intersections

• Route guidance signaling

entrance into a No-entry zone

may occur (No-entry zone, road

under construction, etc.)

• Guidance may be given to a posi-

tion that is not the actual destina-

tion if roads to reach the actual

destination do not exist or are too

narrow

• Faulty voice guidance may be

given if the vehicle breaks away

from the designated route. (e.g. if

a turn is made at an intersection

while the navigation provided

guidance to go straight.)

These situations may occur after conducting route calculation.

The following occurrences are not malfunctions :

• Guidance may be given to a

position differing from the current

position when turning at an inter-

section

• When driving in high speeds,

route recalculation may take a

longer period of time

• Route guidance signaling for a

u-turn may occur in some No

u-turn intersections

• Route guidance signaling entrance

into No-entry zone may occur.

(No-entry zone, road under construc-

tion, etc.)

• Guidance may be given to a position

removed from the actual destination

if roads to reach the actual destina-

tion do not exist or are too narrow

• Faulty voice guidance may be given

if the vehicle breaks away from the

designated route (e.g. If a turn is

made at an intersection while the

navigation provided guidance to go

straight.)

END USER LICENSE AGREEMENT

PLEASE READ THIS END USER LICENSE AGREEMENT (“EULA”) CAREFULLY BEFORE USING THE NAVIGATION SYSTEM.

This is a license agreement between you and Hyundai MnSoft, INC. including its affiliates (“COMPANY”) regarding a copy of the

COMPANY navigable map database together with associated software, media and explanatory printed documentation published by

COMPANY(jointly the “Product”). The Product is provided for your personal, internal use only and not for resale. It is protected by copyright

and is subject to the following terms which are agreed to by you, on the one hand, and COMPANY and its licensors (and their licensors

and suppliers) (collectively, “Licensors”) on the other hand.

By using the Product, you accept and agree to all terms and conditions in this End User License Agreement (“EULA”). IF YOU DO NOT

AGREE TO THE TERMS OF THIS EULA, YOU MUST PROMPTLY EXIT THE PRODUCT OPERATION PROGRAM AND DO NOT USE

OR ACCESS TO THE PRODUCT. YOU AGREE THAT YOUR RIGHTS UNDER THIS EULA MAY BE TERMINATED AUTOMATICALLY

WITHOUT NOTICE IF YOU FAIL TO COMPLY WITH ANY TERM(S) OF THIS EULA.

Terms and Conditions

Personal Use Only. You agree to use this Product together with COMPANY’s authorized application for the solely personal, non-commer-

cial purposes for which you were licensed, and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to

the restrictions set forth in the following paragraphs, you agree not to otherwise reproduce, copy, modify, decompile, disassemble, create

any derivative works of, or reverse engineer any portion of this Data, and may not transfer or distribute it in any form, for any purpose,

except to the extent permitted by mandatory laws. You may not assign this EULA or any of the rights or licenses granted under this EULA,

except when installed in the system for which it was created.

Restrictions. Except where you have been specifically licensed to do so by COMPANY, and without limiting the preceding paragraph, you

may not use the Product (i) with any products, systems, or applications installed or otherwise connected to or in communication with vehi-

cles, capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet management or similar applications; or (ii) with or

in communication with any positioning devices or any mobile or wireless-connected electronic or computer devices, including without lim-

itation cellular phones, palmtop and handheld computers, pagers, and personal digital assistants or PDAs.

COPYING OR USE OF THE PRODUCT EXCEPT AS PERMITTED BY THIS EULA IS UNAUTHORIZED AND IS COPYRIGHT

INFRINGEMENT UNDER THE LAWS OF YOUR COUNTRY. IF YOU COPY OR USE THE PRODUCT WITHOUT COMPANY’S

PERMISSION, EXCEPT AS PERMITTED BY THIS EULA, YOU ARE VIOLATING THE LAW AND LIABLE TO COMPANY AND ITS

LICENSORS FOR DAMAGES, AND YOU MAY BE SUBJECT TO CRIMINAL PENALTIES.

THE PRODUCT MAY INCLUDE ENFORCEMENT TECHNOLOGY DESIGNED TO PREVENT (i) UNAUTHORIZED COPYING OF

THE PRODUCT ONTO PHYSICAL STORAGE MEDIA OR VIA TRANSFER OVER THE INTERNET OR OTHER ELECTRONIC

COMMUNICATION MEANS AND/OR (ii) ILLEGAL USAGE OF THE PRODUCT OTHER THAN BY A SPECIFICALLY AHTORIZED

DEVICE. YOU AGREE THAT COMPANY MAY USE THESE MEASURES TO PROTECT COMPANY AND THE LICENSORS AGAINST

Uploads. The Product may provide functionality through which you are able to upload certain information about your use of the Product

(collectively, “Uploads”) to COMPANY’s servers or receive other services from COMPANY (collectively, the “Services”). If you use such

functionality, you authorize COMPANY to retain your Uploads on its servers. COMPANY will have no obligation to provide any Services,

may change the form and nature of any Services at any time with or without notice to you, will have no liability whatsoever to you for any

failure of the Product or Services to transmit your Uploads to or from COMPANY’s servers, may cease providing any Services at any time

with or without notice to you, and will have no obligation to retain your Uploads (or any other materials you may provide to COMPANY) on

its servers or return your Uploads (or any other materials you may provide to COMPANY) to you before deleting them from its servers.

Storage. The Product may provide functionality through which you are able to store information (such as images) on the device on which

you are using the Product. COMPANY will have no liability whatsoever to you or any third party for any failure of the Product to store any

such information on such device.

Personal Information. By using the Product, you agree to the collection, retention and processing of your personal data (including the loca-

tion of your mobile device) by COMPANY and to the storage and processing of such personal information on computers located outside

of the country in which you reside. Even though COMPANY has taken steps intended to protect your personal information from being

intercepted, accessed, used, or disclosed by unauthorized persons, COMPANY cannot fully eliminate security risks associated with your

personal information and cannot guarantee that its systems will not be breached. See [*] for additional information regarding COMPANY’s

use of your personal information.

WARNING. THE PRODUCT REFLECTS REALITY AS EXISTING BEFORE YOU RECEIVED THE PRODUCT AND IT COMPRISES

DATA AND INFORMATION FROM GOVERNMENT OTHER SOURCES. ACCORDINGLY, THE PRODUCT MAY CONTAIN INACCURATE

OR INCOMPLETE INFORMATION DUE TO THE PASSAGE OF TIME, CHANGING CIRCUMSTANCES, SOURCES USED AND

THE NATURE OF COLLECTING COMPREHENSIVE GEOGRAPHIC PRODUCT, ANY OF WHICH MAY LEAD TO INCORRECT

RESULTS. THE PRODUCT AND SERVICES MAY NOT TO BE USED FOR SAFETY OF LIFE APPLICATIONS, OR FOR ANY OTHER

APPLICATION IN WHICH THE ACCURACY OR RELIABILITY OF THE PRODUCT OR SERVICES COULD CREATE A SITUATION

WHERE PERSONAL INJURY OR DEATH MAY OCCUR. DO NOT ATTEMPT TO CONFIGURE THE PRODUCT OR INPUT

INFORMATION WHILE DRIVING. FAILURE TO PAY FULL ATTENTION TO THE OPERATION OF YOUR VEHICLE COULD RESULT IN

DEATH, SERIOUS INJURY, OR PROPERTY DAMAGE. BY USING THE PRODUCT, YOU ASSUME ALL RESPONSIBILITY AND RISK.

Disclaimer of Warranty. The Product is provided to you “as is,” and you agree to use it at your own risk. SUBJECT TO THE APPLICABLE

LAWS, COMPANY AND THE LICENSORS MAKE NO GUARANTEES, REPRESENTATIONS OR WARRANTIES OF ANY KIND,

EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO, CONTENT, QUALITY, ACCURACY,

COMPLETENESS, EFFECTIVENESS, RELIABILITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, NON-INFRINGEMENT, USEFULNESS, USE OR RESULTS TO BE OBTAINED FROM THE PRODUCT, OR THAT

THE PRODUCT OR SERVER WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT ERRORS IN THE PRODUCT OR

NONCONFORMITY TO ITS DOCUMENTATION CAN OR WILL BE CORRECTED. YOU ACKNOWLEDGE THAT THE PROVISIONS OF

THIS SECTION ARE A MATERIAL INDUCEMENT AND CONSIDERATION TO COMPANY AND THE LICENSORS TO GRANT THE

LICENSE CONTAINED IN THIS EULA AND TO PROVIDE YOU WITH ACCESS TO THE SERVICES.

Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED UNDER THE APPLICABLE LAWS, COMPANY AND THE LICENSORS

SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE

CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, INCURRED

BY YOU OR ANY THIRD PARTY WHICH MAY ARISE IN CONNECTION WITH OR RESULT FROM THE USE OR POSSESSION OF

THE PRODUCT; OR FOR ANY LOSS OF DATA, PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR OTHER DIRECT, INDIRECT,

INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THE PRODUCT,

ANY DEFECT IN THE PRODUCT, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT

OR TORT OR BASED ON A WARRANTY, EVEN IF COMPANY OR THE LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES AND NOTWITHSTANDING THE FAILURE OF ANY LIMITED REMEDY PROVIDED HEREIN.

Exclusions. Some jurisdictions do not allow certain warranty exclusions or the limitation or exclusion of liability, so to that extent the above

exclusion may not apply to you. To the extent that COMPANY may not, as a matter of applicable law, disclaim any implied warranty or limit

its liabilities, the scope and duration of such warranty and the extent of COMPANY’s liability shall be the minimum permitted under such

applicable law. The disclaimer of warranty and limitation of liability set forth in this EULA does not affect or prejudice your statutory rights

where you have acquired the Product otherwise than in the course of business.

Third-Party Copyright Notices. The third-party sourced data has been incorporated into or made a part of the Product and is being subli-

censed to you subject to the terms and conditions of this EULA. In this regard, you shall not remove or tamper with any intellectual prop-

erty rights notice attached or used in relation to data supplied by the Licensors.

Entire Agreement. This EULA is the entire agreement between COMPANY (and the Licensors) and you pertaining to the subject matter

hereof, and supersedes in their entirety any and all previous written or oral communications or documents (including, if you are obtaining

an update, any agreement that may have been included with an earlier version of the Product) with respect to such subject matter.

Governing Law. This EULA shall be governed by the laws of the jurisdiction in which you reside at the date of acquisition of the Product.

Should you at that moment reside outside the European Union or Switzerland, the law of the jurisdiction within the European Union or

Switzerland where you acquired the Product shall apply. In all other cases, or if the jurisdiction where you acquired the Product cannot

be defined, the laws of the Republic of Korea shall apply. This EULA will not be governed by the U.N. Convention on Contracts for the

International Sale of Goods. The courts competent at your place of residence at the time you acquired the Product shall have jurisdiction

over any dispute arising out of, or relating to this EULA, without prejudice to COMPANY’s right to bring claims at your then current place of

residence.

Export Control. You agree not to export or re-export from anywhere any part of the Product in any form except in compliance with appli-

cable export laws, rules and regulations, including but not limited to the laws, rules and regulations administered by the Office of Foreign

Assets Control of the U.S. Department of Commerce and the Bureau of Industry and Security of the U.S. Department of Commerce.

Miscellaneous. If any provision of this EULA is found to be invalid or unenforceable, it will be enforced to the extent permissible and the

remainder of this EULA will remain in full force and effect. Failure by COMPANY to prosecute any right with respect to a default hereunder

will not constitute a waiver by COMPANY of the right to enforce rights with respect to the same or any other breach. No refunds or replace-

ments will be permitted on damaged Product.

U.S. Government End Users. If the Product is being acquired by or on behalf of the United States Government or any other entity seek-

ing or applying rights similar to those customarily claimed by the United States Government, this Product and related documentation are

“Commercial Items” as that term is defined at 48 C.F.R. (“FAR”) 2.101. This Product and related documentation are licensed to the United

States Government end users (a) only as “Commercial Items” and (b) with only those rights as are granted to all other end users in accor-

dance with this EULA, and each copy of Product delivered or otherwise furnished shall be marked and embedded as appropriate with the

following “Notice of Use,” and shall be treated in accordance with such Notice:

NOTICE OF USE

CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME: Hyundai MnSoft, Inc.

CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS: 74 Wonhyo-ro, Yongsan-gu,

Seoul 140-711, Republic of Korea

This Product and related documentation are commercial items as defined in FAR 2.101 and is

subject to this EULA under which this Product is provided.

If the Contracting Officer, federal government agency, or any federal official refuses to use the legend provided herein, the Contracting Offi-

cer, federal government agency, or any federal official must notify COMPANY prior to seeking additional or alternative rights in the Product.

End-User Terms Required by HERE. The Product utilizes map data that COMPANY licenses from HERE and the following copyright

The HERE Data for areas of Canada includes information taken with permission from Canadian authorities, including: © Her Majesty the

Queen in Right of Canada, © Queen’s Printer for Ontario, © Canada Post Corporation, GeoBase ®, © Department of Natural Resources

HERE holds a non-exclusive license from the United States Postal Service® to publish and sell ZIP+4® information.

©United States Postal Service® 2010. Prices are not established, controlled or approved by the United States Postal Service®. The follow-

ing trademarks and registrations are owned by the USPS: United States Postal Service, USPS, and ZIP+4.

The HERE Data for Mexico includes certain data from Instituto Nacional de Estadística y Geografía.

Austria: © Bundesamt für Eich- und Vermessungswesen

Croatia, Cyprus, Estonia, Latvia, Lithuania, Moldova, Poland, Slovenia and/or Ukraine: © EuroGeographics

France: source: © IGN 2009 – BD TOPO ®

Germany: Die Grundlagendaten wurden mit Genehmigung der zustaendigen Behoerden entnommen

Great Britain: Contains Ordinance Survey data © Crown copyright and database right 2010, and Royal Mail data © Royal Mail copyright

and database right 2010.

Greece: Copyright Geomatics Ltd.

Italy: La Banca Dati Italiana è stata prodotta usando quale riferimento anche cartografia numerica ed al tratto prodotta e fornita dalla

Regione Toscana.

Portugal: Source: IgeoE – Portugal

Spain: Información geográfica propiedad del CNIG

Sweden: Based upon electronic data Ó National Land Survey Sweden

Switzerland: Topografische Grundlage: Ó Bundesamt für Landestopographie

United Kingdom: Contains public sector information licensed under the Open Government Licence v1.0 (see for the license http://www.

nationalarchives.gov.uk/doc/open-government-licence/) and is adapted from data from the office for National Statistics licensed under the

Open Government Licence v.1.0.

Israel: © Survey of Israel data source

Jordan: © Royal Jordanian Geographic Centre. The foregoing notice requirement for Jordan Data is a material term of the Agreement. If

Client or any of its permitted sublicensees (if any) fail to meet such requirement, HERE shall have the right to terminate Client’s license

with respect to the Jordan Data.

Mozambique: Certain Data for Mozambique provided by Cenacarta © 20XX by Cenacarta

Réunion: source: © IGN 2009 - BD TOPO ®

End-User Terms Required by ZENRIN. The Product utilizes map data that COMPANY licenses from ZENRIN and the following copyright

notices apply to such map data (the “ZENRIN Data”):

The marks of companies displayed by this product to indicate business locations are the marks of their respective owners. The use of such

marks in this product does not imply any sponsorship, approval, or endorsement by such companies of this product.

About Map Updates

• You can contact your KIA dealer or call at 1-888-757-0010.

Information

• This product requires regular updates for software corrections, new functions and map updates. Updating may require up to 1 hour

depending on the data size.

• Turning off the power or ejecting the SD card during the update process may result in data loss. Make sure to keep the ignition on and

wait until updating is complete.

CAUTION

• Please use only the SD card that was included with the vehicle purchase.

• The use of a separately purchased SD card may result in damage due to heat related deformation.

• Product malfunctions caused by the use of separately purchased SD cards shall not be covered within the product warranty.

• Repeatedly connecting/disconnecting the SD card in a short period of time may cause damage to the device.

What is Voice Recognition?

Precautions Required for Successful Voice Recognition

Starting/Ending and Setting Voice Recognition

Voice Recognition Screen Overview

Voice Commands

UVO Voice Local Search

Siri Eyes Free

SDUW9RLFH5HFRJQLWLRQ

6-2 I Voice Recognition

:KDWLV9RLFH5HFRJQLWLRQ"

The voice recognition feature operates the

multimedia system by recognizing voice

commands and enables hands-free oper-

ation of the system while you are driving

your car.

Not all possible voice commands are rec-

ognized by the system due to technological

limitations. To make up for these limitations,

the system displays the voice commands

that are available for you to use.

There are errors in communication between

people. Likewise, voice recognition some-

times misunderstands your voice command

in some circumstances. If this happens,

either check the screen for the available

options and say the command again, or

manually select and press the button for the

corresponding command on the screen.

3UHFDXWLRQV5HTXLUHG

IRU6XFFHVVIXO9RLFH

5HFRJQLWLRQ

1. Voice recognition supports only the

commands that are displayed on the

screen and written in the User's Guide.

2. To ensure the correct recognition and

execution of your command, say your

command when you hear the beep after

a voice prompt.

3. Voice recognition automatically ends if:

1) A call is incoming or outgoing

2) A media device (USB or iPod, etc.) is

connected or disconnected

3) The rear view camera is operated

4) The car engine starts or stops

5) A system key, such as

5$',2

key

0(',$

key is selected

4. The microphone used for the voice

recognition system is located in the

headliner directly above the driver's

head. To make your commands better

understood, keep your body straight

in the driver's seat when speaking the

command.

5. Speaking naturally and clearly will

ensure better recognition of your voice

commands.

6. In the following cases voice recognition

will be affected by ambient noise.

1) The sound of the wind if any window

or the sun roof is open.

2) High speed blower from the air vents.

Set climate control to blow lower than

level 3.

3) Vibrations from passing through a

tunnel.

4) Vibrations from driving on an uneven

road.

5) Storms and heavy rain.

9RLFH5HFRJQLWLRQ

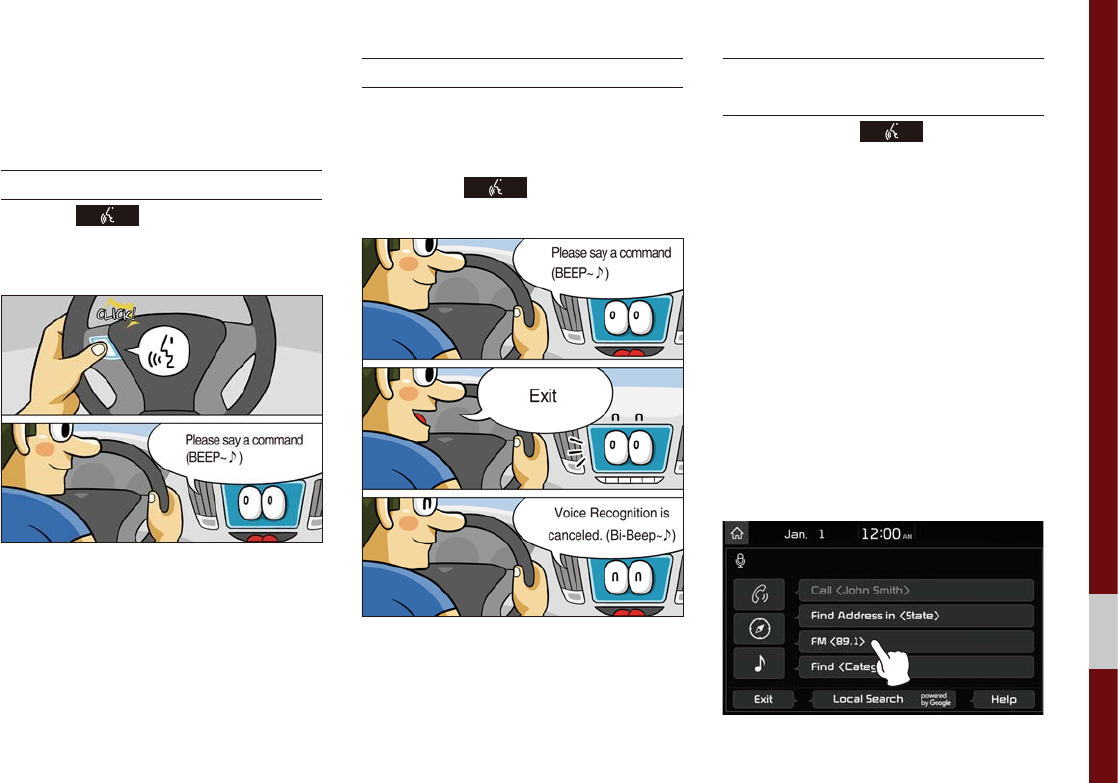

Starting/Ending and Setting Voice Recognition I 6-3



6WDUWLQJ(QGLQJ

DQG6HWWLQJ9RLFH

5HFRJQLWLRQ

Starting Voice Recognition

Press the key briefly (less than 0.8

seconds) on the steering wheel control to

activate voice recognition.

Ending Voice Recognition

1. Select “Exit” to the left of the bottom to

end voice recognition.

2. Press and hold (more than 0.8 sec-

onds) the key on the steering

wheel control to end voice recognition.

Combining Voice Recognition

with On-Screen Commands

After pressing the key, say a com-

mand after the beep. The voice recognition

system will execute the desired operation

after understanding the command.

Alternatively, you may touch any of the

corresponding Commands on the screen

while the Voice Recognition system is in

operation.

Combining voice recognition with available

on-screen commands is useful when the

system is taking longer than expected or

the voice command did not execute as

desired.

6-4 I Voice Recognition

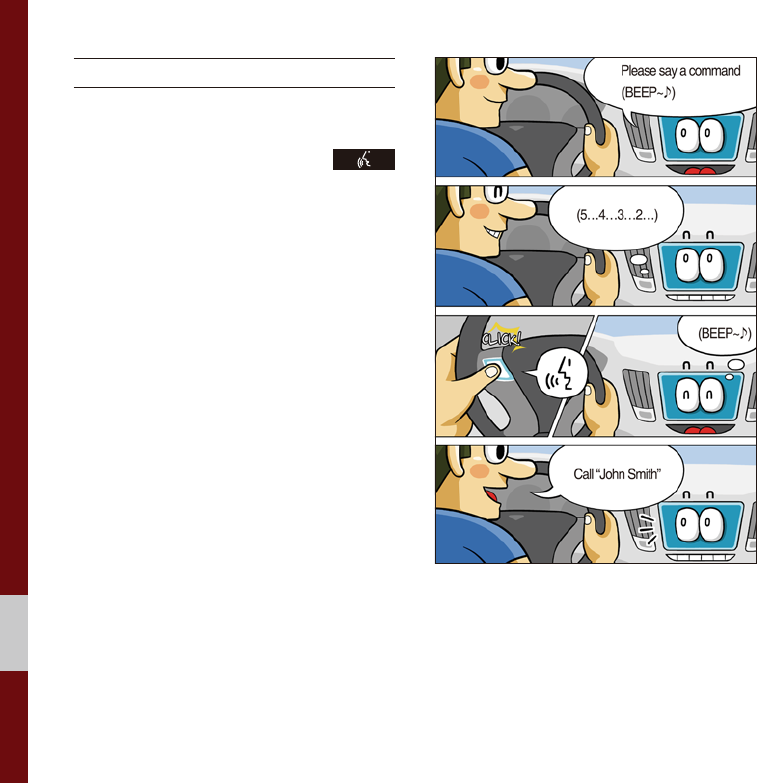

Extending the Listening Time

When the system is waiting for your com-

mand, after the voice prompt and beep

have been heard, if you press the

key (less than 0.8 seconds), then the beep

will sound again and standby mode will

restart.

When activated, voice recognition waits for

your command for 5 seconds. If you say

nothing for 5 seconds, a voice prompt will

ask for your command again.

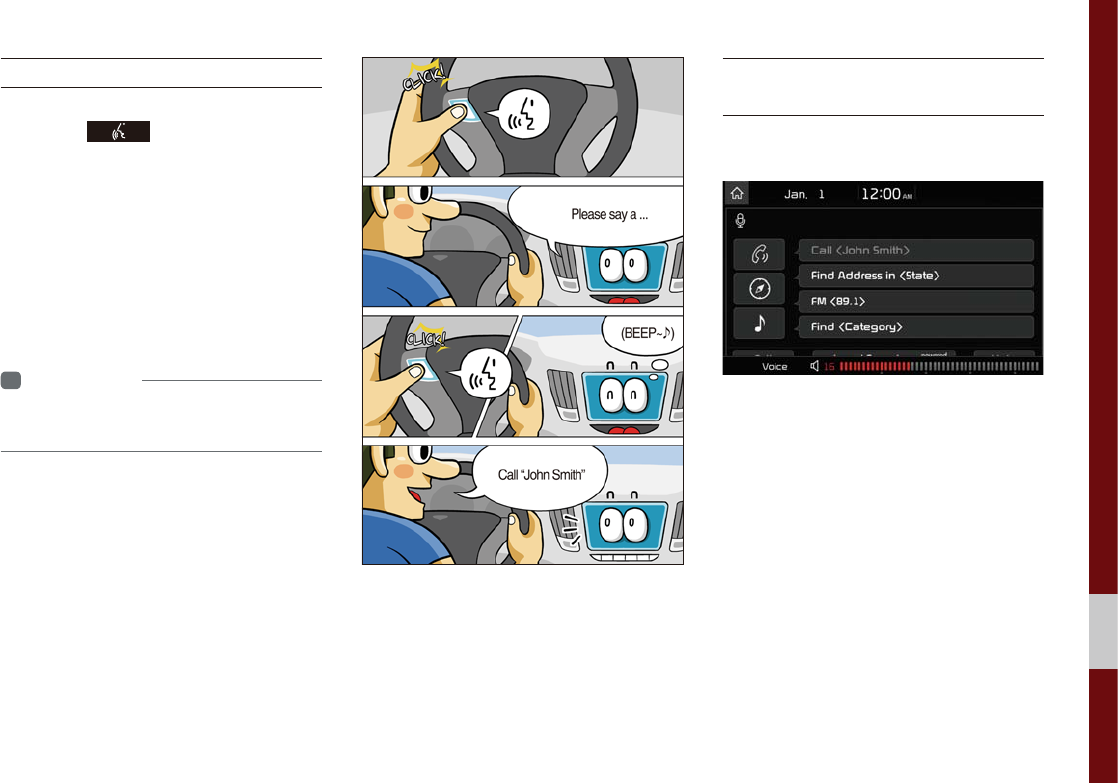

Starting/Ending and Setting Voice Recognition I 6-5



Skipping Prompt Messages

When you hear the prompt message,

press the key on the steering

wheel control to skip the message and go

directly to listening mode to say your com-

mand.

This results in faster operation when

you feel the message is too long or you

already know the command to use.

Information

• Refer to Part 9 for instructions on how to

change the Voice Recognition Settings.

Adjusting Voice

Recognition Volume

During voice recognition, rotate the vol-

ume knob to adjust the message volume.

6-6 I Voice Recognition

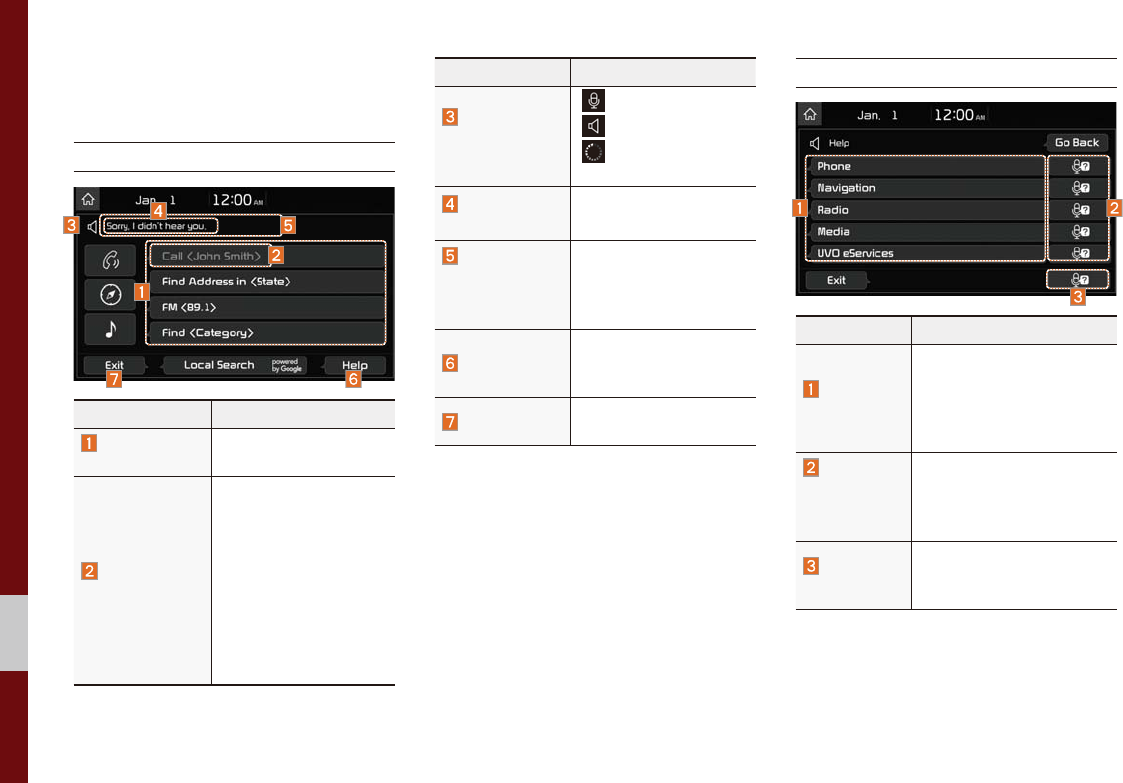

9RLFH5HFRJQLWLRQ

6FUHHQ2YHUYLHZ

Start Screen

Name Description

Representative

Commands

Displays the represen-

tative commands.

Not available

command

Displays commands

that are not available

due to a failure in

meeting the conditions

for using them and

thus need additional

settings. The conditions

required for using them

will be described briefly

under each command.

Name Description

Voice

recognition

status icons

Standby

Voice guidance

Voice command

process

Recognized

results

Displays the voice rec-

ognition result.

User's

speaking

volume being

recognized

Displays the voice

command volume in

real time.

Help

Displays all available

help commands in a

tree format.

Exit Ends the voice recog-

nition.

Help Display

Name Description

Command

list

• Shows the available

commands.

• Select or say a command

to display additional com-

mands in detail.

How to

use for

selected

item

This section shows how to

use voice recognition for

the selected item.

How to use

in general

This section displays how

to use voice recognition in

general.

Voice Recognition Screen Overview I 6-7



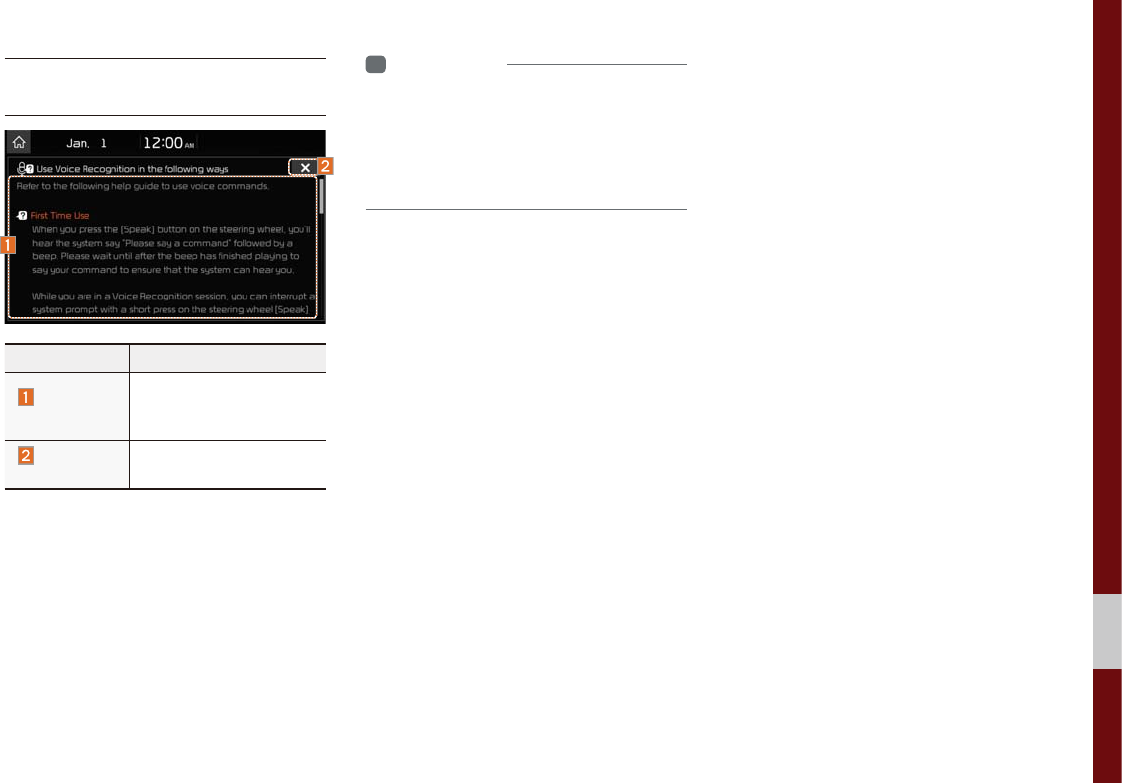

Instructions for Using

Voice Recognition

Name Description

Detail

instruction

This section describes

how to use voice recog-

nition in detail.

button

Closes the screen and

restarts voice recognition.

Information

• In the instructions screen, no voice is

recognized, so you must manually issue

commands. Because the instructions screen

displays a lot of content, you cannot view it

while driving for safety precautions.

6-8 I Voice Recognition

9RLFH&RPPDQGV

Types of Commands

Voice recognition commands are classified as “Global Commands”

and “Local Commands”.

1. Global Commands (Ԭ): Commands that can be used immedi-

ately after activating voice recognition.

2. Local Commands (Ԫ): Commands that can be used when a

multimedia, navigation or Bluetooth function is running, or dis-

played on the screen, after activating voice recognition.

Call Commands

* Check the following before using call commands:

1. Voice commands related to phone calls can be used after con-

necting a Bluetooth device.

2. To call a person, for example “Call <John Smith>” whose name

is listed in Contacts, you must first download the Contacts list.

For details on downloading contacts, see “Part 3. Bluetooth >

Chapter 3. Bluetooth Phone > 3.10 Contacts”.

3. After downloading the Bluetooth contacts, it will take some time

to convert the Contacts into voice data during which time you

cannot make a call by name yet. The time it takes to convert

voice data may vary depending on the number of Contacts

downloaded on the phone.

Command Operation

ԬCall Displays downloaded Contacts, after this

you can make a call by saying the name.

ԬCall <Name> You can directly call a person by <Name> in

the downloaded Contacts.

ԬCall <Name>

on Mobile

You can call a person <name> directly to

the number that is saved as “Mobile” in the

downloaded Contacts.

e.g.) Call “John Smith” on Mobile

ԬCall <Name>

at Work

You can call a person <name> directly to the

number that is saved as “Work” in the down-

loaded Contacts.

e.g.) Call “John Smith” at Work

ԬCall <Name>

at Home

You can call a person <name> directly to

the number that is saved as “Home” in the

downloaded Contacts.

e.g.) Call “John Smith” at Home

ԬCall <Name>

on Other

You can call a person <name> directly to the

number that is saved as “Other” than “Mobile,

Home, or Work” in the downloaded Contacts.

e.g.) Call “John Smith” on Other

ԬDial Number Displays a screen where you can say a

phone number to dial.

ԬDial <Phone #> You can directly say the number to call.

e.g.) Dial 111 555 1234

Voice Commands I 6-9



Navigation Commands

* Check the following before you use navigation commands:

1. Search for and find addresses located in the state or province

your car is currently in.

If you want to search in another state, say the name of state/

province and then look it up.

Find Address is classified by states/provinces to provide you

with faster service.

2. Some commands such as “Cancel Route” are available only

when the destination is fixed.

Command Operation

ԬFind Address

in <State>

• Finds the address in <State> and sets it

as the destination.

e.g.) Find Address in California

• To find an address, you should say

"House Number я Street я City"

e.g.) 300 (Three Zero Zero) Main Street,

Almond

ԬFind Address Finds the address and sets it as the destination.

ԬFind POI

Find the points of interest. After this com-

mand, you can find the name of a location

step-by-step.

ԬFind

Immediately finds <Category>. For detail of

<Category>, see “Find <Category>” list.

e.g.) Find “Banks”

Command Operation

ԬMap Moves to the current position on the naviga-

tion map

ԬPrevious

Points

Displays a list combining Previous Destinations,

Previous Searches, and Previous Starting

Points all together.

You can then set a destination by saying the

list number.

ԬPrevious

Destinations

Displays a list of recent destinations that you

can return to by saying the number in the list.

ԬPrevious

Searches

Displays a list of recent searches, where you

can set a destination by saying the number in

the list.

ԬPrevious

Starting Points

Displays a list of recent starting points that you

can return to by saying the number in the list.

ԬTraffic

Information Moves to the Traffic Information menu screen.

ԬGo Home

Set the destination to your home.

Your home must first be set in the Navigation

system.

ԬGo to Office

Set the destination to your office/work.

Your office/work must first be set in the

Navigation system.

6-10 I Voice Recognition

Command Operation

ԬTurn Guidance

On Turns on the voice guidance system.

ԬTurn Guidance

Off Turns off the voice guidance system.

ԬZoom All the

Way Out

Zooms out from the navigation map to the

fullest.

ԬZoom All the

Way In Zooms in on the navigation map to the fullest.

ԬCancel Route Cancels the route to the fixed destination and

exits guidance.

ԬDestination

Information

Tells you the remaining distance and time to

your destination.

ԬRoute Options Moves to the Route Options menu screen.

ԬEmergency

Services

Displays a list of nearest Police Station,

Hospital, Dealership, or Road Assistance.

You can then set a destination by saying the

list number.

ԬPolice Station

Displays a list of the nearest police stations.

You can then set a destination by saying the

list number.

Command Operation

ԬHospital

Displays a list of the nearest hospitals.

You can then set a destination by saying the

list number.

ԬDealership

Displays a list of the nearest car dealerships.

You can then set a destination by saying the

list number.

ԬRoad

Assistance

Displays a list of the nearest road assistance

locations.

You can then set a destination by saying the

list number.

ԬShow Route Displays a map overview of the entire route

to your destination.

Voice Commands I 6-11



Radio Commands

Command Operation

ԬRadio Plays the most recent radio channels from

FM, AM, and SiriusXM™.

ԬFM Plays FM radio.

ԬFM

<87.5~107.9>

Tunes to FM <Frequency> according to

what you say.

e.g.) FM 87.5: FM eighty seven point five

ԬSiriusXM Plays SiriusXM™ radio.

ԬSiriusXM

<0~999>

Tunes to SiriusXM™ Channel <Channel

Number> according to what you say.

e.g.) SiriusXM 23: SiriusXM Twenty three

ԬAM Plays AM radio.

ԬAM <530~1710>

Tunes to AM <Frequency> according to

what you say.

e.g.) AM 530: AM Five thirty

ԪPreset <1~40> Tunes to your preset stations (1 to 40).

ԪChannel

<0~999>

In SiriusXM™ Radio mode, turns on the

<Channel Number> that you say.

Media Commands

* Check the following before you use media commands.

1. If no media is connected or if no playable files exist at the time

when you use these commands, a voice message will tell you

that this is not available.

2. If you say the name of the media that is currently playing again,

then that media will continue playing.

e.g.) Saying “USB” while USB content is playing.

Command Operation

ԬMusic Continues the last media you played.

ԬiPod

Plays the iPod currently connected. This

will work the same when an iPhone is con-

nected. If a USB is connected, then it will

be played instead of the iPod.

ԬUSB

Plays the music on the USB currently con-

nected.

If an iPod is connected, then the iPod will

be played instead of the USB.

ԬBluetooth Audio

Plays the music on the Bluetooth phone

currently connected.

This may not be supported depending on

the Bluetooth connection status.

ԬAUX Plays external devices that are currently

connected.

6-12 I Voice Recognition

1. USB Music/iPod Command

Command Operation

ԪPlay Plays a selected file.

Maintains the current settings during playback.

ԪPause

Pauses a file that is playing.

Maintains current settings while paused during

playback.

ԪShuffle

Plays tracks or files randomly.

Maintains current settings during shuffled

playback.

ԪShuffle Off

Cancels Shuffle and plays tracks sequentially.

Maintains current settings during sequential

playback.

ԪRepeat

Plays the current track or file repeatedly.

Maintains the current settings during repeat play-

back.

ԪRepeat Off

Cancels Repeat and plays multiple tracks or files.

Maintains current settings during multiple track

playback.

2. Bluetooth audio/AUX Command

For Bluetooth audio and external devices (AUX), local commands

are unavailable, including Play, Pause, Repeat and Shuffle.

UVO eServices Commands List

Command Operation

ԬRoadside Assist Connect with a Roadside Assist agent.

ԬVehicle

Diagnostics

Informs you if diagnostic issues are found

in your vehicle

ԬMy POIs Displays Points of Interest list which were

downloaded from Google Maps and MyUVO

ԬeService Guide Provides guidance on how to use UVO

eServices

Voice Commands I 6-13



Other Commands List

(Commands used in List/Help)

Command Operation

ԬHelp

Moves to the voice recognition help screen.

All available commands can then be identi-

fied and used.

ԪLine 1~4

(One~Four)

When you cannot select a certain name,

such as in Call History, you can select it

using numbers.

Simple numbers can be recognized, such

as “One” or “Two”.

ԪYes/No

When voice recognition is activated, this

command is used when an answer is

requested for a confirmation question.

ԪPrevious/Next

When four or more searched items are

listed, you can move to the previous or

next page using a voice command.

ԪManual Input

When Dial entry results are displayed,

this command is used to search manually,

rather than to search with a voice com-

mand.

Voice recognition stops after this command

is used.

ԪGo Back Moves to the previous screen.

ԬExit Ends the voice recognition.

6-14 I Voice Recognition

“Find <Category>” List

Navigation location names can be changed after an update.

1. Restaurants

Restaurants

Fast Food Restaurants

Arby's

Boston Market

BURGER KING

Carl's Jr

Chick-fil-A

Chipotle

Church's Chicken

Dairy Queen

Firehouse Subs

Fleming's

Hardee's

In-N-Out Burger

IHOP

Jack in the Box

Jimmy John's

KFC

Little Caesars

Long John Silver's

McAlister's Deli

McDonald's

Panda Express

Panera Bread

Popeyes

Quiznos Sub

Schlotzsky's

SONIC

SUBWAY

Taco Bell

Taco John's

Waffle House

Wendy's

White Castle

American Restaurants

Applebee's

Bahama Breeze

Boston's Restaurant & Sports Bar

Cheeseburger in Paradise

Chili's Grill & Bar

Cool River

Denny's

Frisch's Big Boy

Good Eats

III Forks

Lee Roy Selmon's

Lone Star Steakhouse & Saloon

Longhorn Steakhouse

Luckys Cafe

Outback Steakhouse

Ponderosa

Publix

Seasons 52

Sheetz

Silver Fox

Texas Roadhouse

TGI Friday's

The Capital Grille

French Restaurants

Italian Restaurants

Bonefish Grill

Carrabba's Italian Grill

Chuck E Cheese's

Domino's

Olive Garden

Papa John's

Papa Murphy's

Pizza 73

Pizza Hut

pizza pizza

Continental Restaurants

Mexican Restaurants

Cantina Laredo

Chevys

El Chico

Japanese Restaurants

Chinese Restaurants

PF Chang's China Bistro

Korean Restaurants

Vegetarian Restaurants

Seafood Restaurants

Red Lobster

Latin American Restaurants

Voice Commands I 6-15



Restaurants

Asian Restaurants

African Restaurants

Coffee Shops

Starbucks

Dunkin' Donuts

Tim Hortons

Other Restaurants

Auntie Anne's

Baskin-Robbins

Haagen-Dazs

Hooters

Roy's

TCBY

VAN DER VALK

Automotive

Kia Dealerships

Gas Stations

ampm

ARCO

Canadian Tire

Casey's General Store

Cenex

Chevron

CITGO

Conoco

Esso

Exxon

Fleetfuels

GetGo

Giant Gasoline

GTO

Gulf

Husky

Ingles Gas Express

Marathon

Martin's Gasoline

Meijer

Mobil

Murphy Express

Murphy USA

Petro Stopping Centers

PETRO-CANADA

Phillips 66

Pioneer

QuikTrip

Rutter's

Sheetz

Shell

Sinclair

Speedway

Sunoco

Sunoco Canada

TEXACO

TravelCenters of America

Ultramar

Valero

Wawa

Parking

Auto Services

AAA

Advance Auto Parts

America's Tire

AutoZone

BOSCH Car Service

Certigard

Discount Tire

Firestone

GOODYEAR

Kal Tire

Midas

Napa

O'Reilly Auto Parts

Sears Auto Center

Road Assistance

Automobile Dealerships

Auto Parts

Car Washes

Motorcycle Dealerships

2. Automotive

6-16 I Voice Recognition

Trave l

Airports

Hotels

Americas Best Value Inn

AmericInn

Andaz

Ascend Collection

Baymont Inn & Suites

Best Western

Cambria Suites

Canadas Best Value Inn

Candlewood Suites

Clarion Hotel

Comfort INN

Comfort Suites

CONRAD

Country Inn & Suites by Carlson

COURTYARD by Marriott

Crowne Plaza

Days Inn

DELTA

Doubletree

Econo Lodge

Embassy Suites

Grand Residences by Marriott

Hampton Inn

Hampton Inn & Suites

Hawthorn Suites

Hilton

Hilton Garden Inn

Hilton Grand Vacations

Holiday Inn

Holiday Inn Express

Homewood Suites

Hotel Indigo

Howard Johnson

Hyatt Place

Hyatt

Hyatt Summerfield Suites

Intercontinental

JW Marriott

LA QUINTA INN

Lexington

Mainstay Suites

Marriott

Marriott VACATION CLUB

Microtel Inns & Suites

Motel 6

NOVOTEL

Omni Hotels

Park Inn

Park Plaza

QUALITY INN

Radisson

Radisson SAS

RAMADA

Red Roof Inn

Regent Hotels & Resorts

Renaissance

Residence Inn

Ritz-Carlton Club

Rodeway Inn

Sheraton

Sleep Inn

SOFITEL

Staybridge Suites

Studio 6

Suburban Extended Stay

Super 8

Thriftlodge Canada

Travelodge

Travelodge Canada

VAN DER VALK

WALDORF ASTORIA

COLLECTION

Wingate by Wyndham

Wyndham

Rest Areas

Tourist Information

Tourist Attractions

Travel Agents

City Centers

Rental Car Agencies

Alamo

AVIS

Budget

Dollar Rent A Car

Enterprise

Hertz

National

Thrifty

Campgrounds

3. Travel

Voice Commands I 6-17



Trave l

Ferry Terminals

Bus Stations

Local Transit

Train Stations

Shopping

Department Stores

Canadian Tire

Dollar General

Dollar Tree

Family Dollar

JCPenney

Kmart

Kohl's

Nordstrom

Sears

Sears Hometown Store

Target

T.J. Maxx

Walmart

Convenience Stores

7-Eleven

ampm

Circle K

Fleetfuels

GetGo

GTO

Kangaroo Express

Murphy Express

Murphy USA

Petro Stopping Centers

QuikTrip

Rutter's

Sunoco Canada

TravelCenters of America

Wawa

Shopping Centers

Office Depot

Grocery Stores

Giant Eagle

Giant Food Stores

IGA

Ingles Markets

Food Lion

Kroger

Martin's Food Markets

Meijer

Publix

Sav-Mor Foods

Save-A-Lot

SuperValu

Music Stores

Bookstores

Barnes & Noble

Electronics Stores

AT&T

Best Buy

Future Shop

GameStop

Radioshack

Sprint

Staples

T-Mobile

OfficeMax

US Cellular

Verizon

Gift Shops

Sporting Goods Stores

Dick's Sporting Goods

Sports Authority

Home Specialty Stores

ABC Fine Wine & Spirits

Ace Hardware

4. Shopping

6-18 I Voice Recognition

Shopping

Claire's

Costco

Home Depot

Lowe's

Merle Norman

PETCO

PETSMART

Sally Beauty Supply

SHERWIN-WILLIAMS

True Value

Clothing Shops

Mark's

Shoe Stores

Pharmacies

CVS/pharmacy

Giant Drugstore

Ingles Pharmacy

Kmart Pharmacy

Kroger Pharmacy

Martin's Drugstore

Meijer Pharmacy

Rite Aid

Shoppers Drug Mart

Target Pharmacy

Walgreens

General Merchandise

Recreation

Amusement Parks

Museums

Cinemas

Golf Courses

Sports Complexes

Sports Activities

Wineries

Video & Game Rental

Ski Resorts

Recreation Areas

Other Recreation Areas

Financial Services

Banks

Bank of America

BB&T

Chase

Citibank

Citizens Bank

Fifth Third Bank

Key Bank

PNC Bank

RBC Bank

Regions

SunTrust

TD Bank

TD Canada Trust

US Bank

Wells Fargo

ATMs

Check Cashing Services

Money Transfer

6. Financial Services5. Recreation

Voice Commands I 6-19



Community

Police Stations

Post Offices

Libraries

Schools

Fire Departments

Churches

Synagogues

Convention Centers

City Halls

Civic Centers

Court Houses

Government Offices

Waste & Sanitary Services

Utilities

Business Facilities

Services

Hospitals

Medical Services

Physicians

Tax Services

Attorneys

Funeral Homes

Hair & Beauty Services

Cleaning & Laundry Services

Social Services

Communication

Dentists

Photography Services

Tailors & Alterations

Movers

Nursing Home

Optical Services

Personal Services

Repair Service

Veterinary Hospital

7. Community 8. Services

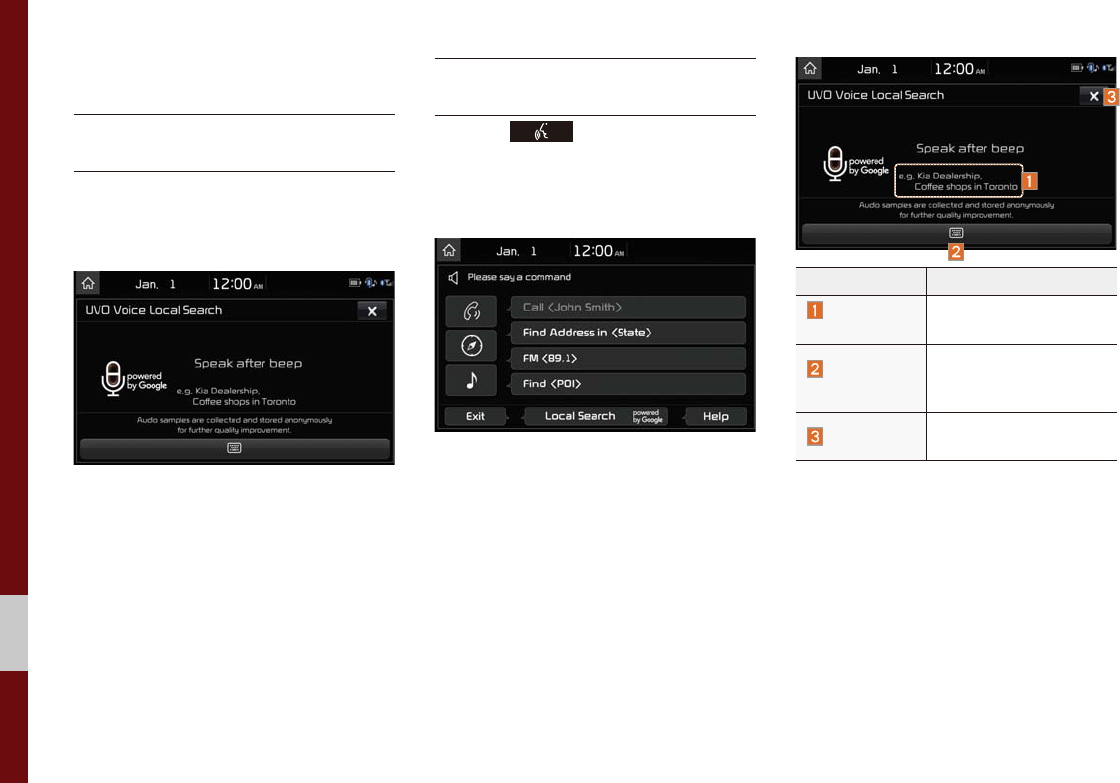

6-20 I Voice Recognition

8929RLFH/RFDO6HDUFK

What is UVO Voice

Local Search?

With UVO network service, you can

search for Google-provided place names

with your voice.

The search is done through network ser-

vices; it is only available when connected

to a communication network & UVO eSer-

vices has been activated.

Starting UVO Voice

Local Search

Press the key briefly (less than 0.8

seconds) on the steering wheel control to

activate voice recognition and say “Local

Search”

Name Description

Example

command

Shows an example to

ask for place search

Manual

switch button

Switches the UVO Voice

Local Search screen to

search.

End button Ends UVO Voice Local

Search.

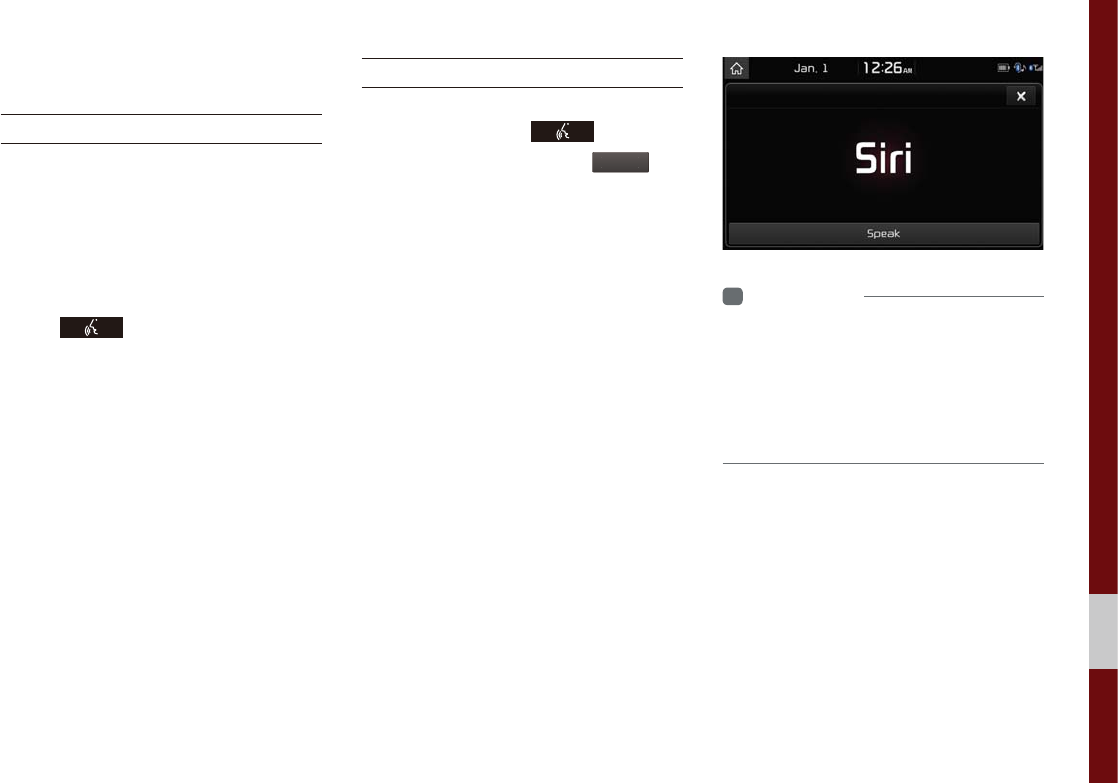

Siri Eyes Free I 6-21



6LUL(\HV)UHH

How to start Siri

If you want to use Siri, you have to con-

nect your iOS device to the Multimedia

system through Bluetooth.

(Please check whether your iOS device

supports Siri and turning Siri On)

Then you can use Siri while pressing and

holding key on the steering wheel.

How to use Siri

When you access the Siri screen while

pressing and holding key on the

steering wheel, you select the

SHD

but-

ton and then you can speak what you

want. Note that the Multimedia system

only supports “Phone” related functions.

Other functions will be performed in your

iOS device. If you press voice key quickly,

Siri would re-start. If you hold down voice

key, Siri would be terminated and the

screen would go back to the previous

screen. Eyes-Free mode would be acti-

vated automatically while you are driving.

When shifting gears into P or putting the

Parking brake on, Eyes-Free mode would

be deactivated automatically.

Information

• Functions and feedbacks from voice

commands via Siri are executed in the iOS

device. If the iOS version is changed, the

functions and response may be different

according to the iOS device and the latest

version.

0(02

HD Radio™ Data

SiriusXM™ Data

SDUW'DWD6HUYLFHV

7-2 I Data Services

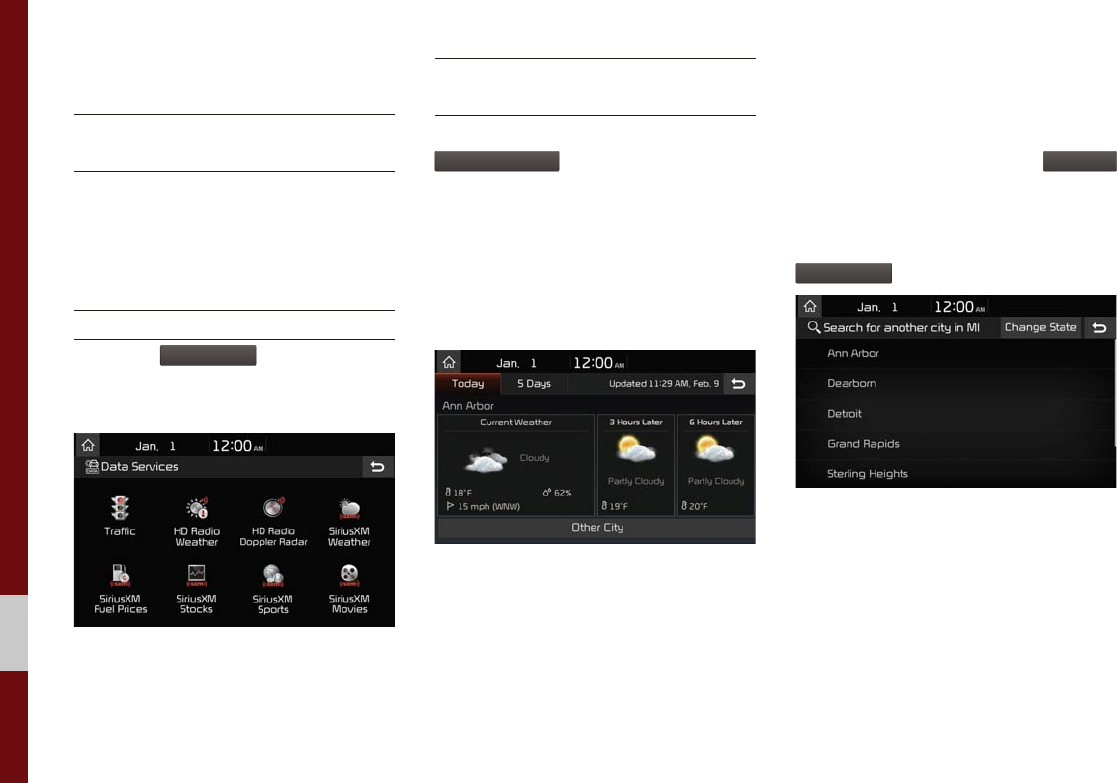

+'5DGLRа'DWD

About HD Radio™

Data Services

The HD Radio™ Data Service provides

users with information such as Weather,

Doppler Radar and Traffic by using HD

Radio™ Technology.

Accessing HD Radio™ Data

Select the

D

FHV

icon after select-

ing “All Menus” to enter Data Services

Mode.

HD Radio™ Weather

Information Mode

At the “Data Services” screen, select the

+'5

:H

WKHU

icon to enter the Weather

Information mode.

Weather Forecast

This service provides current weather

information and weather forecasts for the

next five days in your city.

Other City Option

This service provides access to weather

information from other cities.

To change the city, select the

WKHU&LW\

button and select the desired city. From

this screen, there is also an option

to change the state by selecting the

DQJH

button.

'DWD6HUYLFHV

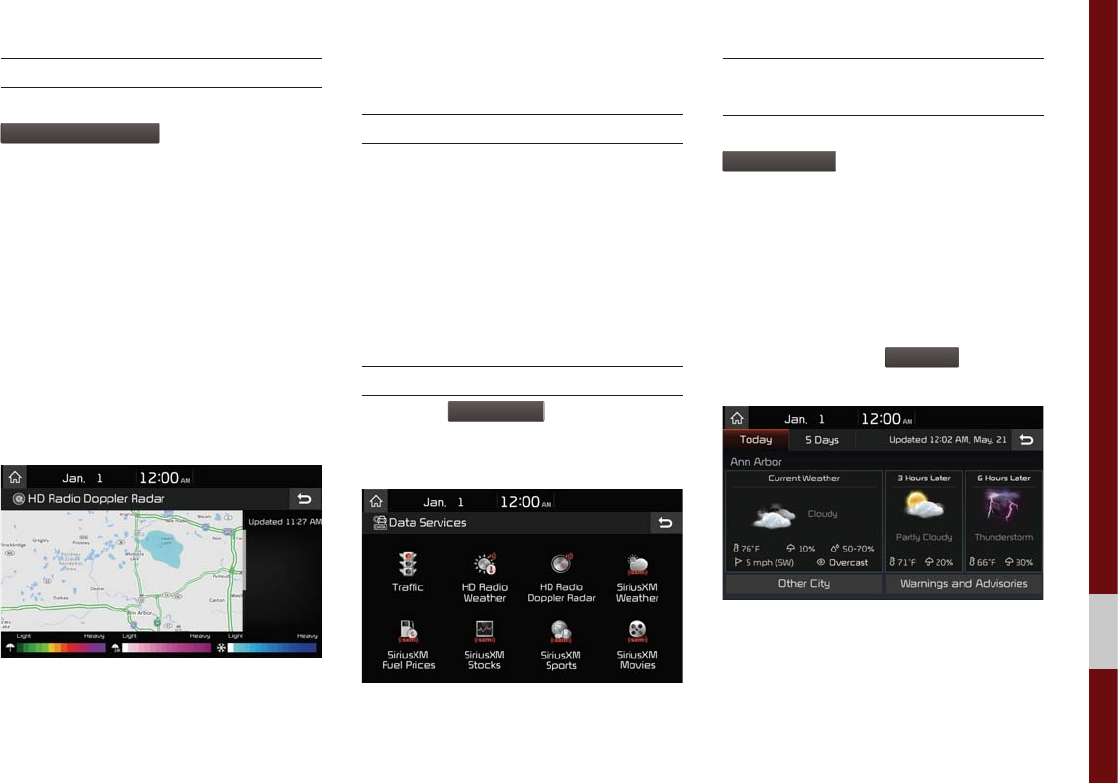

SiriusXM™ Data I 7-3



HD Radio™ Doppler Radar

At the “Data Services” screen, select the

'5DGLR'R

OHU5DGDU

icon to enter the

Doppler Radar mode.

Doppler Radar

This service provides Doppler Radar

views of the current *HD Radio™ cov-

erage market. This screen will change

automatically based on the *HD Radio™

coverage market.

* The HD Radio™ coverage market is the

area with the strongest signal at that time.

6LULXV;0а'DWD

About SiriusXM™ Data Service

The SiriusXM™ Data Service is a paid

membership satellite radio service that

provides users with information such as

Weather, Sports, Stocks, Fuel Prices and

Movies.

However, weather information is not sup-

ported for vehicles purchased in Canada.

Accessing SiriusXM™ Data

Select the

D

HUY

icon after select-

ing All Menus to enter the Data Services

Mode.

SiriusXM™ Weather

Announcement

At the “Data Services” screen, select the

6LUL

V;0:H

WKH

icon to enter the Weather

Announcement mode.

Weather Forecast

This service provides current weather

information and weather forecasts for the

next five days in your region. To change

the region, select the

WKHU&LW

button and

select the desired region.

7-4 I Data Services

Warnings and Advisories

This service provides weather warnings

and advisories, such as tornado, storm,

flood, etc.

SiriusXM™ Fuel Price

Information

At the “Data Services” screen, select the

6LUL

V;0)

HO3ULFH

icon to enter the Fuel

Prices Information mode.

Search for Nearby Stations, and

Stations.

Search for nearby stations with the “Nearby

Stations” menu.

It shows station locations, starting from the

nearest one, and select “Nearest” menu

on the top right side to further sort them

by price or brand name.

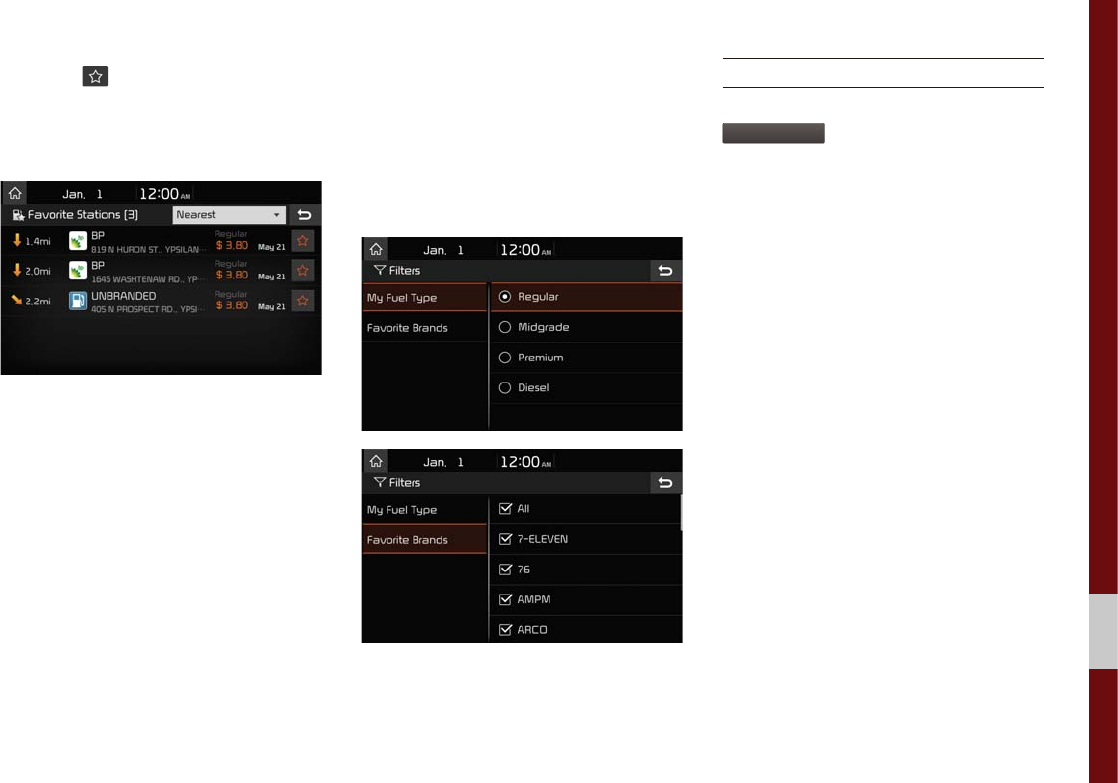

SiriusXM™ Data I 7-5



Select the button to the right of the list

to register key locations as a Favorite

Station so that you can go there again with

the “Favorite Stations” menu.

My Fuel Type Settings

With the “Filters” menu, you can select fuel

types and favorite brands.

When searching for Nearby Stations, the

results will reflect selected fuel types and

brand information.

SiriusXM™ Stock Information

In the “Data Services” screen, select the

6LUL

6W

icon to enter the Stocks

mode.

Stocks is a feature that shows the current

value and change of stocks.

For symbols which you are interested in,

select the icon to save the symbol as a

part of the “Saved” symbols which can be

viewed from the “My Favorites” button on

the Stocks Main screen.

7-6 I Data Services

My Favorites

My Favorites shows a list of stocks added

by the user. When entering the Stocks

menu for the first time, a screen is dis-

played for you to add your favorite stock

information. Select the

button to

move to the stock search screen.

Stock Search

Use the Stock Search menu to search for

specific stocks.

Select the button after searching for

your favorite stocks to save them in “My

Favorites”.

In the My Favorites screen, you can find

the selected stock information that you

registered.

SiriusXM™ Sports Information

Select the

LULXV;

6

RUWV

icon to enter the

Sports mode.

This service provides real-time updated

information on scores and schedules for

major sports, such as NFL, NBA, NCAA

football, NCAA basketball, NHL, MLB,

NASCAR and more.

SiriusXM™ Data I 7-7



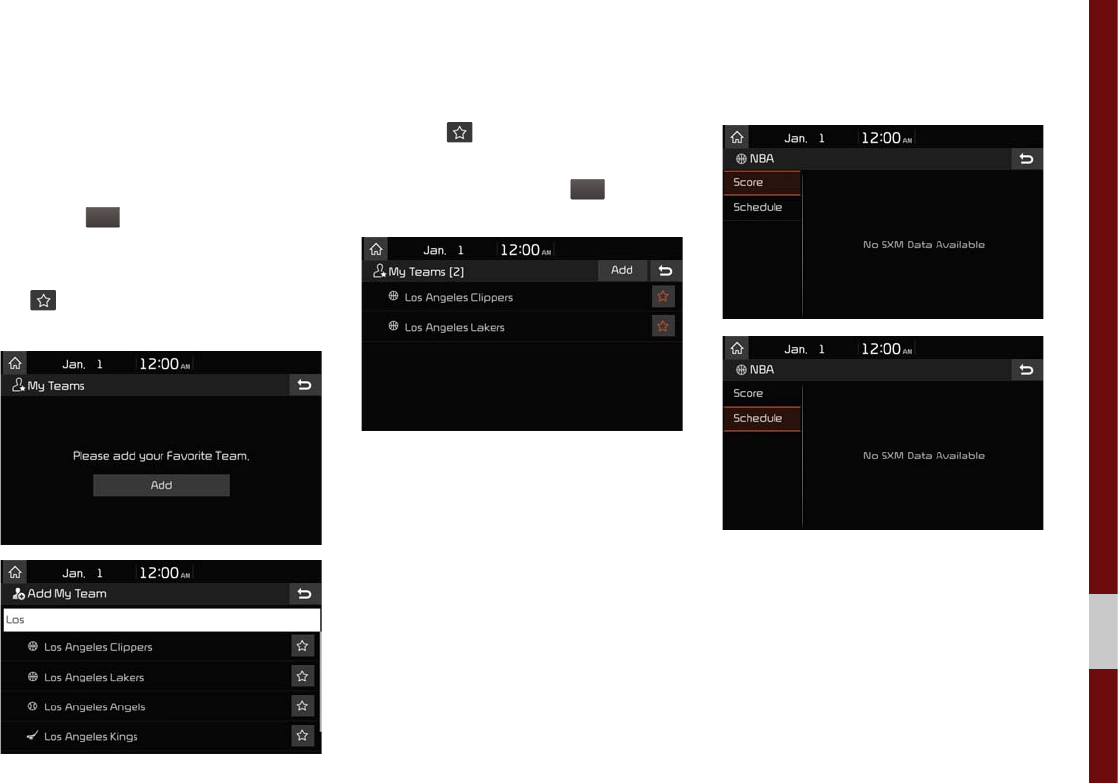

My Teams

You can save teams which you are inter-

ested in as part of My teams to easily view

related scores and schedules.

Select the My Teams menu and then

select the

button to search for and

Search for your favorite teams and select

the button on the right to add it to the

“My Teams” list.

You can always check the list of teams

that you added in the “My Teams” menu.

Select the button on the right side of

the team name to delete the team from

“My Teams” or select the

button to

add other teams.

Select the team name to check daily

results and recent schedules for that team.

7-8 I Data Services

SiriusXM™ Movie Information

Select the

LULXV;



RYLHV

icon to enter the

Movie mode.

You can check recent movies and nearby

theaters, and also register your favorite

theater locations.

Search for Nearby Theaters, and

Theaters.

In the “Nearby Theaters” menu, you can

search for any nearby theaters.

It shows theaters, starting from the nearest

one, and selecting the “Nearest” menu at

the top right side will sort them by name.

Select the button to the right of the list

to register your favorite theater so that you

can always check it again using the

“Favorite Theaters” menu and selecting

the button to view the current movie

information for that theater.

I 7-9



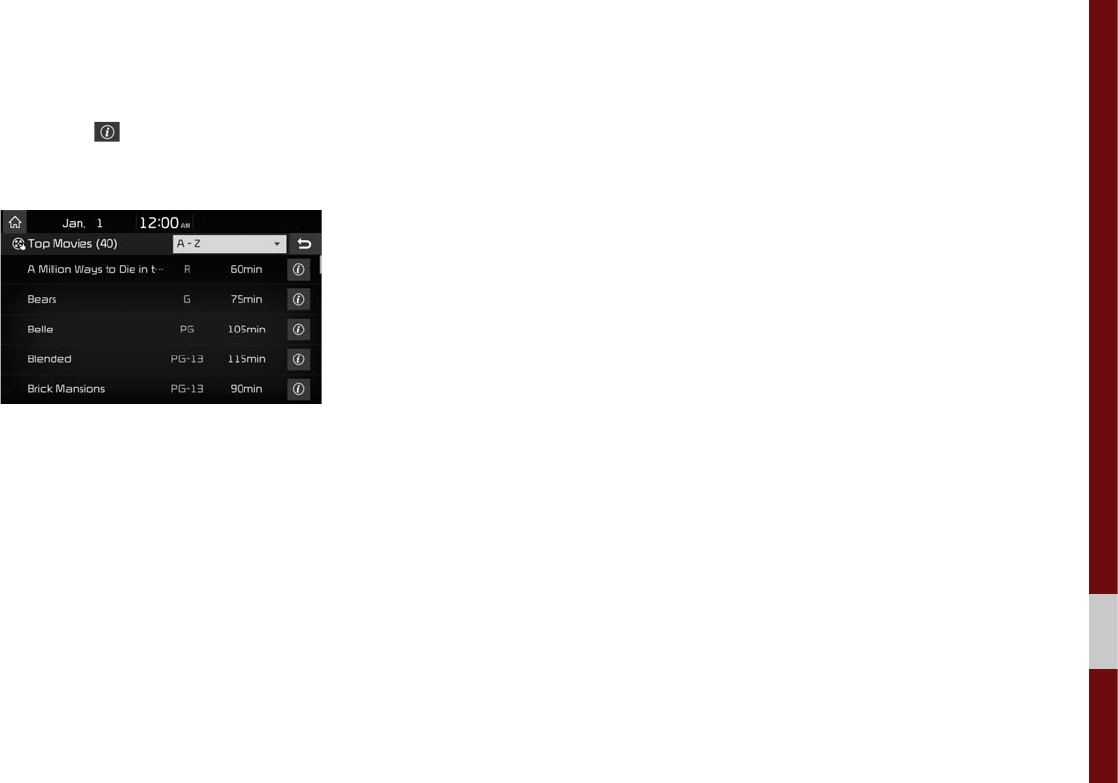

In the “Top Movies” menu, you can check

for any movies that are currently popular.

Select the button to the right of a

movie title to view the plot summary and

any other detailed information.

SiriusXM™ Data I 7-9

0(02

Climate Mode

Camera

SDUW2WKHU)HDWXUHV

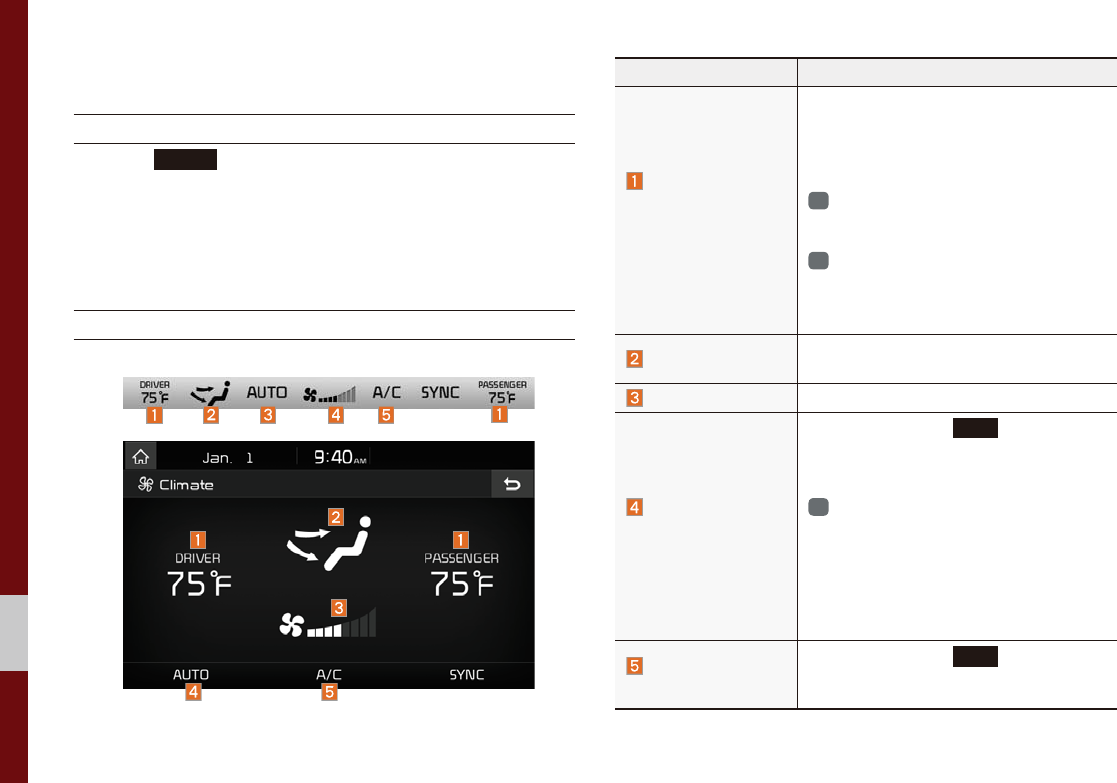

8-2 I Other Features

&OLPDWH0RGH

Operating Climate Mode

Press the

&/,0$7(

key for the climate system to see status infor-

mation in the full screen display.

While multimedia or navigation is in use, the climate system infor-

mation will be displayed over top when you control the tempera-

ture (TEMP) or turn on the air conditioner (A/C).

Basic Mode Screen

Name Description

Set the temperature

of the driver's seat

and passenger

seats

Displays the configured temperature set-

tings for the driver's seat and the passen-

ger seats. Cooling or heating will continue

until the temperature matches the config-

ured temperature settings.

The internal temperaure can be con-

trolled in incrments of 1°F within a

range of 63°F to 89°F.

LOW is displayed when the tempera-

ture is set to anything below 63°F, and

HIGH is displayed when it is set to any-

thing above 89°F.

Air direction Displays the configured air direction set-

tings.

Air volume Displays the configured air volume settings

Cooling/heating

control status

(AUTO)

Displayed when the

$872

key is pressed

and cooling/heating operates automatically

according to the configured temperature

settings.

AUTO will be turned off when you try to

do the following with AUTO on:

- Control the air volume

- Control the air direction

- Turn the air conditioning (A/C) on/off

- Turn on the moisture removal function

for the windshield

Air conditioning

control status

Displayed when the

$&

key is pressed

and the air conditioning starts cooling/heat-

ing.

2WKHU)HDWXUHV

Climate Mode I 8-3



Name Description

Simultaneous tem-

perature settings

for the driver's seat

and the passenger

seats (SYNC)

Displayed when the

6<1&

key is pressed

and the temperatures of the driver's seat

and the passenger seats can be config-

ured at the same time.

8-4 I Other Features

&DPHUD

WARNING

- Backing Up & Using Camera

• Never rely solely on the rear view camera

when backing up. Prior to entering your

vehicle always do a visual check of the area

behind your vehicle, and before backing up be

aware of your surroundings and supplement

the rear view camera by looking over your

shoulders and checking your rear view mir-

rors. Due to the difficulty of ensuring that the

area behind you remains clear, always back

up slowly and stop immediately if you even

suspect that a person, and especially a child,

might be behind you.

Information

• The camera screen shown while the system

boots up does not display any text or buttons.

• While the device boots up, shift the gear to "R"

to activate the rear detection cameras. Shift

the gear to another position to deactivate the

rear detection camera.

Steering-linked camera

• This device is connected to a rear

detection camera to see behind the car

for safe reversing.

• The Rear View Camera turns on auto-

matically if you shift the gear to R when

the power is on or the engine has started.

NOTICE

• A wide-angle lens is installed as the rear

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears.

on-screen. For safety, make sure to view

the back, right, and left sides of the car for

yourself.

• The color of the parking guidelines displayed

in the picture may differ from the actual screen.

• When booted up, blinking may occur when

you switch to a UI screen.

• If

XS

DUQ

QJ

is set in the Sound

Settings, the audio volume is lowered when

your car is driving backward.

Name Description

Red Line About 0.5 m from the

rear bumper

Yellow Line 1 About 1 m from the

rear bumper

Yellow Line 2 About 3 m from the

rear bumper

Yellow Line 3 Trajectory of the wheel

on the driver’s side

Yellow Line 4 Trajectory of the wheel

on the passenger side

Blue Line Neutral steering trajec-

tory

As you reverse your car and monitor the

area behind your car, the steering-linked

driving trajectory and the neutral driving

trajectory are both displayed.

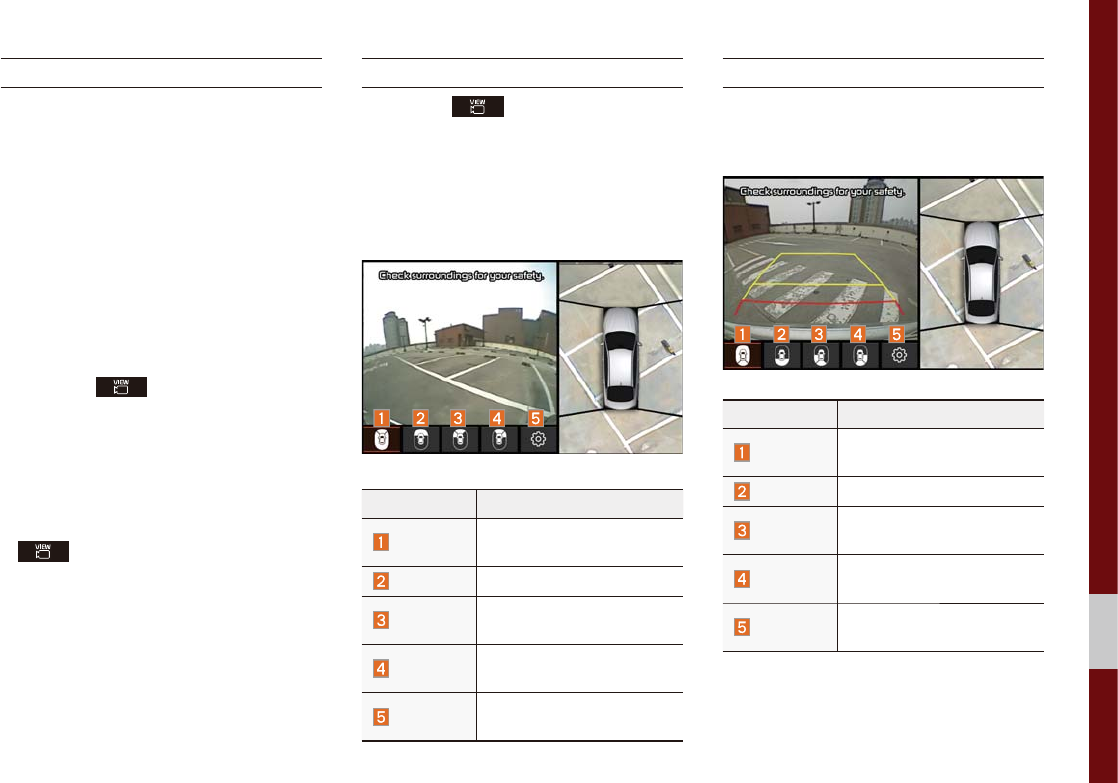

Camera I 8-5



SVM (Surround View Monitor)

With the power on, the SVM is connected

to the SVM camera to see the front, rear,

and back of the car when driving at low

speeds (15km/h or less). It is optional.

• The SVM-camera front detection mode

will be activated when driving at low

speeds (15km/h or less). When the car

drives over 15km/h, the SVM camera

screen is disabled.

• When the key is pressed and the

gear is in a position other than P or R

while the engine is running, the SVM

camera automatically starts when the

car accelerates.

• Shift gears to P or R and turn off the

key to disable the front detection

camera screen.

• The rear detection mode of the SVM

camera is activated with the gear is

positioned to R.

Front SVM

Select the key after starting the

engine.

If the gear is in a position other than P or

R, it automatically switches to the front

detection SVM camera mode when the

car accelerates.

Name Description

SVM Displays all of the images

around the car.

Front Displays the front image.

Front left Displays the front-left

image.

Front right Displays the front-right

image.

Settings Displays the Parking

Guidance Settings screen.

Rear SVM

If the gear is positioned to R, the rear SVM

camera is automatically switched to the

operational mode.

Name Description

SVM Displays all of the images

around the car.

Rear Displays the rear image.

Rear left Displays the rear-left

image.

Rear right Displays the rear-right

image.

Settings Displays the Parking

Guidance Settings screen.

8-6 I Other Features

Parking Guidance Settings

Name Description

Display

Guidelines

Guidelines are displayed

in the Rear View Camera

screen, as shown below.

F/R

Proximity

Warnings

Provides a warning when

an object is in close prox-

imity to the front or rear of

the vehicle.

Front View

Mode

Displaying the front SVM,

select the basic display

mode of the camera

screen. (SVM, Front left,

Front right, and Front.)

Rear View

Mode

Displaying the rear SVM,

select the basic display

mode of the camera

screen. (SVM, Rear left,

Rear right, and Rear.)

CAUTION

• A wide-angle lens is installed for the front

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears

onscreen. For safety, make sure to check the

front, right, and left sides for yourself.

Setup

Navigation Settings

Sound Settings

Display Settings

Bluetooth Settings

UVO eServices Settings

Phone Projection Settings

Custom Button Settings

Voice Recognition Settings

Date/Time Settings

Language Settings

Keyboard Settings Screen

Saver Settings Advanced

Settings System Info

SDUW6HWXS

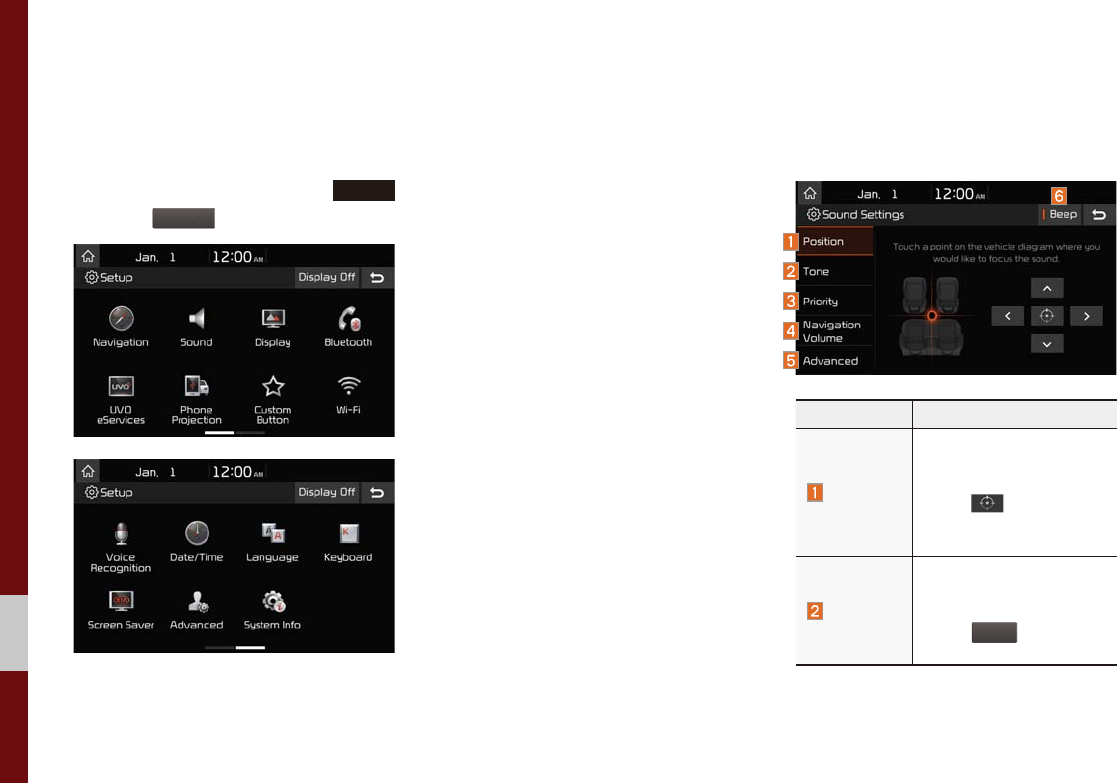

9-2 I Setup

6HWXS

Setup is the screen to control Audio sys-

tem settings.

To enter the screen, press the

6(783

key or the

icon in All Menus.

1DYLJDWLRQ6HWWLQJV

For more details, refer to part 5. Navigation

Settings.

6RXQG6HWWLQJV

Adjusts the sound effects for the whole

system.

Features Description

Position

Select the Up/Down/Left/

Right button to control

sound positioning.

Select to concentrate

the sound on the center of

vehicle.

Tone

Drag the slide bar to con-

trol Bass/Middle/Treble

settings.

Select

to initialize

the settings.

Setup I 9-3



Features Description

Priority

Sets the volume ratio

when reversing the car,

turning on the car’s igni-

tion, etc.

Navigation

Volume

Sets the method of nav-

igation guidance volume

adjustment.

Advanced

Select additional audio

options such as “Speed

Dependent Volume

Control” that automati-

cally controls Audio vol-

ume according to vehicle

speed.

Beep Select to activate a beep

when pressing buttons.

Information

• Advanced sound settings may differ according

to selected AMP option.

• The seat shape may differ according to

vehicle model.

'LVSOD\6HWWLQJV

Adjusts the level of illumination for the

entire system.

Features Description

Mode

Select any of LCD illu-

mination change modes:

Automatic (changes

the level automatically),

Daylight, and Night.

Illumination

Set the levels of illumina-

tion for day and night.

Select

'HI

to initialize

the settings.

Default Resets the display to fac-

tory default settings

Display Off Provides the Display Off

(touch activation) function.

%OXHWRRWK6HWWLQJV

Changes Bluetooth phone settings.

Press the

6(783

key ԡSelect

%OXHWRRWK

icon.

9-4 I Setup

Bluetooth Connection

Press the

6(783

key ԡ Select

%OXHWRRWK

ԡ Select

WK&

QQHFWL

Features Description

Paired Device

List

Displays the paired

Bluetooth device list.

When selecting from

the list, the device is

connected or discon-

nected.

Bluetooth

Audio

Connection

Status

An icon appears when

you make a Bluetooth

Audio connection.

Bluetooth

Hands-Free

Connection

Status

An icon appears when

you make a Bluetooth

Hands-free connection.

Add New Register a new

Bluetooth device.

Delete Devices Select and delete a

paired device.

Help

Switches to the

Bluetooth Connection

Help screen.

Information

• Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be connected

at a time.

• During a Bluetooth device connection, another

device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit

are also deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio, will

function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly

disconnected, due to being out of

communication range, the device powering

off, or a Bluetooth communication error, the

Bluetooth device automatically searches for

and connects to nearby Bluetooth devices.

• If the system is not stable, due to a vehicle-

Bluetooth device communication error, restore

the Default Factory Settings.

• For Default Factory Settings, the Bluetooth

Settings are reset to factory settings.

• Press the

6(783

key ԡ Select

%OXHWRRWK

ԡSelect



)

RU\

WWL

Setup I 9-5



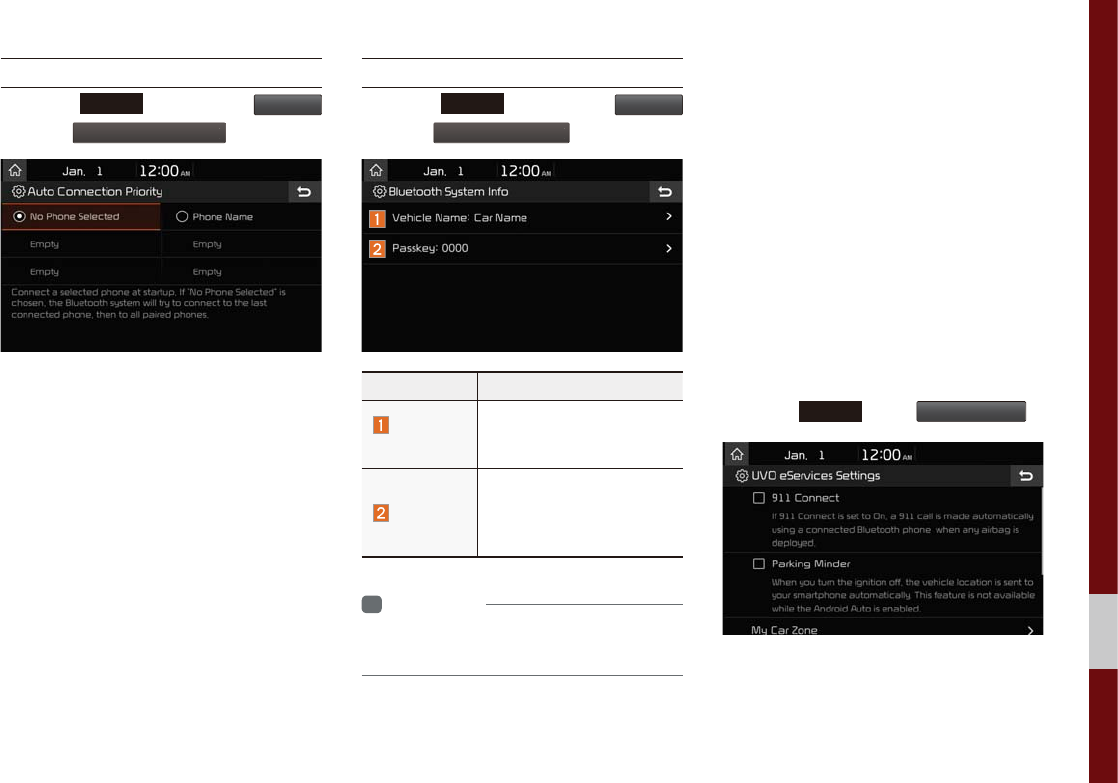

Auto Connection Priority

Press the

6(783

key ԡSelect

%OXHWRRWK

ԡSelect

XWR&RQQHFWLRQ3ULRULW

When the engine is running, the selected

Bluetooth device is automatically con-

nected. If you fail to connect the selected

device, the previously-connected device is

automatically connected, and if it also fails,

then it tries to connect all paired devices

sequentially.

Depending on auto connection priority,

connection to a device may take time.

Bluetooth System Information

Press the

6(783

key ԡSelect

%OXHWRRWK

ԡ Select

%OXHWRRWK6

VWHP,QIR

Features Description

Vehicle

Name

You can change the

Bluetooth device name of

the vehicle.

Passkey

You can change the pass-

key used for Bluetooth

device authentication. the

initial passkey is 0000.

Information

• The vehicle name above is an example.

Check the actual information on the product.

892H6HUYLFHV6HWWLQJV

Within the eServices Settings screen,

UVO eServices related features can be set,

such as activating 911 Connect, Parking

Minder and setting the My Car Zone.

For safety reasons, My Car Zone Settings

cannot be adjusted while driving. Park

the vehicle before making any changes to

your settings.

Press the

6(783

key ԡ

892H6HUYLFHV

9-6 I Setup

911 Connect

This feature is used to turn on or off the

911 Connect feature.

When enabing this feature, you must first

agree to the 911 Connect tems of use.

After reading the tems of use, press the

$JUHH

button on the touch screen to

accept.

Parking Minder

If you want to send vehicle location to your

smartphone automatically when you turn

the ignition off, turn the Parking Minder

feature On.

My Car Zone

This feature is used to set My Car Zone

(Curfew Limit, Speed) alert conditions.

My Car Zone Settings is unavailable when

UVO eServices has not been activated.

Press the

6(783

key ԡ

892H6HUYLFHV

0\&DU=RQH

The PIN must be entered to use My Car

Zone Settings.

Setup I 9-7



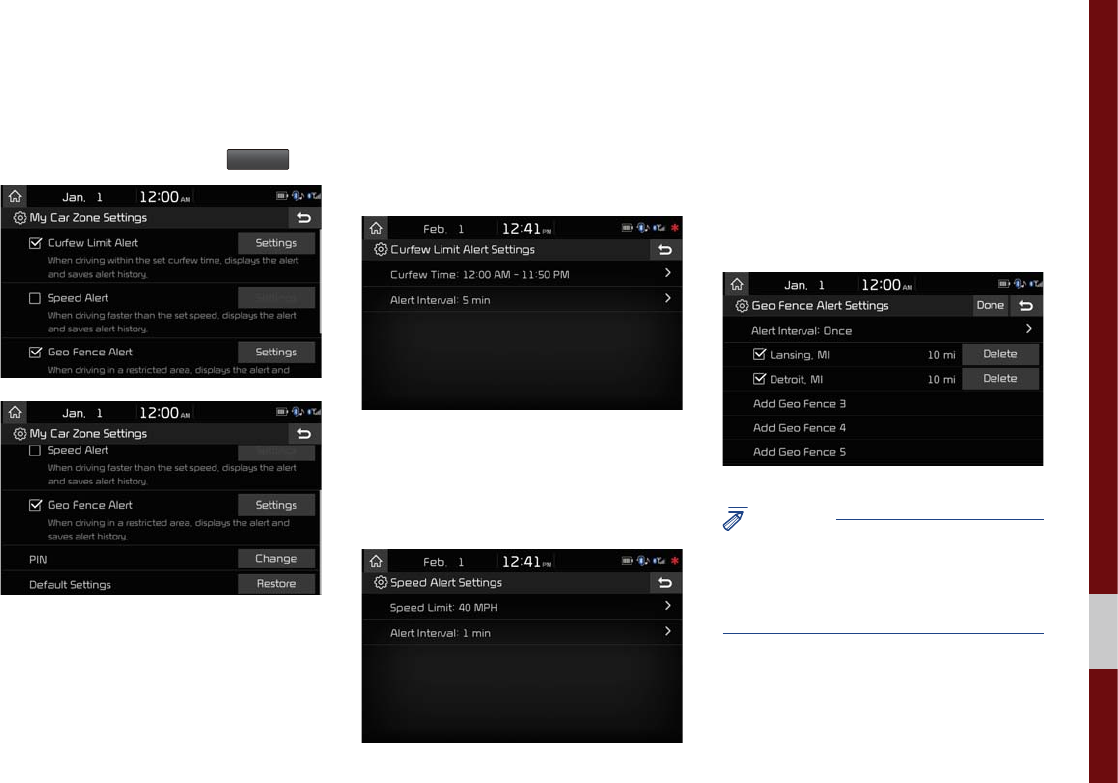

This screen is used to set Curfew Limit

and Speed Alert features.

Set the alert conditions On ԡ

6HWWLQJV

Curfew Limit Alert Settings

Within Curfew Limit Alert Settings, you can

set the Curfew Limit Alert Start and End

Time. You can also set the Alert Interval of

alerts upon Curfew Limit.

Speed Alert Settings

Within Speed Alert Settings, you can set

the vehicle speed limit and Alert Interval of

alerts upon overspeeding.

Geo Fence Alert Settings

Within Geo Fence Alert Settings, you can

set entry-restricted areas. Press Add Geo

Fence and set the center point and radius

of the desired Geo Fence on the Map

screen. You can also set the Alert Interval

of alerts upon Geo Fence alerts.

NOTICE

• Geo Fence Alert cannot be set if there is no

SD card with Maps. At least one Geo Fence

must be added to turn on Geo Fence Alert

Settings.

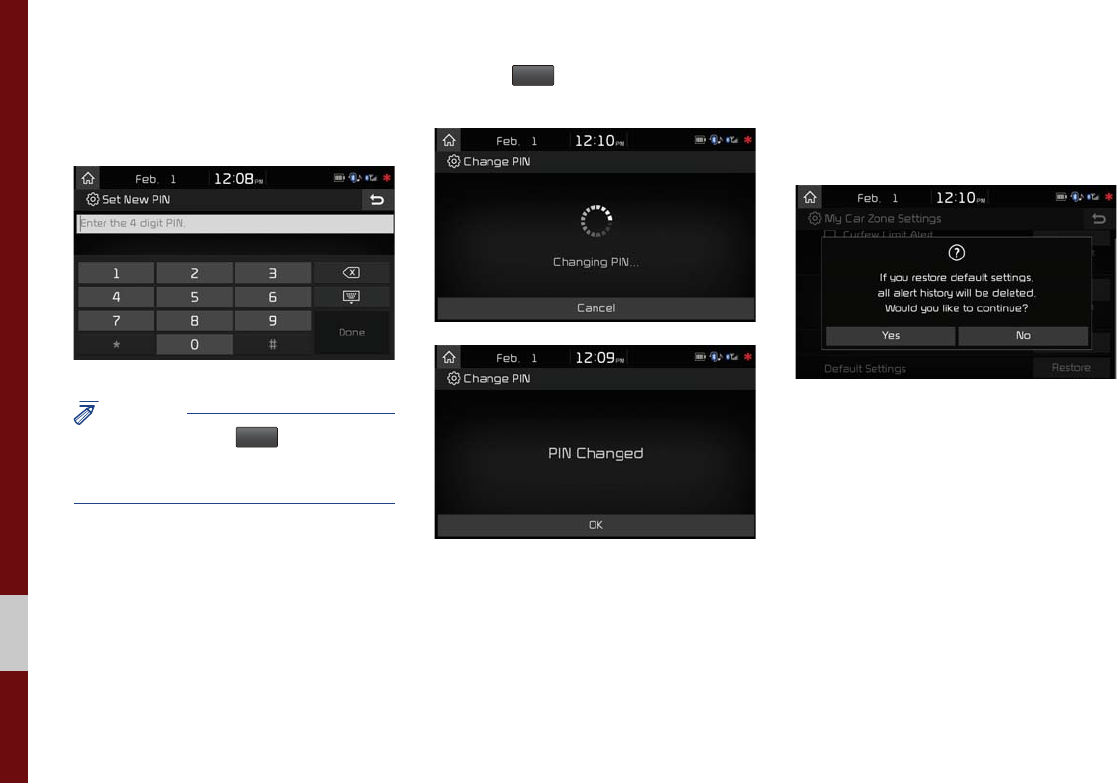

9-8 I Setup

This feature is used to change the PIN to

enter My Car Zone Settings.

NOTICE

• Before pressing

'RQH

, ensure your

smartphone is connected to UVO eServices

system via USB cable.

Press the

'RQH

button to transmit the new

PIN to your My UVO com account.

Restore Factory Settings

This feature is used to restore all My Car

Zone alert history and settings back to

default state.

Setup I 9-9



Scheduled Diagnostics

This feature is for setting when scheduled

diagnostics alerts display.

Press

6(783

key ԡ

892H6HUYLFHV

ԡ Set

the Scheduled Diagnostics On ԡ

6HWWLQJV

NOTICE

• For months without the corresponding day,

the last day of the month will automatically be

set as the scheduled diagnostics date.

Trip Info Sync Reminder

Trip Info is a feature used to set whether

system displays alert when trip info(Driv-

ing Distance, Driving Speed, Driving Time,

etc). reaches 90% of memory.

UVO eServices must be activated to use

this feature.

Press

6(783

key ԡ

892H6HUYLFHV

Set Trip Info Sync Reminder On.

3KRQH3URMHFWLRQ6HWWLQJV

For more details, refer to Phone Projection

guide.

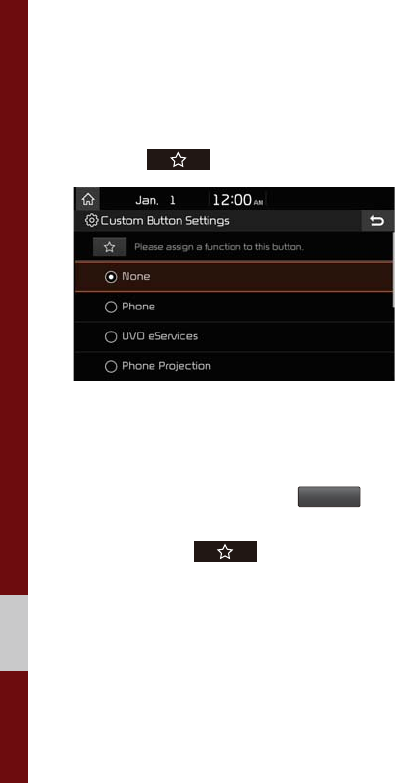

9-10 I Setup

&XVWRP%XWWRQ6HWWLQJV

You can choose the feature to be accessed

when the key is pressed.

Setting it to a feature that you frequently

use will allow you to access the feature

quickly and conveniently anytime.

For example, setting it to

0\0HQX

will

enable you to access the My Menu screen

by pressing the key.

Setup I 9-11



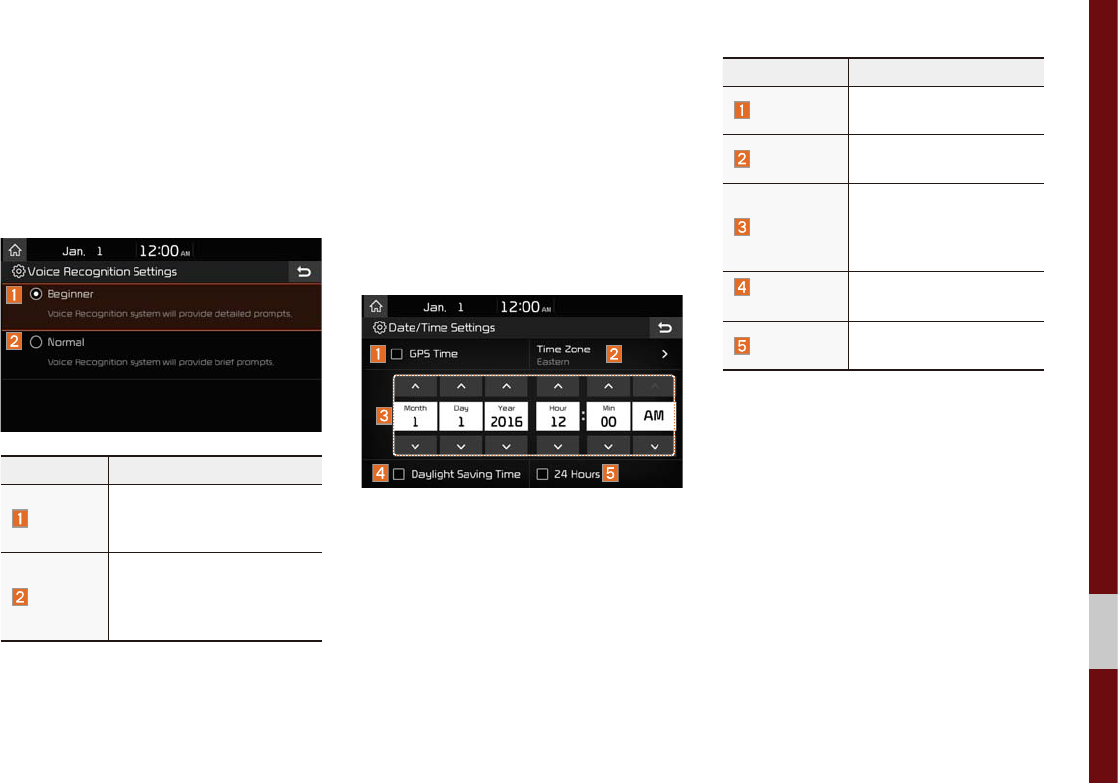

9RLFH5HFRJQLWLRQ

6HWWLQJV

Configure how to make a call with

Voice Recognition Guidance and Voice

Recognition.

Features Description

Beginner

For beginners, the voice

recognition system pro-

vides voice prompts.

Normal

For normal users, the

voice recognition system

provides simple and short

voice guidances.

'DWH7LPH6HWWLQJV

Configure the settings for time and date.

Using the arrow buttons, you can change

the values. Date/Time settings do not

automatically change when crossing into

different time zones. The time must be

changed manually on this screen.

Features Description

GPS Time The time display is set

in GPS Time.

Time Zone Displays the time zone

selected by users.

Direct entry

If you tap any value, you

can directly enter the

number in the following

screen.

Daylight

Saving Time

The daylight saving time

(DST) is applied.

24 Hours The time display is set

in 24-hour format.

9-12 I Setup

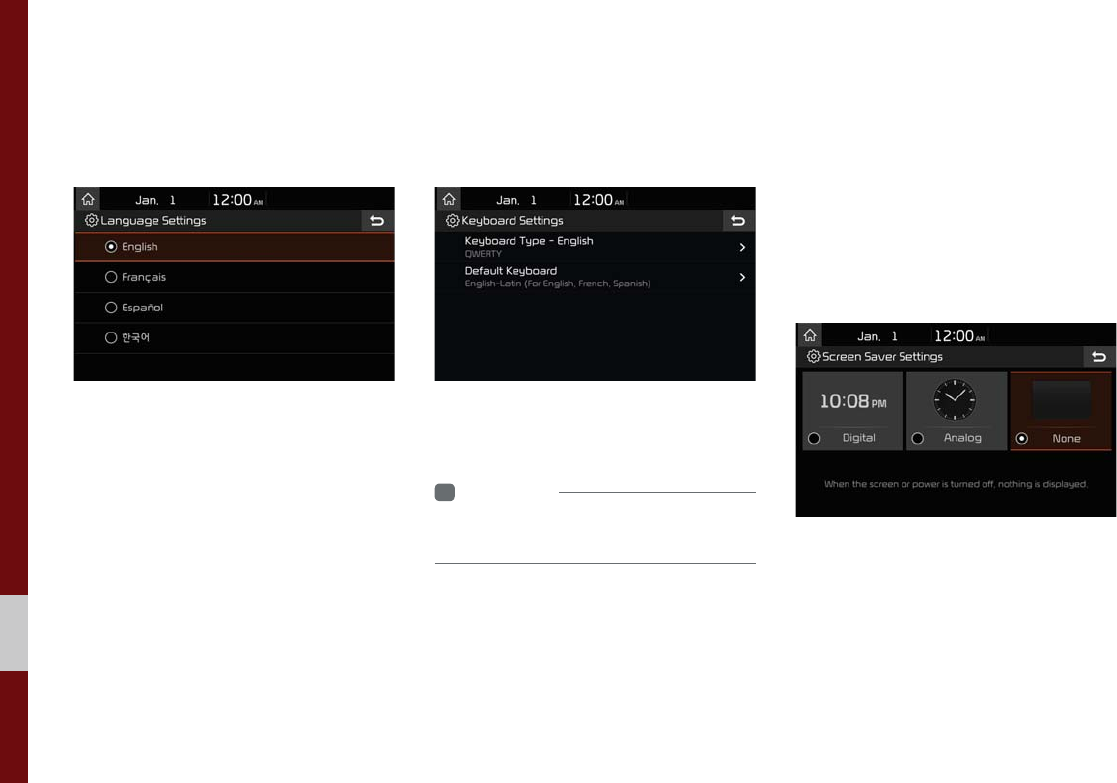

/DQJXDJH6HWWLQJV

You can configure the displayed system

language.

When the language is changed, the sys-

tem language is automatically changed.

Unique data including MP3 file name is

not changed and voice recognition does

not support some languages.

.H\ERDUG6HWWLQJV

You can configure the keyboard layout for

each language.

You can configure ABCD or QWERTY

keyboards for the system.

Information

• Configured keyboard layouts are applied

to all input modes.

6FUHHQ6DYHU6HWWLQJV

You can select any of the following screen

formats to be displayed when the screen

or power is turned off (Press and hold the

Power button).

• Digital clock and date

• Analog clock and date

• None

Setup I 9-13



$GYDQFHG6HWWLQJV

Sets alerts per function if desired by the

user.

Features Description

Media

Change

Notifications

Sets whether to display

media information at the

top of the screen as the

next item is played when

not on the media screen.

Steering

Wheel Mode

Button

Sets the media to be

played when the steer-

ing wheel or rear seat (if

provided)

02'(

but-

ton is pressed.

Return to

Map: Set

Time

Sets the time after which

the screen will return to

the map screen from the

broadcast/music play-

back screen.

6\VWHP,QIR

You can view software version.

Features Description

SW Info

System version informa-

tion and update details are

available. Select the

GDWH

button to update the system.

Default

When

'HI

is selected,

the settings are changed to

factory defaults.

System Update

At the System Info screen, insert the

updated memory (USB or SD card) with

the latest file downloaded, and then select

the

button to begin updating. The

system will then reboot automatically.

Information

• This product needs supplemented software

updates and additional functions, which

collectively may take some time to complete,

depending on the amount of data.

CAUTION

• If the power is disconnected or the USB or

SD card is removed during an update, the

data might be damaged. Please wait until the

update is complete while the engine is on.

• When

'HI

is selected, it may delete all of

the data and settings so be cautious of your

action.

0(02

Product Specification

Troubleshooting

FAQ

SDUW$SSHQGL[

10-2 I Appendix

3URGXFW6SHFLILFDWLRQ

TFT-LCD

Screen Size 8 inch (176.4 X 99.36 mm)

Resolution 384000 pixels (Resolution: 800 x 480)

Operating

Method TFT(Thin Film Transistor) Active Matrix

Viewing Angle Left/Right, Top/Bottom: ALL 89°

Internal Lighting LED

Radio

Channels FM: 87.5 MHz ~ 107.9 MHz(Step: 200 kHz)

AM: 530 kHz ~ 1710 kHz(Step: 10 kHz)

Sensitivity FM: Under 10 dBuV/AM: Under 35 dBu EMF

Distortion Factor Within 2 %

Common

Power Supply DC 14.4 V Operating

Power DC 9 V ~ DC 16 V

Sleep Current 1 mA (Head Unit Only)

Operating

Temperature

-20 ~ +70 °C

(-4 ~ +158 °F)

Storage

Temperature

-30 ~ +80 °C

(-22 ~ +176 °F)

Dimensions 213.6 X 131.5 X 89 mm (Main BOX)

Current

Consumption 2.5 A Weight 2.240 kg

Bluetooth®

Wireless Technology

Frequency

Range 2402 ~ 2480 MHz

Supported

Bluetooth

Specification

3.0

Supported

Profile

Handsfree(1.6), A2DP(1.2), AVRCP(1.4),

PBAP(1.0)

Bluetooth

Power Class 2 -6 ~ 4 dBm Number of

Channels 79 channels

$SSHQGL[

Appendix I 10-3



7URXEOHVKRRWLQJ

1. Errors which occur during the operation or installation of the

device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Kia dealer.

Problem Possible Cause

There are small red,

blue, or green dots on

the screen

• Because the LCD is manufactured with

technology requiring high point density,

a pixel or lighting deficiency may occur

within 0.01% of total pixels

The sound or image is

not working

• Has the Switch for the vehicle been

turned to [ACC] or [ON]?

• Has the SYSTEM been turned OFF?

The screen is being

displayed but sound is

not working

• Has the volume been set to a low level?

• Has the volume been muted?

When the power is

turned on, the corners

of the screen are dark

• The display appearing somewhat dark

after prolonged periods of use is normal

with LCD panels. It is not a malfunction

• If the screen is very dark, contact your

nearest Kia dealer for assistance

Sound is working from

only one speaker

• Are the positions of Fader or Balance

sound controls adjusted to only one

side?

Problem Possible Cause

Sound does not work in

AUX mode

• Are the audio connector jacks fully

inserted into the AUX terminal?

The external device is

not working

• Is the external device connected with a

standard connector cable?

Upon turning power on,

the most recent mode

screen is not displayed

Within modes that play files by reading

external sources, such as USB, iPod, or

Bluetooth

streaming mode, the most

recently played mode screen prior to turn-

ing off power may not properly load

• If the corresponding device is not con-

nected, the mode operated prior to the

most recent mode will operate

• If the previous mode still cannot be

properly played, the mode operated

prior to that will operate

10-4 I Appendix

Problem Possible Cause Countermeasure

The power

does not

turn on

The fuse is discon-

nected

• Replace with a suitable fuse

• If the fuse is disconnected

again, please contact

your point of purchase or

Kia dealer

Device is not properly

connected

• Check to see that the

device has been properly

connected

The system

does not

play

The vehicle battery is

low

• Charge the battery If the

problem persists, contact

your point of purchase or

Kia dealer

Problem Possible Cause Countermeasure

The image

color/tone

quality is

low

• The brightness,

saturation, hue,

and contrast levels

are not set properly

• Properly adjust the bright-

ness, saturation, hue, and

contrast levels through

Display Setup

Sound does

not work

• The volume level

is set to the lowest

level

• The connection is

not proper

• The device is

currently fast-for-

warding, rewinding,

scanning, or play-

ing in slow mode

• Adjust the volume level

• Check to see that the

device has been properly

connected

• The sound will not work

when the device is fast-for-

warding, rewinding, scan-

ning, or playing in slow

mode

The sound

or image

quality is

low

• Vibration is occur-

ring from where

the conversion

switch has been

installed

• Image color/tone

quality is low

• The sound may be

short-circuited and the

image distorted if the

device vibrates

• The device will return to

normal once vibrations stop

Appendix I 10-5



Problem Possible Cause Countermeasure

The USB

does not

work

• USB memory is

damaged

• Please use the USB after

formatting it.

• USB memory has

been contaminated

• Remove any foreign sub-

stances on the contact

surface of the USB memory

and multimedia terminal

• A separately pur-

chased USB HUB

is being used

• Directly connect the USB

memory with the multime-

dia terminal on the vehicle

• A USB extension

cable is being

used

• Directly connect the USB

memory with the multime-

dia terminal on the vehicle

• A USB which is

not a Metal Cover

Type USB Memory

is being used

• Use standard USB

Memory

• An HDD type, CF,

SD Memory is

being used

• Use standard USB

Memory

• There are no

music files which

can be played

• Only MP3, WMA file

formats are supported.

Please use only the sup-

ported music file formats

Problem Possible Cause Countermeasure

The iPod is

not recog-

nized even

though it

has been

connected

• There are no titles

which can be

played

• Use iTunes to download

and save MP3 files into the

iPod

• The iPod firmware

version has not

been properly

updated

• Use iTunes to update

the firmware version and

reconnect the iPod with the

device

• The iPod device

does not recog-

nize downloads

• Reset the iPod and recon-

nect with the device

Bluetooth

does not

work or

its limited

functions are

available

• Bluetooth on your

mobile phone is

set to OFF

• Set it to ON

• The Bluetooth

connection is not

made

• Make the connection

active

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the

5(6(7

key to

reset the system.

• Press and hold the

5(6(7

key (more than 1 second). The device power

will turn off and the system will reset.

10-6 I Appendix

)$4

About Pairing Mobile Phones

Q I cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth® func-

tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set

it to ON. If the cell phone still can’t be registered, try again after

turning Bluetooth off and on, or delete the device registration on

the multimedia system and cell phone and then register the cell

phone again.

Q What is the difference between pairing a mobile phone and con-

necting a mobile phone?

A Pairing occurs through authenticating the head unit and mobile

phone. Mobile phones paired to the head unit can be connected

and disconnected until the paired mobile phone is deleted from

the system. Bluetooth® Handsfree features, such as making/

answering calls or managing contacts, are supported only in

mobile phones connected with the head unit.

Q What is a Passkey?

A A passkey is the password used to authenticate the connection

between the head unit and mobile phone. The passkey only

needs to be entered once when pairing the mobile phone for

the first time.

The initial passkey is 0000. You can change it with

6(783

ԡ

%OXHWRRWK6

VWHP,QI

ԡ

3DVVNH

menu options.

Appendix I 10-7



About Making/Answering Phone Calls

Q How can I answer a call?

A When there is an incoming call, a notification pop-up will

become displayed. To answer the incoming call, select the

FFHS

button on the screen or the key on the steer-

ing

wheel control

To reject the call, select the

button on the screen or

press the key on the steering wheel control.

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (more than 0.8 seconds)

the key on the steering

wheel control

or select the

VH3ULYDW

button at the bottom of the Phone screen to switch

the call to your mobile phone.

About

Bluetooth

® Wireless Technology/

Head Unit Use Environment

Q What is the range of my wireless connection?

A The wireless connection can be used within 15 yards.

Q How many mobile phones can be paired?

A It is possible to pair up to five mobile phones.

Q Why is call quality sometimes poor?

Check the reception sensitivity of the mobile phone when call

quality becomes worsened. The call quality may deteriorate when

the signal strength is low. Call quality may also worsen if metal

objects, such as beverage cans, are placed near the mobile

phone. Check to see if there are metal objects in the vicinity of

the mobile phone. The call sound and quality may differ depend-

ing on the type of mobile phone.

,PSRUWDQW,QIRUPDWLRQ

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual ("User's

Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.

Keep User's Guide in Vehicle

When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please

make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and

safety information carefully.

Warning

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other

serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a

safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may

to distract your attention away from the road and remove your hands from the wheel.



*HQHUDO2SHUDWLRQ

Voice Command Control

Functions within the Multimedia system may be accomplished using only voice commands. Using voice commands while driving allows

you to operate the system without removing your hands from the wheel.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before

attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous

if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while

driving. Driving while unable to hear these sounds could cause an accident.

Navigation Features

Any navigation features included in the system are intended to provide turn by turn instructions to get you to a desired destination. Please

make certain all persons using this system carefully read and follow instructions and safety information fully.

Distraction Hazard

Some navigation features may require manual (non-verbal) setup. Attempting to perform such set-up or insert data while driving can seri-

ously distract your attention and could cause an accident or other serious consequences. Stop the vehicle in a safe and legal manner

before attempting these operations.

Let Your Judgment Prevail

Any navigation features are provided only as an aid. Make your driving decisions based on your observations of local conditions and exist-

ing traffic regulations. Any such feature is not a substitute for your personal judgment. Any route suggestions made by this system should

never replace any local traffic regulations or your personal judgment or knowledge of safe driving practices.

Route Safety

Do not follow the route suggestions if doing so would result in an unsafe or illegal maneuver, if you would be placed in an unsafe situation,

or if you would be directed into an area that you consider unsafe. The driver is ultimately responsible for the safe operation of the vehicle

and therefore, must evaluate whether it is safe to follow the suggested directions.

Potential Map Inaccuracy

Maps used by this system may be inaccurate because of changes in roads, traffic controls or driving conditions. Always use good judg-

ment and common sense when following the suggested routes.



Emergency Services

Do not rely on any navigation features included in the system to route you to emergency services. Ask local authorities or an emergency

services operator for these locations. Not all emergency services such as police, fire stations, hospitals and clinics are contained in the

map database for navigation features.

Use of Speech Recognition Functions

Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any

speech recognition functions included in the system and address any errors.

)&&:DUQLQJ

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: Any changes or modifications to this device not expressly approved by the party responsible for compliance could void your

authority to operate the equipment.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be

collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.

IC Warning

"This device complies with Industry Canada licence-exempt RSS standard(s)."

Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device

must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et

(2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

HYUNDAI MOBIS ADBB0D5AN DISPLAY CAR SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DISPLAY CAR SYSTEM

User manual

Navigation menu

Namespaces

Views

Navigation
