CAR MULTIMEDIA SYSTEM

USER'S MANUAL

Thank you for purchasing this multimedia

system.

This user's manual explains how to use

the Kia Motor multimedia system.

Before using the product, read the con-

tents of this user's manual carefully and

use this product safely.

•

The screens shown in this manual may

differ with the actual screens of the

product.

•

The design and specification of this

product may change without prior notifi-

cation for product improvement.

•

When transferring the vehicle to another

individual, include this user's manual so

that the next driver can continue its use.

Precaution for safe usage

•

Driving while distracted can result in a

loss of vehicle control, that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation of a

vehicle, and use of any handheld devices,

other equipment, or vehicle systems which

take the driver’s eyes, attention and focus

away from the safe operation of a vehicle

or which are not permissible by law should

never be used during operation of the

vehicle.

•

Do not operate the

multimedia system

while driving.

•

Do not disassemble, assemble, or modify

the

multimedia system

•

Do not watch the screen for prolonged

periods of time while driving.

•

Set the volume to a level which allows the

driver to be aware of external conditions.

•

Do not operate the

multimedia system

for

prolonged periods of time with the vehicle

ignition in ACC. Such operations may lead

to battery discharge.

•

Be cautious not to spill water or introduce

foreign objects into the device.

•

Do not cause severe shock to the device.

Direct pressure onto the front side of the

monitor may cause damage to the LCD or

touch panel.

•

In case of product malfunction, please

contact your place of purchase or service

center.

•

When cleaning the touch screen, make

sure to turn off the device and use a dry

and smooth cloth. Never use tough materi-

als, chemical cloths, or solvents (alcohol,

ammonia, benzene, thinners, etc.) as such

materials may damage the device panel or

cause color and quality deterioration.

WARNING

• Driving while distracted can result in a

loss of vehicle control that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation

of a vehicle, and use of any handheld

devices, other equipment, or vehicle

systems which take the driver’s eyes,

attention and focus away from the safe

operation of a vehicle or which are not

permissible by law should never be used

during operation of the vehicle.

Read the following safety precautions

for your safety

Before using the product, read the contents of this user's manual

carefully and use this product safely.

※ The design and speciﬁ cations of this product may change without prior

notiﬁ cation for product and service improvement.

The actual features in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

※ This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁ ed under the GNU General

Public license, Version 2, June 1991, and the GNU lesser General

Public License, Version 2.1, February 1999.

For additional information and to obtain related materials including

without limitation, the previous referred to licenses and software, please

Notations used within this User's Manual

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

iPod®

iPod® is a registered trademark of Apple Inc.

Bluetooth

Wireless Technology

The

Bluetooth

® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by Kia is under license.

Other trademarks and trade names are those of their respective owners.

Bluetooth

® Wireless Technology enabled cell phone is required to use

Bluetooth

® Wireless Technology.

Bluetooth

® Wireless Technology phone

compatibility can be checked by visiting https://www.kia.com

Warnings and Cautions

Key Product Features

Component Names and Functions

Starting the System for the First Time

part.1 Basic

1-2 I Basic

Safety Warnings

• Do not stare at the screen while driving.

Staring at the screen for prolonged peri-

ods of time could lead to traffic accidents.

• Do not disassemble, assemble, or modify

the Multimedia system. Such acts could

result in accidents, fire, or electric shock.

• Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

• If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibility

of an accident may increase. Please

use phone related functions only when

parked.

• Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

• Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

• Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

• For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

• Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

Basic

Warnings and Cautions I 1-3

Safety Cautions

Pay attention to traffic conditions while

driving.

• Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

• Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

• Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

• If you want to change the position of

device installation, please inquire with

your place of purchase or service main-

tenance center. Technical expertise is

required to install or disassemble the

device.

• Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

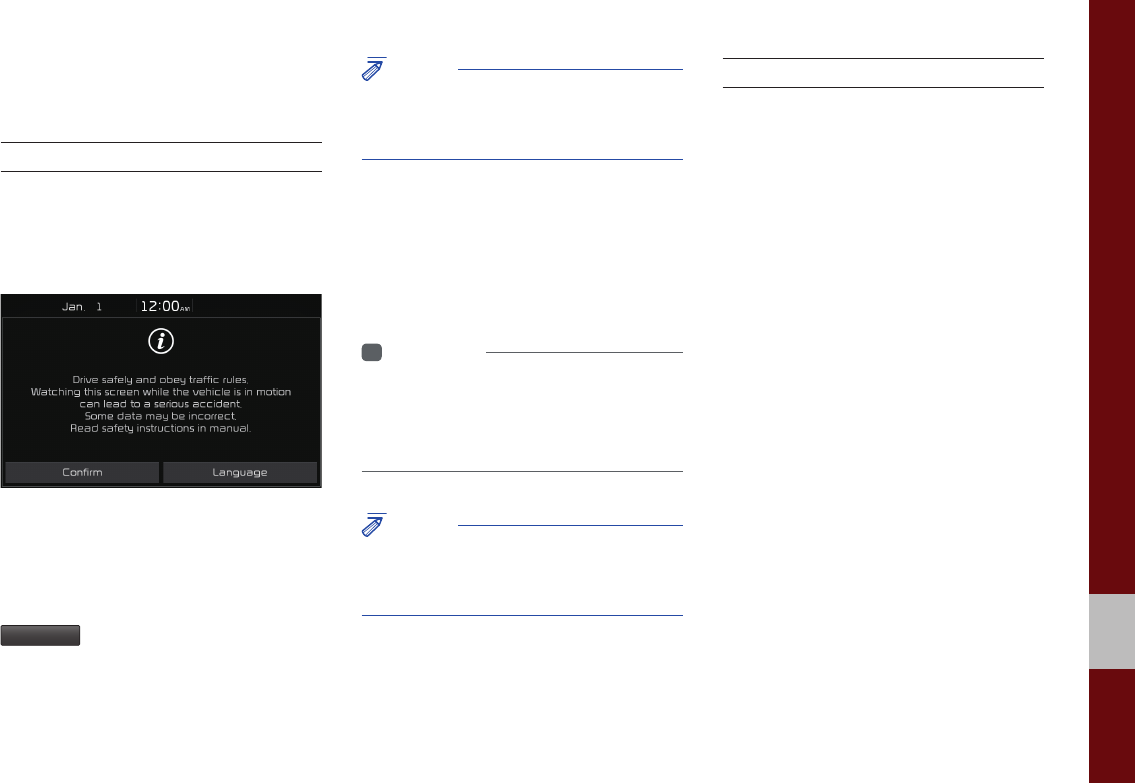

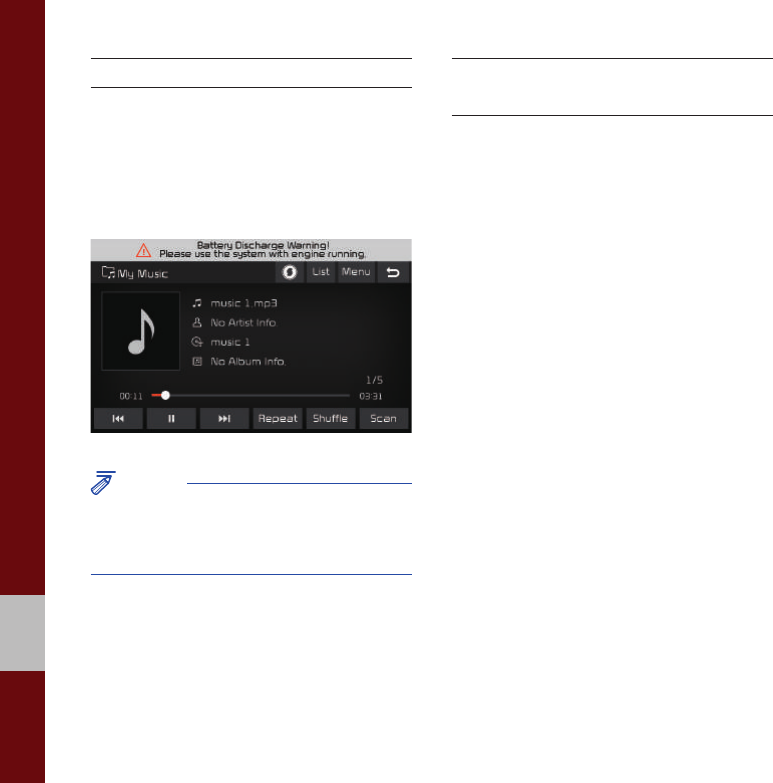

• Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

• Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

• When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

• Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

1-4 I Basic

Key Product Features

This device is a Multimedia system equipped with a multifunc-

tional player that supports Radio (FM, AM), USB, iPod, AUX and

Bluetooth Audio features. The WIDE VGA LCD provides a high

quality resolution while the powerful and rich sound system adds

to the driving enjoyment.

Display

Wide TFT-LCD Display

• Provides high quality video through a Wide TFT-

LCD Display using an LED Back Light.

• Touch screen for maximum user convenience.

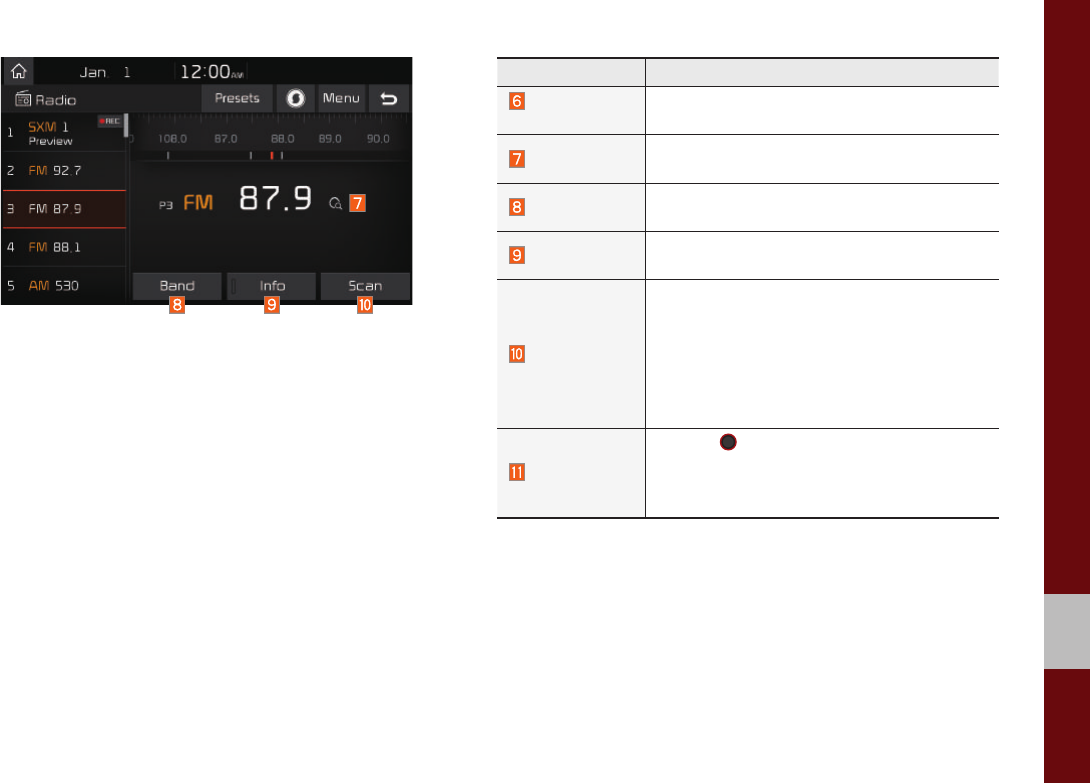

Radio

Digital Tuner Feature

• Digital Tuner using PLL method that supports

memory of 40 broadcast stations.

Radio broadcast station name

• Displays broadcast station names.

Multimedia

Player

Support for various Media Formats

• Support for various media formats, including

Radio, USB, iPod, AUX and Bluetooth

Audio

Streaming modes.

Miscellaneous

Bluetooth

Wireless Technology

• Convenient use of Bluetooth

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

• Easy control of features through touch screen

options

Steering Wheel Control

• Control over audio features, Bluetooth

through

the steering wheel control for maximum conve-

nience.

Component Names and Functions I 1-5

Component Names and Functions

Head Unit

Name Description

RADIO

Converts to FM/AM mode

• Each time the key is pressed, the mode is

changed in the following order: FM → AM →

FM.

MEDIA

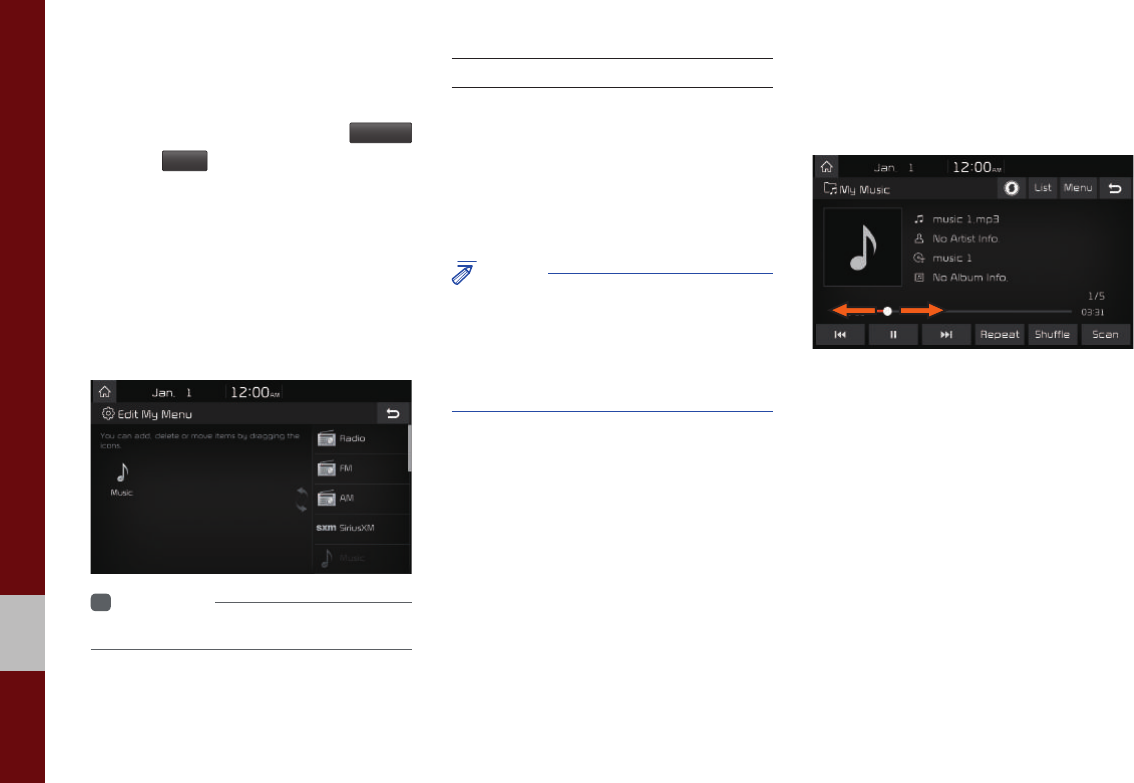

Moves to MEDIA mode.

• If the media is not connected MEDIA mode will

not be activated.

TRACK

SEEK

When the key is pressed shortly (for less than 0.8

seconds),

• FM/AM mode: Plays the previous/next fre-

quency.

• MEDIA (USB/iPod) mode: Changes the track,

file or title (except for AUX).

When the key is pressed and held down (for over

0.8 seconds),

• FM/AM mode: Continuously changes the fre-

quency until the key is released.

• MEDIA (USB/iPod) mode: Rewinds or fast

forwards the track or file (except for Bluetooth

Audio, and AUX).

POWER/

VOL

• When power is off, press to turn power on.

• When power is on, press and hold for over 0.8

seconds to turn the power off.

• When power is on, press shortly for less than 0.8

seconds to turn Audio off.

• Turn left/right to adjust the volume.

Name Description

HOME

Displays the HOME screen.

PHONE

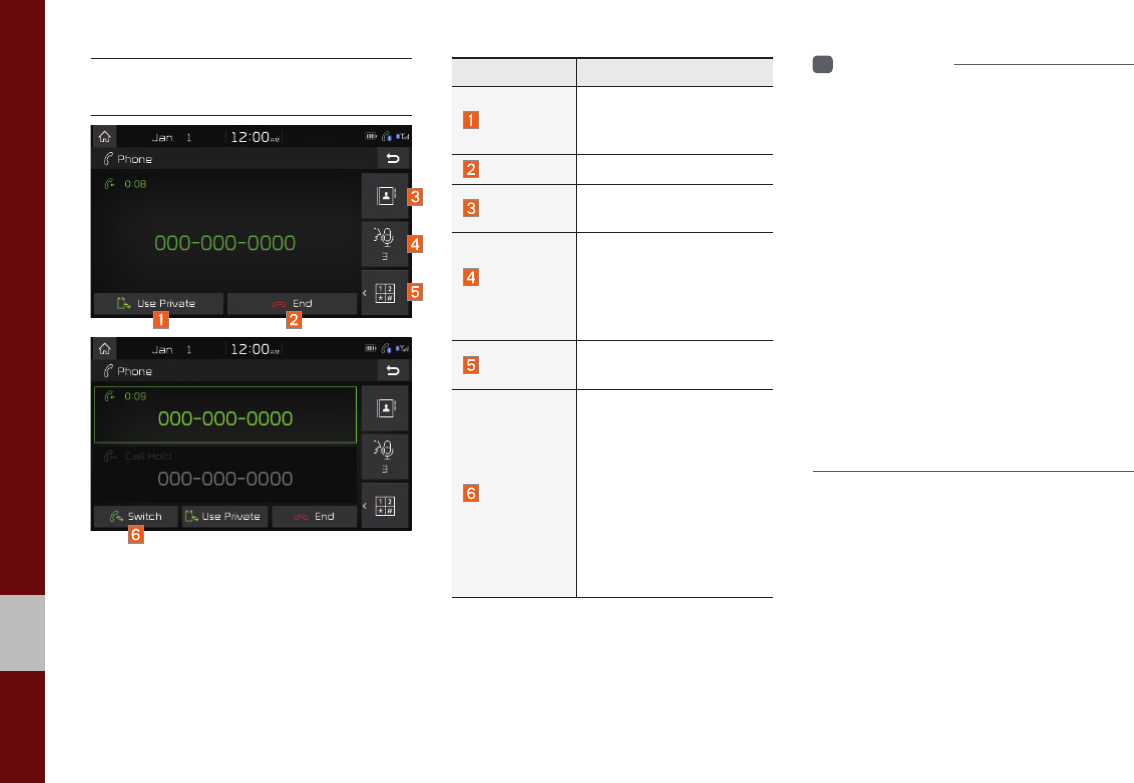

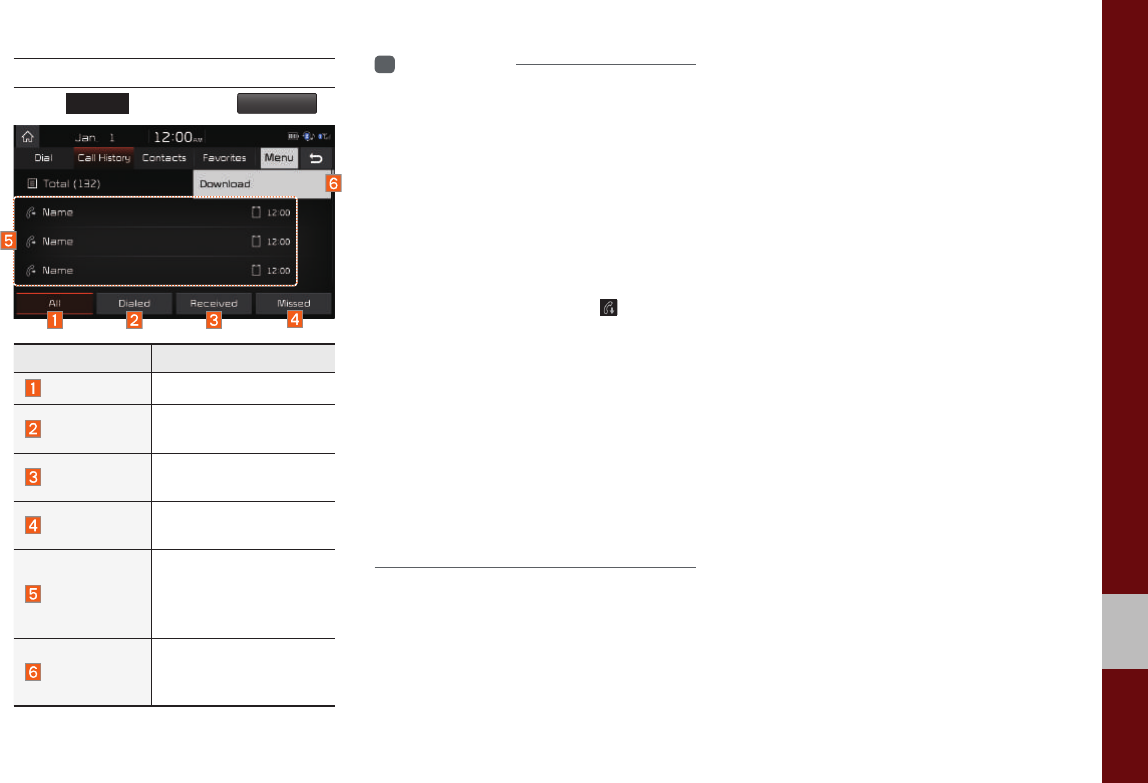

Displays the Bluetooth phone mode.

SETUP

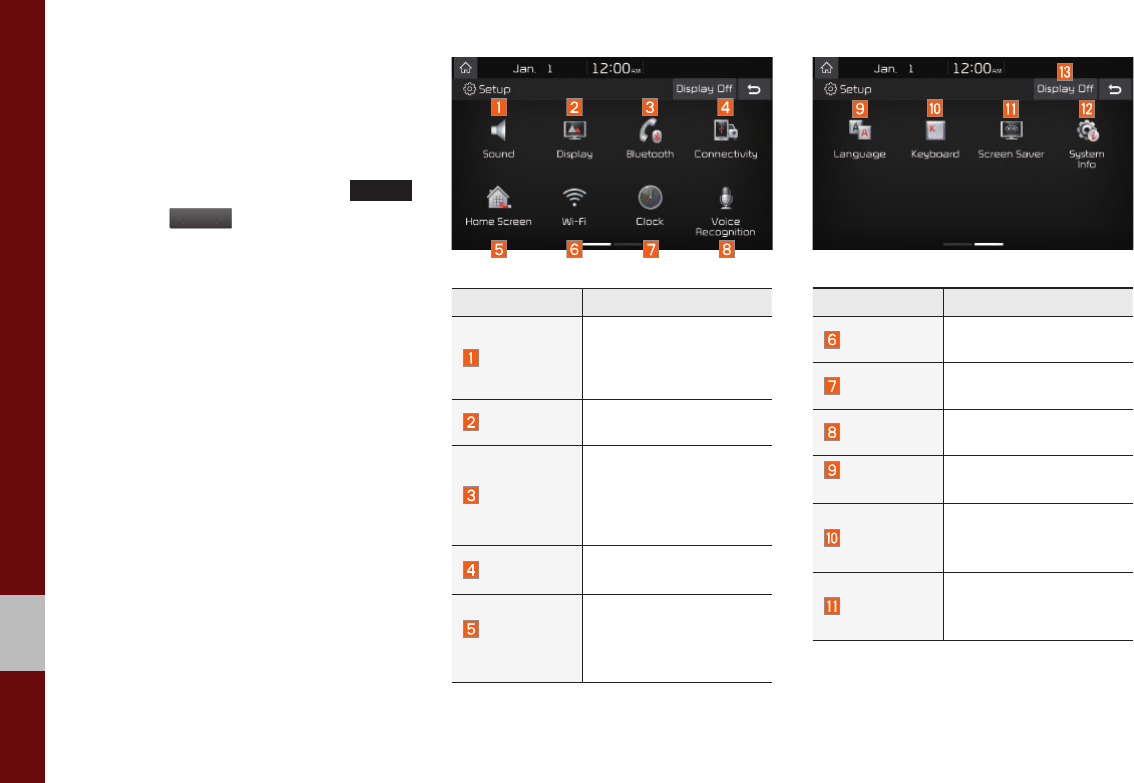

Moves to the Setup screen.

TUNE

• FM/AM mode: Changes the frequency.

• MEDIA (USB/iPod) mode: Changes the track,

file or title (except for Bluetooth Audio, and

AUX).

RESET Resets the system settings. (Preset radio channels

and other data will not be deleted)

※ The actual feature in the vehicle may differ from the illustration.

Functions set up by the user.

Component Names and Functions I 1-7

Name Description

For more details, refer to Connectivity guide.

MODE

• Each time this key is pressed, mode is changed

in the following order: FM → AM → USB or iPod

→ AUX → Bluetooth Audio → FM

• If the media is not connected, the corresponding

modes will be disabled

• Press and hold the key (more than 0.8 seconds)

to turn the Audio system on/off

• When power is off, press the key to turn power

back on

VOL +

VOL -

Controls the volume

When keys are pressed quickly. (less than 0.8 sec-

onds)

• FM/AM mode: searches broadcast frequencies

saved to Presets

• Media (USB/iPod) mode: changes the track, file

or title (except for AUX)

When keys are pressed and held. (more than 0.8

seconds)

• FM/AM mode: automatically searches broadcast

frequencies

• Media (USB/iPod) mode: quickly looks up songs

(excluding AUX and Bluetooth audio files)

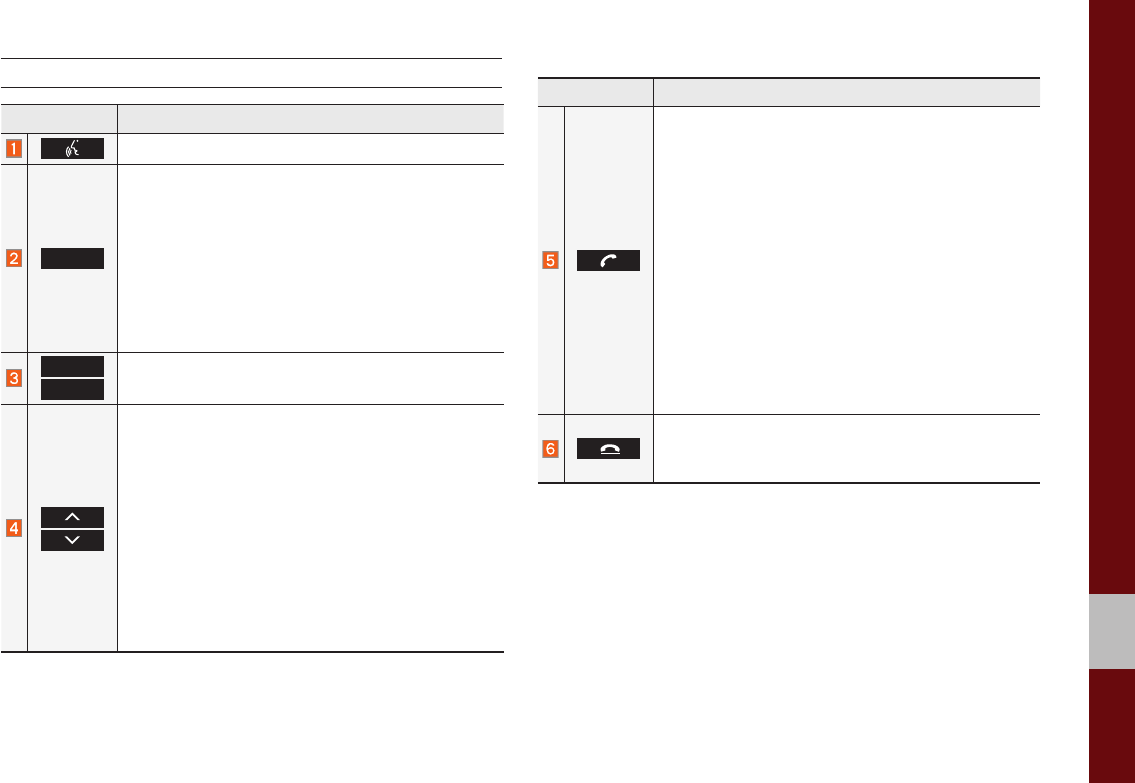

Steering Wheel Control

Name Description

When pressed quickly. (less than 0.8 seconds)

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen,

answers the call

• When pressed during call waiting, switches to

waiting call (Call Waiting)

When pressed and held. (more than 0.8 seconds)

• When pressed in Bluetooth

Hands-free, redials

the last dialed call

• When pressed during a Bluetooth

Hands-free

call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone,

switches call back to Bluetooth

Hands-free

(operates only when Bluetooth

Hands-free is

connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects

the call

※ The actual feature in the vehicle may differ from the illustration.

Starting the System for the First Time I 1-9

Starting the System for

the First Time

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

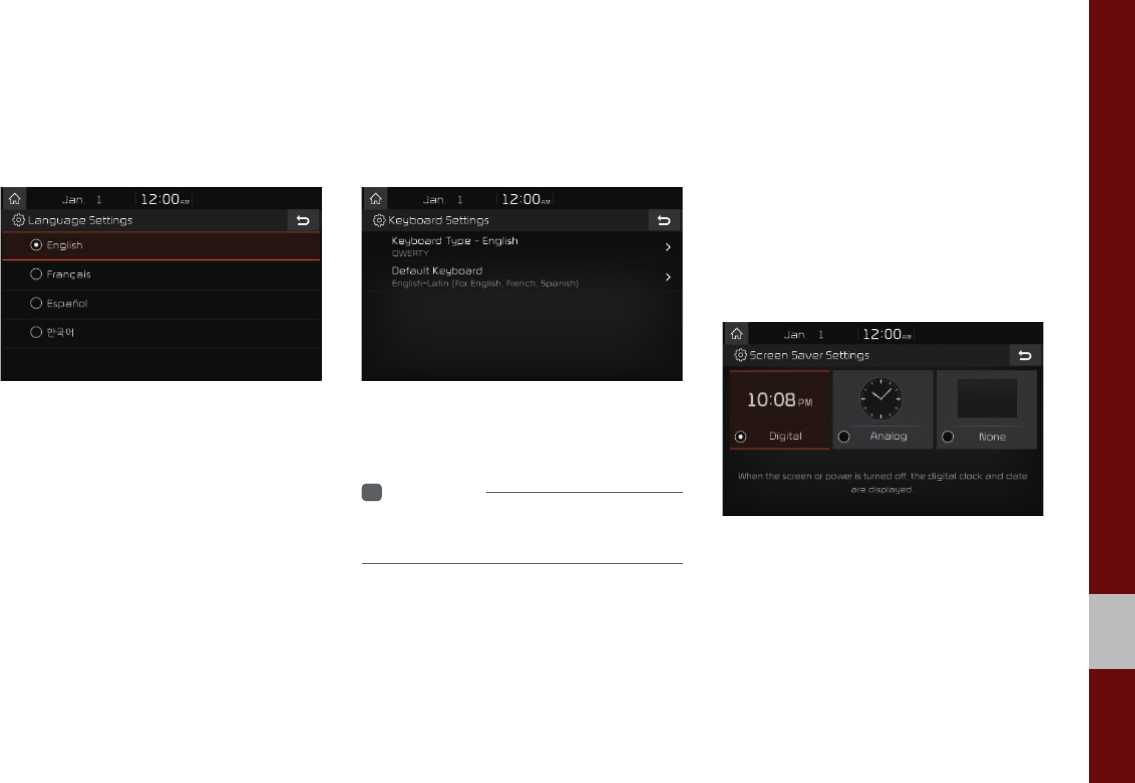

Pressing the power key on the head unit

will display the safety guide. To change the

system language between English,

French, Spanish and Korean press the

Language

button.

NOTICE

•Cannot operate the system while it is

booting up. It may take some time for all of

features of the system.

Pressing and holding the power key on the

head unit will turn off the system.

You can change Screen Saver Settings

in Setup to display a clock on the Screen

Saver.

Information

• If you turn off the system during a phone

call using the Hands-free feature, then the

call will automatically switch to your mobile

phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust

the volume to a reasonable level.

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the RESET key for a sec-

ond or longer. (It is recommended that you

press the RESET key using a tool, such as

a pin or a clip.)

1-10 I Basic

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become

completely discharged.

Restrictions on Features for

Safety Measures

Several features are limited while driving.

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

Starting the System for the First Time I 1-11

Home Screen

Controls Menu Conﬁ guration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

Features Description

Radio/

Media Widget

•Shows brief information on the radio or media

that is now playing.

•Tap the area to move to the mode that you are

listening to.

Connectivity

Widget

Shows any connected devices such as iPod and

Bluetooth.

All Menus Shows all of the items in the system menu.

My Menu

•You can add up to eight menus here.

• Add your favorite menus to have quick and

easy access to them.

Apps/Info Moves to the Apps/Info screen.

Setup Moves to the Setup screen.

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

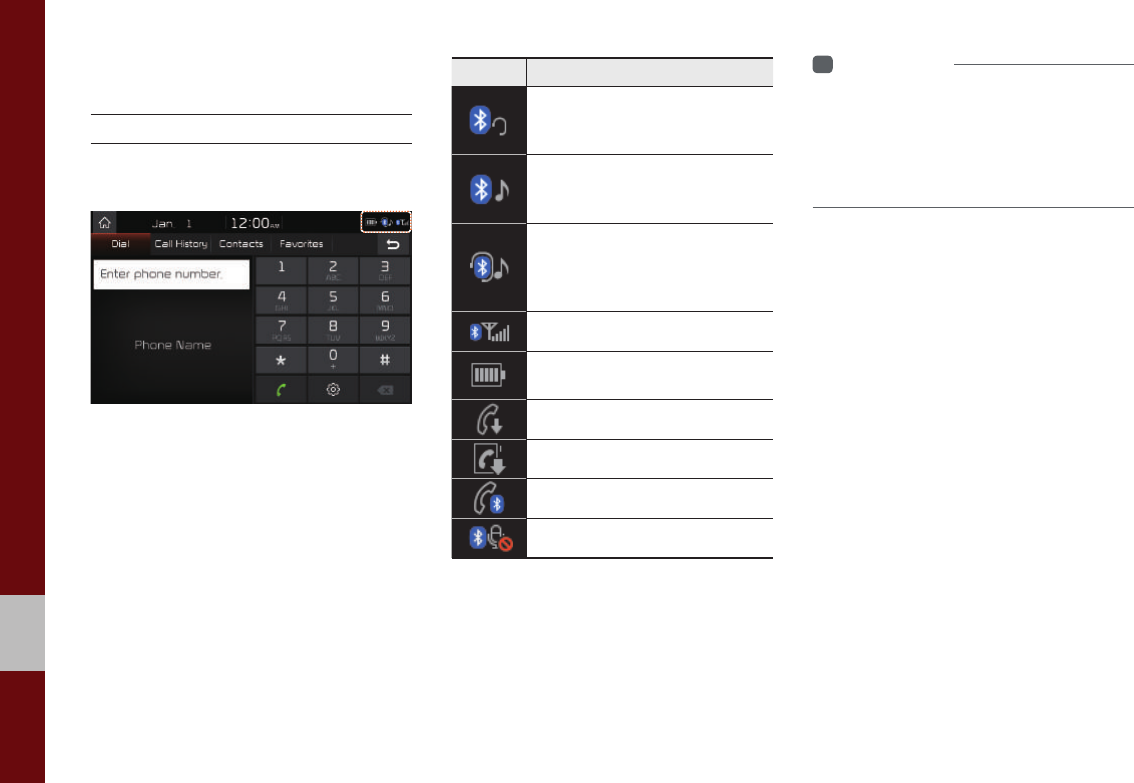

The icons in the following table indicate the various types of sys-

tem status details and events.

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth phone is muted.

Displays the signal strength of the Bluetooth phone.

1-12 I Basic

Adding Your Favorite Menu Items to My

From the Home screen, select

My Menu

and then

Edit

From the Edit My Menu screen, select

menu items from the list on the right, then

drag and drop them to a desired place on

the left.

To remove the item from My Menu, drag

item from the left and drop them on the

right.

Information

• Up to eight items can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

•The system will not recognize your touch if

you wear a glove or other non-conductive

material. Touch the screen using your

ﬁ nger, an electrostatic touch-screen glove,

or a stylus pen.

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

Starting the System for the First Time I 1-13

Drag the frequency bar to the left or right

to move to the frequency that you want.

From the Edit My Menu screen, drag and

drop icons to add, delete, or move to/from

My Menu.

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items

will display a handler on the right of the

display. You can easily move many items at

a time with the handler.

You can view the previous or next image

by flicking left/right on an image on the

USB Image screen.

Flick left/right on the frequency bar in the

radio player to look up the previous/next

frequency available.

1-14 I Basic

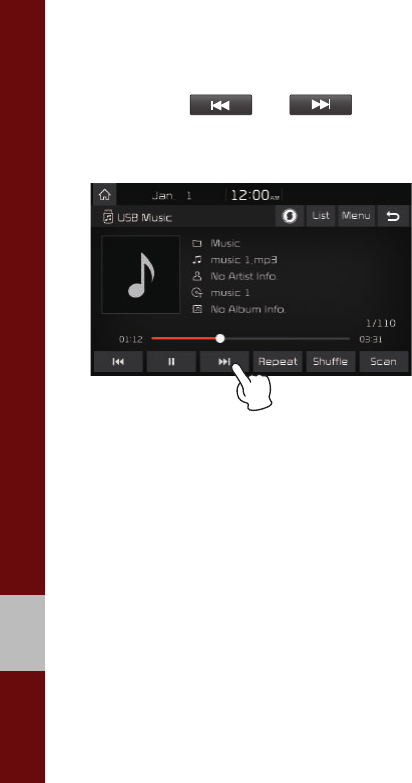

Press and Hold

Pressing the and buttons

in the music player will fast forward/rewind

the music.

FM/AM

USB

iPod

AUX

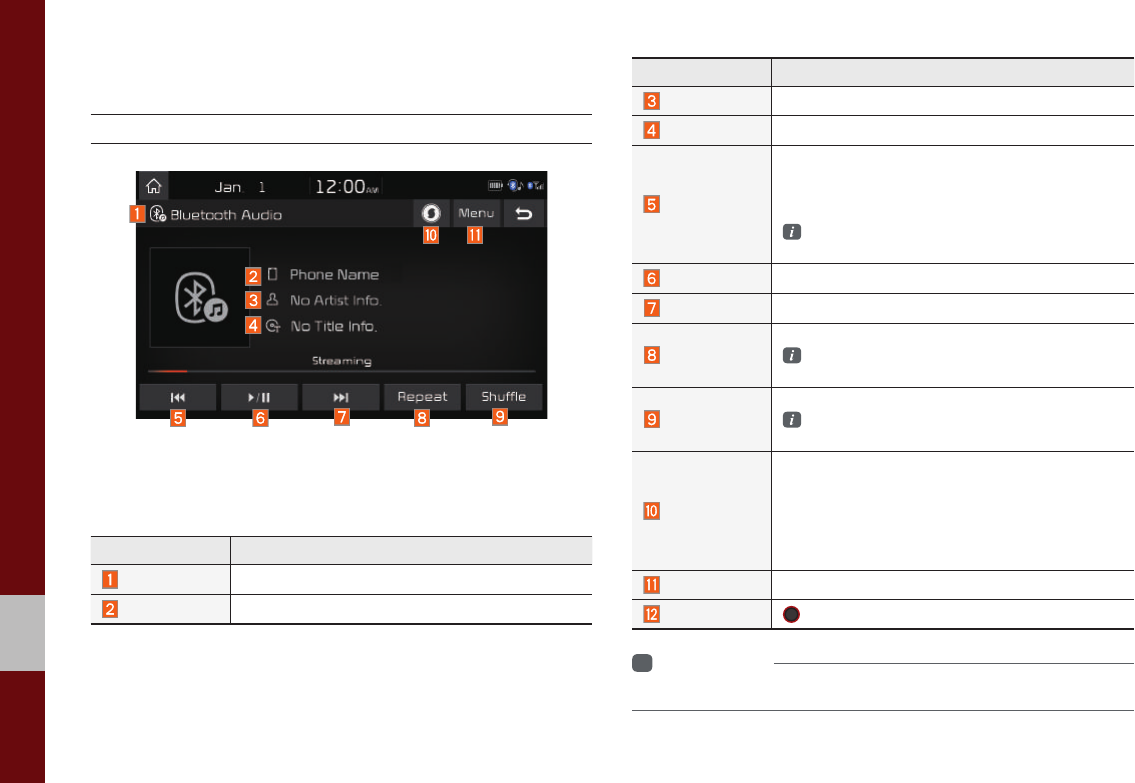

Bluetooth® Audio

part.2 Radio/Media

2-2 I Radio/Media

Radio/Media

FM/AM

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu from All Menus on the Home

screen.

FM/AM Mode Display Controls

Information

• If you press the

RADIO

key when the power is off, the power will turn

on and a radio broadcast will be tuned from the current mode.

• If you are in radio mode, select the media widget from the Home screen

to access the radio player.

Features Description

Preset

Frequencies

•The stored preset frequencies are displayed

for user selection.

• After selecting frequency, press and hold

the preset button for over 0.8 seconds.

A beep sound will be heard and the fre-

quency is to be stored in the selected pre-

set button.

• Flick the preset frequencies up/down to

scroll quickly through presets.

Frequency Bar

• Flick the frequency bar left/right to search

for available radio channels to the left or

right of the current channel.

•Dragging: Drag the frequency bar to the left/

right to find the radio channel that you want.

Frequency Displays the current frequency.

Presets Shows the stored presets for user selection.

• List

Moves to the frequency list.

• Preset

Scan

Plays preset frequencies for 10 seconds per

item.

• Sound Settings

Moves to the Sound Settings.

FM/AM I 2-3

Features Description

Scan/

Preset Scan

Displays an active mode from Scan and

Preset Scan modes.

Band Changes to the desired band from among FM

and AM.

Info Turns the Radio text information transmitted

from the broadcasting station on and off.

Scan Shortly plays the broadcasts for the frequencies

with superior reception for 5 seconds per item.

SEEK/TRACK

• Pressing this button briefly (less than 0.8 sec-

onds): Seeks the previous/next frequency.

• Pressing and holding this button (for more

than 0.8 seconds): Moves quickly through

all of the frequencies. The moment that you

release the button, the system seeks the next

available frequency.

TUNE

Turn the

TUNE

knob to manually seek avail-

able frequencies.

•FM: Increment/decrement by 200 kHz

•AM: Increment/decrement by 10 kHz

2-4 I Radio/Media

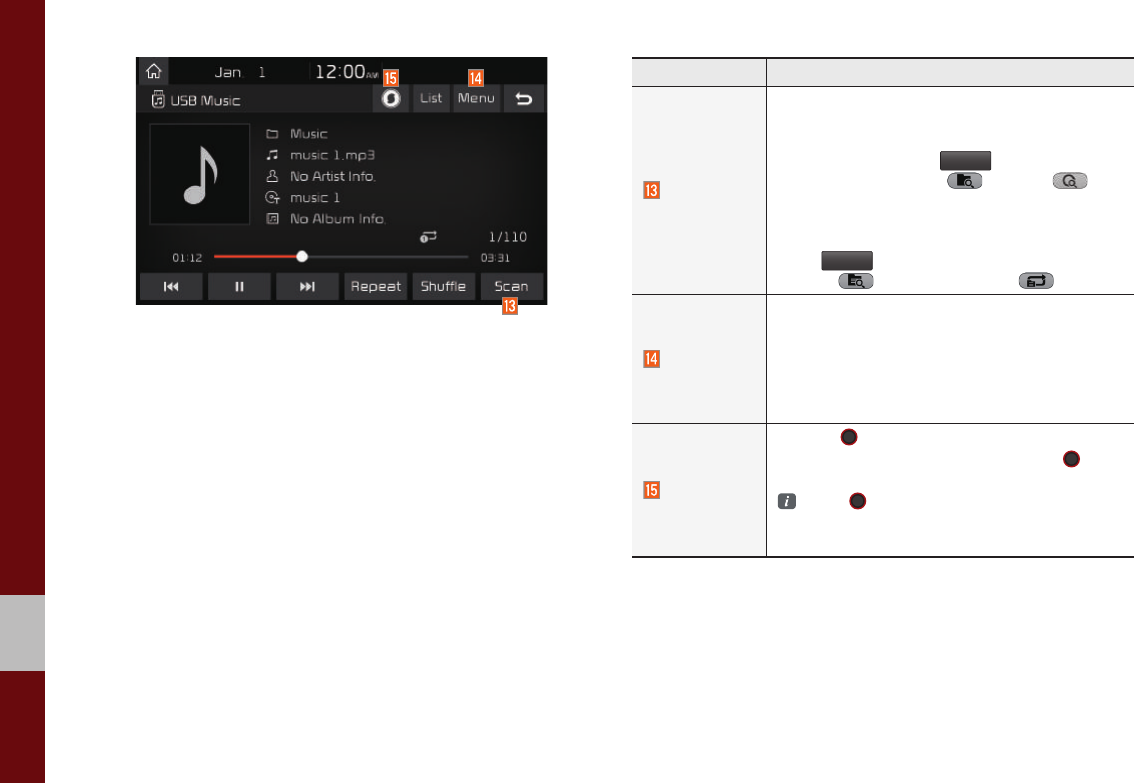

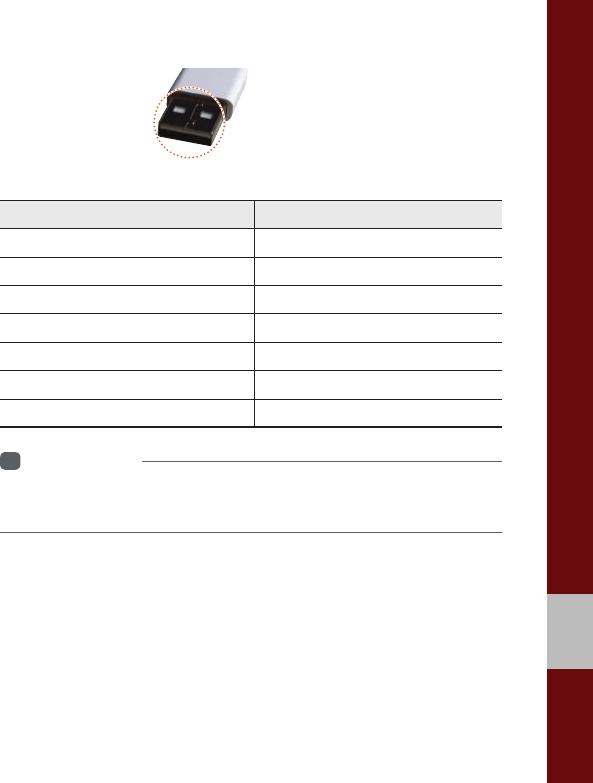

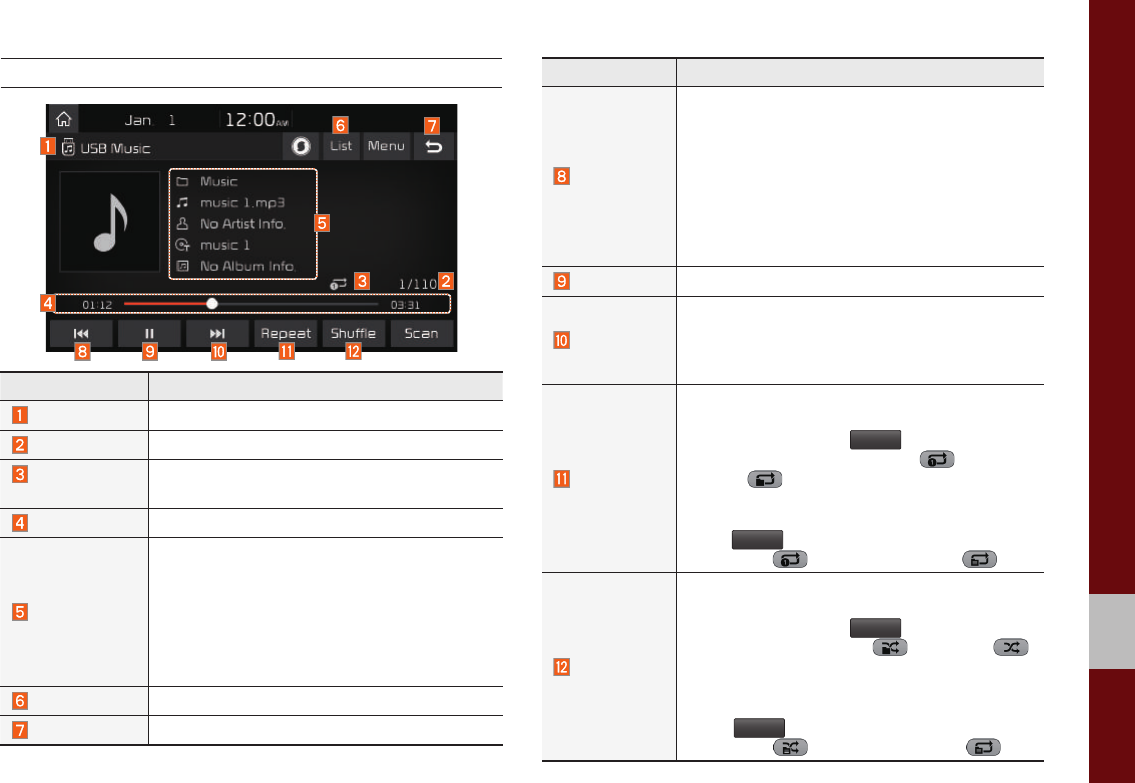

USB

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB

device may become damaged if it is already connected when the

ignition is turned on.

•Files that are not standard format music/image files will not be

played.

• For MP3/WMA/OGG files, only music files with compression

rates between 8Kbps ~ 320Kbps can be played.

•Heed caution to static electricity when connecting/disconnecting

external USB devices.

• Encoded MP3 Players will not be recognized when connected

as an external device.

•When connecting an external USB device, the device may not

properly recognize the USB is in some states.

•Only products formatted with byte/sectors under 64Kbyte will be

recognized.

•USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-

tem, are recommended. File systems other than FAT12, FA

T16,

FAT32, exFAT, and NTFS are not supported.

•Some USB devices may not be supported due to compatibility

issues.

•Take caution so that the USB connector does not come in con-

tact with body parts or objects.

•Repeated connecting/disconnecting of USB devices within short

periods of time may result in product malfunction.

•Make sure to connect/disconnect external USB devices with the

audio power turned off.

• The amount of time required to recognize the external USB

device may differ depending on the type, size, or file formats

stored on the USB.

•The use of USB devices for purposes other than playing music

and image files is prohibited.

•Do not use the USB I/F to charge batteries or USB accessories

that generate heat. Such acts may lead to worsened perfor-

mance or damage to the device.

• The device may not recognize the USB device if separately

purchased USB hubs and extension cables are being used.

Connect the USB directly with the multimedia terminal of the

vehicle.

• When using mass storage USB devices with separate logical

drives, only files saved to the root drive can be played.

•When application programs are installed to specific USBs, files

may not properly play.

USB I 2-5

• The device may not operate normally if MP3 Players, cellu-

lar phones, digital cameras, or other electronic devices (USB

devices not recognized as portable disk drives) are connected

with the device.

• Charging through the USB may not work for some mobile

devices.

• The device may not support normal operation when using a

USB memory type besides Metal Cover Type USB Memory.

•The device may not support normal operation when using for-

mats such as HDD Type, CF, or SD Memory.

• Upon playing iPods, please use a dedicated iPod car cable.

•Normal operations cannot be guaranteed when other cables are

being used.

•The device will not support files locked by DRM. (Digital Rights

Management)

• USB memory sticks used by connecting an Adaptor (SD Type or

CF Type) may not be properly recognized.

•Only use Plug type connector products, as shown in the figure

below.

• To play USB MP3, the USB device must be connected to the

USB port in the front multibox. The USB port in the center con-

sole storage (if equipped) is for charging only.

Product Name Manufacturer

XTICK LG

BMK BMK

echnology

SKY-DRV Sky Digital

TRANSCEND JetFlash Transcend

Sandisk Cruzer SanDisk

Micro ZyRUS ZyRUS

NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

Plug Type Connector

2-6 I Radio/Media

Supported USB MP3 music speciﬁ cations

Name Description

MP3 File

Specification Specification: MPEG1 AUDIO LAYER 3

Recommended

Bit Rates and

Sampling

Frequency

Acceptable sampling frequency: 32, 44.1, 48 (kHz)

Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112,

128, 160, 192, 224, 256, 320 (Kbps)

96, 128, 192 Kbps fixed bit rate/44.1kHz

ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,

ID3v2.4 ID3 tags

Detailed

Specifications

Maximum directory layers: 20 layers

Maximum length of folder name/file name: 255Bytes

Supported characters for folder name/file name:

Alphanumeric characters, Korean standard charac-

ter set 2,350 characters, Simplified Chinese 4888

characters

Maximum number of folders which can be stored

onto one USB: 2000 folders (including ROOT)

Maximum number of files which can be stored onto

one USB: 8000

Information

• The sound quality of MP3 files that use bitrates exceeding 192 Kbps

cannot be guaranteed. When using files without fixed bit rates, some

features (FF/REW features) may not properly operate.

USB I 2-7

USB Mode Display Controls

Features Description

Mode Displays current operating mode

File Index Shows the current file/total files within the USB

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the current

operating function

Play Time Displays the current play time/total play time

Song Info

Displays the information of the current track

• When a track in the file tab on the list screen

is selected: Displays folder, file, title, artist,

album info

• When a track in the other tabs on the list

screen is selected: Displays artist, title, album

info

List Moves to the list screen

Back Button Converts to basic mode screen

Features Description

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

• If play time is less than 3 seconds, moves to

previous file

• If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds): It

rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is pressed (less than 0.8 seconds):

Moves to the next file

•If button is pressed (more than 0.8 seconds): It

fast-forwards the track

Repeat

Repeats the current file

• If select the song in the file tab on the list

screen: Press the

Repeat

button to switch

between repeating one song , repeating

folder , and turning repeat off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Press

the

Repeat

button to switch between repeating

one song and turning repeat off

Shuffle

Plays files in random order

• If select the song in the file tab on the list

screen: Press the

Shuffle

button to switch

between Shuffle Folder , Shuffle All ,

and turning shuffle off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Press

the

Shuffle

button to switch between Shuffle

Category and turning shuffle off

2-8 I Radio/Media

Features Description

Scan

Scans the beginning parts of USB files (approx.

10 seconds per file)

• If select the song in the file tab on the list

screen: Press the

Scan

button to switch

between Scan Folder , Scan All , and

turning scan off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Press

the

Scan

button to switch between Scan cat-

egory and turning scan off

• Add to Playlist: Add the current track to the

Playlist: Playlist is placed on the left tab in the

list

•Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the

sound.

TUNE

Turn the

TUNE

knob to search a desired track.

If the desired track is displayed, press the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

USB I 2-9

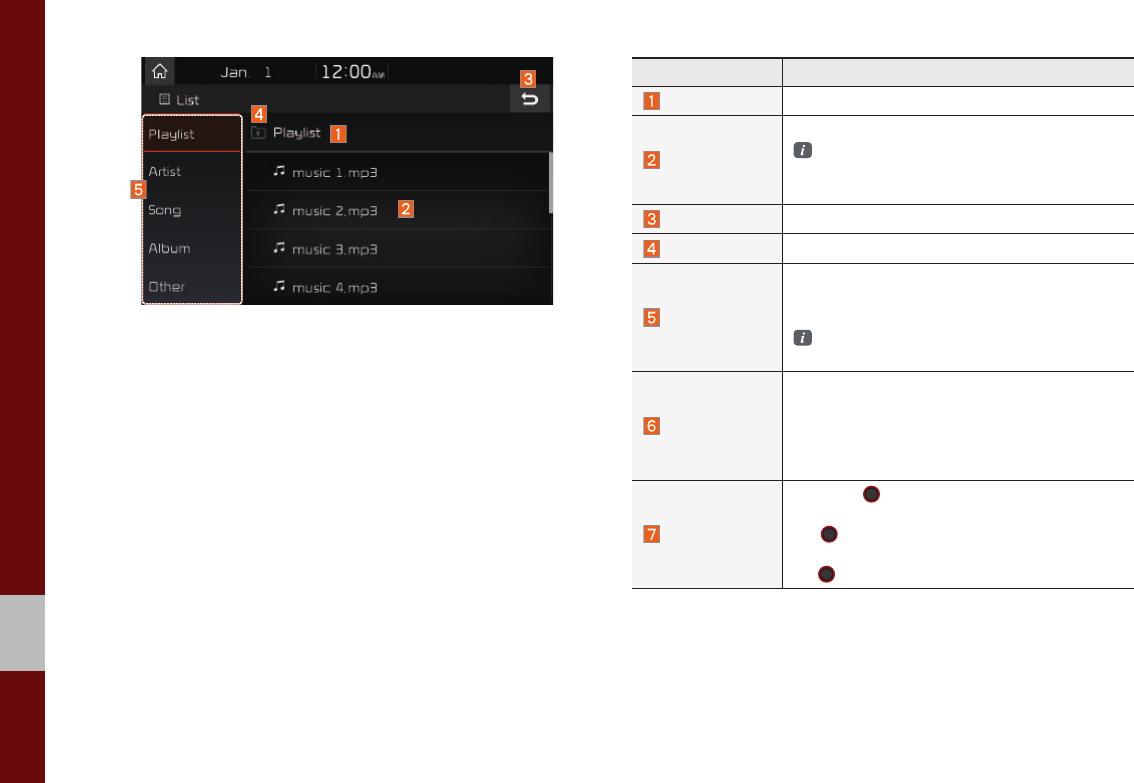

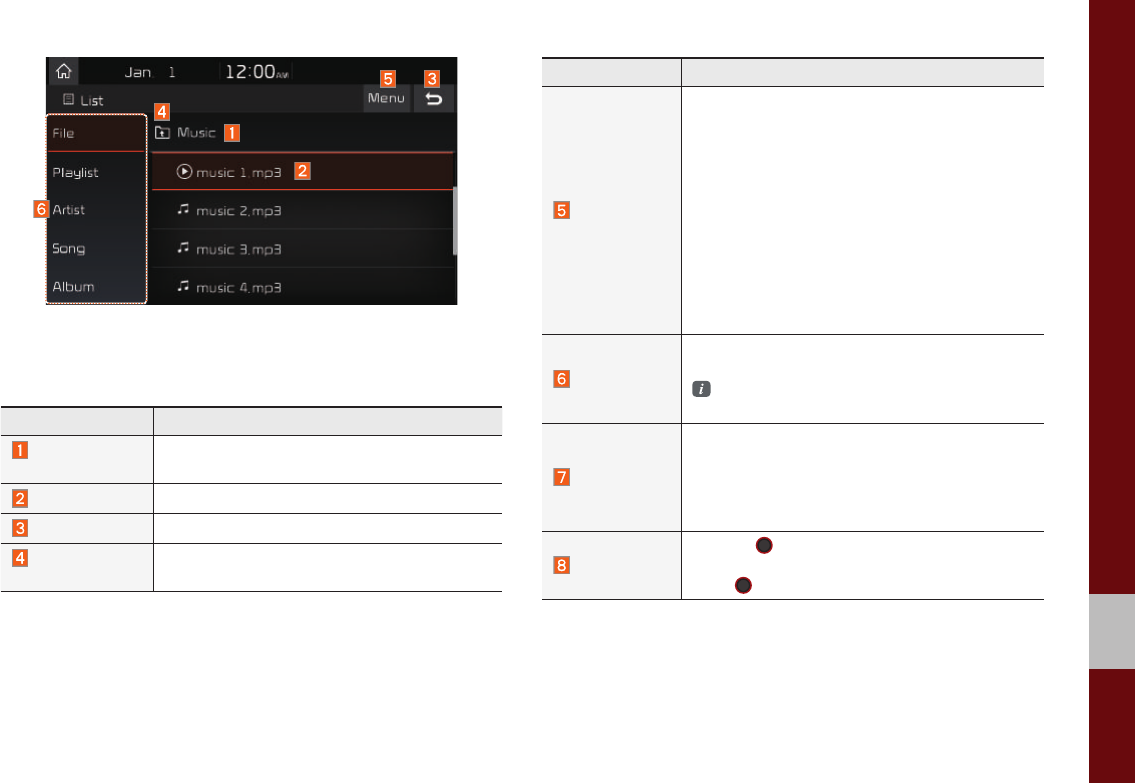

Features Description

Folder/

Category Name Displays folder/category name in the list

Current Song Displays current playing file name

Back Button Converts to basic mode screen

Upper Folder/

Category Moves to Upper Folder

Features Description

• Add to Playlist: Adds the current track to the

Playlist: Playlist is placed on the left tab in the

list (Maximum 100 files) Select a desired track

and press “Add to Playlist” to add the track in

the playlist.

• Delete from Playlist: Select a track you want to

delete from the playlist and press “Delete from

Playlist” to delete the track in the playlist

• Now Playing: When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when

the current list includes the current file)

Search Menu

Search tracks by the list type. Search songs

according to File, Playlist, Artist, Song and Album.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track.

• If button is pressed (more than 0.8 seconds):

Moves to play screen, and then it will rewind or

fast-forward the track.

TUNE

Turn the

TUNE

knob to move the focus to the

previous/next list. If the desired track is displayed,

press

TUNE

knob to play the track.

2-10 I Radio/Media

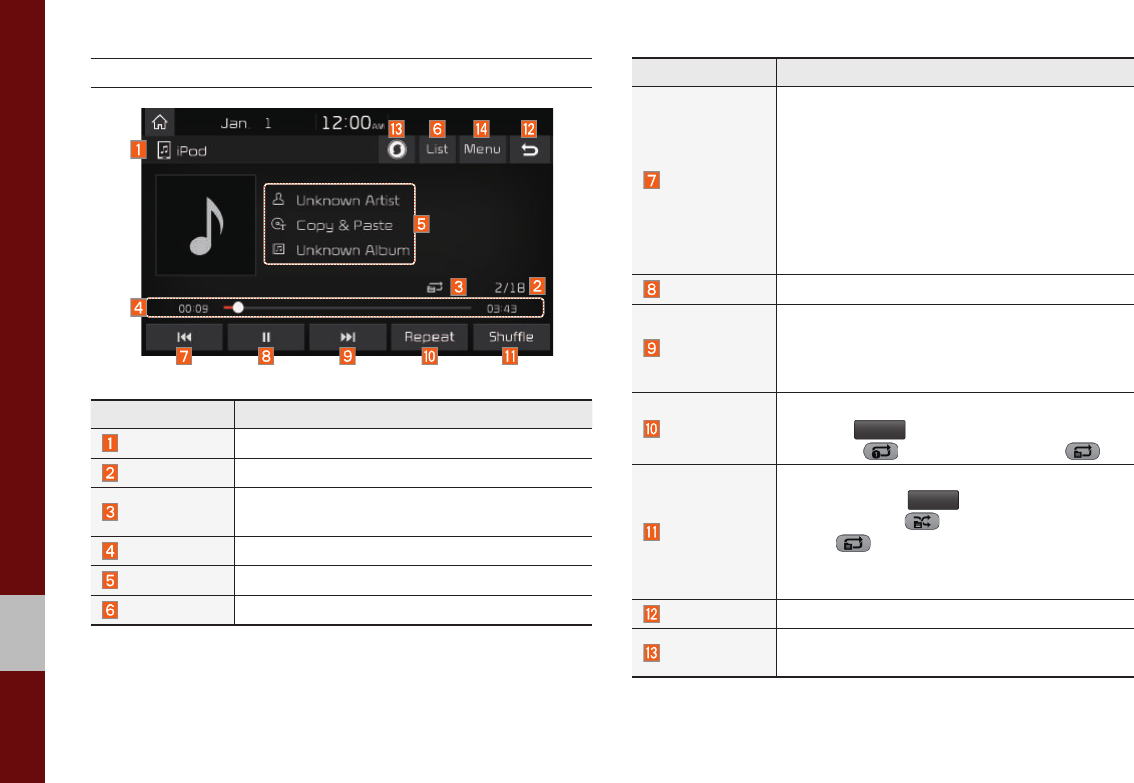

iPod

Using iPod Devices

• iPod is a registered trademark of Apple

Inc.

•iPod mode will not operate if the con-

nected iPod cannot be recognized due

to operation of unsupported versions

that do not support related protocols,

iPod abnormalities, or iPod device

defects. Some iPods with unsupported

communication protocols may not prop-

erly operate with the Multimedia system.

• For fifth generation iPod Nano devices,

the iPod may not be recognized when

the battery level is low. Please charge

the iPod for use.

• Search/play orders shown within the

iPod device may differ with the orders

shown within the Multimedia system.

•If the iPod malfunctions due to an iPod

device defect, reset the iPod and try

again. (To learn more, refer to your iPod

manual)

• If repeatedly connect and disconnect

iPod/iPhone to the Multimedia system

with USB cable in short time, it may

cause abnormal operation.

•The time for recognition of iPod/iPhone

may vary depending on device type,

firmware version and iOS version.

• For some iPod Touch and iPhone

devices, connecting Bluetooth® while the

iPod is operating may result in discon-

tinued iPod sound. When such devices

with Bluetooth® support are connected,

this problem occurs as the sound source

is changed from the Dock Connector

(USB connector cable) to Bluetooth.

• To prevent this symptom, Bluetooth

Audio function in the Multimedia system

is limited if iPod/iPhone is connected

to the system through both cable and

Bluetooth. To listen to the iPod sound,

use either iPod menu with USB connec-

tion or Bluetooth Audio with Bluetooth

connection.

• To listen to the iPod sound, reconnect

the USB cable or change the audio out-

put settings in iPod/iPhone to Dock.

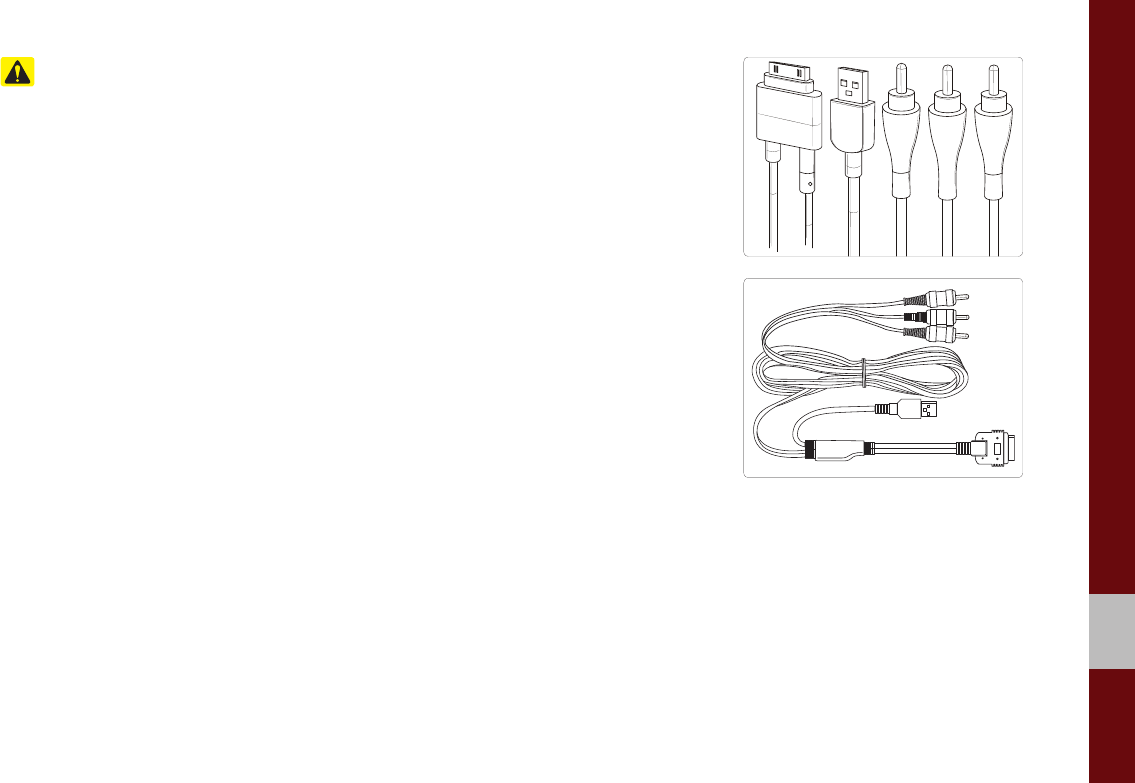

•In order to use the iPod while operating

the keys, you must use a dedicated iPod

cable. (the cable that is supplied when

purchasing iPod/ iPhone products)

※ During ACC ON state, connecting the

iPod through the iPod cable (The cable

that is supplied when purchasing iPod/

iPhone product.) will charge the iPod

through the head unit.

※ The use of genuine iPod cables sup-

The use of genuine iPod cables sup-

plied by Apple is recommended. (The

use of other products may result in

noise or abnormal operation.)

※

To play iPod music through cable con-

nection, the iPod/USB cable must be

connected to the USB port in the front

multibox. The USB port in the center

console storage (if equipped) is for

charging only.

iPod I 2-11

• When connecting with the iPod cable,

make sure to fully insert the jack to pre-

vent communication interference. If the

iPod is connected to the vehicle while it

is playing, a high pitch tone may sound

for about 1~2 seconds immediately after

connection. If possible, connect the iPod

to the vehicle with the iPod stopped/

paused.

• Within iPhones, streaming audio and

iPod control may occasionally conflict.

If problems persist, remove the iPhone

and connect again.

•When connecting to iPod Nano/Classic,

the Kia Motor logo appears on the Apple

device. For the iPod Nano 6 genera-

tion, however, the logo image does not

appear since it is not supported. Also, all

iPhone and iPod T

ouch products do not

support this function.

• In Apple’s iOS 6.0 version or later,

Podcast and Audiobook media files are

designed to be played with the Podcasts

and iBooks applications specifically

designed for Apple products. If the Apple

device does not provide the Podcast and

Audiobook lists, the playlist may not be

displayed and played in the iPod mode.

•If the Apple Podcasts and iBooks apps

are not installed on the Apple device, but

the Apple device provides the Podcast

and Audiobook lists, you can play files in

other categories in iPod mode.

• The screen of multimedia system can

be different when you run other music

players (e.g. iHeartRadio) on your con-

nected device.

2-12 I Radio/Media

Caution

• While using a connected iPhone/iPod

Touch device, it may not operate nor-

mally if the user changed some func-

tions in the device.

• When calling with an iPhone connec-

tion, song may stop playing due to an

Apple device feature. If sound does

not resume after the call is terminated,

check the device status.

• If lots of songs have the same informa-

tion, skipping may occur when previous/

next song is executed due to an Apple

device feature. Also problems may occur

depending on device type or iOS version.

•If lots of songs have the same informa-

tion, it may occur difference of playing

songs between the Multimedia system

and Apple device. Reset the device or

delete the same songs in the Apple

device using iTunes.

• If you control pause, repeat, shuffle, or

seek songs when the play time is when

the play time is less than 3s before fin-

ished playing, it may occur difference of

playing song between the Multimedia

system and Apple device. Access to

iPod music from another mode or pause

a song and then play a song again in

Apple device.

• We recommend that your Apple device

uses the latest firmware since some

problems may occur due to an outdated

firmware or other software related issues.

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPod Mini Not Supported

iPod Shuffle Not Supported

iPod Nano ○ ○ ○○○ ○Not

released ○

iPod Touch ○

(iOS 1.1 not

supported)

○ ○○○ Not released

iPad ○ (Unable to charge, Not verified, Normal working not guaranteed)

iPad Mini ○ (Unable to charge, Not verified, Normal working not guaranteed)

iPod Classic Not Supported ○

(iPod with

Video)

○

(iPod

Classic)

○

(iPod

Classic)

Not

released

Type 3G 3GS 4 4S 5 5C 5S 6 6+

iPhone

Not verified,

Normal

working not

guaranteed

○○○○○○○○

iPod I 2-13

Caution

• If the iPhone/iPod Touch supports

Bluetooth, it is unable to use Bluetooth

Audio if the Apple device that is con-

nected to the Multimedia system

through both USB connection and

Bluetooth. Disconnect the USB connec-

tion then use Bluetooth Audio.

• If iPod/iPhone connected to the

Multimedia system through both USB

and AUX. iPod/iPhone keeps output

sound via AUX, thus it may occur sound

will not output in iPod mode.

• If AUX cable connected to iPod/iPhone

but not connect to the Multimedia sys-

tem, it may occur sound will not output

in iPod mode due to iPod/iPhone’s fea-

ture. Especially, if you use AUX cable

like pictures, this problem may occur.

•Disconnect AUX cable from iPod/iPhone

first, then connect to the Multimedia

system via USB. Or change settings to

“Dock” in iPod/iPhone.

• If connect to the Multimedia system

while podcast or iTunes music down-

loading to iPod/iPhone, it may occur

some problems when you select song

in the list. Reconnect iPod/iPhone to the

Multimedia system when downloading

is finished or the file deleted.

• If connect to the Multimedia system

while sync, it may occur some problems.

Try to use iPod/iPhone connection after

sync complete. (To learn more, refer to

your iPod manual)

• iPhone and iPod Touch devices are

guaranteed to work normally on iOS

9.3.2 or below. However, they may not

work normally on future iOS versions

as their operations have not yet been

tested.

2-14 I Radio/Media

iPod Mode Display Controls

Features Description

Mode Displays current operating mode

Song Index Shows the current song/total songs

Repeat/Shuffle From Repeat/Shuffle, displays the current

operating function

Play Time Displays the current play time/total play time

Song Info Displays the artist/song title/album info

List Moves to the list screen

Features Description

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

•If play time is less than 3 seconds, moves to

previous file

•If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds): It

rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is pressed (less than 0.8 seconds):

Moves to the next file

•If button is pressed (more than 0.8 seconds):

It fast-forwards the track

Repeat

Repeats the current file

Press the

Repeat

button to switch between repeat-

ing 1 track , and turning repeat off

Shuffle

Plays files in random order

When pressing

Shuffle

button, it changes to

shuffle category → deactivate shuffle then

repeat

• Shuffle Category: Shuffle song in the current

category

Back Button Move to home/previous mode screen

Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the sound.

iPod I 2-15

Features Description

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

2-16 I Radio/Media

Features Description

Category Name Displays the category name

Category List

Displays the contents of selected category

If there are many items in the list, items

are added in order and the scroll bar on

the right is adjusted accordingly.

Back Button Converts to basic mode screen

Upper Folder Moves to Upper Folder

Search Menu

Search tracks by the list type. Search songs

according to Playlist, Artist, Song, Album,

Genre, Composer, Podcast and Audiobook.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track.

• If button is pressed (more than 0.8 seconds):

Moves to play screen, and then it will rewind

or fast-forward the track.

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If you do not anything with the knob for 5 seconds,

the

TUNE

knob search will be terminated.

AUX I 2-17

AUX

Connecting an External Device

If an external device connector is con-

nected with the AUX terminal, then AUX

mode will automatically operate. Once the

connector is disconnected, the previous

mode will be restored.

• AUX mode can be used only when an

external audio player has been con-

nected.

•The AUX volume can also be controlled

separately through the connected

device.

NOTICE

• If only a cable is connected to the AUX

without an external device, the mode will be

changed to AUX, but noise may occur. When

an external device is not being used, remove

the connector jack.

• When the external device power is connected

to the power jack, playing the external device

may output noise. In such cases, disconnect

the power connection before use.

2-18 I Radio/Media

Bluetooth

Audio

Bluetooth Audio Mode Display Controls

Features Description

Mode Displays the current operating mode

Phone Name Displays name of connected phone

Features Description

Artist Info Name of current artist

Title Name of current song

Previous File

•If play time is less than 3 seconds, moves to

the previous file

• If play time is over than 3 seconds, plays the

current file from the beginning

This function may differ depending on the

model of mobile phone

Play/Pause Plays/Pauses Bluetooth Audio

Next File Moves to the next file

Repeat

Repeats the current file.

This function may differ depending on the

model of mobile phone.

Shuffle

Plays files in random order.

This function may differ depending on the

model of mobile phone.

•Connections: Moves to the Bluetooth Settings

screen. You can pair a new device or change/

delete paired device(s).

•Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the

sound.

SEEK/TRACK Plays the previous/next file

TUNE

is not supported.

Information

•Artist info and Title may not be supported by mobile phone.

Bluetooth® Audio I 2-19

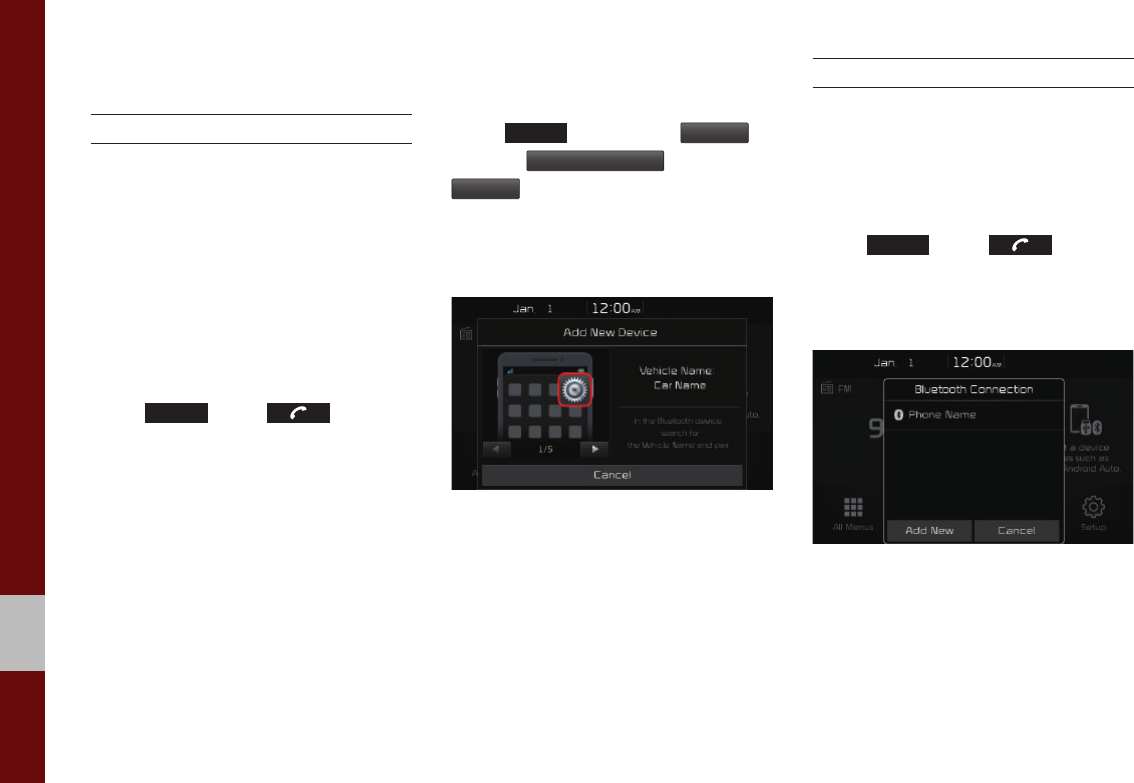

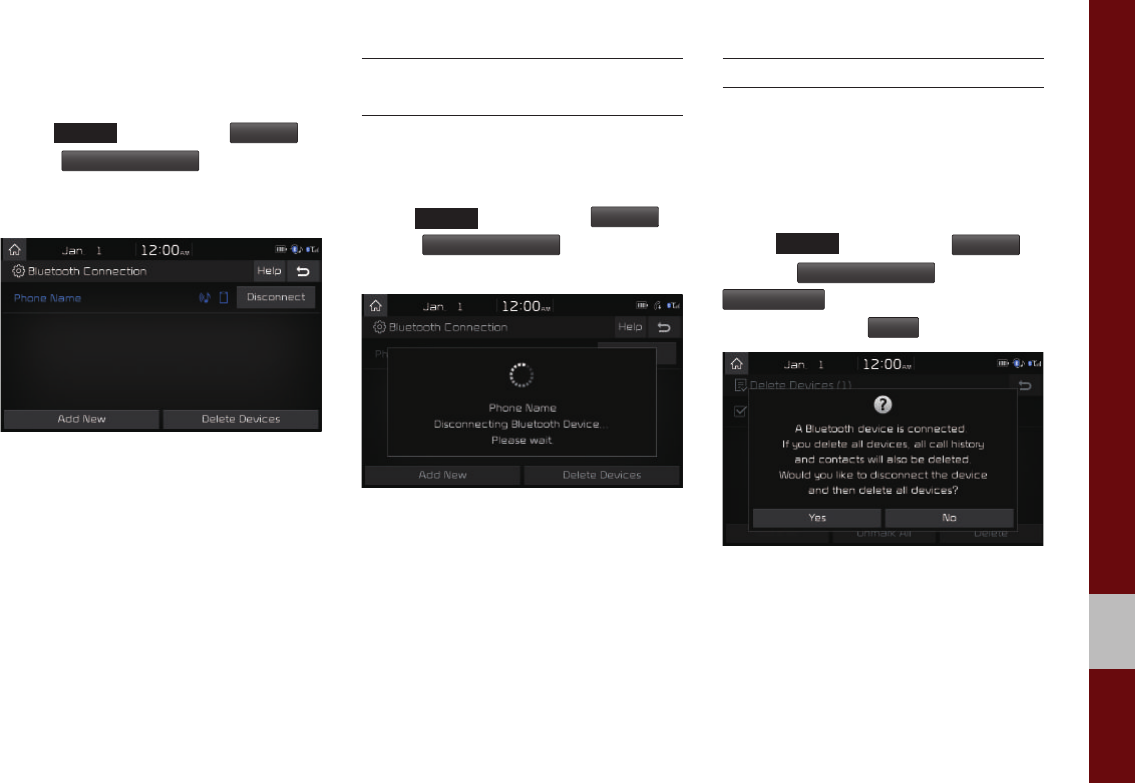

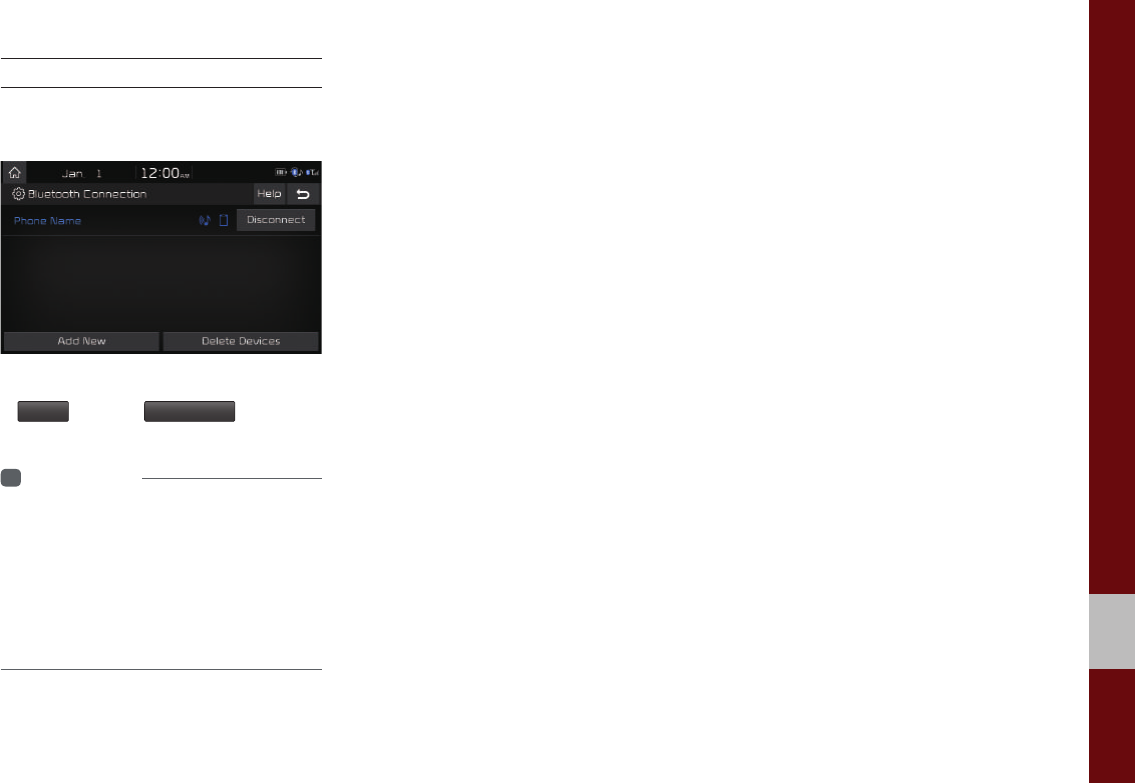

Bluetooth Connection Settings

Settings for pairing, connection and dis-

connection of a Bluetooth device.

• In Bluetooth Audio play screen, select

and then

Connections

Information

•If the music in the mobile phone is not

played after changing to audio streaming

mode, press the play button. Thus check if

the music is playing in the Bluetooth device

after changing to audio streaming mode.

Audio streaming may not be supported for

some mobile phones.

MEMO

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

part.3 Bluetooth

3-2 I Bluetooth

Before Using the

Bluetooth

Handsfree

What is

Bluetooth

Wireless Technology?

•

Bluetooth

® Wireless Technology refers

to a short-distance wireless networking

technology which uses a 2.45GHz fre-

quency to connect various devices within

a certain distance.

• Supported within PCs, external devices,

Bluetooth® phones, PDAs, various elec-

tronic devices, and automotive environ-

ments,

Bluetooth

® Wireless Technology

to be transmitted at high speeds without

having to use a connector cable.

• Bluetooth® Handsfree refers to a device

which allows the user to conveniently

make phone calls with Bluetooth®

mobile phones through the Multimedia

system.

•The

Bluetooth® Handsfree feature

may not be supported in some mobile

phones.

Precautions for Safe Driving

• Bluetooth® is a feature that enables driv-

ers to practice safe driving. Connecting

the head unit with a Bluetooth® phone

allows the user to conveniently make

calls, receive calls, and manage the

phonebook. Before using

Bluetooth

Wireless Technology, carefully read the

contents of this user’s manual.

•Excessive use or operations while driv-

ing may lead to negligent driving prac-

tices and be the cause of accidents. Do

not operate the device excessively while

driving.

•

Viewing the screen for prolonged peri-

ods of time is dangerous and may lead

to accidents. When driving, view the

screen only for short periods of time.

Bluetooth

Before Using the Bluetooth

Handsfree I 3-3

CAUTIONS upon Connecting

Bluetooth® Phone

• Before connecting the head unit with

the mobile phone, check to see that the

mobile phone supports Bluetooth® fea-

tures.

• Even if the phone supports

Bluetooth

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth® power is turned off.

Disable the hidden state or turn on the

Bluetooth® power prior to searching/

connecting with the head unit.

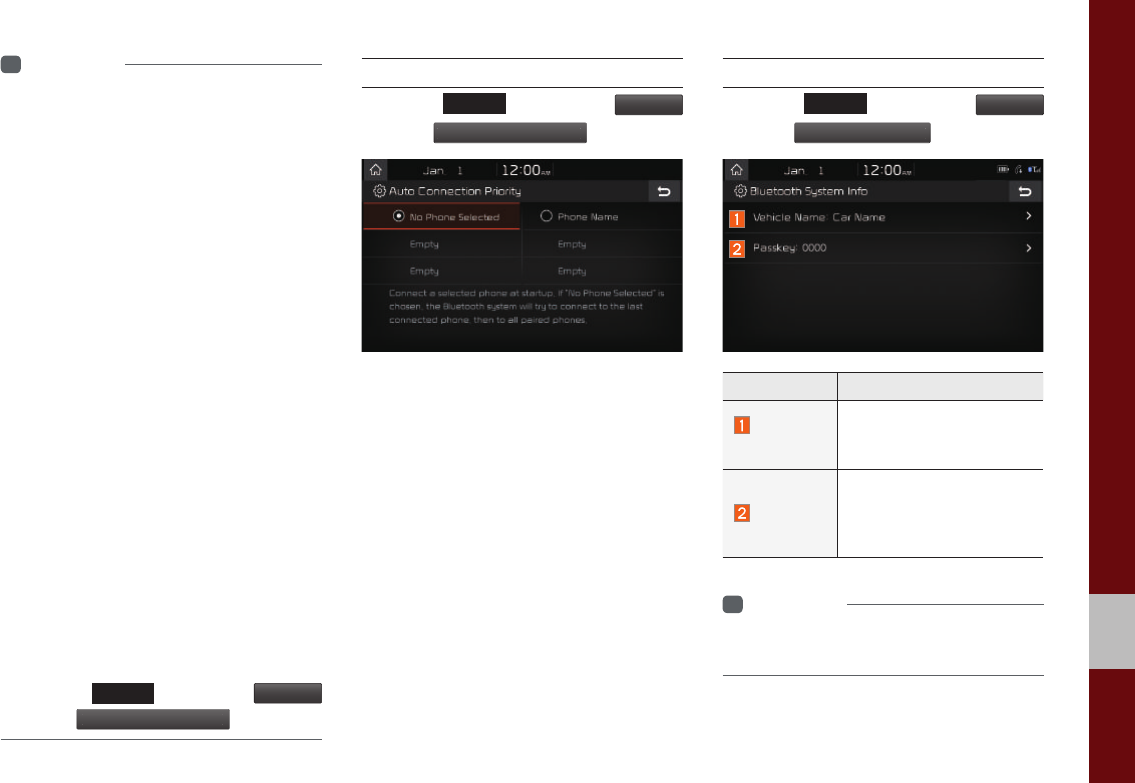

• If Auto Connection is used, the Bluetooth®

phone is automatically connected when

the ignition is turned on, making it unnec-

essary to have to connect the phone with

the head unit every time.

• If you do not want automatic connection

with your Bluetooth® device, turn the

Bluetooth® feature off of the Bluetooth®

device.

• Park the vehicle when connecting the

head unit with the mobile phone.

• Bluetooth® connection may become inter-

mittently disconnected in some mobile

phones. Follow these steps to try again.

1. Turn the Bluetooth® function within

the mobile phone OFF/ON and try

again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile

phone battery, reboot, and then

again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both

of Phone and Head Unit sides and

then try again

• The Handsfree call volume and quality

may differ depending on the mobile phone.

• Pairing Bluetooth® devices and use of

other Bluetooth® features are not sup-

ported when the vehicle is in motion. For

safety, please first park your vehicle.

• If you continue having issues with

downloading contacts, please check the

mobile phone status or inquire of the

mobile phone manufacturer.

3-4 I Bluetooth

Bluetooth Connection

Pairing a New Device

Before you can use the Bluetooth feature,

you must first pair/connect your mobile

phone to your car.

Up to 5 Bluetooth devices can be paired.

Only one Bluetooth device can be con-

nected at a time.

Pairing a New Device by Selecting

Phone/Call

Select

PHONE

key or key in the

steering wheel control. ▶ Pair your car

after your mobile phone detects the

Bluetooth device. ▶ Enter the passkey or

accept the authorization popup. ▶

Connect Bluetooth.

Pairing a New Device Through the

Phone Settings

Select

SETUP

key. ▶ Select

Bluetooth

. ▶

Select

Bluetooth Connection

. ▶ Select

Add New

. ▶ Pair your car after your mobile

phone detects the Bluetooth device. ▶

Enter the passkey or accept the authoriza-

tion popup. ▶ Connect Bluetooth.

The default passkey is 0000.

The vehicle name above is an example.

Check the actual information on the product.

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting

Phone/Call

Select

PHONE

key or key in the

steering wheel control. ▶ Select the name

of the device to connect. ▶ Connect

Bluetooth.

Bluetooth Connection I 3-5

Connecting Devices Through the

Phone Settings

Select

SETUP

key. ▶ Select

Bluetooth

. ▶

Select

Bluetooth Connection

. ▶ Select the

name of the device to connect. ▶ Connect

Bluetooth.

Disconnecting

Bluetooth Devices

Disconnects Bluetooth devices that are

connected.

Select

SETUP

key. ▶ Select

Bluetooth

. ▶

Select

Bluetooth Connection

. ▶ Select the

name of the device to disconnect.

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you

added. Note that deleting a Bluetooth

device will delete all Call History and

Contact Info downloaded along with it.

Select

SETUP

key. ▶ Select

Bluetooth

. ▶

Select

Bluetooth Connection

. ▶ Select

Delete Devices

. ▶ Select the device name

to delete. ▶ Select

Delete

3-6 I Bluetooth

Bluetooth Phone

Phone Status Icons

Shows the current phone status in the

right top of the display.

Icons Description

You can use Bluetooth phones

when a Bluetooth Hands-free

connection is established.

You can use Bluetooth audio

features when a Bluetooth

audio connection is established.

You can use Bluetooth phones

and audio features when both

Bluetooth Hands-free and audio

connections are established.

Call signal strength indicator

Battery level of the Bluetooth

devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Information

• The battery level icon and the call signal

strength indicator may not be supported in

some Bluetooth devices.

• The battery level may differ from the actual

level remaining.

Bluetooth Phone I 3-7

Dial

Dials a call after the Bluetooth devices

are connected.

•Select

PHONE

key or key in

the steering wheel control.

•You can also select

All Menus

▶

Phone

Name Description

Keypad

Use the keypad to enter

the phone number that

you want to call. Press

and hold the last number

of a speed dial to dial a

number that you added

to the Speed Dial list in

the phone

Call

Makes a call after you

dial a number and select

CALL. If the number is

listed in Dialed Calls, you

can select the number

and press CALL to auto-

matically dial that num-

ber again.

Settings Moves to a screen of

Phone Settings.

Delete Deletes the numbers that

you entered.

Information

• Some types of mobile phones may not

support the Speed Dial function.

Accept/Reject Call

If there is an incoming call after you

made a Bluetooth connection, a popup

message will appear.

Name Description

Accept Answers the call.

Reject Ignores the call.

Information

• In some mobile phones, the caller's number

may not be displayed, and the Reject feature

may not be supported.

3-8 I Bluetooth

Using the Menu During

a Phone Call

When making a call, you can use the fol-

lowing menu items.

Name Description

Use Private

Switches a voice call

from the car Hands-free

to the mobile phone.

End Ends a call.

Contacts Displays the Contacts

list.

Outgoing

Volume

Displays the Mic Volume

settings. You can adjust

the in-call volume that

the other party hears

(level 1 - 5).

Keypad Moves to a screen for

entering ARS numbers.

Switch

Switches to a call on

hold, if any. You can also

switch calls by select-

ing the number in the

Information Display. The

Switch function switches

the current call to a

waiting call in order to

answer a new incoming

call.

Information

• If the caller's number is listed in Contacts, the

caller's name will be displayed. Otherwise,

only the number will be displayed. In some

mobile phones, the phone number may not

be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as

Radio and Settings.

• Depending on handset types, the in-call

volume the other party hears may differ. If the

other party hears your voice too low or too

loud, adjust the mic volume.

Bluetooth Phone I 3-9

Call History

Select

PHONE

key, and then

Call History

Name Description

All Lists the all call history.

Dialed Lists the calls that you

made.

Received Lists the calls that you

have received.

Missed Lists the calls you

missed.

Call History

Displays all of your

call history. Select

from the list to dial the

number.

Download

Downloads the call his-

tory information from

your mobile phone.

Information

• In some mobile phones, call records may not

be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off on the

Bluetooth device, the call history download

will fail.

• Some devices require a device authentication

for downloading your call history. If download

fails, check if the Bluetooth settings or display

status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device

supports download feature.

3-10 I Bluetooth

Contacts

Select

PHONE

key, and then

Contacts

Name Description

Contacts List

The list of Contacts.

Select from the list to

dial the number.

Download Downloads contacts

from your mobile phone.

Search Searches Contacts.

Information

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth

device.

• You cannot edit or delete downloaded phone

numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain.

(Note that deleting a paired phone will also

delete all downloaded Contacts and Call

History data)

• Downloaded phone numbers may be lost

depending on the condition of the head unit.

Keep your important data in a safe place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same

time by default.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on

your Bluetooth device.

• Some devices require a device authentication

for downloading your contacts. If download

fails,check your phone screen and conﬁ rm the

download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth

device supports contacts download.

Bluetooth Phone I 3-11

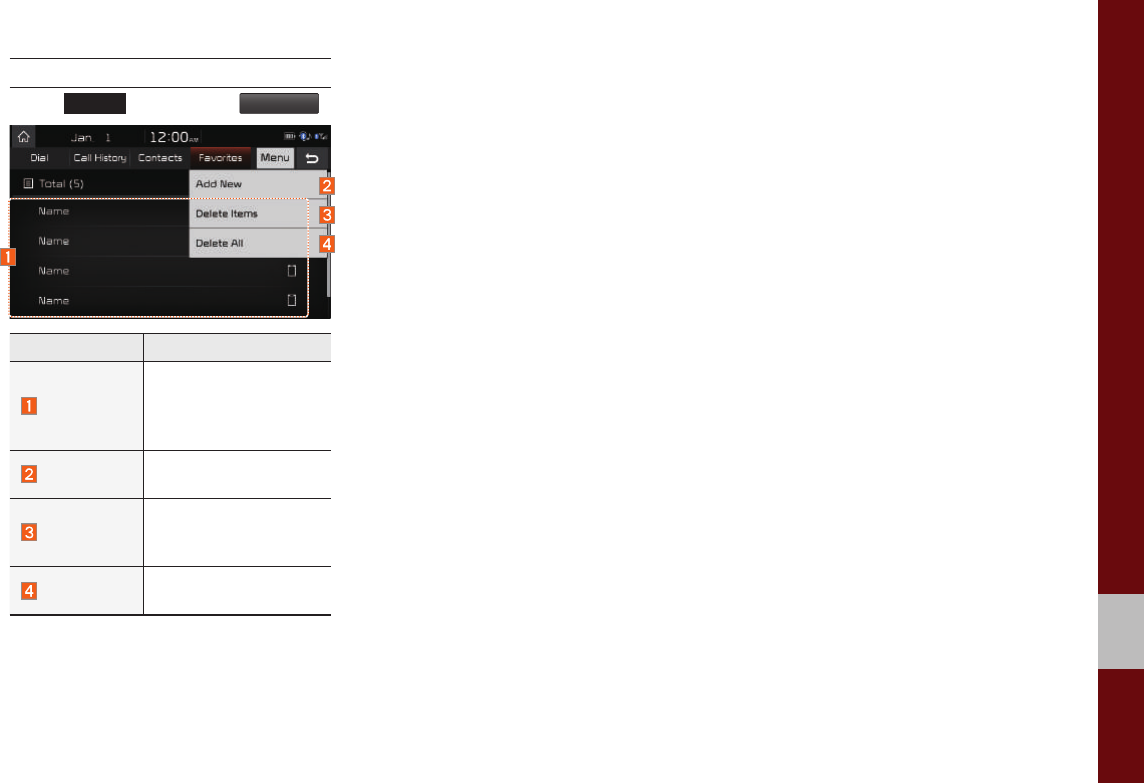

Favorites

Select

PHONE

key, and then

Favorites

Name Description

Favorites

Lists the phone num-

bers saved as Favorites.

Select from the list to

dial the number.

Add New Adds a new number to

Favorites.

Delete Items

Deletes numbers

that you select from

Favorites.

Delete All Deletes all of the num-

bers from Favorites.

MEMO

Siri Eyes Free

Camera

part.4 Other Features

4-2 I Other Features

Other Features

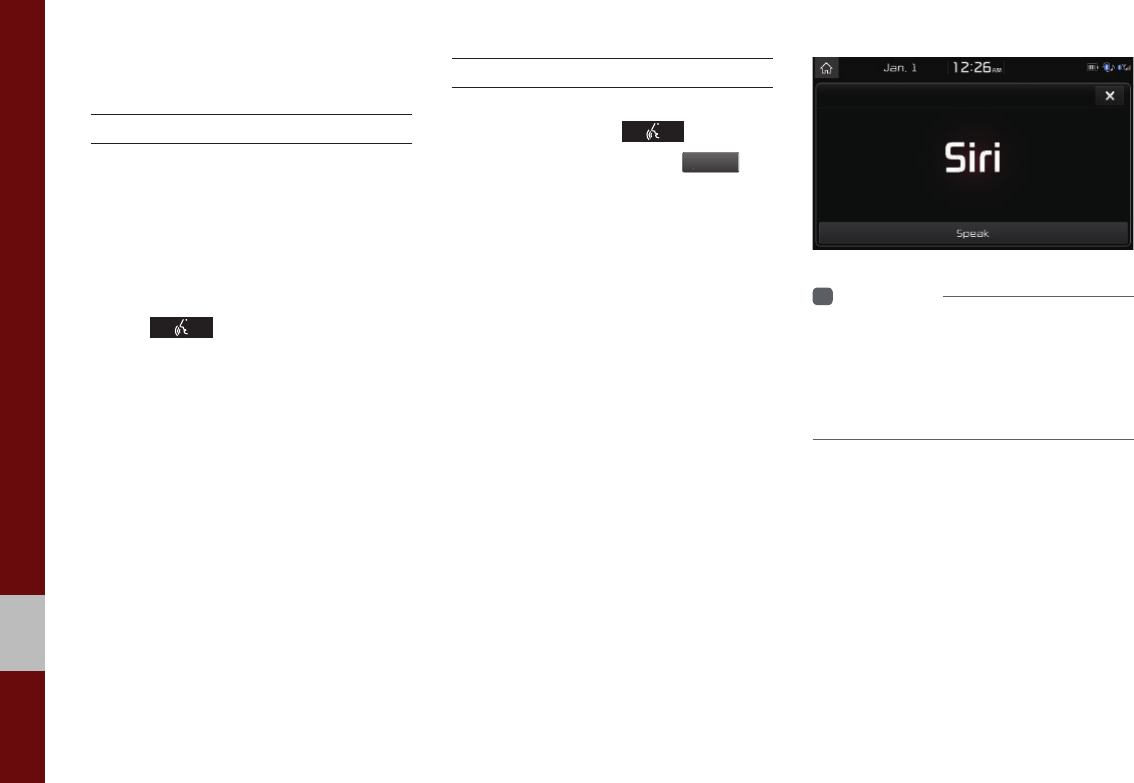

Siri Eyes Free

How to start Siri

If you want to use Siri, you have to con-

nect your iOS device to Multimedia system

through Bluetooth.

(Please check whether your iOS device

supports Siri and turning Siri On)

Then you can use Siri while pressing and

holding key on the steering wheel.

How to use Siri

When you access the Siri screen while

pressing and holding key on the

steering wheel, you can press

pea

but-

ton and then you can speak what you

want. Please see the Multimedia system

only supports “Phone” related functions.

Other functions will be performed in your

iOS device. If you press voice key quickly,

Siri would re-start. If you hold down voice

key, Siri would be terminated and the

screen would go back to the previous

screen. Eyes-Free mode would be acti-

vated automatically while you are driving.

When shifting gears into P or putting the

Parking brake on, Eyes-Free mode would

be deactivated automatically.

Information

• Functions and feedbacks from voice

commands via Siri are executed in iOS

device. If iOS version changed, functions and

feedbacks can be changed according to iOS

device.

Camera I 4-3

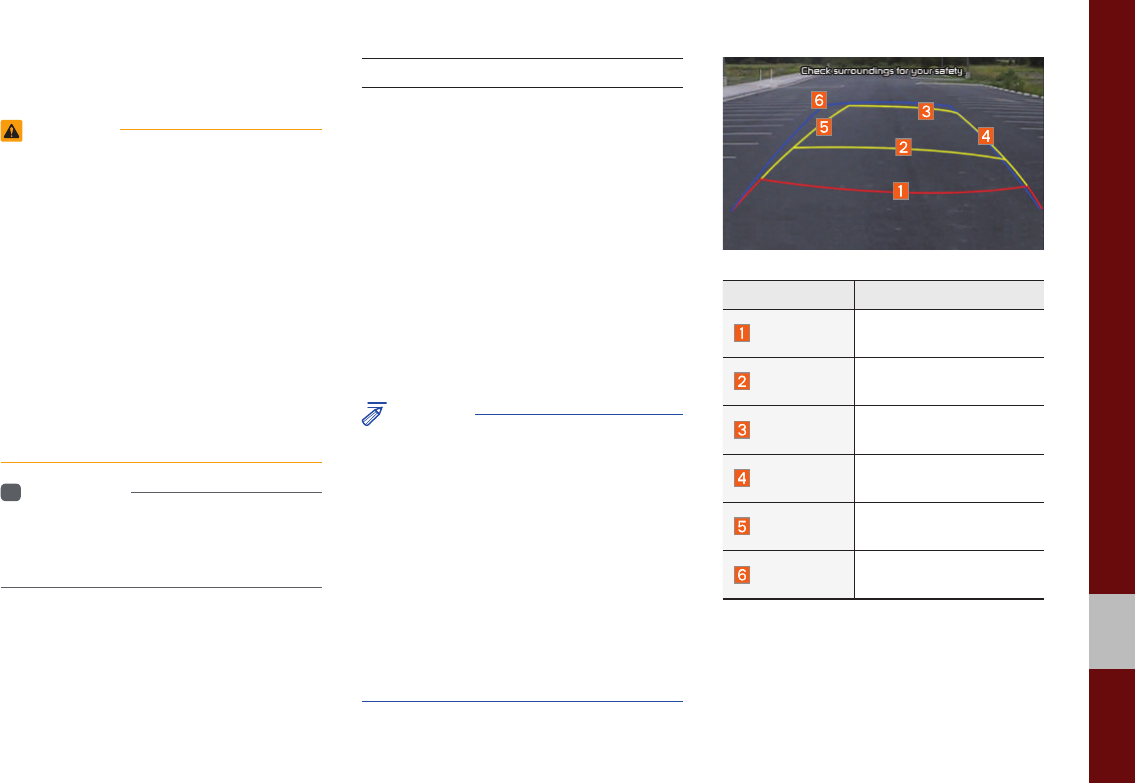

Camera

WARNING

- Backing Up & Using Camera

•Never rely solely on the rear view camera

when backing up. Prior to entering your

vehicle always do a visual check of the area

behind your vehicle, and before backing up

be aware of your surroundings and supple-

ment the rear view camera by looking over

your shoulders and checking your rear view

mirrors. Due to the difficulty of ensuring that

the area behind you remains clear, always

back up slowly and stop immediately if you

even suspect that a person, and especially

a child, might be behind you.

Information

• A separate chipset is used for the camera

screen while booting up, so it may be different

after booting up.

Steering-linked camera

• This device is connected to a rear

detection camera to see behind the car

for safe reversing.

• The Rear View Camera turns on auto-

matically if you shift the gear to R when

the power is on or the engine has started.

•While the device boots up, shift the gear

to "R" to activate the rear detection cam-

eras. Shift the gear to another position to

deactivate the rear detection camera.

NOTICE

•A wide-angle lens is installed as the rear

detection camera to get a wider view, so

there may be some difference between

the actual distance and the distance that

appears. on-screen. For safety, make sure

to view the back, right, and left sides of the

car for yourself.

•The color of the parking guidelines

displayed in the picture may differ from the

actual screen.

• When booted up, blinking may occur when

you switch to a UI screen.

Name Description

Red Line About 0.5 m from the

rear bumper

Yellow Line 1 About 1 m from the rear

bumper

Yellow Line 2 About 3 m from the rear

bumper

Yellow Line 3 Trajectory of the wheel

on the driver’s side

Yellow Line 4 Trajectory of the wheel

on the passenger side

Blue Line Neutral steering trajec-

tory

As you reverse your car and monitor the

area behind your car, the steering-linked

driving trajectory and the neutral driving

trajectory are both displayed.

MEMO

Setup

Sound Settings

Display Settings

Bluetooth Settings

Clock Settings

Language Settings

Keyboard Settings

Screen Saver Settings

System Info

part.5 Setup

5-2 I Setup

Setup

Setup is the screen to control Audio sys-

tem settings.

To enter the screen, select the

SETUP

key or the

Setu

icon in All Menus.

Features Description

Sound

Provides the sound con-

trol options for Position,

Bass, Mid, Treble, Volume

and Advanced settings.

Display Provides the Mode/

Illumination settings.

Bluetooth

Provides the Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information settings.

Connectivity

For more details, refer

to Connectivity guide.

Home

Screen

Provides the function

to customize the three

menu items at the bot-

tom of the Home Screen.

Features Description

Clock Provides the Time and

View settings.

Language Provides the Change

Language settings.

Keyboard

Provides settings to

switch keyboard layouts.

Screen

Saver

Provides the Clock/

None settings.

System Info

Provides software and

storage space informa-

tion.

Display Off

Provides the Display Off

(touch activation) func-

tion.

Setup I 5-3

Sound Settings

Adjusts the sound effects for the whole

system.

Features Description

Position

Select the Up/Down/Left/

Right button to control

sound positioning.

Press

to concen-

trate the sound on the

center of vehicle.

Tone

Drag the slide bar to

control bass/mid/treble

settings.

Press

to initialize

the settings.

Features Description

Advanced

Select additional audio

options such as “Speed

Dependent Volume

Control” that automatically

controls Audio volume

according to vehicle

speed.

Default Resets the sound to fac-

tory default settings.

Beep Select to activate a beep

when pressing buttons.

Information

• Advanced sound settings may differ according

to selected AMP option.

• The seat shape may differ according to

vehicle model.

Display Settings

Adjusts the level of illumination for the

entire system.

Features Description

Mode

Select any of LCD illumi-

nation change modes:

Automatic (changes

the level automatically),

Daylight, and Night.

Illumination

Set the levels of illumina-

tion for day and night.

Press

to initialize

the settings.

Default Resets the display to fac-

tory default settings

Display Off Provides the Display Off

(touch activation) function.

5-4 I Setup

Bluetooth Settings

Changes Bluetooth phone settings.

Bluetooth Settings

Select the

SETUP

key ▶ Select

Bluetooth

Bluetooth Connection Settings

Select the

SETUP

key ▶ Select

Bluetooth

▶Select

th C

nnecti

Features Description

Paired Device

List

Displays the paired

Bluetooth device list.

When selecting from

the list, the device is

connected or discon-

nected.

Bluetooth

Audio

Connection

Status

An icon appears

when you make a

Bluetooth Audio con-

nection.

Bluetooth

Hands-Free

Connection

Status

An icon appears

when you make a

Bluetooth Hands-free

connection.

Add New Register a new

Bluetooth device.

Delete Devices Select and delete a

paired device.

Help

Switches to the

Bluetooth Connection

Help screen.

Setup I 5-5

Information

• Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be connected

at a time.

• During a Bluetooth device connection, another

device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit

are also deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio, will

function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly

disconnected, due to being out of

communication range, the device powering

off, or a Bluetooth communication error, the

Bluetooth device automatically searches for

and connects to nearby Bluetooth devices.

• If the system is not stable, due to a vehicle-

Bluetooth device communication error, restore

the Default Factory Settings.

• For Default Factory Settings, the bluetooth

settings are reset to factory settings.

• Select the

SETUP

key ▶ Select

Bluetooth

▶Select

ory

tti

Auto Connection Priority

Select the

SETUP

key ▶ Select

Bluetooth

▶ Select

Auto Connection Priorit

When the engine is running, the selected

Bluetooth device is automatically con-

nected. If you fail to connect the selected

device, the previously-connected device is

automatically connected, and if it also fails,

then it tries to connect all paired devices

sequentially.

Depending on auto connection priority,

connection to a device may take time.

Bluetooth System Information

Select the

SETUP

key ▶ Select

Bluetooth

▶ Select

luetooth S

stem Inf

Features Description

Vehicle

Name

You can change the

Bluetooth device name of

the vehicle.

Passkey

You can change the pass-

key used for Bluetooth

device authentication. the

initial passkey is 0000.

Information

• The vehicle name above is an example.

Check the actual information on the product.

5-6 I Setup

Default Factory Settings

You can delete all paired devices and

restore the Default Bluetooth Settings. For

Default Factory Settings, all paired devices

are deleted, and the system is reset to

factory settings.

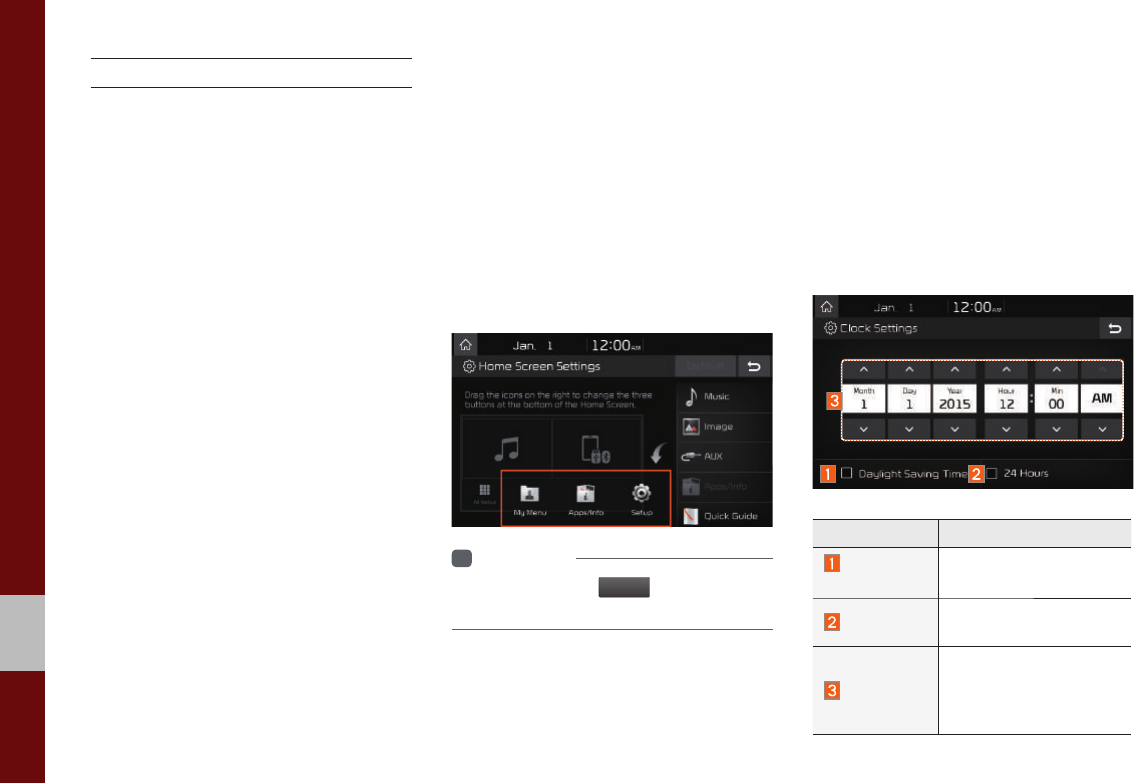

Home Screen Settings

You can customize the three menu items

at the bottom right of the Home Screen

into the ones you want.

On the Home Screen Settings screen,

drag the menu items on the right to the

area marked in blue in the screen below.

Information

• You can press the

Defaul

button to reset to

the factory default settings.

Clock Settings

Configure the settings for time and date.

Using the arrow buttons, you can change

the values. Clock settings do not automat-

ically change when crossing into different

time zones. The time must be changed

manually on this screen.

Features Description

Daylight

Saving Time

The daylight saving time

(DST) is applied.

24 Hours The time display is set in

24-hour format.

Direct entry

If you tap any value, you

can directly enter the

number in the following

screen.

Setup I 5-7

Language Settings

You can configure the displayed system

language.

When the language is changed, the sys-

tem language is automatically changed.

Unique data including MP3 file name is

not changed.

Keyboard Settings

You can configure the keyboard layout for

each language.

You can configure ABCD or QWERTY

keyboards for the system.

Information

• Configured keyboard layouts are applied

to all input modes.

Screen Saver Settings

You can select any of the following screen

formats to be displayed when the screen

or power is turned off (Press and hold the

Power button).

• Digital clock and date

• Analog clock and date

• None

5-8 I Setup

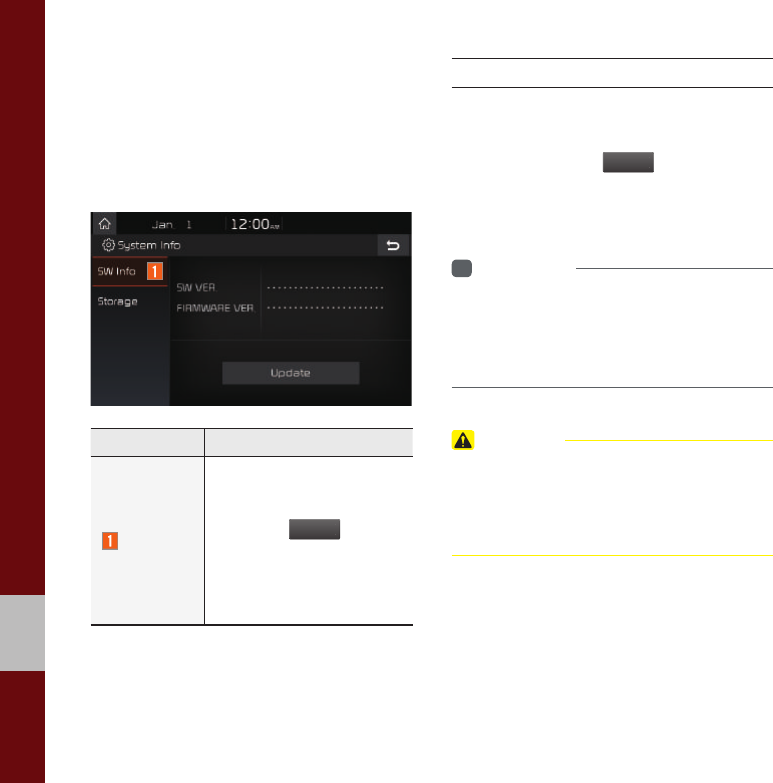

System Info

At the System Info screen, software ver-

sion information, updates, and storage

status details are available.

Features Description

SW Info

System version informa-

tion and update details are

available.

Select the

Upd

button

to update the system. After

update is complete, the

system will reboot auto-

matically.

System Update

At the System Info screen, insert the USB

memory with the latest file downloaded,

and then select the

button to begin

updating. The system will then reboot

automatically.

Information

•This product needs supplemented software

updates and additional functions, which

collectively may take some time to complete,

depending on the amount of data.

CAUTION

• If the power is disconnected or the USB is

removed during an update, the data might be

damaged. Please do not turn off the vehicle

while an update is in progress.

Product Specification

roubleshooting

FAQ

part.6 Appendix

6-2 I Appendix

Product Specification

TFT-LCD

Screen Size 7 inch(152.4 X 91.44 mm)

Resolution 384000 pixels (Resolution: 800 x 480)

Operating

Method TFT(Thin Film Transistor) Active Matrix

Viewing Angle Left/Right, Top/Bottom: ALL 89°

Internal Lighting LED

Radio

Channels FM: 87.5 MHz ~ 107.9 MHz(Step: 200 kHz)

AM: 530 kHz ~ 1710 kHz(Step: 10 kHz)

Sensitivity FM: Under 10 dBu/AM: Under 35 dBu

Distortion Factor Within 2 %

Common

Name Car TFT LCD Display Audio Unit

Power Supply DC 14.4 V Operating

Power DC 9 V ~ DC 16 V

Current

Consumption 2.5 A Sleep

Current

1 mA

(Head Unit Only)

Operating

Temperature

-20 ~ +70 °C

(-4 ~ +158 °F)

Storage

Temperature

-30 ~ +80 °C

(-22 ~ +176 °F)

Dimensions 178 X 139.2 X 89 mm (Main BOX)

Weight 1.8 kg

Appendix

Appendix I 6-3

Bluetooth

® Wireless Technology

Frequency

Range 2402 ~ 2480 MHz

Supported

Bluetooth

Specification

4.1

Supported

Profile Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)

Output

Number of

Channels 79 channels

CAUTION

• The producer and installer cannot provide services related to

life safety as the concerned radio equipment is liable to radio

interference.

6-4 I Appendix

Troubleshooting

1. Errors which occur during the operation or installation of the

device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Kia dealer.

Problem Possible Cause

There are small red,

blue, or green dots on

the screen

• Because the LCD is manufactured with

technology requiring high point density,

a pixel or lighting deficiency may occur

within 0.01% of total pixels

The sound or image is

not working

• Has the Switch for the vehicle been

turned to [ACC] or [ON]?

•Has the SYSTEM been turned OFF?

The screen is being

displayed but sound is

not working

•Has the volume been set to a low level?

• Has the volume been muted?

When the power is

turned on, the corners

of the screen are dark

• The display appearing somewhat dark

after prolonged periods of use is normal

with LCD panels. It is not a malfunction

•If the screen is very dark, contact your

nearest Kia dealer for assistance

Sound is working from

only one speaker

• Are the positions of Fader or Balance

sound controls adjusted to only one

side?

Problem Possible Cause

Sound does not work in

AUX mode

• Are the audio connector jacks fully

inserted into the AUX terminal?

The external device is

not working

•Is the external device connected with a

standard connector cable?

Upon turning power on,

the most recent mode

screen is not displayed

Within modes that play files by reading

external sources, such as USB, iPod, or

Bluetooth

streaming mode, the most

recently played mode screen prior to turn-

ing off power may not properly load

• If the corresponding device is not con-

nected, the mode operated prior to the

most recent mode will operate

• If the previous mode still cannot be

properly played, the mode operated

prior to that will operate

Appendix I 6-5

Problem Possible Cause Countermeasure

The power

does not

turn on

The fuse is

disconnected

•Replace with a suitable

fuse

• If the fuse is disconnected

again, please contact your

point of purchase or Kia

dealer

Device is not prop-

erly connected

•Check to see that the

device has been properly

connected

The system

does not

play

The vehicle battery

is low

•Charge the battery If the

problem persists, contact

your point of purchase or

Kia dealer

Problem Possible Cause Countermeasure

The image

color/tone

quality is

low

• The

brightness,

saturation, hue,

and contrast levels

are not set properly

•Properly adjust the bright-

ness, saturation, hue, and

contrast levels through

Display Setup

Sound does

not work

•The volume level

is set to the lowest

level

• The connection is

not proper

• The device is

currently fast-for-

warding, rewinding,

scanning, or play-

ing in slow mode

•Adjust the volume level

•Check to see that the

device has been properly

connected

•The sound will not work

when the device is fast-for-

warding, rewinding, scan-

ning, or playing in slow

mode

The sound

or image

quality is

low

•Vibration is occur-

ring from where

the conversion

switch has been

installed

• Image color/tone

quality is low

•The sound may be

short-circuited and the

image distorted if the

device vibrates

•The device will return to

normal once vibrations

stop

6-6 I Appendix

Problem Possible Cause Countermeasure

The USB

does not

work

• USB memory is

damaged

•Please use the USB after

formatting it.

•USB memory has

been contami-

nated

•Remove any foreign sub-

stances on the contact sur-

face of the USB memory

and multimedia terminal

•A separately pur-

chased USB HUB

is being used

• Directly connect the USB

memory with the multime-

dia terminal on the vehicle

•A USB extension

cable is being

used

• Directly connect the USB

memory with the multime-

dia terminal on the vehicle

• A USB which is

not a Metal Cover

ype USB Memory

is being used

• Use standard USB Memory

•An HDD type, CF

SD Memory is

being used

• Use standard USB Memory

• There are no

music files which

can be played

•Only MP3, WMA file

formats are supported.

Please use only the sup-

ported music file formats

Problem Possible Cause Countermeasure

The iPod is

not recog-

nized even

though it

has been

connected

• There are no titles

which can be

played

•Use iTunes to download

and save MP3 files into the

iPod

• The iPod firmware

version has not

been properly

updated

• Use iTunes to update

the firmware version and

reconnect the iPod with the

device

• The iPod device

does not recog-

nize downloads

• Reset the iPod and recon-

nect with the device

Bluetooth

does not

work or its

limited

functions

are

available

•Bluetooth on your

mobile phone is

set to OFF

•Set it to ON

• The Bluetooth

connection is not

made

•Make the connection

active

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the

RESET

key to

reset the system.

• Press and hold the

RESET

key (over 1 second). The device power will

turn off and the system will reset.

Appendix I 6-7

FAQ

About Pairing Mobile Phones

Q I cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth® func-

tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set

it to ON. If the cell phone still can’t be registered, try again after

turning Bluetooth off and on, or delete the device registration on

the multimedia system and cell phone and then register the cell

phone again.

Q What is the difference between pairing a mobile phone and con-

necting a mobile phone?

A Pairing occurs through authenticating the head unit and mobile

phone. Mobile phones paired to the head unit can be connected

and disconnected until the paired mobile phone is deleted from

the system. Bluetooth® Handsfree features, such as making/

answering calls or managing contacts, are supported only in

mobile phones connected with the head unit.

Q What is a Passkey?

A A passkey is the password used to authenticate the connection

between the head unit and mobile phone. The passkey only

needs to be entered once when pairing the mobile phone for the

first time.

The initial passkey is 0000. You can change it with

SETUP

▶

Bluetoot

▶

luetooth S

stem Inf

▶

Passke

menu options.

6-8 I Appendix

About Making/Answering Phone Calls

Q How can I answer a call?

A When there is an incoming call, a notification pop-up will

become displayed. To answer the incoming call, press the

cce

button on the screen or the key on the

steering

wheel control

To reject the call, press the

ect

button on the screen or press

the key on the steering wheel control.

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (over 0.8 seconds) the

key on the

steering wheel control

or press the

Use Pri

but-

ton at the bottom of the Phone screen to switch the call to your

mobile phone.

About

Bluetooth

® Wireless Technology/

Head Unit Use Environment

Q What is the range of my wireless connection?

A The wireless connection can be used within 15 yards.

Q How many mobile phones can be paired?

A It is possible to pair up to five mobile phones.

Q Why is call quality sometimes poor?

Check the reception sensitivity of the mobile phone when call

quality becomes worsened. The call quality may deteriorate when

the signal strength is low. Call quality may also worsen if metal

objects, such as beverage cans, are placed near the mobile

phone. Check to see if there are metal objects in the vicinity of the

mobile phone. The call sound and quality may differ depending on

the type of mobile phone.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before

attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous

if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while

driving. Driving while unable to hear these sounds could cause an accident.

Use of Speech Recognition Functions

Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any

speech recognition functions included in the system and address any errors.

Important Safety Information

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual (“User’s

Guide”). Not following precautions found in this User’s Guide can lead to an accident or other serious consequences.

Keep User’s Guide in Vehicle

When kept in the vehicle, the User’s Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please

make certain that before using the system for the first time, all persons have access to the User’s Guide and read its instructions and

safety information carefully.

Warning

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other

serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a

safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may

to distract your attention away from the road and remove your hands from the wheel.

FCC Warning

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body.

This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the

FCC.

HYUNDAI MOBIS ADBC0G6EE DIGITAL CAR AUDIO SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM

User Manual

Navigation menu

Namespaces

Views

Navigation
