Read the following safety precautions

for your safety

Before using the product, read the contents of this user's manual

carefully and use this product safely.

※ The design and speciﬁ cations of this product may change without prior

notiﬁ cation for product and service improvement.

The actual features in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

※ This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁ ed under the GNU General

Public license, Version 2, June 1991, and the GNU lesser General Public

License, Version 2.1, February 1999.

For additional information and to obtain related materials including

without limitation, the previous referred to licenses and software, please

Notations used within this User's Manual

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

K_UMa_UVO3[USA_EU]AV_PART0.indd 1K_UMa_UVO3[USA_EU]AV_PART0.indd 1 2016-01-27 오후 4:22:522016-01-27 오후 4:22:5

iPod®

iPod® is a registered trademark of Apple Inc.

Bluetooth®

Wireless Technology

A compatible Bluetooth® Wireless Technology-enabled cell phone is

required to use Bluetooth® Wireless Technology.

The Bluetooth® word mark and logos are registered trademarks owned

by Bluetooth SIG, Inc. and any use of such marks by Kia is under license.

Other trademarks and trade names are those of their respective owners.

A Bluetooth® enabled cell phone is required to use Bluetooth® Wireless

Technology.

A Bluetooth® Wireless Technology enabled cell phone is required to use

Bluetooth® Wireless Technology. Bluetooth® Wireless Technology phone

compatibility can be checked by visiting http://www.kia.com.

HD Radio™ Technology

HD Radio™ Technology manufactured under license from iBiquity Digital

Corporation. U.S. and Foreign Patents.

HD Radio™ and the HD, HD Radio, and "Arc" logos are proprietary

trademarks of iBiquity Digital Corp.

Pandora®

Pandora, the Pandora logo, and the Pandora trade dress are trademarks

or registered trademarks of Pandora Media, Inc. Used with permission.

Pandora is only available in certain countries. Please visit http://www.

pandora.com/legal for more information.

Wi-Fi®

The Wi-Fi CERTIFIED™ Logo is a certiﬁ cation mark of Wi-Fi Alliance.

K_UMa_UVO3[USA_EU]AV_PART0.indd 6K_UMa_UVO3[USA_EU]AV_PART0.indd 6 2016-01-27 오후 4:22:542016-01-27 오후 4:22:5

Warnings and Cautions

Key Product Features

Component Names and Functions

Starting the System for the First Time

part.1 Basic

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-1K_UMa_UVO3[USA_EU]AV_PART1.indd 1-1 2016-01-27 오후 4:23:052016-01-27 오후 4:23:0

1-2 I Basic

Safety Warnings

• Do not stare at the screen while driving.

Staring at the screen for prolonged peri-

ods of time could lead to traffic accidents.

• Do not disassemble, assemble, or modify

the Multimedia system. Such acts could

result in accidents, fire, or electric shock.

• Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

• If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibil-

ity of an accident may increase. Please

use phone related functions only when

parked.

• Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

• Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

• Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

• For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

• Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

Basic

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-2K_UMa_UVO3[USA_EU]AV_PART1.indd 1-2 2016-01-27 오후 4:23:052016-01-27 오후 4:23:0

Warnings and Cautions I 1-3

Safety Cautions

Pay attention to traffic conditions while

driving.

• Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

• Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

• Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

• If you want to change the position of

device installation, please inquire with

your place of purchase or service main-

tenance center. Technical expertise is

required to install or disassemble the

device.

• Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

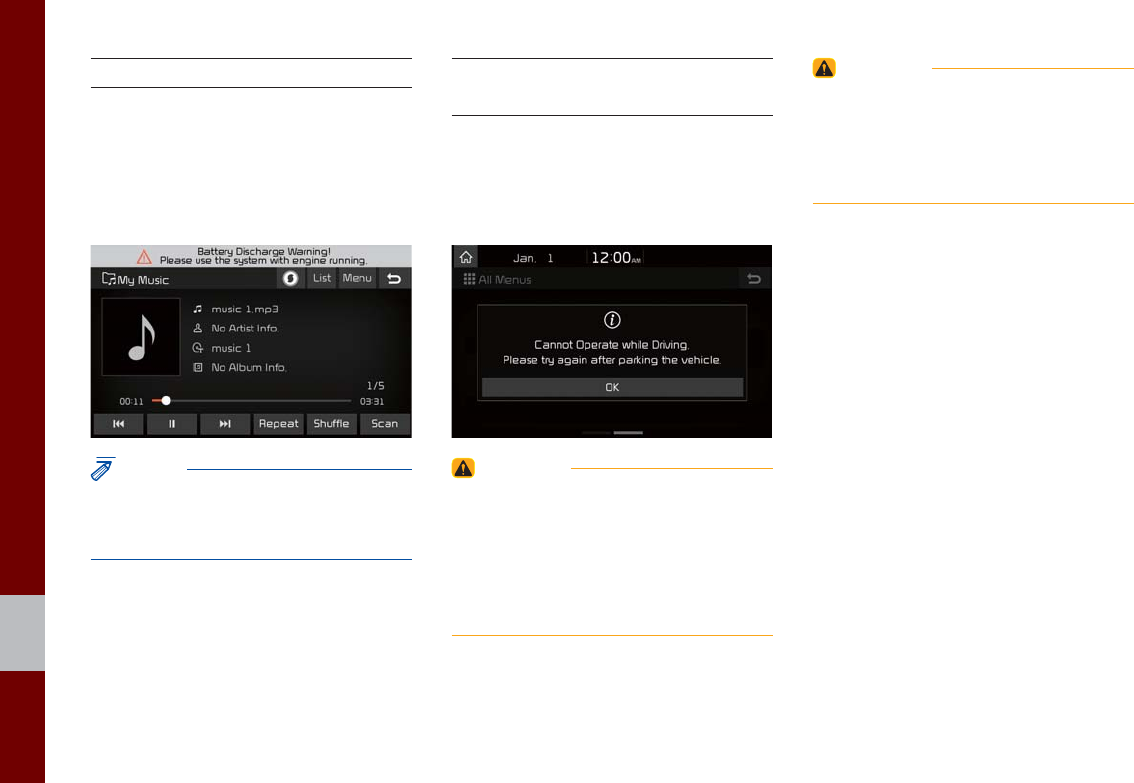

• Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

• Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

• When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

• Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-3K_UMa_UVO3[USA_EU]AV_PART1.indd 1-3 2016-01-27 오후 4:23:062016-01-27 오후 4:23:0

1-4 I Basic

Key Product Features

This device is a Multimedia system equipped with a multifunc-

tional disc player that supports Radio (FM, AM), HD Radio™

Technology (if equipped), SiriusXM™, Audio CD, MP3, USB,

iPod, AUX, Bluetooth Audio and My Music features. The WIDE

VGA LCD provides a high quality resolution while the powerful

and rich sound system adds to the driving enjoyment.

Display

Wide TFT-LCD Display

• Provides high quality video through a Wide TFT-

LCD Display using an LED Back Light.

• Touch screen for maximum user convenience.

Radio

Digital Tuner Feature

• Digital Tuner using PLL method that supports

memory of 40 broadcast stations.

Radio broadcast station name

• Displays broadcast station names.

HD Radio™(if equipped)/Satellite Radio feature

• Supports HD Radio™(if equipped) reception

and Satellite Radio (SiriusXM™).

Multimedia

Player

Support for various Media Formats

• Support for various media formats, including

Radio, Audio CD, MP3, USB, iPod, AUX and

Bluetooth

Audio Streaming modes

My Music

• Supports copying of music stored within USB

devices into My Music (internal memory) mode

Miscellaneous

Bluetooth

Wireless Technology

• Convenient use of Bluetooth

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

• Easy control of features through touch screen

options

Steering Wheel Control

• Control over audio features, voice recognition

and Bluetooth

through the steering wheel

control for maximum convenience

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-4K_UMa_UVO3[USA_EU]AV_PART1.indd 1-4 2016-01-27 오후 4:23:062016-01-27 오후 4:23:0

Component Names and Functions I 1-5

Component Names and Functions

Head Unit

Name Description

Press to insert or eject disc

RADIO

Selects FM/AM/SiriusXM™ mode

• Each time this is pressed, the mode is changed in

the following order: FM → AM → SiriusXM™ → FM.

MEDIA

Selects MEDIA mode.

• If the media is not connected MEDIA mode will

not be activated.

TRACK

SEEK

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: Plays the previous/next frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA (Disc/USB/iPod/My Music) mode:

Changes the track, file or title (except for USB

Image and AUX).

When pressed and held down (more than 0.8 sec-

onds),

• FM/AM mode: Continuously changes the fre-

quency until the key is released.

• MEDIA (Disc/USB/iPod/My Music) mode:

Rewinds or fast forwards the track or file (except

for USB Image, Bluetooth Audio, and AUX).

PWR/

VOL

• When power is off, press to turn power on.

• When power is on, press and hold (more than 0.8

seconds) to turn the power off.

• When power is on, press quickly (less than 0.8

seconds) to turn Audio off.

• Turn left/right to adjust the volume.

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-5K_UMa_UVO3[USA_EU]AV_PART1.indd 1-5 2016-01-27 오후 4:23:062016-01-27 오후 4:23:0

Name Description

DISP

Turns the screen on/off.

APPS/

Moves to the Apps/Info screen.

PHONE

Displays the Bluetooth phone mode.

UVO

Displays the UVO mode

SETUP

Moves to the Setup screen.

TUNE

• FM/AM mode: Changes the frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA (Disc/USB/iPod/My Music) mode:

Changes the track, file or title (except USB Image,

Bluetooth Audio, and AUX).

RESET

Resets the system settings. (Preset radio channels

and other data will not be deleted)

※ The actual feature in the vehicle may differ from the illustration.

Name Description

When pressed quickly (less than 0.8 seconds),

• If Android Auto is not connected, activates the

multimedia system voice recognition

• If Android Auto is connected, activates or ends

Google voice recognition

When pressed and held (more than 0.8 seconds),

• If the multimedia system voice recognition is acti-

vated, ends the multimedia system voice recognition

• If Android Auto is connected, activates or ends

Google voice recognition

• If iOS device is connected through Bluetooth,

activates or ends Siri Eyes Free

Name Description

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: searches broadcast frequencies

saved to Presets

• SiriusXM™ mode: searches broadcast channels

saved to Presets

• MEDIA (Disc/USB/iPod/My Music) mode: changes

the track, file or title (except USB Image, AUX)

When pressed and held (more than 0.8 seconds),

• FM/AM mode: automatically searches broadcast

frequencies

• SiriusXM™ mode: automatically searches broad-

cast channels

• MEDIA (Disc/USB/iPod/My Music) mode: quickly

looks up songs (excluding USB images, AUX and

Bluetooth audio files)

Steering Wheel Controls

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-7K_UMa_UVO3[USA_EU]AV_PART1.indd 1-7 2016-01-27 오후 4:23:132016-01-27 오후 4:23:1

MODE

• Each time this is pressed, the mode is changed in

the following order: FM → AM → SiriusXM → Disc

→ USB or iPod → AUX → Bluetooth Audio → My

Music → Android Auto → Pandora → FM

• If the media is not connected, the corresponding

modes will be disabled

• Press and hold (more than 0.8 seconds) to turn

the Audio system on/off

• When power is off, press button to turn power

back on

Controls the volume

When pressed quickly (less than 0.8 seconds),

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen,

answers the call

• When pressed during call waiting, switches to

waiting call (Call Waiting)

When pressed and held (more than 0.8 seconds),

• When pressed in Bluetooth

Hands-free, redials

the last dialed call

• When pressed during a Bluetooth

Hands-free

call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone,

switches call back to Bluetooth

Hands-free

(operates only when Bluetooth

Hands-free is

connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects

the call

※ The actual feature in the vehicle may differ from the illustration.

Starting the System for the First Time I 1-9

Starting the System for

the First Time

Turning the System On/Off

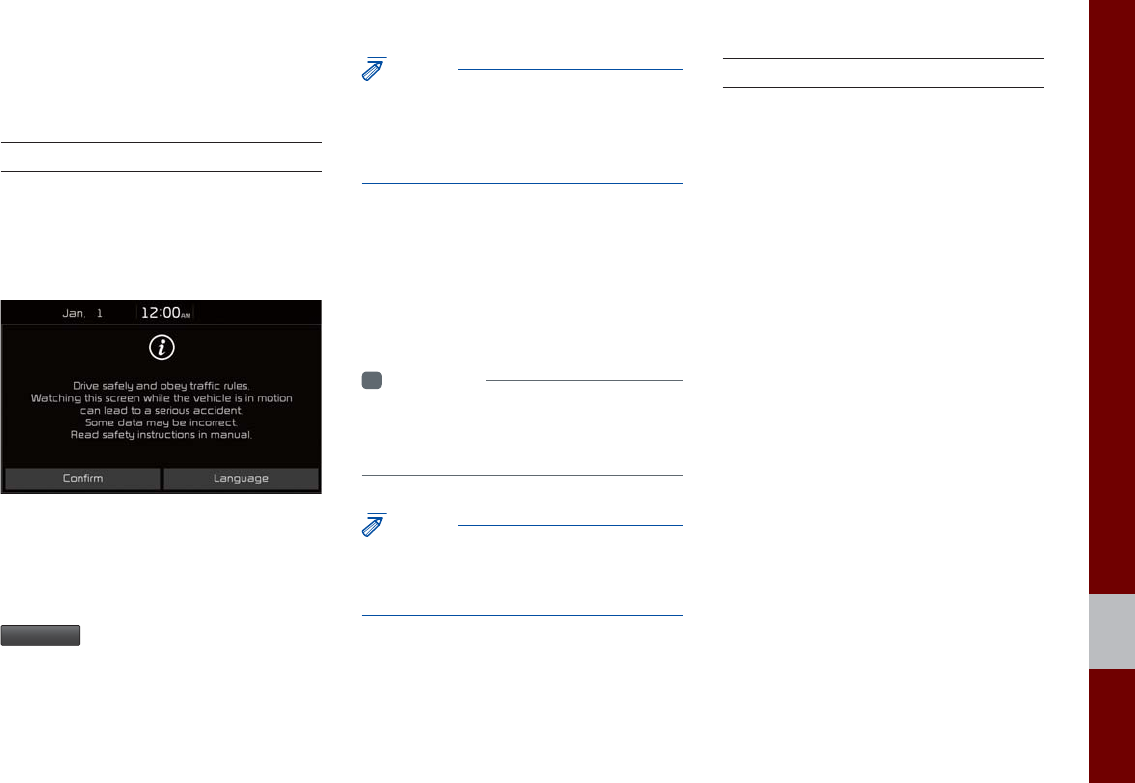

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

Pressing the power key on the head unit

will display the safety guide. To change the

system language between English,

French, Spanish and Korean, select the

Language

button.

NOTICE

• You cannot operate the system while it is

booting up. It may take some time for all of

features of the system, particularly the voice

recognition system, to be ready for use.

Pressing and holding the power key on the

head unit will turn off the system.

You can change Screen Saver Settings

in Setup to display a clock on the Screen

Saver.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will

automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust

the volume to a reasonable level.

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the RESET key for a sec-

ond or longer. (It is recommended that you

press the RESET key using a tool, such as

a pin or a clip.)

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-9K_UMa_UVO3[USA_EU]AV_PART1.indd 1-9 2016-01-27 오후 4:23:152016-01-27 오후 4:23:1

1-10 I Basic

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become

completely discharged.

Restrictions on Features for

Safety Measures

Several features are limited while driving.

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

WARNING

- Blank Screen

• Refrain from use if the screen is blank or

no sound can be heard as these signs may

indicate product malfunction. Continued use in

such conditions could lead to accidents (ﬁ res,

electric shock).

WARNING

- Touching the Antenna During A

Thunder Storm

• Do not touch the antenna during thunder or

lightning as such acts may lead to lightning

induced electric shock.

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-10K_UMa_UVO3[USA_EU]AV_PART1.indd 1-10 2016-01-27 오후 4:23:162016-01-27 오후 4:23:1

Starting the System for the First Time I 1-11

Home Screen

Controls Menu Conﬁ guration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

Features Description

Radio/Media

Widget

• Shows brief information on the radio or

media that is now playing.

• Tap the area to move to the mode that

you are listening to.

Connectivity

Widget

Shows any connected devices such as

Android Auto, iPod, Pandora, and Bluetooth.

All Menus Shows all of the items in the system menu.

My Menu

•You can add up to eight menus here.

• Add your favorite menus to have quick

and easy access to them.

Apps/Info Moves to the Apps/Info screen.

Setup Moves to the Setup screen.

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

The icons in the following table indicate the various types of sys-

tem status details and events.

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth is muted.

Displays the signal strength of the Bluetooth phone.

Displayed when connected to Wi-Fi.

Displayed when connecting to Wi-Fi.

Displayed when 911 connect is available.

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-11K_UMa_UVO3[USA_EU]AV_PART1.indd 1-11 2016-01-27 오후 4:23:172016-01-27 오후 4:23:1

1-12 I Basic

Adding Your Favorite Menu Items to My

From the Home screen, select

My Menu

icon, and then

Edit

From the Edit My Menu screen, select

menu items from the list on the right, then

drag and drop them to a desired place on

the left.

To remove the item from My Menu, drag

item from the left and drop them on the

right.

Information

• Up to eight items can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive

material. Touch the screen using your ﬁ nger,

an electrostatic touch-screen glove, or a stylus

pen.

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

Information

• Music screens for Disc CD and Disc MP3 do

not support this function.

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-12K_UMa_UVO3[USA_EU]AV_PART1.indd 1-12 2016-01-27 오후 4:23:182016-01-27 오후 4:23:1

Starting the System for the First Time I 1-13

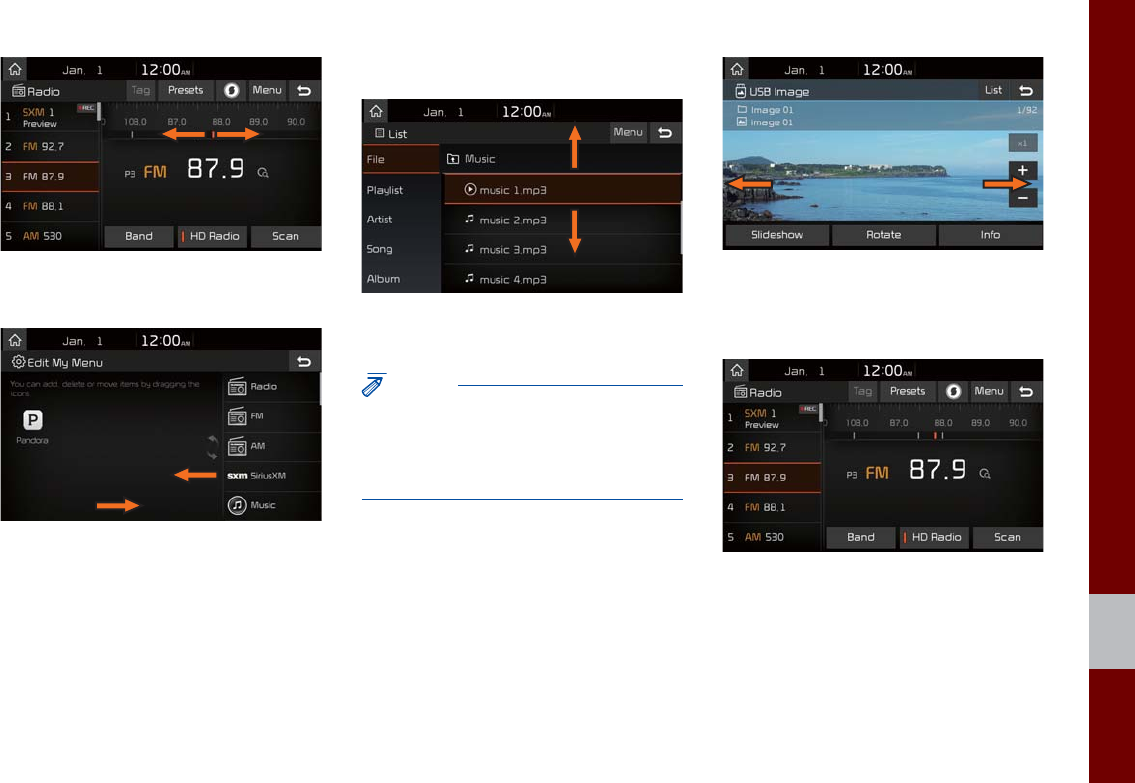

Drag the frequency bar to the left or right

to move to the frequency that you want.

From the Edit My Menu screen, drag and

drop icons to add, delete, or move to/from

My Menu.

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display.

You can easily move many items at a time

with the handler

You can view the previous or next image

by flicking left/right on an image on the

USB Image screen.

Flick left/right on the frequency bar in the

radio player to look up the previous/next

frequency available.

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-13K_UMa_UVO3[USA_EU]AV_PART1.indd 1-13 2016-01-27 오후 4:23:182016-01-27 오후 4:23:1

1-14 I Basic

Press and Hold

Pressing the and buttons

in the music player will fast forward/rewind

the music.

K_UMa_UVO3[USA_EU]AV_PART1.indd 1-14K_UMa_UVO3[USA_EU]AV_PART1.indd 1-14 2016-01-27 오후 4:23:202016-01-27 오후 4:23:2

FM/AM

HD Radio™ Technology

SiriusXM™

About Disc

Disc CD

Disc MP3

USB

iPod

AUX

Bluetooth® Audio

My Music

part.2 Radio/Media

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-1K_UMa_UVO3[USA_EU]AV_PART2.indd 2-1 2016-01-27 오후 4:23:382016-01-27 오후 4:23:3

2-2 I Radio/Media

FM/AM

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu from All Menus on the Home

screen.

FM/AM Mode Display Controls

Information

• If you press the

RADIO

key when power is off, the power will turn on

and a radio broadcast will be tuned from the current mode.

• If you are in radio mode, select the media widget from the Home screen

to access the radio player.

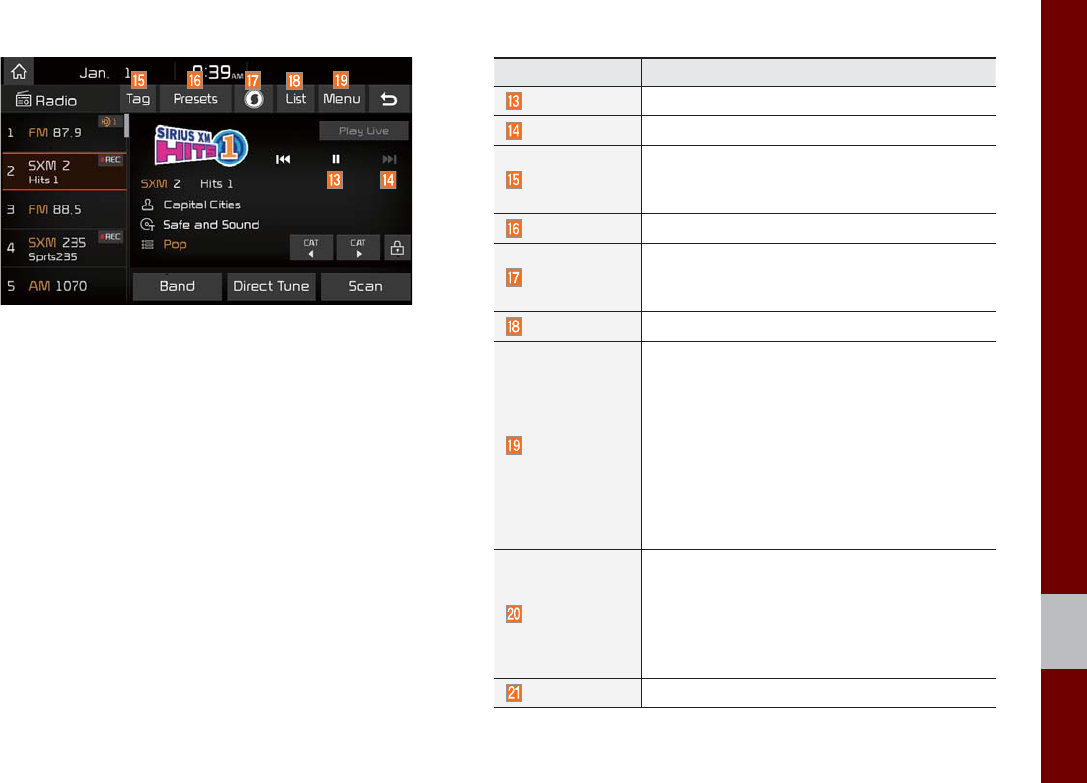

Features Description

Preset

Frequencies

•The stored preset frequencies are displayed

for user selection.

• After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the frequency

is to be stored in the selected preset button.

•Flick the preset frequencies up/down to scroll

quickly through presets.

Frequency Bar

•Flick the frequency bar left/right to search for

available radio channels to the left or right of

the current channel.

•Dragging: Drag the frequency bar to the left/

right to find the radio channel that you want.

Frequency Displays the current frequency.

Tag

Saves the current music’s tag information to the

head unit. If connected to iPod, the tag informa-

tion can be saved on the device.

Presets Shows the stored presets for user selection.

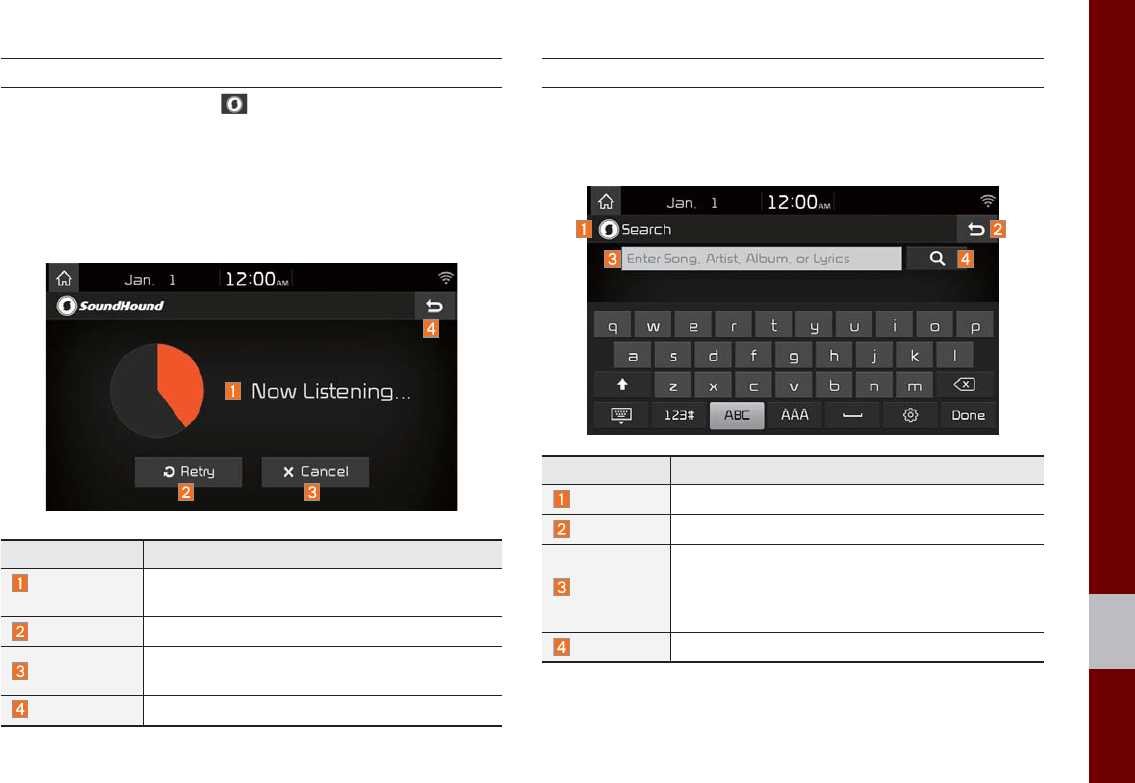

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to

the SoundHound information in the Info section.

• List

Moves to the frequency list.

• Info

Turns the Radio text information transmitted

from the broadcasting station on and off.

• Preset

Scan

Plays preset frequencies for 10 seconds per

item.

• Sound

Settings

Moves to the Sound Settings.

Radio/Media

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-2K_UMa_UVO3[USA_EU]AV_PART2.indd 2-2 2016-01-27 오후 4:23:392016-01-27 오후 4:23:3

FM/AM I 2-3

Features Description

Scan/

Preset Scan

Displays an active mode from Scan and Preset

Scan modes.

Band Changes to the desired band from among FM,

AM, and SiriusXM.

HD Radio Used to set whether to turn HD Radio™ recep-

tion On or Off.

Scan Shortly plays the broadcasts for the frequencies

with superior reception for 5 seconds per item.

SEEK/TRACK

• When pressed quickly (less than 0.8 sec-

onds): Seeks the previous/next frequency.

• When pressed and held (more than 0.8 sec-

onds): Moves quickly through all of the fre-

quencies. The moment that you release the

button, the system seeks the next available

frequency.

TUNE

Turn the

TUNE

knob to manually seek avail-

able frequencies.

• FM: Increment/decrement by 200 kHz

• AM: Increment/decrement by 10 kHz

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-3K_UMa_UVO3[USA_EU]AV_PART2.indd 2-3 2016-01-27 오후 4:23:402016-01-27 오후 4:23:4

2-4 I Radio/Media

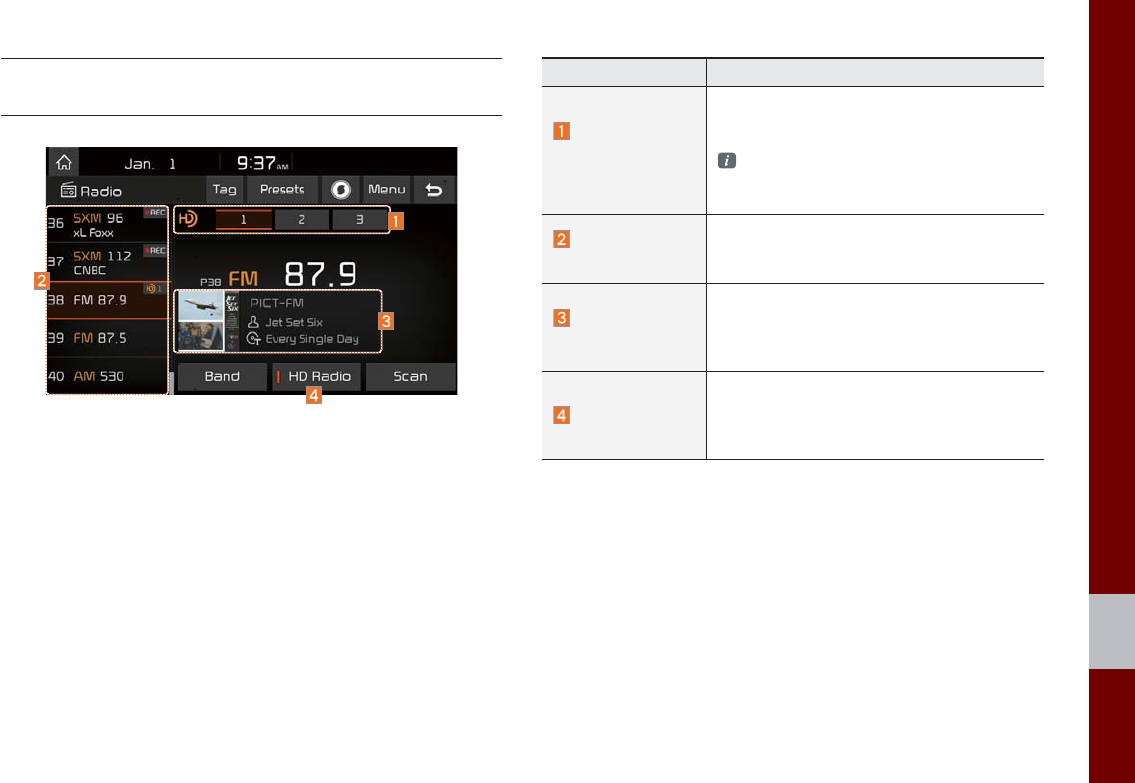

If an HD Radio™ broadcast is received,

the radio mode will switch from analog

broadcast to HD Radio™ broadcast.

Information

• The HD Radio™ screen is displayed only

when a HD Radio™ broadcast is being

received

Program Service Data:

Contributes to the superior user experience of HD

Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3

Channel Guide, and other relevant data streams.

Adjacent traditional main stations are extra local FM

channels. These HD2/HD3 Channels provide new, origi-

nal music as well as deep cuts into traditional genre.

Digital, CD-quality sound. HD Radio™ Technology

enables local radio stations to broadcast a clean digital

signal. AM sounds like today’s FM and FM sounds like a CD.

HD Radio™ Technology

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-4K_UMa_UVO3[USA_EU]AV_PART2.indd 2-4 2016-01-27 오후 4:23:422016-01-27 오후 4:23:4

HD Radio™ Technology I 2-5

Basic Mode Screen

(HD Radio™ reception ON)

Name Description

HD Radio™

Reception &

Channel buttons

Displays main HD Radio™ channels and

used to directly select the current available

channels.

The HD Radio™ related icon display

becomes active within regions where an

HD Radio™ signal can be received.

HD Channel

Number

Analog station and corresponding HD

Radio™ channel number saved in the pre-

set list.

HD Broadcast

Info

Displays detailed information about the cur-

rent broadcast (the details of the information

shown are different depending on whether

the Info button is selected)

HD Radio

When the HD Radio™ soft button is ON (the

blue indicator on the HD Radio™ button

is illuminated), HD Radio™ signals will be

broadcast.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-5K_UMa_UVO3[USA_EU]AV_PART2.indd 2-5 2016-01-27 오후 4:23:432016-01-27 오후 4:23:4

2-6 I Radio/Media

SiriusXM™

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu option from All Menus on the

Home screen. Select the SiriusXM™ band from the radio player.

SiriusXM™ Mode Display Controls

Information

• If you press the

RADIO

key when the power is off, the power will turn

on and a radio broadcast will be tuned from the current mode.

• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget

from the Home screen to access the radio player.

• When the power is off, pressing the

RADIO

key will turn the power on

and play a SiriusXM™ Radio broadcast.

Features Description

Preset

Frequencies

•Shows the stored presets for user selection.

• After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the frequency

is to be stored in the selected preset button.

Channel Logo Displays the current channel logo.

Channel Info Displays the current channel number and name.

Content Info Displays the artist, title and other information

about the current playing song.

Category Info Displays the category of the currently playing

song.

Band Changes to the desired band from among FM,

AM, and SirusXM.

Direct Tune Used to search for the desired channel by

entering the channel number.

Scan Plays all receivable channels for 10 seconds

per item.

Category Lock If pressed, only the channels for the current cat-

egory can be searched or scanned.

Category

Selection Buttons

Used to select the previous/next category.

Play Live Switches to the live broadcast mode.

Skip Backward

Repeats the previously broadcasted program.

•Holding for less than 0.8 seconds: Moves to

the previous segment.

•Holding for more than 0.8 seconds: Moves to

the previous 5 seconds.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-6K_UMa_UVO3[USA_EU]AV_PART2.indd 2-6 2016-01-27 오후 4:23:432016-01-27 오후 4:23:4

SiriusXM™ I 2-7

Features Description

Play/Pause Pauses/plays the current broadcasting program.

Skip/Forward Moves to the next segment.

Tag

Saves the current music’s tag information to the

head unit. If connected to iPod, the tag informa-

tion can be saved on the device.

Presets Shows the stored presets for user selection.

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to

the SoundHound information in the Info section.

List Moves to the channel list.

•What is on My Presets?

The program schedule saved in my preset. (For

more details, see Section 2.5. Viewing Menu.)

• Featured Favorites

Theme channels recommended by SiriusXM™.

(For more details, see Section 2.5. Viewing Menu.)

• Preset Scan

Plays preset channels for 10 seconds each.

• Sound Settings

Moves to the Sound Settings.

SEEK/TRACK

• When pressed quickly (less than 0.8 sec-

onds): Plays the previous/next channel.

•When pressed and held (more than 0.8 sec-

onds): Continuously changes the channel

until the key is released and plays the current

channel.

TUNE Changes the channel.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-7K_UMa_UVO3[USA_EU]AV_PART2.indd 2-7 2016-01-27 오후 4:23:442016-01-27 오후 4:23:4

2-8 I Radio/Media

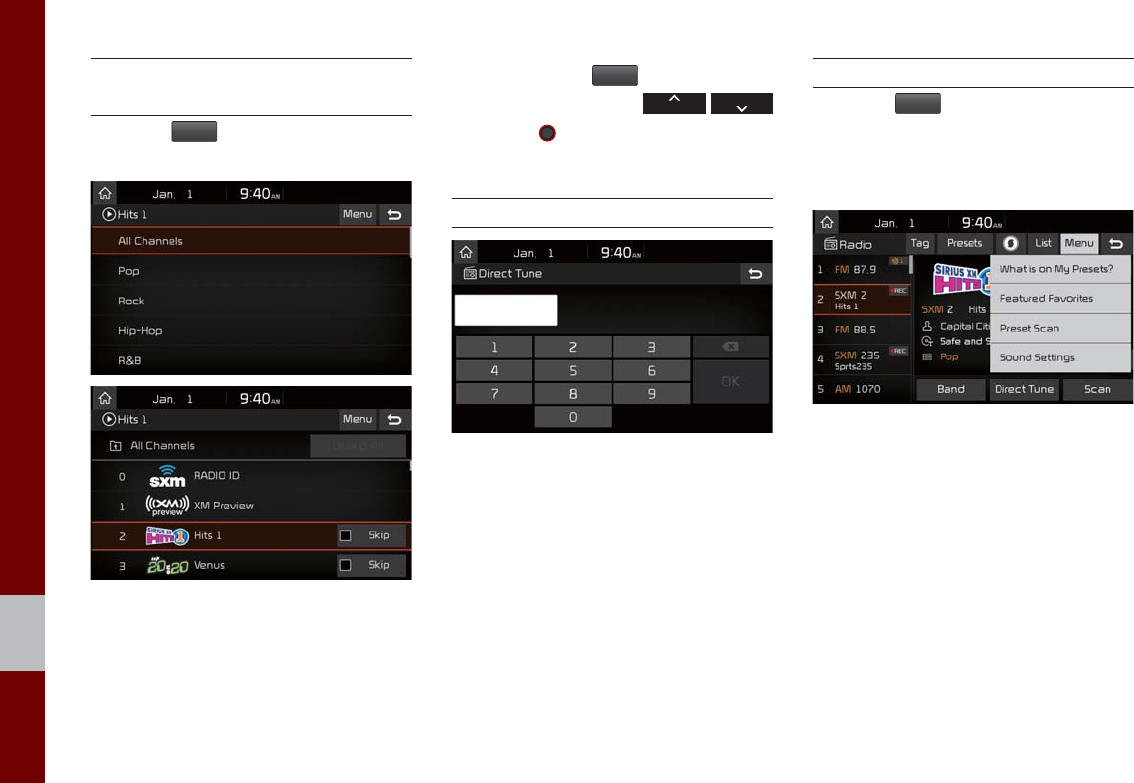

Selecting through

Channel/Category List

Select the

List

▶ Select the desired cat-

egory and channel.

Select the desired category and the chan-

nel. Once selected, the previous screen

will be restored and the selected channel

will begin playing.

If you select the

Skip

button, you can

scan channels using the

SEEK

TRACK

key or the

TUNE

knob by skipping the

channels that you chose to skip.

Direct Tune

Enter the number of the channel you want

to receive.

Viewing Menu

Using the

button on the right, you

can view the program schedule and infor-

mation about the Featured Favorites pro-

vided by SiriusXM™ .

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-8K_UMa_UVO3[USA_EU]AV_PART2.indd 2-8 2016-01-27 오후 4:23:452016-01-27 오후 4:23:4

SiriusXM™ I 2-9

What is on My Presets? (Program Schedule)

You can select Menu to see program information and the sched-

ules of broadcast channels listed in the presets.

Name Description

Change

Broadcast

Date

By selecting this option, you can select a broad-

casting date.

Broadcast information will be provided for one

week from the current date.

Preset

Shows saved presets for user selection

A total of 40 frequencies for SiriusXM™ modes

can be displayed.

Program

Information

Shows you the program titles to be broadcasted

at the time that you have chosen.

Select a program to see more details.

If there is more information on the program you

selected, an arrow button will be displayed on

the right of the list. You can see more program

information by selecting the arrow button.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-9K_UMa_UVO3[USA_EU]AV_PART2.indd 2-9 2016-01-27 오후 4:23:462016-01-27 오후 4:23:4

2-10 I Radio/Media

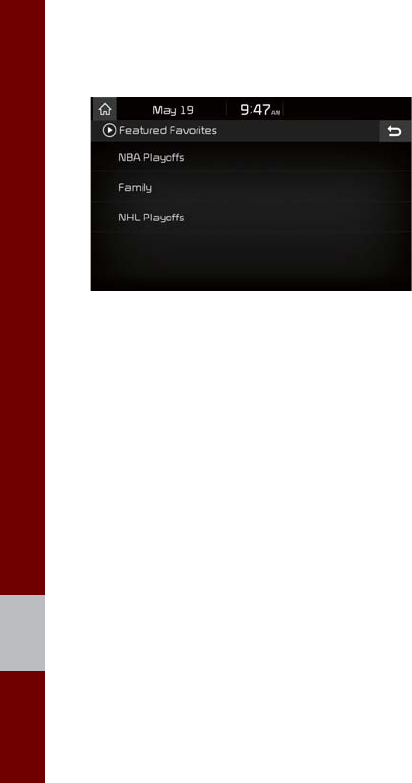

Featured Favorites

Featured Favorites feature allows

SiriusXM™ to broadcast additional presets.

• Example 1: "Martha's Favorites" may

represent Martha Stuart's favorites pre-

sets on her radio.

• Example 2: During holidays, "Holiday

Music" may represent all the SiriusXM™

channels that are playing the holiday

music for easy access by users.

Multiple sets Featured Favorites data

can be broadcast by SiriusXM™ and can

change from time to time.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-10K_UMa_UVO3[USA_EU]AV_PART2.indd 2-10 2016-01-27 오후 4:23:472016-01-27 오후 4:23:4

About Disc I 2-11

About Disc

Precautions upon Handling Discs

CAUTION

• After using a disc, put the disc back in its

original case to prevent disc scratches.

• Do not use abnormally shaped discs (8cm,

heart-shaped, octagon-shaped) as such discs

could lead to errors.

• Do not clean discs with chemical solutions,

such as record sprays, antistatic sprays,

antistatic liquids, benzene, or thinners.

• Do not expose the disc to direct sunlight or

high temperatures for prolonged periods

of time. Such exposure may lead to disc

deformation.

• Upon playing a disc contaminated by dirt

or other substances, the sound quality may

deteriorate and result in skipping sounds.

Writing on either side of the disc could result

in damage to disc surfaces.

• Clean fingerprints and dust off the disc

surface (coated side) with a soft cloth.

• Copy-protected CDs, such as S-type CDs,

may not properly operate in the device. DATA

CDs cannot be played. (However, such discs

may still abnormally operate.)

• Do not disassemble the device. Contact a

designated service center in case of problems.

(Complete after service assistance will not be

provided if the user disassembles the device.)

• Do not use water to clean the device.

Exposure to water could lead to product

damage.

• Do not introduce foreign substances into

the disc insert/eject slot. Introducing foreign

substances could damage the device interior.

• The device may not properly operate in

extremely hot or cold temperatures. (The

operating temperature range is: 14˚F ~ 150˚F)

• Steam can become condensed on the

ﬁ beroptic lens due to rain, wet conditions, or

upon operating the heating system. In such

cases, discs may not be properly recognized.

Remove the disc and wait until the moisture

dries.

• Skipping may occur during audio play when

driving on bumpy roads for prolonged periods

of time or upon severe shock to the vehicle. In

case of severe shock, audio may not properly

play.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-11K_UMa_UVO3[USA_EU]AV_PART2.indd 2-11 2016-01-27 오후 4:23:472016-01-27 오후 4:23:4

2-12 I Radio/Media

Supported Disc Formats

This device supports the following disc for-

mats.

Disc Type

Disc Type Disc Format Device Support

3inch (8cm)

5inch (12cm)

CD-R

CD-RW

Multisession-CD

O (Read Only)

SACD

(Single, SACD layer)

SACD (Hybrid)

(Only CD layer)

Disc Format

Disc Type Disc Format Device Support

CD-DA

MP3

WMA

MPEG4 AAC

DTS-CD

CD-ROM

CD-G

CD-EXTRA

CD-TEXT

Disc/Content Format

Compatibility

By Format according to Disc Type

Disc Type Disc Format Device Support

CD LPCM

MP3

MPEG1, Layer3

MPEG2, Layer3

MPEG2.5

WMA Ver9

Ordinary Disc Compatibility

This device has been designed/manufac-

tured to be compatible with software bear-

ing the following logo marks.

• CD-R/RW discs (Audio CD) created with

CD recording devices or PCs may not

properly operate in the device. This is a

result of various causes, including disc

format, recording method, and contami-

nation to the disc or lens.

$XGLR&'

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-12K_UMa_UVO3[USA_EU]AV_PART2.indd 2-12 2016-01-27 오후 4:23:472016-01-27 오후 4:23:4

About Disc I 2-13

CD-R/RW Compatibility

• This device supports CD-R, CD-RW,

and MP3 discs burned in Audio CD for-

mats.

• The recording of CD-R and CD-RW

discs with this device is not supported.

• CD-R/RW discs recorded as audio CDs

that were not finalized are not supported

by this device.

PC-created Disc Compatibility

• When burning a disc on a PC, the disc

may not operate in this device depend-

ing on the software settings. In such

cases, inquire with the software manu-

facturer.

• Additional information regarding com-

patibility is displayed on the CD-R/RW

software disc box.

•DVD-R/W discs are not compatible with

this device.

Cautions upon Writing CDs

• When a multi-session disc is being

recorded, make sure to close the ses-

sion before recording.

• If MP3/WMA file extensions are

changed, such could result in errors.

• In the case of MP3/WMA, write using

only English. (Other languages are not

supported)

•Unauthorized use of copy-protected

music files is prohibited by law.

• Prolonged use of CD-R/CD-RW prod-

ucts that do not satisfy related specifica-

tions may result in abnormal operation.

•When writing CDs, low-speed writing is

recommended.

Compressed Audio Compatibility

• Physical formats of CD: Model 1, Model

2 XA format 1.

• This device supports audio file com-

pressed through MPEG-1 audio stream

layer 3 (MP3) using 8kbps ~ 320kbps.

(CBR or VBR)

• For stable operation, the use of files

in 95kbps~192kbps bit rate range and

44.1kHz SAMPLING frequency is rec-

ommended.

• This device supports WMA audio files

using 20kbps ~ 320kbps. (CBR or VBR)

• Variable bit rate files may operate, but

the play time information may not be

properly displayed.

•This device only supports tracks with file

extension of “.mp3” or “.wma”.

• This device does not support multises-

sion discs.

•This device supports only 8 layer folders.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-13K_UMa_UVO3[USA_EU]AV_PART2.indd 2-13 2016-01-27 오후 4:23:482016-01-27 오후 4:23:4

2-14 I Radio/Media

• This device supports MP3 ID3 tag ver-

sions of Ver. 1.0, Ver. 1.1, Ver. 2.2, Ver.

2.3, Ver. 2.4. When using discs with

other versions, the ID3 info will not be

displayed.

• Although this device has been desig-

nated to be compatible with various bit

rates, playing low bit rate MP3 tracks

may result in low quality sound.

Before Playing an MP3 Disc

Supported MP3 File Speciﬁ cation

• Acceptable standard: MPEG1 Audio

Layer 3.

• Acceptable sampling frequency: 8,

11.025, 12, 16, 22.05, 24, 32, 44.1,

48(KHz).

• Acceptable bit rate: 8 ~ 320 (Kbps).

Recommended Bit Rates and Frequency

• Sampling frequency: 96 ~ 192 Kbps

fixed bit rate/44.1 kHz.

NOTICE

• Supported ID3 tags: ID3v1.0, ID3v1.1,

ID3v1.2, ID3v2.2, ID3v2.3, ID3v2.4.

• Supported MP3 Media: CD-ROM.

• Supported media formats: ISO9660 LEVEL1

and LEVEL2.

Detailed Speciﬁ cation

• Maximum directory layers: 8 layers.

• Maximum folder length: 64 bytes, file

name length: 64 bytes.

•Supported characters for folder name/file

name: 2350 characters for Alphanumeric

character and Korean character sets,

4888 characters for Simplified Chinese

character set.

•Maximum number of folders per disc: 256

folders. (including ROOT)

• Maximum number of files per disc: 512

files.

Precautions upon Burning MP3 Files

• The use of ISO 9660 LEVEL 2 JOLIET

format is recommended.

•Up to 32 characters in Korean/Chinese

are supported for file names and up to

20 characters in Korean/Chinese are

supported for folder names.

•The use of CDs exceeding 700MB may

result in faulty disc recognition or errors

upon play.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-14K_UMa_UVO3[USA_EU]AV_PART2.indd 2-14 2016-01-27 오후 4:23:482016-01-27 오후 4:23:4

About Disc I 2-15

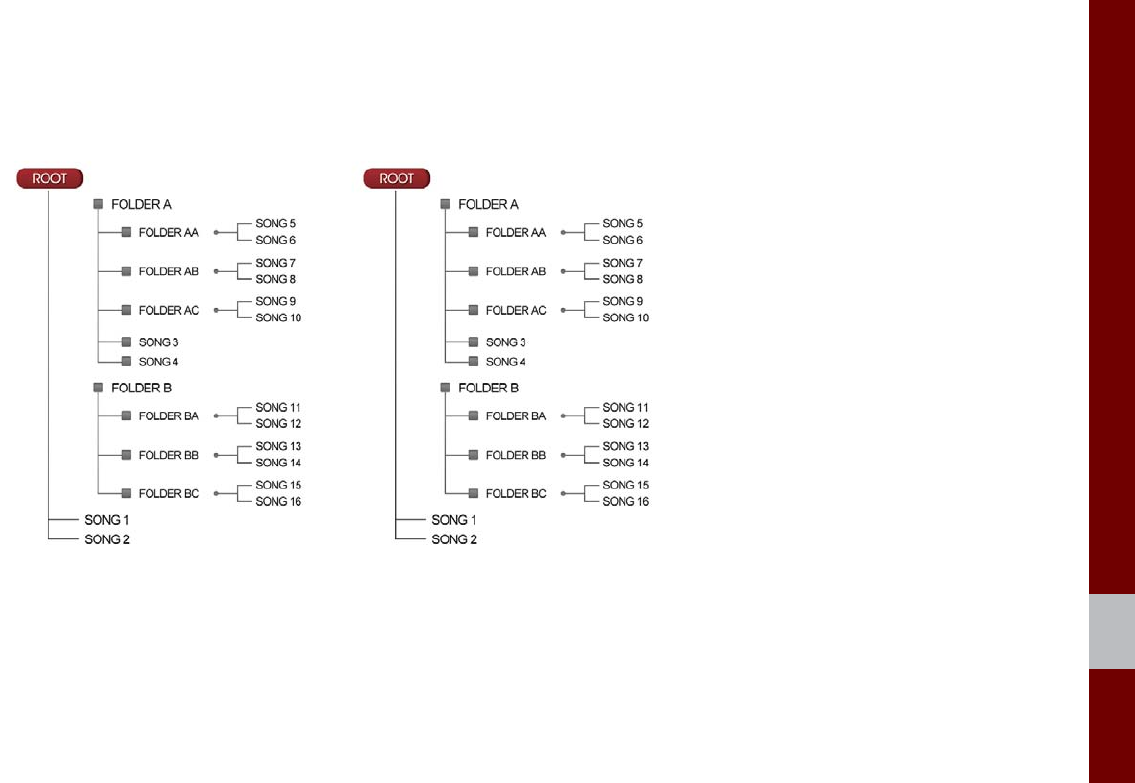

MP3 File Structure

Recognition occurs through the same folder structure used within the disc.

Folder structure as saved in CD-ROM Folder structure as saved in the system

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-15K_UMa_UVO3[USA_EU]AV_PART2.indd 2-15 2016-01-27 오후 4:23:482016-01-27 오후 4:23:4

2-16 I Radio/Media

Disc CD

CD Mode Display Controls

Name Description

Mode Displays current operating mode

Track Index Shows the current track/total tracks

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the currently

operating function

Play Time Displays the current play time

Play Info Displays track/artist/title/album information

Tra ck

• When the play time is under 3 seconds the

previous track

•When the play time is over 3 seconds current

song from the beginning

Play/Pause Plays/pauses the current track

Next Track Moves to the next track

Repeat

Repeats the current track

Select the

Repeat

button to switch between repeat-

ing the current track → and turning repeat off

Shuffle

Plays disc tracks in random order

Select the

Shuffle

button to switch between shuf-

fle all → and turning shuffle off

Scan

Scans the beginning parts of disc tracks (approx.

10 seconds per track)

Select the

Scan

button to switch between scan

all → and turning scan off

List Moves to the track list screen

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-16K_UMa_UVO3[USA_EU]AV_PART2.indd 2-16 2016-01-27 오후 4:23:482016-01-27 오후 4:23:4

Disc CD I 2-17

Name Description

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to

the SoundHound information in the Info section.

Menu Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the sound.

SEEK/TRACK

•If button is pressed quickly (less than 0.8 sec-

onds), it moves to previous or next track

• If button is pressed and held (more than 0.8

seconds), it rewinds or fast-forward the track

When button pressed for 5 seconds, it will

rewind or fast-forward the track at 4x speed.

After that, it will rewind or fast-forward at 20x

speed. Once released, the track will begin

playing at normal speed.

TUNE

Turn the TUNE knob and search a desired

track. When the track name is displayed, press

the TUNE knob

to play the track.

If the TUNE knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-17K_UMa_UVO3[USA_EU]AV_PART2.indd 2-17 2016-01-27 오후 4:23:502016-01-27 오후 4:23:5

2-18 I Radio/Media

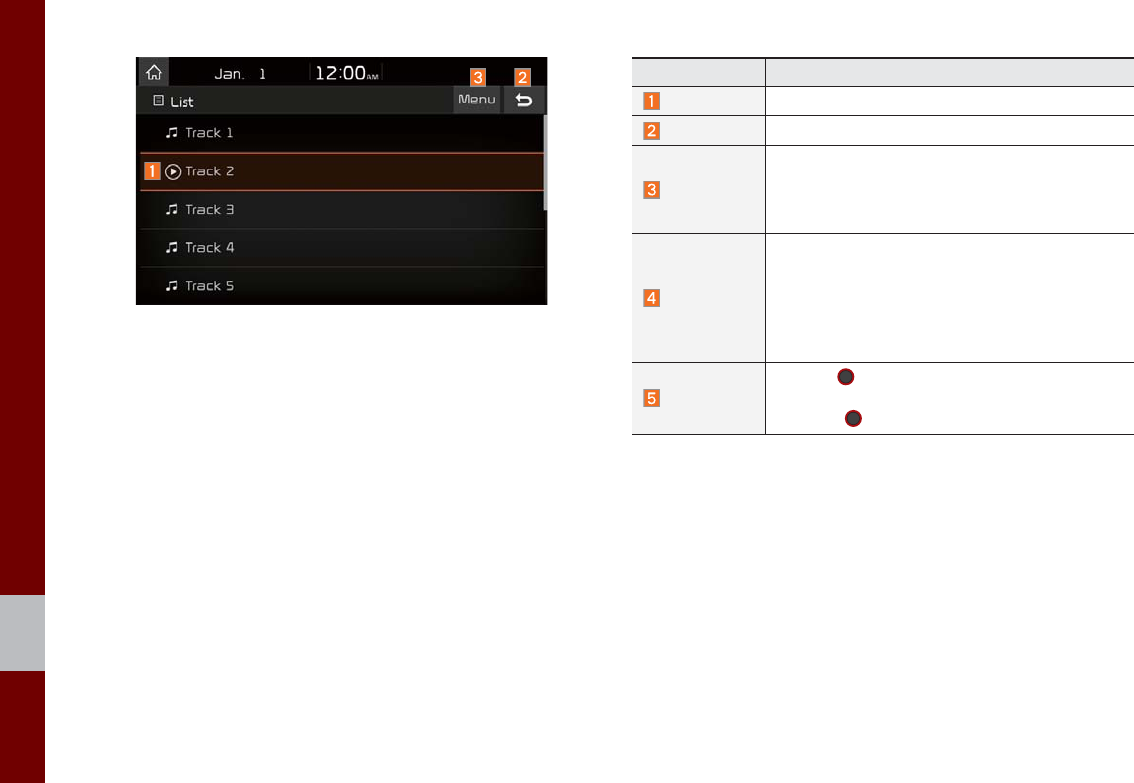

Name Description

Current Track Displays current playing track name

Back Button Converts to basic mode screen

When moving to a different list screen, moves to

the list page where the current file is located

(Becomes disabled when the current list includes

the current file)

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track

• If button is pressed (more than 0.8 seconds):

Moves to play screen, and then it will rewind or

fast-forward the track. It will play the track nor-

mally if it is released.

TUNE

Turn the TUNE knob to move the focus to the

next/previous track. If the desired track is selected,

press the TUNE knob to play the track.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-18K_UMa_UVO3[USA_EU]AV_PART2.indd 2-18 2016-01-27 오후 4:23:512016-01-27 오후 4:23:5

Disc MP3 I 2-19

Disc MP3

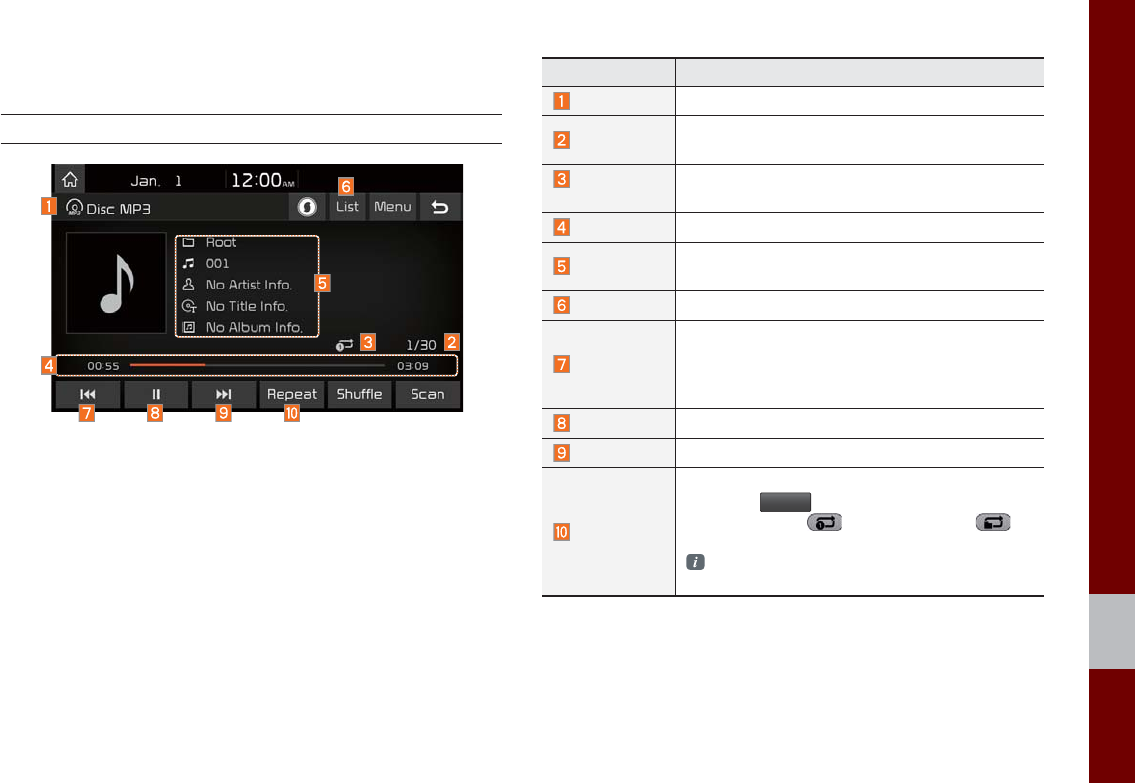

MP3 Mode Display Controls

Name Description

Mode Displays current operating mode

File Index Shows the current MP3 file/total number of MP3

files

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the current

operating function

Play Time Displays the current play time

Song Info Displays folder/file/artist/title/album info for current

song

List Moves to the list screen

Previous File

•If play time is less than 3 secs, moves to previ-

ous file

• If play time is more than 3 secs, play the current

file from the beginning

Play/Pause Plays/pauses the current track

Next File Moves to the next song

Repeat

Repeats the current song or all songs in the folder.

Select the

Repeat

button to switch between

repeating 1 song → repeating folder →

and turning repeat off

Repeat 1 song: Repeats the current song

Repeat Folder: Repeats songs in the folder

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-19K_UMa_UVO3[USA_EU]AV_PART2.indd 2-19 2016-01-27 오후 4:23:522016-01-27 오후 4:23:5

2-20 I Radio/Media

Name Description

Shuffle

Plays files in the folder or in the disc in random

order. Select the

Shuffle

button to switch

between shuffle folder → shuffle all

→ and turning shuffle off

Shuffle folder: Plays songs in the folder in

random order

Shuffle All: Plays songs in the disc in random

order.

Scan

Scans the beginning parts of MP3 files (approx.

10 seconds per file)

Select the

Scan

button to switch between

scan folder → scan all → and turning

scan off

Scan Folder: Scans tracks in the current folder

Scan All: Scans all tracks in the disc

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to

the SoundHound information in the Info section.

Menu Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the sound.

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track

•If button is pressed (more than 0.8 seconds):

Moves to play screen, and then it will rewind

or fast-forward the track.

TUNE

Turn the TUNE knob to search a desired

track. If the desired track is displayed, press the

TUNE knob to play the track.

If the TUNE knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-20K_UMa_UVO3[USA_EU]AV_PART2.indd 2-20 2016-01-27 오후 4:23:522016-01-27 오후 4:23:5

Disc MP3 I 2-21

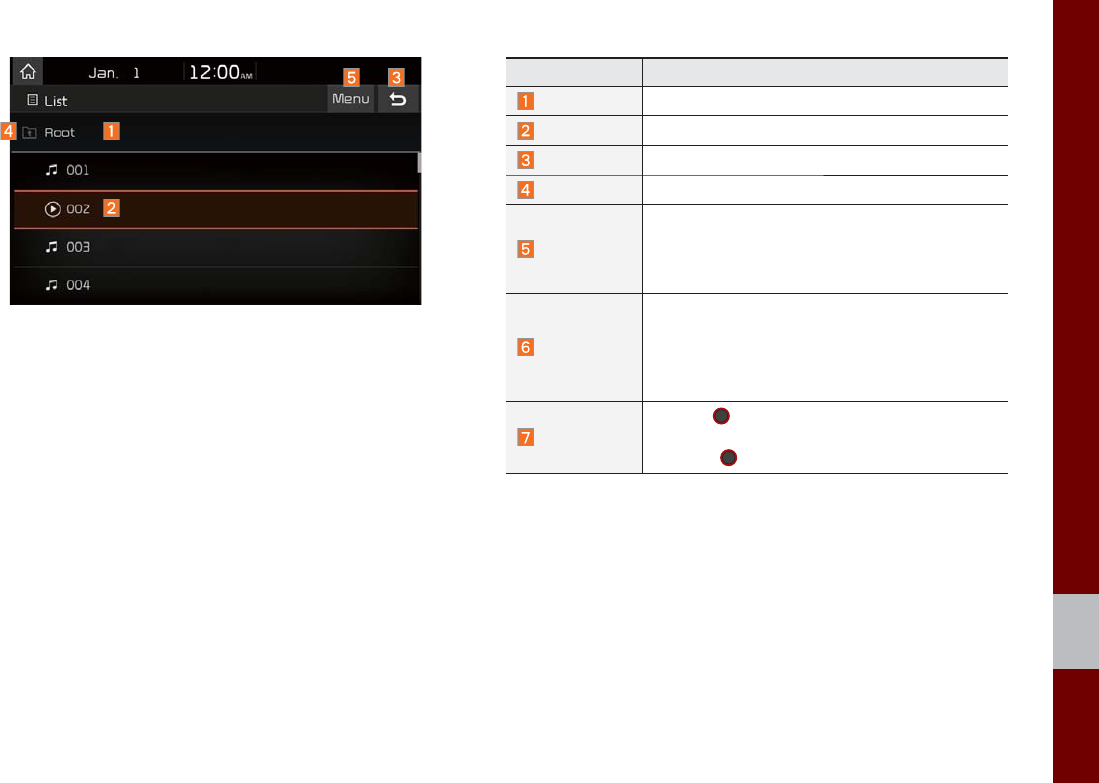

Name Description

Folder Name Displays folder name for current file

Current Song Displays currently playing file name

Back Button Converts to basic mode screen

Upper Folder Moves to Root Folder

When moving to a different list screen, moves to

the list page where the current file is located

(Becomes disabled when the current list includes

the current file)

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track

• If button is pressed (more than 0.8 seconds):

Moves to play screen, and then it will rewind or

fast-forward the track.

TUNE

Turn the TUNE knob to move the focus to the

previous/next track. If the desired track is displayed,

press the TUNE knob to play the track.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-21K_UMa_UVO3[USA_EU]AV_PART2.indd 2-21 2016-01-27 오후 4:23:532016-01-27 오후 4:23:5

2-22 I Radio/Media

USB

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB

device may become damaged if it is already connected when the

ignition is turned on.

•Files that are not standard format music/image files will not be

played.

• For MP3/WMA/OGG files, only music files with compression

rates between 8Kbps ~ 320Kbps can be played.

•Heed caution to static electricity when connecting/disconnecting

external USB devices.

• Encoded MP3 Players will not be recognized when connected

as an external device.

•When connecting an external USB device, the device may not

properly recognize the USB is in some states.

•Only products formatted with byte/sectors under 64Kbyte will be

recognized.

•USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-

tem, are recommended. File systems other than FAT12, FAT16,

FAT32, exFAT, and NTFS are not supported.

•Some USB devices may not be supported due to compatibility

issues.

•Take caution so that the USB connector does not come in con-

tact with body parts or objects.

•Repeated connecting/disconnecting of USB devices within short

periods of time may result in product malfunction.

•Make sure to connect/disconnect external USB devices with the

audio power turned off.

• The amount of time required to recognize the external USB

device may differ depending on the type, size, or file formats

stored on the USB.

•The use of USB devices for purposes other than playing music

and image files is prohibited.

•Do not use the USB I/F to charge batteries or USB accessories

that generate heat. Such acts may lead to worsened perfor-

mance or damage to the device.

• The device may not recognize the USB device if separately

purchased USB hubs and extension cables are being used.

Connect the USB directly with the multimedia terminal of the

vehicle.

• When using mass storage USB devices with separate logical

drives, only files saved to the root drive can be played.

•When application programs are installed to specific USBs, files

may not properly play.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-22K_UMa_UVO3[USA_EU]AV_PART2.indd 2-22 2016-01-27 오후 4:23:532016-01-27 오후 4:23:5

USB I 2-23

• The device may not operate normally if MP3 Players, cellu-

lar phones, digital cameras, or other electronic devices (USB

devices not recognized as portable disk drives) are connected

with the device.

• Charging through the USB may not work for some mobile

devices.

• The device may not support normal operation when using a

USB memory type besides Metal Cover Type USB Memory.

•The device may not support normal operation when using for-

mats such as HDD Type, CF, or SD Memory.

• When playing iPods, please use a dedicated iPod car cable.

•Normal operation cannot be guaranteed when other cables are

being used.

•The device will not support files locked by DRM. (Digital Rights

Management)

• USB memory sticks used by connecting an Adaptor (SD Type or

CF Type) may not be properly recognized.

•Only use Plug type connector products, as shown in the figure

below.

• To play USB MP3, the USB device must be connected to the

USB port in the front multibox. The USB port in the center con-

sole storage (if equipped) is for charging only.

Product Name Manufacturer

XTICK LG

BMK BMK

Technology

SKY-DRV Sky Digital

TRANSCEND JetFlash Transcend

Sandisk Cruzer SanDisk

Micro ZyRUS ZyRUS

NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

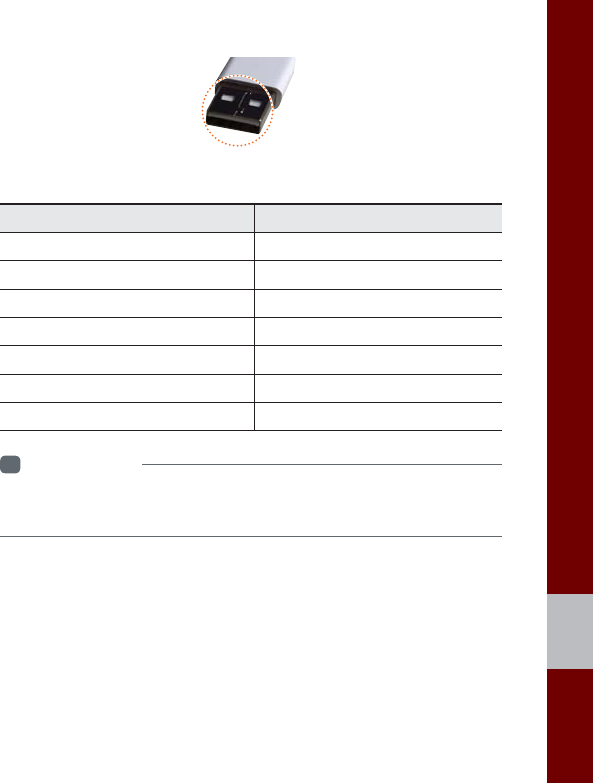

Plug Type Connector

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-23K_UMa_UVO3[USA_EU]AV_PART2.indd 2-23 2016-01-27 오후 4:23:542016-01-27 오후 4:23:5

2-24 I Radio/Media

Supported USB MP3 music speciﬁ cations

Name Description

MP3 File

Specification Specification: MPEG1 AUDIO LAYER 3

Recommended

Bit Rates and

Sampling

Frequency

Acceptable sampling frequency: 32, 44.1, 48 (kHz)

Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112,

128, 160, 192, 224, 256, 320 (Kbps)

96, 128, 192 Kbps fixed bit rate/44.1kHz

ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,

ID3v2.4 ID3 tags

Detailed

Specifications

Maximum directory layers: 20 layers

Maximum length of folder name/file name:

255Bytes

Supported characters for folder name/file name:

Alphanumeric characters, Korean standard charac-

ter set 2,350 characters, Simplified Chinese 4888

characters

Maximum number of folders which can be stored

onto one USB: 2000 folders (including ROOT)

Maximum number of files which can be stored onto

one USB: 8000

Information

• The sound quality of MP3 files that use bitrates exceeding

192 Kbps cannot be guaranteed. When using ﬁ les without ﬁ xed bit rates,

some features (FF/REW features) may not properly operate.

Supported Image Speciﬁ cations

Name Description

Image format JPG, GIF, BMP, PNG (animated GIF, etc.

are not supported)

Supported image

resolution

5M pixels for JPG, BMP, PNG (1M pixels

maximum for GIF)

Supported image file

size

5M pixels for JPG, BMP, PNG (1M pixels

maximum for GIF)

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-24K_UMa_UVO3[USA_EU]AV_PART2.indd 2-24 2016-01-27 오후 4:23:592016-01-27 오후 4:23:5

USB I 2-25

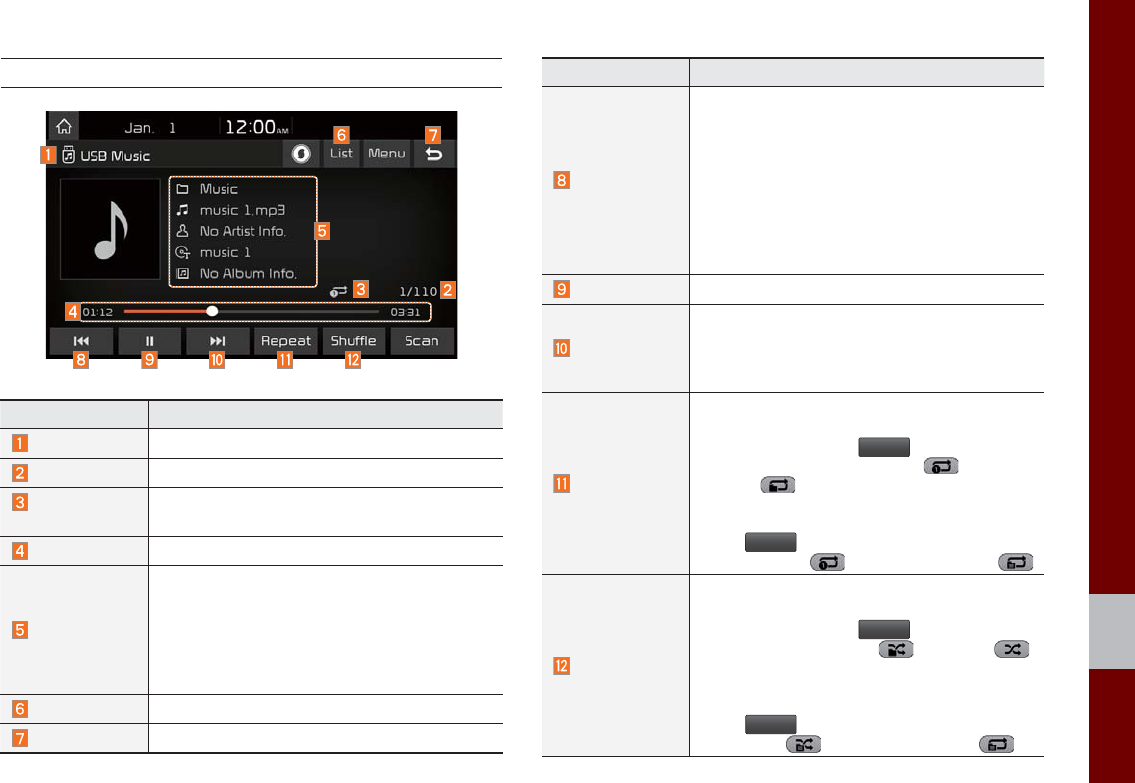

USB Mode Display Controls

Features Description

Mode Displays the current operating mode

File Index Shows the current file/total files within the USB

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the current

operating function

Play Time Displays the current play time/total play time

Song Info

Displays the information of the current track

•When a track in the file tab on the list screen

is selected: Displays folder, file, title, artist,

album info

• When a track in the other tabs on the list screen

is selected: Displays artist, title, album info

List Moves to the list screen

Back Button Converts to basic mode screen

Features Description

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

•If play time is less than 3 seconds, moves to

previous file

•If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is pressed (less than 0.8 seconds):

Moves to the next file

•If button is pressed (more than 0.8 seconds):

It fast-forwards the track

Repeat

Repeats the current file

• If select the song in the file tab on the list

screen: Select the

Repeat

button to switch

between repeating one song , repeating

folder , and turning repeat off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Repeat

button to switch between repeat-

ing one song and turning repeat off

Shuffle

Plays files in random order

• If select the song in the file tab on the list

screen: Select the

Shuffle

button to switch

between Shuffle Folder , Shuffle All ,

and turning shuffle off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Shuffle

button to switch between Shuffle

Category and turning shuffle off

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-25K_UMa_UVO3[USA_EU]AV_PART2.indd 2-25 2016-01-27 오후 4:23:592016-01-27 오후 4:23:5

2-26 I Radio/Media

Features Description

Scan

Scans the beginning parts of USB files (approx.

10 seconds per file)

• If select the song in the file tab on the list

screen: Select the

Scan

button to switch

between Scan Folder , Scan All ,

and turning scan off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Scan

button to switch between Scan

category and turning scan off

Features Description

• Add to Playlist: Add the current track to the

Playlist: Playlist is placed on the left tab in the

list

•Save to My Music: You can save the current

track to My Music. You can play saved track

from My Music without USB. Access to My

Music in the Media mode.

•Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the

sound.

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to

the SoundHound information in the Info section.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

track from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, select

the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track

info for the current track is restored.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-26K_UMa_UVO3[USA_EU]AV_PART2.indd 2-26 2016-01-27 오후 4:24:002016-01-27 오후 4:24:0

USB I 2-27

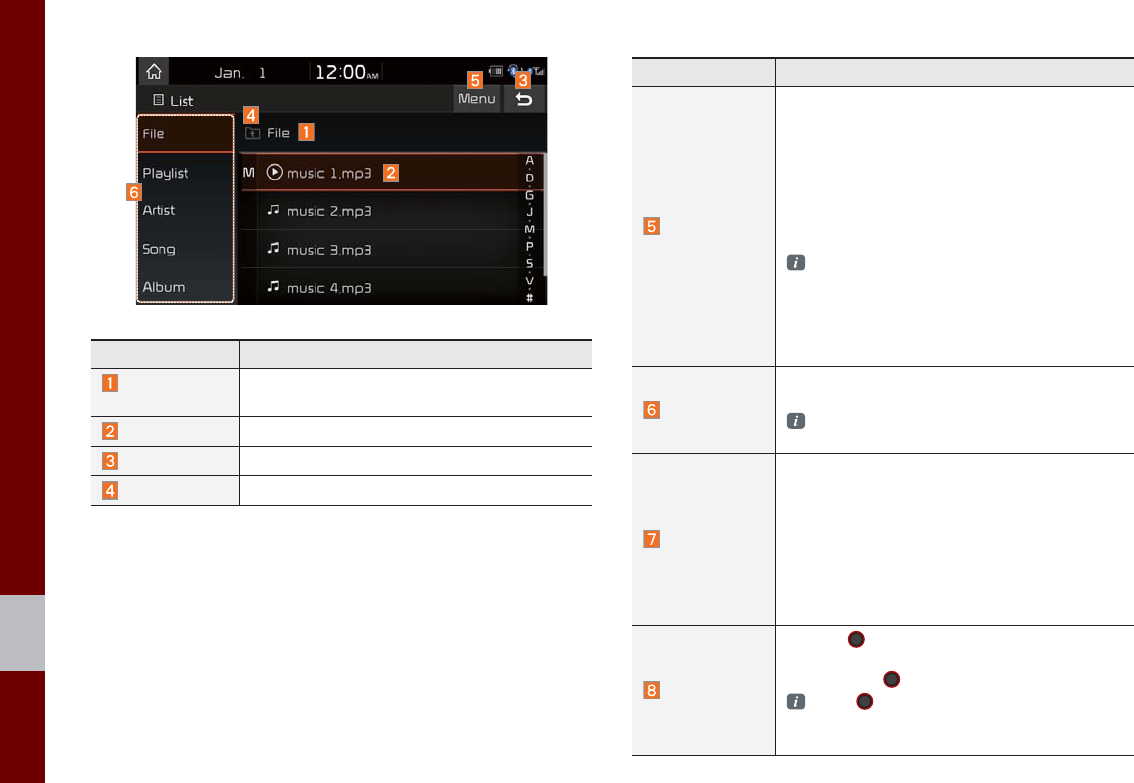

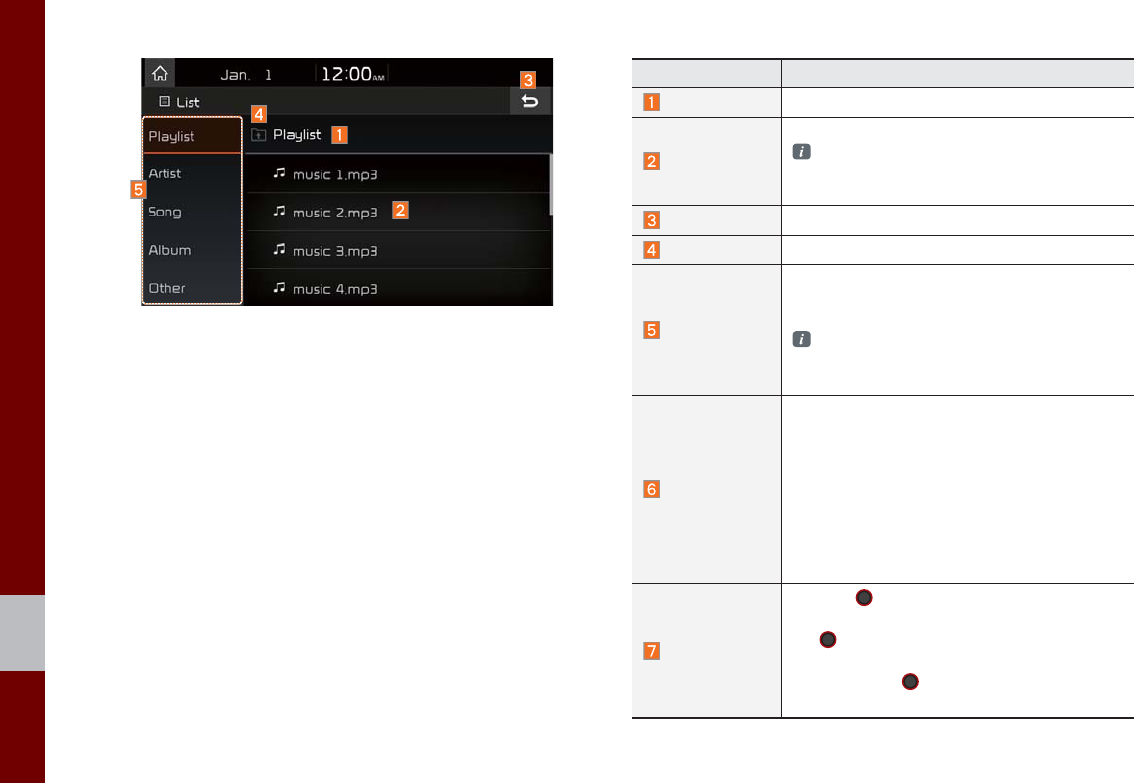

Features Description

Folder/

Category Name Displays folder/category name in the list

Current Song Displays the current playing file name

Back Button Converts to basic mode screen

Upper Folder/

Category Moves to Upper Folder

Features Description

• Add to Playlist: Adds the current track to the

Playlist: Playlist is placed on the left tab in the

list (Maximum 100 files) Select a desired track

and press “Add to Playlist” to add the track in

the playlist.

•Delete from Playlist: Select a track you want to

delete from the playlist and press “Delete from

Playlist” to delete the track in the playlist

•Now Playing: When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when

the current list includes the current file)

• Save to My Music: Stores the music. The

stored music can be played in My Music. (This

function is not provided in Playlist.)

Search Menu

Search tracks by the list type. Search songs

according to File, Playlist, Artist, Song and Album.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

If button is pressed (less than 0.8 seconds):

Plays previous/next track

• If play time is less than 3 seconds, moves to

previous/next file

• If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds):

Moves to play screen, and then it will rewind or

fast-forward the track. It will play the track nor-

mally if button released.

TUNE

Turn the

TUNE

knob to move the focus to the

previous/next list. If the desired track is displayed,

press

TUNE

knob to play the track.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-27K_UMa_UVO3[USA_EU]AV_PART2.indd 2-27 2016-01-27 오후 4:24:012016-01-27 오후 4:24:0

2-28 I Radio/Media

USB Image

Features Description

Mode Displays the current operating mode

Folder/File

Name Displays folder name where image is located

File Index Shows the current file/total files within the USB

Slideshow Images as slideshow in 5, 10, 20, 30 second

intervals

Rotate Rotate image in clockwise direction

Info Shows the file name, resolution and file type of

current image

Adjust Image

Size Enlarge/reduce (zoom-in/zoom-out) image size

List Moves to the list screen

Previous/

Next image

Swipe image left or right to see Previous/Next


K_UMa_UVO3[USA_EU]AV_PART2.indd 2-28K_UMa_UVO3[USA_EU]AV_PART2.indd 2-28 2016-01-27 오후 4:24:022016-01-27 오후 4:24:0

USB I 2-29

Features Description

Current File Displays the current playing file name

Back Button Converts to basic mode screen

Now Playing: When moving to a different list

screen, moves to the list page where the current

file is located (Becomes disabled when the cur-

rent list includes the current file)

SEEK/TRACK

Controls background mode

• Radio mode: Changes Frequency and Channel

•Media mode: Changes Track (excluding AUX)

TUNE

Controls background mode

• Radio mode: Changes Frequency and Channel

• Media mode: Changes track (excluding AUX).

If a desired track is displayed, press the knob

to move to the track.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-29K_UMa_UVO3[USA_EU]AV_PART2.indd 2-29 2016-01-27 오후 4:24:032016-01-27 오후 4:24:0

2-30 I Radio/Media

iPod

Using iPod Devices

• iPod is a registered trademark of Apple

Inc.

•iPod mode will not operate if the con-

nected iPod cannot be recognized due

to operation of unsupported versions

that do not support related protocols,

iPod abnormalities, or iPod device

defects. Some iPods with unsupported

communication protocols may not prop-

erly operate with the Multimedia system.

• For fifth generation iPod Nano devices,

the iPod may not be recognized when

the battery level is low. Please charge

the iPod for use.

• Search/play orders shown within the

iPod device may differ with the orders

shown within the Multimedia system.

•If the iPod malfunctions due to an iPod

device defect, reset the iPod and try

again. (To learn more, refer to your iPod

manual)

• If repeatedly connect and disconnect

iPod/iPhone to the Multimedia system

with USB cable in a short time, it may

cause abnormal operation.

•The time for recognition of iPod/iPhone

may vary depending on device type,

firmware version and iOS version.

• For some iPod Touch and iPhone

devices, connecting Bluetooth® while the

iPod is operating may result in discon-

tinued iPod sound. When such devices

with Bluetooth® support are connected,

this problem occurs as the sound source

is changed from the Dock Connector

(USB connector cable) to Bluetooth.

• To prevent this symptom, Bluetooth

Audio function in the Multimedia system

is limited if iPod/iPhone is connected

to the system through both cable and

Bluetooth. To listen to the iPod sound,

use either iPod menu with USB connec-

tion or Bluetooth Audio with Bluetooth

connection.

• To listen to the iPod sound, reconnect

the USB cable or change the audio out-

put settings in iPod/iPhone to Dock.

•In order to use the iPod while operating

the keys, you must use a dedicated iPod

cable. (the cable that is supplied when

purchasing iPod/ iPhone products)

※ During ACC ON state, connecting the

iPod through the iPod cable (The cable

that is supplied when purchasing iPod/

iPhone product.) will charge the iPod

through the head unit.

※

The use of genuine iPod cables sup-

plied by Apple is recommended. (The

use of other products may result in

noise or abnormal operation.)

※ To play iPod music through cable con-

nection, the iPod/USB cable must be

connected to the USB port in the front

multibox. The USB port in the center

console storage (if equipped) is for

charging only.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-30K_UMa_UVO3[USA_EU]AV_PART2.indd 2-30 2016-01-27 오후 4:24:032016-01-27 오후 4:24:0

iPod I 2-31

• When connecting with the iPod cable,

make sure to fully insert the jack to pre-

vent communication interference. If the

iPod is connected to the vehicle while it

is playing, a high pitch tone may sound

for about 1~2 seconds immediately after

connection. If possible, connect the iPod

to the vehicle with the iPod stopped/

paused.

• Within iPhones, streaming audio and

iPod control may occasionally conflict.

If problems persist, remove the iPhone

and connect again.

•When connecting to iPod Nano /Classic,

the Kia Motor logo appears on the Apple

device. For the iPod Nano 6 genera-

tion, however, the logo image does not

appear since it is not supported. Also, all

iPhone and iPod Touch products do not

support this function.

• In Apple’s iOS 6.0 version or later,

Podcast and Audiobook media files

are designed to be played with the

Podcasts and iBooks applications spe-

cifically designed for Apple products. If

the Apple device does not provide the

Podcast and Audiobook lists, the playlist

may not be displayed and played in the

iPod mode.

• If the Apple Podcasts and iBooks apps

are not installed on the Apple device, but

the Apple device provides the Podcast

and Audiobook lists, you can play files in

other categories in iPod mode.

• The screen of multimedia system can

be different when you run other music

players (e.g. iHeartRadio) on your con-

nected device.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-31K_UMa_UVO3[USA_EU]AV_PART2.indd 2-31 2016-01-27 오후 4:24:032016-01-27 오후 4:24:0

2-32 I Radio/Media

Caution

• While using a connected iPhone/iPod

Touch device, it may not operate nor-

mally if the user changed some func-

tions in the device.

• When calling with an iPhone connec-

tion, song may stop playing due to an

Apple device feature. If sound does

not resume after the call is terminated,

check the device status.

•If lots of songs have the same informa-

tion, skipping may occur when previous/

next song is executed due to an Apple

device feature. Also problems may

occur depending on device type or iOS

version.

• If lots of songs have the same informa-

tion, the song that plays may be differ-

ent between the system and the Apple

device. Reset the device or delete the

same songs in the Apple device using

iTunes.

• If you control pause, repeat, shuffle, or

seek songs when the play time is less

than 3s before the song is finished play-

ing, it may occur difference of playing

song between the Multimedia system

and Apple device. Access to iPod music

from another mode or pause a song and

then play a song again in Apple device.

•We recommend that your Apple device

uses the latest firmware since some

problems may occur due to an outdated

firmware or other software related

issues.

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPod Mini Not Supported

iPod Shuffle Not Supported

iPod Nano ○ ○ ○○○ ○Not

released ○

iPod Touch

○

(iOS 1.1

not sup-

ported)

○ ○○○ Not released

iPad ○ (Unable to charge, Not verified, Normal working not guaranteed)

iPad Mini ○ (Unable to charge, Not verified, Normal working not guaranteed)

iPod Classic Not Supported ○

(iPod with

Video)

○

(iPod

Classic)

○

(iPod

Classic)

Not

released

Type 3G 3GS 4 4S 5 5C 5S 6 6+

iPhone

Not verified,

Normal

working not

guaranteed

○○○○○○○○

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-32K_UMa_UVO3[USA_EU]AV_PART2.indd 2-32 2016-01-27 오후 4:24:032016-01-27 오후 4:24:0

iPod I 2-33

Caution

• If the iPhone/iPod Touch supports

Bluetooth, the Apple device will not be

able to use the Bluetooth function if the

device is connected through both the

USB port and via Bluetooth. Disconnect

the USB connection then use Bluetooth

Audio

• If iPod/iPhone connected to the

Multimedia system through both USB

and AUX. iPod/iPhone keeps output

sound via AUX, thus it may occur sound

will not output in iPod mode.

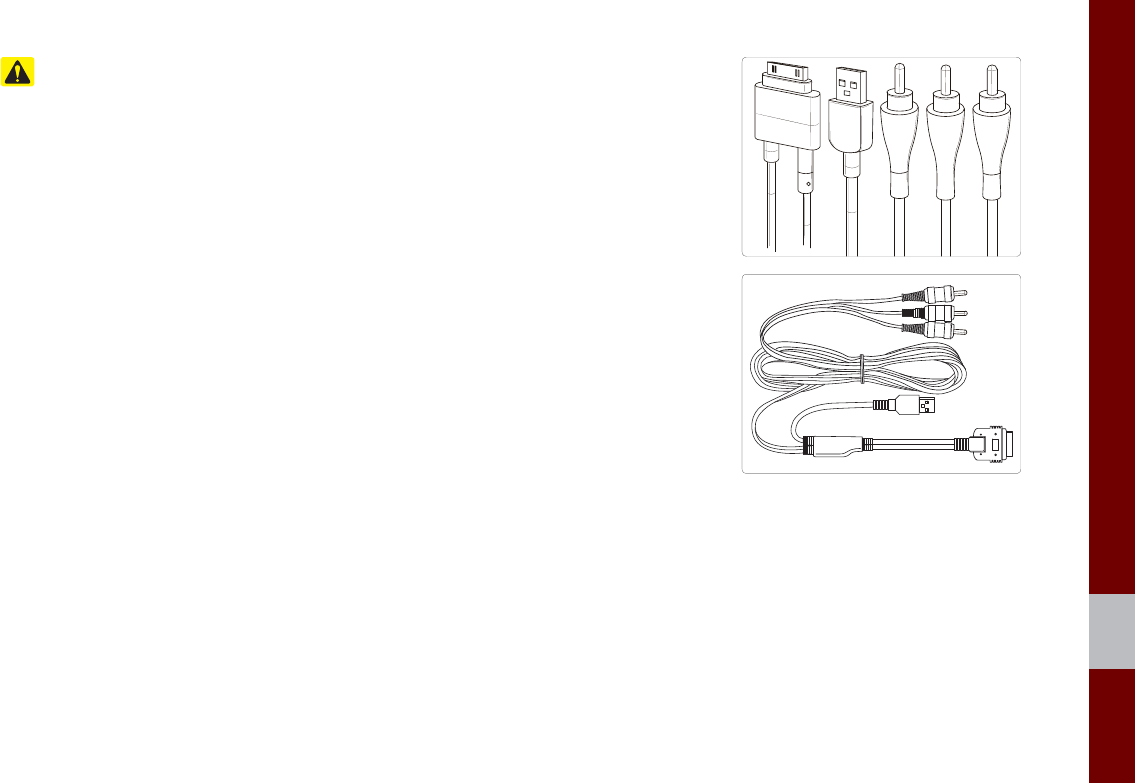

• If AUX cable connected to iPod/iPhone

but not connect to the Multimedia sys-

tem, it may occur sound will not output

in iPod mode due to iPod/iPhone’s fea-

ture. Especially, if you use AUX cable

like pictures, this problem may occur.

•Disconnect AUX cable from iPod/iPhone

first, then connect to the Multimedia

system via USB. Or change settings to

“Dock” in iPod/iPhone.

• If connect to the Multimedia system

while podcast or iTunes music down-

loading to iPod/iPhone, it may occur

some problems when you select song

in the list. Reconnect iPod/iPhone to the

Multimedia system when downloading

is finished or the file deleted.

• If connect to the Multimedia system

while sync, it may occur some problems.

Try to use iPod/iPhone connection after

sync complete. (To learn more, refer to

your iPod manual)

• iPhone and iPod Touch devices are

guaranteed to work normally on iOS 8.2

or below. However, they may not work

normally on future iOS versions as their

operations have not yet been tested.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-33K_UMa_UVO3[USA_EU]AV_PART2.indd 2-33 2016-01-27 오후 4:24:042016-01-27 오후 4:24:0

2-34 I Radio/Media

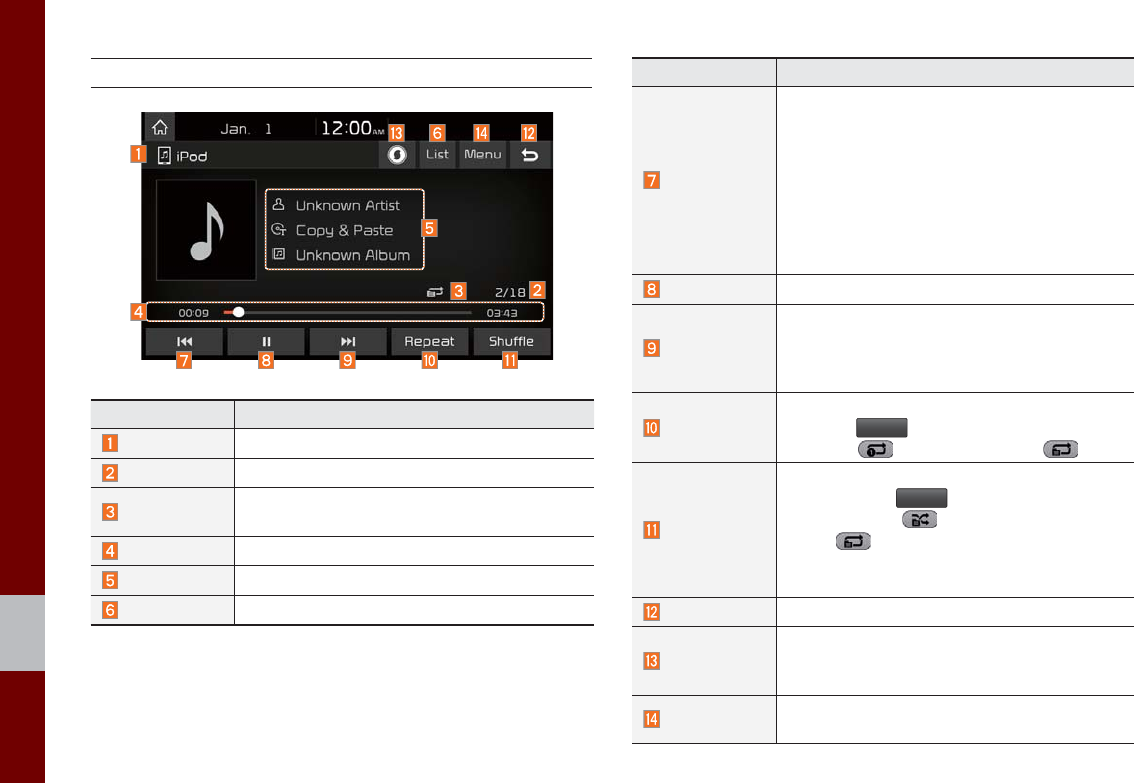

iPod Mode Display Controls

Features Description

Mode Displays the current operating mode

Song Index Shows the current song/total songs

Repeat/Shuffle From Repeat/Shuffle, displays the current oper-

ating function

Play Time Displays the current play time/total play time

Song Info Displays the artist/song title/album info

List Moves to the list screen

Features Description

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

•If play time is less than 3 seconds, moves to

previous file

•If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

rewinds the track.

Play/Pause Plays/pauses the current file

Next File

• If button is pressed (less than 0.8 seconds),

Moves to the next file

•If button is pressed (more than 0.8 seconds),

it does fast-forward the track.

Repeat

Repeats the current file

Select the

Repeat

button to switch between repeat-

ing 1 track , and turning repeat off

Shuffle

Plays files in random order

When pressing

Shuffle

button, it changes to

shuffle category → deactivate shuffle then

repeat

• Shuffle Category: Shuffle song in the current

category

Back Button Move to home/previous mode screen

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to

the SoundHound information in the Info section.

Menu Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the sound.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-34K_UMa_UVO3[USA_EU]AV_PART2.indd 2-34 2016-01-27 오후 4:24:042016-01-27 오후 4:24:0

iPod I 2-35

Features Description

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

• If play time is less than 3 seconds, moves to

previous/next file

• If play time is more than 3 seconds, plays

the current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-35K_UMa_UVO3[USA_EU]AV_PART2.indd 2-35 2016-01-27 오후 4:24:052016-01-27 오후 4:24:0

2-36 I Radio/Media

Features Description

Category Name Displays the category name

Category List

Displays the contents of selected category

If there are many items in the list, items are

added in order and the scroll bar on the right

is adjusted accordingly.

Back Button Converts to basic mode screen

Upper Folder Moves to Upper Folder

Search Menu

Search tracks by the list type. Search songs

according to Playlist, Artist, Song, Album,

Genre, Composer, Podcast and Audiobook .

If access the search menu while playing

a track, it moves to the previous search

mode.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

• If play time is less than 3 seconds, moves

to previous/next file

• If play time is more than 3 seconds, plays

the current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track.

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If you do not anything with the knob for

5 seconds, the

TUNE

knob search will be

terminated.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-36K_UMa_UVO3[USA_EU]AV_PART2.indd 2-36 2016-01-27 오후 4:24:052016-01-27 오후 4:24:0

AUX I 2-37

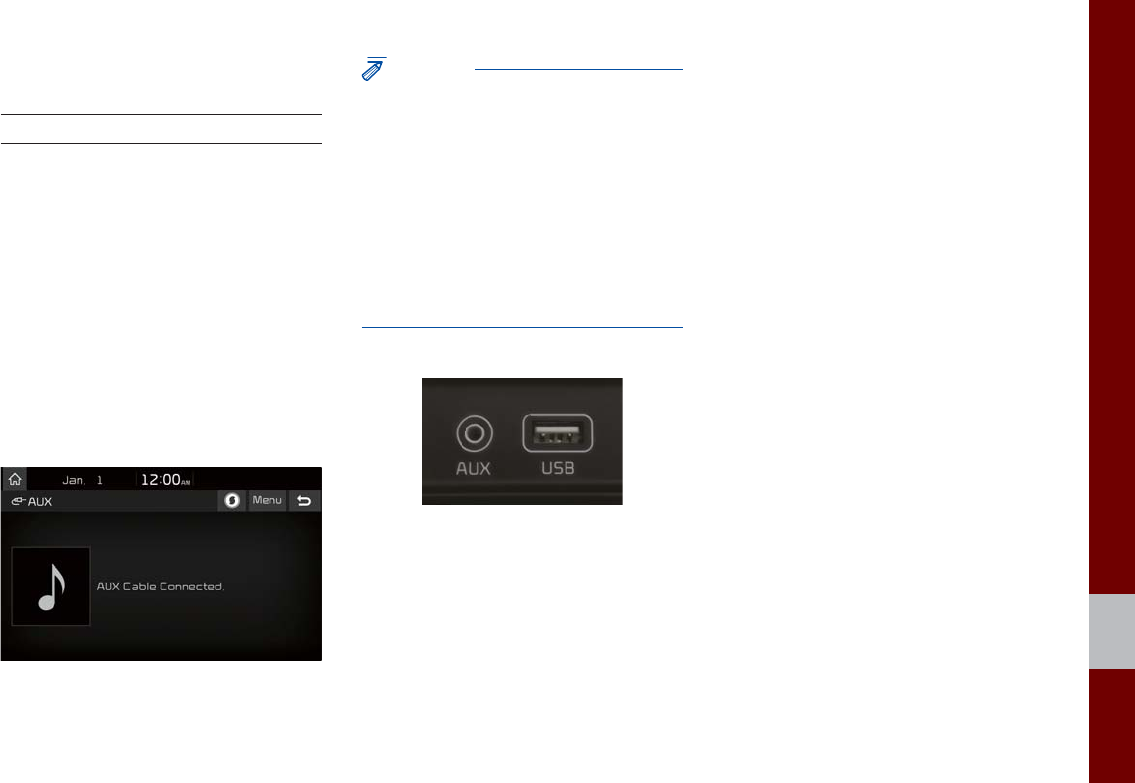

AUX

Connecting an External Device

If an external device connector is con-

nected with the AUX terminal, then AUX

mode will automatically operate. Once the

connector is disconnected, the previous

mode will be restored.

• AUX mode can be used only when an

external audio player has been con-

nected.

•The AUX volume can also be controlled

separately through the connected

device.

NOTICE

•If only a cable is connected to the AUX

without an external device, the mode will

be changed to AUX, but noise may occur.

When an external device is not being

used, remove the connector jack.

•When the external device power is

connected to the power jack, playing the

external device may output noise. In such

cases, disconnect the power connection

before use.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-37K_UMa_UVO3[USA_EU]AV_PART2.indd 2-37 2016-01-27 오후 4:24:062016-01-27 오후 4:24:0

2-38 I Radio/Media

Bluetooth

Audio

Bluetooth Audio Mode Display Controls

Features Description

Mode Displays the current operating mode

Phone Name Displays name of connected phone

Artist Info Name of current artist

Title Name of current song

Previous File

• If play time is less than 3 seconds, moves to

the previous file

•If play time is more than 3 seconds, plays the

current file from the beginning

This function may differ depending on the

model of mobile phone

Play/Pause Plays/Pauses Bluetooth Audio

Next File Moves to the next file

•Connections: Moves to the Bluetooth Settings

screen. You can pair a new device or change/

delete paired device(s).

•Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the

sound.

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to the

SoundHound information in the Info section.

SEEK/TRACK Plays the previous/next file

TUNE

is not supported.

Information

• Artist info and Title may not be supported by mobile phone

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-38K_UMa_UVO3[USA_EU]AV_PART2.indd 2-38 2016-01-27 오후 4:24:072016-01-27 오후 4:24:0

Bluetooth

Audio I 2-39

Bluetooth Connections

Settings

Settings for pairing, connection and dis-

connection of a Bluetooth device

• In Bluetooth Audio play screen, select

and then

Connections

Information

•If the music in the mobile phone is not

played after changing to audio streaming

mode, press the play button. Thus check if

the music is playing in the Bluetooth device

after changing to audio streaming mode.

Audio streaming may not be supported for

some mobile phones.

•Please check the Bluetooth compatibility

in below website: KIA Motors Corporation

http://www.kia.com

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-39K_UMa_UVO3[USA_EU]AV_PART2.indd 2-39 2016-01-27 오후 4:24:072016-01-27 오후 4:24:0

2-40 I Radio/Media

My Music

My Music Mode Display Controls

Features Description

Mode Displays the current operating mode

File Index Shows the current file/total files

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the cur-

rent operating function

Play Time Displays the current play time/total play time

Song Info

Displays the information about the current track

• When a track in the file tab on the list screen is

selected: Displays file, artist, title, album info

• When a track in the other tab on the list

screen is selected: Displays artist, title,

album info

Features Description

List Moves to the list screen

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

•If play time is less than 3 seconds, moves to

previous file

•If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

rewinds the track

Play/Pause Plays/pauses the current file

Next File

•If button is pressed (less than 0.8 seconds):

Moves to the next file

•If button is pressed (more than 0.8 seconds)

it will fast-forward the file

Repeat

Repeats the current file

• If select the song in the file tab on the list

screen: Select the

Repeat

button to switch

between repeating one song and turn-

ing repeat off.

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen:

Select the

Repeat

button to switch between

repeating one song and turning repeat

off

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-40K_UMa_UVO3[USA_EU]AV_PART2.indd 2-40 2016-01-27 오후 4:24:082016-01-27 오후 4:24:0

My Music I 2-41

Features Description

Shuffle

Plays files in random order

• If select the song in the file tab on the list

screen: Select the

Shuffle

button to switch

between shuffle and turning shuffle off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Shuffle

button to switch between shuffle

and turning shuffle off

Features Description

Scan

Scans the beginning parts of files (approx. 10

seconds per file)

• If select the song in the file tab on the list

screen: Select the

Scan

button to switch

between scan and turning scan off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Scan

button to switch between scan

and turning scan off

• Add to Playlist: Adds the current song to the

Playlist: Playlist is placed on the left tab in the list

• Delete Current File: Deletes the current track

from My Music.

• Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the sound.

SoundHound

Runs the SoundHound feature.

For more details regarding this feature, refer to

the SoundHound information in the Info section.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

• If play time is less than 3 seconds, moves to

previous/next file

•If play time is more than 3 seconds, plays the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired track.

If the desired track is displayed, press the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-41K_UMa_UVO3[USA_EU]AV_PART2.indd 2-41 2016-01-27 오후 4:24:082016-01-27 오후 4:24:0

2-42 I Radio/Media

Features Description

Folder/

Category Name Displays folder/category name in the list

Current Song Displays the current playing file name

Back Button Converts to basic mode screen

Upper Folder Moves to Root Folder

Features Description

• Add to Playlist: Adds the current track to the

Playlist: Playlist is placed on the left tab in the

list (Maximum 100 files) Select a track and

press “Add to Playlist” to add the track in the

playlist

• Delete from Playlist: Select a track from the

playlist and press “Delete from Playlist” to

delete the track in the playlist

•Delete Files: Deletes files from My Music

If delete file from My Music, the information

related to song also deleted in the list.

•Now Playing: When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when

the current list includes the current file

Search Menu

Search tracks by the list type. Search songs

according to File, Playlist, Artist, Song and Album.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is more than 3 seconds, plays the

current file from the beginning

If button is pressed (more than 0.8 seconds) it

will rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to move the focus to pre-

vious/next file. If the file you want to play is dis-

played, press

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, Tune search

will be terminated.

K_UMa_UVO3[USA_EU]AV_PART2.indd 2-42K_UMa_UVO3[USA_EU]AV_PART2.indd 2-42 2016-01-27 오후 4:24:092016-01-27 오후 4:24:0

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

part.3 Bluetooth

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-1K_UMa_UVO3[USA_EU]AV_PART3.indd 3-1 2016-01-27 오후 4:24:322016-01-27 오후 4:24:3

3-2 I Bluetooth

Before Using the

Bluetooth

Handsfree

What is

Bluetooth

Wireless Technology?

• Bluetooth® Wireless Technology refers

to a short-distance wireless network-

ing technology which uses a 2.45GHz

frequency to connect various devices

within a certain distance.

• Supported within PCs, external devices,

Bluetooth® phones, PDAs, various elec-

tronic devices, and automotive environ-

ments,

Bluetooth

Wireless Technology

to be transmitted at high speeds without

having to use a connector cable.

• Bluetooth® Handsfree refers to a device

which allows the user to conveniently

make phone calls with Bluetooth®

mobile phones through the Multimedia

system.

• The Bluetooth® Handsfree feature may

not be supported in some mobile phones.

For more information on mobile phone

compatibility, visit the KIA Motor website

- KIA Motors Corporation: http://www.kia.

com

WARNING

- Distracted Driving

• Focus on the road while driving. The driver's

primary responsibility is in the safe and legal

operation of the vehicle. Drivers should not

use any hand held devices or other equipment

or vehicle systems that distract the driver

during vehicle operation.

• Do not stare at the multimedia screen for long

periods of time while driving. Staring at the

screen for prolonged periods of time can lead

to trafﬁ c accidents and can result in personal

injuries.

Precautions for Safe Driving

• Bluetooth® is a feature that enables driv-

ers to make handsfree calls. Connecting

the head unit with a Bluetooth® phone

allows the user to conveniently make

calls, receive calls, and manage the

phonebook. Before using

Bluetooth

Wireless Technology, carefully read the

contents of this user’s manual.

•Excessive use or operations while driv-

ing may lead to negligent driving prac-

tices and be the cause of accidents. Do

not operate the device excessively while

driving.

•

Viewing the screen for prolonged peri-

ods of time is dangerous and may lead

to accidents. When driving, view the

screen only for short periods of time.

Bluetooth

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-2K_UMa_UVO3[USA_EU]AV_PART3.indd 3-2 2016-01-27 오후 4:24:332016-01-27 오후 4:24:3

Before Using the Bluetooth

Handsfree I 3-3

CAUTIONS upon Connecting

Bluetooth® Phone

• Before connecting the head unit with

the mobile phone, check to see that the

mobile phone supports Bluetooth® fea-

tures

• Even if the phone supports

Bluetooth

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth® power is turned off.

Disable the hidden state or turn on the

Bluetooth® power prior to searching/

connecting with the head unit.

• If Auto Connection is used, the

Bluetooth® phone is automatically con-

nected when the ignition is turned on,

making it unnecessary to have to con-

nect the phone with the head unit every

time.

•If you do not want automatic connection

with your Bluetooth® device, turn the

Bluetooth® feature off of the Bluetooth®

device.

• Park the vehicle when connecting the

head unit with the mobile phone.

•Bluetooth® connection may become

intermittently disconnected in some

mobile phones. Follow these steps to try

again.

1. Turn the Bluetooth® function within the

mobile phone OFF/ON and try again.

2. Turn the mobile phone power OFF/ON

and try again.

3. Completely remove the mobile phone

battery, reboot, and then again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both of

Phone and Head Unit sides and then

try again

• The Handsfree call volume and quality

may differ depending on the mobile

phone.

•Pairing Bluetooth® devices and use of

other Bluetooth® features are not sup-

ported when the vehicle is in motion. For

safety, please first park your vehicle.

•If you continue having issue download-

ing your contacts to your vehicle, con-

tact your mobile phone provider.

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-3K_UMa_UVO3[USA_EU]AV_PART3.indd 3-3 2016-01-27 오후 4:24:332016-01-27 오후 4:24:3

3-4 I Bluetooth

Bluetooth Connection

Pairing a New Device

Before you can use the Bluetooth feature,

you must first pair/connect your mobile

phone to your car.

Up to 5 Bluetooth devices can be paired.

Only one Bluetooth device can be con-

nected at a time.

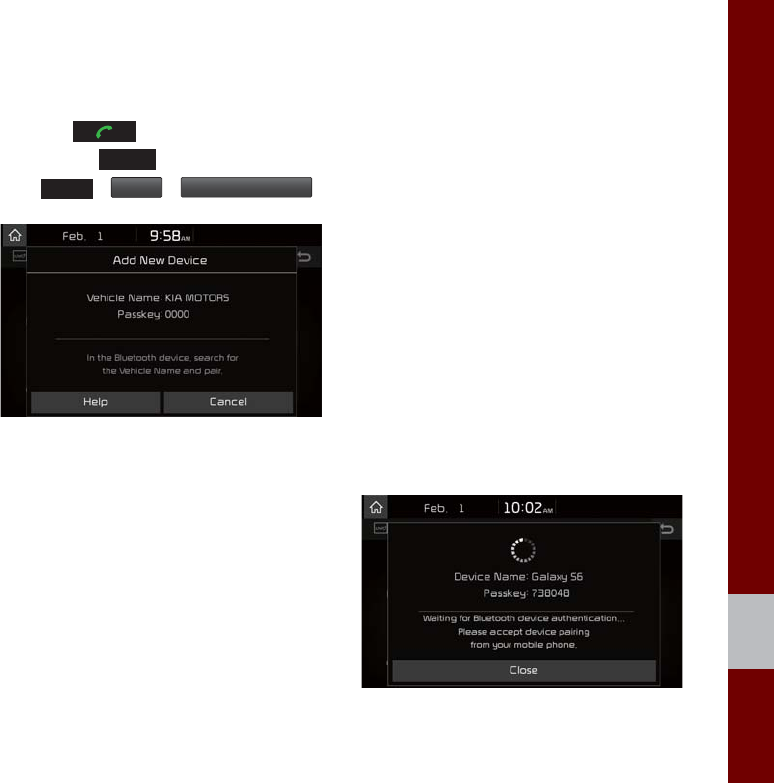

Pairing a New Device by Selecting

Phone/Call

Press the

PHONE

key or key in

the steering wheel control. ▶ Pair your car

after your mobile phone detects the

Bluetooth device. ▶ Enter the passkey or

accept the authorization popup. ▶

Connect Bluetooth.

Pairing a New Device Through the

Phone Settings

Press the

SETUP

key. ▶ Select

Phone

. ▶

Select

Bluetooth Connection

. ▶ Select

Add New

. ▶ Pair your car after your mobile

phone detects the Bluetooth device. ▶

Enter the passkey or accept the authoriza-

tion popup. ▶ Connect Bluetooth.

The default passkey is 0000.

The vehicle name above is an example.

Check the actual information on the product.

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting

Phone/Call

Press the

PHONE

key or key in

the steering wheel control. ▶ Select the

name of the device to connect. ▶ Connect

Bluetooth.

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-4K_UMa_UVO3[USA_EU]AV_PART3.indd 3-4 2016-01-27 오후 4:24:332016-01-27 오후 4:24:3

Bluetooth Connection I 3-5

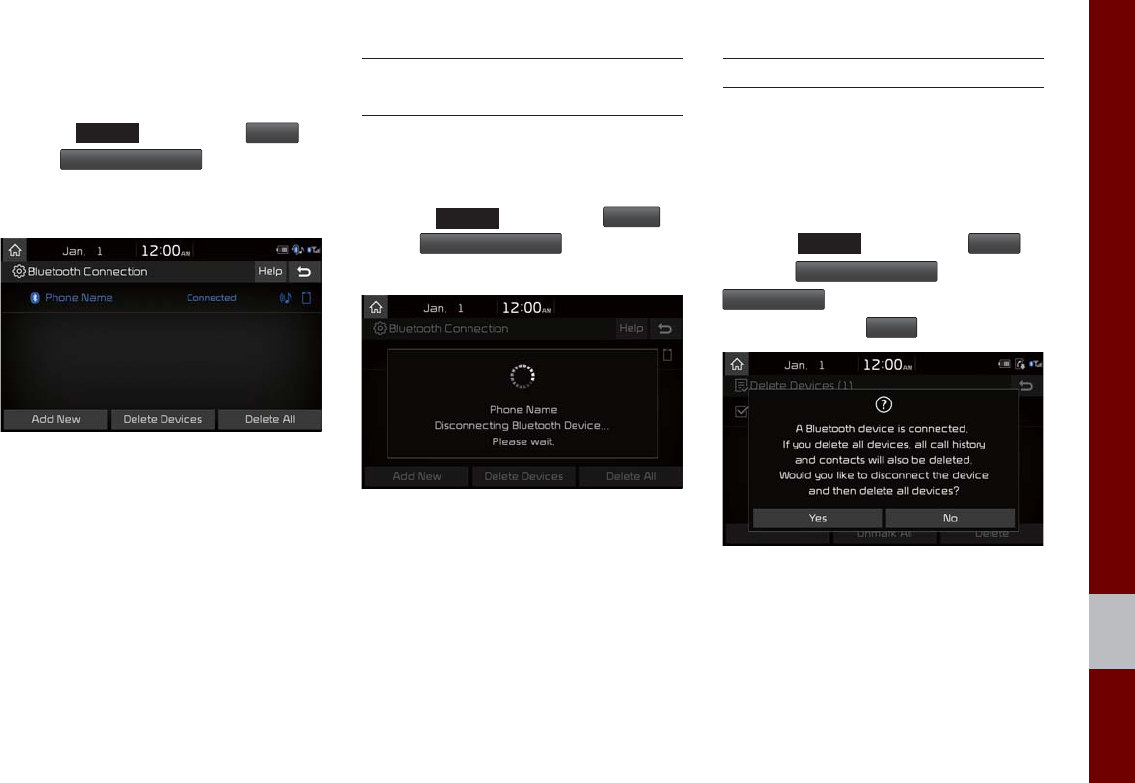

Connecting Devices Through the

Phone Settings

Press the

SETUP

key. ▶ Select

Phone

. ▶

Select

Bluetooth Connection

. ▶ Select the

name of the device to connect. ▶ Connect

Bluetooth.

Disconnecting

Bluetooth Devices

Disconnects Bluetooth devices that are

connected.

Press the

SETUP

key. ▶ Select

Phone

. ▶

Select

Bluetooth Connection

. ▶ Select the

name of the device to disconnect.

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you

added. Note that deleting a Bluetooth

device will delete all Call History and

Contact Info downloaded along with it.

Press the

SETUP

key. ▶ Select

Phone

. ▶

Select

Bluetooth Connection

. ▶ Select

Delete Devices

. ▶ Select the device name

to delete. ▶ Select

Delete

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-5K_UMa_UVO3[USA_EU]AV_PART3.indd 3-5 2016-01-27 오후 4:24:342016-01-27 오후 4:24:3

3-6 I Bluetooth

Bluetooth Phone

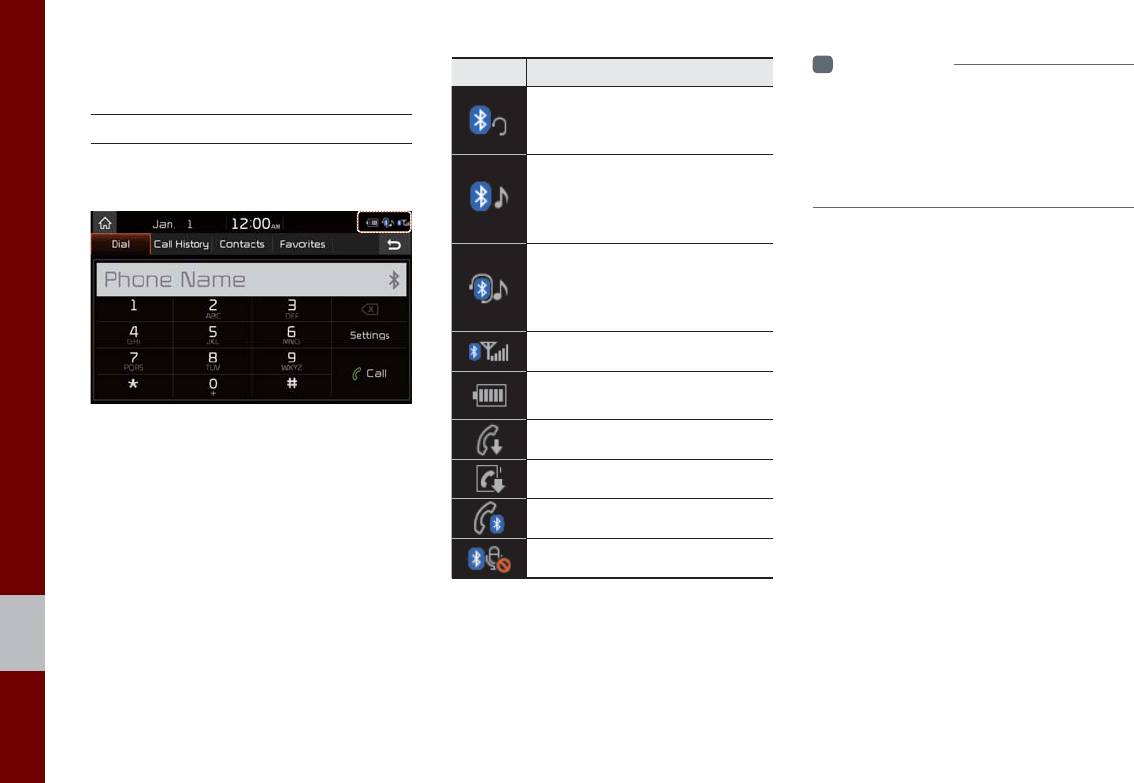

Phone Status Icons

Shows the current phone status in the

right top of the display.

Icons Description

You can use Bluetooth phones

when a Bluetooth Hands-free

connection is established.

You can use Bluetooth audio

features when a Bluetooth

audio connection is estab-

lished.

You can use Bluetooth phones

and audio features when both

Bluetooth Hands-free and audio

connections are established.

Call signal strength indicator

Battery level of the Bluetooth

devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Information

• The battery level icon and the call signal

strength indicator may not be supported in

some Bluetooth devices.

• The battery level may differ from the actual

level remaining

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-6K_UMa_UVO3[USA_EU]AV_PART3.indd 3-6 2016-01-27 오후 4:24:352016-01-27 오후 4:24:3

Bluetooth Phone I 3-7

Dial

Dials a call after the Bluetooth devices are

connected.

• Press

the

PHONE

key or key in

the steering wheel control.

•You can also select

All Menus

icon ▶ and

then

Phone

icon.

Name Description

Keypad

Use the keypad to enter

the phone number that you

want to call. Press and hold

the last number of a speed

dial to dial a number that

you added to the Speed

Dial list in the phone

Delete Deletes the numbers that

you entered.

Settings Moves to a screen of

Phone Settings.

Call

Makes a call after you dial

a number and select CALL.

If the number is listed in

Dialed Calls, you can select

the number and press

CALL to automatically dial

that number again.

Information

• Some types of mobile phones may not

support the Speed Dial function.

Accept/Reject Call

If there is an incoming call after you made

a Bluetooth connection, a popup message

will appear.

Name Description

Accept Answers the call.

Reject Ignores the call.

Information

• In some mobile phones, the caller's number

may not be displayed, and the Reject feature

may not be supported.

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-7K_UMa_UVO3[USA_EU]AV_PART3.indd 3-7 2016-01-27 오후 4:24:352016-01-27 오후 4:24:3

3-8 I Bluetooth

Using the Menu During

a Phone Call

When making a call, you can use the fol-

lowing menu items.

Name Description

Use Private

Switches a voice call

from the car Hands-free

to the mobile phone.

End Ends a call.

Contacts Displays the Contacts list.

Outgoing

Volume

Displays the Mic Volume

settings. You can adjust

the in-call volume that

the other party hears

(level 1 - 5).

Keypad Moves to a screen for

entering ARS numbers.

Switch

Switches to a call on

hold, if any. You can also

switch calls by select-

ing the number in the

Information Display. The

Switch function switches

the current call to a wait-

ing call in order to answer

a new incoming call.

Information

• If the caller's number is listed in Contacts, the

caller's name will be displayed. Otherwise,

only the number will be displayed. In some

mobile phones, the phone number may not

be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as

Radio and Settings.

• Depending on handset types, the in-call

volume the other party hears may differ. If the

other party hears your voice too low or too

loud, adjust the mic volume.

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-8K_UMa_UVO3[USA_EU]AV_PART3.indd 3-8 2016-01-27 오후 4:24:362016-01-27 오후 4:24:3

Bluetooth Phone I 3-9

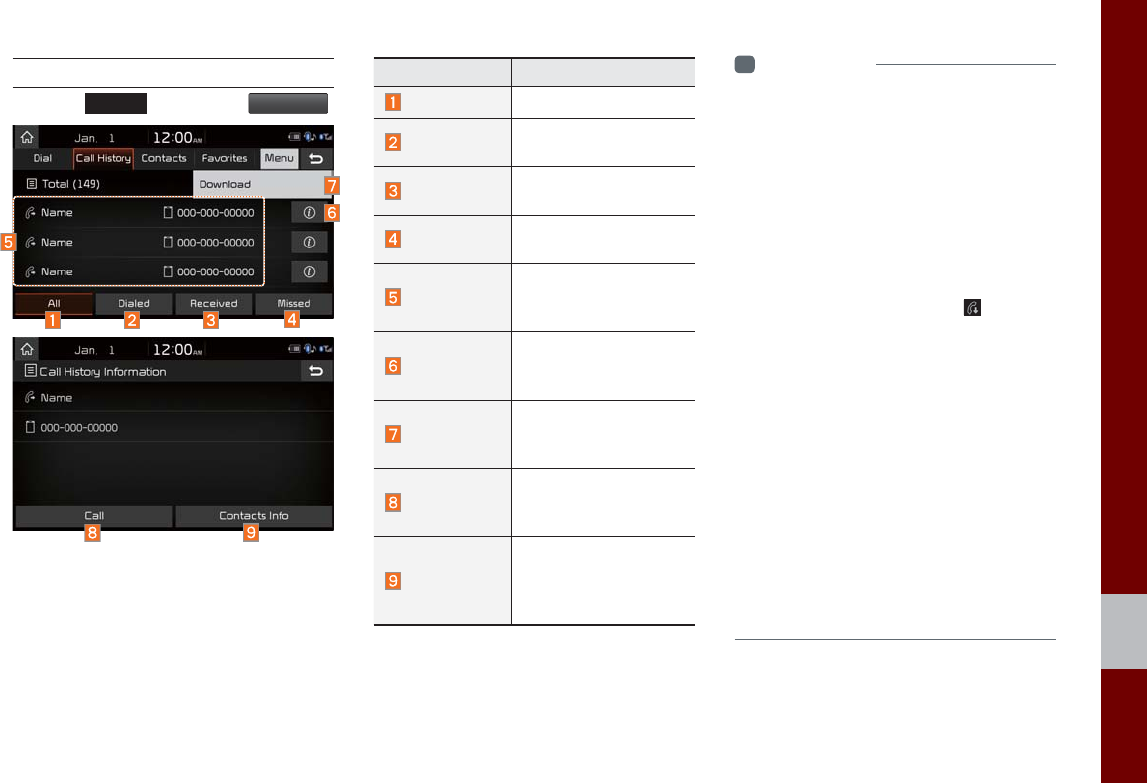

Call History

Press the

PHONE

key, and then

Call History

Name Description

All Lists the all call history.

Dialed Lists the calls that you

made.

Received Lists the calls that you

have received.

Missed Lists the calls you

missed.

Call History

Displays all of your call

history. Select from the

list to dial the number.

Information

Displays the details of

your call history

information.

Download

Downloads the call his-

tory information from

your mobile phone.

Call

Dials the selected

number in your Call

History Information.

Contacts Info

Goes to the Contact

Information screen if

the number has been

stored.

Information

• In some mobile phones, call records may

not be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off

on the Bluetooth device, the call history

download will fail.

• Some devices require a device authentication

for downloading your call history. If download

fails, check if the Bluetooth settings or

display status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device

supports download feature. For details

regarding Bluetooth-supported devices and

their functional compatibility, visit http://www.

kia.com

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-9K_UMa_UVO3[USA_EU]AV_PART3.indd 3-9 2016-01-27 오후 4:24:372016-01-27 오후 4:24:3

3-10 I Bluetooth

Contacts

Press the

PHONE

key, and then

Contacts

Name Description

Contacts List

The list of Contacts.

Select from the list to

dial the number.

Information Displays contact infor-

mation.

Download

Downloads contacts

from your mobile

phone.

Search by

Name

Searches Contacts

for the name that you

enter.

Search by

Number

Searches Contacts for

the number that you

enter.

Add to

Favorites

Adds a phone number

to Favorites.

Information

•Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth

device.

•You cannot edit or delete downloaded

phone numbers from your car.

•Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain. (Note that

deleting a paired phone will also delete all

downloaded Contacts and Call History data)

•Downloaded phone numbers may be lost

depending on the condition of the head

unit. Keep your important data in a safe

place.

•Contacts from both the SIM card and your

mobile phone are downloaded at the same

time by default.

•The status bar displays a ( ) while

downloading contacts.

•The download will not be available if the

contacts download function is turned off on

your Bluetooth device.

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-10K_UMa_UVO3[USA_EU]AV_PART3.indd 3-10 2016-01-27 오후 4:24:382016-01-27 오후 4:24:3

Bluetooth Phone I 3-11

• Some devices require a device authentication

for downloading your contacts. If download

fails,check your phone screen and conﬁ rm the

download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth

device supports contacts download. For

Bluetooth supporting devices details and

compatibility, visit http://www.kia.com

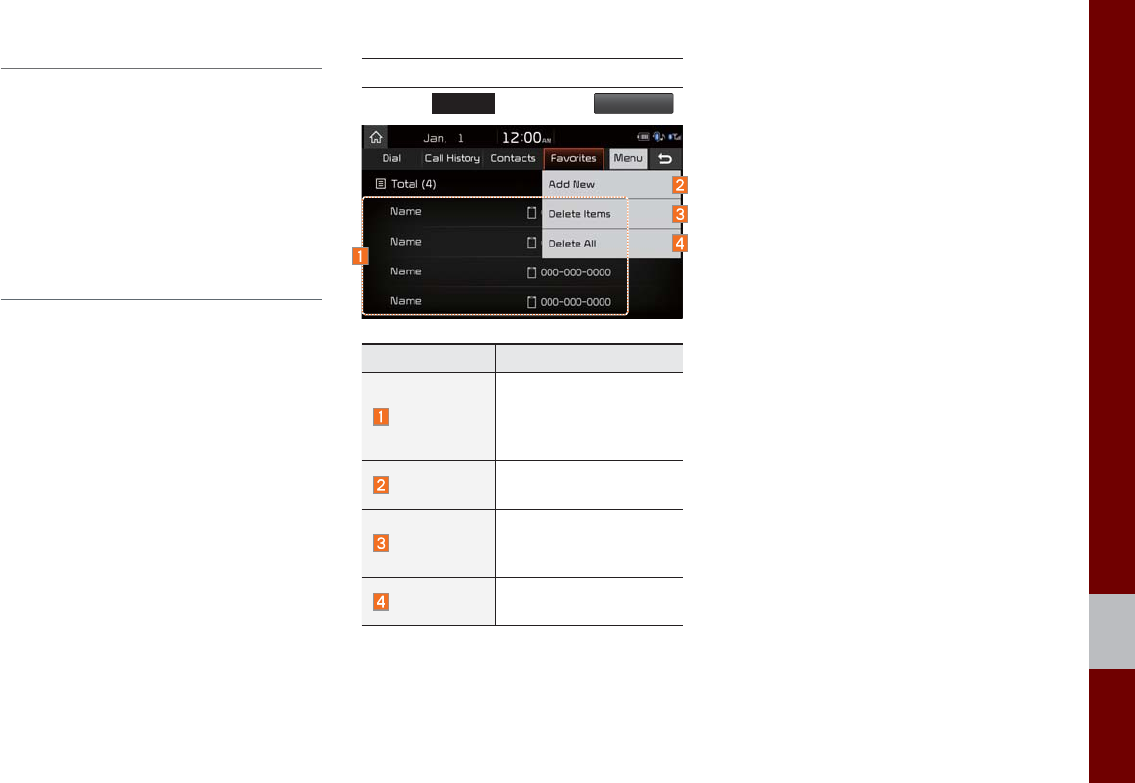

Favorites

Press the

PHONE

key, and then

Favorites

Name Description

Favorites

Lists the phone num-

bers saved as Favorites.

Select from the list to

dial the number.

Add New Adds a new number to

Favorites.

Delete Items

Deletes numbers

that you select from

Favorites.

Delete All Deletes all of the

numbers from Favorites.

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-11K_UMa_UVO3[USA_EU]AV_PART3.indd 3-11 2016-01-27 오후 4:24:392016-01-27 오후 4:24:3

MEMO

K_UMa_UVO3[USA_EU]AV_PART3.indd 3-12K_UMa_UVO3[USA_EU]AV_PART3.indd 3-12 2016-01-27 오후 4:24:402016-01-27 오후 4:24:4

The 911 Connect feature may not operate in the following situations

About UVO eServices

Before using UVO eServices

Connecting Bluetooth

Pair a device from Bluetooth-enabled phone

Connecting to smartphone via USB

911 Connect

Roadside Assist

Vehicle Diagnostics

My Car Zone

Parking Minder

eServices Guide

part.4 UVO eServices

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-1K_UMa_UVO3[USA_EU]AV_PART4.indd 4-1 2016-01-27 오후 4:25:002016-01-27 오후 4:25:0

4-2 I UVO eServices

UVO eServices

The 911 Connect feature may

not operate in the following situations

When the vehicle ignition is not turned on.

When the phone Bluetooth® feature is set to off.

When the phone Bluetooth® cannot be connected or becomes

disconnected.

When there are no phones paired with the vehicle.

When cellular service is unavailable.

When the power turns off due to phone power (battery) issues.

When a Bluetooth® device without phone feature support has

been connected, such as an MP3 device.

When the system is booting.

When the system power supply is unstable.

When the attempted call is blocked due to user operations.

When the 9-1-1 call is unstable due to phone or other commu-

nication network issues.

When the call feature is not operating due to phone settings set

by the user.

When the phone cannot be controlled via Bluetooth® due to

phone specifications or characteristics.

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-2K_UMa_UVO3[USA_EU]AV_PART4.indd 4-2 2016-01-27 오후 4:25:012016-01-27 오후 4:25:0

Using UVO eServices and Precautions I 4-3

Using UVO eServices and Precautions

Download the UVO eServices App and install it on your smartphone.

The app can be downloaded from your smartphone’s app store.

For using UVO eServices call features such as 911 Connect,

Roadside Assist and eServices Guide, a smartphone must be

connected with the vehicle via Bluetooth. Pair and connect your

smartphone with the vehicle. For information on connecting

your Bluetooth device, refer to the smartphone user’s manual

and instructions on the Phone Help screen on your radio. Up to

five Bluetooth devices can be paired to the vehicle and only

one device can be connected at a time.

For using data communication of Vehicle Diagnostics, Parking

Minder, and My Car Zone, smartphone must be connected with

the vehicle via USB cable.

※

The use of genuine cable is recommended. (The use of

other products may result in abnormal or non-proper operation.)

Some UVO eServices features will only be available when your

smartphone is connected with the vehicle via USB and the

UVO eServices App is running.

UVO eServices may not operate properly with incompatible

smartphones. To view the list of compatible smartphones,

please visit MyUVO.com

Communication between the vehicle and smartphone app may

temporarily disconnect depending on the phone state.

If the feature is not operating properly, you may need to reset

the UVO eServices App or the smartphone and try again

according to the following steps.

1. Try feature again in the Head Unit

2. Restart smartphone app

3. Re-connect Bluetooth and USB cable

4. Reset smartphone 5. Delete Device and pair again

Some services use the customer’s mobile phone data plan for

data communication. Therefore, the features will function in

accordance with the cellular plan.

Use of the most up-to-date app version is recommended.

For smartphone related inquiries, please visit MyUVO.com.

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-3K_UMa_UVO3[USA_EU]AV_PART4.indd 4-3 2016-01-27 오후 4:25:022016-01-27 오후 4:25:0

4-4 I UVO eServices

About UVO eServices

UVO eServices provides the following features through Bluetooth

and/or USB connection to your smartphone.

Name Connection Description

911

Connect BT

If an airbag deploys, your vehicle

automatically initiates a call to 9-1-1

and sends your vehicle’s location

information to the 9-1-1 operator.

Roadside

Assist BT & USB If a diagnostic issue exists, you can

connect with a Roadside Assist.

Vehicle

Diagnostics USB

Informs you if there is a diagnostic

issue found in your vehicle. If an

issue is found, you can contact a

call center through Roadside Assist

or reserve an appointment with

your preferred Kia dealer through

Schedule Service.

My Car

Zone USB

Keeps track of predefined triggered

alerts such as Speed Alert and

Curfew Limit Alert from the My Car

Zone feature.

Parking

Minder USB

Saves the location of your parked

vehicle on your UVO eServices

smartphone app.

You can check where your vehicle is

parked through the UVO eServices

App on your smartphone.

eServices

Guide BT Receive guidance on how to use

UVO eServices.

Information

• 24-hour Roadside Assistance is a

service plan provided by Kia Motors

America, Inc. Certain limitations apply. Coverage details are available

in the Kia Warranty and Consumer Information Manual. For access

to Enhanced Roadside Assistance, a conn

ected mobile phone via

Bluetooth within the cellular service coverage area is required.

To use UVO eServices, the following conditions must be met.

1. The UVO eServices smartphone app must be installed and

you must log in using your MyUVO account credentials.

2. The smartphone must be connected via Bluetooth and USB

cable to the vehicle.

3. Once this is complete, eServices must be activated.

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-4K_UMa_UVO3[USA_EU]AV_PART4.indd 4-4 2016-01-27 오후 4:25:022016-01-27 오후 4:25:0

Pair a device from Bluetooth-enabled phone I 4-5

Before using UVO

eServices

Installing the UVO eServices App on your

smartphone

1. Download and install the UVO eSer-

vices App on your smartphone.

The app can be downloaded from the

Apple App Store or Google Play.

2. Register your vehicle and account at

MyUVO.com

Note: MyUVO.com is accessible from

your phone’s browser.

3. Start the UVO eServices App on your

smartphone and log in.

Connecting Bluetooth

Press the key on the steering wheel

or press the

PHONE

key on the head unit.

Press

SETUP

▶

Phone

▶

Bluetooth Connection

Pair a device from

Bluetooth-enabled phone

1. Turn on the Bluetooth feature on your

smartphone’s Bluetooth settings screen.

2. Search Bluetooth devices on your

smartphone.

3. Select the Vehicle Name on the phone

that matches the name shown on the

screen.

4. Verify the passkey shown on the touch-

screen.

If the phone supports SSP, check the

passkey on your Bluetooth® device and

confirm the authentication.

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-5K_UMa_UVO3[USA_EU]AV_PART4.indd 4-5 2016-01-27 오후 4:25:022016-01-27 오후 4:25:0

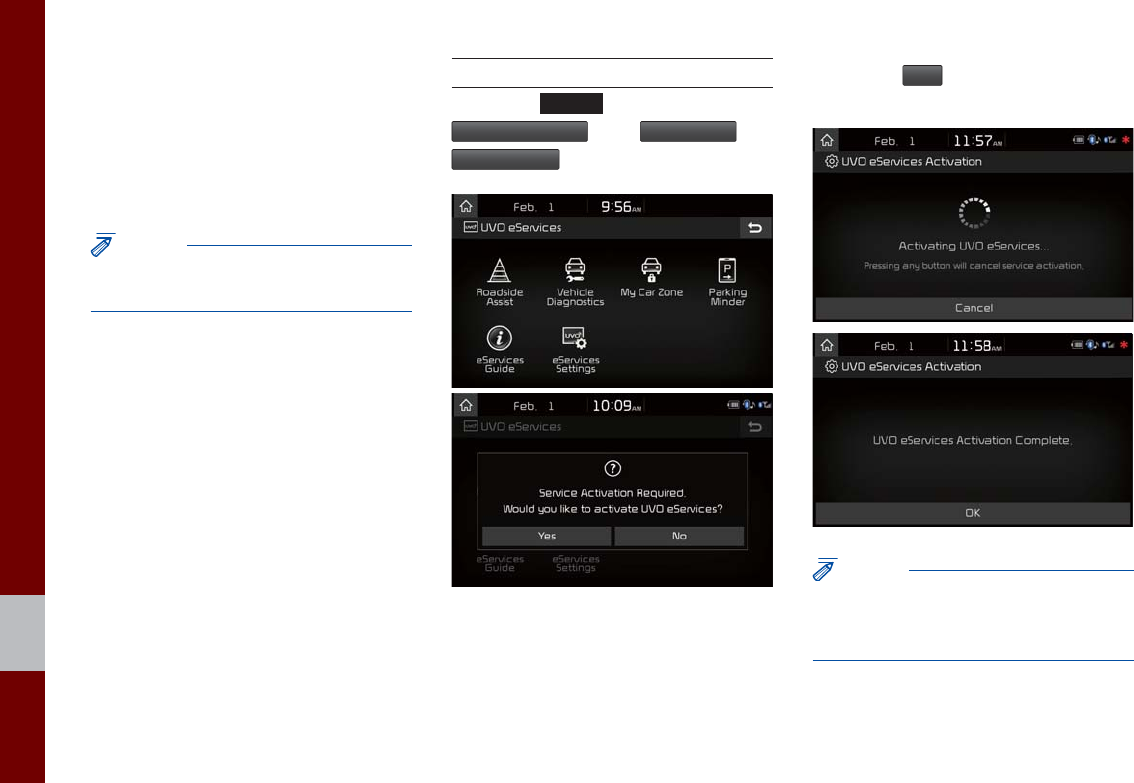

4-6 I UVO eServices

Connecting to

smartphone via USB

1. Connect your smartphone with the vehi-

cle via USB cable.

NOTICE

• For smartphone related inquiries, please visit

MyUVO.com.

Activating UVO eServices

Press the

UVO

key, then press the

Vehicle Diagnostics

My Car Zone

Parking Minder

button.

Press the

Yes

button, then the UVO

eServices activation process will begin.

NOTICE

•Before activating UVO eServices, ensure

your phone is connected to the vehicle via

USB cable.

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-6K_UMa_UVO3[USA_EU]AV_PART4.indd 4-6 2016-01-27 오후 4:25:042016-01-27 오후 4:25:0

911 Connect I 4-7

911 Connect

If an airbag deploys, your vehicle automat-

ically initiates a call to 9-1-1 and sends

your vehicle’s location information to the

9-1-1 operator.

The 911 Connect feature is available only

when the mobile phone is connected via

Bluetooth.

By default, this feature is turned off. To turn

it on, you must turn it on in the eServices

Settings menu. By enabling this feature,

you are agreeing to the 911 Connect

A ( ) icon is displayed at the top of the

touch screen as shown below when phone

is connected to UVO eServices system via

Bluetooth and the 911 connect feature is

turned on.

Initiating a 911 Call

If an airbag deploys, the following screen

is displayed and a call is automatically

placed to 9-1-1 after 10 seconds.

Once a call is connected with a 9-1-1

operator, it is possible to request emer-

gency services to be dispatched to your

location.

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-7K_UMa_UVO3[USA_EU]AV_PART4.indd 4-7 2016-01-27 오후 4:25:062016-01-27 오후 4:25:0

4-8 I UVO eServices

The 9-1-1 operator may request informa-

tion on the current location of your vehicle.

When the 9-1-1 operator requests your

vehicle location, “Sending Location” is

displayed on the screen and the vehicle

location is automatically sent to the 9-1-1

operator.

When the 9-1-1 operator attempts to talk

to the driver again, the call time is dis-

played and allows the driver to speak with

the 9-1-1 operator.

Roadside Assist

If there is any issues in the vehicle, you

can connect with a Roadside Assist agent.

The Roadside Assist feature can be used

only when your phone is connected via

Bluetooth.

Press the

UVO

key ▶

Roadside Assist

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-8K_UMa_UVO3[USA_EU]AV_PART4.indd 4-8 2016-01-27 오후 4:25:062016-01-27 오후 4:25:0

Vehicle Diagnostics I 4-9

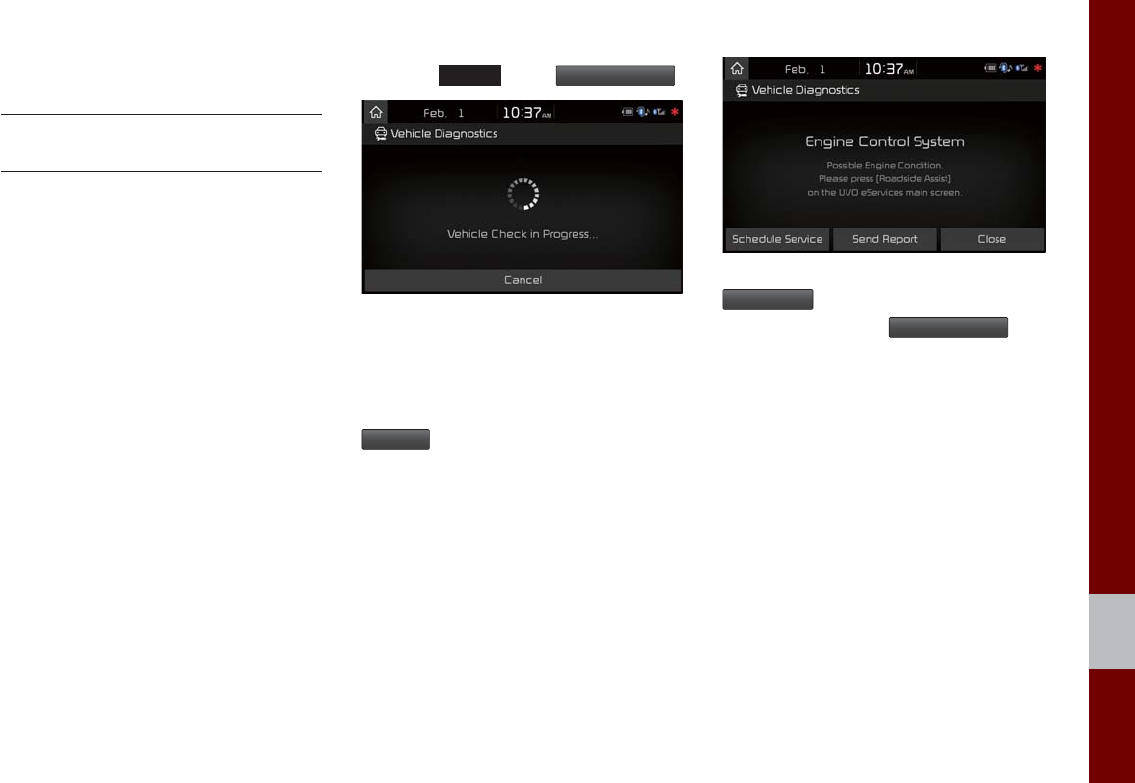

Vehicle Diagnostics

Conducting Vehicle

Diagnostics

Vehicle Diagnostics is available only when

the ignition is turned on and the vehicle is

parked.

It also requires that UVO eServices is

activated, and the Phone is connected

via USB cable before starting Vehicle

Diagnostics.

Press the

UVO

key ▶

Vehicle Diagnostics

The Vehicle Diagnostics process will begin.

When a diagnostics check is in progress,

keep the vehicle in park with the ignition

on. To cancel diagnostics, press the

Cancel

button on the touch screen or

any hardkey.

If diagnostic issues are found, press the

Send Report

button to send to your MyUVO

account or press the

Schedule Service

but-

ton to schedule an appointment with your

preferred or nearby Kia dealer.

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-9K_UMa_UVO3[USA_EU]AV_PART4.indd 4-9 2016-01-27 오후 4:25:072016-01-27 오후 4:25:0

4-10 I UVO eServices

Schedule Service

When scheduling an appointment using

the

Schedule Service

button, pressing the

Preferred

button will allow you to request an

appointment with your preferred Kia dealer

and send your vehicle’s diagnostics infor-

mation.

Pressing the

Nearest

button will allow you

to request an appointment with the near-

est Kia dealer and send your vehicle’s

diagnostics information.

Press the

Preferred

Nearest

button.

Request an appointment with Preferred or

Nearest Kia Dealer and send your vehi-

cle’s diagnostics data.

Send Report

Press the

Send Report

in the vehicle diag-

nostics result screen.

Vehicle Diagnostics Data is transmitted to

your account and you can see the report

on MyUVO.com

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-10K_UMa_UVO3[USA_EU]AV_PART4.indd 4-10 2016-01-27 오후 4:25:082016-01-27 오후 4:25:0

Vehicle Diagnostics I 4-11

Even if diagnostic issues are not found

after Vehicle Diagnostics, it is recom-

mended that you send the diagnostic

results to your MyUVO account.

Press the

Send Report

button to send the

diagnostics results to your MyUVO

account.

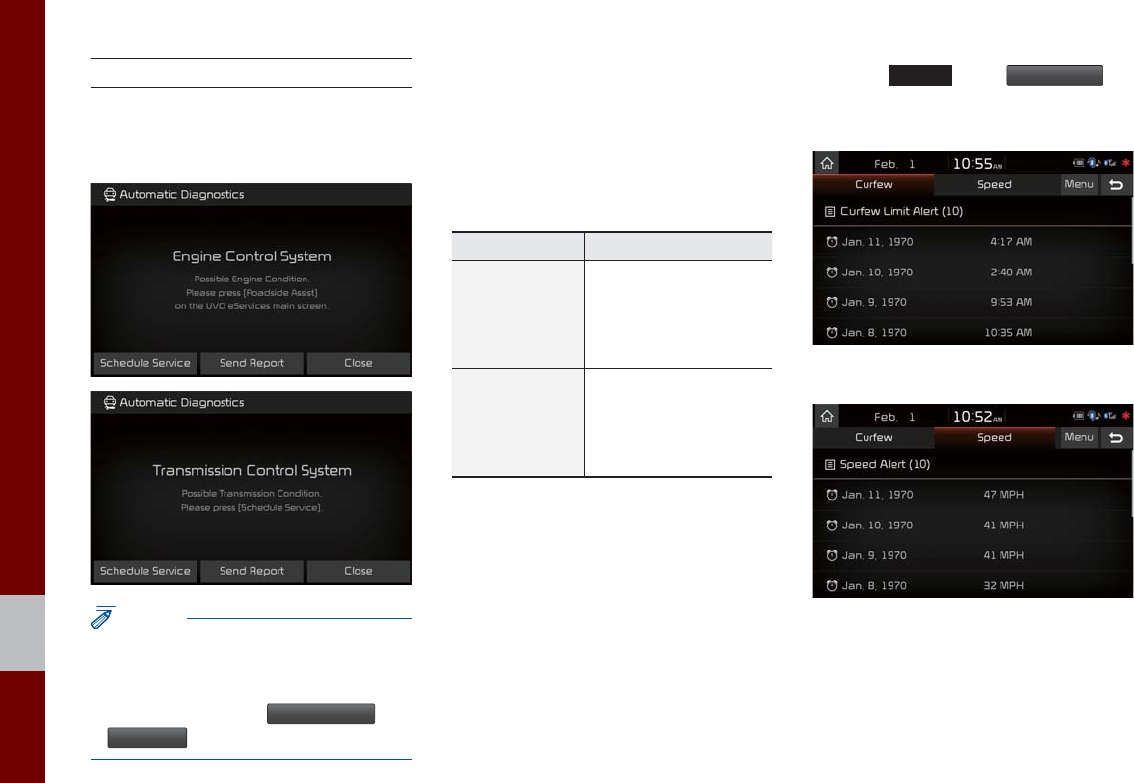

Scheduled Diagnostics

If you have set up Scheduled Diagnostics

on your UVO eServices App, a vehicle

diagnostics check will automatically start

on the day you selected.

On the date of the Scheduled Diagnostics,

the following window will be displayed.

Press the

Yes

button on the touch screen

to proceed with diagnostics.

Press the

Send Report

button to see the

Vehicle Health Report on MyUVO.com.

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-11K_UMa_UVO3[USA_EU]AV_PART4.indd 4-11 2016-01-27 오후 4:25:092016-01-27 오후 4:25:0

4-12 I UVO eServices

Automatic Diagnostics

If a critical diagnostics issue with your

vehicle’s powertrain is detected, Automatic

Diagnostics will be notified.

NOTICE

• The screen messages differ based on the

vehicle diagnostics severity. Ensure your

phone is connected to the system via USB

cable before using

Schedule Service

and

Send Report

My Car Zone

My Car Zone is a feature that provides

alerts and driving history for Curfew Limit

Alerts and Speed Alerts set by the user.

Name Description

Curfew Limit

Alert

Curfew Limit Alerts are

alerts that are triggered

when a driver is driving

within a predefined time

range.

Speed Alert

Speed Alerts are alerts

that are triggered when

a driver exceeds the

predefined maximum

speed.

My Car Zone features are supported only

when UVO eServices has been activated.

Press the

UVO

key ▶

My Car Zone

Curfew Limit Alerts History

Speed Alerts History

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-12K_UMa_UVO3[USA_EU]AV_PART4.indd 4-12 2016-01-27 오후 4:25:102016-01-27 오후 4:25:1

My Car Zone I 4-13

Curfew Limit Alert

Speed Alert

Curfew Limit Alert

You can check the Curfew Limit Alert his-

tory for a list of past triggered curfew alerts.

Name Description

Phone

Name of phone con-

nected upon triggered

curfew limit

Alert Time Initial alert time

Duration

Total duration of driving

while curfew limit was

triggered

Driving Time

Total driving time from

turning ignition on until

turning ignition off

Speed Alert

You can check the Speed Alert history for

triggered speed limit alerts of the vehicle.

Name Description

Phone

Name of phone con-

nected upon triggered

speed limit alert

Max. Speed

Maximum vehicle speed

upon triggered speed

limit alert

Alert Time

Time from first triggered

alert until last triggered

alert

Duration

Total triggered alert time

from turning ignition on

to turning ignition off

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-13K_UMa_UVO3[USA_EU]AV_PART4.indd 4-13 2016-01-27 오후 4:25:122016-01-27 오후 4:25:1

4-14 I UVO eServices

To check My Car Zone alert history from

your smartphone, you must first send the

alert history to your MyUVO account.

Parking Minder

Sending Parking Location

The location where your vehicle is currently

parked can be sent to your smartphone.

Ensure that your smartphone is connected

via USB and the UVO eServices App is

running before using this feature.

After parking the vehicle, press the

UVO

key ▶

Parking Minder

to send the

vehicle’s location to your smartphone.

Once the parking location has been sent,

you can view your vehicle’s location from

the UVO eServices App on your smart-

phone.

NOTICE

• When the parking location is being sent, do

not drive the vehicle. Ensure that you have

logged into the UVO eServices App, and your

phone is connected to the multimedia system

via USB cable.

• When ignition is turned off while the phone is

connected via USB, Parking Minder can be

transferred automatically if the option is set up

in UVO eService Settings

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-14K_UMa_UVO3[USA_EU]AV_PART4.indd 4-14 2016-01-27 오후 4:25:132016-01-27 오후 4:25:1

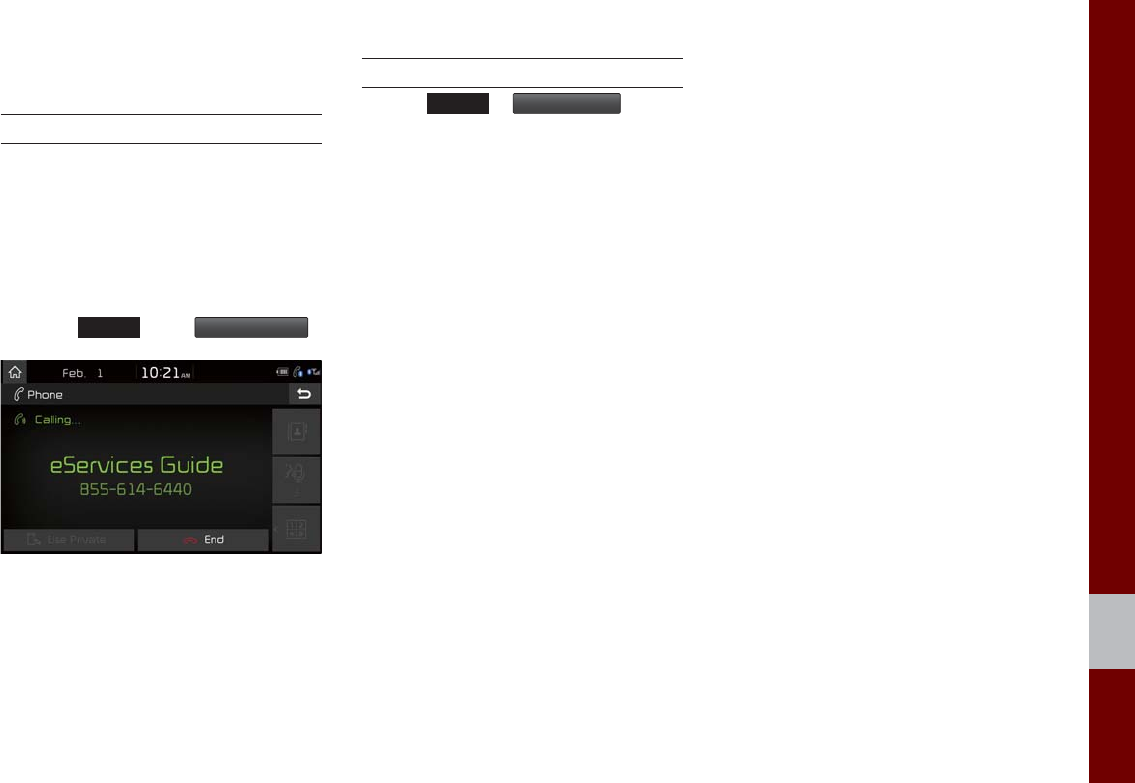

eServices Guide I 4-15

eServices Guide

eServices Guide provides guidance on

how to use UVO eServices.

This feature is only available when the

mobile phone is connected via Bluetooth.

Press the

UVO

key ▶

eServices Guide

UVO eServices Settings

Refer to

SETUP

▶

UVO eServices

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-15K_UMa_UVO3[USA_EU]AV_PART4.indd 4-15 2016-01-27 오후 4:25:142016-01-27 오후 4:25:1

MEMO

K_UMa_UVO3[USA_EU]AV_PART4.indd 4-16K_UMa_UVO3[USA_EU]AV_PART4.indd 4-16 2016-01-27 오후 4:25:142016-01-27 오후 4:25:1

What is Voice Recognition?

Precautions Required for Successful Voice Recognition

Starting/Ending and Setting Voice Recognition

Voice Recognition Screen Overview

Voice Commands

Siri Eyes Free

part.5 Voice Recognition

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-1K_UMa_UVO3[USA_EU]AV_PART5.indd 5-1 2016-01-27 오후 4:25:262016-01-27 오후 4:25:2

5-2 I Voice Recognition

What is Voice Recognition?

The voice recognition feature operates the

multimedia system by recognizing voice

commands and enables hands-free oper-

ation of the system while you are driving

your car.

Not all possible voice commands are rec-

ognized by the system due to technological

limitations. To make up for these limitations,

the system displays the voice commands

that are available for you to use.

There are errors in communication between

people. Likewise, voice recognition some-

times misunderstands your voice command

in some circumstances. If this happens,

either check the screen for the available

options and say the command again, or

manually select and press the button for the

corresponding command on the screen.

Precautions Required

for Successful Voice

Recognition

1. Voice recognition supports only the

commands that are displayed on the

screen and written in the User's Guide.

2. To ensure the correct recognition and

execution of your command, say your

command when you hear the beep after

a voice prompt.

3. Voice recognition automatically ends if:

1) A call is incoming or outgoing

2) A media device (USB or iPod, etc.) is

connected or disconnected

3) The rear view camera is operated

4) The car engine starts or stops

5) A system key, such as

RADIO

key

MEDIA

key is selected

4. The microphone used for the voice

recognition system is located in the

headliner directly above the driver's

head. To make your commands better

understood, keep your body straight

in the driver's seat when speaking the

command.

5. Speaking naturally and clearly will

ensure better recognition of your voice

commands.

6. In the following cases voice recognition

will be affected by ambient noise.

1) The sound of the wind if any window

or the sun roof is open.

2) High speed blower from the air vents.

Set climate control to blow lower than

level 3.

3) Vibrations from passing through a

tunnel.

4) Vibrations from driving on an uneven

road.

5) Storms and heavy rain.

Voice Recognition

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-2K_UMa_UVO3[USA_EU]AV_PART5.indd 5-2 2016-01-27 오후 4:25:272016-01-27 오후 4:25:2

Starting/Ending and Setting Voice Recognition I 5-3

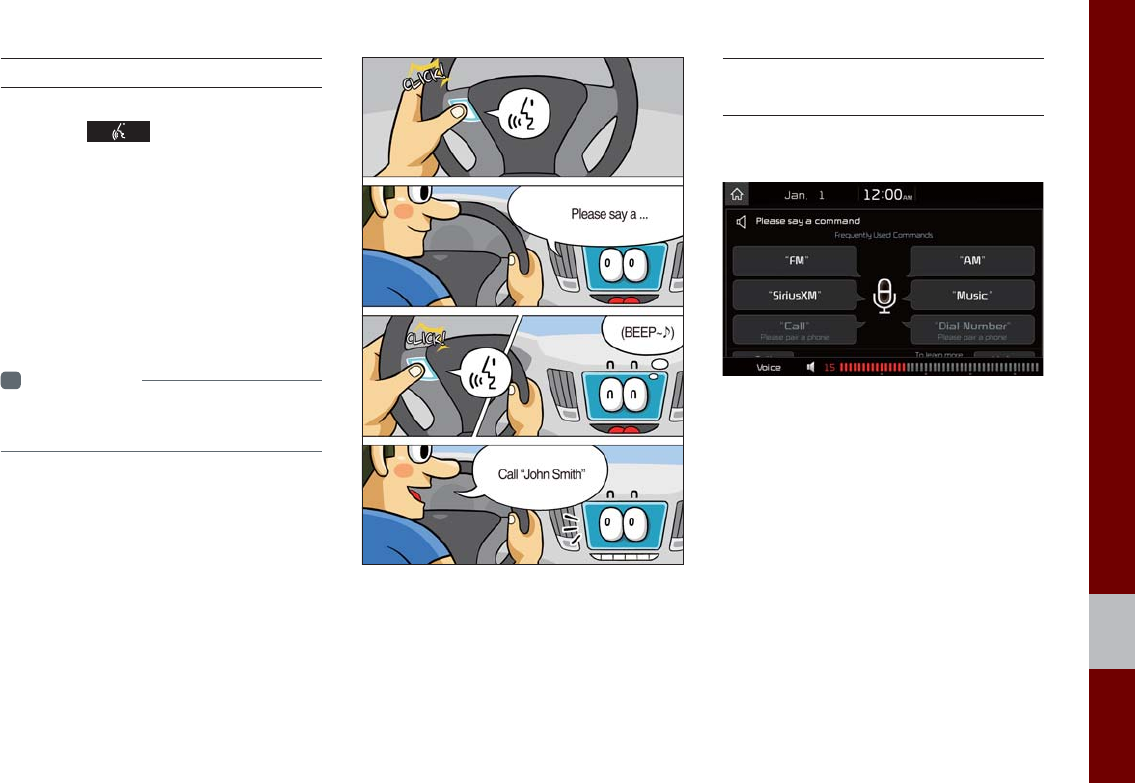

Starting/Ending

and Setting Voice

Recognition

Starting Voice Recognition

Press the key briefly (less than 0.8

seconds) on the steering wheel control to

activate voice recognition.

Ending Voice Recognition

1. Select “Exit” to the left of the bottom to

end voice recognition.

2. Press and hold (more than 0.8 sec-

onds) the key on the steering

wheel control to end voice recognition.

Combining Voice Recognition

with On-Screen Commands

After pressing the key, say a com-

mand after the beep. The voice recognition

system will execute the desired operation

after understanding the command.

Alternatively, you may touch any of the cor-

responding Frequently Used Commands

on the screen while the Voice Recognition

system is in operation.

Combining voice recognition with available

on-screen commands is useful when the

system is taking longer than expected or

the voice command did not execute as

desired.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-3K_UMa_UVO3[USA_EU]AV_PART5.indd 5-3 2016-01-27 오후 4:25:272016-01-27 오후 4:25:2

5-4 I Voice Recognition

Extending the Listening Time

When the system is waiting for your com-

mand, after the voice prompt and beep

have been heard, if you press the

key (shorter than 0.8 seconds), then the

beep will sound again and standby mode

will restart.

When activated, voice recognition waits for

your command for 5 seconds. If you say

nothing for 5 seconds, a voice prompt will

ask for your command again.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-4K_UMa_UVO3[USA_EU]AV_PART5.indd 5-4 2016-01-27 오후 4:25:442016-01-27 오후 4:25:4

Starting/Ending and Setting Voice Recognition I 5-5

Skipping Prompt Messages

When you hear the prompt message,

press the key on the steering

wheel control to skip the message and go

directly to listening mode to say your com-

mand.

This results in faster operation when

you feel the message is too long or you

already know the command to use.

Information

• Refer to Part 8 for instructions on how to

change the Voice Recognition Settings.

Adjusting Voice

Recognition Volume

During voice recognition, rotate the vol-

ume knob to adjust the message volume.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-5K_UMa_UVO3[USA_EU]AV_PART5.indd 5-5 2016-01-27 오후 4:26:092016-01-27 오후 4:26:0

5-6 I Voice Recognition

Voice Recognition

Screen Overview

Start Screen

Name Description

Most

frequently

used

commands

Displays the six most fre-

quently used commands.

Not

available

command

Displays commands that

are not available due to

a failure in meeting the

conditions for using them

and thus need additional

settings. The conditions

required for using them

will be described briefly

under each command.

Name Description

Voice

recognition

status icons

Standby

Voice guidance

Voice command

process

Recognized

results

Displays the voice rec-

ognition result.

User's

speaking

volume being

recognized

Displays the voice

command volume in

real time.

Help

Displays all available

help commands in a

tree format.

Exit Ends the voice recog-

nition.

Help Display

Name Description

Command

list

• Shows the available

commands.

• Select or say a command

to display additional com-

mands in detail.

How to

use for

selected

item

This section shows how to

use voice recognition for

the selected item.

How to

use in

general

This section displays how

to use voice recognition in

general.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-6K_UMa_UVO3[USA_EU]AV_PART5.indd 5-6 2016-01-27 오후 4:26:112016-01-27 오후 4:26:1

Voice Recognition Screen Overview I 5-7

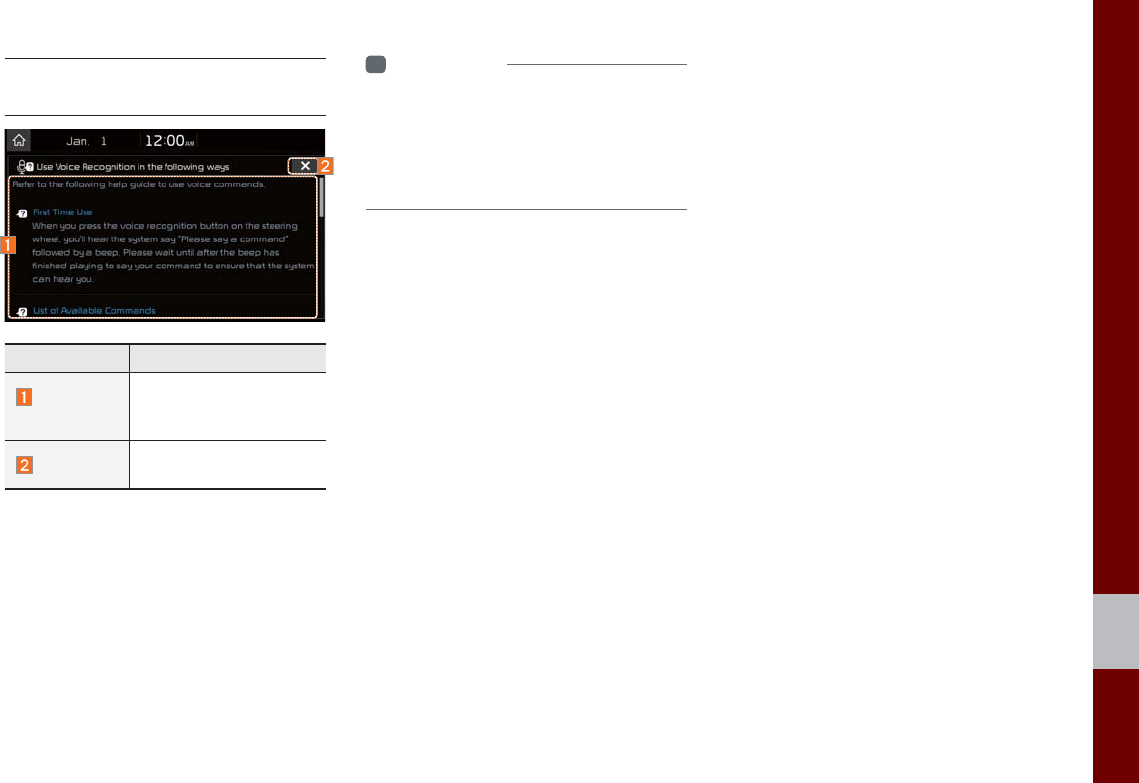

Instructions for Using

Voice Recognition

Name Description

Detail

instruction

This section describes

how to use voice recog-

nition in detail.

Close button Closes the screen and

restarts voice recognition.

Information

• In the instructions screen, no voice is

recognized, so you must manually issue

commands. Because the instructions screen

displays a lot of content, you can not view it

while driving for safety precautions.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-7K_UMa_UVO3[USA_EU]AV_PART5.indd 5-7 2016-01-27 오후 4:26:122016-01-27 오후 4:26:1

5-8 I Voice Recognition

Voice Commands

Types of Commands

Voice recognition commands are classified as “Global Commands”

and “Local Commands”.

1. Global Commands (●): Commands that can be used immedi-

ately after activating voice recognition.

2. Local Commands (○): Commands that can be used when a

multimedia or Bluetooth function is running, or displayed on the

screen, after activating voice recognition.

Call Commands

* Check the following before using call commands:

1. Voice commands related to phone calls can be used after con-

necting a Bluetooth device.

2. To call a person, for example “Call <John Smith>” whose name

is listed in Contacts, you must first download the Contacts

list. For details on downloading contacts, see “Part 3. Using

Bluetooth > Chapter 3. Bluetooth Phone > 3.10 Contacts”.

3. After downloading the Bluetooth contacts, it will take some time

to convert the Contacts into voice data during which time you

cannot make a call by name yet. The time it takes to convert

voice data may vary depending on the number of Contacts

downloaded on the phone.

Command Operation

●Call Displays downloaded Contacts, after this

you can make a call by saying the name.

●Call <Name> You can directly call a person by <Name>

in the downloaded Contacts.

●Call <Name> on

Mobile

You can call a person <name> directly to

the number that is saved as “Mobile” in

the downloaded Contacts.

e.g.) Call “John Smith” on Mobile

●Call <Name> in

Office

You can call a person <name> directly to

the number that is saved as “Office” in the

downloaded Contacts.

e.g.) Call “John Smith” in Office

●Call <Name> at

Home

You can call a person <name> directly to

the number that is saved as “Home” in the

downloaded Contacts.

e.g.) Call “John Smith” at Home

●Call <Name> on

Other

You can call a person <name> directly to

the number that is saved as “Other” than

“Mobile, Home, or Office” in the down-

loaded Contacts.

e.g.) Call “John Smith” on Other

●Dial Number Displays a screen where you can say a

phone number to dial.

●Dial <Phone #> You can directly say the number to call.

e.g.) Dial 111 555 1234

●Redial Directly calls at the number that you last

dialed.

●Call History Displays your Call History, where you can

say the list number to make a call.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-8K_UMa_UVO3[USA_EU]AV_PART5.indd 5-8 2016-01-27 오후 4:26:122016-01-27 오후 4:26:1

Voice Commands I 5-9

Radio Commands

Command Operation

●Radio Plays the most recent radio channels

from FM, AM, and SiriusXM™.

●FM Plays FM radio.

●FM

<87.5~107.9>

Tunes to FM <Frequency> according to

what you say.

e.g.) FM 87.5: FM eighty seven point five

●SiriusXM Plays SiriusXM™ radio.

●SiriusXM

<0~999>

Tunes to SiriusXM™ Channel <Channel

Number> according to what you say.

e.g.) SiriusXM 23: SiriusXM Twenty three

●AM Plays AM radio.

●AM <530~1710>

Tunes to AM <Frequency> according to

what you say.

e.g.) AM 530: AM Five Thirty

○Preset <1~40> Tunes to your preset stations (1 to 40).

○Channel

<0~999>

In SiriusXM™ Radio mode, turns on the

<Channel Number> that you say.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-9K_UMa_UVO3[USA_EU]AV_PART5.indd 5-9 2016-01-27 오후 4:26:122016-01-27 오후 4:26:1

5-10 I Voice Recognition

Media Commands

* Check the following before you use media commands.

1. If no media is connected or if no playable files exist at the time

when you use these commands, a voice message will tell you

that this is not available.

2. If you say the name of the media that is currently playing again,

then that media will continue playing.

e.g.) Saying “USB” while USB content is playing.

Command Operation

●Music Continues the last media you played.

●CD CD Plays the content of the CD currently

inserted.

●iPod

Plays the iPod currently connected. This

will work the same when an iPhone is con-

nected. If a USB is connected, then it will

be played instead of the iPod.

●USB

Plays the music on the USB currently con-

nected.

If an iPod is connected, then the iPod will

be played instead of the USB.

●Bluetooth Audio

Plays the music on the Bluetooth phone

currently connected.

This may not be supported depending on

the Bluetooth connection status.

●AUX Plays external devices that are currently

connected.

●My Music Plays My Music files stored in the system.

●Pandora Radio Plays Pandora Radio that is currently con-

nected.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-10K_UMa_UVO3[USA_EU]AV_PART5.indd 5-10 2016-01-27 오후 4:26:122016-01-27 오후 4:26:1

Voice Commands I 5-11

1. Audio CD Command

Command Operation

○Play Plays a paused track.

Maintains the current settings during playback.

○Pause

Pauses a track that is currently playing.

Maintains current settings while paused during

playback.

○Tra ck

<1~99> Plays a desired track number.

○Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled play-

back.

○Shuffle Off

Cancels Shuffle and plays tracks sequentially.

Maintains current settings during sequential

playback.

○Repeat

Plays the current track repeatedly.

Maintains the current settings during repeat play-

back.

○Repeat Off

Cancels Repeat and plays multiple tracks or files.

Maintains current settings during multiple track

playback.

2. MP3 CD/USB Music/iPod/My Music Command

Command Operation

○Play Plays a selected file.

Maintains the current settings during playback.

○Pause

Pauses a file that is playing.

Maintains current settings while paused during

playback.

○Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled

playback.

○Shuffle Off

Cancels Shuffle and plays tracks sequentially.

Maintains current settings during sequential

playback.

○Repeat

Plays the current track or file repeatedly.

Maintains the current settings during repeat

playback.

○Repeat Off

Cancels Repeat and plays multiple tracks or files.

Maintains current settings during multiple track

playback.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-11K_UMa_UVO3[USA_EU]AV_PART5.indd 5-11 2016-01-27 오후 4:26:122016-01-27 오후 4:26:1

5-12 I Voice Recognition

3. Pandora Radio Command

Command Operation

○Skip Moves to the next track.

○Thumbs up

If you like the genre of the music currently

playing, say “Thumbs up” so that more

similar music will play.

○Thumbs down

If you don’t like the music currently playing,

say “Thumbs down” to minimize the num-

ber of playbacks of similar genre music.

○Play

Plays a selected file.

Maintains the current settings during play-

back.

○Pause

Pauses a file that is playing.

Maintains current settings while paused

during playback.

○Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled

playback.

4. Bluetooth audio/AUX Command

For Bluetooth audio and external devices (AUX), local commands

are unavailable, including Play, Pause, Repeat and Shuffle.

UVO eServices Commands List

Command Operation

●Roadside Assist Connect with a Roadside Assist agent.

●Vehicle

Diagnostics

Informs you if diagnostic issues are found

in your vehicle

●eService Guide Provides guidance on how to use UVO

eServices

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-12K_UMa_UVO3[USA_EU]AV_PART5.indd 5-12 2016-01-27 오후 4:26:122016-01-27 오후 4:26:1

Voice Commands I 5-13

Other Commands List

(Commands used in List/Help)

Command Operation

●Help

Moves to the voice recognition help screen.

All available commands can then be identi-

fied and used.

○Line 1~4

(One~Four)

When you cannot select a certain name,

such as in Call History, you can select it using

numbers.

Simple numbers can be recognized, such as

“One” or “Two”.

○Yes/No

When voice recognition is activated, this com-

mand is used when an answer is requested for

a confirmation question.

○Previous/Next

When four or more searched items are listed,

you can move to the previous or next page

using a voice command.

○Manual Input

When Dial entry results are displayed, this

command is used to search manually, rather

than to search with a voice command.

Voice recognition stops after this command is

used.

○Go Back Moves to the previous screen.

●Exit Ends the voice recognition.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-13K_UMa_UVO3[USA_EU]AV_PART5.indd 5-13 2016-01-27 오후 4:26:122016-01-27 오후 4:26:1

5-14 I Voice Recognition

Siri Eyes Free

How to start Siri

If you want to use Siri, you have to con-

nect your iOS device to the Multimedia

system through Bluetooth.

(Please check whether your iOS device

supports Siri and turning Siri On)

Then you can use Siri while pressing and

holding key on the steering wheel.

How to use Siri

When you access the Siri screen while

pressing and holding key on the

steering wheel, you can press

Spea

but-

ton and then you can speak what you

want. Note that the Multimedia system

only supports “Phone” related functions.

Other functions will be performed in your

iOS device. If you press voice key quickly,

Siri would re-start. If you hold down voice

key, Siri would be terminated and the

screen would go back to the previous

screen. Eyes-Free mode would be acti-

vated automatically while you are driving.

When shifting gears into P or putting the

Parking brake on, Eyes-Free mode would

be deactivated automatically.

Information

• Functions and feedbacks from voice

commands via Siri are executed in the iOS

device. If the iOS version is changed, the

functions and response may be different

according to the iOS device and the latest

version.

K_UMa_UVO3[USA_EU]AV_PART5.indd 5-14K_UMa_UVO3[USA_EU]AV_PART5.indd 5-14 2016-01-27 오후 4:26:132016-01-27 오후 4:26:1

Start up

Pandora®

SiriusXM™ Data

SoundHound

Android Auto

part.6 Apps/Info

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-1K_UMa_UVO3[USA_EU]AV_PART6.indd 6-1 2016-01-27 오후 4:26:432016-01-27 오후 4:26:4

6-2 I Apps/Info

Apps/Info

Start Up

Press the

APPS/

key on the head unit to move to the information

screen. The screen is composed of:

•Pandora®: To listen to Pandora® Radio by connecting a smart

phone

•Quick Guide: To provide information about how to controls and

major functions

•SiriusXM Data: To show weather, sports, stock, fuel prices and

movie information provided by SiriusXM™ Travel Link.

•Voice Commands: To provide information about available voice

command list to use voice recognition.

• Android Auto: To conveniently use various functions of your

mobile phone while driving (For more information, visit the

Google website http://support.google.com/androidauto).

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-2K_UMa_UVO3[USA_EU]AV_PART6.indd 6-2 2016-01-27 오후 4:26:442016-01-27 오후 4:26:4

Pandora

I 6-3

Pandora

Press the “Pandora” icon after selecting All Menus or the

APPS/

key to enter Pandora®.

Pandora, the Pandora logo, and the Pandora trade dress are

trademarks or registered trademarks of Pandora Media, Inc. Used

with permission. Pandora is only available in certain countries.

Please visit http://www.pandora.com/legal for more information.

Pandora® Screen Controls

Name Description

Mode Displays the current operating mode.

Station Name Shows the station name current playing.

Artist Name Shows the artist/title information current playing.

Name Description

Song Title Shows the song title current playing.

Album Name Shows the album name current playing.

Play Time Displays the current play time.

Thumbs

Down

If you don’t like the music currently playing, press

this button to move to the next song and to minimize

the number of playbacks of similar genre music.

You can move to next song up to specific times

which Pandora

allows

Thumbs Up

If you like the genre of the music Thumbs Up,

press this button to send a “Thumbs Up” signal to

Pandora

so that more similar music will play.

This function can not be reset once setting is

chosen.

Bookmark

Track

Add the music current playing to the bookmarks list.

You can view your bookmarked songs from

your Pandora

profile online. Go to pandora.

com, then click on the “Your profile” button

above the player. That will bring up a page with

your stations, bookmarked songs.

This function can not be reset once setting is

chosen.

Play/Pause Plays/pauses the current song

Skip

Moves to the next track

You can move to next song up to specific times

which Pandora

allows

Station Moves to the station list screen.

Shared

Station Icon

Indicates that the station is already shared.

Thumbs Up/Down in not available for shared

stations.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-3K_UMa_UVO3[USA_EU]AV_PART6.indd 6-3 2016-01-27 오후 4:26:442016-01-27 오후 4:26:4

6-4 I Apps/Info

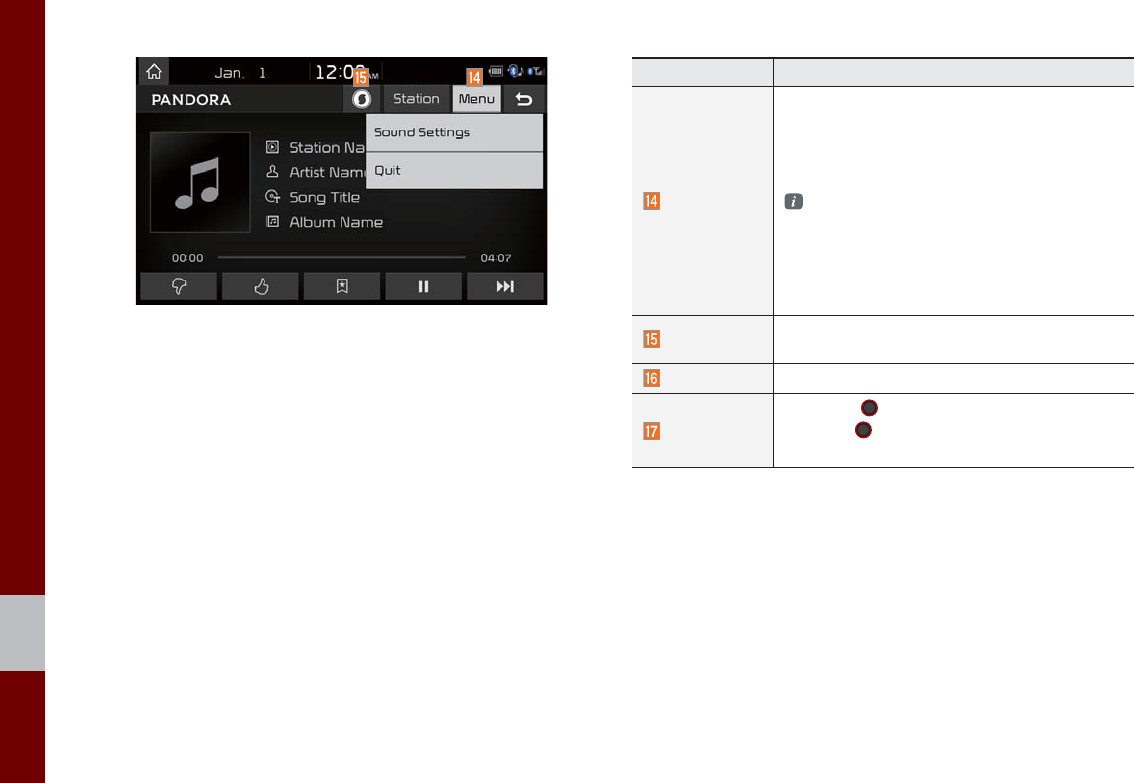

Name Description

• Sound Settings

Moves to the sound settings screen.

• Quit

Exit current Pandora

mode and then move to

previous AV mode.

You can view your bookmarked artists and

songs from your Pandora

profile online.

Go to pandora.com, then click on the “Your

Profile” button above the player. That will

bring up a page with your stations, book-

marked artists, and bookmarked songs.

SoundHound Moves to the SoundHound searching music

application.

SEEK/TRACK Press briefly to play the next song.

TUNE

Rotate the

TUNE

knob to search for a station.

Press the

TUNE

knob to play the station when

you find the name that you want.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-4K_UMa_UVO3[USA_EU]AV_PART6.indd 6-4 2016-01-27 오후 4:26:462016-01-27 오후 4:26:4

Pandora

I 6-5

Name Description

Current

Station Shows the name of the station current displayed.

Shuffle

Shuffling your stations provides a more diverse

mix of music by randomly playing songs from the

stations in your list.

Sorts stations by the items in the menu.

•A-Z: Sorts stations in alphabetical order.

• By Date: Sorts stations in the order they were

generated.

Shared

Station Icon Indicates that the station is already shared.

SEEK/

TRACK Press briefly to play the next song.

TUNE

Rotate the TUNE knob to move to the previous/

next list. Press the TUNE knob to play a

selected file.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-5K_UMa_UVO3[USA_EU]AV_PART6.indd 6-5 2016-01-27 오후 4:26:482016-01-27 오후 4:26:4

6-6 I Apps/Info

SiriusXM™ Data

About SiriusXM™ Data Service

The SiriusXM™ Data Service is a paid membership satellite radio

service that provides users with information such as Weather,

Sports, Stocks, Fuel Prices and Movies.

However, weather information is not supported for vehicles pur-

chased in Canada.

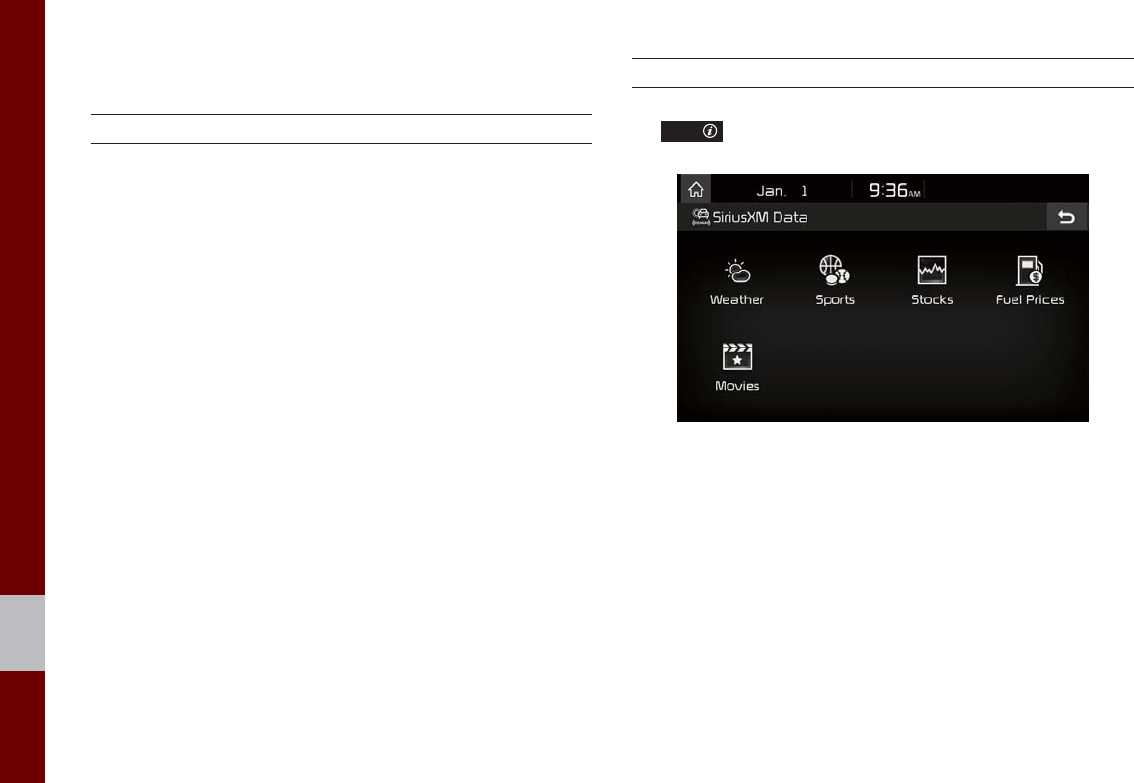

Accessing SiriusXM™ Data

Select the “SiriusXM Data” icon after selecting All Menus icon or

the

APPS/

key to enter the SiriusXM™ Data mode.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-6K_UMa_UVO3[USA_EU]AV_PART6.indd 6-6 2016-01-27 오후 4:26:492016-01-27 오후 4:26:4

SiriusXM™ Data I 6-7

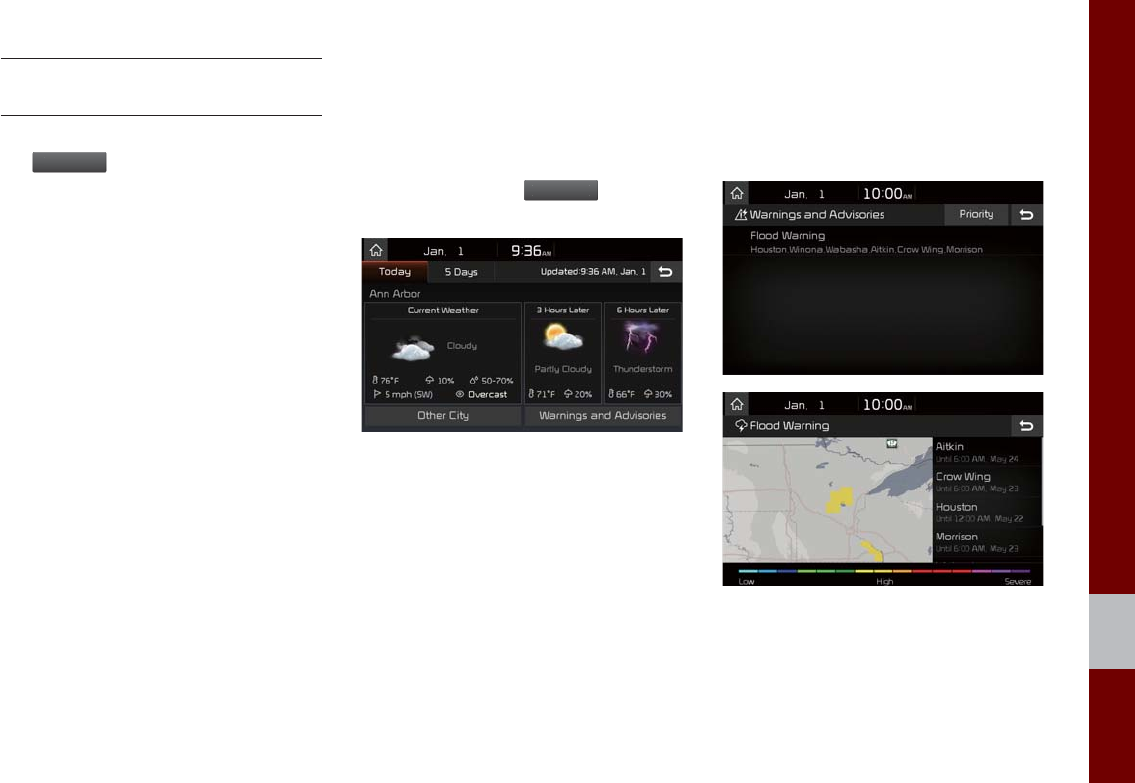

SiriusXM™ Weather

Announcement

At the “SiriusXM Data” screen, select

the

Weathe

icon to enter the Weather

Announcement mode.

Weather Forecast

This service provides current weather

information and weather forecasts for the

next five days in your region. To change

the region, select the

ther City

button and

select the desired region.

Warnings and Advisories

This service provides weather warnings

and advisories, such as tornado, storm,

flood, etc.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-7K_UMa_UVO3[USA_EU]AV_PART6.indd 6-7 2016-01-27 오후 4:26:502016-01-27 오후 4:26:5

6-8 I Apps/Info

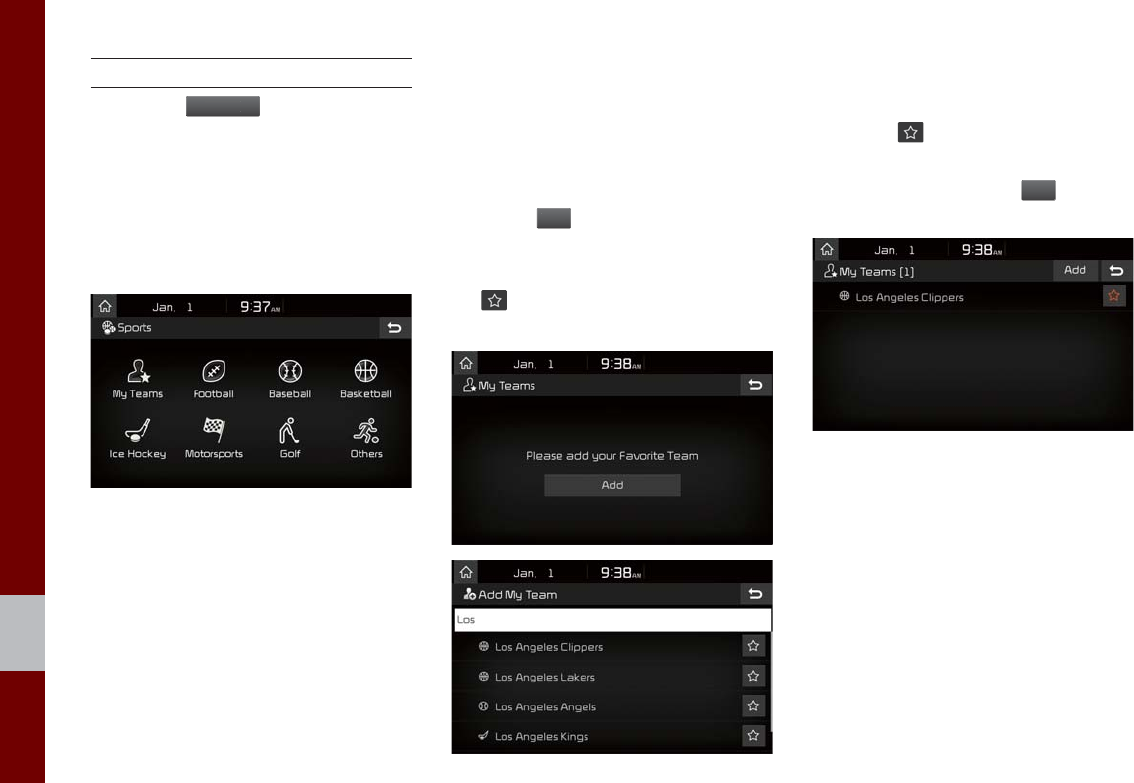

SiriusXM™ Sports Information

Select the

icon to enter the

Sports mode.

This service provides real-time updated

information on scores and schedules for

major sports, such as NFL, NBA, NCAA

football, NCAA basketball, NHL, MLB,

NASCAR and more.

My Teams

You can save teams which you are inter-

ested in as part of My teams to easily view

related scores and schedules.

Select the My Teams menu and then

select the

button to search for and

Search for your favorite teams and select

the button on the right to add it to the

“My Teams” list.

You can always check the list of teams

that you added in the “My Teams” menu.

Select the button on the right side of

the team name to delete the team from

“My Teams” or select the

button to

add other teams.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-8K_UMa_UVO3[USA_EU]AV_PART6.indd 6-8 2016-01-27 오후 4:26:512016-01-27 오후 4:26:5

SiriusXM™ Data I 6-9

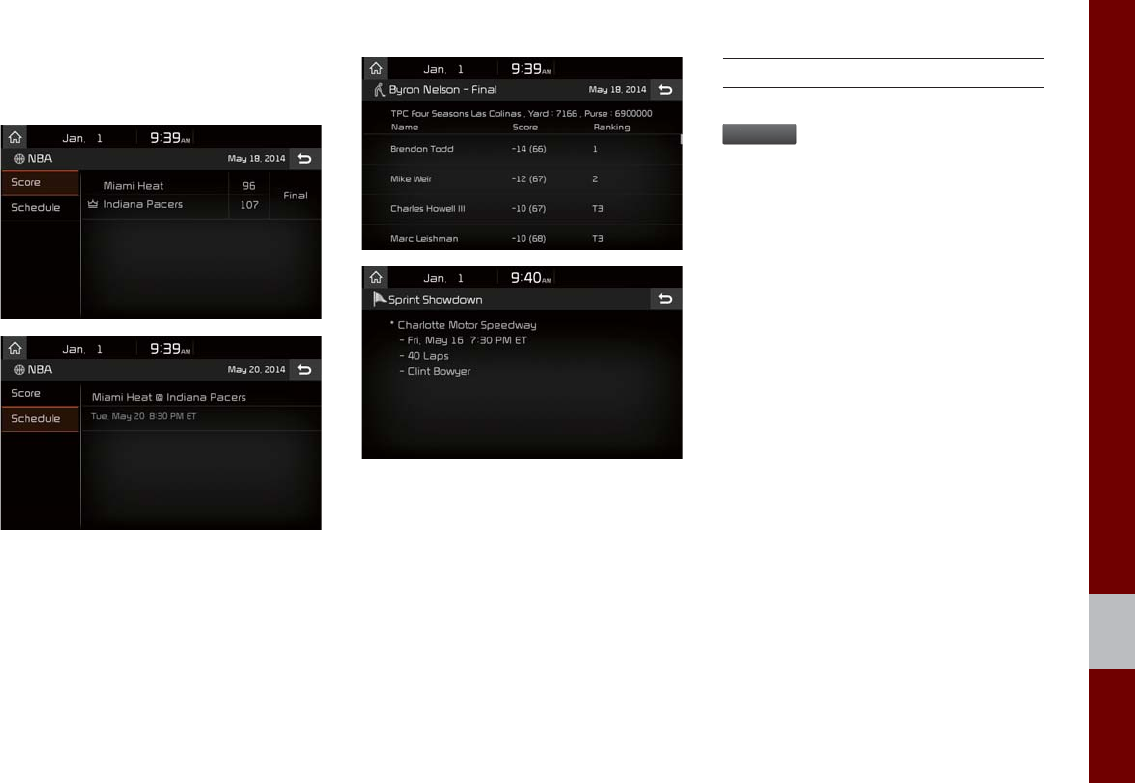

Select the team name to check daily

results and recent schedules for that team.

SiriusXM™ Stock Information

In the “SiriusXM Data” screen, select the

Stocks

icon to enter the Stocks mode.

Stocks is a feature that shows the current

value and change of stocks.

For symbols which you are interested in,

select the icon to save the symbol as a

part of the “Saved” symbols which can be

viewed from the “My Favorites” button on

the Stocks Main screen.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-9K_UMa_UVO3[USA_EU]AV_PART6.indd 6-9 2016-01-27 오후 4:26:522016-01-27 오후 4:26:5

6-10 I Apps/Info

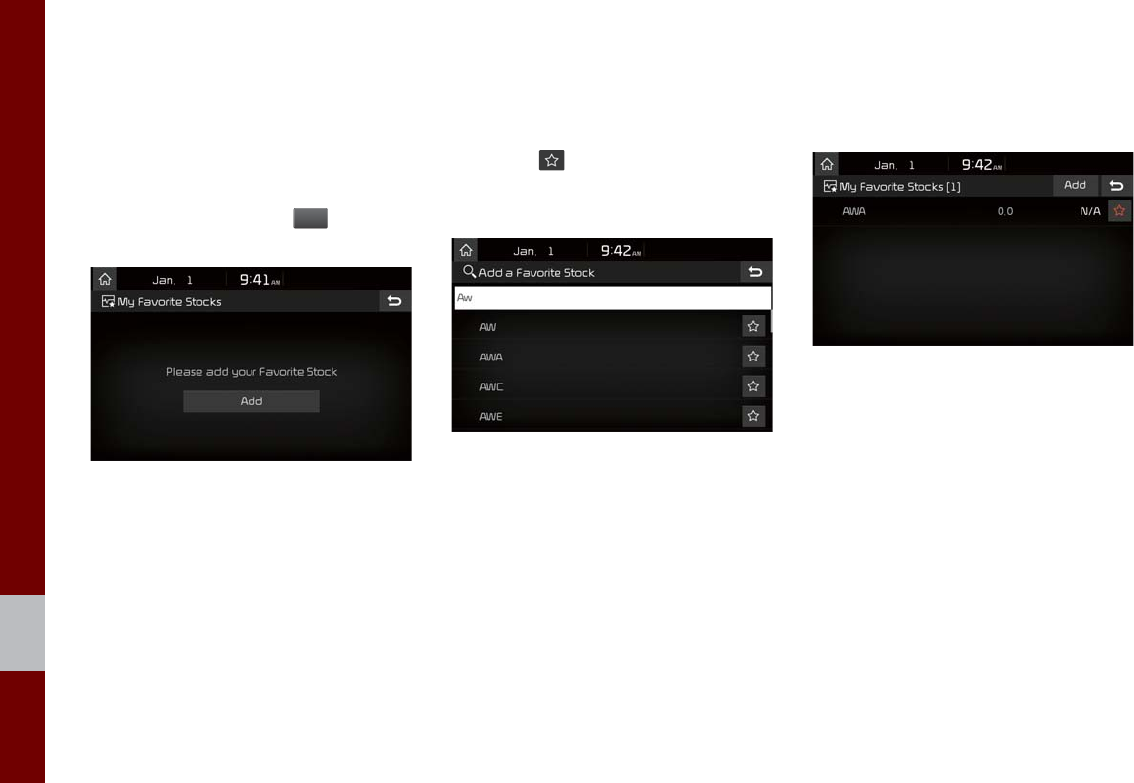

My Favorites

My Favorites shows a list of stocks added

by the user. When entering the Stocks

menu for the first time, a screen is dis-

played for you to add your favorite stock

information. Select the

button to

move to the stock search screen.

Stock Search

Use the Stock Search menu to search for

specific stocks.

Select the button after searching for

your favorite stocks to save them in “My

Favorites”.

In the My Favorites screen, you can find

the selected stock information that you

registered.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-10K_UMa_UVO3[USA_EU]AV_PART6.indd 6-10 2016-01-27 오후 4:26:532016-01-27 오후 4:26:5

SiriusXM™ Data I 6-11

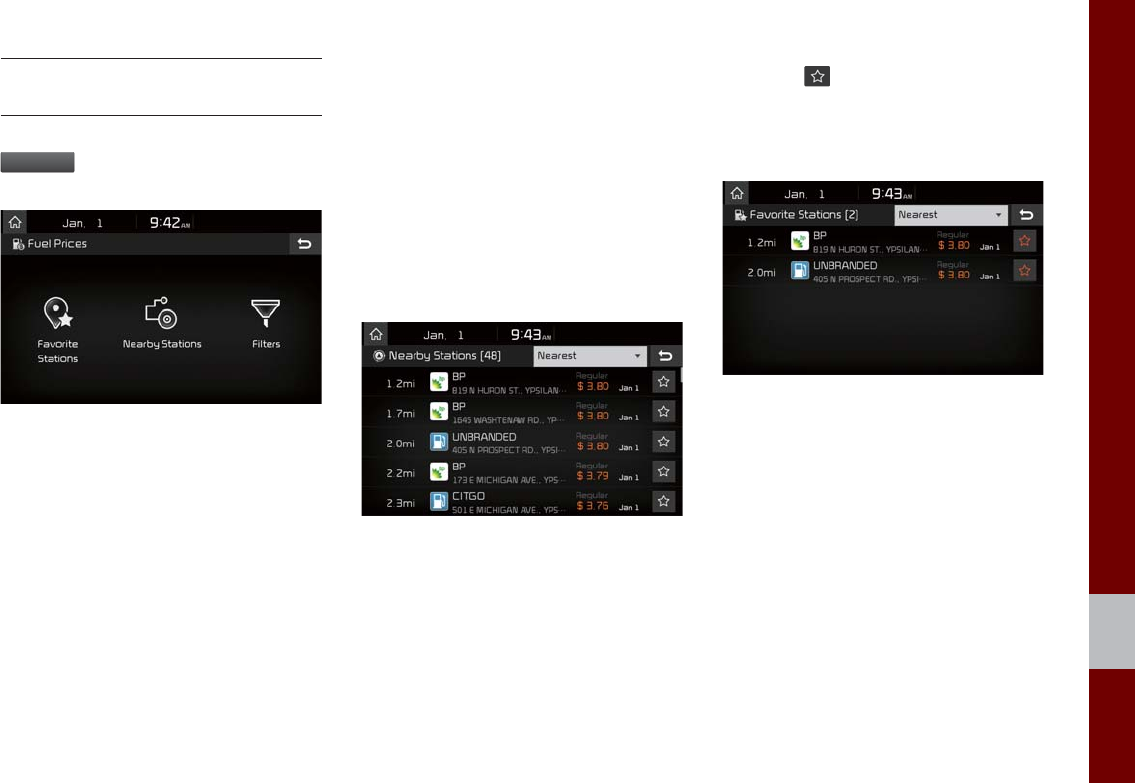

SiriusXM™ Fuel Price

Information

At the “SiriusXM Data” screen, select the

Fuel Price

icon to enter the Fuel Prices

Information mode.

Search for Nearby Stations, and

Stations.

Search for nearby stations with the “Nearby

Stations” menu.

It shows station locations, starting from the

nearest one, and select “Nearest” menu

on the top right side to further sort them

by price or brand name.

Select the button to the right of the list

to register key locations as a Favorite

Station so that you can go there again with

the “Favorite Stations” menu.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-11K_UMa_UVO3[USA_EU]AV_PART6.indd 6-11 2016-01-27 오후 4:26:542016-01-27 오후 4:26:5

6-12 I Apps/Info

My Fuel Type Settings

With the “Filters” menu, you can select fuel

types and favorite brands.

When searching for Nearby Stations, the

results will reflect selected fuel types and

brand information.

SiriusXM™ Movie Information

Select the

ovies

icon to enter the

Movie mode.

You can check recent movies and nearby

theaters, and also register your favorite

theater locations.

Search for Nearby Theaters, and

Theaters.

In the “Nearby Theaters” menu, you can

search for any nearby theaters.

It shows theaters, starting from the nearest

one, and selecting the “Nearest” menu at

the top right side will sort them by name.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-12K_UMa_UVO3[USA_EU]AV_PART6.indd 6-12 2016-01-27 오후 4:26:552016-01-27 오후 4:26:5

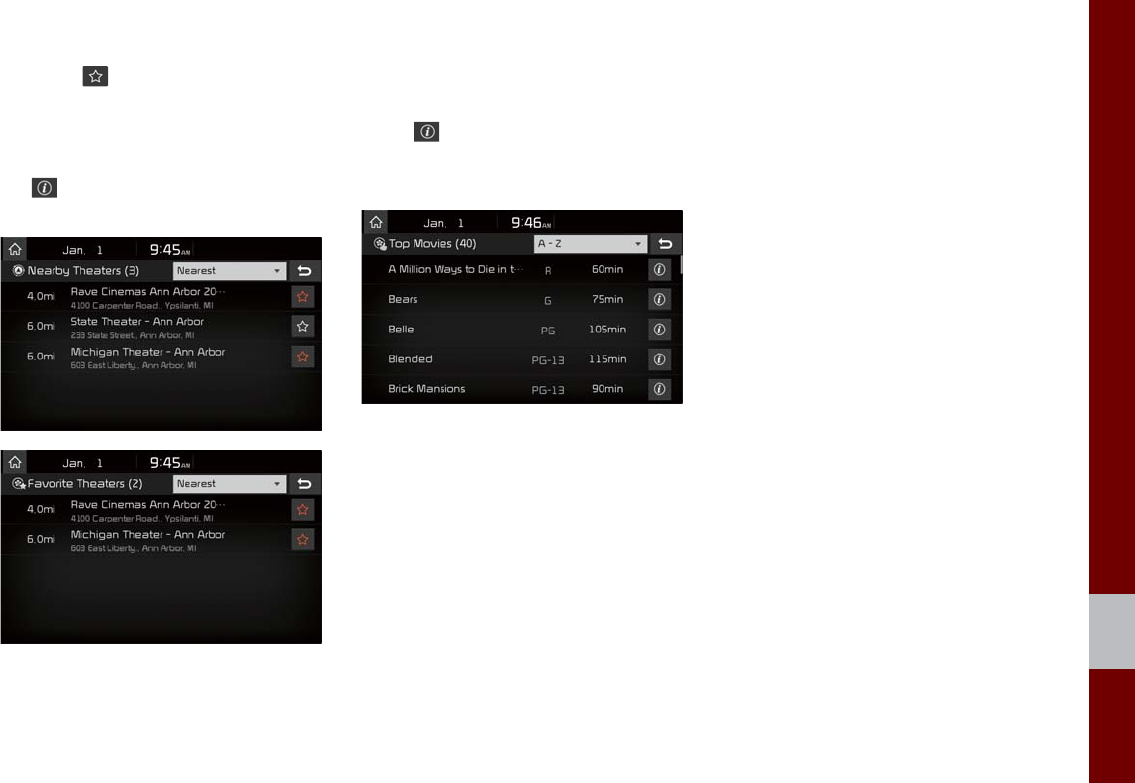

SiriusXM™ Data I 6-13

Select the button to the right of the list

to register your favorite theater so that you

can always check it again using the

“Favorite Theaters” menu and selecting

the button to view the current movie

information for that theater.

In the “Top Movies” menu, you can check

for any movies that are currently popular.

Press button to the right of a movie

title to view the plot summary and any

other detailed information.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-13K_UMa_UVO3[USA_EU]AV_PART6.indd 6-13 2016-01-27 오후 4:26:572016-01-27 오후 4:26:5

6-14 I Apps/Info

SoundHound

SoundHound is a music search engine. It enables users to identify

music by playing or singing a song. It is also possible to search by

typing the name of the artist, song, album or lyrics.

The head unit should be connected to the Internet in order to use

SoundHound. (ex. Wi-Fi)

Accessing SoundHound

1. From the Home screen, select All Menus then select

SoundHound button.

2. Select SoundHound button on Radio modes (AM, FM and

SiriusXM) or Media modes (CD, Bluetooth Audio, iPod, USB,

My Music, AUX and Pandora).

SoundHound Main Screen

Name Description

Mode Displays the current operating mode.

Back button Goes back to previous mode.

What’s that

Song?

Starts the song recognition process. After this pro-

cess is complete, it goes to Song screen.

Search Goes to Search screen.

History Goes to History screen.

Favorites Goes to Favorites screen.

Charts Goes to Charts screen.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-14K_UMa_UVO3[USA_EU]AV_PART6.indd 6-14 2016-01-27 오후 4:26:582016-01-27 오후 4:26:5

SoundHound I 6-15

Recognizing Music

After selecting SoundHound button, the song recognition pro-

cess is activated, the system will match the currently playing song

with the SoundHound music database.

Music from Smartphones and MP3 players that are not connected

to the head unit can also be recognized.

Name Description

Now

Listening…

Message displayed while SoundHound is

processing the music.

Retry Starts over the song recognition process.

Cancel Cancels song recognition process and Exits

SoundHound.

Back button Goes back to previous screen.

Searching Music

Music can also be searched by selecting the Search option in

SoundHound main screen and typing a song, artist, album or lyr-

ics into the search field.

Name Description

Search Displays the current operating mode.

Back button Goes back to SoundHound main screen.

Search field

Displays search field. Once text is typed, recom-

mended song, artist, album or lyrics information

that might match the search criteria is displayed in

the scroll menu.

Search icon Starts the searching process.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-15K_UMa_UVO3[USA_EU]AV_PART6.indd 6-15 2016-01-27 오후 4:26:592016-01-27 오후 4:26:5

6-16 I Apps/Info

Song Main Screen

Name Description

Back button Goes back to previous screen.

Song, Artist

and Album

information

Displays song, artist and album information of

currently playing song.

Album Image If album image is selected, the detailed infor-

mation of the album is displayed.

Artist Image If artist image is selected, the detailed informa-

tion of the artist is displayed.

Favorite

It saves current playing song into Favorites

by tapping on the star icon. Star icon will be

highlighted when song has been saved into

Favorites. To delete song from Favorites, select

the star icon again or go to Favorites menu

screen.

Lyrics Displays current playing song’s lyrics.

Recommended

Songs

Displays a list of recommended songs by

SoundHound.

Similar Artists Displays list of similar artists to currently play-

ing artist.

Song’s Album

Appearances

Displays list of albums on which currently play-

ing song appears.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-16K_UMa_UVO3[USA_EU]AV_PART6.indd 6-16 2016-01-27 오후 4:26:592016-01-27 오후 4:26:5

Android Auto I 6-17

Android Auto

What is Android Auto?

You can securely access your smart phone while driving by using

this feature. Various functions on your smart phone are displayed

on the multimedia system so you can easily use any of them (find-

ing the direction, making a call, listening to music, etc.).

With Android phone connected, Android Auto appears on the display.

Available functions and operations may differ depending on the

company model.

For more information, visit the Google website http://support.goo-

gle.com/androidauto

Precautions

• Android Auto is a registered trademark of Google Inc.

• Android Auto is unavailable if the phone OS is not Android 5.0

(Lollipop) or higher or your phone is unable to be recognized due

to a shutdown caused by a failure or defect in the device itself.

• Your phone may not be recognized if its battery is low. Charge

your phone then try again.

• If your phone is shut down due to a defect in the device itself,

reset your phone and try again.

• If you repeatedly connect and disconnect the USB cable on the

device in a short period of time, your phone may malfunction.

This can also cause a device failure.

• The device recognition time may differ depending on the device

type and firmware/OS version.

• Using the micro-USB cable that came with the phone is rec-

ommended. (Using a non-genuine product may cause noise or

malfunction.)

• Normal operations are not guaranteed when you arbitrarily

manipulate your phone while Android Auto is active.

• Carrier charges may apply when using Android Auto.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-17K_UMa_UVO3[USA_EU]AV_PART6.indd 6-17 2016-01-27 오후 4:27:002016-01-27 오후 4:27:0

6-18 I Apps/Info

• Android Auto may not operate normally due to mobile phone

issues.

• The following problems may occur due to issues with your

phone.

- Intermittent black screens appear when entering Android

Auto.

- Unable to differentiate between phones that support Android

Auto and those that do not.

- If services do not work properly due to problems similar to the

specified above, check your phone, and if necessary, recon-

nect your phone after restarting.

Using Android Auto Features

1. With Android Auto, connect the micro-USB cable provided by

the mobile manufacturer.

On the Home or All Menus screen, select the

Android Auto

icon.

3. You can use Android Auto’s features, such as navigation,

music, and phone.

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-18K_UMa_UVO3[USA_EU]AV_PART6.indd 6-18 2016-01-27 오후 4:27:002016-01-27 오후 4:27:0

Android Auto I 6-19

NOTICE

•Before connecting your mobile phone, check whether Android Auto

is set to ON in the Connectivity Settings menu.

•After connecting the mobile phone, you must unlock your phone

and accept the Disclaimers on your phone in order for Android Auto

to launch.

•The screens and features displayed on the multimedia system

are the same as what Google originally provide. The screens and

features are subject to change according to the policy of each

individual company.

Cautions when using Android Auto

•Bluetooth media features will be disabled when Android Auto

is activated. You cannot use Bluetooth Media features such as

Bluetooth Audio and Pandora. If you want to use these features,

disconnect the micro-USB cable.

•Android Auto mode does not support the feature that enables you to

search for music ﬁ les by controlling the

TUNE

knob.

•If Android Auto is not activated even after a successful connection,

check the following:

- Phone Application status (Check if an error has occurred)

- Check if Android Auto has been closed on your phone.

- Check whether Android Auto is set to ON in the Connectivity

Settings menu.

• If Android Auto does not work normally even after a reconnection

has been made, visit the Google website http://support.google.com/

androidauto

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-19K_UMa_UVO3[USA_EU]AV_PART6.indd 6-19 2016-01-27 오후 4:27:012016-01-27 오후 4:27:0

MEMO

K_UMa_UVO3[USA_EU]AV_PART6.indd 6-20K_UMa_UVO3[USA_EU]AV_PART6.indd 6-20 2016-01-27 오후 4:27:012016-01-27 오후 4:27:0

Climate Mode

Camera

part.7 Other Features

K_UMa_UVO3[USA_EU]AV_PART7.indd 7-1K_UMa_UVO3[USA_EU]AV_PART7.indd 7-1 2016-01-27 오후 4:27:132016-01-27 오후 4:27:1

7-2 I Other Features

Other Features

Climate Mode

Operating Climate Mode

Press the

CLIMATE

key for the climate system to see status infor-

mation in the full screen display.

While multimedia or navigation is in use, the climate system infor-

mation will be displayed over top when you control the tempera-

ture (TEMP) or turn on the air conditioner (A/C).

Basic Mode Screen

Name Description

Set the temperature

of the driver's seat

and passenger

seats

Displays the configured temperature set-

tings for the driver's seat and the passenger

seats. Cooling or heating will continue until

the temperature matches the configured

temperature settings.

The internal temperaure can be con-

trolled in incrments of 1°F within a range

of 63°F to 89°F.

LOW is displayed when the temperature

is set to anything below 63°F, and HIGH

is displayed when it is set to anything

above 89°F.

Air direction Displays the configured air direction settings.

Air volume Displays the configured air volume settings

Cooling/heating

control status

(AUTO)

Displayed when the

AUTO

key is pressed

and cooling/heating operates automatically

according to the configured temperature

settings.

AUTO will be turned off when you try to

do the following with AUTO on:

- Control the air volume

- Control the air direction

- Turn the air conditioning (A/C) on/off

- Turn on the moisture removal function

for the windshield

Air conditioning

control status

Displayed when the

A/C

key is pressed

and the air conditioning starts cooling/heating.

K_UMa_UVO3[USA_EU]AV_PART7.indd 7-2K_UMa_UVO3[USA_EU]AV_PART7.indd 7-2 2016-01-27 오후 4:27:142016-01-27 오후 4:27:1

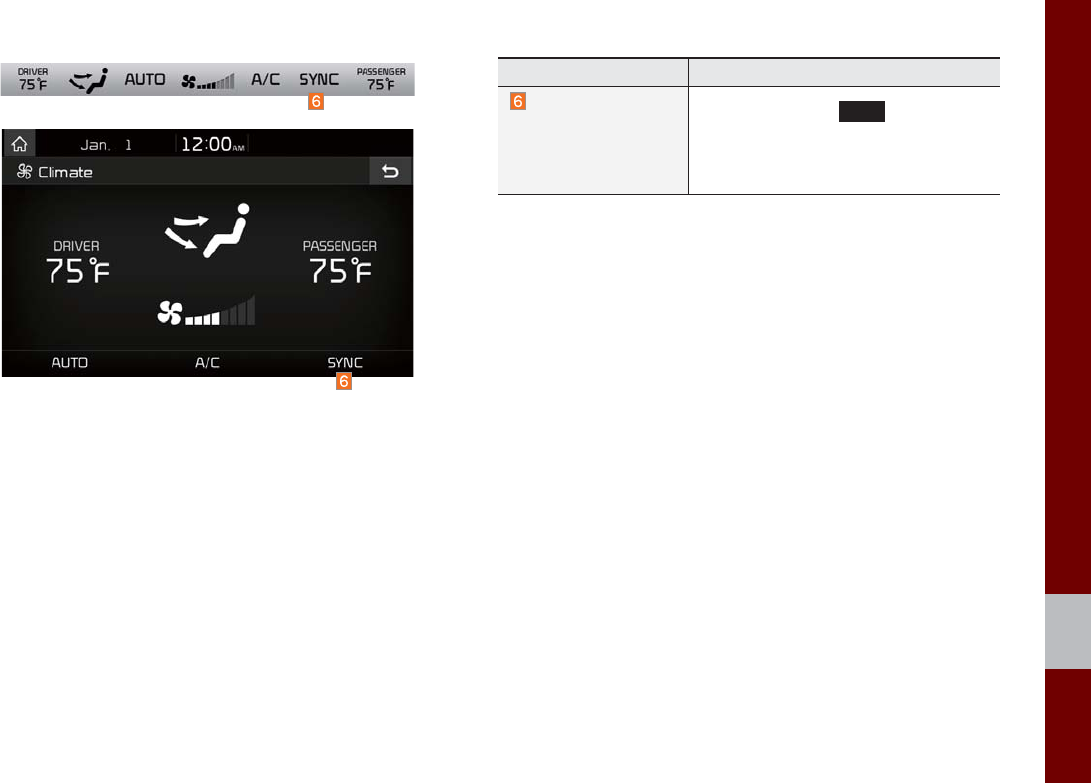

Climate Mode I 7-3

Name Description

Simultaneous tem-

perature settings for

the driver's seat and

the passenger seats

(SYNC)

Displayed when the

SYNC

key is pressed

and the temperatures of the driver's seat

and the passenger seats can be config-

ured at the same time.

K_UMa_UVO3[USA_EU]AV_PART7.indd 7-3K_UMa_UVO3[USA_EU]AV_PART7.indd 7-3 2016-01-27 오후 4:27:162016-01-27 오후 4:27:1

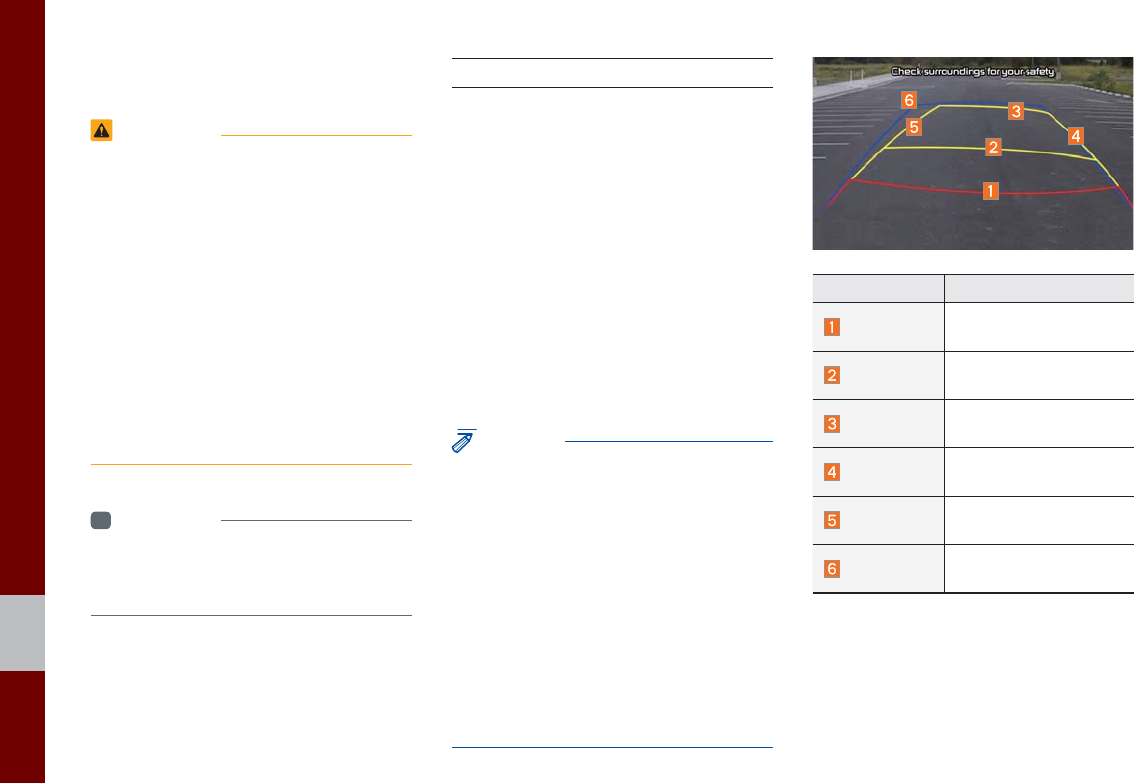

7-4 I Other Features

Camera

WARNING

- Backing Up & Using Camera

• Never rely solely on the rear view camera

when backing up. Prior to entering your

vehicle always do a visual check of the area

behind your vehicle, and before backing up be

aware of your surroundings and supplement

the rear view camera by looking over your

shoulders and checking your rear view mir-

rors. Due to the difficulty of ensuring that the

area behind you remains clear, always back

up slowly and stop immediately if you even

suspect that a person, and especially a child,

might be behind you.

Information

• A separate chipset is used for the camera

screen while booting up, so it may be different

after booting up.

Steering-linked camera

• This device is connected to a rear

detection camera to see behind the car

for safe reversing.

• The Rear View Camera turns on auto-

matically if you shift the gear to R when

the power is on or the engine has

started.

•While the device boots up, shift the gear

to "R" to activate the rear detection cam-

eras. Shift the gear to another position

to deactivate the rear detection camera.

NOTICE

• A wide-angle lens is installed as the rear

detection camera to get a wider view, so

there may be some difference between

the actual distance and the distance that

appears. on-screen. For safety, make sure to

view the back, right, and left sides of the car

for yourself.

• The color of the parking guidelines displayed

in the picture may differ from the actual

screen.

• When booted up, blinking may occur when

you switch to a UI screen.

Name Description

Red Line About 0.5m from the rear

bumper

Yellow Line 1 About 1m from the rear

bumper

Yellow Line 2 About 3m from the rear

bumper

Yellow Line 3 Trajectory of the wheel

on the driver’s side

Yellow Line 4 Trajectory of the wheel

on the passenger side

Blue Line Neutral steering trajec-

tory

As you reverse your car and monitor the

area behind your car, the steering-linked

driving trajectory and the neutral driving

trajectory are both displayed.

K_UMa_UVO3[USA_EU]AV_PART7.indd 7-4K_UMa_UVO3[USA_EU]AV_PART7.indd 7-4 2016-01-27 오후 4:27:162016-01-27 오후 4:27:1

Camera I 7-5

SVM (Surround View Monitor)

With the power on, the SVM is connected

to the SVM camera to see the front, rear,

and back of the car when driving at low

speeds (10km/h or less). It is optional.

• The SVM-camera front detection mode

will be activated when driving at low

speeds (10km/h or less). When the car

drives over 10km/h, the SVM camera

screen is disabled.

•When

the key is pressed and

the gear is in a position other than P or

R while the engine is running, the SVM

camera automatically starts when the

car accelerates.

• Shift gears to P or R and turn off the

key to disable the front detec-

tion camera screen.

• The rear detection mode of the SVM

camera is activated with the gear is

positioned to R.

Front SVM

Select the key after starting the

engine.

If the gear is in a position other than P or

R, it automatically switches to the front

detection SVM camera mode when the

car accelerates.

Name Description

SVM Displays all of the images

around the car.

Front Displays the front image.

Front left Displays the front-left

image.

Front right Displays the front-right

image.

Settings Displays the Parking

Guidance Settings screen.

Rear SVM

If the gear is positioned to R, the rear SVM

camera is automatically switched to the

operational mode.

Name Description

SVM Displays all of the images

around the car.

Rear Displays the rear image.

Rear left Displays the rear-left

image.

Rear right Displays the rear-right


Settings Displays the Parking

Guidance Settings screen.

K_UMa_UVO3[USA_EU]AV_PART7.indd 7-5K_UMa_UVO3[USA_EU]AV_PART7.indd 7-5 2016-01-27 오후 4:27:172016-01-27 오후 4:27:1

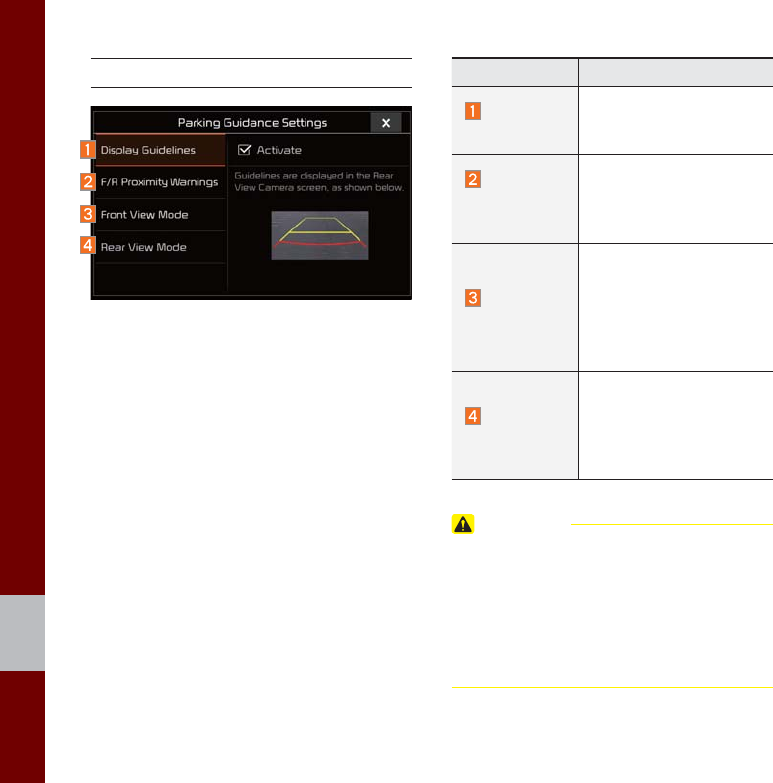

7-6 I Other Features

Parking Guidance Settings

Name Description

Display

Guidelines

Guidelines are displayed

in the Rear View Camera

screen, as shown below.

F/R

Proximity

Warnings

Provides a warning when

an object is in close

proximity to the front or

rear of the vehicle.

Front View

Mode

Displaying the front

SVM, select the basic

display mode of the

camera screen. (SVM,

Front left, Front right,

and Front.)

Rear View

Mode

Displaying the rear SVM,

select the basic display

mode of the camera

screen. (SVM, Rear left,

Rear right, and Rear.)

CAUTION

• A wide-angle lens is installed for the front

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears

onscreen. For safety, make sure to check the

front, right, and left sides for yourself.

K_UMa_UVO3[USA_EU]AV_PART7.indd 7-6K_UMa_UVO3[USA_EU]AV_PART7.indd 7-6 2016-01-27 오후 4:27:192016-01-27 오후 4:27:1

Setup

Sound Settings

Display Settings

Phone Settings

UVO eServices Settings

Connectivity Settings

Home Screen Settings

Wi-Fi Settings

Clock Settings

Voice Recognition Settings

Language Settings

Keyboard Settings

Screen Saver Settings

System Info

part.8 Setup

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-1K_UMa_UVO3[USA_EU]AV_PART8.indd 8-1 2016-01-27 오후 4:27:292016-01-27 오후 4:27:2

8-2 I Setup

Setup

Setup is the screen to control Audio sys-

tem settings.

To enter the screen, press the

SETUP

key or the

Setu

icon in All Menus.

Features Description

Sound

Provides the sound con-

trol options for Position,

Bass, Mid, Treble, Volume

and Advanced settings.

Display Provides the Mode/

Illumination settings.

Phone

Provides the Bluetooth

Connection/Auto

Connection Priority/

Bluetooth System

Information settings.

UVO

eServices

Provides the 911

Connect/Parking Minder/

My Car Zone/ Scheduled

Diagnostics/Trip Info

Sync Reminder Settings.

Connectivity Provides connectivity set-

tings for Android Auto.

Home

Screen

Provides the function

to customize the three

menu items at the bottom

of the Home Screen.

Features Description

Wi-Fi

Provides the Wi-Fi

On and Network

Connection settings.

Clock Provides the Time and

View settings.

Voice

Recognition

Provides the Guidance

and Priority settings.

Language

Provides the Change

Language settings.

Keyboard

Provides settings to

switch keyboard lay-

outs.

Screen

Saver

Provides the Clock/

None settings.

System Info

Provides software and

storage space informa-

tion.

Display Off

Provides the Display

Off (touch activation)

function.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-2K_UMa_UVO3[USA_EU]AV_PART8.indd 8-2 2016-01-27 오후 4:27:292016-01-27 오후 4:27:2

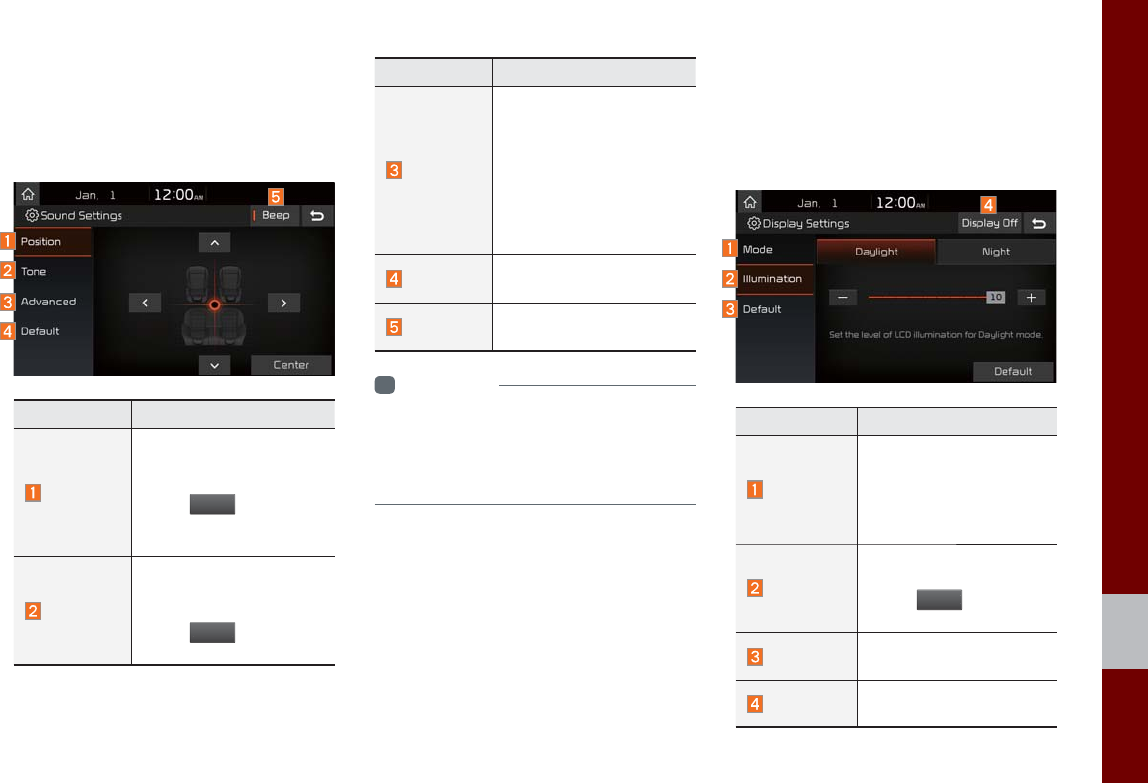

Setup I 8-3

Sound Settings

Adjusts the sound effects for the whole

system.

Features Description

Position

Select the Up/Down/Left/

Right button to control

sound positioning.

Select

to concen-

trate the sound on the

center of vehicle.

Tone

Drag the slide bar to

control bass/mid/treble

settings.

Select

to initialize

the settings.

Features Description

Advanced

Select additional audio

options such as “Speed

Dependent Volume

Control” that automatically

controls Audio volume

according to vehicle

speed as well as “Variable

EQ”.

Default Resets the sound to fac-

tory default settings.

Beep Select to activate a beep

when pressing buttons.

Information

• Advanced sound settings may differ according

to selected AMP option.

• The seat shape may differ according to

vehicle model.

Display Settings

Adjusts the level of illumination for the

entire system.

Features Description

Mode

Select any of LCD illumi-

nation change modes:

Automatic (changes

the level automatically),

Daylight, and Night.

Illumination

Set the levels of illumina-

tion for day and night.

Select

Default

to initialize

the settings.

Default Resets the display to fac-

tory default settings

Display Off Provides the Display Off

(touch activation) function.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-3K_UMa_UVO3[USA_EU]AV_PART8.indd 8-3 2016-01-27 오후 4:27:312016-01-27 오후 4:27:3

8-4 I Setup

Phone Settings

Changes Bluetooth phone settings.

Phone Settings

Press the

SETUP

key ▶ Select

Pho

icon.

Bluetooth Connection Settings

Press the

SETUP

key ▶ Select

▶Select

th C

nnecti

Features Description

Paired Device

List

Displays the paired

Bluetooth device list.

When selecting from

the list, the device is

connected or discon-

nected.

Bluetooth

Audio

Connection

Status

An icon appears when

you make a Bluetooth

Audio connection.

Bluetooth

Hands-Free

Connection

Status

An icon appears when

you make a Bluetooth

Hands-free connection.

Add New Register a new

Bluetooth device.

Delete Devices Select and delete a

paired device.

Delete All Delete all paired

devices.

Help

Switches to the

Bluetooth Connection

Help screen.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-4K_UMa_UVO3[USA_EU]AV_PART8.indd 8-4 2016-01-27 오후 4:27:322016-01-27 오후 4:27:3

Setup I 8-5

Information

•Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be connected

at a time.

• During a Bluetooth device connection,

another device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit

are also deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio,

will function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly

disconnected, due to being out of

communication range, the device powering

off, or a Bluetooth communication error, the

Bluetooth device automatically searches for

and connects to nearby Bluetooth devices.

• If the system is not stable, due to a vehicle-

Bluetooth device communication error,

restore the Default Factory Settings.

• For Default Factory Settings, the bluetooth

settings are reset to factory settings

• Press the

SETUP

key ▶ Select

hone

▶

Select

▶Select

ory

tti

Auto Connection Priority

Press the

SETUP

key ▶ Select

▶Select

Auto Connection Priorit

When the engine is running, the selected

Bluetooth device is automatically con-

nected. If you fail to connect the selected

device, the previously-connected device is

automatically connected, and if it also fails,

then it tries to connect all paired devices

sequentially.

Depending on auto connection priority,

connection to a device may take time.

Bluetooth System Information

Press the

SETUP

key ▶Select

▶Select

luetooth S

stem Inf

Features Description

Vehicle

Name

You can change the

Bluetooth device name of

the vehicle.

Passkey

You can change the pass-

key used for Bluetooth

device authentication. the

initial passkey is 0000.

Default

Factory

Settings

You can delete all paired

devices and restore the

Default Bluetooth Settings.

For Default Factory

Settings, all paired devices

are deleted, and the

system is reset to factory

settings.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-5K_UMa_UVO3[USA_EU]AV_PART8.indd 8-5 2016-01-27 오후 4:27:332016-01-27 오후 4:27:3

8-6 I Setup

Information

• The vehicle name above is an example.

Check the actual information on the product.

UVO eServices Settings

Within the eServices Settings screen,

UVO eServices related features can be set,

such as activating 911 Connect, Parking

Minder and setting the My Car Zone.

For safety reasons, My Car Zone Settings

can not be adjusted while driving. Park

the vehicle before making any changes to

your settings.

Press the

SETUP

key ▶

UVO eServices

911 Connect

This feature is used to turn on or off the

911 Connect feature.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-6K_UMa_UVO3[USA_EU]AV_PART8.indd 8-6 2016-01-27 오후 4:27:332016-01-27 오후 4:27:3

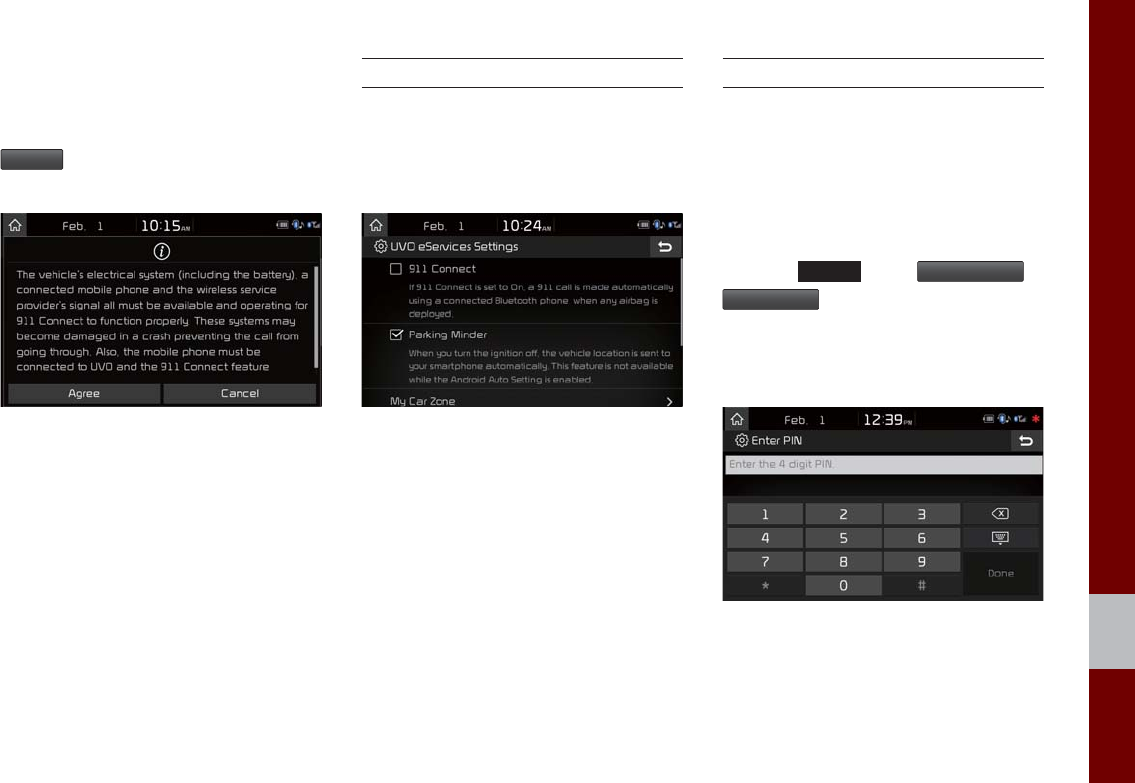

Setup I 8-7

When enabing this feature, you must first

agree to the 911 Connect tems of use.

After reading the tems of use, press the

Agree

button on the touch screen to

accept.

Parking Minder

If you want to send vehicle location to your

smartphone automatically when you turn

the ignition off, turn the Parking Minder

feature On.

My Car Zone

This feature is used to set My Car Zone

(Curfew Limit, Speed) alert conditions.

My Car Zone Settings is unavailable when

UVO eServices has not been activated.

Press the

SETUP

key ▶

UVO eServices

▶

My Car Zone

The PIN must be entered to use My Car

Zone Settings.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-7K_UMa_UVO3[USA_EU]AV_PART8.indd 8-7 2016-01-27 오후 4:27:342016-01-27 오후 4:27:3

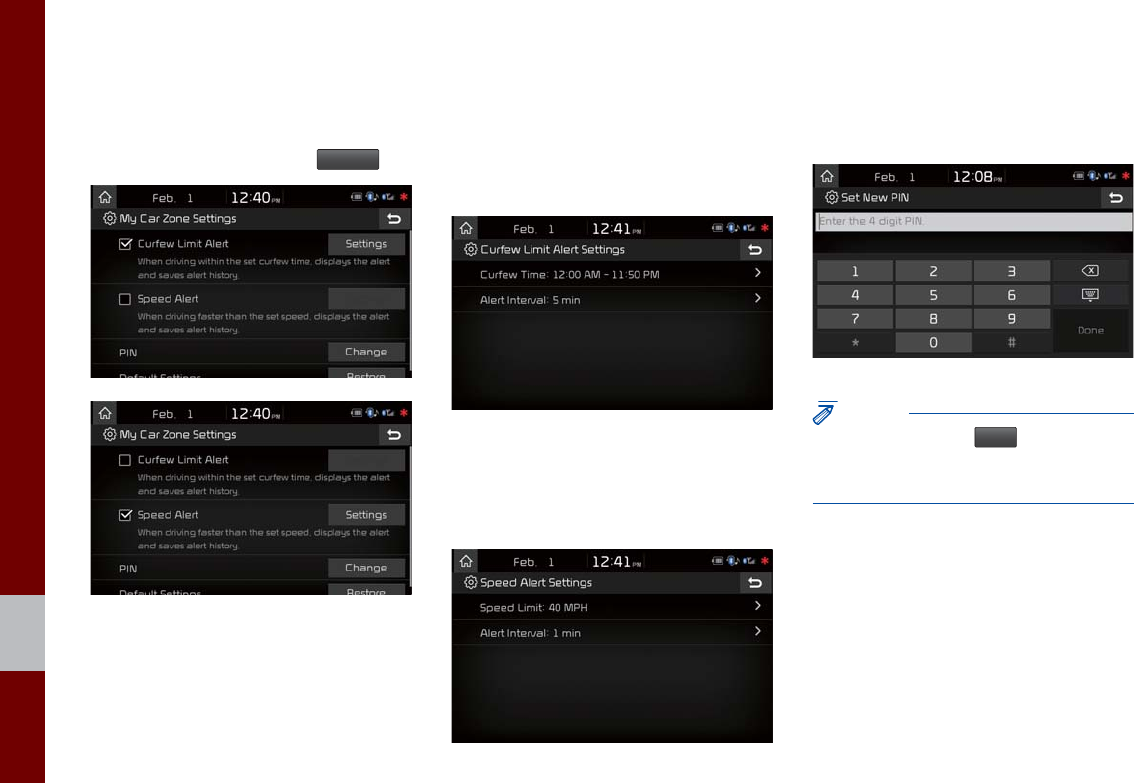

8-8 I Setup

This screen is used to set Curfew Limit

and Speed Alert features.

Set the alert conditions On ▶

Settings

Curfew Limit Alert Settings

Within Curfew Limit Alert Settings, you can

set the Curfew Limit Alert Start and End

Time. You can also set the Alert Interval of

alerts upon Curfew Limit.

Speed Alert Settings

Within Speed Alert Settings, you can set

the vehicle speed limit and Alert Interval of

alerts upon overspeeding.

This feature is used to change the PIN to

enter My Car Zone Settings.

NOTICE

• Before pressing

Done

, ensure your

smartphone is connected to UVO eServices

system via USB cable.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-8K_UMa_UVO3[USA_EU]AV_PART8.indd 8-8 2016-01-27 오후 4:27:352016-01-27 오후 4:27:3

Setup I 8-9

Press the

Done

button to transmit the new

PIN to your My UVO com account.

Restore Factory Settings

This feature is used to restore all My Car

Zone alert history and settings back to

default state.

Scheduled Diagnostics

This feature is for setting when scheduled

diagnostics alerts display.

Press

SETUP

key ▶

UVO eServices

▶ Set

the Scheduled Diagnostics On ▶

Settings

NOTICE

• For months without the corresponding day,

the last day of the month will automatically be

set as the scheduled diagnostics date.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-9K_UMa_UVO3[USA_EU]AV_PART8.indd 8-9 2016-01-27 오후 4:27:372016-01-27 오후 4:27:3

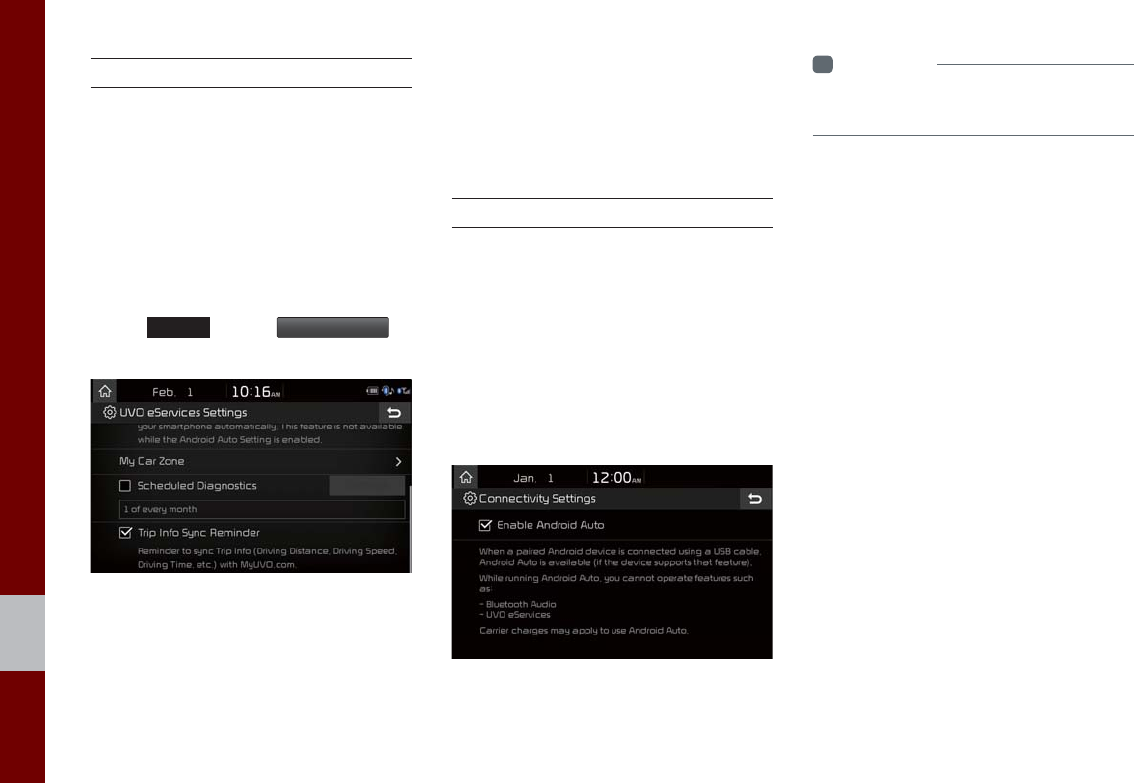

8-10 I Setup

Trip Info Sync Reminder

Trip Info is a feature used to set whether

system displays alert when trip info(Driv-

ing Distance, Driving Speed, Driving Time,

etc). reaches 90% of memory.

UVO eServices must be activated to use

this feature.

Press

SETUP

key ▶

UVO eServices

▶

Set Trip Info Sync Reminder On

Connectivity Settings

You can set Android Auto to activate when

an Android device is connected.

Android Auto

If Android Auto is checked, you can use

the functions of your Android phone with

a USB cable and Bluetooth connected. It

enables the Android Auto functions. The

latest version of Android must be installed

on the phone (Android 5.0 and above).

While Android Auto is running, you cannot

use some features.

Information

• This setting is disabled when a device is

connected to the vehicle USB port.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-10K_UMa_UVO3[USA_EU]AV_PART8.indd 8-10 2016-01-27 오후 4:27:392016-01-27 오후 4:27:3

Setup I 8-11

Home Screen Settings

You can customize the three menu items

at the bottom right of the Home Screen

into the ones you want.

On the Home Screen Settings screen,

drag the menu items on the right to the

area marked in blue in the screen below.

Information

• You can select the

Def

button to reset

to the factory default settings.

Wi-Fi Settings

You can share a digital-device network

with the vehicle device through Wi-Fi.

Features Description

Wi-Fi Turn on/off Wi-Fi.

MAC

Address Displays the MAC address.

Refresh Searches available net-

works near the vehicle.

Network

Name

Displays available network

AP (Access Point) names.

Add Wi-Fi

Network

Enter the network ID/

password to connect to

a hidden network AP

(Access Point).

Help Shows the Wi-Fi setup

guide.

How to Connect to a Network

1. In the Wi-Fi settings of a digital device,

activate Internet sharing (Hotspot).

2. In the vehicle network list, select the

desired device to connect to. Enter

the password to connect, if any.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-11K_UMa_UVO3[USA_EU]AV_PART8.indd 8-11 2016-01-27 오후 4:27:402016-01-27 오후 4:27:4

8-12 I Setup

Clock Settings

Configure the settings for time and date.

Using the arrow buttons, you can change

the values. Clock settings do not automat-

ically change when crossing into different

time zones. The time must be changed

manually on this screen.

Features Description

Daylight

Saving Time

The daylight saving

time (DST) is applied.

24 Hours The time display is set

in 24-hour format.

Direct entry

If you tap any value,

you can directly enter

the number in the fol-

lowing screen.

Voice Recognition

Settings

Configure how to make a call with

Voice Recognition Guidance and Voice

Recognition.

Features Description

Beginner

For beginners, the voice

recognition system pro-

vides voice prompts.

Normal

For normal users, the

voice recognition system

provides simple and short

voice guidances.

Language Settings

You can configure the displayed system

language.

When the language is changed, the sys-

tem language is automatically changed.

Unique data including MP3 file name is

not changed and voice recognition does

not support some languages.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-12K_UMa_UVO3[USA_EU]AV_PART8.indd 8-12 2016-01-27 오후 4:27:412016-01-27 오후 4:27:4

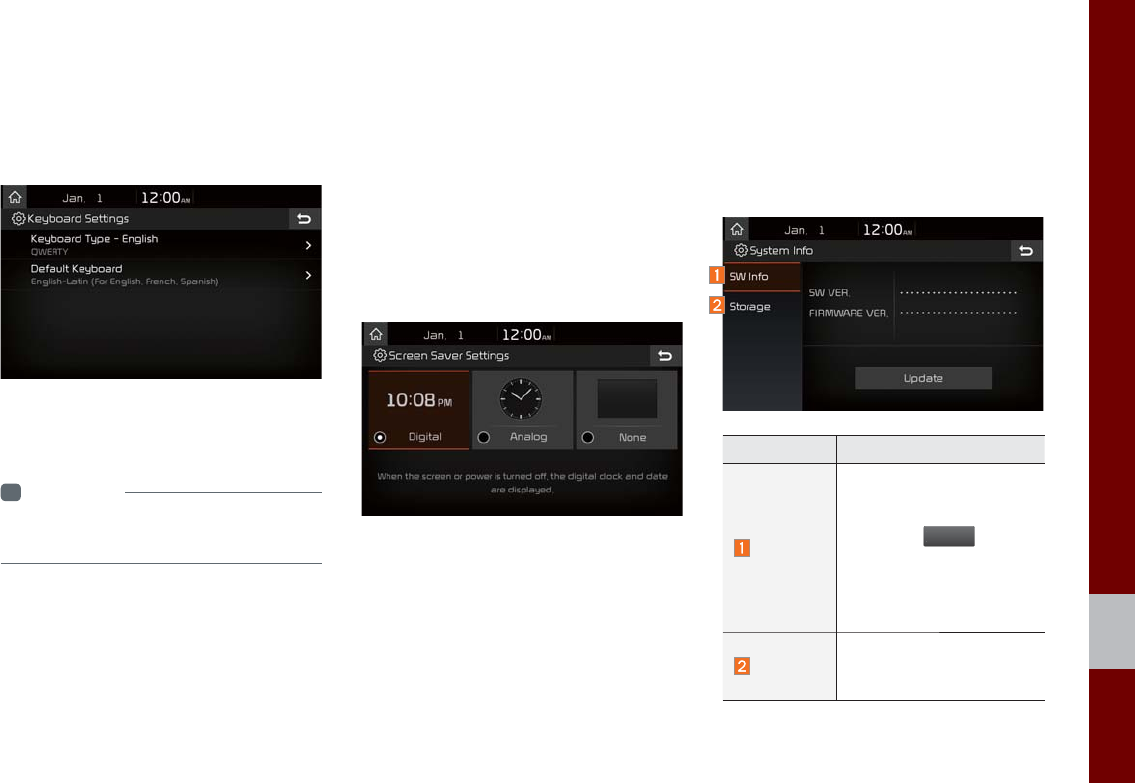

Setup I 8-13

Keyboard Settings

You can configure the keyboard layout for

each language.

You can configure ABCD or QWERTY

keyboards for the system.

Information

• Configured keyboard layouts are applied

to all input modes.

Screen Saver Settings

You can select any of the following screen

formats to be displayed when the screen

or power is turned off (Press and hold the

Power button).

• Digital clock and date

• Analog clock and date

• None

System Info

At the System Info screen, software ver-

sion information, updates, and storage

status details are available.

Features Description

SW Info

System version informa-

tion and update details

are available.

Select the

Upd

button

to update the system.

After update is complete,

the system will reboot

automatically.

Storage

Displays the memory

space available for media

storage.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-13K_UMa_UVO3[USA_EU]AV_PART8.indd 8-13 2016-01-27 오후 4:27:412016-01-27 오후 4:27:4

8-14 I Setup

System Update

At the System Info screen, insert the USB

memory with the latest file downloaded,

and then select the

Update

button to begin

updating. The system will then reboot

automatically.

Information

• This product needs supplemented software

updates and additional functions, which

collectively may take some time to complete,

depending on the amount of data.

CAUTION

• If the power is disconnected or the USB is

removed during an update, the data might be

damaged. Please do not turn off the vehicle

while an update is in progress.

K_UMa_UVO3[USA_EU]AV_PART8.indd 8-14K_UMa_UVO3[USA_EU]AV_PART8.indd 8-14 2016-01-27 오후 4:27:432016-01-27 오후 4:27:4

Product Specification

Troubleshooting

FAQ

part.9 Appendix

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-1K_UMa_UVO3[USA_EU]AV_PART9.indd 9-1 2016-01-27 오후 4:27:572016-01-27 오후 4:27:5

9-2 I Appendix

Product Specification

TFT-LCD

Screen Size 7 inch(152.4 X 91.44 mm)

Resolution 384000 pixels (Resolution: 800 x 480)

Operating

Method TFT(Thin Film Transistor) Active Matrix

Viewing Angle Left/Right, Top/Bottom: ALL 89°

Internal Lighting LED

Radio

Channels FM: 87.5 MHz ~ 107.9 MHz(Step: 200 kHz)

AM: 530 kHz ~ 1710 kHz(Step: 10 kHz)

Sensitivity FM: Under 10 dBu/AM: Under 35 dBu

Distortion Factor Within 2 %

Common

Name Car TFT LCD Display Audio Unit

Power Supply DC 14.4 V Operating

Power DC 9 V ~ DC 16 V

Current

Consumption 2.5 A Sleep

Current

1 mA

(Head Unit Only)

Operating

Temperature

-20 ~ +70 °C

(-4 ~ +158 °F)

Storage

Temperature

-30 ~ +80 °C

(-22 ~ +176 °F)

Dimensions 178 X 139.2 X 103 (Main Box)

Weight 2.3 kg

Appendix

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-2K_UMa_UVO3[USA_EU]AV_PART9.indd 9-2 2016-01-27 오후 4:27:582016-01-27 오후 4:27:5

Appendix I 9-3

Wi-Fi Details

Frequency 2412 ~ 2462 MHz,

5180 ~ 5825 MHz

Specification IEEE802.11 a/b/g/n/ac

Operating

Temperature

-20 ~ +70

°C

(-4 ~ +158

°F

)

Supported

Bandwidth 20/40/80 MHz

Bluetooth®

Wireless Technology

Frequency

Range 2402 ~ 2480 MHz

Supported

Bluetooth

Specification

3.0

Supported

Profile Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)

Output -6~4 dBm (Power Class2, Conducted)

Number of

Channels 79 channels

CAUTION

• The producer and installer cannot provide services related to life safety

as the concerned radio equipment is liable to radio interference.

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-3K_UMa_UVO3[USA_EU]AV_PART9.indd 9-3 2016-01-27 오후 4:27:582016-01-27 오후 4:27:5

9-4 I Appendix

Troubleshooting

1. Errors which occur during the operation or installation of the

device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Kia dealer.

Problem Possible Cause

There are small red,

blue, or green dots on

the screen

• Because the LCD is manufactured with

technology requiring high point density,

a pixel or lighting deficiency may occur

within 0.01% of total pixels

The sound or image is

not working

• Has the Switch for the vehicle been

turned to [ACC] or [ON]?

• Has the SYSTEM been turned OFF?

The screen is being

displayed but sound is

not working

• Has the volume been set to a low level?

• Has the volume been muted?

When the power is

turned on, the corners

of the screen are dark

• The display appearing somewhat dark

after prolonged periods of use is normal

with LCD panels. It is not a malfunction

• If the screen is very dark, contact your

nearest Kia dealer for assistance

Sound is working from

only one speaker

• Are the positions of Fader or Balance

sound controls adjusted to only one

side?

Problem Possible Cause

Sound does not work in

AUX mode

• Are the audio connector jacks fully

inserted into the AUX terminal?

The external device is

not working

• Is the external device connected with a

standard connector cable?

Upon turning power on,

the most recent mode

screen is not displayed

Within modes that play files by reading

external sources, such as discs, USB,

iPod, or Bluetooth

streaming mode, the

most recently played mode screen prior to

turning off power may not properly load

• If there is no disc or the corresponding

device is not connected, the mode oper-

ated prior to the most recent mode will

operate

• If the previous mode still cannot be

properly played, the mode operated

prior to that will operate

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-4K_UMa_UVO3[USA_EU]AV_PART9.indd 9-4 2016-01-27 오후 4:27:582016-01-27 오후 4:27:5

Appendix I 9-5

Problem Possible Cause Countermeasure

The power

does not

turn

The fuse is

disconnected

• Replace with a suitable fuse

• If the fuse is disconnected

again, please contact your

point of purchase or Kia

dealer

Device is not properly

connected

• Check to see that the

device has been properly

connected

The system

does not

play

The disc has not been

inserted or has been

inserted upside down

• Insert the disc properly so

that the sides are facing

the correct direct

The disc has been

contaminated

• Wipe away dirt and other

foreign substances from

the disc

The vehicle battery is

low

• Charge the battery If the

problem persists, contact

your point of purchase or

Kia dealer

A disc not supported

by the device has

been inserted

• Insert a disc which is sup-

ported by the device

Problem Possible Cause Countermeasure

The image

color/tone

quality is

low

• The brightness,

saturation, hue,

and contrast levels

are not set properly

• Properly adjust the bright-

ness, saturation, hue, and

contrast levels through

Display Setup

Sound does

not work

• The volume level

is set to the lowest

level

• The connection is

not proper

• The device is

currently fast-for-

warding, rewinding,

scanning, or play-

ing in slow mode

• Adjust the volume level

• Check to see that the

device has been properly

connected

• The sound will not work

when the device is fast-for-

warding, rewinding, scan-

ning, or playing in slow

mode

The sound

or image

quality is

low

• Vibration is occur-

ring from where

the conversion

switch has been

installed

• Image color/tone

quality is low

• The sound may be

short-circuited and the

image distorted if the

device vibrates

• The device will return to

normal once vibrations stop

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-5K_UMa_UVO3[USA_EU]AV_PART9.indd 9-5 2016-01-27 오후 4:27:582016-01-27 오후 4:27:5

9-6 I Appendix

Problem Possible Cause Countermeasure

The USB

does not

work

• USB memory is

damaged

• USB memory has

been contaminated

• A separately pur-

chased USB HUB

is being used

• A USB extension

cable is being

used

• A USB which is

not a Metal Cover

Type USB Memory

is being used

• An HDD type, CF,

SD Memory is

being used

• There are no

music files which

can be played

• Please use the USB after

formatting it.

• Remove any foreign sub-

stances on the contact

surface of the USB memory

and multimedia terminal

• Directly connect the USB

memory with the multime-

dia terminal on the vehicle

• Directly connect the USB

memory with the multime-

dia terminal on the vehicle

• Use standard USB

Memory

• Use standard USB

Memory

• Only MP3, WMA file

formats are supported.

Please use only the sup-

ported music file formats

The iPod is

not recog-

nized even

though it

has been

connected

• There are no titles

which can be

played

• The iPod firmware

version has not

been properly

updated

• The iPod device

does not recog-

nize downloads

• Use iTunes to download

and save MP3 files into the

iPod

• Use iTunes to update

the firmware version and

reconnect the iPod with the

device

• Reset the iPod and recon-

nect with the device

Problem Possible Cause Countermeasure

Bluetooth

does not

work or its

limited

functions are

available

• Bluetooth on your

mobile phone is

set to OFF

• The Bluetooth

connection is not

made

• Android Auto is

active

• Set it to ON

• Make the connection

active

• Deactivate the mode

Android

Auto does

not work

with proper

connection

• Android Auto

blocking is made

in your phone

• The status of the

application has an

error

• Android OS ver-

sion not supported

• Android Auto App

not installed

• Non acceptance of

request of approval

• Release the blocking.

• Clear the error.

• End the application pro-

cess and try again

• The latest version of

Android must have been

installed

• Install Android Auto App

through Google Play

• Accept request of approval

Android Auto is connected

first time

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the

RESET

key to

reset the system.

• Press and hold the

RESET

key (over 1 second). The device power will

turn off and the system will reset.

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-6K_UMa_UVO3[USA_EU]AV_PART9.indd 9-6 2016-01-27 오후 4:27:582016-01-27 오후 4:27:5

Appendix I 9-7

FAQ

About Pairing Mobile Phones

Q I cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth® func-

tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set

it to ON. If the cell phone still can’t be registered, try again after

turning Bluetooth off and on, or delete the device registration on

the multimedia system and cell phone and then register the cell

phone again.

Q What is the difference between pairing a mobile phone and con-

necting a mobile phone?

A Pairing occurs through authenticating the head unit and mobile

phone. Mobile phones paired to the head unit can be connected

and disconnected until the paired mobile phone is deleted from

the system. Bluetooth® Handsfree features, such as making/

answering calls or managing contacts, are supported only in

mobile phones connected with the head unit.

Q What is a Passkey?

A A passkey is the password used to authenticate the connection

between the head unit and mobile phone. The passkey only

needs to be entered once when pairing the mobile phone for the

first time.

The initial passkey is 0000. You can change it with

SETUP

▶

Phon

▶

luetooth S

stem Inf

▶

Passke

menu options.

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-7K_UMa_UVO3[USA_EU]AV_PART9.indd 9-7 2016-01-27 오후 4:27:582016-01-27 오후 4:27:5

9-8 I Appendix

About Making/Answering Phone Calls

Q How can I answer a call?

A When there is an incoming call, a notification pop-up will

become displayed. To answer the incoming call, select the

cce

button on the screen or the key on the

steering

wheel control

To reject the call, select the

ect

button on the screen or

press the key on the steering wheel control.

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (more than 0.8 seconds)

the key on the

steering wheel control

or select the

button at the bottom of the Phone screen to switch

the call to your mobile phone.

About

Bluetooth

Wireless Technology/

Head Unit Use Environment

Q What is the range of my wireless connection?

A The wireless connection can be used within 15 yards.

Q How many mobile phones can be paired?

A It is possible to pair up to five mobile phones.

Q Why is call quality sometimes poor?

Check the reception sensitivity of the mobile phone when call

quality becomes worsened. The call quality may deteriorate when

the signal strength is low. Call quality may also worsen if metal

objects, such as beverage cans, are placed near the mobile

phone. Check to see if there are metal objects in the vicinity of the

mobile phone. The call sound and quality may differ depending on

the type of mobile phone.

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-8K_UMa_UVO3[USA_EU]AV_PART9.indd 9-8 2016-01-27 오후 4:27:592016-01-27 오후 4:27:5

Important Information

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual ("User's

Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.

Keep User's Guide in Vehicle

When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please

make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and

safety information carefully.

Warning

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other

serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a

safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may

to distract your attention away from the road and remove your hands from the wheel.

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-13K_UMa_UVO3[USA_EU]AV_PART9.indd 9-13 2016-01-27 오후 4:27:592016-01-27 오후 4:27:5

General Operation

Voice Command Control

Functions within the Multimedia system may be accomplished using only voice commands. Using voice commands while driving allows

you to operate the system without removing your hands from the wheel.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before

attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous

if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while

driving. Driving while unable to hear these sounds could cause an accident.

Use of Speech Recognition Functions

Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any

speech recognition functions included in the system and address any errors.

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-14K_UMa_UVO3[USA_EU]AV_PART9.indd 9-14 2016-01-27 오후 4:27:592016-01-27 오후 4:27:5

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• IIncrease the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body.

This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the

FCC.

K_UMa_UVO3[USA_EU]AV_PART9.indd 9-15K_UMa_UVO3[USA_EU]AV_PART9.indd 9-15 2016-01-27 오후 4:27:592016-01-27 오후 4:27:5

HYUNDAI MOBIS ADC40A9AN DISPLAY CAR SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DISPLAY CAR SYSTEM

User Manual

Navigation menu

Namespaces

Views

Navigation
