HYUNDAI MOBIS AM110TFGG DIGITAL CAR AUDIO SYSTEM User Manual TF FL A3 0 USA AUDIO 20130219 qxp

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM TF FL A3 0 USA AUDIO 20130219 qxp

UserManual.wiki >

HYUNDAI MOBIS >

AM110TFGG User Manual HTML Version

User Manual

Features of your vehicle

How vehicle audio works

AM and FM radio signals are broad-

cast from transmitter towers located

around your city. They are intercept-

ed by the radio antenna on your vehi-

cle. This signal is then processed by

the radio and sent to your vehicle

speakers.

When a strong radio signal has

reached your vehicle, the precise

engineering of your audio system

ensures the best possible quality

reproduction. However, in some

cases the signal coming to your vehi-

cle may not be strong and clear.

This can be due to factors, such as

the distance from the radio station,

closeness of other strong radio sta-

tions or the presence of buildings,

bridges or other large obstructions in

the area.

AM broadcasts can be received at

greater distances than FM broad-

casts. This is because AM radio

waves are transmitted at low fre-

quencies. These long distance,low

frequency radio waves can follow the

curvature of the earth rather than

travelling straight. In addition, they

curve around obstructions resulting

in better signal coverage.

ቍቋᆲ

JBM002

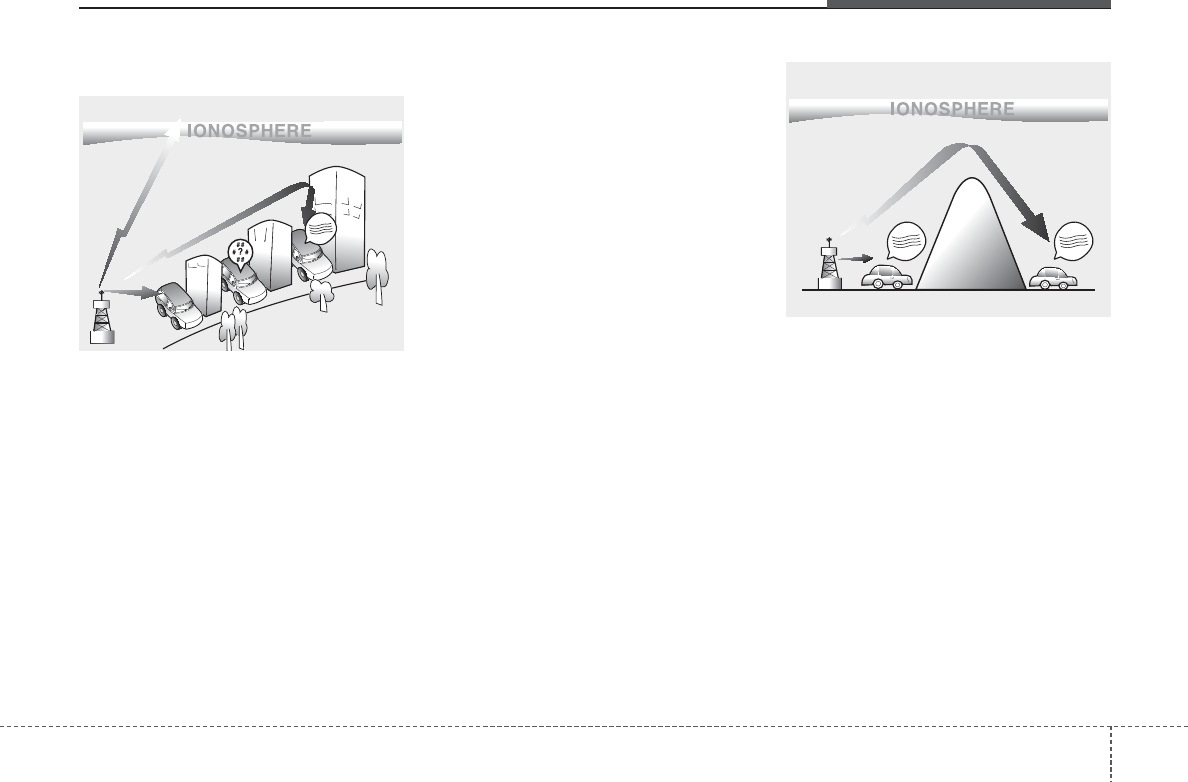

AM reception

ቍቋᆲ

JBM001

FM reception

Features of your vehicle

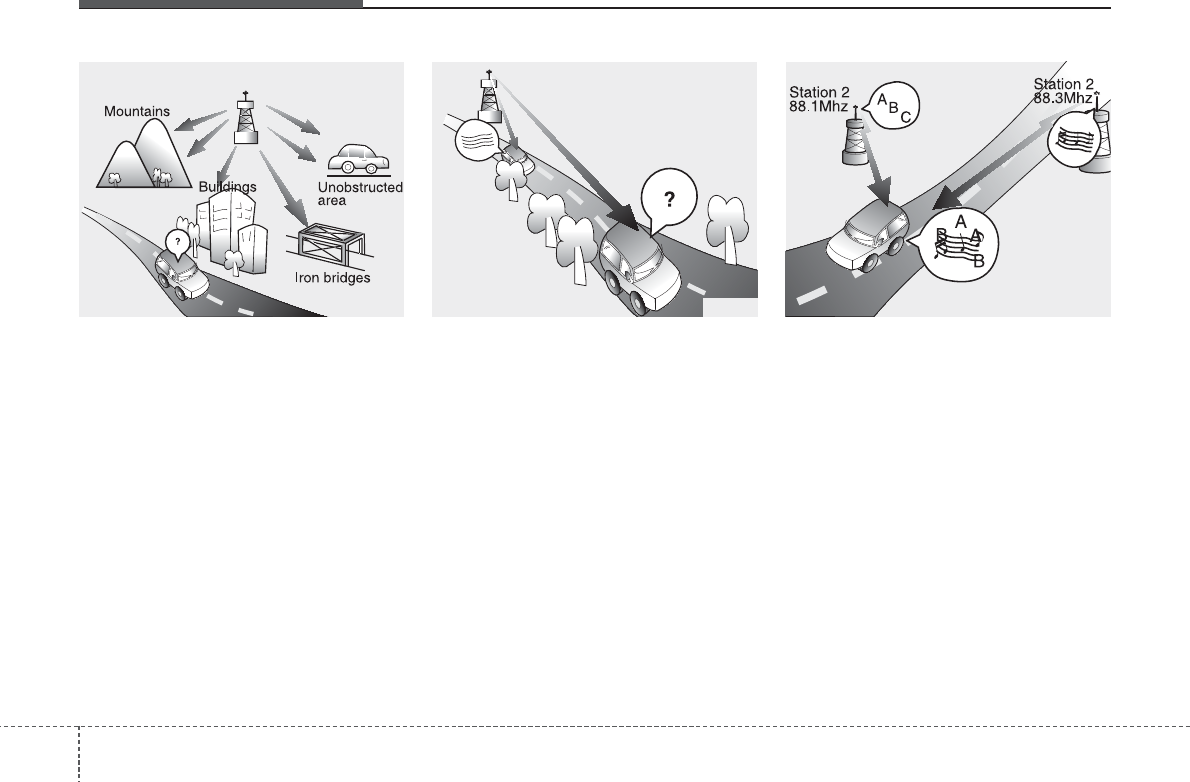

FM broadcasts are transmitted at

high frequencies and do not bend to

follow the earth's surface. Because

of this, FM broadcasts generally

begin to fade within short distances

from the station. short distances from

the station. Also, FM signals are eas-

ily affected by buildings, mountains,

and obstructions. This can lead to

undesirable or unpleasant listening

conditions which might lead you to

believe a problem exists with your

radio. The following conditions are

normal and do not indicate radio

trouble:

• Fading - As your vehicle moves

away from the radio station, the

signal will weaken and sound will

begin to fade. When this occurs,

we suggest that you select another

stronger station.

• Flutter/Static - Weak FM signals or

large obstructions between the

transmitter and your radio can dis-

turb the signal causing static or

fluttering noises to occur. Reducing

the treble level may lessen this

effect until the disturbance clears.

• Station Swapping - As an FM sig-

nal weakens, another more power-

ful signal near the same frequency

may begin to play. This is because

your radio is designed to lock onto

the clearest signal. If this occurs,

select another station with a

stronger signal.

• Multi-Path Cancellation - Radio

signals being received from sever-

al directions can cause distortion

or fluttering. This can be caused by

a direct and reflected signal from

the same station, or by signals

from two stations with close fre-

quencies. If this occurs, select

another station until the condition

has passed.

JBM003

FM radio station

JBM005

ቍቋᆲ

JBM004

Features of your vehicle

Using a cellular phone or a two-

way radio

When a cellular phone is used inside

the vehicle, noise may be produced

from the audio system. This does not

mean that something is wrong with

the audio equipment. In such a case,

try to operate mobile devices as far

from the audio equipment as possi-

ble.

Caring for disc

• If the temperature inside the car is

too high, open the car windows to

ventilate before using the system.

• It is illegal to copy and use

MP3/WMA files without permis-

sion. Use CDs that are created

only by lawful means.

• Do not apply volatile agents, such

as benzene and thinner, normal

cleaners and magnetic sprays

made for analogue disc onto CDs.

• To prevent the disc surface from

getting damaged, hold CDs by the

edges or the center hole only.

• Clean the disc surface with a piece

of soft cloth before playback (wipe

it from the center to the outside

edge).

• Do not damage the disc surface or

attach pieces of sticky tape or

paper.

• Make certain only CDs are insert-

ed into the CD player (Do not insert

more than one CD at a time).

• Keep CDs in their cases after use

to protect them from scratches or

dirt.

CAUTION

When using a communication

system such as a cellular phone

or a radio set inside the vehicle,

a separate external antenna

must be fitted. When a cellular

phone or a radio set is used

with an internal antenna alone,

it may interfere with the vehi-

cle's electrical system and

adversely affect safe operation

of the vehicle.

WARNING

Do not use a cellular phone

while driving. Stop at a safe

location to use a cellular phone.

Features of your vehicle

• Depending on the type of CD-

R/CD-RW CDs, certain CDs may

not operate normally according to

the manufacturing companies. In

such circumstances, continued

use may cause malfunctions to

your audio system.

✽NOTICE

- Playing an Incompatible

Copy Protected Audio

Some copy protected CDs, which do

not comply with international audio

CD standards (Red Book), may not

play on your car audio. Please note

that inabilities to properly play a

copy protected CD may indicate

that the CD is defective, not the CD

player.

NOTE:

Order of playing files (folders) :

1. Song playing order : to

sequentially.

2. Folder playing order :

❋If no song file is contained in the

folder, that folder is not displayed.

Features of your vehicle

CAUTION

• Operating the device while

driving could lead to acci-

dents due to a lack of atten-

tion to external surroundings.

First park the vehicle before

operating the device.

• Adjust the volume to levels

that allow the driver to hear

sounds from outside of the

vehicle. Driving in a state

where external sounds cannot

be heard may lead to acci-

dents.

• Pay attention to the volume

setting when turning the

device on. A sudden output of

extreme volume upon turning

the device on could lead to

hearing impairment. (Adjust

the volume to a suitable levels

before turning off the device.)

(Continued)

WARNING

• Do not stare at the screen

while driving. Staring at the

screen for prolonged periods

of time could lead to traffic

accidents.

• Do not disassemble, assem-

ble, or modify the audio sys-

tem. Such acts could result in

accidents, fire, or electric

shock.

• Using the phone while driving

may lead to a lack of attention

of traffic conditions and

increase the likelihood of

accidents. Use the phone

feature after parking the vehi-

cle.

• Heed caution not to spill water

or introduce foreign objects

into the device. Such acts

could lead to smoke, fire, or

product malfunction.

(Continued)

• Please refrain from use if the

screen is blank or no sound

can be heard as these signs

may indicate product mal-

function. Continued use

in such conditions could lead

to accidents(fires, electric

shock) or product malfunc-

tions.

• Do not touch the antenna dur-

ing thunder or lightening as

such acts may lead to light-

ning induced electric shock.

• Do not stop or park in park-

ing-restricted areas to operate

the product. Such acts could

lead to traffic accidents.

• Use the system with the vehi-

cle ignition turned on.

Prolonged use with the igni-

tion turned off could result in

battery discharge.

Features of your vehicle

(Continued)

• If you want to change the posi-

tion of device installation,

please inquire with your place

of purchase or service mainte-

nance center. Technical

expertise is required to install

or disassemble the device.

• Turn on the car ignition before

using this device. Do not oper-

ate the audio system for long

periods of time with the igni-

tion turned off as such opera-

tions may lead to battery dis-

charge.

• Do not subject the device to

severe shock or impact. Direct

pressure onto the front side of

the monitor may cause dam-

age to the LCD or touch

screen.

(Continued)

• When cleaning the device, make

sure to turn off the device and

use a dry and smooth cloth.

Never use tough materials,

chemical cloths, or solvents

(alcohol, benzene, thinners, etc.)

as such materials may damage

the device panel or cause

color/quality deterioration

• Do not place beverages close

to the audio system. Spilling

beverages may lead to system

malfunction.

• In case of product malfunction,

please contact your place of pur-

chase or After Service center.

• Placing the audio system

within an electromagnetic

environment may result in

noise interference.

(Continued)

• Prevent caustic solutions

such as perfume and cosmet-

ic oil from contacting the

dashboard because they may

cause damage or discol-

oration.

Features of your vehicle

USING THE USB DEVICE

• To use an external USB device,

make sure the device is not con-

nected when starting up the

vehicle. Connect the device after

starting up.

• If you start the engine when the

USB device is connected, it may

damage the USB device. (USB

flashdrives are very sensitive to

electric shock.)

• If the engine is started up or

turned off while the external USB

device is connected, the external

USB device may not work.

• The System may not play unau-

thenticated MP3 or WMA files.

1) It can only play MP3 files with

the compression rate between

8Kbps ~ 320Kbps.

2) It can only play WMA music

files with the compression rate

between 8Kbps ~ 320Kbps.

• Take precautions for static elec-

tricity when connecting or discon-

necting the external USB device.

(Continued)

• An encrypted MP3 PLAYER is

not recognizable.

• Depending on the condition of

the external USB device, the

connected external USB device

can be unrecognizable.

• When the formatted byte/sector

setting of External USB device is

not either 512BYTE or

2048BYTE, then the device will

not be recognized.

• Use only a USB device format-

ted to FAT 12/16/32.

• USB devices without USB I/F

authentication may not be recog-

nizable.

• Make sure the USB connection

terminal does not come in con-

tact with the human body or

other objects.

• If you repeatedly connect or dis-

connect the USB device in a

short period of time, it may break

the device.

(Continued)

• You may hear a strange noise

when connecting or disconnect-

ing a USB device.

• If you disconnect the external

USB device during playback in

USB mode, the external USB

device can be damaged or may

malfunction. Therefore, discon-

nect the external USB device

when the audio is turned off or in

another mode. (e.g, Radio, CD)

• Depending on the type and

capacity of the external USB

device or the type of the files

stored in the device, there is a

difference in the time taken for

recognition of the device.

• Do not use the USB device for

purposes other than playing

music files.

• Playing videos through the USB

is not supported.

• Use of USB accessories such as

rechargers or heaters using USB

I/F may lower performance or

cause trouble.

(Continued)

Features of your vehicle

(Continued)

• Some USB flash memory read-

ers (such as CF, SD, micro SD,

etc.) or external-HDD type

devices can be unrecognizable.

• Music files protected by DRM

(DIGITAL RIGHTS MANAGE-

MENT) are not recognizable.

• The data in the USB memory

may be lost while using this

audio. Always back up important

data on a personal storage

device.

• Please avoid using

USB memory prod-

ucts which can be

used as key chains or

cellular phone acces-

sories as they could cause dam-

age to the USB jack. Please

make certain only to use plug

type connector products.

(Continued)

• If you use devices such as a USB

hub purchased separately, the

vehicle’s audio system may not

recognize the USB device. In that

case, connect the USB device

directly to the multimedia terminal

of the vehicle.

• If the USB device is divided by log-

ical drives, only the music files on

the highest-priority drive are rec-

ognized by car audio.

• Devices such as MP3 Player/

Cellular phone/Digital camera can

be unrecognizable by standard

USB I/F can be unrecognizable.

• Charging through the USB may

not be supported in some mobile

devices.

• USB HDD or USB types liable to

connection failures due to vehicle

vibrations are not supported.

(i-stick type)

• Some non-standard USB devices

(METAL COVER TYPE USB) can

be unrecognizable.

(Continued)

Features of your vehicle

USING THE iPod®DEVICE

• Some iPod®models may not

support communication protocol

and files may not properly play.

Supported iPod®models:

-iPhone®3GS/4

-iPod®touch 1st~4th generation

-iPod®nano 1st~6th generation

-iPod®classic

• The order of search or playback

of songs in the iPod®can be dif-

ferent from the order searched in

the audio system.

• If the iPod®is disabled due to its

own malfunction, reset the

iPod®. (Reset: Refer to iPod®

manual)

• An iPod®may not operate nor-

mally on low battery.

(Continued)

• Some iPod®devices, such as the

iPhone®, can be connected

through the

Bluetooth®

Wireless

Technology interface. The device

must have audio

Bluetooth®

Wireless Technology capability

(such as for stereo headphone

Bluetooth®

Wireless Technology).

The device can play, but it will not

be controlled by the audio system.

• To use iPod®features within the

audio, use the cable provided

upon purchasing an iPod®

device.

• Skipping or improper operation

may occur depending on the char-

acteristics of your iPod®/iPhone®

device.

• If your iPhone®is connected to

both the

Bluetooth®

Wireless

Technology and USB, the sound

may not be properly played. In

your iPhone®, select the Dock

connector or

Bluetooth®

Wireless

Technology to change the sound

output (source).

(Continued)

• When connecting iPod®with the

iPod®Power Cable, insert the

connector to the multimedia

socket completely. If not inserted

completely, communications

between iPod®and audio may

be interrupted.

• When adjusting the sound

effects of the iPod®and the

audio system, the sound effects

of both devices will overlap and

might reduce or distort the qual-

ity of the sound.

• Deactivate (turn off) the equaliz-

er function of an iPod®when

adjusting the audio system’s vol-

ume, and turn off the equalizer

of the audio system when using

the equalizer of an iPod®.

• When not using iPod®with car

audio, detach the iPod®cable

from iPod®. Otherwise, iPod®

may remain in accessory mode,

and may not work properly.

Features of your vehicle

104

Bluetooth®

Wireless

Technology

Bluetooth

Wireless Technology

The

Bluetooth

word mark and logos

are registered trademarks owned by

Bluetooth SIG, lnc. and any use of

such marks by Kia is under license.

Bluetooth

enabled call phone is

required to use

Bluetooth

wireless

technology.

Before Using the

Bluetooth®

Handsfree

What is Bluetooth®?

•

Bluetooth

refers to a short-dis-

tance wireless networking technol-

ogy which uses a 2.4GHz ~

2.48GHz frequency to connect var-

ious devices within a certain dis-

tance.

• Supported within PCs, external

devices,

Bluetooth

phones, PDAs,

various electronic devices, and

automotive environments,

Bluetooth

allows data to be trans-

mitted at high speeds without hav-

ing to use a connector cable.

•

Bluetooth

Handsfree refers to a

device which allows the user to con-

veniently make phone calls with

Bluetooth

mobile phones through

the audio system.

•

Bluetooth

Handsfree may not be

supported in some mobile phones.

To learn more about mobile device

compatibility, visit www.kia.com.

Precautions for Safe Driving

•

Bluetooth

Handsfree is a feature

that enables drivers to practice safe

driving. Connecting the head unit

with a

Bluetooth

phone allows the

user to conveniently make and

receive calls and use contacts.

Before using

Bluetooth

, carefully

read the contents of this user’s

manual.

• Excessive use or operations while

driving may lead to negligent driv-

ing practices and result in acci-

dents. Refrain from excessive oper-

ations while driving.

• Viewing the screen for prolonged

periods of time is dangerous and

may lead to accidents. When driv-

ing, view the screen only for short

periods of time.

WARNING

• Driving while distracted can

result in a loss of vehicle control

that may lead to an accident,

severe personal injury, and

death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a vehi-

cle or which are not permissible

by law should never be used

during operation of the vehicle.

411

Features of your vehicle

When connecting a

Bluetooth®

Phone

• Before connecting the head unit

with the mobile phone, check to

see that the mobile phone sup-

ports

Bluetooth®

features.

• Even if the phone supports

Bluetooth®

, the phone will not be

found during device searches if

the phone has been set to hidden

state or the

Bluetooth®

power is

turned off. Disable the hidden

state or turn on the

Bluetooth®

power prior to searching/connect-

ing with the Head unit.

• Bluetooth phone is automatically

connected when the ignition on.

• If you do not want automatic con-

nection with your

Bluetooth®

device, turn off the

Bluetooth®

feature within your mobile phone.

• The Handsfree call volume and

quality may differ depending on

the mobile phone.

• Park the vehicle when connecting

the head unit with the mobile

phone.

•

Bluetooth®

connection may

become intermittently discon-

nected in some mobile phones.

Follow these steps to try again.

1. Within the mobile phone, turn

the

Bluetooth®

function off/on

and try again.

2. Turn the mobile phone power

Off/On and try again.

3. Completely remove the mobile

phone battery, reboot, and then

again.

4. Reboot the Audio Video

Navigation System and try

again.

5. Delete all paired devices, pair

and try again.

• Handsfree call quality and volume

may differ depending on the

model of your mobile phone.

Features of your vehicle

124

Voice Recognition

• When using the voice recognition

feature, only commands listed with-

in the user's manual are supported.

• Be aware that during the operation

of the voice recognition system,

pressing any key other than the

key terminate voice recognition

mode.

• For superior voice recognition per-

formance, position the microphone

used for voice recognition above

the head of the driver’s seat and

maintain a proper position when

saying commands.

• Within the following situations,

voice recognition may not function

properly due to external sound.

- When the windows and sunroof

are open

- When the wind of the cooling /

heating device is strong

- When entering and passing

through tunnels

(Continued)

- When driving on rugged and

uneven roads

- During severe rain (heavy rains,

windstorms)

• Phone related voice commands

can be used only when a

Bluetooth

Wireless Technology

device is connected.

• When making calls by stating a

name, the corresponding contact

must be downloaded and stored

within the audio system.

• After downloading the

Bluetooth

Wireless Technology phone book, it

takes some times to convert the

phone book data into voice infor-

mation. During this time, voice

recognition may not properly oper-

ate.

• Pronounce the voice commands

naturally and clearly as if in a nor-

mal conversation.

413

Features of your vehicle

■ CD Player :

Features of your vehicle

144

SYSTEM CONTROLLERS

AND FUNCTIONS

❈Display and settings may differ

depending on the selected audio.

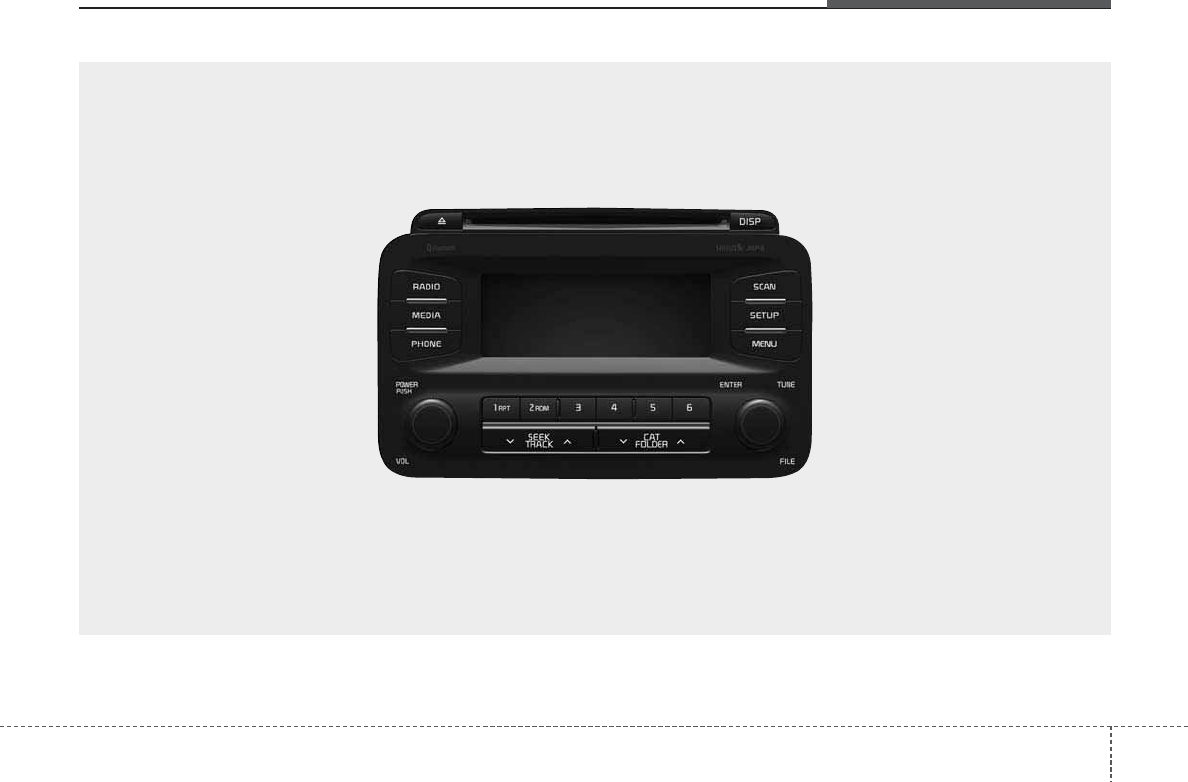

Audio Head Unit

(1) (EJECT)

Ejects the disc.

(2)

Changes to FM/AM/SIRIUS™mode.

Each time the key is pressed, the

mode is changed in order of FM1 ➟

FM2 ➟AM ➟SAT1 ➟SAT2 ➟SAT3.

❈In Setup>Display, the radio pop up

screen will be displayed when

[Mode Pop up] is turned .

When the pop up screen is dis-

played, use the TUNE knob or

keys ~ to select the

desired mode.

(3)

Changes to CD, USB(iPod®), AUX,

My Music, BT Audio mode.

Each time the key is pressed, the

mode is changed in order of CD,

USB(iPod®), AUX, My Music, BT

Audio.

❈In Setup>Display, the media pop

up screen will be displayed when

[Mode Pop up] is turned .

When the pop up screen is dis-

played, use the TUNE knob or

keys ~ to select the

desired mode.

(4)

Operates Phone Screen

❈When a phone is not connected,

the connection screen is displayed.

(5) PWR/VOL knob

Power : Turns power On/Off by

pressing the knob

Volume : Sets volume by turning

the knob left/right

(6)

Radio Mode : Automatically search-

es for broadcast frequencies.

CD, USB, iPod®, My Music modes

Shortly press the key (under 0.8 sec-

onds): Moves to next or previous song

(file)

Press and hold the key (over 0.8 sec-

onds): Rewinds or fast-forwards the

current song.

BT Audio mode : Moves to next or

previous song(file)

❈

The Play/Pause feature may oper-

ate differently depending on the

mobile phone.

SEEK

TRACK

PHONE

MEDIA

RADIO

415

Features of your vehicle

(7)

Each time the button is shortly

pressed (under 0.8 seconds), it sets

the screen Off ➟Screen On ➟

Screen Off

❈Audio operation is maintained and

only the screen will be turned Off.

In the screen Off state, press any

key to turn the screen On again.

(8)

Radio Mode

- Shortly press the key : Previews

each broadcast for 5 seconds

each.

- Press and hold the key (over 0.8

seconds): Previews the broadcasts

saved in Preset ~ for 5

seconds each.

❈Press the key again to

continue listening to the current

frequency.

❈SAT Radio does not support the

Preset scan feature.

CD, USB, My Music mode

- Shortly press the key (under 0.8

seconds): Previews each song

(file) for 10 seconds each.

❈Press the key again to

continue listening to the current

song (file).

(9)

Moves to the Display, Sound, Phone,

System setting modes.

(10)

Displays menus for the current mode.

(11)

Radio Mode

-SIRIUS™RADIO : Category Search

MP3, CD, USB mode : Folder Search

(13) TUNE knob

Radio mode : Changes frequency by

turning the knob left/right.

CD, USB, iPod®, My Music mode:

Searches songs (files) by turning the

knob left/right.

❈When the desired song is dis-

played, press the knob to play the

song.

Moves focus in all selection menus

and selects menus.

CAT

FOLDER

SETUP

SCAN

DISP

Features of your vehicle

164

(12) ~ (Preset)

Radio Mode: Saves frequencies

(channels) or receives saved fre-

quencies (channels)

CD, USB, iPod®, My Music mode

- : Repeat

- : Random

In the Radio, Media, Setup, and

Menu pop up screen, the number

menu is selected.

417

Features of your vehicle

SETUP

Display Settings

Press the key Select [Display]

through TUNE knob or key

Select menu through TUNE knob

Mode Pop up

[Mode Pop up] Changes /

selection mode

• During On state, press the

or key to display the mode

change pop up screen.

Text Scroll

[Text Scroll] Set /

• : Maintains scroll

• : Scrolls only one (1) time.

Media Display

When playing an MP3 file, select the

desired display info from ‘Folder/File’

or ‘Album/Artist/Song’.

Off

OffOn

MEDIA

RADIO

OffOn

SETUP

Features of your vehicle

184

SOUND SETTINGS

Press the key Select [Sound]

through TUNE knob or key

Select menu through TUNE knob

Sound Settings

This menu allows you to set the ‘Bass,

Middle, Treble’ and the Sound Fader and

Balance.

Select [Sound Settings] Select

menu through

TUNE knob

Tu r n

TUNE knob

left/right to set

• Bass, Middle, Treble : Selects the

sound tone.

• Fader, Balance : Moves the sound

fader and balance.

• Default : Restores default settings.

❈Back : While adjusting values,

pressing the TUNE knob will

restore the parent menu.

Speed Dependent Volume Control

This feature is used to automatically

control the volume level according to

the speed of the vehicle.

Select [Speed Dependent Vol.] Set

in 4 levels [Off/Low/Mid/High] of

TUNE

knob

Voice Recognition Volume

Adjusts voice recognition volume.

Select [Voice Recognition Vol.] Set

volume of

TUNE

knob

SETUP

419

Features of your vehicle

SYSTEM SETTINGS

Press the key Select

[System] through tune knob or

key Select menu through TUNE

knob

Memory Information

Displays currently used memory and

total system memory.

Select [Memory Information] OK

The currently used memory is dis-

played on the left side while the total

system memory is displayed on the

right side.

Prompt Feedback

This feature is used to change voice

command feedback between Normal

and Expert modes.

Select [Prompt Feedback] Set

through

TUNE

knob

• On : This mode is for beginner

users and provides detailed

instructions during voice command

operation.

• Off : This mode is for expert users

and omits some information during

voice command operation. (When

using Expert mode, guidance

instructions can be heard through

the [Help] or [Menu] commands.

Language

This menu is used to set the display

and voice recognition language.

Select [Language]

Set through TUNE knob

❈ The system will reboot after the

language is changed.

❈ Language support by region

- English, Francais, Espanol

SETUP

Features of your vehicle

204

RADIO : FM, AM OR SIRIUS™

Changing RADIO mode (FM,

AM or SIRIUS™)

Press the key to change the

mode in order of FM1➟FM2➟

AM➟SAT1➟SAT2➟SAT3.

• When the power is off, press the

key to turn on the audio

system and receive radio broad-

casts.

• [Mode Pop up] On state : Displays the

change radio mode pop up screen.

While the pop up screen is displayed,

you can change the radio mode

(FM1➟FM2➟AM➟SAT1➟SAT2➟SA

T3) through the tune knob or ~

keys.

Adjust Volume

Turn the VOL knob left/right to

adjust the volume.

SEEK

Press the key

• Shortly pressing the key (under 0.8

seconds): Automatically searches

for the next station.

• Pressing and holding the key (over

0.8 seconds): While holding the key,

frequency changes without stop-

ping. When the key is released,

automatically searches for the next

frequency from that point.

Preset SEEK

Press the ~ key

• Shortly pressing the key (under 0.8

seconds): Plays the frequency

saved in the corresponding key.

• Pressing and holding the key (over

0.8 seconds): Pressing and holding

the desired key from ~

will save the currently playing

broadcast to the selected key and

sound a BEEP.

SCAN

Press the key

• Shortly pressing the key (under 0.8

seconds): The broadcast frequency

increases and previews each

broadcast for 5 seconds each. After

scanning all frequencies, returns

and plays the current broadcast fre-

quency.

• Pressing and holding the key (over

0.8 seconds): Previews the broad-

casts saved in Preset ~

for 5 seconds each.

Selecting through manual

Turn the TUNE knob left/right to

adjust the frequency.

• FM : Changes by 200KHz

• AM : Changes by 10KHz

SCAN

SEEK

TRACK

RADIO

421

Features of your vehicle

Within key are the A.Store

(Auto Store) and Info functions.

A.Store

Press the key Set [A.Store]

through TUNE knob or key.

Saves broadcasts with superior

reception to ~ keys. If no

frequencies are received, then the

most recently received frequency will

be broadcast.

Features of your vehicle

224

Satellite Radio channels:

SIRIUS™Satellite Radio has over

130 channels, including 69 channels

of 100% commercial-free music, plus

sports, news, talk and entertainment

available nationwide in your vehicle.

For more information and a complete

list of SIRIUS™Satellite Radio chan-

nels, visit sirius.com in the United

States, sirius-canada.ca in Canada,

or call SIRIUS™at 1-888-539-7474.

Satellite Radio reception factors:

To receive the satellite signal, your

vehicle has been equipped with a

satellite radio antenna located on the

roof of your vehicle. The vehicle roof

provides the best location for an unob-

structed, open view of the sky, a

requirement of a satellite radio system.

Like AM/FM, there are several factors

that can affect satellite radio reception

performance:

• Antenna obstructions: For optimal

reception performance, keep the

antenna clear of snow and ice build-

up and keep luggage and other

material as far away from the anten-

na as possible.

• Terrain: Hills, mountains, tall build-

ings, bridges, tunnels, freeway over-

passes, parking garages, dense

tree foliage and thunderstorms can

interfere with your reception.

SIRIUS™Satellite Radio service:

SIRIUS™Satellite Radio is a sub-

scription-based satellite radio service

that broadcasts music, sports, news

and entertainment programming to

radio receivers, which are available for

installation in motor vehicles or factory

installed, as well as for the home,

portable and wireless devices, and

through an Internet connection on per-

sonal computer.

Vehicles that are equipped with a

factory installed SIRIUS™Satellite

Radio system include:

• Hardware and an introductory trial

subscription term, which begins on

the date of sale or lease of the vehi-

cle.

• For a small upgrade fee, access to

SIRIUS™music channels, and other

select channels over the Internet

using any computer connected to

the Internet (U.S. customers only).

For information on extended sub-

scription terms, contact SIRIUS™

at 1-888-539-7474.

NOTE:

SiriusXM service requires a sub-

scription, sold separately, after 3-

month trial included with vehicle

purchase. If you decide to contin-

ue your SiriusXM service at the

end of your trial subscription, the

plan you choose will automatical-

ly renew and bill at then-current

rates until you call Sirius XM at 1-

866-635-2349 to cancel. See our

Customer Agreement for com-

plete terms at www.siriusxm.com.

Programming subject to change.

Sirius satellite service is available

only to those at least 18 and older

in the 48 contiguous USA, D.C.,

and PR (with coverage limita-

tions). Traffic information not

available in all markets. See sir-

iusxm.com/traffic for details.

Sirius, XM and all related marks

and logos are trademarks of Sirius

XM Radio Inc.

SIRIUS™Satellite Radio information

423

Features of your vehicle

SIRIUS™ RADIO

Using SIRIUSTM Satellite Radio

Your Kia vehicle is equipped with a 3

month complimentary period of SIR-

IUS™Satellite Radio so you have

access to over 130 channels of

music, information, and entertain-

ment programming.

Activation

In order to extend or reactivate your

subscription to SIRIUS™Satellite

Radio, you will need to contact SIR-

IUS™Customer Care at 800-643-

2112. Have your 12 digit SID (Sirius

Identification Number) / ESN

(Electronic Serial Number) ready. To

retrieve the SID / ESN, turn on the

radio, press the [RADIO] button, and

tune to channel zero.

Please note that the vehicle will need

to be turned on, in Sirius mode, and

have an unobstructed view of the sky

in order for the radio to receive the

activation signal.

SEEK

Press the key

• Shortly pressing the key (under 0.8

seconds): select previous or next

channel.

• Pressing and holding the key (over

0.8 seconds): continuously move

to previous or next channel.

❈ If the “Category” icon is displayed,

channels are changed within the

current category.

SCAN

Press the key

• Shortly pressing the key (under 0.8

seconds): Previews each broad-

cast for 5 seconds each

❈Press the key again to

continue listening to the current

frequency

❈If the “Category” icon is displayed,

channels are changed within the

current category.

Category

Press the key Set through

the

TUNE

knob

• The display will indicate the catego-

ry menus, highlight the category

that the current channel belongs to.

• In the Category List Mode, press

the key to navigate cate-

gory list.

• Press the tune knob to select the

lowest channel in the highlighted

category.

❈If channel is selected by selecting

category, then the “CATEGORY”

icon is displayed at the top of the

screen.

CAT

FOLDER

CAT

FOLDER

SCAN

SCANRADIO

RADIO

Features of your vehicle

244

Preset

Press the key ~

• Shortly pressing the key (under 0.8

seconds): Plays the frequency

saved in the corresponding key.

• Pressing and holding the key (over

0.8 seconds): Pressing and holding

the desired key from ~

will save the current broadcast to

the selected key and sound a

BEEP.

✽Troubleshooting

1. Antenna Error

If this message is displayed, the

antenna or antenna cable is bro-

ken or unplugged. Please consult

with your Kia dealership.

2. Acquiring Signal

If this message is displayed, it

means that the antenna is covered

and that the SIRIUS™ Satellite

Radio signal is not available.

Ensure the antenna is uncovered

and has a clear view of the sky.

Tune

• Rotate TUNE knob : Changes

the channel number or scrolls cat-

egory list.

• Press TUNE knob : Selects the

menu.

Select category menu through the

TUNE knob Press the

key Select [ Info] through the

TUNE knob or key

Info (Information)

Displays the Artist/Song info of the

current song.

61RADIO

425

Features of your vehicle

BASIC METHOD OF USE :

Audio CD / MP3 CD / USB /

iPod®/ My Music

Press the key to change the

mod mode in order of CD ➟

USB(iPod®)➟ AUX ➟ My Music ➟ BT

Audio.

The folder/file name is displayed on

the screen.

<USB>

❈ The CD is automatically played

when a CD is inserted.

❈ The USB music is automatically

played when a USB is connected.

Repeat

While song (file) is playing

(RPT) key

Audio CD, MP3 CD, USB, iPod®, My

Music mode: RPT on screen

• To repeat one song (press the key)

: Repeats the current song.

MP3 CD, USB mode: FLD.RPT on

screen

• To repeat folder (pressing twice):

repeats all files within the current

folder.

❈ Press the key again to turn

off repeat.

Random

While song (file) is playing

(RDM) key

Audio CD, My Music mode: RDM on

screen

• Random (press the key) : Plays all

songs in random order.

2RDM

1RPT

MEDIA

Features of your vehicle

264

MP3 CD, USB mode: FLD.RDM on

screen

• Folder Random (press the key) :

Plays all files within the current fold-

er in random order.

iPod®mode: ALL RDM on screen

• All Random (press the key) : Plays

all files in random order.

MP3 CD, USB : ALL RDM on screen

• All Random (pressing twice): Plays

all files in random order.

❈ Press the key again to turn

off repeat.

Changing Song/File

While song (file) is playing

key

• Shortly pressing the key : Plays the

current song from the beginning.

❈ If the key is pressed

again within 2 second, the previ-

ous song is played.

• Pressing and holding the key (over

0.8 seconds): Rewinds the song.

While song (file) is playing

key

• Shortly pressing the key : Plays the

next song.

• Pressing and holding the key (over

0.8 seconds): Fast forwards the

song.

Scan

While song (file) is playing

key

• Shortly pressing the key : Scans all

songs from the next song for 10

seconds each.

❈ Press the key again to turn

off.

❈ The SCAN function is not support-

ed in iPod®mode.

Folder Search : MP3 CD, USB

Mode

While file is playing

(Folder Up) key

• Searches the next folder.

While file is playing

(Folder Down) key

• Searches the parent folder.

❈ If a folder is selected by pressing

the TUNE knob, the first file

within the selected folder will be

played.

❈ In iPod®mode, moves to the

Parent Folder.

Searching Songs (File)

• Turning

TUNE

knob : Searches

for songs (files)

• Pressing TUNE knob : Plays

selected song (file).

CAT

FOLDER

CAT

FOLDER

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

2RDM

427

Features of your vehicle

MENU : Audio CD

Press the CD MP3 mode key

to set the Repeat, Random,

Information features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key to repeat the current song.

❈Press RPT again to turn off.

Random

Press the key Set [ RDM]

through the TUNE knob or

key to randomly play songs within

the current folder.

❈Press RDM again to turn off.

Information

Press the key Set [ Info]

through the

TUNE

knob or

key to display information of the cur-

rent song.

❈ Press the key to turn off

info display.

MENU : MP3 CD / USB

Press the CD MP3 mode key

to set the Repeat, Folder Random,

Folder Repeat, All Random,

Information, and Copy features.

Repeat

Press the key Set [ RPT]

through the

TUNE

knob or

key to repeat the current song.

❈ Press RPT again to turn off.

1RPT

2RDM

1RPT

Features of your vehicle

284

Folder Random

Press the key Set [ F.RDM]

through the

TUNE

knob or

key to randomly play songs within the

current folder.

❈ Press F.RDM again to turn off.

Folder Repeat

Press the key Set [ F.RPT]

through the

TUNE

knob or

key to repeat songs within the cur-

rent folder.

❈ Press F.RPT again to turn off.

All Random

Press the key Set [ A.RDM]

through the

TUNE

knob or key

to randomly play all songs within the

CD.

❈ Press A.RDM again to turn off.

Information

Press the key Set [ Info]

through the

TUNE

knob or

key to display information of the cur-

rent song.

❈ Press the key to turn off

info display.

Copy

Press the key Set [

Copy] through the

TUNE

knob

or key.

This is used to copy the current

song into My Music. You can play

the copied Music in My Music

mode.

❈ If another key is pressed while

copying is in progress, a pop up

asking you whether to cancel

copying is displayed.

❈ If another media is connected or

inserted (USB, CD, iPod®, AUX)

while copying is in progress, copy-

ing is canceled.

❈ Music will not be played while

copying is in progress.

MENU : iPod®

In iPod®mode, press the key

to set the Repeat, Album Random, All

Random, Information and Search fea-

tures.

Repeat

Press the key Set [ RPT]

through the

TUNE

knob or

key to repeat the current song.

❈ Press RPT again to turn repeat off.

Random

Press the key Set [ RDM]

through the TUNE knob or

key.

Plays all songs within the currently

playing category in random order.

❈Press RDM again to turn off.

1RPT

2RDM

429

Features of your vehicle

Information

Press the key Set [ Info]

through the

TUNE

knob or

key.

Displays information of the current

song.

❈Press the key to turn off

info display.

Press the key Set [ Search]

through the

TUNE

knob or

key.

Displays iPod®category list.

❈Searching iPod®category is

key pressed, move to par-

ent category.

Features of your vehicle

304

MENU : My Music Mode

In My Music mode, press the

key to set the Repeat, Random,

Information, Delete, Delete All, and

Delete Selection features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key.

Repeats the currently playing song.

❈ Press RPT again to turn repeat off.

Random

Press the key Set [ RDM]

through the TUNE knob or

key.

Plays all songs in random order.

❈ Press RDM again to turn random off.

Information

Press the key Set [ Info]

through the

TUNE

knob or

key.

Displays information of the current

song.

❈ Press the key to turn off

info display.

Delete

Press the key Set [ Delete]

through the TUNE knob or

key.

Deletes currently playing file

In the play screen, pressing delete

will delete the currently playing song.

Deletes file from list

➀ Select the file you wish to delete

by using the TUNE knob.

➁ Press the key and select

the delete menu to delete the

selected file.

Delete All

Press the key Set [ Del.All]

through the TUNE knob or key.

Deletes all songs of My Music.

Delete Selection

Press the key Set [ Del.Sel]

through the TUNE knob or

key.

Songs within My Music are selected

and deleted.

➀ Select the songs you wish to

delete from the list.

2RDM

1RPT

431

Features of your vehicle

➁ After selecting, press key

and select the delete menu.

My Music

• Even if memory is available, a

maximum of 6,000 songs can be

stored.

• The same song can be copied up

to 1,000 times.

• Memory info can be checked in the

System menu of Setup.

AUX

AUX is used to play external MEDIA

currently connected with the AUX

terminal.

AUX mode will automatically start

when an external device is connect-

ed with the AUX terminal.

If an external device is connected,

you can also press the key to

change to AUX mode.

❈ AUX mode cannot be started

unless there is an external device

connected to the AUX terminal.

AUX

Fully insert the AUX cable into the

AUX terminal for use.

Bluetooth®

Wireless Technology

AUDIO

What is

Bluetooth®

Wireless

Technology

Bluetooth

Wireless Technology

allows devices to be connected in a

short distance, including hands-free

devices, stereo headsets, wireless

remote controllers, etc. For more

information, visit

the

Bluetooth®

Wireless Technology

website at

www.Bluetooth.com

Before using

Bluetooth

Wireless

Technology audio features

•

Bluetooth

Wireless Technology

audio may not be supported depend-

ing on the compatibility of your

Bluetooth

Wireless Technology

mobile phone.

• In order to use

Bluetooth

Wireless

Technology audio, you must first

pair and connect the

Bluetooth

Wireless Technology mobile phone.

MEDIA

Features of your vehicle

324

• The

Bluetooth

word mark and

logos are registered trademarks

owned by Bluetooth SIG, Inc. and

any use of such marks by Kia is

under license. Other trademarks

and trade names are those of their

respective owners. A

Bluetooth

enabled cell phone is required to

use

Bluetooth

Wireless Technology

•

Bluetooth

Wireless Technology

audio can be used only when the

[Audio Streaming] of Phone is

turned .

❈ Setting

Bluetooth®

Wireless

Technology

Audio Streaming : Press

the key Select [Phone]

through the tune knob or key

Select [Audio Streaming] through

the TUNE knob Set

Starting

Bluetooth®

Wireless

Technology Audio

• Press the key to change the

mode in order of CD ➟ USB ➟ AUX

➟ My Music ➟ BT Audio.

• If BT Audio is selected,

Bluetooth

Wireless Technology audio will start

playing.

❈ Audio may not automatically start

playing in some mobile phones.

Using the

Bluetooth®

Wireless

Technology audio features

• Play / Stop

Press the TUNE knob to play and

pause the current song.

• Previous / Next song

Press or to play

previous or next song.

❈ The previous song / next song /

play / pause functions may not be

supported in some mobile phones.

SEEK

TRACK

SEEK

TRACK

MEDIA

Off

SETUP

WARNING

• Driving while distracted can

result in a loss of vehicle control

that may lead to an accident,

severe personal injury, and

death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a vehi-

cle or which are not permissible

by law should never be used

during operation of the vehicle.

433

Features of your vehicle

PHONE

Before using the

Bluetooth®

Wireless

Technology phone features

• In order to use

Bluetooth®

Wireless

Technology phone, you must first

pair and connect the

Bluetooth®

Wireless Technology mobile phone.

• If the mobile phone is not paired or

connected, it is not possible to

enter Phone mode. Once a phone

is paired or connected, the guid-

ance screen will be displayed.

• If Priority is set upon vehicle igni-

tion (IGN/ACC ON), the

Bluetooth®

Wireless Technology phone will be

automatically connected. Even if

you are outside, the

Bluetooth®

Wireless Technology phone will be

automatically connected once you

are in the vicinity of the vehicle. If

you do not want automatic

Bluetooth®

Wireless Technology

phone connection, set the

Bluetooth®

Wireless Technology

power to OFF.

PHONE

Making a call using the

Steering-wheel mount controls

(1) MUTE button : Mute the micro-

phone during a call.

(2) VOLUME button : Raises or low-

ers speaker volume.

(3) button : Activates voice recog-

nition.

(4) button : Places and transfers

calls.

(5) button : Ends calls or cancels

functions.

• Check call history and making call

➀ Shortly press (under 0.8 seconds)

the key on the steering

remote controller.

➁ The call history list will be dis-

played on the screen.

➂ Press the key again to con-

nect a call to the selected number.

• Redialing the most recently called

number

➀ Press and hold (over 0.8 seconds)

the key on the steering

remote controller.

➁ The most recently called number

is redialed.

Features of your vehicle

344

Bluetooth

Wireless Technology

Pairing a

Bluetooth®

Wireless

Technology Device

What is Bluetooth®Wireless

Technology Pairing?

Pairing refers to the process of syn-

chronizing your

Bluetooth

Wireless

Technology phone or device with the

car audio system for connection.

Pairing is necessary to connect and

use the

Bluetooth

Wireless

Technology feature.

The

Bluetooth

word mark and logos

are registered trademarks owned by

Bluetooth SIG, Inc. and any use of

such marks by Kia is under license.

Other trademarks and trade names

are those of their respective owners.

Bluetooth

enabled cell phone is

required to use

Bluetooth

wireless

technology

Pairing Key / Key on

the Steering Remote Controller

When No Devices have been Paired

1. Press the key or the key

on the steering remote controller.The

following screen is displayed.

2. Select [OK] button to enter the

Pair Phone screen.

1) Car Name : Name of device as

shown when searching from your

Bluetooth

Wireless Technology

device

2) Passkey : Passkey used to pair

the device

PHONE

WARNING

• Driving while distracted can

result in a loss of vehicle control

that may lead to an accident,

severe personal injury, and

death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a vehi-

cle or which are not permissible

by law should never be used

during operation of the vehicle.

435

Features of your vehicle

3. From your

Bluetooth

Wireless

Technology device (i.e. Mobile

Phone), search and select your

car audio system.

4. After a few moments, a screen is

displayed where the passkey is

entered. Here, enter the passkey

“0000” to pair your

Bluetooth

Wireless Technology device with

the car audio system.

5. Once pairing is complete, the fol-

lowing screen is displayed.

Some phones (i.e., iPhone®, Android

and Blackberry phones) may offer an

option to allow acceptance of all

future

Bluetooth

connection

requests by default." and "Visit

http://www.kia.com/#/bluetooth for

additional information on pairing your

Bluetooth-enabled mobile phone, and

to view a phone compatibility list.

• If

Bluetooth

Wireless Technology

devices are paired but none are

currently connected, pressing the

key or the key on the

steering wheel displays the follow-

ing screen. Select [Pair] button to

pair a new device or select

[Connect] to connect a previously

paired device.

Pairing through [PHONE] Setup

Press the key Select

[Phone] Select [Pair Phone]

Select TUNE knob

1. The following steps are the same

as those described in the section

"When No Devices have been

Paired" on the previous page.

•

Bluetooth

Wireless Technology fea-

tures supported within the vehicle

are as follows. Some features may

not be supported depending on your

Bluetooth

Wireless Technology

device.

- Outgoing/Incoming Handsfree calls

- Operations during a call (Switch to

Private, Switch to call waiting, MIC

on/off)

- Downloading Call History

- Downloading Mobile Contacts

Bluetooth

Wireless Technology

device auto connection

- Bluetooth Audio Streaming

• Up to five

Bluetooth

Wireless

Technology devices can be paired to

the Car Handsfree system.

• Only one

Bluetooth

Wireless

Technology device can be connected

at a time.

SETUP

PHONE

Features of your vehicle

364

• Other devices cannot be paired while

Bluetooth

Wireless Technology

device is connected.

• Only

Bluetooth

Wireless Technology

Handsfree and Bluetooth audio relat-

ed features are supported.

• Bluetooth related operations are pos-

sible only within devices that support

Handsfree or audio features, such as

Bluetooth

Wireless Technology

mobile phone or a Bluetooth audio

device.

• If a connected

Bluetooth

Wireless

Technology device becomes discon-

nected due to being out of communi-

cation range, turning the device OFF,

or a

Bluetooth

Wireless Technology

communication error, corresponding

Bluetooth

Wireless Technology

devices are automatically searched

and reconnected.

• If the system becomes unstable due

to communication errors between the

car Handsfree and the

Bluetooth

Wireless Technology device, reset

the device by turning off and back on

again. Upon resetting

Bluetooth

Wireless Technology device, the sys-

tem will be restored.

• After pairing is complete, a contacts

download request is sent once to the

mobile phone. Some mobile phones

may require confirmation upon

receiving a download request,

ensure your mobile phone accepts

the connection. Refer to your phones

user’s manual for additional informa-

tion regarding phone pairing and

connections.

Connecting a Device

Press the key Select

[Phone] Select [Phone List]

1) Connected Phone : Device that is

currently connected

2) Paired Phone : Device that is

paired but not connected

From the paired phone list, select the

device you want to connect and

select [Connect].

SETUP

437

Features of your vehicle

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth

Wireless Technology

devices with the car audio system.

The "Change Priority" feature is used

to set the connection priority of

paired phones.

Press the key Select

[Phone] Select [Phone List]

From the paired phone list, select

the phone you want to switch to the

highest priority, then select [Change

Priority] button from the Menu. The

selected device will be changed to

the highest priority.

•Priority icon will be displayed when

the selected phone is set as a pri-

ority phone.

SETUP

Features of your vehicle

384

Disconnecting a Device

Press the key Select

[Phone] Select [Phone List]

From the paired phone list, select the

currently connected device and

select [Disconnect] button.

Deleting a Device

Press the key Select

[Phone] Select [Phone List]

From the paired phone list, select the

device you want to delete and select

[Delete] button.

• When deleting the currently con-

nected device, the device will auto-

matically be disconnected to pro-

ceed with the deleting process.

• If a paired

Bluetooth

Wireless

Technology device is deleted, the

device’s call history and contacts

data will also be deleted.

• To re-use a deleted device, you

must pair the device again.

SETUPSETUP

439

Features of your vehicle

USING

Bluetooth®

Wireless

Technology

Phone Menu Screen

Phone Menus

With a

Bluetooth®

Wireless

Technology device connected, press

the key to display the Phone

menu screen.

1) Favorite : Up to 20 frequently used

contacts saved for easy access

2) Call History : Displays the call his-

tory list screen

3) Contacts : Displays the Contacts

list screen

4) Setup : Displays Phone related

settings.

• If you select the [Call History] but-

ton but there is no call history data,

a prompt is displayed which asks to

download call history data.

• If you select the [Contacts] button

but there is no contacts data

stored, a prompt is displayed which

asks to download contacts data.

• This feature may not be supported

in some mobile phones. For more

information on download support,

refer to your mobile phone user’s

manual.

Answering Calls

Answering a Call

Answering a call with a

Bluetooth®

Wireless Technology device connect-

ed will display the following screen.

To accept the call, press key on

the steering wheel while the call is

incoming.

1) Caller : Displays the other party’s

name when the incoming caller is

saved within your contacts

2) Incoming Number : Displays the

incoming number

PHONE

Features of your vehicle

404

•When an incoming call pop-up is

displayed, most Audio and SETUP

mode features are disabled. Only

the call volume will operate.

• The telephone number may not be

properly displayed in some mobile

phones.

• When a call is answered with the

mobile phone, the call mode will

automatically revert to Private

mode.

Favorites

Press the key Select

[Favorites]

1) Saved favorite contact : Connects

call upon selection

2) To add favorite : Downloaded con-

tacts be saved as favorite.

•To save Favorite, contacts should

be downloaded.

•Contact saved in Favorites will not

be automatically updated if the con-

tact has been updated in the

phone. To update Favorites, delete

the Favorite and create a new

Favorite.

Call History

Press the key Select [Call

History]

A list of incoming, outgoing and

missed calls is displayed.

• Call history may not be saved in the

call history list in some mobile

phones.

• Calls received with hidden caller ID

will not be saved in the call history

list.

• Calling through the call history is not

possible when there is no call histo-

ry stored or a

Bluetooth

Wireless

Technology phone is not connected.

• Up to 20 received, dialed and missed

calls are stored in Call History.

• Time of received/dialed calls and call

time information are not saved.

PHONEPHONE

441

Features of your vehicle

Contacts

Press the key Select

[Contacts]

The list of saved phone book entries

is displayed.

• Up to 1,000 contacts saved in your

Bluetooth

Wireless Technology

phone can be downloaded into the

car contacts. Contacts that have

been downloaded to the car cannot

be edited or deleted on the phone.

• Mobile phone contacts are managed

separately for each paired

Bluetooth

Wireless Technology

device (max 5 devices x 1,000 con-

tacts each). Previously downloaded

data is maintained even if the

Bluetooth

Wireless Technology

device has been disconnected.

(However, the contacts and call his-

tory saved to the phone will be delet-

ed if a paired phone is deleted.)

• It is possible to download contacts

during Bluetooth streaming audio.

• When downloading contacts, the

icon will be displayed within the sta-

tus bar.

• It is not possible to begin download-

ing a contact list when the contact

download feature has been turned

off within the

Bluetooth

Wireless

Technology device. In addition, some

devices may require device authori-

zation upon attempting to download

contacts. If downloading does not

normally occur, check the

Bluetooth

Wireless Technology device settings

or the screen state.

• The contacts download feature may

not be supported in some mobile

phones. For more information of sup-

ported

Bluetooth

devices and func-

tion support, refer to your phone’s

user manual.

PHONE

Bluetooth®

Wireless

Technology Setting

The

Bluetooth

word mark and logos

are registered trademarks owned by

Bluetooth SIG, Inc. and any use of

such marks by Kia is under license.

Other trademarks and trade names

are those of their respective owners.

Bluetooth

enabled cell phone is

required to use

Bluetooth

wireless

technology

Pairing a New Device

Press the key Select

[Phone] Select [Pair Phone]

Bluetooth

Wireless Technology

devices can be paired with the audio

system.

For more information, refer to the

“Pairing through Phone Setup” section

within

Bluetooth

Wireless Technology.

Viewing Paired Phone List

Press the key Select

[Phone] Select [Phone List]

This feature is used to view mobile

phones that have been paired with

the audio system. Upon selecting a

paired phone, the setup menu is dis-

played.

For more information, refer to the

“Setting

Bluetooth

Wireless

Technology Connection” section with-

Bluetooth

Wireless Technology.

1) Connect/Disconnect Phone :

Connect/ disconnects currently

selected phone

2) Change Priority : Sets currently

selected phone to highest connec-

tion priority

3) Delete : Deletes the currently

selected phone

4) Return : Moves to the previous

screen

SETUP

Features of your vehicle

424

WARNING

• Driving while distracted can

result in a loss of vehicle control

that may lead to an accident,

severe personal injury, and

death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a vehi-

cle or which are not permissible

by law should never be used

during operation of the vehicle.

443

Features of your vehicle

• To learn more about whether your

mobile phone supports contacts

downloads, refer to your mobile

phone user’s manual.

• The contacts for only the connected

phone can be downloaded

Downloading Contacts

Press the key Select

[Phone] Select [Contacts Download]

As the contacts are downloaded

from the mobile phone, a download

progress bar is displayed.

• Upon downloading phone contacts,

the previous corresponding data is

deleted.

• This feature may not be supported

in some mobile phones.

• Voice Recognition may not operate

while contacts are being down-

loaded.

Auto Download (Contacts)

Press the key Select

[Phone] Select [Auto Download]

This feature is used to automatically

download mobile contacts entries

once a

Bluetooth

Wireless

Technology phone is connected.

• The Auto Download feature will

download mobile contacts entries

every time the phone is connected.

The download time may differ

depending on the number of saved

contacts entries and the communi-

cation state.

• Before downloading contacts, first

check to see that your mobile

phone supports the contacts

download feature.

SETUPSETUP

Features of your vehicle

444

Audio Streaming

Press the key Select

[Phone] Select [Audio Streaming]

When Audio Streaming is turned on,

you can play music files saved in

your

Bluetooth

Wireless Technology

device through the audio system.

Outgoing Volume

Press the key Select

[Phone] Select [Outgoing Volume]

Use TUNE knob to adjust the out-

going volume level.

•While on a call, the volume can be

changed by using the key.

Turning Bluetooth System Off

Press the key Select

[Phone] Select [Bluetooth System

Off]

Once

Bluetooth

Wireless Technology

is turned off,

Bluetooth

Wireless

Technology related features will not

be supported within the audio system.

• To turn

Bluetooth

Wireless

Technology back on, go to

[Phone] and select “Yes”.

SETUP

SEEK

TRACK

SETUP

Appendix Homologation

FCC Compliance Statement.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions :

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interferencethat may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Do Not

Any changes or modifications to the equipment not expressly

approved by the party responsible for compliance could void

user’s authority to operate the equipment.

Be sure

The antenna(s) used for this device must be installed to provide a separation distance of

at least 20 cm from all persons and must not be co-located or operating in conjunction

with any other antenna or transmitter.

IC Compliance Statement.



Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio

exempts de licence. L’exploitation est autorisee aux deux conditions suivantes :

(1) l’appareil ne doit pas produire de brouillage, et

(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le

brouillage est susceptible d’en compromettre le fonctionnement.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may

cause undesired operation of the device.

HYUNDAI MOBIS AM110TFGG DIGITAL CAR AUDIO SYSTEM User Manual TF FL A3 0 USA AUDIO 20130219 qxp

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM TF FL A3 0 USA AUDIO 20130219 qxp

User Manual

Navigation menu

Namespaces

Views

Navigation
