Users Manual

Features of your vehicle

1904

4191

Features of your vehicle

1924

How vehicle audio works

AM and FM radio signals are broad-

cast from transmitter towers located

around your city. They are intercept-

ed by the radio antenna on your vehi-

cle. This signal is then received by

the radio and sent to your vehicle

speakers.

When a strong radio signal has

reached your vehicle, the precise

engineering of your audio system

ensures the best possible quality

reproduction. However, in some

cases the signal coming to your vehi-

cle may not be strong and clear.

This can be due to factors, such as

the distance from the radio station,

closeness of other strong radio sta-

tions or the presence of buildings,

bridges or other large obstructions in

the area.

AM broadcasts can be received at

greater distances than FM broad-

casts. This is because AM radio

waves are transmitted at low fre-

quencies. These long, low frequency

radio waves can follow the curvature

of the earth rather than travelling

straight out into the atmosphere. In

addition, they curve around obstruc-

tions so that they can provide better

signal coverage.

♬♩♪

JBM001

♬♩♪

JBM002

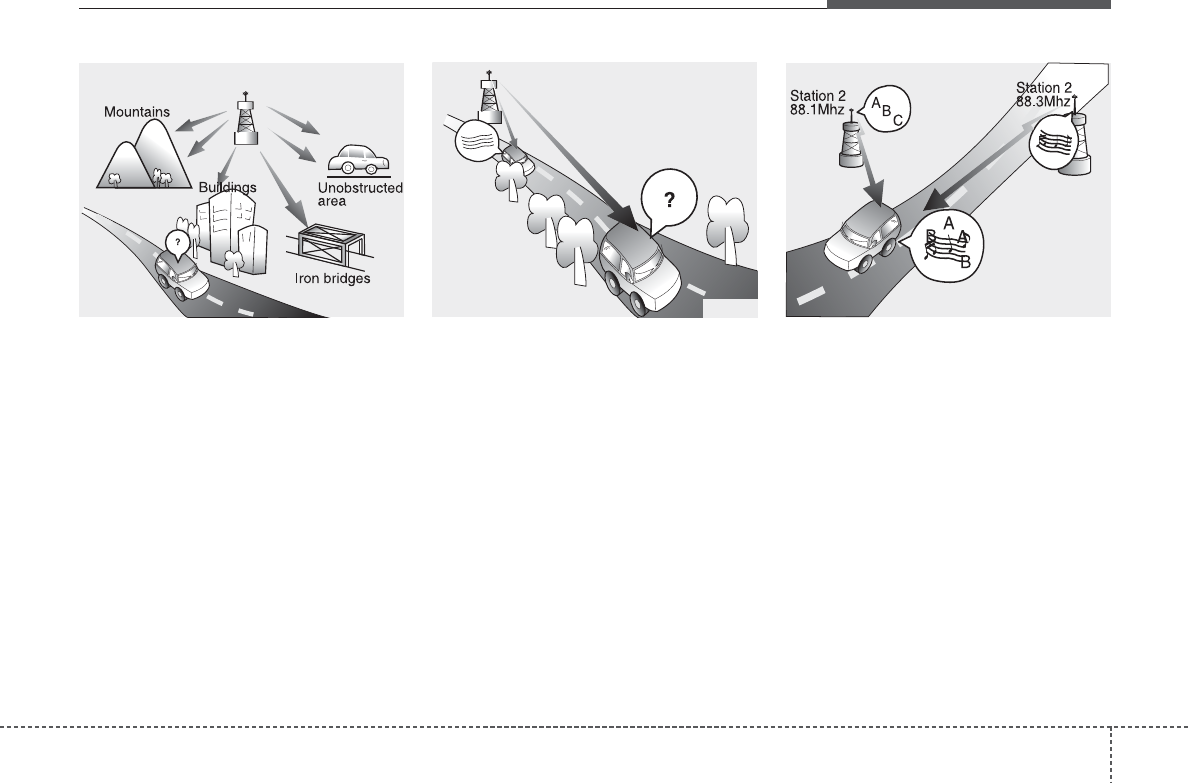

FM reception

AM (MW, LW) reception

4193

Features of your vehicle

FM broadcasts are transmitted at

high frequencies and do not bend to

follow the earth's surface. Because

of this, FM broadcasts generally

begin to fade at short distances from

the station. Also, FM signals are eas-

ily affected by buildings, mountains,

or other obstructions. These can

result in certain listening conditions

which might lead you to believe a

problem exists with your radio. The

following conditions are normal and

do not indicate radio trouble:

• Fading - As your vehicle moves

away from the radio station, the

signal will weaken and sound will

begin to fade. When this occurs,

we suggest that you select another

stronger station.

• Flutter/Static - Weak FM signals or

large obstructions between the

transmitter and your radio can dis-

turb the signal causing static or

fluttering noises to occur. Reducing

the treble level may lessen this

effect until the disturbance clears.

• Station Swapping - As a FM signal

weakens, another more powerful

signal near the same frequency

may begin to play. This is because

your radio is designed to lock onto

the clearest signal. If this occurs,

select another station with a

stronger signal.

• Multi-Path Cancellation - Radio

signals being received from sever-

al directions can cause distortion

or fluttering. This can be caused by

a direct and reflected signal from

the same station, or by signals

from two stations with close fre-

quencies. If this occurs, select

another station until the condition

has passed.

♬♩♪

JBM004 JBM005JBM003

FM radio station

Features of your vehicle

1944

Using a cellular phone or a two-

way radio

When a cellular phone is used inside

the vehicle, noise may be produced

from the audio system. This does not

mean that something is wrong with

the audio equipment. In such a case,

use the cellular phone at a place as

far as possible from the audio equip-

ment.

Caring for disc

• If the temperature inside the car is

too high, open the car windows to

ventilate before using the system.

• It is illegal to copy and use

MP3/WMA files without permis-

sion. Use CDs that are created

only by lawful means.

• Do not apply volatile agents, such

as benzene and thinner, normal

cleaners and magnetic sprays

made for analogue disc onto CDs.

• To prevent the disc surface from

getting damaged, hold CDs by the

edges or the center hole only.

• Clean the disc surface with a piece

of soft cloth before playback (wipe

it from the center to the outside

edge).

• Do not damage the disc surface or

attach pieces of sticky tape or

paper.

• Make certain only CDs are insert-

ed into the CD player (Do not insert

more than one CD at a time).

• Keep CDs in their cases after use

to protect them from scratches or

dirt.

CAUTION

When using a communication

system such as a cellular phone

or a radio set inside the vehicle,

a separate external antenna

must be fitted. When a cellular

phone or a radio set is used

with an internal antenna alone,

it may interfere with the vehi-

cle's electrical system and

adversely affect safe operation

of the vehicle.

WARNING

Do not use a cellular phone

while driving. Stop at a safe

location to use a cellular phone.

4195

Features of your vehicle

• Depending on the type of CD-

R/CD-RW CDs, certain CDs may

not operate normally according to

manufacturing companies or mak-

ing and recording methods. In such

circumstances, continued use may

cause malfunctions to your audio

system.

✽✽NOTICE - Playing an

Incompatible Copy

Protected Audio CD

Some copy protected CDs, which do

not comply with international audio

CD standards (Red Book), may not

play on your car audio. Please note

that inabilities to properly play a

copy protected CD may indicate

that the CD is defective, not the CD

player.

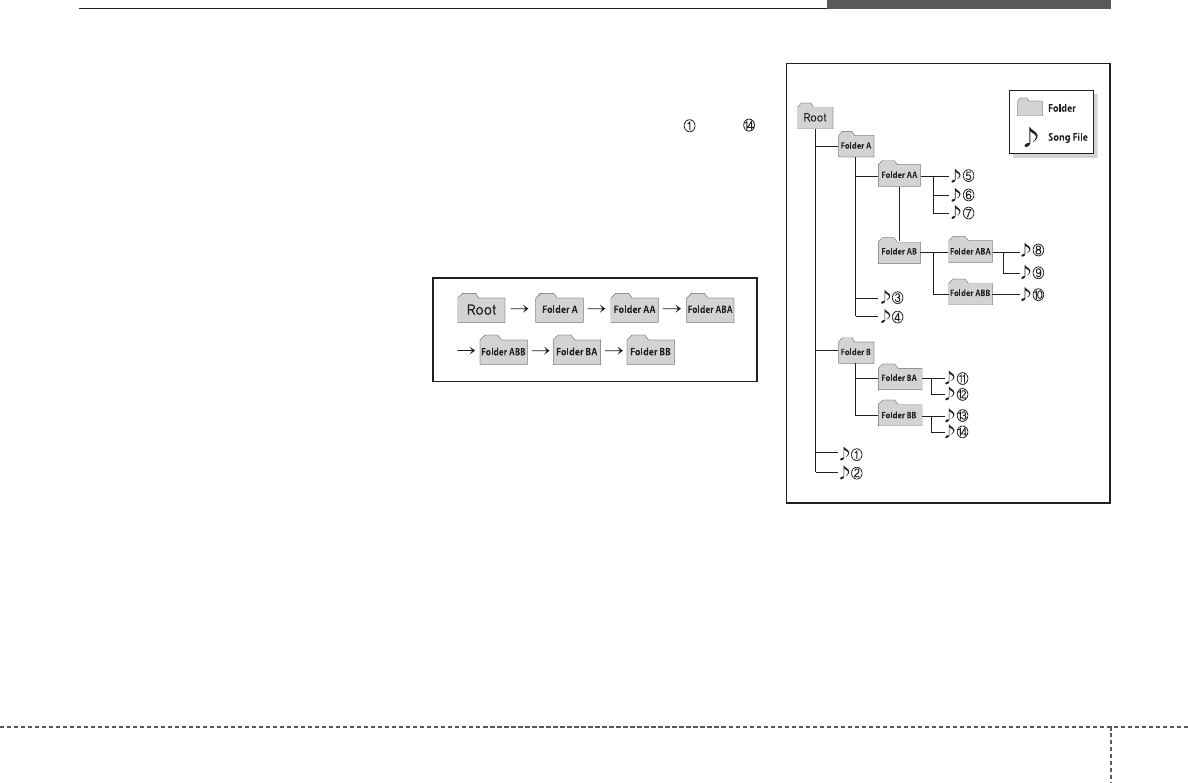

NOTE:

Order of playing files (folders) :

1. Song playing order : to

sequentially.

2. Folder playing order :

❋If no song file is contained in

the folder, that folder is not dis-

played.

Features of your vehicle

1964

CAUTION

• Operating the device while

driving could lead to acci-

dents due to a lack of atten-

tion to external surroundings.

First park the vehicle before

operating the device.

• Adjust the volume to levels

that allow the driver to hear

sounds from outside of the

vehicle. Driving in a state

where external sounds cannot

be heard may lead to acci-

dents.

• Pay attention to the volume

setting when turning the

device on. A sudden output of

extreme volume upon turning

the device on could lead to

hearing impairment. (Adjust

the volume to a suitable levels

before turning off the device.)

(Continued)

WARNING

• Do not stare at the screen

while driving. Staring at the

screen for prolonged periods

of time could lead to traffic

accidents.

• Do not disassemble, assem-

ble, or modify the audio sys-

tem. Such acts could result in

accidents, fire, or electric

shock.

• Using the phone while driving

may lead to a lack of attention

of traffic conditions and

increase the likelihood of

accidents. Use the phone fea-

ture after parking the vehicle.

• Heed caution not to spill water

or introduce foreign objects

into the device. Such acts

could lead to smoke, fire, or

product malfunction.

(Continued)

• Please refrain from use if the

screen is blank or no sound

can be heard as these signs

may indicate product mal-

function. Continued use in

such conditions could lead to

accidents(fires, electric

shock) or product malfunc-

tions.

• Do not touch the antenna dur-

ing thunder or lightening as

such acts may lead to light-

ning induced electric shock.

• Do not stop or park in park-

ing-restricted areas to operate

the product. Such acts could

lead to traffic accidents.

• Use the system with the vehi-

cle ignition turned on.

Prolonged use with the igni-

tion turned off could result in

battery discharge.

4197

Features of your vehicle

(Continued)

• If you want to change the posi-

tion of device installation,

please inquire with your place

of purchase or service mainte-

nance center. Technical

expertise is required to install

or disassemble the device.

• Turn on the car ignition before

using this device. Do not oper-

ate the audio system for long

periods of time with the igni-

tion turned off as such opera-

tions may lead to battery dis-

charge.

• Do not subject the device to

severe shock or impact. Direct

pressure onto the front side of

the monitor may cause damage

to the LCD or touch screen.

(Continued)

• When cleaning the device,

make sure to turn off the

device and use a dry and

smooth cloth. Never use

tough materials, chemical

cloths, or solvents (alcohol,

benzene, thinners, etc.) as

such materials may damage

the device panel or cause

color/quality deterioration

• Do not place beverages close

to the audio system. Spilling

beverages may lead to system

malfunction.

• In case of product malfunc-

tion, please contact your place

of purchase or After Service

center.

• Placing the audio system with-

in an electromagnetic environ-

ment may result in noise inter-

ference.

Features of your vehicle

1984

✽✽NOTICE - USING THE USB

DEVICE

• To use an external USB device,

make sure the device is not con-

nected when starting up the vehi-

cle. Connect the device after start-

ing up.

• If you start the engine when the

USB device is connected, it may

damage the USB device. (USB

flashdrives are very sensitive to

electric shock.)

• If the engine is started up or

turned off while the external USB

device is connected, the external

USB device may not work.

• The System may not play inau-

thentic MP3 or WMA files.

1) It can only play MP3 files with

the compression rate between

8Kbps ~ 320Kbps.

2) It can only play WMA music

files with the compression rate

between 8Kbps ~ 320Kbps.

• Take precautions for static elec-

tricity when connecting or discon-

necting the external USB device.

• An encrypted MP3 PLAYER is

not recognizable. (Continued)

(Continued)

• Depending on the condition of the

external USB device, the connect-

ed external USB device can be

unrecognizable.

• When the formatted byte/sector

setting of External USB device is

not either 512BYTE or

2048BYTE, then the device will

not be recognized.

• Use only a USB device formatted

to FAT 12/16/32.

• USB devices without USB I/F

authentication may not be recog-

nizable.

• Make sure the USB connection

terminal does not come in contact

with the human body or other

objects.

• If you repeatedly connect or dis-

connect the USB device in a short

period of time, it may break the

device.

• You may hear a strange noise

when connecting or disconnecting

a USB device. (Continued)

(Continued)

• If you disconnect the external USB

device during playback in USB

mode, the external USB device can

be damaged or may malfunction.

Therefore, disconnect the external

USB device when the audio is

turned off or in another mode.

(e.g, Radio, CD)

• Depending on the type and capac-

ity of the external USB device or

the type of the files stored in the

device, there is a difference in the

time taken for recognition of the

device.

• Do not use the USB device for pur-

poses other than playing music

files.

• Playing videos through the USB is

not supported.

• Use of USB accessories such as

rechargers or heaters using USB

I/F may lower performance or

cause trouble. (Continued)

4199

Features of your vehicle

(Continued)

• If you use devices such as a USB

hub purchased separately, the

vehicle’s audio system may not

recognize the USB device. In that

case, connect the USB device

directly to the multimedia termi-

nal of the vehicle.

• If the USB device is divided by log-

ical drives, only the music files on

the highest-priority drive are rec-

ognized by car audio.

• Devices such as MP3 Player/

Cellular phone/Digital camera can

be unrecognizable by standard

USB I/F can be unrecognizable.

• Charging through the USB may

not be supported in some mobile

devices.

• USB HDD or USB types liable to

connection failures due to vehicle

vibrations are not supported. (i-

stick type)

• Some non-standard USB devices

(METAL COVER TYPE USB)

can be unrecognizable.

(Continued)

• Some USB flash memory readers

(such as CF, SD, micro SD, etc.) or

external-HDD type devices can be

unrecognizable.

• Music files protected by DRM

(DIGITAL RIGHTS MANAGE-

MENT) are not recognizable.

• The data in the USB memory may

be lost while using this audio.

Always back up important data on

a personal storage device.

• Please avoid using USB

memory products

which can be used as

key chains or cellular

phone accessories as

they could cause damage to the

USB jack. Please make certain

only to use plug type connector

products.

Features of your vehicle

2004

✽✽NOTICE - USING THE iPod®

DEVICE

• Some iPod models may not sup-

port communication protocol and

files may not properly play.

Supported iPod models:

- iPhone 3GS/4

- iPod touch 1st~4th generation

- iPod nano 1st~6th generation

- iPod classic

• The order of search or playback of

songs in the iPod can be different

from the order searched in the

audio system.

• If the iPod disabled due to its own

malfunction, reset the iPod.

(Reset: Refer to iPod manual)

• An iPod may not operate normal-

ly on low battery. (Continued)

(Continued)

• Some iPod devices, such as the

iPhone, can be connected through

the Bluetooth®Wireless Technology

interface. The device must have

audio Bluetooth®Wireless

Technology capability (such as for

stereo headphone Bluetooth®

Wireless Technology ). The device

can play, but it will not be con-

trolled by the audio system.

• To use iPod features within the audio,

use the cable provided upon purchas-

ing an iPod device.

• Skipping or improper operation may

occur depending on the characteris-

tics of your iPod/Phone device.

• If your iPhone is connected to both

the Bluetooth®Wireless Technology

and USB, the sound may not be prop-

erly played. In your iPhone, select the

Dock connector or Bluetooth®

Wireless Technology to change the

sound output (source). (Continued)

(Continued)

• When connecting iPod with the

iPod Power Cable, insert the con-

nector to the multimedia socket

completely. If not inserted com-

pletely, communications between

iPod and audio may be interrupted.

• When adjusting the sound effects

of the iPod and the audio system,

the sound effects of both devices

will overlap and might reduce or

distort the quality of the sound.

• Deactivate (turn off) the equalizer

function of an iPod when adjust-

ing the audio system’s volume, and

turn off the equalizer of the audio

system when using the equalizer of

an iPod.

• When not using iPod with car

audio, detach the iPod cable from

iPod. Otherwise, iPod may remain

in accessory mode, and may not

work properly.

4201

Features of your vehicle

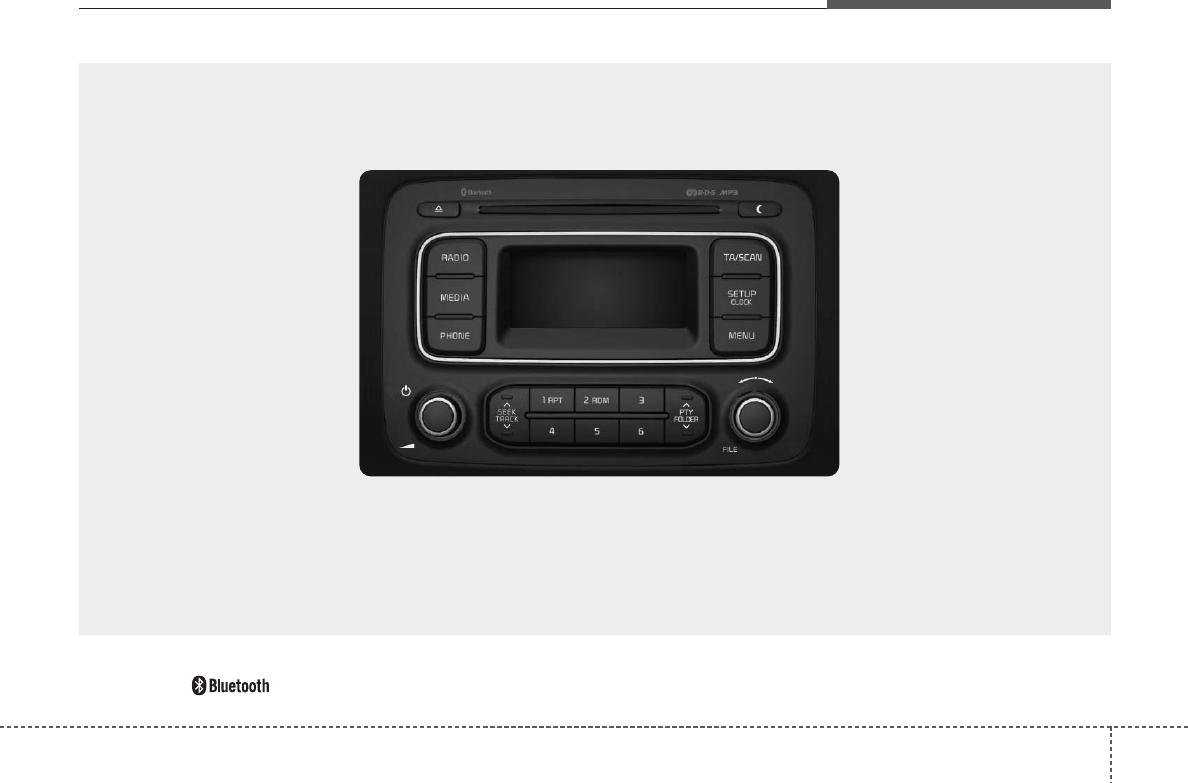

■■ CD Player :

❋ No logo will be shown if the

Bluetooth

Wireless Technology feature is not supported.

Features of your vehicle

2024

Audio Head Unit

1. (EJECT)

• Ejects the disc.

• Changes to FM/AM mode.

• Each time the key is pressed,the

mode is changed in order of FM1 ➟

FM2 ➟AM.

❈ In Setup>Display, the radio pop up

screen will be displayed when

[Mode Pop up] is turned .

When the pop up screen is dis-

played, use the TUNE knob or

keys ~ to select the

desired mode.

• Changes to CD, USB(iPod), AUX,

My Music, BT Audio mode.

• Each time the key is pressed, the

mode is changed in order of CD,

USB(iPod), AUX, My Music, BT

Audio mode.

❈ In Setup>Display, the media pop

up screen will be displayed when

[Mode Pop up] is turned .

When the pop up screen is dis-

played, use the TUNE knob or

keys ~ to select the

desired mode.

4. (for

Bluetooth®

Wireless

Technology equipped model)

• Operates Phone Screen

❈ When a phone is not connected,

the connection screen is displayed.

5. PWR/VOL knob

• Power Knob: Turns power On/Off

by pressing the knob

• Volume Knob: Sets volume by

turning the knob left/right

PHONE

MEDIA

RADIO

4203

Features of your vehicle

• Radio Mode : Automatically search-

es for broadcast frequencies.

• CD, USB, iPod, My Music modes

- Shortly press the key (under 0.8

seconds): Moves to next or previ-

ous song (file)

- Press and hold the key (over 0.8

seconds): Rewinds or fast-for-

wards the current song.

• CD MP3, USB mode : Folder

8. ~ (Preset)

• Radio Mode: Saves frequencies

(channels) or receives saved fre-

quencies (channels)

• CD, USB, iPod, My Music mode

- : Repeat

- : Random

• In the Radio, Media, Setup, and

Menu pop up screen, the number

menu is selected.

9. /

• Each time the button is shortly

pressed (under 0.8 seconds), sets

screen Off ➟Screen On ➟Screen

Off

❈ Audio operation is maintained and

only the screen will be turned Off.

In the screen Off state, press any

key to turn the screen On again.

10.

• Radio Mode

- Press the key (under 0.8 sec-

onds): Previews each broadcast

for 5 seconds each

• CD, USB, My Music mode

- Press the key (under 0.8 sec-

onds): Previews each song (file)

for 10 seconds each

❈ Press the key again to continue

listening to the current song (file).

11.

• Shortly press the key (under 0.8

seconds) : Moves to the Display,

Sound, Clock, Phone, System set-

ting modes

• Press and hold the key (over 0.8

seconds) : Move to the Time setting

screen

12.

Displays menus for the current

mode.

❈ iPod List : Move to parent category

MEMU

SETUP

SCAN

DISP

2 RDM

1 RPT

FOLDER

SEEK

TRACK

Features of your vehicle

2044

13. TUNE knob

• Radio mode : Changes frequency

by turning the knob left/right

• CD, USB, iPod, My Music mode:

Searches songs (files) by turning

the knob left/right

❈ When the desired song is dis-

played, press the knob to play the

song.

• Moves focus in all selection menus

and selects menus

15.

• Changes to FM mode.

• Each time the key is pressed, the

mode changed in order of FM1 ➟

FM2.

16.

• Changes to AM mode.

4205

Features of your vehicle

SETUP

Display Settings

Press the key Select

[Display] through TUNE knob or

key Select menu through

TUNE knob

Mode Pop up

[Mode Pop up] Changes .

selection mode

• During On state, press the

or key to display the mode

change pop up screen.

Text Scroll

[Text Scroll ] Set /

• : Maintains scroll

• : Scrolls only one (1) time.

Media Display

When playing an MP3 file, select the

desired display info from ‘Folder/File’

or ‘Album/Artist/Song’.

SOUND SETTINGS

Press the key Select

[Sound] through TUNE knob or

key Select menu through

TUNE knob

2 RDM

SETUP

Off

MEDIA

RADIO

1 RPT

SETUP

Features of your vehicle

2064

Sound Settings

This menu allows you to set the

‘Bass, Middle, Treble’ and the Sound

Fader and Balance.

Select [Sound Settings] Select

menu through TUNE knob Turn

TUNE knob left/right to set

• Bass, Middle, Treble : Selects the

sound tone.

• Fader, Balance : Moves the sound

fader and balance.

• Default : Restores default settings.

❈ Return : While adjusting values,

re-pressing the TUNE knob will

restore the parent menu.

Virtual Sound

The PoewrBass, PowerTreble, and

Surround can be set.

Select [Virtual Sound] Set menu

through TUNE knob Set

/ through TUNE knob

• PowerBass : This is a sound system

feature that provides live bass.

• PowerTreble : This is a sound system

feature that provides live tremble.

• Surround : This is a sound system

feature that provides surround

sound.

❈ May differ depending on the select-

ed audio.

Off

4207

Features of your vehicle

Speed Dependent Volume

Control

This feature is used to automatically

control the volume level according to

the speed of the vehicle.

Select [Speed Dependent Vol.] Set

in 4 levels [Off/Low/Mid/High] of

TUNE knob

Features of your vehicle

2084

CAUTION

To pair a Bluetooth®Wireless

Technology enabled mobile

phone, authentication and con-

nection processes are first

required. As a result, you can-

not pair your mobile phone

while driving the vehicle. First

park your vehicle before use.

Phone Setup

(for

Bluetooth®

Wireless

Technology equipped model)

Press the key Select

[Phone] through TUNE knob or

key Select menu through

TUNE knob

Pair Phone

Select [Pair Phone] Set through

TUNE knob

➀ Search for device names as dis-

played on your mobile phone and

connect.

➁ Input the passkey displayed on the

screen. (Passkey : 0000)

❈ The device name and passkey will

be displayed on the screen for up

to 3 minutes. If pairing is not com-

pleted within the 3 minutes, the

mobile phone pairing process will

automatically be canceled.

➂ Pairing completion is displayed.

❈ In some mobile phones, pairing

will automatically be followed by

connection.

❈ It is possible to pair up to five

Bluetooth®

Wireless Technology

enabled mobile phones.

SETUP

4209

Features of your vehicle

Phone List

The names of up to 5 paired phones

will be displayed.

A [ ] is displayed in front of the cur-

rently connected phone.

Select the desired name to setup the

selected phone.

• Connecting a phone

Select [Phone List] Select mobile

phone through TUNE knob

Select [Connect Phone]

➀ Select a mobile phone that is not

currently connected.

➁ Connect the selected mobile

phone.

➂ Connection completion is dis-

played.

❈ If a phone is already connected,

disconnect the currently connect-

ed phone and select a new phone

to connect.

• Disconnecting a connected phone

Select [Phone List] Select mobile

phone through TUNE knob

Select [Disconnect Phone]

➀ Select the currently connected

mobile phone.

➁ Disconnect the selected mobile

phone.

➂ Disconnection completion is dis-

played.

Features of your vehicle

2104

• Changing connection sequence

(Priority)

This is used to change the order (pri-

ority) of automatic connection for the

paired mobile phones.

Select [Phone List] Select [Priority]

through TUNE knob Select No. 1

Priority mobile phone

➀ Select [Priority].

➁ From the paired phones, select

the phone desired for No.1 priority.

➂ The changed priority sequence is

displayed.

❈ Once the connection sequence

(priority) is changed, the new no. 1

priority mobile phone will be con-

nected.

- when the no. 1 priority cannot be

connected: Automatically attempts

to connect the most recently con-

nected phone.

- Cases when the most recently

connected phone cannot be con-

nected: Attempts to connect in the

order in which paired phones are

listed.

- The connected phone will auto-

matically be changed to No. 1 pri-

ority.

• Delete

Select [Phone List] Select mobile

phone through TUNE knob

Select [Delete]

➀ Select the desired mobile phone.

➁ Delete the selected mobile phone.

➂ Deletion completion is displayed.

❈ When attempting to delete a cur-

rently connected phone, the

phone is first disconnected.

Contacts Download

This feature is used to download

contacts and call histories into the

audio system.

Select [Contacts Download] Select

through TUNE knob

CAUTION

• The download feature may not

be supported in some mobile

phones.

• If a different operation is per-

formed while Contacts are

being downloaded, download-

ing will be discontinued.

Contacts already downloaded

will be saved.

• When downloading new

Contacts, delete all previously

saved Contacts before start-

ing download.

CAUTION

• When you delete a mobile

phone, the mobile phone con-

tacts will also be erased.

• For stable Bluetooth®Wireless

Technology communication,

delete the mobile phone from

the audio and also delete the

audio from your mobile phone.

4211

Features of your vehicle

Auto Download

When connecting a mobile phone, it

is possible to automatically download

new Contacts and Call Histories.

Select [Auto Download] Set /

through TUNE knob

Audio Streaming

Songs (files) saved in your

Bluetooth®

Wireless Technology

enabled mobile phone can be played

through the audio system.

Select [Audio Streaming] Set /

through TUNE knob

Outgoing Volume

This is used to set the volume of your

voice as heard by the other party

while on a

Bluetooth®

Wireless

Technology enabled handsfree call.

Select [Outgoing Volume] Set vol-

ume through TUNE knob

❈ Even while on a call, the volume

can be changed by using the

key.

SEEK

TRACK

Off

CAUTION

The Bluetooth®Wireless

Technology audio streaming

feature may not be supported in

some mobile phones.

Features of your vehicle

2124

CAUTION

• Bluetooth®Wireless Technology

connection may become inter-

mittently disconnected in some

mobile phones. Follow these

next steps to try again.

1) Turn the Bluetooth®Wireless

Technology function within the

mobile phone ON/OFF and try

to connect again.

2) Turn the mobile phone power

ON/OFF and try to connect

again.

3) Completely remove the mobile

phone battery, reboot, and then

try to connect again.

4) Reboot the audio system and

try to connect again

5) Delete all paired devices in

your mobile phone and the

audio system and pair again

for use.

Bluetooth

Wireless

Technology System Off

This feature is used when you do not

wish to use the

Bluetooth®

Wireless

Technology system.

Select [Bluetooth System Off] Set

through TUNE knob

❈ If a phone is already connected,

disconnect the currently connect-

ed phone and turn the

Bluetooth®

Wireless Technology system off.

Using the

Bluetooth

Wireless

Technology System

To use

Bluetooth®

Wireless

Technology when the system is cur-

rently off, follow these next steps.

• Turning On

Bluetooth®

Wireless

Technology through the Key

Press the key Screen

Guidance

❈ Moves to the screen where

Bluetooth®

Wireless Technology

functions can be used and dis-

plays guidance.

• Turning On

Bluetooth®

Wireless

Technology through the Key

Press the key Select

[Phone] through TUNE knob or

key

➀ A screen asking whether to turn on

Bluetooth®

Wireless Technology will

be displayed.

➁ On the screen, select to turn

Bluetooth®

Wireless Technology

and display guidance.

❈ If the

Bluetooth®

Wireless

Technology system is turned on, the

system will automatically try to con-

nect the most recently connected

Bluetooth®

Wireless Technology

mobile phone.

YES

SETUP

PHONE

4213

Features of your vehicle

SYSTEM SETTINGS

Press the key Select

[System] through tune knob or

key Select menu through TUNE

knob

Memory Information

(if equipped)

Displays currently used memory and

total system memory.

Select [Memory Information] OK

The currently used memory is dis-

played on the left side while the total

system memory is displayed on the

right side.

Language

This menu is used to set the display

and voice recognition language.

Select [Language] Set through

TUNE knob

❈ The system will reboot after the

language is changed.

❈ Language support by region

- , English

SETUP

Features of your vehicle

2144

RADIO

Changing RADIO mode

Press the key to change the

mode in order of FM1 ➟ FM2 ➟ AM.

Press the or key to

change the mode in order of FM1 ➟

FM2 and AM.

• When the power is off, press the

or key to

turn on the audio system and

receive radio broadcasts.

[Mode Pop up] On state : Displays

the change radio mode pop up

screen. While the pop up screen is

displayed, you can change the radio

mode ( : FM1 ➟ FM2 ➟ AM

/ : FM1 ➟FM2 / : AM)

through the tune knob or ~

keys.

Adjust Volume

Turn the VOL knob left/right to

adjust the volume.

SEEK

Press the key

• Shortly pressing the key (under 0.8

seconds): Changes the frequency.

• Pressing and holding the key (over

0.8 seconds): Automatically search-

es for the next frequency.

Preset SEEK

Press the ~ key

• Shortly pressing the key (under 0.8

seconds): Plays the frequency

saved in the corresponding key.

• Pressing and holding the key (over

0.8 seconds): Pressing and holding

the desired key from ~

will save the currently playing

broadcast to the selected key and

sound a BEEP.

SCAN

Press the key

• Shortly pressing the key (under 0.8

seconds): The broadcast frequen-

cy increases and previews each

broadcast for 5 seconds each.

After scanning all frequencies,

returns and plays the current

broadcast frequency.

• Pressing and holding the key (over

0.8 seconds): Previews the broad-

casts saved in Preset ~

for 5 seconds each.

SCAN

SEEK

TRACK

AMFM

RADIO

AMFMRADIO

AMFM

RADIO

4215

Features of your vehicle

Selecting through manual

Turn the TUNE knob left/right to

adjust the frequency.

• AM100GMGE / AM110GMGE

- FM : Changes by 50KHz

- AM : Changes by 9khz

• AM100GMGG / AM110GMGG

- FM : Changes by 100KHz

- AM : Changes by 9khz

• AM100GMGN / AM110GMGN

- FM : Changes by 200KHz

- AM : Changes by 10khz

Within key are the A.Store

(Auto Store) and Info functions.

A.Store (Auto Store)

Press the key Set [

A.Store] through TUNE knob or

key.

Select A.Store(Auto Store) to save

frequencies with superior reception

to presets ~ . If no fre-

quencies are received, then the most

recently received frequency will be

broadcast.

1 RPT

Features of your vehicle

2164

BASIC METHOD OF USE :

Audio CD / MP3 CD / USB /

iPod / My Music

Press the key to change the

mod mode in order of CD ➟ USB(iPod)

➟ AUX ➟ My Music ➟ BT Audio.

The folder/file name is displayed on

the screen.

<USB>

❈ The CD is automatically played

when a CD is inserted.

❈ The USB music is automatically

played when a USB is connected.

Repeat

While song (file) is playing

(RPT) key

Audio CD, MP3 CD, USB, iPod, My

Music mode: RPT on screen

• To repeat one song (Shortly press-

ing the key (under 0.8 seconds)):

Repeats the current song.

MP3 CD, USB mode: FLD.RPT on

screen

• To repeat folder (pressing twice):

repeats all files within the current

folder.

❈ Press the key again to turn

off repeat.

1 RPT

MEDIA

4217

Features of your vehicle

Random

While song (file) is playing

(RDM) key

Audio CD, My Music mode: RDM on

screen

• Random (Shortly pressing the key

(under 0.8 seconds)): Plays all

songs in random order.

MP3 CD, USB mode: FLD.RDM on

screen

• Folder Random (Shortly pressing

the key (under 0.8 seconds)): Plays

all files within the current folder in

random order.

iPod mode: ALB RDM on screen

• Album Random (Shortly pressing

the key (under 0.8 seconds)): Plays

all files within albums of the current

category in random order.

MP3 CD, USB, iPod mode: ALL RDM

on screen

• All Random (pressing twice): Plays

all files in random order.

❈ Press the key again to turn

off repeat.

Changing Song/File

While song (file) is playing

key

• Shortly pressing the key (under 0.8

seconds): Plays the current song

from the beginning.

❈ If the key is pressed

again within 1 second, the previ-

ous song is played.

• Pressing and holding the key (over

0.8 seconds): Rewinds the song.

While song (file) is playing

key

• Shortly pressing the key (under 0.8

seconds): Plays the next song.

• Pressing and holding the key (over

0.8 seconds): Fast forwards the

song.

Scan

While song (file) is playing

key

• Shortly pressing the key (under 0.8

seconds) : Scans all songs from

the next song for 10 seconds each.

❈ Press the key again to turn

off.

❈ The SCAN function is not support-

ed in iPod mode.

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

2RDM

2 RDM

Features of your vehicle

2184

Folder Search : MP3 CD, USB

Mode

While file is playing /

(Folder Up)

key

• Searches the next folder.

While file is playing

/ (Folder Down) key

• Searches the parent folder.

❈ If a folder is selected by pressing

the TUNE knob, the first file

within the selected folder will be

played.

❈ In iPod mode, moves to the Parent

Folder.

Searching Songs (File)

• Turning TUNE knob : Searches

for songs (files)

• Pressing TUNE knob : Plays

selected song (file).

MENU : Audio CD

Press the CD MP3 mode key

to set the Repeat, Random,

Information features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key to repeat the current song.

❈ Press RPT again to turn off.

Random

Press the key Set [ RDM]

through the TUNE knob or

key to randomly play songs within

the current folder.

❈ Press RDM again to turn off.

Information

Press the key Set [ Info]

through the TUNE knob or

key to display information of the cur-

rent song.

❈ Press the key to turn off

info display.

MENU : MP3 CD / USB

Press the CD MP3 mode key

to set the Repeat, Folder Random,

Folder Repeat, All Random,

Information, and Copy features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key to repeat the current song.

❈ Press RPT again to turn off.

1 RPT

2 RDM

1 RPT

FOLDER

PTY

FOLDER

PTY

FOLDER

4219

Features of your vehicle

Folder Random

Press the key Set [

F.RDM] through the TUNE knob or

key to randomly play songs

within the current folder.

h Press F.RDM again to turn off.

Folder Repeat

Press the key Set [ F.RPT]

through the TUNE knob or

key to repeat songs within the cur-

rent folder.

❈ Press F.RPT again to turn off.

All Random

Press the key Set [

A.RDM] through the TUNE knob

or key to randomly play all

songs within the CD.

❈ Press A.RDM again to turn off.

Information

Press the key Set [ Info]

through the TUNE knob or

key to display information of the cur-

rent song.

❈ Press the key to turn off

info display.

Copy (if equipped)

Press the key Set [ Copy]

through the TUNE knob or

key.

This is used to copy the current

song into My Music. You can play

the copied Music in My Music

mode.

❈ If another key is pressed while

copying is in progress, a pop up

asking you whether to cancel

copying is displayed.

❈ If another media is connected or

inserted (USB, CD, iPod, AUX)

while copying is in progress, copy-

ing is canceled.

❈ Music will not be played while

copying is in progress.

2 RDM

Features of your vehicle

2204

MENU : iPod

In iPod mode, press the key

to set the Repeat, Album Random,

All Random, Information and Search

features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key to repeat the current song.

❈ Press RPT again to turn repeat

off.

Album Random

Press the key Set [

Alb.RDM] through the TUNE knob

or key.

Plays albums within the currently

playing category in random order.

❈ Press Alb.RDM again to turn off.

All Random

Press the key Set [

A.RDM] through the TUNE knob

or key.

Plays all songs within the currently

playing category in random order.

❈ Press A.RDM again to turn off.

Information

Press the key Set [ Info]

through the TUNE knob or

key.

Displays information of the current

song.

❈ Press the key to turn off

info display.

Press the key Set [

Search] through the TUNE knob

or key.

Displays iPod category list.

❈ Searching iPod category is

key pressed, move to parent cate-

gory.

2 RDM

1 RPT

4221

Features of your vehicle

MENU : My Music Mode

(if equipped)

In My Music mode, press the

key to set the Repeat, Random,

Information, Delete, Delete All, and

Delete Selection features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key.

Repeats the currently playing song.

❈ Press RPT again to turn repeat off.

Random

Press the key Set [ RDM]

through the TUNE knob or

key.

Plays all songs in random order.

❈ Press RDM again to turn random

off.

Information

Press the key Set [ Info]

through the TUNE knob or

key.

Displays information of the current

song.

❈ Press the key to turn off

info display.

Delete

Press the key Set [ Delete]

through the TUNE knob or

key.

Deletes currently playing file

In the play screen, pressing delete

will delete the currently playing

song.

Deletes file from list

➀ Select the file you wish to delete

by using the TUNE knob.

➁ Press the key and select

the delete menu to delete the

selected file.

2 RDM

1 RPT

Features of your vehicle

2224

Delete All

Press the key Set [ Del.All]

through the TUNE knob or

key.

Deletes all songs of My Music.

Delete Selection

Press the key Set [

Del.Sel] through the TUNE knob

or key.

Songs within My Music are selected

and deleted.

➀ Select the songs you wish to

delete from the list.

➁ After selecting, press the

key and select the delete menu.

✽✽NOTICE - USING THE My

Music

• Even if memory is available, a

maximum of 6,000 songs can be

stored.

• The same song can be copied up to

1,000 times.

• Memory info can be checked in

the System menu of Setup.

AUX

AUX is used to play external MEDIA

currently connected with the AUX

terminal.

AUX mode will automatically start

when an external device is connect-

ed with the AUX terminal.

If an external device is connected,

you can also press the key to

change to AUX mode.

❈ AUX mode cannot be started

unless there is an external device

connected to the AUX terminal.

✽✽NOTICE - USING THE AUX

• Fully insert the AUX cable into the

AUX terminal for use.

MEDIA

4223

Features of your vehicle

Bluetooth®

Wireless

Technology AUDIO

(if equipped)

What is

Bluetooth

Wireless

Technology?

Bluetooth®

Wireless Technology is a

wireless technology that allows mul-

tiple devices to be connected in a

short range, low-powered devices

like hands-free, stereo headset, wire-

less remote controller, etc. For more

information, visit the

Bluetooth®

Wireless Technology website at

www.Bluetooth.com

Before using

Bluetooth®

Wireless

Technology audio features

•

Bluetooth®

Wireless Technology

audio may not be supported

depending on the compatibility of

your

Bluetooth®

Wireless Technology

mobile phone.

• In order to use

Bluetooth®

Wireless

Technology audio, you must first

pair and connect the

Bluetooth®

Wireless Technology mobile phone.

•

Bluetooth®

Wireless Technology

audio can be used only when the

[Audio Streaming] of Phone is

turned On.

❈ Setting

Bluetooth®

Wireless

Technology Audio Streaming :

Press the key Select

[Phone] through the tune knob

Select [Audio Streaming] through

the TUNE knob Set /

Starting

Bluetooth

Wireless

Technology Audio

• Press the key to change the

mode in order of CD ➟ USB ➟ AUX

➟ My Music ➟ BT Audio.

• If BT Audio is selected,

Bluetooth®

Wireless Technology audio will start

playing.

❈ Audio may not automatically start

playing in some mobile phones.

Using the

Bluetooth

Wireless

Technology audio features

• Play / Pause

Press the TUNE knob to play and

pause the current song.

❈ The previous song / next song /

play / pause functions may not be

supported in some mobile phones.

MEDIA

OffOn

SETUP

Features of your vehicle

2244

PHONE (if equipped)

Before using the

Bluetooth

Wireless

Technology

phone features

• In order to use

Bluetooth®

Wireless

Technology

phone, you must first

pair and connect the

Bluetooth®

Wireless Technology

mobile phone.

• If the mobile phone is not paired or

connected, it is not possible to

enter Phone mode. Once a phone

is paired or connected, the guid-

ance screen will be displayed.

• If Priority is set upon vehicle igni-

tion (IGN/ACC ON), the

Bluetooth®

Wireless Technology

phone will be

automatically connected. Even if

you are outside, the

Bluetooth®

Wireless Technology

phone will be

automatically connected once you

are in the vicinity of the vehicle. If you

do not want automatic

Bluetooth®

Wireless Technology

phone connec-

tion, set the

Bluetooth®

Wireless

Technology

power to OFF.

Making a call using the

Steering remote controller

1. VOLUME button : Raises or lowers

speaker volume.

2.MUTE button : Mute the micro-

phone during a call.

3. button : Activates voice recog-

nition.

4. button : Places and transfers

calls.

5. button : Ends calls or cancels

functions.

• Check call history and making call

➀ Shortly press (under 0.8 seconds)

the key on the steering

remote controller.

➁ The call history list will be dis-

played on the screen.

➂ Press the key again to con-

nect a call to the selected number.

• Redialing the most recently called

number

➀ Press and hold (over 0.8 seconds)

the key on the steering

remote controller.

➁ The most recently called number

is redialed.

4225

Features of your vehicle

Phone MENU

Press the key to display three

menus (Call History, Contacts,

Phone Setup).

Call history

Press the key Set [

History] through the TUNE knob

or key.

The call history is displayed and can

be used to select a number and

make a call.

If call history does not exist, a screen

asking whether to download call his-

tory is displayed. (The download fea-

ture may not be supported in some

mobile phones)

Contacts

Press the key Set [

Contacts] through the TUNE knob

or key.

The Contacts are displayed and can

be used to select a number and

make a call.

❈ If more than one number is saved to

one contact, then a screen showing

the mobile phone number, Home and

office number is displayed. Select the

desired number to make the call.

❈ If Contacts do not exist, a screen ask-

ing whether to download Contacts is

displayed. (The download feature may

not be supported in some mobile

phones)

Phone Setup

Press the key Set [

Setup] through the TUNE knob or

key.

The

Bluetooth

Wireless Technology

mobile phone setup screen is dis-

played. For more information, refer to

“Phone Setup”.

PHONE

2 RDM

PHONE

1 RPT

PHONE

Features of your vehicle

2264

✽✽NOTICE - USING THE

Bluetooth®

Wireless Technology

CELLULAR PHONE

• Do not use a cellular phone or per-

form Bluetooth®Wireless

Technology settings (e.g. pairing a

phone) while driving.

• Some Bluetooth®Wireless

Technology -enabled phones may

not be recognized by the system or

fully compatible with the system.

• Before using Bluetooth®Wireless

Technology related features of the

audio system, refer your phone’s

User’s Manual for phone-side

Bluetooth®Wireless Technology

operations.

• The phone must be paired to the

audio system to use Bluetooth®

Wireless Technology related fea-

tures.

• You will not be able to use the

hands-free feature when your

phone (in the car) is outside of the

cellular service area (e.g. in a tun-

nel, in a underground, in a moun-

tainous area, etc.). (Continued)

(Continued)

• If the cellular phone signal is poor

or the vehicles interior noise is too

loud, it may be difficult to hear the

other person’s voice during a call.

• Do not place the phone near or

inside metallic objects, otherwise

communications with Bluetooth®

Wireless Technology system or cel-

lular service stations can be dis-

turbed.

• While a phone is connected

through Bluetooth®Wireless

Technology your phone may dis-

charge quicker than usual for

additional Bluetooth®Wireless

Technology-related operations.

• Some cellular phones or other

devices may cause interference

noise or malfunction to audio sys-

tem. In this case, store the device

in a different location may resolve

the condition.

• Phone contact names should be

saved in English or they may not

be displayed correctly.(Continued)

(Continued)

• If Priority is set upon vehicle igni-

tion(IGN/ACC ON), the

Bluetooth®Wireless Technology

phone will be automatically con-

nected.

Even if you are outside, the

Bluetooth®Wireless Technology

phone will be automatically con-

nected once you are in the vicinity

of the vehicle.

If you do not want automatic

Bluetooth®Wireless Technology

connection, turn the Bluetooth®

Wireless Technology feature off.

• The hands-free call volume and

quality may differ depending on

the mobile phone type.

•Bluetooth®Wireless Technology

features can be used only when the

mobile phone has been paired and

connected with the device. For

more information on pairing and

connecting Bluetooth®Wireless

Technology enabled mobile

phones, refer to the “Phone Setup”

section. (Continued)

4227

Features of your vehicle

(Continued)

• When a Bluetooth®Wireless

Technology mobile phone is con-

nected, a ( ) icon will appear at

the top of the screen. If a ( ) icon

is not displayed, this indicates that

a Bluetooth®Wireless Technology

enabled device has not been con-

nected. You must connect the

device before use. For more infor-

mation on Bluetooth®Wireless

Technology mobile phones, refer

to the “Phone Setup” section.

• Pairing and connecting a

Bluetooth®Wireless Technology

enabled mobile phone will work

only when the Bluetooth®Wireless

Technology option within your

mobile phone has been turned on.

(Methods of turning on the

Bluetooth®Wireless Technology

enabled feature may differ

depending on the mobile phone.)

(Continued)

• In some mobile phones, starting

the ignition while talking through

Bluetooth®Wireless Technology

enabled handsfree call will result

in the call becoming disconnected.

(Switch the call back to your

mobile phone when starting the

ignition.)

• Some features may not be sup-

ported in some Bluetooth®

Wireless Technology mobile phone

and devices.

•Bluetooth®Wireless Technology

enabled operation may be unsta-

ble depending on the communica-

tion state.

• Placing the audio system within an

electromagnetic environment may

result in noise interference.

Features of your vehicle

2284

✽✽NOTICE - USING VOICE COM-

MAND

• The voice recognition feature of

this product supports recognition

of the commands listed within this

user’s manual.

• While using voice recognition,

operating the steering remote con-

trol or the device will terminate

voice recognition and allow you to

manually operate desired func-

tions.

• Position the microphone above the

head of the driver’s seat. For supe-

rior performance, maintain good

posture when saying voice com-

mands. (Continued)

(Continued)

• Voice recognition may not func-

tion properly due to outside noise.

The following conditions can

affect the performance of Voice

Recognition:

- When the windows and sunroof

are open

- When the heating/cooling system

is on

- When passing a tunnel

- When driving on rugged and

uneven roads

• After downloading Bluetooth®

Wireless Technology phone book,

the system requires some times to

convert the phone book into voice

information. During this time,

voice recognition may not operate

properly.

• Upon inputting your phone book,

special symbols and numbers can-

not be recognized by voice. For

example, “# John Doe%&” will be

recognized as “John Doe”.

4229

Features of your vehicle

VOICE COMMAND

(if equipped)

Starting Voice Command

• To start voice command, shortly

press the key on the steering

wheel remote controller.

• If voice command is in [Normal

Mode], then the system will say

“Please say a command. Beep”

❈ If voice command is in [Expert

Mode], then the system will only

say a “Beep-”

❈ Setting Voice command [Normal

Mode]/[Expert Mode]:

Press the key Select

[System] through the TUNE

knob or key Select [Voice

Command Mode] through the

TUNE knob Set [Normal

Mode]/[Expert Mode]

• Say the voice command.

✽✽NOTICE

For proper voice recognition, say the

voice command after the guidance

message and the “Beep” sound.

Skipping the Guidance

Message

While the guidance message is

being stated, shortly press the

key (under 0.8 seconds) to discontin-

ue the guidance message and sound

the “beep”.

After the “beep”, say the voice com-

mand.

Ending Voice Command

• While using voice command, press

and hold the key (over 0.8 sec-

onds) to end voice command.

• While using voice command, press-

ing the steering wheel remote con-

troller or a different key will end

voice command.

• In a state where the system is wait-

ing for your voice command, say

“cancel” or “end” to end voice com-

mand.

• In a state where the system is wait-

ing for your voice command, short-

ly press the key (under 0.8 sec-

onds) to end voice command.

SETUP

Features of your vehicle

2304

❈ Illustration on using voice commands

• Starting voice command.

Shortly pressing the key (under 0.8 seconds):

• Skipping Voice Recognition

Shortly pressing the key (under 0.8 seconds):

• End voice command.

Shortly pressing the key (under 0.8 seconds):

while guidance message is being

stated

More Help

Phone book

Cancel

More Help

Please say a command

Please say a...

More Help.

You can say Radio, FM, AM, Media, CD, USB,

Aux, My Music, iPod, Bluetooth Audio, Phone, Call

History or Phone book. Please say a command.

Phone book

Please say the name of the Phone book

you want to call.

More Help.

You can say Radio, FM, AM, Media, CD, USB,

Aux, My Music, iPod, Bluetooth Audio, Phone, Call

History or Phone book. Please say a command.

Beep-

Beep Beep.. (end beep)

Shortly pressing the key

(under 0.8 seconds)

4231

Features of your vehicle

Voice Command List

• Common Commands: These are commands that can be used in all situations. (However, some commands may not

be supported in special circumstances.)

Command Function

More Help Provides guidance on commands that can be

used anywhere in the system.

Help Provides guidance on commands that can be

used within the current mode.

Call<Name> Calls <Name> saved in

phone book

Ex) Call “John”

Phone Provides guidance on Phone related com-

mands. After saying this command, say “Call

History”, “

Phone book

”, “Dial Number” to exe-

cute corresponding functions.

Call History Displays the Call History screen.

Phone book

Displays the

phone book

screen. After saying

this command, say the name of a

phone book

saved in the

phone book

to automatically con-

nect the call.

Dial Number Display the Dial number screen. After saying

this command, you can say the number what

you want to call.

Redial Connects the most recently called number.

Radio

•

When listening to the radio, displays the next

radio screen. (FM1➟FM2➟FMA➟AM➟AMA)

•

When listening to a different mode, displays

the most recently played radio screen.

Command Function

•

When currently listening to the FM radio,

maintains the current state.

•

When listening to a different mode, displays

the most recently played FM screen.

FM1(FM One) Displays the FM1 screen.

FM2(FM Two) Displays the FM2 screen.

FMA Displays the FMA screen.

AM Displays the AM screen.

AMA Displays the AMA screen.

FM Preset 1~6 Plays the most recently played broadcast

saved in FM Preset 1~6.

AM Preset 1~6 Plays the broadcast saved in AM Preset 1~6.

FM 87.5~107.9 Plays the FM broadcast of the corresponding

frequency.

AM 530~1710 Plays the AM broadcast of the corresponding

frequency.

TA on Enable Traffic Announcement

TA off Disable Traffic Announcement

News on Enable RDS News feature

News off Disable RDS News feature

Features of your vehicle

2324

Command Function

Media Moves to the most recently played media

screen.

Play Track 1~30 If a music CD has been inserted, plays the

corresponding track.

CD Plays the music saved in the CD.

Search CD Moves to the CD track or file selection screen.

•

For audio CDs, move to the screen and say

the track number to play the corresponding

track.

•

Moves to MP3 CD file selection screen.

After manually operate the device to select

and play music.

USB Plays USB music.

Search USB Moves to USB file selection screen. After

manually operate the device to select and play

music.

iPod Plays iPod music.

Search iPod Moves to the iPod file selection screen. After,

manually operate the device to select and play

music.

My Music Plays the music saved in My Music.

Search My Music Moves to My Music file selection screen. After

manually operate the device to select and play

music.

Command Function

AUX (Auxiliary) Plays the connected external device.

Bluetooth Audio Plays the music saved in connected

Bluetooth

Wireless Technology

device.

Mute Mutes the radio or music volume.

Pardon? Repeats the most recent comment.

Cancel (Exit) Ends voice command.

4233

Features of your vehicle

• FM/AM radio commands: Commands that can be

used while listening to FM, AM radio.

• Audio CD commands: Commands that can be used

while listening to Audio CD.

Command Function

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Auto Store Automatically selects radio broadcast fre-

quencies with superior reception and saves in

Presets 1~6.

Preset Save 1~6 Saves the current broadcast frequency to

Preset 1~6.

Seek up Plays the next receivable broadcast.

Seek down Plays the previous receivable broadcast.

Next Preset Selects the preset number next to the most

recently selected preset. (Example: When cur-

rently listening to preset no. 3, then preset no.

4 will be selected.)

Previous Preset Selects the preset number previous to the

most recently selected preset. (Example:

When currently listening to preset no. 3, then

preset no. 2 will be selected.)

Scan Scans receivable frequencies from the current

broadcast and plays for 10 seconds each.

Preset Scan Moves to the next preset from the current

present and plays for 10 seconds each.

AF on Enable Alternative Frequency feature

AF off Disable Alternative Frequency feature

Region Enable Region feature

Command Function

Region off Disable Region feature

Program Type Moves to the RDS Program type selection

screen. After, manually operate the device to

select a desired program type.

Random Randomly plays the tracks within the CD.

Random Off Cancels random play to play tracks in sequen-

tial order.

Repeat Repeats the current track.

Repeat Off Cancels repeat play to play tracks in sequen-

tial order.

Next Track Plays the next track.

Previous Track Plays the previous track.

Scan Scans the tracks from the next track for 10

seconds each.

Track 1~30 Plays the desired track number.

Search Track Moves to the track selection screen. After, say

the track name to play the corresponding track.

Information Displays the information screen of the current

track.

Features of your vehicle

2344

• MP3 CD / USB commands: Commands that can be

used while listening to music files saved in CD and

USB.

• iPod Commands: Commands that can be used while

playing iPod.

Command Function

Random Randomly plays the files within the current

folder.

All Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Folder Repeat Repeats all files in the current folder.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Search Folder Moves to the folder selection screen.

Information Displays the information screen of the current

file.

Copy Copies the current file into My Music.

Command Function

All Random Randomly plays all saved songs.

Random Randomly plays the songs within the current

category.

Random Off Cancels random play to play songs in sequen-

tial order.

Repeat Repeats the current song.

Repeat Off Cancels repeat play to play songs in sequen-

tial order.

Next Song Plays the next song.

Previous Song Plays the previous song.

Search Song Moves to the song selection screen.

Information Displays the information screen of the current

song.

4235

Features of your vehicle

• My Music Commands: Commands that can be used

while playing My Music.

•

Bluetooth

Wireless Technology Audio Commands:

Commands that can be used while playing Phone

Music.

Command Function

Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Information Displays the information screen of the current

file.

Delete Deletes the current file. You will bypass an

additional confirmation process.

Delete All Deletes all files saved in My Music. You will

bypass an additional confirmation process.

Command Function

Play Plays the currently paused song.

Pause Pauses the current song.

Features of your vehicle

2364

APPENDIX

Name Description

AST (A.store) Automatically selects and saves

channels

SDVC Speed Dependent Volume

Control

HYUNDAI MOBIS AM1A0A4KN CAR AUDIO User Manual

HYUNDAI MOBIS CO., LTD. CAR AUDIO Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
