Features of your vehicle

2104

SYSTEM CONTROLLERS

AND FUNCTIONS

Audio Head Unit

1. (EJECT)

• Ejects the disc.

• Converts to Radio mode.

• Each time the key is pressed, the

mode is changed in order of FM1,

FM2, AM, SAT1, SAT2, SAT3.

• Converts to Media mode

• Each time the key is pressed, the

mode is changed in order of CD,

USB(iPod®), AUX, My Music, BT

Audio.

• Converts to Phone mode

❈When a phone is not connected,

the connection screen is displayed.

5. POWER/VOL knob

• Power : Press to turn power on/

off.

• Volume : Turn left/right to control

volume.

• When pressed briefly (less than 1

second)

- Radio mode : plays previous/next

frequency.

- Media (CD /USB /iPod® /My

Music/BT Audio) modes : changes

the track, Song(file)

• When pressed and held (more than

1 second)

- Radio mode : continuously changes

the frequency. Upon release, plays

the current frequency.

- Media(CD /USB /iPod® /My Music)

modes : rewinds or fast forwards

the track or file

- During a Handsfree call, controls

the call volume.

• SiriusXM RADIO : Category Search

• MP3 CD/USB mode : Search Folder

CAT

FOLDER

SEEK

TRACK

PHONE

MEDIA

RADIO

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:52 PM Page 210 YD AUDIO_B TYPE

FCC ID: TQ8-AM1A0B0AN

IC: 5074A-AM1A0B0KN

4 211

Features of your vehicle

• Turns the monitor display on/off.

• Mutes the audio. Press again to

unmute.

10.

• Radio mode : previews all receiv-

able broadcasts for 5 seconds each

• Media (CD/USB/My Music) modes :

previews each song (file) for 10

seconds each.

11.

• Converts to Setup mode.

12. TUNE knob

• Radio mode : turn to change broad-

cast frequencies.

• Media (CD/USB/iPod®/My Music)

modes : turn to search Tracks/chan-

nels/files.

13. RESET

• Forced system termination and sys-

tem restart.

MUTE

SETUP

SCAN

DISP

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:52 PM Page 211

Features of your vehicle

2124

Steering remote controller

1. MUTE

• Mutes the microphone during a call.

2. MODE

• Each time this key is pressed, the

mode is changed in order of FM1 ➟

FM2 ➟ AM ➟ SAT1 ➟ SAT2 ➟SAT3

➟ CD ➟ USB(iPod®) ➟ AUX ➟ My

Music ➟ BT Audio

• If the media is not connected or a

disc is not inserted, corresponding

modes will be disabled.

3. VOLUME

• Used to control volume.

4. SEEK

• When pressed briefly (less than 0.8

seconds)

- Radio mode : searches broadcast

frequencies saved to presets.

- Media(CD/ USB/ iPod®/ My Music/

BT Audio) modes : changes the

track, file or chapter.

• When pressed and held (more than

0.8 seconds)

- Radio mode, automatically search-

es broadcast frequencies and

channels

- Media(CD/USB/iPod®/My Music)

modes, rewinds or fast forwards

the track or song(file)

- BT Audio mode may not be sup-

ported in some mobile phones.

• When pressed briefly

- Starts voice recognition

- When selected during a voice

prompt, stops the prompt and

converts to voice command wait-

ing state

• When pressed and held (more than

0.8 seconds)

- Ends voice recognition

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:52 PM Page 212

4 213

Features of your vehicle

• When pressed briefly

- When pressed in the phone screen,

displays call history screen

- When pressed in the dial screen,

makes a call

- When pressed in the incoming call

screen, answers the call

- When pressed during call waiting,

switches to waiting call (Call

Waiting)

• When pressed and held (more than

0.8 seconds)

- When pressed in the

Bluetooth®

Wireless Technology Handsfree

wait mode, redials the last call

- When pressed during a

Bluetooth®

Wireless Technology Handsfree

call, switches call back to mobile

phone (Private)

- When pressed while calling on the

mobile phone, switches call back to

Bluetooth®

Wireless Technology

Handsfree (Operates only when

Bluetooth®

Wireless Technology

Handsfree is connected)

• Ends phone call

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:52 PM Page 213

Features of your vehicle

2144

RADIO MODE

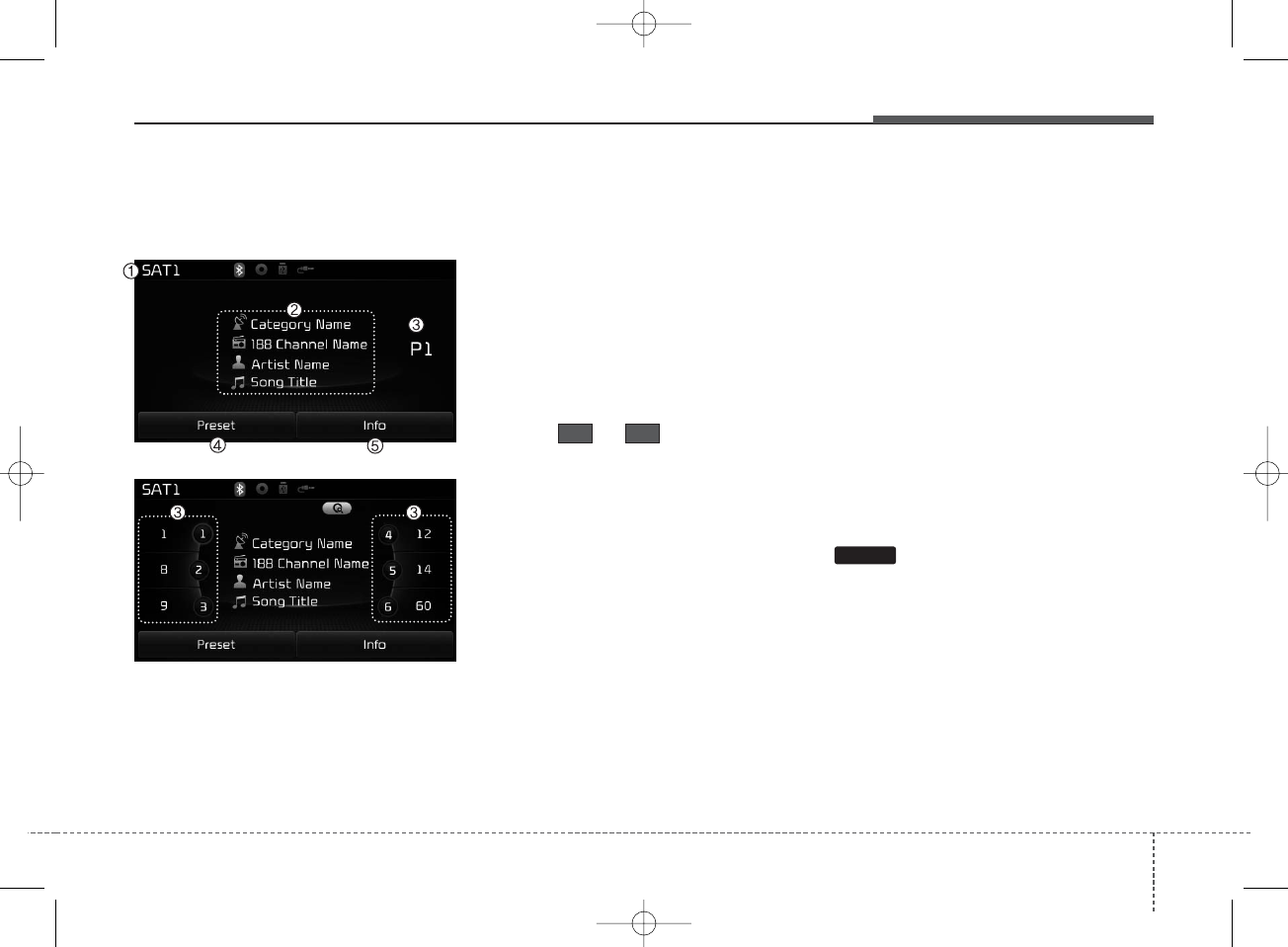

Basic Mode Screen

1. Mode Display

Displays currently operating mode.

2. Frequency

Displays the current frequency.

3. Preset

Displays current preset number

4. Preset Display

Displays preset buttons.

5. A.Store

Automatically saves frequencies with

superior reception to Preset buttons.

Switching to Radio Mode

Pressing the key will change

the operating mode in order of FM1

➟

FM2

➟

SAT1

➟

SAT2

➟

SAT3

If is turned on within

, then pressing the

key will display the Radio

Pop-up Mode screen.

Turn the TUNE knob to move the

focus. Press the knob to select.

RADIO

Display

SETUP

Mode Pop up

RADIO

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 214

4 215

Features of your vehicle

Searching Radio Frequencies

Using Seek

Press the key to play the

previous/next frequency.

Using TUNE

Turn the TUNE knob to select the

desired frequency.

Using Radio Mode

Selecting Presets/Saving Presets

Press the button to display

the broadcast information for the fre-

quency saved to each button.

Press the ~ buttons to play

the desired preset.

✽NOTICE

While listening to a frequency you

want to save as a preset, press and

hold one of the ~ preset

buttons (more than 1 second) to save

the current frequency to the selected

preset.

Auto Store

Press the button to auto-

matically save receivable frequen-

cies to Preset buttons.

Scan

Press the key to preview fre-

quencies with superior reception for

5 seconds each.

Press and hold the key

(more than 1 second) to preview pre-

sets for 5 seconds each.

Once scan is complete, the previous

frequency will be restored. While

Scan is operating, pressing the

key will cancel the scan

operation.

SCAN

A.Store

Preset

SEEK

TRACK

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 215

Features of your vehicle

2164

Satellite Radio channels:

Enjoy SiriusXM Satellite Radio with a

3-month trial subscription to the Sirius

Select package. You'll get over 140

channels, including commercial-free

music, plus all your favorite sports,

exclusive talk, entertainment, and a

selection of premium programming.

For more information and a complete

list of SiriusXM channels, visit sir-

iusxm.com in the United States, sir-

iusxm.ca in Canada, or call SiriusXM

at 1-888-539-7474.

Satellite Radio reception factors:

To receive the satellite signal, your vehi-

cle has been equipped with a satellite

radio antenna located on the roof of

your vehicle. The vehicle roof provides

the best location for an unobstructed,

open view of the sky, a requirement of

a satellite radio system. Like AM/FM,

there are several factors that can affect

satellite radio reception performance:

• Antenna obstructions: For optimal

reception performance, keep the

antenna clear of snow and ice

build-up and keep luggage and

other material as far away from the

antenna as possible.

• Terrain: Hills, mountains, tall build-

ings, bridges, tunnels, freeway over-

passes, parking garages, dense

tree foliage and thunderstorms can

interfere with your reception.

SiriusXM Satellite Radio service:

SiriusXM is a subscription-based

satellite radio service that broad-casts

music, sports, news and entertain-

ment programming to radio receivers,

which are available for installation in

motor vehicles or factory installed, as

well as for the home, portable and

wireless devices, and through an

Internet connection on personal com-

puter. Vehicles that are equipped with

a factory installed SiriusXM Satellite

Radio system include:

• Hardware and an introductory trial

subscription term, which begins on

the date of sale or lease of the

vehicle.

• For a small upgrade fee, access to

SiriusXM music channels, and

other select channels over the

Internet using any computer con-

nected to the Internet (U.S. cus-

tomers only).

For information on extended sub-

scription terms, contact SiriusXM

at 1-888-539-7474.

NOTE:

SiriusXM services require a sub-

scription sold separately, or as a

package, by Sirius XM Radio Inc. If

you decide to continue service after

your trial, the subscription plan you

choose will automatically renew

thereafter and you will be charged

according to your chosen payment

method at then-current rates. Fees

and taxes apply. To cancel you must

call SiriusXM at 1-866-635-2349.

See SiriusXM Customer Agreement

for complete terms at www.sir-

iusxm.com. SiriusXM U.S. satellite

and data services are available only

in the 48 contiguous USA, DC and

PR (with coverage limitations).

SiriusXM satellite service is also

available in Canada; see www.sir-

iusxm.ca. All fees and program-

ming subject to change. Sirius, XM

and all related marks and logos are

trademarks of Sirius XM Radio Inc.

SiriusXM®Satellite Radio information

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 216

4 217

Features of your vehicle

SiriusXM RADIO MODE

Basic Mode Screen

1. Mode Display

Displays currently operating mode.

2. Channel Information

Displays the category, channel num-

ber, channel name, artist and title

information.

3. Preset

Displays current playing preset

number ~ .

4. Preset Display

Displays saved presets.

5. Info

Displays detailed information about

the current broadcast.

Using SiriusXM Satellite Radio

Your Kia vehicle is equipped with a 3-

month trial subscription to SiriusXM

so you have access to over 140

channels of music, information, and

entertainment programming.

Activation

In order to extend or reactivate your

Sirius Select subscription, you will

need to contact SiriusXM Customer

Care at 1-800-643-2112. Have your

12-digit RID (Radio Identification

Number) / ESN (Electronic Serial

Number) ready. To retrieve the RID /

ESN, turn on the radio, press the

key, and tune to channel

zero.

Please note that the vehicle will need

to be turned on, in Sirius mode, and

have an unobstructed view of the sky

in order for the radio to receive the

activation signal.

RADIO

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 217

Features of your vehicle

2184

Using SEEK

Press the key to play the

previous/next channel.

❈If the “Category” icon is displayed,

channels are changed within the

current category.

Using Tune

Turn the TUNE knob to select the

desired channel.

SCAN

Press the key to scan all

channels with superior reception for

5 seconds each.

Once scan is complete, the previous-

ly played channel will be restored.

During Scan, pressing the

key again will cancel the scan opera-

tion and restore the previously

played channel.

If the “Category” icon is displayed,

channels are changed within the cur-

rent category.

Searching Categories

Select the category by using the

key and press the TUNE

knob to select.

Channels for the selected category

are played.

✽Troubleshooting

1. Antenna Error

If this message is displayed, the

antenna or antenna cable is broken

or unplugged. Please consult with

your Kia dealership.

2. No Signal

If this message is displayed, it means

that the antenna is covered and that

the SiriusXM Satellite Radio signal

is not available. Ensure the antenna

is uncovered and ha s a clear view of

the sky.

SEEK

TRACK

CAT

FOLDER

SCAN

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 218

4 219

Features of your vehicle

Selecting Presets/Saving

Presets

Press the button to display

the broadcast information for the

channel saved to each button.

Press the ~ buttons to play

the desired preset.

✽NOTICE

While listening to a channel you want

to save as a preset, press and hold one

of the ~ preset buttons

(more than 1 second) to save the cur-

rent channel to the selected preset.

✽NOTICE - USING CDs

When using CD-R/CD-RW discs,

differences in disc reading and play-

ing times may occur depending on

the disc manufacturer, production

method and the recording method

as used by the user.

Preset

CAUTION - Cleaning

Compact Disc

• Do not introduce foreign sub-

stances into the disc

insert/eject slot. Introducing

foreign substances could

damage the device interior.

• Do not insert two discs simul-

taneously into the disc

insert/eject slot. This could

damage the device.

• The use of CD-R/CD-RW discs

attached with labels may

result in disc slot jams or diffi-

culties in disc removal.

• Do not use abnormally shaped

discs (8cm, heart-shaped, octa-

gon shaped) as such discs

could lead to malfunctions.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 219

Features of your vehicle

2204

✽NOTICE

• Some CD-R/CD-RW discs may

not properly operate depending on

the disc manufacturer, production

method and the record method as

used by the user. If problems per-

sist, trying using a different CD as

continued use may result in mal-

functions.

• The performance of this product

may differ depending on the

CDRW Drive Software.

• Copy-protected CDs such as Stype

CDs may not function in the device.

DATA discs cannot be played.

(However, such discs may still

operate but will do so abnormally.)

• If the disc is straddled on the disc

slot without removal for 10 sec-

onds, the disc will automatically

be re-inserted into the disc player.

• Only genuine audio CDs are sup-

ported. Other discs may result in

recognition failure. (e.g. copy

CDR, CDs with labels)

MEDIA MODE

Pressing the key will change

the operating mode in order of CD

➟

USB(iPod®)

➟

AUX

➟

My Music

➟

BT Audio.

If is turned on within

, then pressing the

key will display the Media

Mode Pop up screen.

Turn the TUNE knob to move the

focus. Press the knob to select.

✽NOTICE

The media Mode Pop up screen can

be displayed only when there are

two or more media modes turned

on.

Title Icon

When a

Bluetooth®

Wireless Technology,

iPod®, USB, or AUX device is con-

nected or a CD is inserted, the cor-

responding mode icon will be dis-

played.

Icon Title

Bluetooth®

Wireless Technology

iPod®

USB

AUX

Display

Mode Pop up

SETUP

MEDIA

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 220

4 221

Features of your vehicle

AUDIO CD MODE

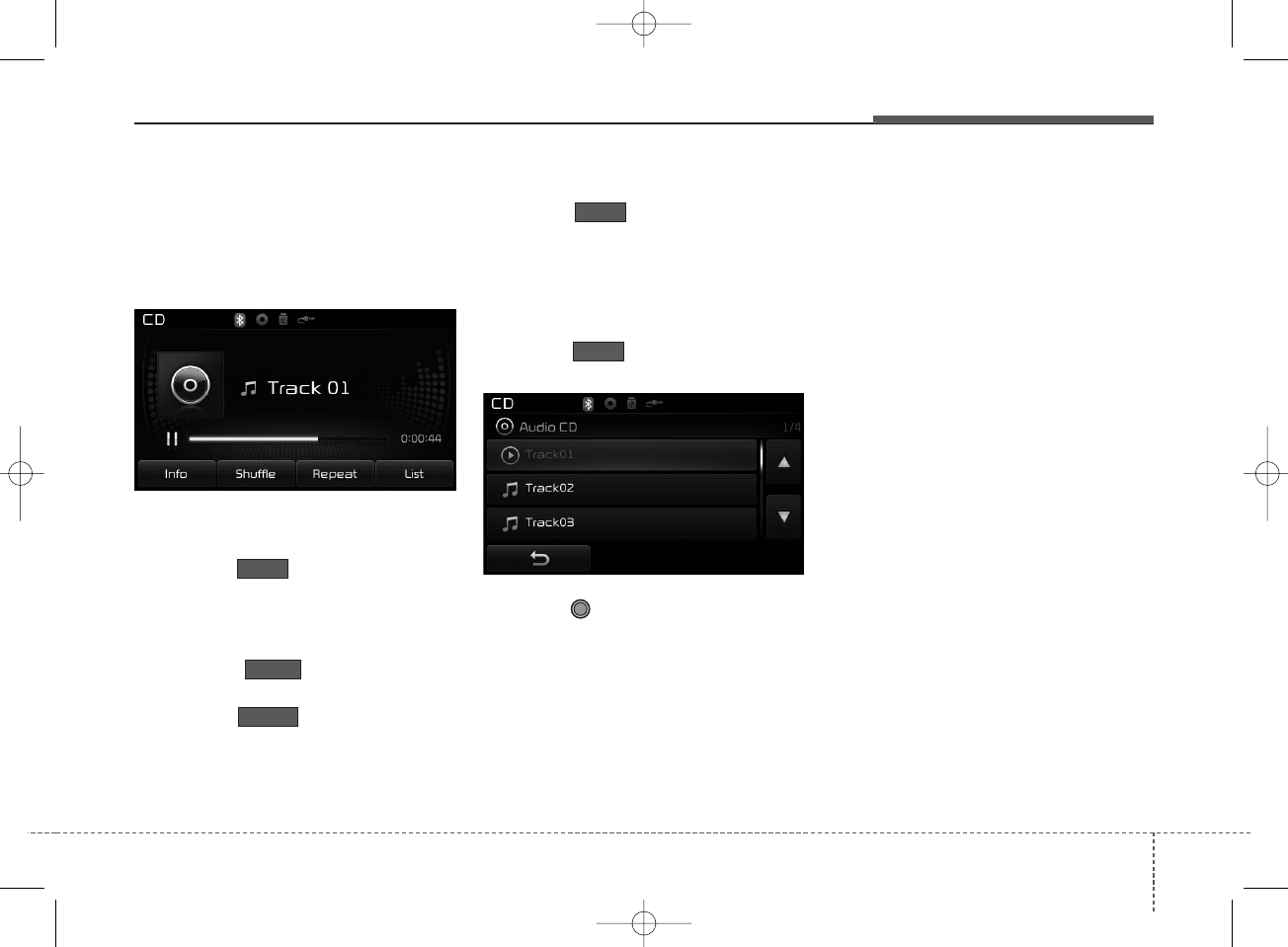

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat/Shuffle/Scan, displays the

currently operating function.

3. Track Info

Displays information about the cur-

rent track.

4. Play/Pause

Changes the play/pause state.

5. Play Time

Displays the current play time.

6. Info

Shows detailed information about

the current track.

7. Shuffle

Turns the Shuffle feature on/off.

8. Repeat

Turns the Repeat feature on/off.

9. List

Moves to the list screen.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 221

Features of your vehicle

2224

Using Audio CD Mode

Playing/Pausing CD Tracks

Once an audio CD is inserted, the

mode will automatically start and

begin playing.

While playing, press the button

to pause and press button to

play.

✽NOTICE

• Only genuine audio CDs are sup-

ported. Other discs may result in

recognition failure (e.g. copy CD-

R, CDs with labels)

• The artist and title information

are displayed on the screen if

track information is included

within the audio CD.

Changing Tracks

Press the key to move to

the previous or next track.

✽NOTICE

• Pressing the key after the

track has been playing for 2 sec-

onds will start the current track

from the beginning.

• Pressing the key before

the track has been playing for 1

second will start the previous

track.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired track.

Once you find the desired track,

press the TUNE knob to start

playing.

Rewinding / Fast-forwarding

Tracks

While playing, press and hold the

key (more than 1 second)

to rewind or fast-forward the current

track.

Scan

Press the key to play the first

10 seconds of each file.

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 222

4 223

Features of your vehicle

Audio CD Mode Menu

Within this mode, you will have

access to the Info, Shuffle, Repeat

and List features.

Info

Press the button to display

details about the current disc.

Shuffle

Press the button to play

tracks in shuffle order.

Press the button again to

turn the Shuffle feature off.

• Shuffle : Plays all tracks in shuffle

order.

Repeat

Press the button to repeat the

current track. Press the button again

to turn the repeat feature off.

• Repeat : Repeats the current track.

List

Press the button to display the

track list screen.

Turn the TUNE knob left/right to

search for tracks. Once the desired

track is displayed, press the knob to

select and play.

Shuffle

List

Repeat

Shuffle

Info

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 223

Features of your vehicle

2244

MP3 CD MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat /Shuffle /Scan, displays

the currently operating function.

3. File Index

Displays the current file number.

4. File Info

Displays information about the cur-

rent file.

5. Play/Pause

Changes the play/pause state.

6. Play Time

Displays the current play time.

7. Info

Shows detailed information about

the current file.

8. Shuffle

Turns the Shuffle feature on/off.

9. Repeat

Turns the Repeat feature on/off.

10. Copy

Copies the current file into My Music

11. List

Moves to the list screen.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 224

4 225

Features of your vehicle

Using MP3 CD Mode

Playing/Pausing MP3 Files

Once an MP3 disc is inserted the

mode will automatically start and

being playing.

While playing, press the button

to pause and press button to

play.

✽NOTICE

If there are numerous files and fold-

ers within the disc, reading time

could take more than 10 seconds

and the list may not be displayed or

song searches may not operate.

Once loading is complete, try again.

Changing Files

Press the key to move to

the previous or next file.

✽NOTICE

• Pressing the key after the

file has been playing for 2 seconds

will start the current file from the

beginning.

• Pressing the key before the

file has been playing for 1 second will

start the previous file.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired file.

Once you find the desired file, press

the TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (more than 1 second)

to rewind or fast-forward the current

file.

Scan

Press the key to play the first

10 seconds of each file.

Searching Folders

Press the key to select and

search fo lders.

Once the desired folder is displayed,

press the TUNE knob to select.

The first file within the selected fold-

er will begin playing.

CAT

FOLDER

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 225

Features of your vehicle

2264

MP3 CD Mode Menu

Within this mode, you will have

access to the Info, Shuffle, Repeat,

Copy and List features.

Info

Press the button to display

details about the current file.

✽NOTICE

• When the ‘Folder File’ option is

set as the default display within

Display setup, the album/artist/file

information are displayed as

detailed file information.

• When the ‘Album Artist Song’

option is set as the default display,

the folder name/file name are dis-

played as detailed file information.

• The title, artist and album info are

displayed only when such informa-

tion are recorded within the MP3

file ID3 tag.

Shuffle

Press the button to play files

in shuffle order.

Each time the button is pressed, the

feature changes in order of Shuffle

Folder ➟ Shuffle All ➟ Off.

• Shuffle Folder : Plays all files within

the current folder in shuffle order.

• Shuffle All : Plays all files in shuffle

order.

Repeat

Press the button to repeat the

current file or folder.

Each time the button is pressed, the

feature changes in order of Repeat ➟

Repeat Folder ➟ Off.

• Repeat: Repeats the current file.

• Repeat Folder: Repeats all files

within the current Folder.

Copying Files

Press the button to copy the

current file into My Music.

✽NOTICE

Selecting another feature during

copying will display a pop-up asking

whether you wish to cancel copying.

To cancel, select “Yes”.

Copy

Repeat

Shuffle

Info

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 226

4 227

Features of your vehicle

List

Press the button to display the

file list screen.

Turn the TUNE knob left/right to

search for files. Once the desired file

is displayed, press the knob to select

and play.

✽NOTICE - USING THE USB

DEVICE

• Connect the USB device after turn-

ing on the engine. The USB device

may become damaged if it is already

connected when the ignition is

turned on.The USB device may not

operate properly if the car ignition is

turned on or off with the USB device

connected.

• Heed caution to static electricity

when connecting/disconnecting USB

devices.

• Encoded MP3 Players will not be

recognized when connected as an

external device.

• When connecting an external USB

device, the device may not properly

recognize the USB is in some states.

• Only products formatted with

byte/sectors under 64Kbyte will be

recognized.

• This device recognizes USB devices

formatted in FAT 12/16/32 file for-

mats. This device does not recognize

files in NTFS file format.

(Continued)

• Some USB devices may not be sup-

ported due to compatibility issues.

• Avoid contact between the USB con-

nector with bodily parts or foreign

objects.

• A strange noise may occur when dis-

connecting the USB.

• Make sure to connect/disconnect

external USB devices with the audio

power turned off.

• The amount of time required to rec-

ognize the USB device may differ

depending on the type, size or file

formats stored in the USB. Such dif-

ferences in time are not indications

of malfunctions.

• The device only supports USB

devices used to play music files.

• USB images and videos are not sup-

ported.

(Continued)

List

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 227

Features of your vehicle

2284

(Continued)

• Do not use the USB I/F to charge

batteries or USB accessories that

generate heat. Such acts may lead

to worsened performance or dam-

age to the device.

• The device may not recognize the

USB device if separately pur-

chased USB hubs and extension

cables are being used. Connect the

USB directly with the multimedia

terminal of the vehicle.

• When using mass storage USB

devices with separate logical

drives, only files saved to the root

drive can be played.

• Files may not properly operate if

application programs are installed

to the USBs.

• The device may not operate nor-

mally if MP3 Players, cellular

phones, digital cameras, or

other electronic devices (USB

devices not recognized as

portable disk drives) are con-

nected with the device.

(Continued)

• Charging through the USB may

not work for some mobile devices.

• The device may not support normal

operation when using a USB memory

type besides (Metal Cover Type) USB

Memory.

• The device may not support nor-

mal operation when using formats

such as HDD Type, CF, or SD

Memory.

• The device will not support files

locked by DRM (Digital Rights

Management.)

• USB memory sticks used by con-

necting an Adaptor (SD Type or

CF Type) may not be properly rec-

ognized.

• The device may not operate

properly when using USB HDDs

or USBs subject to connection

failures caused by vehicle vibra-

tions. (e.g. i-stick type)

(Continued)

• Avoid use of USB

memory products that

can also be used as key

chains or mobile phone

accessories. Use of such products

may cause damage to the USB jack.

• Connecting an MP3 device or

phone through various channels,

such as AUX/BT or Audio/ USB

mode may result in pop noises or

abnormal operation.

CAUTION - Disconnecting

USB

Repeated connecting/discon-

necting of USB devices within

short periods of time may result

in product malfunction.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 228

4 229

Features of your vehicle

USB MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat/Shuffle/Scan, displays the

currently operating function.

3. File Index

Displays the current file number.

4. File Info

Displays information about the cur-

rent file.

5. Play/Pause

Changes the play/pause state.

6. Play Time

Displays the current play time.

7. Info

Displays detailed information for the

current file.

8. Shuffle

Turns the Shuffle feature on/off.

9. Repeat

Turns the Repeat feature on/off.

10. Copy

Copies the current file into My Music.

11. List

Moves to the list screen.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:53 PM Page 229

Features of your vehicle

2304

Using USB Mode

Playing/Pausing USB Files

Once a USB is connected, the mode

will automatically start and begin

playing a USB file.

While playing, press the button

to pause and press button to

play.

✽NOTICE

• Loading may require additional time

if there are many files and folders

within the USB and result in faulty

list display or file searching. Normal

operations will resume once loading

is complete.

• The device may not support normal

operation when using a USB memo-

ry type besides (Metal Cover Type)

USB Memory.

Changing Files

Press the keys to move to

the previous or next file.

✽NOTICE

• Pressing the key after the

file has been playing for 2 seconds

will start the current file from the

beginning.

• Pressing the key before the

file has been playing for 1 second

will start the previous file.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired file.

Once you find the desired file, press

the TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (more than 1 second)

to rewind or fast-forward the current

file.

Scan

Press the key to play the first

10 seconds of each file.

SEEK

TRACK

SEEK

TRACK SEEK

TRACK

SCAN

SEEK

TRACK

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 230

4 231

Features of your vehicle

Searching Folders

Press the key to select and

search folders.

Once the desired folder is displayed,

press the TUNE knob to select.

The first file within the selected fold-

er will begin playing.

USB Mode Menu

Within this mode, you will have

access to the Info, Shuffle, Repeat,

Copy and List features.

Info

Press the button to display

details about the current file.

✽NOTICE

• When the ‘Folder File’ option is

set as the default display within

Display setup, the album/artist/file

information are displayed as

detailed file information.

• When the ‘Album Artist Song’ opti-

on is set as the default display, the

folder name/file name are displayed

as detailed file information.

• The title, artist and album info are

displayed only when such informa

tion are recorded within the MP3

file ID3 tag.

Shuffle

Press the button to play files

in shuffle order.

Each time the button is pressed, the

feature changes in order of Shuffle

Folder ➟ Shuffle All ➟ Off.

• Shuffle Folder : Plays the files in

the current folder in shuffle order.

• Shuffle All : Plays all files in shuffle

order.

CAT

FOLDER

Shuffle

Info

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 231

Features of your vehicle

2324

Repeat

Press the button to repeat

the current file or folder.

Each time the button is pressed, the

feature changes in order of Repeat➟

Repeat Folder ➟Off.

• Repeat : Repeats the current file.

• Repeat Folder : Repeats all files w i th i n

the current folder.

Copying Files

Press the button to copy the

current file into My Music.

✽NOTICE

Selecting another feature during

copying will display a pop-up asking

whether you wish to cancel copying.

To cancel, select “Yes”.

List

Press the button to display the

file list screen.

Turn the TUNE knob left/right to

search for files. Once the desired file

is displayed, press the knob to select

and play.

Repeat List

Copy

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 232

4 233

Features of your vehicle

✽NOTICE - USING THE

iPod®DEVICE

• iPod®is a registered trademark of

Apple Inc.

• In order to use the iPod®while

operating the keys, you must use a

dedicated iPod®cable. (the cable

that is supplied when purchasing

iPod®/iPhone®products)

• If the iPod®is connected to the

vehicle while it is playing, a high

pitch sound could occur for

approximately 1-2 seconds imme-

diately after connecting. If possi-

ble, connect the iPod®to the vehi-

cle with the iPod®stopped/paused.

• During ACC ON state, connecting

the iPod®through the iPod®cable

will charge the iPod®through the

car audio system.

• When connecting with the iPod®

cable, make sure to fully insert the

jack to prevent communication

interference.

(Continued)

• When the EQ features of an exter-

nal device, such as the iPod®, and

the audio system are both active,

EQ effects could overlap and

cause sound deterioration and dis-

tortion. Whenever possible, turn

off the EQ feature within the

external device upon use by con-

necting with the audio system.

• Noise may occur when an iPod®or

AUX device is connected. When

such devices are not being used,

disconnect the device for storage.

• When the iPod®or AUX device

power is connected to the power

jack, playing the external device

may result in noise. In such cases,

disconnect the power connection

before use.

• Skipping or improper operation

may occur depending on the char-

acteristics of your iPod® /iPhone®

device.

(Continued)

• If your iPhone®is connected to

both the Bluetooth®Wireless

Technology and USB, the sound

may not be properly played. In

your iPhone®, select the Dock con-

nector or Bluetooth®Wireless

Technology to change the sound

output (source).

• iPod®mode cannot be operated

when the iPod®cannot be recog-

nized due to versions that do not

support communication protocols.

• For fifth generation iPod®Nano

devices, the iPod®may not be rec-

ognized when the battery level is

low. Please charge the iPod®for

use.

• Search/play orders shown within

the iPod®device may differ with

the orders shown within the audio

system.

• If the iPod®malfunctions due to an

iPod®device defect, reset the iPod®

and try again. (To learn more, refer

to your iPod®manual)

(Continued)

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 233

Features of your vehicle

2344

iPod®MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat/Shuffle, displays the cur-

rently operating function.

3. Song Index

Displays the current song/total num-

ber of songs.

4. Song Info

Displays information about the cur-

rent song.

5. Play/Pause

Changes the play/pause state.

6. Play Time

Displays the current play time.

7. Shuffle

Turns the Shuffle feature on/off.

8. Repeat

Turns the Repeat feature on/off.

9. List

Moves to the list screen.

(Continued)

• Some iPod®may not sync with the

System depending on its version.

If the Media is removed before the

Media is recognized, then the sys-

tem may not properly restore the

previously operated mode. (iPad®

charging is not supported.)

• Beside support 1M cable when

purchasing iPod/iPhone products,

Long Cable cannot be recognized.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 234

4 235

Features of your vehicle

Using iPod®Mode

Playing/Pausing iPod®Songs

Once an iPod®is connected, the

mode will automatically start and

begin playing an iPod®song.

While playing, press the button

to pause and press button to

play.

✽NOTICE

iPod®with unsupported communica-

tion protocols may not properly oper-

ate in the audio system.

Changing Songs

Press the key to move to

the previous or next song.

✽NOTICE

• Pressing the key after the

song has been playing for 2 seconds

will start the current song from the

beginning.

• Pressing the key before the

song has been playing for 1 second

will start the previous song.

• Slight time differences may exist

depending your iPod®product.

Rewinding / Fast-forwarding

Songs

While playing, press and hold the

key (more than 1 second)

to rewind or fast-forward the current

song.

Searching Categories

Turn the TUNE knob left/right to

search for the desired category.

Once you find the desired category,

press the TUNE knob to select

and play.

✽NOTICE

There are eight categories that can be

searched, including Playlists, Artists,

Albums, Genres, Songs, Composers,

Audiobooks and Podcasts.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 235

Features of your vehicle

2364

Category Menu

Within the iPod®Category menu,

you will have access to the ,

, and features.

1. : Displays the play screen

2. : Moves to the iPod®root cat-

egory screen

3. : Moves to the previous cate-

gory

✽NOTICE

• If the search mode is accessed while

playing a song, the most recently

searched category is displayed.

• Search steps upon initial connection

may differ depending on the type of

iPod®device.

iPod®Mode Menu

Within this mode, you will have

access to the Shuffle, Repeat and

List features.

Shuffle

Press the button to play

songs in shuffle order.

Each time the button is pressed, the

feature changes in order of Shuffle

All ➟ Off ➟ Shuffle All.

• Shuffle All : Plays all songs in shuffle

order.

Repeat

Press the button to repeat the

current song. Press the button again

to turn the repeat feature off.

• Repeat : Repeats the current song

List

Press the button to display the

Category Menu.

Turn the TUNE knob left/right to

search for the desired category.

Once you find the desired category,

press the TUNE knob to select

and play.

Home

List

Repeat

Shuffle

Home

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 236

4 237

Features of your vehicle

AUX MODE

Using AUX Mode

Press the key Select

An external device can be connected

to play music.

Connecting an External Device

External audio players (Camcorders,

car VCR, etc.) can be played through

a dedicated cable.

✽NOTICE

• If an external device connector is

connected with the AUX terminal,

then AUX mode will automatically

operate. Once the connector is dis-

connected, the previous mode will be

restored.

• AUX mode can be used only when an

external audio player (camcorder,

car VCR, etc.) has been connected.

• The AUX volume can be controlled

separately from other audio modes.

• Connecting a connector jack to the

AUX terminal without an external

device will convert the system to

AUX mode, but only output noise.

When an external device is not being

used, also remove the connector

jack.

• When the external device power is

connected to the power jack, playing

the external device may output noise.

In such cases, disconnect the power

connection before use.

• Fully insert the AUX cable to the

AUX jack upon use.

AUX

MEDIA

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 237

Features of your vehicle

2384

MY MUSIC MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat/Shuffle/Scan, displays the

currently operating function.

3. File Index

Displays the current file/total number

of files.

4. File Info

Displays information about the cur-

rent file.

5. Play/Pause

Changes the play/pause state.

6. Play Time

Displays the current play time.

7. Info

Displays detailed information for the

current file.

8. Shuffle

Turns the Shuffle feature on/off.

9. Repeat

Turns the Repeat feature on/off.

10. Delete

Deletes the current file.

11. List

Moves to the list screen.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 238

4 239

Features of your vehicle

Using My Music Mode

Playing/Pausing My Music Files

While playing, press the button

to pause and press button to

play.

✽NOTICE

If there are no files saved within My

Music, the button will be

disabled.

Changing Files

Press the key to move to

the previous or next file.

✽NOTICE

• Pressing the key after the

file has been playing for 2 seconds

will start the current file from the

beginning.

• Pressing the key before the

file has been playing for 1 second will

start the previous file.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired file.

Once you find the desired file, press

the TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

key (more than 1 second)

to rewind or fast-forward the current

file.

Scan

Press the key to play the first

10 seconds of each file.

My Music

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SCAN

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 239

Features of your vehicle

2404

My Music Mode Menu

Within this mode, you will have

access to the Info, Shuffle, Repeat,

Delete and List features.

Info

Press the button to display

details about the current file.

✽NOTICE

The title, artist and album info are

displayed only when such information

is recorded within the MP3 file ID3

tag.

Shuffle

Press the button to play files

in shuffle order. Press the button

again to turn the Shuffle feature off.

Repeat

Press the button to repeat the

current song. Press the button again

to turn the repeat feature off.

Deleting Files

Press the button to delete the

current file.

List

Press the button to display the

file list screen.

Turn the TUNE knob left/right to

search for files. Once the desired file

is displayed, press the knob to select

and play.

List

Delete

Repeat

Shuffle

Info

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 240

4 241

Features of your vehicle

List Menu

From the List screen, it is possible to

delete files you previously saved into

My Music.

Press the button or individ-

ually select the files you want to

delete. Once files are selected, the

button and button

will be enabled.

1) : Moves to the previous

screen

2) Select All : Selects all files

3) Unselect All : Deselects all select-

ed files

4) Delete : Deletes selected files

After selecting the files you want to

delete, press the button to

delete the selected files.

✽NOTICE

• If there is memory available, up to

6,000 files can be saved.

• Identical files cannot be copied

more than 1,000 times.

• To check memory information,

go to

Memory Information

System

Delete

Unselect All

Select All

Delete

SETUP

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 241

Features of your vehicle

2424

✽NOTICE - USING THE

Bluetooth®

Wireless

Technology Audio Mode

•Bluetooth®Wireless Technology Audio

Mode can be used only when a

Bluetooth®Wireless Technology

phone has been connected.

•Bluetooth®Wireless Technology Audio

Mode will not be available when con-

necting mobile phones that do not

support this feature.

• While Bluetooth®Wireless Technology

Audio is playing, if the Bluetooth®

Wireless Technology phone is con-

nected, then the music will also stop.

• Moving the Track up/down while play-

ing Bluetooth®Wireless Technology

audio mode may result in pop noises

in some mobile phones.

•Bluetooth®Wireless Technology stream-

ing audio may not be supported in some

mobile phones.

(Continued)

• When returning to Bluetooth®

Wireless Technology Audio mode

after ending a call, the mode may not

automatically restart in some mobile

phones.

• Receiving an incoming call or mak-

ing an outgoing call while playing

Bluetooth®Wireless Technology Audio

may result in audio interference.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 242

4 243

Features of your vehicle

Bluetooth

Wireless

Technology AUDIO MODE

Using

Bluetooth®

Wireless

Technology Audio Mode

Playing/Pausing Bluetooth®

Wireless Technology Audio

Once a

Bluetooth

Wireless Technology

device is connected, the mode will

automatically start.

While playing, press the button

to pause and press button to

play.

✽NOTICE

The play/pause feature may operate

differently depending on the mobile

phone.

Changing Files

Press the key to move to

the previous or next file.

Setting Connection

If a

Bluetooth®

Wireless Technology

device has not been connected, press

the key button to

display the

Bluetooth®

Wireless

Technology connection screen.

It is possible to use the pair phone,

connect/disconnect and delete fea-

tures from your

Bluetooth

Wireless

Technology phone.

✽NOTICE

If music is not yet playing from your

mobile device after converting to

Bluetooth®Wireless Technology

Audio mode, pressing the play but-

ton once may start playing the

mode. Check to see that music is

playing from the Bluetooth®

Wireless Technology device after

converting to Bluetooth®Wireless

Technology Audio Mode.

Phone

SEEK

TRACK

SETUP

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 243

Features of your vehicle

2444

Pairing a

Bluetooth®

Wireless

Technology Device

What is Bluetooth® Wireless

Technology Pairing?

Pairing refers to the process of syn-

chronizing your

Bluetooth®

Wireless

Technology phone or device with the

car audio system for connection.

Pairing is necessary to connect and

use the

Bluetooth®

Wireless Technology

feature.

The Bluetooth®word mark and logos

are registered trademarks owned by

Bluetooth SIG, Inc. and any use of

such marks by Kia is under license.

Other trademarks and trade names

are those of their respective owners.

A Bluetooth®enabled cell phone is

required to use

Bluetooth®

Wireless

Technology.

Pairing Using the key or

the Steering Wheel Control

key

When No Devices have been

Paired

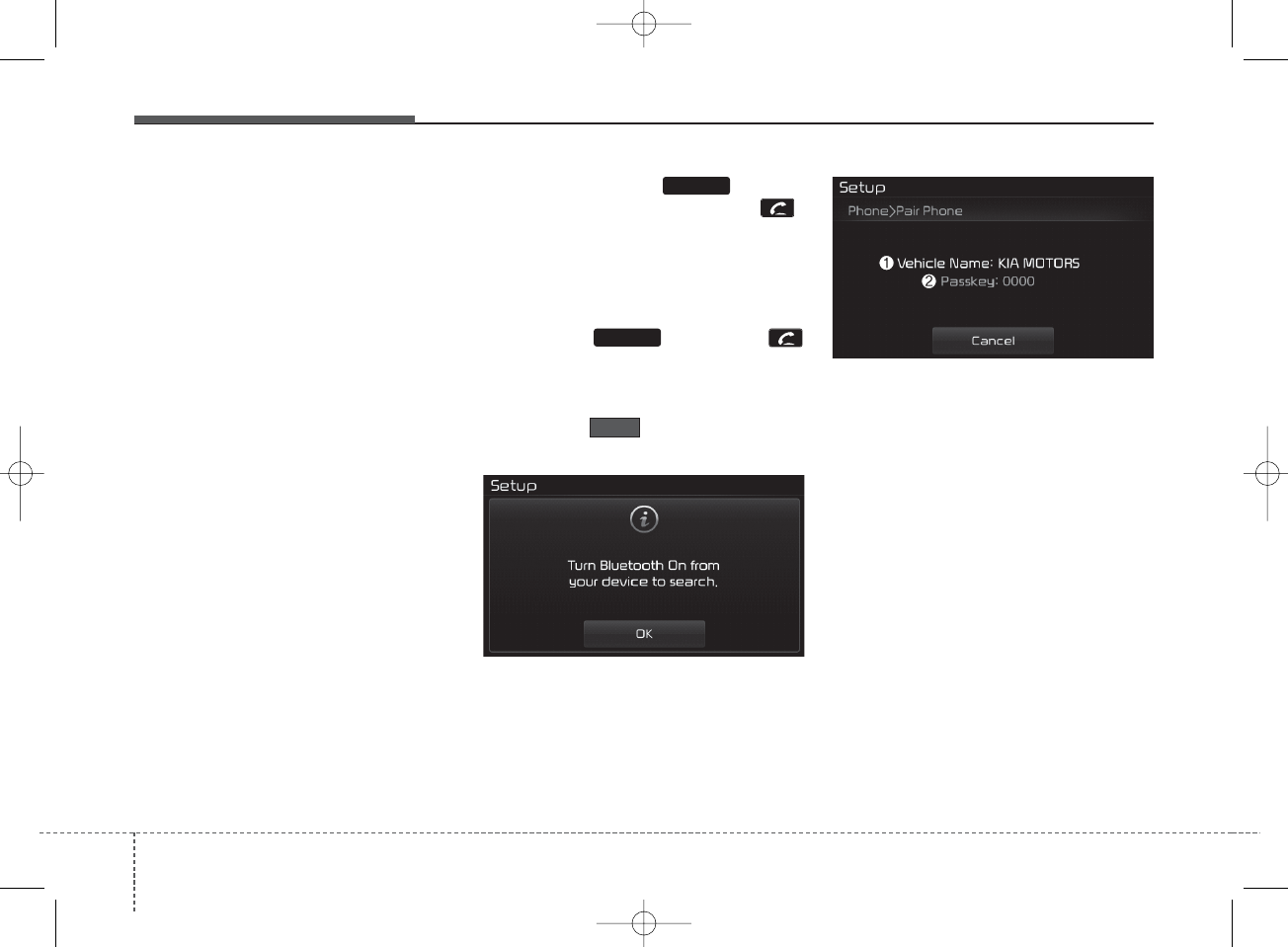

1.Press the key or the

key on the steering remote con-

troller. The following screen is dis-

played.

2.Press the button to enter the

Pair Phone screen.

1) Vehicle Name : Name of device as

shown when searching from your

Bluetooth®

Wireless Technology

device

2) Passkey : Passkey used to pair the

device

3. From your

Bluetooth®

Wireless

Technology device (i.e. Mobile

Phone), search and select your

car audio system.

PHONE

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 244

4 245

Features of your vehicle

[Non SSP supported device]

(SSP: Secure Simple Pairing)

4. After a few moments, a screen is

displayed where the passkey is

entered.

Here, enter the passkey “0000” to

pair your

Bluetooth®

Wireless

Technology device with the car audio

system.

[SSP supported device]

4. After a few moments, a screen is

displayed 6 digits passkey.

Here, check the passkey on your

Bluetooth®

Wireless Technology

device and confirm.

5. Once pairing is complete, the fol-

lowing screen is displayed.

✽NOTICE

If Bluetooth®Wireless Technology

devices are paired but none are cur-

rently connected, pressing the

key or the key on the steering

wheel displays the following screen.

Press the button to pair a new

device or press the to connect

a previously paired device.

Pairing through [PHONE]

Setup

Press the key Select

Select Select

TUNE knob

1. The following steps are the same

as those described in the section

"When No Devices have been

Paired" on the previous page.

Connect

Pair

Phone Pair Phone

SETUP

PHONE

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 245

Features of your vehicle

2464

✽NOTICE

•Bluetooth®Wireless Technology fea-

tures supported within the vehicle

are as follows. Some features may

not be supported depending on your

Bluetooth®Wireless Technology device.

- Outgoing/Incoming Handsfree calls

- Operations during a call (Switch to

Private, Switch to call waiting, MIC

on/off)

- Downloading Call History

- Downloading Mobile Contacts

-Bluetooth®Wireless Technology

device auto connection

- Bluetooth Audio Streaming

• Up to five Bluetooth®Wireless

Technology devices can be paired to

the Car Handsfree system.

• Only one Bluetooth®Wireless

Technology device can be connected

at a time.

• Other devices cannot be paired while a

Bluetooth®Wireless Technology device is

connected.

• Only Bluetooth®Wireless Technology

Handsfree and Bluetooth audio related

features are supported.

(Continued)

• Bluetooth related operations are pos-

sible only with devices that support

Handsfree or audio features, such as

a Bluetooth®Wireless Technology

mobile phone or a Bluetooth audio

device.

• If a connected Bluetooth®Wireless

Technology device becomes discon-

nected due to being out of communica-

tion range, turning the device OFF, or

a Bluetooth®Wireless Technology com-

munication error, corresponding

Bluetooth®Wireless Technology devices

are automatically searched and recon-

nected.

• If the system becomes unstable due

to communication errors between the

car Handsfree and the Bluetooth®

Wireless Technology device, reset the

device by turning off and back on

again. Upon resetting Bluetooth®

Wireless Technology device, the sys-

tem will be restored.

(Continued)

• After pairing is complete, a contacts

download request is sent once to the

mobile phone. Some mobile phones

may require confirmation upon

receiving a download request, ensure

your mobile phone accepts the con-

nection. Refer to your phones user’s

manual for additional information

regarding phone pairing and connec-

tions.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 246

4 247

Features of your vehicle

Connecting a Device

Press the key Select

Select

1) Connected Phone : Device that is

currently connected

2) Paired Phone : Device that is

paired but not connected

From the paired phone list, select the

device you want to connect and

press the button.

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth®

Wireless Technology devices with the

car audio system. The "Change

Priority" feature is used to set the

connection priority of paired phones.

Press the key Select

Select

Phone Paired Phone List

Paired Phone ListPhone

SETUP

Connect

SETUP

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:54 PM Page 247

Features of your vehicle

2484

From the paired phone list, select

the phone you want to switch to the

highest priority, then press the

button from the Menu.

The selected device will be changed

to the highest priority.

✽NOTICE

Priority icon will be displayed when the

selected phone is set as a priority phone.

Disconnecting a Device

Press the key Select

Select

From the paired phone list, select the

currently connected device and

press the button.

Deleting a Device

Press the key Select

Select

From the paired phone list, select the

device you want to delete and press

the button.

✽NOTICE

• When deleting the currently con-

nected device, the device will auto-

matically be disconnected to proceed

with the deleting process.

• If a paired Bluetooth®Wireless

Technology device is deleted, the

device’s call history and contacts

data will also be deleted.

• To re-use a deleted device, you must

pair the device again.

Paired Phone ListPhonePaired Phone ListPhone

Delete

SETUP

Disconnect

SETUP

Change priority

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 248

4 249

Features of your vehicle

USING

Bluetooth®

Wireless

Technology

Phone Menu Screen

Phone Menus

With a

Bluetooth®

Wireless Technology

device connected, press the

key to display the Phone menu

screen.

1) Favorites : Up to 20 frequently

used contacts saved for easy

access

2) Call History : Device the call histo-

ry list screen

3) Contacts : Displays the Contacts

list screen

4) Dial Number : Displays the dial

screen where numbers can be

dialed to make calls

5) Setup : Displays Phone related

settings.

✽NOTICE

• If you press the button

but there is no call history data, a

prompt is displayed which asks to

download call history data.

• If you press the button but

there is no contacts data stored, a

prompt is displayed which asks to

download contacts data.

• This feature may not be supported in

some mobile phones. For more infor-

mation on download support, refer

to your mobile phone user’s manual.

Favorites

Press the key Select

1) Saved favorite contact : Connects

call upon selection

2) To add favorite : Downloaded con-

tacts be saved as favorite.

3) Delete All : Delete all stored

favorite contacts

✽NOTICE

• To save Favorite, contacts should be

downloaded.

• Contact saved in Favorites will not be

automatically updated if the contact

has been updated in the phone. To

update Favorites, delete the Favorite

and create a new Favorite.

Favorites

Call History

Contacts

PHONE

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 249

Features of your vehicle

2504

Call History

Press the key Select

A list of incoming, outgoing and

missed calls is displayed.

Press the button to down-

load the call history.

1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

2) Download : Download Recent Call

History

• Call history may not be saved in the

call history list in some mobile

phones.

• Calls received with hidden caller ID

will not be saved in the call history

list.

• Calling through the call history is

not possible when there is no call

history stored or a

Bluetooth

Wireless Technology phone is not

connected.

• Up to 50 received, dialed and

missed calls are stored in Call

History.

• Time of received/dialed calls and

call time information are not saved.

Contacts

Press the key Select

The list of saved phone book entries

is displayed. Press the but-

ton to download the call history.

Download

Contacts

PHONE

Call History

Download

PHONE

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 250

4 251

Features of your vehicle

1) Contacts List :

- Displays downloaded contacts

entries

- Connects call upon selection

2) Sort by : Find a contact in an

alphabetical order.

3) Download : Download contacts

entries

✽NOTICE

• Up to 1,000 contacts saved in your

Bluetooth®Wireless Technology

phone can be downloaded into the

car contacts. Contacts that have been

downloaded to the car cannot be

edited or deleted on the phone.

• Mobile phone contacts are managed

separately for each paired Bluetooth®

Wireless Technology device (max 5

devices x 1,000 contacts each).

Previously downloaded data is main-

tained even if the Bluetooth®Wireless

Technology device has been discon-

nected. (However, the contacts and

call history saved to the phone will

be deleted if a paired phone is delet-

ed.)

(Continued)

• It is possible to download contacts

during Bluetooth streaming audio.

• When downloading contacts, the

icon will be displayed within the sta-

tus bar.

• It is not possible to begin download-

ing a contact list when the contact

download feature has been turned

off within the Bluetooth®Wireless

Technology device. In addition, some

devices may require device authori-

zation upon attempting to download

contacts. If downloading does not

normally occur, check the Bluetooth®

Wireless Technology device settings

or the screen state.

• The contacts download feature may

not be supported in some mobile

phones. For more information of

supported Bluetooth®devices and

function support, refer to your

phone’s user manual.

Calling by Dialing a Number

Press the key Select

1) Dial Pad : Used to enter phone

number

2) Call : If a number has been

entered, calls the number If no

number has been entered, switch-

es to call history screen

3) End : Deletes the entered phone

number

4) Delete : Deletes entered numbers

one digit at a time

Dial Number

PHONE

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 251

Features of your vehicle

2524

Answering Calls

Answering a Call

Answering a call with a

Bluetooth®

Wireless Technology device connect-

ed will display the following screen.

1) Caller : Displays the other party’s

name when the incoming caller is

saved within your contacts

2) Incoming Number : Displays the

incoming number

3) Accept : Accepts the incoming call

4) Reject : Rejects the incoming call

✽NOTICE

• When an incoming call pop-up is

displayed, most Audio and SETUP

mode features are disabled. Only

the call volume will operate.

• The telephone number may not be

properly displayed in some mobile

phones.

During a Handsfree Call

1) Caller : Displays the other party’s

name if the incoming caller is

saved within your contacts

2) Incoming Number : Displays the

incoming number

3) Call time : Displays the call time

4) End : Ends call

5) Private : Switches to Private mode

6) Out Vol. : Sets call volume as

heard by the other party

7) Mute : Turns Mic Mute On/Off

✽NOTICE

If the mic is muted, the other party

will not be able to hear your voice.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 252

4 253

Features of your vehicle

Bluetooth®

Wireless

Technology Setting

Pairing a New Device

Press the key Select

Select

Bluetooth

Wireless Technology

devices can be paired with the audio

system.

For more information, refer to the

“Pairing through Phone Setup” section

within

Bluetooth

Wireless Technology.

Viewing Paired Phone List

Press the key Select

Select

This feature is used to view mobile

phones that have been paired with

the audio system. Upon selecting a

paired phone, the setup menu is dis-

played.

For more information, refer to the

“Setting

Bluetooth

Wireless Technology

Connection” section within

Bluetooth

Wireless Technology.

1) : Moves to the previous

screen

2) Connect/Disconnect Phone :

Connect/ disconnects currently

selected phone

3) Delete : Deletes the currently

selected phone

4) Change priority : Sets currently

selected phone to highest connec-

tion priority

Paired Phone List

Phone

Paired PhonePhone

SETUP

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 253

Features of your vehicle

2544

✽NOTICE BEFORE DOWN-

LOADING CONTACTS

• Only contacts within connected

phones can be downloaded. Also

check to see that your mobile phone

supports the download feature.

• To learn more about whether your

mobile phone supports contacts

downloads, refer to your mobile

phone user’s manual.

• The contacts for only the connected

phone can be downloaded.

Downloading Contacts

Press the key Select

Select

As the contacts are downloaded

from the mobile phone, a download

progress bar is displayed.

✽NOTICE

• Upon downloading phone contacts,

the previous corresponding data is

deleted.

• This feature may not be supported

in some mobile phones.

• Voice Recognition may not operate

while contacts are being down-

loaded.

Outgoing Volume

Press the key Select

Select

Use the , buttons to adjust the

outgoing volume level.

✽NOTICE

While on a call, the volume can be

changed by using the key.

Outgoing Volume

PhoneContacts DownloadPhone

SEEK

TRACK

SETUP SETUP

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 254

4 255

Features of your vehicle

Turning Bluetooth System Off

Press the key Select

Select

Once

Bluetooth

Wireless Technology

is turned off,

Bluetooth

Wireless

Technology related features will not

be supported within the audio sys-

tem.

✽NOTICE

To turn Bluetooth®Wireless Technology

back on, go to and

press “Yes”.

Phone

SETUP

Bluetooth System OffPhone

SETUP

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 255

Features of your vehicle

2564

VOICE RECOGNITION

Using Voice Recognition

Starting Voice Recognition

Shortly press the key on the

steering wheel remote controller. Say

a command.

If prompt feedback is in , then

the system will say “Please say a

command after the beep (BEEP)”

• If prompt feedback is in

mode, then the system will only

say “(BEEP)”

• To change Prompt Feedback

/, go to

✽NOTICE

For proper recognition, say the com-

mand after the voice instruction and

beep tone.

Contact List Best Practices

1) Use full names vs. short or single

syllable names (“John Smith” vs.

“Dad”, “Smith Residence” vs.

“Home”)

2) Avoid using special characters or

hyphens (@, &, #, /, -, *, +, etc.)

3) Avoid using acronyms (“In Case

Emergency” vs. “ICE”)

4) Spell words completely, no abbre-

viations (“Doctor Goodman” vs.

“Dr. Goodman”)

Skipping Prompt Messages

While prompt message is being stat-

ed Shortly press the key on

the steering remote controller.

The prompt message is immediately

ended and the beep tone will sound.

After the “beep”, say the voice com-

mand.

Re-starting Voice Recognition

While system waits for a command

Shortly press the key on the

steering remote controller.

The command wait state is immedi-

ately ended and the beep ton will

sound. After the “beep”, say the voice

command.

Prompt Feedback

System

SETUP

OFF

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 256

4 257

Features of your vehicle

❈ Illustration on using voice commands

• Starting voice command.

Shortly pressing the key (less than 0.8 seconds):

• Skipping Voice Recognition

Shortly pressing the key (less than 0.8 seconds):

• Ending voice command.

Shortly pressing the key (less than 0.8 seconds):

More Help

Contacts

Cancel

More Help

Please say a command after

the beep (BEEP)

Please say a command after

the beep (BEEP)

Please say a...

Please say the contact name you want to call.

Ding~

More Help

Here are some examples of mode commands.

You can say a radio type like 'FM', 'AM', or 'Satellite'.

You can also say a media source like 'USB', 'My

Music', or 'iPod®'.

Additionally, there are phone commands like

"Contacts', 'Call History', or 'Dial Number".

You can find more detailed commands in the user's

manual.

Please say a command after the beep.

More Help

Here are some examples of mode commands.

You can say a radio type like 'FM', 'AM', or 'Satellite'.

You can also say a media source like 'USB', 'My

Music', or 'iPod®'.

Additionally, there are phone commands like

"Contacts', 'Call History', or 'Dial Number".

You can find more detailed commands in the user's

manual.

Please say a command after the beep.

(BEEP)

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 257

Features of your vehicle

2584

Command Function

More Help Provides guidance on commands that can be

used anywhere in the system.

Help Provides guidance on commands that can be

used within the current mode.

Call <Name> Calls <Name> saved in Contacts

Ex) Call “John Smith”

Call <Name> Calls <Name> to the number that is saved as

"Mobile" in Contacts

Ex) Call "John Smith" on Mobile

Call <Name> Calls <Name> to the number that is saved as

"Office" in Contacts

Ex) Call "John Smith" in Office

Call <Name> Calls <Name> to the number that is saved as

"Home" in Contacts

Ex) Call "John Smith" at Home

Call <Name> Calls <Name> to the number that is saved as

"Other" in Contacts

Ex) Call "John Smith" on Other

Phone Provides guidance on Phone related com-

mands. After saying this command, say

“Favorites”,“Dial Number”, “Call History” or

“Contacts” execute corresponding functions.

Favorites Displays the Favorite screen.

Call History Displays the Call History screen.

Command Function

Contacts Displays the Contacts screen. After saying

this command, say the name of a contact

saved in the Contacts to automatically con-

nect the call.

Dial Number Displays the Dial number screen. After saying

this command, you can say the number that

you want to call.

Redial Connects the last dialed call number.

Tutorial Provide guidance on how to use voice

recognition and Bluetooth

connections.

•

When listening to the radio, displays the

next radio screen.

(FM1

➟

FM2

➟

➟SAT1➟SAT2➟SAT3➟

FM1)

Radio

•

When listening to a different mode, displays

the most recently played radio screen.

•

When currently listening to the FM radio,

maintains the current state.

•

When listening to a different mode, displays

the most recently played FM screen.

FM1(FM One) Displays the FM1 screen.

FM2(FM Two) Displays the FM2 screen.

AM Displays the AM screen.

(Call by Name)

Voice Command List

• Common Commands : These commands can be used in most operations. (However a few commands may not be

available during certain operations)

on Mobile

in Office

at Home

on Other

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 258

4 259

Features of your vehicle

Command Function

FM Preset 1~6 Plays the most recently played broadcast

saved in FM Preset 1~6.

AM Preset 1~6 Plays the broadcast saved in AM Preset 1~6.

FM 87.5~107.9 Plays the FM broadcast of the corresponding

frequency.

AM 530~1710 Plays the AM broadcast of the corresponding

frequency.

SIRIUS (Satellite)

•

When currently listening to the SiriusXM

maintains the current state.

•

When listening to a different mode, displays

the most recently played SiriusXM

screen.

SIRIUS (Satellite) Displays the selected SiriusXM

screen.

SIRIUS Channel Plays the selected SiriusXM

channel.

Media Moves to the most recently played media

screen.

CD Plays the music saved in the CD.

USB Plays USB music.

iPod

Plays iPod

music.

Command Function

My Music Plays the music saved in My Music.

AUX (Auxiliary) Plays the connected external device.

Bluetooth

Audio Plays the music saved in connected Bluetooth

device.

Mute Mutes the sound.

Cancel (Exit) Ends voice command.

0~223

1~3

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 259

Features of your vehicle

2604

• FM/AM radio Commands : Available during FM, AM

radio operation

• Satellite radio Commands : Commands that can be

used while listening to Satellite Radio.

Command Function

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Scan Scans receivable frequencies from the current

broadcast and plays for 10 seconds each.

Preset Scan Moves to the next preset from the current

present and plays for 10 seconds each.

Command Function

Channel 0~223 Play the selected Satellite Radio channel.

Scan Scans receivable channels from the current

broadcast and plays for 10 seconds each.

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Information Displays the information of the current broad-

cast.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 260

4 261

Features of your vehicle

• Audio CD Commands : Commands available during

Audio CD operation

Command Function

Play Plays the currently paused track.

Pause Pauses the current track.

Shuffle Randomly plays the tracks within the CD.

Shuffle Off Cancels random play to play tracks in sequen-

tial order.

Repeat Repeats the current track.

Repeat Off Cancels repeat play to play tracks in sequen-

tial order.

Track 1~30 Plays the desired track number.

Command Function

Play Plays the currently paused file.

Pause Pauses the current file.

Shuffle Randomly plays the files within the current

folder.

Shuffle Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Next Folder Play the first file in the next folder.

Previous Folder Play the first file in the previous folder.

• MP3 CD and USB Commands : Commands available

during USB and MP3 CD operation

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 261

Features of your vehicle

2624

•iPod

®Commands : Commands available during iPod®

operation

• My Music Commands : Commands available during

My Music operation

Command Function

Play Plays the currently paused song.

Pause Pauses the current song.

Shuffle Randomly plays the songs within the current

category.

Shuffle Off Cancels random play to play songs in sequen-

tial order.

Repeat Repeats the current song.

Repeat Off Cancels repeat play to play songs in sequen-

tial order.

Command Function

Play Plays the currently paused file.

Pause Pauses the current file.

Shuffle Randomly plays all saved files.

Shuffle Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Delete Deletes the current file. You will bypass an

additional confirmation process.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:55 PM Page 262

4 263

Features of your vehicle

SETUP

Starting Mode

Press the key to display the

Setup screen.

You can select and control options

related to , ,

and .

Display Settings

Adjusting the Brightness

Press the key Select

Select

Use the , buttons to adjust the

screen brightness or set the Brightness

on Automatic, Day, or Night mode.

Press the button to reset.

1) Automatic : Adjusts the brightness

automatically

2) Day : Always maintains the bright-

ness on high

3) Night : Always maintains the bright-

ness on low

Mode Pop up

Press the key Select

Select

This feature is used to display the

Mode Pop up screen when entering

radio and media modes.

When this feature is turned on,

pressing the or key

will display the Mode Pop up screen.

✽NOTICE

The media Mode Pop up screen can be

displayed only when two or more

media modes have been connected.

Mode Pop up

Display

Brightness

Display

System

PhoneSoundDisplay

Default

RADIO MEDIA

SETUP

SETUP SETUP

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:56 PM Page 263

Features of your vehicle

2644

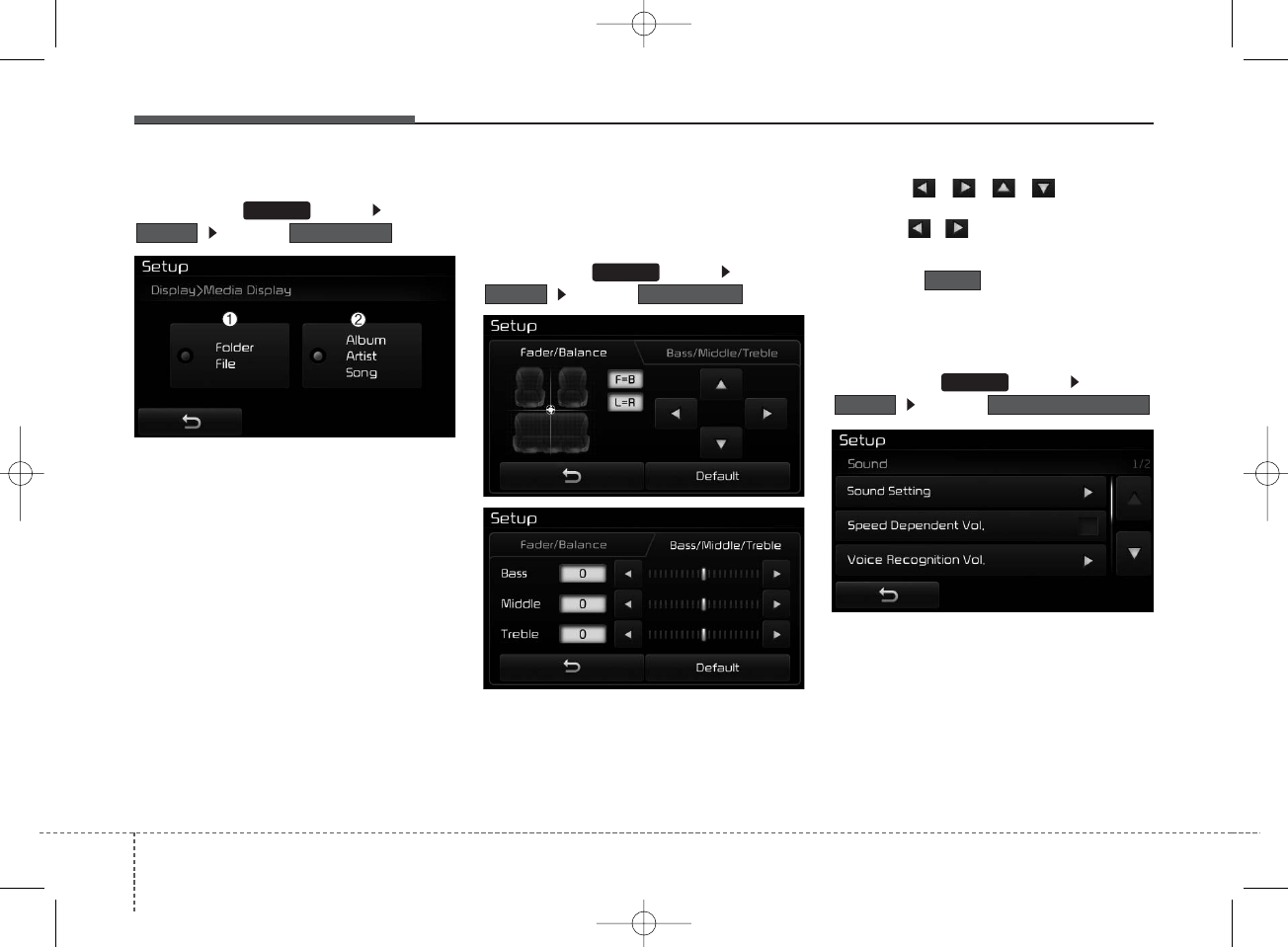

MP3 Information Display

Press the key Select

Select

This feature is used to change the

information displayed within USB

and MP3 CD modes.

1) Folder File : Displays file name

and folder name.

2) Album Artist Song : Displays

album name/artist name/song

name.

Sound Settings

Press the key Select

Select

Use the , , , buttons to

adjust the Fader/Balance settings.

Use the , buttons to adjust the

Bass/Middle/Treble settings.

Press the button to reset.

SDVC (Speed Dependent Volume

Control)

Press the key Select

Select

The volume level is controlled auto-

matically according to the vehicle

speed. SDVC can be set by selecting

from On/Off.

Speed Dependent Vol.

Sound

SETUP

Sound Setting

Sound

Media Display

Display

Default

SETUP

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:56 PM Page 264

4 265

Features of your vehicle

Voice Recognition Volume

Press the key Select

Select

Turn the TUNE knob to adjust the

Voice Recognition volume.

Touch Screen Beep

Press the key Select

Select

This feature is used to turn the touch

screen beep on/off.

System Setting

Memory Information

Press the key Select

Select

This feature displays information

related to system memory.

1) Using : Displays capacity currently

in use

2) Capacity : Displays total capacity

Memory Information

System

SETUP

Touch Screen Beep

Sound

Voice Recognition Vol.

Sound

SETUP SETUP

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:56 PM Page 265

Features of your vehicle

2664

Prompt Feedback

Press the key Select

Select

This feature is used to select the

desired prompt feedback option from

ON and OFF.

1) ON : When using voice recognition,

provides detailed guidance prompts

2) OFF : When using voice recogni-

tion, omits some guidance prompts

Language

Press the key Select

Select

This feature is used to change the

system and voice recognition lan-

guage.

If the language is changed, the sys-

tem will restart and apply the select-

ed language.

REAR VIEW CAMERA

(if equipped)

• The system has been equipped

with a rear view camera for user

safety by allowing a wider rear

range of vision.

• The rear view camera will automat-

ically operate when the ignition key

is turned ON and the transmission

shift lever is positioned into reverse

(R).

• The rear view camera will automat-

ically stop operating when set to a

the transmission shift lever is posi-

tioned to another gear.

LanguageSystemPrompt Feedback

System

SETUP SETUP

CAUTION

The rear view camera has been

equipped with an optical lens to

provide a wider range of vision

and may appear different from

the actual distance. For safety,

directly check the rear and

left/right sides.

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:56 PM Page 266

4 267

Features of your vehicle

iPod®is a registered trademark of

Apple Inc. iPod®mobile digital

device sold separately. The

Bluetooth®word mark and logos

are registered trademarks owned

by Bluetooth SIG, Inc. and any use

of such marks by Kia is under

license. SiriusXM services require

a subscription sold separately, or

as a package, by Sirius XM Radio

Inc. If you decide to continue serv-

ice after your trial, the subscrip-

tion plan you choose will automat-

ically renew thereafter and you

will be charged according to your

chosen payment method at then-

current rates. Fees and taxes

apply. To cancel you must call

SiriusXM at 1-866-635-2349. See

SiriusXM Customer Agreement for

complete terms at www.sir-

iusxm.com. SiriusXM U.S. satellite

and data services are available

only in the 48 contiguous USA, DC

and PR (with coverage limita-

tions). SiriusXM satellite service is

also available in Canada; see

www.siriusxm.ca. All fees and pro-

gramming subject to change.

Sirius, XM and all related marks

and logos are trademarks of Sirius

XM Radio Inc. Android™ is a

trademark of Google, Inc.

BlackBerry is a registered trade-

mark of Research In Motion

Limited (RIM). All other marks,

channel names and logos are the

property of their respective own-

K_YD_IQS_AB3.0[USA]:XM usa 4(101~audio)1029.qxd 5/12/2015 6:56 PM Page 267

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

■Reorient or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void

your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

IC Warning

"This device complies with Industry Canada licence-exempt RSS standard(s)."

Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must

accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et (2)

l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

HYUNDAI MOBIS AM1A0B0AN DIGITAL CAR AUDIO SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM

User Manual

Navigation menu

Namespaces

Views

Navigation
