HYUNDAI MOBIS AM1A1IHAN DIGITAL CAR AUDIO SYSTEM User Manual UB usa TD usa 4 87 audio

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM UB usa TD usa 4 87 audio

User Manual

Features of your vehicle

How vehicle audio works

AM and FM radio signals are broad-

cast from transmitter towers located

around your city. They are intercept-

ed by the radio antenna on your vehi-

cle. This signal is then received by

the radio and sent to your vehicle

speakers.

When a strong radio signal has

reached your vehicle, the precise

engineering of your audio system

ensures the best possible quality

reproduction.

However, in some cases the signal

coming to your vehicle may not be

strong and clear. This can be due to

factors, such as the distance from

the radio station, closeness of other

strong radio stations or the presence

of buildings, bridges or other large

obstructions in the area.

AM broadcasts can be received at

greater distances than FM broad-

casts. This is because AM radio

waves are transmitted at low fre-

quencies. These long, low frequency

radio waves can follow the curvature

of the earth rather than travelling

straight out into the atmosphere. In

addition, they curve around obstruc-

tions so that they can provide better

signal coverage.

JBM001

FM reception

JBM002

AM reception

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 1

Features of your vehicle

JBM005

FM broadcasts are transmitted at

high frequencies and do not bend to

follow the earth's surface. Because

of this, FM broadcasts generally

begin to fade at short distances from

the station. Also, FM signals are eas-

ily affected by buildings, mountains,

or other obstructions. These can

result in certain listening conditions

which might lead you to believe a

problem exists with your radio. The

following conditions are normal and

do not indicate radio trouble:

• Fading - As your vehicle moves

away from the radio station, the

signal will weaken and sound will

begin to fade. When this occurs,

we suggest that you select another

stronger station.

• Flutter/Static - Weak FM signals or

large obstructions between the

transmitter and your radio can dis-

turb the signal causing static or

fluttering noises to occur. Reducing

the treble level may lessen this

effect until the disturbance clears.

• Station Swapping - As a FM signal

weakens, another more powerful

signal near the same frequency

may begin to play. This is because

your radio is designed to lock onto

the clearest signal. If this occurs,

select another station with a

stronger signal.

• Multi-Path Cancellation - Radio

signals being received from sever-

al directions can cause distortion

or fluttering. This can be caused by

a direct and reflected signal from

the same station, or by signals

from two stations with close fre-

quencies. If this occurs, select

another station until the condition

has passed.

JBM004JBM003

FM radio station

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 2

Features of your vehicle

Satellite radio reception

You may experience difficulties in

receiving SIRIUS®satellite radio sig-

nals in the following situations.

• If you are driving in a tunnel or a

covered parking area.

• If you are driving beneath the top

level of a multi-level freeway.

• If you drive under a bridge.

• If you are driving next to a tall vehi-

cle (such as a truck or a bus) that

blocks the signal.

• If you are driving in a valley where

the surrounding hills or peaks

block the signal from the satellite.

• If you are driving on a mountain

road where is the signal blocked by

mountains.

• If you are driving in an area with tall

trees that block the signal (30 ft. /

10m or more), for example on an

road that goes through a dense for-

est.

• The signal can become weak in

some areas that are not covered

by the SIRIUS repeater network.

There may be other unforeseen cir-

cumstances leading to reception

problems with the SIRIUS satellite

radio signal.

Using a cellular phone or a two-

way radio

When a cellular phone is used inside

the vehicle, noise may be produced

from the audio system. This does not

mean that something is wrong with

the audio equipment. In such a case,

use the cellular phone at a place as

far as possible from the audio equip-

ment.

SATELITE2

SATELITE1

WARNING - Cell phone

use

Do not use a cellular phone

while driving. Stop at a safe

location to use a cellular phone.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 3

Features of your vehicle

Care of disc (if equipped)

• If the temperature inside the car is

too high, open the car windows for

ventilation before using your car

audio.

• It is illegal to copy and use

MP3/WMA/AAC/WAVE files with-

out permission. Use CDs that are

created only by lawful means.

• Do not apply volatile agents such

as benzene and thinner, normal

cleaners and magnetic sprays

made for analogue disc onto CDs.

• To prevent the disc surface from

getting damaged. Hold and carry

CDs by the edges or the edges of

the center hole only.

• Clean the disc surface with a piece

of soft cloth before playback (wipe

it from the center to the outside

edge).

• Do not damage the disc surface or

attach pieces of sticky tape or

paper onto it.

• Make sure on undesirable matter

other than CDs are inserted into

the CD player (Do not insert more

than one CD at a time).

• Keep CDs in their cases after use

to protect them from scratches or

dirt.

• Depending on the type of CD-

R/CD-RW CDs, certain CDs may

not operate normally according to

manufacturing companies or mak-

ing and recording methods. In such

circumstances, if you still continue

to use those CDs, they may cause

the malfunction of your car audio

system.

✽NOTICE - Playing an

Incompatible Copy-Protected

Audio CD

Some copy protected CDs, which do

not comply with the international

audio CD standards (Red Book),

may not play on your car audio.

Please note that if you try to play

copy protected CDs and the CD

player does not perform correctly

the CDs maybe defective, not the CD

player.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 4

Features of your vehicle

NOTE:

Order of playing files (folders) :

1. Song playing order : to

sequentially.

2. Folder playing order :

❋If no song file is contained in

the folder, that folder is not dis-

played.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 5

Features of your vehicle

❋No logo will be shown if the

Bluetooth

Wireless Technology

feature is not supported.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 6

Features of your vehicle

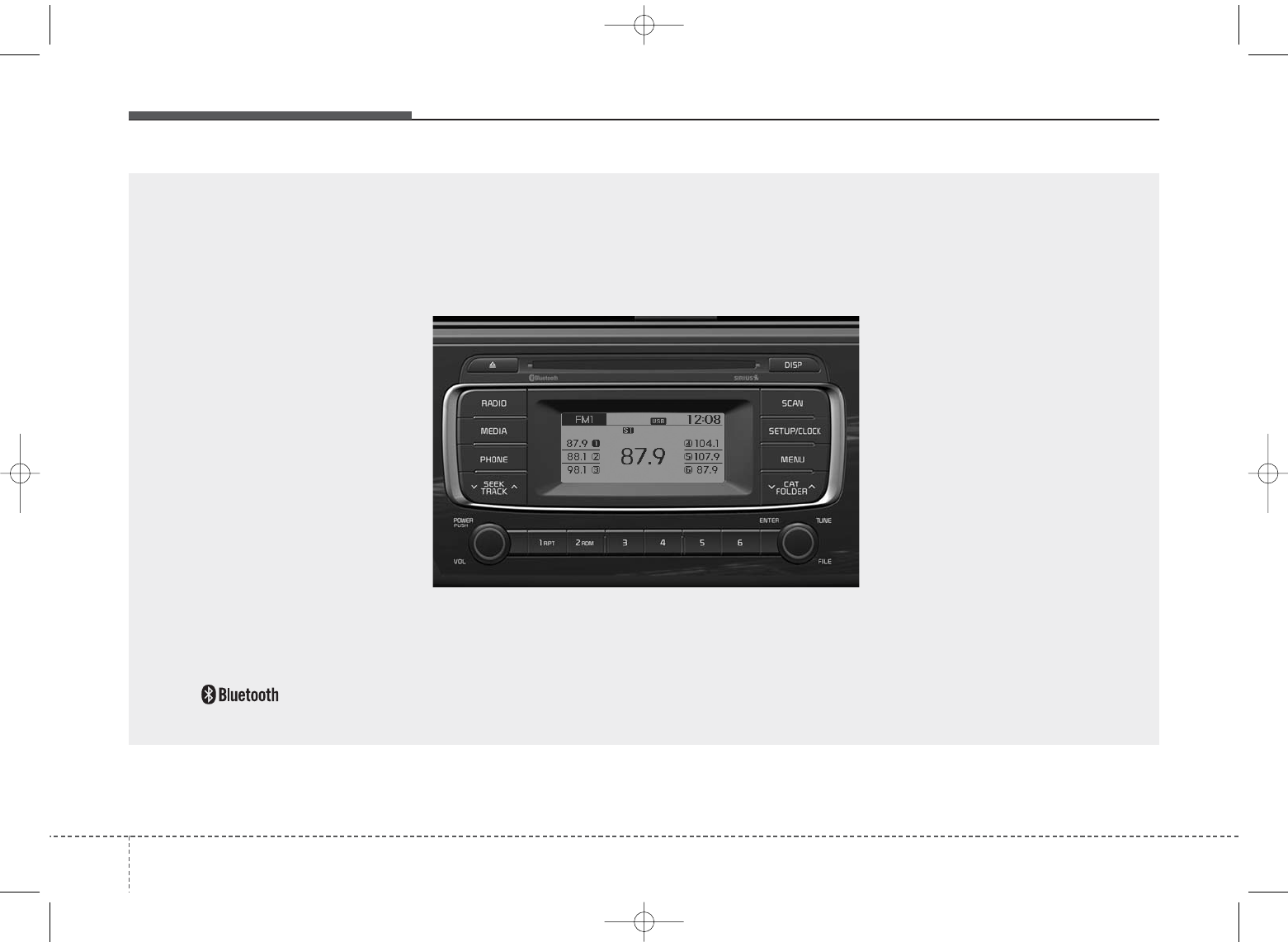

SYSTEM CONTROLLERS

AND FUNCTIONS

Audio Head Unit

1. (EJECT)

• Ejects the disc.

• Changes to FM/AM/SIRIUS mode.

• Each time the key is pressed, the

mode is changed in order of FM1 ➟

FM2 ➟AM ➟SAT1 ➟SAT2 ➟SAT3

❈ In Setup>Display, the radio pop up

screen will be displayed when

[Mode Pop up] is turned .

When the pop up screen is dis-

played, use the TUNE knob or

keys ~ to select the

desired mode.

• Changes to CD, USB, iPod®, AUX,

My Music, BT Audio modes.

• Each time the key is pressed, the

mode is changed in order of CD,

USB, iPod®, AUX, My Music, BT

Audio modes.

❈In Setup>Display, the media pop

up screen will be displayed when

[Mode Pop up] is turned .

When the pop up screen is dis-

played, use the TUNE knob or

keys ~ to select the

desired mode.

• Operates Phone Screen

❈When a phone is not connected,

the connection screen is dis-

played.

• Radio Mode : Automatically

searches for broadcast frequen-

cies.

• CD, USB, iPod®, My Music modes :

- Shortly press the key (under 0.8

seconds): Moves to next or previ-

ous song(file)

- Press and hold the key (over 0.8

seconds): Rewinds or fast-for-

wards the current song(file)

6. PWR/VOL knob

• Power Knob : Turns power

On/Off by pressing the knob

• Volume Knob : Sets volume by

turning the knob left/right

7. ~ (Preset)

• Radio Mode: Saves frequencies

(channels) or receives saved fre-

quencies (channels)

• CD, USB, iPod®, My Music mode

- : Repeat

- : Random

• In the Radio, Media, Setup, and

Menu pop up screen, the number

menu is selected.

1 6

SEEK

TRACK

PHONE

MEDIA

RADIO

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 7

Features of your vehicle

• Each time the button is shortly

pressed (under 0.8 seconds), it

sets the screen Off ➟Screen On ➟

Screen Off

❈Audio operation is maintained and

only the screen will be turned Off.

In the screen Off state, press any

key to turn the screen On again.

• Radio Mode

- Shortly press the key (under 0.8

seconds): Previews each broad-

cast for 5 seconds each

- Press and hold the key (over 0.8

seconds): Previews the broad-

casts saved in Preset ~

for 5 seconds each.

❈Press the key again to

continue listening to the current

frequency.

❈SIRIUS Radio does not support

the Preset scan feature.

• CD, USB, iPod®mode

- Shortly press the key (under 0.8

seconds): Previews each song

(file) for 10 seconds each

❈Press the key again to

continue listening to the current

song (file).

10.

• Shortly press the key (under 0.8

seconds) : Moves to the Display,

Sound, Phone, System setting

modes

• Press and hold the key (over 0.8

seconds) : Move to the Time set-

ting screen

11.

• Displays menus for the current

mode.

❈iPod®List : Move to parent category

12.

• Radio Mode

SIRIUS RADIO : Category Search

• MP3, CD, USB mode : Folder

•iPod

®mode: Moves to parent folder

❈May differ depending on the

selected audio.

13. TUNE knob

• Radio mode : Changes frequency

by turning the knob left/right

• CD, USB, iPod®mode: Searches

songs (files) by turning the knob

left/right

❈When the desired song is dis-

played, press the knob to play the

song.

• Moves focus in all selection menus

and selects menus

DISP

SETUP/CLOCK

CAT

FOLDER

SCAN

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 8

Features of your vehicle

14.

• Changes to FM/AM mode.

• Each time the key is pressed, the

mode is changed in order of FM1 ➟

FM2 ➟AM

15. (SIRIUS Satellite Radio)

• Changes to SIRIUS Satellite Radio

mode.

• Each time the key is pressed, the

mode is changed in order of SAT1

➟ SAT2 ➟ SAT3

SAT

FM/AM

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 9

Features of your vehicle

104

DISPLAY SETTINGS

Press the key Select

[Display] through TUNE knob or

key Select menu through

TUNE knob

Mode Pop up

[Mode Pop up] Changes /

selection mode

• During On state, press the

or key to display the mode

change pop up screen.

Text Scroll

[Text Scroll] Set /

• : Maintains scroll

• : Scrolls only one (1) time.

Media Display

When playing an MP3 file, select the

desired display info from ‘Folder/File’

or ‘Album/Artist/Song’.

Off

OffOn

MEDIA

RADIO

OffOn

SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 10

4 11

Features of your vehicle

SOUND SETTINGS

Press the key Select

[Sound] through TUNE knob or

key Select menu through

TUNE knob

Sound Settings

This menu allows you to set the

‘Bass, Middle, Treble’ and the Sound

Fader and Balance.

Select [Sound Settings] Select

menu through TUNE knob Turn

TUNE knob left/right to set

• Bass, Middle, Treble : Selects the

sound tone.

• Fader, Balance : Moves the sound

fader and balance.

• Default : Restores default settings.

❈Back : While adjusting values, re-

pressing the TUNE knob will

restore the parent menu.

Virtual Sound

The PoewrBass, PowerTreble, and

Surround can be set.

Select [Virtual Sound] Set menu

through TUNE knob Set

/ through TUNE knob

• PowerBass : This is a sound sys-

tem feature that provides live bass.

• PowerTreble : This is a sound sys-

tem feature that provides live tre-

ble.

• Surround : This is a sound system

feature that provides surround

sound.

Off

SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 11

Features of your vehicle

124

Speed Dependent Volume

Control

This feature is used to automatically

control the volume level according to

the speed of the vehicle.

Select [SDVC] Set in 4 levels [Off/

Low/Mid/High] of TUNE knob

Voice Recognition Volume

Adjusts voice recognition volume.

Select [Voice Recognition Vol.] Set

volume of TUNE knob

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 12

4 13

Features of your vehicle

CLOCK SETTINGS

Press the key Select [Clock]

through TUNE knob or key

Select menu through TUNE knob

Clock Settings

This menu is used to set the time.

Select [Clock Settings] Set through

TUNE knob Press TUNE knob

❈Adjust the number currently in

focus to set the [hour] and press

the TUNE knob to set the [minute].

Calendar Settings

This menu is used to set the date

(MM/DD/YYYY).

Select [Calendar Settings] Set

through TUNE knob Press

TUNE knob

❈Adjust the number currently in

focus to make the settings and

press the TUNE knob to move to

the next setting. (Set in order of

Month/Day/Year)

Clock Display when Power is

OFF

Select [Clock Disp.(Pwr Off) Set

/ through TUNE knob

• : Displays time/date on

screen

•: Turn off.

Off

OffOn

SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 13

Features of your vehicle

144

SYSTEM SETTINGS

Press the key Select

[System] Select menu through

TUNE knob

Memory Information

Displays currently used memory and

total system memory.

Select [Memory Information] OK

The currently used memory is dis-

played on the left side while the total

system memory is displayed on the

right side.

Prompt Feedback

This feature is used to change voice

command feedback between Normal

and Expert modes.

Select [Prompt Feedback] Set

through TUNE knob

• Normal : This mode is for beginner

users and provides detailed

instructions during voice command

operation.

• Expert : This mode is for expert

users and omits some information

during voice command operation.

(When using Expert mode, guid-

ance instructions can be heard

through the [Help] or [Menu] com-

mands.

Language

This menu is used to set the display

and voice recognition language.

Select [Language] Set through

TUNE knob

❈The system will reboot after the

language is changed.

❈Language support by region

SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 14

4 15

Features of your vehicle

RADIO : FM, AM OR SIRIUS

SEEK

Press the key

• Shortly pressing the key (under 0.8

seconds): Changes the frequency.

• Pressing and holding the key (over

0.8 seconds): Automatically

searches for the next frequency.

Preset SEEK

Press the key ~

• Shortly pressing the key (under 0.8

seconds) : Plays the frequency

saved in the corresponding key.

• Pressing and holding the key (over

0.8 seconds) : Pressing and hold-

ing the desired key from ~

will save the currently playing

broadcast to the selected key and

sound a BEEP.

SCAN

Press the key

• Shortly pressing the key (under 0.8

seconds): The broadcast frequen-

cy increases and previews each

broadcast for 5 seconds each.

After scanning all frequencies,

returns and plays the current

broadcast frequency.

• Pressing and holding the key (over

0.8 seconds): Previews the broad-

casts saved in Preset ~

for 5 seconds each.

Selecting through manual

Turn the TUNE knob left/right to

adjust the frequency.

• FM : Changes by 200KHz

• AM : Changes by 10MHz

SCANRADIO

61RADIO

SEEK

TRACK

RADIO

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 15

Features of your vehicle

164

Within key are the A.Store

(Auto Store).

A.Store

Press the key Set [A.Store]

through TUNE knob or key.

Saves broadcasts with superior

reception to ~ keys. If no

frequencies are received, then the

most recently received frequency will

be broadcast.

1 6

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 16

4 17

Features of your vehicle

SIRIUS Satellite Radio information (if equipped)

Satellite Radio channels:

SIRIUS Satellite Radio has over 130

channels, including 69 channels of

100% commercial-free music, plus

sports, news, talk and entertainment

available nationwide in your vehicle.

For more information and a complete

list of SIRIUS Satellite Radio chan-

nels, visit sirius.com in the United

States, sirius-canada.ca in Canada,

or call SIRIUS at 1-888-539-7474.

Satellite Radio reception factors:

To receive the satellite signal, your

vehicle has been equipped with a

satellite radio antenna located on the

roof of your vehicle. The vehicle roof

provides the best location for an

unobstructed, open view of the sky, a

requirement of a satellite radio sys-

tem. Like AM/FM, there are several

factors that can affect satellite radio

reception performance:

• Antenna obstructions: For optimal

reception performance, keep the

antenna clear of snow and ice

build-up and keep luggage and

other material as far away from the

antenna as possible.

• Terrain: Hills, mountains, tall build-

ings, bridges, tunnels, freeway over-

passes, parking garages, dense

tree foliage and thunderstorms can

interfere with your reception.

SIRIUS Satellite Radio service:

SIRIUS Satellite Radio is a subscrip-

tion based satellite radio service that

broadcasts music, sports, news and

entertainment programming to radio

receivers, which are available for

installation in motor vehicles or facto-

ry installed, as well as for the home,

portable and wireless devices, and

through an Internet connection on

personal computer.

Vehicles that are equipped with a

factory installed SIRIUS Satellite

Radio system include:

• Hardware and an introductory trial

subscription term, which begins on

the date of sale or lease of the

vehicle.

• For a small upgrade fee, access to

SIRIUS music channels, and other

select channels over the Internet

using any computer connected to

the Internet (U.S. customers only).

For information on extended sub-

scription terms, contact SIRIUS at

1-888-539-7474.

NOTE:

Satellite Radio requires SIRIUS®

compatible receiver and a subscrip-

tion service fee after trial period.

Vehicles without a factory-installed

radio receiver require hardware pur-

chase and installation. Please see

your dealer for further details. All

fees and programming subject to

change.

Subscriptions governed by the SIR-

IUS Terms & Conditions available at

www.sirius.com / service terms.

Available only in the 48 contiguous

United States and the District of

Columbia. Service available in

Canada; see www.siriuscanada.ca

Kia shall not be responsible for

any such programming changes.

Satellite Radio Electronic Serial

Number (ESN) : This 12-digit

Satellite Serial Number is needed to

re-activate, modify or track your

satellite radio account. You will need

this number when communicating

with SIRIUS.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 17

Features of your vehicle

184

SIRIUS RADIO

Using SIRIUS Satellite Radio

Your Kia vehicle is equipped with a 3

month complimentary period of SIR-

IUS Satellite Radio so you have

access to over 130 channels of

music, information, and entertain-

ment programming.

Activation

In order to extend or reactivate your

subscription to SIRIUS Satellite

Radio, you will need to contact SIR-

IUS Customer Care at 800-643-

2112. Have your 12 digit SID (Sirius

Identification Number)/ESN

(Electronic Serial Number) ready. To

retrieve the SID/ESN, turn on the

radio, press the [SAT] button, and

tune to channel zero.

Please note that the vehicle will need

to be turned on, in Sirius mode, and

have an unobstructed view of the sky

in order for the radio to receive the

activation signal.

SEEK

Press the key

• Shortly pressing the key (under 0.8

seconds): select previous or next

channel.

• Pressing and holding the key (over

0.8 seconds): continuously move

to previous or next channel.

❈If the “Category” icon is displayed,

channels are changed within the

current category.

SCAN

Press the key

• Shortly pressing the key (under 0.8

seconds): Previews each broad-

cast for 5 seconds each

❈Press the key again to

continue listening to the current

frequency

❈If the “Category” icon is displayed,

channels are changed within the

current category.

Category

Press the key Set through

the TUNE knob

• The display will indicate the cate-

gory menus, highlight the category

that the current channel belongs

to.

• In the Category List Mode, press

the key to navigate cate-

gory list.

• Press the tune knob to select the

lowest channel in the highlighted

category.

CAT

FOLDER

CAT

FOLDER

SCAN

SCANRADIO

RADIO

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 18

4 19

Features of your vehicle

❈If channel is selected by selecting

category, then the “CATEGORY”

icon is displayed at the top of the

screen.

Preset

Press the key ~

• Shortly pressing the key (under 0.8

seconds): Plays the frequency

saved in the corresponding key.

• Pressing and holding the key (over

0.8 seconds): Pressing and holding

the desired key from ~

will save the current broadcast to

the selected key and sound a

BEEP.

✽Troubleshooting

1. Antenna Error

If this message is displayed, the

antenna or antenna cable is bro-

ken or unplugged. Please consult

with your Kia dealership.

2. Acquiring Signal

If this message is displayed, it

means that the antenna is covered

and that the SIRIUS Satellite

Radio signal is not available.

Ensure the antenna is uncovered

and has a clear view of the sky.

Tune

• Rotate TUNE knob : Changes

the channel number or scrolls cate-

gory list.

• Press TUNE knob : Selects the

menu.

Select category menu through the

TUNE knob Press the

key Select [ Info] through the

TUNE knob or key

Info (Information)

Displays the Artist/Song info of the

current song.

1 6

RADIO 1 6

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 19

Features of your vehicle

204

USING YOUR USB DEVICE

• When using an external USB

device, make sure the device is

not connected when starting up

the vehicle.

• If you start the engine when the

USB device is connected, it may

damage the USB device. (USB

flashdrives are very sensitive to

electric shock.) Connect the

device after starting up.

• If you start the engine when the

USB device is connected, it may

damage the USB device.

• The System may not play inau-

thentic MP3 or WMA files.

1) It can only play MP3 files with

the compression rate between

8Kbps~320Kbps.

2) It can only play WMA music

files with the compression rate

between 8Kbps~320Kbps.

• Take precautions for static elec-

tricity when connecting or dis-

connecting the external USB

device.

• An encrypted MP3 PLAYER is

not recognizable.

• Depending on the condition of

the external USB device, the

connected external USB device

can be unrecognizable.

• When the formatted byte/sector

setting of External USB device is

not either 512BYTE or

2048BYTE, then the device will

not be recognized.

• Use only a USB device format-

ted to FAT 12/16/32.

• USB devices without USB I/F

authentication may not be recog-

nizable.

• If you repeatedly connect or dis-

connect the USB device in a

short period of time, it may break

the device.

• You may hear a strange noise

when connecting or disconnect-

ing a USB device.

• If you disconnect the external

USB device during playback in

USB mode, the external USB

device can be damaged or may

malfunction.

Therefore, disconnect the exter-

nal USB device when the audio

is turned off or in another mode.

(e.g, Radio, SIRIUS or CD)

• Depending on the type and

capacity of the external USB

device or the type of the files

stored in the device, there is a

difference in the time taken for

recognition of the device.

• Do not use the USB device for

purposes other than playing

music files.

• Playing videos through the USB

is not supported.

• If you use devices such as a

USB hub purchased separately,

the vehicle’s audio system may

not recognize the USB device. In

that case, connect the USB

device directly to the multimedia

terminal of the vehicle.

• If the USB device is divided by

logical drives, only the music

files on the highest-priority drive

are recognized by car audio.

(Continued)

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 20

4 21

Features of your vehicle

(Continued)

• Some USB devices such as

MP3 Player/Cellular

phone/Digital camera may be

unrecognizable.

• Charging through the USB may

not be supported in some mobile

devices.

• USB HDD or USB types liable to

connection failures due to vehi-

cle vibrations are not supported.

(i-stick type)

• Some non-standard USB

devices (METAL COVER TYPE

USB) can be unrecognizable.

• Some USB flash memory read-

ers (such as CF, SD, micro SD,

etc.) or external-HDD type

devices can be unrecognizable.

• Music files protected by DRM

(DIGITAL RIGHTS MANAGE-

MENT) are not recognizable.

CAUTION - USB Jack

Damage

• The data in the USB memory

may be lost while using this

audio.

Always back up important

data on a personal storage

device.

• Please avoid using USB mem-

ory products which can be

used as key chains or cellular

phone accessories as they

could cause damage to the

USB jack. Please make certain

only to use plug type connec-

tor products as shown below.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 21

Features of your vehicle

224

BASIC METHOD OF USE :

Audio CD / MP3 CD / USB /

iPod®/ My Music

Press the key to change the

mod mode in order of CD ➟

USB(iPod®) ➟ AUX ➟ My Music ➟

BT Audio.

The folder/file name is displayed on

the screen.

❈`The CD is automatically played

when a CD is inserted.

❈`The USB music is automatically

played when a USB is connected.

Press the key Select [

Display] through the TUNE knob

or key Select [Media

Display] Media Display

• [Media Display] : The screen dis-

play info can be changed to

Album/Artist/ Song name.

Repeat

While song (file) is playing

(RPT) key

Audio CD, MP3 CD, USB, iPod®, My

Music mode: RPT on screen

• To repeat one song (Shortly press-

ing the key (under 0.8 seconds)):

Repeats the current song.

MP3 CD, USB mode: FLD.RPT on

screen

• To repeat folder (Pressing and

holding the key (over 0.8 sec-

onds)): repeats all files within the

current folder.

❈Press the key again to turn

off repeat.

Random

While song (file) is playing

(RDM) key

Audio CD, My Music mode: RDM on

screen

• Random (Shortly pressing the key

(under 0.8 seconds)): Plays all

songs in random order.

MP3 CD, USB mode: FLD.RDM on

screen

• Folder Random (press the key) :

Plays all files within the current fold-

er in random order.

iPod®mode: ALL RDM on screen

• All Random (press the key) : Plays

all files in random order.

SETUP

MEDIA

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 22

4 23

Features of your vehicle

MP3 CD, USB, iPod®mode: ALL

RDM on screen

•All Random (pressing and holding the

key (over 0.8 seconds)): Plays all files

in random order.

❈Press the key again to turn

off repeat.

Changing Song/File

While song (file) is playing

key

• Shortly pressing the key (under 0.8

seconds) : Plays the current song

from the beginning.

❈ If the key is pressed

again within 1 second, the previ-

ous song is played.

• Pressing and holding the key (over

0.8 seconds): Rewinds the song.

While song (file) is playing

key

• Shortly pressing the key (under 0.8

seconds) : Plays the next song.

• Pressing and holding the key (over

0.8 seconds) : Fast forwards the

song.

Scan

While song (file) is playing

key

Scans all songs for 10 seconds start-

ing from the next song.

❈Press the key again to turn

off.

❈The SCAN function is not support-

ed in iPod®mode.

Folder Search : MP3 CD, USB

Mode

While file is playing

( ) (Folder Up) key

• Searches the next folder.

While file is playing

( )(Folder Down) key

• Searches the previous folder.

❈If a folder is selected by pressing

the TUNE knob, the first file

within the selected folder will be

played.

❈In iPod®mode, moves to the

Parent Folder.

Searching Songs (File)

• Turning

TUNE

knob : Searches

for songs (files)

• Pressing TUNE knob : Plays

selected song (file).

CAT

FOLDER

CAT

FOLDER

CAT

FOLDER

CAT

FOLDER

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 23

Features of your vehicle

244

MENU : Audio CD

Press the CD MP3 mode key

to set the Repeat, Random,

Information features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key to repeat the current song.

❈Press RPT again to turn off.

Random

Press the key Set [ RDM]

through the TUNE knob or

key to randomly play songs within

the current folder.

❈Press RDM again to turn off.

Information

Press the key Set [ Info]

through the TUNE knob or

key to display information of the cur-

rent song.

❈Press the key to turn off

info display.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 24

4 25

Features of your vehicle

MENU : MP3 CD / USB

Press the CD MP3 mode key

to set the Repeat, Folder Random,

Folder Repeat, All Random,

Information, and Copy features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key to repeat the current song.

❈ Press RPT again to turn off.

Folder Random

Press the key Set [

F.RDM] through the

TUNE

knob or

key to randomly play songs

within the current folder.

❈Press F.RDM again to turn off.

Folder Repeat

Press the key Set [ F.RPT]

through the

TUNE

knob or

key to repeat songs within the cur-

rent folder.

❈Press F.RPT again to turn off.

All Random

Press the key Set [ A.RDM]

through the

TUNE

knob or

key to randomly play all songs within

the CD.

❈Press A.RDM again to turn off.

Information

Press the key Set [ Info]

through the

TUNE

knob or

key to display information of the cur-

rent song.

❈Press the key to turn off

info display.

Copy

Press the key Set [ Copy]

through the

TUNE

knob or

key.

• This is used to copy the current

song into My Music. You can play

the copied Music in My Music

mode.

❈If another key is pressed while

copying is in progress, a pop up

asking you whether to cancel

copying is displayed.

❈If another media is connected or

inserted (USB, CD, iPod®, AUX)

while copying is in progress, copy-

ing is canceled.

❈Music will not be played while

copying is in progress.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 25

Features of your vehicle

264

MENU : iPod®

In iPod®mode, press the key

to set the Repeat, Random,

Information and Search features.

Repeat

Press the key Set [ RPT]

through the

TUNE

knob or

key to repeat the current song.

❈Press RPT again to turn repeat

off.

Album Random

Press the key Set [ Alb.RDM]

through the TUNE knob or key.

Plays albums within the currently

playing category in random order.

❈Press Alb.RDM again to turn off.

All Random

Press the key Set [ A.RDM]

through the TUNE knob or

key.

Plays all songs within the currently

playing category in random order.

❈Press A.RDM again to turn off.

Information

Press the key Set [ Info]

through the

TUNE

knob or

key.

Displays information of the current

song.

❈Press the key to turn off

info display.

• Some iPod®models may not sup-

port communication protocol and

files may not properly play.

Supported iPod®models:

- iPod Mini®

- iPod 4th(Photo) ~ 6th(Classic)

generation

- iPod Nano®1st~4th generation

- iPod Touch®1st~2nd generation

• The order of search or playback of

songs in the iPod®can be different

from the order searched in the

audio system.

• If the iPod®disabled due to its own

malfunction, reset the iPod®.

(Reset: Refer to iPod®manual)

• An iPod®may not operate normal-

ly on low battery.

• Some iPod®devices, such as the

iPhone, can be connected through

the -interface. The device must

have audio

Bluetooth

Wireless

Technology

capability (such as for

stereo headphone

Bluetooth

Wireless Technology

). The device

can play, but it will not be controlled

by th eaudio system.

• To use iPod®features within the

audio, use the cable provided upon

purchasing an iPod®device.

• Skipping or improper operation may

occur depending on the characteris-

tics of your iPod®/iPhone®device.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 26

4 27

Features of your vehicle

• If your iPhone is connected to both

the

Bluetooth

Wireless

Technology

and USB, the sound

may not be properly played. In your

iPhone, select the Dock connector or

Bluetooth

Wireless Technology

change the sound output (source).

• When connecting iPod®with the

iPod®Power Cable, insert the con-

nector to the multimedia socket

completely. If not inserted com-

pletely, communications between

iPod®and audio may be interrupt-

ed.

• When adjusting the sound effects

of the iPod®and the audio system,

the sound effects of both devices

will overlap and might reduce or

distort the quality of the sound.

• Deactivate (turn off) the equalizer

function of an iPod®when adjust-

ing the audio system’s volume, and

turn off the equalizer of the audio

system when using the equalizer of

an iPod®.

• When not using iPod®with car

audio, detach the iPod®cable from

iPod®. Otherwise, iPod®may

remain in accessory mode, and

may not work properly.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 27

Features of your vehicle

284

MENU : My Music Mode

In My Music mode, press the

key to set the Repeat, Random,

Information, Delete, Delete All, and

Delete Selection features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key.

Repeats the currently playing song.

❈Press RPT again to turn repeat

off.

Random

Press the key Set [ RDM]

through the TUNE knob or key.

Plays all songs within the currently

playing folder in random order.

❈Press RDM again to turn random

off.

Information

Press the key Set [ Info]

through the

TUNE

knob or

key.

Displays information of the current

song.

❈Press the key to turn off

info display.

Delete

Press the key Set [ Delete]

through the TUNE knob or

key.

• Deletes currently playing file

In the play screen, pressing delete

will delete the currently playing song.

• Deletes file from list

➀ Select the file you wish to delete

by using the TUNE knob.

➁ Press the key and select

the delete menu to delete the

selected file.

Delete All

Press the key Set [ Del.All]

through the TUNE knob or key.

Deletes all songs of My Music.

Delete Selection

Press the key Set [ Del.Sel]

through the TUNE knob or

key.

Songs within My Music are selected

and deleted.

➀ Select the songs you wish to

delete from the list.

➁ After selecting, press the

key and select the delete menu.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 28

4 29

Features of your vehicle

My Music

• Even if memory is available, a

maximum of 6,000 songs can be

stored.

• The same song can be copied up

to 1,000 times.

• Memory info can be checked in the

System menu of Setup.

AUX

AUX is used to play external MEDIA

currently connected with the AUX

terminal.

AUX mode will automatically start

when an external device is connect-

ed to the AUX terminal.

If an external device is connected,

you can also press the key to

change to AUX mode.

❈AUX mode cannot be started

unless there is an external device

connected to the AUX terminal.

AUX

• Fully insert the AUX cable into the

AUX terminal for use.

MEDIA

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 29

Features of your vehicle

304

Bluetooth

Wireless Technology

AUDIO

What is

Bluetooth®

Wireless

Technology

Bluetooth

Wireless Technology allows

devices to be connected in a short dis-

tance, including hands-free devices,

stereo headsets, wireless remote con-

trollers, etc. For more information, visit

the

Bluetooth

Wireless Technology

website at

www.Bluetooth.com

Before using

Bluetooth

Wireless

Technology audio features

•

Bluetooth

Wireless Technology

audio may not be supported depend-

ing on the compatibility of your

Bluetooth

Wireless Technology

mobile phone.

• In order to use

Bluetooth

Wireless

Technology audio, you must first

pair and connect the

Bluetooth

Wireless Technology mobile phone.

• The

Bluetooth

word mark and

logos are registered trademarks

owned by Bluetooth SIG, Inc. and

any use of such marks by Kia is

under license. Other trademarks

and trade names are those of their

respective owners. A Bluetooth®

enabled cell phone is required to

use

Bluetooth

Wireless Technology

•

Bluetooth

Wireless Technology

audio can be used only when the

[Audio Streaming] of Phone is turned

❈ Setting

Bluetooth

Wireless Technology

Audio Streaming : Press the

key Select [Phone] Select [Audio

Streaming] through the TUNE

knob Set

OffOn

SETUP

WARNING

Driving while distracted can

result in a loss of vehicle control

that may lead to an accident,

severe personal injury, and

death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a vehi-

cle or which are not permissible

by law should never be used dur-

ing operation of the vehicle.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 30

431

Features of your vehicle

Starting

Bluetooth

Wireless

Technology

Audio

• Press the key to change

the mode in order of

CD➟USB➟AUX➟My Music➟BT

Audio.

• If BT Audio is selected,

Bluetooth

Wireless Technology

audio will start

playing.

❈Audio may not automatically start

playing in some mobile phones.

Using the

Bluetooth

Wireless

Technology

audio features

• Play / Stop

Press the TUNE knob to play and

pause the current song.

❈The previous song / next song /

play / pause functions may not be

supported in some mobile phones.

MEDIA

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 31

Features of your vehicle

324

PHONE

Before using the

Bluetooth

Wireless

Technology phone features

• In order to use

Bluetooth

Wireless

Technology phone, you must first

pair and connect the

Bluetooth

Wireless Technology mobile phone.

• If the mobile phone is not paired or

connected, it is not possible to

enter Phone mode. Once a phone

is paired or connected, the guid-

ance screen will be displayed.

• If Priority is set upon vehicle igni-

tion (IGN/ACC ON), the

Bluetooth

Wireless Technology phone will be

automatically connected. Even if

you are outside, the

Bluetooth

Wireless Technology phone will be

automatically connected once you

are in the vicinity of the vehicle. If

you do not want automatic

Bluetooth

Wireless Technology

phone connection, set the

Bluetooth

Wireless Technology

power to OFF

Making a call using the

Steering-wheel mount controls

(if equipped)

1) , button : Raises or

lowers speaker volume.

2) :

Mode Change Each time

the button pressed.

3) :

Turns the sound on and off.

4) button : Places and transfers

calls.

5) button : Ends calls or cancels

functions.

6. button : Activates voice recog-

nition.

• Check call history and making call

➀ Shortly press (under 0.8 seconds)

the key on the steering

remote controller .

➁ The call history list will be dis-

played on the screen.

➂ Press the key again to con-

nect a call to the selected number.

• Redialing the most recently called

number

➀ Press and hold (over 0.8 seconds)

the key on the steering

remote controller.

➁ The most recently called number

is redialed.

❈If call history does not exist, a

screen asking whether to down-

load call history is displayed. (The

download feature may not be sup-

ported in some mobile phones)

MUTE

MODE

VOL

VOL +

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 32

4 33

Features of your vehicle

BEFORE USE

Bluetooth

Wireless Technology

The

Bluetooth

word mark and logos

are registered trademarks owned by

Bluetooth SIG, lnc. and any use of

such marks by Kia is under license.

Bluetooth

enabled call phone is

required to use

Bluetooth

wireless

technology.

Before Using the

Bluetooth

Handsfree

What is Bluetooth

•

Bluetooth

refers to a short-dis-

tance wireless networking technol-

ogy which uses a 2.4GHz ~

2.48GHz frequency to connect var-

ious devices within a certain dis-

tance.

• Supported within PCs, external

devices,

Bluetooth

phones, PDAs,

various electronic devices, and

automotive environments,

Bluetooth

allows data to be trans-

mitted at high speeds without hav-

ing to use a connector cable.

•

Bluetooth

Handsfree refers to a

device which allows the user to con-

veniently make phone calls with

Bluetooth

mobile phones through

the audio system.

•

Bluetooth

Handsfree may not be

supported in some mobile phones.

To learn more about mobile device

compatibility, visit www.kia.com.

Precautions for Safe Driving

•

Bluetooth

Handsfree is a feature

that enables drivers to practice safe

driving. Connecting the head unit

with a

Bluetooth

phone allows the

user to conveniently make and

receive calls and use contacts.

Before using

Bluetooth

, carefully

read the contents of this user’s

manual.

• Excessive use or operations while

driving may lead to negligent driv-

ing practices and result in acci-

dents. Refrain from excessive oper-

ations while driving.

• Viewing the screen for prolonged

periods of time is dangerous and

may lead to accidents. When driv-

ing, view the screen only for short

periods of time.

DOT LCD Type AUDIO

WARNING

Driving while distracted can

result in a loss of vehicle control

that may lead to an accident,

severe personal injury, and

death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a vehi-

cle or which are not permissible

by law should never be used dur-

ing operation of the vehicle.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 33

Features of your vehicle

344

When connecting a

Bluetooth

Phone

• Before connecting the head unit

with the mobile phone, check to

see that the mobile phone sup-

ports

Bluetooth

features.

• Even if the phone supports

Bluetooth

, the phone will not be

found during device searches if

the phone has been set to hidden

state or the

Bluetooth

power is

turned off. Disable the hidden

state or turn on the

Bluetooth

power prior to searching/connect-

ing with the Head unit.

• Bluetooth phone is automatically

connected when the ignition on.

• If you do not want automatic con-

nection with your

Bluetooth

device, turn off the

Bluetooth

feature within your mobile phone.

• The Handsfree call volume and

quality may differ depending on

the mobile phone.

• Park the vehicle when connecting

the head unit with the mobile

phone.

•

Bluetooth

connection may

become intermittently discon-

nected in some mobile phones.

Follow these steps to try again.

1.Within the mobile phone, turn

the

Bluetooth

function off/on

and try again.

2.Turn the mobile phone power

Off/On and try again.

3.Completely remove the mobile

phone battery, reboot, and

then again.

4.Reboot the Audio System and

try again.

5.Delete all paired devices, pair

and try again.

• Handsfree call quality and volume

may differ depending on the

model of your mobile phone.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 34

4 35

Features of your vehicle

Bluetooth

Wireless Technology

Pairing a

Bluetooth

Wireless

Technology Device

What is Bluetooth

Wireless

Technology Pairing?

Pairing refers to the process of syn-

chronizing your

Bluetooth

Wireless

Technology phone or device with the

car audio system for connection.

Pairing is necessary to connect and

use the

Bluetooth

Wireless

Technology feature.

The

Bluetooth

word mark and logos

are registered trademarks owned by

Bluetooth SIG, Inc. and any use of

such marks by Kia is under license.

Other trademarks and trade names

are those of their respective owners.

Bluetooth

enabled cell phone is

required to use

Bluetooth

Wireless

Technology

WARNING

Driving while distracted can

result in a loss of vehicle control

that may lead to an accident,

severe personal injury, and

death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a vehi-

cle or which are not permissible

by law should never be used dur-

ing operation of the vehicle.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 35

Features of your vehicle

364

Pairing Key / Key

on the Steering Remote

Controller

When No Devices have been

Paired

1. Press the key or the

key on the steering remote con-

troller. The following screen is dis-

played.

2. Select [OK] button to enter the

Pair Phone screen.

* Clock is an optional feature.

1) Car Name : Name of device as

shown when searching from your

Bluetooth

Wireless Technology

device

2) Passkey : Passkey used to pair the

device

3. From your

Bluetooth

Wireless

Technology device (i.e. Mobile

Phone), search and select your

car audio system.

[Non SSP supported device]

(SSP: Secure Simple Pairing)

4. After a few moments, a screen is

displayed where the passkey is

entered.

Hear, enter the passkey “0000” to

pair your

Bluetooth

Wireless

Technology device with the car

audio system.

[SSP supported device]

4. After a few moments, a screen is

displayed 6 digits passkey.

Hear, check the passkey on your

Bluetooth

Wireless Technology

device and confirm.

5. Once pairing is complete, the fol-

lowing screen is displayed.

PHONE

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 36

4 37

Features of your vehicle

Some phones (i.e., iPhone, Android

and Blackberry phones) may offer an

option to allow acceptance of all

future Bluetooth connection requests

by default." and "Visit

http://www.kia.com/#/bluetooth for

additional information on pairing your

Bluetooth-enabled mobile phone,

and to view a phone compatibility list. • If

Bluetooth

Wireless Technology

devices are paired but none are

currently connected, pressing the

key or the key on the

steering wheel displays the follow-

ing screen. Select [Pair] button to

pair a new device or select

[Connect] to connect a previously

paired device.

PHONE

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 37

Features of your vehicle

384

Pairing through [PHONE]

Setup

Press the key Select

[Phone] Select [Pair Phone]

Select TUNE knob

1. The following steps are the same

as the steps described in the

“When No Devices have been

Paired” section.

•

Bluetooth

Wireless Technology

features supported within the vehi-

cle are as follows. Some features

may not be supported depending

on your

Bluetooth

Wireless

Technology device.

- Outgoing/Incoming Handsfree

calls

- Operations during a call (Switch

to Private, Switch to call waiting,

MIC on/off)

- Downloading Call History

- Downloading Mobile Contacts

Bluetooth

Wireless Technology

device auto connection

- Bluetooth Audio Streaming

• Up to five

Bluetooth

Wireless

Technology devices can be paired

to the Car Handsfree system.

• Only one

Bluetooth

device can be

connected at a time.

• Only one

Bluetooth

Wireless

Technology device can be con-

nected at a time.

• Other devices cannot be paired

while a

Bluetooth

Wireless

Technology device is connected.

• Only

Bluetooth

Wireless

Technology Handsfree and

Bluetooth audio related features

are supported.

• Bluetooth related operations are

possible only within devices that

support Handsfree or audio fea-

tures, such as a

Bluetooth

Wireless Technology mobile phone

or a Bluetooth audio device.

• If a connected

Bluetooth

Wireless

Technology device becomes dis-

connected due to being out of

communication range, turning the

device OFF, or a

Bluetooth

Wireless Technology communica-

tion error, corresponding

Bluetooth

Wireless Technology

devices are automatically

searched and reconnected.

• If the system becomes unstable

due to communication errors

between the car Handsfree and the

Bluetooth

Wireless Technology

device, reset the device by turning

off and back on again. Upon reset-

ting

Bluetooth

Wireless

Technology device, the system will

be restored.

SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 38

4 39

Features of your vehicle

• After pairing is complete, a con-

tacts download request is sent

once to the mobile phone. Some

mobile phones may require confir-

mation upon receiving a download

request, ensure your mobile phone

accepts the connection. Refer to

your phones user’s manual for

additional information regarding

phone pairing and connections.

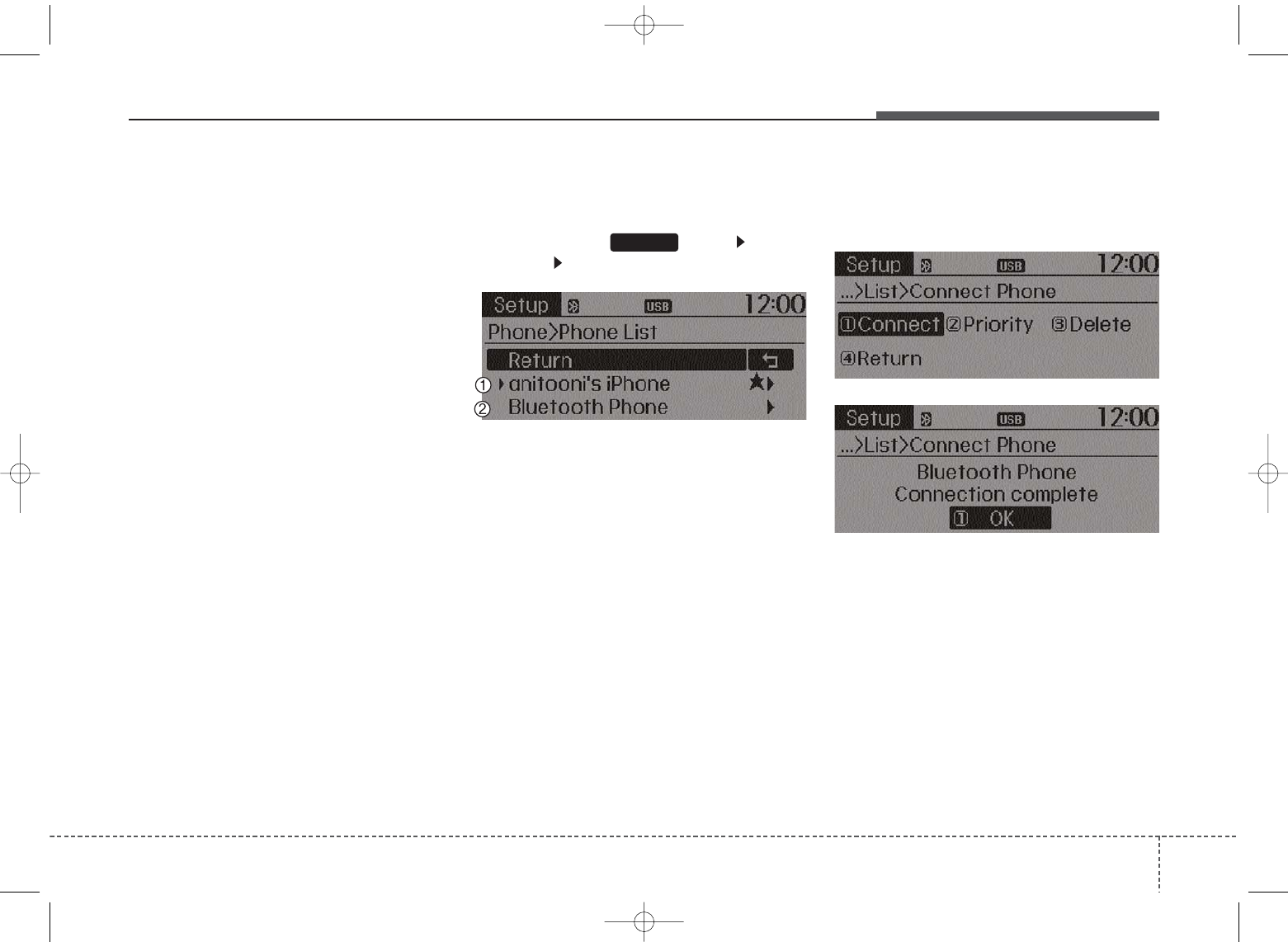

Connecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

1) Connected Phone : Device that is

currently connected

2) Paired Phone : Device that is

paired but not connected

From the paired phone list, select the

device you want to connect and

select [Connect].

SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 39

Features of your vehicle

404

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth

Wireless Technology

devices with the car audio system.

The “Change Priority” feature is used

to set the connection priority of

paired phones.

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select

the phone you want to switch to the

highest priority, then select [Change

Priority] button from the Menu. The

selected device will be changed to

the highest priority.

• Priority icon will be displayed when

the selected phone is set as a pri-

ority phone.

SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:37 AM Page 40

4 41

Features of your vehicle

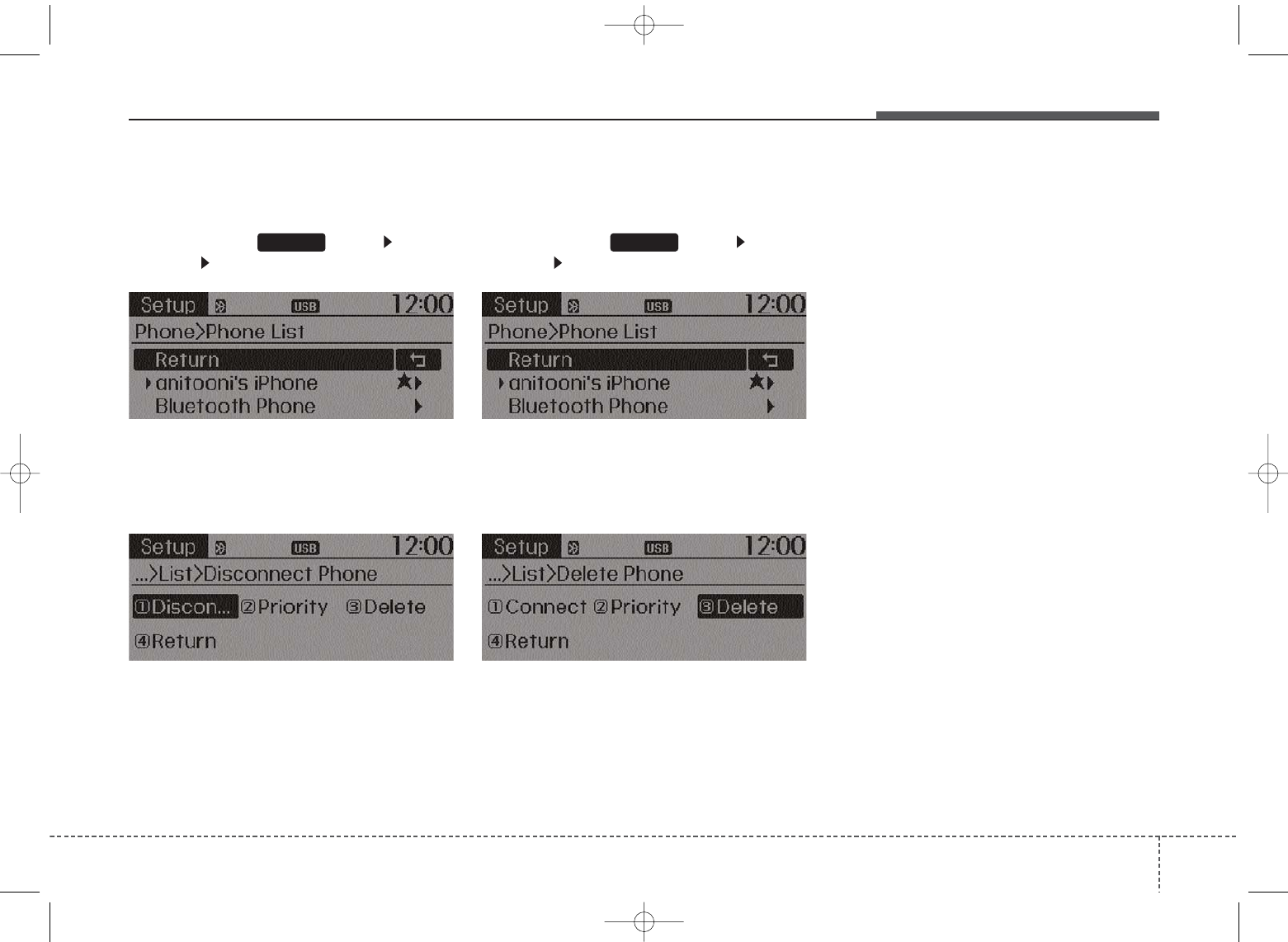

Disconnecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

currently connected device and

select [Disconnect] button.

Deleting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

device you want to delete and select

[Delete] button.

• When deleting the currently con-

nected device, the device will auto-

matically be disconnected to pro-

ceed with the deleting process.

• If a paired

Bluetooth

Wireless

Technology device is deleted, the

device’s call history and contacts

data will also be deleted.

• To re-use a deleted device, you

must pair the device again.

SETUP SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 41

Features of your vehicle

424

USING

Bluetooth

Wireless

Technology

Phone Menu Screen

Phone Menus

With a

Bluetooth

Wireless

Technology device connected, press

the key to display the Phone

menu screen.

1) Favorite : Up to 20 frequently used

contacts saved for easy access.

2) Call History : Device the call histo-

ry list screen

3) Contacts : Displays the Contacts

list screen

4) Setup : Displays Phone related

settings.

• If you select the [Call History] but-

ton but there is no call history data,

a prompt is displayed which asks to

download call history data.

• If you select the [Contacts] button

but there is no contacts data

stored, a prompt is displayed which

asks to download contacts data.

• This feature may not be supported

in some mobile phones. For more

information on download support,

refer to your mobile phone user’s

manual.

Answering Calls

Answering a Call

Answering a call with a

Bluetooth

Wireless Technology device connect-

ed will display the following screen.

To accept the call, press key on

the steering wheel while the call is

incoming.

1) Caller : Displays the other party’s

name when the incoming caller is

saved within your contacts

2) Incoming Number : Displays the

incoming number

PHONE

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 42

443

Features of your vehicle

• When an incoming call pop-up is

displayed, most Audio and SETUP

mode features are disabled. Only

the call volume will operate.

• The telephone number may not be

properly displayed in some mobile

phones.

• When a call is answered with the

mobile phone, the call mode will

automatically revert to Private

mode.

Favorites

Press the key Select

[Favorites]

1) Saved favorite contact : Connects

call upon selection

2) To add favorite : Downloaded con-

tacts be saved as favorite.

• To save Favorite, contacts should

be downloaded.

• Contact saved in Favorites will not

be automatically updated if the

contact has been updated in the

phone. To update Favorites, delete

the Favorite and create a new

Favorite.

Call History

Press the key Select [Call

History]

A list of incoming, outgoing and

missed calls is displayed.

• Call history may not be saved in the call

history list in some mobile phones.

• Calls received with hidden caller ID will

not be saved in the call history list.

• Calling through the call history is not pos-

sible when there is no call history stored

or a

Bluetooth

Wireless Technology

phone is not connected.

• Up to 20 received, dialed and missed

calls are stored in Call History.

• Time of received/dialed calls and call

time information are not stored in Call

History.

PHONE

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 43

Features of your vehicle

444

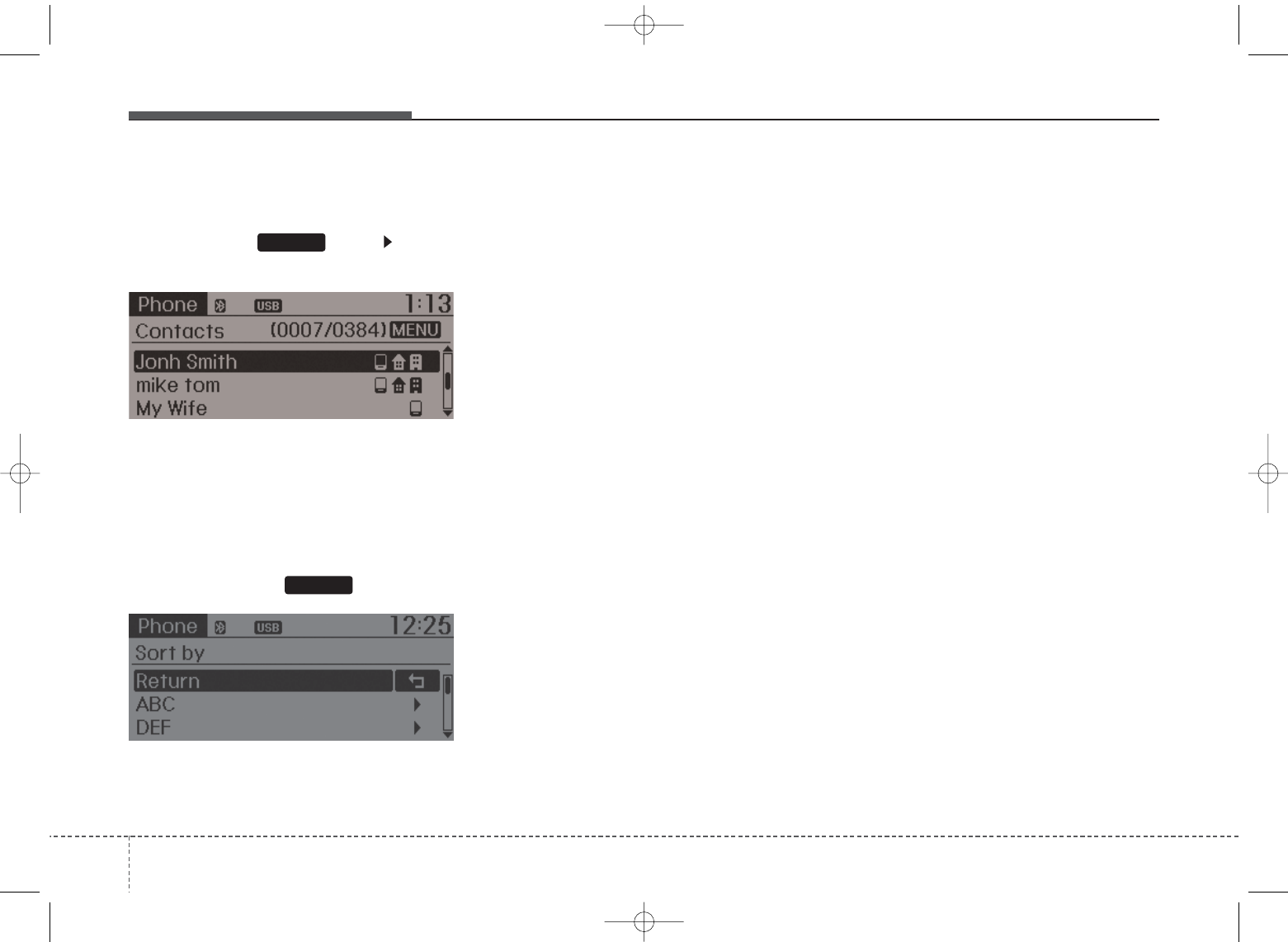

Contacts

Press the key Select

[Contacts]

The list of saved phone book entries

is displayed.

NOTE:

Find a contact in an alphabetical

order, press the key.

• Up to 1,000 contacts saved in your

Bluetooth

Wireless Technology

phone can be downloaded into the

car contacts. Contacts that have

been downloaded to the car cannot

be edited or deleted on the phone.

• Mobile phone contacts are man-

aged separately for each paired

Bluetooth

Wireless Technology

device (max 5 devices x 1,000 con-

tacts each). Previously downloaded

data is maintained even if the

Bluetooth

Wireless Technology

device has been disconnected.

(However, the contacts and call his-

tory saved to the phone will be

deleted if a paired phone is delet-

ed.)

• It is possible to download contacts

during Bluetooth streaming audio.

• When downloading contacts, the

icon will be displayed within the sta-

tus bar.

• It is not possible to begin down-

loading a contact list when the con-

tact download feature has been

turned off within the

Bluetooth

Wireless Technology device. In

addition, some devices may require

device authorization upon attempt-

ing to download contacts. If down-

loading does not normally occur,

check the

Bluetooth

Wireless

Technology device settings or the

screen state.

• The contacts download feature may

not be supported in some mobile

phones. For more information of

supported

Bluetooth

devices and

function support, refer to your

phone’s user manual.

PHONE

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 44

445

Features of your vehicle

Bluetooth

Wireless

Technology Setting

The

Bluetooth

word mark and logos

are registered trademarks owned by

Bluetooth SIG, Inc. and any use of

such marks by Kia is under license.

Other trademarks and trade names

are those of their respective owners.

Bluetooth

enabled cell phone is

required to use

Bluetooth

Wireless

Technology

Bluetooth

Wireless

Technology Setting

Pairing a New Device

Press the key Select

[Phone] Select [Pair Phone]

Bluetooth

Wireless Technology

devices can be paired with the audio

system.

For more information, refer to the

“Pairing through Phone Setup” sec-

tion within

Bluetooth

Wireless

Technology.

Viewing Paired Phone List

Press the key Select

[Phone] Select [Paired Phone List]

This feature is used to view mobile

phones that have been paired with

the audio system. Upon selecting a

paired phone, the setup menu is dis-

played.

For more information, refer to the

“Setting

Bluetooth

Wireless

Technology Connection” section

within

Bluetooth

Wireless

Technology.

SETUP

WARNING

Driving while distracted can

result in a loss of vehicle control

that may lead to an accident,

severe personal injury, and

death. The driver’s primary

responsibility is in the safe and

legal operation of a vehicle, and

use of any handheld devices,

other equipment, or vehicle sys-

tems which take the driver’s

eyes, attention and focus away

from the safe operation of a vehi-

cle or which are not permissible

by law should never be used dur-

ing operation of the vehicle.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 45

Features of your vehicle

464

1) Connect/Disconnect Phone :

Connect/ disconnects currently

selected phone

2) Change Priority : Sets currently

selected phone to highest connec-

tion priority

3) Delete : Deletes the currently

selected phone

4) Return : Moves to the previous

screen

• To learn more about whether your

mobile phone supports contacts

downloads, refer to your mobile

phone user’s manual.

• The contacts for only the connected

phone can be downloaded.

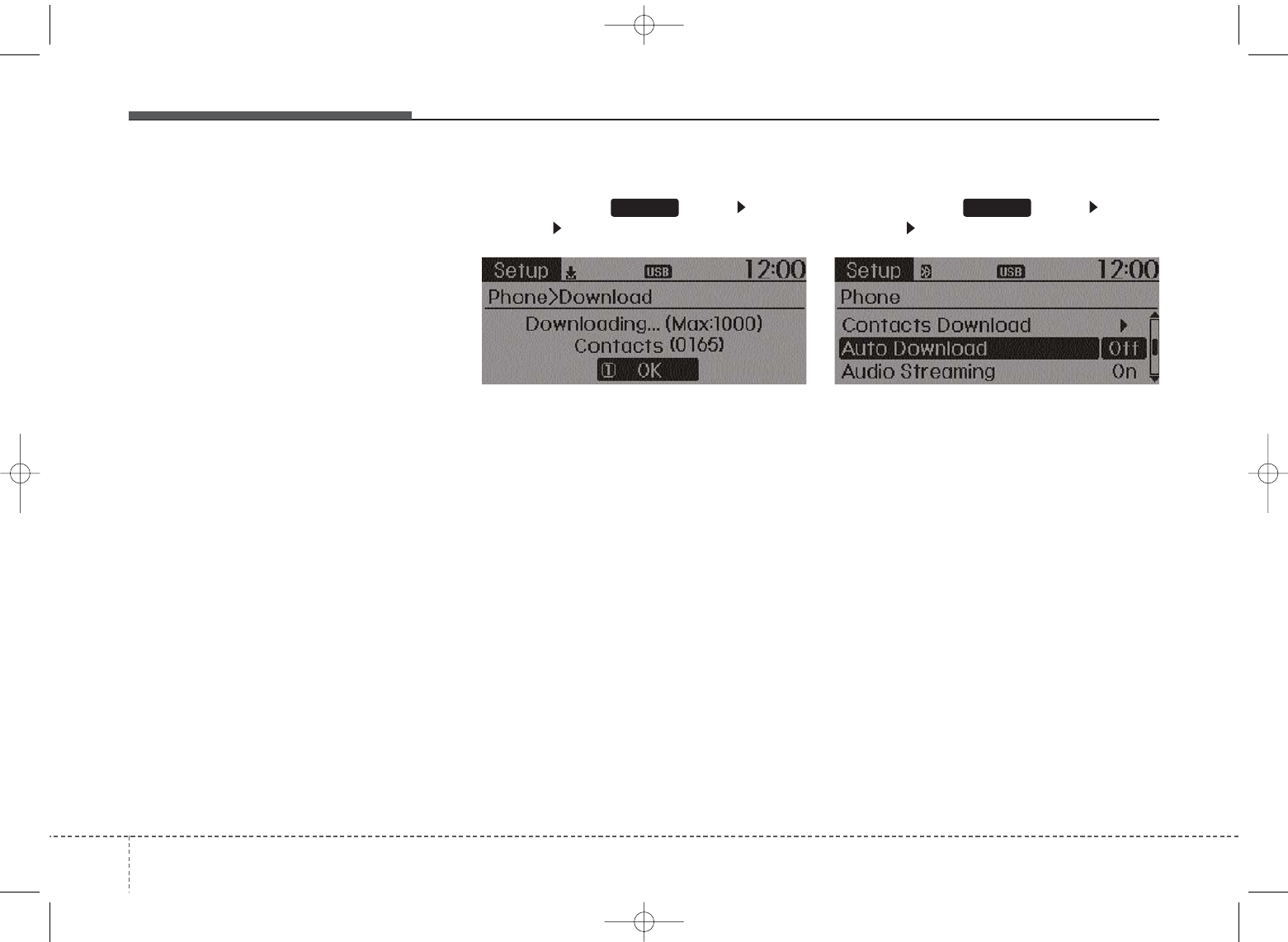

Downloading Contacts

Press the key Select

[Phone] Select [Contacts Download]

As the contacts are downloaded

from the mobile phone, a download

progress bar is displayed.

• Upon downloading phone con-

tacts, the previous corresponding

data is deleted.

• This feature may not be supported

in some mobile phones.

• Voice Recognition may not operate

while contacts are being down-

loaded.

Auto Download (Contacts)

Press the key Select

[Phone] Select [Auto Download]

This feature is used to automatically

download mobile contacts entries

once a

Bluetooth

Wireless

Technology phone is connected.

• The Auto Download feature will

download mobile contacts entries

every time the phone is connected.

The download time may differ

depending on the number of saved

contacts entries and the communi-

cation state.

• Before downloading contacts, first

check to see that your mobile

phone supports the contacts

download feature.

SETUP SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 46

447

Features of your vehicle

Audio Streaming

Press the key Select

[Phone] Select [Audio Streaming]

When Audio Streaming is turned on,

you can play music files saved in

your

Bluetooth

Wireless

Technology device Technology

device through the audio system.

Outgoing Volume

Press the key Select

[Phone] Select [Outgoing Volume]

Use TUNE knob to adjust the out-

going volume level.

• While on a call, the volume can be

changed by using the ,

key.

Turning Bluetooth System Off

Press the key Select

[Phone] Select [Bluetooth System

Off]

Once

Bluetooth

Wireless

Technology is turned off,

Bluetooth

Wireless Technology related features

will not be supported within the audio

system.

• To turn

Bluetooth

Wireless

Technology back on, go to

[Phone] and select “Yes”.

TRACK SEEK

SETUP

SETUP SETUP

SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 47

Features of your vehicle

484

Voice Recognition

• When using the voice recognition

feature, only commands listed

within the user's manual are sup-

ported.

• Be aware that during the operation

of the voice recognition system,

pressing any key other than the

key terminate voice recogni-

tion mode.

• For superior voice recognition per-

formance, position the microphone

used for voice recognition above

the head of the driver’s seat and

maintain a proper position when

saying commands.

• Within the following situations,

voice recognition may not function

properly due to external sound.

- When the windows and sunroof

are open

- When the wind of the cooling /

heating device is strong

- When entering and passing

through tunnels

(Continued)

- When driving on rugged and

uneven roads

- During severe rain (heavy rains,

windstorms)

• Phone related voice commands

can be used only when a

Bluetooth

Wireless Technology

device is connected.

• When making calls by stating a

name, the corresponding contact

must be downloaded and stored

within the audio system.

• After downloading the

Bluetooth

Wireless Technology phone book,

it takes some times to convert the

phone book data into voice infor-

mation. During this time, voice

recognition may not properly oper-

ate.

• Pronounce the voice commands

naturally and clearly as if in a nor-

mal conversation.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 48

449

Features of your vehicle

VOICE RECOGNITION

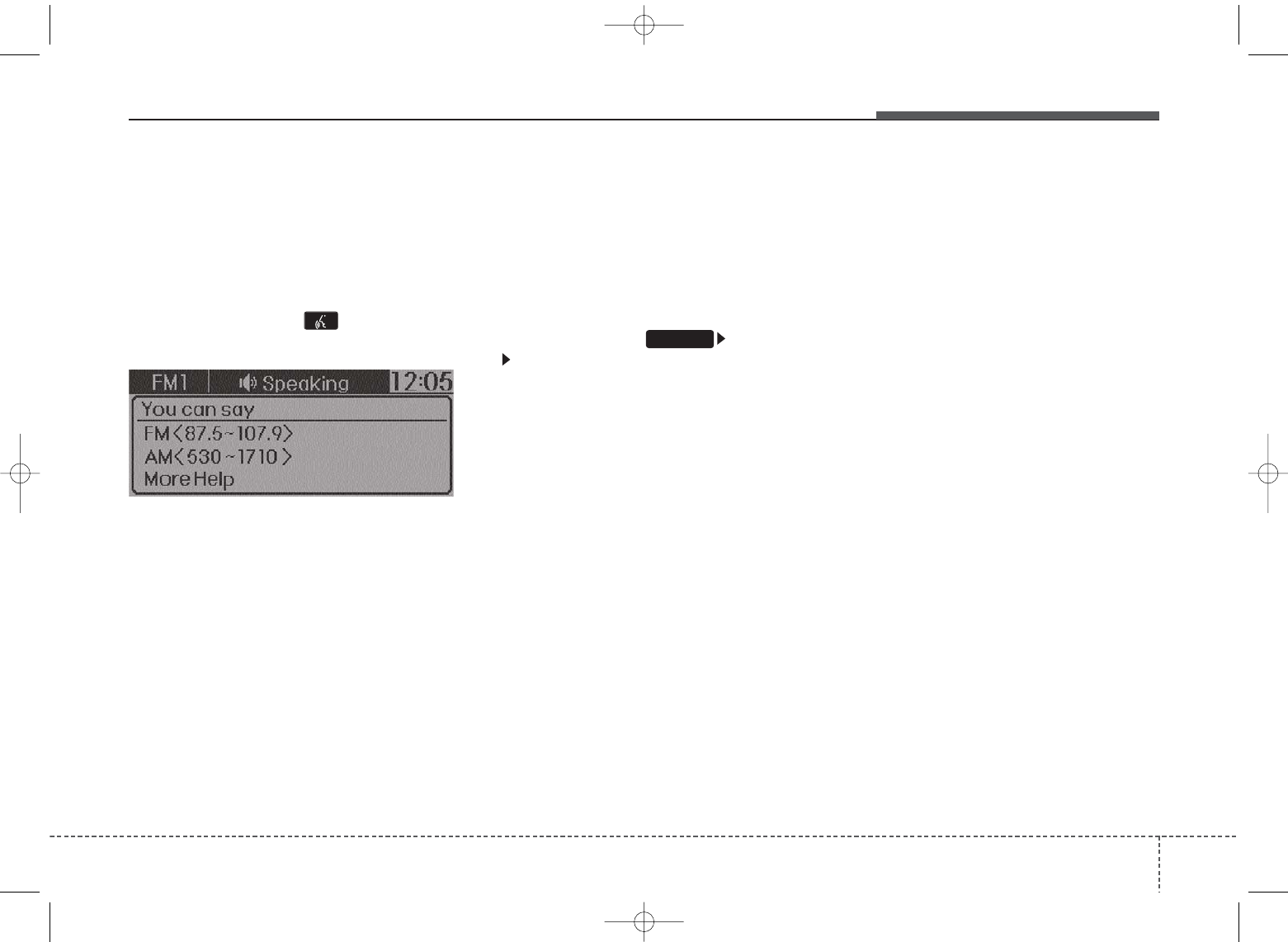

Using Voice Recognition

Starting Voice Recognition

Shortly press the key on the

steering wheel. Say a command

If prompt feedback is in [ON], then

the system will say “Please say a

command after the beep (BEEP)”

• If prompt feedback is in [OFF]

mode, then the system will only

say “(BEEP)”

• To change Prompt Feedback

[On]/[Off], go to [System]

[Prompt Feedback]

• For proper recognition, say the

command after the voice instruc-

tion and beep tone.

Contact List Best Practices

1)Do not store single-name entries

(e.g., “Bob”, “Mom”, “Kim”, etc.).

Instead, always use full names

(including first and last names) for

all contacts (e.g., use “Jacob

Stevenson” instead of “Dad”).

2)Do not use abbreviations (i.e., use

“Lieutenant” instead of “Lt.” or

“Sergeant” instead of “Sgt.”).

3)Do not use acronyms (i.e., use

“County Finance Department”

instead of “CFD”).

4)Do not use special characters

(e.g., “@”, “hyphen -“, “asterisk *”,

ampersand &”).

5)If a name is not recognized from

the contact list, change it to a more

descriptive name (e.g., use

“Grandpa Joseph” instead of “Pa

Joe”).

SETUP

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 49

Features of your vehicle

504

Skipping Prompt Messages

While prompt message is being stat-

ed Shortly press the key on the

steering remote controller (under 0.8

seconds)

The prompt message is immediately

ended and the beep tone will sound.

After the “beep”, say the voice com-

mand.

Re-starting Voice Recognition

While system waits for a command

Shortly press the key on the

steering remote controller (under 0.8

seconds)

The command wait state is immedi-

ately ended and the beep ton will

sound. After the “beep”, say the voice

command.

ENDING VOICE

RECOGNITION

While Voice Recognition is operating

Press and hold the key on the

steering remote controller (over 0.8

seconds)

• While using voice command, press-

ing any steering wheel control or a

different key will end voice com-

mand.

• When the system is waiting for a

voice command, say “cancel” or

“end” to end voice command.

• When the system is waiting for a

voice command, press and hold the

key on the steering wheel to

end voice command.

Voice Recognition and Phone

Contact Tips:

The Kia Voice Recognition System

may have difficulty understanding

some accents or uncommon

names. When using Voice

Recognition to place a call, speak in

a moderate tone, with clear pronun-

ciation

To maximize the use of Voice

Recognition, consider these guide-

lines when storing contacts:

• Do not store single-name entries

(e.g., “Bob”, “Mom”, etc.). Instead,

always use full names (including

first and last names) for these con-

tacts

• Do not use special characters (e.g.,

'@', '-', '*', '&', etc.)

• Do not use abbreviations (i.e., use

"Lieutenant" instead of "Lt.") or

acronyms (i.e., use "County

Finance Department" instead of

"C. F. D."; Be sure to say the name

exactly as it is entered in the con-

tacts list

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 50

451

Features of your vehicle

Illustration on using voice commands

• Starting voice command.

Shortly pressing the key (under 0.8 seconds):

• Skipping Voice Recognition

Shortly pressing the key (under 0.8 seconds):

• End voice command.

Shortly pressing the key (under 0.8 seconds):

while guidance message is being stated

More Help

Contacts

Cancel

More Help

Please say a command after

the beep (BEEP)

Please say a...

Contacts.

Please say the name of the contact you want

to call.

(BEEP)

Beep Beep.. (end beep)

Shortly pressing the

key (under 0.8 seconds)

Beep~

More Help

Here are some examples of mode commands.

You can say a radio type like 'FM', 'AM', or 'Satellite'.

You can also say a media source like 'USB', 'My

Music', or 'iPod'.

Additionally, there are phone commands like

"Contacts', 'Call History', or 'Dial Number".

You can find more detailed commands in the user's

manual.

Please say a command after the beep.

More Help

Here are some examples of mode commands.

You can say a radio type like 'FM', 'AM', or 'Satellite'.

You can also say a media source like 'USB', 'My

Music', or 'iPod'.

Additionally, there are phone commands like

"Contacts', 'Call History', or 'Dial Number".

You can find more detailed commands in the user's

manual.

Please say a command after the beep.

Edit IQS 2nd

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 51

Features of your vehicle

524

Voice Command List

• Common Commands: These commands can be used in most operations. (However a few commands may not be

available during certain operations)

Command Function

More Help Provides guidance on commands that can be

used anywhere in the system.

Help Provides guidance on commands that can be

used within the current mode.

Call<Name> Calls <Name> saved in Contacts

Ex) Call “John Smith”

Phone Provides guidance on Phone related com-

mands. After saying this command, say

“Favorites”,“Call History”, “Contacts” or ”Dial

Number” execute corresponding functions.

Favorites Display the Favorite screen.

Call History Displays the Call History screen.

Contacts Displays the Contacts screen. After saying

this command, say the name of a contact

saved in the Contacts to automatically con-

nect the call.

Dial Number Display the Dial number screen. After saying

this command, you can say the number that

you want to call.

Redial Connects the most recently called number.

Tutorial Provide guidance on how to use voice

recognition and Bluetooth

connections

Command Function

•

When listening to the radio, displays the next

radio screen. (FM1

➟

FM2

➟

SAT1

➟

SAT2

➟

SAT3

➟

FM1)

Radio

•

When listening to a different mode, displays

the most recently played radio screen.

•

When currently listening to the FM radio,

maintains the current state.

•

When listening to a different mode, displays

the most recently played FM screen.

FM1(FM One) Displays the FM1 screen.

FM2(FM Two) Displays the FM2 screen.

AM Displays the AM screen.

FM Preset 1~6 Plays the most recently played broadcast

saved in FM Preset 1~6.

AM Preset 1~6 Plays the broadcast saved in AM Preset 1~6.

FM 87.5~107.9 Plays the FM broadcast of the corresponding

frequency.

AM 530~1710 Plays the AM broadcast of the corresponding

frequency.

•

When currently listening to the SIRIUS

maintains the current state.

•

When listening to a different mode, displays

the most recently played

SIRIUSTM

screen.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 52

453

Features of your vehicle

Command Function

SIRIUS

(Satellite)

Displays the selected SIRIUS

screen.

SIRIUS

Channel Plays the selected SIRIUS

channel.

Media Moves to the most recently played media

screen.

CD Plays the music saved in the CD.

USB Plays USB music.

iPod

Plays iPod

music.

Command Function

My Music Plays the music saved in My Music.

AUX (Auxiliary) Plays the connected external device.

Bluetooth

Audio Plays the music saved in connected Bluetooth

device.

Please repeat Repeats the most recent comment.

Mute Mutes the sound.

Cancel (Exit) Ends voice command.

0~223

1~3

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 53

Features of your vehicle

544

• FM/AM radio commands: Commands available during

FM, AM radio operation.

• Satellite radio commands: Commands that can be

used while listening to Satellite Radio.

Command Function

Preset 1~6 Plays the broadcast station saved in Preset 1~6.

Scan Scans receivable frequencies from the current

broadcast and plays for 10 seconds each.

Preset Scan Moves to the next preset from the current

present and plays for 10 seconds each.

Information Displays the information of the current broad-

cast.(This feature can be used when receiving

RBDS broadcasts.)

Command Function

Channel 0~223 Plays the selected Satellite Radio channel.

Scan Scans receivable channels from the current

broadcast and plays for 10 seconds each.

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Information Displays the information of the current broad-

cast.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 54

455

Features of your vehicle

• Audio CD commands: Commands available during

Audio CD operation.

• MP3 CD / USB commands: Commands available dur-

ing USB and MP3 CD operation.

Command Function

Random Randomly plays the tracks within the CD.

Random Off Cancels random play to play tracks in sequen-

tial order.

Repeat Repeats the current track.

Repeat Off Cancels repeat play to play tracks in sequen-

tial order.

Track 1~30 Plays the desired track number.

Command Function

Random Randomly plays the files within the current

folder.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Information Displays the information screen of the current

file.

Next Folder Play the first file in the next folder.

Previous Folder Play the first file in the previous folder.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 55

Features of your vehicle

564

• iPod®Commands: Commands available during iPod®

operation.

• My Music Commands: Commands available during

My Music operation.

Command Function

Random Randomly plays the songs within the current

category.

Random Off Cancels random play to play songs in sequen-

tial order.

Repeat Repeats the current song.

Repeat Off Cancels repeat play to play songs in sequen-

tial order.

Command Function

Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Delete Deletes the current file. You will bypass an

additional confirmation process.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 56

457

Features of your vehicle

Command Function

Play Plays the currently paused song.

Pause Pauses the current song.

•

Bluetooth

Wireless Technology Audio Commands:

Commands available during

Bluetooth

Wireless

Technology audio streaming from mobile phone oper-

ation Command Operation

iPod®is a registered trademark of Apple Inc. iPod®

mobile digital device sold separately. The

Bluetooth

word mark and logos are registered

trademarks owned by Bluetooth SIG, Inc. and any

use of such marks by Kia is under license. A

Bluetooth

enabled cell phone is required to use

Bluetooth

wireless technology. SiriusXM™ service

requires a subscription, sold separately, after 3-

month trial included with vehicle purchase. If you

decide to continue your SiriusXM™ service at the

end of the trial subscription, the plan you choose

will automatically renew and bill at the current rates

until you call SiriusXM™ at 1-866-635-2349 to can-

cel. See our Customer Agreement for complete

terms at www.siriusxm.com. Sirius satellite service

is available only to those at least 18 and older in the

48 contiguous United States, D.C., and P.R. (with

coverage limitations). SiriusXM™ Traffic available

in select markets. See siriusxm.com/traffic for more

information. Sirius, XM and all related marks and

logos are trademarks of Sirius XM Radio Inc.

UB usa:TD usa 4(87~audio).qxd 5/9/2014 11:38 AM Page 57

HYUNDAI MOBIS AM1A1IHAN DIGITAL CAR AUDIO SYSTEM User Manual UB usa TD usa 4 87 audio

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM UB usa TD usa 4 87 audio

Contents

User Manual

Navigation menu

Namespaces

Views

Navigation
