Features of your vehicle

SYSTEM CONTROLLERS AND

FUNCTIONS

❈ Display and settings may differ

depending on the selected audio.

Audio Head Unit

1. (EJECT)

• Ejects the disc.

• Changes to FM/AM mode.

• Each time the key is pressed,the mode

is changed in order of FM1 ➟FM2 ➟

FMA ➟AM ➟AMA.(❈ For RDS Model)

•

Each time the key is pressed,the mode is

changed in order of FM1 ➟FM2 ➟AM.

❈ In Setup>Display, the radio pop up

screen will be displayed when [Mode

Pop up] is turned .

When the pop up screen is displayed,

use the TUNE knob or keys

~ to select the desired mode.

• Changes to CD, USB MP3, iPod, BT

MP3, AUX modes.

• Each time the key is pressed, the mode

is changed in order of CD, USB, iPod,

AUX, My Music, BT Audio.

❈ In Setup>Display, the media pop up

screen will be displayed when [Mode

Pop up] is turned .

When the pop up screen is displayed,

use the TUNE knob or keys

~ to select the desired mode.

• Operates Phone Screen

❈ When a phone is not connected, the

connection screen is displayed.

5. ,

• Radio Mode : Automatically searches

for broadcast frequencies.

• CD, USB, iPod, My Music modes

Shortly press the key (under 0.8 seconds):

Moves to next or previous song (file)

Press and hold the key (over 0.8 sec-

onds): Rewinds or fast-forwards the cur-

rent song.

6. PWR/VOL knob

• Power Knob: Turns power On/Off by

pressing the knob

• Volume Knob: Sets volume by turn-

ing the knob left/right

•

Changes to FM mode.

•

Each time the key is pressed, the mode

changed in order of FM1

➟

FM2

➟

FMA.

• Changes to AM mode.

• Each time the key is pressed, the mode

changed in order of AM ➟AMA.

TRACK

SEEK

PHONE

MEDIA

RADIO

MODEL NAME: $0%'0$1

Features of your vehicle

9. ~ (Preset)

• Radio Mode: Saves frequencies (chan-

nels) or receives saved frequencies

(channels)

• CD, USB, iPod, My Music mode

- : Repeat

- : Random

• In the Radio, Media, Setup, and Menu

pop up screen, the number menu is

selected.

10. , / ,

• MP3, CD, USB mode : Folder Search

• iPod mode: Moves to parent folder

• FM : RDS Program Type Search

11. /

• Each time the button is shortly pressed

(under 0.8 seconds), sets screen Off ➟

Screen On ➟Screen Off

❈ Audio operation is maintained and

only the screen will be turned Off.

In the screen Off state, press any key

to turn the screen On again.

12. /

• Radio Mode

- Press and hold the key (over 0.8 sec-

onds): Previews each broadcast for 5

seconds each

• CD, USB, iPod mode

- Press and hold the key (over 0.8 sec-

onds): Previews each song (file) for 10

seconds each

❈ Press the key again to contin-

ue listening to the current song (file).

13.

• Shortly press the key (under 0.8 sec-

onds) : Moves to the Display, Sound,

Clock, Phone, System setting modes

• Press and hold the key (over 0.8 sec-

onds) : Move to the Time setting screen

14.

Displays menus for the current mode.

15. TUNE knob

• Radio mode : Changes frequency by

turning the knob left/right

• CD, USB, iPod mode: Searches songs

(files) by turning the knob left/right

❈ When the desired song is displayed,

press the knob to play the song.

• Moves focus in all selection menus and

selects menus

MEMU

SETUP

CLOCK

SCAN

DISP

FOLDER

PTY

2 RDM

1 RPT

Features of your vehicle

DISPLAY SETTINGS

Press the key Select [Display]

through TUNE knob or key

Select menu through TUNE knob

Mode Pop up

[Mode Pop up] Changes .

selection mode

• During On state, press the or

key to display the mode

change pop up screen.

Scroll Text

[Scroll Text] Set /

• : Maintains scroll

• : Scrolls only one (1) time.

Song Info

When playing an MP3 file, select the

desired display info from ‘Folder/File’ or

‘Album/Artist/Song’.

SOUND SETTINGS

Press the key Select [Sound]

through TUNE knob or key

Select menu through TUNE kno

2 RDM

SETUP

Off

OffOn

MEDIA

RADIO

1 RPT

SETUP

Features of your vehicle

Audio Settings

This menu allows you to set the ‘Bass,

Middle, Treble’ and the Sound Fader and

Balance.

Select [Sound Settings] Select

menu through

TUNE knob

Tu r n

TUNE knob

left/right to set

• Bass, Middle, Treble : Selects the sound

tone.

• Fader, Balance : Moves the sound fader

and balance.

• Default : Restores default settings.

❈ Return : While adjusting values, re-

pressing the TUNE knob will

restore the parent menu.

Power Bass

This is a sound system feature that pro-

vides live bass.

Select [Power Bass] Set /

through TUNE knob

Speed Dependent Volume Control

This feature is used to automatically con-

trol the volume level according to the

speed of the vehicle.

Select [SDVC] Set in 4 levels [Off/

Low/Mid/High] of

TUNE

knob

Volume Dialogue

Adjusts voice recognition volume.

Select [Volume Dialogue] Set vol-

ume of

TUNE

knob

OffOn

Features of your vehicle

CLOCK SETTINGS

Press the key Select [Clock]

through TUNE knob or key

Select menu through TUNE knob

Clock Settings

This menu is used to set the time.

Select [Clock Settings] Set through

TUNE

knob Press

TUNE

knob

❈ Adjust the number currently in focus to

set the [hour] and press the tune knob

to set the [minute].

Day Settings

This menu is used to set the date

(DD/MM/YYYY).

Select [Day Settings] Set through

TUNE knob Press TUNE knob

❈ Adjust the number currently in focus to

make the settings and press the tune

knob to move to the next setting. (Set

in order of Day/Month/Year)

Clock Display when Power is OFF

Select [Clock Disp.(Pwr Off)

Set

/ through TUNE knob

• : Displays time/date on screen

• : Turn off.

Time Format

This function is used to set the 12/24

hour time format of the audio system.

Select [Time Format] Set 12Hr /

24Hr through

TUNE

knob

Automatic RDS Time

This option is used to automatically set

the time by synchronizing with RDS.

Select [Automatic RDS Time]

Set

/ through TUNE knob

• : Turn on Automatic Time

• : Turn off.

Off

OffOn

Off

OffOn

SETUP

CLOCK

Features of your vehicle

PHONE SETUP (if equipped)

Press the key Select [Phone]

through TUNE knob or key

Select menu through TUNE knob

Pair Phone

Select [Pair Phone] Set through TUNE

knob

➀Search for device names as displayed

on your mobile phone and connect.

➁Input the passkey displayed on the

screen. (Passkey : 0000)

❈ The device name and passkey will be

displayed on the screen for up to 3

minutes. If pairing is not completed

within the 3 minutes, the mobile phone

pairing process will automatically be

canceled.

➂Pairing completion is displayed.

❈ In some mobile phones, pairing will

automatically be followed by connection.

❈ It is possible to pair up to five

Bluetooth

Wireless Technology

enabled

mobile phones.

SETUP CAUTION

To pair a Bluetooth

Wireless

Technology enabled mobile phone,

authentication and connection

processes are first required. As a

result, you cannot pair your mobile

phone while driving the vehicle.

First park your vehicle before use.

Features of your vehicle

Phone List

The names of up to 5 paired phones will

be displayed.

A [ ] is displayed in front of the currently

connected phone.

Select the desired name to setup the

selected phone.

• Connecting a phone

Select [Phone List] Select mobile

phone through TUNE knob Select

[Connect Phone]

➀Select a mobile phone that is not cur-

rently connected.

➁ Connect the selected mobile phone.

➂Connection completion is displayed.

❈ If a phone is already connected, dis-

connect the currently connected

phone and select a new phone to con-

nect.

• Disconnecting a connected phone

Select [Phone List] Select mobile

phone through TUNE knob Select

[Disconnect Phone]

➀Select the currently connected mobile

phone.

➁ Disconnect the selected mobile

phone.

➂Disconnection completion is dis-

played.

• Changing connection sequence

(Priority)

This is used to change the order (priori-

ty) of automatic connection for the paired

mobile phones.

Select [Phone List] Select [Priority]

through TUNE knob Select No. 1

Priority mobile phone

➀Select [Priority].

➁ From the paired phones, select the

phone desired for No.1 priority.

➂ The changed priority sequence is dis-

played.

❈ Once the connection sequence (priori-

ty) is changed, the new no. 1 priority

mobile phone will be connected.

- when the no. 1 priority cannot be con-

nected: Automatically attempts to con-

nect the most recently connected

phone.

- Cases when the most recently con-

nected phone cannot be connected:

Attempts to connect in the order in

which paired phones are listed.

- The connected phone will automati-

cally be changed to No. 1 priority.

Features of your vehicle

104

• Delete

Select [Phone List] Select mobile

phone through TUNE knob Select

[Delete]

➀Select the desired mobile phone.

➁Delete the selected mobile phone.

➂Deletion completion is displayed.

❈ When attempting to delete a currently

connected phone, the phone is first

disconnected.

Contacts Download

This feature is used to download con-

tacts and call histories into the audio sys-

tem.

Select [Contacts Download] Select

through

TUNE

knob

Auto Download

When connecting a mobile phone, it is

possible to automatically download new

Contacts and Call Histories.

Select [Auto Download] Set /

through TUNE knob

Audio Streaming

Songs (files) saved in your

Bluetooth

Wireless Technology enabled

mobile phone

can be played through the audio system.

Select [Audio Streaming] Set /

through TUNE knob

Outgoing Volume

This is used to set the volume of your

voice as heard by the other party while

on a

Bluetooth

Wireless Technology

enabled handsfree call.

Select [Outgoing Volume] Set vol-

ume through

TUNE

knob

❈ Even while on a call, the volume can

be changed by using the

Off

CAUTION

•

The download feature may not be

supported in some mobile phones.

• If a different operation is per-

formed while Contacts are being

downloaded, downloading will be

discontinued. Contacts already

downloaded will be saved.

• When downloading new Contacts,

delete all previously saved

Contacts before starting down-

load.

CAUTION

The

Bluetooth®Wireless Technology

audio streaming feature may not be

supported in some mobile phones.

CAUTION

• When you delete a mobile phone,

the mobile phone contacts will

also be erased.

•

For stable Bluetooth®Wireless

Technology communication, delete

the mobile phone from the audio

and also delete the audio from your

mobile phone.

key.

TRACK SEEK

411

Features of your vehicle

Bluetooth®

Wireless Technology

System Off

This feature is used when you do not

wish to use the

Bluetooth

Wireless

Technology

system.

Select [

Bluetooth

Wireless Technology

System Off] Set through TUNE

knob

❈ If a phone is already connected, dis-

connect the currently connected phone

and turn the

Bluetooth

Wireless

Technology

system off.

Using the

Bluetooth®

Wireless

Technology System

To use

Bluetooth

Wireless Technology

when the system is currently off, follow

these next steps.

• Turning On

Bluetooth

Wireless

Technology

through the Key

Press the key Screen Guidance

❈ Moves to the screen where

Bluetooth

Wireless Technology

functions can be

used and displays guidance.

• Turning On

Bluetooth

Wireless

Technology

through the Key

Press the key Select [Phone]

through TUNE knob or key

➀A screen asking whether to turn on

Bluetooth

Wireless Technology

will be

displayed.

➁ On the screen, select to turn on

Bluetooth

Wireless Technology

and

display guidance.

❈ If the

Bluetooth

Wireless Technology

system is turned on, the system will

automatically try to connect the most

recently connected

Bluetooth

Wireless Technology

mobile phone.

YES

SETUP

PHONE

CAUTION

•Bluetooth

Wireless Technology

connection may become intermit-

tently disconnected in some

mobile phones. Follow these next

steps to try again.

1) Turn the Bluetooth

Wireless

Technology function within the

mobile phone ON/OFF and try to

connect again.

2) Turn the mobile phone power

ON/OFF and try to connect again.

3) Completely remove the mobile

phone battery, reboot, and then

try to connect again.

4) Reboot the audio system and try

to connect again

5) Delete all paired devices in your

mobile phone and the audio sys-

tem and pair again for use.

Features of your vehicle

124

SYSTEM SETTINGS

Press the key Select [System]

through tune knob or key Select

menu through TUNE knob

Memory Information (if equipped)

Displays currently used memory and

total system memory.

Select [Memory Information] OK

The currently used memory is displayed

on the left side while the total system

memory is displayed on the right side.

VRS mode

This feature is used to change voice

command feedback between Normal and

Expert modes.

Select [VRS mode] Set through

TUNE

knob

• Normal : This mode is for beginner

users and provides detailed instructions

during voice command operation.

• Expert : This mode is for expert users

and omits some information during

voice command operation. (When using

Expert mode, guidance instructions can

be heard through the [Help] or [Menu]

commands.

Language

This menu is used to set the display and

voice recognition language.

Select [Language] Set through TUNE

knob

❈ The system will reboot after the lan-

guage is changed.

❈ Language support by region

SETUP

413

Features of your vehicle

RADIO (for RDS equipped model)

Changing RADIO mode

Press the key to change the

mode in order of FM1 ➟ FM2 ➟ FMA

➟ AM ➟ AMA.

Press the or key to change

the mode in order of FM1 ➟ FM2 and AM.

• When the power is off, press the

key to turn on the audio system

and receive radio broadcasts.

[Mode Pop up] On state : Displays the

change radio mode pop up screen.

While the pop up screen is displayed, you

can change the radio mode

( : FM1

➟ FM2 ➟ FMA ➟ AM ➟ AMA /

: FM1 ➟FM2 / : AM) through the

tune knob or ~ keys.

Adjust Volume

Turn the VOL knob left/right to adjust

the volume.

SEEK

Press the ( , )key

• Shortly pressing the key (under 0.8

seconds): Changes the frequency.

• Pressing and holding the key (over 0.8

seconds): Automatically searches for

the next frequency.

Preset SEEK

Press the ( , ) key

• Shortly pressing the key (under 0.8

seconds): Plays the frequency saved in

the corresponding key.

• Pressing and holding the key (over 0.8

seconds): Pressing and holding the

desired key from ~ will

save the currently playing broadcast to

the selected key and sound a BEEP.

SCAN

Press the ( , ) key

• Shortly pressing the key (under 0.8

seconds): The broadcast frequency

increases and previews each broadcast

for 5 seconds each. After scanning all

frequencies, returns and plays the cur-

rent broadcast frequency.

• Pressing and holding the key (over 0.8

seconds): Previews the broadcasts

saved in Preset ~ for 5 sec-

onds each.

Press the ( , ) key

• Pressing and holding the key (over 0.8

seconds): The broadcast frequency

increases and previews each broadcast

for 5 seconds each. After scanning all

frequencies, returns and plays the cur-

rent broadcast frequency.

Selecting through manual search

Turn the TUNE knob left/right to adjust

the frequency.

• AC100A6EE / AC110A6EE / AC101A6EE /

AC111A6EE

- FM : Changes by 50KHz

- AM : Changes by 9khz

• AC100A6EG / AC110A6EG

- FM : Changes by 100KHz

- AM : Changes by 9khz

• AC100A6EN / AC110A6EN

-FM : Changes by 200KHz

- AM : Changes by 10khz

SCAN

AMFMRADIO

SCAN

AMFMRADIO

RADIO

AMFM

RADIO

TRACK

SEEK

Features of your vehicle

144

Traffic Announcement (TA)

Shortly pressing the key (under

0.8 seconds): Set

TA Traffic

Announcement) mode.

PTY Up/Down

• Press the / key when

searching PTY in RDS Broadcasting

Program Type selection.

Within key are the A.Store (Auto

Store) and Info functions.

AST (Auto Store)

Press the key Set [ AST]

through TUNE knob or key.

Select AST (Auto Store) to save fre-

quencies with superior reception to

presets

. If no frequencies

are received, then the most recently

received frequency will be broadcast.

❈ Saves only to the Preset memory

~ of FMA or AMA mode.

AF (Alternative Frequency)

Press the key Set [ AF]

through TUNE knob or key.

The Alternative Frequency option can be

turned On/Off.

Region

Press the key Set [ Region]

through TUNE knob or key.

The Region option can be turned On/Off.

News

Press the key Set [ News]

through TUNE knob or key.

The News option can be turned On/Off.

Info Volume

Info Volume refers to the sound volume

upon receiving News or Traffic information.

The info volume can be controlled by

turning the VOL knob left/right while a

news or traffic broadcast is playing.

❈ AF, Region, and News are RDS Radio

menus.

2 RDM

1 RPT

FORDER

PTY

OffOn

SCAN

415

Features of your vehicle

RADIO

Changing RADIO mode

Press the key to change the

mode in order of FM1 ➟ FM2 ➟ AM.

Press the or key to change

the mode in order of FM1 ➟ FM2 and AM.

• When the power is off, press the

or key to turn on the

audio system and receive radio broadcasts.

[Mode Pop up] On state : Displays the

change radio mode pop up screen.

While the pop up screen is displayed,

you can change the radio mode

( : FM1 ➟ FM2 ➟ AM /

: FM1 ➟FM2 / : AM) through the

tune knob or ~ keys.

Adjust Volume

Turn the VOL knob left/right to adjust

the volume.

SEEK

Press the ( , ) key

• Shortly pressing the key (under 0.8

seconds): Changes the frequency.

• Pressing and holding the key (over 0.8

seconds): Automatically searches for

the next frequency.

Preset SEEK

Press the ( , ) key

• Shortly pressing the key (under 0.8

seconds): Plays the frequency saved in

the corresponding key.

• Pressing and holding the key (over 0.8

seconds): Pressing and holding the

desired key from ~ will

save the currently playing broadcast to

the selected key and sound a BEEP.

SCAN

Press the ( , ) key

• Shortly pressing the key (under 0.8

seconds): The broadcast frequency

increases and previews each broadcast

for 5 seconds each. After scanning all

frequencies, returns and plays the cur-

rent broadcast frequency.

• Pressing and holding the key (over 0.8

seconds): Previews the broadcasts

saved in Preset ~ for 5 sec-

onds each.

Press the ( , ) key

• Pressing and holding the key (over 0.8

seconds): The broadcast frequency

increases and previews each broadcast

for 5 seconds each. After scanning all

frequencies, returns and plays the cur-

rent broadcast frequency.

Selecting through manual search

Turn the TUNE knob left/right to adjust

the frequency.

• AC100A6EE / AC110A6EE / AC101A6EE /

AC111A6EE

- FM : Changes by 50KHz

- AM : Changes by 9khz

• AC100A6EG / AC110A6EG

- FM : Changes by 100KHz

- AM : Changes by 9khz

• AC100A6EN / AC110A6EN

-FM : Changes by 200KHz

- AM : Changes by 10khz

SCAN

AMFMRADIO

SCAN

AMFMRADIO

FMRADIO

AMFM

RADIO

AMFM

RADIO

TRACK

SEEK

Features of your vehicle

164

Within key are the A.Store (Auto

Store) and Info functions.

AST (Auto Store)

Press the key Set [ AST]

through TUNE knob or key.

Select AST (Auto Store) to save fre-

quencies with superior reception to

presets

. If no frequencies

are received, then the most recently

received frequency will be broadcast.

1 RPT

417

Features of your vehicle

How vehicle audio works

AM and FM radio signals are broadcast

from transmitter towers located around

your city. They are intercepted by the

radio antenna on your vehicle. This signal

is then received by the radio and sent to

your vehicle speakers.

When a strong radio signal has reached

your vehicle, the precise engineering of

your audio system ensures the best pos-

sible quality reproduction. However, in

some cases the signal coming to your

vehicle may not be strong and clear. This

can be due to factors, such as the dis-

tance from the radio station, closeness of

other strong radio stations or the pres-

ence of buildings, bridges or other large

obstructions in the area.

AM broadcasts can be received at

greater distances than FM broadcasts.

This is because AM radio waves are

transmitted at low frequencies. These

long, low frequency radio waves can fol-

low the curvature of the earth rather than

travelling straight out into the atmos-

phere. In addition, they curve around

obstructions so that they can provide bet-

ter signal coverage.

FM broadcasts are transmitted at high

frequencies and do not bend to follow the

earth's surface. Because of this, FM

broadcasts generally begin to fade at

short distances from the station. Also,

FM signals are easily affected by build-

ings, mountains, or other obstructions.

These can result in certain listening con-

ditions which might lead you to believe a

problem exists with your radio. The fol-

lowing conditions are normal and do not

indicate radio trouble:

¢¢¢

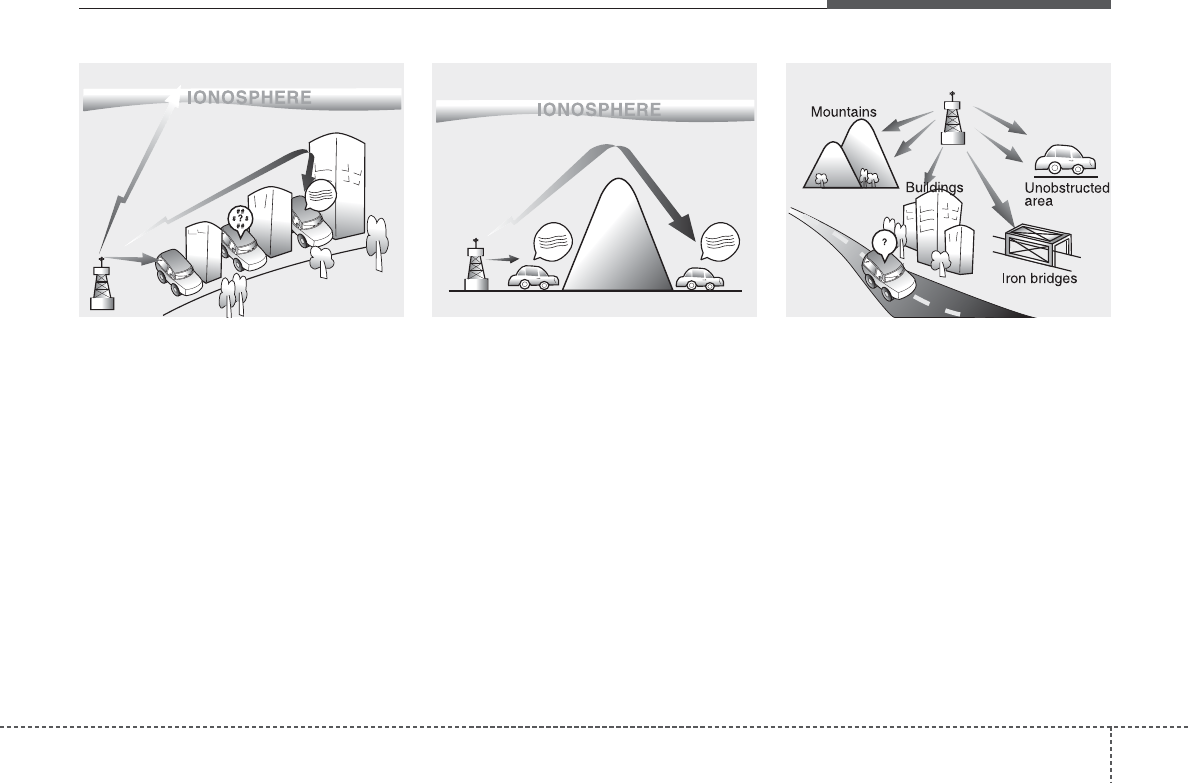

JBM002

AM reception

¢¢¢

JBM001

FM reception

JBM003

FM radio station

Features of your vehicle

184

• Fading - As your vehicle moves away

from the radio station, the signal will

weaken and sound will begin to fade.

When this occurs, we suggest that you

select another stronger station.

• Flutter/Static - Weak FM signals or

large obstructions between the trans-

mitter and your radio can disturb the

signal causing static or fluttering nois-

es to occur. Reducing the treble level

may lessen this effect until the distur-

bance clears.

• Station Swapping - As a FM signal

weakens, another more powerful sig-

nal near the same frequency may

begin to play. This is because your

radio is designed to lock onto the clear-

est signal. If this occurs, select another

station with a stronger signal.

• Multi-Path Cancellation - Radio signals

being received from several directions

can cause distortion or fluttering. This

can be caused by a direct and reflect-

ed signal from the same station, or by

signals from two stations with close

frequencies. If this occurs, select

another station until the condition has

passed.

Using a cellular phone or a two-way

radio

When a cellular phone is used inside the

vehicle, noise may be produced from the

audio system. This does not mean that

something is wrong with the audio equip-

ment. In such a case, use the cellular

phone at a place as far as possible from

the audio equipment.

JBM005

¢¢¢

JBM004

CAUTION

When using a communication sys-

tem such as a cellular phone or a

radio set inside the vehicle, a sepa-

rate external antenna must be fitted.

When a cellular phone or a radio set

is used with an internal antenna

alone, it may interfere with the vehi-

cle's electrical system and adverse-

ly affect safe operation of the vehi-

cle.

WARNING

Do not use a cellular phone while

driving. Stop at a safe location to

use a cellular phone.

419

Features of your vehicle

BASIC METHOD OF USE :

Audio CD / MP3 CD / USB /

iPod / My Music

Press the key to change the mod

mode in order of CD➟USB(iPod)➟AUX

➟My Music➟BT Audio.

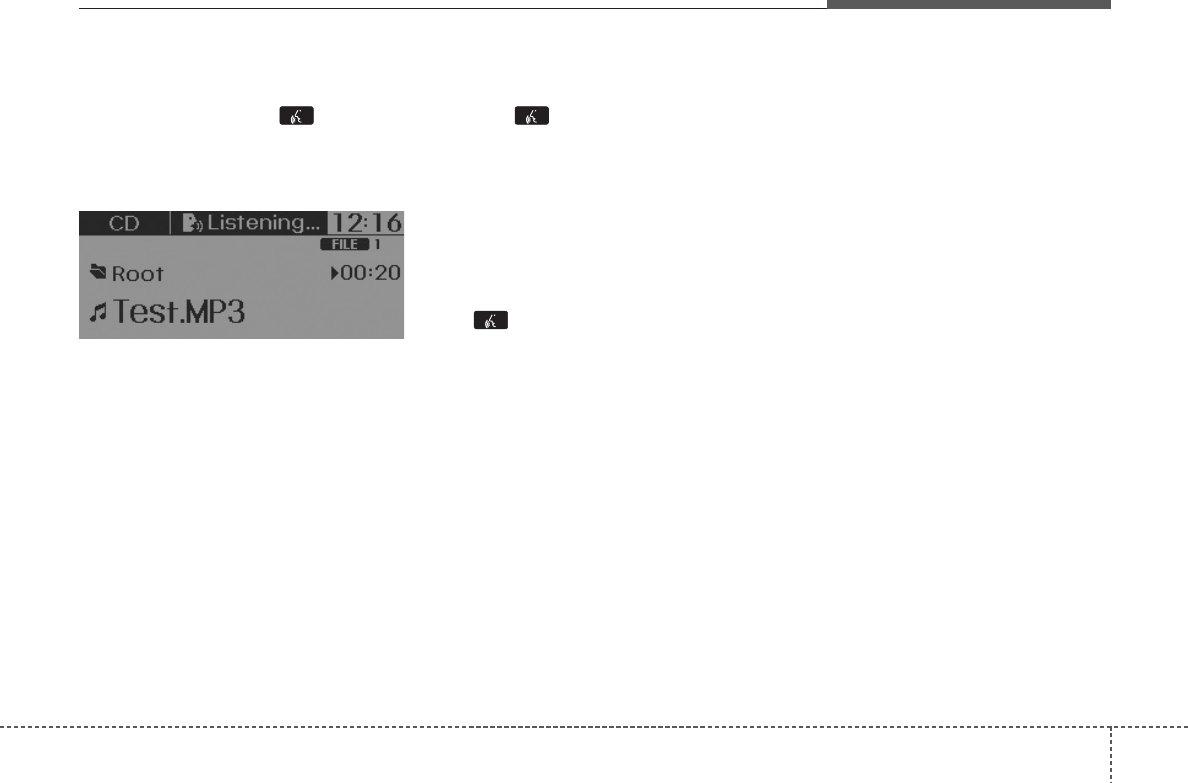

The folder/file name is displayed on the

screen.

❈ The CD is automatically played when

a CD is inserted.

❈ The USB music is automatically

played when a USB is connected.

Press the key Select [ Display]

through the TUNE knob or key

Select [Song Info] Media Display

• [

Song Info

] : The screen display info can

be changed to Album/Artist/ Song

name.

Repeat

While song (file) is playing

(RPT) key

Audio CD, MP3 CD, USB, iPod, My Music

mode: RPT on screen

• To repeat one song (Shortly pressing

the key (under 0.8 seconds)): Repeats

the current song.

MP3 CD, USB mode: FLD.RPT on

screen

• To repeat folder (Pressing and holding

the key (over 0.8 seconds)): repeats all

files within the current folder.

❈ Press the key again to turn off

repeat.

Random

While song (file) is playing

(RDM) key

Audio CD, My Music mode: RDM on

screen

• Random (Shortly pressing the key

(under 0.8 seconds)): Plays all songs in

random order.

MP3 CD, USB mode: FLD.RDM on

screen

• Folder Random (Shortly pressing the

key (under 0.8 seconds)): Plays all files

within the current folder in random

order.

iPod mode: ALB RDM on screen

• Album Random (Shortly pressing the

key (under 0.8 seconds)): Plays all files

within albums of the current category in

random order.

MP3 CD, USB, iPod mode: ALL RDM on

screen

• All Random (pressing and holding the

key (over 0.8 seconds)): Plays all files in

random order.

❈ Press the key again to turn off

repeat.

2RDM

2 RDM

1 RPT

SETUP

MEDIA

Features of your vehicle

204

Changing Song/File

While song (file) is playing key

• Shortly pressing the key (under 0.8

seconds): Plays the current song from

the beginning.

❈ If the key is pressed again

within 1 second, the previous song is

played.

• Pressing and holding the key (over 0.8

seconds): Rewinds the song.

While song (file) is playing key

• Shortly pressing the key (under 0.8

seconds): Plays the next song.

• Pressing and holding the key (over 0.8

seconds): Fast forwards the song.

Scan

While song (file) is playing

key

• Shortly pressing the key (under 0.8

seconds) : Scans all songs from the

next song for 10 seconds each.

While song (file) is playing key

• Pressing and holding the key (over 0.8

seconds) : Scans all songs for 10 sec-

onds starting from the next song.

❈ Press the key again to turn off.

❈ The SCAN function is not supported in

iPod mode.

Folder Search : MP3 CD, USB

Mode

While file is playing

(Folder Up) key

• Searches the next folder.

While file is playing (Folder

Down) key

• Searches the parent folder.

❈ If a folder is selected by pressing the

TUNE knob, the first file within the

selected folder will be played.

❈ In iPod mode, moves to the Parent

Folder.

Searching Songs (File)

• Turning

TUNE

knob : Searches for

songs (files)

• Pressing TUNE knob : Plays select-

ed song (file).

FORDER

FORDERPTY

SCAN

SEEK

TRACK

421

Features of your vehicle

MENU : Audio CD

Press the CD MP3 mode key to

set the Repeat, Random, Information

features.

Repeat

Press the key Set [ RPT]

through the

TUNE

knob or

key to repeat the current song.

❈ Press RPT again to turn off.

Random

Press the key Set [ RDM]

through the

TUNE

knob or

key to randomly play songs within

the current folder.

❈ Press RDM again to turn off.

Information

Press the key Set [ Info]

through the

TUNE

knob or

key to display information of the cur-

rent song.

❈ Press the key to turn off info

display.

MENU : MP3 CD / USB

Press the CD MP3 mode key to

set the Repeat, Folder Random, Folder

Repeat, All Random, Information, and

Copy features.

Repeat

Press the key Set [ RPT]

through the

TUNE

knob or

key to repeat the current song.

❈ Press RPT again to turn off.

1 RPT

2 RDM

1 RPT

Features of your vehicle

224

Folder Random

Press the key Set [ F.RDM]

through the

TUNE

knob or

key to randomly play songs within the

current folder.

❈ Press F.RDM again to turn off.

Folder Repeat

Press the key Set [ F.RPT]

through the

TUNE

knob or

key to repeat songs within the cur-

rent folder.

❈ Press F.RPT again to turn off.

All Random

Press the key Set [ A.RDM]

through the

TUNE

knob or key

to randomly play all songs within the

CD.

❈ Press A.RDM again to turn off.

Information

Press the key Set [ Info]

through the

TUNE

knob or

key to display information of the cur-

rent song.

❈ Press the key to turn off info

display.

Copy

Press the key Set [ Copy]

through the

TUNE

knob or

key.

This is used to copy the current song

into My Music. You can play the copied

Music in My Music mode.

❈ If another key is pressed while copying

is in progress, a pop up asking you

whether to cancel copying is dis-

played.

❈ If another media is connected or

inserted (USB, CD, iPod, AUX) while

copying is in progress, copying is can-

celed.

❈ Music will not be played while copying

is in progress.

MENU : iPod

In iPod mode, press the key to

set the Repeat, Album Random, All

Random, and Information features.

Repeat

Press the key Set [ RPT]

through the

TUNE

knob or

key to repeat the current song.

❈ Press RPT again to turn repeat off.

Album Random

Press the key Set [ Alb.RDM]

through the TUNE knob or key.

Plays albums within the currently playing

category in random order.

❈ Press Alb.RDM again to turn off.

2 RDM

1 RPT

2 RDM

423

Features of your vehicle

All Random

Press the key Set [ A.RDM]

through the TUNE knob or

key.

Plays all songs within the currently play-

ing category in random order.

❈ Press A.RDM again to turn off.

Information

Press the key Set [ Info]

through the

TUNE

knob or

key.

Displays information of the current song.

❈ Press the key to turn off info

display.

Features of your vehicle

244

MENU : My Music Mode

(if equipped)

In My Music mode, press the key

to set the Repeat, Random, Information,

Delete, Delete All, and Delete Selection

features.

Repeat

Press the key Set [ RPT]

through the TUNE knob or

key.

Repeats the currently playing song.

❈ Press RPT again to turn repeat off.

Random

Press the key Set [ RDM]

through the TUNE knob or key.

Plays all songs within the currently play-

ing folder in random order.

❈ Press RDM again to turn random off.

Information

Press the key Set [ Info]

through the

TUNE

knob or

key.

Displays information of the current song.

❈ Press the key to turn off info

display.

Delete

Press the key Set [ Delete]

through the TUNE knob or

key.

Deletes currently playing file

In the play screen, pressing delete will

delete the currently playing song.

Deletes file from list

➀Select the file you wish to delete by

using the TUNE knob.

➁ Press the key and select the

delete menu to delete the selected file.

Delete All

Press the key Set [ Del.All]

through the TUNE knob or key.

Deletes all songs of My Music.

Delete Selection

Press the key Set [ Del.Sel]

through the TUNE knob or

key.

Songs within My Music are selected and

deleted.

➀Select the songs you wish to delete

from the list.

➁ After selecting, press the key

and select the delete menu.

2 RDM

1 RPT

425

Features of your vehicle

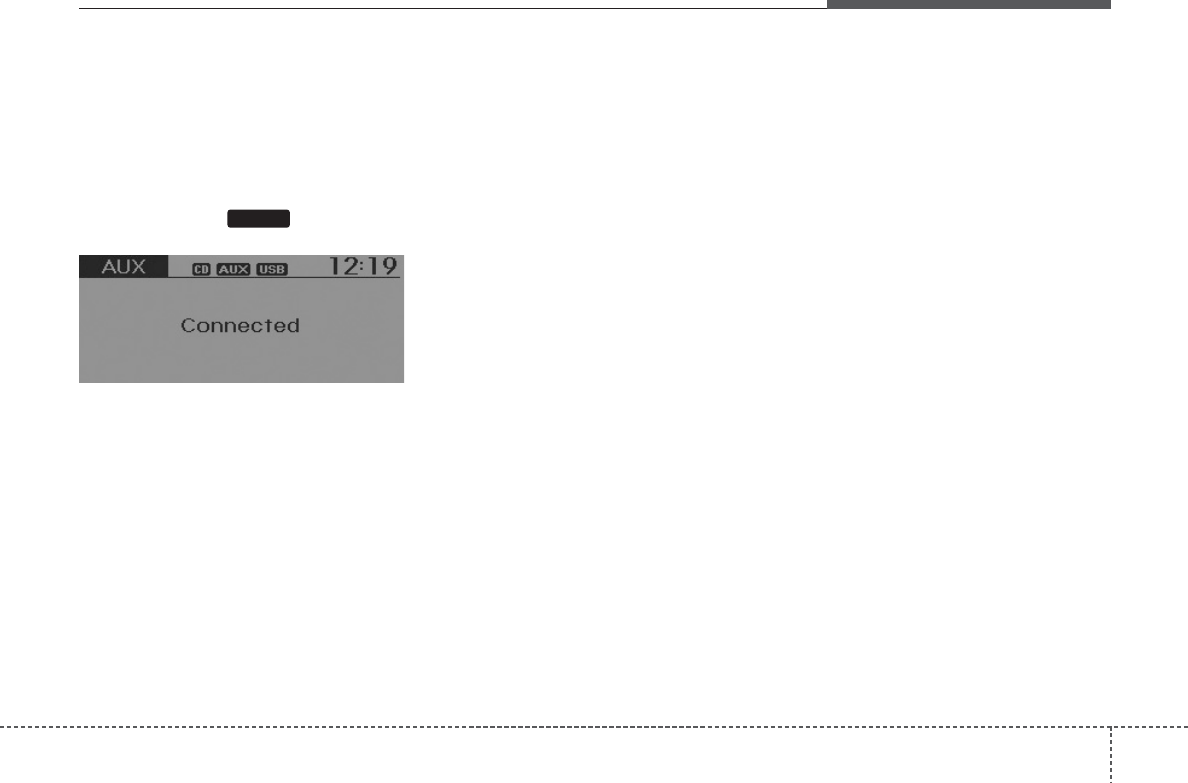

AUX

AUX is used to play external MEDIA cur-

rently connected with the AUX terminal.

AUX mode will automatically start when

an external device is connected with the

AUX terminal.

If an external device is connected, you

can also press the key to change

to AUX mode.

❈ AUX mode cannot be started unless

there is an external device connected

to the AUX terminal.

✽✽NOTICE FOR USING THE

AUX

• Fully insert the AUX cable into the

AUX terminal for use.

MEDIA

Features of your vehicle

264

Caring for disc

• If the temperature inside the car is too

high, open the car windows to ventilate

before using the system.

• It is illegal to copy and use MP3/WMA

files without permission. Use CDs that

are created only by lawful means.

• Do not apply volatile agents, such as

benzene and thinner, normal cleaners

and magnetic sprays made for ana-

logue disc onto CDs.

• To prevent the disc surface from get-

ting damaged, hold CDs by the edges

or the center hole only.

• Clean the disc surface with a piece of

soft cloth before playback (wipe it from

the center to the outside edge).

• Do not damage the disc surface or

attach pieces of sticky tape or paper.

• Make certain only CDs are inserted

into the CD player (Do not insert more

than one CD at a time).

• Keep CDs in their cases after use to

protect them from scratches or dirt.

• Depending on the type of CD-R/CD-

RW CDs, certain CDs may not operate

normally according to manufacturing

companies or making and recording

methods. In such circumstances, con-

tinued use may cause malfunctions to

your audio system.

✽✽NOTICE - Playing an

Incompatible Copy

Protected Audio CD

Some copy protected CDs, which do not

comply with international audio CD

standards (Red Book), may not play on

your car audio. Please note that inabili-

ties to properly play a copy protected

CD may indicate that the CD is defec-

tive, not the CD player.

NOTE:

Order of playing files (folders) :

1. Song playing order : to sequen-

tially.

2. Folder playing order :

❋If no song file is contained in the

folder, that folder is not displayed.

427

Features of your vehicle

CAUTION IN USING

USB DEVICE

• To use an external USB device,

make sure the device is not con-

nected when starting up the vehi-

cle. Connect the device after

starting up.

• If you start the engine when the

USB device is connected, it may

damage the USB device. (USB

flashdrives are very sensitive to

electric shock.)

• If the engine is started up or

turned off while the external USB

device is connected, the external

USB device may not work.

• The System may not play inau-

thentic MP3 or WMA files.

1) It can only play MP3 files with

the compression rate between

8Kbps~320Kbps.

2) It can only play WMA music

files with the compression rate

between 8Kbps~320Kbps.

• Take precautions for static electrici-

ty when connecting or disconnect-

ing the external USB device.

(Continued)

• An encrypted MP3 PLAYER is not

recognizable.

• Depending on the condition of

the external USB device, the con-

nected external USB device can

be unrecognizable.

• When the formatted byte/sector

setting of External USB device is

not either 512BYTE or 2048BYTE,

then the device will not be recog-

nized.

• Use only a USB device formatted

to FAT 12/16/32.

• USB devices without USB I/F

authentication may not be recog-

nizable.

• Make sure the USB connection

terminal does not come in contact

with the human body or other

objects.

• If you repeatedly connect or dis-

connect the USB device in a short

period of time, it may break the

device.

• You may hear a strange noise

when connecting or disconnect-

ing a USB device.

(Continued)

• If you disconnect the external USB

device during playback in USB

mode, the external USB device can

be damaged or may malfunction.

Therefore, disconnect the external

USB device when the audio is

turned off or in another mode. (e.g,

Radio, CD)

• Depending on the type and capacity

of the external USB device or the

type of the files stored in the device,

there is a difference in the time

taken for recognition of the device.

• Do not use the USB device for pur-

poses other than playing music files.

• Playing videos through the USB is

not supported.

• Use of USB accessories such as

rechargers or heaters using USB

I/F may lower performance or

cause trouble.

• If you use devices such as a USB

hub purchased separately, the

vehicle’s audio system may not

recognize the USB device. In that

case, connect the USB device

directly to the multimedia termi-

nal of the vehicle.

(Continued)

Features of your vehicle

284

(Continued)

• If the USB device is divided by

logical drives, only the music files

on the highest-priority drive are

recognized by car audio.

• Devices such as MP3 Player/

Cellular phone/Digital camera can

be unrecognizable by standard

USB I/F can be unrecognizable.

• Charging through the USB may

not be supported in some mobile

devices.

• USB HDD or USB types liable to

connection failures due to vehicle

vibrations are not supported.

(i-stick type)

• Some non-standard USB devices

(METAL COVER TYPE USB) can

be unrecognizable.

• Some USB flash memory readers

(such as CF, SD, micro SD, etc.) or

external-HDD type devices can be

unrecognizable.

• Music files protected by DRM

(DIGITAL RIGHTS MANAGEMENT)

are not recognizable.

(Continued)

• The data in the USB memory may

be lost while using this audio.

Always back up important data on

a personal storage device.

• Please avoid using USB memory

products which can be used as

key chains or cellular phone

accessories as they could cause

damage to the USB jack. Please

make certain only to use plug type

connector products as shown

below.

429

Features of your vehicle

✽✽NOTICE FOR USING THE

iPod®DEVICE

• Some iPod models may not support

communication protocol and files

may not properly play.

Supported iPod models:

- iPod Mini

- iPod 4th(Photo) ~ 6th(Classic)

generation

- iPod Nano 1st~4th generation

- iPod Touch 1st~2nd generation

• The order of search or playback of

songs in the iPod can be different

from the order searched in the

audio system.

• If the iPod disabled due to its own

malfunction, reset the iPod. (Reset:

Refer to iPod manual)

• An iPod may not operate normally

on low battery.

• Some iPod devices, such as the

iPhone, can be connected through

the Bluetooth®Wireless Technology

interface. The device must have

audio Bluetooth®Wireless

Technology capability (such as for

stereo headphone Bluetooth®

Wireless Technology ). The device

can play, but it will not be con-

trolled by the audio system.

(Continued)

CAUTION IN USING THE

iPod®DEVICE

• When connecting iPod with the

iPod Power Cable, insert the con-

nector to the multimedia socket

completely. If not inserted com-

pletely, communications between

iPod and audio may be interrupted.

• When adjusting the sound effects of

the iPod and the audio system, the

sound effects of both devices will

overlap and might reduce or distort

the quality of the sound.

• Deactivate (turn off) the equalizer

function of an iPod when adjust-

ing the audio system’s volume,

and turn off the equalizer of the

audio system when using the

equalizer of an iPod.

• When not using iPod with car

audio, detach the iPod cable from

iPod. Otherwise, iPod may remain

in accessory mode, and may not

work properly.

(Continued)

• To use iPod features within the audio,

use the cable provided upon purchas-

ing an iPod device.

• Skipping or improper operation may

occur depending on the characteris-

tics of your iPod/Phone device.

• If your iPhone is connected to both

the Bluetooth®Wireless Technology

and USB, the sound may not be prop-

erly played. In your iPhone, select the

Dock connector or Bluetooth®

Wireless Technology to change the

sound output (source).

Features of your vehicle

304

✽✽NOTICE FOR USING THE

My Music

• Even if memory is available, a max-

imum of 6,000 songs can be stored.

• The same song can be copied up to

1,000 times.

• Memory info can be checked in the

System menu of Setup.

431

Features of your vehicle

Bluetooth

Wireless Technology

AUDIO

What is

Bluetooth®

Wireless

Technology

Bluetooth

Wireless Technology is a wire-

less technology that allows multiple

devices to be connected in a short range,

low-powered devices like hands-free,

stereo headset, wireless remote con-

troller, etc. For more information, visit

the

Bluetooth

Wireless Technology

website at

www.Bluetooth.com

Before using

Bluetooth

Wireless

Technology

audio features

•

Bluetooth

Wireless Technology

audio

may not be supported depending on

the compatibility of your

Bluetooth

Wireless Technology

mobile phone.

• In order to use

Bluetooth

Wireless

Technology

audio, you must first pair and

connect the

Bluetooth

Wireless

Technology

mobile phone.

•

Bluetooth

Wireless Technology

audio

can be used only when the [Audio

Streaming] of Phone is turned .

❈ Setting

Bluetooth

Wireless Technology

Audio Streaming : Press the

key Select [Phone] through the tune

knob or key Select [Audio

Streaming] through the TUNE

knob Set

Starting

Bluetooth

Wireless

Technology

Audio

• Press the key to change the

mode in order of CD➟USB➟AUX➟My

Music➟BT Audio.

• If BT Audio is selected,

Bluetooth

Wireless Technology

audio will start play-

ing.

❈ Audio may not automatically start play-

ing in some mobile phones.

Using the

Bluetooth

Wireless

Technology

audio features

• Play / Stop

Press the TUNE knob to play and

pause the current song.

❈ The previous song / next song / play /

pause functions may not be supported

in some mobile phones.

MEDIA

OffOn

SETUP

Features of your vehicle

324

PHONE (if equipped)

Before using the

Bluetooth

Wireless

Technology

phone features

• In order to use

Bluetooth

Wireless

Technology

phone, you must first pair

and connect the

Bluetooth

Wireless

Technology

mobile phone.

• If the mobile phone is not paired or con-

nected, it is not possible to enter Phone

mode. Once a phone is paired or con-

nected, the guidance screen will be dis-

played.

• If Priority is set upon vehicle ignition

(IGN/ACC ON), the

Bluetooth

Wireless

Technology

phone will be automatically

connected. Even if you are outside, the

Bluetooth

Wireless Technology

phone

will be automatically connected once

you are in the vicinity of the vehicle. If

you do not want automatic

Bluetooth

Wireless Technology

phone connection,

set the

Bluetooth

Wireless Technology

power to OFF.

Making a call using the Steering

remote controller

1. VOLUME button : Raises or lowers

speaker volume.

2.MUTE button : Mute the microphone

during a call.

3. button : Activates voice recognition.

4. button : Places and transfers calls.

5. button : Ends calls or cancels func-

tions.

• Check call history and making call

➀Shortly press (under 0.8 seconds) the

key on the steering remote con-

troller.

➁ The call history list will be displayed

on the screen.

➂Press the key again to connect a

call to the selected number.

• Redialing the most recently called num-

ber

➀Press and hold (over 0.8 seconds) the

key on the steering remote con-

troller.

➁ The most recently called number is

redialed.

433

Features of your vehicle

Phone MENU

Press the key to display three

menus (Call History, Phone book, Phone

Setup).

Call history

Press the key Set [ Call

History] through the TUNE knob or

key.

The call history is displayed and can be

used to select a number and make a call.

If call history does not exist, a screen

asking whether to download call history

is displayed. (The download feature may

not be supported in some mobile

phones)

Contacts

Press the key Set [

Phone

book

] through the TUNE knob or

key.

The Contacts are displayed and can be

used to select a number and make a call.

❈ If more than one number is saved to

one contact, then a screen showing

the mobile phone number, house and

office number is displayed. Select the

desired number to make the call.

❈ If Contacts do not exist, a screen ask-

ing whether to download Contacts is

displayed. (The download feature may

not be supported in some mobile

phones)

Phone Setup

Press the key Set [ Phone

Setup] through the TUNE knob or

key.

The

Bluetooth

Wireless Technology

mobile phone setup screen is displayed.

For more information, refer to “Phone

Setup”.

PHONE

2 RDM

PHONE

1 RPT

PHONE

Features of your vehicle

344

CAUTION IN USING

BLUETOOTH

WIRELESS

TECHNOLOGY CELLU-

LAR PHONE

• Do not use a cellular phone or

perform

Bluetooth®Wireless

Technology

settings (e.g. pairing

a phone) while driving.

• Some Bluetooth

Wireless

Technology -enabled phones may

not be recognized by the system

or fully compatible with the sys-

tem.

• Before using Bluetooth

Wireless

Technology related features of

the audio system, refer your

phone’s User’s Manual for phone-

side Bluetooth

Wireless

Technology operations.

•

The phone must be paired to the

audio system to use

Bluetooth

Wireless Technology

related fea-

tures.

• You will not be able to use the

hands-free feature when your

phone (in the car) is outside of

the cellular service area (e.g. in a

tunnel, in a underground, in a

mountainous area, etc.).

(Continued)

• If the cellular phone signal is

poor or the vehicles interior noise

is too loud, it may be difficult to

hear the other person’s voice dur-

ing a call.

• Do not place the phone near or

inside metallic objects, otherwise

communications with Bluetooth

Wireless Technology system or

cellular service stations can be

disturbed.

• While a phone is connected through

Bluetooth

Wireless Technology

your phone may discharge quicker

than usual for additional

Wireless

Technology-related operations.

•Some cellular phones or other

devices may cause interference

noise or malfunction to audio

system. In this case, store the

device in a different location may

resolve the condition.

• Phone contact names should be

saved in English or they may not

be displayed correctly.

(Continued)

• If Priority is set upon vehicle igni-

tion(IGN/ACC ON), the Bluetooth

Wireless Technology phone will

be automatically connected.

Even if you are outside, the

Bluetooth

Wireless Technology

phone will be automatically con-

nected once you are in the vicini-

ty of the vehicle.

If you do not want automatic

Bluetooth

Wireless Technology

connection, turn the Bluetooth

Wireless Technology feature off.

•The hands-free call volume and

quality may differ depending on

the mobile phone type.

435

Features of your vehicle

CAUTION

•Bluetooth®Wireless Technology

features can be used only when the

mobile phone has been paired and

connected with the device. For

more information on pairing and

connecting

Bluetooth®Wireless

Technology enabled

mobile phones,

refer to the “Phone Setup” section.

When a

Bluetooth®Wireless

Technology

mobile phone is con-

nected, a ( ) icon will appear at

the top of the screen. If a ( ) icon

is not displayed, this indicates that

a Bluetooth®Wireless Technology

enabled device has not been con-

nected. Your must connect the

device before use. For more infor-

mation on Bluetooth®Wireless

Technology mobile phones, refer to

the “Phone Setup” section.

Pairing and connecting a

Bluetooth®

Wireless Technology enabled

mobile

phone will work only when the

Bluetooth®Wireless Technology

option within your mobile phone

has been turned on. (Methods of

turning on the Bluetooth®Wireless

Technology enabled feature may

differ depending on the mobile

phone.)

(Continued)

In some mobile phones, starting the

ignition while talking through

Bluetooth®Wireless Technology

enabled

handsfree call will result in

the call becoming disconnected.

(Switch the call back to your mobile

phone when starting the ignition.)

Some features may not be supported

in some Bluetooth®Wireless

Technology mobile phone and

devices.

Bluetooth®Wireless Technology

enabled

operation may be unstable

depending on the communication

state.

Features of your vehicle

364

VOICE COMMAND (if equipped)

Starting Voice Command

• To start voice command, shortly press

the key on the steering wheel

remote controller.

• If voice command is in [Normal Mode],

then the system will say “Please say a

command. Beep”

❈ If voice command is in [Expert Mode],

then the system will only say a “Beep-”

❈ Setting Voice command [Normal

Mode]/[Expert Mode]:

Press the key Select [System]

through the TUNE knob or

key Select [Voice Command Mode]

through the TUNE knob Set

[Normal Mode]/[Expert Mode]

• Say the voice command.

SETUP

CAUTION

For proper voice recognition, say

the voice command after the guid-

ance message and the “Beep”

sound.

CAUTION IN USING

VOICE COMMAND

• The voice recognition feature of

this product supports recognition

of the commands listed within

this user’s manual.

While using voice recognition, oper-

ating the steering remote control

or the device will terminate voice

recognition and allow you to man-

ually operate desired functions.

Position the microphone above the

head of the driver’s seat. For superi-

or performance, maintain good pos-

ture when saying voice commands.

Voice recognition may not func-

tion properly due to outside

noise. The following conditions

can affect the performance of

Voice Recognition:

- When the windows and sunroof

are open

- When the heating/cooling sys-

tem is on

- When passing a tunnel

- When driving on rugged and

uneven roads

(Continued)

After downloading Bluetooth

Wireless Technology contacts,

the system requires some times

to convert the contacts into voice

information. During this time,

voice recognition may not oper-

ate properly.

Upon inputting your contacts,

special symbols and numbers

cannot be recognized by voice.

For example, “# John Doe%&” will

be recognized as “John Doe”.

437

Features of your vehicle

Skipping the Guidance Message

While the guidance message is being

stated, shortly press the key (under

0.8 seconds) to discontinue the guidance

message and sound the “beep”.

After the “beep”, say the voice command.

Ending Voice Command

• While using voice command, press and

hold the key (over 0.8 seconds) to

end voice command.

• While using voice command, pressing

the steering wheel remote controller or

a different key will end voice command.

• In a state where the system is waiting

for your voice command, say “cancel” or

“end” to end voice command.

• In a state where the system is waiting

for your voice command, shortly press

the key (under 0.8 seconds) to end

voice command.

Features of your vehicle

384

❈ Illustration on using voice commands

• Starting voice command.

Shortly pressing the key (under 0.8 seconds):

• Skipping Voice Recognition

Shortly pressing the key (under 0.8 seconds):

• End voice command.

Shortly pressing the key (under 0.8 seconds):

while guidance message is being stated

More Help

Phone book

Cancel

More Help

Please say a command

Please say a...

More Help.

You can say Radio, FM, AM, Media, CD, USB, Aux,

My Music, iPod, Bluetooth Audio, Phone, Call

History or Phone book. Please say a command.

Phone book.

Please say the name of the phone book you

want to call.

More Help.

You can say Radio, FM, AM, Media, CD, USB, Aux,

My Music, iPod, Bluetooth Audio, Phone, Call

History or Phone book. Please say a command.

Beep-

Beep Beep.. (end beep)

Shortly pressing the key

(under 0.8 seconds)

439

Features of your vehicle

Command Function

More Help Provides guidance on commands that can be

used anywhere in the system.

Help Provides guidance on commands that can be

used within the current mode.

Call<Name> Calls <Name> saved in

phone book

Ex) Call “John”

Phone Provides guidance on Phone related com-

mands. After saying this command, say “Call

History”, “

Phone book

”, “Dial Number” to exe-

cute corresponding functions.

Call History Displays the Call History screen.

Phone book

Displays the

phone book

screen. After saying

this command, say the name of a

phone book

saved in the

phone book

to automatically con-

nect the call.

Dial Number Display the Dial number screen. After saying

this command, you can say the number what

you want to call.

Redial Connects the most recently called number.

Radio

•

When listening to the radio, displays the next

radio screen. (FM1➟FM2➟FMA ➟ AM ➟

AMA)

•

When listening to a different mode, displays

the most recently played radio screen.

Command Function

•

When currently listening to the FM radio,

maintains the current state.

•

When listening to a different mode, displays

the most recently played FM screen.

FM1(FM One) Displays the FM1 screen.

FM2(FM Two) Displays the FM2 screen.

FMA Displays the FMA screen.

AM Displays the AM screen.

AMA Displays the AMA screen.

FM Preset 1~6 Plays the most recently played broadcast

saved in FM Preset 1~6.

AM Preset 1~6 Plays the broadcast saved in AM Preset 1~6.

FM 87.5~107.9 Plays the FM broadcast of the corresponding

frequency.

AM 530~1710 Plays the AM broadcast of the corresponding

frequency.

TA on Enable Traffic Announcement

TA off Disable Traffic Announcement

News on Enable RDS News feature

News off Disable RDS News feature

Voice Command List

• Common Commands: These are commands that can be used in all situations. (However, some commands may not be support-

ed in special circumstances.)

Features of your vehicle

404

Command Function

Media Moves to the most recently played media

screen.

Play Track 1~30 If a music CD has been inserted, plays the

corresponding track.

CD Plays the music saved in the CD.

Search CD Moves to the CD track or file selection screen.

•

For audio CDs, move to the screen and say the

track number to play the corresponding track.

•

Moves to MP3 CD file selection screen. After

manually operate the device to select and

play music.

USB Plays USB music.

Search USB Moves to USB file selection screen. After

manually operate the device to select and play

music.

iPod Plays iPod music.

Search iPod Moves to the iPod file selection screen. After,

manually operate the device to select and play

music.

My Music Plays the music saved in My Music.

Search My Music Moves to My Music file selection screen. After

manually operate the device to select and play

music.

Command Function

AUX (Auxiliary) Plays the connected external device.

Bluetooth Audio Plays the music saved in connected

Bluetooth

Wireless Technology

device.

Mute Mutes the radio or music volume.

Pardon? Repeats the most recent comment.

Cancel (Exit) Ends voice command.

441

Features of your vehicle

• FM/AM radio commands: Commands that can be used while

listening to FM, AM radio.

• Audio CD commands: Commands that can be used while

listening to Audio CD.

Command Function

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Auto Store Automatically selects radio broadcast fre-

quencies with superior reception and saves in

Presets 1~6.

Preset Save 1~6 Saves the current broadcast frequency to

Preset 1~6.

Seek up Plays the next receivable broadcast.

Seek down Plays the previous receivable broadcast.

Next Preset Selects the preset number next to the most

recently selected preset. (Example: When cur-

rently listening to preset no. 3, then preset no.

4 will be selected.)

Previous Preset Selects the preset number previous to the

most recently selected preset. (Example:

When currently listening to preset no. 3, then

preset no. 2 will be selected.)

Scan Scans receivable frequencies from the current

broadcast and plays for 10 seconds each.

Preset Scan Moves to the next preset from the current

present and plays for 10 seconds each.

AF on Enable Alternative Frequency feature

AF off Disable Alternative Frequency feature

Region Enable Region feature

Command Function

Region off Disable Region feature

Program Type Moves to the RDS Program type selection

screen. After, manually operate the device to

select a desired program type.

Random Randomly plays the tracks within the CD.

Random Off Cancels random play to play tracks in sequen-

tial order.

Repeat Repeats the current track.

Repeat Off Cancels repeat play to play tracks in sequen-

tial order.

Next Track Plays the next track.

Previous Track Plays the previous track.

Scan Scans the tracks from the next track for 10

seconds each.

Track 1~30 Plays the desired track number.

Search Track Moves to the track selection screen. After, say

the track name to play the corresponding track.

Information Displays the information screen of the current

track.

Features of your vehicle

424

• MP3 CD / USB commands: Commands that can be used

while listening to music files saved in CD and USB.

• iPod Commands: Commands that can be used while playing

iPod.

Command Function

Random Randomly plays the files within the current

folder.

All Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Folder Repeat Repeats all files in the current folder.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Search Folder Moves to the folder selection screen.

Information Displays the information screen of the current

file.

Copy Copies the current file into My Music.

Command Function

All Random Randomly plays all saved songs.

Random Randomly plays the songs within the current

category.

Random Off Cancels random play to play songs in sequen-

tial order.

Repeat Repeats the current song.

Repeat Off Cancels repeat play to play songs in sequen-

tial order.

Next Song Plays the next song.

Previous Song Plays the previous song.

Search Song Moves to the song selection screen.

Information Displays the information screen of the current

song.

443

Features of your vehicle

• My Music Commands: Commands that can be used while

playing My Music.

•

Bluetooth

Wireless Technology Audio Commands:

Commands that can be used while playing Phone Music.

Command Function

Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Information Displays the information screen of the current

file.

Delete Deletes the current file. You will bypass an

additional confirmation process.

Delete All Deletes all files saved in My Music. You will

bypass an additional confirmation process.

Command Function

Play Plays the currently paused song.

Pause Pauses the current song.

Features of your vehicle

444

Monday Monday

Tuesday Tuesday

Wednesday Wednesday

Thursday Thursday

Friday Friday

Saturday Saturday

Sunday Sunday

Use tune knob Use tune knob

Volume Volume

Max Volume maxinmum

Min Volume mininmum

AST (Auto store) Automatically selects and saves

channels

No Media Empty media file in CD or USB

No File Empty media file in CD or USB

Empty File Empty media file in MY MUSIC

Info (Information) Information of playing files

Artist Artist name, MP3/CD file cur-

rently being played

Title Song name, MP3/CD file cur-

rently being played

Album Album name, MP3/CD file cur-

rently being played

Genres "Genres" is keyword for search-

ing mode of playlists for iPod

Composers "Composers" is filtering keyword

for searching mode of playlists

for iPod

Playlists

"Playlists" is filtering keyword for

searching mode of playlists for iPod

Songs

"Songs" is filtering keyword for

searching mode of playlists for iPod

Audiobooks "Audiobooks" is filtering key-

word for searching mode of

playlists for iPod

Podcasts "Podcasts" is filtering keyword

for searching mode of playlists

for iPod

RPT (Repeat) Audio play mode of Reapeat

F.RPT (Folder Repeat)

Audio play mode of Folder

Reapeat

RDM (Random) Audio play mode of Random

F.RDM(Folder Random)

Audio play mode of Folder

Random

A.RDM (All Random)

Audio play mode of All Random

COPY Copy MP3 file to flash memory

for MY MUSIC

Cancel copy Cancel copy mode

File copied Completed File copy

Free Free size of memory

Copy failed Copy failed

Search Search files

Loading CD Loading CD

Reading CD Reading CD

Reading Error Reading Error

Mechanism Error Mechanism Error

Ejecting CD Ejecting CD

445

Features of your vehicle

Audio CD Audio CD

Track Audio CD song order

Reading Media Reading Media

Not supported Not supported file format

Empty iPod Empty iPod, iPoddon't have

playable data

Communication Error

Communication error between

audio and iPod or usb

Delete Delete the paired phone or files

in MY MUSIC

Del.All Delete all files

Del.Sel Select files to delete

Return Return menu

List List files or paired phones

Select Files Select Files

Memory is full, Memory is full, Delete

files

Over 6000 files. can Over 6000 files. can not be

copied

Over 1000 same files

Over 1000 same files can not

be copied

System will automati

System will automatically

switchoff after 1 hour with igni-

tion off

Battery discharge Battery discharge

Start the engine

Setup Setup

Display Setup display mode

Mode Pop up This function is used to select

popup menu on or off

Scroll text This function is used to display

characters longer than the LCD

text displays

Song Info Setup display information being

played

Folder/File Display Folder/file name, file

currently being played

Album/Artist/Song Display Album/Artist/Song

name, file currently being played

Sound Setup sound mode

Audio Settings Setup Audio settings that con-

sist BASS,Middle,Treble,Fader

and Balance

PowerBass This function is used to improve

bass sound quality

Speed Dependent Vol.

Automatically adjust the volume

according to the car speed

Volume Dialogue Adjust volume level of Dialogue

Bass Bass is sound of low frequency.

It can be adjusted sound by

user

Middle Middle is sound of middle fre-

quency. It can be adjusted

sound by user

Treble

Treble is sound of high frequency.

It can be adjusted sound by user

cally switchoff after 1

hour with ignition off

Delete files

not be copied

can not be copied

Start the engine

Features of your vehicle

464

Fader Fader is sound positon between

FRONT and REAR. It can be

adjusted sound by user

Balance Balance is sound positon

between Right and Left. It can

be adjusted sound by user

Default This function is used to initialize

setting value

Clock Setup time

Clock Settings Enters time advanced settings

Day Settings Enters day advanced settings

Time Format Refer to the time display The

time can be displayedin 12

hours or 24 hours

Clock Disp.(Pwr Off) This function is used to select

clock display mode in power off

System Setup system or system infor-

mation

Memory Information Display used memory size

VRS Mode Setup Voice command mode

Normal Normal mode. This function is

used to set default value of

voice recognition factor

Expert Expert mode. This function is

used to set exercised value of

voice recognition factor

Language This function is used to select

user language

Deutsch Deutsch

English(UK) English(UK)

Français French

Italiano Italian

Español Spanish

Nederlands dutch

Svenska swedish

Dansk Danish

Polish

Polski Russian

The system will be The system will be

rebooted

Please change language

Please change language when

ignition ON

Bluetooth not ready

You can use BT System for a

moment Because BT system is

being initialized

Add a new Bluetooth Add a new

Bluetooth

Wireless

Technology device from your phone

Processing Bluetooth

You can use BT System for a

moment Because BT system is

being initialized or processing

other command

Incoming Call Receivng phone

Call Ended Call Ended

Call Rejected When there is unwanted call,

You push the button on the

steering remote controller

Unknown "Unknown" mean Headunit or

phone don't have any informa-

tion about phone number

when ignition ON

device from your phone

Please try later

Please wait

rebooted

447

Features of your vehicle

Call is not possible Call is not possible

MIC Mute Microphone mute

Activate

Bluetooth

Activate

Bluetooth®

Wireless

Technology

System

Bluetooth System

Bluetooth®

Wireless

Technology

system activated

No phone paired. Empty phone paired.

Pair a phone?

No connected phone.

No connected phone. Connect a

phone?

Phone book is empty.

Phone book is empty

Available only when This is a warning, Do not enter

the MENU about BT Setup.

When vehicle is moving

Listening... Listen to instruction of audio

Phone book Download

Downloading phone book from

phone paired to audio

Auto Download After pairing phone, audio sys-

tem automatically download

phone book

Audio Streaming

After pairing phone

, a

udio system

can support

Bluetooth

Wireless

Technology streaming mode

Outgoing Volume Set outoging volume "0 ~ 5"

Bluetooth

System Off

Turn off

Bluetooth®

Wireless

Technology

System

Bluetooth

System ON

Turn on

Bluetooth®

Wireless

Technology

System

Device :

Bluetooth®

Wireless

Technology

device name

Passkey Passkey for pairing a phone

Pairing complete Pair a

Bluetooth®

Wireless

Technology

phone to the audio

Pairing failed Audio & Phone connection have

failed

Already 5 devices All 5 phones have already been

paired. Delete a previously

paired phone to pair new phone

Connection complete

Audio & Phone connection have

succeed

Connection failed. Audio & Phone connection have

failed

Priority changed Changed priority about the reg-

istered phones

Overwrite previous Overwrite previous phone book

information

Phone does not support

Phone does not support Phone

book download

No connected There are phone in the

connection list

Phone does not support

But it was actually not connect-

ed BT pairing

Downloading stopped

System?

paired. Delete a

paired phone?

Phone book download

Bluetooth

audio

vehicle is stationary

Download?

Connect a phone?

Pair a phone?

activated

phone book?

Retry?

Bluetooth

device

9-17

APPENDIX

M & SOFT AMERICA MAP CENTER

TEL : 888-757-0010

WEBSITE : www.mapnsoft.com

MAP DATABASE HOTLINE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

ˍ Reorient or relocate the receiving antenna.

ˍ Increase the separation between the equipment and receiver.

ˍ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

ˍ Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modiﬁcations to this device not explicitly approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

,&:DUQLQJ

7KLVGHYLFHFRPSOLHVZLWK,QGXVWU\&DQDGDOLFHQFHH[HPSW566VWDQGDUGV

2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQVWKLVGHYLFHPD\QRWFDXVHLQWHUIHUHQFHDQG

WKLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHLQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQRIWKHGHYLFH



/HSUpVHQWDSSDUHLOHVWFRQIRUPHDX[&15G,QGXVWULH&DQDGDDSSOLFDEOHVDX[DSSDUHLOVUDGLRH[HPSWVGHOLFHQFH

/H[SORLWDWLRQHVWDXWRULVpHDX[GHX[FRQGLWLRQVVXLYDQWHVODSSDUHLOQHGRLWSDVSURGXLUHGHEURXLOODJHHW

OXWLOLVDWHXUGHODSSDUHLOGRLWDFFHSWHUWRXWEURXLOODJHUDGLRpOHFWULTXHVXEL

PrPHVLOHEURXLOODJHHVWVXVFHSWLEOHGHQFRPSURPHWWUHOHIRQFWLRQQHPHQW



7KLVHTXLSPHQWFRPSOLHVZLWK)&&UDGLDWLRQH[SRVXUHOLPLWVVHWIRUWKIRUDQXQFRQWUROOHGHQYLURQPHQW

7KLVHTXLSPHQWVKRXOGEHLQVWDOOHGDQGRSHUDWHGZLWKPLQLPXPFPEHWZHHQWKHUDGLDWRUDQG\RXUERG\

7KLVWUDQVPLWWHUPXVWQRWEHFROORFDWHGRURSHUDWLQJLQFRQMXQFWLRQZLWKDQ\RWKHUDQWHQQDRUWUDQVPLWWHUXQOHVVDXWKRUL]HGWRGRVRE\WKH)&&

HYUNDAI MOBIS AM1B3DMAN CAR AUDIO User Manual H GD EU 1124 qxp

HYUNDAI MOBIS CO., LTD. CAR AUDIO H GD EU 1124 qxp

Users Manual

Navigation menu

Namespaces

Views

Navigation
