CAR MULTIMEDIA SYSTEM l USER'S MANUAL

3VENE10

(영어/미국)

CAR MULTIMEDIA SYSTEM

Thank you for purchasing this multimedia

system.

This user's manual explains how to use

the HYUNDAI Motor multimedia system.

Before using the product, read the con-

tents of this user's manual carefully and

use this product safely.

•

The screens shown in this manual may

differ with the actual screens of the

product.

•

The design and specification of this

product may change without prior notifi-

cation for product improvement.

•

When transferring the vehicle to another

individual, include this user's manual so

that the next driver can continue its use.

Precaution for safe usage

•

Driving while distracted can result in a

loss of vehicle control, that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation of a

vehicle, and use of any handheld devices,

other equipment, or vehicle systems which

take the driver’s eyes, attention and focus

away from the safe operation of a vehicle

or which are not permissible by law should

never be used during operation of the

vehicle.

•

Do not operate the

multimedia system

while driving.

•

Do not disassemble, assemble, or modify

the

multimedia system

•

Do not watch the screen for prolonged

periods of time while driving.

•

Set the volume to a level which allows the

driver to be aware of external conditions.

•

Do not operate the

multimedia system

for

prolonged periods of time with the vehicle

ignition in ACC. Such operations may lead

to battery discharge.

•

Be cautious not to spill water or introduce

foreign objects into the device.

•

Do not cause severe shock to the device.

Direct pressure onto the front side of the

monitor may cause damage to the LCD or

touch panel.

•

In case of product malfunction, please

contact your place of purchase or service

center.

•

When cleaning the touch screen, make

sure to turn off the device and use a dry

and smooth cloth. Never use tough materi-

als, chemical cloths, or solvents (alcohol,

ammonia, benzene, thinners, etc.) as such

materials may damage the device panel or

cause color and quality deterioration.

•

SiriusXM service requires a subscrip-

tion, sold separately, after 3-month trial

included with vehicle purchase. If you

decide to continue your SiriusXM ser-

vice at the end of your trial subscription,

the plan you choose will automatically

renew and bill at then-current rates until

you call Sirius XM at 1-866-635-2349 to

cancel. See our Customer Agreement

for complete terms at www.siriusxm.

com. Programming subject to change.

Sirius satellite service is available only

to those at least 18 and older in the 48

contiguous USA, D.C., and PR (with

coverage limitations). Traffic informa-

tion not available in all markets. See

siriusxm.com/traffic for details. Sirius,

XM and all related marks and logos are

trademarks of Sirius XM Radio Inc.

WARNING

• Driving while distracted can result in a

loss of vehicle control that may lead to

an accident, severe personal injury, and

death. The driver’s primary responsibil-

ity is in the safe and legal operation

of a vehicle, and use of any handheld

devices, other equipment, or vehicle

systems which take the driver’s eyes,

attention and focus away from the safe

operation of a vehicle or which are not

permissible by law should never be used

during operation of the vehicle.

All Map Database cannot be copied without permission.

Important Notice : This is protected by U.S. copyright laws. All rights not expressly granted are reserved.

You may not otherwise reproduce, modify and distribute the content without HYUNDAI MnSoft, Inc’s prior written consent.

Warnings and Cautions

Key Product Features

Component Names and Functions

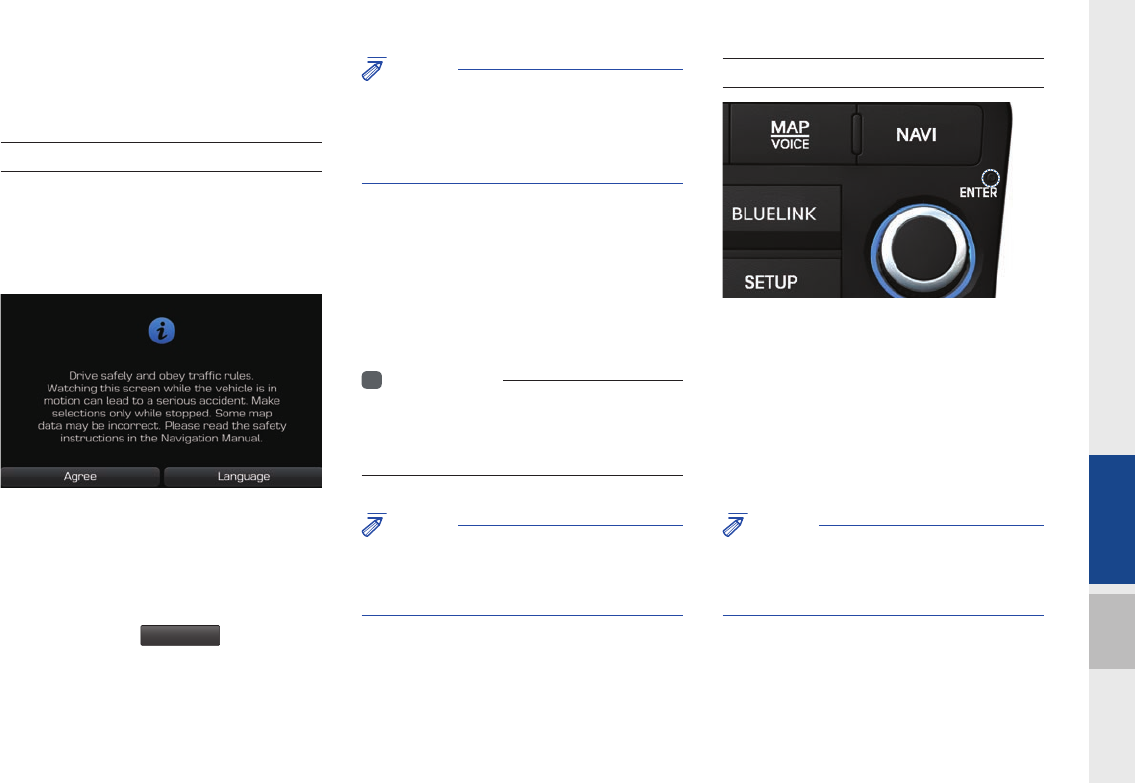

Starting the System for the First Time

part.1 Basic

1-2 I Basic

Safety Warnings

•Even when receiving route guidance

from the Navigation system, please

abide by actual traffic and road regu-

lations. Following only the Navigation

route guidance may lead to violations of

actual traffic and road regulations and

lead to traffic accidents.

•Do not stare at the screen while driv-

ing. Staring at the screen for prolonged

periods of time could lead to traffic acci-

dents.

•Do not operate the Navigation system

while driving, such as entering POIs or

conducting route searches. Such acts

could lead to accidents, fire, or electric

shock. Park the vehicle before operating

the device.

•Do not disassemble, assemble, or mod-

ify the Multimedia system. Such acts

could result in accidents, fire, or electric

shock.

•Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

•If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibil-

ity of an accident may increase. Please

use phone related functions only when

parked.

•Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

•Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

•Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

•For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

•Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

Basic

Warnings and Cautions I 1-3

Safety Cautions

Pay attention to traffic conditions while

driving.

•In some instances, the navigation may

provide guidance through restricted

areas.

•Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

•Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

•Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

•If you want to change the position of

device installation, please inquire with

your place of purchase or service main-

tenance center. Technical expertise is

required to install or disassemble the

device.

•Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

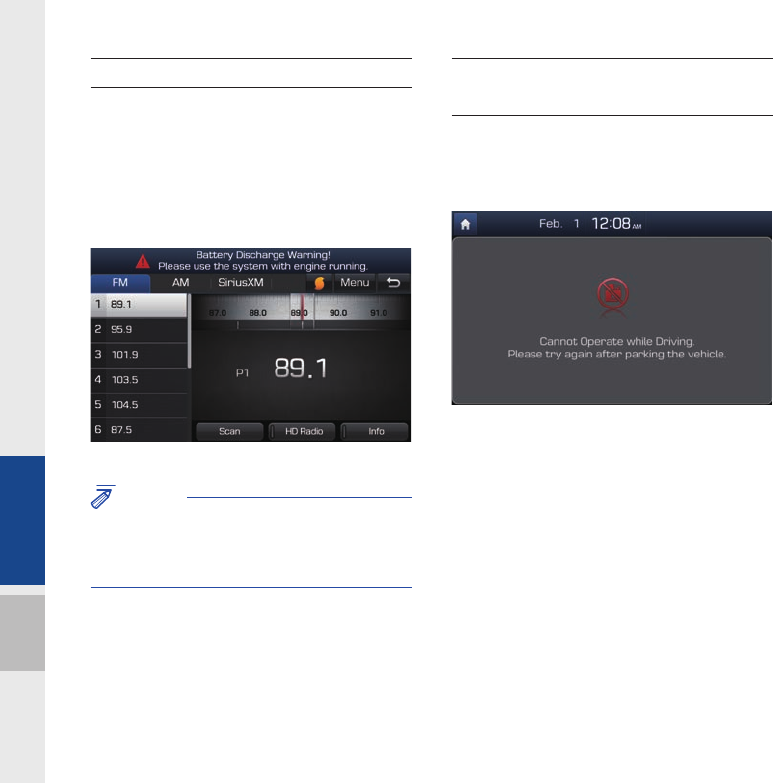

•Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

•Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

•When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

•Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

1-4 I Basic

Display

Wide TFT-LCD Display

•Provides high quality video through a Wide TFT-

LCD Display using an LED Back Light.

•Touch screen for maximum user convenience.

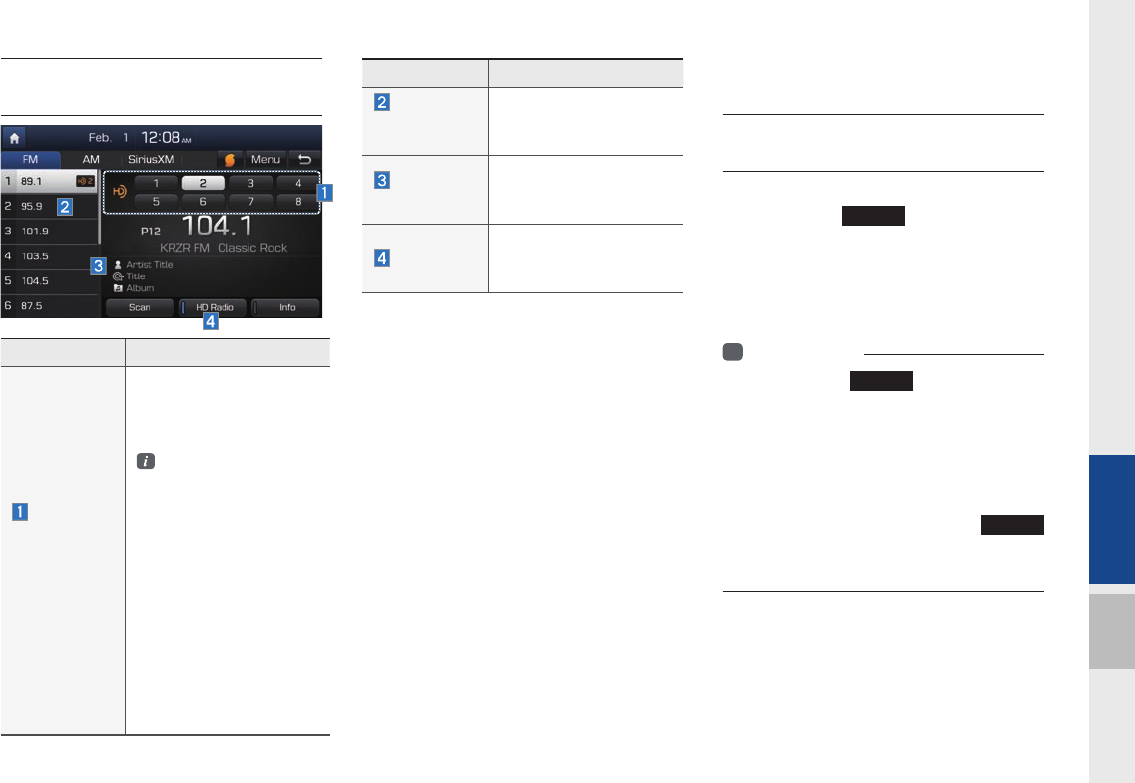

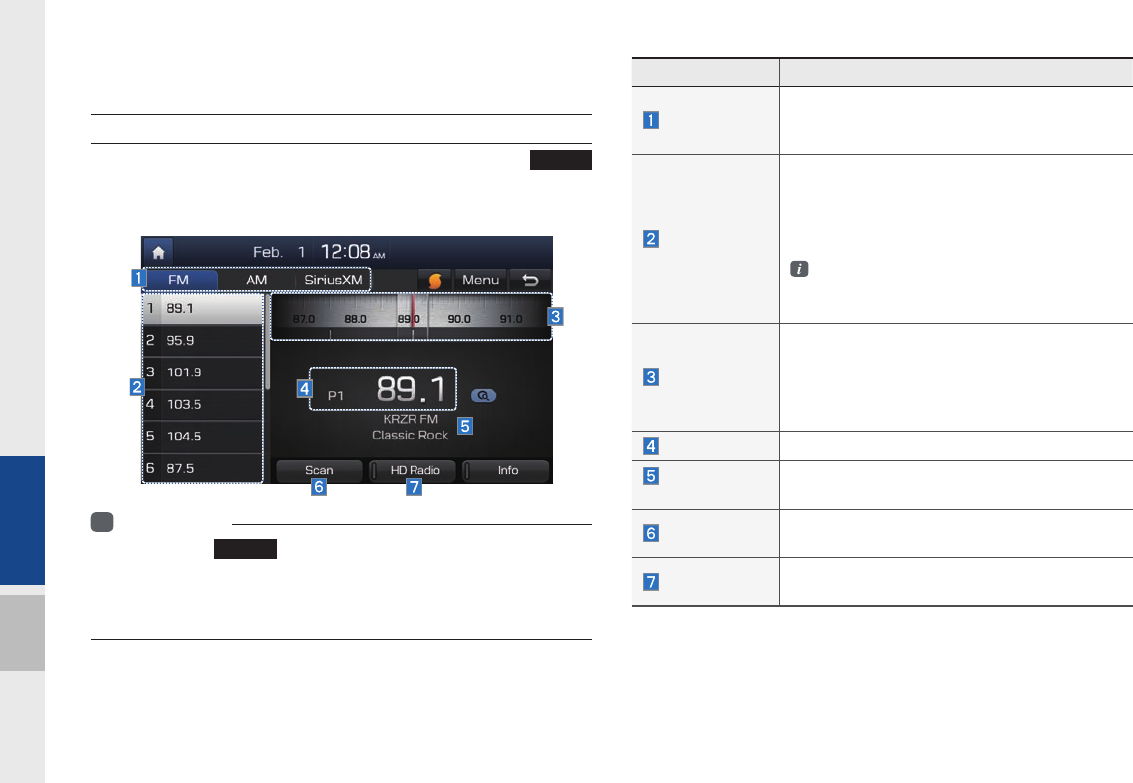

Radio

Digital Tuner Feature

•Digital Tuner using PPL method that supports

memory of 12 broadcast stations for each AM

and FM modes.

Radio broadcast station name

•Displays broadcast station names.

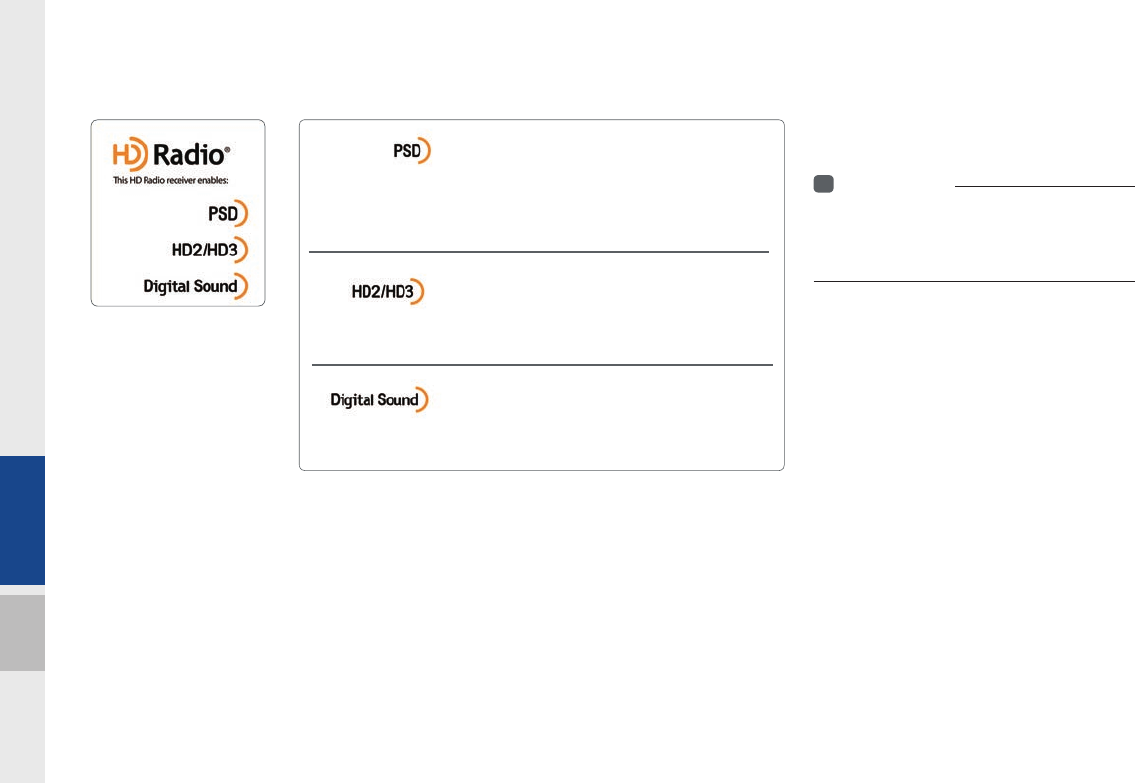

HD Radio™/Satellite Radio feature

•Supports HD Radio™ reception and Satellite

Radio (SiriusXM™).

Key Product Features

This device is a Multimedia system equipped with a multifunctional

disc player that supports Radio (FM, AM), HD Radio™ technology,

SiriusXM™, Audio CD, MP3, USB, iPod, AUX, Bluetooth Audio

and My Music features. The WIDE VGA LCD provides a high qual-

ity resolution while the powerful and rich sound system adds to the

driving enjoyment.

Multimedia

Player

Support for various Media Formats

•Support for various media formats, including

Radio, Audio CD, MP3, USB, iPod, AUX and

Bluetooth

Audio Streaming modes

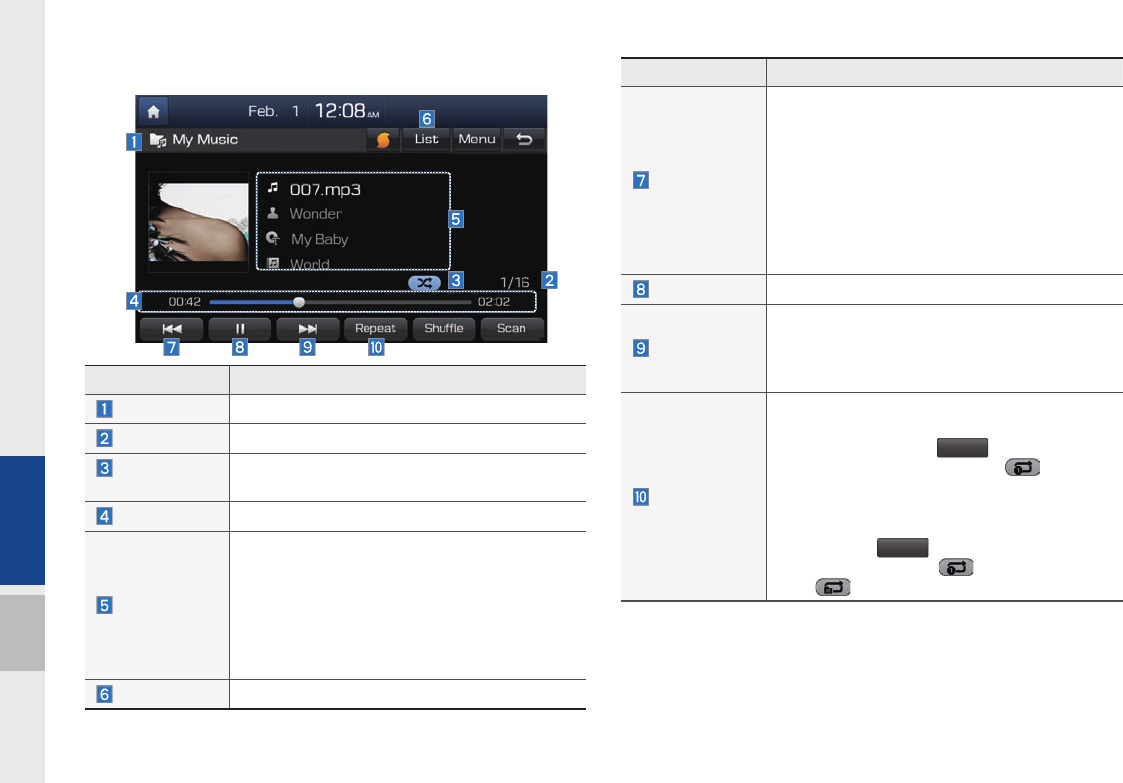

My Music

•Supports copying of music stored within USB

devices into My Music (internal memory) mode

Navigation

Voice Guidance

•Voice route guidance to safely and conveniently

reach set destinations

•Various map scales that enable drivers to accu-

rately view map and surrounding areas

Automatic Correction for Current Location

•Automatically corrects current position using

map matching and GPS information.

Miscellaneous

Bluetooth

Wireless Technology

•Convenient use of Bluetooth

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

•Easy control of features through touch screen

options

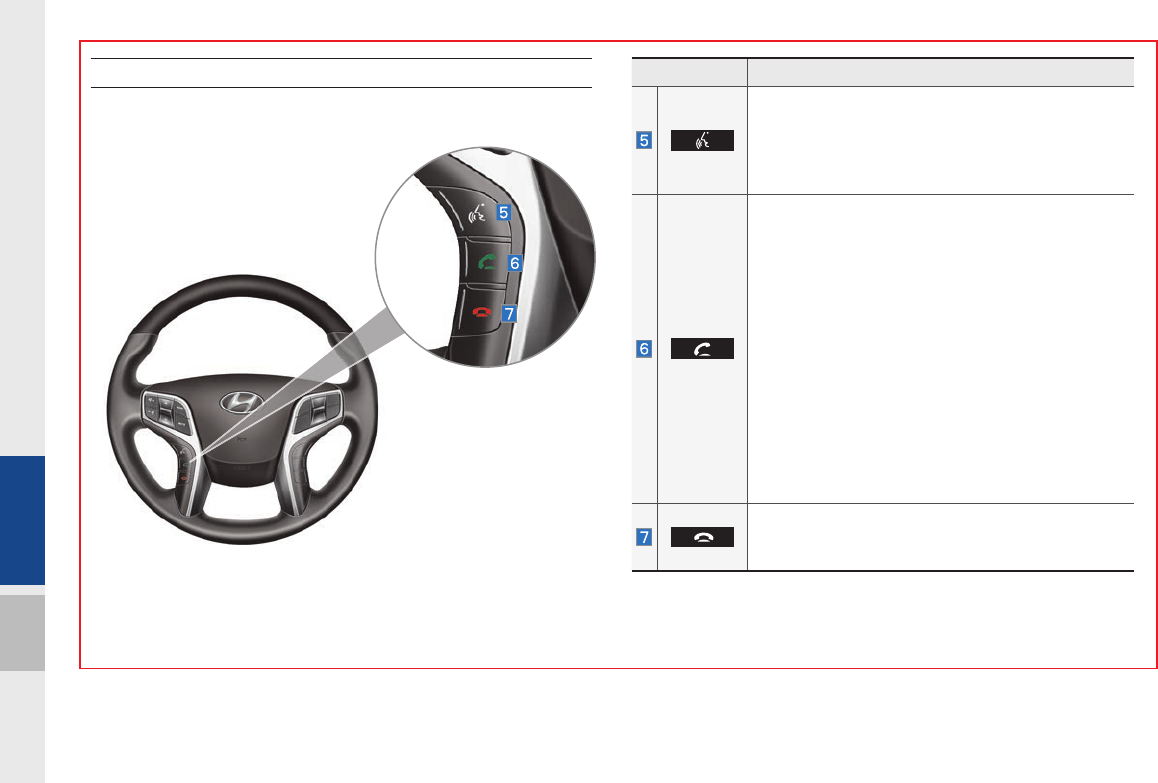

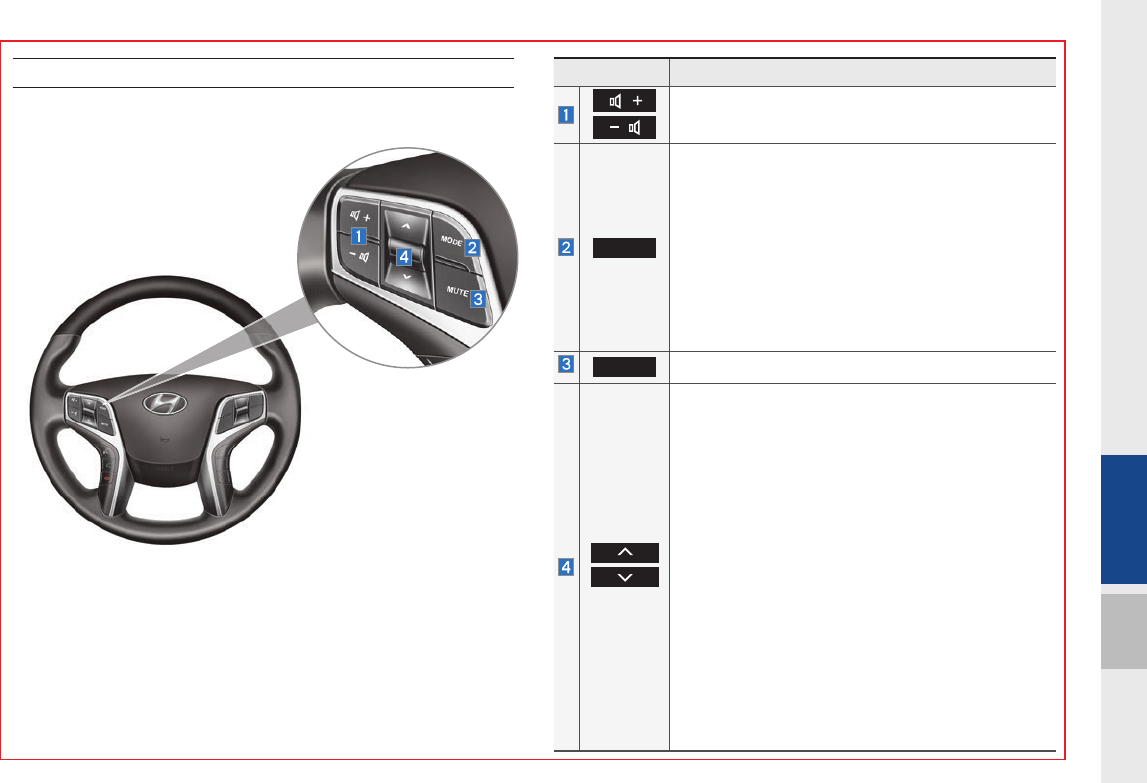

Steering Wheel Control

•Control over audio features, voice recognition

and Bluetooth

through the steering wheel con-

trol for maximum convenience

Component Names and Functions I 1-5

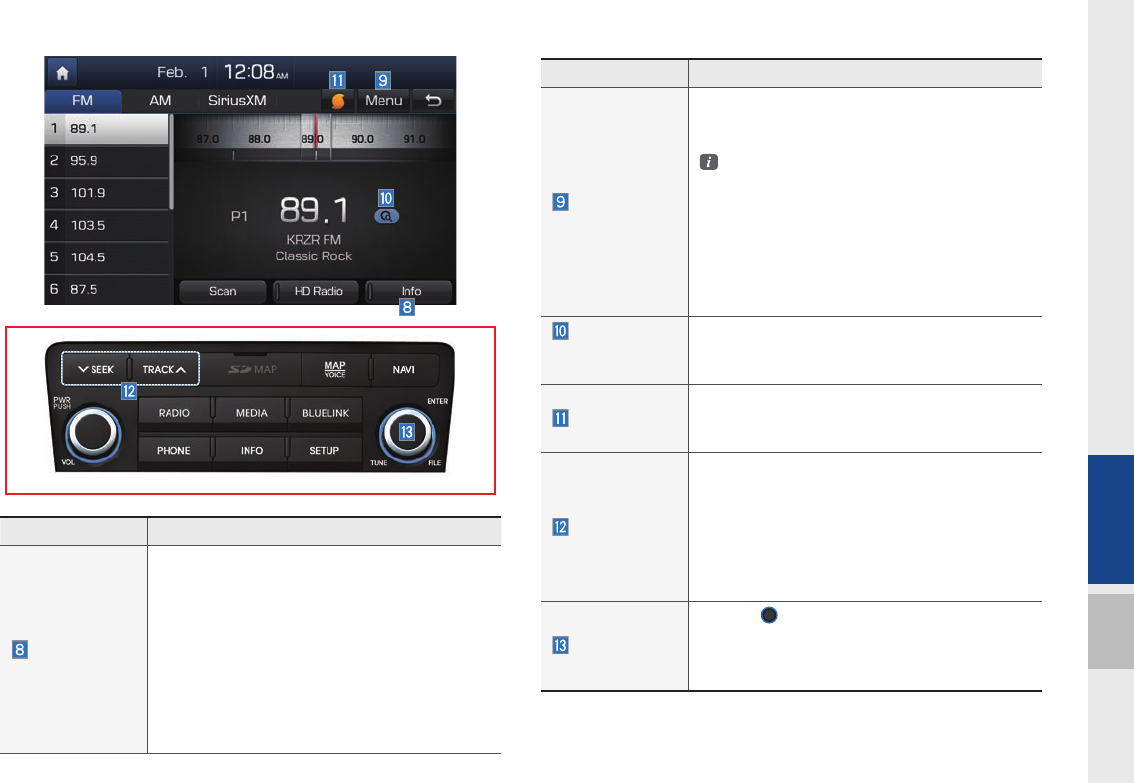

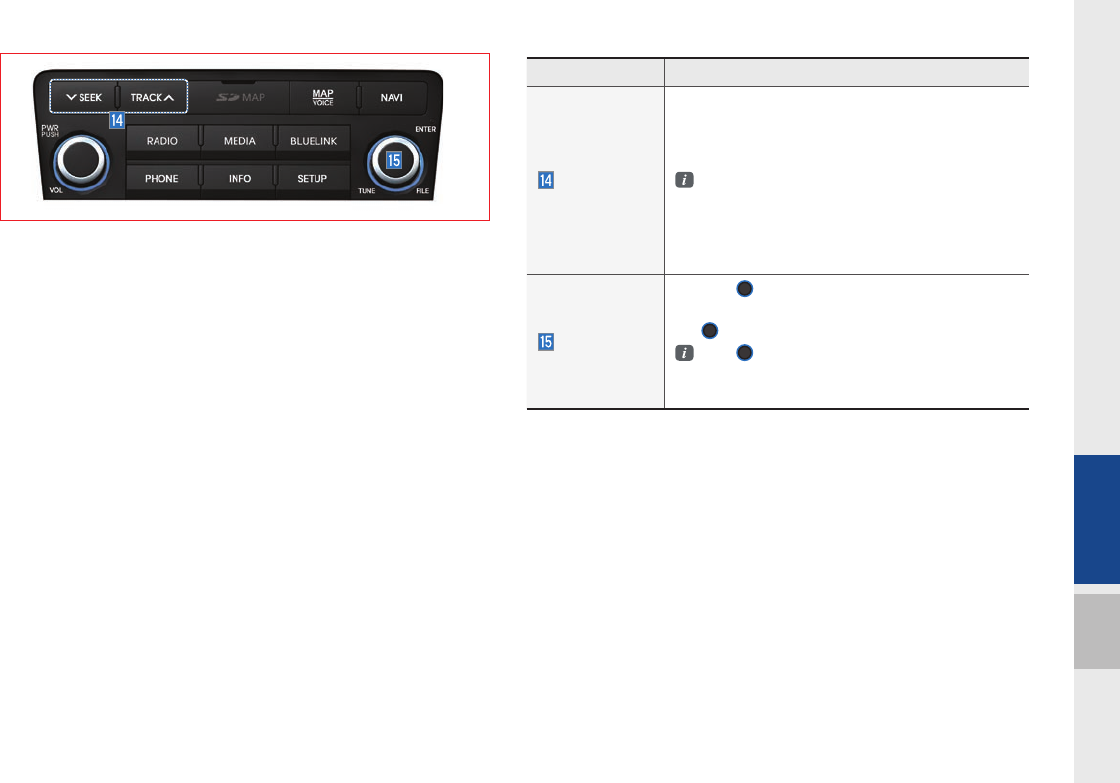

Component Names and Functions

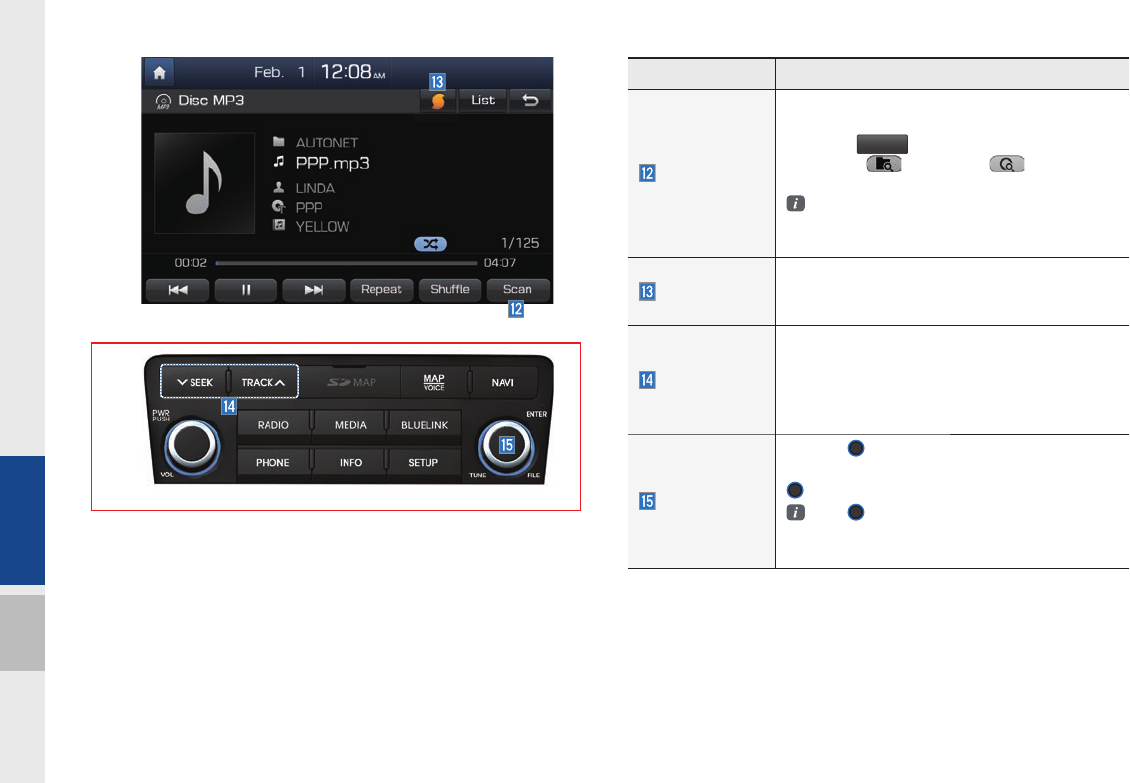

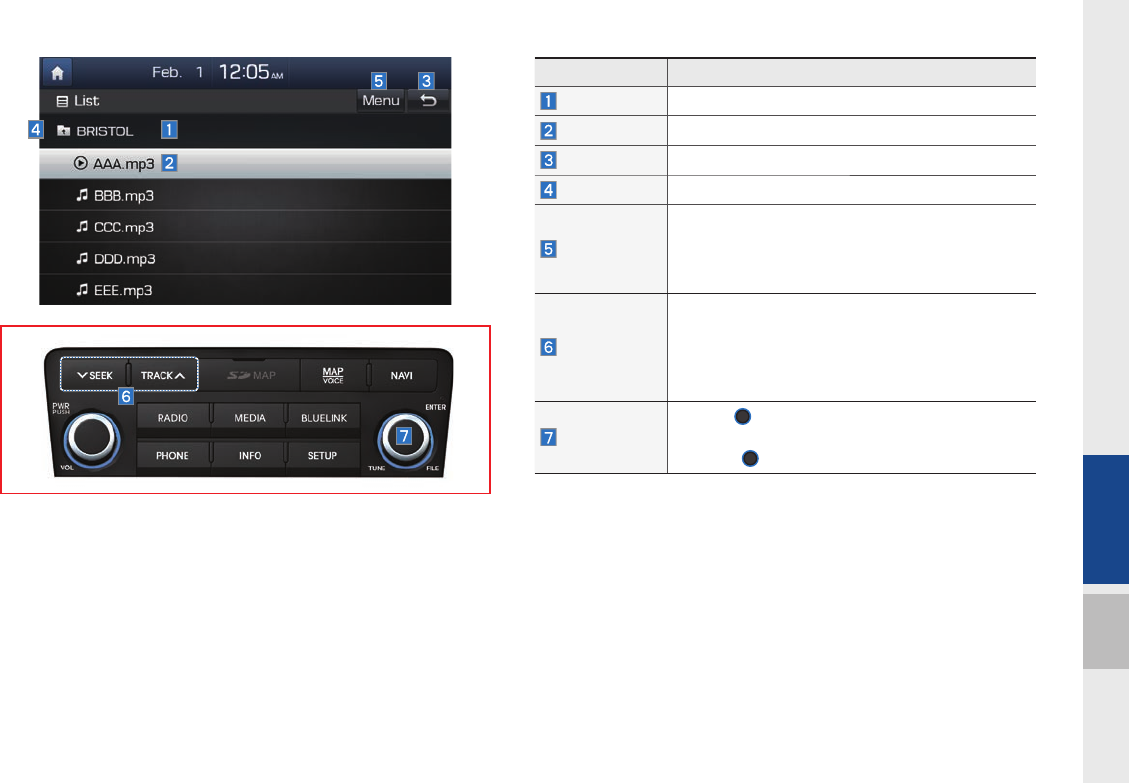

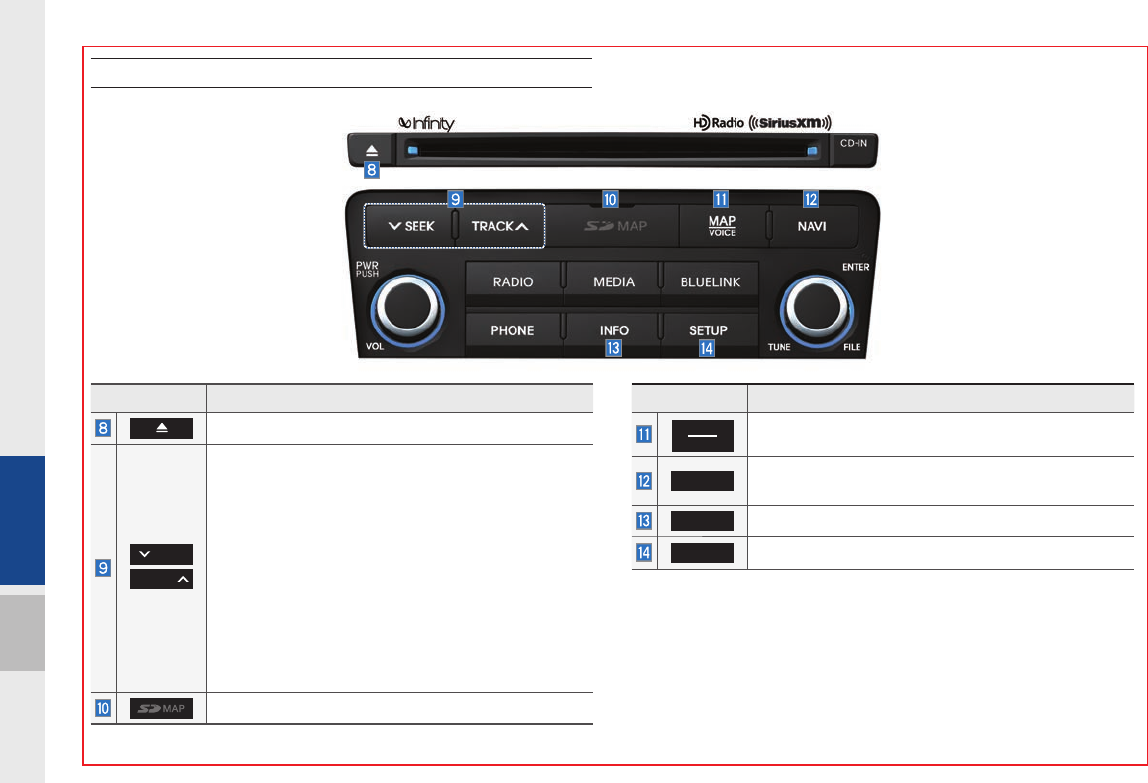

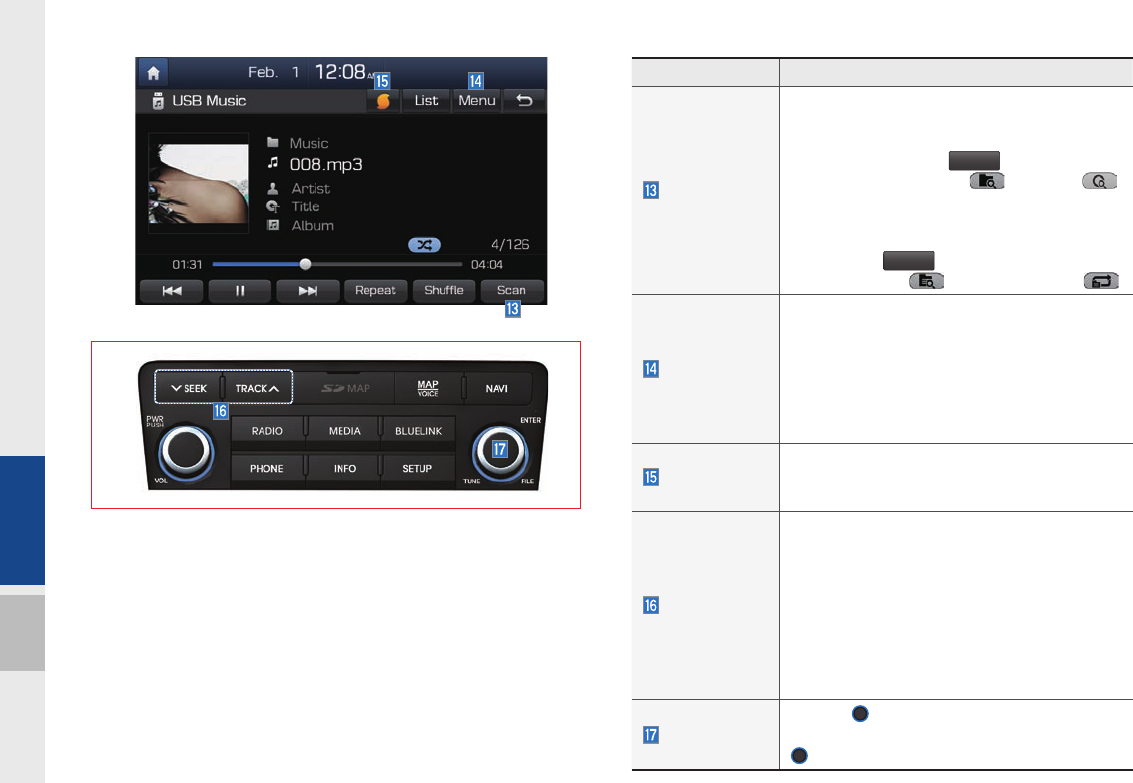

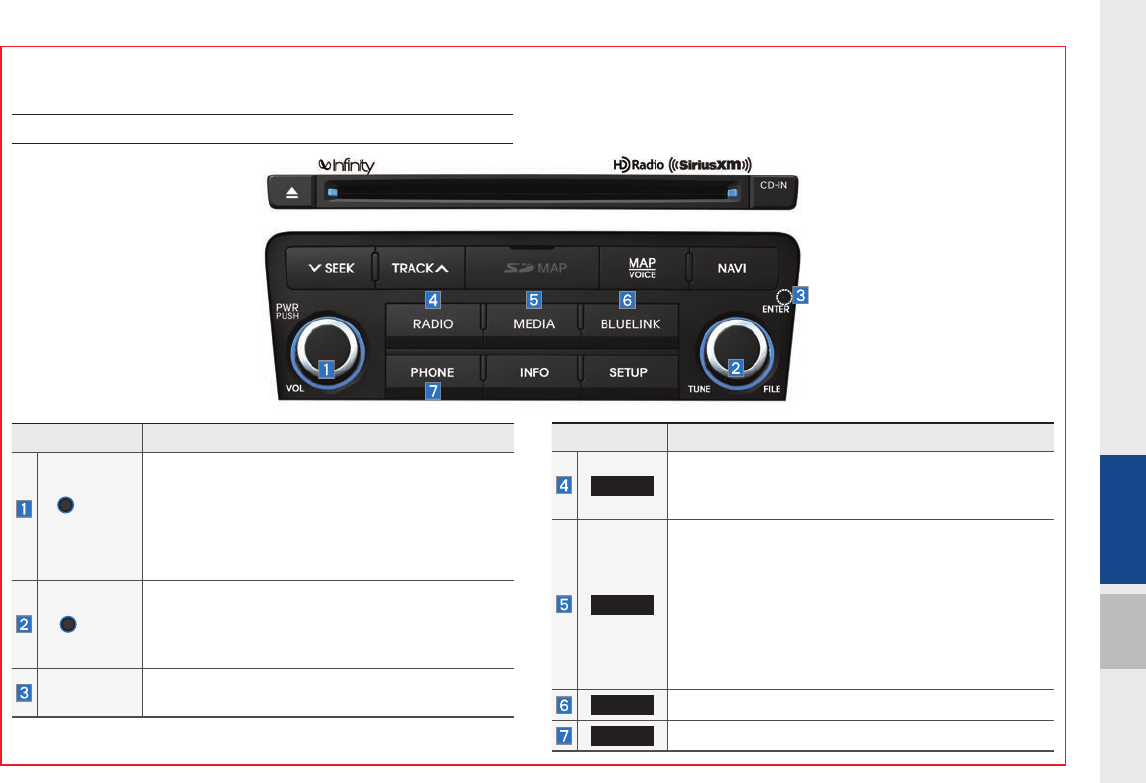

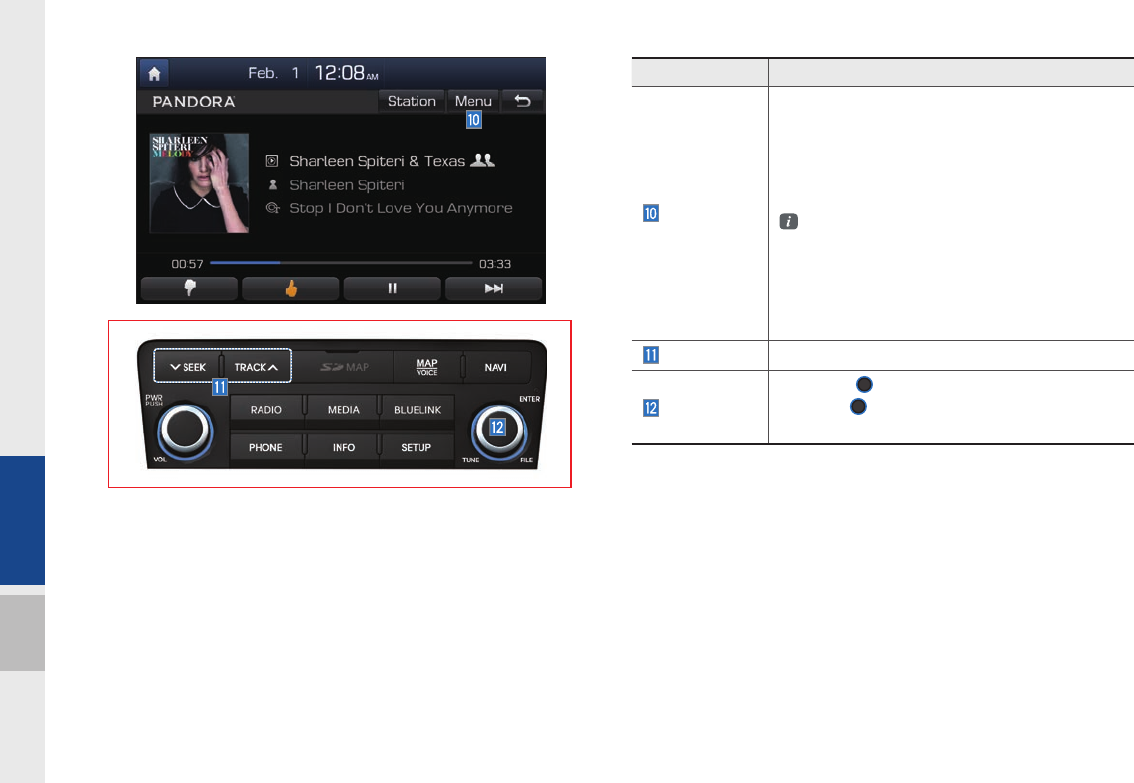

Head Unit

Name Description

PWR/

VOL

•When power is off, press to turn power on

•When power is on, press and hold (more than

0.8 seconds) to turn power off

•When power is on, press quickly (less than 0.8

seconds) to turn Audio off

•Turn left/right to control volume

TUNE

•FM/AM mode : changes the frequency

•MEDIA (Disc/USB/iPod/My Music) mode :

changes the track, file or title (except USB

Image, Bluetooth Audio and AUX)

RESET

Resets the system settings. (Preset radio channels

and other data will not be deleted)

Name Description

RADIO

Converts to FM/AM/SiriusXM™ mode

•Each time the key is pressed, the mode is changed

in order of FM → AM → SiriusXM™ → FM

MEDIA

Converts to MEDIA mode

•If the media is not connected or the CD player is

not available for this model, MEDIA mode will not

be activated.

•Press this key to move to the last mode that you

accessed in MEDIA mode. Press it again to dis-

play the screen where you can select a MEDIA

mode.

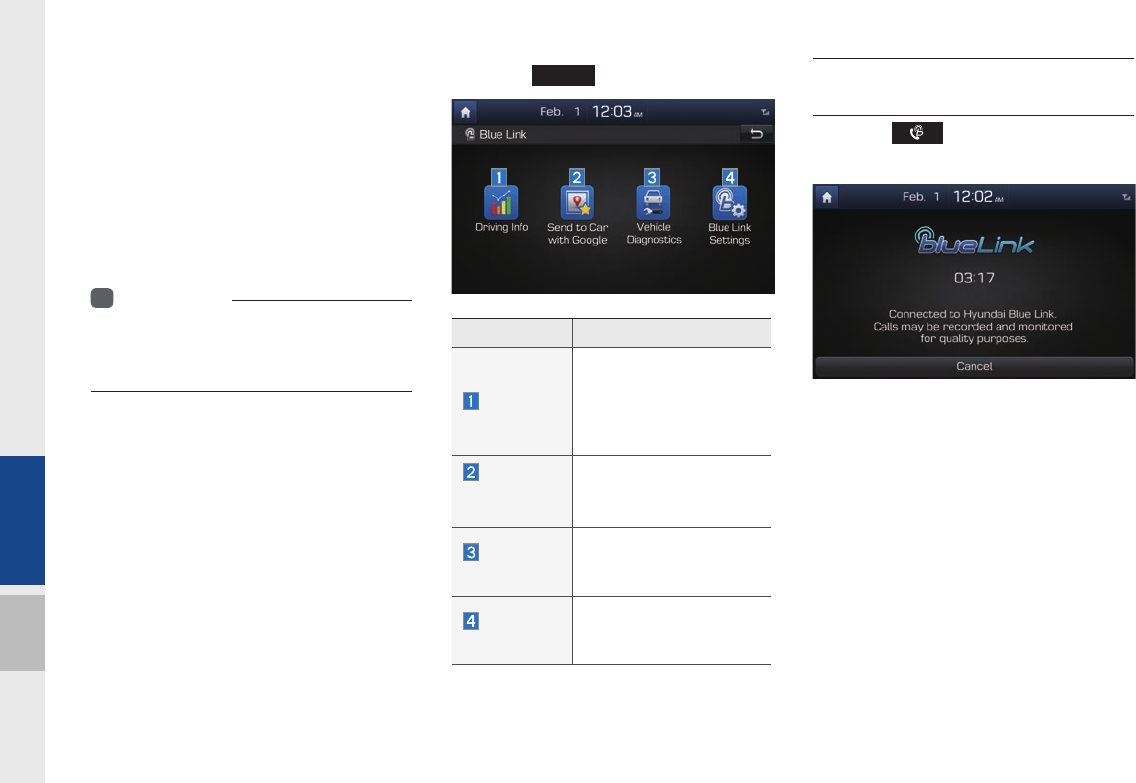

BLUELINK

Displays the Blue Link mode

PHONE

Takes user to phone screen

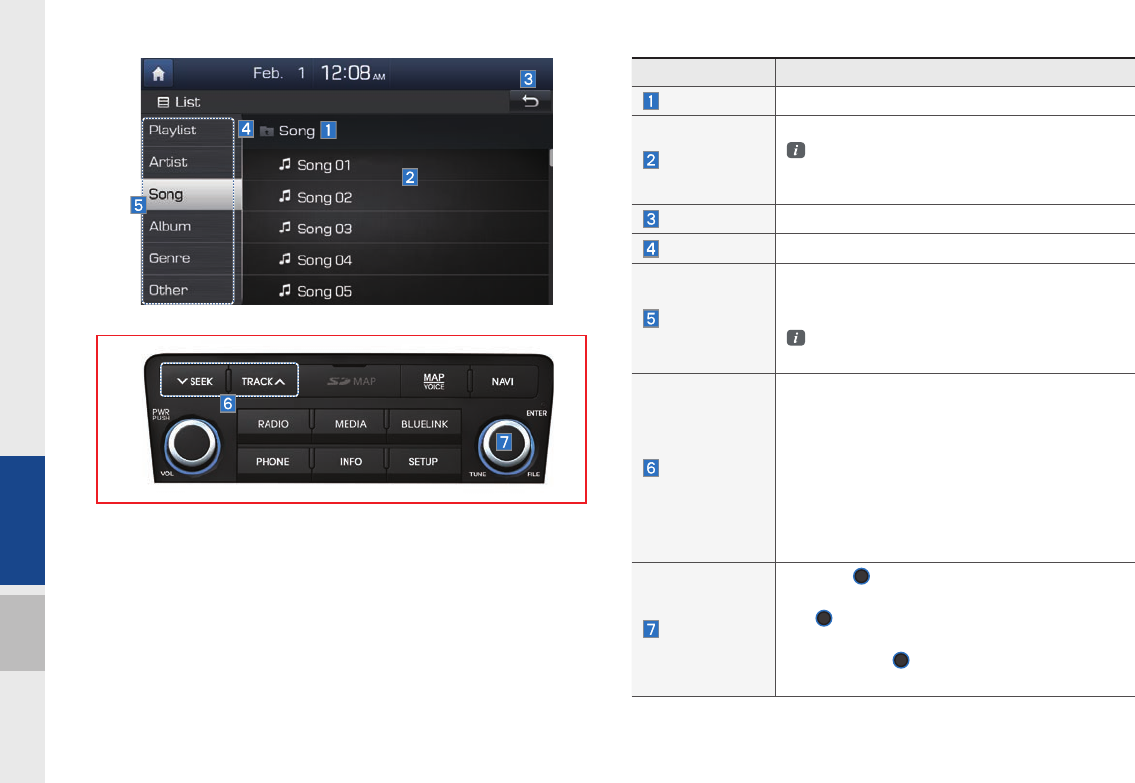

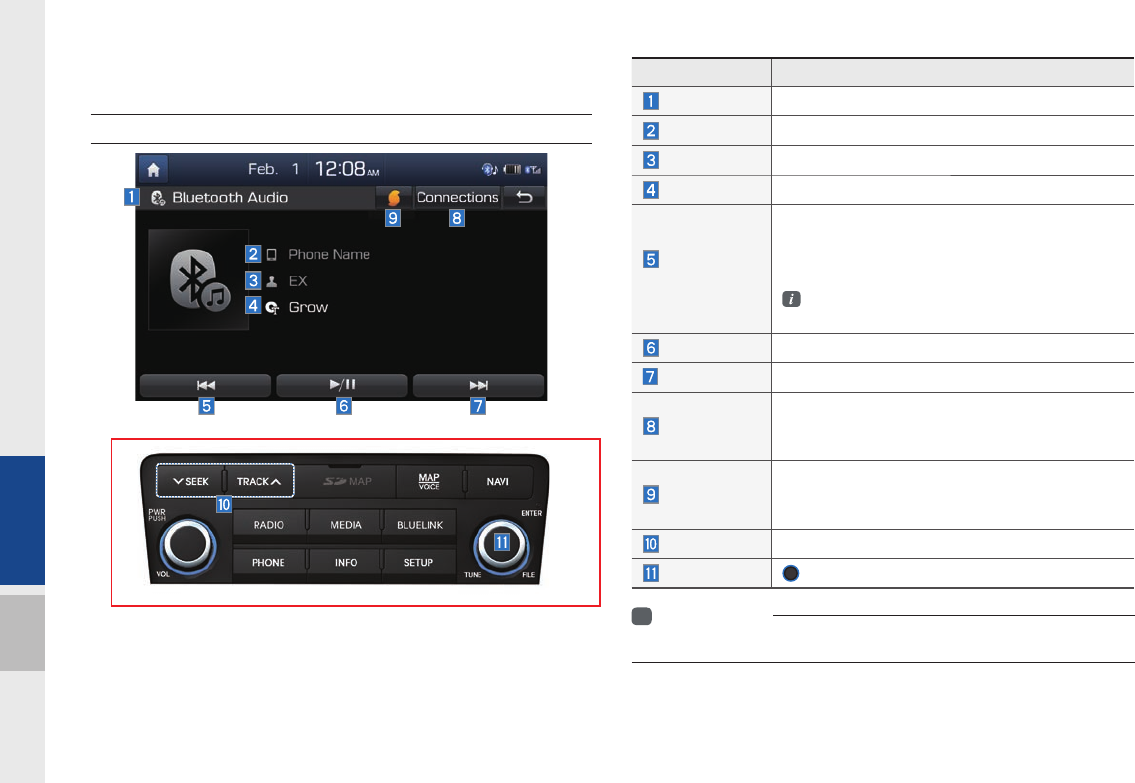

1-6 I Basic

Head Unit

Name Description

Press to insert or eject disc

SEEK

TRACK

When key is pressed quickly. (less than 0.8 seconds)

•FM/AM mode : plays previous/next frequency

•MEDIA (Disc/USB/iPod/My Music) mode :

changes the track, file or title (except USB Image

and AUX)

When key is pressed and held. (more than 0.8 sec-

onds)

•FM/AM mode : continuously changes the fre-

quency until the key is released

•MEDIA (Disc/USB/iPod/My Music) mode :

rewinds or fast forwards the track or file (except

USB Image, Bluetooth Audio and AUX)

SD card insert slot

Name Description

MAP

VOICE

Displays the map for the current position

NAVI

Takes you to the menu screen where you can find

your destination and set the route.

INFO

Displays the Info mode screen

SETUP

Displays the Setup mode screen.

Component Names and Functions I 1-7

Name Description

Controls the volume

MODE

•Each time this key is pressed, mode is changed

in the order FM → AM → SiriusXM™ → Disc →

USB Music or iPod → AUX → Bluetooth Audio →

My Music

•If the media is not connected, the corresponding

modes will be disabled

•Press and hold the key (more than 0.8 seconds)

to turn the Audio system on/off

•When power is off, press the key to turn power

back on

MUTE

The sound stops playing. Press again to unmute.

When keys are pressed quickly. (less than 0.8 sec-

onds)

•FM/AM mode : searches broadcast frequencies

saved to Presets

•SiriusXM™ mode : searches broadcast channels

saved to Presets

•MEDIA (Disc/USB/iPod/My Music) mode :

changes the track, file or title (except USB Image,

AUX)

When keys are pressed and held. (more than 0.8

seconds)

•FM/AM mode : automatically searches broadcast

frequencies

•SiriusXM™ mode : automatically searches broad-

cast channels

•MEDIA (Disc/USB/iPod/My Music) mode : quickly

looks up songs (excluding USB images, AUX and

Bluetooth audio files)

Steering Wheel Control

1-8 I Basic

Steering Wheel Control

※The actual feature in the vehicle may differ from the illustration.

Name Description

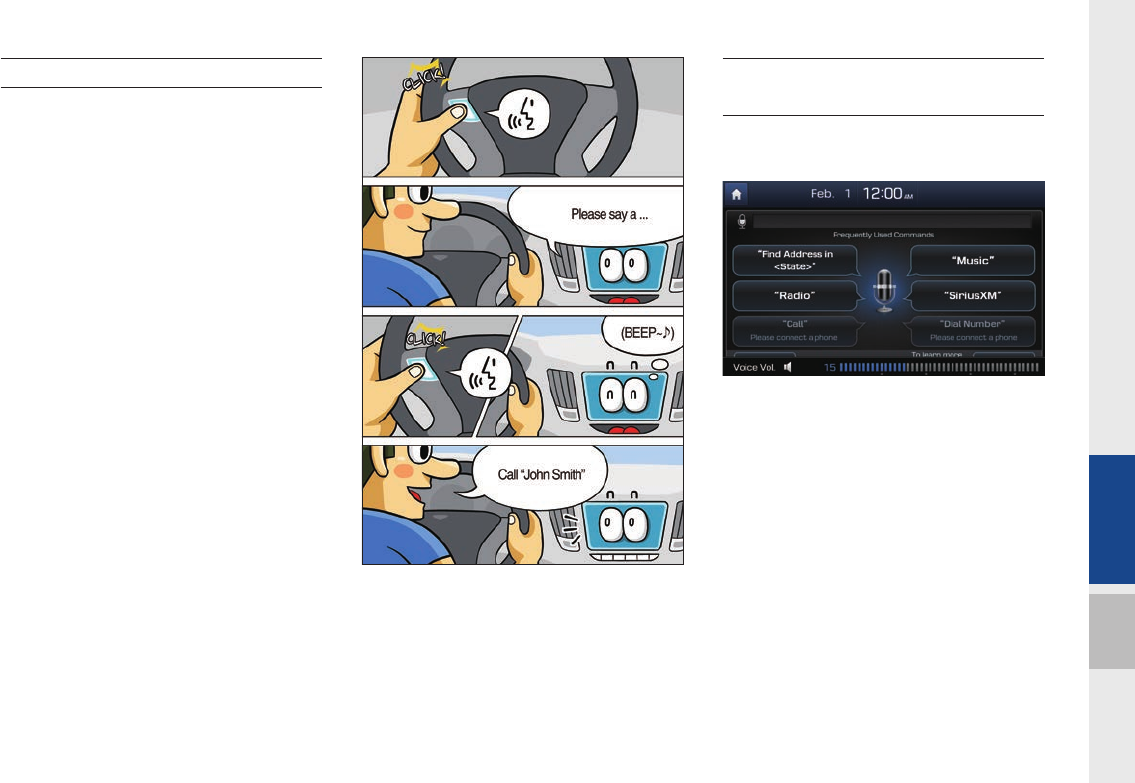

When pressed quickly. (less than 0.8 seconds)

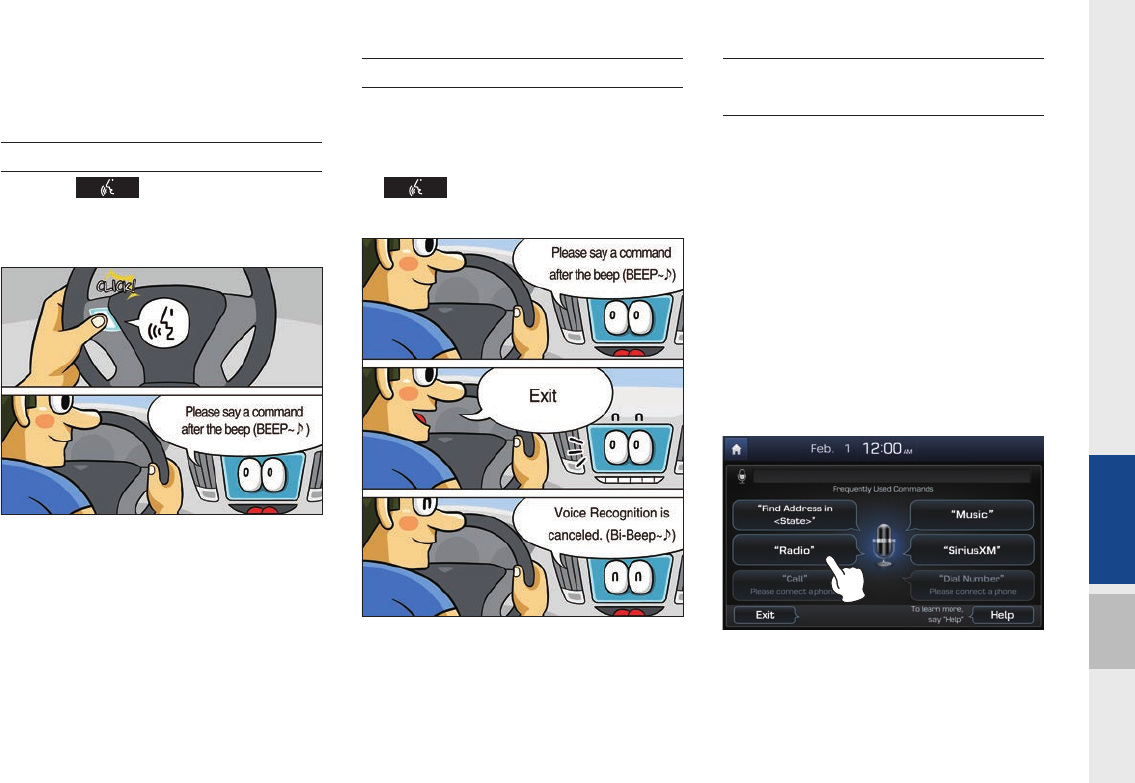

•Activates voice recognition

When pressed and held. (more than 0.8 seconds)

•Ends voice recognition

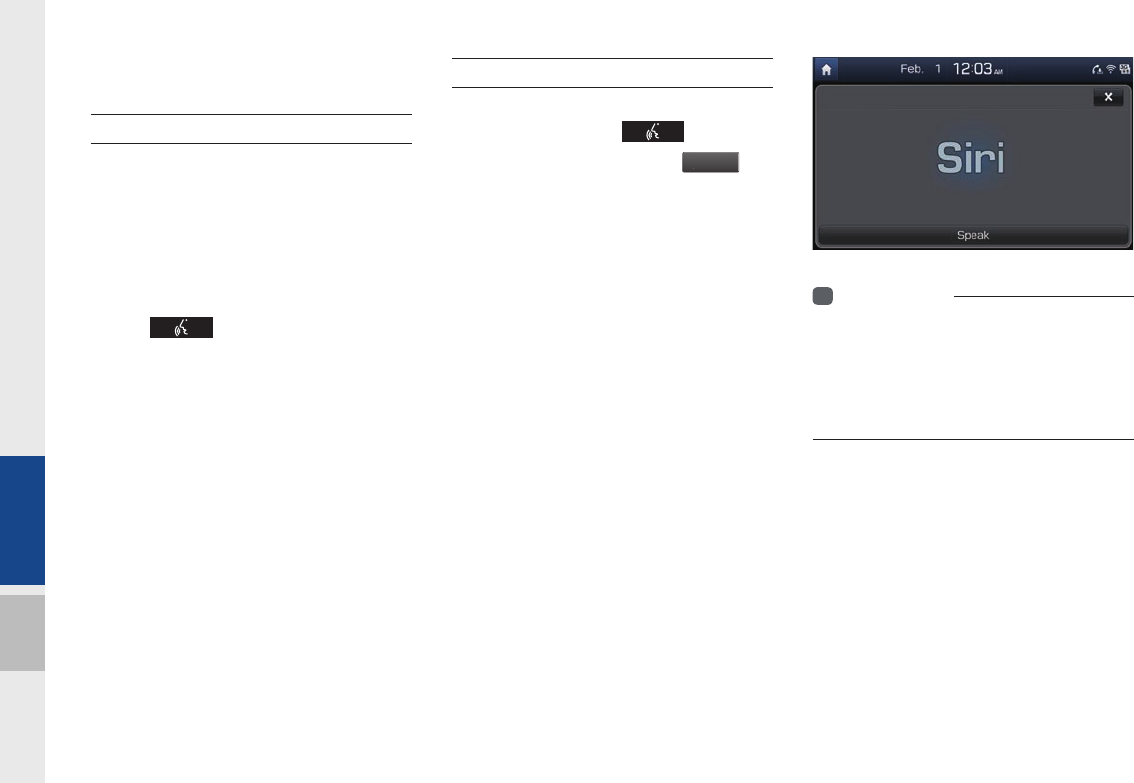

•Activates Siri Eyes Free

When pressed quickly. (less than 1.2 seconds)

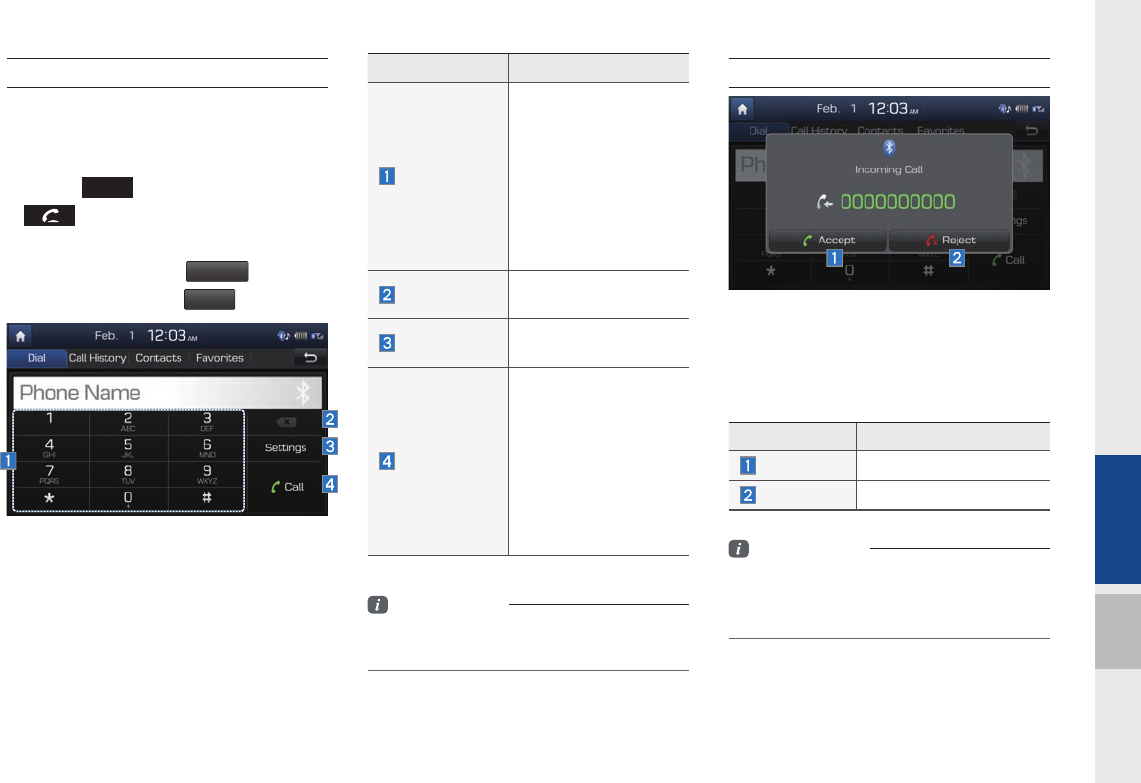

•When pressed in the dial screen, makes a call

•When pressed in the incoming call screen,

answers the call

•When pressed during call waiting, switches to

waiting call (Call Waiting)

When pressed and held. (more than 1.2 seconds)

•When pressed in Bluetooth

Hands-free, redials

the last dialed call

•When pressed during a Bluetooth

Hands-free

call, switches call back to mobile phone (Private)

•When pressed while calling on the mobile phone,

switches call back to Bluetooth

Hands-free

(operates only when Bluetooth

Hands-free is

connected)

•When pressed during a call, ends the phone call

•When pressed in the incoming call screen, rejects

the call

Starting the System for the First Time I 1-9

Starting the System for the

First Time

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

Pressing the power key on the head unit

will display the user agreement screen. To

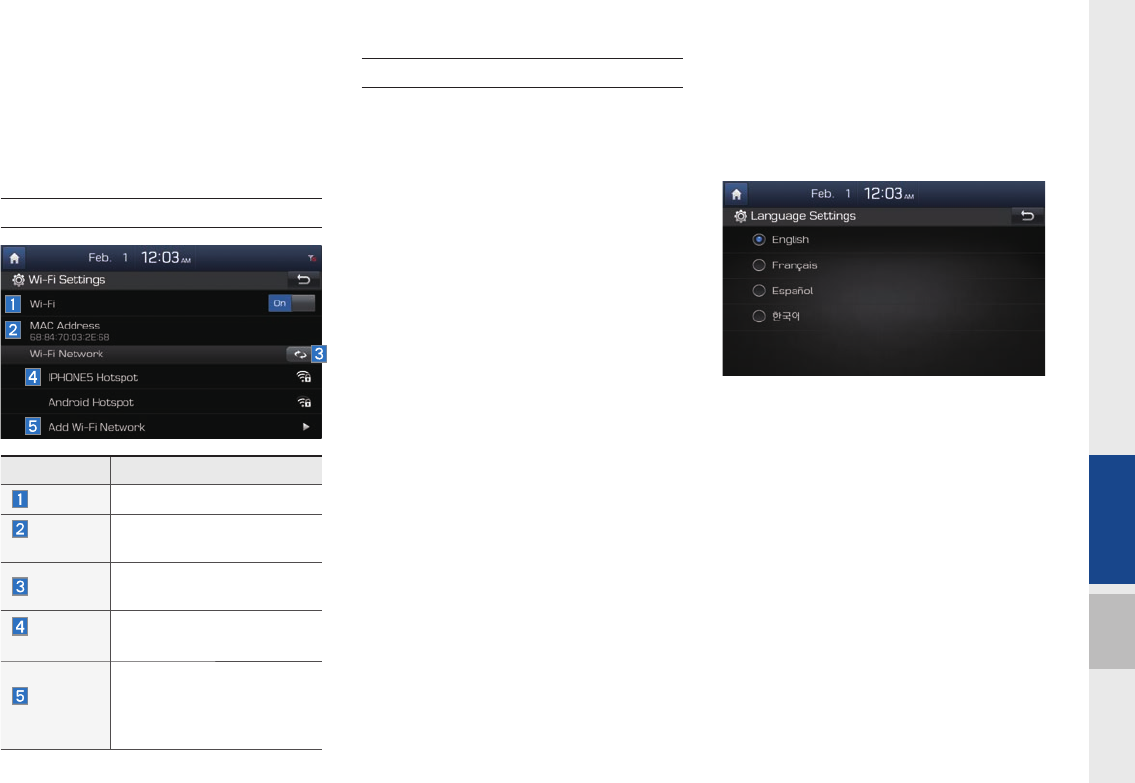

change the system language between

English, French, Spanish and Korean

press the Change

Language

button.

NOTICE

• Cannot operate the system while it is booting

up. It may take some time for all of features of

the system, particularly the voice recognition

system, to be ready for use.

Pressing and holding the power key on the

head unit will turn off the system.

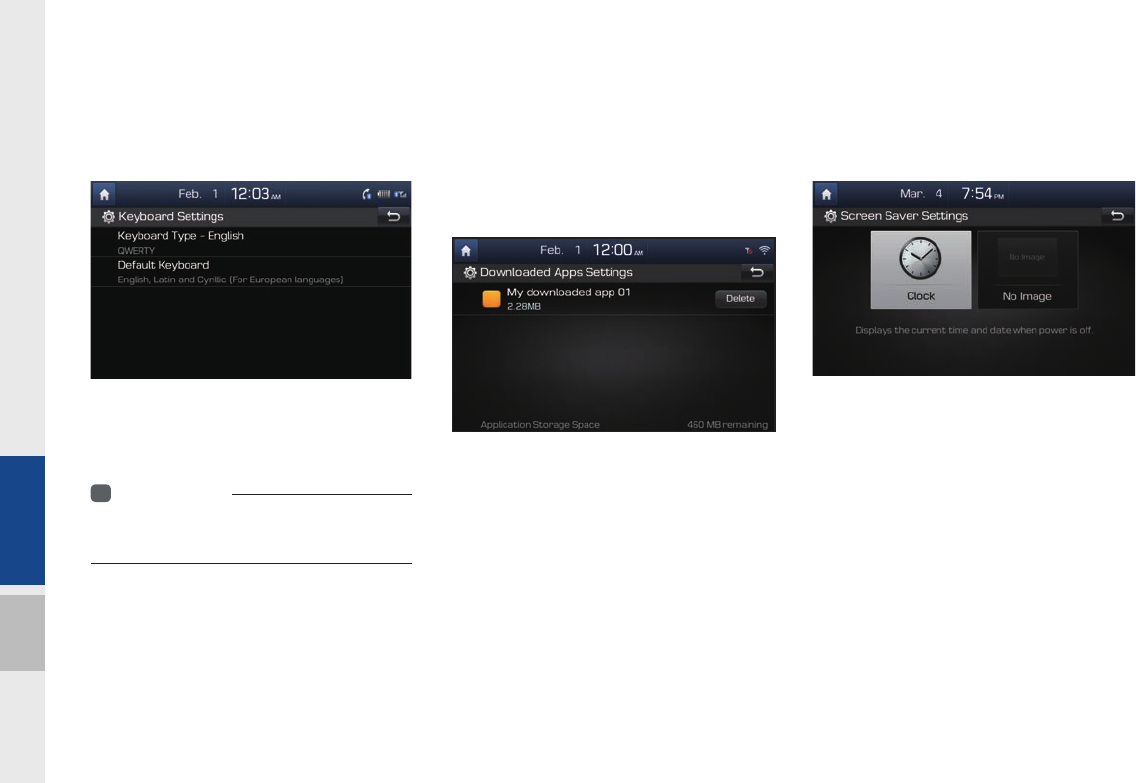

You can change Screen Saver Settings in

Setup to display a clock or another chosen

image on the Screen Saver.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will

automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust

the volume to a reasonable level.

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the RESET key for a sec-

ond or longer. (It is recommended that you

press the RESET key using a tool, such as

a pin or a clip.)

NOTICE

• Resetting the system restores all existing

settings and configurations (e.g. volume,

display, etc.) back to their factory defaults.

1-10 I Basic

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become

completely discharged.

Restrictions on Features for

Safety Measures

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

Starting the System for the First Time I 1-11

Features Description

Navigation

Widget

•Provides a brief view of the navigation map

and the route screen.

•Touch any area on the screen to move to

the navigation screen.

AV Widget

•Shows brief information on the radio media

current playing.

•Touch the area to move to the mode for

what you are listening to.

All Menus Shows all of the items in the system menu.

Places Directly moves to the screen where you can

search for your destination.

My Menu

•You can add and save up to eight menu items.

•Add your favorite menu items to have quick

and easy access to them.

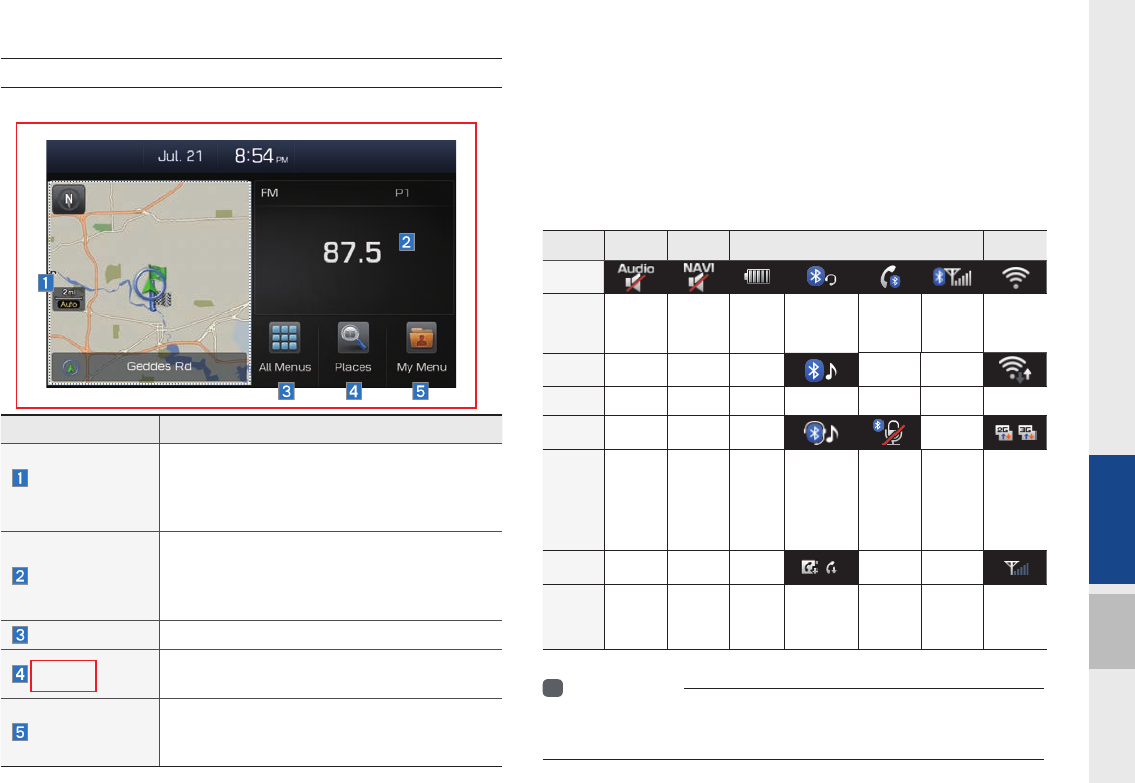

Home Screen

Controls Menu Conﬁ guration for the Home Screen

Information Display on the Status Bar

Displays the date and time, along with the system status shown

by the various icons to the right of the clock.

The icons in the following table indicate the various types of sys-

tem status details and events.

AV-Mute Navigation-

Mute Making a call and Bluetooth connection 2G/3G/

Wi-Fi

ICON

Description Mute AV

sound

Mute

Navogation

sound

Bluetooth

phone

remaining

battery

Handsfree

connection

Making a

call using

BT phone

Bluetooth

phone

reception

sensitivity

Wi-Fi is

connected

ICON

Description Connecting to

music stream

Connecting

to Wi-Fi

ICON

Description

Handsfree+

streaming

connection

Mute

Bluetooth

phone

micro-

phone

2G/3G data

connection

(displayed

only when

connected

to a 2G/3G

data net-

work)

ICON

Description

Downloading

contacts/

recent calls

Blue Link

received

signal

strength

indication

Information

• Received signal strength indicator of Blue Link and 2G/3G/Wi-Fi information

are displayed only in the devices that support the telematics system.

1-12 I Basic

Adding Your Favorite Menu Items to My

From the Home screen, select

My Menu

▶

and then

Edit

From the My Menu Settings screen, select

menu items from the list on the right, then

drag and drop them to a desired place on

the left.

To remove the item from My Menu, draft

item from the left and drop them on the

right.

Information

• Up to eight items can be added to My Menu.

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive

material. Touch the screen using your ﬁ nger,

an electrostatic touch-screen glove, or a stylus

pen.

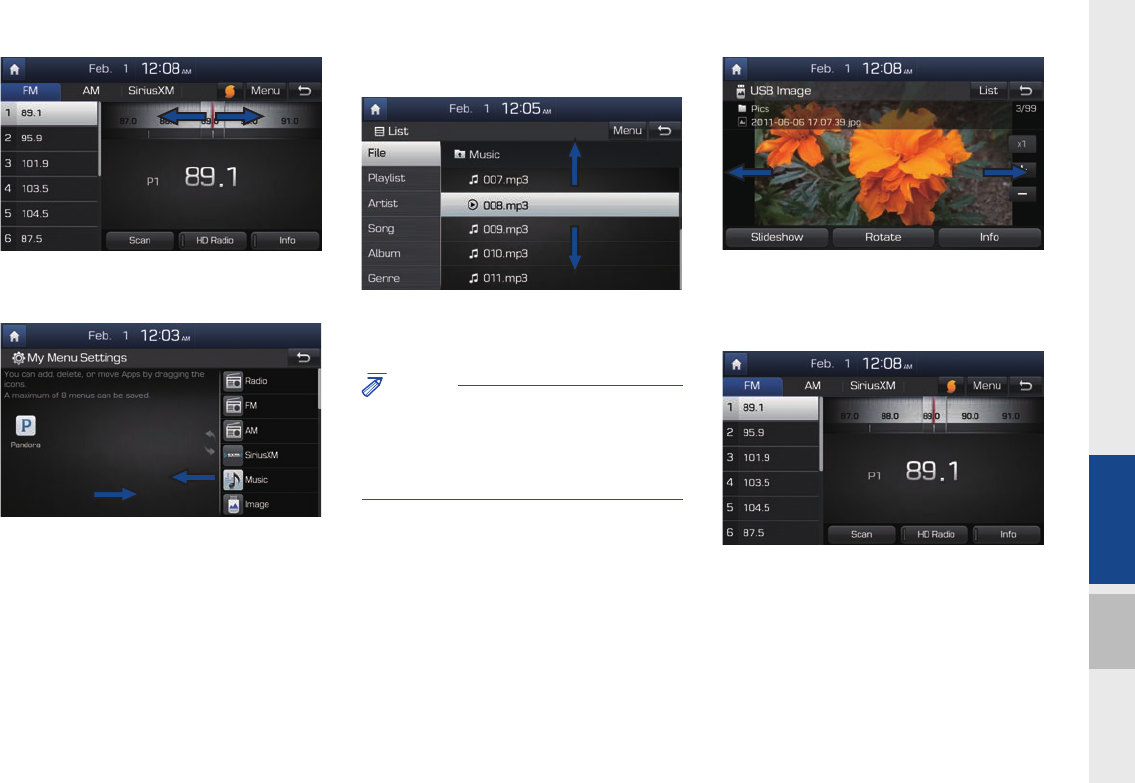

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from. However, the

CD player does not support drag function.

Information

• Music screens for Disc CD and Disc MP3 do

not support this function.

Starting the System for the First Time I 1-13

Drag the frequency bar to the left or right

to move to the frequency that you want.

From the My Menu Settings screen, drag

and drop icons to add, delete, or move to/

from My Menu.

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display.

You can easily move many items at a time

with the handler

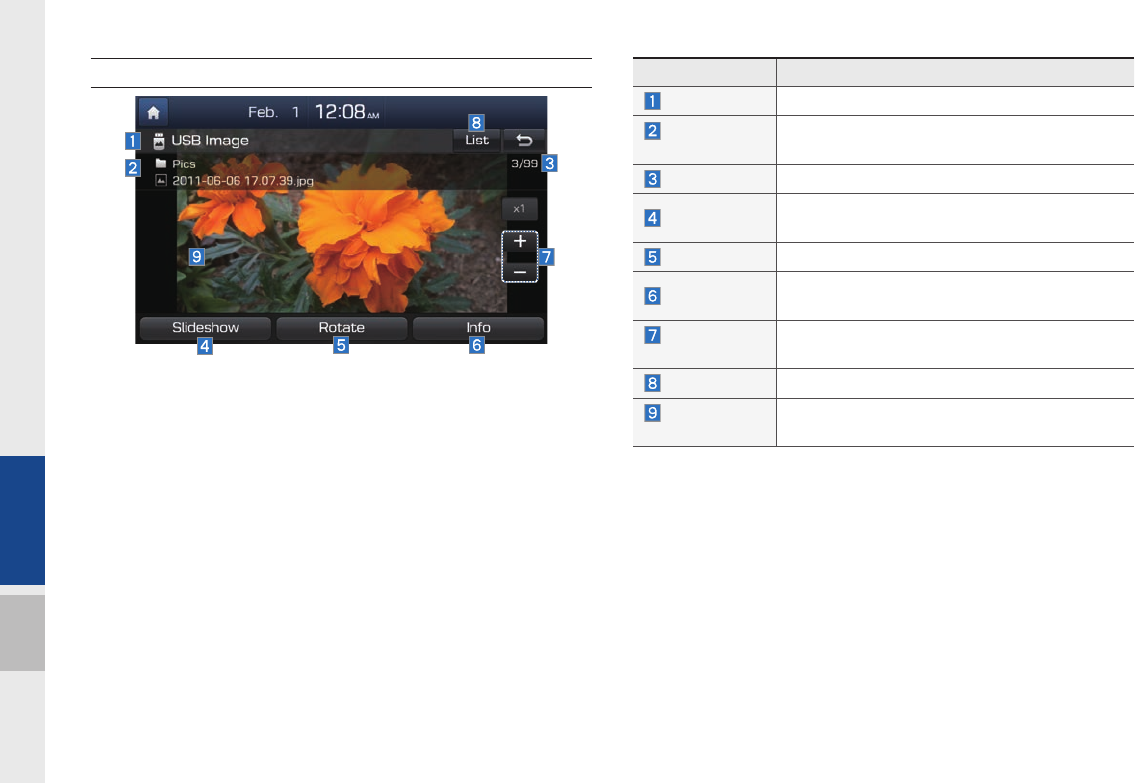

You can view the previous or next image

by flicking left/right on an image on the

USB Image screen.

Flick left/right on the frequency bar in the

radio player to look up the previous/next

frequency available.

1-14 I Basic

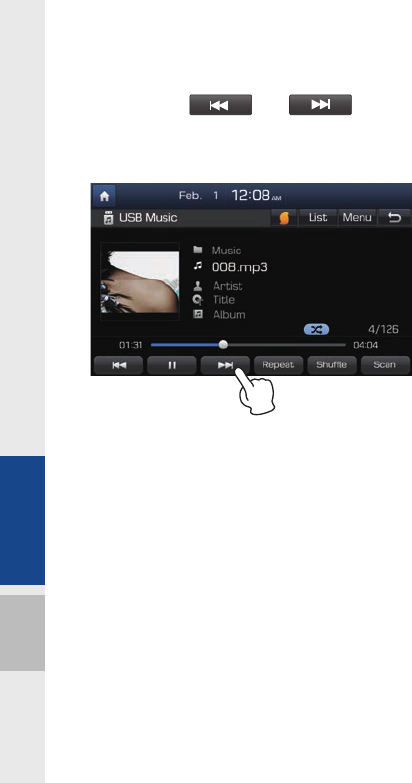

Press and Hold

Pressing the and buttons

in the music or video player will fast for-

ward/rewind the music or video.

FM/AM

HD Radio™ Technology

SiriusXM™

Media

About Disc

MP3

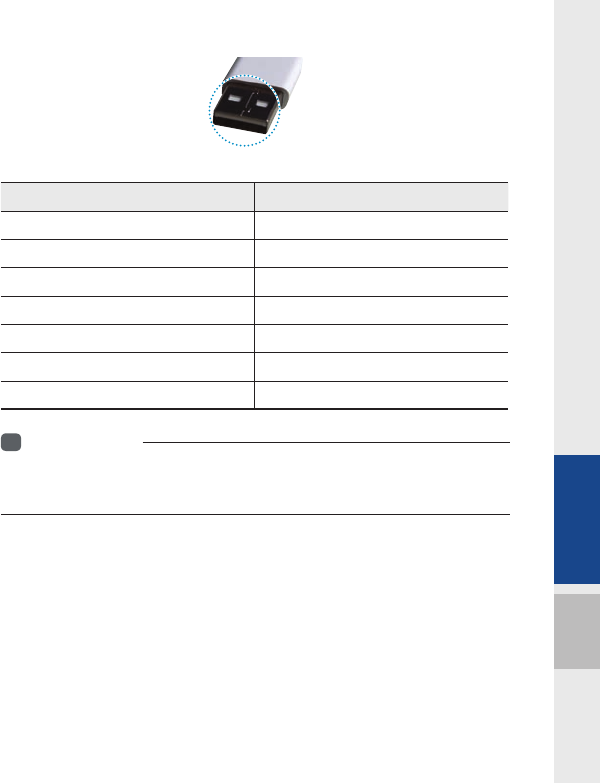

USB

iPod

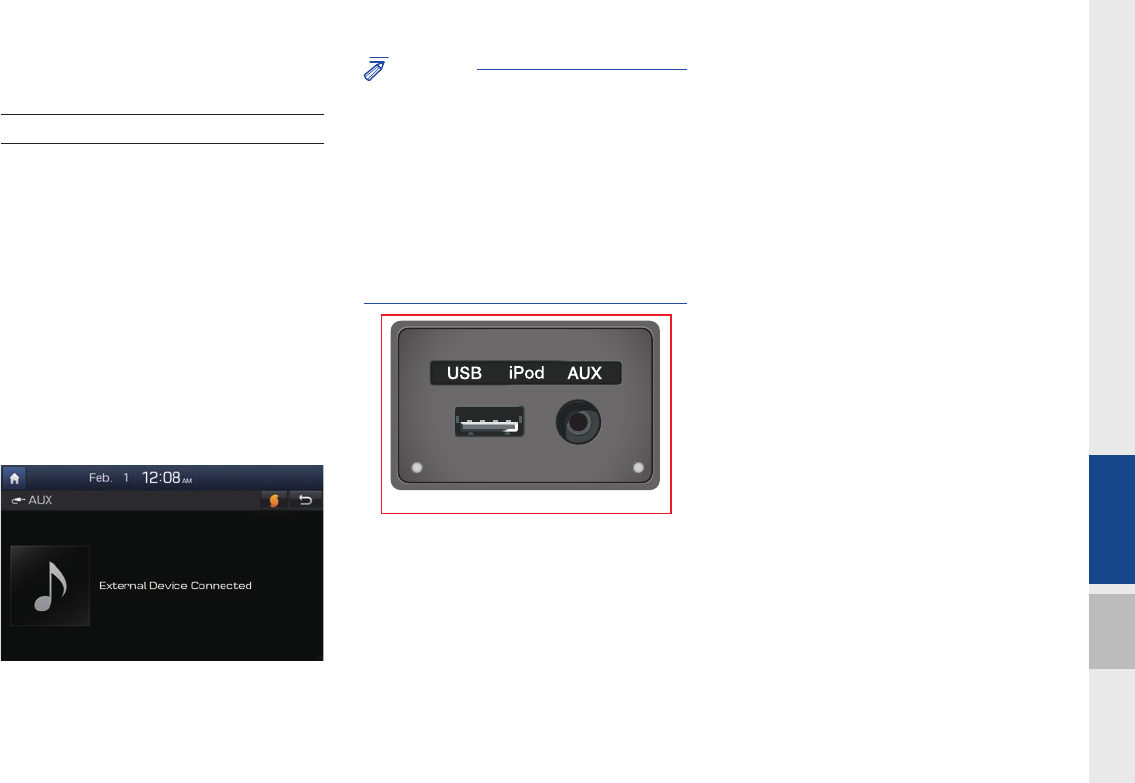

AUX

Bluetooth® Audio

My Music

part.2 AV

2-2 I AV

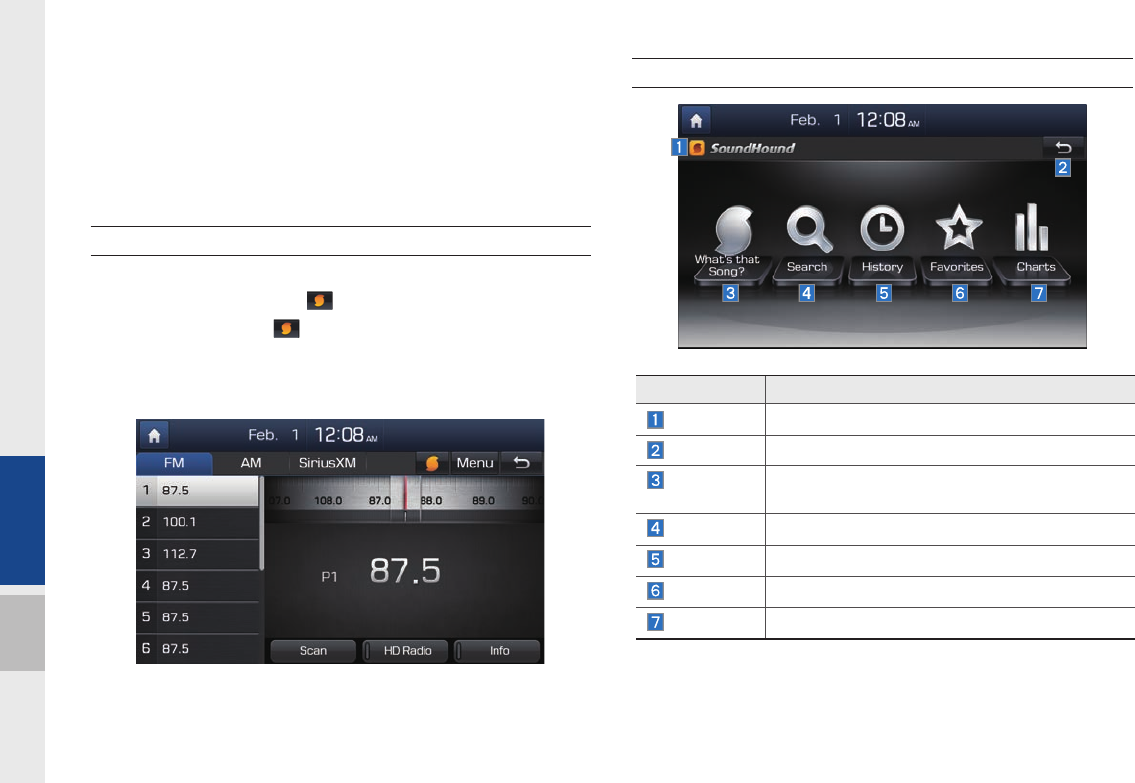

Features Description

Mode Display

•Displays current operating mode

•If select wanted mode tap, it will change to

selected mode in Radio.

Preset

•Shows saved presets for user selection

•After selecting frequency → press and hold

(over 0.8 seconds) the preset button. A

'beep' will sound and the frequency is saved

to the selected preset button.

A total of 24 frequencies with 12 preset

frequencies each for FM/AM modes can be

saved.

Frequency Bar

•Flick the frequency bar left/right to search for

available radio channels to the left or right of

the current channel.

•Dragging: Drag the frequency bar to the left/

right to find the radio channel that you want.

Frequency Displays the current frequency

Broadcast

station Displays the current broadcast station name.

Scan Plays frequencies with superior reception for

5 seconds each

HD Radio Used to set whether to turn HD Radio™ recep-

tion On/Off.

FM/AM

Accessing FM/AM Mode

You can access the radio player either by pressing the

RADIO

hard key or by selecting the Radio menu option from All Menus on

the Home screen.

Information

• If you press the

RADIO

hard key when the power is off, then the power

will turn on and a radio broadcast will be tuned up.

• If you are in the FM/AM mode, select the FM/AM radio widget from the

Home screen to access the radio player.

FM/AM I 2-3

Features Description

Info

Turns the Radio Text information on and off

•If the ON Text On button is displayed (Text off

state), information will not be displayed even

if there is information being transmitted from

the broadcast station.

•If the Off Text Off button is displayed (Text

on state), then broadcast information will be

displayed. Information may not be displayed if

there is no information being transmitted from

the broadcast station.

Features Description

•Autostore

Saves frequencies with good reception to

Preset buttons

While Auto Store is operating, pressing the

Auto Store button again will cancel the func-

tion and play the previous frequency.

•Preset Scan

Plays preset frequencies for 5 or 10 secodes

each

•HD on : 10 seconds

•HD off : 5 seconds

Scan/

Auto Scan/

Preset Scan

Displays an activated mode from the Scan/Auto

Scan/Preset Scan modes.

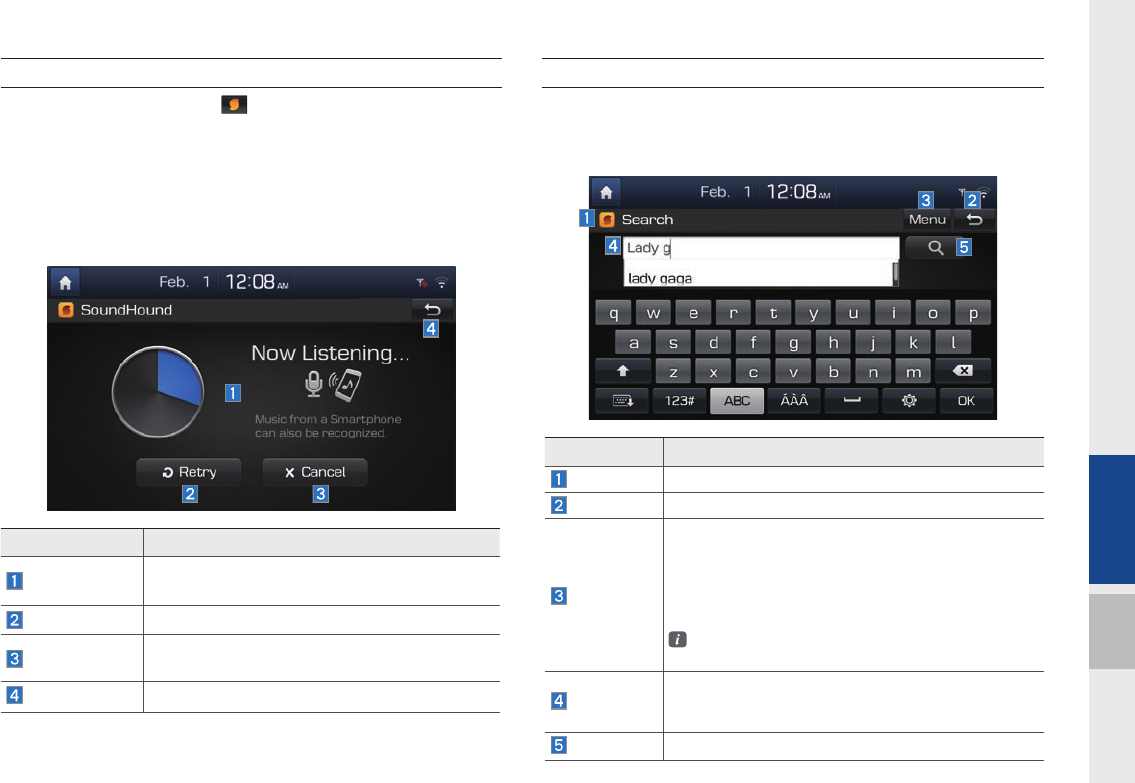

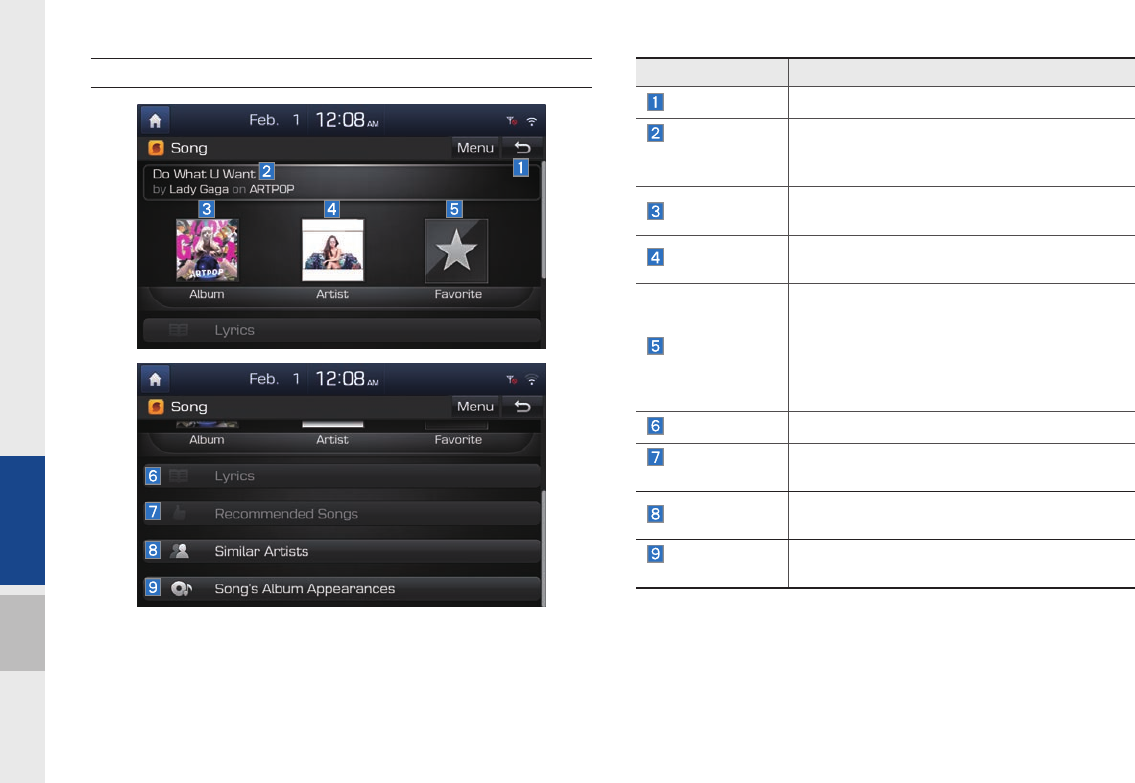

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

SEEK/TRACK

•Pressing this button briefly (less than 0.8 sec-

onds) : Seeks the previous/next frequency.

•Pressing and holding this button (longer than

0.8 seconds) : Moves quickly through all of

the frequencies. From the moment that you

release the button, the system will seek the

next available frequency.

TUNE

Turn the

TUNE

knob to manually seek avail-

able frequencies.

•FM : Increment/decrement by 200 kHz

•AM : Increment/decrement by 10 kHz

2-4 I AV

If an HD Radio™ broadcast is received,

the radio mode will switch from analog

broadcast to HD Radio™ broadcast.

Information

• The

HD Radio™

screen is displayed only

when a HD Radio™ broadcast is being

received

Program Service Data :

Contributes to the superior user experience of HD

Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3

Channel Guide, and other relevant data streams.

Adjacent traditional main stations are extra local FM

channels. These HD2/HD3 Channels provide new, origi-

nal music as well as deep cuts into traditional genre.

Digital, CD-quality sound. HD Radio™ Technology

enables local radio stations to broadcast a clean digital

signal. AM sounds like today’s FM and FM sounds like a CD.

HD Radio™ Technology

SiriusXM™ I 2-5

Basic Mode Screen

(HD Radio™ reception ON)

SiriusXM™

SiriusXM™ Mode

Hard Key Controls

You can access the radio player either by

pressing the

RADIO

hard key or by

selecting the Radio menu option from All

Menus on the Home screen. Select the

SiriusXM™ tab from the radio player.

Information

• If you press the

RADIO

hard key when the

power is off, then the power will turn on and a

radio broadcast will be tuned up.

• If you are in the SiriusXM™ mode, select

the SiriusXM™ radio widget from the Home

screen to access the radio player.

• When the power is off, pressing the

RADIO

key will turn the power on and play a

SiriusXM™ Radio broadcast.

Name Description

HD Radio™

Reception

&Channel

buttons

Displays main HD Radio™

channels and used to directly

select the current available

channels

As HD Radio™ reception

is included within Radio

mode, the methods of

moving between chan-

nels, saving presets,

searching, or methods

of searching frequencies

are identical. However,

while the HD Radio™

related icon display will

become active when

within regions where an

HD Radio™ signal can

be received.

Name Description

Channel

Number

HD Channel number

saved in preset

Broadcast

Info

Displays detailed infor-

mation about the current

broadcast

HD Radio

Used to set whether to

turn HD Radio™ recep-

tion On/Off.

2-6 I AV

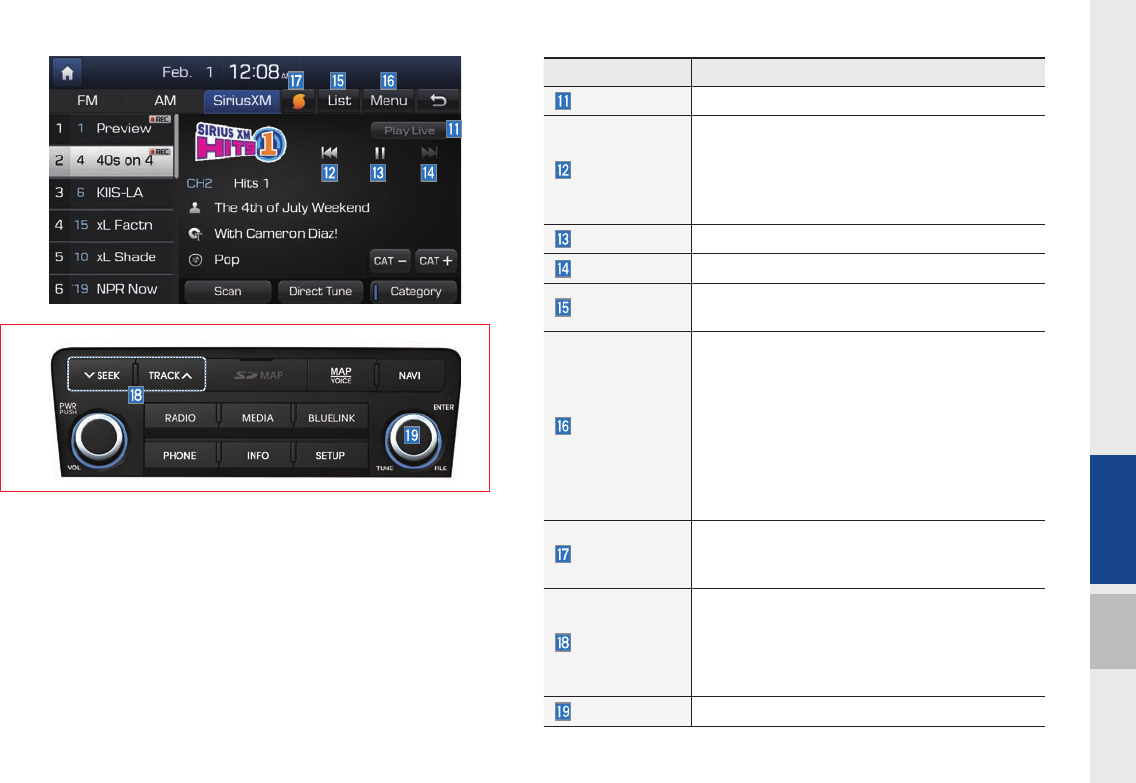

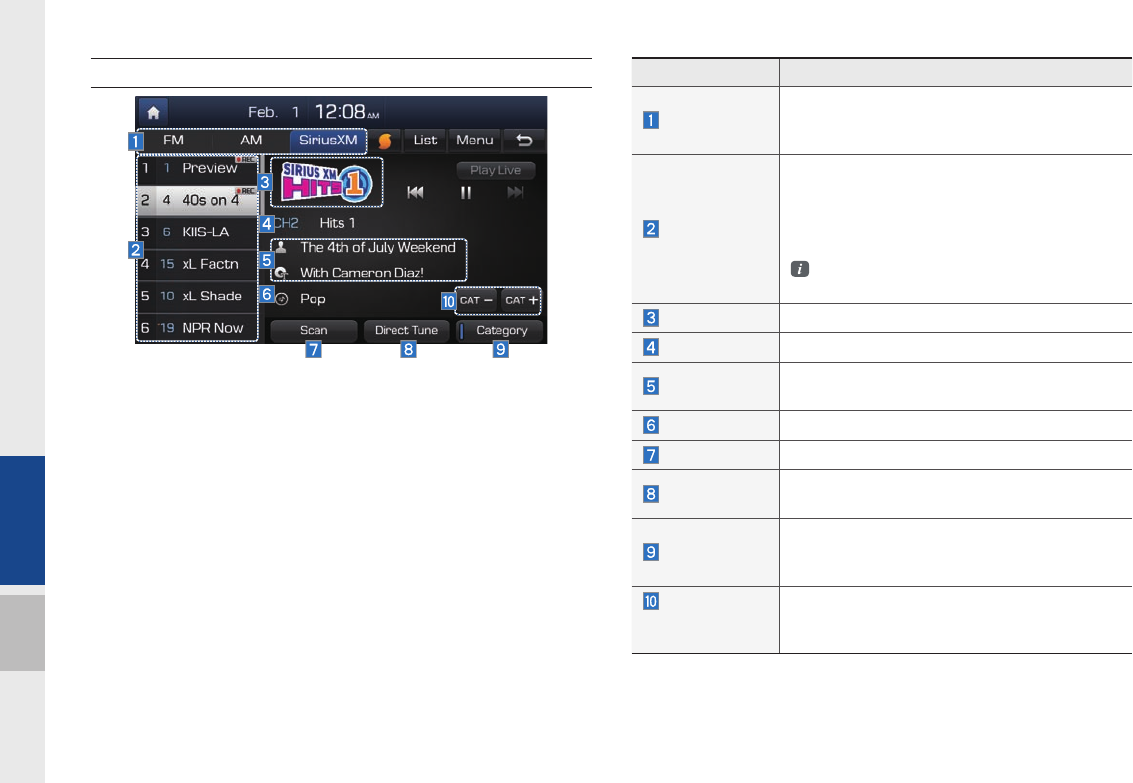

SiriusXM™ Mode Display Controls

Features Description

Mode Display

Displays current operating mode.

If you press FM, AM or SiriusXM, mode will

change to selected one in Radio

Preset

Shows saved presets for user selection

After selecting frequency → press and hold

(over 0.8 seconds) the preset button. A 'beep'

will sound and the frequency is saved to the

selected preset button.

A total of 18 frequencies for SiriusXM™

modes can be saved.

Channel Logo Displays the current channel logo

Channel Info Displays the current channel number and name

Contents Info Displays the artist, title and other information

about the current playing song

Category Info Displays the current playing category

Scan Plays all receivable channels for 10 seconds each

Direct Tune Used to search for channels by entering chan-

nel numbers

Category

Selection

Buttons

Used to select the previous/next category

SiriusXM™ I 2-7

Features Description

Play Live It will change to listening live broadcast mode.

Skip Backward

Repeats the previously broadcasted program.

•Holding for less than 0.8 seconds : Moves to

the previous segment

•Holding for longer than 0.8 seconds: Moves

to the previous 5 seconds

Play Pause Pauses/plays the current broadcasting program.

Skip Forward Moves to the next segment.

List Displays SiriusXM™ Radio Categories/Channel

Lists

What’s on My Preset?

The program schedule saved in my preset. (For

more details, see Section 2.5. Viewing Menu.)

•Featured Favorite

Theme channels recommended by SiriusXM™ .

(For more details, see Section 2.5. Viewing

Menu.)

•Preset Scan

Plays preset frequencies for 5 seconds each.

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

SEEK/TRACK

When key is pressed quickly.(under 0.8 seconds)

Plays the previous/next channel

When key is pressed and held.(over 0.8 seconds)

Continuously changes the channel until the key

is released and plays the current channel

TUNE Changes the channel

2-8 I AV

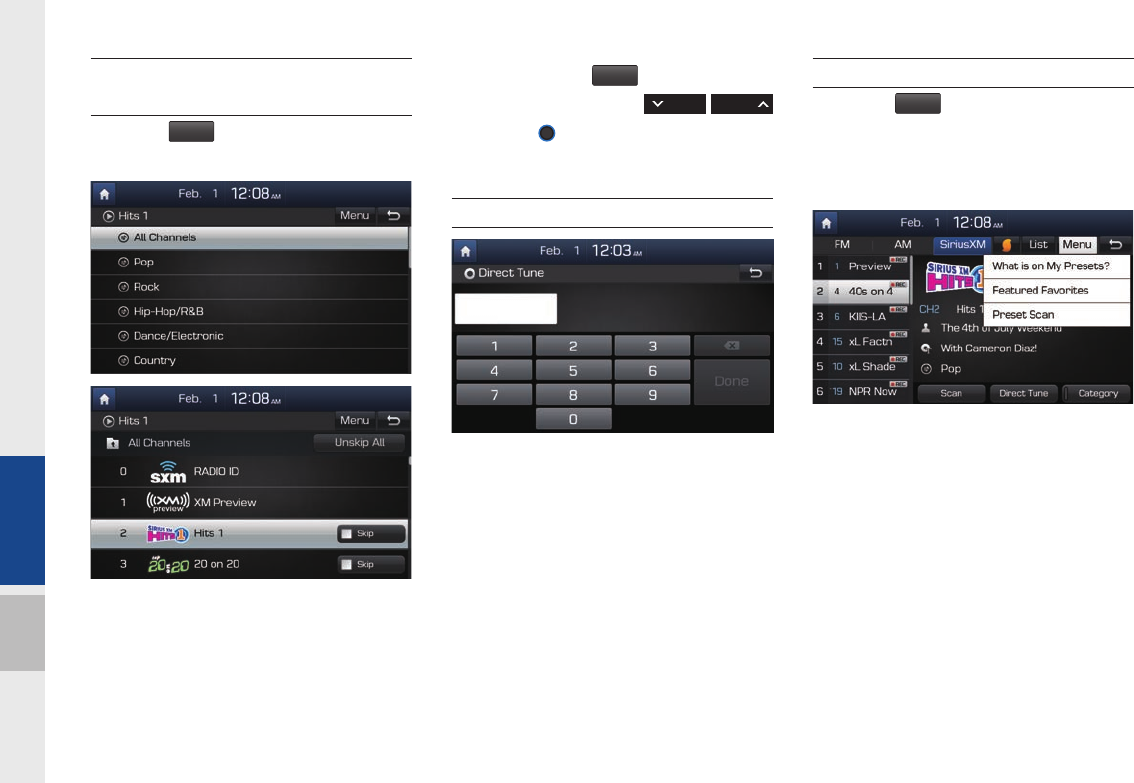

Selecting through

Channel/Category List

Press the

List

▶ Select the desired cat-

egory and channel.

Select the desired category and the chan-

nel. Once selected, the previous screen

will be restored and the selected channel

will begin playing.

If you select the

Skip

button, you can

scan channels using the

SEEK

TRACK

key or the

TUNE

knob by skipping the

channels that you chose to skip.

Direct Tune

Enter the number of the channel you want

to receive.

Viewing Menu

Using the

button on the right, you

can view the program schedule and infor-

mation about the Featured Favorites pro-

vided by SiriusXM™ .

SiriusXM™ I 2-9

Name Description

Change

Broadcast

Date

By selecting this option, you can select a broad-

casting date and time zone.

Broadcast information will be provided for one week

from the current date.

Preset

Shows saved presets for user selection

A total of 18 frequencies for SiriusXM™ modes

can be displayed

Broadcasting

Time You can select the time that you want.

Program

Information

Shows you the program titles to be broadcasted at

the time that you have chosen.

Select a program to see more details.

If there is more information on the program you

selected, an arrow button will be displayed on

the right of the list. You can see more program

information by selecting the arrow button.

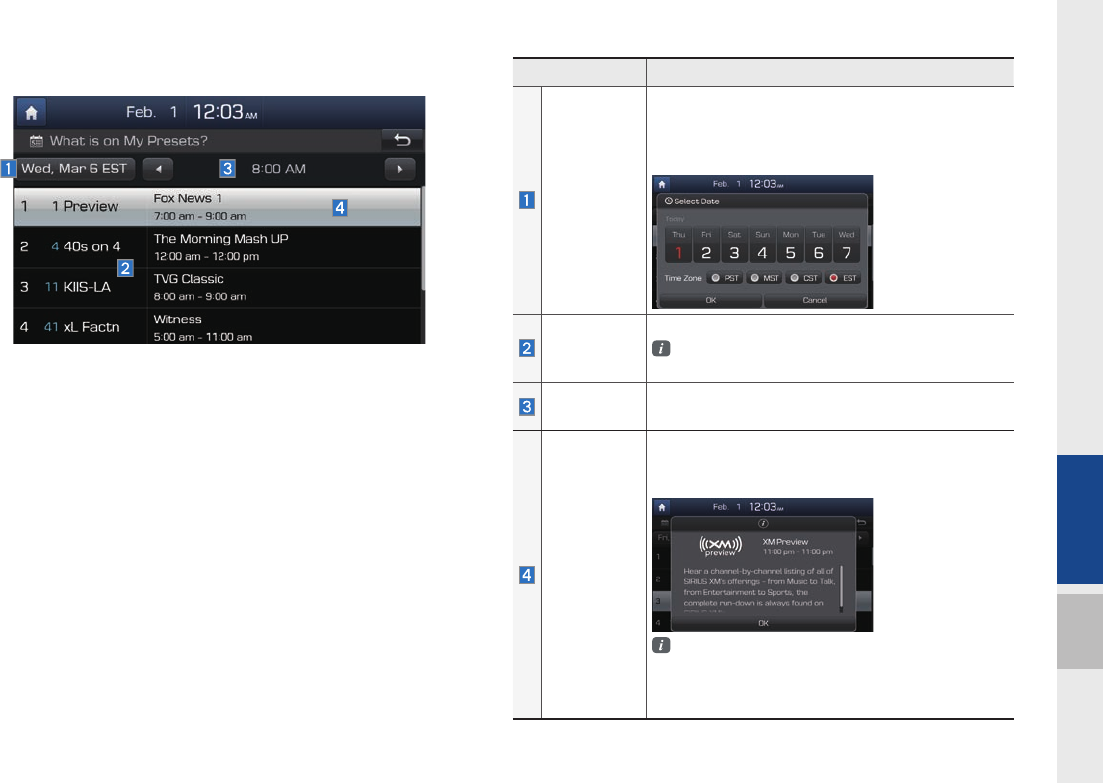

What’s on My Preset? (Program Schedule)

Menu → What’s on My Preset? You can select Menu to see pro-

gram information and the schedules of broadcast channels listed

in the Preset.

2-10 I AV

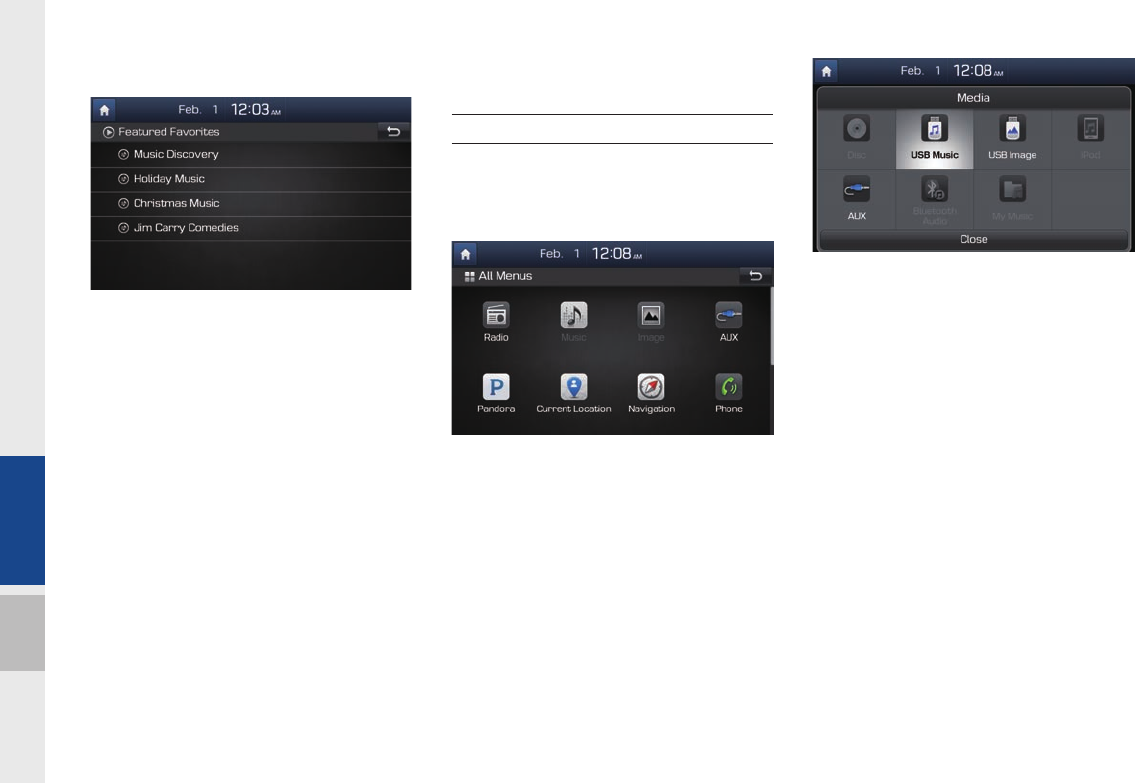

Featured Favorites

Featured Favorites feature allows

SiriusXM™ to broadcast additional presets

•Example 1 : "Martha's Favorites" may

represent Martha Stuart's favorites pre-

sets on her radio

•Example 2 : During holidays, "Holiday

Music" may represent all the SiriusXM™

channels that are playing the holiday

music for easy access by users

Multiple sets Featured Favorites data

can be broadcast by SiriusXM™ and can

change from time to time

Media

Starting Mode

1. From All Menus, select an icon you

want from “Music, Image, AUX” to enter

the last mode you used.

2. You can enter the Media mode that you

recently used by pressing the Media

hard key while in another mode.

3. To go to a different mode after you enter

Media mode, press Media and choose

the one you want.

About Disc I 2-11

About Disc

Precautions upon Handling Discs

CAUTION

• After using a disc, put the disc back in its

original case to prevent disc scratches.

• Do not use abnormally shaped discs (8cm,

heart-shaped, octagon-shaped) as such discs

could lead to errors.

• Do not clean discs with chemical solutions,

such as record sprays, antistatic sprays,

antistatic liquids, benzene, or thinners.

• Do not expose the disc to direct sunlight or

high temperatures for prolonged periods of

time. Such exposure may lead to disc defor-

mation.

• Upon playing a disc contaminated by dirt

or other substances, the sound quality may

deteriorate and result in skipping sounds.

Writing on either side of the disc could result

in damage to disc surfaces.

• Clean fingerprints and dust off the disc

surface (coated side) with a soft cloth.

• Copy-protected CDs, such as S-type CDs,

may not properly operate in the device. DATA

CDs cannot be played. (However, such discs

may still abnormally operate.)

• Do not disassemble the device. Contact a

designated service center in case of problems.

(Complete after service assistance will not be

provided if the user disassembles the device.)

• Do not use water to clean the device.

Exposure to water could lead to product

damage.

• Do not introduce foreign substances into

the disc insert/eject slot. Introducing foreign

substances could damage the device interior.

• The device may not properly operate

in extremely hot or cold temperatures.

(The operating temperature range is : 14˚F ~

150˚F)

• Steam can become condensed on the ﬁ ber-

optic lens due to rain, wet conditions, or

upon operating the heating system. In such

cases, discs may not be properly recognized.

Remove the disc and wait until the moisture

dries.

• Skipping may occur during audio play when

driving on bumpy roads for prolonged periods

of time or upon severe shock to the vehicle. In

case of severe shock, audio may not properly

play.

2-12 I AV

Supported Disc Formats

This device supports the following disc for-

mats.

Disc Type

Disc Type Disc Format Device Support

3inch (8cm)

5inch (12cm)

CD-R

CD-RW

Multisession-CD

O (Read Only)

SACD

(Single, SACD layer)

SACD (Hybrid)

(Only CD layer)

Disc Format

Disc Type Disc Format Device Support

CD-DA

MP3

WMA

MPEG4 AAC

DTS-CD

CD-ROM

CD-G

CD-EXTRA

CD-TEXT

Disc/Content Format

Compatibility

By Format according to Disc Type

Disc Type Disc Format Device Support

CD LPCM

MP3

MPEG1, Layer3

MPEG2, Layer3

MPEG2.5

WMA Ver9

Ordinary Disc Compatibility

This device has been designed/ manufac-

tured to be compatible with software bear-

ing the following logo marks.

•CD-R/RW discs (Audio CD) created

with CD recording devices or PCs may

not properly operate in the device.

This is a result of various causes,

including disc format, recording method,

and contamination to the disc or lens.

$XGLR&'

About Disc I 2-13

CD-R/RW Compatibility

•This device supports CD-R, CD-RW,

and MP3 discs burned in Audio CD for-

mats.

•The recording of CD-R and CD-RW

discs with this device is not supported.

•CD-R/RW discs recorded as audio CDs

that were not finalized are not supported

by this device.

PC-created Disc Compatibility

•When burning a disc on a PC, the disc

may not operate in this device depend-

ing on the software settings. In such

cases, inquire with the software manu-

facturer.

•Additional information regarding com-

patibility is displayed on the CD-R/RW

software disc box.

•DVD-R/W discs are not compatible with

this device.

Cautions upon Writing CDs

•When a multi-session disc is being

recorded, make sure to close the ses-

sion before recording.

•If MP3/WMA file extensions are

changed, such could result in errors.

•In the case of MP3/WMA, write using

only English. (Other languages are not

supported)

•Unauthorized use of copy-protected

music files is prohibited by law.

•Prolonged use of CD-R/CD-RW prod-

ucts that do not satisfy related specifica-

tions may result in abnormal operation.

•When writing CDs, low-speed writing is

recommended.

Compressed Audio Compatibility

•Physical formats of CD : Model 1, Model

2 XA format 1.

•This device supports audio file com-

pressed through MPEG-1 audio stream

layer 3 (MP3) using 8kbps ~ 320kbps.

(CBR or VBR)

•For stable operation, the use of files

in 95kbps~192kbps bit rate range and

44.1kHz SAMPLING frequency is rec-

ommended.

•This device supports WMA audio files

using 20kbps ~ 320kbps. (CBR or VBR)

•Variable bit rate files may operate, but

the play time information may not be

properly displayed.

•This device only supports tracks with file

extension of “.mp3” or “.wma”.

•This device does not support multises-

sion discs.

•This device supports only 8 layer fold-

ers.

2-14 I AV

•This device supports MP3 ID3 tag ver-

sions of Ver. 1.0, Ver. 1.1, Ver. 2.2, Ver.

2.3, Ver. 2.4. When using discs with

other versions, the ID3 info will not be

displayed.

•Although this device has been desig-

nated to be compatible with various bit

rates, playing low bit rate MP3 tracks

may result in low quality sound.

Before Playing an MP3 Disc

Supported MP3 File Speciﬁ cation

•Acceptable standard: MPEG1 Audio

Layer 3.

•Acceptable sampling frequency :

8, 11.025, 12, 16, 22.05, 24, 32, 44.1,

48(kHz).

•Acceptable bit rate : 8 ~ 320 (Kbps).

Recommended Bit Rates and Frequency

•Sampling frequency : 96 ~ 192 Kbps

fixed bit rate/44.1kHz.

NOTICE

• Supported ID3 tags : ID3v1.0, ID3v1.1,

ID3v1.2, ID3v2.2, ID3v2.3, ID3v2.4.

• Supported MP3 Media : CD-ROM.

• Supported media formats : ISO9660 LEVEL1

and LEVEL2.

Detailed Speciﬁ cation

•Maximum directory layers : 8 layers.

•Maximum folder length : 64 bytes, file

name length: 64 bytes.

•Supported characters for folder name/file

name: 2350 characters for Alphanumeric

character and Korean character sets,

4888 characters for Simplified Chinese

character set.

•Maximum number of folders per disc :

256 folders. (including ROOT)

•Maximum number of files per disc : 512

files.

Precautions upon Burning MP3 Files

•The use of ISO 9660 LEVEL 2 JOLIET

format is recommended.

•Up to 32 characters in Korean/Chinese

are supported for file names and up to

20 characters in Korean/Chinese are

supported for folder names.

•The use of CDs exceeding 700MB may

result in faulty disc recognition or errors

upon play.

About Disc I 2-15

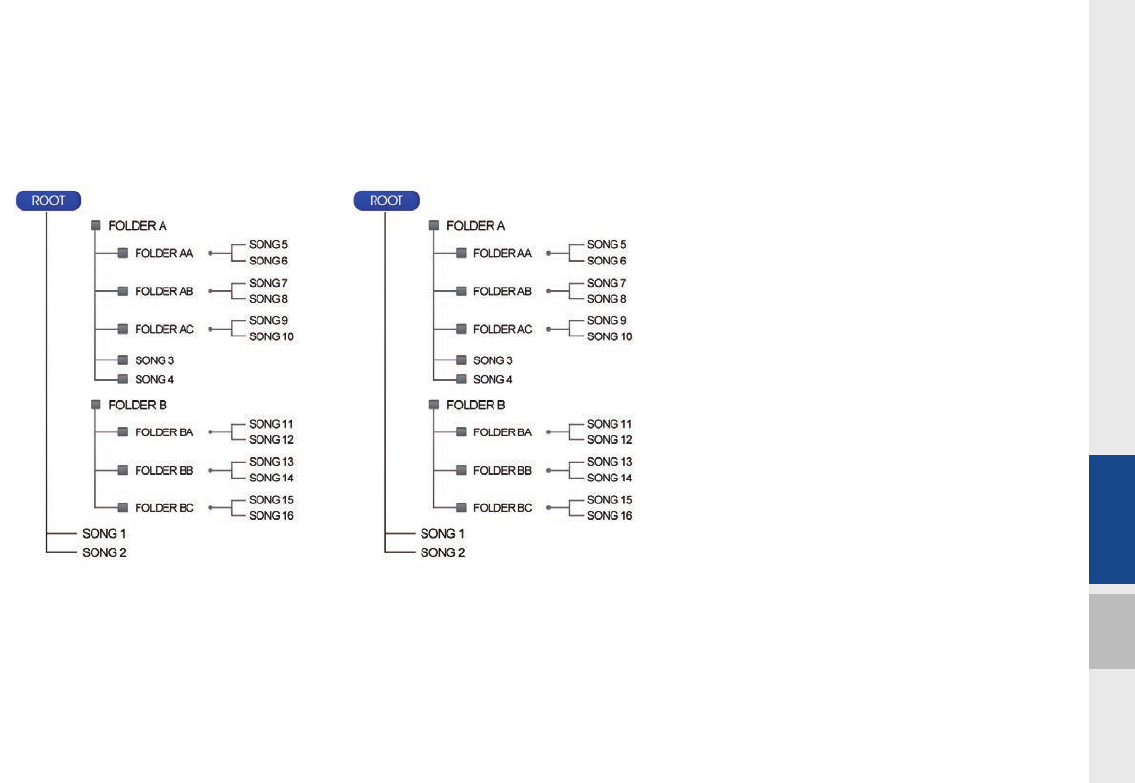

MP3 File Structure

Recognition occurs through the same folder structure used within the disc.

Folder structure as saved in CD-ROM Folder structure as saved in the system

2-16 I AV

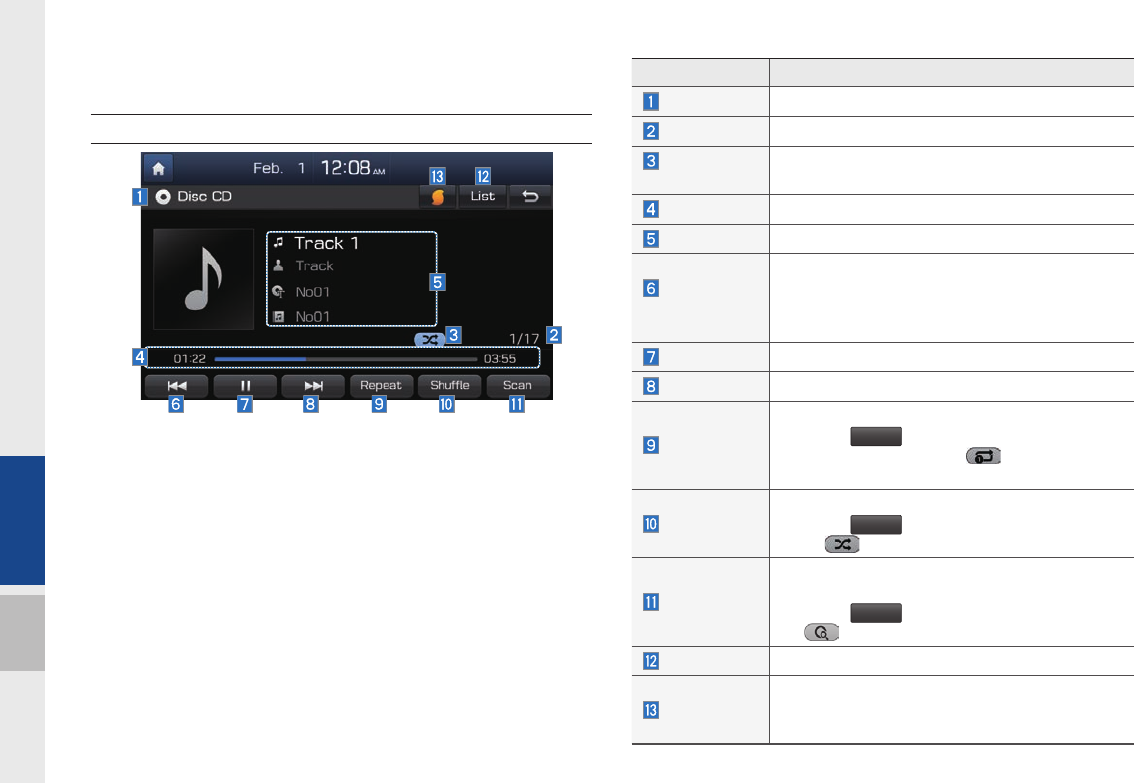

Basic Mode Screen

Name Description

Mode Displays current operating mode

Track Index Shows the current track/total tracks

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the current

operating function

Play Time Displays the current play time

Play Info Displays track/artist/title/album information

Tra ck

•When the play time is under 3 seconds the

previous track

•When the play time is over 3 seconds current

song from the beginning

Play/Pause Plays/pauses the current track

Next Track Moves to the next track

Repeat

Repeats the current track

Press the

Repeat

button to switch between

repeating the current track → and turning

repeat off

Shuffle

Plays disc tracks in random order

Press the

Shuffle

button to switch between shuf-

fle all → and turning shuffle off

Scan

Scans the beginning parts of disc tracks (approx.

10 seconds per track)

Press the

Scan

button to switch between scan

all → and turning scan off

List Moves to the track list screen

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

CD I 2-17

Name Description

SEEK/TRACK

•If button is pressed quickly (less than 0.8 sec-

onds), it moves to previous or next track

•If button is pressed and held (over than 0.8

seconds), it rewinds or fast-forward the track

When pressed for 5 seconds, it will rewind or

fast-forward the track at 4x speed. After that, it

will rewind or fast-forward at 20x speed. Once

released, the track will begin playing at normal

speed.

TUNE

Turn the

TUNE

knob and search a desired

track. When the track name is displayed, press

the

TUNE

knob

to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

2-18 I AV

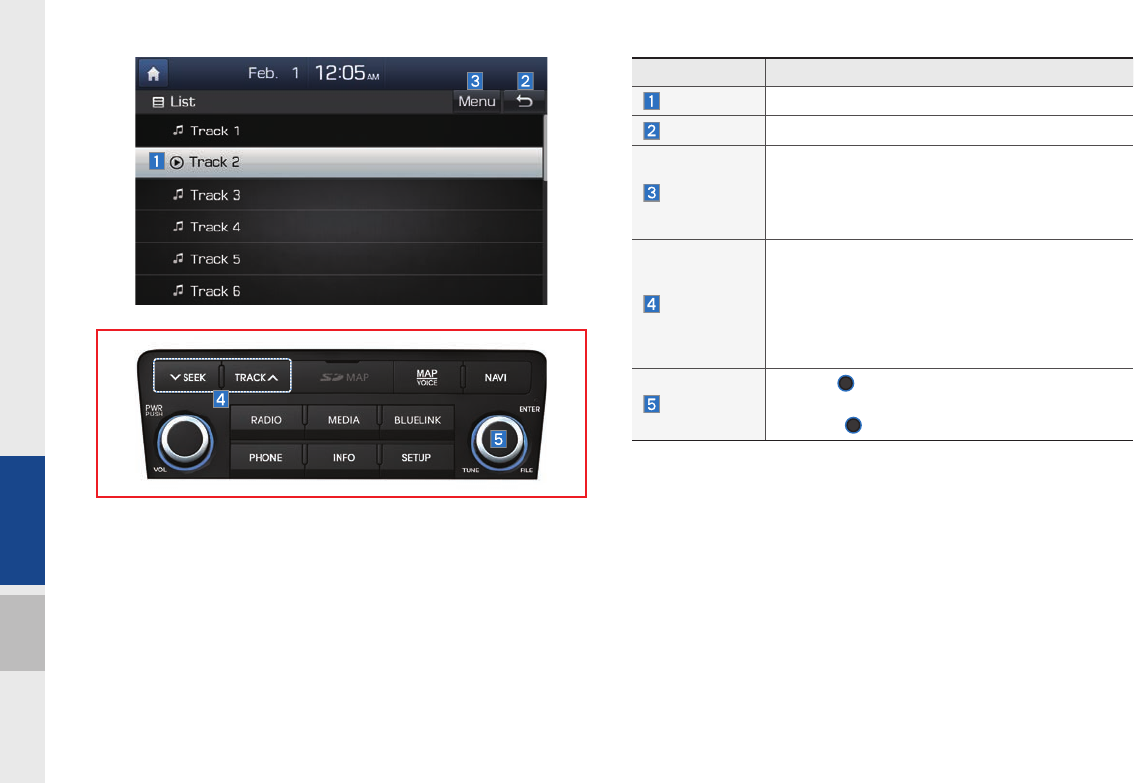

Name Description

Current Track Displays current playing track name

Back Button Converts to basic mode screen

When moving to a different list screen, moves to

the list page where the current file is located

(Becomes disabled when the current list includes

the current file)

SEEK/TRACK

•If button is pressed (less than 0.8 seconds):

Plays previous/next track

•If button is pressed (over than 0.8 seconds):

Moves to play screen, and then it will rewind or

fast-forward the track. It will play the track nor-

mally if it is released.

TUNE

Turn the

TUNE

knob to move the focus to the

next/previous track. If the desired track is selected,

press the

TUNE

knob to play the track.

MP3 I 2-19

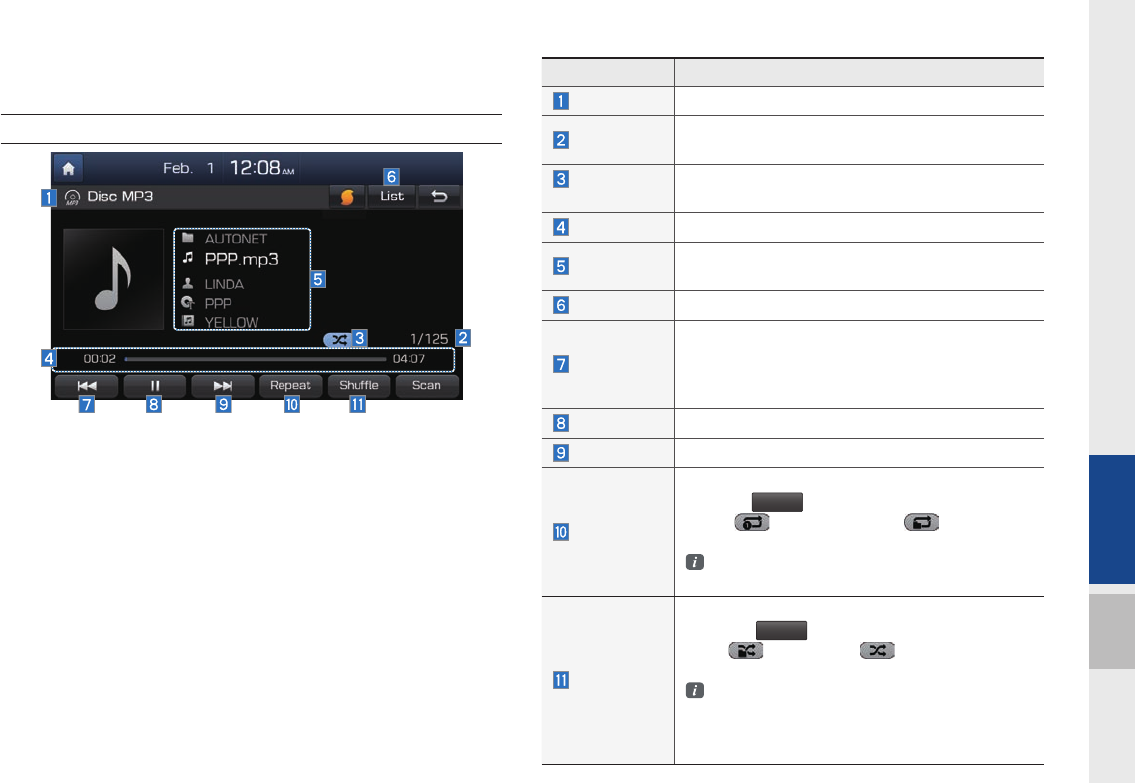

MP3

Basic Mode Screen

Name Description

Mode Displays current operating mode

File Index Shows the current MP3 file/total number of MP3

files

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the current

operating function

Play Time Displays the current play time

Song Info Displays folder/file/artist/title/album info for current

song

List Moves to the list screen

Previous File

•If play time is less than 3 secs, moves to previ-

ous file

•If play time is over than 3 secs, play the current

file from the beginning

Play/Pause Plays/pauses the current track

Next File Moves to the next song

Repeat

Repeats the current song or all songs in the folder

Press the

Repeat

button to switch between repeating

1 song → repeating folder → and turn-

ing repeat off

Repeat 1 song: Repeats the current song

Repeat Folder: Repeats songs in the folder

Shuffle

Plays files in the folder or in the disc in random order

Press the

Shuffle

button to switch between shuffle

folder → shuffle all → and turning

shuffle off

Shuffle folder : Plays songs in the folder in ran

dom order

Shuffle All : Plays songs in the disc in random

order.

2-20 I AV

Name Description

Scan

Scans the beginning parts of MP3 files (approx.

10 seconds per file)

Press the

Scan

button to switch between

scan folder → scan all → and turn-

ing scan off

Scan Folder : Scans tracks in the current

folder

Scan All : Scans all tracks in the disc

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

SEEK/TRACK

•If button is pressed (less than 0.8 seconds):

Plays previous/next track

•If button is pressed (over than 0.8 seconds):

Moves to play screen, and then it will rewind

or fast-forward the track.

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within 5

seconds of searching tracks, the track info

for the current track is restored.

MP3 I 2-21

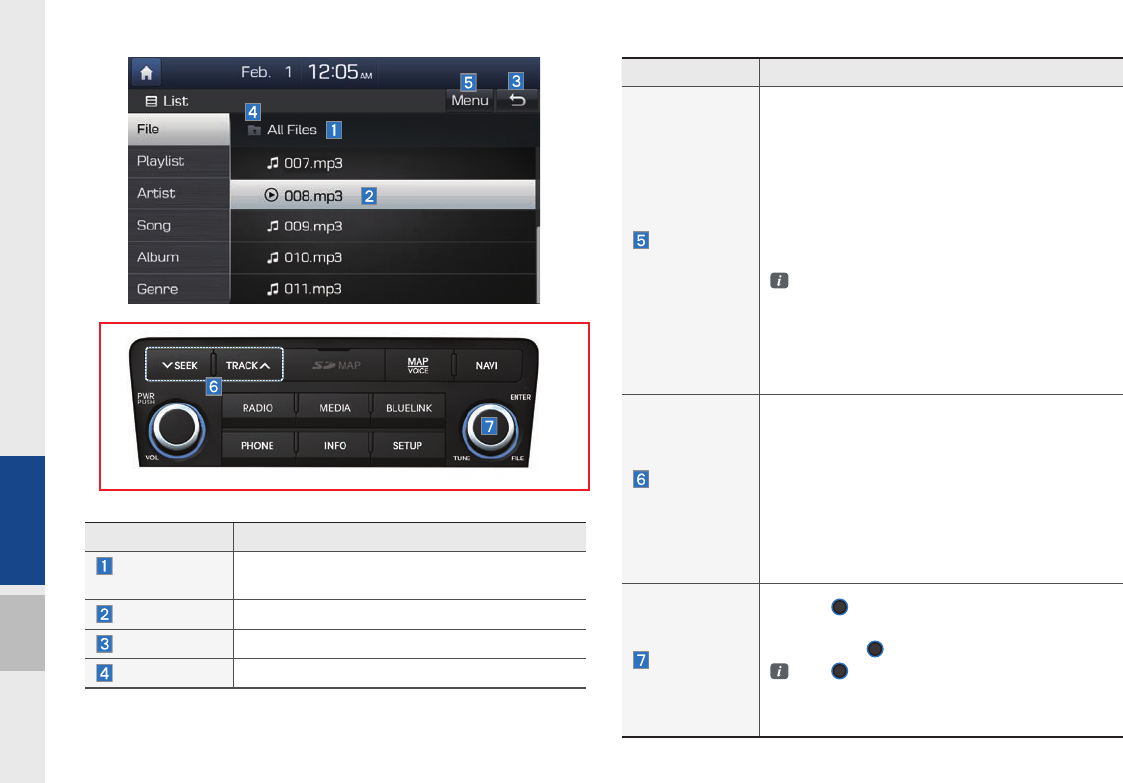

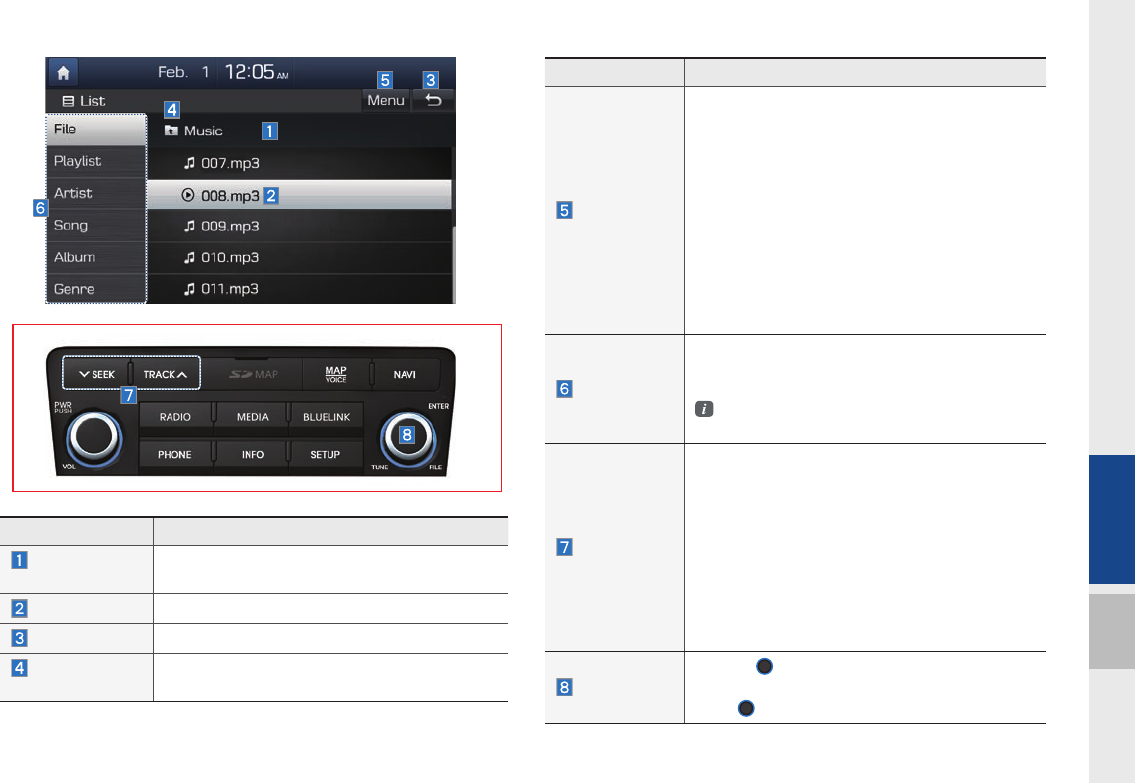

Name Description

Folder Name Displays folder name for current file

Current Song Displays current playing file name

Back Button Converts to basic mode screen

Upper Folder Moves to Root Folder

When moving to a different list screen, moves to the

list page where the current file is located

(Becomes disabled when the current list includes

the current file)

SEEK/TRACK

•If button is pressed (less than 0.8 seconds) :

Plays previous/next track

•If button is pressed (over than 0.8 seconds) :

Moves to play screen, and then it will rewind or

fast-forward the track.

TUNE

Turn the

TUNE

knob to move the focus to the

previous/next track. If the desired track is displayed,

press the

TUNE

knob to play the track.

2-22 I AV

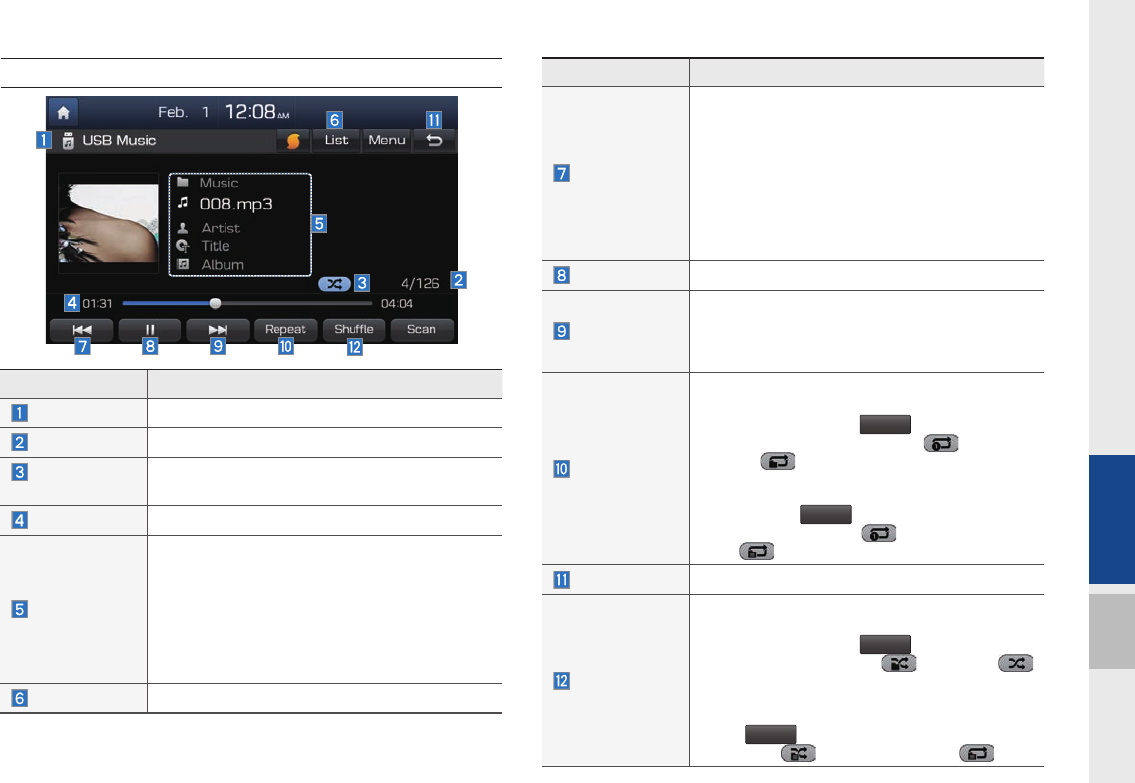

USB

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB

device may become damaged if it is already connected when the

ignition is turned on.

•Files that are not standard format music/image files will not be

played.

•For MP3/WMA/OGG files, only music files with compression

rates between 8Kbps ~ 320Kbps can be played.

•Heed caution to static electricity when connecting/disconnecting

external USB devices.

•Encoded MP3 Players will not be recognized when connected

as an external device.

•When connecting an external USB device, the device may not

properly recognize the USB is in some states.

•Only products formatted with byte/sectors under 64Kbyte will be

recognized.

•This device recognizes USB devices formatted in FAT 12/16/32

file formats. This device does not recognize files in NTFS file for-

mat.

•Some USB devices may not be supported due to compatibility

issues.

•Take caution so that the USB connector does not come in con-

tact with body parts or objects.

•Repeated connecting/disconnecting of USB devices within short

periods of time may result in product malfunction.

•Make sure to connect/disconnect external USB devices with the

audio power turned off.

•The amount of time required to recognize the external USB

device may differ depending on the type, size, or file formats

stored on the USB.

•The use of USB devices for purposes other than playing music

and image files is prohibited.

•Do not use the USB I/F to charge batteries or USB accessories

that generate heat. Such acts may lead to worsened perfor-

mance or damage to the device.

•The device may not recognize the USB device if separately

purchased USB hubs and extension cables are being used.

Connect the USB directly with the multimedia terminal of the

vehicle.

•When using mass storage USB devices with separate logical

drives, only files saved to the root drive can be played.

•When application programs are installed to specific USBs, files

may not properly play.

USB I 2-23

•The device may not operate normally if MP3 Players, cellu-

lar phones, digital cameras, or other electronic devices (USB

devices not recognized as portable disk drives) are connected

with the device.

•Charging through the USB may not work for some mobile

devices.

•The device may not support normal operation when using a USB

memory type besides Metal Cover Type USB Memory.

•The device may not support normal operation when using for-

mats such as HDD Type, CF, or SD Memory.

•Upon playing iPods, please use a dedicated iPod car cable.

•Normal operations cannot be guaranteed when other cables are

being used.

•The device will not support files locked by DRM. (Digital Rights

Management)

•USB memory sticks used by connecting an Adaptor (SD Type or

CF Type) may not be properly recognized.

•Only use Plug type connector products, as shown in the figure

below.

Plug Type Connector

Product Name Manufacturer

XTICK LG

BMK BMK Technology

SKY-DRV Sky Digital

TRANSCEND JetFlash Transcend

Sandisk Cruzer SanDisk

Micro ZyRUS ZyRUS

NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

2-24 I AV

Supported Image Speciﬁ cations

Name Description

Image format JPG, GIF, BMP, PNG (animated GIF, etc.

are not supported)

Supported image

resolution

5M pixels for JPG, BMP, PNG (1M pixels

maximum for GIF)

Supported image file

size

5M pixels for JPG, BMP, PNG (1M pixels

maximum for GIF)

USB MP3 Information and Precautions

Name Description

MP3 File

Specification Specification : MPEG1 AUDIO LAYER 3

Recommended

Bit Rates and

Sampling

Frequency

Acceptable sampling frequency : 32, 44.1, 48 (kHz)

Acceptable bit rate : 32, 40, 48, 56, 64, 80, 96, 112,

128, 160, 192, 224, 256, 320 (Kbps)

96, 128, 192 Kbps fixed bit rate/44.1kHz

ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,

ID3v2.4 ID3 tags

Detailed

Specifications

Maximum directory layers : 20 layers

Maximum length of folder name/file name : 255Bytes

Supported characters for folder name/file name :

Alphanumeric characters, Korean standard character

set 2,350 characters, Simplified Chinese 4888 char-

acters

Maximum number of folders which can be stored onto

one USB : 2000 folders (including ROOT)

Maximum number of files which can be stored onto

one USB : 8000

Information

• The sound quality of MP3 files that use bitrates exceeding

192 Kbps cannot be guaranteed. When using files without fixed bit

rates, some features (FF/REW features) may not properly operate.

USB I 2-25

Features Description

Previous File

If button is pressed (less than 0.8 seconds) :

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

•If play time is less than 3 seconds, moves to

previous file

•If play time is over than 3 seconds, play the

current file from the beginning

If button is pressed (over than 0.8 seconds) it

rewinds the track

Play/Pause Plays/pauses the current file

Next File

•If button is pressed (less than 0.8 seconds) :

Moves to the next file

•If button is pressed (over than 0.8 seconds) :

It fast-forwards the track

Repeat

Repeats the current file

•If select the song in the file tab on the list

screen : Press the

Repeat

button to switch

between repeating one song , repeating

folder , and turning repeat off

•If select the song in the other tabs (Playlist,

Artist, Song, Album, Genre) on the list screen

: Press the

Repeat

button to switch between

repeating one song and turning repeat

off

Back Button Converts to basic mode screen

Shuffle

Plays files in random order

•If select the song in the file tab on the list

screen : Press the

Shuffle

button to switch

between Shuffle Folder , Shuffle All

, and turning shuffle off

•If select the song in the other tabs (Playlist, Artist,

Song, Album, Genre) on the list screen : Press

the

Shuffle

button to switch between Shuffle

Category and turning shuffle off

USB Music

Features Description

Mode Displays current operating mode

File Index Shows the current file/total files within the USB

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the current

operating function

Play Time Displays the current play time/total play time

Song Info

Displays the information of the current track

•When a track in the file tab on the list screen

is selected : Displays folder, file, title, artist,

album info

•When a track in the other tabs on the list

screen is selected : Displays artist, title, album

info

List Moves to the list screen

2-26 I AV

Features Description

Scan

Scans the beginning parts of USB files (approx.

10 seconds per file)

•If select the song in the file tab on the list

screen : Press the

Scan

button to switch

between Scan Folder , Scan All ,

and turning scan off

•If select the song in the other tabs (Playlist,

Artist, Song, Album, Genre) on the list screen :

Press the

Scan

button to switch between

Scan category and turning scan off

•Add to Playlist : Add the current track to the

Playlist Playlist is placed on the left tab in the

list

•Save to My Music : You can save the current

track to My Music. You can play saved track

from My Music without USB. Access to My

Music in the Media mode.

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

track from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is over than 3 seconds, play the

current file from the beginning

If button is pressed (over than 0.8 seconds) it

will rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press the

TUNE

knob to play the track.

USB I 2-27

Features Description

•Add to Playlist : Adds the current track to the

Playlist: Playlist is placed on the left tab in the

list (Maximum 100 files) Select a desired track

and press “Add to Playlist” to add the track in

the playlist.

•Delete from Playlist : Select a track you want to

delete from the playlist and press “Delete from

Playlist” to delete the track in the playlist

•Now Playing : When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when

the current list includes the current file)

Search Menu

Search tracks by the list type. Search songs

according to Playlist, Artist, Song, Album, and

Genre.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

If button is pressed (less than 0.8 seconds):

Plays previous/next track

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is over than 3 seconds, play the

current file from the beginning

If button is pressed (over than 0.8 seconds):

Moves to play screen, and then it will rewind or

fast-forward the track. It will play the track nor-

mally if button released.

TUNE

Turn the

TUNE

knob to move the focus to the

previous/next list. If the desired track is displayed,

press

TUNE

knob to play the track.

Features Description

Folder/

Category Name Displays folder/category name in the list

Current Song Displays current playing file name

Back Button Converts to basic mode screen

Upper Folder/

Category Moves to Upper Folder

2-28 I AV

USB Image

Features Description

Mode Displays current operating mode

Folder/File

Name Displays folder name where image is located

File Index Shows the current file/total files within the USB

Slideshow images as slideshow in 5, 10, 20, 30 second

intervals

Rotate Rotate image in clockwise direction

Info Shows the file name, resolution and file type of

current image

Adjust Image

Size Enlarge/reduce (zoom-in/zoom-out) image size

List Moves to the list screen

Previous/

Next image

Swipe image left or right to see Previous/ Next


USB I 2-29

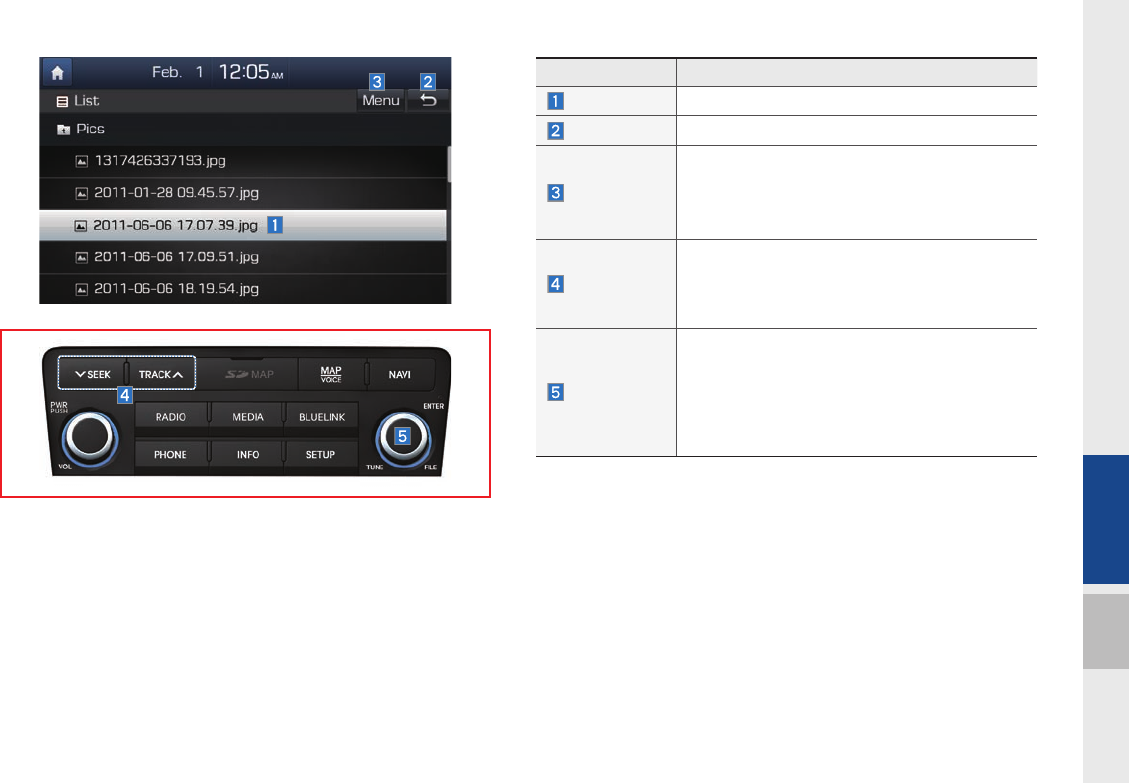

Features Description

Current File Displays current playing file name

Back Button Converts to basic mode screen

Now Playing : When moving to a different list

screen, moves to the list page where the current

file is located (Becomes disabled when the cur-

rent list includes the current file)

SEEK/TRACK

Controls background mode

•Radio mode : Changes Frequency and

Channel

•Media mode : Changes Track (excluding AUX)

TUNE

Controls background mode

•Radio mode : Changes Frequency and

Channel

•Media mode : Changes track (excluding AUX).

If a desired track is displayed, press the knob

to move to the track.

2-30 I AV

iPod

Using iPod Devices

•iPod is a registered trademark of Apple Inc.

•iPod mode will not operate if the con-

nected iPod cannot be recognized due

to operation of unsupported versions

that do not support related protocols,

iPod abnormalities, or iPod device

defects. Some iPods with unsupported

communication protocols may not prop-

erly operate with the Multimedia system.

•For fifth generation iPod Nano devices,

the iPod may not be recognized when

the battery level is low. Please charge

the iPod for use.

•Search/play orders shown within the

iPod device may differ with the orders

shown within the Multimedia system.

•If the iPod malfunctions due to an iPod

device defect, reset the iPod and try

again. (To learn more, refer to your iPod

manual)

•If repeatedly connect and disconnect

iPod/iPhone to the Multimedia system

with USB cable in short time, it may

cause abnormal operation.

•The time for recognition of iPod/iPhone

may vary depending on device type,

firmware version and iOS version.

•For some iPod Touch and iPhone

devices, connecting Bluetooth® while the

iPod is operating may result in discon-

tinued iPod sound. When such devices

with Bluetooth® support are connected,

this problem occurs as the sound source

is changed from the Dock Connector

(USB connector cable) to Bluetooth.

•To prevent this symptom, Bluetooth

Audio function in the Multimedia system

is limited if iPod/iPhone is connected

to the system through both cable and

Bluetooth. To listen to the iPod sound,

use either iPod menu with USB connec-

tion or Bluetooth Audio with Bluetooth

connection.

•To listen to the iPod sound, reconnect

the USB cable or change the audio out-

put settings in iPod/iPhone to Dock.

•In order to use the iPod while operating

the keys, you must use a dedicated iPod

cable. (the cable that is supplied when

purchasing iPod/ iPhone products)

※ During ACC ON state, connecting the

iPod through the iPod cable (The cable

that is supplied when purchasing iPod/

iPhone product.) will charge the iPod

through the head unit.

※ The use of genuine iPod cables sup-

The use of genuine iPod cables sup-

plied by Apple is recommended. (The

use of other products may result in

noise or abnormal operation.)

iPod I 2-31

•When connecting with the iPod cable,

make sure to fully insert the jack to pre-

vent communication interference. If the

iPod is connected to the vehicle while it

is playing, a high pitch tone may sound

for about 1~2 seconds immediately after

connection. If possible, connect the iPod

to the vehicle with the iPod stopped/

paused.

•Within iPhones, streaming audio and

iPod control may occasionally conflict.

If problems persist, remove the iPhone

and connect again.

•When connecting to iPod Nano /Classic,

the HYUNDAI Motor logo appears on

the Apple device. For the iPod Nano 6

generation, however, the logo image

does not appear since it is not sup-

ported. Also, all iPhone and iPod Touch

products do not support this function.

•In Apple’s iOS 6.0 version or later,

Podcast and Audiobook media files

are designed to be played with the

Podcasts and iBooks applications spe-

cifically designed for Apple products. If

the Apple device does not provide the

Podcast and Audiobook lists, the playlist

may not be displayed and played in the

AVN iPod mode.

•If the Apple Podcasts and iBooks apps

are not installed on the Apple device, but

the Apple device provides the Podcast

and Audiobook lists, you can play files in

other categories in AVN iPod mode.

2-32 I AV

Caution

•While using a connected iPhone/iPod

Touch device, it may not operate nor-

mally if the user changed some func-

tions in the device.

•When calling with an iPhone connec-

tion, song may stop playing due to an

Apple device feature. If sound does

not resume after the call is terminated,

check the device status.

•If lots of songs have the same informa-

tion, skipping may occur when previous/

next song is executed due to an Apple

device feature. Also problems may

occur depending on device type or iOS

version.

•If lots of songs have the same informa-

tion, it may occur difference of playing

songs between the Multimedia system

and Apple device. Reset the device or

delete the same songs in the Apple

device using iTunes.

•If you control pause, repeat, shuffle, or

seek songs when the play time is when

the play time is less than 3s before fin-

ished playing, it may occur difference of

playing song between the Multimedia

system and Apple device. Access to

iPod music from another mode or pause

a song and then play a song again in

Apple device.

•We recommend that your Apple device

uses the latest firmware since some

problems may occur due to an outdated

firmware or other software related

issues.

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPod Mini Not Supported

iPod Shuffle Not Supported

iPod Nano ◯ ◯ ◯◯◯ ◯Not

released ◯

iPod Touch

◯

(iOS 1.1 not

supported)

◯ ◯◯◯ Not released

iPad ◯ (Unable to charge, Not verified, Normal working not guaranteed)

iPad Mini ◯ (Unable to charge, Not verified, Normal working not guaranteed)

iPod Classic Not Supported

◯

(iPod with

Video)

◯

(iPod

Classic)

◯

(iPod

Classic)

Not

released

Type 3G 3GS 4G 4GS 5G

iPhone

Not verified,

Normal

working not

guaranteed

◯◯◯◯

iPod I 2-33

Caution

•If the iPhone/iPod Touch supports

Bluetooth, it is unable to use Bluetooth

Audio if the Apple device that is con-

nected to the Multimedia system

through both USB connection and

Bluetooth. Disconnect the USB connec-

tion then use Bluetooth Audio

•If iPod/iPhone connected to the

Multimedia system through both USB

and AUX. iPod/iPhone keeps output

sound via AUX, thus it may occur sound

will not output in iPod mode.

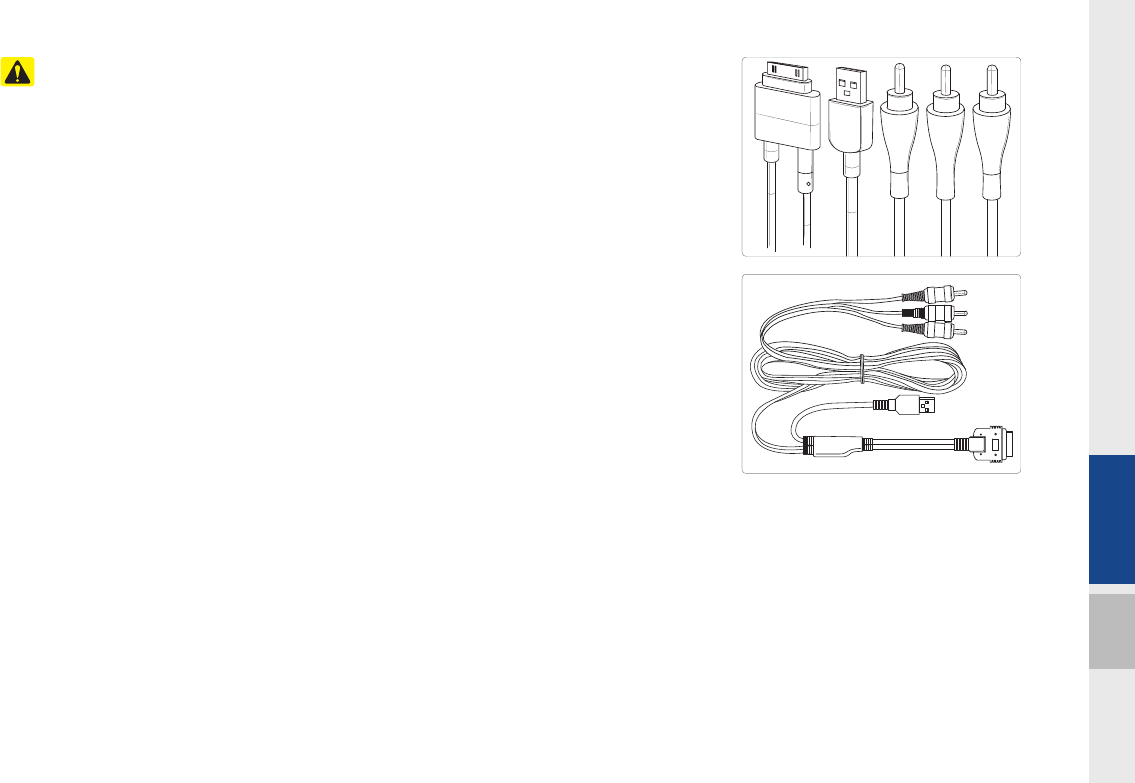

•If AUX cable connected to iPod/iPhone

but not connect to the Multimedia sys-

tem, it may occur sound will not output

in iPod mode due to iPod/iPhone’s fea-

ture. Especially, if you use AUX cable

like pictures, this problem may occur.

•Disconnect AUX cable from iPod/iPhone

first, then connect to the Multimedia

system via USB. Or change settings to

“Dock” in iPod/iPhone.

•If connect to the Multimedia system

while podcast or iTunes music down-

loading to iPod/iPhone, it may occur

some problems when you select song

in the list. Reconnect iPod/iPhone to the

Multimedia system when downloading

is finished or the file deleted.

•If connect to the Multimedia system

while sync, it may occur some problems.

Try to use iPod/iPhone connection after

sync complete. (To learn more, refer to

your iPod manual)

•iPhone and iPod Touch devices are

guaranteed to work normally on iOS

7.0.6 or below. However, they may not

work normally on future iOS versions

as their operations have not yet been

tested.

2-34 I AV

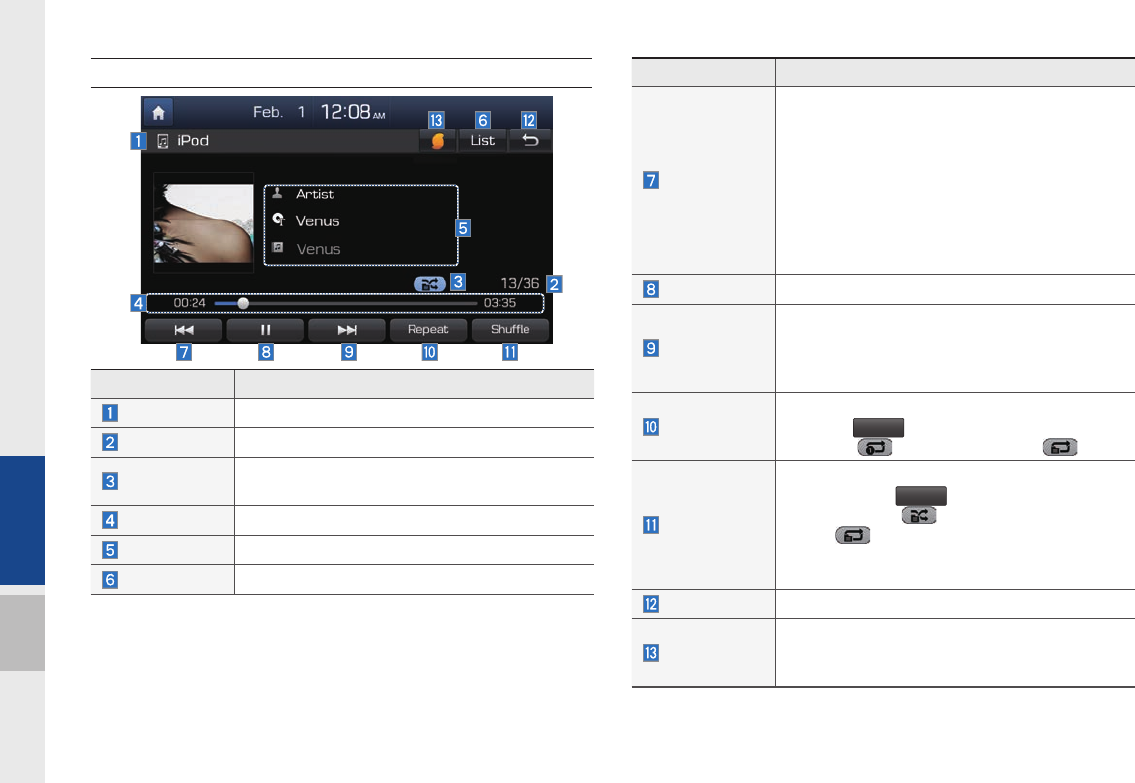

iPod

Features Description

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

•If play time is less than 3 seconds, moves to

previous file

•If play time is over than 3 seconds, play the

current file from the beginning

If button is pressed (over than 0.8 seconds) it

rewinds the track.

Play/Pause Plays/pauses the current file

Next File

•If button is pressed (less than 0.8 seconds),

Moves to the next file

•If button is pressed (over than 0.8 seconds), it

does fast-forward the track.

Repeat

Repeats the current file

Press the

Repeat

button to switch between repeat-

ing 1 track , and turning repeat off

Shuffle

Plays files in random order

When pressing

Shuffle

button, it changes to

shuffle category → deactivate shuffle then

repeat

•Shuffle Category: Shuffle song in the current

category

Back Button Move to home/previous mode screen

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

Features Description

Mode Displays current operating mode

Song Index Shows the current song/total songs

Repeat/Shuffle From Repeat/Shuffle, displays the current oper-

ating function

Play Time Displays the current play time/total play time

Song Info Displays the artist/song title/album info

List Moves to the list screen

iPod I 2-35

Features Description

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is over than 3 seconds, plays the

current file from the beginning

If button is pressed (over than 0.8 seconds) it will

rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within 5

seconds of searching tracks, the track info for

the current track is restored.

2-36 I AV

Features Description

Category Name Displays the category name

Category List

Displays the contents of selected category

If there are many items in the list, items are

added in order and the scroll bar on the right

is adjusted accordingly.

Back Button Converts to basic mode screen

Upper Folder Moves to Upper Folder

Search Menu

Search tracks by the list type. Search songs

according to Playlist, Artist, Song, Album, and

Genre.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is over than 3 seconds, plays the

current file from the beginning

If button is pressed (over than 0.8 seconds) it will

rewind/fast-forward the track.

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If you do not anything with the knob for

5 seconds, the

TUNE

knob search will be ter-

minated.

AUX I 2-37

AUX

Connecting an External Device

If an external device connector is con-

nected with the AUX terminal, then AUX

mode will automatically operate. Once the

connector is disconnected, the previous

mode will be restored.

•AUX mode can be used only when an

external audio player has been con-

nected.

•The AUX volume can also be controlled

separately through the connected

device.

NOTICE

• If only a cable is connected to the AUX without

an external device, the mode will be changed

to AUX, but noise may occur. When an

external device is not being used, remove the

connector jack.

• When the external device power is connected

to the power jack, playing the external device

may output noise. In such cases, disconnect

the power connection before use.

2-38 I AV

Features Description

Mode Displays current operating mode

Phone Name Displays name of connected phone

Artist Info Name of current artist

Title Name of current song

File

•If play time is less than 3 seconds, moves to

the previous file

•If play time is over than 3 seconds, plays the

current file from the beginning

This function may differ depending on the

model of mobile phone

Play/Pause Plays/Pauses Bluetooth Audio

Next File Moves to the next file

Connections

Moves to the Bluetooth Settings screen. You

can pair a new device or change/delete paired

device(s)

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

SEEK/TRACK Plays the previous/next file

TUNE

is not supported.

Bluetooth

Audio

Bluetooth Audio Mode

Information

• Artist info and Title may not be supported by mobile phone

BluetoothⓇ Audio I 2-39

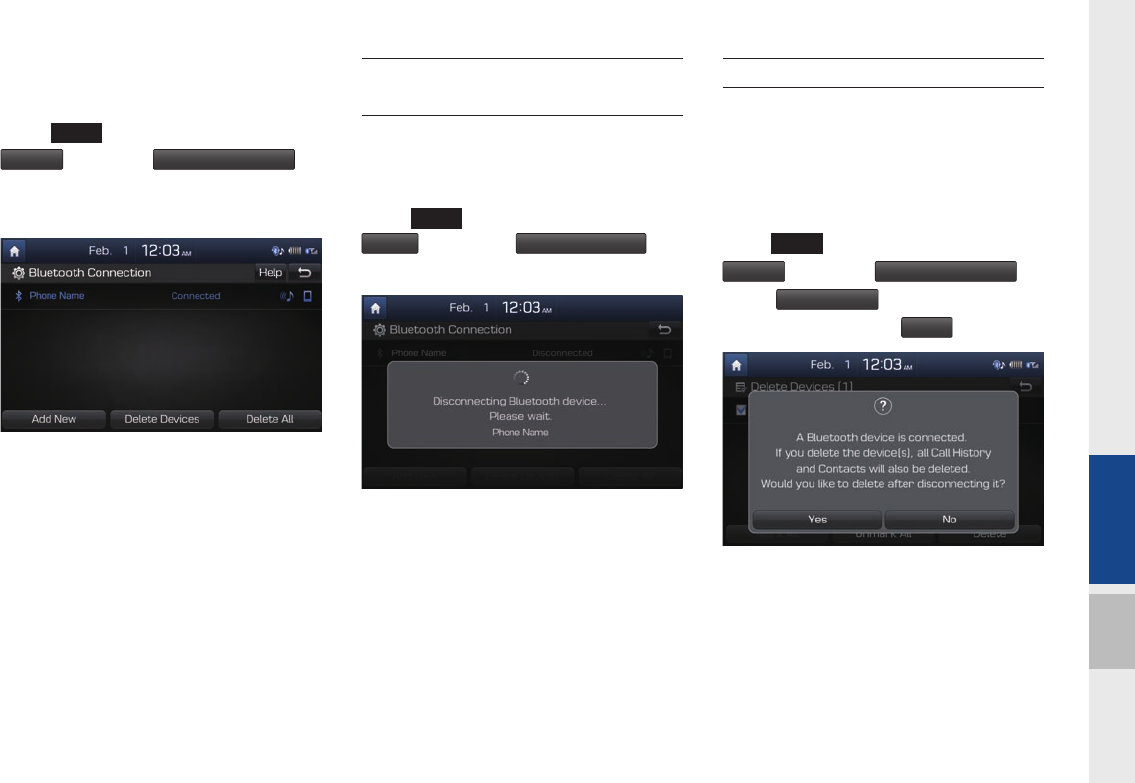

Bluetooth Connections

Settings

Settings for pairing, connection and dis-

connection of a Bluetooth device

•In Bluetooth Audio play screen, Select

Connections

•Select

SETUP

key in the head unit. ▶

Select

Phone

. ▶ Select

Bluetooth connection

Information

• If the music in the mobile phone is not played

after changing to audio streaming mode,

press the play button. Thus check if the

music is playing in the Bluetooth device after

changing to audio streaming mode. Audio

streaming may not be supported for some

mobile phones.

• Please check the Bluetooth compatibility in

below website : HYUNDAI Motor America

https://www.hyundaiusa.com/bluetooth

2-40 I AV

My Music

Features Description

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

•If play time is less than 3 seconds, moves to

previous file

•If play time is over than 3 seconds, play the

current file from the beginning

If button is pressed (over than 0.8 seconds) it

rewinds the track

Play/Pause Plays/pauses the current file

Next File

•If button is pressed (less than 0.8 seconds):

Moves to the next file

•If button is pressed (over than 0.8 seconds) it

will fast-forward the file

Repeat

Repeats the current file

•If select the song in the file tab on the list

screen : Press the

Repeat

button to switch

between repeating one song and turn-

ing repeat off.

•If select the song in the other tabs (Playlist,

Artist, Song, Album, Genre) on the list screen

: Press the

Repeat

button to switch between

repeating one song and turning repeat

off

Features Description

Mode Displays current operating mode

File Index Shows the current file/total files

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the current

operating function

Play Time Displays the current play time/total play time

Song Info

Displays the information about the current track

•When a track in the file tab on the list screen

is selected : Displays file, artist, title, album

info

•When a track in the other tab on the list

screen is selected : Displays artist, title, album

info

List Moves to the list screen

My Music I 2-41

Features Description

Scan

Scans the beginning parts of files (approx.

10seconds per file)

•If select the song in the file tab on the list

screen : Press the

Scan

button to switch

between scan and turning scan off

•If select the song in the other tabs (Playlist,

Artist, Song, Album, Genre) on the list screen

: Press the

Scan

button to switch between

scan and turning scan off

•Add to Playlist: Adds the current song to the

Playlist

Playlist is placed on the left tab in the list

•Delete Current File: Deletes the current track

from My Music.

SoundHound

Runs the SoundHound feature.

For more detailed feature, please refer to

SoundHound section in Info part.

SEEK/

TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is over than 3 seconds, plays the

current file from the beginning

If button is pressed (over than 0.8 seconds) it will

rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to search a desired track.

If the desired track is displayed, press the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within 5

seconds of searching tracks, the track info

for the current track is restored.

Features Description

Shuffle

Plays files in random order

•If select the song in the file tab on the list screen

: Press the

Shuffle

button to switch between

shuffle and turning shuffle off

•If select the song in the other tabs (Playlist,

Artist, Song, Album, Genre) on the list screen :

Press the

Shuffle

button to switch between

shuffle and turning shuffle off

2-42 I AV

Features Description

•Add to Playlist : Adds the current track to the

Playlist : Playlist is placed on the left tab in the

list (Maximum 100 files) Select a track and

press “Add to Playlist” to add the track in the

playlist

•Delete from Playlist : Select a track from the

playlist and press “Delete from Playlist” to

delete the track in the playlist

•Delete Files : Deletes files from My Music

If delete file from My Music, the information

related to song also deleted in the list.

•Now Playing : When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when

the current list includes the current file

SEEK/

TRACK

If button is pressed (less than 0.8 seconds)

moves to previous/next file or play the current

song from the beginning

•If play time is less than 3 seconds, moves to

previous/next file

•If play time is over than 3 seconds, plays the

current file from the beginning

If button is pressed (over than 0.8 seconds) it will

rewind/fast-forward the track

TUNE

Turn the

TUNE

knob to move the focus to pre-

vious/next file. If the file you want to play is dis-

played, press

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, Tune search

will be terminated.

Features Description

Folder/

Category Name

Displays folder/category name in the list

Category List Displays current playing file name

Back Button Converts to basic mode screen

Upper Folder Moves to Root Folder

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

part.3 Bluetooth

3-2 I Bluetooth

Before Using the Bluetooth

Handsfree

What is

Bluetooth

Wireless Technology?

•Bluetooth

Wireless Technology refers

to a short-distance wireless network-

ing technology which uses a 2.45GHz

frequency to connect various devices

within a certain distance.

•Supported within PCs, external devices,

Bluetooth® phones, PDAs, various elec-

tronic devices, and automotive environ-

ments,

Bluetooth

Wireless Technology

to be transmitted at high speeds without

having to use a connector cable.

•Bluetooth® Handsfree refers to a device

which allows the user to conveniently

make phone calls with Bluetooth®

mobile phones through the Multimedia

system.

•The Bluetooth® Handsfree feature may

not be supported in some mobile phones.

For more information on mobile phone

compatibility, visit the HYUNDAI website

- HYUNDAI Motor America : https://www.

hyundaiusa.com/bluetooth

Precautions for Safe Driving

•Bluetooth® Handsfree is a feature that

enables drivers to practice safe driv-

ing. Connecting the head unit with a

Bluetooth® phone allows the user to

conveniently make calls, receive calls,

and manage the phone book. Before

using

Bluetooth

Wireless Technology,

carefully read the contents of this user’s

manual.

•Excessive use or operations while driv-

ing may lead to negligent driving prac-

tices and be the cause of accidents. Do

not operate the device excessively while

driving.

•Viewing the screen for prolonged peri-

Viewing the screen for prolonged peri-

ods of time is dangerous and may lead

to accidents. When driving, view the

screen only for short periods of time.

Bluetooth

Before Using the BluetoothⓇ Handsfree I 3-3

CAUTIONS upon Connecting

Bluetooth® Phone

•Before connecting the head unit with

the mobile phone, check to see that the

mobile phone supports Bluetooth® fea-

tures

•Even if the phone supports

Bluetooth

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth® power is turned off.

Disable the hidden state or turn on the

Bluetooth® power prior to searching/

connecting with the head unit.

•If Auto Connection is used, the

Bluetooth® phone is automatically con-

nected when the ignition is turned on,

making it unnecessary to have to con-

nect the phone with the head unit every

time.

•If you do not want automatic connection

with your Bluetooth® device, turn the

Bluetooth® feature off of the Bluetooth®

device.

•Park the vehicle when connecting the

head unit with the mobile phone.

•Bluetooth® connection may become

intermittently disconnected in some

mobile phones. Follow these steps to

try again.

1. Turn the Bluetooth® function within

the mobile phone OFF/ON and try

again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile

phone battery, reboot, and then

again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both

of Phone and Head Unit sides and

then try again

•The Handsfree call volume and quality

may differ depending on the mobile

phone.

•Pairing Bluetooth® devices and use of

other Bluetooth® features are not sup-

ported when the vehicle is in motion. For

safety, please first park your vehicle.

•When downloading contacts, is not

functioning and is not described within

this user’s manual it may be related with

the mobile device. When that occurs,

inquire within the mobile phone manu-

facturer.

3-4 I Bluetooth

Bluetooth Connection

Pairing a New Device

Before you can use the Bluetooth feature,

you must first pair/connect your mobile

phone to your car.

Up to 5 Bluetooth devices can be paired.

Only one Bluetooth device can be con-

nected at a time.

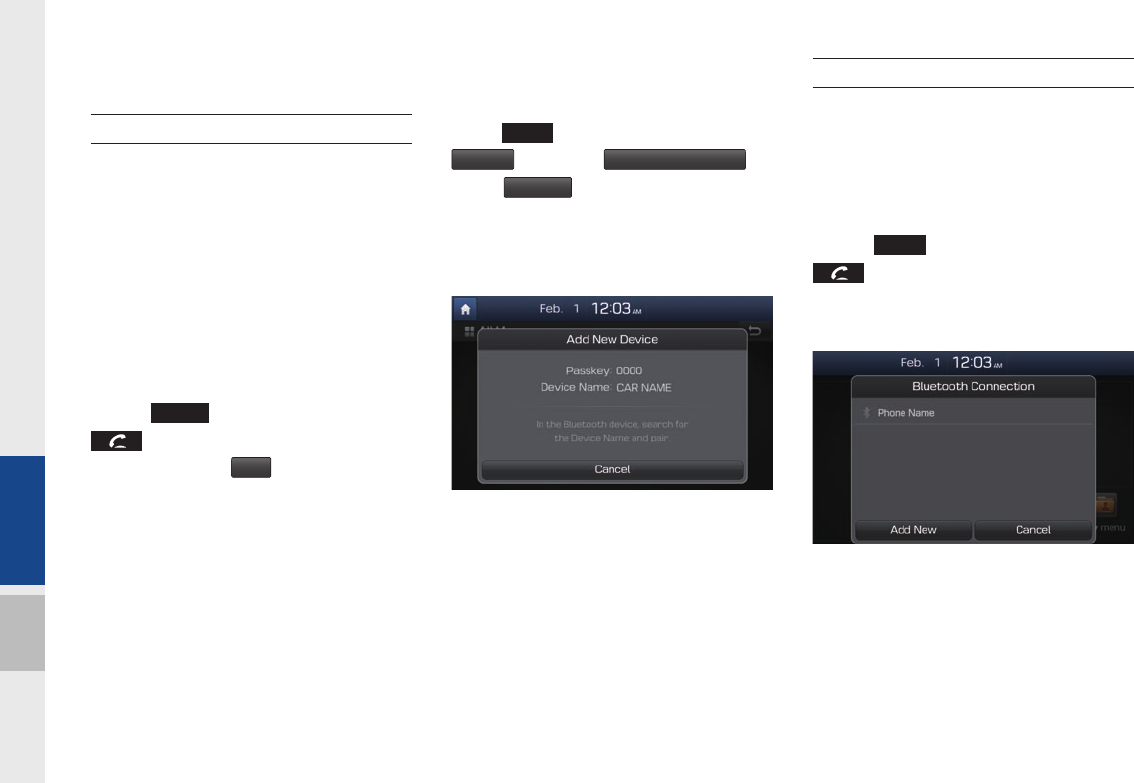

Pairing a New Device by Selecting

Phone/Call

Select

PHONE

key in the head unit or

key in the steering wheel remote

control. ▶ Select

Yes

. ▶ Pair your car

after your mobile phone detects the

Bluetooth device. ▶ Enter the passkey or

accept the authorization popup. ▶

Connect Bluetooth.

Pairing a New Device Through the

Phone Settings

Select

SETUP

key in the head unit. ▶ Select

Phone

. ▶ Select

Bluetooth Connection

. ▶

Select

Add New

. ▶ Pair your car after your

mobile phone detects the Bluetooth

device. ▶ Enter the passkey or accept the

authorization popup. ▶ Connect Bluetooth.

The default passkey is 0000.

The device name above is an example.

Check the actual information on the product.

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting

Phone/Call

Select

PHONE

key in the head unit or

key in the steering wheel remote

control. ▶ Select the name of the device

to connect. ▶ Connect Bluetooth.

Bluetooth Connection I 3-5

Connecting Devices Through the

Phone Settings

Select

SETUP

key in the head unit. ▶ Select

Phone

. ▶ Select

Bluetooth Connection

. ▶

Select the name of the device to connect. ▶

Connect Bluetooth.

Disconnecting

Bluetooth Devices

Disconnects Bluetooth devices that are

connected.

Select

SETUP

key in the head unit. ▶ Select

Phone

. ▶ Select

Bluetooth Connection

. ▶

Select the name of the device to disconnect.

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you

added. Note that deleting a Bluetooth

device will delete all Call History and

Contact Info downloaded along with it.

Select

SETUP

key in the head unit. ▶ Select

Phone

. ▶ Select

Bluetooth Connection

. ▶

Select

Delete Devices

. ▶ Select the device

name to delete. ▶ Select

Delete

3-6 I Bluetooth

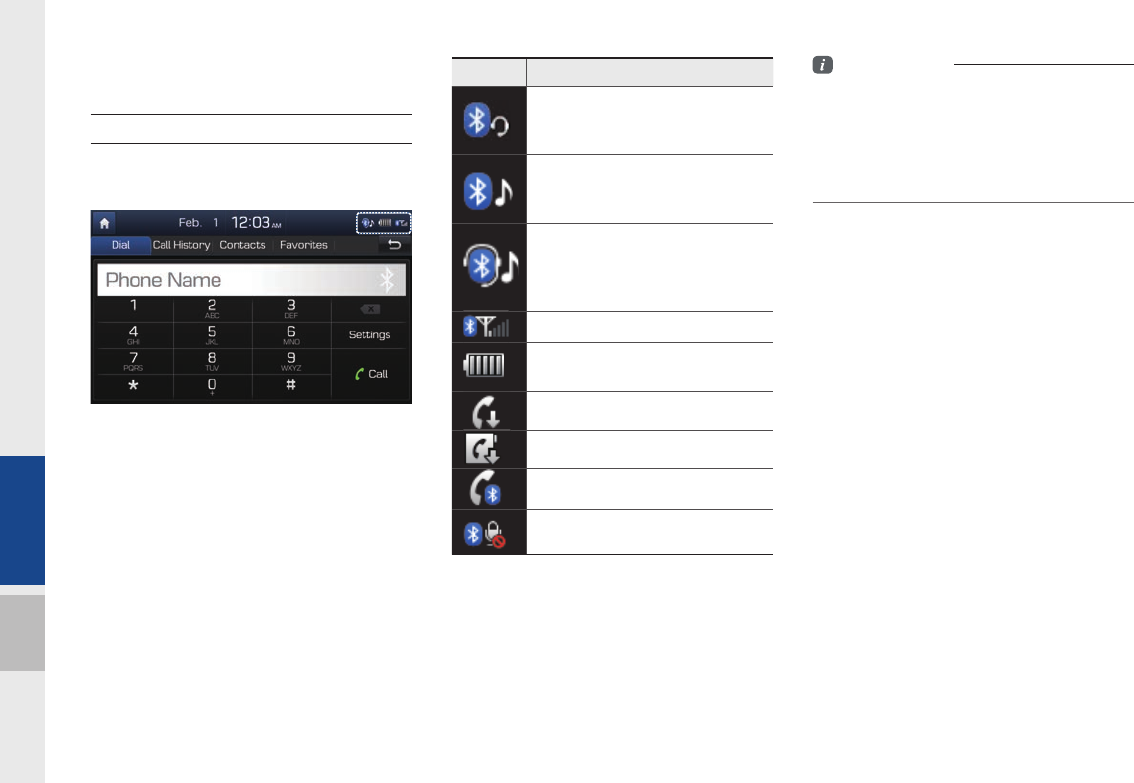

Bluetooth Phone

Phone Status Icons

Shows the current phone status in the

right top of the display.

Information

• The battery level icon and the call signal

strength indicator may not be supported in

some Bluetooth devices.

• The battery level may differ from the actual

level remaining

Icons Description

You can use Bluetooth phones

when a Bluetooth Hands-free

connection is established.

You can use Bluetooth audio

features when a Bluetooth audio

connection is established.

You can use Bluetooth phones

and audio features when both

Bluetooth Hands-free and audio

connections are established.

Call signal strength indicator

Battery level of the Bluetooth

devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Bluetooth Phone I 3-7

Dial

Dials a call after the Bluetooth devices are

connected.

•Select

PHONE

key in the head unit or

key in the steering wheel remote

control.

•Y

ou can also select

All Menus

from the

full screen display ▶

Phone

Name Description

Keypad

Use the keypad to

enter the phone

number that you want

to call. Press and hold

the last number of

a speed dial to dial

a number that you

added to the Speed

Dial list in the phone

Delete Delete the numbers

that you entered.

Settings Moves to a screen of

Phone Settings.

Call

Makes a call after

you dial a number

and select CALL. If

the number is listed

in Dialed Calls, you

can select the number

and press CALL to

automatically dial that

number again.

Information

• Some types of mobile phones may not

support the Speed Dial function.

Accept/Reject Call

If there is an incoming call after you made

a Bluetooth connection, a popup message

will appear.

Information

• In some mobile phones, the caller's number

may not be displayed, and the Ignore feature

may not be supported.

Name Description

Accept Answers the call.

Reject Ignores the call.

3-8 I Bluetooth

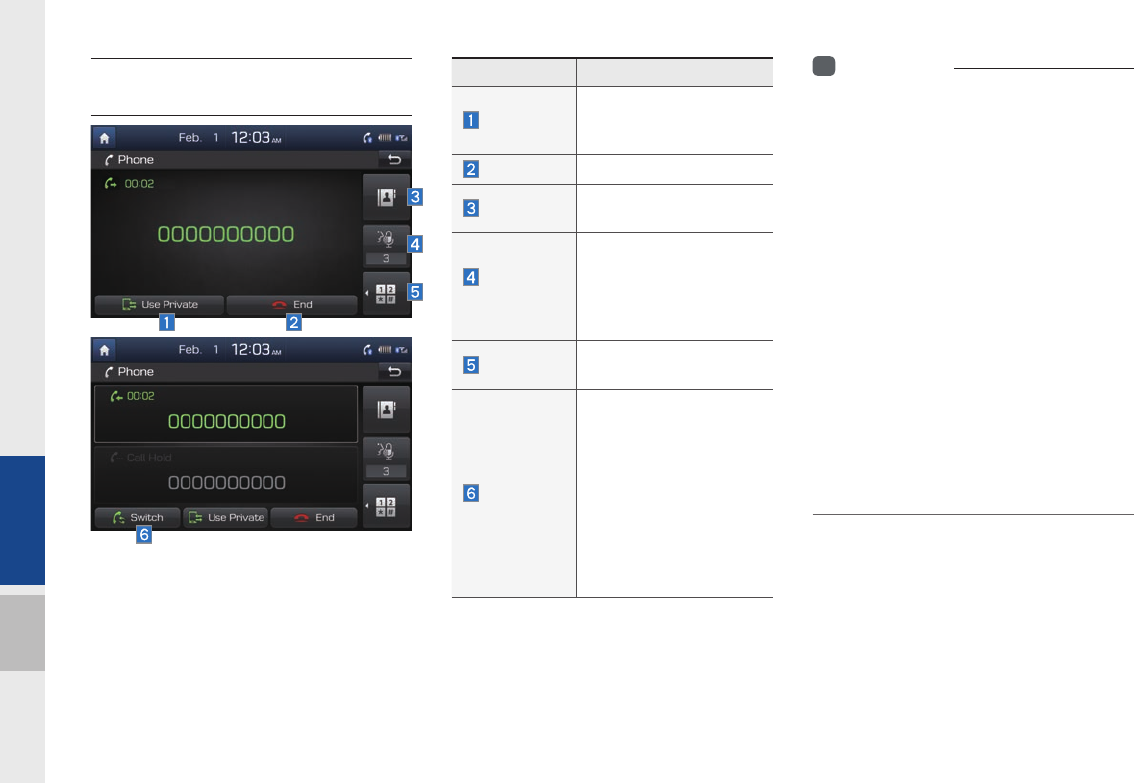

Using the Menu During

a Phone Call

When making a call, you can use the fol-

lowing menu items.

Name Description

Use Private

Switches a voice call

from the car Hands-free

to the mobile phone.

End Ends a call.

Contacts Displays the Contacts

list.

Outgoing

Volume

Displays the Mic Volume

settings. You can adjust

the in-call volume that

the other party hears

(level 1 - 5).

Keypad Moves to a screen for

entering ARS numbers.

Switch

Switches to a call on

hold, if any. You can also

switch calls by select-

ing the number in the

Information Display. The

Switch function switches

the current call to a

waiting call in order to

answer a new incoming

call.

Information

• If the caller's number is listed in Contacts, the

caller's name will be displayed. Otherwise,

only the number will be displayed. In some

mobile phones, the phone number may not

be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as

Audio Video and Settings. You can switch to

in-call volume control and navigation modes

only.

• Depending on handset types, the in-call

volume the other party hears may differ. If the

other party hears your voice too low or too

loud, adjust the mic volume.

Bluetooth Phone I 3-9

Call History

Select

PHONE

key in the head unit ▶ and

then

Call History

Name Description

All Lists the all call history.

Dialed Lists the calls that you

made.

Received Lists the calls that you

have received.

Missed Lists the calls you

missed.

Call History

Displays all of your call

history. Select from the

list to dial the number.

Information

Displays the details of

your call history

information.

Download

Downloads the call his-

tory information from

your mobile phone.

Call

Dials the selected

number in your Call

History Information.

Contacts Info

Goes to the Contact

Information screen if

the number has been

stored.

Information

• In some mobile phones, call records may not

be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off with

the Bluetooth device, the call history download

will fail.

• Some devices require a device authentication

for downloading your call history. If download

fails, check if the Bluetooth settings or display

status are normal.

• Some devices do not support call history

downloading. Check if your Bluetooth device

supports downloading. For details regarding

Bluetooth-supported devices and their

functional compatibility, visit https://www.

hyundaiusa.com/bluetooth

3-10 I Bluetooth

Contacts

Select

PHONE

key in the head unit ▶ and

then

Contacts

Information

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth

device.

• You cannot edit or delete downloaded phone

numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain.

(Note that deleting a paired phone will also

delete all downloaded Contacts and Call

History data)

• Downloaded phone numbers may be lost

depending on the condition of the head unit.

Keep your important data in a safe place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same

time by default.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on

your Bluetooth device.

Name Description

Contacts List

The list of Contacts.

Select from the list to dial

the number.

Information Displays contact informa-

tion.

Download Downloads contacts from

your mobile phone.

Search by

Name

Searches Contacts for

the name that you enter.

Search by

Number

Searches Contacts for

the number that you

enter.

Add to

Favorites

Adds a phone number

to Favorites.

Bluetooth Phone I 3-11

• Some devices require a device authentication

for downloading your contacts. If download

fails,check your phone screen and conﬁ rm the

download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth

device supports contacts downloading. For

Bluetooth supporting devices details and

compatibility, visit https://www.hyundaiusa.

com/bluetooth

Favorites

Select

PHONE

key in the head unit ▶ and

then

Favorites

Name Description

Favorites

Lists the phone

numbers saved as

Favorites. Select from

the list to dial the num-

ber.

Add New Adds a new number to

Favorites.

Delete Items

Deletes numbers

that you select from

Favorites.

Delete All Deletes all of the

numbers from Favorites.

3-12 I Bluetooth

MEMO

Name and Function of Each Part

Before Use

Getting Started with Blue Link

Driving Info

Send to Car with Google

Vehicle Diagnostics

Blue Link Settings

Blue Link Voice Local Search

part.4

Blue Link® Control

4-2 I Blue Link® Control

Blue Link® Control

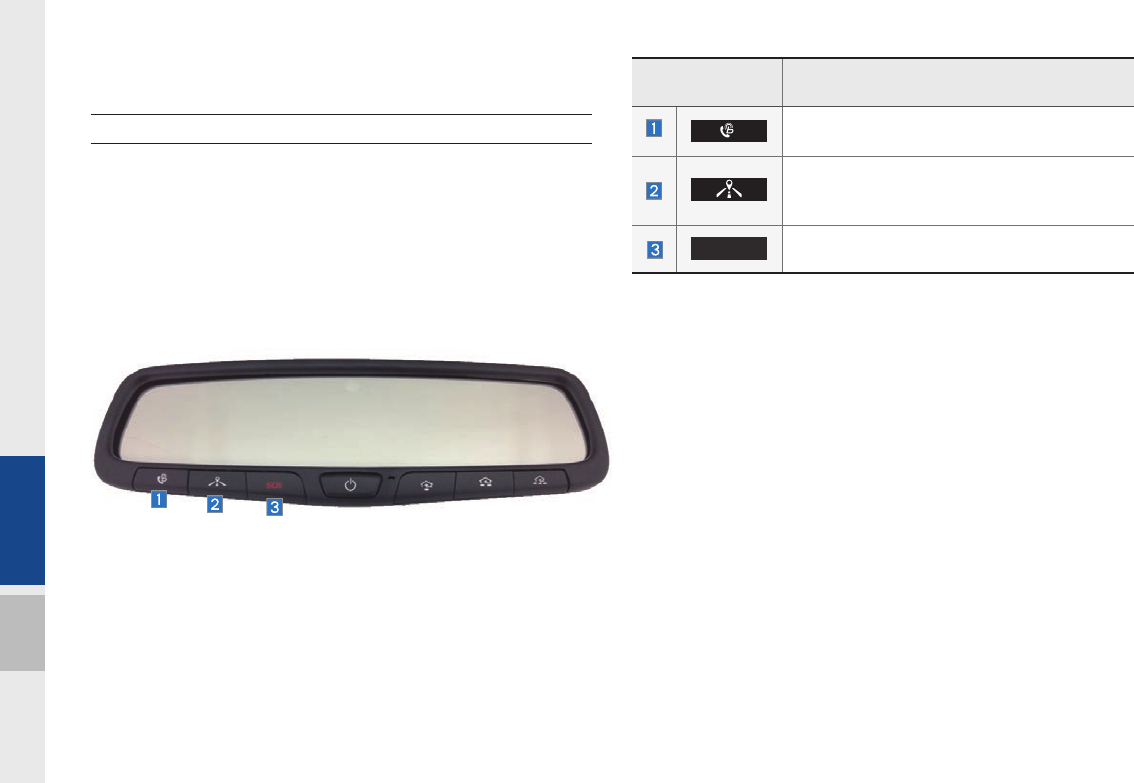

Rear View Mirror Switch

Using the Rear View Mirror switch

Selecting the Rear View mirror switch will allow you to make ser-

vice required inquiries, place search, and emergency Service by

connecting to the Blue Link Center. Such features can be used

only after subscribing to the Blue Link service.

Instructions

Display Contents

Blue Link

•Start or ends the Blue Link call.

Blue Link Voice Local Search

•Request information about places via Blue

Link Voice Local Search.

SOS

•Start or ends the SOS call.

Name and Function of Each Part

※ Refer to Blue Link service manual for more Blue Link features.

Before Use I 4-3

Before Use

What Is Blue Link?

This is a Hyundai telematics service based on our cutting-edge IT

system that makes your driving experience more convenient and

fun and features safety, security, vehicle diagnostics, remote con-

trol and even smartphone synchronization functions.

Enjoy a smarter driving style with Blue Link.

What Is Telematics?

The word “Telematics” stems from the combination of telecommu-

nications and informatics, and refers to an information system that

provides a variety of driving information through the built-in termi-

nal by analyzing each symptom and driving state. This allows for a

much safer and more comfortable driving experience.

About Transmission and

Reception of Radio Waves

Connection to the Blue Link Center or wireless data transmission

may be disrupted in the following places.

For radio wave transmission/reception status, refer to the status

displayed on the Blue Link screen.

It is recommended that you use the Blue Link system when the

antenna icon ( ) shows four bars or more.

Places where Blue Link may be disrupted depending on the trans-

mission/reception status:

•Inside tunnels

•Mountainous areas or dense forest

•Roads close to cliff edges

•Densely built-up areas

•On highways or roads underneath higher interchange roads

•Inside buildings

4-4 I Blue Link® Control

Getting Started with

Blue Link

Use Blue Link features such as Driving

Info and Vehicle Diagnostics. Blue Link

features can be used after activating the

service.

Information

• A separate fee may be charged for using Blue

Link, and features may differ according to your

service plan.

Select the

BLUELINK

key in the head unit.

Name Description

Driving Info

Displays information such

as Driving Time/Idle Time,

Deceleration/Acceleration

Distribution, Driving Speed

and Driving Distance.

Send to

Car with

Google

Displays information about

places received via Blue

Link Voice Local Search.

Vehicle

Diagnostics

Inspects vehicle malfunc-

tions and provides diag-

nostics.

Blue Link

Settings

Activates the service or

displays modem informa-

tion.

Connecting with the

Blue Link Center

Press the key in the rear-view mir-

ror to connect with the Blue Link center.

Getting Started with Blue Link I 4-5

Blue Link® Safety and

Security Service

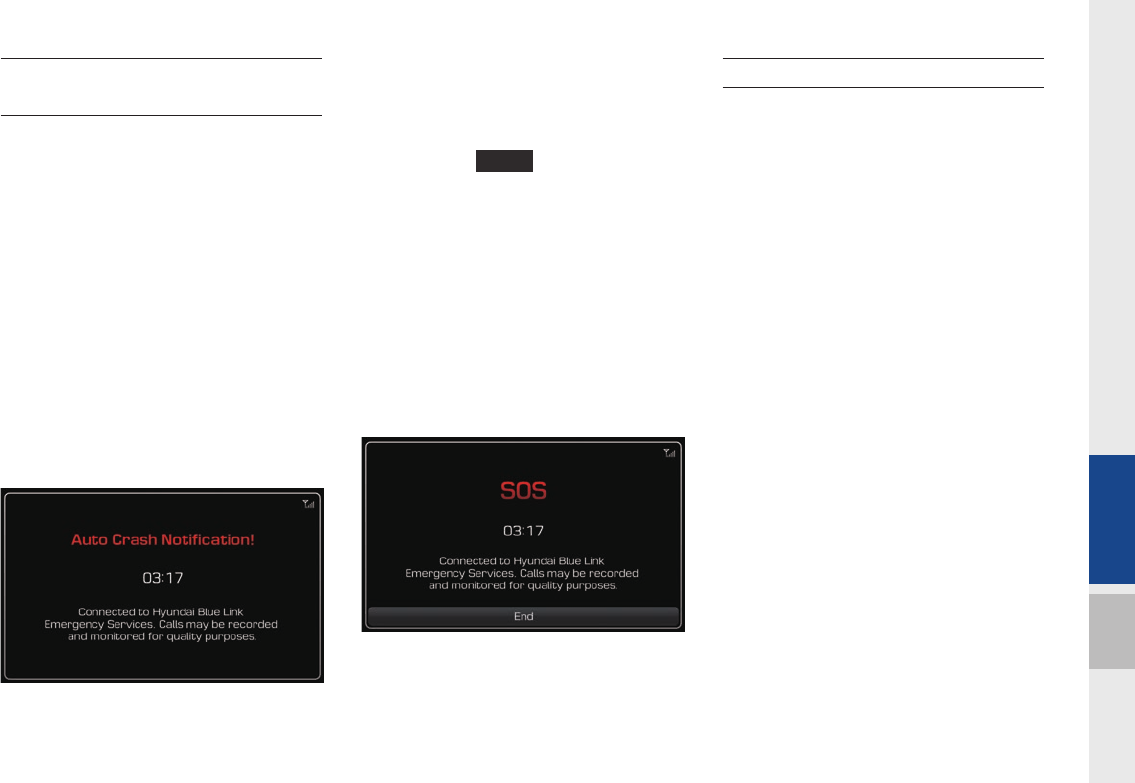

Auto Crash Notiﬁ cation

Provides immediate assistance when an

accident occurs and an airbag is deployed.

In this event, an ACN signal, contain-

ing customer and location information,

will automatically be transmitted to the

response center. Upon receipt of the sig-

nal, a response specialist will attempt to

establish voice communications with the

vehicle occupants and forward any perti-

nent information to Blue Link emergency

services.

SOS

Customers request emergency Blue

Link emergence services by pressing

the dedicated

SOS

key in the vehicle.

This action transmits vehicle information

and location to specially trained response

specialists, who assist in coordinating the

dispatch of appropriate emergency assis-

tance to the customer.

The response specialist remains on the

line with the customer until advised assis-

tance has arrived.

Stolen Vehicle Recovery

In the event a customer’s vehicle is

reported stolen (and a stolen vehicle

report has been filed with the appropriate

police department), the response center

can provide assistance to the police in an

attempt to recover the vehicle.

Vehicle Slowdown

Used with Stolen Vehicle Recovery, this

enables law enforcement to gradually

reduce the engine power of the vehicle,

thus slowing it down to safe levels. A warn-

ing shall be transmitted to the driver prior

to the slowdown procedure.

Vehicle Immobilization

Used with Stolen Vehicle Recovery, this

enables law enforcement to send a signal

to the vehicle which immobilizes the engine

management system, thus preventing

startup. This capability is only valid when

the ignition is off, but can be saved for later

immobilization if the vehicle is on or in

motion at the time of signal transmission.

4-6 I Blue Link® Control

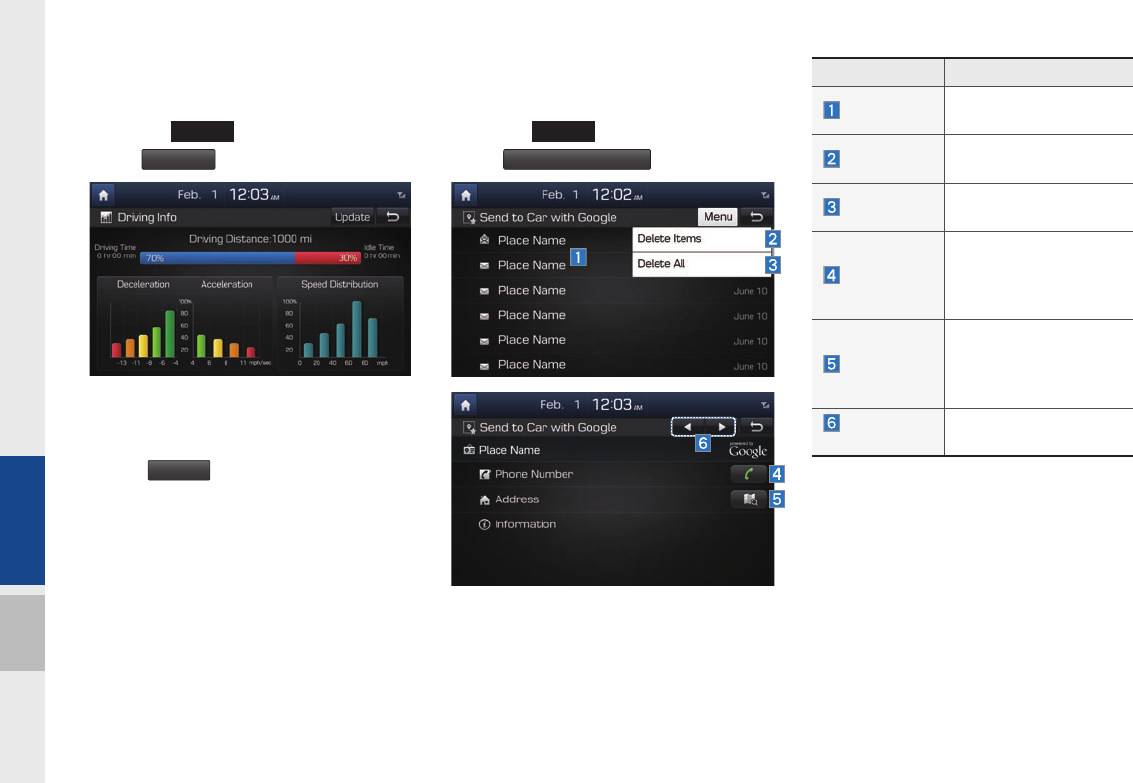

Driving Info

Select the

BLUELINK

key in the head unit ▶

Select

Driving Info

This service can be used while your car is

stopped and the engine is on.

Select

Update

button to receive up-to-

date driving information.

Send to Car with Google

Select the

BLUELINK

key in the head unit ▶

Select

Send to Car with Google

You can check information about places

received via Blue Link Voice Local Search.

To use Send to Car with Google, first you

need to sign up to the Blue Link.

Name Description

Place list Displays the list of

received places

Delete Items Deletes selected items

from the place list.

Delete All Deletes all items from

the place list.

Dial

Displays the phone

number of a selected

place. Press the num-

ber to make a call.

View Map

Displays the address of

a selected place. Press

the address to view

map

Previous/

Displays the previous or

next place information.

Blue Link Settings I 4-7

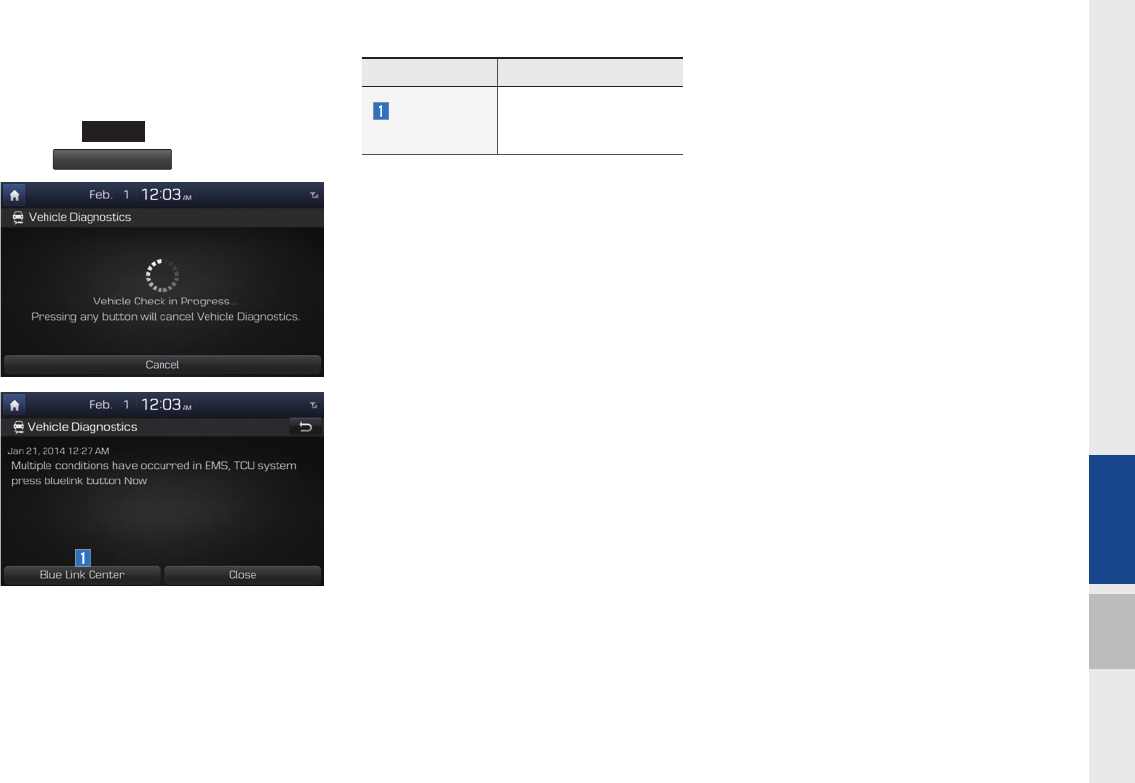

Vehicle Diagnostics

Select the

BLUELINK

key in the head unit ▶

Select

Vehicle Diagnostics

Name Description

Blue Link

Center

Calls the Blue Link

Center to check for

vehicle problems

You can have your vehicle inspected only

after stopping the vehicle because some

control units can't be diagnosed while driv-

ing.

Vehicle Diagnostics will be canceled if you

switch to another screen while diagnosis

is in progress.

To receive result details, you need to first

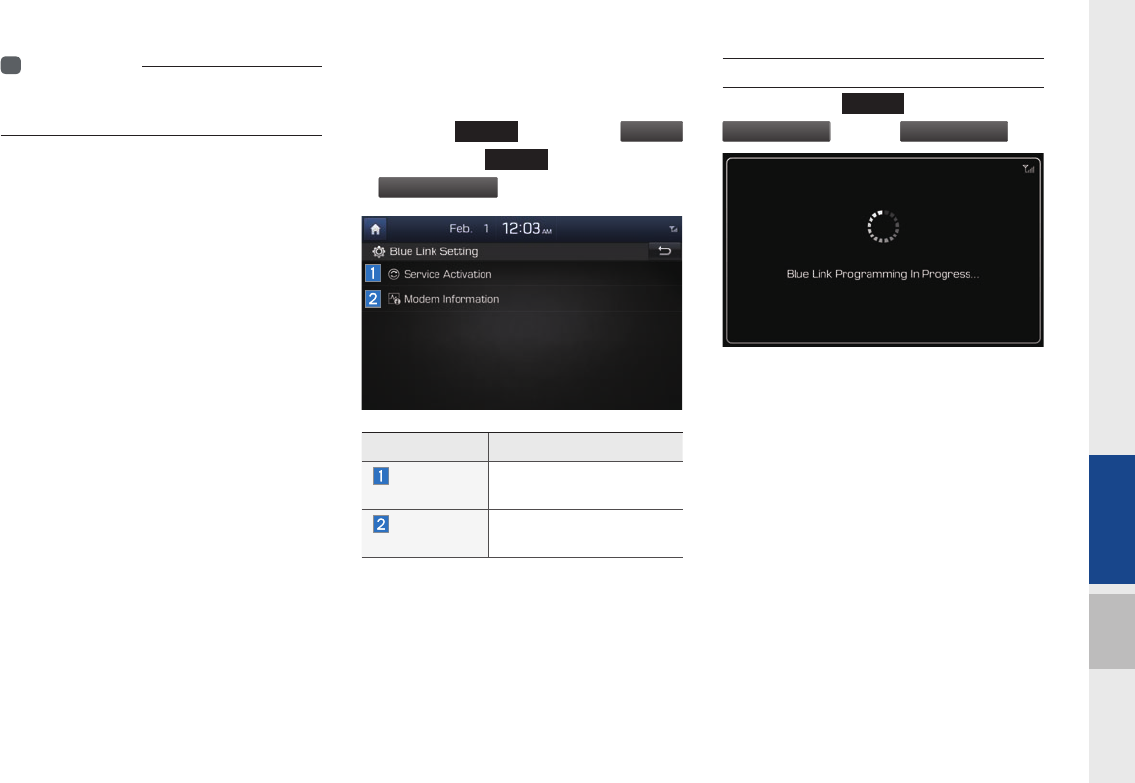

Blue Link Settings

For more details, refer to part 9. Setup >

Blue Link Settings.

4-8 I Blue Link® Control

Blue Link Voice Local

What is Blue Link Voice

Local Search?

With Blue Link network service, you can

search for Google-provided place names

with your voice.

Separated from Voice Recognition in the

steering wheel, it specializes in place

name searches and may be run with a

key in the rear-view mirror.

The search is done through network ser-

vices; it is only available when connected

to a communication network.

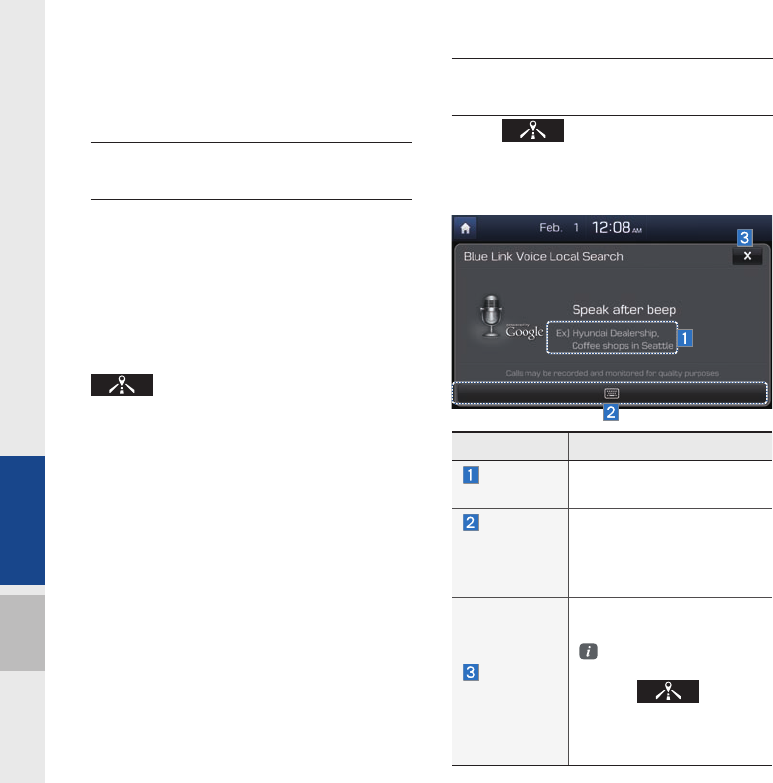

Starting Blue Link

Voice Local Search

Press key in the rear-view mirror

(less than 0.8 seconds) to start Blue Link

Voice Local Search.

Name Description

Example

command

Shows an example to ask

for a place search.

Manual

switch

button

Switches the Blue Link

Voice Local Search

screen to manual search.

End

button

Ends Blue Link Voice

Local Search.

With Blue Link Voice

Local Search, press

the key in

the rear-view mirror

again to end the ser-

vice.

What is Voice Recognition?

Precautions Required for Successful Voice Recognition

Starting/Ending and Setting Voice Recognition

Voice Recognition Screen Overview

Voice Commands

Siri Eyes Free

part.6 Voice Recognition

6-2 I Voice Recognition

What is Voice Recognition?

Voice recognition technology runs the sys-

tem as ordered by recognizing your voice

command for operation of the multimedia

while you are driving the car.

Regretfully, not all possible voice com-

mands are recognized by the system due

to technological limitations. To make up for

these limitations, the system displays the

voice commands that are available for you

to use.

There are errors in communication between

people. Likewise, voice recognition some-

times misunderstands your voice command

in some circumstances. If this happens,

either check the screen for the available

options and say the command again, or

manually select and press the button for the

corresponding command on the screen.

Precautions Required

for Successful Voice

Recognition

1. Voice recognition supports only the

commands that are displayed on the

screen and written in the User's Guide.

2. To ensure the correct recognition and

execution of your command, say your

command when you hear the beep after

a voice prompt.

3. Voice recognition automatically ends if:

1) A call is incoming or outgoing

2) A media (USB or iPod, etc.) is con-

nected or disconnected

3) The front or rear view camera is

operated (optional)

4) The car engine starts or stops

5) A system key, such as

RADIO

key

MEDIA

key is selected

6) An emergency occurs, for example

re-searching for the route after the

navigation route has been lost

4. The microphone that recognizes your

voice is located over the head part in

the driver's seat. To make your com-

mands better understood, keep your

body straight in the driver's seat when

speaking the command.

5. Speaking naturally and clearly will

ensure better recognition of your voice

commands.

6. In the following cases voice recognition

will be affected by ambient noise.

1) The sound of the wind if any win-

dow or the sun roof is open.

2) High speed blower from the air

vents. Set climate control to blow

lower than level 3.

Vibrations from passing through a

tunnel.

4) Vibrations from driving on an

uneven road.

5) Storms and heavy rain.

Voice Recognition

Starting/Ending and Setting Voice Recognition I 6-3

Starting/Ending and Setting

Voice Recognition

Starting Voice Recognition

Press the key briefly (less than 0.8

seconds) on the steering wheel control to

activate voice recognition.

Ending Voice Recognition

1. Select “Exit” to the left of the bottom to

end voice recognition.

2. Press and hold (over 0.8 seconds) the

key on the steering wheel con-

trol to end voice recognition.

Quick Run of Voice

Recognition (Manual Mode)

Usually, you are supposed to say a com-

mand to execute the desired operation

after the voice guidance.However, it takes

a little time to wait for the voice guidance.

If you would like to activate the desired

operation more quickly, you can just touch

the commands displayed on the screen.

This feature is useful when you feel the

voice guidance is too long orvoice com-

mands do not work as you desired.

6-4 I Voice Recognition

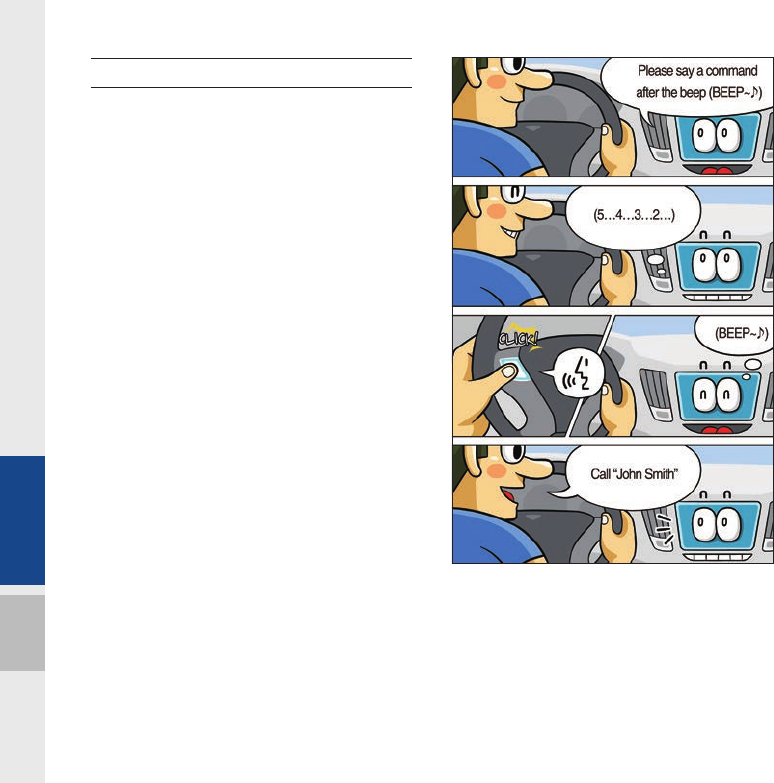

Extending the Listening Time

When the system is waiting for your com-

mand, after the voice prompt and beep

have been heard, if you press the voice

recognition icon (shorter than 0.8 sec-

onds), then the beep will sound again and

standby mode will restart.

When activated, voice recognition waits for

your command for 5 seconds. If you say

nothing for 5 seconds, a voice prompt will

ask for your command again.

Starting/Ending and Setting Voice Recognition I 6-5

Skipping Prompt Messages

When you hear the prompt message,

press the voice recognition icon on the

steering wheel remote control to skip the

message and go directly to listening mode

to say your command.

This results in faster operation when

you feel the message is too long or you

already know the command to use.

Adjusting Voice

Recognition Volume

During voice recognition, rotate the vol-

ume knob to adjust the message volume.

6-6 I Voice Recognition

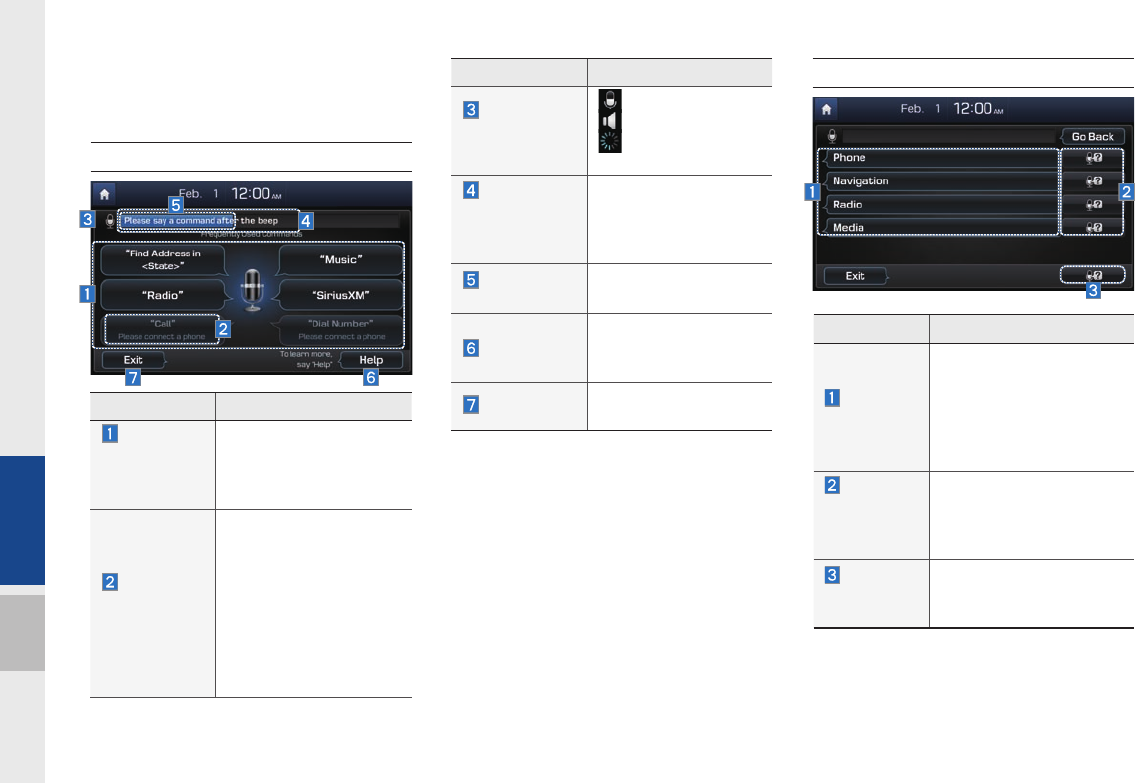

Voice Recognition Screen

Overview

Start Screen

Help Display

Name Description

Most

frequently

used

commands

Displays the six most fre-

quently used commands.

Not

available

command

Displays commands that

are not available due to

a failure in meeting the

conditions for using them

and thus need additional

settings. The conditions

required for using them

will be described briefly

under each command.

Name Description

Voice

recognition

status icons

Standby

Voice guidance

Voice command

process

User's

speaking

volume being

recognized

Displays the voice

command volume in

real time.

Recognized

results

Displays the voice rec-

ognition result.

Help

Displays all available

help commands in a

tree format.

Exit Ends the voice recog-

nition.

Name Description

Command

list

• Shows the available

commands.

•Select or say a com-

mand to display addi-

tional commands in

detail.

How to

use for

selected

item

This section shows how to

use voice recognition for

the selected item.

How to

use in

general

This section displays how

to use voice recognition in

general.

Voice Recognition Screen Overview I 6-7

Instructions for Using

Voice Recognition

Information

• In the instructions screen, no voice is

recognized, so you must manually issue

commands. Because the instructions screen

displays a lot of content, you can not view it

while driving for safety precautions.

Name Description

Detail

instruction

This section describes

how to use voice recog-

nition in detail.

Close button

Closes the screen and

restarts voice recogni-

tion.

6-8 I Voice Recognition

Voice Commands

Types of Commands

Voice recognition commands are classified as "Global Commands"

and "Local Commands."

1. Global Commands (󰥋): Commands that can be used immedi-

ately after activating voice recognition.

2. Local Commands (◯): Commands that can be used when a

multimedia, navigation, or Bluetooth call is running, or displayed

on the screen, after activating voice recognition.

Call Commands

* Check the following before using call commands :

1. Voice commands related to phone calls can be used after con-

necting a Bluetooth device.

2. To call a person, for example “Call <John Smith>” whose name

is listed in Contacts, you must first download the Contacts

list. For details on downloading contacts, see “Part 3. Using

Bluetooth > Chapter 3. Bluetooth Phone > 3.6 Contacts”.

3. After downloading the Bluetooth contacts, it will take some time

to convert the Contacts into voice data during which time you

cannot make a call by name yet. The time it takes to convert

voice data may vary depending on the number of Contacts

downloaded on the phone.

Command Operation

󰥋Call Displays downloaded Contacts, after this

you can make a call by saying the name.

󰥋Call <Name> You can directly call a person by <Name>

in the downloaded Contacts.

󰥋Call <Name> on

Mobile

You can call a person <name> directly to

the number that is saved as “Mobile” in

the downloaded Contacts.

e.g.) Call “John Smith” on Mobile

󰥋Call <Name> in

Office

You can call a person <name> directly to

the number that is saved as “Office” in the

downloaded Contacts.

e.g.) Call “John Smith” in Office

󰥋Call <Name> at

Home

You can call a person <name> directly to

the number that is saved as “Home” in the

downloaded Contacts.

e.g.) Call “John Smith” at Home

󰥋Call <Name> on

Other

You can call a person <name> directly to

the number that is saved as “Other” than

“Mobile, Home, or Office” in the down-

loaded Contacts.

e.g.) Call “John Smith” on Other

󰥋Dial Number Displays a screen where you can say a

phone number to dial.

󰥋Dial <Phone #> You can directly say the number to call.

e.g.) Dial 111 555 1234

󰥋Redial Directly calls at the number that you last

dialed.

󰥋Call History Displays your Call History, where you can

say the list number to make a call.

Voice Commands I 6-9

Navigation Commands

* Check the following before you use navigation commands :

1. Search for and find addresses located in the state or province

your car is currently in.

If you want to search in another state, say the name of state/

province and then look it up.

Find Address is classified by states/provinces to provide you

with faster service.

2. Some commands such as “Cancel Route” are available only

when the destination is fixed.

Command Operation

󰥋POIs Near

Destination

Finds POIs near the destination.

After this command, you can find the name of

a location step-by-step.

󰥋

Near

Destination

Find <Category> near the destination.

For details of <Category>, see “Find the

Nearest <Category> list”.

e.g.) “Banks” Near Destination

󰥋Map Moves to the current position on the naviga-

tion map

󰥋Previous

Points

Displays a list combining Previous Destinations,

Previous Searches, and Previous Starting Points

all together.

You can then set a destination by saying the list

number.

󰥋Previous

Destinations

Displays a list of recent destinations that you

can return to by saying the number in the list.

󰥋Previous

Searches

Displays a list of recent searches, where you

can set a destination by saying the number in

the list.

󰥋Previous

Starting Points

Displays a list of recent starting points that you

can return to by saying the number in the list.

󰥋Traffic

Information Moves to the Traffic Information menu screen.

󰥋Go Home

Set the destination to your home.

Your home must first be set in the Navigation

system.

󰥋Go to Office

Set the destination to your office/work.

Your office/work must first be set in the

Navigation system.

Command Operation

󰥋Find Address

in <State>

•Finds the address in <State> and sets it

as the destination.

e.g.) Find Address in California

•To find an address, you should say "House

Number → Street → City" (in order,

excluding the state).

e.g.) 300 (Three Zero Zero) Main Street, Almond

󰥋Find Address Finds the address and sets it as the destination.

󰥋Find the

Nearest POI

Find the nearest points of interest from your

current location.

After this command, you can find the name

of a location step-by-step.

󰥋

Find the

Nearest

Immediately finds <Category> nearest to

your location.

For details of <Category>, see “Find the

Nearest <Category> list”.

e.g.) Find the Nearest “Parking”

6-10 I Voice Recognition

Command Operation

󰥋Hospital

Displays a list of the nearest hospitals.

You can then set a destination by saying the

list number.

󰥋Dealership

Displays a list of the nearest car dealerships.

You can then set a destination by saying the

list number.

󰥋Road

Assistance

Displays a list of the nearest road assistance

locations.

You can then set a destination by saying the

list number.

󰥋Show Route Displays a map overview of the entire route

to your destination.

Command Operation

󰥋Turn Guidance

On Turns on the voice guidance system.

󰥋Turn Guidance

Off Turns off the voice guidance system.

󰥋Zoom All the

Way Out

Zooms out from the navigation map to the

fullest.

󰥋Zoom All the

Way In Zooms in on the navigation map to the fullest.

󰥋Cancel Route Cancels the route to the fixed destination and

exits guidance.

󰥋Destination

Information

Tells you the remaining distance and time to

your destination.

󰥋Route Options

Restarts the route to your destination.You can

then select either “Faster Time” or “Shorter

Distance”.

󰥋Find Faster

Time Route

Starts a new route to your destination that will

take the least amount of time.

󰥋

Find Shorter

Distance

Route

Starts a new route to your destination that will

use the shortest distance.

󰥋Emergency

Services

Displays a list of nearest Police Station,

Hospital, Dealership, or Road Assistance.

You can then set a destination by saying the

list number.

󰥋Police Station

Displays a list of the nearest police stations.

You can then set a destination by saying the

list number.

Voice Commands I 6-11

Command Operation

󰥋Radio Plays the most recent radio channels from

FM, AM, and SiriusXM™.

󰥋FM Plays FM radio.

󰥋FM

<87.5~107.9>

Tunes to FM <Frequency> according to

what you say.

e.g.) FM 87.5: FM eighty seven point five

󰥋SiriusXM Plays SiriusXM™ radio.

󰥋

SiriusXM

Channel

<0~999>

Tunes to SiriusXM™ Channel <Channel

Number> according to what you say.

e.g.) SiriusXM Channel 23: SiriusXM

Channel twenty three

󰥋AM Plays AM radio.

󰥋AM <530~1710>

Tunes to AM <Frequency> according to

what you say.

e.g.) AM 530: AM five thirty

◯Preset <1~18> Tunes to your preset stations (1 to 18).

◯Channel

<0~999>

In SiriusXM™ Radio mode, turns on the

<Channel Number> that you say.

Radio Commands

6-12 I Voice Recognition

Media Commands

* Check the following before you use media commands.

1. If no media is connected or if no playable files exist at the time

when you use these commands, a voice message will tell you

that this is not available.

2. If you say the name of the media that is currently playing again,

then that media will continue playing.

e.g.) Saying “USB” while USB content is playing.

Command Operation

󰥋Music Continues the last media you played.

󰥋iPod

Plays the iPod currently connected. This

will work the same when an iPhone is con-

nected. If a USB is connected, then it will

be played instead of the iPod.

󰥋USB

Plays the music on the USB currently con-

nected.

If an iPod is connected, then the iPod will

be played instead of the USB.

󰥋Bluetooth Audio

Plays the music on the Bluetooth phone

currently connected.

This may not be supported depending on

the Bluetooth connection status.

󰥋AUX Plays external devices that are currently

connected.

󰥋My Music Plays My Music files stored in the system.

󰥋Pandora Radio Plays Pandora Radio that is currently con-

nected.

Voice Commands I 6-13

1. Audio CD Command

Command Operation

◯Play Plays a paused track.

Maintains the current settings during playback.

◯Pause

Pauses a track that is currently playing.

Maintains current settings while paused during

playback.

◯Track

<1~99> Plays a desired track number.

◯Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled play-

back.

◯Shuffle Off

Cancels Shuffle and plays tracks sequentially.

Maintains current settings during sequential

playback.

◯Repeat

Plays the current track repeatedly.

Maintains the current settings during repeat play-

back.

◯Repeat Off

Cancels Repeat and plays multiple tracks or

files.

Maintains current settings during multiple track

playback.

2. MP3 CD / USB Music / iPod / My Music Command

Command Operation

◯Play Plays a selected file.

Maintains the current settings during playback.

◯Pause

Pauses a file that is playing.

Maintains current settings while paused during

playback.

◯Shuffle

Plays tracks or files randomly.

Maintains current settings during shuffled play-

back.

◯Shuffle Off

Cancels Shuffle and plays tracks sequentially.

Maintains current settings during sequential

playback.

◯Repeat

Plays the current track or file repeatedly.

Maintains the current settings during repeat play-

back.

◯Repeat Off

Cancels Repeat and plays multiple tracks or

files.

Maintains current settings during multiple track

playback.

6-14 I Voice Recognition

3. Pandora Radio command 4. Bluetooth audio / AUX command

For Bluetooth audio and external devices (AUX), local commands

are unavailable, including Play, Pause, Repeat and Shuffle.

Command Operation

◯Skip Moves to the next track.

◯Thumbs up

If you like the genre of the music currently

playing, say “Thumbs up” so that more

similar music will play.

◯Thumbs down

If you don’t like the music currently playing,

say “Thumbs down” to minimize the number

of playbacks of similar genre music.

Voice Commands I 6-15

Other Commands List

(Commands used in List / Help)

Command Operation

󰥋Help

Moves to the voice recognition help screen.

All available commands can then be identified

and used.

◯Line 1~5

(One~Five)

When you cannot select a certain name,

such as in Call History, you can select it

using numbers.

Simple numbers can be recognized, such

as “One” or “Two."

◯Yes / No

When voice recognition is activated, this

command is used when an answer is

requested for a confirmation question.

◯Previous Page /

When five or more searched items are listed,

you can move to the previous or next page

using a voice command.

◯Manual Input

When Dial or POI Name search results are

displayed, this command is used to search

manually, rather than to search with a voice

command.

Voice recognition stops after this command

is used.

◯Go Back Moves to the previous screen.

󰥋Exit Ends the voice recognition.

6-16 I Voice Recognition

“Find the Nearest <Category>” List

Navigation location names can be changed after an update.

1. Restaurants

Restaurants

Fast Food

Arby's

Boston Market

BURGER KING

Carl's Jr

Chick-fil-A

Chipotle

Church's Chicken

Dairy Queen

Firehouse Subs

Fleming's

Hardee's

In-N-Out Burger

IHOP

Jack in the Box

Jimmy John's

KFC

Little Caesars

Long John Silver's

McAlister's Deli

McDonald's

Panda Express

Panera Bread

Popeyes

Quiznos Sub

Schlotzsky's

SONIC

SUBWAY

Taco Bell

Taco John's

Waffle House

Wendy's

White Castle

American

Applebee's

Bahama Breeze

Boston's Restaurant & Sports Bar

Cheeseburger in Paradise

Chili's Grill & Bar

Cool River

Denny's

Frisch's Big Boy

Good Eats

III Forks

Lee Roy Selmon's

Lone Star Steakhouse &

Saloon

Longhorn Steakhouse

Luckys Cafe

Outback Steakhouse

Ponderosa

Publix

Seasons 52

Sheetz

Silver Fox

Texas Roadhouse

TGI Friday's

The Capital Grille

French

Italian

Bonefish Grill

Carrabba's Italian Grill

Chuck E Cheese's

Domino's

Olive Garden

Papa John's

Papa Murphy's

Pizza 73

Pizza Hut

pizza pizza

Continental

Mexican

Cantina Laredo

Chevys

El Chico

Japanese

Chinese

PF Chang's China Bistro

Korean

Vegetarian Food

Seafood

Red Lobster

Latin American

Voice Commands I 6-17

Restaurants

Asian

African

Coffee Shop

Starbucks

Dunkin' Donuts

Others

Auntie Anne's

Baskin-Robbins

Tim Hortons

Haagen-Dazs

Hooters

Roy's

TCBY

VAN DER VALK

Automotive

Hyundai Dealerships

Gas Stations

ampm

ARCO

Canadian Tire

Casey's General Store

Cenex

Chevron

CITGO

Conoco

Esso

Exxon

Fleetfuels

GetGo

Giant Gasoline

GTO

Gulf

Husky

Ingles Gas Express

Marathon

Martin's Gasoline

Meijer

Mobil

Murphy Express

Murphy USA

Petro Stopping Centers

PETRO-CANADA

Phillips 66

Pioneer

QuikTrip

Rutter's

Sheetz

Shell

Sinclair

Speedway

Sunoco

Sunoco Canada

TEXACO

TravelCenters of America

Ultramar

Valero

Wawa

Parking

Auto Services

AAA

Advance Auto Parts

America's Tire

AutoZone

BOSCH Car Service

Certigard

Discount Tire

Firestone

GOODYEAR

Kal Tire

Midas

Napa

O'Reilly Auto Parts

Sears Auto Center

Road Assistance

Automobile Dealerships

Auto Parts

Car Washes

Motorcycle Dealerships

2. Automotive

6-18 I Voice Recognition

Travel

Airports

Hotels

Americas Best Value Inn

AmericInn

Andaz

Ascend Collection

Baymont Inn & Suites

Best Western

Cambria Suites

Canadas Best Value Inn

Candlewood Suites

Clarion Hotel

Comfort INN

Comfort Suites

CONRAD

Country Inn & Suites by Carlson

COURTYARD by Marriott

Crowne Plaza

Days Inn

DELTA

Doubletree

Econo Lodge

Embassy Suites

Grand Residences by Marriott

Hampton Inn

Hampton Inn & Suites

Hawthorn Suites

Hilton

Hilton Garden Inn

Hilton Grand Vacations

Holiday Inn

Holiday Inn Express

Homewood Suites

Hotel Indigo

Howard Johnson

Hyatt Place

Hyatt

Hyatt Summerfield Suites

Intercontinental

JW Marriott

LA QUINTA INN

Lexington

Mainstay Suites

Marriott

Marriott VACATION CLUB

Microtel Inns & Suites

Motel 6

NOVOTEL

Omni Hotels

Park Inn

Park Plaza

QUALITY INN

Radisson

Radisson SAS

RAMADA

Red Roof Inn

Regent Hotels & Resorts

Renaissance

Residence Inn

Ritz-Carlton Club

Rodeway Inn

Sheraton

Sleep Inn

SOFITEL

Staybridge Suites

Studio 6

Suburban Extended Stay

Super 8

Thriftlodge Canada

Travelodge

Travelodge Canada

VAN DER VALK

WALDORF ASTORIA

COLLECTION

Wingate by Wyndham

Wyndham

Rest Areas

Tourist Information

Tourist Attractions

Travel Agents

City Centers

Rental Car Agencies

Alamo

AVIS

Budget

Dollar Rent A Car

Enterprise

Hertz

National

Thrifty

Campgrounds

3. Travel

Voice Commands I 6-19

Travel

Ferry Terminals

Bus Stations

Local Transit

Train Stations

Shopping

Department Stores

Canadian Tire

Dollar General

Dollar Tree

Family Dollar

JCPenney

Kmart

Kohl's

Nordstrom

Sears

Sears Hometown Store

Target

T.J. Maxx

Walmart

Convenience Stores

7-Eleven

ampm

Circle K

Fleetfuels

GetGo

GTO

Kangaroo Express

Murphy Express

Murphy USA

Petro Stopping Centers

QuikTrip

Rutter's

Sunoco Canada

TravelCenters of America

Wawa

Shopping Centers

Office Depot

Grocery Stores

Giant Eagle

Giant Food Stores

IGA

Ingles Markets

Food Lion

Kroger

Martin's Food Markets

Meijer

Publix

Sav-Mor Foods

Save-A-Lot

SuperValu

Music Stores

Bookstores

Barnes & Noble

Electronics

AT&T

Best Buy

Future Shop

GameStop

Radioshack

Sprint

Staples

T-Mobile

OfficeMax

US Cellular

Verizon

Gifts

Sporting Goods

Dick's Sporting Goods

Sports Authority

Home Specialty Stores

ABC Fine Wine & Spirits

Ace Hardware

4. Shopping

6-20 I Voice Recognition

Shopping

Claire's

Costco

Home Depot

Lowe's

Merle Norman

PETCO

PETSMART

Sally Beauty Supply

SHERWIN-WILLIAMS

True Value

Clothing

Mark's Work Wearhouse

Shoe Stores

Pharmacies

CVS/pharmacy

Giant Drugstore

Ingles Pharmacy

Kmart Pharmacy

Kroger Pharmacy

Martin's Drugstore

Meijer Pharmacy

Rite Aid

Shoppers Drug Mart

Target Pharmacy

Walgreens

General Merchandise

Recreation

Amusement Parks

Museums

Cinemas

Golf Courses

Sports Complexes

Sports Activities

Wineries

Video & Game Rental

Ski Resorts

Recreation Areas

Other Recreation Areas

Financial Services

Banks

Bank of America

BB&T

Chase

Citibank

Citizens Bank

Fifth Third Bank

Key Bank

PNC Bank

RBC Bank

Regions

SunTrust

TD Bank

TD Canada Trust

US Bank

Wells Fargo

ATMs

Check Cashing Services

Money Transfer

6. Financial Services5. Recreation

Voice Commands I 6-21

Community

Police Stations

Post Offices

Libraries

Schools

Fire Departments

Church

Synagogue

Convention Centers

City Halls

Civic Centers

Court Houses

Government Offices

Waste & Sanitary

Utilities

Business Facilities

Services

Hospitals

Medical Services

Physicians

Tax Services

Attorneys

Funeral Homes

Hair & Beauty

Cleaning & Laundry

Social Services

Communication

Dentists

Photography

Tailors & Alterations

Movers

Nursing Home

Optical

Personal Services

Repair Service

Veterinary Hospital

8. Services7. Community

6-22 I Voice Recognition

Siri Eyes Free

How to start Siri

If you want to use Siri, you have to con-

nect your iOS device to Multimedia system

through Bluetooth.

(Please check whether your iOS device

supports Siri and turning Siri On)

Then you can use Siri while pressing and

holding key on the steering wheel.

How to use Siri

When you access the Siri screen while

pressing and holding key on the

steering wheel, you can press

pea

but-

ton and then you can speak what you

want. Please see the Multimedia system

only supports “Phone” related functions.

Other functions will be performed in your

iOS device. If you press voice key quickly,

Siri would re-start. If you hold down voice

key, Siri would be terminated and the

screen would go back to the previous

screen. Eyes-Free mode would be acti-

vated automatically while you are driving.

When shifting gears into P or putting the

Parking break on, Eyes-Free mode would

be deactivated automatically.

Information

• Functions and feedbacks from voice

commands via Siri are executed in iOS

device. If iOS version changed, functions and

feedbacks can be changed according to iOS

device.

Start up

Pandora Radio Mode

Download Center

SiriusXM™ Data

SoundHound

part.7 Info

7-2 I Info

Info

Start Up

Press the

INFO

key on head unit to enter the information screen.

The screen is composed of : “Pandora” to listen to Pandora Radio

by connecting a smart phone; “Quick Guide” to provide information

about how to controls and major functions; “SiriusXM Data” to

show weather, traffic, stock, gas station, sports, and movie infor-

mation provided by SiriusXM™ Travel Link. ; “Voice Commands” to

provide information about available voice command list to use

voice recognition.

Pandora Radio Mode

Press the “Pandora” icon after selecting All Menus or the

INFO

hard-key to enter Pandora Radio mode.

Pandora Radio Mode I 7-3

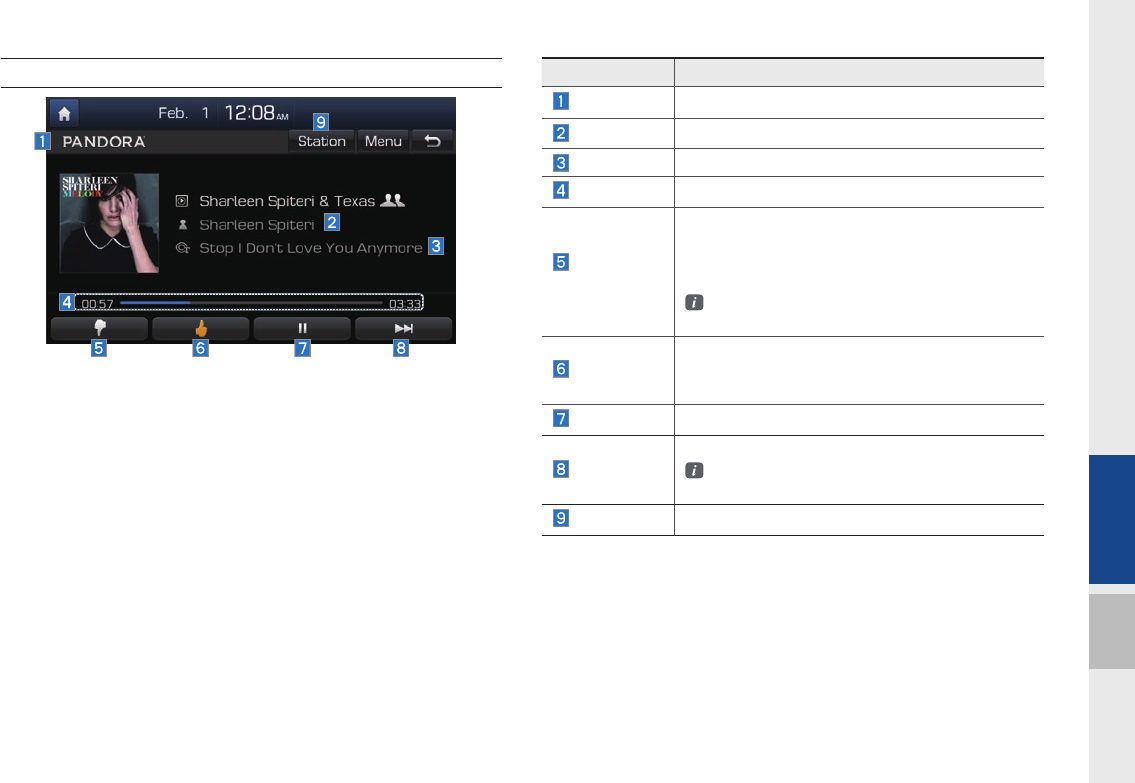

Pandora Radio Mode Screen Controls

Name Description

Mode Displays current operating mode.

Station Info Shows the station name current playing.

Track Info Shows the artist/title information current playing.

Play Time Displays the current play time.

Thumb

Down

If you don’t like the music current playing, press

this button to move to the next music and to min-

imize the number of playbacks of similar genre

music.

You can move to next song up to specific times

which pandora allows

Thumb up

If you like the genre of the music current playing,

press this button to send a “Thumb Up” signal to

Pandora so that more similar music will play.

Play/Pause Plays/pauses the current song

SKIP

Moves to the next track

You can move to next song up to specific times

which pandora allows

Station List Moves to the station list screen.

7-4 I Info

Name Description

•Bookmark Track

Adds the music current playing to the book-

marks list.

•Bookmark Artist

Adds the artist of the music current playing to

the bookmarks list.

You can view your bookmarked artists and

songs from your Pandora profile online. Go to

pandora.com, then click on the “Your Profile”

button above the player. That will bring up a

page with your stations, bookmarked artists,

and bookmarked songs.

SEEK/TRACK Press briefly to play the next song.

TUNE

Rotate the

TUNE

knob to search for a station.

Press the

TUNE

knob to play the station when

you find the name that you want.

Pandora Radio Mode I 7-5

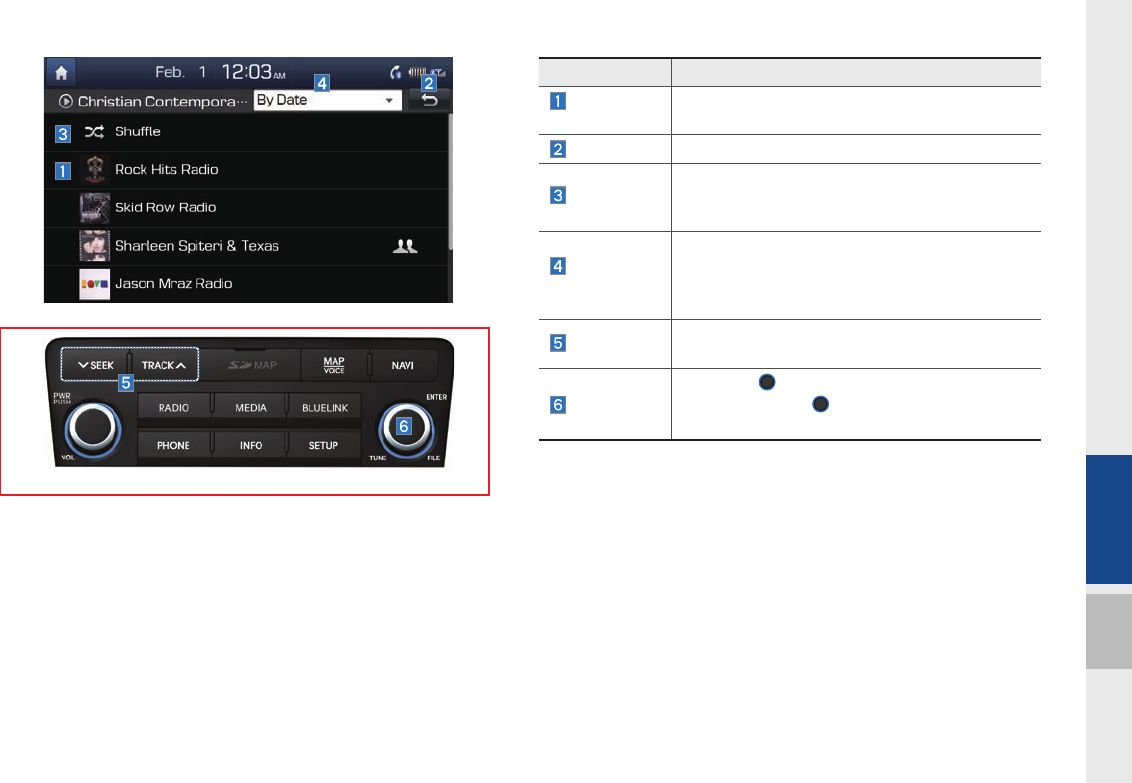

Name Description

Current

Station Shows the name of the station current displayed.

Previous Switches to the play mode screen.

Shuffle

Shuffling your stations provides a more diverse

mix of music by randomly playing songs from the

stations in your list.

Sorts stations by the items in the menu.

•A-Z : Sorts stations in alphabetical order.

•By Date: Sorts stations in the order they were

generated.

SEEK/

TRACK Press briefly to play the next song.

TUNE

Rotate the

TUNE

knob to move to the previous/

next list. Press the

TUNE

knob to play a

selected file.

7-6 I Info

Download Center

With Download Center, you can install

paid/free applications or check for related

information. Only BlueLink center, verified

applications can be installed.

You can use Download Center after agree-

ing to the terms of service and use on the

screen. (Only 1 time for initial launch)

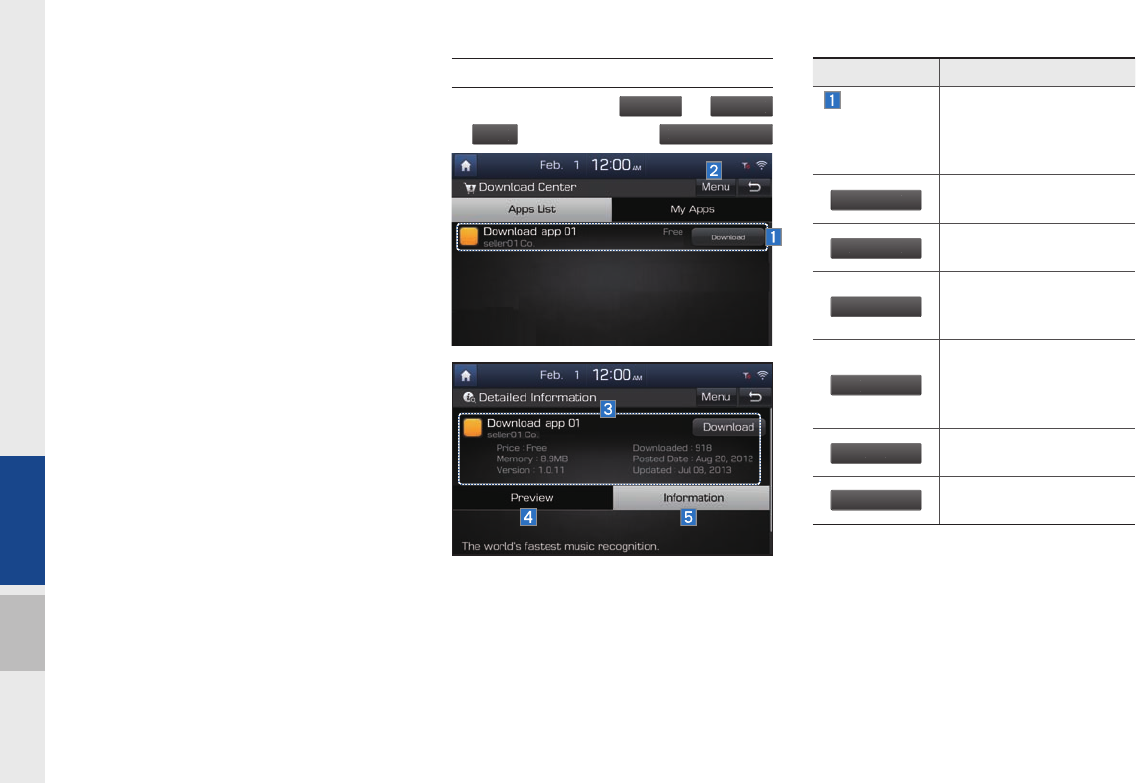

Apps List

Select Home-screen

All Men

▶

App

▶ and then select

Downlo

Name Description

Application

Download

and Run

buttons

Button state changes

according to the applica-

tion state.

own

Downloads free applica-

tions.

urc

Downloads paid applica-

tions.

ownlo

Downloads deleted

applications after previ-

ously installing them.

etry

Downloads the applica-

tions that failed to down-

load due to network or

system errors.

Runs installed applica-

tions.

ncel

Cancels any downloads

and updates.

Download Center I 7-7

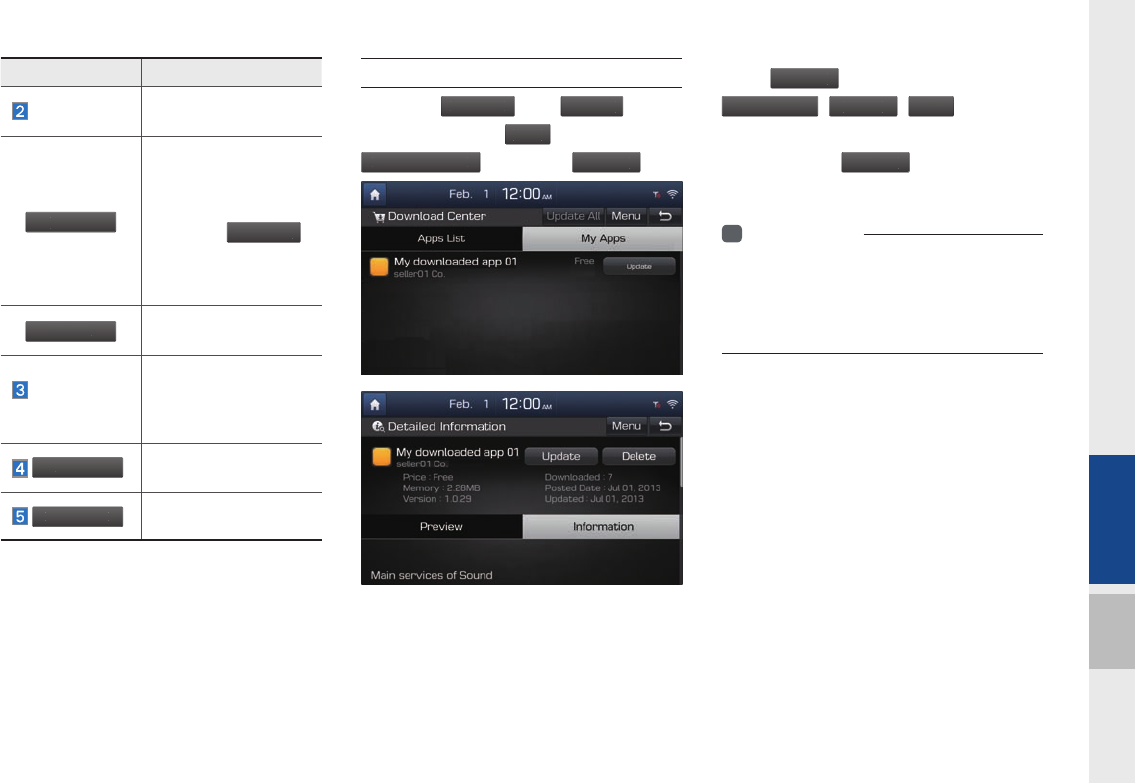

My Apps

Select

All Men

from

Home screen ▶

pps

▶ followed by

Download

enter

and then ▶

The

menu displays the

Re-

ownlo

dat

options for

downloaded applications.

All functions of

pps

are the same as

those in the app list.

Information

• You can update applications already running

only after closing them.

• Details on downloaded apps can be checked

within the Download Center.

Name Description

Menu Updates and refreshes

the menu.

After installation, it

shows applications

requiring updates.

The update screen

shows the

pdate All

button to update all

applications that need

updates.

res

Refreshes the app list

status.

Detailed

Information

When the application

list area is pressed, it

moves to the Detailed

Information screen.

Previe

Displays application

images.

nform

ion

Displays application

information.

7-8 I Info

SiriusXM™ Data

About SiriusXM™ Data

Service

The SiriusXM™ Data Service is a paid

membership Satellite radio service which

provides users with traffic, stock, sports,

and weather information.

However, weather information is not sup-

ported for vehicles purchased in Canada.

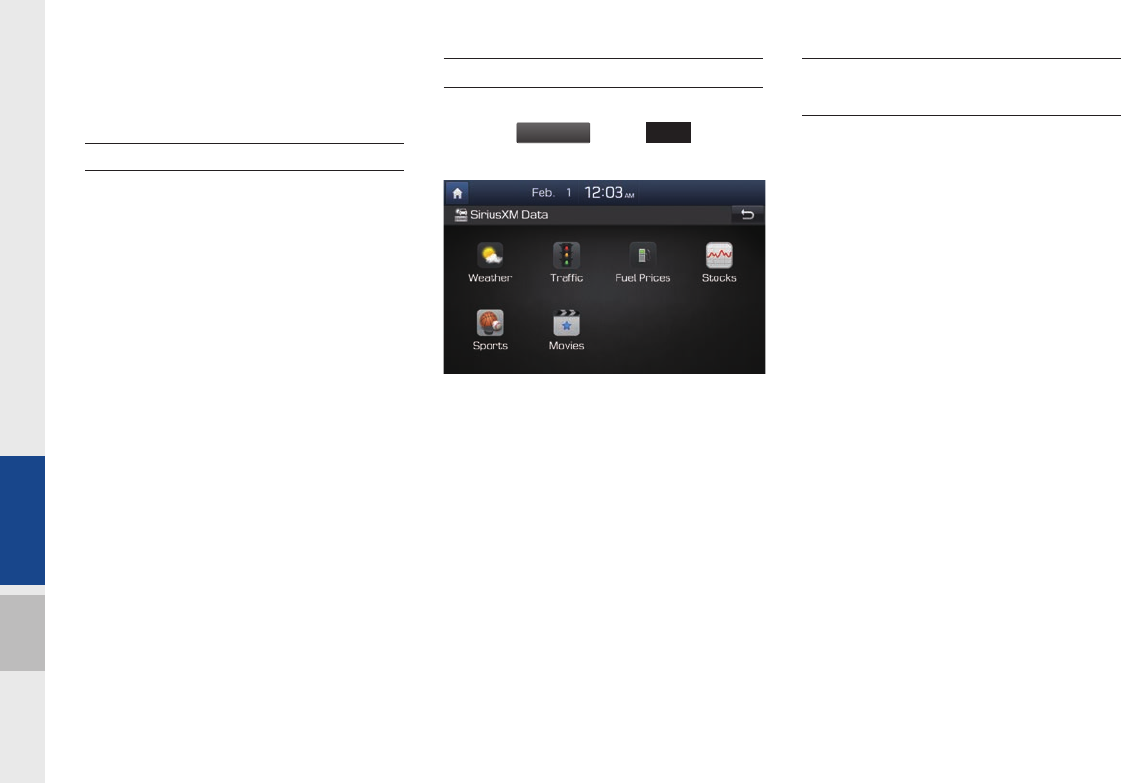

Accessing SiriusXM™ Data

Press the “SiriusXM Data” icon after

selecting

ll Menus

or the

INFO

hard-key

to enter the SiriusXM™ Data mode.

SiriusXM™ Weather

Announcement

At the “SiriusXM Data” screen, press

the “Weather” icon to enter the Weather

Announcement mode.

SiriusXM™ Data I 7-9

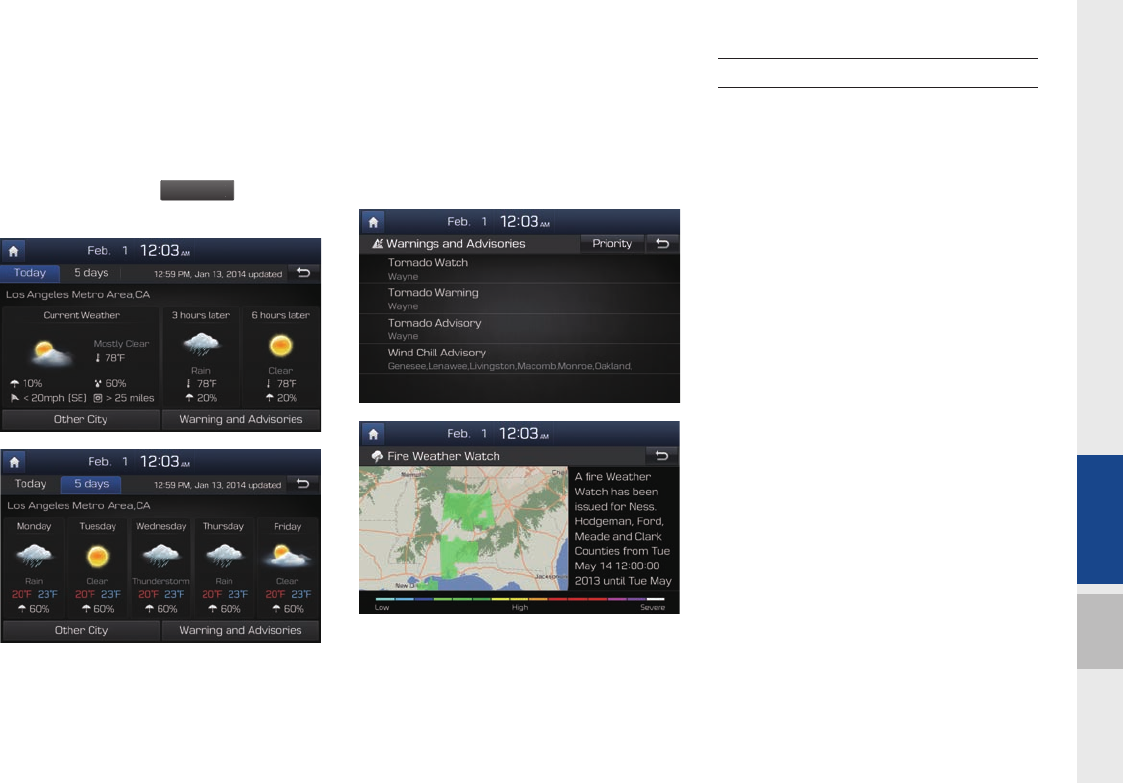

Weather Forecast

This service provides current weather

information and weather forecasts for the

next five days in your region. To change

the region, press the

ther

button and

select the desired region.

Warnings and Advisories

This service provides weather warnings

and advisories, such as tornado, storm,

flood, etc. as symbols on the Navigation

map.

SiriusXM™ Trafﬁ c Information

At the “SiriusXM Data” screen, press

the “Traffic” icon to enter the Traffic

Announcement mode.

7-10 I Info

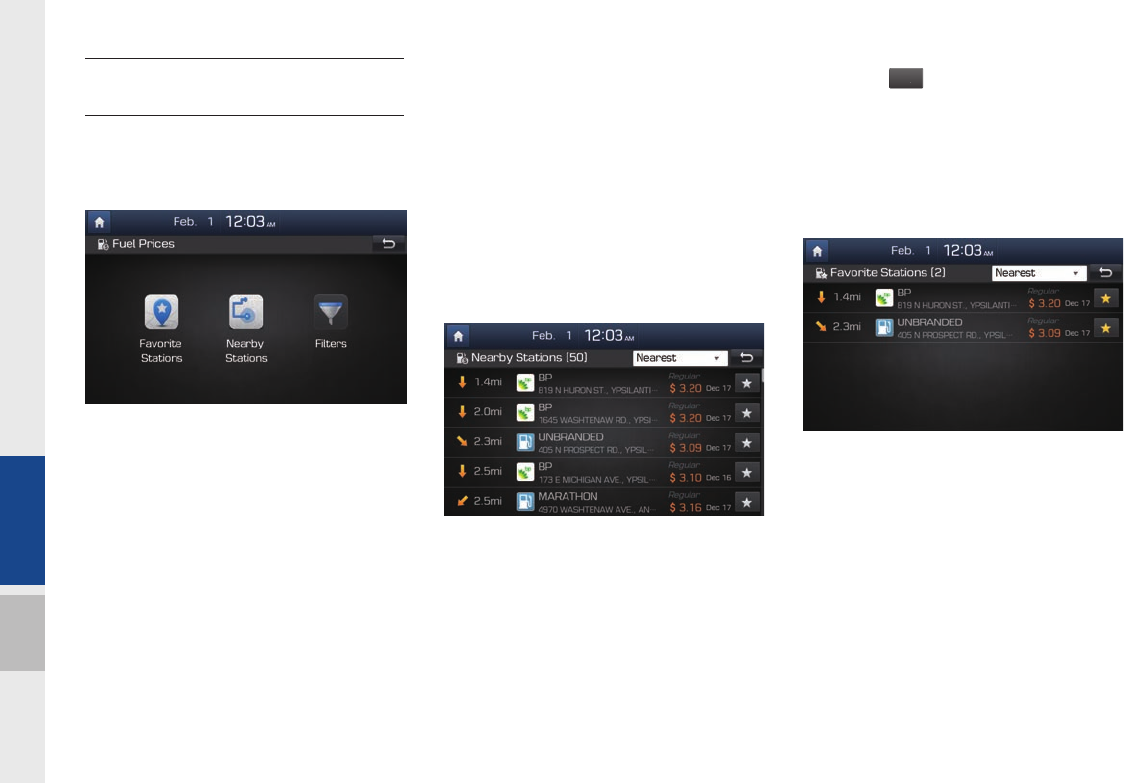

SiriusXM™ Fuel Price

Information

At the “SiriusXM Data” screen, press the

“Fuel Prices” icon to enter the Fuel Prices

Information mode.

Search for Nearby Stations, and

Stations.

Search for nearby stations with the

“Nearby Stations” menu.

It shows station locations, starting from

the nearest one, and select “Nearest”

menu on the top right side to further sort

them by price or brand name.

Select the

★

button to the right of the

list to register key locations as a Favorite

Station so that you can go there again

with the “Favorite Stations” menu. Select

the list to move to navigation destination

select screen to receive guidance.

SiriusXM™ Data I 7-11

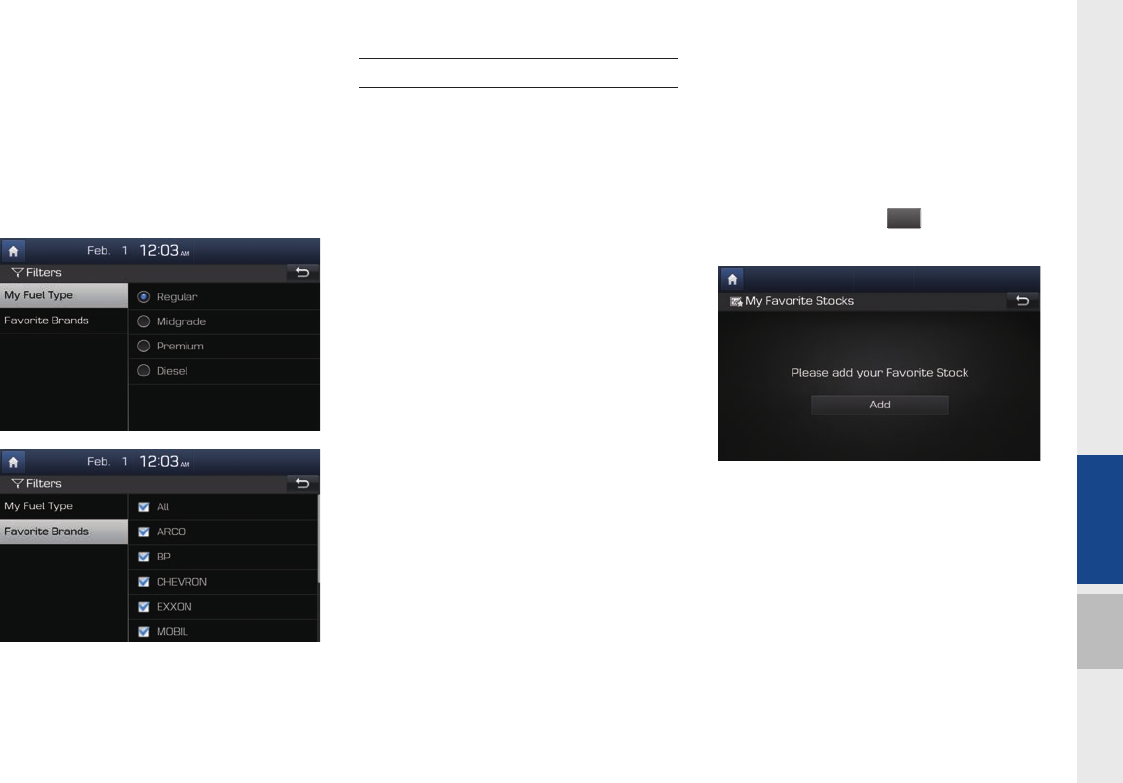

My Fuel Type Settings

With the “Filters” menu, you can select

fuel types and favorite brands.

When searching for Nearby Stations, the

results will reflect selected fuel types and

brand information.

SiriusXM™ Stock Information

In the “SiriusXM Data” screen, press the

“Stocks” icon to enter the Stocks mode.

Stocks is a feature that shows the current

value and change of stocks.

For symbols which you are interested

in, press the icon to save the symbol as

a part of Saved symbols can be viewed

from the My Favorites button on the Stock

Main screen.

My Favorites

My Favorites shows a list of stocks added

by the user. When entering the Stocks

menu for the first time, a screen is dis-

played for you to add your favorite stock

information. Press the

Add

button to move

to the stock search screen.

7-12 I Info

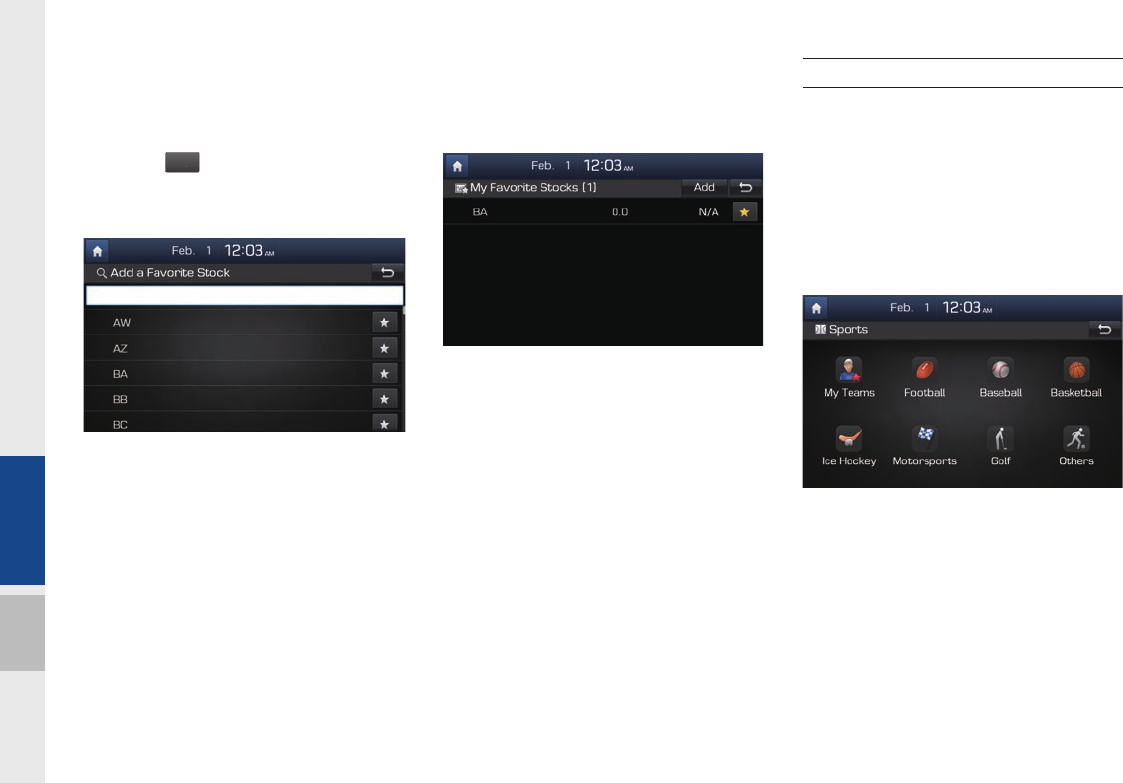

Stock Search

Use the Stock Search menu to search for

specific stocks.

Press the

★

button after searching for

your favorite stocks to save them in “My

Favorite”.

In the My Favorites screen, you can find

the selected stock information that you

registered.

SiriusXM™ Sports Information

Press the “Sports” icon to enter the Sports

mode.

This service provides real-time updated

information on scores and schedules for

major sports, such as NFL, NBA, NCAA

football, NCAA basketball, NHL, MLB,

NASCAR and more.

SiriusXM™ Data I 7-13

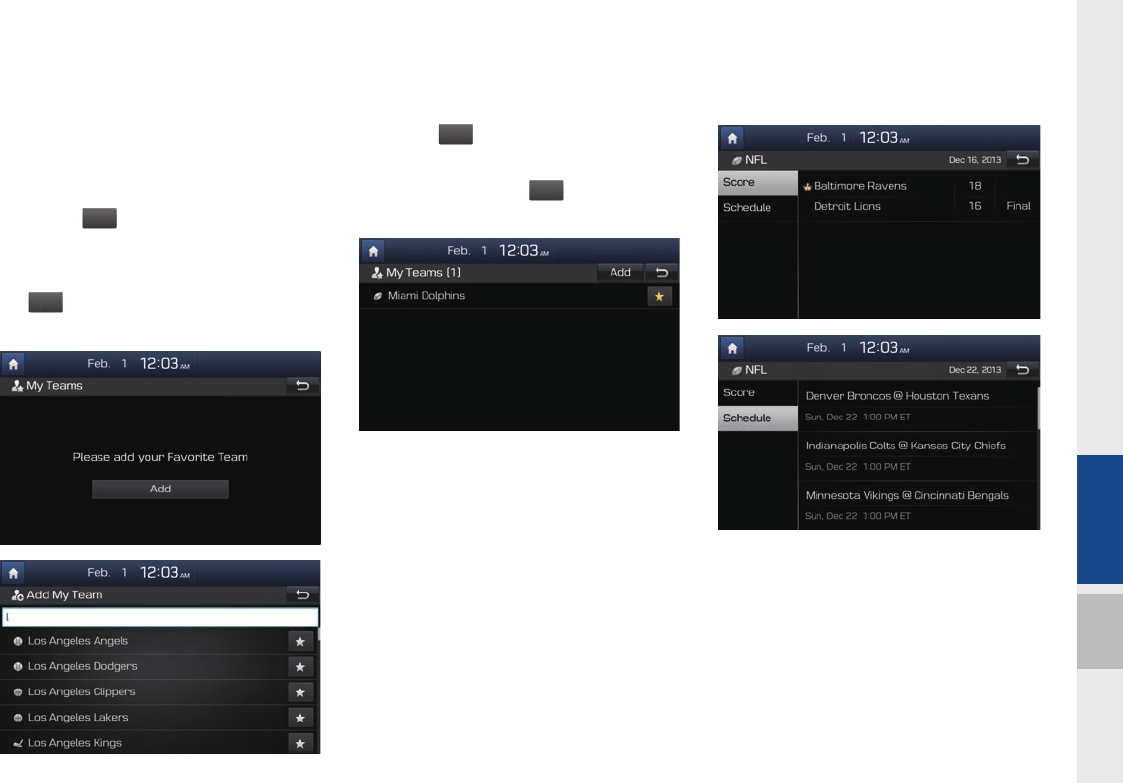

My Teams

You can save teams which you are inter-

ested in as part of My teams to easily

view related scores and schedules.

Select the My Teams menu and then

press the

Add

button to search for and

Search for your favorite teams and press

the

★

button on the right to add it to the

“My Teams” list.

You can always check the list of teams

that you added in the “My Teams” menu.

Press the

★

button on the right side of

the team name to delete the team from “My

Teams” or press the

Add

button to add

other teams.

Press the team name to check daily

results and recent schedules for that team.

7-14 I Info

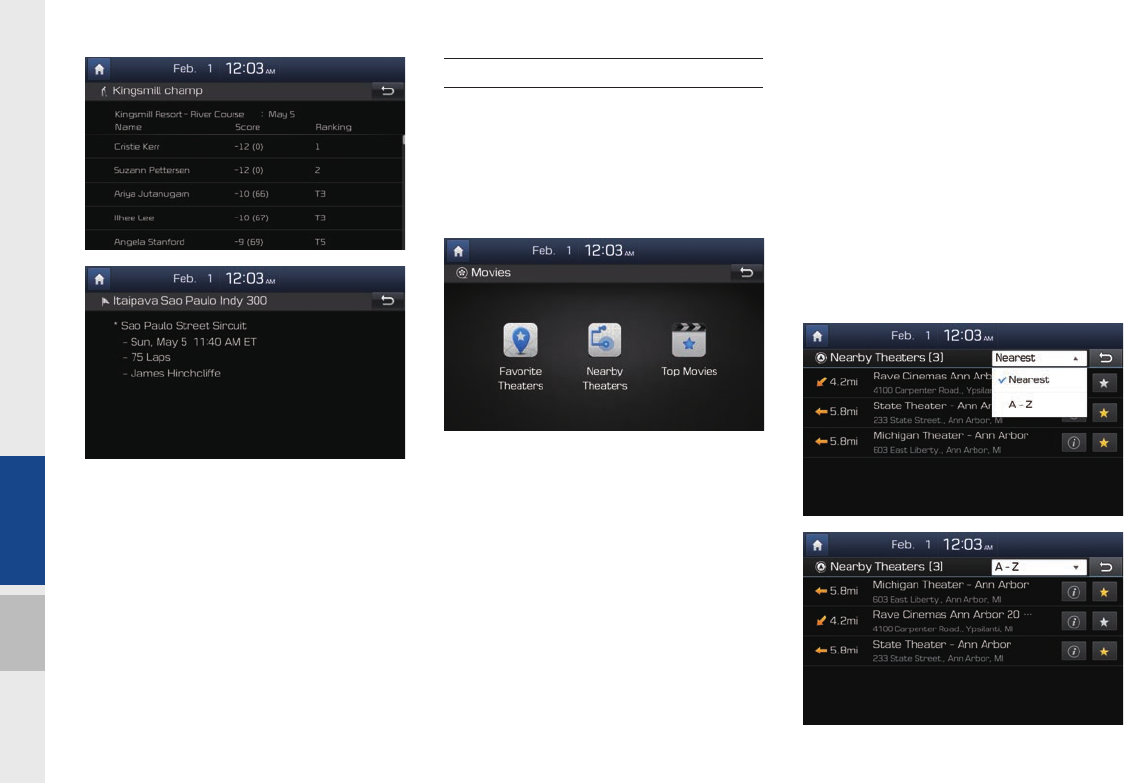

SiriusXM™ Movie Information

Press the “Movies” icon to enter the Movie

mode.

You can check recent movies and nearby

theaters, and also register your favorite

theater locations.

Search for Nearby Theaters, and

Theaters.

In the “Nearby Theaters” menu, you can

search for any nearby theaters.

It shows theaters, starting from the near-

est one, and selecting the “Nearest” menu

at the top right side will sort them by

name.

SiriusXM™ Data I 7-15

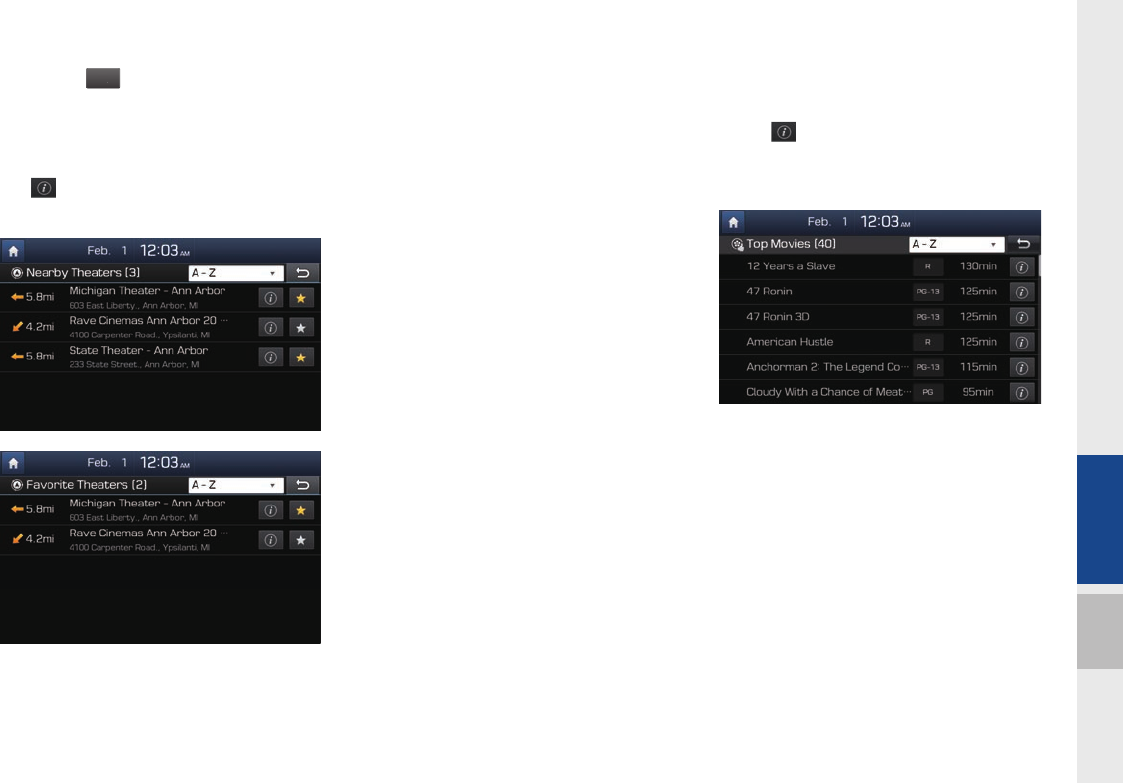

Select the

★

button to the right of the

list to register your favorite theater so that

you can always check it again using the

“Favorite Theaters” menu and selecting

the button to view the current movie

information for that theater.

Select from the list to move to the select

navigation destination screen and receive

directions.

In the “Top Movies” menu, you can check

for any movies that are currently popular.

Press button to the right of a movie

title to view the plot summary and any

other detailed information.

7-16 I Info

SoundHound

SoundHound is a music search engine. It enables users to identify

music by playing or singing a song. It is also possible to search by

typing the name of the artist, song, album or lyrics.

Accessing SoundHound

1. From the Home screen, select All Menus, My Menu or Apps

then select SoundHound button.

2. Select SoundHound button on Radio modes (AM, FM and

SiriusXM) or Media modes (CD, Bluetooth Audio, iPod, USB,

My Music and AUX).

SoundHound Main Screen

Name Description

Mode Displays current operating mode.

Back button Goes back to previous mode.

What’s that

Song?

Starts the song recognition process. After this pro-

cess is complete, it goes to Song screen.

Search Goes to Search screen.

History Goes to History screen.

Favorites Goes to Favorites screen.

Charts Goes to Charts screen.

SoundHound I 7-17

Recognizing Music

After selecting SoundHound button, the song recognition pro-

cess is activated, the system will match current playing song with

the SoundHound music database.

Music from Smartphones and MP3 players that are not connected

to head unit can also be recognized.

Searching Music

Music can also be searched by selecting the Search option in

SoundHound main screen and typing a song, artist, album or lyr-

ics into the search field.

Name Description

Now listening… Message displayed while SoundHound is pro-

cessing the music.

Retry Starts over the song recognition process.

Cancel Cancels song recognition process and Exits

SoundHound.

Back button Goes back to previous screen.

Name Description

Search Displays current operating mode.

Back button Goes back to SoundHound main screen.

Displays menu options:

Home: Goes back to SoundHound main screen.

History: Goes to History screen.

Favorites: Goes to Favorites screen.

Exit: Exits SoundHound application and goes back to

previous media mode.

Delete option is available in Favorites and History

screens.

Search field

Displays search field. Once text is typed, recommended

song, artist, album or lyrics information that might match

the search criteria is displayed in the scroll menu.

Search icon Starts the searching process.

7-18 I Info

Song Main Screen

Name Description

Back button Goes back to previous screen.

Song, Artist

and Album

information

Displays song, artist and album information of

currently playing song.

Album Image If album image is selected, album artwork

screen is displayed.

Artist Image If artist image is selected, artist image screen

is displayed.

Favorite

It saves current playing song into Favorites

by tapping on the star icon. Star icon will be

highlighted when song has been saved into

Favorites. To delete song from Favorites, select

the star icon again or go to Favorites menu

screen.

Lyrics Displays current playing song’s lyrics.

Recommended

Songs

Displays a list of recommended songs by

SoundHound.

Similar Artists Displays list of similar artists to currently play-

ing artist.

Song’s Album

Appearances

Displays list of albums on which currently play-

ing song appears.

Camera

part.8 Other Features

8-2 I Other Features

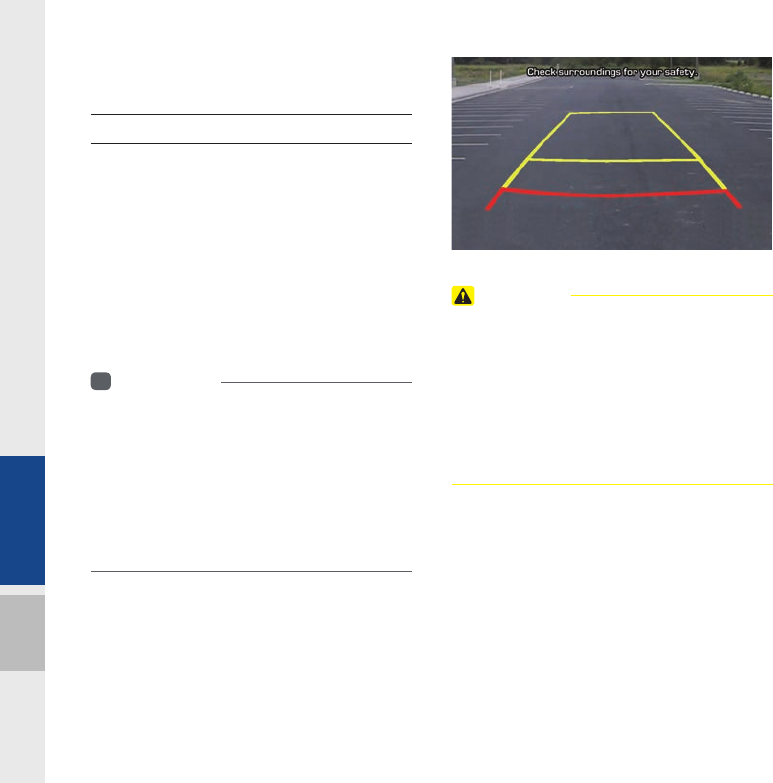

Camera

About Rear Detection Camera

•This device is connected to a rear

detection camera to see behind the car

when reversing.

•When the engine starts, shift the gear to

R to activate the rear detection camera.

•Shift the gear to another position to

deactivate the rear detection camera.

Information

• While the device boots up, shift the gear to R

to activate the rear detection camera.

• A separate chipset is used for the camera

screen while booting up, so it may be different

after booting up.

• When booted up, blinking may occur when

you switch to a UI screen.

CAUTION

• A wide-angle lens is installed as the rear

detection camera to get a wider view, so

there may be some difference between the

actual distance and the distance that appears

on-screen. For safety, make sure to view

the back, right, and left sides of the car for

yourself.

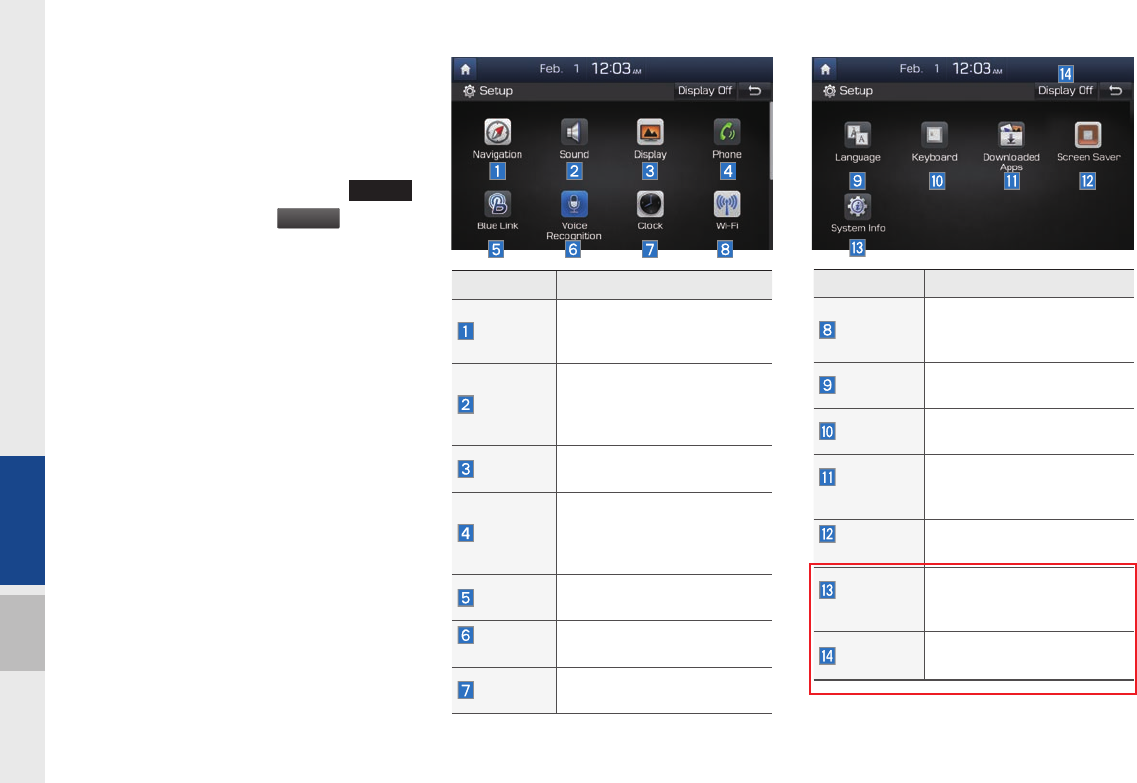

Setup

Navigation Settings

Sound Settings

Display Settings

Phone Settings

Blue Link Settings

Voice Recognition Settings

Clock Settings

Wi-Fi Settings

Language Settings

Keyboard Settings

Downloaded Apps Settings

Screen Saver Settings

System Info

part.9 Setup

9-2 I Setup

Setup

Setup is the screen to control system set-

tings of the AVN.

To enter the screen, select the

SETUP

key of the device or the

etup

button in

All Menus.

Features Description

Navigation

Provides Normal/Screen/

Guidance/Route/Safety

Setting.

Sound

Provides the sound

control options for Position,

Bass, Mid, Treble, Volume,

Ratio and Advanced settings.

Display Provides the Adjust/Mode

settings.

Phone

Provides the Bluetooth

Connection/Auto Connection

Priority/Ringtone/System

Bluetooth Information settings.

Blue Link Provides the Activation/

Modem Information settings.

Voice

Recognition

Provides the Guidance and

Priority settings.

Clock Provides the Time and View

settings.

Features Description

Wi-Fi

Provides the Wi-Fi On and

Network Connection set-

tings.

Language Provides the Change

Language settings.

Keyboard Provides settings to switch

keyboard layouts.

Downloaded

Apps

Provides the removal set-

tings for downloaded and

installed apps.

Screen

Saver

Provides the Clock/None

settings.

System

Info

Provides software and stor-

age space information.

Display Off Provides the Display Off

(touch activation) function.

Setup I 9-3

Navigation Settings

For more details, refer to part 5. Navigation

Settings.

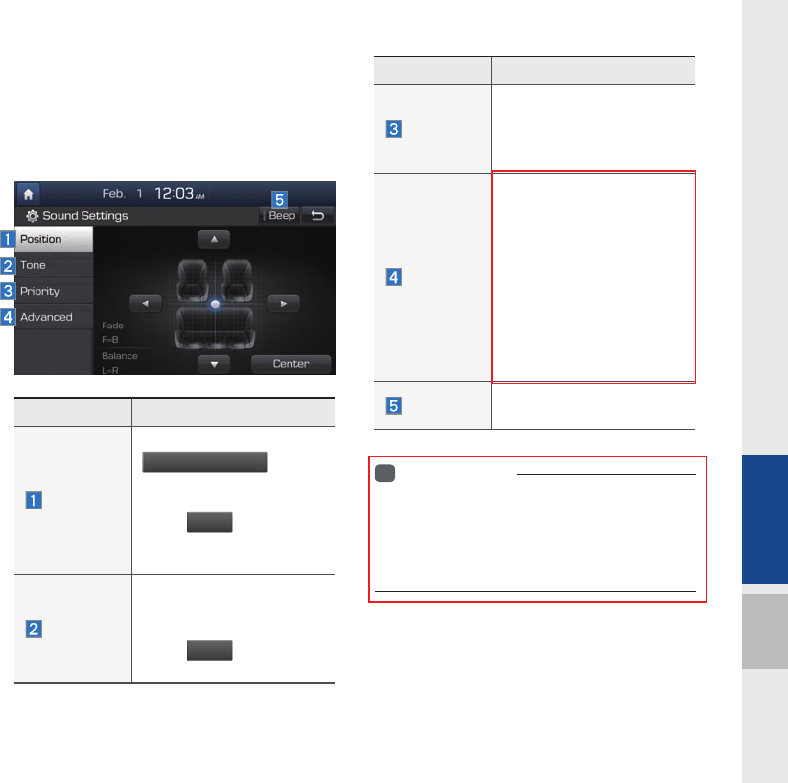

Sound Settings

Adjusts the sound effects for the whole

system.

Information

• Advanced sound settings may differ according

to selected AMP option.

• The seat shape may differ according to

vehicle model.

Features Description

Position

Select the

p/Down/Left/Righ

button

to control sound position-

ing.

Press

enter

to concen-

trate the sound on the

center of vehicle.

Tone

Drag the slide bar to

control bass/mid/treble

settings.

Press

to initialize

the settings.

Features Description

Priority

You can adjust the volume

ratio between navigation

announcements and reg-

ular audio.

Advanced

Select additional audio

options such as “Speed

Dependent Volume

Control” that automatically

controls Audio volume

according to vehicle speed

as well as “Variable EQ”,

“Surround”, “Quantum

Logic Surround”, and

“Signal Doctor”.

Beep Select to activate a beep

when pressing buttons.

9-4 I Setup

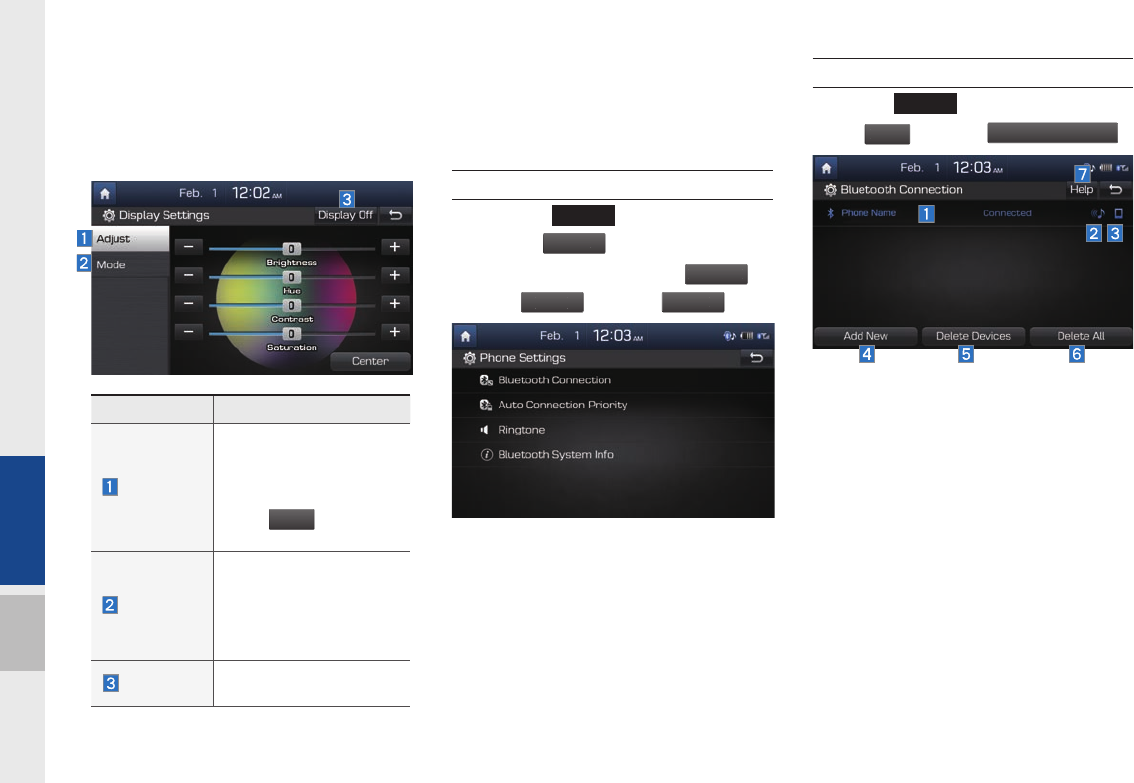

Display Settings

Controls the display brightness and image

rate for the whole system.

Phone Settings

Changes Bluetooth phone settings.

Phone Settings

•Select the

SETUP

key in the head unit

▶ Select

•Home screen ▶ Select

All

enus

▶

Select

etup

▶ Select

Bluetooth Connection Settings

Select the

SETUP

key in the head unit ▶

Select

▶ Select

Bluetooth

onnectio

Features Description

Adjust

Drag the slide bar to

control the Brightness/

Hue/Contrast/Saturation

settings.

Press

Center

to initialize

the settings.

Mode

You can select Daylight/

Night/Automatic options

for the display bright-

ness according to mode

changes.

Display Off Provides the Display Off

(touch activation) function.

Setup I 9-5

Features Description

Paired Device

List

Displays the paired

Bluetooth device list.

When selecting from

the list, the device is

connected or discon-

nected.

Bluetooth

Audio

Connection

Status

An icon appears when

you make a Bluetooth

Audio connection.

Bluetooth

Hands-Free

Connection

Status

An icon appears when

you make a Bluetooth

Hands-free connec-

tion.

Add New Register a new

Bluetooth device.

Delete Devices Select and delete a

paired device.

Delete All Delete all paired

devices.

Help

Switches to the

Bluetooth Connection

Help screen.

Information

• Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be connected

at a time.

• During a Bluetooth device connection, another

device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit

are also completely deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio, will

function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly

disconnected, due to being out of

communication range, the device powering

off, or a Bluetooth communication error, the

Bluetooth device automatically searches for

and connects to nearby Bluetooth devices.

• If the system is not stable, due to a vehicle-

Bluetooth device communication error, restore

the Default Factory Settings.

• For Default Factory Settings, the bluetooth

settings are reset to factory settings

• Select the

SETUP

key ▶ Select

▶ Select

Bluetooth S

stem Info

▶Select

Default Factory Setting

Auto Connection Priority

Select the

SETUP

key in the head unit ▶

Select

▶ Select

uto

onnection Priority

When the engine is running, the selected

Bluetooth device is automatically con-

nected. If you fail to connect the selected

device, the previously-connected device is

automatically connected, and if it also fails,

then it tries to connect all paired devices

sequentially.

Depending on auto connection priority,

connection to a device may take time.

9-6 I Setup

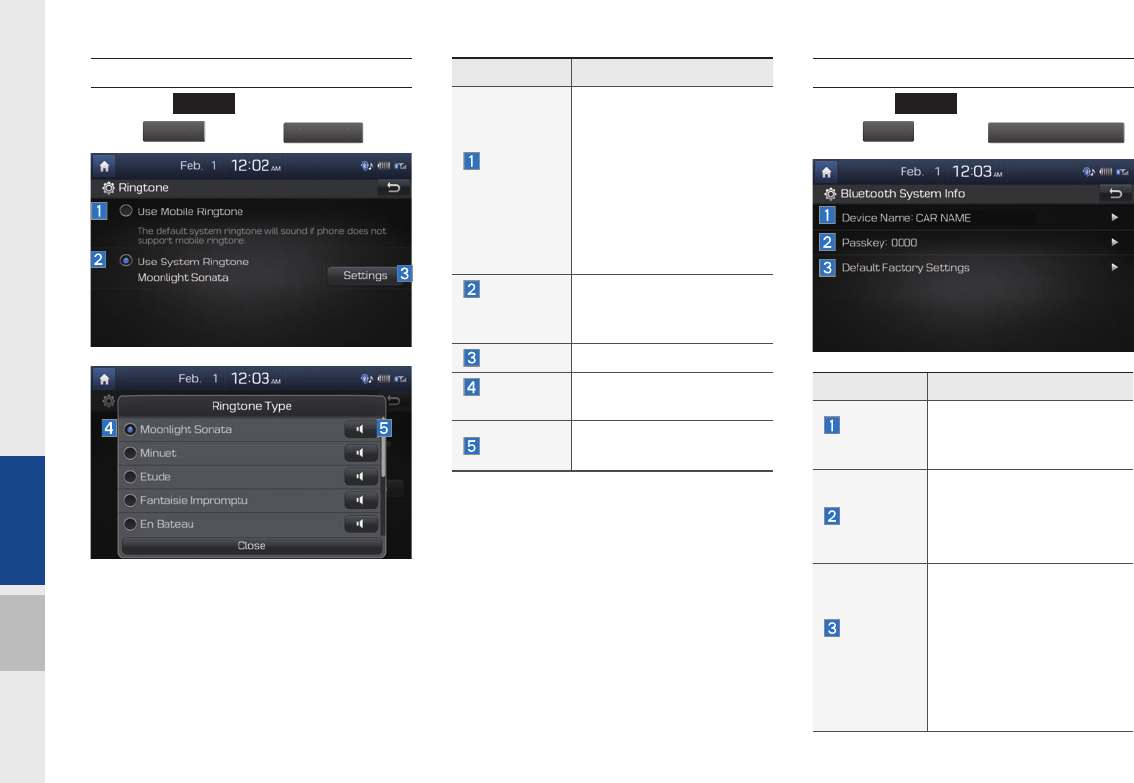

Phone Ringtone

Select the

SETUP

key in the head unit ▶

Select

▶ Select

tone

Bluetooth System Information

Select the

SETUP

key in the head unit ▶

Select

▶ Select

Bluetooth

stem Info

Features Description

Device

Name

You can change the

Bluetooth device name of

the vehicle.

Passkey

You can change the pass-

key used for Bluetooth

device authentication. the

initial passkey is 0000.

Default

Factory

Settings

You can delete all paired

devices and restore the

Default Bluetooth Settings.

For Default Factory

Settings, all paired devices

are deleted, and the

system is reset to factory

settings.

Features Description

Use

Mobile

Ringtone

The configured mobile

ringtone comes out

through the vehicle

speakers when you

receive a call. When a

mobile device doesn’t

support it, the basic ring-

tone of the vehicle will be

used.

Use

System

Ringtone

The system ringtone will

be used.

Settings Changes the ringtone.

Ringtone

Type

Selects a ringtone by

name.

Preview Previews the available

ringtones.

Setup I 9-7

Information

• The device name above is an example. Check

the actual information on the product.

Blue Link Settings

•Select the

SETUP

key ▶ Select

e Link

•Select the

BLUELINK

key ▶ Select

Blue Link Setting

Features Description

Service

Activation

Reactivates the Blue

Link.

Modem

Information

Shows MEID modem

information.

Service Activation

Select the

BLUELINK

key ▶Select

lue Link

etting

▶Select

ervice Ac

ion

Activation may take up to five minutes.

Do not turn the engine off while activation

is in progress.

If activation fails, contact the Blue Link

Center at (855) 2-BlueLink.

During service activation, the hard keys in

the head unit do not function.

9-8 I Setup

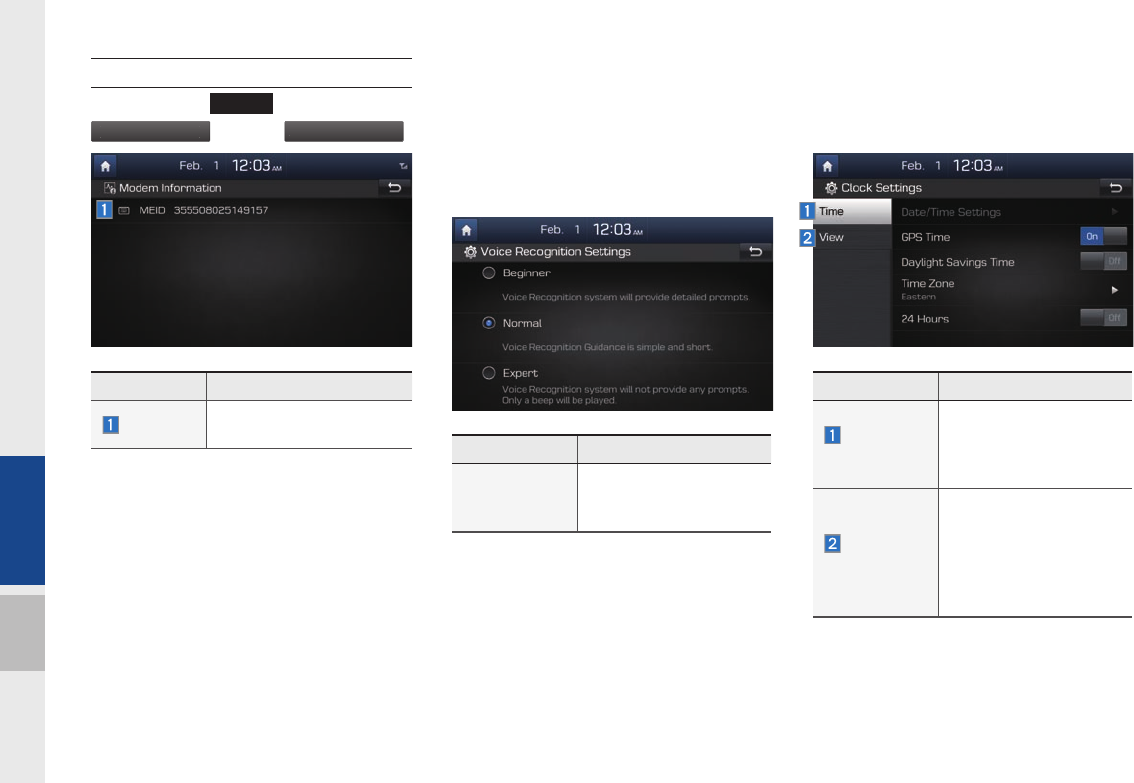

Modem Information

Select the

BLUELINK

key ▶Select

lue Link Settin

▶ Select

em Inform

ion

Features Description

MEID Identification number of

the Blue Link terminal

Voice Recognition Settings

Configure how to make a call with

Voice Recognition Guidance and Voice

Recognition.

Features Description

Guidance

Select an option from

Beginner, Normal, or

Expert.

Clock Settings

Provides the time and date settings.

Features Description

Time

Settings

Provides the GPS Time,

Date/Time Settings,

Daylight Savings Time,

and 24 Hours options.

View

Settings

Provides options to

select a digital or ana-

log clock widget for the

screen saver or home

screen, and to select the

Display Date settings.

Setup I 9-9

Wi-Fi Settings

You can share a digital-device network

with the vehicle device through Wi-Fi.

Wi-Fi Settings Screen

Features Description

Wi-Fi Turn on/off Wi-Fi.

MAC

Address Displays the MAC address.

Refresh Searches available net-

works near the vehicle.

Network

Name

Displays available network

AP (Access Point) names.

Add Wi-Fi

Network

Enter the network ID/

password to connect to a

hidden network AP (Access

Point).

How to Connect to a Network

1. In the Wi-Fi settings of a digital device,

activate Internet sharing (hot spot).

2. In the vehicle network list, select the

desired device to connect to. Enter the

password to connect, if any.

Language Settings

You can configure the displayed system

language.

When the language is changed, the

system language is automatically

changed.

Unique data including MP3 file name is

not changed and some languages don’t

support voice recognition.

9-10 I Setup

Keyboard Settings

You can configure the keyboard layout for

each language.

You can configure ABCD or QWERTY

keyboards for the system.

Information

• Conﬁ gured keyboard layouts are applied to all

input modes.

Downloaded Apps Settings

Displays the applications that were down-

loaded through the Download Center. View

the memory status of installed applications

or delete them.

You can delete downloaded applications in

the Download Center. To recover a deleted

application, you can re-install the applica-

tion with the re-download function in the

Download Center.

Screen Saver Settings

Configures a screen to be displayed when

the system is powered off.

Setup I 9-11

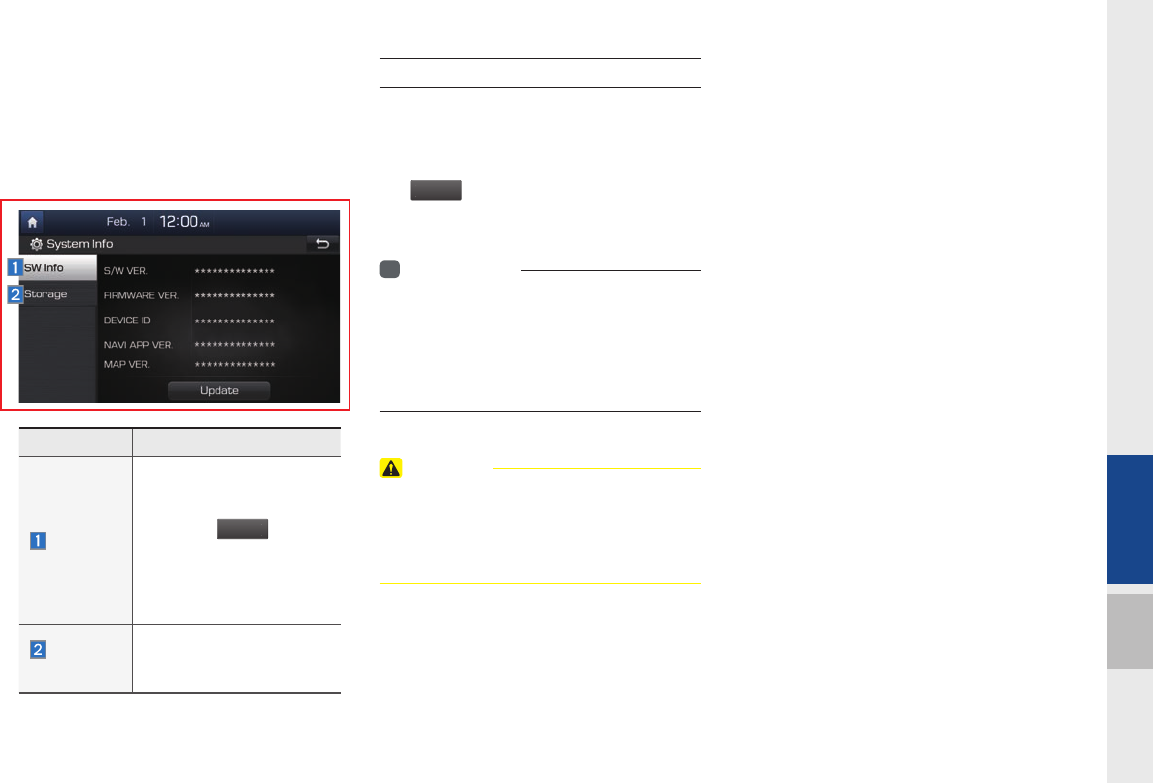

System Info

At the System Info screen, software ver-

sion information, updates, and storage

status details are available.

Features Description

SW Info

System version informa-

tion and update details are

available.

Select the

button

to update the system. After

update is complete, the

system will reboot auto-

matically.

Storage

Space

Displays the memory

space available for media

files and applications.

System Update

At the System Info screen, insert the

updated memory (USB or SD card) with

the latest file downloaded, and then select

the

button to begin updating. The

system will then reboot automatically.

Information

• This product needs supplemented software

updates, additional new functions, and

renewed maps, which collectively may take

some time to complete, depending on the

amount of data.

CAUTION

• If the power is disconnected or the USB or

SD card is removed during an update, the

data might be damaged. Please wait until the

update is complete while the engine is on.

9-12 I Setup

MEMO

Product Specification

Troubleshooting

FAQ

part.10 Appendix

10-2 I Appendix

Product Specification

TFT-LCD

Screen Size Navigation Device - 8 inch(176.4 x 99.36mm)

Resolution

Navigation Device - 384,000 pixels (Resolution: 800 x 480)

Operating

Method TFT(Thin Film Transistor) Active Matrix

Viewing Angle Left/Right, Top/Bottom : ALL 89°

Internal Lighting

LED

Radio

Channels

FM : 87.5 MHz ~ 107.9 MHz(Step : 200 kHz)

AM : 530 kHz ~ 1710 kHz(Step : 10 kHz)

Sensitivity FM : Under 10dBu/AM : Under 35dBu

Distortion Factor

Within 2%

Common

Name Car TFT LCD Display Navigation Unit

Power Supply DC 14.4V Operating

Power DC 9V ~ DC 16V

Current

Consumption 2.5A Sleep

Current

0.5mA

(Head Unit Only)

Operating

Temperature

-20 ~ +70℃

(-4 ~ +158

℉

)

Storage

Temperature

-30 ~ +80℃

(-86 ~ +176

℉

)

Dimensions 178 X 102 X138mm (Main BOX)

Weight 2.7kg

Appendix

Appendix I 10-3

CDMA

Frequency 869MHz~894MHz (BC0),

1930MHz~1990MHz (BC1)

Sensitivity -104dBm under (FER = 0.5% under)

Frequency 824MHz~849MHz (BC0),

1850MHz~1910MHz (BC1)

Max RF Output

Power

23.01dBm ~ 30dBm

(Power Class3(BC0),

PowerClass2(BC1), conducted)

Sensitivity -104dBm under(FER=0.5% under)

Power 23.01~30dBm (BC0, BC1, conducted)

Wi-Fi Details

Frequency 2412 ~ 2462MHz

Specification 802.11b/g/n

Number of

Channels 11 Channel

Operating

Temperature -20 ~ +70℃ (-4 ~ +158

℉

)

Bluetooth®

Wireless Technology

Frequency

Range 2402 ~ 2480 MHz

Supported

Bluetooth

Specification

3.0

Supported

Profile Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)

Output -6~4dBm (Power Class2, Conducted)

Number of

Channels 79 channels

CAUTION

• The producer and installer cannot provide services related to life

safety as the concerned radio equipment is liable to radio interference.

10-4 I Appendix

Troubleshooting

1. Errors which occur during the operation or installation of the

device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Hyundai dealer.

Problem Possible Cause

There are small red,

blue, or green dots on

the screen

•Because the LCD is manufactured with

technology requiring high point density,

a pixel or lighting deficiency may occur

within 0.01% of total pixels

The sound or image is

not working

•Has the Switch for the vehicle been turned

to [ACC] or [ON]?

•Has the SYSTEM been turned OFF?

The screen is being dis-

played but sound is not

working

•Has the volume been set to a low level?

•Has the volume been muted?

When the power is

turned on, the corners of

the screen are dark

•The display appearing somewhat dark

after prolonged periods of use is normal

with LCD panels. It is not a malfunction

•If the screen is very dark, contact your

nearest Hyundai dealer for assistance

Sound is working from

only one speaker

•Are the positions of Fader or Balance

sound controls adjusted to only one side?

Problem Possible Cause

Sound does not work in

AUX mode

•Are the audio connector jacks fully

inserted into the AUX terminal?

The external device is

not working

•Is the external device connected with a

standard connector cable?

Upon turning power on,

the most recent mode

screen is not displayed

Within modes that play files by reading

external sources, such as discs, USB, iPod,

or Bluetooth

streaming mode, the most

recently played mode screen prior to turning

off power may not properly load

•If there is no disc or the corresponding

device is not connected, the mode oper-

ated prior to the most recent mode will

operate

•If the previous mode still cannot be prop-

erly played, the mode operated prior to

that will operate

Appendix I 10-5

Problem Possible Cause Countermeasure

The image

color/tone

quality is low

•The brightness, satura-

tion, hue, and contrast

levels are not set prop-

erly

•Properly adjust the bright-

ness, saturation, hue, and

contrast levels through

Display Setup

Sound does

not work

•The volume level

is set to the lowest

level

•The connection is

not proper

•The device is

currently fast-for-

warding, rewinding,

scanning, or playing

in slow mode

•Adjust the volume level

•Check to see that the device

has been properly connected

•The sound will not work

when the device is fast-for-

warding, rewinding, scan-

ning, or playing in slow

mode

The sound or

image quality

is low

•Vibration is occur-

ring from where the

conversion switch

has been installed

•Image color/tone

quality is low

•The sound may be short-cir-

cuited and the image dis-

torted if the device vibrates

•The device will return to nor-

mal once vibrations stop

Problem Possible Cause Countermeasure

The power

does not turn

The fuse is discon-

nected

•Replace with a suitable fuse

•If the fuse is disconnected

again, please contact

your point of purchase or

Hyundai dealer

Device is not properly

connected

•Check to see that the device

has been properly con-

nected

The system

does not

play

The vehicle battery is

low

•Charge the battery If the

problem persists, contact

your point of purchase or

Hyundai dealer

10-6 I Appendix

Problem Possible Cause Countermeasure

The USB

does not

work

•USB memory is

damaged

•USB memory has

been contaminated

•A separately pur-

chased USB HUB is

being used

•A USB extension

cable is being used

•A USB which is not

a Metal Cover Type

USB Memory is

being used

•An HDD type, CF,

SD Memory is being

used

•There are no music

files which can be

played

•Please use after formatting

the USB into FAT 12/16/32

format

•Remove any foreign sub-

stances on the contact surface

of the USB memory and multi-

media terminal

•Directly connect the USB mem-

ory with the multimedia terminal

on the vehicle

•Directly connect the USB

memory with the multimedia

terminal on the vehicle

•Use standard USB Memory

•Only MP3, WMA file formats

are supported. Please use

only the supported music file

formats

The iPod is

not recog-

nized even

though it has

been con-

nected

•There are no titles

which can be played

•The iPod firmware

version has not

been properly

updated

•The iPod device

does not recognize

downloads

•Use iTunes to download and

save MP3 files into the iPod

•Use iTunes to update the firm-

ware version and reconnect the

iPod with the device

•Reset the iPod and reconnect

with the device

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the

RESET

key to

reset the system.

• Press and hold the

RESET

key (over 1 second). The device power will

turn off and the system will reset.

Appendix I 10-7

FAQ

About Pairing Mobile Phones

Q I cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth® func-

tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set

it to ON. If the cell phone still can’t be registered, try again after

turning Bluetooth off and on, or delete the device registration on

the AVN and cell phone and then register the cell phone again.

Q What is the difference between pairing a mobile phone and con-

necting a mobile phone?

A Pairing occurs through authenticating the head unit and mobile

phone. Mobile phones paired to the head unit can be connected

and disconnected until the paired mobile phone is deleted from

the system. Bluetooth® Handsfree features, such as making/

answering calls or managing contacts, are supported only in

mobile phones connected with the head unit.

Q What is a Passkey?

A A passkey is the password used to authenticate the connection

between the head unit and mobile phone. The passkey only

needs to be entered once when pairing the mobile phone for the

first time.

The initial passkey is 0000. You can change it with

SETUP

▶

one

▶

Bluetooth

ystem Info

▶

ass

options.

10-8 I Appendix

About Making/Answering Phone Calls

Q How can I answer a call?

A When there is an incoming call, a notification pop-up will

become displayed. To answer the incoming call, press the

ccep

button on the screen or the key on the steering

remote controller.

To reject the call, press the

ect

button on the screen or press

the key on the steering wheel control.

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (over 0.8 seconds) the

key on the steering remote controller or press the

vat

button at the bottom of the Phone screen to switch the call to

your mobile phone.

About

Bluetooth

Wireless Technology/

Head Unit Use Environment

Q What is the range of my wireless connection?

A The wireless connection can be used within 15 yards.

Q How many mobile phones can be paired?

A It is possible to pair up to five mobile phones.

Q Why is call quality sometimes poor?

Check the reception sensitivity of the mobile phone when call

quality becomes worsened. The call quality may deteriorate when

the signal strength is low. Call quality may also worsen if metal

objects, such as beverage cans, are placed near the mobile

phone. Check to see if there are metal objects in the vicinity of the

mobile phone. The call sound and quality may differ depending on

the type of mobile phone.

Index I 10-9

AUX ……………………………………2-37

About

Bluetooth

® Wireless Technology

/Head Unit Use Environment …………10-8

About Disc ……………………………2-11

About Making/Answering Phone Calls … 10-8

About Pairing Mobile Phones …………10-7

About Rear Detection Camera ……… 8-2

About SiriusXM™ Data Service ……… 7-8

About Transmission and Reception of Radio

Waves ………………………………… 4-3

Accept/Reject Call …………………… 3-7

Accessing FM/AM Mode …………… 2-2

Accessing SiriusXM™ Data ………… 7-8

Accessing SoundHound ………………7-16

Address ………………………………5-14

Adjusting Voice Recognition Volume … 6-5

App List ……………………………… 7-6

Auto Connection Priority ……………… 9-5

Avoid Street ……………………………5-33

Basic Features ………………………… 5-2

Basic Mode Screen ………… 2-16, 2-19

Basic Mode Screen

(HD Radio™ reception ON) ………… 2-5

Battery Warning Message ……………1-10

Before Playing a USB MP3 ……………2-22

Before Playing an MP3 Disc …………2-14

Before Use …………………………… 4-3

Before Using the Bluetooth® Handsfree

…

3-2

Blue Link Settings ……………… 4-7, 9-7

Blue Link Voice Local Search ………… 4-8

Blue Link® Safety and Security Service …4-5

Bluetooth Audio Mode …………………2-38

Bluetooth Connection ………………… 3-4

Bluetooth Connection Settings ……… 9-4

Bluetooth Connections Settings ………2-39

Bluetooth Phone ……………………… 3-6

Bluetooth System Information………… 9-6

Bluetooth® Audio ………………………2-38

CAUTIONS upon Connecting Bluetooth®

Phone ………………………………… 3-3

CD ……………………………………2-16

Call Commands ……………………… 6-8

Call History …………………………… 3-9

Camera ……………………………… 8-2

Canceling Route ………………………5-30

Changing Map View ………………… 5-3

Clock Settings ………………………… 9-8

Component Names and Functions ……1-5

Connecting Bluetooth Devices ……… 3-4

Connecting an External Device ………2-37

Connecting with the Blue Link Center

…

4-4

Contacts ………………………………3-10

Deleting Bluetooth Devices …………… 3-5

Detour ………………………………… 5-5

Dial …………………………………… 3-7

Direct Tune …………………………… 2-8

Disc/Content Format Compatibility ……2-12

Disconnecting Bluetooth Devices …… 3-5

Index

10-10 I Index

Display …………………………………5-34

Display Route Information ……………5-30

Display Settings ……………………… 9-4

Download Center …………………… 7-6

Downloaded Apps Settings …………9-10

Driving Info …………………………… 4-6

Editing Route …………………………5-32

Ending Voice Recognition …………… 6-3

Extending the Listening Time ………… 6-4

FAQ ……………………………………10-7

FM/AM ………………………………… 2-2

Favorites ………………………………3-11

"Find the Nearest <Category> "List …6-16

General ………………………………5-34

Getting Started with Blue Link………… 4-4

Guidance ………………………………5-35

HD Radio™ Technology ……………… 2-4

Head Unit ……………………………… 1-5

Help Display …………………………… 6-6

Home Screen …………………………1-11

How to Connect to a Network ………… 9-9

How to start Siri ………………………6-21

How to use Siri …………………………6-21

Instructions for Using Voice Recognition … 6-7

IPod …………………………… 2-30, 2-34

Key Product Features ………………… 1-4

Keyboard Settings ……………………9-10

Language Settings …………………… 9-9

MP3 ……………………………………2-19

Map Scale …………………………… 5-4

Media …………………………………2-10

Media Commands ……………………6-12

Menu ………………………………… 5-4

Modem Information …………………… 9-8

My Apps ……………………………… 7-7

My Music ………………………………2-40

Name and Function of Each Part …… 4-2

Navigation Commands ……………… 6-9

Navigation Settings ……………… 5-34, 9-3

Navigation Volume …………………… 5-5

Nearby POIs ………………………… 5-6

Index I 10-11

On-Screen Touch Controls ……………1-12

Operating Navigation Screen ………… 5-2

Other Commands List

(Commands used in List / Help) ………6-15

Pairing a New Device ………………… 3-4

Pandora Radio Mode ………………… 7-2

Pandora Radio Mode Screen Controls …7-3

Phone Ringtone ……………………… 9-6

Phone Settings ……………………… 9-4

Phone Status Icons ………………… 3-6

Precautions Required for Successful Voice

Recognition …………………………… 6-2

Precautions for Safe Driving ………… 3-2

Precautions upon Handling Discs ……2-11

Product Specification …………………10-2

Quick Run of Voice Recognition

(Manual Mode) ……………………… 6-3

Radio Commands ……………………6-11

Rear View Mirror Switch ……………… 4-2

Recognizing Music ……………………7-17

Route ………………………… 5-30, 5-35

Route Guidance ………………………5-28

Route Option ………………………… 5-4

Route Options …………………………5-33

Route Overview ………………………5-31

Route Preview …………………………5-31

Route Setting …………………………5-25

Screen Saver Settings …………………9-11

Searching Music ………………………7-17

Selecting through Channel/Category List … 2-8

Send to Car with Google ……………… 4-6

Service Activation …………………… 9-7

Setup ………………………………… 9-2

Siri Eyes Free …………………………6-21

SiriusXM™ …………………………… 2-5

SiriusXM™ Mode Display Controls … 2-6

SiriusXM™ Data ……………………… 7-8

SiriusXM™ Fuel Price Information ……7-10

SiriusXM™ Mode Hard Key Controls

…

2-5

SiriusXM™ Movie Information ………7-14

SiriusXM™ Sports Information ………7-12

SiriusXM™ Stock Information …………7-11

SiriusXM™ Traffic Information………… 7-9

SiriusXM™ Weather Announcement … 7-8

Skipping Prompt Messages ………… 6-5

Song Main Screen ……………………7-18

Sound Settings ……………………… 9-3

SoundHound …………………………7-16

SoundHound Main Screen ……………7-16

Start Screen …………………………… 6-6

Start Up ……………………………… 7-2

Starting Blue Link Voice Local Search …4-8

Starting Mode …………………………2-10

Starting Voice Recognition …………… 6-3

Starting the System for the First Time … 1-9

Starting/Ending and Setting Voice

Recognition …………………………… 6-3

Steering Wheel Control ……………… 1-7

Stolen Vehicle Recovery ……………… 4-5

Supported Disc Formats ………………2-12

10-12 I Index

Supported Image Specifications………2-24

System Info ……………………………9-11

System Reset ………………………… 1-9

System Update ………………………9-11

Traffic …………………………………5-35

Troubleshooting ……………… 5-36, 10-4

Turning the System On/Off …………… 1-9

Types of Commands ………………… 6-8

USB ……………………………………2-22

USB Image ……………………………2-28

USB Music ……………………………2-25

USB MP3 Information and Precautions … 2-23

Using iPod Devices ……………………2-30

Using the Menu During a Phone Call … 3-8

Vehicle Diagnostics …………………… 4-7

Viewing Menu ………………………… 2-8

Voice Commands …………………… 6-8

Voice Guidance Volume On/Off ……… 5-3

Voice Recognition Screen Overview … 6-6

Voice Recognition Settings …………… 9-8

Warnings and Cautions ……………… 1-2

What Is Blue Link? …………………… 4-3

What Is Telematics? ………………… 4-3

What is Blue Link Voice Local Search?

…

4-8

What is

Bluetooth

® Wireless Technology? …3-2

What is Voice Recognition? ………… 6-2

Wi-Fi Settings ………………………… 9-9

Wi-Fi Settings Screen ………………… 9-9

Zoom In /Zoom Out …………………… 5-3

Important Safety Information

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual ("User's

Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.

Keep User's Guide in Vehicle

When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please

make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and

safety information carefully.

Warning

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other

serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a

safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may

to distract your attention away from the road and remove your hands from the wheel.

General Operation

Voice Command Control

Functions within the Multimedia system may be accomplished using only voice commands. Using voice commands while driving allows

you to operate the system without removing your hands from the wheel.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before

attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous

if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while

driving. Driving while unable to hear these sounds could cause an accident.

Navigation Features

Any navigation features included in the system are intended to provide turn by turn instructions to get you to a desired destination. Please

make certain all persons using this system carefully read and follow all instructions on safety information.

Distraction Hazard

Some navigation features may require manual (non-verbal) setup. Attempting to perform such set-up or insert data while driving can seri-

ously distract your attention and could cause an accident or other serious consequences. Stop the vehicle in a safe and legal manner

before attempting these operations.

Let Your Judgment Prevail

Any navigation features are provided only as an aid. Make your driving decisions based on your observations of local conditions and exist-

ing traffic regulations. Any such feature is not a substitute for your personal judgment. Any route suggestions made by this system should

never replace any local traffic regulations or your personal judgment or knowledge of safe driving practices.

Route Safety

Do not follow the route suggestions if doing so would result in an unsafe or illegal maneuver, if you would be placed in an unsafe situation,

or if you would be directed into an area that you consider unsafe. The driver is ultimately responsible for the safe operation of the vehicle

and therefore, must evaluate whether it is safe to follow the suggested directions.

Potential Map Inaccuracy

Maps used by this system may be inaccurate because of changes in roads, traffic controls or driving conditions. Always use good judg-

ment and common sense when following the suggested routes.

Emergency Services

Do not rely on any navigation features included in the system to route you to emergency services. Ask local authorities or an emergency

services operator for these locations. Not all emergency services such as police, fire stations, hospitals and clinics are contained in the

map database for navigation features.

Use of Speech Recognition Functions

Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any

speech recognition functions included in the system and address any errors.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• IIncrease the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum 20 cm between the radiator and your body.

This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the

FCC.

MEMO

HYUNDAI MOBIS AT140C2AN DISPLAY AUDIO SYSTEM User Manual

HYUNDAI MOBIS CO., LTD. DISPLAY AUDIO SYSTEM

User manual

Navigation menu

Namespaces

Views

Navigation
