HYUNDAI MOBIS AVBB0G2AN1 DISPLAY CAR SYSTEM User Manual
HYUNDAI MOBIS CO., LTD. DISPLAY CAR SYSTEM
User Manual
C2EF06
(미국/영어-English) DISPLAY CAR SYSTEM l USER'S MANUAL
(AVBB0G2AN_NOWIFI, ADB40G2AN_NOWIFI)
미국/영어-English
Read the following safety cautions for your
safety
Before using the product, read the contents of this user's manual
carefully and use this product safely.
※ The design and specifi cations of this product may change without prior
notifi cation for product and service improvement.
The actual features in the vehicle may differ from the illustrations.
For more accurate information about the vehicle, please refer to the
catalogue.
※ This Audio system contains open source software, including without
limitation, software distributed and/or modifi ed under the GNU General
Public license, Version 2, June 1991, and the GNU lesser General Public
License, Version 2.1, February 1999.
For additional information and to obtain related materials including
without limitation, the previous referred to licenses and software, please
contact us at MOBIS_OSSrequest@mobis.co.kr
Notations used within this User's Manual
WARNING
• Failure to observe the instructions within this category could result in death
or serious injury or damage to the vehicle.
CAUTION
• Information on matters that could potentially lead to injury or vehicle
damage/malfunction Information that could lead to higher user safety
i
Information
• Information and tips that provide additional user convenience in using the
product
NOTICE
• Information on specific features that facilitate proper product use and
functional understanding
• Information on terminology used within this manual
Thank you for purchasing this multimedia
system.
This user's manual explains how to use
the HYUNDAI Motor multimedia system.
Before using the product, read the con-
tents of this user's manual carefully and
use this product safely.
•
The screens shown in this manual may
differ with the actual screens of the
product.
•
The design and specification of this
product may change without prior notifi-
cation for product improvement.
•
When transferring the vehicle to another
individual, include this user's manual so
that the next driver can continue its use.
Precaution for safe usage
•
Driving while distracted can result in a
loss of vehicle control, that may lead to
an accident, severe personal injury, and
death. The driver’s primary responsibil-
ity is in the safe and legal operation of a
vehicle, and use of any handheld devices,
other equipment, or vehicle systems which
take the driver’s eyes, attention and focus
away from the safe operation of a vehicle
or which are not permissible by law should
never be used during operation of the
vehicle.
•
Do not operate the
multimedia system
while driving.
•
Do not disassemble, assemble, or modify
the
multimedia system
.
•
Do not watch the screen for prolonged
periods of time while driving.
•
Set the volume to a level which allows the
driver to be aware of external conditions.
•
Do not operate the
multimedia system
for
prolonged periods of time with the vehicle
ignition in ACC. Such operations may lead
to battery discharge.
•
Be cautious not to spill water or introduce
foreign objects into the device.
•
Do not cause severe shock to the device.
Direct pressure onto the front side of the
monitor may cause damage to the LCD or
touch panel.
•
In case of product malfunction, please
contact your place of purchase or service
center.
•
When cleaning the touch screen, make
sure to turn off the device and use a dry
and smooth cloth. Never use tough materi-
als, chemical cloths, or solvents (alcohol,
ammonia, benzene, thinners, etc.) as such
materials may damage the device panel or
cause color and quality deterioration.
•
SiriusXM service requires a subscrip-
tion, sold separately, after 3-month trial
included with vehicle purchase. If you
decide to continue your SiriusXM ser-
vice at the end of your trial subscription,
the plan you choose will automatically
renew and bill at then-current rates until
you call Sirius XM at 1-866-635-2349 to
cancel. See our Customer Agreement
for complete terms at www.siriusxm.
com. Programming subject to change.
Sirius satellite service is available only
to those at least 18 and older in the 48
contiguous USA, D.C., and PR (with
coverage limitations). Traffic informa-
tion not available in all markets. See
siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are
trademarks of Sirius XM Radio Inc.
WARNING
• Driving while distracted can result in a
loss of vehicle control that may lead to
an accident, severe personal injury, and
death. The driver’s primary responsibil-
ity is in the safe and legal operation
of a vehicle, and use of any handheld
devices, other equipment, or vehicle
systems which take the driver’s eyes,
attention and focus away from the safe
operation of a vehicle or which are not
permissible by law should never be used
during operation of the vehicle.
6 I Table of Contents
iPod®
iPod® is a registered trademark of Apple Inc.
Bluetooth®
Wireless Technology
The
Bluetooth
®
Wireless Technology word mark and logos are registered
trademarks owned by
Bluetooth
®
Wireless Technology SIG, Inc. and any
use of such marks by HYUNDAI is under license.
A
Bluetooth
®
Wireless Technology enabled cell phone is required to use
Bluetooth
®
Wireless Technology.
Bluetooth
®
Wireless Technology phone
compatibility can be checked by visiting https://www.hyundaiusa.com/
bluetooth.
HD Radio™ Technology
HD Radio™ Technology manufactured under license from iBiquity Digital
Corporation. U.S. and Foreign Patents.
HD Radio™ and the HD, HD Radio, and "Arc" logos are proprietary
trademarks of iBiquity Digital Corp.
Pandora®
Pandora, the Pandora logo, and the Pandora trade dress are trademarks
or registered trademarks of Pandora Media, Inc. Used with permission.
Pandora is only available in certain countries. Please visit http://www.
pandora.com/legal for more information.
Warnings and Cautions
Key Product Features
Component Names and Functions
Starting the System for the First Time
part.1 Basic
1-2 I Basic
Safety Warnings
•Do not stare at the screen while driv-
ing. Staring at the screen for prolonged
periods of time could lead to traffic acci-
dents.
•Do not disassemble, assemble, or mod-
ify the Multimedia system. Such acts
could result in accidents, fire, or electric
shock.
•Heed caution not to spill water or intro-
duce foreign objects into the device.
Such acts could lead to smoke, fire, or
product malfunction.
•If you use phone related functions while
driving, you will find it difficult to concen-
trate on operating the vehicle and the
current traffic conditions, so the possibil-
ity of an accident may increase. Please
use phone related functions only when
parked.
•Please refrain from use if the screen
is blank or no sound can be heard as
these signs may indicate product mal-
function. Continued use in such con-
ditions could lead to accidents (fires,
electric shock) or product malfunctions.
•Do not touch the antenna during thun-
der or lightening as such acts may lead
to lightning induced electric shock.
•Do not stop or park in parking-restricted
areas to operate the product. Such acts
could lead to traffic accidents.
•For most Audio and multimedia modes,
the display will not operate when the
vehicle is in motion. For your safety, first
park the vehicle to watch or view the
screen.(The screen will only operate
when the parking brake is ON for man-
ual transmission vehicles and when the
parking brake is ON or the gearshift is in
the P (PARK) position for automatic.)
•Some functions other than the one
mentioned above cannot be used while
driving. These functions operate only
when the vehicle is parked.
Basic
Warnings and Cautions I 1-3
01
Safety Cautions
Pay attention to traffic conditions while
driving.
•Operating the device while driving could
lead to accidents due to a lack of atten-
tion to external surroundings. First park
the vehicle before operating the device.
In addition, the touch screen may not
work for some functions when the vehi-
cle is in motion. The touch screen fea-
ture will be supported once the vehicle
has stopped.
•Adjust the volume to levels that allow
the driver to hear sounds from outside
of the vehicle. Driving in a state where
external sounds cannot be heard may
lead to accidents.
•Pay attention to the volume setting when
turning the device on. A sudden output
of extreme volume upon turning the
device on could lead to hearing impair-
ment. (Adjust the volume to a suitable
levels before turning off the device.)
•If you want to change the position of
device installation, please inquire with
your place of purchase or service main-
tenance center. Technical expertise is
required to install or disassemble the
device.
•Turn on the car ignition before using this
device. Do not operate the Multimedia
system for long periods of time with the
ignition turned off as such operations
may lead to battery discharge.

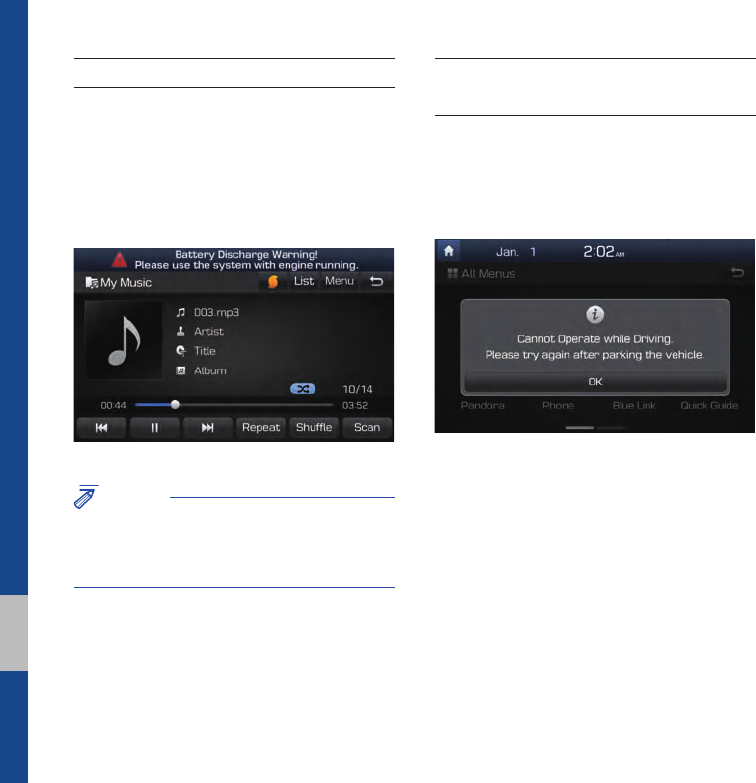

•Upon using the Multimedia system
for more than 10 minutes with the car
engine turned off, the following warning
will be displayed. After 10 minutes, the
warning will be displayed for 5 seconds
every 1 minute.
•Do not subject the device to severe
shock or impact. Direct pressure onto
the front side of the monitor may cause
damage to the LCD or touch screen.
•When cleaning the device, make sure
to turn off the device and use a dry and
smooth cloth. Never use tough materi-
als, chemical cloths, or solvents(alcohol,
benzene, thinners, etc.) as such mate-
rials may damage the device panel or
cause color/quality deterioration. When
experiencing product concerns, inquire
with your place of purchase or service
maintenance center.
•Prevent caustic solutions such as per-
fume and cosmetic oil from contacting
the dashboard because they may cause
damage or discoloration.
1-4 I Basic
Display
Wide TFT-LCD Display
•Provides high quality video through a Wide TFT-
LCD Display using an LED Back Light.
•Touch screen for maximum user convenience.
Radio
Digital Tuner Feature
•Digital Tuner using PPL method that supports
memory of 12 broadcast stations for each AM
and FM modes.
Radio broadcast station name
•Displays broadcast station names.
HD Radio™/Satellite Radio feature
•Supports HD Radio™ reception and Satellite
Radio (SiriusXM™).
Multimedia
Player
Support for various Media Formats
•Support for various media formats, including
Radio, Audio CD, MP3, USB, iPod, AUX and
Bluetooth
®
Audio Streaming modes
My Music
•Supports copying of music stored within USB
devices into My Music (internal memory) mode
Key Product Features
This device is a Multimedia system equipped with a multifunctional
disc player that supports Radio (FM, AM), HD Radio™ technology,
SiriusXM™, Audio CD, MP3, USB, iPod, AUX, Bluetooth Audio
and My Music features. The WIDE VGA LCD provides a high qual-
ity resolution while the powerful and rich sound system adds to the
driving enjoyment.
Miscellaneous
Bluetooth
®
Wireless Technology
•Convenient use of Bluetooth
®
Handsfree by
using buttons within the steering wheel control
Digital Screen Control Features
•Easy control of features through touch screen
options
Steering Wheel Control
•Control over audio features, voice recognition
and Bluetooth
®
through the steering wheel con-
trol for maximum convenience
Component Names and Functions I 1-5
01
Component Names and Functions

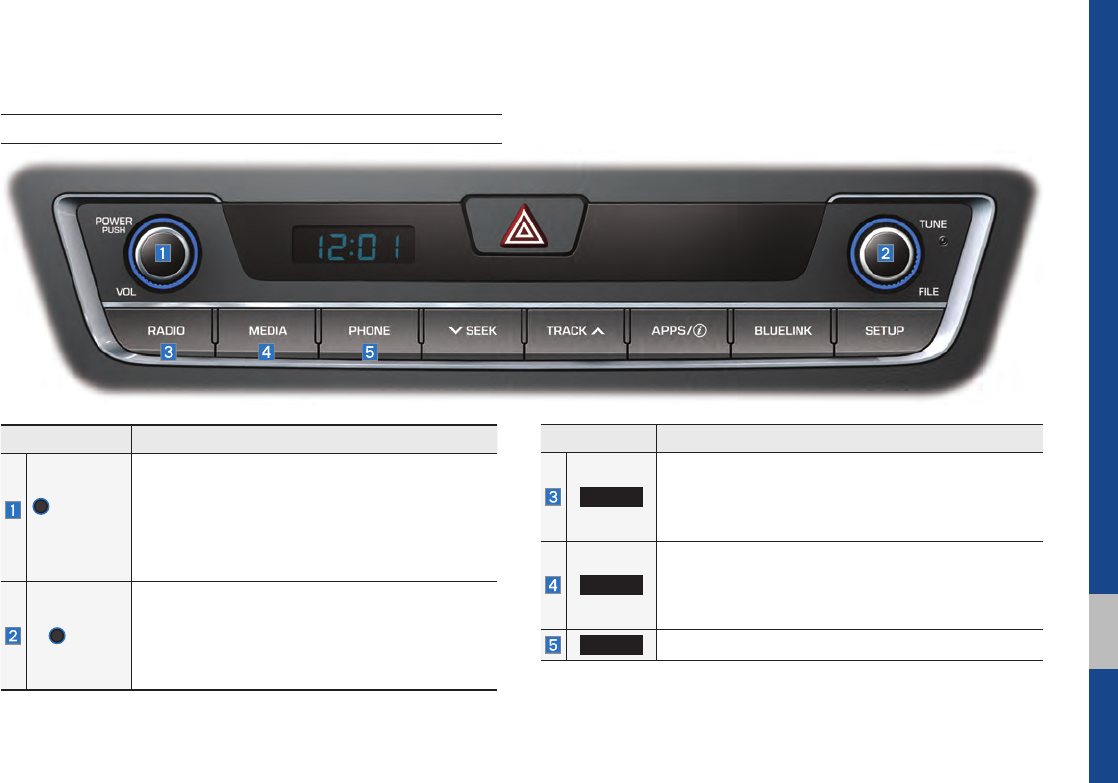

Head Unit
Name Description
POWER/
VOL
•When power is off, press to turn power on.
•When power is on, press and hold for over 0.8
seconds to turn the power off.
•When power is on, press shortly for less than
0.8 seconds to turn Audio off.
•Turn left/right to adjust the volume.
TUNE
•FM/AM mode: Changes the frequency.
•SiriusXM™ mode: Changes the channel.
•MEDIA (Disc/USB/iPod/My Music) mode:
Changes the track, file or title (except USB
Image, Bluetooth Audio, and AUX).
Name Description
RADIO
Converts to FM/AM/SiriusXM™ mode
•Each time the key is pressed, the mode is changed
in the following order: FM → AM → SiriusXM™ →
FM.
MEDIA
Moves to MEDIA mode.
•If the media is not connected or the CD player is
not available for this model, the MEDIA mode will
not be activated.
PHONE
Displays the Bluetooth phone mode.

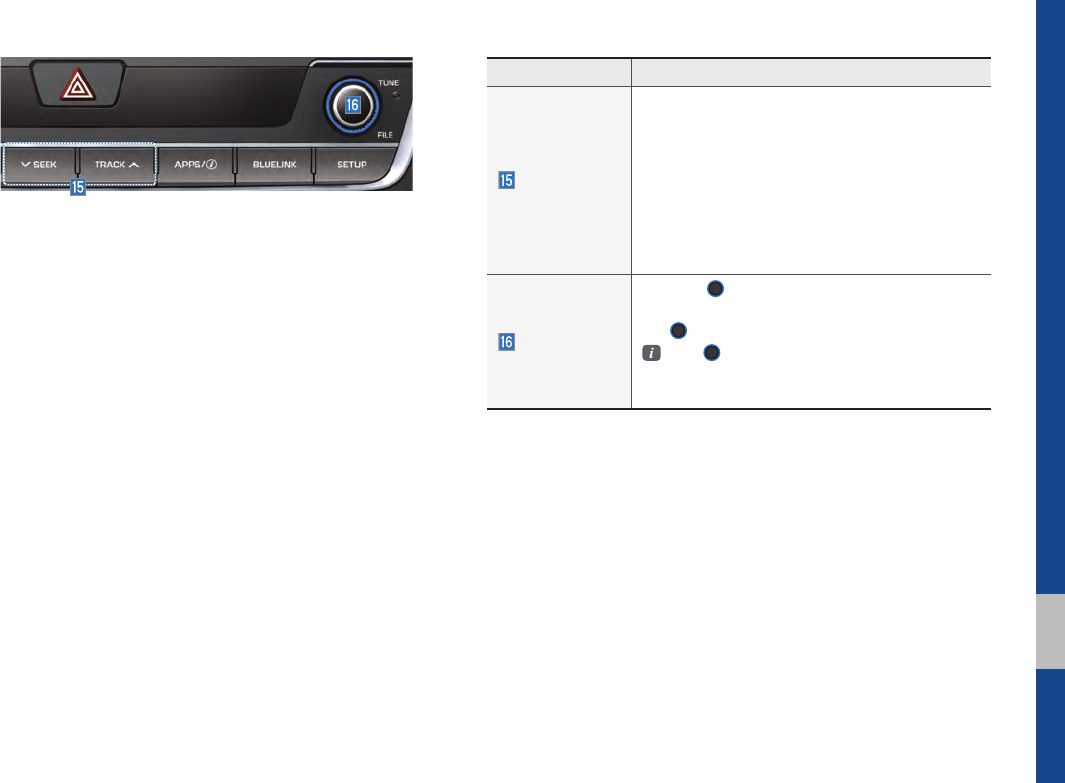

1-6 I Basic
Head Unit
Name Description
SEEK
TRACK
When the key is pressed shortly (for less than 0.8
seconds),
•FM/AM mode: Plays the previous/next frequency.
•SiriusXM™ mode: Changes the channel.
•MEDIA (Disc/USB/iPod/My Music) mode: Changes
the track, file or title (except for USB Image and
AUX).
When the key is pressed and held down (for over 0.8
seconds),
•FM/AM mode: Continuously changes the fre-
quency until the key is released.
•MEDIA (Disc/USB/iPod/My Music) mode:
Rewinds or fast forwards the track or file (except
for USB Image, Bluetooth Audio, and AUX).
Name Description
APPS/
Moves to the Apps/Info screen.
SETUP
Moves to the Setup screen.
Press to eject a disc.
DISP
Turns the screen on/off.
RESET
Resets the system settings. (Preset radio channels
and other data will not be deleted)
Component Names and Functions I 1-7
01
Name Description
When pressed quickly. (less than 0.8 seconds)
•If Android Auto is not connected, activates the
multimedia system voice recognition
•If Google voice recognition is activated, ends
Google voice recognition
When pressed and held. (more than 0.8 seconds)
•If the multimedia system voice recognition is acti-
vated, ends the multimedia system voice recognition
•If Android Auto is connected, activates Google
voice recognition
•If iOS device is connected through Bluetooth,
activates or ends Siri Eyes Free
VOL+
VOL-
Controls the volume
When keys are pressed quickly. (less than 0.8 sec-
onds)
•FM/AM mode : searches broadcast frequencies
saved to Presets
•SiriusXM™ mode : searches broadcast channels
saved to Presets
•MEDIA (Disc/USB/iPod/My Music) mode : changes
the track, file or title (except USB Image, AUX)
When keys are pressed and held. (more than 0.8
seconds)
•FM/AM mode : automatically searches broadcast
frequencies
•SiriusXM™ mode : automatically searches broad-
cast channels
•MEDIA (Disc/USB/iPod/My Music) mode : quickly
looks up songs (excluding USB images, AUX and
Bluetooth audio files)

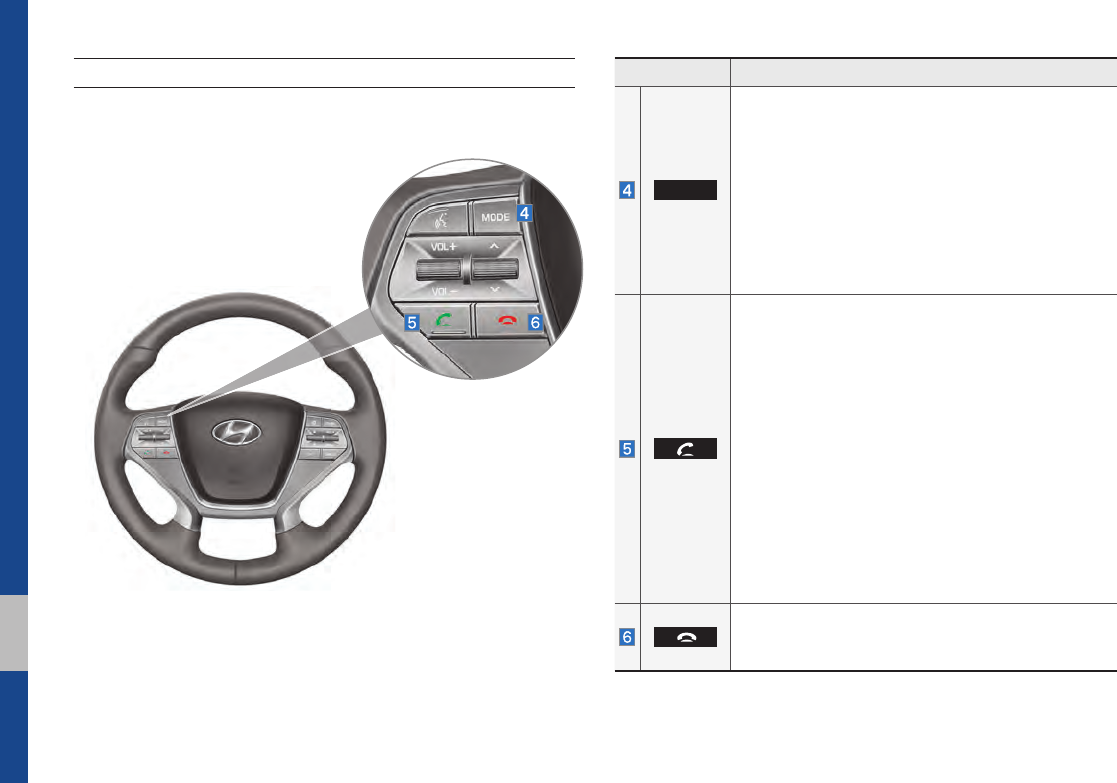

Steering Wheel Control
1-8 I Basic

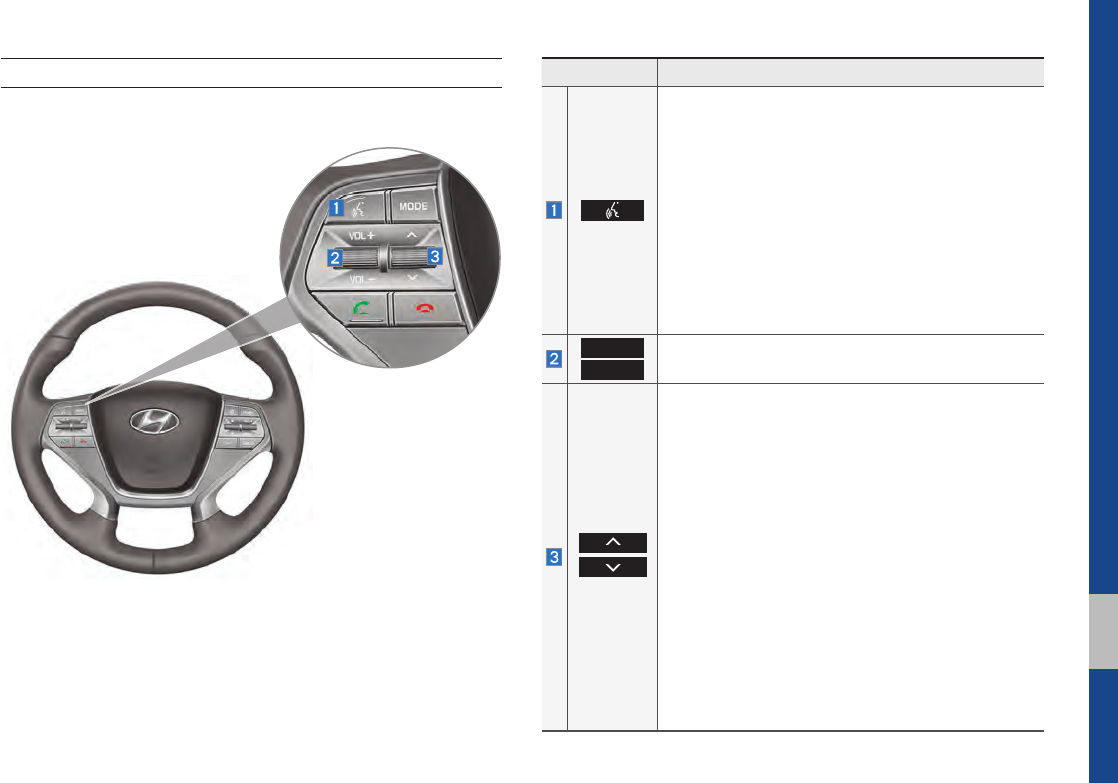

Steering Wheel Control
※The actual feature in the vehicle may differ from the illustration.
Name Description
MODE
•Each time this key is pressed, mode is changed
in the following order: FM → AM → SiriusXM →
Disc → USB or iPod → AUX → Bluetooth Audio
→ My Music → Android Auto → Pandora → FM
•If the media is not connected, the corresponding
modes will be disabled
•Press and hold the key (more than 0.8 seconds)
to turn the Audio system on/off
•When power is off, press the key to turn power
back on
When pressed quickly. (less than 0.8 seconds)
•When pressed in the dial screen, makes a call
•When pressed in the incoming call screen,
answers the call
•When pressed during call waiting, switches to
waiting call (Call Waiting)
When pressed and held. (more than 0.8 seconds)
•When pressed in Bluetooth
®
Hands-free, redials
the last dialed call
•When pressed during a Bluetooth
®
Hands-free
call, switches call back to mobile phone (Private)
•When pressed while calling on the mobile phone,
switches call back to Bluetooth
®
Hands-free
(operates only when Bluetooth
®
Hands-free is
connected)
•When pressed during a call, ends the phone call
•When pressed in the incoming call screen, rejects
the call
Starting the System for the First Time I 1-9
01
Starting the System for the
First Time
Turning the System On/Off
Press the engine start button or set the
ignition key to On or ACC. Each time you
turn on the system, a boot logo and safety
warning will appear.
Pressing the power key on the head unit

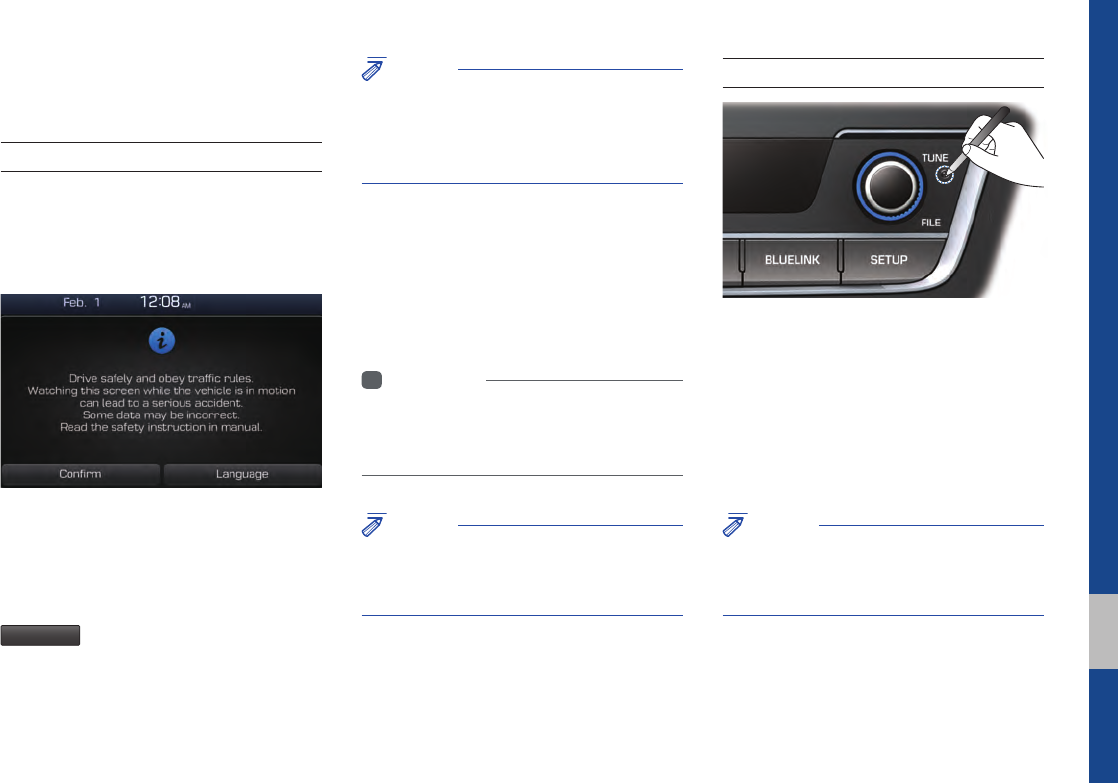

will display the safety guide. To change the
system language between English,
French, Spanish and Korean press the
Language
button.
NOTICE
• Cannot operate the system while it is booting
up. It may take some time for all of features of
the system, particularly the voice recognition
system, to be ready for use.
Pressing and holding the power key on the
head unit will turn off the system.
You can change Screen Saver Settings
in Setup to display a clock on the Screen
Saver.
i
Information
• If you turn off the system during a phone call
using the Hands-free feature, then the call will
automatically switch to your mobile phone.
NOTICE
• Check the volume when turning on the
system. Before turning on the system, adjust
the volume to a reasonable level.
System Reset
The System Reset function restores the
system when it is not operating correctly.
Press and hold the RESET key for a sec-
ond or longer. (It is recommended that you
press the RESET key using a tool, such as
a pin or a clip.)
NOTICE
• Resetting the system restores all existing
settings and configurations (e.g. volume,
display, etc.) back to their factory defaults.
1-10 I Basic
Battery Warning Message
Always use the system while the car
engine is running. If you turn on the sys-
tem while the engine is off, a battery warn-
ing message will appear. When the engine
starts, the message will disappear.
NOTICE
• If you use the system for a long time with
the engine off, the battery may become
completely discharged.
Restrictions on Features for
Safety Measures
Several features are limited while driving.
The restriction screen will disappear when
shifting gears into P or putting the parking
brake on.
Starting the System for the First Time I 1-11
01

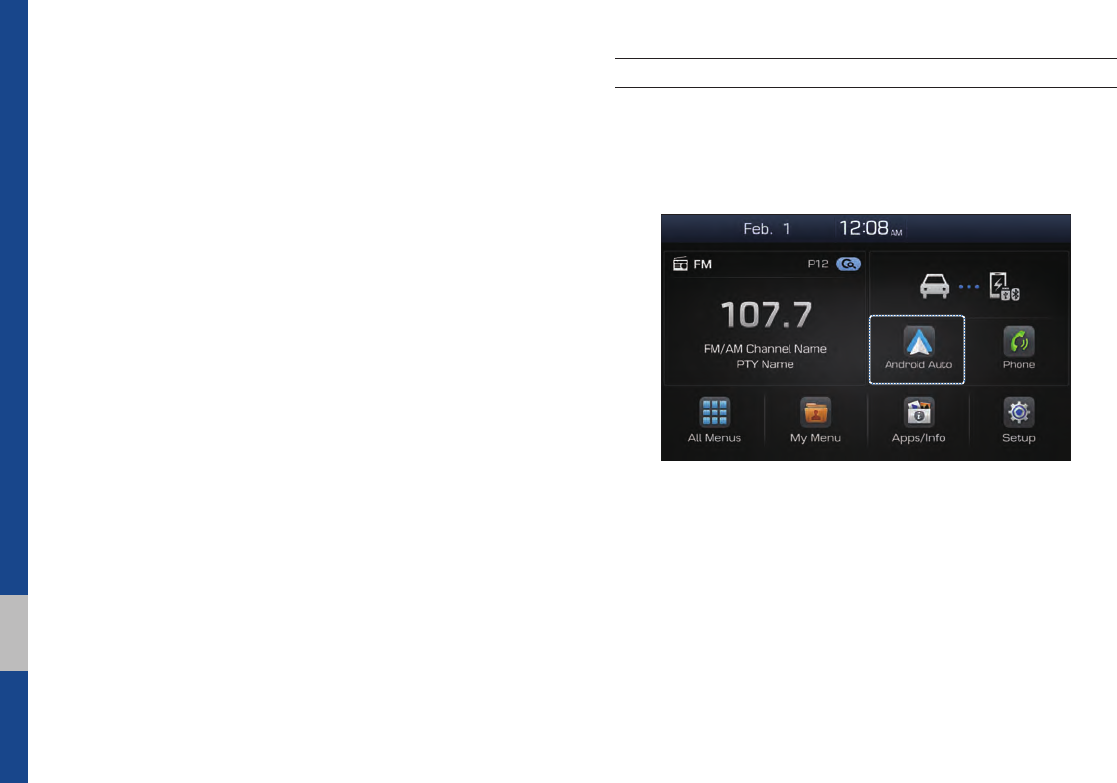

Features Description
Radio/Media
Widget
•Shows brief information on the radio or
media that is now playing.
•Tap the area to move to the mode that you
are listening to.
Connectivity
Widget
Shows any connected devices such as
Android Auto, iPod, Pandora, and Bluetooth.
All Menus Shows all of the items in the system menu.
My Menu
•You can add up to eight menus here.
•Add your favorite menus to have quick and
easy access to them.
Apps/Info Moves to the Apps/Info screen.
Setup Moves to the Setup screen.
Home Screen

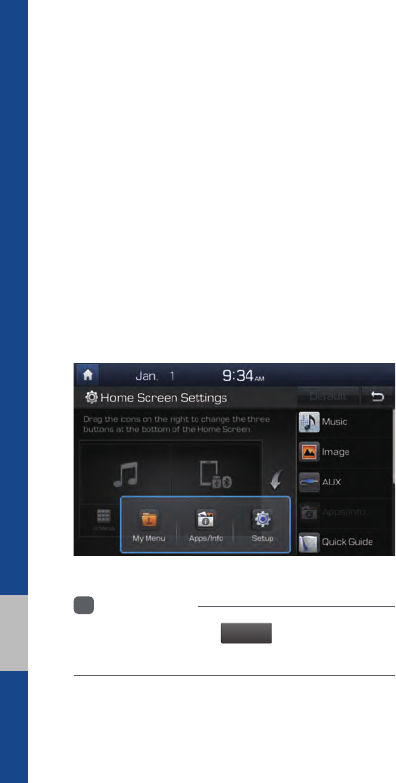

Controls Menu Confi guration for the Home Screen
Information Display on the Status Bar
Displays the date and time, along with the system status shown
by the various icons to the right of the clock.
The icons in the following table indicate the various types of sys-
tem status details and events.
Icon Description
Displayed when the audio is muted.
Displays the remaining battery of the Bluetooth phone.
Displayed when connected to Bluetooth for handsfree.
Displayed when connected to Bluetooth for streaming audio.
Displayed when connected to Bluetooth for streaming audio and handsfree.
Displayed when downloading contacts or recent calls from the Bluetooth phone.
Displayed while on a call with the Bluetooth phone.
Displayed when the microphone of the Bluetooth phone is muted.
Displays the signal strength of the Bluetooth phone.
1-12 I Basic

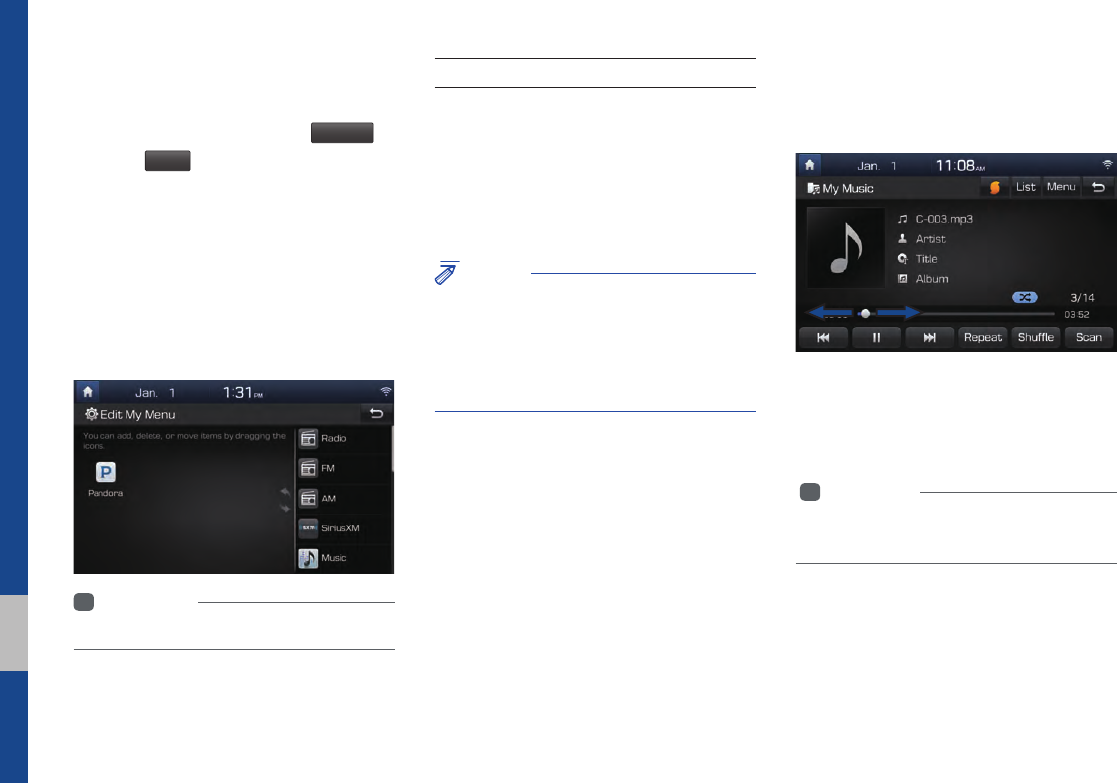

Adding Your Favorite Menu Items to My
Menu
From the Home screen, select
My Menu
▶
and then
Edit
.
From the Edit My Menu screen, select
menu items from the list on the right, then
drag and drop them to a desired place on
the left.
To remove the item from My Menu, drag
item from the left and drop them on the
right.
i
Information
• Up to eight items can be added to My Menu.

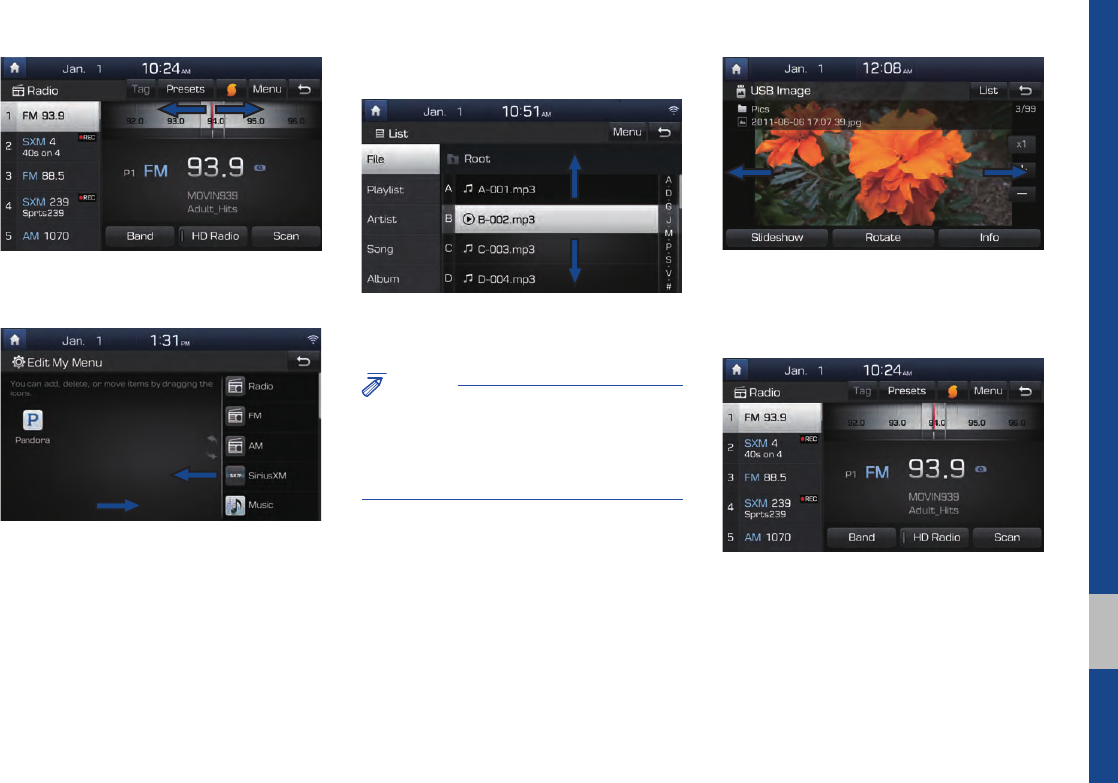

On-Screen Touch Controls
Learn how to touch the screen to operate
the system.
Select
Tap lightly on a menu or an item to select it.
NOTICE
• The system will not recognize your touch if
you wear a glove or other non-conductive
material. Touch the screen using your fi nger,
an electrostatic touch-screen glove, or a stylus
pen.
Drag & Drop
Select a menu or item you want, then drag
and drop it to where you want to place it.
Drag or touch the slider along the play bar
in the music screens to jump to the point
that you want to play from.
i
Information
• Music screens for Disc CD and Disc MP3 do
not support this function.
Starting the System for the First Time I 1-13
01
Drag the frequency bar to the left or right
to move to the frequency that you want.
From the Edit My Menu screen, drag and
drop icons to add, delete, or move to/from
My Menu.
Flick (Quick Scrolling)
Quickly moves up and down in the list.
NOTICE
• Moving the list when there are many items will
display a handler on the right of the display.
You can easily move many items at a time
with the handler
You can view the previous or next image
by flicking left/right on an image on the
USB Image screen.
Flick left/right on the frequency bar in the
radio player to look up the previous/next
frequency available.
1-14 I Basic

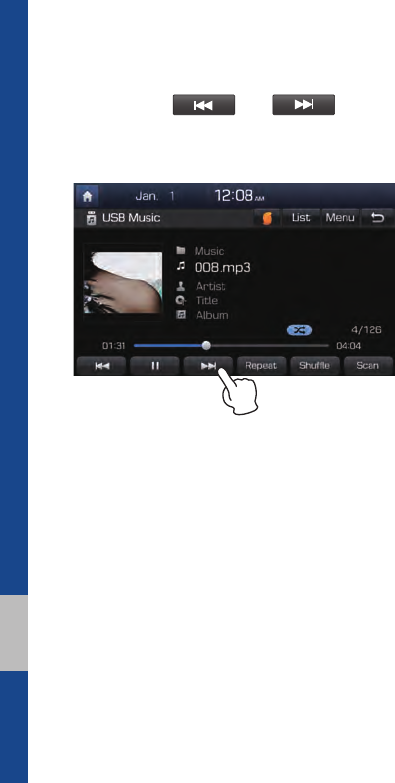

Press and Hold
Pressing the and buttons
in the music player will fast forward/rewind
the music.
FM/AM
HD Radio™ Technology
SiriusXM™
About Disc
CD
MP3
USB
iPod
AUX
Bluetooth® Audio
My Music
part.2 Radio/Media
2-2 I Radio/Media

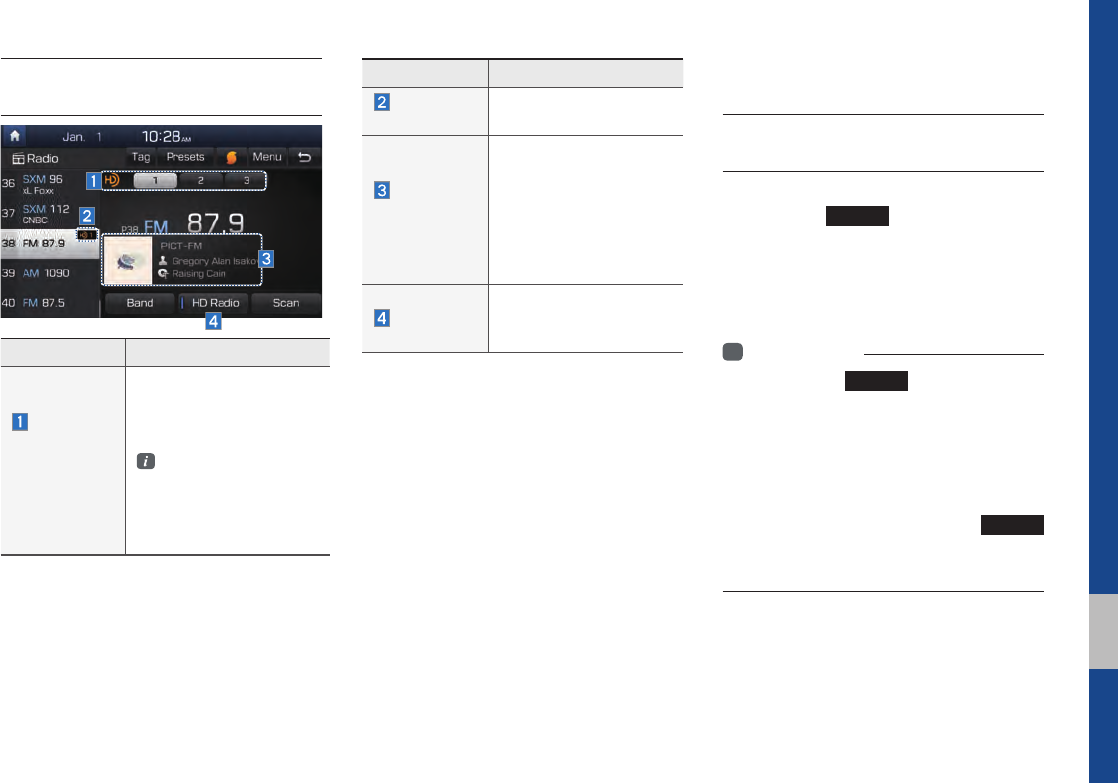

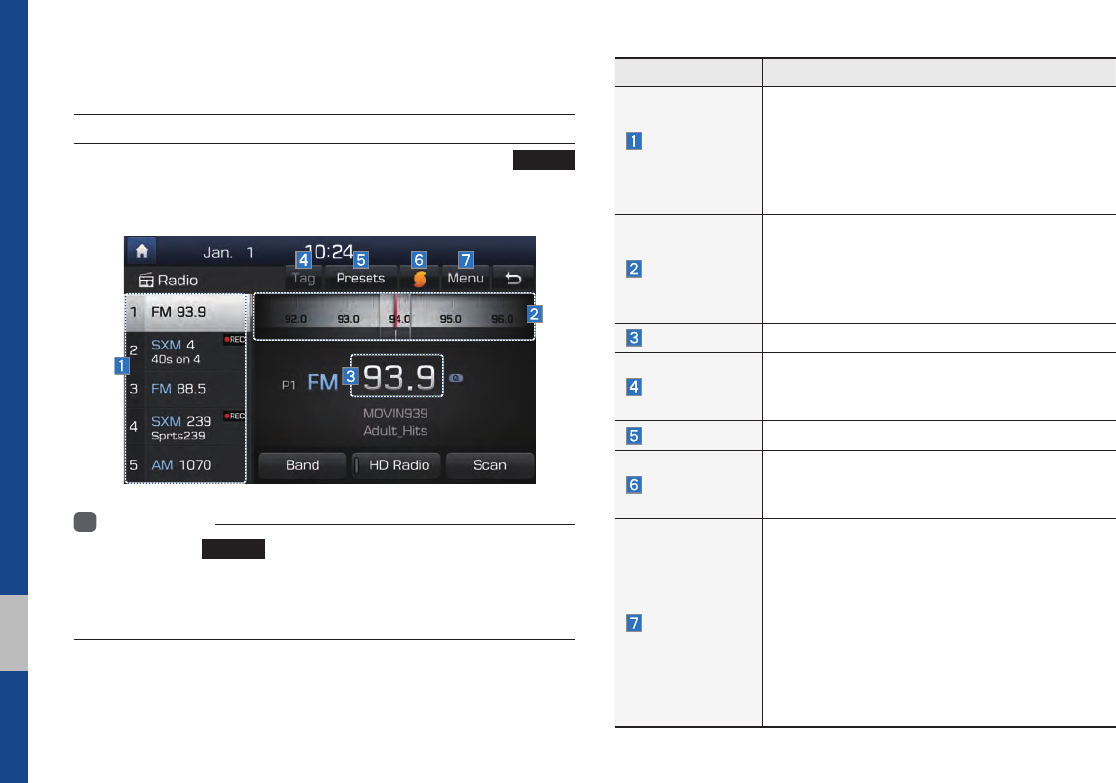

Features Description
Preset
Frequencies
•The stored preset frequencies are displayed for
user selection.
•After selecting frequency, press and hold the
preset button for over 0.8 seconds. A beep
sound will be heard and the frequency is to be
stored in the selected preset button.
Frequency Bar
•Flick the frequency bar left/right to search for
available radio channels to the left or right of
the current channel.
•Dragging: Drag the frequency bar to the left/
right to find the radio channel that you want.
Frequency Displays the current frequency.
Tag
Saves the current music’s tag information to the
head unit. If connected to iPod, the tag informa-
tion can be saved on the device.
Presets Shows the stored presets for user selection.

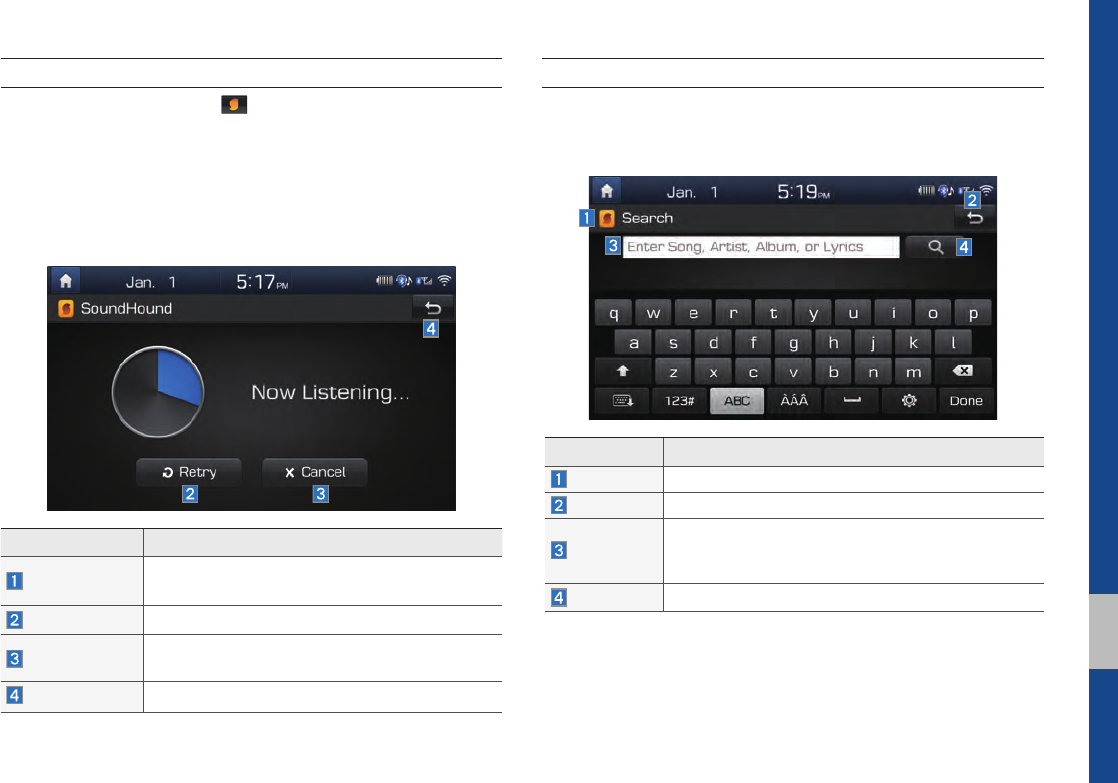

SoundHound
Runs the SoundHound feature.
For more information, please see the SoundHound
section in Info part.
Menu
•List
Moves to the frequency list.
•Info
Turns the Radio text information transmitted
from the broadcasting station on and off.
•Preset Scan
Plays preset frequencies for 10 seconds
peritem.
•Sound Settings
Moves to the Sound Settings.
Radio/Media
FM/AM
Accessing FM/AM Mode
You can access the radio player either by pressing the
RADIO
key or by selecting the Radio menu from All Menus on the Home
screen.
i
Information
• If you press the
RADIO
key when power is off, the power will turn on
and a radio broadcast will be tuned up.
• If you are in radio mode, select the media widget from the Home screen
to access the radio player.
FM/AM I 2-3
02
Features Description
Scan/Preset
Scan
Displays an active mode from Scan and Preset
Scan modes.
Band
Changes to the desired band from among FM, AM,
and SirusXM.
HD Radio Used to set whether to turn HD Radio™ recep-
tion On or Off.
Scan
Shortly plays the broadcasts for the frequen-
cies with superior reception for 5 seconds per
item.
SEEK/TRACK
•Pressing this button briefly (less than 0.8 sec-
onds) : Seeks the previous/next frequency.
•Pressing and holding this button (for more
than 0.8 seconds) : Moves quickly through
all of the frequencies. The moment that you
release the button, the system seeks the next
available frequency.
TUNE
Turn the
TUNE
knob to manually seek avail-
able frequencies.
•FM : Increment/decrement by 200 kHz
•AM : Increment/decrement by 10 kHz
2-4 I Radio/Media
If an HD Radio™ broadcast is received,
the radio mode will switch from analog
broadcast to HD Radio™ broadcast.
i
Information
• The
HD Radio™
screen is displayed only
when a HD Radio™ broadcast is being
received
Program Service Data :

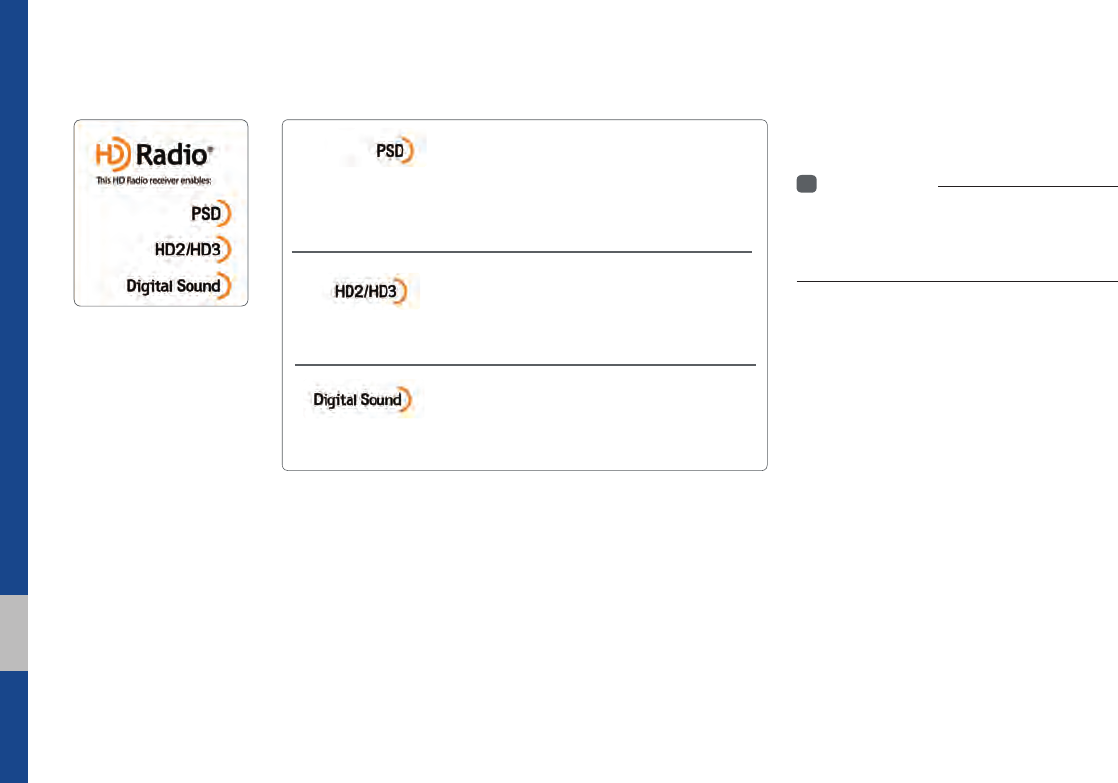

Contributes to the superior user experience of HD
Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3
Channel Guide, and other relevant data streams.
Adjacent traditional main stations are extra local FM
channels. These HD2/HD3 Channels provide new, origi-
nal music as well as deep cuts into traditional genre.
Digital, CD-quality sound. HD Radio™ Technology
enables local radio stations to broadcast a clean digital
signal. AM sounds like today’s FM and FM sounds like a CD.
HD Radio™ Technology
SiriusXM™ I 2-5
02
Basic Mode Screen
(HD Radio™ reception ON)
SiriusXM™
SiriusXM™ Mode
Hard Key Controls

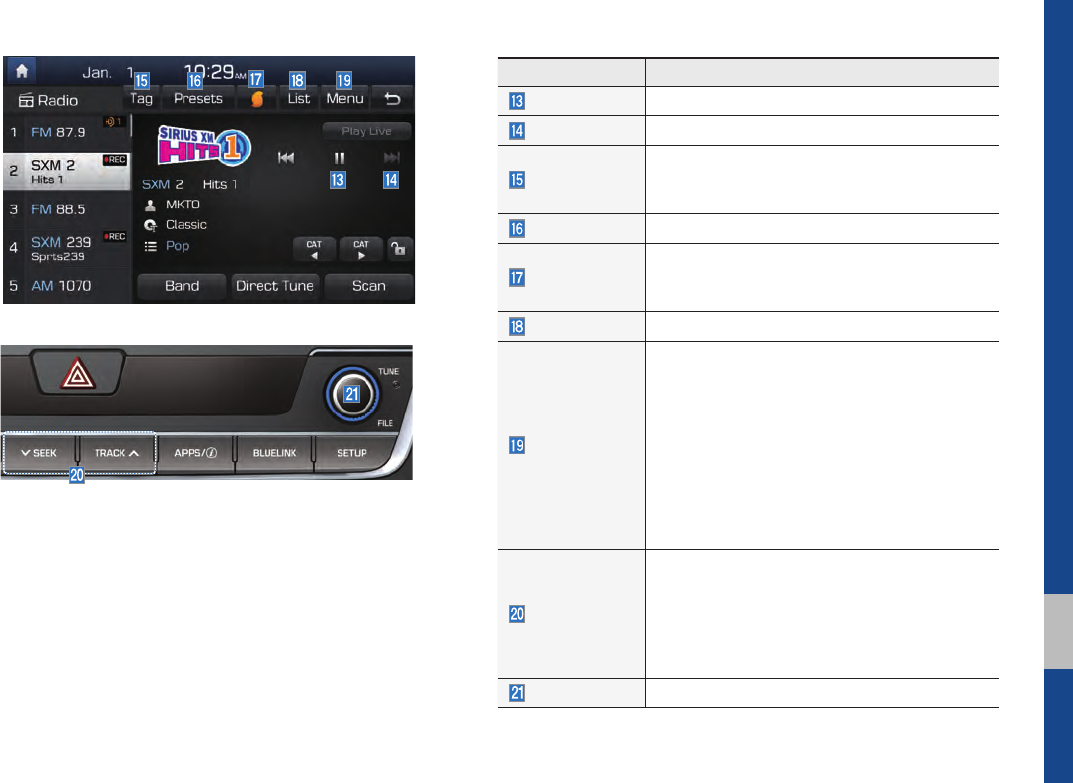

You can access the radio player either by
pressing the
RADIO
key or by selecting
the Radio menu option from All Menus on
the Home screen. Select the SiriusXM™
band from the radio player.
i
Information
• If you press the
RADIO
key when the power
is off, then the power will turn on and a radio
broadcast will be tuned up.
• If you are in the SiriusXM™ mode, select
the SiriusXM™ radio widget from the Home
screen to access the radio player.
• When the power is off, pressing the
RADIO
key will turn the power on and play a
SiriusXM™ Radio broadcast.
Name Description
HD Radio™
Reception
&Channel
buttons
Displays main HD Radio™
channels and used to directly
select the current available
channels.
The HD Radio™ related
icon display becomes
active within regions
where an HD Radio™
signal can be received.
Name Description
HD Channel
Number
HD channel number that
is stored in presets.
HD
Broadcast
Info
Displays detailed infor-
mation about the current
broadcast. If the HD
Radio is turned on, the
information for album art,
artist, and song appears
(if available)
HD Radio
Used to set whether to
turn HD Radio™ recep-
tion On/Off.
2-6 I Radio/Media
SiriusXM™ Mode Display Controls
Features Description
Preset
Frequencies
•Shows the stored presets for user selection.
•After selecting frequency, press and hold the
preset button for over 0.8 seconds. A beep
sound will be heard and the frequency is to
be stored in the selected preset button.
Channel Logo Displays the current channel logo.
Channel Info Displays the current channel number and name.
Content Info Displays the category of the currently playing
song.
Category Info Displays the artist, title and other information
about the current playing song
Band Changes to the desired band from among FM,
AM, and SirusXM.
Direct Tune Plays all receivable channels for 10 seconds each
Scan Plays all receivable channels for 10 seconds
peritem.
Category Lock If pressed, only the channels for the current cat-
egory can be searched or scanned.
Category
Selection Buttons
Used to select the previous/next category.
Play Live Switches to the live broadcast mode.
Skip Backward
Repeats the previously broadcasted program.
•Holding for less than 0.8 seconds : Moves to
the previous segment.
•Holding for more than 0.8 seconds : Moves to
the previous 5 seconds.
SiriusXM™ I 2-7
02
Features Description
Play/Pause Pauses/plays the current broadcasting program.
Skip/Forward Moves to the next segment.
Tag
Saves the current music’s tag information to the
head unit. If connected to iPod, the tag informa-
tion can be saved on the device.
Presets Shows the stored presets for user selection.
SoundHound
Runs the SoundHound feature.
For more information, please see the SoundHound
section in Info part.
List
Moves to the channel list.
Menu
•What is on My Presets?
The program schedule saved in my preset. (For
more details, see Section 2.5. Viewing Menu.)
•Featured Favorites
Theme channels recommended by SiriusXM™ .
(For more details, see Section 2.5. Viewing Menu.)
•Preset Scan
Plays preset channels for 10 seconds each.
•Sound Settings
Moves to the Sound Settings.
SEEK/TRACK
•Pressing this key shortly (for less than 0.8 sec-
onds) : Plays the previous/next channel.
•Pressing and holding this key (for more than 0.8
seconds) : Continuously changes the channel
until the key is released and plays the current
channel.
TUNE Changes the channel.
2-8 I Radio/Media

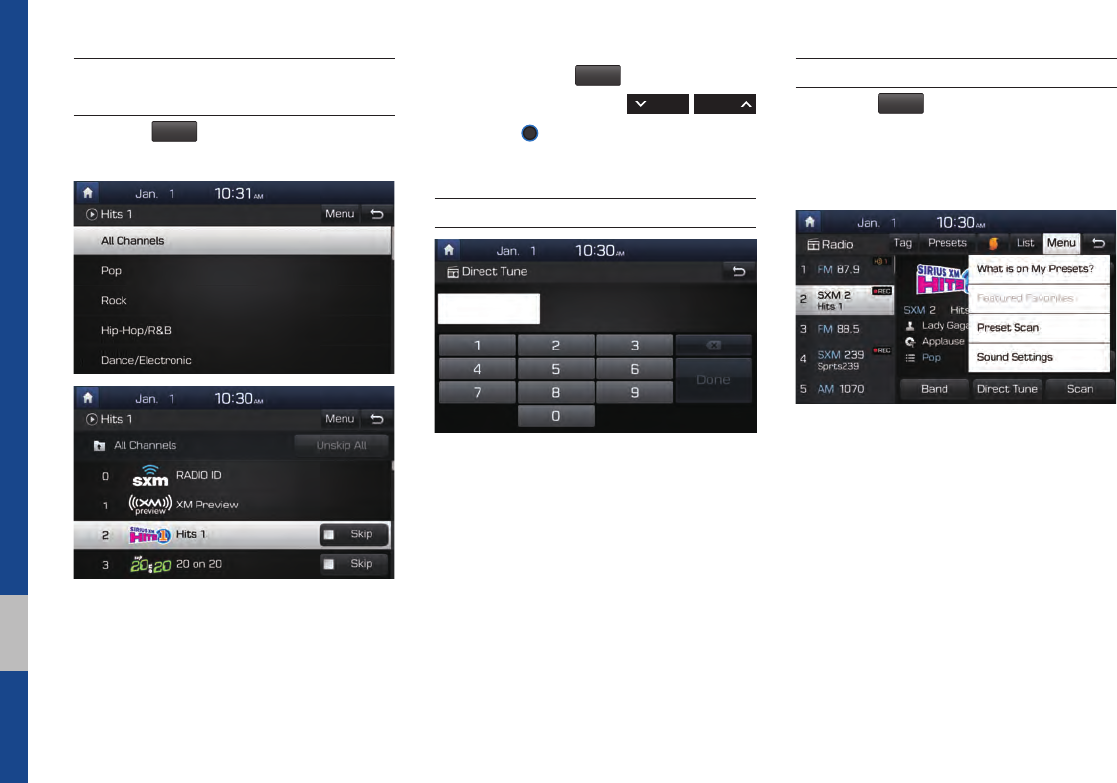

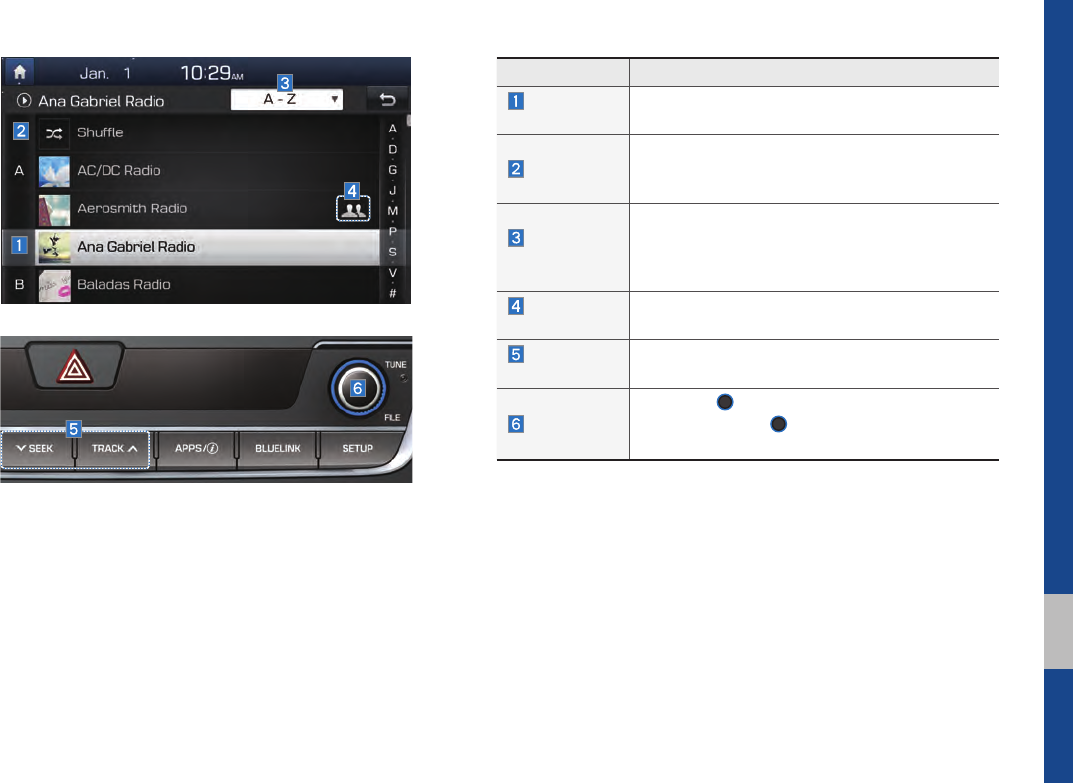

Selecting through
Channel/Category List
Press the
List
▶ Select the desired cat-
egory and channel.
Select the desired category and the chan-
nel. Once selected, the previous screen
will be restored and the selected channel
will begin playing.
If you select the
Skip
button, you can
scan channels using the
SEEK
TRACK
key or the
TUNE
knob by skipping the
channels that you chose to skip.
Direct Tune
Enter the number of the channel you want
to receive.
Viewing Menu
Using the
Menu
button on the right, you
can view the program schedule and infor-
mation about the Featured Favorites pro-
vided by SiriusXM™ .
SiriusXM™ I 2-9
02
Name Description
Change
Broadcast
Date
By selecting this option, you can select a broad-
casting date and time zone.
Broadcast information will be provided for one week
from the current date.
Preset
Shows saved presets for user selection
A total of 18 frequencies for SiriusXM™ modes
can be displayed
Broadcasting
Time You can select the time that you want.
Program
Information
Shows you the program titles to be broadcasted at
the time that you have chosen.
Select a program to see more details.
If there is more information on the program you
selected, an arrow button will be displayed on
the right of the list. You can see more program
information by selecting the arrow button.

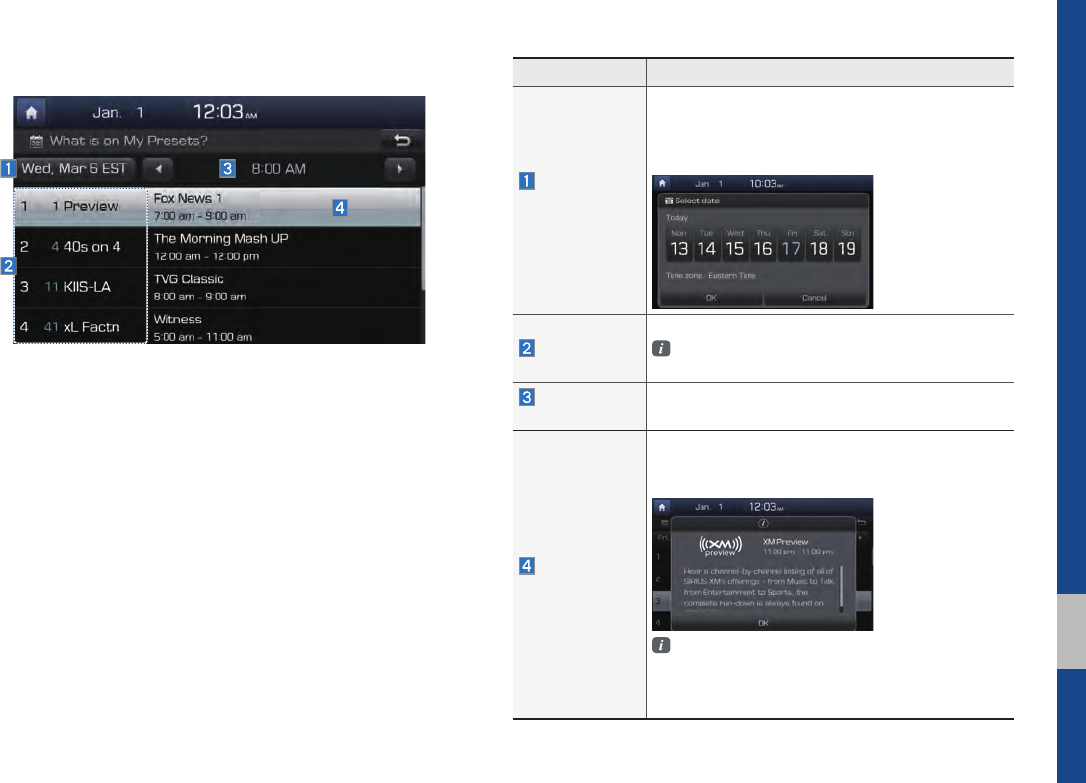

What is on My Presets? (Program Schedule)
You can select Menu to see program information and the sched-
ules of broadcast channels listed in the presets.
2-10 I Radio/Media

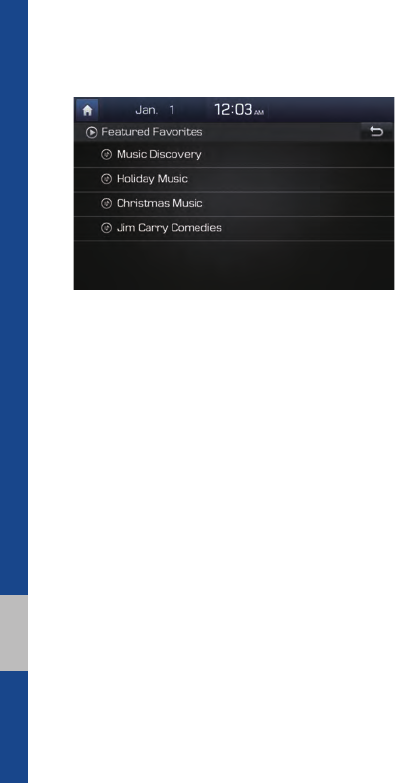

Featured Favorites
Featured Favorites feature allows
SiriusXM™ to broadcast additional presets
•Example 1 : "Martha's Favorites" may
represent Martha Stuart's favorites pre-
sets on her radio
•Example 2 : During holidays, "Holiday
Music" may represent all the SiriusXM™
channels that are playing the holiday
music for easy access by users
Multiple sets Featured Favorites data
can be broadcast by SiriusXM™ and can
change from time to time
About Disc I 2-11
02
About Disc
Precautions upon Handling Discs
CAUTION
• After using a disc, put the disc back in its
original case to prevent disc scratches.
• Do not use abnormally shaped discs (8cm,
heart-shaped, octagon-shaped) as such discs
could lead to errors.
• Do not clean discs with chemical solutions,
such as record sprays, antistatic sprays,
antistatic liquids, benzene, or thinners.
• Do not expose the disc to direct sunlight or
high temperatures for prolonged periods of
time. Such exposure may lead to disc defor-
mation.
• Upon playing a disc contaminated by dirt
or other substances, the sound quality may
deteriorate and result in skipping sounds.
Writing on either side of the disc could result
in damage to disc surfaces.
• Clean fingerprints and dust off the disc
surface (coated side) with a soft cloth.
• Copy-protected CDs, such as S-type CDs,
may not properly operate in the device. DATA
CDs cannot be played. (However, such discs
may still abnormally operate.)
• Do not disassemble the device. Contact a
designated service center in case of problems.
(Complete after service assistance will not be
provided if the user disassembles the device.)
• Do not use water to clean the device.
Exposure to water could lead to product
damage.
• Do not introduce foreign substances into
the disc insert/eject slot. Introducing foreign
substances could damage the device interior.
• The device may not properly operate
in extremely hot or cold temperatures.
(The operating temperature range is : 14˚F ~
150˚F)
• Steam can become condensed on the fi ber-
optic lens due to rain, wet conditions, or
upon operating the heating system. In such
cases, discs may not be properly recognized.
Remove the disc and wait until the moisture
dries.
• Skipping may occur during audio play when
driving on bumpy roads for prolonged periods
of time or upon severe shock to the vehicle. In
case of severe shock, audio may not properly
play.
2-12 I Radio/Media
Supported Disc Formats
This device supports the following disc for-
mats.
Disc Type
Disc Type Disc Format Device Support
CD
3inch (8cm)
5inch (12cm)
CD
CD-R
CD-RW
Multisession-CD
X
O
O
O (Read Only)
O (Read Only)
O (Read Only)
SACD
SACD
(Single, SACD layer)
SACD (Hybrid)
X
X
(Only CD layer)
Disc Format
Disc Type Disc Format Device Support
CD
CD-DA
MP3
WMA
MPEG4 AAC
DTS-CD
CD-ROM
CD-G
CD-EXTRA
CD-TEXT
O
O
O
X
X
O
X
O
O
Disc/Content Format
Compatibility
By Format according to Disc Type
Disc Type Disc Format Device Support
CD LPCM
O
MP3
MPEG1, Layer3
MPEG2, Layer3
MPEG2.5
O
O
O
WMA Ver9
O
Ordinary Disc Compatibility
This device has been designed/ manufac-
tured to be compatible with software bear-
ing the following logo marks.
•CD-R/RW discs (Audio CD) created
with CD recording devices or PCs may
not properly operate in the device.
This is a result of various causes,
including disc format, recording method,
and contamination to the disc or lens.
$XGLR&'
About Disc I 2-13
02
CD-R/RW Compatibility
•This device supports CD-R, CD-RW,
and MP3 discs burned in Audio CD for-
mats.
•The recording of CD-R and CD-RW
discs with this device is not supported.
•CD-R/RW discs recorded as audio CDs
that were not finalized are not supported
by this device.
PC-created Disc Compatibility
•When burning a disc on a PC, the disc
may not operate in this device depend-
ing on the software settings. In such
cases, inquire with the software manu-
facturer.
•Additional information regarding com-
patibility is displayed on the CD-R/RW
software disc box.
•DVD-R/W discs are not compatible with
this device.
Cautions upon Writing CDs
•When a multi-session disc is being
recorded, make sure to close the ses-
sion before recording.
•If MP3/WMA file extensions are
changed, such could result in errors.
•In the case of MP3/WMA, write using
only English. (Other languages are not
supported)
•Unauthorized use of copy-protected
music files is prohibited by law.
•Prolonged use of CD-R/CD-RW prod-
ucts that do not satisfy related specifica-
tions may result in abnormal operation.
•When writing CDs, low-speed writing is
recommended.
Compressed Audio Compatibility
•Physical formats of CD : Model 1, Model
2 XA format 1.
•This device supports audio file com-
pressed through MPEG-1 audio stream
layer 3 (MP3) using 8kbps ~ 320kbps.
(CBR or VBR)
•For stable operation, the use of files
in 95kbps~192kbps bit rate range and
44.1kHz SAMPLING frequency is rec-
ommended.
•This device supports WMA audio files
using 20kbps ~ 320kbps. (CBR or VBR)
•Variable bit rate files may operate, but
the play time information may not be
properly displayed.
•This device only supports tracks with file
extension of “.mp3” or “.wma”.
•This device does not support multises-
sion discs.
•This device supports only 8 layer fold-
ers.
2-14 I Radio/Media
•This device supports MP3 ID3 tag ver-
sions of Ver. 1.0, Ver. 1.1, Ver. 2.2, Ver.
2.3, Ver. 2.4. When using discs with
other versions, the ID3 info will not be
displayed.
•Although this device has been desig-
nated to be compatible with various bit
rates, playing low bit rate MP3 tracks
may result in low quality sound.
Before Playing an MP3 Disc
Supported MP3 File Specifi cation
•Acceptable standard: MPEG1 Audio
Layer 3.
•Acceptable sampling frequency :
8, 11.025, 12, 16, 22.05, 24, 32, 44.1,
48(kHz).
•Acceptable bit rate : 8 ~ 320 (Kbps).
Recommended Bit Rates and Frequency
•Sampling frequency : 96 ~ 192 Kbps
fixed bit rate/44.1kHz.
NOTICE
• Supported ID3 tags : ID3v1.0, ID3v1.1,
ID3v1.2, ID3v2.2, ID3v2.3, ID3v2.4.
• Supported MP3 Media : CD-ROM.
• Supported media formats : ISO9660 LEVEL1
and LEVEL2.
Detailed Specifi cation
•Maximum directory layers : 8 layers.
•Maximum folder length : 64 bytes, file
name length: 64 bytes.
•Supported characters for folder name/file
name: 2350 characters for Alphanumeric
character and Korean character sets,
4888 characters for Simplified Chinese
character set.
•Maximum number of folders per disc :
256 folders. (including ROOT)
•Maximum number of files per disc : 512
files.
Precautions upon Burning MP3 Files
•The use of ISO 9660 LEVEL 2 JOLIET
format is recommended.
•Up to 32 characters in Korean/Chinese
are supported for file names and up to
20 characters in Korean/Chinese are
supported for folder names.
•The use of CDs exceeding 700MB may
result in faulty disc recognition or errors
upon play.
About Disc I 2-15
02
MP3 File Structure

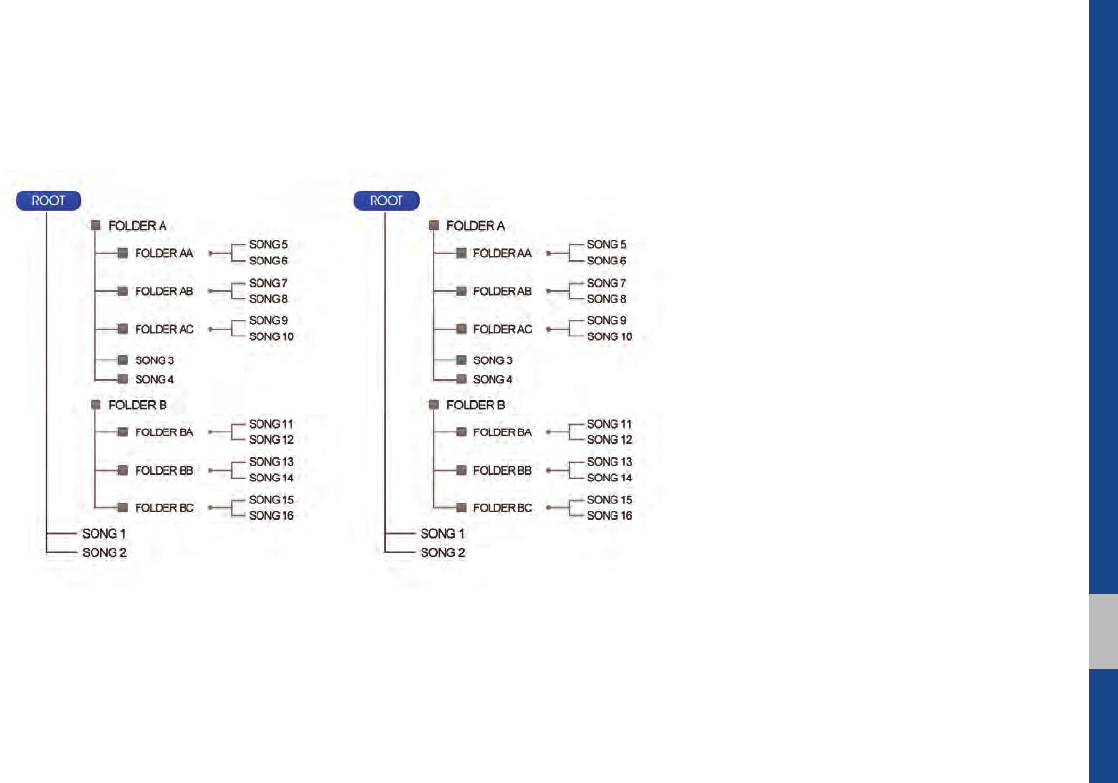

Recognition occurs through the same folder structure used within the disc.
Folder structure as saved in CD-ROM Folder structure as saved in the system
2-16 I Radio/Media
CD

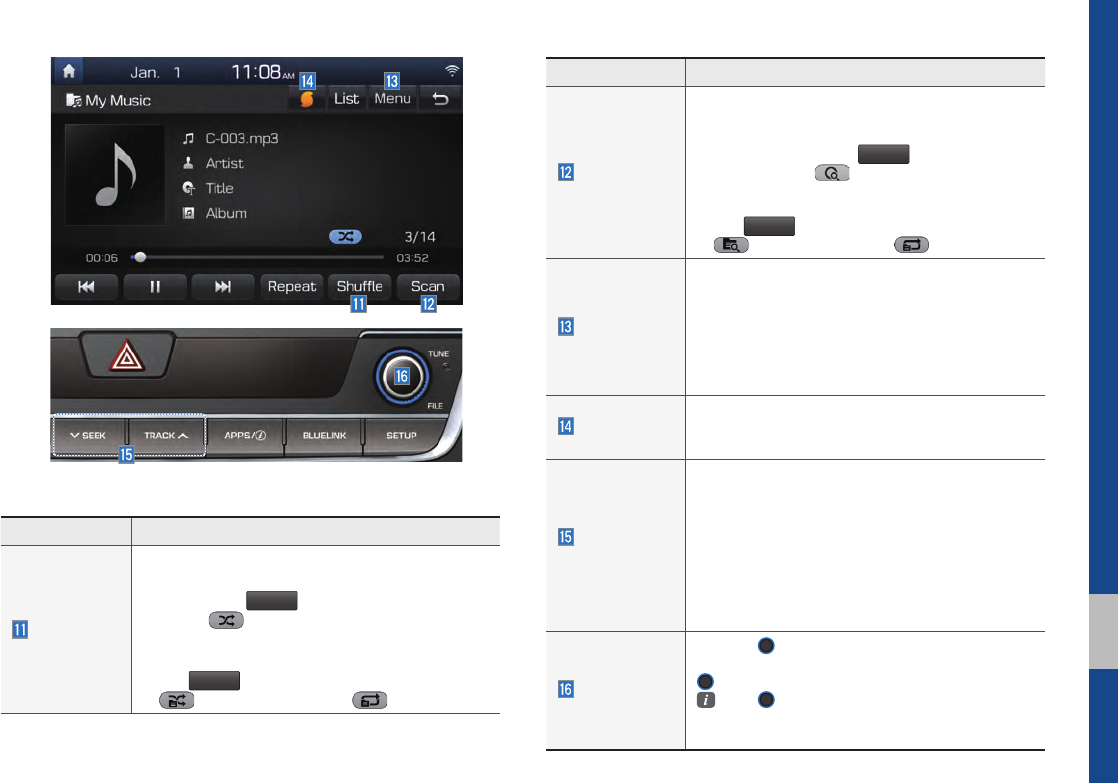

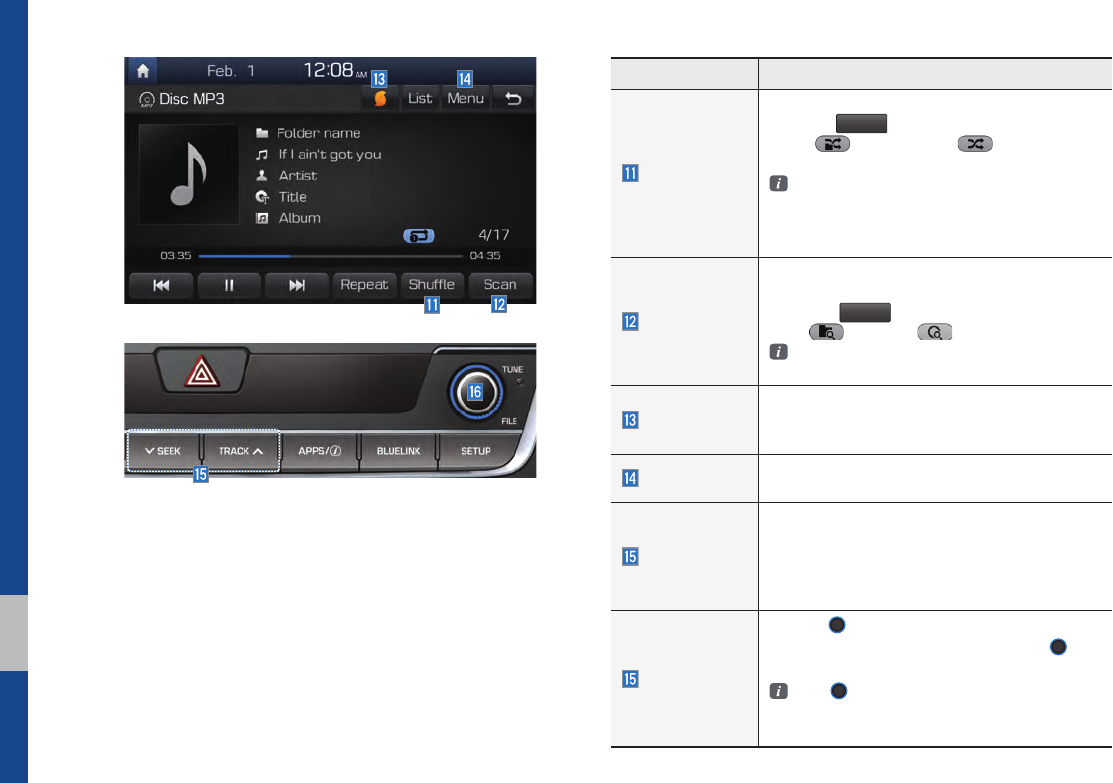

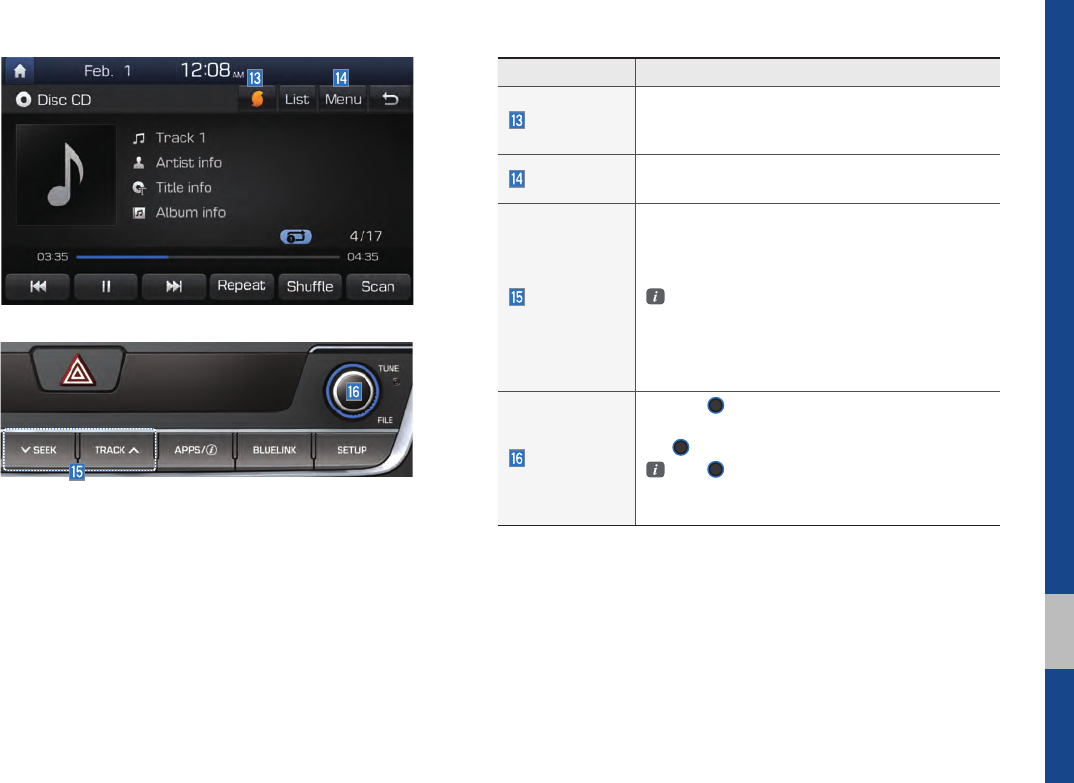

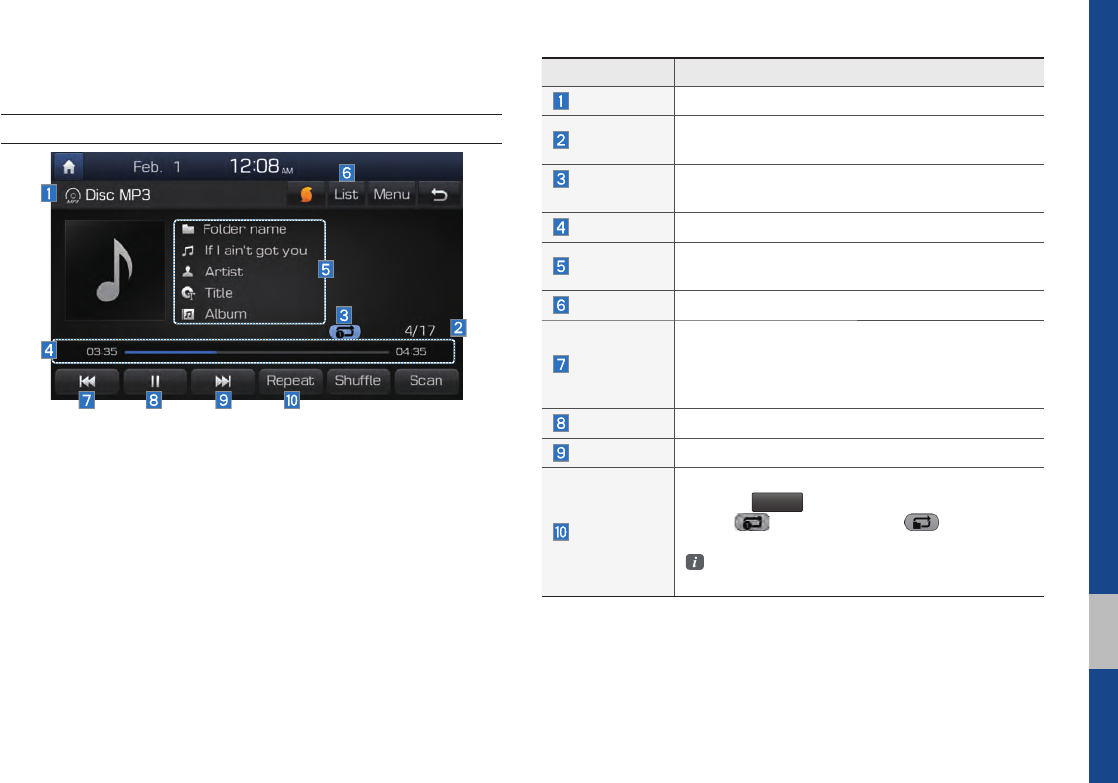

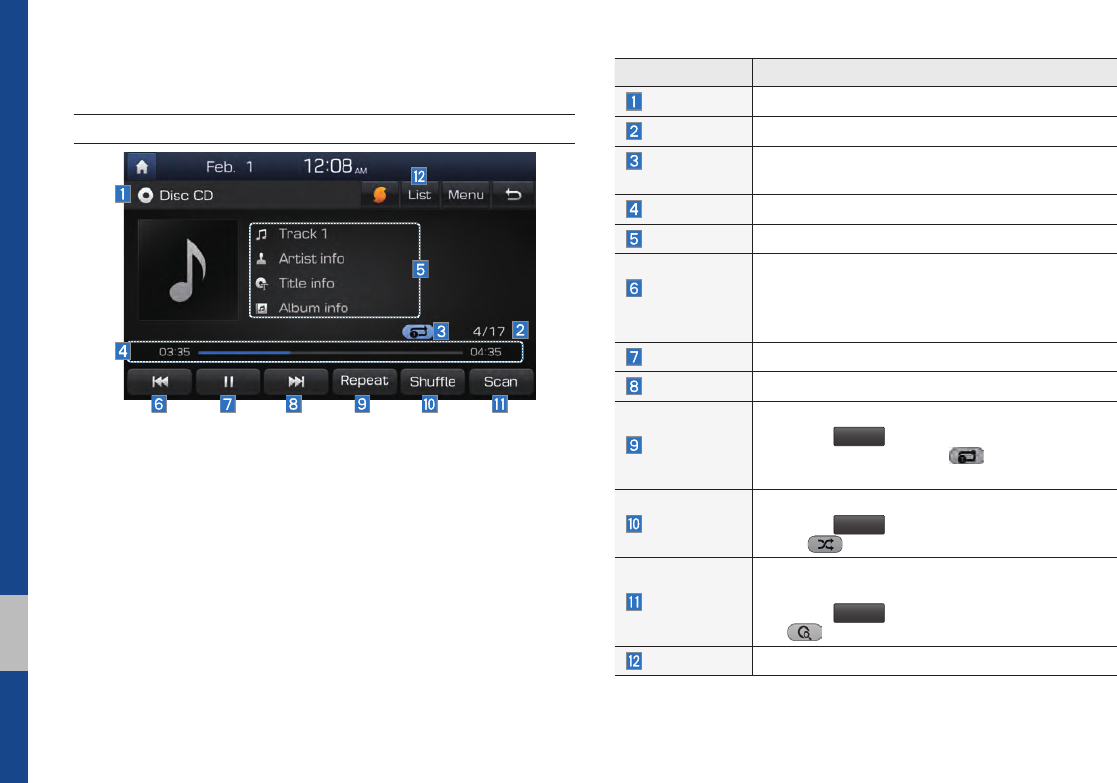

Basic Mode Screen
Name Description
Mode Displays current operating mode
Track Index Shows the current track/total tracks
Repeat/
Shuffle/Scan
From Repeat/Shuffle/Scan, displays the current
operating function
Play Time Displays the current play time
Play Info Displays track/artist/title/album information
Previous
Tra c k
•When the play time is under 3 seconds the
previous track
•When the play time is over 3 seconds current
song from the beginning
Play/Pause Plays/pauses the current track
Next Track Moves to the next track
Repeat
Repeats the current track
Press the
Repeat
button to switch between
repeating the current track → and turning
repeat off
Shuffle
Plays disc tracks in random order
Press the
Shuffle
button to switch between shuf-
fle all → and turning shuffle off
Scan
Scans the beginning parts of disc tracks (approx.
10 seconds per track)
Press the
Scan
button to switch between scan
all → and turning scan off
List Moves to the track list screen
CD I 2-17
02
Name Description
SoundHound
Runs the SoundHound feature.
For more information, please see the SoundHound
section in Info part.
Menu Sound Settings : Moves to the Sound Settings
screen. You can change the settings of the sound.
SEEK/TRACK
•If button is pressed quickly (less than 0.8 sec-
onds), it moves to previous or next track
•If button is pressed and held (over than 0.8
seconds), it rewinds or fast-forward the track
When pressed for 5 seconds, it will rewind or
fast-forward the track at 4x speed. After that, it
will rewind or fast-forward at 20x speed. Once
released, the track will begin playing at normal
speed.
TUNE
Turn the
TUNE
knob and search a desired
track. When the track name is displayed, press
the
TUNE
knob
to play the track.
If the
TUNE
knob is not pressed within
5 seconds of searching tracks, the track info
for the current track is restored.
2-18 I Radio/Media

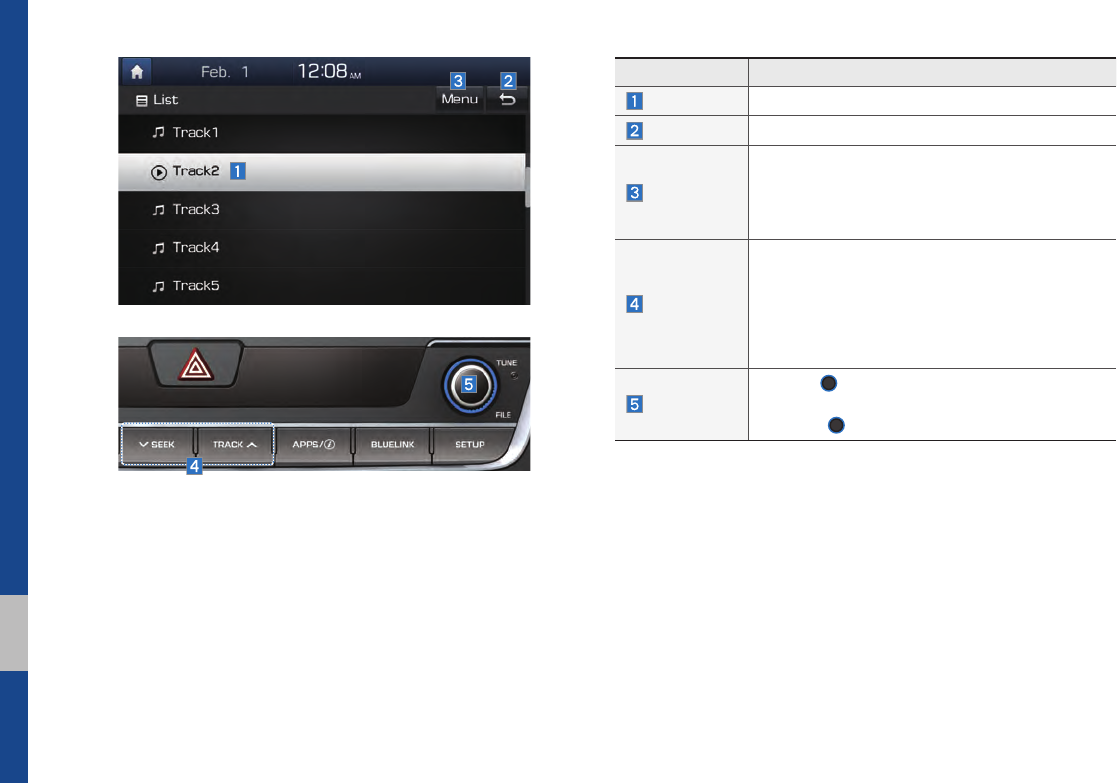

Name Description
Current Track Displays current playing track name
Back Button Converts to basic mode screen
Menu
When moving to a different list screen, moves to
the list page where the current file is located
(Becomes disabled when the current list includes
the current file)
SEEK/TRACK
•If button is pressed (less than 0.8 seconds):
Plays previous/next track
•If button is pressed (over than 0.8 seconds):
Moves to play screen, and then it will rewind or
fast-forward the track. It will play the track nor-
mally if it is released.
TUNE
Turn the
TUNE
knob to move the focus to the
next/previous track. If the desired track is selected,
press the
TUNE
knob to play the track.
MP3 I 2-19
02
MP3
Basic Mode Screen
Name Description
Mode Displays current operating mode
File Index Shows the current MP3 file/total number of MP3
files
Repeat/
Shuffle/Scan
From Repeat/Shuffle/Scan, displays the current
operating function
Play Time Displays the current play time
Song Info Displays folder/file/artist/title/album info for current
song
List Moves to the list screen
Previous File
•If play time is less than 3 secs, moves to previ-
ous file
•If play time is over than 3 secs, play the current
file from the beginning
Play/Pause Plays/pauses the current track
Next File Moves to the next song
Repeat
Repeats the current song or all songs in the folder
Press the
Repeat
button to switch between repeating
1 song → repeating folder → and turn-
ing repeat off
Repeat 1 song: Repeats the current song
Repeat Folder: Repeats songs in the folder
2-20 I Radio/Media
Name Description
Shuffle
Plays files in the folder or in the disc in random order
Press the
Shuffle
button to switch between shuffle
folder → shuffle all → and turning
shuffle off
Shuffle folder : Plays songs in the folder in
random order
Shuffle All : Plays songs in the disc in random
order.
Scan
Scans the beginning parts of MP3 files (approx.
10 seconds per file)
Press the
Scan
button to switch between scan
folder → scan all → and turning scan off
Scan Folder : Scans tracks in the current folder
Scan All : Scans all tracks in the disc
SoundHound
Runs the SoundHound feature.
For more information, please see the SoundHound
section in Info part.
Menu
Sound Settings : Moves to the Sound Settings
screen. You can change the settings of the sound.
SEEK/TRACK
•If button is pressed (less than 0.8 seconds):
Plays previous/next track
•If button is pressed (over than 0.8 seconds):
Moves to play screen, and then it will rewind or
fast-forward the track.
TUNE
Turn the TUNE knob to search a desired track.
If the desired track is displayed, press the
TUNE knob to play the track.
If the
TUNE
knob is not pressed within
5 seconds of searching tracks, the track info
for the current track is restored.
MP3 I 2-21
02
Name Description

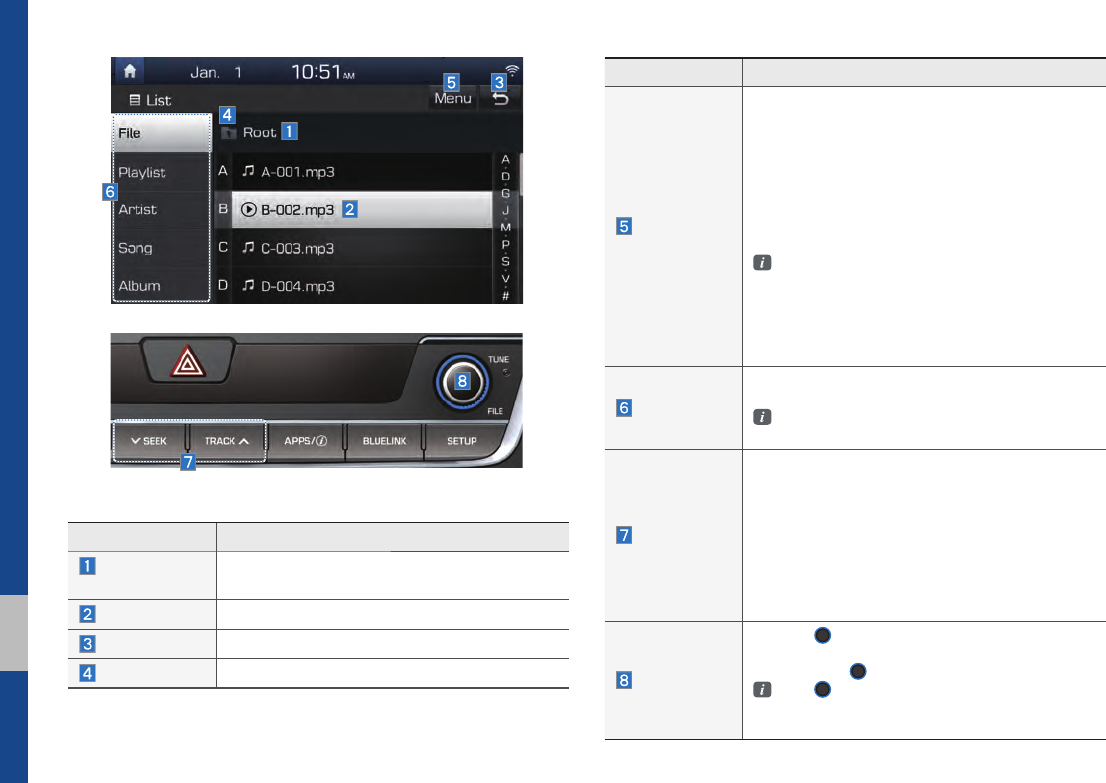

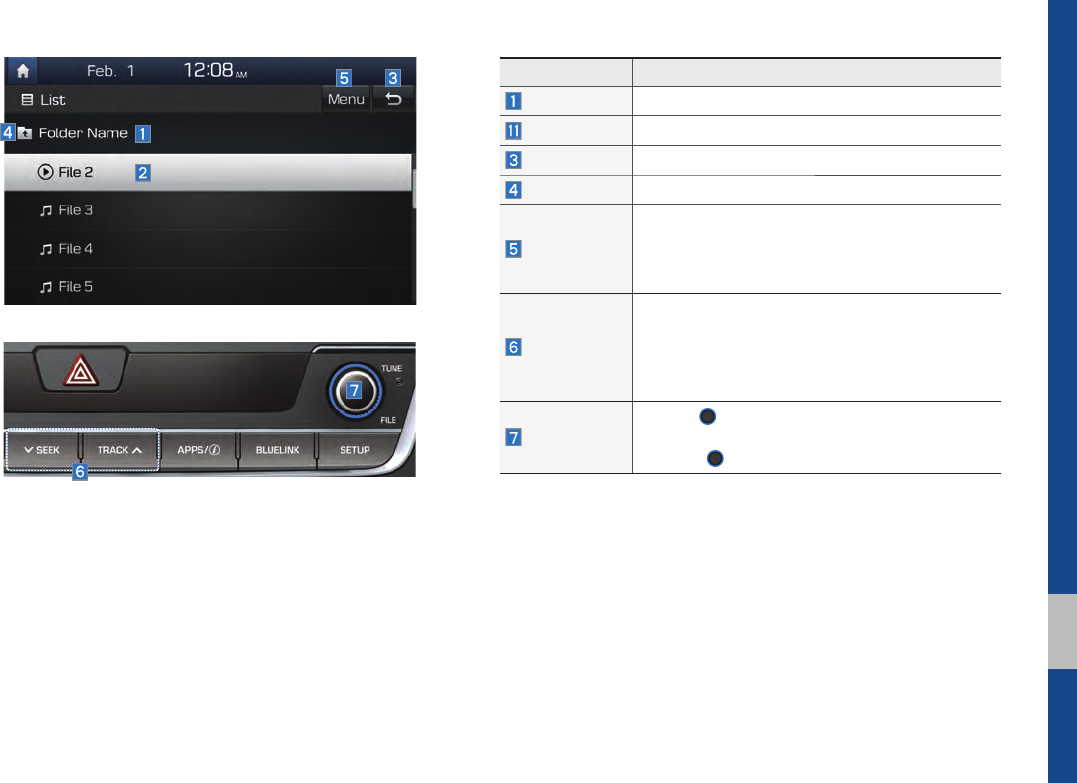

Folder Name Displays folder name for current file
Current Song Displays current playing file name
Back Button Converts to basic mode screen
Upper Folder Moves to Root Folder
Menu
When moving to a different list screen, moves to the
list page where the current file is located
(Becomes disabled when the current list includes
the current file)
SEEK/TRACK
•If button is pressed (less than 0.8 seconds) :
Plays previous/next track
•If button is pressed (over than 0.8 seconds) :
Moves to play screen, and then it will rewind or
fast-forward the track.
TUNE
Turn the
TUNE
knob to move the focus to the
previous/next track. If the desired track is displayed,
press the
TUNE
knob to play the track.
2-22 I Radio/Media
USB
Before Playing a USB MP3
Connect the USB device after turning on the engine. The USB
device may become damaged if it is already connected when the
ignition is turned on.
•Files that are not standard format music/image files will not be
played.
•For MP3/WMA/OGG files, only music files with compression
rates between 8Kbps ~ 320Kbps can be played.
•Heed caution to static electricity when connecting/disconnecting
external USB devices.
•Encoded MP3 Players will not be recognized when connected
as an external device.
•When connecting an external USB device, the device may not
properly recognize the USB is in some states.
•Only products formatted with byte/sectors under 64Kbyte will be
recognized.
•This device recognizes USB devices formatted in FAT 12/16/32
file formats. This device does not recognize files in NTFS file for-
mat.
•Some USB devices may not be supported due to compatibility
issues.
•Take caution so that the USB connector does not come in con-
tact with body parts or objects.
•Repeated connecting/disconnecting of USB devices within short
periods of time may result in product malfunction.
•Make sure to connect/disconnect external USB devices with the
audio power turned off.
•The amount of time required to recognize the external USB
device may differ depending on the type, size, or file formats
stored on the USB.
•The use of USB devices for purposes other than playing music
and image files is prohibited.
•Do not use the USB I/F to charge batteries or USB accessories
that generate heat. Such acts may lead to worsened perfor-
mance or damage to the device.
•The device may not recognize the USB device if separately
purchased USB hubs and extension cables are being used.
Connect the USB directly with the multimedia terminal of the
vehicle.
•When using mass storage USB devices with separate logical
drives, only files saved to the root drive can be played.
•When application programs are installed to specific USBs, files
may not properly play.
USB I 2-23
02
•The device may not operate normally if MP3 Players, cellu-
lar phones, digital cameras, or other electronic devices (USB
devices not recognized as portable disk drives) are connected
with the device.
•Charging through the USB may not work for some mobile
devices.
•The device may not support normal operation when using a USB
memory type besides Metal Cover Type USB Memory.
•The device may not support normal operation when using for-
mats such as HDD Type, CF, or SD Memory.
•Upon playing iPods, please use a dedicated iPod car cable.
•Normal operations cannot be guaranteed when other cables are
being used.
•The device will not support files locked by DRM. (Digital Rights
Management)
•USB memory sticks used by connecting an Adaptor (SD Type or
CF Type) may not be properly recognized.
•Only use Plug type connector products, as shown in the figure
below.

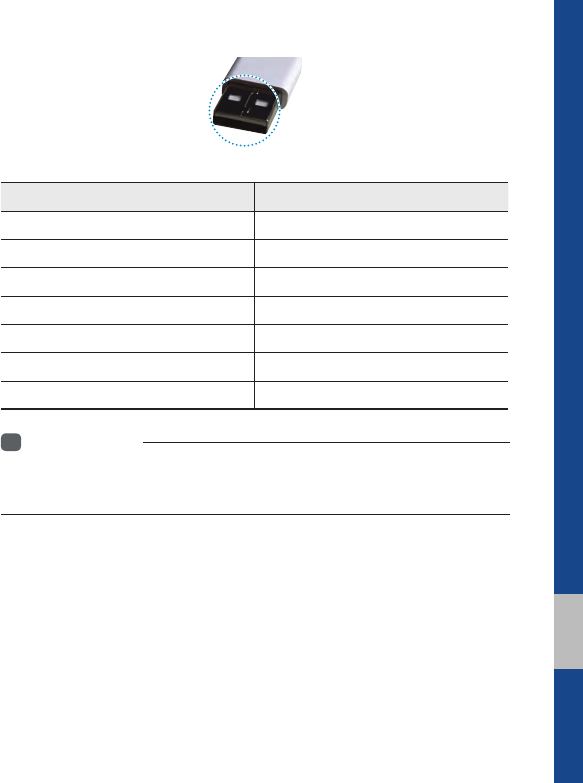

Plug Type Connector
Product Name Manufacturer
XTICK LG
BMK BMK Technology
SKY-DRV Sky Digital
TRANSCEND JetFlash Transcend
Sandisk Cruzer SanDisk
Micro ZyRUS ZyRUS
NEXTIK Digiworks
i
Information
• Problems that occur through use of USB devices not listed within the
above table are not covered by the product warranty.
2-24 I Radio/Media
Supported Image Specifi cations
Name Description
Image format JPG, GIF, BMP, PNG (animated GIF, etc.
are not supported)
Supported image
resolution
5M pixels for JPG, BMP, PNG (1M pixels
maximum for GIF)
Supported image file
size
5M pixels for JPG, BMP, PNG (1M pixels
maximum for GIF)
USB MP3 Information and Precautions
Name Description
MP3 File
Specification Specification : MPEG1 AUDIO LAYER 3
Recommended
Bit Rates and
Sampling
Frequency
Acceptable sampling frequency : 32, 44.1, 48 (kHz)
Acceptable bit rate : 32, 40, 48, 56, 64, 80, 96, 112,
128, 160, 192, 224, 256, 320 (Kbps)
96, 128, 192 Kbps fixed bit rate/44.1kHz
ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,
ID3v2.4 ID3 tags
Detailed
Specifications
Maximum directory layers : 20 layers
Maximum length of folder name/file name : 255Bytes
Supported characters for folder name/file name :
Alphanumeric characters, Korean standard character
set 2,350 characters, Simplified Chinese 4888 char-
acters
Maximum number of folders which can be stored onto
one USB : 2000 folders (including ROOT)
Maximum number of files which can be stored onto
one USB : 8000
i
Information
•The sound quality of MP3 files that use bitrates exceeding
192 Kbps cannot be guaranteed. When using files without fixed bit
rates, some features (FF/REW features) may not properly operate.
USB I 2-25
02
Features Description
Back Button Converts to basic mode screen
Previous File
If button is pressed (less than 0.8 seconds) :
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
•If play time is less than 3 seconds, moves to
previous file
•If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
rewinds the track
Play/Pause Plays/pauses the current file
Next File
•If button is pressed (less than 0.8 seconds) :
Moves to the next file
•If button is pressed (over than 0.8 seconds) :
It fast-forwards the track
Repeat
Repeats the current file
•If select the song in the file tab on the list
screen : Press the
Repeat
button to switch
between repeating one song , repeating
folder , and turning repeat off
•If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen : Press the
Repeat
button to switch between repeating
one song and turning repeat off
Shuffle
Plays files in random order
•If select the song in the file tab on the list screen
: Press the
Shuffle
button to switch between
Shuffle Folder , Shuffle All , and turn-
ing shuffle off
•If select the song in the other tabs (Playlist, Artist,
Song, Album) on the list screen : Press the
Shuffle
button to switch between Shuffle Category
and turning shuffle off

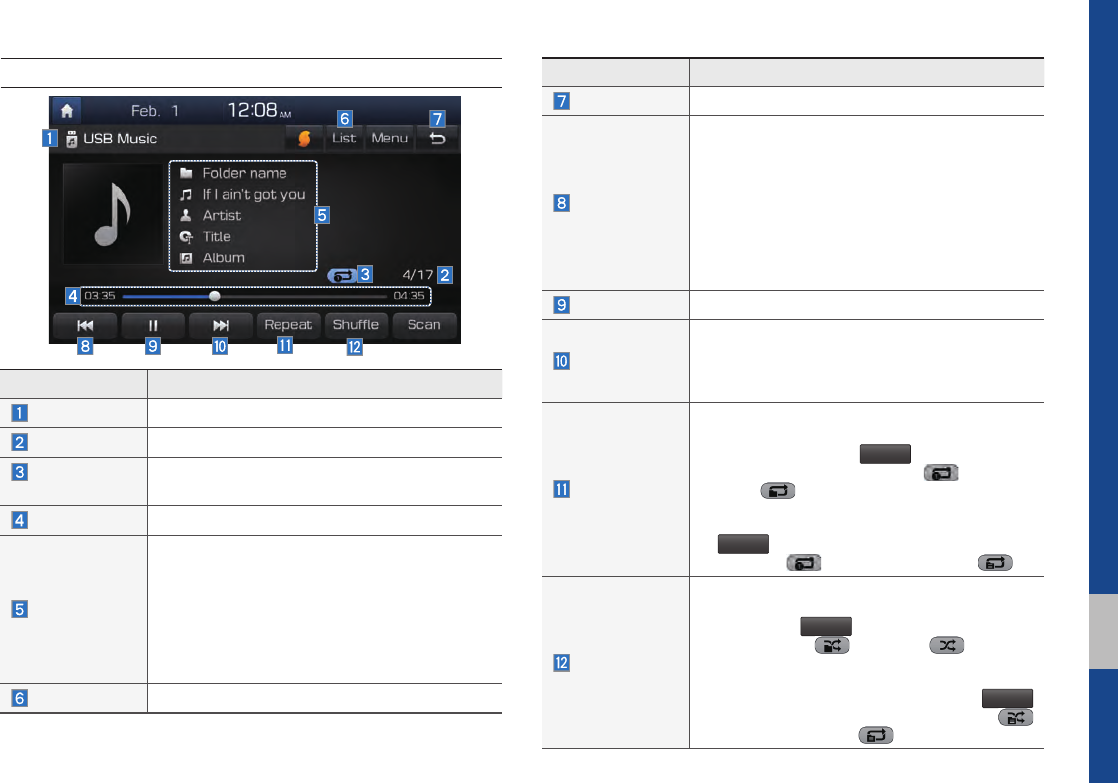

USB Music
Features Description
Mode Displays current operating mode
File Index Shows the current file/total files within the USB
Repeat/
Shuffle/Scan
From Repeat/Shuffle/Scan, displays the current
operating function
Play Time Displays the current play time/total play time
Song Info
Displays the information of the current track
•When a track in the file tab on the list screen
is selected : Displays folder, file, title, artist,
album info
•When a track in the other tabs on the list
screen is selected : Displays artist, title, album
info
List Moves to the list screen
2-26 I Radio/Media

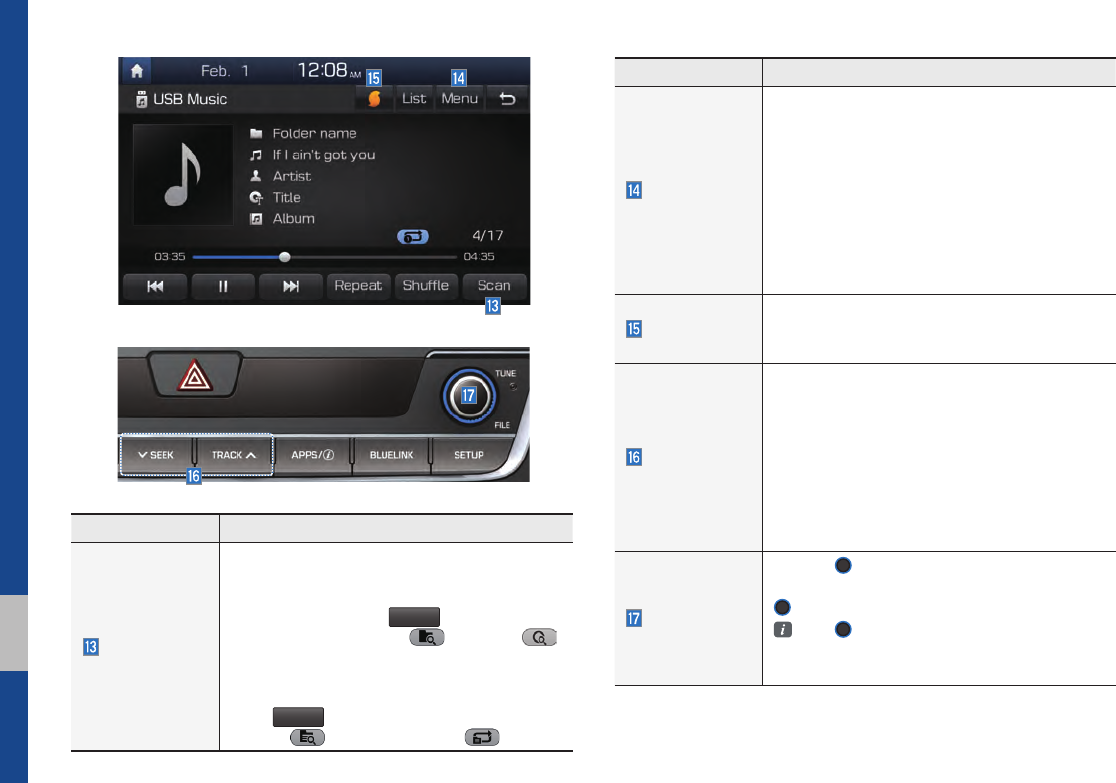

Features Description
Menu
•Add to Playlist : Add the current track to the
Playlist Playlist is placed on the left tab in the
list
•Save to My Music : You can save the current
track to My Music. You can play saved track
from My Music without USB. Access to My
Music in the Media mode.
•Sound Settings : Moves to the Sound Settings
screen. You can change the settings of the
sound.
SoundHound
Runs the SoundHound feature.
For more information, please see the SoundHound
section in Info part.
SEEK/TRACK
If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
track from the beginning
•If play time is less than 3 seconds, moves to
previous/next file
•If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
will rewind/fast-forward the track
TUNE
Turn the
TUNE
knob to search a desired
track. If the desired track is displayed, press the
TUNE
knob to play the track.
If the
TUNE
knob is not pressed within
5 seconds of searching tracks, the track info
for the current track is restored.
Features Description
Scan
Scans the beginning parts of USB files (approx.
10 seconds per file)
•If select the song in the file tab on the list
screen : Press the
Scan
button to switch
between Scan Folder , Scan All ,
and turning scan off
•If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen : Press
the
Scan
button to switch between Scan cat-
egory and turning scan off
USB I 2-27
02

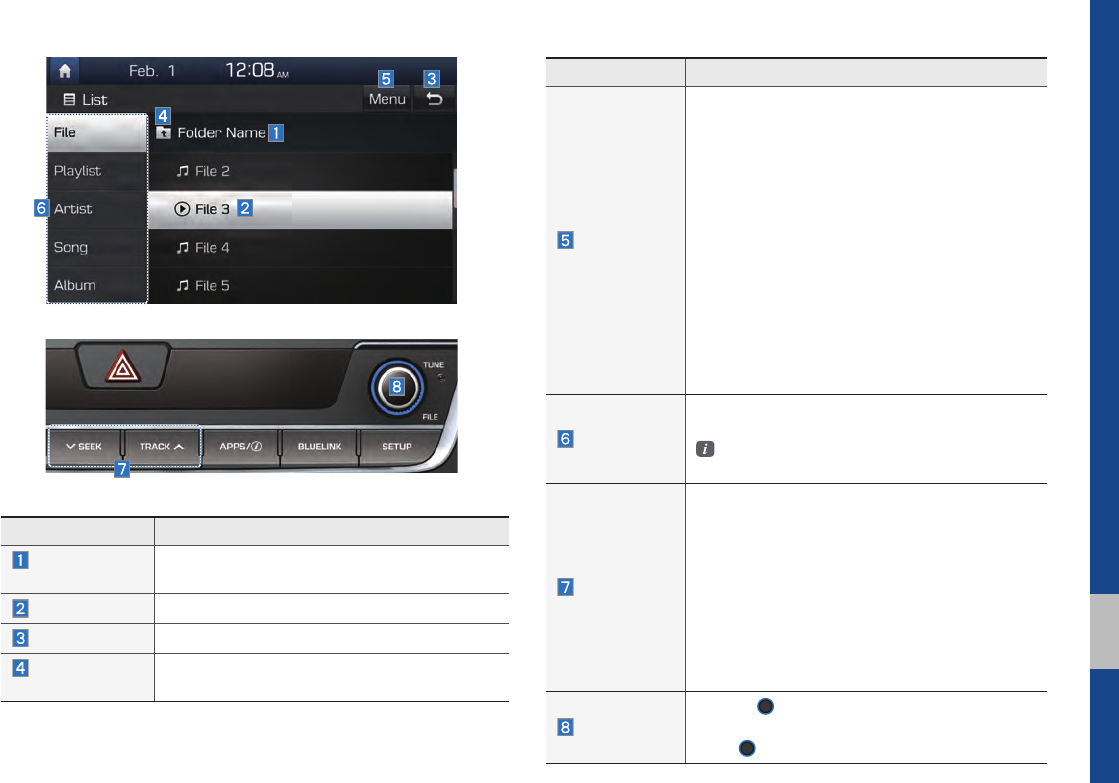

Features Description
Menu
•Add to Playlist : Adds the current track to the
Playlist: Playlist is placed on the left tab in the
list (Maximum 100 files) Select a desired track
and press “Add to Playlist” to add the track in
the playlist.
•Delete from Playlist : Select a track you want to
delete from the playlist and press “Delete from
Playlist” to delete the track in the playlist
•Now Playing : When moving to a different list
screen, moves to the list page where the cur-
rent file is located (Becomes disabled when
the current list includes the current file)
•Save to My Music : Stores the music. The
stored music can be played in My Music. (This
function is not provided in Playlist.)
Search Menu
Search tracks by the list type. Search songs
according to File, Playlist, Artist, Song and Album.
If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK
If button is pressed (less than 0.8 seconds):
Plays previous/next track
•If play time is less than 3 seconds, moves to
previous/next file
•If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds):
Moves to play screen, and then it will rewind or
fast-forward the track. It will play the track nor-
mally if button released.
TUNE
Turn the
TUNE
knob to move the focus to the
previous/next list. If the desired track is displayed,
press
TUNE
knob to play the track.
Features Description
Folder/
Category Name Displays folder/category name in the list
Current Song Displays current playing file name
Back Button Converts to basic mode screen
Upper Folder/
Category Moves to Upper Folder
2-28 I Radio/Media

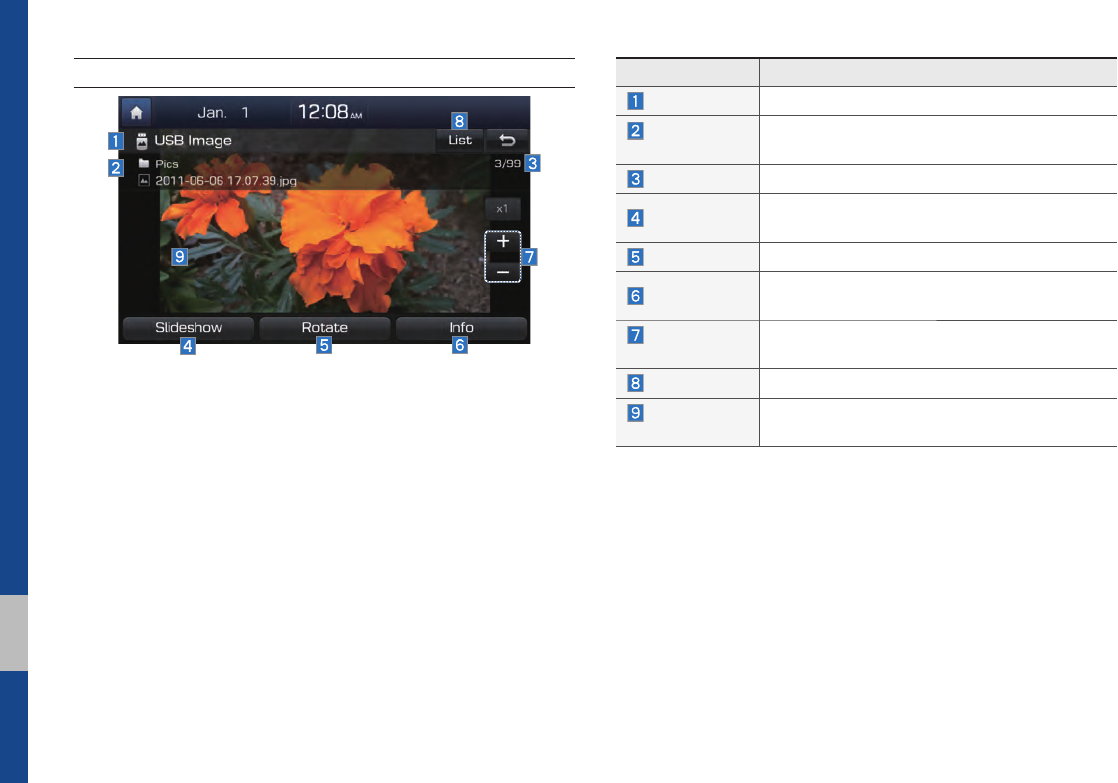

USB Image
Features Description
Mode Displays current operating mode
Folder/File
Name Displays folder name where image is located
File Index Shows the current file/total files within the USB
Slideshow images as slideshow in 5, 10, 20, 30 second
intervals
Rotate Rotate image in clockwise direction
Info Shows the file name, resolution and file type of
current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List Moves to the list screen
Previous/
Next image
Swipe image left or right to see Previous/ Next
USB I 2-29
02

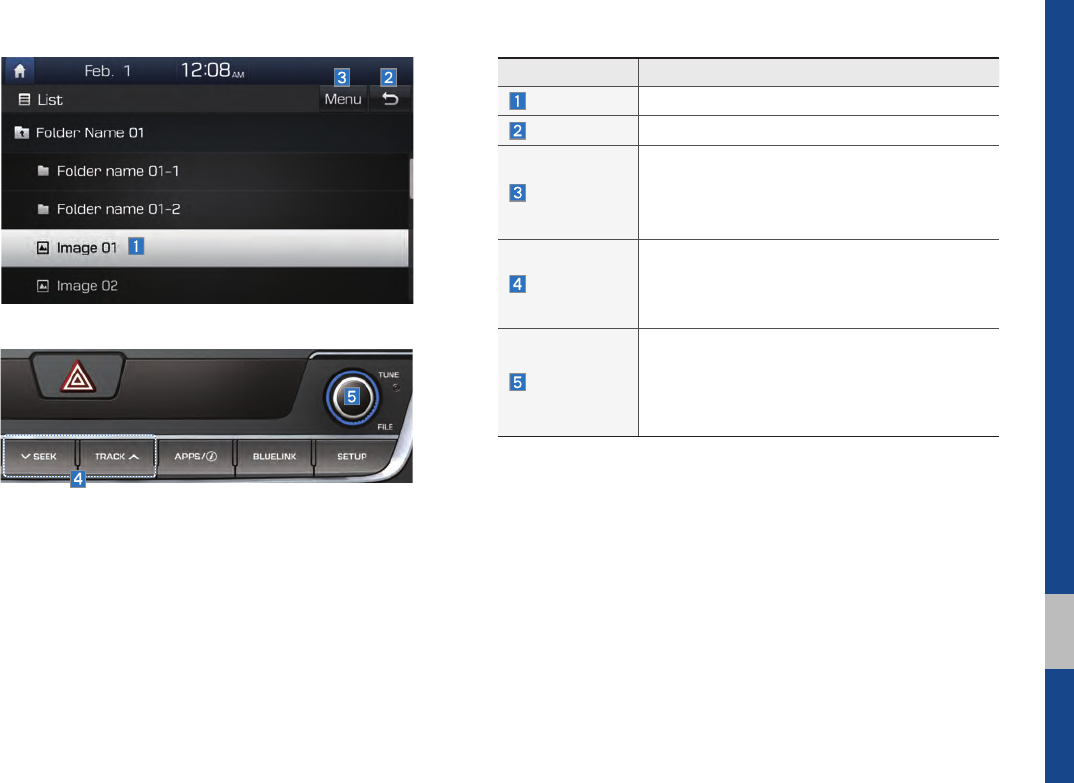

Features Description
Current File Displays current playing file name
Back Button Converts to basic mode screen
Menu
Now Playing : When moving to a different list
screen, moves to the list page where the current
file is located (Becomes disabled when the cur-
rent list includes the current file)
SEEK/TRACK
Controls background mode
•Radio mode : Changes Frequency and
Channel
•Media mode : Changes Track (excluding AUX)
TUNE
Controls background mode
•Radio mode : Changes Frequency and Channel
•Media mode : Changes track (excluding AUX).
If a desired track is displayed, press the knob to
move to the track.
2-30 I Radio/Media
iPod
Using iPod Devices
•iPod is a registered trademark of Apple Inc.
•iPod mode will not operate if the con-
nected iPod cannot be recognized due
to operation of unsupported versions
that do not support related protocols,
iPod abnormalities, or iPod device
defects. Some iPods with unsupported
communication protocols may not prop-
erly operate with the Multimedia system.
•For fifth generation iPod Nano devices,
the iPod may not be recognized when
the battery level is low. Please charge
the iPod for use.
•Search/play orders shown within the
iPod device may differ with the orders
shown within the Multimedia system.
•If the iPod malfunctions due to an iPod
device defect, reset the iPod and try
again. (To learn more, refer to your iPod
manual)
•If repeatedly connect and disconnect
iPod/iPhone to the Multimedia system
with USB cable in short time, it may
cause abnormal operation.
•The time for recognition of iPod/iPhone
may vary depending on device type,
firmware version and iOS version.
•For some iPod Touch and iPhone
devices, connecting Bluetooth® while the
iPod is operating may result in discon-
tinued iPod sound. When such devices
with Bluetooth® support are connected,
this problem occurs as the sound source
is changed from the Dock Connector
(USB connector cable) to Bluetooth.
•To prevent this symptom, Bluetooth
Audio function in the Multimedia system
is limited if iPod/iPhone is connected
to the system through both cable and
Bluetooth. To listen to the iPod sound,
use either iPod menu with USB connec-
tion or Bluetooth Audio with Bluetooth
connection.
•To listen to the iPod sound, reconnect
the USB cable or change the audio out-
put settings in iPod/iPhone to Dock.
•In order to use the iPod while operating
the keys, you must use a dedicated iPod
cable. (the cable that is supplied when
purchasing iPod/ iPhone products)
※ During ACC ON state, connecting the
iPod through the iPod cable (The cable
that is supplied when purchasing iPod/
iPhone product.) will charge the iPod
through the head unit.
※ The use of genuine iPod cables sup-
The use of genuine iPod cables sup-
plied by Apple is recommended. (The plied by Apple is recommended. (The
use of other products may result in use of other products may result in
noise or abnormal operation.)noise or abnormal operation.)
iPod I 2-31
02
•When connecting with the iPod cable,
make sure to fully insert the jack to pre-
vent communication interference. If the
iPod is connected to the vehicle while it
is playing, a high pitch tone may sound
for about 1~2 seconds immediately after
connection. If possible, connect the iPod
to the vehicle with the iPod stopped/
paused.
•Within iPhones, streaming audio and
iPod control may occasionally conflict.
If problems persist, remove the iPhone
and connect again.
•When connecting to iPod Nano /Classic,
the HYUNDAI Motor logo appears on
the Apple device. For the iPod Nano 6
generation, however, the logo image
does not appear since it is not sup-
ported. Also, all iPhone and iPod Touch
products do not support this function.
•In Apple’s iOS 6.0 version or later,
Podcast and Audiobook media files
are designed to be played with the
Podcasts and iBooks applications spe-
cifically designed for Apple products. If
the Apple device does not provide the
Podcast and Audiobook lists, the playlist
may not be displayed and played in the
iPod mode.
•If the Apple Podcasts and iBooks apps
are not installed on the Apple device, but
the Apple device provides the Podcast
and Audiobook lists, you can play files in
other categories in iPod mode.
•The screen of multimedia system can
be different when you run other music
players (e.g. iHeartRadio) on your con-
nected device.
2-32 I Radio/Media
Caution
•While using a connected iPhone/iPod
Touch device, it may not operate nor-
mally if the user changed some func-
tions in the device.
•When calling with an iPhone connec-
tion, song may stop playing due to an
Apple device feature. If sound does
not resume after the call is terminated,
check the device status.
•If lots of songs have the same informa-
tion, skipping may occur when previous/
next song is executed due to an Apple
device feature. Also problems may
occur depending on device type or iOS
version.
•If lots of songs have the same informa-
tion, it may occur difference of playing
songs between the Multimedia system
and Apple device. Reset the device or
delete the same songs in the Apple
device using iTunes.
•If you control pause, repeat, shuffle, or
seek songs when the play time is when
the play time is less than 3s before fin-
ished playing, it may occur difference of
playing song between the Multimedia
system and Apple device. Access to
iPod music from another mode or pause
a song and then play a song again in
Apple device.
•We recommend that your Apple device
uses the latest firmware since some
problems may occur due to an outdated
firmware or other software related
issues.
Type 1G 2G 3G 4G 5G 6G 6.5G 7G
iPod Mini Not Supported
iPod Shuffle Not Supported
iPod Nano ◯ ◯ ◯◯◯ ◯Not
released ◯
iPod Touch
◯
(iOS 1.1 not
supported)
◯ ◯◯◯ Not released
iPad ◯ (Unable to charge, Not verified, Normal working not guaranteed)
iPad Mini ◯ (Unable to charge, Not verified, Normal working not guaranteed)
iPod Classic Not Supported
◯
(iPod with
Video)
◯
(iPod
Classic)
◯
(iPod
Classic)
Not
released
Type 3G 3GS 4G 4GS 5G
iPhone
Not verified,
Normal
working not
guaranteed
◯◯◯◯
iPod I 2-33
02
Caution
•If the iPhone/iPod Touch supports
Bluetooth, it is unable to use Bluetooth
Audio if the Apple device that is con-
nected to the Multimedia system
through both USB connection and
Bluetooth. Disconnect the USB connec-
tion then use Bluetooth Audio
•If iPod/iPhone connected to the
Multimedia system through both USB
and AUX. iPod/iPhone keeps output
sound via AUX, thus it may occur sound
will not output in iPod mode.

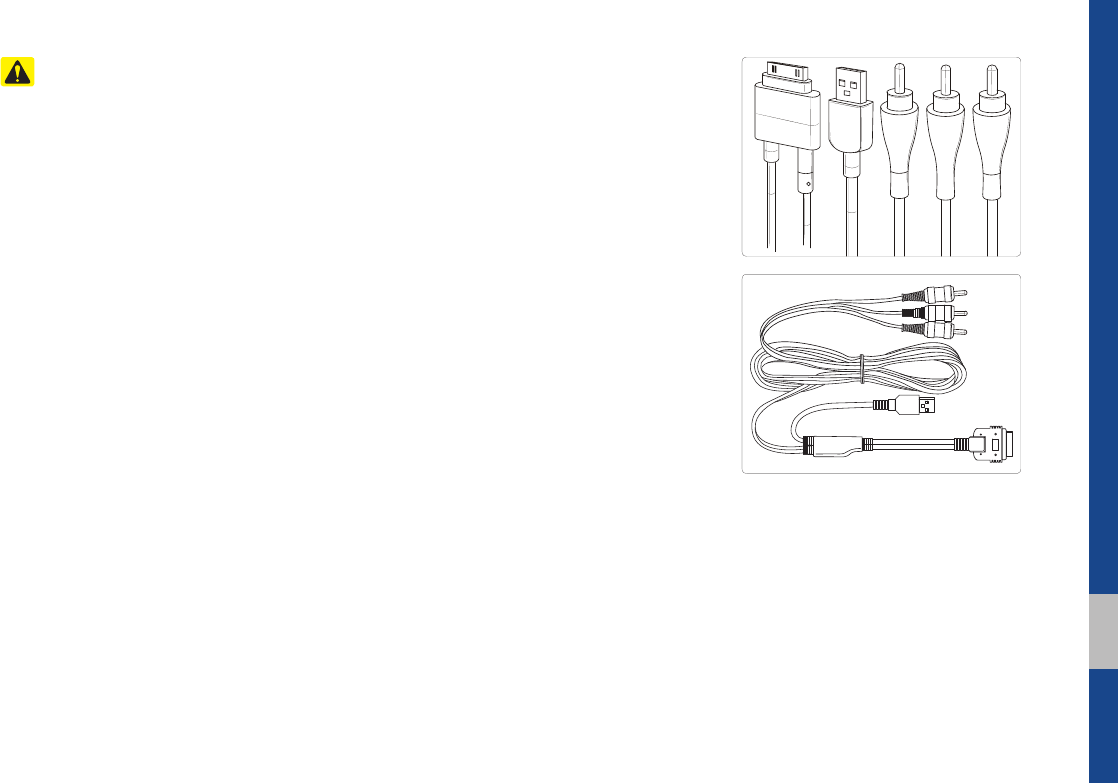

•If AUX cable connected to iPod/iPhone
but not connect to the Multimedia sys-
tem, it may occur sound will not output
in iPod mode due to iPod/iPhone’s fea-
ture. Especially, if you use AUX cable
like pictures, this problem may occur.
•Disconnect AUX cable from iPod/iPhone
first, then connect to the Multimedia
system via USB. Or change settings to
“Dock” in iPod/iPhone.
•If connect to the Multimedia system
while podcast or iTunes music down-
loading to iPod/iPhone, it may occur
some problems when you select song
in the list. Reconnect iPod/iPhone to the
Multimedia system when downloading
is finished or the file deleted.
•If connect to the Multimedia system
while sync, it may occur some problems.
Try to use iPod/iPhone connection after
sync complete. (To learn more, refer to
your iPod manual)
•iPhone and iPod Touch devices are
guaranteed to work normally on iOS
7.0.6 or below. However, they may not
work normally on future iOS versions
as their operations have not yet been
tested.
2-34 I Radio/Media

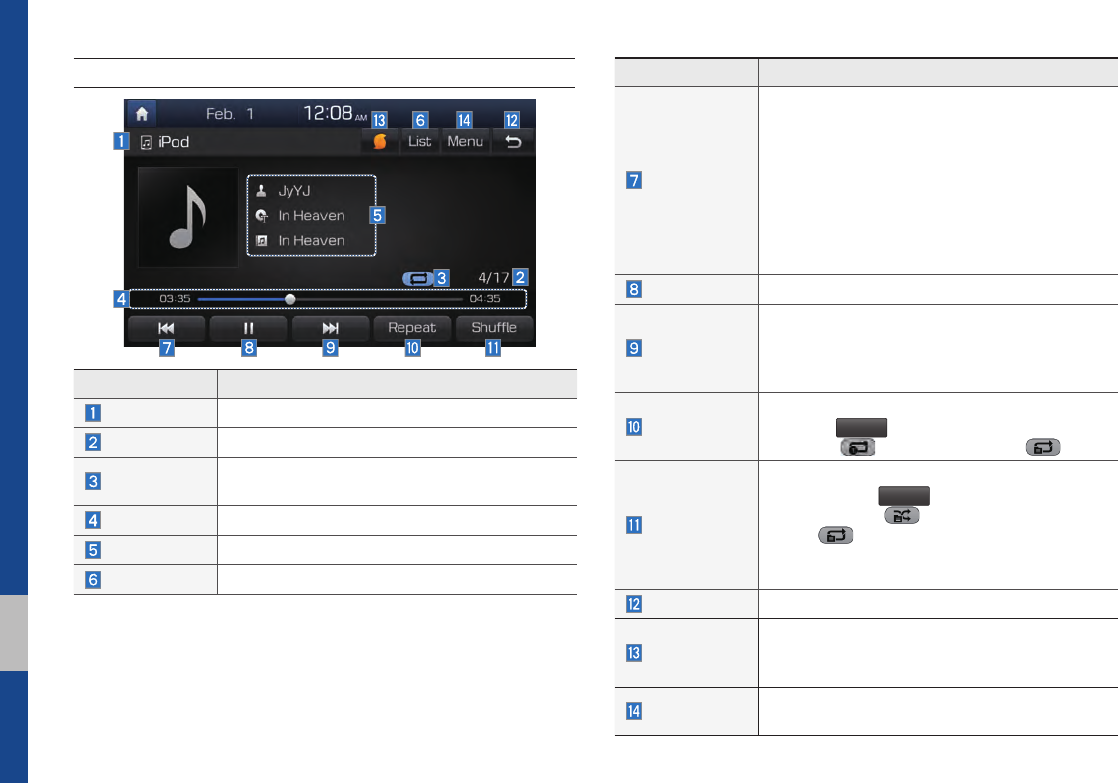

iPod
Features Description
Previous File
If button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
•If play time is less than 3 seconds, moves to
previous file
•If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
rewinds the track.
Play/Pause Plays/pauses the current file
Next File
•If button is pressed (less than 0.8 seconds),
Moves to the next file
•If button is pressed (over than 0.8 seconds), it
does fast-forward the track.
Repeat
Repeats the current file
Press the
Repeat
button to switch between repeat-
ing 1 track , and turning repeat off
Shuffle
Plays files in random order
When pressing
Shuffle
button, it changes to
shuffle category → deactivate shuffle then
repeat
•Shuffle Category: Shuffle song in the current
category
Back Button Move to home/previous mode screen
SoundHound
Runs the SoundHound feature.
For more information, please see the SoundHound
section in Info part.
Memo
Sound Settings : Moves to the Sound Settings
screen. You can change the settings of the sound.
Features Description
Mode Displays current operating mode
Song Index Shows the current song/total songs
Repeat/Shuffle From Repeat/Shuffle, displays the current oper-
ating function
Play Time Displays the current play time/total play time
Song Info Displays the artist/song title/album info
List Moves to the list screen
iPod I 2-35
02
Features Description
SEEK/TRACK
If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning
•If play time is less than 3 seconds, moves to
previous/next file
•If play time is over than 3 seconds, plays the
current file from the beginning
If button is pressed (over than 0.8 seconds) it will
rewind/fast-forward the track
TUNE
Turn the
TUNE
knob to search a desired
track. If the desired track is displayed, press
the
TUNE
knob to play the track.
If the
TUNE
knob is not pressed within
5 seconds of searching tracks, the track info
for the current track is restored.
2-36 I Radio/Media
Features Description
Category Name Displays the category name
Category List
Displays the contents of selected category
If there are many items in the list, items are
added in order and the scroll bar on the right
is adjusted accordingly.
Back Button Converts to basic mode screen
Upper Folder Moves to Upper Folder
Search Menu
Search tracks by the list type. Search songs
according to Playlist, Artist, Song, Album, Genre,
Composer, Podcast and Audiobook .
If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK
If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning
•If play time is less than 3 seconds, moves to
previous/next file
•If play time is over than 3 seconds, plays the
current file from the beginning
If button is pressed (over than 0.8 seconds) it will
rewind/fast-forward the track.
TUNE
Turn the
TUNE
knob to search a desired
track. If the desired track is displayed, press
the
TUNE
knob to play the track.
If you do not anything with the knob for
5 seconds, the
TUNE
knob search will be ter-
minated.
AUX I 2-37
02
AUX
Connecting an External Device
If an external device connector is con-
nected with the AUX terminal, then AUX
mode will automatically operate. Once the
connector is disconnected, the previous
mode will be restored.
•AUX mode can be used only when an
external audio player has been con-
nected.
•The AUX volume can also be controlled
separately through the connected
device.
NOTICE
• If only a cable is connected to the AUX without
an external device, the mode will be changed
to AUX, but noise may occur. When an
external device is not being used, remove the
connector jack.
• When the external device power is connected
to the power jack, playing the external device
may output noise. In such cases, disconnect
the power connection before use.
2-38 I Radio/Media
Features Description
Mode Displays current operating mode
Phone Name Displays name of connected phone

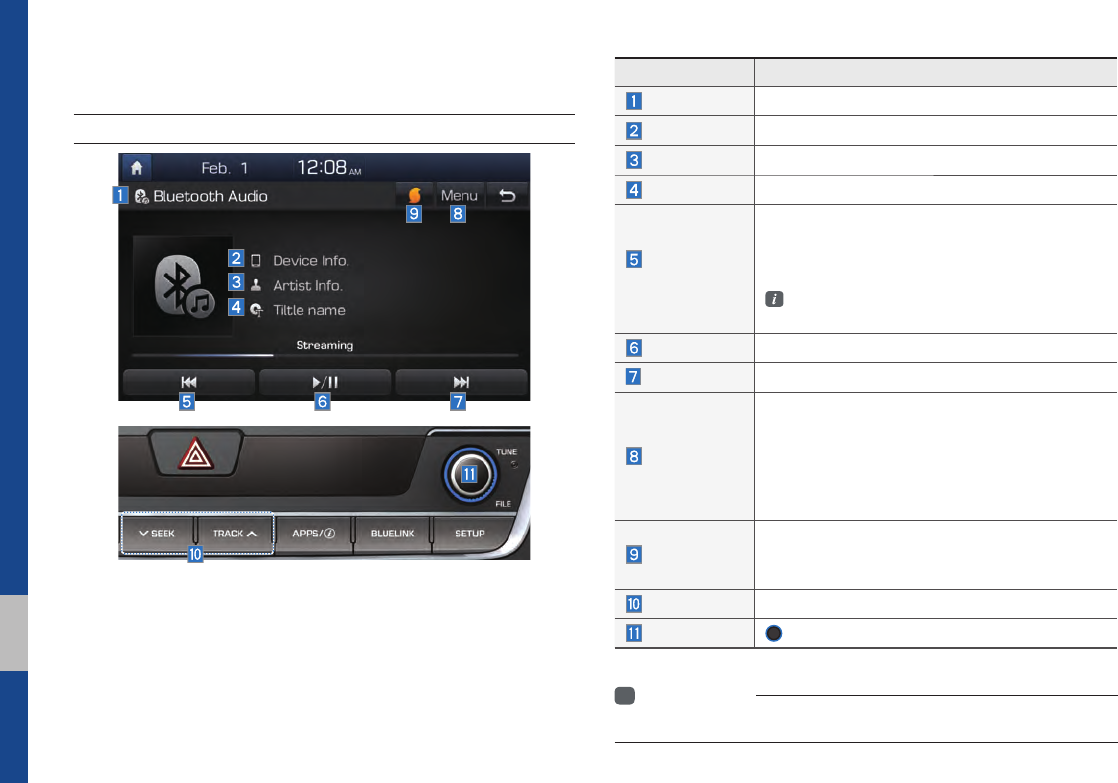

Artist Info Name of current artist
Title Name of current song
Previous
File
•If play time is less than 3 seconds, moves to
the previous file
•If play time is over than 3 seconds, plays the
current file from the beginning
This function may differ depending on the
model of mobile phone
Play/Pause Plays/Pauses Bluetooth Audio
Next File Moves to the next file
Menu
•Connections: Moves to the Bluetooth Settings
screen. You can pair a new device or change/
delete paired device(s).
•Sound Settings: Moves to the Sound Settings
screen. You can change the settings of the
sound.
SoundHound
Runs the SoundHound feature.
For more information, please see the SoundHound
section in Info part.
SEEK/TRACK Plays the previous/next file
TUNE
TUNE
is not supported.
Bluetooth
®
Audio
Bluetooth Audio Mode
i
Information
• Artist info and Title may not be supported by mobile phone
BluetoothⓇ Audio I 2-39
02
Bluetooth Connections
Settings
Settings for pairing, connection and dis-
connection of a Bluetooth device
•In Bluetooth Audio play screen, select
Menu
and then
Connections
.
i
Information
• If the music in the mobile phone is not played
after changing to audio streaming mode,
press the play button. Thus check if the
music is playing in the Bluetooth device after
changing to audio streaming mode. Audio
streaming may not be supported for some
mobile phones.
• Please check the Bluetooth compatibility in
below website : HYUNDAI Motor America
https://www.hyundaiusa.com/bluetooth
2-40 I Radio/Media

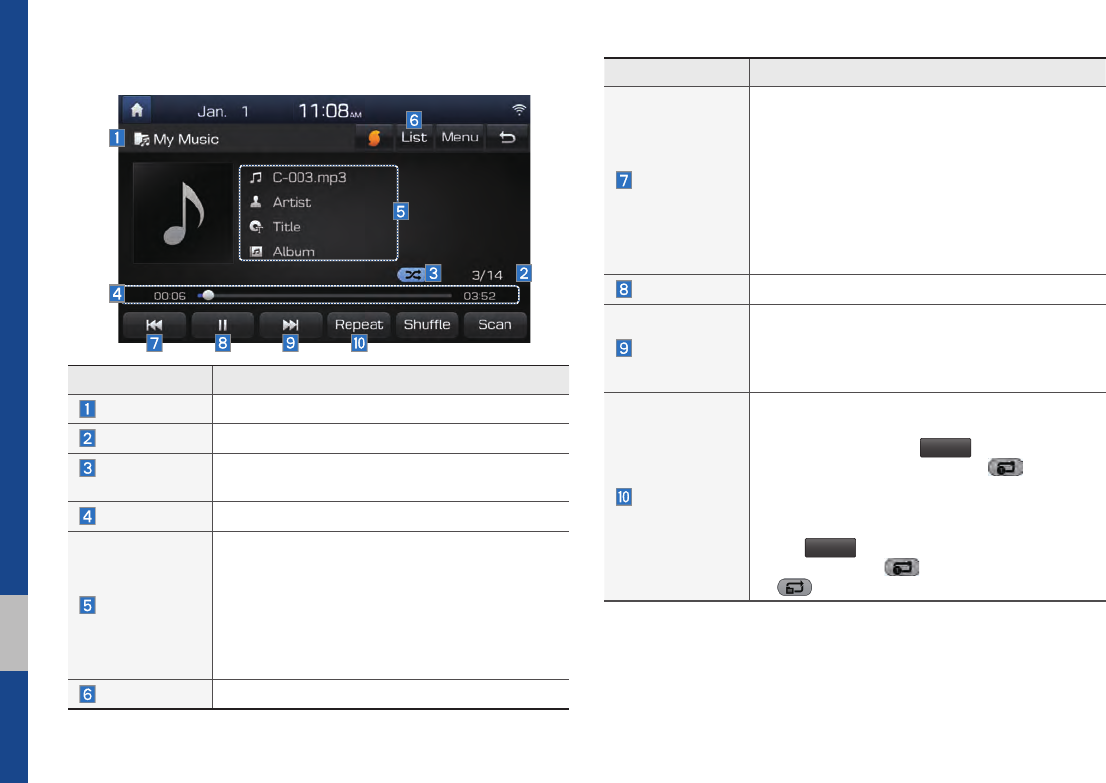

My Music
Features Description
Previous File
If button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
•If play time is less than 3 seconds, moves to
previous file
•If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
rewinds the track
Play/Pause Plays/pauses the current file
Next File
•If button is pressed (less than 0.8 seconds):
Moves to the next file
•If button is pressed (over than 0.8 seconds) it
will fast-forward the file
Repeat
Repeats the current file
•If select the song in the file tab on the list
screen : Press the
Repeat
button to switch
between repeating one song and turn-
ing repeat off.
•If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen : Press
the
Repeat
button to switch between repeat-
ing one song and turning repeat off
Features Description
Mode Displays current operating mode
File Index Shows the current file/total files
Repeat/
Shuffle/Scan
From Repeat/Shuffle/Scan, displays the current
operating function
Play Time Displays the current play time/total play time
Song Info
Displays the information about the current track
•When a track in the file tab on the list screen
is selected : Displays file, artist, title, album
info
•When a track in the other tab on the list
screen is selected : Displays artist, title, album
info
List Moves to the list screen
My Music I 2-41
02
Features Description
Scan
Scans the beginning parts of files (approx.
10seconds per file)
•If select the song in the file tab on the list
screen : Press the
Scan
button to switch
between scan and turning scan off
•If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen : Press
the
Scan
button to switch between scan
and turning scan off
Menu
•Add to Playlist: Adds the current song to the Playlist
Playlist is placed on the left tab in the list
•Delete Current File: Deletes the current track
from My Music.
•Sound Settings: Moves to the Sound Settings
screen. You can change the settings of the
sound.
SoundHound
Runs the SoundHound feature.
For more information, please see the SoundHound
section in Info part.
SEEK/
TRACK
If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning
•If play time is less than 3 seconds, moves to
previous/next file
•If play time is over than 3 seconds, plays the
current file from the beginning
If button is pressed (over than 0.8 seconds) it will
rewind/fast-forward the track
TUNE
Turn the
TUNE
knob to search a desired track.
If the desired track is displayed, press the
TUNE
knob to play the track.
If the
TUNE
knob is not pressed within 5
seconds of searching tracks, the track info
for the current track is restored.
Features Description
Shuffle
Plays files in random order
•If select the song in the file tab on the list screen
: Press the
Shuffle
button to switch between
shuffle and turning shuffle off
•If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen : Press
the
Shuffle
button to switch between shuffle
and turning shuffle off
2-42 I Radio/Media
Features Description
Menu
•Add to Playlist : Adds the current track to the
Playlist : Playlist is placed on the left tab in the
list (Maximum 100 files) Select a track and
press “Add to Playlist” to add the track in the
playlist
•Delete from Playlist : Select a track from the
playlist and press “Delete from Playlist” to
delete the track in the playlist
•Delete Files : Deletes files from My Music
If delete file from My Music, the information
related to song also deleted in the list.
•Now Playing : When moving to a different list
screen, moves to the list page where the cur-
rent file is located (Becomes disabled when
the current list includes the current file
Search Menu
Search tracks by the list type. Search songs accord-
ing to File, Playlist, Artist, Song and Album.
If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK
If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning
•If play time is less than 3 seconds, moves to
previous/next file
•If play time is over than 3 seconds, plays the
current file from the beginning
If button is pressed (over than 0.8 seconds) it will
rewind/fast-forward the track
TUNE
Turn the
TUNE
knob to move the focus to pre-
vious/next file. If the file you want to play is dis-
played, press
TUNE
knob to play the track.
If the
TUNE
knob is not pressed within 5
seconds of searching tracks, Tune search will
be terminated.
Features Description
Folder/
Category Name
Displays folder/category name in the list
Current Song Displays current playing file name
Back Button Converts to basic mode screen
Upper Folder Moves to Root Folder
Before Using the Bluetooth® Handsfree
Bluetooth Connection
Bluetooth Phone
part.3 Bluetooth
3-2 I Bluetooth
Before Using the Bluetooth
®
Handsfree
What is
Bluetooth
®
Wireless Technology?
•Bluetooth
®
Wireless Technology refers
to a short-distance wireless network-
ing technology which uses a 2.45GHz
frequency to connect various devices
within a certain distance.
•Supported within PCs, external devices,
Bluetooth® phones, PDAs, various elec-
tronic devices, and automotive environ-
ments,
Bluetooth
®
Wireless Technology
to be transmitted at high speeds without
having to use a connector cable.
•Bluetooth® Handsfree refers to a device
which allows the user to conveniently
make phone calls with Bluetooth®
mobile phones through the Multimedia
system.
•The Bluetooth® Handsfree feature may
not be supported in some mobile phones.
For more information on mobile phone
compatibility, visit the HYUNDAI website
- HYUNDAI Motor America : https://www.
hyundaiusa.com/bluetooth
Precautions for Safe Driving
•Bluetooth® Handsfree is a feature that
enables drivers to practice safe driv-
ing. Connecting the head unit with a
Bluetooth® phone allows the user to
conveniently make calls, receive calls,
and manage the phonebook. Before
using
Bluetooth
®
Wireless Technology,
carefully read the contents of this user’s
manual.
•Excessive use or operations while driv-
ing may lead to negligent driving prac-
tices and be the cause of accidents. Do
not operate the device excessively while
driving.
•Viewing the screen for prolonged peri-Viewing the screen for prolonged peri-
ods of time is dangerous and may lead ods of time is dangerous and may lead
to accidents. When driving, view the to accidents. When driving, view the
screen only for short periods of time.screen only for short periods of time.
Bluetooth
Before Using the Bluetooth
®
Handsfree I 3-3
03
CAUTIONS upon Connecting
Bluetooth® Phone
•Before connecting the head unit with
the mobile phone, check to see that the
mobile phone supports Bluetooth® fea-
tures
•Even if the phone supports
Bluetooth
®
Wireless Technology, the phone will
not be found during device searches if
the phone has been set to hidden state
or the Bluetooth® power is turned off.
Disable the hidden state or turn on the
Bluetooth® power prior to searching/
connecting with the head unit.
•If Auto Connection is used, the
Bluetooth® phone is automatically con-
nected when the ignition is turned on,
making it unnecessary to have to con-
nect the phone with the head unit every
time.
•If you do not want automatic connection
with your Bluetooth® device, turn the
Bluetooth® feature off of the Bluetooth®
device.
•Park the vehicle when connecting the
head unit with the mobile phone.
•Bluetooth® connection may become
intermittently disconnected in some
mobile phones. Follow these steps to
try again.
1. Turn the Bluetooth® function within
the mobile phone OFF/ON and try
again.
2. Turn the mobile phone power OFF/
ON and try again.
3. Completely remove the mobile
phone battery, reboot, and then
again.
4. Reboot the Multimedia System and
try again.
5. Delete all paired devices from both
of Phone and Head Unit sides and
then try again
•The Handsfree call volume and quality
may differ depending on the mobile
phone.
•Pairing Bluetooth® devices and use of
other Bluetooth® features are not sup-
ported when the vehicle is in motion. For
safety, please first park your vehicle.
•If you continue having issues with
downloading contacts, please check the
mobile phone status or inquire of the
mobile phone manufacturer.
3-4 I Bluetooth

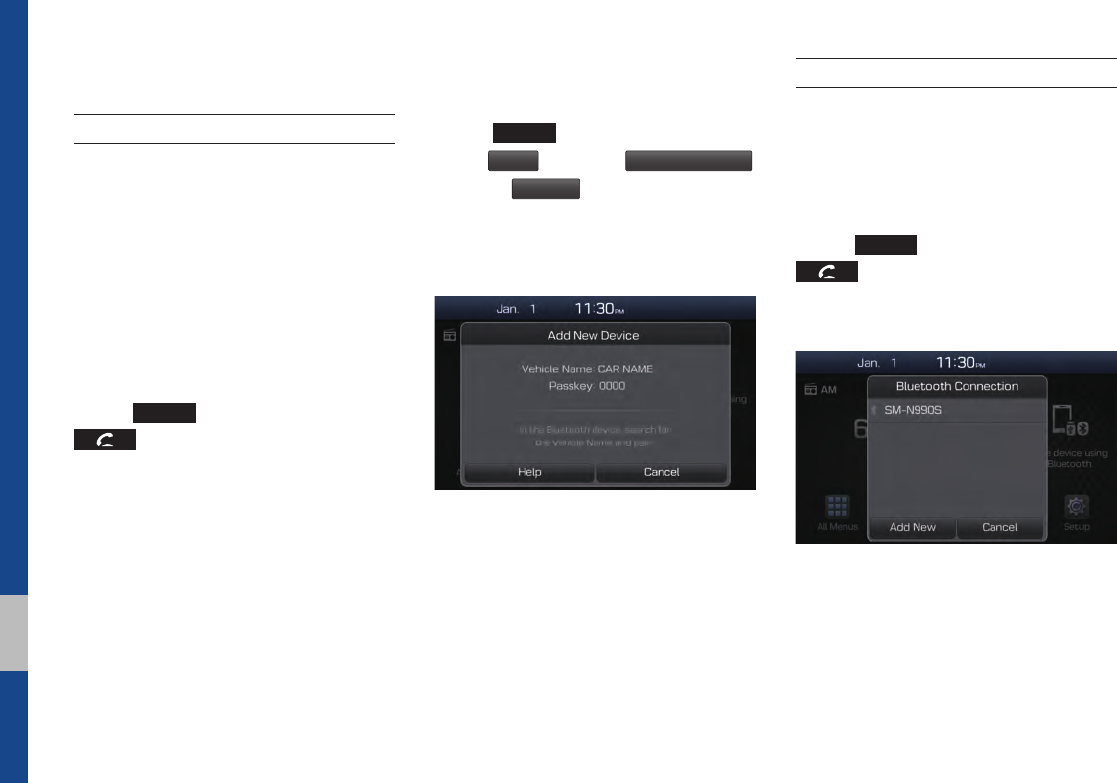

Bluetooth Connection
Pairing a New Device
Before you can use the Bluetooth feature,
you must first pair/connect your mobile
phone to your car.
Up to 5 Bluetooth devices can be paired.
Only one Bluetooth device can be con-
nected at a time.
Pairing a New Device by Selecting
Phone/Call
Select
PHONE
key in the head unit or
key in the steering wheel remote
control. ▶ Pair your car after your mobile
phone detects the Bluetooth device. ▶
Enter the passkey or accept the authoriza-
tion popup. ▶ Connect Bluetooth.
Pairing a New Device Through the
Phone Settings
Select
SETUP
key in the head unit. ▶
Select
Phone
. ▶ Select
Bluetooth Connection
.
▶ Select
Add New
. ▶ Pair your car after
your mobile phone detects the Bluetooth
device. ▶ Enter the passkey or accept the
authorization popup. ▶ Connect Bluetooth.
The default passkey is 0000.
The vehicle name above is an example.
Check the actual information on the product.
Connecting Bluetooth Devices
Connects the Bluetooth devices that you
add.
Connecting Devices by Selecting
Phone/Call
Select
PHONE
key in the head unit or
key in the steering wheel remote
control. ▶ Select the name of the device
to connect. ▶ Connect Bluetooth.
Bluetooth Connection I 3-5
03

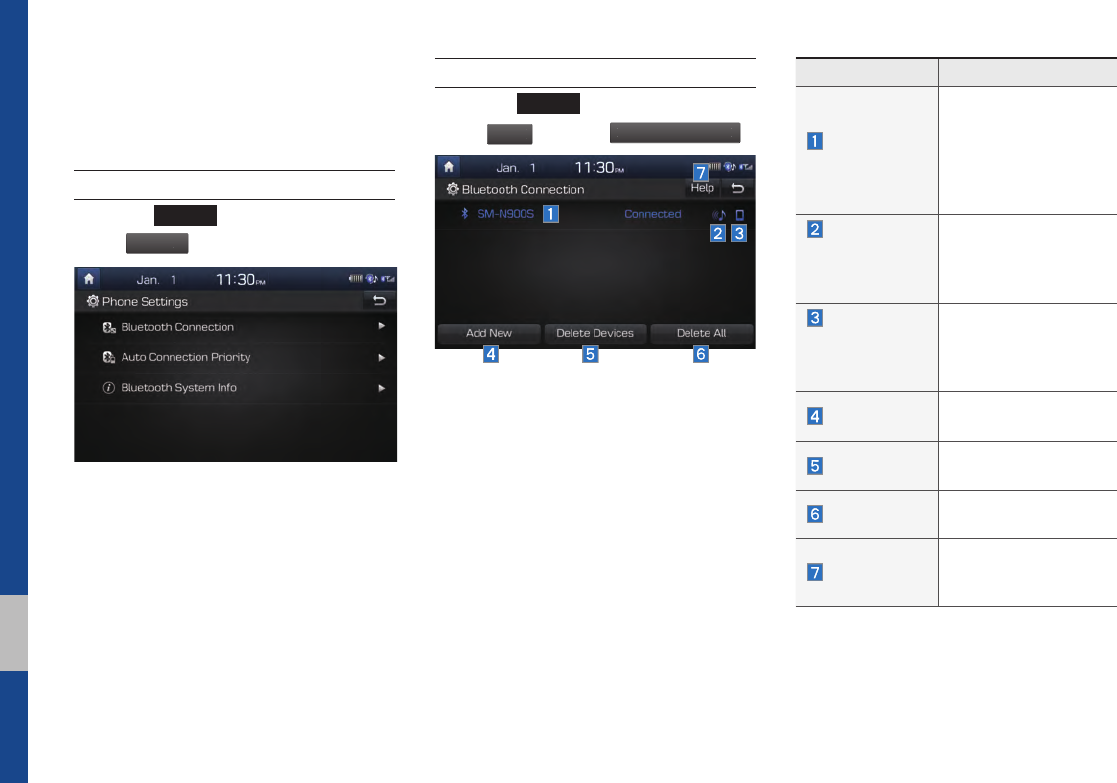

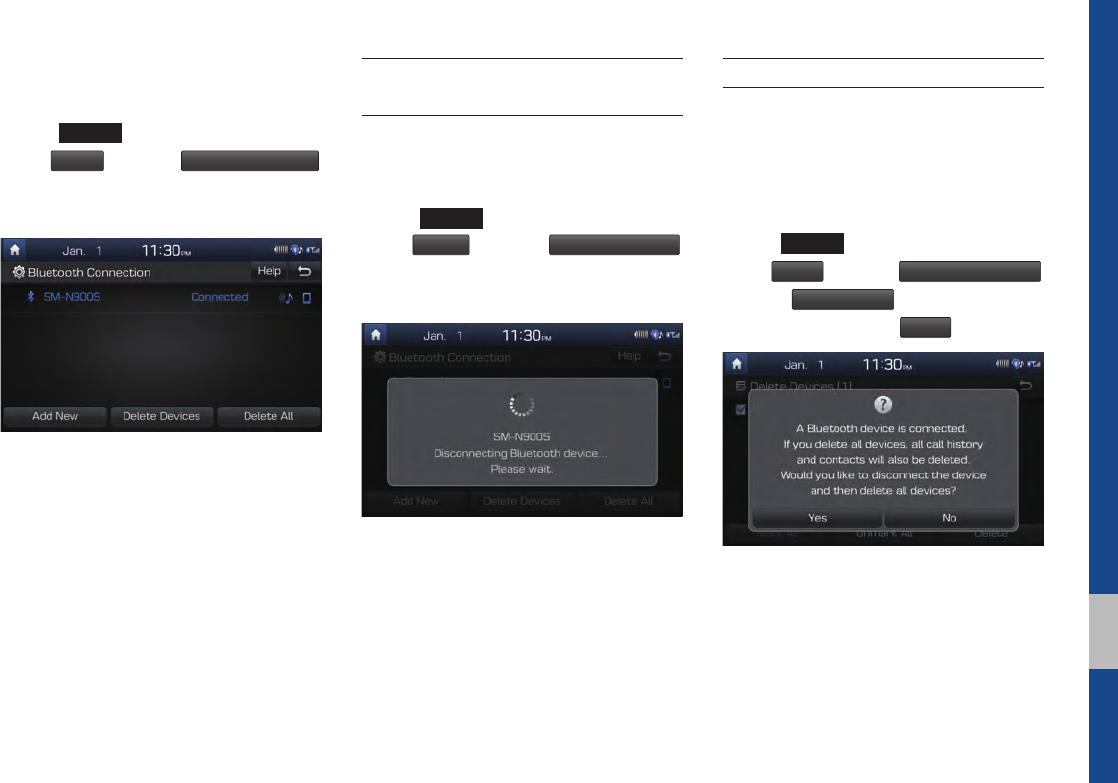

Connecting Devices Through the
Phone Settings
Select
SETUP
key in the head unit. ▶
Select
Phone
. ▶ Select
Bluetooth Connection
.
▶ Select the name of the device to connect.
▶ Connect Bluetooth.
Disconnecting
Bluetooth Devices
Disconnects Bluetooth devices that are
connected.
Select
SETUP
key in the head unit. ▶
Select
Phone
. ▶ Select
Bluetooth Connection
.
▶ Select the name of the device to dis-
connect.
Deleting Bluetooth Devices
Deletes the Bluetooth devices that you
added. Note that deleting a Bluetooth
device will delete all Call History and
Contact Info downloaded along with it.
Select
SETUP
key in the head unit. ▶
Select
Phone
. ▶ Select
Bluetooth Connection
.
▶ Select
Delete Devices
. ▶ Select the device
name to delete. ▶ Select
Delete
.
3-6 I Bluetooth
Bluetooth Phone
Phone Status Icons
Shows the current phone status in the
right top of the display.
Information
• The battery level icon and the call signal
strength indicator may not be supported in
some Bluetooth devices.
• The battery level may differ from the actual
level remaining
Icons Description
You can use Bluetooth phones
when a Bluetooth Hands-free
connection is established.
You can use Bluetooth audio
features when a Bluetooth audio
connection is established.
You can use Bluetooth phones
and audio features when both
Bluetooth Hands-free and audio
connections are established.
Call signal strength indicator
Battery level of the Bluetooth
devices connected
Downloading Call History list
Downloading Contacts
In a Bluetooth phone call
Microphone muted
Bluetooth Phone I 3-7
03

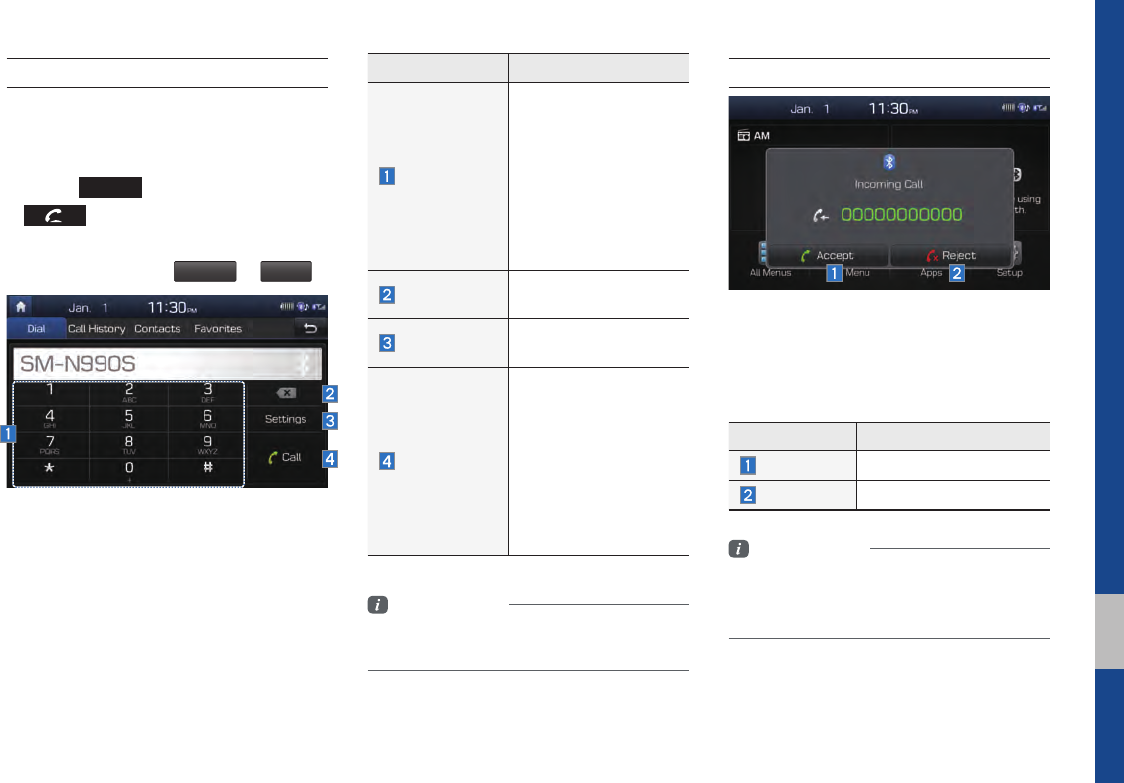

Dial
Dials a call after the Bluetooth devices are
connected.
•Select
PHONE
key in the head unit or
key in the steering wheel
remote control.
•You can also select
All Menus
▶
Phone
.
Name Description
Keypad
Use the keypad to
enter the phone
number that you want
to call. Press and hold
the last number of
a speed dial to dial
a number that you
added to the Speed
Dial list in the phone
Delete Deletes the numbers
that you entered.
Settings Moves to a screen of
Phone Settings.
Call
Makes a call after
you dial a number
and select CALL. If
the number is listed
in Dialed Calls, you
can select the number
and press CALL to
automatically dial that
number again.
Information
• Some types of mobile phones may not
support the Speed Dial function.
Accept/Reject Call
If there is an incoming call after you made
a Bluetooth connection, a popup message
will appear.
Information
• In some mobile phones, the caller's number
may not be displayed, and the Reject feature
may not be supported.
Name Description
Accept Answers the call.
Reject Ignores the call.
3-8 I Bluetooth
Using the Menu During
a Phone Call
When making a call, you can use the fol-
lowing menu items.
Name Description
Use Private
Switches a voice call
from the car Hands-free
to the mobile phone.
End Ends a call.
Contacts Displays the Contacts
list.
Outgoing
Volume
Displays the Mic Volume
settings. You can adjust
the in-call volume that
the other party hears
(level 1 - 5).
Keypad Moves to a screen for
entering ARS numbers.
Switch
Switches to a call on
hold, if any. You can also
switch calls by select-
ing the number in the
Information Display. The
Switch function switches
the current call to a
waiting call in order to
answer a new incoming
call.
i
Information
• If the caller's number is listed in Contacts, the
caller's name will be displayed. Otherwise,
only the number will be displayed. In some
mobile phones, the phone number may not
be displayed.
• In some Bluetooth devices, the Use Private
feature may not be supported.
• In some Bluetooth devices, the Switch feature
may not be supported.
• During a phone call on a Bluetooth Hands-
free, you cannot access other modes, such as
Radio and Settings.
• Depending on handset types, the in-call
volume the other party hears may differ. If the
other party hears your voice too low or too
loud, adjust the mic volume.
Bluetooth Phone I 3-9
03

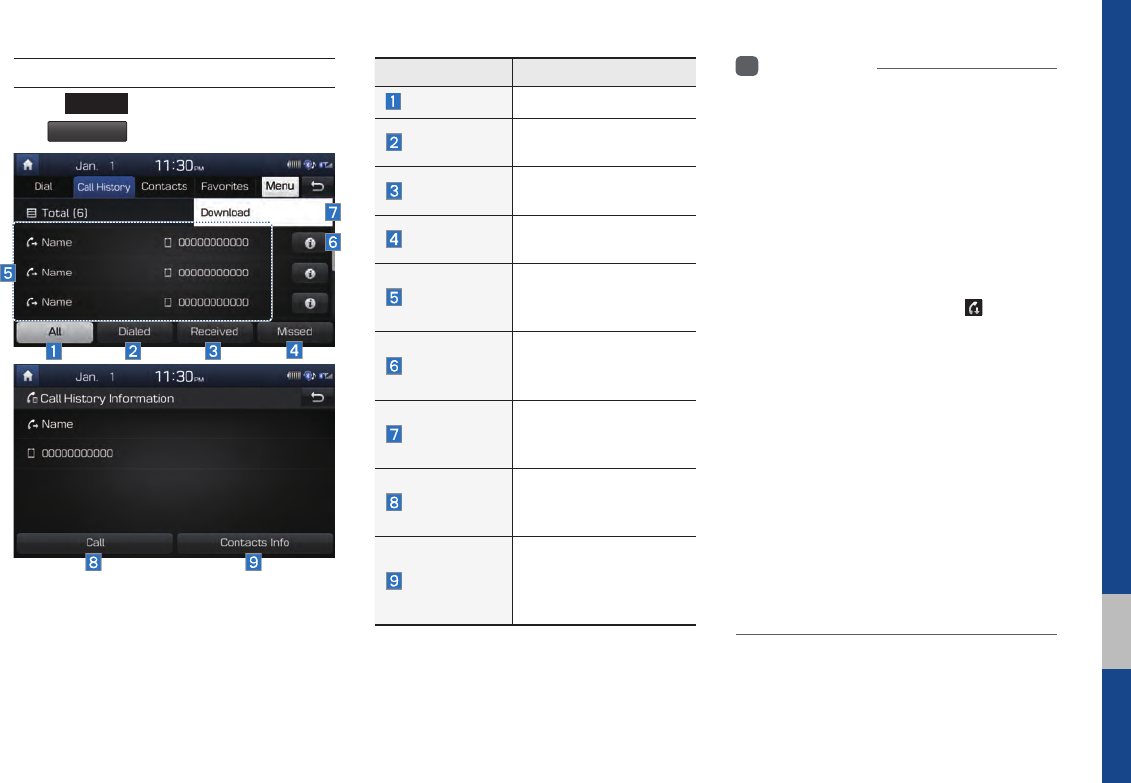

Call History
Select
PHONE
key in the head unit ▶ and
then
Call History
.
Name Description
All Lists the all call history.
Dialed Lists the calls that you
made.
Received Lists the calls that you
have received.
Missed Lists the calls you
missed.
Call History
Displays all of your call
history. Select from the
list to dial the number.
Information
Displays the details of
your call history
information.
Download
Downloads the call his-
tory information from
your mobile phone.
Call
Dials the selected
number in your Call
History Information.
Contacts Info
Goes to the Contact
Information screen if
the number has been
stored.
i
Information
• In some mobile phones, call records may not
be added to your Call History.
• Calls from restricted ID's are not added to
your Call History Information.
• Up to 50 calls can be added in each Dialed
Calls/Received Calls/Missed Calls list.
• The durations of each dialed/received call are
not displayed in your car's Call History list.
• While the call history download is in progress,
the status bar displays an icon ( ).
• If the call history download is turned off on the
Bluetooth device, the call history download
will fail.
• Some devices require a device authentication
for downloading your call history. If download
fails, check if the Bluetooth settings or display
status are normal.
• Some devices do not support call history
download. Check if your Bluetooth device
supports download feature. For details
regarding Bluetooth-supported devices and
their functional compatibility, visit https://www.
hyundaiusa.com/bluetooth
3-10 I Bluetooth

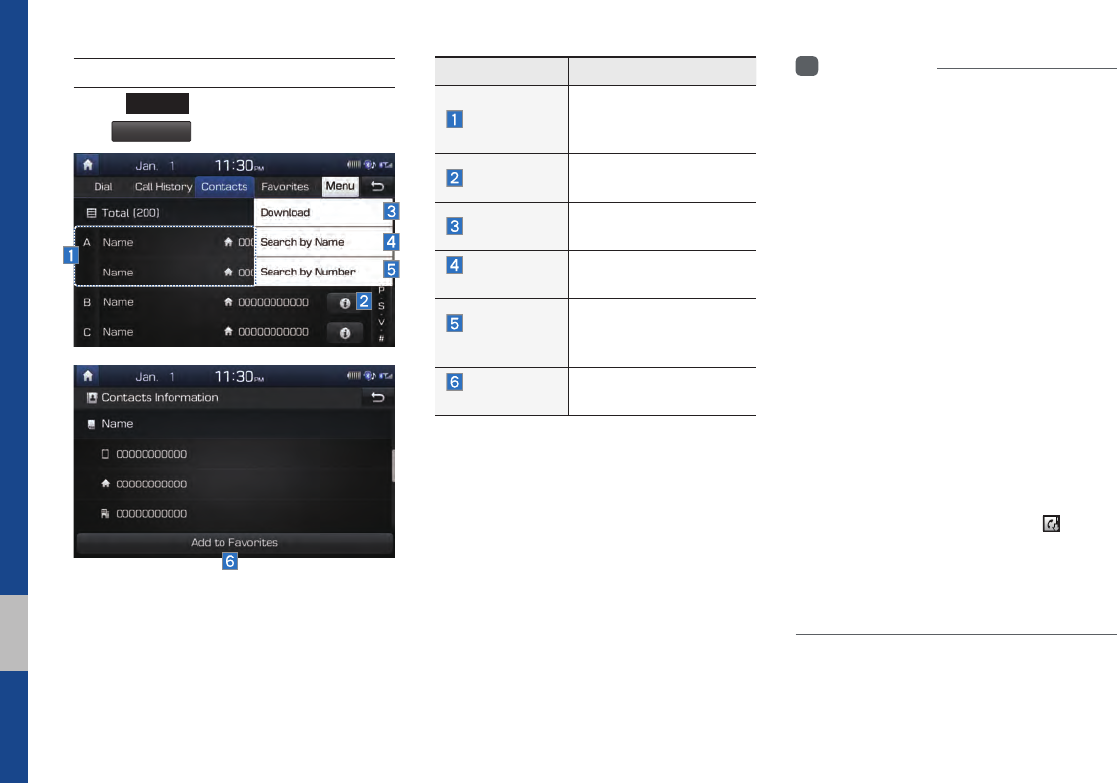

Contacts
Select
PHONE
key in the head unit ▶ and
then
Contacts
i
Information
• Up to 5000 phone numbers can be
downloaded from a single, paired Bluetooth
device.
• You cannot edit or delete downloaded phone
numbers from your car.
• Contacts can be viewed only when the
Bluetooth device is connected.
• Even if the Bluetooth device is disconnected,
the downloaded data will remain.
(Note that deleting a paired phone will also
delete all downloaded Contacts and Call
History data)
• Downloaded phone numbers may be lost
depending on the condition of the head unit.
Keep your important data in a safe place.
• Contacts from both the SIM card and your
mobile phone are downloaded at the same
time by default.
• The status bar displays a ( ) while
downloading contacts.
• The download will not be available if the
contacts download function is turned off on
your Bluetooth device.
Name Description
Contacts List
The list of Contacts.
Select from the list to dial
the number.
Information Displays contact informa-
tion.
Download Downloads contacts from
your mobile phone.
Search by
Name
Searches Contacts for
the name that you enter.
Search by
Number
Searches Contacts for
the number that you
enter.
Add to
Favorites
Adds a phone number
to Favorites.
Bluetooth Phone I 3-11
03
• Some devices require a device authentication
for downloading your contacts. If download
fails,check your phone screen and confi rm the
download if necessary.
• Some devices do not support contacts
download feature. Check if your Bluetooth
device supports contacts download. For
Bluetooth supporting devices details and
compatibility, visit https://www.hyundaiusa.
com/bluetooth
Favorites
Select
PHONE
key in the head unit ▶ and
then
Favorites
.
Name Description
Favorites
Lists the phone
numbers saved as
Favorites. Select from
the list to dial the num-
ber.
Add New Adds a new number to
Favorites.
Delete Items
Deletes numbers
that you select from
Favorites.
Delete All Deletes all of the
numbers from Favorites.
MEMO
What is Voice Recognition?
Precautions Required for Successful Voice Recognition
Starting/Ending and Setting Voice Recognition
Voice Recognition Screen Overview
Voice Commands
Siri Eyes Free
part.5 Voice Recognition
5-2 I Voice Recognition
What is Voice Recognition?
Voice recognition technology runs the sys-
tem as ordered by recognizing your voice
command for operation of the multimedia
while you are driving the car.
Regretfully, not all possible voice com-
mands are recognized by the system due
to technological limitations. To make up for
these limitations, the system displays the
voice commands that are available for you
to use.
There are errors in communication between
people. Likewise, voice recognition some-
times misunderstands your voice command
in some circumstances. If this happens,
either check the screen for the available
options and say the command again, or
manually select and press the button for the
corresponding command on the screen.
Precautions Required
for Successful Voice
Recognition
1. Voice recognition supports only the
commands that are displayed on the
screen and written in the User's Guide.
2. To ensure the correct recognition and
execution of your command, say your
command when you hear the beep after
a voice prompt.
3. Voice recognition automatically ends if:
1) A call is incoming or outgoing
2) A media (USB or iPod, etc.) is con-
nected or disconnected
3) The front or rear view camera is
operated (optional)
4) The car engine starts or stops
5) A system key, such as
RADIO
key
or
MEDIA
key is selected
4. The microphone that recognizes your
voice is located over the head part in
the driver's seat. To make your com-
mands better understood, keep your
body straight in the driver's seat when
speaking the command.
5. Speaking naturally and clearly will
ensure better recognition of your voice
commands.
6. In the following cases voice recognition
will be affected by ambient noise.
1) The sound of the wind if any win-
dow or the sun roof is open.
2) High speed blower from the air
vents. Set climate control to blow
lower than level 3.
3)
Vibrations from passing through a
tunnel.
4) Vibrations from driving on an
uneven road.
5) Storms and heavy rain.
Voice Recognition
Starting/Ending and Setting Voice Recognition I 5-3
05

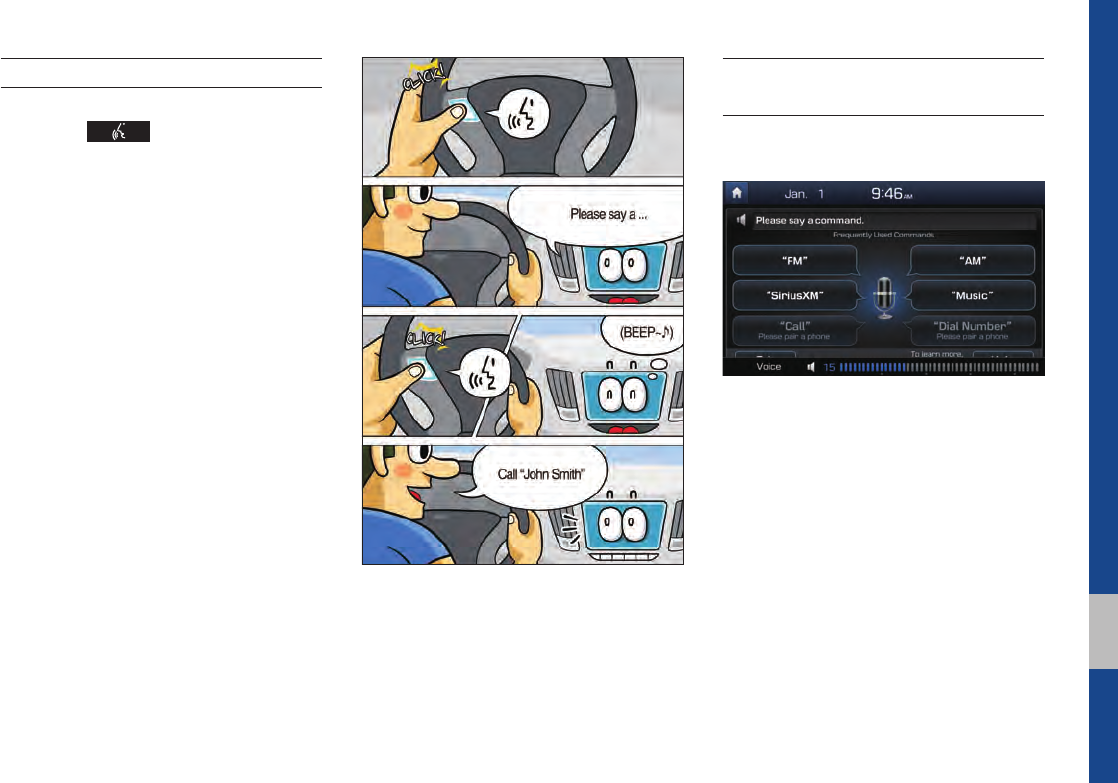

Starting/Ending and Setting
Voice Recognition
Starting Voice Recognition
Press the key briefly (less than 0.8
seconds) on the steering wheel control to
activate voice recognition.
Ending Voice Recognition
1. Select “Exit” to the left of the bottom to
end voice recognition.
2. Press and hold (over 0.8 seconds) the
key on the steering wheel con-
trol to end voice recognition.
Quick Run of Voice
Recognition (Manual Mode)
Usually, you are supposed to say a com-
mand to execute the desired operation
after the voice guidance. However, it takes
a little time to wait for the voice guidance.
If you would like to activate the desired
operation more quickly, you can just touch
the commands displayed on the screen.
This feature is useful when you feel the
voice guidance is too long or voice com-
mands do not work as you desired.
5-4 I Voice Recognition

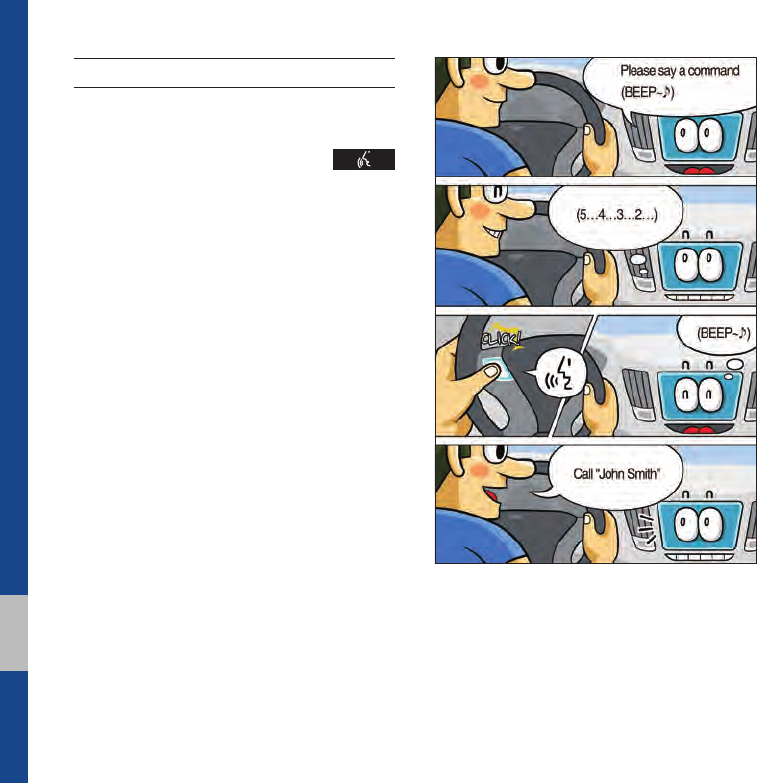

Extending the Listening Time
When the system is waiting for your com-
mand, after the voice prompt and beep
have been heard, if you press the
key (shorter than 0.8 seconds), then the
beep will sound again and standby mode
will restart.
When activated, voice recognition waits for
your command for 5 seconds. If you say
nothing for 5 seconds, a voice prompt will
ask for your command again.
Starting/Ending and Setting Voice Recognition I 5-5
05
Skipping Prompt Messages
When you hear the prompt message,
press the key on the steering
wheel remote control to skip the message
and go directly to listening mode to say
your command.
This results in faster operation when
you feel the message is too long or you
already know the command to use.
Adjusting Voice
Recognition Volume
During voice recognition, rotate the vol-
ume knob to adjust the message volume.
5-6 I Voice Recognition

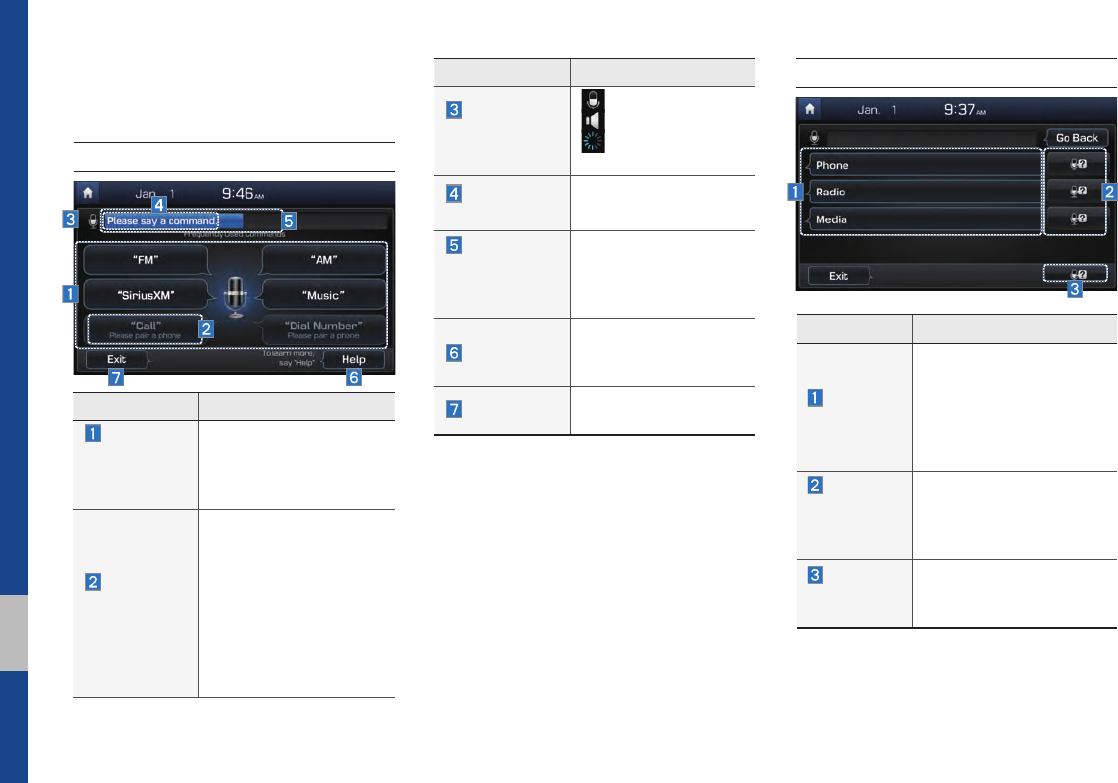

Voice Recognition Screen
Overview
Start Screen
Help Display
Name Description
Most
frequently
used
commands
Displays the six most fre-
quently used commands.
Not
available
command
Displays commands that
are not available due to
a failure in meeting the
conditions for using them
and thus need additional
settings. The conditions
required for using them
will be described briefly
under each command.
Name Description
Voice
recognition
status icons
Standby
Voice guidance
Voice command
process
Recognized
results
Displays the voice rec-
ognition result.
User's
speaking
volume being
recognized
Displays the voice
command volume in
real time.
Help
Displays all available
help commands in a
tree format.
Exit Ends the voice recog-
nition.
Name Description
Command
list
• Shows the available
commands.
•Select or say a com-
mand to display addi-
tional commands in
detail.
How to
use for
selected
item
This section shows how to
use voice recognition for
the selected item.
How to
use in
general
This section displays how
to use voice recognition in
general.
Voice Recognition Screen Overview I 5-7
05

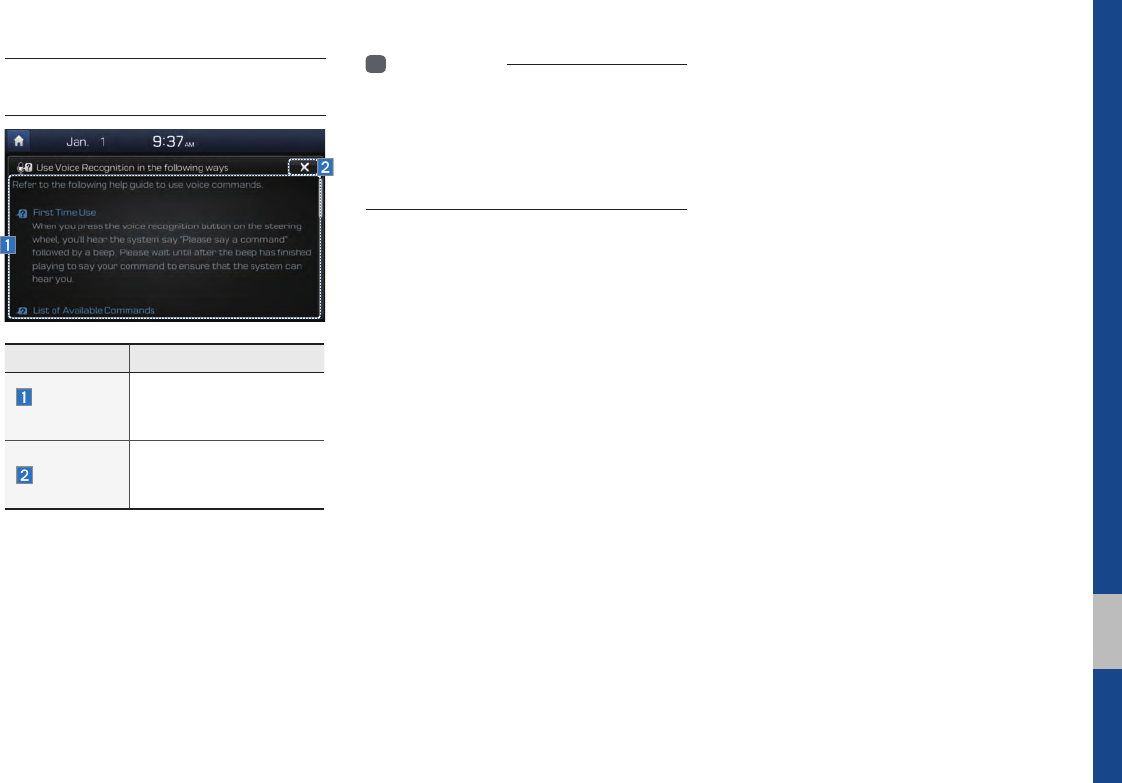

Instructions for Using
Voice Recognition
i
Information
• In the instructions screen, no voice is
recognized, so you must manually issue
commands. Because the instructions screen
displays a lot of content, you can not view it
while driving for safety precautions.
Name Description
Detail
instruction
This section describes
how to use voice recog-
nition in detail.
Close button
Closes the screen and
restarts voice recogni-
tion.
5-8 I Voice Recognition
Voice Commands
Types of Commands
Voice recognition commands are classified as “Global Commands”
and “Local Commands”.
1. Global Commands (●): Commands that can be used immedi-
ately after activating voice recognition.
2. Local Commands (○): Commands that can be used when a
multimedia or Bluetooth function is running, or displayed on the
screen, after activating voice recognition.
Call Commands
* Check the following before using call commands :
1. Voice commands related to phone calls can be used after con-
necting a Bluetooth device.
2. To call a person, for example “Call <John Smith>” whose name
is listed in Contacts, you must first download the Contacts
list. For details on downloading contacts, see “Part 3. Using
Bluetooth > Chapter 3. Bluetooth Phone > 3.10 Contacts”.
3. After downloading the Bluetooth contacts, it will take some time
to convert the Contacts into voice data during which time you
cannot make a call by name yet. The time it takes to convert
voice data may vary depending on the number of Contacts
downloaded on the phone.
Command Operation
●Call Displays downloaded Contacts, after this
you can make a call by saying the name.
●Call <Name> You can directly call a person by <Name>
in the downloaded Contacts.
●Call <Name> on
Mobile
You can call a person <name> directly to
the number that is saved as “Mobile” in
the downloaded Contacts.
e.g.) Call “John Smith” on Mobile
●Call <Name> in
Office
You can call a person <name> directly to
the number that is saved as “Office” in the
downloaded Contacts.
e.g.) Call “John Smith” in Office
●Call <Name> at
Home
You can call a person <name> directly to
the number that is saved as “Home” in the
downloaded Contacts.
e.g.) Call “John Smith” at Home
●Call <Name> on
Other
You can call a person <name> directly to
the number that is saved as “Other” than
“Mobile, Home, or Office” in the down-
loaded Contacts.
e.g.) Call “John Smith” on Other
●Dial Number Displays a screen where you can say a
phone number to dial.
●Dial <Phone #> You can directly say the number to call.
e.g.) Dial 111 555 1234
●Redial Directly calls at the number that you last
dialed.
●Call History Displays your Call History, where you can
say the list number to make a call.
Voice Commands I 5-9
05
Command Operation
●Radio Plays the most recent radio channels
from FM, AM, and SiriusXM™.
●FM Plays FM radio.
●FM
<87.5~107.9>
Tunes to FM <Frequency> according to
what you say.
e.g.) FM 87.5: FM eighty seven point five
●SiriusXM Plays SiriusXM™ radio.
●SiriusXM
<0~999>
Tunes to SiriusXM™ Channel <Channel
Number> according to what you say.
e.g.) SiriusXM 23: SiriusXM Twenty three
●AM Plays AM radio.
●AM <530~1710>
Tunes to AM <Frequency> according to
what you say.
e.g.) AM 530: AM Five Thirty
○Preset <1~40> Tunes to your preset stations (1 to 40).
○Channel
<0~999>
In SiriusXM™ Radio mode, turns on the
<Channel Number> that you say.
Radio Commands
5-10 I Voice Recognition
Media Commands
* Check the following before you use media commands.
1. If no media is connected or if no playable files exist at the time
when you use these commands, a voice message will tell you
that this is not available.
2. If you say the name of the media that is currently playing again,
then that media will continue playing.
e.g.) Saying “USB” while USB content is playing.
Command Operation
●Music Continues the last media you played.
●iPod
Plays the iPod currently connected. This
will work the same when an iPhone is con-
nected. If a USB is connected, then it will
be played instead of the iPod.
●USB
Plays the music on the USB currently con-
nected.
If an iPod is connected, then the iPod will
be played instead of the USB.
●Bluetooth Audio
Plays the music on the Bluetooth phone
currently connected.
This may not be supported depending on
the Bluetooth connection status.
●AUX Plays external devices that are currently
connected.
●My Music Plays My Music files stored in the system.
●Pandora Radio Plays Pandora Radio that is currently con-
nected.
Voice Commands I 5-11
05
1. Audio CD Command
Command Operation
○Play Plays a paused track.
Maintains the current settings during playback.
○Pause
Pauses a track that is currently playing.
Maintains current settings while paused during
playback.
○Track
<1~99> Plays a desired track number.
○Shuffle
Plays tracks or files randomly.
Maintains current settings during shuffled play-
back.
○Shuffle Off
Cancels Shuffle and plays tracks sequentially.
Maintains current settings during sequential
playback.
○Repeat
Plays the current track repeatedly.
Maintains the current settings during repeat play-
back.
○Repeat Off
Cancels Repeat and plays multiple tracks or
files.
Maintains current settings during multiple track
playback.
2. MP3 CD / USB Music / iPod / My Music Command
Command Operation
○Play Plays a selected file.
Maintains the current settings during playback.
○Pause
Pauses a file that is playing.
Maintains current settings while paused during
playback.
○Shuffle
Plays tracks or files randomly.
Maintains current settings during shuffled play-
back.
○Shuffle Off
Cancels Shuffle and plays tracks sequentially.
Maintains current settings during sequential
playback.
○Repeat
Plays the current track or file repeatedly.
Maintains the current settings during repeat play-
back.
○Repeat Off
Cancels Repeat and plays multiple tracks or
files.
Maintains current settings during multiple track
playback.
5-12 I Voice Recognition
3. Pandora Radio command 4. Bluetooth audio / AUX command
For Bluetooth audio and external devices (AUX), local commands
are unavailable, including Play, Pause, Repeat and Shuffle.
Command Operation
○Skip Moves to the next track.
○Thumbs up
If you like the genre of the music currently
playing, say “Thumbs up” so that more simi-
lar music will play.
○Thumbs down
If you don’t like the music currently playing,
say “Thumbs down” to minimize the number
of playbacks of similar genre music.
○Play
Plays a selected file.
Maintains the current settings during play-
back.
○Pause
Pauses a file that is playing.
Maintains current settings while paused
during playback.
○Shuffle
Plays tracks or files randomly.
Maintains current settings during shuffled
playback.
Voice Commands I 5-13
05
Other Commands List
(Commands used in List / Help)
Command Operation
●Help
Moves to the voice recognition help screen.
All available commands can then be identified
and used.
○Line 1~4
(One~Four)
When you cannot select a certain name,
such as in Call History, you can select it
using numbers.
Simple numbers can be recognized, such
as “One” or “Two”.
○Yes / No
When voice recognition is activated, this
command is used when an answer is
requested for a confirmation question.
○Previous/Next
When four or more searched items are
listed, you can move to the previous or next
page using a voice command.
○Manual Input
When Dial entry results are displayed,
this command is used to search manually,
rather than to search with a voice com-
mand.
Voice recognition stops after this command
is used.
○Go Back Moves to the previous screen.
●Exit Ends the voice recognition.
5-14 I Voice Recognition

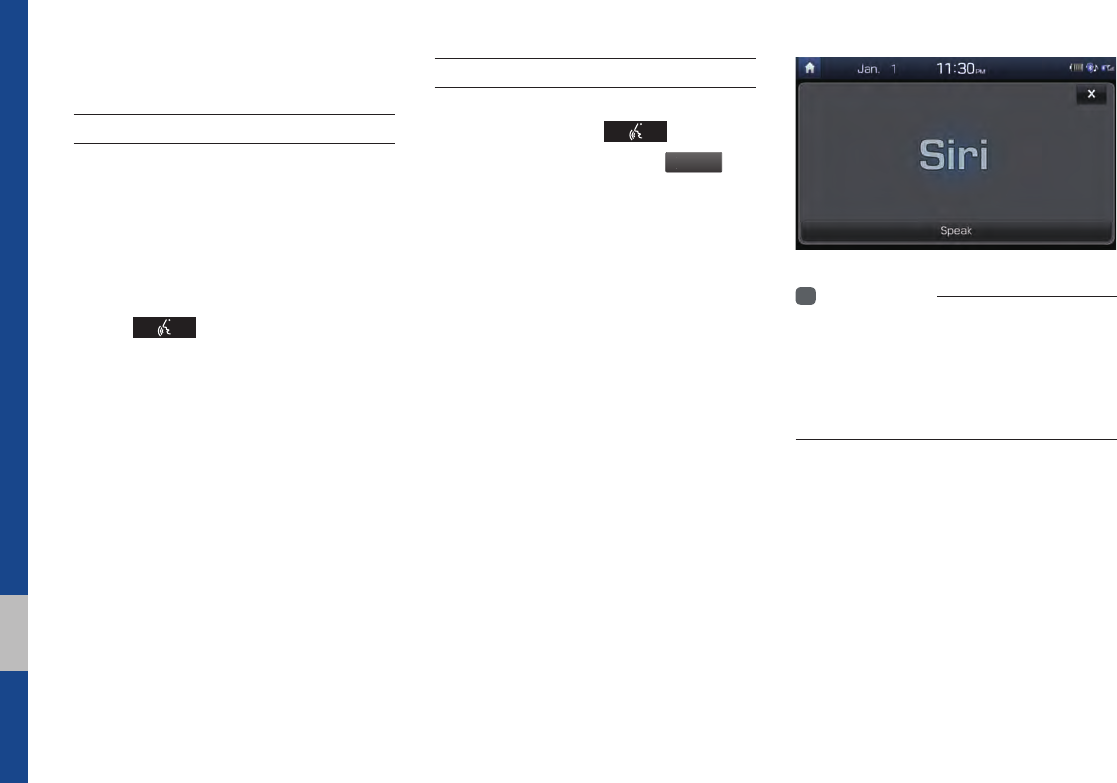

Siri Eyes Free
How to start Siri
If you want to use Siri, you have to con-
nect your iOS device to Multimedia system
through Bluetooth.
(Please check whether your iOS device
supports Siri and turning Siri On)
Then you can use Siri while pressing and
holding key on the steering wheel.
How to use Siri
When you access the Siri screen while
pressing and holding key on the
steering wheel, you can press
S
pea
k
but-
ton and then you can speak what you
want. Please see the Multimedia system
only supports “Phone” related functions.
Other functions will be performed in your
iOS device. If you press voice key quickly,
Siri would re-start. If you hold down voice
key, Siri would be terminated and the
screen would go back to the previous
screen. Eyes-Free mode would be acti-
vated automatically while you are driving.
When shifting gears into P or putting the
Parking break on, Eyes-Free mode would
be deactivated automatically.
i
Information
• Functions and feedbacks from voice
commands via Siri are executed in iOS
device. If iOS version changed, functions and
feedbacks can be changed according to iOS
device.
Start up
Pandora®
SiriusXM™ Data
SoundHound
Android Auto
part.6 Apps/Info
6-2 I Apps/Info
Apps/Info
Start Up
Press the
APPS/
key on the head unit to move to the information
screen. The screen is composed of :
• “Pandora®” to listen to Pandora® Radio by connecting a smart
phone
• “Quick Guide” to provide information about how to controls and
major functions
• “SiriusXM Data” to show weather, traffic, stock, gas station,
sports, and movie information provided by SiriusXM™ Travel
Link.
• “Voice Commands” to provide information about available voice
command list to use voice recognition.
• Android Auto to conveniently use various functions of your
mobile phone while driving (For more information, refer to the
manual from Google or visit its company website.).
Pandora
®
Press the “Pandora” icon after selecting All Menus or the
APPS/
key to enter Pandora®.
Pandora, the Pandora logo, and the Pandora trade dress are
trademarks or registered trademarks of Pandora Media, Inc. Used
with permission. Pandora is only available in certain countries.
Please visit http://www.pandora.com/legal for more information.
Pandora
®
I 6-3
06

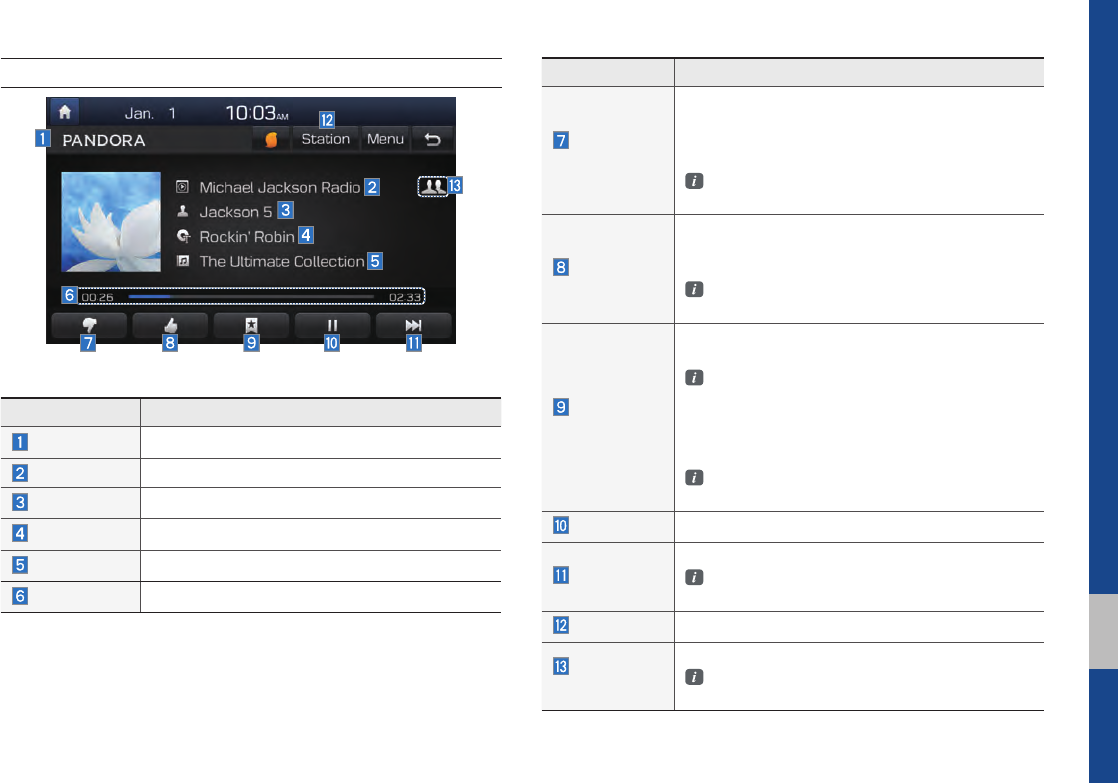

Pandora® Screen Controls
Name Description
Thumbs
Down
If you don’t like the music current playing, press
this button to move to the next music and to min-
imize the number of playbacks of similar genre
music.
You can move to next song up to specific times
which Pandora
®
allows
Thumbs Up
If you like the genre of the music current playing,
press this button to send a “Thumbs Up” signal to
Pandora
®
so that more similar music will play.
This function can not be reset once setting is
chosen.
Bookmark
Tra c k
Add the music current playing to the bookmarks
list.
You can view your bookmarked songs from
your Pandora
®
profile online. Go to pandora.
com, then click on the “Your profile” button
above the player. That will bring up a page with
your stations, bookmarked songs.
This function can not be reset once setting is
chosen.
Play/Pause Plays/pauses the current song
SKIP
Moves to the next track
You can move to next song up to specific times
which Pandora
®
allows
Station List Moves to the station list screen.
Shared
Station Icon
Indicates that the station is already shared.
Thumbs Up/Down in not available for shared
stations.
Name Description
Mode Displays current operating mode.
Station Name Shows the station name current playing.
Artist Name Shows the artist/title information current playing.
Song Title Shows the song title current playing.
Album Name Shows the album name current playing.
Play Time Displays the current play time.

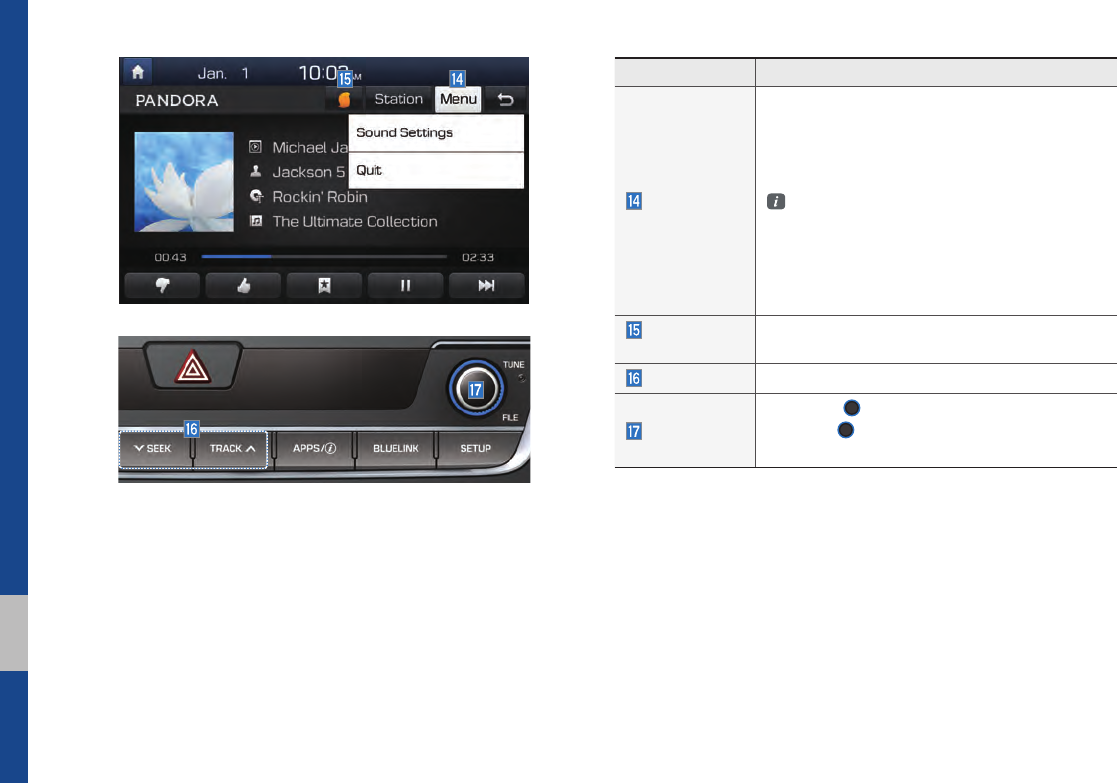

6-4 I Apps/Info
Name Description
Menu
•Sound Settings
Moves to the sound settings screen.
•Quit
Exit current Pandora
®
mode and then move to
previous AV mode.
You can view your bookmarked artists and
songs from your Pandora
®
profile online. Go to
pandora.com, then click on the “Your Profile”
button above the player. That will bring up a
page with your stations, bookmarked artists,
and bookmarked songs.
SoundHound
Icon
Moves to the SoundHound searching music
application.
SEEK/TRACK Press briefly to play the next song.
TUNE
Rotate the
TUNE
knob to search for a station.
Press the
TUNE
knob to play the station when
you find the name that you want.
Pandora
®
I 6-5
06
Name Description
Current
Station Shows the name of the station current displayed.
Shuffle
Shuffling your stations provides a more diverse
mix of music by randomly playing songs from the
stations in your list.
Search
Menu
Sorts stations by the items in the menu.
•A-Z : Sorts stations in alphabetical order.
•By Date: Sorts stations in the order they were
generated.
Shared
Station Icon Indicates that the station is already shared.
SEEK/
TRACK Press briefly to play the next song.
TUNE
Rotate the
TUNE
knob to move to the previous/
next list. Press the
TUNE
knob to play a
selected file.
6-6 I Apps/Info

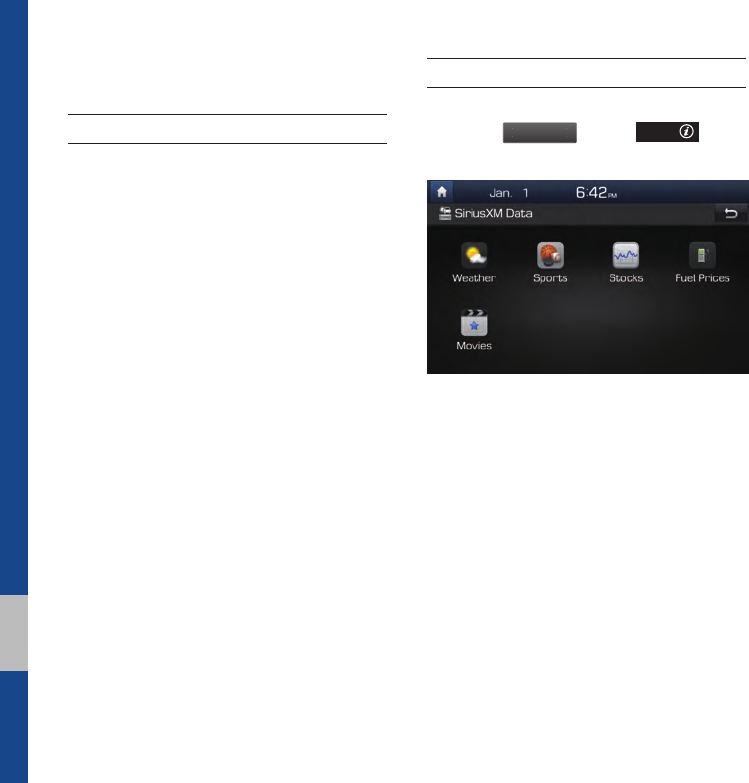

SiriusXM™ Data
About SiriusXM™ Data Service
The SiriusXM™ Data Service is a paid
membership satellite radio service that
provides users with information such as
weather, fuel prices, stocks, sports and
movies.
However, weather information is not sup-
ported for vehicles purchased in Canada.
Accessing SiriusXM™ Data
Press the “SiriusXM Data” icon after
selecting
All
M
enus
or the
APPS/
hard-
key to enter the SiriusXM™ Data mode.
SiriusXM™ Data I 6-7
06

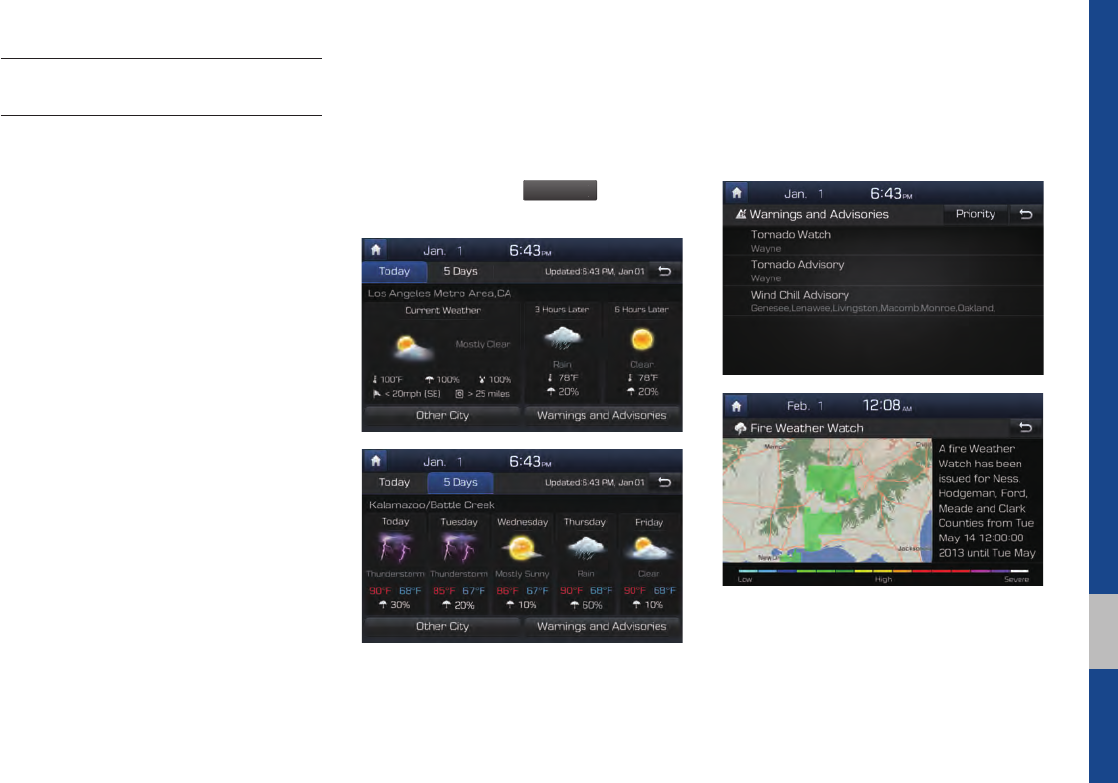

SiriusXM™ Weather
Announcement
At the “SiriusXM Data” screen, press
the “Weather” icon to enter the Weather
Announcement mode.
Weather Forecast
This service provides current weather
information and weather forecasts for the
next five days in your region. To change
the region, press the
O
ther Cit
y
button and
select the desired region.
Warnings and Advisories
This service provides weather warnings
and advisories, such as tornado, storm,
flood, etc.
6-8 I Apps/Info
SiriusXM™ Fuel Price
Information
At the “SiriusXM Data” screen, press the
“Fuel Prices” icon to enter the Fuel Prices
Information mode.
Search for Nearby Stations, and
Register Key Locations as Favorite
Stations.
Search for nearby stations with the
“Nearby Stations” menu.
It shows station locations, starting from
the nearest one, and select “Nearest”
menu on the top right side to further sort
them by price or brand name.
Select the
★
button to the right of the
list to register key locations as a Favorite
Station so that you can go there again
with the “Favorite Stations” menu.
SiriusXM™ Data I 6-9
06

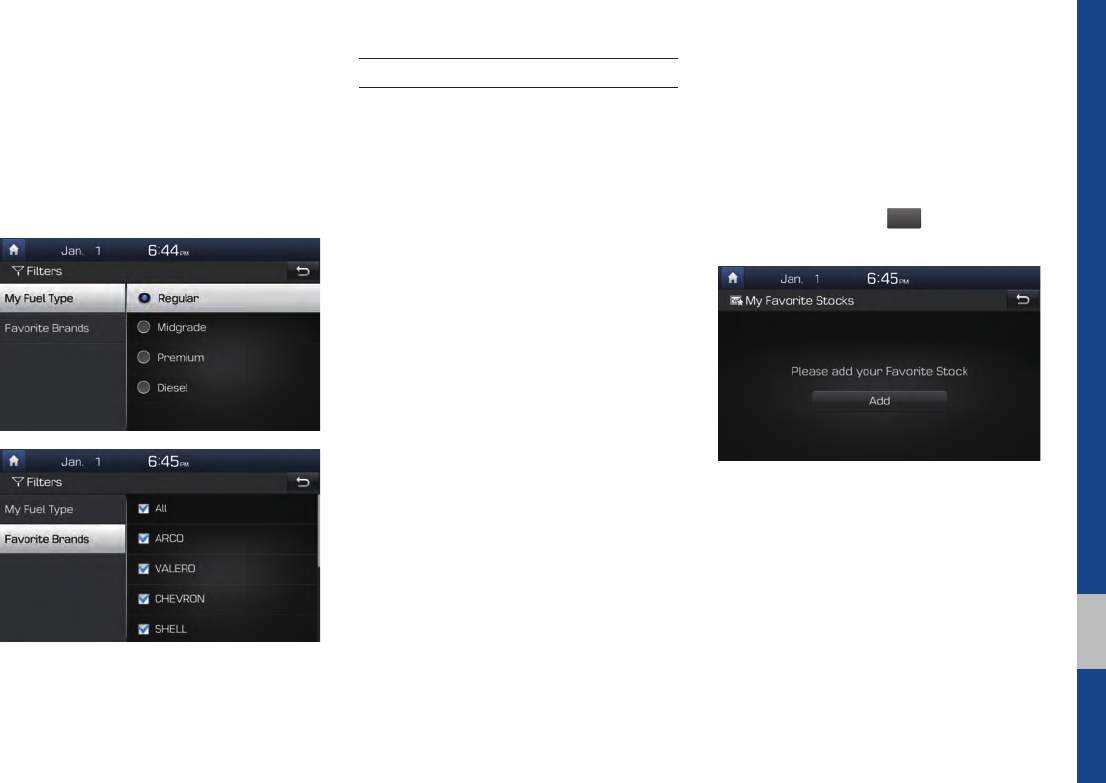

My Fuel Type Settings
With the “Filters” menu, you can select
fuel types and favorite brands.
When searching for Nearby Stations, the
results will reflect selected fuel types and
brand information.
SiriusXM™ Stock Information
In the “SiriusXM Data” screen, press the
“Stocks” icon to enter the Stocks mode.
Stocks is a feature that shows the current
value and change of stocks.
For symbols which you are interested
in, press the icon to save the symbol as
a part of Saved symbols can be viewed
from the My Favorites button on the Stock
Main screen.
My Favorites
My Favorites shows a list of stocks added
by the user. When entering the Stocks
menu for the first time, a screen is dis-
played for you to add your favorite stock
information. Press the
Add
button to move
to the stock search screen.
6-10 I Apps/Info

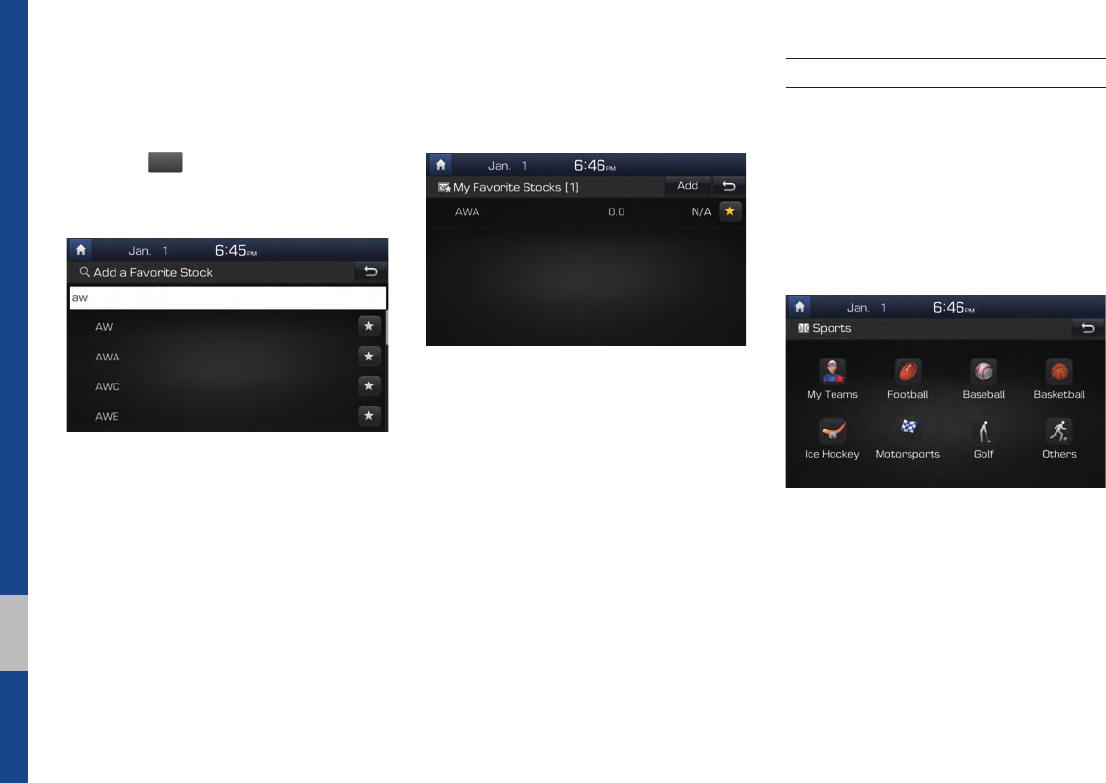

Stock Search
Use the Stock Search menu to search for
specific stocks.
Press the
★
button after searching for
your favorite stocks to save them in “My
Favorite”.
In the My Favorites screen, you can find
the selected stock information that you
registered.
SiriusXM™ Sports Information
Press the “Sports” icon to enter the Sports
mode.
This service provides real-time updated
information on scores and schedules for
major sports, such as NFL, NBA, NCAA
football, NCAA basketball, NHL, MLB,
NASCAR and more.
SiriusXM™ Data I 6-11
06

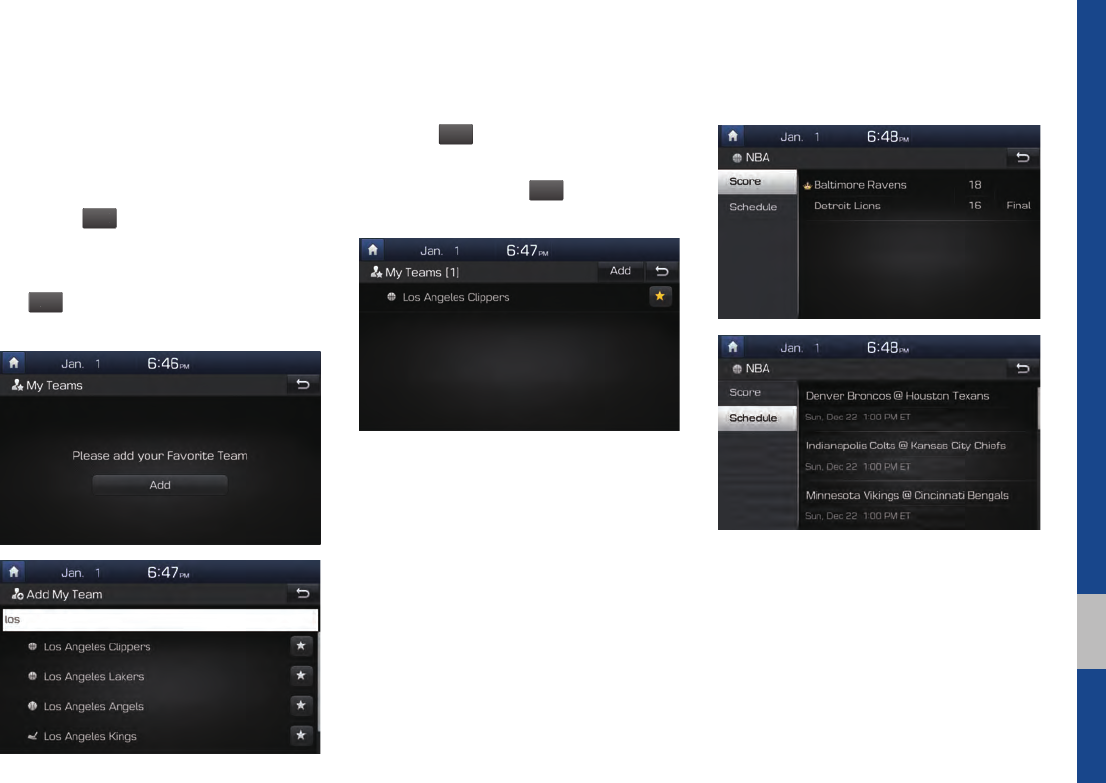

My Teams
You can save teams which you are inter-
ested in as part of My teams to easily
view related scores and schedules.
Select the My Teams menu and then
press the
Add
button to search for and
register your favorite teams.
Search for your favorite teams and press
the
★
button on the right to add it to the
“My Teams” list.
You can always check the list of teams
that you added in the “My Teams” menu.
Press the
★
button on the right side of
the team name to delete the team from “My
Teams” or press the
A
dd
button to add
other teams.
Press the team name to check daily
results and recent schedules for that team.
6-12 I Apps/Info

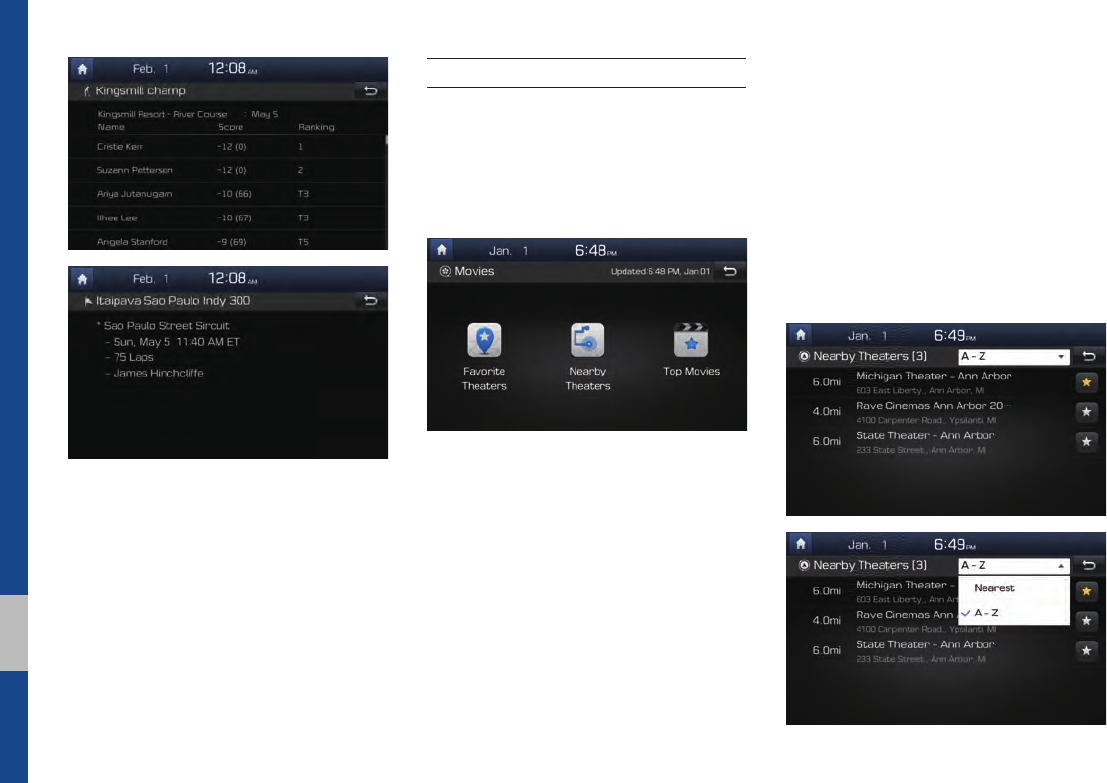

SiriusXM™ Movie Information
Press the “Movies” icon to enter the Movie
mode.
You can check recent movies and nearby
theaters, and also register your favorite
theater locations.
Search for Nearby Theaters, and
Register Any Key Locations as Favorite
Theaters.
In the “Nearby Theaters” menu, you can
search for any nearby theaters.
It shows theaters, starting from the near-
est one, and selecting the “Nearest” menu
at the top right side will sort them by
name.
SiriusXM™ Data I 6-13
06

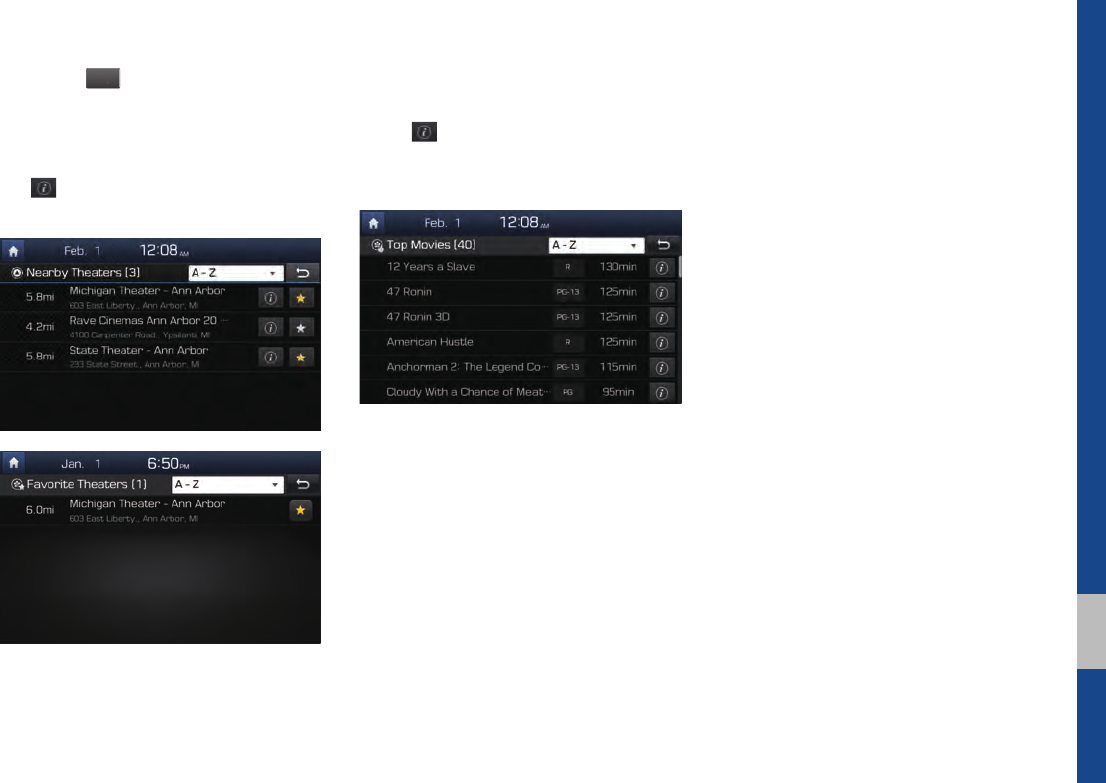

Select the
★
button to the right of the
list to register your favorite theater so that
you can always check it again using the
“Favorite Theaters” menu and selecting
the button to view the current movie
information for that theater.
In the “Top Movies” menu, you can check
for any movies that are currently popular.
Press button to the right of a movie
title to view the plot summary and any
other detailed information.
6-14 I Apps/Info
SoundHound
SoundHound is a music search engine. It enables users to identify
music by playing or singing a song. It is also possible to search by
typing the name of the artist, song, album or lyrics.
The head unit should be connected to the Internet in order to use
SoundHound.
Accessing SoundHound
1. From the Home screen, select All Menus, My Menu then select
SoundHound button.
2. Select SoundHound button on Radio modes (AM, FM and
SiriusXM) or Media modes (CD, Bluetooth Audio, iPod, USB,
My Music and AUX, Pandora).
SoundHound Main Screen
Name Description
Mode Displays current operating mode.
Back button Goes back to previous mode.
What’s that
Song?
Starts the song recognition process. After this pro-
cess is complete, it goes to Song screen.
Search Goes to Search screen.
History Goes to History screen.
Favorites Goes to Favorites screen.
Charts Goes to Charts screen.
SoundHound I 6-15
06
Recognizing Music
After selecting SoundHound button, the song recognition pro-
cess is activated, the system will match current playing song with
the SoundHound music database.
Music from Smartphones and MP3 players that are not connected
to head unit can also be recognized.
Searching Music
Music can also be searched by selecting the Search option in
SoundHound main screen and typing a song, artist, album or lyr-
ics into the search field.
Name Description
Now Listening…
Message displayed while SoundHound is processing
the music.
Retry Starts over the song recognition process.
Cancel Cancels song recognition process and Exits
SoundHound.
Back button Goes back to previous screen.
Name Description
Search Displays current operating mode.
Back button Goes back to SoundHound main screen.
Search field
Displays search field. Once text is typed, recommended
song, artist, album or lyrics information that might match
the search criteria is displayed in the scroll menu.
Search icon Starts the searching process.
6-16 I Apps/Info

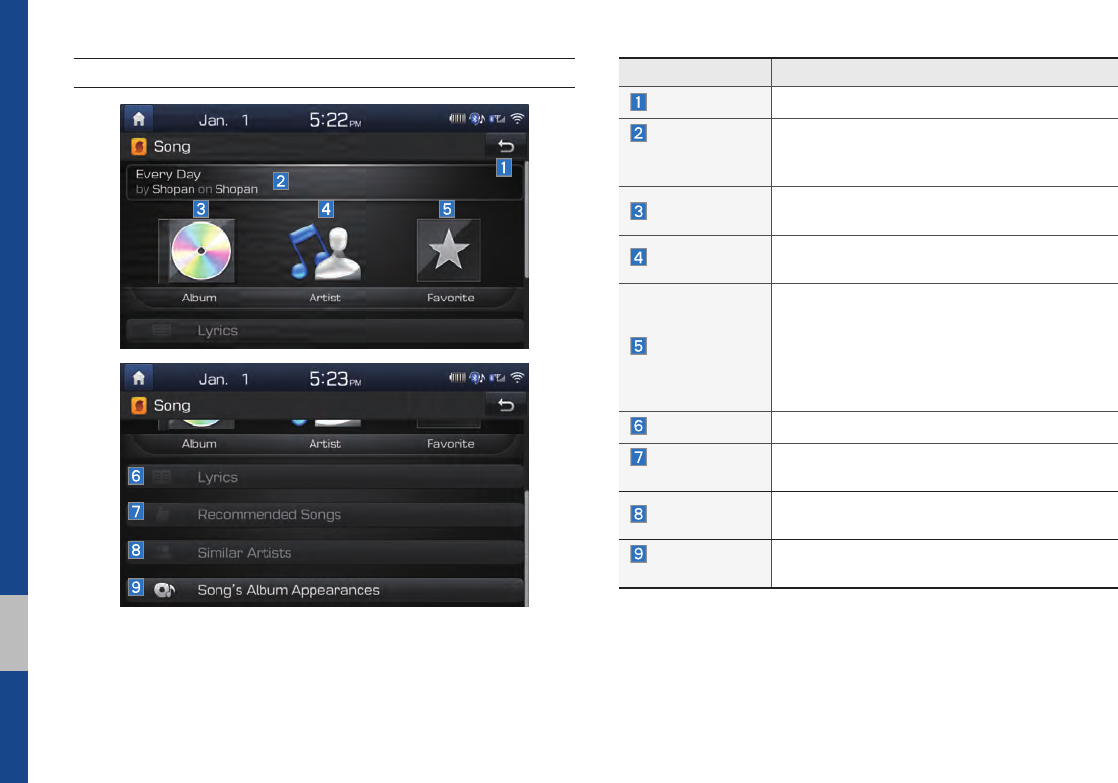

Song Main Screen
Name Description
Back button Goes back to previous screen.
Song, Artist
and Album
information
Displays song, artist and album information of
currently playing song.
Album Image If album image is selected, the detailed infor-
mation of the album is displayed.
Artist Image If artist image is selected, the detailed informa-
tion of the artist is displayed.
Favorite
It saves current playing song into Favorites
by tapping on the star icon. Star icon will be
highlighted when song has been saved into
Favorites. To delete song from Favorites, select
the star icon again or go to Favorites menu
screen.
Lyrics Displays current playing song’s lyrics.
Recommended
Songs
Displays a list of recommended songs by
SoundHound.
Similar Artists Displays list of similar artists to currently play-
ing artist.
Song’s Album
Appearances
Displays list of albums on which currently play-
ing song appears.
Android Auto I 6-17
06
Android Auto
What is Android Auto?
You can securely manipulate your smart phone while driving by
using this feature. Various functions on your smart phone are
displayed on the multimedia system so you can easily use any of
them (finding the direction, making a call, listening to music, etc.).
With Android phone connected, Android Auto appears on the display.
Available functions and operations may differ depending on the
company model.
For more information, refer to the manual or visit the website.
Precautions
• Android Auto is a registered trademark of Google Inc.
• Android Auto is unavailable if the version of communication pro-
tocol is not supported or your phone is unable to be recognized
due to a shutdown caused by a failure or defect in the device
itself.
• Your phone may not be recognized if its battery is low. Charge
your phone then try again.
• If your phone is shut down due to a defect in the device itself,
reset your phone and try again.
• If you repeatedly connect and disconnect the USB cable on the
device in a short period of time, your phone may malfunction.
This can also cause a device failure.
• The device recognition time may differ depending on the device
type and firmware/OS version.
• For using this feature, the dedicated cable is recommended to
use. (Using a non-genuine product may cause noise or malfunc-
tion.)
• Normal operations are not guaranteed when you arbitrarily
manipulate your phone while Android Auto is active.
• Carrier charges may apply to use Android Auto.
6-18 I Apps/Info
•Android Auto may not operate normally due to mobile phone
issues.
•The following problems may occur due to issues with
your phone.
- Intermittent black screens appear when entering Android
Auto.
-Unable to differentiate between phones that support Android
Auto and those that do not.
- If services do not work properly due to problems similar to the
specified above, check your phone, and if necessary, recon-
nect your phone after restarting.
Using Android Auto Features
1. With Android Auto, connect the USB cable provided by the
mobile manufacturer.
2. On the Home or All Menus or Apps/Info screen, select the entry
button.
3. You can use the functions for music, phone, and the like of
Android Auto.
Android Auto I 6-19
06
NOTICE
• Before connecting your mobile phone, check whether Android Auto is set
to be used in Setup > Connectivity Settings.
• After connecting the mobile phone, you must release the lock or accept it
to connect Android Auto normally.
• With Android Auto connected, press the key on the steering
wheel to run the phone function of Android Auto.
• The screens and features displayed on the multimedia system are the
same as what Google originally provide. The screens and features are
subject to change according to the policy of each individual company.
Cautions when using Android Auto
• When Android Auto is activated, you can use only phone features among
all Bluetooth features. You cannot use Bluetooth Media features such as
Bluetooth Audio and Pandora. If you want to use such features, remove
the USB cable before use.
• Android Auto mode does not support the feature that enables you to
search for music fi les by controlling the
TUNE
knob.
• In case Android Auto is not activated even after a connection has been
made successfully, check the following:
– Check the status of Phone Application(Check if an error has occurred)
– Terminate the Android Auto process and attempt a reconnection
– Check whether Android Auto is set to be used in Setup > Connectivity
Settings.
• If Android Auto does not work normally even after a reconnection has
been made, see the manual provided by Google or visit our website.
MEMOMEMO
Steering-linked camera
part.7 Other Features
7-2 I Other Features

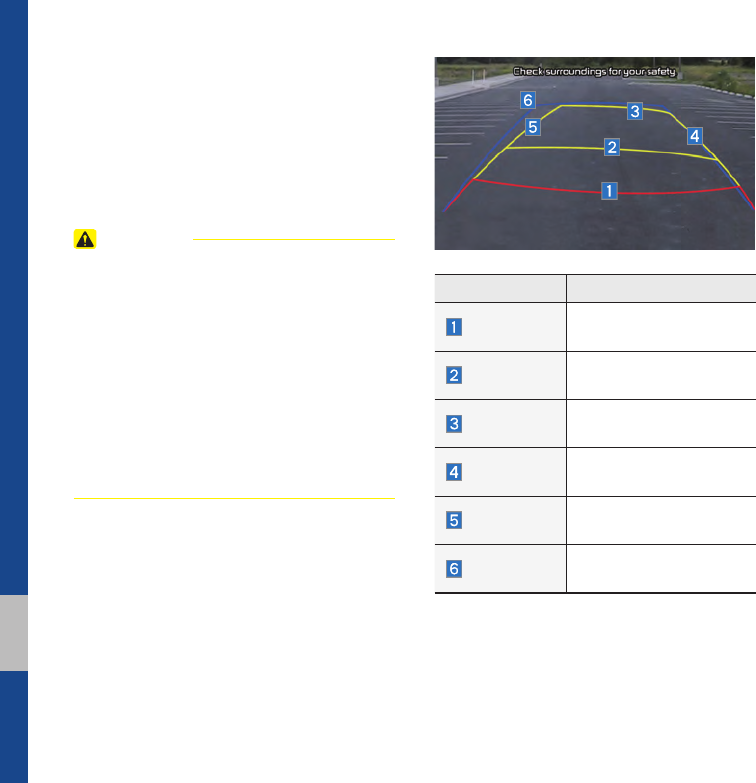

Steering-linked camera
This parking guide system is activated if
you shift the gear to R when the power is
on or the engine has started.
NOTICE
• A wide-angle lens is installed as the rear
detection camera to get a wider view, so
there may be some difference between the
actual distance and the distance that appears
on-screen. For safety, make sure to view
the back, right, and left sides of the car for
yourself.
• The color of the parking guidelines displayed
in the picture may differ from the actual
screen.
Name Description
Red Line About 0.5m from the rear
bumper
Yellow Line 1 About 1m from the rear
bumper
Yellow Line 2 About 3m from the rear
bumper
Yellow Line 3 Trajectory of the wheel
on the driver’s side
Yellow Line 4 Trajectory of the wheel
on the passenger side
Blue Line Neutral steering trajec-
tory
As you reverse your car and monitor the
area behind your car, the steering-linked
driving trajectory and the neutral driving
trajectory are both displayed.
Other Features
Sound Settings
Display Settings
Phone Settings
Connectivity Settings
Home Screen Settings
Clock Settings
Voice Recognition Settings
Language Settings
Keyboard Settings Screen
Saver Settings System Info
part.8 Setup
8-2 I Setup
Setup
Setup
Setup is the screen to control system set-
tings of the Audio.
To enter the screen, select the
SETUP
key of the device or the
S
etu
p
button in
All Menus.
Features Description
Sound
Provides the sound
control options for Position,
Bass, Mid, Treble, Volume,
Ratio and Advanced set-
tings.
Display Provides the Mode/
Illumination settings.
Phone
Provides the Bluetooth
Connection/Auto
Connection Priority/
Bluetooth System
Information settings.
Connectivity
Provides connectivity set-
tings for Android Auto.
Home
Screen
Provides the function to cus-
tomize the three menu items
at the bottom of the Home
Screen.
Features Description
Clock Provides the Time and View
settings.
Voice
Recognition
Provides the Guidance and
Priority settings.
Language Provides the Change
Language settings.
Keyboard Provides settings to switch
keyboard layouts.
Screen
Saver
Provides the Clock/None
settings.
System
Info
Provides software and stor-
age space information.
Display Off Provides the Display Off
(touch activation) function.
Setup I 8-3
08

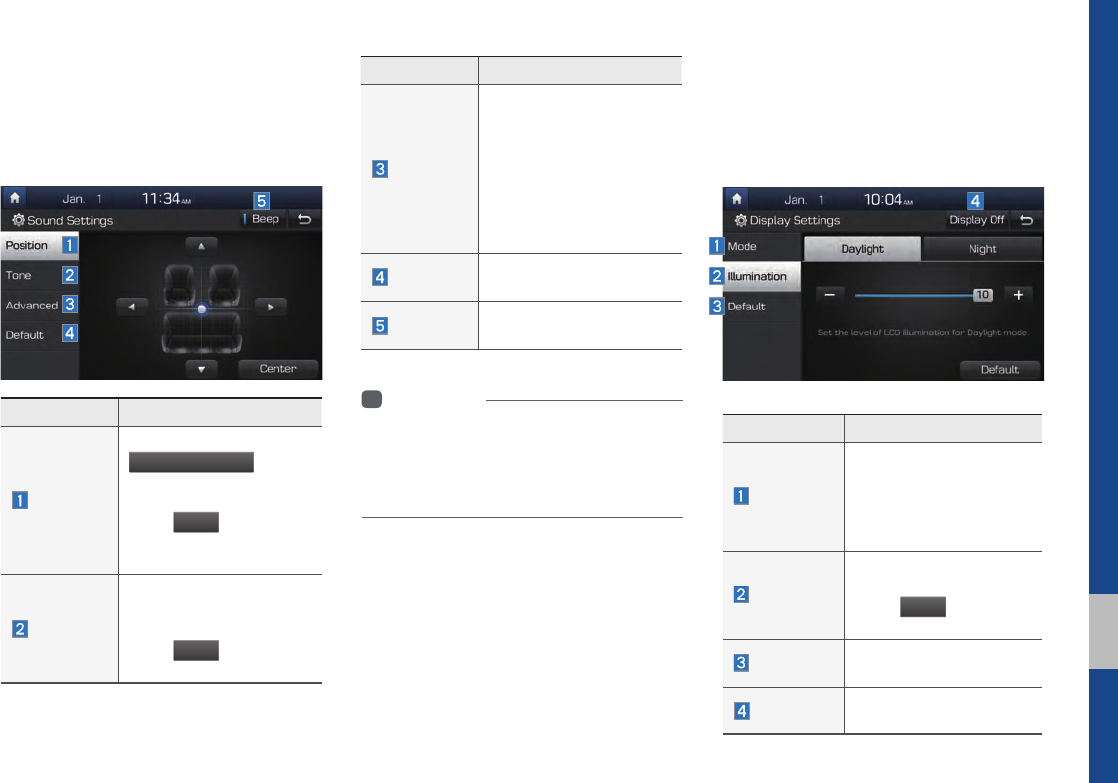

Sound Settings
Adjusts the sound effects for the whole
system.
i
Information
• Advanced sound settings may differ according
to selected AMP option.
• The seat shape may differ according to
vehicle model.
Display Settings
Adjusts the level of illumination for the
entire system.
Features Description
Mode
Select any of LCD illumi-
nation change modes:
Automatic (changes
the level automatically),
Daylight, and Night.
Illumination
Set the levels of illumina-
tion for day and night.
Press
Def
au
l
t
to initialize
the settings.
Default Resets the display to fac-
tory default settings
Display Off Provides the Display Off
(touch activation) function.
Features Description
Position
Select the
U
p
/Down/Left/Ri
g
h
t
button
to control sound position-
ing.
Press
Cen
t
er
to concen-
trate the sound on the
center of vehicle.
Tone
Drag the slide bar to
control bass/mid/treble
settings.
Press
Cen
t
er
to initialize
the settings.
Features Description
Advanced
Select additional audio
options such as “Speed
Dependent Volume
Control” that automatically
controls Audio volume
according to vehicle
speed as well as “Variable
EQ”.
Default Resets the sound to fac-
tory default settings.
Beep Select to activate a beep
when pressing buttons.
8-4 I Setup
Phone Settings
Changes Bluetooth phone settings.
Phone Settings
Select the
SETUP
key in the head unit ▶
Select
Ph
on
e
.
Bluetooth Connection Settings
Select the
SETUP
key in the head unit ▶
Select
Phon
e
▶ Select
Bluetooth Connection
Features Description
Paired Device
List
Displays the paired
Bluetooth device list.
When selecting from
the list, the device is
connected or discon-
nected.
Bluetooth
Audio
Connection
Status
An icon appears when
you make a Bluetooth
Audio connection.
Bluetooth
Hands-Free
Connection
Status
An icon appears when
you make a Bluetooth
Hands-free connec-
tion.
Add New Register a new
Bluetooth device.
Delete Devices Select and delete a
paired device.
Delete All Delete all paired
devices.
Help
Switches to the
Bluetooth Connection
Help screen.
Setup I 8-5
08
i
Information
• Up to 5 Bluetooth devices can be paired.
• Only one Bluetooth device can be connected
at a time.
• During a Bluetooth device connection, another
device cannot be paired.
• When you delete a paired device, the Call
History and Contacts stored in the head unit
are also completely deleted.
• Bluetooth Hands-free and Bluetooth Audio
functions are supported.
• Hands-free and audio-supported devices,
such as a Bluetooth smartphone or audio, will
function normally.
• When a Bluetooth device is connected, if
the Bluetooth connection is unexpectedly
disconnected, due to being out of
communication range, the device powering
off, or a Bluetooth communication error, the
Bluetooth device automatically searches for
and connects to nearby Bluetooth devices.
• If the system is not stable, due to a vehicle-
Bluetooth device communication error, restore
the Default Factory Settings.
• For Default Factory Settings, the bluetooth
settings are reset to factory settings
• Select the
SETUP
key ▶ Select
P
h
o
n
e
▶Select
Bluetooth System Info
▶Select
Default Factory Setting
s

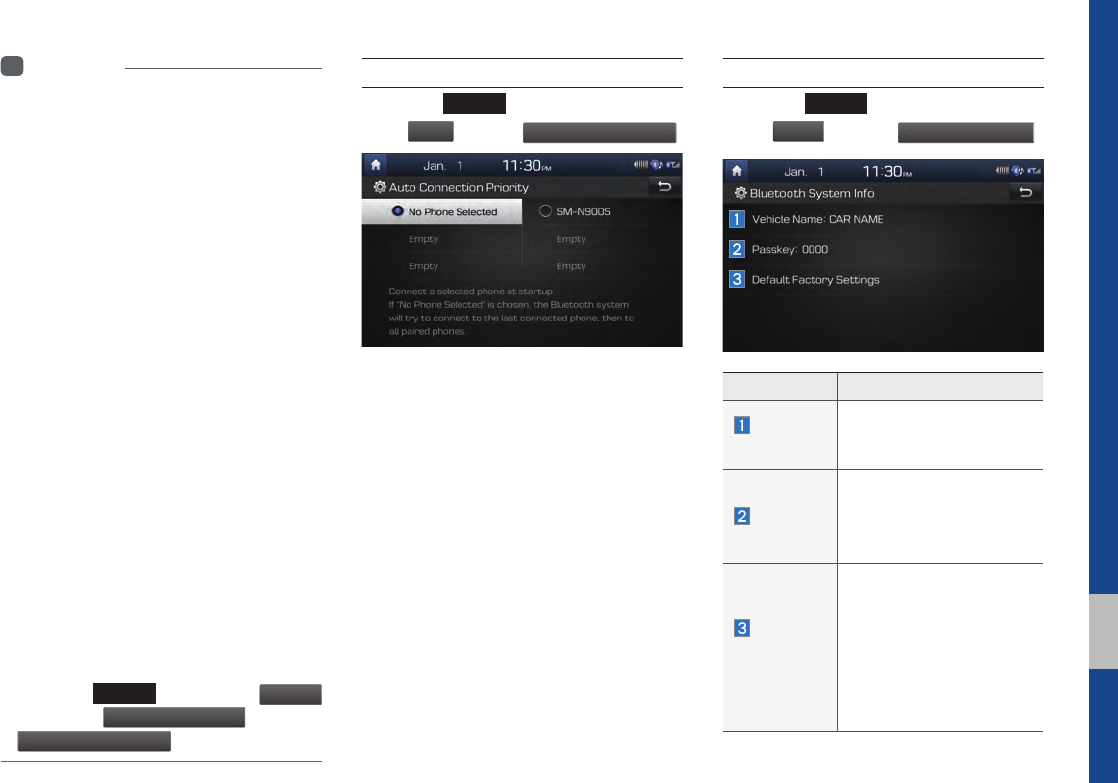

Auto Connection Priority
Select the
SETUP
key in the head unit ▶
Select
Ph
on
e
▶ Select
A
uto Connection Priority
.
When the engine is running, the selected
Bluetooth device is automatically con-
nected. If you fail to connect the selected
device, the previously-connected device is
automatically connected, and if it also fails,
then it tries to connect all paired devices
sequentially.
Depending on auto connection priority,
connection to a device may take time.
Bluetooth System Information
Select the
SETUP
key in the head unit ▶
Select
Ph
one
▶ Select
Bluetooth System Info
.
Features Description
Vehicle
Name
You can change the
Bluetooth device name of
the vehicle.
Passkey
You can change the pass-
key used for Bluetooth
device authentication. the
initial passkey is 0000.
Default
Factory
Settings
You can delete all paired
devices and restore the
Default Bluetooth Settings.
For Default Factory
Settings, all paired devices
are deleted, and the
system is reset to factory
settings.
8-6 I Setup
i
Information
• The vehicle name above is an example.
Check the actual information on the product.
Setup I 8-7
08
Connectivity Settings
You can select the mode to run when an
Android device is connected. If not selected,
the mode does not run exclusively.
Android Auto
If Android Auto is checked, you can use
the functions of your Android phone with
a USB cable and Bluetooth connected. It
enables and activates the Android Auto
functions with user agreement in case of
good network connectivity. For this, the
latest version of Android must have been
installed. While Android Auto is running,
you cannot use any of Pandora and
Bluetooth audio.
i
Information
• The settings are allowed only after
disconnecting any type of USB device
including an Android device and a USB
memory as well.
• Pandora may not be used outside of the
United States.
• Regardless of using Android Auto, when
any Android device is connected with a USB
cable, it basically starts charging.
8-8 I Setup
Home Screen Settings
You can customize the three menu items
at the bottom right of the Home Screen
into the ones you want.
On the screen for the Home Screen
Settings, drag the menu items on the right
to the area marked in blue in the screen
below.
i
Information
• You can press the
D
e
f
au
l
t
button to reset to
the factory default settings.
Setup I 8-9
08

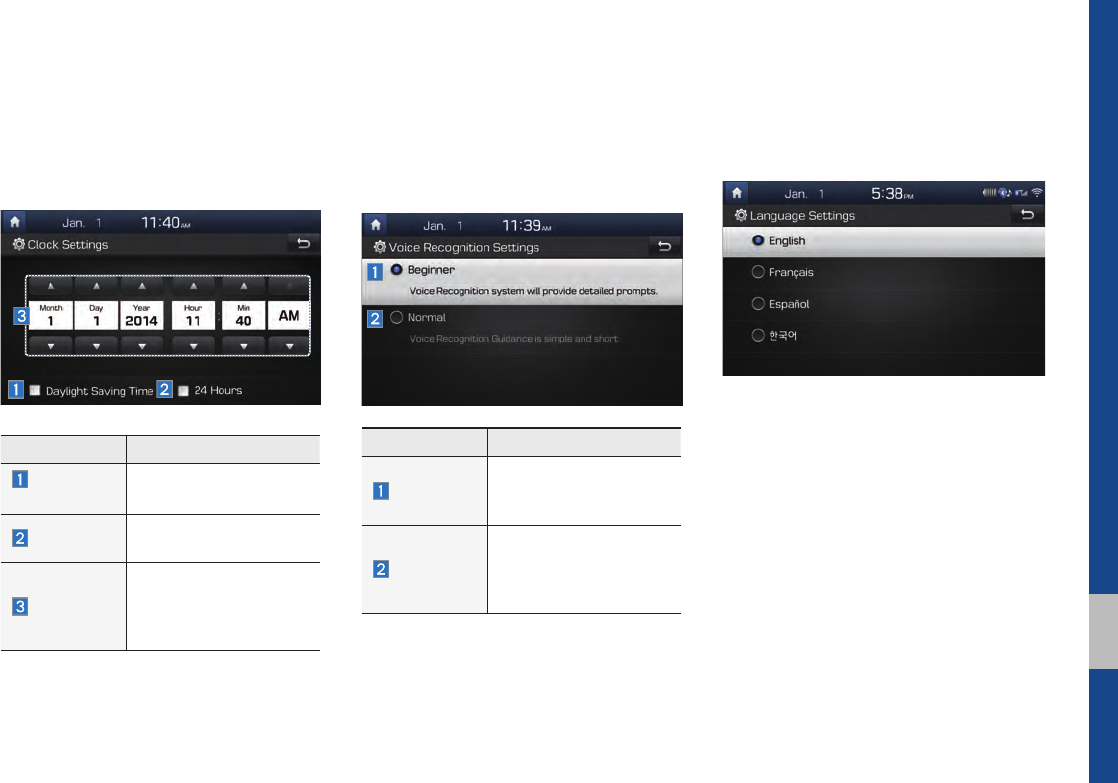

Clock Settings
Configure the settings for time and date.
Using the arrow buttons, you can change
the values.
Features Description
Daylight
Saving Time
The daylight saving time
(DST) is applied.
24 Hours The time display is set in
24-hour format.
Direct entry
If you tap any value, you
can directly enter the
number in the following
screen.
Voice Recognition Settings
Configure how to make a call with
Voice Recognition Guidance and Voice
Recognition.
Features Description
Beginner
For beginners, the voice
recognition system pro-
vides voice prompts.
Normal
For normal users, the
voice recognition system
provides simple and
short voice guidances.
Language Settings
You can configure the displayed system
language.
When the language is changed, the
system language is automatically
changed.
Unique data including MP3 file name is
not changed and some languages don’t
support voice recognition.
8-10 I Setup
Keyboard Settings
You can configure the keyboard layout for
each language.
You can configure ABCD or QWERTY
keyboards for the system.
i
Information
• Confi gured keyboard layouts are applied to all
input modes.
Screen Saver Settings
You can select any of the following screen
formats to be displayed when the screen
or power is turned off.
•Digital clock and date
•Analog clock and date
•None
System Info
At the System Info screen, software ver-
sion information, updates, and storage
status details are available.
Features Description
SW Info
System version informa-
tion and update details are
available.
Select the
U
p
d
at
e
button
to update the system. After
update is complete, the
system will reboot auto-
matically.
Storage
Space
Displays the memory
space available for media
storage.
Default Resets the system infor-
mation to initial settings.
Setup I 8-11
08
System Update
At the System Info screen, insert the USB
memory with the latest file downloaded,
and then select the
Updat
e
button to begin
updating. The system will then reboot
automatically.
i
Information
• This product needs supplemented software
updates and additional functions, which
collectively may take some time to complete,
depending on the amount of data.
CAUTION
• If the power is disconnected or the USB is
removed during an update, the data might
be damaged. Please wait until the update is
complete while the engine is on.
MEMO
Product Specification
Troubleshooting
FAQ
part.9 Appendix
9-2 I Appendix
Product Specification
TFT-LCD
Screen Size 7 inch(152.4 X 91.44mm)
Resolution 384,000 pixels (Resolution: 800 x 480)
Operating
Method TFT(Thin Film Transistor) Active Matrix
Viewing Angle Left/Right, Top/Bottom : ALL 89°
Internal Lighting LED
Radio
Channels
FM : 87.5 MHz ~ 107.9 MHz(Step : 200 kHz)
AM : 530 kHz ~ 1710 kHz(Step : 10 kHz)
Sensitivity FM : Under 10dBu/AM : Under 35dBu
Distortion Factor Within 2%
Common
Name Car TFT LCD Display Audio Unit
Power Supply DC 14.4V Operating
Power DC 9V ~ DC 16V
Current
Consumption 2.5A Sleep
Current
1mA
(Head Unit Only)
Operating
Temperature
-20 ~ +70°C
(-4 ~ +158°F)
Storage
Temperature
-30 ~ +80°C
(-22 ~ +176°F)
Dimensions 178 X 139.2 X 90mm (Main BOX)
Weight 2.7kg
Appendix
Appendix I 9-3
09
Bluetooth®
Wireless Technology
Frequency
Range 2402 ~ 2480 MHz
Supported
Bluetooth
®
Specification
3.0
Supported
Profile Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)
Output 2.43 dBm (Power Class2, Conducted)
Number of
Channels 79 channels
CAUTION
• The producer and installer cannot provide services related to life
safety as the concerned radio equipment is liable to radio interference.
9-4 I Appendix
Troubleshooting
1. Errors which occur during the operation or installation of the
device may be mistaken as a malfunction of the actual device.
2. If you are having problems with the device, try the suggestions
listed below.
3. If the problems persist, contact your Hyundai dealer.
Problem Possible Cause
There are small red,
blue, or green dots on
the screen
•Because the LCD is manufactured with
technology requiring high point density,
a pixel or lighting deficiency may occur
within 0.01% of total pixels
The sound or image is
not working
•Has the Switch for the vehicle been turned
to [ACC] or [ON]?
•Has the SYSTEM been turned OFF?
The screen is being dis-
played but sound is not
working
•Has the volume been set to a low level?
•Has the volume been muted?
When the power is
turned on, the corners of
the screen are dark
•The display appearing somewhat dark
after prolonged periods of use is normal
with LCD panels. It is not a malfunction
•If the screen is very dark, contact your
nearest Hyundai dealer for assistance
Sound is working from
only one speaker
•Are the positions of Fader or Balance
sound controls adjusted to only one side?
Problem Possible Cause
Sound does not work in
AUX mode
•Are the audio connector jacks fully
inserted into the AUX terminal?
The external device is
not working
•Is the external device connected with a
standard connector cable?
Upon turning power on,
the most recent mode
screen is not displayed
Within modes that play files by reading
external sources, such as discs, USB, iPod,
or Bluetooth
®
streaming mode, the most
recently played mode screen prior to turning
off power may not properly load
•If there is no disc or the corresponding
device is not connected, the mode oper-
ated prior to the most recent mode will
operate
•If the previous mode still cannot be prop-
erly played, the mode operated prior to
that will operate
Appendix I 9-5
09
Problem Possible Cause Countermeasure
The image
color/tone
quality is low
•The brightness, satura-
tion, hue, and contrast
levels are not set prop-
erly
•Properly adjust the bright-
ness, saturation, hue, and
contrast levels through
Display Setup
Sound does
not work
•The volume level
is set to the lowest
level
•The connection is
not proper
•The device is
currently fast-for-
warding, rewinding,
scanning, or playing
in slow mode
•Adjust the volume level
•Check to see that the device
has been properly connected
•The sound will not work
when the device is fast-for-
warding, rewinding, scan-
ning, or playing in slow
mode
The sound or
image quality
is low
•Vibration is occur-
ring from where the
conversion switch
has been installed
•Image color/tone
quality is low
•The sound may be short-cir-
cuited and the image dis-
torted if the device vibrates
•The device will return to nor-
mal once vibrations stop
Problem Possible Cause Countermeasure
The power
does not turn
on
The fuse is
disconnected
•Replace with a suitable fuse
•If the fuse is disconnected
again, please contact
your point of purchase or
Hyundai dealer
Device is not properly
connected
•Check to see that the device
has been properly con-
nected
The system
does not
play
The vehicle battery is
low
•Charge the battery If the
problem persists, contact
your point of purchase or
Hyundai dealer
9-6 I Appendix
Problem Possible Cause Countermeasure
The USB
does not
work
•USB memory is
damaged
•USB memory has
been contaminated
•A separately pur-
chased USB HUB is
being used
•A USB extension
cable is being used
•A USB which is not
a Metal Cover Type
USB Memory is
being used
•An HDD type, CF,
SD Memory is being
used
•There are no music
files which can be
played
•Please use after formatting
the USB into FAT 12/16/32
format
•Remove any foreign sub-
stances on the contact surface
of the USB memory and multi-
media terminal
•Directly connect the USB mem-
ory with the multimedia terminal
on the vehicle
•Directly connect the USB
memory with the multimedia
terminal on the vehicle
•Use standard USB Memory
•Use standard USB Memory
•Only MP3, WMA file formats
are supported. Please use
only the supported music file
formats
The iPod is
not recog-
nized even
though it has
been con-
nected
•There are no titles
which can be played
•The iPod firmware
version has not
been properly
updated
•The iPod device
does not recognize
downloads
•Use iTunes to download and
save MP3 files into the iPod
•Use iTunes to update the firm-
ware version and reconnect the
iPod with the device
•Reset the iPod and reconnect
with the device
Problem Possible Cause Countermeasure
Bluetooth
does not
work or its
limited
functions are
available
•Bluetooth on your
mobile phone is set
to OFF
•The Bluetooth con-
nection is not made
•Android Auto is
active
•Set it to ON
•Make the connection active
•Deactivate the mode
Android Auto
does not
work with
proper
connection
•Android Auto block-
ing is made in your
phone
•The status of the
application has an
error
•Android OS version
not supported
•Android Auto App
not installed
•Non acceptance of
request of approval
•Release the blocking.
•Clear the error.
•End the application process
and try again
•The latest version of Android
must have been installed
•Install Android Auto App
through Google Play
•Accept request of approval
Android Auto is connected
first time
i
Information
• While operating the device, if an abnormality occurs that cannot be
corrected with the above described measures, press the
RESET
key to
reset the system.
• Press and hold the
RESET
key (over 1 second). The device power will
turn off and the system will reset.
Appendix I 9-7
09
FAQ
About Pairing Mobile Phones
Q I cannot pair my mobile phone. What is the cause?
A Check to see that the mobile phone supports Bluetooth® func-
tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set
it to ON. If the cell phone still can’t be registered, try again after
turning Bluetooth off and on, or delete the device registration on
the multimedia system and cell phone and then register the cell
phone again.
Q What is the difference between pairing a mobile phone and con-
necting a mobile phone?
A Pairing occurs through authenticating the head unit and mobile
phone. Mobile phones paired to the head unit can be connected
and disconnected until the paired mobile phone is deleted from
the system. Bluetooth® Handsfree features, such as making/
answering calls or managing contacts, are supported only in
mobile phones connected with the head unit.
Q What is a Passkey?
A A passkey is the password used to authenticate the connection
between the head unit and mobile phone. The passkey only
needs to be entered once when pairing the mobile phone for the
first time.
The initial passkey is 0000. You can change it with
SETUP
▶
Phon
e
▶
Bluetooth System Info
▶
P
asske
y
menu
options.
9-8 I Appendix
About Making/Answering Phone Calls
Q How can I answer a call?
A When there is an incoming call, a notification pop-up will
become displayed. To answer the incoming call, press the
A
ccep
t
button on the screen or the key on the steering
remote controller.
To reject the call, press the
Rejec
t
button on the screen or press
the key on the steering wheel control.
Q What should I do if I am talking on the Handsfree but want to
switch the call to the mobile phone?
A While on a call, press and hold (over 0.8 seconds) the
key on the steering remote controller or press the
Use Priv
ate
button at the bottom of the Phone screen to switch the call to
your mobile phone.
About
Bluetooth
®
Wireless Technology/
Head Unit Use Environment
Q What is the range of my wireless connection?
A The wireless connection can be used within 15 yards.
Q How many mobile phones can be paired?
A It is possible to pair up to five mobile phones.
Q Why is call quality sometimes poor?
A
Check the reception sensitivity of the mobile phone when call
quality becomes worsened. The call quality may deteriorate when
the signal strength is low. Call quality may also worsen if metal
objects, such as beverage cans, are placed near the mobile
phone. Check to see if there are metal objects in the vicinity of the
mobile phone. The call sound and quality may differ depending on
the type of mobile phone.
Index I 9-9
09
A
About Bluetooth® Wireless Technology
/Head Unit Use Environment ………… 9-8
About Disc ……………………………2-11
About Making/Answering Phone Calls 9-8
About Pairing Mobile Phones ………… 9-7
About SiriusXM™ Data Service ……… 6-6
About Transmission and Reception of
Radio Waves ………………………… 4-3
Accept/Reject Call …………………… 3-7
Accessing FM/AM Mode …………… 2-2
Accessing SiriusXM™ Data ………… 6-6
Accessing SoundHound ……………6-14
Adjusting Voice Recognition Volume … 5-5
Android Auto …………………… 6-17, 8-7
Auto Connection Priority ……………… 8-5
AUX ……………………………………2-37
B
Basic Mode Screen ………… 2-16, 2-19
Basic Mode Screen
(HD Radio™ reception ON) ………… 2-5
Battery Warning Message ……………1-10
Before Playing a USB MP3 ……………2-22
Before Playing an MP3 Disc …………2-14
Before Use …………………………… 4-3
Before Using the Bluetooth®
Handsfree …………………………… 3-2
Bluetooth Audio Mode …………………2-38
Bluetooth Connection ………………… 3-4
Bluetooth Connection Settings ……… 8-4
Bluetooth Connections Settings ………2-39
Bluetooth Phone ……………………… 3-6
Bluetooth System Information………… 8-5
Bluetooth® Audio ………………………2-38
C
Call Commands ……………………… 5-8
Call History …………………………… 3-9
CAUTIONS upon Connecting Bluetooth®
Phone ………………………………… 3-3
CD ……………………………………2-16
Clock Settings ………………………… 8-9
Component Names and Functions … 1-5
Connecting an External Device ………2-37
Connecting Bluetooth Devices ……… 3-4
Connectivity Settings ………………… 8-7
Contacts ………………………………3-10
D
Deleting Bluetooth Devices …………… 3-5
Dial …………………………………… 3-7
Direct Tune …………………………… 2-8
Disc/Content Format Compatibility ……2-12
Disconnecting Bluetooth Devices …… 3-5
Display Settings ……………………… 8-3
Driving Info …………………………… 4-6
Index
9-10 I Index
E
Ending Voice Recognition …………… 5-3
Extending the Listening Time ………… 5-4
F
FAQ …………………………………… 9-7
Favorites ………………………………3-11
FM/AM ………………………………… 2-2
G
H
HD Radio™ Technology ……………… 2-4
Head Unit ……………………………… 1-5
Help Display …………………………… 5-6
Home Screen …………………………1-11
Home Screen Settings ……………… 8-8
How to Connect to a Network ………… 8-8
How to start Siri ………………………5-14
How to use Siri …………………………5-14
I
Instructions for Using Voice Recognition …5-7
iPod ……………………………… 2-30, 2-34
K
Key Product Features ………………… 1-4
Keyboard Settings ……………………8-10
L
Language Settings …………………… 8-9
M
Media Commands ……………………5-10
Modem Information …………………… 8-7
MP3 ……………………………………2-19
My Music ………………………………2-40
N
Name and Function of Each Part …… 4-2
O
On-Screen Touch Controls ……………1-12
Other Commands List
(Commands used in List / Help) ………5-13
P
Pairing a New Device ………………… 3-4
Pandora® ……………………………… 6-2
Pandora® Screen Controls …………… 6-3
Phone Settings ……………………… 8-4
Phone Status Icons ………………… 3-6
Precautions ……………………………6-17
Precautions for Safe Driving ………… 3-2
Precautions Required for Successful Voice
Recognition …………………………… 5-2
Precautions upon Handling Discs ……2-11
Product Specification ………………… 9-2
Index I 9-11
09
Q
Quick Run of Voice Recognition
(Manual Mode) ……………………… 5-3
R
Radio Commands …………………… 5-9
Rear View Mirror Switch ……………… 4-2
Recognizing Music ……………………6-15
S
Screen Saver Settings …………………8-10
Searching Music ………………………6-15
Selecting through Channel/Category
List …………………………………… 2-8
Send to Car with Google ……………… 4-6
Service Activation …………………… 8-6
Setup ………………………………… 8-2
Siri Eyes Free …………………………5-14
SiriusXM™ …………………………… 2-5
SiriusXM™ Mode Display Controls … 2-6
SiriusXM™ Data ……………………… 6-6
SiriusXM™ Fuel Price Information …… 6-8
SiriusXM™ Mode Hard Key Controls 2-5
SiriusXM™ Movie Information ………6-12
SiriusXM™ Sports Information ………6-10
SiriusXM™ Stock Information ………… 6-9
SiriusXM™ Weather Announcement … 6-7
Skipping Prompt Messages ………… 5-5
Song Main Screen ……………………6-16
Sound Settings ……………………… 8-3
SoundHound …………………………6-14
SoundHound Main Screen ……………6-14
Start Screen …………………………… 5-6
Start Up ……………………………… 6-2
Time …………………………………… 1-9
Starting Voice Recognition …………… 5-3
Starting/Ending and Setting Voice
Recognition …………………………… 5-3
Steering-linked camera ……………… 7-2
Steering Wheel Control ……………… 1-7
Stolen Vehicle Recovery ……………… 4-5
Supported Disc Formats ………………2-12
Supported Image Specifications………2-24
System Info ……………………………8-10
System Reset ………………………… 1-9
System Update ………………………8-11
T
Troubleshooting ……………………… 9-4
Turning the System On/Off …………… 1-9
Types of Commands ………………… 5-8
U
USB ……………………………………2-22
USB Image ……………………………2-28
USB MP3 Information and
Precautions ……………………………2-24
USB Music ……………………………2-25
Using Android Auto Features …………6-18
Using iPod Devices ……………………2-30
Using the Menu During a Phone Call … 3-8
9-12 I Index
V
Vehicle Diagnostics …………………… 4-7
Viewing Menu ………………………… 2-8
Voice Commands …………………… 5-8
Voice Recognition Screen Overview … 5-6
Voice Recognition Settings …………… 8-9
W
Warnings and Cautions ……………… 1-2
What is Android Auto? ………………6-17
What is Bluetooth® Wireless
Technology? …………………………… 3-2
What Is Telematics? ………………… 4-3
What is Voice Recognition? ………… 5-2
Z
Zoom In /Zoom Out …………………… 5-3
09
Important Safety Information
Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual ("User's
Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.
Keep User's Guide in Vehicle
When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please
make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and
safety information carefully.
Warning
Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other
serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a
safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may
to distract your attention away from the road and remove your hands from the wheel.
Voice Command Control
Functions within the Multimedia system may be accomplished using only voice commands. Using voice commands while driving allows
you to operate the system without removing your hands from the wheel.
Prolonged Views of Screen
Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before
attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous
if your attention has been diverted away from your driving task at a critical time.
Volume Setting
Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while
driving. Driving while unable to hear these sounds could cause an accident.
Use of Speech Recognition Functions
Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any
speech recognition functions included in the system and address any errors.
7KLVHTXLSPHQWVKRXOGEHLQVWDOOHGDQGRSHUDWHGZLWKPLQLPXPFPEHWZHHQWKHUDGLDWRUDQG\RXUERG\7KLVWUDQVPLWWHUPXVW
QRWEHFROORFDWHGRURSHUDWLQJLQFRQMXQFWLRQZLWKDQ\RWKHUDQWHQQDRUWUDQVPLWWHUXQOHVVDXWKRUL]HGWRGRVRE\WKH)&&
