HYUNDAI MOBIS AVN-600YFPL Car Audio Bluetooth User Manual AVN 600YFPL IC ATT C E G H I
HYUNDAI MOBIS CO., LTD. Car Audio Bluetooth AVN 600YFPL IC ATT C E G H I
User Manual
FCC ID: TQ8-AVN-600YFPL/ IC: 5074A-AVN600YFPCA
HCT CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCTR0910FR05-1 1/1
ATTACHMENT E.
- User Manual_1 -
Preface
Thank you for purchasing this
Audio Navigation System.
This user's manual explains how to
use the Hyundai Motor Audio
Navigation System.
Before using the product, read the
contents of this user's manual care-
fully and use this product safely.
The screens shown in this manu-
al may differ with the actual
screens of the product.
The design and specification of
this product may change without
prior notification for product
improvement.
When transferring the vehicle to
another individual, include this
user's manual so that the next
driver can continue its use.
iPod
iPod
is a registered trademark of
Apple Inc.
Bluetooth
Bluetooth
is a trademark owned
by Bluetooth SIG, Inc.
Copyright(c) 2009 by NAVTEQ. All Map Database cannot be copied without permission.
This is protected by U.S. copyright laws. All rights not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content without M&Soft, Inc's prior written consent.
PART 1
PRE-OVERVIEW
Introduction 1-2
Controller and functions 1-3
Basic operation and setting 1-6
PART 2
AUDIO SYSTEM
Operating the radio 2-2
Operating the CDP 2-10
Operating external devices 2-22
PART 3
NAVIGATION SYSTEM
Limitations of the navigation
system 3-2
Starting navigation system 3-5
Map Functions 3-5
Setting a destination 3-12
Operating after setting
a destination 3-28
Route guidance 3-30
Setup and Information 3-36
PART 4
VOICE COMMAND SYSTEM
Operating voice command 4-2
Setting up the voice command
system 4-4
Voice command list 4-6
Table of contents
PRE-OVERVIEW 1-1
PRE-OVERVIEW
PART 1
PRE-OVERVIEW

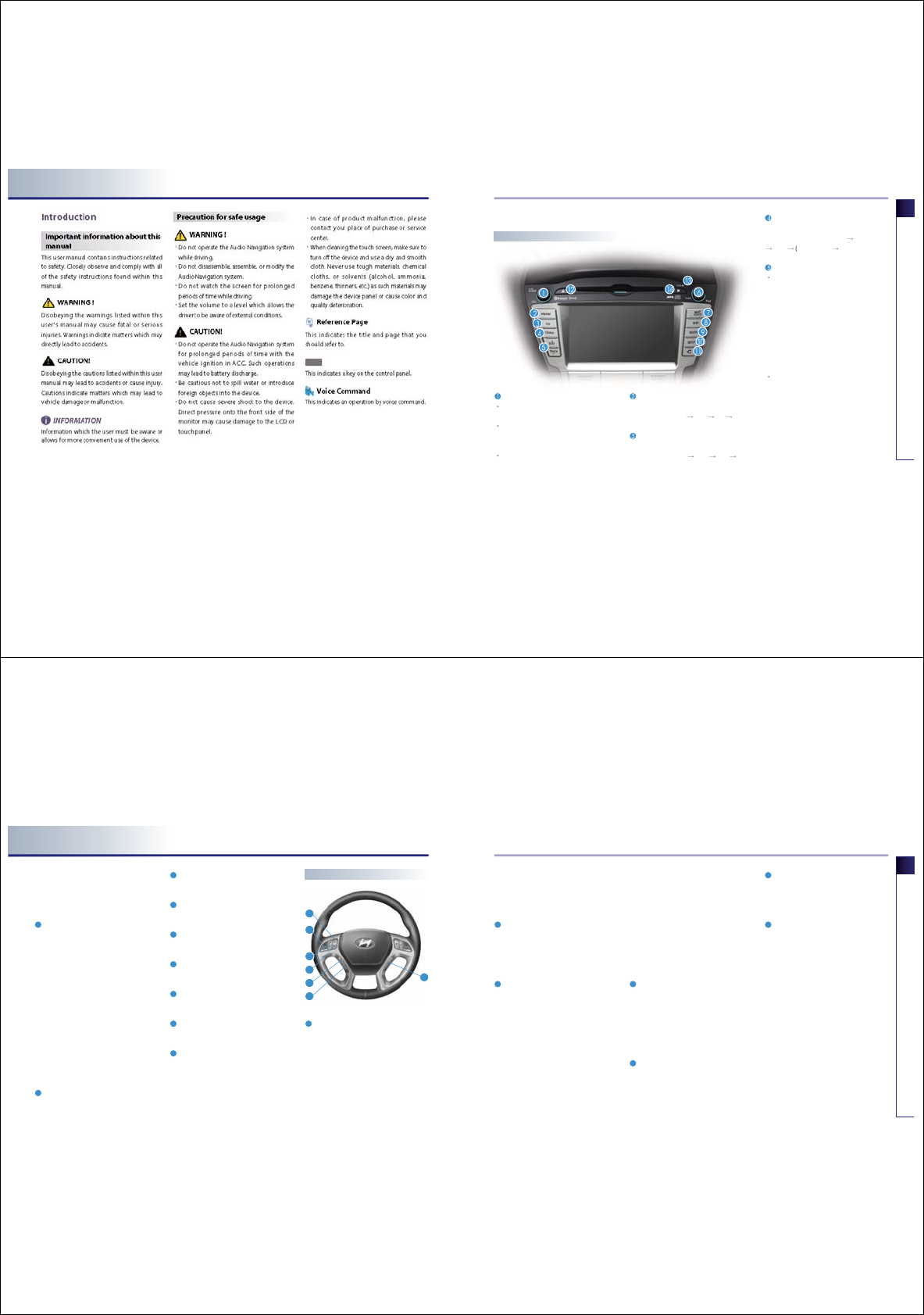

Introduction
1-2
Important information about this
manual 1-2
Precaution for safe usage 1-2
Controller and functions
1-3
Control panel 1-3
Steering wheel remote controller 1-5
Basic operation and setting
1-6
Turning the Power ON 1-6
Turning the Power OFF 1-6
Turning the Audio ON/OFF 1-6
Adjusting audio volume 1-7
How to operate the screen menu 1-7
Operating typical screen menu 1-7
Inputting letter by using screen
keyboard 1-7
Displaying the list 1-7
Selecting an item in a list 1-8
Sorting items from the list 1-8
How to operate menu by
voice command 1-8
Conditions for voice recognition
system 1-8
Giving voice command 1-9
Sound setting 1-9
FAD/BAL 1-9
BASS/MID/TREB 1-10
Auto volume control ON/OFF 1-10
Touch screen beep ON/OFF 1-10
Display setting 1-10
Display mode 1-10
Brightness 1-10
Display OFF 1-10
Display ON 1-10
Viewing Current Time 1-11
Setting the Clock 1-11
PART 5
BLUETOOTH HANDS FREE
Before using the Bluetooth
Handsfree 5-2
Converting Bluetooth Handsfree
mode 5-2
Pairing and connecting a Bluetooth
phone 5-4
Bluetooth Handsfree screen
layout 5-9
Making a call 5-11
Answering a call 5-13
Operating menus during a call 5-14
Phone Book 5-16
Call History List 5-19
PHONE MUSIC 5-21
Bluetooth settings 5-24
Important information 5-30
PART 6
REAR CAMERA
About Rear Detection Camera 6-2
PART 7
APPENDIX
Troubleshooting guide 7-2
Map legend 7-5
INDEX 7-8
PRE-OVERVIEW 1-3
PRE-OVERVIEW
1-2 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
Power / Volume control knob
Push knob (over 0.8 second) : Turns the
power off.
Push knob (under 0.8 second) : Each time the
knob is pressed, the Audio is turned on and
off.
Tune knob : The range of volume adjustment
is between 0 ~ 35.
FM/AM
Each press will change the bands in the
following order: FM1 FM2 AM FM1
XM
Each press will change the bands in the
following order: XM1 XM2 XM3 XM1
CD/AUX
Each press will change the bands in the
following order: DISC(CD, MP3) (USB or iPod)
(AUX) Phone Music) DISC(CD, MP3)
SEEK/TRACK Up/Down
SHORT KEY(less than 0.8 second)
- FM/AM Mode : Automatically searches for
the previous or next broadcast frequency
and starts playing.
- XM Mode : Receives the previous or next
channel.
- CD Mode : Plays the previous or next track.
- MP3, USB Mode : Plays the previous or
next file.
- iPod Mode : Plays the previous or next song.
LONG KEY(over 0.8 second)
- FM/AM Mode : Quickly moves through the
frequencies while the button is pressed.
Once released, automatically searches for
broadcasts which can be received.
- XM Mode : Quickly moves to the previous
or next channel.
- CD Mode : REW/FF the current playing
track.
Controller and functions
Control panel
- MP3, USB Mode : REW/FF the current
playing file.
- iPod Mode : REW/FF the current playing
song.
TUNE knob
- FM/AM Mode : Turn the knob to search for
the desired frequency. Press the knob to
receive the selected frequency.
- XM Mode : Turn the knob to search for the
desired channel. After a brief moment, the
selected channel will be displayed.
- CD Mode : Turn the knob to search for the
desired track. Press the knob to play the
selected track.
- MP3, USB Mode : Turn the knob to search
for the desired file.
Press the knob to play the selected file.
- iPod Mode : Turn the knob to search for
the desired song. Press the knob to play
the selected song.
MAPVOICE
Displays the map screen for the current
position.
DEST
Displays the Destination menu screen.
ROUTE
Displays the Route menu screen.
SETUP
Displays the Setup menu screen.
PHONE
Displays the Bluetooth handsfree screen.
DISC eject
Ejects the inserted disc.
DISC insert indicator LED
Displays whether a DISC has been inserted.
Clock
Short Key (under 0.8 second)
- When the screen is turned on : displays the
current time in the center of the screen.
- When the screen is turned off : turns the full
clock screen on and off.
Long Key (over 0.8 second)
- Displays the clock setting screen.
MODE
Each time the Mode key is pressed, the mode
changes in the following order: FM1
FM2
AM
XM1
XM2
XM3
(DISC)
(USB or
iPod)
(AUX)
(Phone Music)
FM1
If an unsupported DISC is inserted, if there is
no disc, or if an external device (e.g. iPod, USB
memory stick, etc.) has not been connected,
the mode will not be recognized and
automatically switch to the next mode.
Press this key for over 0.8 second to turn the
Audio ON and OFF.
Press this key when the Power is turned off
to turn the power on.
Volume Up/Down
Increases or decreases the volume within a
range between 0 ~ 35. Volume for navigation
and voice guidance can be adjusted in the
setup mode.
Seek Up/Down
SHORT KEY(less than 0.8 second)
- FM/AM : Receives the previous or next
preset frequency.
- XM Mode : Receives the previous or next
preset channel.
- CD Mode : Plays the previous or next track.
- MP3, USB Mode : Plays the previous or
next file.
- iPod Mode : Plays the previous or next
song.
LONG KEY(Over 0.8 second)
- FM/AM Mode : Quickly moves through the
frequencies while the key is pressed.
Once released, automatically searches for
broadcasts which can be received.
- XM Mode : Quickly moves to the previous
or next channel.
- CD Mode : REW/FF the current playing
track.
- MP3, USB Mode : REW/FF the current
playing file.
- iPod Mode : REW/FF the current playing
song.
MUTE
- Turns the sound on and off.
- When the MUTE is turned on, the MUTE icon
will become displayed.
- When in the Navigation screen, the MUTE
icon at the top of the screen will disappear
after 3seconds.
CALL
Press this key to receive an incoming call. If
pressed while in AV/Navigation mode, the
bluetooth handsfree screen will be displayed.
END
Press this key to reject an incoming call.
If pressed while on a call, then the call will be
ended.
Voice Recognition
Starts Voice Recognition.
PRE-OVERVIEW 1-5
PRE-OVERVIEW
1-4 PRE-OVERVIEW
PART 1 PRE-OVERVIEW

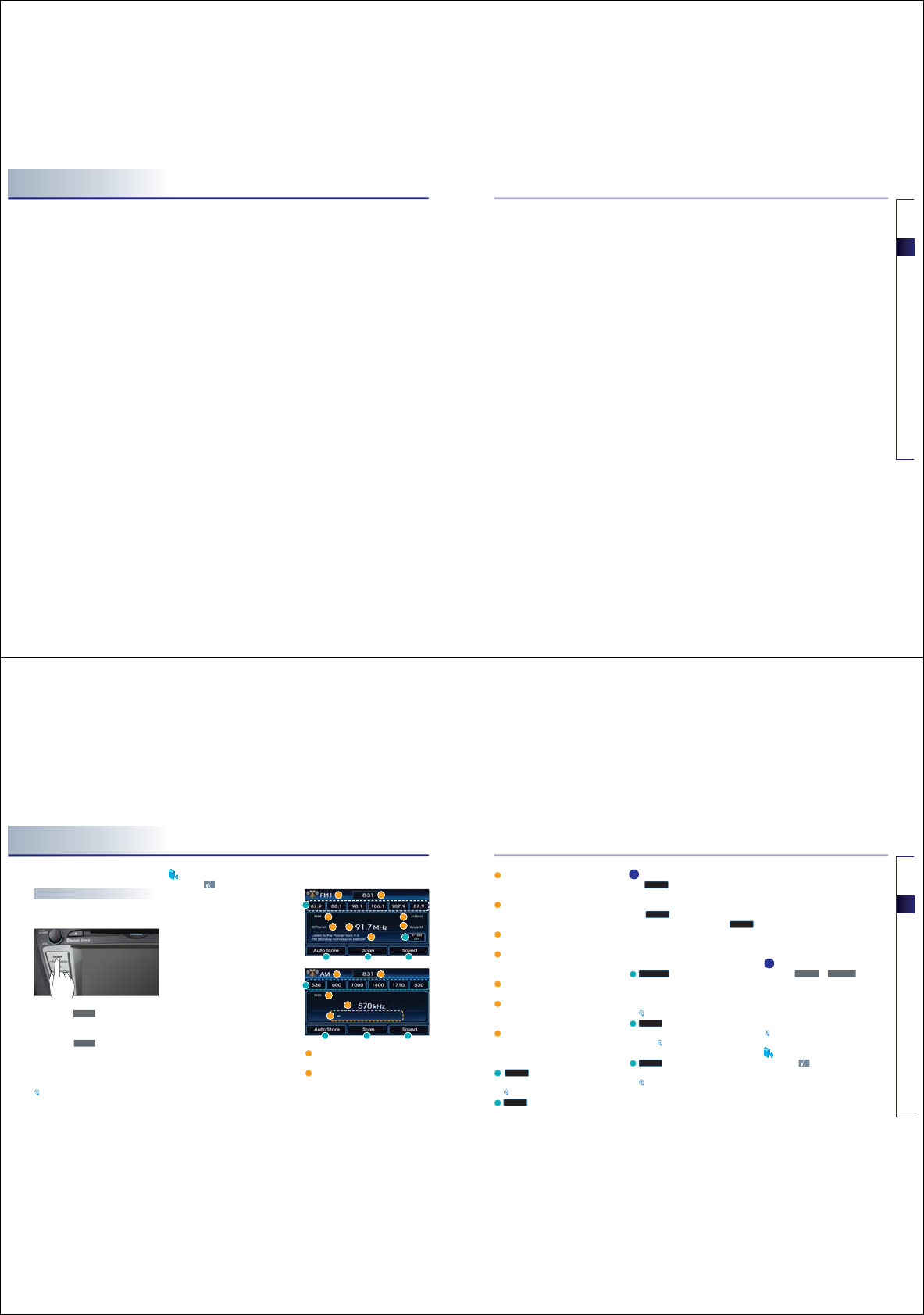

Steering wheel remote controller
PRE-OVERVIEW 1-7
PRE-OVERVIEW
1-6 PRE-OVERVIEW
PART 1 PRE-OVERVIEW

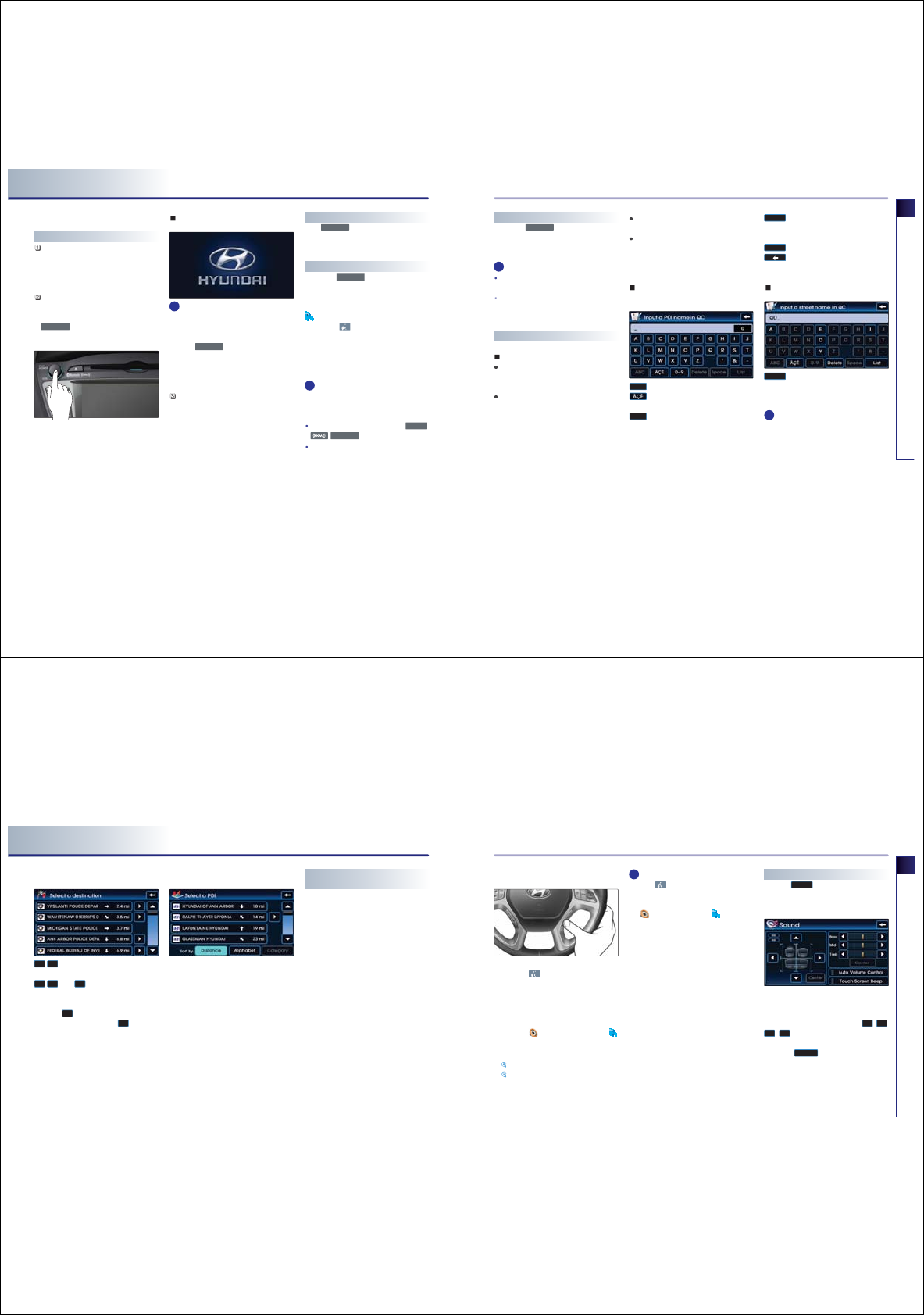

Basic operation and setting
Turning the Power ON
Turn the ignition key onto ACC or ON. If the
system power had been on when the
ignition was turned off, the system will turn
back on automatically.
If the system power had been off when the
ignition was turned off, the system will
remain off. In this case, press the
knob to turn on the system
power.
System Power ON
INFORMATION
As system booting starts from the point the
door lock is unlocked, the device may
complete booting before the ACC is turned
on or the knob is pressed.
Consequently, the booting screen may not be
displayed upon initially turning on the system
power.
Once system booting is complete, the most
recent operated mode will be displayed.
For example, turning on the system will
display FM1 radio mode if the last operated
mode prior to turning off the system had
been FM1 radio mode.
Turning the Power OFF
If the knob is pressed for over 0.8
second, a beep will sound and the system
power will be turned off.
Turning the Audio ON/OFF
Press the knob for under 0.8
second with the system power on to turn the
Audio on and off.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"AV On"
"AV Off"
INFORMATION
Conducting the following operations while
the AUDIO is off will automatically turn on the
Audio system.
Pressing the AV related keys ( ,
, ).
Inserting a DISC or connecting an external
device.
CD/AUX
FM/AM
PWR/VOL
PWR/VOL
PWR/VOL
PWR/VOL
i
i
Adjusting audio volume
Turn the knob in clockwise
direction to increase the volume and counter-
clockwise to decrease the volume.
INFORMATION
The range of volume adjustment is
between 0 ~ 35.
Adjustments to the volume cannot be
made while the AUDIO is turned off.
How to operate the screen menu
Operating typical screen menu
If a menu button on the screen is pressed,
the corresponding function will begin
operation.
The same menu button may perform
different functions depending on the length
of time the button is pressed (under 0.8
seconds or over 0.8 second).
For more information, refer to the specific
function within this user manual.
The current operated button will be
highlighted upon display.
Buttons which cannot be operated under
the current conditions will be displayed in
disabled state. Pressing a disabled button
will not perform any operation.
Inputting letter by using screen
keyboard
: Displays the English alphabet keypad.
: Displays the French alphabet keypad.
(if available)
: Displays the number and symbol
keypad.
: Deletes the previously inputted letter.
Pressing for over 0.8 second will delete
all content.
: The input is completed.
: Restores to previous screen. The
inputted text will not be saved.
Displaying the list
: Even if input is not complete, the
current matching items from the
database will be displayed.
INFORMATION
The number at the upper-right side of the
screen displays the number of current
matches.
List
Done
Delete
0 - 9
ABC
PWR/VOL
i
i
PRE-OVERVIEW 1-9
PRE-OVERVIEW
1-8 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
Selecting an item in a list
: Moves to the next page or previous
page.
: The button will be displayed if
the text is too long to be displayed
in one button.
Press the button to move the cursor to
the end of the text. Press the button to
move the cursor to the front of the text.
Sorting items from list
Select the desired sorting method to
reorganize the list in accordance to the
selected method.
How to operate menu by voice
command
Conditions for voice recognition
system
Most of the functions within the AV and
Navigation system can be operated by voice.
Please follow the instructions below for
optimal voice recognition performance.
Close all windows and the sunroof. The
voice recognition can be improved when in
a quiet environment.
Press the voice recognition button and say
the desired voice command after the sound
of the beep.
The microphone is positioned above the
driver so that voice commands can be said
while maintaining a proper posture.
Pronounce the voice commands naturally
and clearly as if in normal conversation.
Giving voice command
Press the key on the steering wheel
remote controller.
A voice command window will be displayed
on the lower side of the screen followed by a
"Command please" system voice comment.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say the desired voice command.
[Voice command list], page 4-6.
[Searching a destination by voice
command], page 4-19.
INFORMATION
Press the key shortly to input the desired
voice command. The system voice instruction
comment will immediately terminate. When
the icon changes into the icon with a
beep sound, it is possible to input voice
commands.
Sound setting
Press the button on the main screen
of each AV mode (FM/AM, XM, CD, MP3, USB,
iPod) to display the Sound setting screen.
FAD/BAL
The position of the sound can be adjusted by
using the up-down and left-right ( , ,
, ) buttons on the left side of the
screen.
Press the button to position the
sound in the center of the vehicle.
Center
Sound
i
PRE-OVERVIEW 1-11
PRE-OVERVIEW
1-10 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
BASS/MID/TREB
The BASS/MID/TREB can be adjusted by using
the left/right buttons ( , ) of each
control.
Auto volume control ON/OFF
Each time the button is
pressed, the Auto volume control function is
turned on or off.
INFORMATION
The Auto Volume Control is a function which
automatically adjusts the volume level in
accordance to changes in vehicle speed.
Touch screen beep ON/OFF
Each time the button is
pressed, the beeping sound that follows each
press on the screen will turn on or off.
Display setting
Press the key on the control panel to
display the Setup menu screen.
Press button to display the Display
Setup screen.
Display mode
Press the button for the desired display mode
from , , and
modes. The current selected mode is
highlighted.
The display is automatically converted
between Daylight and Night modes in
accordance to the on/off state of the
vehicle taillights.
The bright screen is always maintained
regardless of the on/off state of the vehicle
taillights.
The dark screen is always maintained
regardless of the on/off state of the vehicle
taillights.
Brightness
Use the left/right buttons ( , ) for
control to make adjustments.
Display OFF
Press the button.
Display ON
Press anywhere on the black screen. The screen
prior to display setting will be displayed.
Display Off
Night
Daylight
Automatic
NightDaylightAutomatic
Display
SETUP
Touch screen beep
Auto volume control
Viewing Current Time
Press the on the front panel shortly
(under 0.8 second) to display the current time
at the center of the screen.
INFORMATION
If the screen is turned off, selecting the
will display the current time on the
entire screen.
Setting the Clock
Press and hold the on the front panel
shortly (over 0.8 second) to display the Clock
setting screen.
GPS Time
The time received from the GPS will be
displayed automatically.
Clock Type
Selects the clock type shown as the entire
screen when the system power is turned off.
Time Format
When the clock type is digital, this button is
used to convert the time between 12 hour/ 24
hour systems.
Show Time if Audio is Off
Selects whether to display the clock when the
system power is turned off.
Daylight Saving Time
Turns the Daylight Saving Time function on or
off.
Time Zone
Selects the time zone so that differences in
regional times can be adjusted.
i
i
Time Zone Time
Alaska UTC-9h
Atlantic UTC-4h
Central UTC-6h
Eastern UTC-5h
PRE-OVERVIEW 1-13
PRE-OVERVIEW
1-12 PRE-OVERVIEW
PART 1 PRE-OVERVIEW MEMO
INFORMATION
Clock setting mode can be displayed while
the clock is displayed on the screen even
when the system is turned off.
The time may not be properly displayed if
the GPS time has not been received.
Time Zone Time
Hawaii UTC-10h
Mountain UTC-7h
Newfoundland UTC-3h 30m
Pacific UTC-8h
i
PART 2 AUDIO SYSTEM
AUDIO SYSTEM 2-1
AUDIO SYSTEM
PART 2
AUDIO SYSTEM
PART 2
AUDIO SYSTEM
Operating external devices
2-22
iPod 2-22
Connecting iPod device 2-22
Listening to iPod music 2-22
iPod screen and functions 2-23
Selecting an iPod song 2-23
REW/FF iPod song 2-24
Setting Repeat function for
iPod song 2-25
Setting Random function for
iPod song 2-25
USB 2-26
USB MP3 related information and
precaution 2-26
Precautions upon handling USB 2-26
Connecting the USB 2-28
Listening to USB music 2-28
AUX 2-29
Connecting AUX 2-29
Playing AUX 2-29
AUX screen 2-29
Operating the radio
2-2
FM/AM Radio 2-2
Listening to the FM/AM radio 2-2
FM/AM screen and functions 2-2
Selecting FM/AM broadcast
frequency 2-3
Storing FM/AM preset 2-4
Scanning FM/AM broadcast
frequency 2-5
XM Radio 2-6
Listening to the XM radio 2-6
XM screen and functions 2-6
Switching the XM mode
(Channel / Category) 2-7
Selecting XM broadcast channel 2-7
Storing XM preset 2-9
Scanning XM broadcast channel 2-9
Operating the CDP 2-10
About CDP 2-10
Precautions upon handling discs 2-10
For safe and efficient operation 2-10
Supported disc formats 2-11
Disc/Content format compatibility 2-12
Inserting/Ejecting disc 2-13
Inserting a Disc 2-13
Ejecting a Disc 2-13
CD 2-14
Listening to CD music 2-14
CD screen and functions 2-14
Selecting the CD track 2-15
REW/FF CD track 2-15
Setting Repeat function for
CD music 2-15
Setting Random function for
CD music 2-16
Scanning CD track 2-16
MP3 2-17
MP3 disc related information and
precaution 2-17
Listening to MP3 music 2-18
MP3 screen and functions 2-18
Selecting the MP3 file 2-19
REW/FF MP3 file 2-20
Viewing detail information for
MP3 file 2-20
Setting Repeat function for MP3 file 2-20
Setting Random function for
MP3 file 2-20
Scanning MP3 file 2-21
Operating the radio
FM/AM Radio
Listening to the FM/AM radio
Press the key on the control
panel. The FM/AM radio band of the most
recent listened station will be displayed.
Press the key to change the
desired radio band. Each press will
change the bands in the following order:
FM1
FM2
AM
FM1
Select the desired broadcast frequency.
[Selecting FM/AM broadcast frequency],
page 2-3.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
" Radio"
"(Radio) AM"
"(Radio) FM"
"(Radio) FM <1 or 2>"
"AM Frequency <530 to 1710>"
"FM Frequency <87.5 to 107.9>"
"AM Preset <1 to 6>"
"FM <1 or 2> Preset <1 to 6>"
FM/AM screen and functions
Mode display : displays the FM1/FM2/
AM modes.
SEEK/SCAN/PRESET SCAN/AUTO PRESET
indicator : if SEEK/SCAN/PRESET SCAN
/AUTO PRESET is operating, the switch is
displayed.
FM/AM
FM/AM
AUDIO SYSTEM 2-3
AUDIO SYSTEM
2-2 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
STEREO indicator : if the current
frequency is a stereo broadcast, the
indicator is displayed.
Program Service name : displays the
program service name if data is being
broadcast.
Frequency : displays the current playing
frequency.
Program type name : displays the
program type name if data is being
broadcast.
Radio Text : displays the radio text
information if data is being broadcast.
Frequency Bar : displays the position of
the current frequency within the total
frequency range.
Current time : displays the current time
manually automatically according to the
GPS time.
buttons : the desired frequency
can be preset and selected.
[Storing FM/AM preset], page 2-4.
ON/OFF button : turns the
Radio Text information on and off.
INFORMATION
If the is on OFF state, text will not be
displayed even if there is text being
transmitted from the broadcast station.
If the is on ON state, the frequency
bar will not be displayed. Even if the
in on ON state, text may not be displayed if text
is not being received from the broadcast
station.
button : searches the 6
frequencies with the most superior
reception and automatically stores as
preset buttons in corresponding order.
[Storing FM/AM preset], page 2-4.
button : scans all frequencies or
just the preset frequencies for 5 seconds
each. [Scanning FM/AM broadcast
frequency], page 2-5.
button : adjusts the FAD/BAL,
BASS/MID/TREB controls.
[Sound setting], page 1-10.
Selecting FM/AM broadcast frequency
There are 3 ways to select the broadcast
frequency - (a) selecting through preset, (b)
selecting through SEEK, (c) selecting
through manual search.
(a) Selecting a frequency through preset
Press the preset button of the desired
broadcast frequency.
INFORMATION
Press the or keys on the
steering wheel remote controller shortly. The
preset frequencies of the current band will be
selected in order.
There are 6 preset frequencies each for
FM1, FM2, and AM modes.
[Storing FM/AM preset], page 2-4.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Preset <1 to 6>"
"Preset Up"
"Preset Down"
TRACK
SEEK
Sound
Scan
Auto Store
R-Text
R-Text
R-Text
R-Text
Preset
i
i
AUDIO SYSTEM 2-5
AUDIO SYSTEM
2-4 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Scanning FM/AM broadcast
frequency
Press the button.
SCAN (less than 0.8 second) :
Scans all frequencies and plays only
frequencies with superior reception for 5
seconds each.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Scan"
PRESET SCAN (over 0.8 second):
Scans the 6 frequencies stored as preset
frequencies in the current band for 5
seconds each.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Preset Scan"
Press the button again to
continue listening to a frequency. The
scan will be terminated and the current
frequency will continue to be played.
INFORMATION
When scanning has completed an entire
revolution, the scan function will terminate
automatically and the previous played
frequency will be restored.
Scan
Scan
(b) Selecting a Broadcast frequency
through SEEK
Press the
or
keys on the
control panel for less than 0.8 second.
Once the SEEK function is operating (SEEK
indicator blinking), the next or previous
broadcast frequency with superior reception
will be searched automatically.
INFORMATION
Press the or keys on the
control panel or steering wheel remote
controller for more than 0.8 second to
quickly move to the nearest desired
frequency. Once the button is released, the
next frequency with superior reception will
be searched automatically.
If the SEEK function is operating, pressing
the or keys on the
control panel again will terminate SEEK
operation and select the current frequency.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Seek Up"
"Seek Down"
(c) Selecting a broadcast frequency through
manual search
Turn the knob on the control panel in
clockwise or counter-clockwise direction.
Each click on the knob will increase or
decrease the frequency by 1 step (FM: 0.2
MHz, AM: 10 kHz).
Storing FM/AM preset
There are 2 ways to store preset frequencies -
(a) storing manually and (b) auto store.
(a) Storing manually
Select the desired frequency.
[Selecting FM/AM broadcast frequency],
page 2-3.
Press the preset button to store for over
0.8 second. The frequency will become
stored along with a beep sound.
INFORMATION
Six preset frequencies each for FM1/ FM2/AM
modes can be stored using the above
instructions.
(b) Auto Store
After selecting the desired band, press the
button. The 6 frequencies with
the most superior reception will be stored as
preset buttons in corresponding order.
INFORMATION
If the button is pressed again
while operating Auto Store, then the Auto
Store operation will be terminated and the
previously played frequency will be restored.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Auto preset"
Auto Store
Auto Store
TUNE
TUNE
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
i
i
i
i
AUDIO SYSTEM 2-7
AUDIO SYSTEM
2-6 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
button : displays the channel or
category list. [Selecting XM broadcast
channel], page 2-7.
button : selects the channel by
directly inputting the channel number.
[Selecting XM broadcast channel],
page 2-7.
button : scans all frequencies or
just the preset channels for 5 seconds
each.
[Scanning XM broadcast channel],
page 2-9.
button : adjusts the FAD/BAL,
BASS/MID/TREB controls.
[Sound setting], page 1-10.
Switching the XM mode (Channel /
Category)
Each time the button is pressed,
the mode will switch between channel
mode and category mode.
Use the tune knob to change categories
and press the tune knob change to selected
category.
Selecting XM broadcast channel
There are 5 ways to select a broadcast
channel - (a) selecting through preset, (b)
selecting with channel Up/Down, (c)
Selecting a channel through manual search,
(d) selecting through channel/ category list,
(e) selecting by directly inputting the
channel number.
(a) Selecting a channel through preset
Press the preset button of the desired
channel.
INFORMATION
Press the or keys on the
steering wheel remote controller for less
than 0.8 second. The preset channels of the
current band will be selected in order.
There are 6 preset channels each for XM1,
XM2, and XM3.
[Storing XM preset], page 2-9.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Preset <1 to 6>"
"Preset Up"
"Preset Down"
(b) Selecting with Channel Up/Down
Press the
or
keys on the
control panel for less than 0.8 second.
The previous or next channel will be selected.
INFORMATION
If in Channel mode, the channel is selected
from all channels. If in Category mode, the
first channel of each category is selected.
Press the or keys on the
control panel or steering wheel remote
controller for more than 0.8 second to
quickly move to the nearest desired
channel. Once the button is released, the
current channel will be selected.
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
Mode
Sound
Scan
Search
List
XM radio
Listening to the XM radio
Press the key on the control panel.
The XM radio band screen of the most
recent listened station will be displayed.
Press the key to change the
desired radio band. Each press will
change the bands in the following order:
XM1 XM2 XM3 XM1
Select the desired broadcast channel.
[Selecting XM broadcast channel], page
2-7.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"XM"
"XM <1 or 2 or 3>"
"XM Channel <0 to 255>"
"XM <1 or 2 or 3> Preset <1 to 6>"
XM screen and functions
Mode display : displays the XM1/XM2/
XM3 modes.
SCAN/PRESET SCAN indicator : if
SCAN/PRESET SCAN is operating, the
switch is displayed.
Channel number : displays the current
playing channel.
Channel mode indicator : displays the
channel mode in orange.
Category mode indicator : displays the
category mode in orange.
Channel name : displays the channel
name.
NAME : displays the artist and other
related information.
Title name : displays the title name.
Category name : displays the category
name.
Current time : displays the current time
manually automatically according to the
GPS time.
buttons : the desired channel
can be preset and selected. [Storing
XM preset], page 2-9.
buttons : switches between
channel mode and category mode.
[Switching the XM mode], page 2-7.
Mode
Preset
i i
AUDIO SYSTEM 2-9
AUDIO SYSTEM
2-8 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Input desired channel number, and press
the button. The previous screen
will be restored and the selected channel
will begin playing.
INFORMATION
To prevent inputting a channel which exceeds
the channel range, numbers which cannot be
inputted are set to disabled state.
Voice Command
1. Press the button on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Channel<0 to 255>"
Storing XM preset
Select the desired channel. [Selecting
XM broadcast channel], page 2-7.
Press the preset button for over 0.8
second. The frequency will be saved
along with beep sound.
INFORMATION
Six preset frequencies each for XM1/ XM2/
XM3 modes can be stored using the above
instructions.
Scanning XM broadcast channel
Press the button.
SCAN (under 0.8 second): Scans all
channels for 5 seconds each if in channel
mode. If in category mode, scans all
channels within the current category for 5
seconds each.
Voice Command
1. Press the button on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Scan"
PRESET SCAN (over 0.8 second): Scans the
6 preset channels within the current band
for 5 seconds each.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Preset Scan"
Press the button again to
continue playing the channel. The scan
will be terminated and the current
channel will continue to be played.
INFORMATION
When scanning has completed an entire
revolution, the scan function is automatically
terminated and the previous played channel
will be restored.
Channel 0 is the radio ID and contains
information required for XM Activation.
Scan
Scan
OK
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Channel Up"
"Channel Down"
(c) Selecting a channel through manual
search
Turn the key in clockwise or counter-
clockwise direction to display the previous
or next channel information. After a brief
moment, the selected channel will be
displayed.
INFORMATION
If in channel mode, the channel is selected
from all channels. If in category mode, the first
channel of each category is selected.
(Category search)

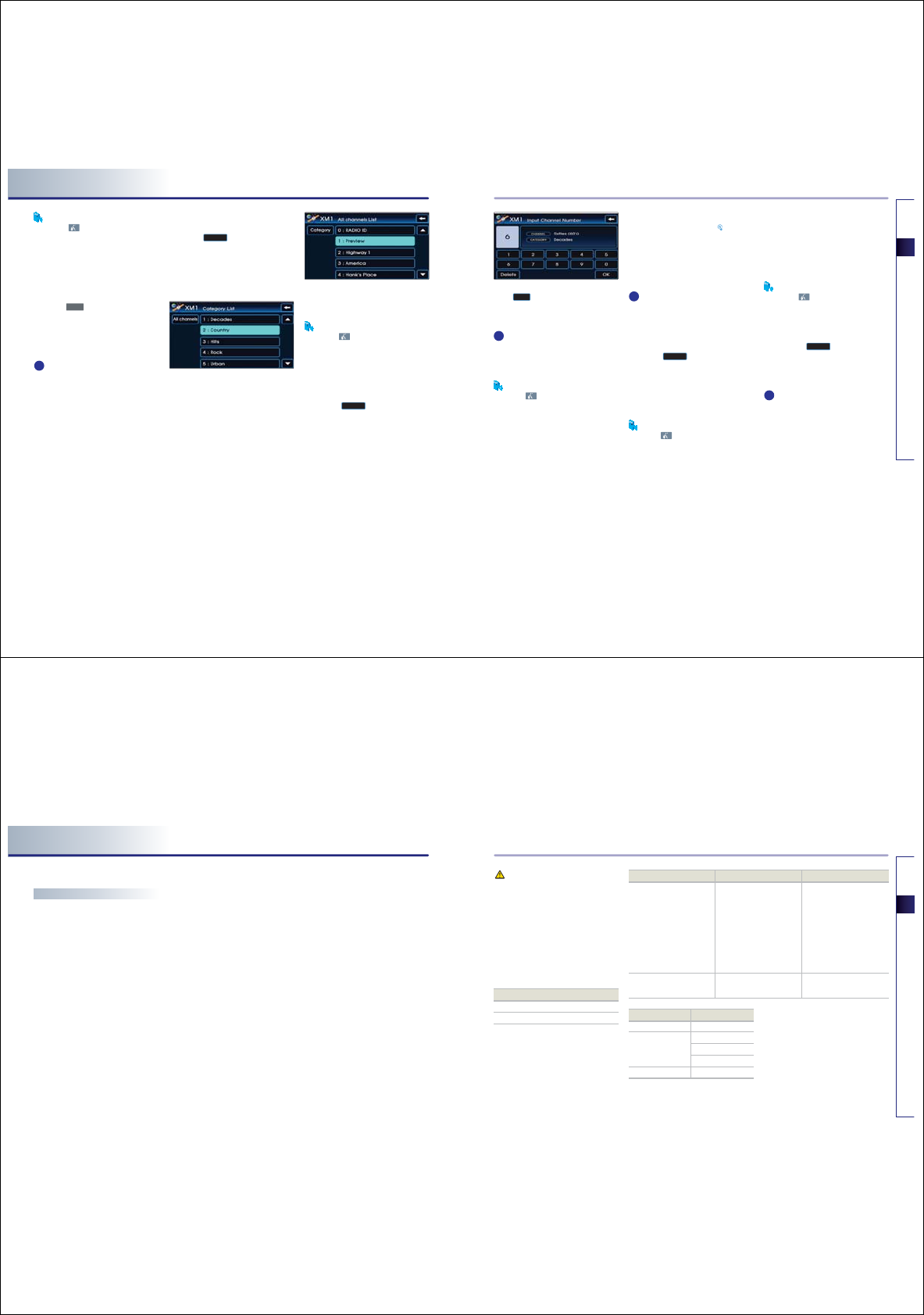

(d) Selecting channel through channel/
category list
Press the button.
If in category mode, the all category list
screen will be displayed.
Select the desired category button to
display the channel list screen for the
corresponding category.
If in channel mode, the all channels list
screen will be displayed.
Select the desired channel button. The
previous screen will be restored and the
selected channel will begin playing.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Category Search"
(e) Selecting channel by directly inputting
the channel number
Press the button. The channel
input screen will be displayed.
Search
List
TUNE
i
i
i
i
AUDIO SYSTEM 2-11
AUDIO SYSTEM
2-10 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
WARNING !
Always pay full attention to driving. Avoid
operating your system in such a way that you
are distracted from driving your vehicle.
Supported disc formats
The disc types supported by this device are
as shown below.
CD-R or CD-RW DISC burned with a bulk
CD without quality guarantees may not
be recognized by the device.
Inserting an abnormal disc may result in
faulty operation or recognition.
Operating the CDP
About CDP
Precautions upon handling discs
After using a disc, keep it in the original
case to prevent it from becoming
scratched, which may cause the CD to
make popping sounds.
Do not use heart-shaped discs, octagon-
shaped discs, or any other abnormally
shaped disc. Such discs may be the cause
of malfunctions.
Do not clean discs with chemical solutions
such as record sprays, antistatic sprays,
antistatic liquids, benzene, or thinners.
Such materials may cause the surface of
DISC to be unrecoverable.
Do not expose the disc to direct sunlight
for prolonged periods of time. Such
exposure may lead to disc deformation.
Dust, scratch, and other substances may
cause popping sound while playing as
well as sound deterioration.
Never place paper on either side of the
disc or write on disc surfaces. Sharp
writing utensils and inks used in felt-tip
pens may cause damage to disc surfaces
Clean fingerprints and dust off the signal
surface (coated side) of the disc with a
soft cloth.
Only soft cloths should be used as there
are no grooves for dust to get in as is the
case with LPs.
Copy-protected CDs such as S-type CDs
may not function in the device.
DATA CDs are not supported by the
device. (However, such discs may operate
abnormally.)
For safe and efficient operation
Do not disassemble the CDP for repair
purposes. Contact your place of purchase
in the case of malfunction. (Complete
service assistance will not be provided if
the user disassembles the device.)
Do not use water to clean the device.
Exposure to water may cause damage to
the device.
Be cautious not to introduce foreign
substances into the disc insert slot.
Foreign substances may cause damage
to the interior of the device.
The device may fail to operate properly in
extremely hot or cold temperatures.
Discontinue the use of the device unless
normal temperature is maintained.
(The operational temperature range is:
-10
~ 65
).
Steam can be condensed on the fiberoptic
lens due to rain, wet conditions, or upon
operating the heating system.
Skipping may occur to the audio when
driving on bumpy roads for prolonged
periods of time or upon severe shock to
the vehicle.
Do not use chemical solvent to clean the
device. Such solvents may cause damage
to the surfaces of the device.
Always use a clean and dry cloth.
Disc format Disc media Disc format
CD CD-DA
CD-R MP3
CD-RW WMA
Multisession-CD DTS-CD
CD CD-ROM
CD-G
CD-EXTRA
CD-TEXT
SACD SACD
SACD(Hybrid)
Disc format Audio format
CD LPCM
MP3 MPEG1, Layer3
MPEG2, Layer3
MPEG2.5
WMA Ver9
Disc Size
3-inch (7.6 cm)
5-inch (12.7cm)
AUDIO SYSTEM 2-13
AUDIO SYSTEM
2-12 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Although this device supports low bit rate
MP3 tracks, such tracks may only provide
low quality sound.
For stable operation, the use of files in
95kbps ~ 192kbps bit rate range and
44.1kHz SAMPLING frequency is
recommended.
Inserting/Ejecting Disc
Inserting a Disc
Insert the disc into the slot.
The disc will begin playing automatically
after it has been inserted.
INFORMATION
If the operation mode had been Audio mode
before inserting the disc, the device will
convert to the DISC mode screen and begin
playing.
If the operation mode had been Navigation
mode, then Navigation mode screen will
remain and the disc play status will be
displayed through the Audio bar.
Ejecting a Disc
Press the key.
The disc will immediately be stopped and
ejected.
INFORMATION
If the operation mode had been in Audio
mode before ejecting the disc, the device
will be converted back to Audio mode.
If the operation mode had been in
Navigation mode, then Navigation mode
screen will remain.
If the disc is straddled on the slot without
removing for approximately 10 seconds, the
disc will be re-inserted automatically into
the disc player.
In such a case, the disc will not begin
playing automatically.
Disc/Content format compatibility
Ordinary disc compatibility
This device has been designed/
manufactured to be compatible with
software bearing the following logo marks.
CD-R/RW discs (Audio CD and MP3 CD)
created with CD-writing devices or
personal computers may not properly
function in the device. This may be
caused by damaged recording method,
contamination by dirt and other foreign
substance on the disc surfaces or play
lens, and various other reasons.
Special formats or special features
regarding software
CD-R/RW Compatibility.
This device operates as a CD-ROM
including CD-R and CD-RW DISC written in
CD Audio or MP3 CD Format.
However, other contents may cause
abnormal disc operation such noise.
The writing of CD-R and CD-RW discs with
this device is not supported.
Although CD-R/RW discs burned as audio
CDs which have not been finalized are not
supported by the device, some information
such as play time may be displayed.
PC-created DISC compatibility.
When recording a disc with a personal
computer, even discs recorded in a
"format compatible" with the formats
described above may not operate on the
device caused by software settings of the
recording application.
In such cases, contact the software
developer.
Additional information regarding
compatibility can be found on the CD-R/
RW software disc box.
DVD-R/RW are not supported by the
device.
Compressed audio compatibility
This device plays audio files compressed by
MPEG-1 audio stream layer 3(MP3) using 32,
44.1 and 48kHz fixed bit rates. Incompatible
files are not supported.
Variable bit rate files may operate, but the
play time information may not be
properly displayed.
Physical formats of CD : Model 1, Model 2
XA format 1.
This device only supports tracks with file
extension of ".MP3" or ".WMA".
This device does not support multi-
session discs.
This device supports a maximum of 256
folders and maximum 512 files.
Folders and files which exceed this limit
will not be supported.
There are various bit rates which can be
encoded onto a MP3 file.
This device has been designed to be
compatible with various bit rates.
Audio which has been encoded at
128kbps will sound similar to CD audio
sound quality.
Audio-CD CD-R CD-RW
i
i
AUDIO SYSTEM 2-15
AUDIO SYSTEM
2-14 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Selecting the CD track
There are 2 ways to select a CD Track - (a)
selecting through Track Up/Down, (b)
selecting through searching Track.
(a) Selecting through Track Up / Down
Press the
or
keys on the
control panel or steering wheel remote
controller for less than 0.8 second. The next
or previous track will begin playing.
INFORMATION
If the key on the control panel or
steering wheel remote controller is pressed
shortly while the track has played for more
than 3 seconds, the start of the current track
will begin playing. If the track has been
playing for less than 2 seconds, the start of
the previous track will begin playing.
Voice Command
1. Press the button on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Next Track"
"Previous Track"
(b) Selecting track through search
Turn the knob on the control
panel in clockwise or counter-clockwise
direction. Each click on the knob
will display the information of the next or
previous track. The current playing track
will continue to be played.
Press the knob at the desired track.
The searched track will begin playing.
REW/FF CD track
Press and hold the
or
keys on the control panel or steering wheel
remote controller for over 0.8 second.
The track will play 20 times faster while
holding the button and return to normal
play when the button is released.
Setting Repeat function for CD
music
Press the button. Each press will
change the function in the following order:
REPEAT
REPEAT OFF
REPEAT
* REPEAT : repeats the current playing track.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Repeat Track"
Say "Repeat File" or "Repeat Folder" again
or say "Normal Play" in order to terminate
the set Repeat
Repeat
TRACK
SEEK
TUNE
TUNE
TUNE
TRACK
TRACK
SEEK
CD

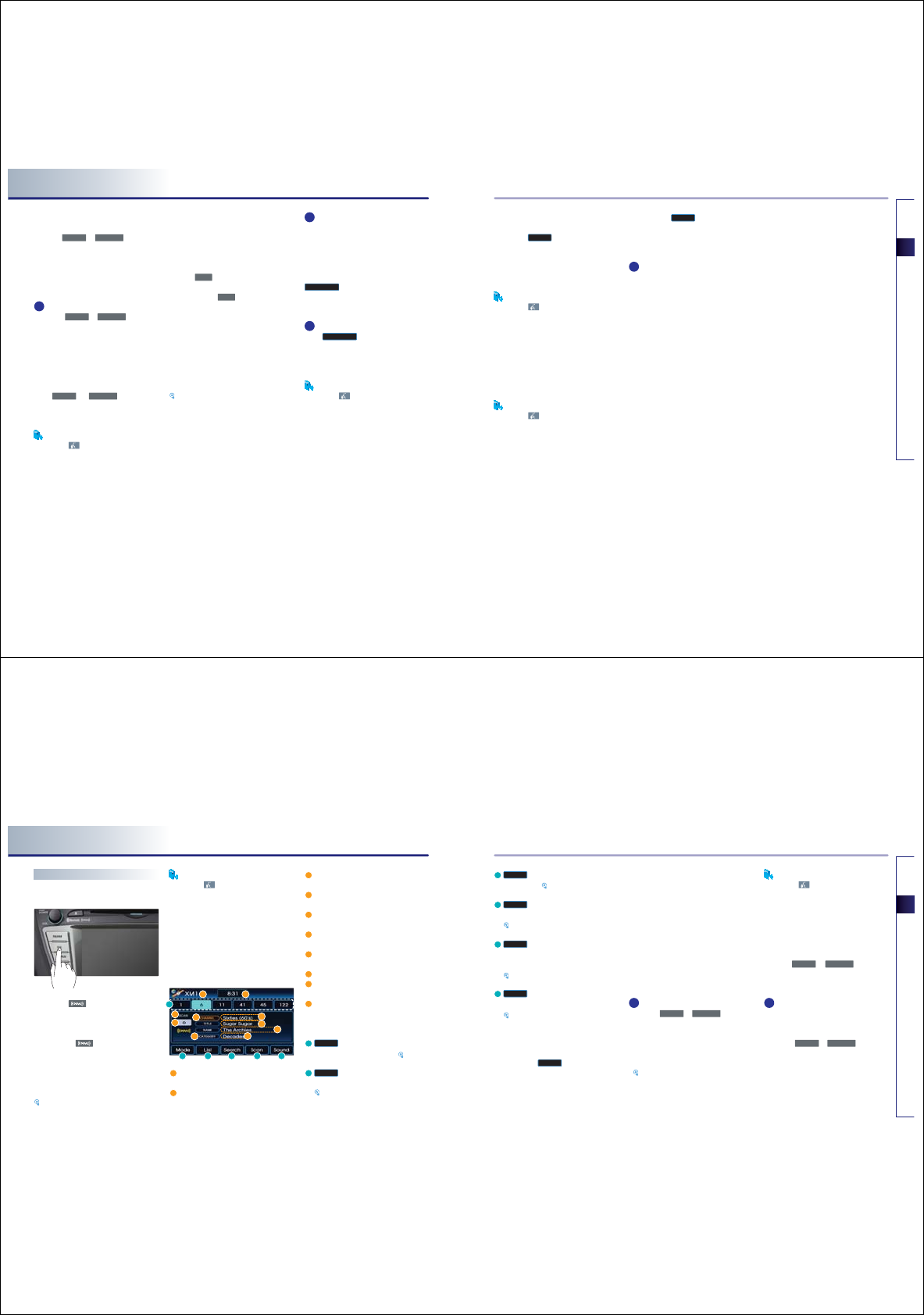

Listening to CD music
Insert the CD or press the key
on the control panel if the CD is already
inserted.
Select the desired track. [Selecting the
CD track], page 2-15.
Voice Command
1. Press the button on the steering wheel
remote controller.
2. After the beep sound, say a command.
"DISC"
"CD"
"CD Track <1 to 665>"

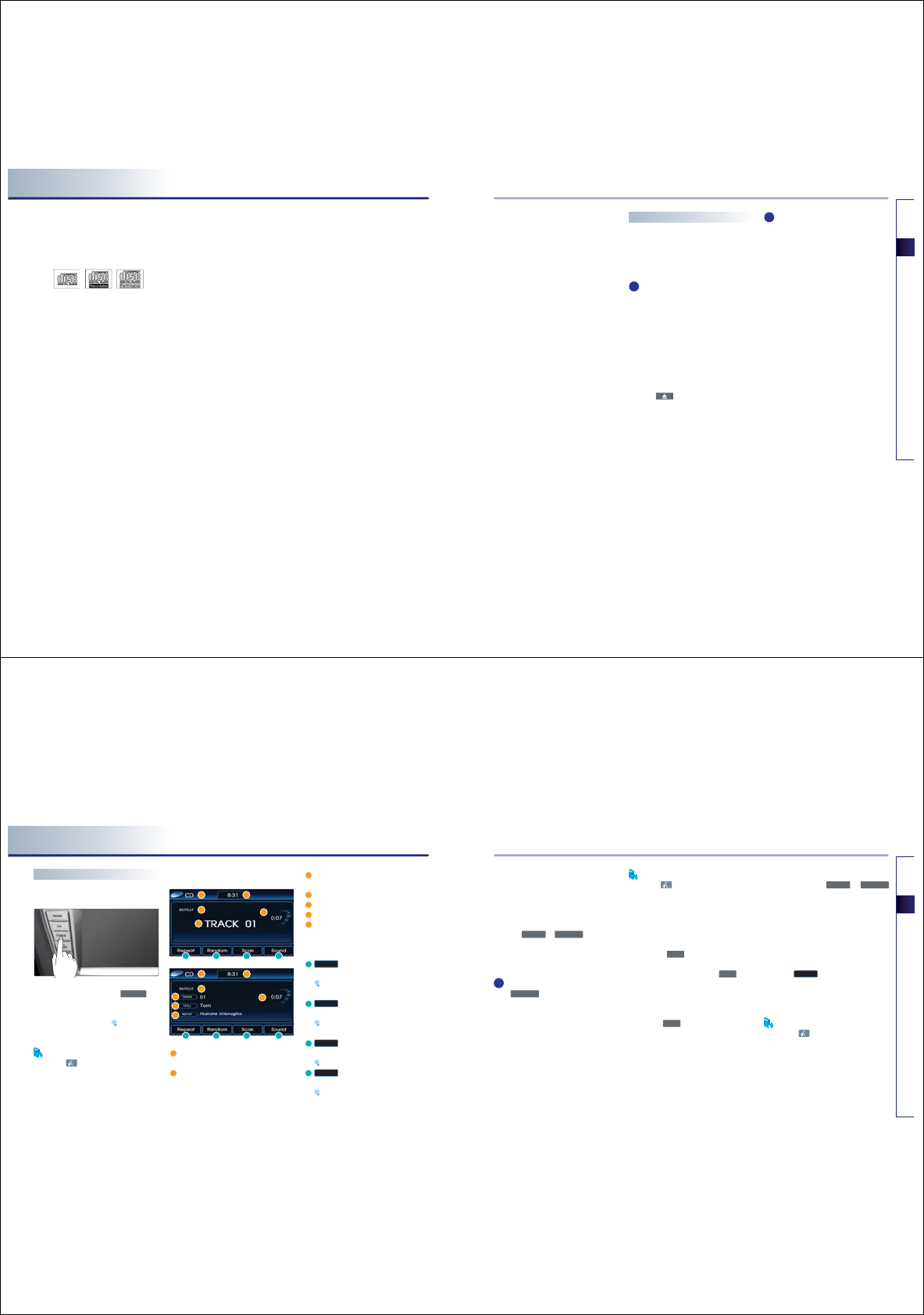

CD screen and functions
Mode display : displays that the current
mode is CD mode.
REPEAT/RANDOM/SCAN indicator : if
REPEAT/RANDOM/SCAN is operating,
the switch is displayed.
Track number : displays the track
number.
Play Time : displays the play time.
Title name : display the title name.
Artist name : display the artist name.
Current time : displays the current time
manually automatically according to the
GPS time.
buttons : repeat the current
playing track.
[Setting Repeat function for CD music],
page 2-15.
button : plays the tracks on the
disc in random order.
[Setting Random function for CD
music], page 2-16.
button : scans all tracks on the
disc for 10 seconds each.
[Scanning CD track], page 2-16.
button : adjusts the FAD/BAL,
BAS, MID, TRE controls.
[Sound setting], page 1-10.
Sound
Scan
Random
Repeat
CD/AUX
i
AUDIO SYSTEM 2-17
AUDIO SYSTEM
2-16 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
MP3
MP3 disc related information and
precaution
Information
The MP3 file standards supported by the
device are as follows.
Acceptable standard: MPEG1 AUDIO
LAYER 3
Acceptable sampling frequency: 32, 44.1,
48 (KHz)
Acceptable bit rate: 32, 40, 48, 56, 64, 80,
96, 112, 128, 160, 192, 224, 256, 320
(Kbps)
Recommended bit rate & reference
sampling frequency: 96,128, 192 Kbps
fixed bit rate /44.1KHz
ID3 tag
This device supports ID3v1.0, ID3v1.1,
ID3v2.2, ID3v2.3, and ID3v2.4 ID3 tags.
Supported media
The MP3 media supported by the device
are CD-ROM and USB.
Supported media formats
This device supports ISO9660 LEVEL1 and
LEVEL2. Detailed specification is as below.
Maximum directory layers: 8 layers
Maximum folder length: 64 Bytes, file
name length: 64 Bytes
Supported characters for folder name/ file
name: Alphanumeric characters, Korean
standard character set 2350 characters,
Simplified Chinese 4888 characters
Maximum number of folders which can
be stored onto one disc: 256 folders
(including ROOT directory)
Maximum number of files which can be
stored onto one disc: 512 files
Precautions upon burning MP3 files
The use of ISO 9660 LEVEL 2 JOLIET
format is recommended when burning
MP3 files. Burning in other formats may
abnormally display the file names.
It is possible to display up to 32 characters
for file and folder names in case of
UNICODE, and up to 64 characters in case of
ASCII. Although the full length of the file
name can be displayed by using the scroll
function, the full length of folder names
may not be displayed as the scroll function
does not operate when displaying folder
names.
Precaution
Please use a MP3 bit rate which is less than
128 kbps. The sound quality cannot be
guaranteed for MP3s exceeding 128kbps.
Setting Random function for CD
music
Press the button. Each press will
change the function in the following order:
RANDOM RANDOM OFF RANDOM
* RANDOM : plays all tracks in the disc in
random order.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Random"
Say "Random" or "Random Folder" again or
say "Normal Play" in order to terminate the
set Random function.
Scanning CD track
Press the button. Each press will
change the function in the following
order: SCAN
SCAN OFF
SCAN.
* SCAN : scans all tracks in the disc for 9
seconds each.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Scan"
Say "Normal Play" in order to terminate the
set Scan function.
Press the button again to continue
listening to the track. The scan will be
terminated and the current track will
continue to be played.
INFORMATION
When scanning has completed an entire
revolution, the scan function is automatically
terminated and the previous played track will
be restored.
Scan
Scan
Random
i
AUDIO SYSTEM 2-19
AUDIO SYSTEM
2-18 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Selecting the MP3 file
There are 3 ways to select an MP3 file - (a)
selecting through file up/down, (b)
selecting through searching files, (c)
selecting through MP3 list.
(a) Selecting through File Up / Down
Press the
or
keys on the
control panel or steering wheel remote
controller for less than 0.8second. The next or
previous file will begin playing.
INFORMATION
If the key on the control panel or
steering wheel remote controller is pressed
shortly while the song has played for more
than 3 seconds, the start of the current song
will begin playing. If the song has been
playing for less than 2 seconds, the start of
the previous song will begin playing.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Next File"
"Previous File"
"Next Folder"
"Previous Folder"
(b) Selecting through search
Turn the knob on the control
panel in clockwise or counter-clockwise
direction. Each click on the knob
will display the information of the next or
previous file. The current playing file will
continue to be played.
INFORMATION
If the operation of the Tune knob is too rapid,
there may be a delay in displaying the file
information.
Press the knob at the desired file.
The searched file will begin playing.
(c) Selecting through MP3 List
Press the button. The file list of
the folder for the current playing file will
be displayed.
INFORMATION
If many songs and folders are recorded onto a
DISC, file loading time may be longer and
cause the play list to be improperly displayed
or song search through TUNE operation to
operate improperly. In such cases, wait until file
loading is complete and try again.
Press the desired menu to return to the
main screen and play the selected file.
List
TUNE
TUNE
TUNE
TRACK
TRACK
SEEK
Listening to MP3 music
Insert the MP3 disc or press the
key on the control panel if the MP3 disc is
already inserted.
Select the desired file. [Selecting the
MP3 file], page 2-19.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"DISC"
"CD"
"MP3"
MP3 screen and functions
Mode display : displays that the current
mode is MP3 disc mode. (MP3 files on
DVD discs are not supported.)
REPEAT/RANDOM/SCAN indicator : if
REPEAT/RANDOM/SCAN is operating,
the switch is displayed.
Play Time : displays the play time.
Folder name : displays the folder name.
File name : displays the file name.
Current time : displays the current time
manually automatically according to the
GPS time.
button : displays or hides
the detailed file information for the
current playing file.
[Viewing detail information for MP3
file], page 2-20.
button : displays the MP3
folders and file lists for the disc.
[Selecting the MP3 file], page 2-19.
button : repeats the current
playing folder or file.
[Setting repeat function for MP3 file],
page 2-20.
button : plays all files on the
disc or folder in random order.
[Setting random function for MP3
file], page 2-20.
button : scans all files on the
disc or folder for 10 seconds each.
[Scanning MP3 file], page 2-21.
button : adjusts the FAD/BAL,
BASS/MID/TREB controls.
[Sound setting], page 1-10.
Sound
Scan
Random
Repeat
List
Info On/Off
CD/AUX
ii
i
AUDIO SYSTEM 2-21
AUDIO SYSTEM
2-20 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Scanning MP3 file
Press the button.
Each press will change the function in the
following order : Scan
Folder Scan
Scan Off
Scan
* Folder Scan : plays all files in the current
folder for 10 seconds each.
* Scan: scans all files in the disc for 10
seconds each.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Scan"
"Folder Scan"
Say "Normal Play" in order to terminate the
set Scan function.
Press the button again to
continue listening to the file. The scan
will be terminated and the current file
will continue to be played.
INFORMATION
When scanning has completed an entire
revolution, the scan function is automatically
terminated and the previously played file will
be restored.
Scan
Scan
REW/FF MP3 file
Press and hold the
or
keys on the control panel or steering wheel
remote controller for over 0.8 second.
The file will play 20 times faster while
holding the button and return to normal
play when the button is released.
Viewing detail information for
MP3 file
Press the button. The detailed
information (Title, Artist, Album, Genre)
for the current playing MP3 will be
displayed.
Press the button. The detailed
information will be turned off.
Setting Repeat function for MP3 file
Press the button.
Each press will change the function in the
following order: Repeat
Folder Repeat
Repeat Off
Repeat
* Repeat : repeats the current playing file.
* Folder Repeat : repeats the files in the
current folder.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Repeat File"
"Repeat Folder"
Say "Repeat File" or "Repeat Folder" again
or say "Normal Play" in order to terminate
the set Repeat function.
Setting Random function for MP3
file
Press the button.
Each press changes the setting as follows :
Random
Folder Random
Random Off
Random
* Folder Random : plays the files in the
current folder in random order.
* Random : plays all files in the disc in random
order.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Random"
"Random Folder"
Say "Random" or "Random Folder" again or
say "Normal Play" in order to terminate the
set Random function.
Random
Repeat
Info Off
Info On
TRACK
SEEK
i
AUDIO SYSTEM 2-23
AUDIO SYSTEM
2-22 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Operating external devices
iPod
iPod
is a registered trademark of
Apple Inc.
Connecting iPod device
Connect the iPod device as shown in the
picture.
The identification of the iPod device, battery
recharge, and other functions provided by
the iPod device can be normally supported
only by using a separately sold iPod
connector cable.
If the USB cable provided upon purchasing
the iPod for charging is used as the
connector cable, the device will be
recognized as a USB and may not properly
operate or display all of the display
information.
Supported iPod devices : Classic 4
th
/5
th
/6
th
,
Mini 1
st
/2
nd
, NANO 1
st
/2
nd
/3
rd
/4
th
and Touch
1
st
/2
nd
Generations.
If iPod mode cannot be entered due to
identification error, no track, incompatible
protocol version, or other reasons, a pop-up
message will be displayed for 5 seconds and
return automatically to the previous mode.
If the message continues even after
reconnecting the iPod, check to see if there
are any problems with the iPod device.
CAUTION!
If a playing iPod is connected to the audio
system, a high-pitched tone may occur for
approximately 1-2 seconds.
Please turn the iPod device to pause/stop
prior to connecting it to the vehicle.
INFORMATION
An iPod cable assembly can be purchased at
your local Hyundai dealer.
Listening to iPod music
Connect the iPod or press the
key on the control panel if the iPod is
already connected.
INFORMATION
Even if the iPod is connected, message may
be displayed if an error has occurred. In such a
case, reconnect the iPod.
Select the desired song.
[Selecting an iPod song], page 2-23.
CD/AUX
i
iVoice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"iPod"
iPod screen and functions
Mode display : displays that the current
mode is iPod mode.
REPEAT/RANDOM indicator : if REPEAT/
RANDOM is operating, the switch is
displayed.
Title name : displays the title name of
the playing file.
Play Time : displays the play time.
Artist name : displays the artist name of
the playing file.
Album name : displays the album name
of the playing file.
Current time : displays the current time
manually automatically according to the
GPS time.
button : converts to the search
menu screen.
[Selecting an iPod song], page 2-23.
buttons : repeats the current
playing song.
[Setting repeat function for iPod
song], page 2-25.
button : plays all songs in the
current playing list in random order or
randomly in album unit.
[Setting random function for iPod
song], page 2-25.
button : adjusts the FAD/BAL,
BASS/MID/TREB controls.
[Sound setting], page 1-10.
Selecting an iPod song
There are 3 ways to select songs from the
iPod device - (a) selecting song through
Up/Down, (b) selecting song through
sequential search, (c) selecting song
through menu.
(a) Selecting song through Up / Down
Press the or button on
the for less than 0.8 second. The next or
previous song will begin playing.
INFORMATION
If the key on the control panel or
steering wheel remote controller is pressed
shortly while the track has played for more
than 3 seconds, the start of the current song
will begin playing. If the track has been
playing for less than 2 seconds, the start of
the previous song will begin playing.
TRACK
TRACK
SEEK
Sound
Random
Repeat
Menu
i
AUDIO SYSTEM 2-25
AUDIO SYSTEM
2-24 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Next Song"
"Previous Song"
(b) Selecting song through search
Turn the knob on the control
panel in clockwise or counter-clockwise
direction.
Operate the key dial to display the
previous or next channel information. After
a brief moment, the selected channel will
be displayed.
INFORMATION
If the operation of the knob is too
rapid, there may be a delay in displaying the
song information.

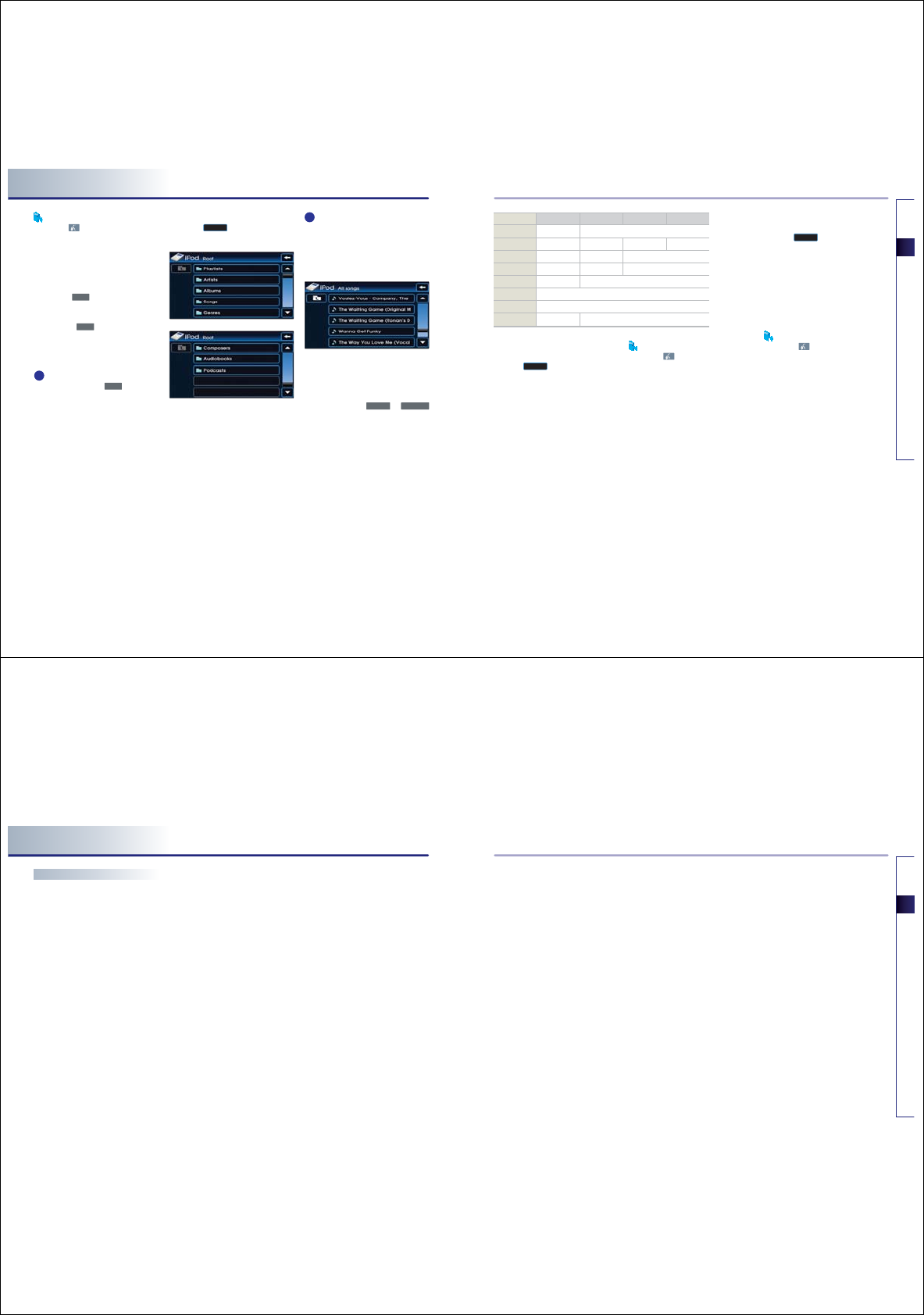

(c) Selecting song through Menu
Press the button. The iPod menu
screen will be displayed.
Press the button for the desired search
method.
INFORMATION
If the search mode is accessed while playing a
song, the most recent searched step will be
displayed. The search steps upon initial
connection are listed below.
Press the desired song button to return
to the main screen and play the selected
song.
REW/FF iPod song
Press and hold the or
keys on the control panel or steering wheel
remote controller for over 0.8 second. The
song will be play faster while holding the
button and return to normal play when the
button is released.
TRACK
SEEK
Menu
TUNE
TUNE
TUNE
i
i
Setting Repeat function for iPod
song
Press the button. Each press will
change the function in the following order :
Repeat Repeat Off Repeat
* Repeat : repeats the current playing song.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Repeat Song"
Say "Normal Play" in order to terminate the
set Repeat function.
Setting Random function for iPod
song
Press the button. Each press will
change the function in the following order :
Random
Album Random
Random Off
Random
* Album Random : plays the songs in the
current playing list randomly in Album
units.
* Random : plays all files in the current
playing list in random order.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Random"
"Random Album"
Say "Random" or "Random Album" again or
say "Normal Play" in order to terminate the
set Random
Random
Repeat
1 Step 2 Step 3 Step 4 Step
Playlist Playlist Song
Genre Genre Artist Album Song
Artist Artist Album Song
Composer composer Album Song
Album Album Song
Audiobooks Song
Songs Song
Podcasts Program Episode
Song
Song
Episode
Song
Song
Song
AUDIO SYSTEM 2-27
AUDIO SYSTEM
2-26 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
USB
USB MP3 related information and
precaution
Information
The MP3 file standards supported by the
device are as follows.
Acceptable standard: MPEG1 AUDIO
LAYER 3
Acceptable sampling frequency: 32, 44.1,
48 (kHz)
Acceptable bit rate : 32, 40, 48, 56, 64, 80,
96, 112, 128, 160, 192, 224, 256, 320
(kbps)
Recommended bit rate & reference
sampling frequency: 96,128, 192 kbps
fixed bit rate /44.1kHz
ID3 tag
This device supports ID3v1.0, ID3v1.1,
ID3v2.2, ID3v2.3, and ID3v2.4 ID3 tags.
Supported media
The MP3 media supported by the device
are CD-ROM and USB.
Supported media formats
This device supports ISO9660 LEVEL1 and
LEVEL2. Detailed specification is as below.
Maximum directory layers: 20 layers
Maximum length of folder name/file
name: 250Bytes
Supported characters for folder name/ file
name: Alphanumeric characters, Korean
standard character set 2350 characters,
Simplified Chinese 4888 characters
Maximum number of folders which can
be stored onto one USB: 2000 folders
(including ROOT directory)
Maximum number of files which can be
stored onto one USB: 6000 files
Precautions upon formatting USB &
downloading MP3 files
The device only supports FAT type USB
file system. The device will not play USB
media content if the USB is NTFS type.
Precaution
Please use an MP3 bit rate which is less than
192Kbps and a fixed bit rate.
The sound quality cannot be guaranteed for
MP3s exceeding 192Kbps and operation of
specific functions (limited to FF/REW
functions) may be abnormal with variable
bit rates.
Precautions upon handling USB
When using the external USB device, make sure
to keep the device disconnected and connect
only some time after turning on the vehicle
ignition. The USB device may be damaged if the
USB device already connected when the
ignition is turned on. (USB device is not an
electronic automotive component)
The external USB device may not operate
if the USB device already connected when
vehicle ignition is turned on or off.
The device will not operate when playing
a format which is not MP3 or WMA file
formats.
Only MP3 files with compression rates
between 8Kbps~320Kbps are supported.
Only WMA files with compression rates
between 8Kbps~320Kbps are supported.
Be cautious of static electricity when
connecting/disconnecting the external
USB device.
Encoded MP3 Players will not be
recognized when connected as the
external device.
When connecting an external USB device,
the device may not be properly recognize
the USB when the USB is in some states.
When formatting the external USB device,
the device may not be properly recognize
a Byte/Sector selection other than
512Byte or 2048Byte.
The device will only recognize USB
devices formatted in FAT 12/16/32.
Some USB devices may not operate
properly because of compatibility issues.
Verify that the external device is
supported by the device before starting
use.
Avoid contact between the USB
connector with bodily parts and foreign
substances.
Repeatedly connecting/disconnecting the
USB in a short period of time may cause
damage to the device.
When disconnecting the USB, an
abnormal sound may occur occasionally.
Abruptly disconnecting the external USB
device while the USB is operating may cause
the device to be damaged or function
abnormally.
Make sure to disconnect the USB device only
after the audio power is turned off or when
the audio is operating in a different mode.
The amount of time required to recognize
the external USB device may differ
depending on the type, size, or file
formats stored on the USB. Such
differences in the required time are not
indications of malfunction.
Please wait the period of time required to
recognize the device.
The device supports only USB devices
used to play music files.
Do not use the USB I/F to charge batteries
or USB accessories which generate heat.
Such acts may lead to deteriorated
performance or damage to the device.
The device may not recognize the USB
device if separately purchased USB hubs
and extension cables are being used.
Connect the USB directly to the
multimedia terminal of the vehicle.
In the case of high capacity USB devices,
there are instances where the logical
drives are partitioned for user
convenience. In this case, only the USB
music in the top-level logical drive will be
possible to play.
When using partitioned drives, save the
songs desired to play on the device only
in the top-level logical drive.
In addition, certain USB devices are
configured with a separate drive used to
install application programs and songs
from such drives may not be possible to
play for the reasons as described above.
AUDIO SYSTEM 2-29
AUDIO SYSTEM
The device may not support normal
operation if MP3 Players, cellular phones,
digital cameras, or other electronic
devices (USB devices not recognized as
portable disk drives) are connected to the
device.
The device may not support normal
operation when using a USB memory
type besides the Metal Cover Type USB
Memory.
The device may not support normal
operation when using formats such as
HDD Type, CF, or SD Memory.
The device will not support files locked by
DRM (Digital Rights Management).
The device many not support normal
operation if the proper connection with
the USB memory fails due to vibrations
caused by the vehicle. (i-stick type, etc.)
Please avoid using USB memory products
which can be used as key chains or cellular
phone accessories as they could cause
damage to the USB jack.

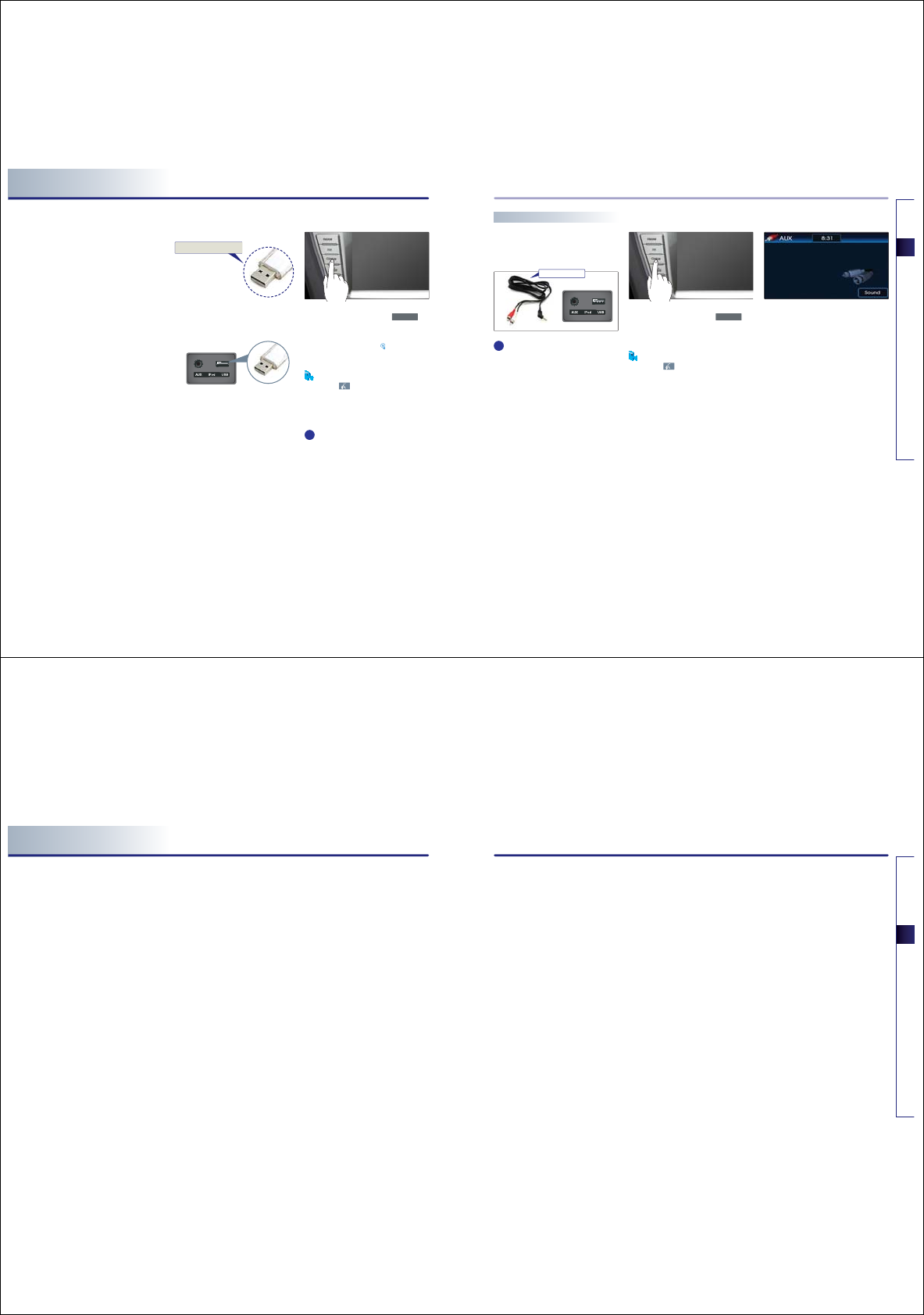

Please make certain only to use plug type
connector products as shown below.
Connecting the USB
Connect the USB as shown in the picture.
Listening to USB music
Connect a USB or press the key
on the control panel if the USB is already
connected.
Select the desired file. [Selecting the
MP3 file], page 2-19.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"USB"
INFORMATION
The USB screen and operation method is the
same with MP3 mode. Please refer to the MP3
mode section for more information.
CD/AUX
2-28 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Plug Type Connector
AUX
Connecting AUX
Connect the external Audio player as
shown in the picture.
INFORMATION
Connect only by using AUX terminals.
Playing AUX
Connect an AUX or press the key
on the control panel if the AUX is already
connected.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Line In"
AUX screen
Audio AUX screen
CD/AUX
i
i
External Device
PART 3 NAVIGATION SYSTEM
NAVIGATION SYSTEM 3-1
NAVIGATION SYSTEM
PART 3
NAVIGATION SYSTEM
Setup and Information 3-36
Setup menu screen and functions 3-36
Main setting 3-36
Setting keyboard for inputting
letter 3-36
Setting voice command feedback
ON/OFF 3-37
Setting Language 3-37
Initializing system 3-37
Navigation setting 3-38
Setting units (mile/km) 3-38
Setting arrival time and distance
display 3-38
Registering avoid area 3-38
Editing avoid area 3-40
Deleting avoid area 3-41
Deleting all avoid areas 3-41
Setting Q.POI icons 3-42
Setting estimate travel time 3-42
My places setting 3-43
Registering new address in
address book 3-43
Editing an address of
address book 3-45
Deleting an address of address
book 3-46
Deleting an address book 3-47
Registering home address 3-48
Deleting home address 3-48
Registering favorite place 3-49
Deleting favorite place 3-50
System information and update 3-51
Voice guidance volume setting 3-51
Voice guidance volume control 3-51
Adaptive volume control ON/OFF
3-52
Traffic Setup 3-52
Traffic Information 3-52
Help 3-54
PART 3
NAVIGATION SYSTEM
Limitations of the navigation
system 3-2
GPS signal reception state 3-2
Vehicle position display 3-3
Route guidance 3-4
Route Re-calculation 3-4
Starting navigation system 3-5
Map Functions 3-5
Current position map screen
(without route) 3-5
Switching map mode
(North up/Heading up) 3-6
Viewing GPS signal state 3-7
Changing the map scale 3-8
Displaying / Hiding POI icons
on the map 3-9
Displaying / Hiding Q.POI icons 3-9
Displaying /Hiding icons other than
Q.POI icons 3-9
Making a call to POI 3-10
Scrolling map 3-11
Setting a Destination 3-12
Destination menu screen and functions
3-12
Searching a Destination 3-13
Searching an Address 3-13
Searching a Previous Destination
3-17
Searching an Intersection 3-17
Searching a POI 3-20
Searching from Address book 3-24
Searching for Emergency facilities
3-25
Searching your Home 3-25
Searching favorite places 3-26
Searching from MAP 3-26
Searching POI by local POI list 3-26
Operating after searching a
destination 3-27
Changing destination position 3-27
Setting as Destination/waypoint 3-27
Adding to address book 3-27
Operating after setting
a destination 3-28
Starting Route Guidance 3-28
Route guidance screen 3-28
Selecting other route 3-29
Route guidance 3-30
Route menu screen and functions 3-30
Finishing route guidance
(Delete Destination) 3-30
Route overview(View Entire Route)3-31
Changing Route option 3-32
Editing waypoints 3-32
Adding waypoints 3-32
Deleting waypoints 3-34
Re-ordering waypoints 3-34
Setting detour distance 3-35
Setting avoid streets on route 3-35
NAVIGATION SYSTEM 3-3
NAVIGATION SYSTEM
Vehicle position display
If multipass errors occur due to reflections
from buildings or related causes, the
current position mark on the navigation
may differ from the actual position of the
vehicle.
The position of the vehicle on the
navigation may be different from the
actual position if the vehicle is under the
following conditions. If such differences
occur, driving for a short period of time
will automatically correct the position of
the vehicle through map matching or GPS
information (several minutes may be
necessary in certain cases).
When driving on a Y-shaped road with a
narrow angle, the current position may
be displayed in the opposite direction.
If the vehicle is loaded onto a ferry or a
car transport vehicle, the current
position mark may be stalled on the last
position prior to loading.
When driving on a spiral-shaped road.
When driving in mountain regions with
sharp turns or sudden brakes.
When entering a road after having been
in an underground parking structure,
building parking structure, or turntable
with many rotations.
When the tires have recently been
replaced (Especially upon use of spare or
studless tires)
If the battery terminal is removed.
When driving in city streets, the current
position may be displayed on the
opposite side or on an off-road position.
When changing the zoom level from the
maximum zoom in level to a different
zoom level, the current position mark
may be displayed on a different road.
When driving in heavy traffic with frequent
gostops in traffic or intersections.
When driving under slippery conditions,
such as heavy sand, snow, etc.
When driving with the tire chain in place.
When using a tire with an incorrect size
specification.
When the tire pressure for the 4 tires are
different.
When the replacement tire is a worn or
used tire (Especially studless tires having
passed a 2nd seasons, etc.)
When driving near high-rise buildings
If a roof carrier has been installed
When driving under high speeds or
having calculated a long-distance route.
3-2 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Limitations of the
navigation system
GPS signal reception state
As the GPS satellite frequency is received
/transmitted in straight lines, reception
may not work if hiding devices are placed
on or near the GPS antenna or when
traveling through the following locations.
Tunnels
Basement parking structures
Underneath an overpass
Roads within forested areas
Areas near high rise buildings
Roads within canyons
NAVIGATION SYSTEM 3-5
NAVIGATION SYSTEM
Route Guidance
Suitable route guidance may not occur
caused by search conditions or the
driving position.
Guidance to go straight may be given
while driving on a straight road.
Guidance may not be given even when
having turned at an intersection.
There are certain intersections in which
guidance may not occur.
A route guidance signaling for a U-Turn
in a No U-Turn location may occur.
A route guidance signaling entrance into
a no enter zone may occur (No enter
zone, road under construction, etc.).
Guidance may be given to a position
removed from the actual destination if
roads to reach the actual destination do
not exist or are too narrow.
Faulty voice guidance may be given if
the vehicle breaks from the designated
route (ex: if a turn is made at an
intersection while the navigation
provided guidance to go straight).
Map Data may be missing or incorrect
causing route guidance to not be given.
Route Re-calculation
The following phenomena may occur
after conducting route recalculation.
Guidance may be given to a position
differing from the current position when
turning at an intersection.
Route Recalculation may take a longer
period of time when driving under high
speeds.
A route guidance signaling for a U-Turn
in a No U-Turn location may occur.
A route guidance signaling entrance into a
no enter zone may occur (No enter zone,
road under construction, etc).
Guidance may be given to a position
removed from the actual destination if
roads to reach the actual destination do
not exist or are too narrow.
Faulty voice guidance may be given if
the vehicle breaks from the designated
route (ex: if a turn is made at an
intersection while the navigation
provided guidance to go straight)
3-4 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Starting navigation system
Press the Navigation mode key ( ,
, , ). The Caution screen
will always be displayed when first entering
into Navigation mode. Read the contents of
the caution screen carefully and press the
button.
Map Functions
Current position map screen
(without route)
Press the key on the control
panel to display the map of current position
and the neighboring area.
GPS signal state indicator : Displays the
state of GPS signal reception.
[Viewing GPS signal state], page 3-7.
Map scale level indicator : Displays the
current map scale.
[Changing the map scale], page 3-8.
Landmark icons : Landmark icons are
displayed on the map when the map
scale level is set to under 300 ft (100m
depending on map data)
[Appendix : Landmark icons], page 7-7.
POI icons : POI icons are displayed on
the map when the map scale level is set
to under 0.5 mi (800m).
[Appendix : POI icons], page 7-5.
Current vehicle position icon : Displays
the current position of the vehicle.
MAPVOICE
Agree
SETUP
ROUTE
DEST
MAPVOICE
NAVIGATION SYSTEM 3-7
NAVIGATION SYSTEM
Viewing GPS signal state
The state of GPS signal reception is
displayed as shown below.
GPS (active) :
GPS reception is satisfactory.
GPS (inactive) :
GPS reception is unsatisfactory.
[System information and update], page
3-51.
INFORMATION
GPS (Global Position System) : GPS is a
system developed and operated by the
United States which determines the current
location of the user (longitude, latitude, etc.)
by generally using 4 or more satellites. This
system is used with related GPS information,
various sensors, road map data, and other
navigation related information.
GPS information may not operate under the
following conditions.
- When buildings, tunnels, or other
obstructions block satellite signals.
- When materials are placed above the GPS
antenna and block satellite signals.
- When the satellite does not transmit
signals (signal transmission is controlled
by the satellite control center in the
United States and may not transmit when
under repair, modification, etc).
- When a digital cellular phone (1.5GHz) is
placed near the GPS antenna.
This system uses GPS information, various
sensors, road map data, and other related
information to display the current position.
Errors may occur if the satellite is
transmitting inaccurate signals or if which
can only two or less satellite signals can be
received.
Errors which occur in such conditions
cannot be corrected.
3-6 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
North Up / Heading Up switch :
Displays the current map mode and the
map mode can be switched between
North Up and Heading Up.
[Switching map mode], page 3-6.
POI : Displays or hides the POI icon on
the map.
[Displaying/Hiding POI icons on the
map], page 3-9.
Map scale : Increases or decreases the
map scale.
[Changing the map scale], page 3-8.
Switching map mode (North Up /
Heading Up)
Each time the compass button is pressed,
the screen will switch in the order shown
below.
Heading Up
North Up
Heading Up
INFORMATION
All map screens (map screen after setting
destination & whole route display screen)
except the current position screen will always
be displayed in North Up mode.
North Up : displays the map always facing
the North direction regardless of the
direction which the vehicle is traveling.
The vehicle icon is displayed in the center
position of the map.
Heading Up : displays the map always
facing the direction which the vehicle is
traveling. The vehicle icon is displayed in
the lower center position of the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"North Up"
"Heading Up"
i
i
NAVIGATION SYSTEM 3-9
NAVIGATION SYSTEM
3-8 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Changing the map scale
Press the or button. The map scale
will be increased or decreased by one level.
INFORMATION
Each time the
or
button is pressed,
the scale bar will be displayed.
The scale can be changed by directly pressing
the scale level on the scale bar.
The green color on the scale bar indicates the
current scale level while the orange color
indicates the selected scale level.
Press the
or
button for over 0.8
second. The scale will continuously change.
If the scale range limit is reached, the
or
button will be disabled.
The map scale range is between 1 and 14:
10,240,000 ~ 1 : 5,000.
i
Level Actual distance
mi / ft km / m
1 150 ft 50 m
2 300 ft 100 m
3 700 ft 200 m
4 0.25 mi 400 m
5 0.5 mi 800 m
6 1 mi 1.6 km
7 2 mi 3.2 km
8 4 mi 6.4 km
9 8 mi 12 km
10 16 mi 25 km
11 32 mi 50 km
12 64 mi 100 km
13 130 mi 200 km
14 250 mi 400 km
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Zoom In"
"Zoom Out"
"Zoom Maximum"
"Zoom Minimum"
"Zoom level <1 to 14>"
"Zoom <actual distance>"
" (ex. Zoom 700ft)"
Displaying / Hiding POI icons on
the map
Displaying/Hiding Q.POI icons
Press the button.
Related menu buttons will be displayed
at the bottom of the screen.
INFORMATION
The Q.POI icons are set to - Gas Station,
- Parking, - Hotel, - Golf Course,
- Bank, - Fast Food (6 icons) by default.
This setting can be changed in SETUP.
[Setting Q.POI icons], page 3-42.
Press the icon buttons to display or hide.
To turn off all POI icons displayed on the
map, press the button.
INFORMATION
The current displayed POI icons are
highlighted while the icons not being
displayed are shown as normal buttons.
If there are no POI icons being displayed,
the button will be disabled.
POI icons are displayed when the scale is
under 0.5 mi (800m).
Displaying / Hiding icons other
than Q.POI icons
Press the button.
Related menu buttons will be displayed
at the bottom of the screen.
Press the button.
INFORMATION
Q.POI stands for Quick POI and refers to the
function which turns POI icon display on or off
on the map.
Others
POI
ALL OFF
ALL OFF
POI
i
i
i
NAVIGATION SYSTEM 3-11
NAVIGATION SYSTEM
3-10 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
(a) by category list
Press the desired main category button.
Select the desired sub category menu to
display or hide (Multiple selections are
possible).
Press the selected menu again to cancel
the selection.
If the button is pressed, the
selected menus will be displayed or
hidden on the map screen.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Show <POI name>" (ex. Show ATM)
"Hide <POI name>" (ex. Hide ATM)
"Hide All"
Making a call to POI
After searching a POI, the POI phone
number information can be used to make a
call to the POI facility.
Use the various search methods, such as
the map scroll function, Q.POI search
function, and destination search function
to search for a POI.
Press the button.
Show Icon(s)
Bluetooth is used to make a call to the
POI facility.
Once the call is ended, the map is
restored to the current vehicle location.
INFORMATION
Making a call is not possible if there is no
telephone information for a POI or if there is
no mobile phone connected through
Bluetooth.
For more information of mobile phone
authentication through Bluetooth or
detailed information on conducting search,
refer to [Pairing and connecting a
Bluetooth phone], page 5-4.
Scrolling map
Press the map area on the map screen.
The selected point will be centered on the
screen and the scroll mark will be displayed.
Information about the marked point and
straight line distance from the current
position will be displayed at the top of the
screen.
INFORMATION
If a map area on the map screen is pressed,
the map will continuously scroll in the
corresponding direction until the pressing is
released.
i
i
NAVIGATION SYSTEM 3-13
NAVIGATION SYSTEM
3-12 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Setting a destination
Destination menu screen and
functions
Press the key on the control panel to
display the destination menu screen.
Address : sets the destination through
address search.
[Searching an Address], page 3-13.
Previous Dest : sets the destination
through the previous destination list.
[Searching a Previous Destination],
page 3-17 .
Intersection : sets the destination
through intersection search.
[Searching an Intersection], page 3-
17.
POI Search : sets the destination through
POI Category search.
[Searching a POI], page 3-20 .
Address Book : sets the destination
through address book search.
[Searching from Address book], page
3-24 .
Emergency : sets the destination
through emergency facilities search.
[Searching for Emergency facilities],
page 3-25 .
HOME : sets the stored HOME as the
destination.
[Searching your Home], page 3-25 .
Favorite place ~ : sets the
destination with one of the stored
favorite places.
[Searching favorite places], page 3-26 .
51
DEST
Searching a Destination
Searching an Address
There are 2 ways to set the destination
through address search-(a) by street, (b) by
city.
Press the key.
Press the button.
Press the button to change the
state.
Input the State name and press the
button.
If the number of matches with the input
is less than 4 results, then the state list
screen will be displayed automatically.
If the number of matches is only one
result, then the state will automatically be
changed without having to manually
select the state.
Select the desired state from the list to
change the state.
(a) by street
Press the button.
Street
List
State
Address
DEST

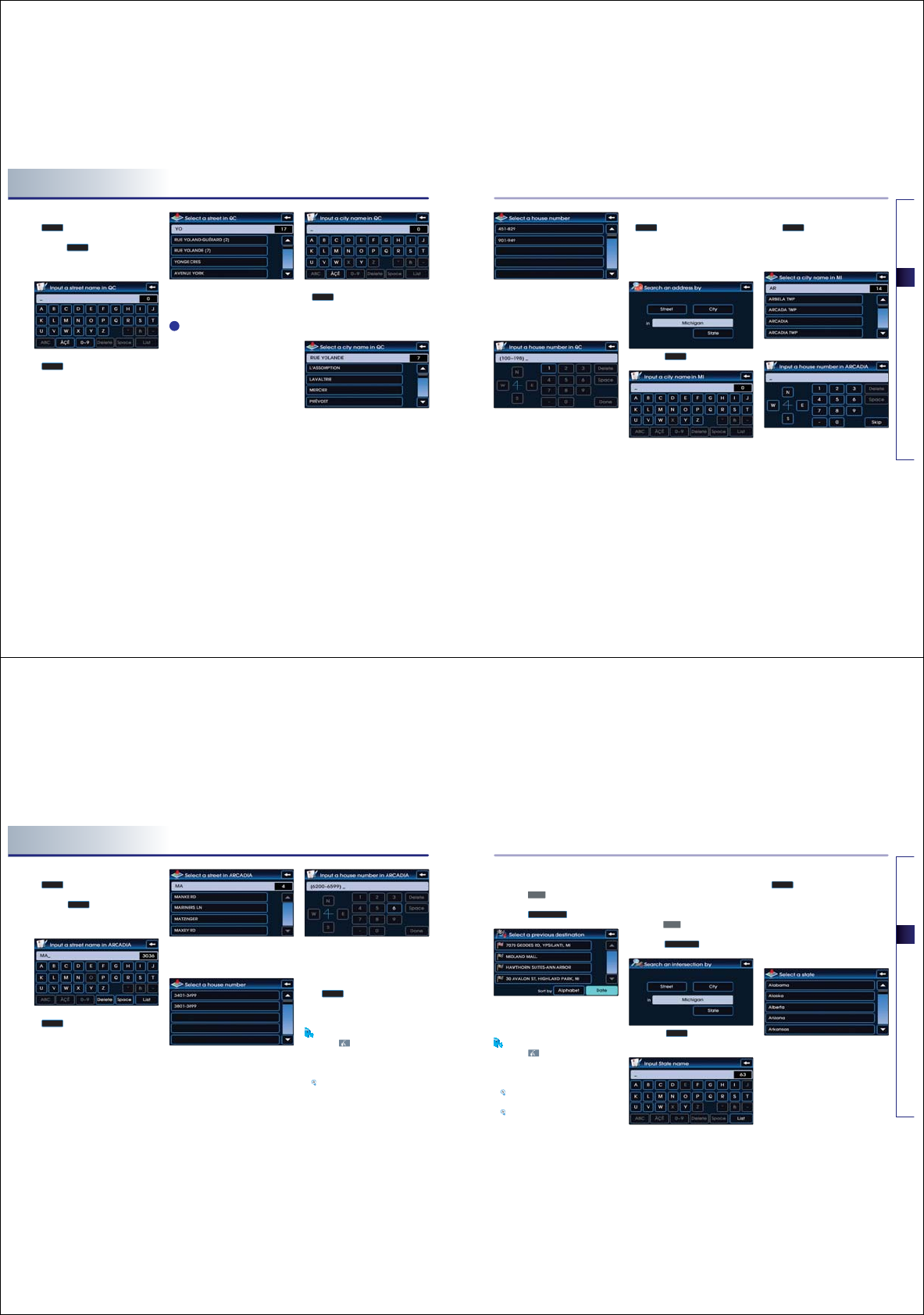

3-14 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
NAVIGATION SYSTEM 3-15
NAVIGATION SYSTEM
Input the House number and Press the
button to complete.
If the House number is not recognized,
press the button.
In this case, the range of house numbers
will be displayed during the last step.
Input the Street name and press the
button.
If the number of matches with the input
is less than 4 results, then the street list
screen will be displayed automatically.
If the desired street from the list is
selected, the corresponding position will
be displayed on the map.
INFORMATION
If more than 30 cities exist with the selected
street, then the city input screen will be
displayed. If less than 30 cities exist, then the
city selection screen will be displayed.
Input the city name and press the
button to complete.
If the number of matches with the input
is less than 4 results, then the list screen
will be displayed automatically.
Select the desired city from the list.
List
List
Skip
Done
i
This screen will be displayed if the House
number had not been inputted during
step
and more than 2 house numbers
ranges exist.
Select the desired House number range.
This screen will be displayed if the House
number had not been inputted during
step
and only one house numbers
range exists.
Input the House number and press the
button to complete.
The corresponding position will be
displayed on the map.
(b) by city
Press the button.
Input the city name and press and press
the button.
If the number of matches with the input
is less than 4 results, then the city list
screen will be displayed automatically.
Select the desired city from the list.
List
City
Done
NAVIGATION SYSTEM 3-17
NAVIGATION SYSTEM
3-16 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Input the house number and press the
button to complete.
If the House number is not recognized,
press the button.
In this case, the range of house numbers
will be displayed during the last step.
Input the Street name and press the
button to complete.
If the number of matches with the input is
less than 4 results, then the street list
screen will be displayed automatically.
Select the desired street from the list and
the corresponding position will be
displayed on the map.
This screen will be displayed if the House
number had not been inputted during
step
and more than 2 House number
ranges exist.
Select the desired House number range.
This screen will be displayed if the House
number had not been inputted during
step
and only one House number
range exists.
Select the house number range and Press
the button to complete.
The corresponding position will be
displayed on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Find address"
[Find address], page 4-19.
Done
List
Skip
Done
Searching a Previous Destination
Press the key.
Press the button.
Select the desired previous destination.
The corresponding position will be
displayed on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Previous destination"
[Previous destination], page 4-24.
"Previous start point"
[Previous start point], page 4-25.

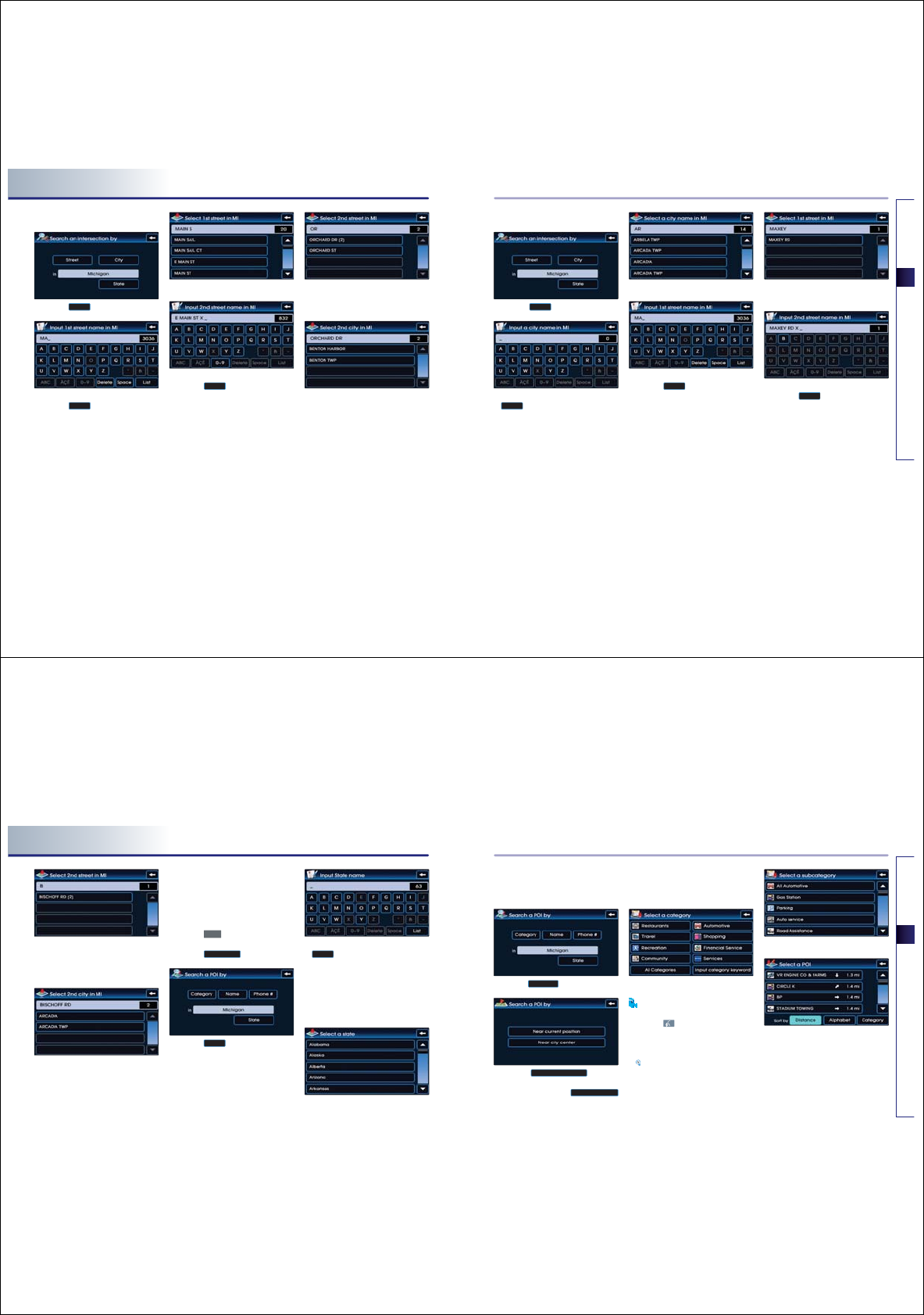

Searching an Intersection
There are two ways to set the destination
through intersection search-(a) by street, (b)
by city.
Press the key.
Press the button.
Press the button to change the
state.
Input the state name and press the
button. If the number of matches
with the input is less than 4 results, then
the state list screen will be displayed
automatically.
If the number of matches is only one
result, then the state will automatically be
changed without having to manually
select the state.
Select the desired state from the list to
change the state.
List
State
Intersection
DEST
Previous Dest
DEST
NAVIGATION SYSTEM 3-19
NAVIGATION SYSTEM
(a) by street
Press the button.
Input the name of the 1st street and
press the button.
If the number of matches with the input
is less than 4 results, then the street list
screen will be displayed automatically.
Select the desired 1st street from the list.
Input the name of the 2nd street and
press the button.
If the number of matches with the input
is less than 4 results, then the street list
screen will be displayed automatically.
Select the desired 2nd street menu from
the list. The corresponding position will
be displayed on the map.
If the selected 2nd street is within more
than 2 cities, then the city list screen will
be displayed.
Select the desired city menu from the list.
The corresponding position will be
displayed on the map.
List
List
Street
3-18 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
(b) by city
Press the button.
Input the city name and press the
button.
If the number of matches with the input
is less than 4 results, then the city list
screen will be displayed automatically.
Select the desired city name.
Input the name of the 1st street and
press the button.
If the number of matches with the input
is less than 4 results, then the street list
screen will be displayed automatically.
Select the desired 1st street menu from
the list.
Input the name of the 2nd street and
press the button.
If the number of matches with the input
is less than 4 results, then the street list
screen will be displayed automatically.
List
List
List
City
NAVIGATION SYSTEM 3-21
NAVIGATION SYSTEM
Select the desired 2nd street menu from
the list.
The corresponding position will be
displayed on the map.
If the selected 2nd street is within more
than 2 cities, then the city list screen will
be displayed.
Select the desired city menu from the list.
The corresponding position will be
displayed on the map.
Searching a POI
There are 3 ways to set the destination
through POI search - (a) by category, (b) by
name, (c) by phone number.
Press the key.
Press the button.
Press the button.
Input the state name and press the
button. If the number of matches
with the input is less than 4 results, then
the state list screen will be displayed
automatically. If there is only one
matching result, then the state will
automatically be changed without having
to manually select the state.
Select the desired state from the list to
change the state.
List
State
POI Search
DEST
3-20 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
(a) By category
Searches for facilities nearby the current
position or from the city center.
Press the button.
Press the button to
search for facilities nearby the current
position, or press the
button to search for facilities in the near
city center.
(a-1) Near current position
Searches for facilities within a 30 mi (45km)
radius of the current position.
Press the desired main category menu.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Find nearest POI"
[Find nearest POI], page 4-20.
Press the desired sub category menu.
Select the desired menu button.
The corresponding position will be
displayed on the map.
Near city center
Near current position
Category
NAVIGATION SYSTEM 3-23
NAVIGATION SYSTEM
3-22 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
(

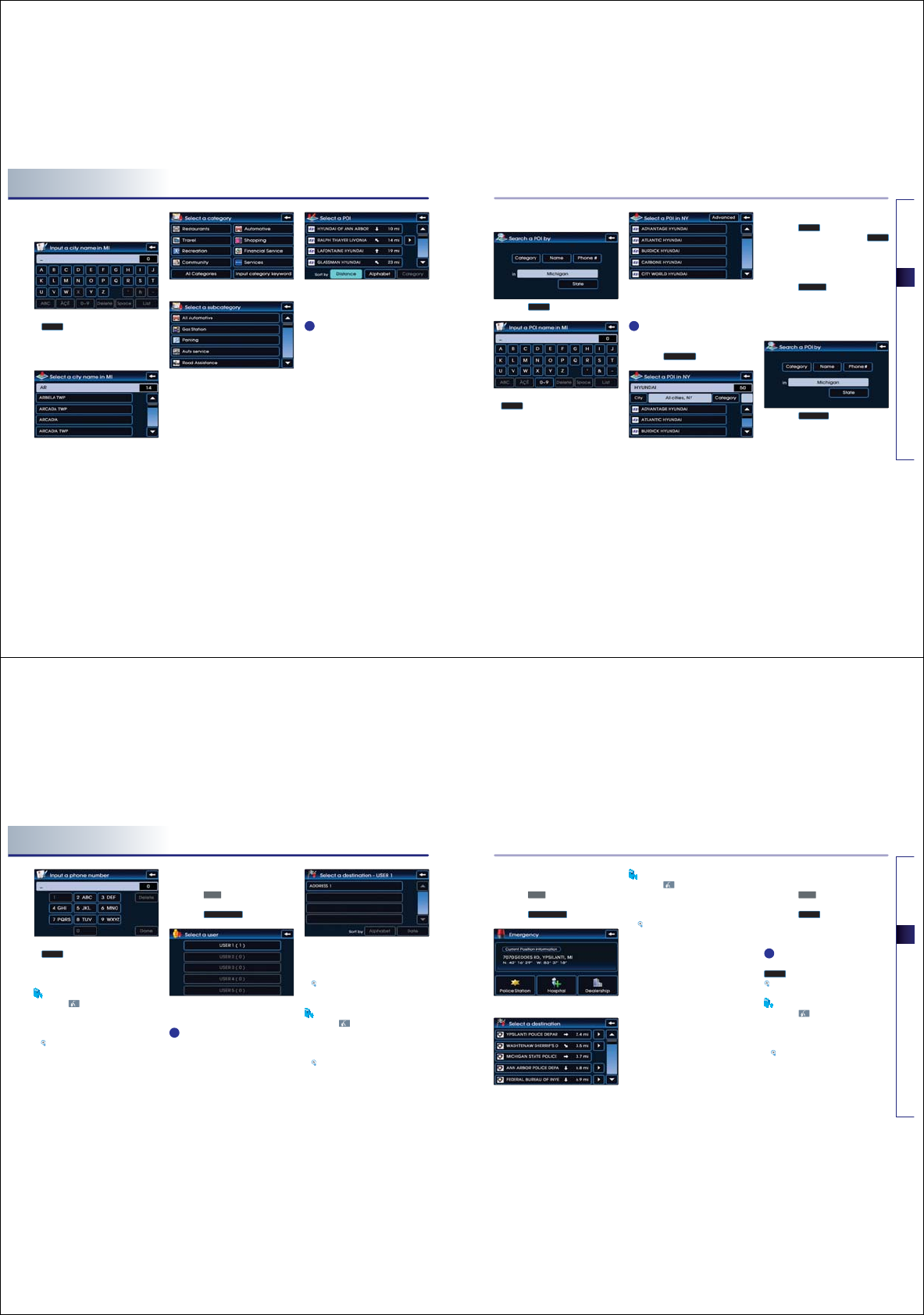

a-2) Near city center
Searches for facilities from the city center.
Input the city name and press the
button.
If the number of matches with the input
is less than 4 results, then the city list
screen will be displayed automatically.
Press the desired city menu.
Press the desired main category.
Press the desired sub category.
Select the desired menu button.
The corresponding position will be
displayed on the map.
INFORMATION
The distance on each POI item button refers
to the distance from the city center.
List
i
(b) By name
Press the button.
Input the name of the POI and press the
button.
If the number of matches with the input
is less than 4 results, then the facilities list
screen will be displayed automatically.
Select the desired POI menu.
The corresponding position will be
displayed on the map.
INFORMATION
When necessary, the search conditions for
the city and category can be changed by
pressing the button.
Changing City
Press the button.
Input the city name and press the
button.
Select the desired city name.
Changing Category
Press the button.
Select the desired main category menu.
Select the desired sub category menu.
(c) By phone number
Press the button.
Phone #
Category
List
City
Advanced
List
Name
i
NAVIGATION SYSTEM 3-25
NAVIGATION SYSTEM
3-24 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Input the phone number and Press the
button to complete.
The corresponding position will be
displayed on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Destination POI by Phone Number"
[Destination POI by phone number],
page 4-22.
Searching from Address book
Press the key.
Press the button.
Select the desired address book (user)
menu.
INFORMATION
This system provides 5 address books. Each
addresses book can hold up to 200 entries.
Select the desired address name from
the list.
The corresponding position will be
displayed on the map.
[Registering new address in address
book], page 3-43.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Destination by address book"
[Destination by address book], page 4-
25.
Address book
DEST
Done
i
Searching for Emergency facilities
Press the key.
Press the button.
Select the desired facility category.
Select the desired facility.
The corresponding position will be
displayed on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Find emergency <Category>"
[Find emergency <Category>], page 4-
23.
Searching your Home
Press the key.
Press the button.
The Home position will be displayed on
the map.
INFORMATION
If the Home address is not registered, then the
button will be displayed.
[Registering home address], page 3-48.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Go home"
[Go home], page 4-25.
HOME
HOME
DEST
Emergency
DEST
i
NAVIGATION SYSTEM 3-27
NAVIGATION SYSTEM
Operating after searching a
destination
Changing destination position :
Changes the position of the destination by
scrolling the map.
[Scrolling map], page 3-11.
Setting as Destination / waypoint :
Sets the position as the destination or
waypoint.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Start guidance"
(Sets the position of the scroll mark as the
destination and begins route guidance.)
Adding to address book :
Saves the position in the address book.
[Registering new address in address
book], page 3-43.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Store Marked Location to <text tag>"
3-26 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Searching favorite places
Press the key.
Select the desired button from ~ .
The corresponding position will be
displayed on the map.
INFORMATION
If the address of the Favorite place is not
registered, then the ~ buttons
without registered addresses will be disabled.
[Registering favorite place], page 3-49.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Destination by memory point <1 to 5>"
[Destination by memory point <1 to 5>],
page 4-25.
Searching from MAP
Position the scroll mark at the destination
by scrolling the map on the map screen.
Searching POI by local POI list
Press the button on the map
screen.
Press the button.
Press the button.
Select the desired POI menu.
The corresponding position will be
displayed on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Find nearest <POI name>"
[Find nearest <POI name>], page 4-21.
Local POI lists
Others
POI
51
51
DEST
i
NAVIGATION SYSTEM 3-29
NAVIGATION SYSTEM
3-28 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Operating after setting a
destination
Starting Route Guidance
Press the button. Route
Guidance will start.
Route simulation
If the button is pressed
and held for over 0.8 second, then the
route simulation will start.
If the key on the control panel
is pressed during route simulation, then
route simulation will be terminated.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Time to destination"
"Distance to destination"
Route guidance screen
Symbol guidance mode : If the
button is pressed, then the following
route guidance screen will be displayed.
Turn-List mode : If the button is
pressed, then the following route
guidance screen will be displayed.
MAPVOICE
Start Guidance
Start Guidance
Highway mode : If the button is
pressed, then the following route
guidance screen will be displayed.
Intersection zoom mode : This route
guidance screen is automatically displayed
during guidance at an intersection.
Once guidance at the intersection is
complete, the screen will automatically
disappear and the previous guidance
screen will be restored.
Highway junction mode : This route
guidance screen is automatically
displayed during guidance at highway
junctions.
Once guidance at a highway junction is
complete, this screen will automatically
disappear and the previous guidance
screen will be restored.
Selecting other route
Press the button.
Other routes can be selected by pressing
the or buttons.
Others
NAVIGATION SYSTEM 3-31
NAVIGATION SYSTEM
3-30 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Route guidance
Route menu screen and functions
Press the key on the control panel.
The ROUTE menu screen will be displayed.
Cancel Route: deletes destination,
waypoints and terminates route
guidance.
[Finishing route guidance], page 3-30 .
Route Overview: displays the entire
route and route detailed.
[Route overview], page 3-31 .
Route Option: the route option can be
changed.
[Changing Route option], page 3-32 .
Edit Waypoint: waypoints can be
added/deleted and the order can be
changed.
[Editing waypoints], page 3-32 .
Detour : searches detour routes.
[Setting detour distance], page 3-35 .
Avoid Streets: searches routes which
avoid the selected streets.
[Setting avoid streets on route], page
3-35.
Finishing route guidance (Delete
Destination)
Press the key.
Press the button.
Press the button.
The destination and waypoints are
deleted and the route guidance is
terminated.
[Finishing route guidance], page 3-30 .
Yes
Cancel Route
ROUTE
ROUTE
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Cancel route"
(Terminates route guidance and deletes the
set destination and waypoints.)
Route overview (View Entire Route)
Press the key.
Press the button.
Press the button.
INFORMATION
If the button is pressed,
route guidance screen is displayed.
The detailed route information can be
viewed.
Return to guidance
Turn by Turn
Route Overview
ROUTE
i
NAVIGATION SYSTEM 3-33
NAVIGATION SYSTEM
3-32 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Changing Route option
Press the key.
Press the button.
Press the button for the desired route
guidance method.
Guidance will be restarted after
recalculating the route with the selected
guidance method.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Replan recommended route"
"Replan shortest route"
"Replan minimize freeway route"
"Replan minimize toll road route"

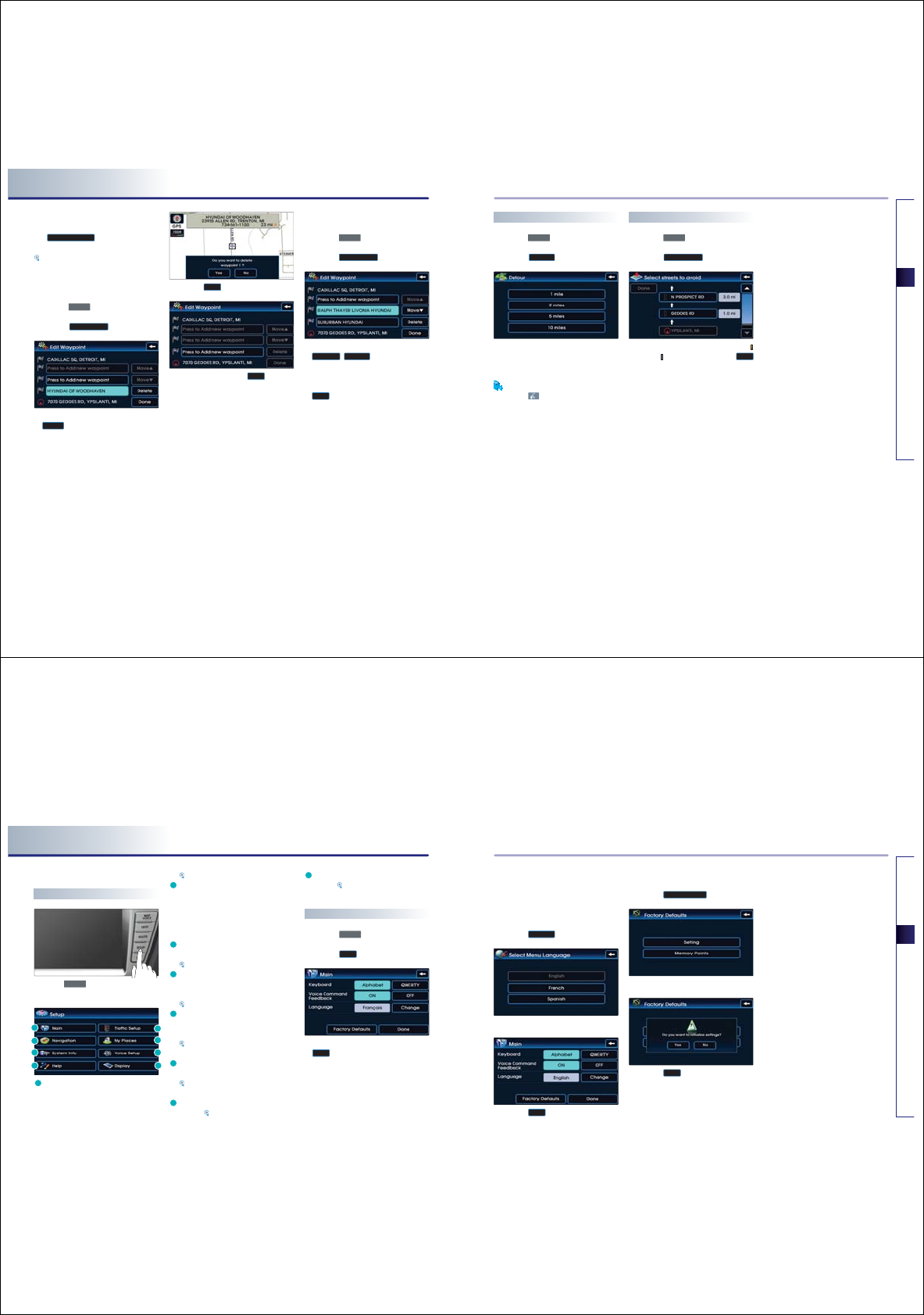

Editing waypoints

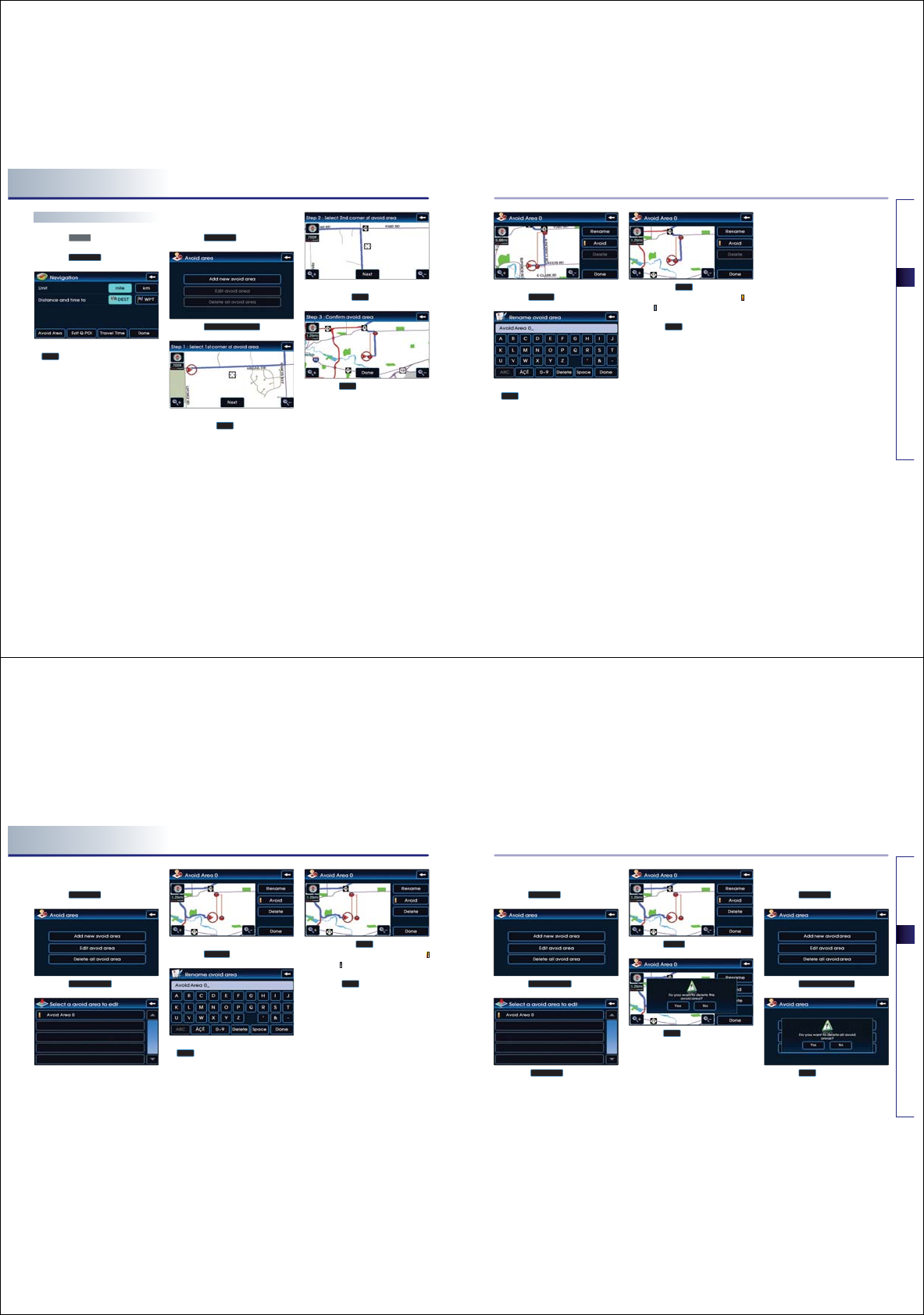

Adding waypoints
There are 2 ways to add waypoints - (a)
searching for POI nearest to the route, (b)
using advanced search.
Press the key.
Press the button.
Press the
button.
Press to add new waypoint
Edit Waypoint
ROUTE
Route Option
ROUTE
(a) Searching POI lists near route
Press the button.
Select the desired category.
Select the desired sub category from list.
Select the desired POI from the list.
The corresponding position will be
displayed on the map.
Press the button.
Press the button to complete.
Guidance will restart after recalculating
the route.
Done
Add as Waypoint
Near POI Lists on Route
NAVIGATION SYSTEM 3-35
NAVIGATION SYSTEM
3-34 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
(b) Using advanced Search
The method for searching waypoints through
the button is the same
method as searching destination.
[Searching a Destination], page 3-13.
Deleting waypoints
Press the key.
Press the button.
Select the waypoint and press the
button.
Press the button.
After deleting, press the button to
complete.
Guidance will be restart after recalculating
the route.
Re-ordering waypoints
Press the key.
Press the button.
Select the desired waypoint and use the
, buttons to change
the order.
Once re-ordering is complete, press the
button to complete.
Guidance will restart after recalculating
the route.
Done
Move
Move
Edit waypoint
ROUTE
Done
Yes
Delete
Edit waypoint
ROUTE
Advanced(more)
Setting detour distance
Press the key.
Press the button.
Select the desired detour range.
Guidance will restart after recalculating
the detour route.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Detour <1 or 2 or 5 or 10> miles"
"Detour <1 or 2 or 5 or 10> kilometers"
Setting avoid streets on route
Press the key.
Press the button.
Select the desired streets to avoid(
avoid, allow) and press the
button to complete.
Guidance will restarted after recalculating
the route to avoid the selected streets.
Done
Avoid streets
ROUTE
Detour
ROUTE
NAVIGATION SYSTEM 3-37
NAVIGATION SYSTEM
3-36 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Setup and Information
Setup menu screen and functions
Press the key on the control panel
to display the setup menu screen.
Main button : changes to the input
keyboard type, voice command feedback
ON/OFF settings and system initialization
can be made.
[Main setting], page 3-36 .
Traffic Setup : sets whether to display
traffic information on map, whether to
provide upcoming traffic information voice
guidance, and whether to display the
detour route popup showing upcoming
traffic information.
Navigation button : navigation related
settings can be set.
[Navigation setting], page 3-38 .
My Places button : the Address book,
Home address, Favorite places, Previous
destination can be edited.
[My places setting], page 3-43 .
System Info button : the system version
information can be viewed and system
upgrades can be conducted.
[System information and update],
page 3-51 .
Voice Setup button : adjusts the
Navigation guidance volume.
[Voice guidance volume setting],
page 3-51 .
Help button : the help contents can be
viewed. [Help], page 3-54 .
Display button : adjusts the display
setting. [Display setting], page 1-11 .
Main setting
Press the key.
Press the button.
Select the desired changes and press the
button to complete.
Setting keyboard for inputting
letter
Press the desired keyboard type button.
The selection will be highlighted.
Done
Main
SETUP
SETUP
Setting voice command feedback
ON/OFF
Press the desired setting button.
Setting Language
Press the button.
Press the desired language.
Press the button to complete.
Initializing system
Press the button.
Press the menu desired for initialization.
Press the button.
Yes
Factory Default
Done
Change
NAVIGATION SYSTEM 3-39
NAVIGATION SYSTEM
If the Avoid area needs to be renamed,
press the button.
Rename the Avoid area and Press the
button to complete.
Each time the button is pressed, the
function will switch between avoid ( )or
allow( ).
Press the button to complete the
setting.
Done
Avoid
Done
Rename
3-38 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Navigation setting
Press the key.
Press the button.
Select the desired changes and press the
button to complete.
Setting units (mile/ km)
Select the desired distance unit.
Setting arrival time and distance
display
Select the desired setting button.
Registering avoid area
Press the button.
Press the button.
Set the start position of the avoid area
and press the button.
Set the end position of the avoid area
and press the button.
Press the button to complete.
Done
Next
Next
Add new avoid area
Avoid Area
Done
Navigation
SETUP
Deleting avoid area
Press the button.
Press the button.
Select the button to delete.
Press the button.
Press the button.
Deleting all avoid areas
Press the button.
Press the button.
Press the button.
Yes
Delete all avoid area
Avoid area
Yes
Delete
Avoid area
Edit avoid area
Avoid area
NAVIGATION SYSTEM 3-41
NAVIGATION SYSTEM
Editing avoid area
Press the button.
Press the button.
Select the Avoid area button to edit.
If the Avoid area needs to be renamed,
press the button.
Rename the Avoid area and press the
button to complete.
Each time the button is pressed,
the function will switch between avoid(
)or allow( ).
Press the button once editing is
complete.
Done
Avoid
Done
Rename
Edit avoid area
Avoid area
3-40 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
NAVIGATION SYSTEM 3-43
NAVIGATION SYSTEM
3-42 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

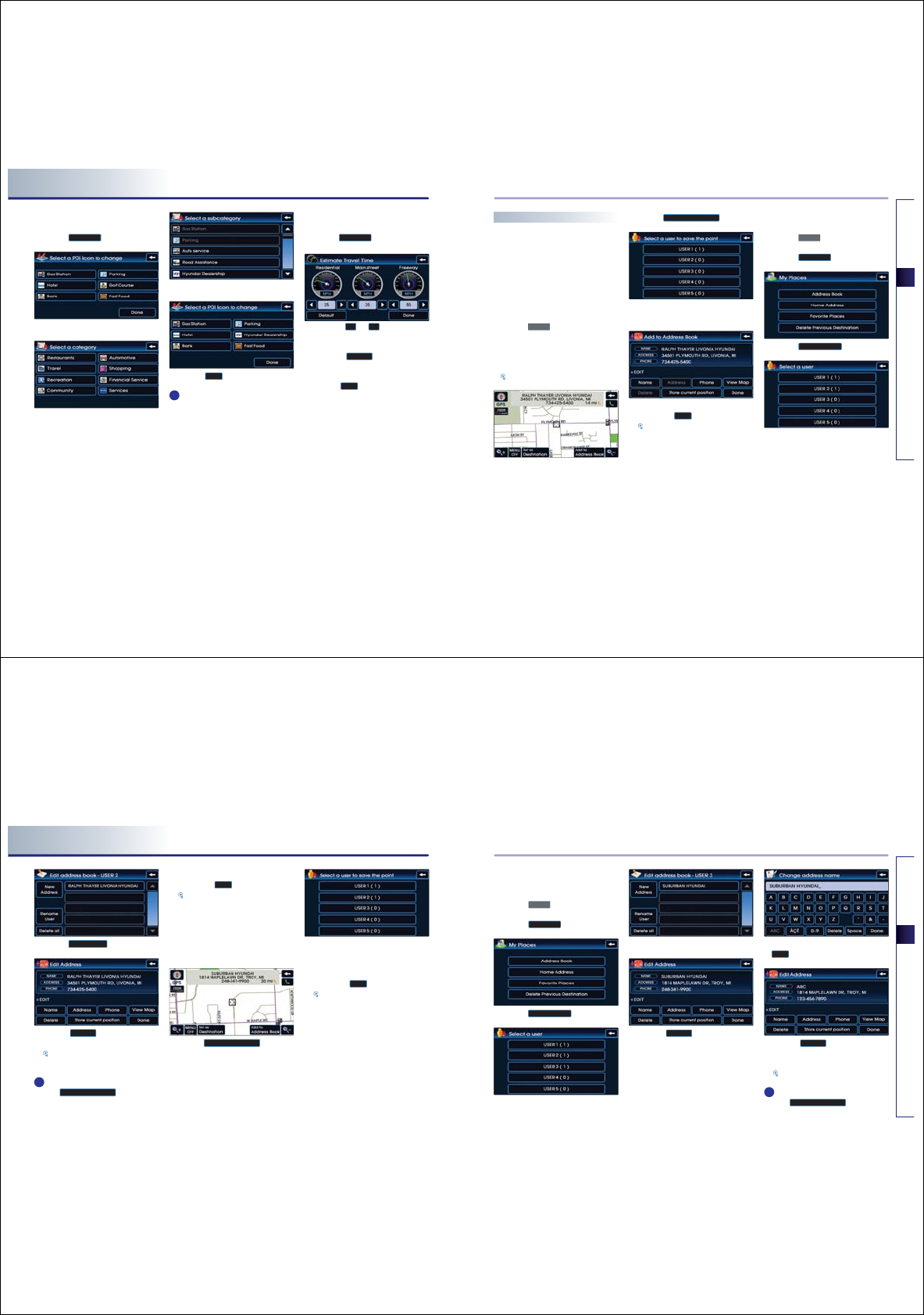

Setting Q.POI icons
Press the button.
Select the desired menu.
Select the desired category.
Select the desired sub category.
Press the button to complete.
INFORMATION
Q.POI stands for Quick POI and refers to the
function which turns POI icon display on or off
on the map.
Setting estimate travel time
Press the button.
Press the or button on the
Residential, Main street, and Freeway
controls to adjust the speed.
Press the button to set the
speeds to the default settings.
Press the button to complete the
setting.
Done
Default
Travel Time
Done
Edit Q.POI
i
My places setting
Registering new address in
address book
There are 3 ways to register a new address
in the address book - (a) by DEST menu, (b)
by registering address in address book, (c)
from map scroll.
(a) by DEST menu
Press the key.
Search through the desired method.
The search process is the same as the
method for destination search.
[Searching a destination], page 3-13.
Press the button.
Press the desired address book (user)
button.
Input the name and telephone information
and press the button to complete.
[Editing an address of address book],
page 3-45.
(b) by registering in the address book
Press the key.
Press the button.
Press the button.
Press the desired address book (user)
button.
Address Book
My Places
SETUP
Done
Add to Address Book
DEST
NAVIGATION SYSTEM 3-45
NAVIGATION SYSTEM
3-44 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Press the button.
Press the button to search the
address.
[Searching an address], page 3-13.
INFORMATION
Press the button to input
the address of the current position.
Input the name and telephone information
and press the button to complete.
[Editing an address of address book],
page 3-45.
(c) from map scroll
In the map screen, scroll the map to the
desired position.
Press the button.
Press the desired address book (user)
button.
Input the name and telephone information
and press the button to complete.
[Editing an address of address book],
page 3-45.
Done
Add to Address Book
Done
Store current position
Address
New Address
i
Editing an address of address
book
Press the key.
Press the button.
Press the button.
Select the desired address book (user)
button .
Select the desired address to edit.
Press the button to input the
address name.
Input the address name and press the
button to complete.
Press the button to search the
address. The process is the same as the
method for searching an address.
[Searching an Address] , page 3-13.
INFORMATION
Press the button to input
the address of the current position.
Store current position
Address
Done
Name
Address Book
My Places
SETUP
i
FCC ID: TQ8-AVN-600YFPL/ IC: 5074A-AVN600YFPCA
HCT CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCTR0910FR05-1 1/1
ATTACHMENT E.
- User Manual_2 -
NAVIGATION SYSTEM 3-47
NAVIGATION SYSTEM
3-46 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

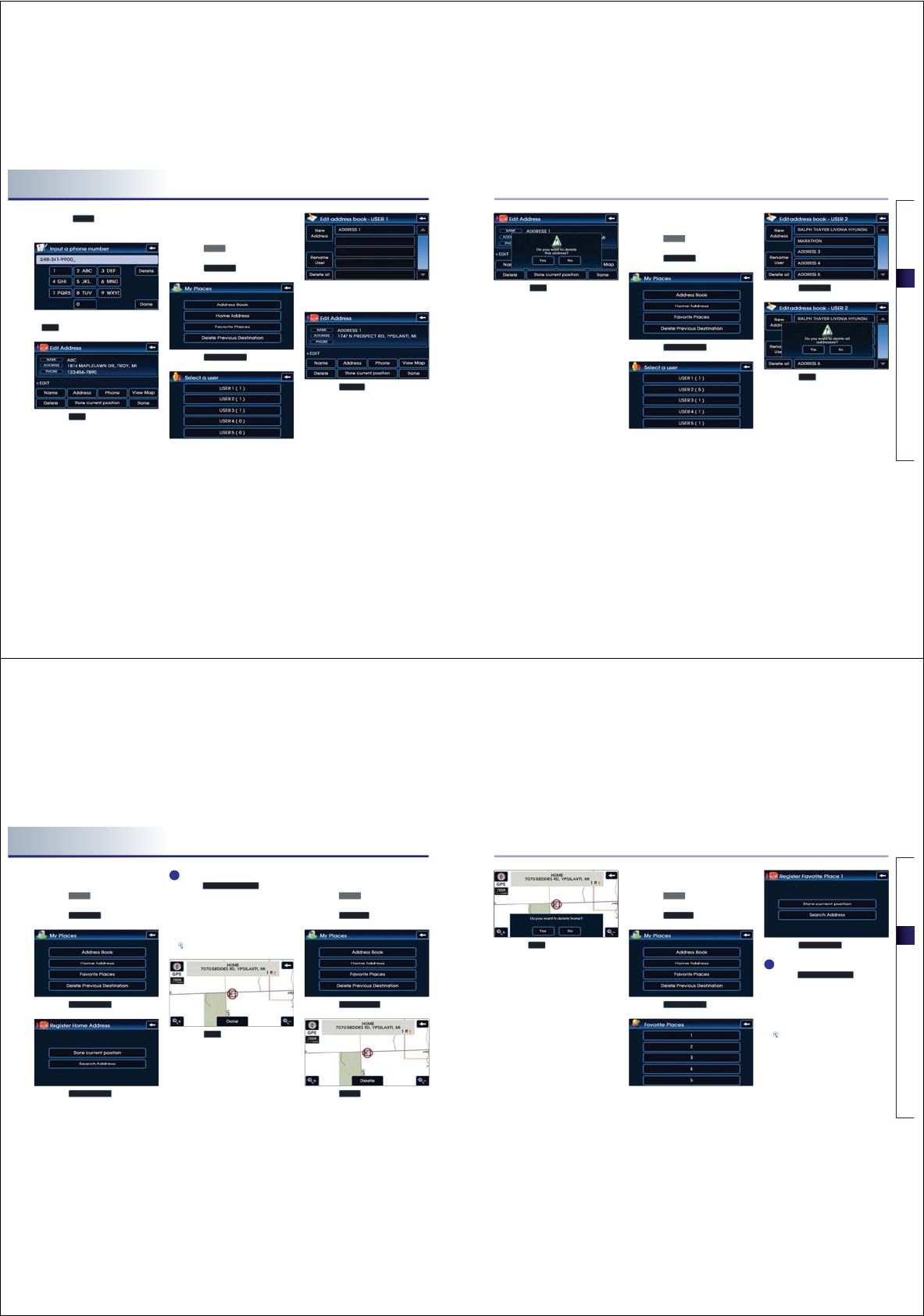

Press the button to input the
phone number.
Input the phone number and press the
button to complete.
Press the button to complete.
Deleting an address of address
book
Press the key.
Press the button.
Press the button.
Select the desired address book (user)
button.
Select the desired address button to
delete.
Press the button.
Delete
Address Book
My Places
SETUP
Done
Done
Phone
Press the button.
Deleting an address book
Press the key.
Press the button.
Press the button.
Press the desired address book (user)
button.
Press the button.
Press the button.
Yes
Delete all
Address Book
My Places
SETUP
Yes
NAVIGATION SYSTEM 3-49
NAVIGATION SYSTEM
3-48 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Registering home address
Press the key.
Press the button.
Press the button.
Press the button.
INFORMATION
Press the button to
register the current position as Home.
Search the address.
The process is the same method as
searching an address.
[Searching an Address], page 3-13.
Press the button to complete.
Deleting home address
Press the key.
Press the button.
Press the button.
Press the button.
Delete
Home Address
My Places
SETUP
Done
Store current position
Search Address
Home Address
My Places
SETUP
i
Press the button.
Registering favorite place
Press the key.
Press the button.
Press the button.
Press the number of the Favorite Place to
register.
Press the button.
INFORMATION
Press the button to
register the current position as a Favorite place.
Search the address.
The process is the same as the method
for searching an address.
[Searching an Address], page 3-13.
Store current position
Search Address
Favorite Places
My Places
SETUP
Yes
i

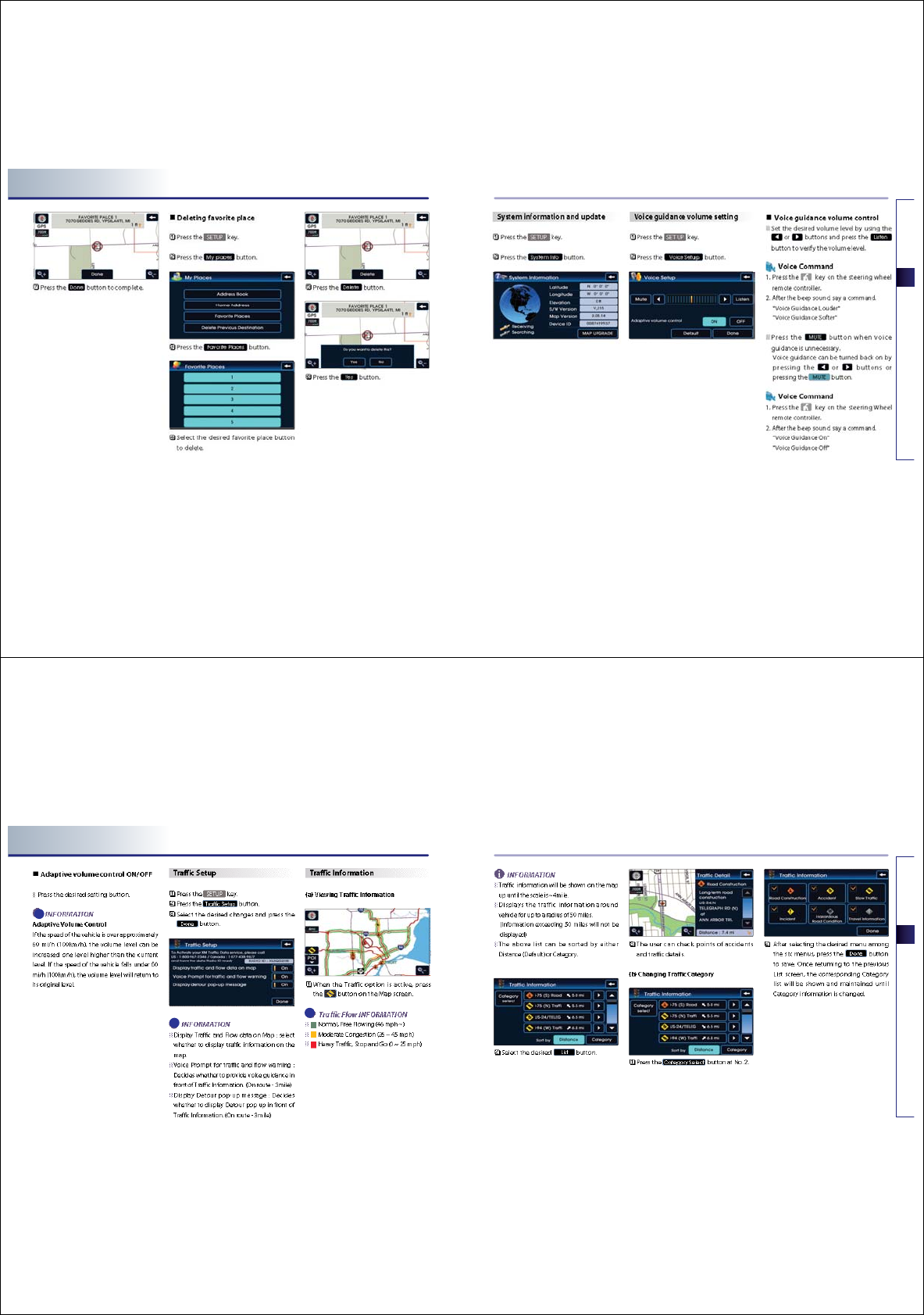

NAVIGATION SYSTEM 3-51
NAVIGATION SYSTEM
3-50 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
NAVIGATION SYSTEM 3-53
NAVIGATION SYSTEM
3-52 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
i
ii
VOICE COMMAND SYSTEM 4-1
VOICE COMMAND SYSTEM
PART 4
VOICE COMMAND SYSTEM
Operating voice command 4-2
Condition for voice command system
4-2
Basic operation for voice
command control 4-2
Voice command Help 4-3
Setting up the voice command
system 4-4
Setting voice Prompt ON/OFF 4-4
Speaker adaptation 4-4
Voice command list 4-6
Command list of Audio system
4-6
Command list of Navigation system
4-12
Command list of Phone 4-18
Command list of Help 4-18
Searching destination by
voice command 4-19
3-54 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

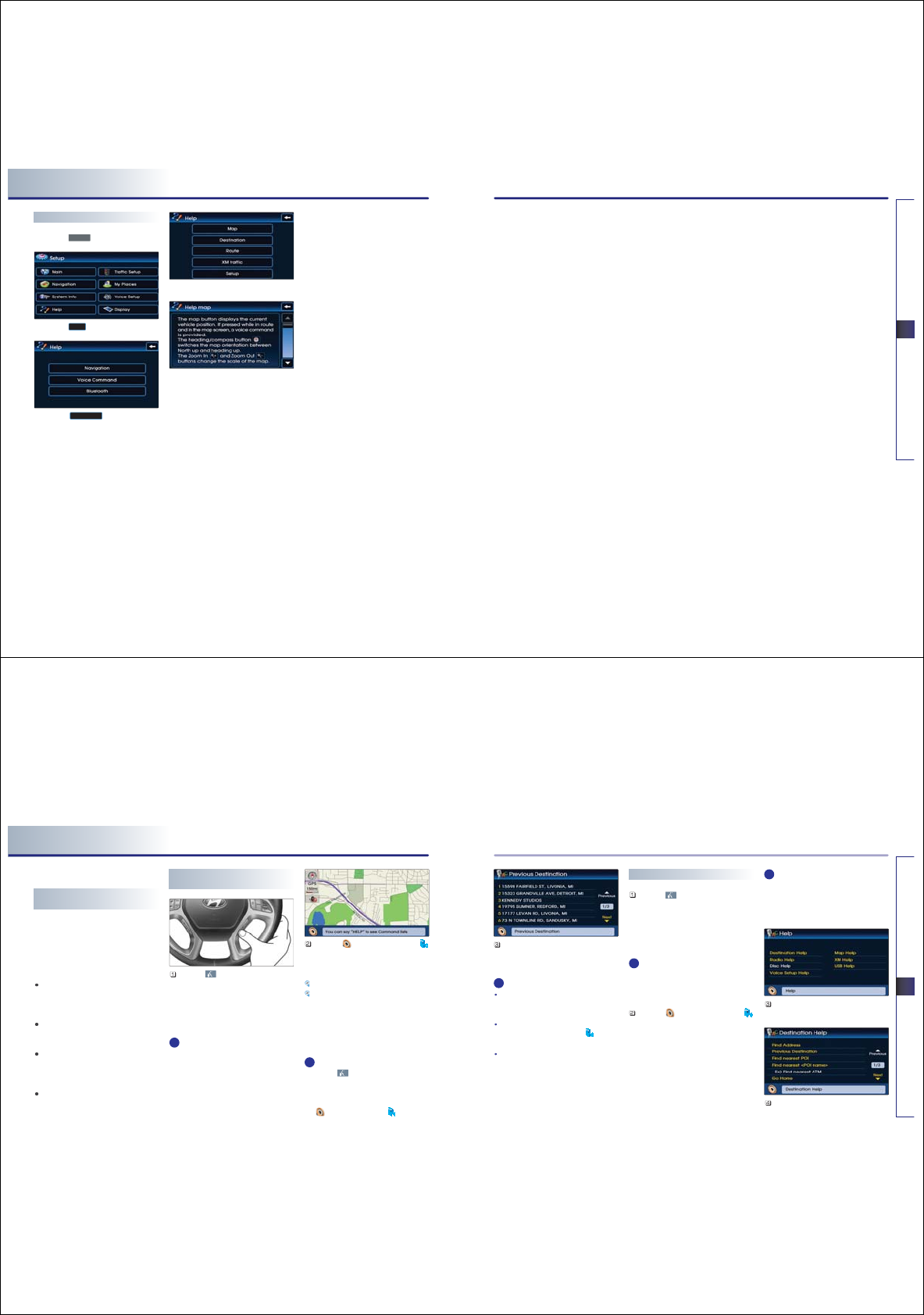

Help
Press the key.
Press the button.
Press the button.
Press the desired Help menu button.
The full content of the help section can
be viewed by using the top-down scroll
buttons.
Navigation
Help
SETUP
VOICE COMMAND SYSTEM 4-3
VOICE COMMAND SYSTEM
4-2 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
The inputted command is fed back to the
screen and voice system. If the command
was not recognized properly, say "Back".
INFORMATION
The commands which can currently be
inputted are displayed on the screen in
yellow.
To terminate the voice recognition system,
either say "cancel" or press the for over
0.8 second.
Be aware that during the operation of the
voice recognition system, pressing the hard
keys or the screen will terminate the voice
recognition system.
Voice command Help
Press the key on the steering wheel
remote controller. A voice command
window will be displayed on the lower
side of the screen followed by a
"Command please" system voice
comment.
INFORMATION
The System voice comment "Command
Please" will not be provided when the Voice
prompt is turned OFF.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Help". If the proper Help
menu is already known, voice
commands, such as "destination help"
can be inputted directly.
INFORMATION
The "help" command can be used even while
voice recognition dialogue is operating. At
such time, help instructions appropriate to
the state of the dialogue will be provided.
Say the name of the desired menu.
(ex : "Destination help")
Say the desired voice command.
PART 4 VOICE COMMAND SYSTEM
Operating voice command
Condition for voice command
system
Most of the functions within the AV and
Navigation system can be operated by
voice. Please follow the following
instructions for optimal voice recognition
performance.
Close all windows and the sunroof. The
performance of the voice recognition can
be improved if the environment of the car
interior is quiet.
Press the voice recognition button and
say the desired voice command after the
sound of the beep.
The microphone is positioned above the
driver so that voice commands can be
spoken while maintaining a proper
posture.
Pronounce the voice commands naturally
and clearly as if in a normal conversation.
Basic operation for voice
command control
Press the key on the steering wheel
remote controller. A voice command
window will be displayed on the lower
side of the screen followed by a
"Command please" system voice
comment.
INFORMATION
The System voice comment "Command
Please" will not be provided when the Voice
prompt is turned OFF.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say the desired voice command
(ex : previous destination)
[Voice command list], page 4-6.
[Searching destination by voice command],
page 4-19.
If the exact command is not known, use the
"Help" command to view the commands list
in detail.
INFORMATION
Press the shortly to input a voice
command from among the system voice
comments. The system voice instruction
comment will immediately terminate. When
the icon changes into the icon with a
beep sound, input the desired voice command.
i
i
i
i
i
VOICE COMMAND SYSTEM 4-5
VOICE COMMAND SYSTEM
4-4 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Yes".
Listen and repeat the 20 commands
(approximate) as instructed by the
device.
Reset Speaker adaptation: Returns to
previous state prior to applying Speaker
adaptation.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Reset Speaker adaptation".

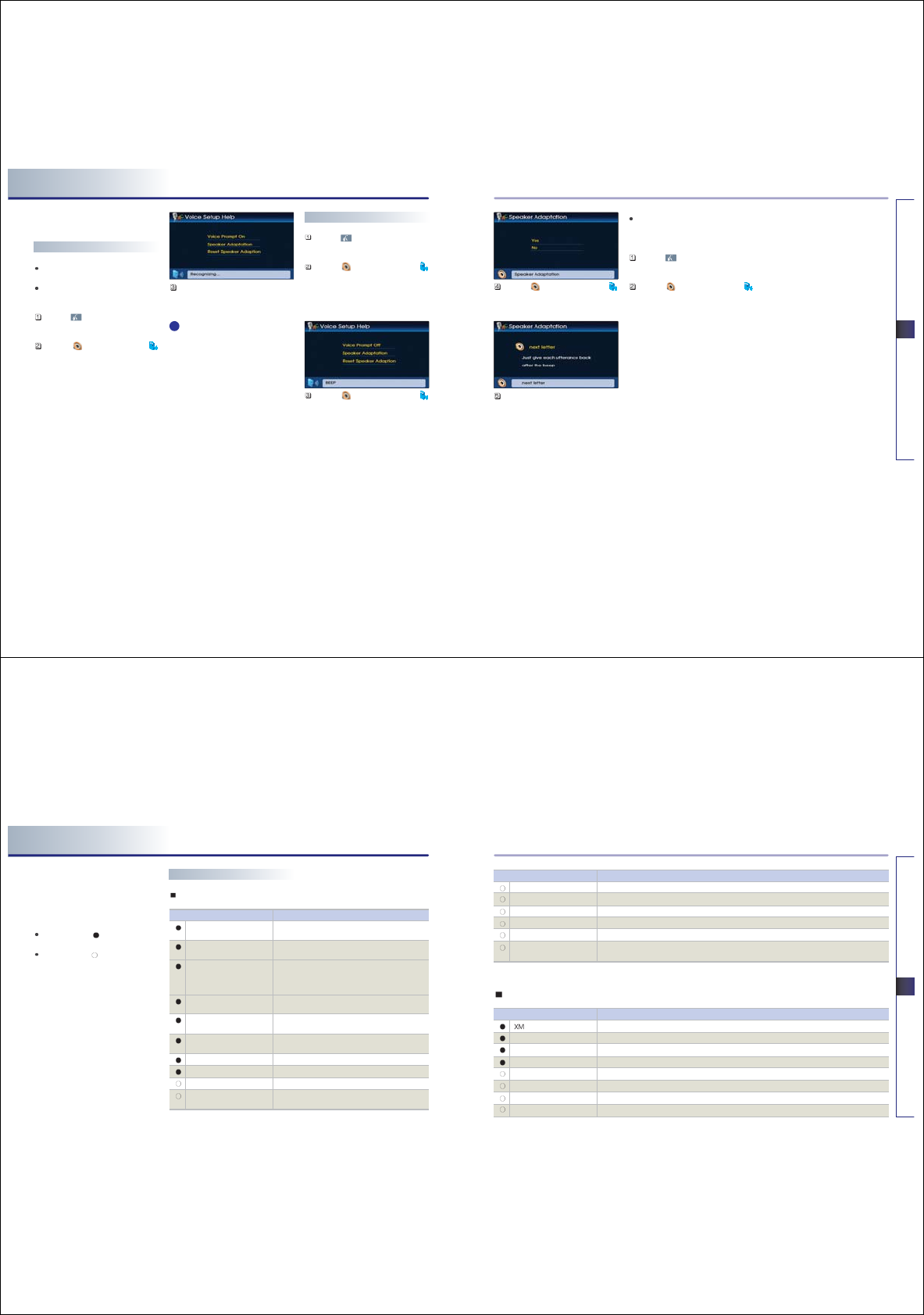

Setting up the voice
command system
Setting voice Prompt ON/OFF
Voice prompt ON : All system prompts are
provided.
Voice prompt OFF : Most of the system
prompts are not provided.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Voice setup." The "voice
prompt on" or "voice prompt off" can be
directly inputted if the current state is
already known.
Once the icon changes into the icon on
the pop-up screen with a beep sound,
say "Voice Prompt on".
INFORMATION
In the Voice Setup Help screen, the commands
possible for input within the current mode are
displayed. For example, if the Voice prompt is
currently in Off state, then the command Voice
prompt ON will be displayed on the screen.
Speaker adaptation
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Voice setup." Or the "Speaker
adaptation" command can be directly
inputted.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Speaker adaptation".
i
VOICE COMMAND SYSTEM 4-7
VOICE COMMAND SYSTEM
4-6 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Voice command list
The voice commands for this system are
divided into Global commands and Local
commands.
Global command ( ) : Commands which
operate in all operating modes.
Local command ( ) : Commands which
operate only when the corresponding
mode is operating or when the mode
screen to the corresponding mode is
displayed.
FM/AM Radio
Command Operation
Radio Plays the most recent frequency for the most recently
operated Band.
(Radio) AM Plays the most recent frequency for the corresponding
Band.
(Radio) FM Plays the most recent frequency for the corresponding
Band. In the case of FM, the most recent frequency
within the most recently played FM1 or FM2 band is
played.
FM <1 or 2> Plays the most recent frequency for the corresponding
Band.
AM frequency <530 to 1710> Plays the desired AM band frequency.
(ex. AM frequency 1310)
FM frequency <87.5 to 107.9> Plays the desired FM band frequency.
(ex. FM frequency 99.1)
AM Preset <1 to 6> Plays the desired AM band preset frequency.
FM <1 or 2> Preset <1 to 6> Plays the desired preset frequency of FM1 or FM2 band.
Preset <1 to 6> Plays the desired preset frequency for the current Band.
Seek Up Searches and plays the next frequency of the current
band.
Command Operation
Seek Down Searches and plays the previous frequency of the current band.
Preset Up Plays the next preset frequency of the current band.
Preset Down Plays the previous preset frequency of the current.
Scan Scans all frequencies within the current band.
Preset Scan Scans the 6 preset frequencies of the current band.
Auto Preset / Auto Store Searches all frequencies within the current band and stores the 6 frequencies with the most superior
reception as preset buttons.
XM Radio
Command Operation
Plays the last channel within the last band from XM1, XM2, and XM3.
XM <1 or 2 or 3> Plays the most recent channel for the corresponding Band.
XM Channel <0 to 255> Plays the desired XM band channel.
XM <1 or 2 or 3> Preset <1 to 6>
Plays the desired preset channel for XM1 or XM2 or XM3 band.
Channel < 0 to 255 > Plays the desired channel of the current band.
Preset <1 to 6> Plays the desired preset channel of the current band.
Channel Up Plays the next channel of the current band.
Channel Down Plays the previous channel of the current band.
Command list of Audio system
VOICE COMMAND SYSTEM 4-9
VOICE COMMAND SYSTEM
4-8 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Command Operation
Preset Up Plays the next preset channel of the current band.
Preset Down Plays the previous preset channel of the current band.
Scan Scans all channels within the current band.
Preset Scan Scans all preset channels within the current band.
CD
Command Operation
DISC Plays the DISC already inserted in the CDP.
CD If the DISC inserted in the CDP is either a CD or MP3 DISC, then the CD or MP3 will be played.
CD track <1 to 665> If the DISC inserted in the CDP is a CD, then CD Mode will start and plays the desired track.
Track <1 to 665> Plays the desired track.
Next track Plays the next track.
Previous track Plays the previous track.
Scan Scans all tracks on the CD DISC.
Repeat track Repeats the current playing track.
Random Plays the tracks of the CD DISC in random order.
Normal play Turns off the Scan, Repeat, and Random functions.
MP3
Command Operation
DISC Plays the DISC already inserted into the CDP.
CD If the DISC inserted in the CDP is either a CD or MP3 DISC, then the CD or MP3 will be played.
MP3 If the DISC inserted in the CDP is an MP3 DISC, then the MP3 will be played.
Next file Plays the next file.
Previous file Plays the previous file.
Next folder Plays the first file in the next folder.
Previous folder Plays the first file in the previous folder.
Scan Scans all files within the MP3 DISC.
Folder Scan Plays all songs in the folder in which the current playing file is located for 10 seconds each.
Repeat File Repeats the current playing file.
Repeat Folder Repeats all tracks within the current playing folder.
Random Plays all files within the MP3 DISC MP3 DISC in random order.
Random Folder Plays all files within the current playing folder in random order.
Normal play Turns off the Scan, Repeat, and Random functions.
VOICE COMMAND SYSTEM 4-11
VOICE COMMAND SYSTEM
4-10 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
USB iPod
Command Operation
USB If the USB has been connected to the device, plays the MP3 files within the USB.
Next file Plays the next file.
Previous file Plays the previous file.
Next folder Plays the first chapter of the next folder.
Previous folder Plays the first chapter of the previous folder.
Scan Scans all files within the USB.
Folder Scan Plays all songs in the folder in which the current playing file is located for 10 seconds each.
Repeat File Repeats the current playing file.
Repeat Folder Repeats all songs within the current playing folder.
Random Plays all files within the MP3 DISC in random order.
Random Folder Plays all files within the current playing folder in random order.
Normal play Turns off the Scan, Repeat, and Random functions.
Command Operation
iPod Plays the songs within the iPod if the iPod has been connected to the device.
Next song Plays the next song.
Previous song Plays the previous song.
Repeat song Repeats the current playing song.
Random Plays all songs within the iPod in random order.
Random Album Plays all songs within the current playing album in random order.
Normal play Turns off the Repeat and Random functions.
Others
Command Operation
Line in Plays the unit connected with the AUX terminal.
Audio on Turns on the Audio/Video.
Audio off Turns off the Audio/Video.
VOICE COMMAND SYSTEM 4-13
VOICE COMMAND SYSTEM
4-12 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Map
Command Operation
Map Current location Displays the current position of the vehicle.
Zoom In Decreases the map zoom by one level.
Zoom Out Increases the map zoom by one level.
Zoom minimum Displays the map screen in the minimum zoom level.
Zoom maximum Displays the map screen in the maximum zoom level.
Zoom level <1 to 14> Displays the map in the zoom level selected from the 14 levels.
Zoom <scale factor> Displays the map in the corresponding zoom.
150 feet / 50 meters
300 feet /100 meters
700 feet / 200 meters
0.25 miles / 400 meters
0.5 miles / 800 meters
1 mile / 1.6 kilometers
2 miles / 3.2 kilometers
4 miles / 6.4 kilometers
8 miles / 12 kilometers
Command list of Navigation system
Navigation commands will operate only agreeing to the terms and conditions for the Navigation system.
Command Operation
16 miles / 25 kilometers
32 miles / 50 kilometers
64 miles / 100 kilometers
130 miles / 200 kilometers
250 miles / 400 kilometers
(ex.Zoom 0.25 miles, zoom 400 meters)
North up Displays the map in North Up mode.
Heading up Displays the map in Heading Up mode.
Show <POI name> (ex. Show ATM) Displays the selected POI categories. [POI Category list], page 4-17.
Hide <POI name> (ex. Hide ATM) Hides the selected POI categories. [POI Category list], page 4-17.
Hide all Hides all POI categories.
Daylight mode Converts the map display into daylight mode.
Night mode Converts the map display into night mode.
Auto mode Converts the map display is between daylight/night modes automatically.
VOICE COMMAND SYSTEM 4-15
VOICE COMMAND SYSTEM
4-14 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Destination
Command Operation
Find address Sets the destination through address search for route guidance.
Find nearest POI
Sets a POI near the current position as the destination for route guidance through POI category search.
Find nearest <POI name> Sets a POI near the current position as the destination by directly inputting the POI name for
route guidance. [POI Category list], page 4-17.
Destination POI by phone number Sets the destination by searching the phone number of the facility.
Find Emergency <Category> Searches for an emergency facility which is nearby the current position and sets it as the
destination for route guidance. Emergency facilities are police stations, hospitals, and
dealerships.
Destination by address book Sets one of the list of previously registered addresses in the address book for the user as the
destination.
Previous destination Sets one of the previous destination as the current destination.
Previous start point Sets the previous start point as the current destination.
Go home Sets the previously registered home address as the destination for route guidance.
Destination by memory point <1 to 5> Sets a previously registered memory point as the destination for route guidance.
(ex. Find Emergency Hospital)
Route
Command Operation
Cancel route Deletes the designated destination and terminates the route guidance.
Repeat voice guidance Repeats the route guidance.
Detour <1 or 2 or 5 or 10> miles Searches detour routes within a <1|2|5|10> mile radius.
Detour <1 or 2 or 5 or 10> kilometers Searches detour routes within a <1|2|5|10> kilometer radius.
Replan recommended route Recalculates the route with the recommended route.
Replan shortest route Recalculates the route with the shortest route.
Replan minimize freeway route Recalculates the route with the minimize freeway route.
Replan minimize toll road route Recalculates the route with the minimize toll route.
Distance to destination Reports the remaining distance until destination by voice.
Time to destination Reports the remaining time until destination by voice.
View route If the destination has been set, displays the whole route screen until the destination.
Start guidance Sets the scroll mark displayed on the map as the destination and starts route guidance.
VOICE COMMAND SYSTEM 4-17
VOICE COMMAND SYSTEM
4-16 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Others
Command Operation
Voice guidance on Turns the Voice Guidance On.
Voice guidance off Turns the Voice Guidance Off.
Voice guidance louder Increases the Voice Guidance volume by 1 level.
Voice guidance softer Increase the Voice Guidance volume by 1 level.
Store marked location to <text tag> Registers the selected location into the selected Address book.
(ex. Store marked location to user 1)
POI Category list
All restaurants
Fast Food restaurant
American restaurant
French restaurant
Italian restaurant
Continental restaurant
Mexican restaurant
Japanese restaurant
Chinese restaurant
Korean restaurant
Vegetarian Food restaurant
Seafood restaurant
Latin American restaurant
Asian restaurant
African restaurant
Coffee Shop
Other restaurants
All automotive
Gas Station
Parking
Auto service
Road Assistance
Hyundai Dealership
Automobile Dealership
Auto Parts
Rest Area
Car Wash
Motorcycle Dealership
All Travel
Airport
Hotel
Tourist Information
Travel Agent
Tourist Attraction
City Cnter
Rental Car Agency
Campground
Ferry Terminal
Bus Station
Local Transit
Train Station
All Shopping
Department Store
Convenience Store
Shopping Center
Music Store
Grocery Store
Bookstore
Hardware Store
Gifts shop
Sporting Goods store
Home Specialty Store
Clothing shop
Shoe Store
Pharmacy
All Recreation
Amusement Park
Museum
Cinema
Sports Activities
Sports Complex
Golf Course
Winery
Video & Game Rental
Ski Resort
Recreation Area
Other Recreation
All Financial Service
Bank
ATM
Check Cashing Service
Money Transfer
Business Facility
All Community
Police Station
Post Office
Library
Court House
Fire Department
Convention Center
City Hall
Civic Center
School
Government Offices
Waste & Sanitary
Utilities
All Services
Hospital
Dentist
Photography
Tax Service
Medical Service
Attorney
Funeral Director
Hair & Beauty
Cleaning & Laundry
Social Service
Physician
Communication services
Tailor Alteration
Mover services
VOICE COMMAND SYSTEM 4-19
VOICE COMMAND SYSTEM
4-18 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM

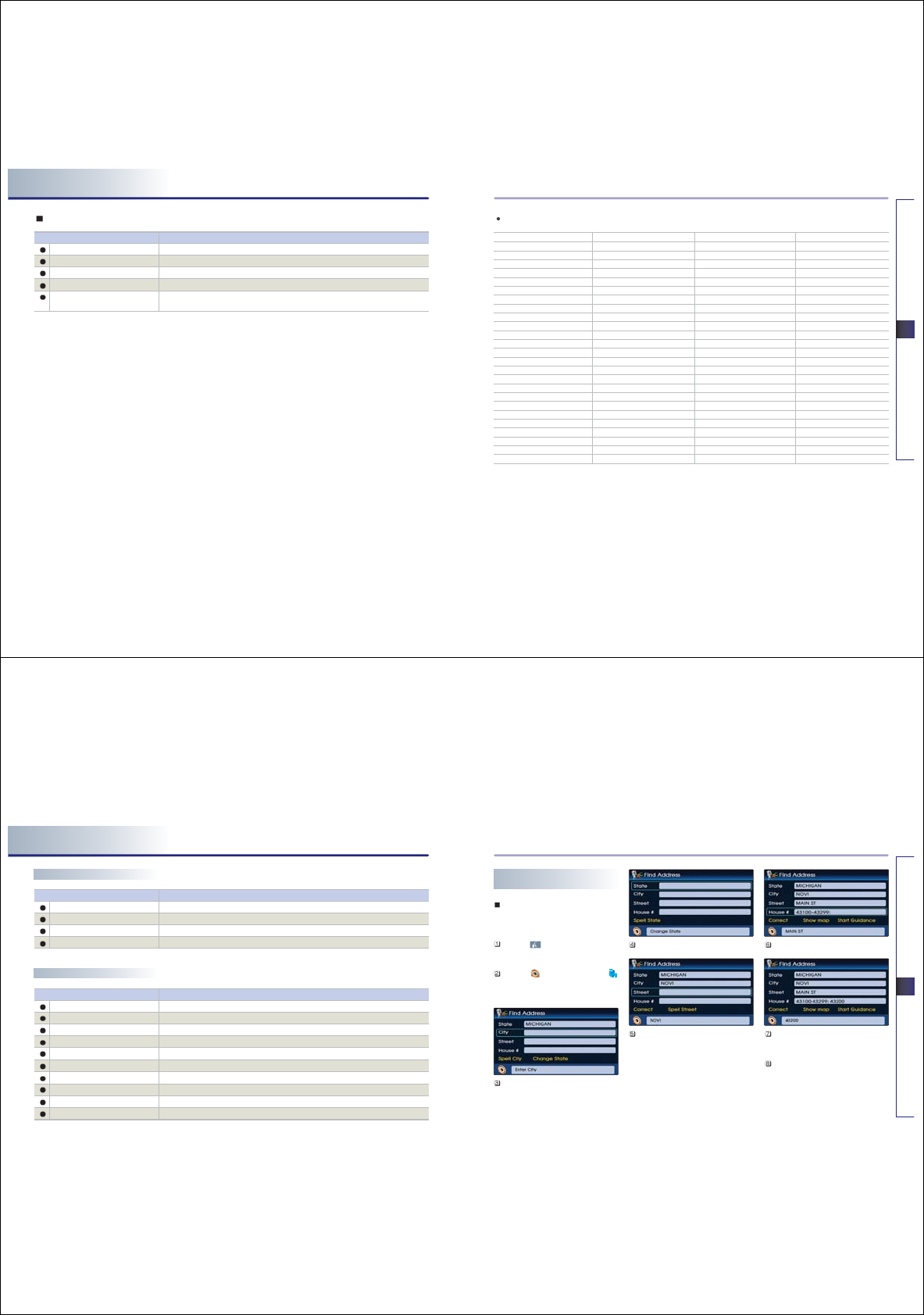

Command list of Help
Command Operation
Help Displays the main Help screen.
Destination Help Displays the Destination related command list.
Map Help Displays the Map related command list.
Radio Help Displays the FM/AM radio related command list.
XM Help Displays the XM radio related command list.
Disc Help Displays the DISC mode related command list for the disc inserted in the CDP.
iPod Help Displays the iPod related Command list.
USB Help Displays the USB related command list.
Phone Help Displays the Phone help screen.
Voice setup Help Displays the Voice prompt settings and speaker-adaptive commands on the screen.
Command list of Phone
Command Operation
Call Name Makes the call to the name.
Dial Number makes the callto the number.
Redial The recently called number is redialed.
Recent Calls The user can select a number from the outgoing, incoming, and missed calls.
Searching destination by voice
command
Find address
Sets the destination through address search
for route guidance.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Find address".
Say "Change state" to change the state.
Say the state name.
Say the city name.
Say the street name.
Say the House number. Here, the range
which can be inputted will be displayed.
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the
selected position on the map.
VOICE COMMAND SYSTEM 4-21
VOICE COMMAND SYSTEM
4-20 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
INFORMATION
Spell recognition
It is possible to search the state, city, street
names through the text line inputted by the
user.
To enter spell search mode, say the "Spell
000" command as displayed on the screen.
Text lines can be inputted continuously.
Pick-List(n-best list)
If there are more than one voice result, then
a pick-list which can be selected by the user
will be displayed.
There may be more than one list page. The
desired page can be viewed by using
commands such as "next page" or "previous
page".
Here, the "Line + number" voice command
can be used to select the desired result,
such as "Line one". Pressing the desired
result is not supported.
Also, selectable areas will be highlighted in
yellow, allowing the user to easily see which
results can be selected.
Find nearest POI
Sets a POI near the current position as the
destination for route guidance through POI
category search.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "find nearest POI".
Select the desired main category.
i
Select the desired sub category.
Select the desired POI from the list and
say the line number for the
corresponding menu. Ex) "Line 1".
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the
selected position on the map.
Find nearest <POI name>
Sets a POI near the current position as the
destination by directly inputting the POI
name for route guidance.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Find nearest Parking".
Select the desired POI from the list and
say the line number for the
corresponding menu. Ex) "Line 1".
VOICE COMMAND SYSTEM 4-23
VOICE COMMAND SYSTEM
4-22 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the
selected position on the map.
Destination POI by phone number
Sets the destination by searching the
phone number of the facility.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Destination POI by Phone
number".
Input the 10 numbers for the phone
number.
INFORMATION
Continuous recognition of phone numbers is
possible, and the recognized result will be
displayed in block units. To correct a block
unit, say "correct". To delete the entire result,
say "delete". To have the input read back, say
"repeat".
Say "Show list" to view the resulting search
list.
i
Select the desired location from the list
and say the line command.
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the
selected position on the map.
Find emergency <Category> :
Searches for an emergency facility which is
nearby the current position and sets it as
the destination for route guidance.
Emergency facilities are police stations,
hospitals, and dealerships.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say the voice command.
Ex) Find emergency hospital
Select the desired location from the list
and say the line command.
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the
selected position on the map.
VOICE COMMAND SYSTEM 4-25
VOICE COMMAND SYSTEM
4-24 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Destination by address book
Sets one of the list of previously registered
addresses in the address book for the user
as the destination.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Destination by address
book".
Select the desired user name(Address
book name).
Select the desired location from the list
and say the line command.
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the
selected position on the map.
Previous destination
Sets one of the previous destination as the
current destination.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Previous destination".
Select the desired location from the list
and say the line command.
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the
selected position on the map.
Previous start point
Sets the previous start point as the current
destination.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Previous start point".
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the
selected position on the map.
Go home
Sets the previously registered home
address as the destination for route
guidance.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Go home".
Destination by memory point
<1 to 5>
Sets a previously registered memory point
as the destination for route guidance.
Press the key on the steering wheel
remote controller.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Destination by memory
point 1".
PART 5 BLUETOOTH HANDSFREE
BLUETOOTH HANDSFREE 5-1
BLUETOOTH HANDSFREE
PART 5
BLUETOOTH HANDSFREE
Bluetooth settings
5-24
Pairing and connecting a mobile
phone 5-24
Setting mobile phone auto connect
priority 5-24
Setting Handsfree volume 5-25
Setting Audio streaming 5-26
Advanced settings 5-26
Searching and modifying
my device properties 5-27
Changing passkey 5-28
Deleting all paired phones 5-28
Initializing Bluetooth handsfree 5-29
Important information
5-30
About pairing mobile phones 5-30
About making/answering phone calls 5-31
About Bluetooth device environment 5-31
PART 5
BLUETOOTH HANDSFREE
Before using the Bluetooth
Handsfree
5-2
What is Bluetooth? 5-2
Functions supported by Bluetooth
Handsfree 5-2
Converting Bluetooth Handsfree
mode
5-2
Converting from AV/Navigation mode to
Bluetooth Handsfree mode 5-2
Converting from Bluetooth Handsfree mode
to AV/Navigation mode 5-3
Pairing and connecting a Bluetooth
phone
5-4
Pairing a mobile phone 5-4
Deleting a paired phone 5-6
Connecting a mobile phone 5-7
Disconnecting a mobile phone 5-8
Bluetooth Handsfree screen
layout
5-9
Bluetooth Handsfree screen and
functions 5-9
When there is no mobile phone
connected 5-9
When a mobile phone is connected 5-9
When receiving an incoming call 5-10
When already on a call 5-10
When there is a call waiting 5-10
Making a call
5-11
Making a call by dialing a phone
number 5-11
Making a call from Speed Dial 5-11
Making a call by redialing 5-12
Answering a call
5-13
Answering an incoming call 5-13
Rejecting an incoming call 5-13
Operating menus during a call
5-14
Switching call to the mobile phone 5-14
Activating Call waiting 5-14
Ending a call 5-15
Phone Book
5-16
Making a call from the Phone book 5-16
Searching the Phone Book 5-17
Searching by name 5-17
Searching by number 5-18
Call History List
5-19
Making a call from Call history 5-19
Sorting call history 5-19
Phone Music
5-21
Before playing Phone Music 5-21
Starting Phone Music 5-21
Phone Music screen layout 5-22
Selecting Phone Music files 5-23

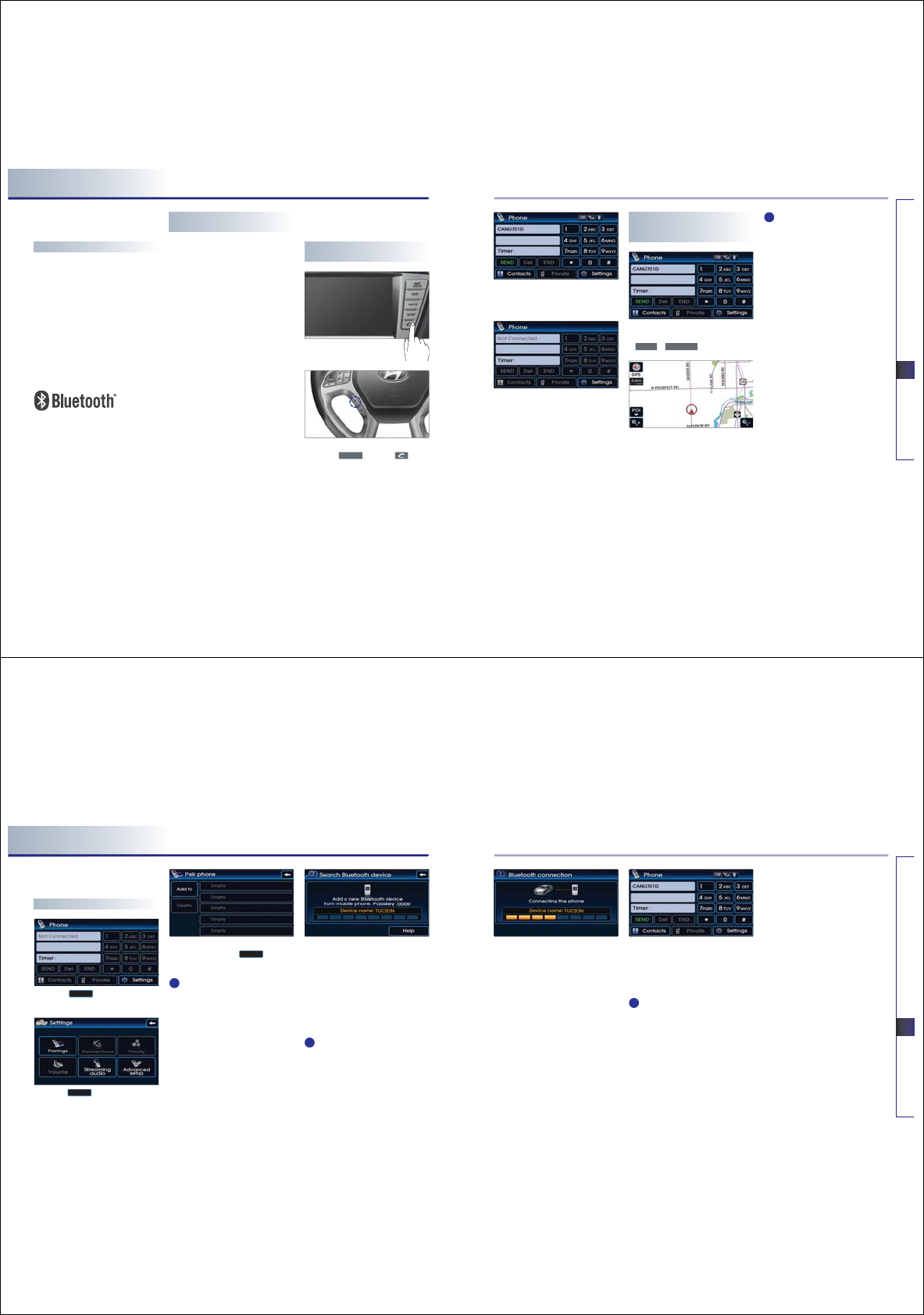

5-2 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
BLUETOOTH HANDSFREE 5-3
BLUETOOTH HANDSFREE
Before using the Bluetooth
Handsfree
What is Bluetooth?
Bluetooth allows wireless transmission of
information between PC, mobile phones,
headsets, PDAs, printers and other devices
within close ranges by using 2.45Ghz
frequency short-distance wireless
telecommunication technologies.
Within this vehicle, users can make
handsfree calls, transmit mobile phone
data, and play audio streaming files by
connecting a mobile phone with the
system.
Functions supported by
Bluetooth Handsfree
Pairing mobile phones (Up to 5 phones)
Connecting/disconnecting mobile phones
Making/Answering phone calls
Downloading a Phone Book
Downloading a Call history list
Playing music saved in a Bluetooth phone
in the vehicle
Some functions may not be supported in
some mobile phone.
Converting Bluetooth
Handsfree mode
Converting from AV/Navigation
mode to Bluetooth Handsfree mode
While in AV mode or Navigation mode,
press the key or the key on
the steering wheel.
PHONE
The system will change to Bluetooth
Handsfree mode and display the PHONE
screen.
The following screen will become
displayed if no mobile phone has been
connected.
Converting from Bluetooth
Handsfree mode to
AV/Navigation mode
While in Bluetooth Handsfree mode, press
an AV/Navigation mode key, such as
or .
The corresponding mode will be displayed.
INFORMATION
Most of the functions of the AV or SETUP
modes are not supported while on a
Bluetooth Handsfree call. The call volume and
Navigation (MAPVOICE, DEST, ROUTE) screens
can be operated.
MAPVOICEFM/AM
i
Bluetooth is a trademark owned by
Bluetooth SIG, Inc.
BLUETOOTH HANDSFREE 5-5
BLUETOOTH HANDSFREE
When pairing the car handsfree from the
mobile phone, a passkey input window
will become displayed on the mobile
phone screen. Input the passkey set within
the car system into the mobile phone
input window. (The factory state passkey is
0000.) As shown in the figure, once the
passkey becomes successfully inputted,
the Bluetooth connection between the car
system and mobile phone will start.
Once Bluetooth connection is successful,
the name of the connected mobile phone
will become displayed on the PHONE
screen and Bluetooth handsfree functions
will operate.
INFORMATION
Some functions may not be supported due
to limited Bluetooth compatibility between
the car system and mobile phone.
i
i
5-4 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Pairing and connecting a
Bluetooth phone
Pairing a mobile phone
Press the button on the PHONE
screen.
Press the button on the Settings
screen.
The list of currently paired phones will be
displayed. Press the button to
pair a new mobile phone.
INFORMATION
For safety reasons, pairing a Bluetooth
phone is not possible when the vehicle is in
motion.
Park the vehicle in a safe location to pair a
new phone. It is possible to pair up to five
mobile phones. In order to pair a new
phone when there are already five mobile
phones paired, you must first delete one of
the previously paired phones.
From the Bluetooth device list within the
mobile phone, add the car handsfree.
The default name of the car system is
TUCSON.
For more information on registering
Bluetooth devices from the mobile phone,
please refer to the mobile phone user's
manual.
INFORMATION
While conducting a Bluetooth device search
from the mobile phone, operating to
another screen will prevent the car
handsfree from being found in the mobile
phone. Always conduct searches for
Bluetooth devices with the Search
Bluetooth device screen displayed.
Add to
Pairings
Settings
i
BLUETOOTH HANDSFREE 5-7
BLUETOOTH HANDSFREE

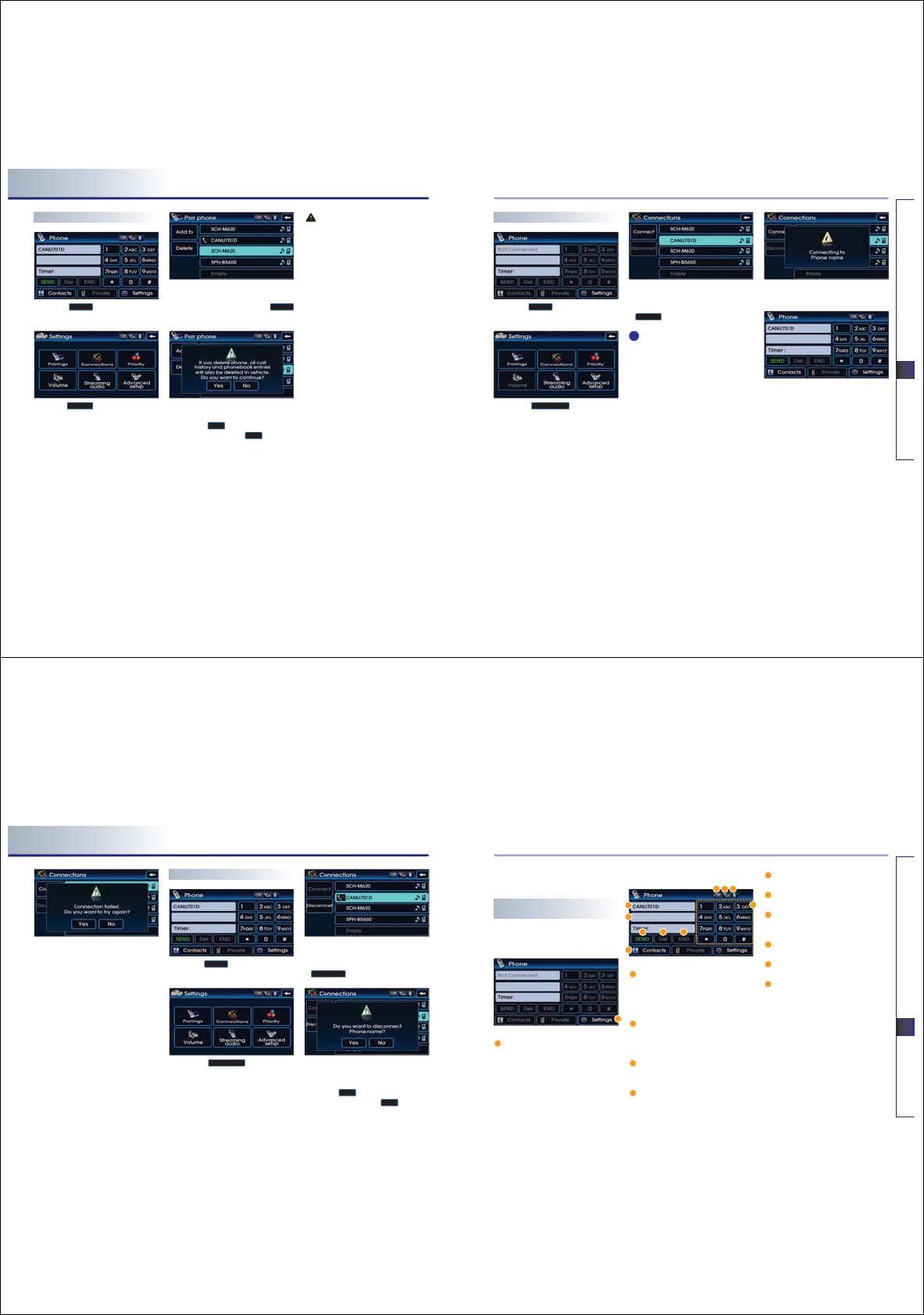

5-6 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Deleting a paired phone
Press the button on the PHONE
screen.
Press the button on the Settings
screen.
The list of currently paired phones will be
displayed. Select the phone you wish to
delete from the list and press the
button.
A pop-up asking whether you wish to
delete the paired phone will be displayed.
Press the button to delete the
paired phone and the button to
cancel.
CAUTION!
A mobile phone cannot be deleted if it is
currently connected to the car system.
To delete the phone, first disconnect the
mobile phone and try again.
No
Yes
Delete
Pairings
Settings
Connecting a mobile phone
Press the button on the PHONE
screen.
Press the button on the
Settings screen.
The list of currently paired phones will be
displayed. Select the phone you wish to
connect from the list and press the
button.
INFORMATION
When there are no paired phones, pair the
mobile phone through [Settings>Pairings>
Add to]. For more information on pairing
mobile phones, refer to the user's manual
[Pairing and Connecting a Bluetooth phone >
Pairing a mobile phone].
The Bluetooth connection between the car
system and mobile phone will start.
Once Bluetooth connection is successful,
the name of the connected mobile phone
will become displayed on the PHONE
screen and Bluetooth handsfree functions
will operate.
Connect
Connections
Settings
i
BLUETOOTH HANDSFREE 5-9
BLUETOOTH HANDSFREE
5-8 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
If the connection between the mobile
phone and Bluetooth fails, the following
pop-up will be displayed. If problems occur
while connecting Bluetooth, check for the
following conditions.
Whether the mobile phone you wish to
connect is in the vicinity of the car system
Whether the power of the mobile phone
Bluetooth has been turned off
Whether the mobile phone Bluetooth has
been set to hidden state
Whether there are Bluetooth compatibility
issues between the car system and another
mobile phone
Disconnecting a mobile phone
Press the button on the PHONE
screen.
Press the button on the
Settings screen.
The list of currently paired phones will be
displayed. Select the phone you wish to
disconnect from the list and press the
button.
A pop-up asking whether you wish to
disconnect the mobile phone will be
displayed.
Press the button to disconnect the
mobile phone and the button to
cancel.
No
Yes
Disconnect
Connections
Settings
Bluetooth Handsfree screen
layout
Bluetooth Handsfree screen and
functions
When there is no mobile phone
connected
Settings : The user can set environment
settings for the Bluetooth handsfree, such
as pair/delete mobile phone, connect/
disconnect mobile phone, set call volume,
change device name and change passkey.
When a mobile phone is connected
Phone battery charge status : Displays
the battery charge status of the
connected mobile phone. The battery
charge status may not be displayed in
some mobile phones.
Signal strength : Displays the mobile
phone signal strength. The signal
strength may not be displayed in some
mobile phones.
Bluetooth connection state : Becomes
displayed when a Bluetooth phone has
been connected with the car system.
Name of connected mobile phone :
Displays the name of the connected
mobile phone.
Phone number input window : Displays
the inputted phone number.
Dial : Input the phone number through
the dial pad.
SEND : If a number has not been inputted
into the phone number input window,
then displays the call history list screen.
Del : Deletes the inputted number one
digit at a time.
END : If a number has been inputted, then
erases the entire number.
Contacts : Displays the phone book
screen. The user can search previously
saved phone numbers.
BLUETOOTH HANDSFREE 5-11
BLUETOOTH HANDSFREE
5-10 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
When receiving an incoming call
Accept : Accepts the incoming call.
Reject : Rejects the incoming call.
When already on a call
Busy icon : When already on a call, displays
an icon shaped like a receiver.
Name of incoming caller : Displays the
name of incoming caller. The name of the
incoming caller will not be displayed if the
caller's phone number has not been
previously registered in the phone book.
Number of incoming caller : Displays the
number of the incoming caller.
Call state : Displays the call state, such as
talk time, phone connection, and end time.
END : Ends the call.
Private : When talking on the car
handsfree, use this function to switch the
call to the mobile phone. Press this button
and the following screen will be displayed.
The speaker and microphone will be
switched to the mobile phone.
Mute : Use this function to mute the
outgoing volume. Pressing the
button will display the at the top right
side of the screen and the caller will not be
able to hear the conversation taking place
in the car. Press the button again to
release the Mute function.
When there is a call waiting
Switch : Use this button to switch
between callers when there are calls on
call waiting.
END : Use this button to end the calls with
all callers.
Mute
Mute
Making a call
Making a call by dialing a phone
number
Use the number pad on the right side of
the PHONE screen to input the number
you wish to call.
Press the button or the key on
the steering wheel to make the call.
NFORMATION
To modify, press the button to delete
the inputted number one digit at a time.
Press the button or the key on the
steering wheel to cancel the call.
Making a call from Speed Dial
Use the number pad on the right side of
the PHONE screen to input a speed dial
number.
INFORMATION
Only speed dial numbers already stored on
the mobile phone can be used for speed dial
calls.
Up to 2-digit speed dial numbers are
supported.
END
Del
SEND
i
i
BLUETOOTH HANDSFREE 5-13
BLUETOOTH HANDSFREE
5-12 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Press the button or the key on
the steering wheel to make the call.
INFORMATION
For 2-digit speed dial numbers, press and
hold the 2nd digit to make a call to the speed
dial number.
Making a call by redialing
Press and hold (over 0.8 second) the
button on the PHONE screen or the
key on the steering wheel.
INFORMATION
Redialing is not possible when there is no call
history or the call history list is being
downloaded from the mobile phone. When
there is no call history list, the button
will be inactive.
The recently called number is redialed.
INFORMATION
It is not possible to display the AV mode and
Settings screen when on a phone call. Only
the call volume and Navigation (MAP, DEST,
ROUTE) screens can be operated.
SEND
SEND
SEND
Answering a call
Answering an incoming call
The following screen will be displayed
when you receive an incoming call.
To answer the incoming call, press the
button or the key on the
steering wheel.
Rejecting an incoming
The following screen will be displayed
when you receive an incoming call.
To reject the incoming call, press the
button or the key on the
steering wheel. The incoming call will be
rejected.
INFORMATION
Upon receiving a call, the [Reject] function
may not be supported in some mobile
phones.
Reject
Accept
i
i
i
i
BLUETOOTH HANDSFREE 5-15
BLUETOOTH HANDSFREE

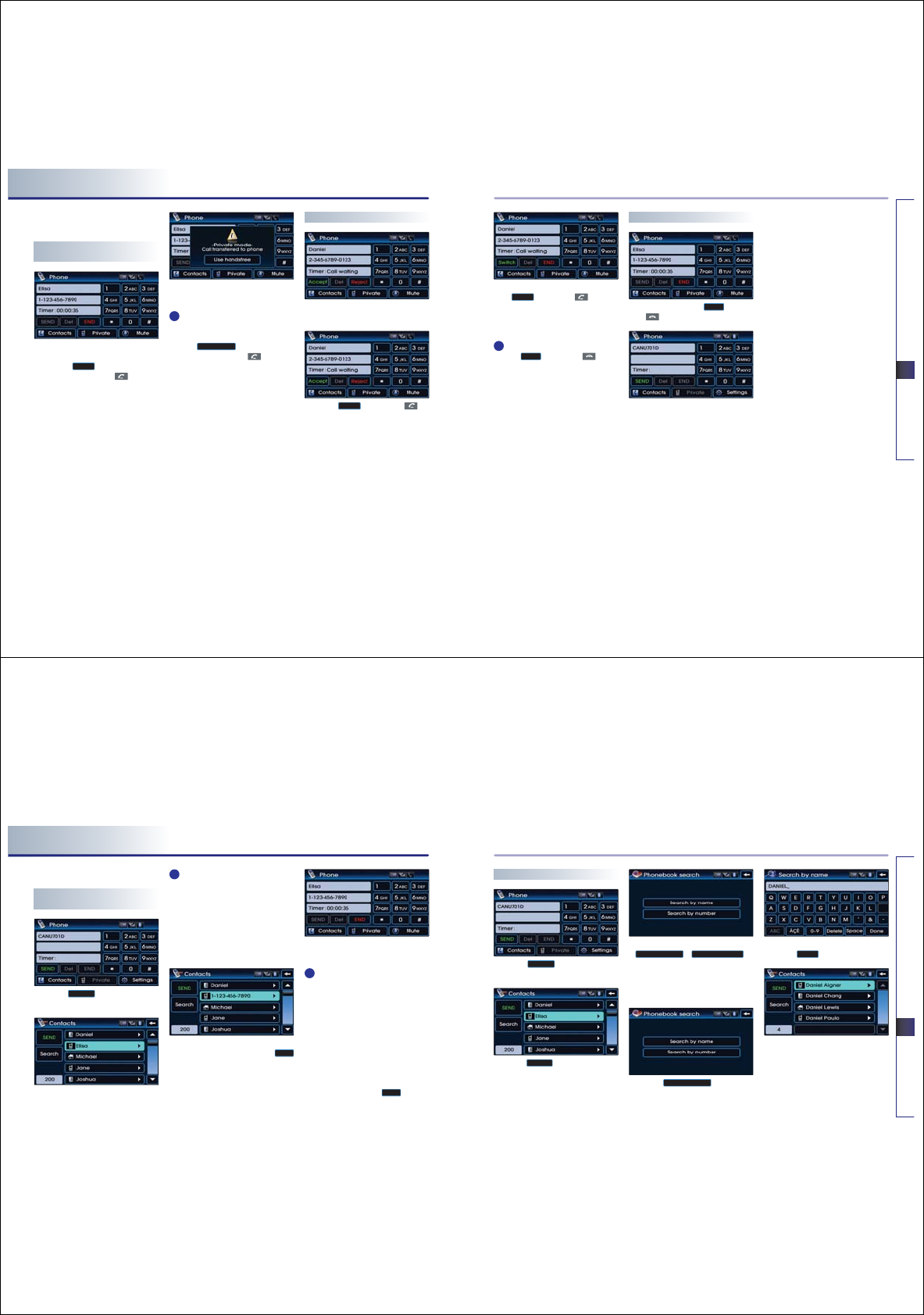

5-14 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Operating menus during a
call
Switching call to the mobile
phone
If you wish to switch the call to the mobile
phone while talking on the car handsfree,
press the button or press and
hold (over 0.8 second) the key on the
steering wheel.
As shown, the call will be switched to the
mobile phone.
INFORMATION
If you wish to switch the call to the car
handsfree while talking on the mobile phone,
press the button or press and
hold (over 0.8 second) the key on the
steering wheel. The call will be switched to
the car handsfree.
Activating Call waiting
If another person calls while already on a
call, the following screen will be displayed.
Press the button or the key
on the steering wheel to receive the
incoming call by switching to the new
caller.
Accept
Use handsfree
Private
To switch again to the other caller, press
the button or the key on the
steering wheel. The other call will be
received and the previous call will switch
back to call waiting.
INFORMATION
Press the button or the key on
the steering wheel to end the current call and
call waiting.
Ending a call
To end a call, press the button or
the key on the steering wheel.
The call will be ended.
End
End
Switch
i
i
BLUETOOTH HANDSFREE 5-17
BLUETOOTH HANDSFREE
5-16 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Phone Book
Making a call from the Phone
book
Press the button on the PHONE
screen.
The phone book list will be displayed.
INFORMATION
The system may begin to slow down when
downloading the phone book in some
mobile phones.
Upon connecting a mobile phone, the
phone book lists saved in the mobile phone
will automatically be downloaded. The
phone book download function may not be
supported in some mobile phones.
Select the number you wish to call from
the phone book list and press the
button.
The call will be made to the selected
number.
INFORMATION
When there are more than 2 numbers saved
in one phone number list, if the list is
repeatedly selected, the registered phone
numbers will be displayed sequentially on
the list.
The Mobile Phone/Office/Home categories
received via the mobile phone may differ
from the information actually stored in the
mobile phone.
Select the phone number you wish to
connect by repeatedly selecting the phone
number list and press the button to
make the call to the selected number.
SEND
SEND
Contacts
Searching the Phone Book
Press the button on the PHONE
screen.
Press the button on the Contacts
screen.
Phone numbers can be searched by either
or .
From the two methods, select the search
method you wish to use.
Searching by name
Press the button on the
Phonebook search screen.
Input the name you wish to search and
press the button.
The search results will be displayed on the
screen.
Done
Search by name
Search by numberSearch by name
Search
Contacts
i
i
BLUETOOTH HANDSFREE 5-19
BLUETOOTH HANDSFREE

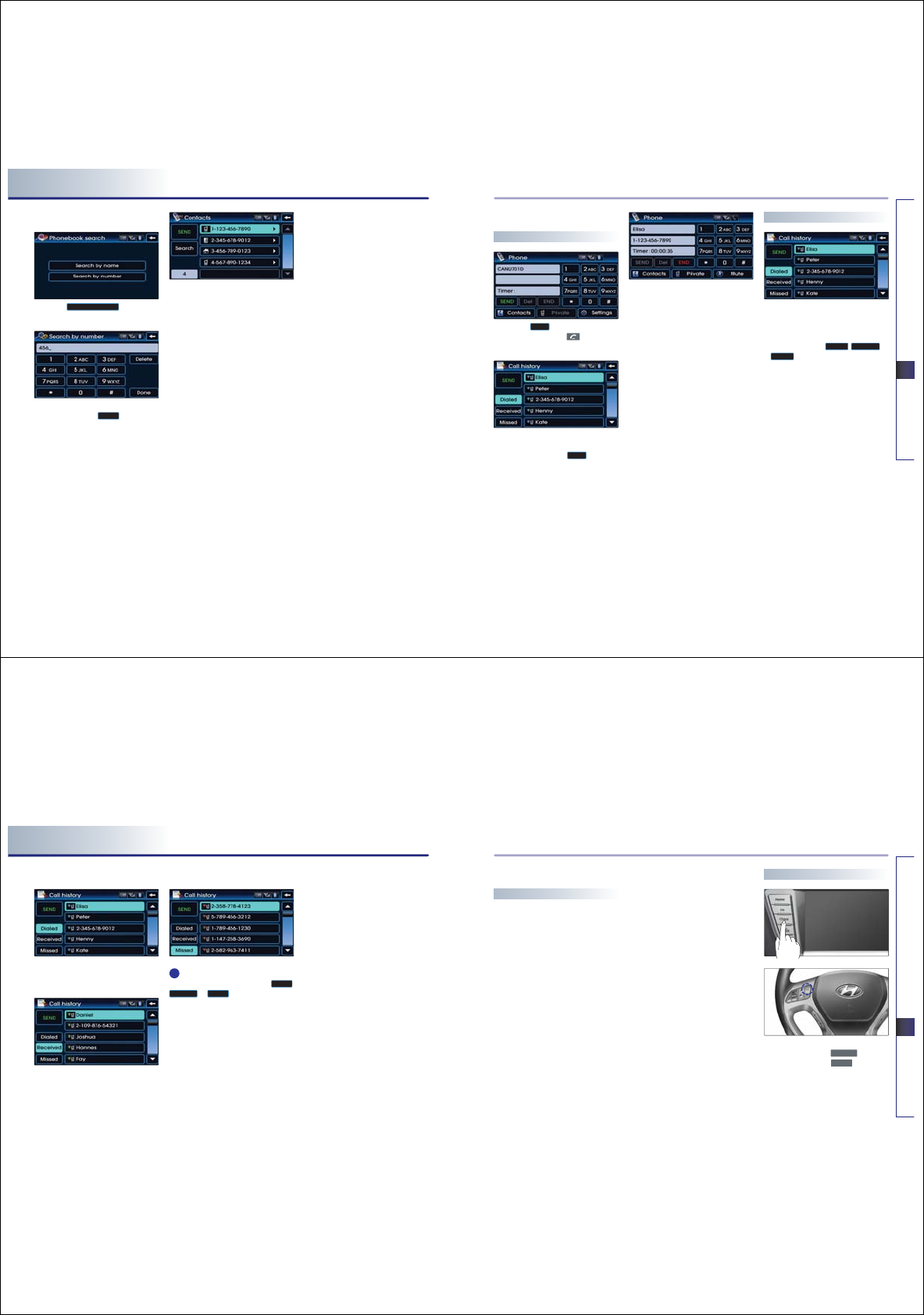

5-18 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Searching by number
Press the button on the
Phonebook search screen.
Input the phone number you wish to
search and press the button.
The search results will be displayed on the
screen.
Done
Search by number
Call History List
Making a call from Call history
Press the button on the PHONE
screen or press the key on the
steering wheel.
The call history list will be displayed. Select
the number you wish to call from the call
history list and press the button.
The call will be made to the selected
number.
Sorting call history
The call history can be displayed by sorting
the incoming calls, outgoing calls and
missed calls.
When pressing the , , or
button, the corresponding call
history list will be displayed.
Missed
ReceivedDialed
SEND
SEND
BLUETOOTH HANDSFREE 5-21
BLUETOOTH HANDSFREE
5-20 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Dialed number
Received number
Missed number
INFORMATION
If there are no entries saved in the ,
, or lists, the corresponding
button will be inactive. Up to 20 entries can
be saved in each list.
MissedReceived
Dialed
Phone Music
Before playing Phone music
Music saved in the mobile phone can be
played in the car through Bluetooth audio
streaming.
Phone music can be played only when a
Bluetooth phone has been connected. To
play phone music, connect the Bluetooth
phone to the car system. For more
information on connecting Bluetooth, please
refer to the user's manual [Pairing and
Connecting a Bluetooth phone].
If the Bluetooth is disconnected while playing
phone music, the music will be discontinued.
The audio streaming function may not be
supported in some mobile phones.
Only one function can be used at a time
between the Bluetooth handsfree or Phone
music function.
For example, if you convert to the Bluetooth
handsfree while playing Phone music, the
music will be discontinued.
Playing music from the car is not possible
when there are no music files stored in the
mobile phone.
Starting Phone Music
Repeatedly press the key on the
front panel or the key on the
steering wheel to enter Phone music
mode.
MDOE
CD/AUX
i
BLUETOOTH HANDSFREE 5-23
BLUETOOTH HANDSFREE

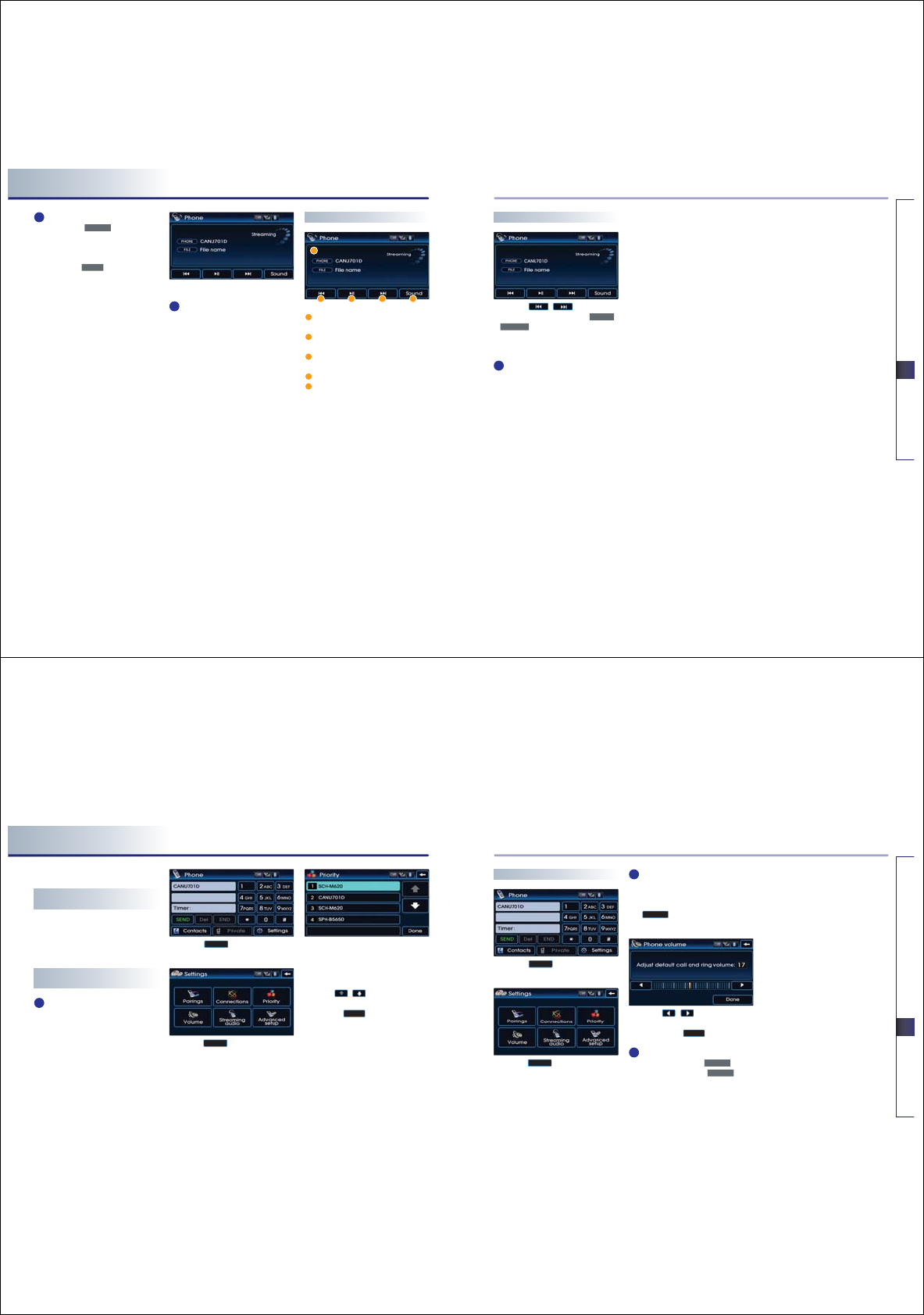

5-22 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
INFORMATION
Each press of the key on the front
panel will change the function in the order of
DISC USB or iPod AUX Phone Music
DISC .
Each press of the key on the steering
wheel will change the audio mode in the
order of FM1 FM2 AM XM1 XM2
XM3 DISC USB or iPod AUX Phone
Music FM1.
It is not possible to enter Phone music mode if
the mobile phone is not connected or if the
audio streaming setting within Bluetooth
handsfree settings has been set to [Disable
streaming audio].
For more information on audio streaming
setting, please refer to the user
s manual
[Bluetooth settings > Setting Audio streaming].
The Phone music screen is displayed.
INFORMATION
While music saved in the mobile phone will
automatically begin playing after converting
to the Phone music screen, this music player
function may not be supported in some
mobile phones.
If music does not begin playing even after
converting to the Phone music screen, try
starting the music directly from the mobile
phone.
Phone music screen layout
Information Bar : displays information for
the currently playing song.
File Down button : plays the previous
song.
Play/Pause button : Plays/pauses the
song.
File Up button : plays the next song.
Sound button : sets the FAD/BAL and
BAS/MID/TRE.
MODE
CD/AUX
Selecting Phone music files
Press the , buttons on the
Phone music screen or the ,
keys on the system.
The previous or next song will be played
each time the button or key is pressed.
INFORMATION
The file selection function may not be
supported in some mobile phones.
TRACK
SEEK
i
i
i
BLUETOOTH HANDSFREE 5-25
BLUETOOTH HANDSFREE
5-24 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Bluetooth settings
Pairing and connecting a mobile
phone
For more information on pairing and
connecting a mobile phone, please refer to
[Pairing and Connecting a Bluetooth phone].
Setting mobile phone auto
connect priority
INFORMATION
After turning on the car ignition and the
system is booted up, the Bluetooth connection
between the car system and mobile phone is
automatically made.
The Bluetooth connection will be conducted
in the order of mobile phone priority.
The auto connect priority will be supported
only for previously paired mobile phones.
Press the button on the PHONE
screen.
Press the button on the Settings
screen.
The paired mobile phone list and the
mobile phone connection priority will be
displayed.
When wishing to change the priority order,
select the mobile phone from the list and
use the , buttons to change its
priority.
Press the button to save the
changed mobile phone priority.
Done
Priority
Settings
Setting Handsfree volume
Press the button on the PHONE
screen.
Press the button on the Settings
screen.
INFORMATION
The Bluetooth handsfree volume can be
adjusted only when a mobile phone has been
connected.
The cannot be set if no mobile
phone has been connected.
Use the , buttons to set the
desired volume on the Phone volume
screen. Press the button to save.
INFORMATION
While on a call, turning the knob to
the left/right or pressing the key on
the steering wheel will also adjust the call
volume.
If the call volume is set too high, the loud
incoming call bell may cause a traffic accident.
VOL
POWER
Done
Volume
Volume
Settings
i
i
i
BLUETOOTH HANDSFREE 5-27
BLUETOOTH HANDSFREE
5-26 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Setting Audio streaming
Press the button on the PHONE
screen.
Press the button on the
Settings screen.
Streaming audio setting is selected.
INFORMATION
Enable streaming audio: Repeatedly press the
key or the key to enter
Phone music mode. Phone music can be
played through Bluetooth audio streaming.
Disable streaming audio: Even if the
key or the key is repeatedly pressed,
will not enter Phone music mode. Phone
music through Bluetooth audio streaming is
not supported.
Advanced settings
Bluetooth advanced settings can be
changed. Enter advanced settings through
the following way.
Press the button on the PHONE
screen.
Press the button on the
Settings screen.
Advanced setup
Settings
MODE
CD/AUX
MODECD/AUX
Streaming audio
Settings
INFORMATION
For safety reasons, operation of Advance
setup is not possible when the vehicle is in
motion. Please park in a safe place to make
changes to Advanced setup.
The Advance setup screen will be
displayed. In Advance setup, the following
four settings can be made.
Searching and modifying my
device properties
Press the button on the
Advance setup screen.
Displays the Device information such as
the name and address of the car system.
To modify the device name, press the
button.
Use the key pad to input the Device name
you wish to modify.
After inputting is complete, press the
button to save.
Done
Change name
Device information
i
i
BLUETOOTH HANDSFREE 5-29
BLUETOOTH HANDSFREE
5-28 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Changing passkey
Press the button on the
Advance setup screen.
Once the Change passkey screen is
displayed, input the desired passkey and
press the button.
INFORMATION
The passkey is a 4-digit authentication code
used for a Bluetooth connection between the
mobile phone and car system. The default
passkey is set to 0000.
Deleting all paired phones
Press the button
on the Advance setup screen.
A pop-up asking whether you wish to
delete all paired phone will be displayed.
Press the button to delete all paired
phones and the button to cancel.
If button is pressed, all currently
paired phones will be deleted.
Yes
No
Yes
Delete all paired phones
Done
Change passkey
Initializing Bluetooth handsfree
Press the button on
the Advance setup screen.
A pop-up asking whether you wish to
initialize the Bluetooth handsfree will be
displayed.
Press the button to initialize the
Bluetooth handsfree system and the
button to cancel.
INFORMATION
Upon initializing the Bluetooth handsfree, the
entire paired phone list will be deleted and all
Bluetooth related settings will be restored to
factory state.
If is pressed, the Bluetooth handsfree
settings will be initialized.
Yes
No
Yes
Restore factory settings
i i
BLUETOOTH HANDSFREE 5-31
BLUETOOTH HANDSFREE
5-30 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Important information
About pairing mobile phones
I cannot search for mobile phones
through the car system. What is the
cause?
Check to see whether the mobile phone
you wish to connect supports Bluetooth
function. If your mobile phone supports
Bluetooth, check to see that whether the
Bluetooth settings in the mobile phone
have been set to hidden state or if the
Bluetooth power has been turned off. If
the device has been set to hidden,
release the hidden state and if the
Bluetooth power has been turned off,
turn the power ON and try searching
again.
What is the difference between pairing a
mobile phone and connecting a mobile
phone?
Through a two-way passkey between
the car system and mobile phones, up to
5 mobile phones can be paired with the
car system. The paired mobile phone will
remain paired with the car system until
the user deletes it manually.
In addition, the call history lists and
phone number books saved in each
mobile phone will also be maintained
until the paired phone is deleted. For
more information on pairing mobile
phones, please refer to the manual
[Pairing and Connecting a Bluetooth
phone > Pairing a mobile phone].
Connect a mobile phone to Bluetooth
by selecting the desired mobile phone
from the paired phones. Within the car
system, only one Bluetooth phone can
be connected at one time. For more
information, please refer to the manual
[Pairing and Connecting a Bluetooth
phone > Pairing a mobile phone].
What is a Passkey?
A passkey is an authentication code used
for two-way authentication of the car
system and the mobile phone.
Only 4-digit numbers can be used as
passkeys. Passkeys are registered only
once when pairing the phone number
for the first time. The factory-set passkey
is 0000.
About making/answering phone
calls
How can I answer a call?
When you receive an incoming call,
press the key on the steering wheel
or the button on the PHONE
screen to answer. To reject the incoming
call, press the key on the steering
wheel or the button on the
PHONE screen.
What should I do if I am talking on the
Handsfree but wish to switch the call to
the mobile phone?
To switch the call to the mobile phone,
press the button on the PHONE
screen or press and hold (over 0.8
second) the key on the steering
wheel. If you wish to switch the call back
to the car handsfree, press the
button on the PHONE
screen or press and hold (over 0.8
second) the key on the steering
wheel.
About Bluetooth device
environment
What is the range for Bluetooth wireless
connection?
The wireless connection range is within
10 meters.
How many mobile phones can be paired?
It is possible to pair up to five phones
with the car system.
What is the reason why the call quality
deteriorates?
First, check to see the signal strength of
the mobile phone. The call quality may
deteriorate when the signal strength is
low. Call quality may also deteriorate if
metal objects, such as drink cans, are
placed near the mobile phone.
Use handsfree
Private
Reject
Accept
Q.
A.
A.
A.
Q. Q.
A.
Q.
A.
Q.
A.
Q.
A.
Q.
A.
Q.
REAR CAMERA 6-1
REAR CAMERA
5-32 BLUETOOTH HANDSFREE
MEMO
PART 6
REAR CAMERA
About Rear Detection Camera 6-2

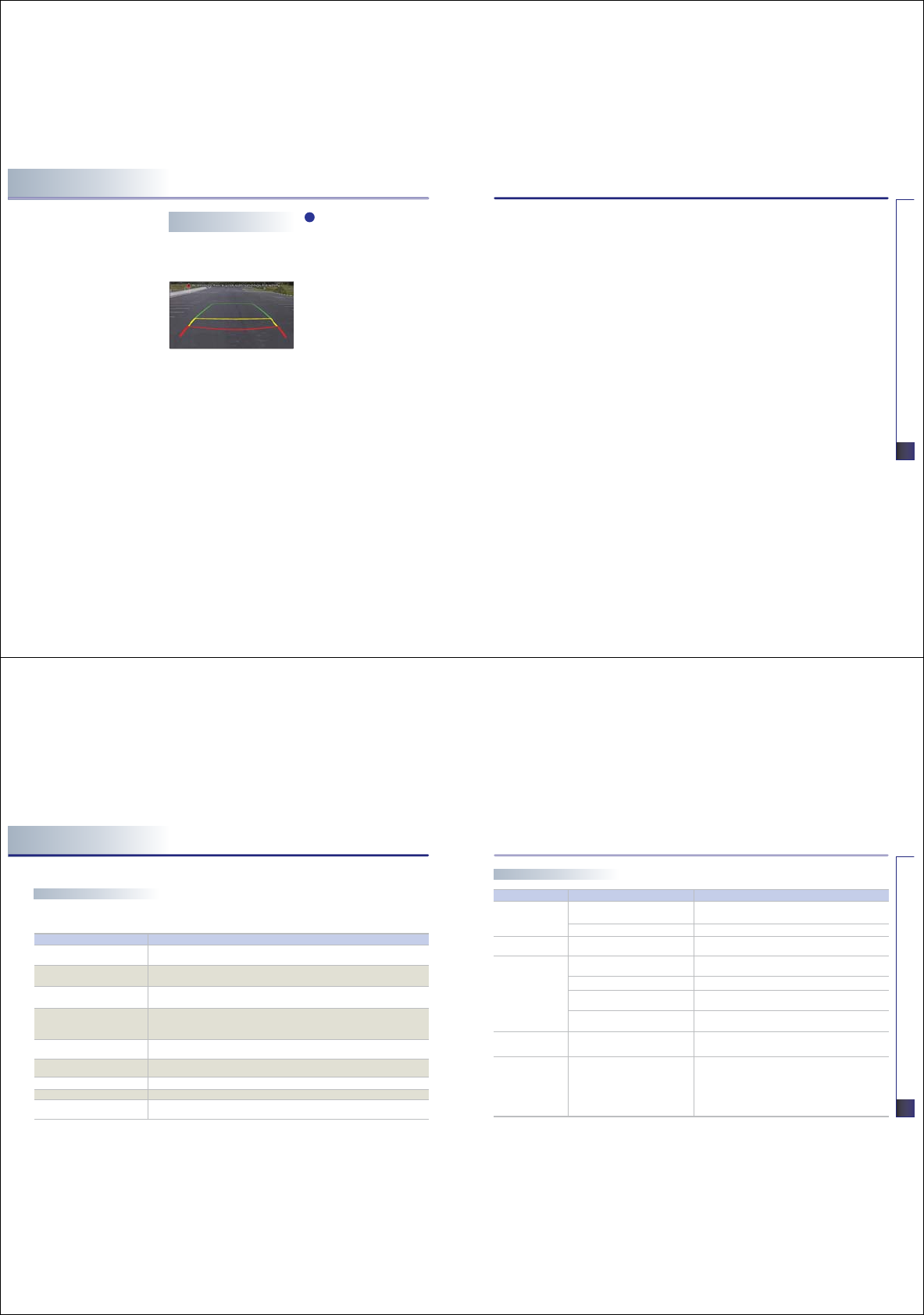

6-2 REAR CAMERA
PART 6 REAR CAMERA
APPENDIX 7-1
APPENDIX
PART 7
APPENDIX
Troubleshooting guide 7-2
Before thinking the product has
malfunctioned 7-2
Troubleshooting 7-3
Map legend 7-5
Road color 7-5
POI icons 7-5
Landmark icons 7-7
INDEX 7-8
About Rear Detection
Camera
This system has been equipped with a rear
camera for user safety by allowing a wider
rear range of vision.
The rear camera will operate automatically
when the ignition KEY is turned ON and the
transmission lever is set to R. The rear
camera will automatically stop operating
when set to a different lever.
Operating sequence of the Rear
Camera
Position the ignition key onto ACC or ON.
Position the transmission lever to R.
The rear camera mode will be displayed on
the screen.
INFORMATION
The front/rear camera has been equipped
with an optical lens to provide a wider range
of vision and may appear different from the
actual distance. Check the rear and left/right
firsthand for user safety.
The front/rear camera section pertains only
to customers who have purchased this
optional installation.
i
APPENDIX 7-3
APPENDIX
7-2 APPENDIX
PART 7 APPENDIX
Troubleshooting guide
Before thinking the product has malfunctioned
Errors which occur during the operation or installation of the device may be mistaken as a malfunction of the actual device.
If you are having problems with the device, try the suggestions listed below.
If the problems persist, contact your point of purchase or the nearest service center.
Function
Because the LCD is manufactured with technology requiring high point density, a pixel deficiency or
lighting may occur within 0.01% of total pixels.
Has the Switch for the vehicle been turned to [ACC] or [ON]?
Has the SYSTEM been turned OFF?
Has the volume been set to a low level?
Has the volume been set on mute?
The display looking somewhat darker after prolonged periods of use is a normal phenomenon with
LCD panels. It is not a malfunction.
If the screen is very dark, contact your point of purchase or the nearest service center.
Is the position of FAL/BAL sound controls or volume adjusted to only one side?
Is the audio and video connector jacks fully inserted into the AUX terminal?
Is the external device connected with a standard connector cable?
Some map data may be missing or incorrect.
The TTS(Text To Speech) engine speaks the street name based off of the phonetic spelling.
This will continuously be update with the map database.
Problem
There are small red, blue, or green dots
on the screen
The sound or image is not
working
The video is being displayed but
sound is not working
When the power is turned on, the
corners of the screen are dark
Sound is working from only one
speaker
Sound and video does not work in AUX
mode
The external device is not working
The road is missing
The road name is spoken incorrectly
Troubleshooting
Possible Cause
The fuse is disconnected.
Solution
Replace with a suitable fuse. If the fuse is disconnected again, please
contact your point of purchase or service center.
Problem
The power does not
turn on.
Device is not properly connected. Check to see that the device has been properly connected.
The XM mode is in category. Press the mode button to change to channel mode.
The DISC has not been inserted or has been
inserted upside down.
Insert the disc properly so that the sides are facing the correct
direction.
The DISC has been contaminated.
The vehicle battery is low.
A disc which is not supported by the device
has been inserted.
Wipe dirt and other foreign substances from the DISC.
Charge the battery. If the problem persists, please contact your point of
purchase or service center.
Insert a disc which is supported for play by the device.
The CD does not play.
XM only goes through
one category
The brightness level has been set to the
lowest level.
Adjust the brightness to a higher level. The video does not
work.
The volume level is set the lowest level.
The connector is not properly connected.
The device is currently fast-forwarding,
rewinding, scanning, or playing in slow
mode.
Adjust the volume level.
Check the connection state.
The sound will not work when the device is fast-forwarding,
rewinding, scanning, or playing in slow mode.
The sound does not
work.
APPENDIX 7-5
APPENDIX
7-4 APPENDIX
PART 7 APPENDIX
Possible Cause
The DISC is dirty or scratched.
Vibration is occurring from the position in
which the conversion switch has been installed.
The color and tone quality of the image is low.
Solution
Wipe off water or dirt from the DISC. Do not use a disc which has
been scratched.
The sound may be short-circuited and the image distorted if the
device begins to vibrate. The device will return to normal
operation once the vibration has stopped.
Aging of the video display and deterioration in performance
may cause certain quality degradations.
Problem
The sound or video
quality is low.
The iPod is not
recognized even though
it has been connected.
There are no titles which can be played.
The iPod firmware version has not been
properly updated.
The iPod device does not recognize downloads.
Use iTunes to download and save MP3 files into the iPod.
Use iTunes to update the firmware version and reconnect the
iPod with the device.
Reset the iPod and reconnect with the device.
The USB does not work.
USB memory is damaged.
USB memory has been contaminated.
A separately purchased USB HUB is being used.
A USB extension cable is being used.
A USB which is not a Metal Cover Type USB
Memory is being used.
A HDD type, CF, SD Memory is being used.
There are no music files which can be played.
Please use after formatting the USB into FAT 12/16/32 format.
Remove any foreign substances on the contact surface of the
USB memory and multimedia terminal.
Directly connect the USB memory with the multimedia terminal on
the vehicle.
Directly connect the USB memory with the multimedia terminal on
the vehicle.
Use a standard USB Memory.
Use a standard USB Memory.
Only MP3,WMA file formats are supported. Please use only the
supported music file formats.
Map legend
Road color
Color
Day Road Type
Freeway
Arterial
County
Collector
Local
Unpaved local
Ferry
Color
Night Road Type
Freeway
Arterial
County
Collector
Local
Unpaved local
Ferry
POI icons
No Category Sub Category Icon
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Representation
Fast Food
American
French
Italian
Continental
Mexican
Japanese
Chinese
Korean
Vegetarian Food
Seafood
Latin American
Asian
African
Restaurants
No Category Sub Category Icon
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Restaurants
Automotive
Travel
Coffee Shop
Others
Representation
Gas Station
Parking
Auto service
Road Assistance
Hyundai Dealership
Automobile Dealership
Auto Parts
Rest Area
Car Wash
Motorcycle Dealeship
Representation
Airport
APPENDIX 7-7
APPENDIX
7-6 APPENDIX
PART 7 APPENDIX
No Category Sub Category Icon
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
Travel
Shopping
Hotel
Tourist Information
Travel Agent
Tourist Attraction
Popular Spot
Rental Car Agency
Campground
Ferry Terminal
Bus Station
Local Transit
Train Station
Representation
Department Store
Convenience Store
Shopping Center
No Category Sub Category Icon
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Shopping
No Category Sub Category Icon
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
Financial
Service
Community
Recreation
Recreation
Sports Complex
Golf Course
Winery
Video & Game Rental
Ski Resort
Recreation Area
Other Recreation
Representation
Bank
ATM
Check Cashing Service
Money Transfer
Business Facility
Representation
Police Station
Music Store
Grocery Store
Bookstore
Electronics
Hardware Store
Gifts
Sporting Goods
Home Specialty Store
Clothing
Shoe Store
Representation
Amusement Park
Museum
Cinema
Sports Activities
No Category Sub Category Icon
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
Community
Service
Post Office
Library
Court House
Fire Department
Convention Center
City Hall
Civic Center
School
Government Offices
Waste & Sanitary
Utilities
Representation
Hospital
Dentist
Photography
No Category Sub Category Icon
91
92
93
94
95
96
97
98
99
100
101
Service
Tax Service
Medical Service
Attorney
Funeral Director
Hair & Beauty
Cleaning & Laundry
Social Service
Physician
Communication
Tailor & Alteration
Mover
No Category Sub Category Icon
1
2
3
4
Service
Airport
Park
Golf
University
Landmark iconsPOI icons POI icons
APPENDIX 7-9
INDEX
7-8 APPENDIX
INDEX
A
Activating call waiting
5-14
Adaptive volume control ON/OFF
3-52
Adding to address book
3-27
Adding waypoints
3-32
Adjusting audio volume
1-8
Advanced settings
5-26
Audio streaming
5-21
Auto volume control ON/OFF
1-11
AUX
2-29
AUX screen
2-29
Answering an incoming call
5-13
B
BASS/MID/TREB
1-11
Basic operation and setting
1-7
Basic operation for voice command
control
4-2
Before thinking the product has
malfunctioned
7-2
Bluetooth handsfree
5-2
Bluetooth handsfree mode
5-2
Bluetooth settings
5-24
Brightness
1-11
C
Call history
5-19
CD
2-14
CD screen and functions
2-14
Changing destination position
3-27
Changing the map scale
3-8
Changing Route option
3-32
Changing passkey
5-28
Command list of Audio system
4-6
Command list of Help
4-18
Command list of Navigation system
4-12
Condition for voice command system
4-2
Condition for voice recognition system
1-9
Connections
5-7
Connecting AUX
2-29
Connecting a mobile phone
5-7
Connecting iPod device
2-22
Connecting the USB
2-28
Control panel
1-3
Controller and functions
1-3
Current position map screen
(without route)
3-5
D
Deleting an address book
3-47
Deleting an address of address book
3-46
Deleting all avoid area
3-41
Deleting all paired phones
5-28
Deleting avoid area
3-41
Deleting a paired phone
5-6
Deleting favorite place
3-50
Deleting Home address
3-48
Deleting waypoints
3-34
Destination menu screen and functions
3-12
Device information
5-27
Device name
5-27
Device address
5-27
Disable streaming audio
5-26
Disc/content format compatibility
2-12
Disconnecting a mobile phone
5-8
Display mode
1-11
Display OFF
1-11
Display ON
1-11
Display setting
1-11
Displaying / Hiding POI icons on the map
3-9
Displaying / Hiding Q.POI icons
3-9
Displaying /Hiding icons other than
Q.POI icons
3-9
Displaying the list
1-8
E
Editing an address of address book
3-45
Editing avoid area
3-40
Editing waypoints
3-32
Ejecting a disc
2-13
Enable streaming audio
5-26
Ending a call
5-15
F
FAD/BAL
1-10
Finishing route guidance
(Delete Destination)
3-30
FM/AM Radio
2-2
FM/AM screen and functions
2-2
For safe and efficient operation
2-10
G
Giving voice command
1-10
GPS signal reception state
3-2
H
Handsfree volume
5-25
Help
3-54
How to operate a menu by
voice command
1-9
How to operate the screen menu
1-8
I
Important information about this manual
1-2
Initializing Bluetooth handsfree
5-29
Initializing system
3-38
Inputting letter by using screen
keyboard
1-8
Inserting a disc
2-13
Inserting/Ejecting disc
2-13
Introduction
1-2
iPod
2-22
iPod screen and functions
2-23
L
Landmark icons
7-7
Limitations of the navigation system
3-2
Listening to CD music
2-14
Listening to iPod music
2-22
Listening to MP3 music
2-18
Listening to the FM/AM radio
2-2
Listening to the XM radio
2-6
Listening to USB music
2-38
M
Main setting
3-36
Making a call by dialing a phone number
5-11
Making a call from Speed Dial
5-11
Making a call by redialing
5-12
Making a call from the Phone book
5-16
Making a call from Call history
5-19
Making a call to POI
3-10
Map Functions
3-5
Map legend
7-5
MP3
2-17
MP3 disc related information and
precaution
2-17
MP3 screen and functions
2-18
My places setting
3-43
N
Navigation setting
3-38
O
Operating after searching a destination
3-27
Operating after setting a destination
3-28
Operating the CDP
2-10
Operating the external devices
2-22
Operating the radio
2-2
APPENDIX 7-11
INDEX
7-10 APPENDIX
INDEX
Operating typical screen menu
1-8
Operating voice command
4-2
P
Pairings
5-4
Pairing a mobile phone
5-4
Passkey
5-5
Phonebook
5-16
Phonebook download
5-16
Phone music
5-21
Playing AUX
2-29
POI icons
7-5
Precaution for safe usage
1-2
Precautions upon handling discs
2-10
Precautions upon handling USB
2-26
Priority
5-24
Private mode
5-14
R
Rear detection camera
6-2
Region code
5-6
Registering avoid area
3-38
Registering favorite place
3-49
Registering home address
3-48
Registering new address in
address book
3-43
Rejecting an incoming call
5-13
Re-ordering waypoints
3-34
REW/FF CD track
2-15
REW/FF iPod song
2-24
REW/FF MP3 file
2-20
Road color
7-5
Route guidance
3-4, 3-30
Route guidance screen
3-28
Route menu screen and functions
3-30
Route overview(View Entire Route)
3-31
Route Re-calculation
3-4
S
Scanning CD track
2-16
Scanning FM/AM broadcast frequency
2-5
Scanning MP3 file
2-21
Scanning XM broadcast channel
2-9
Scrolling map
3-11
Searching a destination
3-13
Searching a POI
3-20
Searching a previous Destination
3-17
Searching an address
3-13
Searching for Emergency facilities
3-25
Searching an intersection
3-17
Searching destination by
voice command
4-19
Searching favorite places
3-26
Searching from Address book
3-24
Searching from MAP
3-26
Searching POI by local POI list
3-26
Searching your Home
3-25
Selecting an iPod song
2-23
Selecting an item in a list
1-9
Selecting FM/AM broadcast frequency
2-3
Selecting other route
3-29
Selecting the CD track
2-15
Selecting the MP3 file
2-19
Searching the Phone Book
5-17
Selecting XM broadcast channel
2-7
Searcting a destination
3-13
Setting arrival time and distance display
3-38
Setting as Destination/waypoint
3-27
Setting avoid streets on route
3-35
Setting detour distance
3-35
Setting estimate travel time
3-42
Setting keyboard for inputting letter
3-36
Setting Q.POI icons
3-42
Setting Random function for MP3 file
2-20
Setting Random function for iPod song
2-25
Setting Random function for CD music
2-16
Setting Repeat function for MP3 file
2-20
Setting Repeat function for CD music
2-15
Setting Repeat function for iPod song
2-25
Setting the Clock
1-11
Setting units (mi/km)
3-38
Setting up the voice command system
4-4
Setting voice command feedback
ON/OFF
3-37
Setting voice Prompt ON/OFF
4-4
Setup and Information
3-36
Setup menu screen and functions
3-36
Sorting items from the list
1-9
Sound setting
1-10
Sorting call history
5-19
Speaker adaptation
4-4
Speed dial
5-11
Starting navigation system
3-5
Starting Phone Music
5-21
Selecting Phone Music files
5-23
Starting route Guidance
3-28
Steering wheel remote controller
1-4
Storing FM/AM preset
2-4
Storing XM preset
2-9
Supported disc formats
2-11
Switching call to the mobile phone
5-14
Switching map mode
(north up/heading up)
3-6
Switching the XM mode
(channel/category)
2-7
System information and update
3-51
System Power ON
1-7
T
Touch screen beep ON/OFF
1-11
Troubleshooting
7-3
Troubleshooting guide
7-2
Traffic Setup
3-52
Traffic Information
3-52
Turning the Audio ON/OFF
1-7
Turning the Power OFF
1-7
Turning the Power ON
1-7
U
USB
2-26
USB MP3 related information and
precaution
2-26
V
Vehicle position display
3-3
Viewing detail information for MP3 file
2-20
Viewing Current Time
1-11
Viewing GPS signal state
3-7
Voice command help
4-3
Voice command list
4-6
Voice guidance volume control
3-51
Voice guidance volume setting
3-51
W
Waiting call switch
5-15
X
XM Radio
2-6
XM screen and functions
2-6
MS
MicrosoftWindowsAutomotive Operating System
Important Safety Information
Read and Follow Instructions
Before using your Windows Automotive-based system, read and follow all instructions and safety information provided in this end user manual
("User's Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.
Keep User's Guide in Vehicle
When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Windows Automotive-based
system. Please make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions
and safety information carefully.
Warning:
Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or
other serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle
in a safe and legal manner before attempting these operations. This is important since while setting up or changing some functions you
might be required to distract your attention away from the road and remove your hands from the wheel.
General Operation
Voice Command Control
Functions within the Windows Automotive-based system may be accomplished using only voice commands. Using voice commands while
driving allows you to operate the system without removing your hands from the wheel.
Prolonged Views of Screen
Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before
attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous if your
attention has been diverted away from your driving task at a critical time.
Volume Setting
Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while driving.
Driving while unable to hear these sounds could cause an accident.
Navigation Features
Any navigation features included in the system are intended to provide turn by turn instructions to get you to a desired destination. Please
make certain all persons using this system carefully read and follow instructions and safety information fully.
Distraction Hazard
Any navigation features may require manual (non-verbal) setup. Attempting to perform such set-up or insert data while driving can seriously
distract your attention and could cause an accident or other serious consequences. Stop the vehicle in a safe and legal manner before
attempting these operations.
Let Your Judgment Prevail
Any navigation features are provided only as an aid. Make your driving decisions based on your observations of local conditions and existing
traffic regulations. Any such feature is not a substitute for your personal judgment. Any route suggestions made by this system should never
replace any local traffic regulations or your personal judgment or knowledge of safe driving practices.
MS MAP AS HOTLINE
Route Safety
Do not follow the route suggestions if doing so would result in an unsafe or illegal maneuver, if you would be placed in an unsafe situation, or if
you would be directed into an area that you consider unsafe. The driver is ultimately responsible for the safe operation of the vehicle and
therefore, must evaluate whether it is safe to follow the suggested directions.
Potential Map Inaccuracy
Maps used by this system may be inaccurate because of changes in roads, traffic controls or driving conditions. Always use good judgment and
common sense when following the suggested routes.
Emergency Services
Do not rely on any navigation features included in the system to route you to emergency services. Ask local authorities or an emergency services
operator for these locations. Not all emergency services such as police, fire stations, hospitals and clinics are likely to be contained in the map
database for such navigation features.
Use of Speech Recognition Functions
Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any speech
recognition functions included in the system and address any errors.
M & SOFT AMERICA MAP CENTER
TEL :888-757-0010
WEBSITE :www.mapnsoft.com
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating
in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.
IC Warning
Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
