HYUNDAI MOBIS HA-T008 Transmitter for RKE System User Manual 20070118 FD FSK 315 FCC IC
Hyundai MOBIS Co., Ltd. Transmitter for RKE System 20070118 FD FSK 315 FCC IC
Users Manual
HYUNDAI AUTONET Co., Ltd.
San 136-1, Ami-ri, Bubal-eub, Ichon-si, Kyoungki-do, 467-701, South Korea
Remote Keyless Entry
(HA-T008)
- INDEX -
- Description of Transmitter
- Block diagram from Transmitter
- An outline
1. How to use HA-T008
- HA-T008 is Remote Keyless System.
- This unit controll door lock/unlock/panic/tail gate unlock with wireless.
- This unit consist of Transmitter(HA-T008)
2. Introduction of Transmitter(HA-T008)
- Transmitter has four buttons
- Transmitter use the battery
- Freqency is 315 MHz
- Modulation item is SAW Resonator
- Transmitter use Rolling code algorithm
3. Regulatory Information
- THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES
- Operation is subject to the following two conditions;
(1) this device may not cause harmful interface, and
An outline of Transmitter and BCM
(2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes and modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
1. PRIMARY FUNTION
- Remote door lock/unlock/panic/tail gate unlock
- LED turn on ( When button is pushed )
- Operating distance : 30 m over
- Id input(setting mode)
2. ELECTRICAL CHARACTERISTICS
Operating frequency
Power 75.6 dBuV/m under
315 MHz
Consumption current Max 15 mA
Sensitivity -
ETC FM modulation
Operating temperature - 20 ~ + 55 ℃
Description of Transmitter
Operating voltage 3 VDC
TRANSMITTER
model name HA-T008
3. OPERATING DIAGRAM
1) TRANSMITTER

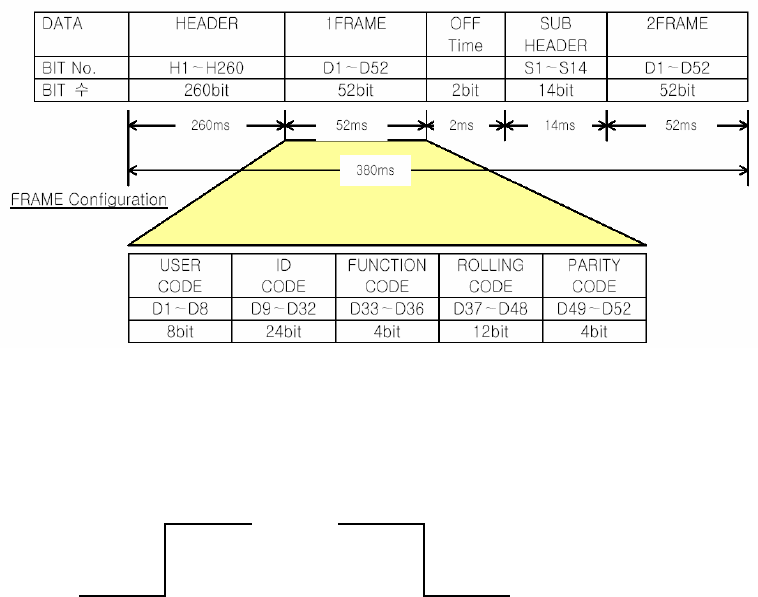

A) DATA FRAME
B) DATA FORMAT
C) TRANSMISSION SPECIFICATION
- BAUD RATE : 1 kbps
- CODING METHOD : MANCHESTER
- TRANSMISSION BIT COUNT : 380 BIT
- TRANSMISSION TIME : 380 ms ± 15 %
LOGIC "1"LOGIC "0"
TRANSMITTER(HA-T008)

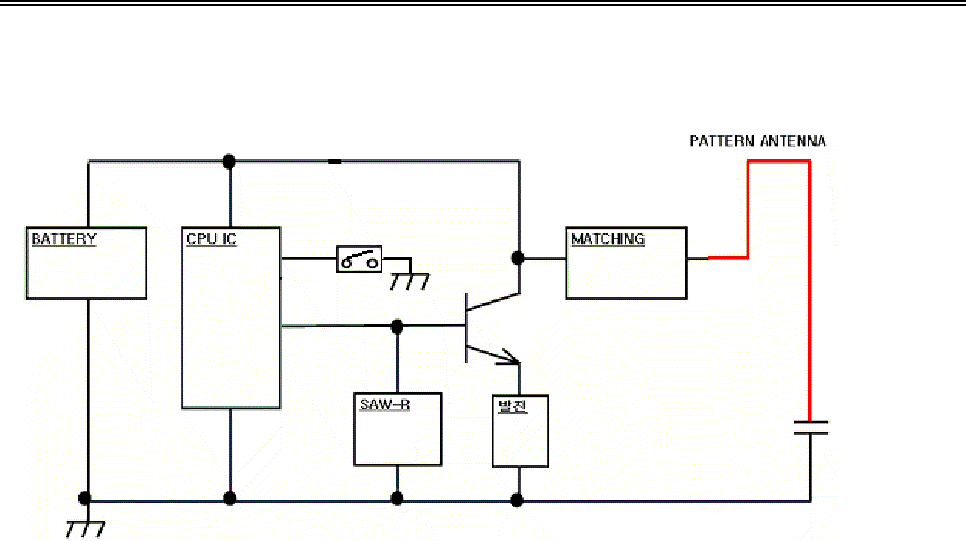

Block diagram from Transmitter
