ATTACHMENT H.
- Hardware Manual -
1. PRIMARY FUNTION
- Remote door lock/unlock/panic
- Operating distance : 30 m over
- Id input(setting mode)
2. ELECTRICAL CHARACTERISTICS
3. DESCRIPTION MODE
1) Mode
B+
KEYLESS
ACC
IG
SETTING
2) Id input(Setting Mode)
When Setting Mode, once the button push,
Operating frequency
Power 75dBuV/m under
model name HA-T036
Consumption current
315㎒
Operating temperature -20 ~ +60℃
Max 15mA
Sensitivity -
ON
OFF
OFF
Description of Transmitter and BCM
Operating voltage 3 VDC
TRANSMITTER
ETC FM modulation
Mode
- OFF
use equipment
ID INPUT
(Setting Mode)
ON
-
-
OFF
Normal Mode
4. OPERATING DIAGRAM
1) TRANSMITTER

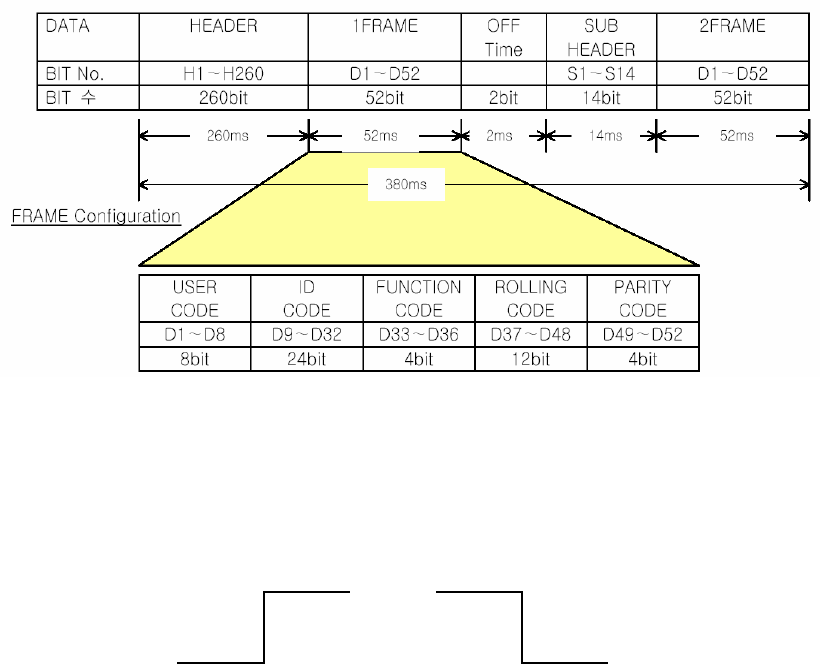

A) DATA FRAME
B) DATA FORMAT
C) TRANSMISSION SPECIFICATION
- BAUD RATE : 1000bps
- CODING METHOD : MANCHESTER
- TRANSMISSION BIT COUNT : 380BIT
- TRANSMISSION TIME : 380ms
LOGIC "1"LOGIC "0"

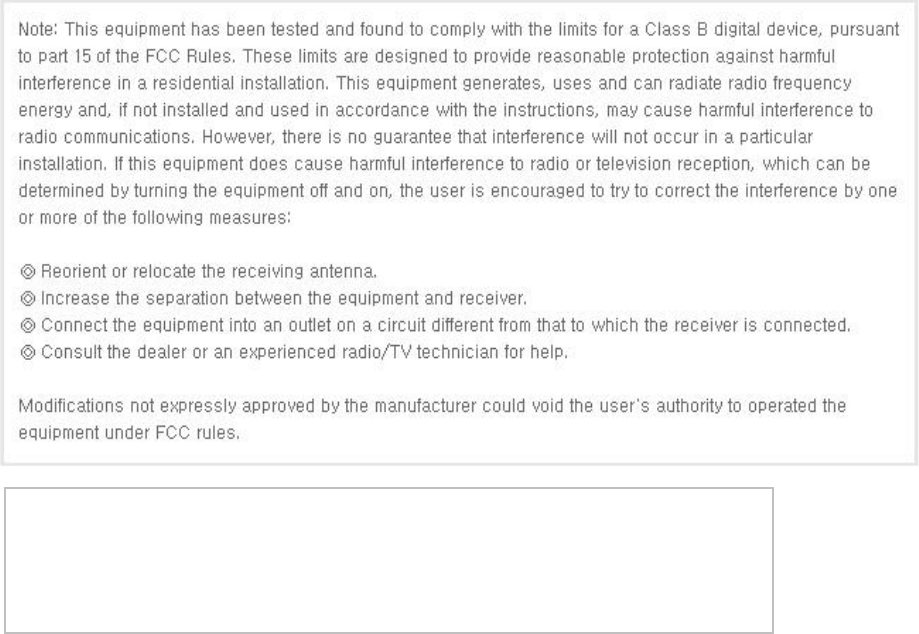

5. Information for FCC
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
