HYUNDAI MOBIS HA-T038 RKE (Remote control) User Manual H Manual
Hyundai MOBIS Co., Ltd. RKE (Remote control) H Manual
User manual
IC: 4018A-HA-T038 / FCC ID: PINHA-T038
HCT CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-RF09-0115 1/1
ATTACHMENT H.
- Hardware Manual -
1. PRIMARY FUNTION
- Remote door lock/unlock/panic
- Operating distance : 30 m over
- Id input(setting mode)
2. ELECTRICAL CHARACTERISTICS
Description of Transmitter
Operating voltage 3 VDC
TRANSMITTER
ETC FM modulation
Operating temperature -20 ~ +60℃
model name HA-T038
Operating frequency
Power 75.6dBuV/munder
Consumption current
315㎒
Max 15mA
Sensitivity -
3. OPERATING DIAGRAM
1) TRANSMITTER

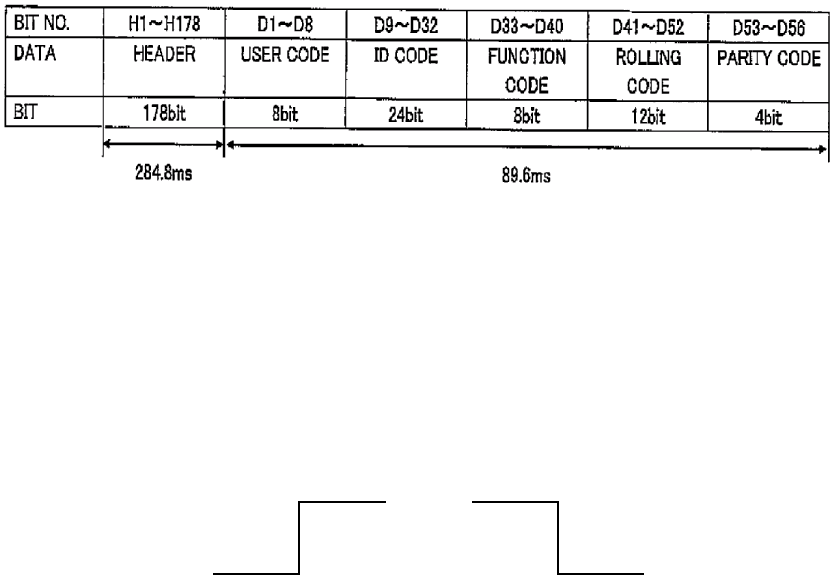

A) DATA FRAME(1FRAME)
B) DATA FORMAT
C) TRANSMISSION SPECIFICATION
- BAUD RATE : 625bps
- CODING METHOD : MANCHESTER
- TRANSMISSION BIT COUNT : 234BIT
- TRANSMISSION TIME : 374.4ms±20%
LOGIC "1"LOGIC "0"

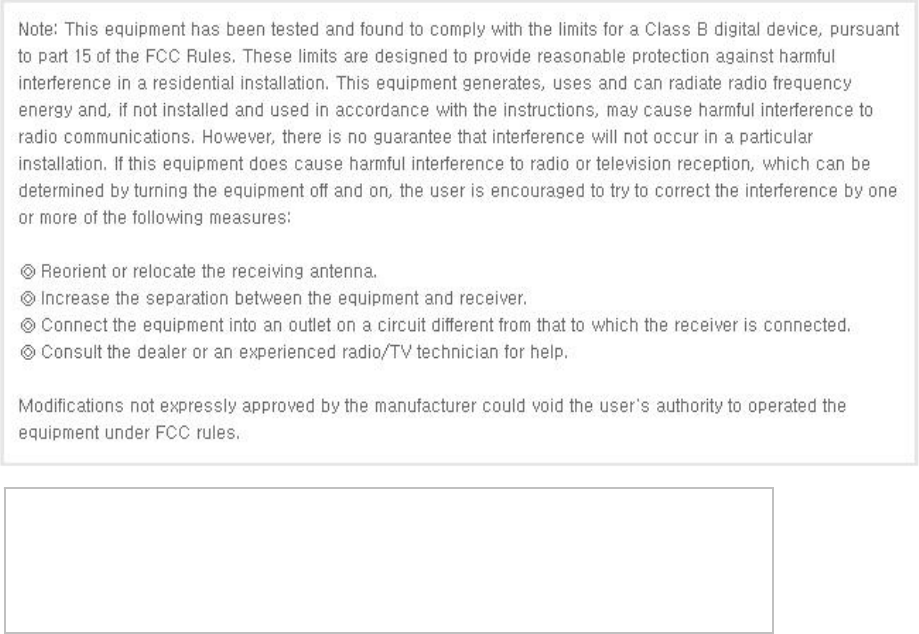

4. Information for FCC
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
