HYUNDAI MOBIS HA-T041 Remote control User Manual H Manual
HYUNDAI MOBIS CO., LTD. Remote control H Manual
User Manual
FCC ID: TQ8HA-T041/ IC: 5074A-HAT041
HCT CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCTR0910FR01-1 1/1
ATTACHMENT E.
- Hardware Manual -
1. PRIMARY FUNTION
- Remote door lock/unlock/panic/trunk
- Operating distance : 30 m over
- Id input(setting mode)
2. ELECTRICAL CHARACTERISTICS
3. DESCRIPTION MODE
1) Mode
B+
KEYLESS
ACC
IG
SETTING
2) Id input(Setting Mode)
When Setting Mode, once the button push,
Operating frequency
Power 75.6dBuV/munder
315㎒
Consumption current Max 15mA
Sensitivity -
ETC FM modulation
Operating temperature -20 ~ +60℃
Normal Mode
ON
OFF
OFF
Description of Transmitter
Operating voltage 3 VDC
TRANSMITTER
model name HA-T041
Mode
- OFF
use equipment
ID INPUT
(Setting Mode)
ON
-
-
OFF
3. OPERATING DIAGRAM
1) TRANSMITTER

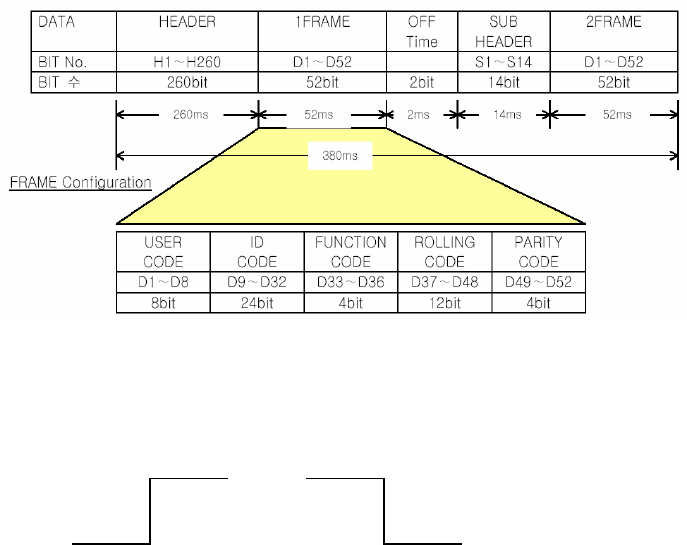

A) DATA FRAME
B) DATA FORMAT
C) TRANSMISSION SPECIFICATION
- BAUD RATE : 1kbps
- CODING METHOD : MANCHESTER
- TRANSMISSION BIT COUNT : 380BIT
- TRANSMISSION TIME : 380ms±15%
LOGIC "1"LOGIC "0"
2) BCM
Hazard Relay
Trunk Relay
Door Lock Door lock Relay
Door Unlock Door unlock Relay
Trunk
PANIC
RF Module
BCM
Output Circuit
Output Circuit CAR
Serial
Number
Rolling
Code
Button
Press
User Code
Serial Number
Sync Code
for Rolling
Rolling
Code
Decryptio
n
User Code
Received Information
Parity Error Detection
Check For
Match
Check For
Match
Decrypted
Rollin
g
Code
EEPROM
Array
4. Information for FCC

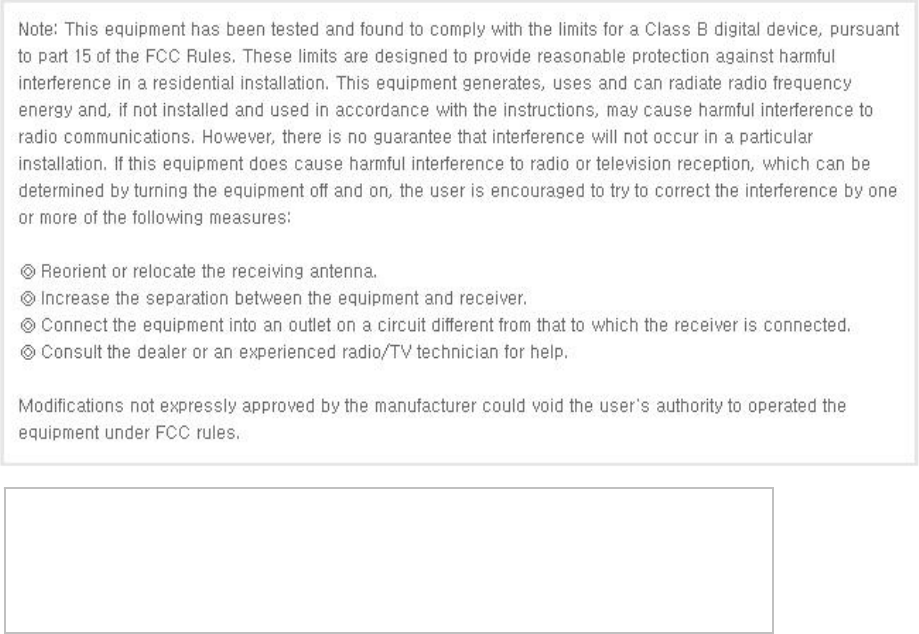

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
