HYUNDAI MOBIS HM-T008 Remote Keyless Entry System User Manual

Hyundai MOBIS Co., Ltd. Remote Keyless Entry System

User Manual

Remote Keyless Entry
(HM-T008)
Hyundai Autonet Co., Ltd.
FCC STATEMENT
FCC NOTICE: This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) This devices may
not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generate, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to the equipment not expressly
approved by the party responsible for compliance could void user’s
authority to operate the equipment.
- INDEX -
1. An outline
2. Description of Transmitter
3. Block diagram from Transmitter
4. A Picture of Transmitter
1. An outline
1.1 How to use HM-T008
- HM-T008 & HM-E008 is Remote Keyless System.
- This unit is control door lock/unlock with wireless.
- This unit is consist of Transmitter.(HM-T008).
- Lock button push, then door lock.
- Unlock button push, then door unlock.
1.2 Introduction of Transmitter(HM-T008)
- Transmitter has three button
- Button marking are LOCK, UNLOCK
- Transmitter use thee voltage battery
- Frequency is 315Mhz
- Modulation item is SAW Resonator
- Transmitter use Rolling code algorithm
2. Description of Transmitter
2.1 Description of Transmitter
- Remote door lock/unlock
- LED turn on (When button is pushed.)
- Operating distance: 10m over
- ID input (setting mode)
2.2 ELECTRICAL CHARACTERISTICS
Item TRANSMITTER
Model name HM-T008
Operating voltage 3 VDC
Consumption current Max 15mA
Operating frequency 315
Power 10mW under
Sensitivity -
Operating temperature -20 ~ +60
ETC AM modulation

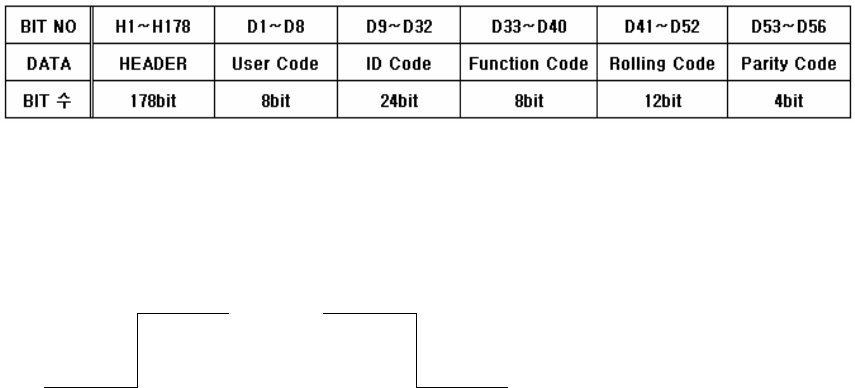

2.3 OPERATING DIAGRAM
- DATA FRAME
- DATA FORMAT
LOGIC "0" LOGIC "1"
- TRANSMISSION SPECIFICATION
. BAUD RATE : 625bps
. CODING METHOD : MANCHESTER
. TRANSMISSION BIT COUNT : 1 FRAME = 234BIT
. TRANSMISSION TIME : 377.4msec
3. Block diagram from Transmitter

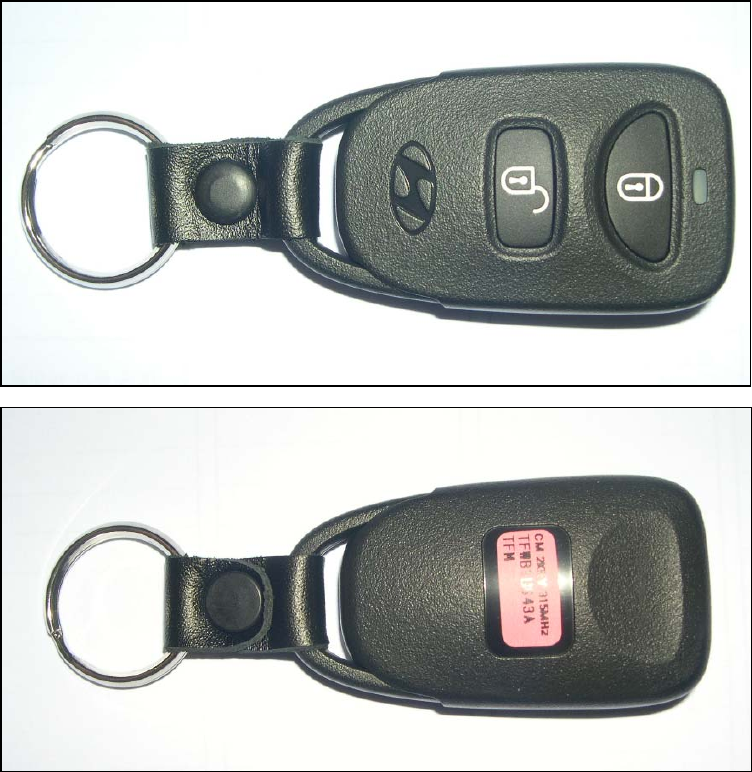

4. A Picture of Transmitter
