HYUNDAI MOBIS RKE-3F05 Remote Keyless Entry User Manual RKE 3F05 RP TX 315MHz FCC IC
HYUNDAI MOBIS CO., LTD. Remote Keyless Entry RKE 3F05 RP TX 315MHz FCC IC
User Manual
1. PRIMARY FUNCTION
- Remote door lock/unlock/panic/tail gate
- Operating distance : 10 m over
- Id input(setting mode)
2. ELECTRICAL CHARACTERISTICS
ETC FM modulation
Operating frequency
Power 75 dBuV/m under
Operating temperature -20 ~ +60 ℃
Consumption current Max 15 mA
Sensitivity -
315 ㎒
Description of Transmitter
Operating voltage 3 VDC
TRANSMITTER
model name RKE-3F05
3. OPERATING DIAGRAM
1) TRANSMITTER

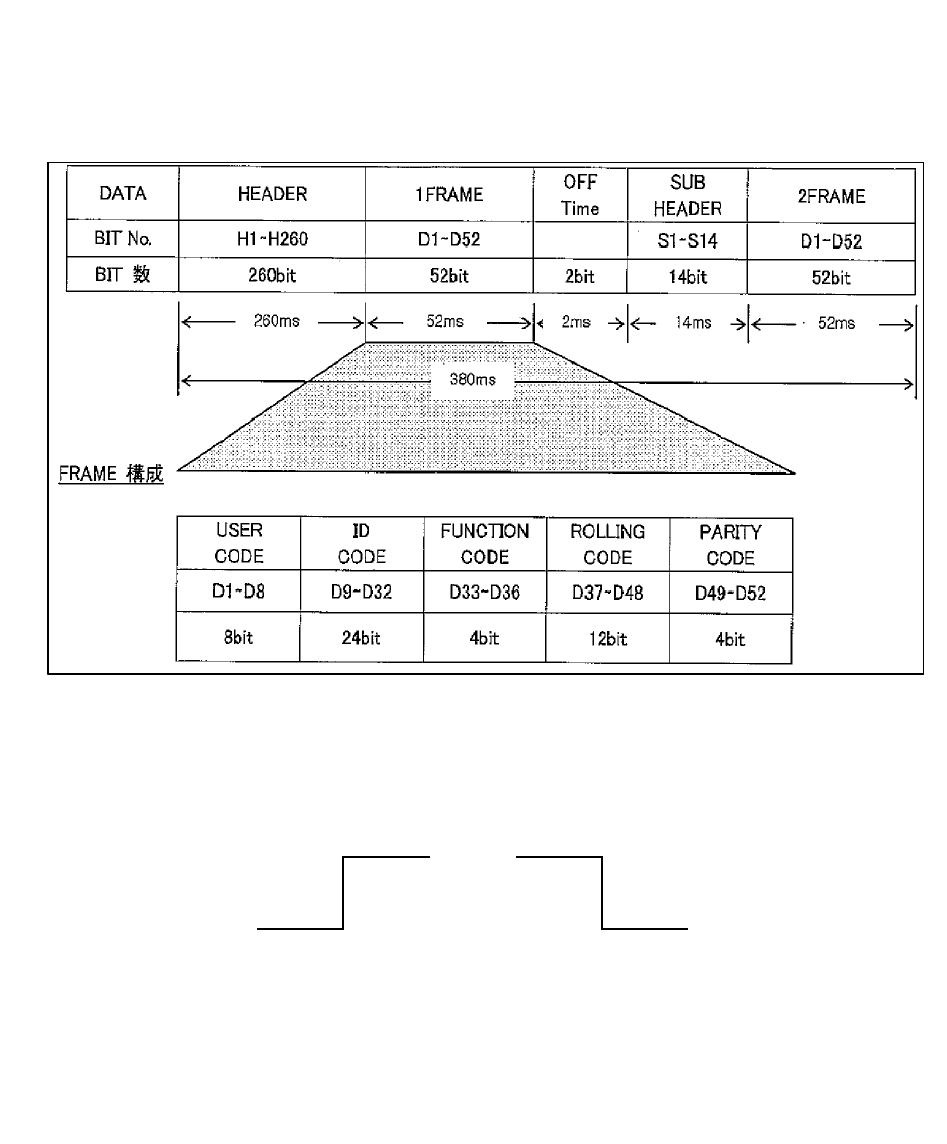

A) DATA FRAME
B) DATA FORMAT
C) TRANSMISSION SPECIFICATION
- BAUD RATE : 1kbps
- CODING METHOD : MANCHESTER
- TRANSMISSION BIT COUNT : 380Bit
- TRANSMISSION TIME : 380ms±15%
LOGIC "1"LOGIC "0"
