Habilis Net Technology E101VWT MiniVPN Box User Manual ok for FCC
Habilis Net Technology Co., LTD MiniVPN Box ok for FCC
Users Manual
Zebra Web Site：http://www.zebravpnbox.com/

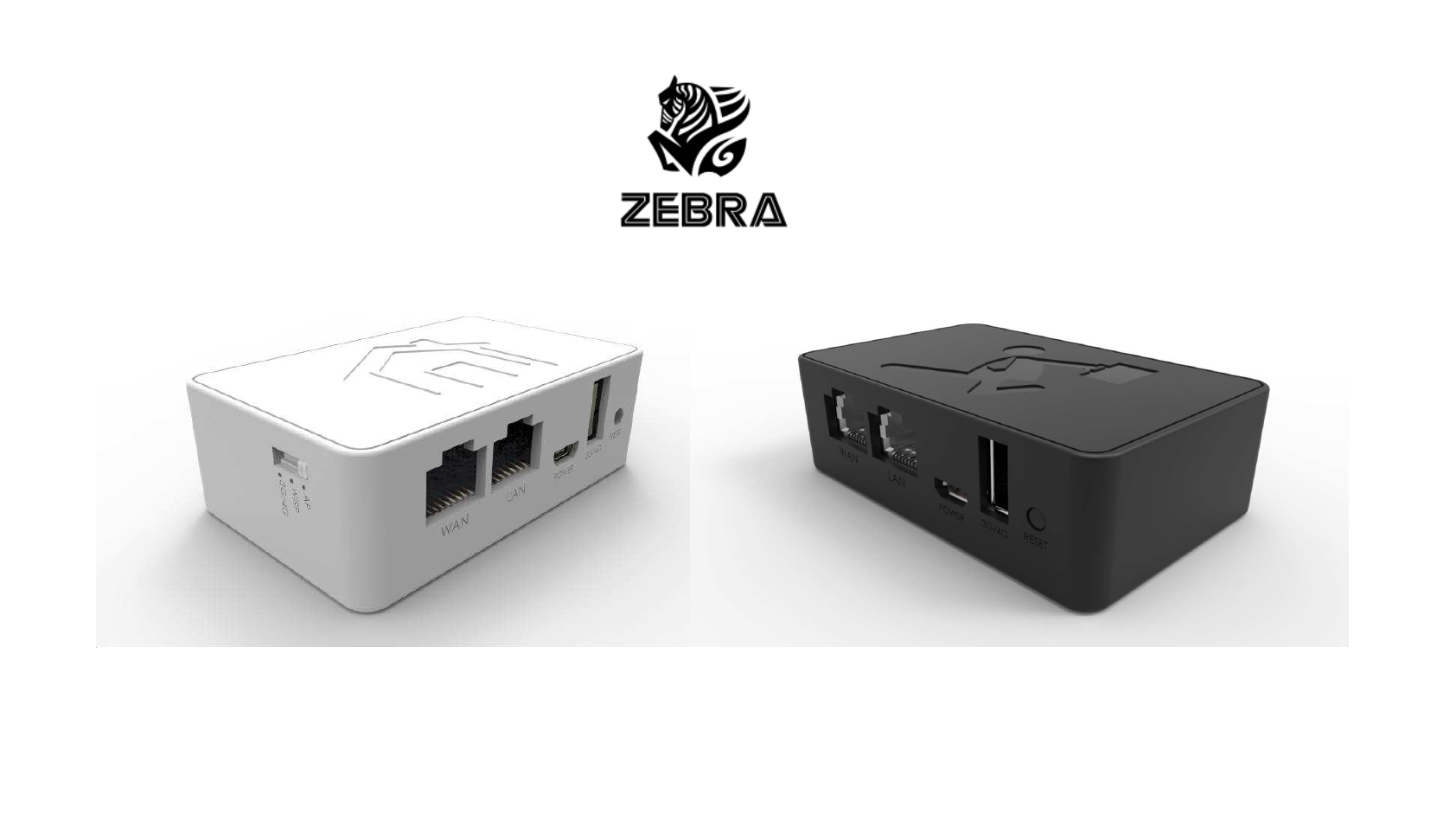

MiniVPN_Black (BE101VWT)
MiniVPN_White (WE101VWT)
黑機 (MiniVPN_Black)白機 (MiniVPN_White)
或者
Chunghwa Telecom
Modem
(Public IP)
VPN
VPN VPN
VPN Setup
SetupSetup
Setup
❶
❶❶
❶

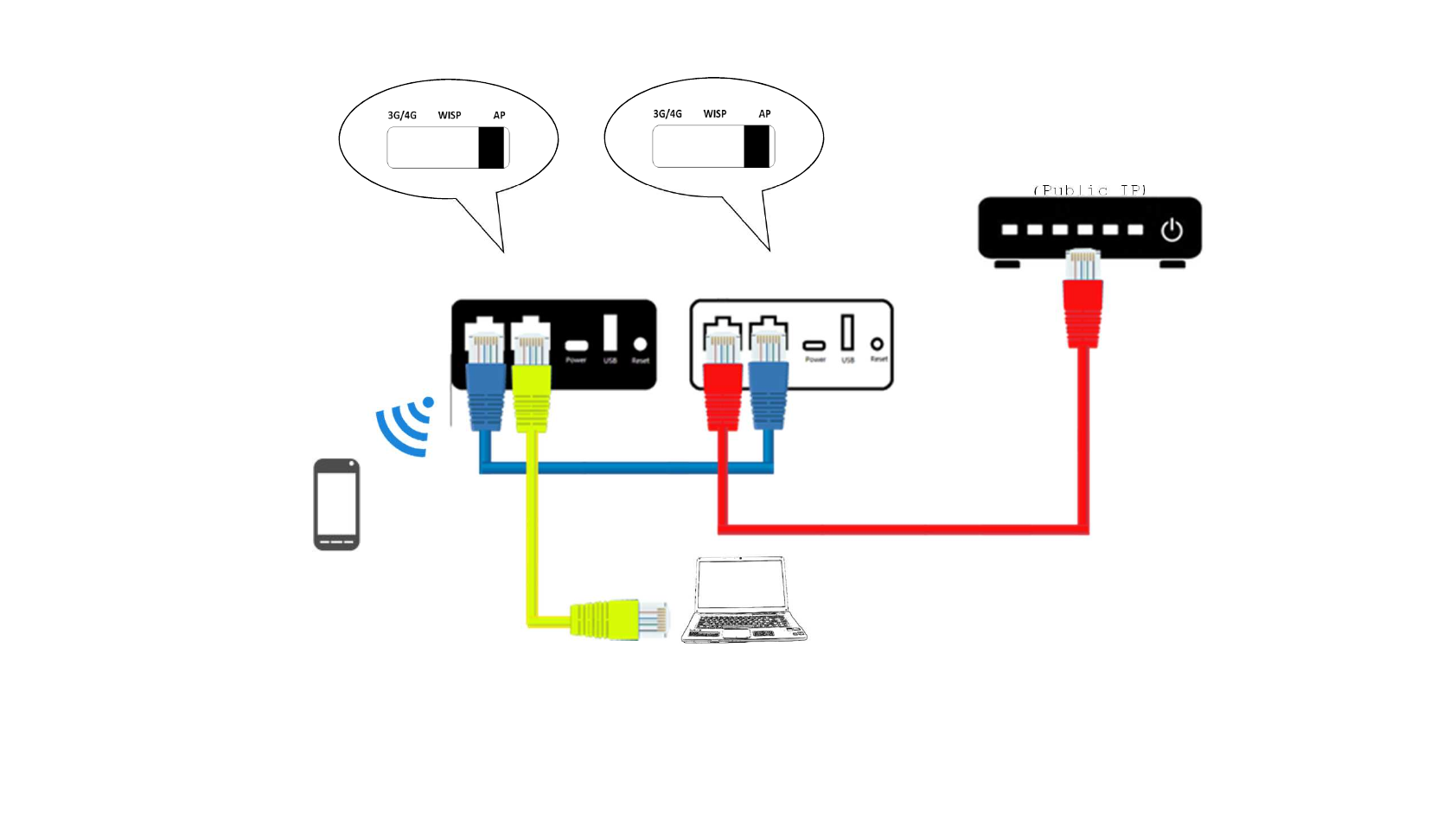

Network Topology
Network TopologyNetwork Topology
Network Topology
●Please connect Black and White Box as figure
shown above
電腦
Cell phone
Zebra Web Site：http://www.zebravpnbox.com/
WAN LAN LANWAN
MiniVPN_Black (BE101VWT) MiniVPN_White (WE101VWT)
Or Laptop
VPN
VPN VPN
VPN Setup
SetupSetup
Setup
❷
❷❷
❷
Set
SetSet
Setup via Smart
up via Smart up via Smart
up via Smart
Phone
PhonePhone
Phone

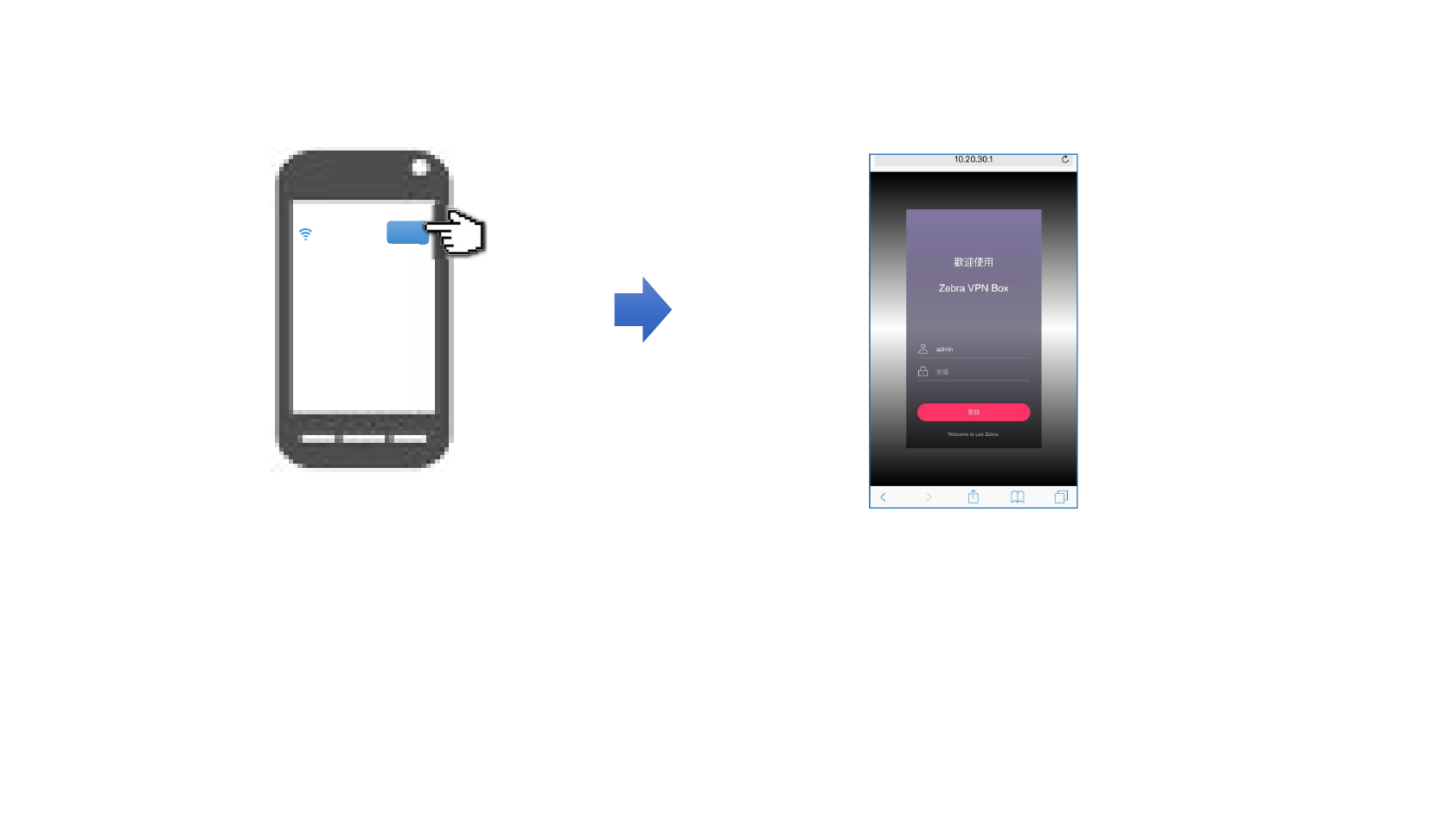

Open your mobile phone browser,enter 10.20.30.1
Key-in black box password
Default Account/Password：admin/admin
Select mobile phone configuration
Select Wi-Fi option, turn on Wi-Fi
Search for wireless SSIDs
Select MiniVPN-Black-xxxxxx
Join MiniVPN-Black-xxxxxx
MiniVPN_Black 加入
Zebra Web Site：http://www.zebravpnbox.com/

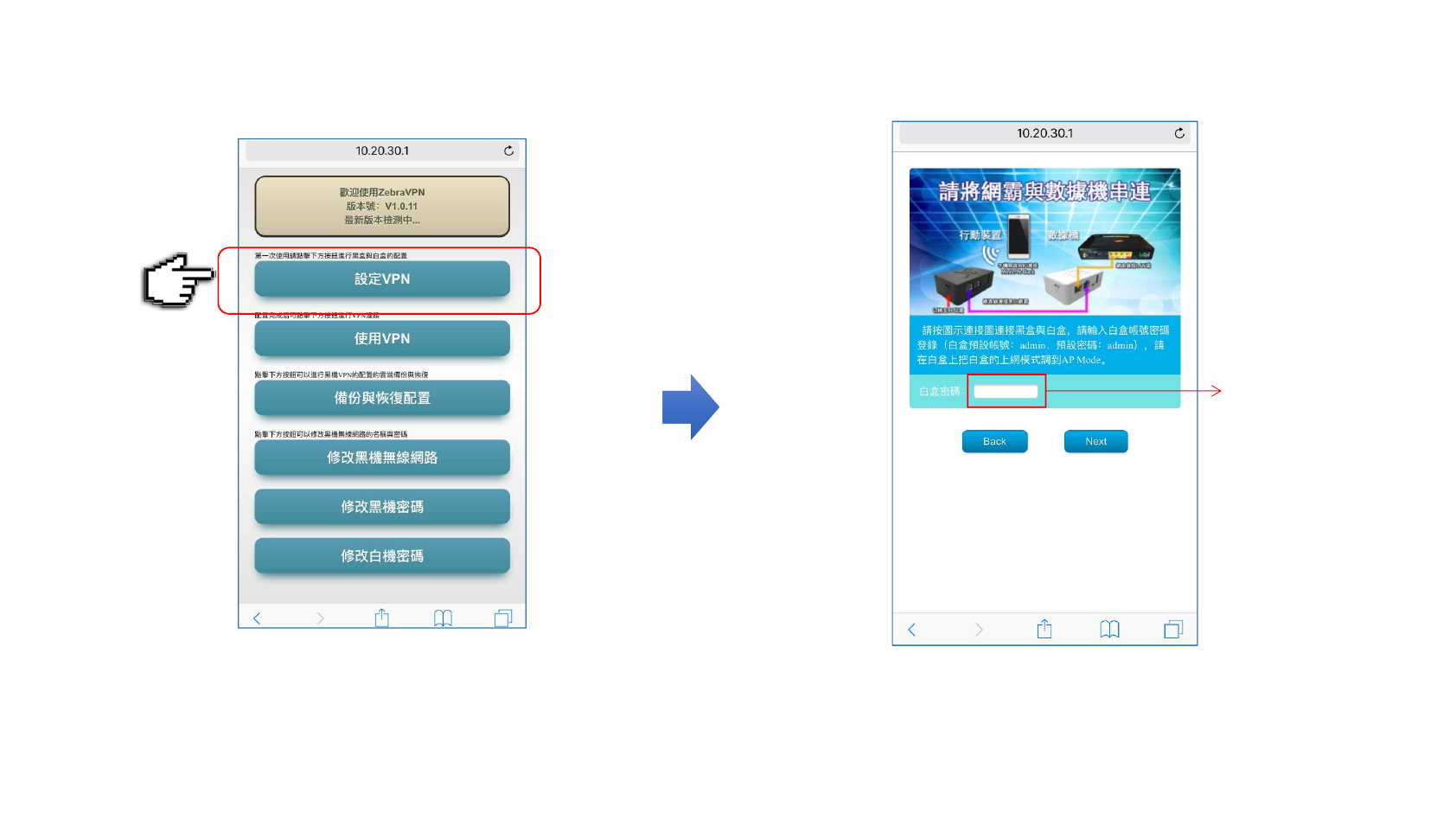

Enter VPN
Configuration Key-in White Box password
VPN Setup
VPN SetupVPN Setup
VPN Setup
❷
❷❷
❷
VPN Configuration Process
VPN Configuration ProcessVPN Configuration Process
VPN Configuration Process
Zebra Web Site：http://www.zebravpnbox.com/

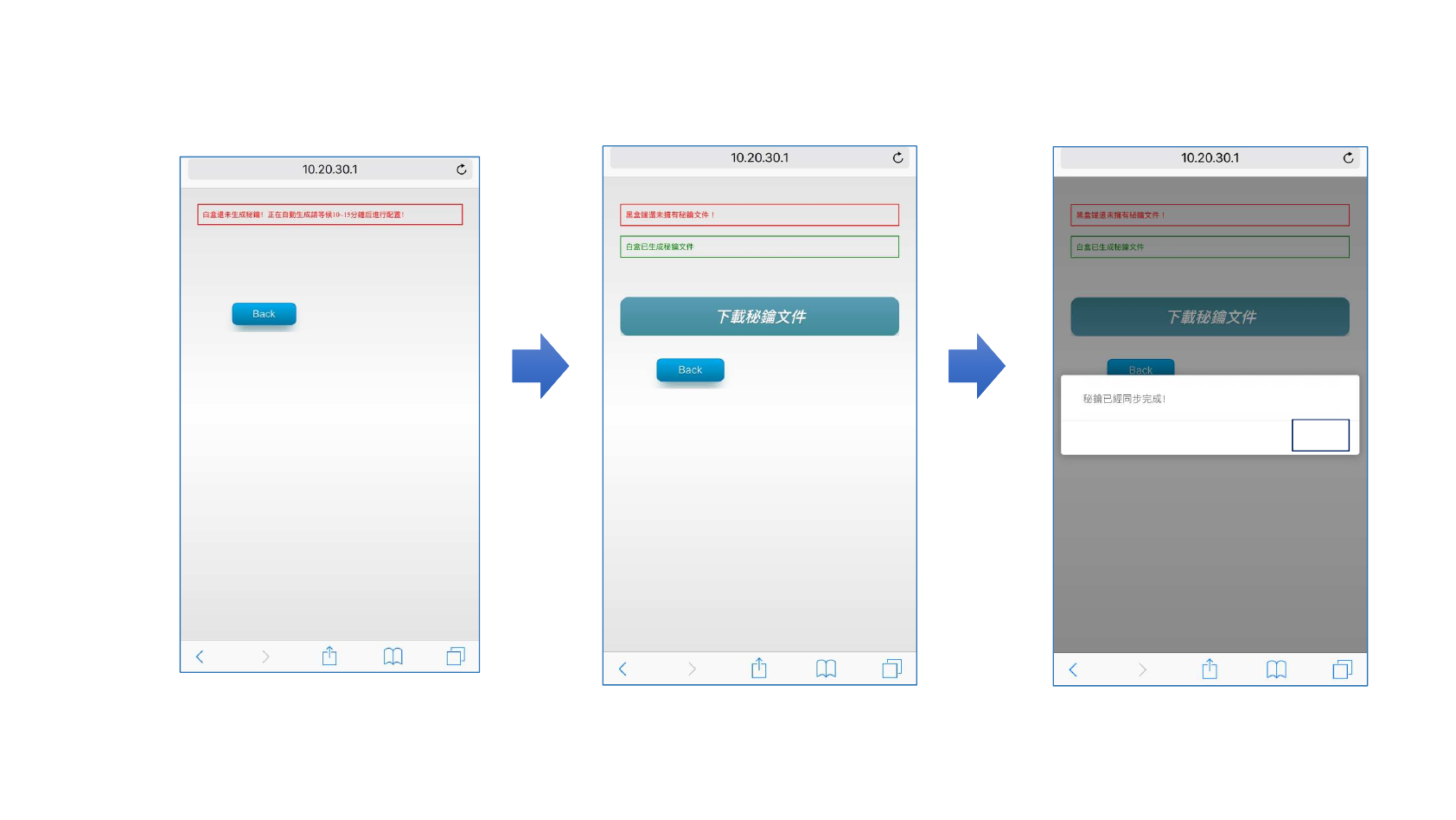

password
Synch up the key with
Black Box
(close window) Next step
Wait 5 minutes for white box
To generate a key automatically
VPN Setup
VPN SetupVPN Setup
VPN Setup
❷
❷❷
❷
VPN Configuration Process
VPN Configuration ProcessVPN Configuration Process
VPN Configuration Process
Zebra Web Site：http://www.zebravpnbox.com/
Complete !! close

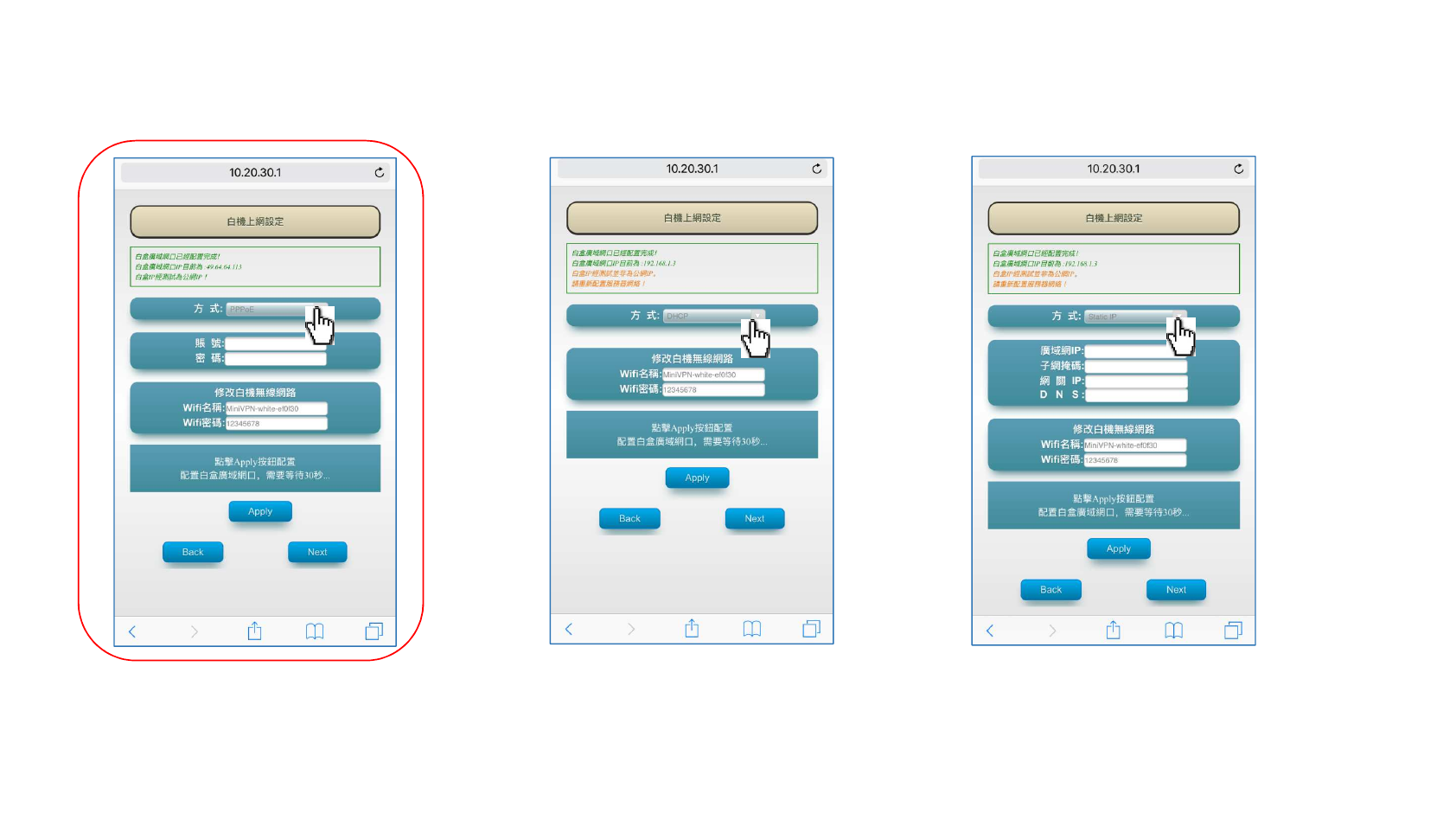

Setup White box WAN configuration according to ISP(Internet Service Provider). In
general, PPPoE is used for broadband connection if your ISP is Chunghwa Telecom. White
machine will prompt you whether it is a public WAN or not upon configuration applied.
Private IP is not allowed in our situation. Please click on the "Next" button to
proceed.
VPN Setup
VPN SetupVPN Setup
VPN Setup
❹
❹❹
❹White
White White
White Box
BoxBox
Box Internet
Internet Internet
Internet
configuration
configurationconfiguration
configuration
Zebra Web Site：http://www.zebravpnbox.com/
PPPoE mode DHCP mode Statis IP mode

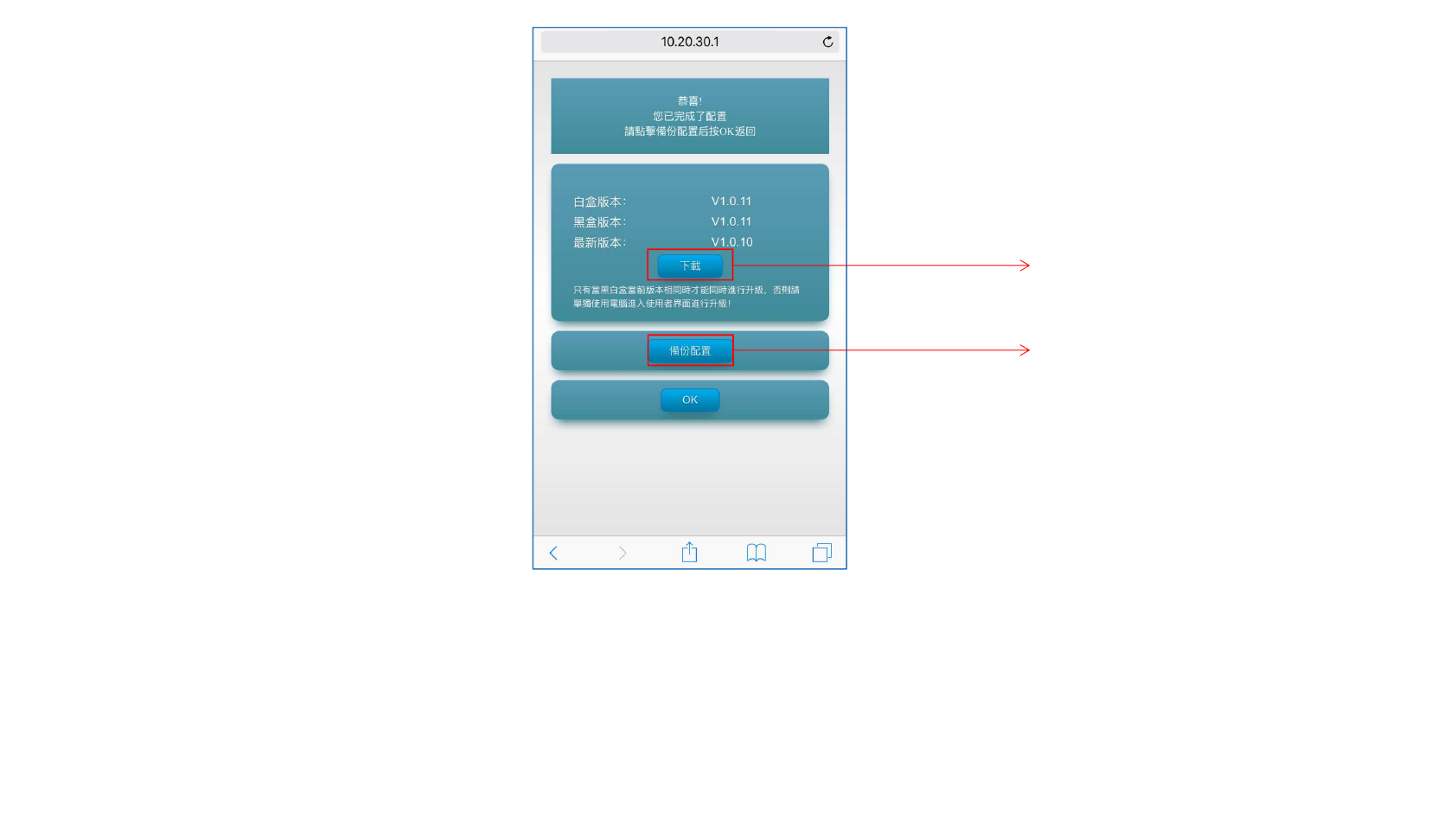

When you finish, be sure to backup the configuration to our cloud (Very important!!!), firmware
version number are available in the page. You can download the latest version and upgrade.
Click the "OK" button to return to the main menu. You can now disconnect connection between
Black and white box. You can use black box as a dedicated VPN network when travelling.
VPN
VPN VPN
VPN Setup
SetupSetup
Setup
❺
❺❺
❺
Complete
Complete Complete
Complete setup
setupsetup
setup
Zebra Web Site：http://www.zebravpnbox.com/
Backup Configuration
Download the latest F/W
VPN Use Case
VPN Use CaseVPN Use Case
VPN Use Case

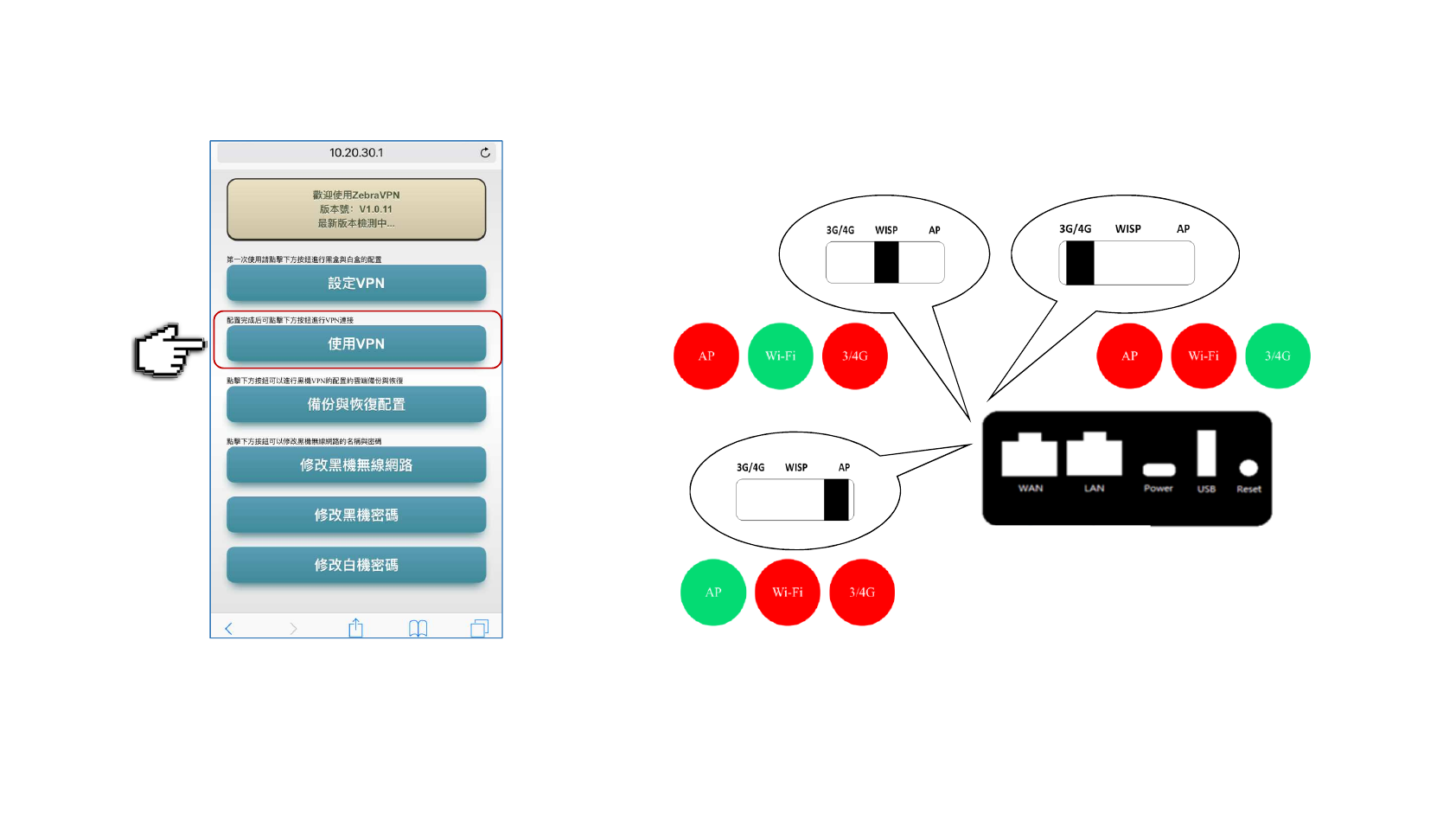

Click “Use VPN”, make sure how your
black box connect to internet. Switch
Black box side paddles appropriate for
corresponding internet connection.
GUI
detect router side paddles automatically.
Green circle shows the current paddles
position
Zebra Web Site：http://www.zebravpnbox.com/
LAN port in the wall
or
LAN port of router
LAN port in the wall
or
LAN port of router

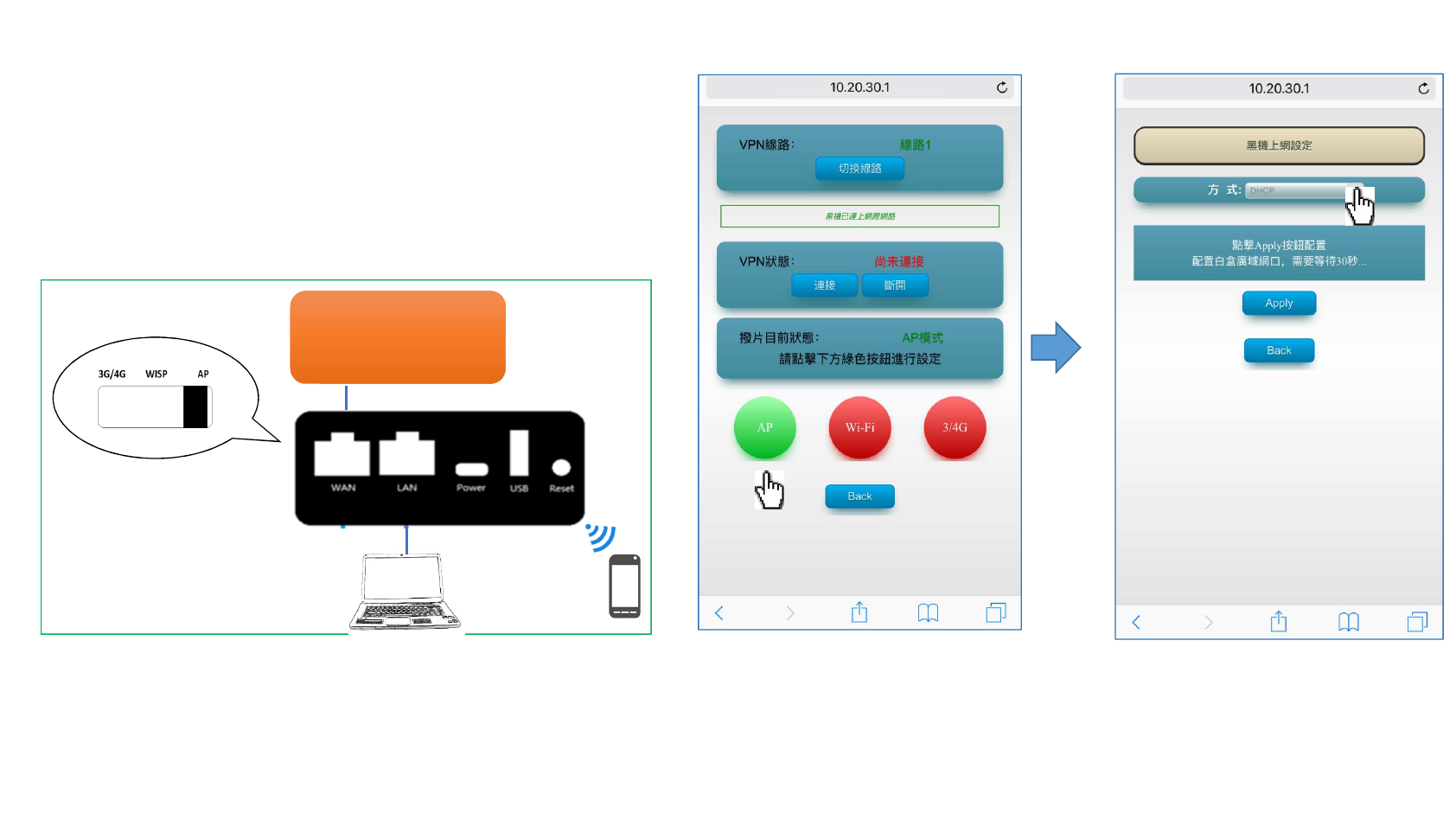

When wired internet connection is used for
Black Box, router side paddles should be
switched to “AP“Mode. Click the green AP
Circle to setup Internet configuration
accordingly
Select the appropriate
internet connection. Set
up your black box
internet
configuration.
Or
AP mode
AP modeAP mode
AP mode diagram
diagramdiagram
diagram
VPN Use Case
VPN Use Case VPN Use Case
VPN Use Case –
––
– AP Mode
AP ModeAP Mode
AP Mode
Zebra Web Site：http://www.zebravpnbox.com/
WISP
WISP WISP
WISP mode
modemode
mode diagram
diagramdiagram
diagram
Select the correct wireless
SSID,
enter Wi-Fi password. Click
the
"Connect" button for Wi-Fi
Access.
Cell Phone to Black Box
connection
VPN use
VPN useVPN use
VPN use

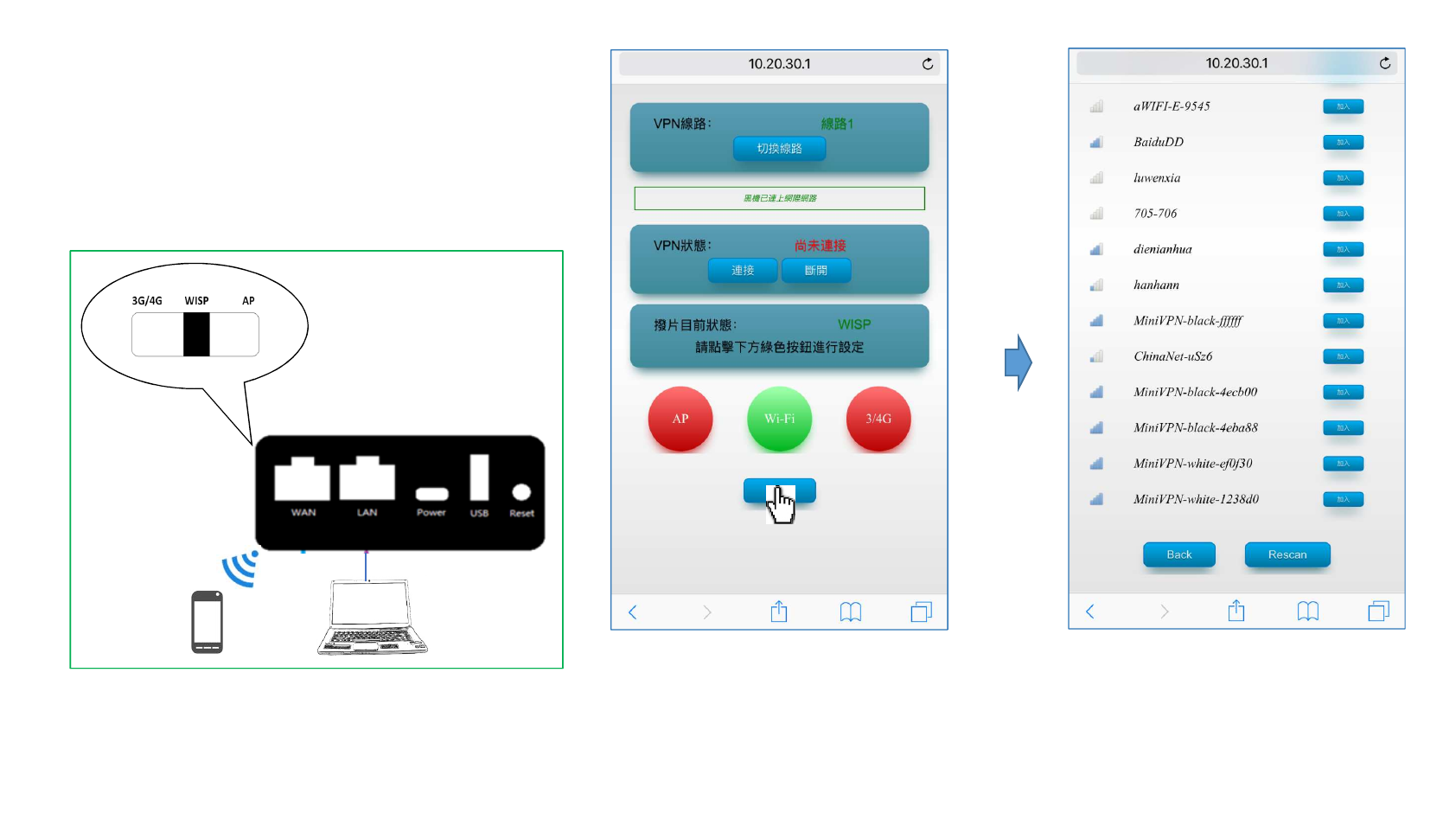

When wireless internet connection is used for
Black Box, router side paddles should be
switched to WISP Mode. Click the green Wi-Fi
Circle to setup Internet configuration
accordingly
Zebra Web Site：http://www.zebravpnbox.com/
3G/4G
3G/4G3G/4G
3G/4G mode
mode mode
mode diagram
diagramdiagram
diagram
VPN use
VPN useVPN use
VPN use

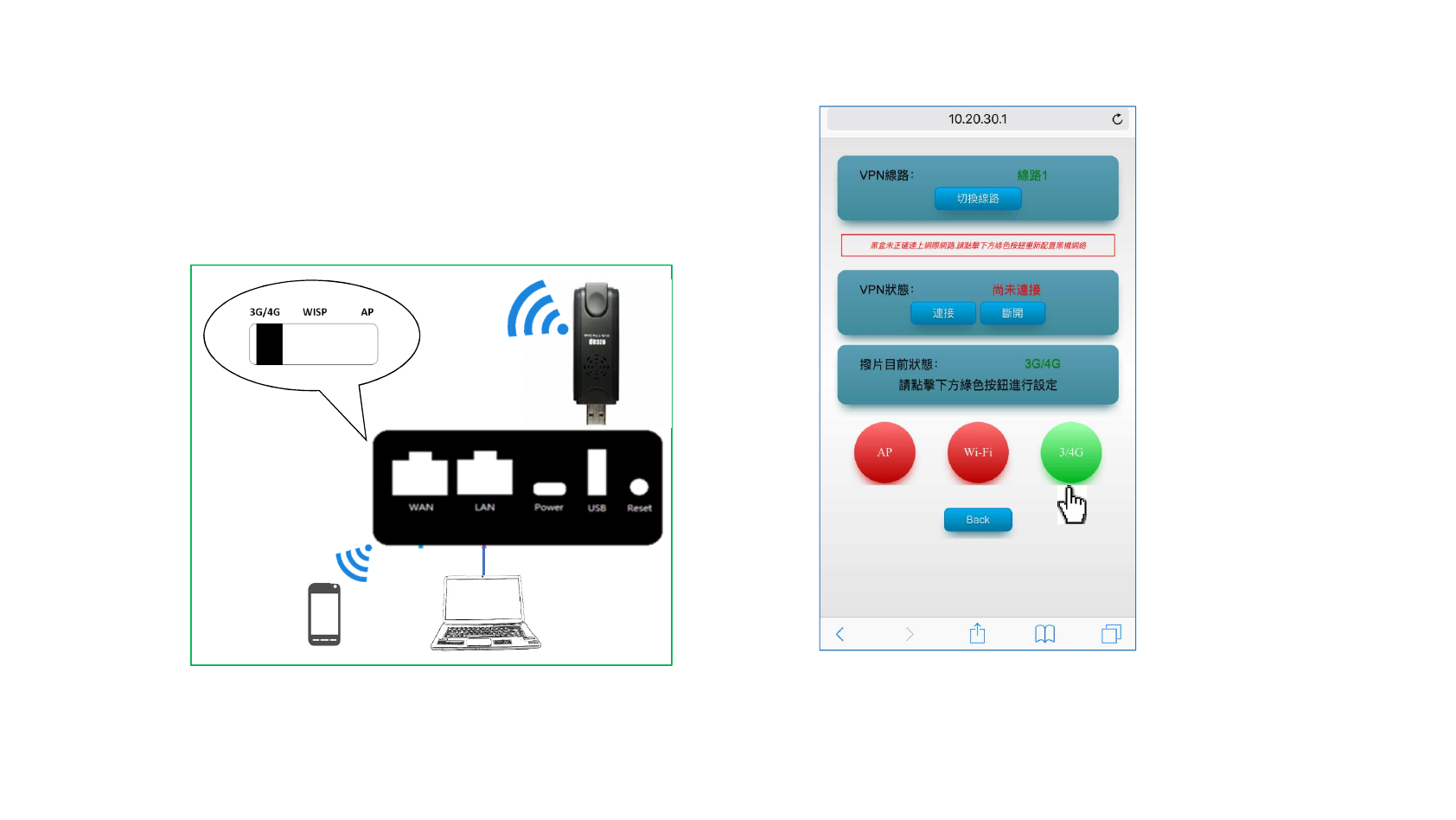

When 3/4 G internet connection is used for
Black Box, router side paddles should be
switched to 3/4 G Mode. Black Box can
go on line automatically.
Zebra Web Site：http://www.zebravpnbox.com/

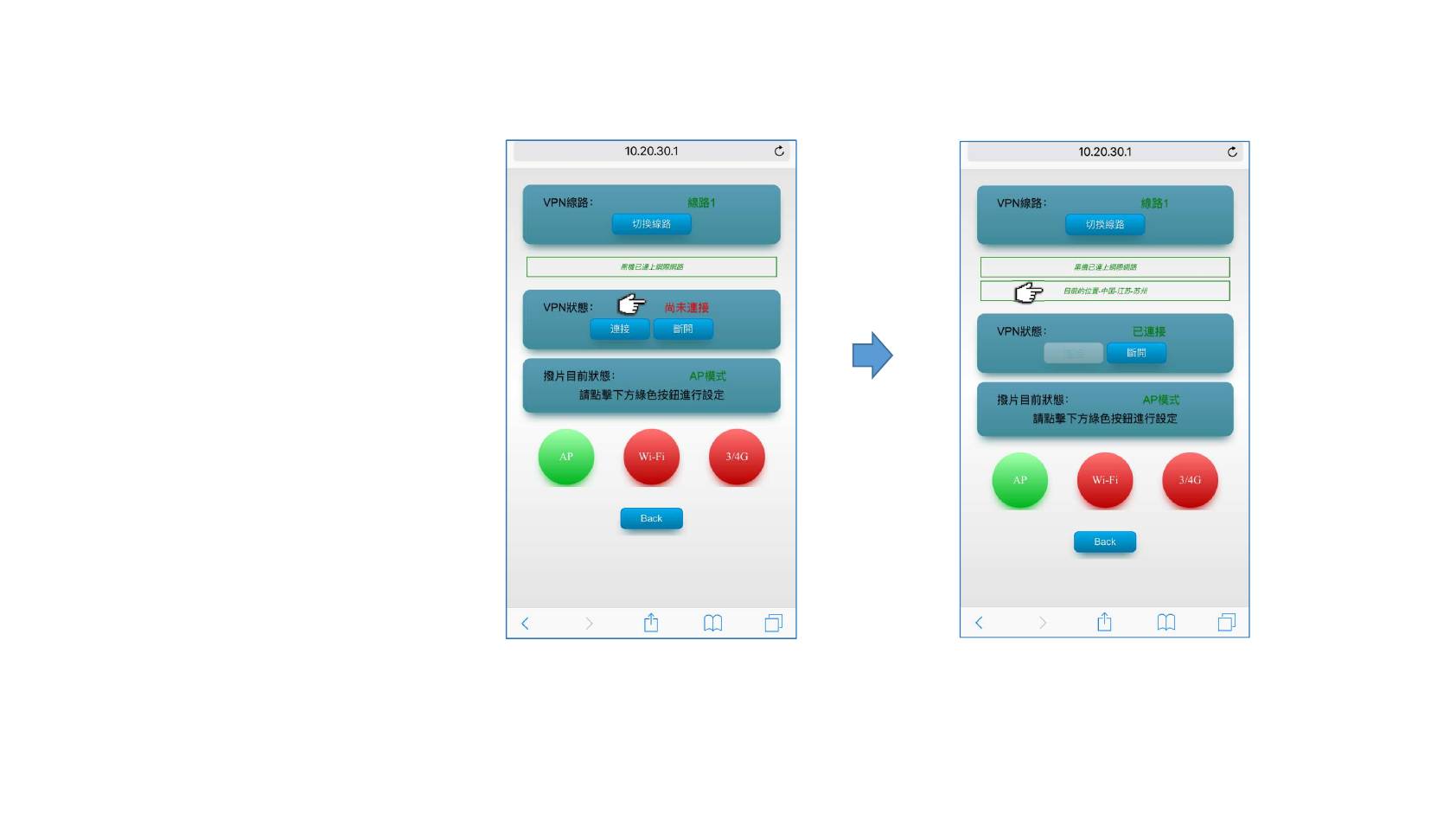

VPN connection
VPN connectionVPN connection
VPN connection
If the VPN is still not
connected, please click
the "Connect" button to
reconnect VPN. You can see
the location of black box
after VPN connected. At
this point, you are ready
for your own VPN service.
VPN use
VPN useVPN use
VPN use
Zebra Web Site：http://www.zebravpnbox.com/
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
