HW-WM100 User Guide
Address:
Zip Code:
Service Hotline:
http://www.XXX.com
Brief Introduction
HW-WM100 is a type of multi-mode, 3G wireless USB modem,
applicable HSDPA/EDGE/WCDMA/GSM/GPRS network. With USB
interface to connect to portable PC, it integrates functions of modem,
mass storage and combines mobile communication with the internet
perfectly. Via HSDPA/EDGE/WCDMA/GSM/GPRS mobile network, it
carries out Data service and SMS services, helping you break away from
limitation of time and zone, and communicate wirelessly anytime and
anywhere.
Packing List
Wireless USB modem (1), Software installation disc (1), Quick user
2
guide (1), Guarantee Cert. (1).
Specification
Interface Type USB 2.0.
Applicable
Equipment
Supports main types of PC.
Function SMS service, Data service.
Applications management, Data concurrent, etc.
Network Sys. GSM/GPRS/EDGA,WCDMA/HSDPA
WCDMA/HSDPA 2100MHz:
1920-1980 MHz/2110-2170 MHz(Up-link/Down-link)
GSM/GPRS/EDGE 850MHz:
824-849MHz/869-894 MHz(Up-link/Down-link)
GSM/GPRS/EDGE 900MHz:
880-915MHz/925-960 MHz(Up-link/Down-link)
GSM/GPRS/EDGE 1800MHz:
1710-1785MHz/1805-1880 MHz(Up-link/Down-link)
Frequency
Band
GSM/GPRS/EDGE 1900MHz:
1850-1910MHz/1930-1990 MHz(Up-link/Down-link)
3
Temperature 10to +55
System
Requirements
of the
HW-WM100
Computer running Windows 2003/XP/VISTA/Mac
(10.4.9 and later version)
Memory: 32 MB
Disk Space: 100 MB
Mass storage Support memory card as the mass storage.
Quick Installation Guide
1. Software Installation
z Insert the HW-WM100 into your USB port of computer, the
installation pop-up window appears on display if the system of
computer supports installation automatically. If the installation
auto run failed, please run "Setup.exe" program.
z If the installation program has been set before, user is able to
repair the installation.
z Please uninstall if the PC manager file of HW-WM100 is
damaged, then run install program.
z Select the language applicable to the operating system, click
"Next".
4
z Choose "I accept the terms of the license agreement", click
"Next".
z Click "Cancel" to skip the driver installation if you don’t want
the setup program to do this for you.
z Follow the wizard to finish the driver installation.
After the installation, a shortcut icon is created on the desktop. On
the screen of computer, select "Start" menu "Program", and
there is a program group listed in.
2. Hardware Installation
1) Insert the SIM/USIM card into the HW-WM100:
Insert the SIM/USIM card with the metal contact tip facedown
into the USB modem slot tightly.
Remove and pick the SIM/USIM card through slot or hatch on the
card.
5
2) Insert the memory card into the HW-WM100:
Insert the memory card with the metal contact tip facedown into
the memory card slot of USB modem tightly.
Remove and pick the SIM/USIM card through slot or hatch on the
card.

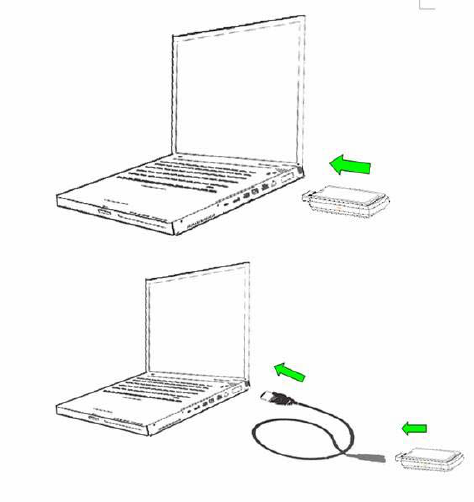

3) Insert the HW-WM100 into PC:
Insert the HW-WM100 into USB port of PC. With the indicator
turns on, the HW-WM100 is properly inserted.
6
Remove the wireless USB modem safely
Close the application software at first, then you can remove the
HW-WM100.
How to use the wireless USB modem
Notice: On some version Vista system, you may need to turn off
the "User Account Control (UAC)" function. Please select the
Windows "Control Panel"/"User Account"/"Enable/Disable User
Account Control" and turn off the function.
Click any icon on the main menu interface to start corresponding
7
function.
Connect to
the Internet
With correct network settings, click "Connect"
button prompted. If succeeded, you can surf on the
Internet. Or choose the "More Profiles" button to
edit a data link profile or view the statistics.
Internet Click "Internet" button to view the data flow.
SMS Click "SMS" button to do the SMS relative
operations.
Contacts Click "Contacts" button to do the phone book
relative operations.
Options Make general setting, SMS setting, network
setting, security setting, sound setting, flow
warning setting and check the version information,
etc.
Help Choose "Help" menu to view online help.
Safety Warning
z Some electronic devices are susceptible to electromagnetic
interference sent by USB modem if inadequately shielded, such as
8
electronic system of vehicles. Please consult the manufacturer of the
device before using the USB modem if necessary.
z Operating of USB modem may interfere with medical devices like
hearing aides and pacemakers. Please always keep the card more
than 20 centimeters away from such medical devices when the card
is powered on. Power off the USB modem if necessary. Consult a
physician or the manufacturer on the medical device before using
the USB modem.
z Do not use USB modem at gas station.
z Be aware of the usage limitation when using a USB modem at
places such as oil warehouses or chemical factories, where there are
explosive gases or explosive products being processed. Do not use
the USB modem if necessary.
z Store the USB modem out of the reach of little children. The USB
modem may cause injury if used as a toy.
z Please use original accessories that are authorized by the
manufacturer. Using any unauthorized accessories may affect your
USB modem’s performance, and violate related national regulations
about telecom terminals.
z Avoid using the USB modem near metallic structure device or
establishment that can emit electromagnet wave. Otherwise it may
influence receiving of signals.
9
z The USB modem is non-waterproof, please keep it dry and store in
shady and cool place.
z Don’t use the USB modem immediately after sudden temperature
change. In such case, there will be dew inside and outside the card,
so don’t use it until it becomes dry.
z Take the USB modem carefully. Don’t drop, bend or strike it to
avoid destructive damage.
z No dismantling by non-professional and only qualified maintainer
can undertake repair work.
z Please power off USB modem before the airplane takes off. In order
to protect airplane’s communication system from interference, it is
never allowed to use USB modem when it is in flight. Using it
before the plane taking off should get aircrew’s permission
according to safety regulations.
10
z RF Exposure Information and Statement
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types
HW-WM100 (FCC ID: SG70812HW-WM100) has also been tested against this SAR limit. The
highest SAR value reported under this standard during product certification for use at the ear is
0.892 W/kg and when properly worn on the body is 0.355 W/kg. This device was tested for
typical body-worn operations with the back of the handset kept 1.5cm from the body. To
maintain compliance with FCC RF exposure requirements, use accessories that maintain a
1.5cm separation distance between the user's body and the back of the handset. The use of belt
clips, holsters and similar accessories should not contain metallic components in its assembly.
The use of accessories that do not satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help
