Haier Telecom 1105HG-M720 Mobile Phone User Manual SG71105HG M720
Haier Telecom (Qingdao) Co., Ltd. Mobile Phone SG71105HG M720
manual
1
This document and all its contents included remain the proprietary material of Qingdao
Haier Telecom Co. Ltd. (Haier Telecom) and are protected by the Chinese laws and
applicable international conventions on copyrights. Any reproduction, transmission,
disclosure，revision, modification or use otherwise of this document or the whole or part of
its contents, in whatever form and by whatever means, is not permitted without prior
express written authorization from Haier Telecom. Offenders will be liable for any and all
damages caused by their offence hereof and will be subject to all remedies that Haier
Telecom is entitled to seek under applicable laws.
2
Contents
Contents ............................................................................................................................ 2
1. Safety Precautions ........................................................................................................ 4
2. Handset guide ............................................................................................................... 5
2.1 Idle mode screen ................................................................................................. 6
2.2 Battery ................................................................................................................. 6
2.3 SIM card............................................................................................................... 7
2.4 Making and receiving a call .................................................................................. 7
3. Input method ................................................................................................................. 8
3.1 Using the English Mode ....................................................................................... 9
3.3 Using the Spanish Mode ...................................................................................... 9
3.4 Using the Number Mode ...................................................................................... 9
4. Phonebook .................................................................................................................... 9
4.1 View ..................................................................................................................... 9
4.2 Send text message .............................................................................................. 9
4.3 Send multimedia message ................................................................................... 9
4.4 Call ....................................................................................................................... 9
4.5 Edit ....................................................................................................................... 9
4.6 Delete ................................................................................................................ 10
4.7 Copy .................................................................................................................. 10
4.8 Move .................................................................................................................. 10
4.9 Send contact ...................................................................................................... 10
4.10 Mark several .................................................................................................... 10
4.11 Caller groups .................................................................................................... 10
4.12 Phonebook settings ......................................................................................... 10
5. Multimedia ................................................................................................................... 11
5.1 Camera .............................................................................................................. 11
5.2 Video recorder ................................................................................................... 12
5.4 Video player ....................................................................................................... 12
5.4 Audio player ....................................................................................................... 12
5.5 FM radio ............................................................................................................. 12
5.6 Sound recorder .................................................................................................. 12
5.7 Image viewer ...................................................................................................... 13
5.8 Games ............................................................................................................... 13
6. Call Center .................................................................................................................. 13
7. Settings ....................................................................................................................... 13
7.1 Phone settings ................................................................................................... 13
7.2 Network settings ................................................................................................ 14
7.3 Security settings ................................................................................................. 14
7.4 Call settings ....................................................................................................... 15
7.5Restore factory settings ...................................................................................... 16
8. Messages .................................................................................................................... 16
3
8.1 SMS ................................................................................................................... 16
8.2 MMS .................................................................................................................. 17
9. File manager ............................................................................................................... 18
10. User profiles .............................................................................................................. 18
11. Organizer ................................................................................................................... 19
11.1 Calculator ......................................................................................................... 19
11.2 Calendar ........................................................................................................... 19
11.3 Tasks ................................................................................................................ 19
11.4 Alarm ................................................................................................................ 19
11.5 World clock ....................................................................................................... 19
11.6 Notes ................................................................................................................ 20
11.7 Bluetooth .......................................................................................................... 20
12. Services .................................................................................................................... 21
12.1 SIM Tool Kit ...................................................................................................... 21
12.2 Internet service ................................................................................................ 21
12.3 Data account .................................................................................................... 22
13. Care and maintenance .............................................................................................. 22
4

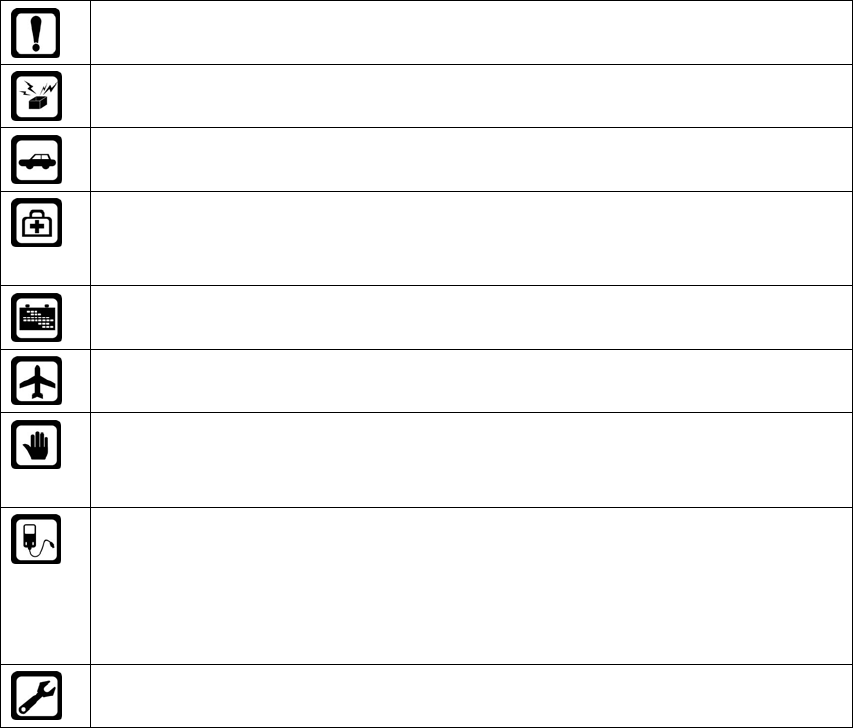

1. Safety Precautions
Please read these simple guidelines. Not following them may be dangerous or illegal.
Do not switch the phone on where Mobile Phone use is prohibited or when it
may cause interference or danger.
Do not place your phone and its accessories in containers with strong
electromagnetic field.
Obey all traffic laws. Always keep your hands free, to operate the vehicle while
driving. Your first consideration while driving should be road safety.
Hospitals or health care facilities may be using equipment that could be
sensitive to external radio frequency energy. Follow all regulations and rules
enforced.
Do not use the phone at a refueling station. Do not use near fuel or chemicals.
Follow all instructions. Wireless devices can cause interference in aircraft.
Keep the phone and all its parts, including accessories, out of the reach of
children. Do not use the phone while connected to the charger or with wet hand
or bare feet.
Use only approved batteries and chargers. Disconnect the charger from the
power source when it is not in use. Do not leave the battery connected to a
charger for more than a week, since overcharging may shorten its life. Please
remove the battery only after the phone is switched off normally, otherwise it
could cause unpredictable damage for the phone.
Only qualified personnel should service the phone. Faulty service may be
dangerous and may invalidate any warranty applicable to the device.
5
2. Handset guide

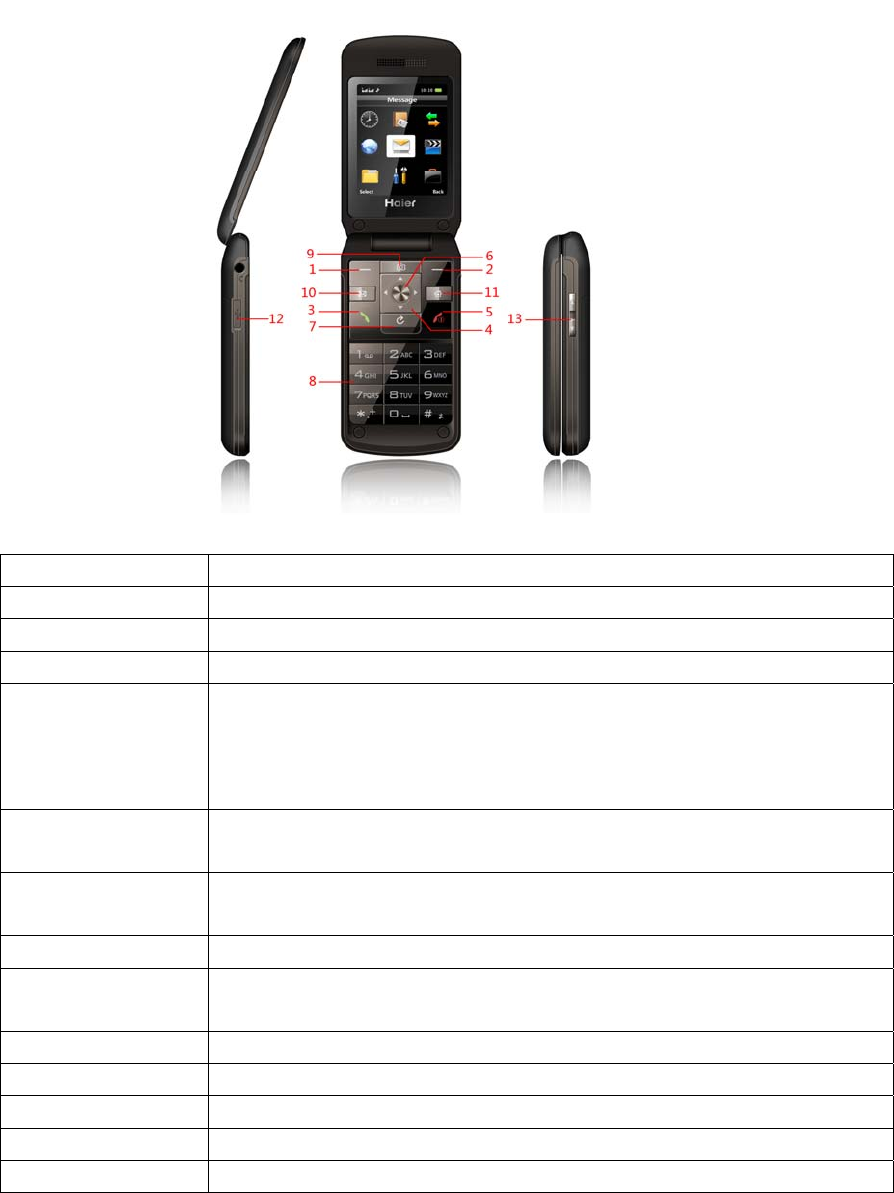

The illustration below displays the main components of your phone.
The appearance of the mobile phone and introduction:
Name Description
1 Left Soft key Select the option displayed on the lower left corner of the screen.
2 Right Soft key Select the option displayed on the lower right corner of the screen.
3 Send key In standby mode, press this key to enter the recent calls list.
4 Navigation key
In standby mode, quick into the Shortcuts, Audio player, Write message
and FM radio.
In menu mode and when entering text, scroll through the menu and
text.
5 End(Power) key Long press: power on, power off.
Short press: return to Idle screen.
6 Center Select key This is the center key in the navigation keypad.
In standby mode, use this key to enter the Main menu view.
7 Delete key Delete the letters when you edit wrong.
8 Number keys Enter numbers, letters, and some special characters.
In Idle screen, long press ’#’ key to enable or disable the Meeting Mode.
9 Camera key In idle screen, press this key, will go to camera screen.
10 SMS key In idle screen, press the key, will go to SMS screen
11Audio player key n idle screen, press the key, will go to Audio player screen
12 Charge port Charge port and USB port
13 Side key In Idle screen: turn up or turn down voice
6
Notes: long press means pressing the key for more than 2 seconds; short press means
pressing key for less than 2 seconds.
2.1 Idle mode screen
Icon Description
Indicates signal strength.
You have one or several missed calls.
You have one or several new text messages.
You have one or several new multimedia messages.
Alarm clock has been activated.
Indicates a headset is connected to the phone
Indicates ring alert type.
Indicates vibrate alert type.
Indicates vibrate and ring alert type.
Indicates vibrate then ring alert type.
Indicates Silent mode.
Indicates battery power level.
2.2 Battery
2.2.1 Installing and removing
7

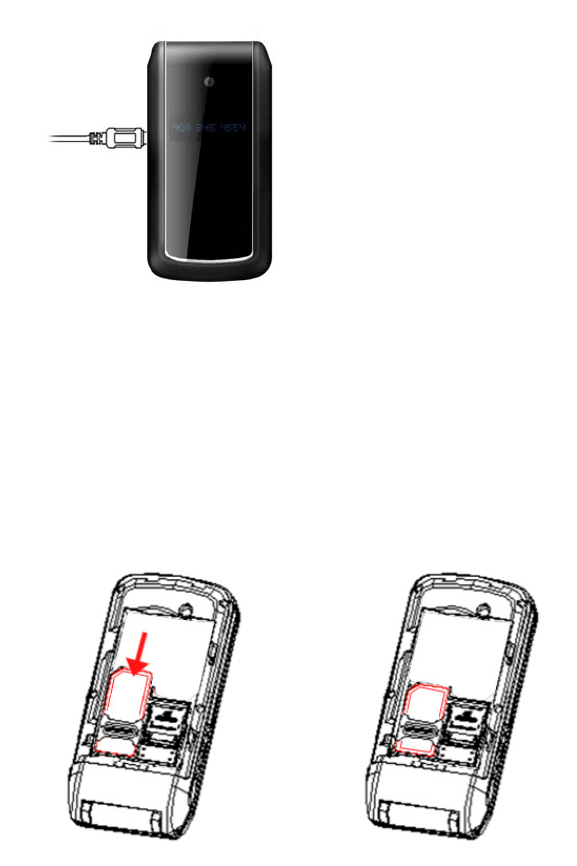

2.2.2 Charging the battery
2.3 SIM card
2.3.1 Insert SIM card
2.4.1 To make a call
You can use the function only after the network-prompting icon is shown on screen.
1. Making phone call using the keypad
After SIM card has been inserted into your phone, in idle mode, directly type in the phone
number to dial.
2. Making phone call using contacts
Enter the phonebook to view the contacts list and select a desired entry to dial.
3. Making phone call using call history
In idle mode, press send key to access the recent calls list, scroll to the number or name
you wish to dial.
4. Making phone call using speed dial
8
In idle mode, press and hold 2-9 key to make phone call you set.
5. Ending a call
You can end a call at any time by pressing end key till the call has been terminated.
2.4.2 To receive a call
When an incoming call arrives, phone will alert you.
Press the send key to answer.
Press RSK [Mute] once to close incoming ringer, press RSK [Reject] twice to reject the
call.
2.4.3 During a phone call
During a phone call, press left/right navigation key to increase/decrease the volume, press
RSK to activate hand-free function, press LSK to view the following options:
1. Hold call
This is useful if you want to make a new call during a call. Put the current call on hold, but
maintain connection of the communication line.
2. End call
End the current call.
3. New call
Enter the digital dialing contact surface.
4. Phonebook
Allow you to view the Phonebook option.
5. SMS
Allow you to view the Messages option.
6. Recorder
Allow you to record the call sound.
7. Mute
Allow you to temporarily turn the microphone off.
8. DTMF
Dual Tone Multi Frequency
This function allows you to set whether send out DTMF signal.
3. Input method
When you are in a display that allows characters to be entered, you will notice the text
input mode indicator on the display. You can change the Text Input Mode by pressing #
Key and insert symbols by pressing * Key. To insert a space between characters, press 0
key except in Numeric mode.
9
3.1 Using the English Mode
This phone provides Capital and Small mode for you to enter text.
3.3 Using the Spanish Mode
This phone provides Capital and Small Spanish mode for you to enter text.
3.4 Using the Number Mode
The Number mode enables you to enter numbers in a text message (a telephone number
for example).
4. Phonebook
4.1 View
View the contact information.
4.2 Send text message
You can send SMS to the contact.
4.3 Send multimedia message
You can send MMS to the contact
4.4 Call
Call to the selected contacts.
4.5 Edit
Edit Contact Information
10
4.6 Delete
Delete the current contact information
4.7 Copy
1, Copy the contact to Phone or SIM card
2, Contact information will be saved as the files to the phone or memory card
4.8 Move
Move the contact from SIM to phone, Phone to SIM
4.9 Send contact
Send contact information as files by SMS,MMS and Bluetooth.
4.10 Mark several
Can selectively one or more records to copy, move, delete and other operations
4.11 Caller groups
Classify a number of contacts into one group in accordance with their relationship.
4.12 Phonebook settings
4.12.1 Preferred storage
Select the default saving position.
4.12.2 Speed dial
Speed dial is a fast way to call one of your special numbers.
1. To assign a speed dial number
You can select a desired number from the contacts list.
2. To dial a speed dial number
When Status is enabled to on, in idle mode, long press number key and the corresponding
number will automatically be dialed.
11
By default the 1 key is used to set voice mail number
4.12.3 Extra numbers
Edit the SIM owner number and name
4.12.4 Memory status
View the storage capacity of phonebook of SIM card and phone
4.12.5 Copy contacts
Copy all entries from SIM to phone or phone to SIM
4.12.6 Move contacts
Move all entries from SIM to phone or phone to SIM
4.12.7 Delete all contacts
Delete all contacts from SIM card or Phone.
5. Multimedia
5.1 Camera
You can take pictures, save and view them and send them as multimedia message.
Press center navigation key to capture the scene. The pictures taken will be saved under
Photos file.
You can press LSK to enter the following options:
1. Photos
Enter the menu to View and edit the pictures.
2. Camera settings
Set camera parameters, such as EV, Anti-flicker, Delay timer.
3. Image settings
Set the size and quality of the image.
4. White balance
Adjust the picture color to the lighting conditions.
5. Scene mode
Choose auto or night mode.
12
6. Storage
Select saving path for the photos.
7. Restore default
Revert to the default settings.
5.2 Video recorder
The phone provides a clear Video recording function. The camera screen, press the
middle button to start recording, recording process by pressing the middle button to pause
the recording, press the right soft key to stop recording. Press the left soft key framing
interface can be the following options, which a more detailed set of parameters
1. Camcorder settings
Set video device parameters
2. Video Settings
Set video parameters
3. White balance
Adjust the picture color to the lighting conditions.
4. Effect settings
Choose a special photo effects
5. Storage
Select saving path for the photos.
6. Restore default
Revert to the default setting
5.4 Video player
You can play Video files. Video files should be saved under Videos file.
5.4 Audio player
You can play audio files. Audio files should be saved under My Music file.
5.5 FM radio
With this feature, you can listen to FM radio stations.
5.6 Sound recorder
Use the menu to make the record of the sound.
The files recorded will save under Audio file.
13
5.7 Image viewer
Use the menu to review the image. Image files should be saved under Photos file.
When you view the image, you can press the up/down navigation key to view the last/next
image.
5.8 Games
You can play the game provided by your phone and set the games settings.
6. Call Center
Call Center stores information about the missed calls, dialled calls, and received calls.
You can view the call timers, call cost, text message counter, and GPRS counter; also you
can delete call logs.
Notes: This function should only be used for reference. For details, please consult your network operator.
7. Settings
7.1 Phone settings
Enter the submenu Phone Settings to operate:
7.1.1 Time and date
You can customize the display of times and dates throughout your phone.
7.1.2 Schedule power on/off
You may set status and time of each one; however you may not set same time in different
items, to avoid conflict.
7.1.3 Language
Select language to display on mobile phone.
14
7.1.4 Pref. input methods
Select the default initial input method.
7.1.5 Display
Allow you to set the following options: Wallpaper, Screen saver, Show date and time.
7.1.6 Shortcuts
Setup the shortcuts list.
7.1.7 Dedicated key
Use the menu to set the shortcuts. It includes Up, Down, Left, Right navigation key.
7.1.8 Auto update of date and time
If you open this feature, Phone time and date will be auto update after you login network
or MMS.
7.1.9 Flight mode
Supply normal mode, flight mode, query when power on. Flight mode applies on board.
7.1.10 Misc. settings
Adjust the LCD backlight.
7.2 Network settings
Use the menu to set the network. It contains Network selection, Preferences, GPRS
connection.
7.3 Security settings
7.3.1 SIM lock
This option is used to set the PIN code.
15
The PIN code is used to protect your SIM card from random using by others. If set to on,
access to your SIM card will be restricted each time the phone is powered on.
Note: The SIM card will be locked after entering the wrong PIN code for max retry limits. In this condition,
phone will ask for PUK (PIN unlocking key), which is available from the service provider.
7.3.2 Phone lock
This option is used to set the phone lock code.
The lock code can be set to protect your phone from unauthorized use. It can be set to
automatically lock your phone each time it is switched on.
The default phone password normally is 0000; please change it to your own password as
soon as possible.
7.3.3 Change password
This option is used to change PIN code, PIN2 code and phone password.
7.4 Call settings
7.4.1. Caller ID
This function needs to be supported by network, including the following sub-menu: Set by
network, Hide ID, Send ID.
7.4.2 Call waiting
If your mobile phone service provider supports this feature, the call waiting notifies you of
an incoming call even while you are on a call.
7.4.3 Call divert
Call divert is a network service.
This service is used to forward incoming calls to your voice mail service or to another
number depending on certain conditions in which your phone is unavailable or you don’t
want to receive any call.
7.4.4 Call barring
You can set restriction for calls made from or to your phone.
16
7.4.5 Line switching
You can choose between Line 1 and Line 2.
7.4.6 Advance settings
1. Auto redial.
Allows you redial automatically when one time trial dial fails by turning on this function.
2. Call time display
Whether display your call time during the call.
3. Call time reminder
During a phone call, as your call duration nears the set time, alert will sound.
4. Auto quick end
Function with a time limit on the call. Beyond setting the length of time, the phone
automatically hang up call
7.5Restore factory settings
Use this menu to reset the phone’s settings to the original factory settings
8. Messages
8.1 SMS
8.1.1 Write message
Allow you to edit text message. When composing text messages, check the number of
characters allowed in the top-right corner of the screen.
Press LSK to enter the Option menu:
1. Send to
Enter the recipient’s number or retrieve a number from the phonebook, then press LSK to
send.
2. Input method
Select different input methods to write message according to requirements.
3. Advanced
Allow you insert object, Insert template, insert contact number, insert contact name, and
insert bookmark; also allow you set text format.
4. Save to Drafts
Save the message to the draft.
17
8.1.2 Inbox
Store the text messages you received
8.1.3 Drafts
You can read the messages saved in draft.
8.1.4 Outbox
View and search the messages you sent but failed
8.1.5 Sent messages
View and search the messages you sent successfully
8.1.6 Delete messages
Delete all messages from Inbox, Drafts, Outbox, Send messages
Delete all messages one time.
8.1.7 Templates
Select the SMS templates you want to use
8.1.8 SMS settings
Enter the menu to set SMS settings. Select the option you want to set to edit.
8.2 MMS
8.2.1 Write message
Allow you to edit multimedia message. Press LSK to enter the Option menu:
1. Done
Complete MMS and Exit
2. Input method
Select different input methods to write message according to requirements.
3. Add picture
Insert the picture to multimedia message.
18
4. Add audio
Insert audio to multimedia message.
5. Add attachment
Insert attachment to multimedia message.
6. Add bookmark text
Edit the subject to multimedia message.
7. Preview
Preview the MMS you edit.
8. Add slide before, Add slide behind, slide time
Add slide behind or before the current slide, and set the slide time.
9. Save to Drafts
Save the message to the draft.
8.2.2 Inbox
Store the messages you received
8.2.3 Outbox
View and search the messages you sent successfully
8.2.4 Drafts
You can read the messages saved in draft.
8.2.6 MMS settings
Enter the menu to set MMS settings. Select the option you want to set to edit.
9. File manager
Use the menu to manager the files you stored in the phone memory and memory card.
10. User profiles
The phone provides multiple scene modes for you to choose according to different events
and environment. The headset mode is activated only when the headset is connected;
when headset mode is on, other modes are deactivated.
Each scene mode can be edited the following contents:
1. Tone settings
19
You can allocate different ringtones for Incoming call, Alarm, Power on, Power off,
Message and Keypad.
2. Volume
This function allows you to adjust the volume output of the Ringtone and Key tone.
3. Alert type
Allows you to specify how you are to be informed of any incoming calls.
4. Ring type
Allow you to select the required ring type.
5. Extra tone
Allows you to select turning on or off for the tone of “Warning”, “Error”, “Camp on” and
“Connect”.
6. Answer mode
You can answer a call by pressing Any key or Auto (only headset profile).
11. Organizer
11.1 Calculator
Use this menu to perform basic arithmetic functions, such as addition, subtraction,
multiplication and division.
11.2 Calendar
Enter this menu to view the calendar.
11.3 Tasks
Records in the future to do and to time to remind
11.4 Alarm
Allow you to set the alarm to ring at a specific time.
11.5 World clock
Enter submenu World Time, the world time zone image appears; move the coordinate by
the left/right navigation key, the interface will show the time of located city.
20
11.6 Notes
Enter the menu, in the current notebook is empty, you can press the left soft key to add a
notepad; when the notebook is not empty, press the left soft key and select New Notepad
menu, you can add Notepad
11.7 Bluetooth
11.7.1 Power
Turn on or turn off Bluetooth
11.7.2 Visibility
If Visibility is turned on, others Phone can search to yours
11.7.3My device
Determine the search for Bluetooth devices, the phone will begin on the effective range of
Bluetooth devices to search.
When the search to the target Bluetooth device, you need to pair to transfer data The
phone is paired with a Bluetooth headset, Bluetooth headset pairing must enter the
password (usually 0000, available on the Bluetooth headset manual); with other Bluetooth
device pairing, follow the prompts, such as a password, enter both the general the same
password, the password can be any combination of numbers
11.7.4 Search audio device
Search for audio device and connect them
11.7.5 My name
You can view or edit the name of the machine
11.7.6 Advanced
1, you can choose audio path, first Storage path
2, Display phone address
21
12. Services
Allow you view the contents provided by your SIM card service and internet service.
12.1 SIM Tool Kit
The function is provided by the network provider. It might have different menu items with
different SIM card service. If the SIM card or network provider does not support the
service, the function is unavailable. Please contact the network provider for more
information.
12.2 Internet service
12.2.1 Homepage
Start up all the set websites in connection setup.
12.2.2 Bookmarks
You may save the WAP address in the bookmark to quickly re-visit the page.
12.2.3 Recent pages
Records the page visited, for the next visit.
12.2.4 Input address
Input the Web page address of a site you want to visit.
12.2.5 Service inbox
Mobile phone can receive the service messages sent by your service provider (For
example, service message can be notice on relevant news abstract or a new web set.)
12.2.6 Settings
1. Profiles
Select the profile you want to use.
2. Browser options
22
Set waiting time and whether display pictures when browse web page.
3. Service message settings
Select to turn on or off to receive messages from service desk.
4. Clear Cache
Clear all temporary stored internet files saved in the phone.
5. Clear Cookies
Clear the history record of browsed web pages.
12.3 Data account
Use the menu to set the GSM data and GPRS.
13. Care and maintenance
If your mobile phone has abnormal conditions, please check it with the following table. If
the problem still remains, please ask mobile phone after sales for help.
Common problems Check item
Cannot charge Please check if the charger is properly connected to the phone
and the power source jack.
Cannot power on Please check if the battery level is too low;
Please check if the battery is properly loaded;
Please press power key for enough time.
Insert the SIM card
but cannot read the
information in the
SIM card
Please check if the SIM card is properly inserted;
Please check if your SIM card is valid.
Cannot make phone
call
Please check if the phone number is valid.
Please check if you are in service area.
Poor voice quality Please check if the phone signal is strong enough.
If you are in a building, please move near the window.
The contact cannot
get your voice during
the phone call
Please check if your mike is blocked by fittings or other blocks.
23
RF Exposure Information
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. The model
(FCC ID: SG71105HG-M720) has also been tested against this SAR limit. The highest
SAR value reported under this standard during product certification for use at the ear is
0.932 W/kg and when properly worn on the body is 1.154 W/kg. This device was tested for
typical body-worn operations with the back of the handset kept 1.5cm from the body. To
maintain compliance with FCC RF exposure requirements, use accessories that maintain
a 1.5cm separation distance between the user's body and the back of the handset. The
use of belt clips, holsters and similar accessories should not contain metallic components
in its assembly. The use of accessories that do not satisfy these requirements may not
comply with FCC RF exposure requirements, and should be avoided.
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
