Haier Telecom 1401W867 WCDMA/GSM Dual-Mode Digital Mobile Phone User Manual ver2

Haier Telecom (Qingdao) Co., Ltd. WCDMA/GSM Dual-Mode Digital Mobile Phone ver2

User Manual-ver2

Haier- W867
User Manual
Precautions
Please carefully read and observe the terms
below:
Safe power on
Do not use your mobile phone where it is
forbidden to use or you might cause a
disturbance or danger.
Safe transportation first
Please observe all related local laws and
regulations.
Do not use your mobile phone while driving.
Safe transportation should be considered first
when driving.
Turn off when in the hospital
Please follow related limitations.
Please switch your mobile phone off when near a
medical instrument.
Turn off on an airplane
Please follow related limitations.
Do not use your mobile phone on an airplane.
Turn off when at a gasoline station
Do not use your mobile phone at a filling station
or around fuels or chemicals.
Turn off around exposure Area
Please observe related limitations and do not use
your mobile phone near an area where explosions
can occur.
Backup
Remember to make a backup or keep a written
record of all important information saved in your
mobile phone.
Use qualified after sales service
Only a qualified technician can install or repair
your mobile phone. Please contact the authorized
service center in case of phone failure.
Precautions
Accessories and batteries
Only use the authorized accessories and batteries
and do not connect to incompatible
manufacturers or products.
Your phone

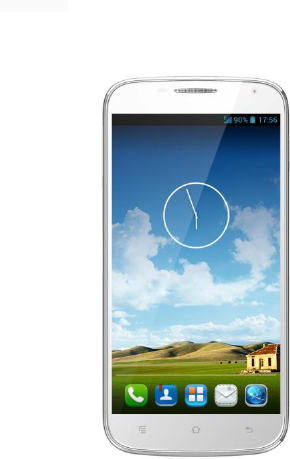

Power Key
Long press to
switch the
phone on and
off
Press to lock or
wake up the
touch screen
Earphone Jack
Charge/USB Connector
Connect a charger or a USB data
cable for data transfer
Touch
Screen
Home Key
Go to Home screen
Back Key
Go back to the
previous screen
Receiver
Front
Camera
Volume
Key
Adjust the
volume
Microphone
Proximity
sensor/ambient
light sensor
Your phone

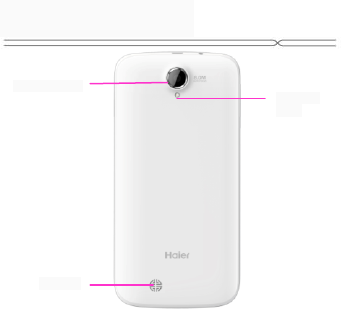

Back Camera
Speaker
Camera
flash
Battery Cover &
Battery
Removing the Battery Cover
1. Hold the device firmly and locate the cover release latch.
2. Place your fingernail in the opening and remove the cover
according to the arrow direction.
Installing the Battery

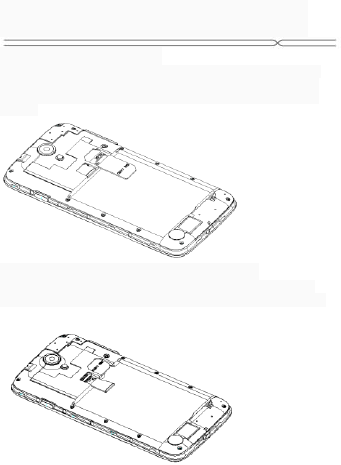

1. With the metallic contacts of the battery facing the metallic
contacts in the battery slot, press the battery down until it
locks into place
2. Ensure the battery is inserted in the phone. To charge the
battery, plug in the charger connector at your phone (USB
interface) and then plug the other end into an AC power socket.
The battery symbol indicates the charging status. While
charging, the charge indicators will scroll. When all the scroll
bars are steady, the battery is fully charged. Disconnect the
charger from the phone. Disconnect the charger from the AC
power socket.
Note: If the battery is powerless, the battery icon will reappear
after a few minutes of charging.
Battery Cover &
Battery
SIM Card & microSD
Installing the SIM Card
1. Make sure that the clipped corner of the SIM card is facing
the correct direction and the metallic contacts are facing the
correct direction. Slide the SIM card into the card slot until it
stops.
Installing the microSD Memory Card
1. Slide microSD card into the SD card slot with the metallic
pins facing downwards. Push the card until it locks into place.
Lock & Unlock Screen
Locking the Screen
To save your battery, prevent accidental touches or when you
want to wipe smudges off your touch screen, put the touch
screen to sleep by pressing the Power Key
Unlocking the Screen

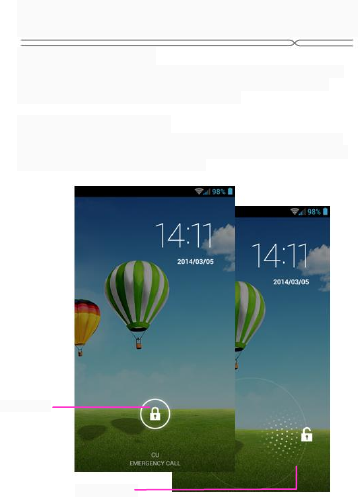

To wake up the touch screen, just press the Power Key again,
and then drag the lock icon to the right on the screen to unlock
according to the clue on the screen.
Lock icon
Unlock icon
Home Screen

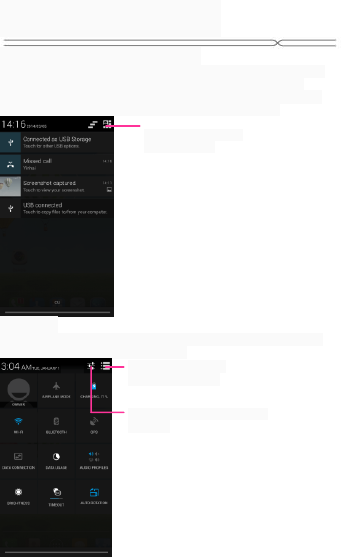

Status Bar and Notifications

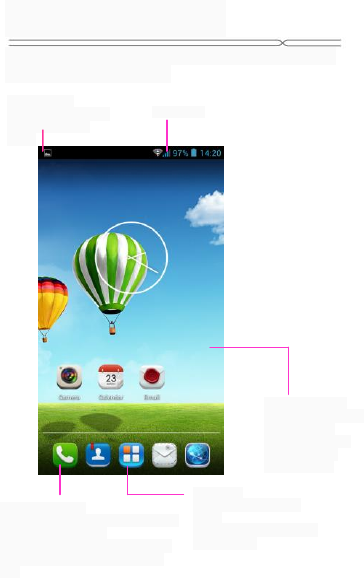

The status bar at the top of the screen contains icons that tell
you about messages and phone status and shows what’s
going on in your phone. You can drag down the status bar to
open the Notification panel and get more information.
Toolkits
In the toolkits you can quickly start the common applications
such as Bluetooth, Wi-Fi and so on.
Touch to open the
toolkits panel
Touch to open the
Notification panel
Touch to open the system
settings
Home Screen
The Home screen is your gateway to the main
features in your phone.
Notifications
Drag down to open
the Notification
panel
Status bar
Launcher
Touch to enter Main
menu
Browse all the installed
applications
The favorite tray
Touch the applications in the tray
to enter applications
Touch and hold the applications
to drag them in or out from the
tray
Slide the Home
screen left or right
to view more
content in other
panels on the
Home screen
Customizing

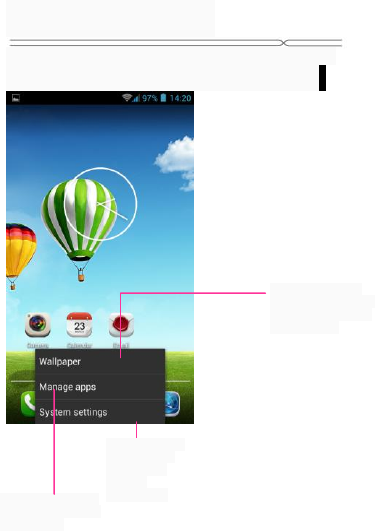

The phone provides you with Options menus.
Touch the Menu Key to enter customizing：
Touch to select a
wallpaper, and set it
as the wallpaper of
Home screen
Touch to enter
the Settings,
and set the
system
preferences
Touch to enter the
Apps, and manage
applications
Phone Function
Making a Call
Touch to enter the Dial pad.
The phone offers you several ways of making a call.
You can make a call through the Phone, People, Messaging and
Call log.
Delete
Make a video call
Dial pad
Touch to close or
open the dial pad
Touch to choose
the card, and then
dial the number
Connecting to WLAN
Connecting to WLAN

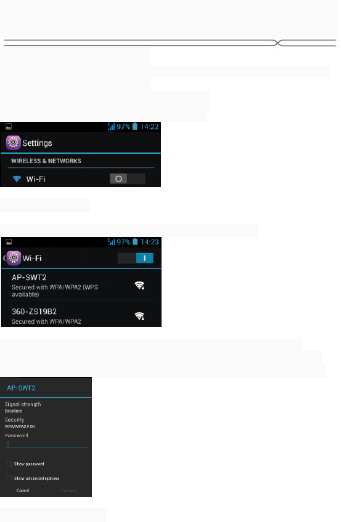

1. You can connect to the WLAN, and use it to surf the Internet
at high speed and download.
Touch Launcher → Settings → WLAN.
2. Turn on the switch to activate WLAN.
3. Touch WLAN.
4. Choose an available WLAN network to connect
5. Secured networks are indicated with a Lock icon. If the
network is secured, you are prompted to enter a password or
other credentials (Ask your network administrator for details)
6. Touch “Connect”.
Accessing the
Internet
Using the Browser

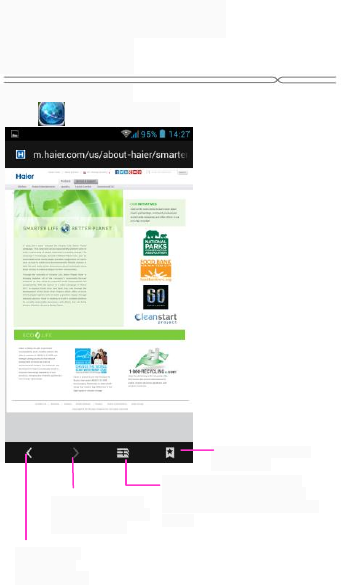

Touch to enter the Browser.
Touch to enter the
Bookmarks
Touch to look through the
thumbnails of all web page
windows, and switch the web
pages
Touch to go
back to the
previous page
Touch to forward
the browser to the
next web page
Accessing the
Internet

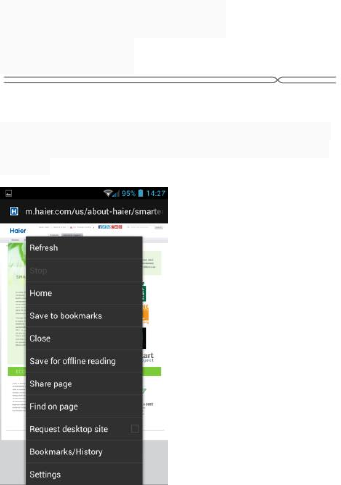

When you are viewing the web page, touch the
Menu Key, the following options are available
to you:
Taking
Pictures/Videos
Taking pictures and videos
Touch to enter the Camera.
View the
photo/video
Taking pictures
Flash light switch
button
Switch before the
camera
Settings
Quick
function
video
Focus on the
box
Playing Music
Music Player
Touch to enter Music.
Categories
Select Playlists,
Artists, Albums,
Songs, and so on
Shuffle
Repeat: Touch to
repeat the all songs;
touch again to repeat
the current song
Next song
Previous song
Play/Pause
The playlist
Troubleshooting
Frequently
Asked
Questions
Cause and Solution
Fail to turn
on
Press the Power Key for over 1 second.
Check if the battery is properly connected.
Please remove and install it again, retry to
turn it on;
Check if battery is appropriately charged.
Fail to
connect
network
Weak signal. Please try and move to a
location with strong signal and try
connecting to the network again;
Please ensure that you are not beyond the
network coverage of service providers;
Please ensure you have a valid SIM card.
Please contact your network provider for
further information;
Poor quality
of calling
Please check if the sound volume is tuned
improperly
In an area with poor receiving condition,
example: basement, the signal might be
weak. Try searching a location with stronger
signal reception and call again.
While using the mobile phone in the peak
period of communication, like commute
time, you may be unable to call because of
line congestion.
SIM Card
Error
Dirt on the metal surface of an SIM card. Use
clean cloth to wipe the metal touch point on
an SIM card.
The SIM card is not installed.
The SIM card is damaged. Please contact
your network service provider.
Callers
cannot
contact you
Please check if the mobile phone is on and
connected with the network.
Please check if the Call barring or call divert
is activated.
Please check if the SIM card is valid.
Fail to set
some
functions
Wrong operation.
The network provider does not support the
function, or you have not applied for it.
Radio Frequency (RF)
Energy
This phone is designed and
manufactured not to exceed the emission
limits for exposure to radio frequency (RF)
energy set by the Federal
Communications Commission of the
United States.
During SAR testing, this device is set to
transmit at its highest certified power
level in all tested frequency bands, and
placed in positions that simulate RF
exposure in usage against the head with
no separation, and near the body with the
separation of 10 mm. Although the SAR
is determined at the highest certified
power level, the actual SAR level of the
device while operating can be well below
the maximum value. This is because the
phone is designed to operate at multiple
power levels so as to use only the power
required to reach the network. In general,
the closer you are to a wireless base
station antenna, the lower the power
output.
The exposure standard for wireless
devices employs a unit of measurement
known as the Specific Absorption Rate,
or SAR. The SAR limit set by the FCC is
1.6W/kg.
This device is compliance with SAR for
general population /uncontrolled
exposure limits in ANSI/IEEE C95.1-1992
and Canada RSS 102, and had been
tested in accordance with the
measurement methods and procedures
specified in OET Bulletin 65 Supplement
C, and Canada RSS 102. This device has
been tested, and meets the FCC, IC RF
exposure guidelines when tested with the
device directly contacted to the body.
The FCC has granted an Equipment
Authorization for this model phone with
all reported SAR levels evaluated as in
compliance with the FCC RF exposure
guidelines. SAR information on this
model phone is on file with the FCC and
can be found under the Display Grant
section of www.fcc.gov/oet/ea/fccid after
searching on FCC ID: SG71401W867
For this device, the highest reported SAR
value for usage against the head is 0.345
W/kg, for usage near the body is 1.110
W/kg.
While there may be differences between
the SAR levels of various phones and at
various positions, they all meet the
government requirement.
SAR compliance for body-worn operation
is based on a separation distance of 10
mm between the unit and the human
body. Carry this device at least 10 mm
away from your body to ensure RF
exposure level compliant or lower to the
reported level. To support body-worn
operation, choose the belt clips or
holsters, which do not contain metallic
components, to maintain a separation of
10 mm between this device and the your
body.
RF exposure compliance with any
body-worn accessory, which contains
metal, was not tested and certified, and
use of such body-worn accessories
should be avoided.
FCC Compliance
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
CAUTION! Changes or modifications not
expressly approved by the manufacturer
could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to part 15
of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
can generate, use and radiate radio
frequency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and receiver.
• Connect the equipment into an
outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an
experienced radio/ TV technician for help.

Navigation menu
