Haier Telecom 20150128Q330 GSM digital mobile phone User Manual
Haier Telecom (Qingdao) Co., Ltd. GSM digital mobile phone
Contents
- 1. user manual
- 2. User Manual
User Manual
-1-
Content Q330
1General Information ................................................................................................................................................. 4
1.1Profile .............................................................................................................................................................. 4
1.2Safety Information .......................................................................................................................................... 4
1.3Safety warning and Attentions ........................................................................................................................ 4
2Your phone ................................................................................................................................................................. 8
2.1Phone overview ............................................................................................................................................... 8
2.2Functions of Keys ........................................................................................................................................... 9
2.3Technical specifications ................................................................................................................................ 10
2.4Accessories list ............................................................................................................................................... 11
3Getting started ......................................................................................................................................................... 12
3.1Installing the SIM Cards and the Battery ...................................................................................................... 12
3.2Installing T-Flash Card .................................................................................................................................. 14
3.3Charging the Battery ..................................................................................................................................... 14
3.4Powering On/Off the Mobile Phone ............................................................................................................. 17
3.5Linking to the Network ................................................................................................................................. 17
-2-
3.6Dialing Calls ................................................................................................................................................. 18
4Input method ........................................................................................................................................................... 18
4.1Icons for Input Methods ................................................................................................................................ 19
4.2To Shift Entry Methods ................................................................................................................................. 19
4.3Numeric and English Input ........................................................................................................................... 19
4.4Inserting a Symbol ........................................................................................................................................ 20
5Using the Menus ...................................................................................................................................................... 20
5.1File manager .................................................................................................................................................. 20
5.2Phonebook..................................................................................................................................................... 21
5.3Audio player .................................................................................................................................................. 22
5.4Call center ..................................................................................................................................................... 22
5.5Messaging ..................................................................................................................................................... 24
5.6Multimedia .................................................................................................................................................... 26
5.7Services ......................................................................................................................................................... 27
5.8Organizer ....................................................................................................................................................... 28
5.9Settings .......................................................................................................................................................... 29
5.10Extras ............................................................................................................................................................ 31
-3-
5.11Profiles .......................................................................................................................................................... 31
5.12Shortcuts ....................................................................................................................................................... 32
6Appendix .................................................................................................................................................................. 33
-4-
1 General Information
1.1 Profile
Please read this pamphlet carefully in order to make your phone in perfect condition.
Our company may change this mobile phone without prior written notice and reserves the final right to
interpret the performance of this mobile phone.
Due to different software and network operators, display on your phone may be different, refer to your
phone for details.
1.2 Safety Information
If your phone has lost or been stolen, notify the telecommunication office the SIM card is disabled
(network support is required). This can avoid economic loss caused by unauthorized use.
Please take measures as following to avoid your phone being unauthorized use:
· Set PIN code of SIM card
· Set phone password
1.3 Safety warning and Attentions
Safety warning
-5-
ROAD SAFETY COMES FIRST
Do not use a hand-held phone while driving. Use hands-free fittings when calls are unavoidable while driving.
In some countries, dialing or receiving calls while driving is illegal!
SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft. Using a mobile phone in flight is illegal and risky.
Please make sure that your mobile phone is powered off in flight.
SWITCH OFF BEFORE ENTERING RISKY AREAS
Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in risky areas. Turn off
your mobile phone before entering a place susceptible to explosion, such as an oil station, oil tank, chemical
plant or a place where a blasting process is under way.
OBSERVE ALL SPECIAL REGULATIONS
Follow any special regulations in force in any area such as hospitals and always switch off your phone
whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your mobile
phone near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical devices,
as it may cause interference to such apparatuses.
INTERFERENCE
The conversation quality of any mobile phone may be affected by radio interference. An antenna is built
inside the mobile phone and located below the microphone. Do not touch the antenna area during a
conversation, lest that the conversation quality deteriorate.
QUALIFIED SERVICE
Only qualified personnel may install or repair phone equipment. Installing or repairing the mobile phone on
-6-
your own may bring great danger and violates the warranty rules.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries.
USE SENSIBLY
Use only in a normal and proper manner.
EMERGENCY CALLS
Ensure the phone is switched on and in service, enter the emergency number, e.g. 112, then press the Dial key.
Give your location and state your situation briefly. Do not end the call until told to do so.
Note: Just like all other mobile phones, this mobile phone does not necessarily support all the features
described in this manual due to network or radio transmission problems. Some networks even do not support
the emergency call service. Therefore, do not rely solely on the mobile phone for critical communications
such as first aid. Please consult the local network operator.
Precautions
This mobile phone is well designed with fine art. Please exercise special care when using it. The following
suggestions will help your mobile phone survive the warranty period and extend its service life:
Keep the mobile phone and all its fittings beyond children's reach.
Keep the mobile phone dry. Keep away from rain, moisture, liquid or other substances that may corrode
electronic circuits.
Do not use or store the mobile phone in dusty places, lest that active parts of the mobile phone be damaged.
Do not store the mobile phone in a high-temperature place. High temperature will shorten the life of
-7-
electronic circuits and damage the battery and some plastic parts.
Do not store the mobile phone in a chilly place. Otherwise, moistures will be formed inside the mobile
phone to damage electronic circuits when the mobile phone is moved to a constant temperature place.
Do not throw, knock or shock the mobile phone, as that will destroy the internal circuits and high-precision
components of the mobile phone.
-8-
2 Your phone

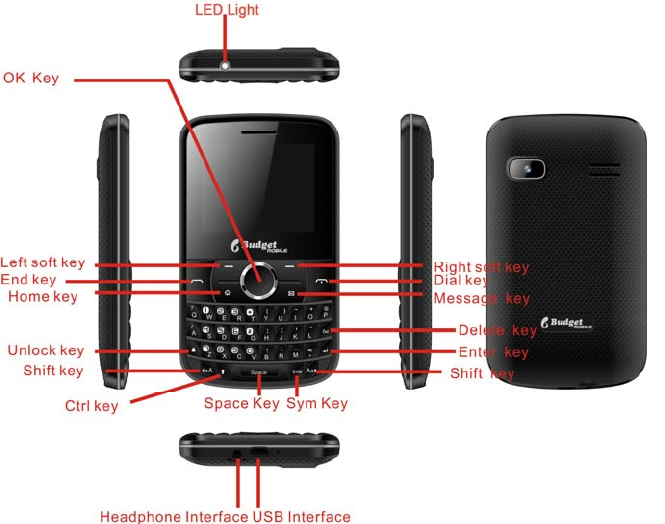

2.1 Phone overview
-9-
2.2 Functions of Keys
The mobile phone provides the following keys:
Dial key
Press it to originate a call by entering the called number or selecting a contact from the phonebook; or
press it to receive an incoming call; or press it in standby state to show the latest call records.
End key
Press it to end a call being dialed or end an ongoing call; or press it to exit the menu and return to the
standby state; or hold it for two or three seconds to power on or off the mobile phone.
Direction key
Press them to scroll the options when browsing a function list. In edit state, press direction keys to
navigate.
OK key
Press it to confirm a selection.
Left soft key
Execute functions that the left-down corner indicator shows.
Right soft key
Execute functions that the right-down corner indicator shows.
Home key
In the idle screen, press this key, you can go directly to the Internet interface.
Message key
Press it to enter message in standby interface.
-10-
Delete key
Press it to delete a character before cursor.
Enter key
In edit interface, you can press this key to switch to another line.
Space key
Press it in the edit interface to get a blank.
Sym key
Press it in the edit interface to input a symbol.
Ctrl. key
In edit interface, you can press it to switch between input methods;
Shift key
Press it to switch between upper case and lower case.
Unlock key
In standby mode, press the key, lock or unlock the standby interface
Number keys and letters
Press number keys 0 through 9 in input or edit state to input numbers and characters; Press letter keys
A through Z in input or edit state to input letters and characters.
2.3 Technical specifications
Phone
-11-
Dimensions(110.2*61.5*10.2mm):
Weight: 97.5G （without battery）
Lithium battery: Li_ion
Rated capacity: 800mAh
Continuous standby duration: 180H
Continuous conversation duration: 5H (Relates to network status)
Please refer to their labels for other data related to the battery and the charger.
2.4 Accessories list
Quick Charger
A lithium battery
T-Flash card
A headset
-12-
3 Getting started
3.1 Installing the SIM Cards and the Battery
An SIM card carries useful information, including your mobile phone number, PIN (Personal
Identification Number), PIN2, PUK (PIN Unlocking Key), PUK2 (PIN2 Unlocking Key), IMSI
(International Mobile Subscriber Identity), network information, contacts data, and short messages data.
Note:
After powering off your mobile phone, wait for a few seconds before removing or inserting an SIM card.
Exercise caution when operating an SIM card, as friction or bending will damage the SIM card.
Properly keep the mobile phone and its fittings such as the SIM cards beyond children's reach.
Installation
Hold the End key for a while to power off the mobile phone
Push the back cover above the battery and remove it.
Pull the left battery buckle outward and then lift the battery away.
Insert the SIM card into the SIM card slot lightly with the corner cutting of the card aligning to the
notch of the slot and the gold plate of the card facing download, till the SIM card cannot be further
pushed in.
With the metallic contacts of the battery facing the metallic contacts in the battery slot, press the battery
down until it locks into place.
Using code
The mobile phone and the SIM cards support sorts of passwords, in order to prevent the phone and the
-13-
SIM cards from being misused. When you are prompted to input any of the codes mentioned below, just
input the correct code and then press the OK key.
Phone lock code
The phone lock code may be set to prevent your mobile phone from being misused. In general, this code
is provided along with the mobile phone by the manufacturer. The initial phone lock code is set to 1122 by
the manufacturer. If the phone lock code is set, you need to input the phone lock code when powering on the
mobile phone.
PIN
The PIN (Personal identification number, 4 to 8 digits) code prevents your SIM card from being used by
unauthorized people. In general, the PIN is supplied with SIM card by the network operator. If PIN check is
enabled, you need to input the PIN each time when you power on your mobile phone. The SIM card will be
locked if you input wrong PIN code for three times.
Unlocking methods as follows:
-Input the correct PUK according to the screen tips to unlock the SIM card.
-Then input the new PIN and press the OK key.
-Input the new PIN again and then press the OK key.
-If the input PUK is correct, the SIM card will be unlocked and the PIN will be reset.
Note: The SIM card will be locked if you input wrong PIN code for three times. To unlock the SIM card,
you need to input the PUK. In general, the PUK can be obtained from the network operator.
PUK
The PUK code (Personal Unlocking Key) is required to change a blocked PIN. It is supplied with SIM
-14-
card. If not, contact your network operator. If you input wrong PUK code for 10 times, SIM card will be
invalid. Please contact the network operator to replace the SIM card.
Barring code
A barring code is required for setting the call barring function. You can obtain this code from the
network operator to set the call barring function.
3.2 Installing T-Flash Card
The T-Flash card is a pluggable mobile storage card inside the mobile phone.
To install the T-Flash card, place its indented side downward, and put the card into the card slot, then lock
the metal cover.
To remove the T-flash card, take the card out.
Note: The T-Flash card is a miniature object. Keep it out of the reach of children for fear that children
swallow it!
3.3 Charging the Battery
The lithium battery delivered with the mobile phone can be put into use immediately after being
unpacked. A new battery will have maximum performance after the first three full charge/discharge cycles.
Battery level indication:
Your mobile phone can monitor and display the battery state.
Normally the remaining energy of the battery is indicated by the battery level icon at the upper right
-15-
corner of the display screen.
When the battery energy is insufficient, the mobile phone prompts "Battery low". If you have set an
alert tone, an alert tone will be given off when the battery level is too low.
A charging animation appears when the battery is being charged. When the charging is complete, the
animation disappears.
Using a travel adapter:
Install the battery into the mobile phone before charging the battery.
Connect the adapter of the travel charger with the charging slot in the mobile phone. Ensure that the
adapter is fully inserted.
Insert the plug of the travel charger to an appropriate power outlet.
During the charging, the battery level grids in the battery icon keep flickering till the battery is fully
charged.
It is normal of the battery to become hot during the charging period.
The battery icon does no longer flicker when the charging process ends.
Note:
Ensure that the plug of the charger, the plug of the earphone, and the plug of the USB cable are inserted
in the right direction. Inserting them in a wrong direction may cause charging failure or other problems.
Before the charging, ensure that the standard voltage and frequency of the local mains supply match the
rated voltage and power of the travel charger.
Using the Battery
The performance of a battery is subject to multiple factors: radio network configuration, signal strength,
-16-
ambient temperature, chosen functions or settings, phone fittings, and the voice, data or other application
mode you choose to use.
To guarantee the optimal performance of your battery, please stick to the following rules:
Use only the battery provided by the vendor. Otherwise, damages or even injuries could be caused
during the charging.
Power off the mobile phone before removing the battery.
The charging process lasts a longer time for a new battery or a battery not in use for long. If the battery
voltage is too low to enable the mobile phone to be powered on, charge the battery for a longer time. In
this case, the battery icon does not flicker until a long time after the battery enters the charge status.
During the charging, ensure the battery is placed in a room temperature environment or in an
environment close to room temperature.
Immediately stop using the battery if the battery produces odor, overheats, cracks, distorts or has other
damage, or if the electrolyte leaks.
The battery wears out with use. A longer charging time is required as the battery is put into use for a
long time. If the total conversation duration decreases but the charging time increases even though the
battery is properly charged, purchase a standard battery from the OEM or use a battery approved by
our company. Using any poor-quality fittings will cause harm to your mobile phone or even incur
danger!
Note: To guarantee your personal safety and protect the environment, do not litter the battery! Return the old
battery to the mobile phone manufacturer or place it in specified battery reclamation areas. Do not litter any
battery with other rubbish.
-17-
Warning: Short-circuits of the battery may cause explosion, fire, personal injury or other severe
consequences!
3.4 Powering On/Off the Mobile Phone
Hold the End key for a while to power on the mobile phone. A power-on animation appears on the display
screen.
Input the phone lock code and press the OK key if the mobile phone prompts you to input the phone lock
code. The original code is 1122.
Input the PIN and press the OK key if the mobile phone prompts you to input the PIN. The PIN is provided
by the network operator for new opening SIM card.
Enter the standby interface.
To power off the mobile phone, hold the End key for a while.
3.5 Linking to the Network
After the SIM card and the mobile phone are successfully unlocked, the mobile phone automatically searches
for an available network. After finding a network, the mobile phone enters the standby state. When the
mobile phone is registered in the network, the name of the network operator is displayed on the screen. Then
you can dial or receive a call.
-18-
3.6 Dialing Calls
In the standby interface, press number keys to input the area code and the telephone number, and then press
the Dial key to dial a call. To end the call, press the End key.
Answering incoming calls
Press the Dial key or the Left soft key to answer an incoming call.
Press the End key to end the current conversation.
To reject an incoming call, press the End key or the Right soft key.
Note: If the caller can be identified, the mobile phone will present the calling number. If the calling number
exists in the phonebook, the mobile phone will present both the name and the phone number of the caller. If
the caller cannot be identified, the mobile phone will present the calling number only. You can answer an
incoming call when using a function list or browsing the phonebook.
Using options during a conversation
Select Options during a conversation to pause, end the ongoing call, originate a new call, browse the
phonebook, view information, set the mute, or perform other operations. For details, refer to the menu guide.
4 Input method
This mobile phone provides multiple input methods, including English input in both upper and lower
-19-
case, and numeric input method. You can use these input methods when editing the phonebook, short
messages and files.
4.1 Icons for Input Methods
The phone offers a variety of input methods, including English, Spanish and Portuguese. Edit the phone
book, short messages, and files, you can use these input method.
When you get into an editing window, such as a window, edit the phone book or SMS, an icon appears
to indicate the current input method:
English input: "abc"
Espanol input: "es"
Portugal input: "pt"
Digital input: "123"
4.2 To Shift Entry Methods
Press Ctrl. key to switch between input methods.
4.3 Numeric and English Input
You can input numbers with the numeric input method. Press a number key to input the corresponding
number.
-20-
You can input letters with the English input method. Press a letter key to input the corresponding letter.
To input a blank, press Space.
To clear wrong inputs, press the delete key.
4.4 Inserting a Symbol
Press the sym key to enter the Select symbol interface and select a symbol you want.
5 Using the Menus
5.1 File manager
The phone supports the T-Flash card. You can use the file manager to conveniently manage various
directories and files on the phone and the T-Flash card.
Open
Choose File manager to enter the root directory of the memory. The root directory will list the default
folders, new folders and user files. When the mobile phone is powered on for the first time or when you have
not changed the directory, the root directory contains the default folders only.
-21-
Format
You can use this function to format all the data in the memory. The system will re-create a default folder. The
formatted data cannot be recovered. Therefore, think twice before using the formatting function.
Details
You can view the details of the memory card.
5.2 Phonebook
The mobile phone can store up to 200 telephone numbers. The number of telephone numbers that an SIM
card can store depends on the storage capacity of the SIM card.
After selecting a telephone number in the phonebook, select Options to perform the following operations:
View: View the content of the telephone number.
Sent text message: sent text message to this number.
Call: call the selected number.
Edit: Edit the telephone number and name.
Delete: Delete the telephone number from the phonebook.
Copy: Duplicate the telephone number from the mobile phone to the SIM card or from the SIM card to
the mobile phone.
Phonebook setting: To set related parameters of phonebook.
-22-
5.3 Audio player
Use this function to play audio files. By pressing the direction key can you control the playing process of
audio player: play/pause（OK key）, stop (up direction key), switch to last song/next song （press left or right
direction key）, fast forward (press and hold right direction key) and rewind (press and hold left direction key).
In audio player interface, you can press + or - key to adjust volume.
5.4 Call center
Call history
Missed Calls
You can view a list of the latest missed calls.
Note: When the mobile phone indicates that some calls are missed, you can select OK to enter the missed
calls list. Navigate to a missed call and then press the Dial key to dial the number.
Dialed Calls
You can view the latest dialed calls. Choose Dialed calls and then select a dialed call to view, call, send text
message or delete.
Received Calls
You can view the latest received calls. Choose Received calls and then select a received call to view, call,
send text message or delete.
All Calls
-23-
You can view all call records. Choose All Call and then select a call log to view, call, send text message or
delete.
Delete call logs
You can delete the latest call records. Choose Delete call logs and then select to delete all the numbers in the
call history, or delete only the numbers in the missed calls list, the dialed calls list or the received calls list.
Call timers
You can view the call times.
Call settings
Caller ID: The function enables you to set whether to display your phone number when others receive
your call.
Call waiting: After you choose Activate, the mobile phone will contact the network. A moment later, the
network will make a response and send a message to acknowledge your operation. If the call waiting
function is activated, the network will alert you and the mobile phone screen will display the incoming
call number if others are calling you while you are already in a conversation.
Call divert: This network function enables you to forward incoming calls to another number you have
previously specified.
Call barring: The call barring function enables you to bar calls as needed. When setting this function,
you need to use a network barring code, which can be obtained from the network operator. If the code is
wrong, an error message will be prompted on the screen. After selecting a call barring option, continue to
-24-
select Activate or Deactivate. The mobile phone will prompt you to input the call barring code and then
contact the network. A moment later, the network will make a response and send the operation results to
the mobile phone.
Line switching: Switch to Line 1 or Line 2. Default Line 1 is used.
Note: If you select Line 2, dial-up may fail. It depends on the implementation of the network operators.
Advanced settings
Auto redial: Set it to On or Off to enable or disable auto redial. If you set Auto redial to On, the mobile
phone will automatically redial the number a moment later if the called party does not reply. The number
of auto redial times can be set to a maximum of 10. In the auto redial period, you cannot dial other
numbers. To end the auto redial process, press the End key.
Note: This function requires support from the network operator to which the SIM card is registered.
Call time reminder: To set single or periodic tone in a call to make you know the time.
Answer mode: Set answer mode as per your need.
5.5 Messaging
If the short message memory is full, a blinking message icon appears on the top of the screen. To normally
receive short messages, you need to delete some of the existing short messages.
If the destination user has received the short message you sent and the short message delivery report function
is activated, the phone will give off a message report alert tone.
-25-
Write message
Access this menu to create a text message.
Inbox
Received messages are listed in this item.
Drafts
From the main menu select “Messaging” to create text message. You can type a message. While writing a
message, select “Options” to access all the messages options. You can save your messages that you send to
“Drafts”.
Outbox
The messages which are sent failed are stored in the Outbox.
Sent messages
Sent messages are listed in this menu.
SMS Settings
This function enables you to set the default features about the text message.
-26-
5.6 Multimedia
Camera
Use this function to capture pictures. In the capture interface, you can perform the following operations:
Up or down direction key to zoom in or zoom out;
OK key to capture photos;
Left soft key to access Options;
Right soft key to exit capture interface;
Image viewer
Pictures taken by camera can be scanned through this function.
Video recorder
This function enables you to record dynamic pictures. In the capture interface, press up or down direction key
to zoom in and zoom out; OK key to capture videos clip.
Video player
Use this function to play video files. By pressing the direction key can you control the playing process of
video player: play/pause（OK key）, fast forward (press and hold right direction key) and rewind (press and
hold left direction key). In video player interface, you can press + or - key to adjust volume, down direction
key to switch to full screen play.
-27-
Sound Recorder
The phone supports WAV and AMR format. The AMR takes the compression algorithm. So in the same
memory condition, it has longer recording time than WAV.
After accessing the sound recorder, you can press left soft key to perform the following operations:
New record: Select this function to record a new file.
List: Recorded files are listed in this menu.
Settings: Through this function, you can set audio quality for record files.
FM radio
You can use the application as a traditional FM radio with automatic tuning and saved channels. In FM radio
interface, you can press left or right direction key to search channels manually, OK key to play/pause the
playing process of the current channel, up or down direction key to enable fine turning search, + or - key to
adjust volume.
5.7 Services
Internet service
This function enables you to view the internet. Your phone will ask you with existed way. You can start to
view only by starting corresponding way.
Homepage: indicates the default website of the internet；
Bookmarks: used to save most commonly-used websites；
-28-
Search or input URL: input the website to be searched and press finish button to access to the network
directly；
Settings: set up WAP-related service.
Note: Consulting the local network operator for related fee and specific setup.
STK
STK service is the tool kit of SIM card. This phone supports the service function .The specific items are
depended by SIM card and network. Service menu will be auto added to the phone menu when supported by
network and SIM card.
5.8 Organizer
Calendar
Once you enter this menu, there is a monthly-view calendar for you to refer to.
Alarm
Five alarm clocks are set but deactivated by default. You can activate one, multiple or all of them as needed.
For each alarm clock, the ringing tone and the ringing time can be set.
-29-
5.9 Settings
Phone Settings
Time and date: set the home city, the time /date format, and detail time of the location.
Language: Select the display language for the mobile phone.
Pref. input method: Select an input method as preferred method.
Display: Users can access this item to set wallpaper, screen auto lock, show date and time.
Dedicated keys: Customize the shortcut functions of the Left and Right direction keys. In the standby
interface, you can press a direction key to directly enter the function menu corresponding to that
direction key.
Flight mode: When flight mode is engaged, it will suspend many of the device's signal transmitting
functions – thereby disabling the device's capacity to place or receive calls or text messages– while still
permitting use of other functions that do not require signal transmission (e.g., built-in camera, MP3
player.)
Misc. settings: You can set LCD backlight brightness and duration through this function.
Hearing Aids: After you choose Activated, you can hear the sound around by receiver or headset.
Torch: Turn on/off torch.
Security Settings
This function provides you with related settings about safety use.
SIM security
-30-
PIN lock: To activate PIN lock, you need to input the correct PIN code. If you set PIN lock to On, you
need to input the PIN each time you power on the mobile phone. In the case you input a wrong PIN for
three consecutive times, you need to input the PIN Unblocking Key (PUK). The PUK is used to unlock
and change the locked PIN. To obtain the PUK, contact the network operator.
Change PIN: To change PIN code of SIM card.
Change PIN2: To change PIN2 code of PIN code.
Phone security
Phone lock: The function enables you to lock/unlock the phone. Enter password to switch on or off the
phone. Password is required when the phone is locked. The password is 4 to 8 digits.
Change password: to change phone password. The initial password is 1122.
Network Settings
Contact the network operator to obtain the following network services:
Network selection: Set Network selection mode to Automatic or Manual. Automatic is recommended.
When Network selection mode is set to Automatic, the mobile phone will prefer the network where the
SIM card is registered. When Network selection mode is set to Manual, you need to select the network
operator's network where the SIM card is registered.
GPRS connection: Select the GPRS connection way.
GPRS transfer Pref.: Select the preferred GPRS.
Connectivity
Bluetooth
-31-
With Bluetooth, you can make a wireless connection to other compatible devices, such as mobile phones,
computers, headsets and car kits. You can use the Bluetooth to send images, video clips, music, sound clips
and notes, etc.
Data accounts
Access this menu to set data account related parameters.
Restore Factory Settings
Use this function to restore factory settings. Note: The initial phone lock code is 1122.
5.10 Extras
Calculator
The calculator can add, subtract, multiply and divide. Up, down, left , right or OK key to select ＋, －, ×, ÷,
＝ respectively.
Note: This calculator provides limited precision and is only applicable to simple arithmetic calculation
5.11 Profiles
The mobile phone provides multiple user profiles, so that you can customize some settings to adapt to the
specific events and environments.
Customize the user profiles according to your preference and then activate the user profiles. The user profiles
-32-
fall into five scenarios: General, Silent, Meeting and Outdoor.
When you insert an earpiece to the mobile phone, the mobile phone automatically enters the Headset mode.
There is no option for activating the Headset mode on the screen. For details on operation, refer to General.
If you set Call center > Advanced settings > Answer mode to On, incoming calls will be automatically
answered.
Activate
Select Activate to activate the selected mode.
Customize
After choosing one of the above four modes, select Customize to edit the following items: Alert type, Ring
type, Ringtone, Ringtone volume, Message, Message volume, Keypad, Keypad volume, System alert, etc.
Reset
Use this function to restore factory settings of user profile.
5.12 Shortcuts
You can set some most used menus as shortcut functions through this item.
-33-
6 Appendix
Appendix 1：Troubleshooting
If you find exceptions when operating the mobile phone, restore the factory settings and then refer to the
following table to solve the problem. If the problem persists, contact the distributor or service provider.
Fault Cause Solution
SIM card error
The SIM card
is damaged. Contact your network service provider
The SIM card
is not in
position.
Check the SIM card
The metal
face of the
SIM card is
polluted.
Clean the SIM card with a clean cloth
-34-
Poor received
signal quality
Signals are
obstructed.
For instance,
radio waves
cannot be
effectively
transmitted
nearby a high
building or in
a basement.
Move to a place where signals can be effectively transmitted
Line
congestions
occur when
you use the
mobile phone
in high-traffic
hours
Avoid using the mobile phone in high-traffic hours
-35-
The mobile
phone cannot
be powered on
The battery
energy is
exhausted.
Charge the battery
Calls cannot be
dialed
Call barring is
activated Cancel call barring
The mobile
phone cannot
connect the
network
The SIM card
is invalid Contact your network service provider
-36-
The mobile
phone is not
in a service
area of the
GSM network
Move to the network operator's service area
The signal is
weak Move to a place where the signal quality is high
The battery
cannot be
charged
The charging
voltage does
not match the
voltage range
indicated on
the charger
Ensure the charging voltage matches the voltage range
indicated on the charger
An improper
charger is
used
Use the charger specially designed for the mobile phone
Poor contact Ensure the charger plug is in good contact with the mobile
phone
-37-
FCC statements:
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothe followingtwoconditions:(1)
thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,
includinginterferencethatmay causeundesiredoperation.
NOTE:ThemanufacturerisnotresponsibleforanyradioorTVinterferencecaused byunauthorized
modificationsorchangestothisequipment.Suchmodificationsorchangescouldvoidtheuser’sauthority
tooperatetheequipment.
NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldevice,
pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainst
harmfulinterferenceina residentialinstallation.Thisequipmentgeneratesusesandcanradiateradio
frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmful
interferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurina
particularinstallation.Ifthis equipmentdoescauseharmfulinterferencetoradioortelevisionreception,
which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedto trytocorrectthe
interferencebyoneormoreofthefollowingmeasures:
‐Reorientorrelocatethereceivingantenna.
‐Increasetheseparationbetweentheequipmentandreceiver.
‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected.
‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
-38-
RF
TheSARlimitofUSA(FCC)is1.6W/kgaveragedoveronegramoftissue.Device
typesQ330hasalsobeentestedagainstthisSARlimit.
ThehighestSARvaluereportedunderthisstandardduringproductcertificationforusewhenproperlyworn
onthebodyis1.310W/kgandforheadis1.311W/kg.SimultaneousRFexposureis1.437W/Kg.
.Thisdevicewastestedfor
typicalbody‐wornoperationswiththebackofthehandsetkept15mmfromthebody.
TomaintaincompliancewithFCCRFexposurerequirements,useaccessoriesthat
maintaina15mmseparationdistancebetweentheuser'sbodyandthebackofthe
handset.Theuseofbeltclips,holstersandsimilaraccessoriesshouldnotcontain
metalliccomponentsinitsassembly.Theuseofaccessoriesthatdonotsatisfythese
requirementsmaynotcomplywithFCCRFexposurerequirements,andshouldbe
avoided.
This device complies with the FCC HAC requirements has also been tested E-Field, the worst test result of M rating is M4.
M-Ratings: Phones rated M4 meet FCC requirements and are likely to generate less interference to hearing devices than
phones that are not rated. Your device is rated M4.
