Haier Telecom 201605L30 GSM/WCDMA/LTE handset User Manual AD683G UM

Haier Telecom (Qingdao) Co., Ltd. GSM/WCDMA/LTE handset AD683G UM

201605L30 User Manual >

1. Users manual
2. Users Manual

Users manual



1
Content
Get Started ......................................................................... 3
Knowing Your Phone........................................................... 3
Removing the back cover ................................................... 5
Inserting the SIM Card ........................................................ 5
Inserting SD card ................................................................ 6
Installing the battery .......................................................... 7
Removing the battery ......................................................... 7
Charging the battery ........................................................... 8
Battery Performance .......................................................... 9
Basic Operations ................................................................. 9
Turning on and off the phone ............................................. 9
Get Started ......................................................................... 9
Main Screen ..................................................................... 10
Making a call .................................................................... 15
Main Function .................................................................. 16
Chrome ............................................................................ 16
Play Store ......................................................................... 17
Manage Download ........................................................... 17
Optimize Battery Life ........................................................ 18

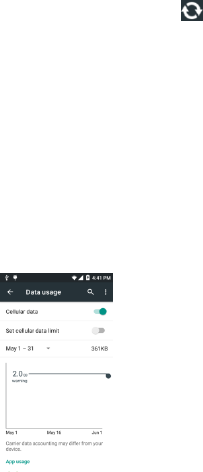

Optimize Data Usage ........................................................ 20
Optimize Memory Usage .................................................. 22
Calculator ......................................................................... 22
Calendar ........................................................................... 23
Camera ............................................................................. 23
Camcorder........................................................................ 25
Clock ................................................................................ 26
Email ................................................................................ 27
FM Radio .......................................................................... 28
Gallery .............................................................................. 28
Gmail ................................................................................ 29



2
Google Settings ................................................................ 29
Google + ........................................................................... 29
Hangouts .......................................................................... 30
Google Drive..................................................................... 30
Google Maps .................................................................... 30
Play Books ........................................................................ 31
Play Games ....................................................................... 31
Play Music ........................................................................ 31
WPS Office ....................................................................... 31
Messaging ........................................................................ 31
Music ............................................................................... 32
Contacts ........................................................................... 33
Search .............................................................................. 33

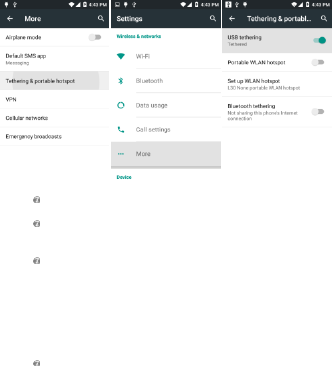

Settings ............................................................................ 34
Sound Recorder ................................................................ 40
Video ................................................................................ 41
Task Manager ................................................................... 41
Safety Information and Use .............................................. 42
Disclaimer ........................................................................ 51

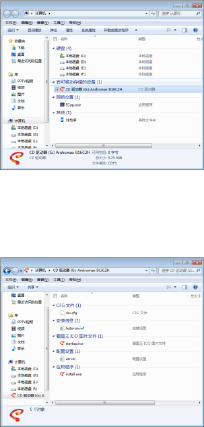

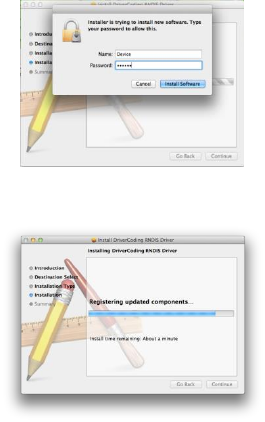

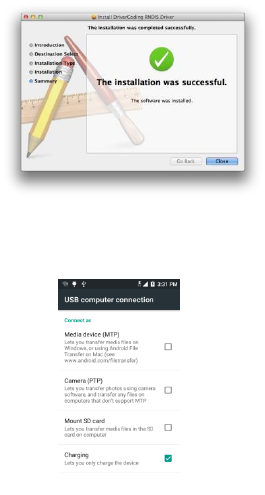

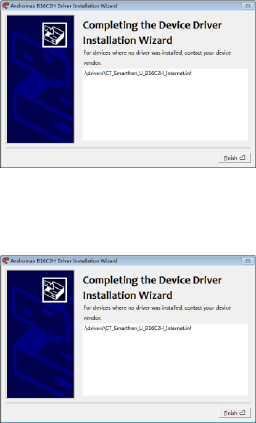

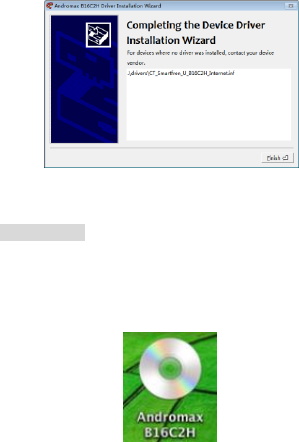

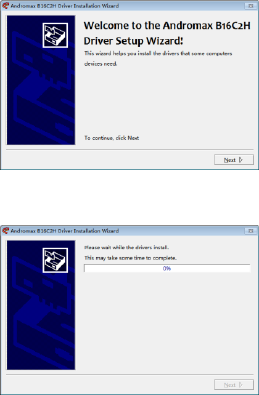

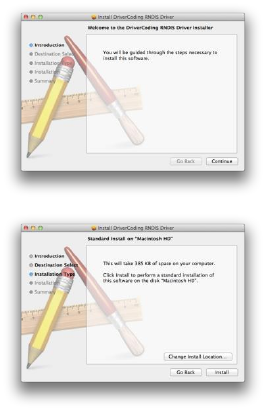

USB Driver Installation Guide ........................................... 51







Get Started

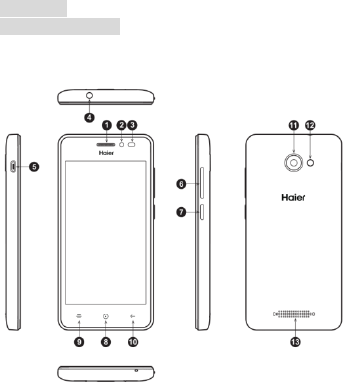

Knowing Your Phone

Name

Function

Ear Piece

Receive the voice from the phone

Front

Camera

Capturing images using front camera

Sensors

1. Ambient sensor, for detecting the light

or surrounding brightness

2. Proximity sensor, used to measure

distance between the phone and turn off

the display during a call

Headset

Port

To connect your 3.5” hands free or audio

port

Micro-USB

Port

To connect the charger or data cable

The volume

keys

Increasing or decreasing volume level

Power Key

Long press To turn on / off the phone from,

and short press to turn on / off the screen

backlight or screen lock the phone

Home Key

Short Press to return to home screen

Recent

Apps Key

To display the recent app list

Return Key

Return to the previous menu or screen

Rear

Camera

Capturing images using rear camera

Flashlight

Brighten the environment when you

capture images using rear camera.

Loud

Speaker

Produces the sound, phone ringtone,

notification and loud the conversation

sound

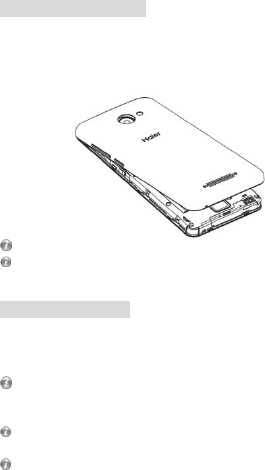

Removing the back cover

You must remove the back cover to install 4G LTE SIM card, SD

card and Battery. Hold the lower half of the phone with battery

cover upwards, and lift the bottom of the battery cover, then

the battery cover can be removed.

Please turn the phone off before open the battery to prevent damage.

Please be careful when opening the back cover, follow it accordingly to prevent

damage.

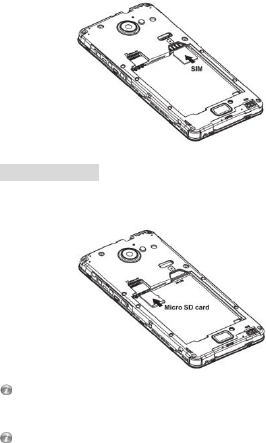

Inserting the SIM Card

You must insert 4G LTE SIM card is on the phone to enjoy and enable

all the features. Your card contains all your subscription information.

Insert 4G LTE SIM and SD card with the metal contacts facing down

and the cut corner is aligned with the cutting on the slot.

If 4G LTE SIM card is not installed, or there are errors in the insertion, or the

card is damaged, “No service” notification will appear on the screen after your

phone is powered on.

If the PIN is enabled you need input the PIN number to unlock it before you

contrast using the phone.

Please use factory default Micro SIM card only, do not cut or modified from

regular size SIM card and do not use converter from Nano SIM to Micro due it

might damage the SIM card slot and SIM card connector on the phone.

Inserting SD card

Insert Micro SD card with the metal contacts facing down and

the cut corner aligned with that of the slot

Please insert or remove the Micro SD card when the phone is powered off, or

the Micro SD-Card or the phone might get damaged and the data on the Micro

SD-Card could be lost.

The phone might not have SD card indicator when inserted, you may check you

Micro-SD card status through Settings



Storage or check through File

Manager.

You might need to restart your phone after setting the storage to SD-Card or

when inserting an SD-Card.

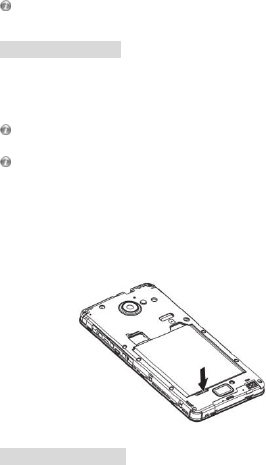

Installing the battery

You must install and charge the battery to use your phone.

Insert the ridge at the top of the battery into the base of the

phone, make sure to touch the metal contact on the phone,

then push the battery down and snap it into place.

Do not forces to turn the phone back on over and over if the battery is too low,

it might cause damage to the phone and the battery.

Please turn the phone off before open the batteryto prevent damage.

Note:

Your phone is designed to be used only with the original

batteries and chargers. The use of other battery or charger is

not recommended it may cause damage to your phone and the

warranty will be void.

Removing the battery

Make sure your phone is powered off before taking out the

battery to prevent data loss from the phone.

Charging the battery

New batteries are shipped partially charged. Before you can use

your phone, you need to charge the battery. Some batteries will

have best performance after several full charge/discharge cycles,

follow the instruction bellow:

1. Connect data cable and charger, plug one end into your

phone’s data port.

2. Plug the other end of the charger into the appropriate

electrical outlet (100~240V AC).

3. When your phone indicates that the battery is fully

charged, remove the charger.

Notes:

● The battery is removable, please properly install them to prevent

damage, and use the original battery and charger

● Your phone is designed to be used only with original built-in batteries

and chargers

● The battery can discharge gradually even when your phone is

powered off. If the battery is drained for a long time, the information

stored in the phone could possibly be lost.

● Even when you are not using the phone, it would be best to charge

your phone periodically to keep it away from draining.

● If the battery is charged after draining, the phone cannot be turned

on. The battery needs to be charged for a while, afterward then the

phone will go to power-off charging mode and you can turned on the

phone

● You need longer charging period with the lower voltage.

● Recommendations do not operate phone during charging.

● The normal temperature of charging is during 0⁰C- 40⁰C.

Battery Performance

Information

Capacity

1950mAH

Standby time (LTE only)*

±150H

Standby time (LTE+G)*

±100H

Talk time*

±8H

Many conditions can affect battery’s standby time, such as local network

conditions, phone’s settings, frequent operations, using data services, etc.

The battery performance is also affected by charge state and temperature.

Basic Operations

Turning on and off the phone

To turn on the phone:

Press and hold Power key for more than 3 seconds to turn on

your phone.

Turn off the phone:

Press and hold Power key to pop up option menu, select “power

off”. If it is powered off you cannot receive, make a call or do

other operations.

Get Started

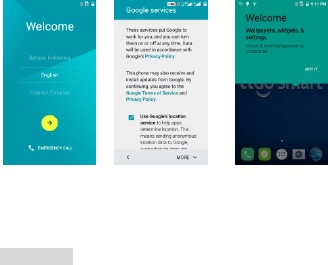

Set up your phone

The first time you turn on the phone, you'll see a Welcome

screen.

 To choose a different language, touch the Start.

 To set up your phone, touch the Start and follow the

instruction, such as set up the time/ input phone name,

etc.

 You need to connect to an active network or WI-FI to

proceed.

There will be series of screens takes you through the setup

process. Set up complete, click “GOT IT” to enter home screen.

As you go through the setup screens, you have the option to

skip some steps. Then input your name allows your phone to

personalize some apps.

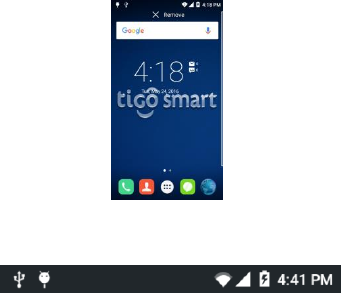

Main Screen

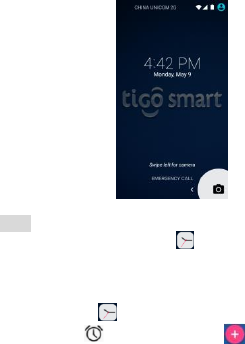

Screen lock

There are four (4) options for the screen lock function, which

consist of:

1. Swipe: Touch Settings  Security  Screen lock 

Swipe. You can unlock the screen by swipe up the key.

2. Pattern: Touch Settings Security Screen lock 

Pattern. You can use the pattern as you desired to

unlock the screen, after you set it up.

3. PIN: Touch Settings Security  Screen lockPIN.

You can use the PIN as you desired to unlock the screen,

after you set it up.

4. Password: Touch Settings Security  Screen lock 

Password. You can use the Password as you desired to

unlock the screen, after you set it up.

Important:

Screen lock options are listed in approximate order of the

strength of their security, starting with None and Swipe, which

provide no security. Pattern lock provides more security than

None and Swipe but less then the stronger option, although

they can be more convenient than the stronger lock options.

Widgets and Icons

Touch menu to see all Application Icons and long press on idle

screen to select Wigets.

Press and hole the widget on the menu sa desired, drag then

release it on desktop.

Delete Icon

Press and hold a selected icon on desktop, you will find ‘X

Remove’ appearing. At this time drag the icon to ‘X Remove’,

then release.

Status Bar

A status bar at the top of the screen displays phone status

information and notifications.

Change Wallpaper

Touch & hold anywhere on a Home screen that's not occupied.

A list of options appears.

Touch a wallpaper source, and it will appear selection:

1. Pick image, it will appear to select image from:

 Gallery. Choose from pictures that you've taken with

Camera or downloaded to your device.

 Photos. Choose from pictures that you've taken with

Camera, and Other.

 File Explorer. Choose from pictures that you've taken

with Camera or downloaded to your device.

2. Default wallpaper:

 Wallpapers. Choose from thumbnails of default

images.

 Live Wallpapers. Choose from a scrolling list of

animated wallpapers.

To set a wallpaper image, touch the image then it will replace

you previous wallpaper.

Notification Panel

You can open notifications such as unread messages or missed

calls directly from the notification panel.

To open the panel, hold the status bar with your finger, and

drag it downward. And you can touch notification and swipe it

to left or right to clear the notifications one by one.

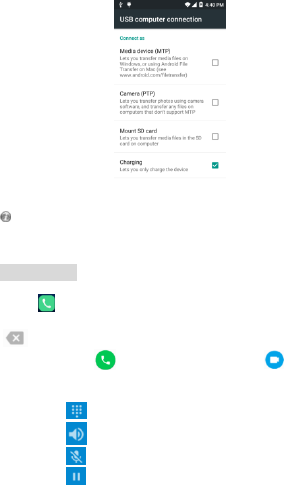

Connection Mode

You can select the connection mode on phone as Media device

(MTP), Camera (PTP), Mount SD Card and Charging and after

your phone is connected to PC via Data Cable. By holding the

status bars with your finger, and drag it downward, then you

will see the Connection mode on notification panel. Touch it

then it will open the option as picture below, then you can

select it as desired.

The USB MTP and PTP might not work on Mac OS due to the limitation and

might required 3rd party application on the Mac Computers for the MTP

function.

Making a call

Making call

Touch to enter dialer interface on idle screen or main menu

screen, input phone number. If you make a mistake, you can touch

to delete the number or hold it to delete all numbers before

the cursor. Touch to make a voice call or touch to make a

video call.

During a call, you can do the following:

1. Touch to open the dial pad.

2. Touch to enable or disable the loud speaker function.

3. Touch to enable or disable your microphone.

4. Touch to hold the call.

5. Touch to add a call.

6. Touch to open menu, hold calll.

7. Touch to end the call.

To see the setting of voice mail, you can do the following:

Touch Settings  Call settings Voicemail. Inside the voice mail

settings, you can see or edit the number. You can dial the voice mail

number manually from the dial pad.

To see the settings of Speed dial, you can do the following:

Touch Settings  General settings Speed dial settings

Inside the Speed dial settings, you can see or edit the number

correspond to 2 to 9 accordingly, you can long press any number of

2 to 9 in dialer to make a call to the corresponding number you have

set.

To see the settings of call forwarding, you can do then following:

Touch Settings  Call Settings  Call forwarding.

To see the setting of call waiting, you can do the following:

Touch Setting Call settings  additional settings Call waiting

Main Function

Chrome

Connect the web page with the mobile network. Click the

Chrome icon on the Desktop , and then you can open the

web browser.

You can in put different website to view different web page.

Press menu key you can do these lists:

 Add a new tab.

 Add a new bookmark or manage bookmarks.

 Settings, to enter the browser settings menu.

 Help, to enter the browser help menu.

Play Store

From this application you can download many applications such

as Games, Books & Reference, Communication, Education,

Entertainment etc, where it contain both free or paid

application you can choose that provided from Android market.

This function can work after you create and activate or login

using your Google account.

 Touch the icon once you connected, the main screen

appears and then afterward you can download any

application based on the categories.

 You can manage your Play Store setting from the main

menu when you access the Play Store application

If there are other applications that you have downloaded from

unknown source, you need to enable the function before you

can install it.

Idle, Touch MenuSettingsSecurityUnknown source

select it then press OK, to allow installation of non-Market

apps.

Not all application provided from the Play Store or any other third party can be

supported or compatible with this device due to the specification and develop

requirement differentiation

Some 3rd party application from trusted or untrusted resource may cause the

phone to malfunction or not working properly

Manage Download

To store the files, apps, and other items you download from

Gmail l, Email, Android Market, or in many other ways, it will

required SD-Card inserted. You can use the Downloads app to

view, copy or delete what you've downloaded.

Open Downloads and manage downloaded files

 Touch the Downloads icon from a Home or all

Apps screen.

 Touch an item to open it.

 Touch headings for earlier downloads to view them.

 Check items you want to share. Then touch the

Share icon and choose a sharing method from

the list.

 Check items you want to delete. Then touch the

Trash icon .

 At the bottom of the screen, touch Sort by size or

Sort by date to switch back and forth.

Optimize Battery Life

You can extend your battery's between charges charges by

turning off features that you don't need.

First touch the Settings icon on a Home or All Apps

screen.

Extend the life of your battery

 If you aren't using Wi-Fi, Bluetooth, or GPS, use the

Settings app to turn them off: Settings Personal

Location.

 Turn off GPS: Touch SettingsPersonal 

Location, then switch off the Location.

 Turn down screen brightness and set a shorter Sleep

timeout: SettingsDeviceDisplay.

 If you don't need it, turn off automatic syncing for all

apps: SettingsAccount. Or you can touch

icon to enable/disable it from taskbar.

Note that this means you need to sync manually to

collect messages, email, and other recent

information, and won't receive notifications when

updates occur.

 If you know you won't be near a mobile or WI-FI

network for a while, switch to Airplane Mode.

Check battery level and usage details

 Open SettingsDeviceBattery. The list at the

bottom of the screen shows the breakdown of

battery usage for individual apps and services.

Warning! If you stop some apps or services, your

device may not work correctly.

Optimize Data Usage

Date usage refers to the amount of data uploaded or

downloaded by your device during a given period.

Data usage settings allow you to:

 Set the data usage level at which you'll receives

warning.

 Set a data usage limit.

 View or restrict data usage app.

To adjust the settings described:

1 Touch the Settings icon on a Home or All Apps

screen.

2 Touch Wireless & networksData usage.

By default, you see the settings for mobile data or networks

provided by your carrier.

It’s possible to settings in a separate tab, to do so, touch the

Menu key, then Show W-Fi usage.

Set data usage warning

 Drag the orange line by its right side to the level where

you want to receive a warning.

Set data usage limit

1 Check Set mobile data limit.

A dialog appears that describes the limit you're setting.

2 Read the message. If you're willing to proceed, click OK.

3 The red line at the top of the graph activates, so you can

drag it up or down.

4 Drag the red line by its right side to the limit you want to

set.When your data usage reaches the limit, mobile data

will be turned off automatically and many features of

your phone won’t work correctly. You’ll receive a

notifacaiton when this occurs.

View or restrict data usage by app

Check whether data usage can be restricted from the app's

own settings (available from within the app) before restricting

it here.

1 Make sure you're viewing the network for which you

want to view or restrict app data usage.

2 Scroll down to find the app whose data usage you want

to view. The blue bar for each app indicates its total

data usage for the cycle displayed above the main graph,

near the top of the screen.

3 To see more details for an app, touch iss name.

4 Tostop background data usage for this app, check

Restrict background data.

5 Read the message that appears, If you’re willing to

proceed ,click OK

Advanced data usage settings

Two other settings available from the Menu key can have

dramatic effects, but may sometimes be useful:

 Data roaming can result in steep additional charges.

However, in some locations this may be the only way

to connect to the internet.

 Restrict background data affects all your apps across

all available networks, and may cause some features

to stop working. This is an extreme step that should

be used with caution.

 Auto‐sync data helps sync each account

automatically to collect recent information. If you

turn it off, you’ll need to collect recent sync manually,

and you won’t receive notifications when updates

occur.

Optimize Memory Usage

Apps use two kinds of memory: internal storage and RAM. They

use internal storage for themselves and any files, settings, and

other data they use. They also use RAM (memory designed for

temporary storage and fast access) when they're running.

The memory available capacity shown is based on the actual usage capacity

after reduced by system usage.

Android also manages how apps use RAM. It may cache some

things you've been using recently, for quicker access if you need

them again, but it will erase the cache if it needs the RAM for

new activities.

You affect the way apps use internal storage directly and

indirectly in many ways, for example by:

 Installing or uninstalling apps.

 Downloading files in Browser, Gmail, and other apps.

 Creating files (for example, by taking pictures).

 Deleting downloaded files or files you created.

 Copying files between your device and a computer via

USB or Bluetooth.

You rarely need to manage the way apps use RAM. But you can

monitor apps RAM usage and stop them if they misbehave.

Calculator

Perform basic arithmetics such as addition, subtraction,

multiplication and division.

1. Touch the Calculator application icon.

2. Touch the number and operation symbols to do the

calculation.

3. Touch “DEL” to clear the result one, or long press ”DEL”

to clear all.

Calendar

The Calendar app lets you view and edit your schedule. Touch

on a Home or Apps screen.

To change the Calendar view, touch the date at the top left

corner and choose Day, Week, Month or Year.

Create agenda

1. Press menu key and click “New event” button.

2. Before you can add an event, you must add at least one

calendar account to your device and make a calendar

visible.

3. Input name/Location/Time and so on.

4. Click “Done” button.

The new agenda will appear on the calendar menu when you

entering again.

Camera

The Camera app is a combination camera and camcorder that

actually consists of two cameras, front camera (facing you) and

main camera behind the phone. The camera includes a

Panorama mode that allows you to create a single image by

panning across a scene. You can view photos and videos you

take with Camera in the Gallery app .

To take pictures and videos, first touch the Camera icon on

the Application list screen.

When the Camera opens, it will have three modes

and additional settings and shortcut and

option to switch camera on the side.



Photo, Take pictures by touching the camera button

icon .



Video recording, Take video by touching the record

button .



Panorama, Take panorama by touching the panorama

button icon .



Touch the thumbnail near the blue or red button to

view the most recently taken pictures or videos. You

can also slide the camera screen to right to view the

most recently taken pictures or videos.

You can share the picture by Gmail, Messaging, Bluetooth, or

other menus displayed after pressing the menu key touch

“Share”.

To view this picture and others in the Gallery app, touch the

picture.

Install Micro-SD before taking any pictures or record videos or you may use

the internal memory by turning the switching the storage location to phone

You might need to restart your phone after setting the storage to SD Card.

Storing pictures and videos to your phone memory may consume the free

space and when it gets low it will impact the phone performance

Please ensure you have already enabled the GPS function before turning on

the Store Location function and you can view your location from the image

details

When taking picture in Panorama mode, it will consume the RAM, if the RAM

usage is high it may not work properly.

Camcorder

To use camcorder function, first touch the Camcorder icon

on the Application list screen. Then touch to switch

camcorder, When the Camcorder opens, it will have the option

button to use front or rear camera. Click Flash button

to turn on or off LED flashlight. Touch button to start

recording video.

 Click button to end recording.

 You can activate the camera function when your phone

screen is locked, by sliding the pad lock icon to the left

toward the dialer icon, then the camera will open, as

shown:

Clock

Touch the Clock application icon . You can see the time and

date.

Add Alarm

1. Touch the Clock application icon.

2. Touch to set alarm and click to add alarm.

3. Set up your alarm as desired.

4. Touch “OK”.

5. Select the alarm clock.

Shut Off Alarm Alert

When a scheduled alarm is activated, a pop-up window with

the alarm title appears.

Touch Snooze if you want to be reminded again in 10 minutes.

Touch Dismiss to cancel the alert.

Turn Alarm on

1. In the Alarm list, find the desire alarm.

2. Click the on the left.

3. After the change to , then alarm is

active.

Edit Alarm

Touch on the alarm you want to edit in the alarm list, and then

you will enter into the editing screen. After editing, touch OK.

Delete Alarm

1. Touch on the alarm you want to delete.

2. Touch at the top right corner.

3. Select OK on the pop-up message.

Notes：

1. Press menu key to enter Settings of alarm clock.

2. The alarm clock will still work even the phone is

powered off.

3. Don not set the phone in silence mode to guarantee the

alarming effect (unless if the vibrate mode is set to

always on).

4. If the battery is empty the alarm function will not work.

You can configure Email for most accounts in just a few

steps according the tip on the screen.

The functions of the Email:

1．Receive email and view the text and attachments via your

phone.

2．Reply and forward a received email.

3．And create a new Email.

Apart from this, you also can set the inbox checking frequency.

Not all email account and protocols can be supported by default, it might

require advance and additional setting or some exception from the email

provider

FM Radio

You should insert headset before using FM Radio, the headset is

also functioning as the external antenna. Please always use the

original headset. The usage of non original headset might not

compatible with the phone.

Search radio settings and play it:

1. Touch the radio icon

2. Click menu key, select “Scan” scan all stations.

3. Select some stations and play it.

4. Touch or icon to search the channel manually.

5. Touch the icon to turn off the radio.

Gallery

Touch the application icon to view pictures and videos

stored in phone or memory card.

The top of screen show several tabs to view the images based

on its classification

Not all media files can be viewed or played due to codec, resolution and size

differentiation

You can find additional 3rd party multimedia from the Play Store to

accommodate your need.

Gmail

You can access and use Gmail to read and write email from

your account on any mobile device or browser.Gmail is not just

about email. Your Gmail name and password can provide you

access into to all Google apps and services.

 Launch Gmail. Touch the Gmail icon on a Home or

All Apps screen. The first time you launch Gmail, you will

be asked to sign in or create an account if you do not

have Gmail account when you first set up your device.

 Read email. Touch a message to read it. Unread message

are bold.

 Organize email. Touch the icon in the front of a mail to

select it. Then use the icons and menu at the top of the

screen to manage the selected mails.

 Change your settings. Touch the Menu key to change

your preferences, add an account, or get Help.

No matter where you are within Gmail, you can always get back

to the Inbox by touching in the top left corner of the screen

and select inbox.

Google Settings

Google Settings app lets you know which apps you've

signed into using Google+, as well as allowing a method of

shutting them off, with the option of removing all associated

content from your Google+ pages.

Google +

Google+ Sign-in allows you to use your Google ID as a

universal sign-in for online apps and services, in the same way

as you've been able to with your Facebook log-in for a number

of years.

The advantage to consumers is fewer passwords to remember

and less time spent tapping in emails and passwords, or going

through a complete registration process.

Hangouts

Hangouts bring conversation to life with photos, emoji,

and video calls for free. Connect with friends through computer,

android devices, etc.

Google Drive

You can store your files in Google Drive by uploading them

directly from both your phone and computer. Then you can

access to the files or even download them and share them with

others from anywhere with the phone or computer.

To upload the files, click the icon at the top right corner,

select Upload;

To download the uploaded file, touch the icon beside the

file name, then click the icon to Download;

To share with others, touch Share link and select a way to

share the file.

Google Maps

This app can help you locate where you are. You can also find

local entertainments, view maps and get driving directions with

Google Maps . Touch the top left corner, you can do:

Select Local to find nearby restaurants, bars, attractions, etc;

Select Navigation to get directions after typing destination;

Touch My places to see your starred location, recent location,

directions, etc;

Select Join Latitude to find family and friends on the map and

share where you are with people you choose.

Play Books

From Play Book you can choose from millions of books on

Google Play including new releases, New York Times®

bestsellers, textbooks and free classics. Easily adjust font size

and customize even more of your reading experience. Read

online or offline and pick up where you left off on your phone,

tablet, or computer.

Play Games

Google Play Games app is the easiest way for you to

discover new games, track achievements and scores, and play

with friends around the world. It brings all your gaming on

Google Play together in a unified Android experience.

Play Music

Google Play Music makes it easy to discover, play and

share the music you love on Android and the web.

You can play millions of songs on Google Play, listen to radio

with no limits, and enjoy playlists handcrafted by our music

experts.

WPS Office

This app provides the basic function to read or edit office

documents in the phone.

Touch the icon to start the application.

Messaging

Send and receive message.

Create text message

Touch Messaging icon to open the program.

Click to create message.

Input receiver’s phone number and edit contents.

For phone number:

1. You can click the keyboard to input number directly.

2. You can select number from messages, contacts or groups

3. You can select several numbers to send.

4. Touch to send the message.

Message with attachment, Multimedia Message (MMS) are not supported

Notes:

If the message editing is interrupted by incoming calls, alarm

clock, powering off, the entered texts will be saved temporarily.

 Click “Type message” to edit the message.

 Touch button to show the menu.

 Message with attachment are not supported features.

Music

Touch the Music application icon to enter music player.

1. Songs: shown the list of all available songs

2. Artists: view the list based on the artists

3. Albums: view based on the albums list.

4. Playlists: view current playlist and saved playlist.

Long Pres splaying song, you can do ：

 Add the song to playlist.

 Set the song as ringtone.

 Delete the song.

 Search.

 Share the music.

You also have Snapdragon Audio+ audio enhancer as an

additional, you can go to Settings  Sound & notification

Snapdragon Audio+ to open and use Snapdragon Audio+ or

through the drop down bar.

Adjust the volume level in accordance with your hearing preference in

order to avoid injury to your hearing.

Use your stereo earphones or headphones for a better audio experience.

Not all multimedia or applications can be supported due to its limitation.

If you use another audio enhancer, equalizer or application, it will affect

the current audio enhancer function and it will not work properly.

Contacts

Touch Contacts application icon to enter the contact

information.

Search for a contact

1. Click fast search key or click

2. Enter the first few letters of the contact name, all contacts

beginning with these letters appear.

Add a contact

Click , you can add a new contact to the phone or SIM card.

Manage contact

Click the item to view the detail information about the contact.

Hold the menu key to view the submenu: Delete /share/send

contact via SMS/ copy to phone / place on home screen.

Google Search is available from the top of Home screen:

 Speak search terms: Touch the Microphone icon ,

After you say what you’re looking for, the Browser

opens to a list of search results.

 Type search terms: Touch Google. As you type,

suggestion appear below the Search box. The first few

suggestions attempt to complete what you’ve typing:

 To search for a suggestion immediately, touch it.

 To add a suggestion to the search field, touch the

arrow to its right. You can then keep on typing or

choose further suggestions.

 To search for the contents of the search field, touch

the Search button near the lower right corner of

the keyboard.

YOU also can input the contact with soft key or voice.

Click to search the network resource.

Settings

Touch the Settings application icon, then you can see some

submenus that you can choose as follows:

Wireless & Networks

Through this menu you can set the connection and network on

LTE, and other functions.

 From the Wi-Fi function you can switch it on / off, and

select the Wi-Fi network available as desired.

 Touch the Data connection icon from the settings

to enable/disable it or from the status bar with your

finger, and drag it downward.

 From the Bluetooth function you can switch it on / off,

and select the available devices to paired.

 Turn on Data usage.

 Click to turn on Airplane mode.

 Set the VPN network

 Set the tethering & portable hotspot.

- Touch More  Tethering & portable hotspot 

USB tethering. You can enable or disable theUSB

tetheringby ticking the box, As illustrated below

You need to plug using the data cable to the computer to use

handset for Data connection sharing through USB port.

For Win XP SP2 or below and Macintosh OS, you need to install

the modem driver before you can use the modem function. You

may find the installation guide on the page 40

Drivers are provided inside phone as a virtual CD ROM, where you

can install it in accordance with the OS you use.

- Click Portable Wi-Fi hotspot to enable / disable

portable network connection. And you can

configure the hotspot as open or secure

connection by touching Set up Wi-Fi hotspot

You can share the Wi-Fi connection up to 5 users.

- Bluetooth tethering enables your phone sharing

Internet connection with other phones. To enable

it, touch More  Tethering & portable hotspot 

Bluetooth tethering.

To use Bluetooth tethering, the phones needs to be connected

first through Bluetooth.

Device

1. SIM Settings

 Touch MoreCellular network Preferred network

type to select the preferred network mode, two option

available, 4G/3G/2G, 3G/2G.

 Touch MoreCellular networkAccess Point Names to

see the APNS Setting information.

If you experience difficulties on data connection you may try switching

in between the APN

2. Call Settings

This function can configure the call function on SIM card.

 Touch Change strings to “Call settings to select phone

ringtone and vibrate, also to configure the

supplementary services including voicemail, call

forwarding, call waiting, etc.

 Other call settings provides the switch for Dial pad

touch tones, proximity sensor, call vibrate, dual

microphone, display duration, etc. You can also set the

length of DTMF tones by touching DTMF tones.

3. Gesture

Turn on gesture function:

There are nine (9) options for the screen lock function, which

consist of:

 Double tap to awake: When screen is black, double tap

the same place of your phone can awake the screen.

 Slide down to camera: When screen is black, slide

down can photograph.

 Slide up to unlock: When screen is black, slide up can

unlock.

 Sideslip change songs: When screen is black, slide to

left or right can change-over music.

 Draw “C” to dial: When screen is black, draw “C” can

dial.

 Draw “O” to contacts: When screen is black, draw “O”

to contacts.

 Draw “W” to Chrome: When screen is black, draw “W”

to chrome.

 Draw “e” to Gallery: When screen is black, draw “e” to

gallery.

 Draw “M” to Music: When screen is black, draw “M”’

can play music.

4. Sound& notification

 Set volume for ringtone / media or alarm.

 Set vibrate and ring.

 Set your default phone ringtone.

 Set your default notification ringtone.

 Turn on / off Dial pad touch tones / Touch sound and so

on.

5. Display

 Adjust the brightness of the screen, you can adjust the

brightness level from this menu or from the home panel

status bar you can quickly set the brightness to low,

medium, high and auto.

By default the handset brightness is set to auto where the backlight

brightness is adjusted base on your surrounding environment using

the ambience sensor

You can adjust the brightness manually by disabling the automatic

brightness function from the display menu or through the shortcut

menu bar

 Choose the wallpaper from gallery / live wallpapers /

wallpapers.

 Adjust the delay before the screen automatically turns

off.

 Select the font size.

6. Storage

View the external (Micro-SD) and internal memory storage

capacity and usage.

7. Battery

View the battery usage data based on the process and

application that were consuming the battery.

8. Apps

Manage and remove installed apps, View and control currently

running services, view storage used by apps.

Personal

1. Location access

 Turn on Access to my location to let apps and Google’s

location service use your location information

 Set the location sources from GPS satellites or Wi-Fi &

mobile network location.

2. Security

 Lock screen with slide, pattern, PIN or password.

 Edit owner information displayed on the lock screen.

 Encrypt your accounts, settings, downloaded apps and

their data, media, and other files.

 Set up SIM card lock and edit passwords.

 Select device administrators.

 Credential storage.

3. Language & input

 Select language and edit personal dictionary.

 Select android keyboard or Google voice typing.

 Set the voice search and text-to-speech output.

 Set the pointer speed.

4. Backup & reset

 Turn on or off “Back up my data” or “Automatic

restore”.

 Erase all data in phone.

Accounts

1. Add account

With this function, you can manage your accounts &synchronize

them. You can add accounts using corporate, other email

account and Google accounts.

 Touch Add account to add account as desired. And you can

switch ON/OFF to activate or deactivate the synchronization

 To remove accounts, touch the account, touch menu button

then select Remove account.

Not all email account and protocols can be supported by default, it might

require advance and additional setting or some exception from the email

provider

System

1. Date and time

Set the date, time, time zone and formats.

 The current date and time will display on the idle

screen.

 LTE network is able to automatically set the date and

time, so Automatic date & time cannot be used after

the phone is inserted with SIM card.

 If you do not choose automatic, you need to set the

date and time zone manually.

2. Accessibility

 View services installed.

 Turn on large text / Power button ends call and so on.

3. About phone:

Touch the Settings  About phone, then you can see sub

menu as follows:

 Status, to check the status of the network, battery, IP

address, WIFI & Bluetooth address serial number and

up time.

 Legal information, to see the legal information from

open source and Google legal

 Model number

 Software version. Etc.

Sound Recorder

With sound recorder application, you can record for a

long time, please make sure your phone has enough storage.

To record the sound, follow the instructions as below:

1. Keep the phone near the sound source.

2. Click “ ” to record, click “ ” to stop.

3. Finish the recording; you can select “Done” or “Discard”.

Video

Touch the Video application icon you can view and play the

video on the SD card.

Not all video files can be viewed or played due to codec, resolution and size

differentiation.

Video can played and view in PIP Mode (Picture in Picture) but not all video

can be supported.

When play the video in PIP Mode, it will consume the RAM usage, if the

RAM usages are high it may not work properly.

You can find additional 3part multimedia player or view from play store to

accommodate your need.

Task Manager

Android does not automatically stop applications after they are

loaded or opened, so you must manually stop the applications

as desired.

You can kill tasks using Task Manager Application on the phone

To open the Task Manager, press menu button, then select

“Task manager” you can press to close the application as

you desired, or press button to close all the active

applications.

Safety Information and Use

Please read this safety information carefully to ensure safe and

proper use.

Note: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following

measures: —Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected. —Consult the

dealer or an experienced radio/TV technician for help.

Driving

Using a mobile phone can distract the user and result in an

accident. You must fully comply with the local regulations and

laws regarding the use of cell phones whilst driving.

Near Sensitive Electronics

Don’t use your phone near sensitive electronic equipment –

particularly medical devices such as pacemakers and electronic

implants, as it could cause them to malfunction. Your phone

may cause interference with TV, radio, fire detectors, and other

automatic-control equipment.

For more information about how your phone affects

pacemakers or other electronic equipment, please contact the

manufacturer or your local distributor.

Flying

Your phone can cause interference with aircraft equipment. So

please turn your phone off when flying.

Hospitals

Your phone may interfere with the operation of medical

equipment. You must observe and follow any instructions or

warnings in hospitals and treatment centers.

At Petrol Stations

Don’t use your phone in petrol stations. In fact, it’s suggested

to be switched off near any fuels, chemicals or explosives.

Contact with liquid

Keep your phone away from water (or any other liquid). Any

damage caused by liquid may be irreparable.

Making Repairs

Never take your phone apart. Please handle the repairs with

the professionals. Any unauthorized repairs would break

warranty terms.

Broken Antenna

Don’t use your phone if the antenna is damaged, as it could

cause injury.

Around Children

Keep your mobile out of children’s reach. It should never be

used as a toy and it might not be good for their health.

Original Accessories

Only use the original accessories supplied with your phone or

those approved by the manufacturer. The use of unauthorized

accessories may damage your phone or cause a safety risk.

Near Explosives and Fire hazard

Turn off your phone in or near explosive materials or heat

sources such as radiators or cookers. Always obey local

regulations and laws. Turn off your phone when requested.

Emergency Calls

To make an emergency call your phone must be turned on and

in an area where there’s network coverage. Dial the national

emergency number and press ‘send’. Explain exactly where you

are and don’t hang up until help has arrived.

Working Temperature

The working temperature for the phone is between 0 Degree

and 40 Degree Celsius. Please don’t use the phone outside the

range. Using the phone under too high or too low temperature

might cause malfunction.

Always make a backup or keep a written record of all important

Backup

data in your mobile phone.

Attention:

 Use cell phone when the signal is good. Keep

your calls short, use headset or send a text

message. This advice applies especially to children, adolescents

and pregnant women.

 If you are using a Bluetooth headset device, please make

sure it has a low power emitter.

 Information about the meaning of Logo WEEE (Waste

Electrical and Electronic Equipment):

The WEEE logo on the product or on its box

indicates that this product must not be

disposed of or dumped with your other

household waste. You are liable to dispose

of all your electronic or electrical waste equipment by

relocating over to the specified collection point for recycling of

such hazardous waste. Isolated collection and proper recovery

of your electronic and electrical waste equipment at the time

of disposal will allow us to help conserving natural resources.

Moreover, proper recycling of the electronic and electrical

waste equipment will ensure safety of human health and

environment.

 Caution: risk of explosion if battery is replaced by an

incorrect type.

 Dispose of used batteries according to the instructions.

 For pluggable equipment, the socket-outlet shall be installed

near the equipment and shall be easily accessible.

 RADIO WAVES:

Proof of compliance with international standards (ICNIRP) or

with European Directive 1999/5/EC (R&TTE) is required of all

mobile phone models before they can be put on the market.

The protection of the health and safety for the user and any

other person is an essential requirement of these standards or

this directive.

THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR

EXPOSURE TO RADIO WAVES.

Your mobile device is a radio transmitter and receiver. It is

designed not to exceed the limits for exposure to radio waves

(radio frequency electromagnetic fields) recommended by

international guidelines. The guidelines were developed by an

independent scientific organization (ICNIRP) and include a

substantial safety margin designed to assure the safety of all

persons, regardless of age and health.

The radio wave exposure guidelines use a unit of measurement

known as the Specific Absorption Rate, or SAR. The SAR limit

for mobile devices is 1.6 W/kg.

Tests for SAR are conducted using standard operating positions

with the device transmitting at its highest certified power level

in all tested frequency bands. The highest SAR values under the

ICNIRP guidelines for this device model are:

Maximum SAR for this model and conditions under which it

was recorded.

SAR

Body

0.788 W/kg

SAR

Head

0.874 W/kg

During use, the actual SAR values for this device are usually

well below the values stated above. This is because, for

purposes of system efficiency and to minimize interference on

the network, the operating power of your mobile device is

automatically decreased when full power is not needed for the

call. The lower the power output of the device, the lower its

SAR value.

If you are not using an approved accessory ensure that

whatever product is used is free of any metal and that it

positions the phone the indicated distance away from the body.

Organizations such as the World Health Organization has stated

that if people are concerned and want to reduce their exposure

they could use a hands-free device to keep the phone away

from the head and body during phone calls, or reduce the

amount of time spent on the phone.

As mobile devices offer a range of functions, they can be used

in positions other than against your ear. In such circumstances

the device will be compliant with the guidelines when used

with headset or USB data cable. If you are using another

accessory ensure that whatever product is used is free of any

metal and that it positions the phone at least 1.0 cm away from

the body.

To prevent possible hearing damage, do not listen at

high volume levels for long periods.

Using the battery and charger

Only use batteries and chargers approved by the manufacturer.

Do not use batteries or chargers that are not compatible with

your model to avoid any explosion.

Do not throw a battery in a fire as it might catch fire or explode.

Do not cause a short circuit to the charger as it might result in

malfunction, smoke or fire.

Do not place conductors like metals, keys or jewels, against the

battery poles or allow them to touch the ends of the battery to

avoid short circuiting the battery and causing injury (burns, for

example) as a result of battery overheating

If the power cable is damaged (wires exposed or broken) or the

connection to the plug is loose, do not use it to avoid electric

shock, short-circuit of the charger or a fire.

Do not dismantle the battery or weld the two poles of the

battery to prevent the battery from leaking, overheating,

catching fire or exploding.

Keep the charger away from any container of water or other

liquids. Infiltration of liquid may cause electric leakage or other

malfunction to the charger.

If the battery leaks, emits smoke or a strange odour, cease use

immediately and move it far away from naked flames or people

to avoid a fire or injury from explosion.

Do not charge the battery in a dusty or damp environment and

keep the cable away from heated objects.

The battery is not fully charged when leaving the factory.

Therefore, you should charge the battery for two hours before

use. Before charging, make sure the charge plug is correctly

inserted in the power socket. If it is incorrectly inserted, electric

shock might occur and the phone or battery may catch fire or

explode. When charging is completed, pull out the charger plug

from the power socket, and do not pull the cable.

If the liquid in the battery splashes into your eyes, do not rub

the eyes to avoid damaging your vision, rinse the eyes

immediately in clean water and go to a hospital for assistance.

Do not place heavy objects on the charger cable. Do not

damage, twist or pull the cable to avoid causing electric shock

or fire.

When the battery cannot be installed correctly in the phone, do

not press down on it heavily to prevent it from leaking or

exploding. Do not remove the battery when the phone is on.

If the battery is distorted, has changed colour or is unusually

hot when charging or when it is stored, remove immediately

the battery and stop using it or it may leak, become overheated,

explode or catch fire.

If a battery is not used for a long period of time after charging,

store it at room temperature

Do not touch the power socket, power cable or charger with

wet hands to avoid electric shock.

If water or other liquid enters the charger, immediately

disconnect the charger plug from the power socket to prevent

it from overheating, catching a fire or malfunction.

Explanation: The instructions in this user manual apply to

English mode. In other language operating modes, slight

differences may appear.

Warning: The manufacturer disclaims any liability for damage,

which may result as a consequence of improper use of this

mobile phone or use contrary to the instructions contained in

this manual.

Disclaimer

 The usage of non-original accessories such as headsets,

batteries, chargers etc, will cause incompatibility between

the mobile phone and the accessories that may cause a

reduction in performance and malfunction, and we are not

responsible for any damage that might occur.

 Specifications and functions of your mobile phone can be

differ to those contained in this user manual due the user

manual is only contain general overview.

 Specifications and functions of your mobile phone have

been confirmed to work properly since produced from the

factory. If there is damage or defect due to the

manufacturing and not by usage, it would follow terms and

condition in the warranty card.

 If the functions of your mobile phone related to features

and services by carrier then those functions will follow the

terms & conditions applicable by the carrier.

 Please note that your mobile phone still has its limitations

referring to the specifications and functions. These

limitations cannot consider as damage or defect and cannot

be regarded as manufacturer damage. Please use your

mobile phone in accordance with the purposes and

functions.

USB Driver Installation Guide

 On some computers, firewall or antivirus software

might block the installation process, you may

disable them temporary until the process is

completed

 On some computers the flow and process may

appears differently from what have shown on the

guide

 Ensure that you have an access as a Super User or

Administrator to do installation

 Ensure the phone modem mode is turn on

 The device may conflict with another modem that

have already been installed on the computer

 In order for the auto installation sequence to run,

please ensure your computer Auto run feature /

option is active, otherwise you may have to install

them manually

Win7 and Windows XP

After USB cable connected between device and computer,

there will pop up USB menu as shown below.

Choose the Charging, and then the virtual CD-ROM Driver will

be displayed in My Computer.

If your OS can not auto run driver installation, please open

windows explorer and enter the virtual CD-ROM named

Andromax_AB16C2H and double click “install.exe” to start the

installation process.

Follow the instruction below until the installation is completed.

The first step of installation is shown as below. Click Next.

Then the installation process is running, wait until the process

is finish.

After the successful installation click Finish.

On Win 8 the process below will run automatically!

On XP OS, Select “Install the software automatically”, Click

Next.

After successful installation process click Finish.

Installation is completed, and you are connected to the

internet.

Macintosh OS:

After USB cable connected between device and Apple

Computer, a CD-ROM named “Andromax_AB16C2H” and

folders will appear on desktop, enter “RNDIS” folder, double

click it to display installation driver. Double click

“RNDIS_Driver.pkg” to start the installation process.

A pop-up will display as shown below, Click Continue and then

click Install.

Fill the “Password” description according to the Computer

Wait until the installation process is completed, click Closed.

Restart the computer. Then the installation is completed.

To enable the USB tethering function, please change USB

Computer Connection to Charging. Then follow guidance on

the page 37.

Haier Telecom 201605L30 GSM/WCDMA/LTE handset User Manual AD683G UM

Haier Telecom (Qingdao) Co., Ltd. GSM/WCDMA/LTE handset AD683G UM

Contents

Users manual

Navigation menu

Namespaces

Views

Navigation
